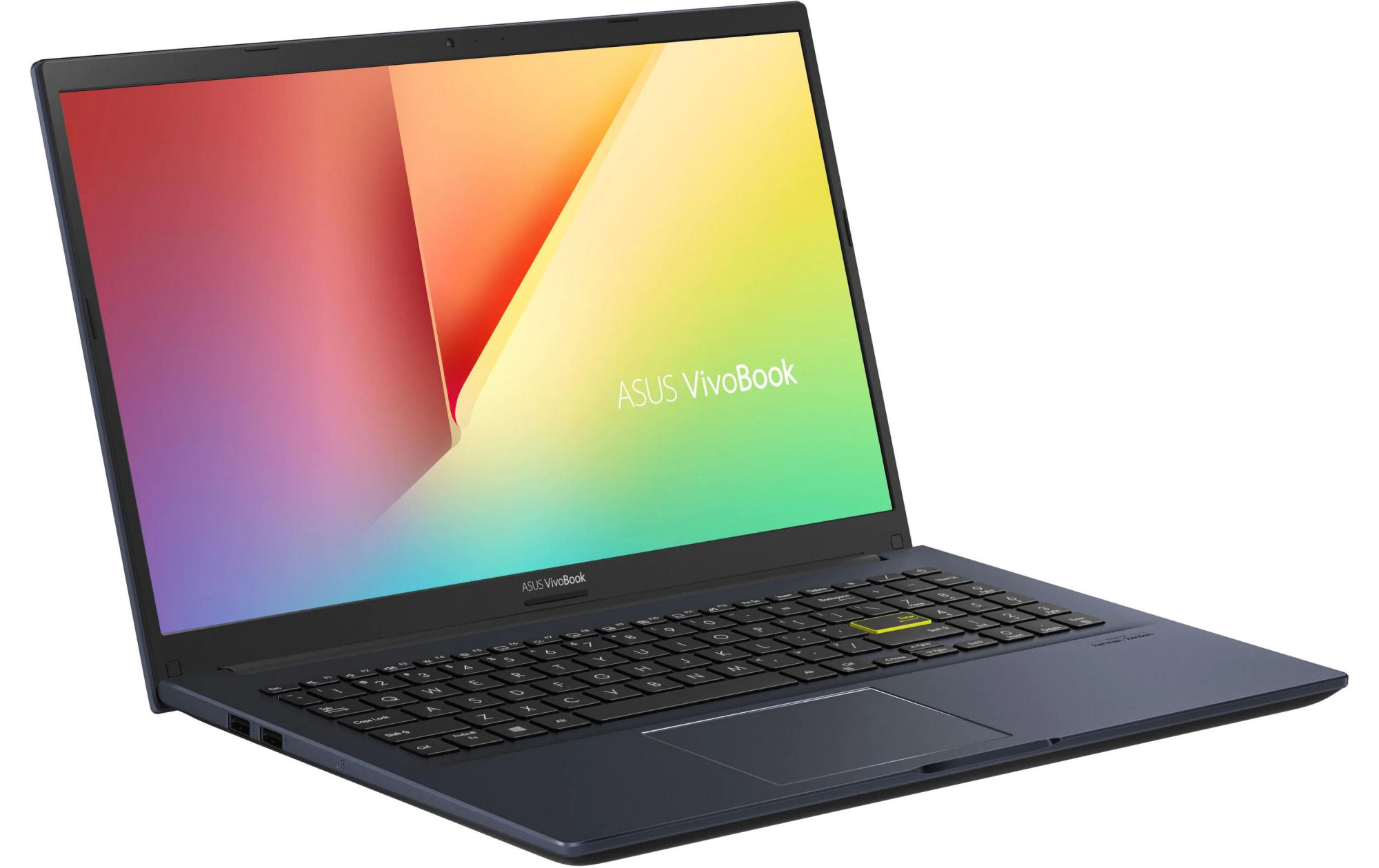

Asus VivoBook 15 OLED Review: Quiet Office Notebook With Strong Screen

The all-round office notebook from Asus stands out with two highlights: A powerful Ryzen 7 5700U APU and a true-color OLED screen. We are already familiar with the screen from the identically built sister model VivoBook 15 K513 (Core i7-1165G7, GeForce MX350). Competing devices include the Lenovo IdeaPad 5 15ALC05, the Acer Aspire 5 A515-45 and the Dell Inspiron 15 3511.
Possible Competitors in Comparision
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
80.7 % v7 (old) | 04 / 2022 | Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8 | 1.8 kg | 18.6 mm | 15.60" | 1920x1080 | |
81 % v7 (old) | 02 / 2022 | Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8 | 1.7 kg | 18 mm | 15.60" | 1920x1080 | |
79.9 % v7 (old) | 01 / 2022 | Dell Inspiron 15 3000 3511 i5-1135G7, Iris Xe G7 80EUs | 1.7 kg | 18.99 mm | 15.60" | 1920x1080 | |
83.5 % v7 (old) | 08 / 2021 | Lenovo IdeaPad 5 15ALC05 R5 5500U, Vega 7 | 1.7 kg | 19.1 mm | 15.60" | 1920x1080 |
Case & Hardware - VivoBook without Thunderbolt

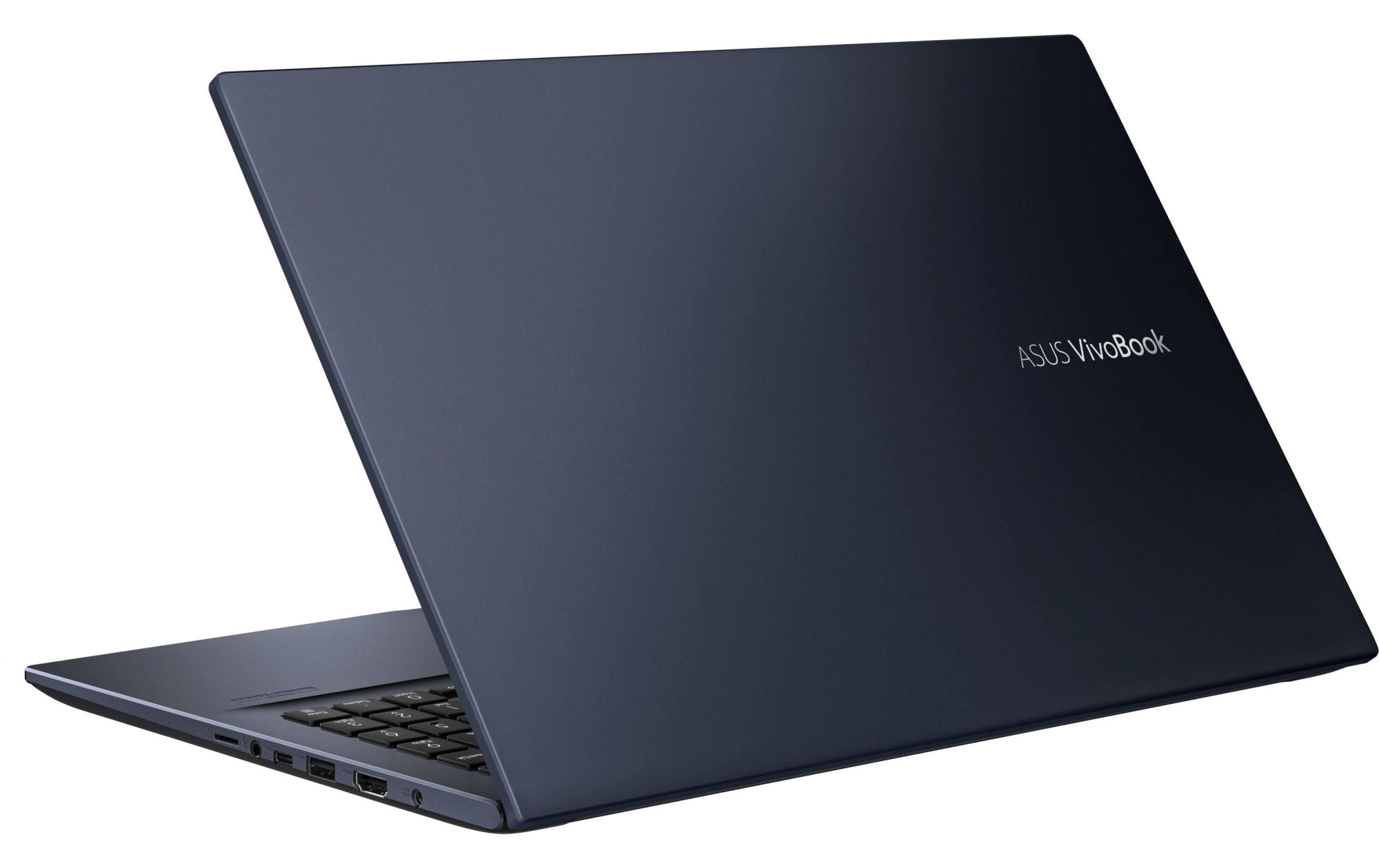

The matte black case with its smooth surfaces is made of metal (lid back) and plastic (base unit). The device does not have any manufacturing flaws. The base unit and lid twist a little too much under torsion. The interior can be accessed after removing the bottom shell. The battery is not glued, but rather held in place by screws.

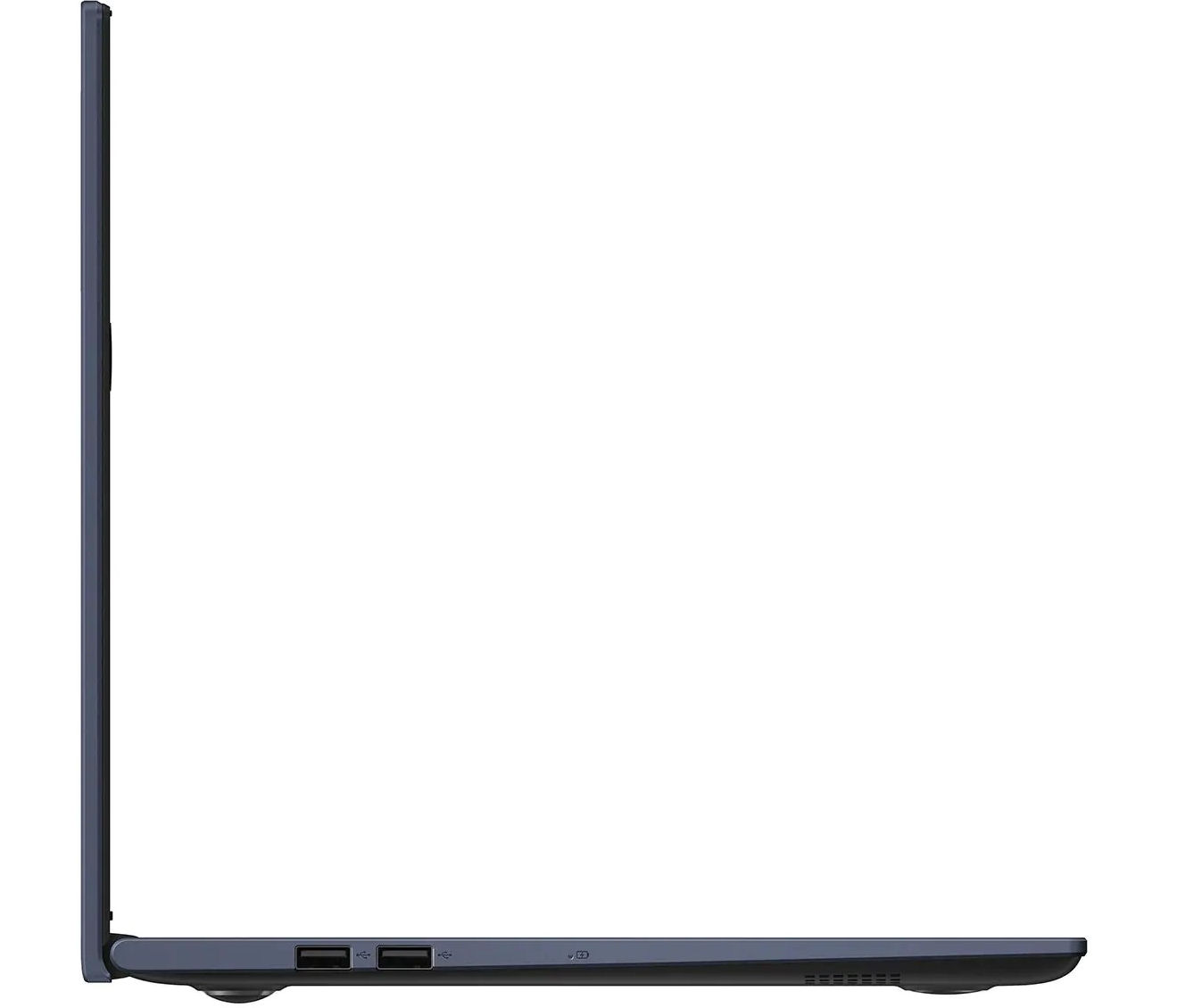

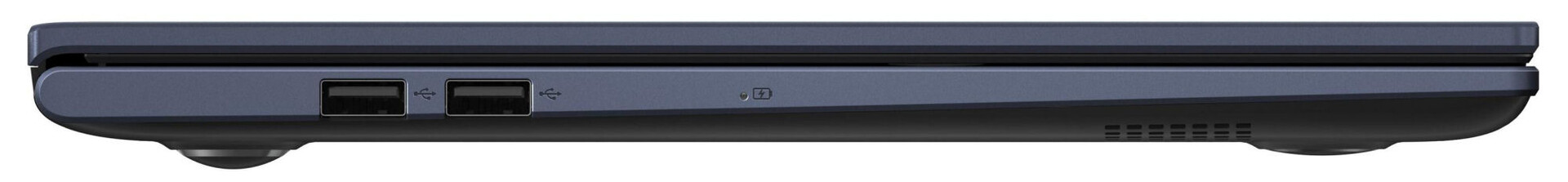

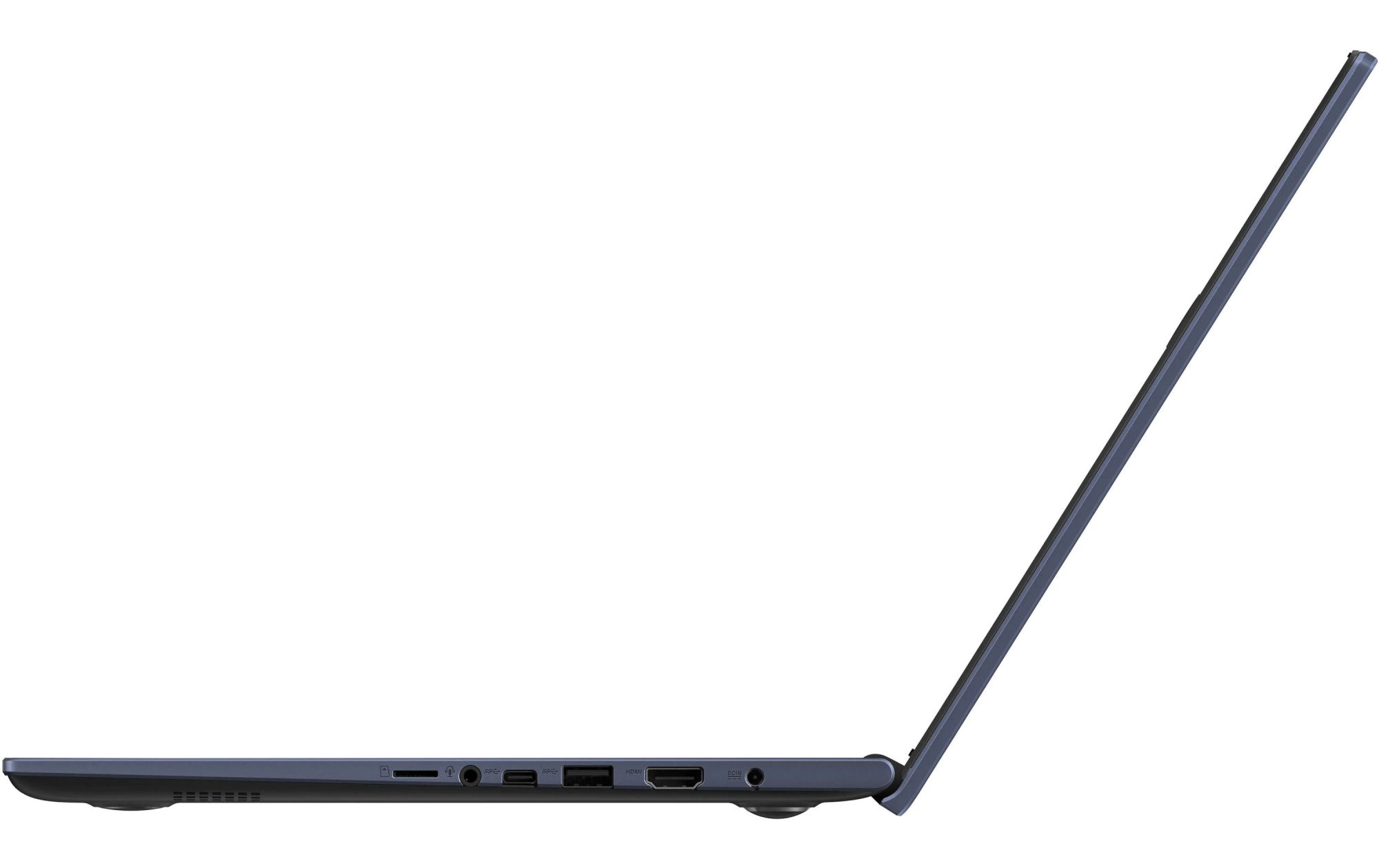

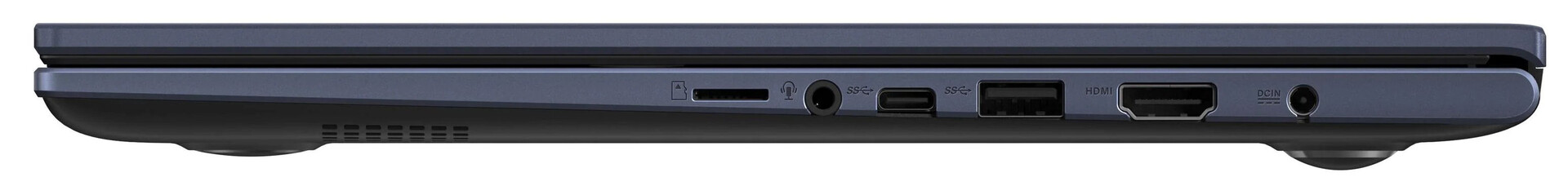

The computer has three USB-A ports (2x USB 2.0, 1x USB 3.2 Gen 1) and one USB-C port (USB 3.2 Gen 1). The latter supports neither Power Delivery nor DisplayPort via USB-C. This means that only one video output is available with the HDMI port. The microSD memory card reader (reference card: 128 GB AV PRO V60) is one of the slowest of its kind.
The WLAN transfer rates determined under optimal conditions (no other WLAN devices in the immediate vicinity, short distance between notebook and server PC) were good for a MediaTek MT7921.
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Average of class Office (22.7 - 198.5, n=31, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (AV Pro SD microSD 128 GB V60) | |
Lenovo IdeaPad 5 15ALC05 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Dell Inspiron 15 3000 3511 (AV Pro V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Average of class Office (25 - 249, n=27, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (AV Pro SD microSD 128 GB V60) | |
Lenovo IdeaPad 5 15ALC05 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Dell Inspiron 15 3000 3511 (AV Pro V60) |

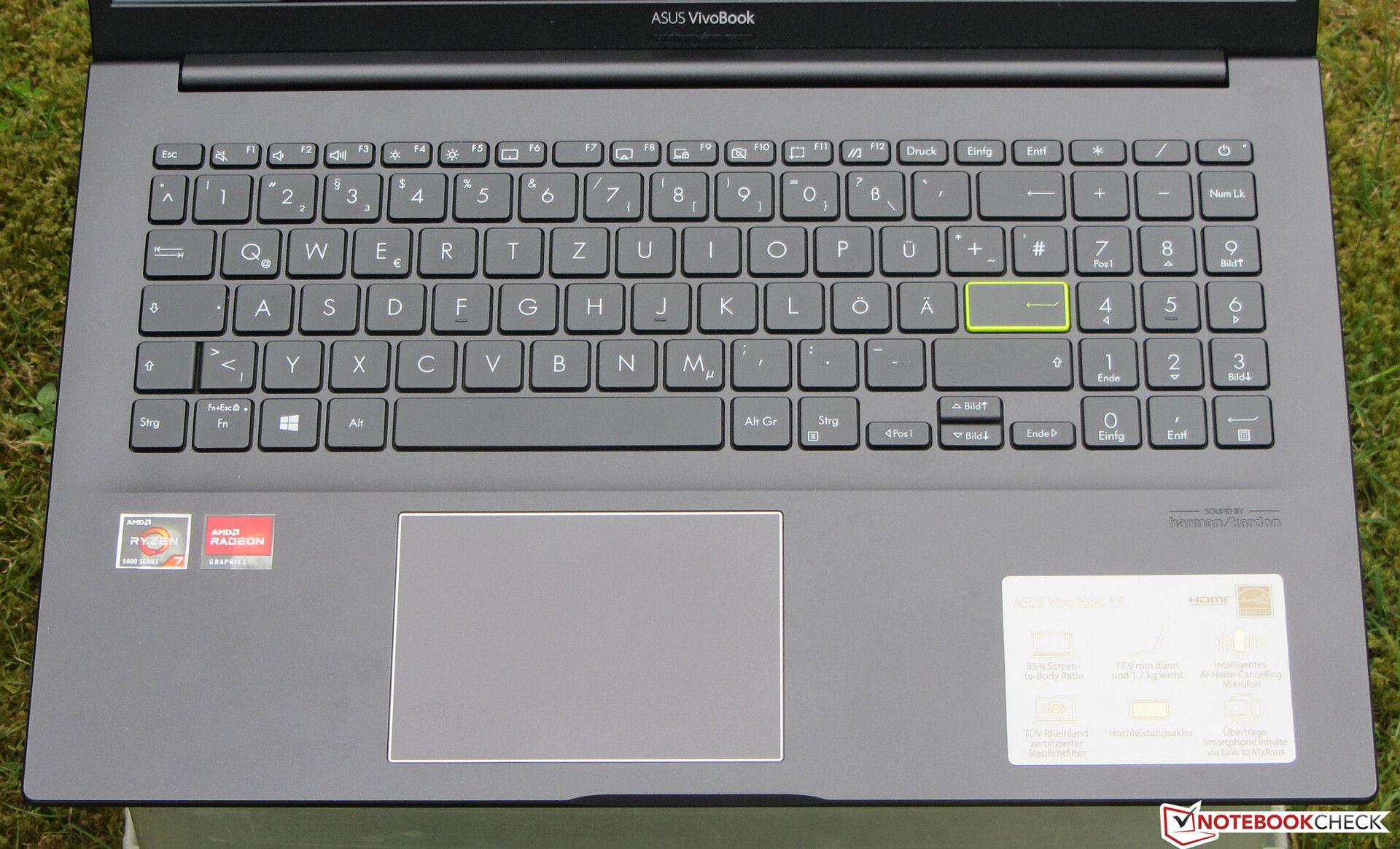

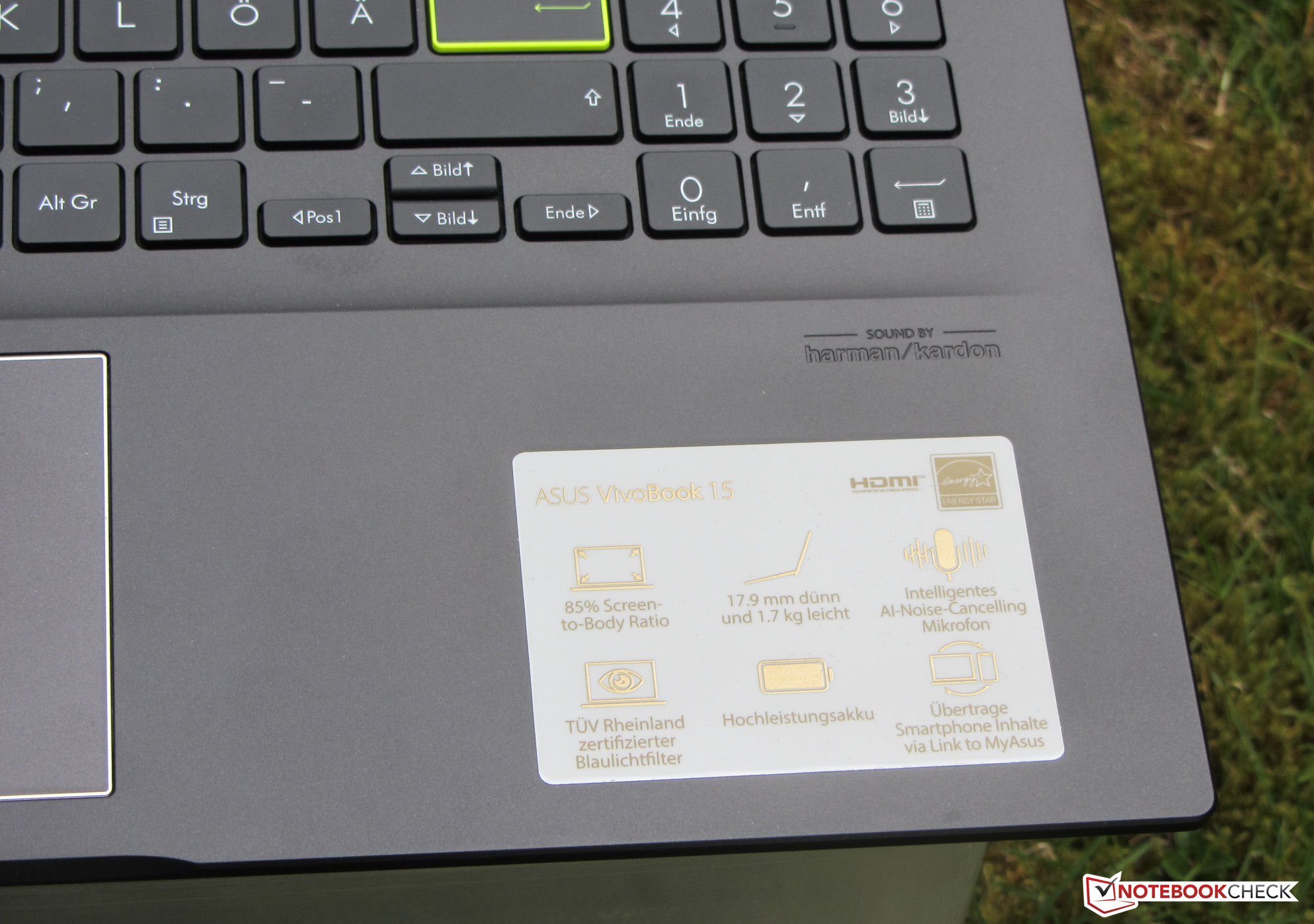

Input Devices - The M513 does not have a backlit keyboard

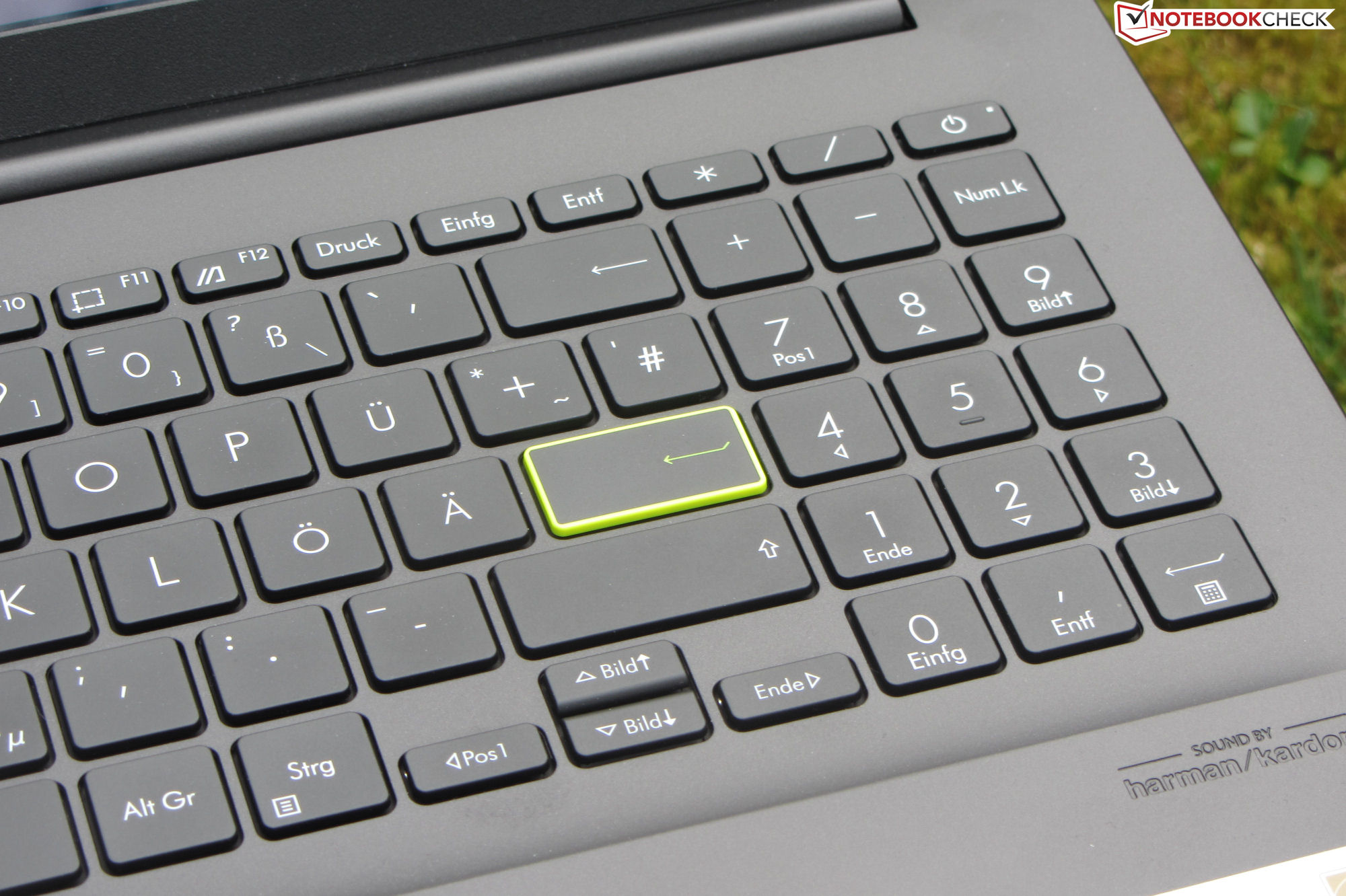

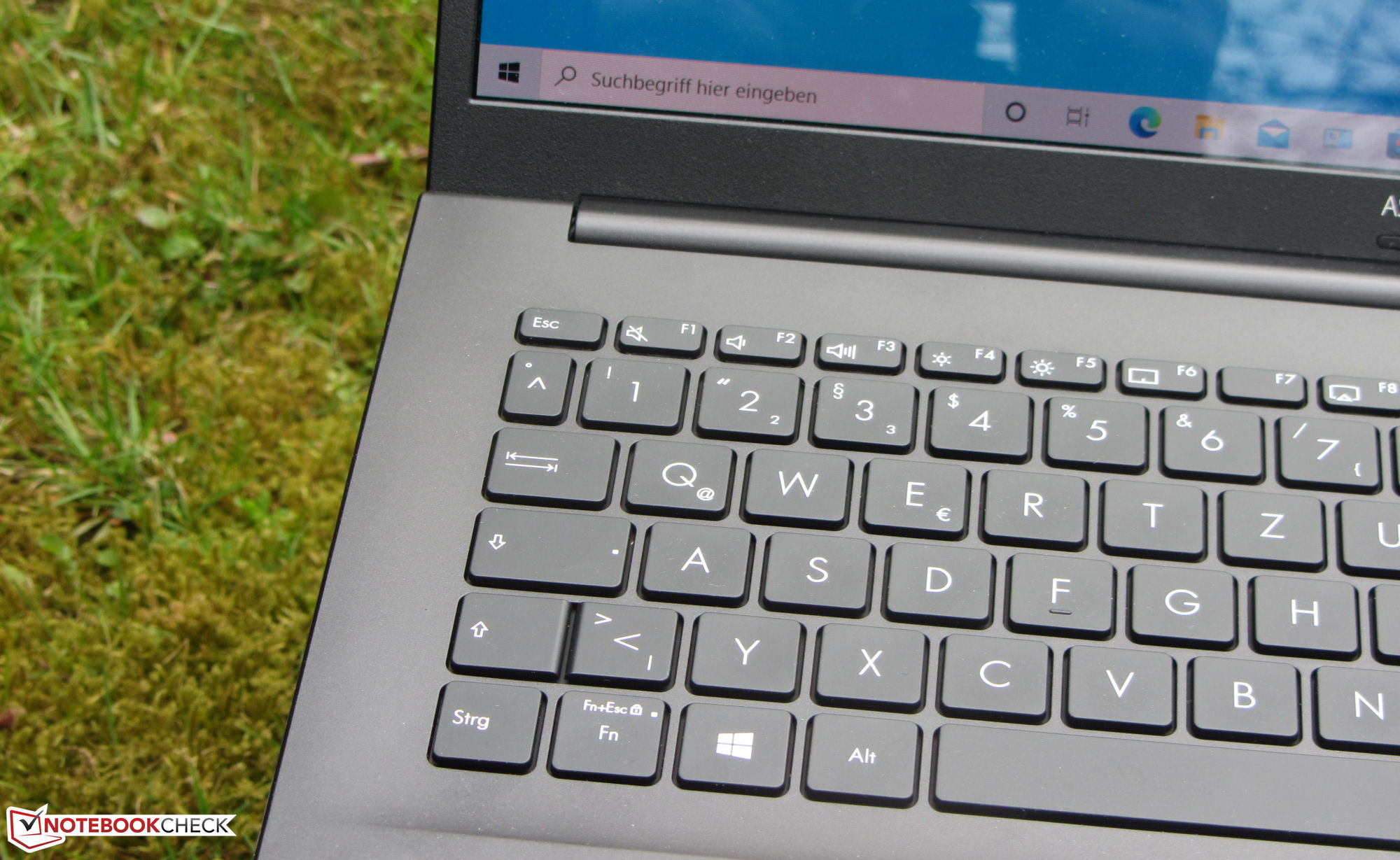

The keys of the non-illuminated chiclet keyboard offer a short downstroke and a clear pressure point. Resistance of the keys could be firmer. The keyboard wobbles slightly while typing, which did not prove to be overly annoying. Overall, Asus delivers a keyboard suitable for everyday use.

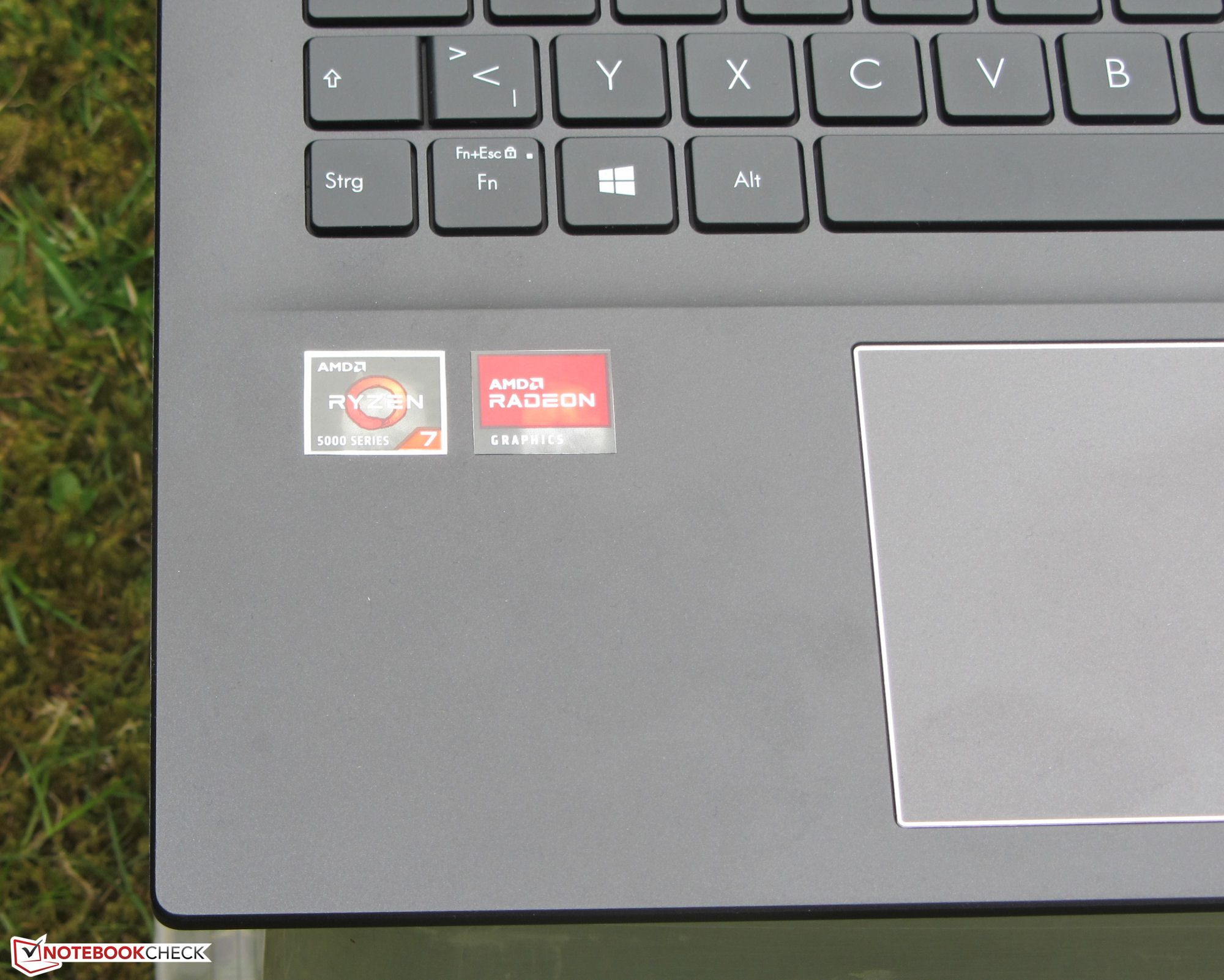

The smooth surface of the multi-touch clickpad (approx. 10.5 x 7.3 cm) allows the fingers to glide easily and even responds to input in the corners. The pad has a short stroke and a clear pressure point.
Display - Excellent black level thanks to OLED

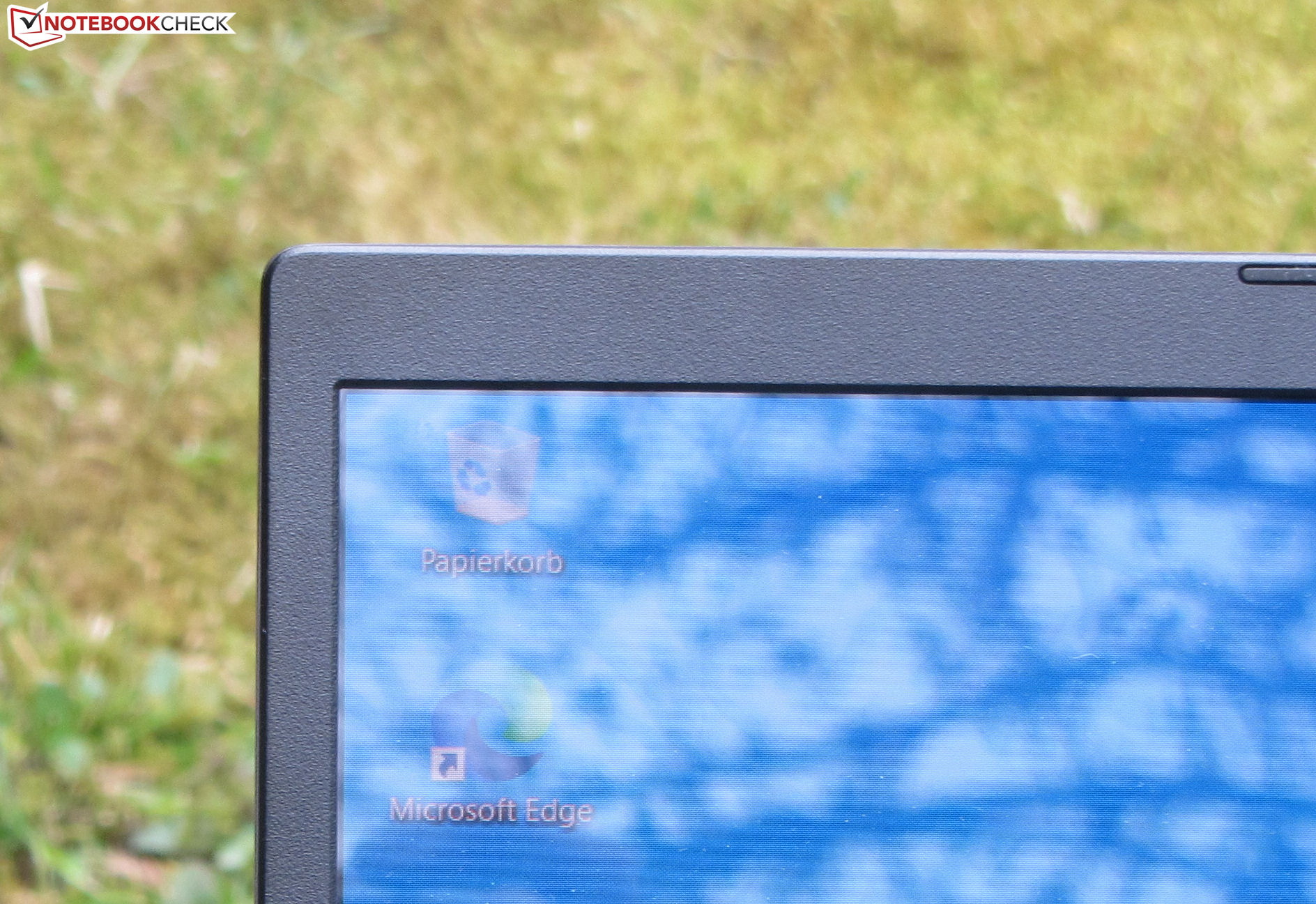

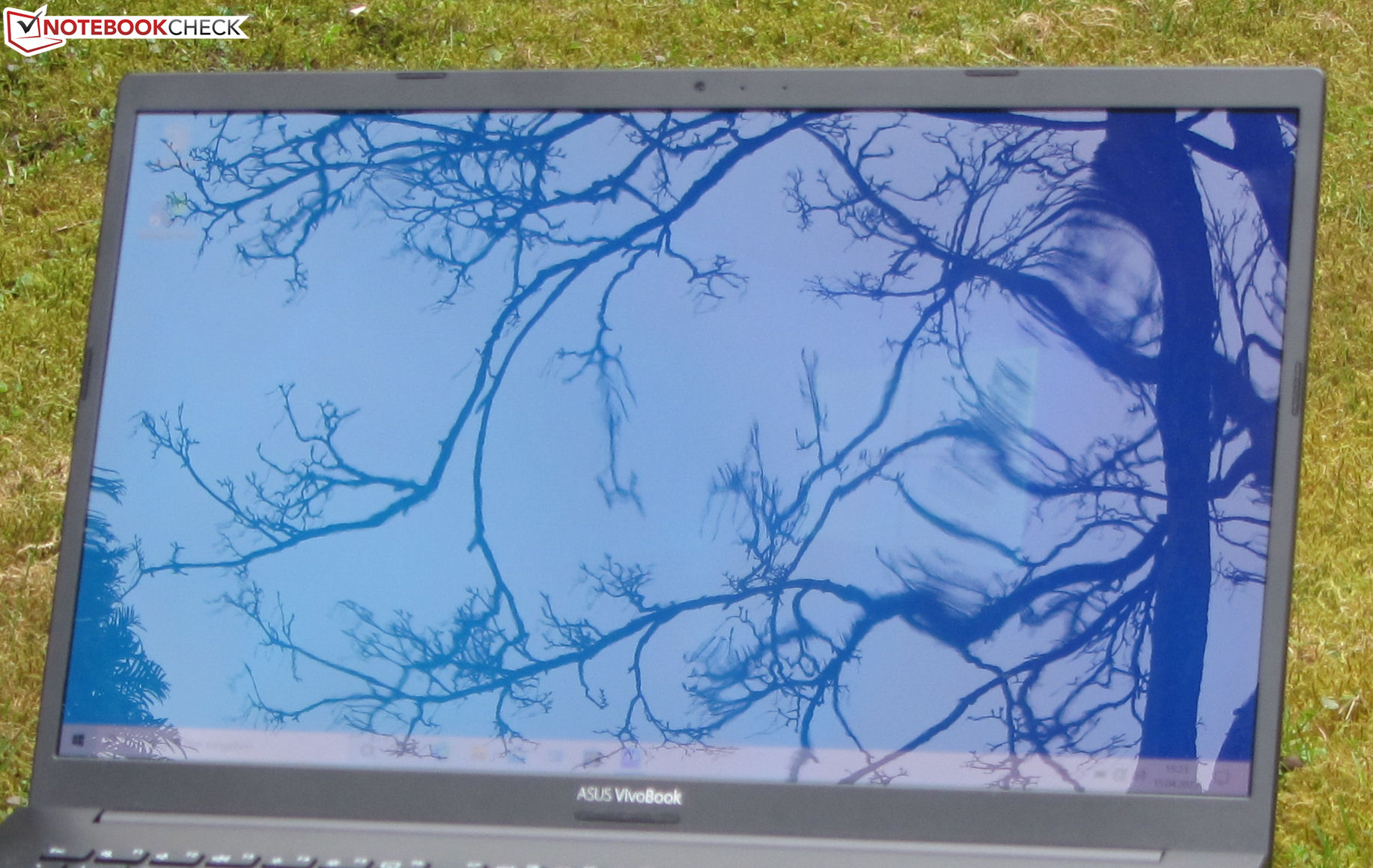

The glossy OLED screen (15.6 inch, 1,920 x 1,080 pixels) offers excellent contrast (and black level in particular) and short response times. The brightness value (370.6 cd/m²) is good. PWM flickering could not be detected.
|
Brightness Distribution: 96 %
Center on Battery: 366 cd/m²
Contrast: 36600:1 (Black: 0.01 cd/m²)
ΔE Color 1.9 | 0.5-29.43 Ø4.87, calibrated: 2.3
ΔE Greyscale 1.27 | 0.5-98 Ø5.1
97.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44
Asus VivoBook 15 OLED M513UA-L1282W Samsung ATNA56YX03-0, OLED, 1920x1080, 15.6" | Acer Aspire 5 A515-45-R4R1 CEC PANDA LM156LF-CL13, IPS, 1920x1080, 15.6" | Dell Inspiron 15 3000 3511 BOE NV15T06, IPS, 1920x1080, 15.6" | Lenovo IdeaPad 5 15ALC05 Lenovo LEN156FHD, IPS, 1920x1080, 15.6" | |
---|---|---|---|---|
Display | -55% | -53% | -51% | |
Display P3 Coverage | 99.9 | 38.09 -62% | 40.1 -60% | |
sRGB Coverage | 100 | 57.3 -43% | 58.8 -41% | 59 -41% |
AdobeRGB 1998 Coverage | 97.6 | 39.35 -60% | 41.5 -57% | 38 -61% |
Response Times | -1525% | -1290% | -1075% | |
Response Time Grey 50% / Grey 80% * | 2 ? | 38 ? -1800% | 31.6 ? -1480% | 29 ? -1350% |
Response Time Black / White * | 2 ? | 27 ? -1250% | 24 ? -1100% | 18 ? -800% |
PWM Frequency | ||||
Screen | -185% | -344% | -938% | |
Brightness middle | 366 | 229 -37% | 239.9 -34% | 376 3% |
Brightness | 371 | 224 -40% | 230 -38% | 341 -8% |
Brightness Distribution | 96 | 73 -24% | 87 -9% | 78 -19% |
Black Level * | 0.01 | 0.12 -1100% | 0.21 -2000% | 0.66 -6500% |
Contrast | 36600 | 1908 -95% | 1142 -97% | 570 -98% |
Colorchecker dE 2000 * | 1.9 | 3.76 -98% | 6.34 -234% | 6.4 -237% |
Colorchecker dE 2000 max. * | 4.26 | 5.97 -40% | 21.03 -394% | 20.45 -380% |
Colorchecker dE 2000 calibrated * | 2.3 | 4.44 -93% | 2.08 10% | |
Greyscale dE 2000 * | 1.27 | 3.01 -137% | 5.1 -302% | 4.59 -261% |
Gamma | 2.44 90% | 2.41 91% | 2.41 91% | 2.26 97% |
CCT | 6338 103% | 6484 100% | 6169 105% | 6819 95% |
Color Space (Percent of AdobeRGB 1998) | 38 | |||
Color Space (Percent of sRGB) | 59 | |||
Total Average (Program / Settings) | -588% /
-349% | -562% /
-417% | -688% /
-813% |
* ... smaller is better

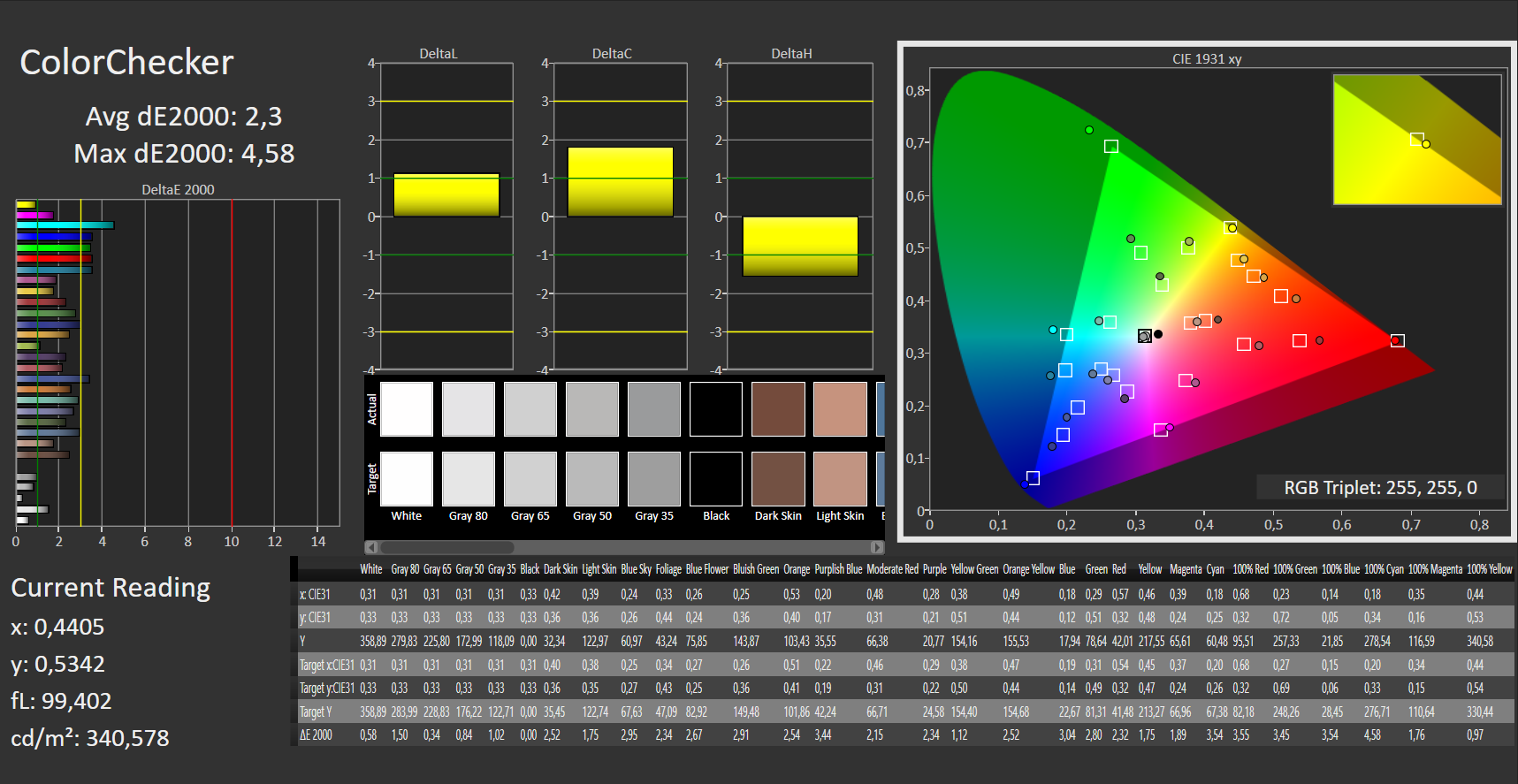

Upon delivery, the screen offers very good color representation - color deviation is within the target range. Calibration does not result in any improvements. The display does not suffer from a blueish tint. The color space coverage is pleasing: The sRGB and DCI-P3 color spaces are reproduced at 100%, and the Adobe RGB color space at least at 98%.

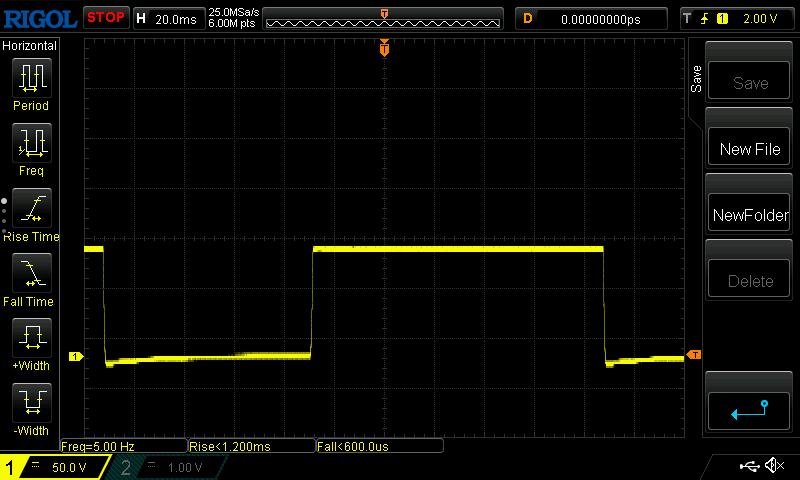

Display Response Times

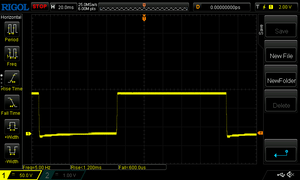

↔ Response Time Black to White | ||
---|---|---|
2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise | |
↘ 1 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 8 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.7 ms). | ||

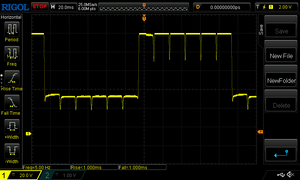

↔ Response Time 50% Grey to 80% Grey | ||
2 ms ... rise ↗ and fall ↘ combined | ↗ 1 ms rise | |
↘ 1 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 7 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.5 ms). |
Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8508 (minimum: 5 - maximum: 343500) Hz was measured. |
Performance - Ryzen packs a punch
With the VivoBook 15 M513UA, Asus has an office notebook in its range that provides sufficient performance for office and internet applications as well as simple computer games.
Test Conditions
The notebook has three manufacturer-specific performance profiles ("Performance Mode", "Balanced Mode", "Quiet Mode"), and the user can alternate between these using the key combination "Fn"+"F". This review was carried out under the default "Balanced" profile. Some benchmarks were also run under the other profiles. The results can be found in the comparison diagrams.
Balanced | Performance | Quiet | |
---|---|---|---|
Power Limit 1 | 25 Watts | 35 Watts | 25 Watts |
Power Limit 2 | 36 Watts | 36 Watts | 36 Watts |
Processor

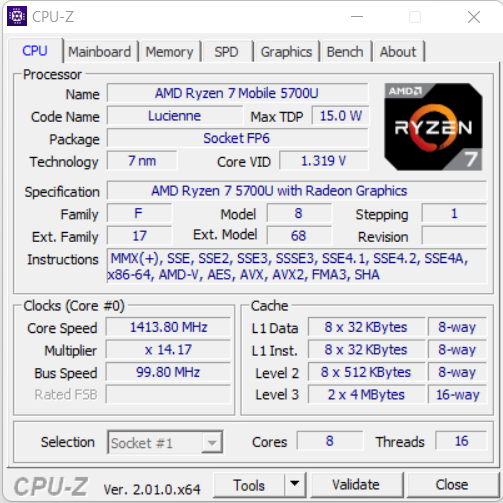

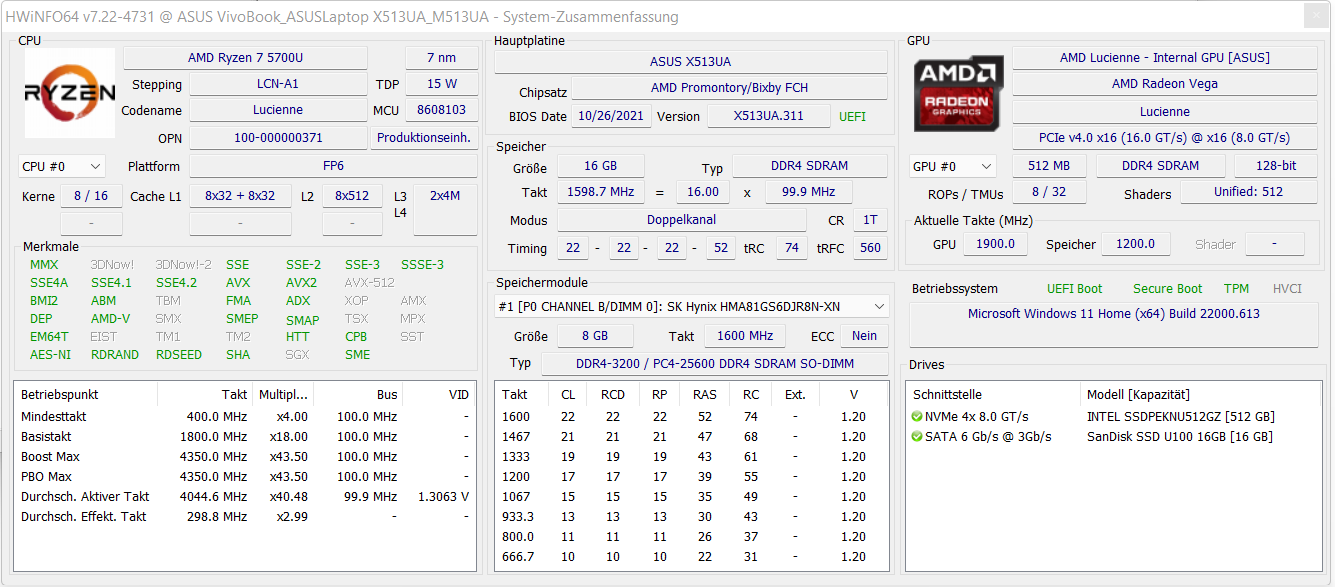

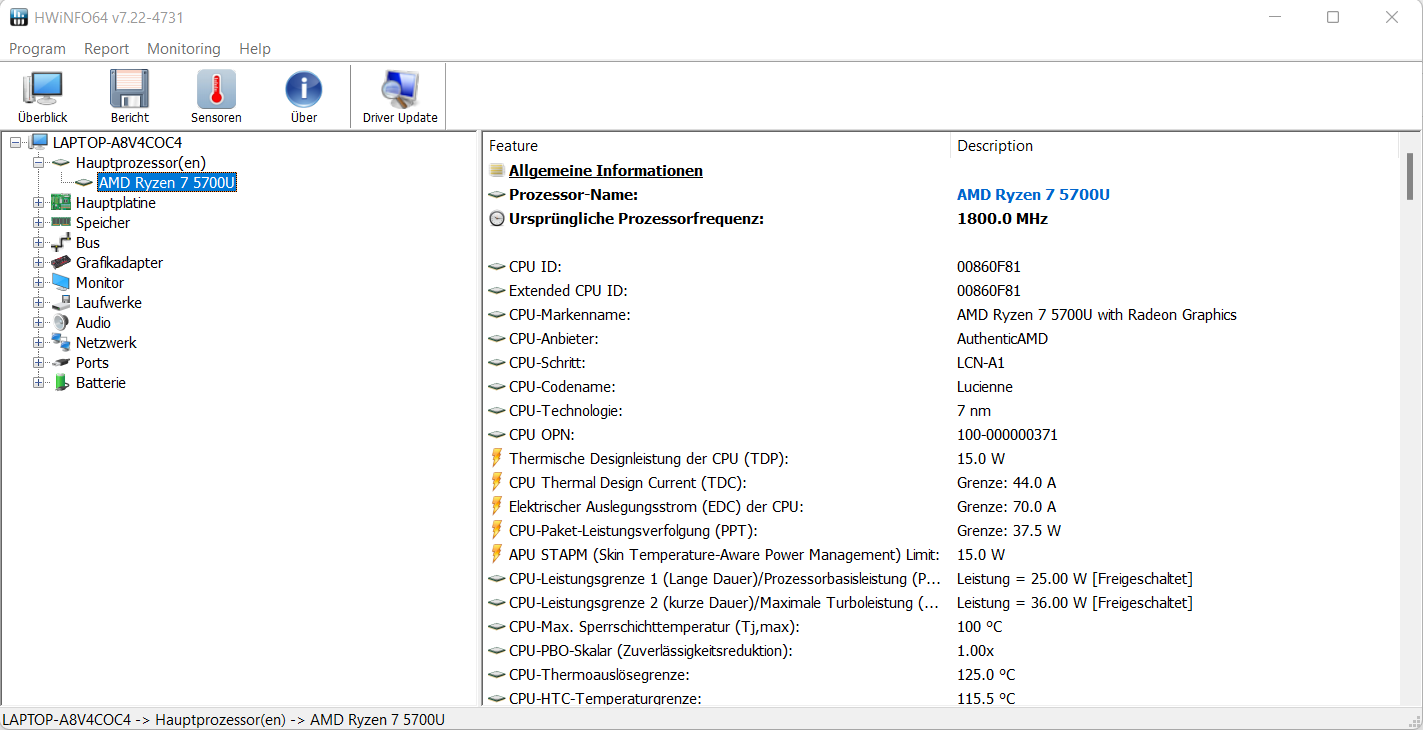

The CPU part of the Ryzen 7 5700U APU (Lucienne) consists of an eight-core processor that operates with a base clock of 1.8 GHz. Using Turbo, an increase up to 4.35 GHz is possible. Simultaneous multithreading (two threads per core) is supported.
The multi-thread test of the Cinebench R15 benchmark briefly runs at 3.4 GHz before dropping to 2.9 - 3 GHz. The single-thread test is run at 1.4 to 4.35 GHz. In battery mode, the CPU operated at 1.85 GHz (multi-thread) or 1.4 - 1.85 GHz (single-thread).

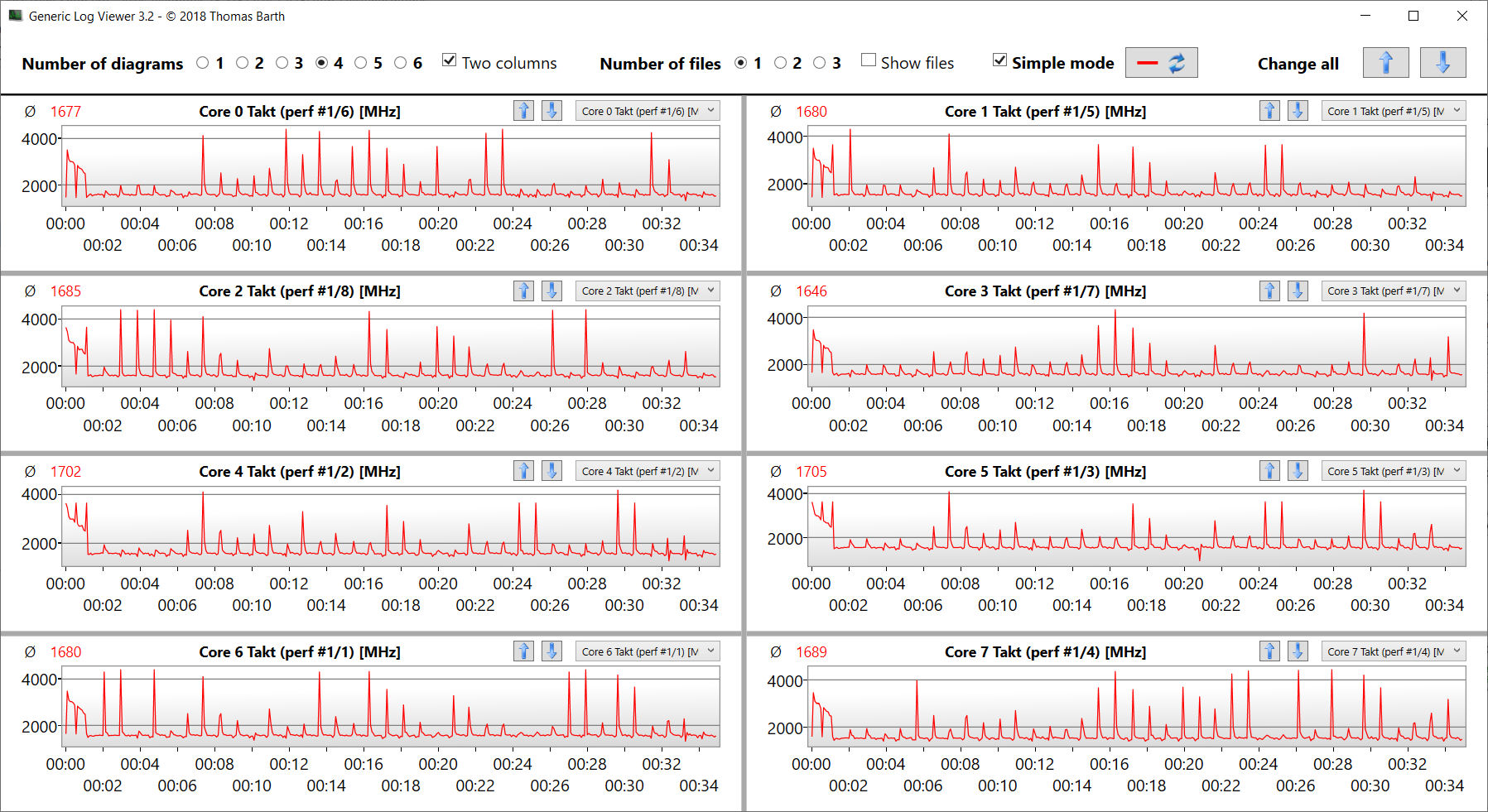

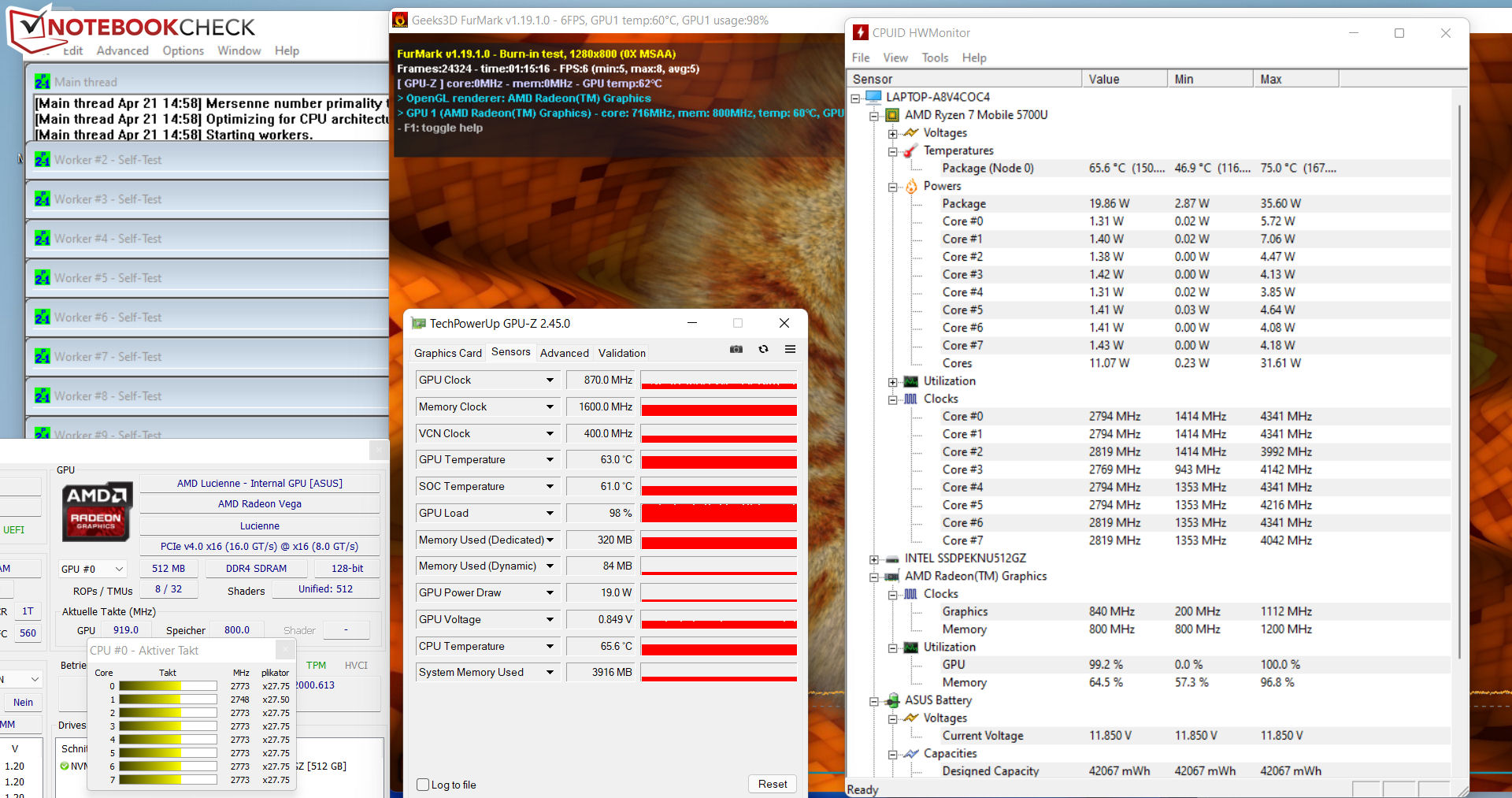

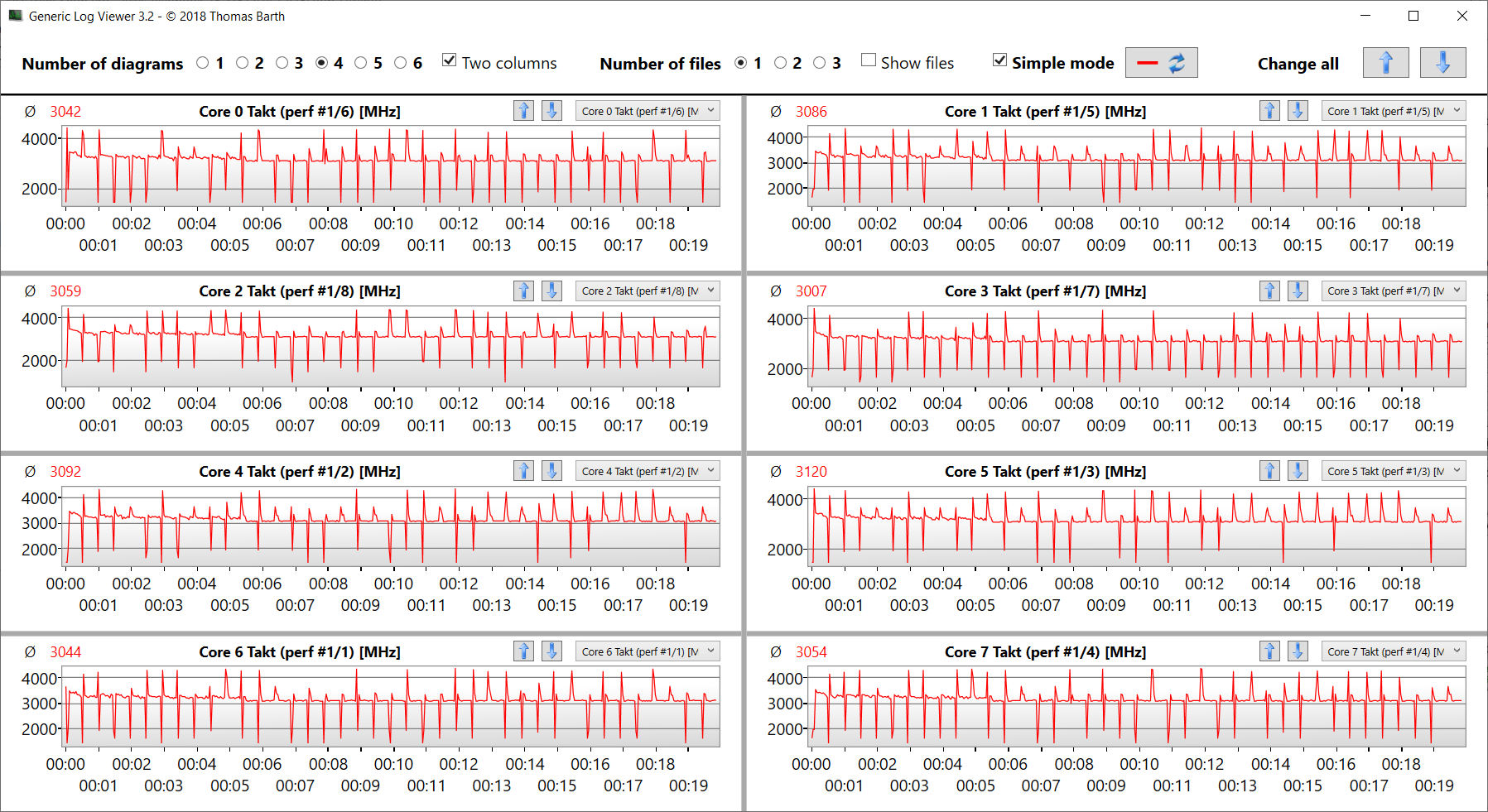

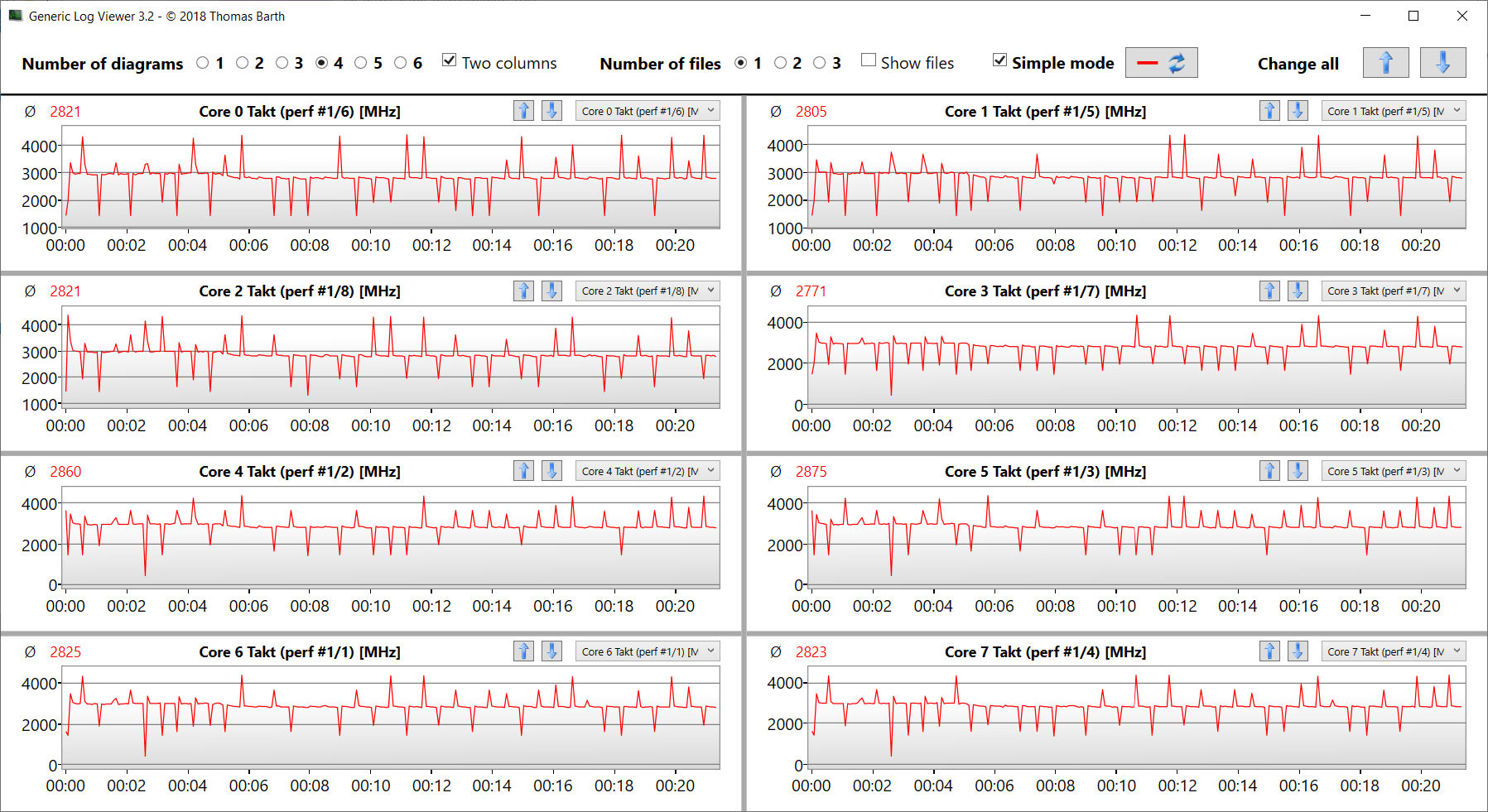

We checked whether the CPU Turbo runs continuously in mains operation by running the multi-thread test of the Cinebench R15 benchmark in a loop for at least 30 minutes. Turbo kicks in at a medium level. "Performance" profile causes a slight increase in clock speed.
CineBench R15 Multi Sustained Load
CPU Performance Rating - Percent | |
Average of class Office | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus Vivobook 15 K513EQ -2! | |
Lenovo IdeaPad 5 15ALC05 | |
Dell Inspiron 15 3000 3511 |
Cinebench R23 | |
Multi Core | |
Average of class Office (1577 - 20399, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (4861 - 10139, n=19) | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 | |
Single Core | |
Average of class Office (618 - 1995, n=87, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U (1177 - 1268, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 |
Cinebench R20 | |
CPU (Multi Core) | |
Average of class Office (590 - 8086, n=85, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U (1887 - 3877, n=20) | |
Acer Aspire 5 A515-45-R4R1 | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 | |
CPU (Single Core) | |
Average of class Office (229 - 766, n=85, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (478 - 495, n=20) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 |
Cinebench R15 | |
CPU Multi 64Bit | |
Average of class Office (246 - 3132, n=89, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Average AMD Ryzen 7 5700U (856 - 1691, n=19) | |
Acer Aspire 5 A515-45-R4R1 | |
Lenovo IdeaPad 5 15ALC05 | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 | |
CPU Single 64Bit | |
Average of class Office (98 - 294, n=87, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (184 - 190, n=18) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Dell Inspiron 15 3000 3511 | |
Lenovo IdeaPad 5 15ALC05 |
Blender - v2.79 BMW27 CPU | |
Dell Inspiron 15 3000 3511 | |
Asus Vivobook 15 K513EQ | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Average of class Office (163 - 1956, n=88, last 2 years) | |
Acer Aspire 5 A515-45-R4R1 | |
Average AMD Ryzen 7 5700U (292 - 557, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) |
7-Zip 18.03 | |
7z b 4 | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Average of class Office (7532 - 76886, n=89, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U (29095 - 47501, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 | |
Lenovo IdeaPad 5 15ALC05 | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 | |
7z b 4 -mmt1 | |
Average of class Office (2972 - 6687, n=88, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U (4476 - 4620, n=19) | |
Dell Inspiron 15 3000 3511 | |
Lenovo IdeaPad 5 15ALC05 |
Geekbench 5.5 | |
Multi-Core | |
Average of class Office (1018 - 14192, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (4254 - 7635, n=18) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 | |
Single-Core | |
Average of class Office (510 - 2096, n=88, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Average AMD Ryzen 7 5700U (1105 - 1205, n=18) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 | |
Lenovo IdeaPad 5 15ALC05 |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Average of class Office (1.72 - 22.4, n=86, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U (6.08 - 12.1, n=19) | |
Acer Aspire 5 A515-45-R4R1 | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Asus Vivobook 15 K513EQ | |
Dell Inspiron 15 3000 3511 |
LibreOffice - 20 Documents To PDF | |
Lenovo IdeaPad 5 15ALC05 | |
Dell Inspiron 15 3000 3511 | |
Acer Aspire 5 A515-45-R4R1 | |
Average AMD Ryzen 7 5700U (52.4 - 72.5, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Average of class Office (31.3 - 129.6, n=86, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus Vivobook 15 K513EQ |
R Benchmark 2.5 - Overall mean | |
Dell Inspiron 15 3000 3511 | |
Lenovo IdeaPad 5 15ALC05 | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Average AMD Ryzen 7 5700U (0.567 - 0.641, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus Vivobook 15 K513EQ | |
Average of class Office (0.4098 - 1.135, n=85, last 2 years) |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average of class Office | |
Average AMD Ryzen 7 5700U | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Lenovo IdeaPad 5 15ALC05 | |
Asus Vivobook 15 K513EQ | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
AIDA64 / FP32 Ray-Trace | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Average of class Office (763 - 31245, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (5679 - 12346, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) |
AIDA64 / FPU Julia | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (39042 - 69580, n=19) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) | |
Average of class Office (4113 - 125394, n=87, last 2 years) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) |
AIDA64 / CPU SHA3 | |
Average of class Office (287 - 5398, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (1103 - 2231, n=19) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) |
AIDA64 / CPU Queen | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Average AMD Ryzen 7 5700U (57016 - 99178, n=19) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Average of class Office (8185 - 115197, n=87, last 2 years) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) |
AIDA64 / FPU SinJulia | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (6837 - 14169, n=19) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Average of class Office (404 - 18321, n=87, last 2 years) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) |
AIDA64 / FPU Mandel | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (20179 - 36523, n=19) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) | |
Average of class Office (2075 - 66922, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) |
AIDA64 / CPU AES | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (26066 - 64646, n=19) | |
Average of class Office (7254 - 155900, n=87, last 2 years) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) |
AIDA64 / CPU ZLib | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Average of class Office (78 - 1366, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (440 - 776, n=19) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) |
AIDA64 / FP64 Ray-Trace | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Average of class Office (432 - 17834, n=87, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Average AMD Ryzen 7 5700U (2985 - 6784, n=19) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) |
AIDA64 / CPU PhotoWorxx | |
Average of class Office (4814 - 54971, n=87, last 2 years) | |
Asus Vivobook 15 K513EQ (v6.33.5700) | |
Average AMD Ryzen 7 5700U (6903 - 25066, n=19) | |
Lenovo IdeaPad 5 15ALC05 (v6.33.5700) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Flüstermodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (v6.50.5800, Leistungsmodus) | |
Acer Aspire 5 A515-45-R4R1 (v6.50.5800) | |
Dell Inspiron 15 3000 3511 (v6.50.5800) |
System Performance
The swift and smoothly running system provides more than enough computing power for office and internet applications. Gaming is also possible to a limited extent. This is complemented by solid PCMark results. RAM transfer rates (dual-channel mode) are at a normal level for DDR4-3200 memory.
PCMark 10 Score | 5253 points | |
Help |
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Average of class Office (2463 - 7578, n=78, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4325 - 5518, n=14) | |
Asus Vivobook 15 K513EQ | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
PCMark 10 / Essentials | |
Average of class Office (5575 - 20841, n=78, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8025 - 10091, n=14) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
PCMark 10 / Productivity | |
Asus Vivobook 15 K513EQ | |
Average of class Office (3041 - 10415, n=78, last 2 years) | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8457, n=14) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
PCMark 10 / Digital Content Creation | |
Average of class Office (2049 - 11108, n=78, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3738 - 5964, n=14) | |
Dell Inspiron 15 3000 3511 | |
Acer Aspire 5 A515-45-R4R1 | |
Asus Vivobook 15 K513EQ |
CrossMark / Overall | |
Average of class Office (348 - 1891, n=82, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (866 - 1183, n=7) |
CrossMark / Productivity | |
Average of class Office (393 - 1870, n=82, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (931 - 1191, n=7) |
CrossMark / Creativity | |
Average of class Office (340 - 2155, n=82, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (907 - 1197, n=7) |
CrossMark / Responsiveness | |
Average of class Office (258 - 2017, n=82, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (605 - 1159, n=7) |

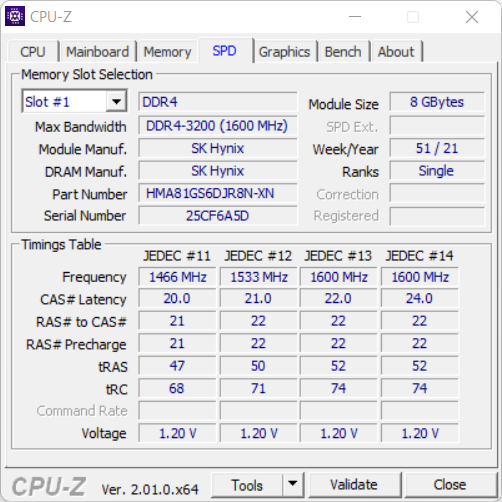

AIDA64 / Memory Copy | |
Average of class Office (7158 - 108783, n=88, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus Vivobook 15 K513EQ | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Ryzen 7 5700U (15867 - 39326, n=19) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
AIDA64 / Memory Read | |
Average of class Office (7325 - 127282, n=88, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Ryzen 7 5700U (17632 - 47190, n=19) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
AIDA64 / Memory Write | |
Average of class Office (7579 - 117935, n=88, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Ryzen 7 5700U (11554 - 47048, n=19) | |
Lenovo IdeaPad 5 15ALC05 | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
AIDA64 / Memory Latency | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Ryzen 7 5700U (84.9 - 113, n=19) | |
Dell Inspiron 15 3000 3511 | |
Average of class Office (7.6 - 185.2, n=85, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Acer Aspire 5 A515-45-R4R1 | |
Asus Vivobook 15 K513EQ |
* ... smaller is better

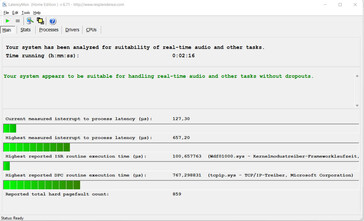

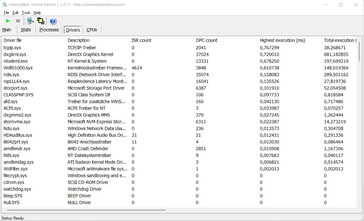

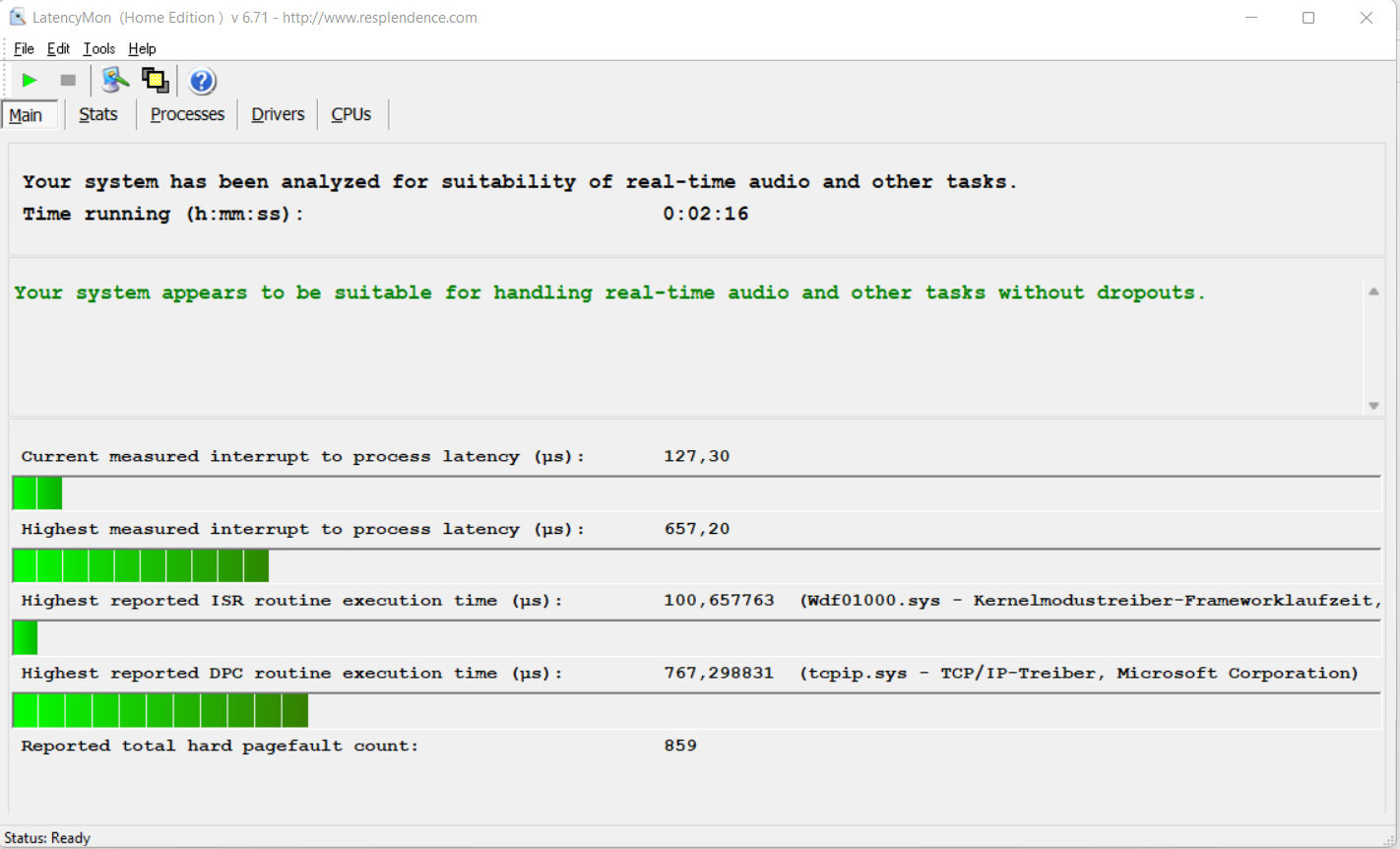

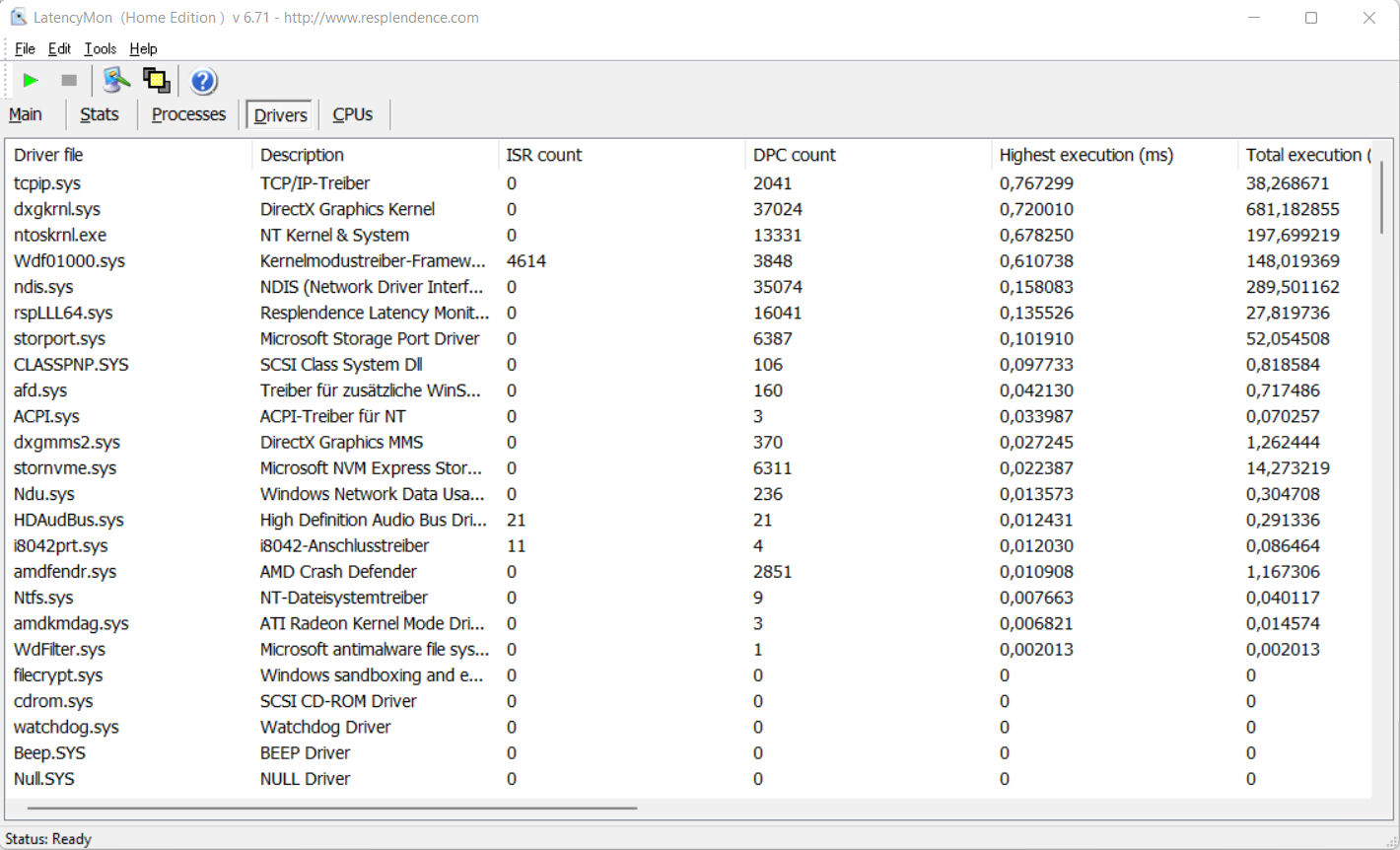

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Dell Inspiron 15 3000 3511 | |
Asus Vivobook 15 K513EQ | |
Acer Aspire 5 A515-45-R4R1 | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W |
* ... smaller is better
Storage Devices

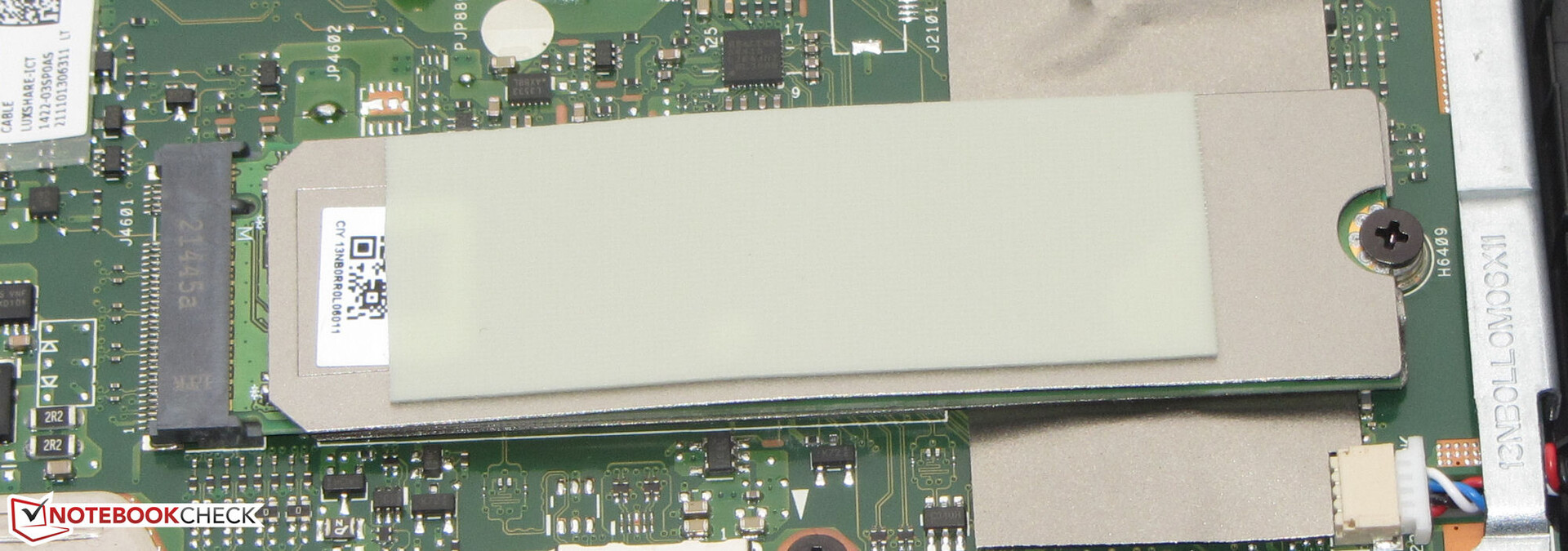

The 512 GB SSD (PCIe 3, M.2 2280) from Intel delivers good transfer rates, but is not among the top SSD models. The notebook offers space for a 2.5-inch storage medium. Since neither the necessary SATA slot nor a mounting frame are included, a corresponding drive could not be added.
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Graphics

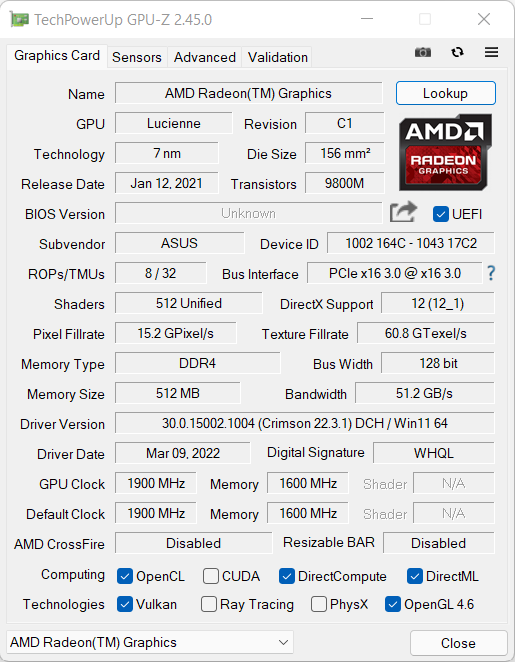

The inbuilt Vega 8 iGPU is one of the more powerful iGPUs and can run many games smoothly at low resolutions or settings. Continuous operation at maximum clock speed (1,900 MHz) is possible - as shown in the Witcher 3 test. However, this only applies when "Performance" profile is activated. The "Balanced" profile leads to a slight drop in the GPU clock to 1,700-1,800 MHz after a few minutes. The benchmark results correspond quite closely to the average performance levels of a Vega 8 iGPU determined thus far.
3DMark 11 Performance | 5815 points | |
3DMark Ice Storm Standard Score | 102899 points | |
3DMark Cloud Gate Standard Score | 21511 points | |

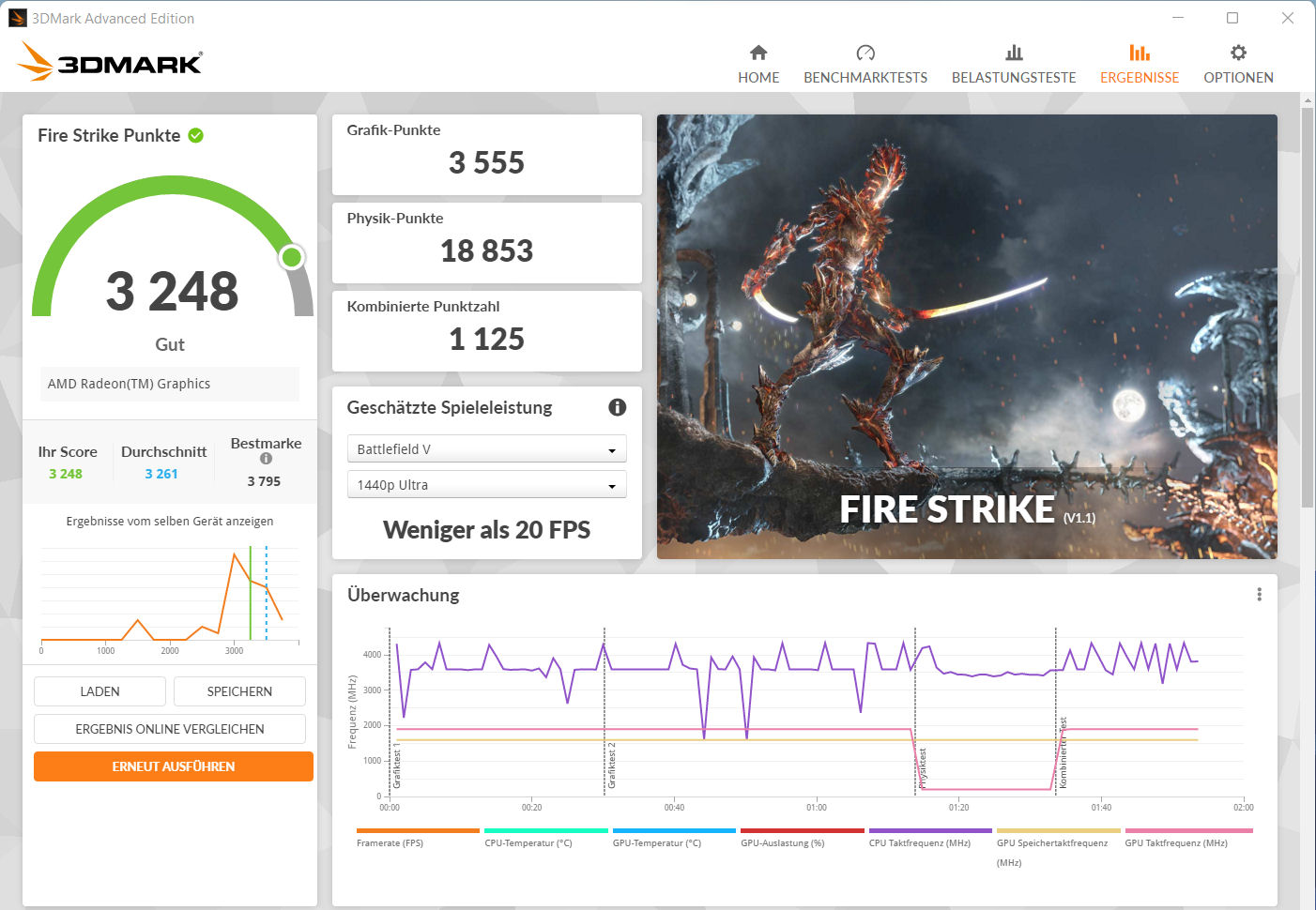

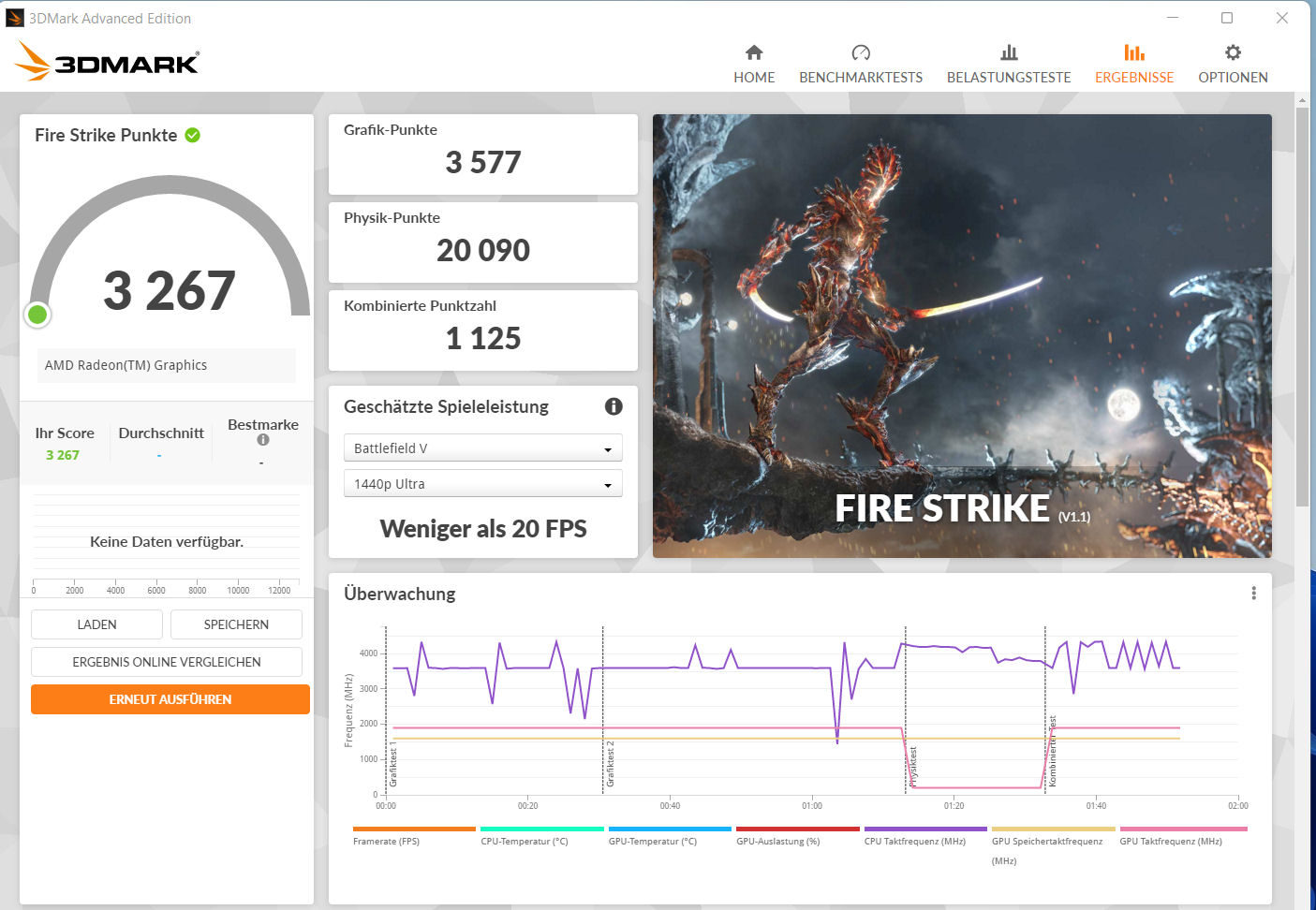

3DMark Fire Strike Score | 3248 points | |
3DMark Time Spy Score | 1306 points | |
Help |
3DMark Performance Rating - Percent | |
Average of class Office | |
Asus Vivobook 15 K513EQ | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Lenovo IdeaPad 5 15ALC05 | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
3DMark 11 - 1280x720 Performance GPU | |
Average of class Office (1468 - 16418, n=83, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=56) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Lenovo IdeaPad 5 15ALC05 | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |

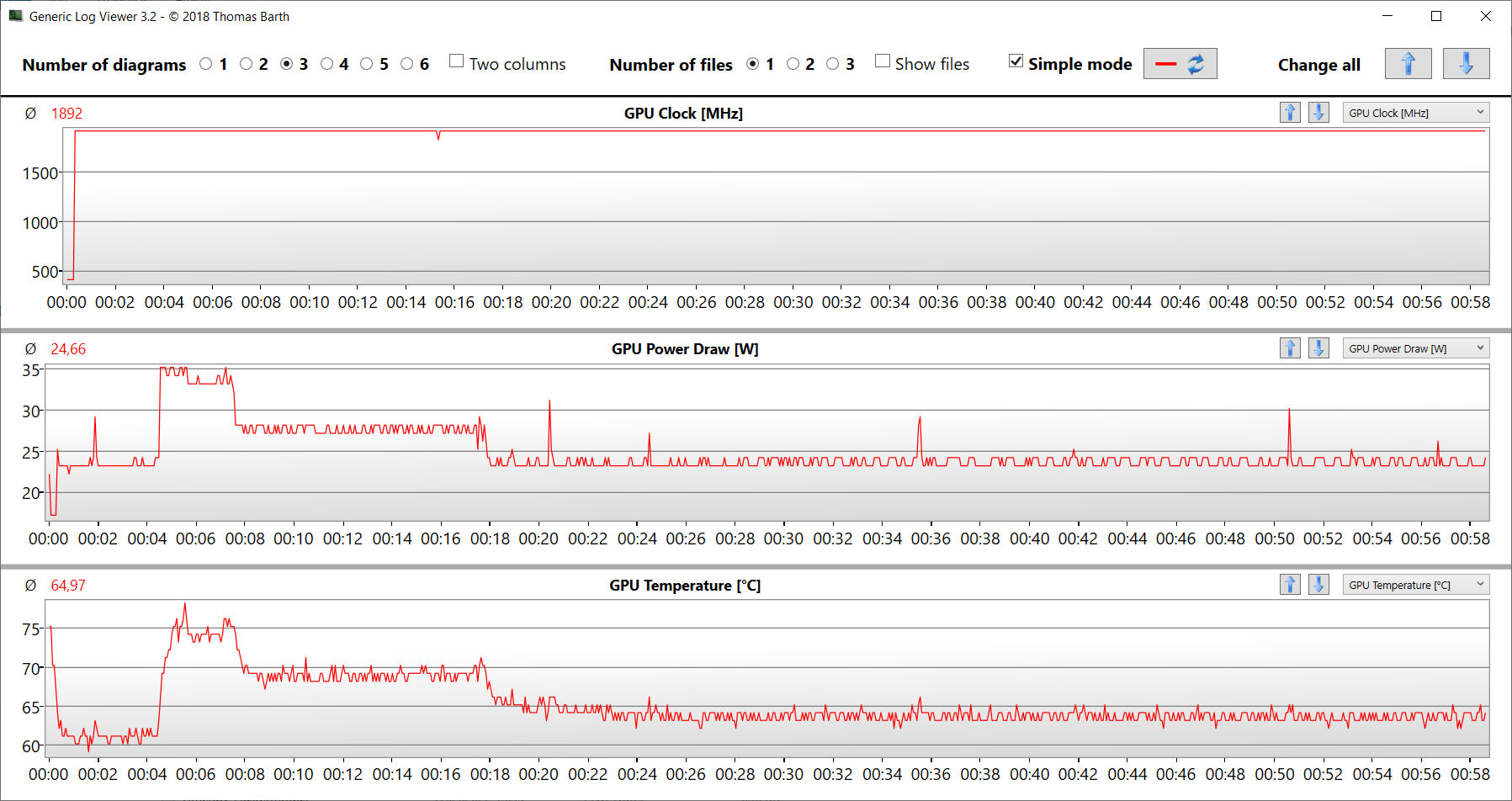

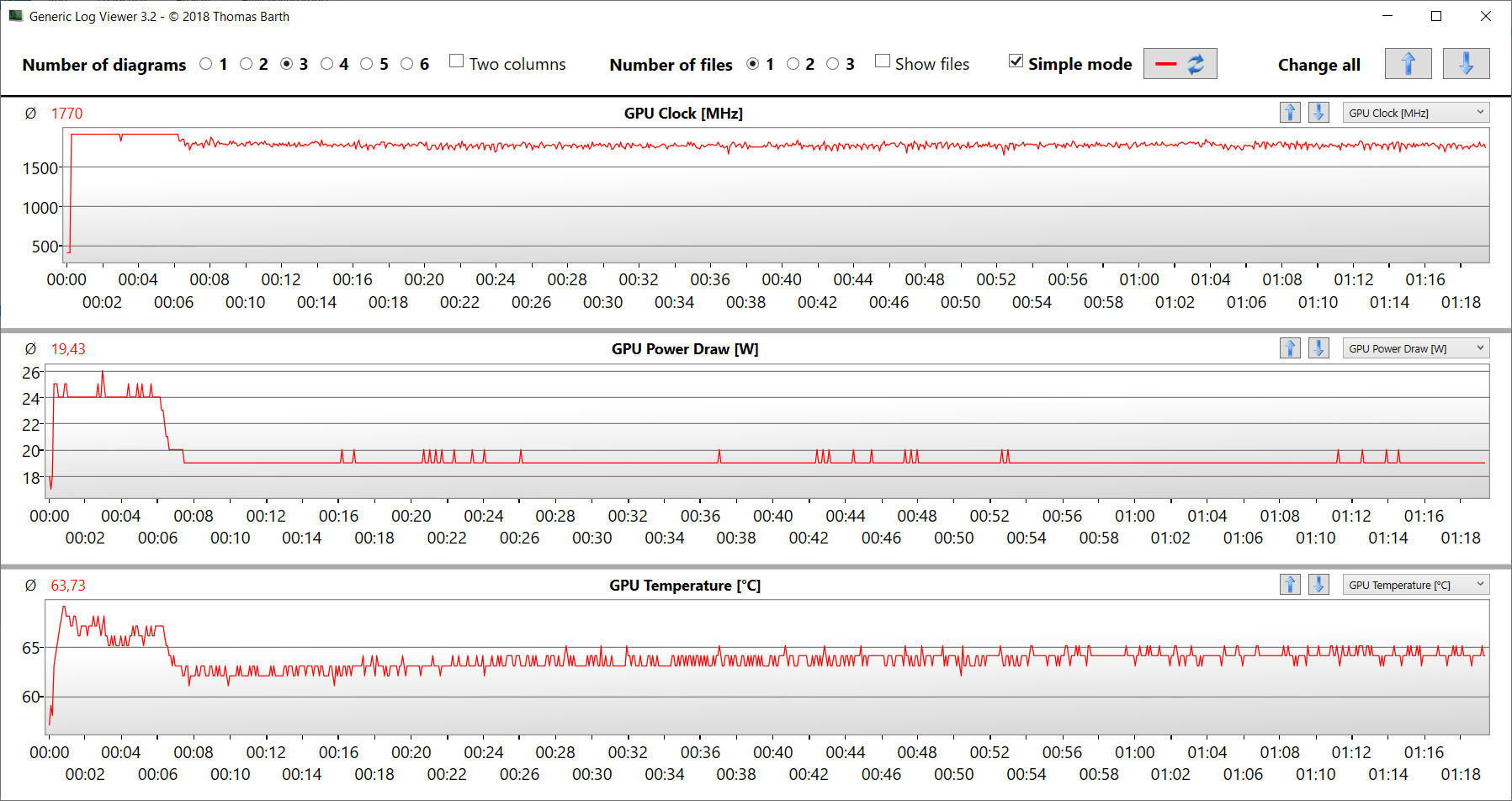

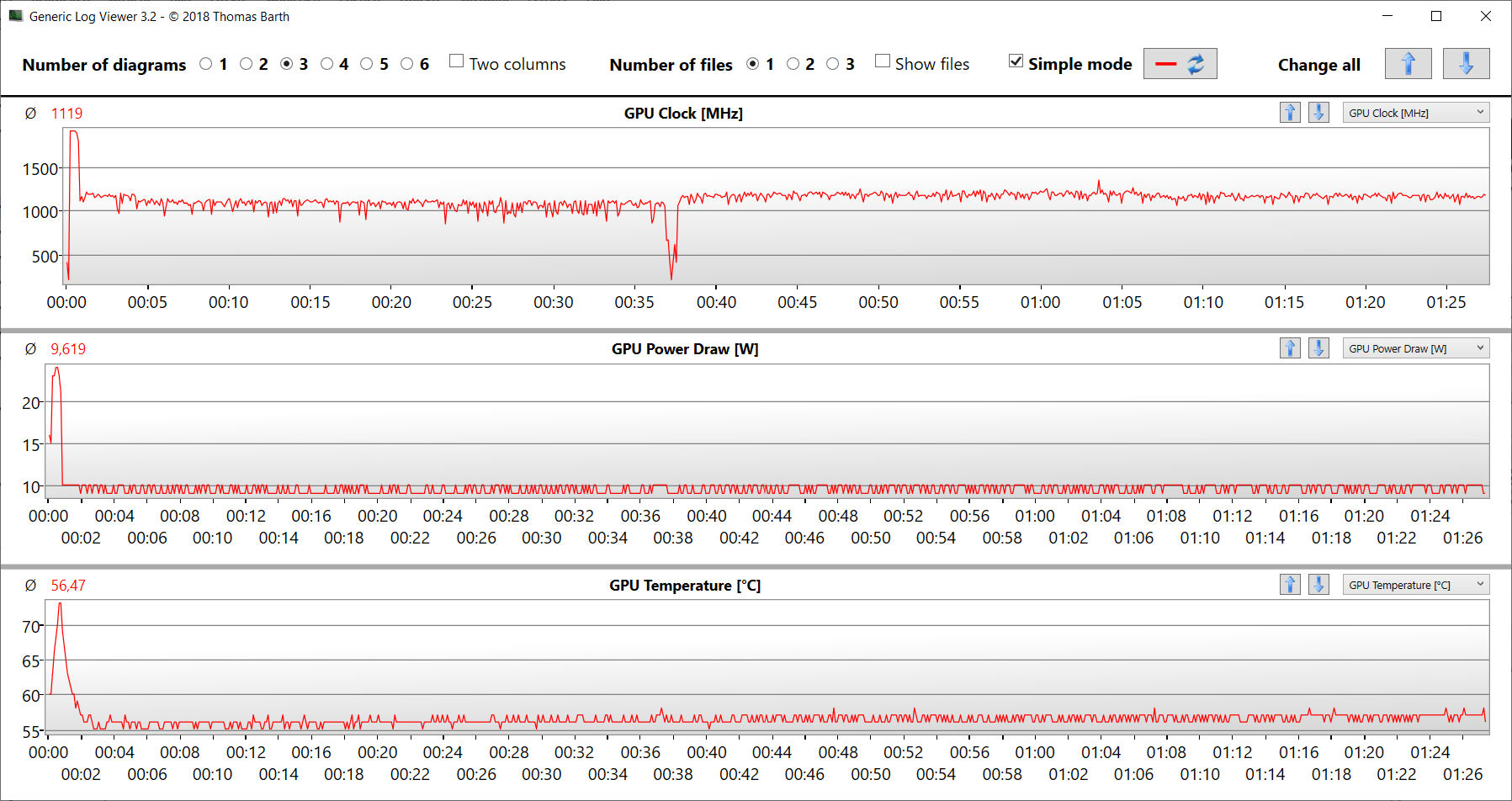

The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
Average of class Office (12 - 106.3, n=43, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Lenovo IdeaPad 5 15ALC05 | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=35) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Asus Vivobook 15 K513EQ | |
Average of class Office (13.4 - 121.2, n=89, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 72, n=58) | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 |
X-Plane 11.11 - 1280x720 low (fps_test=1) | |
Asus Vivobook 15 K513EQ | |
Average of class Office (13.6 - 128.2, n=85, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.3 - 64.9, n=58) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Lenovo IdeaPad 5 15ALC05 | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Acer Aspire 5 A515-45-R4R1 | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Dell Inspiron 15 3000 3511 |
Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
Asus Vivobook 15 K513EQ (1.3) | |
Average of class Office (12.1 - 103.1, n=83, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.4 - 50.1, n=53) | |
Asus VivoBook 15 OLED M513UA-L1282W (1.3, Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (1.3) | |
Asus VivoBook 15 OLED M513UA-L1282W (1.3, Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 (1.3) | |
Dell Inspiron 15 3000 3511 (1.3) |
GTA V | |
1366x768 Normal/Off AF:4x | |
Asus Vivobook 15 K513EQ | |
Average of class Office (32.5 - 171.4, n=76, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 | |
Dell Inspiron 15 3000 3511 | |
1920x1080 Normal/Off AF:4x | |
Average of class Office (32.8 - 168.4, n=51, last 2 years) | |
Asus Vivobook 15 K513EQ | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.7 - 104, n=32) | |
Asus VivoBook 15 OLED M513UA-L1282W (Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Dell Inspiron 15 3000 3511 |
Strange Brigade - 1280x720 lowest AF:1 | |
Average of class Office (37.4 - 245, n=71, last 2 years) | |
Asus Vivobook 15 K513EQ (1.47.22.14 D3D12) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=51) | |
Asus VivoBook 15 OLED M513UA-L1282W (1.47.22.14 D3D12) | |
Asus VivoBook 15 OLED M513UA-L1282W (1.47.22.14 D3D12, Flüstermodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (1.47.22.14 D3D12, Leistungsmodus) | |
Acer Aspire 5 A515-45-R4R1 (1.47.22.14 D3D12) | |
Dell Inspiron 15 3000 3511 (1.47.22.14 D3D12) |
F1 2021 - 1280x720 Ultra Low Preset | |
Average of class Office (73.1 - 197.8, n=11, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (51.8 - 134, n=22) | |
Asus VivoBook 15 OLED M513UA-L1282W (868399) | |
Asus VivoBook 15 OLED M513UA-L1282W (868399, Leistungsmodus) | |
Asus VivoBook 15 OLED M513UA-L1282W (868399, Flüstermodus) | |
Acer Aspire 5 A515-45-R4R1 (840701) |
Doom Eternal - 1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (56.9 - 84, n=2) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Monster Hunter Stories 2 | |
1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 73.6, n=4) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Acer Aspire 5 A515-45-R4R1 | |
1920x1080 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43.3 - 50.4, n=2) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Alan Wake Remastered - 1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (47.9 - 59.7, n=2) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Far Cry 6 - 1280x720 Low Graphics Quality | |
Average of class Office (n=1last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34.5 - 62.1, n=10) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Back 4 Blood | |
1280x720 Low Preset (DX12) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (77.8 - 111, n=2) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
1920x1080 Low Preset (DX12) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (41.9 - 60.5, n=3) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Riders Republic - 1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 41, n=5) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Forza Horizon 5 | |
1280x720 Lowest Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 99, n=7) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
1920x1080 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31 - 81, n=5) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Halo Infinite - 1920x1080 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.1 - 20.7, n=3) | |
Asus VivoBook 15 OLED M513UA-L1282W |
God of War - 1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (20.8 - 35.3, n=4) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average of class Office (8.16 - 35.9, n=2, last 2 years) |
Rainbow Six Extraction - 1280x720 Ultra Low Preset (with Fixed Resolution Quality) | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (n=1) |
Dying Light 2 - 1280x720 Low Quality | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.6 - 32.2, n=3) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Cyberpunk 2077 1.6 - 1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (18.8 - 44.4, n=6) | |
Average of class Office (18.8 - 65.5, n=10, last 2 years) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Elex 2 - 1280x720 Low / Off | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.44 - 25.9, n=4) |
Ghostwire Tokyo - 1280x720 Lowest Settings | |
Asus VivoBook 15 OLED M513UA-L1282W | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 36.9, n=3) |
Tiny Tina's Wonderlands - 1280x720 Lowest Preset (DX12) | |
Average of class Office (15.5 - 139.5, n=16, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (30.7 - 82.2, n=8) | |
Asus VivoBook 15 OLED M513UA-L1282W |
Witcher 3 FPS Chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 94.7 | 84.3 | 24.5 | 10.8 |
The Witcher 3 (2015) | 55.7 | 38.5 | 17.7 | 12.4 |
Dota 2 Reborn (2015) | 94 | 75.9 | 47.8 | 44.9 |
Final Fantasy XV Benchmark (2018) | 33.3 | 17.7 | 12.4 | |
X-Plane 11.11 (2018) | 38.7 | 31.6 | 28 | |
Strange Brigade (2018) | 76.5 | 30.2 | 25.5 | 21.9 |
Doom Eternal (2020) | 56.9 | 26.5 | 22.1 | 21.6 |
Monster Hunter Stories 2 (2021) | 55.8 | 40.4 | 34.9 | |
F1 2021 (2021) | 84.1 | 38.1 | 28.8 | 20.3 |
Alan Wake Remastered (2021) | 47.9 | 19 | 15.1 | |
Far Cry 6 (2021) | 34.5 | 16.8 | 13.9 | 11.8 |
Back 4 Blood (2021) | 77.8 | 29.5 | 24.6 | 21.5 |
Riders Republic (2021) | 36 | 21 | 14 | 12 |
Forza Horizon 5 (2021) | 64 | 27 | 23 | |
Halo Infinite (2021) | 11.4 | 9.69 | 9.2 | |
God of War (2022) | 15.9 | 12.6 | 9.85 | 6.94 |
Rainbow Six Extraction (2022) | 24 | 21 | 20 | 14 |
Dying Light 2 (2022) | 14.6 | 11.7 | 9.8 | |
GRID Legends (2022) | 49.5 | 34.9 | 29.4 | 20.2 |
Cyberpunk 2077 1.6 (2022) | 16 | 12.1 | 8.9 | 9 |
Elex 2 (2022) | 16.7 | 13.8 | 12.1 | 10.2 |
Ghostwire Tokyo (2022) | 17.5 | 14.6 | 14.5 | 14.3 |
Tiny Tina's Wonderlands (2022) | 31.8 | 20.8 | 13.44 | 9.5 |
Emissions & Energy - Asus laptop with average battery runtimes
Noise
The notebook does not produce excessive noise over the entire load range. In everyday use (office, internet), the fan is often inactive and silence reigns. The noise level rises to 41.9 dB(A) under load - a perfectly acceptable value. A positive aspect: It takes a relatively long time for the fan to start up. No bothersome background noise is emitted. The noise generated under load can be reduced via the "Quiet" profile - at the expense of computing power.
Noise Level
Idle |
| 26 / 26 / 26.2 dB(A) |
Load |
| 41.4 / 41.4 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: ![]() ![]() ![]() |
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ | Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD | Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N | Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U | Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8 | |
---|---|---|---|---|---|
Noise | 2% | 15% | 1% | 4% | |
off / environment * | 26 | 25 4% | 23.2 11% | 26 -0% | 23.4 10% |
Idle Minimum * | 26 | 25 4% | 23.3 10% | 26 -0% | 23.6 9% |
Idle Average * | 26 | 25 4% | 23.3 10% | 26 -0% | 23.6 9% |
Idle Maximum * | 26.2 | 29.5 -13% | 23.3 11% | 26 1% | 23.6 10% |
Load Average * | 41.4 | 38.6 7% | 23.3 44% | 42.6 -3% | 41 1% |
Load Maximum * | 41.4 | 38.6 7% | 39.2 5% | 37.4 10% | 47 -14% |
Witcher 3 ultra * | 31.5 | 42.9 |
* ... smaller is better

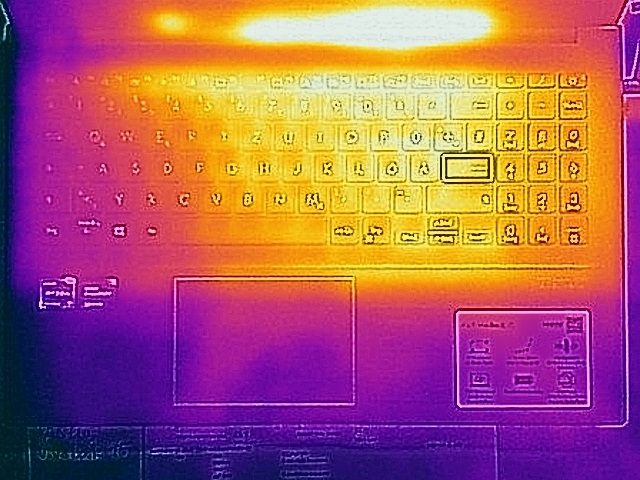

Temperature
In everyday use (office, internet), temperatures fall within the green range. During the stress test, the temperature increases in some areas, but only moderately on average.

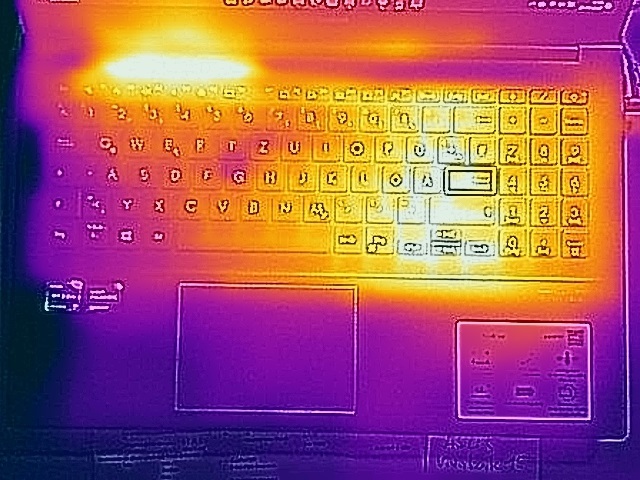

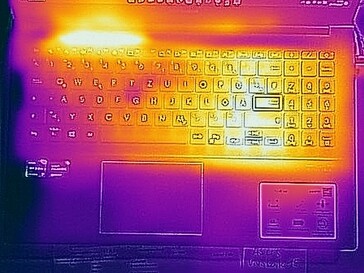

The CPU and GPU begin the stress test (Prime95 and FurMark run for at least one hour) at 3.1 to 3.2 GHz and 1,100 to 1,200 MHz, respectively. As the test progresses, clock rates drop to 2.8 GHz (CPU) and 800 to 900 MHz (GPU). The stress test represents an extreme scenario. We use this test to check whether the system runs stably under full load.
(+) The maximum temperature on the upper side is 39.6 °C / 103 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

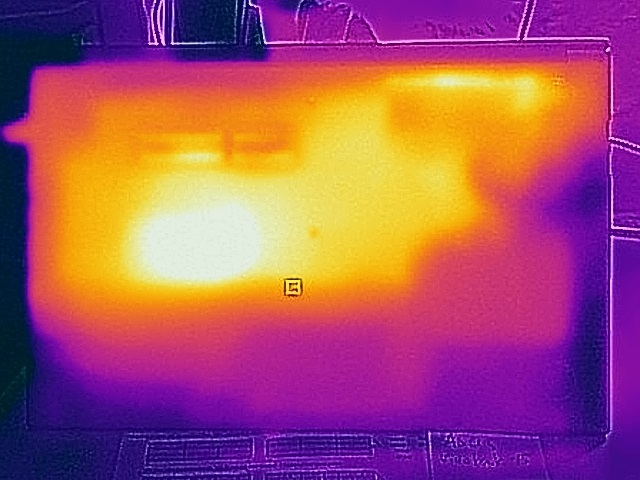

(-) The bottom heats up to a maximum of 48.4 °C / 119 F, compared to the average of 36.8 °C / 98 F

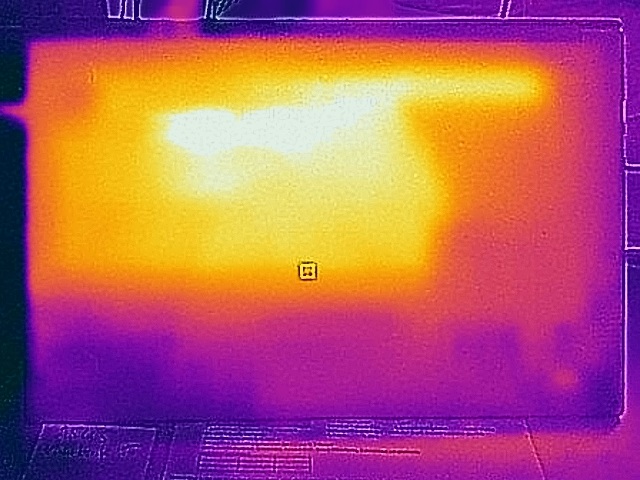

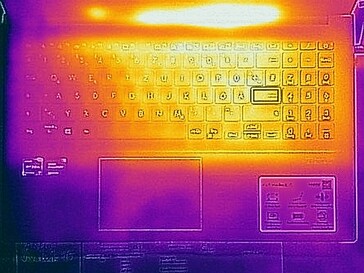

(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-1.9 °C / -3.4 F).
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350 | |
---|---|---|---|---|---|
Heat | 4% | 2% | 9% | -4% | |
Maximum Upper Side * | 39.6 | 40 -1% | 37.8 5% | 40.5 -2% | 48.8 -23% |
Maximum Bottom * | 48.4 | 42.8 12% | 55.6 -15% | 42 13% | 42 13% |
Idle Upper Side * | 30.9 | 32.4 -5% | 26.2 15% | 26.5 14% | 30 3% |
Idle Bottom * | 32.3 | 29.4 9% | 32 1% | 29 10% | 35 -8% |
* ... smaller is better
Speakers
The stereo speakers produce a decent sound that lacks bass. The maximum volume is relatively low.
Asus VivoBook 15 OLED M513UA-L1282W audio analysis
(-) | not very loud speakers (66.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.6% lower than median
(±) | linearity of bass is average (13.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (3.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.6% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 6% similar, 75% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 26% of all tested devices were better, 6% similar, 68% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Acer Aspire 5 A515-45-R4R1 audio analysis
(-) | not very loud speakers (70.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.8% lower than median
(±) | linearity of bass is average (14.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21% difference to median)
Compared to same class
» 70% of all tested devices in this class were better, 8% similar, 22% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 55% of all tested devices were better, 8% similar, 38% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Power Consumption
The laptop does not display any abnormalities in terms of power consumption. The values are at a normal level for the hardware installed here. Power consumption during the Witcher 3 test drops after a few minutes - this matches the measurement results. The nominal output of the power supply is 65 watts.
Off / Standby | ![]() ![]() |
Idle | ![]() ![]() ![]() |
Load |
![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() | |
Key:
min: ![]() ![]() ![]() |
Power Consumption Witcher 3 / Stress test
Power Consumption (external monitor)
Battery Life
The 15.6-incher achieved a runtime of 6:28 hours in our practical WLAN test. The load when accessing websites is mapped using a script.
Pros
Cons
Verdict - The VivoBook 15 still has room for improvement
Office and internet applications as well as simple games do not pose any major challenges for the VivoBook - this is ensured by the built-in combination of Ryzen 7 5700U APU and 16 GB of RAM. Heat and noise emissions are acceptable.
OLED screens are not often found in the sub-1000 Euro notebook segment. Asus is expanding this range with the VivoBook 15.
The inbuilt OLED screen (FHD) offers an excellent black level and completely covers the DCI-P3 color space. It also offers stable viewing angles, good color reproduction, short response times and sufficiently high brightness. However, the glossy screen is a point of criticism.
Despite a purchase price of around 900 Euros, the laptop has weaknesses that should not be present at this level: lack of keyboard lighting, a slow memory card reader, no mounting frame/SATA port for the installation of a 2.5-inch memory device, no fast USB-C port (USB 3.2 Gen 2 or Thunderbolt 4) with Power Delivery and DisplayPort. Battery runtimes can only be described as average with a WLAN runtime of about 6.5 h.
Cheaper without OLED
As an alternative, there is the Lenovo IdeaPad 5 15ALC05, which is similar to the VivoBook in terms of specifications and price, but offers significantly better runtime values thanks to a 70-Wh battery. It also comes with a backlit keyboard and Power Delivery. Weaknesses of the IdeaPad are the soldered RAM and the average display.
A cheaper alternative is the Acer Aspire 5 A515-45-R4R1 (around 600 Euros). This also comes with a Ryzen 7 5700U APU and can also outperform the VivoBook in terms of battery life. The low price level is due to the fact that the RAM only runs in single-channel mode and that no Windows operating system is included.
Price and Availability
The Asus VivoBook 15 OLED M513UA appears to be unavailable in the present configuration (Ryzen 7 5700U, 16 GB RAM, 512 GB SSD, OLED screen) outside of Europe upon the publishing of this review. A very similar configuration can be bought from Amazon UK (Ryzen 5 5500U, 8 GB RAM, 512 GB SSD, OLED screen) for £499.99.
Asus VivoBook 15 OLED M513UA-L1282W
- 05/06/2022 v7 (old)
Sascha Mölck
