Verdict - Familiar design, powerful CPU and almost always quiet during use
During our test, the Geekom Mini IT13 (2025 Edition) proved to be a powerful mini PC with high-quality features. However, its concept hasn't been revised, as Geekom has retained the device's familiar design. In terms of performance, its Intel Core i9-13900HK offers sufficient reserves for demanding office use, multimedia tasks and even simple creative workloads. Despite its powerful hardware, the system stays quiet and efficient during use, which is mainly due to its conservative power limits. Its wide range of connections is excellent and allows users to connect lots of external devices.
The Geekom IT13 2025 Edition's biggest weakness is its low 3D performance. In this respect, many devices with a newer SoC often offer noticeably better performance. An external graphics card may provide a remedy, but you can only connect one via USB4, whereas devices from Minisforum or Aoostar are equipped with a slightly better-performing OCuLink connection.
The mini PC's compact design paired with its good upgradeability makes it a flexible solution for a wide range of applications. The IT13 performs similarly well when it comes to energy efficiency. If you are looking for a compact, reliable and powerful mini PC, the Geekom Mini IT13 offers a complete package including a three-year warranty.
Pros
+ stable, compact case
+ good system performance
+ easy to open up
+ 2x USB4
+ mostly quiet during use
+ fast SD card reader
+ fits up to three storage devices
+ 36-month warranty
Cons
- familiar, outdated design
- SoC's low turbo usage
- SoC slower than with the competition
- iGPU no longer competitive
- no OCuLink connection
Price and availability
You can order the Geekom IT13 2025 Edition directly from the manufacturer for $659. Using the code NBCIT1325
, you can get an additional 6% off.
$699.00
GEEKOM Mini PC IT13 2025 Edition, 13th Intel Core i9-13900HK (14C/20T, up to 5.4GHz), 32GB DDR4/1TB NVMe PCIe SSD Mini Desktop, 8K UHD/USB4.0/WiFi 6E/BT5.2/Windows 11 Pro, Home&Office Mini Computers
- $749.00GEEKOM Mini PC Mini IT13 2025 Edition, 13th Gen Intel i9-13900HK NUC13 Mini Computers(up to 5.4GHz), 32GB DDR4/2TB M.2 NVMe Gen4*4 SSD Windows 11 Pro Support Wi-Fi 6E/Bluetooth 5.2/USB 4.0/2.5G LAN/8K
- $599.00GEEKOM IT12 Mini PC, 12th Gen Intel i9-12900HK NUC12 Mini Computers(14C/20T,Up to 5GHz), 32GB DDR4 RAM & 1TB PCIe Gen 4 SSD, Windows 11 Pro Mini Desktop, 8K/Quad Display/USB4.0/WiFi 6E/BT5.2/2.5G LAN
Table of Contents
- Verdict - Familiar design, powerful CPU and almost always quiet during use
- Specifications
- Case & connectivity - Dual USB4, but no OCuLink
- Performance - A high-end CPU with 14 cores
- Emissions - Balanced and not too loud
- Power management - Almost too frugal for the large power supply
- Notebookcheck total rating
- Possible alternatives compared

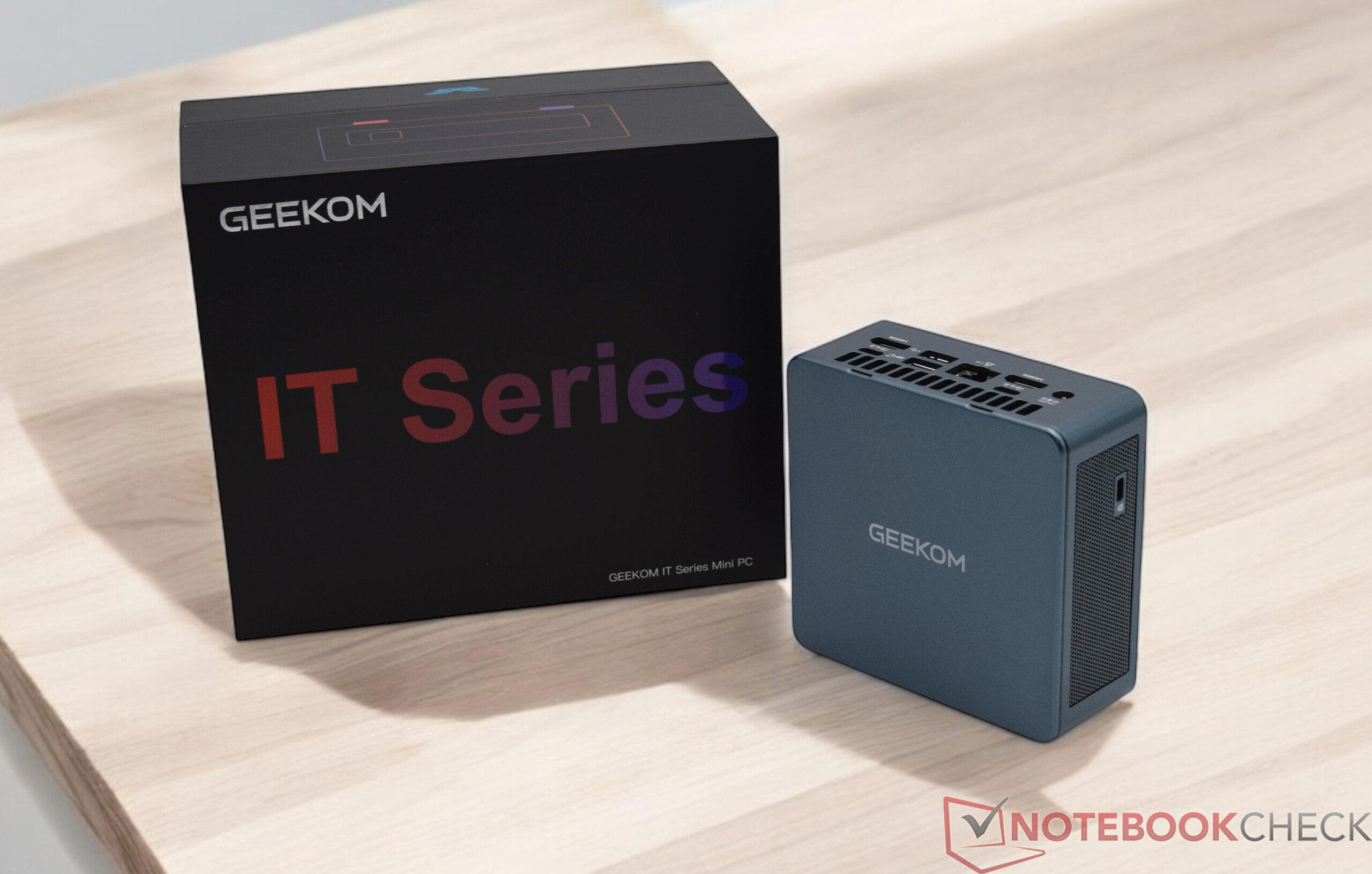

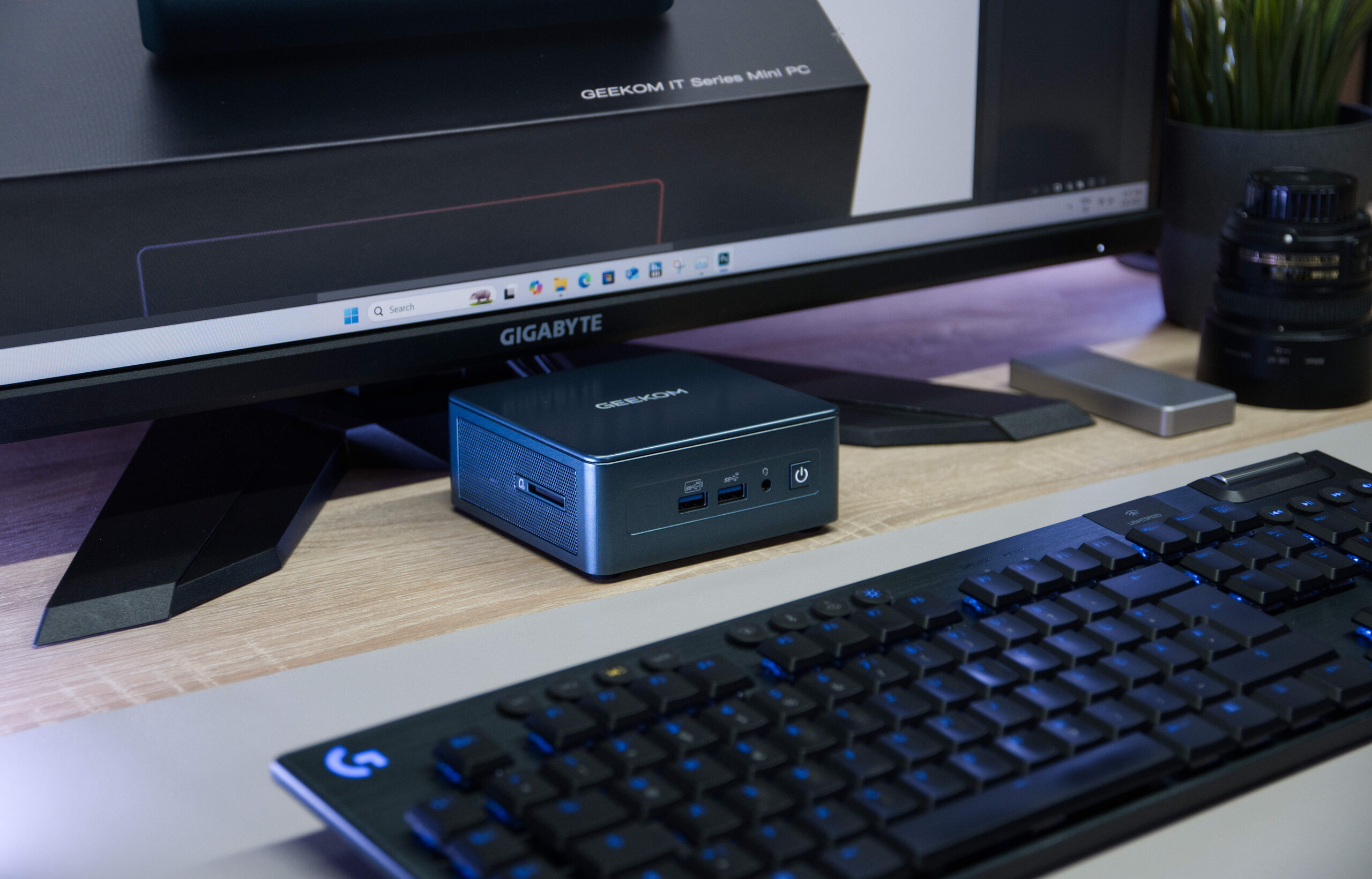

The Mini IT13 2025 Edition is another powerful compact mini PC made by Geekom. The top-of-the-range version is equipped with an Intel Core i9-13900HK with 14 cores and 20 threads. It supports up to 64 GB DDR4 RAM in dual-channel mode and has two M.2 slots for fast SSDs. Together with 32 GB DDR4 RAM and a 1-TB SSD, the Geekom Mini IT13 2025 Edition costs $659. Geekom charges an additional $90 for the mini PC with 2 TB of storage space.
Specifications
Geekom Mini IT13
Processor
Intel Core i9-13900HK 14 x 1.9 - 5.4 GHz, 55 W PL2 / Short Burst, 35 W PL1 / Sustained, Raptor Lake-H
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1500 MHz, 30.0.101.6129 DCH
Memory
32 GB
, DDR4-3200, 2x SO-DIMM, Dual-Channel, max. 64 GB
Mainboard
Intel Alder Lake-P PCH

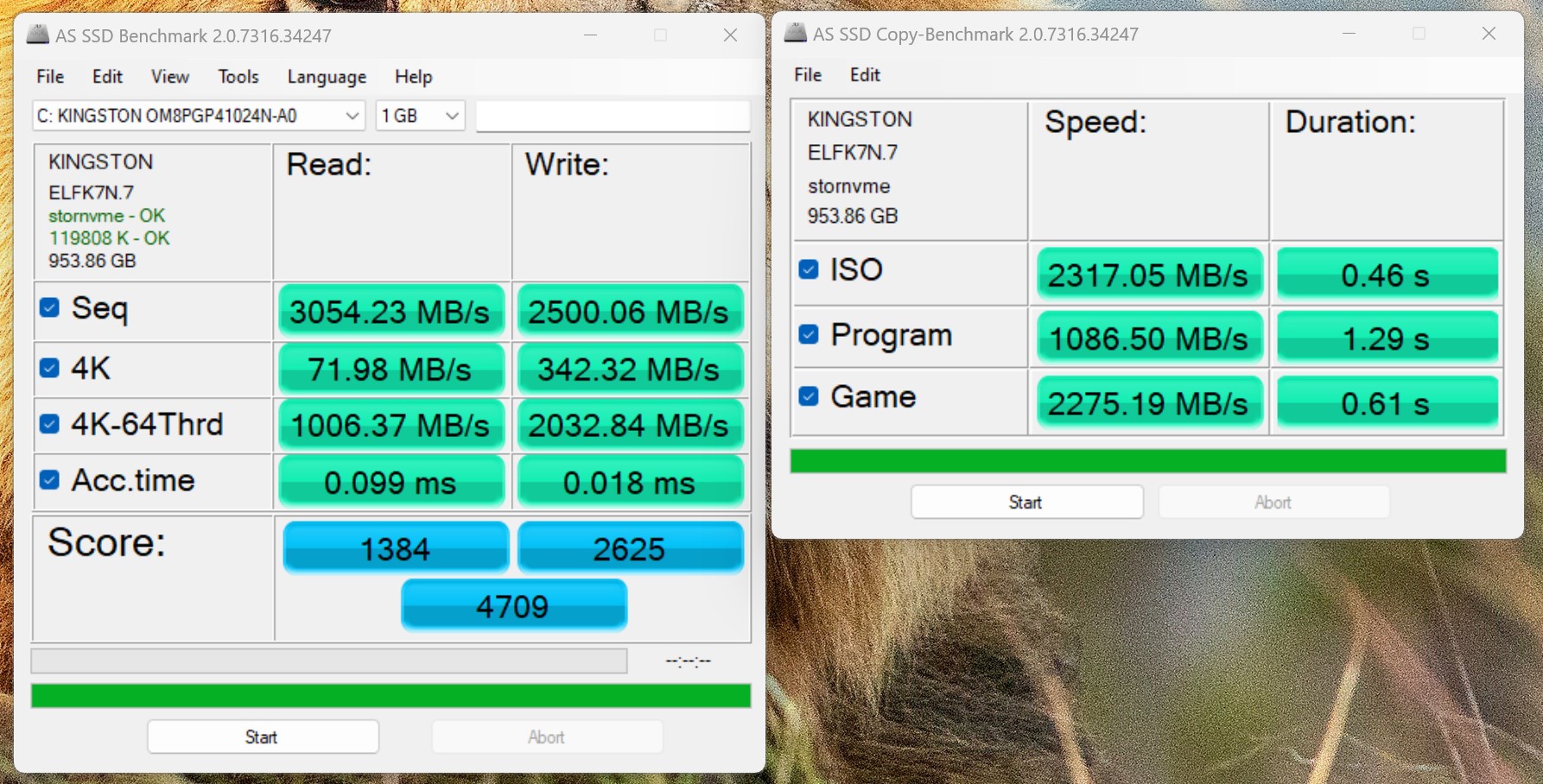

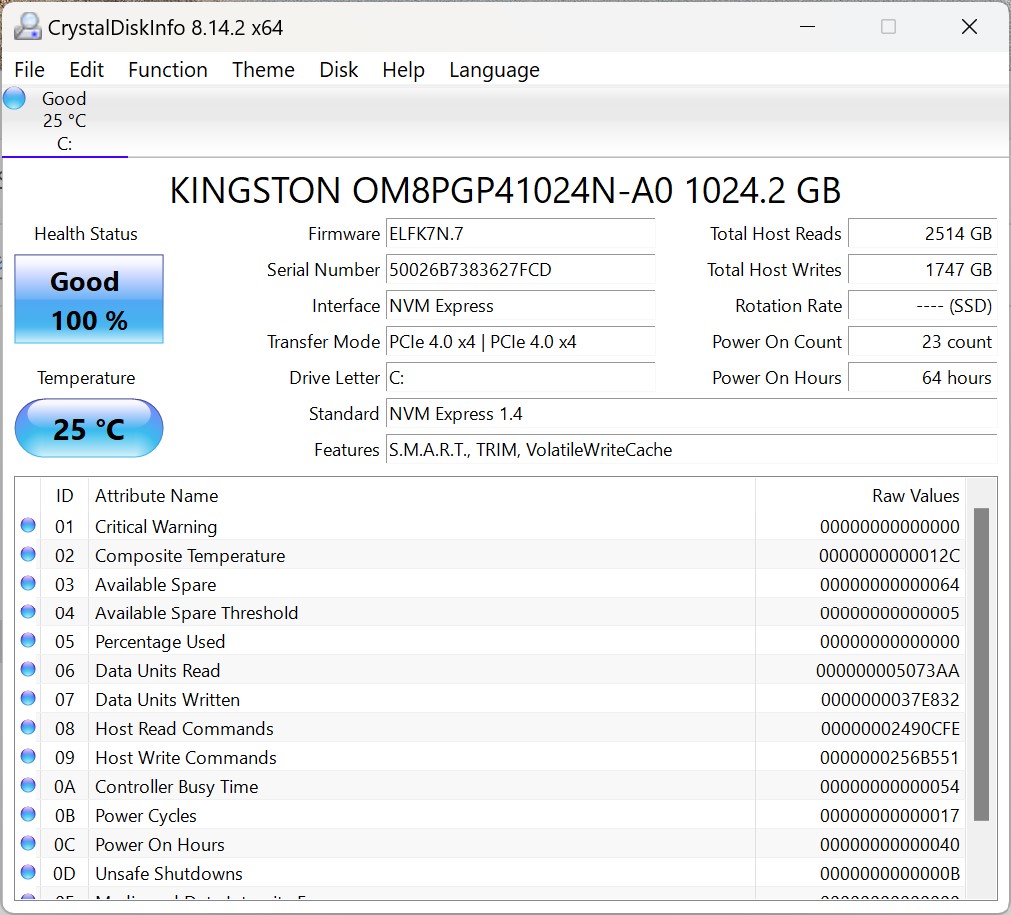

Storage
Kingston OM8PGP41024N-A0, 1024 GB
, 940 GB free
Weight
580 g ( = 20.46 oz / 1.28 pounds), Power Supply: 270 g ( = 9.52 oz / 0.6 pounds)
Price
749 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Case & connectivity - Dual USB4, but no OCuLink

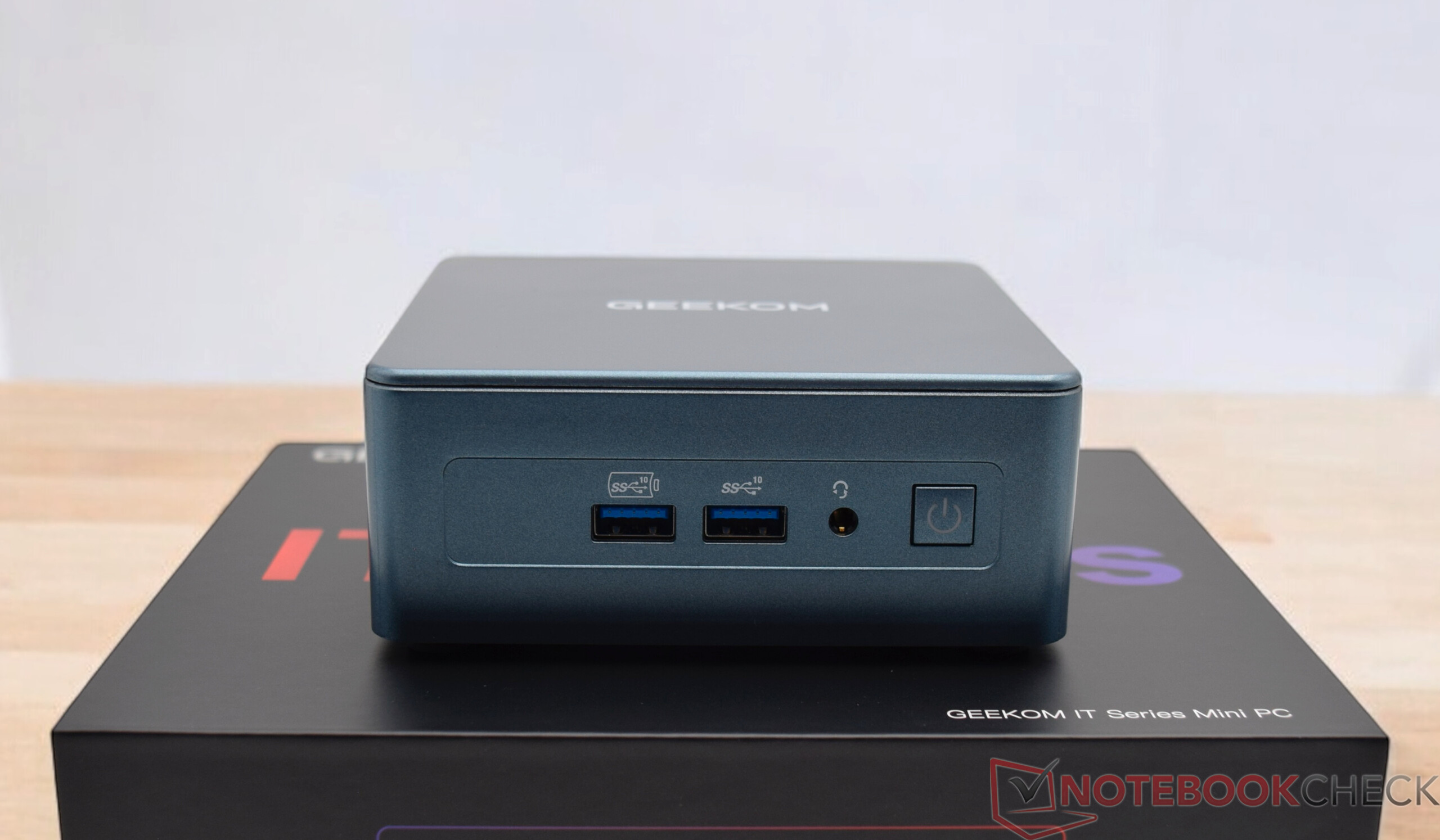

Visually, the Geekom Mini IT13 is very similar to the Intel NUC models and has the same footprint of 11.7 × 11.2 centimeters. It is slightly larger in height at 4.5 centimeters, as it features space for a 2.5-inch drive—similar to the tall variants of the Intel NUCs. Although Geekom advertises the Mini IT13 as the 2025 Edition, nothing has changed visually compared to the Mini IT12. Its design is similar to the older model and Geekom has also kept the turquoise case.

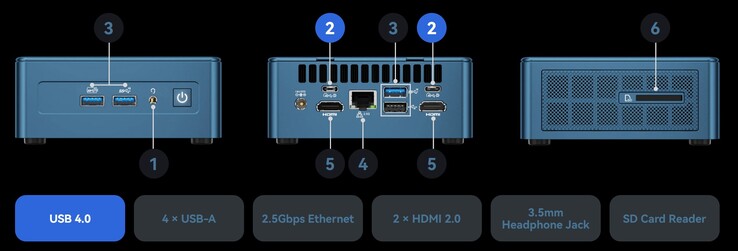

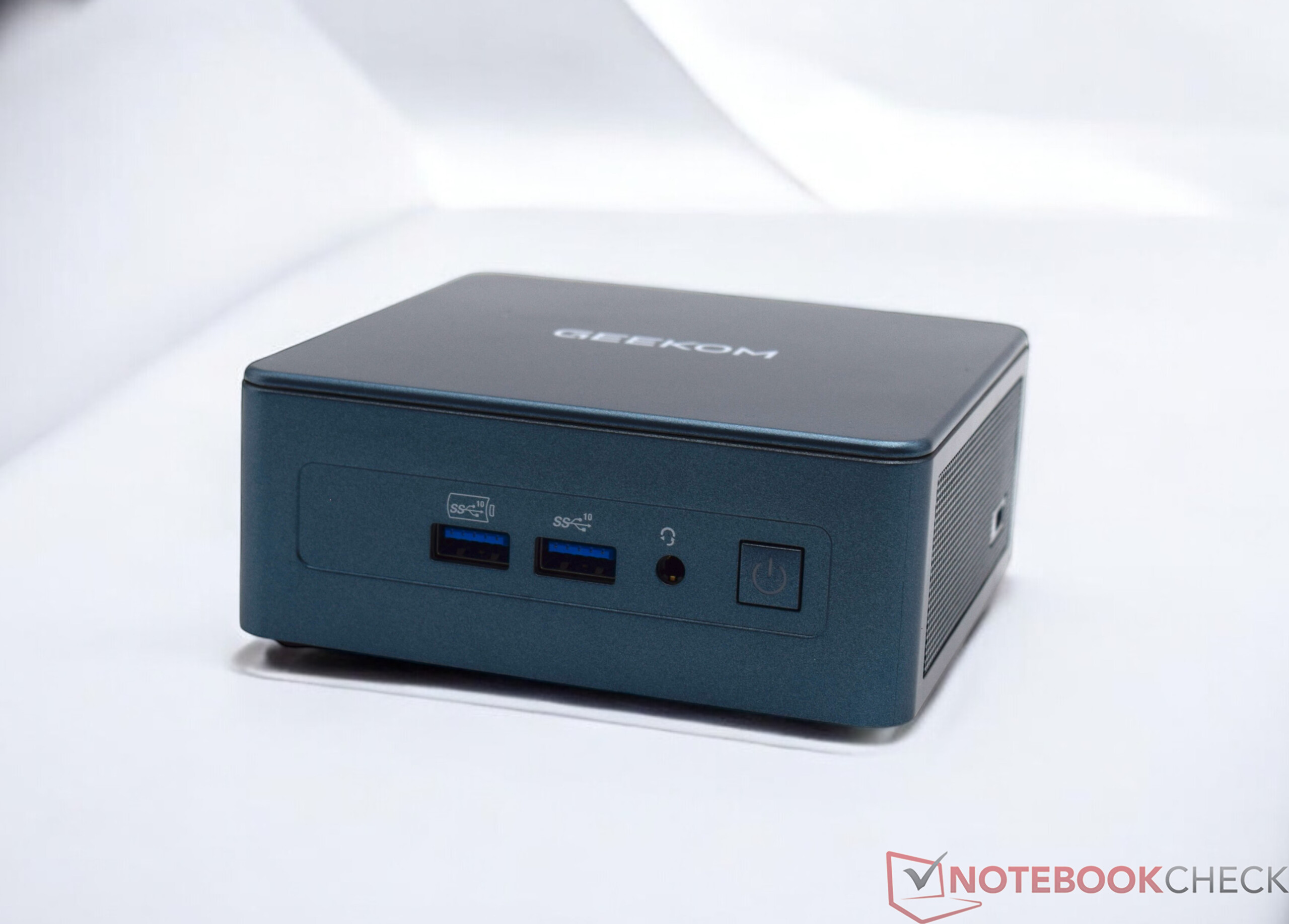

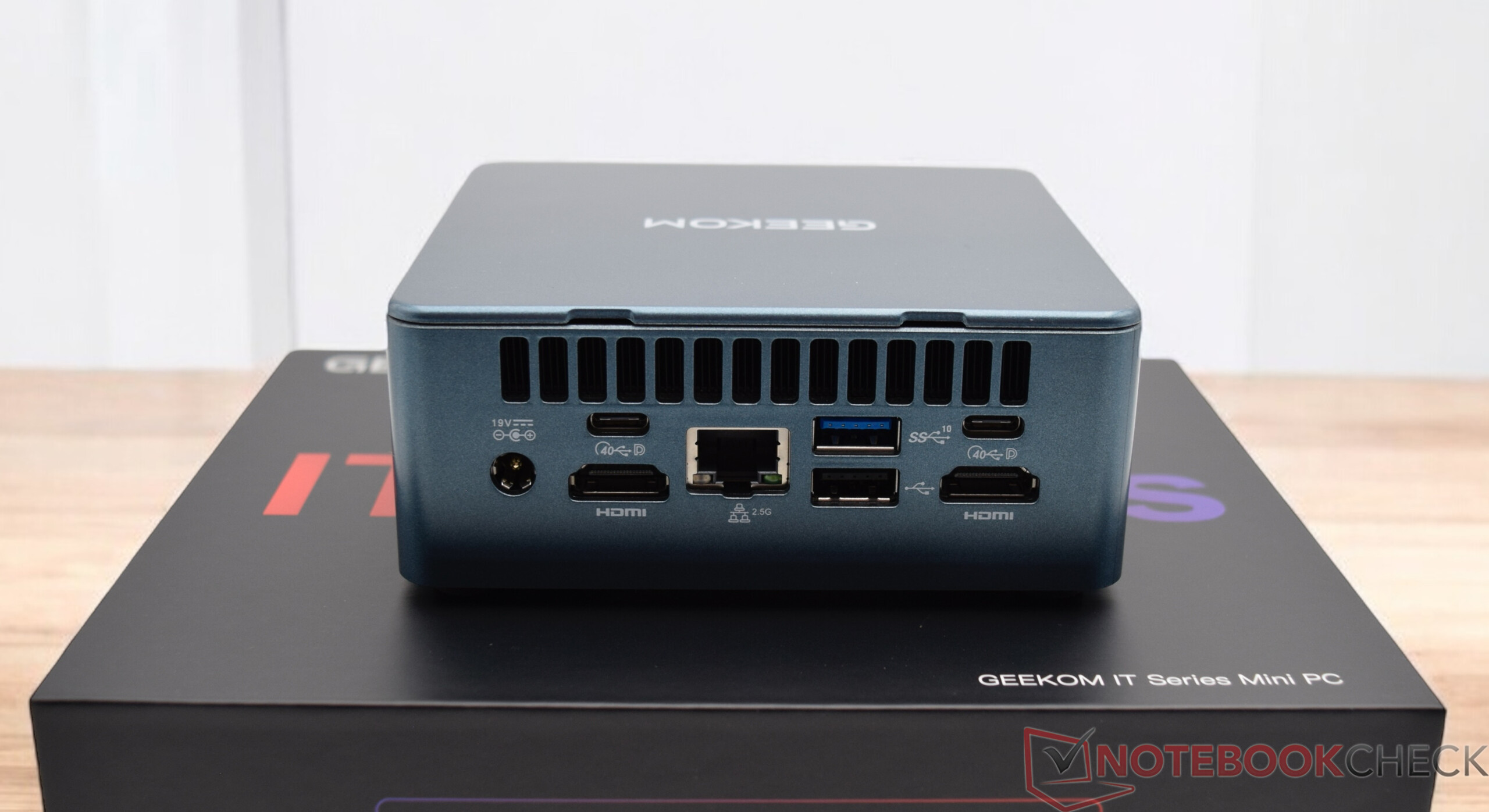

The Geekom Mini IT13 comes with a good variety of connections. It has four USB-A ports, one of which only supports USB 2.0—ideal for a mouse or keyboard. Two modern USB 4 ports (40 Gbps) significantly expand its range of applications, for example for fast storage or docking stations. Up to four monitors can be operated simultaneously via HDMI and USB4. The mini PC's connectivity also includes a 2.5 Gbit LAN port and a speedy SD card reader (UHS II). Geekom uses a wireless module from MediaTek for wireless communication. The device's WLAN performance is consistently good to very good, ensuring a fast and stable connection.
SD card reader
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Khadas Mind (AV Pro SD microSD 128 GB V60) | |
| Geekom A5 (AV Pro SD microSD 128 GB V60) | |
| Geekom Mini IT13 (AV Pro SD microSD 128 GB V60) | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
| Average of class Mini PC (15.1 - 214, n=26, last 2 years) | |
| Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Khadas Mind (AV Pro SD microSD 128 GB V60) | |
| Geekom A5 (AV Pro SD microSD 128 GB V60) | |
| Geekom Mini IT13 (AV Pro SD microSD 128 GB V60) | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
| Average of class Mini PC (18.2 - 221, n=26, last 2 years) | |
| Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |

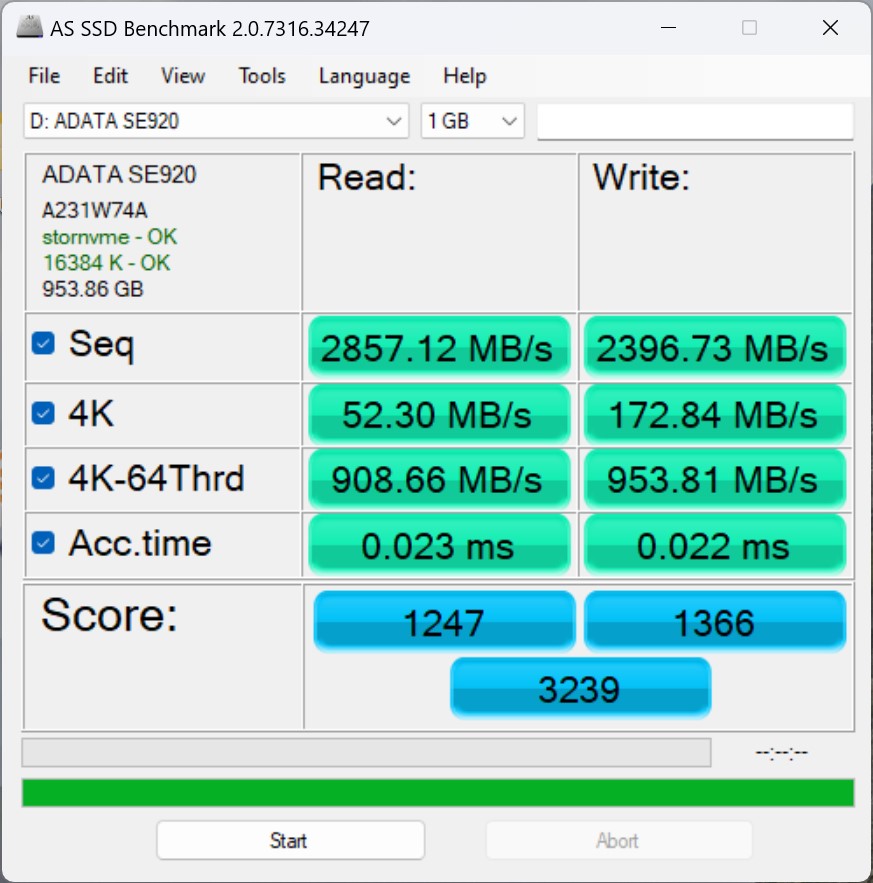

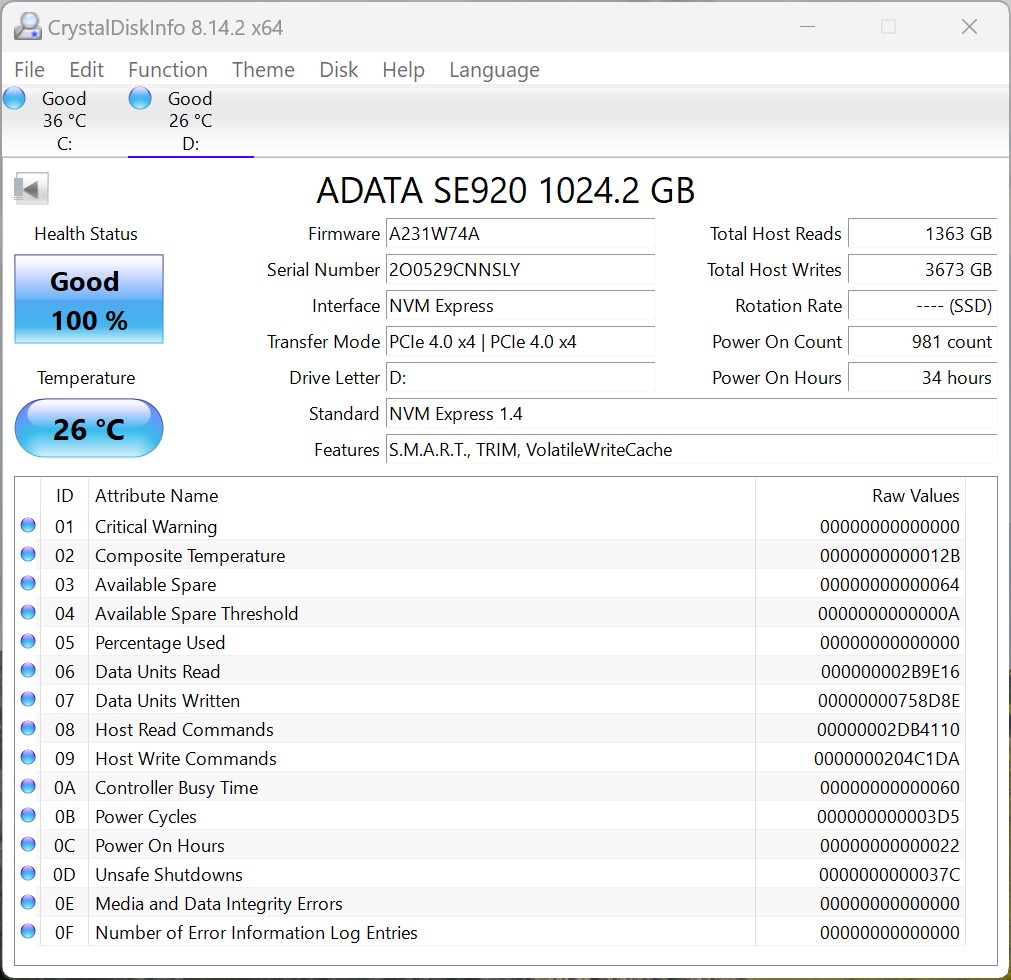

| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| Apple Mac Mini M4 Pro | |
| Minisforum MS-A1 | |
| Khadas Mind 2 | |
| Average of class Mini PC (1611 - 3906, n=13, last 2 years) | |
| Geekom Mini IT13 | |

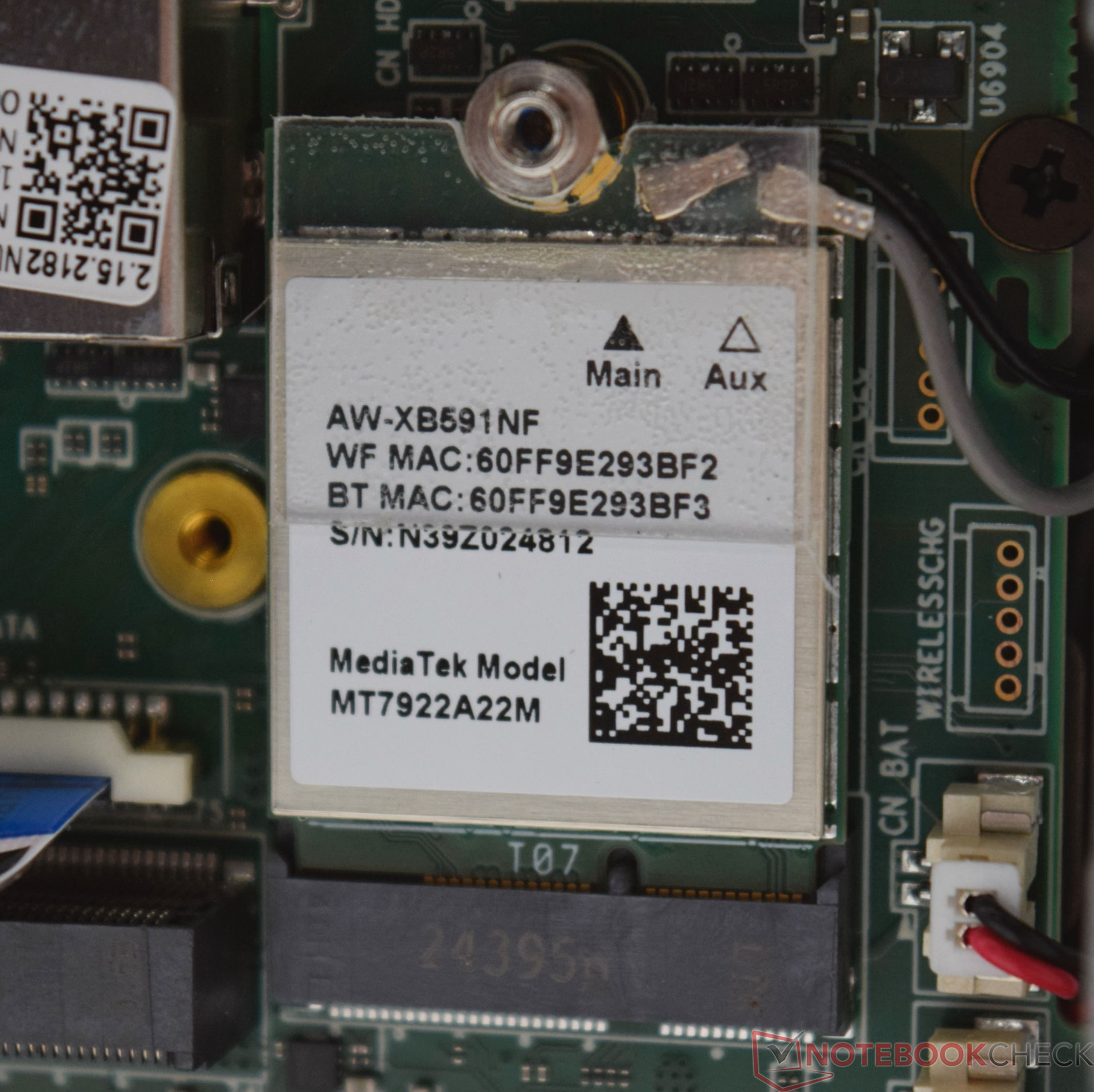

Geekom Mini IT13; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1151 (1008-1230)
Geekom Mini IT13; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1394 (1177-1484)
Geekom Mini IT13; iperf3 receive AXE11000; iperf 3.1.3: Ø972 (960-985)
Geekom Mini IT13; iperf3 transmit AXE11000; iperf 3.1.3: Ø736 (553-783)

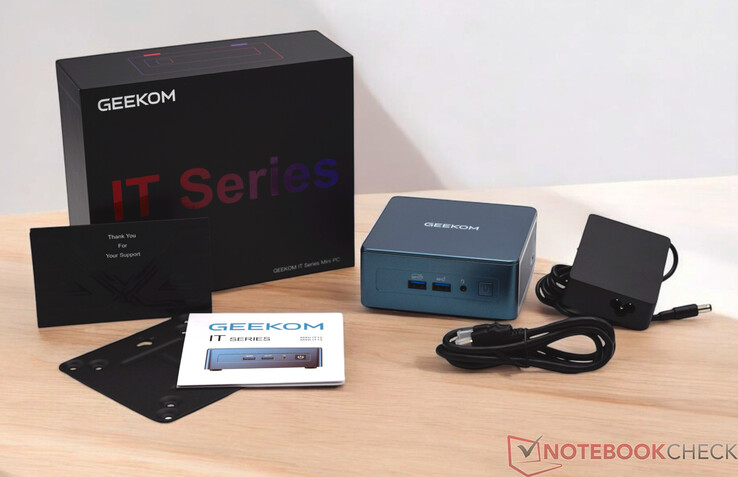

Accessories

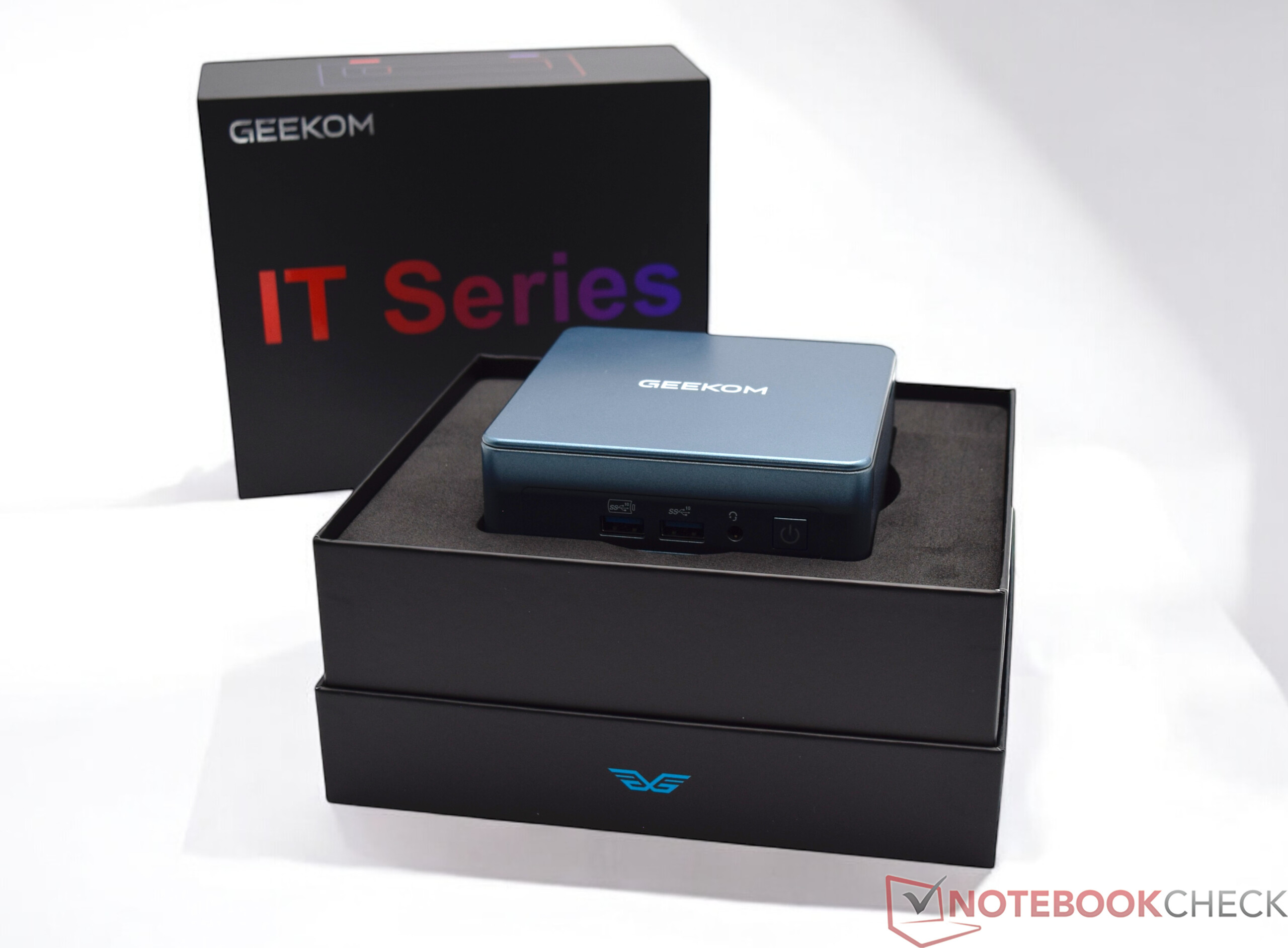

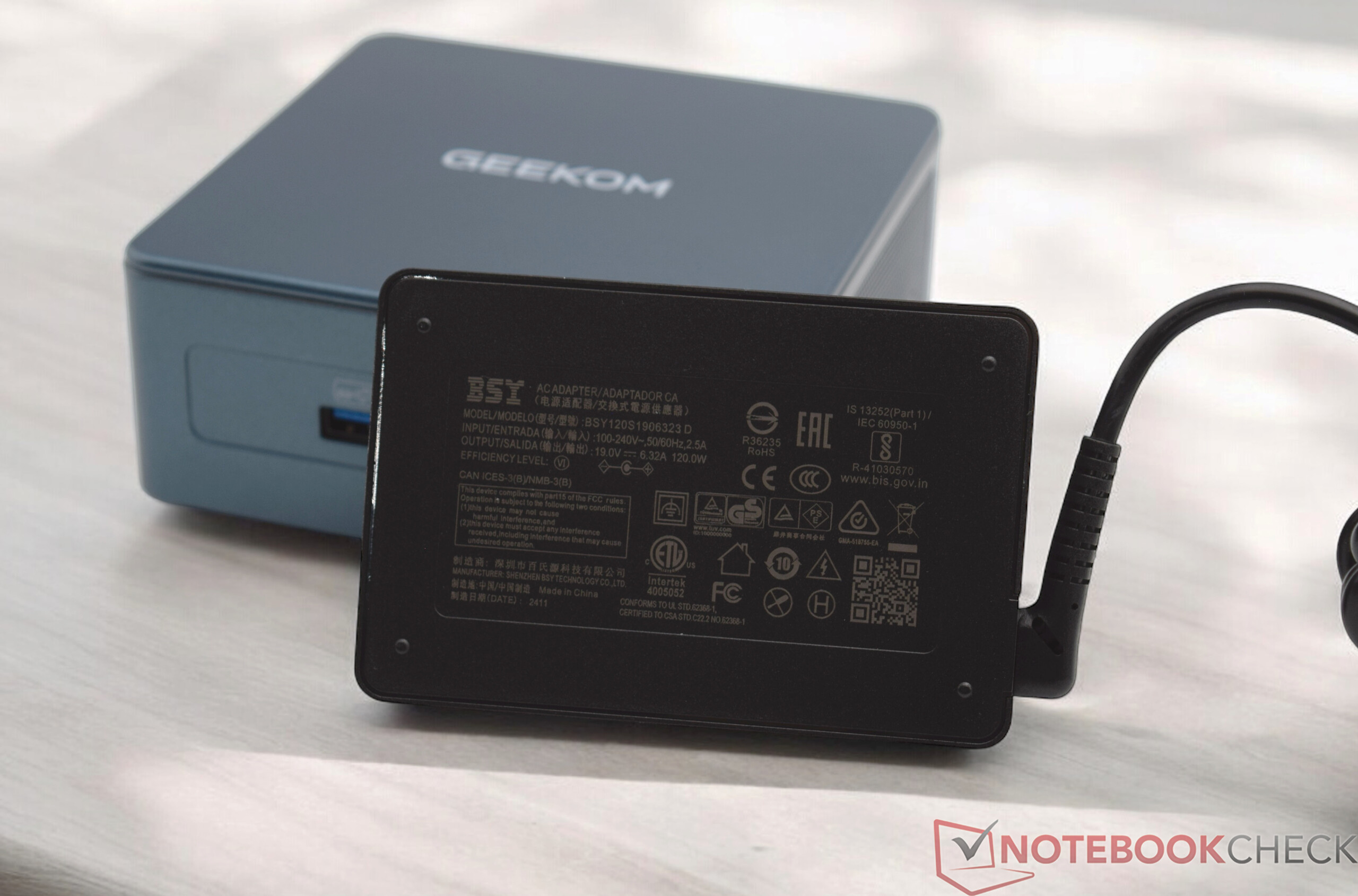

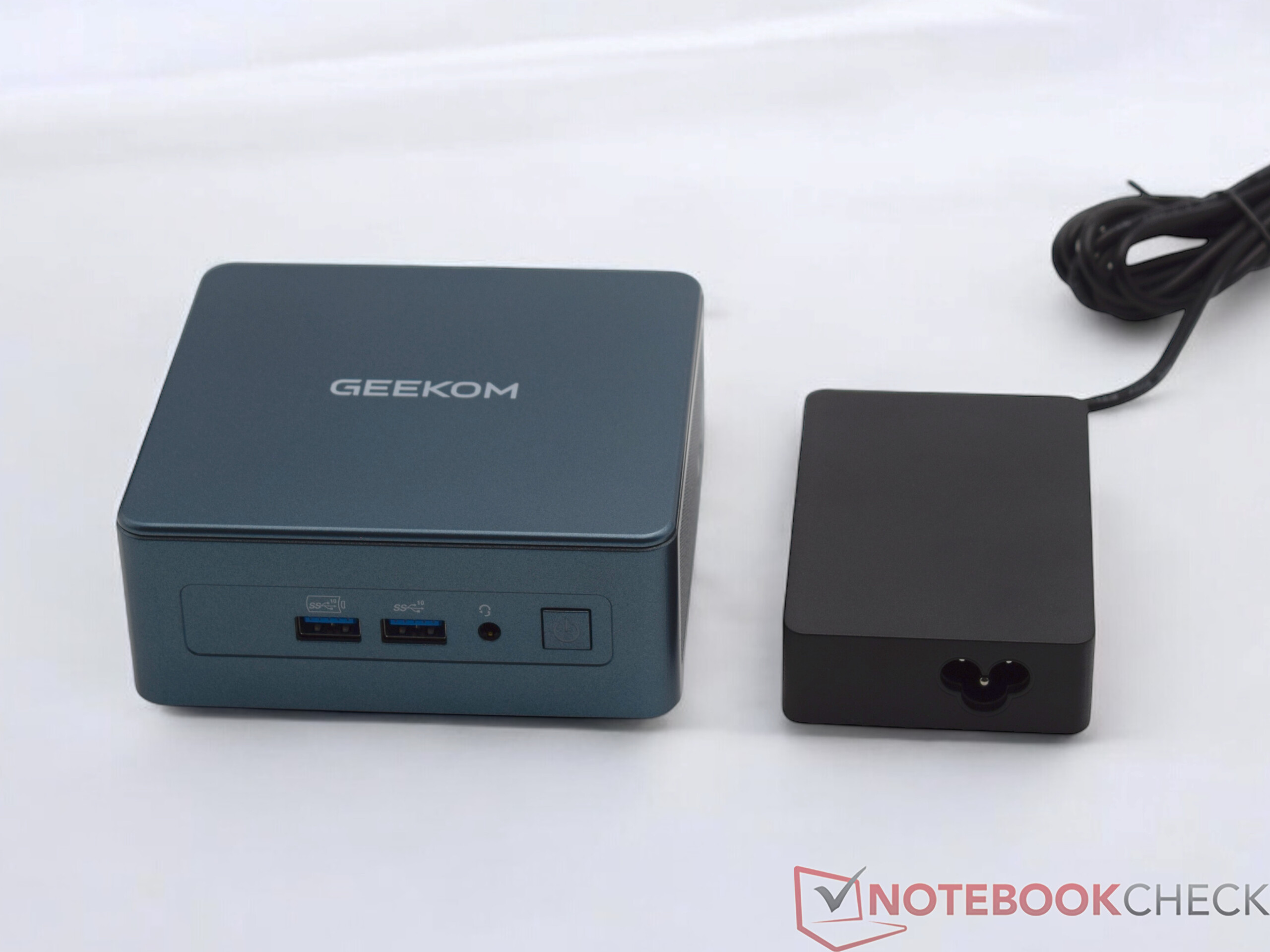

Aside from the mini PC itself, buyers receive a 120-watt power supply, a VESA mount, an HDMI cable as well as a short instruction manual.
Maintenance

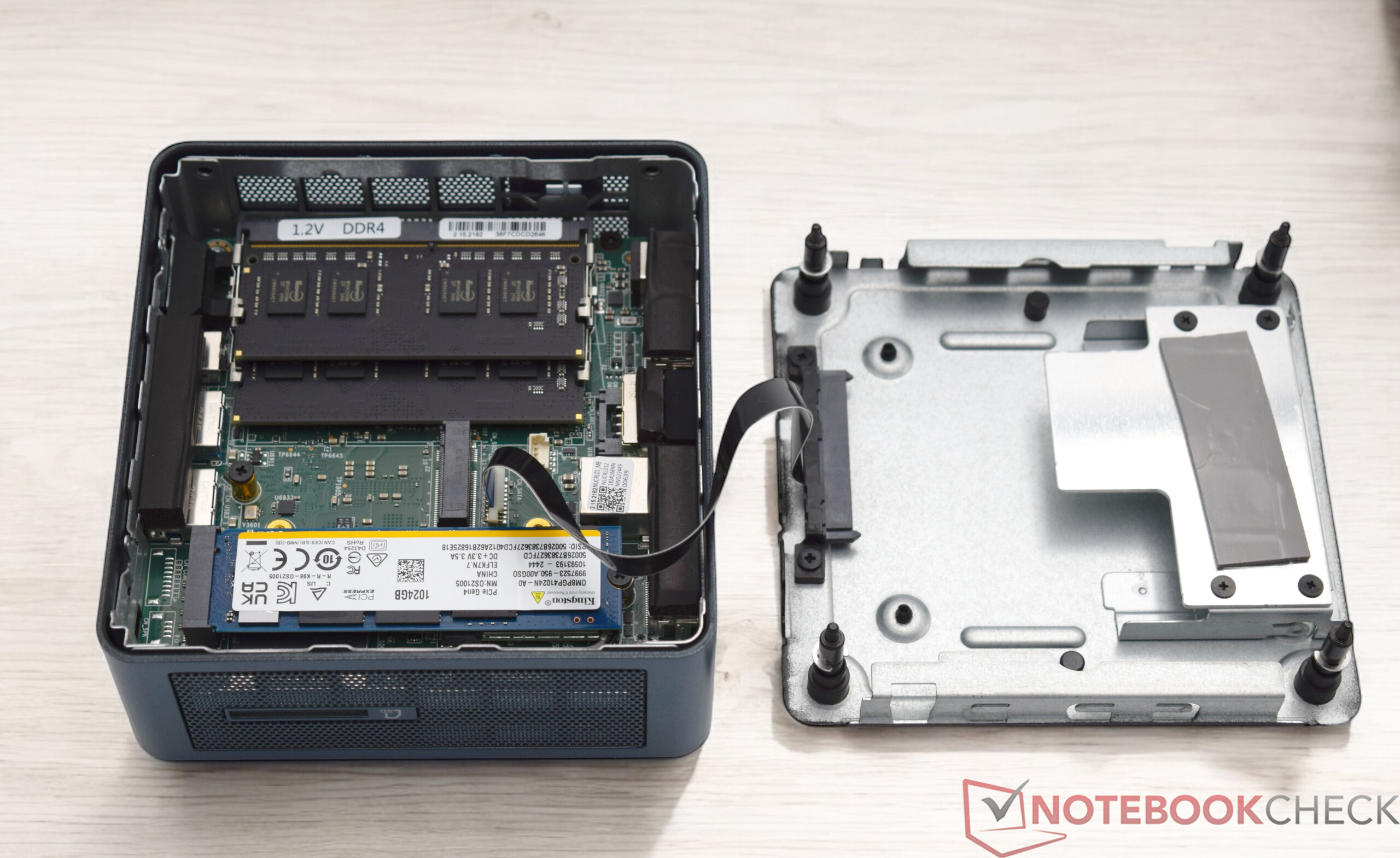

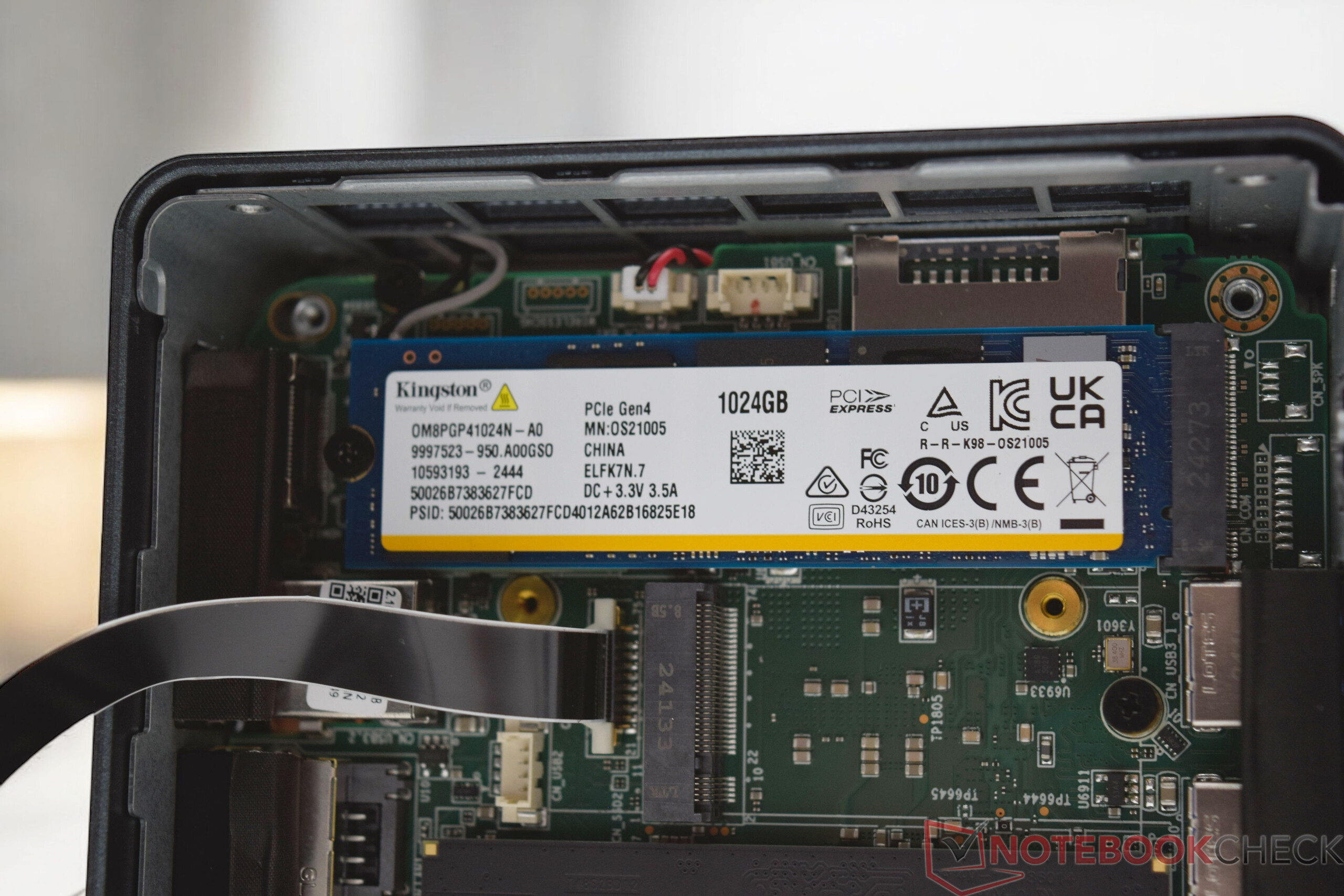

The Geekom Mini IT13 2025 Edition can be easily opened from the bottom. Four screws secure the base plate, which also serves as a passive SSD cooler. Once opened, the RAM, SSD slots and WLAN module are easily accessible, and a 2.5-inch drive can be installed. The fan, on the other hand, is more difficult to reach and requires further disassembly.
Sustainability
The Geekom Mini IT13 2025 Edition is a compact mini PC whose repair options are limited due to its build. Some positives worth mentioning include its 36-month warranty, which sets Geekom apart from lots of competitors. Its compact packaging makes transport easier, and its low power consumption compared to desktop PCs speaks in favor of the device's sustainability—although the manufacturer hasn't published any details on its use of recycled materials.
Performance - A high-end CPU with 14 cores
The Geekom Mini IT13 2025 Edition's Intel Core i9-13900HK delivers strong performance during everyday use. Thanks to its combination of performance and efficiency cores, the SoC even masters more demanding tasks without any problems and is in no way inferior to its competitors with AMD SoCs.
Testing conditions
All tests in this review were carried out in the device's delivered state with a preset power limit. Changes to its fan speed can be made in the BIOS and may have an impact on performance.

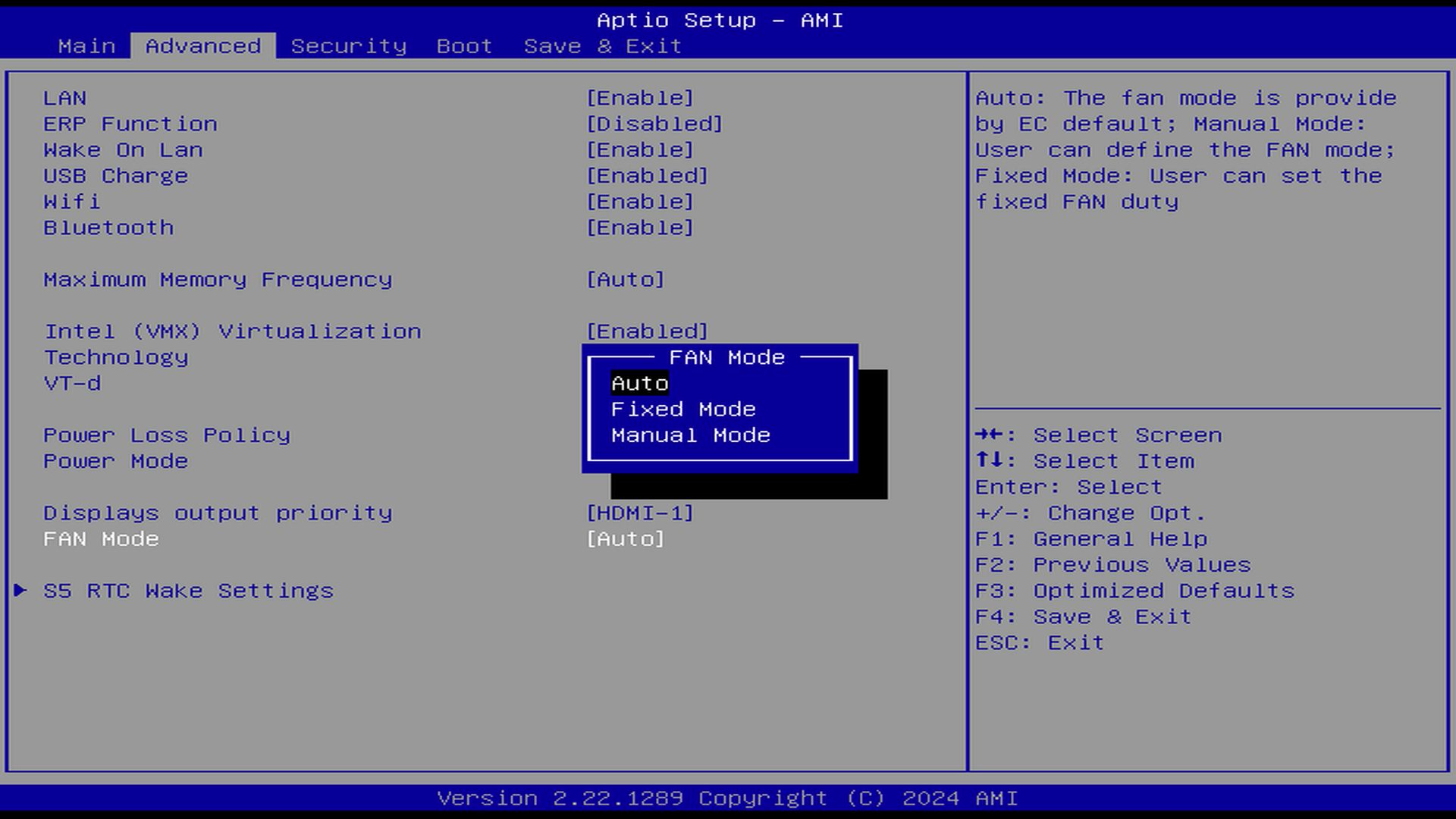

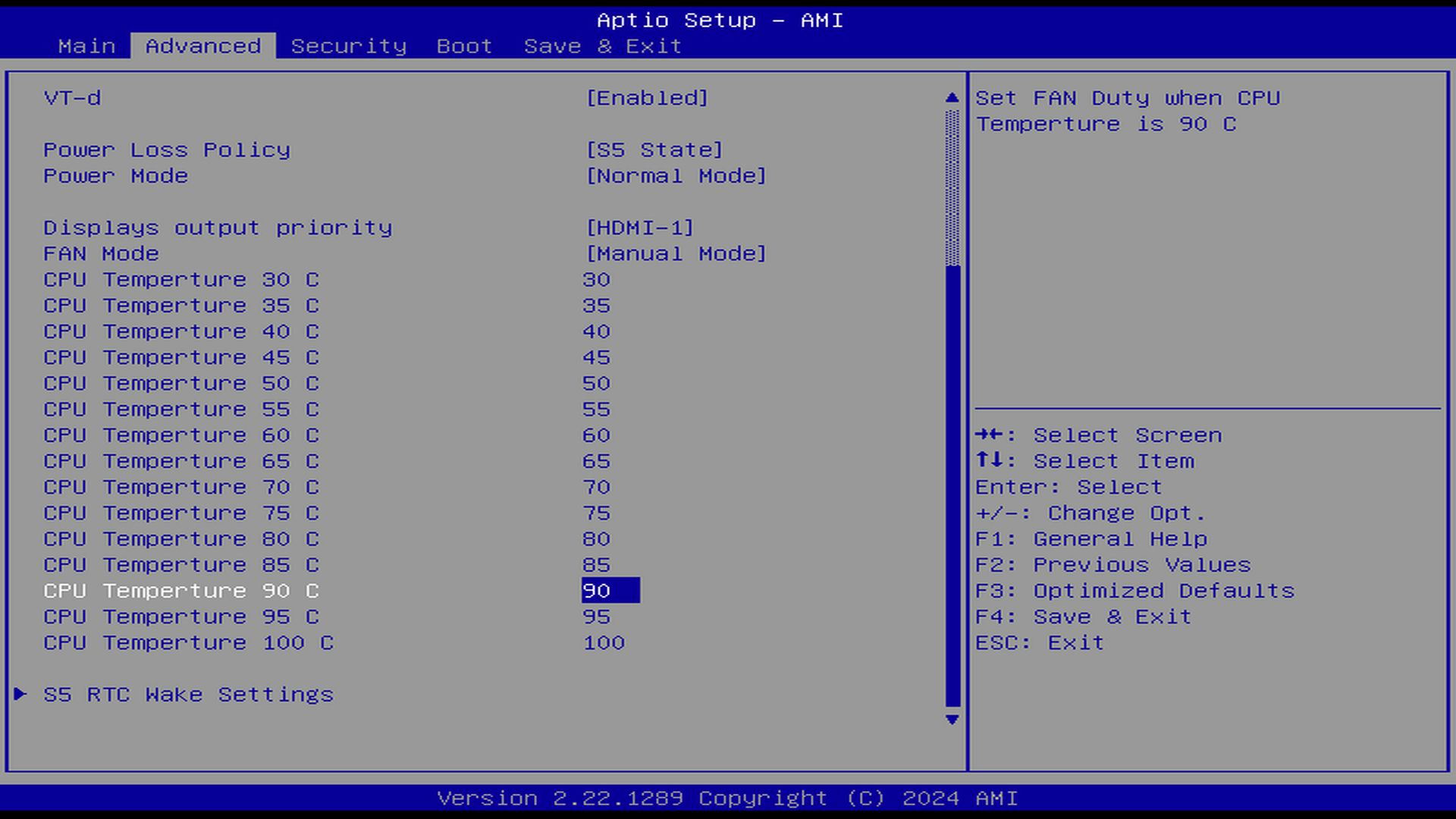

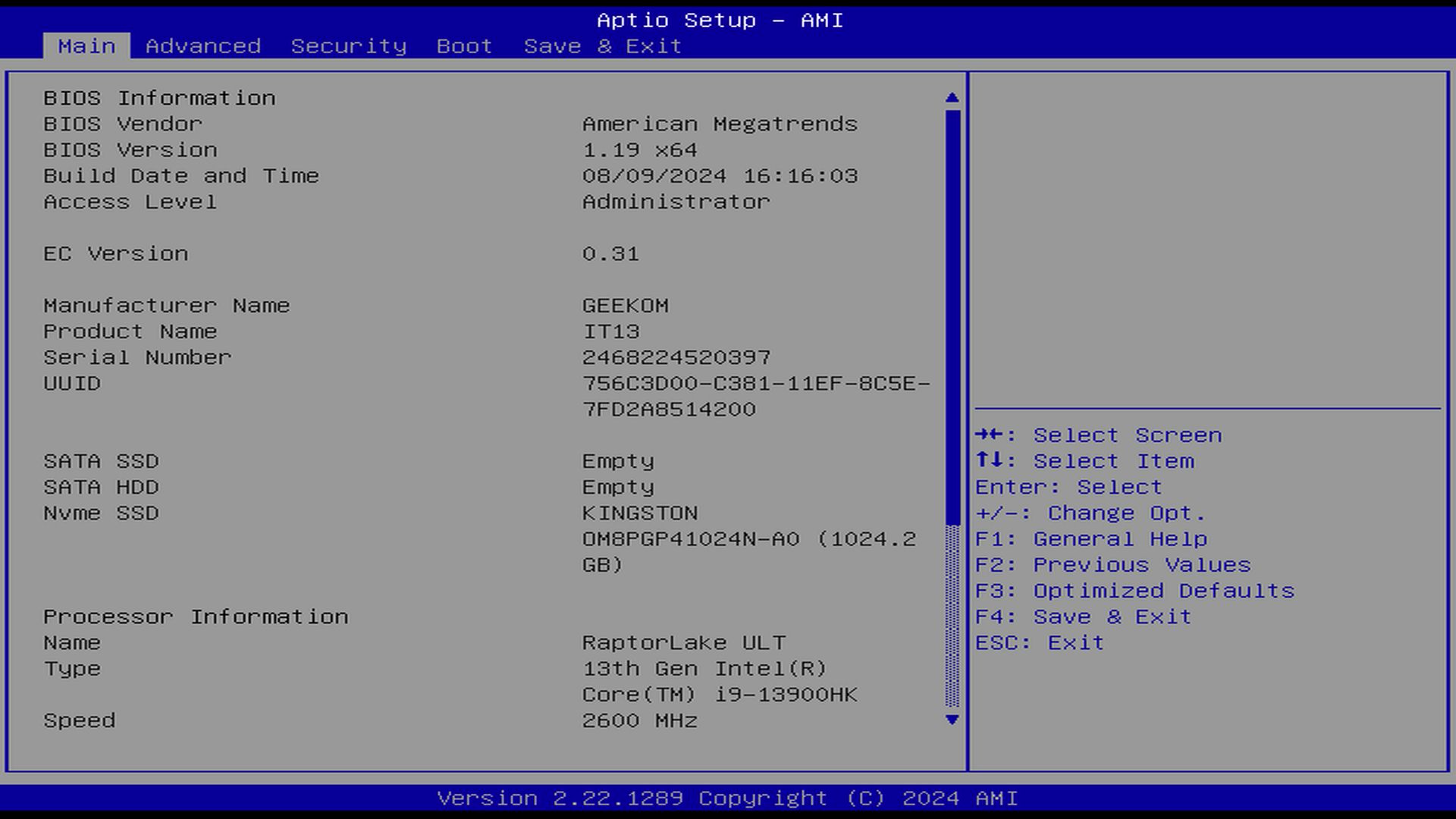

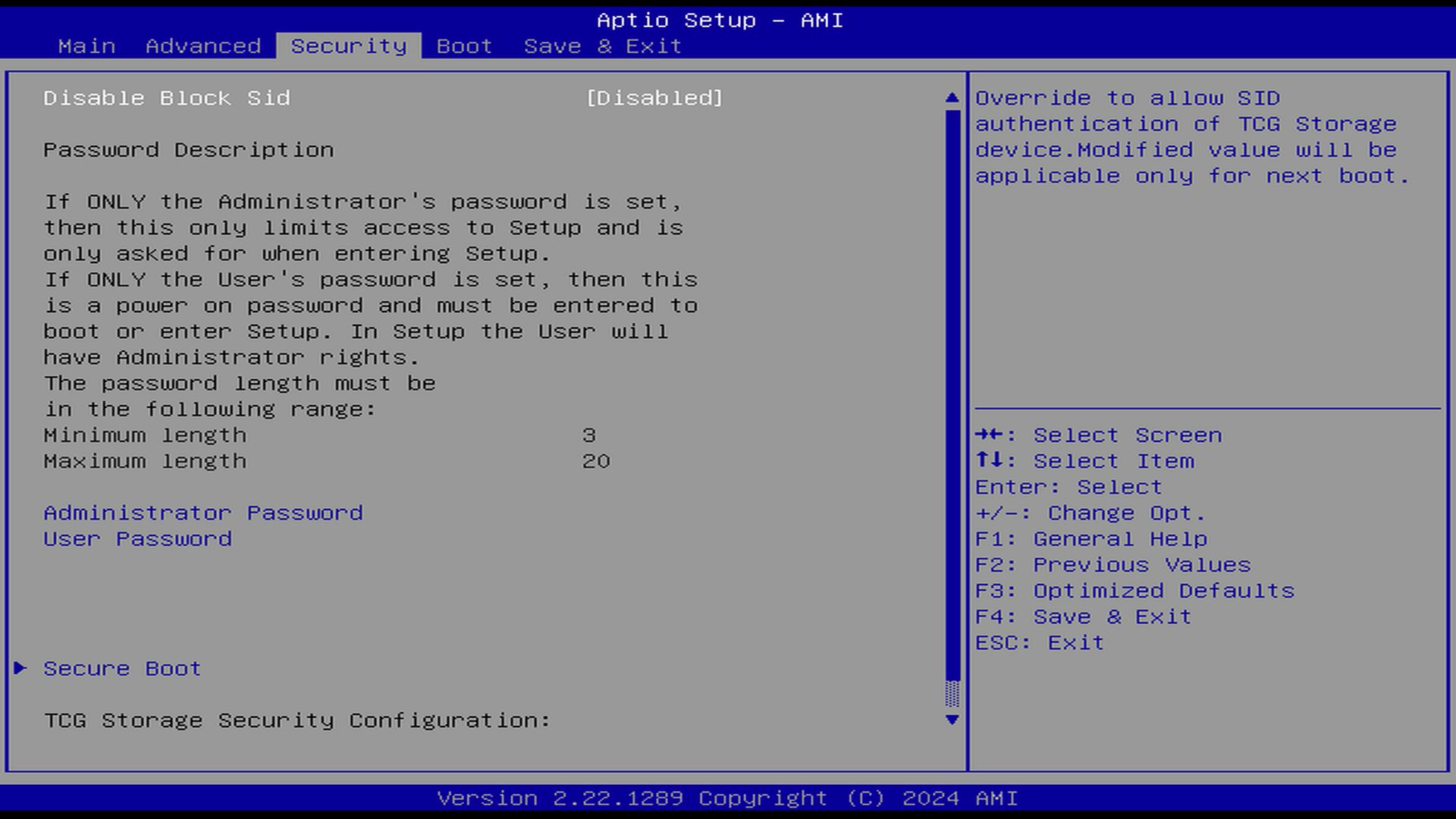

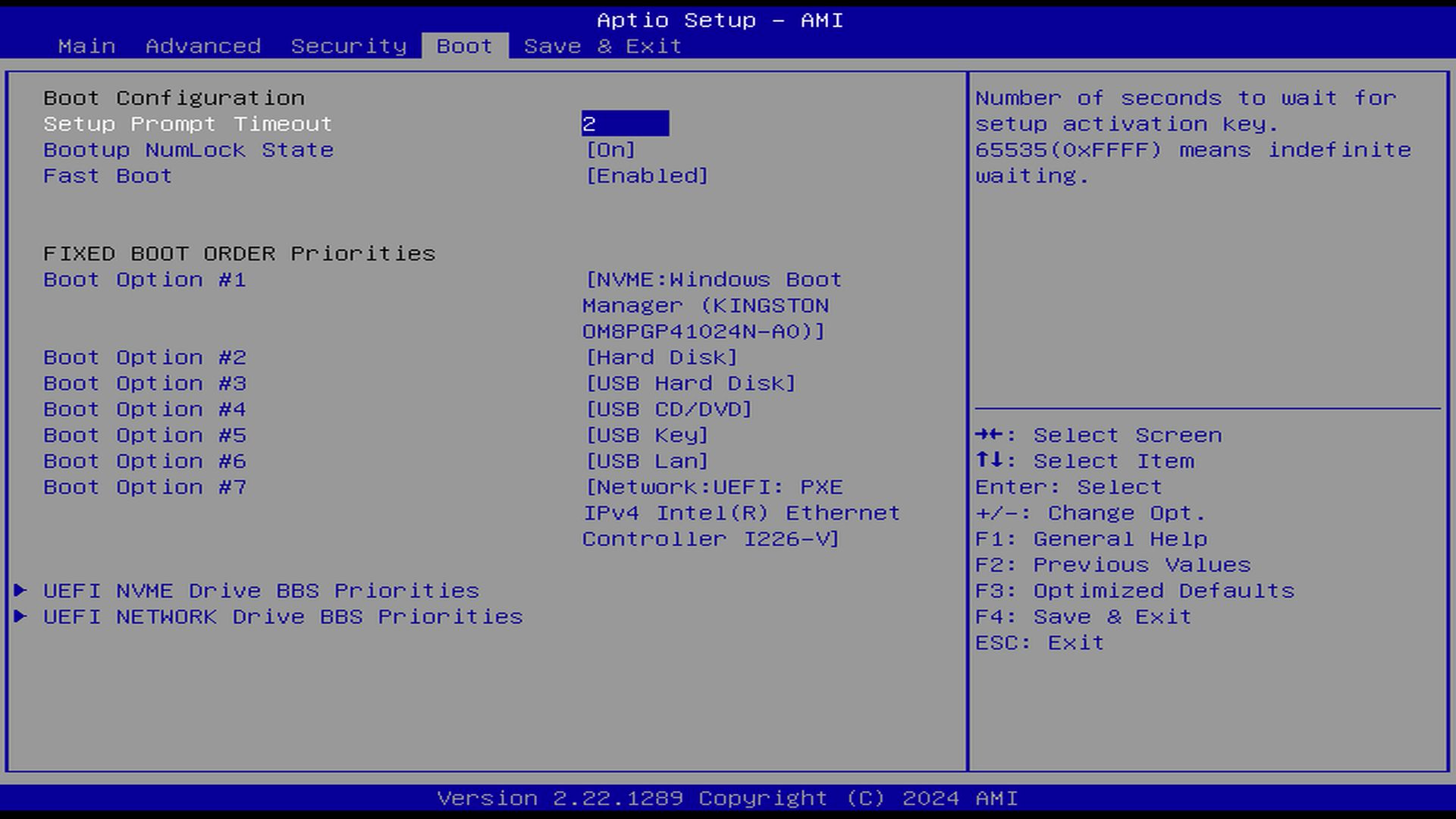

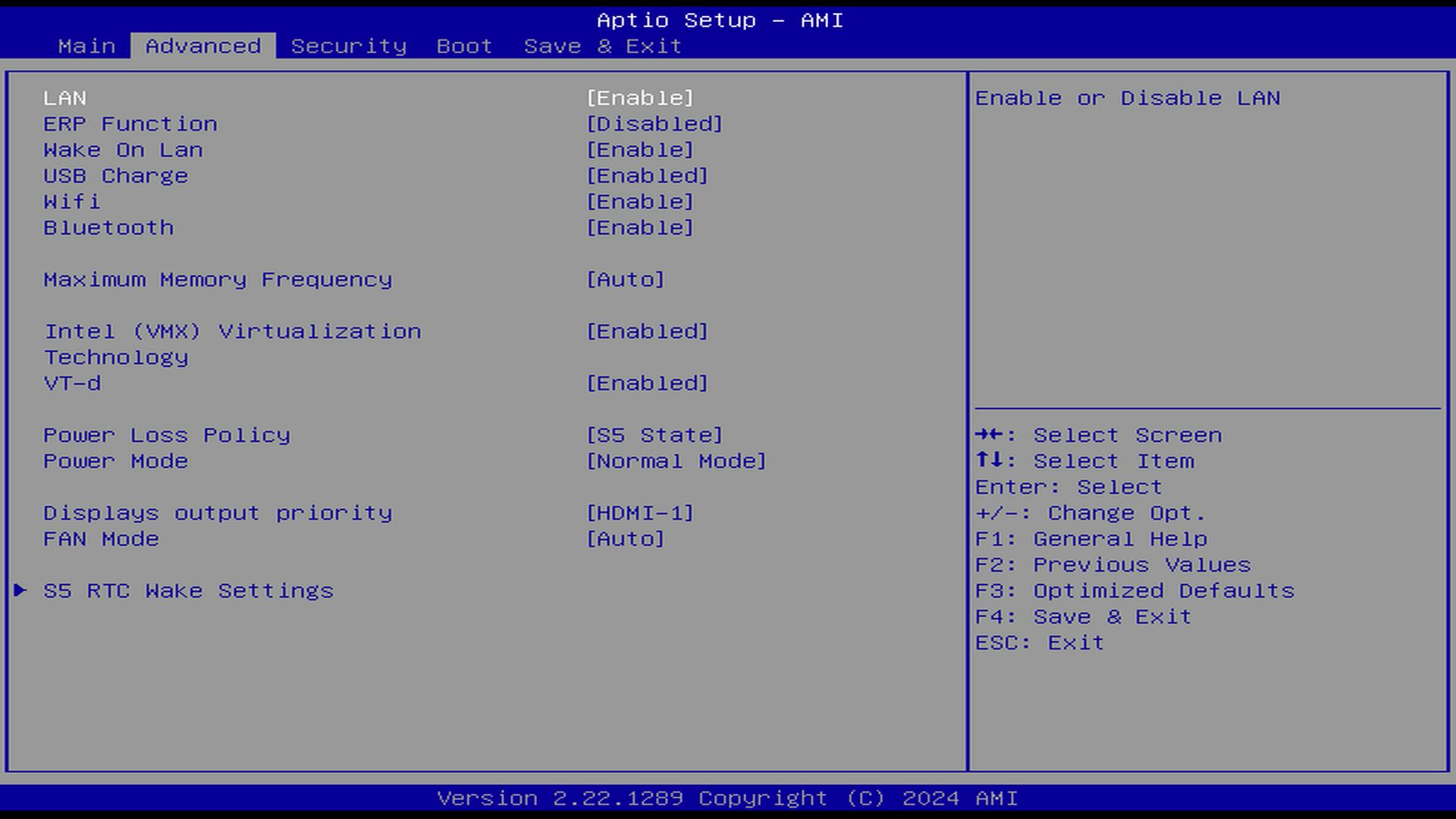

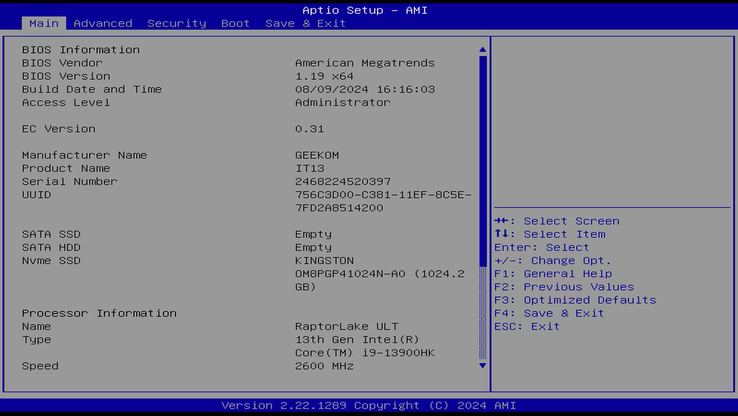

BIOS options
Processor

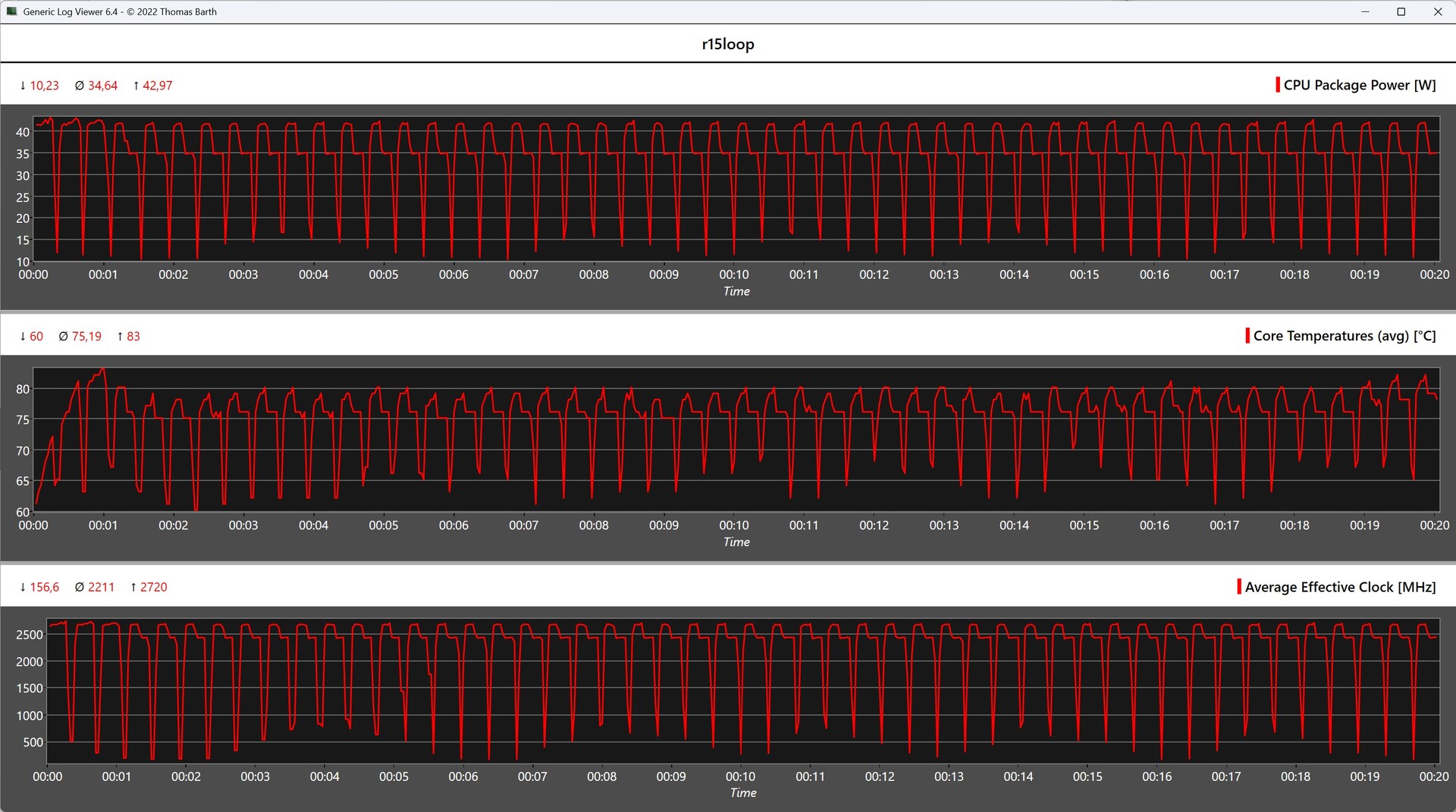

The Geekom Mini IT13 2025 Edition is equipped with the Intel Core i9-13900HK, a high-end processor with 14 cores and 20 threads. Thanks to its hybrid architecture with powerful P-cores and efficient E-cores, the SoC delivers an excellent balance of performance and energy efficiency. Geekom limits its short-term maximum output to 55 watts, while this is reduced to 35 watts under continuous load. In comparison, the Geekom Mini IT13 2025 Edition ranked directly behind the Minisforum UH125 Pro with the Intel Core Ultra 5 125H.
Performance Rating | Cinebench 2024 | Cinebench R23 | Cinebench R20 | Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Blender | wPrime 2.10 | X264 HD Benchmark 4.0 | WinRAR | TrueCrypt | Geekbench AI | Geekbench 6.4 | Geekbench 6.0 | Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | 3DMark 11 | 7-Zip 18.03 | HWBOT x265 Benchmark v2.2 | R Benchmark 2.5 | LibreOffice | WebXPRT 4 | WebXPRT 3 | Mozilla Kraken 1.1 | 3DMark | Super Pi mod 1.5 XS 1M | Super Pi mod 1.5 XS 2M | Affinity Photo 2 | SPECworkstation 4.0
| Performance Rating - Percent | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Cinebench 2024 | |
| CPU Multi Core | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| CPU Single Core | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Cinebench R23 | |
| Multi Core | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Single Core | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| CPU (Single Core) | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| CPU Single 64Bit | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Cinebench R11.5 | |
| CPU Multi 64Bit | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| CPU Single 64Bit | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Cinebench R10 | |
| Rendering Single CPUs 64Bit | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Rendering Multiple CPUs 64Bit | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Blender | |
| v2.79 BMW27 CPU | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| v3.3 Classroom CPU | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| v4.3 Barbershop CPU | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| wPrime 2.10 | |
| 32m | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
| 1024m | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
| X264 HD Benchmark 4.0 | |
| Pass 1 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Pass 2 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| WinRAR - Result | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| TrueCrypt | |
| AES Mean 100MB | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Twofish Mean 100MB | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| Serpent Mean 100MB | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| Geekbench AI | |
| Single Precision CPU 1.2 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Half Precision CPU 1.2 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Quantized CPU 1.2 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Single Precision CPU 1.3 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Half Precision CPU 1.3 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Quantized CPU 1.3 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Geekbench 6.4 | |
| Multi-Core | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Single-Core | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekbench 6.0 | |
| Multi-Core | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Single-Core | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekbench 5.5 | |
| Multi-Core | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Single-Core | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekbench 5.0 | |
| 5.0 Multi-Core | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| 5.0 Single-Core | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekbench 4.4 | |
| 64 Bit Multi-Core Score | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| 64 Bit Single-Core Score | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| 3DMark 11 - 1280x720 Performance Physics | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| 7z b 4 -mmt1 | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| R Benchmark 2.5 - Overall mean | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Acemagic AM18 | |
| LibreOffice - 20 Documents To PDF | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Geekom Mini IT12 | |
| Acemagic AM18 | |
| WebXPRT 4 - Overall | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| WebXPRT 3 - Overall | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Mozilla Kraken 1.1 - Total | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Acemagic AM18 | |
| 3DMark | |
| 1920x1080 Fire Strike Physics | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 2560x1440 Time Spy CPU | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Geekom Mini IT12 | |
| Super Pi mod 1.5 XS 1M - 1M | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Acemagic AM18 | |
| Super Pi mod 1.5 XS 2M - 2M | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Affinity Photo 2 - Combined (Multi CPU) | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| SPECworkstation 4.0 - CPU Score | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Average of class Mini PC | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| AIDA64 / FP32 Ray-Trace | |
| Acemagic AM18 | |
| Average of class Mini PC (764 - 51004, n=114, last 2 years) | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| AIDA64 / FPU Julia | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| Average of class Mini PC (4140 - 214250, n=114, last 2 years) | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| AIDA64 / CPU SHA3 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Average of class Mini PC (290 - 9399, n=114, last 2 years) | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| AIDA64 / CPU Queen | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Average of class Mini PC (8172 - 184747, n=114, last 2 years) | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| AIDA64 / FPU SinJulia | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Average of class Mini PC (408 - 29064, n=114, last 2 years) | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| AIDA64 / FPU Mandel | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Average of class Mini PC (2088 - 113499, n=114, last 2 years) | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| AIDA64 / CPU AES | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Average of class Mini PC (3691 - 325960, n=114, last 2 years) | |
| Geekom Mini IT12 | |
| Minisforum UH125 Pro | |
| AIDA64 / CPU ZLib | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Average of class Mini PC (76.7 - 2039, n=114, last 2 years) | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| AIDA64 / FP64 Ray-Trace | |
| Acemagic AM18 | |
| Average of class Mini PC (432 - 26952, n=114, last 2 years) | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| AIDA64 / CPU PhotoWorxx | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| Average of class Mini PC (5296 - 51727, n=114, last 2 years) | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Geekom A5 | |
Cinebench R15 Multi continuous test
Overall, the Geekom Mini IT13 (2025) performed well during the Cinebench R15 stress test. Its performance remained largely stable, with only a minimal drop under continuous load. Even so, it didn't fully utilize its maximum power limit of 55 watts, as the temperature limit kicked in first.
Geekom Mini IT13 Intel Core i9-13900HK, Intel Core i9-13900HK: Ø1900 (1875.47-2011.87)
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Core Ultra 5 125H: Ø2186 (2040.4-2248.33)
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Ryzen 7 6800H: Ø1983 (1919.75-2106.82)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Acemagic AM18 AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2489 (2476.93-2539.84)
Geekom A5 AMD Ryzen 7 5800H, AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)
System performance
The Geekom Mini IT13's conservative PL2 slowed down its system performance during the synthetic benchmarks, especially in PCMark 10. However, it performed better in Crossmark and the RAM tests, even outperforming the competition in some cases. The disadvantage of DDR4 compared to DDR5 became particularly clear in the RAM tests. Unfortunately, Geekom hasn't gone for DDR5 RAM.
| PCMark 10 / Score | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| PCMark 10 / Essentials | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| PCMark 10 / Productivity | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| CrossMark / Overall | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| CrossMark / Responsiveness | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| CrossMark / Creativity | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| CrossMark / Productivity | |
| Geekom Mini IT13, Intel Core i9-13900HK | |
| Acemagic AM18, AMD Ryzen 7 7840HS | |
| Geekom Mini IT12, Intel Core i7-1260P | |
| Aoostar GEM10, AMD Ryzen 7 6800H | |
| Minisforum UH125 Pro, Intel Core Ultra 5 125H | |
| Geekom A5, AMD Ryzen 7 5800H | |
| AIDA64 / Memory Copy | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Average of class Mini PC (8377 - 89287, n=114, last 2 years) | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| AIDA64 / Memory Read | |
| Minisforum UH125 Pro | |
| Acemagic AM18 | |
| Average of class Mini PC (8974 - 100086, n=114, last 2 years) | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| AIDA64 / Memory Write | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Average of class Mini PC (8762 - 100538, n=114, last 2 years) | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| AIDA64 / Memory Latency | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Average of class Mini PC (44.9 - 184.8, n=114, last 2 years) | |
| Acemagic AM18 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
* ... smaller is better

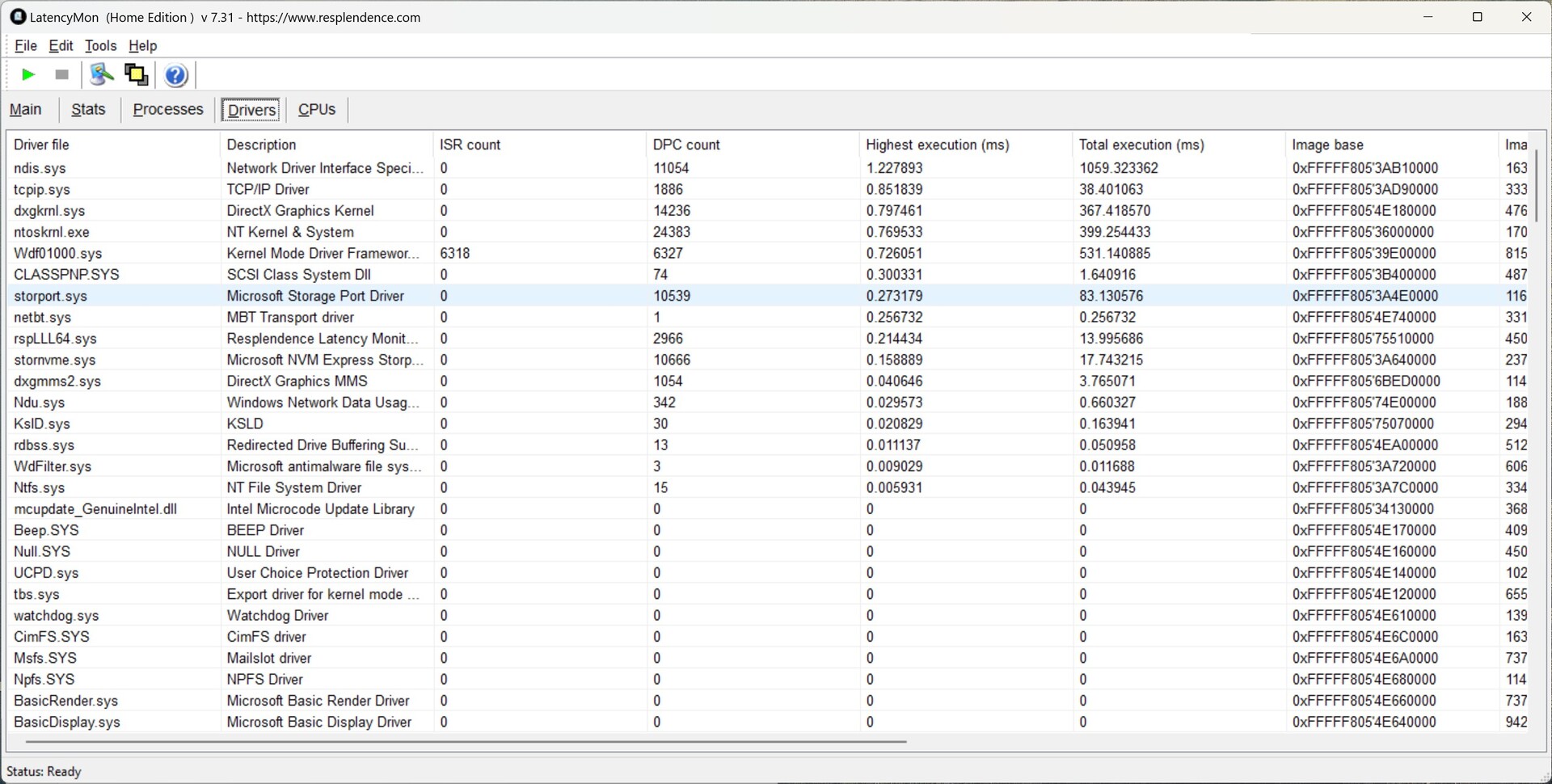

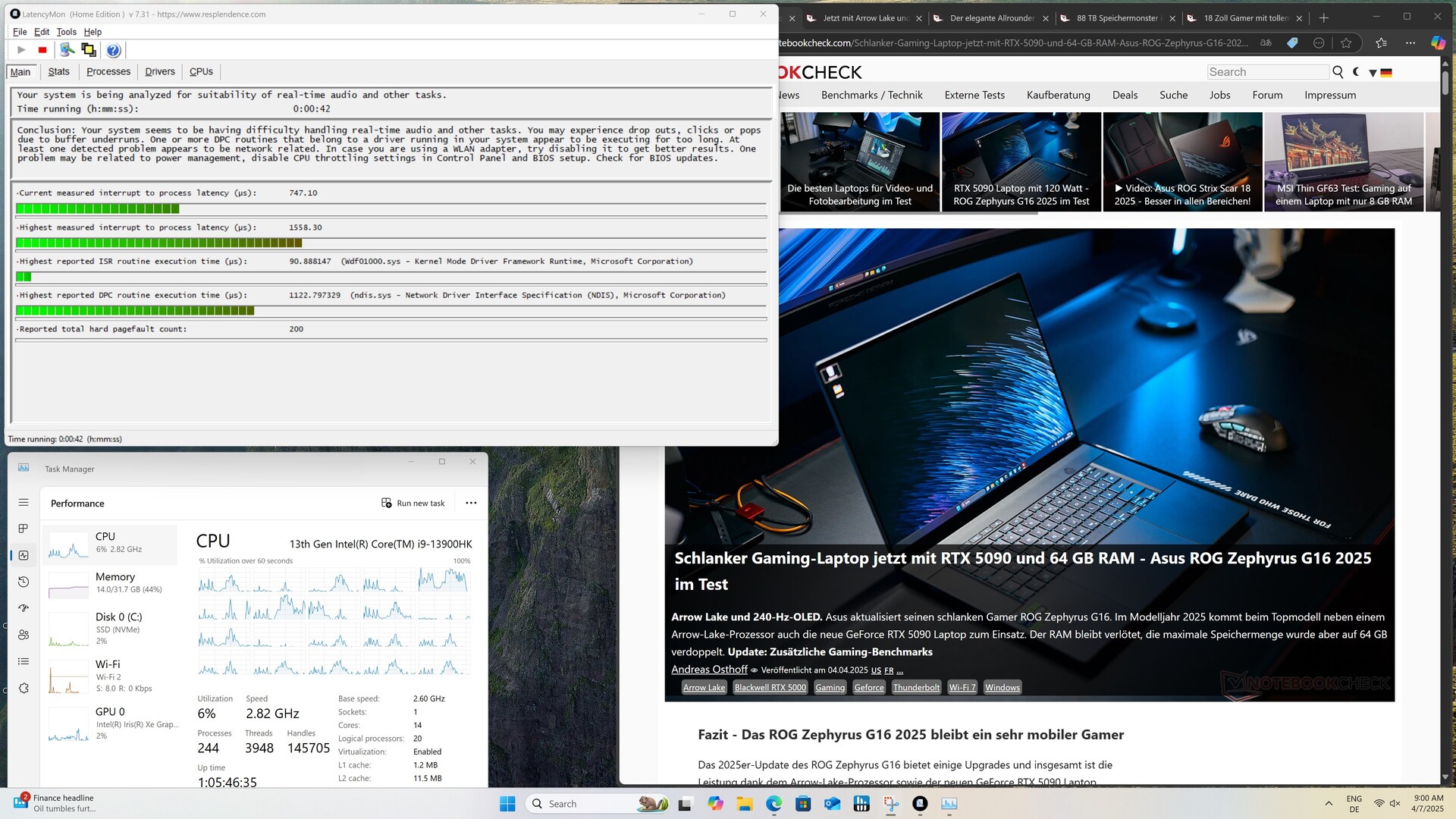

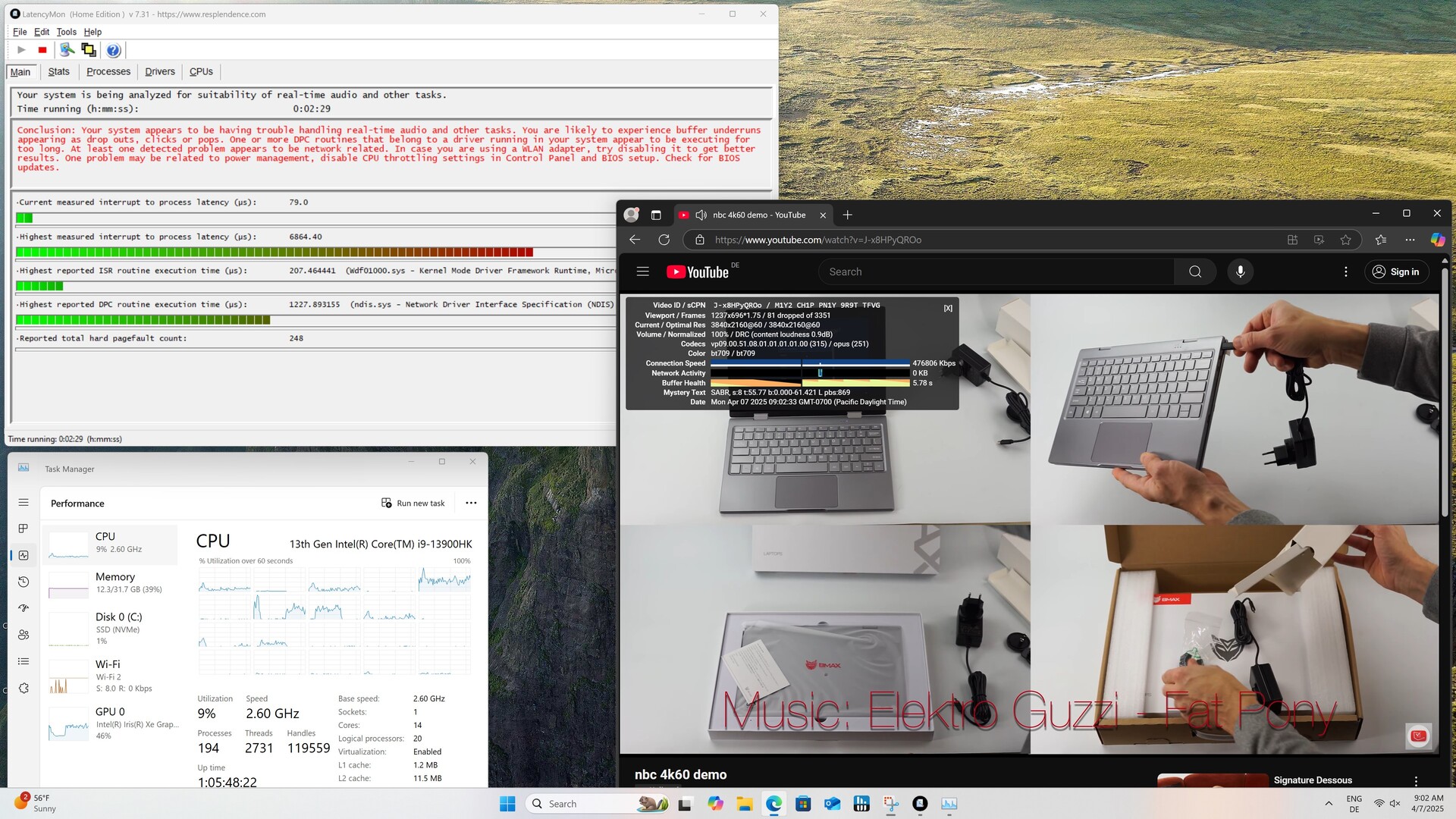

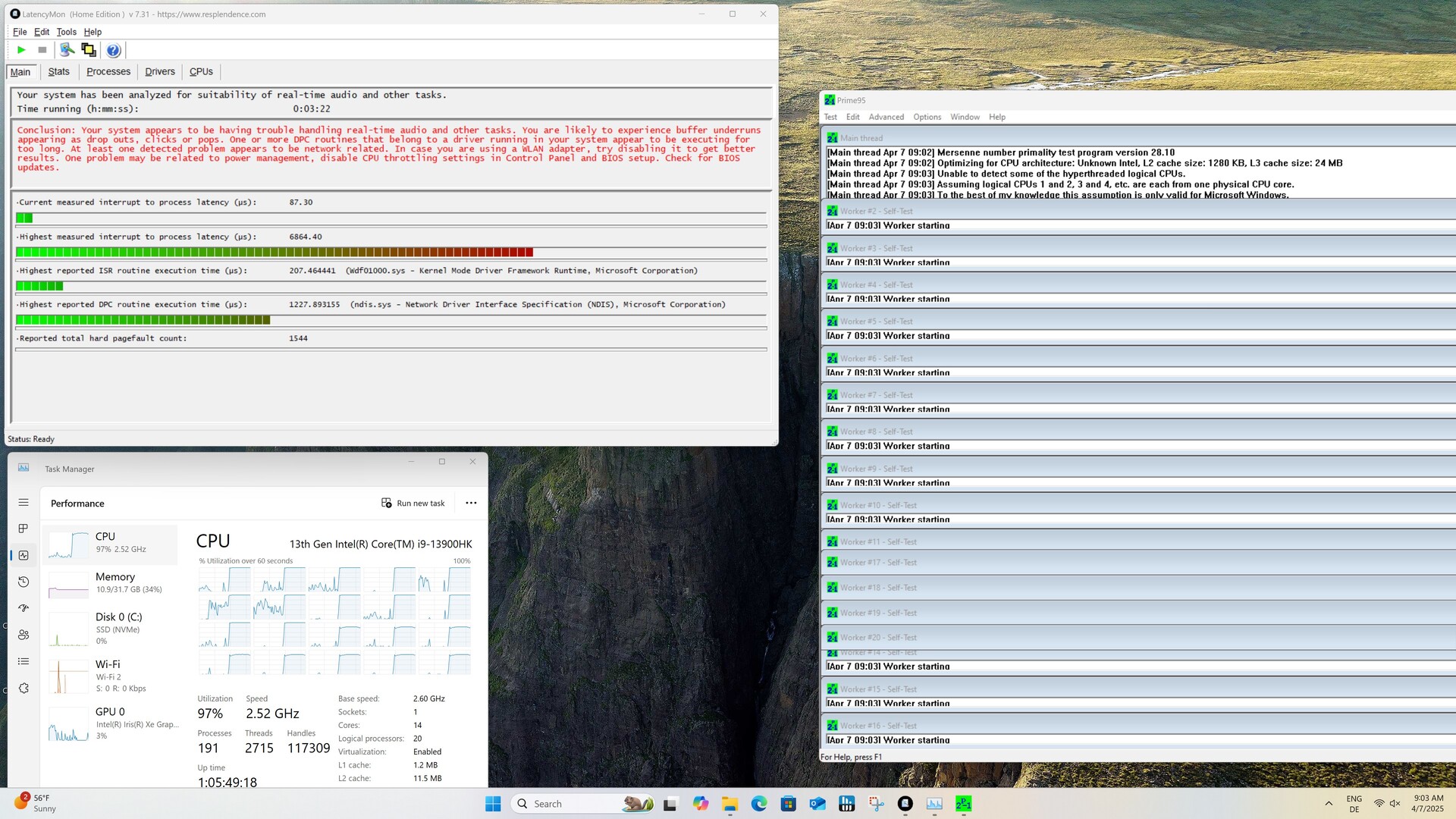

DPC latencies
The Geekom Mini IT13 (2025)'s DPC latencies which we measured are moderate. This is sufficient for everyday tasks such as video streaming or normal audio applications, but the mini PC isn't recommended for real-time audio or particularly latency-critical applications.
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
* ... smaller is better
Storage device

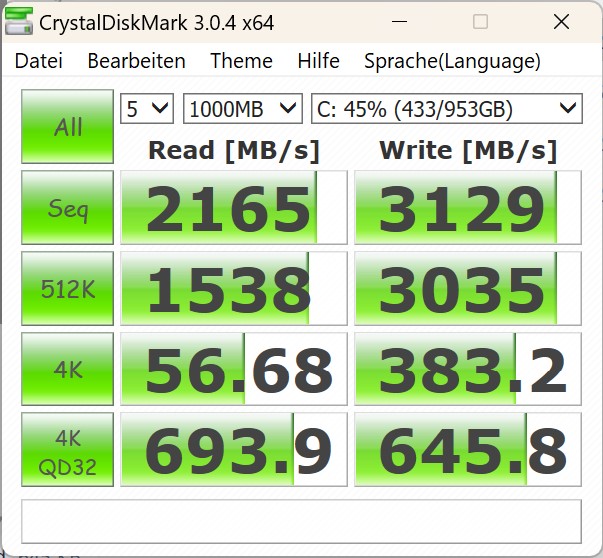

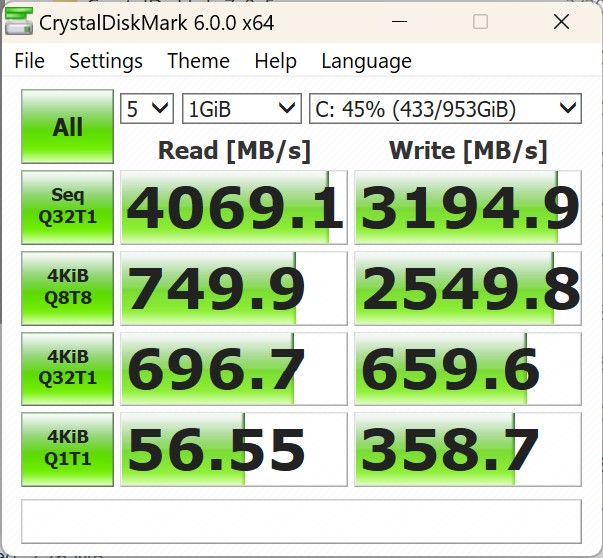

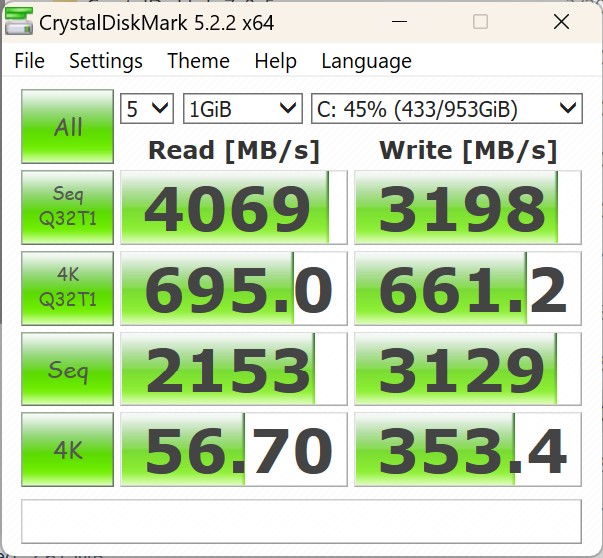

The Geekom Mini IT13 (2025) is fitted with a 1-TB, M.2-format Kingston NVMe SSD via a PCIe Gen4 connection. The SSD delivers solid performance for everyday tasks, but is more suitable for the mainstream market than for high-end users. Its performance is good enough for typical office, multimedia and system applications. The mini PC supports up to three drives: an NVMe SSD, an additional M.2-2242 SSD (SATA) and a 2.5-inch storage device.
Kingston OM8PGP41024N-A0
Sequential Read:
2165 MB/s
Sequential Write:
3129 MB/s
512K Read:
1538 MB/s
512K Write:
3035 MB/s
4K Read:
56.68 MB/s
4K Write:
383.2 MB/s
4K QD32 Read:
693.9 MB/s
4K QD32 Write:
645.8 MB/s
| Drive Performance Rating - Percent | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Average of class Mini PC | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Acemagic AM18 | |
| Geekom Mini IT12 | |
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
Geekom Mini IT13 Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4046 (3379.61-4063.86)
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4790 (4223.81-4803.95)
Aoostar GEM10 BIWIN CE980Y28900-1TB; diskspd 2.0.17 f: Ø4833 (4418.07-4847.99)
Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø4663 (3995.26-4684.2)
Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22)
Graphics card and gaming performance
The Intel Iris Xe graphics unit inside the Geekom Mini IT13 only offers limited performance that's mainly sufficient for simple image output. The benchmarks revealed that the iGPU is no longer one of the latest and, as a result, it lagged behind current models such as the Minisforum UH125 Pro. The IT13 is hardly suitable for gaming—only older or less demanding ones can be run. For more demanding graphics applications, an external GPU via USB4 is required.
| 3DMark Performance Rating - Percent | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 3DMark | |
| 2560x1440 Time Spy Graphics | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| 1920x1080 Fire Strike Graphics | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1 | LuxMark v2.0 64Bit | Affinity Photo 2
| Unigine Heaven 4.0 | |
| Extreme Preset OpenGL | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Extreme Preset DX11 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Unigine Superposition | |
| 1280x720 720p Low | |
| Aoostar GEM10 | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 1920x1080 1080p High | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| 1920x1080 1080p Extreme | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| ComputeMark v2.1 | |
| 1024x600 Normal, Score | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 1024x600 Normal, Fluid 3DTex | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 1024x600 Normal, Fluid 2DTexArr | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| 1024x600 Normal, Mandel Vector | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| 1024x600 Normal, Mandel Scalar | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 1024x600 Normal, QJuliaRayTrace | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| Acemagic AM18 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Sala GPUs-only | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Acemagic AM18 | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Acemagic AM18 | |
| Geekom Mini IT13, Intel Iris Xe Graphics G7 96EUs i9-13900HK | Minisforum UH125 Pro, Intel Arc 7-Core iGPU Ultra 5 125H | Aoostar GEM10, AMD Radeon 680M R7 6800H | Geekom Mini IT12, Intel Iris Xe Graphics G7 96EUs i7-1260P | Acemagic AM18, AMD Radeon 780M R7 7840HS | Geekom A5, AMD Radeon RX Vega 8 (Ryzen 4000/5000) R7 5800H | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 19% | 286% | 21% | 315% | 120% | 218% | |
| 3840x2160 Medical (medical-03) | 3.46 | 4.8 39% | 10.7 209% | 3.37 -3% | 13 276% | 4.82 39% | 8.21 ? 137% |
| 3840x2160 Energy (energy-03) | 3.03 | 3.38 12% | 10.6 250% | 7.39 144% | 14.2 369% | 5.33 76% | 11.8 ? 289% |
| 3840x2160 Creo (creo-03) | 15.5 | 15.4 -1% | 32 106% | 15.1 -3% | 31.2 101% | 19.1 23% | 30.8 ? 99% |
| 3840x2160 CATIA (catia-06) | 7.96 | 9.7 22% | 22.8 186% | 8.23 3% | 24.7 210% | 13.1 65% | 18.7 ? 135% |
| 3840x2160 3ds Max (3dsmax-07) | 9.94 | 13.2 33% | 18.9 90% | 9.65 -3% | 20.7 108% | 11.3 14% | 22.6 ? 127% |
| 3840x2160 Siemens NX (snx-04) | 5.24 | 5.54 6% | 61.4 1072% | 6.23 19% | 61.1 1066% | 38 625% | 37.7 ? 619% |
| 3840x2160 Maya (maya-06) | 26.5 | 32.8 24% | 49.7 88% | 23.7 -11% | 46.7 76% | 25.8 -3% | 57.7 ? 118% |
| 3DMark 05 Standard | 29814 points | |
| 3DMark 06 Standard Score | 26510 points | |
| 3DMark Vantage P Result | 26546 points | |
| 3DMark 11 Performance | 7301 points | |
| 3DMark Ice Storm Standard Score | 138293 points | |
| 3DMark Cloud Gate Standard Score | 24262 points | |
| 3DMark Fire Strike Score | 5071 points | |
| 3DMark Fire Strike Extreme Score | 2473 points | |
| 3DMark Time Spy Score | 1842 points | |
Help | ||
Performance Rating | GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24
| Performance Rating - Percent | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Geekom A5 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Dota 2 Reborn | |
| 1280x720 min (0/3) fastest | |
| Acemagic AM18 | |
| Geekom A5 | |
| Aoostar GEM10 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| 1920x1080 high (2/3) | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 1920x1080 Low Preset (FSR off) | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 1920x1080 High Preset (FSR off) | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| Baldur's Gate 3 | |
| 1280x720 Low Preset | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
| 1920x1080 High Preset | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom Mini IT12 | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| F1 24 | |
| 1920x1080 Low Preset AA:T AF:16x | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT13 | |
| Geekom Mini IT12 | |
| 1920x1080 High Preset AA:T AF:16x | |
| Acemagic AM18 | |
| Aoostar GEM10 | |
| Minisforum UH125 Pro | |
| Geekom A5 | |
| Geekom Mini IT12 | |
| Geekom Mini IT13 | |
FPS diagram - 30 minutes of Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs: Ø9.68 (9.17-9.89)
Aoostar GEM10 R7 6800H, Radeon 680M: Ø17 (13-17.6)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 107.4 | 20.5 | 8.5 | |
| Dota 2 Reborn (2015) | 96 | 70.1 | 65.2 | 59.9 |
| Final Fantasy XV Benchmark (2018) | 39.6 | 23.5 | 16.7 | |
| Baldur's Gate 3 (2023) | 17.8 | 13.8 | 11.7 | 11.5 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 16.7 | 13.4 | 11.3 | |
| F1 24 (2024) | 36.1 | 32.7 | 23.9 |
Geekom Mini IT13 2025 Edition performance check with an Nvidia GeForce RTX 4090 via USB4

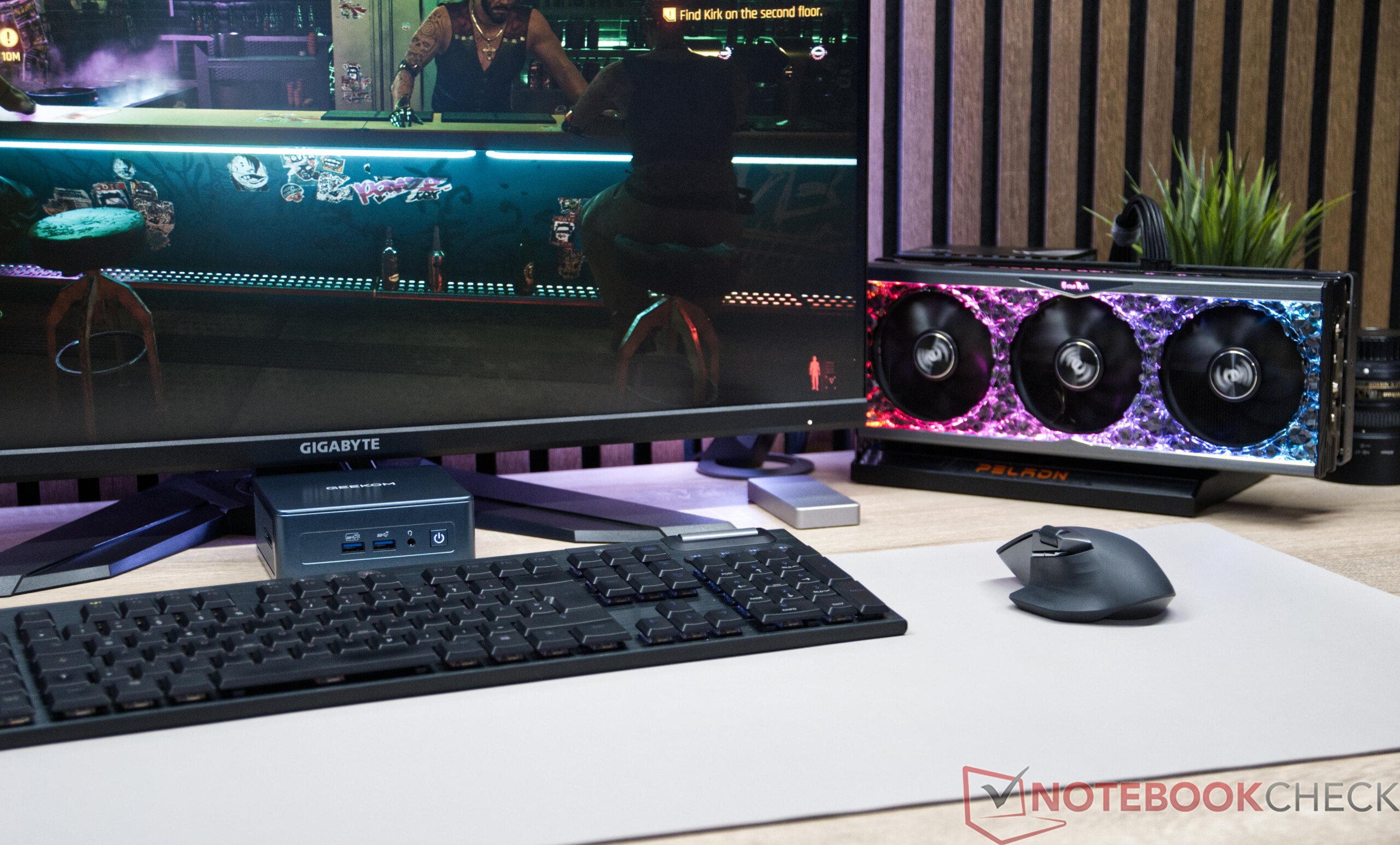

The Geekom Mini IT13 2025 Edition allows external graphics cards, such as a GeForce RTX 4090, to be connected via USB4, in turn transforming the mini PC into a powerful gaming or workstation system. Compared to OCuLink solutions, however, USB4 has noticeable disadvantages in terms of gaming performance, as the benchmarks showed.
Performance Rating | 3DMark 11 | 3DMark | Unigine Superposition | Unigine Valley 1.0 | Unigine Heaven 4.0 | ComputeMark v2.1
| Performance Rating - Percent | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 3DMark | |
| 2560x1440 Time Spy Graphics | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Fire Strike Graphics | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 Fire Strike Ultra Graphics | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Unigine Superposition | |
| 1280x720 720p Low | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 1080p High | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 1080p Extreme | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 4k Optimized | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 7680x4320 8k Optimized | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Unigine Heaven 4.0 | |
| Extreme Preset OpenGL | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Extreme Preset DX11 | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| ComputeMark v2.1 | |
| 1024x600 Normal, Score | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Fluid 3DTex | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Fluid 2DTexArr | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Mandel Vector | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Mandel Scalar | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, QJuliaRayTrace | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Performance Rating - Percent | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 1280x720 Low Preset (FSR off) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Medium Preset (FSR off) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Ultra Preset (FSR off) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Baldur's Gate 3 | |
| 1920x1080 Low Preset | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Medium Preset | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Ultra Preset | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| F1 24 | |
| 1920x1080 Low Preset AA:T AF:16x | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Medium Preset AA:T AF:16x | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 High Preset AA:T AF:16x | |
| Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13, Intel Iris Xe Graphics G7 96EUs i9-13900HK | Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) , i9-13900HK | Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) , Ultra 9 185H | Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) , R9 8945HS | Average of class Mini PC | |
|---|---|---|---|---|---|
| SPECviewperf 2020 | 726% | 1252% | 1703% | 218% | |
| 3840x2160 Medical (medical-03) | 3.46 | 33.2 860% | 42.1 1117% | 43.4 1154% | 8.21 ? 137% |
| 3840x2160 Energy (energy-03) | 3.03 | 86.8 2765% | 92.8 2963% | 141 4553% | 11.8 ? 289% |
| 3840x2160 Creo (creo-03) | 15.5 | 37.3 141% | 91.1 488% | 120 674% | 30.8 ? 99% |
| 3840x2160 CATIA (catia-06) | 7.96 | 42.6 435% | 77.3 871% | 84.3 959% | 18.7 ? 135% |
| 3840x2160 3ds Max (3dsmax-07) | 9.94 | 55.6 459% | 158 1490% | 208 1993% | 22.6 ? 127% |
| 3840x2160 Siemens NX (snx-04) | 5.24 | 19.6 274% | 31.9 509% | 39.5 654% | 37.7 ? 619% |
| 3840x2160 Maya (maya-06) | 26.5 | 66 149% | 378 1326% | 539 1934% | 57.7 ? 118% |
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| The Witcher 3 (2015) | 359 | 320 | 284 | 152.1 | 142.6 | 187.3 |
| Dota 2 Reborn (2015) | 154.5 | 134.1 | 128.5 | 121.3 | 114.8 | |
| Final Fantasy XV Benchmark (2018) | 170.1 | 161.9 | 136.4 | 135.6 | 116.7 | |
| X-Plane 11.11 (2018) | 150.1 | 128.9 | 103.5 | 91.1 | ||
| Baldur's Gate 3 (2023) | 144.7 | 133.4 | 132.2 | 134.5 | 116.4 | 98.6 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 101 | 99.9 | 92.4 | 88.8 | 87.7 | 56.5 |
| F1 24 (2024) | 105.8 | 98.7 | 95.9 | 65.5 | 64 | 54.9 |
Emissions - Balanced and not too loud
Noise emissions
When it comes to noise emissions, the Geekom Mini IT13 usually stays nice and quiet. Its fan is barely audible when idling, and we only measured 29.3 dB(A) under light load—a very good value. Under full load, the noise level rose to a maximum of 42.6 dB(A), but this wasn't permanent. In practice, the level usually settles between 39.6 and 42.6 dB(A) under load.
Noise Level
| Idle |
| 24.1 / 24.2 / 24.3 dB(A) |
| Load |
| 29.3 / 42.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 23.8 dB(A) | ||
| Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs | Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core | Aoostar GEM10 R7 6800H, Radeon 680M | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Acemagic AM18 R7 7840HS, Radeon 780M | Geekom A5 R7 5800H, Vega 8 | |
|---|---|---|---|---|---|---|
| Noise | -27% | -28% | -14% | -24% | -22% | |
| off / environment * | 23.8 | 24.8 -4% | 24.3 -2% | 29.8 -25% | 24.8 -4% | 25 -5% |
| Idle Minimum * | 24.1 | 35 -45% | 36.5 -51% | 29.9 -24% | 31 -29% | 28.2 -17% |
| Idle Average * | 24.2 | 35 -45% | 36.6 -51% | 30.1 -24% | 31.2 -29% | 28.2 -17% |
| Idle Maximum * | 24.3 | 35 -44% | 36.6 -51% | 30.2 -24% | 31.4 -29% | 28.2 -16% |
| Load Average * | 29.3 | 42.2 -44% | 41.7 -42% | 32.1 -10% | 37.1 -27% | 47.8 -63% |
| Cyberpunk 2077 ultra * | 39.5 | 40.8 -3% | 40.3 -2% | |||
| Load Maximum * | 42.6 | 43.9 -3% | 40.8 4% | 32.5 24% | 53.7 -26% | 47.4 -11% |
| Witcher 3 ultra * | 40.18 | 37.6 |
* ... smaller is better

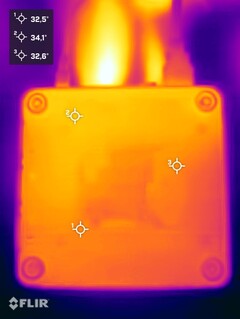

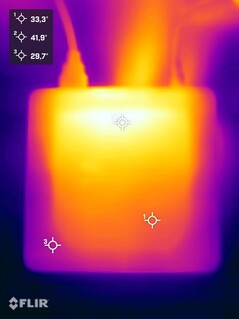

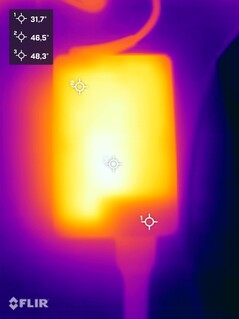

Temperature
The Geekom Mini IT13 (2025)'s case only heats up slightly when idle. Under load, we noted slightly higher temperatures at certain points, but these never reached critical values overall. During the stress test with Prime95, the Intel Core i9-13900HK hit a maximum of 82 °C—an uncritical value for the mobile SoC. The CPU's temperature dropped to an average of 75 °C during the further course as a result of the mini PC's 35-watt PL1.
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 35.7 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.9 °C / 97 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32.3 °C / 90 F.
(±) 3: The average temperature for the upper side is 33.4 °C / 92 F, compared to the average of 32.3 °C / 90 F for the class Mini PC.
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 35.7 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.9 °C / 97 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32.3 °C / 90 F.
(±) 3: The average temperature for the upper side is 33.4 °C / 92 F, compared to the average of 32.3 °C / 90 F for the class Mini PC.
Power management - Almost too frugal for the large power supply
Thanks to the SoC's conservative power targets, the Geekom Mini IT13 is extremely energy efficient. In idle mode, it only consumes 8 to 12 watts, making it one of the more frugal mini PCs in this comparison. Under average load, its energy requirement rises to a low 35 watts, while we only noted 62.5 watts under maximum load. The device's conservatively selected power limits are ultimately responsible for these low values. The included power supply delivers up to 120 watts.
Power Consumption
| Off / Standby | 1.7 / 2.5 Watt |
| Idle | 8.3 / 9.7 / 11.8 Watt |
| Load |
35 / 62.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs | Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core | Aoostar GEM10 R7 6800H, Radeon 680M | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Acemagic AM18 R7 7840HS, Radeon 780M | Geekom A5 R7 5800H, Vega 8 | Average Intel Iris Xe Graphics G7 96EUs | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -39% | -27% | 0% | -49% | -11% | 3% | -38% | |
| Idle Minimum * | 8.3 | 11.9 -43% | 7.3 12% | 5 40% | 9.8 -18% | 6.9 17% | 5.41 ? 35% | 9.54 ? -15% |
| Idle Average * | 9.7 | 14.6 -51% | 8.7 10% | 7 28% | 11.5 -19% | 7.9 19% | 8.6 ? 11% | 11.7 ? -21% |
| Idle Maximum * | 11.8 | 15.4 -31% | 10.4 12% | 10.7 9% | 15.3 -30% | 8.9 25% | 10.9 ? 8% | 15 ? -27% |
| Load Average * | 35 | 48.3 -38% | 67.2 -92% | 50.3 -44% | 75.3 -115% | 60.8 -74% | 45.4 ? -30% | 59.1 ? -69% |
| Cyberpunk 2077 ultra external monitor * | 41.6 | 52.7 -27% | 58.8 -41% | |||||
| Load Maximum * | 62.5 | 89.8 -44% | 101.6 -63% | 82 -31% | 102.8 -64% | 89.7 -44% | 67.6 ? -8% | 100.1 ? -60% |
* ... smaller is better
Efficiency overview
| Performance Rating - Percent | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Power Consumption | |
| Cinebench R23 Multi Power Efficiency - external Monitor | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
| Cinebench R23 Single Power Efficiency - external Monitor | |
| Minisforum UH125 Pro | |
| Geekom Mini IT13 | |
| Cinebench R15 Multi Efficiency (external Monitor) | |
| Geekom Mini IT13 | |
| Minisforum UH125 Pro | |
Power consumption with external monitor
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø9.72 (8.69-11.8)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Idle 1min (external Monitor): Ø14.4 (13.7-16.8)
Aoostar GEM10 R7 6800H, Radeon 680M; Idle 1min (external Monitor): Ø9.01 (8.45-10.4)
Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø9.57 (8.74-19.4)
Acemagic AM18 R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø11.5 (10.5-15.3)
Geekom A5 R7 5800H, Vega 8; Idle 1min (external Monitor): Ø7.9 (7.41-8.93)
Aoostar GEM10 R7 6800H, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø63.2 (61.3-86)
Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø46.3 (43.8-53.4)
Acemagic AM18 R7 7840HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø84 (78.4-92.3)
Geekom A5 R7 5800H, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø55.8 (54.2-68)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø57.4 (56.8-58.4)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø82.9 (81.3-87.6)
Aoostar GEM10 R7 6800H, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø87.3 (85-101.6)
Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø48.5 (44.7-81.9)
Acemagic AM18 R7 7840HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø88.5 (87.3-102.8)
Geekom A5 R7 5800H, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø62.5 (59.3-89.8)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø41.6 (40.6-47.7)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø52.7 (51.9-55.2)
Aoostar GEM10 R7 6800H, Radeon 680M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø58.8 (56.1-62.3)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø35 (32.3-40.8)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 3DMark06 Return To Proxycon: Ø48.4 (45.1-51.5)
Aoostar GEM10 R7 6800H, Radeon 680M; 3DMark06 Return To Proxycon: Ø67.2 (55.9-76)
Acemagic AM18 R7 7840HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø75.3 (59.7-88.4)
Power consumption with external monitor
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø56.8 (52.1-62.5)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Prime95 V2810 Stress (external Monitor): Ø83 (67.7-89.8)
Aoostar GEM10 R7 6800H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø76.4 (71.4-100.8)
Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø48.4 (44.7-80.8)
Acemagic AM18 R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø87.8 (85.8-101.4)
Geekom A5 R7 5800H, Vega 8; Prime95 V2810 Stress (external Monitor): Ø61.1 (56.6-88.9)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø59.5 (58-61.1)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R15 Multi (external Monitor): Ø80.3 (80-81.4)
Aoostar GEM10 R7 6800H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø87.9 (81.6-97.1)
Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø10.7 (10-19.2)
Acemagic AM18 R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø87.9 (80.6-96.2)
Geekom A5 R7 5800H, Vega 8; Cinebench R15 Multi (external Monitor): Ø67.1 (61.7-83.2)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø56.1 (50.3-58.2)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R23 Single (external Monitor): Ø28.7 (27-62.8)
Aoostar GEM10 R7 6800H, Radeon 680M; Cinebench R23 Single (external Monitor): Ø30.1 (28.4-45.5)
Acemagic AM18 R7 7840HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø37.3 (29.6-62.4)
Geekom A5 R7 5800H, Vega 8; Cinebench R23 Single (external Monitor): Ø28.3 (27.1-50.8)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø56.1 (50.3-58.2)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R23 Multi (external Monitor): Ø80.4 (79.8-81.1)
Aoostar GEM10 R7 6800H, Radeon 680M; Cinebench R23 Multi (external Monitor): Ø78.2 (71.1-95.8)
Acemagic AM18 R7 7840HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø81.5 (79.2-94.5)
Geekom A5 R7 5800H, Vega 8; Cinebench R23 Multi (external Monitor): Ø63 (61.3-83.4)
Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.5 (45.8-54.9)
Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø48 (46.2-53.5)
Aoostar GEM10 R7 6800H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø76.4 (69.1-84.4)
Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø45.6 (42.8-72)
Acemagic AM18 R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø85.6 (78-95.5)
Geekom A5 R7 5800H, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø56.5 (53-63.2)
Notebookcheck total rating
During our test, the Geekom Mini IT13 (2025) impressed us with its strong CPU performance thanks to the installed Intel Core i9-13900HK, good connectivity including USB4, and moderate noise levels. Its energy efficiency is excellent thanks to its conservative power limits. The mini PC is ideal for office and multimedia tasks—compact, fast and suitable for everyday use.
Geekom Mini IT13
- 04/08/2025 v8
Sebastian Bade
Mini PC - Weighted Average
Total Sustainability Score: Possible alternatives compared
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
1. 74.5%  | Geekom Mini IT13 Intel Core i9-13900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $699.00 GEEKOM Mini PC IT13 2025 Edi... 2. $749.00 GEEKOM Mini PC Mini IT13 202... 3. $599.00 GEEKOM IT12 Mini PC, 12th Ge... List Price: 749 EUR | 580 g | 112 x 117 x 49.2 mm |
2. 74.5%  | Minisforum UH125 Pro Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $539.90 MINISFORUM UH125 Pro Mini PC... 2. $909.90 MINISFORUM UM890 Pro Mini PC... 3. $615.00 MINISFORUM Venus UM790 Pro M... List Price: 879 EUR | 797 g | 145 x 145 x 49 mm |
3. 73.7%  | Aoostar GEM10 AMD Ryzen 7 6800H ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $489.00 AOOSTAR GEM10 Mini PC, AMD R... 2. $335.00 AOOSTAR GEM10 3*M.2 NVME Slo... 3. $389.95 AOOSTAR GEM10 PRO Three NVME... List Price: 459 US-Dollar | 525 g | 107 x 107 x 60 mm |
4. 82.3% v7 (old)  | Geekom Mini IT12 Intel Core i7-1260P ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $599.00 GEEKOM IT12 Mini PC, 12th Ge... 2. $22.99 GRNPOWCN 19V AC/DC Adapter C... 3. $22.99 PowerHOOD 19V AC/DC Adapter ... List Price: 639 EUR | 572 g | 112 x 117 x 45.6 mm |
5. 82.3% v7 (old)  | Acemagic AM18 AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 512 GB SSD | Amazon: 1. $769.00 ACEMAGIC F1A Mini PC, AM18 7... List Price: 659 EUR | 600 g | 134 x 130 x 58 mm |
6. 81.2% v7 (old)  | Geekom A5 AMD Ryzen 7 5800H ⎘ AMD Radeon RX Vega 8 (Ryzen 4000/5000) ⎘ 32 GB Memory, 512 GB SSD | Amazon: 1. $299.00 GEEKOM A5 Mini PC, AMD Ryzen... 2. $449.00 GEEKOM A6 Mini PC, AMD Ryzen... 3. $21.99 GRNPOWCN 19V AC DC Adapter C... List Price: 429 EUR | 555 g | 112 x 117 x 49.2 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.
Originally from Scotland, I grew up and lived in Germany until I completed my high school qualifications before moving back to Scotland to complete my university studies. Growing up bilingual led me to form a close relationship with the English and German languages, often working in the fields of teaching and translation. Most of my childhood was shaped by playing around on new consoles, computers and gadgets and getting to grips with the new craze of the internet and smartphones. This interest has stayed with me well into adulthood. Nowadays, I live in Glasgow and work as a freelance translator and digital media coordinator. I have been translating for Notebookcheck since early 2023.
