Review Dell Latitude E6540 (i7-4800MQ/HD 8790M) Notebook

Dell is quick... and offers one of the first business notebook based on the latest Intel Haswell architecture. For 1,860 Euros (~$2455) you get a powerful Intel Core i7-4800MQ in combination with an AMD Radeon HD 8790M and a small SSD.

For the original German review, see here.

We just reviewed the predecessor Latitude E6530 back in February and reported in April that the first Haswell processors are scheduled to launch in June. Now in July we can already review the updated successor, the Latitude E6540. Dell is ahead of the competition, most manufacturers did not even announce the switch to Haswell processors for their business devices yet.

The graphics solution is also brand-new; the AMD Radeon HD 8790M is still very rare so we will have a closer look at it in this review. The dedicated graphics card has sufficient performance for tasks beyond the typical office applications but that does not include very demanding CAD applications; the consumer graphics card is not certified for that. Our review unit is very close to a workstation in this configuration.

All the competitors are still based on Intel's Ivy Bridge architecture. We mainly compare the Latitude with the Toshiba Tecra R950Lenovo ThinkPad T530 and the HP EliteBook 8570p, but also with its predecessor, the Latitude E6530

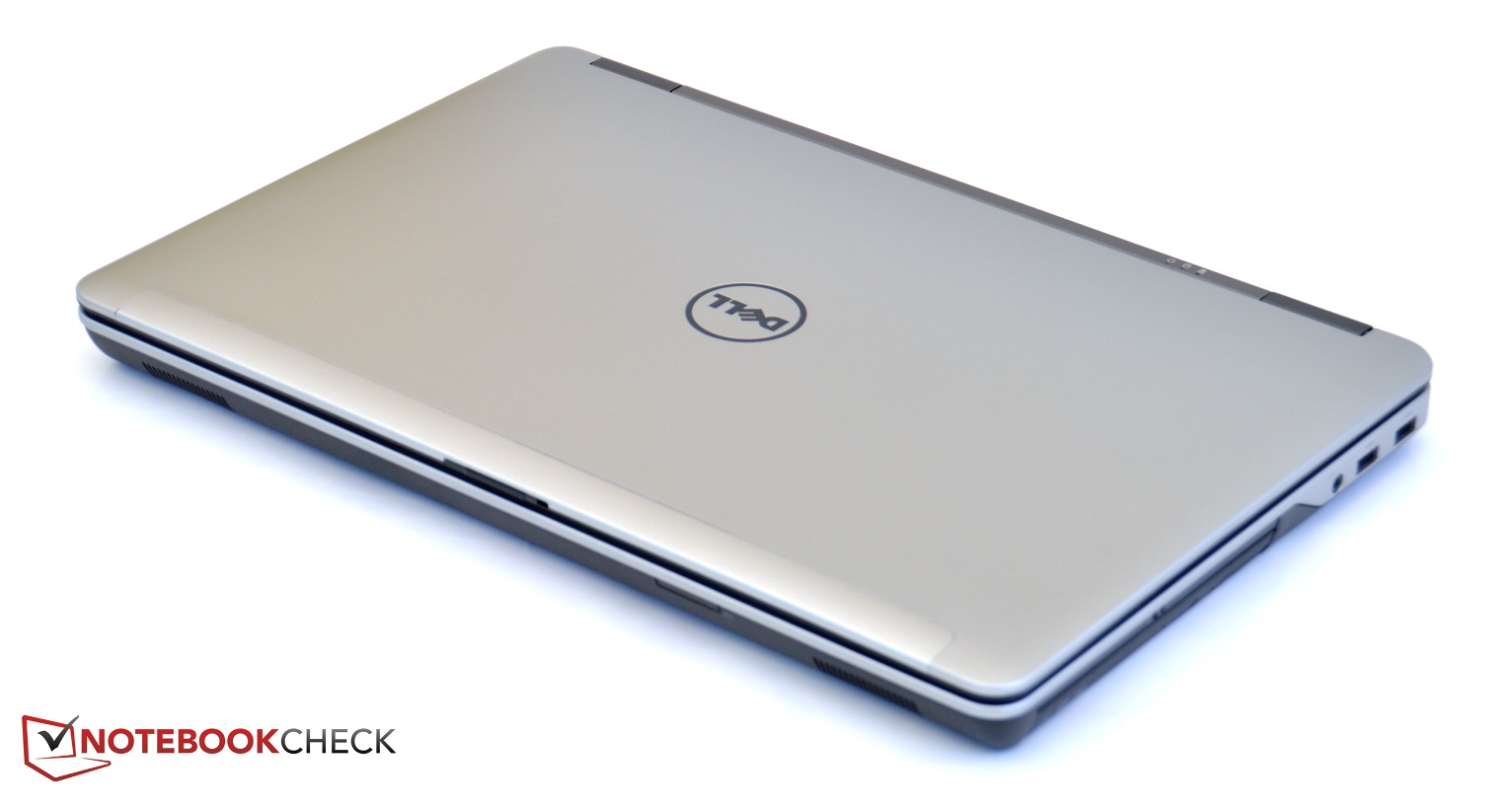

The case has also been updated and the Latitude E6540 has a slightly changed design. The predecessor convinced us completely and got a very good verdict. Are all the positive characteristics still present after the update?

Case

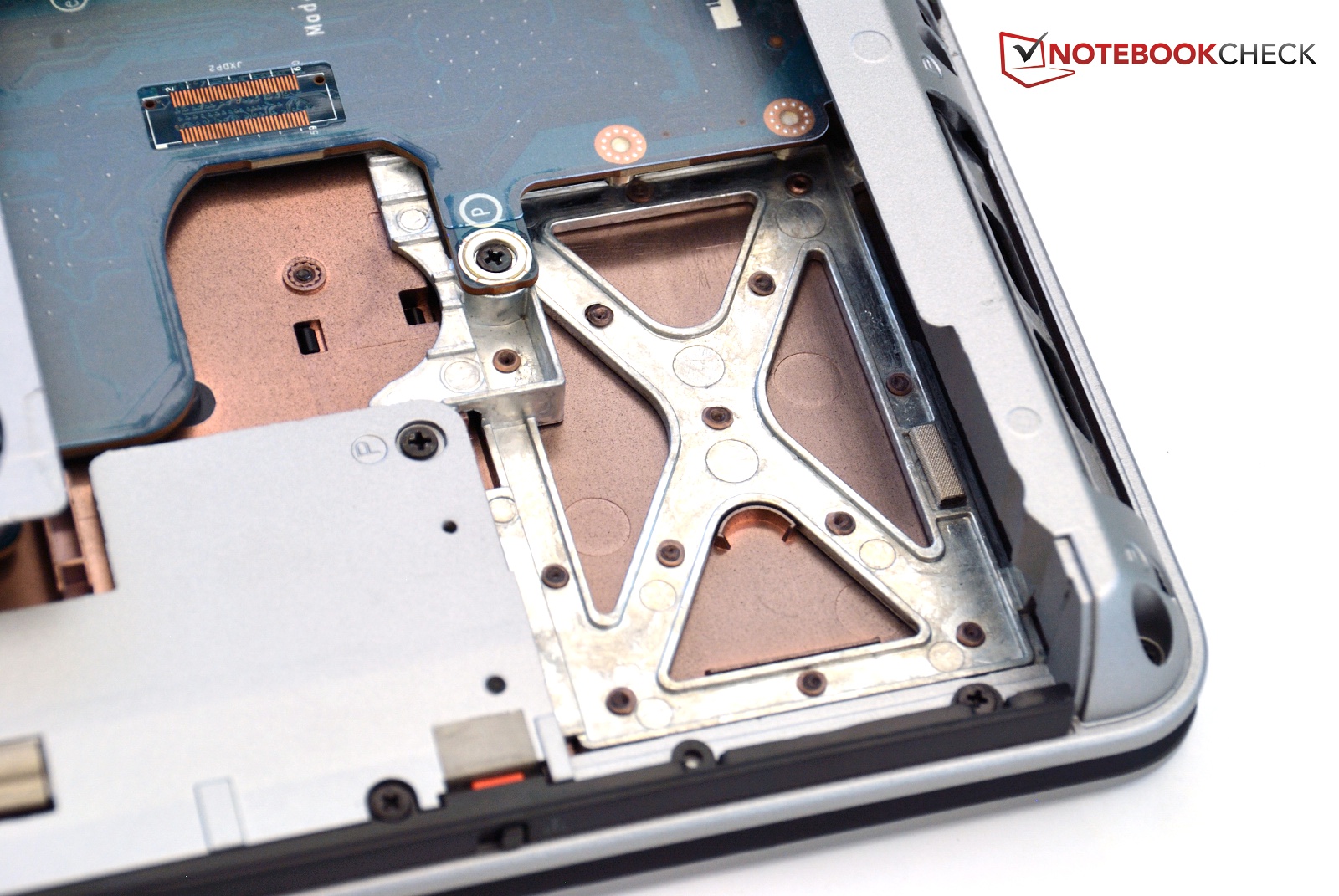

The case is reinforced...
The case is reinforced...

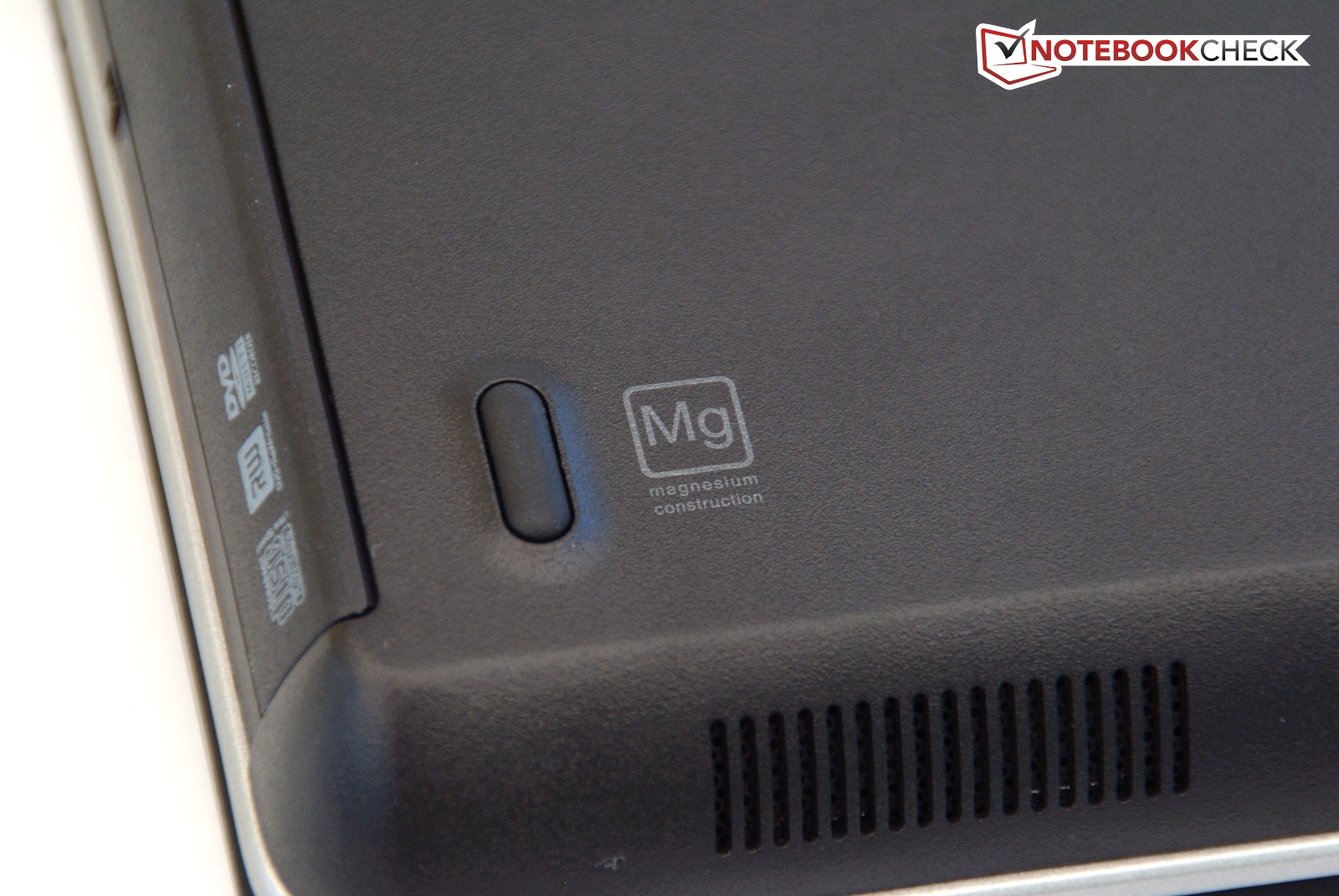

...with magnesium.
...with magnesium.

Once again, there have been small changes: The dark gray, brushed display cover of the predecessor has been replaced with a polished, matte aluminum cover. Small details like the keyboard frame have also been changed; it is now black, similar to the keyboard and the palm rest. The latter is made of rubberized plastic and leaves a high quality impression but is not easy to clean. Fortunately, it does not really attract grease spots or fingerprints.

Dell especially advertises the solid construction of the new Latitude with keywords like Military standards or Tri-metal chassis and the stability of the notebook is actually very good. It cannot be twisted and only the display cover can be slightly pushed in. The critical area above the optical drive however is very stiff; magnesium is used inside the case to improve the construction but has a negative impact on the weight: We measure a total weight of 3.0 kg (~6.6 pounds) with the protruding 9-cell battery.

The hinges are sturdy but cannot eliminate a slight bouncing of the display. One latch is used to close the display cover; the predecessor Latitude E6530 had two latches in comparison.

Overall, the build quality of the new Latitude cannot completely convince us. The expectations are not small with a price of 1,800 Euros (~$2376) and the imprecise gaps and a slight offset of the display cover do not match these expectations. Otherwise, the build quality and used materials leave a high quality impression.

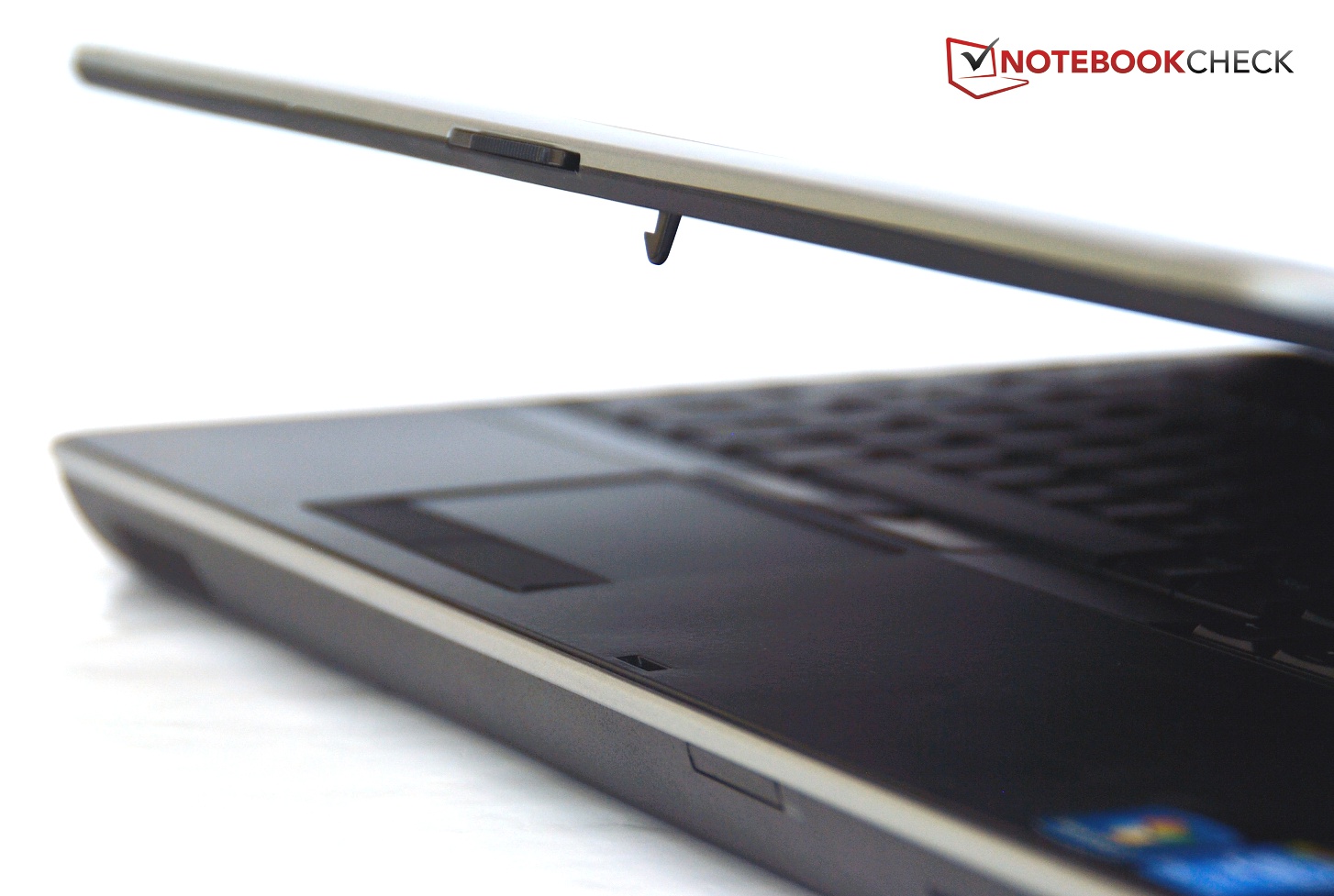

The second latch has been removed.
The second latch has been removed.

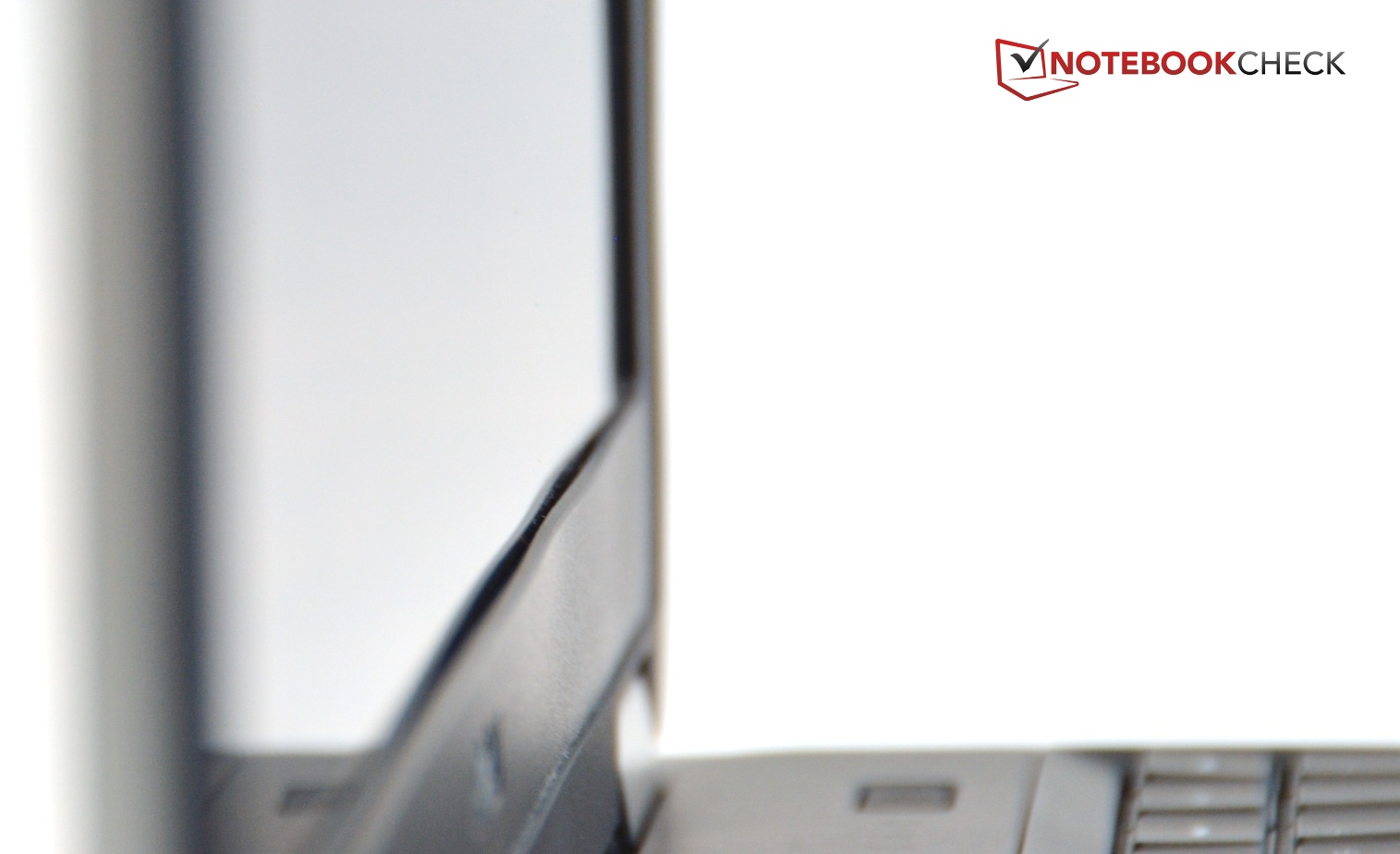

The build quality of the display cover...
The build quality of the display cover...
...is not perfect.
...is not perfect.

Connectivity

Our review unit does not stand out from consumer notebooks in regard to the port equipment: HDMI, VGA and Ethernet port can still be found in many notebooks. There is also a combined stereo jack for headphones and microphones; the card reader can only handle SD cards. The four USB 3.0 ports are a positive aspect, the eSATA port of the predecessor is not available anymore.

There is also another configuration of the notebook in the Dell shop but it is currently not available. It includes all the typical ports for business devices: ExpressCard 54 mm, SmartCard and fingerprint reader. The competition is superior in this regard: Toshiba Tecra R950ThinkPad T530 and HP EliteBook 8570p are equipped with FireWire 400, eSATA and DisplayPort. At least all the ports, except for FireWire, can be used with the optional Dell docking station.

We really like the port layout of the Latitude. All the ports are located at the rear area of the device, so an attached VGA cable, for instance, is not disturbing. The USB ports are at both sides and also at the back, finding an empty port is usually no problem.

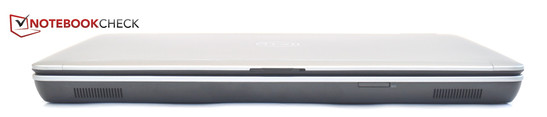

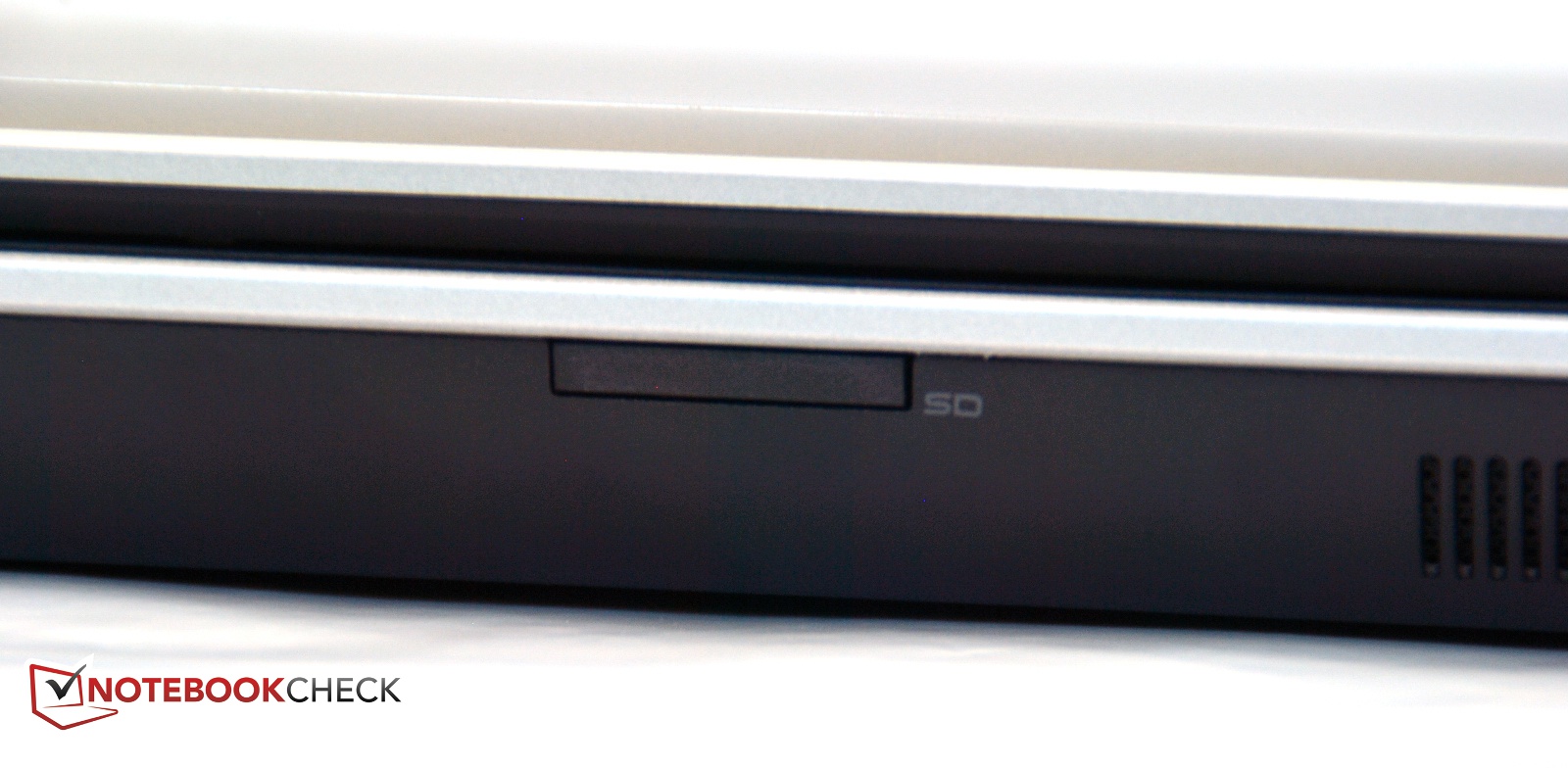

Front: SD card reader
Front: SD card reader
Left side: Kensington, HDMI, USB 3.0
Left side: Kensington, HDMI, USB 3.0

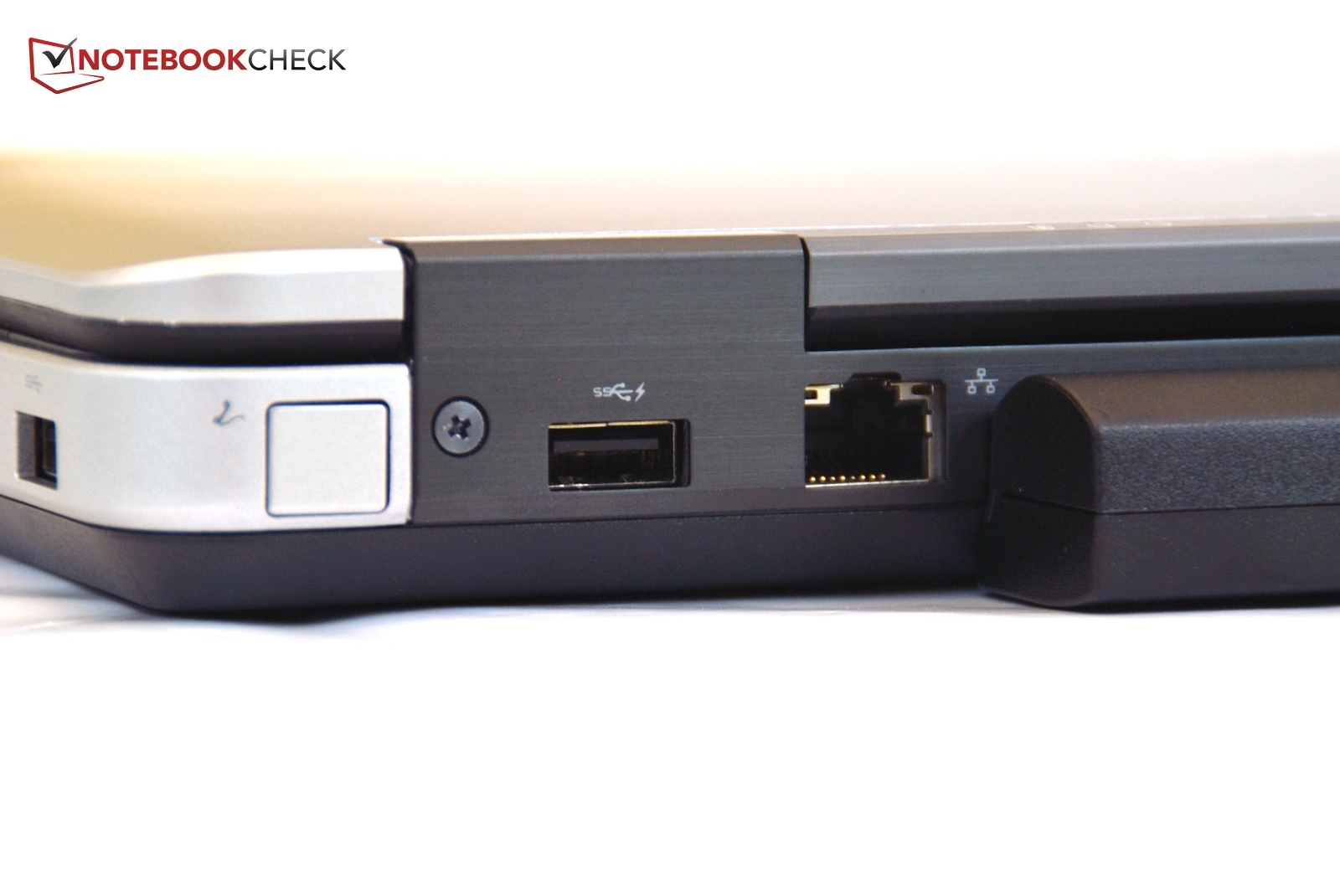

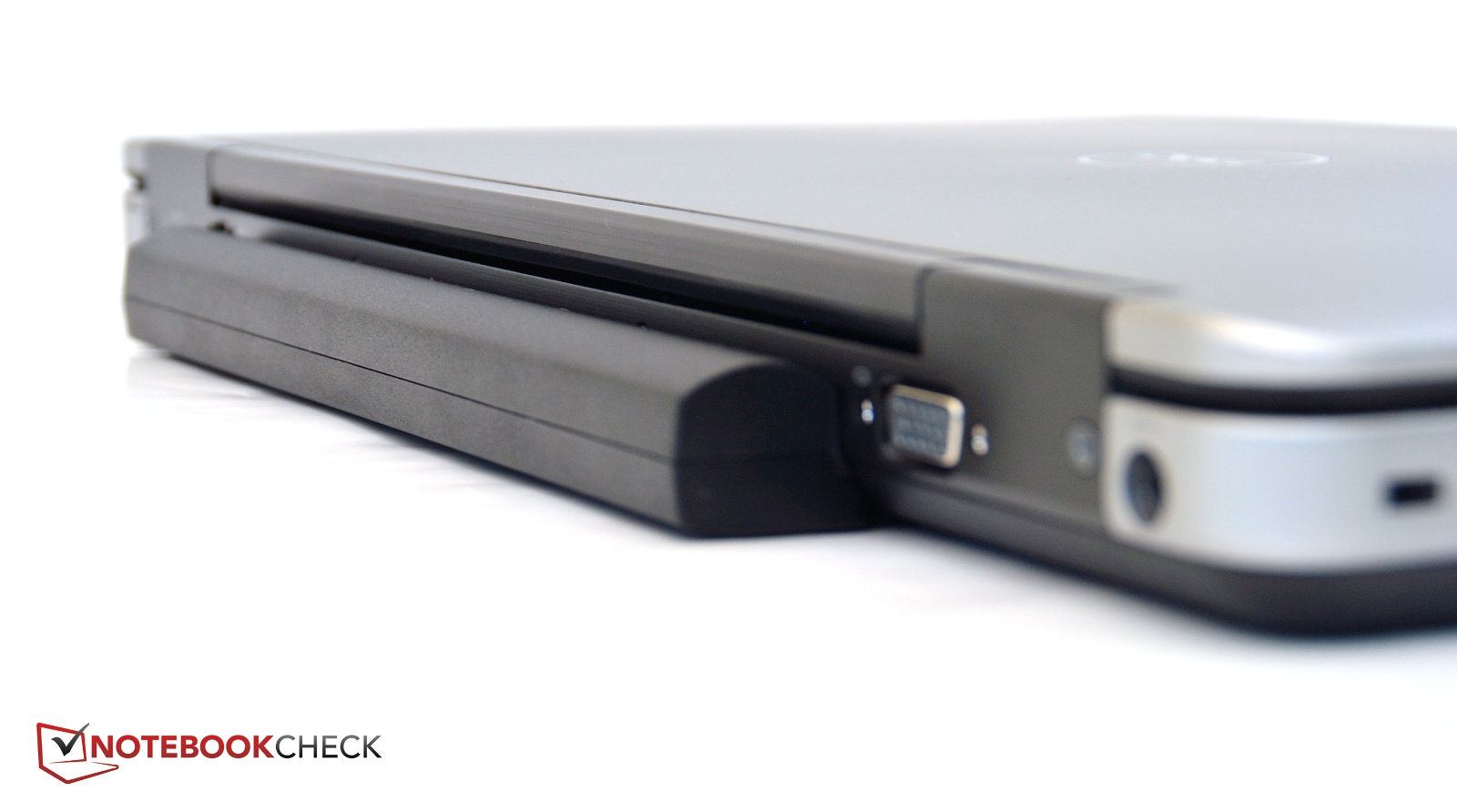

Back: USB 3.0, Gigabit-LAN, VGA, Power
Back: USB 3.0, Gigabit-LAN, VGA, Power

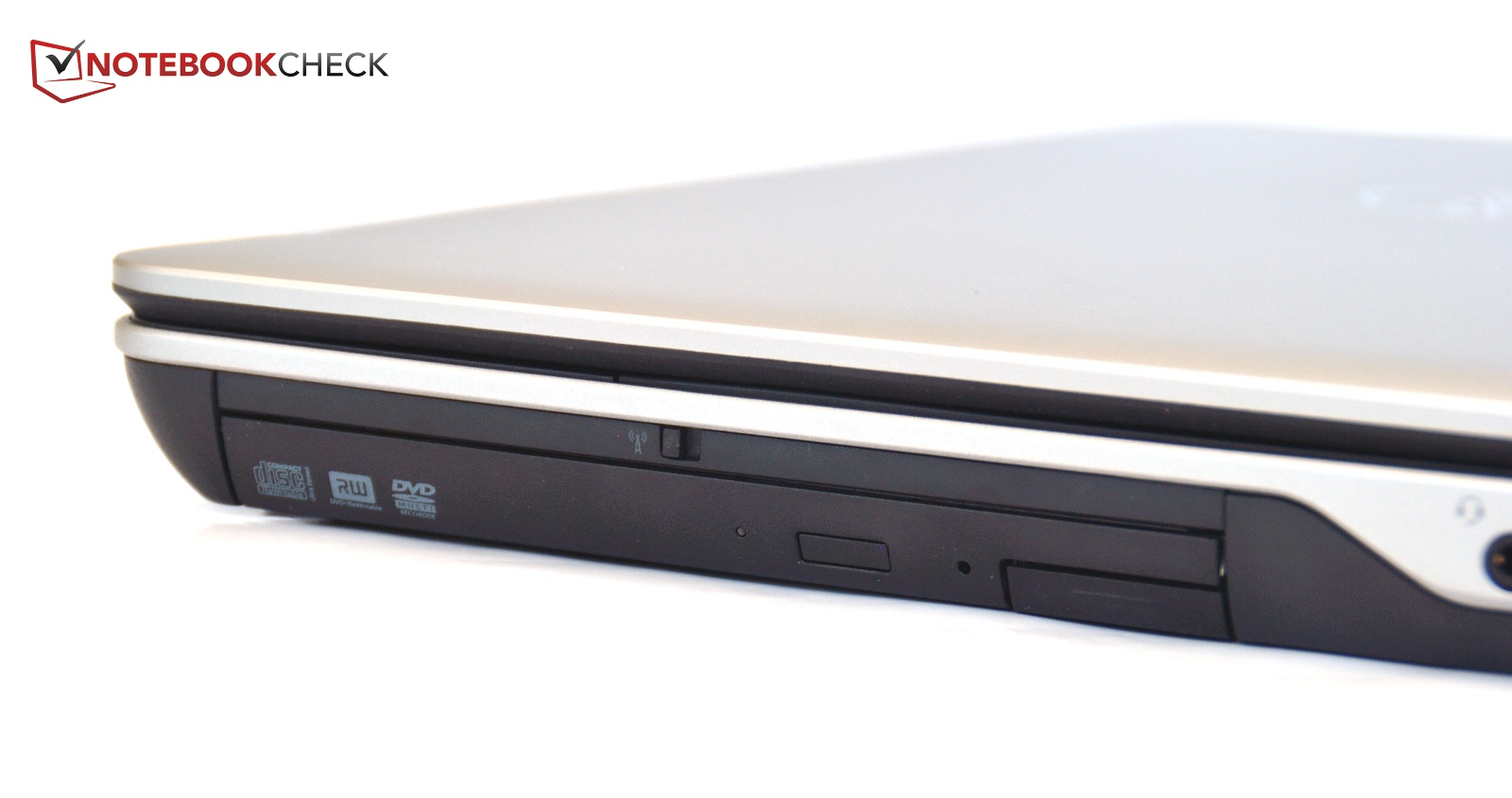

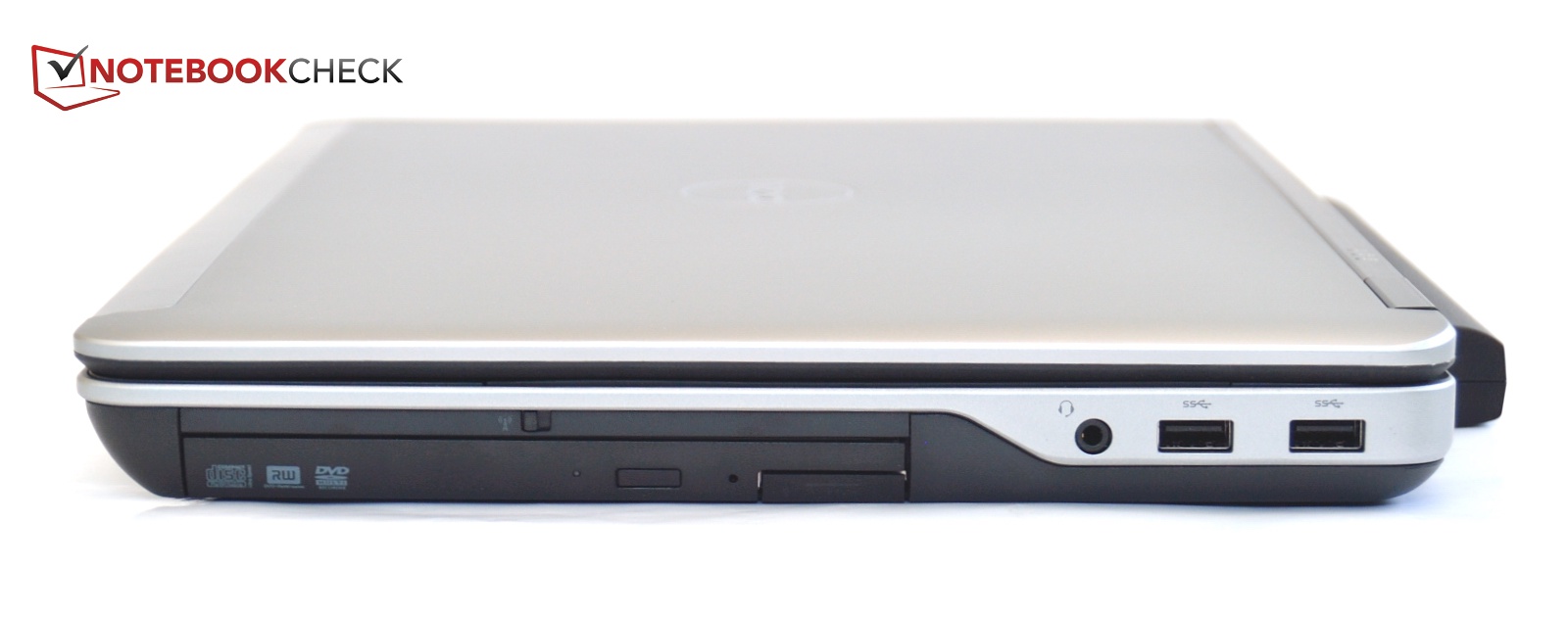

Right side: DVD, Audio, 2x USB 3.0
Right side: DVD, Audio, 2x USB 3.0
SIM card slot
SIM card slot

Communication

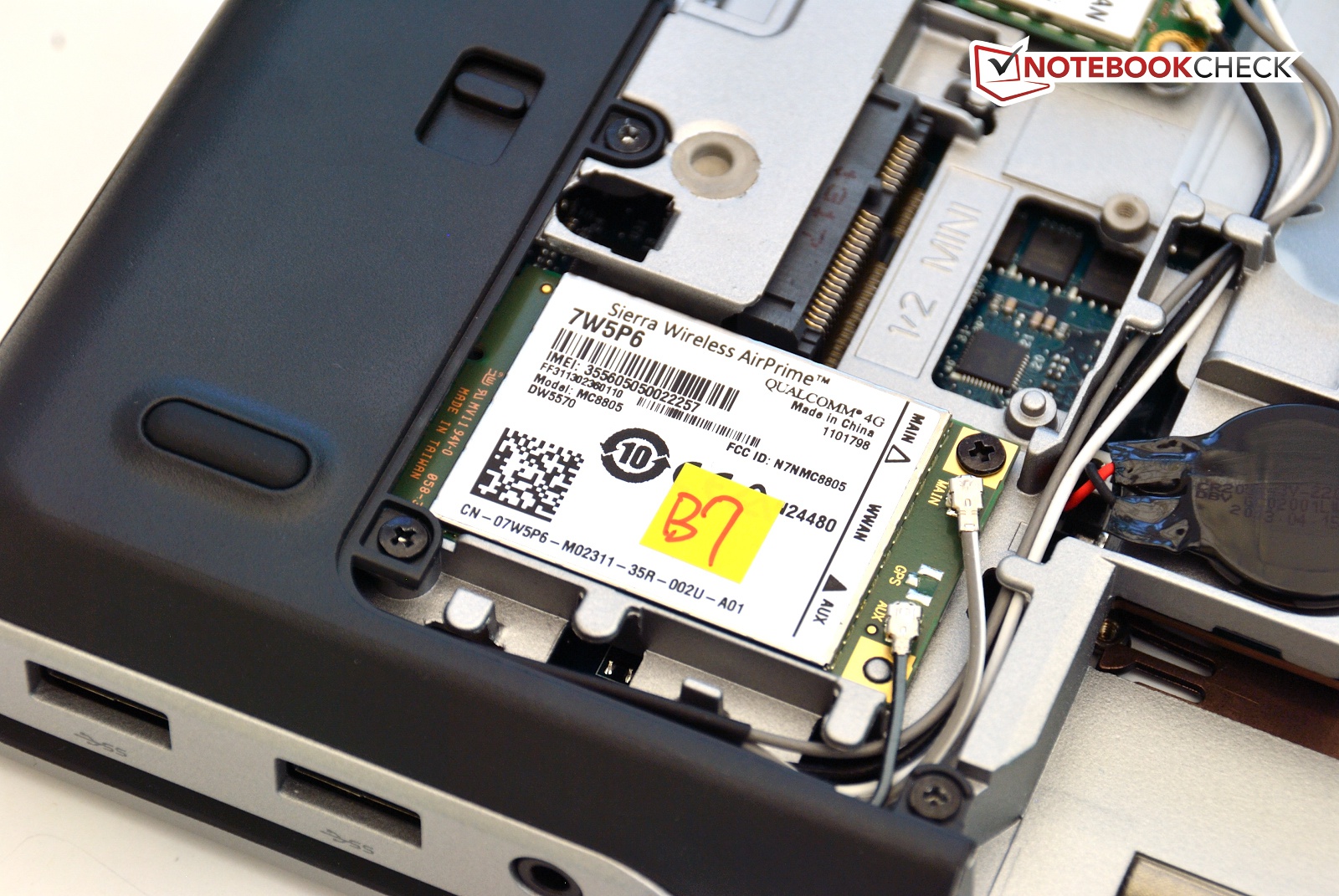

Besides the mandatory Gigabit-LAN Dell also integrates the high quality Intel Centrino Ultimate-N 6300, which has a better reception with three antennas and works with all a/g/n wireless networks. Even a distance of 40 meters (~44 yards) to the router and a wall in between were no problem at all. There is also an UMTS module for Internet on the go, the Sierra Wireless MC8805 supports HSPA+, GSM, GPRS and EDGE; LTE is not available. The SIM card tray in the battery slot only supports micro-SIM cards.

Security

According to Dell, the Latitude E6540 is the most secure notebook in the world. The fingerprint reader and TPM modules are certified according to the FIPS 140-2 standard, unfortunately all that is currently not yet available. At least the provided Dell Protected Workspace is an effective malware protection.

Accessories

There are many accessories for the Latitude E6540: You can purchase a docking station for 180 Euros (~$238) and a stand for 125 Euros (~$165), which lifts the notebook display to a more ergonomic height. A 6-cell battery is also available for around 50 Euros (~$66) if you do not like the protruding 9-cell battery. The optical drive can also be removed and replaced with other accessories, for instance a 3-cell battery for 110 Euros (~$145) or other optical and hard disk drives.

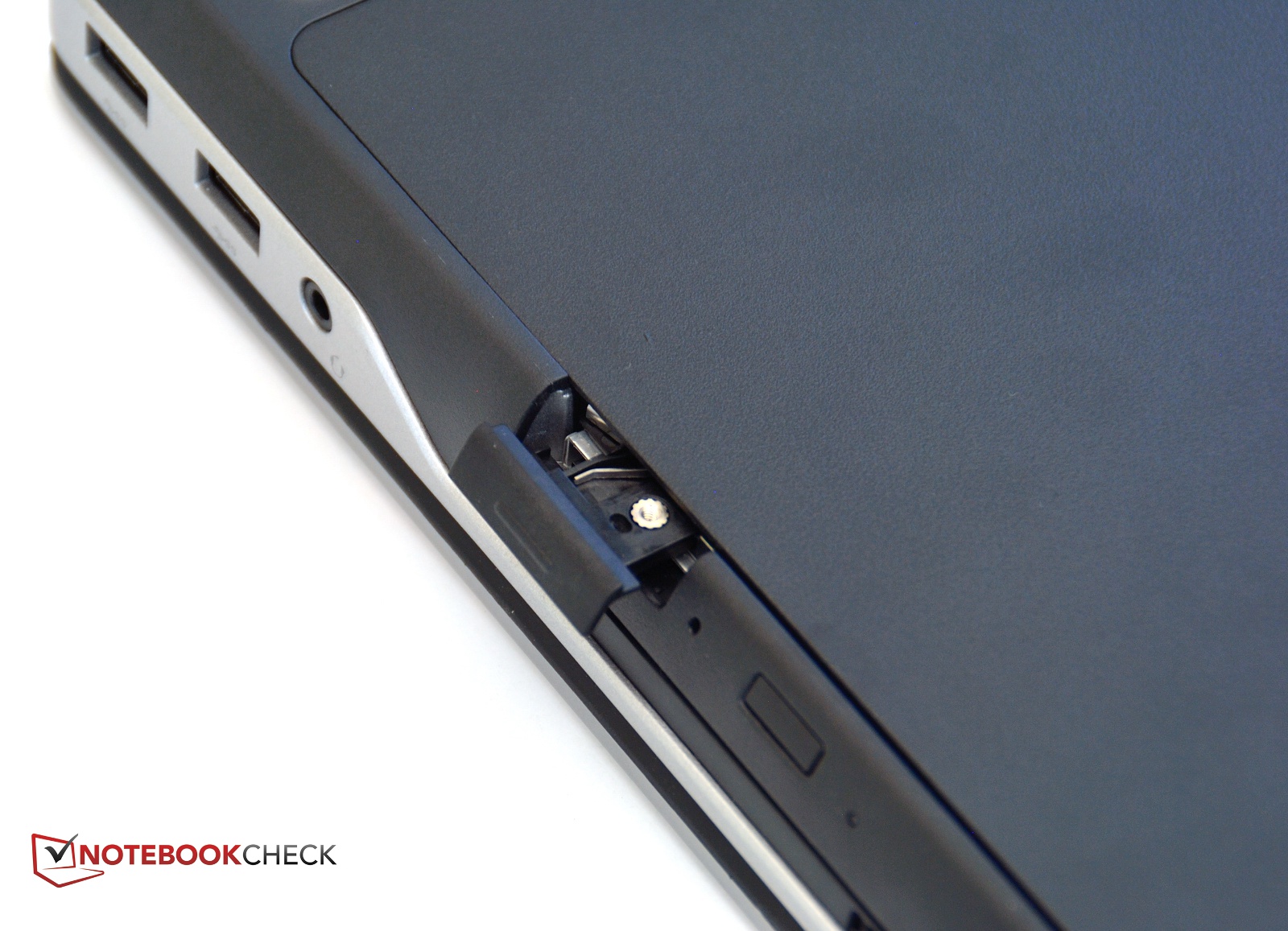

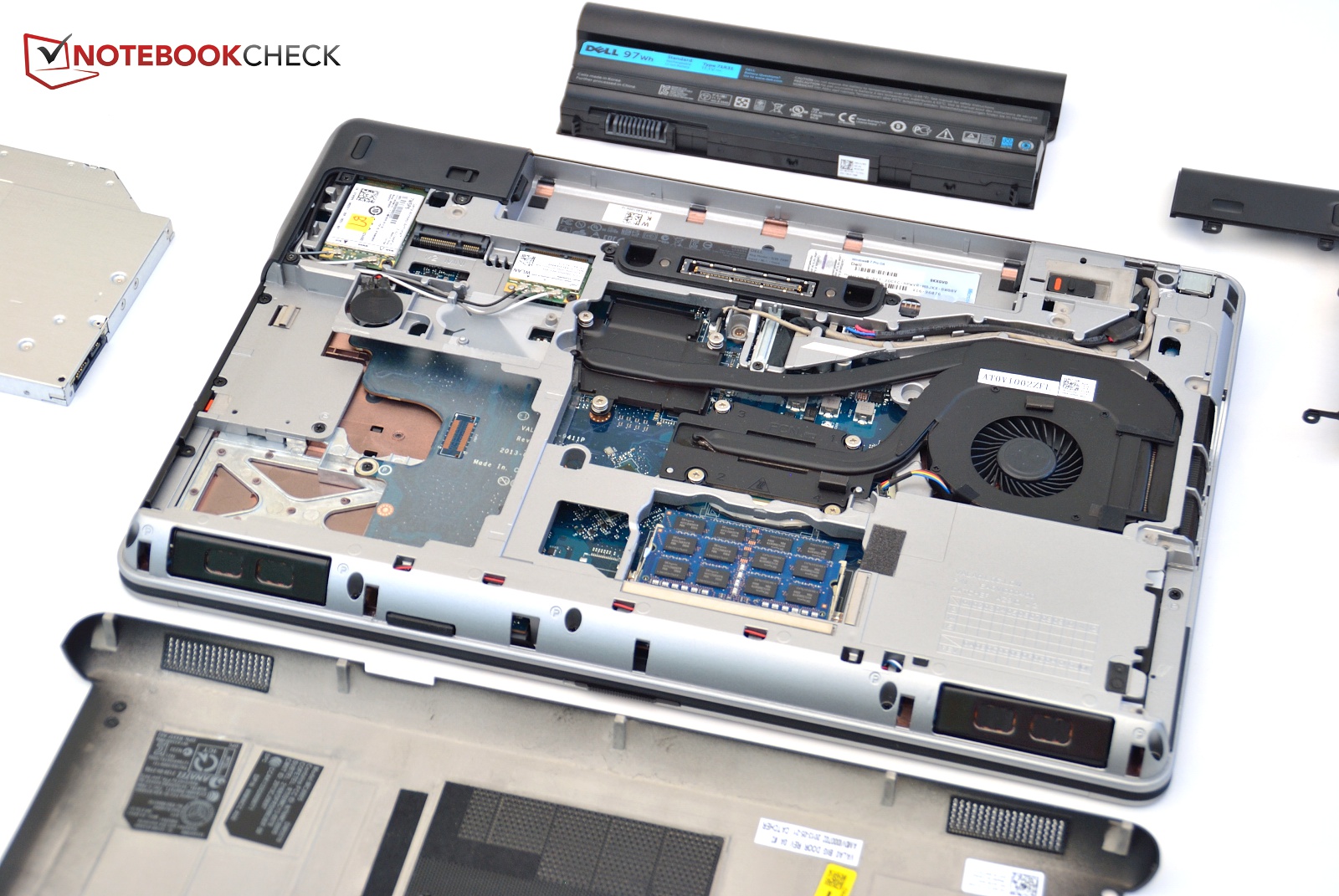

Without the cover
Without the cover

Maintenance

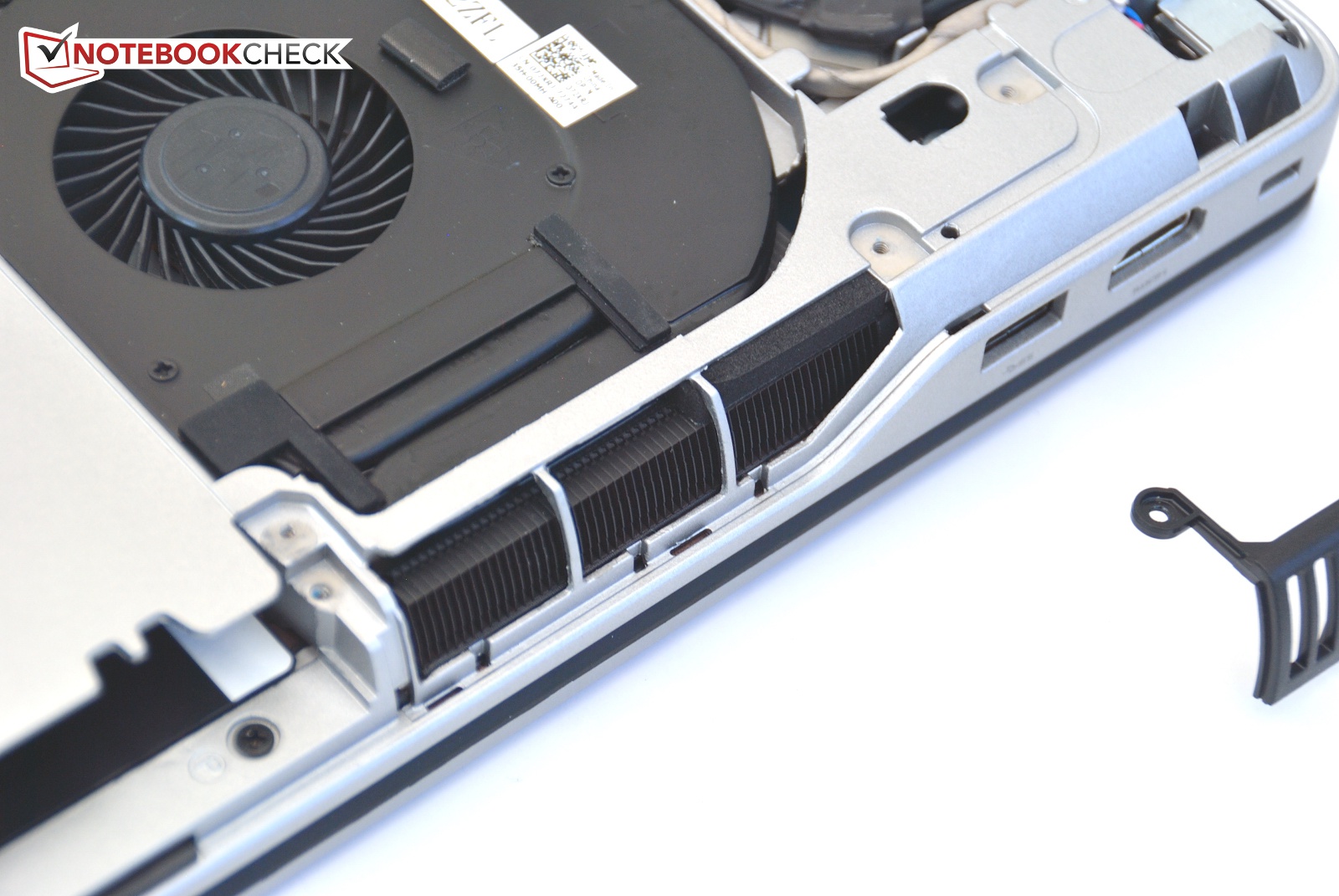

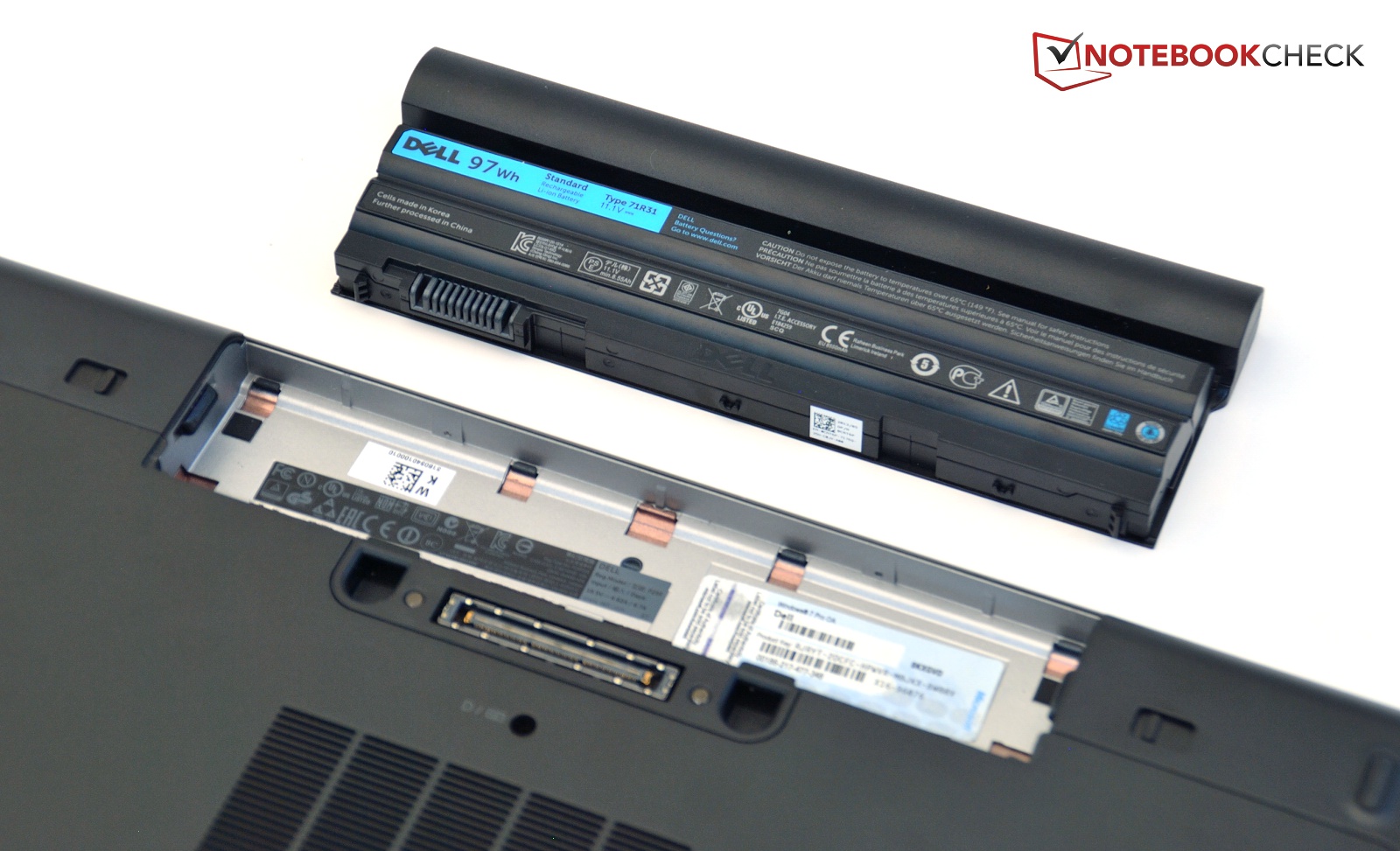

Easy maintenance is very important for business notebooks. Nothing changed in this regard compared to the predecessor. You have to lift the whole bottom cover to access RAM and PCI Express. The cover is secured with just three screws; the HP EliteBooks provide a more comfortable solution without screws. Once you have lifted the cover you have access to all the important components: Fan, RAM, WLAN and WWAN module, even the CMOS battery are accessible. Optical drive and mass storage can be replaced from the side, the removal of the bottom cover is not necessary.

Warranty

Three years ProSupport is preselected in the Dell shop. For 108 Euros (~$142) (excl. tax) you get comprehensive support with the installation and operation of the new system as well as an On-Site service on the next business day. Without this additional charge you get a 3-year Standard service, which also includes On-Site service on the next business day. Both services can be extended up to 5 years.

Input Devices

Keyboard

Input devices are very important for frequent writers. The predecessor got an excellent rating in this category and the keyboard of our review unit is certainly above average. The four-stage adjustable background illumination as well as the numeric keypad is not standard for all notebooks. Nowadays the traditional keyboard design is also unique, Dell decided not to use a chiclet keyboard. HP, Lenovo and Toshiba followed this trend.

The typing experience is also convincing. The key stroke might be a tad too firm for a few people but you get a distinct feedback; the key travel is more limited than we expected. Unfortunately, the keyboard itself is not very firm everywhere, we determine some bouncing around the A-key and the numeric keypad and the keyboard can be dented.

Mouse Replacement

As usual with business notebooks, Dell gives the customer the choice between touchpad and point stick. The associated software has various settings for both input devices and you can set them up based on your requirements. The size of the touchpad is not very generous with 80 x 43 mm (~3.2 x 1.7 inches) and is surpassed by all the rivals. Touchpad and point stick are very precise; the buttons work well and give a distinct feedback. There are numerous settings for the button as well.

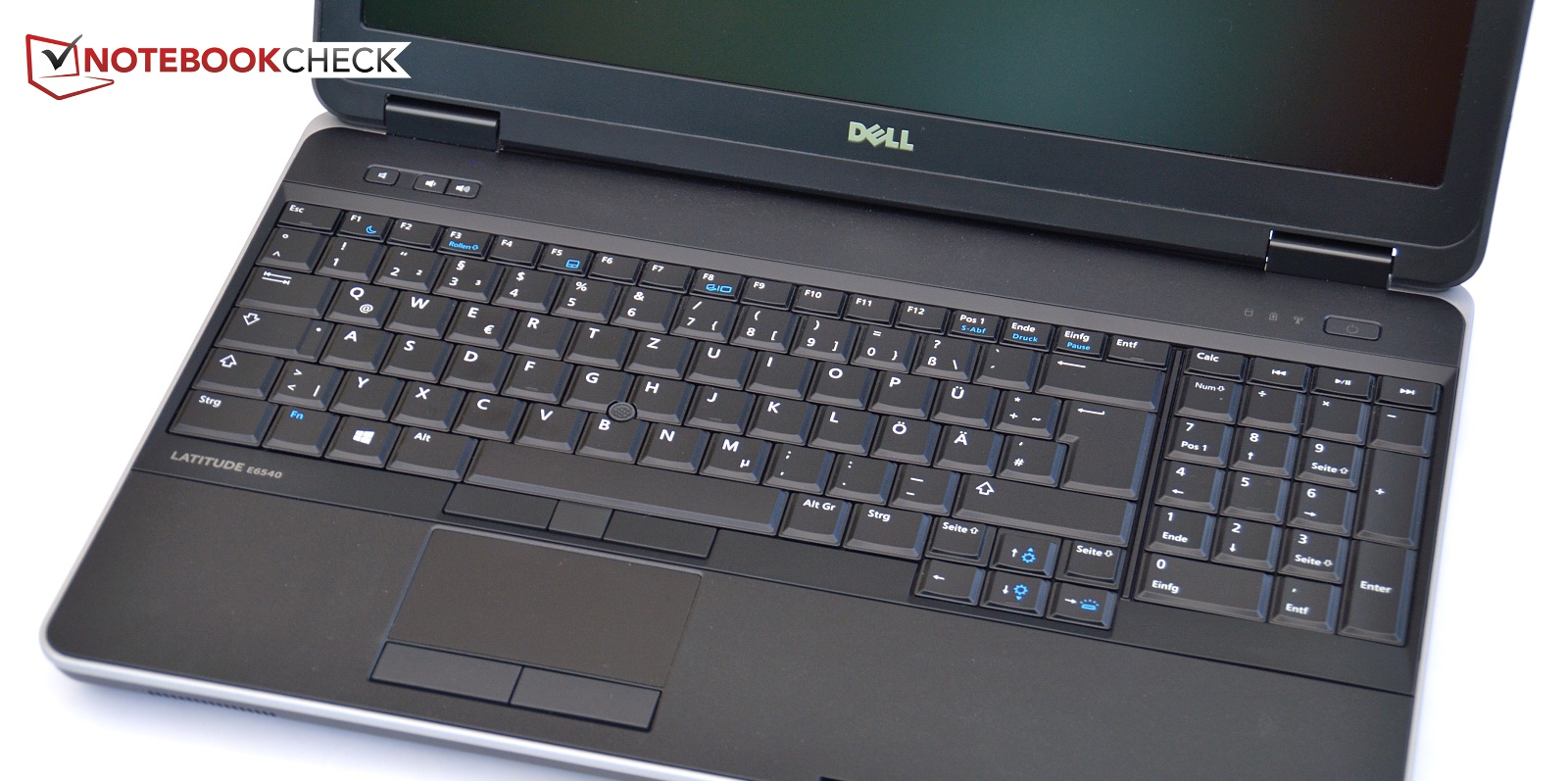

The keyboard is convincing...
The keyboard is convincing...

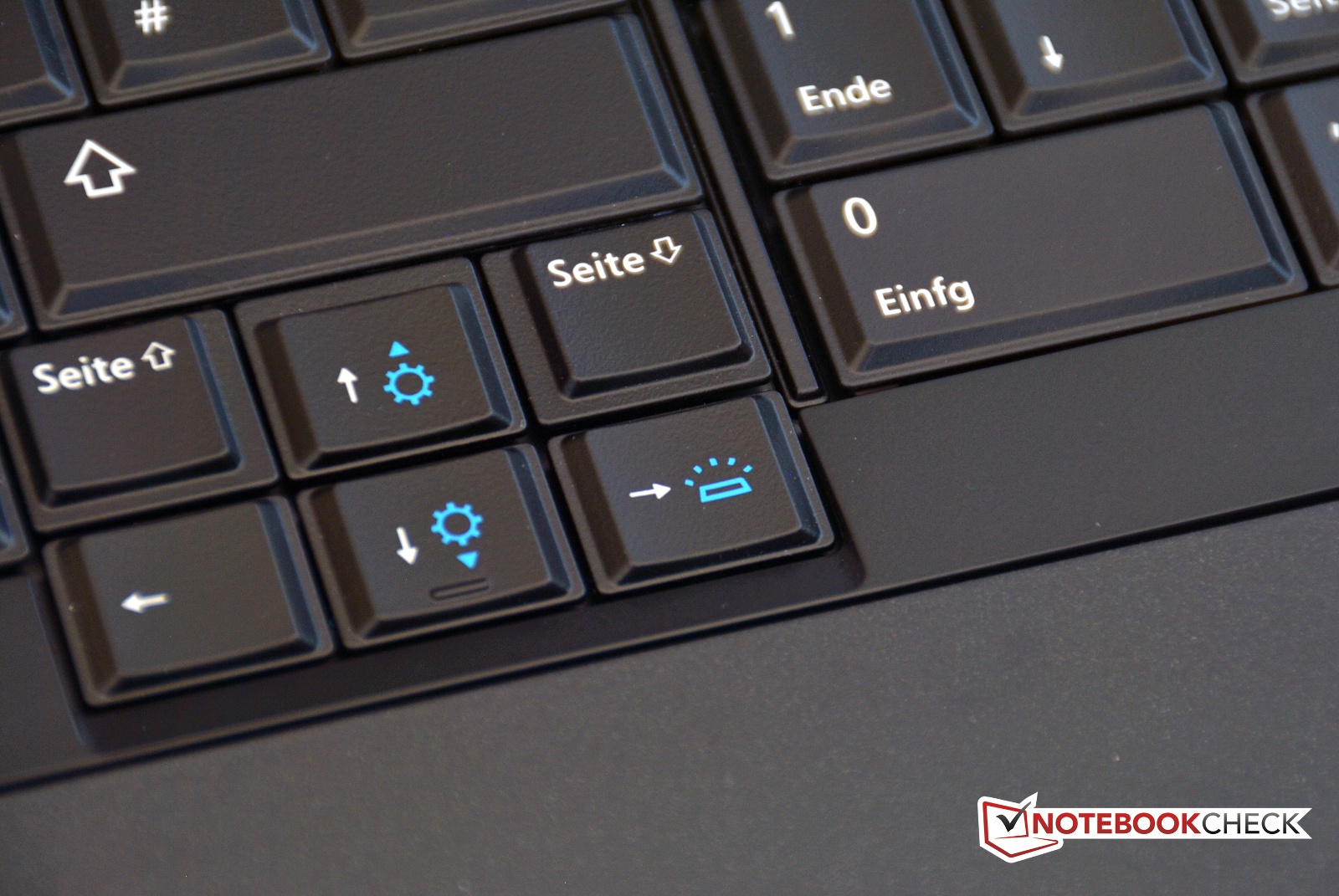

...with backlight illumination...
...with backlight illumination...
...and a numeric keypad.
...and a numeric keypad.

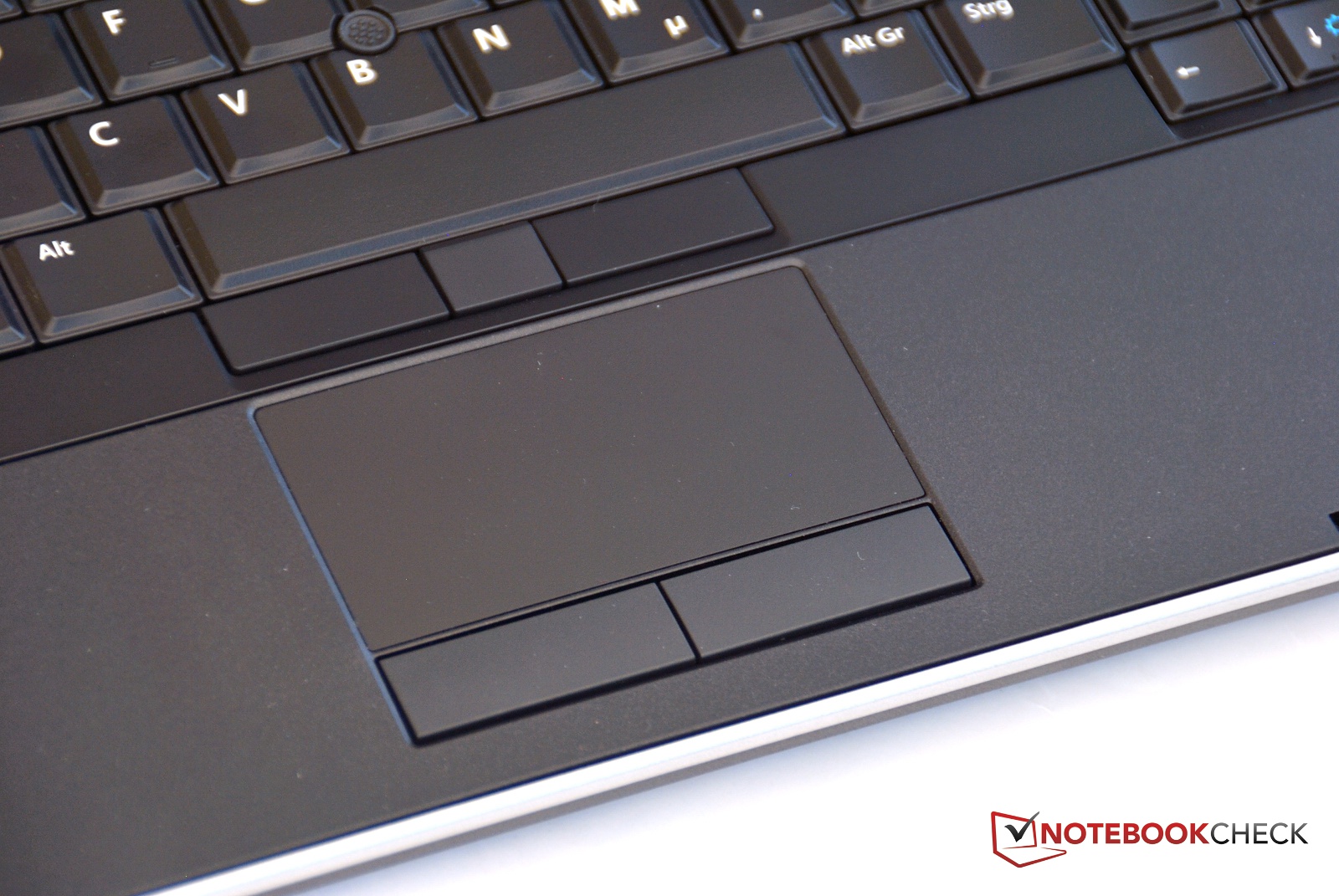

The touchpad and...
The touchpad and...
...the point stick are also very good.
...the point stick are also very good.


Display

Dell advertises two different displays with 1366x768 and 1920x1080 pixels, but once again, only one of the two displays is currently available. It is the Full HD display with LED backlight; the display surface is matte and prevents annoying reflections. The 15.6-inch display is provided by AU Optronics and has the designation B156HW02.

We criticized the limited choice of resolutions in the review of the predecessor. Our review unit had the same problem with only three resolutions but a driver update for the Intel HD Graphics 4600 solved the problem and we could select all the common resolutions.

The average display brightness of 297.2 cd/m² surpasses all the competitors, which are between 220 and 280 cd/m². You can obviously reduce the brightness and go easy on your eyes in darker environments.

The brightness distribution is okay but not overwhelming. The difference between the top with 323 cd/m² and the ride side with 275 cd/m² is quite big but should not be visible during normal tasks. The high display brightness is not reduced on battery.

312
cd/m²
323
cd/m²
301
cd/m²
283
cd/m²
313
cd/m²
275
cd/m²
282
cd/m²
269
cd/m²
276
cd/m²
Distribution of brightness
AU Optronics B156HW02 tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor
Maximum: 323 cd/m² (Nits) Average: 292.7 cd/m²
Brightness Distribution: 83 %
Center on Battery: 313 cd/m²
Contrast: 721:1 (Black: 0.434 cd/m²)
ΔE Color 4.44 | 0.5-29.43 Ø5
ΔE Greyscale 5.58 | 0.57-98 Ø5.3
46.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
51.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
72.2% sRGB (Argyll 2.2.0 3D)
49.75% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.41

The black value of 0.434 cd/m² is decent and combined with the high brightness we determine a contrast ratio of 721:1. Texts are sharp, pictures and videos are very crisp.

The display cannot cover professional color spaces, the standard sRGB is not covered and the Latitude E6540 can only display around 50% of AdobeRGB. You also have to search quite a while among the competitors before you find a suitable display. The HP EliteBook almost completely covers sRGB; the Full HD panel of our ThinkPad W530 almost reaches AdobeRGB.

However, color spaces are only important for a small customer group.

Latitude E6540 vs. sRGB
Latitude E6540 vs. sRGB
Latitude E6540 vs. AdobeRGB
Latitude E6540 vs. AdobeRGB

A look at the measurements of our colorimeter shows quite big deviations with the grayscale presentation as well as the color accuracy; the panel has a slightly visible blue cast. However, the only visible deviation is magenta with a DeltaE value of 7. A calibration did not noticeably improve the situation.

CalMAN ColorChecker
CalMAN ColorChecker
CalMAN ColorChecker (calibrated)
CalMAN ColorChecker (calibrated)
CalMAN Grayscale
CalMAN Grayscale
CalMAN Grayscale (calibrated)
CalMAN Grayscale (calibrated)
CalMAN Saturation
CalMAN Saturation
CalMAN Saturation (calibrated)
CalMAN Saturation (calibrated)

Due to the high brightness and the anti-reflective surface the display is well suited for bright environments including outdoors. Even direct sunlight is no problem, the display content remains visible. You just might have to adjust your viewing angle.

outdoors, sunny
outdoors, sunny
outdoors, direct sunlight
outdoors, direct sunlight

The display is no IPS panel, but the possible viewing angles are pretty wide. A view from the side shows almost no deviations and it is certainly no problem to enjoy the content with more than one person. Even from above the picture remains very stable. The only problem is the view from below; you can hardly see the picture because it gets darker and starts to invert.

Viewing angles Latitude E6540
Viewing angles Latitude E6540

Performance

Usually you can configure almost all the components according to your requirements in the Dell shop but that is not the case at the time of this review. There is just one available CPU and GPU each and you can choose between two storage solutions, however, one of them was currently not available.

Fortunately that is not a huge problem. The Intel Core i7-4800MQ is a brand-new high performance quad-core CPU. If the integrated Intel HD Graphics 4600 is not sufficient you can switch to the dedicated graphics card AMD Radeon HD 8790M with 2 GB memory.

Memory equipment is 8 GB DDR3 RAM with two 4 GB modules, the integrated storage solution with 128 GB unformatted storage is not really generous, at least it is a fast Solid State Drive

CPUZ CPU
CPUZ CPU
CPUZ Cache
CPUZ Cache
CPUZ Mainboard
CPUZ Mainboard
CPUZ Mainboard
CPUZ Mainboard
CPUZ SPD
CPUZ SPD
GPUZ AMD
GPUZ AMD
GPUZ Intel
GPUZ Intel
HWiNFO
HWiNFO
Latencies
Latencies

System information Dell Latitude E6540 FHD HD 8790M

Processor

Intel's Core i7-4800MQ is the second fastest quad-core CPU based on the latest Haswell architecture. The nominal clock is 2.7 GHz but it can be raised via Turbo Boost up to 3.7 GHz for single threaded applications and up to 3.5 GHz if you stress all four cores simultaneously.

However, the Turbo Boost is never utilized to its full extent. With Cinebench R11.5 Multi and Dell's Ultra Performance energy profile the clock fluctuates between 3.0 and 3.4 GHz. The results are therefore worse than the Schenker W503 for instance, which has a performance advantage of around 9%.

Despite that, the CPU performance is very good and the Latitude can easily surpass all the competitors, but you have to keep in mind that they all use dual-core processors based on the older Ivy Bridge architecture. The performance is not reduced when we use the battery

Cinebench R10 Rendering Single 32Bit
5244
Cinebench R10 Rendering Multiple CPUs 32Bit
19327
Cinebench R10 Shading 32Bit
7734
Cinebench R11.5 CPU Multi 64Bit
6.99 Points
Cinebench R11.5 OpenGL 64Bit
58.1 fps
Help
Cinebench R11.5 - CPU Multi 64Bit (sort by value)
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
6.99 Points
SCHENKER W503
GeForce GTX 765M, 4800MQ, Samsung SSD PM841 MZMTD128HAFV mSATA
7.61 Points +9%
Dell Latitude E6530
HD Graphics 4000, 3360M, Seagate Momentus 7200.4 ST9500423AS
3.26 Points -53%
Toshiba Tecra R950-192
Radeon HD 7570M, 3540M, Toshiba MK3261GSYG
3.49 Points -50%
Lenovo ThinkPad T530 2429-5XG
NVS 5400M, 3520M, Hitachi Travelstar Z7K500 HTS725050A7E630
3.36 Points -52%
HP EliteBook 8570p-B6Q03EA-ABD
Radeon HD 7570M, 3520M, Hitachi HTS727550A9E364
3.33 Points -52%

System Performance

A fast processor, dedicated graphics card and especially important an SSD: Ideal conditions for the system benchmark PCMark7. The Latitude E6540 takes a very high position on our benchmark list. Only the Schenker W503, which was also ahead in regard to the processor performance, can clearly beat the Latitude. Competitors with Ivy Bridge CPU's cannot keep up with this performance.

PCMark Vantage Result
16771 points
PCMark 7 Score
4983 points
Help
PCMark 7 - Score (sort by value)
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
4983 Points
SCHENKER W503
GeForce GTX 765M, 4800MQ, Samsung SSD PM841 MZMTD128HAFV mSATA
6152 Points +23%
Dell Latitude E6530
HD Graphics 4000, 3360M, Seagate Momentus 7200.4 ST9500423AS
2951 Points -41%
Toshiba Tecra R950-192
Radeon HD 7570M, 3540M, Toshiba MK3261GSYG
2201 Points -56%
Lenovo ThinkPad T530 2429-5XG
NVS 5400M, 3520M, Hitachi Travelstar Z7K500 HTS725050A7E630
2442 Points -51%
HP EliteBook 8570p-B6Q03EA-ABD
Radeon HD 7570M, 3520M, Hitachi HTS727550A9E364
2235 Points -55%
6.9
Windows 7 Experience Index
Processor
Calculations per second
7.4
Memory (RAM)
Memory operations per second
7.8
Graphics
Desktop performance for Windows Aero
6.9
Gaming graphics
3D business and gaming graphics
6.9
Primary hard disk
Disk data transfer rate
7.9

Storage Devices

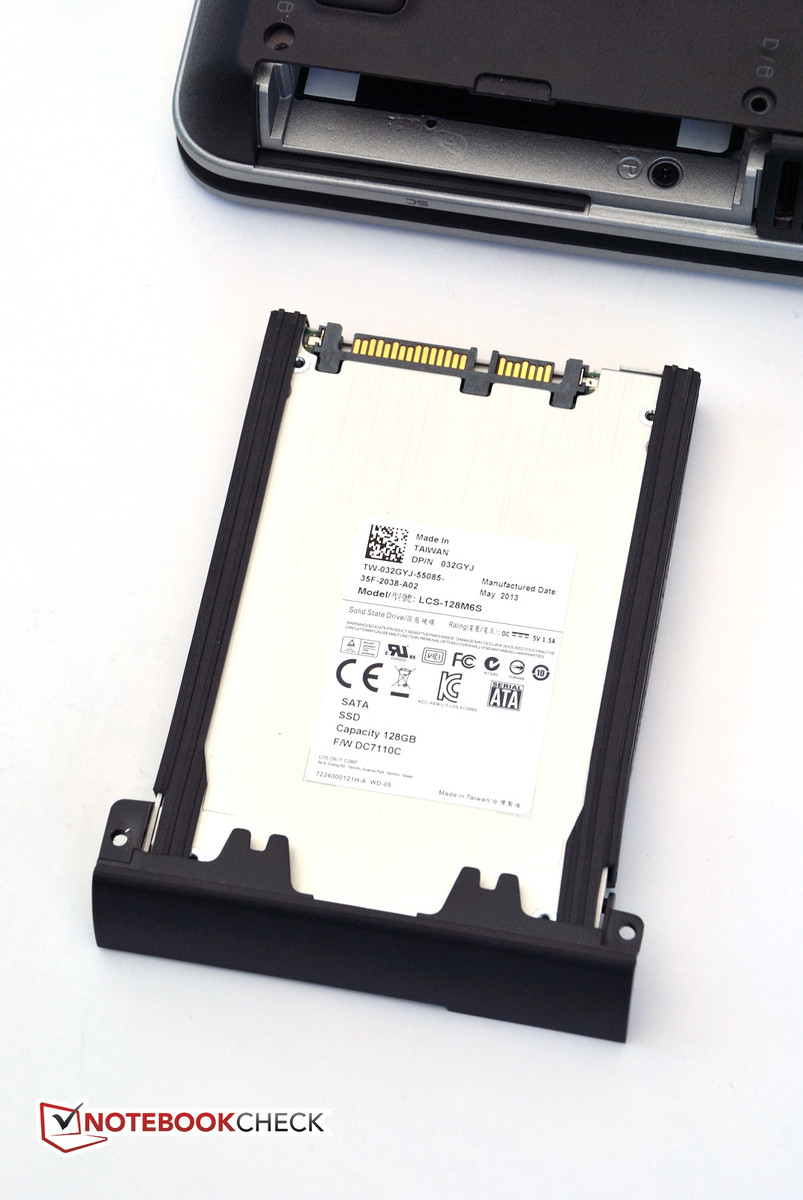

Dell's storage solution deserves praise and criticism at the same time. The SSD is provided by LiteOn and has the designation LCS-128M6S. The designation already suggests it; the storage capacity is just128 GB. Out of the box the user can only use 62 GB. This does not really meet the requirements of the high-end configuration. We would have at least expected twice that capacity. There is also no additional hard drive bay to store data on a conventional hard drive, but you can at least replace the optical drive with a hard drive module.

However, there is no criticism with the performance of the SSD; transfer rates and the low access times are very good. Reference values can be found in our benchmark list. The following bar chart shows two business devices with good Samsung and SanDisk SSD's; both of them are surpassed by the integrated LiteOn SSD.

Liteonit LCS-128M6S
Transfer Rate Minimum: 127.5 MB/s
Transfer Rate Maximum: 354.6 MB/s
Transfer Rate Average: 302.3 MB/s
Access Time: 0.1 ms
Burst Rate: 242.2 MB/s
CrystalDiskMark 3.0
Read Seq (sort by value)
Dell Latitude E6540 FHD HD 8790M
495.3 MB/s
Samsung 600B5C-S03
492.1 MB/s -1%
Asus BU400VC-W3040X
454.9 MB/s -8%
Read 4k (sort by value)
Dell Latitude E6540 FHD HD 8790M
26.75 MB/s
Samsung 600B5C-S03
23.09 MB/s -14%
Asus BU400VC-W3040X
13.81 MB/s -48%

Legend


Dell Latitude E6540 FHD HD 8790M Intel Core i7-4800MQ, AMD Radeon HD 8790M, Liteonit LCS-128M6S

Samsung 600B5C-S03 Intel Core i7-3520M, NVIDIA NVS 5200M, Samsung MZ7PC128HBFU

Asus BU400VC-W3040X Intel Core i7-3517U, NVIDIA NVS 5200M, SanDisk U100 256 GB SDSA5GK-256G-1002

Graphics

The Latitude E6540 has two graphics solutions. The Intel HD Graphics 4600 is integrated into the CPU and has a performance advantage of around 30% compared to the old Ivy Bridge HD Graphics 4000. The integrated graphics solution has sufficient performance for many applications.

We are a bit surprised about the AMD Radeon HD 8790M as the dedicated graphics card. Business notebooks are usually equipped with Nvidia-NVS or AMD FirePro cards, especially if they have to complement a very good integrated graphics card. However, the CAD performance of the Latitude E6540 is surprisingly good in SPECviewperf 11 and should be sufficient for less demanding CAD models. A SPECviewperf 11 performance comparison with the competition can be found at the end of this review.

Switching between the integrated and dedicated graphics is not possible when you run an application; you can assign the graphics card when the application is closed. The automatic choice is not always convenient, some games, for instance, used the integrated HD graphics.

The results of the synthetic graphics benchmark 3DMark are very good; the AMD Radeon HD 8970M gets 2,425 points in 3DMark 11 and is clearly ahead of the competition.

3DMark 03 Standard
27395 points
3DMark 05 Standard
23810 points
3DMark 06 Standard Score
13118 points
3DMark Vantage P Result
9835 points
3DMark 11 Performance
2425 points
3DMark Ice Storm Standard Score
58386 points
3DMark Cloud Gate Standard Score
9478 points
3DMark Fire Strike Score
1648 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Dell Latitude E6540 FHD HD 8790M
Radeon HD 8790M, 4800MQ, Liteonit LCS-128M6S
2425 Points
SCHENKER W503
GeForce GTX 765M, 4800MQ, Samsung SSD PM841 MZMTD128HAFV mSATA
4318 Points +78%
Dell Latitude E6530
HD Graphics 4000, 3360M, Seagate Momentus 7200.4 ST9500423AS
619 Points -74%
Toshiba Tecra R950-192
Radeon HD 7570M, 3540M, Toshiba MK3261GSYG
901 Points -63%
Lenovo ThinkPad T530 2429-5XG
NVS 5400M, 3520M, Hitachi Travelstar Z7K500 HTS725050A7E630
1258 Points -48%
HP EliteBook 8570p-B6Q03EA-ABD
Radeon HD 7570M, 3520M, Hitachi HTS727550A9E364
978 Points -60%

Gaming Performance

Gamers are not the target group for the Latitude series, but the notebook is certainly well suited for games with the dedicated graphics card. Many games can be played with high details, some of them even with the highest settings. The native resolution of 1920x1080 pixels is never a problem, although you might have to reduce some settings from time to time. Far Cry 3 for example has an average frame rate of 39.6 fps with Full HD and low details. The minimum frame rate is 28 fps, which is below the 30 fps mark but still playable.

low med. high ultra
Battlefield 3 (2011) 78 53 41 16
Anno 2070 (2011) 148 68 42 19
Risen 2: Dark Waters (2012) 70 46 31 15
Diablo III (2012) 97 70 61 37
Dirt Showdown (2012) 82 47 27 19
Counter-Strike: GO (2012) 149 116 73
F1 2012 (2012) 112 75 69 34
Fifa 13 (2012) 367 209 180 120
Dishonored (2012) 85 75 67 44
Call of Duty: Black Ops 2 (2012) 109 82 43 27.9
Hitman: Absolution (2012) 49 44 25 10
Assassin´s Creed III (2012) 37 32 11
Far Cry 3 (2012) 65 46 18 8
Dead Space 3 (2013) 188 80 58 36
Crysis 3 (2013) 103 66 42 16
Tomb Raider (2013) 127 57 42.5 19.7
SimCity (2013) 93 38 29 16
BioShock Infinite (2013) 113 55 47 15.6
Metro: Last Light (2013) 56 40 22.7 11.7
GRID 2 (2013) 110 85 59 19
Company of Heroes 2 (2013) 38.9 30.67 17.2 12.52

Emissions

System Noise

Despite the silent SSD the notebook is not really quiet. The fan is audible during idle with 33 dB(A); we measured 35.5 dB(A) during DVD playback and you can clearly hear the DVD drive in quiet movie scenes.

The system noise is increased to more than 40 dB(A) under load, which is always present. In addition there is a slight whining of the fan, however this is only audible in quiet environments.

Noise Level

Idle
32.2 / 33.3 / 33.4 dB(A)
DVD
35.5 / dB(A)
Load
40.7 / 41.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

During idle and common office tasks the surface temperature at the top is around 30 °C (86 °F). Therefore, the palm rest stays conveniently cool. The bottom warms up to around 33 °C (91.4 °F) in the center; using the notebook on your lap should be no problem although lengthy use could be too warm for some people.

The stress test shows the impact of the high performance processor and graphics card. We measure high surface temperatures; the palm rest is still unproblematic with almost 32 °C (89.6 °F) but the keyboard warms up to 44 °C (111.2 °F) at some spots. The bottom is even worse with up to 54 °C (129.2 °F).

Max. Load
 42.2 °C
108 F
42 °C
108 F
37.3 °C
99 F

 41.2 °C
106 F
43.6 °C
110 F
36.8 °C
98 F

 31.8 °C
89 F
37 °C
99 F
31.3 °C
88 F

Maximum: 43.6 °C = 110 F
Average: 38.1 °C = 101 F
39.3 °C
103 F
53.8 °C
129 F
51.7 °C
125 F
39.2 °C
103 F
48 °C
118 F
53.5 °C
128 F
35.8 °C
96 F
38.6 °C
101 F
41.5 °C
107 F
Maximum: 53.8 °C = 129 F
Average: 44.6 °C = 112 F
Power Supply (max.)  56.1 °C = 133 F | Room Temperature 23.7 °C = 75 F | Voltcraft IR-360
(-) The average temperature for the upper side under maximal load is 38.1 °C / 101 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 53.8 °C / 129 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37 °C / 98.6 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-9.3 °C / -16.7 F).

Stress Test

Stress test
Stress test

Our stress test tortures the processor and the graphics card for more than one hour. It determines if the cooling system is sufficient. The graphics performance remained constant for the whole test; the base clock fluctuates between 850 and 900 MHz. The temperature leveled off at 87 °C (188.6 °F).

The performance of the CPU on the other hand fluctuates more; after a short while the maximum clock of all four cores is at 1.7 GHz. The temperature of the CPU is raised to 98 °C (208.4 °F) in this case, which is pretty close to the maximum allowed temperature of 100 °C (212 °F). The result is a reduced clock of 1.1 GHz, even lower than the nominal clock. Unfortunately, this is a case of throttling. As soon as the temperature is below 90 °C (194 °F) the clock is raised again and fluctuates between 1.3 and 2.0 GHz.

3DMark 06 benchmark run directly after the stress test results in a lower score, it drops from 13,118 to 11,947 points and the impact on the CPU score is even worse: 3,928 instead of 5,411 points. If you use the notebook under maximum load for a long time you cannot use the full performance of the components.

Speakers

Speakers
Speakers

The speakers are very loud and should have no problem supporting a presentation in a small room. There are no deviations with high volumes, but you should not expect too much sound quality. Bass does not exist, otherwise the performance is clearly above average.

Energy Management

Power Consumption

The energy consumption adjusts well to the requirements. We only measure around nine Watts during idle. This good value is realized with a reduced display brightness, deactivated AMD Radeon HD 8790M and the, compared to a conventional hard drive, frugal SSD. The processor also has several energy saving features and automatically reduces its clock.

The competition cannot keep up with these results, they consume between 9.5 and 14.5 Watts during idle. Only the predecessor Latitude E6530 is more frugal with 8.4 Watts.

The situation changes under load. With the maximum display brightness, activated WLAN and Dell's Ultra Performance energy profile the notebook consumes 16.7 Watts during idle. Our stress test with maximum load for the CPU and GPU increases the consumption to around 90 Watts. The power supply unit is sufficiently dimensioned with a power output of 130 Watts and thus enables simultaneous charging of the battery.

Power Consumption
Off / Standbydarklight 0 / 0.3 Watt
Idledarkmidlight 8.8 / 13 / 16.7 Watt
Load midlight 67.6 / 88.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Battery Eater Classic Test
Classic Test
Charging
Charging

Dell's 9-cell battery has a very large capacity of 90 Wh, which is enabled by a protruding design. If you do not like that you can purchase a smaller 6-cell battery - another battery for the modular drive bay is also available.

We determine the maximum battery runtime with the Battery Eater Reader’s Test that simulates reading of a document. The display brightness is reduced, all the wireless connections are deactivated and we use the energy saving profile. The Latitude E6540 manages a runtime of more than 8 hours in this scenario.

The more realistic WLAN scenario simulates web browsing with an adjusted display brightness at around 150 cd/m². We use the Quiet energy profile from Dell and the result is a runtime of six and a half hours. Competitors from HPToshiba and the predecessor only have a 60 Wh battery so the runtimes are worse. The ThinkPad T530 however manages around eight hours with a similar battery capacity.

The runtime during DVD playback is sufficient for almost all movies; the runtime under load is comparatively short with one and a half hours because of the high energy consumption. A complete recharge of the battery takes around two and a half hours.

Battery Runtime
Idle (without WLAN, min brightness)
8h 15min
WiFi Surfing
6h 32min
DVD
3h 41min
Load (maximum brightness)
1h 31min

Verdict

The Dell Latitude E6540 is a business notebook, so the display, input devices, quality and service are especially important. The E6540 does not disappoint us and is convincing in these categories. The slightly bouncing keyboard and the small quality problem at the display cover are compensated by the matte Full HD display.

A small drawback is the limited port variety; you have to waive ExpressCard, FireWire and DisplayPort. Our review unit also lacks security features like a fingerprint or a SmartCard reader.

So far, the Latitude E6540 does not stand out from the competition but it is equipped with the latest and very powerful components. If you want to buy a new business notebook based on the Haswell architecture there is almost no alternative at the moment.

The competition cannot keep up in regard to the performance but the price for this is the high emissions and throttling under maximum load. The large 90 Wh battery has sufficient power for mobile working (runtime of 6 to 7 hours).

Due to these small drawbacks, the notebook will certainly not be ideal for everybody and a retail price of 1,860 Euros (~$2455) is also quite expensive.

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Latitude E6540 FHD HD 8790M
8.38 fps
SCHENKER W503
2.27 fps -73%
Toshiba Tecra R950-192
4.86 fps -42%
Lenovo ThinkPad T530 2429-5XG
2.32 fps -72%
HP EliteBook 8570p-B6Q03EA-ABD
4.98 fps -41%
HP EliteBook 8470w B5W63AW-ABD
14.19 fps +69%
Fujitsu Celsius H720 H7200WXP11DE
17.43 fps +108%
1920x1080 Tcvis (sort by value)
Dell Latitude E6540 FHD HD 8790M
7.23 fps
SCHENKER W503
1.02 fps -86%
Toshiba Tecra R950-192
5.76 fps -20%
Lenovo ThinkPad T530 2429-5XG
0.91 fps -87%
HP EliteBook 8570p-B6Q03EA-ABD
5.63 fps -22%
HP EliteBook 8470w B5W63AW-ABD
10.99 fps +52%
Fujitsu Celsius H720 H7200WXP11DE
22.34 fps +209%
1920x1080 SolidWorks (sort by value)
Dell Latitude E6540 FHD HD 8790M
25.98 fps
SCHENKER W503
11.11 fps -57%
Toshiba Tecra R950-192
19.43 fps -25%
Lenovo ThinkPad T530 2429-5XG
8.53 fps -67%
HP EliteBook 8570p-B6Q03EA-ABD
19.34 fps -26%
HP EliteBook 8470w B5W63AW-ABD
33.19 fps +28%
Fujitsu Celsius H720 H7200WXP11DE
30.9 fps +19%
1920x1080 Pro/ENGINEER (sort by value)
Dell Latitude E6540 FHD HD 8790M
4.14 fps
SCHENKER W503
1.48 fps -64%
Toshiba Tecra R950-192
2.58 fps -38%
Lenovo ThinkPad T530 2429-5XG
1.2 fps -71%
HP EliteBook 8570p-B6Q03EA-ABD
2.45 fps -41%
HP EliteBook 8470w B5W63AW-ABD
4.83 fps +17%
Fujitsu Celsius H720 H7200WXP11DE
12.92 fps +212%
1920x1080 Maya (sort by value)
Dell Latitude E6540 FHD HD 8790M
16.53 fps
SCHENKER W503
14.74 fps -11%
Toshiba Tecra R950-192
14.87 fps -10%
Lenovo ThinkPad T530 2429-5XG
9.99 fps -40%
HP EliteBook 8570p-B6Q03EA-ABD
11.69 fps -29%
HP EliteBook 8470w B5W63AW-ABD
36.89 fps +123%
Fujitsu Celsius H720 H7200WXP11DE
38.85 fps +135%
1920x1080 Lightwave (sort by value)
Dell Latitude E6540 FHD HD 8790M
29.85 fps
SCHENKER W503
20.33 fps -32%
Toshiba Tecra R950-192
29.6 fps -1%
Lenovo ThinkPad T530 2429-5XG
14.77 fps -51%
HP EliteBook 8570p-B6Q03EA-ABD
27.31 fps -9%
HP EliteBook 8470w B5W63AW-ABD
42.25 fps +42%
Fujitsu Celsius H720 H7200WXP11DE
44.19 fps +48%
1920x1080 Ensight (sort by value)
Dell Latitude E6540 FHD HD 8790M
23.31 fps
SCHENKER W503
18.35 fps -21%
Toshiba Tecra R950-192
12 fps -49%
Lenovo ThinkPad T530 2429-5XG
11.28 fps -52%
HP EliteBook 8570p-B6Q03EA-ABD
12.17 fps -48%
HP EliteBook 8470w B5W63AW-ABD
12.23 fps -48%
Fujitsu Celsius H720 H7200WXP11DE
11.61 fps -50%
1920x1080 Catia (sort by value)
Dell Latitude E6540 FHD HD 8790M
10.01 fps
SCHENKER W503
11.21 fps +12%
Toshiba Tecra R950-192
6.82 fps -32%
Lenovo ThinkPad T530 2429-5XG
4.54 fps -55%
HP EliteBook 8570p-B6Q03EA-ABD
6.56 fps -34%
HP EliteBook 8470w B5W63AW-ABD
14.62 fps +46%
Fujitsu Celsius H720 H7200WXP11DE
22.94 fps +129%

Legend


Dell Latitude E6540 FHD HD 8790M Intel Core i7-4800MQ, AMD Radeon HD 8790M, Liteonit LCS-128M6S

SCHENKER W503 Intel Core i7-4800MQ, NVIDIA GeForce GTX 765M, Samsung SSD PM841 MZMTD128HAFV mSATA

Dell Latitude E6530 Intel Core i5-3360M, Intel HD Graphics 4000, Seagate Momentus 7200.4 ST9500423AS

Toshiba Tecra R950-192 Intel Core i7-3540M, AMD Radeon HD 7570M, Toshiba MK3261GSYG

Lenovo ThinkPad T530 2429-5XG Intel Core i7-3520M, NVIDIA NVS 5400M, Hitachi Travelstar Z7K500 HTS725050A7E630

HP EliteBook 8570p-B6Q03EA-ABD Intel Core i7-3520M, AMD Radeon HD 7570M, Hitachi HTS727550A9E364

HP EliteBook 8470w B5W63AW-ABD Intel Core i5-3360M, AMD FirePro M2000, Hitachi Travelstar 7K500 HTS727550A9E

Fujitsu Celsius H720 H7200WXP11DE Intel Core i7-3720QM, NVIDIA Quadro K1000M, Micron RealSSD C400-MTFDDAC256MAM
Read all 16 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review: Dell Latitude E6540. Courtesy of: Dell Germany
In Review: Dell Latitude E6540. Courtesy of: Dell Germany

Specifications

Dell Latitude E6540 FHD HD 8790M
Processor
Intel Core i7-4800MQ 4 x 2.7 - 3.7 GHz (Intel Core i7)
Graphics adapter
AMD Radeon HD 8790M - 2048 MB VRAM, Core: 850 MHz, Memory: 1000 MHz, Intel HD Graphics 4600
Memory
8 GB
, 2x 4 GB DDR3 SDRAM
Display
15.60 inch 16:9, 1920 x 1080 pixel, AU Optronics B156HW02, TN LED, glossy: no
Mainboard
Intel QM87 (Lynx Point)
Storage
Liteonit LCS-128M6S, 128 GB
, 62 GB free
Soundcard
Intel Lynx Point PCH - High Definition Audio Controller
Connections
4 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: combined headphone and microphone port, Card Reader: SD
Networking
Intel I217-LM Gigabit Network Connection (10/100/1000MBit/s), Intel Centrino Ultimate-N 6300 AGN (a/g/n = Wi-Fi 4/), Bluetooth 4.0, HSPA+, GSM, GPRS, EDGE
Optical drive
PLDS DVD+-RW DU-8A5HH
Size
height x width x depth (in mm): 35 x 379 x 275 ( = 1.38 x 14.92 x 10.83 in)
Battery
97 Wh Lithium-Ion, 11.1 V
Operating System
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: HD 1280x720
Additional features
Speakers: Stereo, Keyboard Light: yes, 36 Months Warranty
Weight
3 kg ( = 105.82 oz / 6.61 pounds), Power Supply: 400 g ( = 14.11 oz / 0.88 pounds)
Price
1860 Euro



Dell already offers a Haswell update...
Dell already offers a Haswell update...
...for its popular Latitude-E series.
...for its popular Latitude-E series.
The Latitude E6540 has many similarities with the predecessor, ...
The Latitude E6540 has many similarities with the predecessor, ...
...but the components and the case have been updated.
...but the components and the case have been updated.
Our review unit is equipped with an Intel Core i7 4800MQ, ...
Our review unit is equipped with an Intel Core i7 4800MQ, ...
...AMD Radeon HD 8790M and...
...AMD Radeon HD 8790M and...

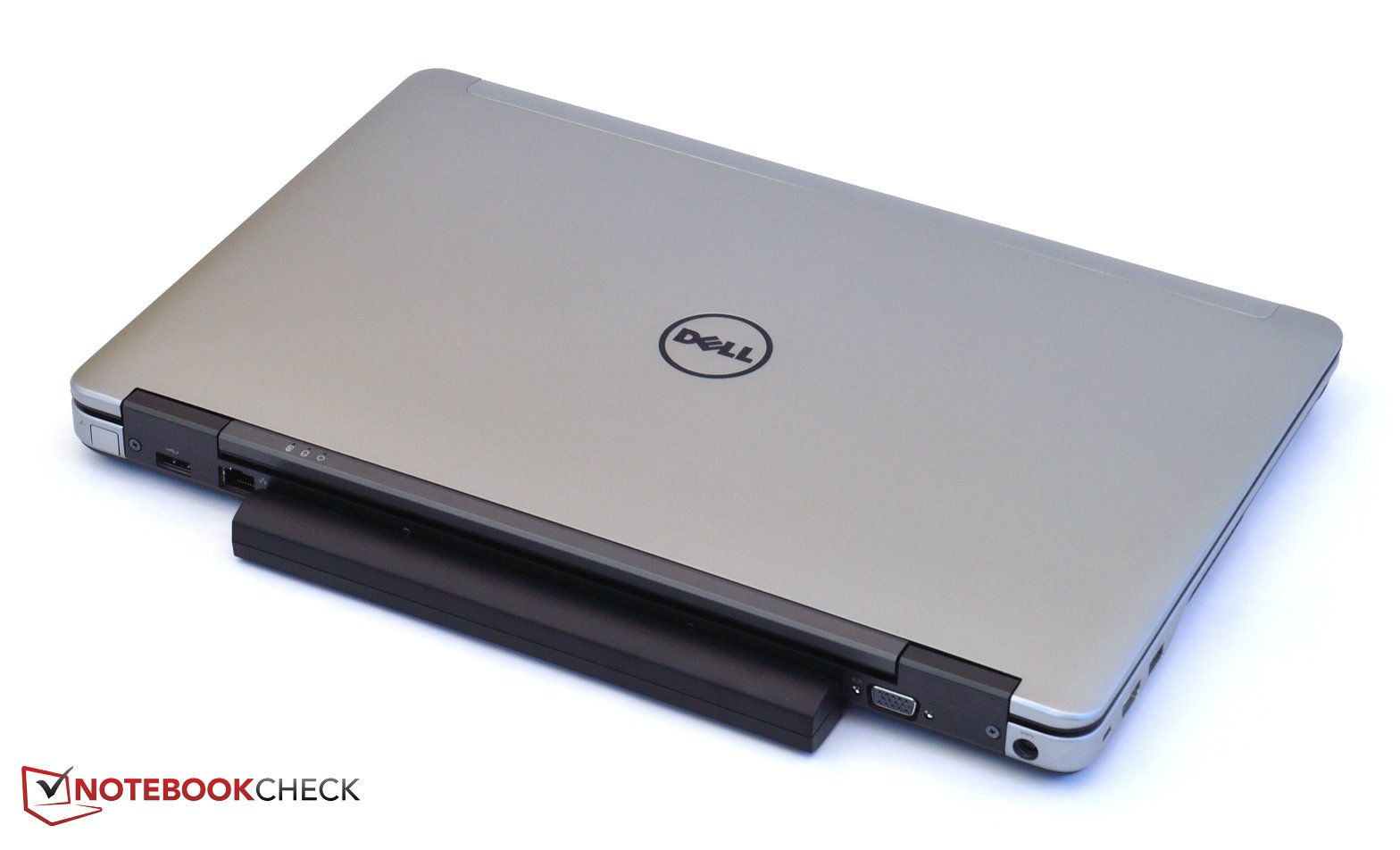

...a large 9-cell battery.
...a large 9-cell battery.
The notebook boots up very quickly...
The notebook boots up very quickly...
...after you hit the Power button...
...after you hit the Power button...
...due to the 128 GB SSD.
...due to the 128 GB SSD.
Even the build quality and stability are solid, ...
Even the build quality and stability are solid, ...
...the only exception is the display cover.
...the only exception is the display cover.
The hinges only bounce slightly.
The hinges only bounce slightly.
A combined stereo jack for microphone and headphones.
A combined stereo jack for microphone and headphones.

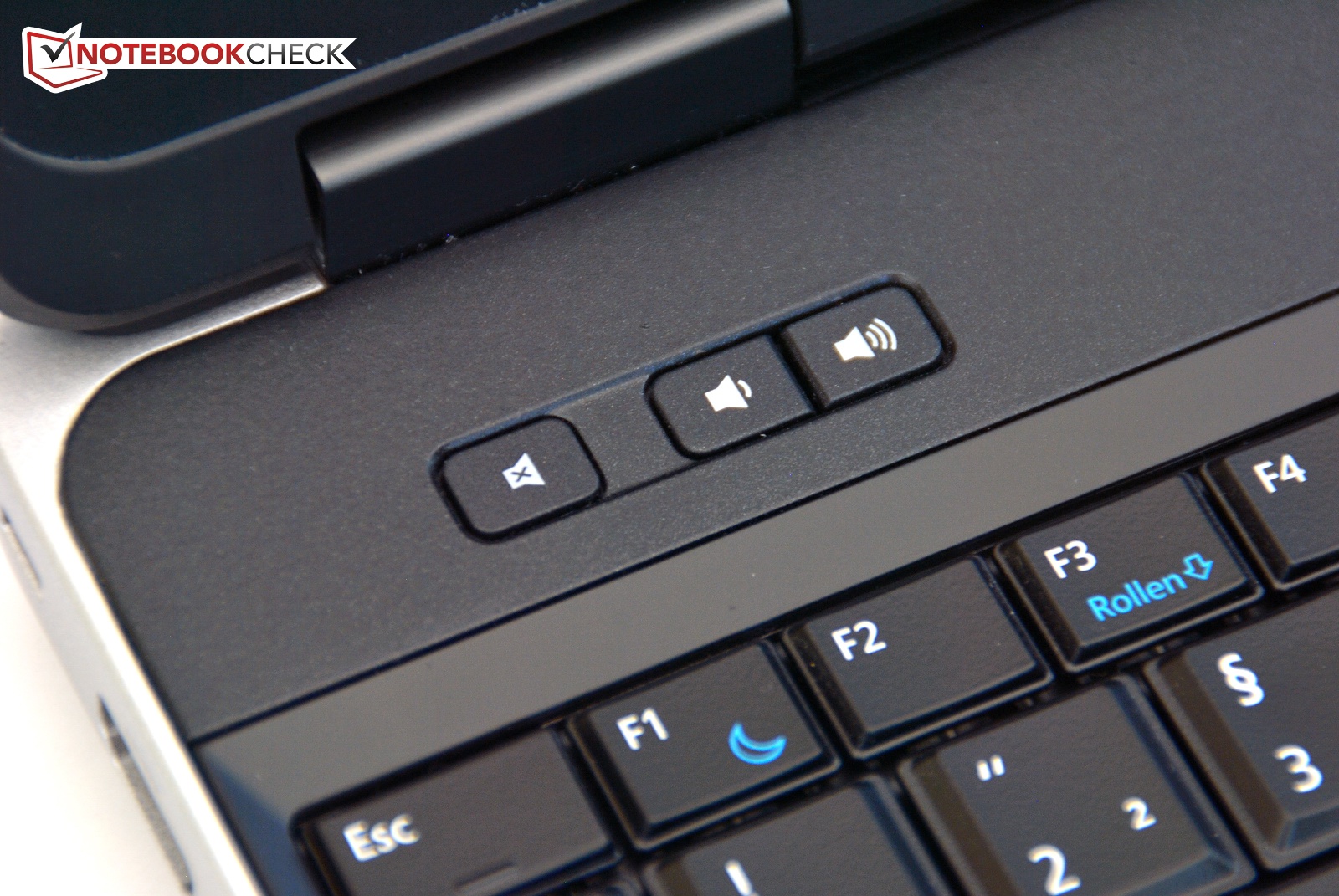

There are special keys for the volume.
There are special keys for the volume.
The high energy consumption of up to 80 Watts...
The high energy consumption of up to 80 Watts...

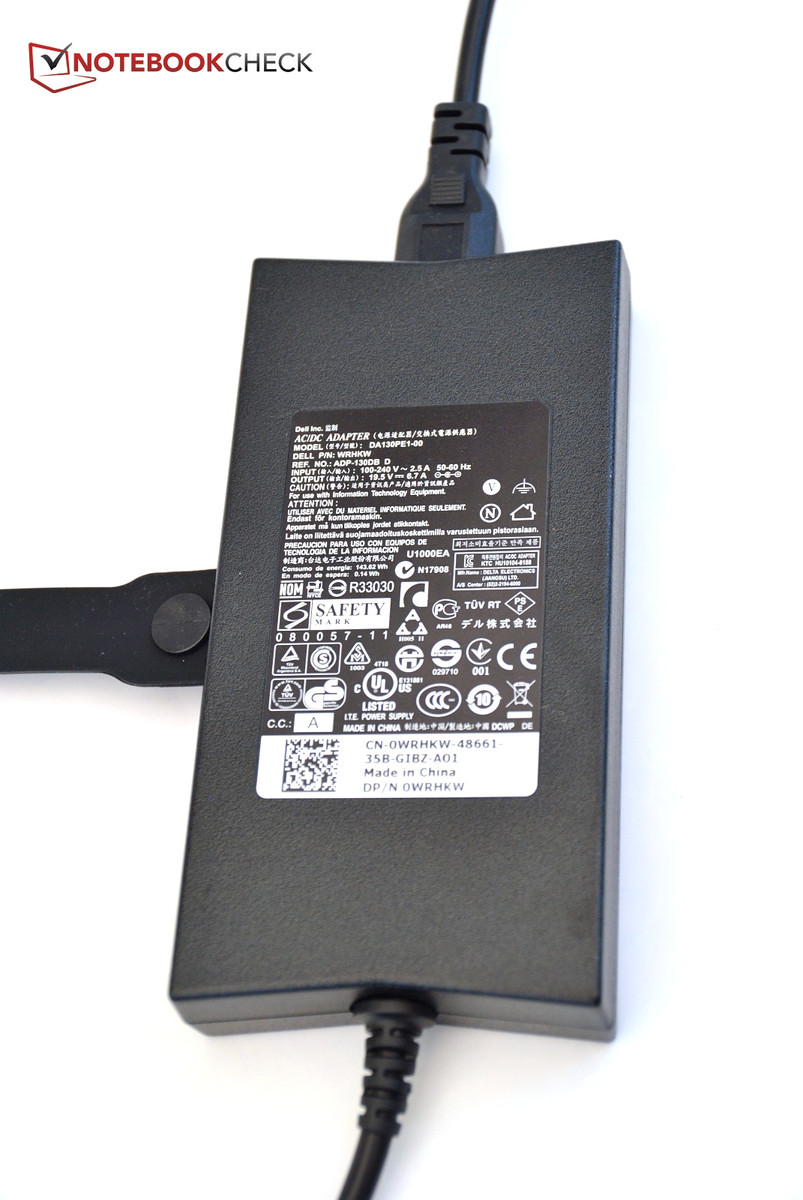

...is covered by the 130 Watts power supply unit.
...is covered by the 130 Watts power supply unit.
It also has a handy strap for the cord.
It also has a handy strap for the cord.
Digital video output via HDMI.
Digital video output via HDMI.
Gigabit LAN and USB 3.0 at the back.
Gigabit LAN and USB 3.0 at the back.
The card reader is only compatible with SD cards.
The card reader is only compatible with SD cards.
Even a VGA port is available.
Even a VGA port is available.
If that's not enough you can also extend the port variety with a docking station.
If that's not enough you can also extend the port variety with a docking station.
The optical drive is a DVD burner...
The optical drive is a DVD burner...
...but the bay is modular.
...but the bay is modular.

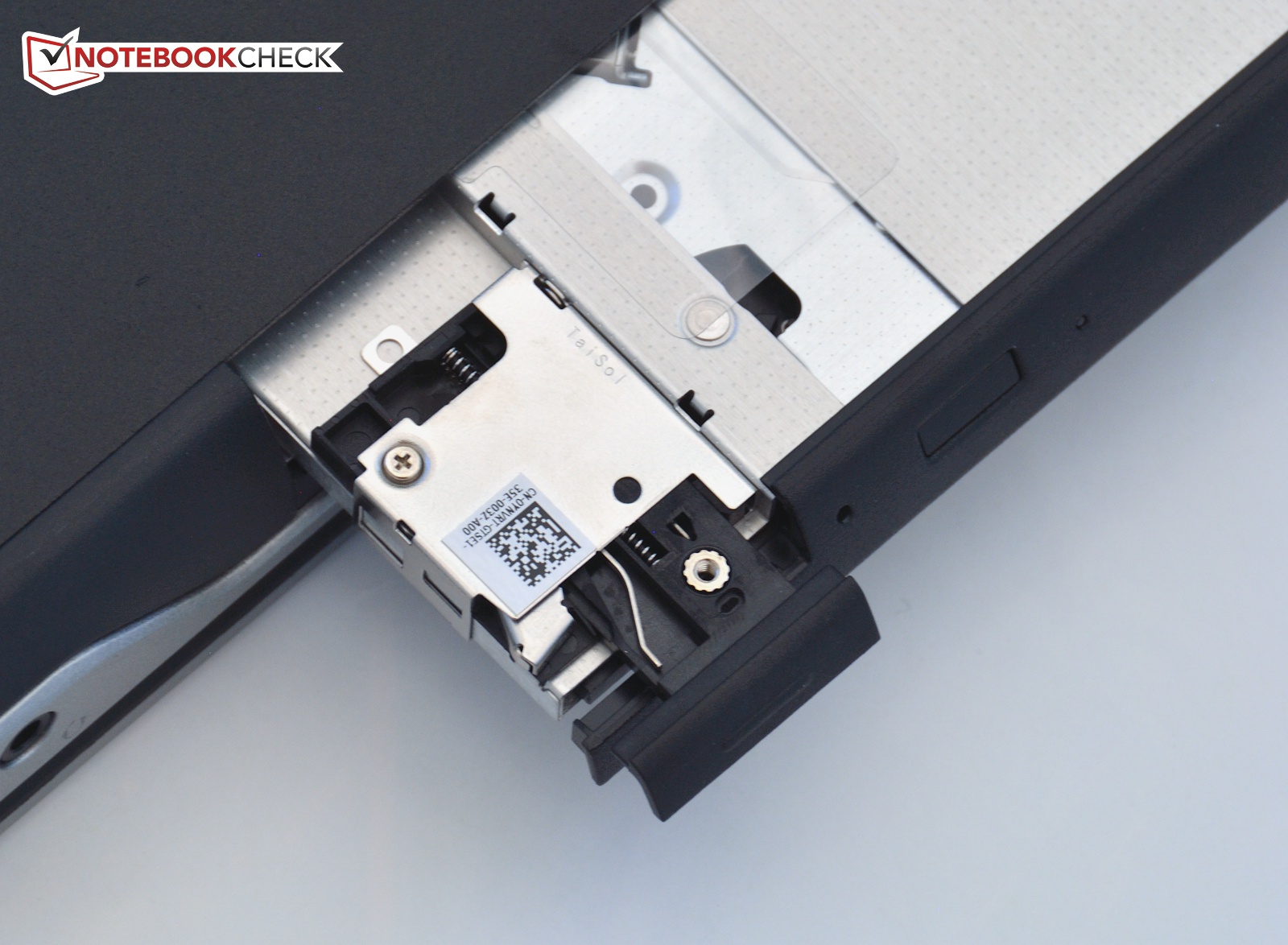

A small latch secures the module inside the notebook.
A small latch secures the module inside the notebook.

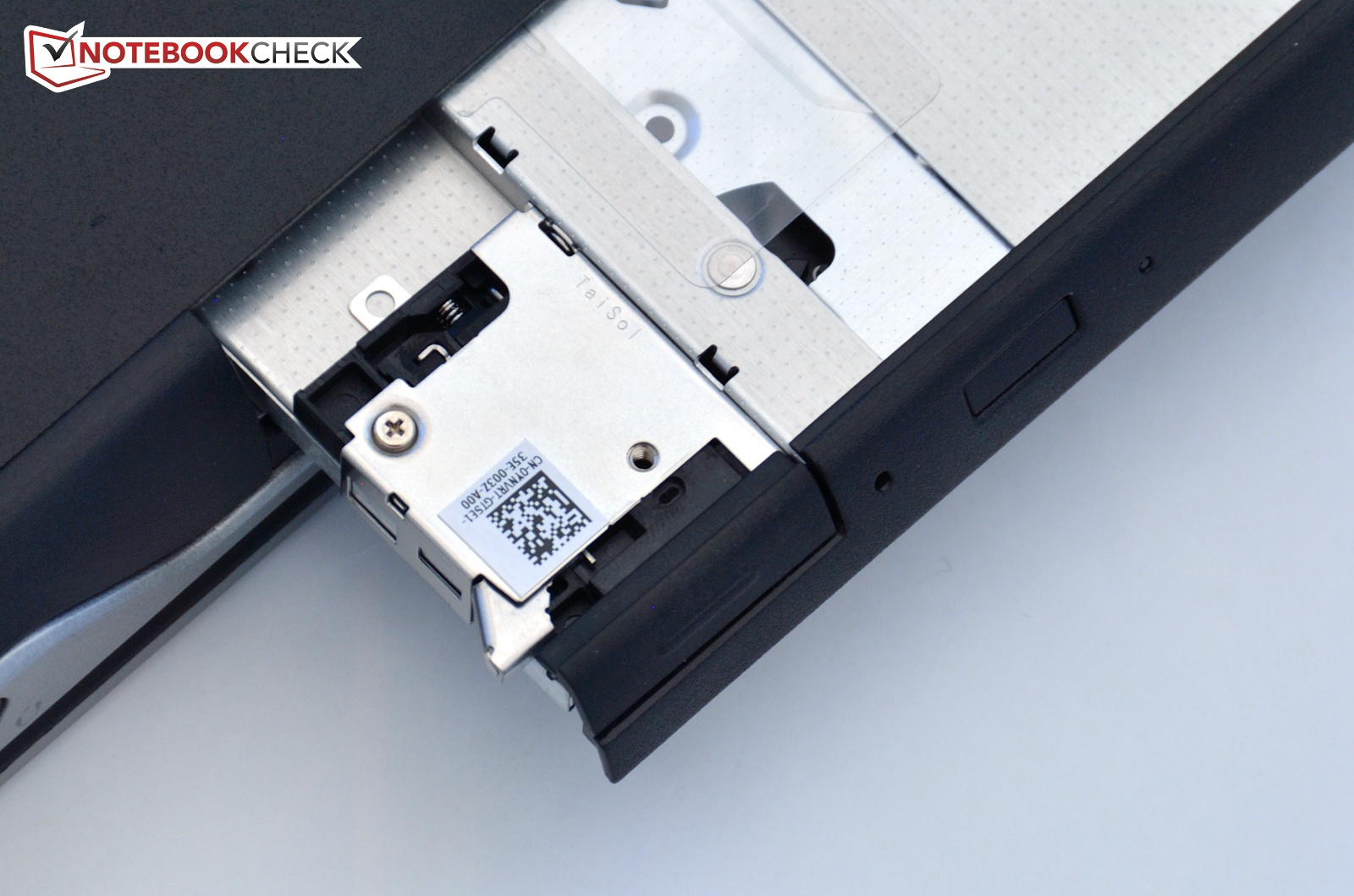

A quick push on the surface next to the drive releases it, no screws are required.
A quick push on the surface next to the drive releases it, no screws are required.

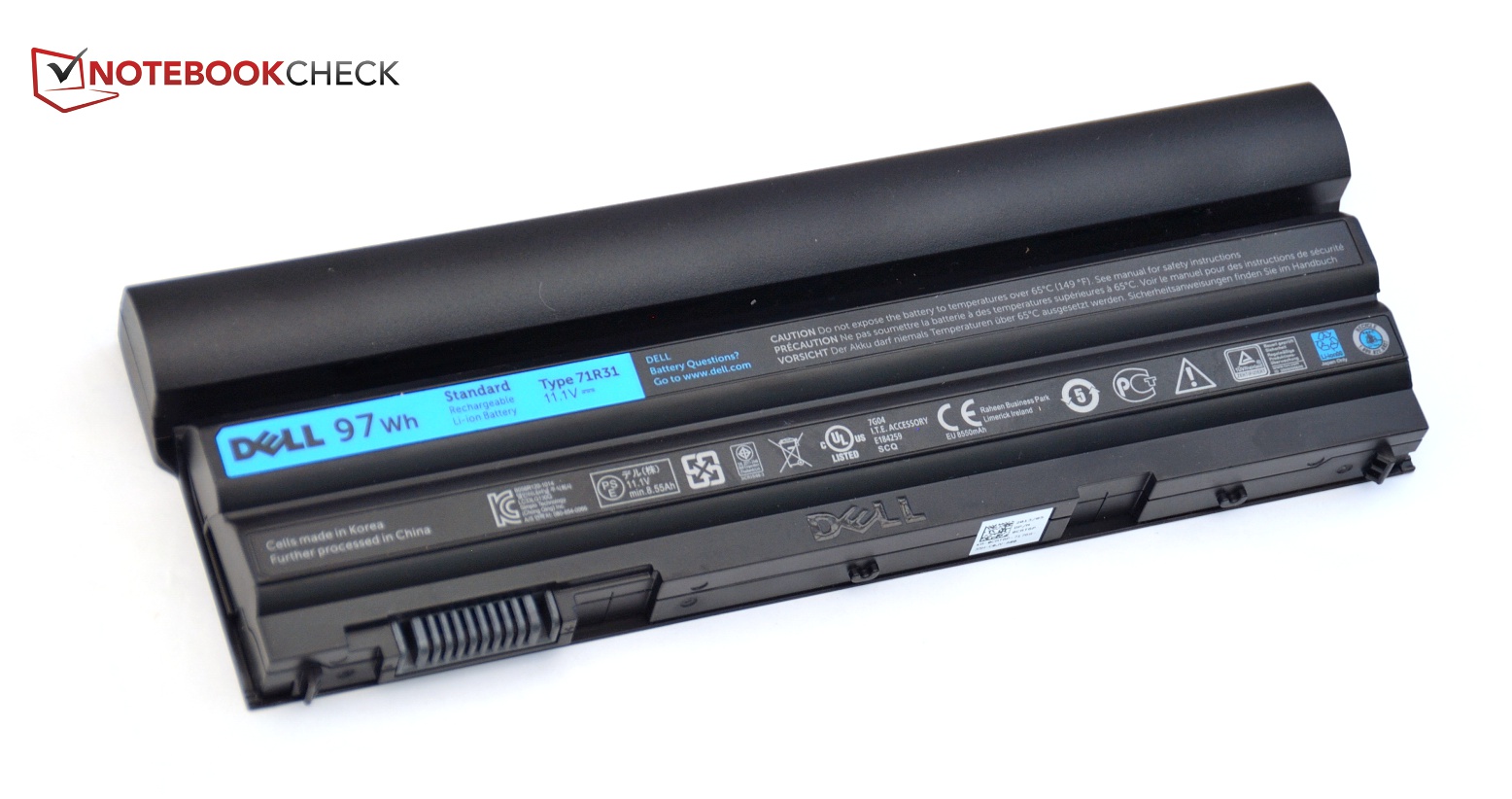

The battery has a capacity of 90 Wh...
The battery has a capacity of 90 Wh...
...and provides WLAN battery runtimes of 6.5 hours.
...and provides WLAN battery runtimes of 6.5 hours.
To maintain the latitude you have to remove the whole bottom cover.
To maintain the latitude you have to remove the whole bottom cover.
The cover reveals the CMOS battery, ...
The cover reveals the CMOS battery, ...
...8 GB DDR3 RAM, ...
...8 GB DDR3 RAM, ...
...the high quality Intel WLAN module...
...the high quality Intel WLAN module...
...as well as an UMTS module.
...as well as an UMTS module.
Even the fan can be accessed...
Even the fan can be accessed...
...and easily cleaned.
...and easily cleaned.
All in all the Latitude E6540...
All in all the Latitude E6540...
...has a unique selling point with Haswell, ...
...has a unique selling point with Haswell, ...
...but also has a few drawbacks...
...but also has a few drawbacks...
...compared with its rivals.
...compared with its rivals.

Similar Devices

Devices with Same Screen Size and/or Weight

Dell Latitude 7440 laptop review: Beating the Latitude 9440 in some key areas
Iris Xe G7 80EUs, Raptor Lake-U i5-1345U, 14.00", 1.218 kg
Intel Core i5-1345U performance debut: Dell Latitude 3440 laptop review
Iris Xe G7 80EUs, Raptor Lake-U i5-1345U, 14.00", 1.537 kg
Dell Latitude 3520 in review: Core i5 office laptop delivers good runtimes
Iris Xe G7 80EUs, Tiger Lake i5-1135G7, 15.60", 1.78 kg
Intel Core i7-1265U debut: Dell Latitude 13 7330 1 kg laptop review
Iris Xe G7 96EUs, Alder Lake-M i7-1265U, 13.30", 1.003 kg
Dell Inspiron 14 5425 in review: Ryzen 5 office laptop offers long battery life
Vega 7, Cezanne (Zen 3, Ryzen 5000) R5 5625U, 14.00", 1.55 kg
Dell Inspiron 15 5515 laptop review: Enduring office notebook with untapped potential
Vega 8, Lucienne (Zen 2, Ryzen 5000) R7 5700U, 15.60", 1.632 kg
Dell Latitude 7420 Review: Windows PC - Maximum Security
Iris Xe G7 80EUs, Tiger Lake i5-1145G7, 14.00", 1.32 kg

Links

Price Comparison

Pros

+Quick and modern CPU
+Dedicated GPU
+Good input devices
+Very bright display
+Fast SSD


Cons

-High weight
-Display cover has quality problems
-Below average port equipment
-Limited storage
-High emissions under load

Shortcut

What we like

The bright and anti-reflective display with good outdoor capabilities.

What we miss

A sufficient cooling to prevent or at least minimize throttling.

What surprises us

That Dell currently only offers one storage solution with 128 GB.

The competition

Toshiba Tecra R950, Lenovo ThinkPad T530, HP EliteBook 8570p, Dell Latitude E6530

Rating

Dell Latitude E6540 FHD HD 8790M - 06/25/2014 v4(old)
Jonas Adams

Chassis
87 / 98 → 89%
Keyboard
89%
Pointing Device
90%
Connectivity
85 / 80 → 100%
Weight
57 / 20-67 → 79%
Battery
84%
Display
84%
Games Performance
88 / 68 → 100%
Application Performance
97 / 92 → 100%
Temperature
75%
Noise
82%
Audio
70%
Camera
45 / 85 → 53%
Average
79%
85%
Office - Weighted Average
> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Archive of our own reviews > Review Dell Latitude E6540 (i7-4800MQ/HD 8790M) Notebook
Jonas Adams, 2013-07-22 (Update: 2018-05-15)
