HP EliteBook 755 G5 (Ryzen 7 2700U, Vega 10) Laptop Review

Mike Wobker, Felicitas Krohn (translated by Mark Riege), 07/21/2018

AMD for Business. HP's EliteBooks offer an attractive design, AMD technology, and many security features. However, these business notebooks frequently stood out with a high power consumption, their low display quality, and a mediocre battery life. We evaluate in our review of the HP EliteBook 755 G5 whether something has changed with this newest generation.

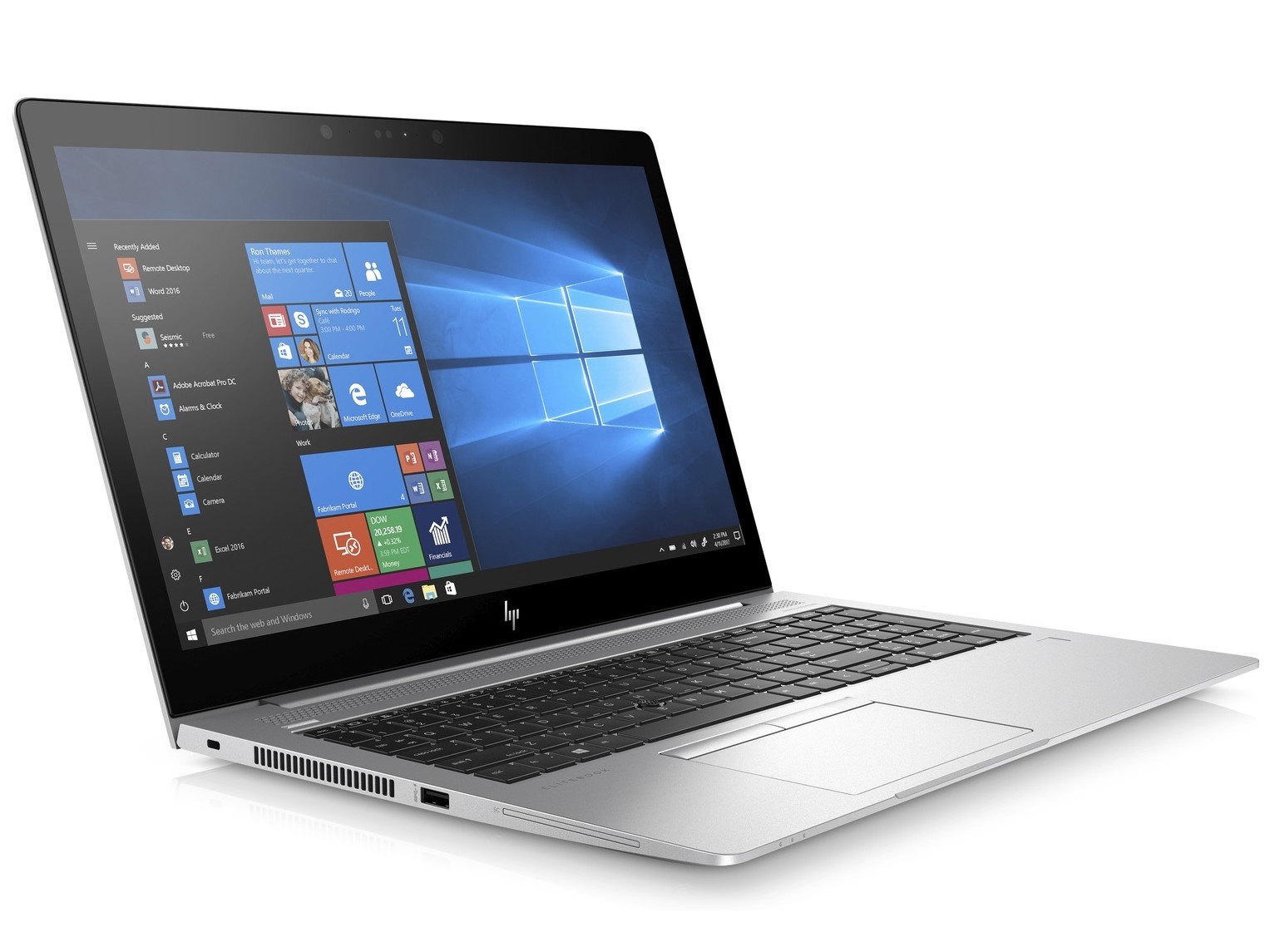

HP EliteBook 755 G5

With the EliteBook 755 G5, HP continues its strategy of offering attractive business notebooks with AMD technology and many security features. With the latest generation, the design of the 700 series has been adjusted and now corresponds to that of the HP EliteBook 850 G5. Our test unit offers an AMD Ryzen 7-2700U CPU with an integrated Radeon RX Vega 10 graphics card, 8 GB of working memory, and a 500 GB SSD.

In addition to the HP EliteBook 745 G5, the competitors of the EliteBook 755 G5 also include the Lenovo ThinkPad T480s, Dell's Latitude 5490, and of course its predecessor, the EliteBook 755 G4. Due to the lack of high-quality business devices with an AMD processor, most of the competing devices are equipped with Intel CPUs. So while a comparison is possible, we cannot let it face-off against other AMD notebooks.

HP EliteBook 755 G5 3UN79EA (EliteBook 700 Series)
Graphics adapter
Memory
8192 MB
, DDR4-2400, single channel
Display
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, BOE074E, IPS, glossy: no
Mainboard
AMD CZ FCH
Storage
Toshiba XG5 KXG50ZNV512G, 512 GB
, 365 GB free
Soundcard
AMD Raven - Audio Processor - HD Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Audio combo port, 1 SmartCard, 1 Fingerprint Reader
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter (a/b/g/n/ac), Bluetooth 4.2, LTE
Size
height x width x depth (in mm): 18.3 x 370 x 252 ( = 0.72 x 14.57 x 9.92 in)
Battery
56 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p, 0,9 MP, 1280 x 720
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
1.78 kg ( = 62.79 oz / 3.92 pounds), Power Supply: 315 g ( = 11.11 oz / 0.69 pounds)
Price
1599 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Case - The EliteBook 755 G5 with a metal case

The case of the HP EliteBook 755 G5 shares an identical build with that of the HP EliteBook 850 G5. We therefore direct you to that review, pointing out that not only the design, but also the measurements and connection equipment are exactly identical. Interested buyers should also keep in mind that while there is a Thunderbolt and a docking port, HP does not include any SD or microSD card reader.

Size Comparison

Left side: Kensington Lock, USB 3.0 Type A, smartcard reader
Left side: Kensington Lock, USB 3.0 Type A, smartcard reader
Right side: SIM card slot, audio combo port, USB 3.0 Type A, HDMI, Gigabit LAN, docking port, USB Type-C, power
Right side: SIM card slot, audio combo port, USB 3.0 Type A, HDMI, Gigabit LAN, docking port, USB Type-C, power

Communication

Thanks to the ac standard and support of the 5 GHz band, the HP EliteBook 755 G5 offers users fast WLAN, and it also has a SIM card slot for mobile communication. In our measurements, the EliteBook 755 G5 is able to shine with good data transfer rates, but slightly falls behind the competitors.

We notice in the comparison with the predecessor and the competing models that our test unit is primarily weak in the data reception and must be content with the last place of our comparison list in this discipline.

Independent journalism is made possible by advertising. We show the least amount of ads whenever possible but we intentionally show more ads when an adblocker is used. Please, switch off ad blockers and support us!

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 5490
Intel Dual Band Wireless-AC 8265
653 MBit/s ∼100% +84%
Lenovo ThinkPad T480s-20L7002AUS
Intel Dual Band Wireless-AC 8265
620 MBit/s ∼95% +75%
HP EliteBook 755 G4
Intel Dual Band Wireless-AC 7265
504 MBit/s ∼77% +42%
Average of class Office
  (5 - 688, n=174)
458 MBit/s ∼70% +29%
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
409 MBit/s ∼63% +15%
HP EliteBook 755 G5 3UN79EA
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
355 MBit/s ∼54%
iperf3 Client (transmit) TCP 1 m 4M x10
HP EliteBook 755 G4
Intel Dual Band Wireless-AC 7265
648 MBit/s ∼100% +15%
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
593 MBit/s ∼92% +5%
HP EliteBook 755 G5 3UN79EA
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
564 MBit/s ∼87%
Lenovo ThinkPad T480s-20L7002AUS
Intel Dual Band Wireless-AC 8265
529 MBit/s ∼82% -6%
Dell Latitude 5490
Intel Dual Band Wireless-AC 8265
524 MBit/s ∼81% -7%
Average of class Office
  (34 - 688, n=174)
425 MBit/s ∼66% -25%

Security

As a business device, the EliteBook 755 G5 offers several security features. These include TPM 2.0, a smartcard reader, a Kensington Lock, a fingerprint sensor, and several software solutions from HP. The fingerprint sensor recognizes the stored prints very fast and offers a good alternative to the conventional password.

Accessories

The HP EliteBook 755 G5 merely includes the corresponding power supply and warranty information. However, HP offers a number of suitable generic notebook accessories on its own website.

Maintenance

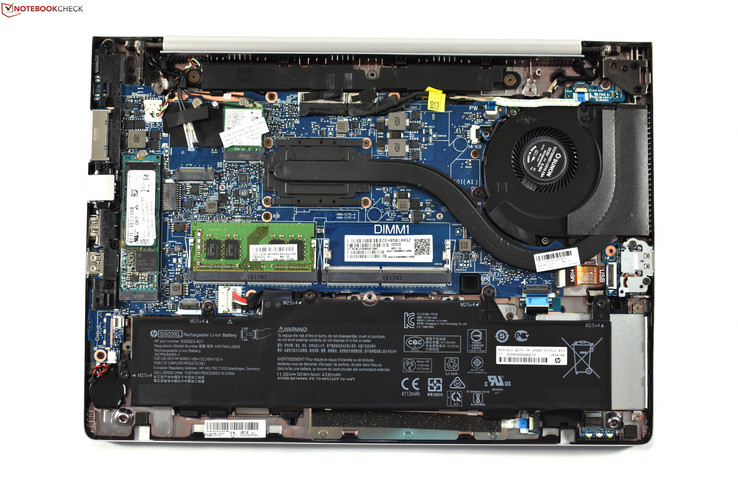

While the HP EliteBook 755 G5 does not offer any maintenance covers for easy access to the RAM or storage, you can remove the bottom cover after you have loosened eight screws. This will give you access to the whole interior, and the fan can be cleaned or hardware components can be replaced.

HP EliteBook 755 G5 - maintenance options
HP EliteBook 755 G5 - maintenance options

Warranty

HP offers a warranty of 36 months to the buyers of the EliteBook G5 and also offers the ability to purchase additional service options.

Input Devices - A business notebook with a TrackPoint

The input devices of the EliteBook 755 G5 are also identical to those of the HP EliteBook 850 G5, so we point you to its review here.

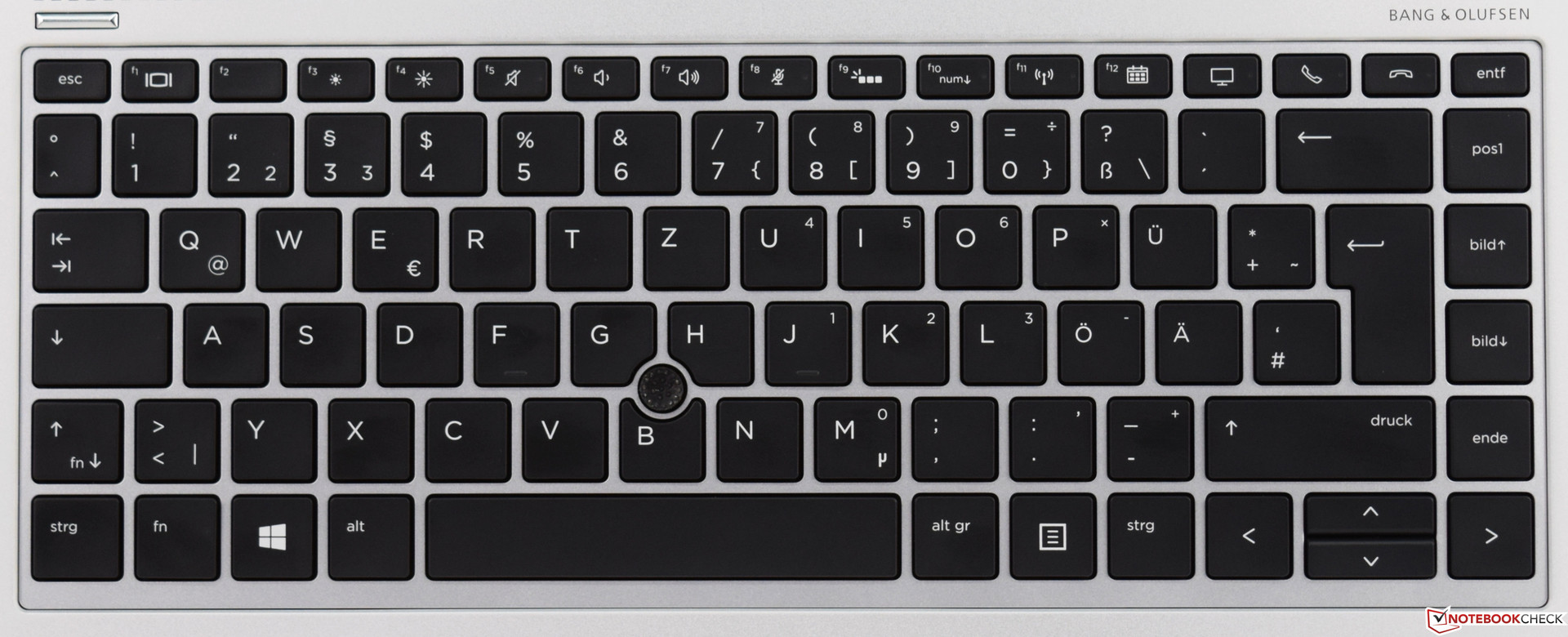

HP EliteBook 755 G5 - keyboard
HP EliteBook 755 G5 - keyboard

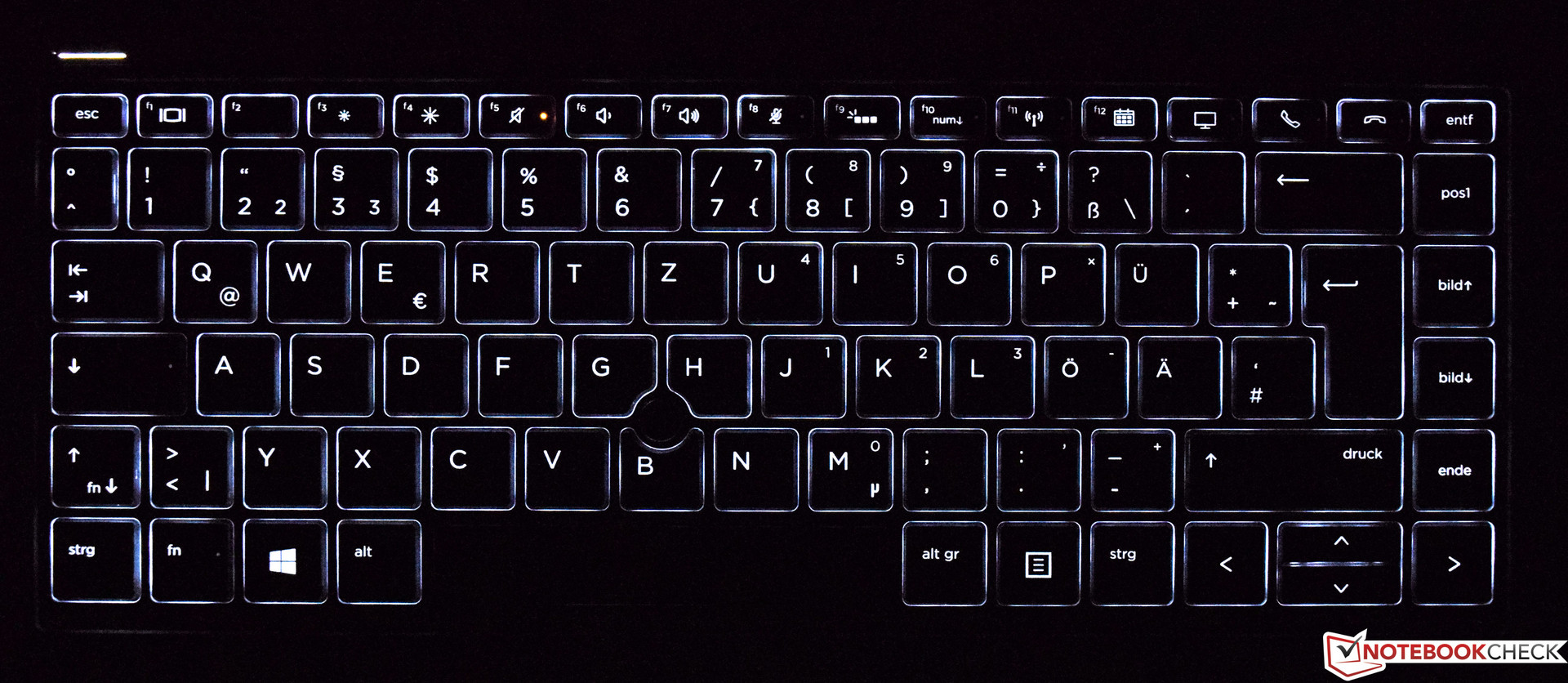

HP EliteBook 755 G5 - keyboard illumination
HP EliteBook 755 G5 - keyboard illumination

Display - HP display with a good color space coverage

Subpixel grid
Subpixel grid

While the HP EliteBook 755 G4 predecessor still offered a TN panel with bad viewing angles, HP now offers three IPS models that differ in their color space coverage and touch function. Our test unit has a non-reflective display with a resolution of 1920x1080 pixels and a brightness value slightly above 400 cd/m². This value is higher than that of comparable devices, making the EliteBook G5 also suitable for work outdoors.

387
cd/m²
395
cd/m²
397
cd/m²
417
cd/m²
456
cd/m²
440
cd/m²
383
cd/m²
407
cd/m²
404
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 456 cd/m² Average: 409.6 cd/m² Minimum: 23 cd/m²
Brightness Distribution: 84 %
Center on Battery: 456 cd/m²
Contrast: 735:1 (Black: 0.62 cd/m²)
ΔE Color 7.09 | 0.4-29.43 Ø6.2
ΔE Greyscale 9.15 | 0.64-98 Ø6.5
90% sRGB (Argyll 3D) 59% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.31
HP EliteBook 755 G5 3UN79EA
BOE074E, , 1920x1080, 15.6
HP EliteBook 745 G5 3UN74EA
AUO383D, , 1920x1080, 14
Lenovo ThinkPad T480s-20L7002AUS
NV140FHM-N46, , 1920x1080, 14
Dell Latitude 5490
AUO133D, , 1920x1080, 14
HP EliteBook 755 G4
Chi Mei, CMN15C3, , 1920x1080, 15.6
Response Times
16%
-38%
19%
-22%
Response Time Grey 50% / Grey 80% *
39 (20, 19)
35 (17, 18)
10%
44 (26, 18)
-13%
30.4 (16.8, 13.6)
22%
45 (27, 18)
-15%
Response Time Black / White *
32 (18, 14)
25 (15, 10)
22%
34 (18.8, 15.2)
-6%
27.2 (16.4, 10.8)
15%
18 (14, 4)
44%
PWM Frequency
21000 (90)
990.1
-95%
1000 (90)
-95%
Screen
30%
1%
-14%
-34%
Brightness middle
456
421
-8%
288.3
-37%
200.6
-56%
333
-27%
Brightness
410
398
-3%
281
-31%
204
-50%
306
-25%
Brightness Distribution
84
86
2%
86
2%
87
4%
82
-2%
Black Level *
0.62
0.27
56%
0.21
66%
0.16
74%
0.89
-44%
Contrast
735
1559
112%
1373
87%
1254
71%
374
-49%
Colorchecker DeltaE2000 *
7.09
4.08
42%
6.16
13%
8.36
-18%
11.69
-65%
Colorchecker DeltaE2000 max. *
12.64
7.48
41%
18.99
-50%
25.63
-103%
20.57
-63%
Greyscale DeltaE2000 *
9.15
2.92
68%
6.3
31%
7.7
16%
13.7
-50%
Gamma
2.31 95%
2.32 95%
2.517 87%
2.773 79%
2.29 96%
CCT
7195 90%
7043 92%
6886 94%
6397 102%
15194 43%
Color Space (Percent of AdobeRGB 1998)
59
57
-3%
37.67
-36%
34.5
-42%
54
-8%
Color Space (Percent of sRGB)
90
87
-3%
58.9
-35%
54.2
-40%
84
-7%
Colorchecker DeltaE2000 calibrated *
4.51
4.6
Total Average (Program / Settings)
23% / 28%
-19% / -8%
3% / -9%
-28% / -31%

* ... smaller is better

Our measurements of the EliteBook 755 G5 display attest it with an elevated black value of 0.62 and a contrast ratio of 735:1. While this means that the display is better than in the EliteBook 755 G4 predecessor, comparable devices offer a better display. However, our test unit can surpass the competitors in terms of the color space coverage, offering 90% of the available sRGB color space and 59% of the AdobeRGB color space.

CalMAN - Color Accuracy
CalMAN - Color Accuracy
CalMAN - Grayscales
CalMAN - Grayscales
CalMAN - Saturation
CalMAN - Saturation

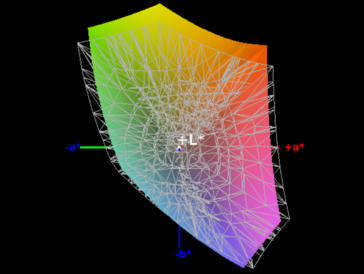

sRGB Color Space Coverage - 90%
sRGB Color Space Coverage - 90%

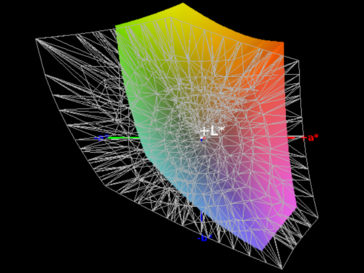

AdobeRGB Color Space Coverage - 59%
AdobeRGB Color Space Coverage - 59%

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

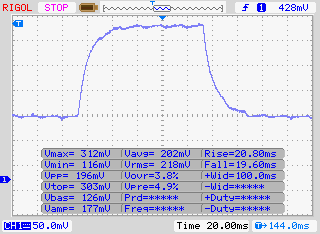

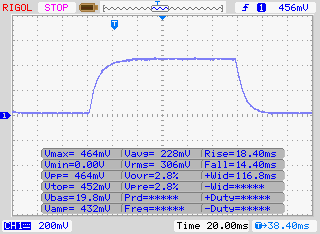

       Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 14 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (25.6 ms).
       Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (41 ms).

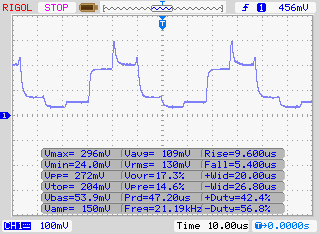

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 21000 Hz ≤ 90 % brightness setting

The display backlight flickers at 21000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 21000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8929 (minimum: 43 - maximum: 142900) Hz was measured.

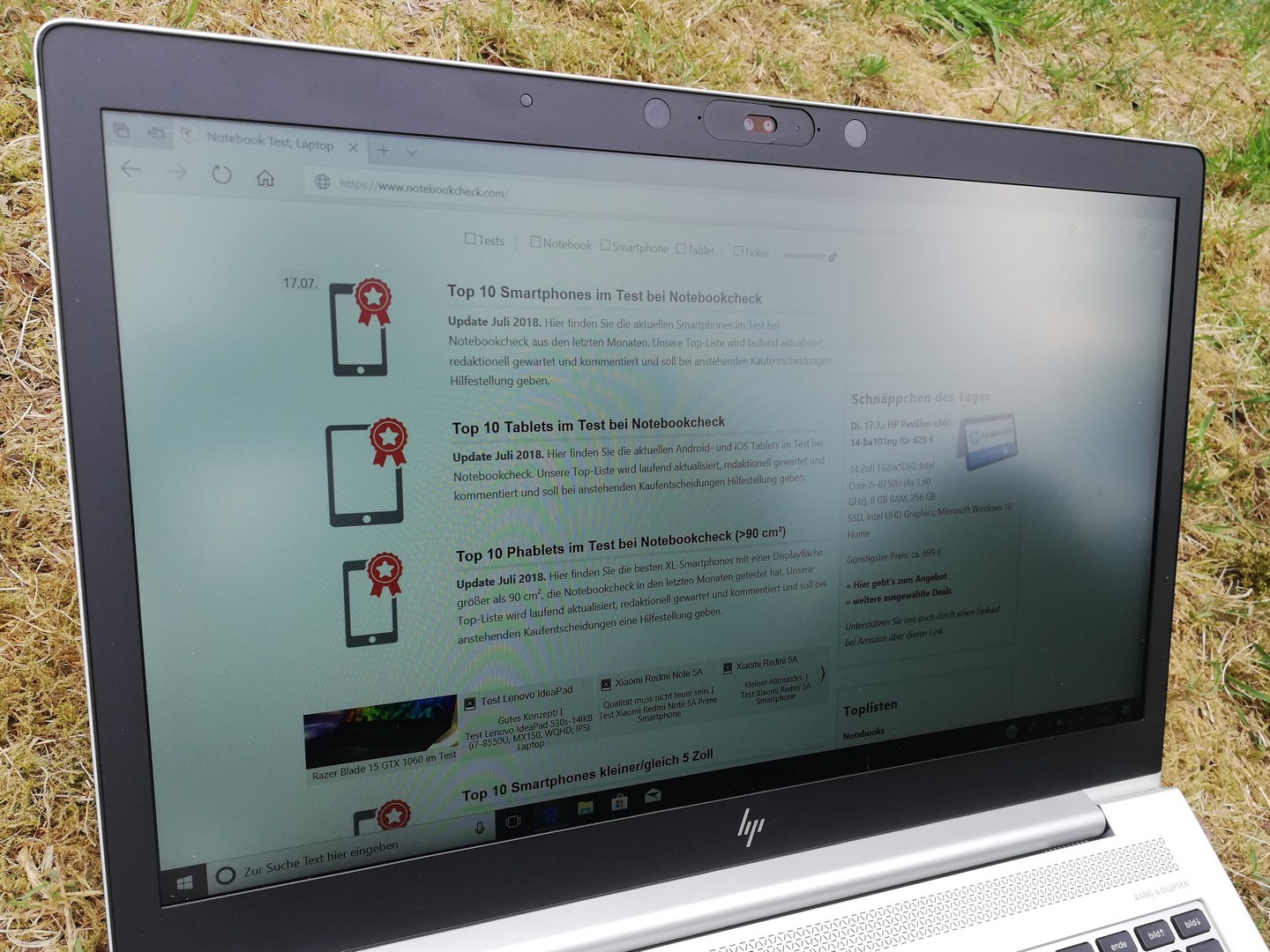

Outdoors, the HP EliteBook 755 G5 can be used in shady places. However, with increasing brightness outside the shade, it becomes increasingly difficult to read the display contents. While the matte display prevents reflections of the surrounding objects, the brightness is still insufficient to outshine the surrounding light outdoors. Our test image also shows screen bleeding, although this only becomes clearly visible due to the long exposure period.

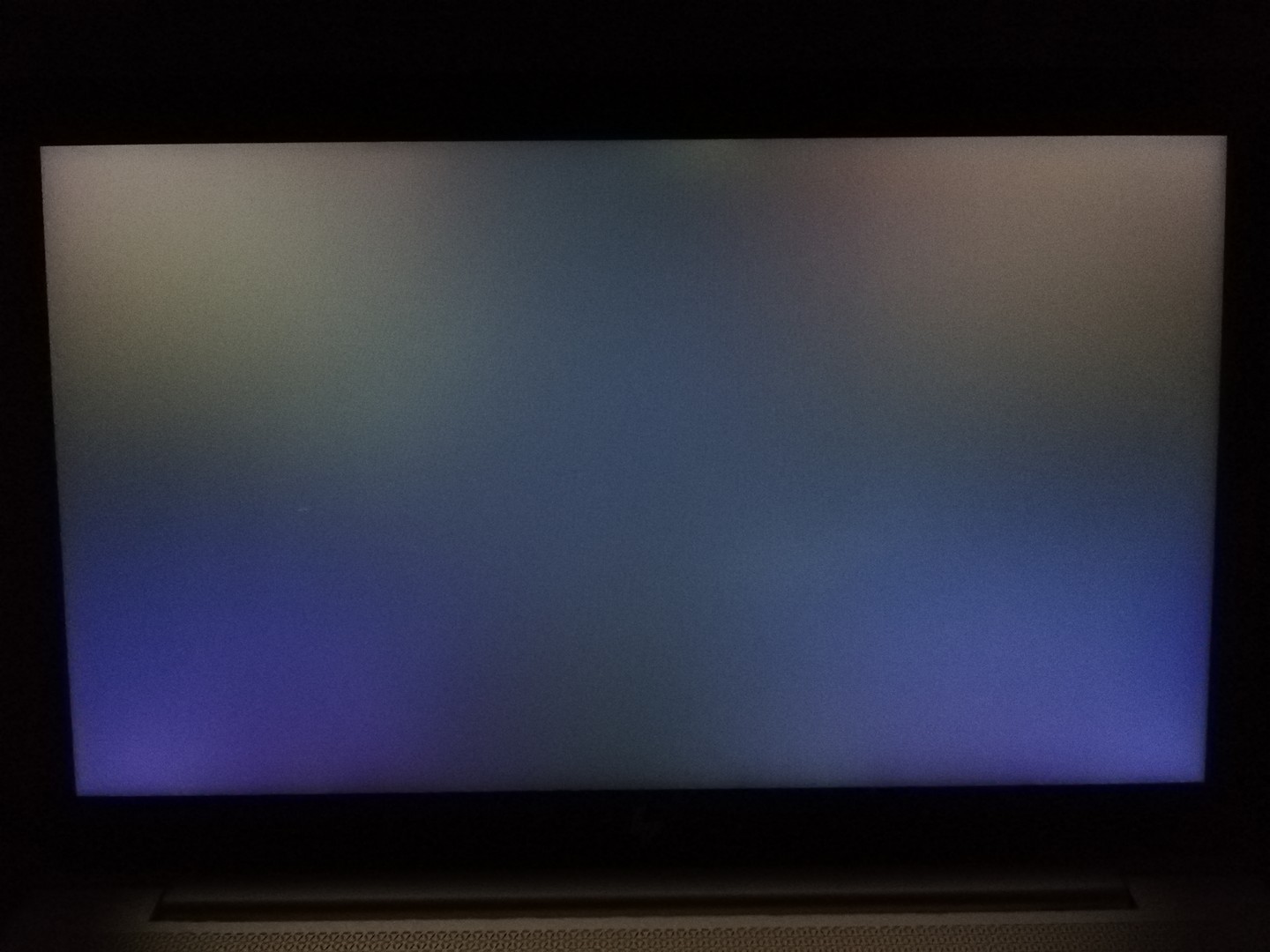

Screen bleeding
Screen bleeding

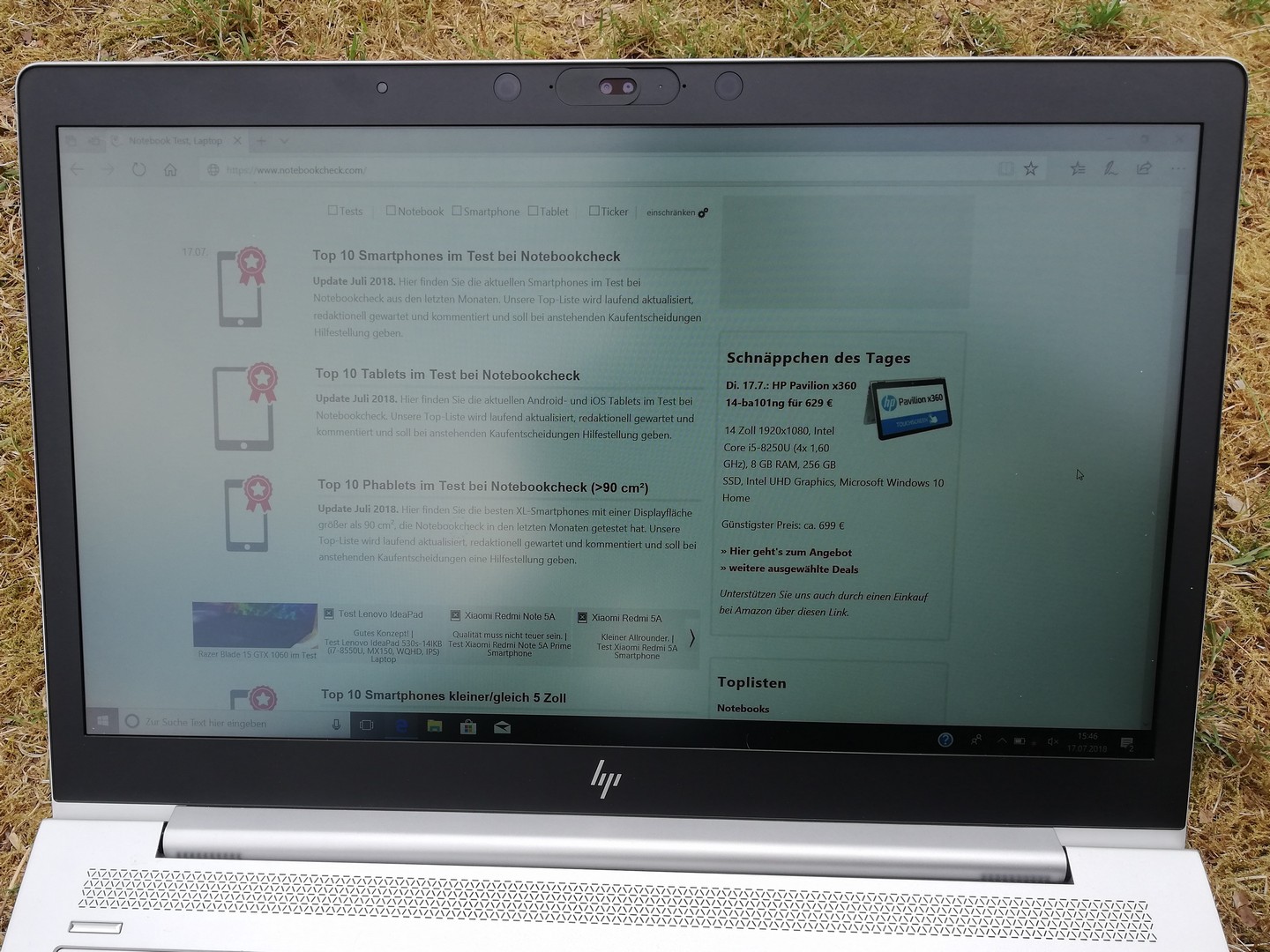

Outdoor use
Outdoor use
Outdoor use
Outdoor use

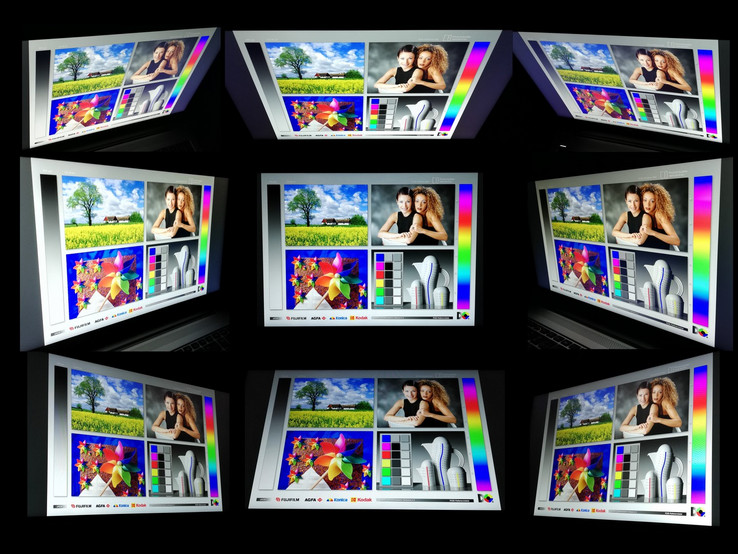

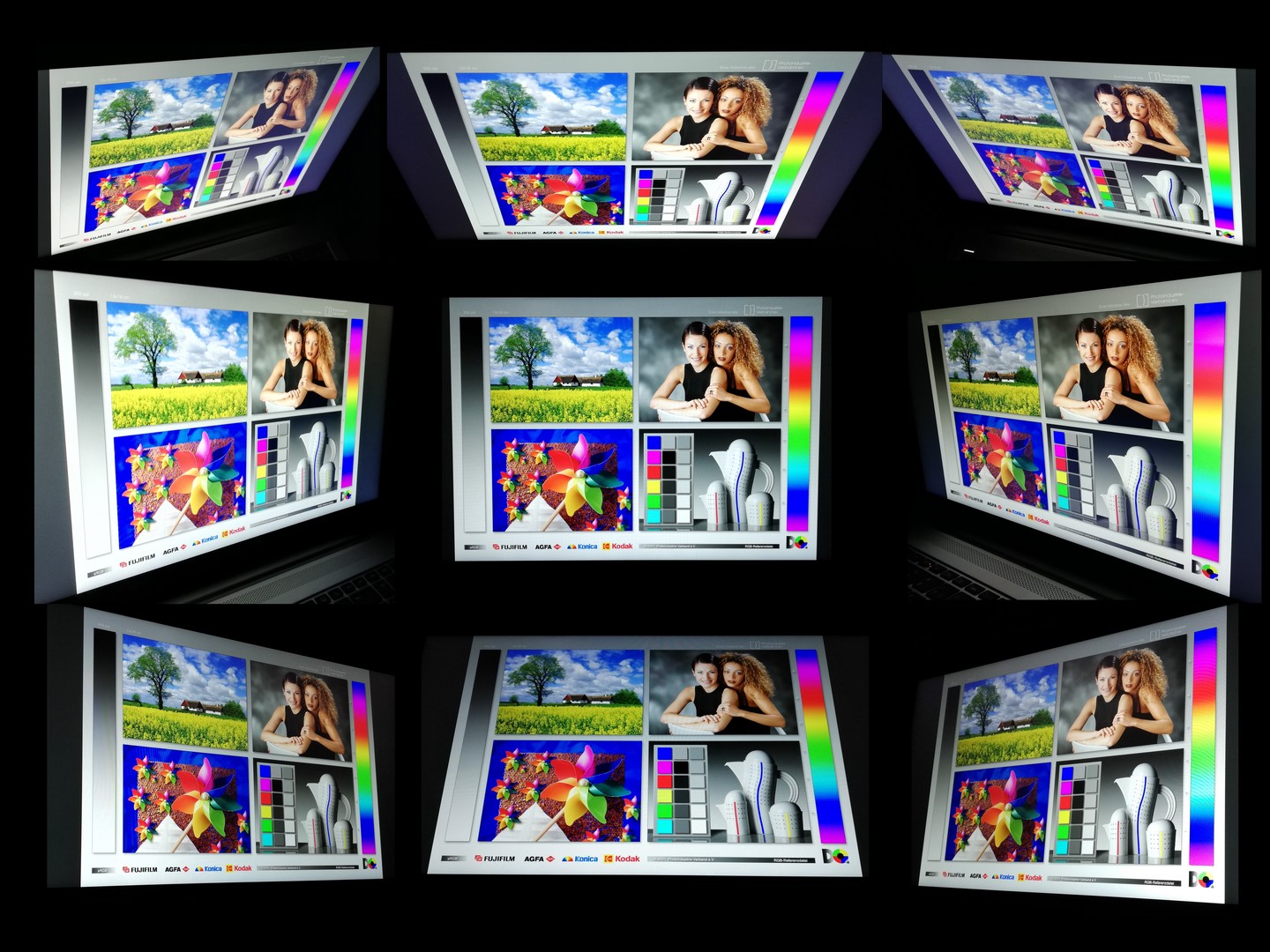

The IPS panel in the HP EliteBook 755 G5 has very stable viewing angles. The display contents can be read from almost any position, making the HP notebook also suitable for use in unusual positions.

Viewing Angle Stability
Viewing Angle Stability

Performance - A business laptop with a Ryzen CPU

HP has equipped our test unit with AMD's Ryzen 7-2700U CPU, an integrated Radeon RX Vega 10, 8 GB of working memory, and a 500 GB SSD. As alternative equipment options, you can also get the EliteBook 755 G5 with the Ryzen 5 2500U or the Ryzen 3 2300 U. Various SSD configurations from 128 to 512 GB are also available, and the RAM can be increased up to 32 GB. This makes the EliteBook 755 G5 suited for most office tasks and also capable of taking on more demanding tasks.



Processor

AMD's Ryzen 7 2700 U is a quad-core processor with clock speeds between 2200 and 3800 MHz. The TDP can be varied between 12 and 25 watts and lies nominally at 15 watts. However, the actual available performance depends primarily on the cooling system.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
Cinebench R15 CPU Multi 64 Bit

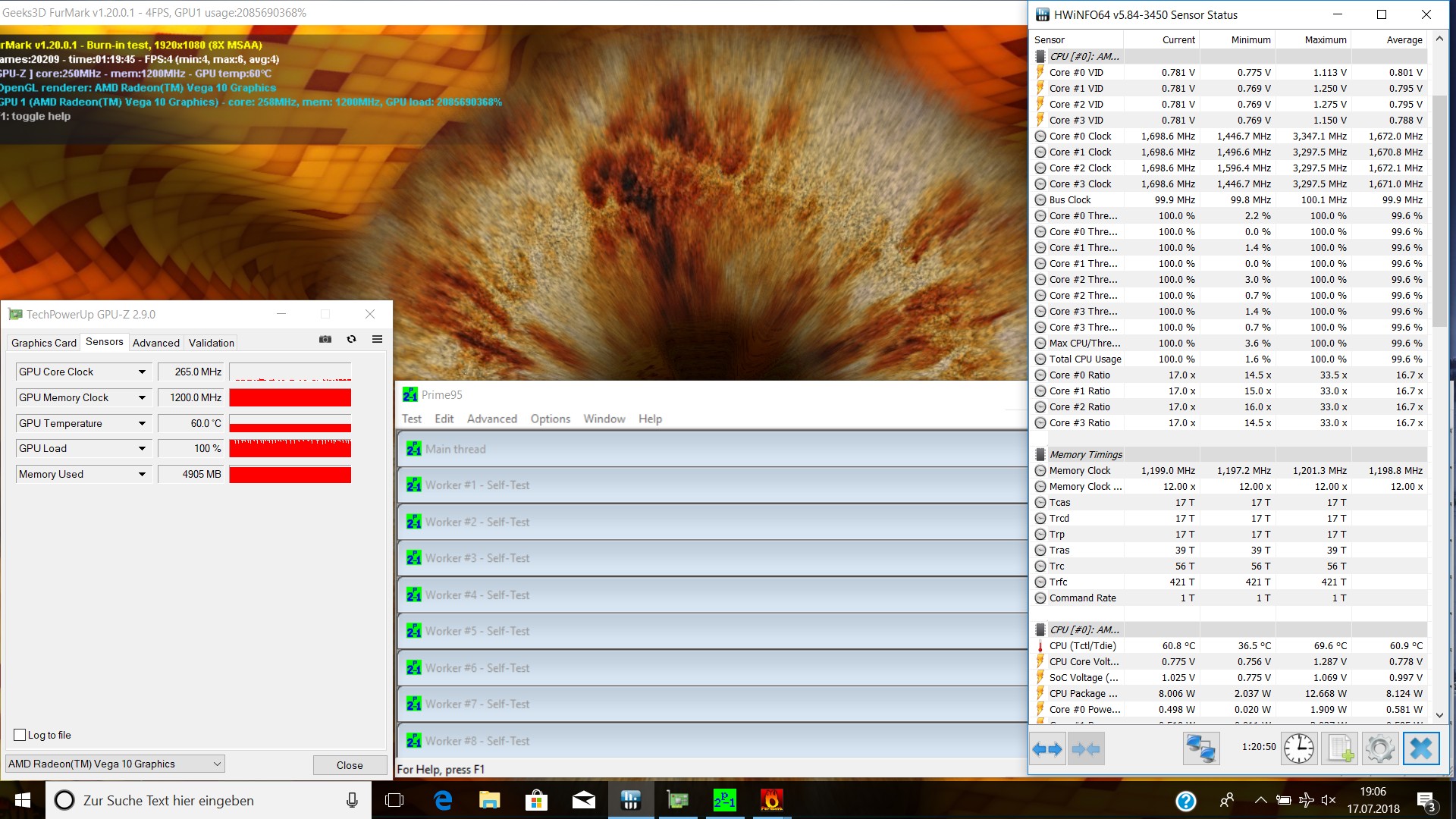

While our test unit is able to use its full performance in the beginning of the Cinebench endurance test, the results quickly drop by about 18%. In the single test, the HP EliteBook 755 G5 achieves almost exactly the average value of the multi-core performance that we determined using other devices with the Ryzen 7 2700U. The EliteBook 745 shows that more performance would have been possible in principle, particularly since the case of the 755 G5 is larger and could offer more space for the cooling.

You can find out in our CPU benchmark page how AMD's Ryzen 7 2700U fares in comparison with other CPUs.

Cinebench R15
CPU Single 64Bit
Dell Latitude 5490
Intel Core i7-8650U
178 Points ∼100% +33%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
143 Points ∼80% +7%
Lenovo ThinkPad T480s-20L7002AUS
Intel Core i5-8250U
143 Points ∼80% +7%
Average AMD Ryzen 7 2700U
  (134 - 150, n=9)
143 Points ∼80% +7%
HP EliteBook 755 G5 3UN79EA
AMD Ryzen 7 2700U
134 Points ∼75%
Average of class Office
  (20 - 178, n=478)
108 Points ∼61% -19%
HP EliteBook 755 G4
AMD PRO A12-9800B
75 Points ∼42% -44%
CPU Multi 64Bit
Lenovo ThinkPad T480s-20L7002AUS
Intel Core i5-8250U
716 Points ∼100% +15%
Dell Latitude 5490
Intel Core i7-8650U
651 Points ∼91% +4%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
630 Points ∼88% +1%
Average AMD Ryzen 7 2700U
  (530 - 719, n=9)
630 Points ∼88% +1%
HP EliteBook 755 G5 3UN79EA
AMD Ryzen 7 2700U
623 Points ∼87%
Average of class Office
  (36 - 1050, n=482)
318 Points ∼44% -49%
HP EliteBook 755 G4
AMD PRO A12-9800B
222 Points ∼31% -64%
Cinebench R15 CPU Single 64Bit
134 Points
Cinebench R15 CPU Multi 64Bit
623 Points
Cinebench R15 OpenGL 64Bit
39.53 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help

System Performance

In the tests of the system performance, the EliteBook 755 G5 places barely below the average of comparable devices with the AMD Ryzen 7 2700U. Compared to the notebooks from other manufacturers and Intel CPUs, our test unit is also able to offer a decent system performance.

PCMark 8
Work Score Accelerated v2
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
5200 Points ∼100% +16%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (4391 - 4774, n=5)
4546 Points ∼87% +1%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
4495 Points ∼86%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
4403 Points ∼85% -2%
Average of class Office
  (1226 - 5428, n=303)
3953 Points ∼76% -12%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
3765 Points ∼72% -16%
Home Score Accelerated v2
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
4065 Points ∼100% +28%
Lenovo ThinkPad T480s-20L7002AUS
UHD Graphics 620, 8250U, Samsung PM961 MZVLW256HEHP
3672 Points ∼90% +15%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (3155 - 3640, n=5)
3308 Points ∼81% +4%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
3186 Points ∼78%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
3155 Points ∼78% -1%
Average of class Office
  (1169 - 4458, n=355)
3009 Points ∼74% -6%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
1579 Points ∼39% -50%
PCMark 10 - Score
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
4066 Points ∼100% +32%
Lenovo ThinkPad T480s-20L7002AUS
UHD Graphics 620, 8250U, Samsung PM961 MZVLW256HEHP
3771 Points ∼93% +22%
Average of class Office
  (803 - 4269, n=98)
3134 Points ∼77% +2%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
3087 Points ∼76%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (2584 - 3354, n=5)
3008 Points ∼74% -3%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
2712 Points ∼67% -12%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
2332 Points ∼57% -24%
PCMark 8 Home Score Accelerated v2
3186 points
PCMark 8 Work Score Accelerated v2
4495 points
Help

Storage Solution

The Toshiba XG5 with 512 GB built into the HP EliteBook 755 G5 delivers the good read and write rates typical for SSDs, so the EliteBook 755 does not need to hide in the comparison. During daily operation, the HP notebook shows no abnormalities. Applications start quickly, and file folders are opened almost without any delay.

You can find out in our HDD/SSD benchmark page how the SSD built into the EliteBook 755 G5 fares in comparison with other storage solutions.

HP EliteBook 755 G5 3UN79EA
Toshiba XG5 KXG50ZNV512G
HP EliteBook 745 G5 3UN74EA
Toshiba XG5 KXG50ZNV256G
Lenovo ThinkPad T480s-20L7002AUS
Samsung PM961 MZVLW256HEHP
Dell Latitude 5490
Samsung PM961 MZVLW256HEHP
Average Toshiba XG5 KXG50ZNV512G

CrystalDiskMark 5.2 / 6
-11%
21%
-7%
6%
Write 4K
119.9
119.5
0%
105.8
-12%
98.69
-18%
109 (79.1 - 149, n=8)
-9%
Read 4K
30.39
31.9
5%
40.79
34%
39.46
30%
32.4 (16.1 - 42.9, n=8)
7%
Write Seq
557.9
351.1
-37%
1204
116%
564.4
1%
565 (250 - 1119, n=8)
1%
Read Seq
1689
1665
-1%
1065
-37%
764.3
-55%
1433 (276 - 2335, n=8)
-15%
Write 4K Q32T1
265.9
268.4
1%
219.2
-18%
443.3
67%
393 (266 - 518, n=8)
48%
Read 4K Q32T1
329.5
333.1
1%
304.3
-8%
268.8
-18%
447 (258 - 773, n=8)
36%
Write Seq Q32T1
709.5
351.8
-50%
1267
79%
796
12%
600 (459 - 1131, n=8)
-15%
Read Seq Q32T1
2984
2705
-9%
3303
11%
875.4
-71%
2844 (1783 - 3141, n=8)
-5%
Toshiba XG5 KXG50ZNV512G
Sequential Read: 1701 MB/s
Sequential Write: 522.6 MB/s
512K Read: 858.5 MB/s
512K Write: 549.8 MB/s
4K Read: 20.23 MB/s
4K Write: 63.21 MB/s
4K QD32 Read: 306 MB/s
4K QD32 Write: 220.3 MB/s

Graphics Card

Radeon RX Vega 10 handles the display of contents in the HP EliteBook 755 G5. This integrated graphics card offers a clock speed of up to 1300 MHz and benefits from fast dual-channel RAM. Since our test unit only offers built-in single-channel RAM, you could definitely achieve better 3D benchmark values with another working memory solution.

While the Vega 10 does not achieve its highest possible performance in our benchmark tests, in the EliteBook 755 G5 it can place itself significantly ahead of devices with Intel's UHD Graphics 620.

You can find out on our GPU benchmark page what performance other GPUs can offer compared to AMD's RX Vega 10.

3DMark 11 - 1280x720 Performance GPU
Average AMD Radeon RX Vega 10
  (2688 - 3728, n=5)
2987 Points ∼100% +9%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
2885 Points ∼97% +6%
HP EliteBook 755 G5 3UN79EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
2728 Points ∼91%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), AMD PRO A12-9800B
1820 Points ∼61% -33%
Dell Latitude 5490
Intel UHD Graphics 620, Intel Core i7-8650U
1761 Points ∼59% -35%
Lenovo ThinkPad T480s-20L7002AUS
Intel UHD Graphics 620, Intel Core i5-8250U
1704 Points ∼57% -38%
Average of class Office
  (185 - 4967, n=603)
1222 Points ∼41% -55%
3DMark
1920x1080 Fire Strike Graphics
Average AMD Radeon RX Vega 10
  (1567 - 2442, n=5)
1840 Points ∼100% +7%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
1738 Points ∼94% +1%
HP EliteBook 755 G5 3UN79EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
1713 Points ∼93%
Dell Latitude 5490
Intel UHD Graphics 620, Intel Core i7-8650U
1141 Points ∼62% -33%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), AMD PRO A12-9800B
962 Points ∼52% -44%
Average of class Office
  (138 - 4109, n=430)
941 Points ∼51% -45%
1280x720 Cloud Gate Standard Graphics
Average AMD Radeon RX Vega 10
  (9364 - 15613, n=5)
11213 Points ∼100% +6%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
10604 Points ∼95% 0%
HP EliteBook 755 G5 3UN79EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
10578 Points ∼94%
Dell Latitude 5490
Intel UHD Graphics 620, Intel Core i7-8650U
9663 Points ∼86% -9%
Average of class Office
  (1208 - 27117, n=474)
6562 Points ∼59% -38%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), AMD PRO A12-9800B
5278 Points ∼47% -50%
3DMark 11 Performance
2792 points
3DMark Cloud Gate Standard Score
8819 points
3DMark Fire Strike Score
1554 points
Help

Gaming Performance

The Radeon RX Vega 10 is also suited for the display of older games and is able to display a few of them smoothly even at higher resolutions. Since a display resolution of 1366x768 pixels is not available to the users, games also ran at a resolution of 1600x900 pixels at low settings without any problems in our test.

You can find out in our GPU games list what performance you can expect from the AMDs Radeon RX Vega 10 for other games.

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
14.2 fps ∼100% +1%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
14 fps ∼99%
Average AMD Radeon RX Vega 10
  (8 - 14.2, n=4)
12.6 fps ∼89% -10%
Average of class Office
  (2.54 - 54.8, n=210)
10.2 fps ∼72% -27%
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
10 fps ∼70% -29%
Lenovo ThinkPad T480s-20L7002AUS
UHD Graphics 620, 8250U, Samsung PM961 MZVLW256HEHP
8 fps ∼56% -43%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
7.8 fps ∼55% -44%
1280x720 Very Low Preset
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
86 fps ∼100%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
84.7 fps ∼98% -2%
Average AMD Radeon RX Vega 10
  (65.7 - 86, n=4)
79.6 fps ∼93% -7%
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
64 fps ∼74% -26%
Lenovo ThinkPad T480s-20L7002AUS
UHD Graphics 620, 8250U, Samsung PM961 MZVLW256HEHP
55 fps ∼64% -36%
Average of class Office
  (12.2 - 204, n=324)
52.6 fps ∼61% -39%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
46.2 fps ∼54% -46%
Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
12 fps ∼100%
Average AMD Radeon RX Vega 10
  (10.9 - 12, n=3)
11.6 fps ∼97% -3%
Average of class Office
  (4.2 - 32.9, n=55)
11.4 fps ∼95% -5%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
10.9 fps ∼91% -9%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
6.2 fps ∼52% -48%
1024x768 Lowest Preset
Average AMD Radeon RX Vega 10
  (33 - 37, n=3)
34.5 fps ∼100% +5%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
33.5 fps ∼97% +2%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
33 fps ∼96%
Average of class Office
  (6.2 - 111, n=95)
26.7 fps ∼77% -19%
HP EliteBook 755 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
20.6 fps ∼60% -38%
Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Average AMD Radeon RX Vega 10
  (9.7 - 10, n=2)
9.85 fps ∼100% +2%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
9.7 fps ∼98%
Average of class Office
  (0.3 - 23, n=37)
6.97 fps ∼71% -28%
1024x768 Very Low Preset
Average AMD Radeon RX Vega 10
  (34 - 36, n=2)
35 fps ∼100% +3%
HP EliteBook 755 G5 3UN79EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV512G
34 fps ∼97%
Average of class Office
  (2.2 - 56, n=83)
17.7 fps ∼51% -48%
low med. high ultra
BioShock Infinite (2013) 860 game wont start0 game wont start14fps
Thief (2014) 340 game wont start0 game wont start9.7fps
Rise of the Tomb Raider (2016) 330 game wont start12fps

Emissions - The HP EliteBook 755 G5 has a quiet fan

Noise Emissions

During idle operation and easy load, the HP EliteBook 755 G5 is almost silent. When the load on the system increases, the fans rev up and become audible after some time. However, they are not loud even then, making the EliteBook G5 also suitable for use in quiet surroundings.

Noise Level

Idle
30.5 / 30.5 / 30.5 dB(A)
Load
37.5 / 35 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.633.832.532.732.62533.833.539.93533.83139.837.238.537.239.84032.131.831.431.832.15032.334.929.130.332.36328.728.229.330.828.78028.628.628.326.628.610027.525.82727.527.51252626.525.125.52616024.824.923.724.324.820023.823.223.323.323.825023.322.22322.623.331522.523.822.721.822.540022.222.322.120.722.250022.521.921.519.922.563024.321.621.119.424.380024.12422.418.624.1100024.724.822.318.424.7125025.62623.217.825.6160027.527.525.117.627.520002828.225.217.728250028.228.325.517.628.2315028.328.324.918.128.3400024.524.621.518.224.5500020.320.319.218.520.3630021.421.219.618.521.4800020.420.919.318.720.41000019.519.719.418.819.51250019.319.119.418.919.31600020.320.520.119.120.3SPL37.537.535.130.737.5N2.52.421.32.5median 24.1median 23.8median 22.4median 18.8median 24.1Delta22.41.91.82hearing rangehide median Fan NoiseHP EliteBook 755 G5 3UN79EA

Temperature

Stress test
Stress test

During idle operation, we measure moderate surface temperatures of around 30 °C (~86 °F) on the EliteBook 755 G5. With increasing load, the HP-Notebook warms up, reaching the 40 °C mark (104 °F) at the fan vent on the right side. In our stress test, we put extreme loads on the system, causing the core temperatures to rise up to 70 °C (158 °F) and the clock speed to drop significantly down to a minimum of about 1400 MHz.

Even though the EliteBook 755 G5 throttled the performance by almost 20% after a short time in the CinebenchR15 endurance test, there should not be any significant performance limitations due to too high temperatures, since a load such as in our stress test scenario is almost impossible in everyday life.

Max. Load
 37.5 °C
100 F
39.8 °C
104 F
38 °C
100 F

 32.7 °C
91 F
37.6 °C
100 F
36.4 °C
98 F

 31 °C
88 F
29.1 °C
84 F
30.1 °C
86 F

Maximum: 39.8 °C = 104 F
Average: 34.7 °C = 94 F
36.1 °C
97 F
38.4 °C
101 F
39.2 °C
103 F
35.5 °C
96 F
35 °C
95 F
40.2 °C
104 F
31.5 °C
89 F
32 °C
90 F
32.7 °C
91 F
Maximum: 40.2 °C = 104 F
Average: 35.6 °C = 96 F
Power Supply (max.)  47.4 °C = 117 F | Room Temperature 23.9 °C = 75 F | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.7 °C / 94 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 33.9 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.2 °C / 104 F, compared to the average of 36.4 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.7 °C / 84 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.7 °C / -4.9 F).

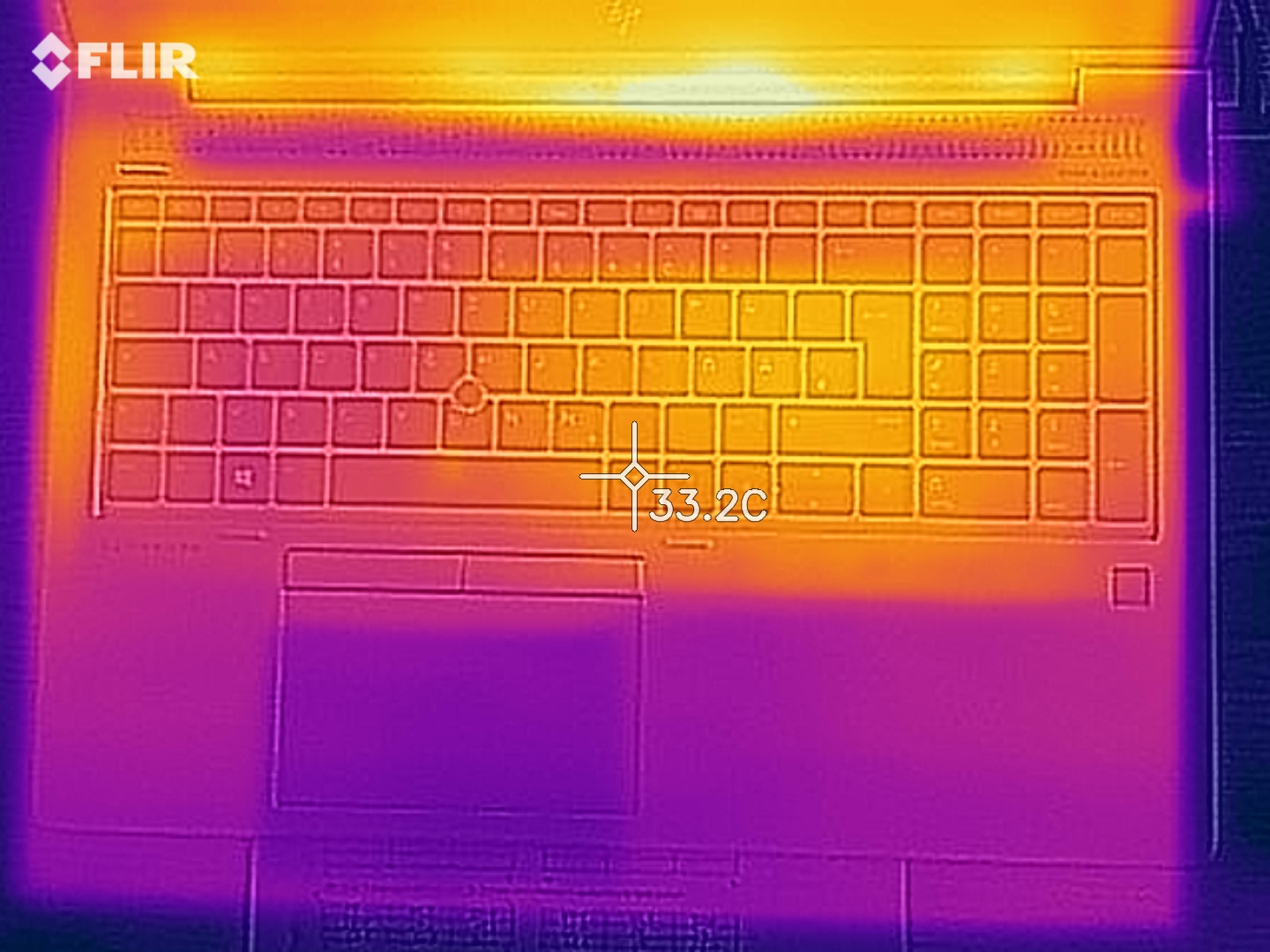

Heat map during idle - top
Heat map during idle - top

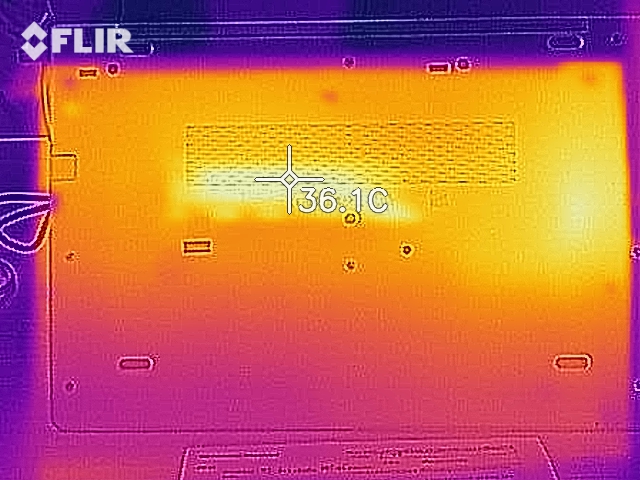

Heat map during idle - bottom
Heat map during idle - bottom

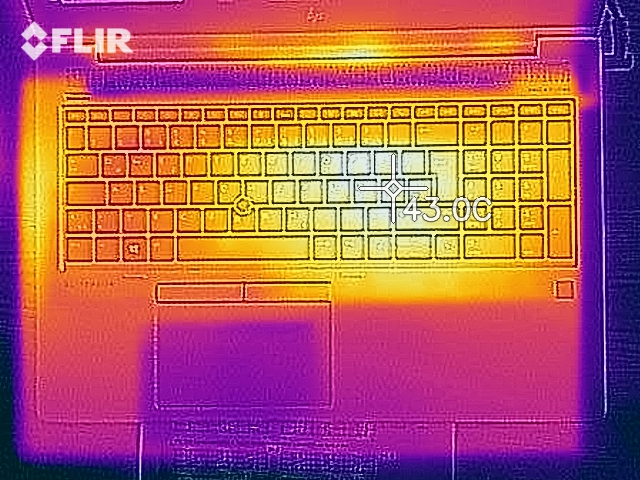

Heat map under load - top
Heat map under load - top

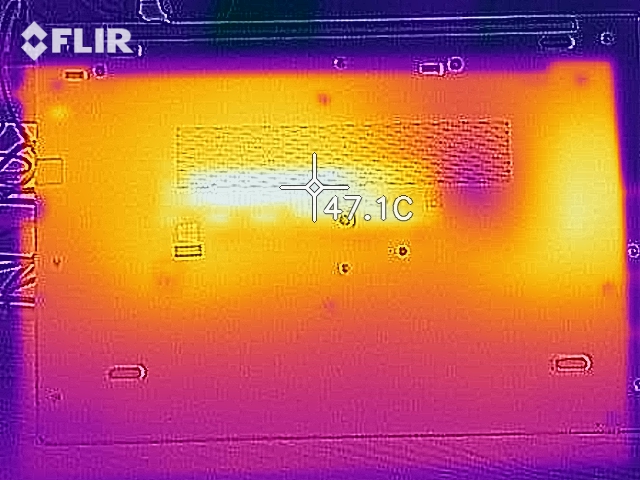

Heat map under load - bottom
Heat map under load - bottom

Speaker

Speaker characteristics
Speaker characteristics

HP is cooperating with the Danish sound experts Bang and Olufsen for an optimized sound quality of the EliteBooks. In our 755 G5 test unit, this optimization results in a relatively balanced sound where only the lower tones are underrepresented. The speakers are quite suitable for prolonged enjoyment of audio contents. Even though the maximum volume is relatively low, the sound reproduction is sufficiently loud to stand up against minor environment noises.

A combined audio port is available to connect external speakers or a headset.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.932.735.92539.33539.33134.837.234.8403431.834503530.3356329.130.829.18026.926.626.910026.127.526.112527.525.527.516037.924.337.920044.523.344.525040.822.640.831554.221.854.240067.520.767.55006419.9646306519.46580063.318.663.3100068.518.468.5125071.917.871.9160066.817.666.8200069.317.769.3250070.417.670.4315071.418.171.4400069.618.269.6500069.818.569.8630068.618.568.6800064.118.764.11000067.618.867.61250065.918.965.91600060.619.160.6SPL80.930.780.9N47.11.347.1median 65.9median 18.8median 65.9Delta8.61.88.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseHP EliteBook 755 G5 3UN79EAApple MacBook 12 (Early 2016) 1.1 GHz

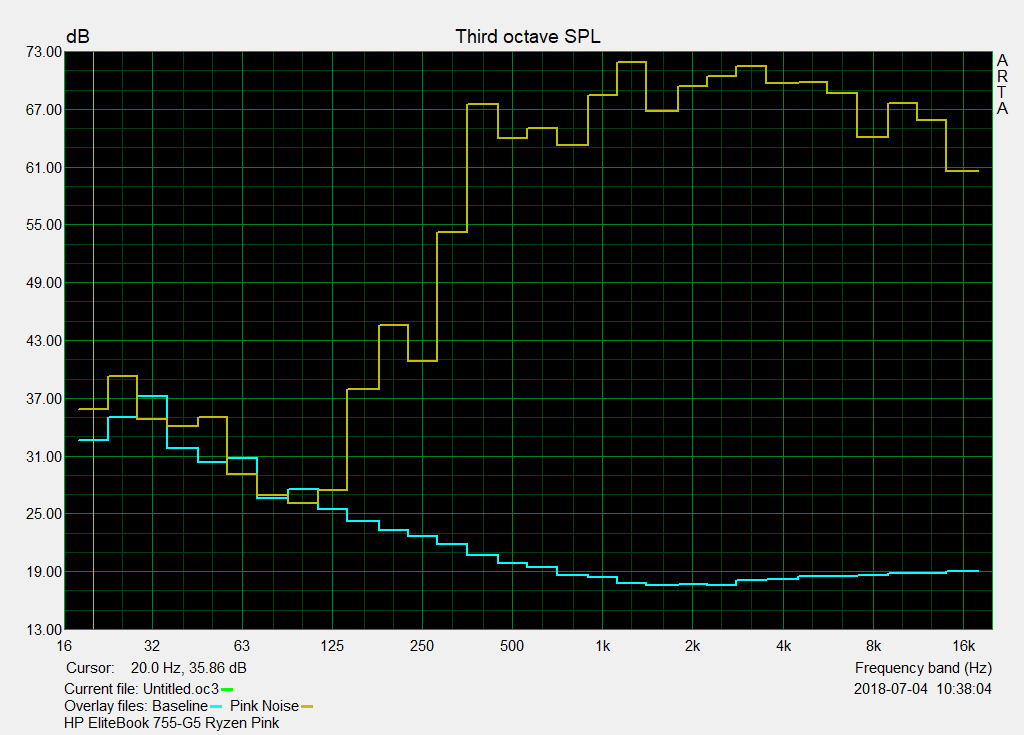

Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP EliteBook 755 G5 3UN79EA audio analysis

(-) | not very loud speakers (71.86 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.3% lower than median
(±) | linearity of bass is average (12.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.5% away from median
(±) | linearity of mids is average (9.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(+) | highs are linear (4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.7% difference to median)
Compared to same class
» 44% of all tested devices in this class were better, 7% similar, 49% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 40% of all tested devices were better, 6% similar, 53% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 96% worse
» The best had a delta of 8%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Power Management - More than eight hours of battery life

Power Consumption

The power consumption of the EliteBook 755 G5 is slightly higher than that of comparable devices. With 5 watts during idle and a maximum value of 46.6 watts under load, the HP notebook is only able to achieve the last place in our comparison list. Moreover, the included 45-watt power supply might reach its power limit when the system is put under constant load.

Power Consumption
Off / Standbydarklight 0.48 / 0.85 Watt
Idledarkmidlight 5 / 10.6 / 12.9 Watt
Load midlight 40.6 / 46.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
HP EliteBook 755 G5 3UN79EA
2700U, Vega 10, Toshiba XG5 KXG50ZNV512G, IPS, 1920x1080, 15.6
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 14
Lenovo ThinkPad T480s-20L7002AUS
8250U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, TFT-LCD, 1920x1080, 14
Dell Latitude 5490
8650U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 14
HP EliteBook 755 G4
PRO A12-9800B, Radeon R7 (Bristol Ridge), Samsung PM961 MZVLW256HEHP, TN LED, 1920x1080, 15.6
Average AMD Radeon RX Vega 10

Average of class Office

Power Consumption
15%
33%
19%
4%
8%
-13%
Idle Minimum *
5
4.9
2%
3.1
38%
3.9
22%
7
-40%
5.34 (4.9 - 5.9, n=5)
-7%
7.78 (0.77 - 32, n=913)
-56%
Idle Average *
10.6
8.1
24%
6.4
40%
6.2
42%
10.9
-3%
9.3 (8.1 - 10.6, n=5)
12%
11.6 (4.2 - 42, n=913)
-9%
Idle Maximum *
12.9
10.6
18%
9.4
27%
7.7
40%
11
15%
11 (8.7 - 12.9, n=5)
15%
14.1 (5 - 67, n=913)
-9%
Load Average *
40.6
32.2
21%
29.8
27%
43.9
-8%
30.5
25%
34.8 (29.3 - 40.6, n=5)
14%
37.3 (7.43 - 99.3, n=898)
8%
Load Maximum *
46.6
42.3
9%
31.2
33%
47.7
-2%
36.1
23%
42.8 (38.5 - 46.6, n=5)
8%
45.8 (12.2 - 129, n=900)
2%

* ... smaller is better

Battery Life

The EliteBook 755 G5 is able to last more than eight hours in our realistic WLAN test. This should at least cover a whole working day. Even though some of the competing devices can offer a slightly longer battery life, our test unit still clearly surpasses the average office notebook.

Battery Runtime
Idle (without WLAN, min brightness)
11h 55min
NBC WiFi Websurfing Battery Test 1.3
8h 19min
Load (maximum brightness)
1h 39min
HP EliteBook 755 G5 3UN79EA
2700U, Vega 10, 56 Wh
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, 50 Wh
Lenovo ThinkPad T480s-20L7002AUS
8250U, UHD Graphics 620, 57 Wh
Dell Latitude 5490
8650U, UHD Graphics 620, 68 Wh
HP EliteBook 755 G4
PRO A12-9800B, Radeon R7 (Bristol Ridge), 51 Wh
Average of class Office

Battery Runtime
WiFi v1.3
499
394
-21%
541
8%
695
39%
259
-48%
404 (105 - 964, n=295)
-19%

Verdict - Design and performance in one device

Pros

+ long battery life
+ good color space coverage
+ attractive design

Cons

- contrast and black value
- no SD card slot
- performance is not as good as it could be
Testing the HP EliteBook 755 G5. Test unit provided by HP Germany.
Testing the HP EliteBook 755 G5. Test unit provided by HP Germany.

HP offers a cultivated generation update to the buyers of the EliteBook 755 G5. The performance of the AMD Ryzen 7-2700U CPU is good, but could have been even better with an optimized cooling. The removable bottom cover offers the users access to the insides enabling them to perform maintenance tasks. The good color space coverage is slightly diminished by the high black value and the low contrast.

The HP EliteBook 755 G5 is an appealing business notebook with sufficient performance also for more demanding tasks and a battery life that lasts for a whole working day.

The users receive a device that is presentable with its attractive design and offers sufficient battery life for one working day. The fact that the power consumption is higher than in other devices does not have any grave consequences, and aside from that, there are hardly any reasons that speak against a purchase of the HP EliteBook 755 G5.

HP EliteBook 755 G5 3UN79EA - 07/20/2018 v6
Mike Wobker

Chassis
92 / 98 → 94%
Keyboard
89%
Pointing Device
89%
Connectivity
53 / 80 → 66%
Weight
100 / 20-67 → 100%
Battery
91%
Display
84%
Games Performance
65 / 68 → 95%
Application Performance
80 / 92 → 87%
Temperature
92%
Noise
92%
Audio
71%
Camera
27 / 85 → 32%
Average
79%
87%
Office - Weighted Average

Pricecompare

Read all 3 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > HP EliteBook 755 G5 (Ryzen 7 2700U, Vega 10) Laptop Review
Mike Wobker, 2018-07-21 (Update: 2018-07-21)
