MagyarAcer Nitro 5 Spin NP515 (i7-8550U, GTX 1050) Convertible Review
The Acer Nitro 5 Spin offers an interesting combination: A convertible combined with a high-performance dedicated graphics card that should have both the multimedia and the gaming sector covered. Apart from its red design elements, it does not seem as if the Nitro differs very much from the gray, standard Acer Spin 5. After a closer look, we did notice a few modifications that might be decisive for your purchase decision.
Our 15.6-inch test unit is equipped with an Intel Core i7-8550U of the current Kaby Lake Refresh series and comes with 8 GB of DDR4 RAM. You can also find a cheaper version of this model available, which is equipped with a slightly lower-clocking Intel Core i5-8250U. Our device has two storage devices - a 256-GB SSD from Micron and a 1-TB HDD from Western Digital.
Apart from the manufacturer's Acer Spin 5, which we already reviewed in detail in December 2017, our main comparison devices are other convertibles such as the Asus ZenBook Flip 15 (i7-8550U with a GeForce GTX 1050) or the HP Spectre x360 (i7-8550U with a GeForce MX150). We have also included the Lenovo ThinkPad T480 (i7-8550U with a GeForce MX150) and the Xiaomi Mi Notebook Pro i7 (also with an i7-8550U and GeForce MX150), which is becoming more and more popular in Europe.
We want to find out whether the sporty Acer Nitro 5 Spin with its red design elements is suitable for gaming since the GTX 1050 is not sitting in a 3-cm-high (~1.2 in) case with sufficient space for ideal cooling, as it does in the enormous Acer Predator Helios gaming series, but in a snug 1.8-cm (~0.7 in) convertible that can also be used as a tablet. Therefore, let us start with a closer look at the case.
Case - a slim gaming laptop with good-quality materials

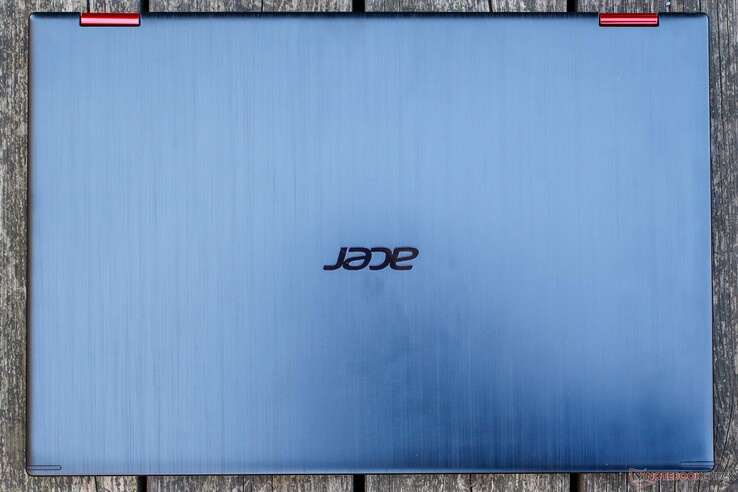

The case of this 2-in-1 tablet seems to be of high quality and very stable; its form factor is the same as that of the "normal" Acer Spin 5. The Nitro, however, has a dark metal look with red gaming highlights. The display cover features an Acer logo with a brushed hairline finish in the center. It is connected to the base by two stable red hinges, also in aluminum look. The red highlights of the Nitro continue to run like a thread throughout the entire design concept. Both the beveled edge around the case, and the area around the touchpad shimmer in metallic red. Naturally, the same applies to the keyboard where the lettering and the sides of the individual keys are also red.
Another thread that runs throughout is the fingerprints on the back of the display. The Nitro not only shows all marks easily, it also makes them difficult to remove.
The bottom of the base unit is kept simple - it is made of metal with four narrow rubber pads and two air vents running across the device. There is another air vent at the back of the device together with two small openings for the speaker, which means the sound output goes in the right direction even in tablet mode.
Overall, the device seems to be very stable and of high quality. Even the display lid is quite warp-resistant. Strong pressure on the back of the display can cause some waves on the display, but these are minimal, which proves how stable the display lid is.
The hinges also offer sufficient resistance. However, shaking the Nitro 5 Spin slightly at an opening angle above 90 degrees does cause the display to open even wider. However, the overall metal construction appears stable enough and the display does not continue wobbling for very long. The hinges should be tight enough to keep the display in position while using the stylus for inputs. By the way, the Nitro can be opened with a single hand, as the base is heavy enough to not lift off the table. However, Acer forgot to add, or decided against, an indentation on the case, which makes opening the device a little more difficult.
The Acer Nitro 5 Spin has a footprint of 38.1 x 25.8 cm (~15 x 10.2 in) and is 1.79 cm (~0.7 in) high. As the case has been taken over from the Acer Spin 5 without any changes, the two devices have the same size. The weight of our model with its second 1-TB HDD lies around 2.2 kg (~4.9 lbs). This would be an acceptable weight for a 15-inch notebook, particularly considering the very good workmanship and high-quality material. But we feel that the Nitro is a little too heavy and large to be used as a tablet. You have to hold the notebook at half an arm's length only to fold the display back into tablet mode - this makes the Acer a little unwieldy for everyday or mobile use as a convertible.
Connectivity - sufficient for a multimedia laptop, but there could be more

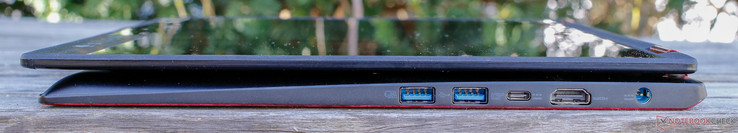

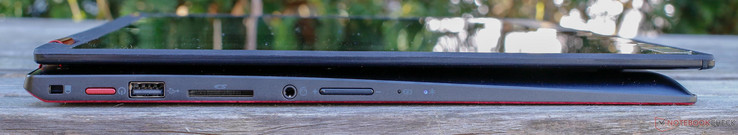

The port selection can be described as mid-range and sufficient. On the left side, there are two USB 3.0 ports, one USB 3.1 Type-C (Gen 1) port and a USB 2.0 port, as well as an HDMI port and the power supply. Although the DisplayPort is missing, this can be "added" via a simple USB 3.1 Type-C adapter. The right side offers two status LEDs, the typical volume rocker, a combined 3.5-mm audio jack, an SD card reader, a USB 2.0 port, the power on/off button and a Kensington security lock.
If you are a passionate gamer, you might be wondering where the Ethernet port has disappeared to. Acer has decided that the Nitro, the red gaming version of its Spin 5, does not need a network connector. For real gamers who play online games and are looking for low ping and latency times as well as faultless transmission, this might make the Nitro completely unsuitable.
The power button is not positioned very well for a convertible - if you want to use the Acer as a tablet in portrait mode, you might easily turn the Nitro off by mistake. Apart from this, the port distribution is very practical, particularly on the left side. The two USB 3.0 ports are closest to the user, then come the HDMI port and the power supply.
SD card reader
The SD card reader does not have a spring and you simply have to push the SD card into the slot, which is usually the more user-friendly version. The disadvantage of this method is that the card does not disappear into the slot entirely but always stands out slightly. In the case of the Nitro 5 Spin, about half of the SD card stands out.
HWInfo shows us that the card reader RTS5129 from RealTek is only connected via USB 2.0. Therefore, the transmission speeds tested with our reference card, the Toshiba Exceria Pro SDXC 64 GB UHS-II, are rather unspectacular and place the Acer Spin 5 among the devices with average data transfer speeds at around 24.4 MB/s.
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Average of class Multimedia (18.4 - 201, n=57, last 2 years) | |
| Lenovo ThinkPad T480s-20L8S02E00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Asus ZenBook Flip 15 UX561UD (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Acer Nitro 5 Spin NP515-51-86CX (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Acer Spin 5 SP515-51GN-80A3 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Average of class Multimedia (25.8 - 266, n=56, last 2 years) | |
| Lenovo ThinkPad T480s-20L8S02E00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Asus ZenBook Flip 15 UX561UD (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Acer Nitro 5 Spin NP515-51-86CX (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Acer Spin 5 SP515-51GN-80A3 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Communication
As mentioned before, the Acer Nitro 5 Spin only offers a Wi-Fi module from Qualcomm (QCA6174), but no Ethernet port. The Wi-Fi module supports 2x2 Multi User Input, Multiple Output (MU-MIMO) and Bluetooth 4.2. The fact that Acer does not offer a network connection via an Ethernet cable for the Nitro is a real shame.
The data transfer rate measured in our benchmark is good and positions the Nitro significantly above the average multimedia device and even puts it slightly over its own non-gaming version Acer Spin 5. The transfer rate was stable throughout our test and reception was normal.
Security
Apart from the fingerprint sensor on the touchpad, the Acer also supports TPM 2.0 (Trusted Platform Module) and has a Kensington Lock on the right side. The Nitro comes with a limited trial period of Norton Security.
Accessories
The Acer Nitro 5 Spin includes a 90-watt power supply, but no other accessories. An input pen that can be used for the touchscreen, such as the Acer Stylus Pen, has to be purchased separately.
Maintenance
The maintenance of the Nitro is not difficult: There are eleven normal Phillips screws that have to be removed in order to lift off the bottom of the base unit. After that, you have direct access to the SSD and HDD. The Acer Nitro does not allow you to make changes to the RAM as this is firmly soldered on. Closing the device is also easy and fast.
Warranty
The manufacturer's warranty for this Acer convertible runs for 2 years and includes pick-up and return service. Please see our Guarantees, Return Policies and Warranties FAQ for country-specific information.
Input Devices - where Acer has tried to save
Keyboard

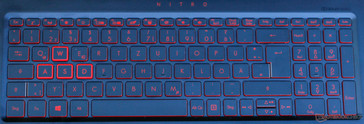

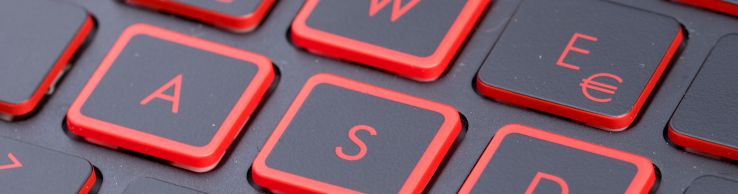

The Acer FineTip keyboard and the snugly fitted number block have red lettering that is sufficiently easy to read. The size of the individual keys is 15 x 14 mm (~0.59 x 0.55 in) on the main keyboard and a narrow 12 x 14 mm (~0.47 x 0.55 in) on the number pad. The enter and backspace keys are large enough, but the up and down arrow keys are very narrow and are positioned too close to each other. The entire keyboard is slightly sunk into the base unit, so that the device can be used easily in tablet mode without the user pressing a key by mistake.
What is striking about the Nitro's keyboard is not only the red lettering and the red sides of the keys, but also the red WASD keys for gamers, further highlighted by bold lettering. Subjectively, the keys have a cheap, plasticky feeling and they rattle when you run your fingers over them. The sound when the keys are pressed reminds us not of high-quality material, but rather of thin, lightweight plastic. Nonetheless, the keyboard allows for fast typing and users who type regularly will not have any difficulties. The rattling keys are not so loud that they become bothersome, but not quiet enough to go unnoticed.

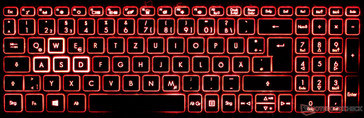

Unfortunately, the keyboard backlighting is a little annoying, as it automatically turns off 30 seconds after the last key was pressed. At night, this means that you regularly find yourself in front of a dark keyboard - even when running on power supply. There are many entries in various Internet forums from users who are having difficulties with this issue, but it seems like the backlighting cannot be set to run all the time, nor can the duration of the backlighting be adjusted.
Touchpad
The surface of the touchpad is made of plastic and is 107 x 79 mm (~4.2 x 3.1 in) large. It responds well and quickly to inputs with one or two fingers. The ClickPad, however, takes a bit of getting used to as it is hard to make a click above the middle on the left side. The left bottom area of the touchpad is rather loose and it has two pressure points, similar to the shutter button on a camera. Simply placing the finger on the touchpad is enough to provoke the first click, although this does not do anything and is simply irritating. Stronger pressure then allows you to make a second, proper click to which the touchpad responds properly.
Acer has placed a fingerprint sensor that works quickly and reliably in the top left corner of the touchpad. A quick placing of the finger on the reader and you are logged-in. The touchpad is large enough for the fingerprint sensor not to get in the way. Acer did not automatically activate the fingerprint reader, as has happened on some other laptops.
Display - a different manufacturer for the display
The Acer Nitro 5 Spin is equipped with a reflective 15.6-inch IPS touch display that has an FHD resolution of 1920x1080 pixels. It is produced by Chi Mei and its model number is CMN15D7. The display size and resolution result in a pixel density of 141 PPI. There are no alternative display options for the Nitro. The display can reach a brightness of 332 cd/m², and even 345 cd/m² in the center of the image, while offering an even brightness distribution that is above average. Acer has decided to change the display manufacturer compared to the "normal" Spin 5, which has led to an increased brightness of over 100 cd/m². The gray and black/white response times are also better than those of the Acer's comparison models in our table. However, they are still too slow for real gamers and you will not get around connecting an external monitor for proper gaming results; IPS displays are not known for their speed, after all.
Compared to the Acer Spin 5, the Nitro's Chi Mei display scores have improved by 38% both for AdobeRGB and sRGB color-space coverage. Only the black value and contrast and the deviations measured with ColorChecker are not as good as those of the Spin 5. So, if a good black value is more important to you than response times or brightness, you might want to take a closer look at the "normal" version of the Spin 5 instead.
| |||||||||||||||||||||||||
Brightness Distribution: 92 %
Center on Battery: 345 cd/m²
Contrast: 1232:1 (Black: 0.28 cd/m²)
ΔE Color 5.85 | 0.5-29.43 Ø4.93
ΔE Greyscale 8.11 | 0.5-98 Ø5.2

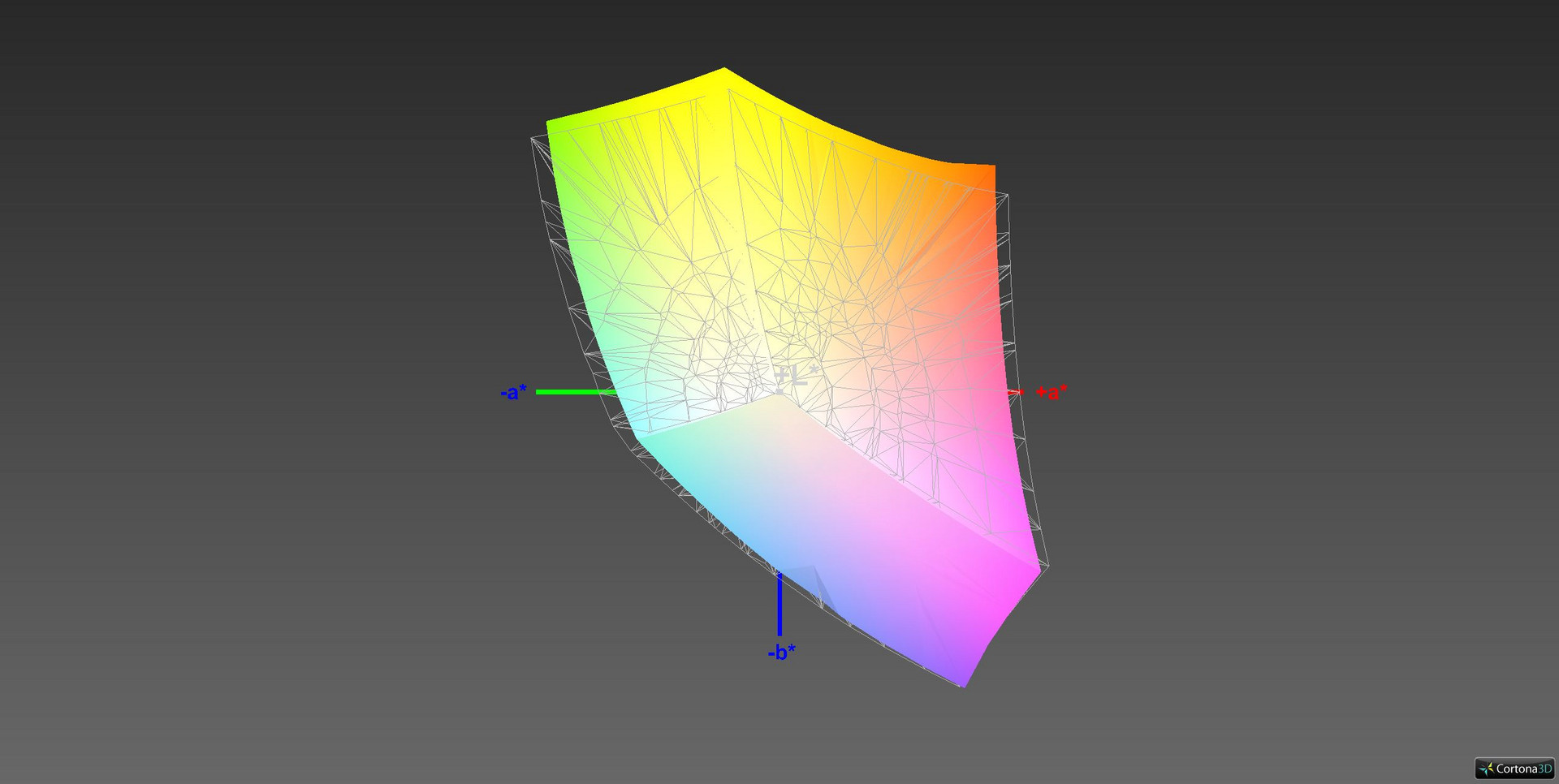

93% sRGB (Argyll 1.6.3 3D)

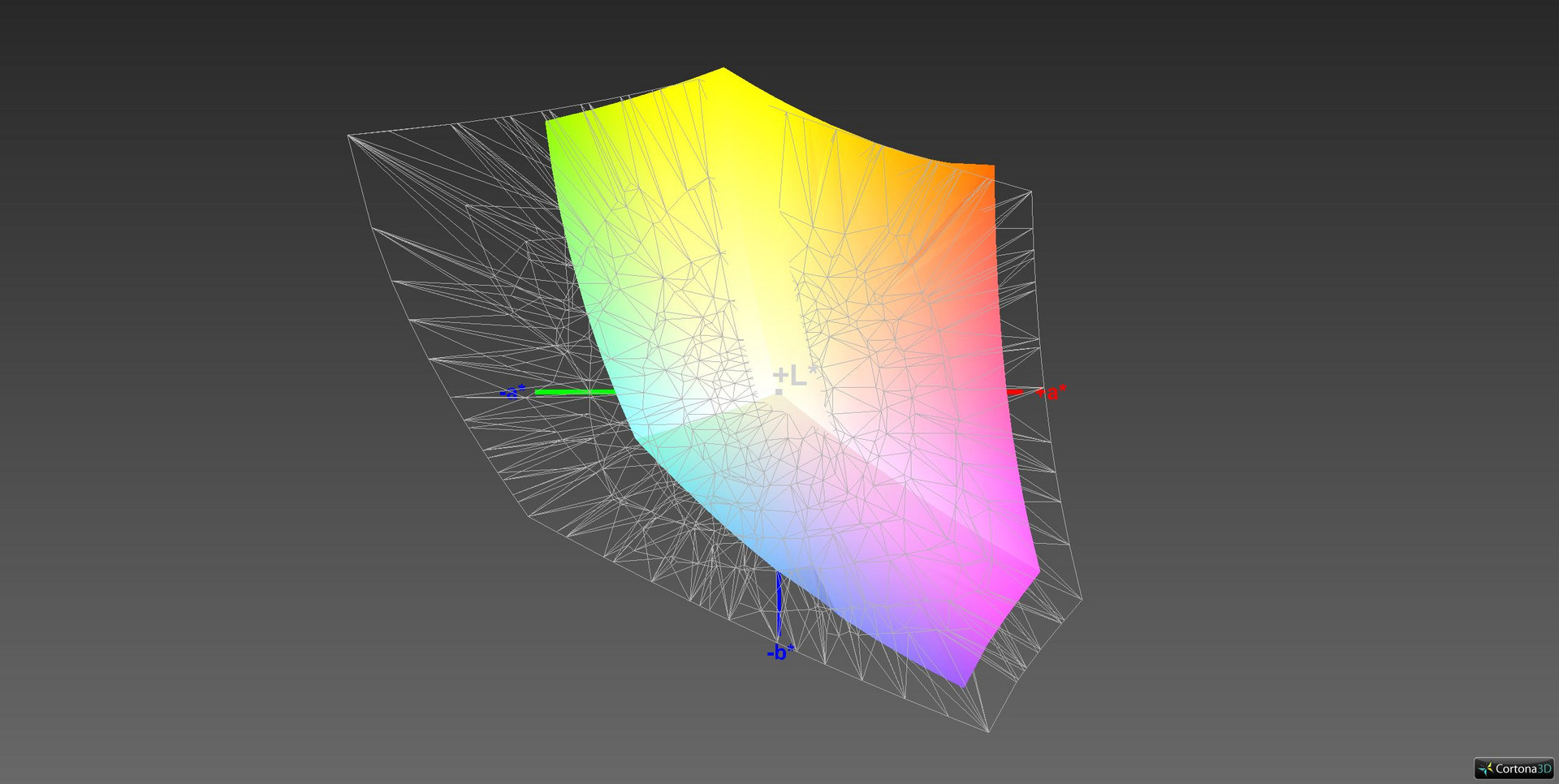

60% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.6% sRGB (Argyll 2.2.0 3D)
64.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.48
| Acer Nitro 5 Spin NP515-51-86CX Chi Mei CMN15D7, , 1920x1080, 15.6" | Acer Spin 5 SP515-51GN-80A3 AUO, B156HAN06.1, , 1920x1080, 15.6" | Asus ZenBook Flip 15 UX561UD B156ZAN03.1, , 3840x2160, 15.6" | HP Spectre x360 15t-bl100 BOE06C3, , 3840x2160, 15.6" | Xiaomi Mi Notebook Pro i7 BOEhydis NV156FHM-N61, , 1920x1080, 15.6" | Lenovo ThinkPad T480s-20L8S02E00 LP140QH2-SPB1, , 2560x1440, 14" | Apple MacBook Pro 15 2017 (2.9 GHz, 560) 2880x1800, 15.4" | |
|---|---|---|---|---|---|---|---|
| Display | -39% | 30% | -2% | 8% | |||
| Display P3 Coverage | 64.9 | 38.73 -40% | 86.6 33% | 66.6 3% | 71.4 10% | ||
| sRGB Coverage | 92.6 | 58.3 -37% | 100 8% | 86.9 -6% | 96.6 4% | ||
| AdobeRGB 1998 Coverage | 66.3 | 40.02 -40% | 99.5 50% | 63.5 -4% | 72.1 9% | ||
| Response Times | -15% | -28% | -14% | -4% | -13% | ||
| Response Time Grey 50% / Grey 80% * | 36 ? | 42 ? -17% | 52 ? -44% | 41.2 ? -14% | 36 ? -0% | 42.4 ? -18% | |
| Response Time Black / White * | 26 ? | 29 ? -12% | 29 ? -12% | 29.6 ? -14% | 28 ? -8% | 28 ? -8% | |
| PWM Frequency | 1000 | ||||||
| Screen | 9% | 20% | 7% | 7% | 9% | 37% | |
| Brightness middle | 345 | 221 -36% | 380 10% | 338.7 -2% | 317 -8% | 311 -10% | 534 55% |
| Brightness | 332 | 224 -33% | 371 12% | 325 -2% | 302 -9% | 502 51% | |
| Brightness Distribution | 92 | 89 -3% | 87 -5% | 91 -1% | 91 -1% | 86 -7% | |
| Black Level * | 0.28 | 0.12 57% | 0.28 -0% | 0.28 -0% | 0.352 -26% | 0.36 -29% | 0.31 -11% |
| Contrast | 1232 | 1842 50% | 1357 10% | 1210 -2% | 901 -27% | 864 -30% | 1723 40% |
| Colorchecker dE 2000 * | 5.85 | 4.12 30% | 4.38 25% | 4.9 16% | 4.5 23% | 3 49% | 1.8 69% |
| Colorchecker dE 2000 max. * | 11.87 | 6.41 46% | 7.59 36% | 8.7 27% | 9 24% | 6.1 49% | 3.8 68% |
| Greyscale dE 2000 * | 8.11 | 3.4 58% | 3.6 56% | 5.5 32% | 3.8 53% | 4 51% | 2.4 70% |
| Gamma | 2.48 89% | 2.54 87% | 2.32 95% | 2.08 106% | 2.17 101% | 2.17 101% | 2.27 97% |
| CCT | 6741 96% | 6893 94% | 6860 95% | 7498 87% | 6961 93% | 6563 99% | |
| Color Space (Percent of AdobeRGB 1998) | 60 | 37 -38% | 88 47% | 63.5 6% | 66.7 11% | 77.92 30% | |
| Color Space (Percent of sRGB) | 93 | 58 -38% | 100 8% | 86.92 -7% | 96.7 4% | 99.94 7% | |
| Colorchecker dE 2000 calibrated * | 1.7 | ||||||
| Total Average (Program / Settings) | -15% /
-4% | 7% /
16% | -3% /
2% | 7% /
7% | 4% /
7% | 12% /
29% |
* ... smaller is better

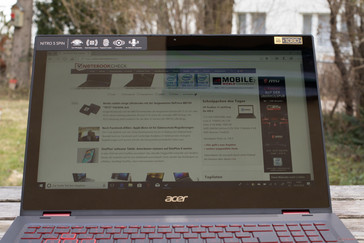

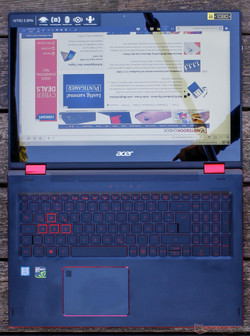

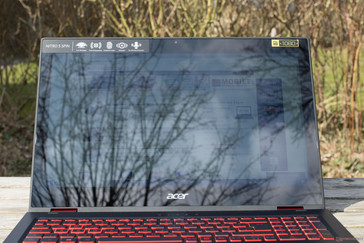

As always with glossy screens, you had best look for a shady spot when using the device outdoors, as these kinds of displays are hard to read despite high brightness levels and things like trees are reflected in the background.
Display Response Times

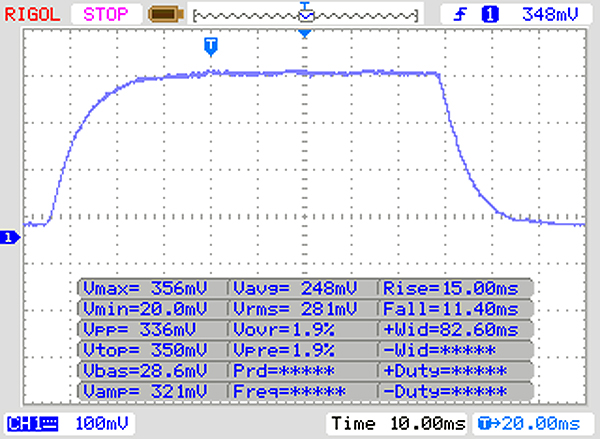

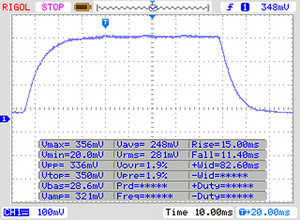

| ↔ Response Time Black to White | ||
|---|---|---|
| 26 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 11 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

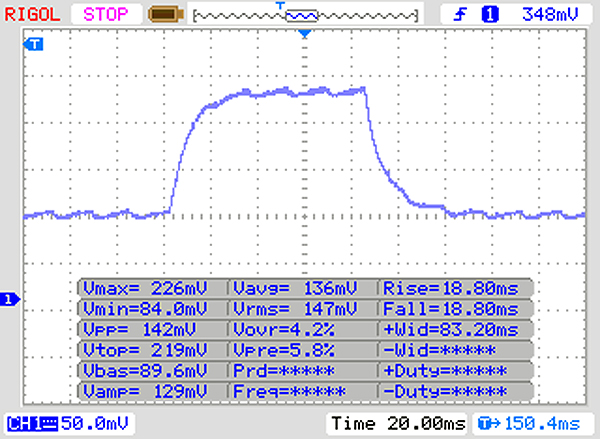

| ↔ Response Time 50% Grey to 80% Grey | ||
| 36 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 46 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33 ms). | ||

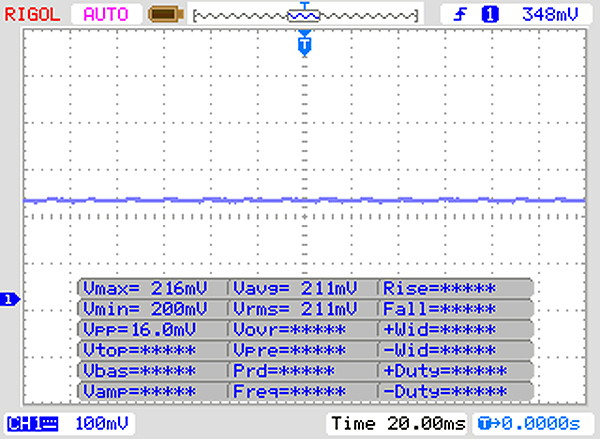

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17146 (minimum: 5 - maximum: 3846000) Hz was measured. | |||

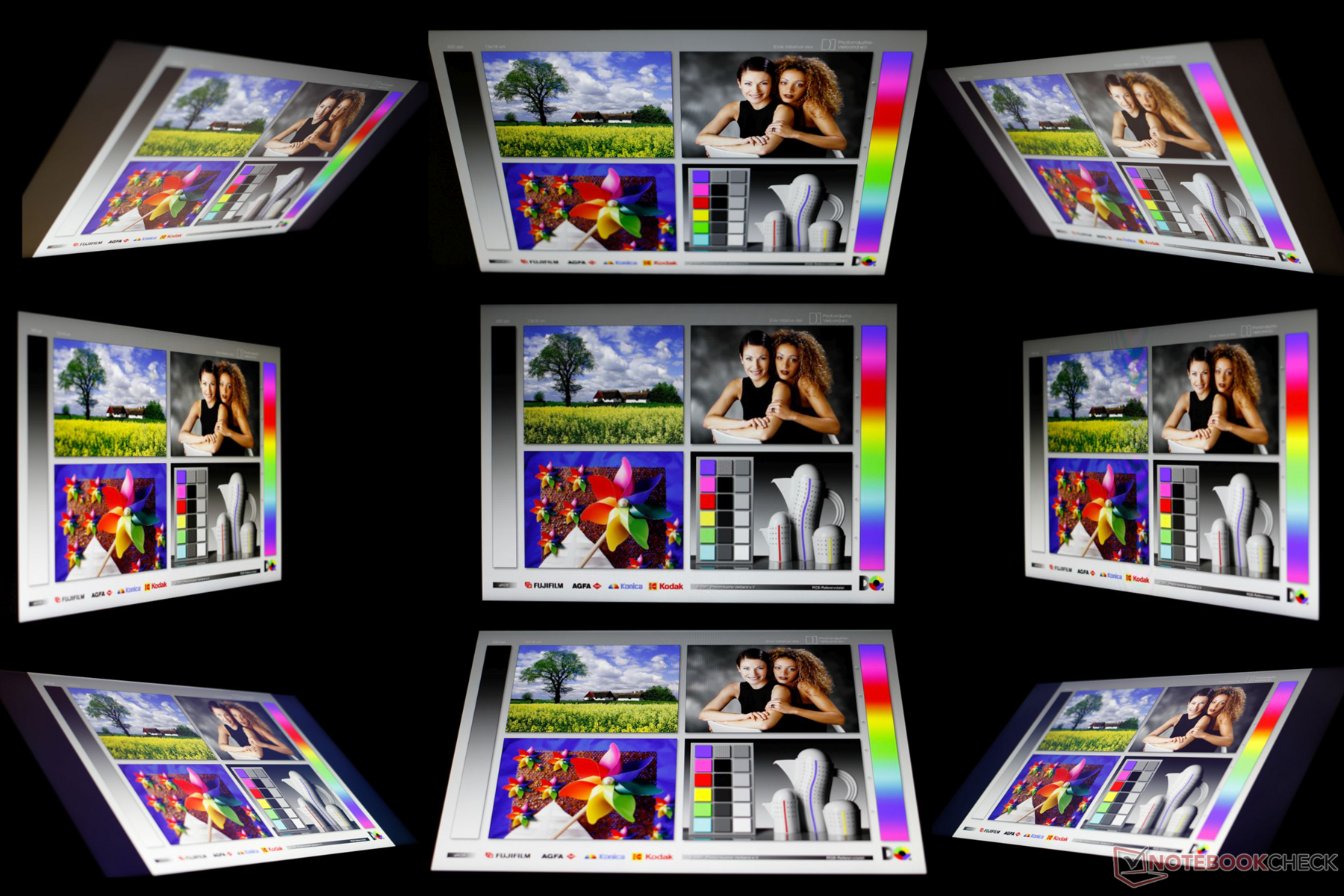

As this is a convertible, there is no limit to the opening angle. The IPS display comes into its own here, particularly when used as a tablet. The content is displayed properly from every viewing angle, as you would expect from an IPS display.
Performance - except for the SSD, the Windows 2-in-1 tablet offers decent performance
Acer offers two different processor versions in its online shop: The Intel Core i5-8250U and the Intel Core i7-8550U with a slightly higher base clock rate. Both CPUs belong to the Kaby Lake Refresh series, offer four cores and can clock at up to 3.4 GHz and 4 GHz respectively in turbo mode. Our test unit is equipped with the faster Intel Core i7-8550U.
Our quad-core CPU includes the standard Intel UHD Graphics 620, but the device is also equipped with the dedicated Nvidia GeForce GTX 1050 with 4 GB of GDDR5 SDRAM. This should be able to display current games decently at medium details.
The Nitro also has 8 GB of RAM in dual-channel mode with two 4 GB units (DDR4-2400 SDRAM).
Processor
The faster configuration with the Intel Core i7-8550U gives the Nitro a base clock rate of 1.8 GHz. The turbo brings the chip up to 4 GHz in two-core mode, but the maximum clock rate is limited to 3.7 GHz at full four-core load. The TDP remains the same as it was for Intel's seventh generation, which is 15 watts. However, this time this is divided among four cores and eight threads. Compared to the Intel Core i7-7500U, we could imagine a performance increase of 40%. You can find detailed technical background information on the Intel Core i7-8550U in our tech section.

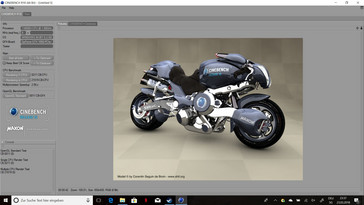

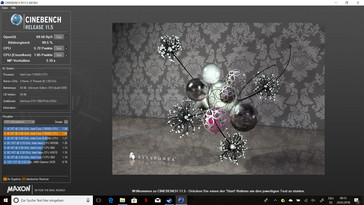

The Cinebench R15 benchmark shows that the Nitro's performance is close to the average of all notebooks equipped with the Intel Core i7-8550U in single-core mode. Among the convertibles, the Asus ZenBook Flip 15 takes first place and offers a 6% increase in performance, while the Lenovo IdeaPad 320s remains at the back of the table, as expected due to the slightly lower base clock rate of its i5-8250U.
As usual, the multi-core test starts with a short-term turbo. Thanks to a cTDP of 25 watts it reaches 529 points in the first round. The Nitro then settles down at around 500 points in the next rounds. This equates to throttling of about 5%. After 28 rounds, the results drop again and then remain at 480 points. Therefore, our test unit reaches better results than the "normal" Acer Spin 5 most of the time and is just below the performance of the HP Spectre x360.
System Performance
The Acer Nitro offers very satisfying system performance, as did the non-gaming version Acer Spin 5 and both are on the same level here. Subjectively, the Nitro, with its dual-channel RAM configuration, reacts quickly and belongs to the faster models of our comparison devices.
| PCMark 7 Score | 6029 points | |
| PCMark 8 Home Score Accelerated v2 | 3975 points | |
| PCMark 8 Creative Score Accelerated v2 | 5112 points | |
| PCMark 8 Work Score Accelerated v2 | 5202 points | |
| PCMark 10 Score | 3835 points | |
Help | ||
Storage Devices
The Acer Nitro 5 Spin has a main storage device, which is a 256-GB SSD from Micron (Micron 1100, MTFDDAV256TBN) with an M.2 form factor and a 6-Gbps SATA interface. This is the device that the Windows operating system is installed on. Additionally, our model offers a 2.5-inch HDD from Western Digital (WD10SPZX) with 5400 RPM and a storage capacity of 1000 GB. For the specification fans among you: The power consumption of the SSD is 3 watts during use and 0.055 watts while idling, that of the HDD is 1.5 watts during use and 0.5 watts while idling.
The benchmark results for the SSD are rather disappointing, unfortunately, but this is not the fault of Nitro, but of the Micro 1100 itself. We have found the same Micron 1100 in the Asus ZenBook Flip 15 and its results are very similar there. You simply cannot compare the performance of the Micron 1100 to that of the widespread and popular Samsung PM961. The Samsung is more than twice as fast in the CrystalDiskMark 3.0 benchmark.
Why Acer has switched from the Intel SSD that was used in the Spin 5 and did a fairly good job there to the slow Micron 1100 we do not know. The second storage device, a Western Digital 1-TB HDD, cannot impress us with high read and write rates in the CrystalDiskMark test either. The benchmark performance of the 2-TB Seagate HDD in the Asus ZenBook Flip 15, for example, is a third higher.
| Acer Nitro 5 Spin NP515-51-86CX Micron 1100 MTFDDAV256TBN | Acer Spin 5 SP515-51GN-80A3 Intel SSD 600p SSDPEKKW256G7 | Asus ZenBook Flip 15 UX561UD Micron 1100 MTFDDAV256TBN | HP Spectre x360 15t-bl100 Samsung PM961 NVMe MZVLW512HMJP | Xiaomi Mi Notebook Pro i7 Samsung PM961 MZVLW256HEHP | Lenovo ThinkPad T480s-20L8S02E00 Samsung SSD PM981 MZVLB512HAJQ | Average Micron 1100 MTFDDAV256TBN | |
|---|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | 73% | -3% | 159% | 138% | 265% | -6% | |
| Read Seq | 484 | 1187 145% | 476.3 -2% | 1248 158% | 1444 198% | 2588 435% | 465 ? -4% |
| Write Seq | 408.5 | 599 47% | 394.4 -3% | 1476 261% | 1173 187% | 1858 355% | 379 ? -7% |
| Read 512 | 339.8 | 935 175% | 291.9 -14% | 849 150% | 816 140% | 1799 429% | 315 ? -7% |
| Write 512 | 381.8 | 609 60% | 291.4 -24% | 1118 193% | 851 123% | 1863 388% | 315 ? -17% |
| Read 4k | 28.26 | 35.61 26% | 27.54 -3% | 58.8 108% | 61.5 118% | 62.7 122% | 24.6 ? -13% |
| Write 4k | 87.3 | 134.4 54% | 92.7 6% | 155.2 78% | 171.9 97% | 146.8 68% | 80.8 ? -7% |
| Read 4k QD32 | 247.6 | 289.3 17% | 247.5 0% | 645 161% | 568 129% | 446.6 80% | 227 ? -8% |
| Write 4k QD32 | 205.9 | 331.1 61% | 247 20% | 547 166% | 436.4 112% | 706 243% | 233 ? 13% |
Graphics
The Acer Nitro 5 Spin, as well as the Acer Spin 5, is equipped with a GeForce GTX 1050 from Nvidia. Thanks to this mid-range GPU, the device can display current games at medium details, and sometimes even at high details. The Acer Nitro 5 Spin should actually be the gaming version of the Acer Spin 5, but as both have the same case and the same cooling system and both are equipped with the same graphics card, the gaming performance of the gaming model is almost unchanged. This is reflected in the benchmark results. Furthermore, the graphics performance of both of the Acer Spin 5 models lies just below the average of all the devices we have tested that were equipped with the GTX 1050.
But please be aware that we are still looking at a convertible. Even if the Nitro looks like it intends to score high in the benchmark tests, its cooling performance is limited due to its slim build, which enables it to also be used as a tablet.
| 3DMark 06 Standard Score | 15510 points | |
| 3DMark 11 Performance | 6446 points | |
| 3DMark Cloud Gate Standard Score | 14974 points | |
| 3DMark Fire Strike Score | 4746 points | |
Help | ||
Gaming Performance
Let us put it like this: For a convertible, the Acer Spin 5 Nitro offers excellent graphics performance. Basically, all the current games we tested could be played smoothly up to medium details, some games, such as COD WW2, could even be displayed at high details without any issues. While the performance lies a few frames below the average of what a GeForce GTX 1050 can do, it is like we said: The Nitro is a convertible. It is also interesting to compare the Acer Nitro 5 Spin with the Asus ZenBook Flip. The Asus, equipped with the same GTX 1050, managed to beat all comparison devices in the first two rounds of the Cinebench R15 loop and then remained stable at 750 points for the remainder of the test. In the area of graphics performance, the ZenBook managed to do better than the Nitro at the game "Rise of Tomb Raider" at low to medium details, but both gaming convertibles had very similar results at high and very high settings, which are more demanding on the GPU. We will talk about this aspect in more detail in the verdict, as this might well influence users' purchase decisions.
| Call of Duty WWII | |
| 1920x1080 Extra / On AA:Filmic T2X SM | |
| Average NVIDIA GeForce GTX 1050 Mobile (34 - 38.1, n=2) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 High / On AA:Filmic 1X SM | |
| Average NVIDIA GeForce GTX 1050 Mobile (45 - 49.7, n=2) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| Lenovo ThinkPad T480s-20L8S02E00 | |
| 1920x1080 Normal / Off | |
| Average NVIDIA GeForce GTX 1050 Mobile (72 - 108, n=2) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| Lenovo ThinkPad T480s-20L8S02E00 | |
| 1280x720 Low / Off | |
| Average NVIDIA GeForce GTX 1050 Mobile (74 - 167, n=2) | |
| Lenovo ThinkPad T480s-20L8S02E00 | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| Rainbow Six Siege | |
| 1920x1080 Ultra Preset AA:T AF:16x | |
| Average NVIDIA GeForce GTX 1050 Mobile (52 - 75.9, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 High Preset AA:T AF:4x | |
| Average NVIDIA GeForce GTX 1050 Mobile (57 - 88.7, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1366x768 Medium Preset AA:T AF:2x | |
| Average NVIDIA GeForce GTX 1050 Mobile (60 - 139.7, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1024x768 Low Preset AA:T AF:Linear | |
| Average NVIDIA GeForce GTX 1050 Mobile (60 - 209, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| For Honor | |
| 1920x1080 Extreme Preset AA:T AF:16x | |
| Average NVIDIA GeForce GTX 1050 Mobile (34 - 43, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 High Preset AA:T AF:8x | |
| Average NVIDIA GeForce GTX 1050 Mobile (42 - 57, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 Medium Preset AA:T AF:4x | |
| Average NVIDIA GeForce GTX 1050 Mobile (44 - 60.1, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1280x720 Low Preset | |
| Average NVIDIA GeForce GTX 1050 Mobile (60 - 147.9, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| Ghost Recon Wildlands | |
| 1920x1080 Ultra Preset AA:T AF:16x | |
| Average NVIDIA GeForce GTX 1050 Mobile (4.1 - 26.2, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 High Preset AA:T AF:4x | |
| Average NVIDIA GeForce GTX 1050 Mobile (28 - 37.5, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 Medium Preset AA:FX | |
| Average NVIDIA GeForce GTX 1050 Mobile (28 - 39.5, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1280x720 Low Preset | |
| Average NVIDIA GeForce GTX 1050 Mobile (57 - 90.8, n=6) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| F1 2017 | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Average NVIDIA GeForce GTX 1050 Mobile (27 - 36, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| 1920x1080 High Preset AA:T AF:8x | |
| Average NVIDIA GeForce GTX 1050 Mobile (35 - 59, n=4) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| Xiaomi Mi Notebook Pro i7 | |
| 1920x1080 Medium Preset AF:4x | |
| Average NVIDIA GeForce GTX 1050 Mobile (43 - 67, n=3) | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| Xiaomi Mi Notebook Pro i7 | |
| 1280x720 Ultra Low Preset | |
| Average NVIDIA GeForce GTX 1050 Mobile (59 - 133, n=3) | |
| Xiaomi Mi Notebook Pro i7 | |
| Acer Nitro 5 Spin NP515-51-86CX | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| Rainbow Six Siege (2015) | 60 | 60 | 57 | 52 |
| Rise of the Tomb Raider (2016) | 79 | 49 | 35 | 30 |
| For Honor (2017) | 60 | 44 | 42 | 34 |
| Ghost Recon Wildlands (2017) | 57 | 28 | 28 | 14 |
| F1 2017 (2017) | 59 | 43 | 35 | 27 |
| Call of Duty WWII (2017) | 74 | 72 | 45 | 34 |
| Final Fantasy XV Benchmark (2018) | 41 | 27 | 18 |
Emissions - a multimedia laptop with loud fans and average speakers
System Noise
The Nitro is very generous when it comes to audible fan noise. While idling without use of the cooling fans, the system noise is still normal at around 31 dB(A), but as soon as the fans turn up, the convertible becomes louder and louder, depending on the load. At maximum load and full fan rotation speed, it easily reaches over 40 dB(A).
Noise Level
| Idle |
| 30.9 / 30.9 / 30.9 dB(A) |
| Load |
| 42.6 / 45 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm distance) environment noise: 30.4 dB(A) | ||
| Acer Nitro 5 Spin NP515-51-86CX i5-8550U, GeForce GTX 1050 Mobile | Acer Spin 5 SP515-51GN-80A3 i5-8550U, GeForce GTX 1050 Mobile | Asus ZenBook Flip 15 UX561UD i5-8550U, GeForce GTX 1050 Mobile | HP Spectre x360 13t-ae000 i5-8550U, UHD Graphics 620 | Lenovo IdeaPad 320-15IKBRN 81BG001KGE i5-8250U, GeForce MX150 | |
|---|---|---|---|---|---|
| Noise | 1% | 5% | 15% | 6% | |
| off / environment * | 30.4 | 30.2 1% | 30.4 -0% | 28.2 7% | 29.9 2% |
| Idle Minimum * | 30.9 | 30.2 2% | 31.3 -1% | 28.2 9% | 29.9 3% |
| Idle Average * | 30.9 | 30.2 2% | 31.3 -1% | 28.2 9% | 29.9 3% |
| Idle Maximum * | 30.9 | 30.9 -0% | 31.3 -1% | 28.2 9% | 32.2 -4% |
| Load Average * | 42.6 | 42.4 -0% | 36.4 15% | 30.7 28% | 34.6 19% |
| Load Maximum * | 45 | 44.8 -0% | 37.1 18% | 32.9 27% | 40.2 11% |
| Witcher 3 ultra * | 40.2 |
* ... smaller is better
Temperature

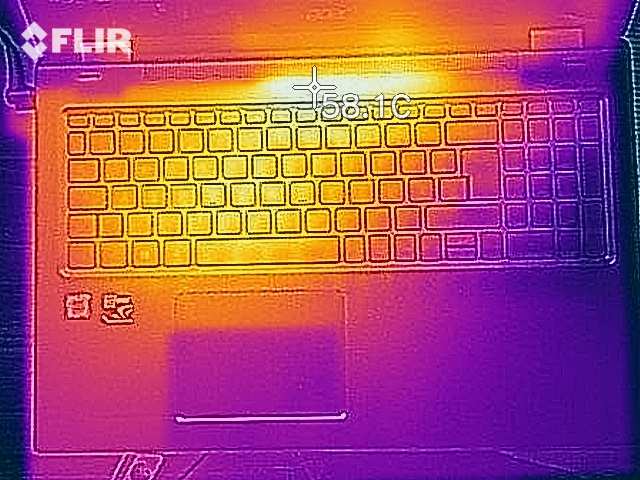

The two fans, which send the hot air out through the back, manage to keep the Acer Nitro below 50 °C (~122 °F). During our stress tests - the FurMark, for example - the hotspot is on the keyboard in the area of the "R", "T", "F", and "G" keys. As the WASD keys, which are so important for gamers, are right to the left of these, you might find that gaming on the Nitro keyboard is a little uncomfortable in summer. If you do not have an external display, we would recommend using the Acer Nitro 5 Spin as a monitor in tablet mode (with the keyboard facing downward) and connecting an external keyboard for gaming.
Under full load at 4 GHz, the CPU peaks at 97 °C (~207 °F) and then settles to around 71 °C (~160 °F). We measured a maximum temperature of 78 °C (~172 °F) during the stress tests; the temperature dropped slightly to a constant 75 °C (~167 °F) under constant load.
(-) The maximum temperature on the upper side is 46 °C / 115 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.

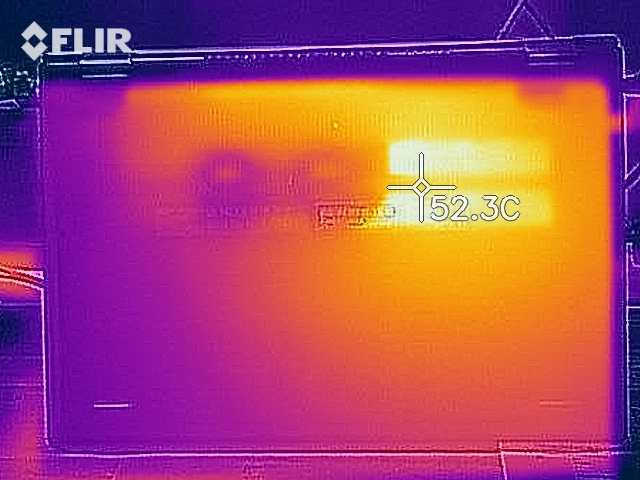

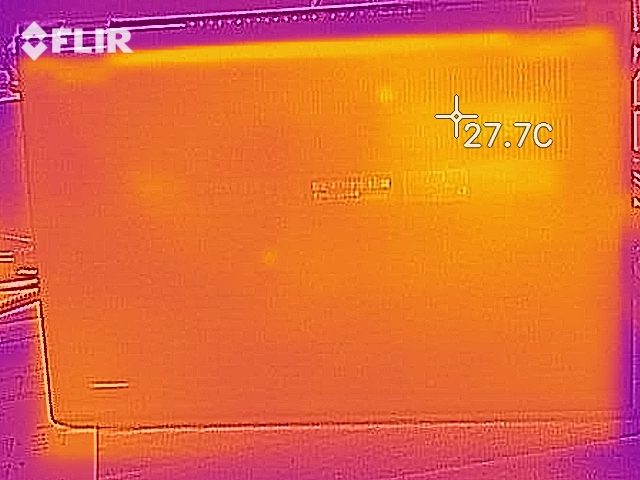

(-) The bottom heats up to a maximum of 47 °C / 117 F, compared to the average of 39.2 °C / 103 F

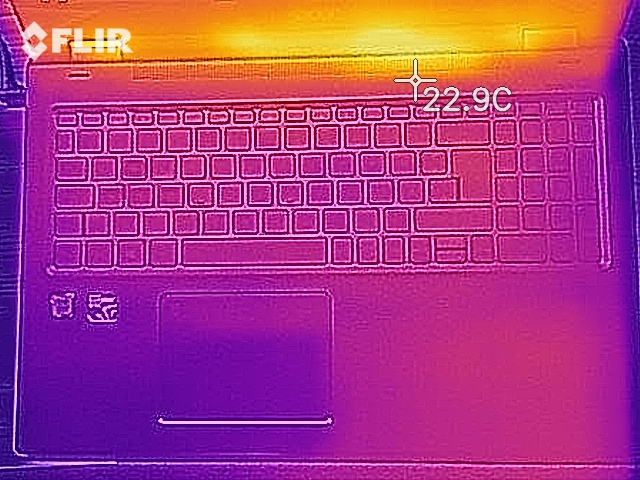

(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.1 °C / 88 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-2.3 °C / -4.2 F).
Speakers
There are two stereo speakers positioned on the left and right, near the heat pipes. The sound is emitted above the keyboard, as well as at the back, which becomes the front in tablet mode.
The maximum volume of 77 dB(A) means that the Nitro is only averagely loud. Although the subwoofer on the bottom should help, the bass quality is still too low. At least Acer can offer very balanced highs.
Acer Nitro 5 Spin NP515-51-86CX audio analysis
(±) | speaker loudness is average but good (77 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.8% lower than median
(-) | bass is not linear (16.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(±) | linearity of mids is average (8.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.9% difference to median)
Compared to same class
» 56% of all tested devices in this class were better, 7% similar, 36% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 40% of all tested devices were better, 8% similar, 52% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Frequency diagram in comparison (checkboxes can be turned on/off!)
Energy Management - an efficient hybrid laptop
Power Consumption
The Acer has good power consumption rates: The Acer is the clear winner in direct comparison to the Asus Zenbook Flip 15, which has a comparable configuration (i7-8550U, GTX 1050, Micron 1100 SSD) but a 4K display that - surprise, surprise - increases power consumption significantly. The Nitro can also beat the HP Spectre x360 (a 4K screen again) in the area of energy-efficiency, but falls behind or is at the same level compared to the models with similar FHD displays such as the Lenovo IdeaPad.
The included power supply needs 55 minutes to recharge the battery to 50% and another 80 minutes to reach 100%.
| Off / Standby | 0.22 / 0.5 Watt |
| Idle | 4.1 / 7.4 / 8.6 Watt |
| Load |
66 / 87 Watt |

| |
| Acer Nitro 5 Spin NP515-51-86CX i5-8550U, GeForce GTX 1050 Mobile, Micron 1100 MTFDDAV256TBN, IPS, 1920x1080, 15.6" | Acer Spin 5 SP515-51GN-80A3 i5-8550U, GeForce GTX 1050 Mobile, Intel SSD 600p SSDPEKKW256G7, a-Si TFT-LCD, LCM, IPS, 1920x1080, 15.6" | Asus ZenBook Flip 15 UX561UD i5-8550U, GeForce GTX 1050 Mobile, Micron 1100 MTFDDAV256TBN, IPS, 3840x2160, 15.6" | HP Spectre x360 15t-bl100 i5-8550U, GeForce MX150, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6" | Lenovo IdeaPad 320S-13IKB i5-8250U, GeForce MX150, Samsung PM961 NVMe MZVLW512HMJP, IPS LED, 1920x1080, 13.3" | Xiaomi Mi Notebook Pro i7 i5-8550U, GeForce MX150, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|---|
| Power Consumption | 2% | -43% | -65% | 22% | 4% | |
| Idle Minimum * | 4.1 | 3.9 5% | 5.4 -32% | 11.6 -183% | 3.4 17% | 4.3 -5% |
| Idle Average * | 7.4 | 6.7 9% | 10.8 -46% | 13.8 -86% | 6.1 18% | 7.9 -7% |
| Idle Maximum * | 8.6 | 8.7 -1% | 13.9 -62% | 14.2 -65% | 7.7 10% | 8.3 3% |
| Load Average * | 66 | 74 -12% | 94 -42% | 67.9 -3% | 44.2 33% | |
| Load Maximum * | 87 | 79 9% | 116.6 -34% | 76.9 12% | 60.3 31% | 65.7 24% |
| Witcher 3 ultra * | 59 | 37.6 | 43.2 |
* ... smaller is better
Battery Runtimes
The Nitro is equipped with a 48-Wh Lithium-Ion battery that cannot be exchanged. On the specification sheet, Acer has claimed that the device has a battery runtime of 10 hours (based on the MobileMark test 2014). Our battery tests all result in above-average runtimes that place the Acer Nitro in a good light. In the battery runtime table, the Asus ZenBook Flip 15 is 26% below the Acer Nitro despite its larger battery (52 Wh) due to its already mentioned 4K screen.
| Acer Nitro 5 Spin NP515-51-86CX i5-8550U, GeForce GTX 1050 Mobile, 48 Wh | Acer Spin 5 SP515-51GN-80A3 i5-8550U, GeForce GTX 1050 Mobile, 48 Wh | Asus ZenBook Flip 15 UX561UD i5-8550U, GeForce GTX 1050 Mobile, 52 Wh | HP Spectre x360 15t-bl100 i5-8550U, GeForce MX150, 79.2 Wh | Xiaomi Mi Notebook Pro i7 i5-8550U, GeForce MX150, 60 Wh | Lenovo ThinkPad T480s-20L8S02E00 i5-8550U, GeForce MX150, 57 Wh | Lenovo IdeaPad 320S-13IKB i5-8250U, GeForce MX150, 36 Wh | Average of class Multimedia | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | -10% | -26% | 25% | 32% | 33% | -14% | 52% | |
| Reader / Idle | 750 | 759 1% | 558 -26% | 934 25% | 1366 82% | 736 -2% | 1146 ? 53% | |
| H.264 | 371 | 331 -11% | 261 -30% | 600 62% | 550 48% | 346 -7% | 785 ? 112% | |
| WiFi v1.3 | 397 | 373 -6% | 311 -22% | 511 29% | 516 30% | 530 34% | 344 -13% | 616 ? 55% |
| Load | 113 | 88 -22% | 84 -26% | 136 20% | 119 5% | 76 -33% | 73 -35% | 98.2 ? -13% |
| Witcher 3 ultra | 94 | 76.3 ? |
Verdict - it could have been a little more
Pros
Cons
After the Spin 5, Acer has now produced another convertible - and this one is aimed at occasional gamers. However, apart from the slightly modified design that now features red elements, it is not immediately clear whether further changes have been made to the gaming version. As we already mentioned in the review, there are two big differences between the insides of the Acer Spin 5 and the Acer Nitro 5 Spin. The Chi Mei display in the Nitro is about 100 cd/m² brighter, has a faster response time and offers higher color-space coverage, but it also has a lower contrast ratio and black value than the Spin 5 display. Furthermore, Acer has chosen a Micron SSD for the Nitro 5, while the Spin 5 is equipped with a significantly faster Intel SSD.
Buyers should not make their decision based only on the color of the case. Which display characteristics are more important to you? Are you willing to forego the faster SSD? As we have seen in the tests, the Nitro offers similar system performance to the Spin 5. The benchmark results from "Tomb Raider", which we were able to compare directly, are good, for a convertible, thanks to the GeForce GTX 1050. You should have no difficulties playing current games on this 2-in-1 device.
We would have expected a little more than a red "WASD" keyboard from a gaming version. Acer could have made more significant changes between the Nitro 5 and the normal Spin 5, such as adding an Ethernet port or improving the cooling system.
A high performing alternative might be the Asus ZenBook Flip 15, which is also equipped with an Nvidia GeForce GTX 1050, although this only has 2 GB of VRAM available. As we saw from the Tomb Raider benchmark, it offers the same performance as the Acer Nitro. Its system performance is a lot worse than that of the Nitro despite excellent Cinebench results. In addition, the 4K display means that the Asus model requires significantly more power and offers 25% less battery runtime than our device from Acer. Depending on the current price of the devices, users will have to decide for themselves which model offers the best value for its money.
Acer Nitro 5 Spin NP515-51-86CX
-
04/11/2018 v6 (old)
Daniel Puschina
More articles related to this device
Acer Nitro 5 Spin NP515-51-86CX (Nitro 5 AN515 Series)Related Articles
Price comparison
