MagyarHaibike Trekking 4 2024 arrives with more powerful motor

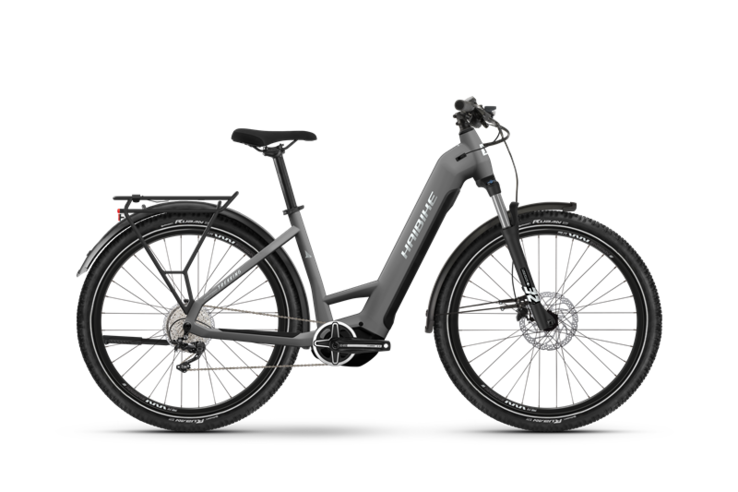

The 2024 Haibike Trekking 4 e-bike is now available. The model is designed to ride around the city and handle uneven terrain. Available with high and low frames, the latest version of the entry-level bicycle has several upgrades on its predecessor, including tweaks to the frame (geometry comparison below).
A new Yamaha PW-S2 250W motor with up to 75Nm and a top assistance speed of 25 kph (~16 mph) powers the 2024 Trekking 4, with a higher capacity 720Wh InTube battery for an extended range. Haibike has chosen a different suspension fork from SR Suntour, opting for the XCM32 ATB DS LO steel spring with 100 mm travel. Other changes include Shimano MT200 hydraulic disc brakes, a 10-speed Shimano Microshift Advent X rear derailleur and 27.5-inch x 2.3-inch Continental Ruban Reflex tires. Also included is a 1.7-inch LCD from Yamaha, fenders, lights, and an MIK luggage carrier system with a 25 kg (~55 lbs) load limit; the bike's total permissible load is 130 kg (~287 lbs).
The Haibike Trekking 4 High and Low e-bikes are now available for €3,499/£2,999, making it €400/£400 more expensive than its predecessor. You can only buy the models via dealers; they are not available directly from Haibike. Plus, customers in the UK can currently save £150 when they buy the new model via E-Bikeshop.

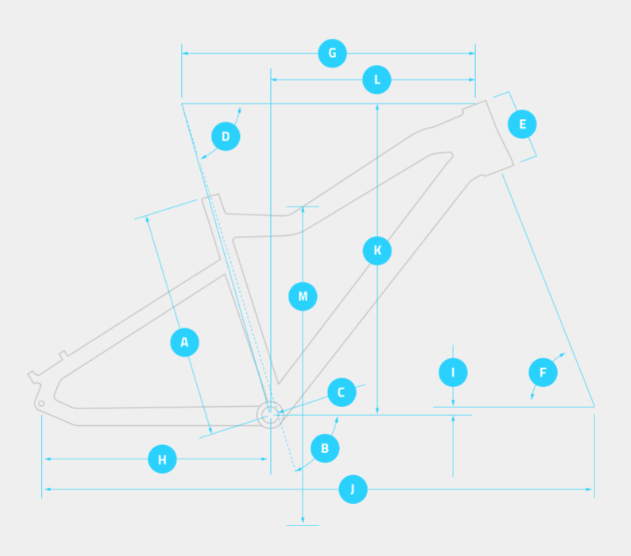

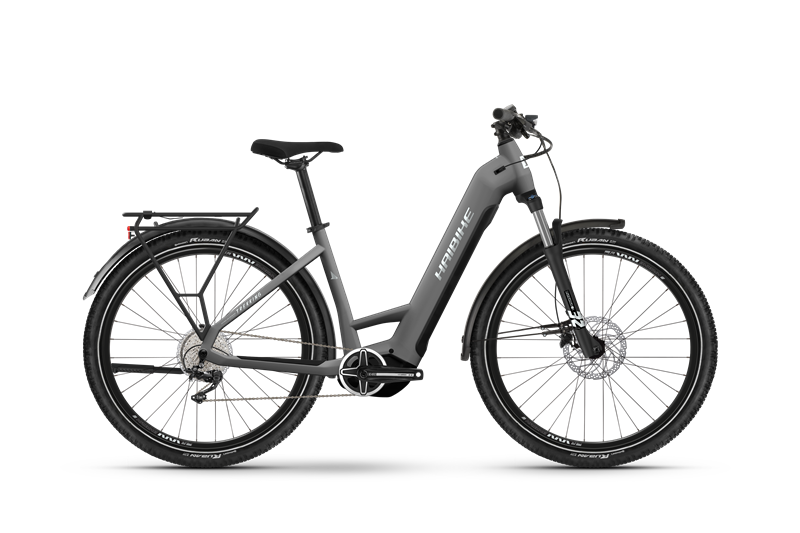

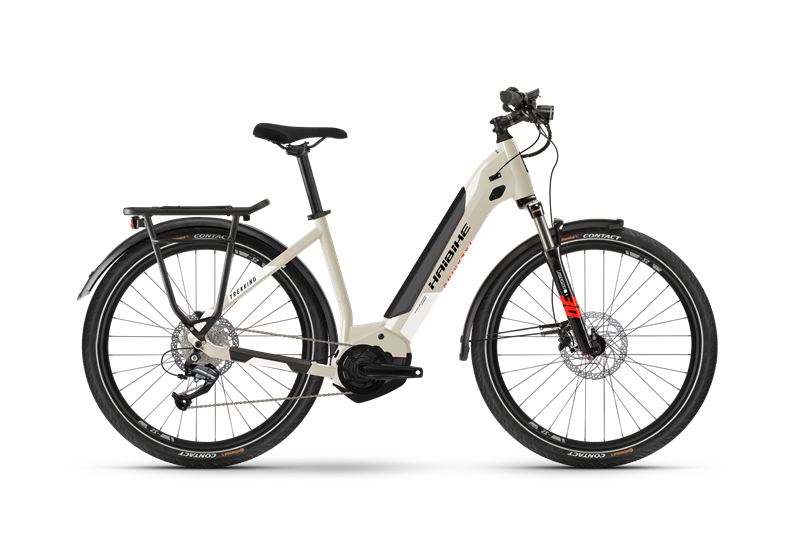

Geometries of the 2024 and 2023 Haibike Trekking 4 e-bike models
| Measurement | 2024 - High | 2023 - High | 2024 - Low | 2023 - Low |
|---|---|---|---|---|
| Frame Size (i.e. S, M, ...) | M | M | M | M |
| A - Frame Height | 45.0 cm | 52.0 cm | 45.0 cm | 50.0 cm |
| B - Seat Tube Angle | 74.0 degrees | 73.0 degrees | 74.0 degrees | 73.0 degrees |
| D - Seat Angle | 74.0 degrees | 73.0 degrees | 74.0 degrees | 73.0 degrees |
| E - Head Tube Length | 140.0 mm | 170.0 mm | 155.0 mm | 180.0 mm |
| F - Head Tube Angle (Degrees) | 68.0 degrees | 67.0 degrees | 69.0 degrees | 70.0 degrees |
| G - Top Tube Horizontal | 620.0 mm | 608.0 mm | 630.0 mm | 620.0 mm |
| H - Chain Stay Length | 465.0 mm | 490.0 mm | 475.0 mm | 470.0 mm |
| I - Bottom Bracket Drop | -60.0 mm | 55.0 mm | -65.0 mm | 60.0 mm |
| J - Wheelbase | 1181.0 mm | 1198.0 mm | 1177.0 mm | 1150.0 mm |
| K - Stack | 656.0 mm | 636.0 mm | 663.0 mm | 669.0 mm |
| L - Reach | 432.0 mm | 414.0 mm | 440.0 mm | 415.0 mm |
