AMD Ryzen 7 5700G in review: 8-core desktop APU based on Zen3 with Vega graphics unit

"Cezanne" for the desktop! With the APUs of the 2000 and 3000 series aka "Raven Ridge" and "Picasso", AMD has repeatedly developed inexpensive processors with a fast graphics unit in the last few years. Based on Zen 3, "Cezanne" series now follows and raises the bar a bit again with the Ryzen 5 5600G and Ryzen 7 5700G.
Sebastian Bade, Anton Avdyushkin (translated by DeepL / Ninh Duy), 🇩🇪 🇳🇱 ...

Working For Notebookcheck

Are you a techie who knows how to write? Then join our Team! English native speakers welcome!

News Writer (AUS/NZL based) - Details here

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Die-shot of the Ryzen 5000G (Source: AMD)
Die-shot of the Ryzen 5000G (Source: AMD)

With the APUs that AMD carries in its lineup, the manufacturer brings notebook technology to the desktop space. The AMD Ryzen 5 5600G and the AMD Ryzen 7 5700G are both based on the current Zen3 architecture and are very similar to their laptop Cezanne counterparts. However, these products are not completely new, as the AMD Ryzen 3 2200G and AMD Ryzen 5 2400G were the first Zen-based APUs with a fast iGPU, which belongs to the Vega architecture. With the small relaunch last year (AMD Ryzen 3 3200G and AMD Ryzen 5 3400G), the innovations of the CPU architecture flowed in. The same applies to the new APUs of the 5000 series. However, there are a small amount of changes in relation to the iGPU. The Vega architecture, which has been around for a few years, is slowly reaching its limits, which is quickly noticed in our tests. Unfortunately, even the high GPU clock cannot make up for that much.

In this review we'll take a closer look at the AMD Ryzen 7 5700G, which AMD Germany provided us with. This modern APU also offers 8 native processing cores for the first time. Thus, it is the fastest APU in AMD's lineup. The AMD Ryzen 5 5600G is a 6-core APU. With its 65 watts, the Ryzen 7 5700G is relatively frugal and at the same time very fast, if we restrict ourselves to CPU performance. More about the exact position of the fastest APU later.

If you want to take full advantage of this APU, you have to own a board with a 400 or 500-series chipset. However, you have to make sure that various display connections are available on the board to be able to use the iGPU at all. These connections are rather rare on the more expensive X570 boards, so buyers should focus on a well-equipped B550 or B450 board. For this review, we found one of the few X570 boards that can fully utilize the APU - Asus ROG Strix X570-I Gaming.

The AMD Ryzen processors at a glance

Model Cores/Threads Base Clock Turbo Clock L3 Cache TDP Graphics Launch Price
Ryzen 9 5950X 16/32 3.4 GHz 4.9 GHz 64 MB 105 Watt - 799 USD
Ryzen 9 5900X 12/24 3.7 GHz 4.8 GHz 64 MB 105 Watt - 549 USD
Ryzen 7 5800X 8/16 3.8 GHz 4.7 GHz 32 MB 105 Watt - 449 USD
Ryzen 7 5700G 8/16 3.8 GHz 4.6 GHz 16 MB 65 Watt Vega 8 (2.0 GHz) 359 USD
Ryzen 5 5600X 6/12 3.7 GHz 4.6 GHz 32 MB 65 Watt - 299 USD
Ryzen 5 5600G 6/12 3.9 GHz 4.4 GHz 16 MB 65 Watt Vega 7 (1.9 GHz) 259 USD

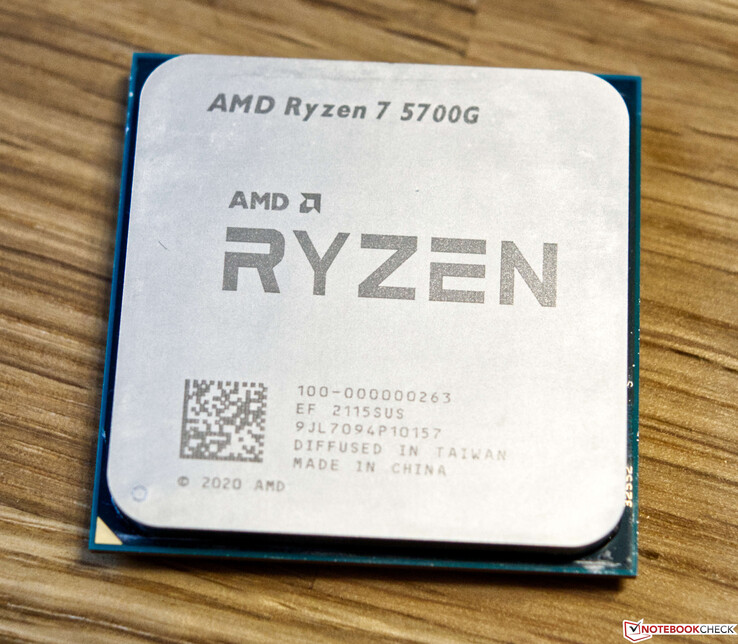

AMD Ryzen 7 5700G
AMD Ryzen 7 5700G

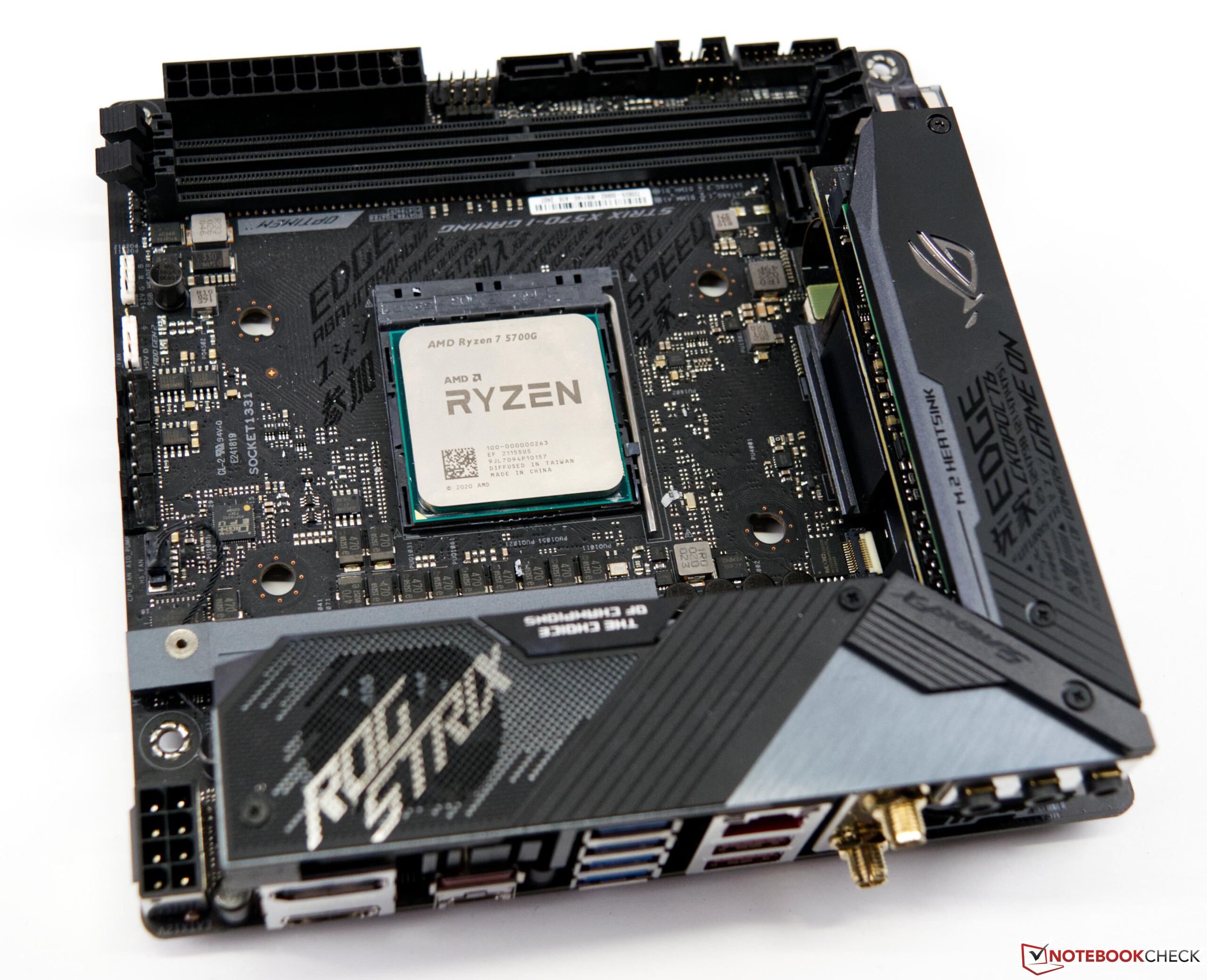

Asus ROG Strix X570-I Gaming with AMD Ryzen 7 5700G
Asus ROG Strix X570-I Gaming with AMD Ryzen 7 5700G

Details about our test system

We use the following system for the following benchmarks and tests

  • Raijintek Pean Benchtable
  • AMD Ryzen 7 5700G
  • Asus ROG Strix X570-I Gaming
  • Alphacool Eisbear 280 AiO
  • Corsair HX 1200i power supply
  • Corsair Vengeance RGB Pro DDR4-4000 memory kit 2 x 16 GB
  • 2x Transcend MTE220S SSD 512GB (OS + Benchmark + Games)
  • Microsoft Windows 10 Professional 64-bit (version 21H1)

We would like to thank Caseking at this point, for the loan of the Raijintek Pean, which was additionally individualized with laser engravings. AMD contributed the Ryzen 7 5700G and for cooling we are using the Alphacool Eisbear 280 AIO, which was provided to us by Alphacool. For the RAM, we would like to thank Corsair for their support.

Processor benchmarks

The already known innovations of the Zen 3 architecture are also reflected in AMD's fastest APU within our CPU benchmarks. The single-core performance is about 10% better compared to the AMD Ryzen 7 3800XT. Compared to the AMD Ryzen 7 5800X, which is also equipped with 8 cores, our AMD Ryzen 7 5700G is clearly beaten. In the performance rating, the APU is somewhat on par with an AMD Ryzen 5 5600X, although the latter has a clear disadvantage in multi-thread loads due to the 6 cores.

More benchmarks of the processors can be found here.

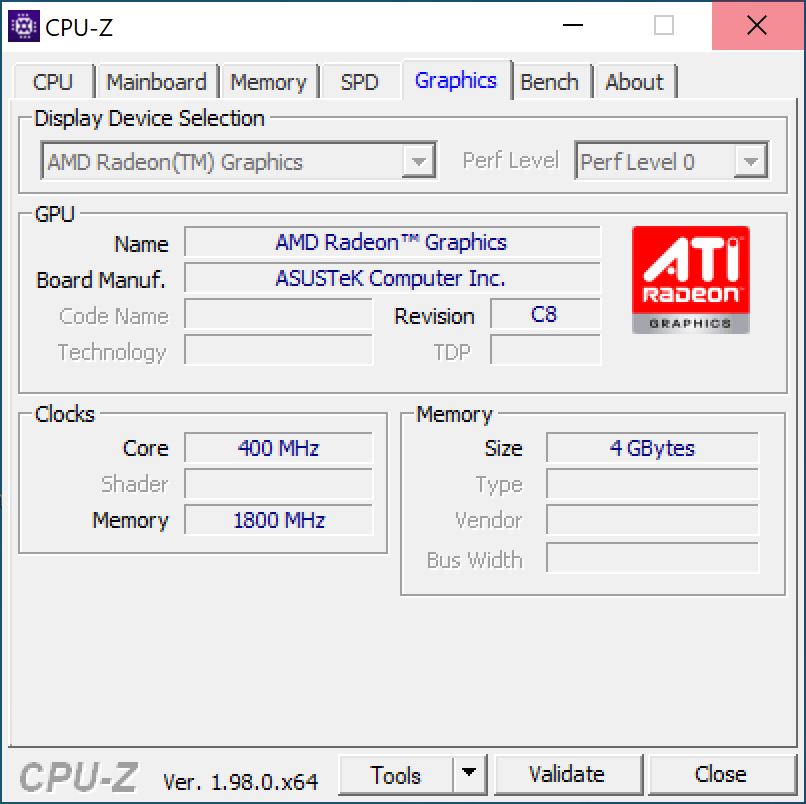

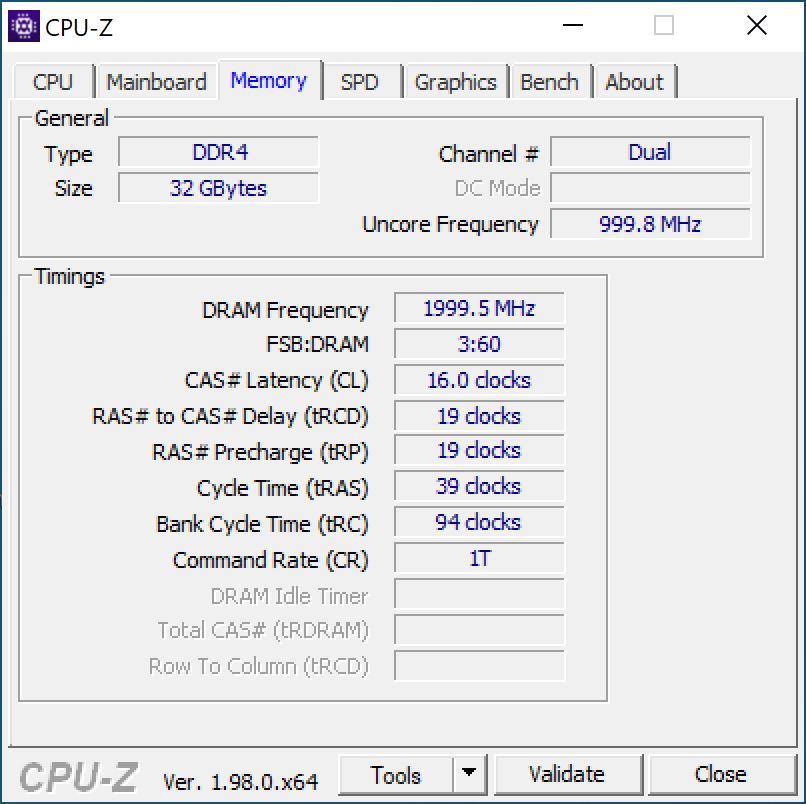

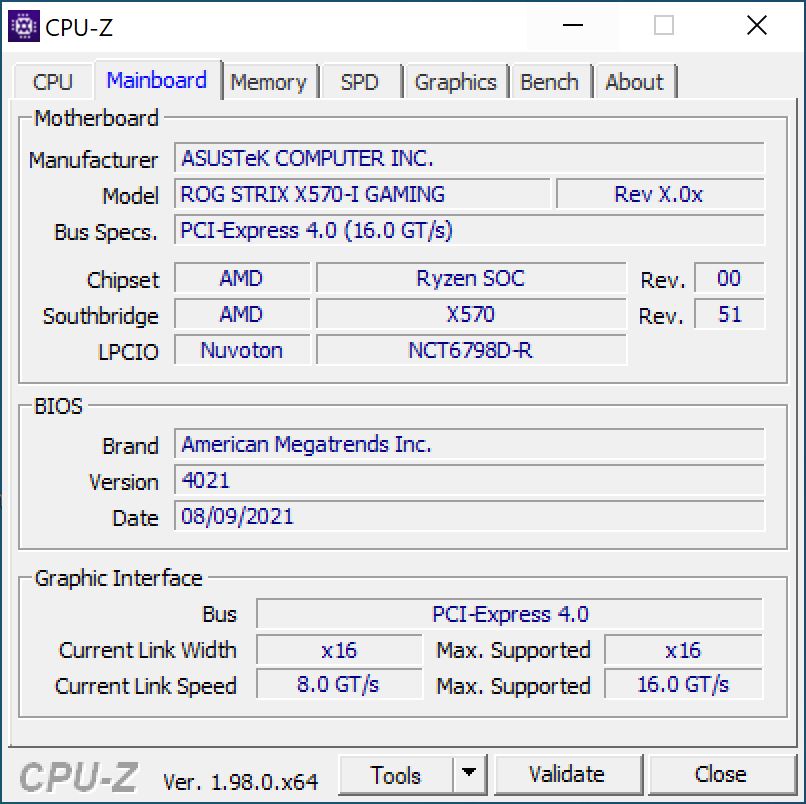

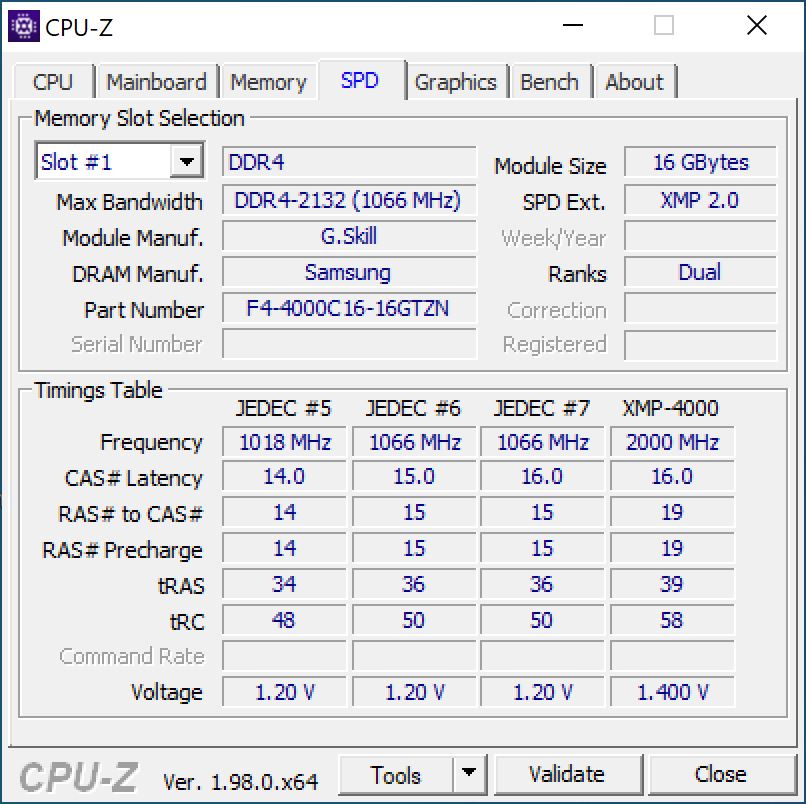

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

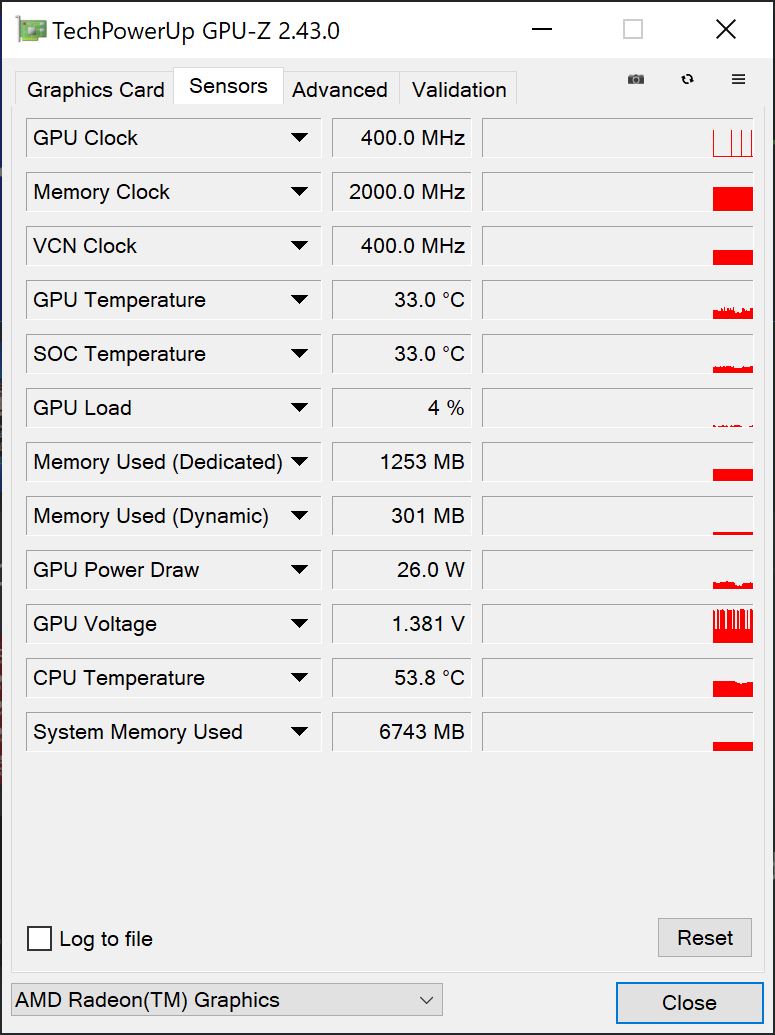

GPU-Z
GPU-Z

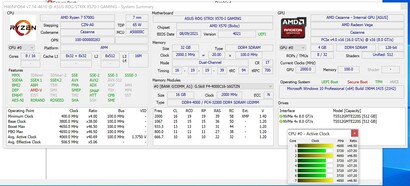

HWiNFO



, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Performance Rating - Percent
Intel Core i7-12700K
85.5 pt ∼86%
AMD Ryzen 7 5800X
74.7 pt ∼75%
AMD Ryzen 7 5700G
62.6 pt ∼63%
AMD Ryzen 5 5600X
62.3 pt ∼62%
AMD Ryzen 7 3800XT
59.6 pt ∼60%
Cinebench R20
CPU (Single Core)
Intel Core i7-12700K
731 Points ∼100% +25%
AMD Ryzen 7 5800X
625 Points ∼85% +7%
AMD Ryzen 5 5600X
601 Points ∼82% +3%
AMD Ryzen 7 5700G
583 Points ∼80%
AMD Ryzen 7 3800XT
544 Points ∼74% -7%
CPU (Multi Core)
Intel Core i7-12700K
8648 Points ∼100% +61%
AMD Ryzen 7 5800X
6068 Points ∼70% +13%
AMD Ryzen 7 5700G
5371 Points ∼62%
AMD Ryzen 7 3800XT
5120 Points ∼59% -5%
AMD Ryzen 5 5600X
4567 Points ∼53% -15%
Cinebench R15
CPU Single 64Bit
Intel Core i7-12700K
272 Points ∼100% +12%
AMD Ryzen 7 5800X
266 Points ∼98% +10%
AMD Ryzen 5 5600X
254 Points ∼93% +5%
AMD Ryzen 7 5700G
242 Points ∼89%
AMD Ryzen 7 3800XT
219 Points ∼81% -10%
CPU Multi 64Bit
Intel Core i7-12700K
3325 Points ∼100% +49%
AMD Ryzen 7 5800X
2616 Points ∼79% +17%
AMD Ryzen 7 5700G
2234 Points ∼67%
AMD Ryzen 7 3800XT
2230 Points ∼67% 0%
AMD Ryzen 5 5600X
1968 Points ∼59% -12%
Cinebench R11.5
CPU Single 64Bit
Intel Core i7-12700K
3.29 Points ∼100% +16%
AMD Ryzen 7 5800X
3.09 Points ∼94% +9%
AMD Ryzen 5 5600X
2.95 Points ∼90% +4%
AMD Ryzen 7 5700G
2.84 Points ∼86%
AMD Ryzen 7 3800XT
2.36 Points ∼72% -17%
CPU Multi 64Bit
Intel Core i7-12700K
38.38 Points ∼100% +57%
AMD Ryzen 7 5800X
29.31 Points ∼76% +20%
AMD Ryzen 7 5700G
24.37 Points ∼63%
AMD Ryzen 7 3800XT
24.18 Points ∼63% -1%
AMD Ryzen 5 5600X
21.75 Points ∼57% -11%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i7-12700K
15179 Points ∼100% +34%
AMD Ryzen 7 5800X
13039 Points ∼86% +15%
AMD Ryzen 5 5600X
12563 Points ∼83% +11%
AMD Ryzen 7 5700G
11351 Points ∼75%
AMD Ryzen 7 3800XT
10497 Points ∼69% -8%
Rendering Multiple CPUs 64Bit
Intel Core i7-12700K
102539 Points ∼100% +44%
AMD Ryzen 7 5800X
83426 Points ∼81% +17%
AMD Ryzen 7 5700G
71162 Points ∼69%
AMD Ryzen 5 5600X
69545 Points ∼68% -2%
AMD Ryzen 7 3800XT
68388 Points ∼67% -4%
Blender 2.79 - BMW27 CPU
AMD Ryzen 5 5600X
260.2 Seconds * ∼100% -22%
AMD Ryzen 7 3800XT
222.7 Seconds * ∼86% -4%
AMD Ryzen 7 5700G
213.6 Seconds * ∼82%
AMD Ryzen 7 5800X
196.8 Seconds * ∼76% +8%
Intel Core i7-12700K
152.3 Seconds * ∼59% +29%
wPrime 2.10
32m
AMD Ryzen 7 5700G
5.067 s * ∼100%
AMD Ryzen 5 5600X
3.891 s * ∼77% +23%
AMD Ryzen 7 3800XT
3.74 s * ∼74% +26%
AMD Ryzen 7 5800X
3.037 s * ∼60% +40%
Intel Core i7-12700K
2.659 s * ∼52% +48%
1024m
Intel Core i7-12700K
171.234 s * ∼100% -89%
AMD Ryzen 5 5600X
113.877 s * ∼67% -26%
AMD Ryzen 7 5700G
90.459 s * ∼53%
AMD Ryzen 7 5800X
86.06 s * ∼50% +5%
AMD Ryzen 7 3800XT
81.36 s * ∼48% +10%
X264 HD Benchmark 4.0
Pass 1
Intel Core i7-12700K
349.5 (349min - 352max) fps ∼100% +23%
AMD Ryzen 7 5800X
339 (338min - 341max) fps ∼97% +19%
AMD Ryzen 5 5600X
320 (319min - 321max) fps ∼92% +13%
AMD Ryzen 7 5700G
284 (283min - 285max) fps ∼81%
AMD Ryzen 7 3800XT
271 (270min - 273max) fps ∼78% -5%
Pass 2
Intel Core i7-12700K
179 (179min - 179max) fps ∼100% +38%
AMD Ryzen 7 5800X
152 (151min - 152max) fps ∼85% +17%
AMD Ryzen 7 5700G
130 (130min - 130max) fps ∼73%
AMD Ryzen 7 3800XT
119 (118min - 119max) fps ∼66% -8%
AMD Ryzen 5 5600X
117 (117min - 117max) fps ∼65% -10%
WinRAR - Result
AMD Ryzen 7 5800X
15604 KB/s ∼100% +86%
AMD Ryzen 5 5600X
13282 KB/s ∼85% +58%
Intel Core i7-12700K
10389 KB/s ∼67% +24%
AMD Ryzen 7 5700G
8401 KB/s ∼54%
AMD Ryzen 7 3800XT
7467 KB/s ∼48% -11%
TrueCrypt
AES Mean 100MB
Intel Core i7-12700K
15.7 GB/s ∼100% +17%
AMD Ryzen 7 5800X
15 GB/s ∼96% +12%
AMD Ryzen 7 5700G
13.4 GB/s ∼85%
AMD Ryzen 7 3800XT
11.4 GB/s ∼73% -15%
AMD Ryzen 5 5600X
10.7 GB/s ∼68% -20%
Twofish Mean 100MB
Intel Core i7-12700K
2.8 GB/s ∼100% +65%
AMD Ryzen 7 3800XT
2 GB/s ∼71% +18%
AMD Ryzen 7 5800X
2 GB/s ∼71% +18%
AMD Ryzen 7 5700G
1.7 GB/s ∼61%
AMD Ryzen 5 5600X
1.5 GB/s ∼54% -12%
Serpent Mean 100MB
Intel Core i7-12700K
1.6 GB/s ∼100% +60%
AMD Ryzen 7 5800X
1.3 GB/s ∼81% +30%
AMD Ryzen 7 3800XT
1.2 GB/s ∼75% +20%
AMD Ryzen 7 5700G
1 GB/s ∼63%
AMD Ryzen 5 5600X
0.938 GB/s ∼59% -6%
Geekbench 5.3
64 Bit Multi-Core Score
Intel Core i7-12700K
15557 Points ∼100% +63%
AMD Ryzen 7 5800X
11354 Points ∼73% +19%
AMD Ryzen 7 5700G
9544 Points ∼61%
AMD Ryzen 5 5600X
8980 Points ∼58% -6%
AMD Ryzen 7 3800XT
8948 Points ∼58% -6%
64 Bit Single-Core Score
Intel Core i7-12700K
1890 Points ∼100% +18%
AMD Ryzen 7 5800X
1665 Points ∼88% +4%
AMD Ryzen 5 5600X
1657 Points ∼88% +4%
AMD Ryzen 7 5700G
1598 Points ∼85%
AMD Ryzen 7 3800XT
1353 Points ∼72% -15%
Geekbench 5.0
64 Bit Multi-Core Score
Intel Core i7-12700K
15440 Points ∼100% +61%
AMD Ryzen 7 5800X
11246 Points ∼73% +18%
AMD Ryzen 7 5700G
9563 Points ∼62%
AMD Ryzen 7 3800XT
9163 Points ∼59% -4%
AMD Ryzen 5 5600X
8926 Points ∼58% -7%
64 Bit Single-Core Score
Intel Core i7-12700K
1835 Points ∼100% +20%
AMD Ryzen 7 5800X
1673 Points ∼91% +10%
AMD Ryzen 5 5600X
1587 Points ∼86% +4%
AMD Ryzen 7 5700G
1525 Points ∼83%
AMD Ryzen 7 3800XT
1360 Points ∼74% -11%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Intel Core i7-12700K
8133 Points ∼100% +21%
AMD Ryzen 7 5800X
7333 Points ∼90% +9%
AMD Ryzen 5 5600X
6953 Points ∼85% +3%
AMD Ryzen 7 5700G
6743 Points ∼83%
AMD Ryzen 7 3800XT
5830 Points ∼72% -14%
64 Bit Multi-Core Score
Intel Core i7-12700K
55786 Points ∼100% +51%
AMD Ryzen 7 5800X
44131 Points ∼79% +19%
AMD Ryzen 7 5700G
36970 Points ∼66%
AMD Ryzen 5 5600X
35617 Points ∼64% -4%
AMD Ryzen 7 3800XT
35526 Points ∼64% -4%
3DMark 11 - 1280x720 Performance Physics
Intel Core i7-12700K
26765 Points ∼100% +46%
AMD Ryzen 7 5800X
23381 Points ∼87% +27%
AMD Ryzen 5 5600X
19649 Points ∼73% +7%
AMD Ryzen 7 3800XT
18905 Points ∼71% +3%
AMD Ryzen 7 5700G
18372 Points ∼69%
7-Zip 18.03
7z b 4
Intel Core i7-12700K
81369 MIPS ∼100% +26%
AMD Ryzen 7 5800X
74306 MIPS ∼91% +15%
AMD Ryzen 7 5700G
64358 MIPS ∼79%
AMD Ryzen 7 3800XT
59247 MIPS ∼73% -8%
AMD Ryzen 5 5600X
56607 MIPS ∼70% -12%
7z b 4 -mmt1
AMD Ryzen 7 5800X
6970 MIPS ∼100% +20%
AMD Ryzen 5 5600X
6594 MIPS ∼95% +13%
Intel Core i7-12700K
6117 MIPS ∼88% +5%
AMD Ryzen 7 5700G
5818 MIPS ∼83%
AMD Ryzen 7 3800XT
5516 MIPS ∼79% -5%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i7-12700K
26.1 fps ∼100% +55%
AMD Ryzen 7 5800X
20.8 fps ∼80% +24%
AMD Ryzen 7 5700G
16.8 fps ∼64%
AMD Ryzen 7 3800XT
16.1 fps ∼62% -4%
AMD Ryzen 5 5600X
15.7 fps ∼60% -7%
R Benchmark 2.5 - Overall mean
AMD Ryzen 7 3800XT
0.512 sec * ∼100% -5%
AMD Ryzen 7 5700G
0.4896 sec * ∼96%
AMD Ryzen 5 5600X
0.4778 sec * ∼93% +2%
AMD Ryzen 7 5800X
0.4509 sec * ∼88% +8%
Intel Core i7-12700K
0.423 sec * ∼83% +14%
LibreOffice - 20 Documents To PDF
AMD Ryzen 7 5700G
49.8 s * ∼100%
AMD Ryzen 5 5600X
45.14 s * ∼91% +9%
AMD Ryzen 7 3800XT
44.78 s * ∼90% +10%
AMD Ryzen 7 5800X
43.31 s * ∼87% +13%
Intel Core i7-12700K
39.8 s * ∼80% +20%
WebXPRT 3 - ---
Intel Core i7-12700K
306 Points ∼100% +4%
AMD Ryzen 7 5800X
296 Points ∼97% 0%
AMD Ryzen 7 5700G
295 Points ∼96%
AMD Ryzen 5 5600X
286 Points ∼93% -3%
AMD Ryzen 7 3800XT
249 Points ∼81% -16%
Mozilla Kraken 1.1 - Total Score
AMD Ryzen 7 3800XT
683 ms * ∼100% -16%
AMD Ryzen 7 5700G
587 ms * ∼86%
AMD Ryzen 5 5600X
578 ms * ∼85% +2%
AMD Ryzen 7 5800X
558 ms * ∼82% +5%
Intel Core i7-12700K
496 ms * ∼73% +16%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i7-12700K
37324 Points ∼100% +38%
AMD Ryzen 7 5800X
31095 Points ∼83% +15%
AMD Ryzen 7 5700G
27096 Points ∼73%
AMD Ryzen 5 5600X
26038 Points ∼70% -4%
AMD Ryzen 7 3800XT
25286 Points ∼68% -7%
1920x1080 Fire Strike Physics
Intel Core i7-12700K
37079 Points ∼100% +36%
AMD Ryzen 7 5800X
30938 Points ∼83% +13%
AMD Ryzen 7 5700G
27300 Points ∼74%
AMD Ryzen 5 5600X
25990 Points ∼70% -5%
AMD Ryzen 7 3800XT
25132 Points ∼68% -8%
2560x1440 Time Spy CPU
Intel Core i7-12700K
17185 Points ∼100% +76%
AMD Ryzen 7 5800X
11599 Points ∼67% +19%
AMD Ryzen 7 3800XT
10302 Points ∼60% +6%
AMD Ryzen 7 5700G
9743 Points ∼57%
AMD Ryzen 5 5600X
8911 Points ∼52% -9%

* ... smaller is better

Raven Ridge vs. Cezanne

Unfortunately, the AMD Ryzen 5 3400G was not available to us, so we decided to compare our test unit with the AMD Ryzen 5 2400G. This is AMD's first APU based on the Zen architecture. It also shows very impressively how much AMD has tinkered with improving the Zen architecture. Of course, you cannot compare the multi-thread tests directly with each other because the AMD Ryzen 5 2400G only offers 4 native processing cores, while current top model has 8 cores.

Performance Rating - Percent
AMD Ryzen 7 5700G
88.4 pt ∼88%
AMD Ryzen 5 2400G
41.6 pt ∼42%
Cinebench R20
CPU (Single Core)
AMD Ryzen 7 5700G
583 Points ∼100%
AMD Ryzen 5 2400G
381 Points ∼65% -35%
CPU (Multi Core)
AMD Ryzen 7 5700G
5371 Points ∼100%
AMD Ryzen 5 2400G
1804 Points ∼34% -66%
Cinebench R15
CPU Single 64Bit
AMD Ryzen 7 5700G
242 Points ∼100%
AMD Ryzen 5 2400G
158 Points ∼65% -35%
CPU Multi 64Bit
AMD Ryzen 7 5700G
2234 Points ∼100%
AMD Ryzen 5 2400G
856 (824.96min - 856.42max) Points ∼38% -62%
Cinebench R11.5
CPU Single 64Bit
AMD Ryzen 7 5700G
2.84 Points ∼100%
AMD Ryzen 5 2400G
1.77 Points ∼62% -38%
CPU Multi 64Bit
AMD Ryzen 7 5700G
24.37 Points ∼100%
AMD Ryzen 5 2400G
9.46 Points ∼39% -61%
Cinebench R10
Rendering Single CPUs 64Bit
AMD Ryzen 7 5700G
11351 Points ∼100%
AMD Ryzen 5 2400G
7495 Points ∼66% -34%
Rendering Multiple CPUs 64Bit
AMD Ryzen 7 5700G
71162 Points ∼100%
AMD Ryzen 5 2400G
30473 Points ∼43% -57%
Blender 2.79 - BMW27 CPU
AMD Ryzen 5 2400G
550 Seconds * ∼100% -157%
AMD Ryzen 7 5700G
213.6 Seconds * ∼39%
wPrime 2.10
32m
AMD Ryzen 5 2400G
6.9 s * ∼100% -36%
AMD Ryzen 7 5700G
5.067 s * ∼73%
1024m
AMD Ryzen 5 2400G
198 s * ∼100% -119%
AMD Ryzen 7 5700G
90.459 s * ∼46%
X264 HD Benchmark 4.0
Pass 1
AMD Ryzen 7 5700G
284 (283min - 285max) fps ∼100%
AMD Ryzen 5 2400G
171.59 (162.5min - 180.43max) fps ∼60% -40%
Pass 2
AMD Ryzen 7 5700G
130 (130min - 130max) fps ∼100%
AMD Ryzen 5 2400G
47.95 (47.59min - 49.17max) fps ∼37% -63%
WinRAR - Result
AMD Ryzen 7 5700G
8401 KB/s ∼100%
AMD Ryzen 5 2400G
3846 KB/s ∼46% -54%
TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5700G
13.4 GB/s ∼100%
AMD Ryzen 5 2400G
5.2 GB/s ∼39% -61%
Twofish Mean 100MB
AMD Ryzen 7 5700G
1.7 GB/s ∼100%
AMD Ryzen 5 2400G
0.808 GB/s ∼48% -52%
Serpent Mean 100MB
AMD Ryzen 7 5700G
1 GB/s ∼100%
AMD Ryzen 5 2400G
0.5 GB/s ∼50% -50%
Geekbench 5.3
64 Bit Multi-Core Score
AMD Ryzen 7 5700G
9544 Points ∼100%
AMD Ryzen 5 2400G
3807 Points ∼40% -60%
64 Bit Single-Core Score
AMD Ryzen 7 5700G
1598 Points ∼100%
AMD Ryzen 5 2400G
970 Points ∼61% -39%
Geekbench 5.0
64 Bit Multi-Core Score
AMD Ryzen 7 5700G
9563 Points ∼100%
AMD Ryzen 5 2400G
3826 Points ∼40% -60%
64 Bit Single-Core Score
AMD Ryzen 7 5700G
1525 Points ∼100%
AMD Ryzen 5 2400G
967 Points ∼63% -37%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
AMD Ryzen 7 5700G
6743 Points ∼100%
AMD Ryzen 5 2400G
4268 Points ∼63% -37%
64 Bit Multi-Core Score
AMD Ryzen 7 5700G
36970 Points ∼100%
AMD Ryzen 5 2400G
13653 Points ∼37% -63%
3DMark 11 - 1280x720 Performance Physics
AMD Ryzen 7 5700G
18372 Points ∼100%
AMD Ryzen 5 2400G
8241 Points ∼45% -55%
7-Zip 18.03
7z b 4
AMD Ryzen 7 5700G
64358 MIPS ∼100%
AMD Ryzen 5 2400G
19885 MIPS ∼31% -69%
7z b 4 -mmt1
AMD Ryzen 7 5700G
5818 MIPS ∼100%
AMD Ryzen 5 2400G
3909 MIPS ∼67% -33%
HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen 5 2400G
26.5 fps ∼100% +58%
AMD Ryzen 7 5700G
16.8 fps ∼63%
R Benchmark 2.5 - Overall mean
AMD Ryzen 5 2400G
0.683 sec * ∼100% -40%
AMD Ryzen 7 5700G
0.4896 sec * ∼72%
LibreOffice - 20 Documents To PDF
AMD Ryzen 5 2400G
83.9 s * ∼100% -68%
AMD Ryzen 7 5700G
49.8 s * ∼59%
WebXPRT 3 - ---
AMD Ryzen 7 5700G
295 Points ∼100%
AMD Ryzen 5 2400G
170 Points ∼58% -42%
Mozilla Kraken 1.1 - Total Score
AMD Ryzen 5 2400G
1000 ms * ∼100% -70%
AMD Ryzen 7 5700G
587 ms * ∼59%
3DMark
1920x1080 Fire Strike Physics
AMD Ryzen 7 5700G
27300 Points ∼100%
AMD Ryzen 5 2400G
10863 Points ∼40% -60%
2560x1440 Time Spy CPU
AMD Ryzen 7 5700G
9743 Points ∼100%
AMD Ryzen 5 2400G
3630 Points ∼37% -63%

* ... smaller is better

Load test with the Cinebench R15 multi-loop

AMD Ryzen 7 5700G has no problems in the stress test with the Cinebench R15 multi-loop. The 65 watts of waste heat do not require large cooling constructions and thus installed AiO together with the 280 millimeter radiator is already somewhat redundant.

01002003004005006007008009001000110012001300140015001600170018001900200021002200230024002500Tooltip
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø2227 (2208.24-2244.79)
AMD Ryzen 7 5800X AMD Ryzen 7 5800X, AMD Ryzen 7 5800X: Ø2579 (2569.37-2596.05)
AMD Ryzen 5 5600X AMD Ryzen 5 5600X, AMD Ryzen 5 5600X: Ø1948 (1942.12-1954.65)

Gaming performance of the new Cezanne APU

The AMD Ryzen 7 5700G offers a solid iGPU AMD Radeon RX Vega 8, which we have known for a few years. However, at the same time this integrated graphics unit has found it increasingly difficult to assert itself against the competition from Intel. With the desktop offshoot of the AMD Radeon RX Vega 8, which is usually found in notebooks, AMD can just about keep Intel's iGPUs in check. Compared with the Nvidia GeForce MX450, the iGPU of the AMD Ryzen 7 5700G is just as fast. But comparing with the Nvidia GeForce GTX 1650 Mobile shows that the iGPU quickly reaches its limits and is clearly inferior to a dedicated graphics card. Future AMD's Rembrandt APUs aka Ryzen 6000 with RDNA2 could close the gap here.

For more comparisons and benchmarks, please refer to our GPU comparison table.

Performance Rating - Percent
Average NVIDIA GeForce GTX 1650 Mobile

100 pt ∼100%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
55.9 pt ∼56%
Average NVIDIA GeForce MX450

53.6 pt ∼54%
Average Intel Iris Xe Graphics G7 96EUs

48.5 pt ∼49%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
37.3 pt ∼37%
Average Intel Iris Xe Graphics G7 80EUs

36.9 pt ∼37%
Average NVIDIA GeForce MX330

36.6 pt ∼37%
Average Intel UHD Graphics 630

13.9 pt ∼14%
Average Intel UHD Graphics 620

13.4 pt ∼13%
3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce GTX 1650 Mobile
  (10885 - 13575, n=28)
12860 Points ∼100% +69%
Average NVIDIA GeForce MX450
  (6341 - 9580, n=13)
8076 Points ∼63% +6%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
7591 Points ∼59%
Average Intel Iris Xe Graphics G7 96EUs
  (2942 - 7115, n=77)
6377 Points ∼50% -16%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
5475 Points ∼43% -28%
Average Intel Iris Xe Graphics G7 80EUs
  (3480 - 6120, n=41)
5207 Points ∼40% -31%
Average NVIDIA GeForce MX330
  (4616 - 4863, n=4)
4787 Points ∼37% -37%
Average Intel UHD Graphics 620
  (1144 - 2006, n=241)
1742 Points ∼14% -77%
Average Intel UHD Graphics 630
  (642 - 2025, n=12)
1742 Points ∼14% -77%
3DMark
1280x720 Cloud Gate Standard Graphics
Average NVIDIA GeForce GTX 1650 Mobile
  (38016 - 66073, n=20)
55777 Points ∼100% +54%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
36134 Points ∼65%
Average NVIDIA GeForce MX450
  (25467 - 33806, n=10)
28203 Points ∼51% -22%
Average Intel Iris Xe Graphics G7 96EUs
  (19487 - 38040, n=67)
27186 Points ∼49% -25%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
20848 Points ∼37% -42%
Average Intel Iris Xe Graphics G7 80EUs
  (12824 - 30894, n=35)
20744 Points ∼37% -43%
Average NVIDIA GeForce MX330
  (15595 - 23580, n=3)
19968 Points ∼36% -45%
Average Intel UHD Graphics 630
  (3863 - 11199, n=9)
9333 Points ∼17% -74%
Average Intel UHD Graphics 620
  (6205 - 11437, n=222)
9232 Points ∼17% -74%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce GTX 1650 Mobile
  (7741 - 9810, n=31)
9235 Points ∼100% +83%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
5041 Points ∼55%
Average Intel Iris Xe Graphics G7 96EUs
  (3073 - 5909, n=83)
4917 Points ∼53% -2%
Average NVIDIA GeForce MX450
  (4336 - 5573, n=14)
4761 Points ∼52% -6%
Average NVIDIA GeForce MX330
  (3581 - 3838, n=3)
3727 Points ∼40% -26%
Average Intel Iris Xe Graphics G7 80EUs
  (1990 - 4846, n=42)
3484 Points ∼38% -31%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
3476 Points ∼38% -31%
Average Intel UHD Graphics 630
  (722 - 1472, n=11)
1228 Points ∼13% -76%
Average Intel UHD Graphics 620
  (557 - 1444, n=210)
1154 Points ∼12% -77%
2560x1440 Time Spy Graphics
Average NVIDIA GeForce GTX 1650 Mobile
  (2909 - 3700, n=30)
3448 Points ∼100% +121%
Average NVIDIA GeForce MX450
  (1086 - 2300, n=13)
1713 Points ∼50% +10%
AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 5700G
1557 Points ∼45%
Average Intel Iris Xe Graphics G7 96EUs
  (783 - 1819, n=82)
1458 Points ∼42% -6%
Average NVIDIA GeForce MX330
  (1059 - 1190, n=3)
1136 Points ∼33% -27%
Average Intel Iris Xe Graphics G7 80EUs
  (743 - 1408, n=41)
1112 Points ∼32% -29%
MSI B350I Pro AC - DDR4-2933 - 2GB GPU
AMD Radeon RX Vega 11, AMD Ryzen 5 2400G
1085 Points ∼31% -30%
Average Intel UHD Graphics 630
  (367 - 459, n=10)
410 Points ∼12% -74%
Average Intel UHD Graphics 620
  (299 - 760, n=85)
384 Points ∼11% -75%
3DMark 06 Standard Score
33790 points
3DMark 11 Performance
8050 points
3DMark Ice Storm Standard Score
153170 points
3DMark Cloud Gate Standard Score
30291 points
3DMark Fire Strike Score
4590 points
3DMark Fire Strike Extreme Score
2071 points
3DMark Time Spy Score
1781 points
Help

Gaming performance

Those who are not willing to buy overpriced videocards might be happy with an AMD APU. Nevertheless, it should be mentioned that the performance is only partially sufficient for current games. Anyway, due to the good cooling in the desktop PC, the iGPU can easily unleash its full performance, while in compact laptops this might be a problem. Overall, the AMD Radeon RX Vega 8 in the AMD Ryzen 7 5700G offers a moderate gaming performance. Older titles can be played without problems, although you have to look closely, for example in Final Fantasy XV. On the other hand, GTA V can even be rendered smoothly in 1080p with high details.

low med. high ultraQHD4K
GTA V (2015) 160 148 40.6 18.2 13.1 12.5 fps
Dota 2 Reborn (2015) 152 122.3 76.7 72 28.3 fps
Rise of the Tomb Raider (2016) 58.8 41.3 24 9.28 19 fps
Final Fantasy XV Benchmark (2018) 50.1 25 17.7 12.9 7.11 fps
X-Plane 11.11 (2018) 64.9 49.6 43.1 23.9 fps
Far Cry 5 (2018) 71 34 31 29 19 9 fps
Strange Brigade (2018) 117 45.3 37.7 32.1 21.6 11.5 fps
Shadow of the Tomb Raider (2018) 75.3 27.7 25.2 21.8 13.8 6.8 fps
Far Cry New Dawn (2019) 66 32 30 28 19 9 fps
Metro Exodus (2019) 54.7 24.1 17.8 14.8 11.2 6.6 fps
Borderlands 3 (2019) 82.2 31.7 19.6 14.9 9.9 5.05 fps
F1 2020 (2020) 127 58.9 44.6 30.9 21.2 11.1 fps
F1 2021 (2021) 134 58.2 45.9 30.2 21.8 12 fps
Far Cry 6 (2021) 62.1 29.7 20.5 12.7 fps
Forza Horizon 5 (2021) 99 41 35 19 14 8 fps

Power consumption

AMD Ryzen 7 5700G during the stress test
AMD Ryzen 7 5700G during the stress test

AMD specifies a TDP of 65 watts for the Ryzen 7 5700G . However, this can be increased by a factor of 1.35 under load. We were able to verify this during the stress test, because the APU's maximum power consumption was just under 87 watts. There were no problems with the temperatures due to the installed AiO. We recorded the highest temperature of 57 °C in the Prime95 load test.

In terms of energy consumption, the system based on the AMD Ryzen 7 5700G can show good rates. The idle power consumption was 45 watts. Nevertheless, we measured a maximum of 156 watts during full load (stress test Prime95 + FurMark). When gaming, the system was content with just 93 watts on average - this is a clear advantage compared to a desktop system with a dedicated graphics card, which often has a TDP of 200 watts and more.

Note: All measurements were taken without taking into account the monitor power consumption, all ARGB lighting was deactivated.

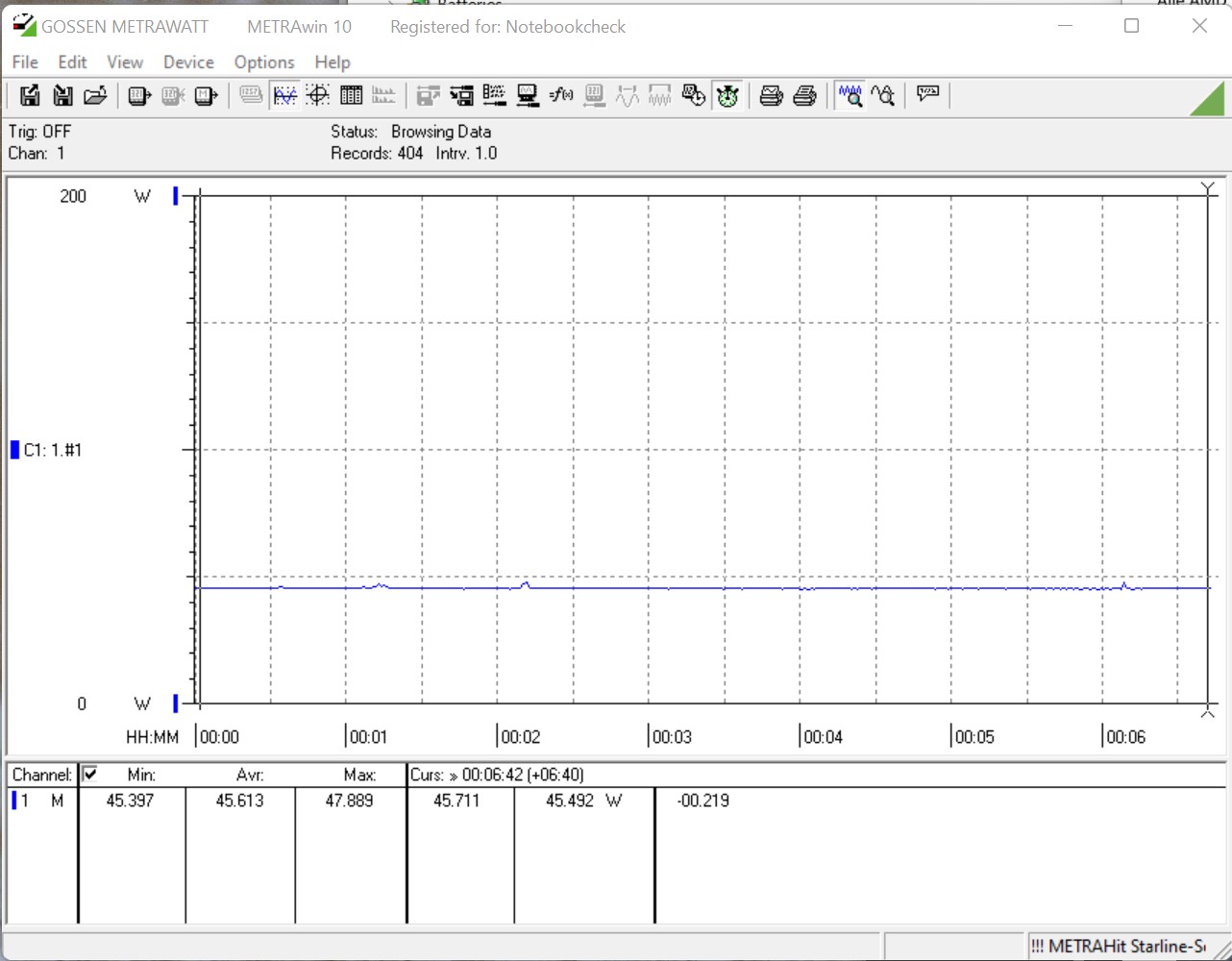

Power consumption test system (idle)
Power consumption test system (idle)

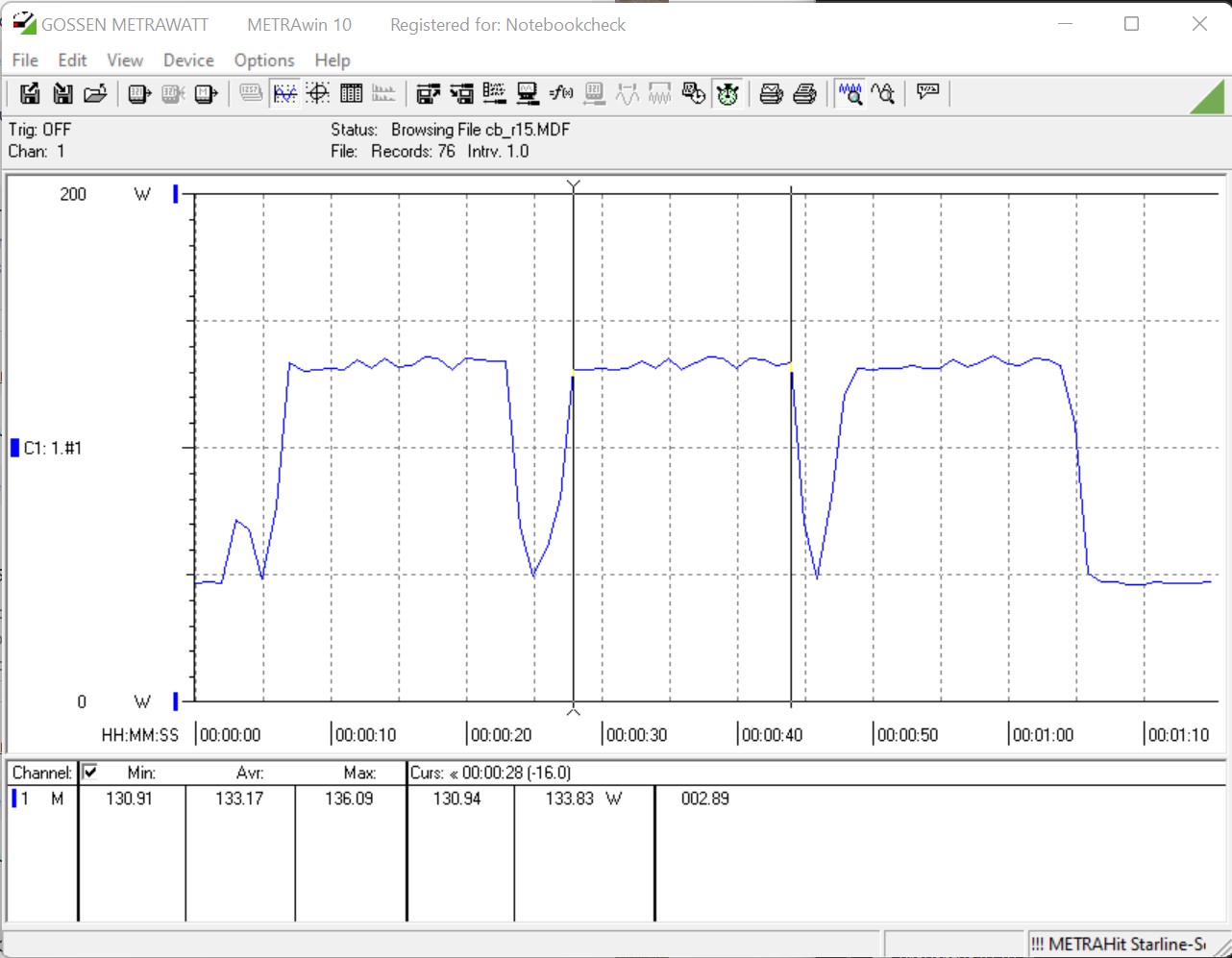

Power consumption test system (Cinebench R15 Multi)
Power consumption test system (Cinebench R15 Multi)
Power consumption test system (FurMark)
Power consumption test system (FurMark)

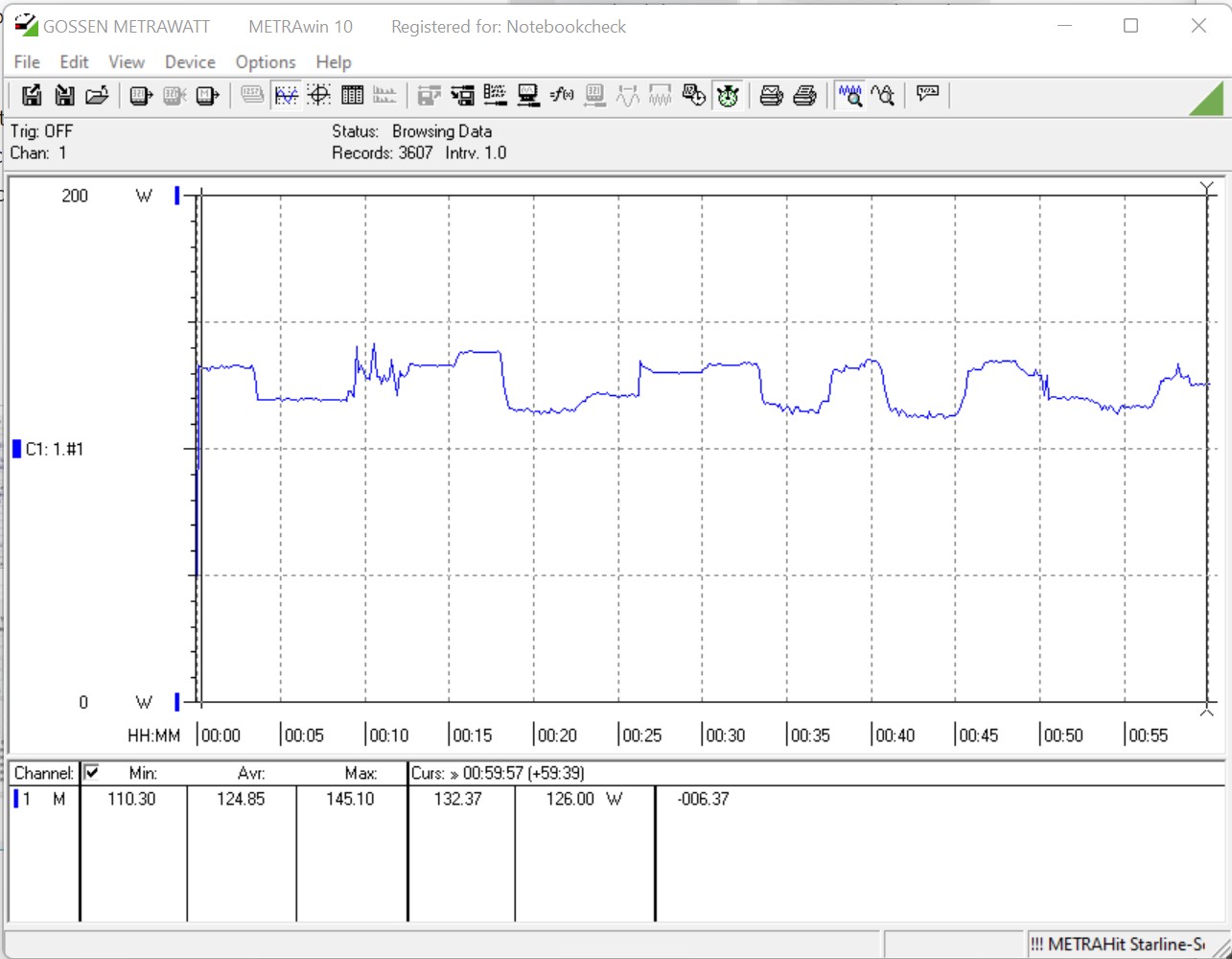

Power consumption test system (Prime95)
Power consumption test system (Prime95)
Power consumption test system (Prime95 + FurMark)
Power consumption test system (Prime95 + FurMark)

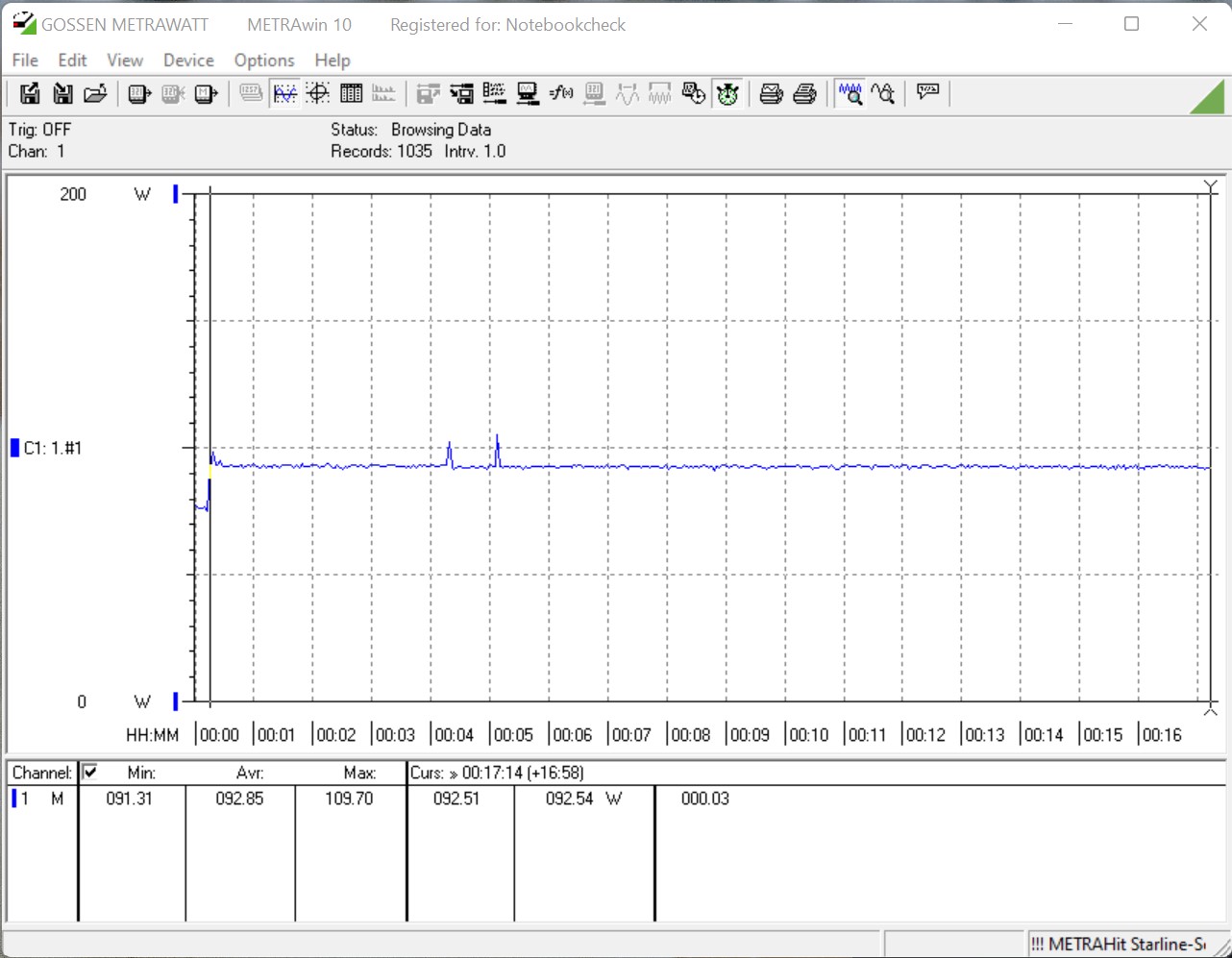

Power consumption test system (while gaming - The Witcher 3 Ultra-Preset)
Power consumption test system (while gaming - The Witcher 3 Ultra-Preset)

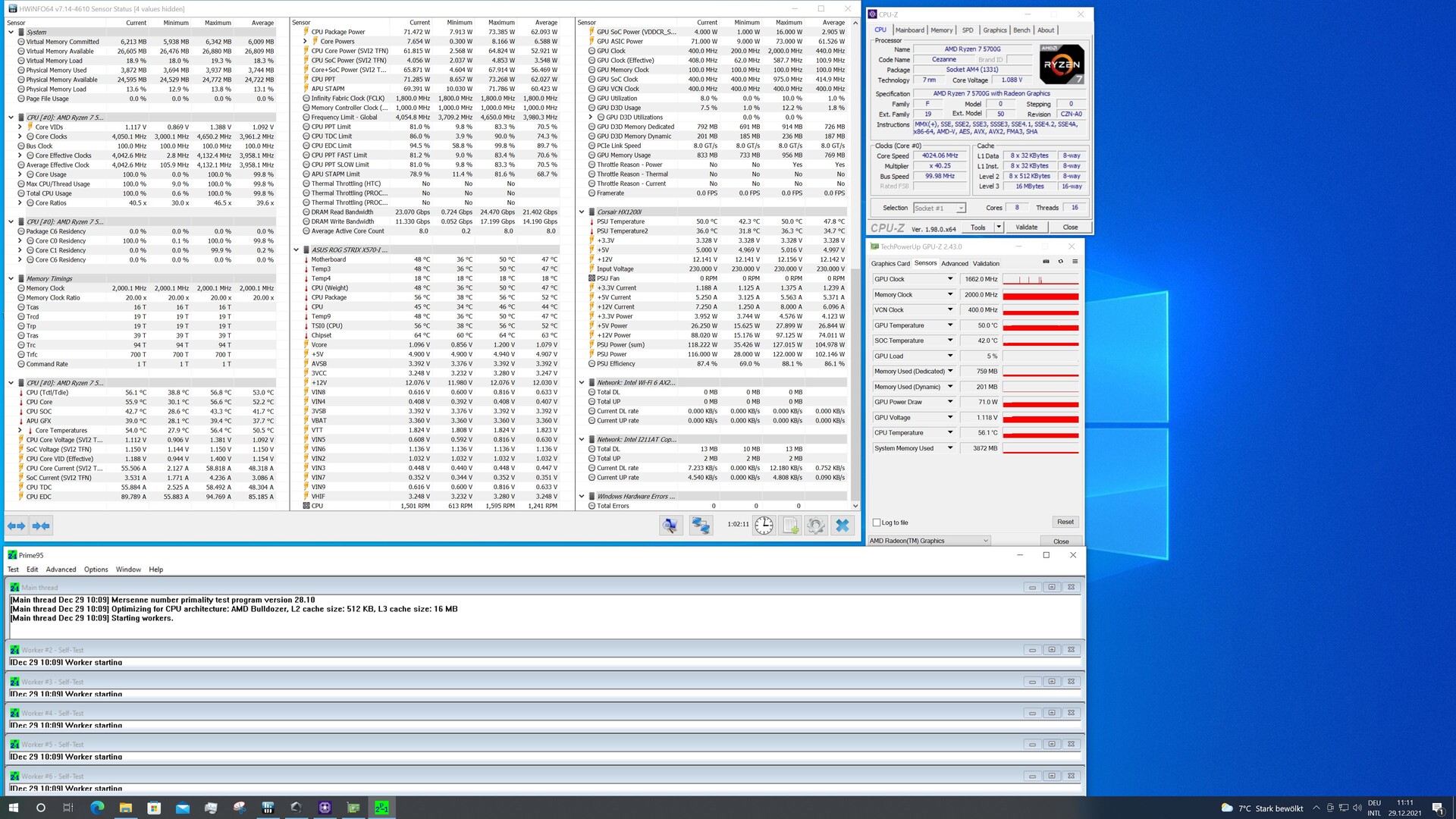

Stress test Prime95 solo
Stress test Prime95 solo

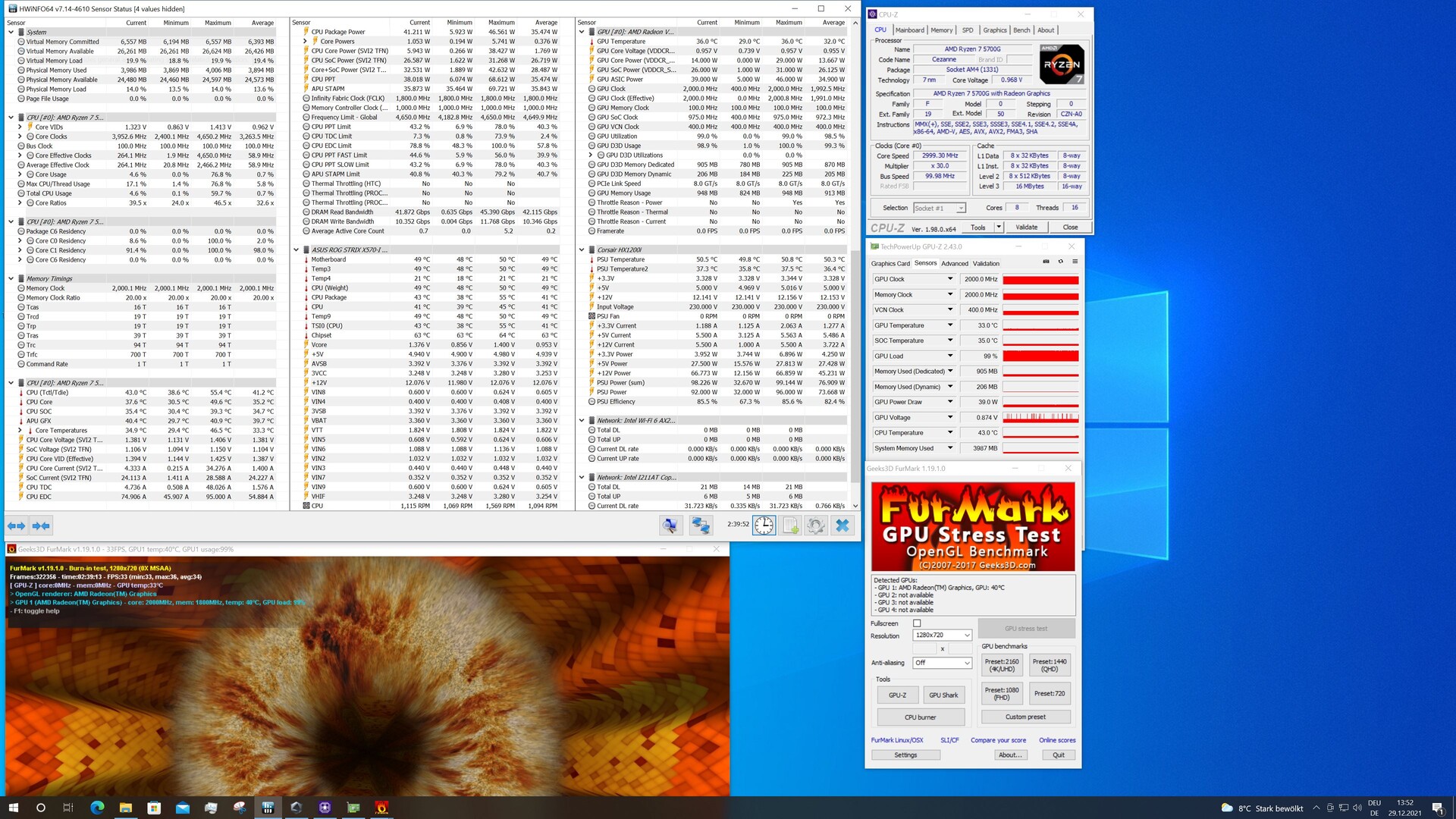

Stress test FurMark solo
Stress test FurMark solo
Stress test Prime95 + FurMark
Stress test Prime95 + FurMark



Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
Intel Core i7-12700K, NVIDIA Titan RTX
NVIDIA Titan RTX, i7-12700K, Intel Optane 905P 480GB 2.5 (Idle: 81 W)
419.7 (402min - 454max) Watt * ∼100% -353%
AMD Ryzen 7 5800X, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)
418.67 (403min - 452max) Watt * ∼100% -352%
AMD Ryzen 7 3800XT, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 3800XT, Intel Optane 905P 480GB 2.5 (Idle: 96.1 W)
415 (409min - 438max) Watt * ∼99% -348%
AMD Ryzen 5 5600X, NVIDIA Titan RTX
NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)
409.2 (381min - 434max) Watt * ∼97% -342%
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 5000)
Vega 8 R5000, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
92.6 (75.4min, 76.5P1 - 110max) Watt * ∼22%
AMD Ryzen 5 2400G, AMD Radeon RX Vega 11
Vega 11, R5 2400G, Intel SSD 600p SSDPEKKW512G7 (13 fps, Idle: 23.5 W)
74.7 Watt * ∼18% +19%
Prime95 V28,10 Stress (external Monitor)
Intel Core i7-12700K, NVIDIA Titan RTX
NVIDIA Titan RTX, i7-12700K, Intel Optane 905P 480GB 2.5 (Idle: 81 W)
281 (250min - 366max) Watt * ∼100% -125%
AMD Ryzen 7 5800X, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)
242.26 (222min - 254max) Watt * ∼86% -94%
AMD Ryzen 7 3800XT, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 3800XT, Intel Optane 905P 480GB 2.5 (Idle: 96.1 W)
191.77 (183min - 247max) Watt * ∼68% -53%
AMD Ryzen 5 5600X, NVIDIA Titan RTX
NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)
175.81 (170min - 179max) Watt * ∼63% -41%
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 5000)
Vega 8 R5000, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
125 (50.4min, 112P1 - 145max) Watt * ∼44%
AMD Ryzen 5 2400G, AMD Radeon RX Vega 11
Vega 11, R5 2400G, Intel SSD 600p SSDPEKKW512G7 (Idle: 23.5 W)
106.5 Watt * ∼38% +15%
Cinebench R15 Multi (external Monitor)
Intel Core i7-12700K, NVIDIA Titan RTX
NVIDIA Titan RTX, i7-12700K, Intel Optane 905P 480GB 2.5 (Idle: 81 W)
278.2 (151min - 298max) Watt * ∼100% -109%
AMD Ryzen 7 5800X, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)
220.7 (219min - 222max) Watt * ∼79% -66%
AMD Ryzen 7 3800XT, NVIDIA Titan RTX
NVIDIA Titan RTX, R7 3800XT, Intel Optane 905P 480GB 2.5 (Idle: 96.1 W)
193.7 (193min - 199max) Watt * ∼70% -46%
AMD Ryzen 5 5600X, NVIDIA Titan RTX
NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)
170.12 (165min - 210max) Watt * ∼61% -28%
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 5000)
Vega 8 R5000, R7 5700G, Transcend M.2 SSD 430S TS512GMTS430S
133 (131min, 131P1 - 136max) Watt * ∼48%
AMD Ryzen 5 2400G, AMD Radeon RX Vega 11
Vega 11, R5 2400G, Intel SSD 600p SSDPEKKW512G7 (Idle: 23.5 W)
95.3 (94min - 98max) Watt * ∼34% +28%

* ... smaller is better

0102030405060708090100110120130140Tooltip
; Prime95 V28,10 Stress (external Monitor): Ø125 (110-145)
; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø93.9 (89.7-112)
; 1920x1080 The Witcher 3 ultra (external Monitor): Ø92.9 (91.3-110)

Cinebench R15 Multi (3 passes)

0102030405060708090100110120130Tooltip
: Ø133 (131-136)

Pros

+ consistently high system performance
+ energy efficient
+ still AM4 socket
+ easy to cool

Cons

- Vega architecture no longer up to date

Verdict - Fast APU for compact systems

The AMD Ryzen 7 5700G in review: provided by AMD Germany
The AMD Ryzen 7 5700G in review: provided by AMD Germany

The AMD Ryzen 7 5700G is a state-of-the-art processor based on the current Zen3 architecture. The innovations that have arrived with the Ryzen 5000 family can also be implemented by the fastest APU from AMD. The 8-core processor is fast and ranks just behind the AMD Ryzen 7 5800X.

The most sought-after feature of the AMD Ryzen 7 5700G is the integrated graphics unit. However, APU is still using somewhat outdated Vega iGPU architecture. AMD has always been able to squeeze a bit more performance out of the AMD Radeon RX Vega 8 with each newer APU generation, but the age of the Vega architecture is noticeable and you should not expect too much from the iGPU of the Ryzen 7 5700G. Users who play older games or casual games from time to time can safely use the current APU. Thus, you can save the purchase of a dedicated graphics card, which is rewarded with a low power consumption. And of course, if the iGPU's performance will no longer be sufficient for you, there is still option for a future upgrade, when prices of a dedicated graphics cards come down. The performance of the 8-core CPU is definitely there.

The AMD Ryzen 7 5700G is the first APU with 8 cores. Nevertheless, AMD gives away valuable 3D-performance here, because the outdated Vega architecture takes its toll, since RDNA2 aka Navi will only take hold with the 6000 processors.

As always, the customer is spoiled for choice, but if the purchase of an APU from AMD is currently on the agenda, there is almost no way around the 5000 Ryzen APUs. The AMD Ryzen 7 5700G is currently available for as little as 300 Euros. The 6-core model (AMD Ryzen 5 5600G) is currently available for 230 Euros. It is a bargain compared to the predecessor, since various online stores charge a whopping 400 Euros for the AMD Ryzen 5 3400G.

static version load dynamic
Loading comments
Comment on this article
Sebastian Bade
Editor of the original article: Sebastian Bade - Senior Tech Writer - 291 articles published on Notebookcheck since 2012
I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.
contact me via: Facebook, testing.basti, Xing
Ninh Duy
Translator: Ninh Duy - Editorial Assistant - 215918 articles published on Notebookcheck since 2008
My main responsibility as an editorial assistant is maintaining the Library section, which aggregates reviews from other publications and channels. In addition, my daily breakfast is Notebookcheck's long list of new content, which I comb through to select the most interesting topics for translation from English to French, Italian, Spanish, Portuguese, and Dutch."
contact me via: Facebook
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > AMD Ryzen 7 5700G in review: 8-core desktop APU based on Zen3 with Vega graphics unit
Sebastian Bade, 2022-01-12 (Update: 2022-01-12)
