Review One K73-3S (Clevo P370SM) Notebook

Twin Guns. The One K73-3S is the best the mobile gaming market has to offer today. Thanks to dual high-end graphic cards, it leaves the competition in the dust. We put a model through our benchmark tests. Can the Radeon HD 8970M CrossFire set a new record?
One Logo

For the original German review, see here.

One, the hardware expert, is famous for its powerful and uniquely configured notebooks. The K73-3S is extensively configurable like its previously tested siblings: K33-3E (GTX 765M), K56-3F (GT 750M), K56-3N2 (GTX 780M) and K73-3N (GTX 770M).

Let us start with the CPU: One offers the Core i7-4700MQ (2.4-3.4 GHz), the  Core i7-4800MQ (2.7-3.7 GHz), the 4900MQ (2.8-3.8 GHz) and the 4930MX (3.0-3.9 GHz). The last one is not recommended as the increased performance it offers by no means justifies its price and one of the slower and cheaper models will suffice, even for a dual-GPU system like the Radeon HD 8970M CrossFire. Now on to the graphic cards: although One has chosen AMDs top guns, the barebones should theoretically be capable of accommodating dual GeForce GTX 765M or GTX 780M cards.

The RAM (four slots) ranges between 4 - 32 GB DDR3 RAM (each running at 1,600 MHz). The laptop can accommodate multiple hard disks: the 17-inch case offers two mSATA slots and two classical 2.5-inch slots. While One uses Toshiba for the mSATA SSDs, the larger 2.5-inch SSDs come from either Kingston or Samsung. Hybrid models and conventional HDDs that run at 5,400 - 7,200 rpm can also be found on the homepage.

An Intel (Centrino N 2230/6235) or Qualcomm Atheros (Killer N 1202) module serves the users wireless needs. The DVD drive or Blu-ray drive take care of the reading of optical media. An operating system is not included in the 1,600 Euros (~$2108) basic packet, but can be bought for a little extra (Windows 7 & 8).

Case

Rubber surface.
Rubber surface.

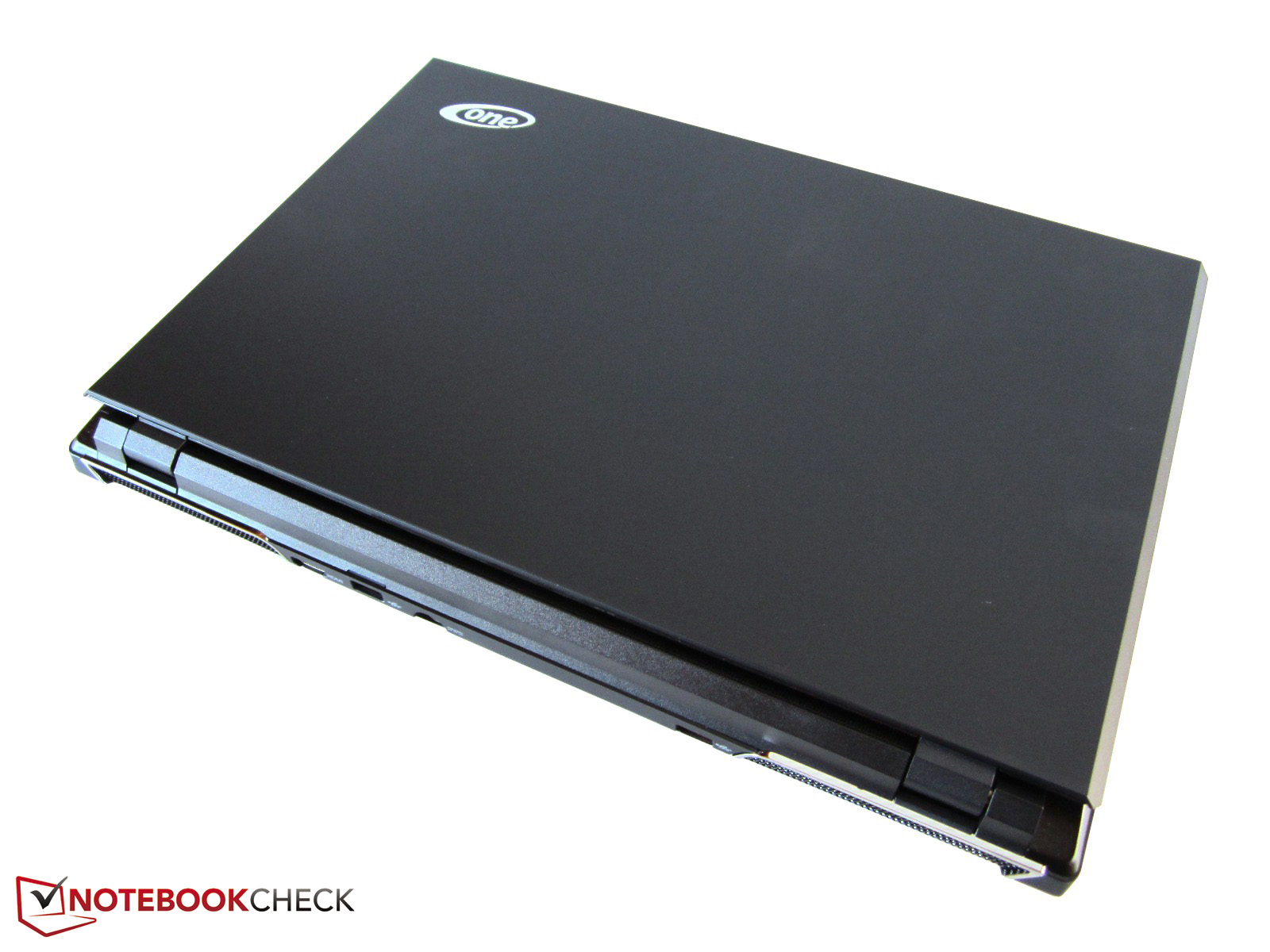

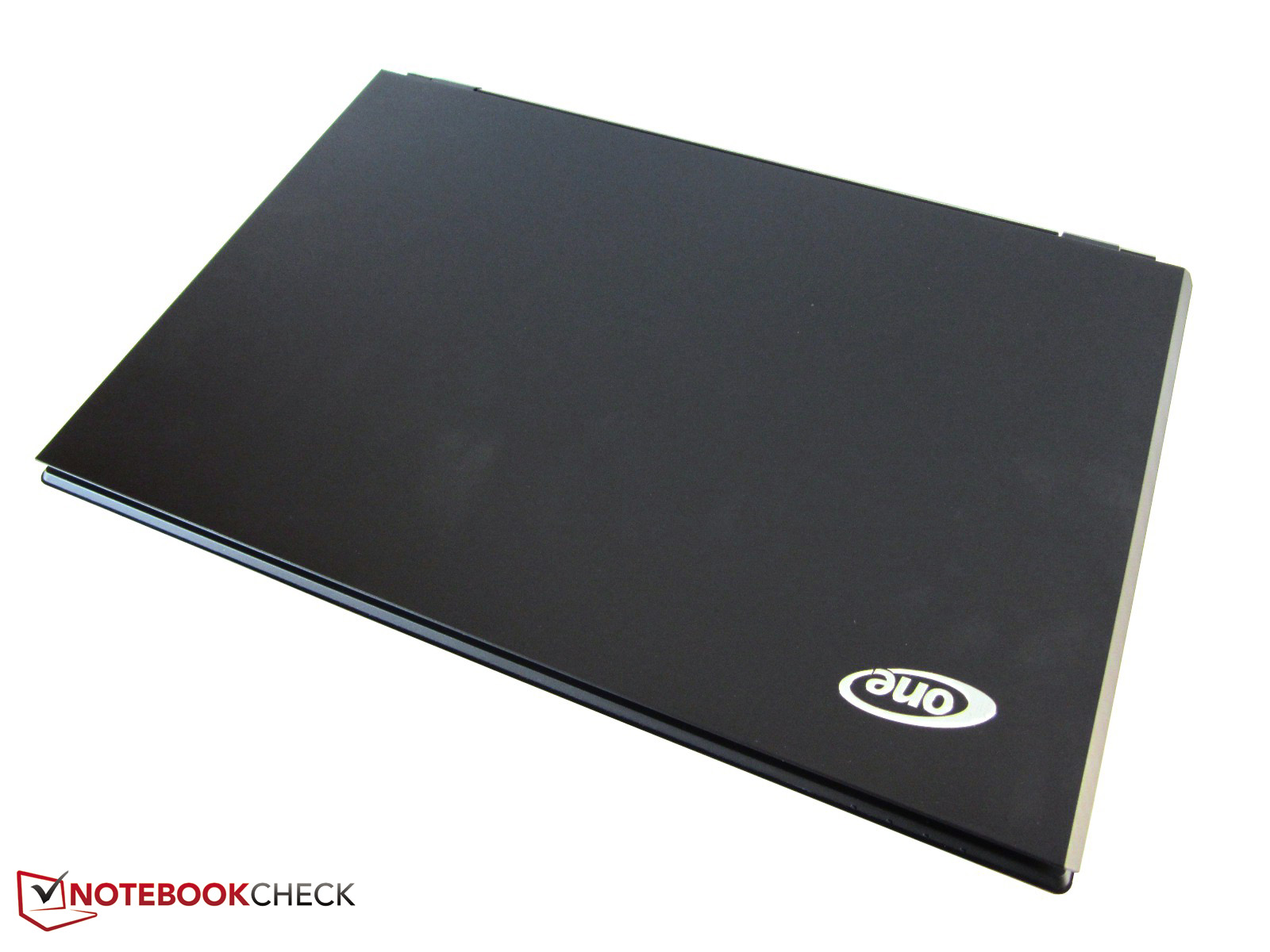

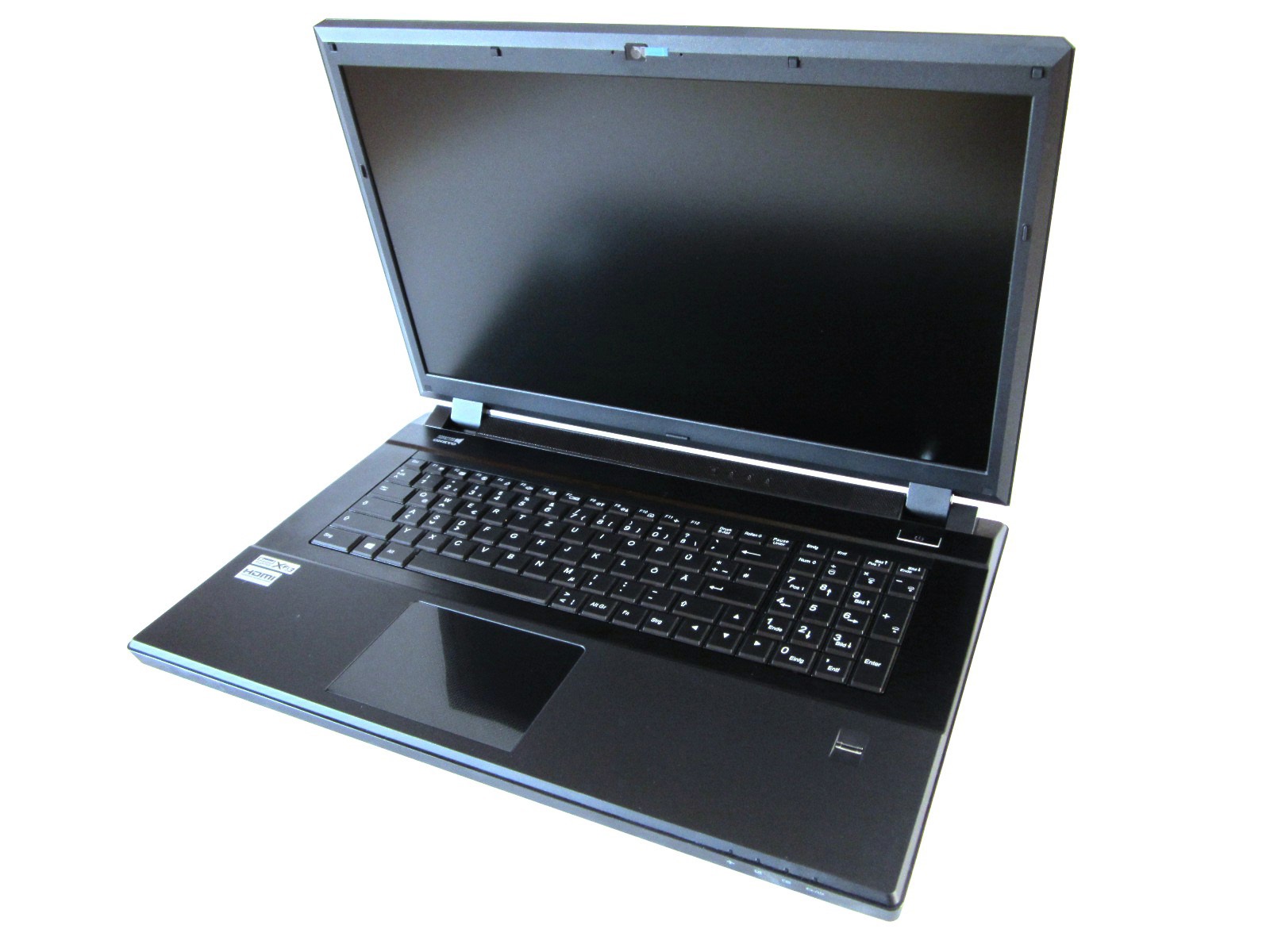

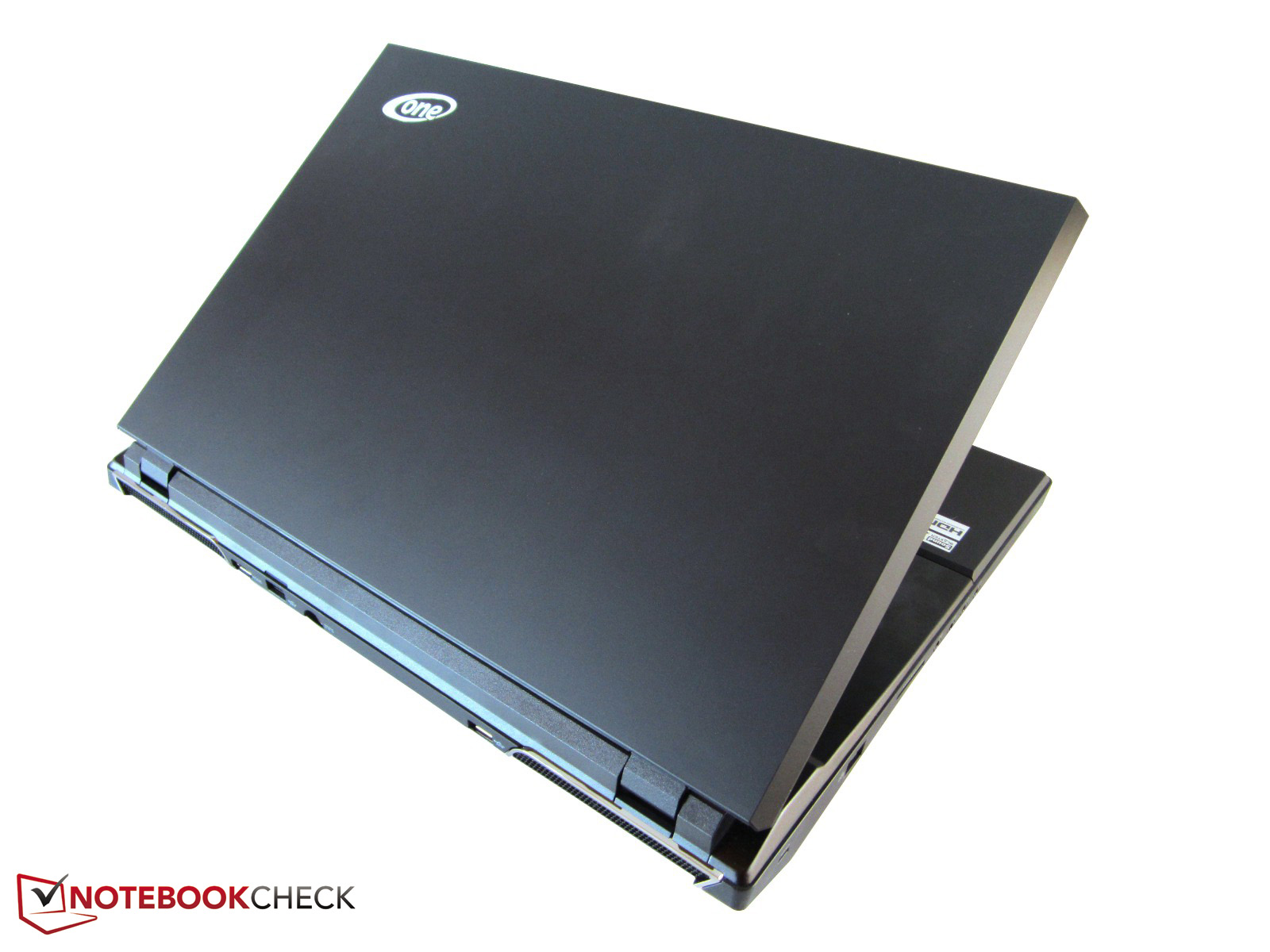

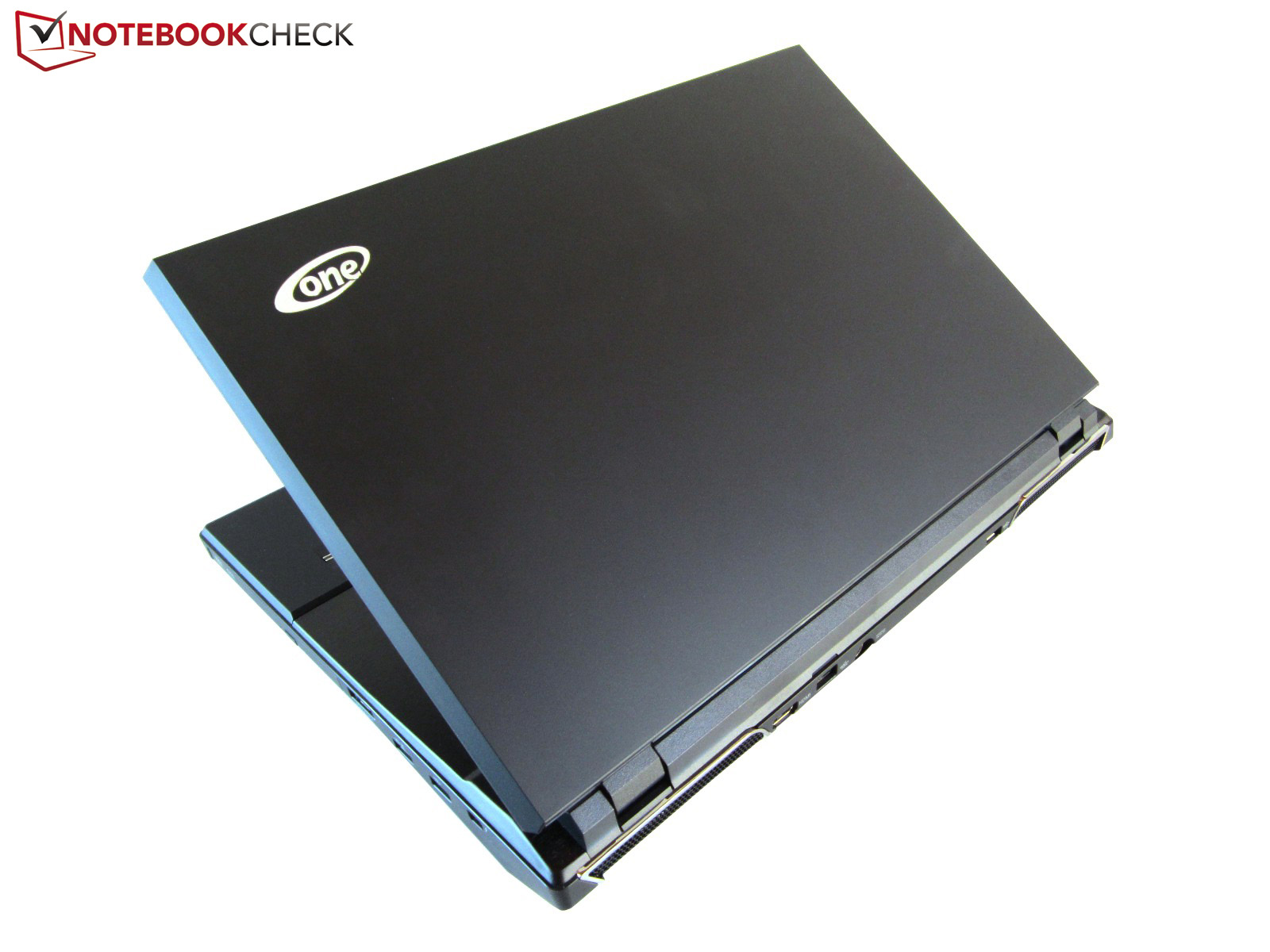

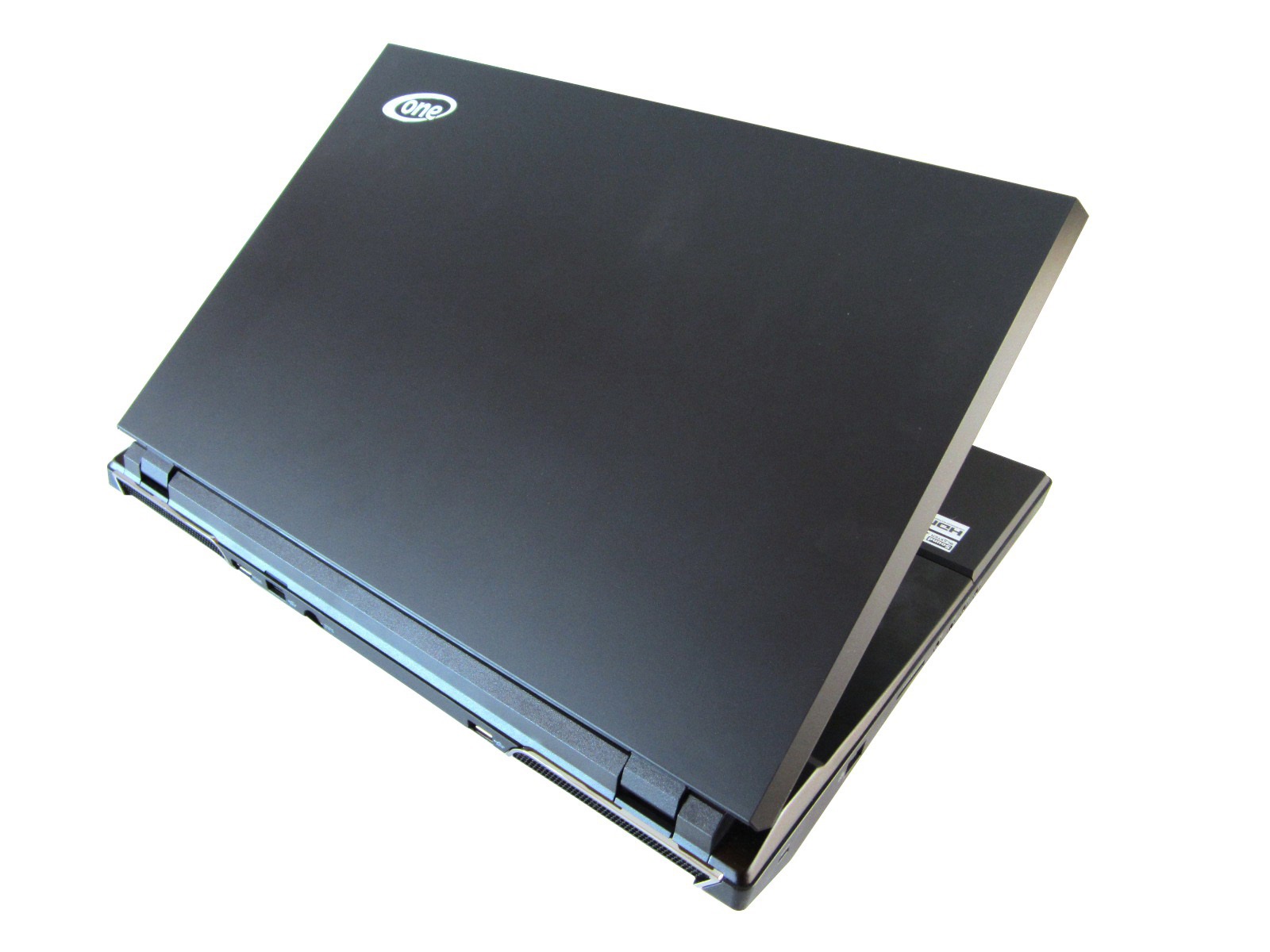

The gaming notebook is based on the 419 x 293 x 54 mm (~16.5 x 11.5 x 2.1 inch) and 4 kg (~8.8 pound) Clevo P370SM Barebones heavyweight, which is also sold by other manufacturers like Schenker. Detailed information about the case can be found in the XMG P723 review.

Connectivity

Interfaces

Aside from the Thunderbolt interface, which was not in the P370EM barebones, the connectivity does not have any surprises. The notebook is equipped with Gigabit-LAN port, an HDMI interface, an eSATA/USB-2.0 combo and a 9-in-1 card reader. The manufacturer deserves respect for the four audio jacks (analog 7.1 sound & S/PDIF) as well as four USB-3.0 ports.

As most ports are placed near the rear of the notebook, the use of an external mouse does not cause any problems. The security features include Kensington Lock, a fingerprint reader and a TPM 1.2 chip.

Wireless Communication

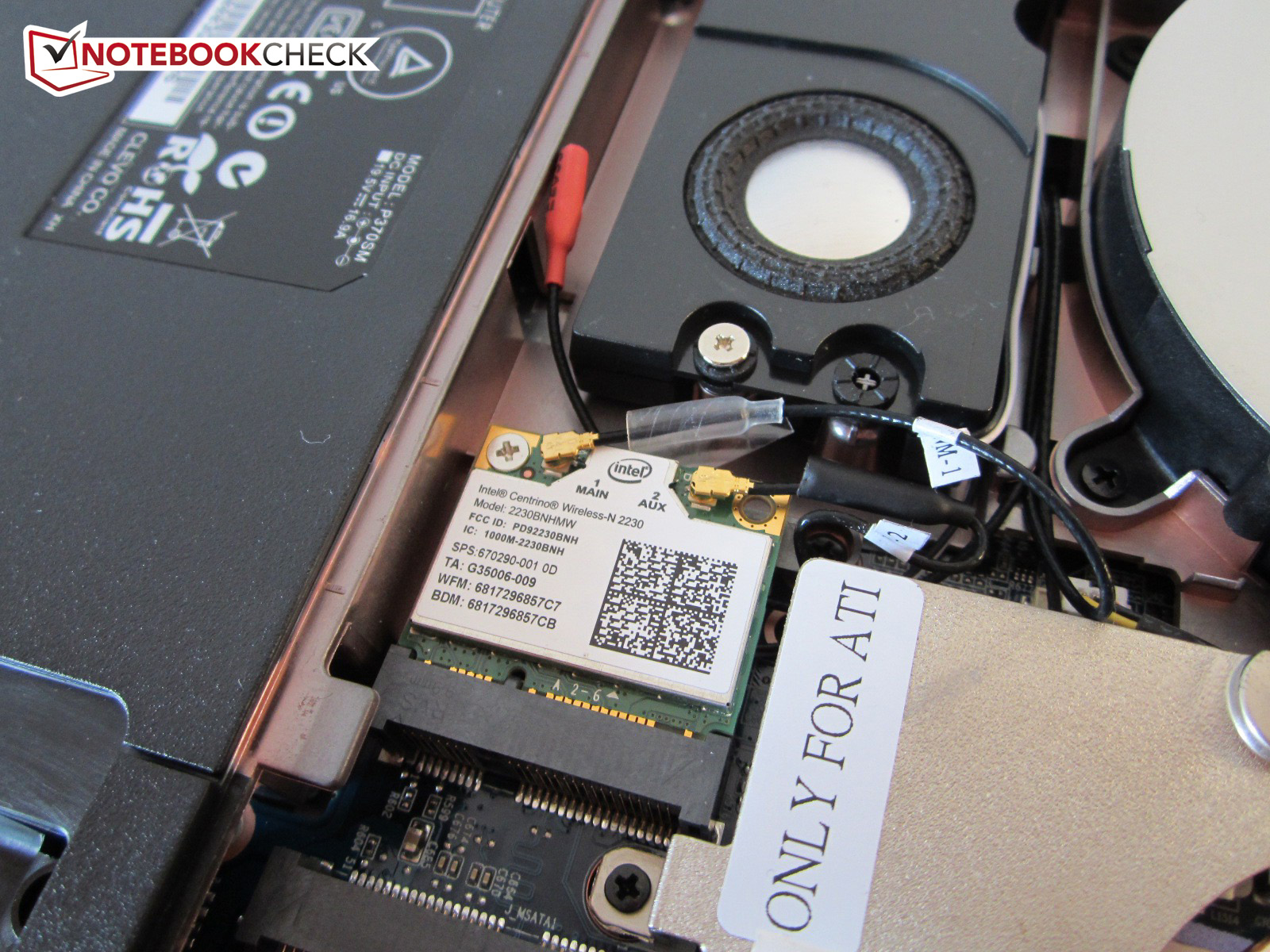

Our test model is equipped with the Intel Centrino Wireless-N 2230 (which is the basic model). The half-length PCIe module supports only the 2.4 GHz frequency (5.0 GHz is only available starting with the Advanced-N 6235) and data is transferred at up to 300 Mbit/s. As expected, Intel has certified the WLAN standards 802.11 b/g/n. Bluetooth 4.0, Wireless Display and Smart Connect are included in the repertoire. The range of the module was not great in our test. Other laptops have performed in this area.

Left side: Kensington Lock, RJ-45 Gigabit LAN, card reader, 4x sound
Left side: Kensington Lock, RJ-45 Gigabit LAN, card reader, 4x sound
Back: HDMI, USB 3.0, Power outlet, USB 3.0
Back: HDMI, USB 3.0, Power outlet, USB 3.0
Right side: optical drive, eSATA / USB 2.0, 2x USB 3.0, Thunderbolt
Right side: optical drive, eSATA / USB 2.0, 2x USB 3.0, Thunderbolt

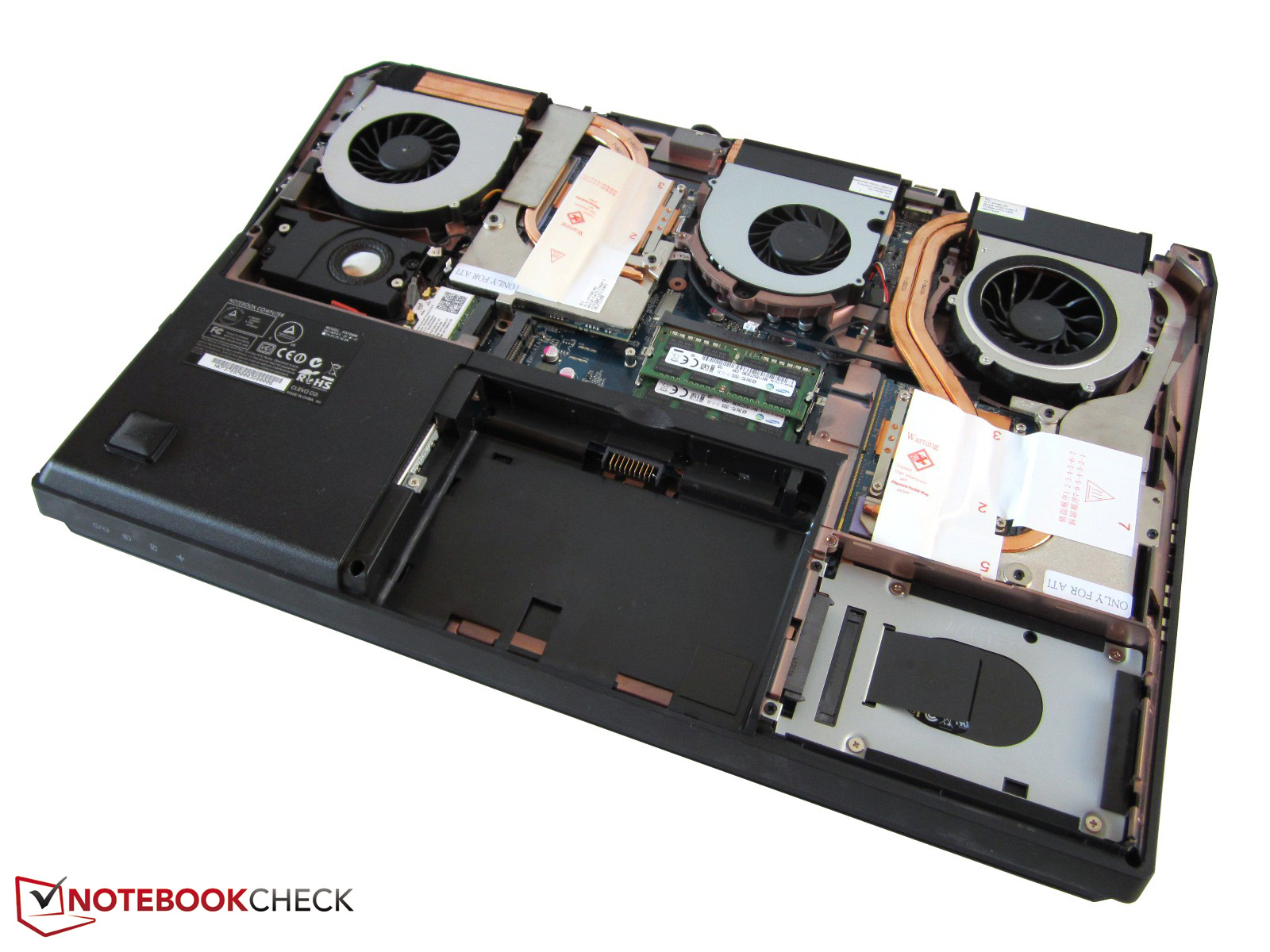

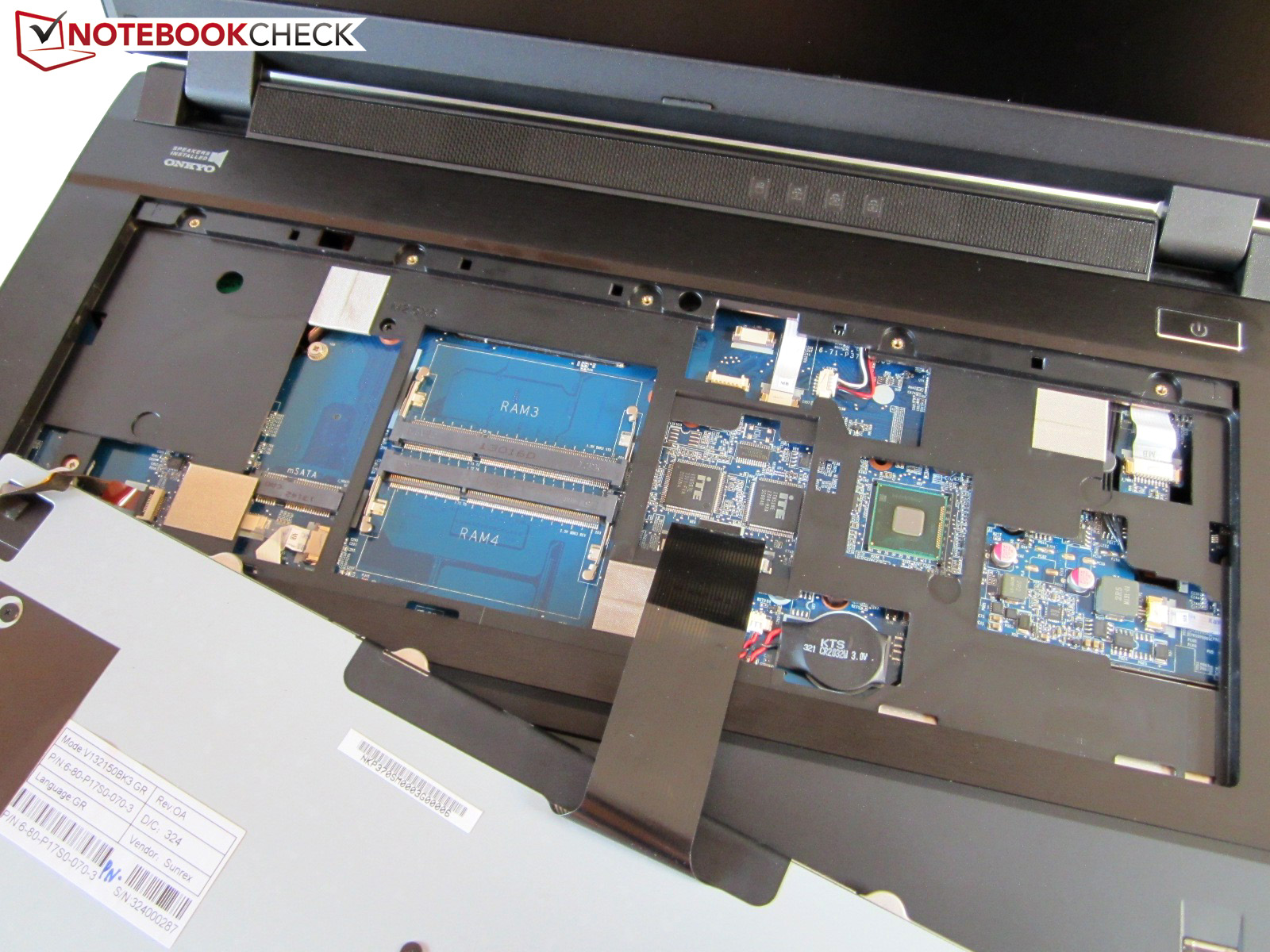

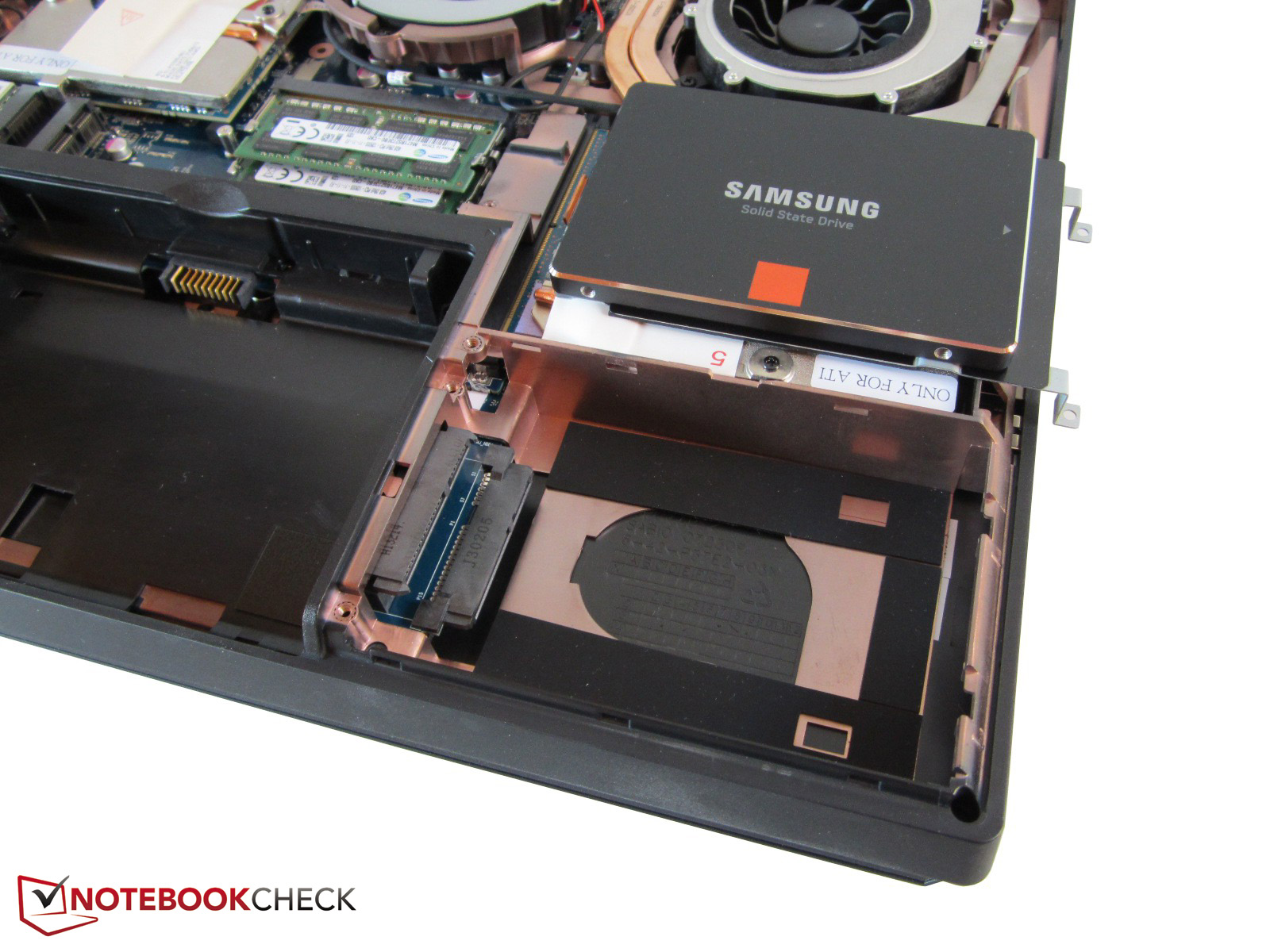

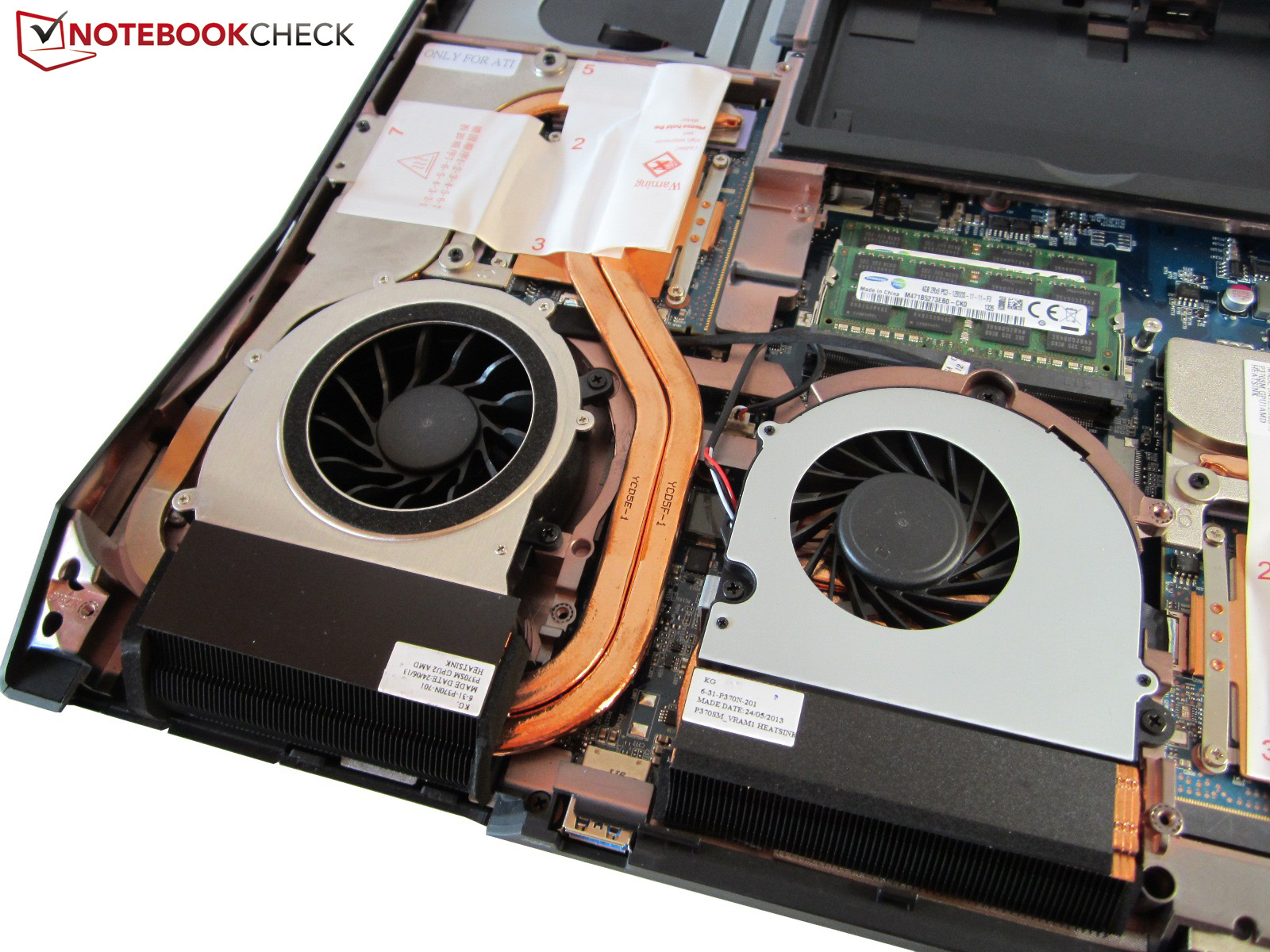

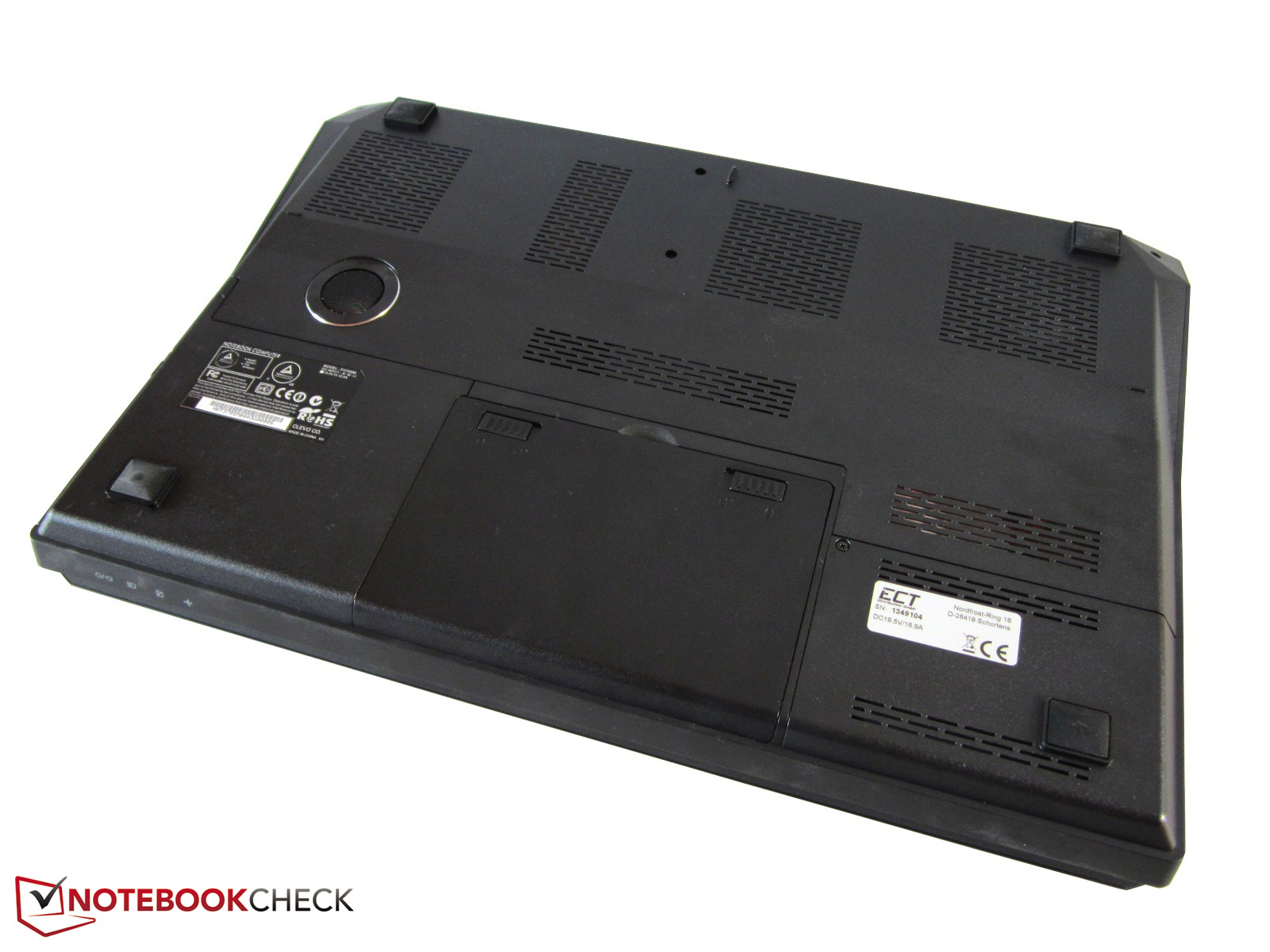

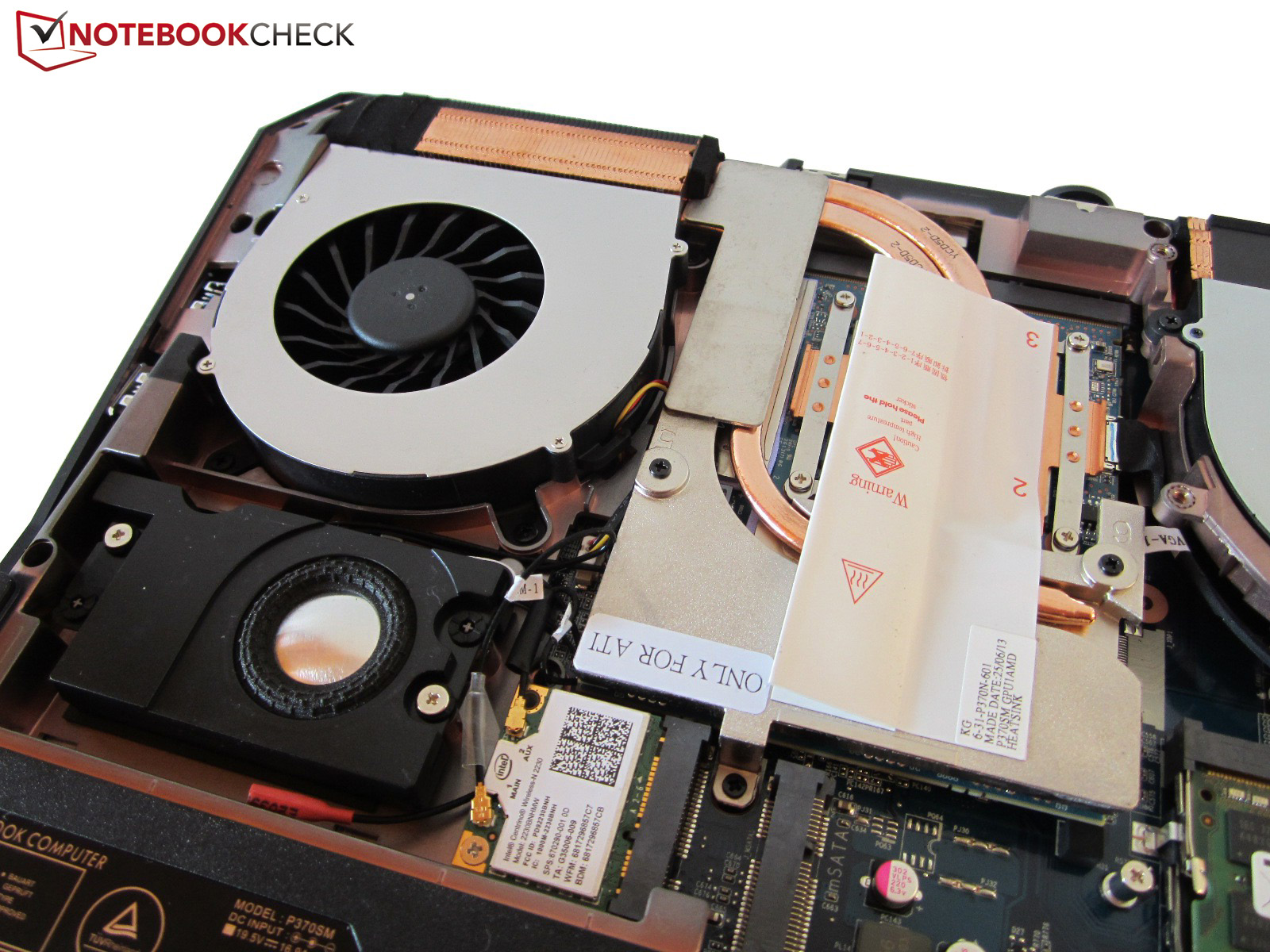

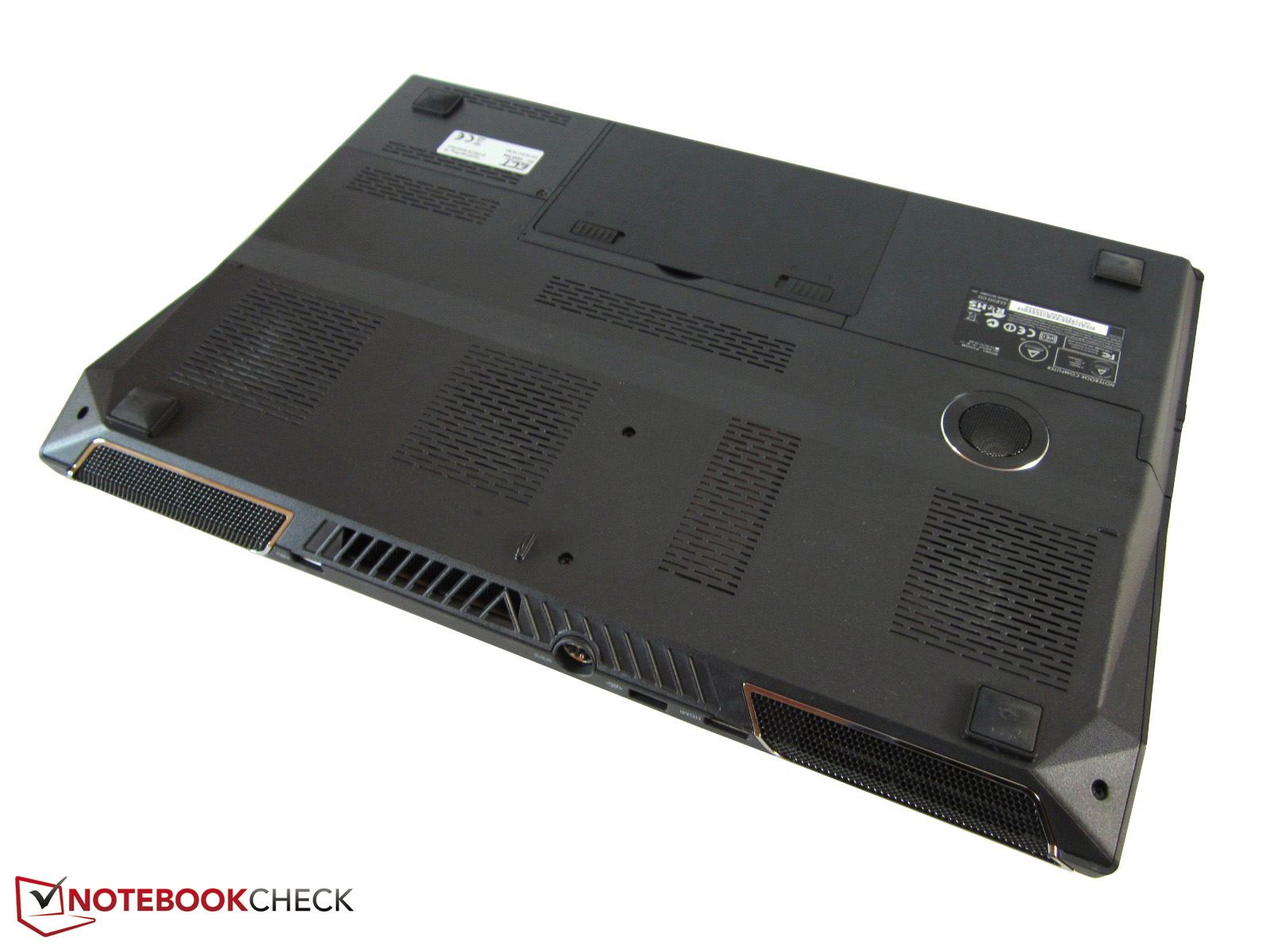

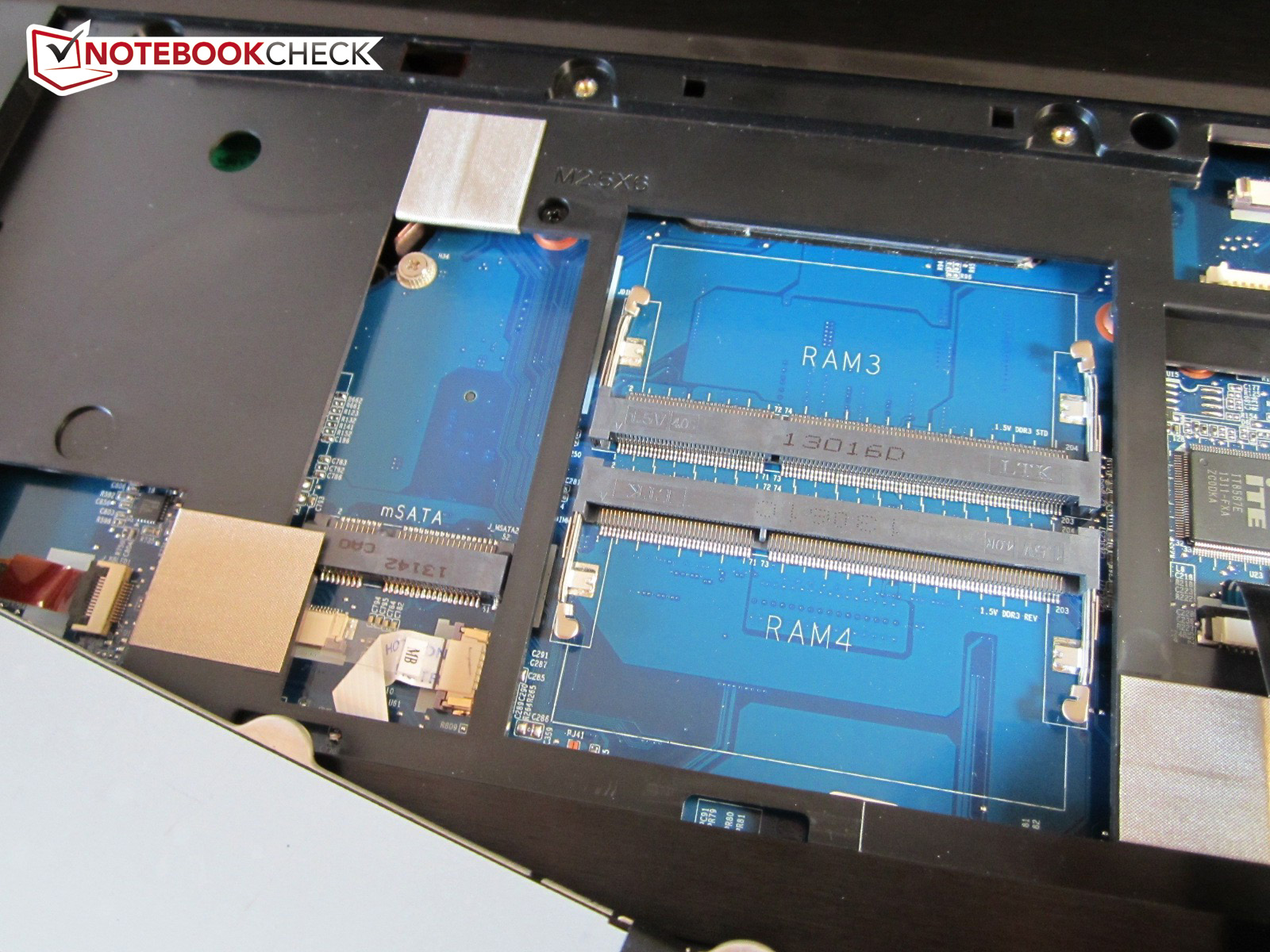

Maintenance

The maintenance possibilities are exemplary and are identical to those of the Schenker XMG P723. In that review, we explore what lies under the maintenance flap and how to remove the keyboard.

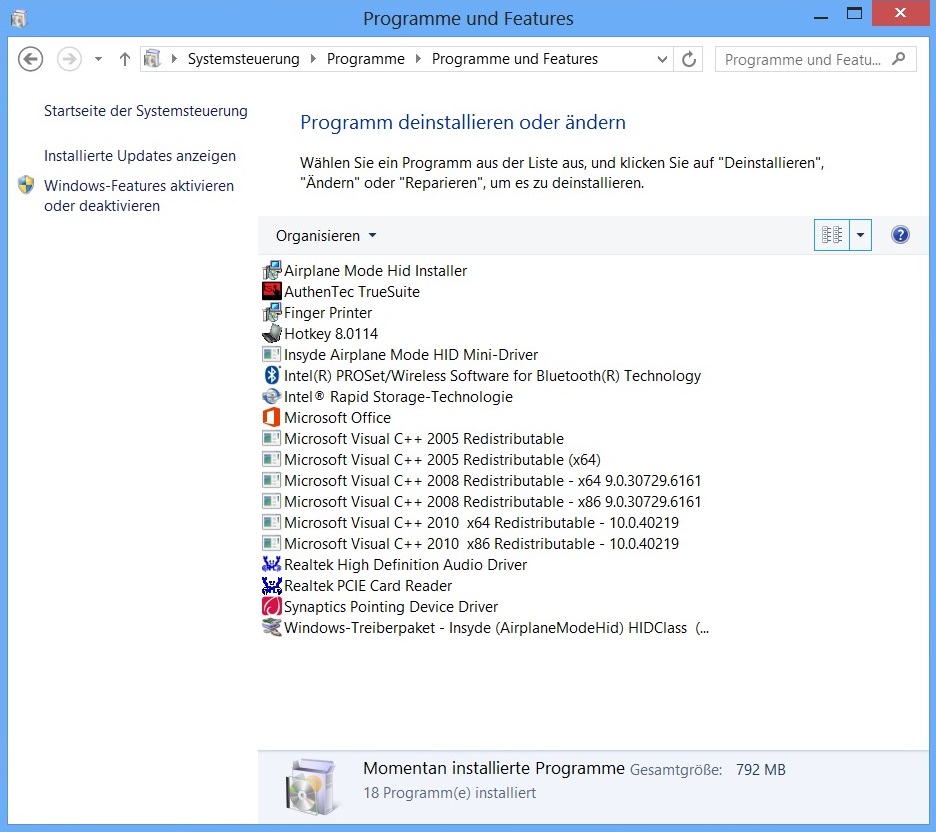

pre-installed software
pre-installed software

Software

The software is spartan. One has avoided the annoying Bloatware most manufacturers favor and provided the user only the necessary drivers and a test version of Office 365. We found it rather strange that our test model lacked the sound suite SoundBlaster X-Fi MB3 and the graphics driver.

Although our test of the Radeon HD 8970M reveals the dangers of the official AMD driver, we chose to install the brand-new AMD Catalyst 13.8 Beta2. The Clevo driver provided by the manufacturer (found on the drivers DVD) should prove more reliable but slower in the latest games.

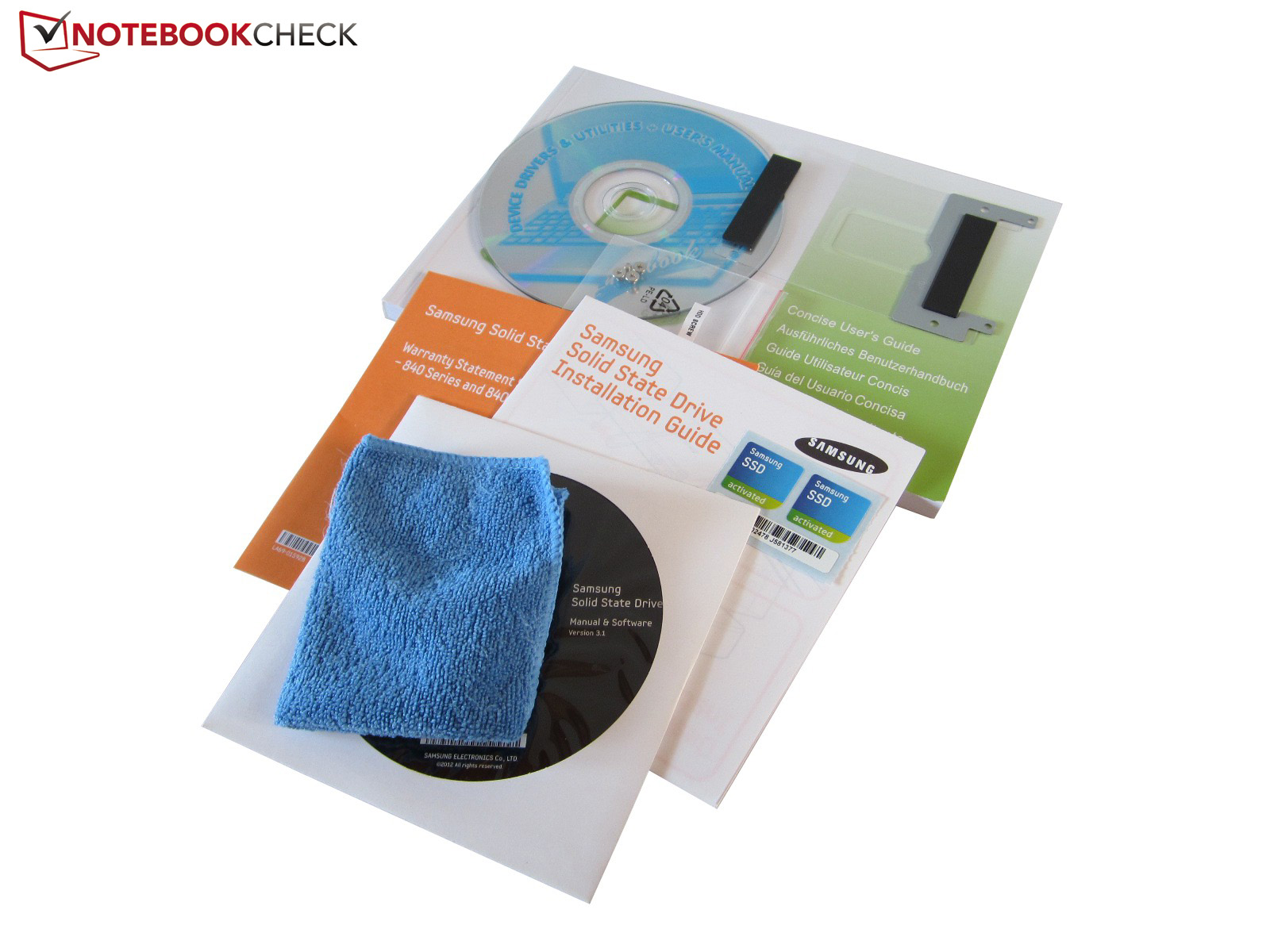

Accessories

In addition to the previously mentioned drivers DVD, One offers a multilingual manual, a cleaning cloth and a hard disk kit (screws, protective flap) in the delivery. Buyers of a Samsung SSD will be pleased with the extras such as a warranty notice, an installation manual and a tool DVD. The 1.2 kg (~2.6 pound) 330 W power adapter and the heavy 450 gram (~1 pound), 8-cell battery are standard for the P370SM Barebones.

Warranty

Depending on the need, the warranty can be extended from 12 to 24 or 36 months (+50/+180 Euros, +~$66/+~$237). The Pickup & Return Service offers a similar plan.

Input Devices

The input devices left us with mixed feelings. On the positive side, the three zones that light up the keyboard allow the user to comfortably type in the dark. However, the unusual key placement requires some getting used to. Furthermore, the spongy touchpad does not inspire confidence and its glossy surface prevents us from working comfortably. The XMG P723 review deals with this matter in-depth.

Unlit keyboard
Unlit keyboard

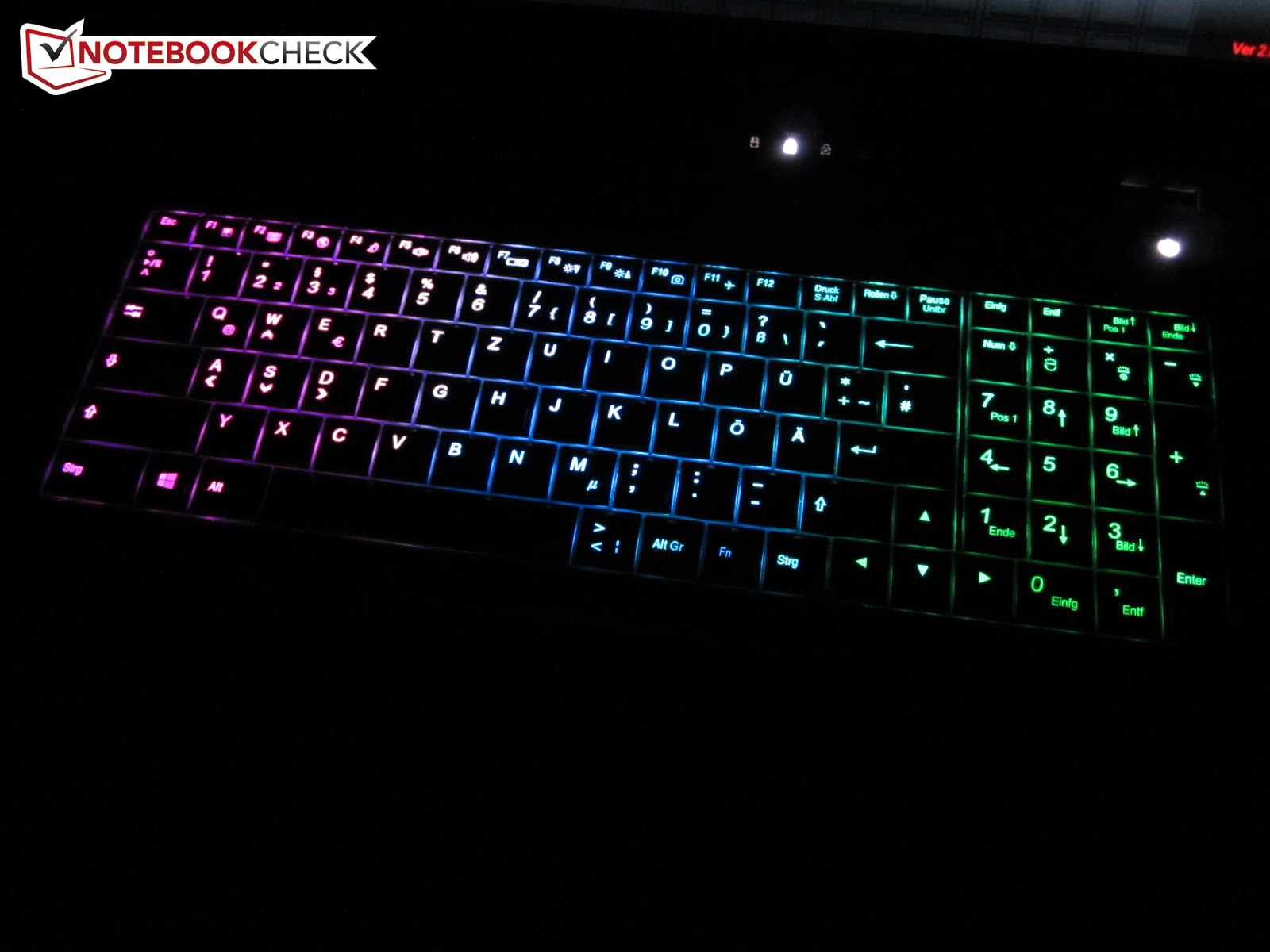

Backlit keyboard
Backlit keyboard

Display

The case manufacturer Clevo does not gamble when it comes to the display. They have once again chosen the extremely popular Chi Mei N173HGE panel. Although professional graphics editors will be unhappy due to the color differences, poor saturation and inaccurate gray levels (see CalMAN screenshots), most "normal" users will be happy due to the excellent brightness (average of 320 cd/m²) and high contrast. A contrast of 750:1 is hard-to-reach for an 08/15 panel, but other models with the Chi Mei N173HGE panel can achieve more than 900:1 (like the MSI GT70H).

322
cd/m²
306
cd/m²
300
cd/m²
340
cd/m²
345
cd/m²
319
cd/m²
320
cd/m²
332
cd/m²
316
cd/m²
Distribution of brightness
Chi Mei N173HGE tested with X-Rite i1Pro 2
Maximum: 345 cd/m² (Nits) Average: 322.2 cd/m²
Brightness Distribution: 87 %
Center on Battery: 345 cd/m²
Contrast: 750:1 (Black: 0.46 cd/m²)
ΔE Color 10.63 | 0.5-29.43 Ø5
ΔE Greyscale 10.8 | 0.57-98 Ø5.3
56% AdobeRGB 1998 (Argyll 1.6.3 3D)
61.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
84.3% sRGB (Argyll 2.2.0 3D)
59.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.87

An illumination of 87% and a black value of 0.46 cd/m² are not new records but these do offer a well-lit interface. However, in dark scenes, the picture is tinted gray. Thankfully our test model does not suffer from the horizontal "bands" the Schenker XMG P723 (Radeon HD 8970M) is plagued by. As we suspected, this was due to the combination of an Nvidia GPU and no graphics switching (the Asus G750 is also affected). Sadly, "the grainy finish" remains.

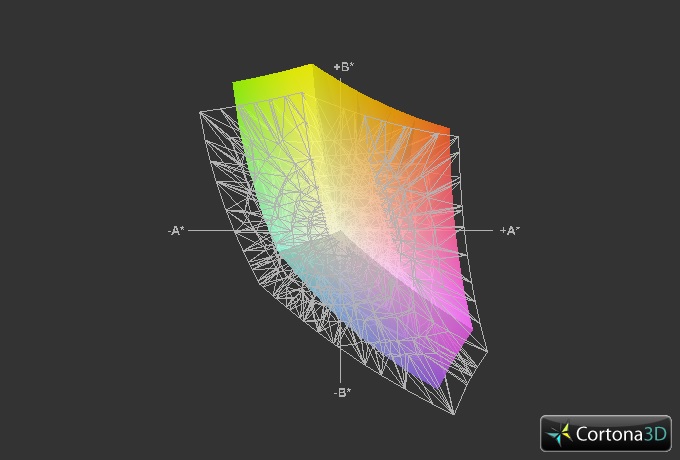

One K73-3S vs. sRGB (Grid)
One K73-3S vs. sRGB (Grid)

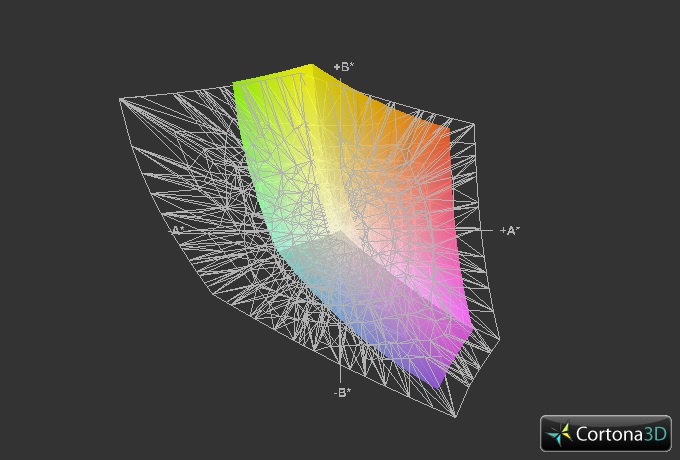

One K73-3S vs. AdobeRGB (Grid)
One K73-3S vs. AdobeRGB (Grid)

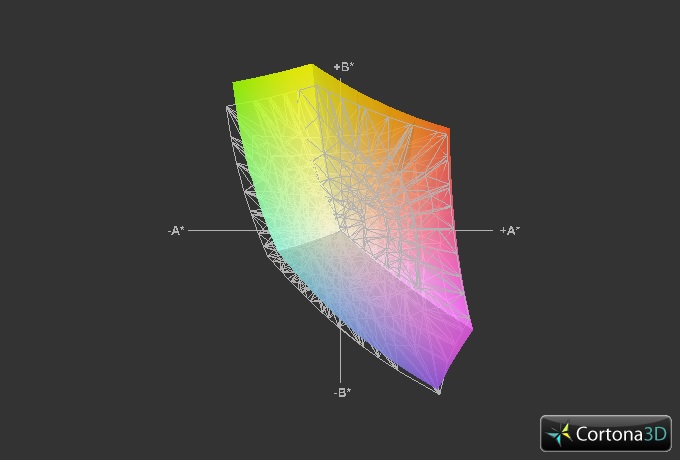

One K73-3S vs. One K56-3N2 (Grid)
One K73-3S vs. One K56-3N2 (Grid)

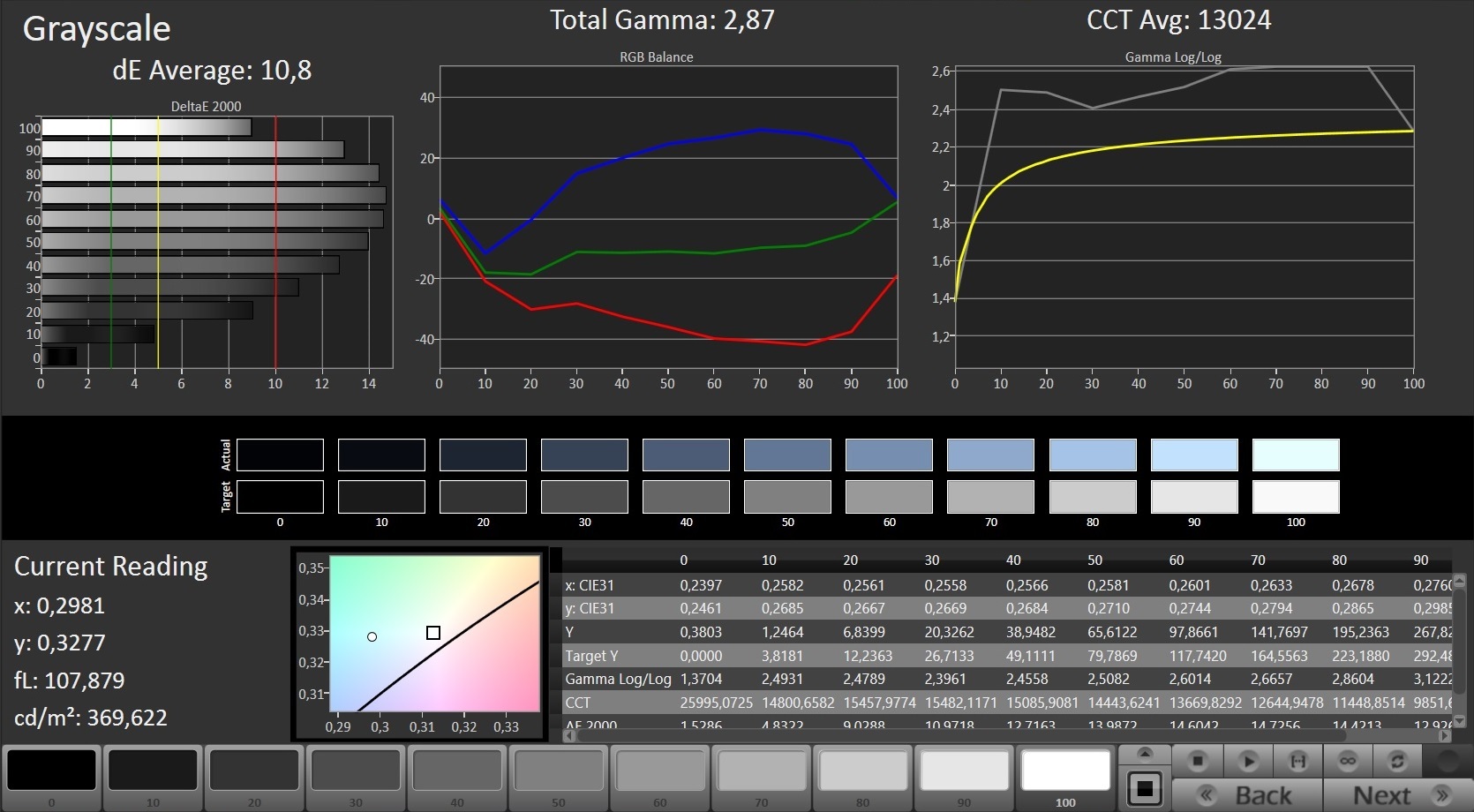

CalMan: Grayscale
CalMan: Grayscale

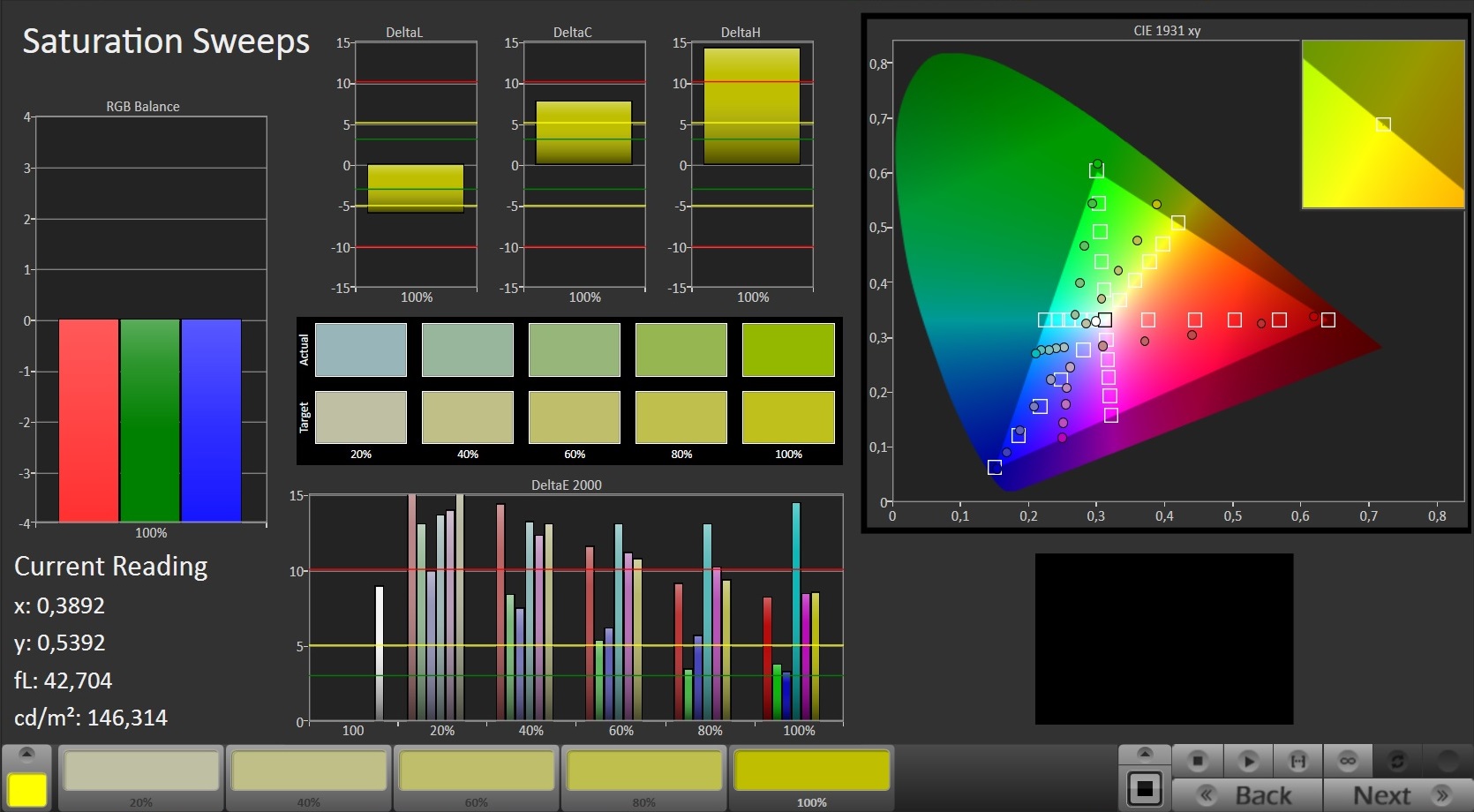

CalMan: Saturation Sweeps
CalMan: Saturation Sweeps

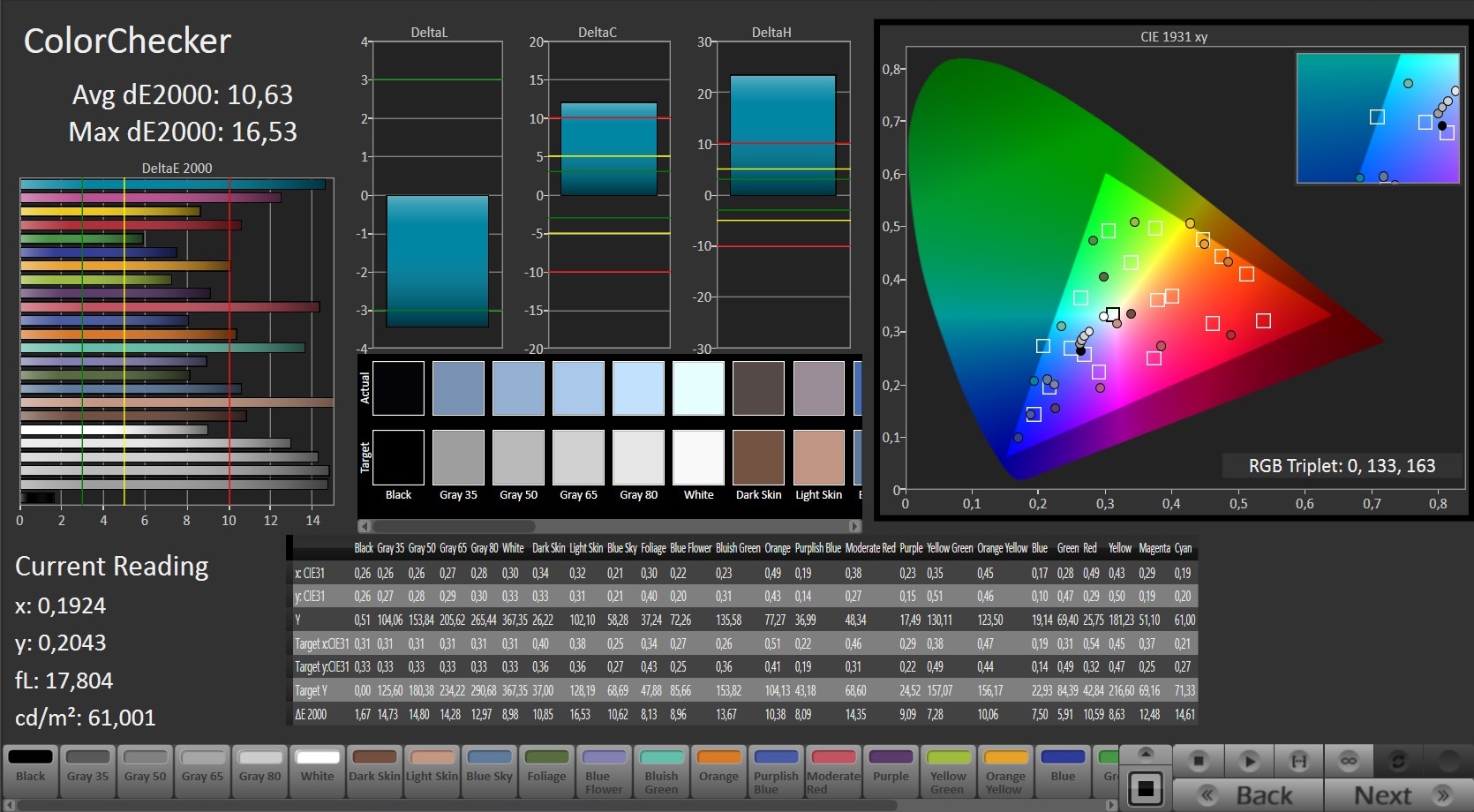

CalMan: ColorChecker
CalMan: ColorChecker

Regardless, one can work comfortably with the screen. The large surface and Full HD resolution of 1920x1080 pixels provides enough room for working with multiple programs.

Outdoors, this 17-inch laptop leaves no room for complaint. The great illumination allows the user to enjoy using the notebook in the sunlight. However, the viewing angles are restricted under extreme conditions (see gallery).

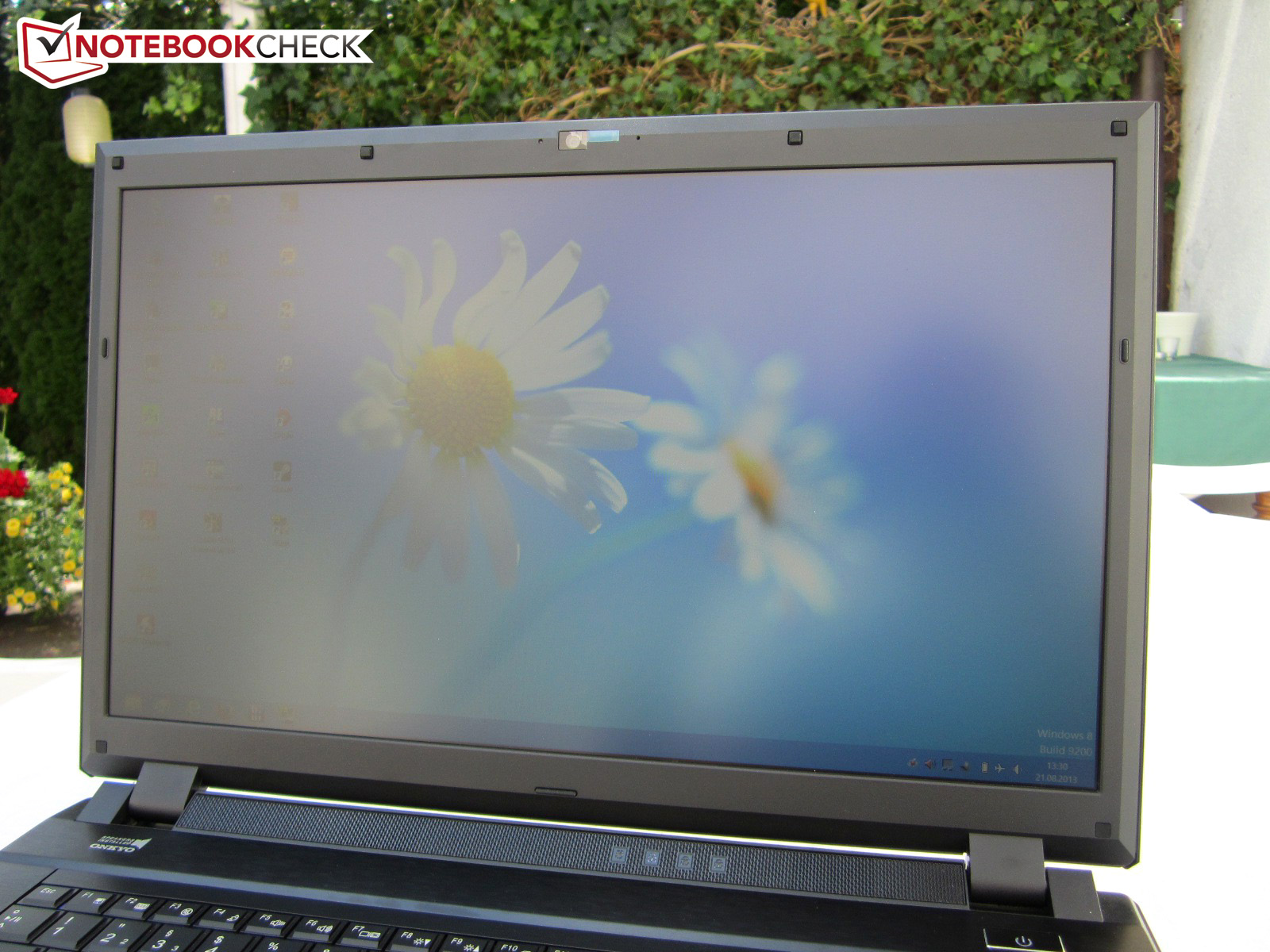

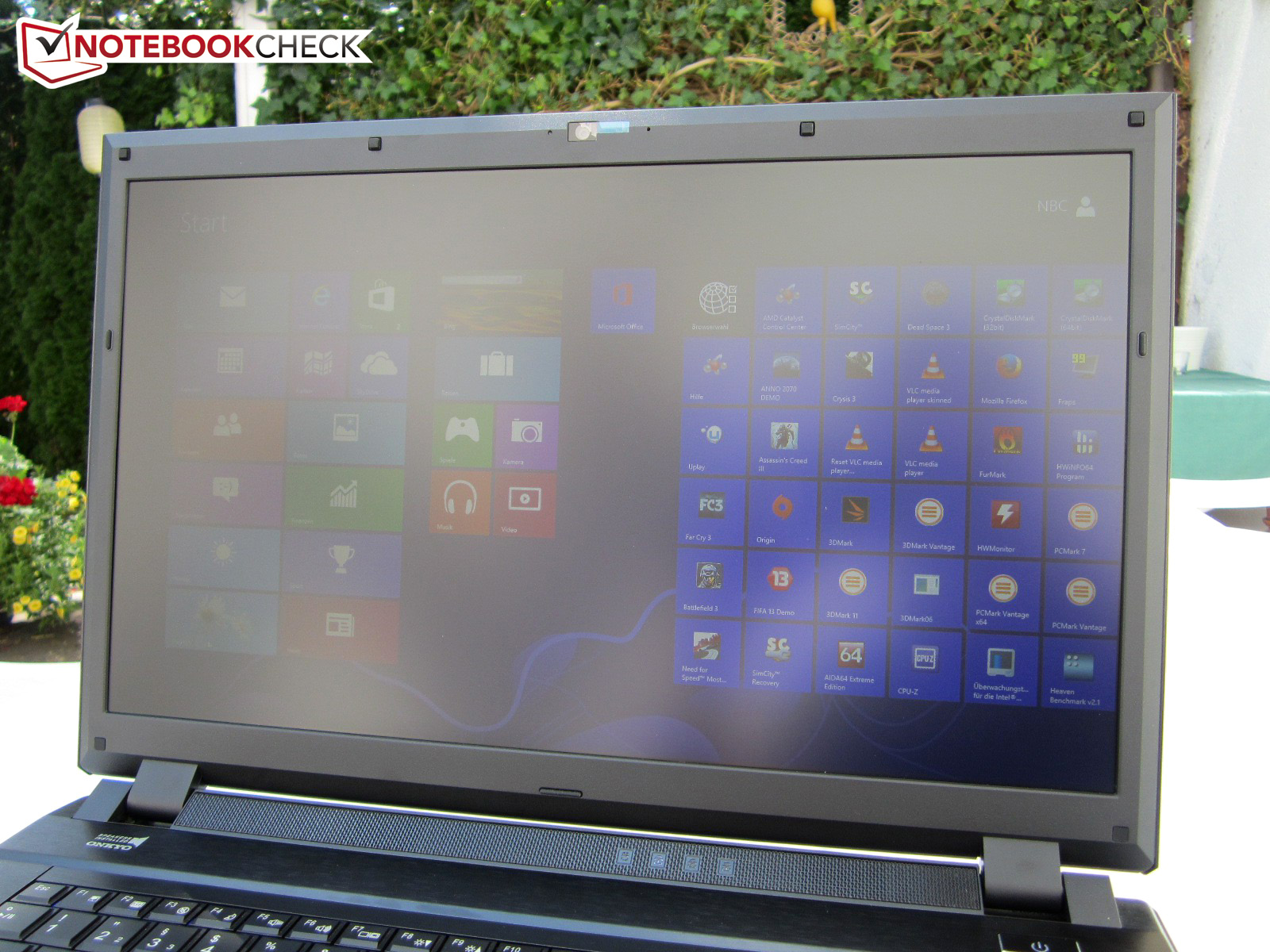

Outdoors use - One K73-3S (sunny day, Notebook opposite a white wall)
Outdoors use - One K73-3S (sunnier day, Notebook opposite a white wall)
Outdoor use - One K73-3S

For TN standards, the viewing angles are quite good. If color deviations are ignored, the horizontal viewing angles remain satisfactorily stable. Vertically, the display should not be pushed too far back or too far to the front. Overall, the screen merits a "Very Good" rating.

Viewing angles of the One K73-3S
Viewing angles of the One K73-3S

Performance

Haswell
Haswell

Processor

The One K73-3S is a quad-core CPU from the Intel Haswell generation. We chose the Core i7-4800MQ, which is also used for the review of the Schenker XMG P723. The clock speeds of the processor are 2.7-3.7 GHz and it runs around 300 MHz faster (on paper) than the cheaper Core i7-4700MQ, which also has a 6 MB L3 cache (Core i7-4900MQ: 8 MB).

Aside from the Core i7-4930MX, the TDP of the model is 47 W. The manufacturing process produces Haswell CPUs identically in the 22 nm format and indicates a modern product. Due to the dual-GPU option, the integrated DirectX 11-ready HD Graphics 4600 IGP remains off. It does not matter if its Nvidia or AMD, a graphics switching option is just not provided on the P370SM barebones.

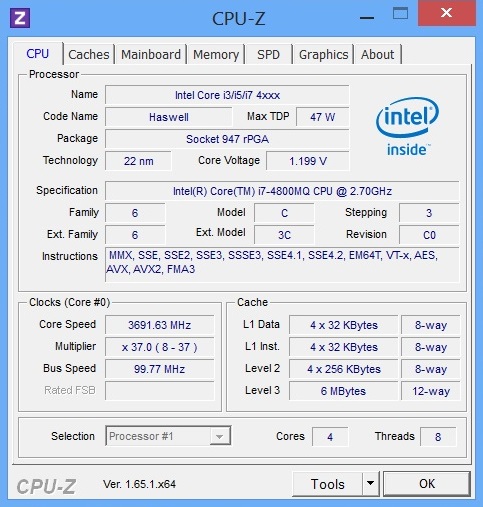

Systeminfo CPUZ CPU

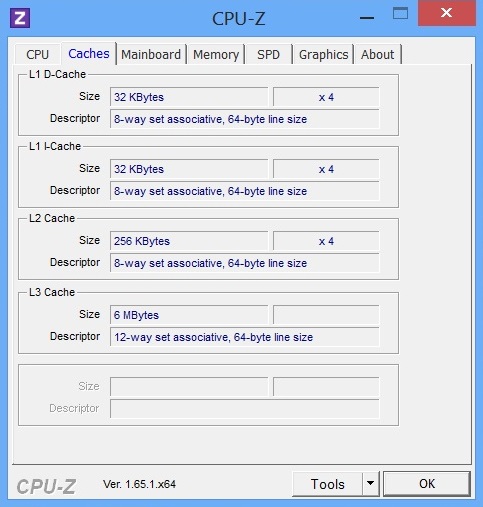

Systeminfo CPUZ Cache

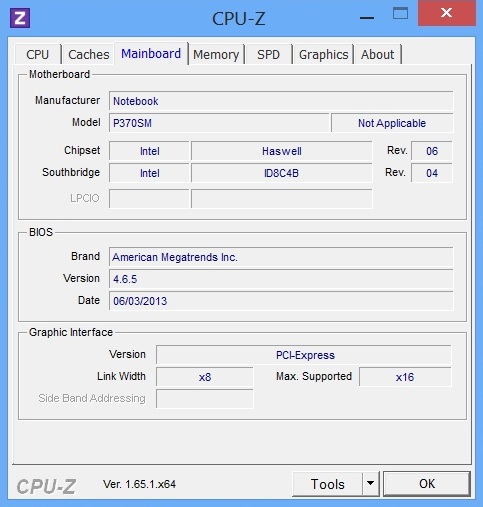

Systeminfo CPUZ Mainboard

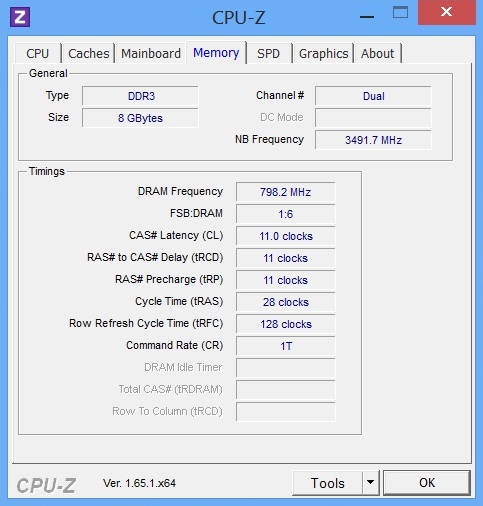

Systeminfo CPUZ Memory

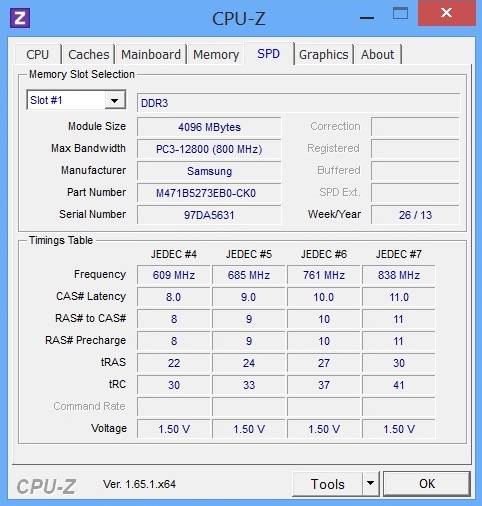

Systeminfo CPUZ SPD

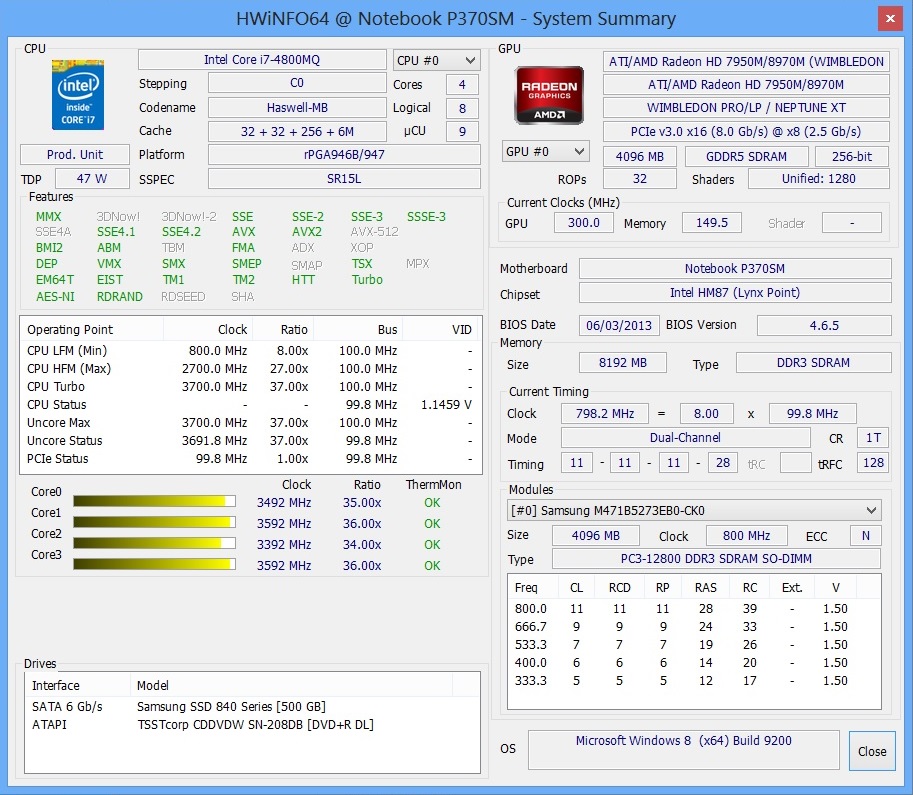

Systeminfo HWiNFO
Systeminfo GPUZ

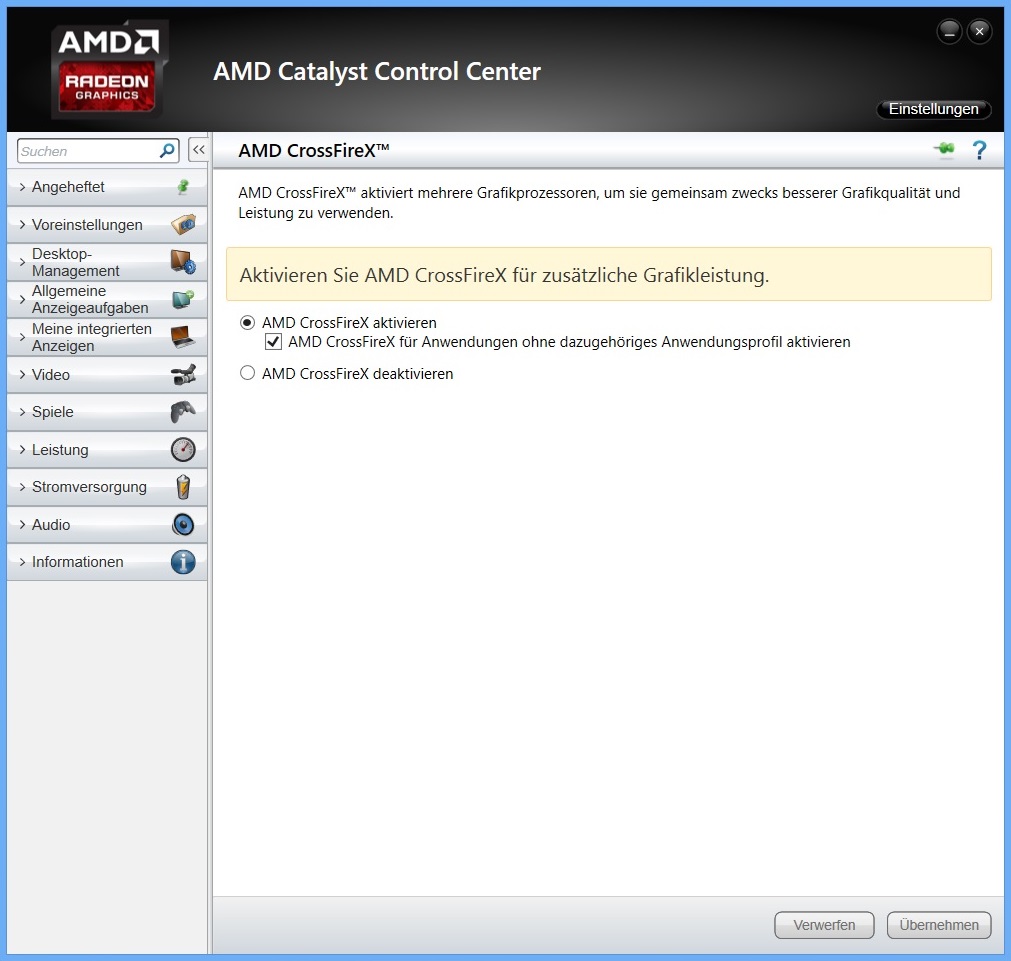

Systeminfo CCC - CrossFireX
Systeminfo CCC - Software

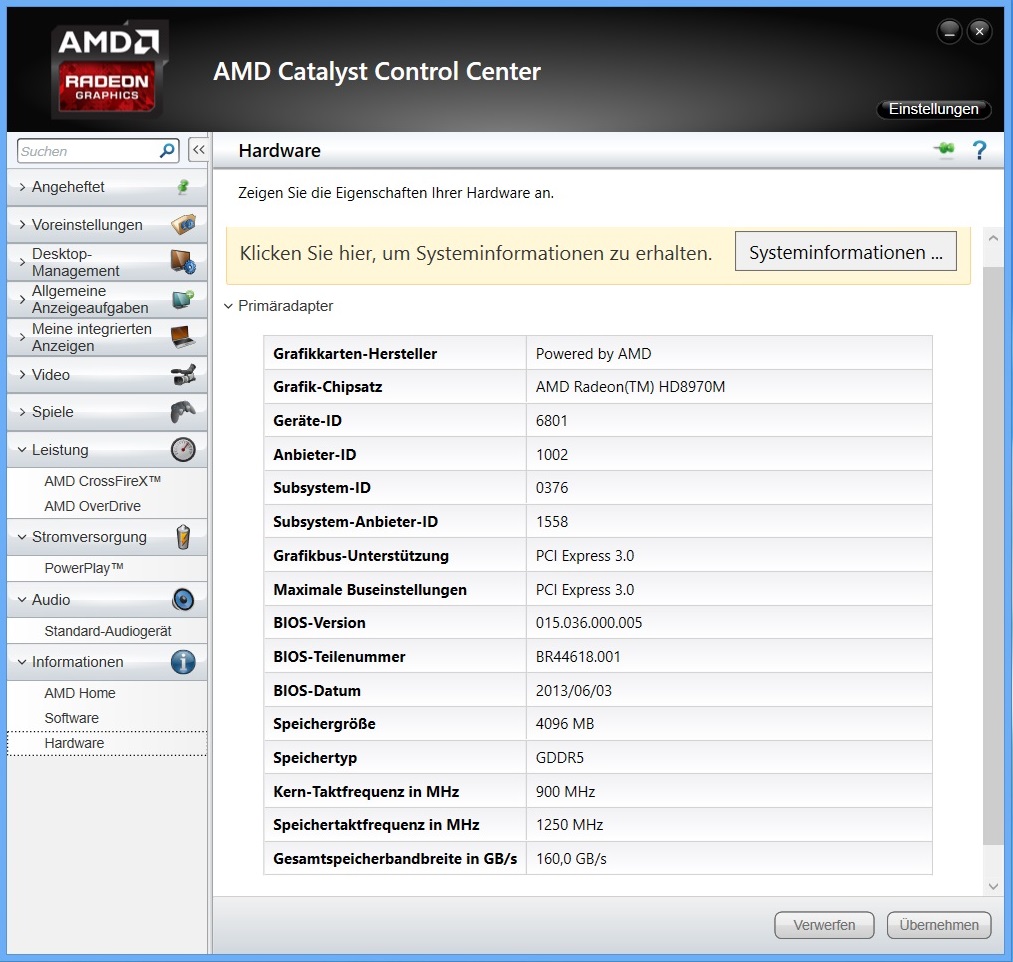

Systeminfo CCC - Hardware

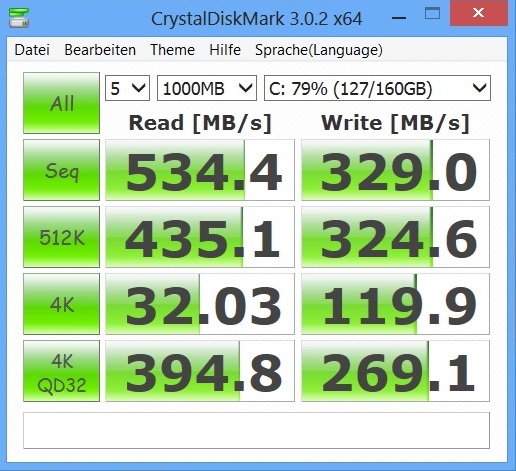

Systeminfo CrystalDiskMark

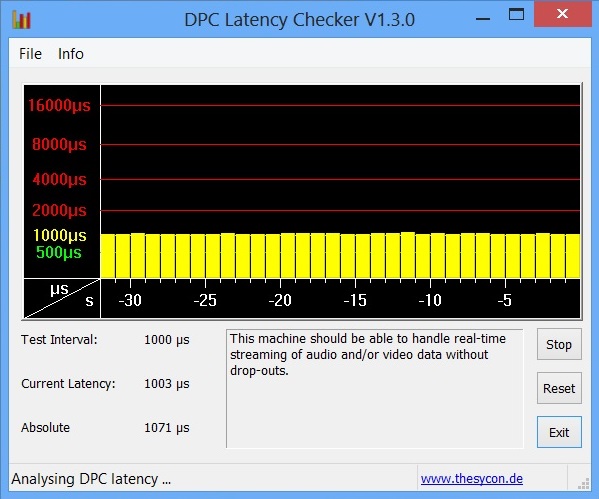

Systeminfo DPC Latency times
System information - One K73-3S

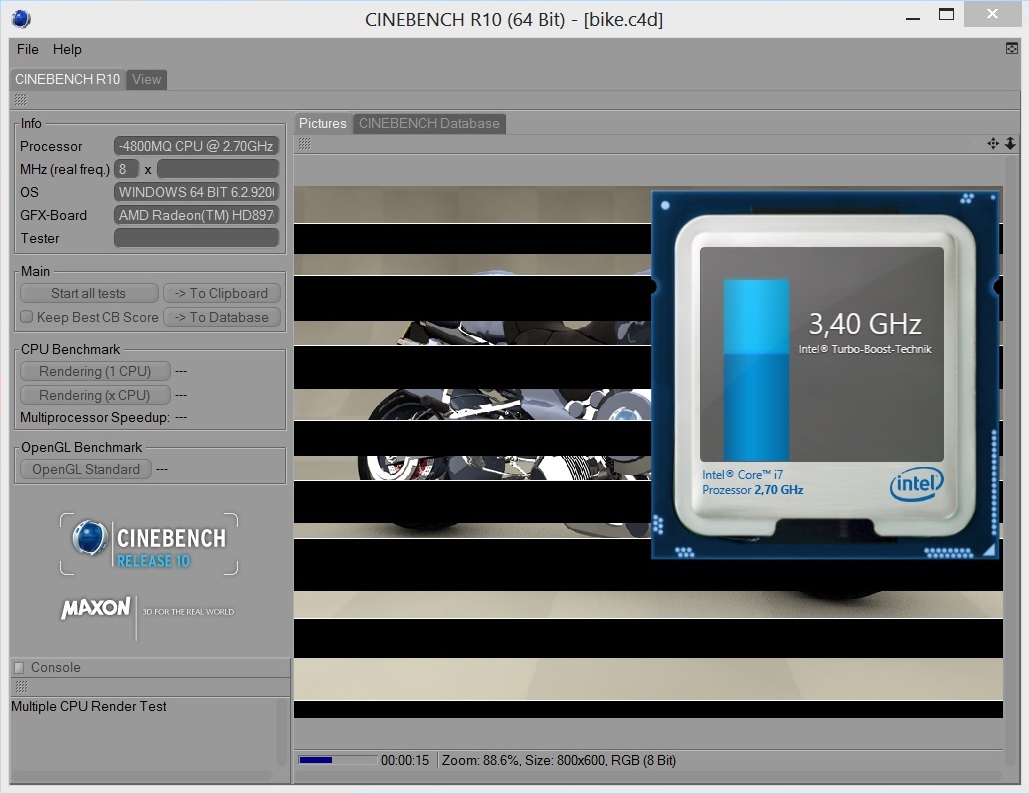

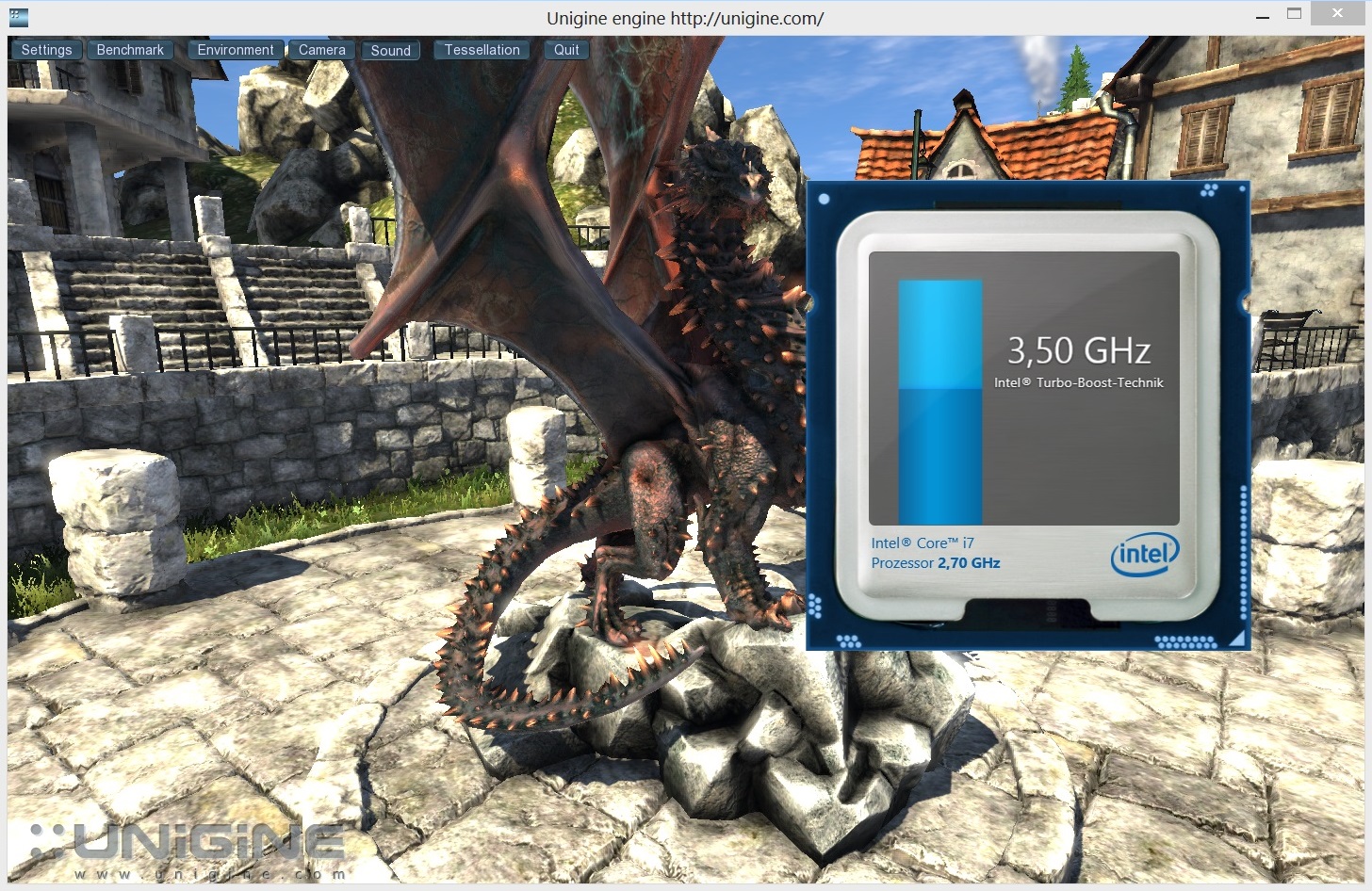

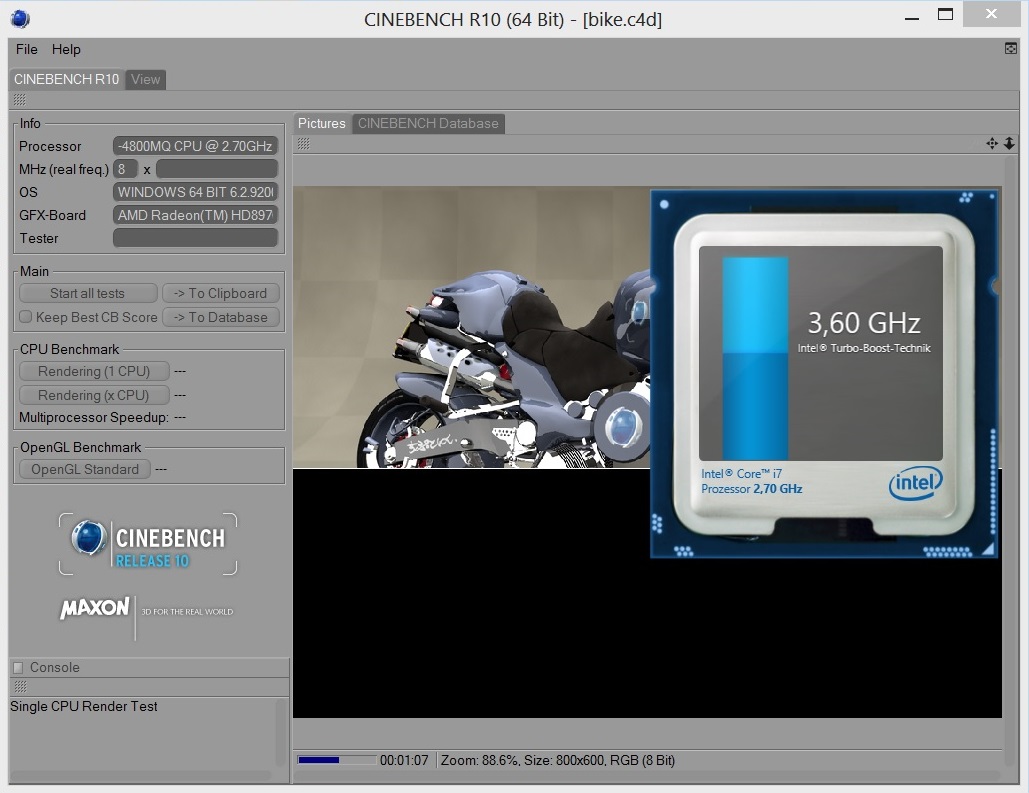

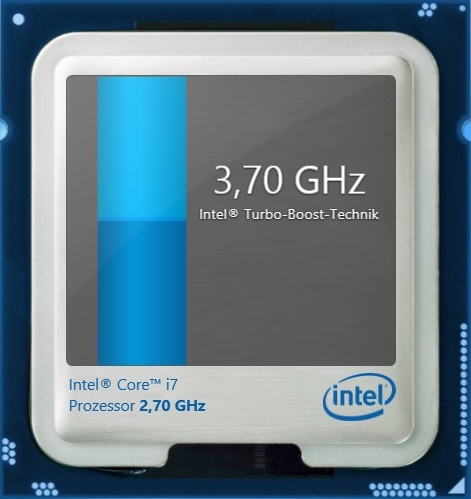

Turbo Boost

In contrast to the Schenker competitor, which we tested with the weaker GeForce GTX 765M SLI combo, the CPU overclocking of our test model is not as well developed. While the Core i7-4800MQ clocks between 3.4 - 3.6 GHz in Single-Core benchmarks, it can achieve between 3.3 - 3.4 GHz in Multi-Core tests. Theoretically, it is possible to achieve up to 3.7 and 3.5 GHz respectively. Depending on the benchmark, differences in performance might be noticeable when comparing this model to other devices that run on the Core i7-4800MQ. In our test, no throttling was noticeable. Only at full load, does the One test model get stuck at 3 GHz.

Single Core Rendering
Single Core Rendering
Multi Core Rendering
Multi Core Rendering
CPU- & GPU - Load
CPU- & GPU - Load

CPU performance

At the beginning of this review, we said that it would not be wise (from a price-to-performance point of view) to invest in the fastest processor available for this test model. We will now prove this using scores from Cinebench R11.5. The test model achieves 1.63 points in the Single CPU test, which is quite good, but this is a mere 9% higher than the score of the Core i7-4700MQ (1.5 points @ One K56-3N2). With 7.09 to 6.9 points, the lead in the Multi-CPU benchmark decreases further.

The 300 Euros (~$395) more expensive Core i7-4900MQ runs 4% (1.7 points @ Schenker XMG P703) and 5% (7.45 points @ Clevo P150SM) faster. This is not much of a lead and in the opinion of the author, the avid gamer should stick to the Core i7-4700MQ or 4800MQ.

Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Core i7-4800MQ
One K73-3S
7229 Points
Core i7-4700MQ
MSI GT70H
6406 Points -11%
Core i7-4900MQ
Schenker XMG P703
7395 Points +2%
Rendering Multiple CPUs 64Bit (sort by value)
Core i7-4800MQ
One K73-3S
26058 Points
Core i7-4700MQ
MSI GT70H
24309 Points -7%
Core i7-4900MQ
Schenker XMG P703
25752 Points -1%
Cinebench R10 Rendering Single CPUs 64Bit
7229 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
26058 Points
Cinebench R10 Shading 64Bit
7772 Points
Cinebench R11.5 CPU Single 64Bit
1.63 Points
Cinebench R11.5 CPU Multi 64Bit
7.09 Points
Cinebench R11.5 OpenGL 64Bit
97.3 fps
Help

Graphics Card

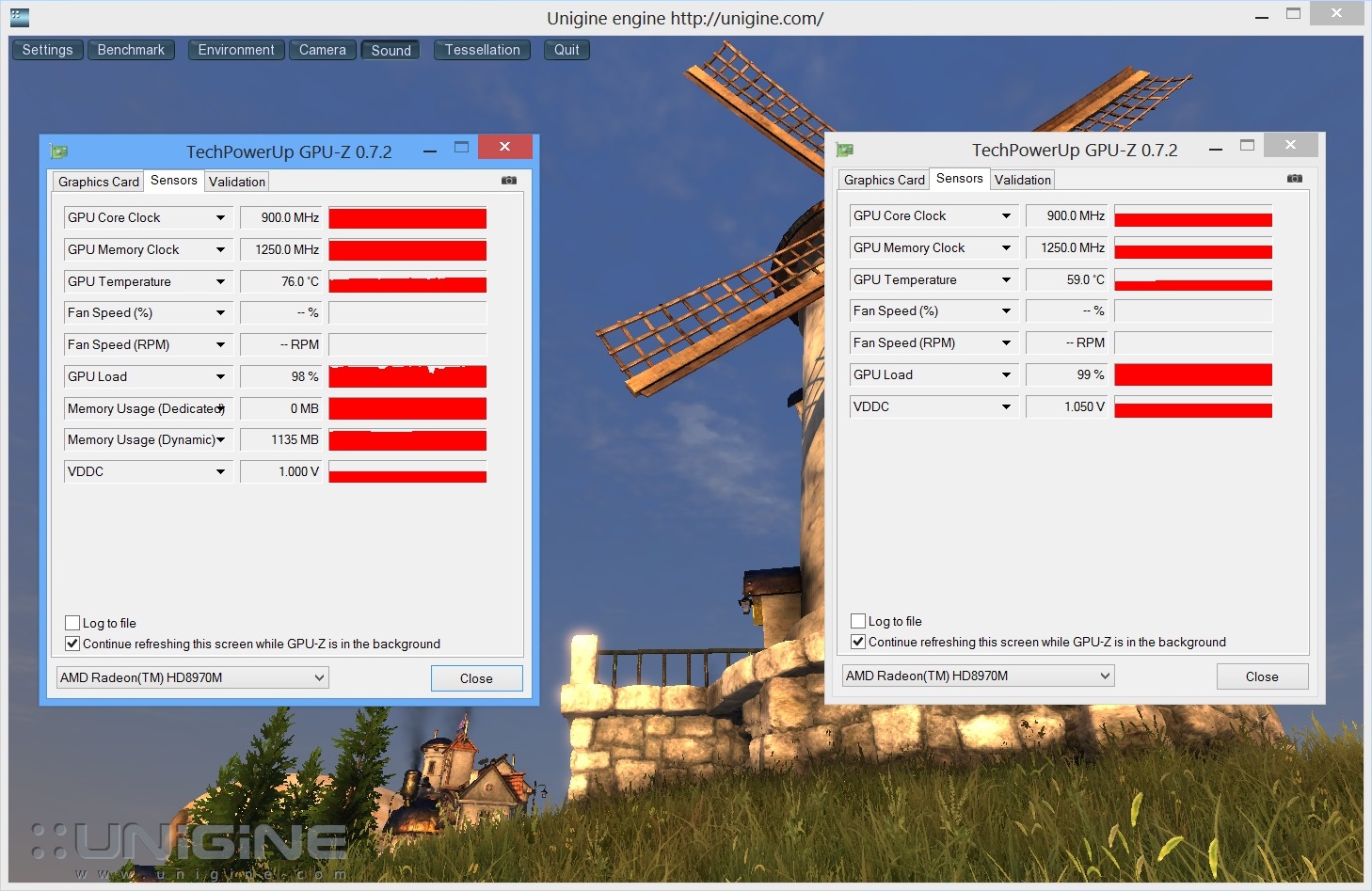

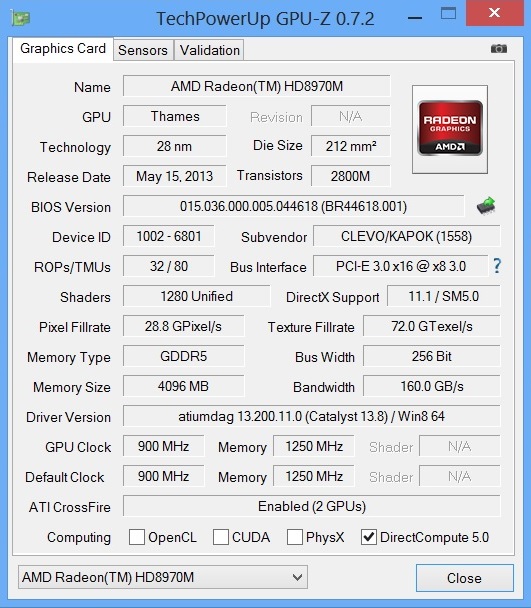

Clock speeds 3D
Clock speeds 3D

The Radeon HD 8970M is merely a slightly modified version of the Radeon HD 7970M. It runs a bit faster (900 MHz @ core, 1,250 MHz @ VRAM) and offers - at least in Clevo - double the video memory (4,096 MB GDDR5), which is connected to a 256-bit interface. The 28 nm GPU also has 1,280 shaders and 2.8 billion transistors (GeForce GTX 780M: 3.54 billion).

It gets much more exciting when you put two such HD 8970M GPUs in one case using the CrossFire technology. Like the Nvidia SLI, the technology allows the user to harness massive performance, but it comes at the price of annoying flaws caused by the dual-GPU system. The system requires a lot of room, ventilation and power (heavy case, loud emissions and short battery life). Furthermore, this system is heavily dependent on drivers.

This is the area where AMD has been lagging behind Nvidia for years. This can lead to unexpected issues while gaming (see list in Gaming Performance). Thanks to the better driver support, SLI works much better and offers much more power from the second GPU.

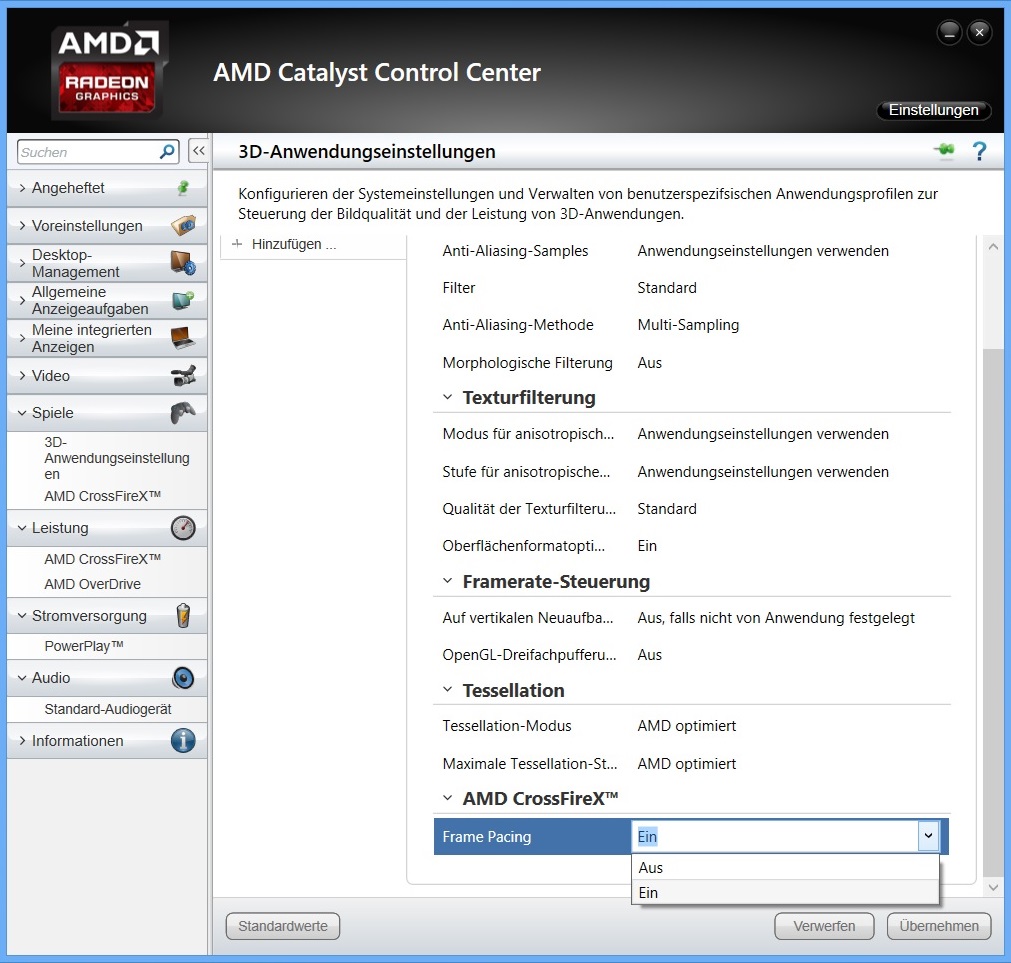

An important new update is the so-called "Frame Pacing" (activated per default), which AMD has built into their drivers recently. This improvement is meant to deal with "micro-stutters" which pop up at low frame rates and can spoil the gaming experience. Due to the enormous performance of a CrossFire system, it is hard to find a game that runs at low frame rates.

Frame Pacing
Frame Pacing

Update: We took a closer look at "Frame Pacing". According to AMD, it is supposed to massively reduce the frame gaps, which occur when dual-VGA systems alternately process data (AFR method). This new feature can be easily turned on/off in the 3D program performance settings of the GPU driver.

A short test with BioShock: InfiniteMetro: Last Light and Hitman: Absolution reveals that the performance with active Frame Pacing only drops by 1%. Thanks to the good frame rate, all games run fluidly and Frame Pacing rounds off the experience (subjective). As Fraps is not optimal to measure this effect, the reader should read our graphs with a grain of salt (only an FCAT system can offer reliable results).

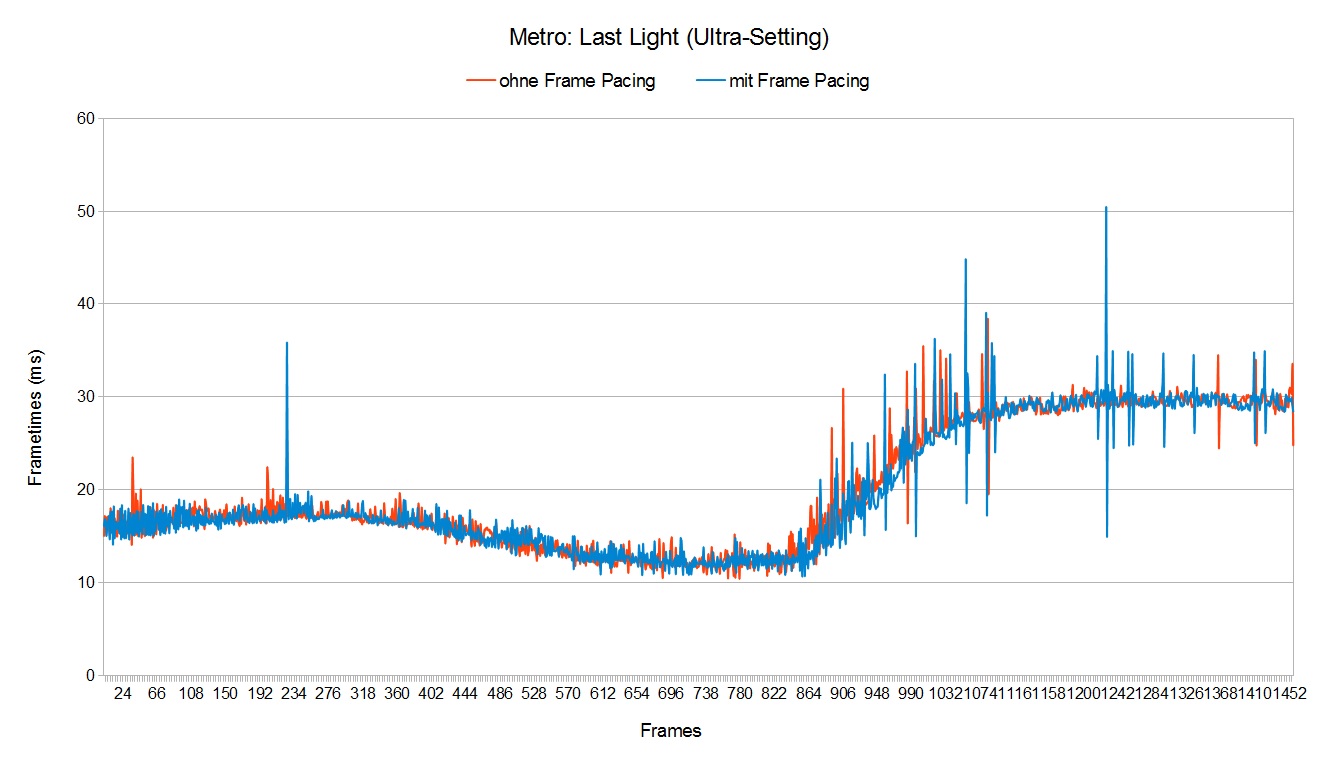

Metro: Last Light
Metro: Last Light

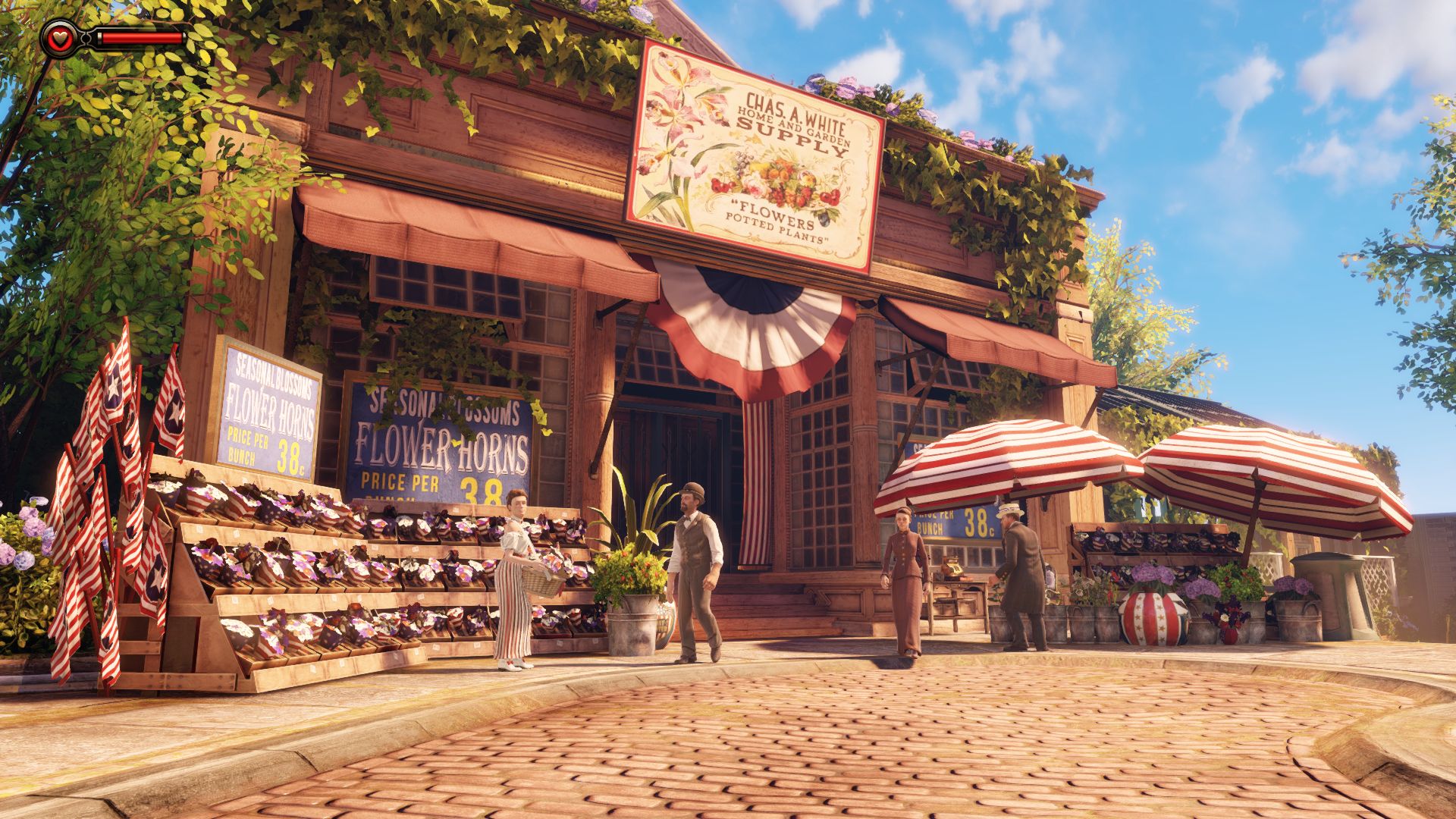

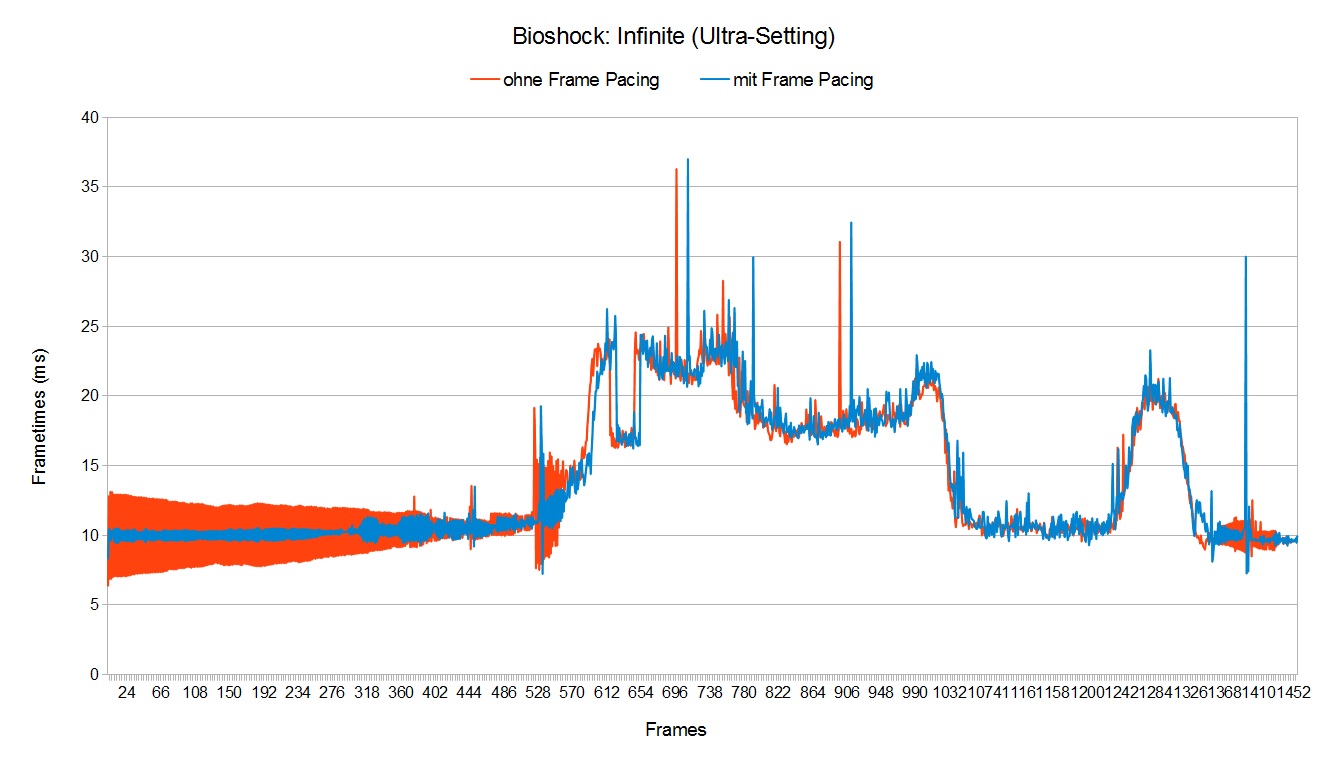

BioShock: Infinite
BioShock: Infinite

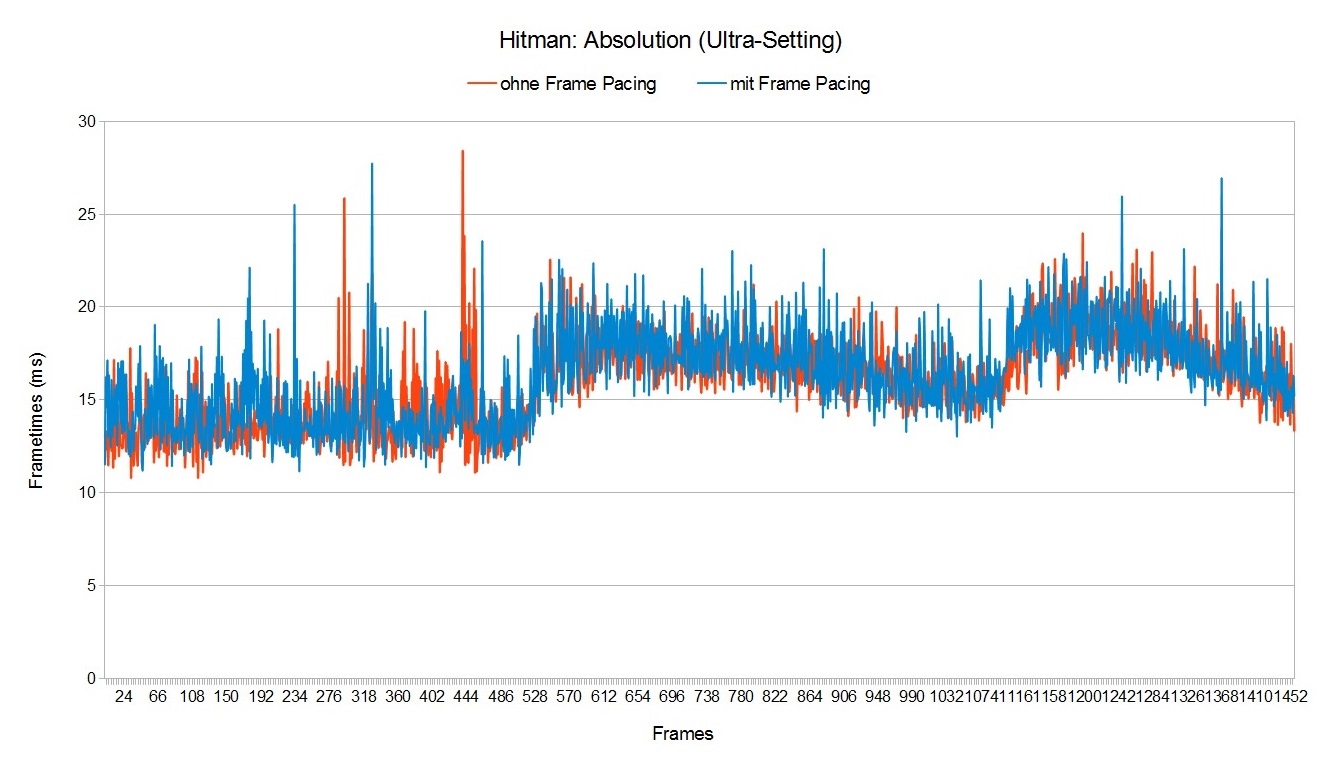

Hitman: Absolution
Hitman: Absolution
7.9
Windows 8 Experience Index
Processor
Calculations per second
7.9
Memory (RAM)
Memory operations per second
7.9
Graphics
Desktop performance for Windows Aero
8
Gaming graphics
3D business and gaming graphics
8
Primary hard disk
Disk data transfer rate
8.1

GPU Performance

Synthetic graphic benchmarks are a piece of cake for the One K73-3S. The results of the DirectX 11 tests are especially impressive. A Fire Strike GPU score of 10,354 points cannot be reached by a single GPU. Even with the latest WHQL driver (320.49), the GeForce GTX 780M loses by around 45% (5,744 points @ One K73-3N). A single HD 8970M card can process 3DMark 2013 only half as fast (5,110 points @ One K73-3N).

In the Unigine Heaven 3.0 benchmark (1920x1080, High, Tessellation normal), the dual GPU system performs similarly. 123 fps is an extra 14% over the GeForce GTX 680M SLI (108 fps @ Schenker XMG U702). While a GeForce GTX 780M runs about 40% slower (~77 fps), a Radeon HD 8970M reaches about exactly half (~61 fps). In older DX11 and DX9 benchmarks, the difference between the GPUs is not as great.

3DMark 11 - 1280x720 Performance GPU (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
12361 Points
Radeon HD 8970M (12.103.0.0)
One K73-3N
6818 Points -45%
GeForce GTX 780M (311.27)
Schenker XMG P703
7900 Points -36%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
11109 Points -10%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
10983 Points -11%
3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
38373 Points
Radeon HD 8970M (12.103.0.0)
One K73-3N
23882 Points -38%
GeForce GTX 780M (311.27)
Schenker XMG P703
27823 Points -27%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
35926 Points -6%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
35538 Points -7%
3DMark 06 Standard Score
25388 points
3DMark Vantage P Result
33489 points
3DMark 11 Performance
10816 points
3DMark Ice Storm Standard Score
136464 points
3DMark Cloud Gate Standard Score
22959 points
3DMark Fire Strike Score
8145 points
Help

Storage Device

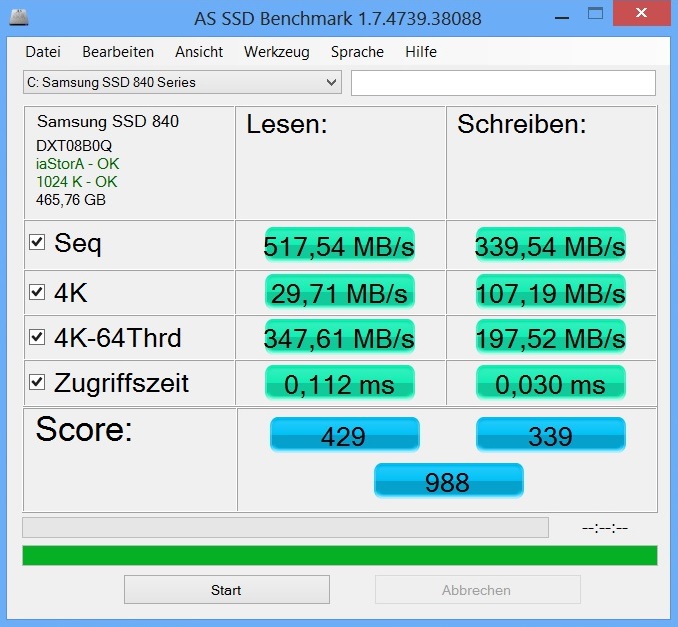

AS SSD Benchmark
AS SSD Benchmark

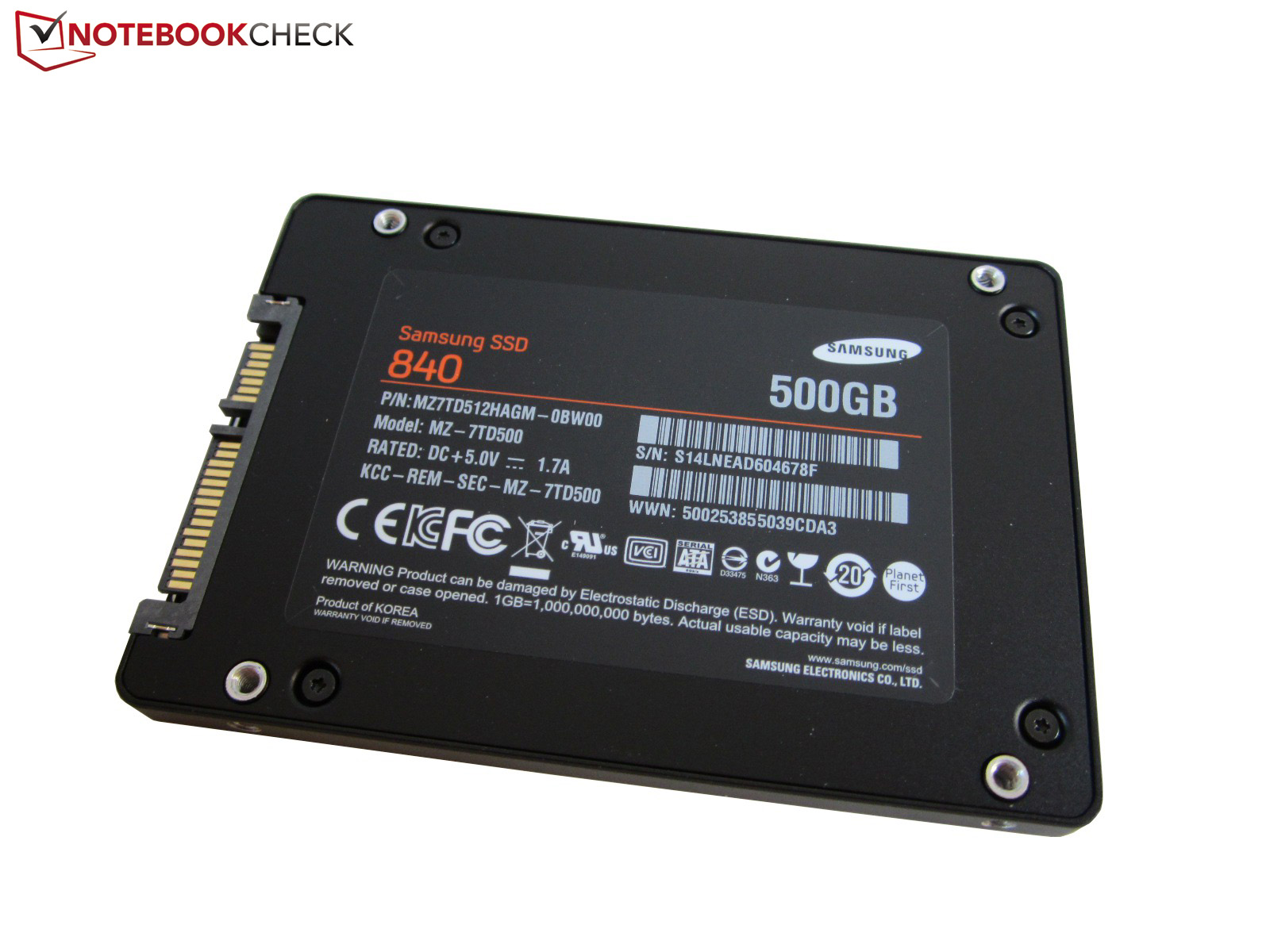

The operating system was found installed on a 500 GB Samsung 840 SSD. Although One did not choose high-quality MLC storage (standard is TLC storage), the Samsung 840 is a good choice for gamers as it is faster than traditional HDDs.

The SATA-III model does not have to hide from the competition. 518 MB/s in sequential read tests of AS SSD benchmark earns the drive respect. The sequential write rate of 340 MB/s is "merely" good. Some competitors, like the OCZ Vertex 4, offer over 400 MB/s.

In everyday use, the performance with small files is important. Thankfully, the Samsung drive had no problems with this task. The access time is 0.11 ms (Read) and 0.03 ms (Write) - no reason for complaint. Those who have the money should pick the Pro version (longer life).

Samsung SSD 840 500GB MZ7TD512HAGM
Sequential Read: 534 MB/s
Sequential Write: 329 MB/s
512K Read: 435.1 MB/s
512K Write: 324.6 MB/s
4K Read: 32.03 MB/s
4K Write: 119.9 MB/s
4K QD32 Read: 394.8 MB/s
4K QD32 Write: 269.1 MB/s

System Performance

It is not surprising that the system performs at a high level. 20,125 points in PCMark Vantage indicate a strong, balanced system. Other high-end notebooks, like the MSI GT70H (20,318 points) or the One K33-3E (20,174 points) can only reach these high levels thanks to their respective SSDs.

In PCMark 7, the test model continues this positive trend. A total result of 5,412 points allows the 17- inch notebook to overtake the Alienware M18x R2, which runs on the Core i7-3920XMtwo Radeon HD 7970M GPUs and a Micron RealSSD C400.

PCMark Vantage Result
20125 points
PCMark 7 Score
5412 points
Help

Gaming Performance

Almost all games ran at max details.
Almost all games ran at max details.

As long as the appropriate profile is picked, every modern game should run with all options set to max, active anti-aliasing and Full HD resolution. Of the 28 tested games, only Company of Heroes 2 stuttered very heavily. Even games like Crysis 3Metro: Last Light or Hitman: Absolution run at more than 35 fps (Ultra settings).

It is not only due to the driver update that the dual-GPU system performs 10% faster than the GeForce GTX 680M SLI and 30% faster than the Radeon HD 7970M CF. A GeForce GTX 780M is about 20% slower. The lead over a single HD 8970M is significant: 33% leaves plenty of breathing space. In contrast, SLI systems are far more efficient (50+).

If we ignore the negative anomalies, the performance gain is a lot higher as can be seen from the tables at the end if this review. In most cases, the CrossFire duo processes 40-100% faster.

Graphics Card Overall performance at Ultra settings
Radeon HD 8970M CrossFire Basis
GeForce GTX 680M SLI -11 %
GeForce GTX 780M -16 %
Radeon HD 7970M CrossFire -24 %
Radeon HD 8970M -25 %

As we expected, while testing the AMD GPUs, we found a lot of anomalies, which should be corrected by future drivers:



  • Alan Wake: heavy graphical errors regardless of settings
  • Anno 2070: performance fluctuations in the main menu
  • Assassin's Creed III: still poor performance in comparison to Nvidia
  • Far Cry 3: stuttered at maximum settings despite a good frame rate
  • FIFA 13: poor shadows
  • F1 2012: lower speeds when using an external display and FPS fluctuations while using the internal display.
  • Guild Wars 2Counter-Strike: Global Offensive and FIFA 13: slower than with a single GPU
  • Sleeping Dogs: hangs at start and causes an undesired restart
  • Other: in most games, the display flickered. Changing and launching windows often showed graphical errors. Some easy tasks were better performed by a single GPU. In addition, there were sporadic drops (for example, in the Cloud Gate test of 3DMark 2013). Also ugly: while idle, the second HD 8970M runs at full speed and 99% load (according to GPU-Z).
low med. high ultra
Battlefield 3 (2011) 120.6 112.9 86.2
The Elder Scrolls V: Skyrim (2011) 79 71.6
Anno 2070 (2011) 160.4 129.1 104.1
Alan Wake (2012) 123 84.1
Risen 2: Dark Waters (2012) 113.3 89.8 71.8
Dirt Showdown (2012) 92.2 88 87
Max Payne 3 (2012) 82 78.5 77.3
Sleeping Dogs (2012) 124.8 109.5 62.5
Counter-Strike: GO (2012) 186.1 159.7 127.8
Guild Wars 2 (2012) 39.8 36.6
F1 2012 (2012) 101 69
Borderlands 2 (2012) 137 131 119
Fifa 13 (2012) 362.3 266.2 213
Dishonored (2012) 128.8 128.2 128.2
Need for Speed: Most Wanted (2012) 60 59.8 59.8
Call of Duty: Black Ops 2 (2012) 243.1 207.3 158.2
Hitman: Absolution (2012) 76.4 68.1 65.4
Assassin´s Creed III (2012) 44.6 43.1 32.5
Far Cry 3 (2012) 96.8 78.8 51
Dead Space 3 (2013) 168.5 168.2 166.7
Crysis 3 (2013) 114.9 91.2 37.8
Tomb Raider (2013) 369.5 275.1 126
SimCity (2013) 118.3 90.4 47.8
BioShock Infinite (2013) 161.4 146.6 86.1
Metro: Last Light (2013) 97.9 79.3 53
GRID 2 (2013) 140.8 128.4 110.3
Company of Heroes 2 (2013) 57.6 48.9 23.2
Dota 2 (2013) 102.3 97.8

Emissions

System Noise

Like the predecessor, the P370SM barebones has high noise emissions. An average of 38 dB(A) while idle is unnecessary and indicate poor ventilation. Sometimes the value rises to 41 dB(A), which is a far more audible level. The DVD burner emits 40 dB(A) while playing DVDs.

In 3D mode, the K73-3S runs slightly louder. 46 dB(A) in the first scene of 3DMark 06 and 53 dB(A) at full load are very loud. Depending on the genre and volume of the game, the emissions might drown out the game noises. Only with a headset is it possible to enjoy the games in peace. Despite the weaker GeForce GTX 765M SLI, the Schenker XMG P723 was similarly loud.

Clevo seems to regulate the fan speeds primarily based on the load and temperature. This impression was gleaned from our test of the Radeon HD 8970M. We hold out hope that one day Clevo will take another look at their cooling system, as other manufacturers, like MSI (GT70) or Asus (G750) integrate far better cooling.

Noise Level

Idle
37 / 37.5 / 41.1 dB(A)
DVD
38.6 / dB(A)
Load
45.9 / 53 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

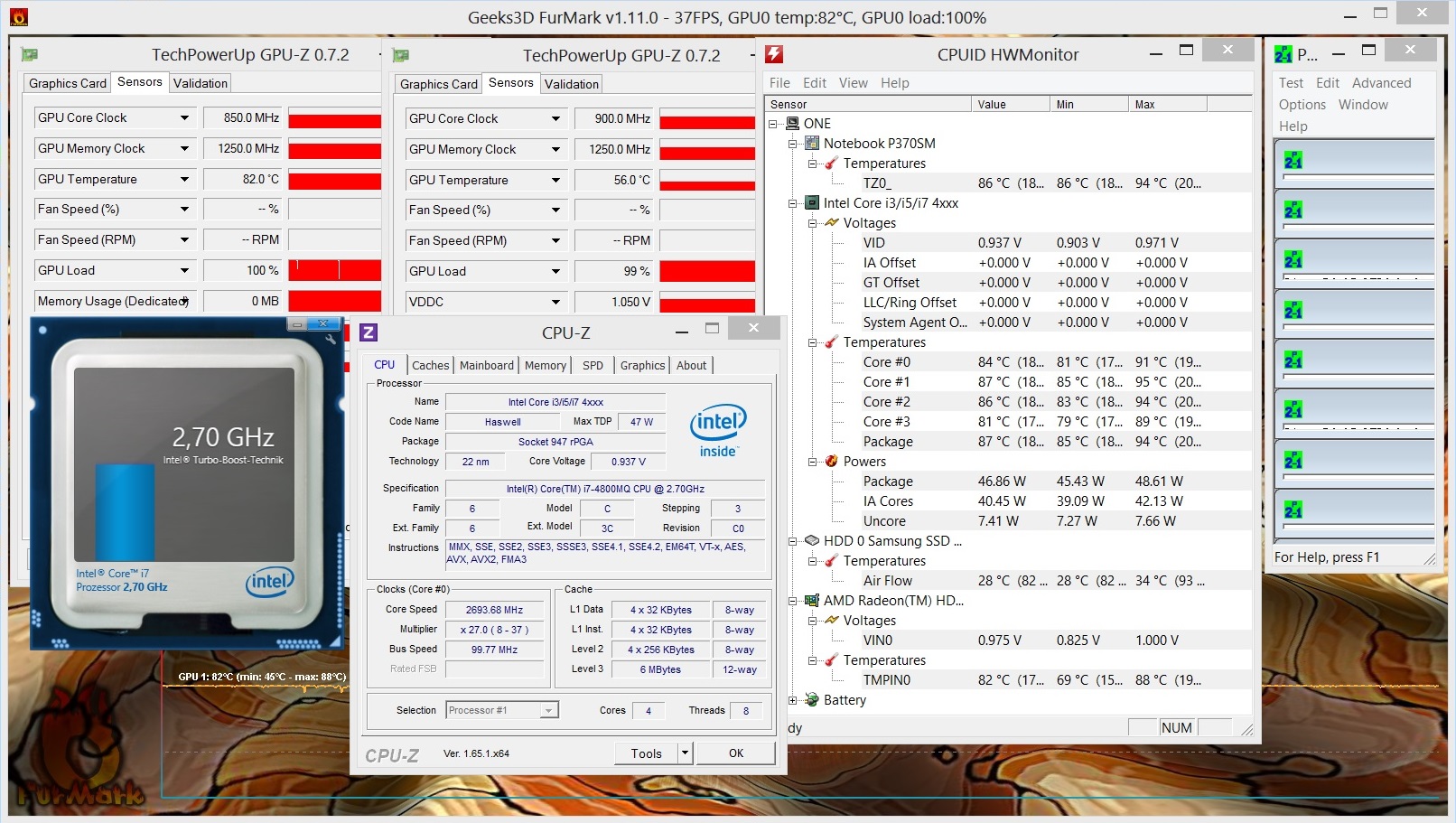

Stress test (Furmark & Prime)
Stress test

The temperatures are very moderate. While the case settles around 31 °C (87.8 °F) at full load, in idle mode, it barely reaches 28 °C (82.4 °F). Those users who did not pick hot 2.5-inch drives (the XMG P723 serves as a negative example), can enjoy surprisingly cool hand-rest regions.

Even the fan regions do not heat up uncomfortably during 3D mode. At a max of 35 °C (95 °F) above and 41 °C (105.8 °F) below, the emissions are very good. Long gaming sessions are not a problem with our test model, whereas compact/lighter models like the MSI GE70 or the One K33-3E have far higher temperatures.

Thanks to the fast fan, the hardware is in no danger of dying out due to heat. It is sad that the CPU reaches 90 °C (194 °F) despite inactive Turbo Boost in the stress test (FurMark + Prime95), but this is somewhat balanced out by the two GPUs which reach about 82 °C (179.6 °F, primary GPU) and 56 °C (132.8 °F, secondary GPU) after about an hour of the same test. The far lower temperatures of the second GPU leave some doubts about whether One is optimally using the secondary GPU.

Max. Load
 33.5 °C
92 F
35.2 °C
95 F
33 °C
91 F

 32 °C
90 F
32.4 °C
90 F
31.3 °C
88 F

 28.1 °C
83 F
26.9 °C
80 F
26 °C
79 F

Maximum: 35.2 °C = 95 F
Average: 30.9 °C = 88 F
36.7 °C
98 F
40.2 °C
104 F
41 °C
106 F
31 °C
88 F
31.3 °C
88 F
31.3 °C
88 F
25.7 °C
78 F
25.4 °C
78 F
28.2 °C
83 F
Maximum: 41 °C = 106 F
Average: 32.3 °C = 90 F
Power Supply (max.)  46.3 °C = 115 F | Room Temperature 24 °C = 75 F | Voltcraft IR-550
(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(+) The maximum temperature on the upper side is 35.2 °C / 95 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(±) The bottom heats up to a maximum of 41 °C / 106 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.3 °C / 83 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+0.8 °C / 1.4 F).

Speakers

Once again, we forward the reader to the review of the Schenker XMG P723

Energy Management

Power Consumption

The idle consumption is close to that of the GeForce GTX 765M SLI. Due to missing graphics switching, the K73-3S will always require more than 30 W. 35-47 W while idle are far from ideal.

At load, the consumption is above average. The laptop pulls about 159 W from the socket while running 3DMark 06. The max value is 226 W. The test configuration of the XMG P723 settled for 123 W (-23%) and 208 W (-8%), which is around the level of the smaller sibling, the XMG P703 (128/209 W @ GTX 780M).

Power Consumption
Off / Standbydarklight 0.1 / 0.4 Watt
Idledarkmidlight 34.7 / 41.8 / 46.2 Watt
Load midlight 158.8 / 226.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Life

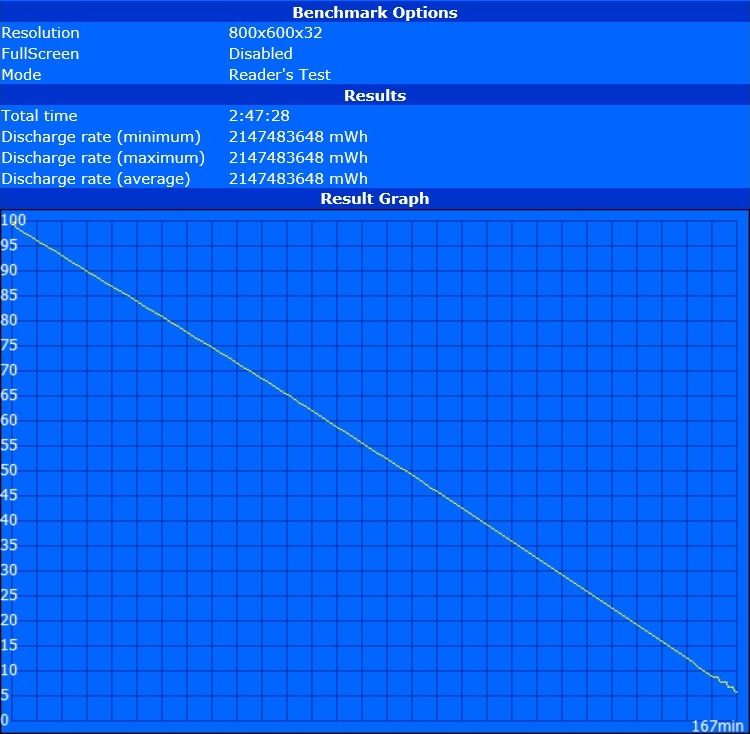

Max battery life (Reader's Test)
Reader's Test
Minimum run time (Classic Test)
Classic Test

A good battery life should not be expected of the K73-3S. Like the XMG P723, the powerful Lithium-Ion battery (89 Wh, 5,900 mAh) is empty after 3 hours. One hour of gaming or 2 hours of DVD playback is hardly ideal. If the CrossFire could have been turned off, the run times would have been much longer.

Battery Runtime
Idle (without WLAN, min brightness)
2h 47min
DVD
2h 00min
Load (maximum brightness)
1h 20min

Verdict

One K73-3S
One K73-3S

Gaming enthusiasts, who want a powerful high-end notebook, can truly enjoy the One K73-3S. The 4 kg (~8.8 pound) chassis scores thanks to its cool surface temperatures, backlit keyboard, easy maintenance and good connectivity. The decent sound and bright Full HD display are additional strengths.

The performance is not lacking in the 17-inch model. An SSD allows the model to run very fast. Gamers will primarily be happy about the huge gaming prowess. Only a few notebooks offer similar performance.

Unfortunately, the AMD driver is not perfect. Graphic errors and performance fluctuations are not part of any description of an ideal GPU. Those users who want to be on the safe side should use the Clevo driver or pick an Nvidia system, as this main competition offers a much more balanced performance with their SLI system and drivers.

The battery life, touchpad and the noise emissions were not satisfactory either. Regardless whether idle or in gaming mode: the fan runs very loudly. The heavy weight and chunky build prevent us from rewarding the model a better score.

Note: the GeForce GTX 780M SLI will be tested soon in the Alienware 18.





Attachment

Company of Heroes 2 - 1920x1080 Maximum / Higher / High AA:High (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
23.2 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
22.8 fps -2%
GeForce GTX 780M (320.49)
One K73-3N
23.3 fps 0%
GRID 2 - 1920x1080 Ultra Preset AA:4xMS (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
110.3 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
62.2 fps -44%
GeForce GTX 780M (320.49)
One K73-3N
71 fps -36%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
53 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
31.9 fps -40%
GeForce GTX 780M (320.49)
One K73-3N
41 fps -23%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
86.1 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
43.7 fps -49%
GeForce GTX 780M (311.27)
Schenker XMG P703
46.8 fps -46%
SimCity - 1920x1080 Ultra / High AA:on (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
47.8 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
44.4 fps -7%
GeForce GTX 780M (311.27)
Schenker XMG P703
40 fps -16%
Tomb Raider - 1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
126 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
61.7 fps -51%
GeForce GTX 780M (311.27)
Schenker XMG P703
65.5 fps -48%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
37.8 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
23.4 fps -38%
GeForce GTX 780M (311.27)
Schenker XMG P703
29.2 fps -23%
Dead Space 3 - 1920x1080 Very High Preset (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
166.7 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
109.4 fps -34%
GeForce GTX 780M (311.27)
Schenker XMG P703
143.6 fps -14%
Far Cry 3 - 1920x1080 DX11 Ultra Preset (HDAO, Enhanced Alpha To Coverage) AA:4x MS (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
51 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
28.3 fps -45%
GeForce GTX 780M (311.27)
Schenker XMG P703
30.4 fps -40%
Assassin´s Creed III - 1920x1080 Very High (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
32.5 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
28.4 fps -13%
GeForce GTX 780M (311.27)
Schenker XMG P703
42.9 fps +32%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
47.6 fps +46%
Hitman: Absolution - 1920x1080 Ultra Preset AA:4xMS AF:16x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
65.4 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
35.2 fps -46%
GeForce GTX 780M (311.27)
Schenker XMG P703
33.8 fps -48%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
44.1 fps -33%
Call of Duty: Black Ops 2 - 1920x1080 (Extra) High / On, FXAA AA:4xMS (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
158.2 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
84.2 fps -47%
GeForce GTX 780M (311.27)
Schenker XMG P703
95 fps -40%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
108.1 fps -32%
Need for Speed: Most Wanted - 1920x1080 High / On (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
59.8 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
53.6 fps -10%
GeForce GTX 780M (311.27)
Schenker XMG P703
60 fps 0%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
47.7 fps -20%
Dishonored - 1920x1080 High / On, FOV: 75 AA:FX (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
128.2 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
112 fps -13%
GeForce GTX 780M (311.27)
Schenker XMG P703
127.1 fps -1%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
130 fps +1%
Fifa 13 - 1920x1080 High AA:4xMS (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
213 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
295.4 fps +39%
GeForce GTX 780M (311.27)
Schenker XMG P703
319.2 fps +50%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
374 fps +76%
Borderlands 2 - 1920x1080 (Ultra) High / On (PhysX low) AA:FX AF:8x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
119 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
69.9 fps -41%
GeForce GTX 780M (311.27)
Schenker XMG P703
86.6 fps -27%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
114.5 fps -4%
F1 2012 - 1920x1080 Ultra Preset AA:4xMS (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
69 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
65 fps -6%
GeForce GTX 780M (311.27)
Schenker XMG P703
104 fps +51%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
109 fps +58%
Guild Wars 2 - 1920x1080 All Maximum / On AA:FX (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
36.6 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
39.7 fps +8%
GeForce GTX 780M (311.27)
Schenker XMG P703
41 fps +12%
GeForce GTX 680M SLI (310.51)
Schenker XMG U702
51.9 fps +42%
Counter-Strike: GO - 1920x1080 (Very) High, FXAA AA:4x MS AF:8x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
127.8 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
194.1 fps +52%
GeForce GTX 780M (311.27)
Schenker XMG P703
187.4 fps +47%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
228.5 fps +79%
Sleeping Dogs - 1920x1080 Extreme Preset AA:Extreme (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
62.5 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
30.2 fps -52%
GeForce GTX 780M (311.27)
Schenker XMG P703
30.9 fps -51%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
22.6 fps -64%
Max Payne 3 - 1920x1080 Very High, DX11 AA:Very High FX AF:8x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
77.3 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
61.4 fps -21%
GeForce GTX 780M (311.27)
Schenker XMG P703
54 fps -30%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
84.6 fps +9%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
69.9 fps -10%
Dirt Showdown - 1920x1080 Ultra Preset AA:4xMS (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
87 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
55.8 fps -36%
GeForce GTX 780M (311.27)
Schenker XMG P703
66 fps -24%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
84.2 fps -3%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
50.9 fps -41%
Risen 2: Dark Waters - 1920x1080 Ultra / on AA:on AF:8x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
71.8 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
48.4 fps -33%
GeForce GTX 780M (311.27)
Schenker XMG P703
53.7 fps -25%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
43.2 fps -40%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
70.4 fps -2%
Alan Wake - 1920x1080 High Preset AA:4x AF:8x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
84.1 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
49.2 fps -41%
GeForce GTX 780M (311.27)
Schenker XMG P703
52.4 fps -38%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
40.4 fps -52%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
73.9 fps -12%
Anno 2070 - 1920x1080 Very High Preset AA:on AF:4x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
104.1 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
58.9 fps -43%
GeForce GTX 780M (311.27)
Schenker XMG P703
72.8 fps -30%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
52.8 fps -49%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
91.1 fps -12%
The Elder Scrolls V: Skyrim - 1920x1080 Ultra Preset AA:8x AF:16x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
71.6 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
59.2 fps -17%
GeForce GTX 780M (311.27)
Schenker XMG P703
68.7 fps -4%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
64.2 fps -10%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
87.2 fps +22%
Battlefield 3 - 1920x1080 ultra AA:4x MS AF:16x (sort by value)
Radeon HD 8970M CrossFire (13.8 Beta2)
One K73-3S
86.2 fps
Radeon HD 8970M (12.103.0.0)
One K73-3N
45.3 fps -47%
GeForce GTX 780M (311.27)
Schenker XMG P703
49.2 fps -43%
Radeon HD 7970M CrossFire (8.934.2.1000)
Alienware M18x R2
67.9 fps -21%
GeForce GTX 680M SLI (302.77)
Schenker XMG P722
65.6 fps -24%
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review: One K73-3S. Provided by ECT Distibution GmbH.
In Review: One K73-3S. Provided by ECT Distibution GmbH.

Specifications

One K73-3S
Processor
Intel Core i7-4800MQ 4 x 2.7 - 3.7 GHz (Intel Core i7)
Graphics adapter
AMD Radeon HD 8970M Crossfire - 2x 4096 MB VRAM, Core: 900 MHz, Memory: 1250 MHz, GDDR5, Catalyst 13.8 Beta2
Memory
8 GB
, 2x 4096 MB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 4 Slots, max. 32 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel, Chi Mei N173HGE, TN LED, Diagonal: 43.94 cm, Full HD, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Storage
Samsung SSD 840 500GB MZ7TD512HAGM, 500 GB
, , Slots: 2x 2.5 inch & 2x mSATA
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
1 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 Thunderbolt, 1 HDMI, 1 Kensington Lock, 1 eSata, Audio Connections: Headphones, Microphone, Line-in, S/PDIF (7.1 out), Card Reader: MMC,RSMMC,SD,Mini SD,SDHC,SDXC,MS,MS Pro,MS Duo, 1 Fingerprint Reader, TPM 1.2
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Centrino Wireless-N 2230 (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Optical drive
TSSTcorp CDDVDW SN-208DB
Size
height x width x depth (in mm): 54 x 419 x 293 ( = 2.13 x 16.5 x 11.54 in)
Battery
89 Wh Lithium-Ion, 5900 mAh, 15.12 V, P370BAT-8, 8 cells, 452 grams
Operating System
Microsoft Windows 8 64 Bit
Camera
Webcam: 2.0 MP
Additional features
Speakers: 2.1 (Onkyo, Sound Blaster X-Fi MB3), Keyboard Light: yes, Power Adapter: 330 watts, Manuals, Drivers DVD, Cleaning cloth, SSD manual and DVD, Hard disk accessories, Microsoft Office 365 Trial, 12-36 Months Warranty
Weight
4.19 kg ( = 147.8 oz / 9.24 pounds), Power Supply: 1.242 kg ( = 43.81 oz / 2.74 pounds)
Price
2080 Euro



The Soft-Touch cover is easily dirtied.
The Soft-Touch cover is easily dirtied.
Like most of the competitors, dark tones dominate our test model.
Like most of the competitors, dark tones dominate our test model.
The bottom holds a maintenance flap.
The bottom holds a maintenance flap.
With the battery, this dual-GPU configuration brings more than 4 kgs to the scale.
With the battery, this dual-GPU configuration brings more than 4 kgs to the scale.
The opening angle could have been wider.
The opening angle could have been wider.
The heavy 17 inch chassis offers a solid build.
The heavy 17 inch chassis offers a solid build.
Great connectivity.
Great connectivity.
The test model offers a variety of upgrade options.
The test model offers a variety of upgrade options.
Qualitatively, the One K73-3S is great.
Qualitatively, the One K73-3S is great.
Audio jacks placed further back would have served the user better.
Audio jacks placed further back would have served the user better.
On the right side, the positioning of the ports is good.
On the right side, the positioning of the ports is good.
The power-hungry components require lots of fresh air.
The power-hungry components require lots of fresh air.
Three fans are responsible for the cooling.
Three fans are responsible for the cooling.
Despite the powerful 8-cell battery, the run times are rather meager.
Despite the powerful 8-cell battery, the run times are rather meager.
Few notebooks have heatpipes like this.
Few notebooks have heatpipes like this.
The subwoofer and the WLAN module.
The subwoofer and the WLAN module.
Two DDR3-RAM slots can be found on the motherboard...
Two DDR3-RAM slots can be found on the motherboard...
...with two more placed on top.
...with two more placed on top.
The keyboard covers the secondary mSATA slot.
The keyboard covers the secondary mSATA slot.
The cooling construction deserves praise: adventurous.
The cooling construction deserves praise: adventurous.
Two 9.5 mm hard disks can be installed (2.5 inch).
Two 9.5 mm hard disks can be installed (2.5 inch).
The Samsung 840 SSD is an attractive middle-class model.
The Samsung 840 SSD is an attractive middle-class model.
2.0 MP webcam.
2.0 MP webcam.
Warning: the audio software was not pre-installed on our test model.
Warning: the audio software was not pre-installed on our test model.

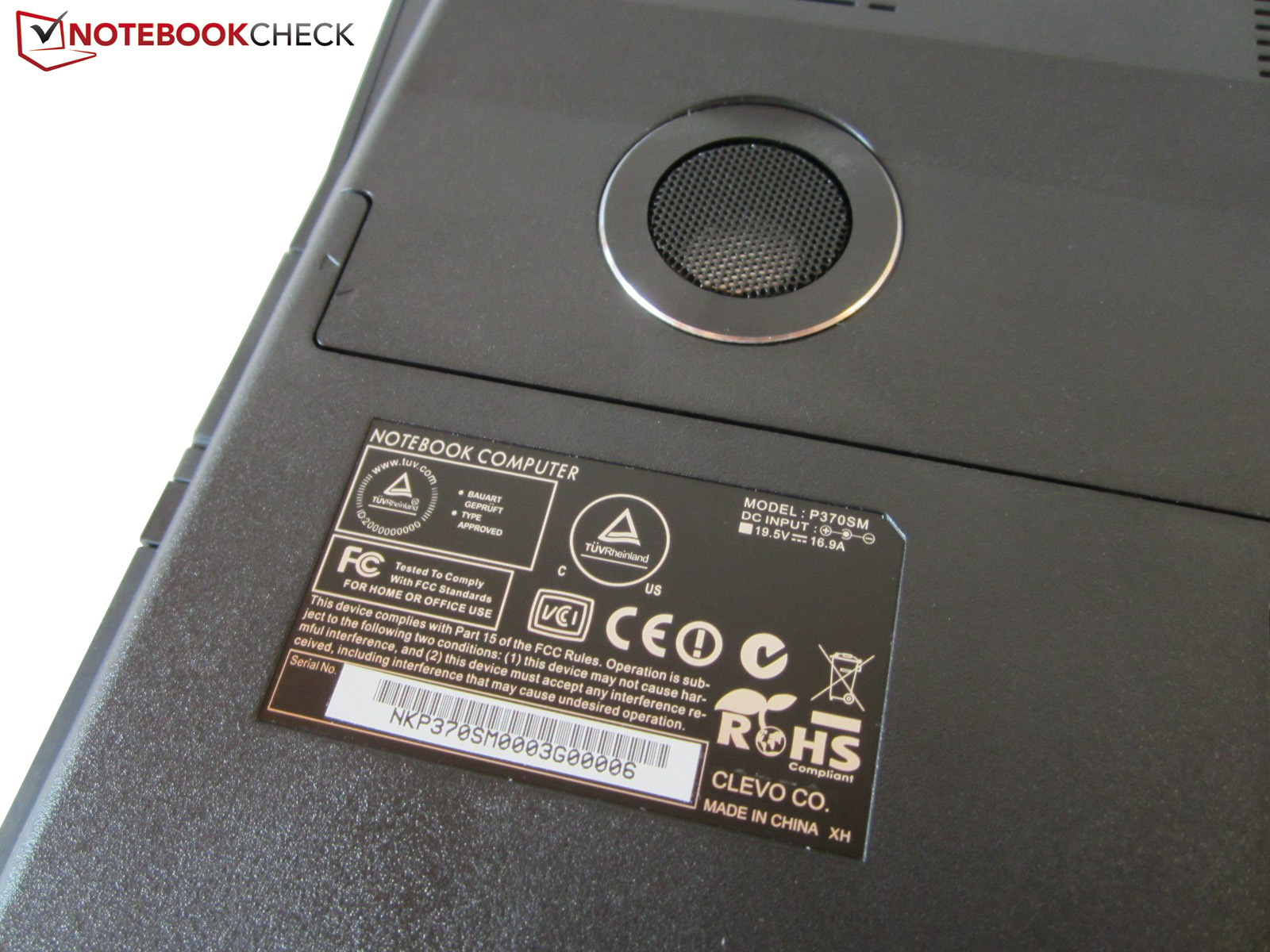

The manufacturer uses the Clevo P370SM barebone.
The manufacturer uses the Clevo P370SM barebone.

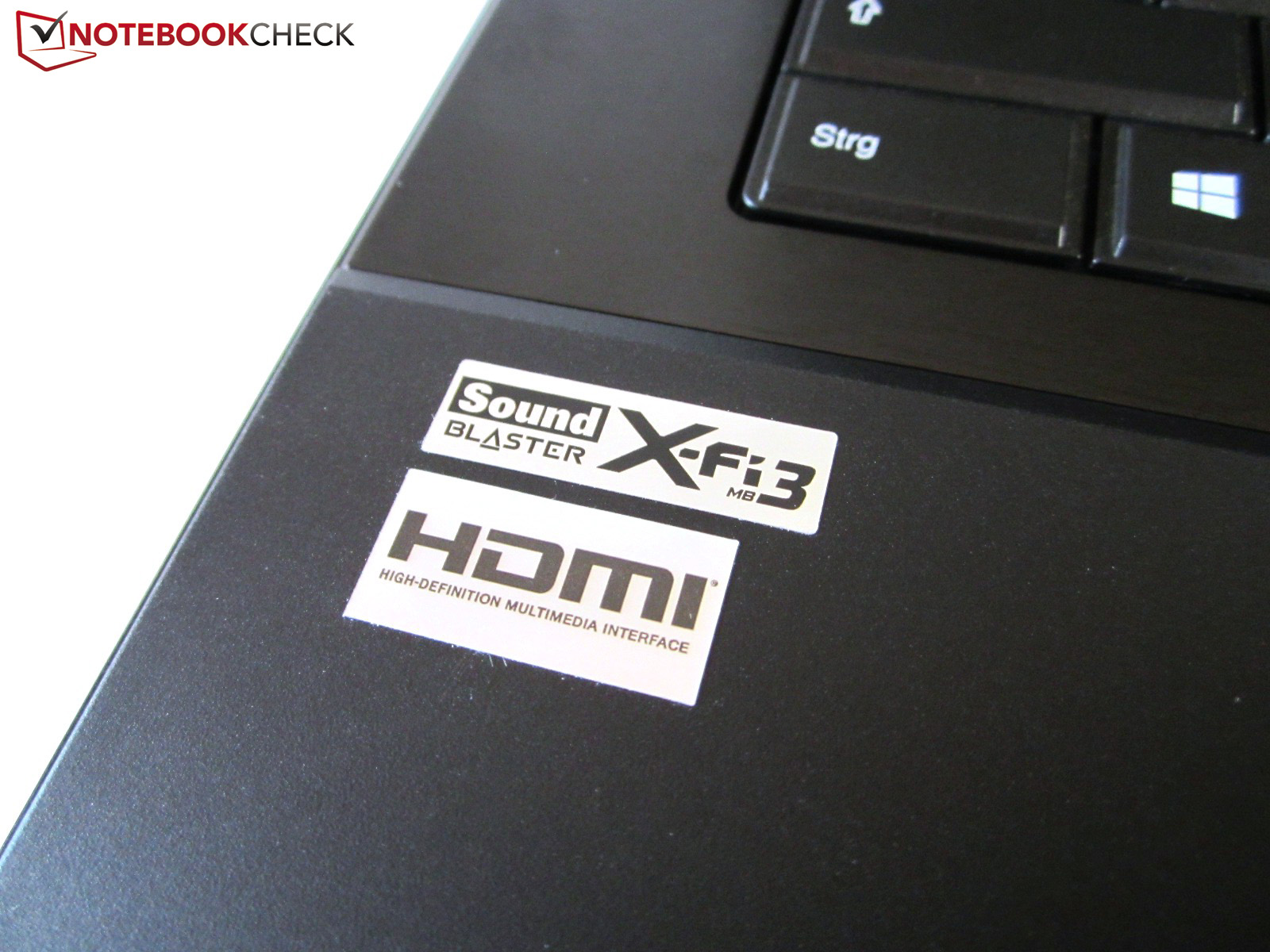

The 2.1 sound system is decent but not exciting.
The 2.1 sound system is decent but not exciting.
The positioning of the keys requires getting used to.
The positioning of the keys requires getting used to.
A fingerprint reader and TPM module are nice extras.
A fingerprint reader and TPM module are nice extras.
Numeric pad allows us to regulated the backlight.
Numeric pad allows us to regulated the backlight.
The touchpad should be improved by Clevo.
The touchpad should be improved by Clevo.
DVD or Blu-ray drive? The customer chooses.
DVD or Blu-ray drive? The customer chooses.
Four of the five USB ports are blue (indicating USB 3.0)
Four of the five USB ports are blue (indicating USB 3.0)
The HDMI interface provides digital video output.
The HDMI interface provides digital video output.
The emissions are pushed outwards from the back.
The emissions are pushed outwards from the back.
Wireless or wired Internet access.
Wireless or wired Internet access.
Top: Line-in, S/PDIF, Microphone and Headphones.
Top: Line-in, S/PDIF, Microphone and Headphones.
The power adapter weighs about 1,200 grams.
The power adapter weighs about 1,200 grams.
If you pick a Samsung SSD, you get plenty of extras.
If you pick a Samsung SSD, you get plenty of extras.

Similar Devices

Devices from a different Manufacturer and/or with a different CPU

Review EUROCOM X7 (Clevo P375SM) Notebook
Radeon HD 8970M Crossfire, Core i7 4930MX

Devices with Same Screen Size and/or Weight

One K73-5N (Clevo P771ZM) Notebook Review
GeForce GTX 980M, Core i7 (Desktop) 4790K, 17.30", 3.85 kg
Review Clevo P170SM-A (One K73-4N) Barebones Notebook
GeForce GTX 870M, Core i7 4800MQ, 17.30", 3.744 kg
Review Clevo P150SM (One K56-4N) Barebones Notebook
Radeon R9 M290X, Core i7 4700MQ, 15.60", 3.146 kg
Review One K33-3E (Clevo W230ST Barebones) Notebook
GeForce GTX 765M, Core i7 4702MQ, 13.30", 1.99 kg
Review One K56-3N2 (Clevo P157SM) Notebook
GeForce GTX 780M, Core i7 4700MQ, 15.60", 3.314 kg
In Review: Nvidia GeForce GTX 780M, GTX 770M & GTX 765M
GeForce GTX 780M, Core i7 4700MQ, 15.60", 3.314 kg

Links

Price Comparison

Pros

+Strong contrast non-glare panel
+Low temperature emissions
+Various upgrade options
+Individual configuration
+Very upgrade-friendly
+Great performance
+Backlit keyboard
+Many ports
+No Bloatware


Cons

-Heavy and large even for a 17 inch model
-Hefty noise emissions
-Modest battery life
-Poorly designed touchpad
-Enormous power consumption
-Large power adapter

Shortcut

What we like

The extensive upgrade options and the price-to-performance ratio of the HD 8970M.

What we miss

A good touchpad and acceptable noise emission levels.

What surprises us

AMD appears incapable of fixing their drivers.

The competition

The 17-inch gaming bulls, like Asus G750MSI GT70One K73-3N or Schenker XMG P703.

Rating

One K73-3S - 03/17/2014 v4(old)
Florian Glaser

Chassis
71 / 98 → 72%
Keyboard
81%
Pointing Device
44%
Connectivity
86 / 81 → 100%
Weight
48 / 10-66 → 68%
Battery
68%
Display
80%
Games Performance
98%
Application Performance
87%
Temperature
86 / 95 → 91%
Noise
50 / 90 → 56%
Audio
80%
Average
73%
81%
Gaming - Weighted Average
Florian Glaser, 2013-09- 4 (Update: 2021-05-18)
