Review Lenovo G505s-20255 Notebook

Sascha Mölck (translated by Marco Fernandez), 08/17/2013

Caught in the middle. Lenovo chose AMD APU's Richland generation for the new G505s series. In addition, there is also a dedicated Radeon GPU in the notebooks so that the two graphic cores are working in a Crossfire connection. It sounds like Lenovo is offering a notebook for the economical gamer. Our test determines whether that is true or not.

For the original German review, see here.

Lenovo extends its already vast selection of cheap notebooks with another series. The G505s series is based on AMD APUs and GPUs. If the G505s rings a bell, then you are not mistaken. The G505s series corresponds to the G500s series. However, the latter uses Intel chips instead. We have tested a notebook of the G500s series (Pentium 2020M, HD Graphics) very recently.

To classify the notebook, we look at the competitors HP Pavilion Sleekbook TouchSmart 15-b153sg (AMD A4-4355M, Radeon 7400G) and Acer Aspire E1-571G (Core i3-3110M, GeForce GT 620M).

In this test, we will not go into the details of case, ports, screen, peripheral devices or speakers, since the G505s and the G500s have the same components. Evaluation and description of these components can be seen in the test of the Lenovo G500s.

Features

How we test - equipment

Maintenance

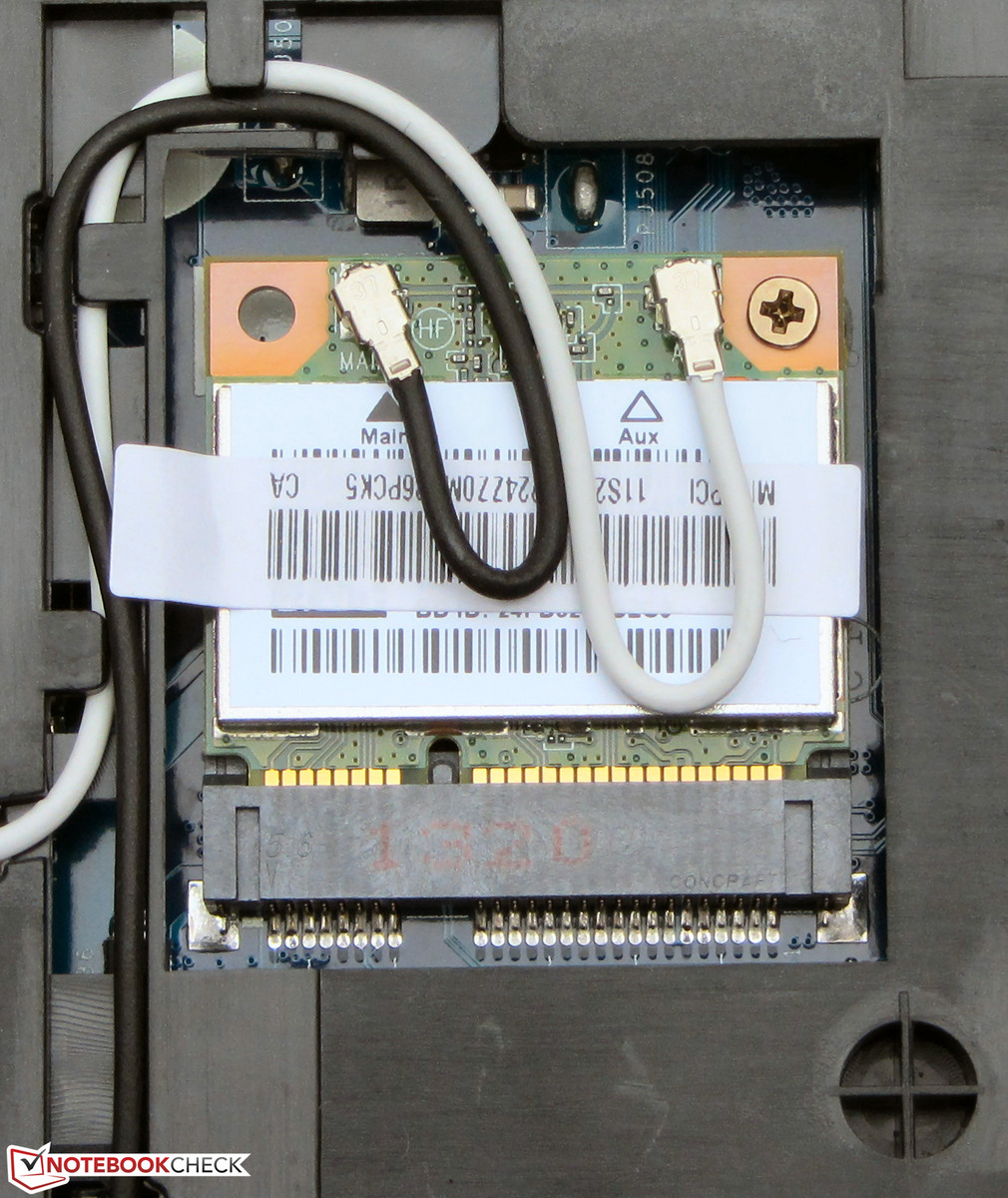

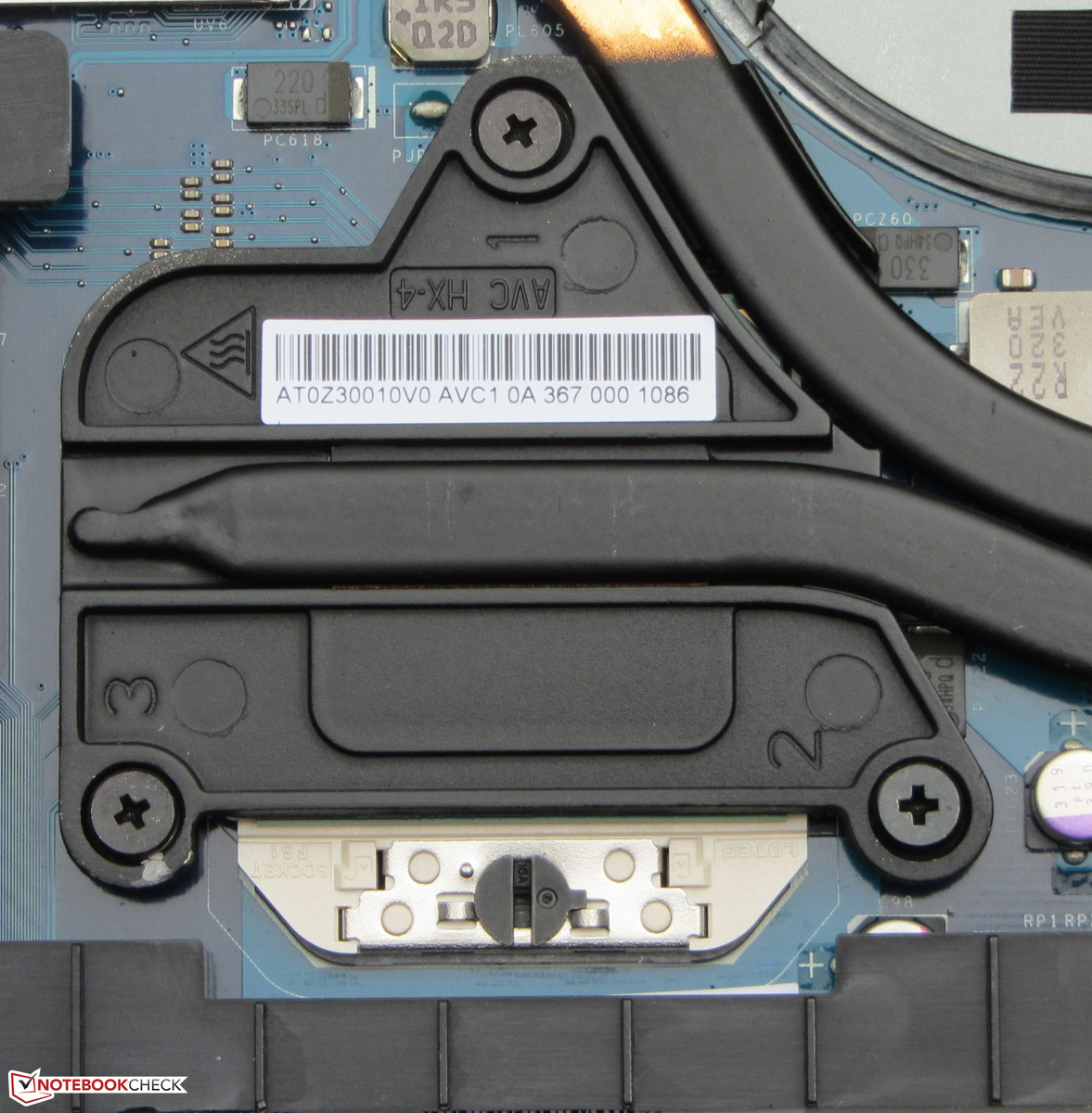

Access to the hardware is possible without any problems, since Lenovo integrated a big maintenance hatch. Behind the hatch, there is the hard drive, the RAM, the fan, the WLAN adapter, the APU and the dedicated GPU. Removing the fan for cleaning is possible. People who have the basic knowhow can also swap the APU.

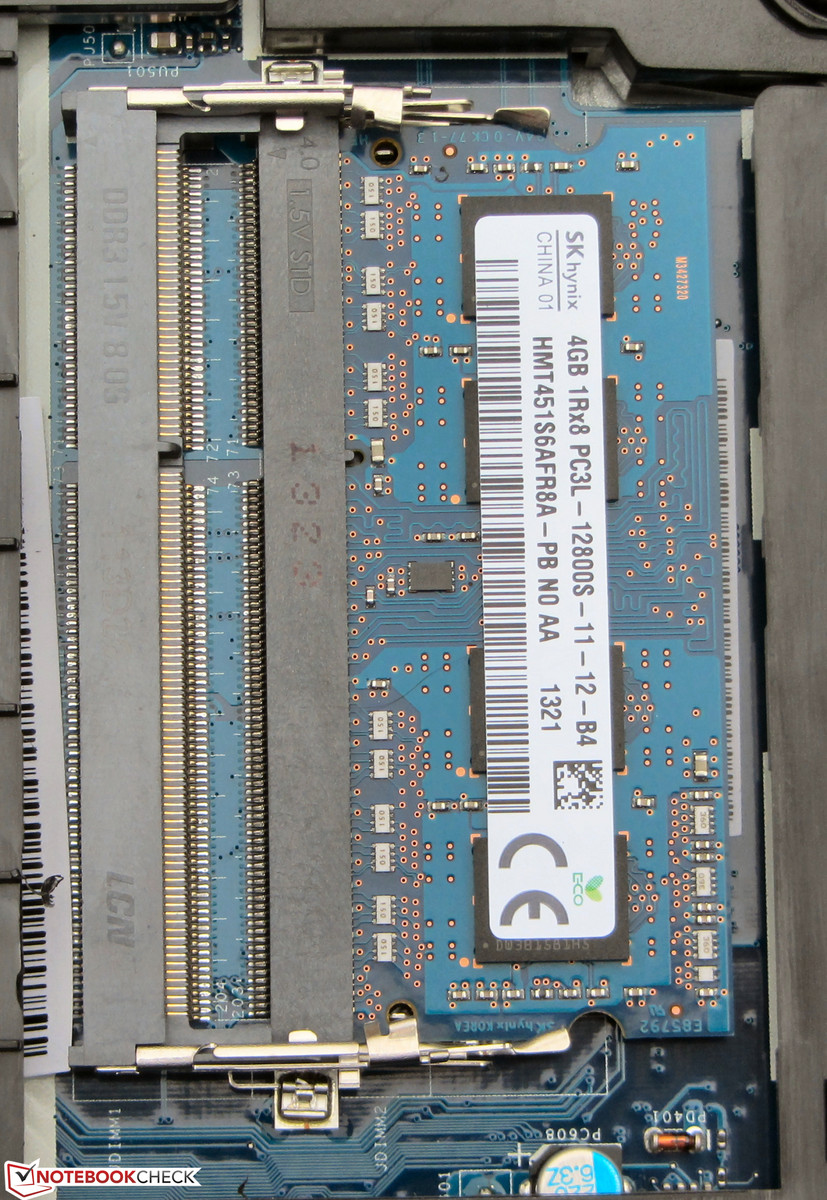

The G505s comes with two RAM slots, just like the G500s. One of the slots is occupied by a 4 GB module. The hard drive can easily be swapped. It is possible to use both hard drives with 7 and 9.5mm thickness. Further information for the maintenance and for swapping parts can be found in the accompanying Hardware Manual. This handbook not only covers the G505s, but also the G500s.

Dual-Channel Mode

The memory modules of modern APUs and CPUs support the so-called dual-channel mode. If there are two RAM modules installed in a computer, then they can be used simultaneously. This profits the whole system because optimally used the CPU and/or the integrated GPU give better results. At the same time, the frame rates of games would also increase. When the dual graphic mode is activated, the benchmark scores of the G505s are not increased through the dual-channel mode. When the dedicated GPU is disabled and only the APU used, then the graphic performance increases.

OS and Recovery

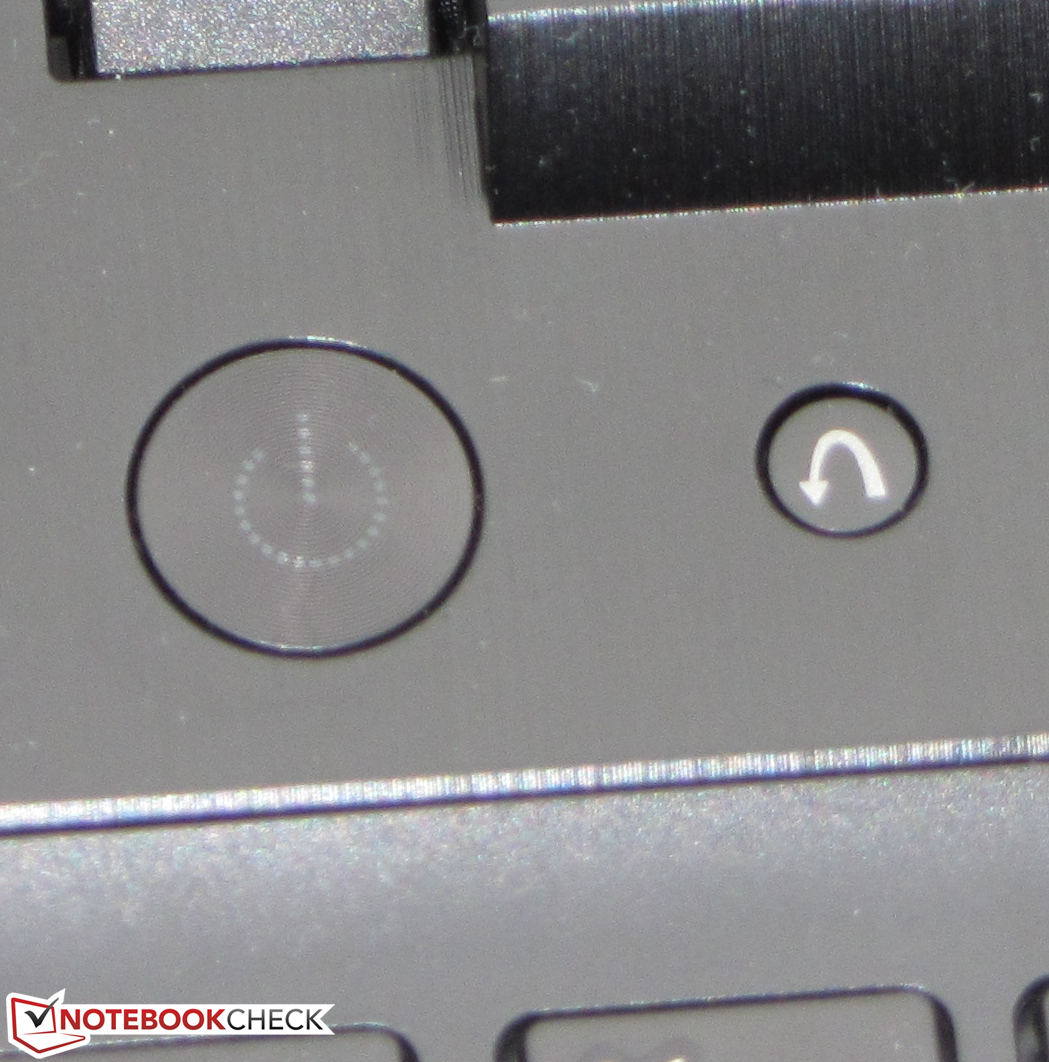

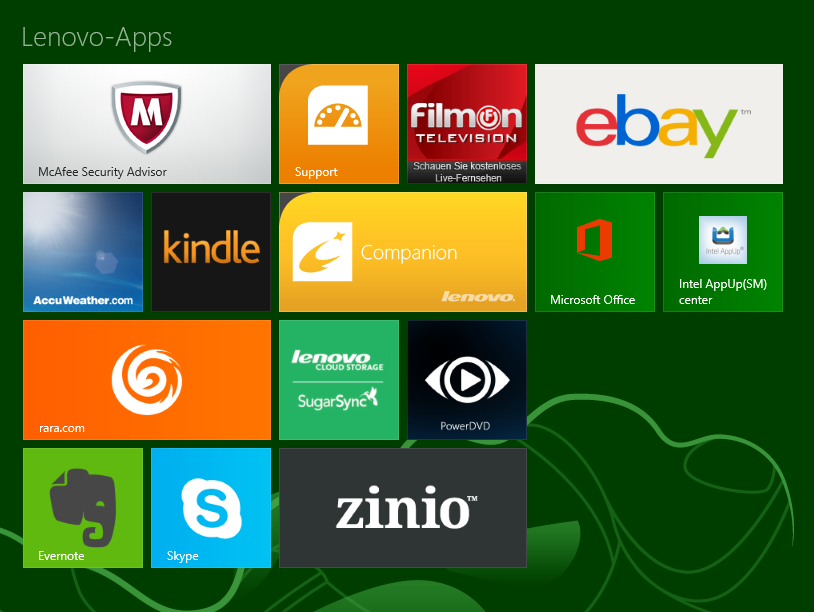

Lenovo has installed Windows 8 (64-bit) on the G505s. A Windows-8-DVD is not included. Lenovo has set up their own system for repair and recovery, the so-called One-Key-Recovery-System. It is launched by pressing the One-Key-Recovery button when the notebook is turned off. This button is placed right next to the power button. When pressed, the notebook turns on and shows a menu. Here, the option "System recovery" can be chosen. The same menu also gives access to the BIOS.

Using Windows 7 on the G505s should not be a problem. Lenovo provides suitable drivers.

Display

Wie wir testen - Display

The G505s has the same Samsung panel as the Lenovo G500s. Consequently, the statements about the G500s display also hold for the G505s.

215
cd/m²
210
cd/m²
199
cd/m²
206
cd/m²
230
cd/m²
209
cd/m²
229
cd/m²
213
cd/m²
204
cd/m²
Distribution of brightness
Information
X-Rite i1Pro 2
Maximum: 230 cd/m²
Average: 212.8 cd/m²
Brightness Distribution: 87 %
Center on Battery: 231 cd/m²
Black: 0.75 cd/m²
Contrast: 307:1

Performance

How we test - Power

The customer gets a simple notebook with an AMD APU and dual graphics solution for the price of about 420 Euros (~$560). Although AMD dual graphics sound very promising, the G505s does not perform well when it comes to computer games. However, it can manage daily tasks without any problems, including office work, Internet communication and video playback (even Full HD videos). At the time of the test, there were two further versions of the series available. People willing to pay about 50 Euros (~$67) more, can buy the same as our test device with 8 GB RAM and a 1 TB hard drive. The third version is equipped with an AMD A8-5550M APU, 8 GB RAM and a 1 TB hard drive. The latter costs about 510 Euros (~$680).

System information Lenovo G505s-20255

Processor

Lenovo has equipped the G505s with an AMD A6-5350M APU that is based on the Richland Architecture. The CPU part of the APU is a dual-core chip working at a base speed of 2.9 GHz. The speed can be increased up to 3.5 GHz (AMD Turbo Core). Thanks to a somewhat faster processing speed, the CPU should perform about 15% better than its predecessor AMD A6-4400M (Trinity). AMD gives a TDP of 35 Watts for the A6-5350M APU.

The CPU test of the Cinebench benchmarks tries to get the CPU to work with 3.5 GHz. This usually works for the single thread tests. Only occasionally the cores are throttled to the range of 1.4 up to 3.4 GHz. In the multithread tests, the throttling occurs more often. The Pavilion (AMD A4-4355MRadeon 7400G) is beaten in all tests. That is not very surprising as its chip is clocked much lower. Both notebooks cannot keep up with the Aspire (Core i3-3110MGeForce GT 620M). It has the strongest CPU. All three notebooks perform similarly in the Cinebench 10 GL tests. In Cinebench R11.5 the G505s delivers the best values.

Cinebench R10 Rendering Single 32Bit
2398
Cinebench R10 Rendering Multiple CPUs 32Bit
2990
Cinebench R10 Shading 32Bit
3615
Cinebench R10 Rendering Single CPUs 64Bit
2838 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
3558 Points
Cinebench R10 Shading 64Bit
3134 Points
Cinebench R11.5 CPU Single 64Bit
0.84 Points
Cinebench R11.5 CPU Multi 64Bit
1 Points
Cinebench R11.5 OpenGL 64Bit
17.23 fps
Help
Cinebench R11.5 - OpenGL 64Bit (sort by value)
Lenovo G505s-20255
Radeon HD 8450G + Radeon HD 8570M Dual Graphics, A6-5350M, Seagate Momentus Thin ST500LT0 12-9WS142
17.23 fps ∼14%
Acer Aspire E1-571G-3114G50Mnks
GeForce GT 620M, 3110M, Toshiba MQ01ABD050
8.37 fps ∼7% -51%
Lenovo G500s-59367693
HD Graphics (Ivy Bridge), 2020M, Seagate Momentus Thin ST500LT0 12-9WS142
9.38 fps ∼8% -46%
HP Pavilion Sleekbook TouchSmart 15-b153sg
Radeon HD 7400G, A4-4355M, Hitachi Travelstar Z5K500 HTS545050A7E380
12.09 fps ∼10% -30%
Lenovo Thinkpad Edge E535-NZR5BGE
Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3
16.82 fps ∼14% -2%
Acer Aspire V5-551-64454G50Makk
Radeon HD 7500G, A6-4455M, Seagate Momentus 5400.6 ST9500325AS
19.5 fps ∼16% +13%
Packard Bell EasyNote TS11SB-250GE
Radeon HD 6620G + HD 7670M Dual Graphics, A8-3520M, WDC Scorpio Blue WD5000BPVT-22HXZT3
23.66 fps ∼19% +37%
Asus K53TK-SX114V
Radeon HD 7670M, A4-3305M, WDC Scorpio Blue WD3200BPVT-80JJ5T0
23.83 fps ∼19% +38%
HP Pavilion Sleekbook 15-b004sg Ultrabook
GeForce GT 630M, 3317U, Western Digital Scorpio Blue WD7500BPVT-60HXZT3 + 32 GB LiteOn LMT-32L3M SSD Cache
29.8 fps ∼24% +73%
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
34.11 fps ∼28% +98%
Cinebench R11.5 - CPU Multi 64Bit (sort by value)
Lenovo G505s-20255
Radeon HD 8450G + Radeon HD 8570M Dual Graphics, A6-5350M, Seagate Momentus Thin ST500LT0 12-9WS142
1 Points ∼6%
HP Pavilion Sleekbook TouchSmart 15-b153sg
Radeon HD 7400G, A4-4355M, Hitachi Travelstar Z5K500 HTS545050A7E380
0.72 Points ∼4% -28%
Acer Aspire V5-551-64454G50Makk
Radeon HD 7500G, A6-4455M, Seagate Momentus 5400.6 ST9500325AS
0.86 Points ∼5% -14%
Asus K53TK-SX114V
Radeon HD 7670M, A4-3305M, WDC Scorpio Blue WD3200BPVT-80JJ5T0
1.07 Points ∼6% +7%
Lenovo Thinkpad Edge E535-NZR5BGE
Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3
1.76 Points ∼10% +76%
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1.84 Points ∼10% +84%
Lenovo G500s-59367693
HD Graphics (Ivy Bridge), 2020M, Seagate Momentus Thin ST500LT0 12-9WS142
1.94 Points ∼11% +94%
Packard Bell EasyNote TS11SB-250GE
Radeon HD 6620G + HD 7670M Dual Graphics, A8-3520M, WDC Scorpio Blue WD5000BPVT-22HXZT3
2.01 Points ∼11% +101%
Acer Aspire E1-571G-3114G50Mnks
GeForce GT 620M, 3110M, Toshiba MQ01ABD050
2.3 Points ∼13% +130%
HP Pavilion Sleekbook 15-b004sg Ultrabook
GeForce GT 630M, 3317U, Western Digital Scorpio Blue WD7500BPVT-60HXZT3 + 32 GB LiteOn LMT-32L3M SSD Cache
2.4 Points ∼14% +140%

System performance

The System works more or less flawlessly and well. Nonetheless, there are lags when starting applications. There is a noticeable time difference between the clicking and the actual start of an application. We believe that the reason for this lies in the Windows installation. The scores in the PC Mark benchmarks are not that good. The Pavilion (AMD A4-4355M, Radeon 7400G) is surpassed because its specs are overall weaker than the ones of the G505s. However, both do not come anywhere near the scores of the Aspire (Core i3-3110M, GeForce GT 620M).

One possibility to improve the system a bit would be to put in a Solid State Disk. The system performance is more agile and faster overall. Moreover, Windows starts up faster too. Furthermore, this has a beneficial effect on PC Mark benchmarks as well. Our Solid State Disk (Crucial RealSSD C300 - 64 GB) increased the PCMark 7 score by just under 103% to a total of 2823 points.

4.7
Windows 8 Experience Index
Processor
Calculations per second
6.2
Memory (RAM)
Memory operations per second
5.9
Graphics
Desktop performance for Windows Aero
4.7
Gaming graphics
3D business and gaming graphics
6.2
Primary hard disk
Disk data transfer rate
5.9
PC Mark
PCMark Vantage2994 points
PCMark 71394 points
Help
PCMark 7 - Score (sort by value)
Lenovo G505s-20255
Radeon HD 8450G + Radeon HD 8570M Dual Graphics, A6-5350M, Seagate Momentus Thin ST500LT0 12-9WS142
1394 Points ∼20%
HP Pavilion Sleekbook TouchSmart 15-b153sg
Radeon HD 7400G, A4-4355M, Hitachi Travelstar Z5K500 HTS545050A7E380
932 Points ∼13% -33%
Acer Aspire V5-551-64454G50Makk
Radeon HD 7500G, A6-4455M, Seagate Momentus 5400.6 ST9500325AS
1201 Points ∼17% -14%
Asus K53TK-SX114V
Radeon HD 7670M, A4-3305M, WDC Scorpio Blue WD3200BPVT-80JJ5T0
1292 Points ∼19% -7%
Packard Bell EasyNote TS11SB-250GE
Radeon HD 6620G + HD 7670M Dual Graphics, A8-3520M, WDC Scorpio Blue WD5000BPVT-22HXZT3
1634 Points ∼24% +17%
Lenovo Thinkpad Edge E535-NZR5BGE
Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3
1667 Points ∼24% +20%
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1723 Points ∼25% +24%
Lenovo G500s-59367693
HD Graphics (Ivy Bridge), 2020M, Seagate Momentus Thin ST500LT0 12-9WS142
2343 Points ∼34% +68%
Acer Aspire E1-571G-3114G50Mnks
GeForce GT 620M, 3110M, Toshiba MQ01ABD050
2382 Points ∼34% +71%
HP Pavilion Sleekbook 15-b004sg Ultrabook
GeForce GT 630M, 3317U, Western Digital Scorpio Blue WD7500BPVT-60HXZT3 + 32 GB LiteOn LMT-32L3M SSD Cache
3923 Points ∼57% +181%

Storage Devices

HD Tune
HD Tune
CrystalDiskMark
CrystalDiskMark

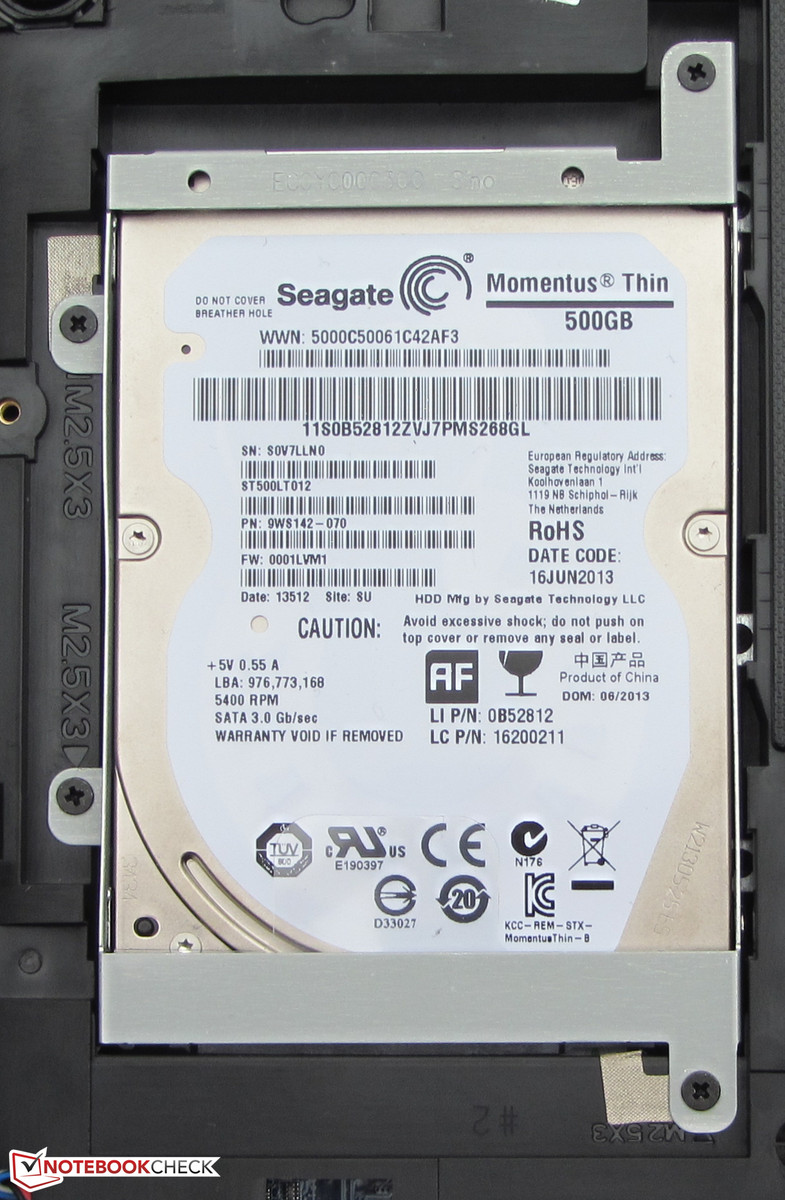

The G505s has a built-in hard drive from the Seagate Momentus Thin Series. It has a capacity of 500 GB and runs at 5400 rpm. CrystalDiskMark yields a read speed of 102.6 MB/s. HD Tune gives an average transfer rate of 87.8 MB/s. These are very good values for a 5400-rpm hard drive.

Seagate Momentus Thin ST500LT0 12-9WS142
Transfer Rate Minimum: 50.6 MB/s
Transfer Rate Maximum: 118.3 MB/s
Transfer Rate Average: 87.8 MB/s
Access Time: 19.1 ms
Burst Rate: 109.8 MB/s
CPU Usage: 11.4 %

Graphics Card

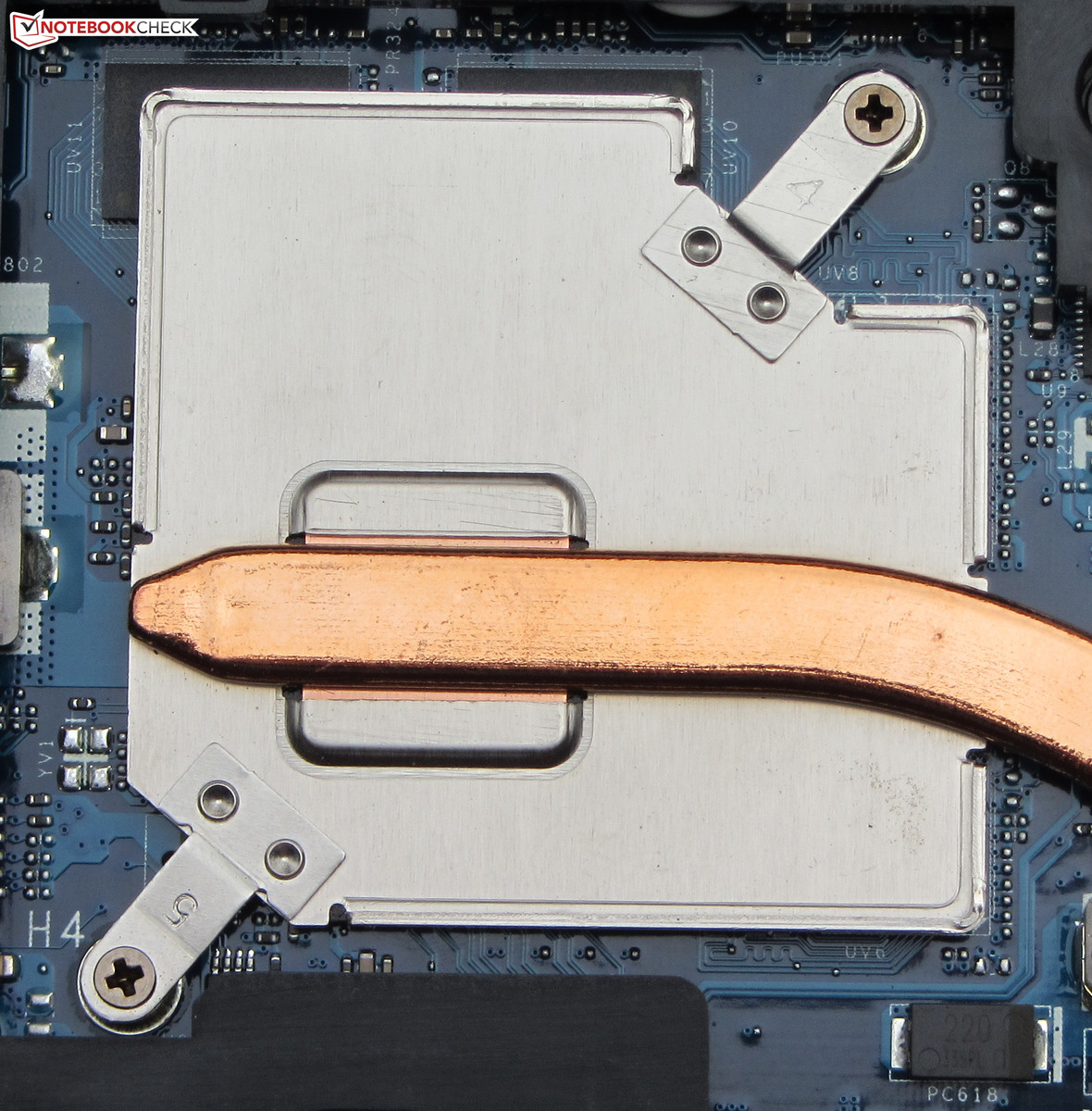

Lenovo chose an AMD Dual graphics solution. Two graphic cores work on the calculation of the pictures (AMD Crossfire). The combination consists of the integrated Radeon HD 8450G graphic core and the dedicated Radeon HD 8570M GPU. Both graphic chips support at least DirectX 11. Both graphic cores do not work simultaneously all the time, e.g. when playing a DVD. When only the integrated GPU is active, then less energy is consumed. Nonetheless, it would be possible to use the dual graphics solution for all the tasks. Dual graphic is also available when in battery mode, but then not at full power. In the GL test of Cinebench R11.5 this results in a score of 11.92 points in battery mode.

Whether the dual graphics mode is used, is chosen via profiles that are included with the driver. If a profile intends to use dual graphics, then this is automatically enabled as soon as the application in question is started. The profiles can be changed by the user. Moreover, it is possible to set up the driver in a way that it also uses dual graphics when no profile is available for a given application.

The results in the various 3D Mark benchmarks are not very impressive. Notebooks where the Radeon HD 8570M GPU is working by itself, deliver better results, e.g. the Samsung Series 7 Ultra 730U3E-S04DE (Core i5-3337U, Radeon HD 8570M). Here, the weak AMD CPU is noticeable. The Pavilion (AMD A4-4355M, Radeon 7400G) can be beaten. There is only an integrated GPU at work after all. However, the G505s cannot reach the scores of the Aspire (Core i3-3110M, GeForce GT 620M). This is not surprising either as it has the better CPU-GPU combination.

Additionally, we have also run the 3D Mark benchmarks with the GPU deactivated (only the graphic core of the APU enabled). The dual graphics solution yields better results in the benchmarks than the integrated GPU alone. In practice, for instance in games, the opposite is the case though.

3D Mark
3DMark 056475 points
3DMark 06
 1280x1024
4242 points
3DMark Vantage3123 points
3DMark 111258 points
3DMark Ice Storm26113 points
3DMark Cloud Gate2675 points
3DMark Fire Strike342 points
Help
Lenovo G505s-20255
AMD A6-5350M, AMD Radeon HD 8450G + Radeon HD 8570M Dual Graphics, Seagate Momentus Thin ST500LT0 12-9WS142
Lenovo G505s-20255
AMD A6-5350M, AMD Radeon HD 8450G, Seagate Momentus Thin ST500LT0 12-9WS142
HP Pavilion Sleekbook TouchSmart 15-b153sg
AMD A4-4355M, AMD Radeon HD 7400G, Hitachi Travelstar Z5K500 HTS545050A7E380
Acer Aspire E1-571G-3114G50Mnks
Intel Core i3-3110M, NVIDIA GeForce GT 620M, Toshiba MQ01ABD050
3DMark 05
1024x768 Standard AA:0x AF:0x64755908
-9%
4515
-30%
3DMark 06
1280x1024 Standard AA:0x AF:0x42423744
-12%
2931
-31%
6768
60%
3DMark Vantage
1280x1024 P Result no PhysX31232035
-35%
3DMark 11
1280x720 Performance1258628
-50%
454
-64%
3DMark (2013)
-3%
-31%
75%
1280x720 Ice Storm Standard Score2611326084
0%
20006
-23%
43590
67%
1280x720 Cloud Gate Standard Score26752029
-24%
1586
-41%
4137
55%
1920x1080 Fire Strike Standard Score342395
15%
245
-28%
695
103%
Total Average (Program / Settings)
-22% / -16%
-39% / -36%
68% / 71%

Gaming Performance

People looking for a gaming capable notebook had better continue their search. The G505s can play a few current 3D games smoothly, but only when low resolution and low quality settings are chosen. For older games and games with only low system requirements, like the FIFA series or Diablo 3, higher resolutions and quality settings are also possible. The AMD dual graphics solutions are known for the issue that micro lags can occur around 30 fps. This was also observed in the case of the G505s.

We have also tried many games while the GPU was disabled (only graphic chip of the APU enabled). There is no clear result here. Often the dual graphics solution delivers higher frame rates. In some cases, there are no noticeable differences. In some cases, the dual solution also delivers lower frame rates in comparison. We tested the integrated graphic core one more time: this time we put a second RAM module into the computer so that the RAM is working in dual-channel mode. The frame rates of the games we tested increased by about 20% on average (Anno 2070: 19%, Tomb Raider: 17.8%, Bioshock Infinite 22.9%, Skyrim: 18%).

If gaming is an important point, then the Aspire is more recommended, since it delivers better frame rates. It costs about 450 Euros (~$600) at the moment, and hence only a little more than the G505s while delivering better CPU and GPU performances. Alternatively, one can also buy its variant, the G500s. That notebook is also available in configurations with a GeForce GT 720M GPU. Such a model with Core i5-3230M chip costs about 520 Euros ($694) at the moment.

low med.high ultra
World of Warcraft (2005) 7644.7fps
Trackmania Nations Forever (2008) 10830.1fps
Resident Evil 5 (2009) 31.318.8fps
Battlefield: Bad Company 2 (2010) 29.525.723.2fps
Metro 2033 (2010) 27.619.2fps
Mafia 2 (2010) 1513.8fps
Civilization 5 (2010) 20.6fps
Total War: Shogun 2 (2011) 45.216.7fps
Deus Ex Human Revolution (2011) 38.826.1fps
Battlefield 3 (2011) 11.1fps
CoD: Modern Warfare 3 (2011) 35.823.819.3fps
The Elder Scrolls V: Skyrim (2011) 18.415.8fps
Anno 2070 (2011) 55.42616.1fps
Alan Wake (2012) 1811.5fps
Mass Effect 3 (2012) 30.821.9fps
Risen 2: Dark Waters (2012) 10.314.411.9fps
Diablo III (2012) 47.637.630.1fps
Dirt Showdown (2012) 19.911.7fps
Max Payne 3 (2012) 9.49.2fps
Ghost Recon: Future Soldier (2012) 10.45.8fps
Sleeping Dogs (2012) 24.813fps
Counter-Strike: GO (2012) 43.133.226.6fps
F1 2012 (2012) 1612fps
Fifa 13 (2012) 43.432.228.9fps
Medal of Honor: Warfighter (2012) 16.613.7fps
Need for Speed: Most Wanted (2012) 19.911.7fps
Call of Duty: Black Ops 2 (2012) 25.222.915.2fps
Hitman: Absolution (2012) 9.48.1fps
Assassin´s Creed III (2012) 6.8fps
Dead Space 3 (2013) 522721.6fps
Crysis 3 (2013) 159.9fps
Tomb Raider (2013) 32.818.6fps
BioShock Infinite (2013) 28.219fps
Metro: Last Light (2013) 8.7fps
GRID 2 (2013) 24.114.7fps
Company of Heroes 2 (2013) 7.8fps
Lenovo G505s-20255
AMD A6-5350M, AMD Radeon HD 8450G + Radeon HD 8570M Dual Graphics, Seagate Momentus Thin ST500LT0 12-9WS142
Lenovo G505s-20255
AMD A6-5350M, AMD Radeon HD 8450G, Seagate Momentus Thin ST500LT0 12-9WS142
HP Pavilion Sleekbook TouchSmart 15-b153sg
AMD A4-4355M, AMD Radeon HD 7400G, Hitachi Travelstar Z5K500 HTS545050A7E380
Acer Aspire E1-571G-3114G50Mnks
Intel Core i3-3110M, NVIDIA GeForce GT 620M, Toshiba MQ01ABD050
Anno 2070
-26%
-45%
46%
1024x768 Low Preset55.442.9
-23%
33
-40%
83
50%
1366x768 Medium Preset AA:on 2618
-31%
13
-50%
41.2
58%
1366x768 High Preset AA:on AF:2x16.112.2
-24%
21
30%
Diablo III
-18%
-35%
47%
1024x768 Low / off47.638.9
-18%
34
-29%
75.4
58%
1366x768 Medium / low37.630.6
-19%
23
-39%
52.3
39%
1366x768 High AA:on 30.124.7
-18%
19
-37%
43.1
43%
Fifa 13
-10%
-12%
338%
1024x768 Low43.438.9
-10%
41
-6%
171
294%
1366x768 Medium32.230
-7%
159
394%
1366x768 High AA:2xMS28.922
-24%
123
326%
Total Average (Program / Settings)
-18% / -20%
-31% / -29%
144% / 144%

Emissions

How we test - Emissions

System Noise

The G505s works with very little noise in idle mode. We have measured a sound level between 29.9 and 31.6 dB(A).

The Pavilion (29.6 dB(A)) and the Aspire (31.2 up to 32.5 dB(A)) also work with very little noise. Under medium (3D Mark 06 running) and full load (Stress test, Prime95 and FurMark running), the G505s does not produce much noise either. The measurements gave values at 36.3 and 36.8 dB(A), respectively. The Pavilion is at a similar level (34.9 and 38.3 dB(A)). For the Aspire (37.7 and 43.2 dB(A)) the values are higher.

Noise Level

Idle 29.9 / 31.2 / 31.6 dB(A)
HDD 30.4 dB(A)
DVD 36.2 / dB(A)
Load 36.3 / 36.8 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft sl-320 (15 cm distance)

Temperature

Lenovo G505s under stress
Lenovo G505s under stress

The G505s does not have any heat problems in idle mode. The temperatures stay under 30 degrees Celsius (86 degrees Fahrenheit). The Pavilion and the Aspire notebooks work at similar low temperatures. The values of the G505s rise to levels of 28.1 up to 44.6 degrees Celsius (82.58 up to 112.28 Fahrenheit) under full load. The values over 40 degrees (104 Fahrenheit) are measured in the area around the fan. The two competitors do not get quite as hot. All three computers allow for comfortable work, since their palm rests never heat up excessively.

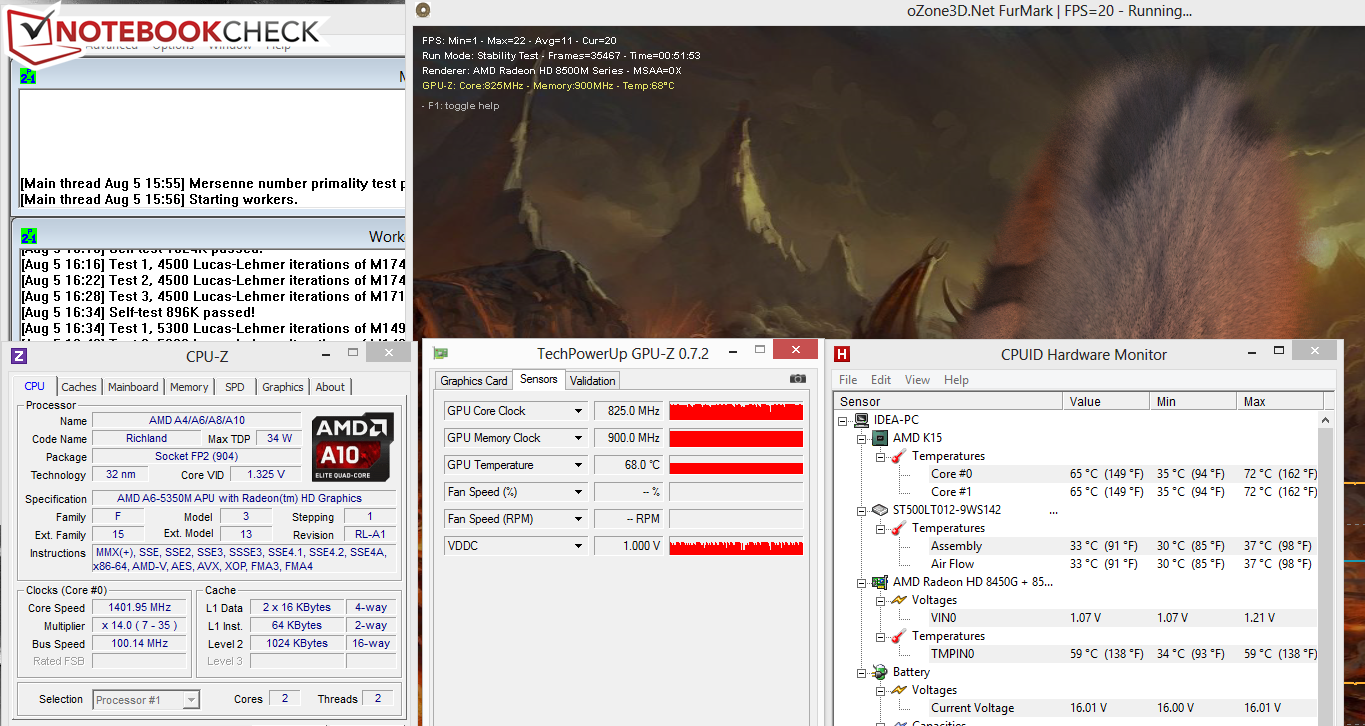

The Stress test (Prime95 and FurMark running for at least one hour) is performed by the CPU with permanently changing speeds. The speed of the two cores varies all the time between 900 and 3,500 MHz. All the intermediate levels are being used as well at that time. The dedicated GPU performs the Stress test with 750 to 825 MHz, the integrated GPU works with 351 to 533 MHz. If the Stress test is performed while in battery mode, then the changing of the speed does not occur. The CPU speed stays constantly at 2.9 GHz. The dedicated GPU works with 400 MHz, while the integrated graphic core is running at 253 MHz. The CPU temperature settles at about 65 degrees Celsius (149 Fahrenheit) when not in battery mode.

We started the 3D Mark 06 Benchmark again right after the Stress test. Then the score was lower than in the cold state of the notebook with a total score 3,639 points. The turbos of the CPU and GPU are used more sparingly at higher temperatures so that the 3D Mark scores are lower. In practice, this would mean that the frame rates of video games would be a bit lower when the notebook is getting too hot.

Max. Load
 42.4 °C40.1 °C28.3 °C
 42.5 °C40 °C28.6 °C
 35.8 °C38.1 °C32.8 °C
Maximum: 42.5 °C
Average: 36.5 °C
28 °C33.2 °C44.4 °C
28.1 °C35.3 °C44.6 °C
29.2 °C33.5 °C37.2 °C
Maximum: 44.6 °C
Average: 34.8 °C
Room Temperature 24.4 °C | Voltcraft IR-360

Energy Management

How we test - Energy Consumption

Power Consumption

The energy consumption of the G505s in idle mode is very low with only 6.6 up to 10 Watts. The same also holds for the Pavilion (6.9 up to 10.1 Watts). The Aspire (9.7 up to 11.5 Watts) is a bit more thirsty. The amount increases under medium load (3D Mark 06 running) or full load (Stress test, Prime95 and FurMark running) to 37.7 and 41.7 Watts, respectively. These values are in a similar range because under full load the CPU and GPU chips do not work with full power. This is also the case for the Pavilion (26.6 and 29.3 Watts). The Aspire (48.8 and 55.4 Watts) does not have this problem; hence, the energy consumption ends up being much higher in return.

Power Consumption

Off / Standby 0.0 / 0.3 Watt
Idle 6.6 / 9.7 / 10 Watt
Load 37.7 / 41.7 Watt

Key: min: , med: , max:         Voltcraft VC 940

Battery Runtime

The G505s shows great endurance in the idle mode with a battery run time of 8:26 h. The Aspire (8:20 h) is as good, but the Pavilion (4:46 h) turns off a lot earlier than that. The idle mode is being tested by the Battery Eater Reader’s Test: the screen is running on the lowest of all brightness levels, the energy profile is activated, and all wireless modules are deactivated. Under full load, the G505s reaches a run time of 1:20 h. Both the Aspire (1:51 h) as well as the Pavilion (2:04 h) offer better run times under these conditions. The Battery Eater Classic Test is used to measure the battery run time under full load. It sets the screen to the highest level of brightness, enables the high-performance profile and activates all the wireless modules.

The G505s finishes the WLAN test after 3:36 h. This time puts it in the middle between the Pavilion (3:09 h) and the Aspire (4:27 h). The test automatically opens websites in 40-second intervals. The energy profile is active and the display brightness is set to 150 cd/m². The DVD playback finishes after 3:15 h on the G505s. The Aspire (3:46 h) lasts a bit longer again. The Pavilion does not have a DVD drive. The DVD test is performed with the energy profile activated (or a higher profile, if the DVD cannot be run smoothly), highest screen brightness, and deactivated wireless modules.

The battery run times of the three devices can be compared to a limited extent. The capacities of their batteries are all in a similar range (Lenovo: 41 Wh, Pavilion: 37 Wh, Aspire: 44 Wh).

Battery Runtime
Idle (without WLAN, min brightness)
8h 26min
WiFi Surfing
3h 36min
DVD
3h 15min
Load (maximum brightness)
1h 20min

Verdict

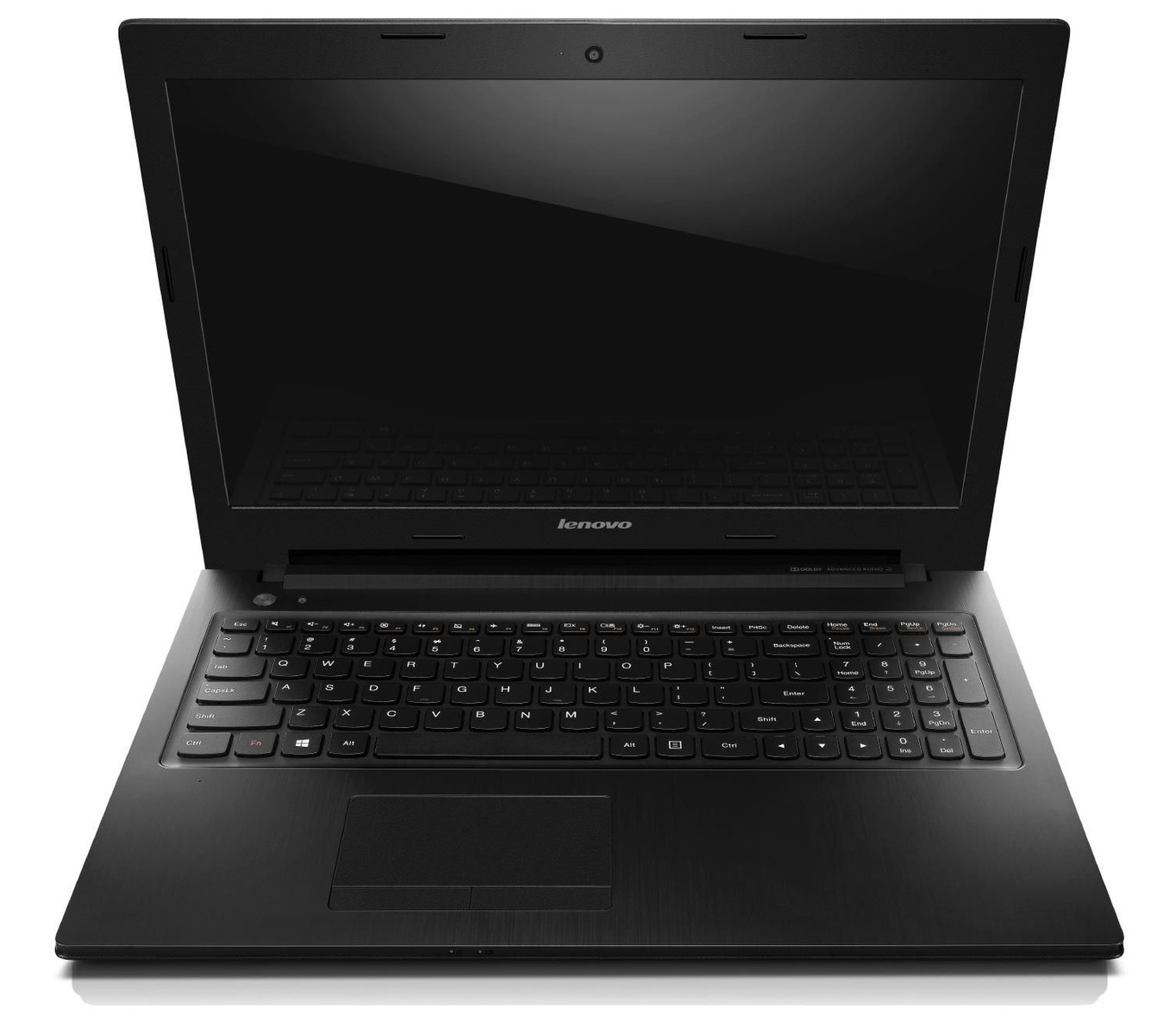

Lenovo G505s
Lenovo G505s

The Lenovo G505s offers sufficient power to perform most of the tasks. Moreover, the device does not get very warm in idle mode and uses energy economically. In addition, the notebook works at a very low noise level throughout the workload. The two-year warranty is another plus.

On the other hand, the keyboard is a step back compared to earlier models from Lenovo. The screen contrast is too low. Furthermore, the case could be more robust. The frame rates in computer games are also fairly low. The dual graphic system does not manage to produce smooth frame rates for many games.

Overall, the G505s is not really convincing. It offers much less CPU performance than many cheaper Intel powered notebooks, such as the Lenovo G500s or the Wortmann Terra Mobile 1512. At the same time it also does not offer as good an application and game performance as many similarly priced notebooks, such as the Acer Aspire E1-571G. Hence, it is hard to find a reason to buy the G505s.

The Acer Aspire E1-571G is best for people who are looking for a good application and game performance at a relatively low price. The HP Pavilion Sleekbook TouchSmart 15-b153sg is interesting when looking for a thin notebook with a touchscreen.

Test device provided by ...
Read all 9 comments / answer
static version load dynamic
Loading comments

Comment this article:

In Review: Lenovo G550s, Review model provided by:
In Review: Lenovo G550s, Review model provided by:

Specifications

Lenovo G505s-20255
Processor
AMD A6-5350M 2.9 GHz
Graphics adapter
AMD Radeon HD 8450G + Radeon HD 8570M Dual Graphics - 2048 MB, Core: HD 8450G: 351-720; HD 8570M: 650-825 MHz, Memory: 900 MHz, Crossfire, Catalyst 13.4, Enduro
Memory
4096 MB
, DDR3, Single-channel, two memory modules
Display
15.6 inch 16:9, 1366x768 pixel, Samsung L ATLTN156AT30L01, TN LED, glossy: yes
Mainboard
AMD Bolton
Harddisk
Seagate Momentus Thin ST500LT0 12-9WS142, 500 GB
5400 rpm , 425 GB free
Soundcard
AMD Hudson-3 FCH High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Audio combo, Card Reader: SD, MMC,
Networking
Atheros AR8172/8176/8178 PCI-E Fast Ethernet Controller (10/100MBit), Atheros AR9485 WiFi Adapter (b g n ), 4.0 Bluetooth
Optical drive
PLDS DVD-RW DU8A5SH
Size
height x width x depth (in mm): 26 x 380 x 260 ( = 1.02 x 14.96 x 10.24 in)
Weight
2.5 kg ( = 88.19 oz) Power Supply: 252 g ( = 8.89 oz)
Battery
41 Wh Lithium-Ion, 14.4 V, 2900 mAh
Price
449 Euro
Operating System
Microsoft Windows 8 64 Bit
Additional features
Webcam: 0,9 Megapixel, Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: no, Cyberlink PowerDVD 10, Cyberlink Power2Go, McAfee Internet Security (Test version), Microsoft Office 365 (Test version), 24 Months Warranty



[+] compare
The back side of the cover is textured.
The back side of the cover is textured.
A maintenance hatch is provided.
A maintenance hatch is provided.

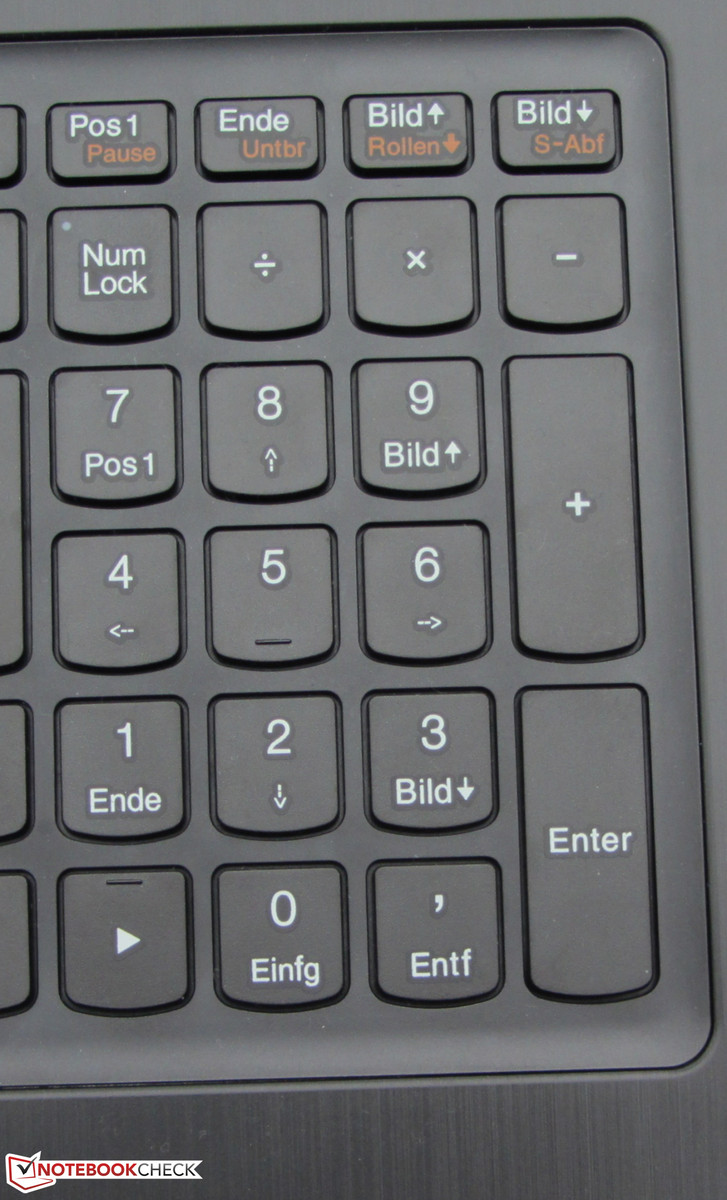

A number pad is available.
A number pad is available.

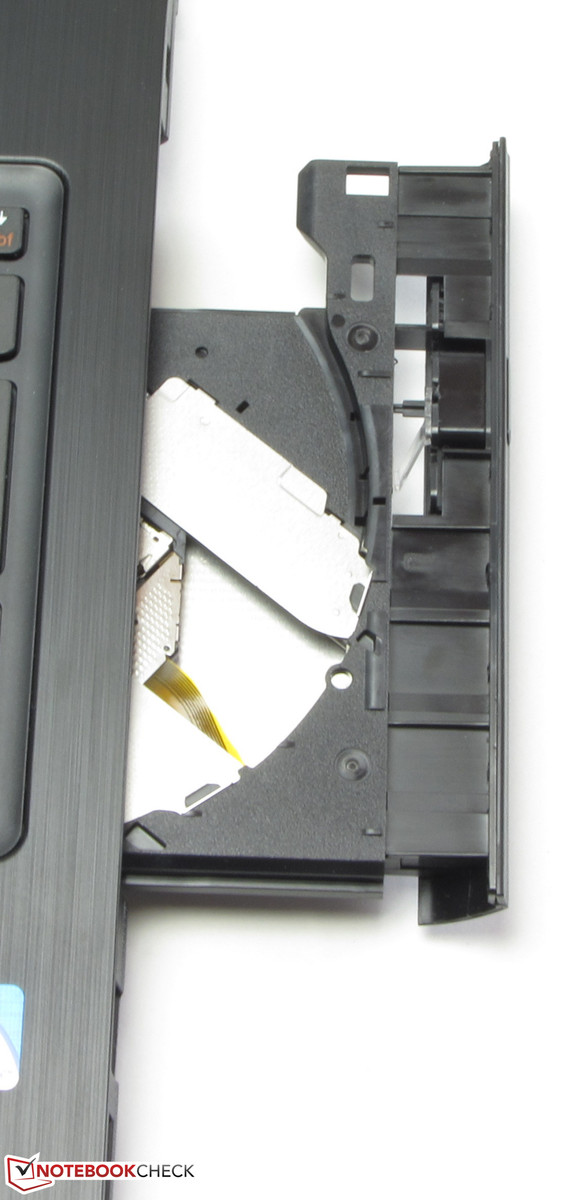

The DVD burner can read and write all DVDs and CDs.
The DVD burner can read and write all DVDs and CDs.

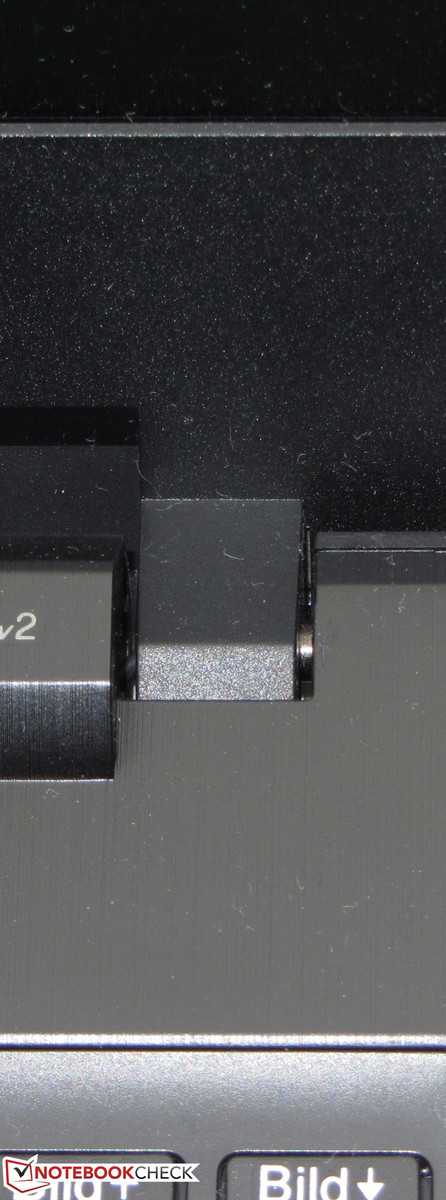

The hinges hold the cover firmly in place.
The hinges hold the cover firmly in place.
The maintenance area.
The maintenance area.
There are two memory slots available.
There are two memory slots available.
Swapping hardrives would be no problem.
Swapping hardrives would be no problem.
The fan can be removed
The fan can be removed
The APU can be swapped.
The APU can be swapped.
The Radeon HD 8570M GPU is soldered in place.
The Radeon HD 8570M GPU is soldered in place.
Good: There are two WLAN antennas in place.
Good: There are two WLAN antennas in place.

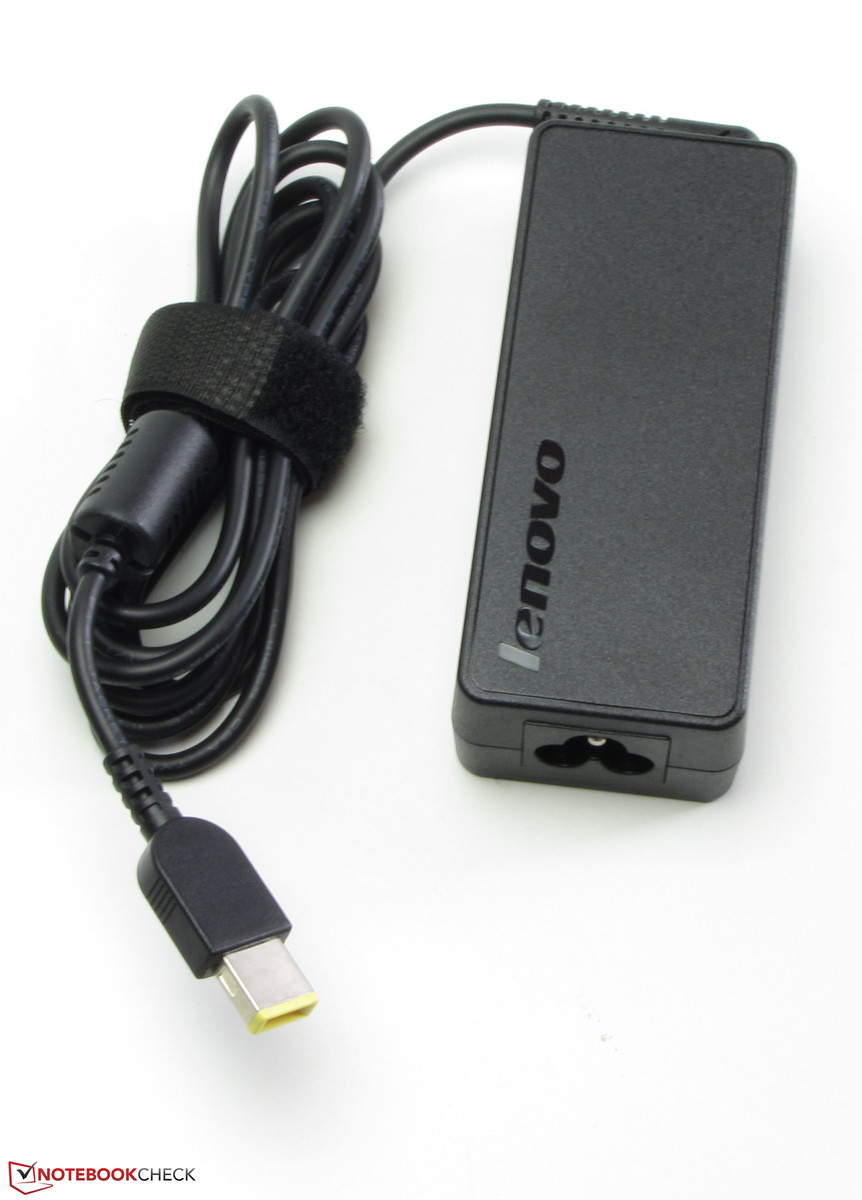

The charger weighs slightly less than 252 grams...
The charger weighs slightly less than 252 grams...

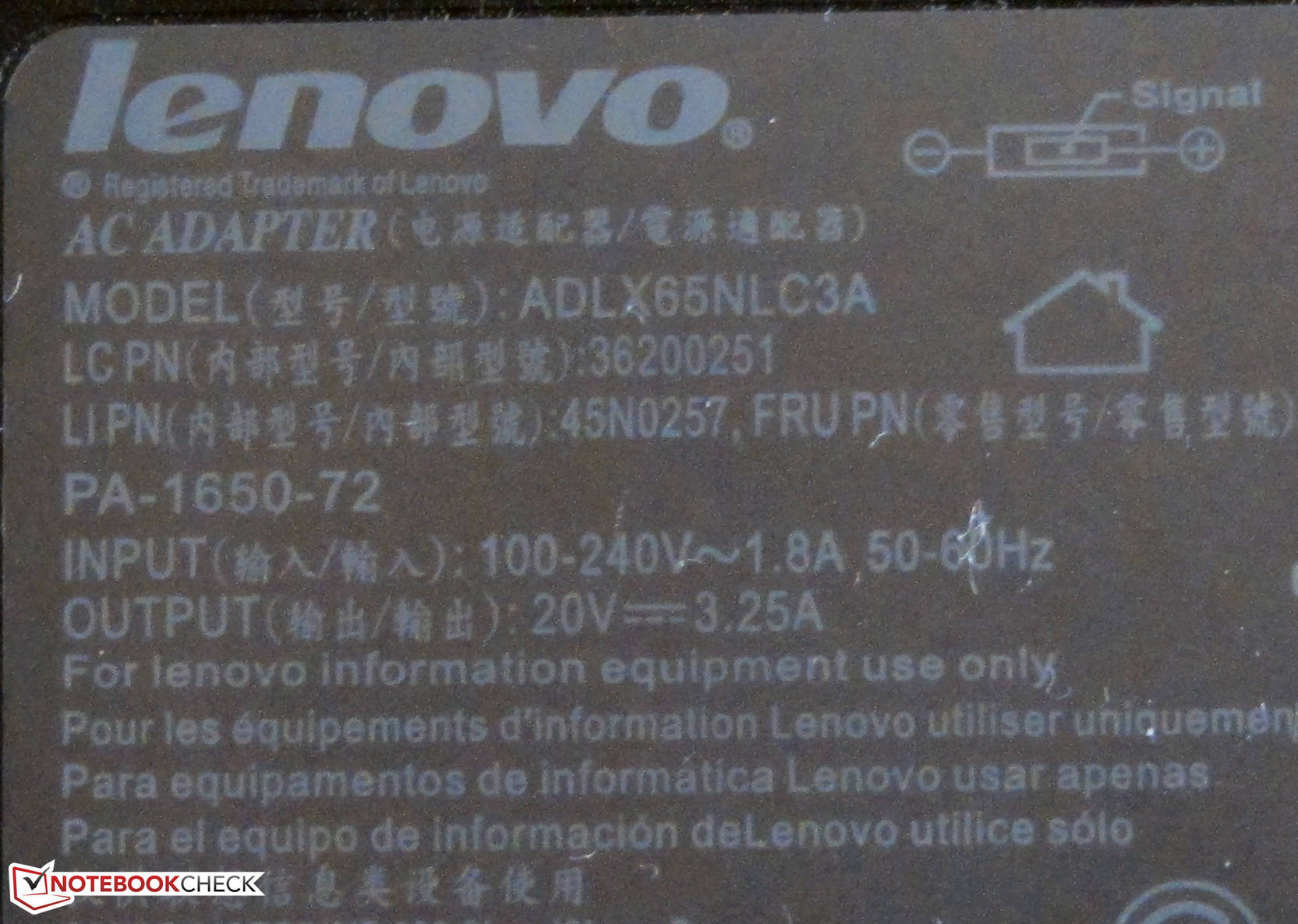

...and offers a maximum performance of 65 Watts.
...and offers a maximum performance of 65 Watts.

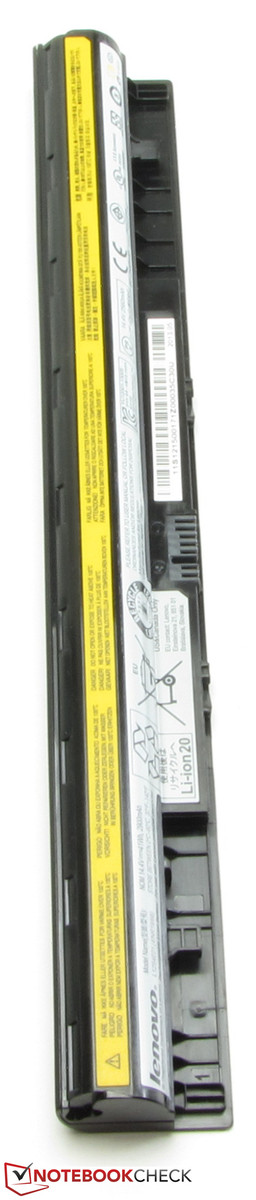

The battery weighs slightly less than 214 grams...
The battery weighs slightly less than 214 grams...

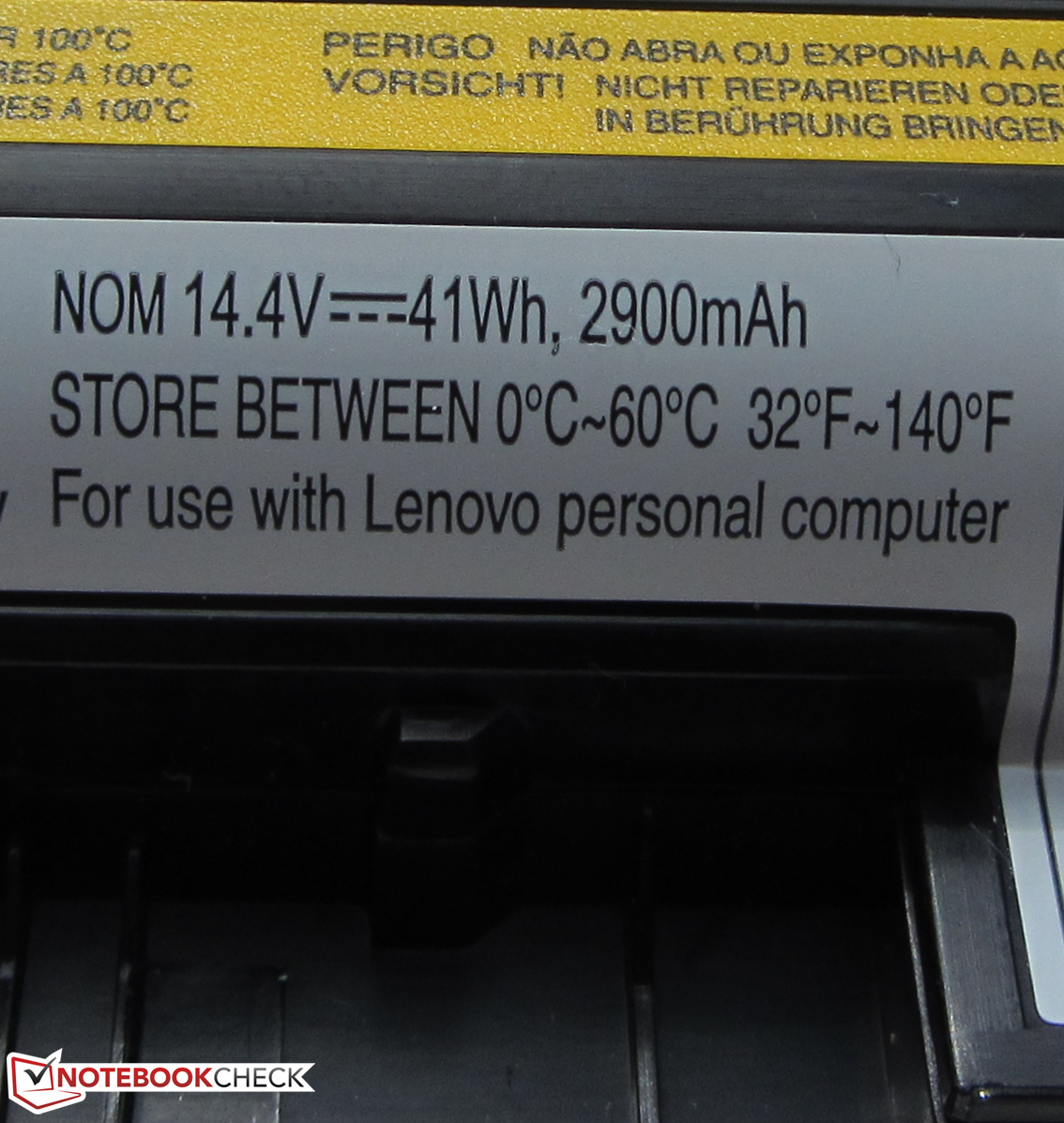

...and offers a capacity of 41 Wh.
...and offers a capacity of 41 Wh.

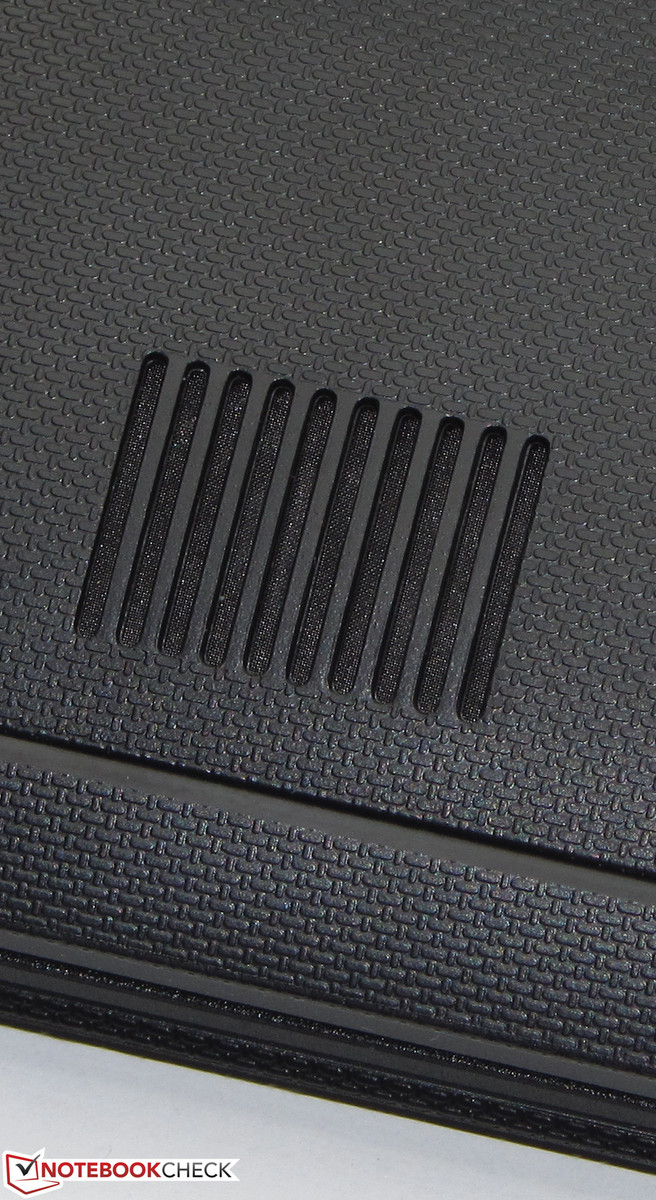

The speakers are located at the bottom of the device.
The speakers are located at the bottom of the device.

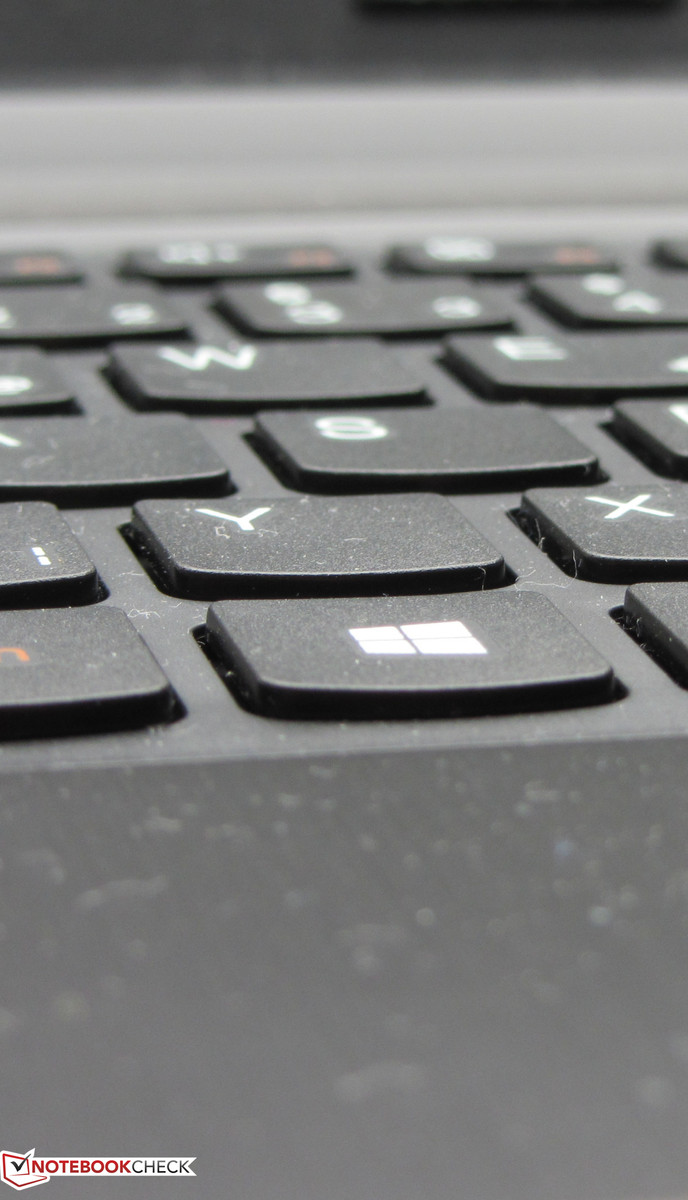

The keys have a short stroke.
The keys have a short stroke.
The One-Key-Recovery-Button (on the right) launches the recovery system and grants access to the BIOS.
The One-Key-Recovery-Button (on the right) launches the recovery system and grants access to the BIOS.
The G505s includes a variety of apps.
The G505s includes a variety of apps.

Similar devices

Devices with Same Screen Size and/or Weight

» Lenovo Edge 15-80H10004US Notebook Review
HD Graphics 4400, Core i5 4210U
» Asus F555LD-XX243H Notebook Review Update
GeForce 820M, Core i3 4010U
» Dell Latitude E5550 Notebook Review
HD Graphics 4400, Core i5 4310U
» HP Envy x2 15-c000ng Convertible Review
HD Graphics 5300, Core M 5Y10
» HP 355 G2 Notebook Review Update
Radeon R5 M240, A-Series A8-6410
» First Impressions: Asus Zenbook NX500JK in Review
GeForce GTX 850M, Core i7 4712HQ
» Asus Zenbook NX500JK-DR018H Ultrabook Review
GeForce GTX 850M, Core i7 4712HQ

Price comparison

Pro

+24-month warranty
+Very little noise
+Nice harddrive


Cons

-Low contract screen
-For Lenovo standards it contains a bad keyboard
-Gaming performance is limited despite dual graphics

Shortcut

What we like

Two-year warranty.

What we are missing

A better display and a better keyboard.

What surprises us

Even the dual-graphics solution does not really make the G505s a gaming capable notebook. Therefore, it does not make sense to us that Lenovo has installed a second graphic chip.

The competition

HP Pavilion Sleekbook TouchSmart 15-b153sg, Acer Aspire E1-571G, Acer Aspire V5-551, Asus K53TK, Packard Bell EasyNote TS11SB-250GE, HP Pavilion g6-2200sg, Lenovo Thinkpad Edge E535, Lenovo G500s, HP Pavilion Sleekbook 15-b004sg, Toshiba Satellite C850-1LX, Dell Vostro 2520, Wortmann Terra Mobile 1512, Lenovo Ideapad N586

Evaluation

Lenovo G505s-20255
08/12/2013 v3
Sascha Mölck

Chassis
73%
Keyboard
73%
Pointing Device
81%
Connectivity
69%
Weight
81%
Battery
82%
Display
72%
Games Performance
69%
Application Performance
74%
Temperature
81%
Noise
91%
Add Points
74%
Average
77%
77%
Office *
Weighted Average
> Notebook / Laptop Reviews and News > Reviews > Review Lenovo G505s-20255 Notebook
Author: Sascha Mölck, 2013-08-17 (Update: 2013-08-19)
