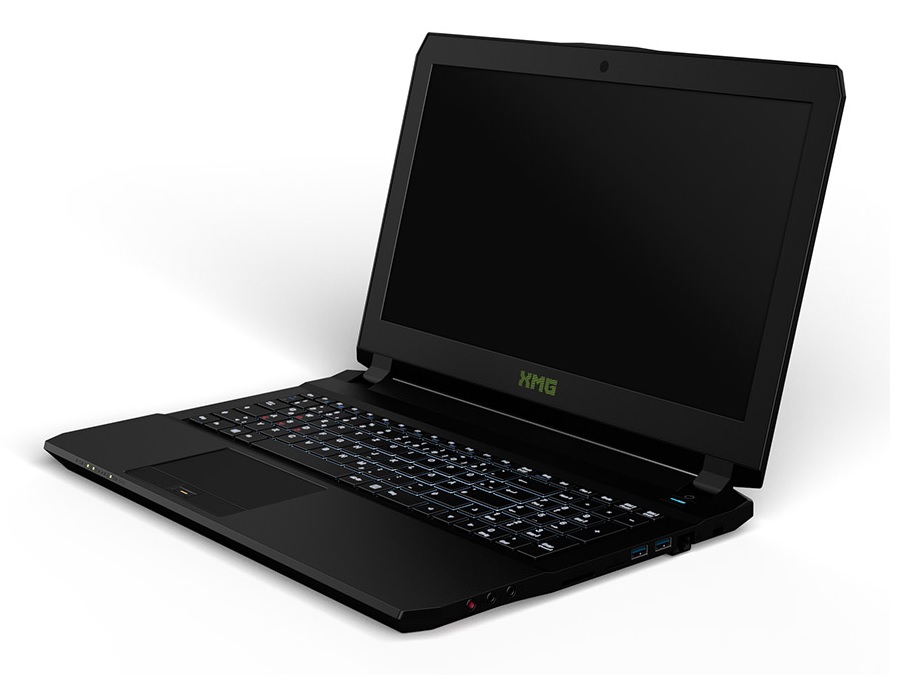

Schenker XMG P505 PRO (Clevo P651SG) Notebook Review

15-inch reference? The XMG P505 from Schenker Technologies is supposed to close the gap between big 17-inch systems (Asus G751, MSI GT72) and ultra-thin compact gamers like the Gigabyte P34G v2. We have already reviewed the configuration with the GTX 970M, now we have a closer look at the GTX 980M.

For the original German review, see here.

Because of the enormous demand we have decided to review the Schenker XMG P505 Pro for a second time. Unlike the first article, the 15-inch notebook is not equipped with a Core i7-4870HQ, but a Core i7-4710HQ, which has a positive effect on the emissions. Other changes are the IPS display (Full HD instead of QFHD) and the storage solution (SATA-III SSD instead of a PCIe-x4 SSD). But the main reason for the new review is the graphics card: The configuration with the GeForce GTX 980M uses a slightly thicker chassis.

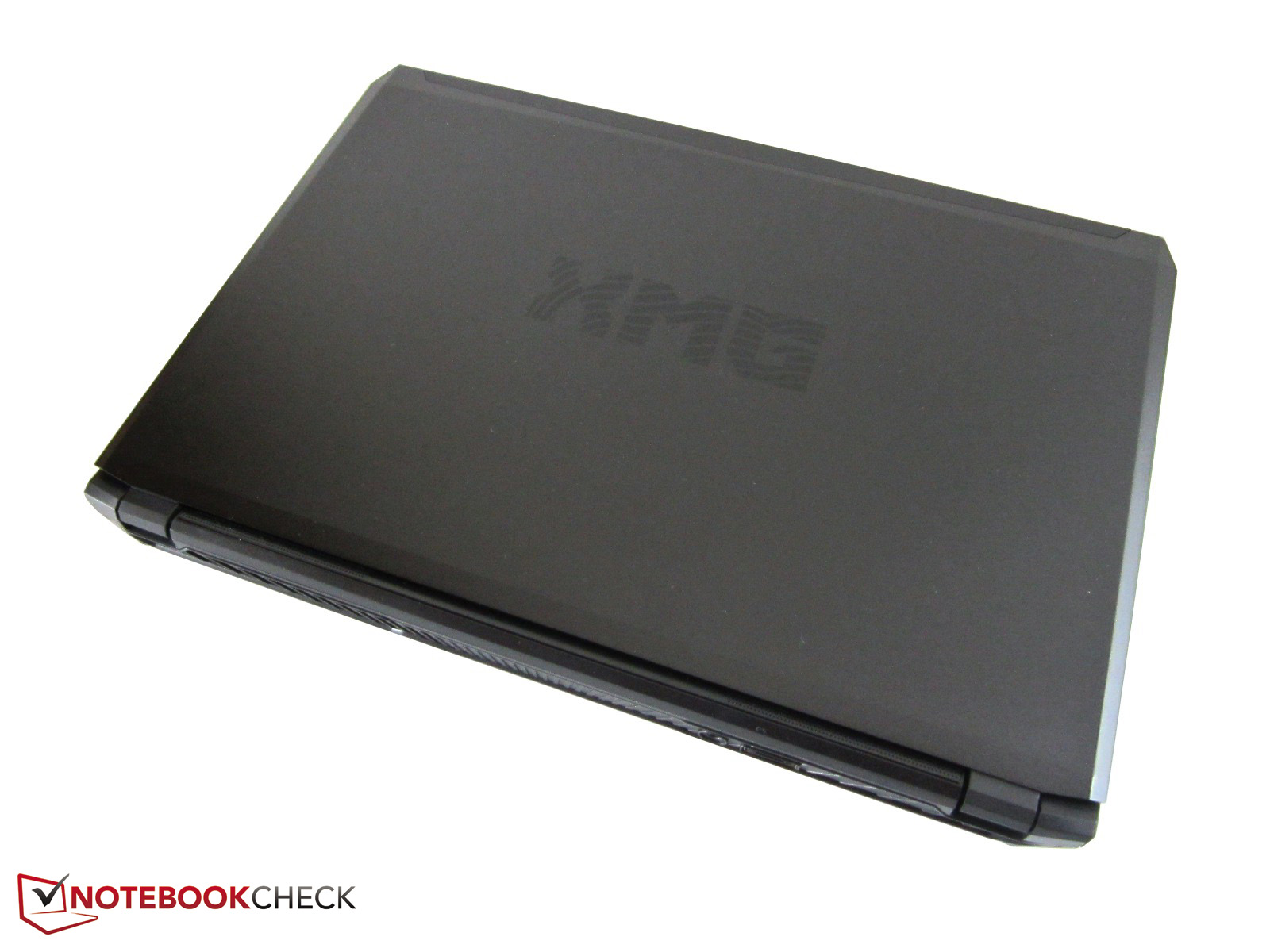

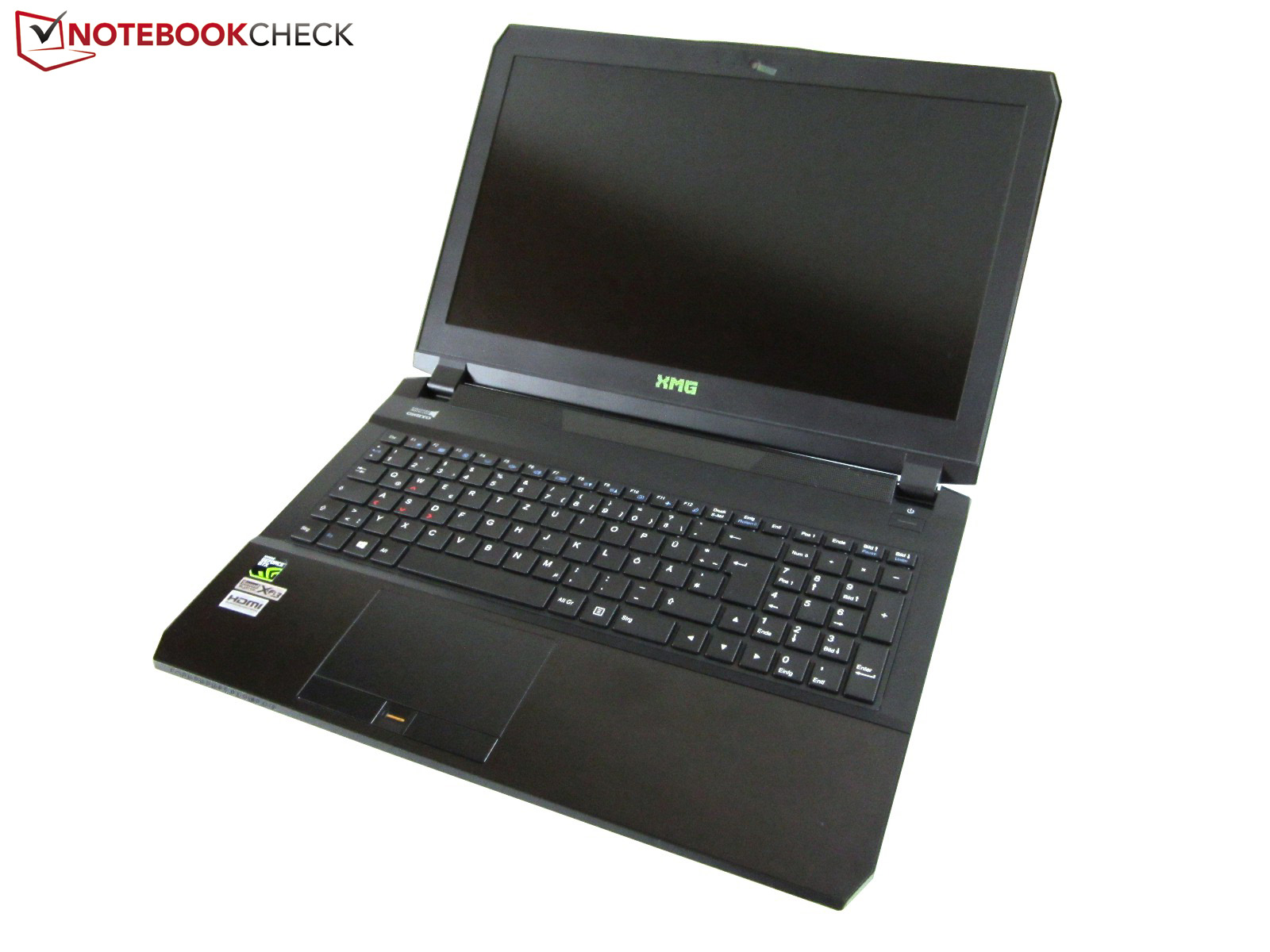

Case

Even though Schenker uses the same XMG P505 designation, you get – depending on the GPU – a different chassis. While the GTX 970M sits in the 2.5 cm (~1 inch) slim P651SE Barebone, the P651SG has a height of almost three centimeters (~1.2 inches). The case manufacturer Clevo reinforced the slim metal bottom with a plastic coating to improve the cooling of the hardware. The cover and the palm rest are still made of aluminum, so the quality impression is good nonetheless. The same applies for the build quality and the stability. Otherwise, you have to search for the changes with a magnifying glass. You will hardly notice a weight difference of around 100 grams (~3.5 ounces) in practice, the same as the different shape of the fan exhaust at the back.

Connectivity

Ports

The ports of the P651SG Barebone are identical to the P651SE. Three digital video ports are just as generous as three audio ports. Four USB 3.0 ports are pretty much standard right now. As you can see in the pictures, the majority of ports is located at the right side of the case.

Wireless Communication

While the wireless module of our first review unit did not work, we can check the signal quality of the WLAN chip this time. The Intel Dual Band Wireless-AC 7265 M.2 module for an additional price does not leave anything to be desired: Bluetooth 4.0, up to 867 Mbps, 2.4 and 5.0 GHz as well as support for the latest ac standard. Even distances of 10-15 meters (~33 – 49 ft) from the router and through several walls are no problem for the XMG P505.

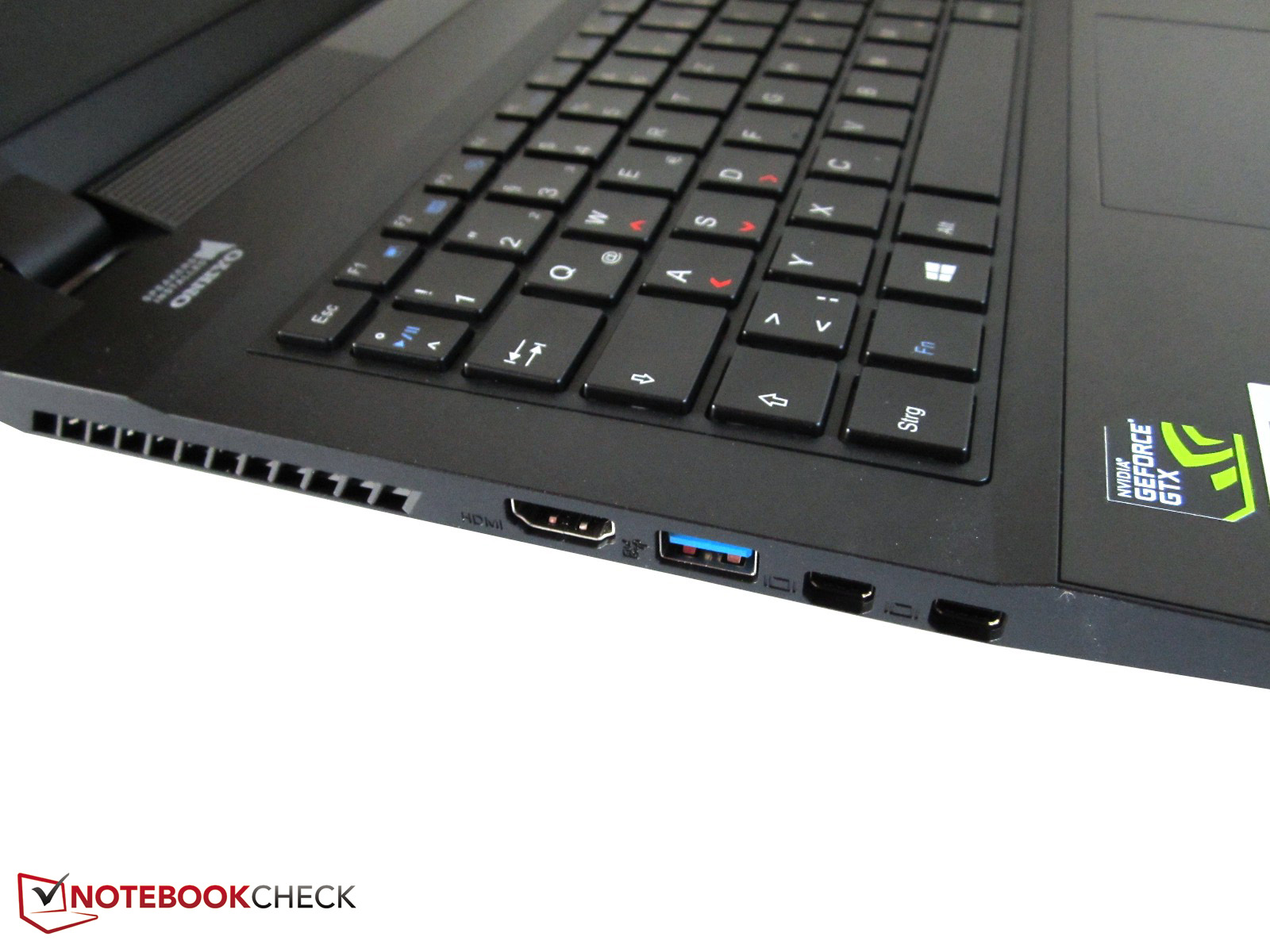

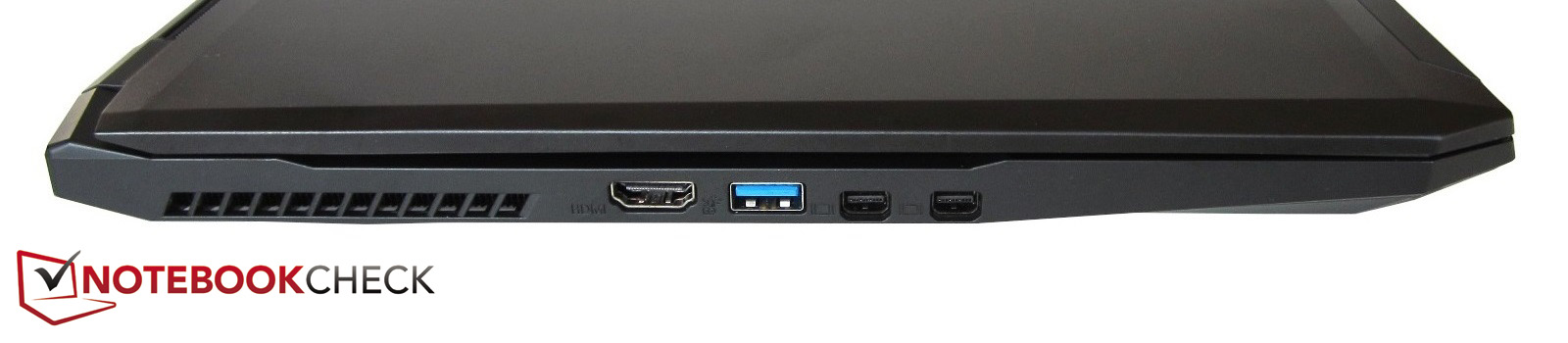

Left side: HDMI, USB 3.0, 2x Mini-DisplayPort
Left side: HDMI, USB 3.0, 2x Mini-DisplayPort

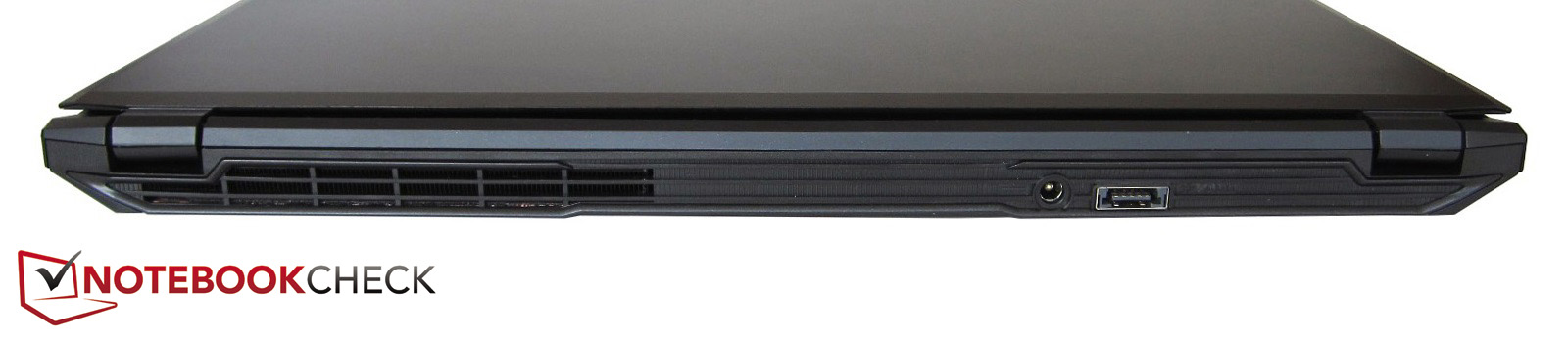

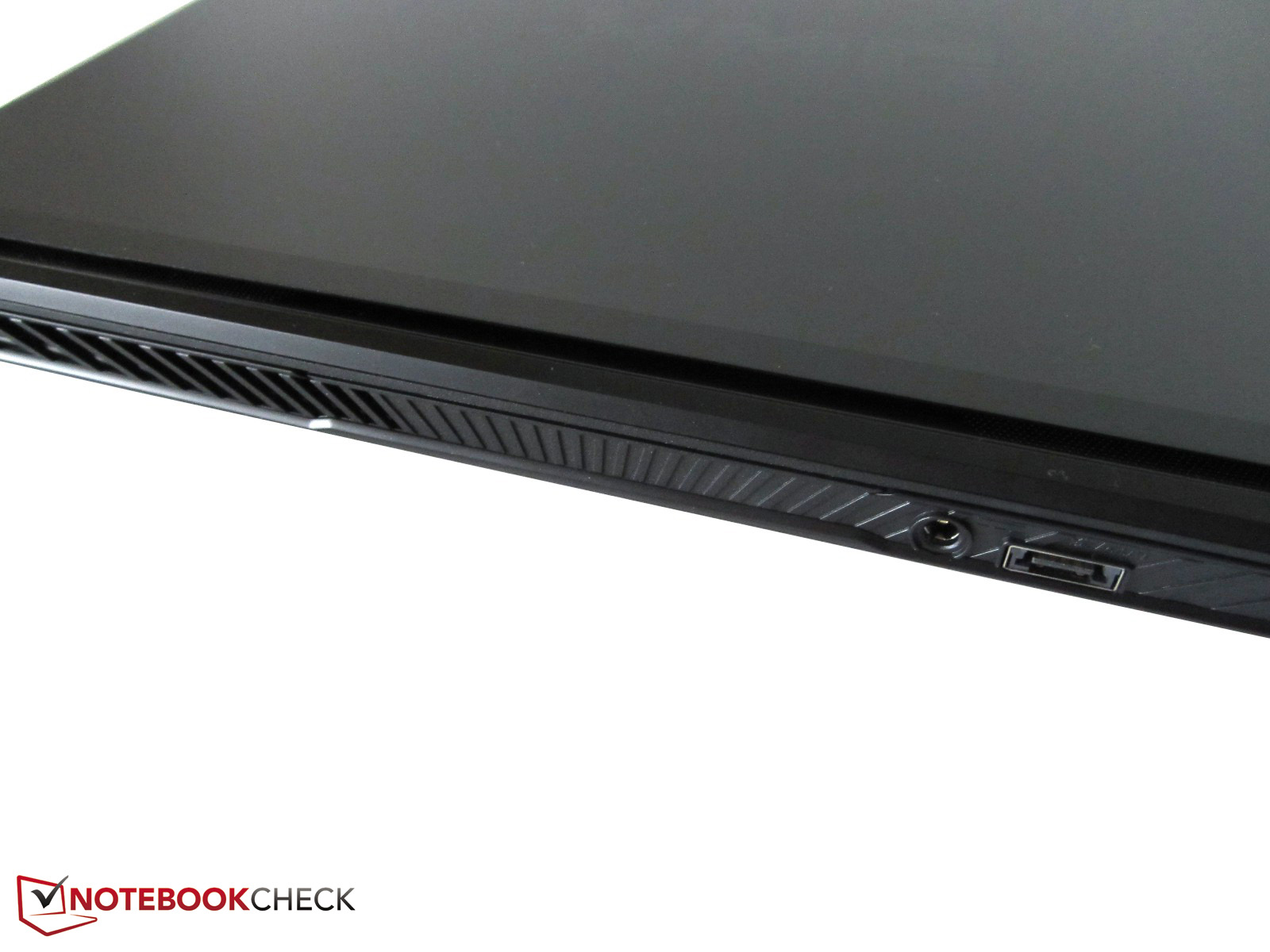

Back: AC power, eSATA/USB 3.0
Back: AC power, eSATA/USB 3.0

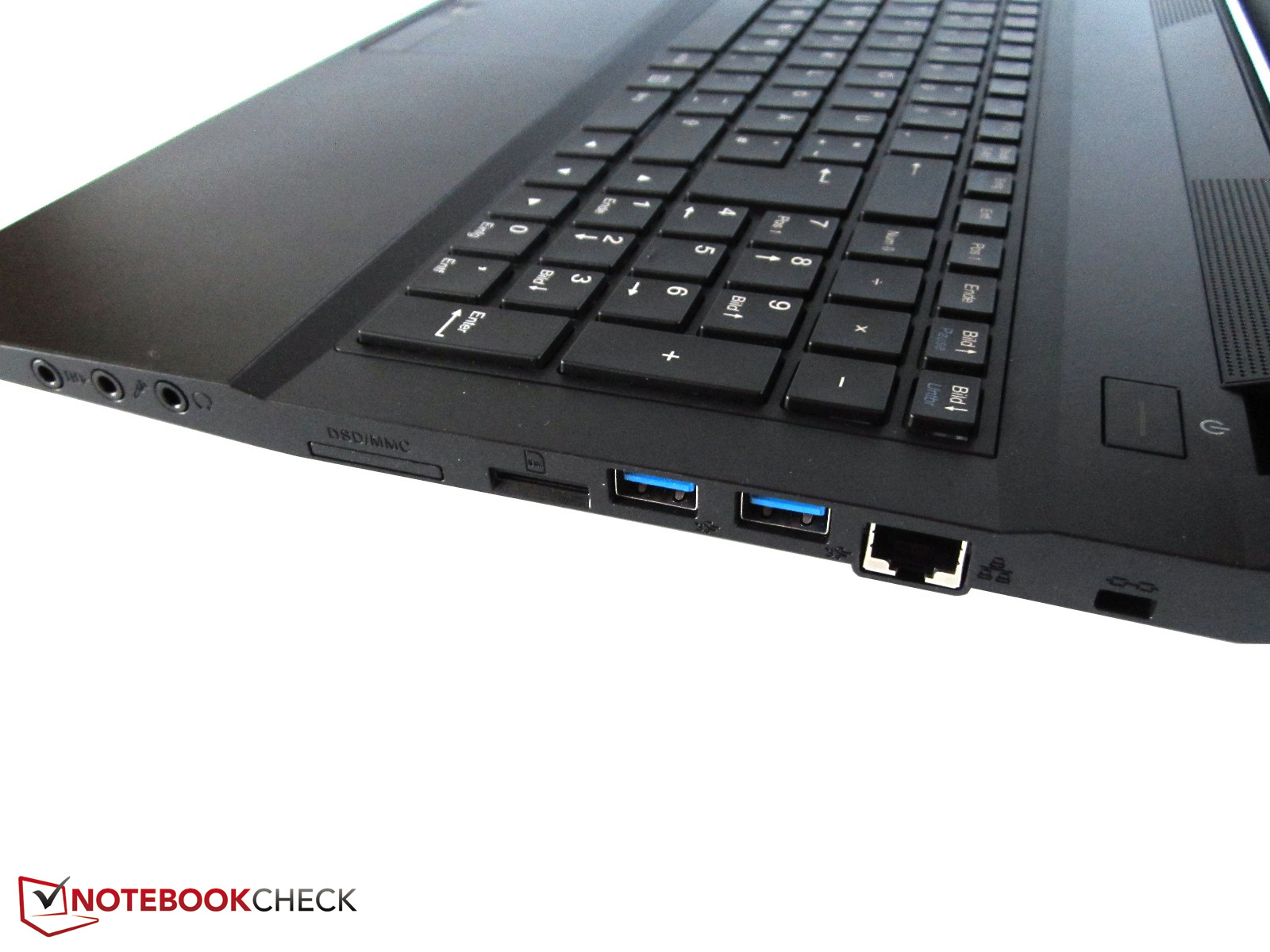

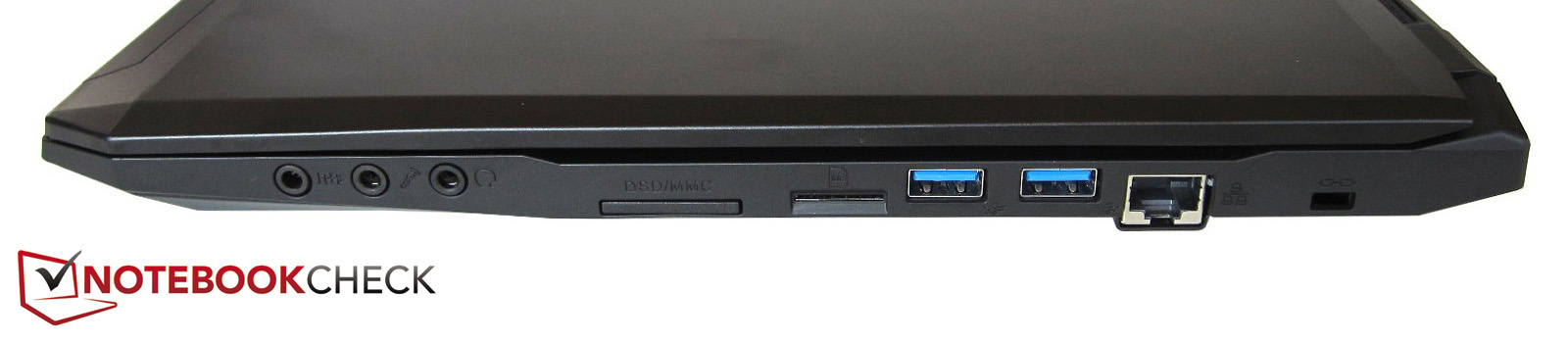

Right side: 3x sound, card reader, SIM, 2x USB 3.0, RJ45-LAN, Kensington Lock
Right side: 3x sound, card reader, SIM, 2x USB 3.0, RJ45-LAN, Kensington Lock

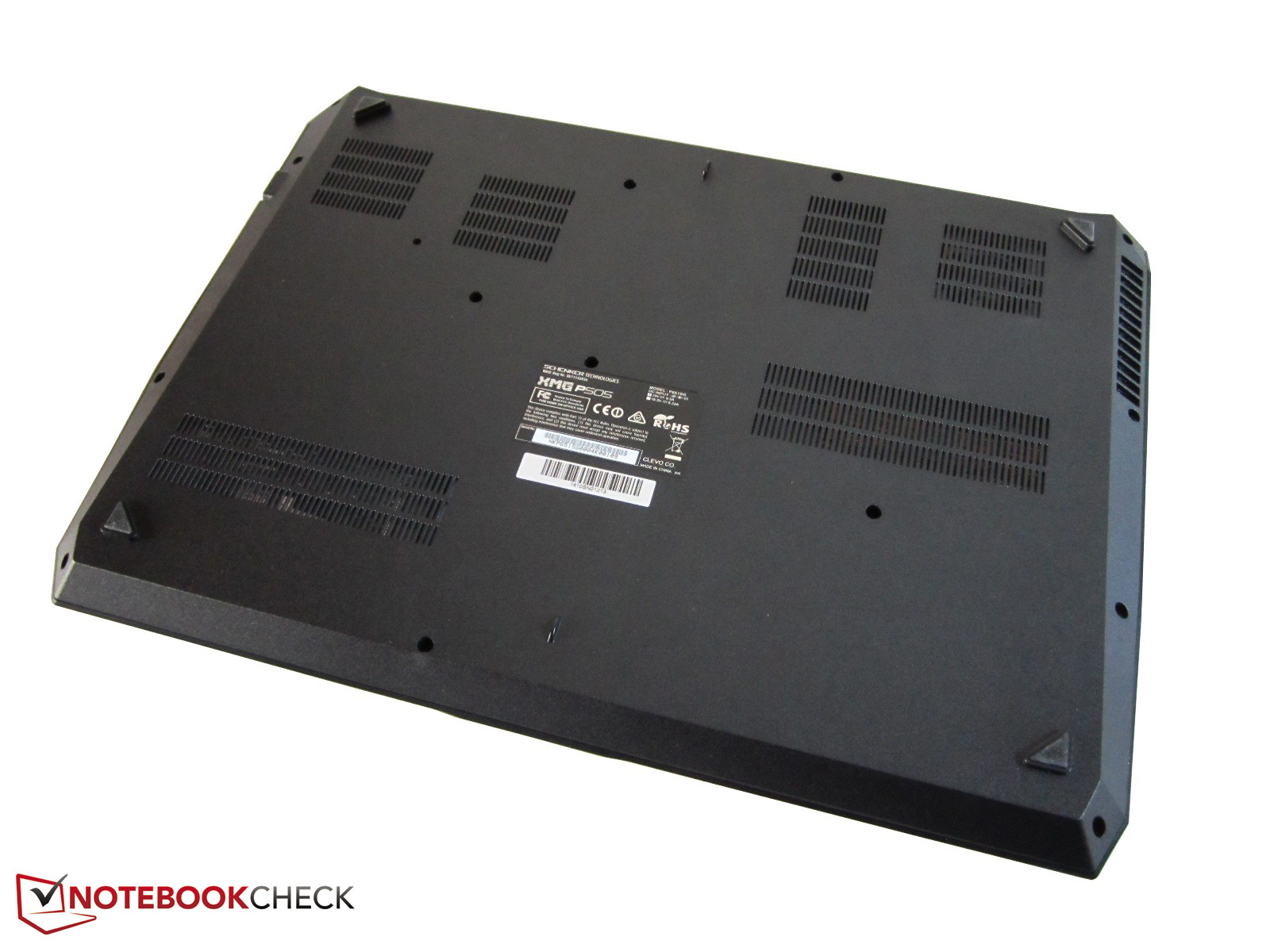

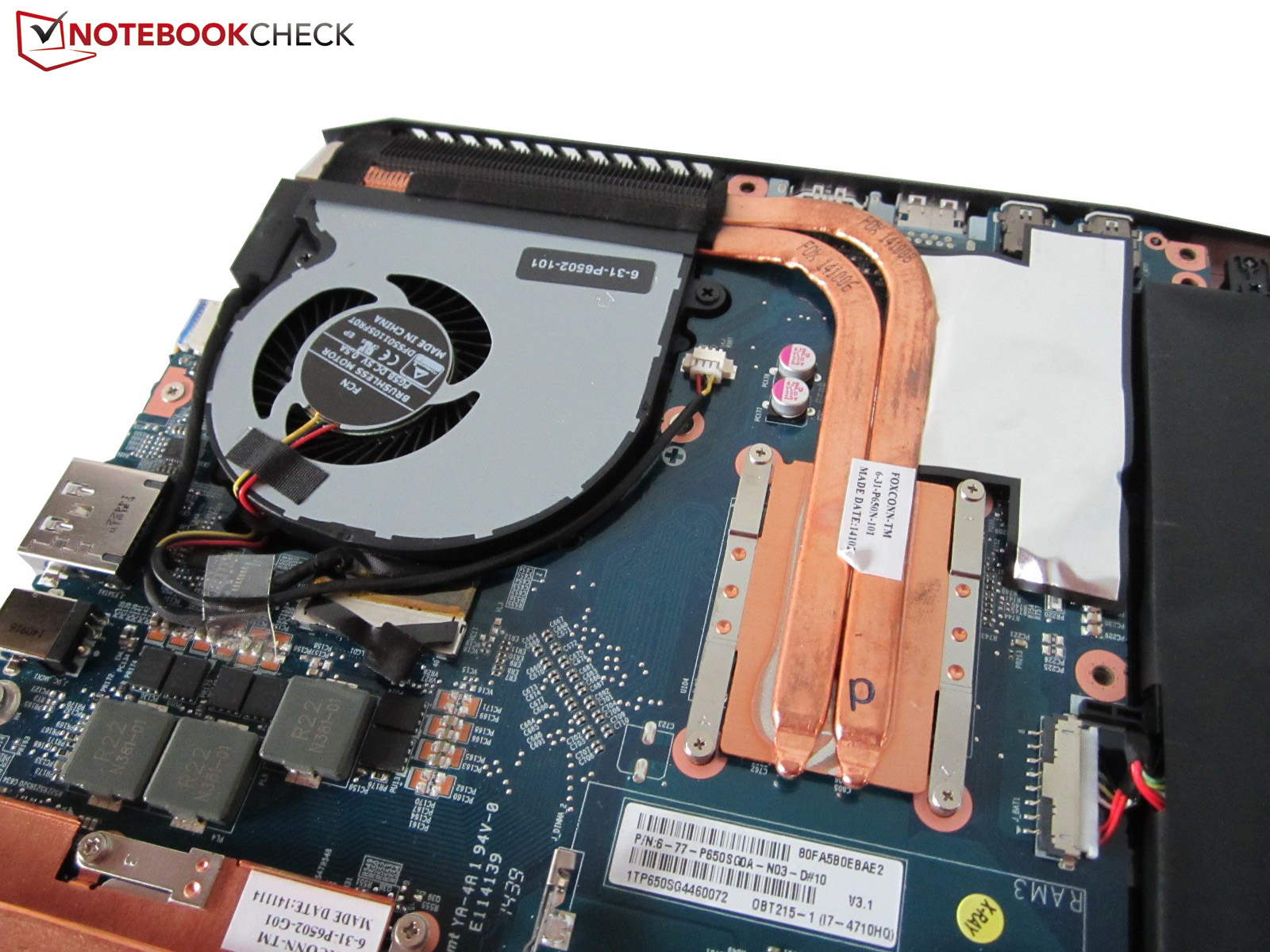

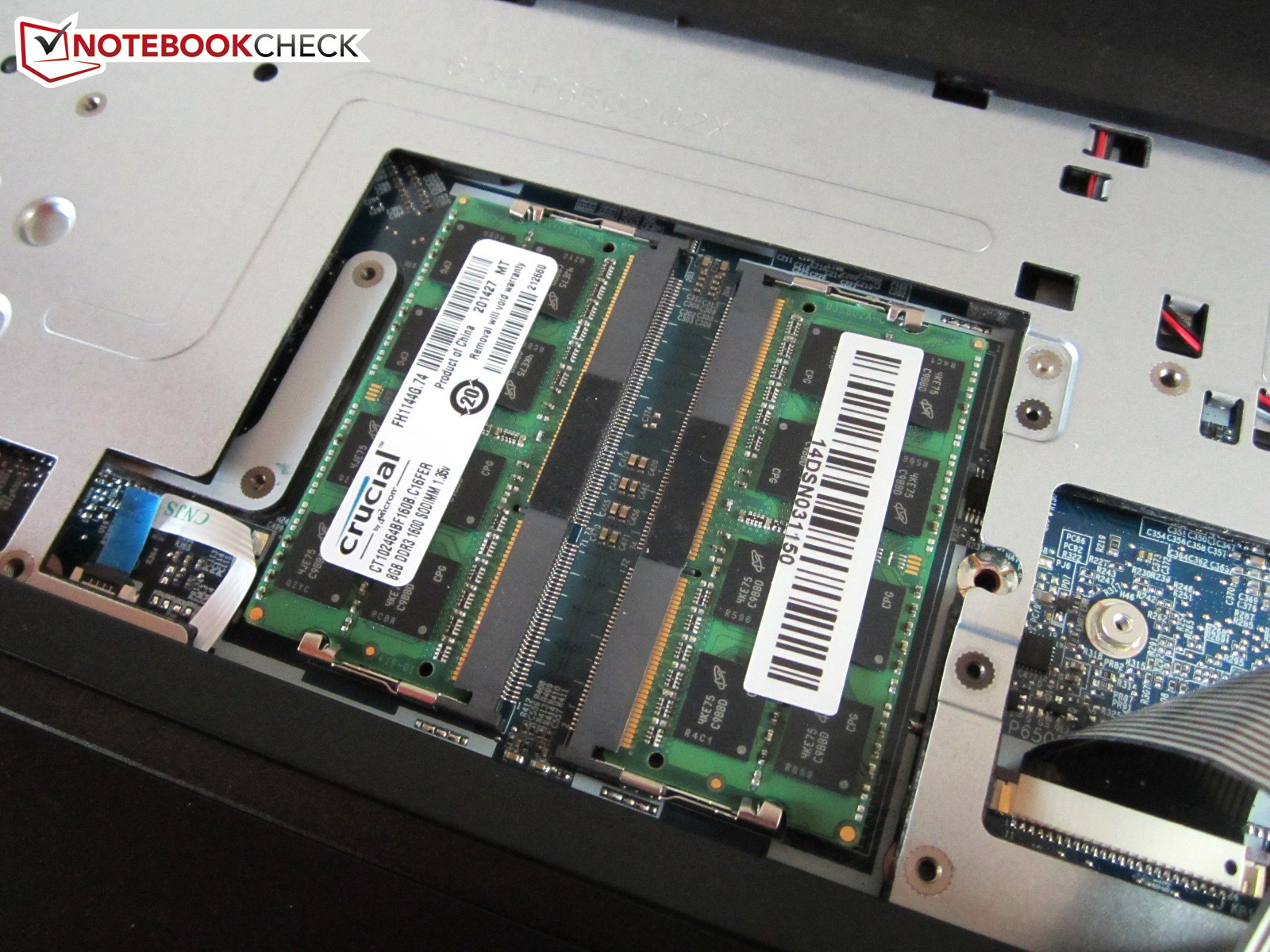

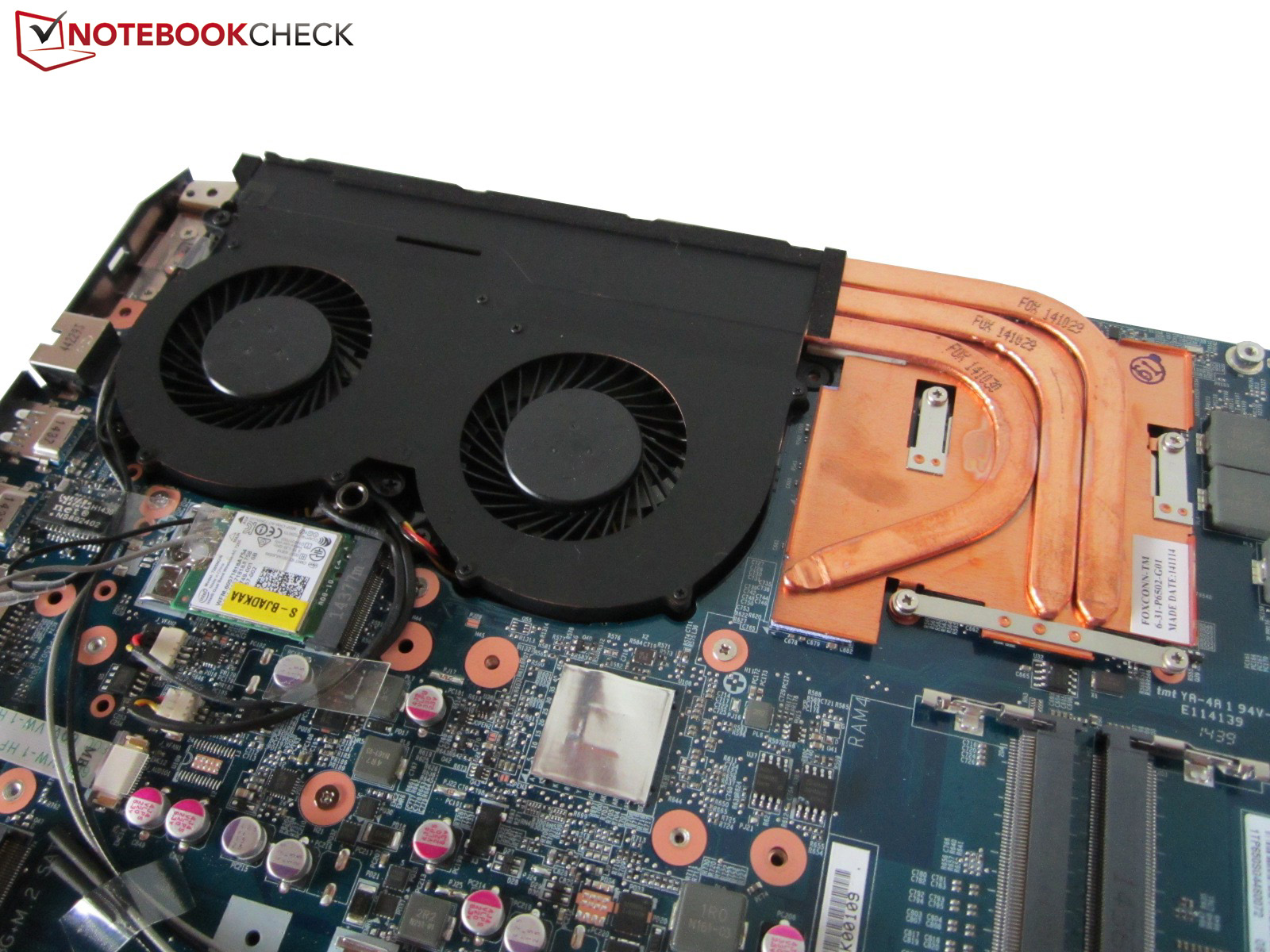

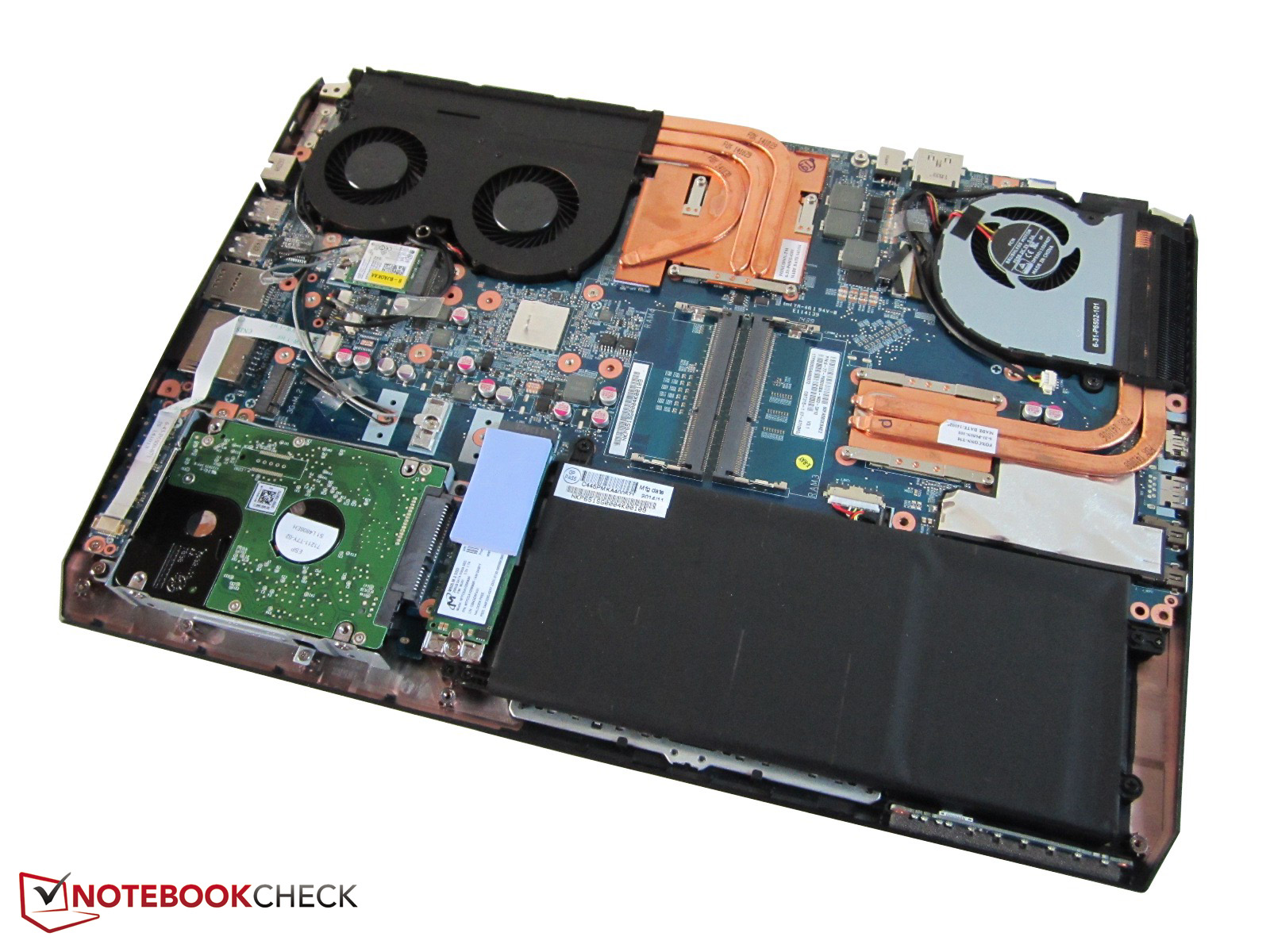

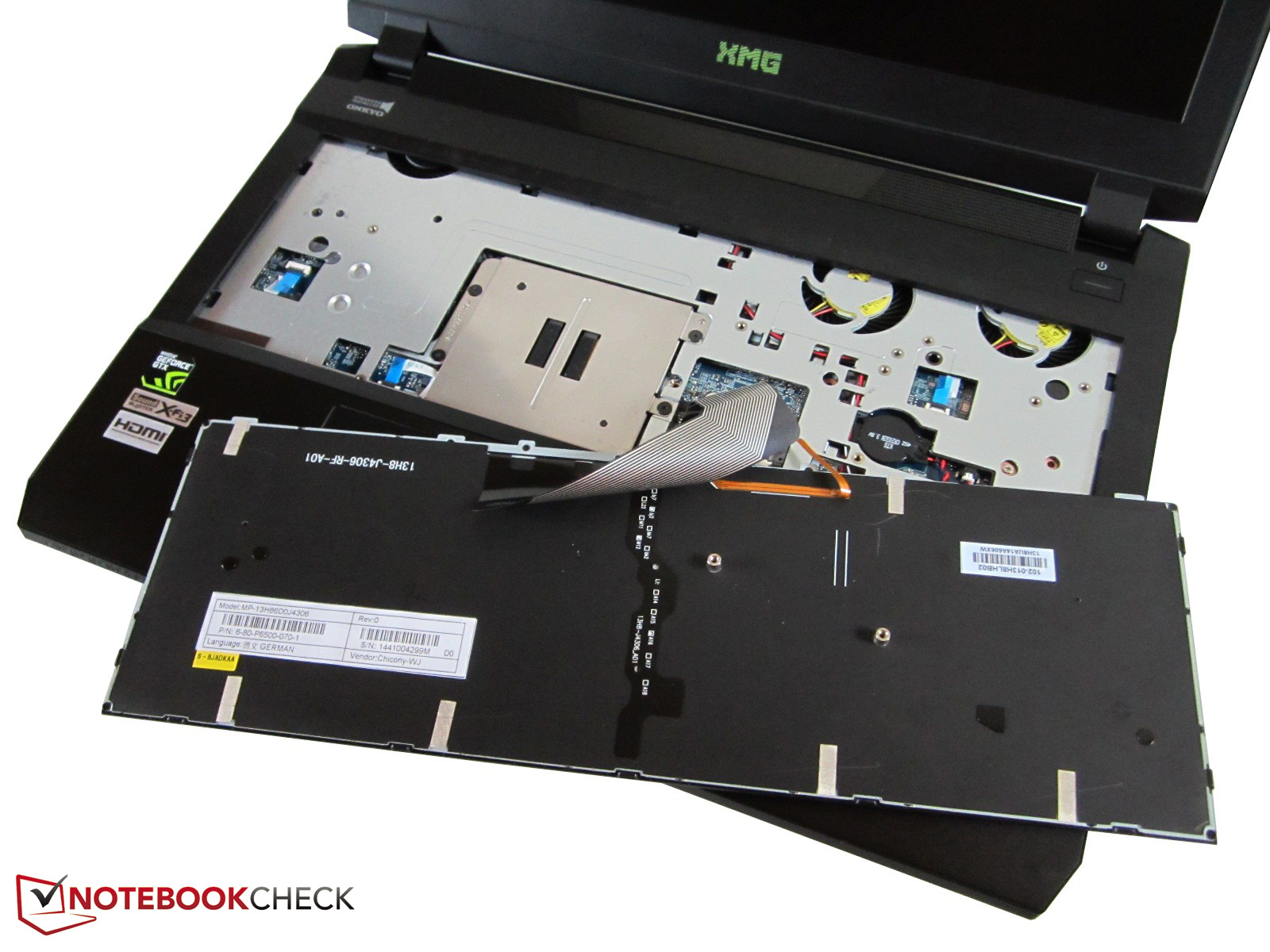

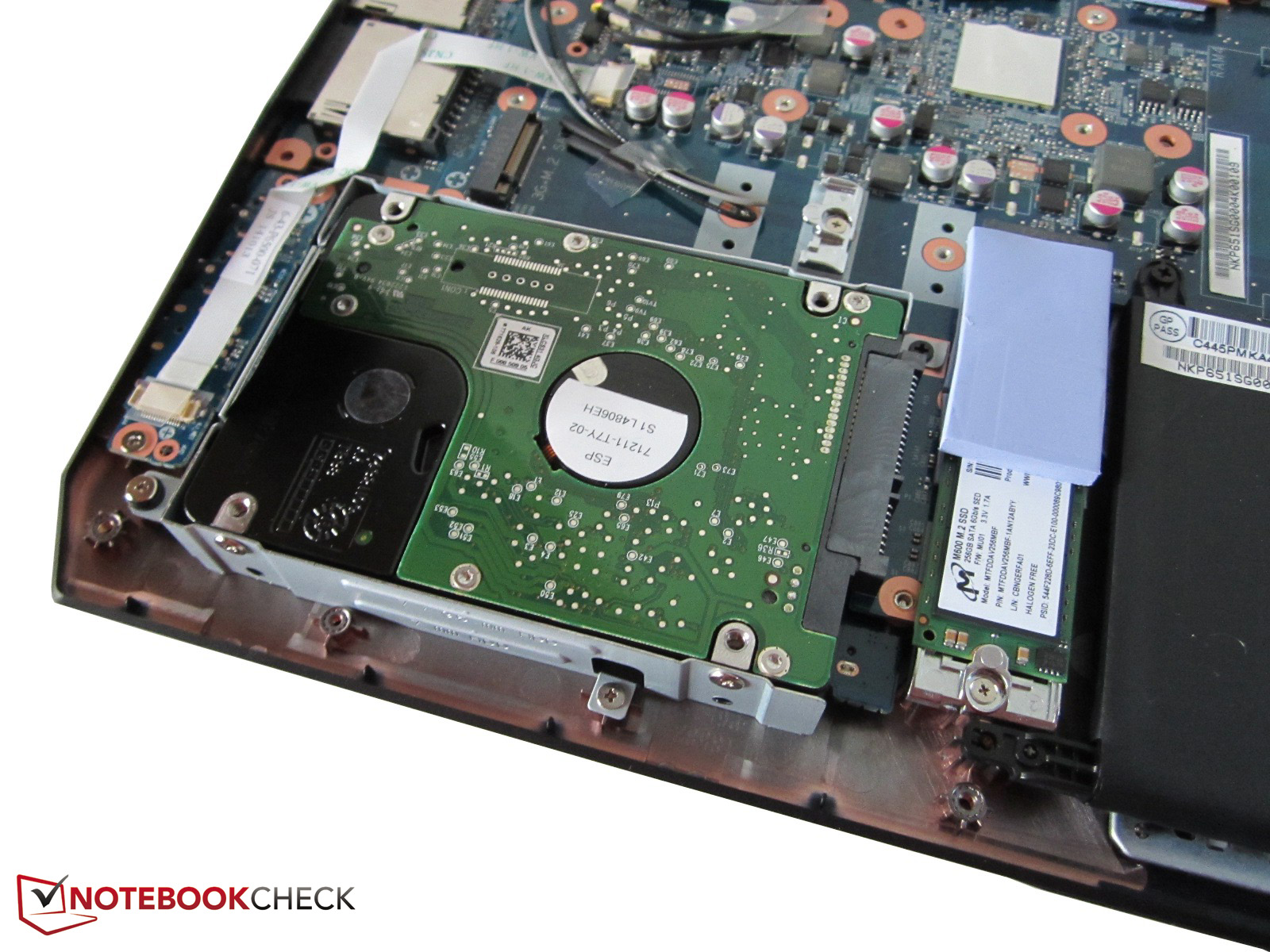

Maintenance

The internal layout just slightly differs from the P651SE Barebone. You once again have to loosen several screws before you can remove the bottom cover (the easiest spot to lift the bottom cover is around the RJ45 port). After that you can access almost every component, including the fans, the hard drives (2x M.2 & 2x 2.5-inch), the battery or the secondary memory slots. Except for the processor and the graphics card, you can remove every component. The primary memory slots are hidden underneath the keyboard, which is only secured with two screws (thanks to a tiny hole at the bottom it is easy to push the keyboard out).

Security and Software

There is no news in terms of security features. A fingerprint reader and a TPM 2.0 chip are not a matter of course for a gaming notebook. The software is almost identical as well, but the Gaming tab in the Command center has been complemented by a feature called Combo Keyboard, which can be used to create and manage macros.

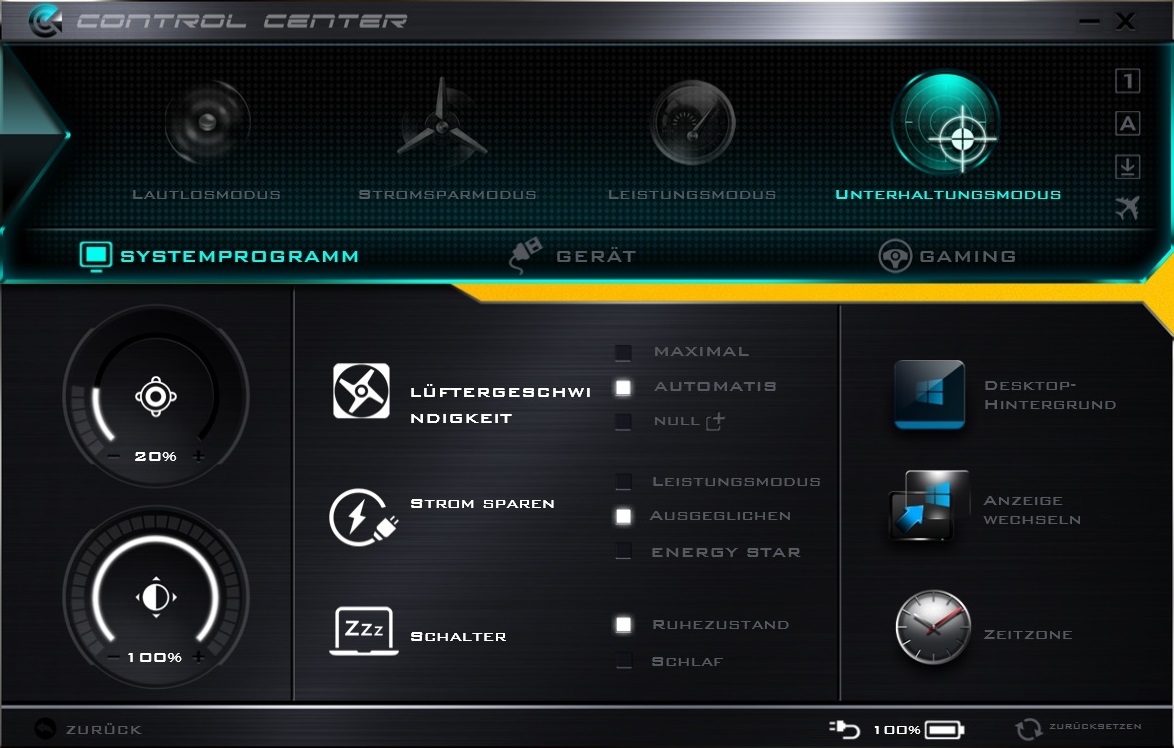

Control Center - System application
Control Center - System application

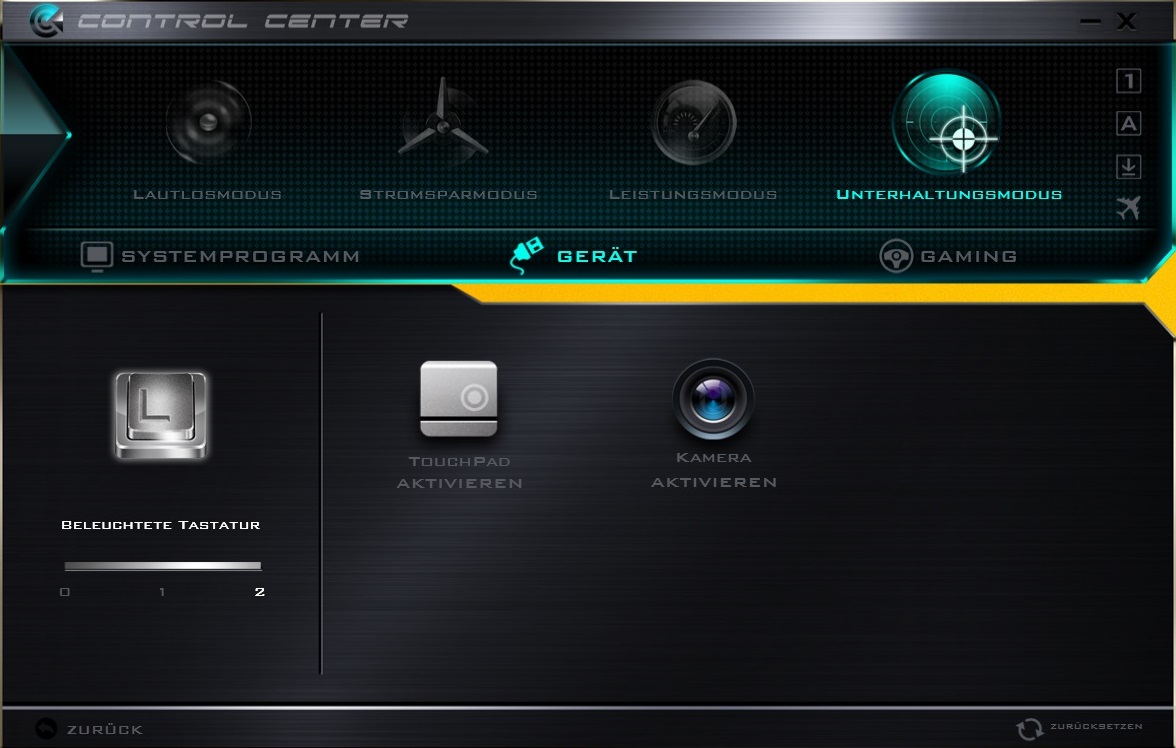

Control Center - Device
Control Center - Device
Control Center - Gaming
Control Center - Gaming

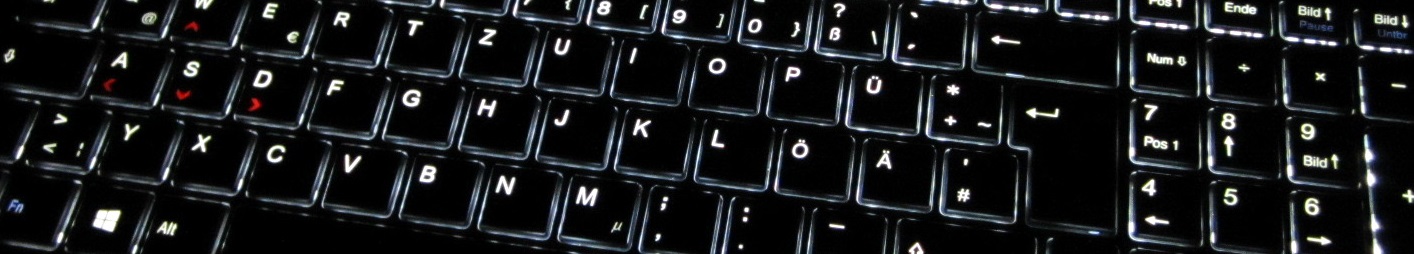

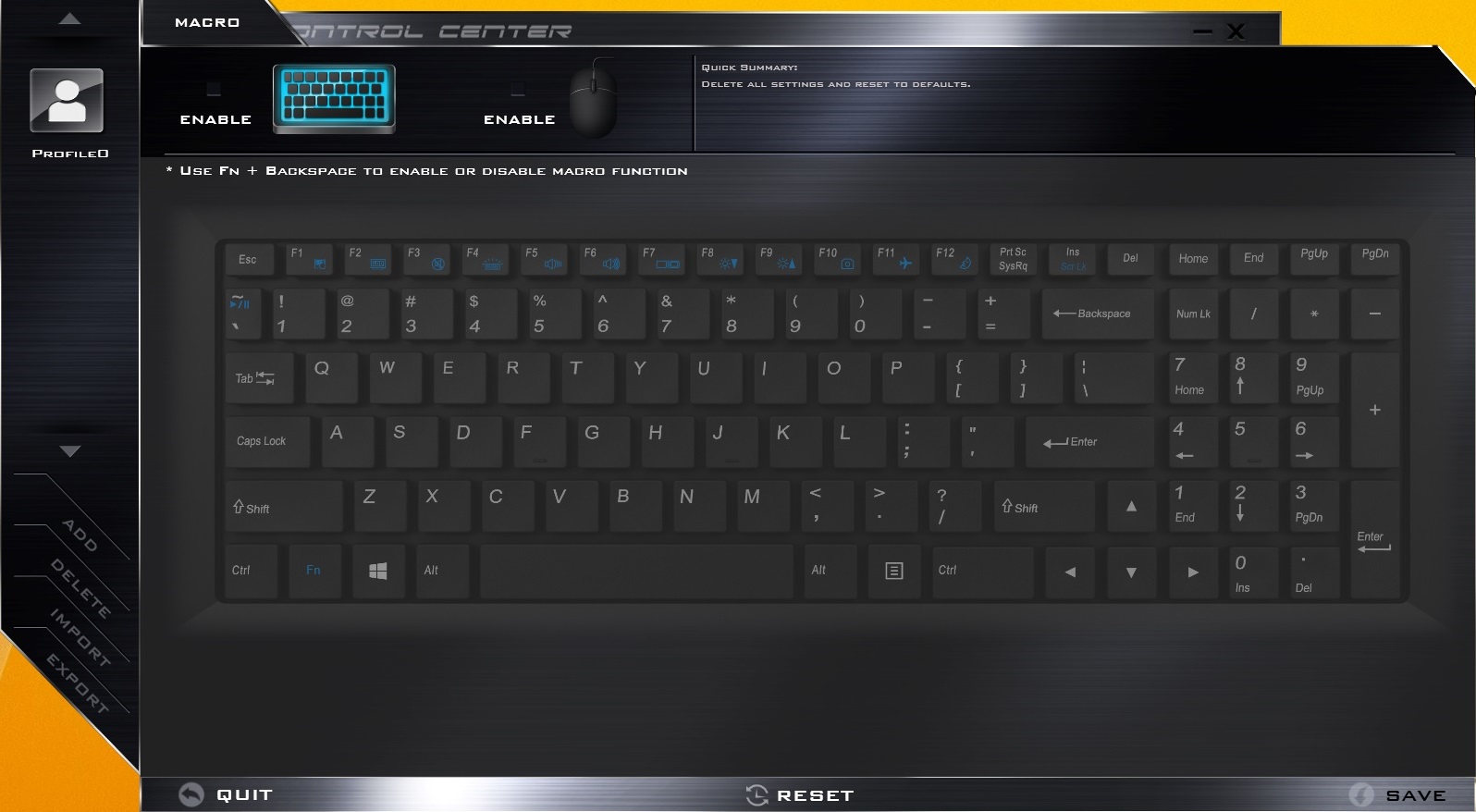

Combo Keyboard
Combo Keyboard

Accessories

Supplied accessories include a cleaning cloth, a manual, a driver DVD, an XMG sticker as well as screws for a hard drive. Furthermore, there is a 180-Watt power adaptor  weighting 844 grams (~1.86 lb). It is not really small with a size of 16.9 x 8.5 x 3.6 centimeters (~6.65 x 3.35 x 1.42 inches).

Warranty

The warranty depends on the wallet of the potential buyer. You can choose between 24, 36 or 48 months.

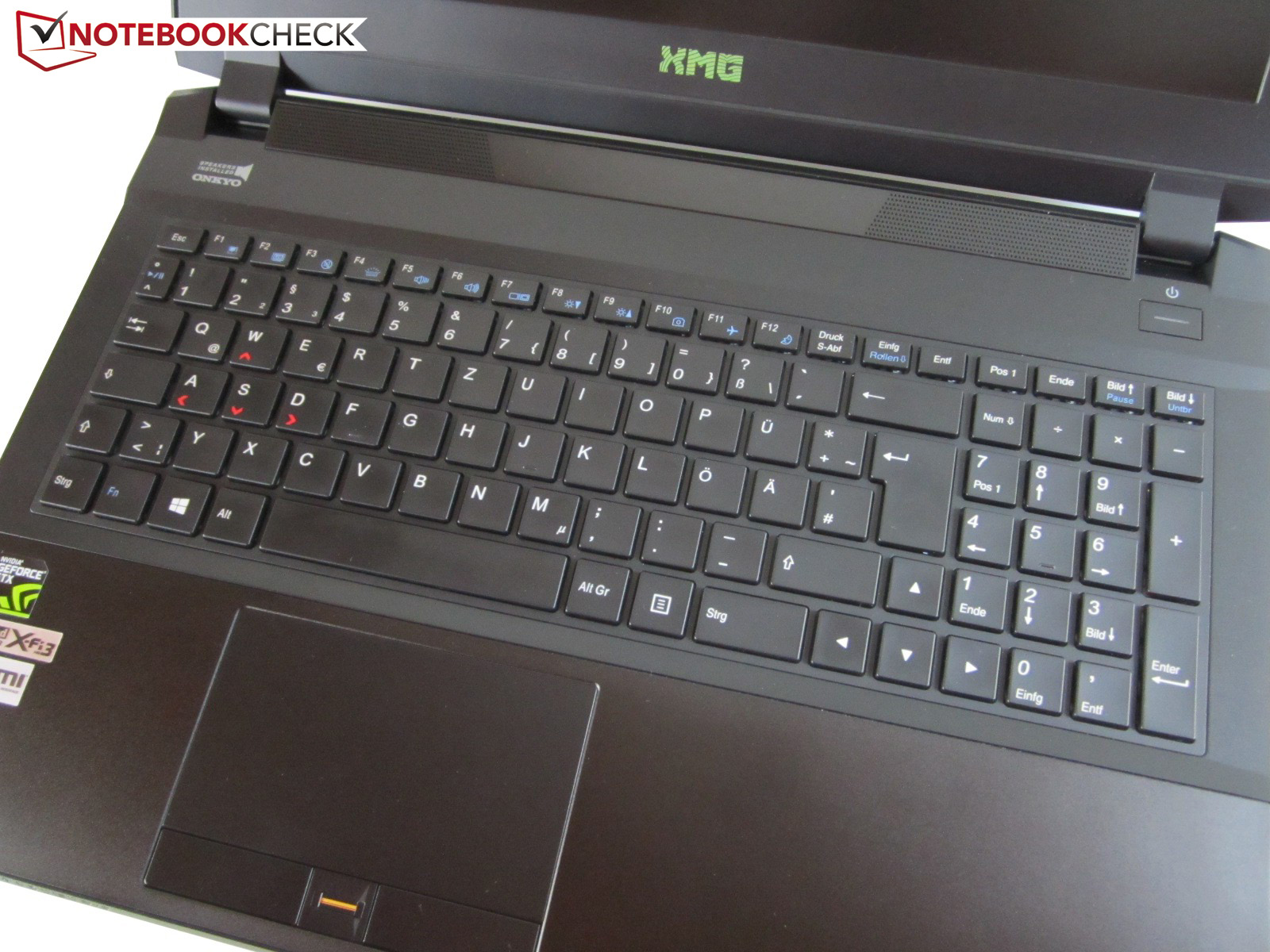

Input Devices

The quality of the input devices is decent in our opinion. There is some room for improvements (typing noise, feedback of the touchpad button, ...), but all in all both the keyboard as well as the mouse replacement do a pretty good job. There is hardly any criticism for the layout and typing experience of the chiclet keyboard, which has a white background illumination. The touchpad itself has a generous size and a smooth surface. More details are available in our first review.

Display

One of the biggest highlights is the display. The "standard" HD panel is not quite as bright as the 4K option (~274 vs. 333 cd/m²), but the AU Optronics B156HAN01.2 still produces an excellent picture thanks to the IPS technology.

272
cd/m²
293
cd/m²
265
cd/m²
269
cd/m²
286
cd/m²
260
cd/m²
301
cd/m²
266
cd/m²
257
cd/m²
Distribution of brightness
AU Optronics B156HAN01.2 (AUO12ED) tested with X-Rite i1Pro 2
Maximum: 301 cd/m² (Nits) Average: 274.3 cd/m²
Brightness Distribution: 85 %
Center on Battery: 286 cd/m²
Contrast: 1192:1 (Black: 0.24 cd/m²)
ΔE Color 3.84 | 0.5-29.43 Ø5
ΔE Greyscale 5.06 | 0.57-98 Ø5.3
91.1% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 2.2.0 3D)
90.1% sRGB (Argyll 2.2.0 3D)
63.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.4

It does not matter if you look at the color accuracy, RGB balance or saturation level: Conventional TN panels usually have a hard time to compete with IPS screens. The XMG P505, for instance, does not suffer from the blue cast, which is typical for notebook displays. The viewing angles are respectable as well, both with horizontal as well as vertical shifts. Even wider angles only result in small picture distortions.

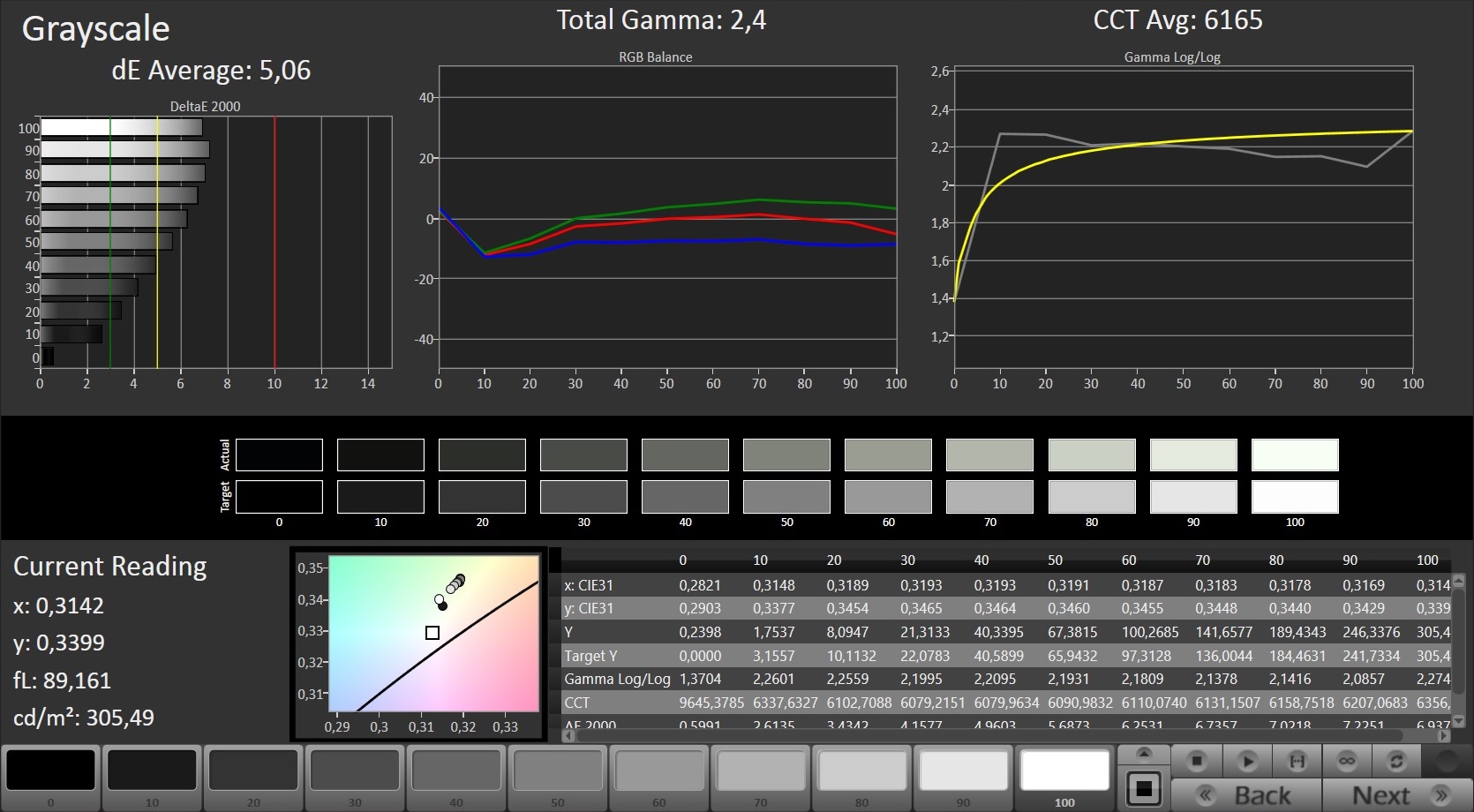

CalMAN: Grayscale
CalMAN: Grayscale

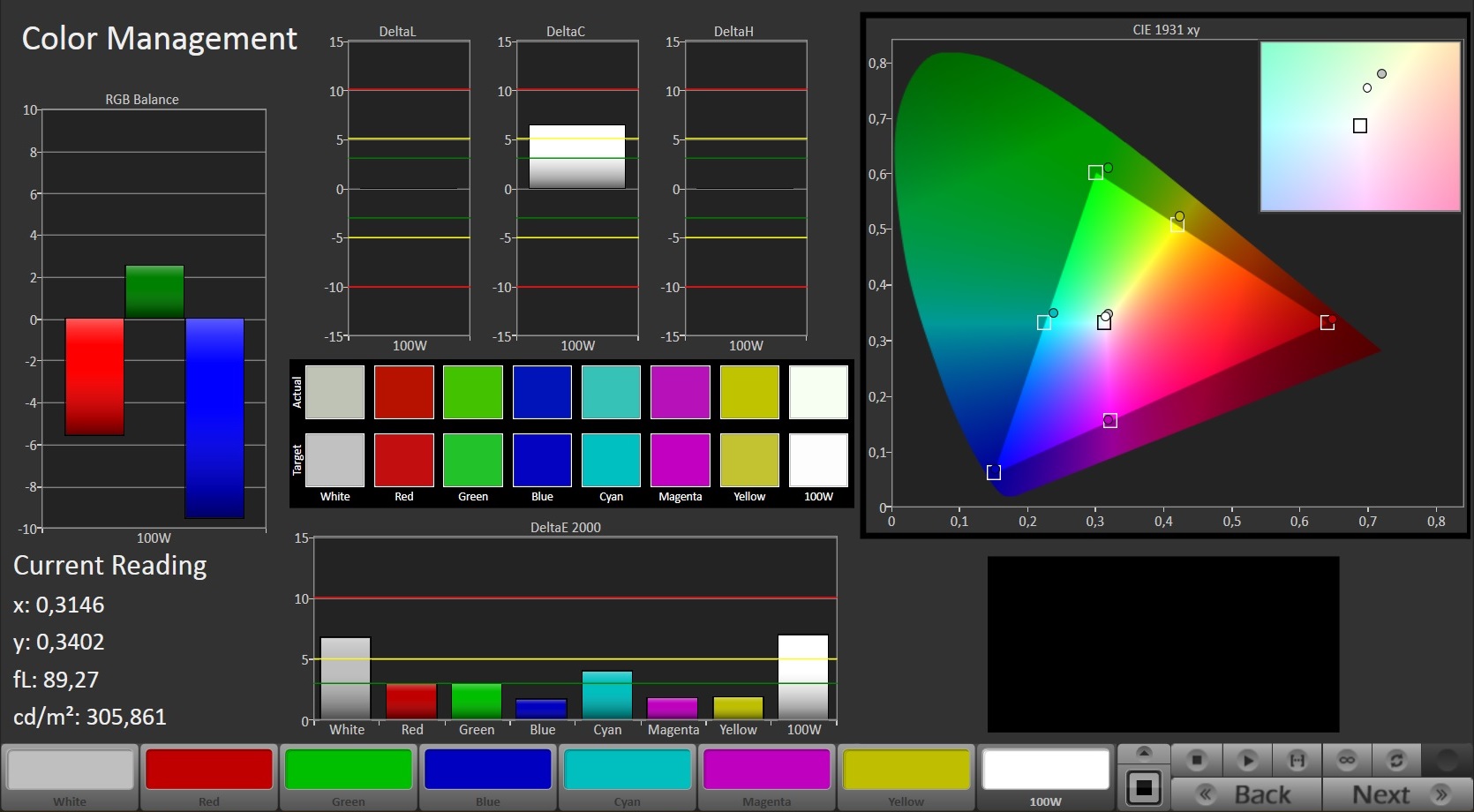

CalMAN: Color Management
CalMAN: Color Management

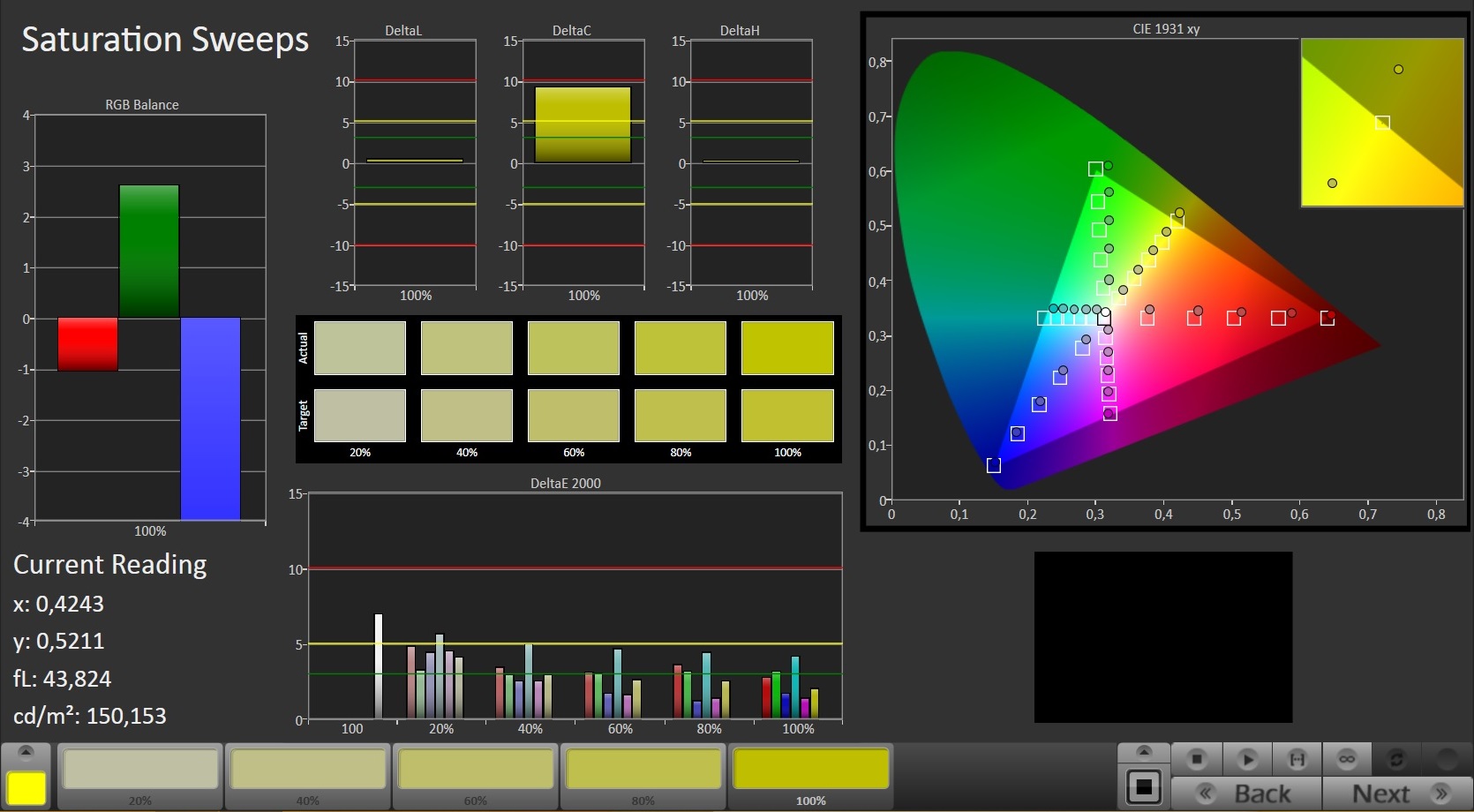

CalMAN: Saturation Sweeps
CalMAN: Saturation Sweeps

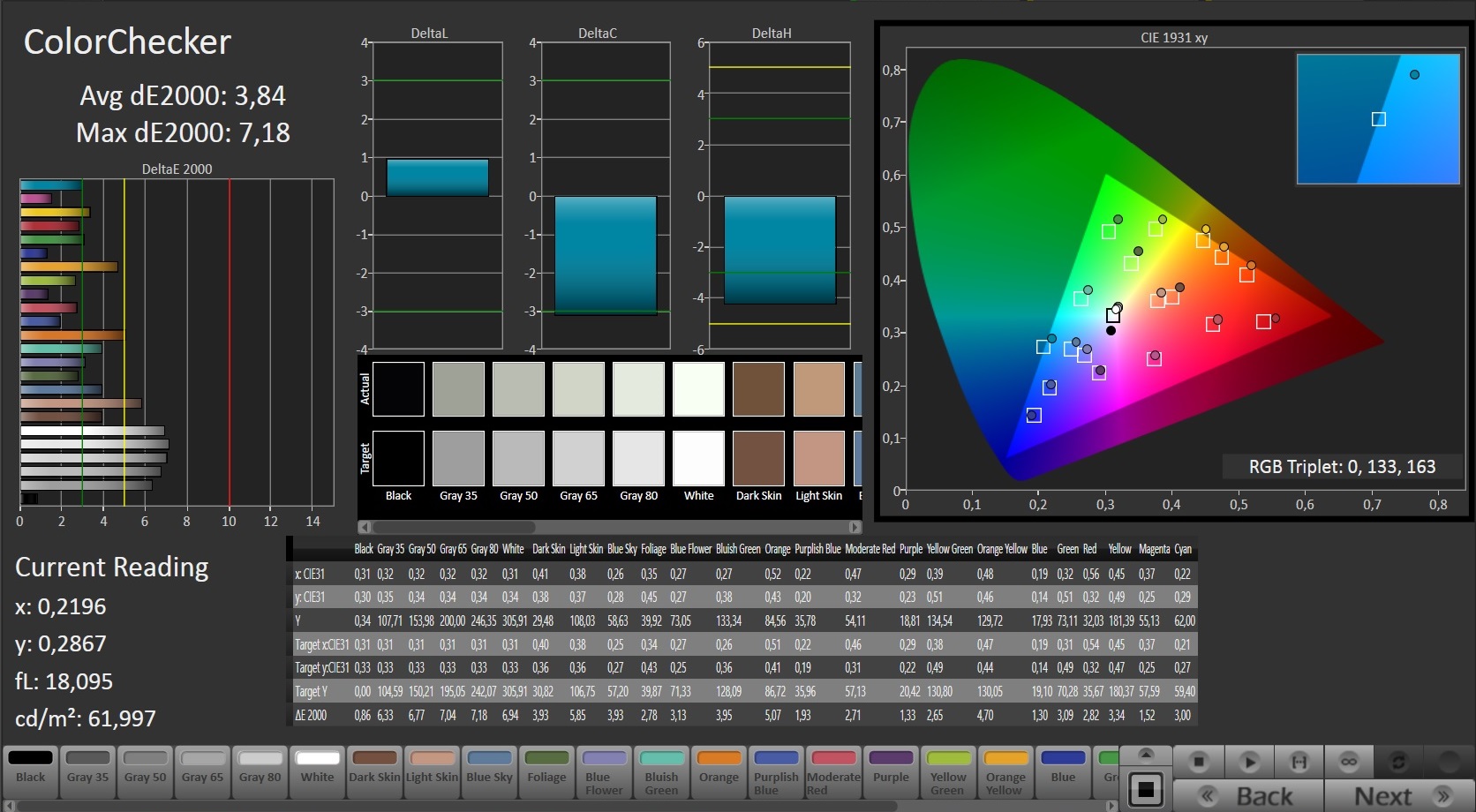

CalMAN: ColorChecker
CalMAN: ColorChecker

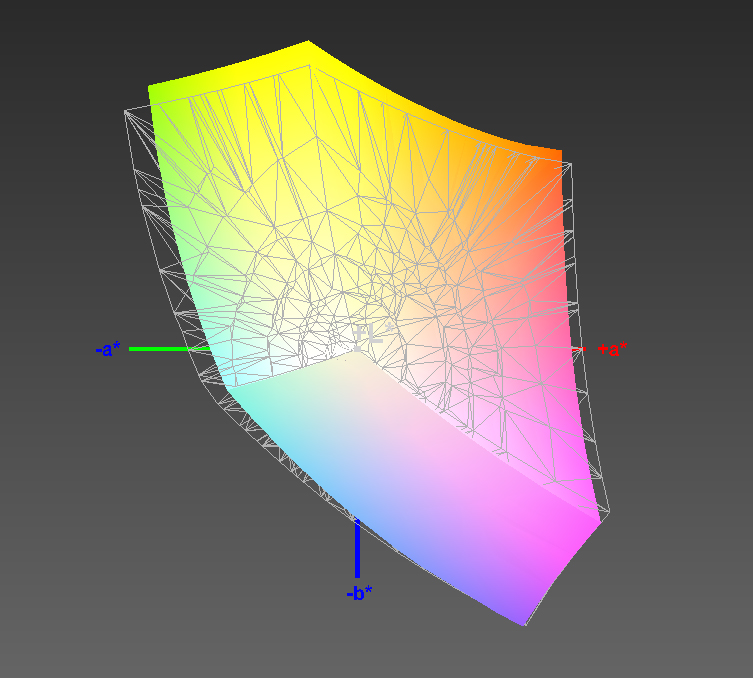

Schenker XMG P505 vs. sRGB (Correction 20.5.2015 due to a wrong sRGB-reference-profile)
Schenker XMG P505 vs. sRGB (Correction 20.5.2015 due to a wrong sRGB-reference-profile)

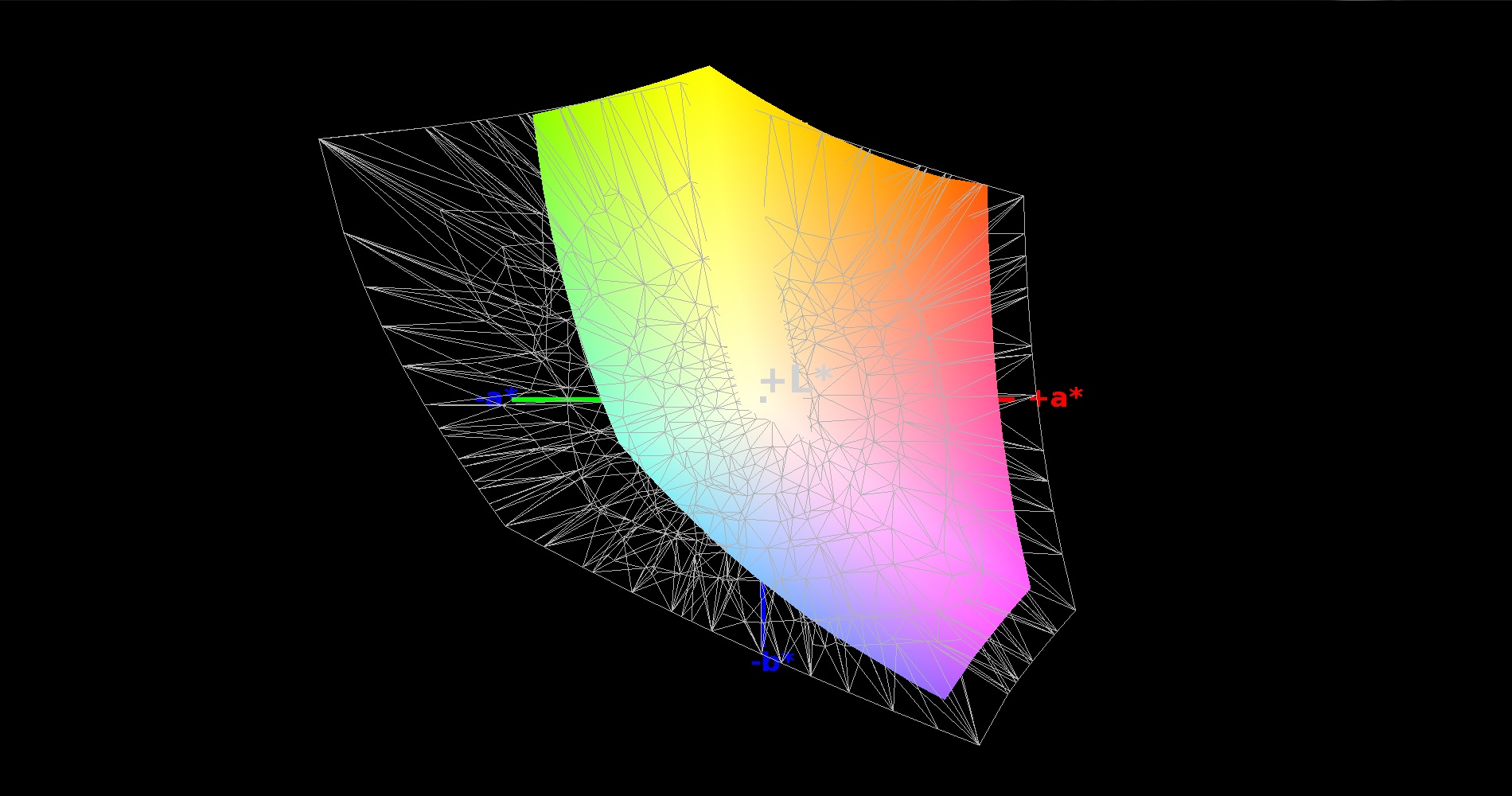

Schenker XMG P505 vs. AdobeRGB
Schenker XMG P505 vs. AdobeRGB

We liked the low black value in particular. Compared to other panels, dark gaming and video scenes, respectively, appear very sharp and not washed-out. In combination with the high contrast (~1,200:1) you can see all contents perfectly. The only criticism concerns the brightness distribution. 85% are just average, especially since our review unit had issues with screen bleeding in the lower left corner.

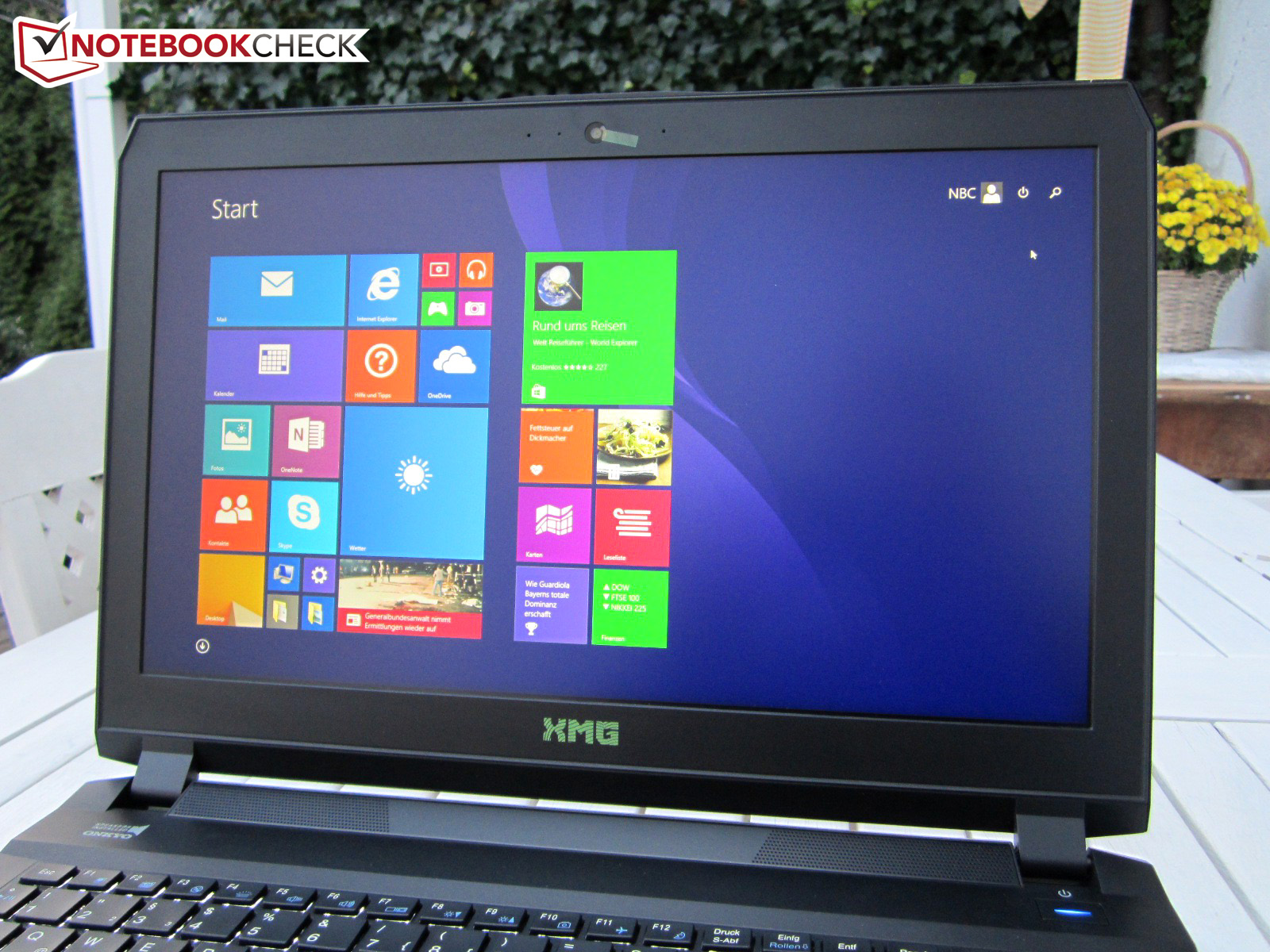

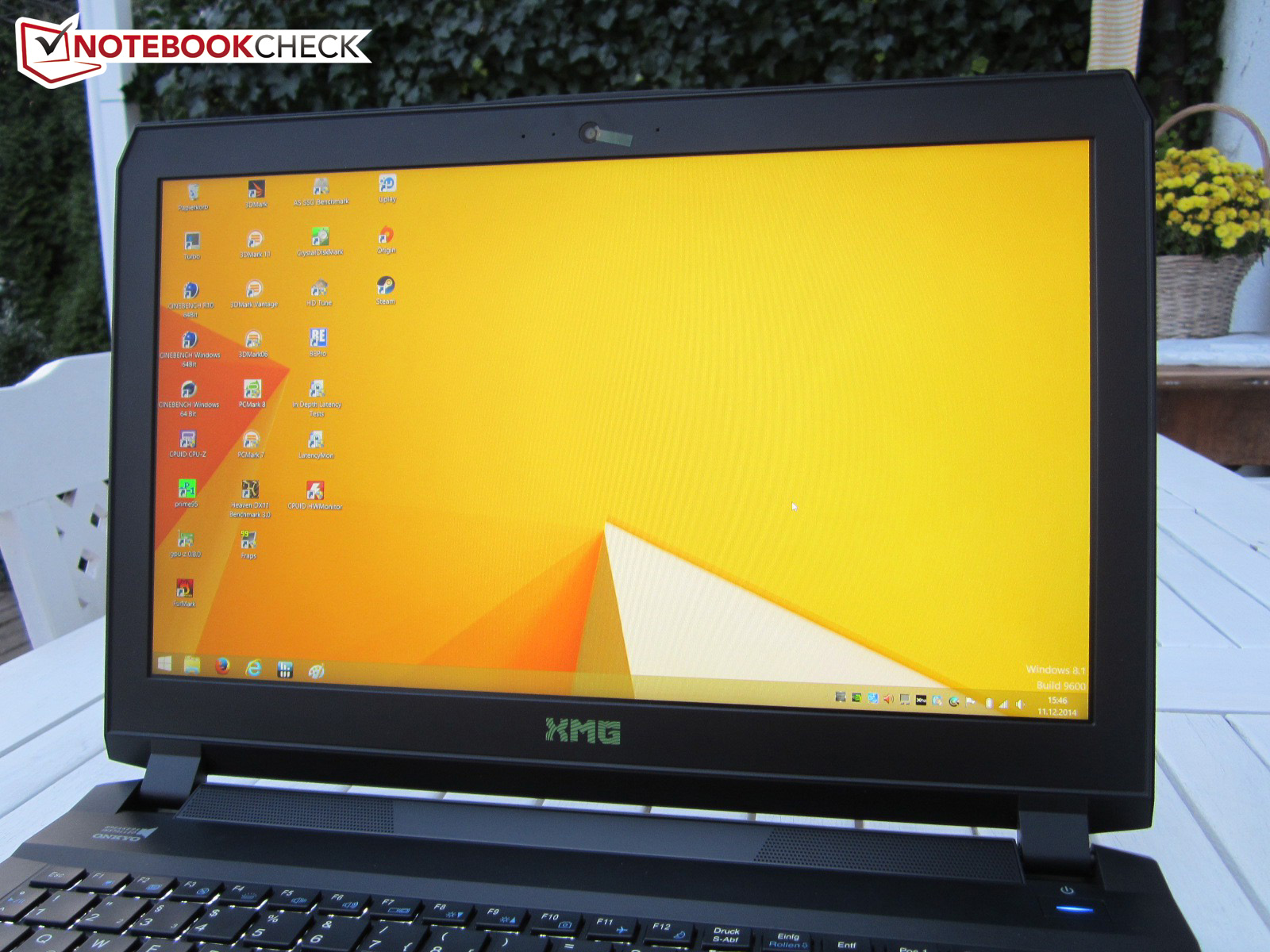

Outdoor use Schenker XMG P505 PRO
Outdoor use Schenker XMG P505 PRO
Outdoor use FHD panel

Because the 4K panel consumes much more power (see Energy Management) and often had scaling issues (size of windows, etc.) we would recommend the Full HD screen. Another positive aspect of the AU Optronics B156HAN01.2 is its matte surface, which means it is more comfortable to use outdoors. Note: According to the Schenker homepage, the panel is supposed to cover 100% of the sRGB color space, but our measurements only determine 91% (Correction 20.5.2015 due to a wrong sRGB-reference-profile).

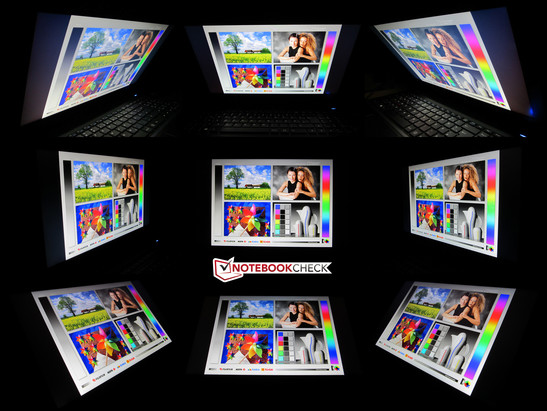

Viewing angles FHD panel
Viewing angles FHD panel

Performance

Haswell
Haswell

Processor

Intel's Core i7-4870HQ, which powered our last review unit, is not available anymore in the configurator. This is a good thing, since the low performance advantage cannot compensate the temperature and therefore noise development. With 2.5-3.5 GHz, the Core i7-4710HQ is just marginally slower than the Core i7-4870HQ (2.5-3.7 GHz), although the more expensive sibling offers the more powerful integrated GPU (Iris Pro 5200 vs. HD Graphics 4600). However, this aspect is not really important considering the dedicated GPU. The other specifications are similar: Both Intel quad-core CPUs have 6 MB L3 cache and a TDP of 47 Watts.

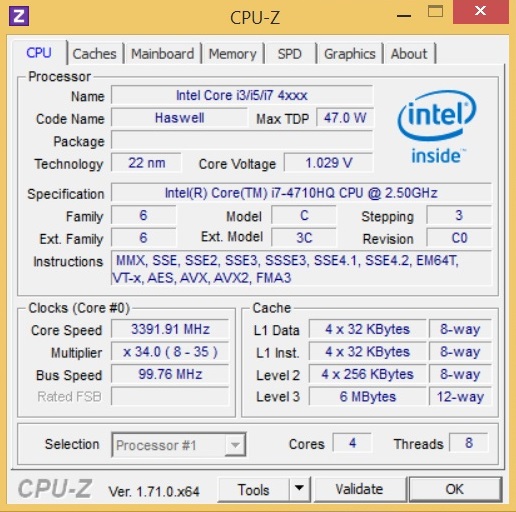

System info CPUZ CPU

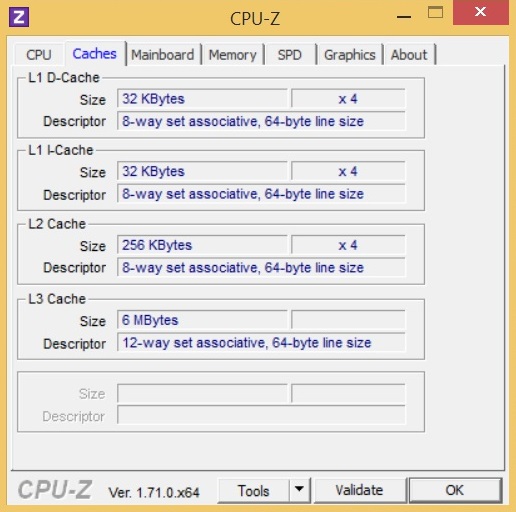

System info CPUZ Cache

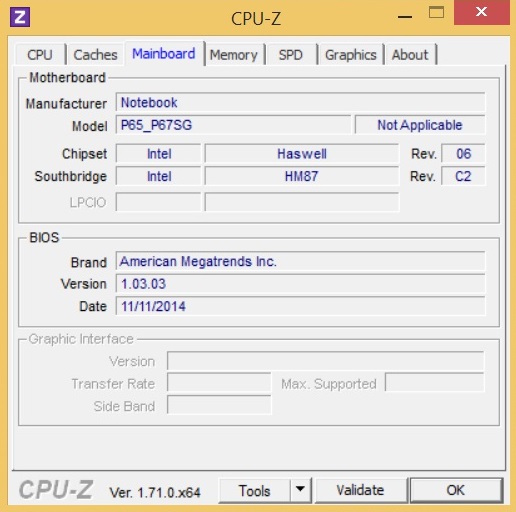

System info CPUZ Mainboard

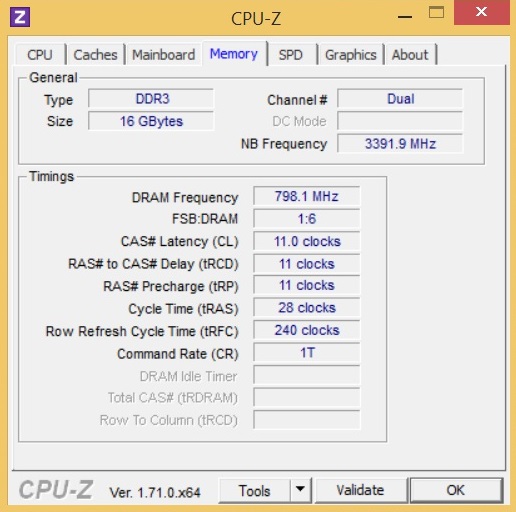

System info CPUZ Memory

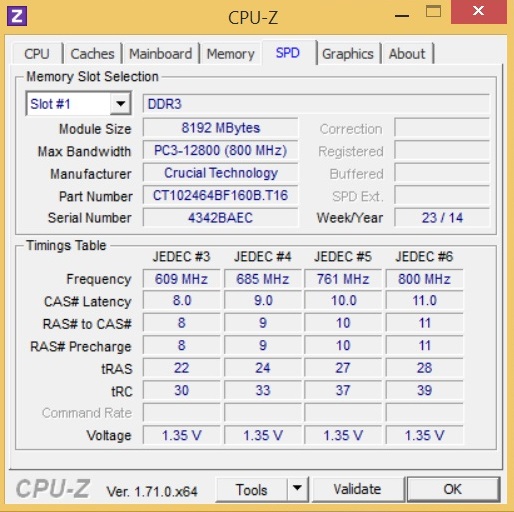

System info CPUZ SPD

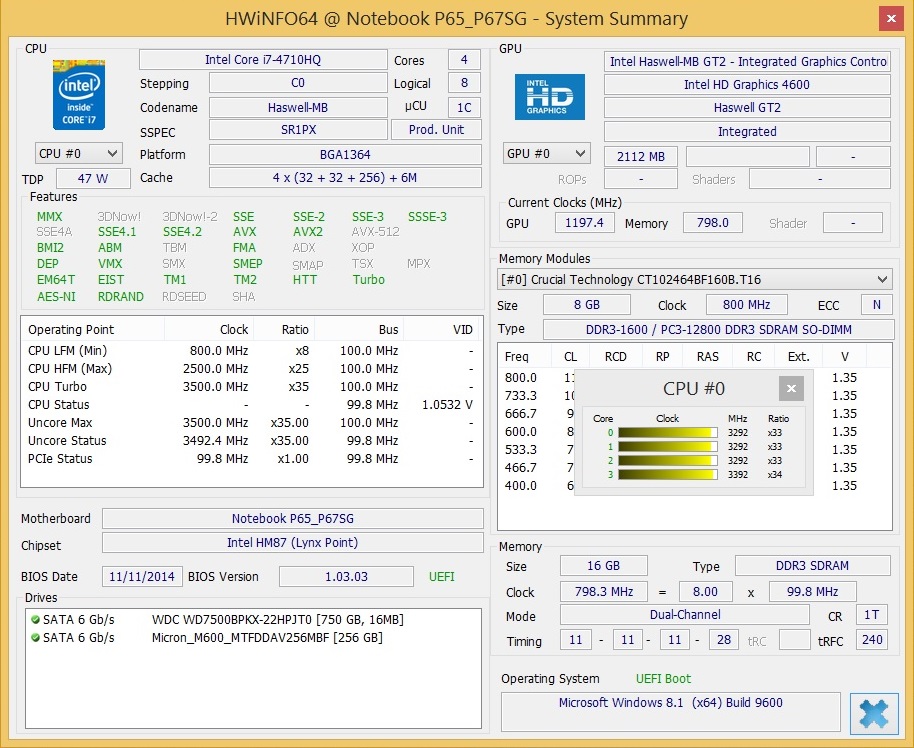

System info HWiNFO

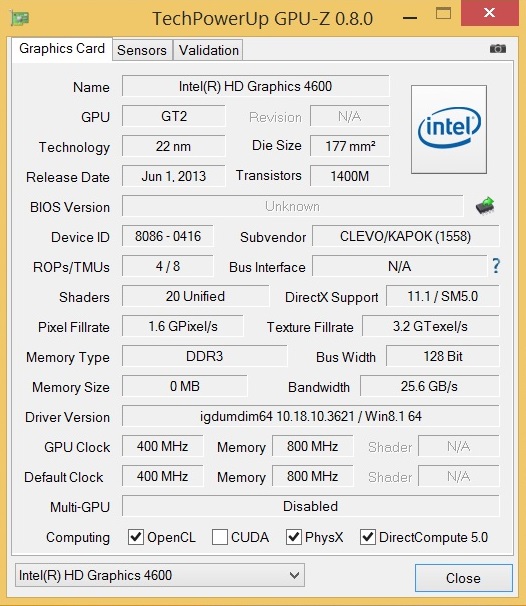

System info GPUZ (HD 4600)

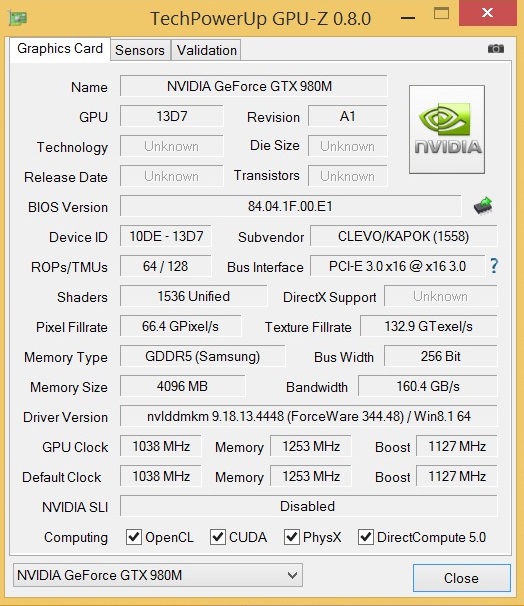

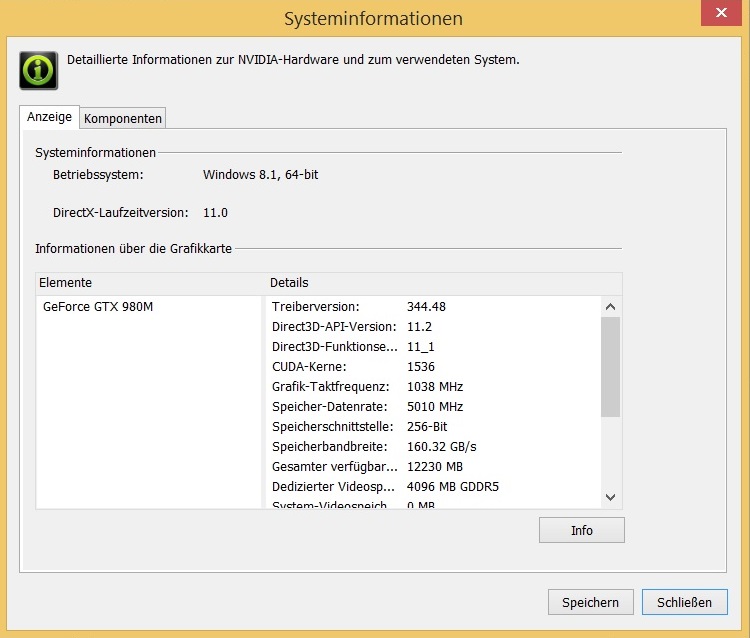

System info GPUZ (GTX 980M)

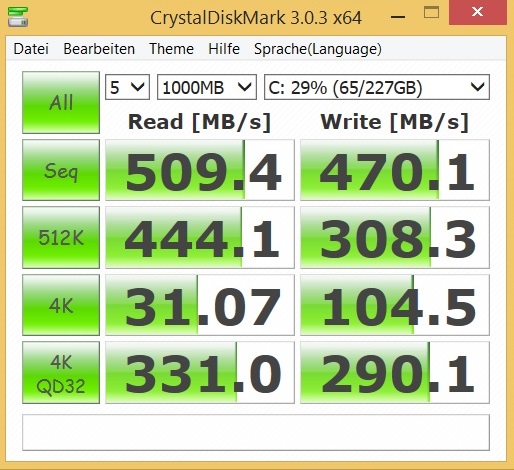

System info CrystalDiskMark (SSD)

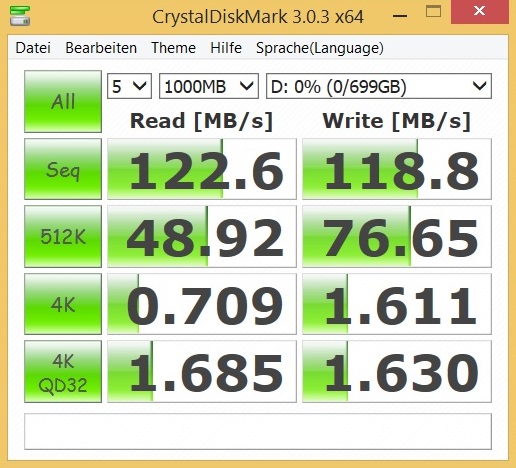

System info CrystalDiskMark (HDD)

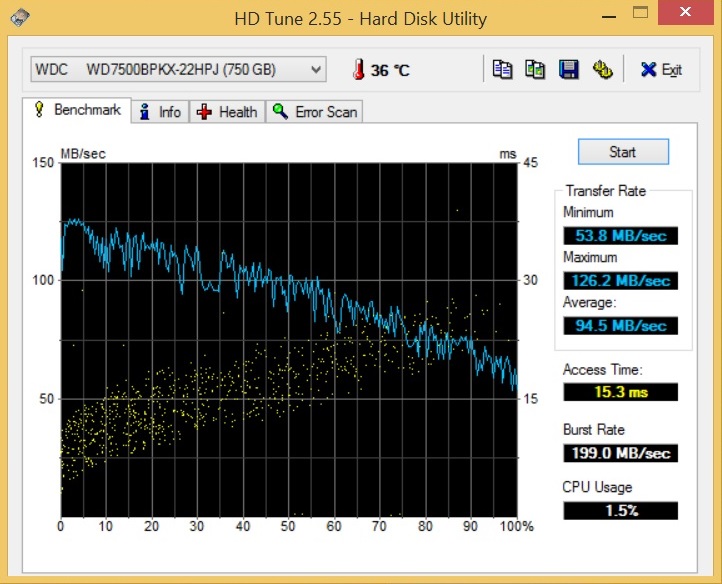

System info HDTune (HDD)

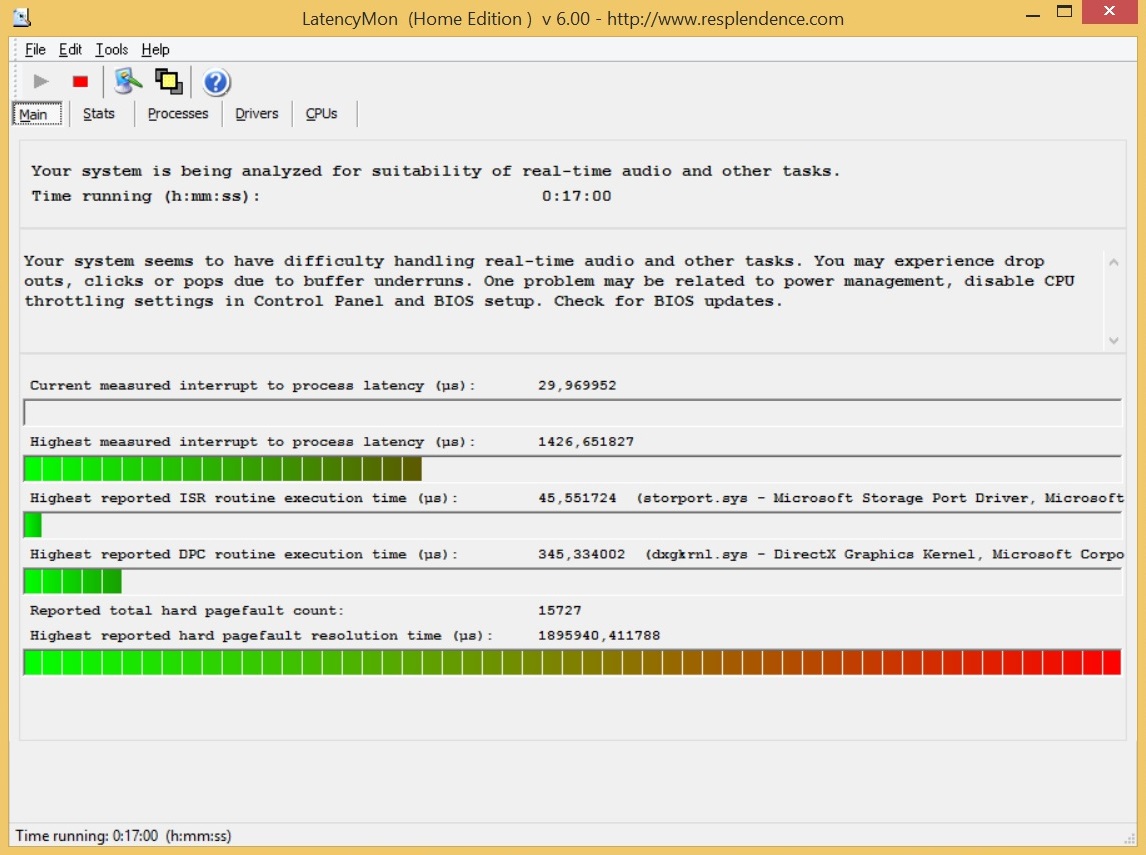

System info Latency
System information Schenker XMG P505 PRO

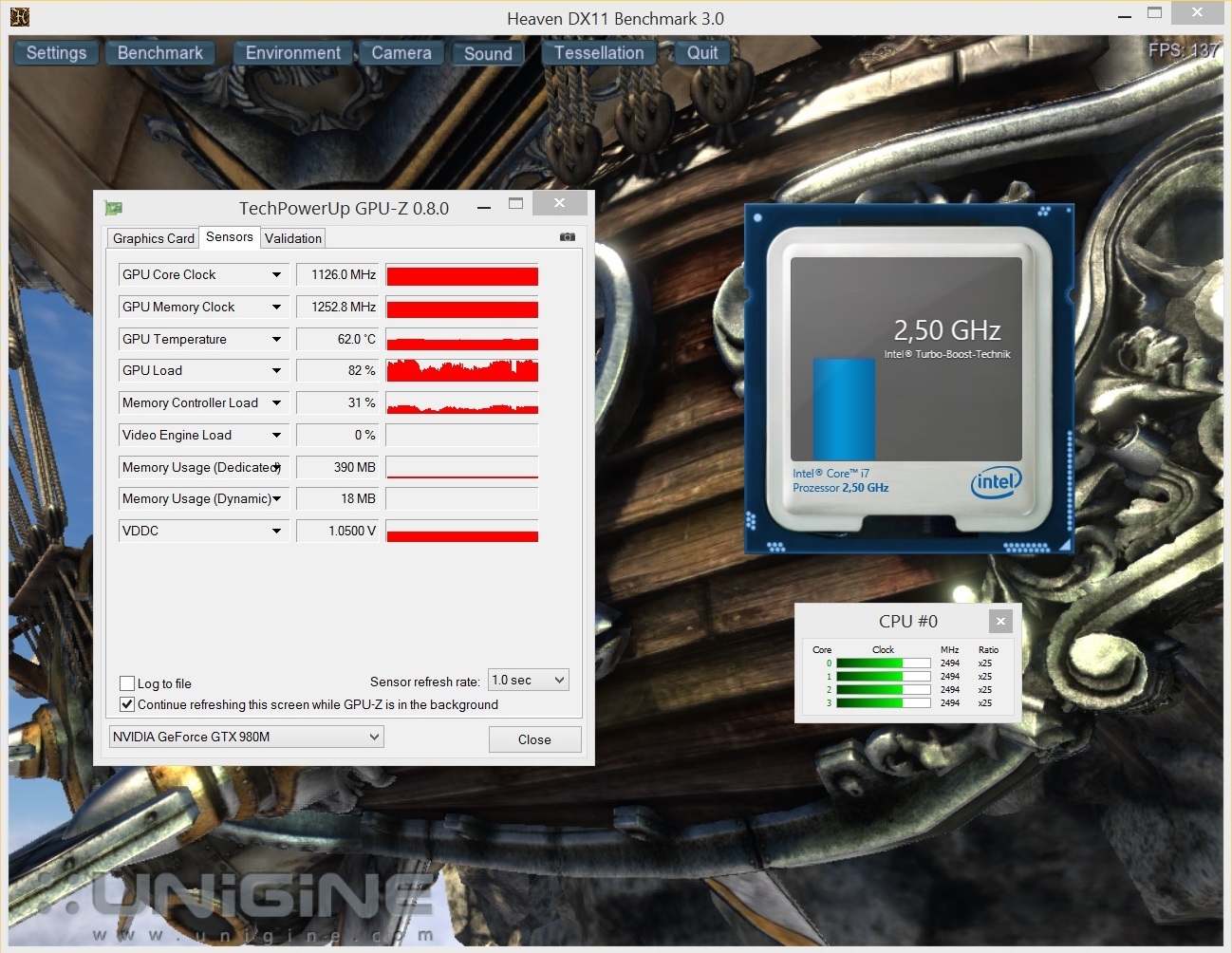

Turbo Boost

The Turbo Boost feature leaves mixed impressions. While CPU benchmarks result in 3.2-3.5 GHz, the clock occasionally drops to 2.5 GHz in 3D applications, which is the nominal value. However, the drops are pretty short, so you hardly recognize the fluctuating Turbo Boost. The feared throttling is only an issue under impractical maximum load, where the clock fluctuates between 1.0 and 2.3 GHz.

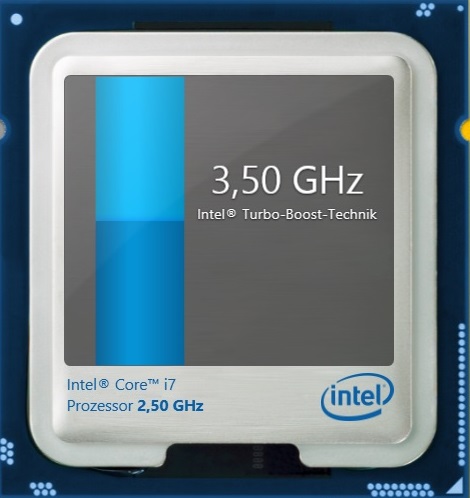

Single-core rendering
Single-core rendering

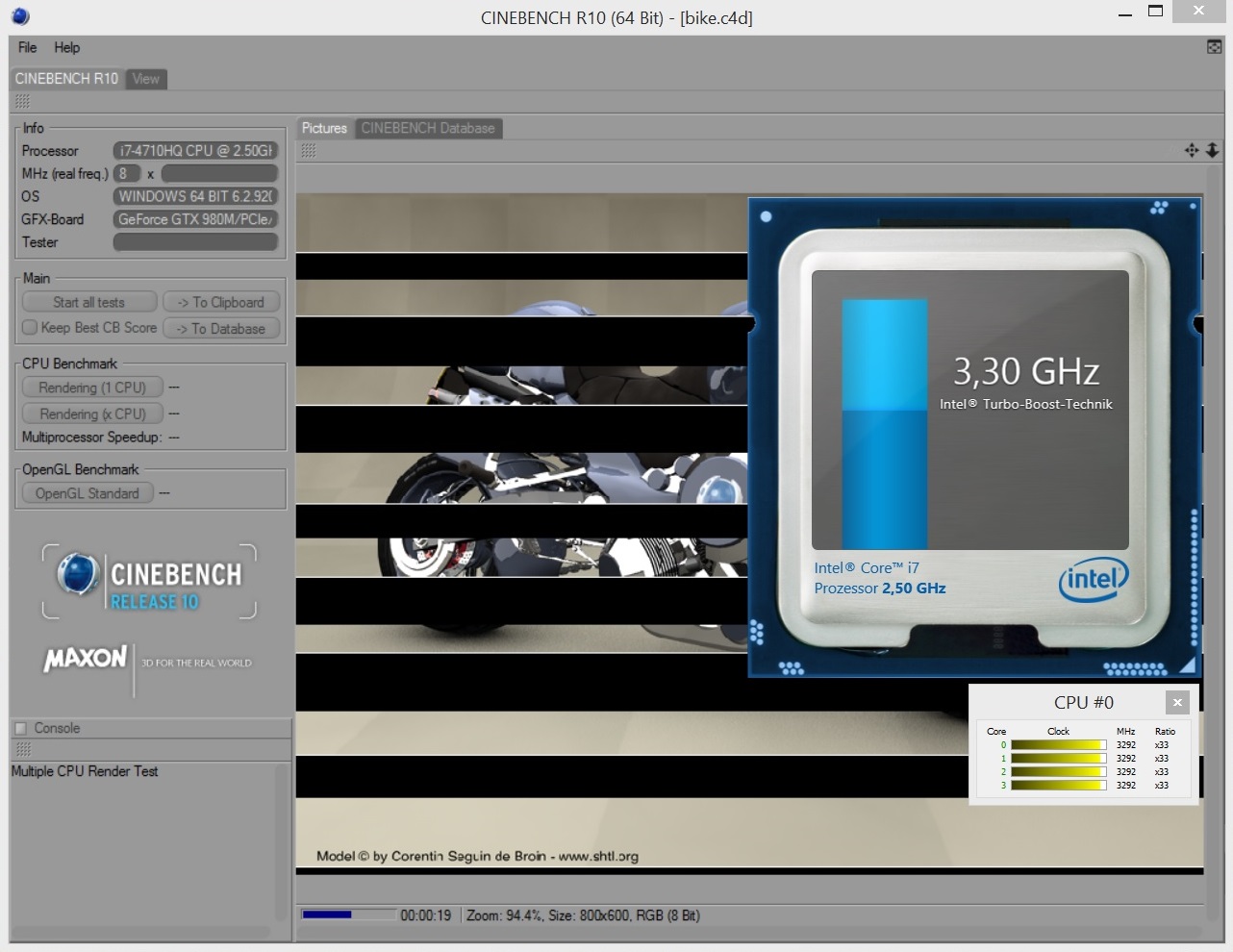

Multi-core rendering
Multi-core rendering
CPU & GPU load
CPU & GPU load

CPU Performance

The Cinebench R15 results are similar to other notebooks with the Core i7-4710HQ. 135 points in the Single-CPU test are managed by the MSI GT72 2QE, for example, as well. The Core i7-4870HQ is 5% faster (142 points). The Multi-core test shows a similar picture. With 660 points, the XMG P505 is on par with the competition (661 points @ Asus G751JY). That a weak Turbo Boost affects the result is confirmed by the Gigabyte P35X v3. Despite the identical CPU it only reached 629 points, the Core i7-4870HQ on the other hand is almost 7% ahead (709 points).

Cinebench R15
CPU Single 64Bit (sort by value)
SCHENKER XMG P505 PRO
Core i7-4710HQ
135 Points
Gigabyte P35X v3
Core i7-4710HQ
134 Points -1%
MSI GT72-2QE32SR311BW
Core i7-4710HQ
135 Points 0%
Asus G751JY-T7009H
Core i7-4710HQ
136 Points +1%
SCHENKER XMG P505
Core i7-4870HQ
142 Points +5%
CPU Multi 64Bit (sort by value)
SCHENKER XMG P505 PRO
Core i7-4710HQ
660 Points
Gigabyte P35X v3
Core i7-4710HQ
629 Points -5%
MSI GT72-2QE32SR311BW
Core i7-4710HQ
657 Points 0%
Asus G751JY-T7009H
Core i7-4710HQ
661 Points 0%
SCHENKER XMG P505
Core i7-4870HQ
709 Points +7%
Cinebench R11.5
CPU Single 64Bit (sort by value)
SCHENKER XMG P505 PRO
Core i7-4710HQ
1.55 Points
Gigabyte P35X v3
Core i7-4710HQ
1.5 Points -3%
MSI GT72-2QE32SR311BW
Core i7-4710HQ
1.52 Points -2%
Asus G751JY-T7009H
Core i7-4710HQ
1.52 Points -2%
SCHENKER XMG P505
Core i7-4870HQ
1.62 Points +5%
CPU Multi 64Bit (sort by value)
SCHENKER XMG P505 PRO
Core i7-4710HQ
7.2 Points
Gigabyte P35X v3
Core i7-4710HQ
6.76 Points -6%
MSI GT72-2QE32SR311BW
Core i7-4710HQ
7.15 Points -1%
Asus G751JY-T7009H
Core i7-4710HQ
7.22 Points 0%
SCHENKER XMG P505
Core i7-4870HQ
7.53 Points +5%
Cinebench R11.5 CPU Single 64Bit
1.55 Points
Cinebench R11.5 CPU Multi 64Bit
7.2 Points
Cinebench R11.5 OpenGL 64Bit
59.1 fps
Cinebench R15 CPU Single 64Bit
135 Points
Cinebench R15 CPU Multi 64Bit
660 Points
Cinebench R15 OpenGL 64Bit
96.1 fps
Help

Graphics

Maxwell
Maxwell

Nvidia created a great high-end GPU with the GeForce GTX 980M. The important new feature is the Maxwell architecture, even though the number of shaders has not been increased (1536 CUDA cores), the GTX 980M has a much higher performance compared to its predecessor. One reason for this is the increased clock. Instead of 1,083-1,127 MHz, the old GTX 880M only ran with 954-993 MHz. The GPU uses 4 GB GDDR5 video memory, even though there is also one version of the GTX 980M with 8 GB (Schenker W504/P504). Some games like Shadow of Mordor benefit from every additional GB. Independent of the memory size, is the 256-bit memory interface. For comparison: The GeForce GTX 970M uses a 192-bit memory interface (3-6 GB GDDR5), 1,280 CUDA cores and a core clock of 924-1,038 MHz.

GPU Performance

Besides the CPU tests, the GPU benchmark results are on the expected level. The XMG P505 manages 116.4 fps in Unigine Heaven 3.0 (1920x1080, normal tessellation) is between the MSI GT72 2QE (119 fps) and the Gigabyte P35X v3 (110.3 fps), which are also powered by a GTX 980M. The GTX 970M of the P651SE Barebone is around 20% slower than its larger sibling (93 fps). The GTX 980M notebooks are also neck and neck in the 3DMark 13 Fire Strike test. 9,807 points (GPU score @ P651SG) are just as great as the 9,819 points of the Asus G751JY and 9,808 points of the MSI GT72 2QE. The Gigabyte P35X v3 follows in the fourth place with 9,741 points. Owners of a GTX 970M will have to live with around 7,300 points (-26%).

Unigine Heaven 3.0 - 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
116.4 fps
SCHENKER XMG P505
GeForce GTX 970M (344.00)
93 fps -20%
Gigabyte P35X v3
GeForce GTX 980M (344.00)
110.3 fps -5%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
119 fps +2%
3DMark - 1920x1080 Fire Strike Graphics (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
9807 Points
SCHENKER XMG P505
GeForce GTX 970M (344.00)
7268 Points -26%
Gigabyte P35X v3
GeForce GTX 980M (344.00)
9741 Points -1%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
9809 Points 0%
Asus G751JY-T7009H
GeForce GTX 980M (344.00)
9819 Points 0%
3DMark 11 - 1280x720 Performance GPU (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
12758 Points
SCHENKER XMG P505
GeForce GTX 970M (344.00)
9907 Points -22%
Gigabyte P35X v3
GeForce GTX 980M (344.00)
12632 Points -1%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
12781 Points 0%
Asus G751JY-T7009H
GeForce GTX 980M (344.00)
12981 Points +2%
3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
33856 Points
SCHENKER XMG P505
GeForce GTX 970M (344.00)
30252 Points -11%
Gigabyte P35X v3
GeForce GTX 980M (344.00)
34535 Points +2%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
35904 Points +6%
3DMark Vantage P Result
30664 points
3DMark 11 Performance
11134 points
3DMark Ice Storm Standard Score
117521 points
3DMark Cloud Gate Standard Score
21648 points
3DMark Fire Strike Score
8335 points
Help

Storage Devices

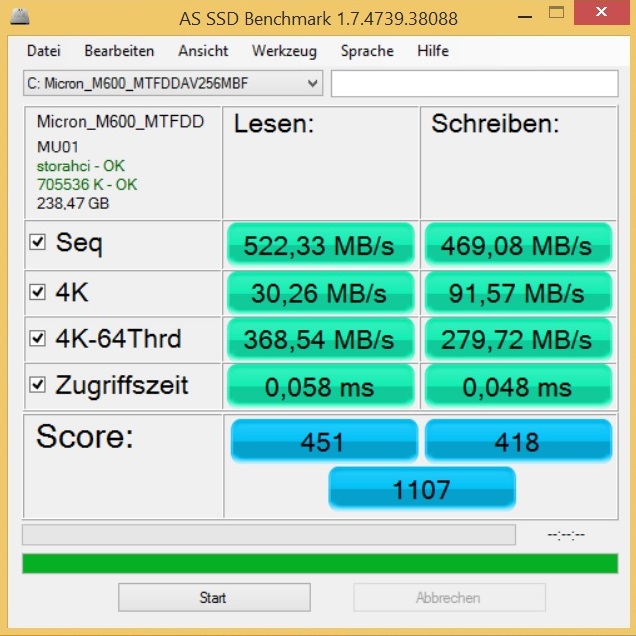

AS SSD Benchmark
AS SSD Benchmark

We recommend a Solid State Drive with a PCIe interface if you are looking for the maximum performance. The 256 GB version of the Samsung XP941 managed more than 1,000 MB/s in the sequential read test, and 713 MB/s sequential write do not indicate a standard SSD, either. Our second review unit uses a SATA-III version. The Micron M600 is also an M.2 drive, but is only roughly half as fast in the sequential tests. The situation is better with 4K files, where the type of SSD does not seem to be that important. AS SSD determined access times between 0.048 and 0.058 ms (0.052-0.099 ms @ Samsung XP941). The Micron M600 is complemented by a 750 GB HDD. The Western Digital Black is very fast for a conventional hard drive, but also pretty loud at the same time. However, this is not a surprise for a drive with 7,200 rpm.

Micron M600 MTFDDAV256MBF M.2
Sequential Read: 509 MB/s
Sequential Write: 470.1 MB/s
512K Read: 444.1 MB/s
512K Write: 308.3 MB/s
4K Read: 31.07 MB/s
4K Write: 104.5 MB/s
4K QD32 Read: 331 MB/s
4K QD32 Write: 290.1 MB/s

System Performance

There are no complaints about the system performance when you use an SSD. The XMG P505 manages more than 6,000 points in PCMark 7, both with the Micron M600 as well as the Samsung XP941. The similarly equipped Gigabyte P35X v3 also reaches more than 6,000 points thanks to the SSD-RAID.

PCMark 7 Score
6054 points
PCMark 8 Home Score Accelerated v2
3942 points
PCMark 8 Creative Score Accelerated v2
4830 points
PCMark 8 Work Score Accelerated v2
4365 points
Help

Gaming Performance

The XMG P505 is a good replacement for gaming enthusiasts who do not want a desktop PC. The GTX 980M is the only notebook chip that manages all modern titles in the native Full HD resolution and with the highest details. Currently Assassin's Creed Unity is one of the most demanding games. More than 30 fps are impossible even for the old high-end model GeForce GTX 880M – at least in the Ultra preset. Other action games like Far Cry 4 and Call of Duty: Advanced Warfare even run with more than 50 fps in the highest preset. We were not that happy with the preinstalled GPU driver (ForceWare 344.48). In addition The Crew and F1 2014Saints Row IV refused to start as well. There were also some problems with the fullscreen mode (Dragon Age Inquisitionhttp://www.notebookcheck.net/Dragon-Age-Inquisition-Benchmarked.131101.0.html) or the centering (The Evil Within @ 1920x1080). Assassin's Creed Unity also only worked in the Ultra preset; the game repeatedly crashed with lower settings.

Dragon Age: Inquisition - 1920x1080 Ultra Graphics Quality AA:2x MS (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
48.9 fps
Asus G751JY-T7009H
GeForce GTX 980M (344.00)
49.5 fps +1%
Far Cry 4 - 1920x1080 Ultra Graphics Quality AA:SM (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
59.4 fps
Call of Duty: Advanced Warfare - 1920x1080 Extra / On (Cache Shadow Maps Off), 2x Supersampling AA:2x SM (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
57.9 fps
Gigabyte P35X v3
GeForce GTX 980M (344.00)
58.1 fps 0%
The Evil Within - 1920x1080 High / Enabled AA:SM (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
82.8 fps
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
63 fps -24%
Middle-earth: Shadow of Mordor - 1920x1080 Ultra Preset (HD Package) (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
67.6 fps
SCHENKER XMG P505
GeForce GTX 970M (344.00)
51.2 fps -24%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
65 fps -4%
Call of Duty: Ghosts - 1920x1080 Extra / High / HBAO+ / No dynamic fur AA:4x MS (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
62.4 fps
SCHENKER XMG P505
GeForce GTX 970M (344.00)
51.5 fps -17%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
65.3 fps +5%
Hitman: Absolution - 1920x1080 Ultra Preset AA:4xMS AF:16x (sort by value)
SCHENKER XMG P505 PRO
GeForce GTX 980M (344.48)
54.6 fps
SCHENKER XMG P505
GeForce GTX 970M (344.00)
41.2 fps -25%
MSI GT72-2QE32SR311BW
GeForce GTX 980M (344.00)
54 fps -1%
Asus G751JY-T7009H
GeForce GTX 980M (344.00)
52.6 fps -4%
low med. high ultra
Hitman: Absolution (2012) 84 79.7 71.1 54.6
Call of Duty: Ghosts (2013) 156.4 135.2 94.6 62.4
Middle-earth: Shadow of Mordor (2014) 163.6 140 88.7 67.6
The Evil Within (2014) 111.6 110.8 82.8
Call of Duty: Advanced Warfare (2014) 150.9 111.8 90.8 57.9
Assassin's Creed Unity (2014) 33.3
Far Cry 4 (2014) 93.3 90.3 68 59.4
Dragon Age: Inquisition (2014) 112.6 102.3 67.9 48.9

Emissions

System Noise

One of the biggest surprises is the noise development. Even though the P651SG Barebone has a more powerful graphics card, it is quieter than the GTX 970M version under 3D load. One reason should be the thicker chassis, but also the CPU (4710HQ vs. 4870HQ). 40-45 dB(A) in 3DMark 06 is really not that much for a high-end notebook. We determined 44-47 dB(A) for the P651SE under the same conditions, which is definitely audible in practice. Slimmer 15-inch gaming notebooks like the Gigabyte P35X v3 (21 millimeters; ~0.82 inches, high) are much louder than that; the rival with the GTX 980M reached 51-55 dB(A) in 3DMark 06. The Gigabyte P35X v3 only wins while idling, the Clevo Barebones cannot compete with 29-36 dB(A), but 30-38 and 30-37 dB(A), respectively, are perfectly acceptable as well. The fan behavior is okay, the cooling is restrained with light workloads (no frequent pulsating). You should only use SSDs if you want it as quiet as possible since the hard drive is the primary source for noise while idling.

Noise Level

Idle
30.4 / 33.6 / 36.6 dB(A)
HDD
34.8 dB(A)
Load
43.4 / 47.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

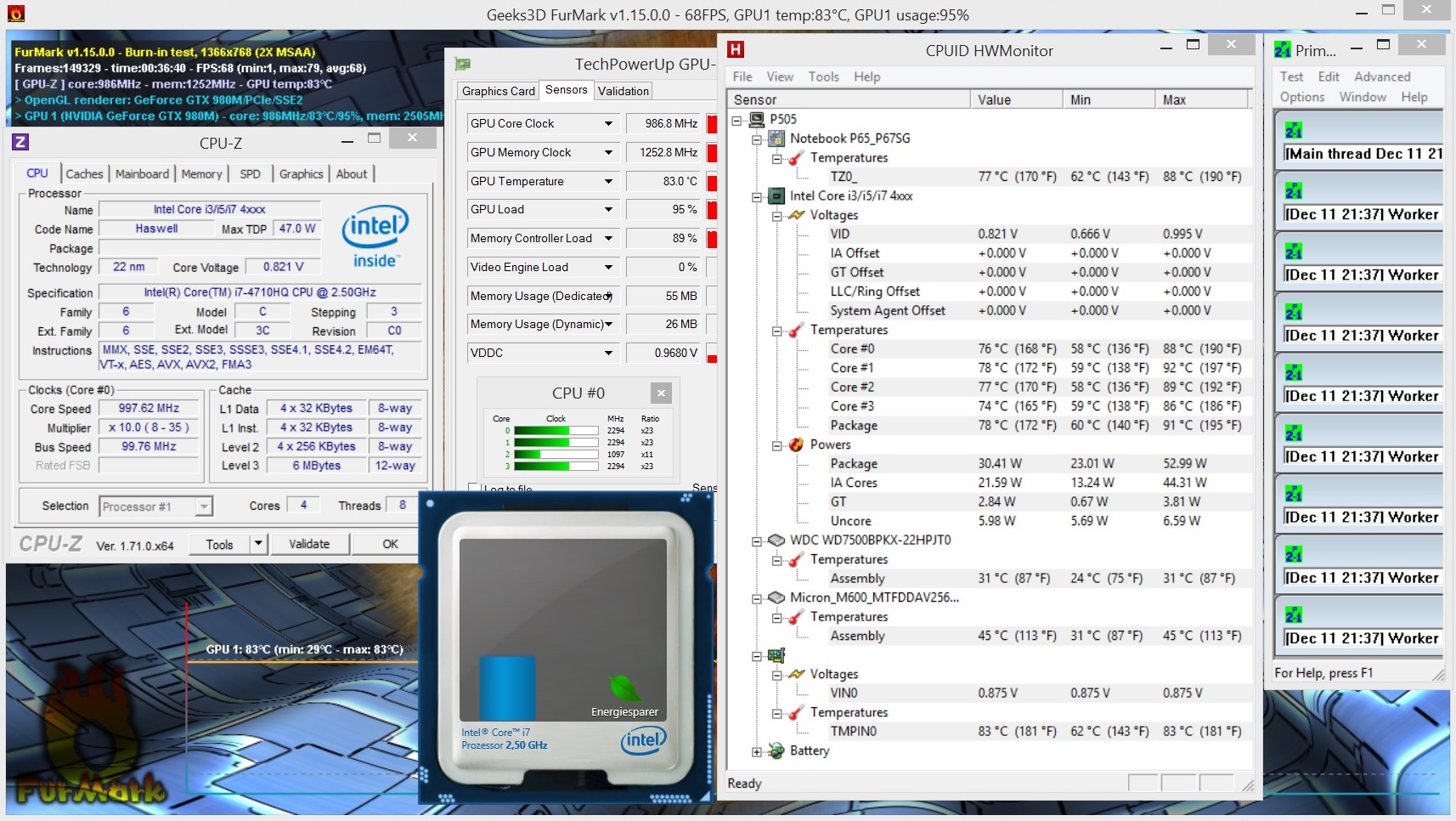

Stress test
Stress test

Thanks to the less powerful processor, the chassis stayed much cooler than in our last review. After one hour maximum load with the tools FurMark and Prime95, the P651SE Barebone reached up to 76 °C (~169 °F) – a pretty high result. The P651SG gets quite hot as well, but up to 59 °C (~138 °F) in the area of the fan exhaust is not a major issue, especially since the temperatures should be lower during gaming, and the palm rest is always comfortable to touch (less than 30 °C ;~96 °F). Despite the slimmer construction, the Gigabyte P35X v3 can keep up in 3D applications. The idle test favors the XMG P505; the Schenker notebook was around 8 °C (~16 °F) cooler after an idle period of two hours. Another interesting aspect is the internal temperatures. Instead of a CPU temperature of 90 °C (~194 °F) and a GPU temperature of 86 °C (~187 °F), the P651SG only reached 80 and 83 °C (~176 and ~181 °F) respectively, in the stress test – even though it is significantly quieter. The Core i7-4870HQ in particular was a hot head in the P651SE, up to 100 °C (~212 °F) are pretty much at the limit. The GeForce GTX 970M finished our stress test with 74 °C (~165 °F). According to our information, it is normal that the GPUs have throttling issues in FurMark, a quick test with the Unigine Heaven 3.0 benchmark on the other hand did not show any sign of throttling.

Max. Load
 50.1 °C
122 F
54.2 °C
130 F
50.3 °C
123 F

 49.1 °C
120 F
49.6 °C
121 F
40.7 °C
105 F

 29.6 °C
85 F
28.1 °C
83 F
27.4 °C
81 F

Maximum: 54.2 °C = 130 F
Average: 42.1 °C = 108 F
45.5 °C
114 F
56.8 °C
134 F
59.4 °C
139 F
35.4 °C
96 F
43.1 °C
110 F
40.4 °C
105 F
29.7 °C
85 F
40.1 °C
104 F
37.2 °C
99 F
Maximum: 59.4 °C = 139 F
Average: 43.1 °C = 110 F
Power Supply (max.)  51.2 °C = 124 F | Room Temperature 22 °C = 72 F | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 42.1 °C / 108 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 54.2 °C / 130 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 59.4 °C / 139 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 27.5 °C / 82 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.6 °C / 85.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-0.7 °C / -1.3 F).

Speakers

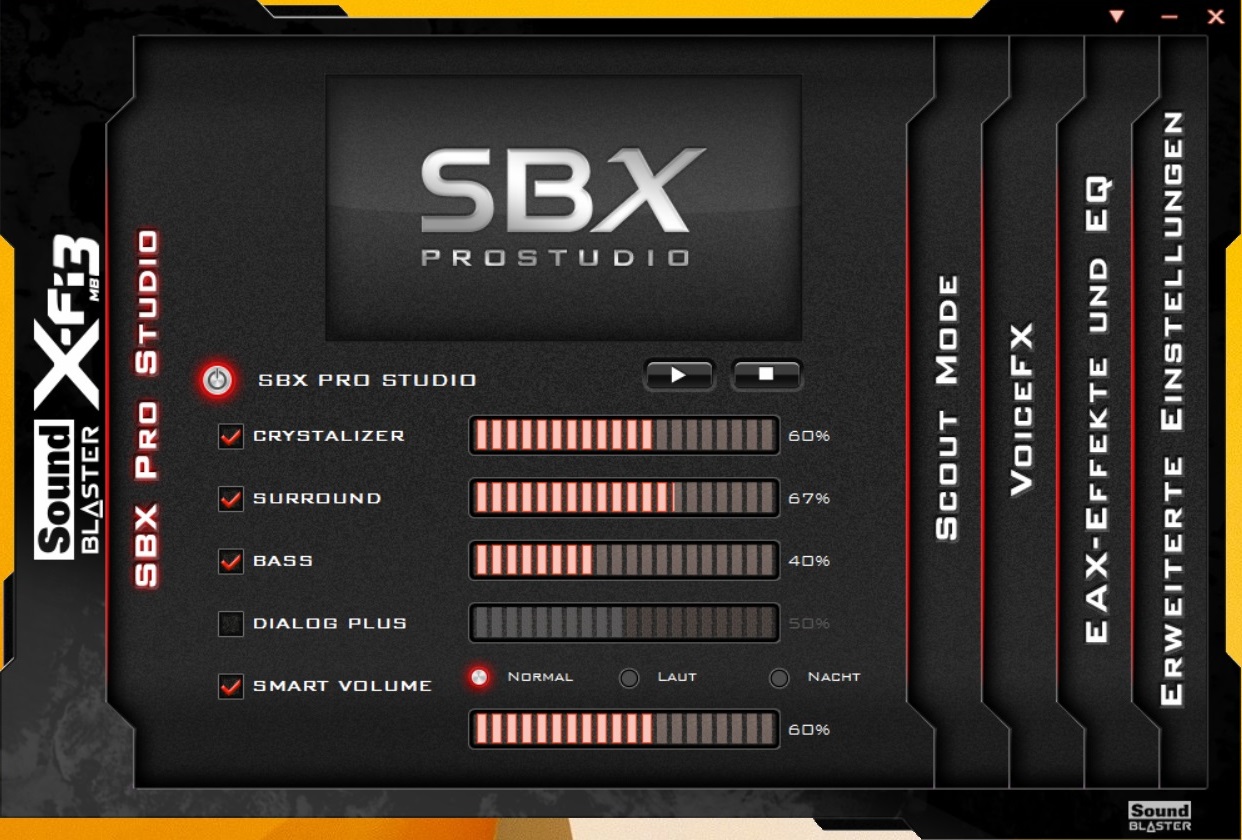

Sound Blaster X-Fi MB3
Sound Blaster X-Fi MB3

Like its slimmer sibling, the P651SG has a 2.0 system from Onkyo. In combination with the SBX technology and the Sound Blaster X-Fi MB3 software, the device creates a pretty decent sound that easily beats many rivals. There has been a big improvement compared to old Clevo Barebones in particular (P150W355W650 ...). You will hardly notice the missing subwoofer with this bass. All in all, the sound is pretty balanced and precise. The good maximum volume deserves praise as well.

Energy Management

Power Consumption

The battery runtimes cannot be long enough for you? Then you should definitely get the Full HD panel, it consumes much less power than its 4K counterpart. We still had to criticize the high idle consumption of our review configuration with the P651SE (20-33 Watts), but our measurement device only showed 12-22 Watts for the P651SG. The Asus G751JY (22-33 Watts) shows that the consumption would be much higher without the Optimus technology. The load measurements also clearly show that the Core i7-4870HQ consumes a lot of power. Despite the more powerful GPU, the P651SG only needs 94 instead of 111 Watts in 3DMark 06. Up to 208 Watts under load, however, raise the question about the output of the power adaptor. This value was measured at the socket, but the Turbo of the Core i7-4710HQ is also inactive in this scenario. A 200-Watt power adaptor would be better suited for the high-end components (MSI ships the GT72 with a 230-Watt PSU).

Power Consumption
Off / Standbydarklight 0.3 / 0.8 Watt
Idledarkmidlight 12 / 17.8 / 22.2 Watt
Load midlight 94.2 / 207.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

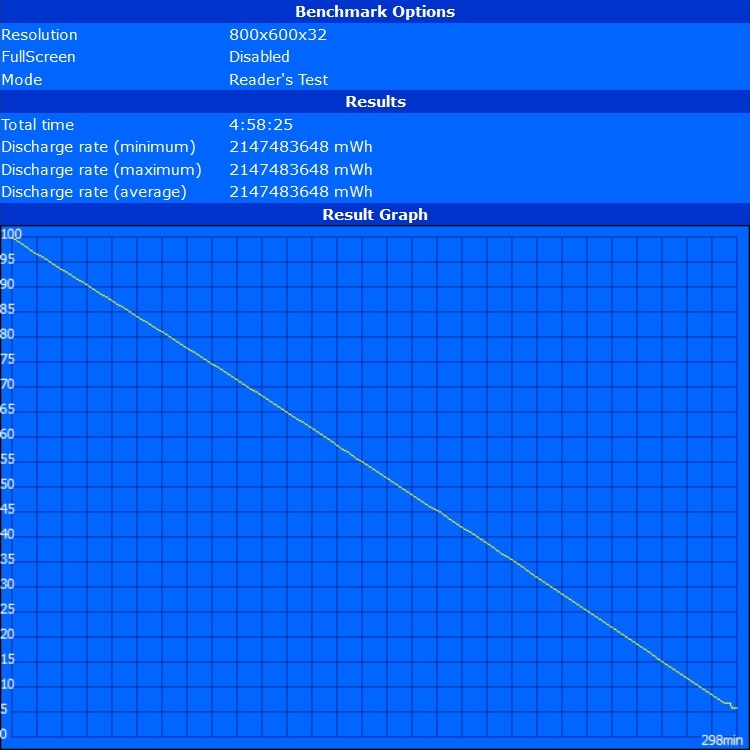

Maximum runtime (Reader's Test)
Reader's Test

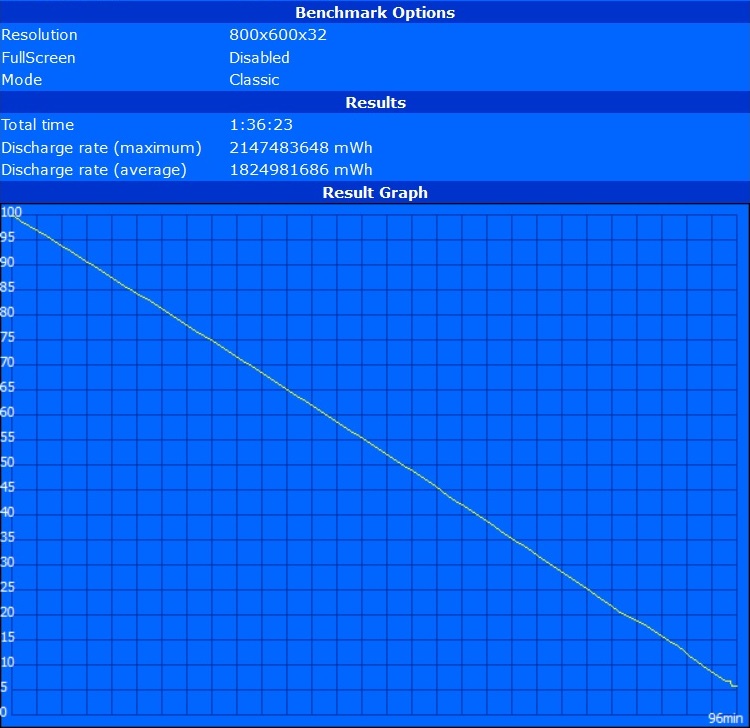

Minimum runtime (Classic Test)
Classic Test

Because of the smaller battery (60 vs. 75 Wh), the runtimes are shorter compared to the Gigabyte P35X v3. Potential buyers of the XMG P505 can expect up to five instead of six hours. Wireless web browsing with an adjusted brightness of 150 cd/m² is possible for around 3.75 hours. HD video playback is possible for around 3.5 hours (medium brightness). The Battery Eater Classic Test, which simulates a 3D scenario, determines a runtime of almost 1.5 hours. Overall, the runtimes are 50% higher compared to the 4K version

Battery Runtime
Idle (without WLAN, min brightness)
4h 58min
WiFi Surfing
3h 45min
Big Buck Bunny H.264 1080p
3h 30min
Load (maximum brightness)
1h 36min

Verdict

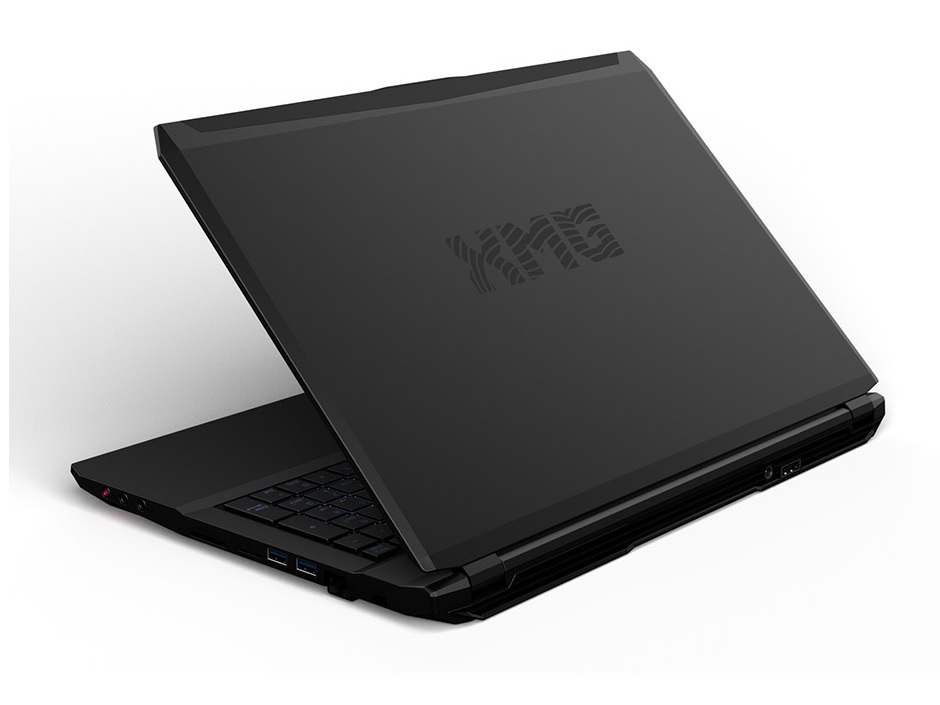

Schenker XMG P505 PRO
Schenker XMG P505 PRO

It might sound absurd, but the lack of the Core i7-4870HQ and the 4K panel, which were used in the first review unit, actually improves the rating of the XMG P505. The Core i7-4710HQ results in lower temperatures and the Full HD version increases the battery runtimes. The panels are not very different in terms of picture quality. Both the AU Optronics B156HAN01.2 as well as the Sharp LQ156D1JX01B convince with a vivid and fairly accurate color representation, let alone the good viewing angles. The chassis manufacturer finally improved some old weaknesses (fan control, sound, touchpad, design, ...), so the notebook can actually secure a top spot, which has been dominated by Alienware, Asus and MSI. Due to the lack of high-end 15-inch gaming alternatives, the XMG P505 is the first choice for gamers. Other notebooks are either not powerful enough (Acer V 15 Nitro, HP Omen, Lenovo Y50-70), or the overall package cannot completely convince us (Gigabyte P35X v3).

Read all 3 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review: Schenker XMG P505 PRO. Review unit courtesy of Schenker Technologies.
In Review: Schenker XMG P505 PRO. Review unit courtesy of Schenker Technologies.

Specifications

SCHENKER XMG P505 PRO
Processor
Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz (Intel Core i7)
Graphics adapter
NVIDIA GeForce GTX 980M - 4 GB VRAM, Core: 1038 MHz, Memory: 2500 MHz, GDDR5, ForceWare 344.48, Optimus
Memory
16 GB
, 2x 8 GB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 2 of 4 slots occupied, up 32 GB
Display
15.60 inch 16:9, 1920 x 1080 pixel, AU Optronics B156HAN01.2 (AUO12ED), IPS, Full HD, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Storage
Micron M600 MTFDDAV256MBF M.2, 256 GB
, SATA-III-SSD + Western Digital Black WD7500BPKX-22HPJT0, 750 GB HDD @ 7200 rpm. Slots: 2x M.2 (Typ 2280) & 2x 2.5-inch
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 eSata, Audio Connections: Headphones, Microphone, S/PDIF, Card Reader: MMC,RSMMC,SD,Mini SD,SDHC,SDXC, 1 Fingerprint Reader, SIM card slot
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 29 x 385 x 271 ( = 1.14 x 15.16 x 10.67 in)
Battery
60 Wh Lithium-Polymer, 4 cells
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: Bison 2 megapixels
Additional features
Speakers: 2.0 Onkyo (Sound Blaster X-Fi MB3), Keyboard: Chiclet, Keyboard Light: yes, PSU: 180 Watts, Manual, Driver DVD, Cleaning cloth, Storage accessories, XMG sticker, Microsoft Office 365 Trial, 24-48 Months Warranty
Weight
2.724 kg ( = 96.09 oz / 6.01 pounds), Power Supply: 844 g ( = 29.77 oz / 1.86 pounds)
Price
2132 Euro



The chassis is almost three centimeters high and weighs around 2.7 kilograms (incl. HDD).
The chassis is almost three centimeters high and weighs around 2.7 kilograms (incl. HDD).
Lid and palm rest are made of aluminum.
Lid and palm rest are made of aluminum.
You can remove the whole bottom cover.
You can remove the whole bottom cover.
All components are accessible.
All components are accessible.
One fan handles the heat from the CPU.
One fan handles the heat from the CPU.
Two fans cool the GPU.
Two fans cool the GPU.
Right next to the hard drive bay you can see the M.2 SSD.
Right next to the hard drive bay you can see the M.2 SSD.
The keyboard has a white background illumination.
The keyboard has a white background illumination.
The primary memory slots are underneath the keyboard.
The primary memory slots are underneath the keyboard.
The notebook supports up to 32 GB RAM.
The notebook supports up to 32 GB RAM.
Two slots are at the back.
Two slots are at the back.
There are a lot of ports at the right side.
There are a lot of ports at the right side.
There are certainly enough video ports.
There are certainly enough video ports.

Similar Laptops

Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

Asus ROG Strix GL502VY-DS71 Notebook Review
GeForce GTX 980M, Core i7 6700HQ
Aorus X5S v5 Notebook Review
GeForce GTX 980M, Core i7 6700HQ
Gigabyte P35X v5 Notebook Review
GeForce GTX 980M, Core i7 6700HQ
Alienware 15 R2 Notebook Review
GeForce GTX 980M, Core i7 6700HQ

Devices with the same GPU and/or Screen Size

Acer Predator 15 Notebook Review
GeForce GTX 980M, Core i7 6700HQ, 3.6 kg

Links

Compare Prices

Pros

+More compact and lighter than other gaming notebooks
+Illuminated keyboard with good mechanics
+Good port variety
+Above-average sound
+All components can be accessed
+Excellent IPS panel
+Individual configuration
+Excellent performance
+Very large touchpad
+Decent battery runtimes
+Nice design
+M.2 SSD


Cons

-Cannot always use the maximum Turbo potential
-Surfaces susceptible to dirt
-Throttling under maximum load
-CPU and GPU soldered
-Bulky power adaptor
-Battery screwed

Shortcut

What we like

You will have a hard time to find a better panel at the moment.

What we'd like to see

Why are the GPU and CPU soldered onto the mainboard? A screwed battery is not perfect, either.

What surprises us

The notebook manages more than 80 % in almost every category.

The competition

High-end devices with GeForce 900 GPUs like the Asus G751, Gigabyte P35X v3MSI GS60/GS70MSI GT72 or Schenker XMG P705.

Rating

SCHENKER XMG P505 PRO - 12/13/2014 v4(old)
Florian Glaser

Chassis
78 / 98 → 80%
Keyboard
81%
Pointing Device
81%
Connectivity
76 / 81 → 94%
Weight
58 / 10-66 → 86%
Battery
81%
Display
88%
Games Performance
99%
Application Performance
95%
Temperature
74 / 95 → 78%
Noise
68 / 90 → 76%
Audio
80%
Average
80%
87%
Gaming - Weighted Average
Florian Glaser, 2014-12-18 (Update: 2018-05-15)
