Review Clevo P150SM (One K56-4N) Barebones Notebook

Repeater. With the Radeon R9 M290X, AMD competes with old technology. Learn in our review whether the deluxe model can keep up with high-end products from Nvidia. Is AMD still competitive or have they already been pushed aside?

For the original German review, see here.

After we reviewed a CrossFire connection recently (Notebookguru Earth V), it remained to demonstrate the capabilities of a single Radeon R9 M290X. Therefore, we ordered the 15-inch K56-4N with a weight of just less than 3.1 kg (~6.8 pounds) from one.de.

Like most of the other gaming notebooks offered at the homepage, the device is highly configurable, starting with the GPU, which can either be from AMD (currently only the R9 M290X) or from Nvidia (GeForce GTX 870M & GTX 880M). The processor can also be selected. Since the Core i3-4000M incorporated by default lacks the Turbo technology, we would recommend an upgrade right away. While the Core i5-4200M and the Core i5-4300M are dual-core CPUs, the i7 family scores points with four cores. If the price performance ratio is important, the Core i7-4700MQ, which was also inside our test model, is recommendable.

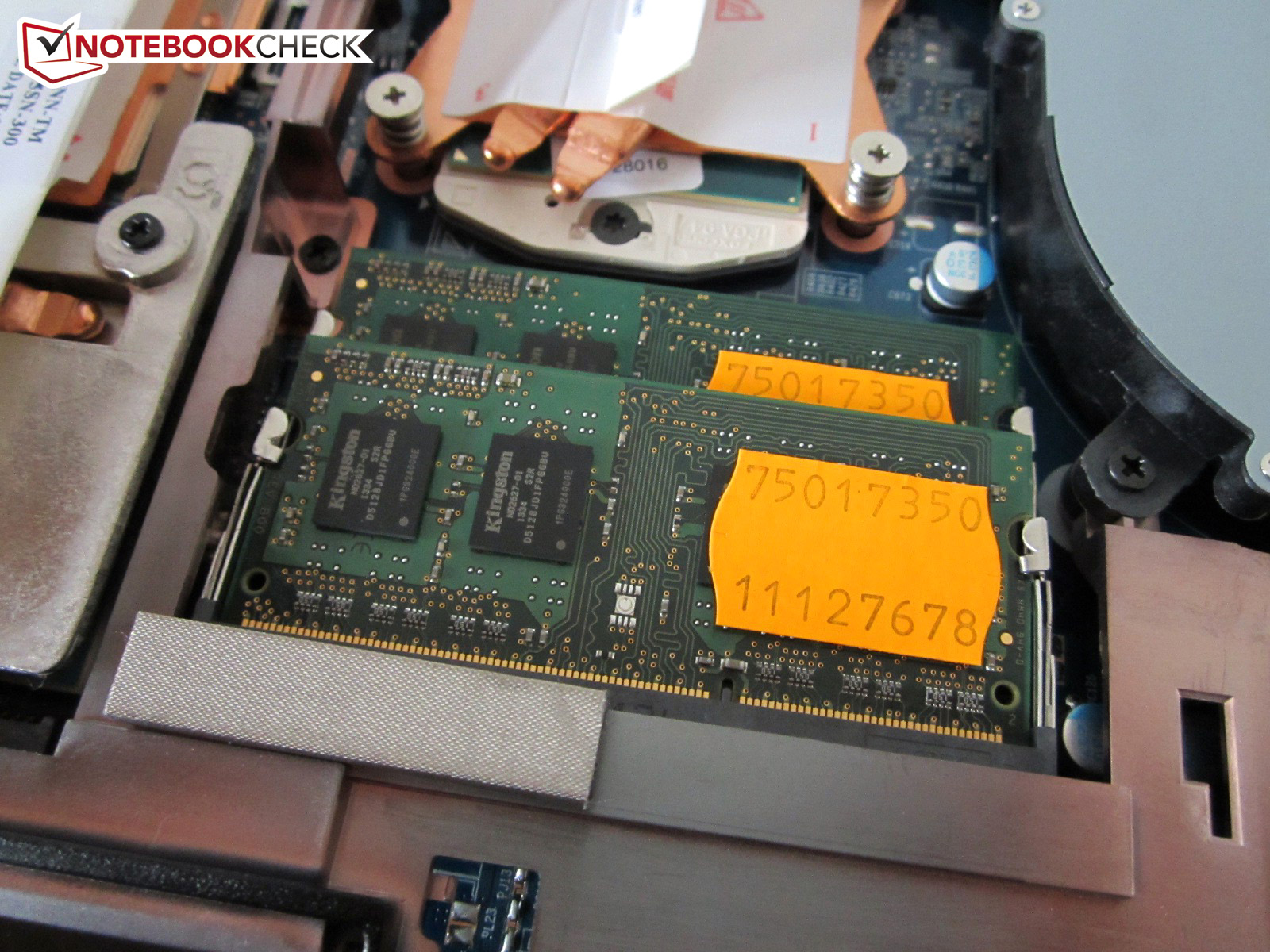

Currently, 4 to 8 GB of RAM is sufficient, but more DDR3-RAM will not hurt (especially considering costs). One of the most difficult decisions is probably choosing the appropriate hard drive or multiple hard drives since the 150SM (K56-4N) does not only feature the usual 2.5-inch slot, but also two modern mSATA slots for SSDs.

In addition, One offers three Wi-Fi modules (Intel AC 3160, Intel AC 7260 & Killer N 1202) and three optical drives (DVD burner, Blu-ray combo or Blu-ray burner). The base model, priced at 999 Euros (~$1378), does not include an OS, but, it can be configured for a surcharge. We will not describe the other upgrade and expansion possibilities (peripherals etc.) here.

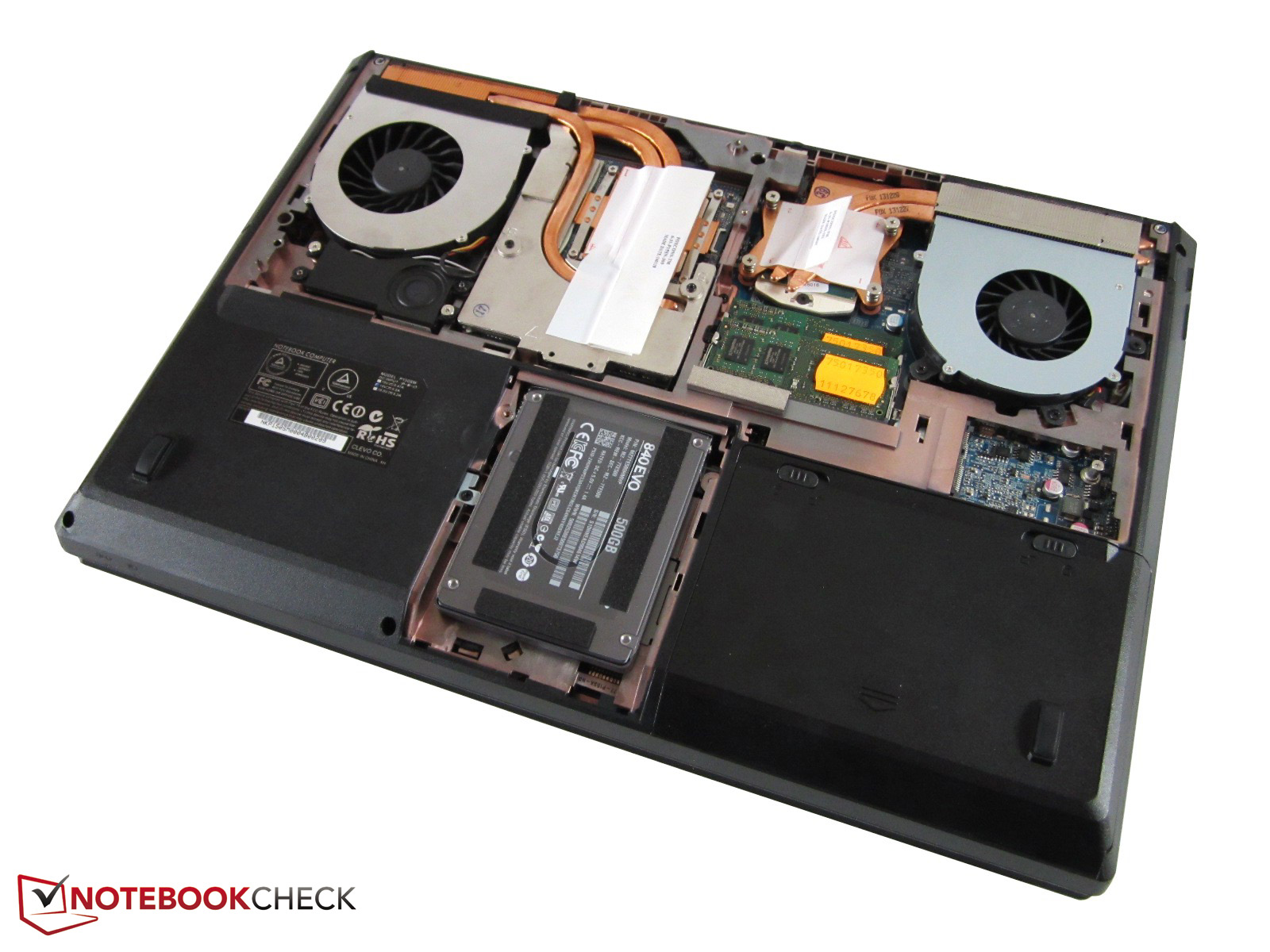

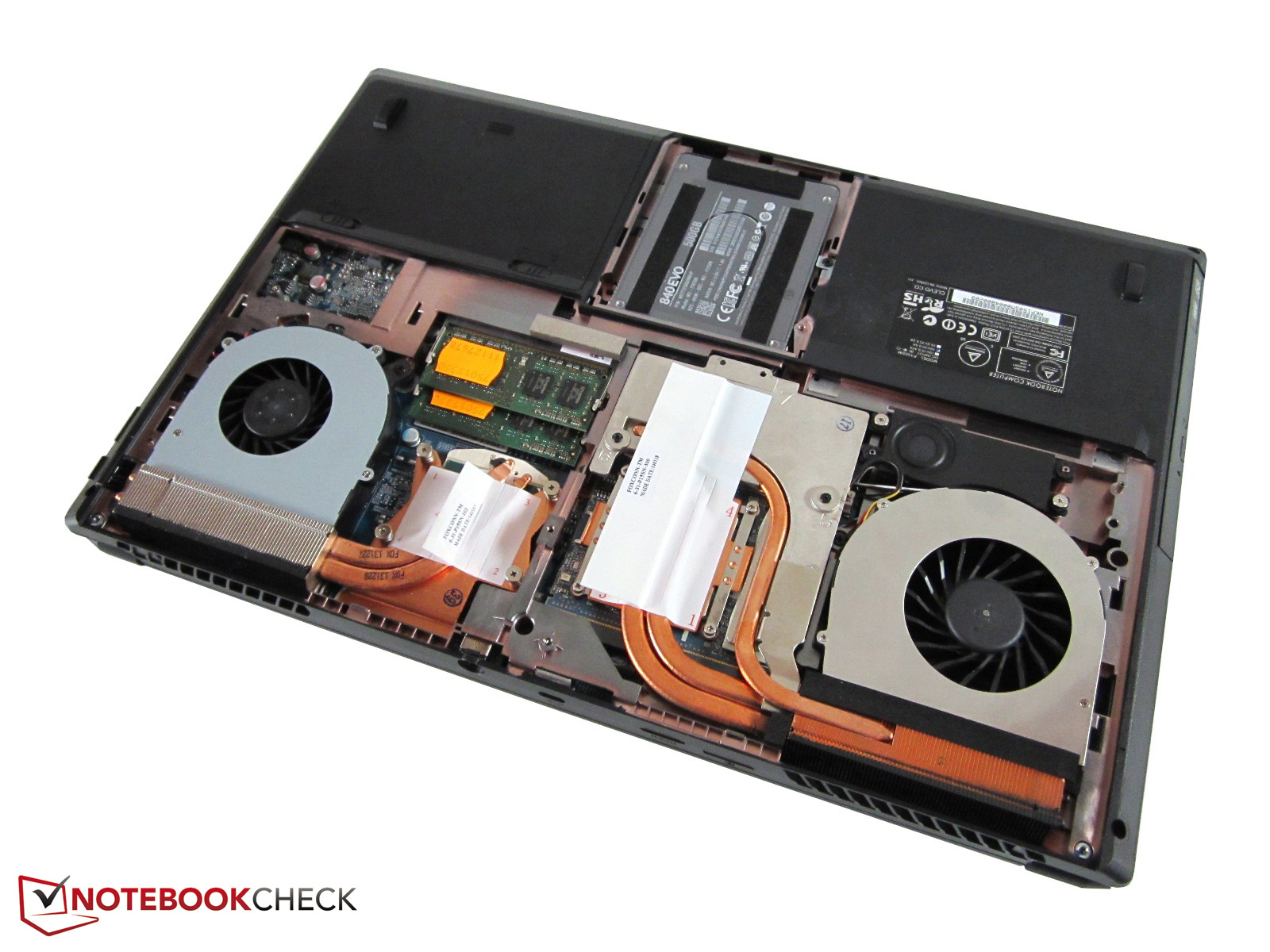

The K56-4N is based on the P150SM-Barebones from Clevo, which is used by many notebook manufacturers and described in detail in this review. As the case has remained largely the same apart from the small redesign and unreliable touchpad bar, we will start with the display section right away.

Display

The matte, Full HD display is the same as in the MSI GE60H. The 15.6-inch LG Philips LP156WF1-TLF3 is upper mid-range and neither especially good nor bad. While an average brightness of 211 cd/m² is not breathtaking, it is usually sufficient for indoor use.

The brightness distribution is 80%, which is also acceptable for gamers. Thanks to a relatively low black value (~0.4 cd/m²), black backgrounds are only slightly grayish and the 150SM (K56-4N) achieves a contrast of about 600:1.

204
cd/m²
185
cd/m²
202
cd/m²
211
cd/m²
229
cd/m²
207
cd/m²
219
cd/m²
233
cd/m²
212
cd/m²
Distribution of brightness
LG Philips LP156WF1-TLF3 (LGD0259) tested with X-Rite i1Pro 2
Maximum: 233 cd/m² (Nits) Average: 211.3 cd/m²
Brightness Distribution: 79 %
Center on Battery: 229 cd/m²
Contrast: 603:1 (Black: 0.38 cd/m²)
ΔE Color 8.58 | 0.5-29.43 Ø5
ΔE Greyscale 10 | 0.57-98 Ø5.3
58% AdobeRGB 1998 (Argyll 1.6.3 3D)
60.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
86.5% sRGB (Argyll 2.2.0 3D)
58.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.29

As can be seen on the third screenshot, the color space is quite similar to the 17-inch Chi Mei N173HGE-L11's, which performs notably better in brightness (~300 cd/m²) and contrast (~800:1) – at least on paper. Subjectively, the LG Philips appears slightly more homogeneous since gray levels, gamma, color balance and color accuracy do not differ that much from the ideal values. However, the display does not stand a chance compared to the AU Optronics B140HAN01.1 (compare the CalMAN figures). As usual in laptops, white elements tend to look bluish.

The outdoor capabilities of the Clevo 150M (One K56-4N) are good. It is just fine to use the notebook on darker or “normal” bright days. It could only get difficult in extremely sunny places. Here you would quickly wish for a higher brightness.

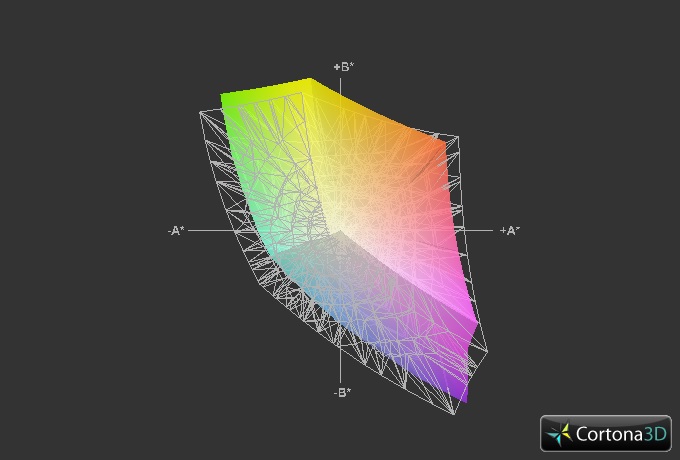

One K56-4N vs. sRGB (grid)
One K56-4N vs. sRGB (grid)

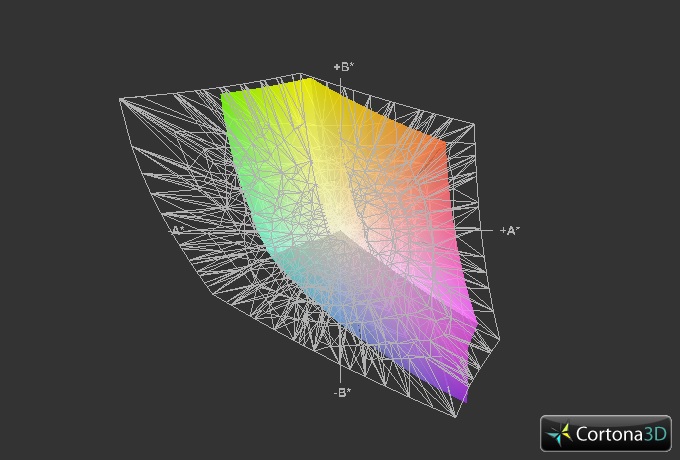

One K56-4N vs. AdobeRGB (grid)
One K56-4N vs. AdobeRGB (grid)

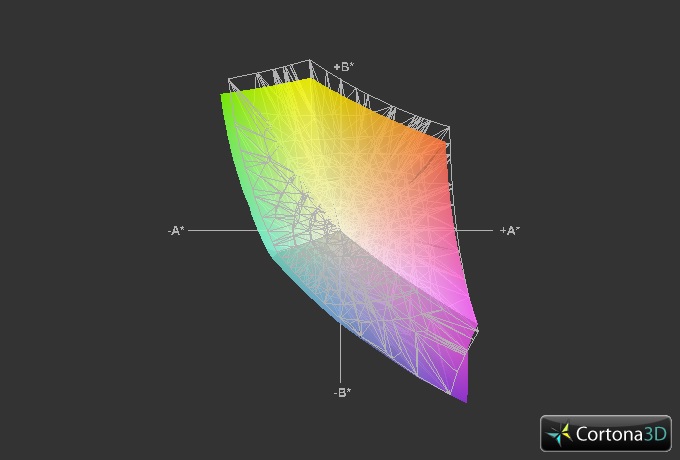

One K56-4N vs. Guru Earth V (grid)
One K56-4N vs. Guru Earth V (grid)

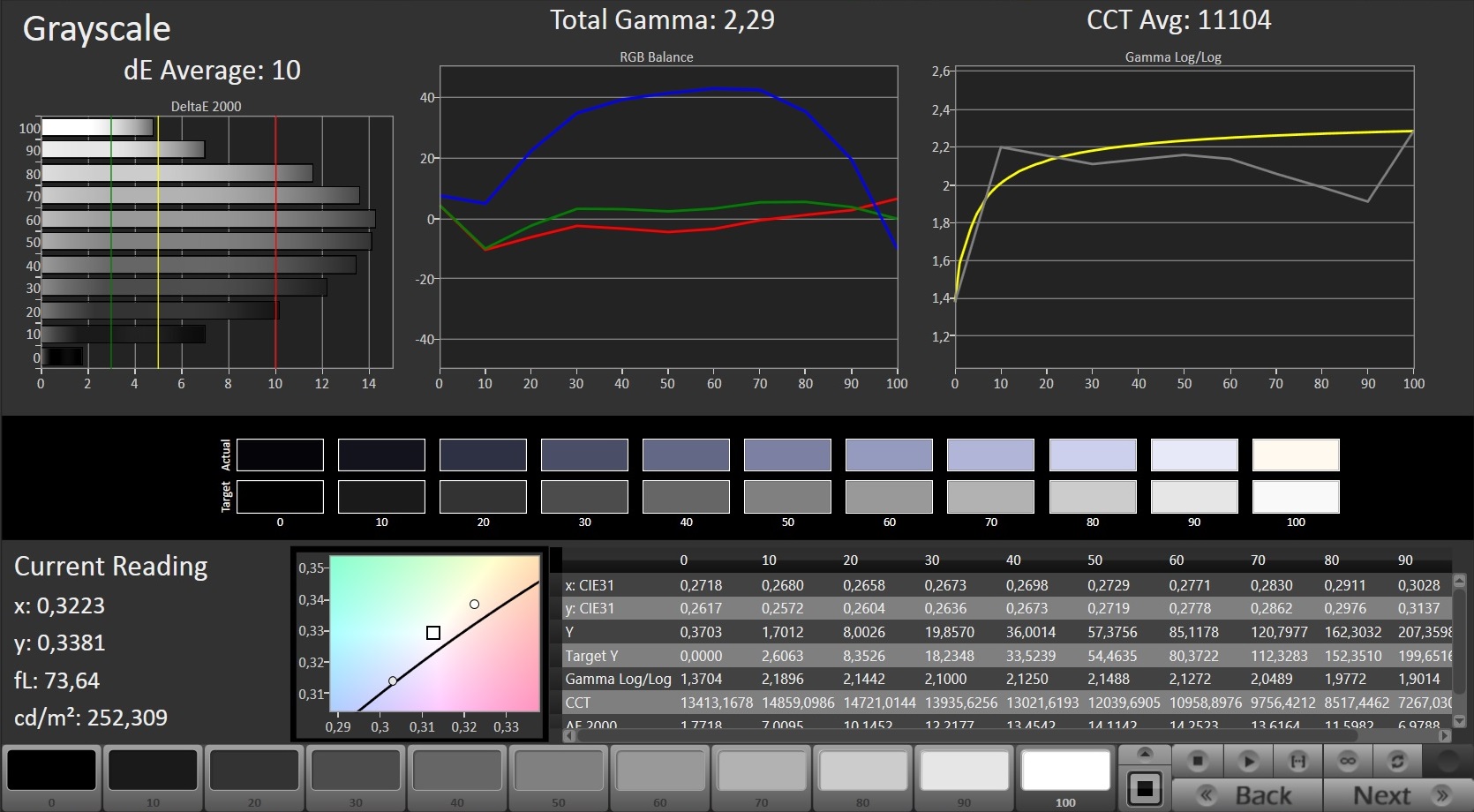

CalMAN: grayscales
CalMAN: grayscales

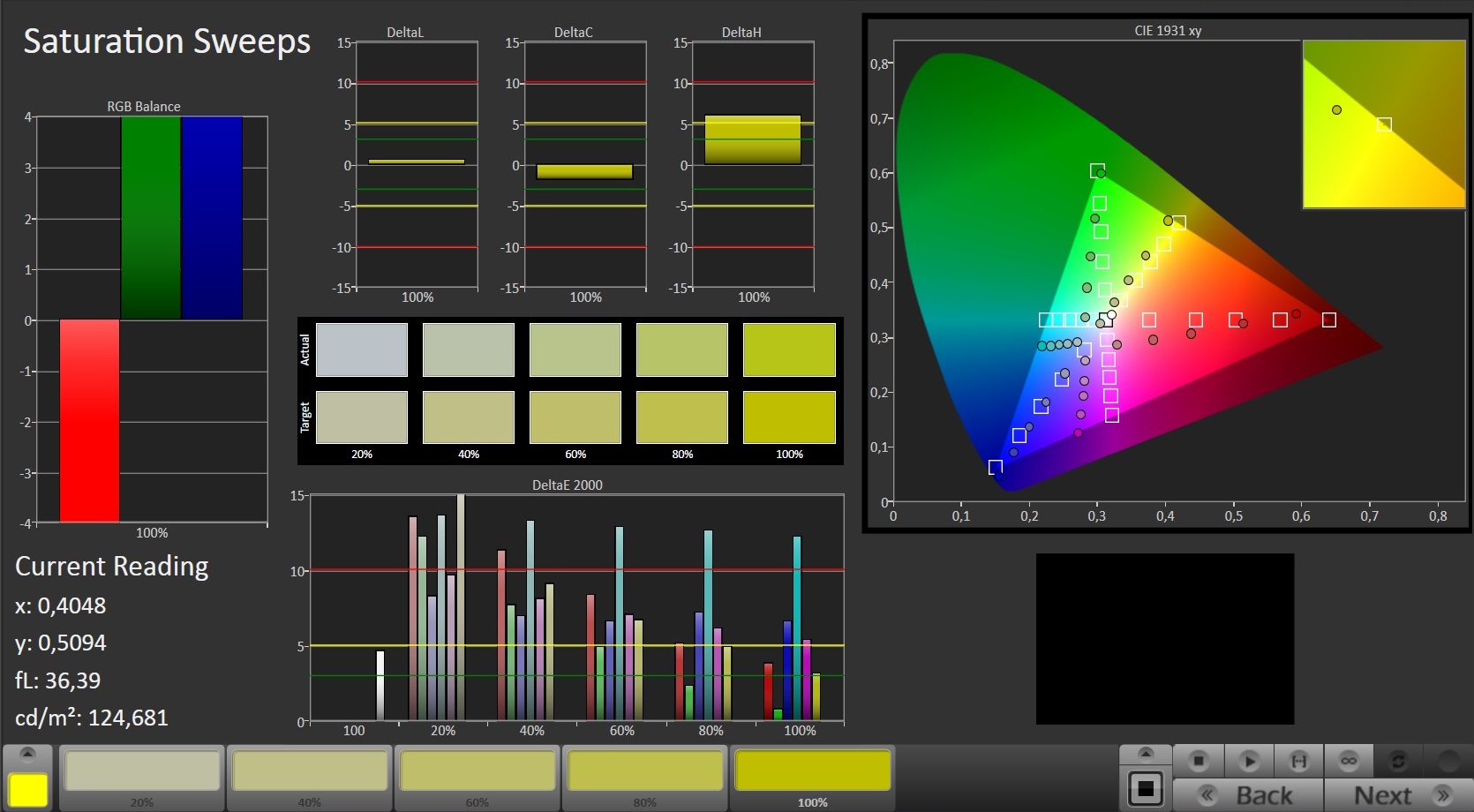

CalMAN: saturation sweeps
CalMAN: saturation sweeps

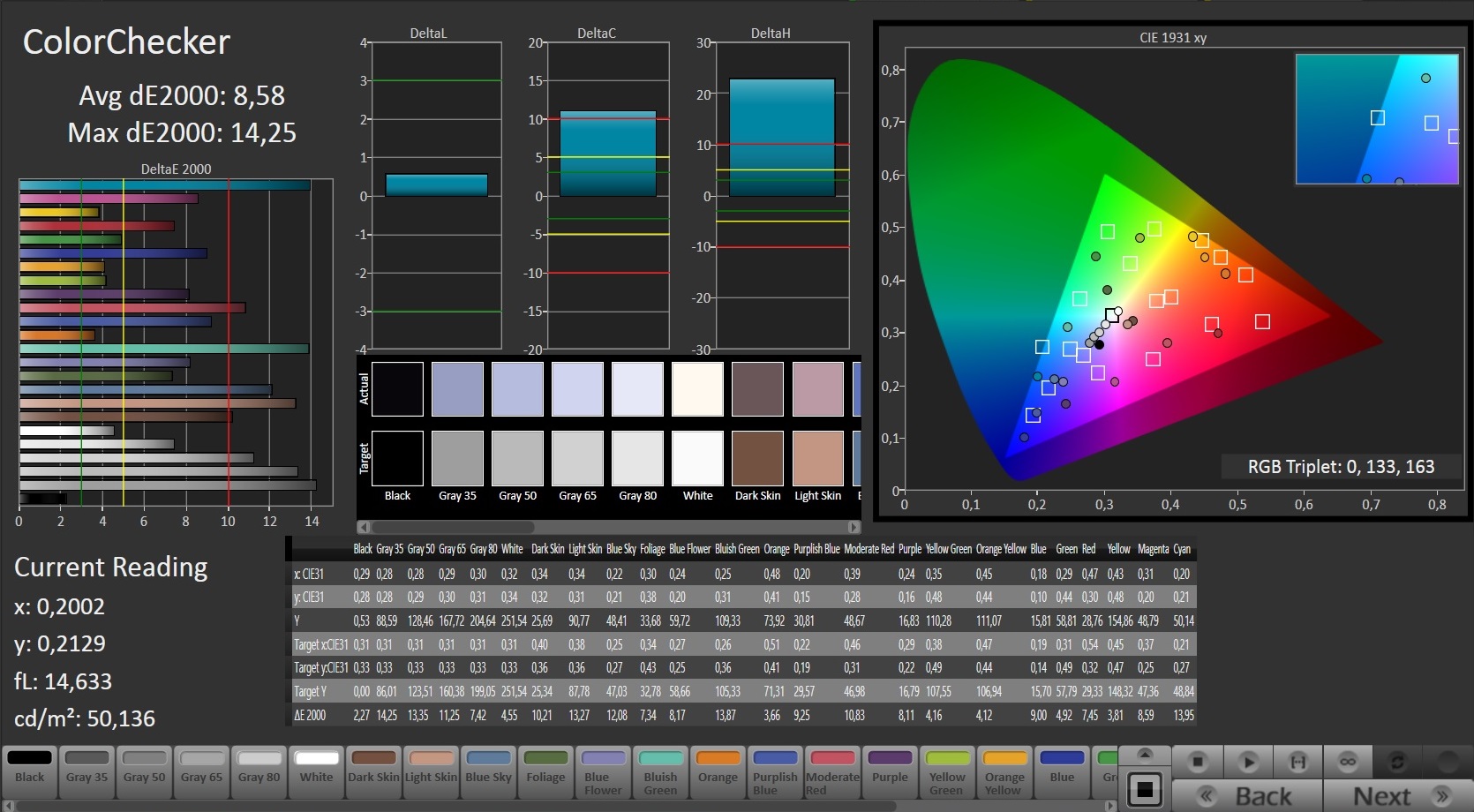

CalMAN: ColorChecker
CalMAN: ColorChecker

The viewing angles suffer slightly from the weaknesses of the TN technology. While oblique positions are possible in horizontal directions, you should not tilt the display too much in vertical directions. Still, the LP156WF1-TLF3 easily outperforms run-of-the mill displays. Overall, we would call the display quality passable, which is reflected by the subrating (80%).

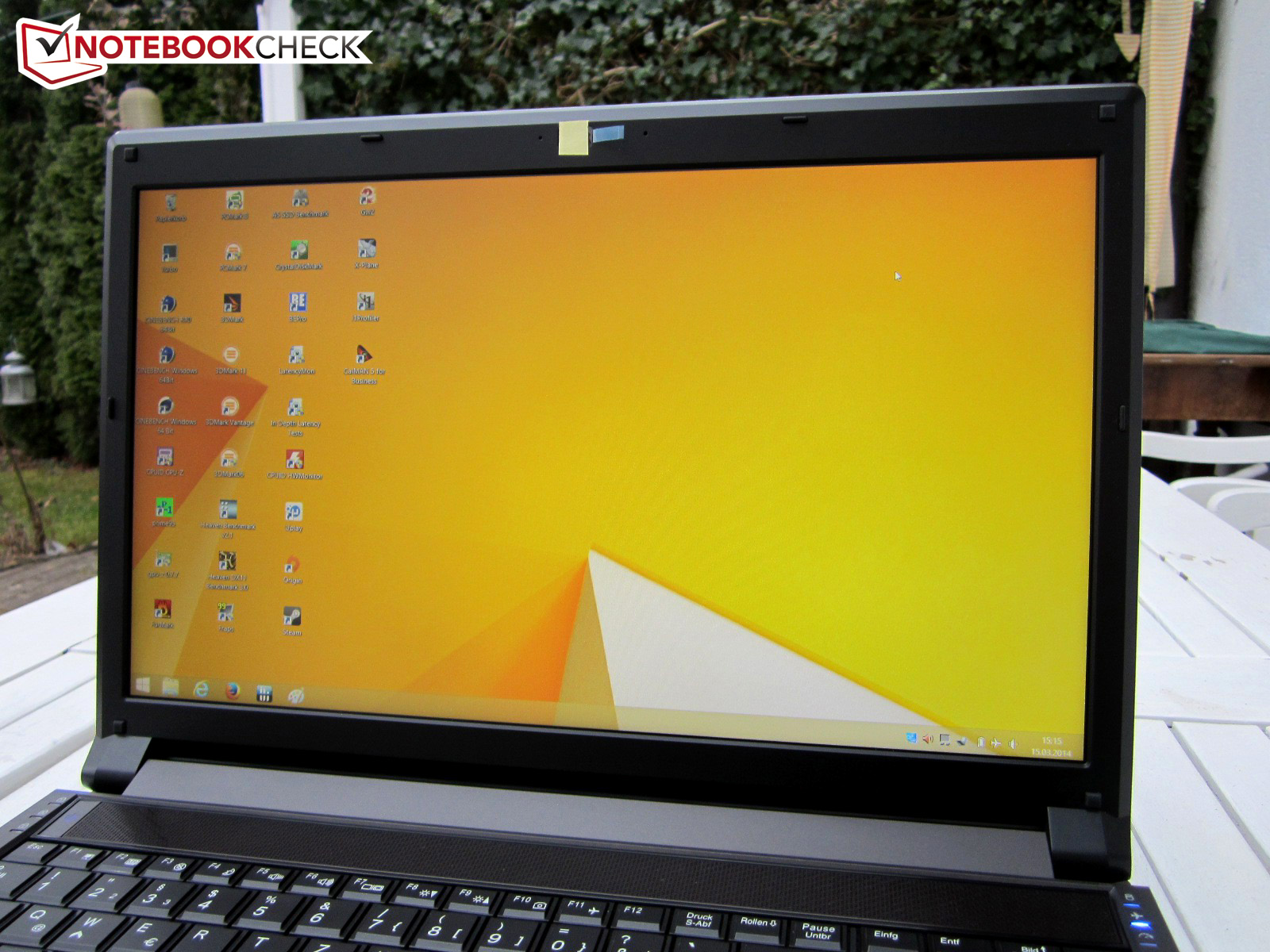

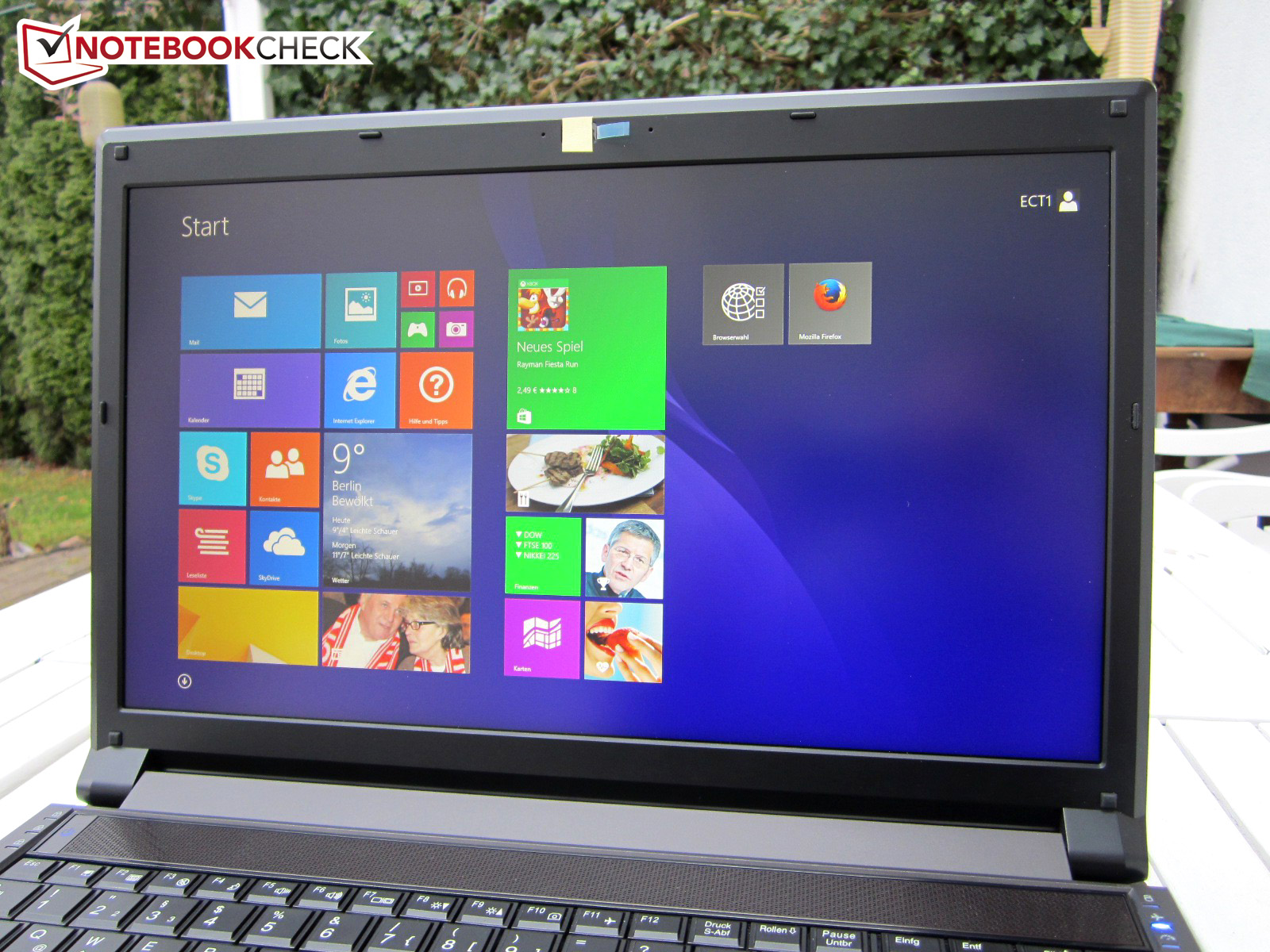

One K56-4N outdoors
One K56-4N outdoors
Outdoor usage: One K56-4N

Performance

Processor

Haswell
Haswell

Since Intel's Haswell generation has been on the market for a while, we will only briefly describe it.

Besides Hyperthreading, which simulates virtual cores, the majority of the 22 nm family features automatic over-clocking called Turbo Boost. The clock rate of the reviewed Core i7-4700MQ ranges from 2.4 to 3.4 GHz. Furthermore, the quad-core CPU features six MB L3 cache and a TDP of 47 Watts (dual-core CPUs: maximum of four MB and 37 Watts).

The integrated DirectX 11 capable HD Graphics 4600 is also noteworthy. It is not surprising that the One K56-4N features AMD's Enduro technology, which ensures moderate power consumption while idle. If you select an Nvidia GPU, you will get a more mature graphics switcher with Optimus

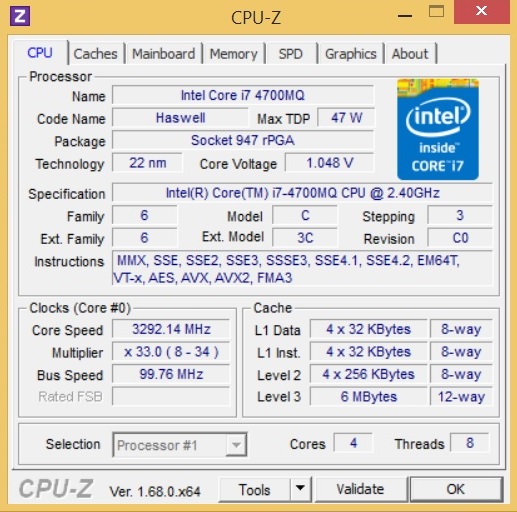

System info CPUZ CPU

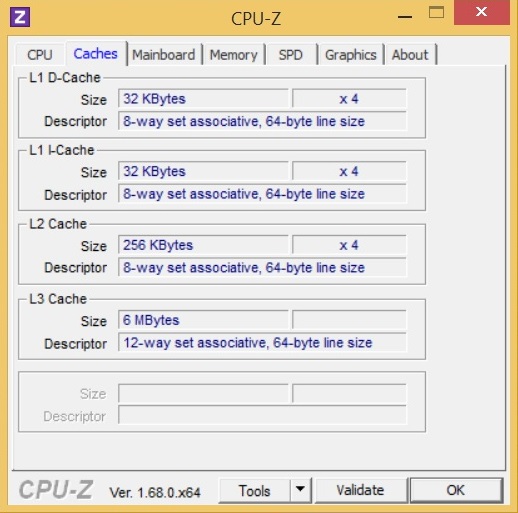

System info CPUZ Cache

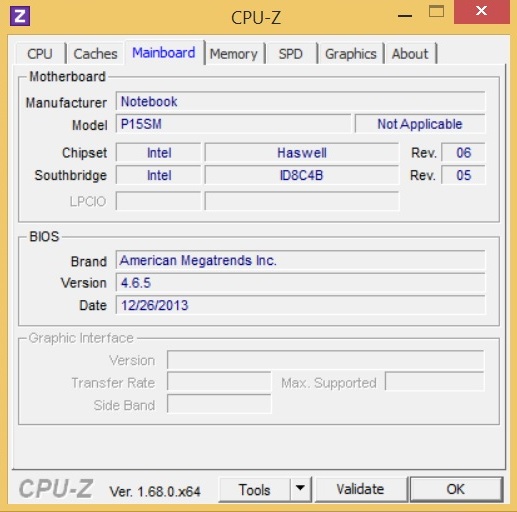

System info CPUZ Mainboard

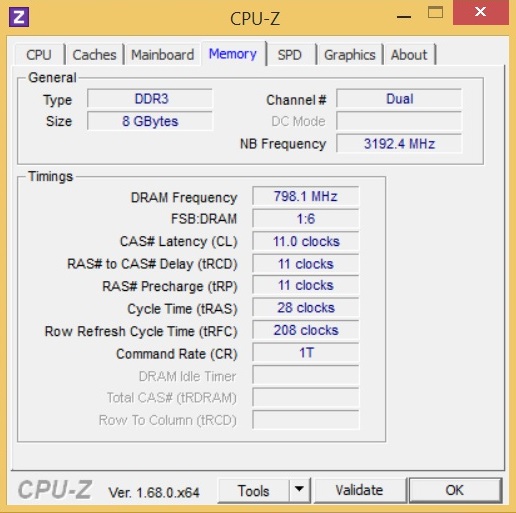

Systeminfo CPUZ Memory
System info CPUZ SPD

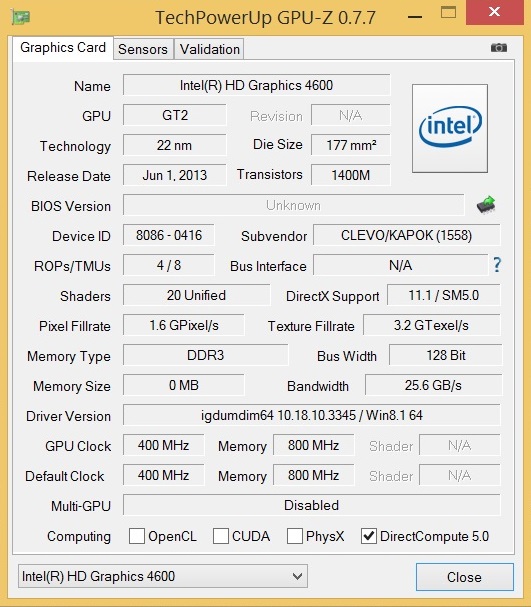

Systeminfo GPUZ (HD 4600)
System info GPUZ (R9 M290X)

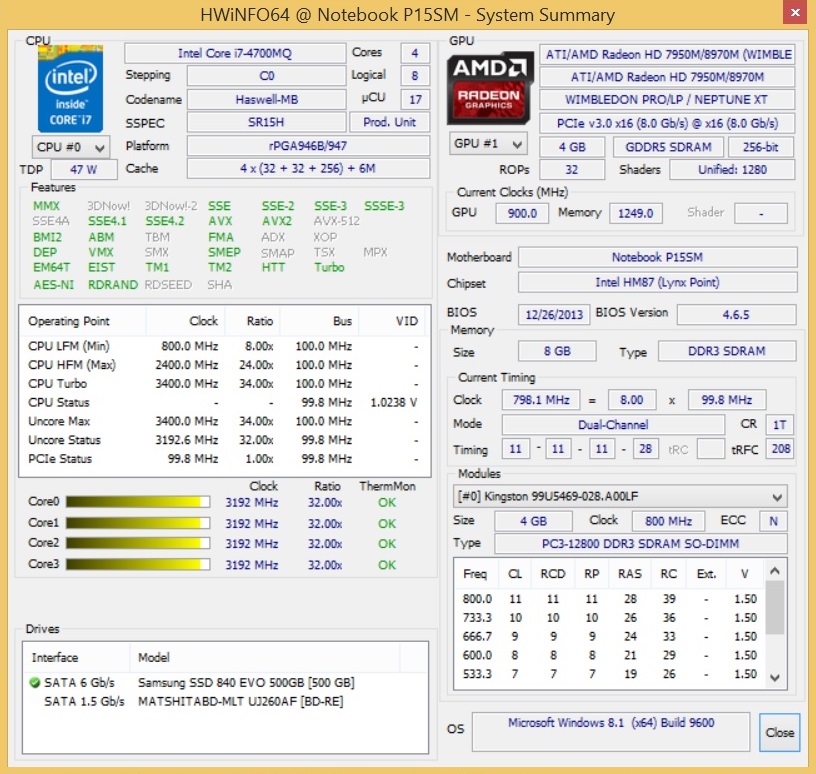

System info HWiNFO

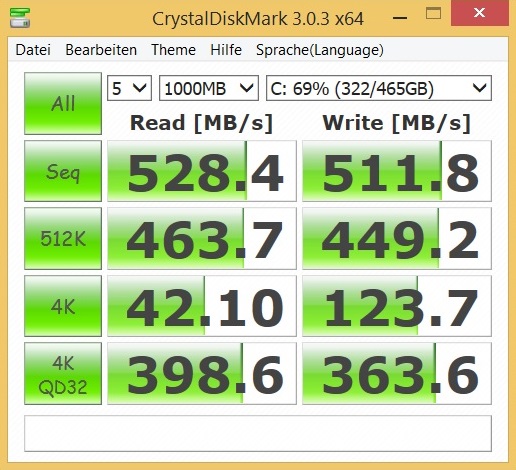

System info CrystalDiskMark

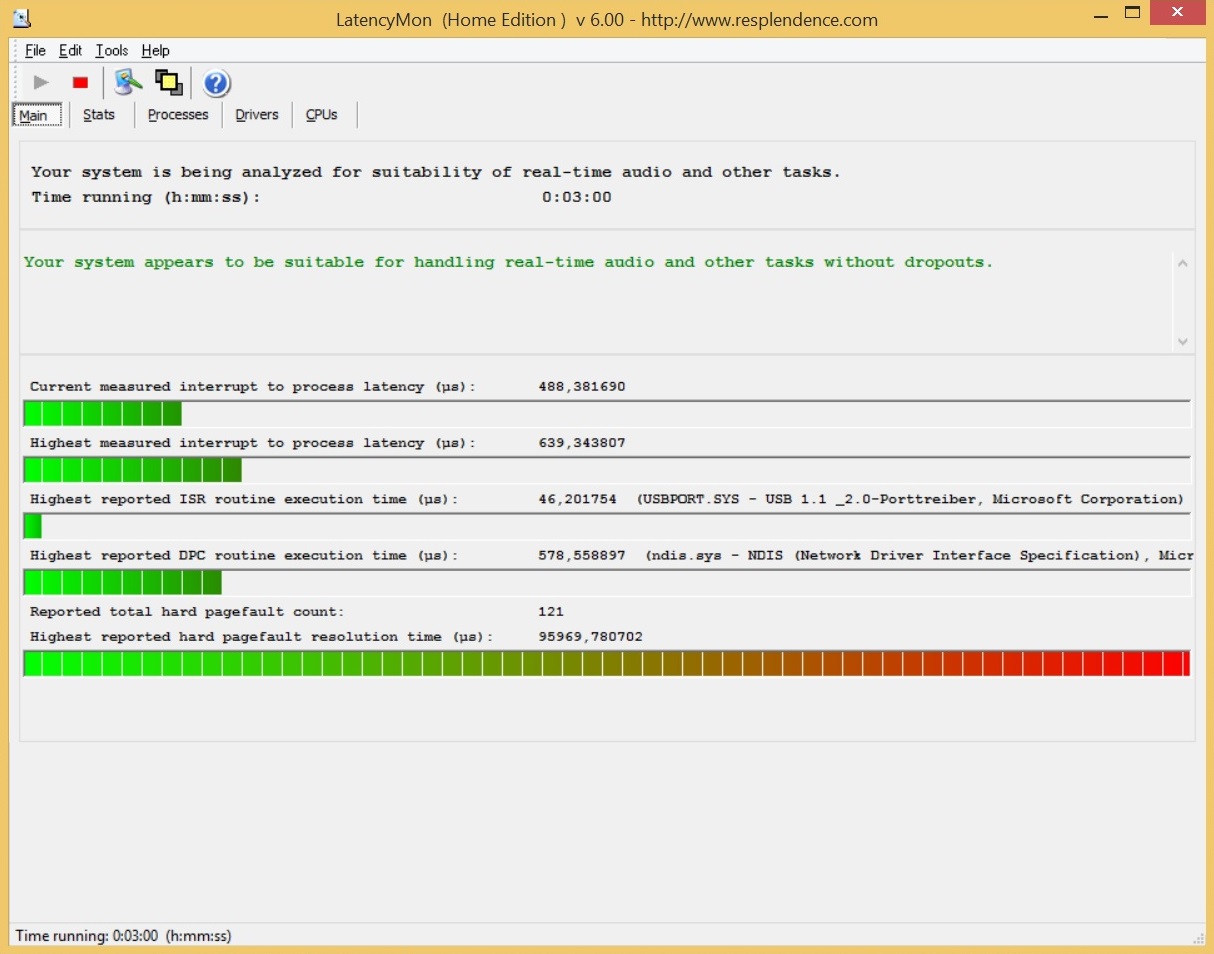

Systeminfo Latencies
Systeminformationen One K56-4N

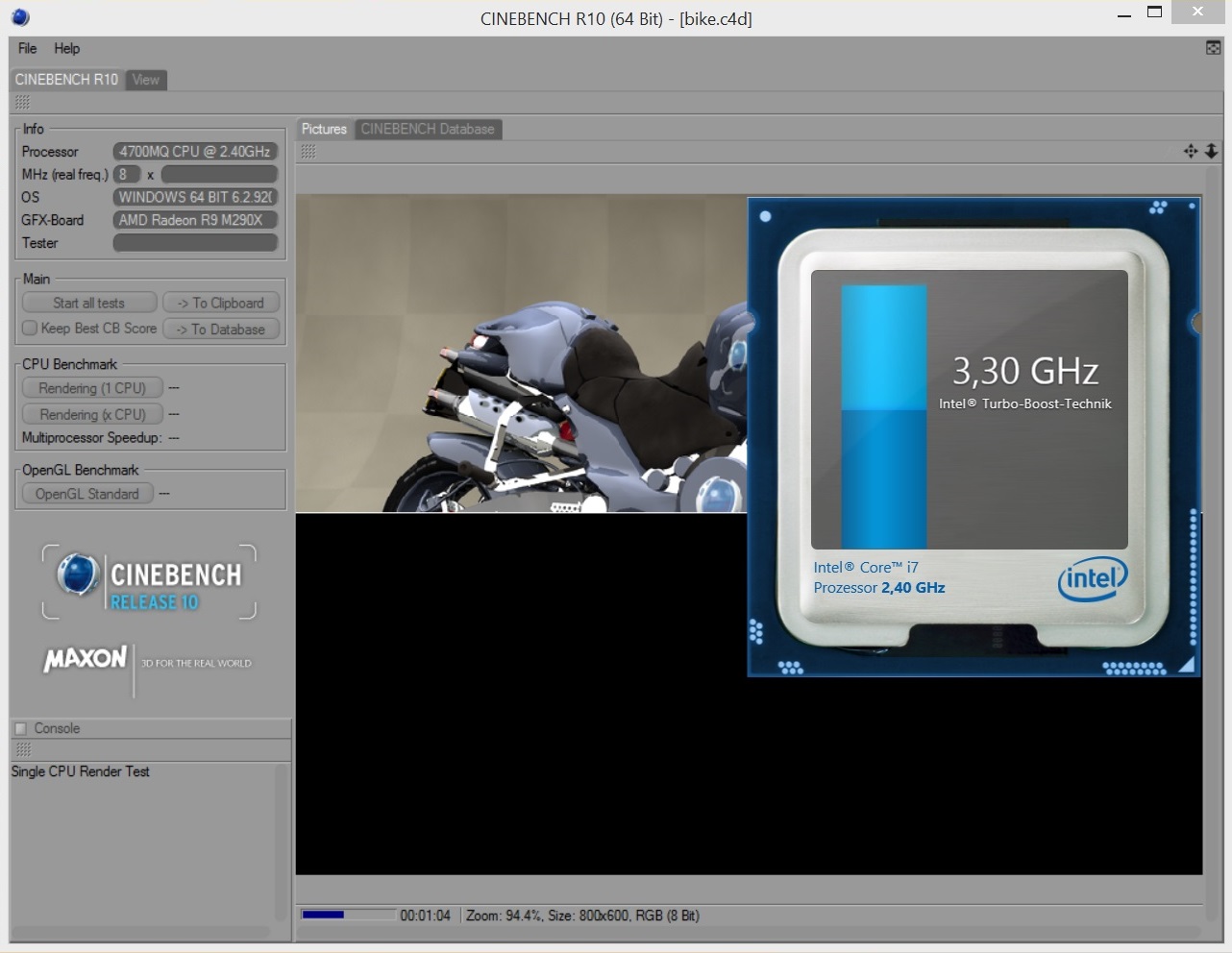

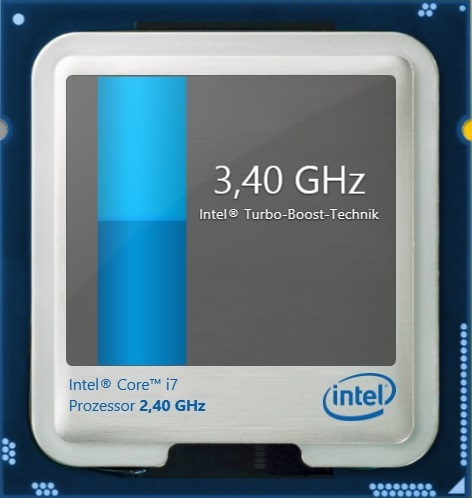

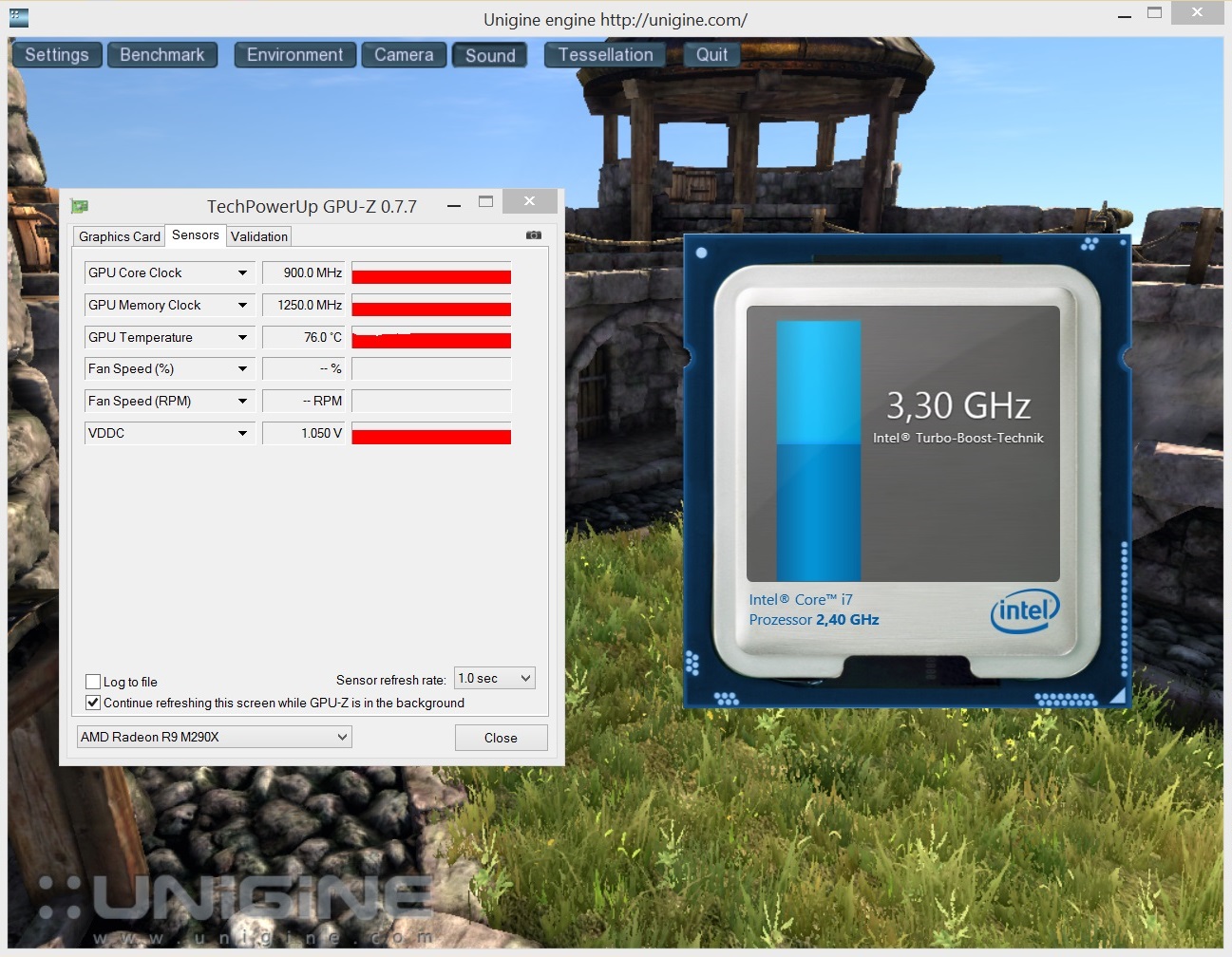

Turbo Boost

Although the CPU clock falls to about 2.8 GHz for a short time, the Core i7-4700MQ performs respectably under load. Not every competitor can achieve average clock rates of 3.3 GHz during the single-core benchmarks and 3.2 GHz during the multi-core benchmarks. With this result, the quad-core CPU reaches about the maximum claimed by Intel.

The processor does not even throttle under extreme conditions, which we proved with a test with FurMark and Prime95 (see section "Emissions"). Even after one hour of full load, the Turbo was still active.

Single core rendering
Single core rendering
Multi core rendering
Multi core rendering

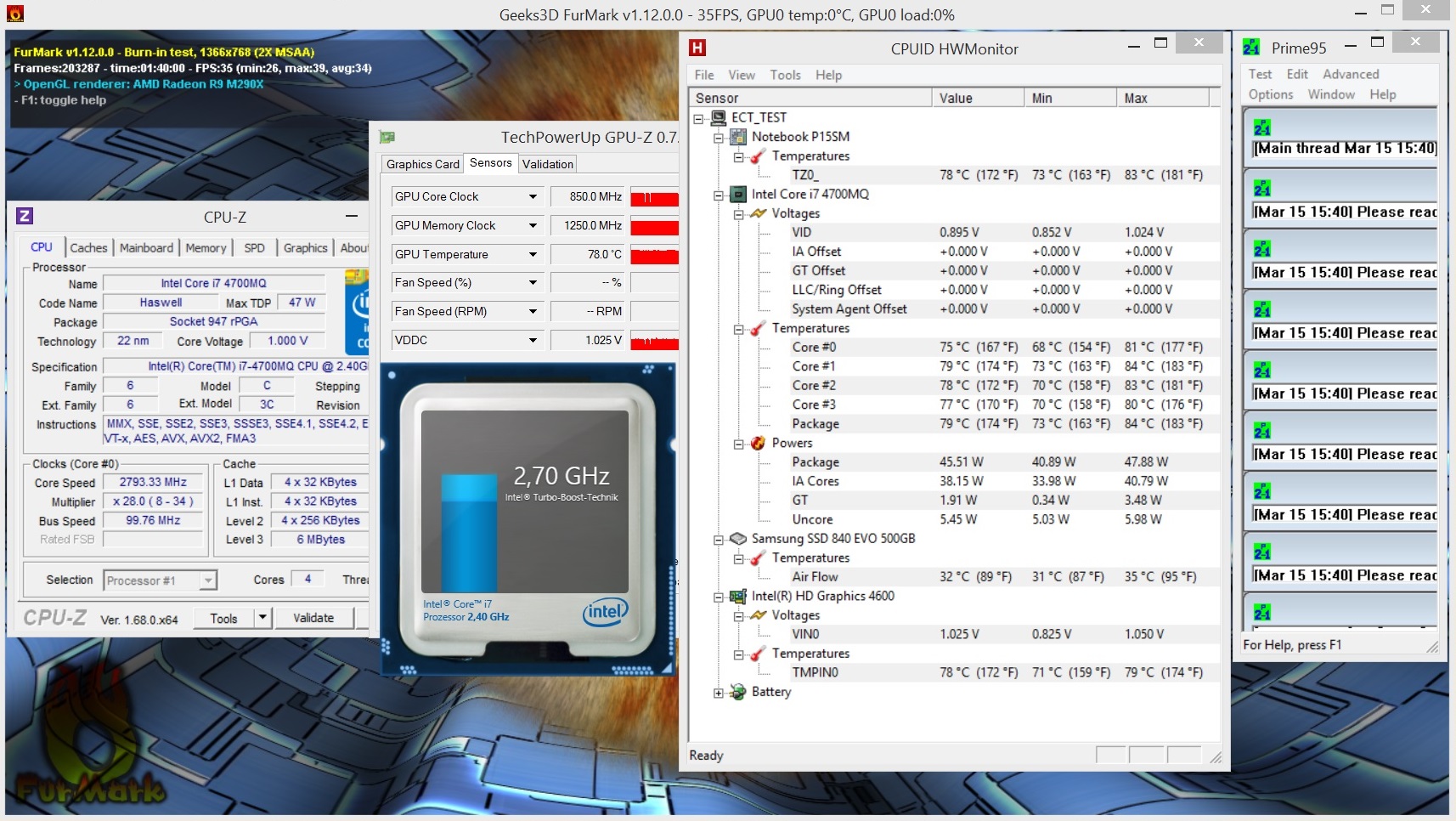

CPU and GPU load
CPU and GPU load

CPU Performance

Under single-core load, dual-core and quad-core CPUs perform quite similarly. With 132 points, the i7-4700MQ ranks slightly below the i5-4300M with a clock rate of 2.6-3.3 GHz in the Single CPU test of Cinebench R15 (127 points @ Dell Latitude E6440).

However, the difference is big in the Multi Core test: 643 vs. 314 points are more than 100% more. You should select a model from the i7 series if you want to be better equipped for the coming years. In our opinion, the 4900MQ and 4930MX top models do not pay off.

Cinebench R11.5
CPU Single 64Bit (sort by value)
Core i7-4700MQ
One K56-4N
1.51 Points
Core i5-4300M
Schenker XMG A503
1.44 Points -5%
Core i7-4800MQ
Schenker W503
1.68 Points +11%
CPU Multi 64Bit (sort by value)
Core i7-4700MQ
One K56-4N
6.94 Points
Core i5-4300M
Schenker XMG A503
3.47 Points -50%
Core i7-4800MQ
Schenker W503
7.61 Points +10%
Cinebench R11.5 CPU Single 64Bit
1.51 Points
Cinebench R11.5 CPU Multi 64Bit
6.94 Points
Cinebench R11.5 OpenGL 64Bit
85.9 fps
Cinebench R15 CPU Single 64Bit
132 Points
Cinebench R15 CPU Multi 64Bit
643 Points
Help

Graphics Card

As can frequently be seen in the graphics segment, AMD essentially changed the name of an old card to create the Radeon R9 M290X. Strictly speaking, the buyer only gets a fine-tuned Radeon HD 8970M, which again features 1280 shader units, 2800 million transistors, a core clock of 850-900 MHz and four GB of GDDR5 memory (1250 MHz).

Combined with the 256-bit interface, the DirectX 11 GPU still belongs to the first league. The meanwhile slightly old GCN architecture with 22 nm lithography continues to provide high 3D performance, which is also proved by our benchmarks.

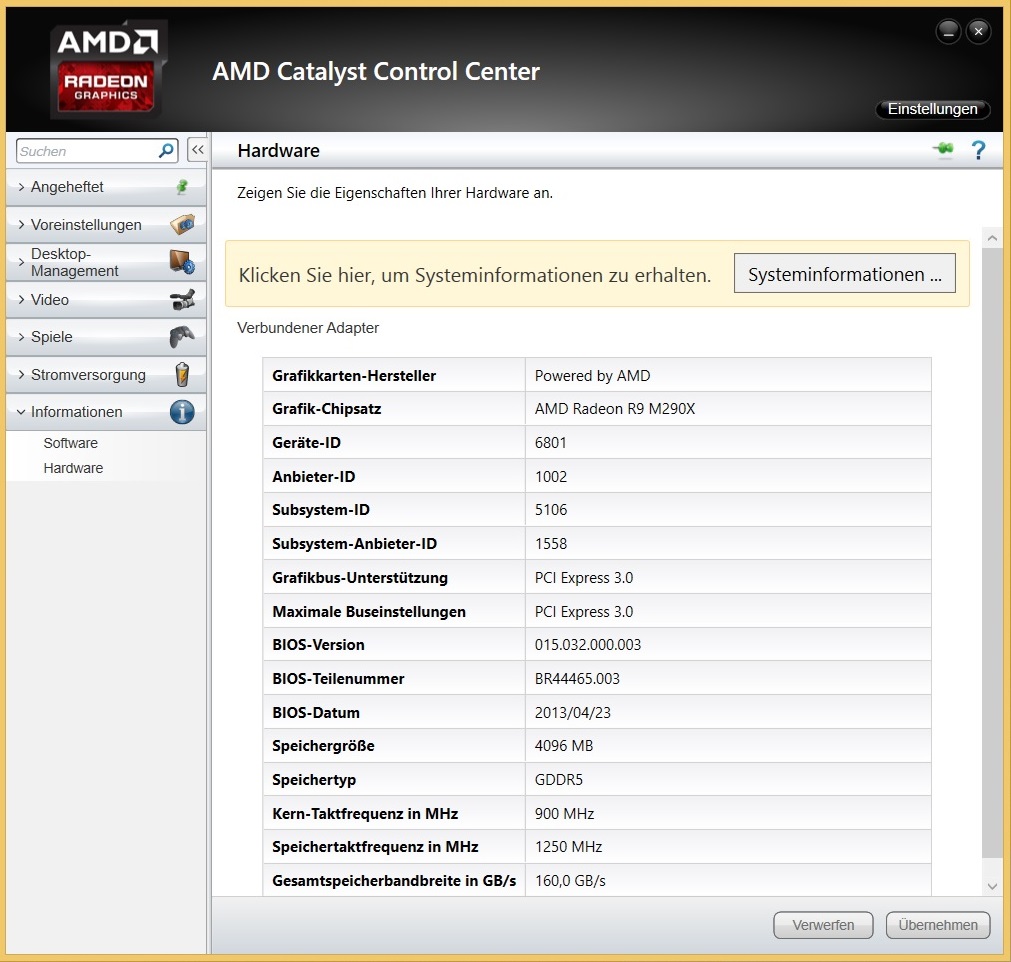

Catalyst Control Center - Hardware
Catalyst Control Center - Hardware

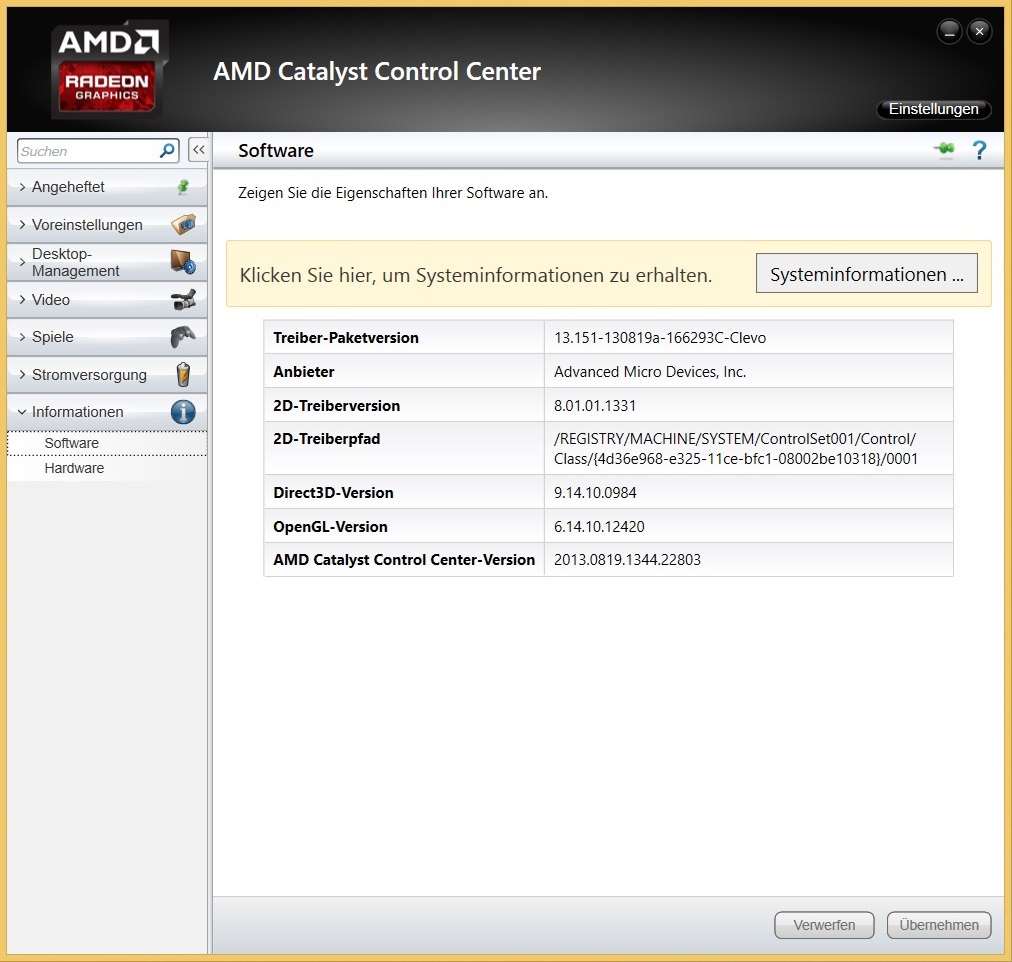

Catalyst Control Center - Software
Catalyst Control Center - Software

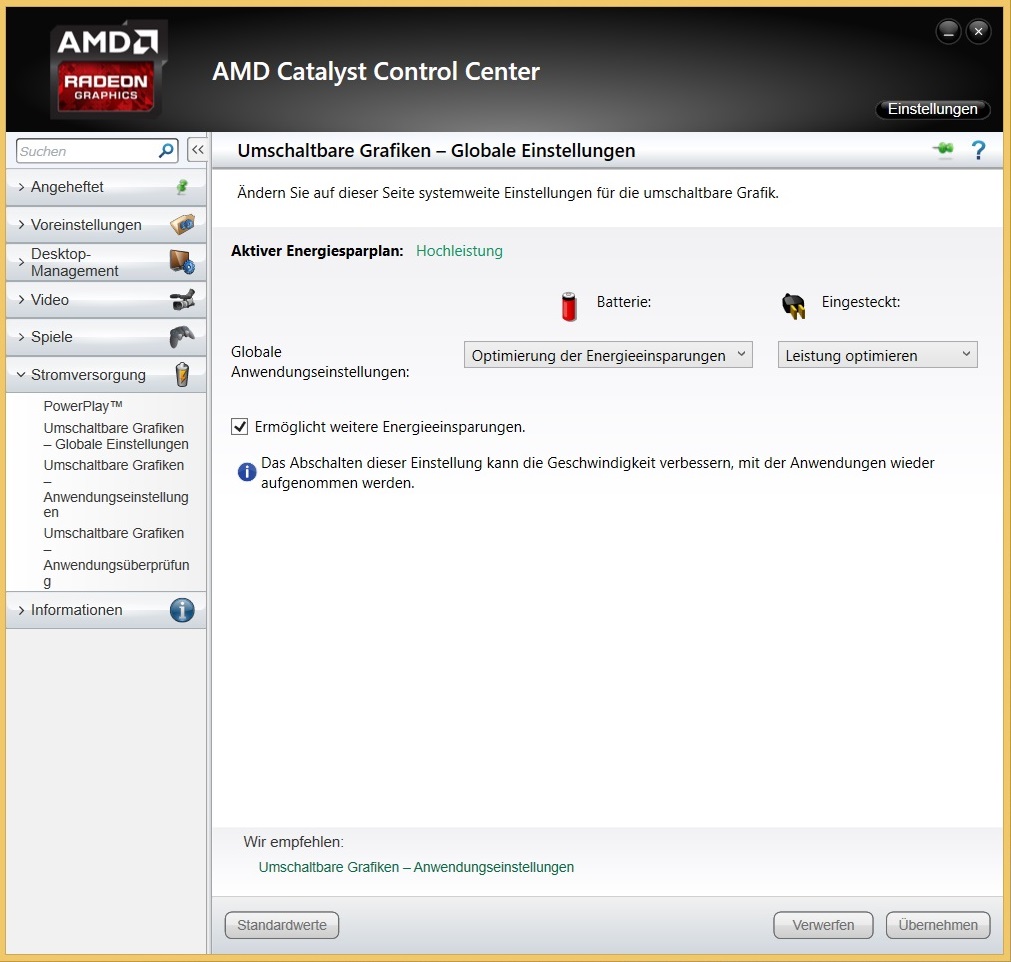

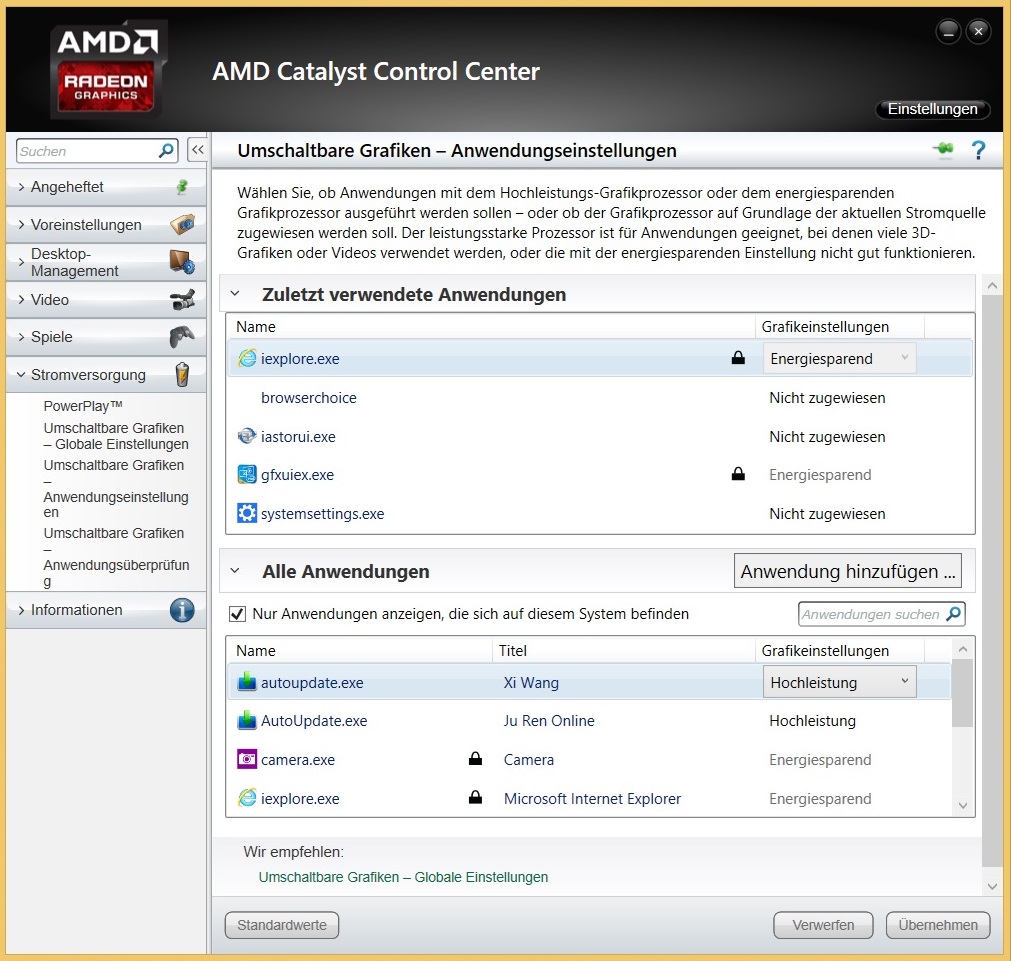

Catalyst Control Center - switchable graphics I
Catalyst Control Center - switchable graphics I
Catalyst Control Center - switchable graphics II
Catalyst Control Center - switchable graphics II

GPU Performance

The Radeon R9 M290X performs especially well in the Fire Strike test of the latest 3DMark. Although it is significantly cheaper, its GPU core is close to the GeForce GTX 780M's (5465 points @ Alienware 17) with 5294 points. The similarly expensive GeForce GTX 770M, with just under 3570 points (-33% @ Gigabyte P25W), and the brand new GeForce GTX 860M with 3940 points, perform worse (-26% @ Schenker XMG P304).

However, the R9 M290X ranks in between the GTX 780M (76 fps @ Schenker XMG P703) and GTX 770M (47.5 fps @ Toshiba Qosmio X70) in the Unigine Heaven 3.0 benchmark, which we run with 1920x1080 pixels and normal tessellation: An average of 62 fps is nothing to sneeze at. For example, the “king of efficiency”, the GeForce GTX 860M achieves about 50 fps.

Regardless of whether the performance is good or not, in our opinion, it is extremely improper that AMD uses deceptive product numbering that suggests a new series, when actually there is none. However, the main competitor often did the same in the past.

3DMark 11 - 1280x720 Performance GPU (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
6817 Points
GeForce GTX 770M (332.21)
Medion Erazer X7825
4817 Points -29%
Radeon HD 8970M (13.4)
One K73-3N
6818 Points 0%
GeForce GTX 780M (326.45)
Alienware 17
7449 Points +9%
3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
24205 Points
GeForce GTX 770M (332.21)
Medion Erazer X7825
18129 Points -25%
Radeon HD 8970M (13.4)
One K73-3N
23882 Points -1%
GeForce GTX 780M (326.45)
Alienware 17
27075 Points +12%
3DMark Vantage P Result
23961 points
3DMark 11 Performance
6859 points
3DMark Ice Storm Standard Score
87614 points
3DMark Cloud Gate Standard Score
17182 points
3DMark Fire Strike Score
4793 points
Help

Storage Devices

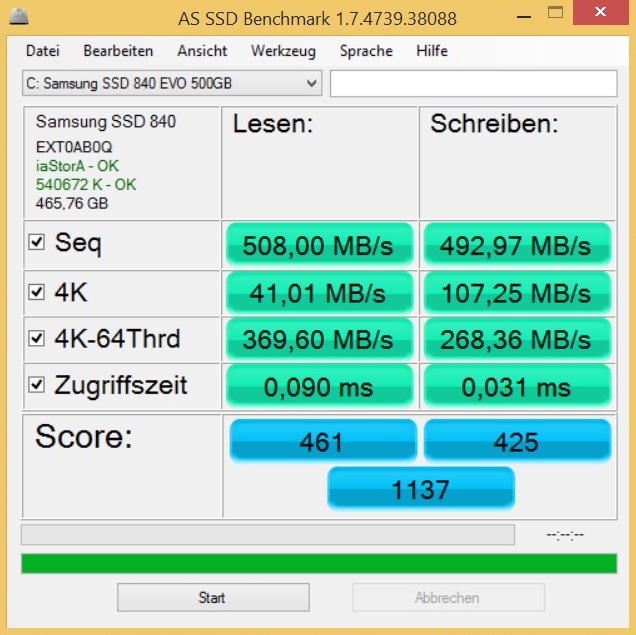

AS SSD benchmark
AS SSD benchmark

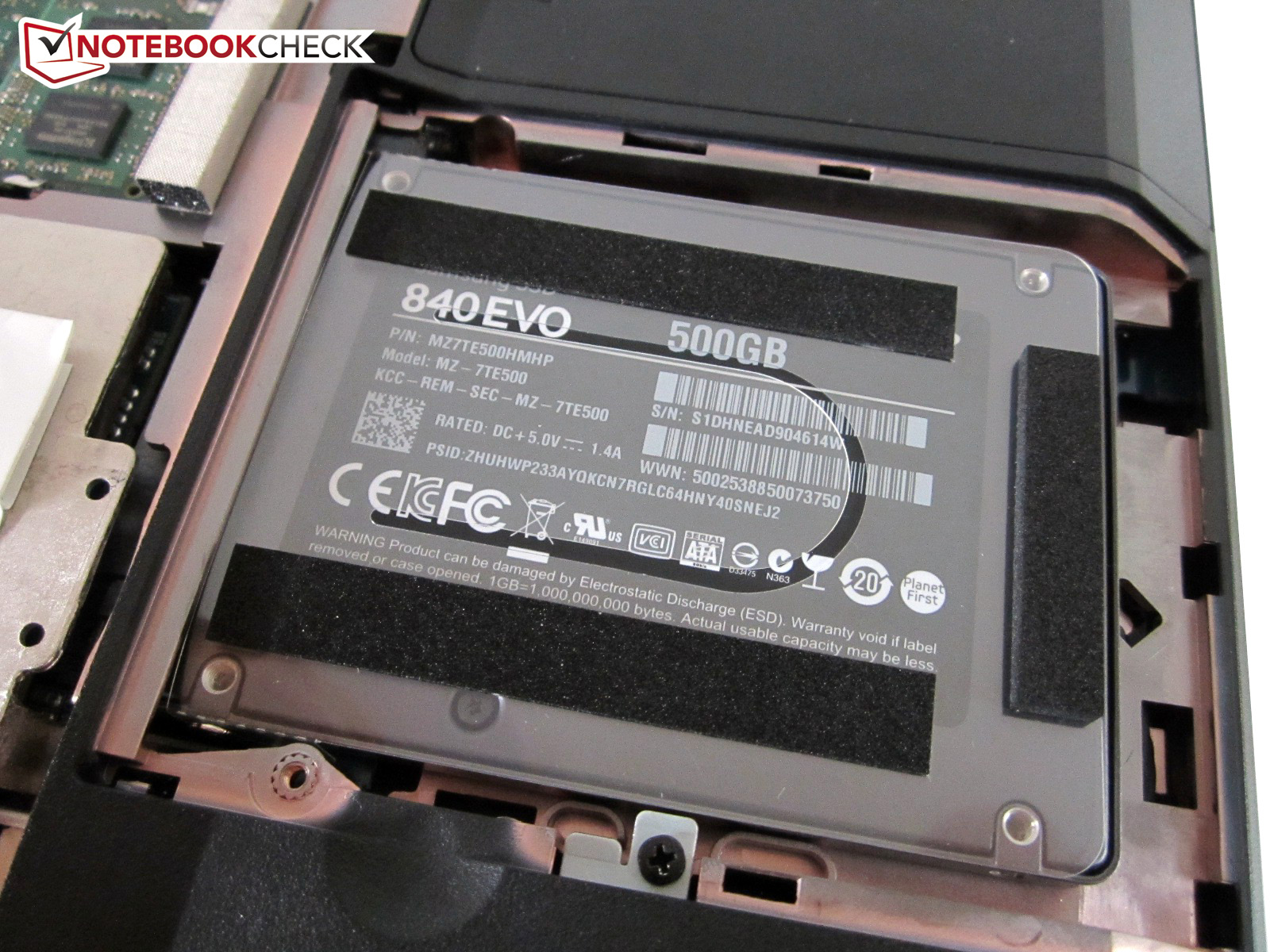

Currently, the Samsung 840 EVO is very popular among notebook and PC manufacturers. This is not surprising since it delivers first-class performance for a reasonable price.

The 500 GB model, which is used in our test model, shines in nearly all aspects. Be it the performance with small files or the sequential read and write rates, maximums of 508 and 493 MB/s hint of ultra modern innards. Many 2.5-inch competitors only achieve maximum write rates of 300-400 MB/s (e.g., the 840 Basic in the One K73-3N). The AS SSD benchmark displayed access times of 0.09 and 0.03 ms, which is a usual value for the 840 EVO (compare to the Notebookguru Earth V).

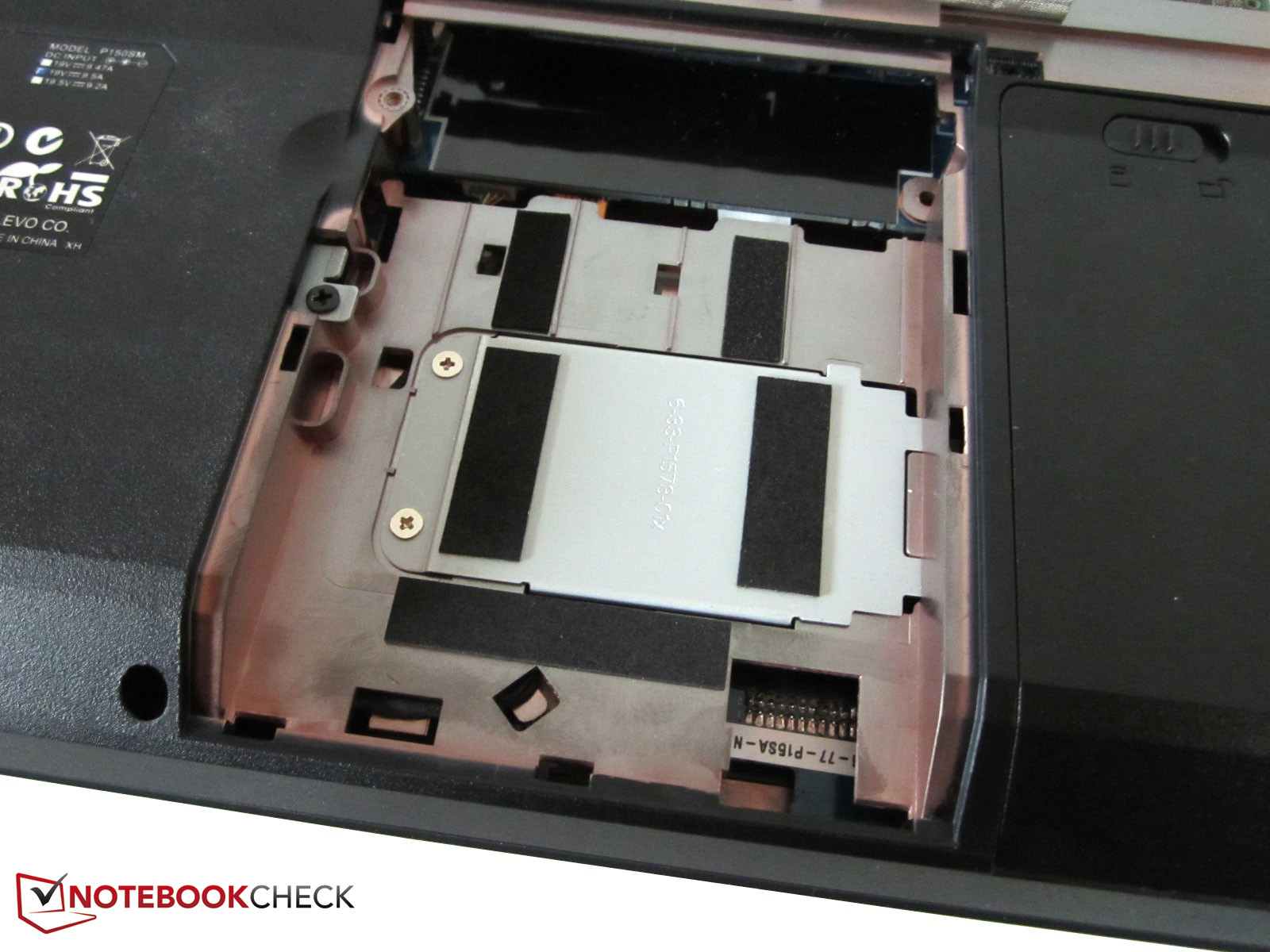

As mentioned above, the One K56-4N is optionally also available with mSATA SSD and/or HDD. Both combined will bring the advantages of both worlds, i.e. high performance (Windows on SSD) and big storage capacity (data on HDD).

Samsung SSD 840 EVO 500GB
Sequential Read: 528 MB/s
Sequential Write: 512 MB/s
512K Read: 463.7 MB/s
512K Write: 449.2 MB/s
4K Read: 42.1 MB/s
4K Write: 123.7 MB/s
4K QD32 Read: 398.6 MB/s
4K QD32 Write: 363.6 MB/s

System Performance

The system performance of the test model is excellent. 6408 points in PCMark 7 is the second best result we recorded so far (in nearly 1000 database records). Only the Sony Vaio SV-Z1311Z9EX performed better despite weaker hardware (Core i7-3612QM & HD Graphics 4000). The main reason is that PCMark heavily depends on mass storage performance. The faster the hard drive, the higher the total score.

PCMark 7 Score
6408 points
PCMark 8 Home Score Accelerated v2
4401 points
PCMark 8 Work Score Accelerated v2
4325 points
Help

Gaming Performance

strong performance
strong performance

The Radeon R9 M290X performs very well in gaming. Unless you run demanding games like Crysis 3, the 15-incher can also handle maximum details and active anti-aliasing. The graphics chip achieved more than 30 fps in 11 of 14 games with our ultra settings. A few years ago, only a dual GPU solution could achieve this.

As expected, the R9 M290X is exactly on par with the old HD 8970M. It is about 30% faster than the GeForce GTX 770M, while the GeForce GTX 780M performs just under 10% better. Unfortunately, the driver of the new generation does not work flawlessly. Although the R9 M290X is nearly identical to the predecessor, we had to struggle with various bugs, which we have already observed for months or years. A short list:



  • Sometimes the graphics card crashes after booting with the error message “the display driver has [...] recovered”. Rebooting usually fixes this problem.
  • SPECviewperf 12 hangs at a certain scenario.
  • The OpenGL test of the Cinebench R15 also crashed with an error message.
  • Far Cry 3 produces strange shades in DirectX 11 mode. Frame rates were much too low in DirectX 9 mode.
  • Guild Wars 2 ran much too slowly despite correct Enduro settings.
  • We could not get F1 2013 running at all (according to the task manager the game was opened, but it was not displayed).
  • Thief only reached the expected performance in the second benchmark run. We faced the same problem with the Notebookguru Earth V.

We used the preinstalled GPU driver version 13.151.0.0 in our test, which is no longer up-to-date. The barebones manufacturer Clevo should upgrade drivers more often. We did not manually upgrade the driver because of bad experiences (see review of the Radeon HD 8970M). Too bad, AMD did not master the driver problem. There are hardly any AMD notebooks running without problems...

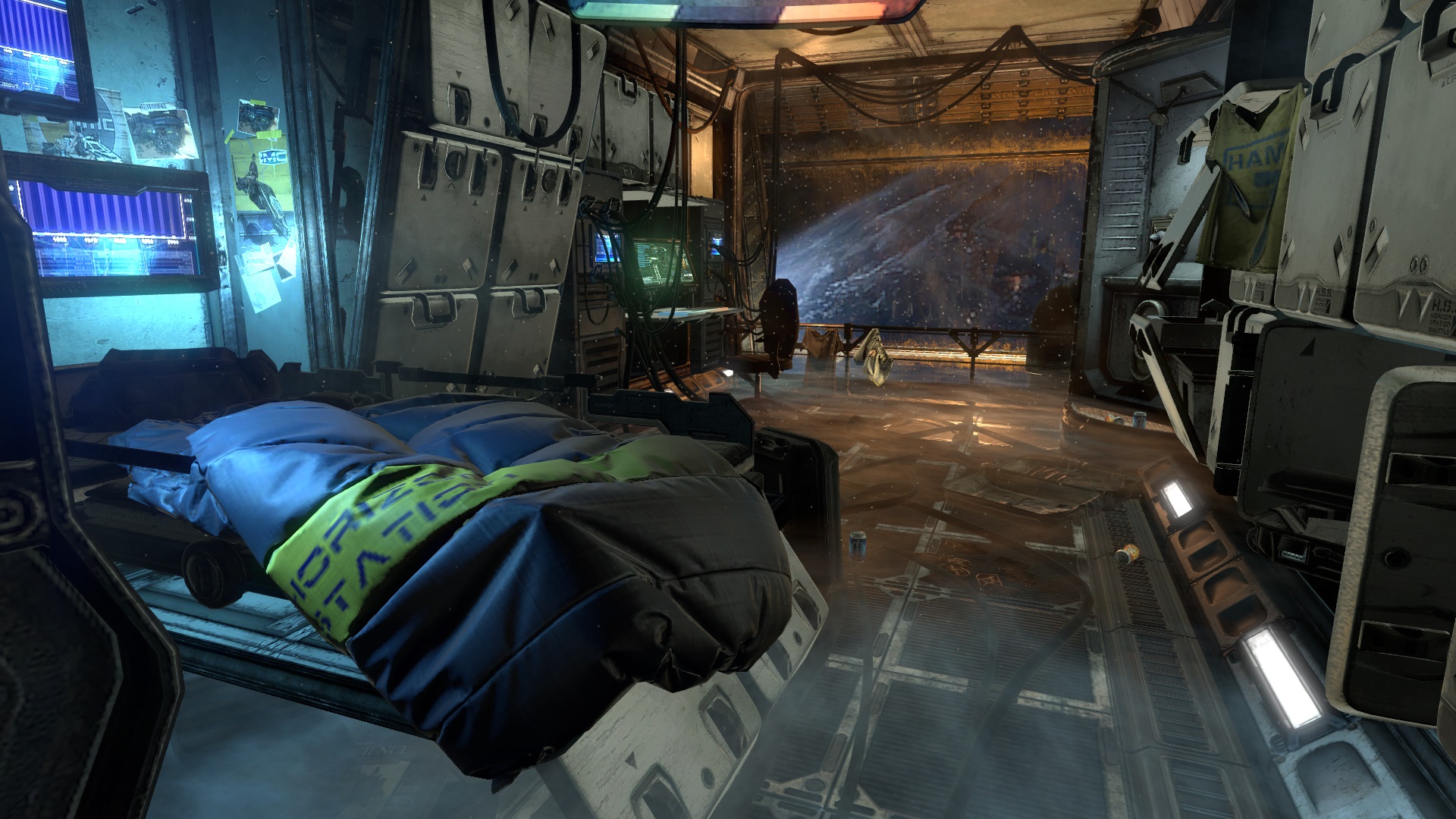

Titanfall - 1920x1080 (Very) High AA:4xMS AF:16x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
58.9 fps
GeForce GTX 770M (mixed driver)
Schenker W503
48.3 fps -18%
Radeon HD 8970M (mixed driver)
Schenker W503
59.1 fps 0%
GeForce GTX 780M (mixed driver)
Schenker W503
59.1 fps 0%
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
34 fps
GeForce GTX 770M (mixed driver)
Schenker W503
26.6 fps -22%
Radeon HD 8970M (mixed driver)
Schenker W503
35.9 fps +6%
GeForce GTX 780M (mixed driver)
Schenker W503
40.2 fps +18%
X-Plane 10.25 - 1920x1080 ultra (fps_test=4) test_flight_c4 (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
16.4 fps
GeForce GTX 770M (mixed driver)
Schenker W503
17.1 fps +4%
Radeon HD 8970M (mixed driver)
Schenker W503
17.2 fps +5%
GeForce GTX 780M (mixed driver)
Schenker W503
22.1 fps +35%
Call of Duty: Ghosts - 1920x1080 Extra / High / HBAO+ / No dynamic fur AA:4x MS (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
33.2 fps
GeForce GTX 770M (mixed driver)
Schenker W503
28.4 fps -14%
Radeon HD 8970M (mixed driver)
Schenker W503
31 fps -7%
GeForce GTX 780M (mixed driver)
Schenker W503
40.5 fps +22%
Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
38.7 fps
GeForce GTX 770M (mixed driver)
Schenker W503
26.5 fps -32%
Radeon HD 8970M (mixed driver)
Schenker W503
37.7 fps -3%
GeForce GTX 780M (mixed driver)
Schenker W503
40 fps +3%
Saints Row IV - 1920x1080 Ultra Preset AA:8x MS AF:16x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
35.2 fps
GeForce GTX 770M (mixed driver)
Schenker W503
35.9 fps +2%
GeForce GTX 780M (mixed driver)
Schenker W503
51.9 fps +47%
Dota 2 - 1920x1080 High / On, Render Quality: 100 % (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
102.6 fps
GeForce GTX 770M (mixed driver)
Schenker W503
58.9 fps -43%
GeForce GTX 780M (mixed driver)
Schenker W503
75.7 fps -26%
GRID 2 - 1920x1080 Ultra Preset AA:4xMS (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
60.3 fps
Radeon HD 8970M (13.4)
One K73-3N
62.2 fps +3%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
33.1 fps
Radeon HD 8970M (13.4)
One K73-3N
31.9 fps -4%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
46.8 fps
GeForce GTX 770M (311.27)
One K73-3N
30.8 fps -34%
Radeon HD 8970M (13.4)
One K73-3N
43.7 fps -7%
GeForce GTX 780M (311.27)
One K56-3N2
46.6 fps 0%
Tomb Raider - 1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
62.7 fps
GeForce GTX 770M (311.27)
One K73-3N
41.9 fps -33%
Radeon HD 8970M (13.4)
One K73-3N
61.7 fps -2%
GeForce GTX 780M (311.27)
One K56-3N2
65.3 fps +4%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
22.8 fps
GeForce GTX 770M (311.27)
One K73-3N
19.3 fps -15%
Radeon HD 8970M (13.4)
One K73-3N
23.4 fps +3%
GeForce GTX 780M (311.27)
One K56-3N2
29.3 fps +29%
Far Cry 3 - 1920x1080 DX11 Ultra Preset (HDAO, Enhanced Alpha To Coverage) AA:4x MS (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
29 fps
GeForce GTX 770M (311.27)
One K73-3N
20 fps -31%
Radeon HD 8970M (13.4)
One K73-3N
28.3 fps -2%
GeForce GTX 780M (311.27)
One K56-3N2
30.4 fps +5%
Hitman: Absolution - 1920x1080 Ultra Preset AA:4xMS AF:16x (sort by value)
Radeon R9 M290X (13.151.0.0)
One K56-4N
37.3 fps
GeForce GTX 770M (311.27)
One K73-3N
21.2 fps -43%
Radeon HD 8970M (13.4)
One K73-3N
35.2 fps -6%
GeForce GTX 780M (311.27)
One K56-3N2
33.8 fps -9%
low med. high ultra
Hitman: Absolution (2012) 60 56.3 49.4 37.3
Far Cry 3 (2012) 61.9 29
Crysis 3 (2013) 107.8 72.8 48.2 22.8
Tomb Raider (2013) 287.5 193.9 137.3 62.7
BioShock Infinite (2013) 164.6 140 124.7 46.8
Metro: Last Light (2013) 84 77.4 60 33.1
GRID 2 (2013) 129.5 90 86 60.3
Dota 2 (2013) 118.2 115.2 102.6
Saints Row IV (2013) 49.2 43.4 38.7 35.2
Battlefield 4 (2013) 93 81.6 73.9 38.7
Call of Duty: Ghosts (2013) 58.6 55.9 44.7 33.2
X-Plane 10.25 (2013) 71.7 41.4 22 16.4
Thief (2014) 51.1 48 45.3 34
Titanfall (2014) 60 60 60 58.9

Emissions

System Noise

In particular, the system noise has to be criticized. Although the fans are sometimes completely deactivated while idle, they produce at least 37 dB(A) as soon as they are active, which is clearly audible. It is hard to understand, why Clevo did not implement a lower level. Sometimes the noise even increases to just under 40 dB(A) without reason.

In 3D mode, the fans adapt very quickly to changing load. So the noise ranges from 41 to 47 dB(A) during 3DMark 06 and hovered around 47 dB(A) after a while. This level might be disturbing unless you play a game with a lot of action or use a headset. A maximum of 54 dB(A) under full load is also pretty noisy.

The fact remains that Clevo achieved very little progress in fan control. Cooling still depends too much on hardware temperatures or load.

Noise Level

Idle
29 / 36.6 / 39.6 dB(A)
DVD
40 / dB(A)
Load
47 / 53.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

Stress test
Stress test

An important advantage of the loud fans is the cool case surfaces. Average temperatures of 26 °C (78.8 °F) while idle and of 33 °C (91.4 °F) after prolonged stress are impressive and are oriented towards the Schenker W503's, which was equipped with a Core i7-4800MQ and a GeForce GTX 765M in our test. Most of the competitors get significantly hotter. Even thick 17-inch devices like the Toshiba Qosmio X70 often reach higher temperatures. It is especially noteworthy, that the palm rests even remained below 30 °C (86 °F) after one hour under full load. A maximum of 39 °C (102.2 °F) close to the fans is also moderate.

Despite hotter temperatures inside, you do not need to worry about the components. Since the cooling system runs at maximum speed as soon as CPU and GPU temperature reach about 80 °C (176 °F), the critical level of 90-100 °C (194-212 °F) is not exceeded. While the Core i7-4700MQ had a temperature of 75-80 °C (167-176 °F) after our stress test (according to CPUID HWMonitor), the Radeon R9 M290X reached about 78 °C (172.4 °F), while the core clock erratically fell to 450 MHz (for a few seconds).

Max. Load
 35.5 °C
96 F
35.5 °C
96 F
35.5 °C
96 F

 34.2 °C
94 F
34.2 °C
94 F
32.7 °C
91 F

 27.3 °C
81 F
28.1 °C
83 F
27.1 °C
81 F

Maximum: 35.5 °C = 96 F
Average: 32.2 °C = 90 F
38.6 °C
101 F
36.3 °C
97 F
35.7 °C
96 F
34.6 °C
94 F
35.1 °C
95 F
29.5 °C
85 F
28.1 °C
83 F
29.6 °C
85 F
25.6 °C
78 F
Maximum: 38.6 °C = 101 F
Average: 32.6 °C = 91 F
Power Supply (max.)  48.9 °C = 120 F | Room Temperature 24 °C = 75 F | Voltcraft IR-550
(±) The average temperature for the upper side under maximal load is 32.2 °C / 90 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(+) The maximum temperature on the upper side is 35.5 °C / 96 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(+) The bottom heats up to a maximum of 38.6 °C / 101 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+0.8 °C / 1.4 F).

Speakers

Please refer to our test of the Schenker W503 if you are interested in the sound system.

Energy Management

Power Consumption

Thanks to the Enduro technology, the One K56-4N is quite frugal while idle. 15-26 Watts are slightly less than the level of the One K73-3N with Core i7-4800MQ and GeForce GTX 770M (17-29 Watts). The device does not perform that well during 3DMark 06. With a power consumption of 126 Watts, our test model significantly exceeds GTX 780M notebooks'. The MSI GT70H (~103 Watts) and the Asus G750JH (~100 Watts) need less energy. The 180-Watt power adapter appears to be sufficient for the tested hardware. During our stress test, our gauge recorded a maximum of 182 Watts.

Power Consumption
Off / Standbydarklight 0.2 / 0.4 Watt
Idledarkmidlight 15.3 / 21.9 / 26 Watt
Load midlight 125.5 / 181.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Life

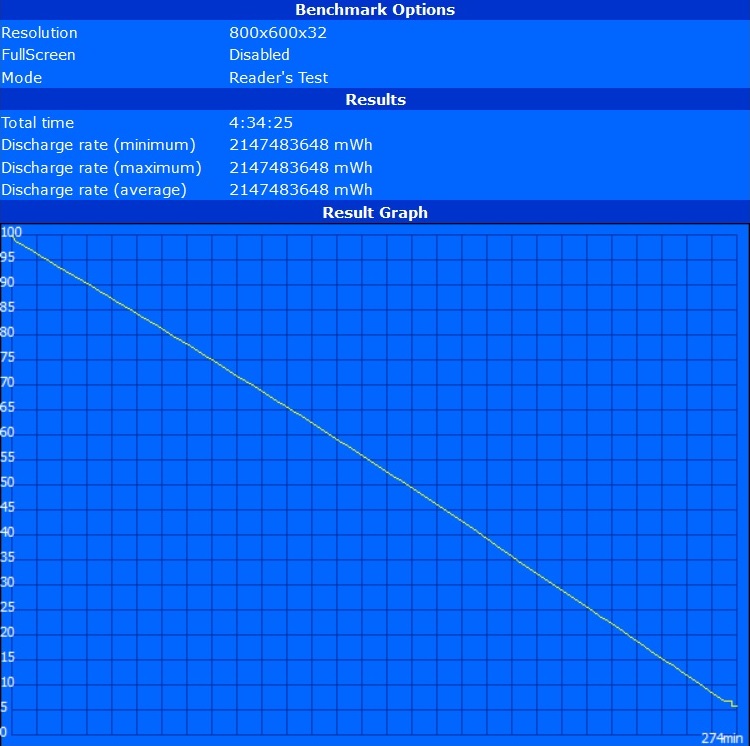

maximum battery life (Reader's Test)
Reader's Test

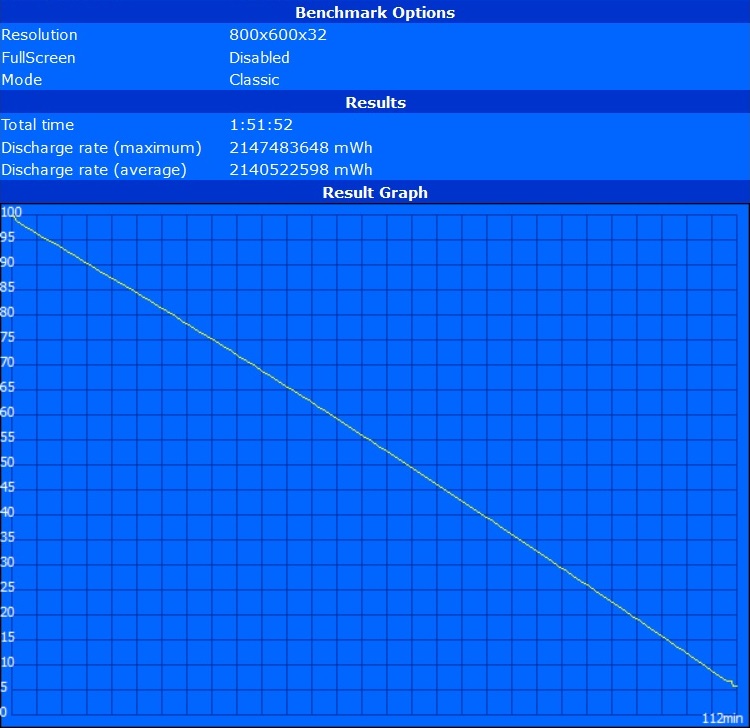

minimum battery life (Classic Test)
Classic Test

Considering the enormous performance the battery life is acceptable. With minimum brightness, up to 4.5 hours are possible while idle. Most buyers will also be satisfied with 3.5 hours Internet surfing via Wi-Fi (70% brightness). Since the Classic test of the Battery Eater Classic ended after above two hours, a similarly long gaming session should be possible.

Battery Runtime
Idle (without WLAN, min brightness)
4h 34min
WiFi Surfing
3h 28min
Load (maximum brightness)
1h 52min

Verdict

powerful gaming model
powerful gaming model

Everything remained the same: This sentence fits perfectly to the Clevo P150 SM (One K56-4N). By that, we not only mean the performance of the Radeon R9 M290X, but also the relatively simple P150SM barebones. Despite a rather thick design (above four centimeters; ~1.6 inches) and the failed rubberized touchpad, the chassis performs well.

Hardly any high-end notebook can be maintained and upgraded as easily. Further pros are the keyboard with several light zones, low temperatures and various interfaces. The lack of glossy elements is also positive in use. It is also not a matter of course that the One comes without bloatware and that the customer can configure it in detail.

Meanwhile, Clevo should improve the sound and fan control. Regardless whether idling or in 3D mode: in our opinion, the P150SM barebones is too loud. In addition, it struggles with temporary driver problems. Meanwhile, we doubt that AMD will ever produce a flawless version. The performance is poor and error messages come up: Compared to Nvidia, the drivers appear quite immature. The best and fastest hardware is useless like this. To summarize, if you want to play without problems, you had better take a GeForce. Reviews of the GTX 870M and the GTX 880M are already planned.

Note: The Clevo 150M (One K56-4N) was one of the first notebooks we tested with our new and noticeably harder rating system (v4 instead of v3). In the past, the total rating would have been 86%. Generally, the ratings should differ more greatly in the future. We e.g. introduced a sound category.

Read all 3 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review: Clevo 150SM (One K56-4N). Test model courtesy of ECT Service GmbH.
In Review: Clevo 150SM (One K56-4N). Test model courtesy of ECT Service GmbH.

Specifications

One K56-4N (K56 Series)
Processor
Intel Core i7-4700MQ 4 x 2.4 - 3.4 GHz (Intel Core i7)
Graphics adapter
AMD Radeon R9 M290X - 4 GB VRAM, Core: 900 MHz, Memory: 1250 MHz, GDDR5, 13.151.0.0, Enduro
Memory
8 GB
, 2x 4 GB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 2 of 4 slots occupied, max. 32 GB
Display
15.60 inch 16:9, 1920 x 1080 pixel, LG Philips LP156WF1-TLF3 (LGD0259), TN LED, Full HD, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Storage
Samsung SSD 840 EVO 500GB, 500 GB
, , slots: 2x mSATA & 1x 2.5 inch
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 Firewire, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 eSata, Audio Connections: headphones, microphone, line-in, S/PDIG (7.1 out), Card Reader: MMC,RSMMC,SD,Mini SD,SDHC,SDXC,MS,MS Pro,MS Duo, 1 Fingerprint Reader, 1mini DisplayPort
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optical drive
MATSHITA BD-MLT UJ260AF
Size
height x width x depth (in mm): 43 x 376 x 256 ( = 1.69 x 14.8 x 10.08 in)
Battery
77 Wh Lithium-Ion, 5200 mAh, 14.8V, P150HMBAT-8, 8 cells, 420 gram
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 2.0 Megapixel
Additional features
Speakers: 2.1 (Onkyo, Sound Blaster X-Fi MB3) , Keyboard Light: yes, power adapter: 180 Watt (169 x 84 x 36 mm), user guide, driver DVD, SSD accessories (guide & DVD), 12-36 Months Warranty
Weight
3.146 kg ( = 110.97 oz / 6.94 pounds), Power Supply: 846 g ( = 29.84 oz / 1.87 pounds)
Price
1514 Euro



The lid is rubberized.
The lid is rubberized.
The same applies to the palm rests.
The same applies to the palm rests.
It is easy to upgrade the P150SM.
It is easy to upgrade the P150SM.
The notebook is just under 5 cm high with feet.
The notebook is just under 5 cm high with feet.
The maximum opening angle is about 135°.
The maximum opening angle is about 135°.
The two fans are in the rear.
The two fans are in the rear.
Most of the photos stem from the technically identical Schenker W503.
Most of the photos stem from the technically identical Schenker W503.
Only the photos of the inside are new.
Only the photos of the inside are new.
The soft touch finish does not like greasy fingers.
The soft touch finish does not like greasy fingers.
The case is completely matte.
The case is completely matte.
The user does not have to do without an optical drive.
The user does not have to do without an optical drive.
Apart from the battery, two hatches can be removed on the underside.
Apart from the battery, two hatches can be removed on the underside.
The cooling system appears sophisticated.
The cooling system appears sophisticated.

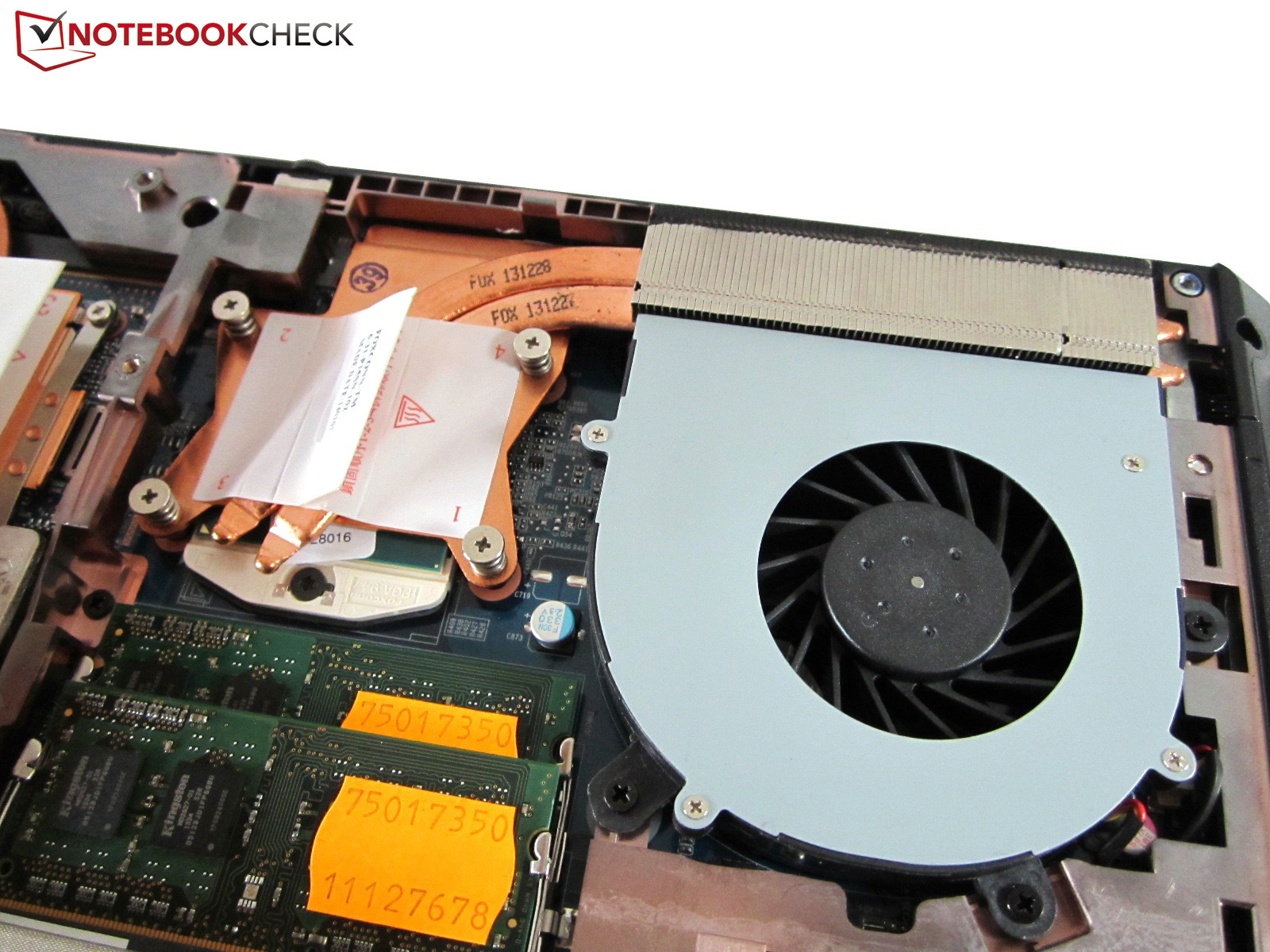

One of the fans is responsible for the processor.
One of the fans is responsible for the processor.
In our test model is DDR3-RAM from Kingston.
In our test model is DDR3-RAM from Kingston.
One mSATA slot can be reached directly.
One mSATA slot can be reached directly.
The Samsung 840 EVO is one of the fastest SSDs.
The Samsung 840 EVO is one of the fastest SSDs.

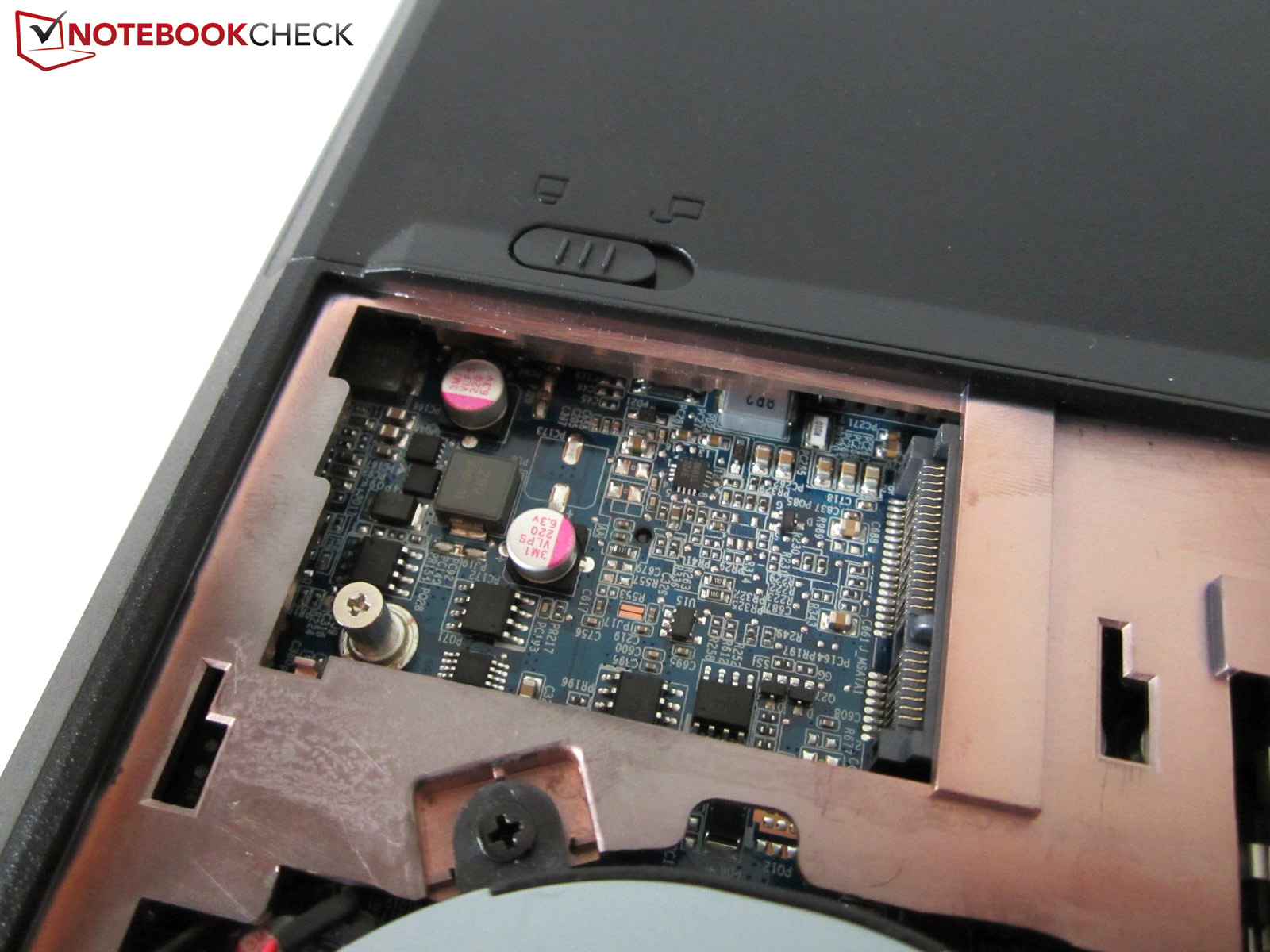

There is a second mSATA slot beneath the 2.5-inch slot.
There is a second mSATA slot beneath the 2.5-inch slot.

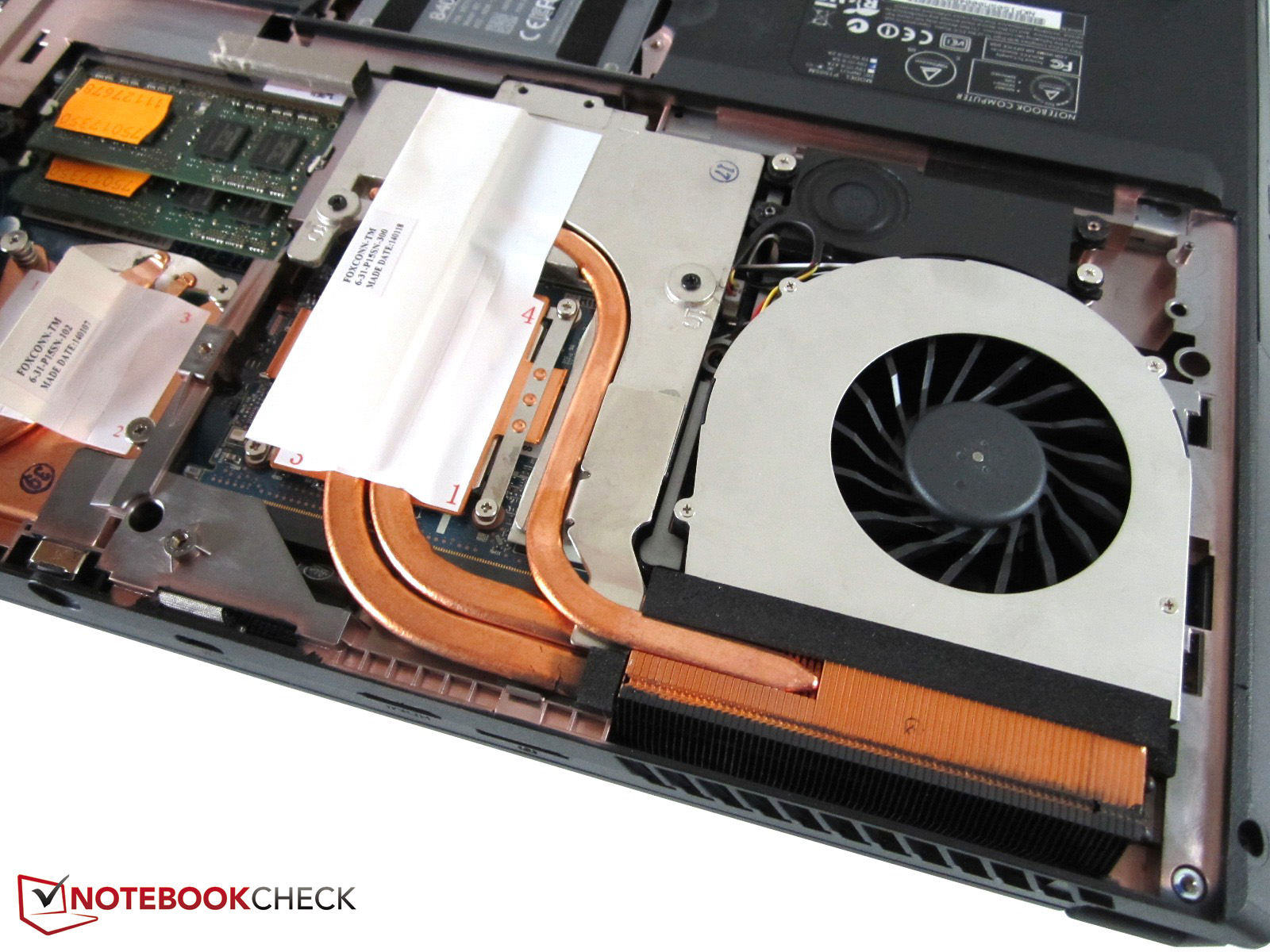

The Radeon R9 M290X is covered by a heat sink and three heat pipes.
The Radeon R9 M290X is covered by a heat sink and three heat pipes.
The battery has an impressive capacity of 77 Wh.
The battery has an impressive capacity of 77 Wh.
The anti-glare display hardly reflects.
The anti-glare display hardly reflects.
The keyboard light is divided into three zones.
The keyboard light is divided into three zones.
There are a WiFi module and two of for RAM slots beneath the keyboard.
There are a WiFi module and two of for RAM slots beneath the keyboard.
There are several indicator LEDs left of the power button.
There are several indicator LEDs left of the power button.
The layout is significantly different from the standard.
The layout is significantly different from the standard.
The light can be adjusted with the number pad.
The light can be adjusted with the number pad.
Despite brand speakers, the sound quality is not outstanding.
Despite brand speakers, the sound quality is not outstanding.
The underside houses a subwoofer.
The underside houses a subwoofer.

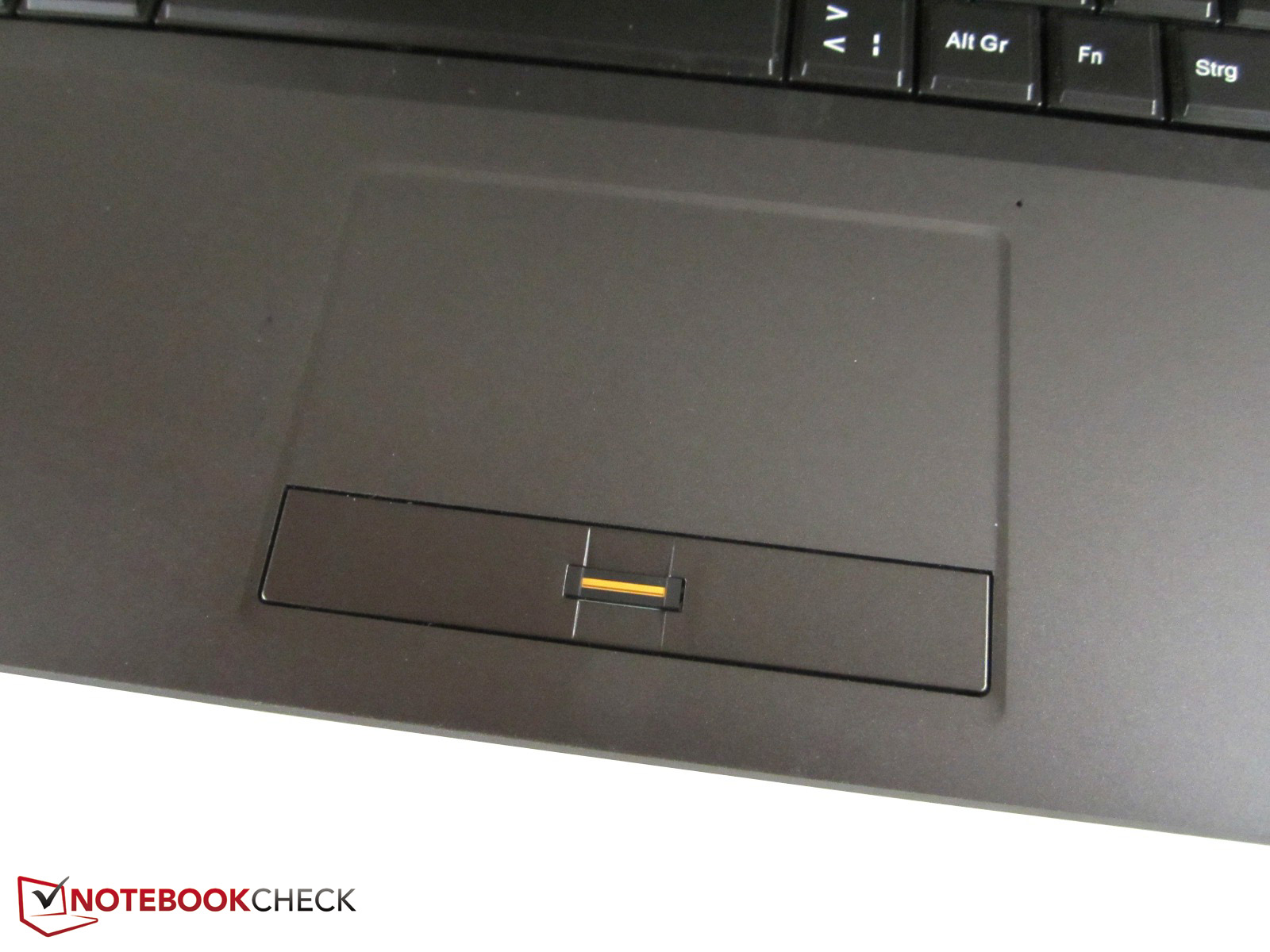

The area with the fingerprint reader was slightly redesigned. Unfortunately, not for good
The area with the fingerprint reader was slightly redesigned. Unfortunately, not for good
Four audio jacks are generous.
Four audio jacks are generous.
Great: The P150 SM (One K56-4N) features two DisplayPorts.
Great: The P150 SM (One K56-4N) features two DisplayPorts.
There are also plenty of USB 3.0 ports.
There are also plenty of USB 3.0 ports.
The included power supply is massive.
The included power supply is massive.

Similar Laptops

Devices with Same Screen Size and/or Weight

One K73-5N (Clevo P771ZM) Notebook Review
GeForce GTX 980M, Core i7 (Desktop) 4790K, 17.30", 3.85 kg
Review Clevo P170SM-A (One K73-4N) Barebones Notebook
GeForce GTX 870M, Core i7 4800MQ, 17.30", 3.744 kg

Devices from the same Manufacturer

One Xcellent 10 v2 Tablet Review
HD Graphics (Bay Trail), Atom Z3735F, 10.10", 0.594 kg

Links

Compare Prices

Pros

+high system and 3D performance
+decent non-glare display
+many upgrades are possible
+matte case surfaces
+individual configuration
+moderate temperatures
+backlit keyboard
+many interfaces
+no bloatware
+2x mSATA


Cons

-driver problems with AMD
-rubberized touchpad
-very loud cooling system
-modest sound

Shortcut

What we like

The P150SM barebones convinces with a simple look and great maintainability.

What we would like to see

The cooling system should work quieter and steadier.

What surprises us

The case temperatures are surprisingly low.

The competition

15-inch gaming notebooks like the Gigabyte P25W, the MSI GE60 or the Schenker XMG A503.

Rating

One K56-4N - 03/26/2014 v4(old)
Florian Glaser

Chassis
74 / 98 → 76%
Keyboard
81%
Pointing Device
64%
Connectivity
79 / 81 → 98%
Weight
56 / 10-66 → 82%
Battery
81%
Display
80%
Games Performance
92%
Application Performance
98%
Temperature
90 / 95 → 95%
Noise
60 / 90 → 67%
Audio
60%
Average
76%
82%
Gaming - Weighted Average
Florian Glaser, 2014-03-20 (Update: 2018-05-15)
