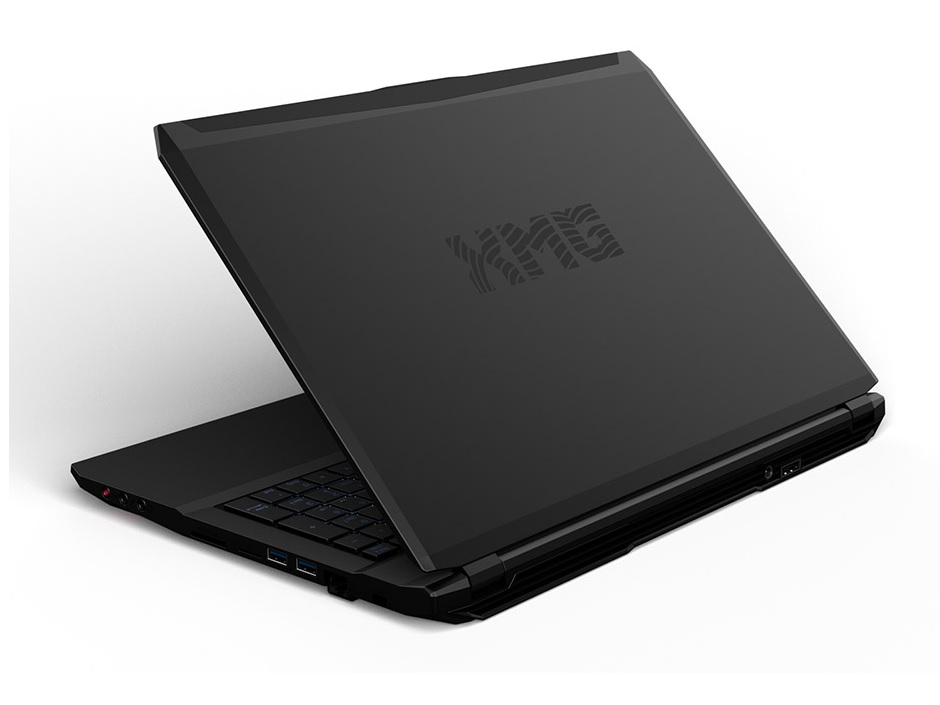

SCHENKER XMG P505 PRO

Specifications

SCHENKER XMG P505 PRO
SCHENKER XMG P505 PRO
Processor
Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz (Intel Core i7)
Graphics adapter
NVIDIA GeForce GTX 980M - 4 GB VRAM, Core: 1038 MHz, Memory: 2500 MHz, GDDR5, ForceWare 344.48, Optimus
Memory
16 GB
, 2x 8 GB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 2 of 4 slots occupied, up 32 GB
Display
15.60 inch 16:9, 1920 x 1080 pixel, AU Optronics B156HAN01.2 (AUO12ED), IPS, Full HD, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Storage
Micron M600 MTFDDAV256MBF M.2, 256 GB
, SATA-III-SSD + Western Digital Black WD7500BPKX-22HPJT0, 750 GB HDD @ 7200 rpm. Slots: 2x M.2 (Typ 2280) & 2x 2.5-inch
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 eSata, Audio Connections: Headphones, Microphone, S/PDIF, Card Reader: MMC,RSMMC,SD,Mini SD,SDHC,SDXC, 1 Fingerprint Reader, SIM card slot
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 29 x 385 x 271 ( = 1.14 x 15.16 x 10.67 in)
Battery
60 Wh Lithium-Polymer, 4 cells
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: Bison 2 megapixels
Additional features
Speakers: 2.0 Onkyo (Sound Blaster X-Fi MB3), Keyboard: Chiclet, Keyboard Light: yes, PSU: 180 Watts, Manual, Driver DVD, Cleaning cloth, Storage accessories, XMG sticker, Microsoft Office 365 Trial, 24-48 Months Warranty
Weight
2.724 kg ( = 96.09 oz / 6.01 pounds), Power Supply: 844 g ( = 29.77 oz / 1.86 pounds)
Price
2132 Euro



Pricecompare

Average Score: 83.5% - good
Average of 2 scores (from 2 reviews)
price: 70%, performance: 94%, features: 83%, display: 88% mobility: 70%, workmanship: 74%, ergonomy: 81%, emissions: 71%

Reviews for the SCHENKER XMG P505 PRO

87% Schenker XMG P505 PRO (Clevo P651SG) Notebook Review | Notebookcheck
15-inch reference? The XMG P505 from Schenker Technologies is supposed to close the gap between big 17-inch systems (Asus G751, MSI GT72) and ultra-thin compact gamers like the Gigabyte P34G v2. We have already reviewed the configuration with the GTX 970M, now we have a closer look at the GTX 980M.
80% Gaming laptop with top-of-the-range nVidia mobile graphics processor offers excellent performance
Source: Tech Advisor English Archive.org version
The XMG P505 is a very accomplished game player, fueled by its top-of-the-range Nvidia mobile graphics processor. The Clevo platform to support this is fairly standard chunky games machine fare, although the all-up weight of around 2.6 kg is modest by the standards of the breed. This laptop is distinguished by its premium IPS display, solid build and the graphics chip required to drive modern Windows games at their highest settings without fuss. And as a general PC it feels commensurably quick, helped along by its 1 GB/s-class PCIe solid-state drive.
Single Review, online available, Very Short, Date: 06/18/2015
Rating: Total score: 80% price: 70% performance: 90% features: 90% workmanship: 70%

Foreign Reviews

PC portable Gamer XMG P505 Pro
Source: Cowcotland French FR→EN Archive.org version
Positive: Excellent performance; chassis finish; effective ventilation; silent operation; ease of maintenance. Negative: Poor autonomy.
Single Review, online available, Very Long, Date: 01/16/2015

Comment

NVIDIA GeForce GTX 980M:

Fast high-end graphics card based on the Maxwell GM204 chip from the GeForce GTX 900M series.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


4710HQ: Haswell-based quad-core processor clocked at 2.5 GHz with Turbo Boost support up to 3.5 GHz. Offers an integrated HD Graphics 4600 GPU and a dual channel DDR3 memory controller.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-inch display variants are the standard and are used for more than half of all laptops.

The reason for the popularity of mid-sized displays is that this size is reasonably easy on the eyes, often allows high resolutions and thus offers rich details on the screen, yet does not consume too much power and the devices can still be reasonably compact - simply the standard compromise.

» To find out how fine a display is, see our DPI List.


2.724 kg:

With this weight, a laptop is rather heavier than average. Devices in this range shine more with screen size and performance than with mobility.


83.5%: This rating is slightly above average, there are somewhat more devices with worse ratings. However, clear purchase recommendations look different.


» Further information can be found in our Notebook Purchase Guide.
