Review Dell Precision M6800 Notebook

Upgradeable Work Machine. This large 17-inch Dell workstation is well-equipped and offers plenty of space for further customization. But is it enough to compete with the smaller Dell Precision M4800? Find out in our in-depth review.

For the original German review, see here.

Dell is a heavyweight in the workstation market. In the last few years, the Precision series has always delivered high performance combined with low emissions. Buyers no longer have to worry about the basic qualities a work notebook should have when they purchase from Dell: high workmanship quality, a sturdy case, extensive service and upgrade options and typical business features. In short, you can find all you need in a Precision, but sometimes you have to pay a little more for it. Business customers and large firms can individually configure their models and even express any extra wishes they might have. However, the options available to private buyers are severely limited, as we experienced when getting out test model. Dell instead offers pre-configured models that cover the needs of what most buyers want.

As a buyer, you currently choose from three Precision M6800 configurations. It is possible to fine-tune some of the software, the warranty period and the service packets, but on the hardware side the user has to stick to the preset configuration. As such, other storage devices, RAM or similar changes are not an option, unless you do it yourself.

At the time of purchase, our test model cost 2,030 Euros (~$2727) (total: 2,420 Euros/~$3251) and it includes an Intel Core i7-4800MQ-CPU, a 750 GB HDD, the Nvidia Quadro K3100M graphics, 16 GB RAM, a matte Full HD display and Windows 7.

Case

In contrast to the Dell Precision M4800, the large 17-inch workstation on our test bench is built around the familiar base case (now in its 4th generation). Over time, the ports may have been rearranged or some details on the inside may have changed, but overall Dell has stayed true to their original design. Sturdiness and user-friendly maintenance are at a very high level and ensure that the Precision M6800 scores full points in the maintenance test. A disadvantage of the sturdy, yet large case is its weight: 3.8 kg (~8.4 pounds) is not light. Furthermore, the model measures 41 x 27 cm (~16.1 x 10.6 inches) and requires a slightly bigger notebook bag than one is used to.

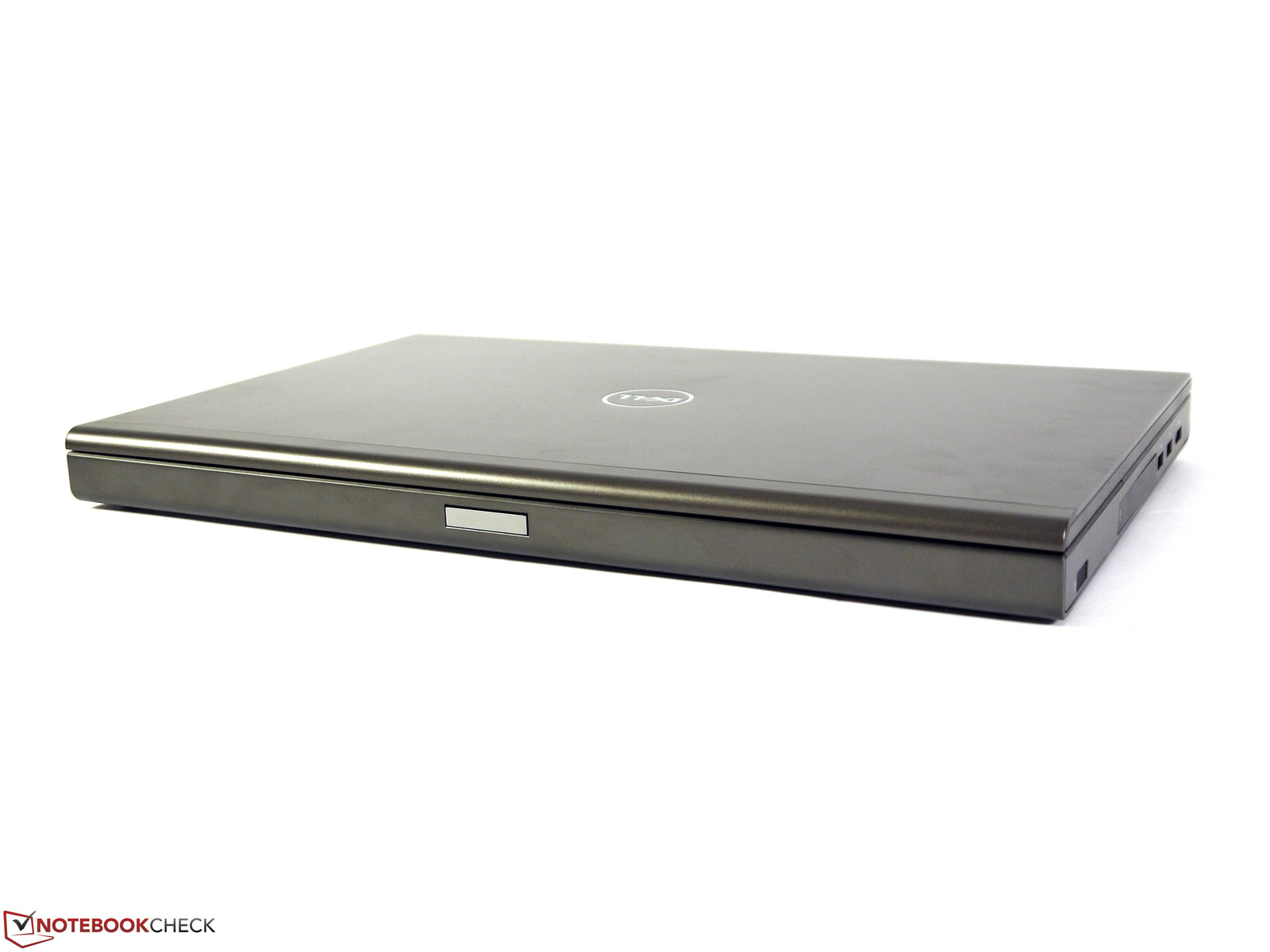

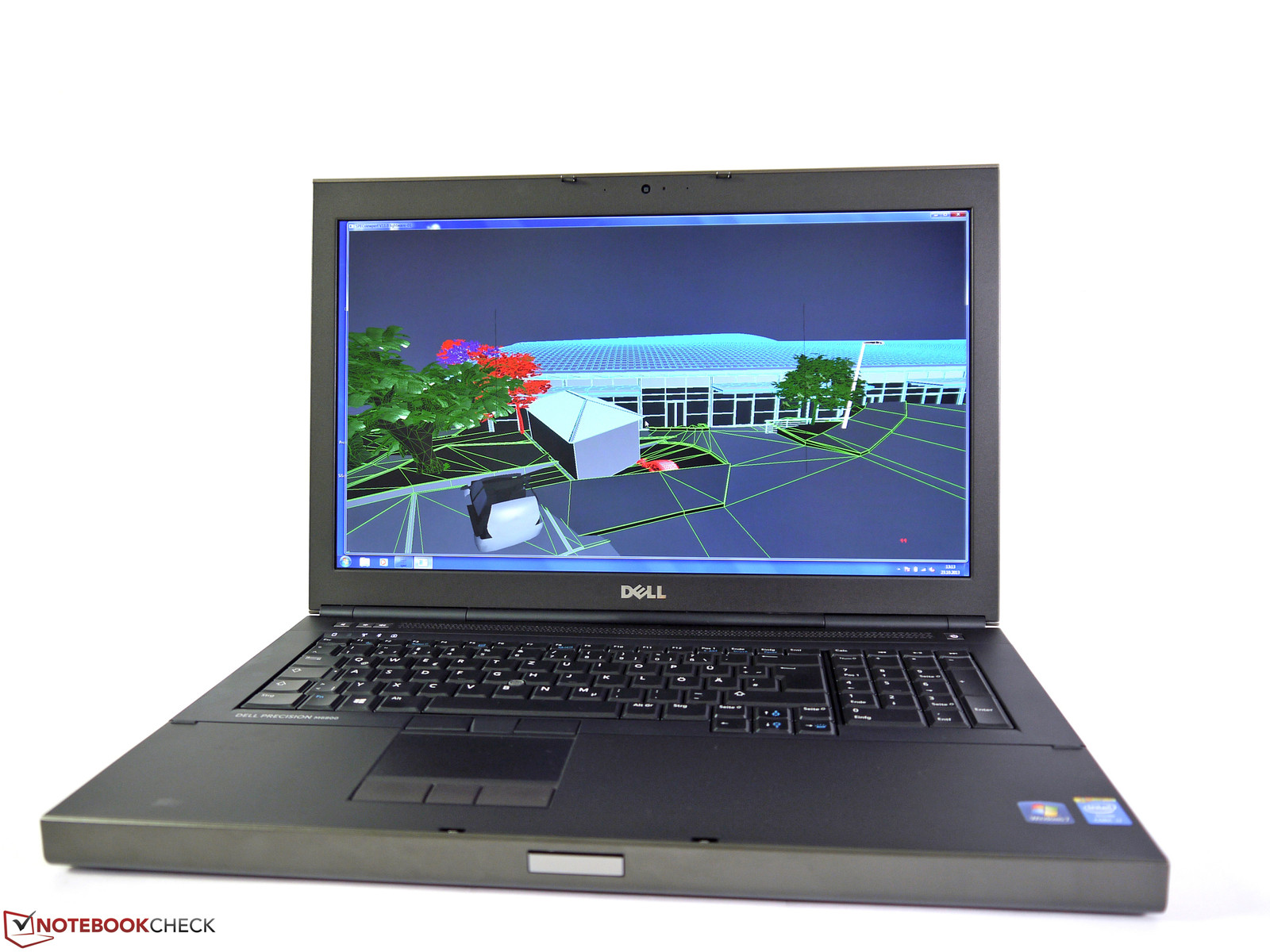

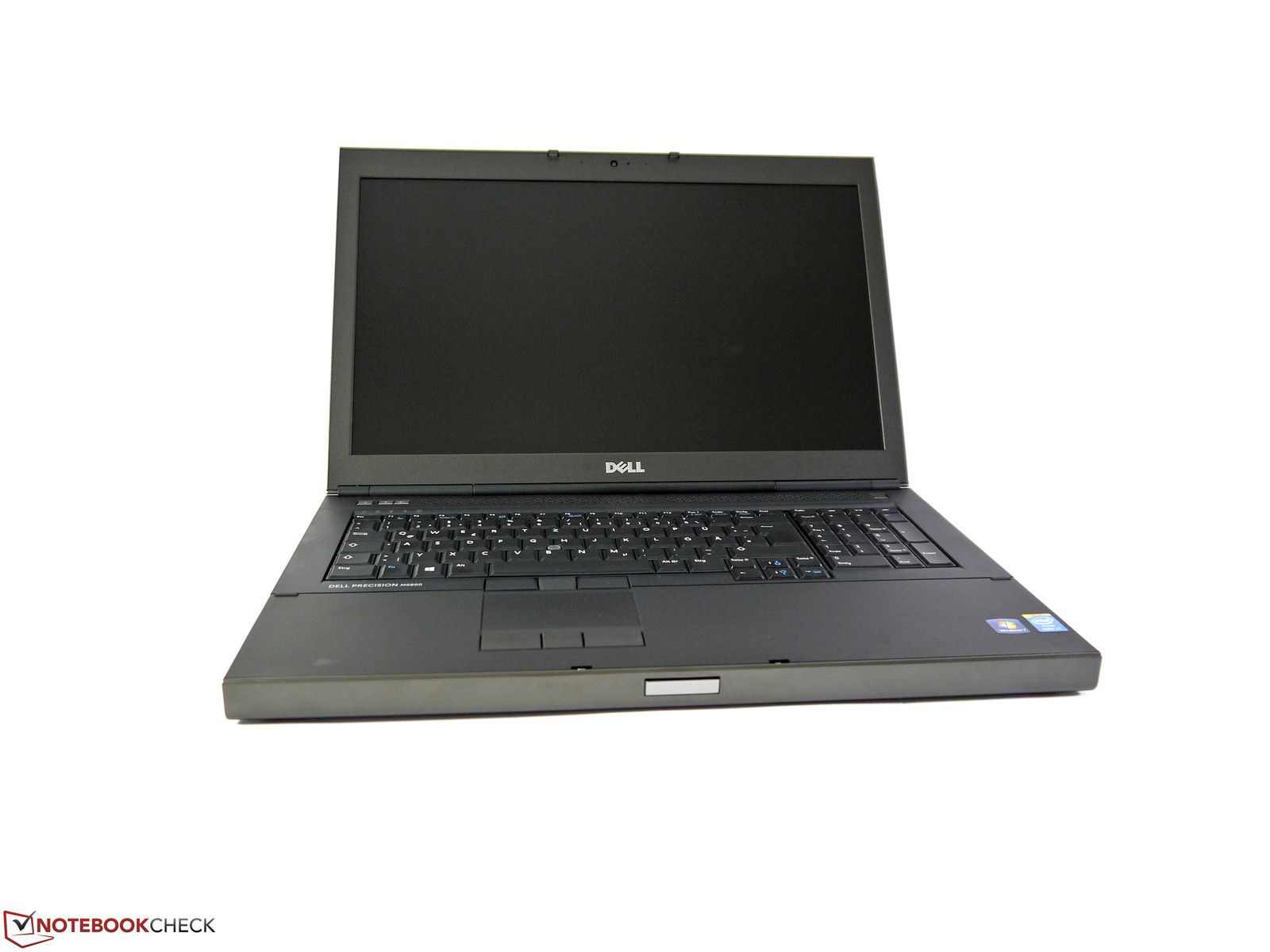

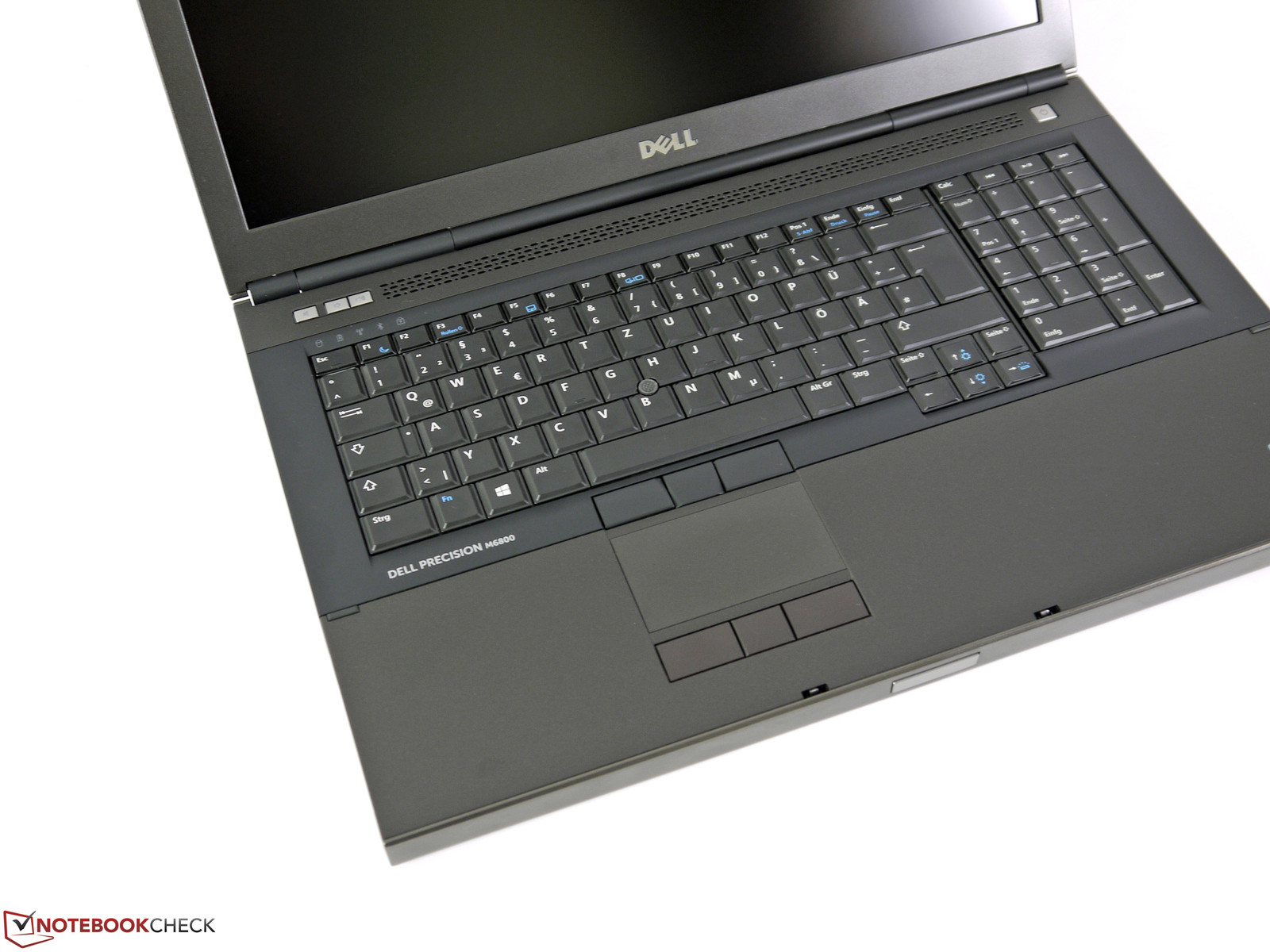

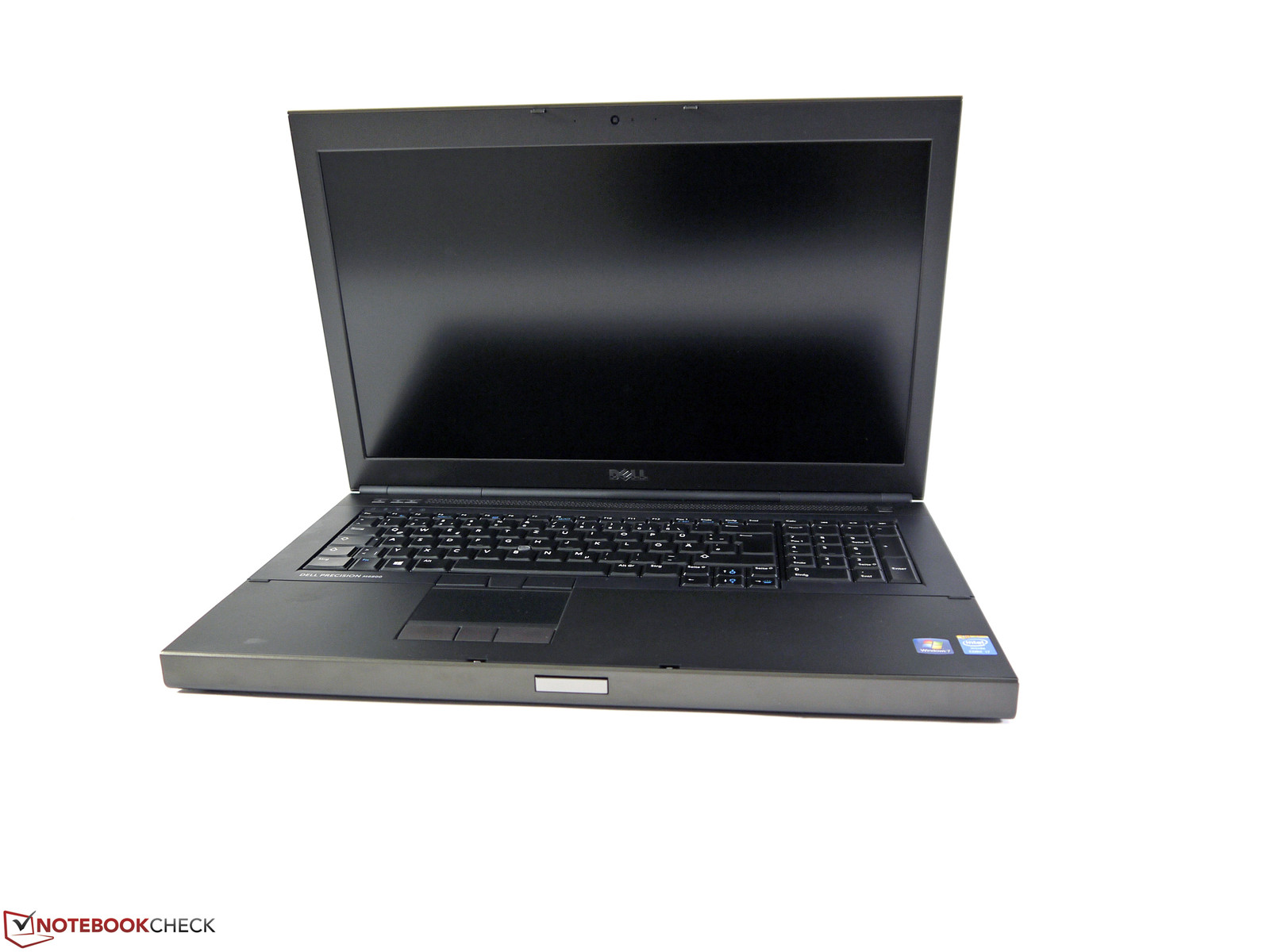

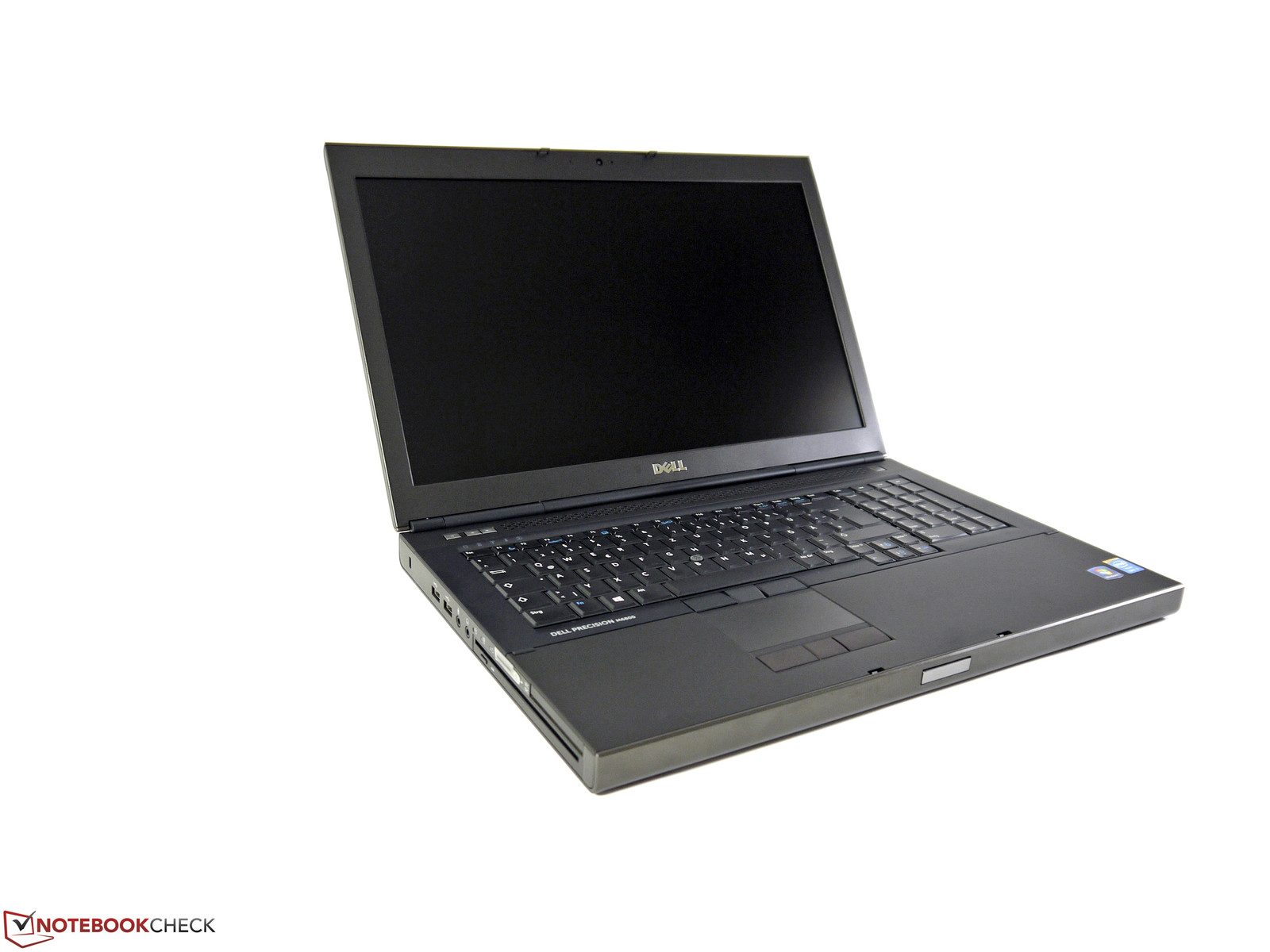

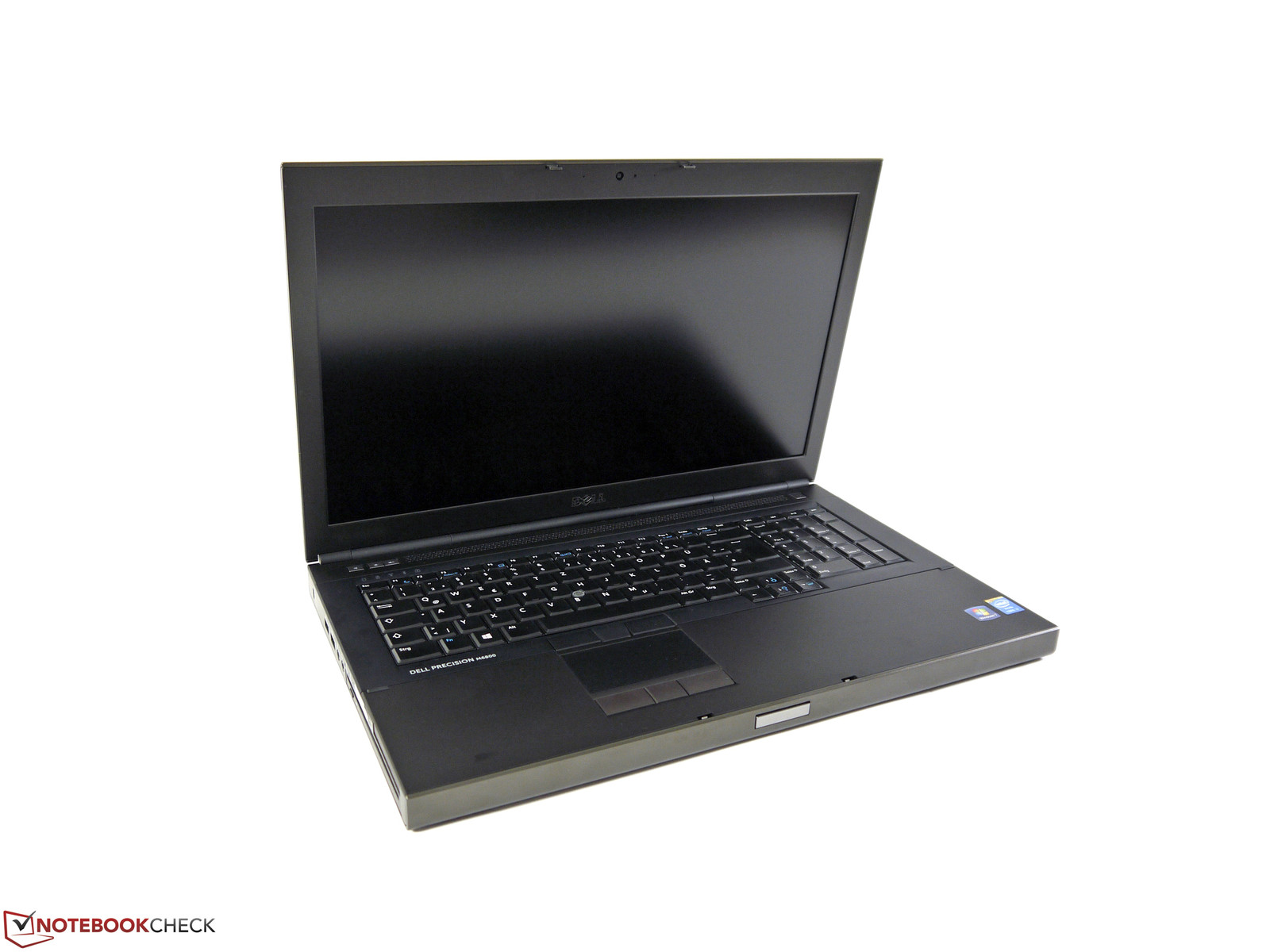

The well-known case of the Dell Precision M6800 ...
The well-known case of the Dell Precision M6800 ...
... in its 4th generation.
... in its 4th generation.

Connectivity

The ports placed on the sides and on the back of our test model are identical to those on the Dell Precision M4800. In fact, it seems that even the positioning has been kept the same. We are provided with 4 x USB 3.0, 1 x USB 2.0/ eSATA, HDMI, VGA, DisplayPort, card reader and Gigabit-LAN. The Dell Precision M6700 has a FireWire 800 interface, but this is not to be found on our model. Unfortunately, despite the reduction in connectivity, the manufacturer has not optimally utilized the (now larger) space available for ports on the left side. For example, the USB 3.0 ports and the audio jacks are quite close together, which means the use of thick DVB-T, memory or WWAN sticks will block the neighboring ports (or they are harder to access). Additional ports can be procured using the ExpressCard 34/54 slot or via a docking station.

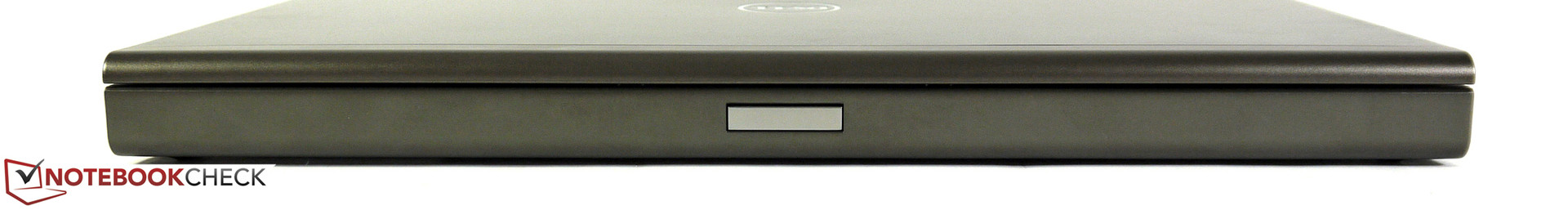

Front: no ports.
Front: no ports.

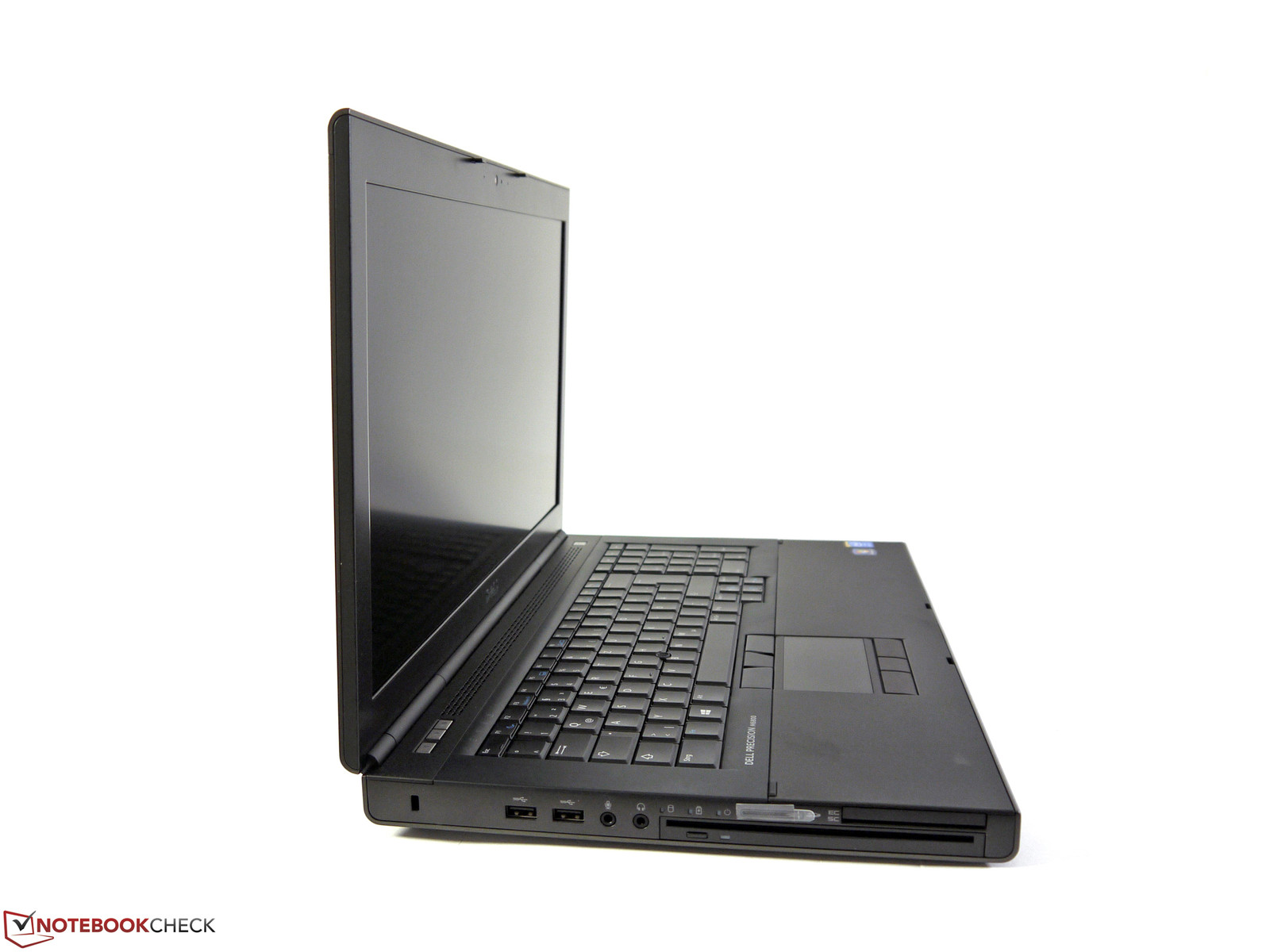

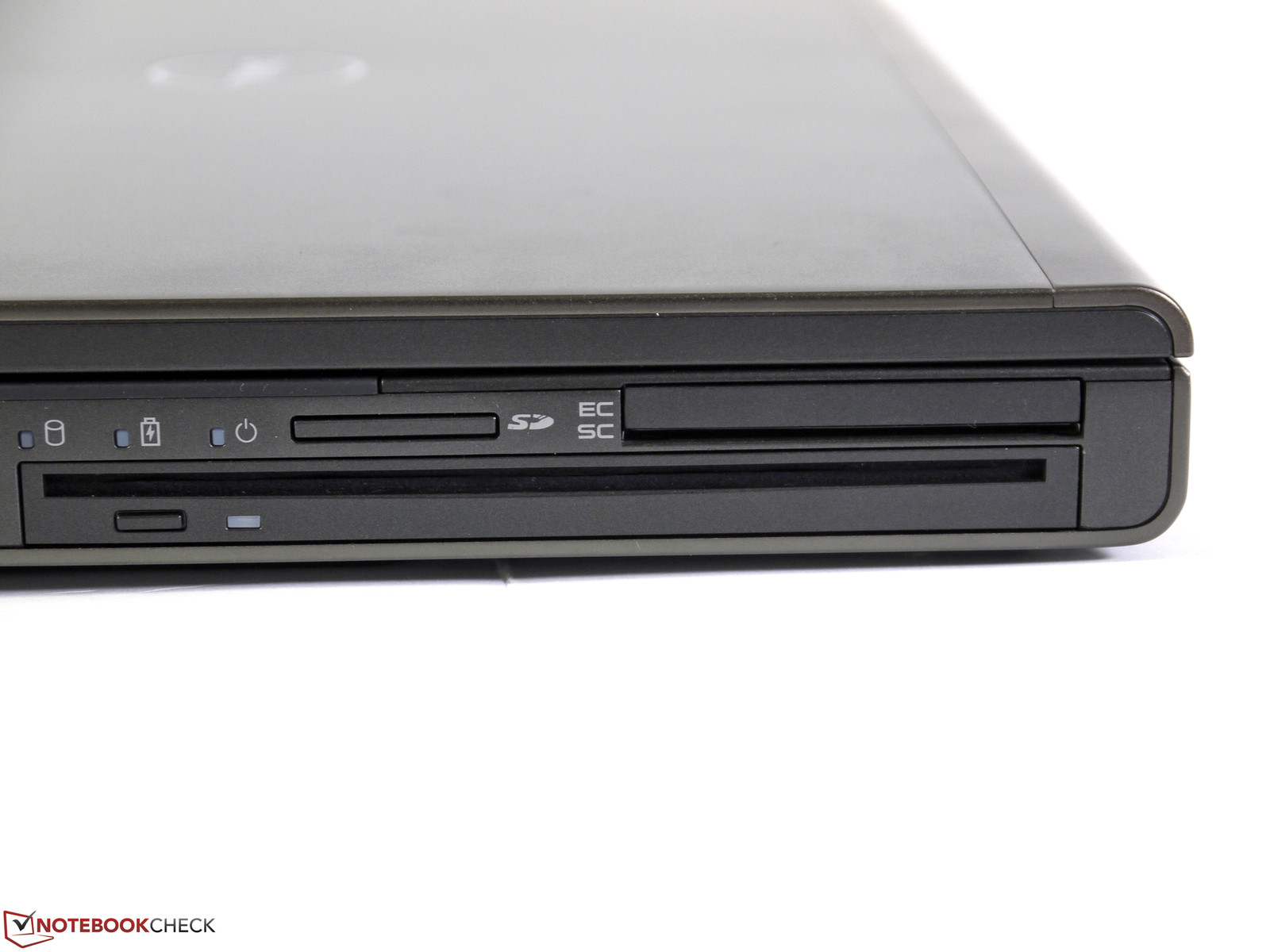

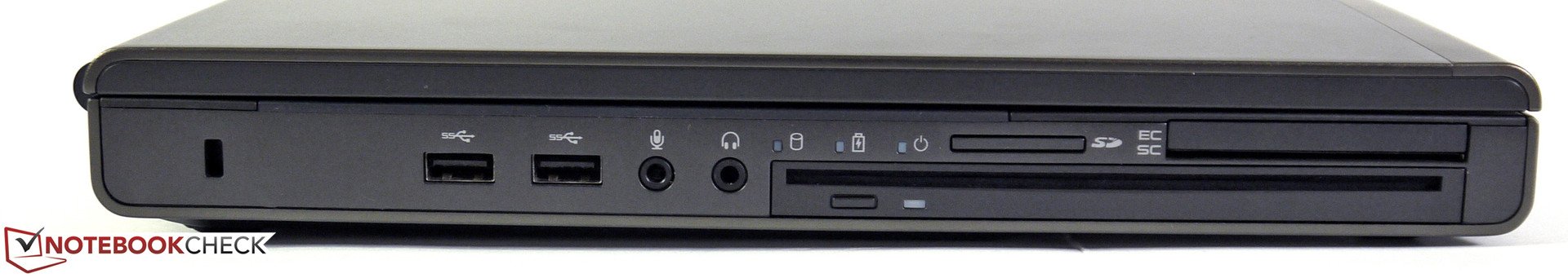

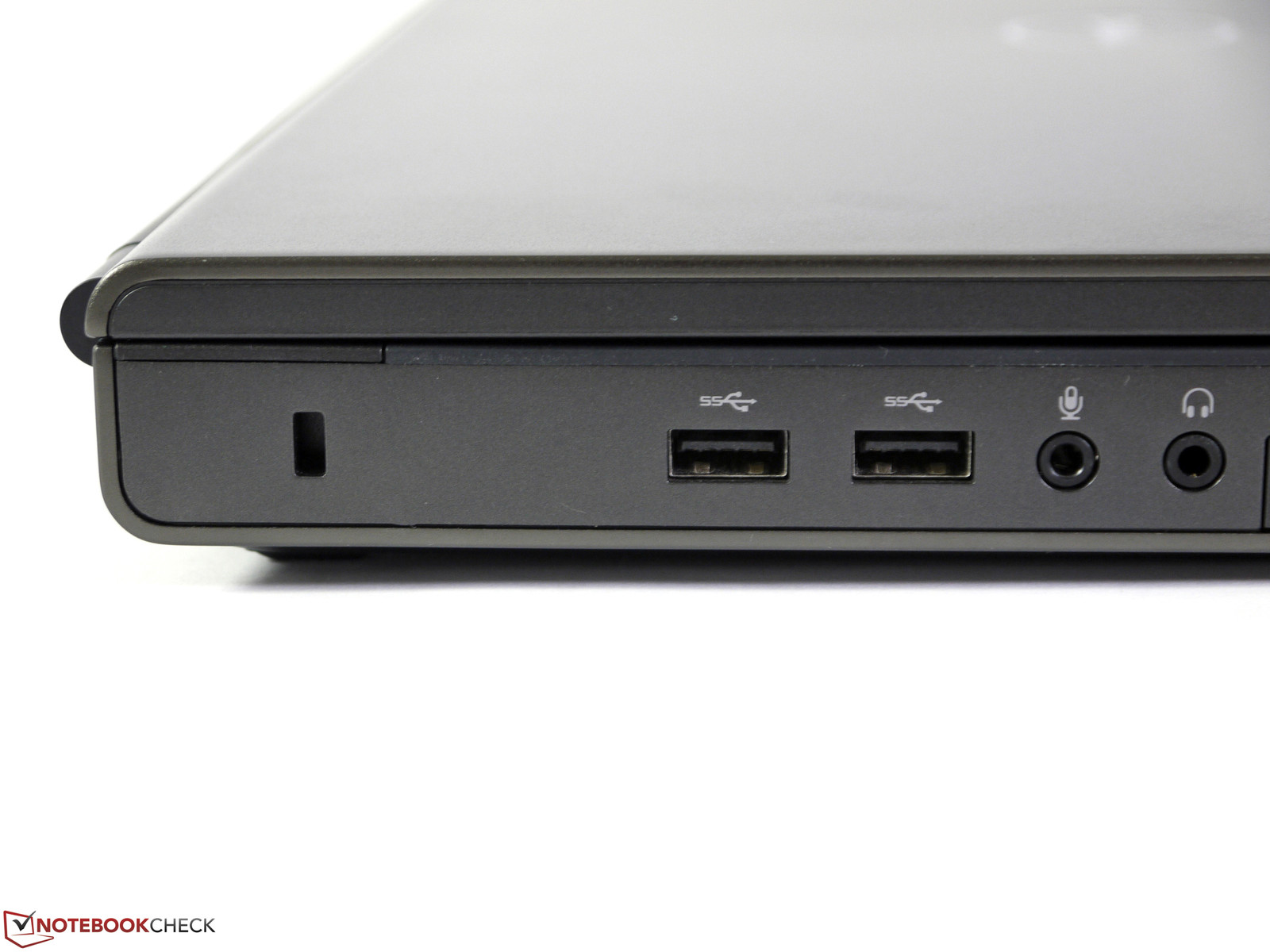

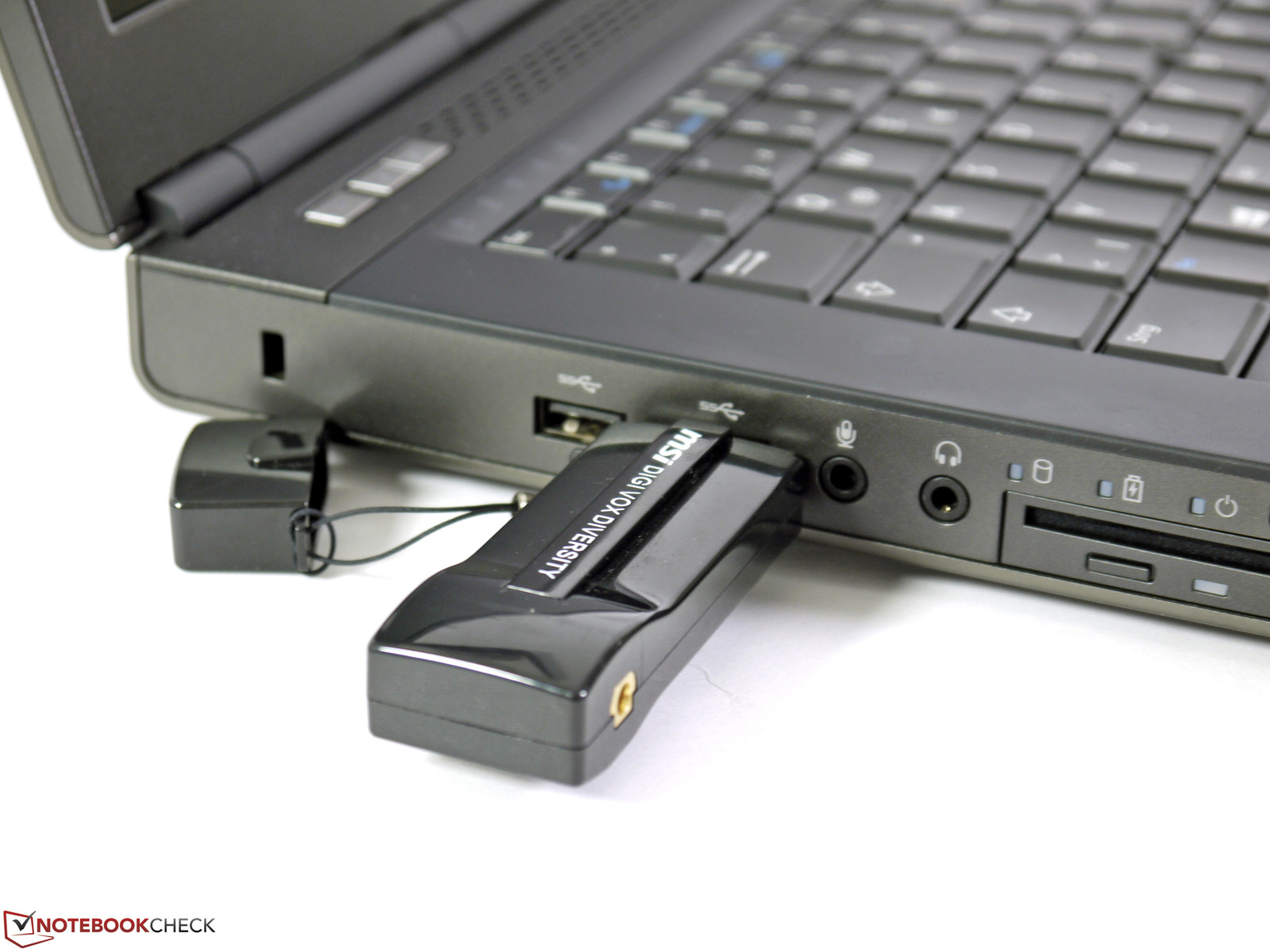

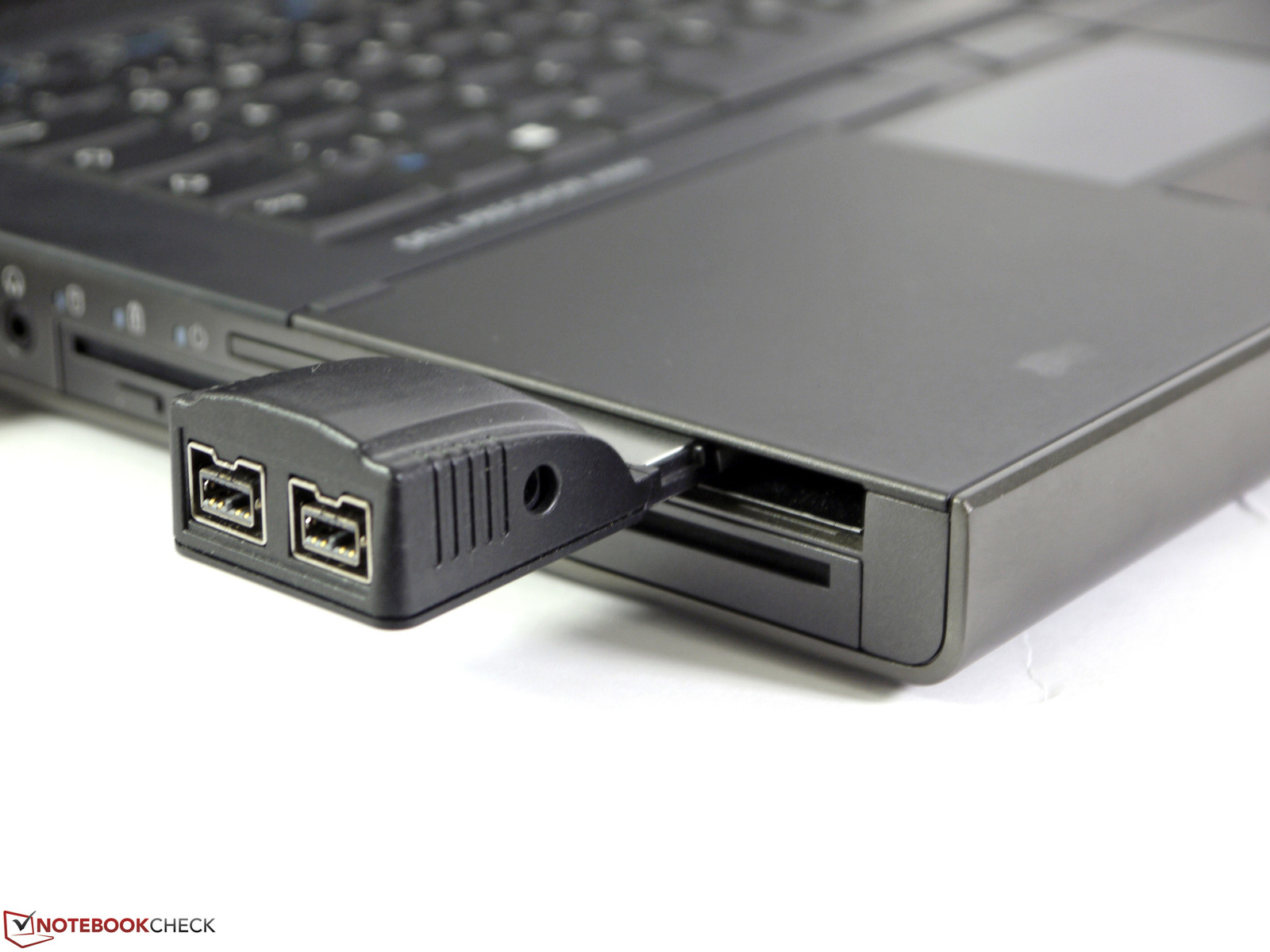

Left: Kensington, 2 x USB 3.0, Audio in/ out, DVD burner, Card reader, Smart Card reader, ExpressCard 34/54.
Left: Kensington, 2 x USB 3.0, Audio in/ out, DVD burner, Card reader, Smart Card reader, ExpressCard 34/54.

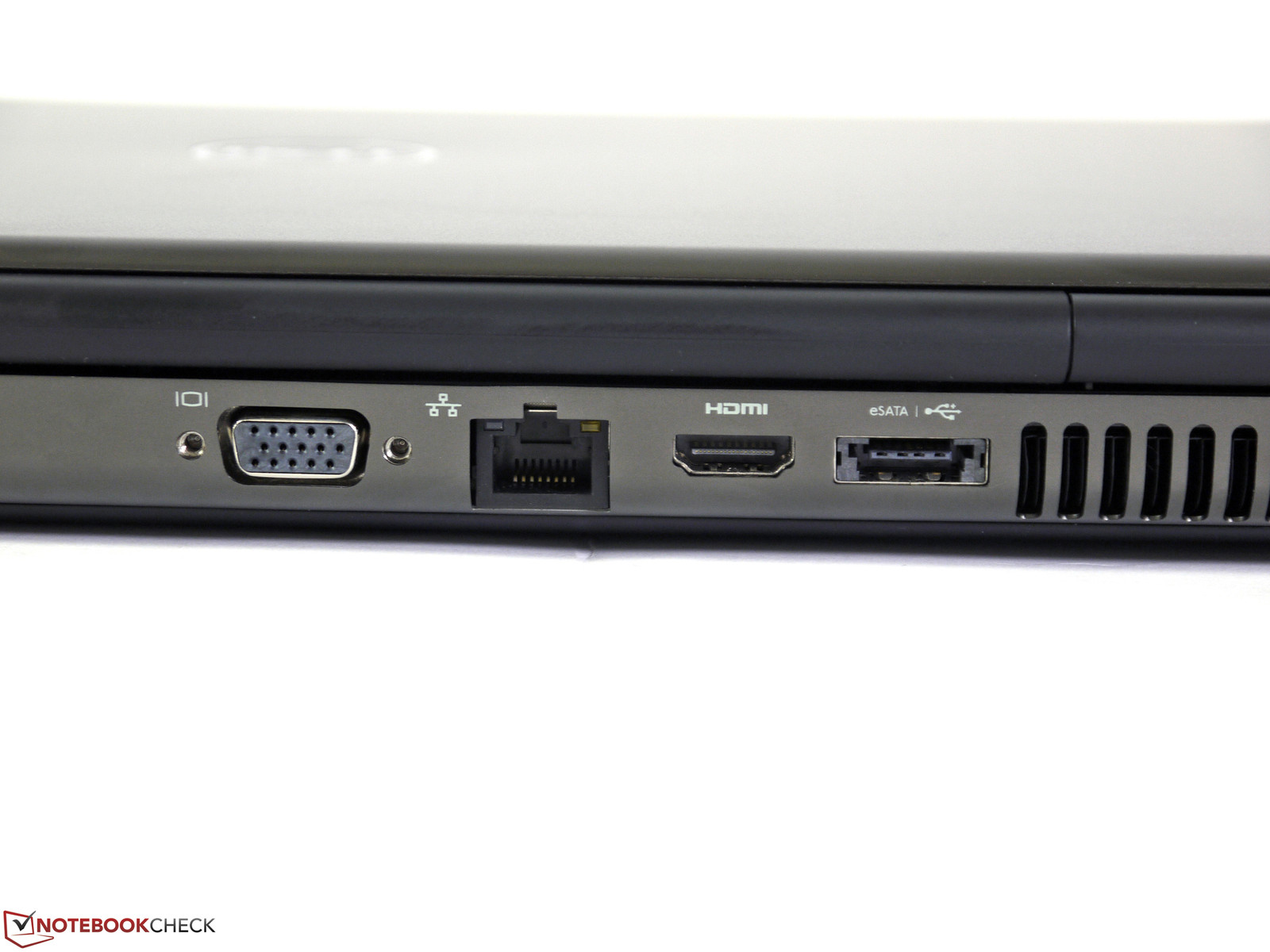

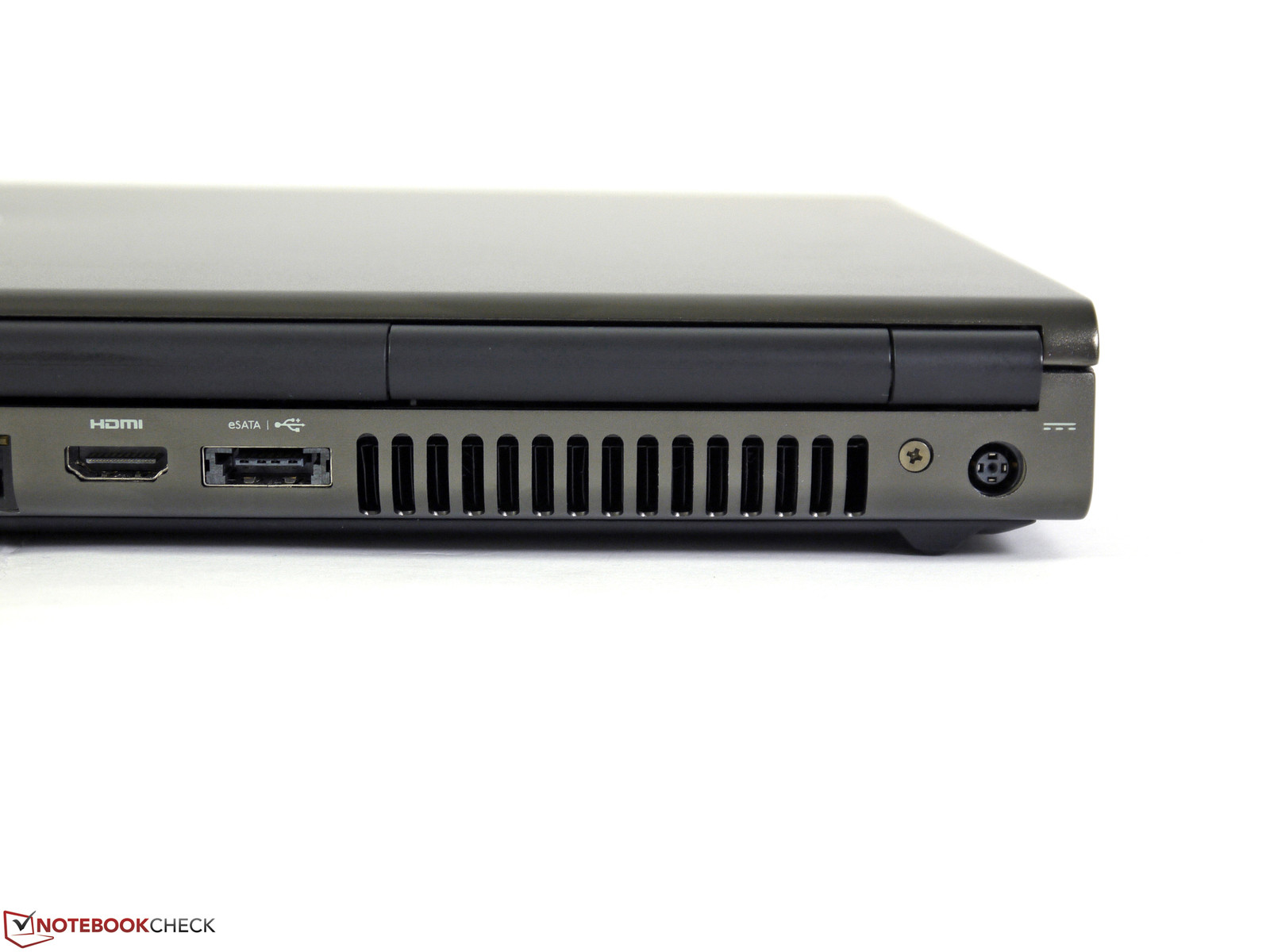

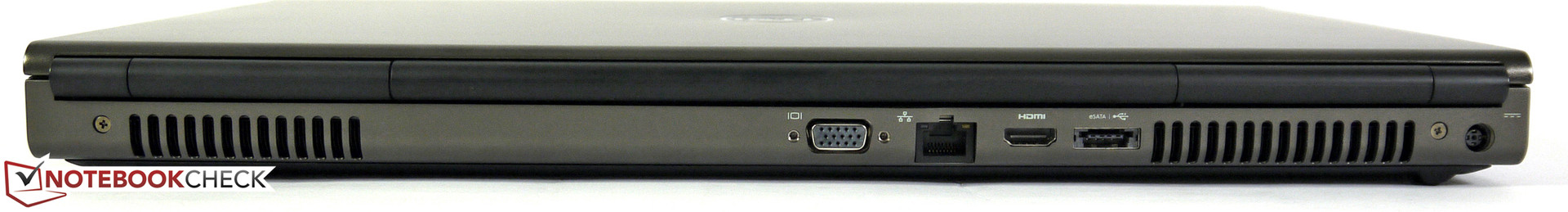

Rear: VGA, LAN, HDMI, eSATA/USB 2.0, Power outlet.
Rear: VGA, LAN, HDMI, eSATA/USB 2.0, Power outlet.

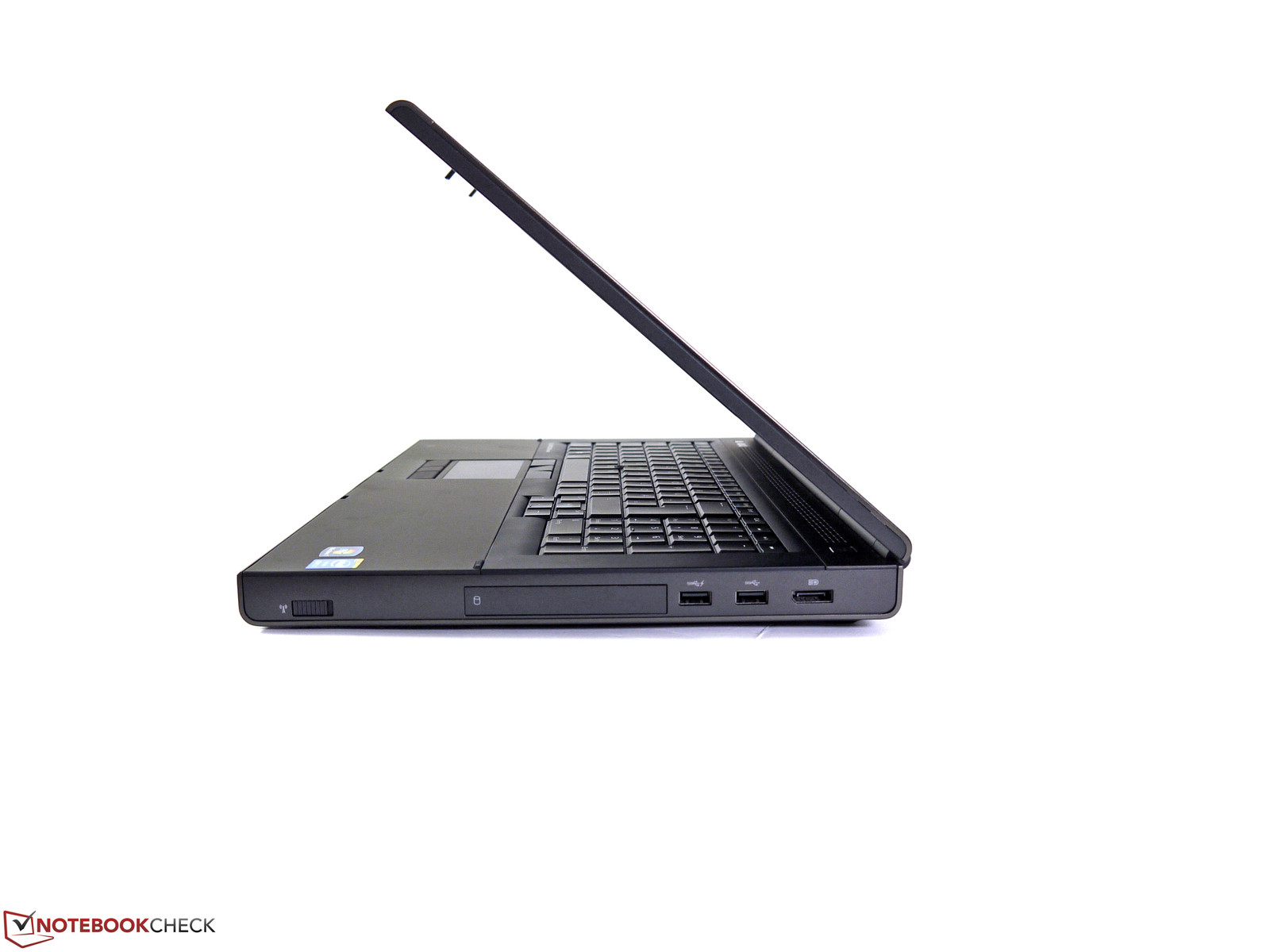

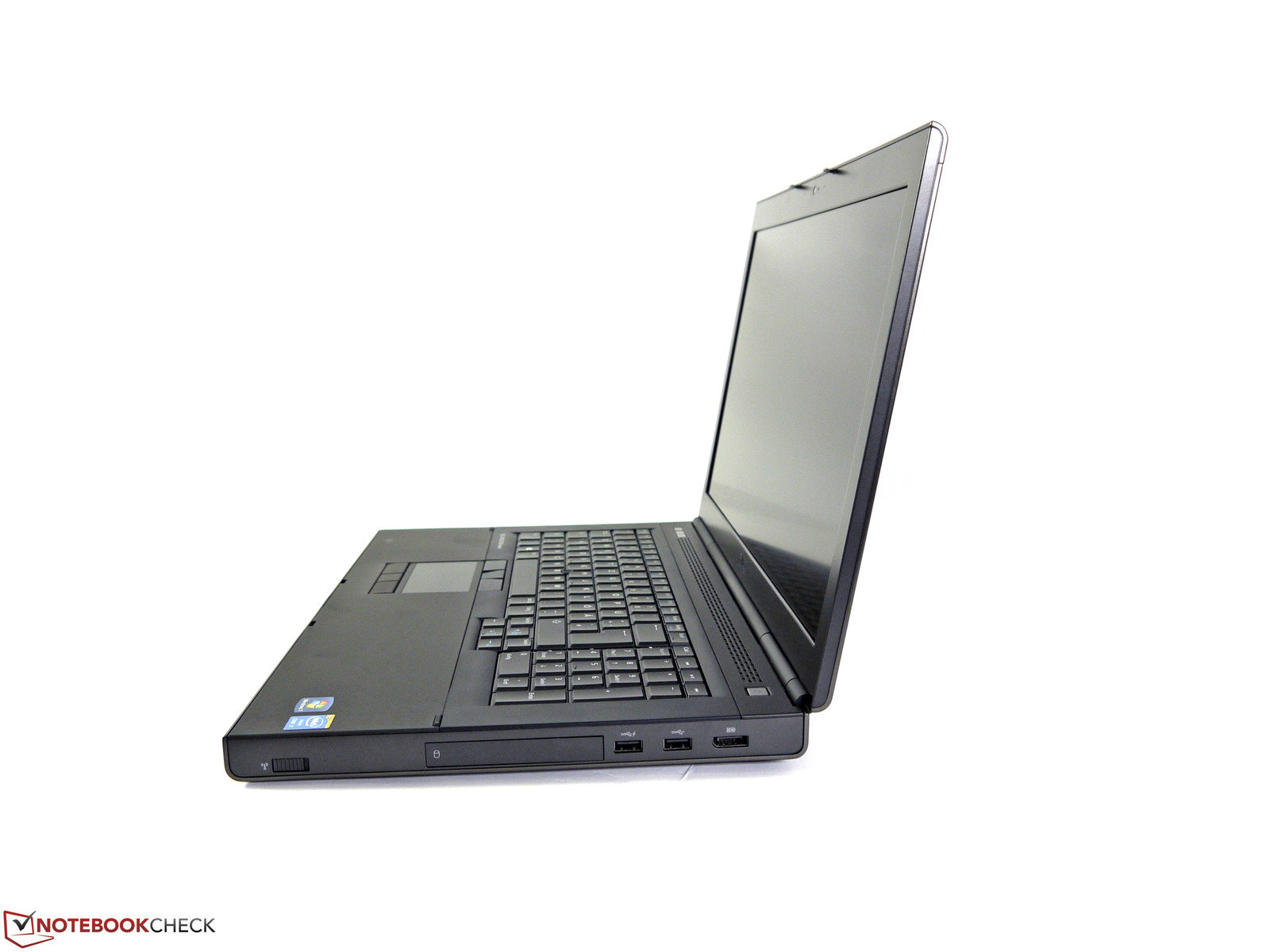

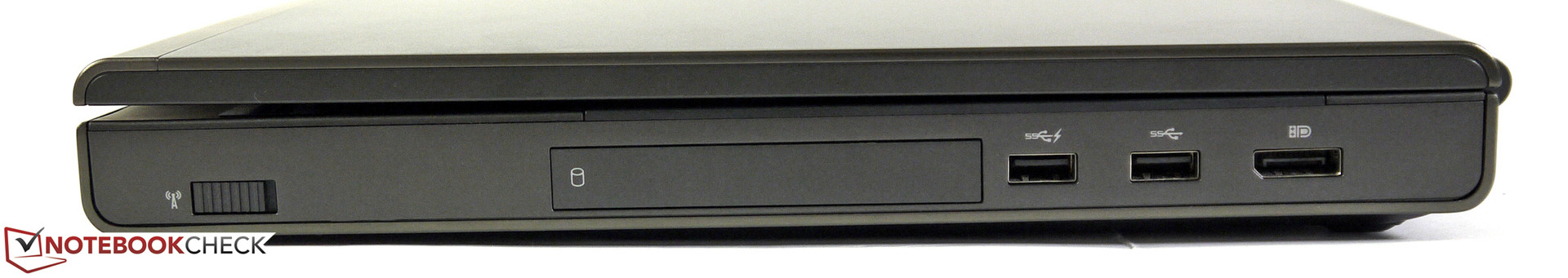

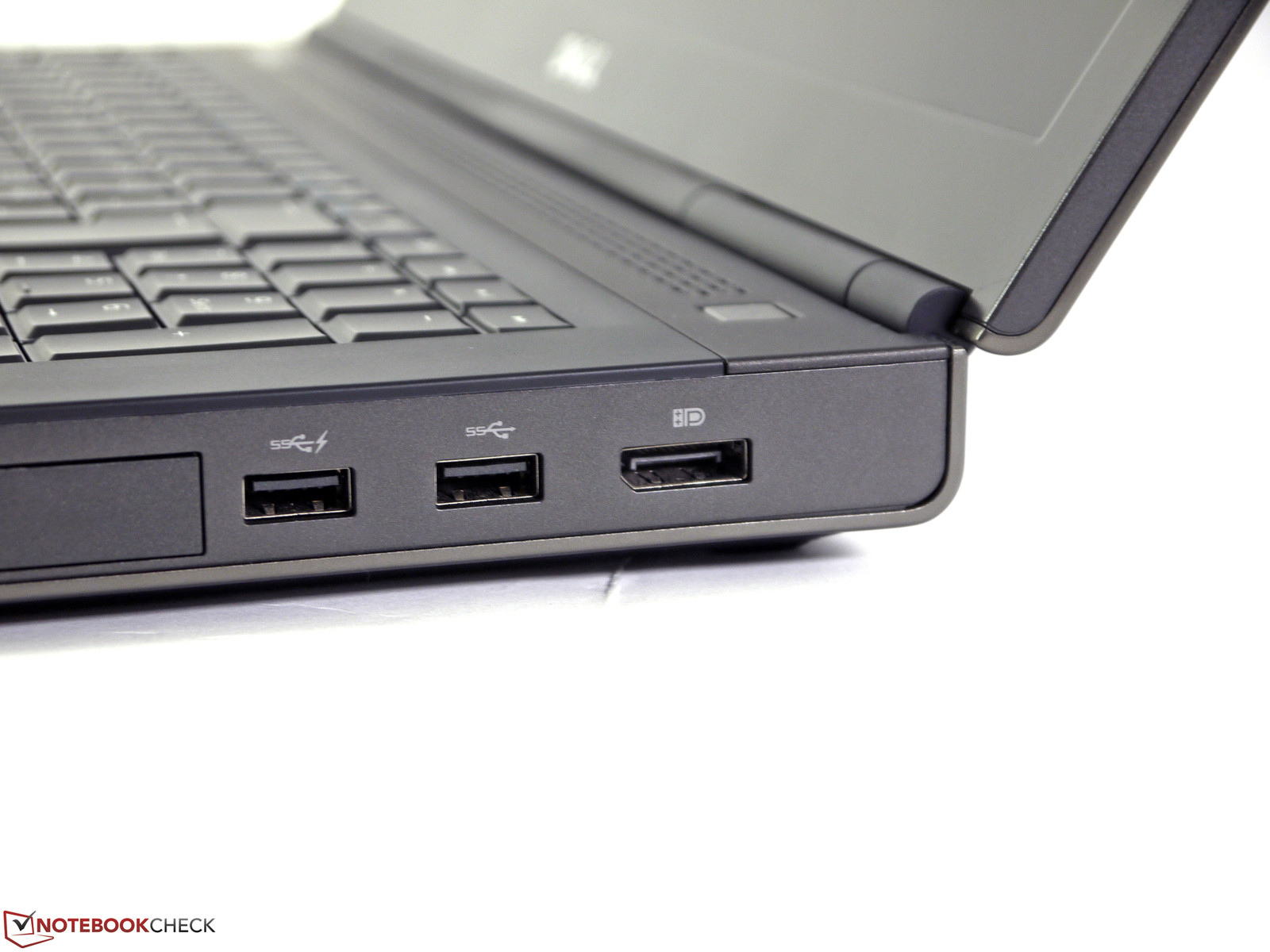

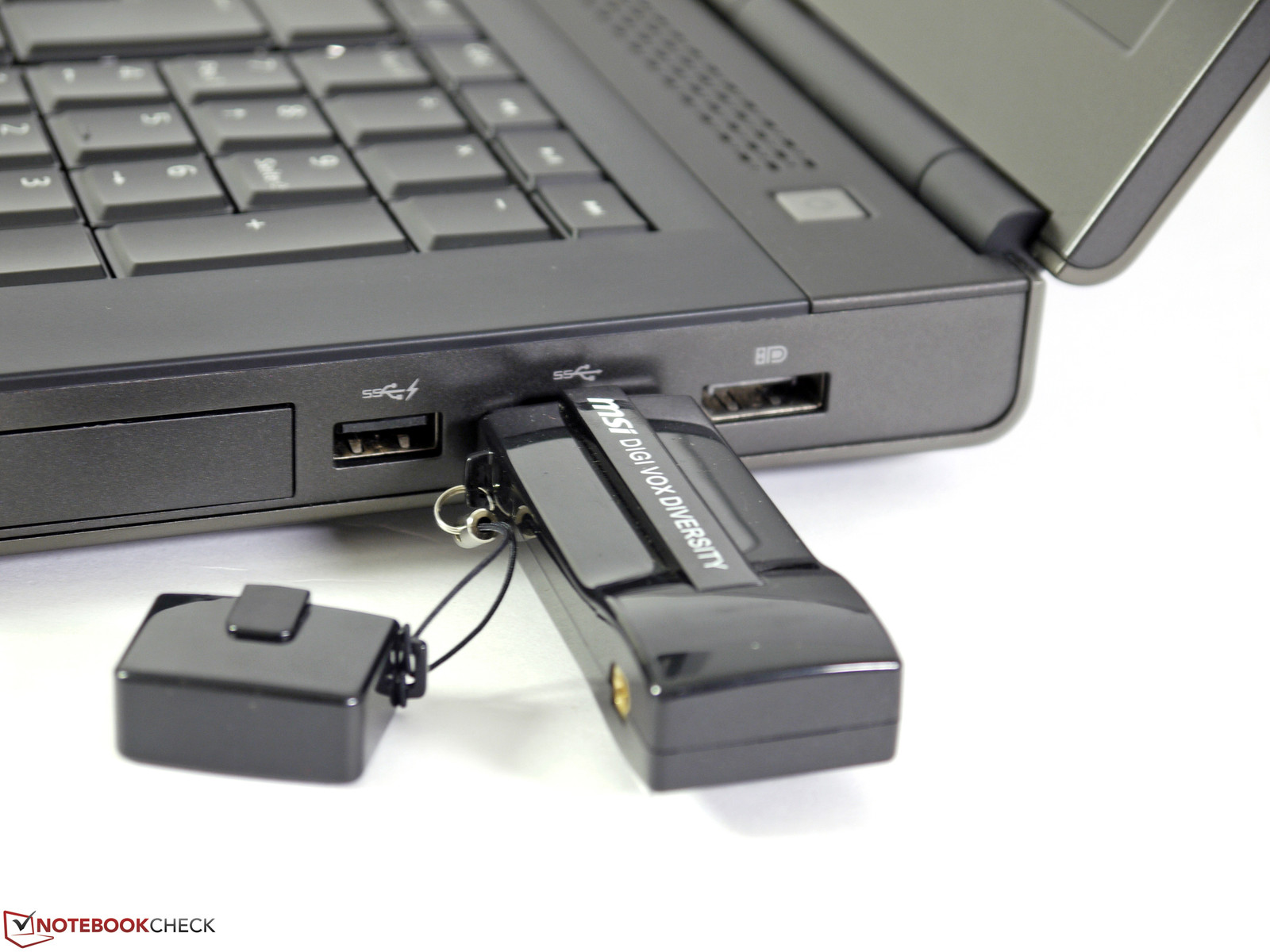

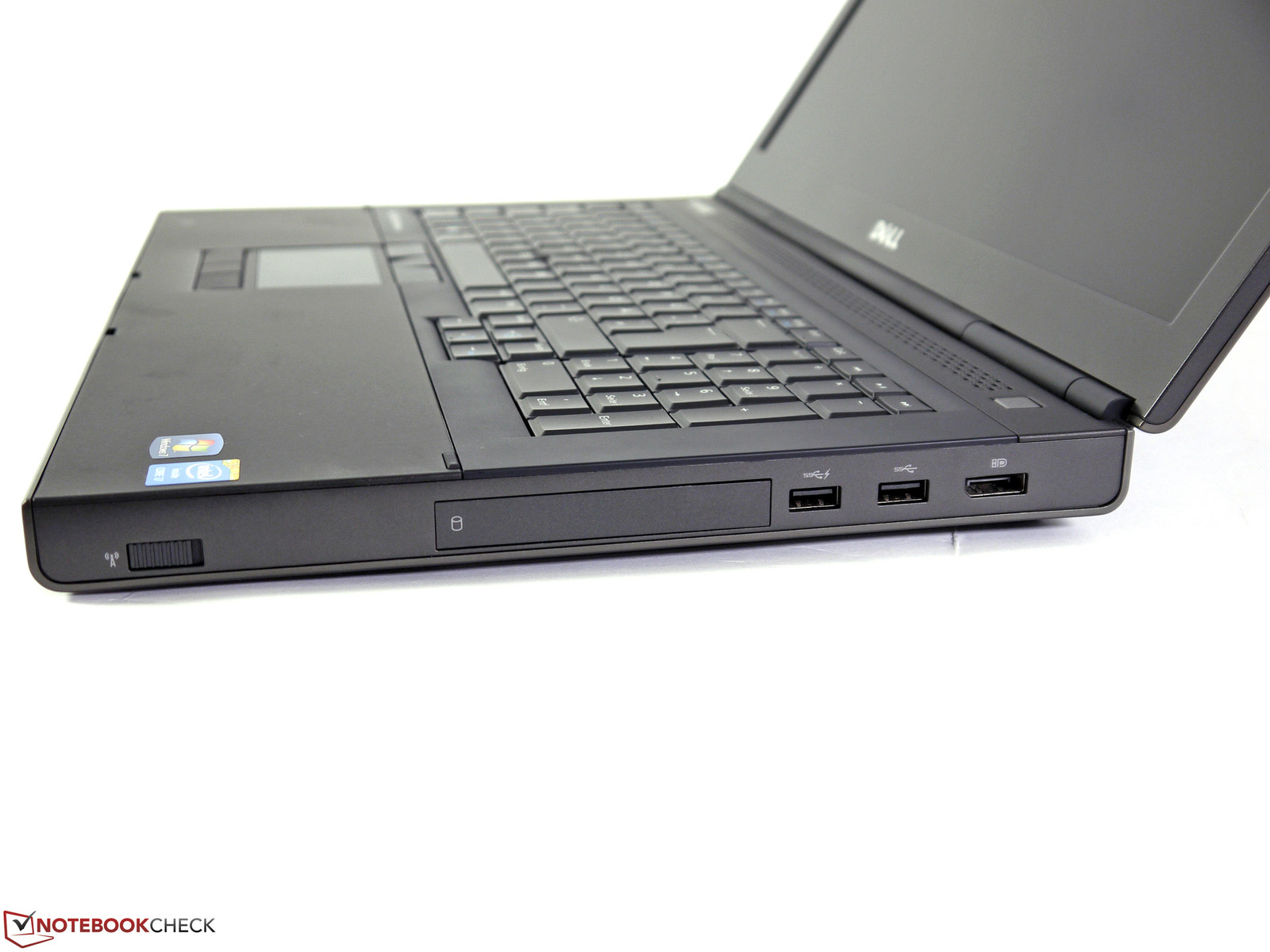

Right: WLAN switch, HDD slot, 2x USB 3.0, DisplayPort.
Right: WLAN switch, HDD slot, 2x USB 3.0, DisplayPort.

Communication

The Dell Precision M6800 is equipped with a Dell Wireless 1550 802.11ac module. It uses two antennas and includes Bluetooth 4.0. We did not find any issues with the connection quality. Furthermore, the antennas for a WWAN module are already included, which makes upgrading quite easy. A Crucial M4 mSATA SSD with a capacity of 64 GB was not recognized in the WWAN slot, which seems to be reserved only for mobile broadband use. A Gigabit LAN port and a 720p webcam round off the connectivity.

Security

Like in the Dell Precision M4800, the large workstation lacks a fingerprint reader. The pre-configured models available in the online shop do not offer the option of adding one. However, our test model includes a Trusted Platform module 1.2, a Smart Card Reader, various BIOS and system password options and is prepared for the Computrace service.

Accessories

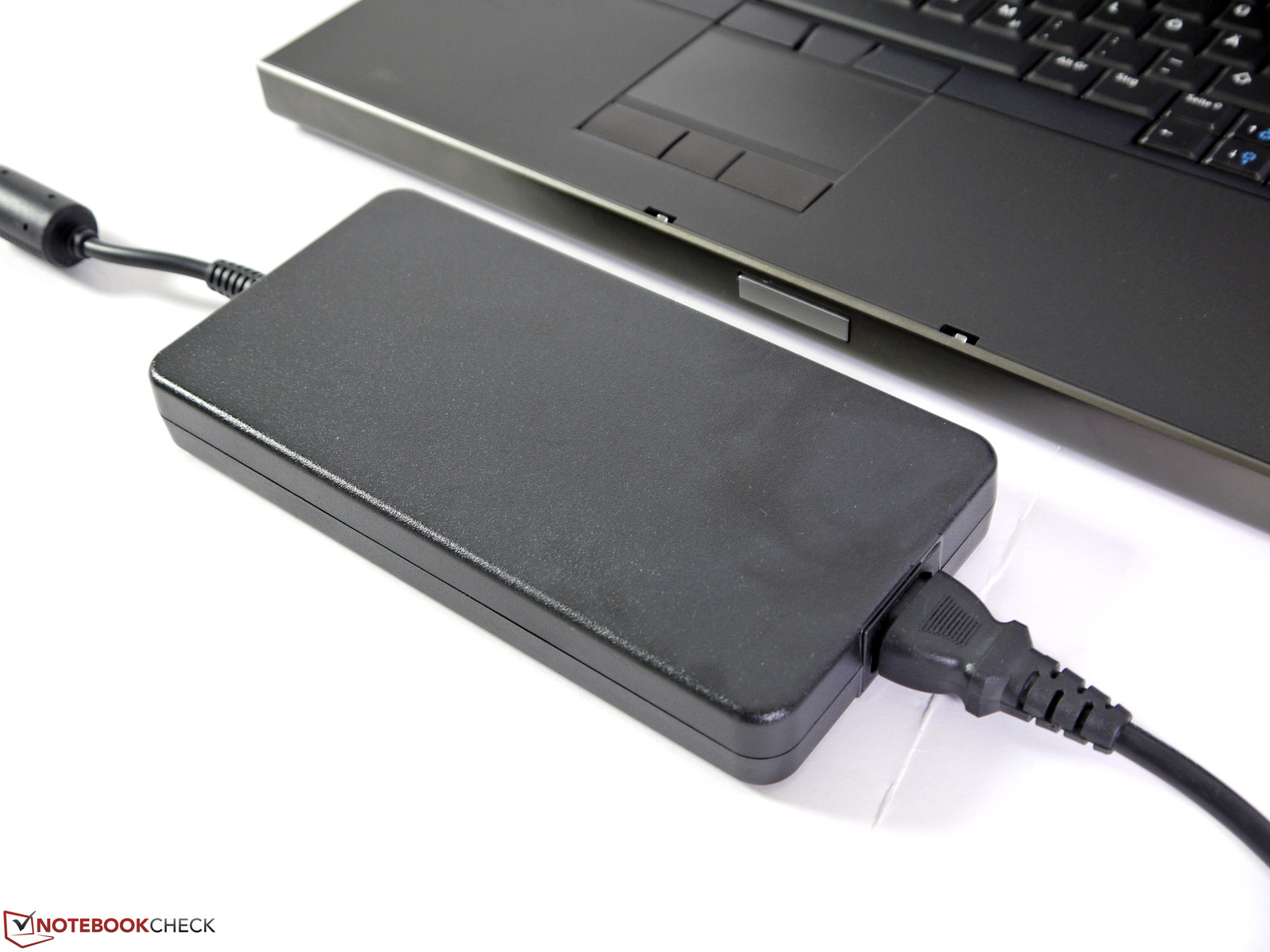

Dell offers a bounty of universal accessories. There are also system-specific docking stations for sale. The Advanced E-Port II port replicator is compatible with the predecessors and costs around 280 Euros (~$376 total) in the shop. The wireless alternative is the Dell D5000 Wireless docking station, which will set the buyer back about 270 Euros (~$363). This may be cheaper, but it includes fewer options and seems only accessible with the Dell 1601 WiGig card.

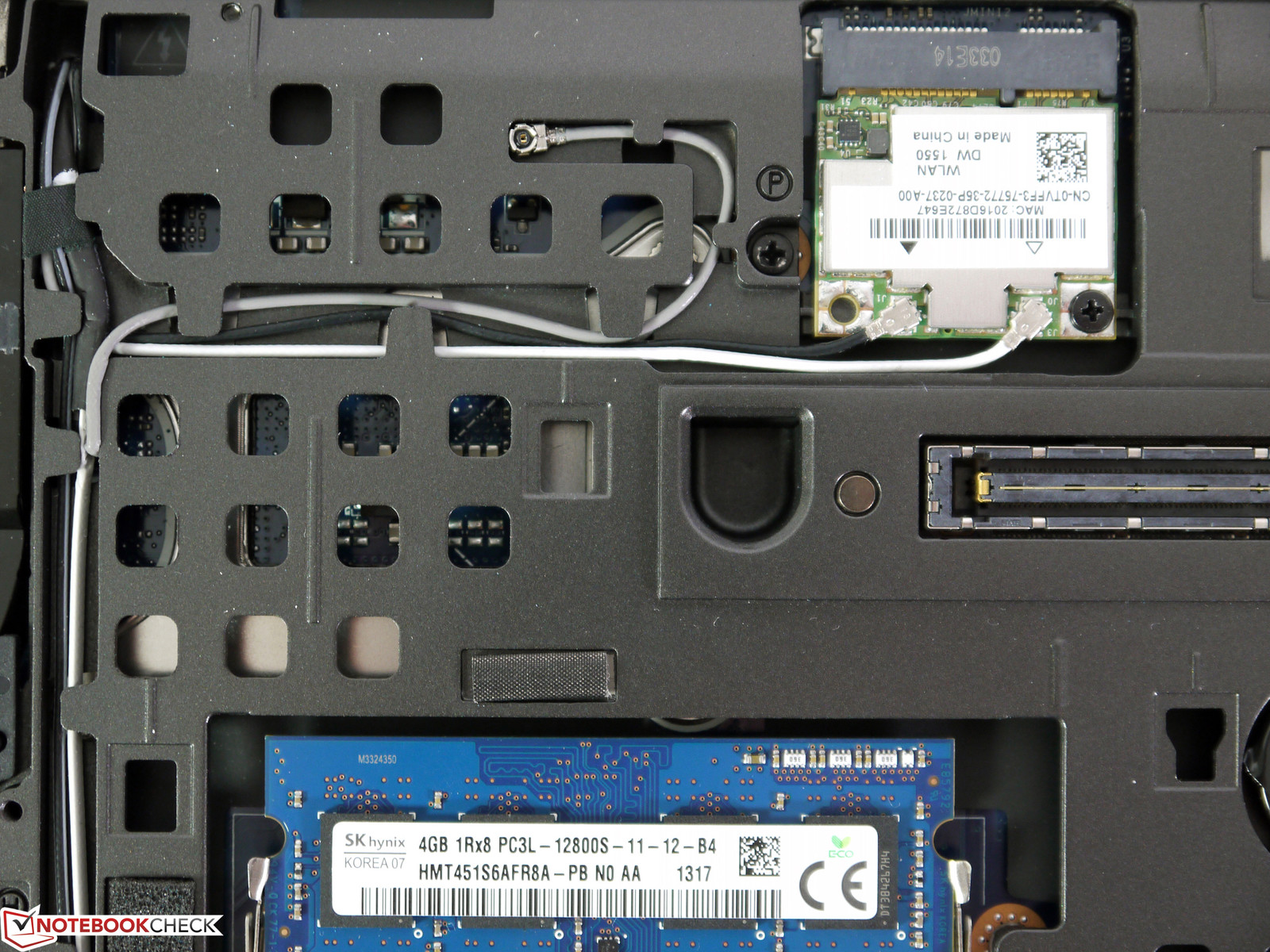

Maintenance

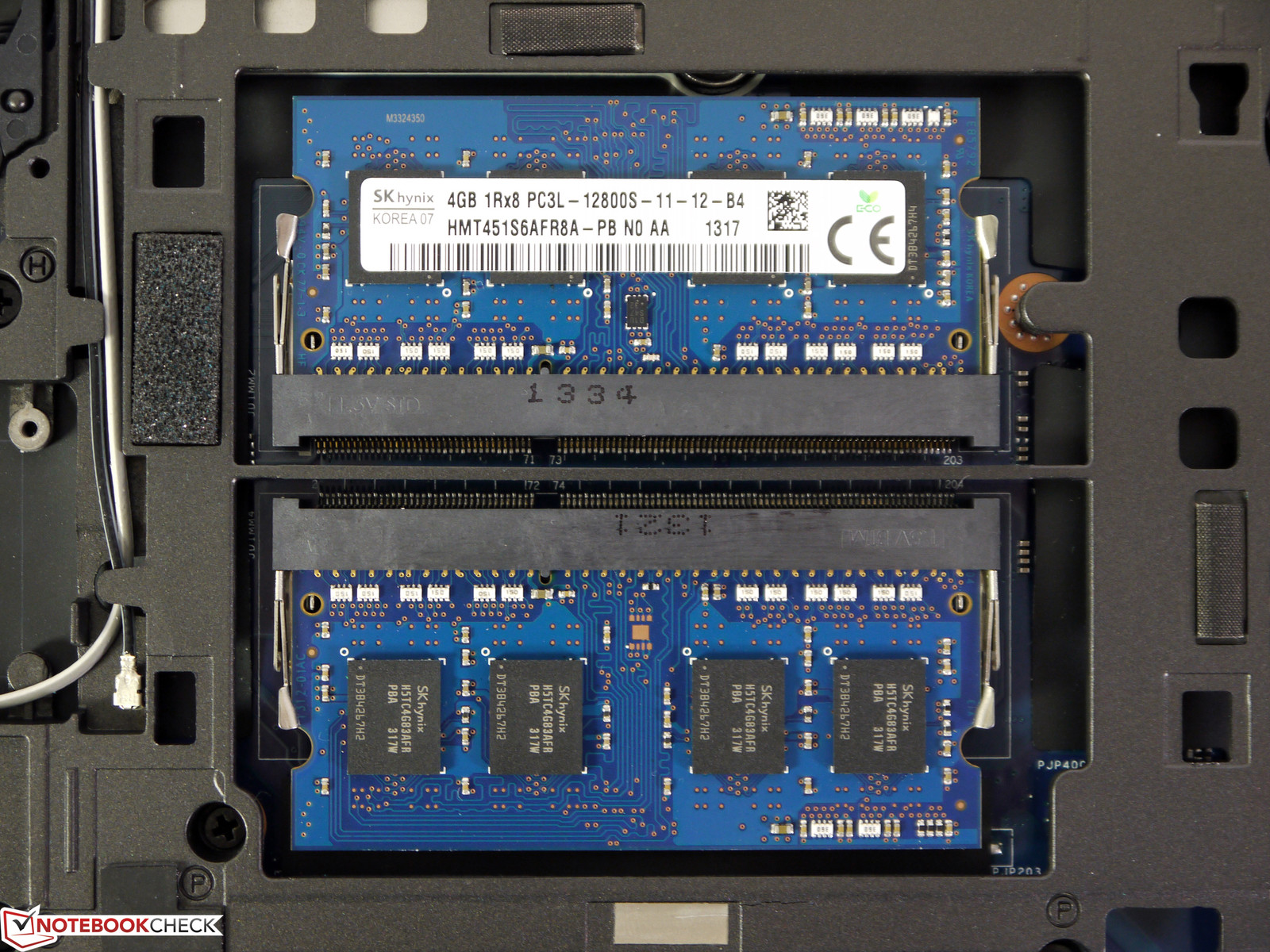

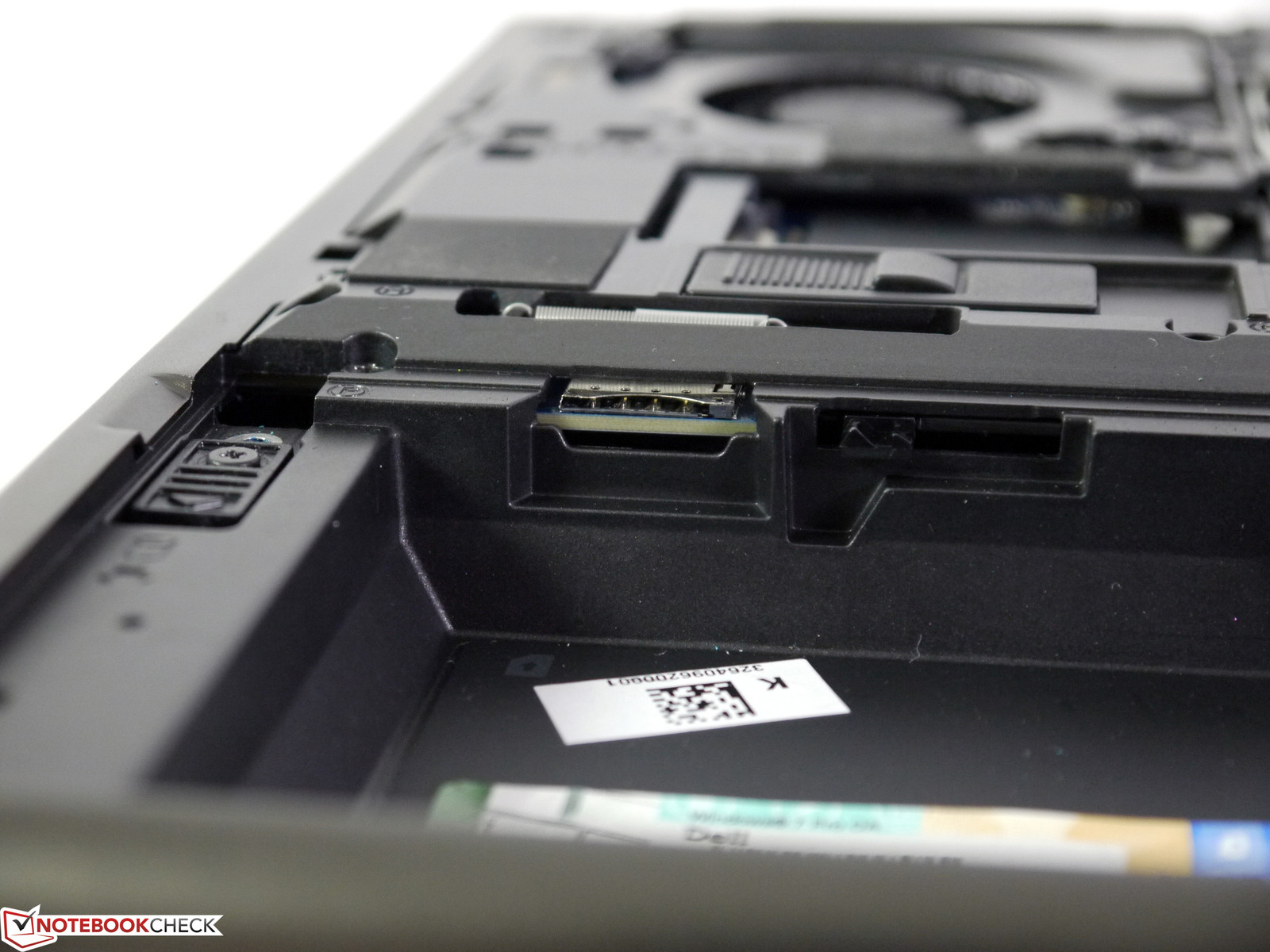

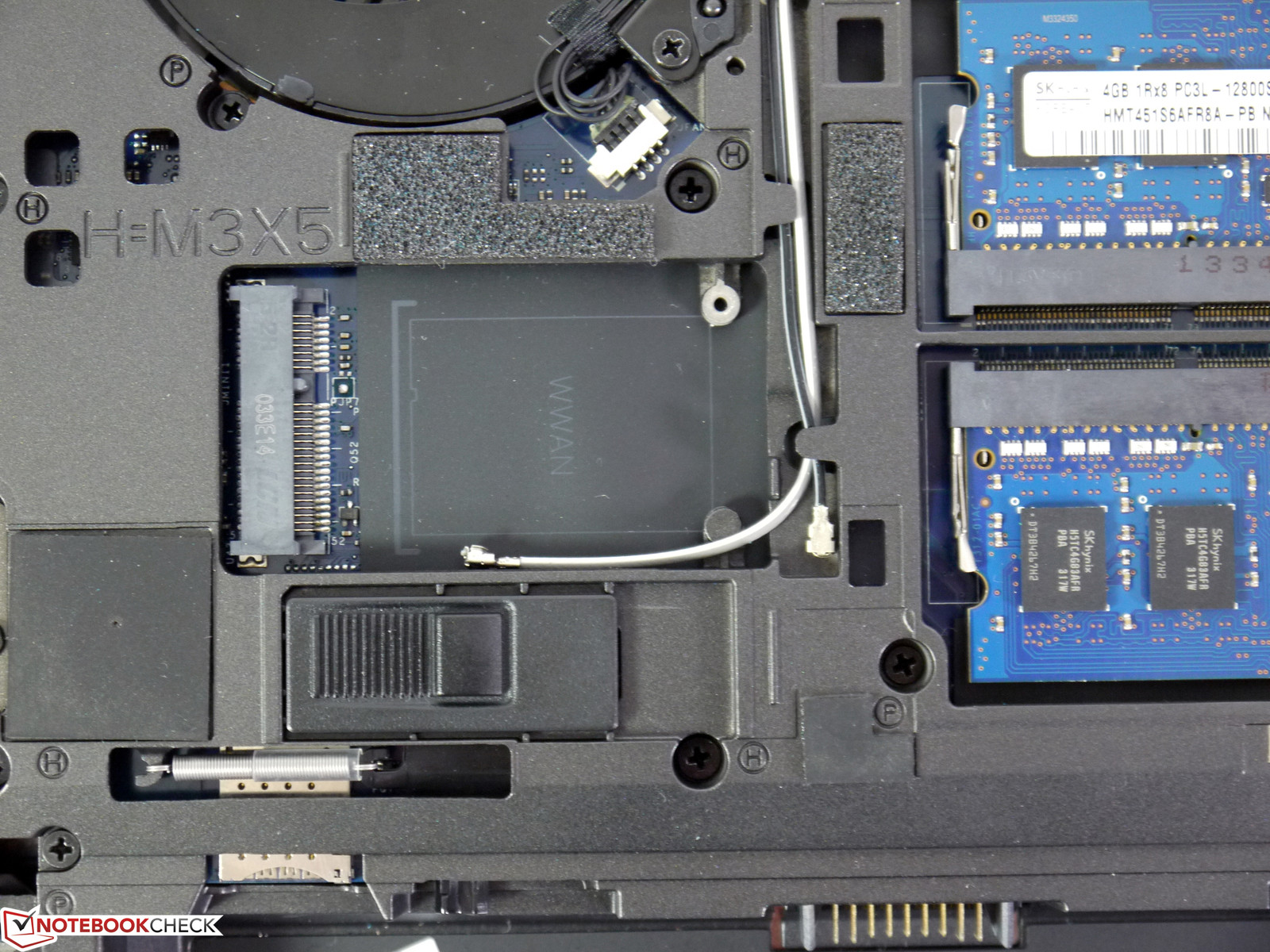

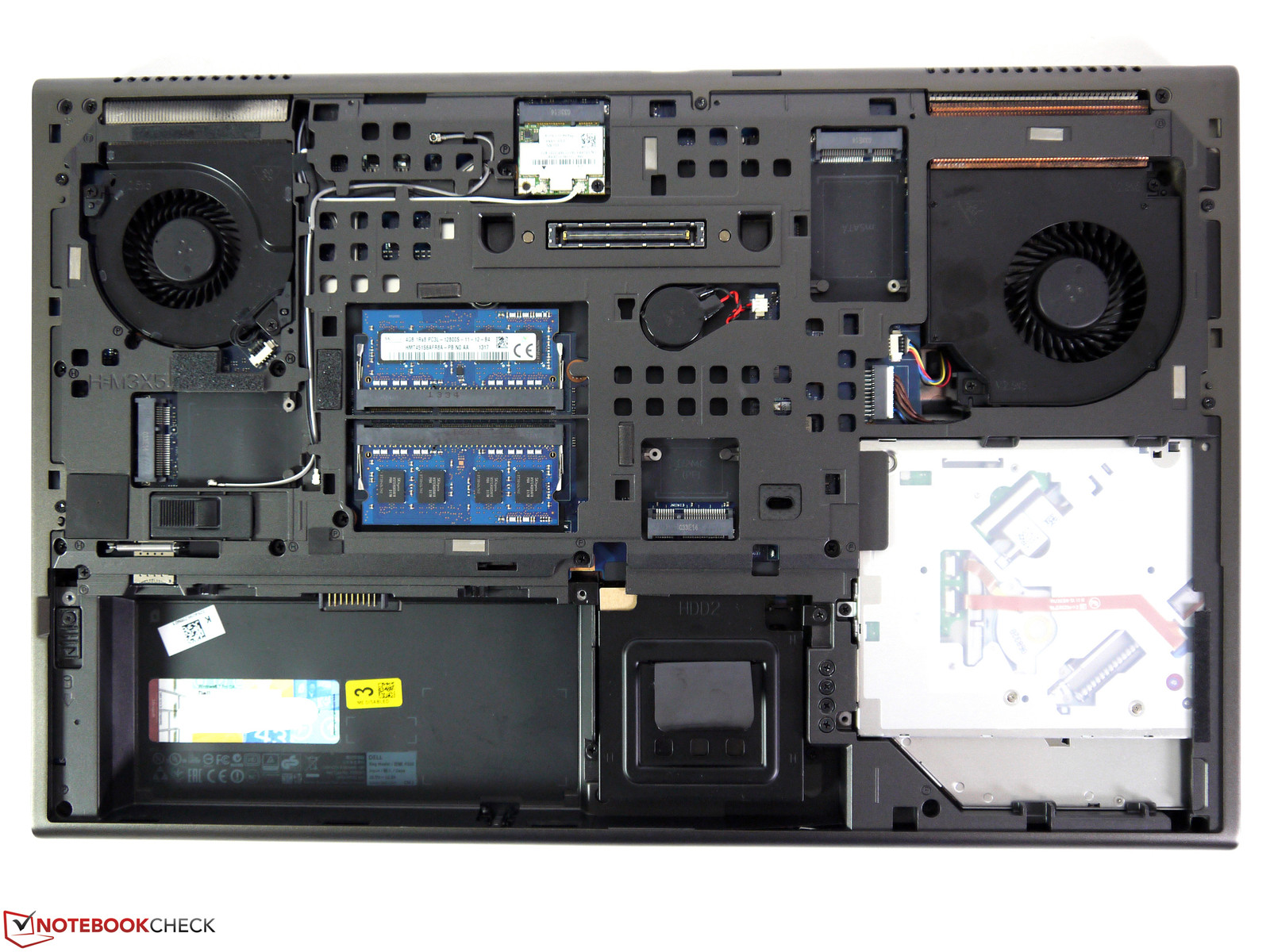

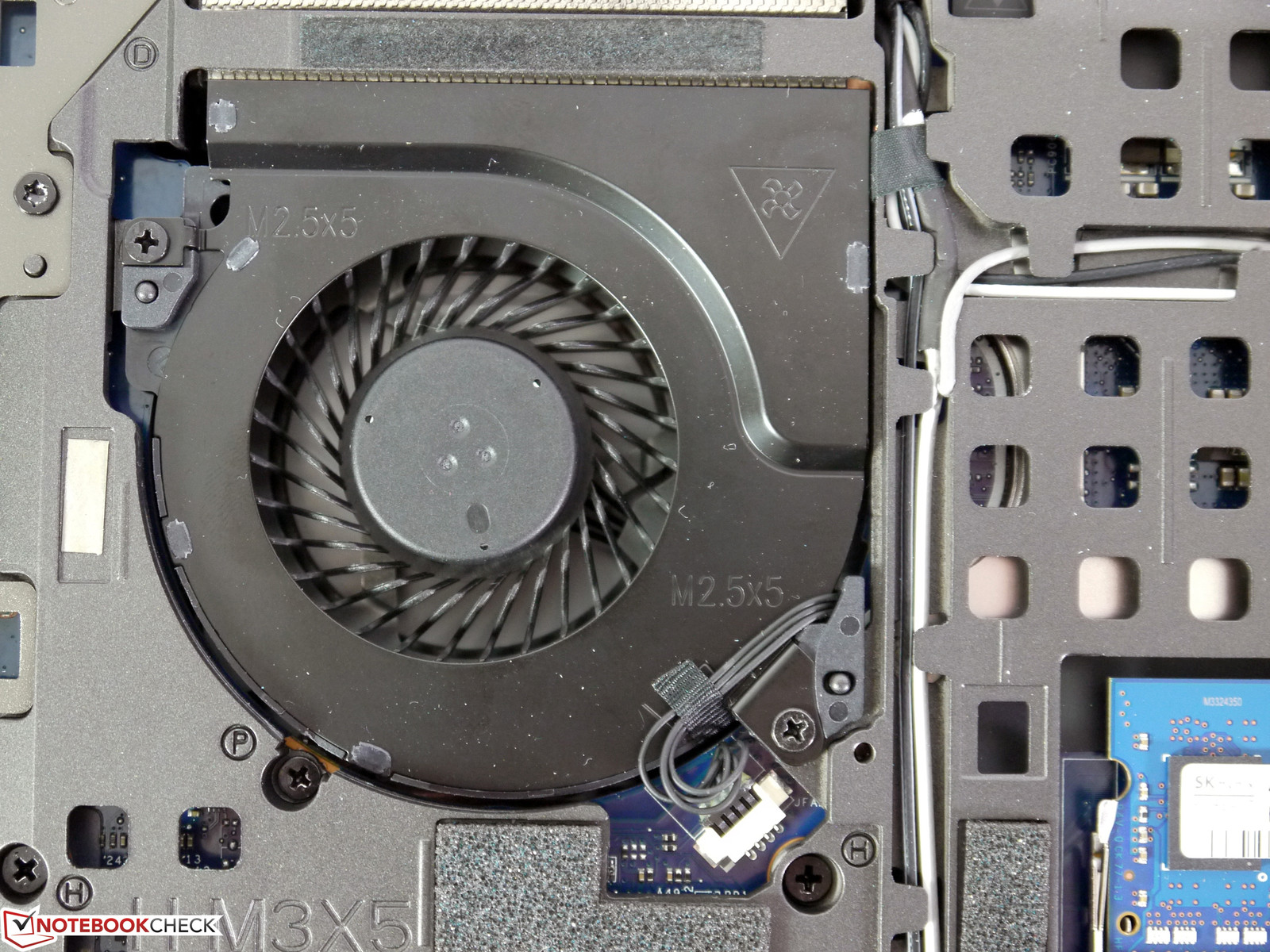

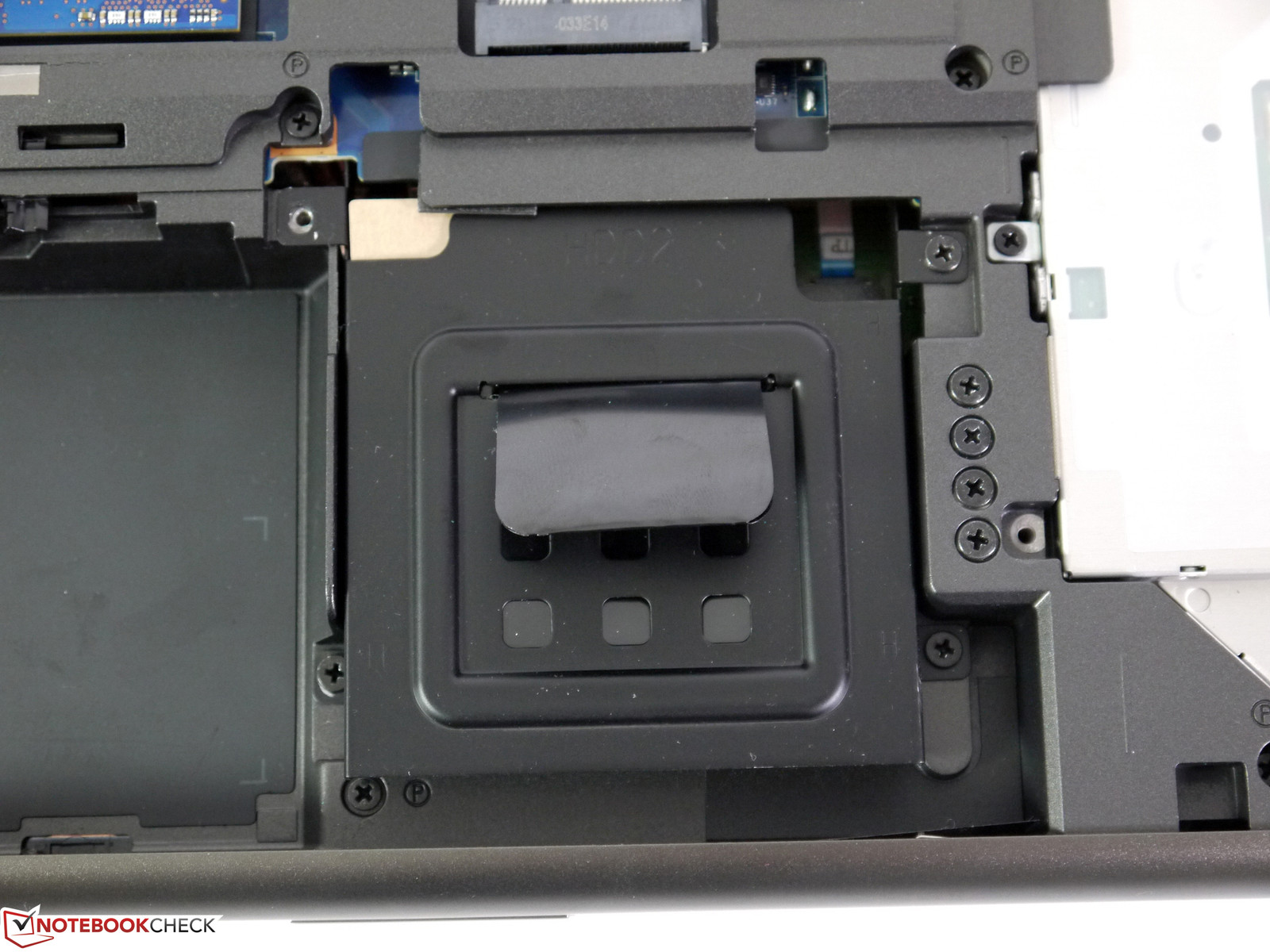

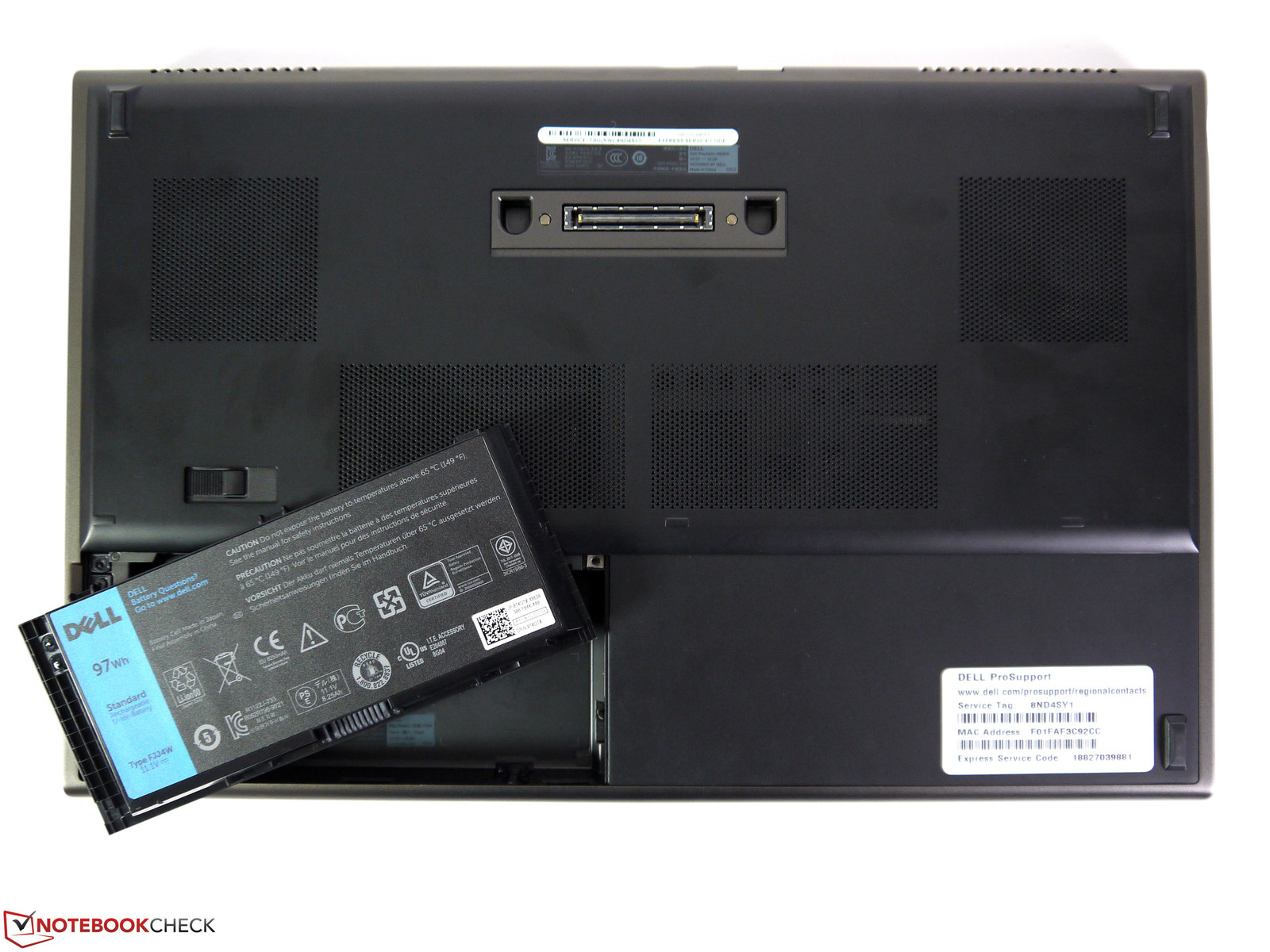

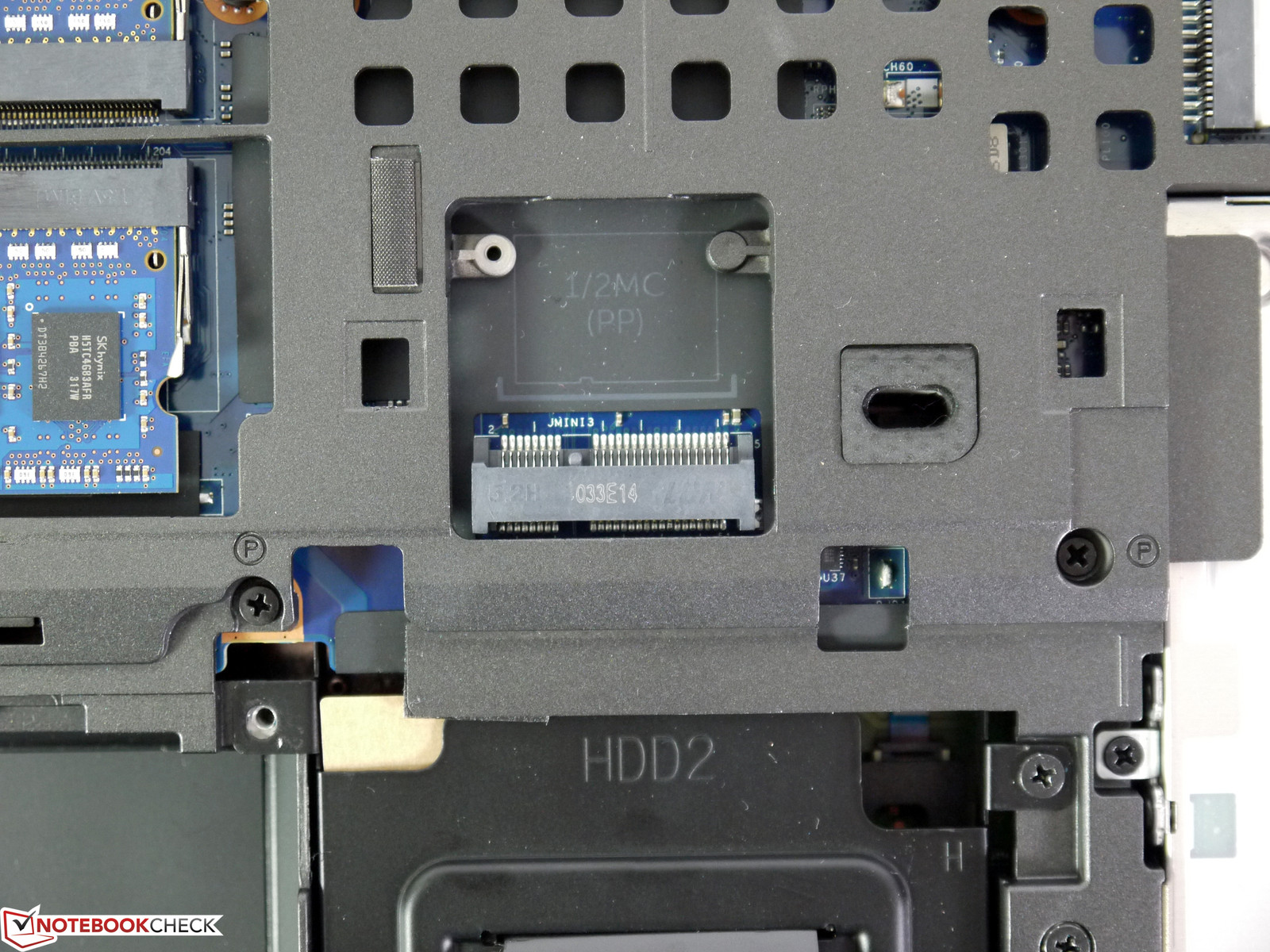

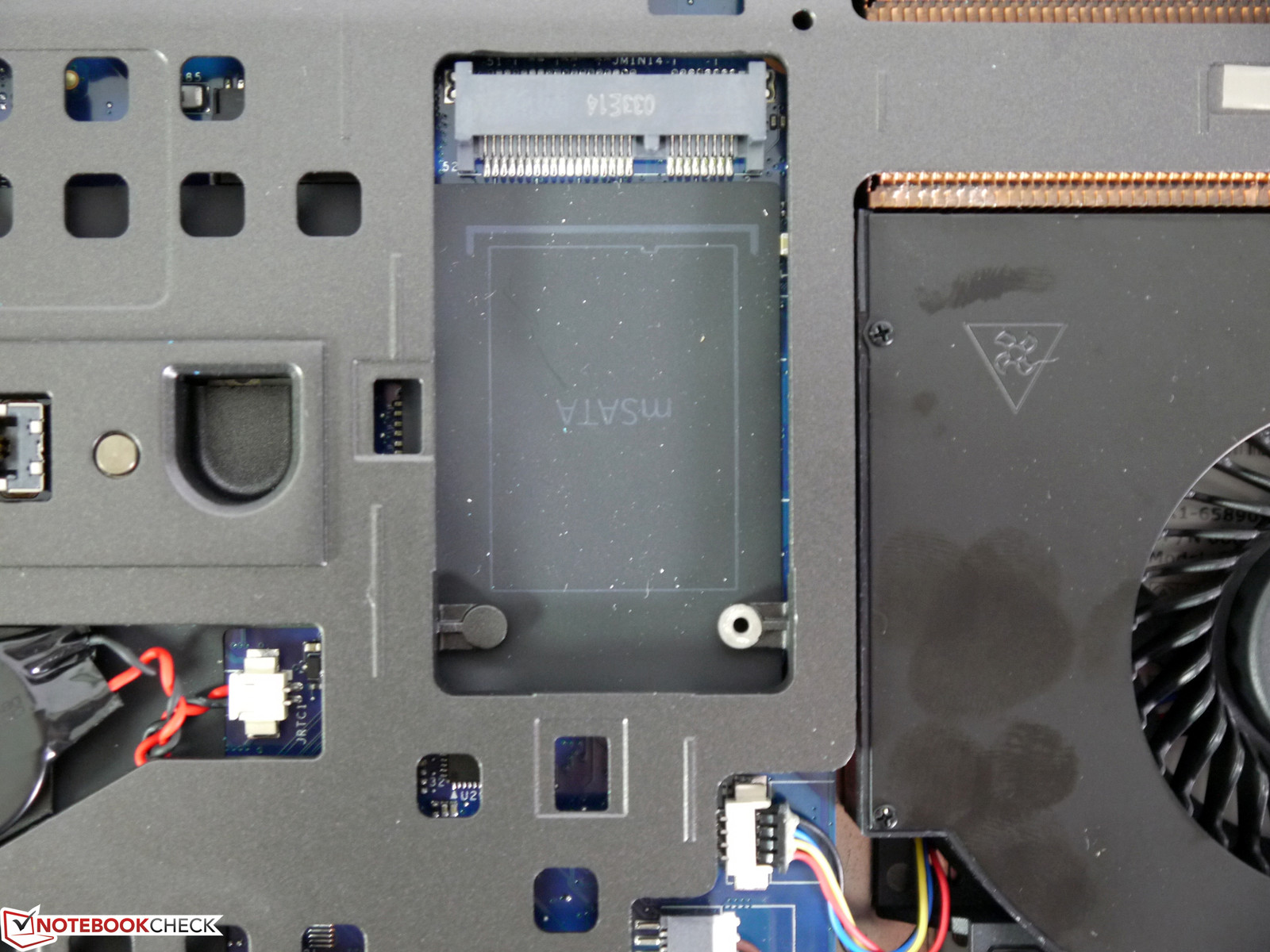

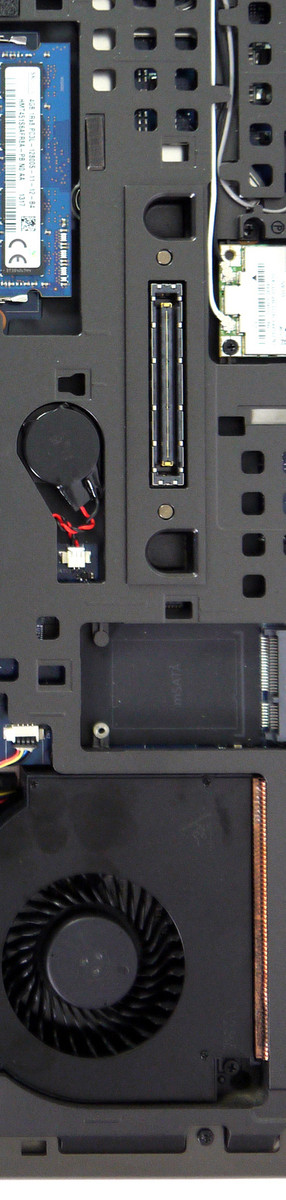

The large maintenance flap on the bottom can be taken off by taking out the battery and removing two screws. Beneath, the user will find all the hardware components and upgrade options. An mSATA slot is unoccupied and can be used to add an mSATA SSD. A second 2.5-inch drive slot offers the user the option of adding a traditional 2.5-inch SSD or HDD. For even more storage, the user can replace the optical drive with a caddy, which will accommodate an SSD / HDD. This design offers the user a plentitude of options to choose from. Furthermore, the Precision M6800 is equipped with a quad-core CPU and has four RAM slots. Two of the slots can be found in the bottom while the other two are to be found under the keyboard. In our test model, all four slots are filled with 4 GB RAM modules. As expected, the fan is easily accessible and can be cleaned / swapped out.

Warranty

The Dell Precision M6800 includes a standard 3-year basic on-site service on the next workday. Extending the warranty or adding service packets is optional. 5 years ProSupport with on-site service on the next workday will cost the buyer 460 Euros (~$618).

Input Devices

Keyboard

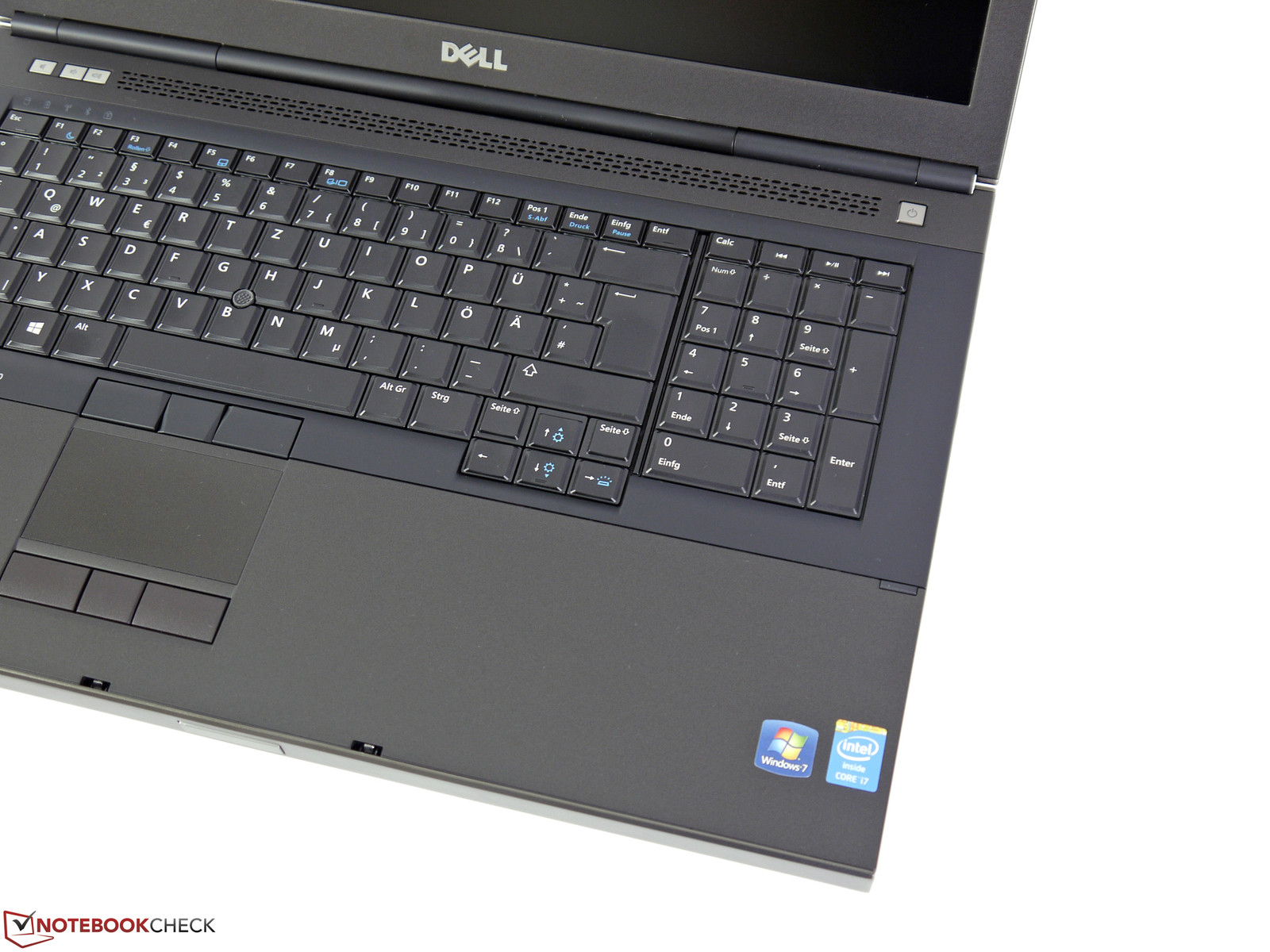

The keyboard is installed securely and offers a modest stroke distance combined with a quiet impact. All keys are sufficiently large and the separate numeric pad should delight number crunchers. The model even offers keyboard lighting, which is lacking in the Precision M6700. Overall, we believe that typists will enjoy working on this keyboard.

Touchpad

The 80 x 45 mm (~3.1 x 1.8 inches) touchpad has very good base properties, but is a bit small for multi-touch gestures. We like the separate touchpad keys, which can be individually configured and the precise TrackPoint.

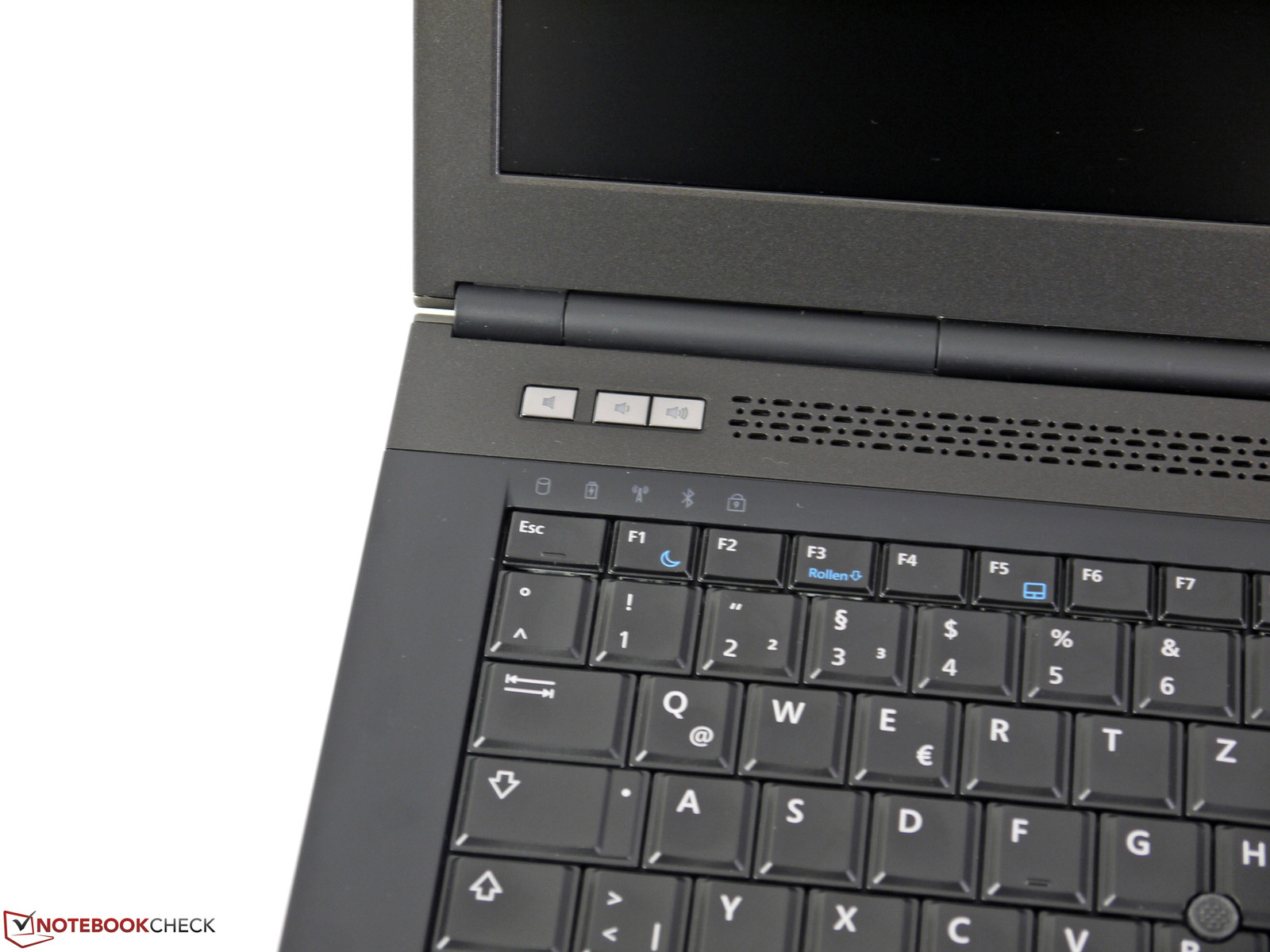

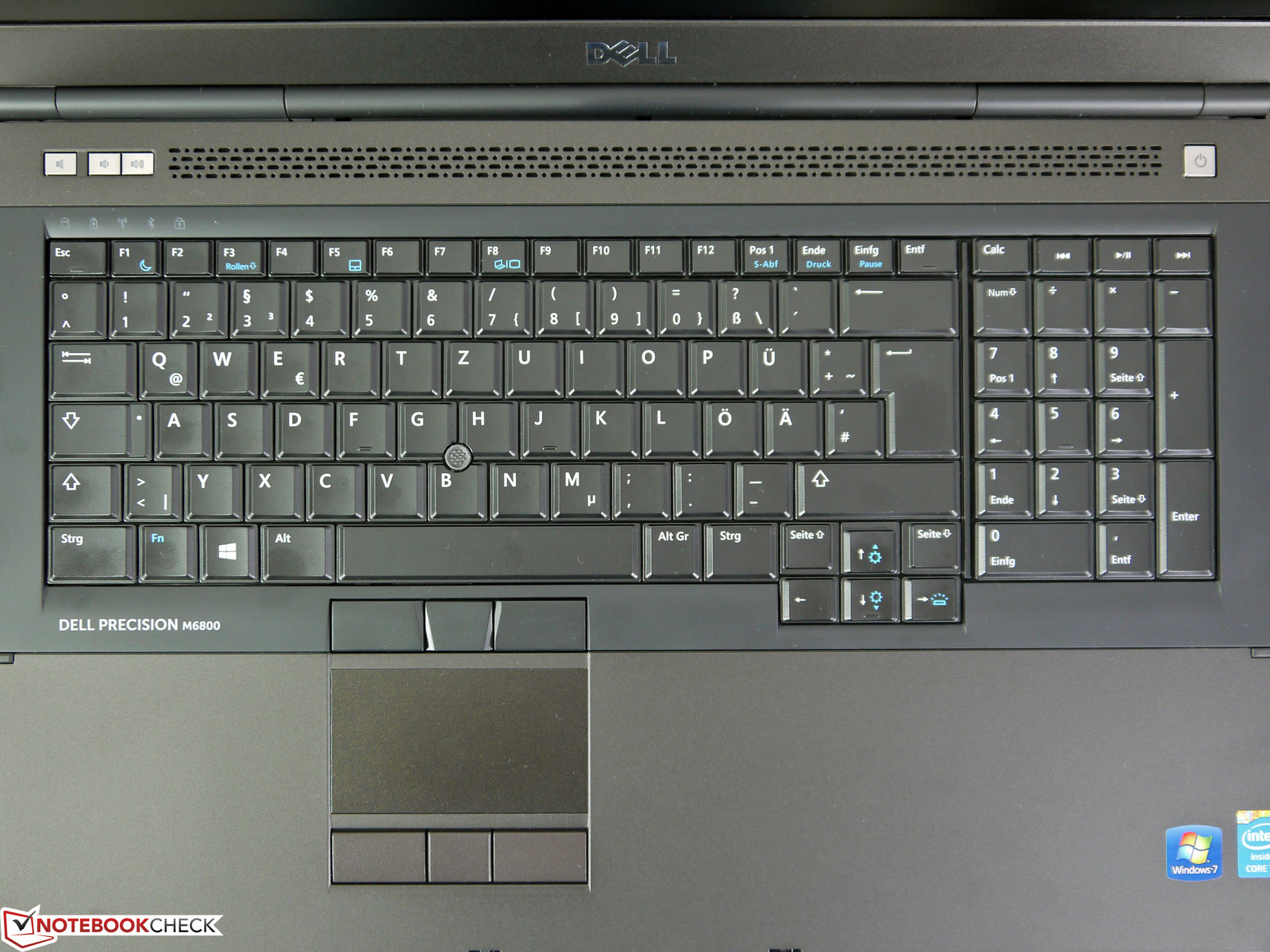

Keyboard
Keyboard

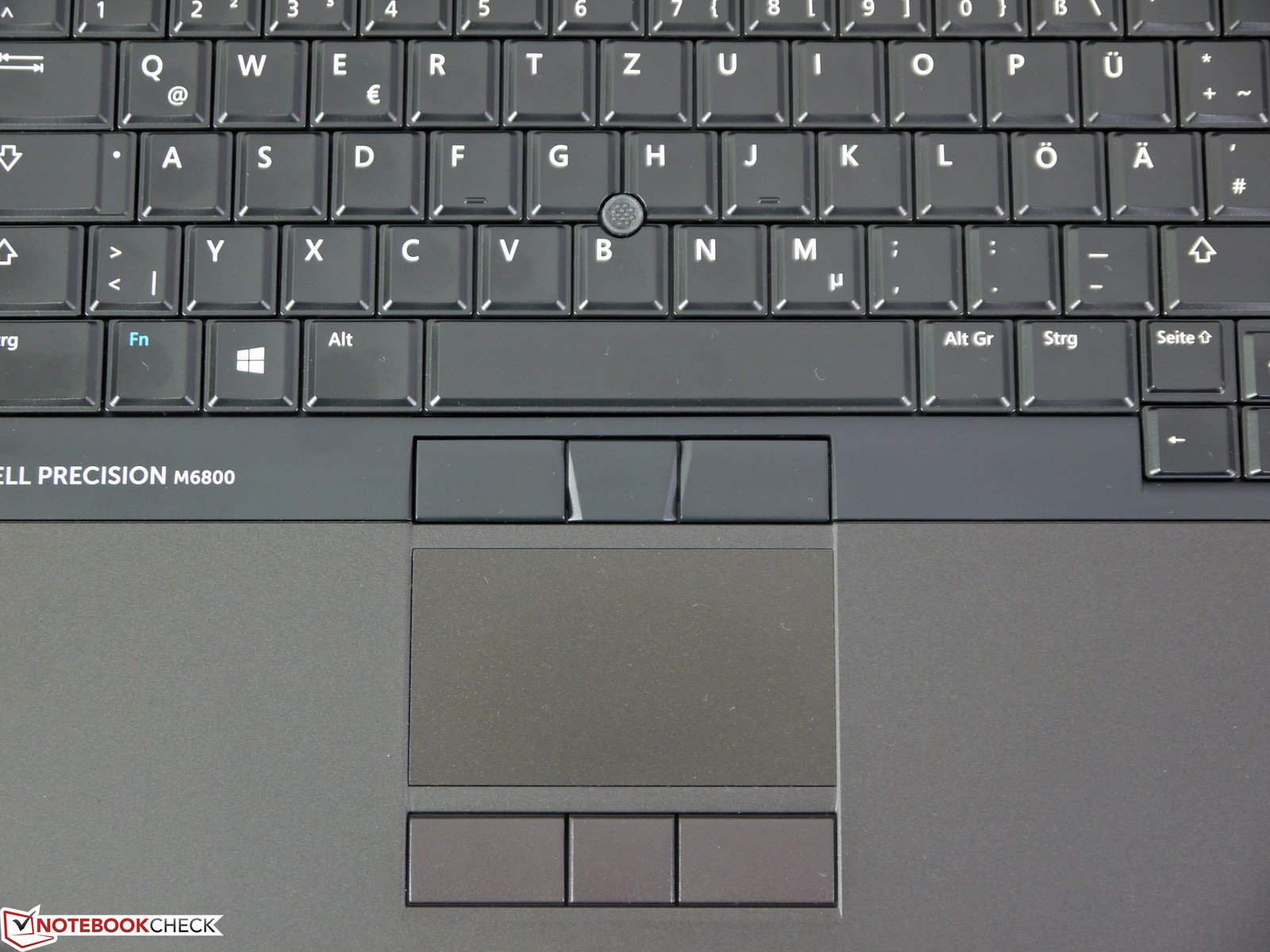

Touchpad and TrackPoint
Touchpad and TrackPoint

Display

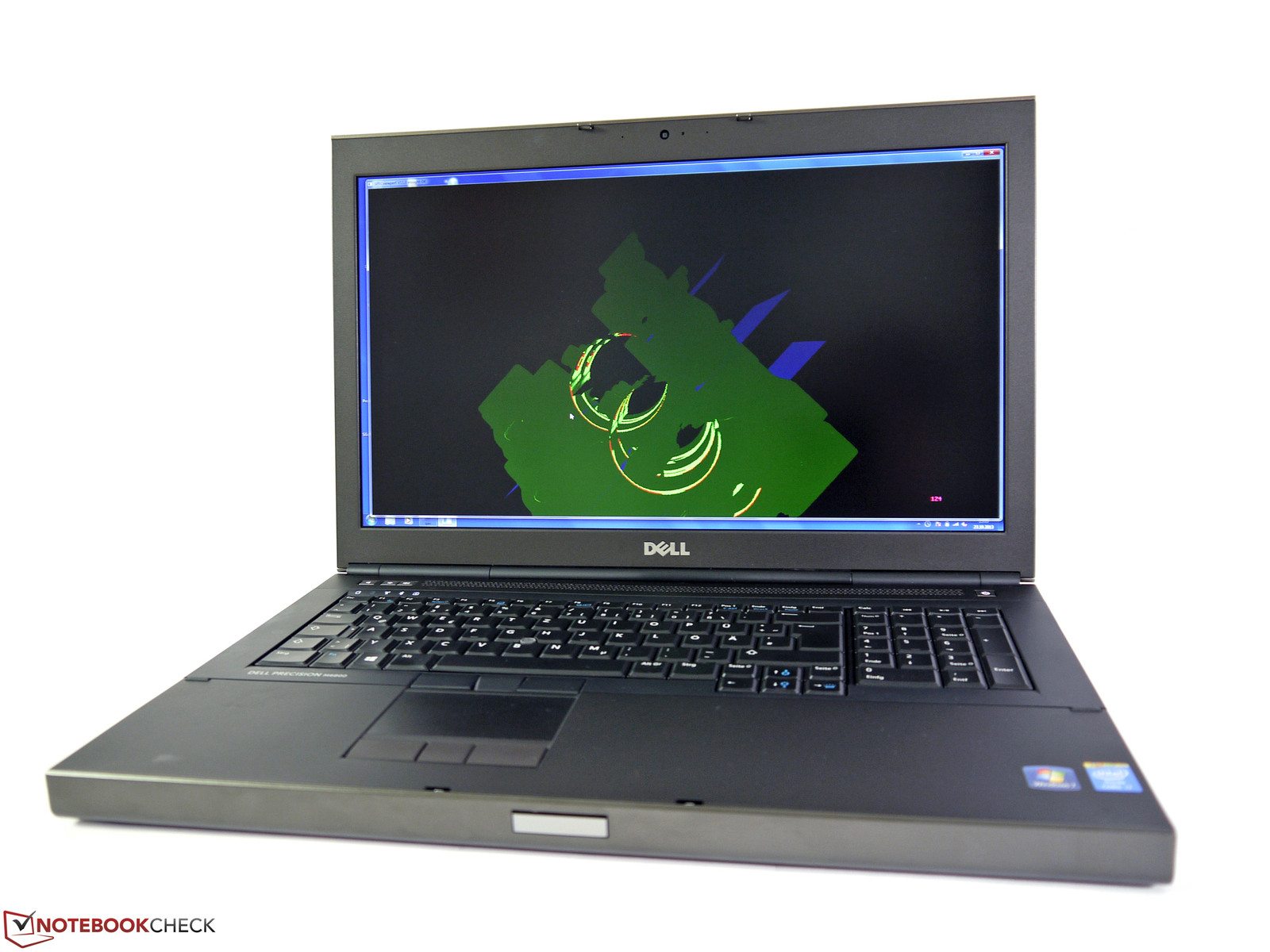

Dell Precision M6800 with a matte Full HD display.
Dell Precision M6800 with a matte Full HD display.

Dell offers three different displays for the Precision M6800 workstation. The entry-level model uses a matte HD+ panel with a resolution of 1600x900 pixels. The optional matte Full HD display (1920x1080 pixels) offers a bigger work area with good viewing angles but it also costs more (used in our test model). For users, who enjoy interacting with their laptop with their fingers, the third option, the reflective Full HD display with multi-touch support, is surely the way to go. Up to 10 fingers are simultaneously recognized by the panel and this proves especially useful for Windows 8 users. A display with extremely high resolutions, like a QHD+ panel, is not available for the 17-inch workstation and neither is one with stronger colors like an RGB LED panel.

225
cd/m²
231
cd/m²
235
cd/m²
233
cd/m²
250
cd/m²
251
cd/m²
262
cd/m²
272
cd/m²
265
cd/m²
Distribution of brightness
LGD02DA tested with X-Rite i1Pro 2
Maximum: 272 cd/m² (Nits) Average: 247.1 cd/m²
Brightness Distribution: 83 %
Center on Battery: 253 cd/m²
Contrast: 524:1 (Black: 0.477 cd/m²)
ΔE Color 11.4 | 0.5-29.43 Ø5
ΔE Greyscale 12.97 | 0.57-98 Ø5.3
68% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.8% sRGB (Argyll 2.2.0 3D)
71.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.65

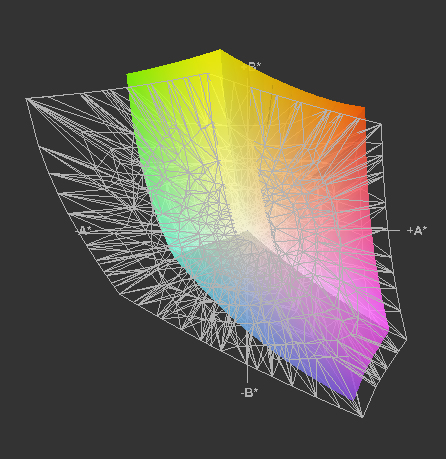

Dell Precision M6800 FHD vs. AdobeRGB
Dell Precision M6800 FHD vs. AdobeRGB

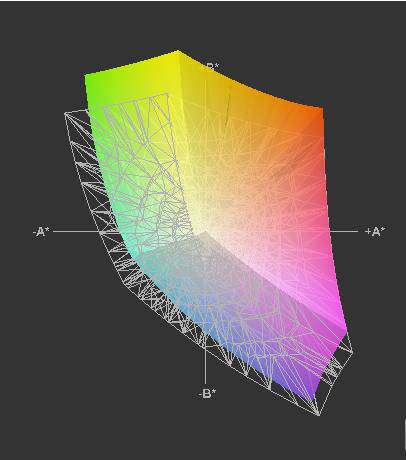

Dell Precision M6800 FHD vs. sRGB
Dell Precision M6800 FHD vs. sRGB

In our test model, we have the same LG Philips panel as in the Precision M6700. The 6700 series also offers a Chi Mei panel, which we thoroughly explored in a test update for the Precision M6700The measured values of our test model are different from those of the Precision M6700 but they lie in the same region. The maximum brightness the Precision M6800 offers is a mere 272 cd/m², but it has an illumination of 83%, which means the brightness varies a little less in different areas. For example, the screen is slightly darker near the top than in the bottom part. However, this is not noticeable to the naked eye and will not affect the user experience.

For indoor use, the maximum brightness is more than enough and can even be dropped to 150 cd/m² thanks to the matte surface of the panel.

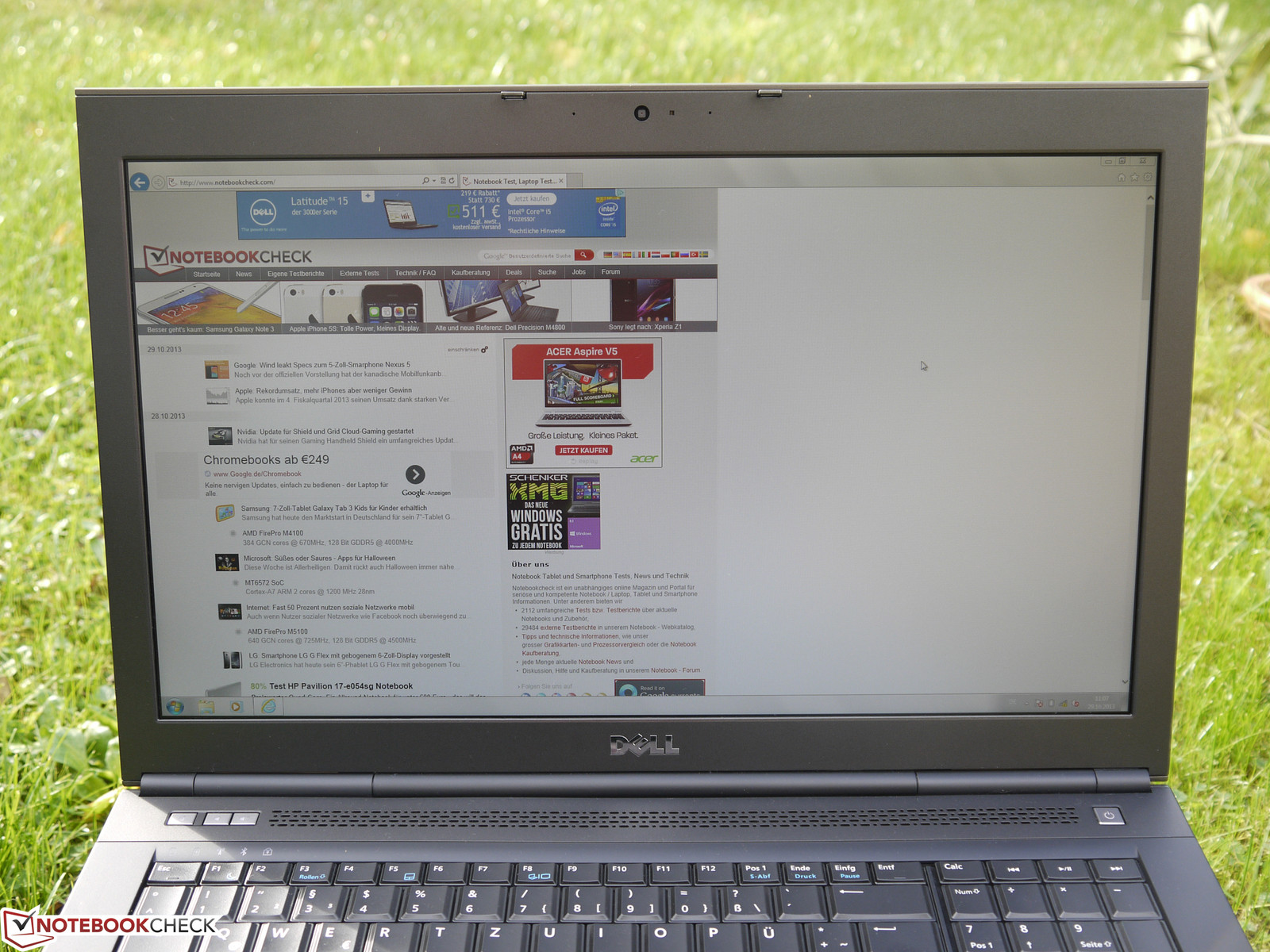

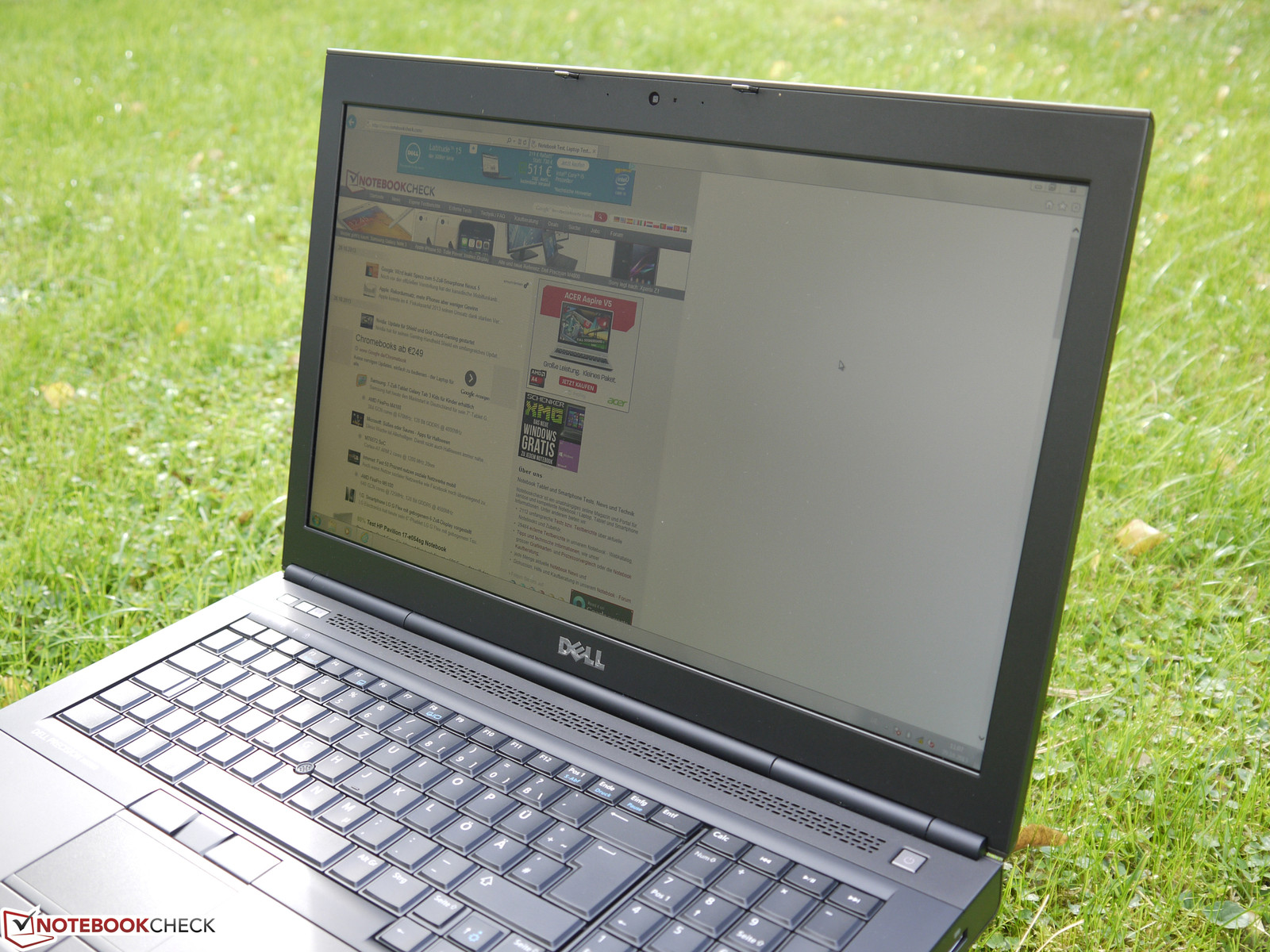

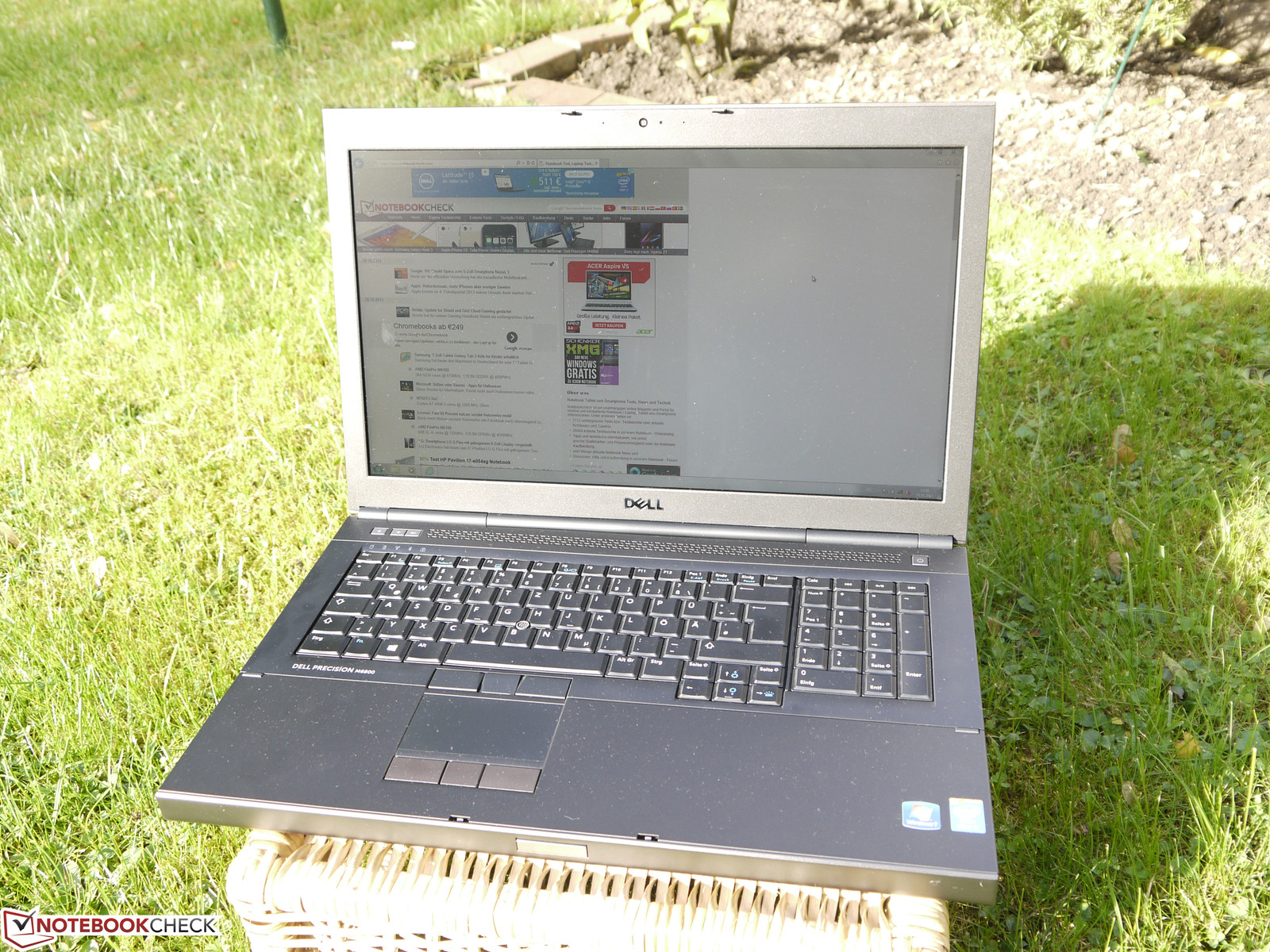

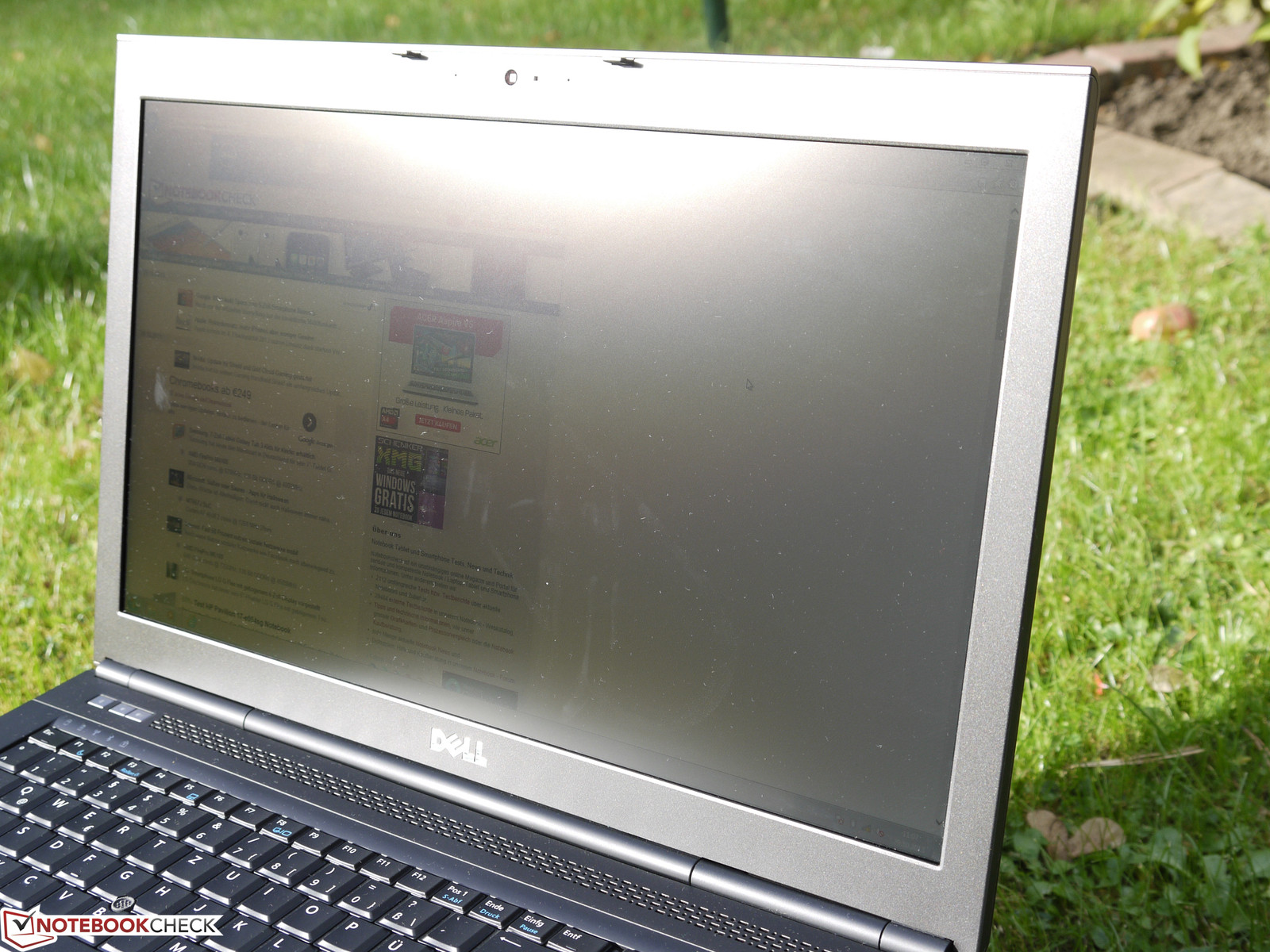

Outdoors, the brightness is not high enough to work with the laptop comfortably. Direct sunlight should be avoided with this full HD panel but thankfully, there are no annoying reflections and the full brightness is available on battery.

The measured contrast is 524:1 and it displays more satisfying colors than standard panels. The Chi Mei panel of the M6700 performs better in this section with a contrast of 797:1.

The supported color space is quite close to the sRGB standard but does not cover it completely. While the yellow, green and orange regions are well covered, the blue, cyan and magenta regions are lacking. Overall, 90% of the sRGB color space are covered, although the possible colors that can be displayed (over 893,000) are quite close to the figure the sRGB color space offers.

The display is not optimally configured. The gray levels, the color saturation and accuracy are far below what one would expect (given what this panel is capable of). After calibrating, all the differences to the ideal values were below a three in DeltaE2000, which means they are not recognizable with the naked eye. Although the panel does not cover the entire sRGB space, the user can work quite well with the display (especially for photographers, video editors and website designers).

Gray levels
Gray levels

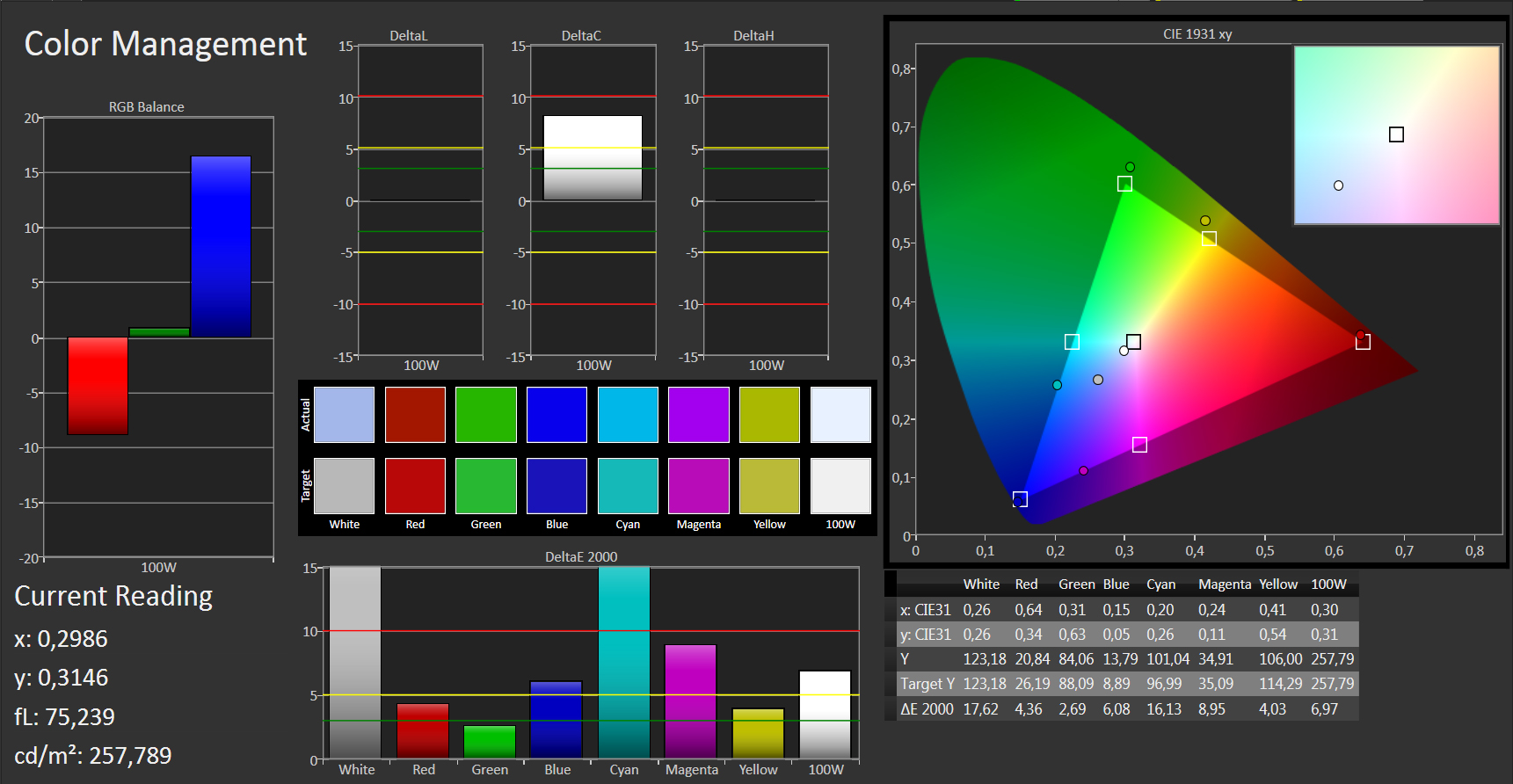

Color accuracy
Color accuracy

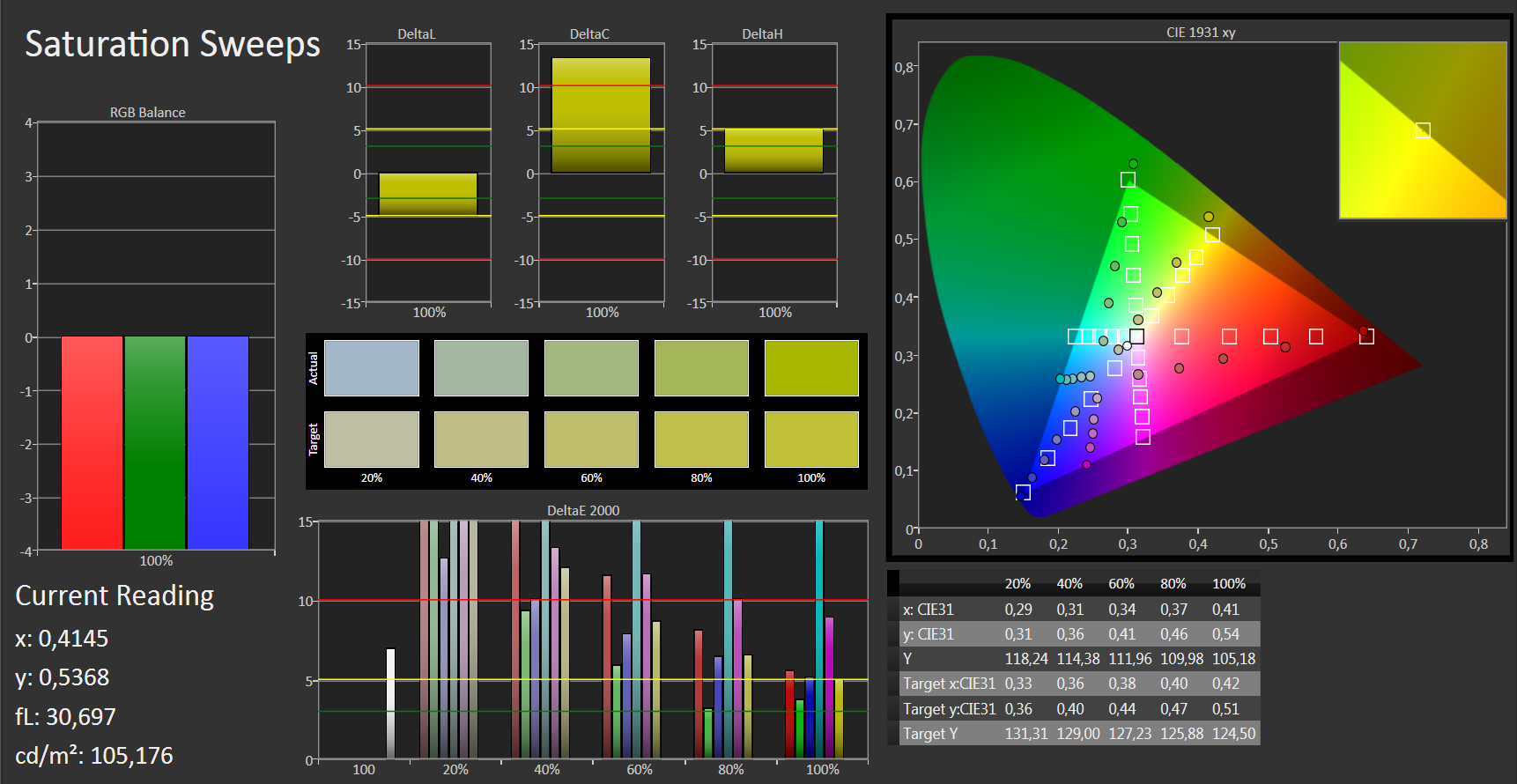

Saturation
Saturation

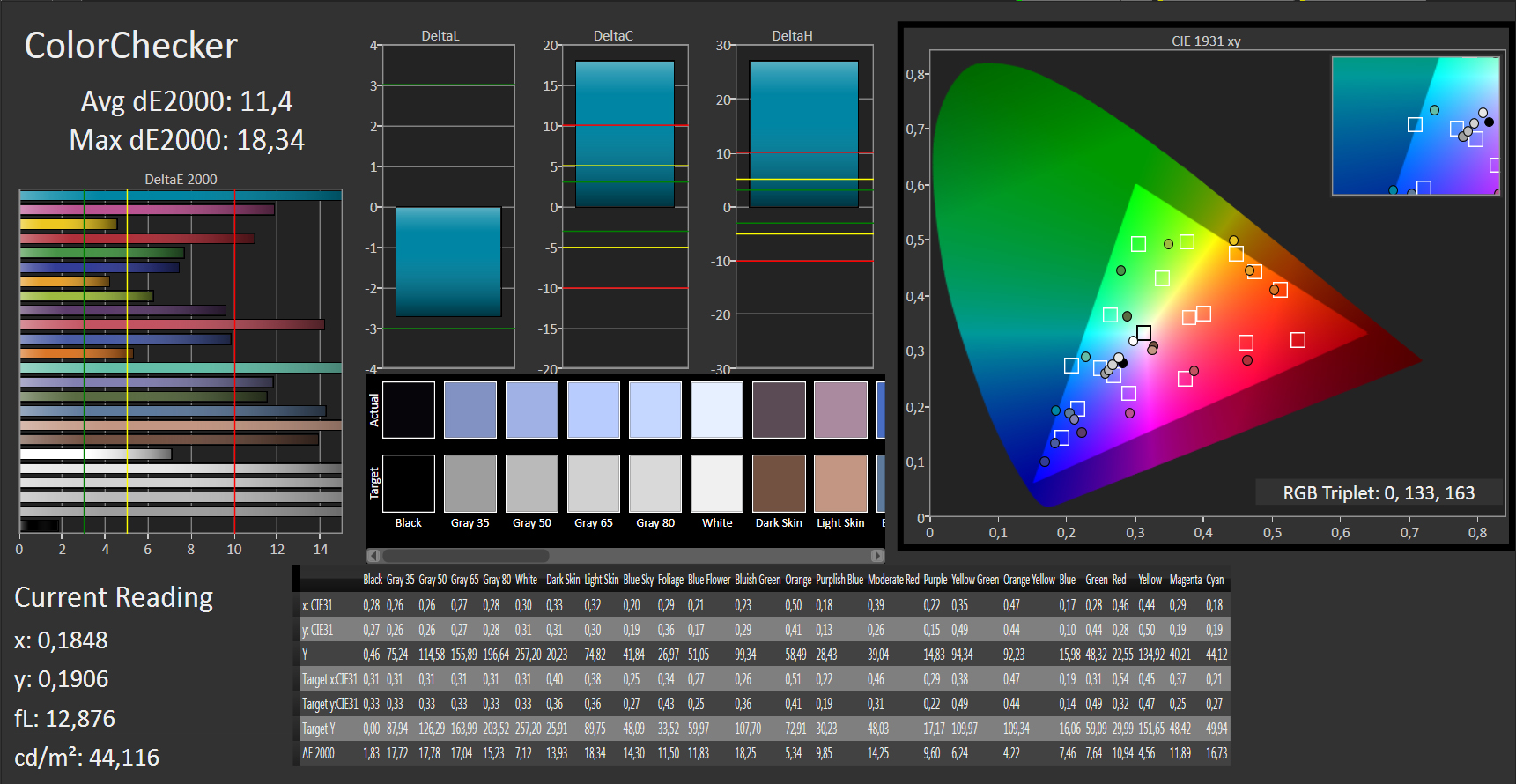

Color checker
Color checker

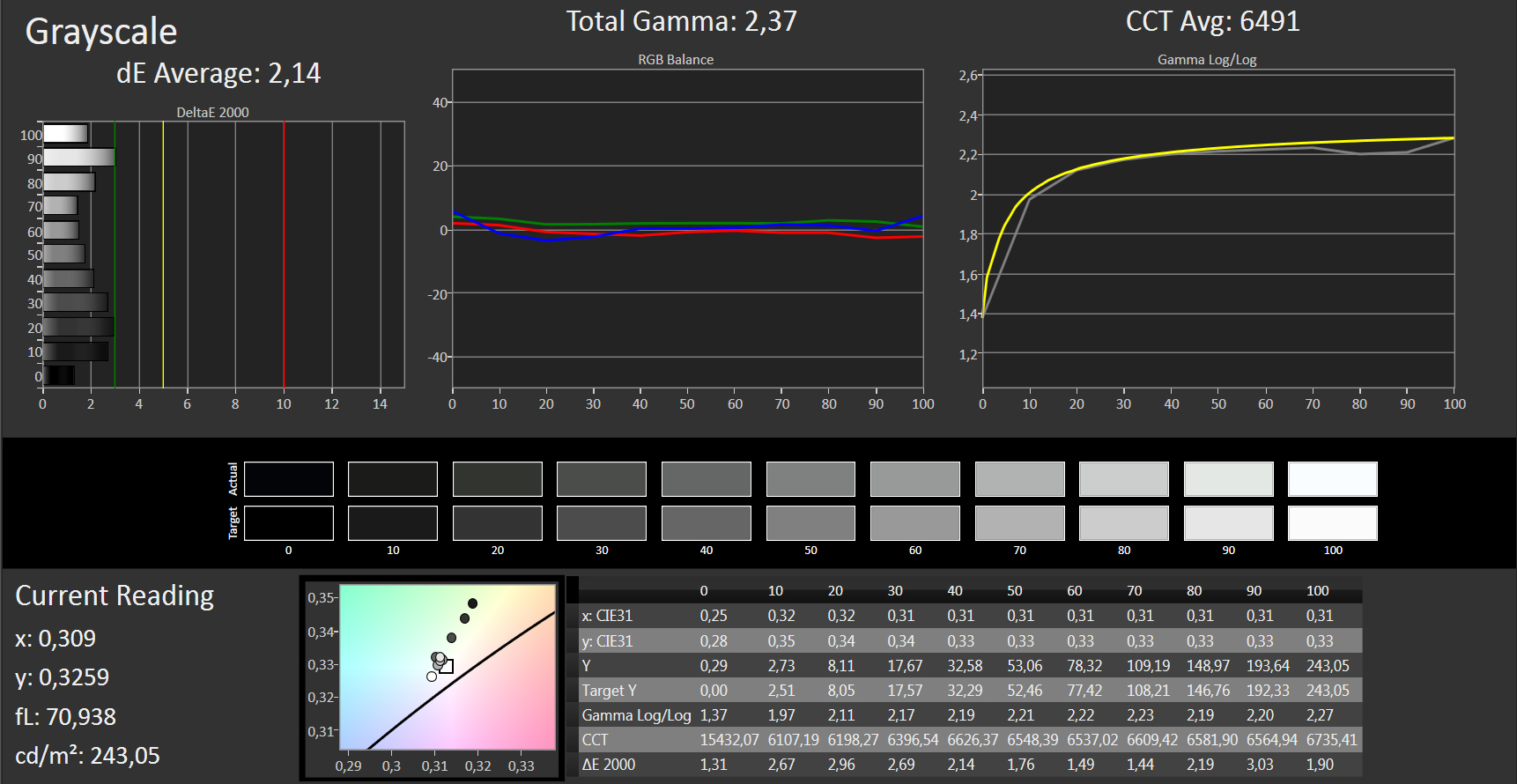

Gray levels calibrated
Gray levels calibrated

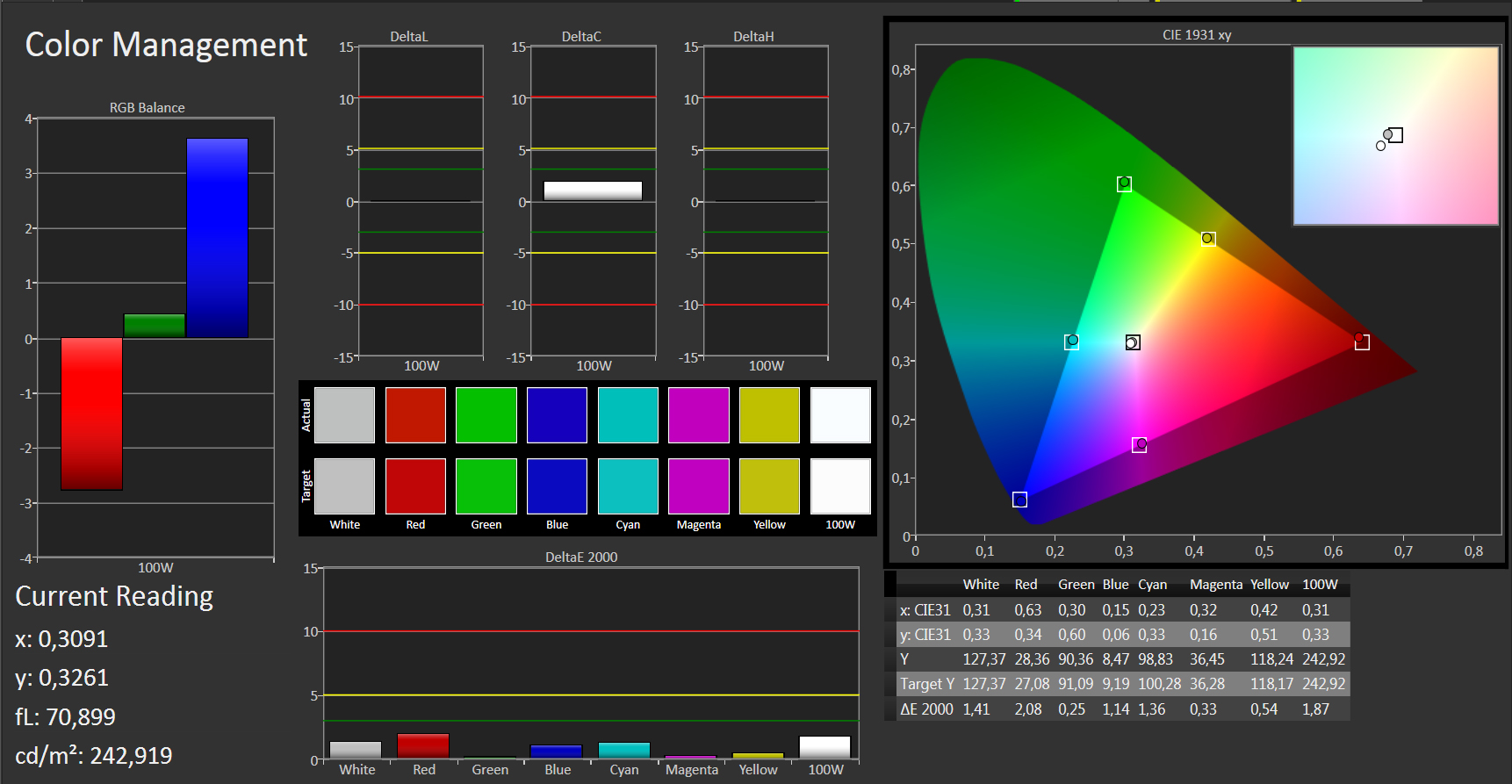

Color accuracy calibrated
Color accuracy calibrated

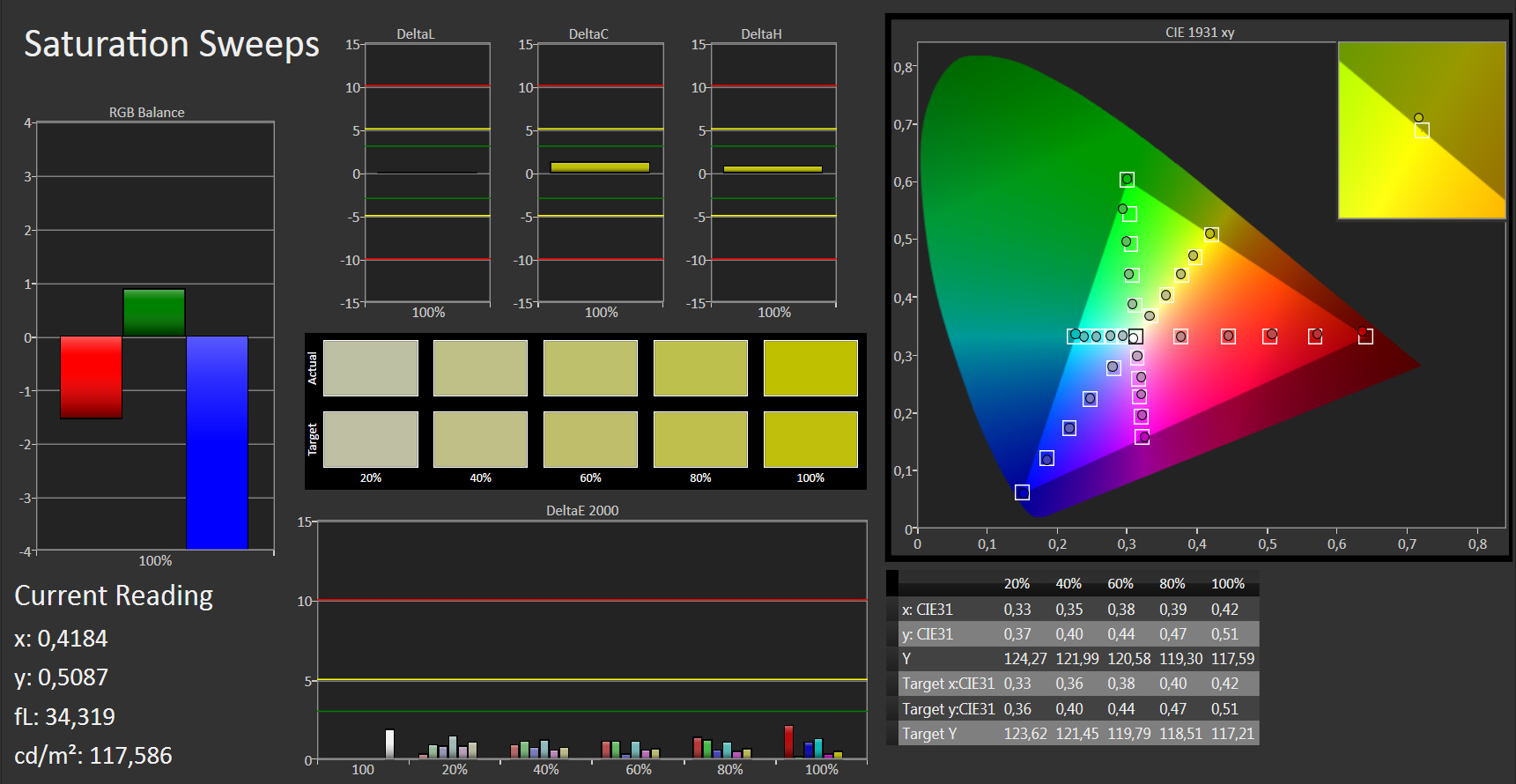

Saturation calibrated
Saturation calibrated

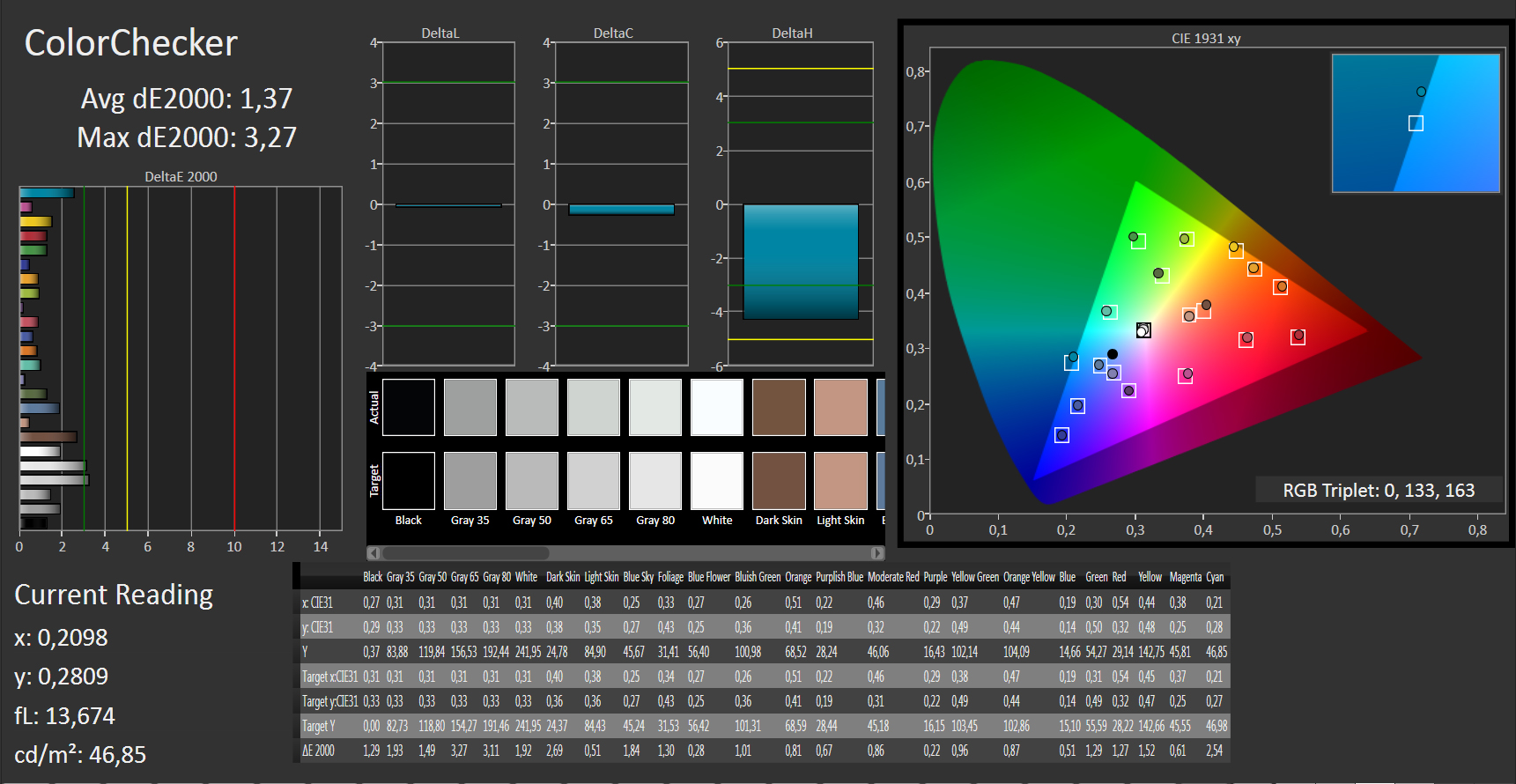

Colorchecker calibrated
Colorchecker calibrated

The viewing angle stability of the screen is quite good as the colors remain stable at a wider angle than on a standard TN display. However, vertically, the display inverts its colors if it is pushed far back and the colors get bleached out if it is pushed too far forward. At wide angles from the sides or from below, the colors are not as bright and a yellow tinge appears. We noticed a slight blue tinge from above.

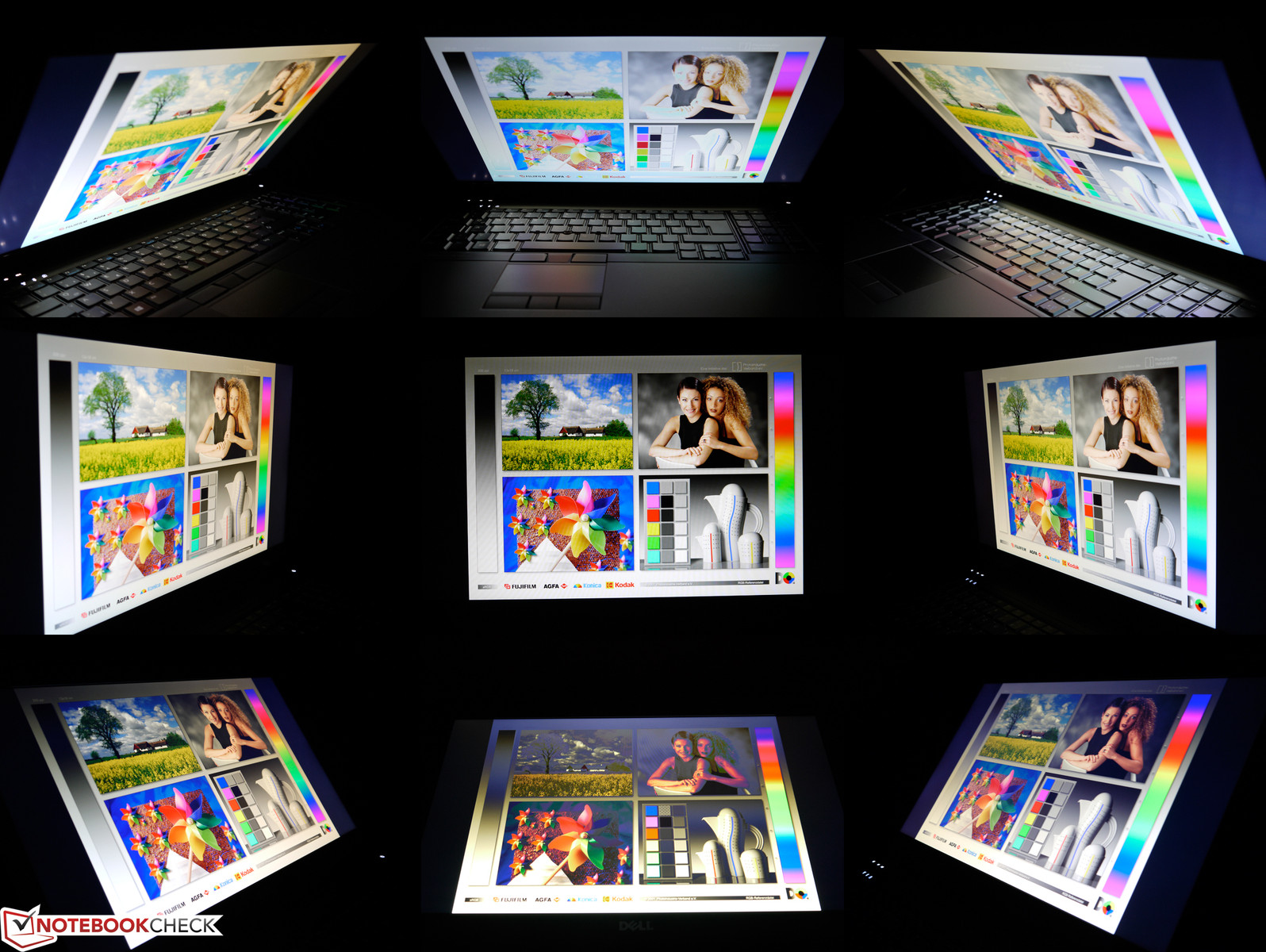

Viewing angles of the Dell Precision M6800 non-glare Full HD.
Viewing angles of the Dell Precision M6800 non-glare Full HD.

Performance

Our Dell Precision M6800 uses a slightly weaker CPU than the Dell Precision M4800 (Intel Core i7-4800MQ) but it can score higher thanks to its stronger professional graphics card (Nvidia Quadro K3100M). Sadly, the test model employs a standard HDD, which will lead to unnecessary throttling of this work machine. Furthermore, the test model does not have an external SSD cache module or a hybrid HDD. We will find out just how much this affects the system performance as the user has to shell out 2,500 Euros (~$3358, total) to buy it. We were surprised to see that the cheaper AMD FirePro M6100 graphics model used a hybrid HDD with an 8 GB SSD cache.

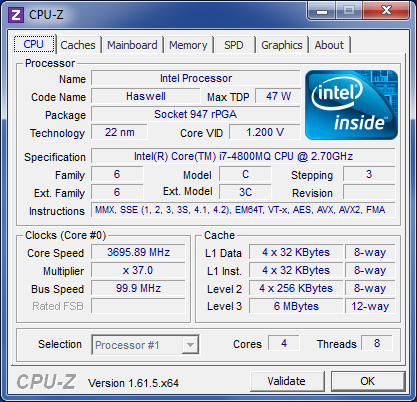

CPU

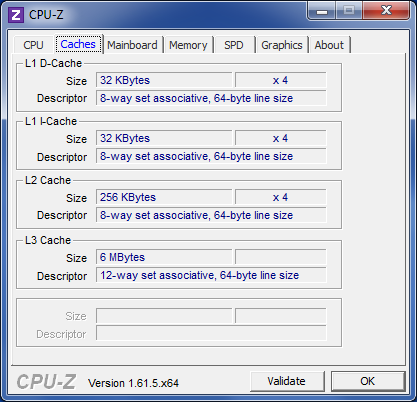

Caches

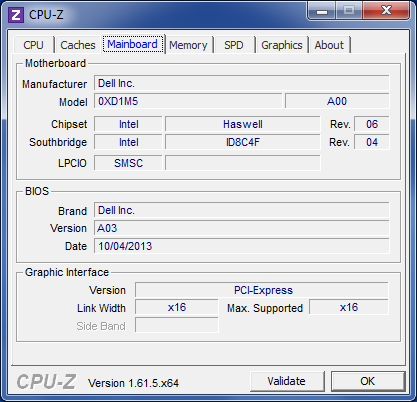

Mainboard

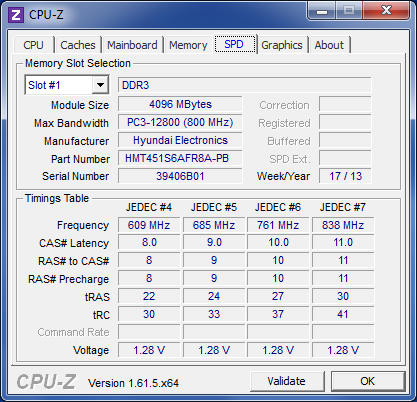

RAM SPD

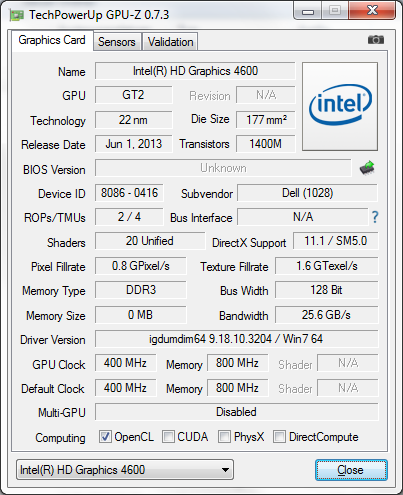

GPU Intel
GPU Nvidia
HD Tune

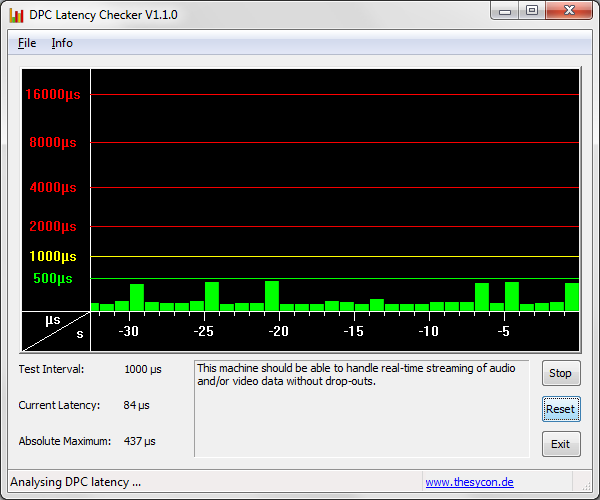

DPC Latency Checker
System information - Dell Precision M6800

Processor

Dell Precision M6800 Workstation
Dell Precision M6800 Workstation

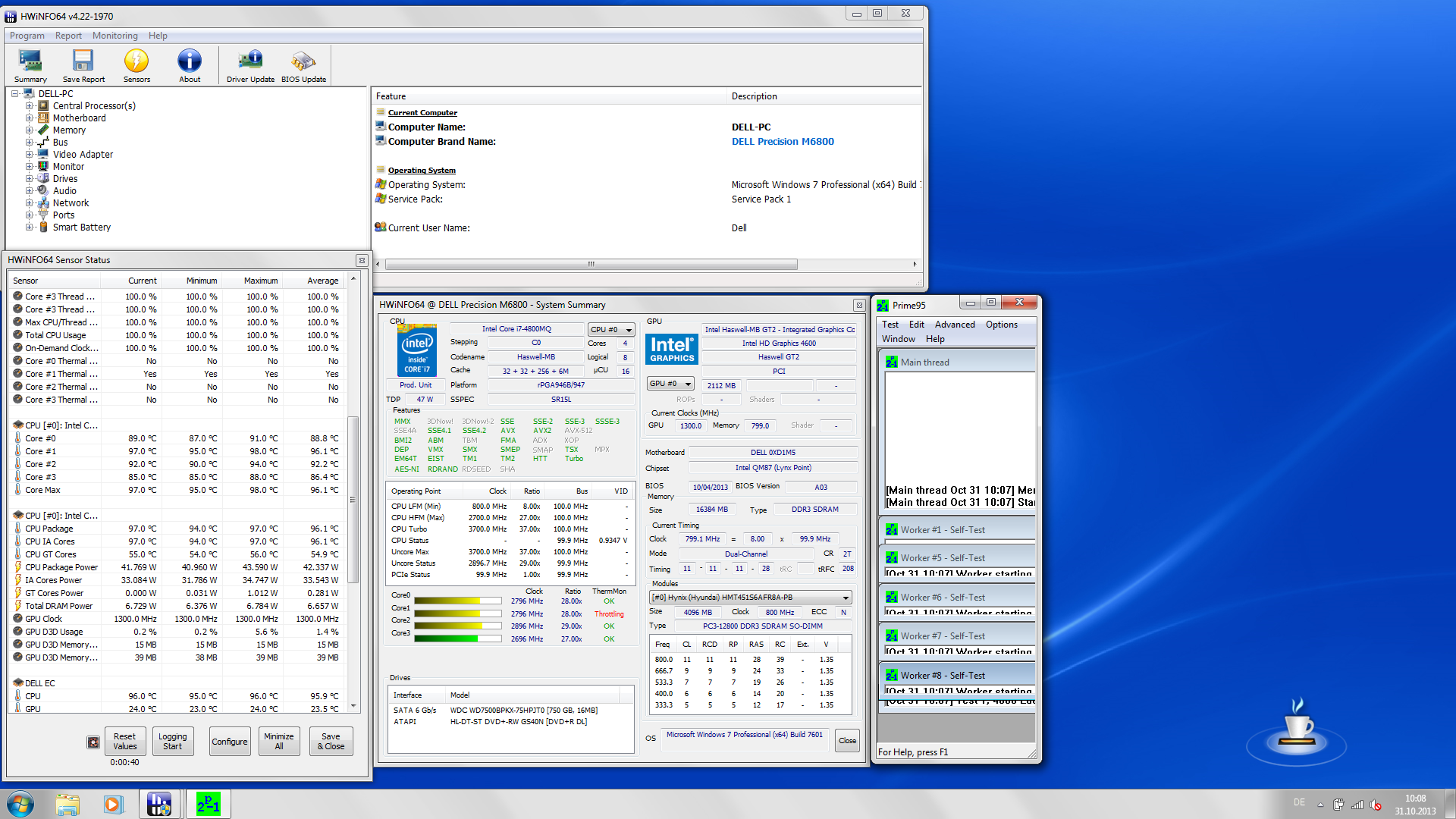

Multithread load with only Prime95
Multithread load with only Prime95

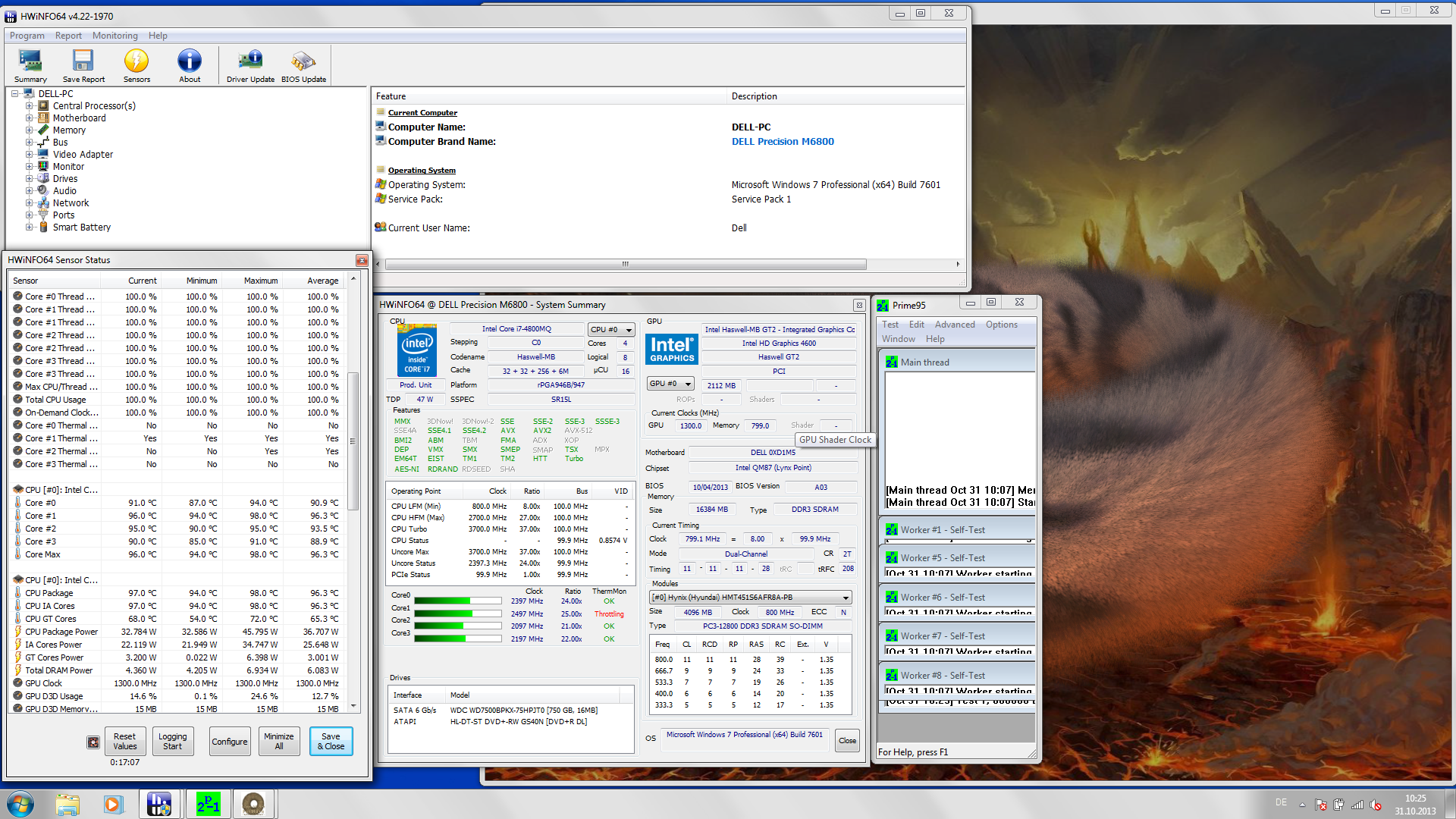

Multithread load with Prime95 + FurMark
Multithread load with Prime95 + FurMark

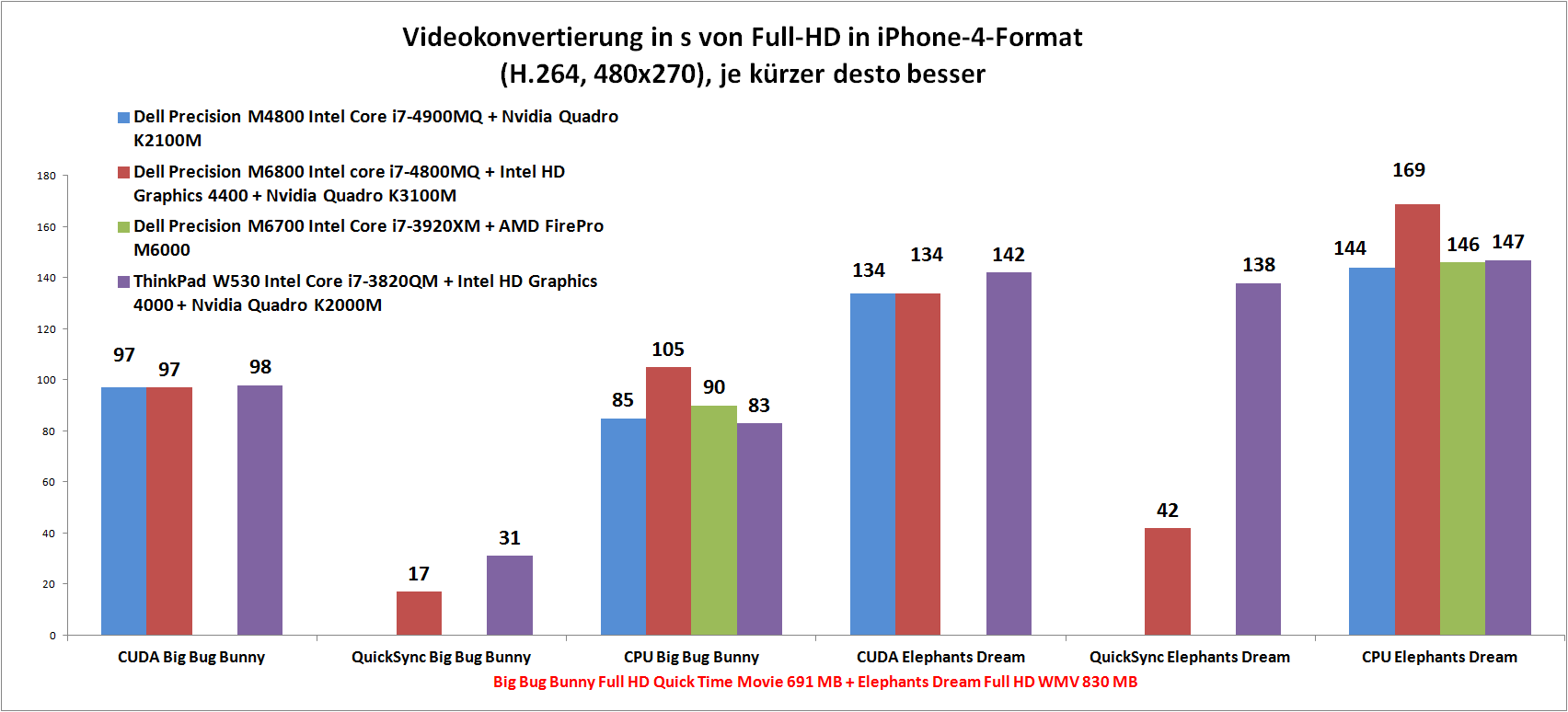

Video conversion
Video conversion
Audio conversion
Audio conversion

Intel Core i7-4800MQ-CPU (47 Watt TDP) is one of the fastest processors that can be currently found in a laptop. Thanks to Hyperthreading, up to eight threads can be simultaneously processed and thanks to Intel Turbo Boost the single clock speed can be raised from 2,700 MHz to 3,700 MHz. The difference in performance to the Intel Core i7-4900MQ, which runs at 2,800 - 3,800 MHz can be measured but is not tangible in everyday use. However, the Dell Precision M6800 shows a larger difference than we expected.

In the Cinebench R10 64-bit, we measure 6,665 points (single thread) and 21,426 points (multithread), which is quite a bit lower than the 7,112 points (single thread) and 27,537 points (multithread) of the i7-4900MQ in the Dell Precision M4800. This is a much larger difference than we would expect to see as the core clock speed differs by a mere 100 MHz. The Alienware 17 scores much better with the Intel Core i7-4800MQ: 7,051 points (single thread) and 25,111 points (multithread). This is in the region of what we would expect from our test model.

The HWinfo64 tool offers a possible explanation: as soon as the CPU processes multithreaded tasks, the core temperature reaches a constant 98 °C (208.4 °F) and is tagged with the throttling icon. In the CPU load test using Prime95, the clock speeds fluctuate right off the bat between 2.4 - 2.8 GHz (later with FurMark: between 2.1 and 2.5 GHz). We used the "Ultra Performance" profile (max fan levels) for our tests. It appears the cooling system is not capable of keeping the CPU temperature in control. This is a little surprising as the Precision M4800 with the Intel Core i7-4900MQ (47 Watt TDP) and the predecessor the Precision M6700 with the Intel Core i7-3920XM (55 Watt TDP) do not have such problems. We believe that this issue could be limited to our test model or the cooling system is not working as expected. If possible, we will check this again using a different configuration in a test update.

In everyday use, the multithreading weakness negatively affects pure CPU processing tasks. For example, although the Cyberlink MediaEspresso can distribute the work load on multiple cores, it requires longer to finish its task on our test model than on the weaker (supposedly) Intel Core i7-3820QM CPU of the previous generation (see image). In iTunes, the processor runs on a single core using its max clock speed of 3,600 MHz and iTunes works up to 57.6x faster. In this scenario, the processor ranks in the expected spot and supports our theory that performance drops only appear in the multi-core tasks.

On battery, we did not observe a drop in performance. The test model scores nigh identical points in the above-mentioned benchmarks on battery as with the power adapter plugged in.

Cinebench R10 Rendering Single CPUs 64Bit
6667 Points
Cinebench R10 Shading 64Bit
6837 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
21426 Points
Cinebench R10 Rendering Single 32Bit
5012
Cinebench R10 Rendering Multiple CPUs 32Bit
15633
Cinebench R10 Shading 32Bit
6831
Cinebench R11.5 CPU Single 64Bit
1.55 Points
Cinebench R11.5 OpenGL 64Bit
80.8 fps
Cinebench R11.5 CPU Multi 64Bit
5.49 Points
Cinebench R15 OpenGL 64Bit
84.2 fps
Cinebench R15 CPU Multi 64Bit
529 Points
Cinebench R15 CPU Single 64Bit
139 Points
Help

System Performance

As previously mentioned, the use of a standard HDD in this high-performance workstation is rather counterproductive (poorly affects the system performance). Although the user has a large storage space for files, the speed is lacking. In comparison to systems that use a Solid State Drive, the user will notice that the system is quite a bit slower, which translates to longer waiting times opening programs and files. As such, the Western Digital HDD is the Achilles' heel of this model and should be replaced as soon as possible (with an SSD or a faster HDD). In PC Mark Vantage, the laptop scored a mere 10,904 points and in PC Mark 7, it scores 3,325 points.

5.9
Windows 7 Experience Index
Processor
Calculations per second
7.6
Memory (RAM)
Memory operations per second
7.7
Graphics
Desktop performance for Windows Aero
7
Gaming graphics
3D business and gaming graphics
7
Primary hard disk
Disk data transfer rate
5.9
PCMark Vantage Result
10904 points
PCMark 7 Score
3325 points
Help

Storage Device

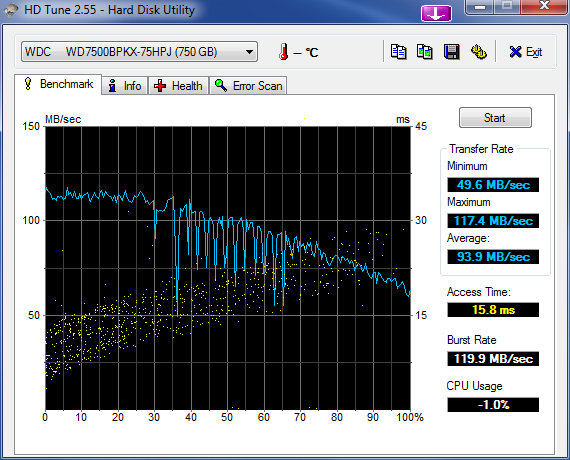

The traditional HDD from Western Digital offers up to 117 MB/s and has an access time of 15 ms (too high for a workstation). Replacing the HDD with a hybrid storage device or an SSD should improve the performance. The user is spoilt by the available options: a free mSATA slot (SATA6G), a free 2.5-inch slot (for storage devices) and an optional 2.5-inch optical drive caddy that can be used to insert a HDD/SSD in the optical drive slot. Sadly, the empty slot for WWAN cards in our test model did not recognize our Crucial M4 mSATA SSD and thus cannot be used for storage.

WDC Scorpio Black WD7500BPKT-80PK4T0
Transfer Rate Minimum: 49.6 MB/s
Transfer Rate Maximum: 117.4 MB/s
Transfer Rate Average: 93.9 MB/s
Access Time: 15.8 ms
Burst Rate: 119.9 MB/s
CPU Usage: 1 %

Graphics Card

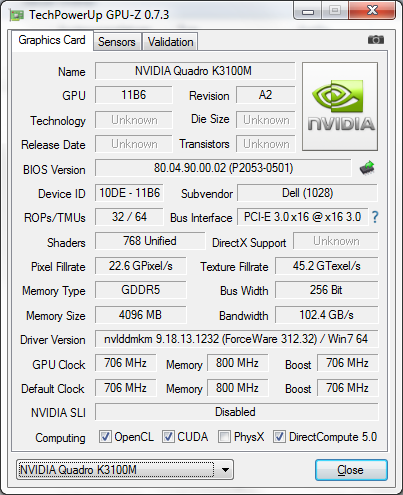

Our Dell Precision M6800 uses the latest Nvidia Quadro K3100M graphics. This card is specifically developed for professional graphics tasks and employs a custom BIOS and optimized Quadro drivers to get the most performance in special programs. The graphics card has a maximum core clock speed of 706 MHz and is equipped with 768 shaders. The 4 GB GDDR5 VRAM has a 256-bit memory interface and can reach a speed of up to 800 MHz. In comparison to the models of the Nvidia GeForce series, the Nvidia Quadro K3100 will place a little above the Nvidia GeForce GTX 760M in DirectX tasks.

In the SPECviewperf. 11 benchmark the performance of the graphics card is measured using multiple CAD programs. In some test sections, the Nvidia Quadro K3100M can clearly surpass the Nvidia Quadro K2100M of the Dell Precision M4800. However, the graphics card lags behind the Nvidia Quadro K5000M in Ensight and behind the AMD FirePro M4000 in Lightwave due to driver issues.

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision M6800
38.53 fps
Dell Precision M4800
30.39 fps -21%
Dell Precision M6700
42.07 fps +9%
HP EliteBook 8570w LY550EA-ABD
23.69 fps -39%
Dell Precision M6700
25.38 fps -34%
1920x1080 Tcvis (sort by value)
Dell Precision M6800
41.83 fps
Dell Precision M4800
33.86 fps -19%
Dell Precision M6700
47.72 fps +14%
HP EliteBook 8570w LY550EA-ABD
18.62 fps -55%
Dell Precision M6700
9.24 fps -78%
1920x1080 SolidWorks (sort by value)
Dell Precision M6800
48.25 fps
Dell Precision M4800
45.41 fps -6%
Dell Precision M6700
46.78 fps -3%
HP EliteBook 8570w LY550EA-ABD
45.85 fps -5%
Dell Precision M6700
43.13 fps -11%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision M6800
18.27 fps
Dell Precision M4800
18.97 fps +4%
Dell Precision M6700
17.16 fps -6%
HP EliteBook 8570w LY550EA-ABD
6.27 fps -66%
Dell Precision M6700
2.62 fps -86%
1920x1080 Maya (sort by value)
Dell Precision M6800
54.9 fps
Dell Precision M4800
52.6 fps -4%
Dell Precision M6700
56.7 fps +3%
HP EliteBook 8570w LY550EA-ABD
52.8 fps -4%
Dell Precision M6700
51.3 fps -7%
1920x1080 Lightwave (sort by value)
Dell Precision M6800
51 fps
Dell Precision M4800
50.9 fps 0%
Dell Precision M6700
50.6 fps -1%
HP EliteBook 8570w LY550EA-ABD
61 fps +20%
Dell Precision M6700
44 fps -14%
1920x1080 Ensight (sort by value)
Dell Precision M6800
34.18 fps
Dell Precision M4800
27.43 fps -20%
Dell Precision M6700
47.12 fps +38%
HP EliteBook 8570w LY550EA-ABD
18.8 fps -45%
Dell Precision M6700
24.98 fps -27%
1920x1080 Catia (sort by value)
Dell Precision M6800
50.3 fps
Dell Precision M4800
41.47 fps -18%
Dell Precision M6700
50.2 fps 0%
HP EliteBook 8570w LY550EA-ABD
16.28 fps -68%
Dell Precision M6700
14.86 fps -70%

Legend


Dell Precision M6800 Intel Core i7-4800MQ, NVIDIA Quadro K3100M, WDC Scorpio Black WD7500BPKT-80PK4T0

Dell Precision M4800 Intel Core i7-4900MQ, NVIDIA Quadro K2100M, Samsung SSD SM841 256GB MZ7PD256HAFV

Dell Precision M6700 Intel Core i7-3940XM, NVIDIA Quadro K5000M, Samsung SSD PM830 256 GByte mSATA

HP EliteBook 8570w LY550EA-ABD Intel Core i5-3360M, AMD FirePro M4000, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M6700 Intel Core i7-3920XM, AMD FirePro M6000, Samsung SSD PM830 (512 GB)

If the user employs the OpenCL interface, the Nvidia Quadro K3100M surpasses the Nvidia Quadro K2100M by a clear margin. We ran multiple tests from the lighting, finance, encryption and video/photo editing categories with a performance plus of 30 - 40 percent. This makes using the K3100M worth the money. The AMD FirePro graphics card provided an even bigger performance increase. In the Raytracing tasks of Luxmark 2.0, the user can see the difference in performance clearly: the AMD FirePro M4000 from the HP EliteBook 8570w of last year can surpass our model by a few hundred percent. The Nvidia CUDA interface and Intel’s Quick Sync video were already tested in the CPU section using Cyberlink MediaEspresso.

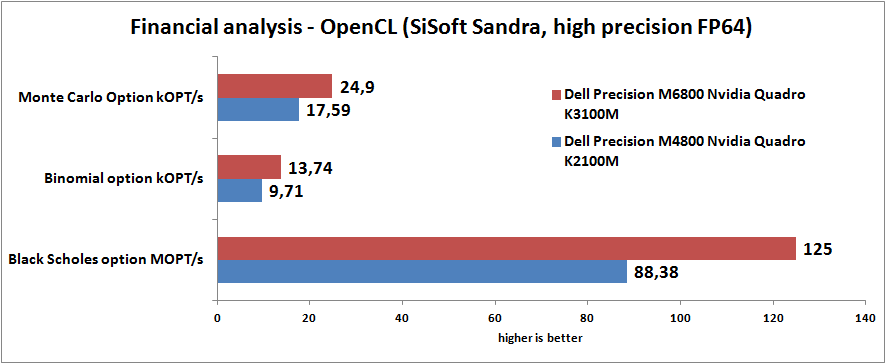

Finance mathematics - OpenCL
Finance mathematics - OpenCL

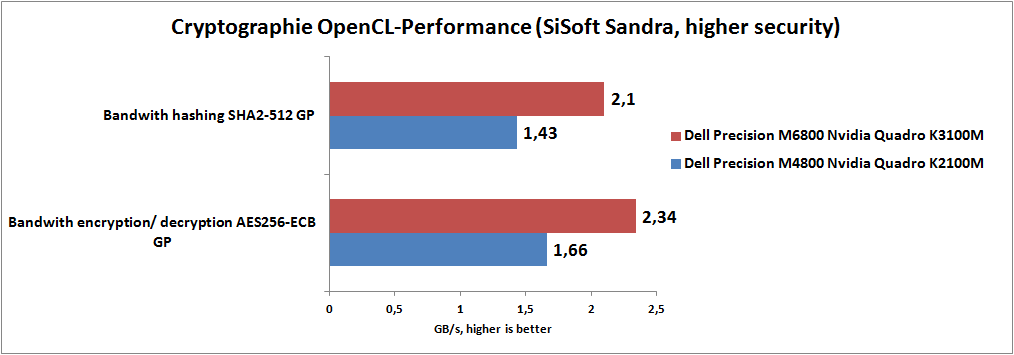

Cryptography OpenCL
Cryptography OpenCL

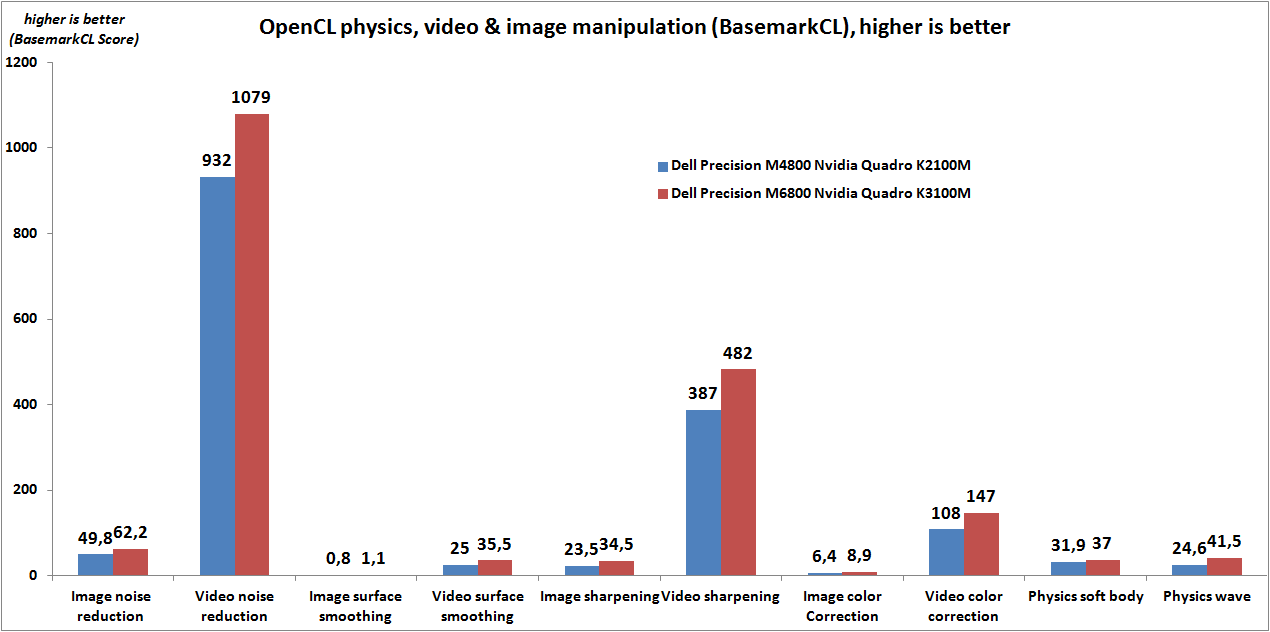

Picture and video editing, Physics OpenCL
Picture and video editing, Physics OpenCL
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision M6800
210 Samples/s
Dell Precision M4800
67 Samples/s -68%
HP EliteBook 8570w LY550EA-ABD
270 Samples/s +29%
Lenovo ThinkPad S531
147 Samples/s -30%
Sala GPUs-only (sort by value)
Dell Precision M6800
96 Samples/s
Dell Precision M4800
145 Samples/s +51%
HP EliteBook 8570w LY550EA-ABD
470 Samples/s +390%
Lenovo ThinkPad S531
244 Samples/s +154%

Legend


Dell Precision M6800 Intel Core i7-4800MQ, NVIDIA Quadro K3100M, WDC Scorpio Black WD7500BPKT-80PK4T0

Dell Precision M4800 Intel Core i7-4900MQ, NVIDIA Quadro K2100M, Samsung SSD SM841 256GB MZ7PD256HAFV

HP EliteBook 8570w LY550EA-ABD Intel Core i5-3360M, AMD FirePro M4000, Hitachi Travelstar Z7K500 HTS725050A7E630

Lenovo ThinkPad S531 Intel Core i7-3537U, AMD Radeon HD 8670M, Samsung SSD 840 250GB MZ7TD256HAFV

In standard 3D Mark tests, the graphics card performs great thanks to the optimally configured drivers. The Nvidia Quadro K3100M scores 15,120 points in 3D Mark Vantage and 3,662 points in 3D Mark 11, which is, as expected, a little better than the Nvidia GeForce GTX 760M. However, it cannot compete with an Nvidia GeForce GTX 770M, which has more shaders and higher clock speeds. The Quadro K3100M performs very well in the OpenGL test: 80.75 fps in Cinebench R11.5 OpenGL Shading are hard to reach, even for Crossfire and SLI systems, as shown by our benchmark ranking. Thus, the OpenGL optimization is great.

On battery, the performance of the card drops by three quarters. In Cinebench R11.5 OpenGL Shading, the graphics card scores a mere 22.36 fps instead of 80.75 fps.

3DMark 06 Standard Score
21257 points
3DMark Vantage P Result
15120 points
3DMark 11 Performance
3662 points
3DMark Ice Storm Standard Score
81160 points
3DMark Cloud Gate Standard Score
12079 points
3DMark Fire Strike Score
2259 points
Help

Gaming Performance

The gaming performance of the test model is very good, but it cannot run all games at maximum settings. 17 - 25 fps in Tomb Raider, Metro Last Light or Bioshock Infinite at maximum settings are not playable. Lowering the resolution and adjusting the graphics settings improves the game experience. As in the Dell Precision M6700 with the Nvidia Quadro K5000M graphics, we could not use the 1280x1024 and 1920x1080 pixel resolutions. In contrast, external monitors cannot use the standard 1366x768 or 1600x900 pixel resolutions.

low med. high ultra
World of Warcraft (2005) 372 203 95 47
StarCraft 2 (2010) 246 56
Total War: Shogun 2 (2011) 189 85 28
Deus Ex Human Revolution (2011) 264 49
Batman: Arkham City (2011) 194 50
Anno 2070 (2011) 193 28
Alan Wake (2012) 89 26
Diablo III (2012) 227 96
Dirt Showdown (2012) 89 34
Sleeping Dogs (2012) 136 19
Torchlight 2 (2012) 160 98
F1 2012 (2012) 161 83
World of Tanks v8 (2012) 113 38
Hitman: Absolution (2012) 61 19
Assassin´s Creed III (2012) 72 25
Tomb Raider (2013) 195 17
BioShock Infinite (2013) 149 22
Metro: Last Light (2013) 78 17
GRID 2 (2013) 159 28
Saints Row IV (2013) 26

Emissions

System Noise

The noise emissions of the Dell Precision M6800 depend on the load. During office, Internet use or photo editing, the workstation remains quiet. In these conditions, the user can hear the slight rumbling of the HDD at 29.2 dB(A). The use of an SSD would make the laptop completely silent.

At medium or max load, the emissions can reach a high of 51.3 dB(A). This turbine-like emission is disturbing and will force many users to choose the "Quiet" power profile (reduced fan levels), thereby reducing performance. The CPU then runs at a constant 2.3 GHz and the emissions reach a modest 45.2 dB(A).

Noise Level

Idle
29.2 / 29.2 / 29.2 dB(A)
HDD
29.2 dB(A)
DVD
36.5 / dB(A)
Load
51.3 / 51.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   PCE-322A (15 cm distance)

Temperatures

The case temperatures do not exceed the 40 °C (104 °F) level even at full load. Both fans push the hot air out of the laptop thus keeping the temperatures low. The temperatures near the docking interface seem unusually high: at 47.2 °C (116.96 °F) (like in the Dell Precision M6700), the notebook is clearly hotter in this area than in others. Overall, the temperatures, in comparison to the predecessor, are much lower, especially as the system now requires less power. As such, we can confirm that the cooling system does a good job and has plenty of room for more cooling.

Max. Load
 39.8 °C
104 F
29.8 °C
86 F
27.3 °C
81 F

 27.4 °C
81 F
37.3 °C
99 F
27.2 °C
81 F

 24.6 °C
76 F
26.6 °C
80 F
24.8 °C
77 F

Maximum: 39.8 °C = 104 F
Average: 29.4 °C = 85 F
35.3 °C
96 F
39 °C
102 F
28.3 °C
83 F
29.8 °C
86 F
38.2 °C
101 F
30.6 °C
87 F
28 °C
82 F
27.5 °C
82 F
26 °C
79 F
Maximum: 39 °C = 102 F
Average: 31.4 °C = 89 F
Power Supply (max.)  42.9 °C = 109 F | Room Temperature 20 °C = 68 F | Fennel Firt 550
(+) The average temperature for the upper side under maximal load is 29.4 °C / 85 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29.5 °C / 85 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.7 °C / 85.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-1.9 °C / -3.5 F).

Speakers

The integrated speakers surpass typical speakers found in business notebooks with their balanced sound output. The sound has dominant highs but also offers bass and middles. Presentations in small groups are feasible as the max volume is loud enough for every participant to clearly hear the audio. We like the various volume levels and the separate audio jacks, which allow the user to employ headsets with two jacks. External solutions can be used via Bluetooth, USB, audio jack or HDMI.

Energy Management

Power Consumption

In a past review, we noted a flaw of the Dell Precision M4800: it lacked Nvidia Optimus, which allows the user to automatically switch between the IGP of the processor and the dedicated graphics card. In our test model, this technology is used which allows the power consumption to stay low while idle or at low load. The minimum power consumption of the Precision M4800 was 13.6 W whereas our test model consumes a mere 7.6 W. At medium settings, the model consumes 19.2 W and in "High Performance" (with wireless modules turned on and max brightness) the laptop requires 25.9 W. The difference in this scenario is around 8 W.

At medium and high load, the tables turn: the Precision M4800 consumes less as our test model runs a much more power-hungry graphics card. Our large workstation requires 121.8 W (M4800: 80.2 W) and 141.7 W (M4800: 107.6 W). The battery has a capacity of 97 Wh, which is identical and the power adapter offers 240 W delivery.

Power Consumption
Off / Standbydarklight 0.5 / 0.6 Watt
Idledarkmidlight 13.6 / 19.2 / 25.9 Watt
Load midlight 121.8 / 141.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Life

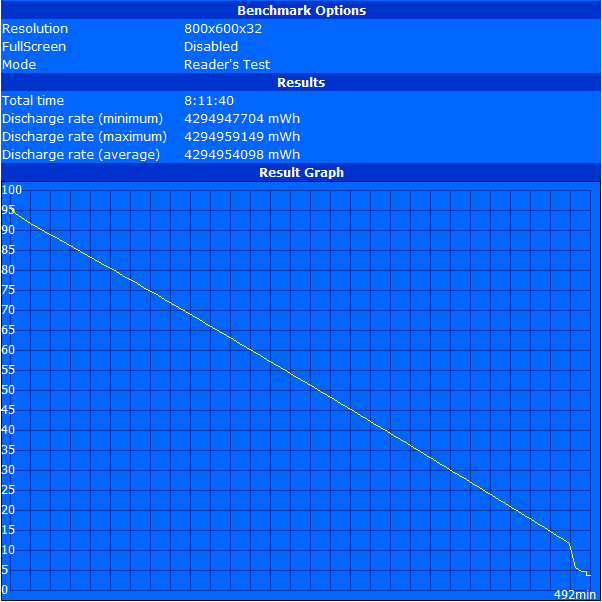

Battery Eater Reader's Test
Battery Eater Reader's Test

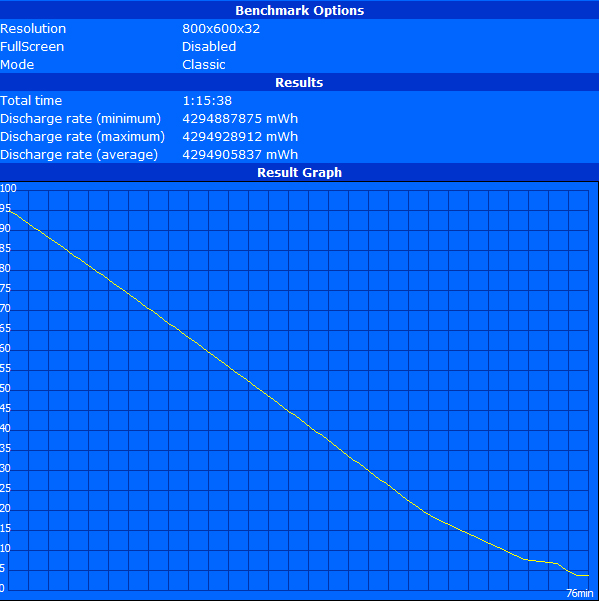

Battery Eater Classic Test
Battery Eater Classic Test

The battery life extends when the Intel HD Graphics 4400 is used. In the Battery Eater Reader’s test (minimum brightness of 31 cd/m², wireless off, "Power Saver" mode, Intel IGP) the Dell Precision M6800 can last over 8 hours without being plugged in. While surfing the Internet using WLAN (147 cd/m² - brightness level 8, "Power Saver" mode, wireless modules on), the laptop can last 6 hours. The user can play movies using DVDs for up to 5 hours (max brightness, wireless off) and the full load scenario in Battery Eater Classic test (max brightness, "Ultra Performance", everything on) can be run for about 2 hours. This relatively long run time at full load is thanks to the automatic reduction of the graphics performance to one-fourth of its power.

Battery Runtime
Idle (without WLAN, min brightness)
8h 12min
WiFi Surfing
5h 52min
DVD
4h 51min
Load (maximum brightness)
1h 15min

Verdict

Dell Precision M6800
Dell Precision M6800

The Dell Precision M6800 is a step in the right direction: the case, keyboard and connectivity are very good and remain solid pros for this series. The upgrade and maintenance options, support and warranty packets as well as the extensive accessories catalog are further pros.

The test model uses a Full HD display, which has nice properties such as accurate color depiction (for professional work). Although the relatively heavy Dell Precision M6800 is not ideal for mobile work, it has good battery life thanks to the switchable graphics, which allow the laptop to run 2 - 6 hours.

Overall, the performance during normal use and in CAD is very good, but the CPU performance is decidedly weaker due to its multithread weakness. This is noticeable in benchmarks as well as in programs that utilize multithreading.

Although we believe this to be a problem limited to our test model, the limited configuration options for the private users and the relatively high pricing are additional cons that will affect the purchase decision.

Read all 18 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review: Dell Precision M6800
In Review: Dell Precision M6800, test model provided by: Dell Deutschland

Specifications

Dell Precision M6800
Processor
Intel Core i7-4800MQ 4 x 2.7 - 3.7 GHz (Intel Core i7)
Graphics adapter
NVIDIA Quadro K3100M - 4 GB VRAM, Core: 706 MHz, Memory: 800 MHz, Forceware 312.32 Win7/64, Nvida Optimus mit Intel HD Graphics 4600
Memory
16 GB
, 4 x 4 GB PC3-12800 Hynix, max. 32 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel, LGD02DA, TN LED, glossy: no
Mainboard
Intel QM87 (Lynx Point)
Storage
WDC Scorpio Black WD7500BPKT-80PK4T0, 750 GB
, 7200 rpm, WDC WD7500BPKX-75HP, 750 GB
Soundcard
HD Audio
Connections
1 Express Card 54mm, 1 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 eSata, 1 Docking Station Port, Audio Connections: 1x microphone, 1x headphones, Card Reader: 1 x 9-in-1-card reader, 1 SmartCard
Networking
Intel I217-LM Gigabit Network Connection (10/100/1000MBit/s), Dell Wireless 1550 802.11ac (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optical drive
HL-DT-ST DVD+-RW GS40N
Size
height x width x depth (in mm): 37 x 417 x 271 ( = 1.46 x 16.42 x 10.67 in)
Battery
97 Wh Lithium-Ion
Operating System
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: 720p
Additional features
Keyboard Light: yes, 36 Months Warranty
Weight
3.83 kg ( = 135.1 oz / 8.44 pounds), Power Supply: 990 g ( = 34.92 oz / 2.18 pounds)
Price
2450 Euro



The Dell Precision M6800 is a large yet mobile 17-inch workstation.
The Dell Precision M6800 is a large yet mobile 17-inch workstation.
The professional Nvidia Quadro K3100M graphics card ensures ...
The professional Nvidia Quadro K3100M graphics card ensures ...
... great performance with CAD, DCC, medicine, geographic survey and imaging tools.
... great performance with CAD, DCC, medicine, geographic survey and imaging tools.
The large case offers a multitude of configuration and upgrade options.
The large case offers a multitude of configuration and upgrade options.
Furthermore it is a good base for a powerful cooling system.
Furthermore it is a good base for a powerful cooling system.
The exterior has barely changed ...
The exterior has barely changed ...
... in comparison to the Dell Precision M6700.
... in comparison to the Dell Precision M6700.
The case is really heavy ...
The case is really heavy ...
... but thanks to this it offers a remarkable sturdiness and build quality.
... but thanks to this it offers a remarkable sturdiness and build quality.
The modest mobility is balanced out by the good battery life.
The modest mobility is balanced out by the good battery life.
The cooling system has two fans which provide ventilation for the CPU and GPU.
The cooling system has two fans which provide ventilation for the CPU and GPU.
Multiple ports are placed near the back of the laptop.
Multiple ports are placed near the back of the laptop.
The sides accomodate even more and these are placed in relatively practical positions.
The sides accomodate even more and these are placed in relatively practical positions.
The area around the optical drive looks a little narrow.
The area around the optical drive looks a little narrow.
The hand-rest regions are secure, ...
The hand-rest regions are secure, ...
... the keyboard does not deform ...
... the keyboard does not deform ...
... and the display hinges hold the screen in position.
... and the display hinges hold the screen in position.

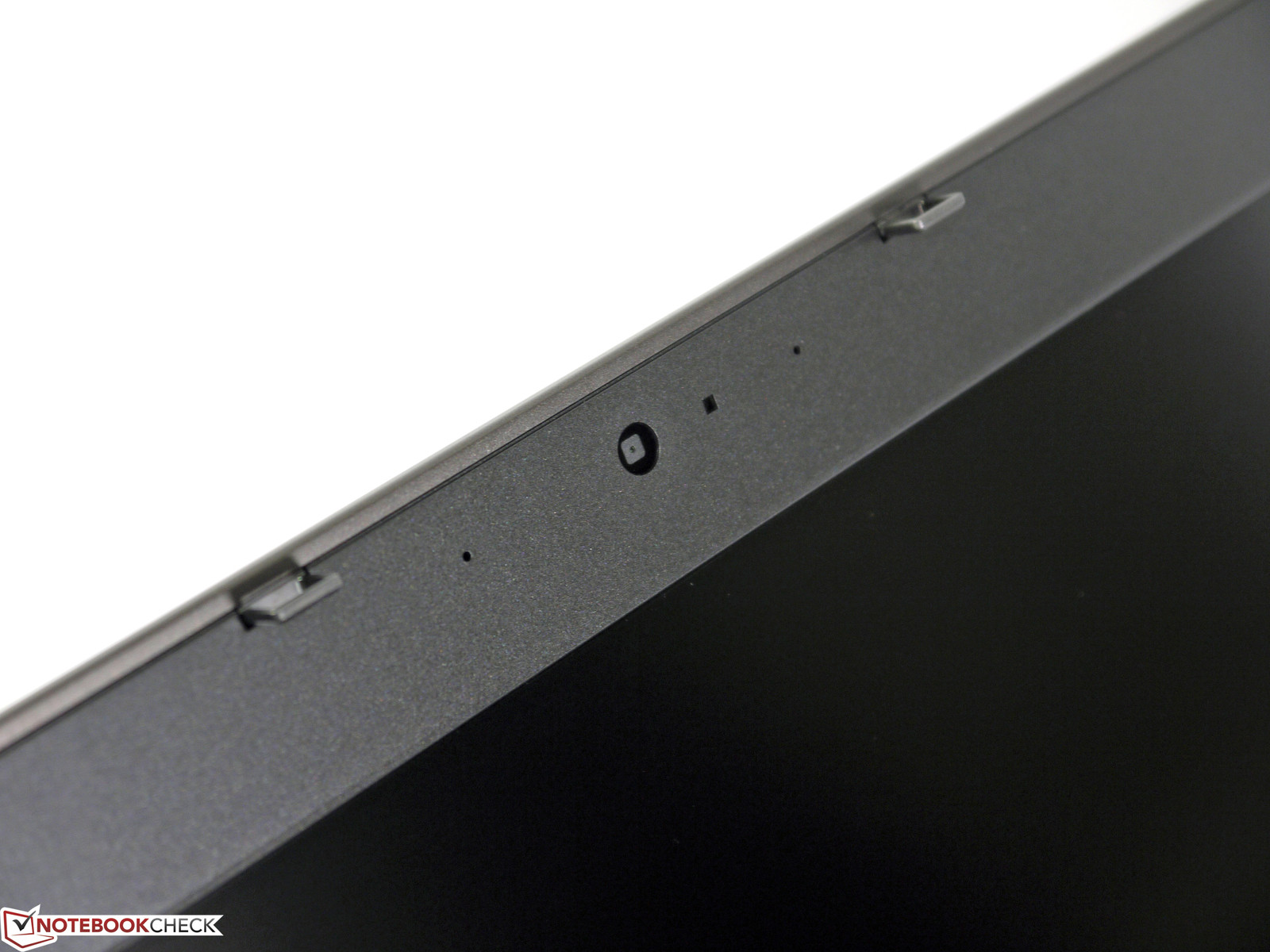

Webcam, microphone and hook clasp.
Webcam, microphone and hook clasp.
The primary storage drive can be taken out from the side.
The primary storage drive can be taken out from the side.
HDMI, DisplayPort and VGA provide video output to external monitors.
HDMI, DisplayPort and VGA provide video output to external monitors.
The gaps between the ports should have been larger.
The gaps between the ports should have been larger.
Wide sticks can block neighboring ports.
Wide sticks can block neighboring ports.
ExpressCard/34 or ExpressCard/54 allows the user to add ports.
ExpressCard/34 or ExpressCard/54 allows the user to add ports.
A 240 W power adapter is provided.
A 240 W power adapter is provided.

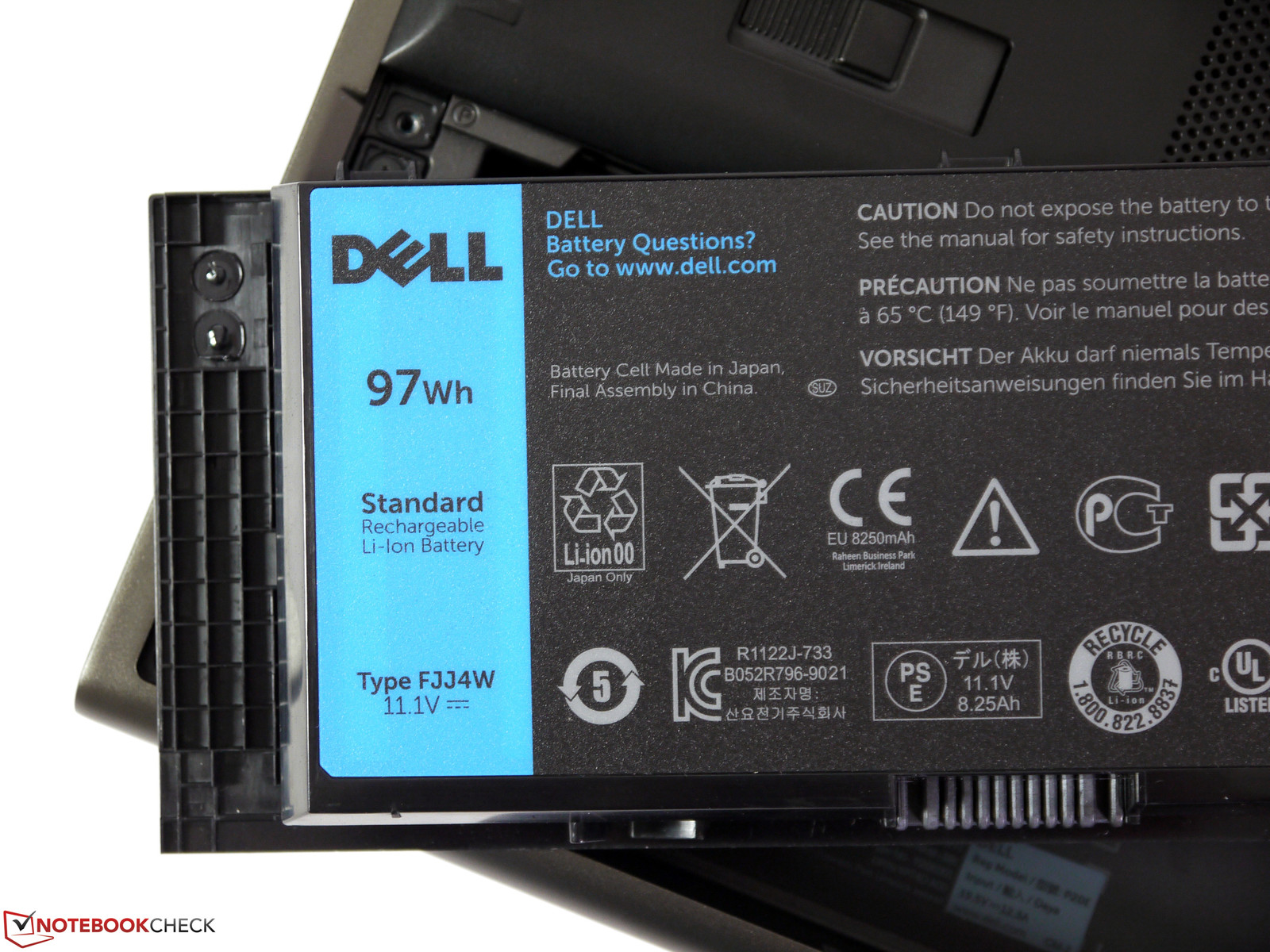

The battery has a capacity of 97 Wh.
The battery has a capacity of 97 Wh.
The bottom of the laptop looks well-designed.
The bottom of the laptop looks well-designed.
The SIM card is inserted in the battery slot.
The SIM card is inserted in the battery slot.
A second hard disk slot offers space for another SSD or HDD.
A second hard disk slot offers space for another SSD or HDD.
The preparations for a mobile broadband module have already been made.
The preparations for a mobile broadband module have already been made.
An mSATA SSD can also be installed.
An mSATA SSD can also be installed.
WLAN and Bluetooth 4.0 are on-board.
WLAN and Bluetooth 4.0 are on-board.
The cooler fan can be easily cleaned or even swapped out.
The cooler fan can be easily cleaned or even swapped out.
A free slot with half width is available.
A free slot with half width is available.
Two RAM modules can be found in the bottom of the laptop while two more are hidden below the keyboard.
Two RAM modules can be found in the bottom of the laptop while two more are hidden below the keyboard.
The docking port has stayed the same, which means it accepts the older stations as well.
The docking port has stayed the same, which means it accepts the older stations as well.

Similar Devices

Devices with Same Screen Size and/or Weight

Nvidia RTX 3000 Ada performance debut: Dell Precision 5480 workstation review
NVIDIA RTX 3000 Ada Generation Laptop GPU, Raptor Lake-H i9-13900H, 14.00", 1.604 kg
Dell Precision 5680 review: Ada Lovelace dominates on workstations
NVIDIA RTX 5000 Ada Generation Laptop GPU, Raptor Lake-H i9-13900H, 16.00", 2.291 kg
Nvidia RTX A5500 debut: Dell Precision 7670 Performance workstation review
RTX A5500 Laptop GPU, Alder Lake-S i9-12950HX, 16.00", 2.849 kg
Dell Precision 7670 workstation review: Core i7-12850HX and CAMM RAM debut
RTX A2000 Laptop GPU, Alder Lake-S i7-12850HX, 16.00", 2.724 kg
Dell Precision 5470 workstation review: Nvidia RTX A1000 debut
RTX A1000 Laptop GPU, Alder Lake-P i9-12900H, 14.00", 1.621 kg
Dell Precision 5560 workstation review: The Quadro RTX A2000 boost
RTX A2000 Laptop GPU, Tiger Lake i7-11850H, 15.60", 2.006 kg
Dell Precision 3551 Laptop Review: Intel Core i9-10885H Debut
Quadro P620, Comet Lake i9-10885H, 15.60", 2.2 kg

Links

Price Comparison

Pros

+Case
+Upgrade options
+Assortment of port and positioning
+Keyboard
+System performance
+CAD performance
+Noise emissions and battery life during low load


Cons

-Weight
-Customization options for private users
-Price
-Fluctuating CPU clock in test model

Shortcut

What we like

The combination of low emissions, high performance and solid business qualities.

What we miss

A fingerprint reader, better multithread performance and more customization options for private users. A more detailed product description would also be nice.

What surprises us

There is no option for a QHD+ display for this 17-inch model. We were also surprised that the test model used a traditional HDD.

The competition

From this year, we have only tested the Dell Precision M4800. The new Lenovo ThinkPad-, HP ZBook-, Toshiba Tecra- and Fujitsu Celsius workstations are going to hit our test benches soon. Perhaps the buyer might find a good deal amongst the predecessors: for example, the Dell Precision M6700, the Fujitsu Celsius H920 and the HP EliteBook 8770w.

Rating

Dell Precision M6800 - 03/21/2014 v4(old)
Tobias Winkler

Chassis
83 / 98 → 85%
Keyboard
90%
Pointing Device
72%
Connectivity
87 / 81 → 100%
Weight
51 / 10-66 → 73%
Battery
84%
Display
80%
Games Performance
89%
Application Performance
68%
Temperature
89 / 95 → 94%
Noise
75 / 90 → 83%
Audio
55%
Camera
42 / 85 → 49%
Average
74%
79%
Workstation - Weighted Average
Tobias Winkler, 2013-11-11 (Update: 2018-05-15)
