Minix Elite EU512-AI review: A particularly energy-efficient Core Ultra Mini PC

Where's the turbo?

Mini PCs from the Far East often advertise low prices but come with underpowered processors like the Intel N100. That’s not the case with the Elite series from Minix - these models are equipped with Intel Core Ultra CPUs, yet prices start at just €668 ($780) or €829 ($967). We’re putting this AI-powered mini PC to the review to see what it really offers.
Christian Hintze, 👁 Christian Hintze, Ninh Duy (translated by DeepL / Ninh Duy) Published 🇩🇪 🇫🇷 ...
AI Arc Benchmark CPU Gadget Meteor Lake Mini PC Intel

Verdict - Energy-efficient, yet the Core Ultra is underwhelming

The Core Ultra 5 125H can theoretically consume 115W in Turbo mode - but not in the Minix Elite EU512-AI, which is capped at 50W. This limitation shows up clearly in all CPU and GPU benchmarks, where similarly equipped competitors often perform significantly better.

On the other hand, the Minix is much more energy-efficient than many of its rivals with similar specs and easily handles everyday office tasks without needing more power. While there are more affordable mini PCs with lower-power CPUs, they typically lack a built-in NPU for AI workloads. workloads.

Pros

+ Sturdy metal case
+ Second M.2 SSD slot
+ TB4, dual Ethernet, and Wi-Fi 6E
+ Quiet and power-efficient

Cons

- Highly throttled Ultra CPU
- SSD throttles quickly under load
- Only 1 USB-A at the back

Price and availability

On the manufacturer's website, our configuration costs €829 ($967). At our loaner Geekmaxi, the model costs €659 ($768) with discount code"CKDI8P1Q".

Amazon Logo
  • $829.90
    MINIX EU512-AI Mini PC Intel Core Ultra 5 125H 16GB DDR5/512GB SSD 8K Quad Output/Thunderbolt 4/Whisper-Quiet Office Design/AI Boost NPU/Dual 2.5G/Wi-Fi 6E Windows 11 Pro Home & Business Computer
  • $31.00
    FRUPART for Minix Elite EU512-AI DC5V 0.70A Replacement MINI PC CPU Fan

According to its website, the Minix Group was founded in 2004 and is known for its mini PCs. Over time, the company has expanded its product range to include consumer electronics, automotive tech, travel accessories, and home office solutions. The German-language version of the website contains a few translation errors and some "interesting" AI images. Minix devices are also available on Amazon.

There are currently two models in the Minix Elite series. We're reviewing the lower-tier configuration, which features the Intel Core Ultra 5 125H and starts at $639 on Amazon. The higher-end variant, equipped with a Core Ultra 7 155H, is priced at around $999. Our review unit comes with a single 16 GB RAM module, while the more expensive models include 2×16 GB for dual-channel performance.

Minix Elite EU512-AI vs
Minix Elite EU512-AI vs
Minix Elite EU715-AI
Minix Elite EU715-AI

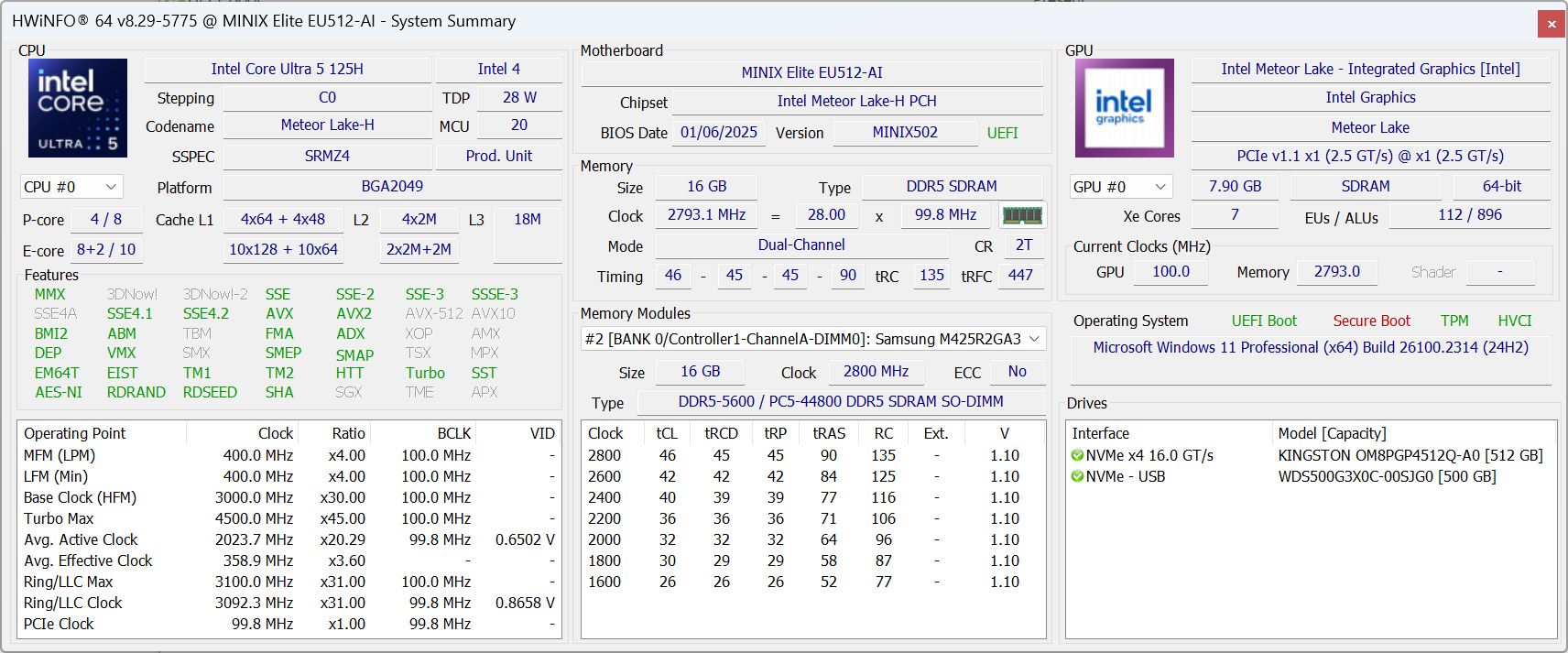

Specifications

Minix Elite EU512-AI
Processor
Intel Core Ultra 5 125H 14c/18t, 4 x 4.5 GHz Intel Redwood Cove P-Core, 8 x 3.6 GHz Intel Crestmont E-Core, 2 x 2.5 GHz Intel Crestmont E-Core, 75 W PL2 / Short Burst, 45 W PL1 / Sustained, Meteor Lake-H
Graphics adapter
Memory
16 GB

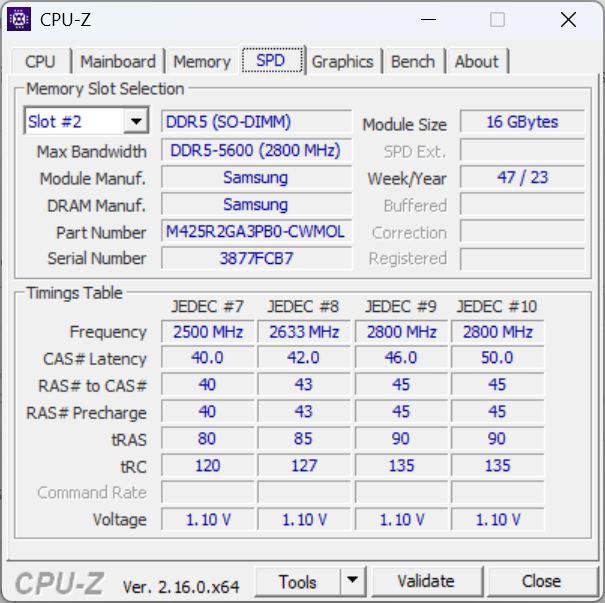

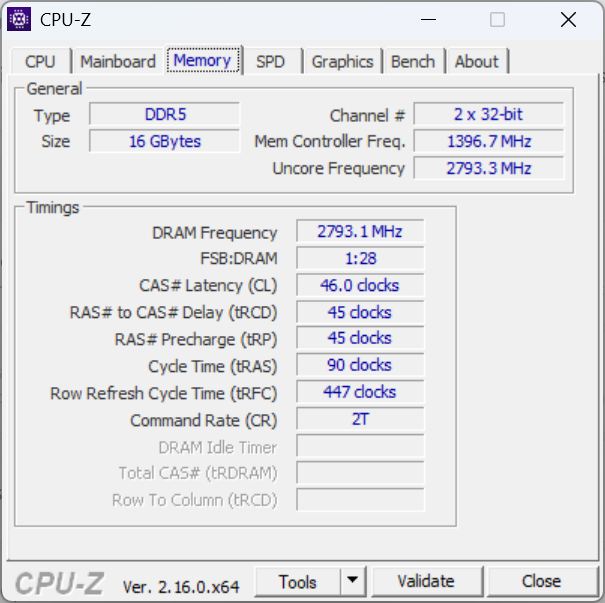

, 1x 16 GB Samsung DDR5-5600, 1 free slot
Mainboard
Intel Arrow Lake-H PCH
Storage
Kingston OM8PGP4512Q-A0, 512 GB
, Partitioned, 450 GB free
Soundcard
Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)
Connections
3 USB 3.1 Gen2, 1 USB 3.2 Gen 2x2 20Gbps, 1 USB4 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset jack
Networking
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth Bluetooth 5.3
Size
height x width x depth (in mm): 39.5 x 140 x 139.7 ( = 1.56 x 5.51 x 5.5 in)
Operating System
Microsoft Windows 11 Pro
Additional features
12 Months Warranty
Weight
772 g ( = 27.23 oz / 1.7 pounds)
Price
829 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Case and equipment

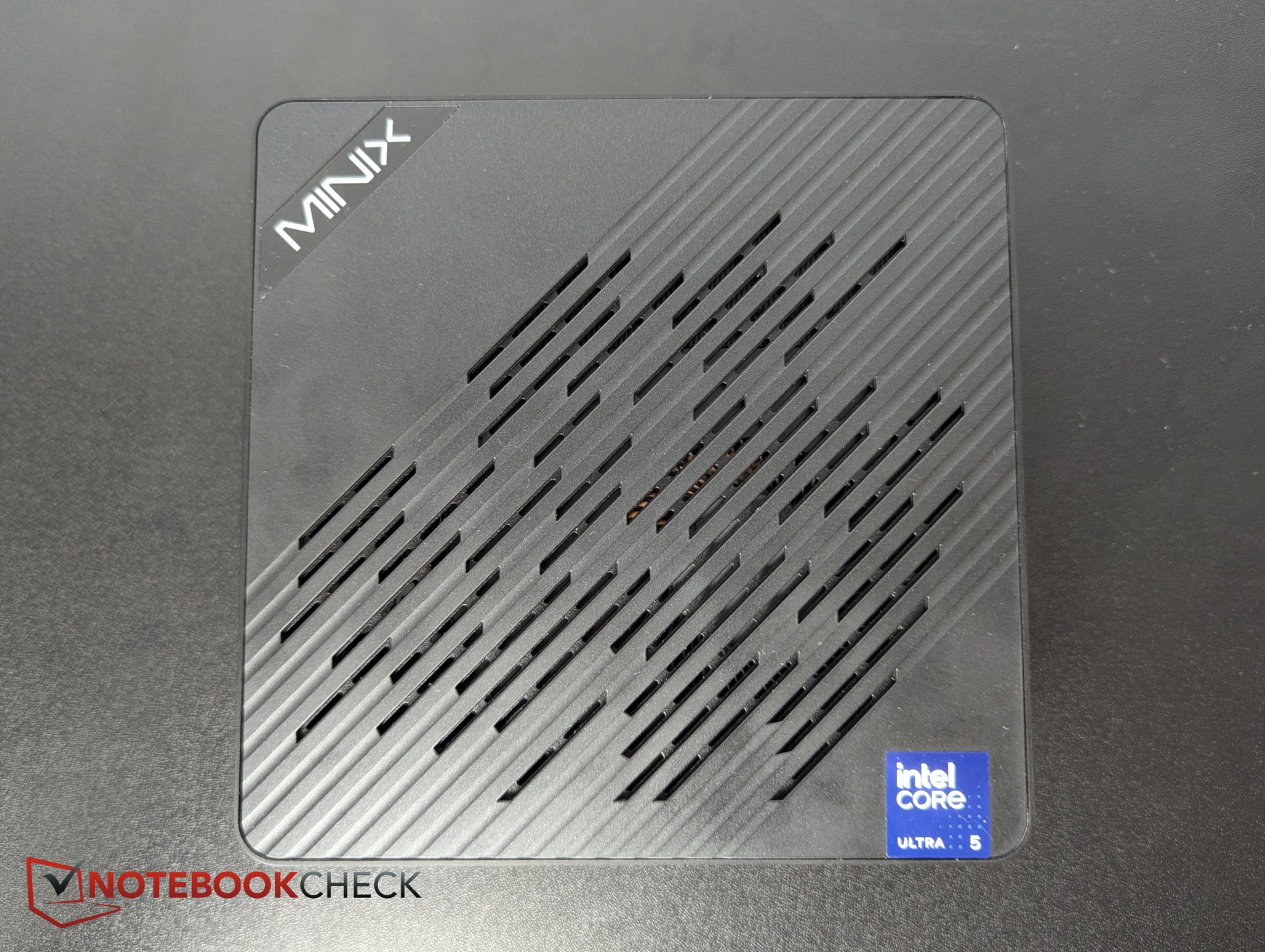

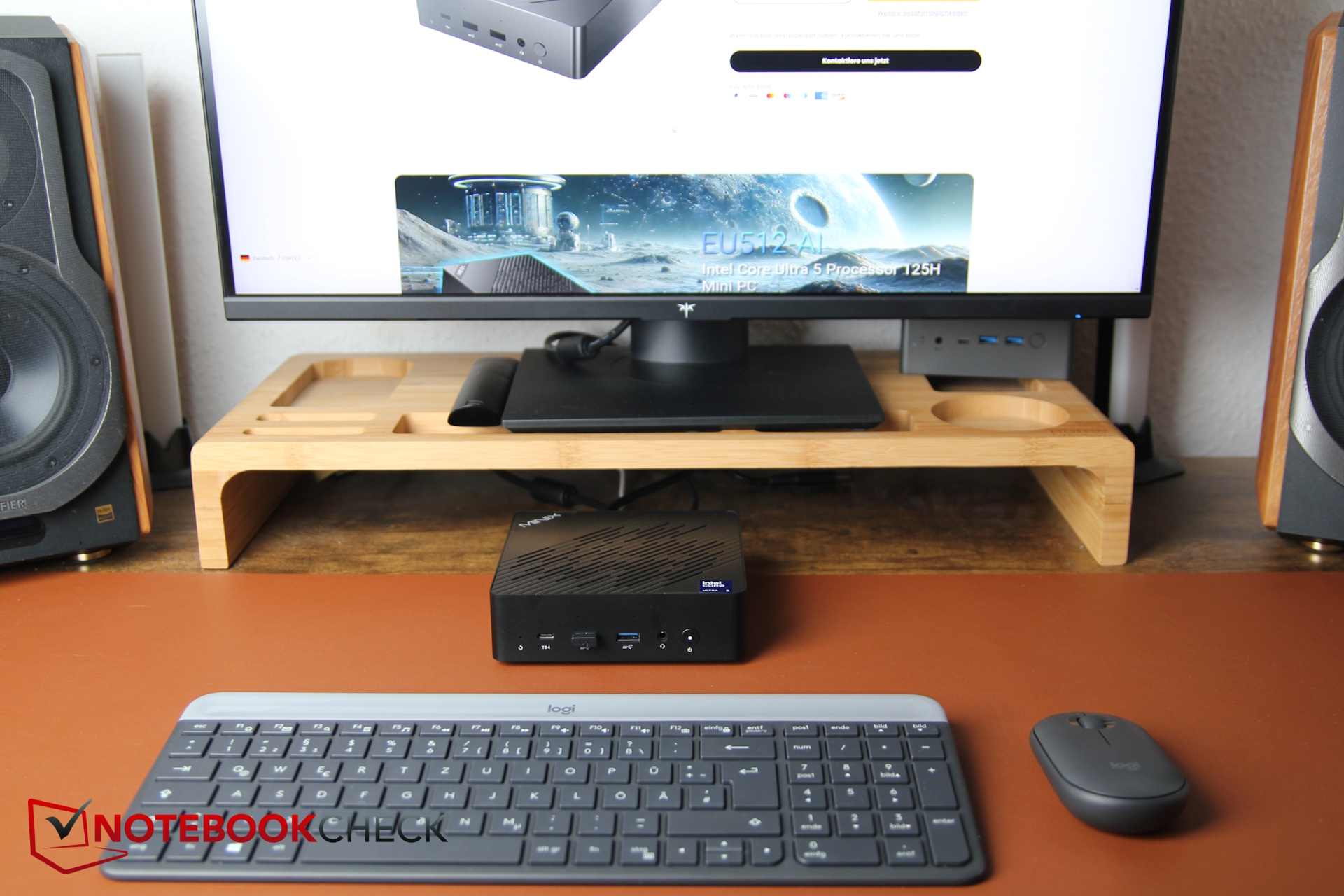

The case is made of metal all around and also conveys a high quality, thanks in part to its weight.

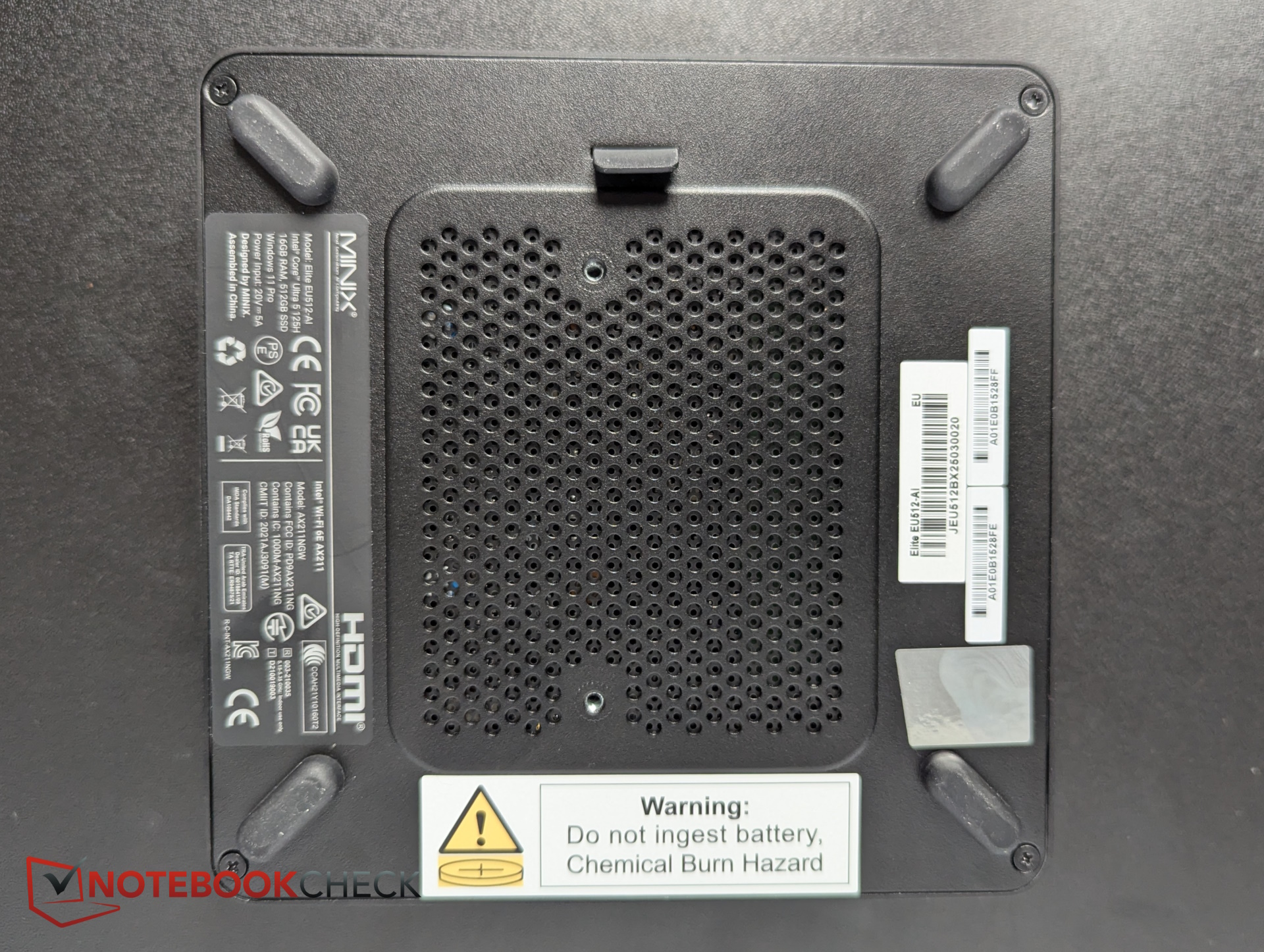

By removing just four Phillips screws from the bottom, you can access the interior, which includes one populated and one empty M.2 slot. There are also two RAM slots, one of which is occupied with 16 GB, the other is still empty.

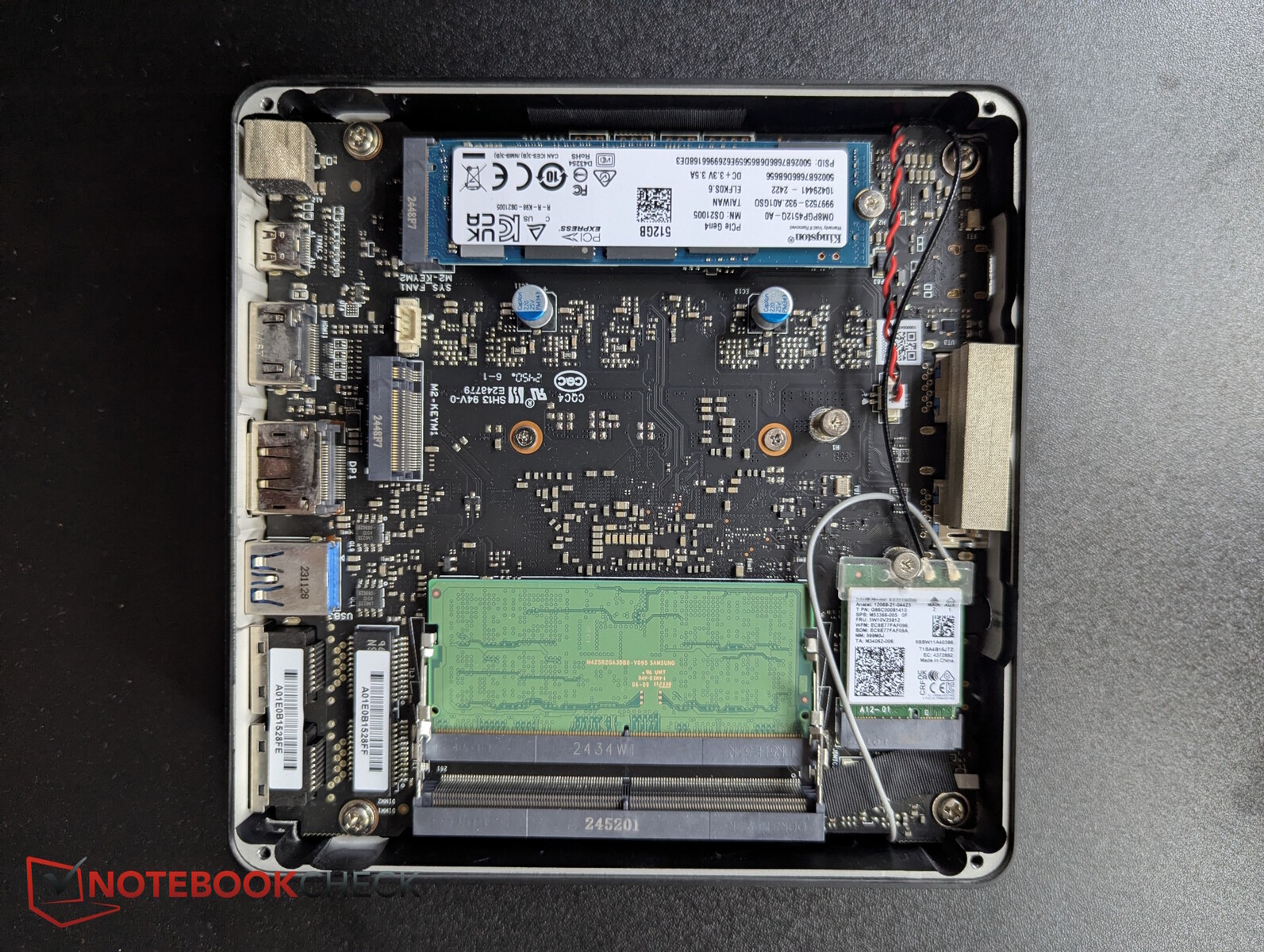

Open Minix Elite
Open Minix Elite

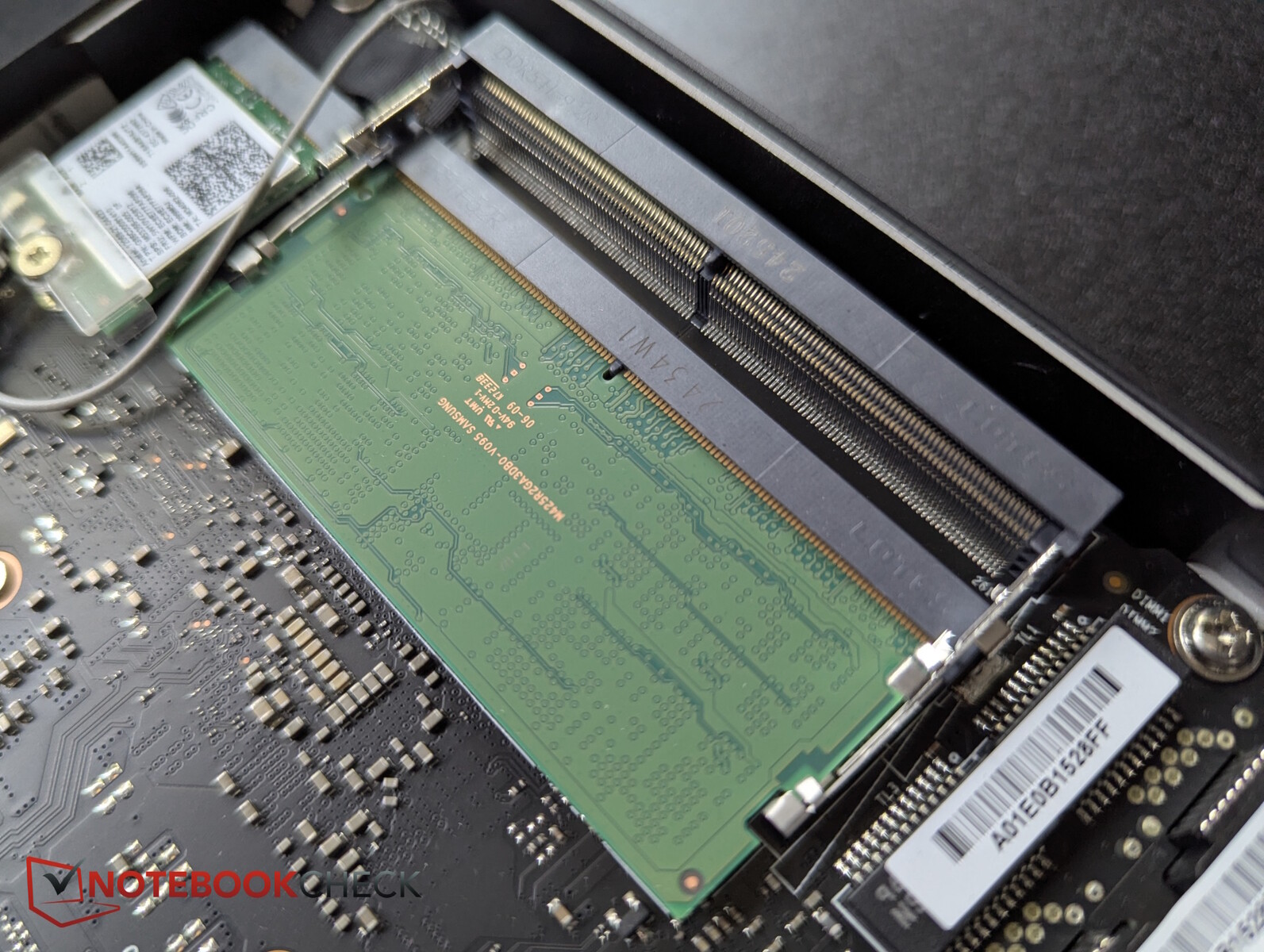

1 free RAM slot
1 free RAM slot

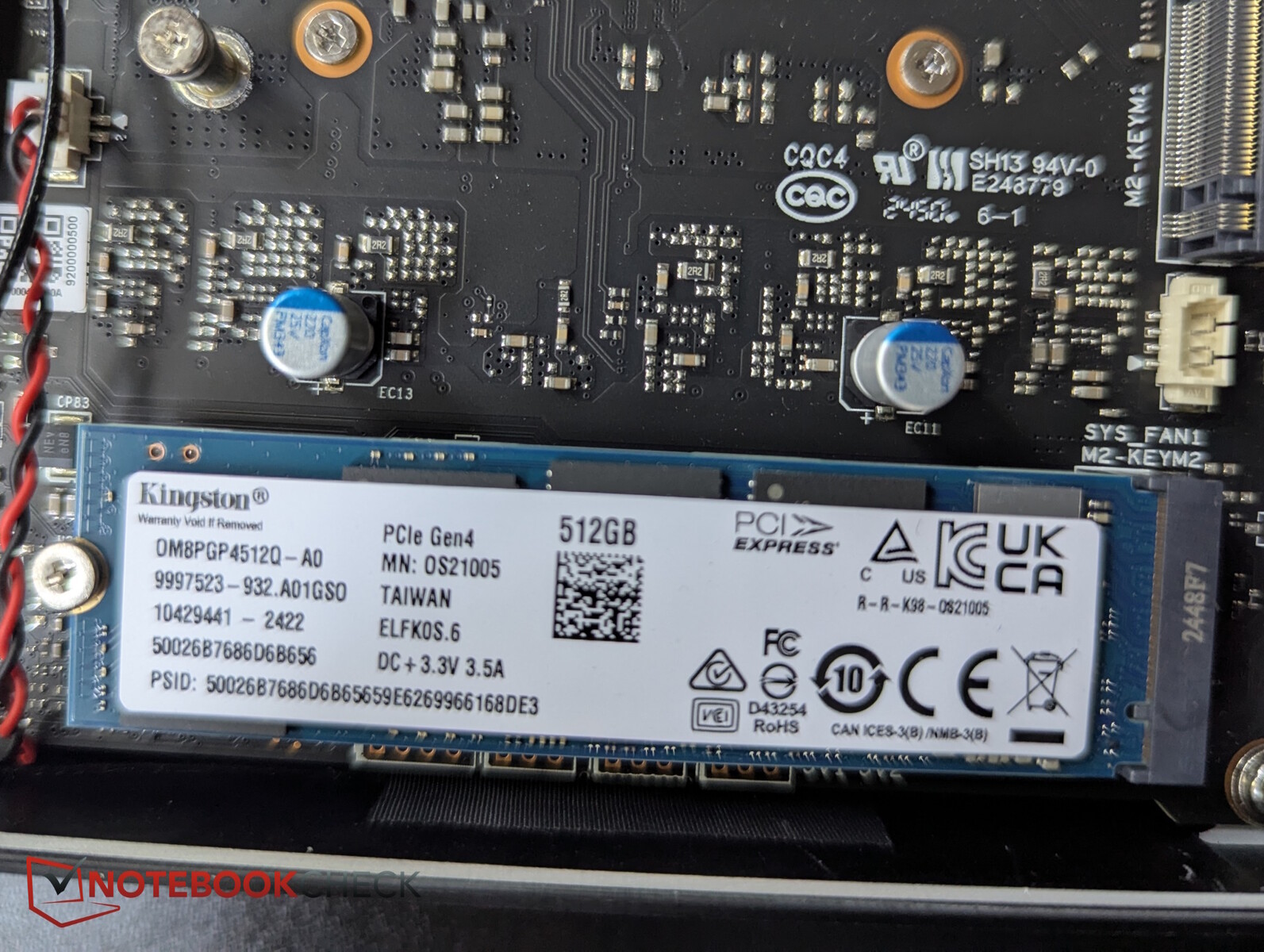

The SSD
The SSD

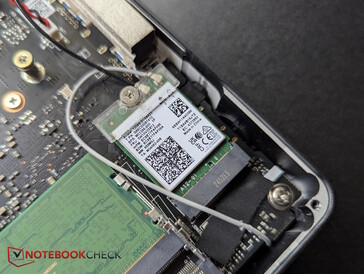

The Wi-Fi 6E module
The Wi-Fi 6E module

The ports are distributed across both the front and back of the device.With Thunderbolt 4, 2x 2.5G LAN, full DisplayPort 1.4 and HDMI 2.1, the Minix Elite is well equipped. However, we would have preferred more than just a USB-A port on the back, either the keyboard or mouse has to be connected at the front. Unlike the front, the USB-A is also "upside down" at the back.

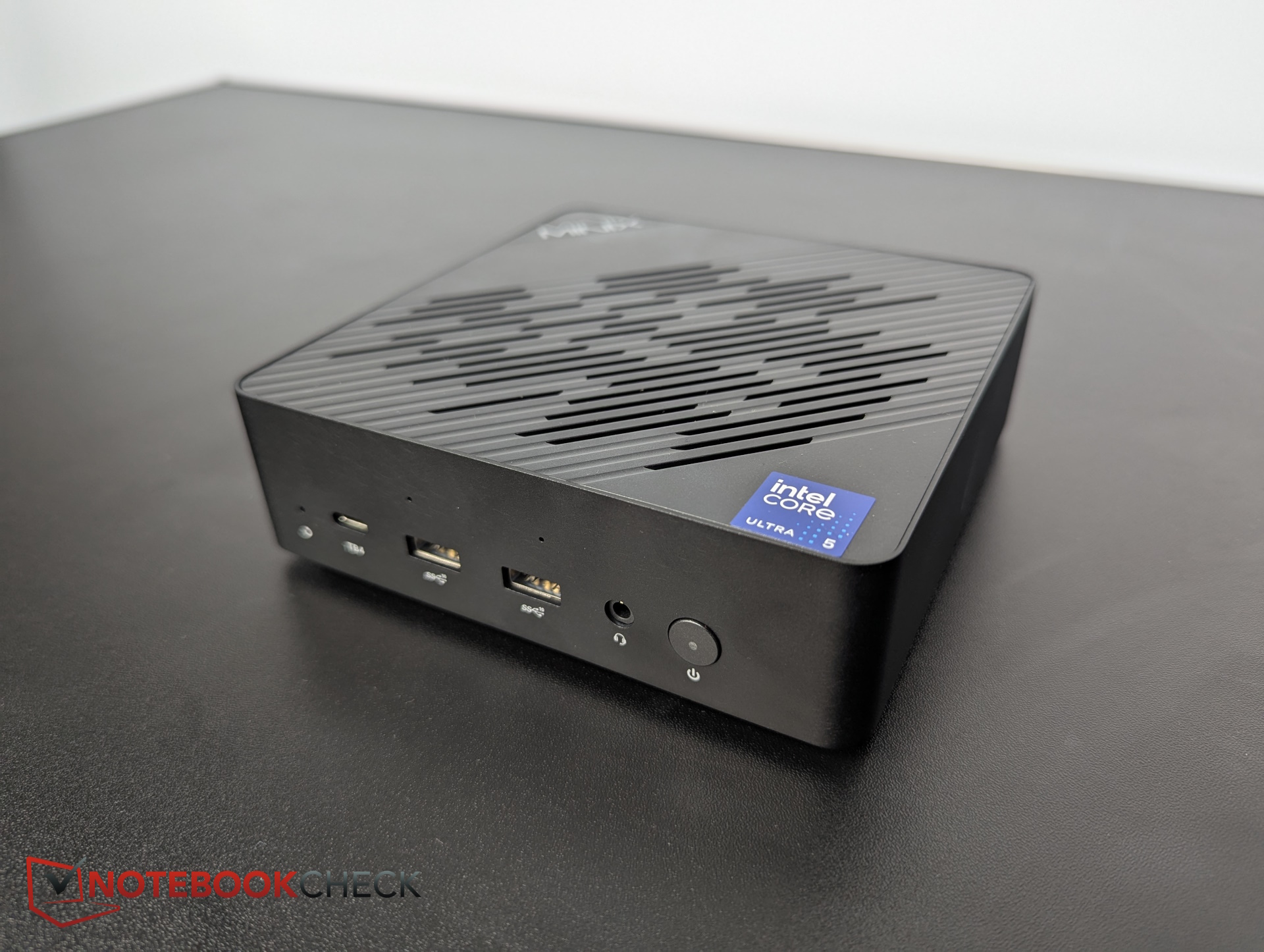

Front: Reset, TB4, 2x USB-A 3.2 Gen 2, headset jack, power button
Front: Reset, TB4, 2x USB-A 3.2 Gen 2, headset jack, power button

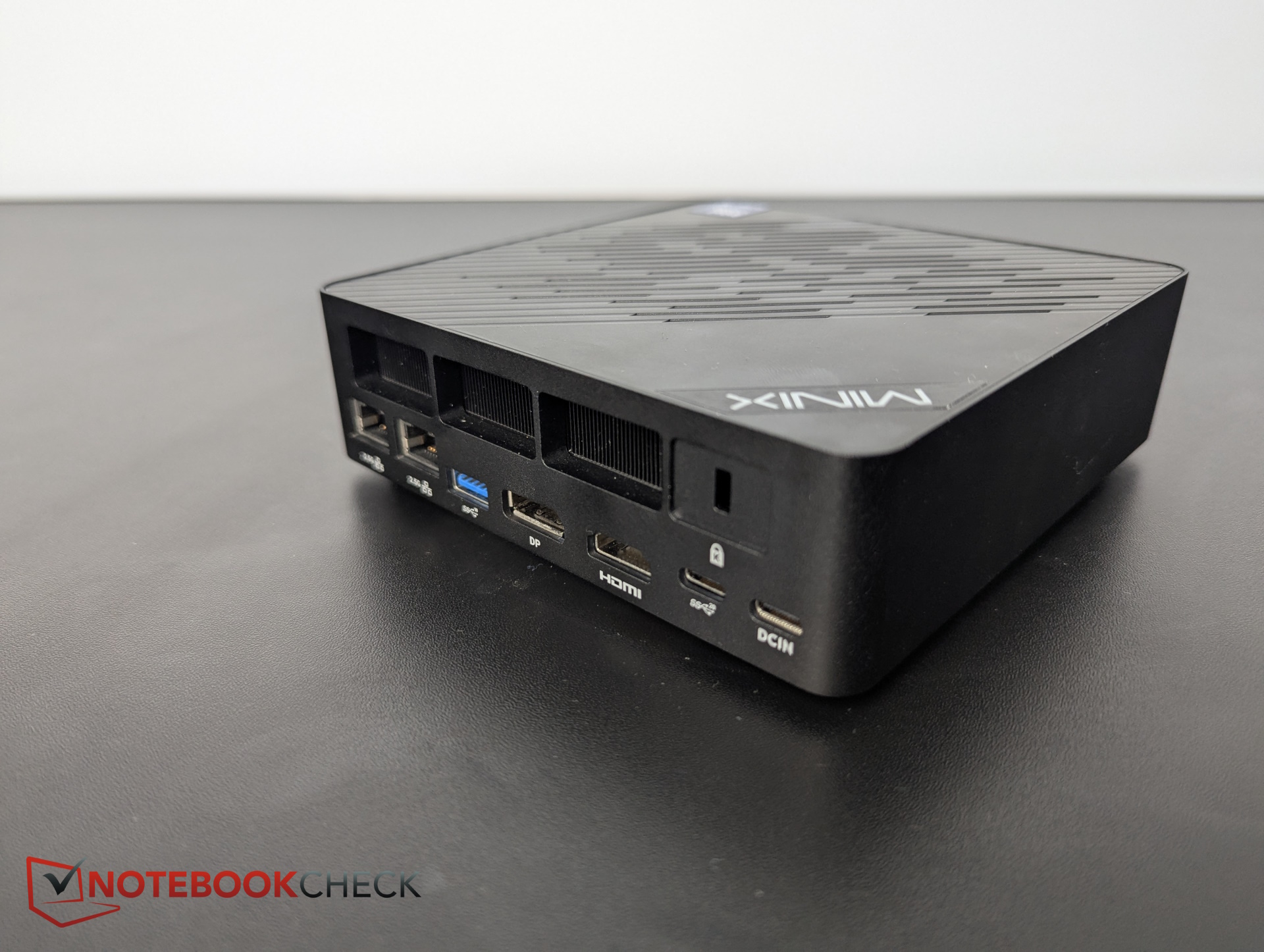

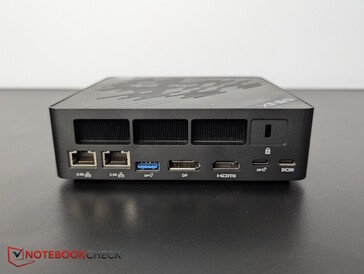

Rear: Dual 2.5G Ethernet, USB-A 3.2 Gen2, DP 1.4, HDMI 2.1, USB-C 3.2 Gen2x2, Kensington
Rear: Dual 2.5G Ethernet, USB-A 3.2 Gen2, DP 1.4, HDMI 2.1, USB-C 3.2 Gen2x2, Kensington

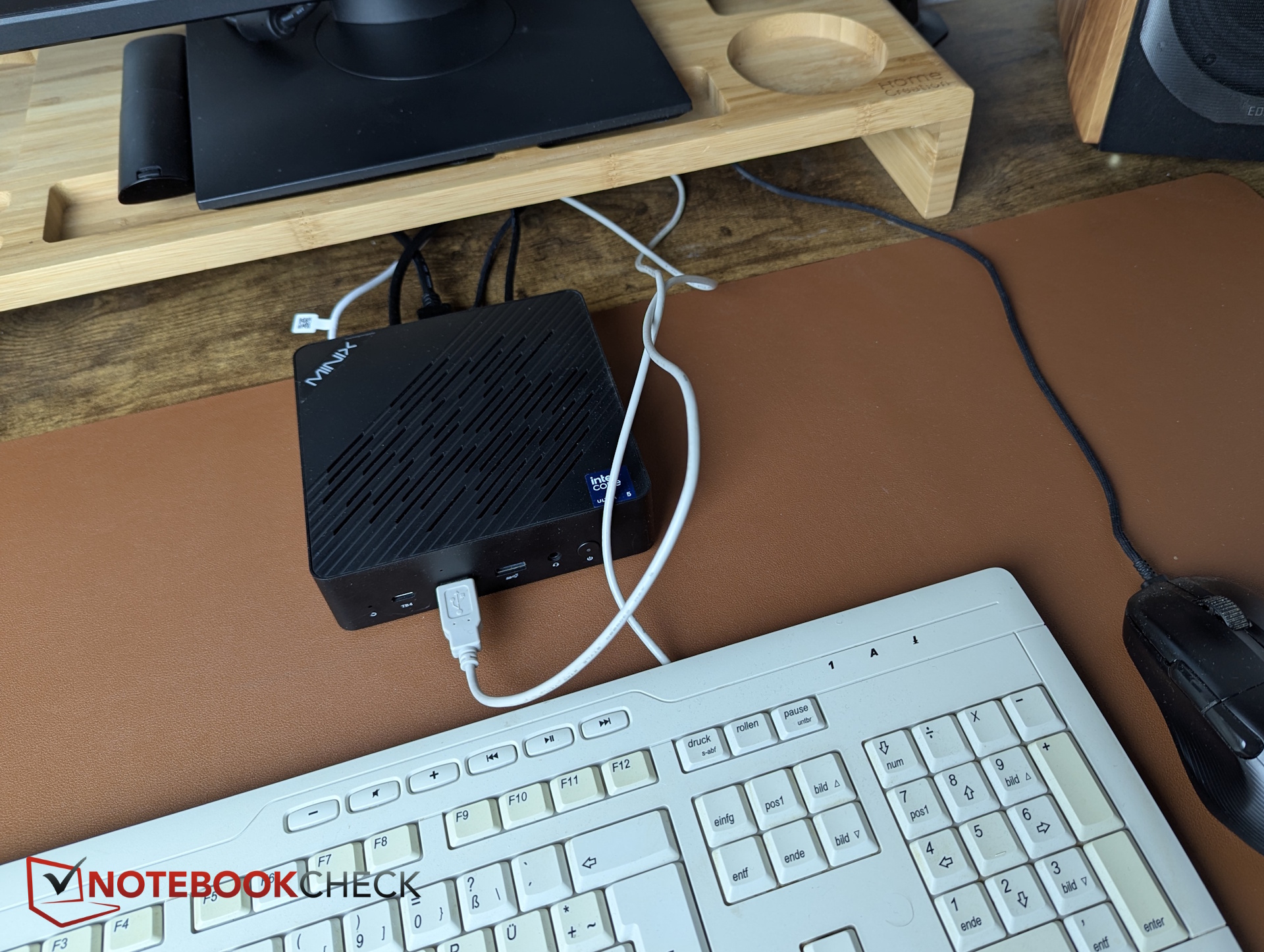

Only 1 USB-A at the back: Mouse or keyboard - one must be at the front
Only 1 USB-A at the back: Mouse or keyboard - one must be at the front

Performance





Processor - Intel Core Ultra 5 125H

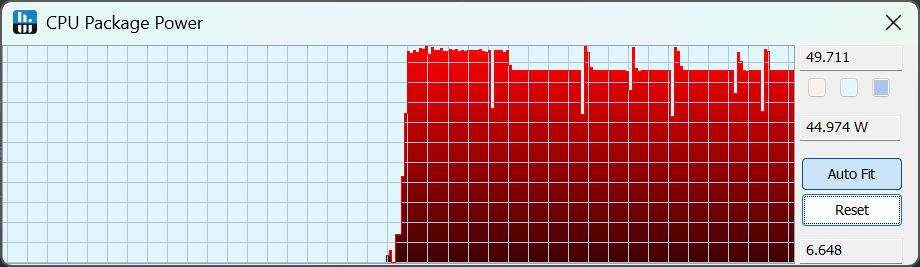

CB23 power consumption
CB23 power consumption

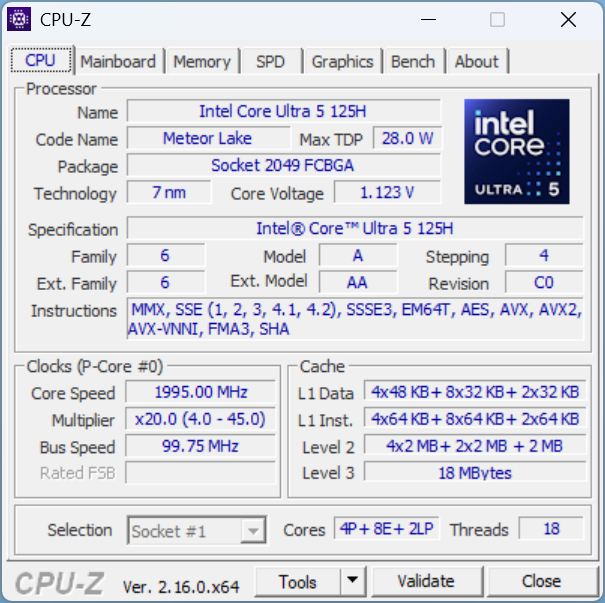

The installed Intel Core Ultra 5 125H is an upper mid-range CPU. In our CPU benchmarks, the Elite performs around the expected level or up to 2% below. The single-core performance, in particular, is often somewhat below average.

The power consumption in Cinebench R23 shows that the CPU only consumes 50W in Turbo mode and even drops back to 45W later on. In theory, it could reach up to 115 W in short bursts, so it's clear the CPU isn’t coming anywhere near its full potential.

Cinebench R15 Multi endurance test

0701402102803504204905606307007708409109801050112011901260133014001470154016101680175018201890196020302100217022402310238024502520259026602730280028702940301030803150322032903360Tooltip
Minix Elite EU512-AI Intel Core Ultra 5 125H: Ø2061 (2026.86-2076.52)
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS: Ø2600 (2571.19-2630.19)
Acemagic F3A AMD Ryzen AI 9 HX 370: Ø3239 (3154.08-3427.89)
Asus NUC 14 Pro Intel Core Ultra 5 125H: Ø2021 (1900.15-2203.13)
Minisforum UH125 Pro Intel Core Ultra 5 125H: Ø2186 (2040.4-2248.33)
GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)
CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance rating
Acemagic F3A
AMD Ryzen AI 9 HX 370
85.5 pt
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
67 pt
Average of class Mini PC

66.6 pt
GMK NucBox K9 -1!
Intel Core Ultra 5 125H
59.3 pt
Asus NUC 14 Pro
Intel Core Ultra 5 125H
56.3 pt
Minisforum UH125 Pro
Intel Core Ultra 5 125H
53.7 pt
Minix Elite EU512-AI
Intel Core Ultra 5 125H
51.2 pt
Average Intel Core Ultra 5 125H

50.5 pt
Cinebench R23 / Multi Core
Acemagic F3A
AMD Ryzen AI 9 HX 370
22461 Points +63%
Average of class Mini PC
  (1571 - 39416, n=100, last 2 years)
17377 Points +26%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
16236 Points +18%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
14564 Points +6%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
14516 Points +6%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
13747 Points
GMK NucBox K9
Intel Core Ultra 5 125H
12989 (12625.3min - 12989.4max) Points -6%
Average Intel Core Ultra 5 125H
  (8419 - 14564, n=8)
12002 Points -13%
Cinebench R23 / Single Core
Acemagic F3A
AMD Ryzen AI 9 HX 370
2035 Points +26%
Average of class Mini PC
  (455 - 2303, n=100, last 2 years)
1768 Points +9%
GMK NucBox K9
Intel Core Ultra 5 125H
1735 Points +7%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
1721 Points +6%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
1701 Points +5%
Average Intel Core Ultra 5 125H
  (1539 - 1735, n=8)
1646 Points +2%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
1640 Points +1%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
1620 Points
Cinebench R20 / CPU (Multi Core)
Acemagic F3A
AMD Ryzen AI 9 HX 370
8817 Points +69%
Average of class Mini PC
  (555 - 15041, n=100, last 2 years)
6731 Points +29%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
6351 Points +22%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
5618 Points +8%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
5617 Points +8%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
5212 Points
GMK NucBox K9
Intel Core Ultra 5 125H
4948 Points -5%
Average Intel Core Ultra 5 125H
  (3203 - 5618, n=8)
4626 Points -11%
Cinebench R20 / CPU (Single Core)
Acemagic F3A
AMD Ryzen AI 9 HX 370
801 Points +29%
Average of class Mini PC
  (173.6 - 884, n=100, last 2 years)
678 Points +9%
GMK NucBox K9
Intel Core Ultra 5 125H
664 Points +7%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
658 Points +6%
Average Intel Core Ultra 5 125H
  (592 - 664, n=8)
634 Points +2%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
629 Points +1%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
623 Points
Asus NUC 14 Pro
Intel Core Ultra 5 125H
622 Points 0%
Cinebench R15 / CPU Multi 64Bit
Acemagic F3A
AMD Ryzen AI 9 HX 370
3478 Points +67%
Average of class Mini PC
  (254 - 5881, n=100, last 2 years)
2690 Points +30%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
2578 Points +24%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
2245 Points +8%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
2141 Points +3%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
2077 (2026.86min - 2076.52max) Points
GMK NucBox K9
Intel Core Ultra 5 125H
1966 (1827.4min - 1965.8max) Points -5%
Average Intel Core Ultra 5 125H
  (1225 - 2245, n=8)
1900 Points -9%
Cinebench R15 / CPU Single 64Bit
Acemagic F3A
AMD Ryzen AI 9 HX 370
315 Points +34%
Average of class Mini PC
  (78.3 - 340, n=100, last 2 years)
268 Points +14%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
263 Points +12%
GMK NucBox K9
Intel Core Ultra 5 125H
251 Points +7%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
248 Points +6%
Average Intel Core Ultra 5 125H
  (217 - 251, n=8)
239 Points +2%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
235 Points 0%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
235 Points
Blender / v2.79 BMW27 CPU
Average of class Mini PC
  (86 - 2330, n=96, last 2 years)
301 Seconds * -26%
Average Intel Core Ultra 5 125H
  (228 - 389, n=8)
293 Seconds * -23%
GMK NucBox K9
Intel Core Ultra 5 125H
248 Seconds * -4%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
239 Seconds *
Minisforum UH125 Pro
Intel Core Ultra 5 125H
230 Seconds * +4%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
228 Seconds * +5%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
197 Seconds * +18%
Acemagic F3A
AMD Ryzen AI 9 HX 370
142 Seconds * +41%
7-Zip 18.03 / 7z b 4
Acemagic F3A
AMD Ryzen AI 9 HX 370
79910 MIPS
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
63912 MIPS
Average of class Mini PC
  (8146 - 136872, n=95, last 2 years)
63125 MIPS
Minisforum UH125 Pro
Intel Core Ultra 5 125H
0 MIPS
Asus NUC 14 Pro
Intel Core Ultra 5 125H
0 MIPS
Minix Elite EU512-AI
Intel Core Ultra 5 125H
0 MIPS
Average Intel Core Ultra 5 125H
  (0 - 0, n=3)
0 MIPS
7-Zip 18.03 / 7z b 4 -mmt1
Acemagic F3A
AMD Ryzen AI 9 HX 370
6497 MIPS +31%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
6334 MIPS +28%
Average of class Mini PC
  (2454 - 7609, n=96, last 2 years)
5852 MIPS +18%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
5136 MIPS +4%
GMK NucBox K9
Intel Core Ultra 5 125H
5004 MIPS +1%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
4961 MIPS
Average Intel Core Ultra 5 125H
  (4663 - 5136, n=8)
4915 MIPS -1%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
4699 MIPS -5%
Geekbench 5.5 / Multi-Core
Acemagic F3A
AMD Ryzen AI 9 HX 370
13125 Points +45%
Average of class Mini PC
  (1638 - 24593, n=99, last 2 years)
11499 Points +27%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
10856 Points +20%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
10788 Points +19%
Average Intel Core Ultra 5 125H
  (8717 - 10856, n=8)
10029 Points +11%
GMK NucBox K9
Intel Core Ultra 5 125H
10025 Points +11%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
9864 Points +9%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
9069 Points
Geekbench 5.5 / Single-Core
Acemagic F3A
AMD Ryzen AI 9 HX 370
2073 Points +26%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
1865 Points +14%
Average of class Mini PC
  (466 - 2395, n=99, last 2 years)
1791 Points +9%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
1685 Points +3%
GMK NucBox K9
Intel Core Ultra 5 125H
1668 Points +2%
Average Intel Core Ultra 5 125H
  (1593 - 1699, n=8)
1652 Points +1%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
1639 Points
Minisforum UH125 Pro
Intel Core Ultra 5 125H
1593 Points -3%
HWBOT x265 Benchmark v2.2 / 4k Preset
Acemagic F3A
AMD Ryzen AI 9 HX 370
27.5 fps +92%
Average of class Mini PC
  (1.5 - 40.3, n=96, last 2 years)
19.1 fps +34%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
18.4 fps +29%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
16.7 fps +17%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
15.7 fps +10%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
14.3 fps
GMK NucBox K9
Intel Core Ultra 5 125H
13.8 fps -3%
Average Intel Core Ultra 5 125H
  (8.52 - 16.7, n=8)
12.9 fps -10%
LibreOffice / 20 Documents To PDF
Minisforum UH125 Pro
Intel Core Ultra 5 125H
70.9 s * -8%
Minix Elite EU512-AI
Intel Core Ultra 5 125H
65.8 s *
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
64.3 s * +2%
Acemagic F3A
AMD Ryzen AI 9 HX 370
61.3 s * +7%
Average of class Mini PC
  (33.1 - 132.6, n=96, last 2 years)
56.6 s * +14%
Average Intel Core Ultra 5 125H
  (42.7 - 70.9, n=8)
56.3 s * +14%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
55.7 s * +15%
GMK NucBox K9
Intel Core Ultra 5 125H
44 s * +33%
R Benchmark 2.5 / Overall mean
Minix Elite EU512-AI
Intel Core Ultra 5 125H
0.565 sec *
Average Intel Core Ultra 5 125H
  (0.4898 - 0.565, n=8)
0.519 sec * +8%
Minisforum UH125 Pro
Intel Core Ultra 5 125H
0.513 sec * +9%
Asus NUC 14 Pro
Intel Core Ultra 5 125H
0.4982 sec * +12%
Average of class Mini PC
  (0.3517 - 1.56, n=97, last 2 years)
0.4972 sec * +12%
GMK NucBox K9
Intel Core Ultra 5 125H
0.4898 sec * +13%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS
0.4716 sec * +17%
Acemagic F3A
AMD Ryzen AI 9 HX 370
0.3927 sec * +30%

* ... smaller is better

Performance rating
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
90.3 pt
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
77.5 pt
Average of class Mini PC

73.3 pt
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
56.8 pt
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
56.3 pt
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
55.5 pt
Average Intel Core Ultra 5 125H

48.9 pt
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
48.7 pt
AIDA64 / FP32 Ray-Trace
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
35454 KRay/s +190%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
27379 KRay/s +124%
Average of class Mini PC
  (974 - 82725, n=107, last 2 years)
23778 KRay/s +94%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
13639 KRay/s +11%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
13347 KRay/s +9%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
12234 KRay/s
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
10755 KRay/s -12%
Average Intel Core Ultra 5 125H
  (7208 - 13639, n=8)
10610 KRay/s -13%
AIDA64 / FPU Julia
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
139919 Points +116%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
111817 Points +72%
Average of class Mini PC
  (6115 - 363782, n=107, last 2 years)
99199 Points +53%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
70880 Points +9%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
68551 Points +6%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
64912 Points
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
58422 Points -10%
Average Intel Core Ultra 5 125H
  (38292 - 70880, n=8)
55756 Points -14%
AIDA64 / CPU SHA3
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
5518 MB/s +72%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
4783 MB/s +49%
Average of class Mini PC
  (385 - 9475, n=107, last 2 years)
4239 MB/s +32%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
3404 MB/s +6%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
3323 MB/s +3%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
3211 MB/s
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
2922 MB/s -9%
Average Intel Core Ultra 5 125H
  (1734 - 3404, n=8)
2682 MB/s -16%
AIDA64 / CPU Queen
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
116988 Points +52%
Average of class Mini PC
  (20501 - 184747, n=93, last 2 years)
92688 Points +20%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
79866 Points +4%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
78797 Points +2%
Average Intel Core Ultra 5 125H
  (76983 - 79986, n=7)
78544 Points +2%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
78098 Points +1%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
76983 Points
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
41793 Points -46%
AIDA64 / FPU SinJulia
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
18824 Points +148%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
14785 Points +95%
Average of class Mini PC
  (1019 - 31931, n=107, last 2 years)
12772 Points +69%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
7851 Points +4%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
7842 Points +3%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
7780 Points +3%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
7577 Points
Average Intel Core Ultra 5 125H
  (5219 - 7851, n=8)
7148 Points -6%
AIDA64 / FPU Mandel
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
74928 Points +128%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
60018 Points +83%
Average of class Mini PC
  (3322 - 192994, n=107, last 2 years)
52007 Points +58%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
35321 Points +7%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
34225 Points +4%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
32869 Points
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
27972 Points -15%
Average Intel Core Ultra 5 125H
  (19180 - 35321, n=8)
27452 Points -16%
AIDA64 / CPU AES
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
108402 MB/s +87%
Average of class Mini PC
  (9214 - 325960, n=106, last 2 years)
86727 MB/s +49%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
84231 MB/s +45%
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
72870 MB/s +25%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
65304 MB/s +12%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
64107 MB/s +10%
Average Intel Core Ultra 5 125H
  (36196 - 108402, n=8)
60531 MB/s +4%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
58117 MB/s
AIDA64 / CPU ZLib
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
1462 MB/s +62%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
1068 MB/s +18%
Average of class Mini PC
  (127.2 - 2431, n=107, last 2 years)
1068 MB/s +18%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
994 MB/s +10%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
969 MB/s +7%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
903 MB/s
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
844 MB/s -7%
Average Intel Core Ultra 5 125H
  (485 - 994, n=8)
778 MB/s -14%
AIDA64 / FP64 Ray-Trace
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
19551 KRay/s +201%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
14561 KRay/s +124%
Average of class Mini PC
  (537 - 43587, n=107, last 2 years)
12656 KRay/s +95%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
7221 KRay/s +11%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
6786 KRay/s +4%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
6494 KRay/s
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
5657 KRay/s -13%
Average Intel Core Ultra 5 125H
  (3753 - 7221, n=8)
5538 KRay/s -15%
AIDA64 / CPU PhotoWorxx
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
47377 MPixel/s +102%
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
47364 MPixel/s +102%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
46296 MPixel/s +97%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
45789 MPixel/s +95%
Average Intel Core Ultra 5 125H
  (23499 - 49844, n=8)
43406 MPixel/s +85%
Average of class Mini PC
  (8069 - 96843, n=107, last 2 years)
39769 MPixel/s +69%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
23499 MPixel/s
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
22324 MPixel/s -5%

System performance

Subjectively, everything runs smoothly. However, in comparison, our Minix performs 4 - 5% below average in PCMark 10 and CrossMark; most other mini PCs with the same CPU are faster. This is probably also due to the RAM, as it performs particularly slowly in our AIDA tests.

Performance rating: Percent
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
Performance rating
Average of class Mini PC

89.6 pt
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
88.3 pt
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
85.9 pt
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU

83 pt
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
81.5 pt
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
81.3 pt
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
81.1 pt
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
79 pt
PCMark 10 / Score
Average of class Mini PC
  (2191 - 9326, n=106, last 2 years)
6867 Points +14%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
6577 Points +9%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
6564 Points +9%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
6463 Points +7%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (6024 - 7240, n=8)
6398 Points +6%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
6282 Points +4%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
6194 Points +3%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
6024 Points
PCMark 10 / Essentials
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
10697 Points +12%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
10050 Points +5%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (9427 - 10697, n=8)
10016 Points +5%
Average of class Mini PC
  (5031 - 11997, n=105, last 2 years)
9957 Points +4%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
9891 Points +4%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
9546 Points
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
9427 Points -1%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
9277 Points -3%
PCMark 10 / Productivity
Average of class Mini PC
  (3646 - 17739, n=105, last 2 years)
9399 Points +23%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
9315 Points +22%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
8497 Points +11%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (7042 - 13501, n=8)
8409 Points +10%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
7715 Points +1%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
7659 Points 0%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
7625 Points
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
7042 Points -8%
PCMark 10 / Digital Content Creation
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
9792 Points +20%
Average of class Mini PC
  (1558 - 17556, n=105, last 2 years)
9717 Points +19%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
9506 Points +17%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
8940 Points +10%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
8868 Points +9%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (8022 - 9506, n=8)
8602 Points +6%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
8330 Points +2%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
8149 Points
CrossMark / Overall
Average of class Mini PC
  (385 - 2244, n=98, last 2 years)
1658 Points +12%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
1638 Points +11%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
1633 Points +10%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (1480 - 1633, n=7)
1554 Points +5%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
1533 Points +4%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
1522 Points +3%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
1480 Points
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1402 Points -5%
CrossMark / Productivity
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
1643 Points +12%
Average of class Mini PC
  (446 - 2790, n=98, last 2 years)
1596 Points +9%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
1594 Points +9%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (1412 - 1594, n=7)
1490 Points +2%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
1467 Points
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
1463 Points 0%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
1432 Points -2%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1253 Points -15%
CrossMark / Creativity
Average of class Mini PC
  (340 - 2879, n=98, last 2 years)
1831 Points +20%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
1765 Points +16%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
1714 Points +13%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1707 Points +12%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (1520 - 1780, n=7)
1707 Points +12%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
1694 Points +11%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
1683 Points +11%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
1520 Points
CrossMark / Responsiveness
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
1520 Points +8%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
1465 Points +4%
Average of class Mini PC
  (363 - 2191, n=98, last 2 years)
1429 Points +2%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
1405 Points
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (1171 - 1520, n=7)
1340 Points -5%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
1332 Points -5%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
1171 Points -17%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1085 Points -23%
WebXPRT 3 / Overall
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
290 Points +17%
Average of class Mini PC
  (90.2 - 557, n=98, last 2 years)
285 Points +15%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
262 Points +6%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
254 Points +2%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
254 Points +2%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (245 - 263, n=8)
253 Points +2%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
252 Points +2%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
248 Points
WebXPRT 4 / Overall
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
251 Points +13%
Average of class Mini PC
  (67.1 - 364, n=93, last 2 years)
244 Points +10%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
231 Points +4%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
231 Points +4%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (222 - 240, n=7)
231 Points +4%
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
227 Points +2%
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
222 Points
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
210 Points -5%
Mozilla Kraken 1.1 / Total
Minix Elite EU512-AI
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0
607 ms *
Minisforum UH125 Pro
Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0
595 ms * +2%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
  (560 - 625, n=8)
585 ms * +4%
Average of class Mini PC
  (255 - 2186, n=98, last 2 years)
569 ms * +6%
Asus NUC 14 Pro
Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G
567 ms * +7%
GMK NucBox K9
Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000
566 ms * +7%
Chuwi Aubox, R7 8745HS
Radeon 780M, R7 8745HS, AirDisk AFF 10-512G
537 ms * +12%
Acemagic F3A
Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
456 ms * +25%

* ... smaller is better

AIDA64 / Memory Copy
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
74350 MB/s +97%
Average Intel Core Ultra 5 125H
  (37664 - 87473, n=8)
72538 MB/s +93%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
69592 MB/s +85%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
69264 MB/s +84%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
67482 MB/s +79%
Average of class Mini PC
  (15933 - 163031, n=107, last 2 years)
65044 MB/s +73%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
37664 MB/s
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
35054 MB/s -7%
AIDA64 / Memory Read
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
85928 MB/s +106%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
74415 MB/s +78%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
72711 MB/s +74%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
70520 MB/s +69%
Average Intel Core Ultra 5 125H
  (41700 - 76803, n=8)
69283 MB/s +66%
Average of class Mini PC
  (14143 - 123769, n=107, last 2 years)
62982 MB/s +51%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
41700 MB/s
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
30630 MB/s -27%
AIDA64 / Memory Write
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
85887 MB/s +140%
Average of class Mini PC
  (10630 - 216693, n=107, last 2 years)
73974 MB/s +107%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
72443 MB/s +103%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
71514 MB/s +100%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
71218 MB/s +99%
Average Intel Core Ultra 5 125H
  (35730 - 72443, n=8)
64901 MB/s +82%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
42154 MB/s +18%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
35730 MB/s
AIDA64 / Memory Latency
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Arc 7-Core
184.8 ns * -36%
Average Intel Core Ultra 5 125H
  (127.3 - 184.8, n=8)
146.4 ns * -8%
GMK NucBox K9
Intel Core Ultra 5 125H, Arc 7-Core
140.2 ns * -3%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Arc 7-Core
135.6 ns *
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Arc 7-Core
127.3 ns * +6%
Average of class Mini PC
  (88.1 - 184.8, n=108, last 2 years)
99.7 ns * +26%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, Radeon 780M
94 ns * +31%
Acemagic F3A
AMD Ryzen AI 9 HX 370, Radeon 890M
87.2 ns * +36%

* ... smaller is better

AI performance

When we run an AI workload on the CPU using Geekbench AI, the results are somewhat below average, which is consistent with other comparisons. Fortunately, the integrated NPU performs significantly better than the CPU. However, it's still weaker than what we've seen in other mini PCs with the same CPU/NPU combination. Nevertheless, the Core 5 125H should be able to calculate local AI tasks sufficiently well.

Geekbench AI
Quantized CPU 1.7
Khadas Mind 2s
7306 Points +43%
Chuwi Aubox, R7 8745HS
6522 Points +28%
Khadas Mind 2
5612 Points +10%
Minisforum UH125 Pro
5560 Points +9%
Acemagic F3A
5326 Points +4%
Minix Elite EU512-AI
5109 Points
Half Precision CPU 1.7
Chuwi Aubox, R7 8745HS
1634 Points +36%
Khadas Mind 2s
1464 Points +22%
Minisforum UH125 Pro
1302 Points +8%
Acemagic F3A
1302 Points +8%
Minix Elite EU512-AI
1201 Points
Khadas Mind 2
1075 Points -10%
Single Precision CPU 1.7
Khadas Mind 2s
3862 Points +43%
Chuwi Aubox, R7 8745HS
3581 Points +32%
Khadas Mind 2
2958 Points +9%
Minisforum UH125 Pro
2951 Points +9%
Acemagic F3A
2907 Points +7%
Minix Elite EU512-AI
2708 Points

Legend


Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, Kingston OM8PGP4512Q-A0

Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Radeon 780M, AirDisk AFF 10-512G

Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe

Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, Kingston KC3000 2048G SKC3000D2048G

Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0

GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, MasonSemi 1TB MC7000

Khadas Mind 2s Intel Core Ultra 7 255H, Intel Arc Graphics 140T, WD PC SN740 SDDPNQE-2T00

Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU, WD PC SN740 SDDPTQD-1T00

Storage device

The 512GB Kingston SSD is partitioned. Today, a 120GB system partition is hardly sufficient as it fills up quickly. The best course of action here is to delete the existing partitions and reinstall Windows on the full 512GB drive.

The memory performs about average in comparisons, but it operates approximately 10% below its potential and unfortunately gets throttled quickly during prolonged use.

Drive Performance rating - Percent
GMK NucBox K9
MasonSemi 1TB MC7000
83.9 pt
Average Kingston OM8PGP4512Q-A0

75.2 pt
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
68.5 pt
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
63 pt
Average of class Mini PC

59.4 pt
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
52.5 pt
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
49.4 pt
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
38 pt
DiskSpd
seq read
GMK NucBox K9
MasonSemi 1TB MC7000
3783 (3597.81min - 3782.84max) MB/s +17%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
3706 (3594.04min - 3706.37max) MB/s +15%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
3220 (2712.48min - 3220.39max) MB/s
Average Kingston OM8PGP4512Q-A0
  (2549 - 3372, n=12)
2932 MB/s -9%
Average of class Mini PC
  (413 - 4960, n=95, last 2 years)
2581 MB/s -20%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
2351 (2320.68min - 2350.61max) MB/s -27%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
2230 (2208.5min - 2230.06max) MB/s -31%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1711 (1699.16min - 1711.28max) MB/s -47%
seq write
GMK NucBox K9
MasonSemi 1TB MC7000
5556 (1352.45min - 5556.19max) MB/s +61%
Average Kingston OM8PGP4512Q-A0
  (3385 - 3553, n=12)
3483 MB/s +1%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
3449 (1457.1min - 3449.21max) MB/s
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
3331 (3244.92min - 3330.75max) MB/s -3%
Average of class Mini PC
  (408 - 5556, n=95, last 2 years)
3051 MB/s -12%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
3017 (2911.9min - 3016.54max) MB/s -13%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
2928 (1958.53min - 2927.62max) MB/s -15%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
2593 (2497.12min - 2592.77max) MB/s -25%
seq q8 t1 read
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
7110 (6058.21min - 7110.02max) MB/s +48%
GMK NucBox K9
MasonSemi 1TB MC7000
7066 (6607.49min - 7066.35max) MB/s +47%
Average Kingston OM8PGP4512Q-A0
  (4788 - 4822, n=12)
4805 MB/s 0%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
4804 (4319.88min - 4804.16max) MB/s
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
4802 (4169.19min - 4801.68max) MB/s 0%
Average of class Mini PC
  (397 - 7117, n=95, last 2 years)
4523 MB/s -6%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
3227 (2874.36min - 3227.1max) MB/s -33%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
3179 (2681.09min - 3179.42max) MB/s -34%
seq q8 t1 write
GMK NucBox K9
MasonSemi 1TB MC7000
6647 (1260.59min - 6647.13max) MB/s +92%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
4712 (3064.99min - 4711.88max) MB/s +36%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
3902 (3839.68min - 3901.75max) MB/s +13%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
3781 (3521.62min - 3780.75max) MB/s +9%
Average of class Mini PC
  (410 - 6647, n=95, last 2 years)
3599 MB/s +4%
Average Kingston OM8PGP4512Q-A0
  (3368 - 3545, n=12)
3482 MB/s +1%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
3461 (3448.11min - 3461.14max) MB/s
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
2768 (2664.64min - 2767.61max) MB/s -20%
4k q1 t1 read
GMK NucBox K9
MasonSemi 1TB MC7000
79.5 (78.92min - 79.5max) MB/s +20%
Average Kingston OM8PGP4512Q-A0
  (59.5 - 82.8, n=12)
74.4 MB/s +12%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
66.4 (45.6min - 66.42max) MB/s
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
60 (58.44min - 60.02max) MB/s -10%
Average of class Mini PC
  (6.85 - 88.3, n=95, last 2 years)
56.6 MB/s -15%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
53.4 (49.89min - 53.35max) MB/s -20%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
41.8 (39.53min - 41.81max) MB/s -37%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
38.5 (38.48min - 38.51max) MB/s -42%
4k q1 t1 write
Average Kingston OM8PGP4512Q-A0
  (133.3 - 425, n=12)
322 MB/s +40%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
230 (202.75min - 230.38max) MB/s
GMK NucBox K9
MasonSemi 1TB MC7000
205 (173.87min - 205.2max) MB/s -11%
Average of class Mini PC
  (29.6 - 366, n=95, last 2 years)
185 MB/s -20%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
181.2 (172.56min - 181.15max) MB/s -21%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
136.8 (131.56min - 136.81max) MB/s -41%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
121.6 (117.56min - 121.64max) MB/s -47%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
83.1 (75.3min - 83.11max) MB/s -64%
4k q32 t16 read
GMK NucBox K9
MasonSemi 1TB MC7000
2243 (1941.91min - 2243.48max) MB/s +16%
Average Kingston OM8PGP4512Q-A0
  (1919 - 1944, n=12)
1936 MB/s 0%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
1932 (791.29min - 1932.47max) MB/s
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1641 (1282.06min - 1641.45max) MB/s -15%
Average of class Mini PC
  (161.3 - 4349, n=95, last 2 years)
1623 MB/s -16%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
731 (660.89min - 731.29max) MB/s -62%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
698 (691.89min - 697.84max) MB/s -64%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
317 (315.3min - 317.14max) MB/s -84%
4k q32 t16 write
GMK NucBox K9
MasonSemi 1TB MC7000
3232 (3002.64min - 3232.41max) MB/s +51%
Average Kingston OM8PGP4512Q-A0
  (1425 - 3412, n=12)
2673 MB/s +24%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
2147 (1705.81min - 2147.11max) MB/s
Average of class Mini PC
  (151.8 - 4288, n=95, last 2 years)
1431 MB/s -33%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
1118 (836.38min - 1118.45max) MB/s -48%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
788 (756.12min - 787.91max) MB/s -63%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
311 (252.72min - 310.91max) MB/s -86%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
186.7 (155.05min - 186.74max) MB/s -91%
AS SSD
Score Total
GMK NucBox K9
MasonSemi 1TB MC7000
7509 Points +44%
Average Kingston OM8PGP4512Q-A0
  (4744 - 7134, n=12)
6034 Points +15%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
5226 Points
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
5131 Points -2%
Average of class Mini PC
  (507 - 10559, n=94, last 2 years)
4971 Points -5%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
4514 Points -14%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
3878 Points -26%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
2500 Points -52%
Score Read
GMK NucBox K9
MasonSemi 1TB MC7000
3258 Points +57%
Average Kingston OM8PGP4512Q-A0
  (2077 - 2391, n=12)
2292 Points +10%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
2077 Points
Average of class Mini PC
  (172 - 3834, n=94, last 2 years)
1718 Points -17%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1572 Points -24%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
1275 Points -39%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
1096 Points -47%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
522 Points -75%
Score Write
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
3313 Points +59%
Average Kingston OM8PGP4512Q-A0
  (1308 - 3538, n=12)
2602 Points +25%
GMK NucBox K9
MasonSemi 1TB MC7000
2593 Points +24%
Average of class Mini PC
  (210 - 5505, n=94, last 2 years)
2409 Points +16%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
2306 Points +11%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
2112 Points +1%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
2083 Points
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
1719 Points -17%
Seq Read
GMK NucBox K9
MasonSemi 1TB MC7000
5766.47 MB/s +78%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
5158 MB/s +59%
Average Kingston OM8PGP4512Q-A0
  (3244 - 4152, n=12)
3982 MB/s +23%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
3808 MB/s +17%
Average of class Mini PC
  (483 - 5766, n=94, last 2 years)
3782 MB/s +17%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
3404 MB/s +5%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
3244 MB/s
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
2791 MB/s -14%
Seq Write
GMK NucBox K9
MasonSemi 1TB MC7000
5653.88 MB/s +82%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
3897 MB/s +25%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
3110 MB/s
Average Kingston OM8PGP4512Q-A0
  (883 - 3292, n=12)
2972 MB/s -4%
Average of class Mini PC
  (346 - 5654, n=94, last 2 years)
2891 MB/s -7%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
2646 MB/s -15%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
2358 MB/s -24%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
1787 MB/s -43%
4K Read
Average Kingston OM8PGP4512Q-A0
  (68.2 - 104.2, n=12)
90 MB/s +32%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
68.2 MB/s
GMK NucBox K9
MasonSemi 1TB MC7000
67.66 MB/s -1%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
63.6 MB/s -7%
Average of class Mini PC
  (18.2 - 101.7, n=94, last 2 years)
59.9 MB/s -12%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
57.3 MB/s -16%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
39.5 MB/s -42%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
38 MB/s -44%
4K Write
Average Kingston OM8PGP4512Q-A0
  (177.5 - 366, n=12)
271 MB/s +53%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
182.1 MB/s +3%
Average of class Mini PC
  (65.5 - 318, n=94, last 2 years)
178.2 MB/s 0%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
177.5 MB/s
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
169.5 MB/s -5%
GMK NucBox K9
MasonSemi 1TB MC7000
148.58 MB/s -16%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
147.7 MB/s -17%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
119.7 MB/s -33%
4K-64 Read
GMK NucBox K9
MasonSemi 1TB MC7000
2614.06 MB/s +55%
Average Kingston OM8PGP4512Q-A0
  (1604 - 1873, n=12)
1804 MB/s +7%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
1684 MB/s
Average of class Mini PC
  (94.3 - 3321, n=94, last 2 years)
1280 MB/s -24%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1192 MB/s -29%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
695 MB/s -59%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
658 MB/s -61%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
205 MB/s -88%
4K-64 Write
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
2878 MB/s +80%
Average Kingston OM8PGP4512Q-A0
  (865 - 2843, n=12)
2034 MB/s +28%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
1945 MB/s +22%
Average of class Mini PC
  (96.3 - 4890, n=94, last 2 years)
1941 MB/s +22%
GMK NucBox K9
MasonSemi 1TB MC7000
1879.53 MB/s +18%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
1603 MB/s +1%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
1595 MB/s
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
1336 MB/s -16%
Access Time Read
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
0.139 ms * -297%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
0.129 ms * -269%
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
0.101 ms * -189%
Average of class Mini PC
  (0.027 - 0.288, n=94, last 2 years)
0.09153 ms * -162%
Average Kingston OM8PGP4512Q-A0
  (0.035 - 0.192, n=12)
0.08975 ms * -156%
GMK NucBox K9
MasonSemi 1TB MC7000
0.06 ms * -71%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
0.053 ms * -51%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
0.035 ms *
Access Time Write
GMK NucBox K9
MasonSemi 1TB MC7000
0.195 ms * -509%
Chuwi Aubox, R7 8745HS
AirDisk AFF 10-512G
0.131 ms * -309%
Average of class Mini PC
  (0.013 - 0.706, n=94, last 2 years)
0.09545 ms * -198%
Acemagic F3A
Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
0.093 ms * -191%
Asus NUC 14 Pro
Kingston KC3000 2048G SKC3000D2048G
0.043 ms * -34%
Average Kingston OM8PGP4512Q-A0
  (0.031 - 0.11, n=12)
0.03783 ms * -18%
Minix Elite EU512-AI
Kingston OM8PGP4512Q-A0
0.032 ms *
Minisforum UH125 Pro
Kingston OM8PGP41024Q-A0
0.024 ms * +25%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

01452904355807258701015116013051450159517401885203021752320246526102755290030453190333534803625377039154060420543504495464047854930507552205365551056555800594560906235638065256670681569607105Tooltip
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0; diskspd 2.0.17 f: Ø2114 (1789.7-4804.99)
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G; diskspd 2.0.17 f: Ø3108 (2714.13-3123.96)
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø3164 (2746.39-3192.28)
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø6306 (1073.74-7111.48)
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4790 (4223.81-4803.95)
GMK NucBox K9 MasonSemi 1TB MC7000; diskspd 2.0.17 f: Ø7053 (6435.53-7074.85)

3D performance and gaming performance

Unfortunately, the 3D performance is particularly disappointing; the Elite EU512's iGPU falls short of our expectations by over 50%. In the games tested, the competitors with the same CPU/GPU are around 35% faster. Games are therefore only possible to a very limited extent, mostly only in 720p at low details, although Full HD can also be possible for frugal games (DOTA 2 Reborn).

3DMark Performance rating - Percent
Average of class Mini PC

100 pt
Acemagic F3A
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
60.3 pt
Asus NUC 14 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
51 pt
GMK NucBox K9
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
47 pt
Average Intel Arc 7-Core iGPU

46.4 pt
Minisforum UH125 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
45.9 pt
Chuwi Aubox, R7 8745HS
AMD Radeon 780M, AMD Ryzen 7 8745HS
32 pt
Minix Elite EU512-AI
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
30.4 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Mini PC
  (768 - 102742, n=111, last 2 years)
22826 Points +311%
Acemagic F3A
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
15203 Points +174%
Asus NUC 14 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
11785 Points +112%
GMK NucBox K9
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
10737 Points +93%
Minisforum UH125 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
10303 Points +86%
Average Intel Arc 7-Core iGPU
  (5549 - 12061, n=8)
10153 Points +83%
Chuwi Aubox, R7 8745HS
AMD Radeon 780M, AMD Ryzen 7 8745HS
8285 Points +49%
Minix Elite EU512-AI
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
5549 Points
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Mini PC
  (7970 - 323532, n=110, last 2 years)
75176 Points +162%
Acemagic F3A
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
52135 Points +82%
Asus NUC 14 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
41975 Points +46%
Minisforum UH125 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
40086 Points +40%
GMK NucBox K9
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
39695 Points +39%
Average Intel Arc 7-Core iGPU
  (28658 - 45644, n=6)
39691 Points +38%
Minix Elite EU512-AI
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
28658 Points
Chuwi Aubox, R7 8745HS
AMD Radeon 780M, AMD Ryzen 7 8745HS
28492 Points -1%
1920x1080 Fire Strike Graphics
Average of class Mini PC
  (1122 - 76132, n=110, last 2 years)
16089 Points +252%
Acemagic F3A
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
9145 Points +100%
Asus NUC 14 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
7900 Points +73%
Average Intel Arc 7-Core iGPU
  (4575 - 8531, n=8)
7367 Points +61%
GMK NucBox K9
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
7325 Points +60%
Minisforum UH125 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
7047 Points +54%
Chuwi Aubox, R7 8745HS
AMD Radeon 780M, AMD Ryzen 7 8745HS
4832 Points +6%
Minix Elite EU512-AI
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
4575 Points
2560x1440 Time Spy Graphics
Average of class Mini PC
  (183 - 35501, n=110, last 2 years)
6775 Points +224%
Acemagic F3A
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
3269 Points +56%
Asus NUC 14 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
3205 Points +53%
GMK NucBox K9
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
2881 Points +38%
Average Intel Arc 7-Core iGPU
  (2090 - 3319, n=8)
2881 Points +38%
Minisforum UH125 Pro
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
2796 Points +34%
Minix Elite EU512-AI
Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H
2090 Points
Chuwi Aubox, R7 8745HS
AMD Radeon 780M, AMD Ryzen 7 8745HS
1622 Points -22%
Performance rating - Percent
Average of class Mini PC

99.9 pt
Acemagic F3A
AMD Ryzen AI 9 HX 370, AMD Radeon 890M
84.8 pt
GMK NucBox K9
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
65.7 pt
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
64.8 pt
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
62.9 pt
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, AMD Radeon 780M
54.9 pt
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
48.6 pt
Final Fantasy XV Benchmark - 1920x1080 High Quality
Average of class Mini PC
  (4.49 - 209, n=97, last 2 years)
50.6 fps +214%
Acemagic F3A
AMD Ryzen AI 9 HX 370, AMD Radeon 890M
30.8 fps +91%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
25.3 fps +57%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
23.4 fps +45%
GMK NucBox K9
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
22.3 fps +39%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, AMD Radeon 780M
16.5 fps +2%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
16.1 fps
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Average of class Mini PC
  (8.2 - 213, n=103, last 2 years)
88.3 fps +62%
Acemagic F3A
AMD Ryzen AI 9 HX 370, AMD Radeon 890M
82.5 (72.7min) fps +51%
GMK NucBox K9
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
73.3 (48.5min) fps +34%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
72.9 (47.2min) fps +34%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
70.5 (47.4min) fps +29%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, AMD Radeon 780M
58.4 (52.1min) fps +7%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
54.5 (35.9min) fps
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Acemagic F3A
AMD Ryzen AI 9 HX 370, AMD Radeon 890M
53.3 fps +92%
Average of class Mini PC
  (4.77 - 147.9, n=85, last 2 years)
53.2 fps +91%
GMK NucBox K9
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
37.3 fps +34%
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS, AMD Radeon 780M
35.2 fps +27%
Minisforum UH125 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
33.4 fps +20%
Asus NUC 14 Pro
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
32.9 fps +18%
Minix Elite EU512-AI
Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU
27.8 fps
lowmed.highultra
Dota 2 Reborn (2015) 90.4 64.5 59.2 54.5
Final Fantasy XV Benchmark (2018) 40.8 21.8 16.1
X-Plane 11.11 (2018) 41 31.4 27.8

Energy management

Consumption curve when starting up
Consumption curve when starting up

When powered off, the Minix consumes around 1.36W - a little high for our taste. When booting up, the consumption briefly spikes to up to 60W, but once idle on the desktop, it settles between 6 and 10W, supplied by the compact USB-C power adapter.

While browsing the web, including YouTube, the system consumes an average of 15 to 16 W. In Cinebench R23, it is initially 72W, but after about one minute the consumption drops to approx. 68W. During gaming tests with Final Fantasy XV, power draw starts at roughly 50W, then falls to around 40–42W after one minute. Compared to its competitors, the Minix is certainly more power-efficient.

Minix Elite EU512-AI
Ultra 5 125H, Arc 7-Core, Kingston OM8PGP4512Q-A0, , x,
Chuwi Aubox, R7 8745HS
R7 8745HS, Radeon 780M, AirDisk AFF 10-512G, , x,
Acemagic F3A
Ryzen AI 9 HX 370, Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe, , x,
Asus NUC 14 Pro
Ultra 5 125H, Arc 7-Core, Kingston KC3000 2048G SKC3000D2048G, , x,
Minisforum UH125 Pro
Ultra 5 125H, Arc 7-Core, Kingston OM8PGP41024Q-A0, , x,
GMK NucBox K9
Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x,
Average Intel Arc 7-Core iGPU

Average of class Mini PC

Power Consumption
-22%
-59%
-28%
-76%
-48%
-28%
-62%
Idle Minimum * (Watt)
5
4.9
2%
8.5
-70%
5.1
-2%
11.9
-138%
10.9
-118%
6.79 ?(3 - 11.9, n=8)
-36%
Idle Average * (Watt)
6
7.4
-23%
11
-83%
6.4
-7%
14.6
-143%
11
-83%
9.15 ?(6 - 14.6, n=8)
-53%
Idle Maximum * (Watt)
10
9.4
6%
12.6
-26%
14.7
-47%
15.4
-54%
11.4
-14%
12.4 ?(6.5 - 16.5, n=8)
-24%
Load Average * (Watt)
50
57.4
-15%
65.3
-31%
55.5
-11%
48.3
3%
52.8
-6%
Load Maximum * (Watt)
60
106.6
-78%
109.8
-83%
103.3
-72%
89.8
-50%
72.2
-20%
75.7 ?(60 - 103.3, n=8)
-26%
Cyberpunk 2077 ultra external monitor * (Watt)
72.6
68.8
59.1
52.7
57.1

* ... smaller is better

Brief summary

The Minix may be a powerful AI mini PC on paper, but in practice it is constrained by a TDP that's too low. On the other hand, it's remarkably energy-efficient. What remains is a quiet and low-consumption office mini PC with AI capabilities.

Possible alternatives compared

Model / Review
Price
Weight
Dimensions
1.
Minix Elite EU512-AI
Minix Elite EU512-AI
Intel Core Ultra 5 125H ⎘
Intel Arc 7-Core iGPU ⎘
16 GB Memory, 512 GB SSD
Amazon: $829.90
List Price: 829 Euro
772 g139.7 x 140 x 39.5 mm
2.
75.3%
Chuwi Aubox, R7 8745HS
Chuwi Aubox, R7 8745HS
AMD Ryzen 7 8745HS ⎘
AMD Radeon 780M ⎘
16 GB Memory, 512 GB SSD
Amazon:
1. $459.99
CHUWI Gaming Laptop, AMD Ryz...
2. $389.89
CHUWI MiniBook X 2-in-1 Lapt...
3. $389.99
CHUWI 2 in 1 Laptop 10.51", ...
List Price: 386 EUR
743 g152 x 154 x 45 mm
3.
77.9%
Acemagic F3A
Acemagic F3A
AMD Ryzen AI 9 HX 370 ⎘
AMD Radeon 890M ⎘
32 GB Memory, 1024 GB
Amazon:
1.
ACEMAGIC Mini PC Gaming AMD ...
2. $359.00
ACEMAGIC Mini PC Windows 11 ...
3. $319.99
ACEMAGIC Mini Pc Windows 11 ...
List Price: 789€
1 kg148 x 147 x 60 mm
4.
74.7%
Asus NUC 14 Pro
Asus NUC 14 Pro
Intel Core Ultra 5 125H ⎘
Intel Arc 7-Core iGPU ⎘
, 2048 GB SSD
Amazon:
1. $1,049.00
ASUS NUC 14 Pro, Intel NUC 1...
2. $1,049.00
ASUS NUC 14 Pro AI Mini PC, ...
3. $881.79
ASUS NUC 14 Pro AI Mini PC, ...
List Price: 500 EUR
525 g112 x 117 x 37 mm
5.
74.5%
Minisforum UH125 Pro
Minisforum UH125 Pro
Intel Core Ultra 5 125H ⎘
Intel Arc 7-Core iGPU ⎘
32 GB Memory, 1024 GB SSD
Amazon: List Price: 879 EUR797 g145 x 145 x 49 mm
6.
67.3%
GMK NucBox K9
GMK NucBox K9
Intel Core Ultra 5 125H ⎘
Intel Arc 7-Core iGPU ⎘
32 GB Memory, 1024 GB SSD
Amazon: List Price: 560 USD528 g126 x 128 x 47 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

static version load dynamic
Loading comments
Comment on this article
Google LogoAdd as a preferred source on Google
Mail Logo
> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Minix Elite EU512-AI review: A particularly energy-efficient Core Ultra Mini PC
Christian Hintze, 2025-07-18 (Update: 2025-07-18)
