Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina Review

Klaus Hinum, Nino Ricchizzi (translated by Andreas Osthoff), 12/06/2015

5K in the second generation. Apple uses new Skylake processors in the current iMac Retina 5K version, but also a new graphics card from AMD as well as new input devices. The sophisticated build quality and powerful hardware create an impressive package, but it is not perfect.

For the original German review, see here.

Apple has implemented several updates in the new version of the 27-inch iMac Retina. The spec sheet reveals the first part of the new features: The manufacturer now uses Intel’s current Skylake chips as well as a new AMD GPU from the R9 300 series. There are also a number of smaller changes, including new input devices as well as changes in terms of storage devices. This review focuses on the differences to the first Apple iMac 27 Retina and provides tangible measurements in our test categories. The manufacturer has not changed the chassis and the ports. The corresponding information is therefore available in our previous review.

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Graphics adapter
AMD Radeon R9 M390 - 2048 MB, Core: 958 MHz, Memory: 1365 MHz, GDDR5
Memory
8192 MB
, DDR3-1867
Display
27 inch 16:10, 5120x2880 pixel, glossy: yes
Mainboard
Intel Sunrise Point Z170
Storage
Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD), 1024 GB
Soundcard
Cirrus Logic CS4206B
Connections
4 USB 3.0 / 3.1 Gen1, 2 Thunderbolt, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset, Card Reader: SD, Sensors: Brightness sensor
Networking
Broadcom NetXtreme Gigabit Ethernet (10/100/1000MBit), Broadcom 802.11ac (a/b/g/n/ac), Bluetooth 4.0
Operating System
Apple OS X 10.11 El Capitan
Camera
Webcam: 720p FaceTime HD
Additional features
Speakers: Stereo speakers, Keyboard: Chiclet, Keyboard Light: no, 12 Months Warranty
Weight
9.54 kg ( = 336.51 oz / 21.03 pounds) ( = 0 oz / 0 pounds)
Price
2299 Euro

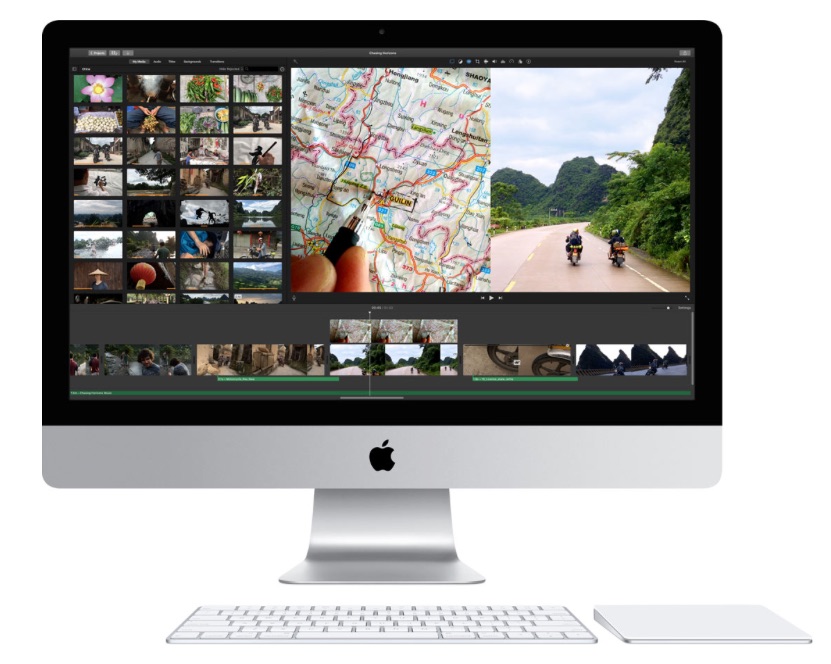

There is enough space on the big 5K screen.
Ports are only at the rear

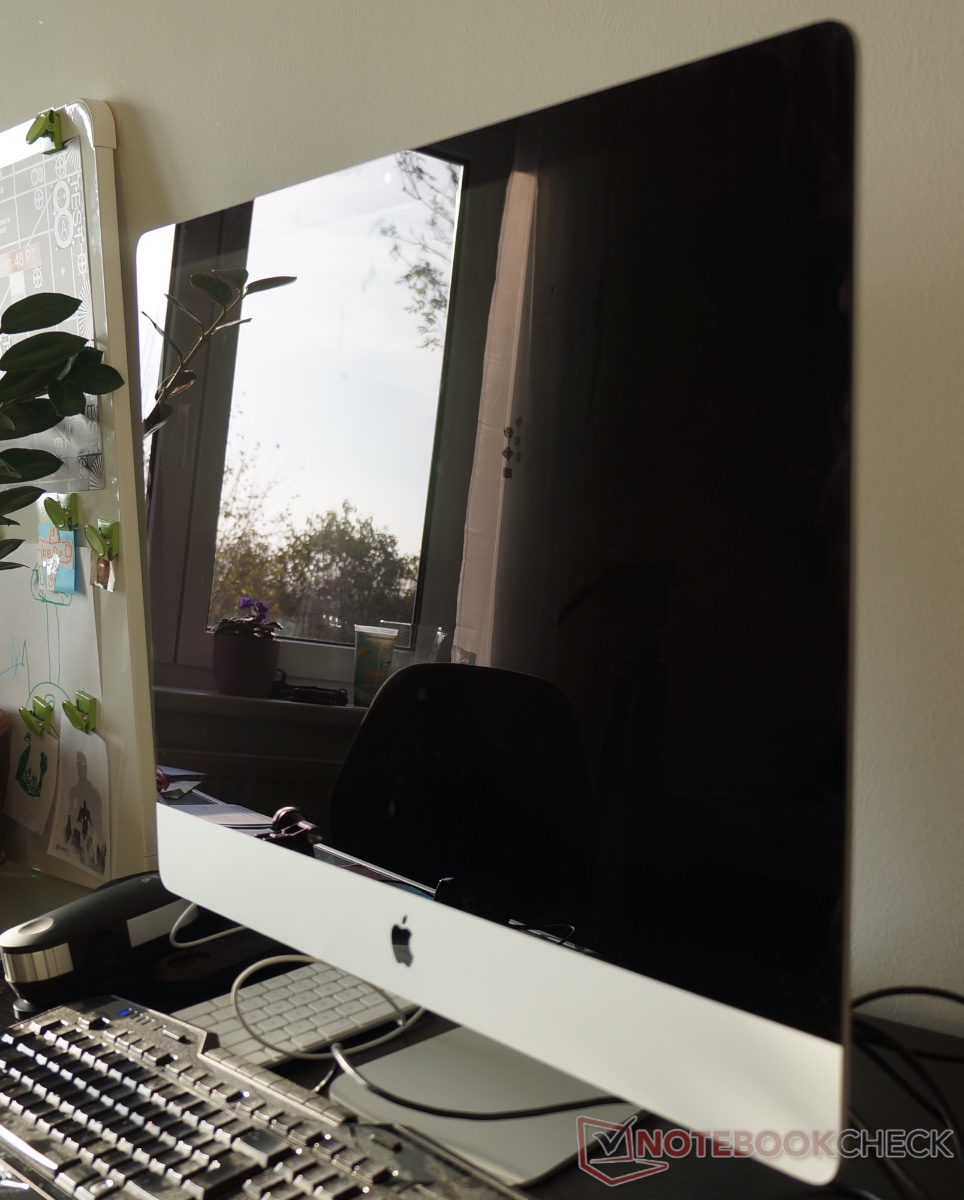

Display with anti-reflective coating
FaceTime HD camera with 720p
glossy panel

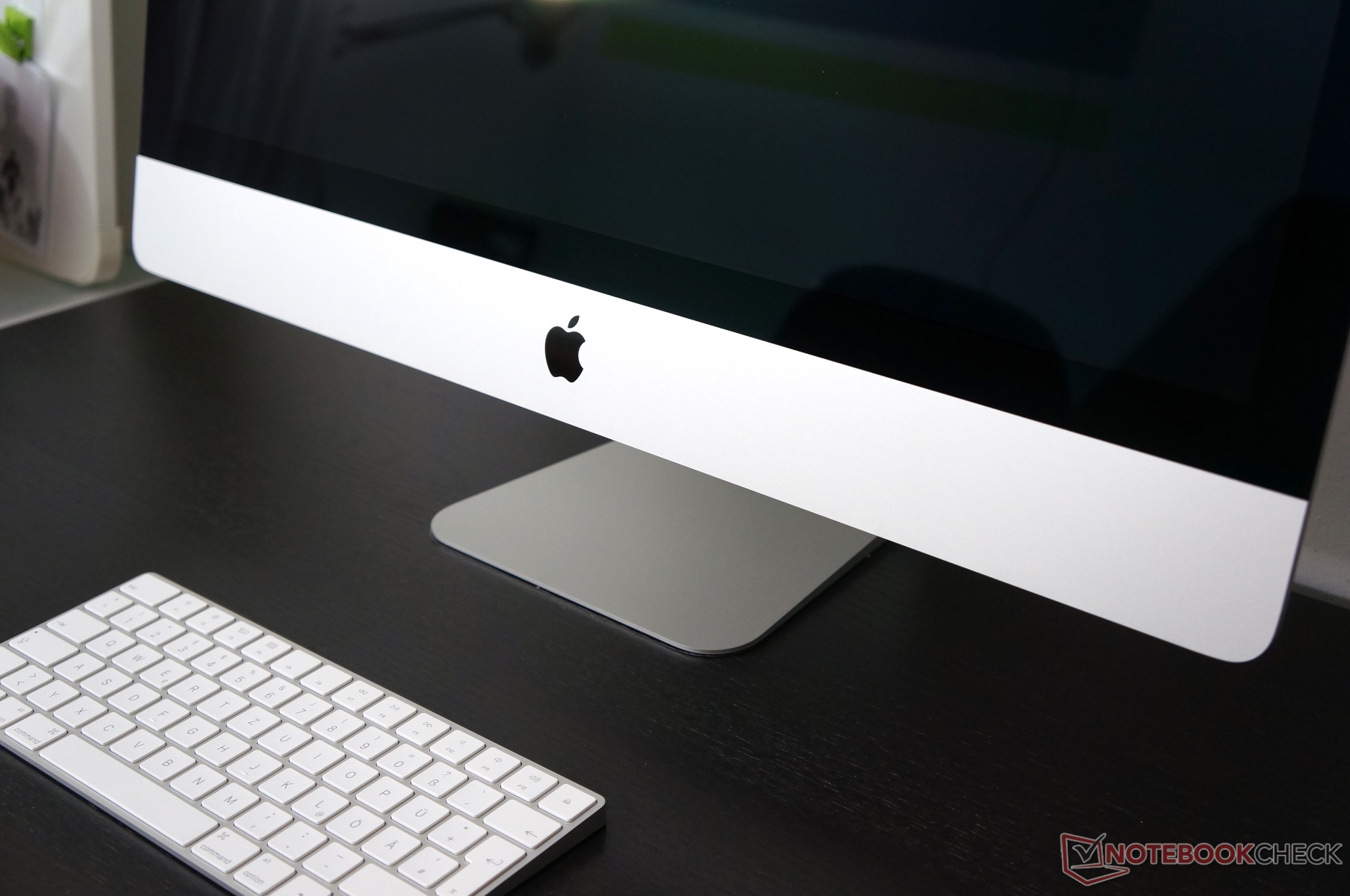

classic and elegant design
slim construction
The new input devices in review

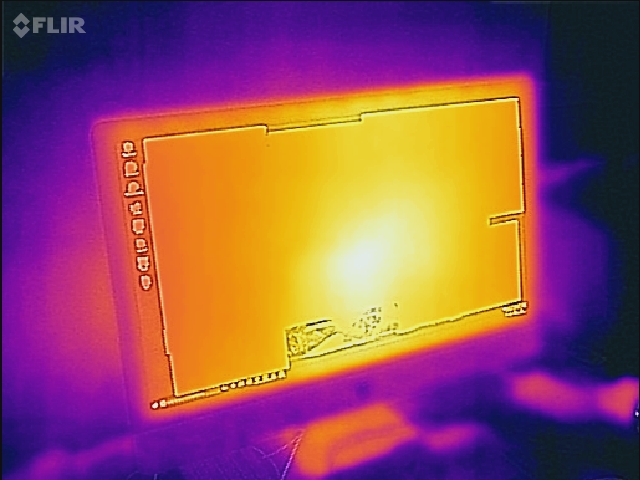

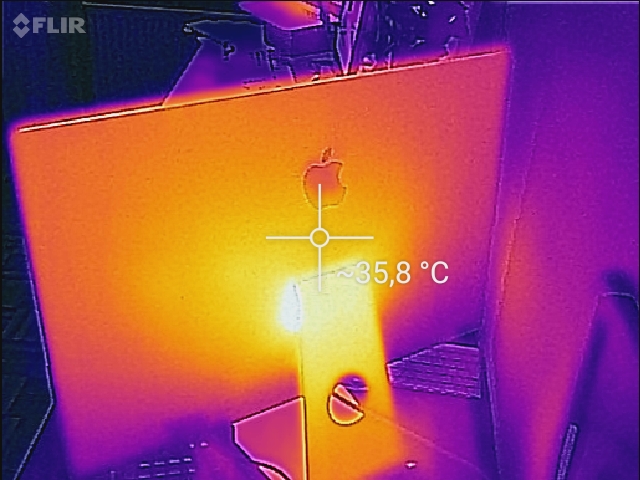

Heat dissipation underneath the display

Communication

The iMac is equipped with various communication modules. Wireless connections are handled by an 802.11ac Wi-Fi module, which is supposed to manage transfer rates of up to 867 Mbps. The connection was very good in combination with our n-router (5 GHz) and we managed between 25 and 30 Mbps. The iMac reached 940 Mbps via Gigabit-Ethernet (both tests with iPerf and a 2013 MBPr13). The Apple device also supports Bluetooth 4.0, which is used by the provided Magic Mouse 2 and the Magic Keyboard. Under Mac OS X, this is not a problem, but there were some connection issues under Windows, despite the installation via Bootcamp.

Wired network connections are possible via Ethernet connection, which allows transfer rates of up to one Gbps.

Webcam

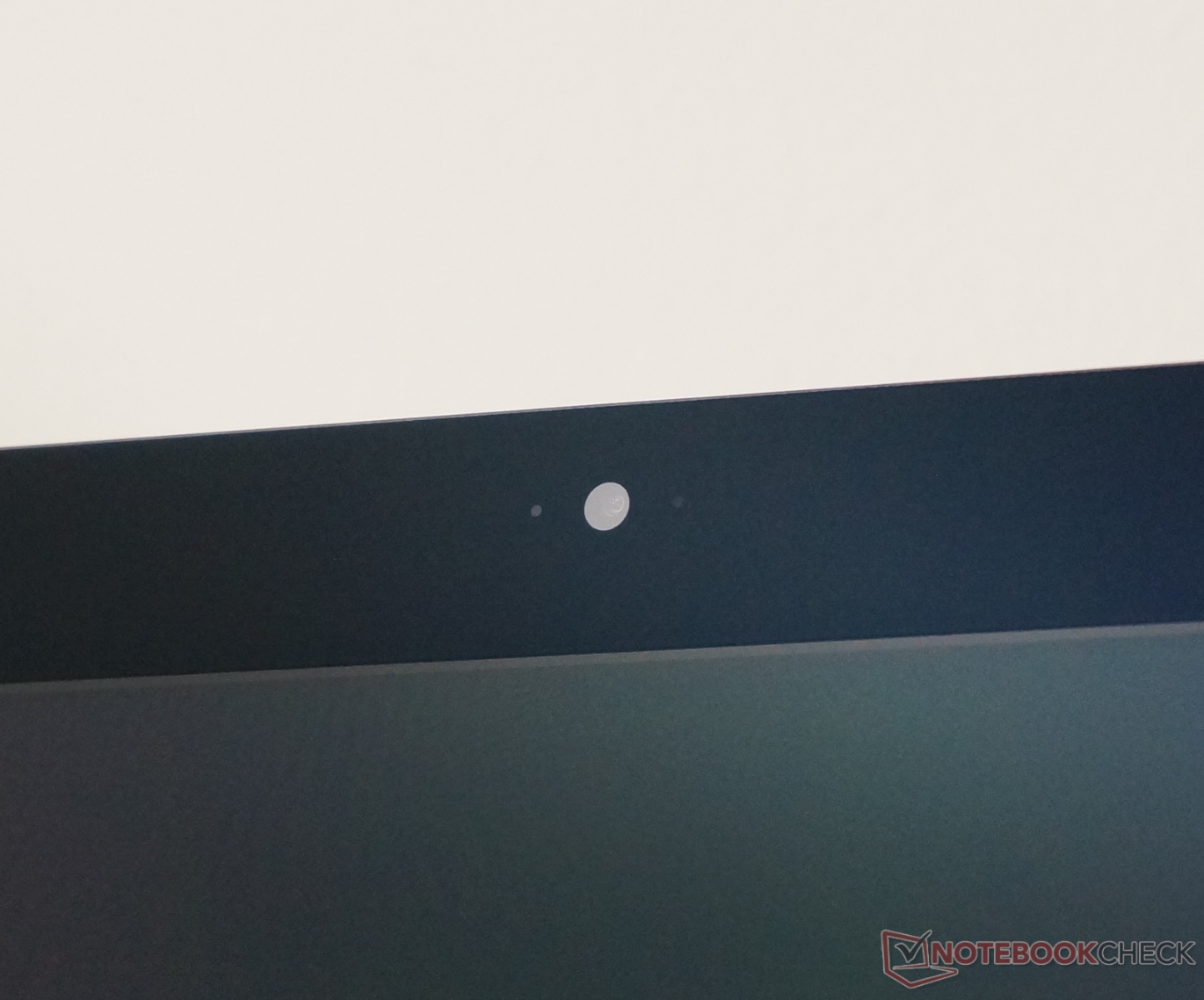

Nothing has changed in terms of the Face Time HD webcam. The 720p camera takes average pictures for a webcam, but there is a lot of room for improvements in terms of details as well as color reproduction. The Face Time camera is therefore only suitable for simple video calls.

FaceTime HD camera - ColorChecker chart
FaceTime HD camera - ColorChecker chart
FaceTime HD camera - skin tone test
FaceTime HD camera - skin tone test
Test chart shows color spaces in the center and the low resolution of the sensor.
Test chart shows color spaces in the center and the low resolution of the sensor.
It is no problem to drive another 4K monitor via Mini-DisplayPort.
It is no problem to drive another 4K monitor via Mini-DisplayPort.

Accessories

As with the previous generation, the Apple iMac is shipped with a keyboard and a mouse – now updated to new versions. You also get a Lightning cable to recharge the input devices at a USB port. You can also get the Magic Trackpad 2 instead of the Magic Mouse 2, but this will cost an additional 60 Euros (~$65). With the exception of a few brochures, there are no other noteworthy accessories.

Maintenance

Once again, the maintainability of the new model is limited. Only the memory can be accessed easily via the hatch at the back. You will have to remove the glued display to reach the other components, but professionals should perform this procedure. Our colleagues from ifixit demonstrate the complicated process.

Warranty

As it is usual for Apple you only get a one-year manufacturer's warranty, but it is possible to purchase an optional AppleCare Protection Plan for up to three years. This additional warranty includes an enhanced technical support, hardware protection as well as software support. This option is priced at 180 Euros (~$196).

The button to release the cover is very hard to push
The button to release the cover is very hard to push
You have to pull the cover out.
You have to pull the cover out.
After that, you can easily access the memory.
After that, you can easily access the memory.

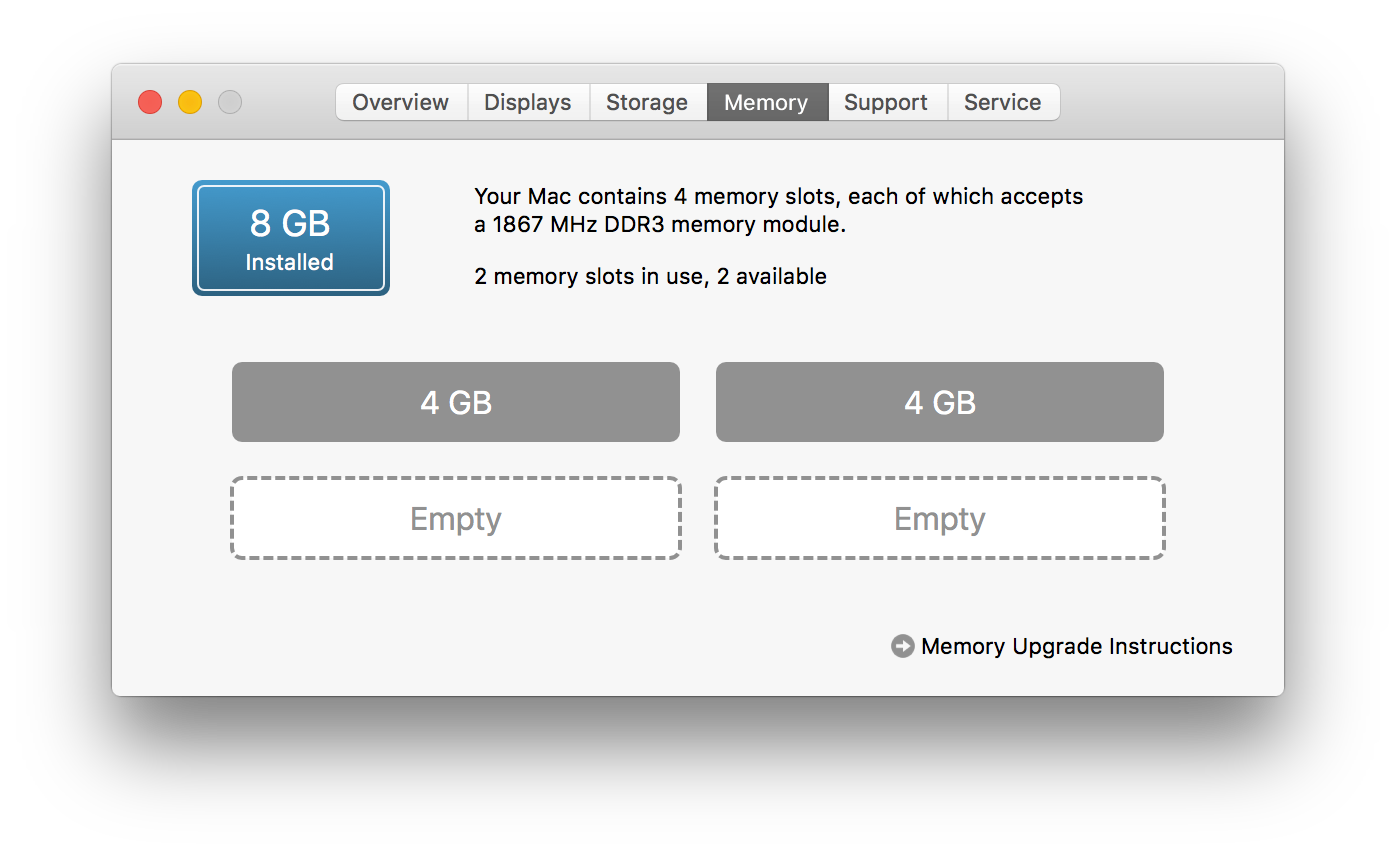

integrated DDR3 memory
integrated DDR3 memory

Ports

All the ports are located at the back and thanks to the hole in the stand, you can achieve a hidden cable management. The problem with this solution is that you will have to turn the iMac every time you want to attach a USB drive or an SD-card. An SD-slot and one USB-port on the side or the front would have been ideal. It is a Skylake device, but there is no fast USB 3.1 Gen 2 (type C). On the other hand, the iMac offers two Thunderbolt ports (but they are only Thunderbolt 2).

Rear: Headset, SD-card, 4x USB 3.0, 2x Thunderbolt 2 (with DisplayPort), Gigabit LAN
Rear: Headset, SD-card, 4x USB 3.0, 2x Thunderbolt 2 (with DisplayPort), Gigabit LAN

Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
English-Swedish-Translator -
Details here
Review Editor -
Details here
News Editor - Details here













Input Devices

Keyboard

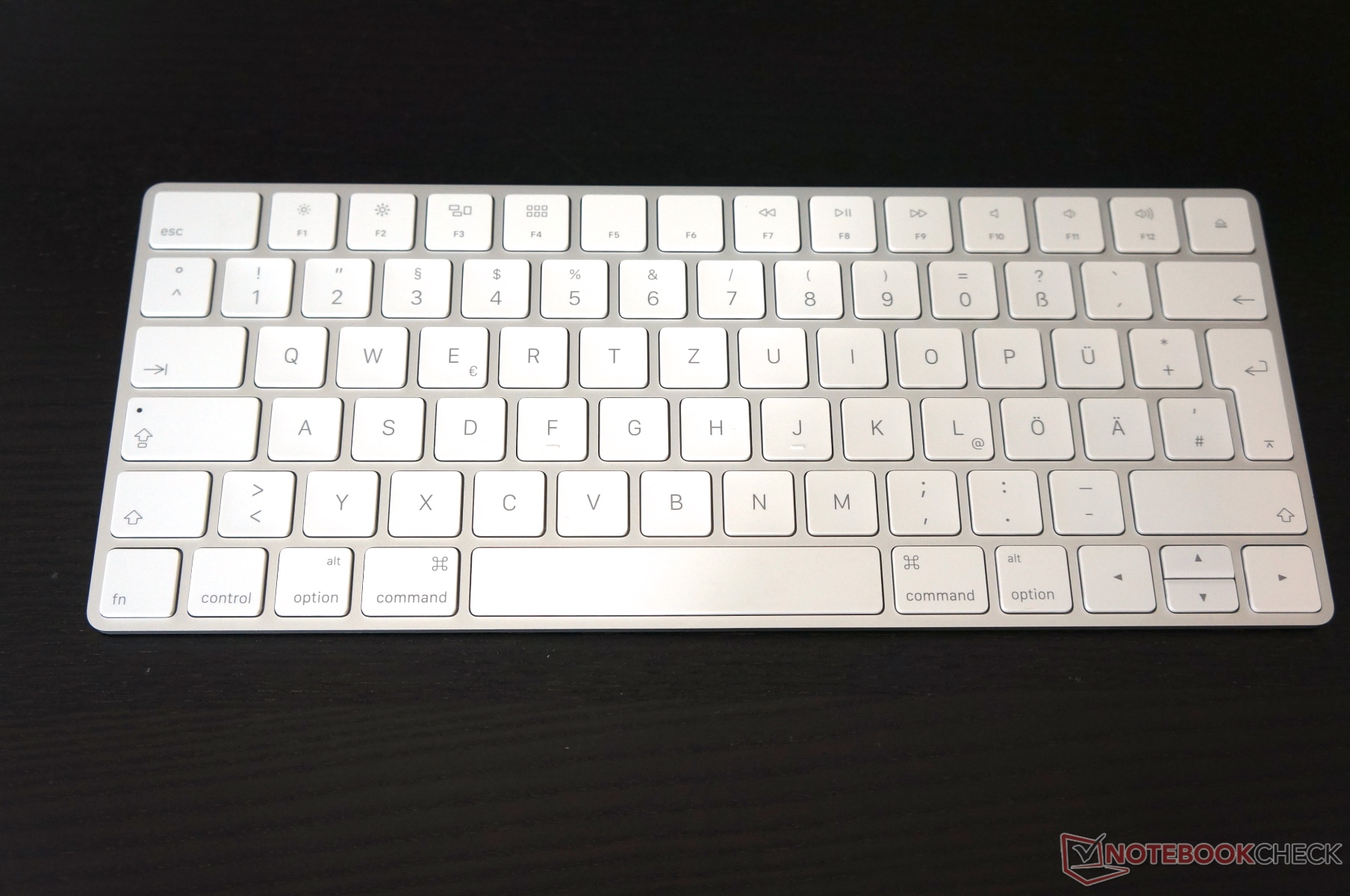

Apple has replaced the Apple Wireless Keyboard, launched in 2007, with the Magic Keyboard. Probably the most anticipated feature is the rechargeable battery, which can be charged via the Lightning port. The design has also changed slightly. It is now 13% smaller and the keys are flatter. The keys now use the scissor mechanism, which was introduced with the Apple MacBook 12, and you will have to get used to them. After a little while, however, we were able to use it just as quickly and comfortably as the old model. All keys have an even resistance and are not wobbly towards the corners. The new model does not have background illumination or a number pad. If you want these features, you can choose a fully wired (old) Apple Keyboard in the configuration process. The chassis is, similar to the iMac, very sophisticated and made of aluminum and plastic (bottom).

Touchpad

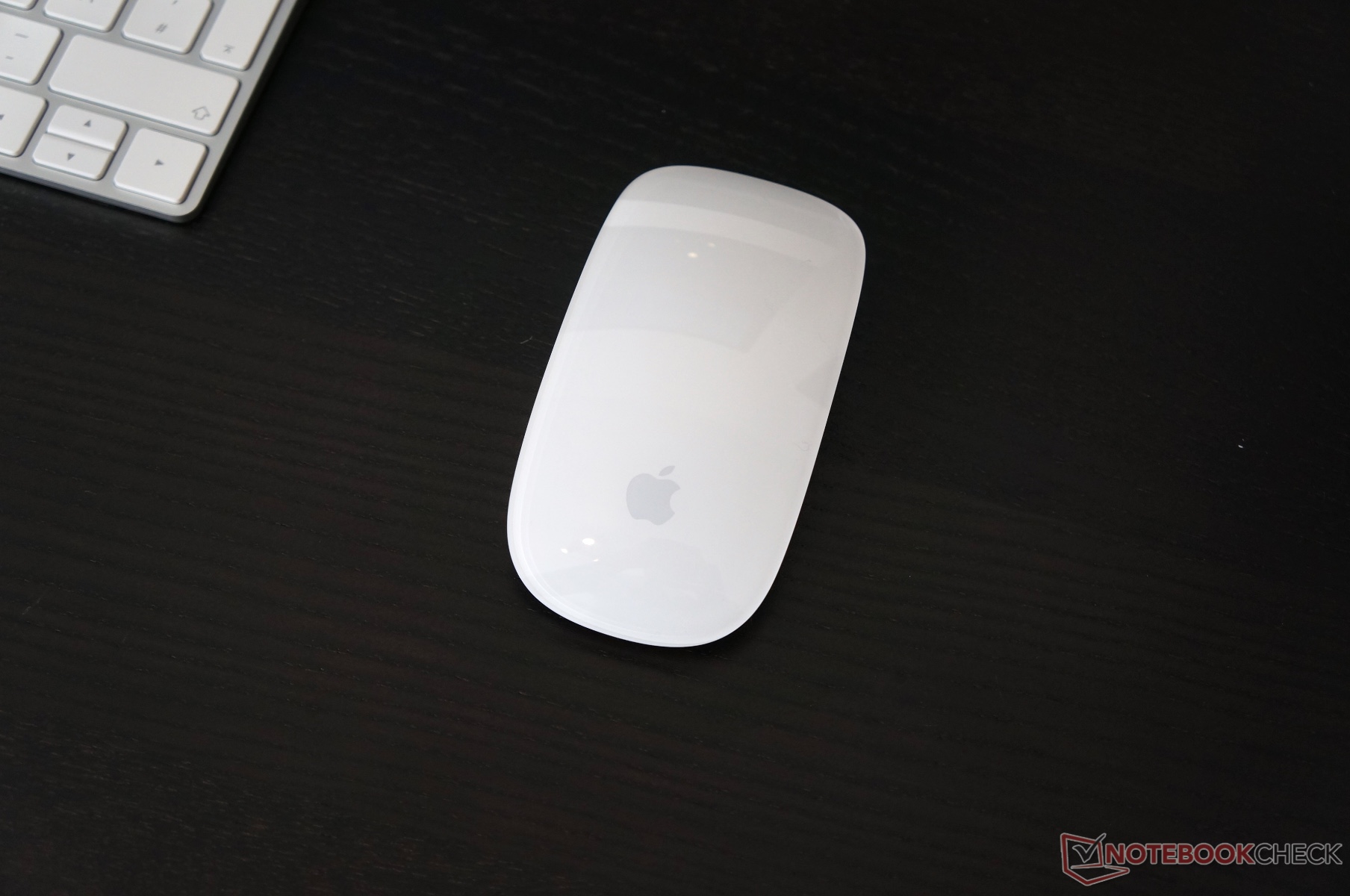

Not that much has changed in terms of the Magic Mouse 2. Apple has finally included a rechargeable battery, which does reduce the weight at the same time. The charging process on the other hand is not very impressive. You will have to turn the mouse upside down and then attach the Lightning cable. The gesture control works perfectly under Mac OS X, but Windows sometimes had issues even with simple scrolling. The mouse was not recognized during the installation via Bootcamp and it did not work after waking from standby. This is a driver problem, so Windows users should have a USB mouse.

visual changes of the keyboard
visual changes of the keyboard

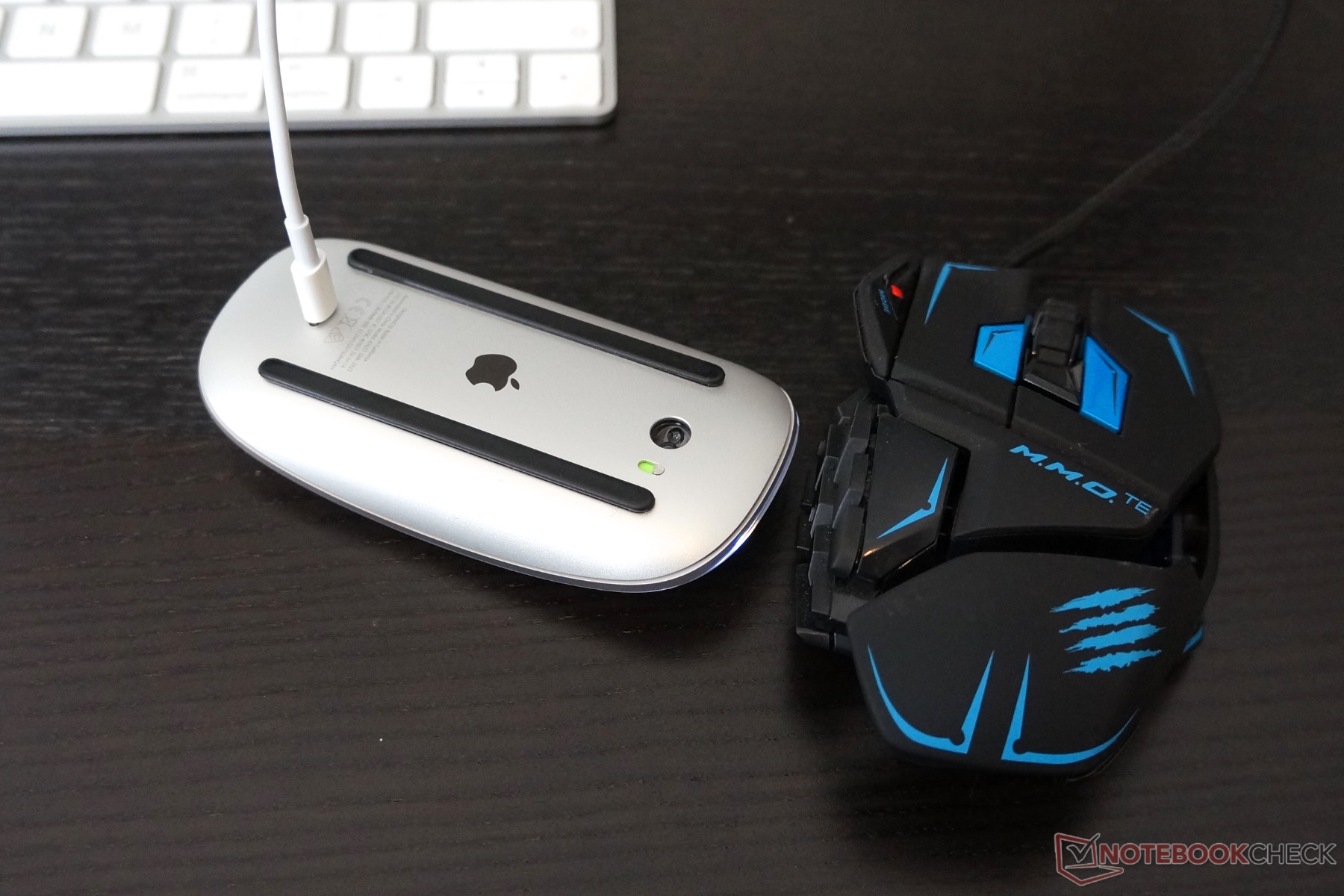

not the most elegant charging solution
not the most elegant charging solution
The surface can be used for gestures.
The surface can be used for gestures.

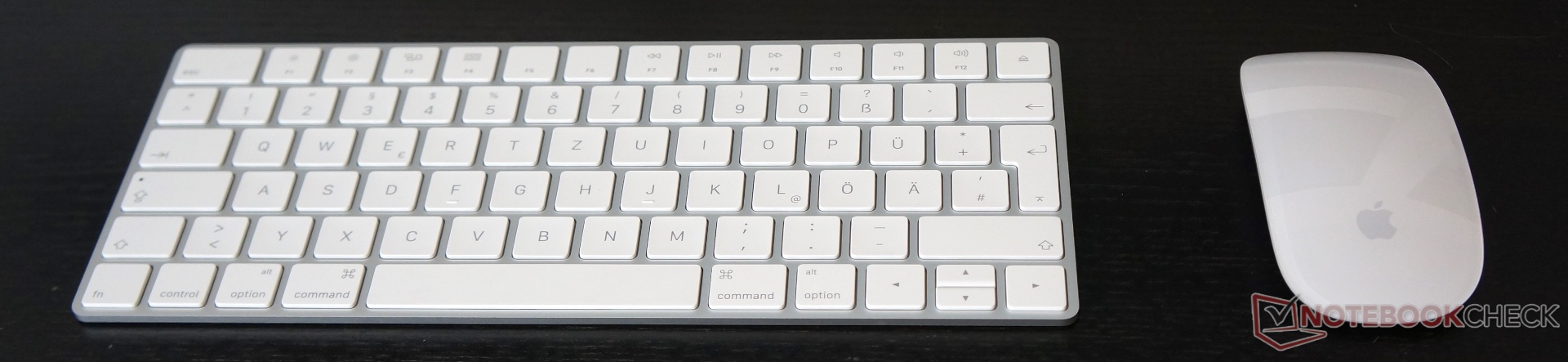

Besides the new charging feature, the two input devices are pretty convincing (when you use OS X).
Besides the new charging feature, the two input devices are pretty convincing (when you use OS X).

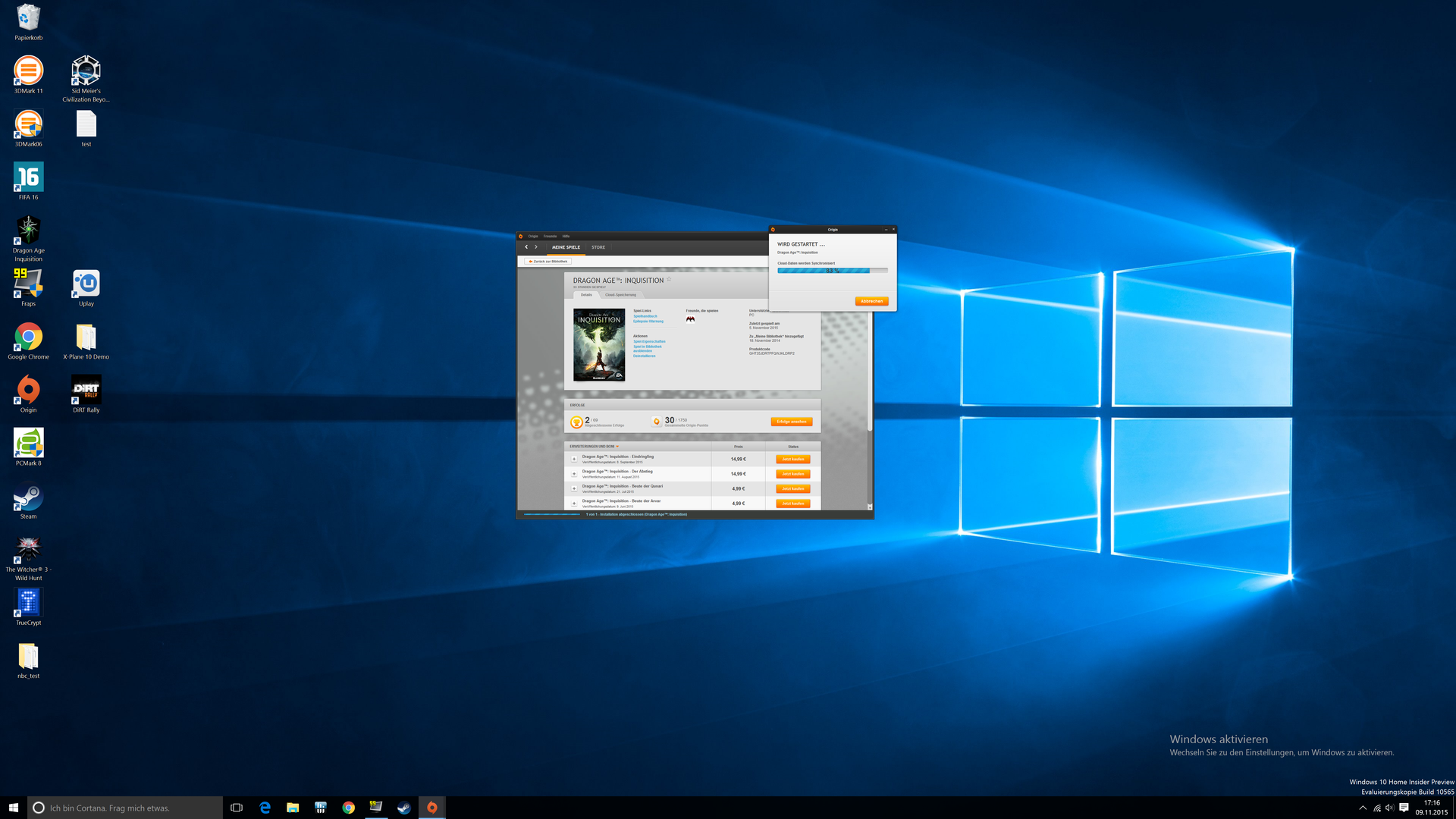

Scaling problems in Windows
Scaling problems in Windows

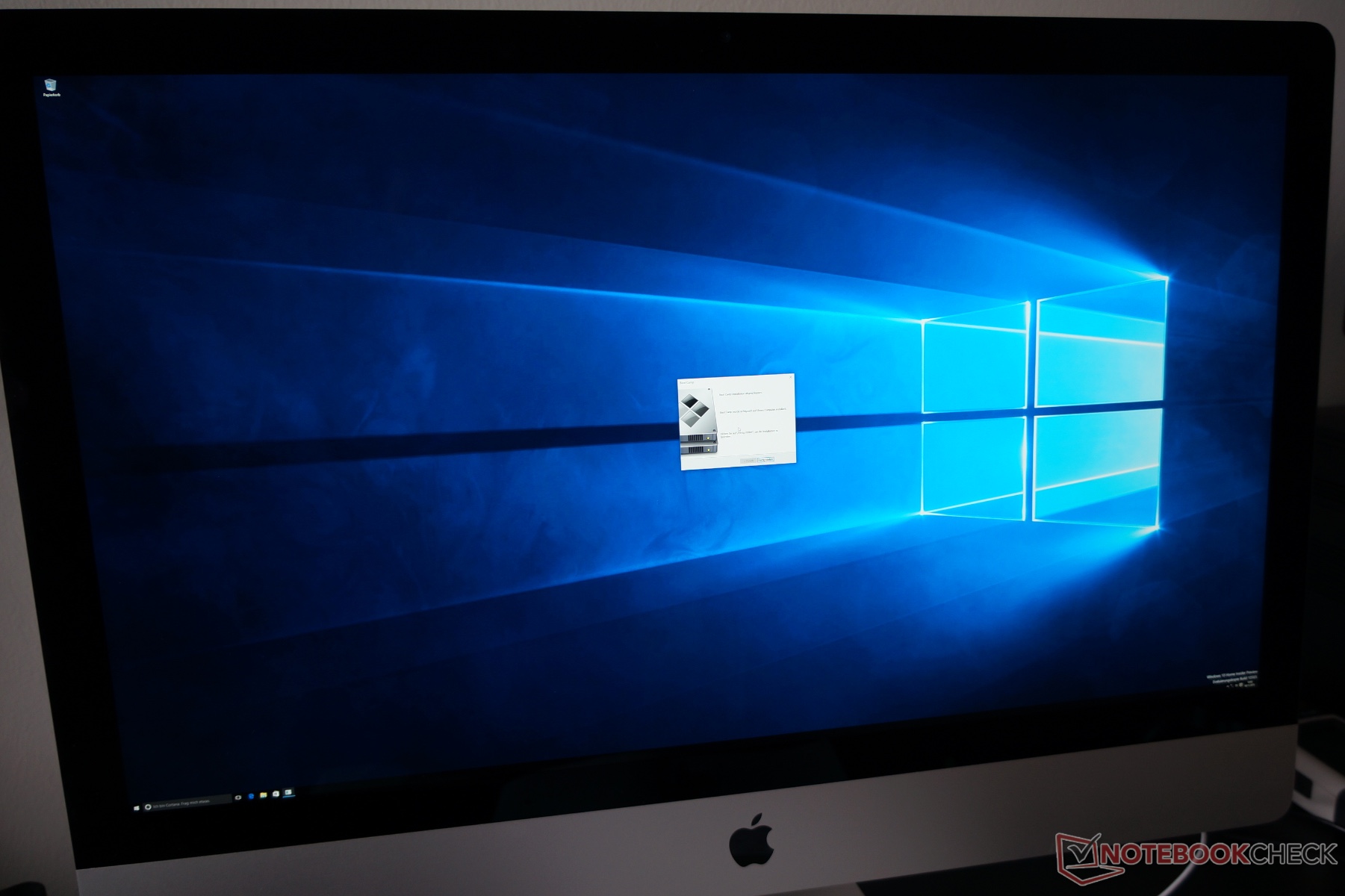

Resolution before we installed the drivers
Resolution before we installed the drivers

At a first glance, the 5K display looks very similar to the old model, but there are differences in the details.

The large screen still has a resolution of 5120x 2880 pixels, which results in a pixel density of 217 PPI. Apple’s own operating system is perfectly optimized for the resolution, but this is not the case for Windows 10 via Bootcamp. The manufacturer uses a red-colored anti-reflection coating to reduce reflections. Apple uses a glossy panel to ensure brilliant colors. The average brightness of 424 cd/m² can also compensate for some annoying reflections. The brightness sensor can adjust the luminance gently and it works very well. A brightness distribution of 95% is also very good, but we can see some backlight bleeding in the corners on a dark background. Our comparison pictures show that the predecessor did not have this issue. A closer look at the corners of the display reveals a small gap between the panel and the case.

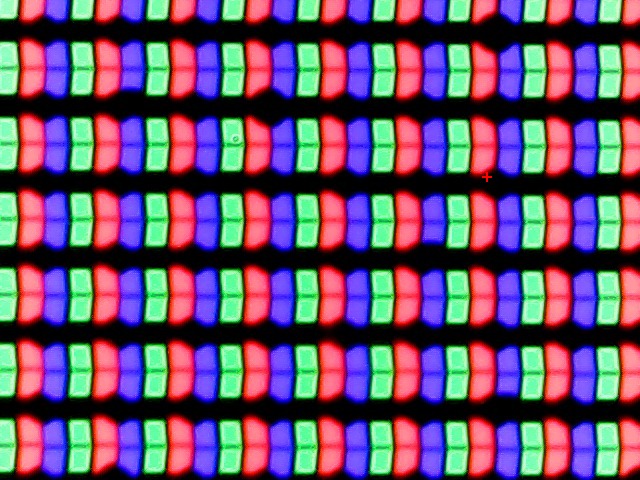

Subpixel array
Subpixel array

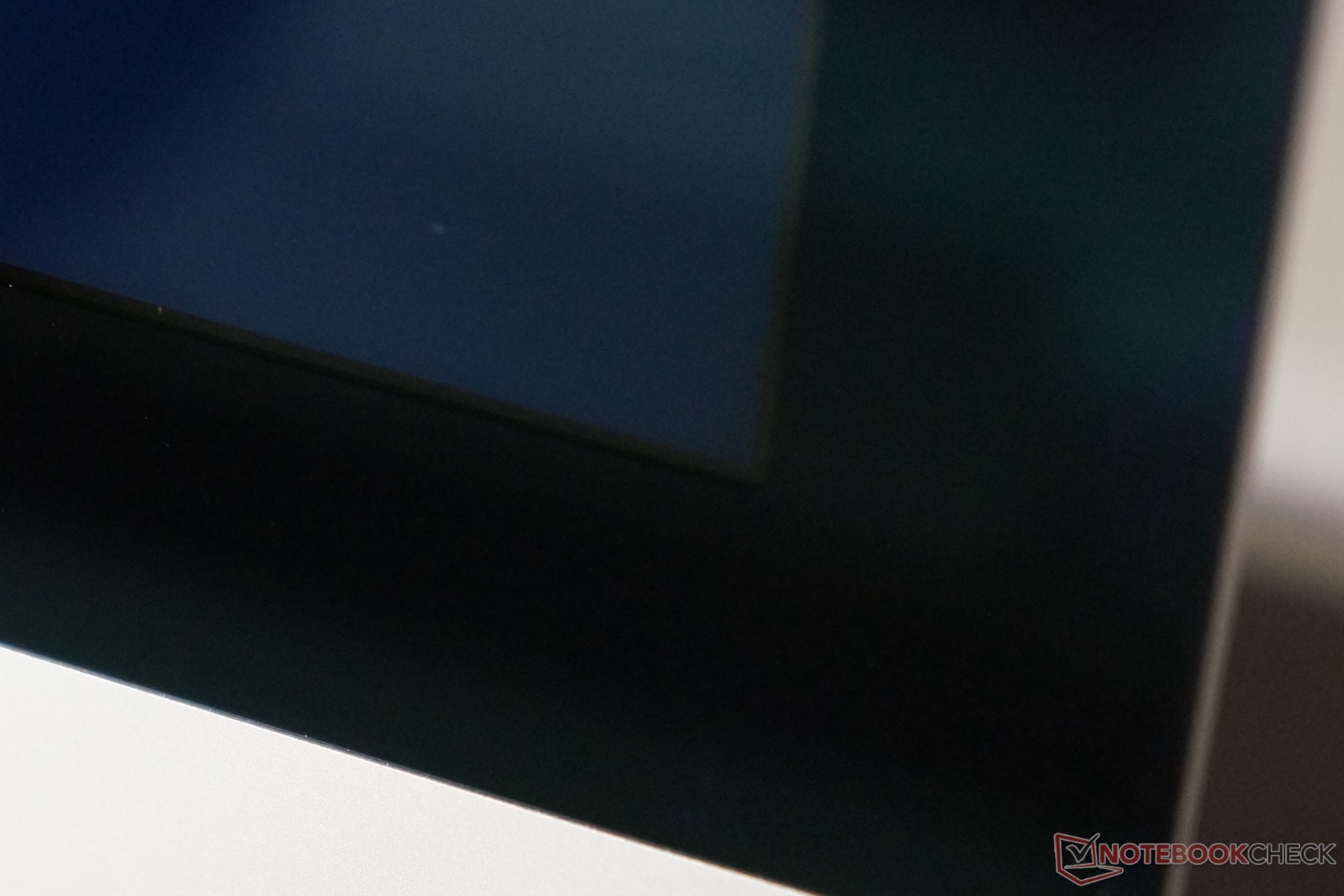

small distance between display panel ...
small distance between display panel ...
... and the case
... and the case

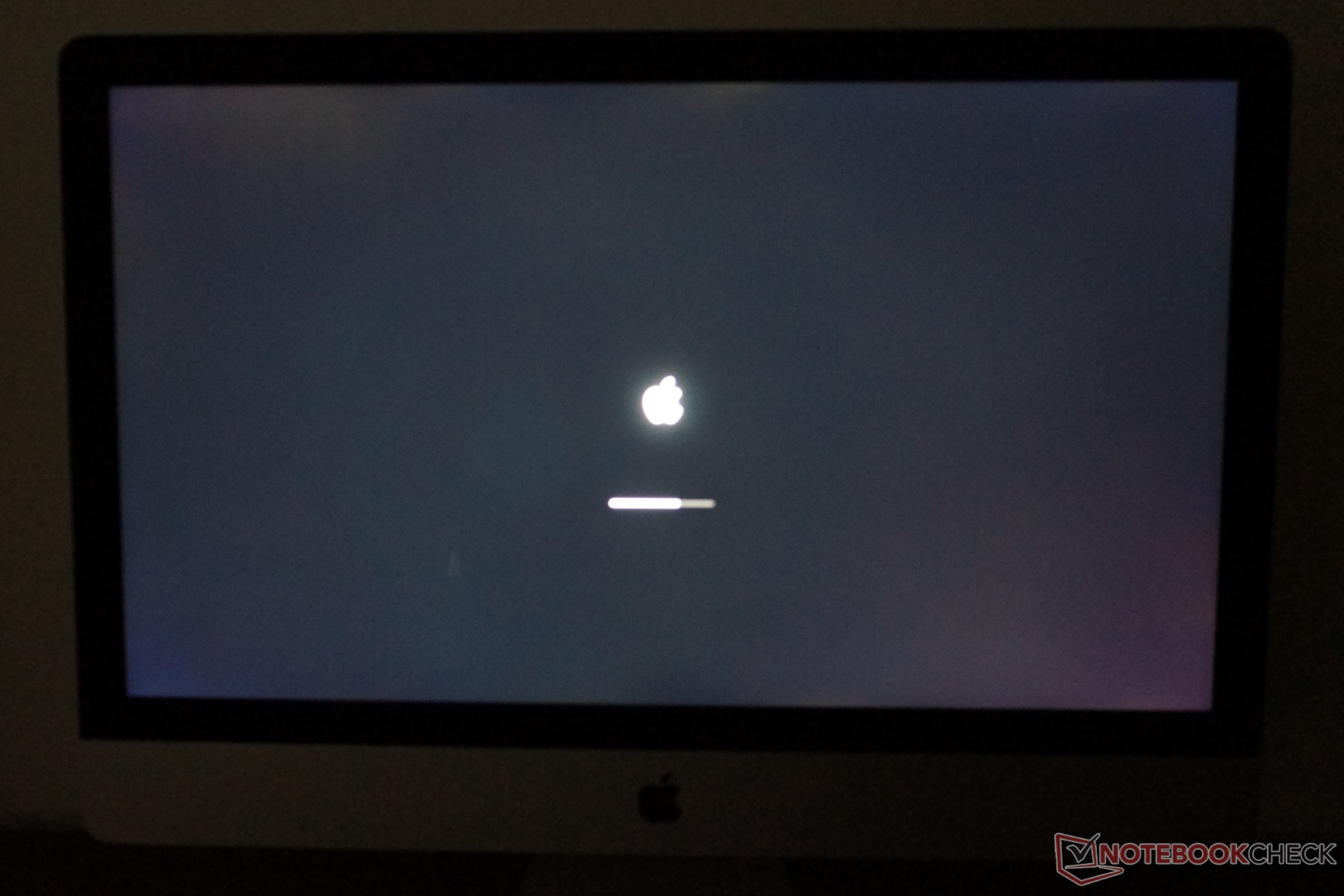

Screen bleeding iMac 5K 2015
Screen bleeding iMac 5K 2015

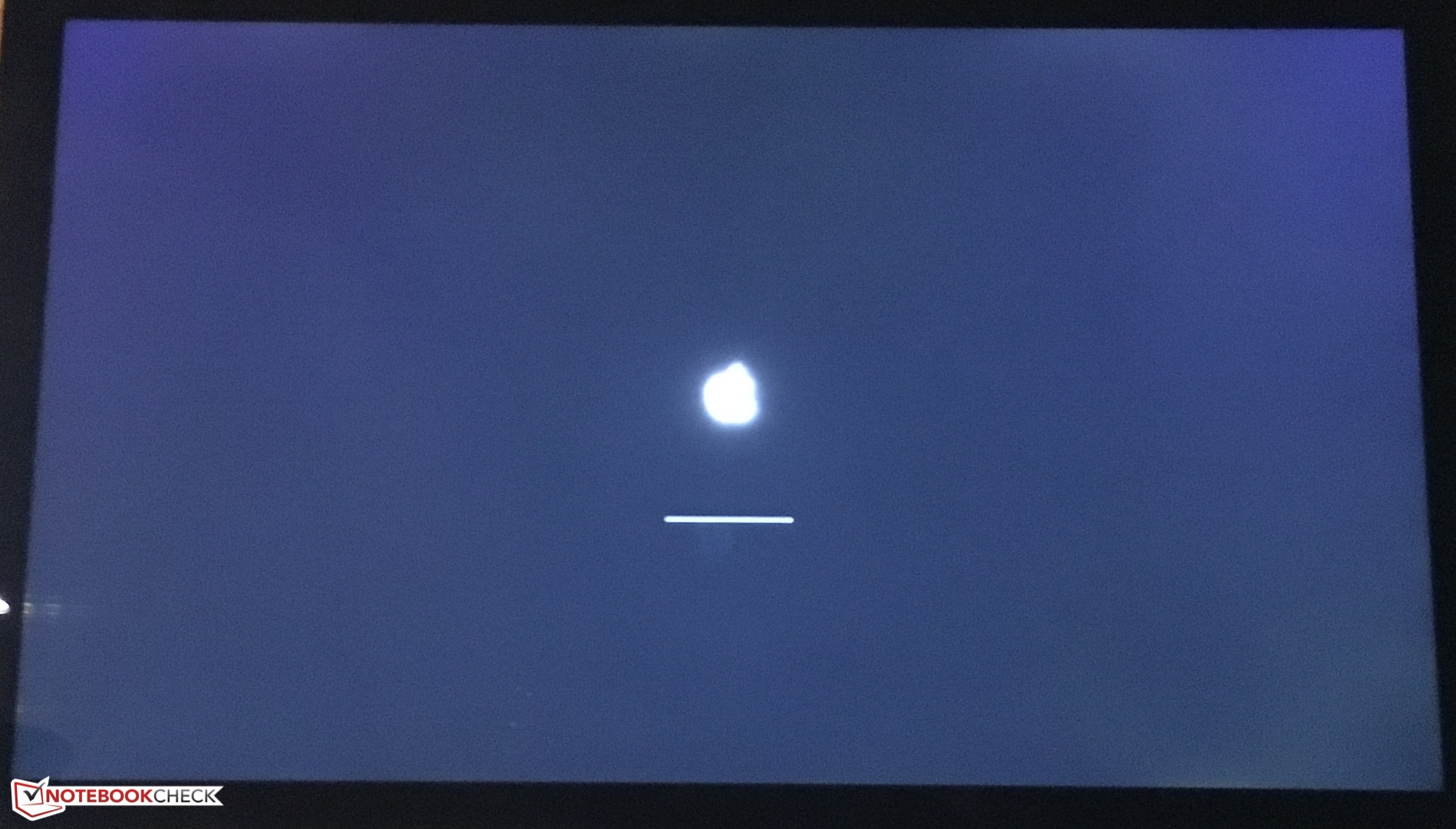

Screen bleeding iMac 5K 2014
Screen bleeding iMac 5K 2014
419
cd/m²
419
cd/m²
422
cd/m²
434
cd/m²
429
cd/m²
432
cd/m²
418
cd/m²
428
cd/m²
412
cd/m²
Distribution of brightness
X-Rite i1Pro 2 // Gossen Mavo-Monitor
Maximum: 434 cd/m² Average: 423.7 cd/m²
Brightness Distribution: 95 %
Contrast: 740:1 (Black: 0.58 cd/m²)
ΔE Color 2.8 | - Ø
ΔE Greyscale 1.97 | - Ø
99.97% sRGB (Argyll) 79% AdobeRGB 1998 (Argyll)
Gamma: 2.13

The contrast ratio is okay at 740:1 (average for workstation notebooks, for example) and is definitely sufficient for nice pictures. The contrast is also stable at APL50 and APL25 (average picture level), which means that there is no backlight dimming for single-colored areas.

We have to look pretty hard to find real differences compared to the predecessor: The CalMAN analysis is very good. The color accuracy (tested compared to the advertised DCI-3P color space) reveals a similar DeltaE deviation (2.8) compared to the iMac Retina 2014 (2.66), but the grayscale performance is much better at 1.96 (iMac Retina 2014: 3.47). These values drop to below 0.5 after calibration. The sRGB color space is covered almost completely at 99.7%, while the AdobeRGB coverage of the iMac is 79%.

Overall, the 27-inch display is impressive and leaves a good impression, particularly during picture and video playback.

CalMAN: Grayscale (DCI-P3)
CalMAN: Grayscale (DCI-P3)
CalMAN: Grayscale after calibration (DCI-P3)
CalMAN: Grayscale after calibration (DCI-P3)

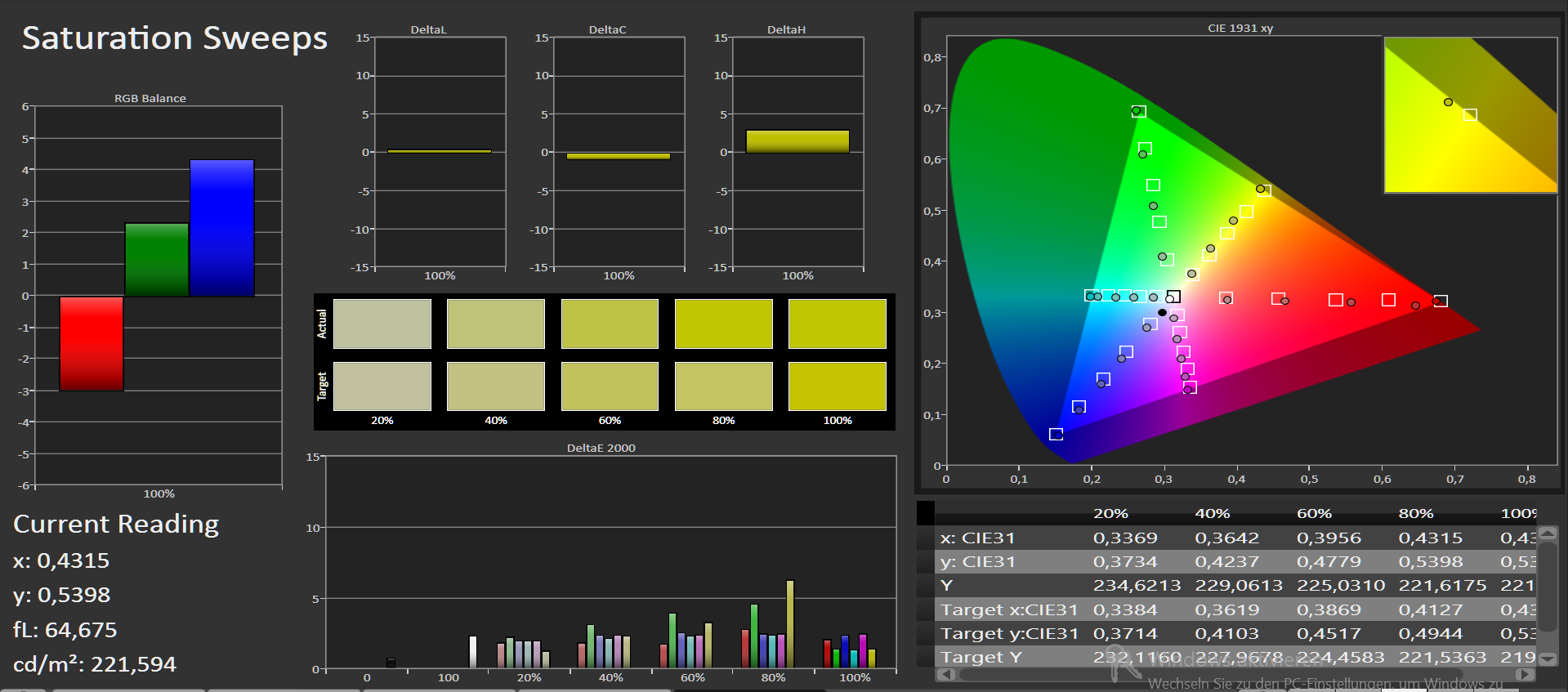

CalMAN: Saturation Sweeps (DCI-P3)
CalMAN: Saturation Sweeps (DCI-P3)

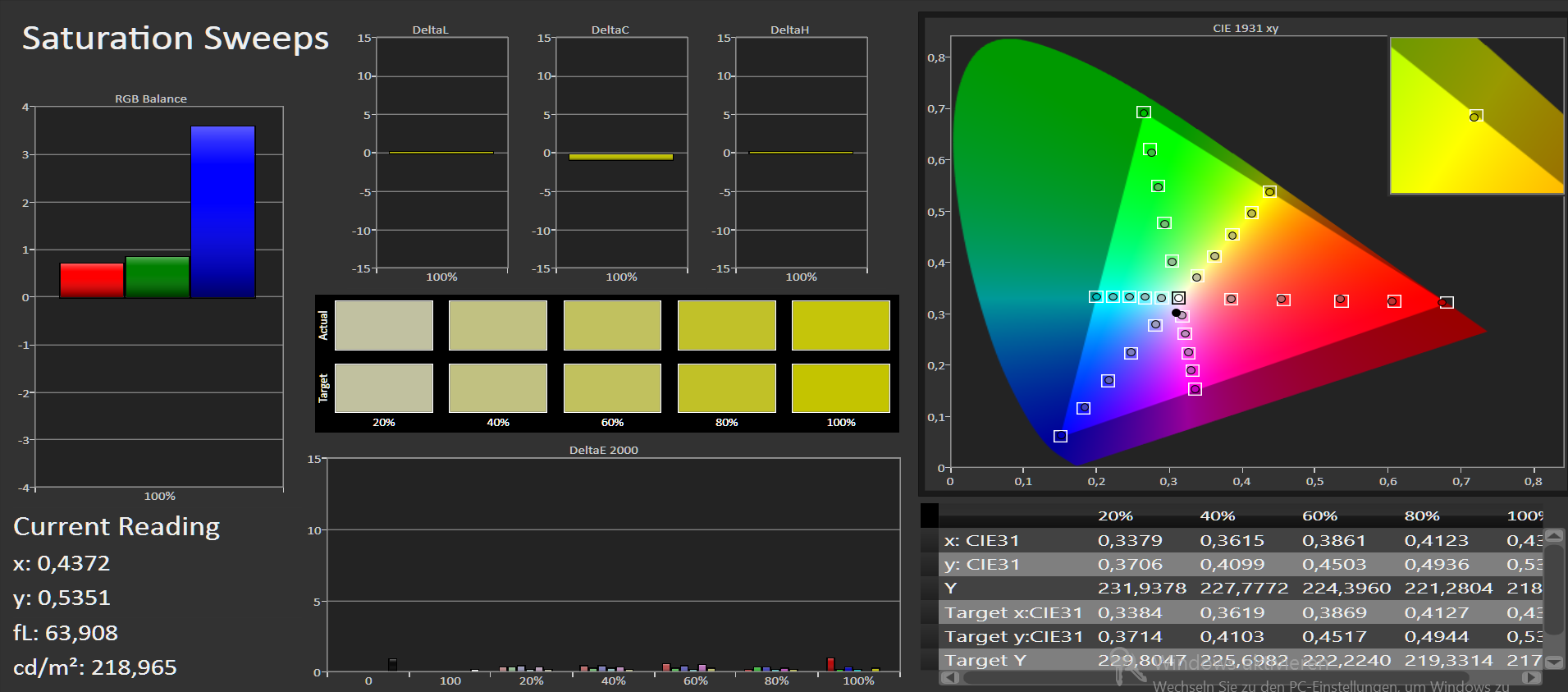

CalMAN: Saturation Sweeps after calibration (DCI-P3)
CalMAN: Saturation Sweeps after calibration (DCI-P3)
CalMAN: ColorChecker (DCI-P3)
CalMAN: ColorChecker (DCI-P3)
CalMAN: ColorChecker after calibration (DCI-P3)
CalMAN: ColorChecker after calibration (DCI-P3)
Comparison: Color space coverage iMac 5K 2014 and iMac 2015 (transparent)
Comparison: Color space coverage iMac 5K 2014 and iMac 2015 (transparent)

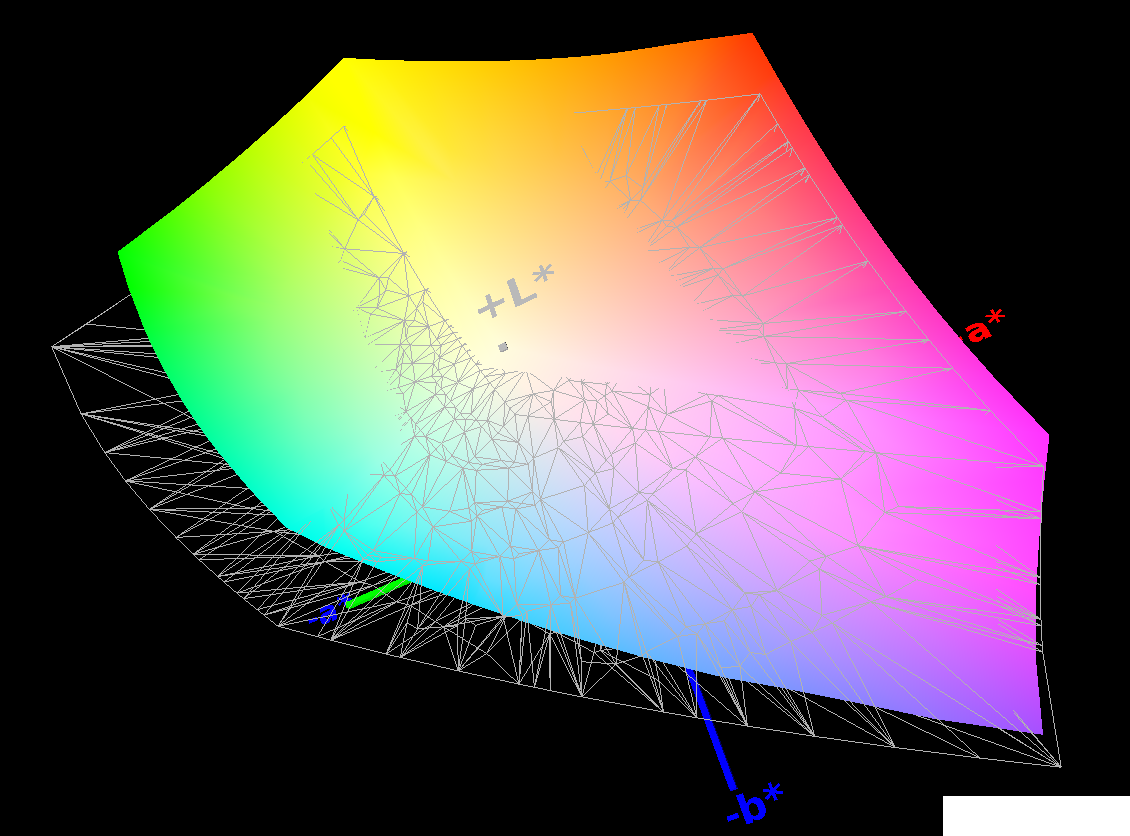

Comparison: AdobeRGB color space and iMac
Comparison: AdobeRGB color space and iMac

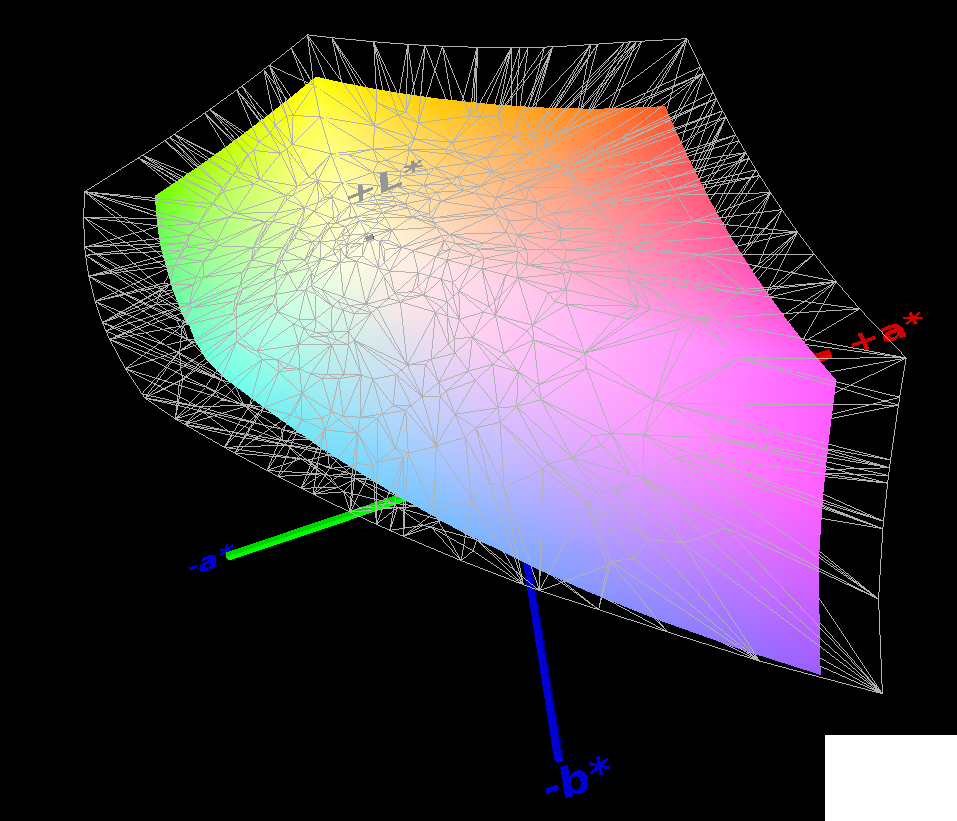

Comparison: sRGB color space and iMac (transparent)
Comparison: sRGB color space and iMac (transparent)
Grayscale: frontal measurement with a distance of 9 cm
Grayscale: frontal measurement with a distance of 9 cm

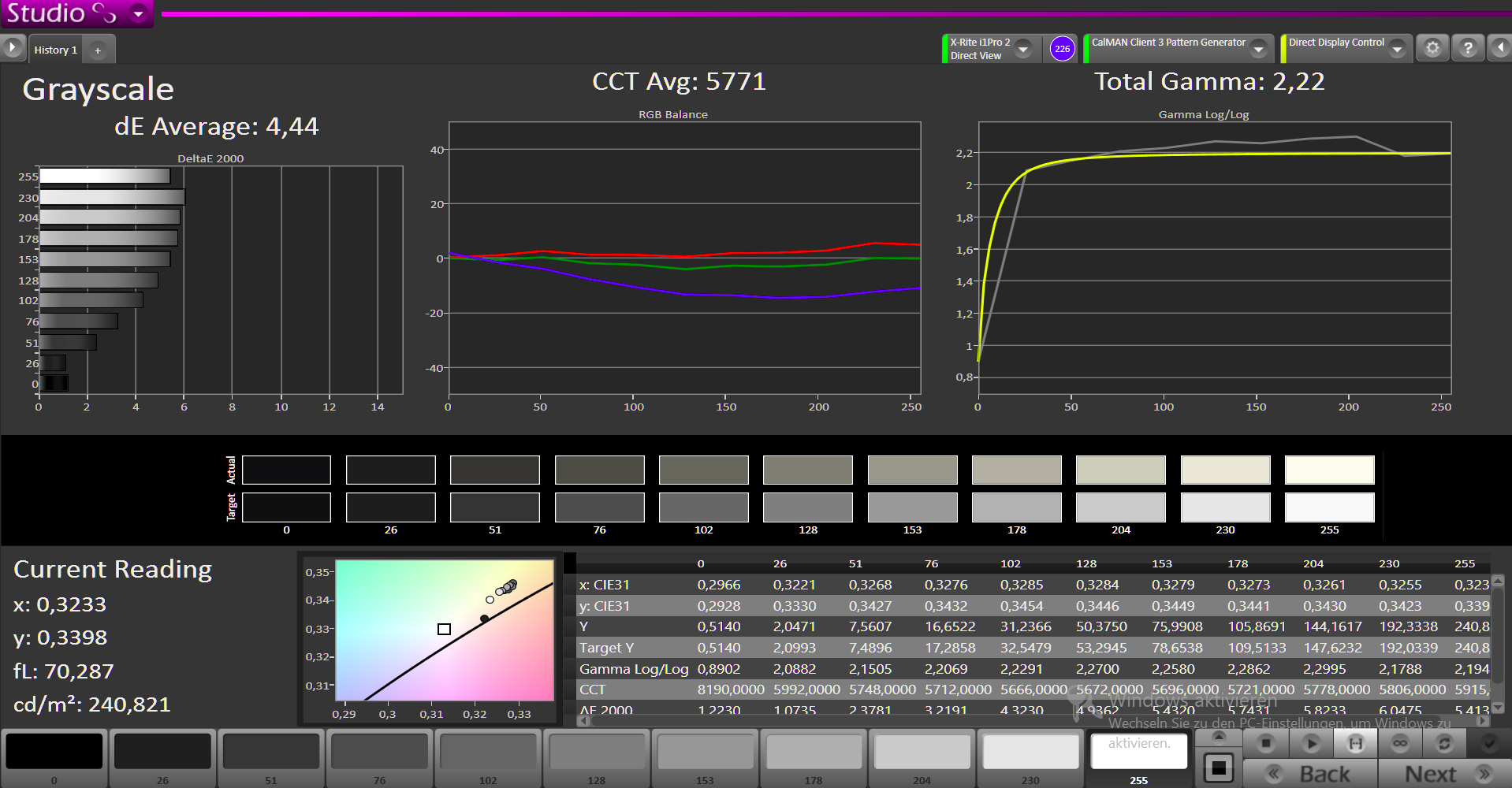

Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees
Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees

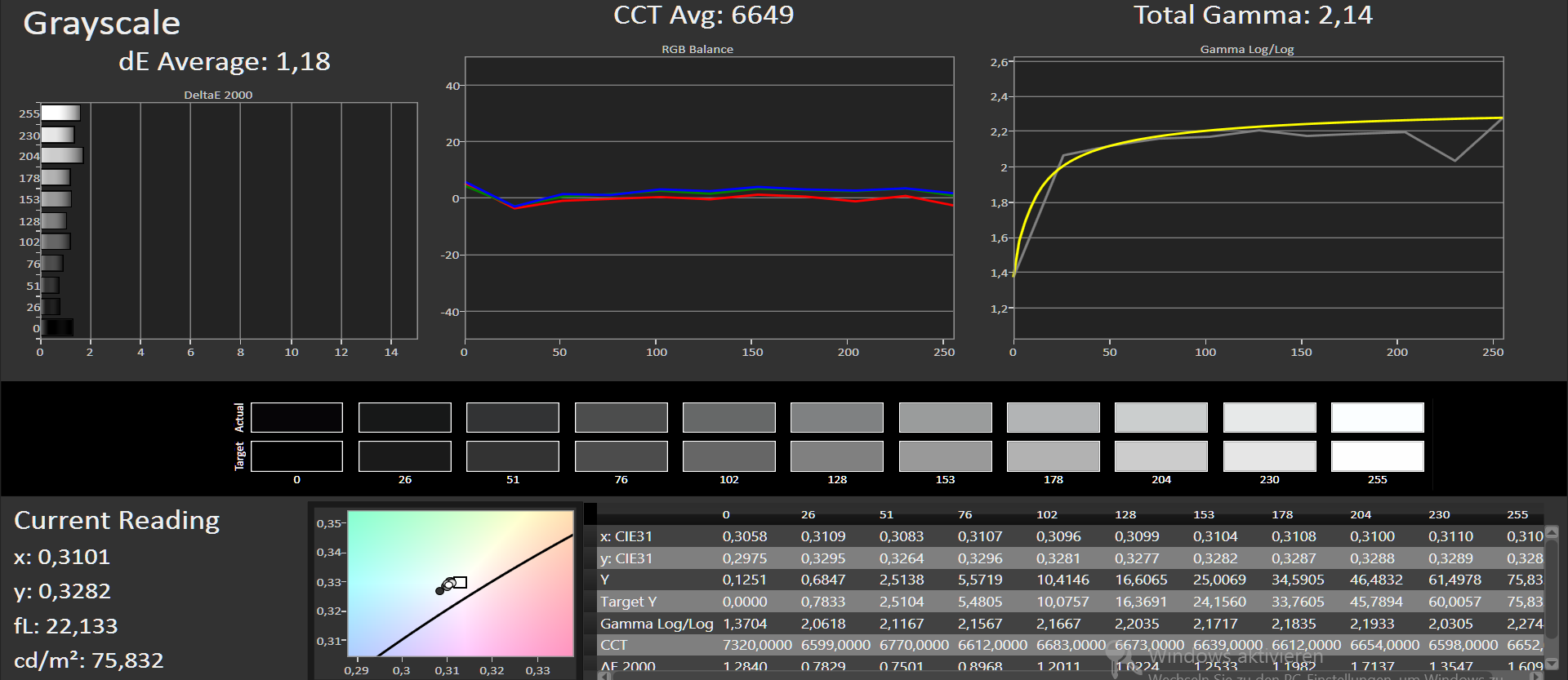

Grayscale: pre-calibration with automatic brightness control
Grayscale: pre-calibration with automatic brightness control

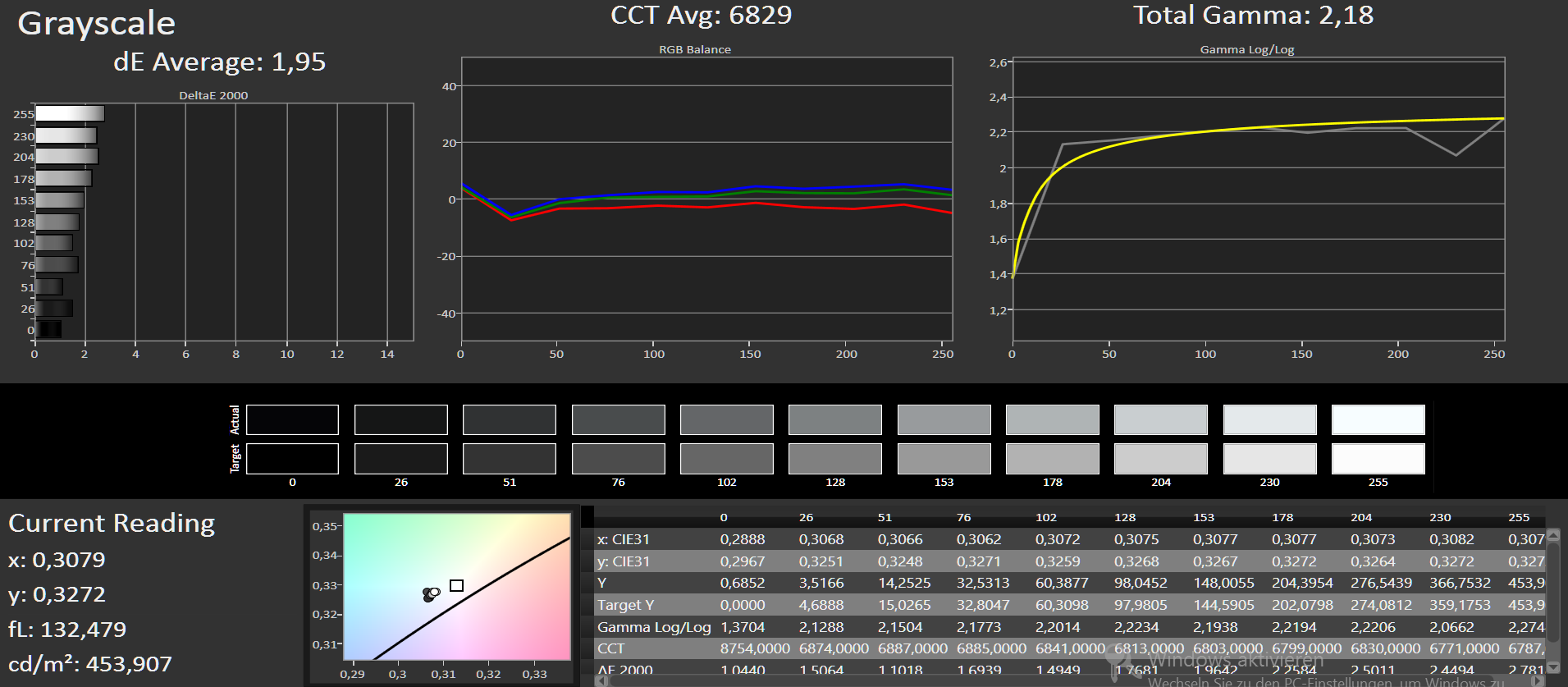

Grayscale: maximum brightness
Grayscale: maximum brightness

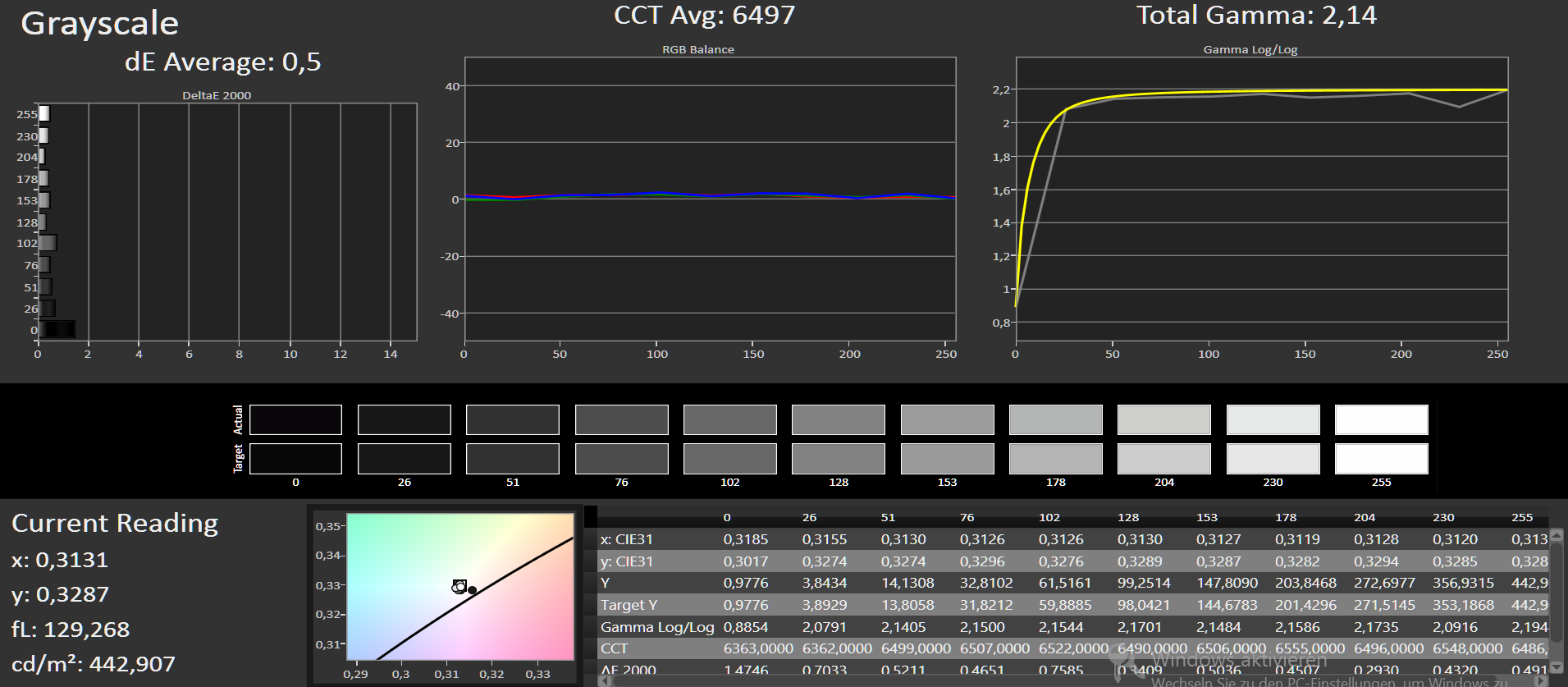

Grayscale: calibrated
Grayscale: calibrated

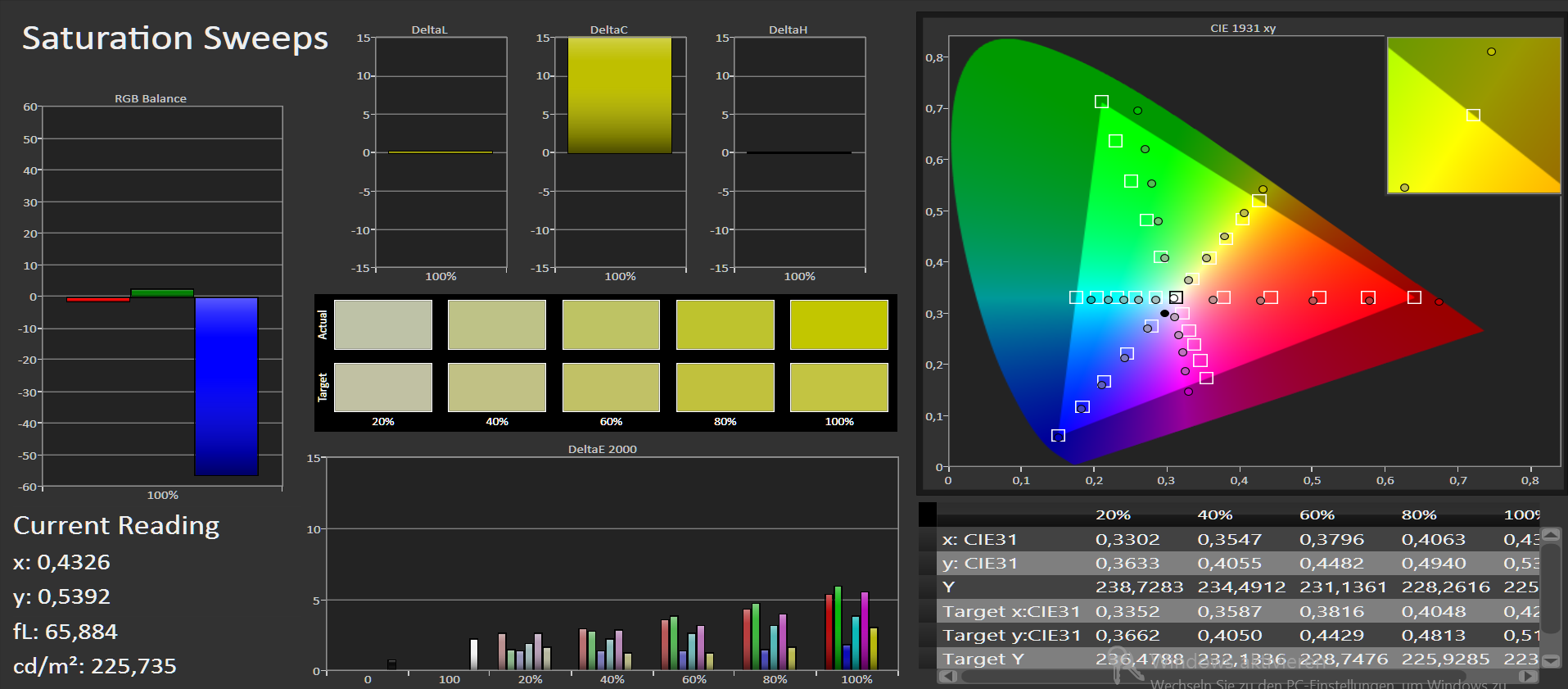

Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile
Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile

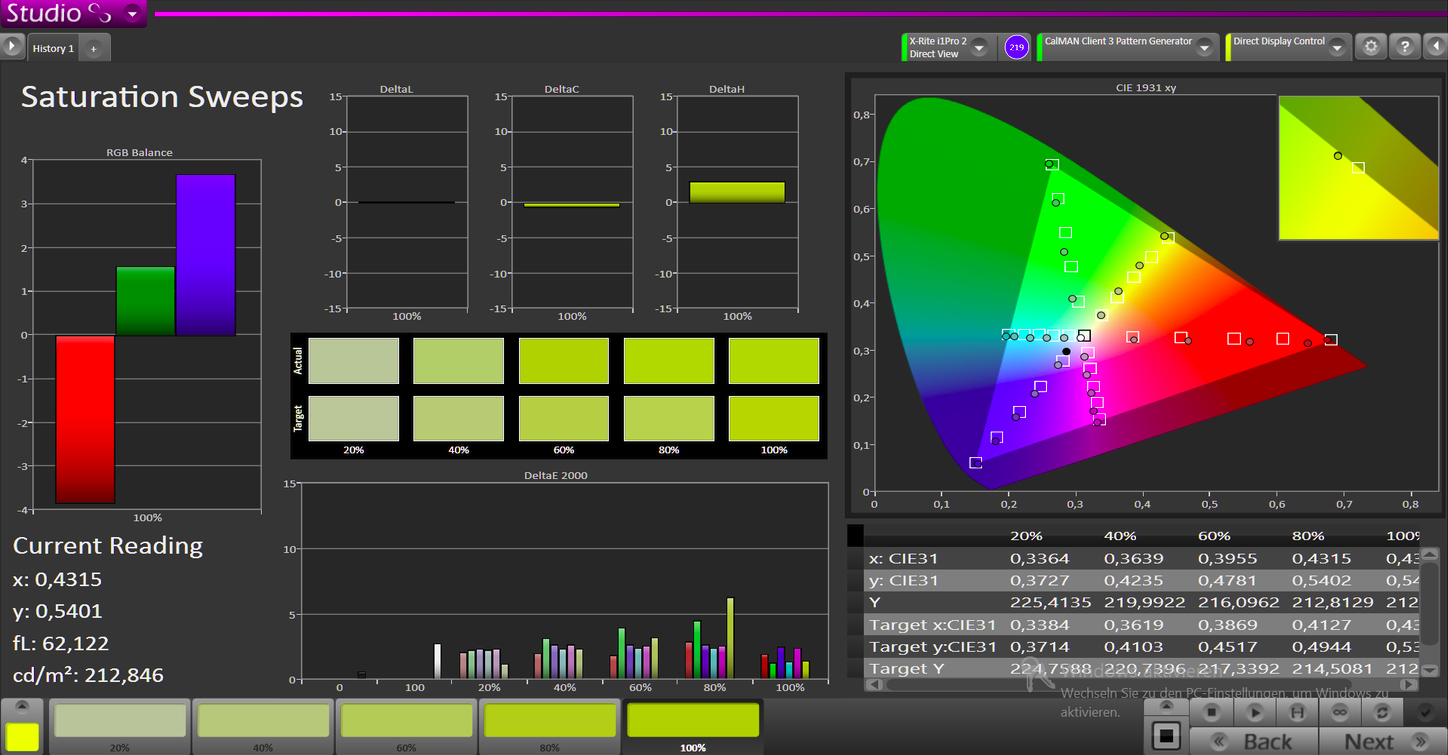

Saturation Sweeps: with a distance of 9 cm
Saturation Sweeps: with a distance of 9 cm
Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below
Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below
ColorChecker: vs. the sRGB color space and the system's sRGB profile
ColorChecker: vs. the sRGB color space and the system's sRGB profile

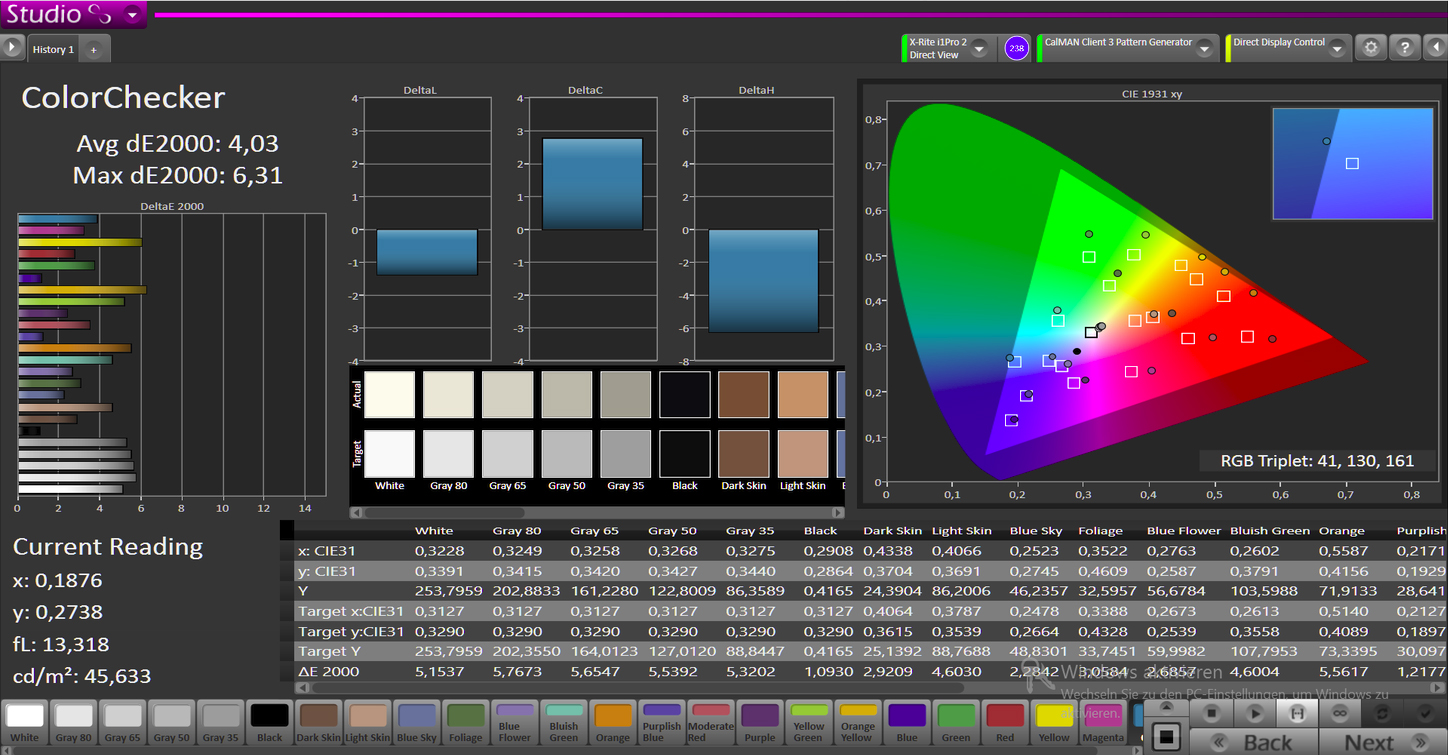

ColorChecker: At an angle of 45 degrees
ColorChecker: At an angle of 45 degrees
ColorChecker: At an angle of 45 degrees - from below
ColorChecker: At an angle of 45 degrees - from below
ColorChecker: Analysis
ColorChecker: Analysis

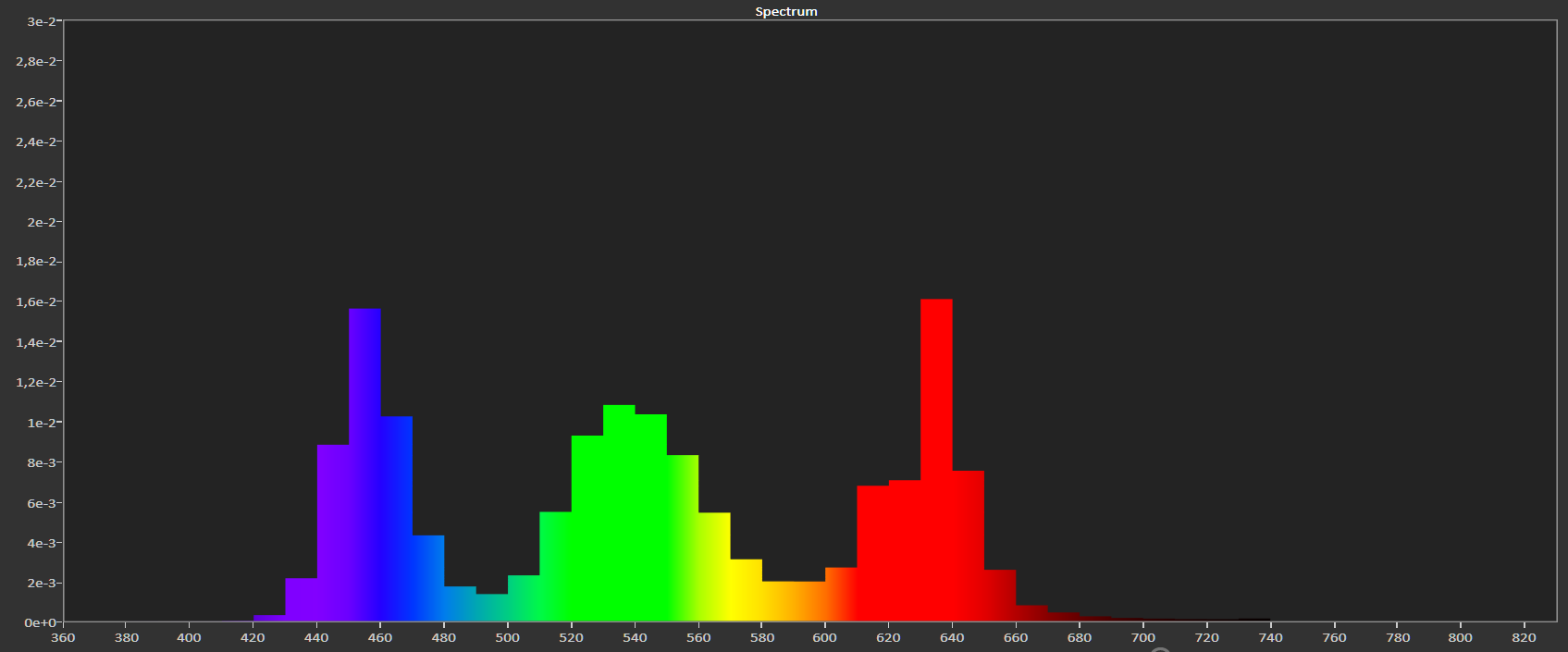

Color spectrum
Color spectrum

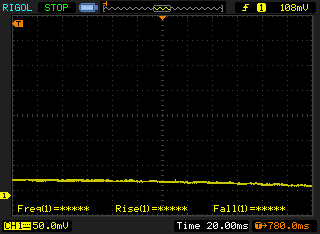

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6668 (minimum: 43 - maximum: 142900) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

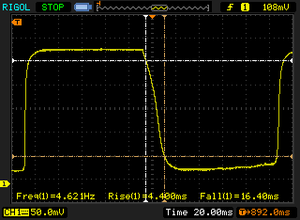

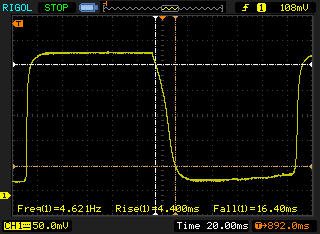

       Response Time Black to White
20.8 ms ... rise ↗ and fall ↘ combined↗ 4.4 ms rise
↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 15 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (26.7 ms).

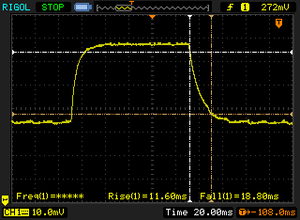

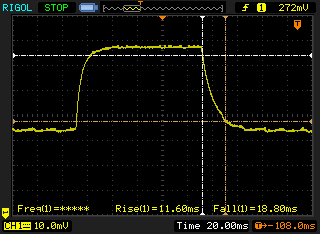

       Response Time 50% Grey to 80% Grey
30.4 ms ... rise ↗ and fall ↘ combined↗ 11.6 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 14 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.8 ms).

The viewing angle is close to 180 degrees, which is why you can easily use the iMac for movie or TV show evenings. Several people can look at the display without any color or brightness deviations. The maximum luminance and the contrast will drop significantly when the angle exceeds 45 degrees. It drops from 440 to 240 nits (473:1) when you look from the side and even to 115 nits (426:1) when you look from below. The color accuracy on the other hand is still good and drops from 2.8 to 5 and 4, respectively (side and below) in the ColorChecker test.


Grayscale measured at a distance of 9 cm (reference)
Grayscale measured at a distance of 9 cm (reference)
Grayscale from the side (45 degrees)
Grayscale from the side (45 degrees)
ColorChecker from the side (45 degrees)
ColorChecker from the side (45 degrees)
ColorChecker from below (45 degrees)
ColorChecker from below (45 degrees)
Saturation Sweeps from the side (45 degrees)
Saturation Sweeps from the side (45 degrees)
Saturation Sweeps from below (45 degrees)
Saturation Sweeps from below (45 degrees)

Performance

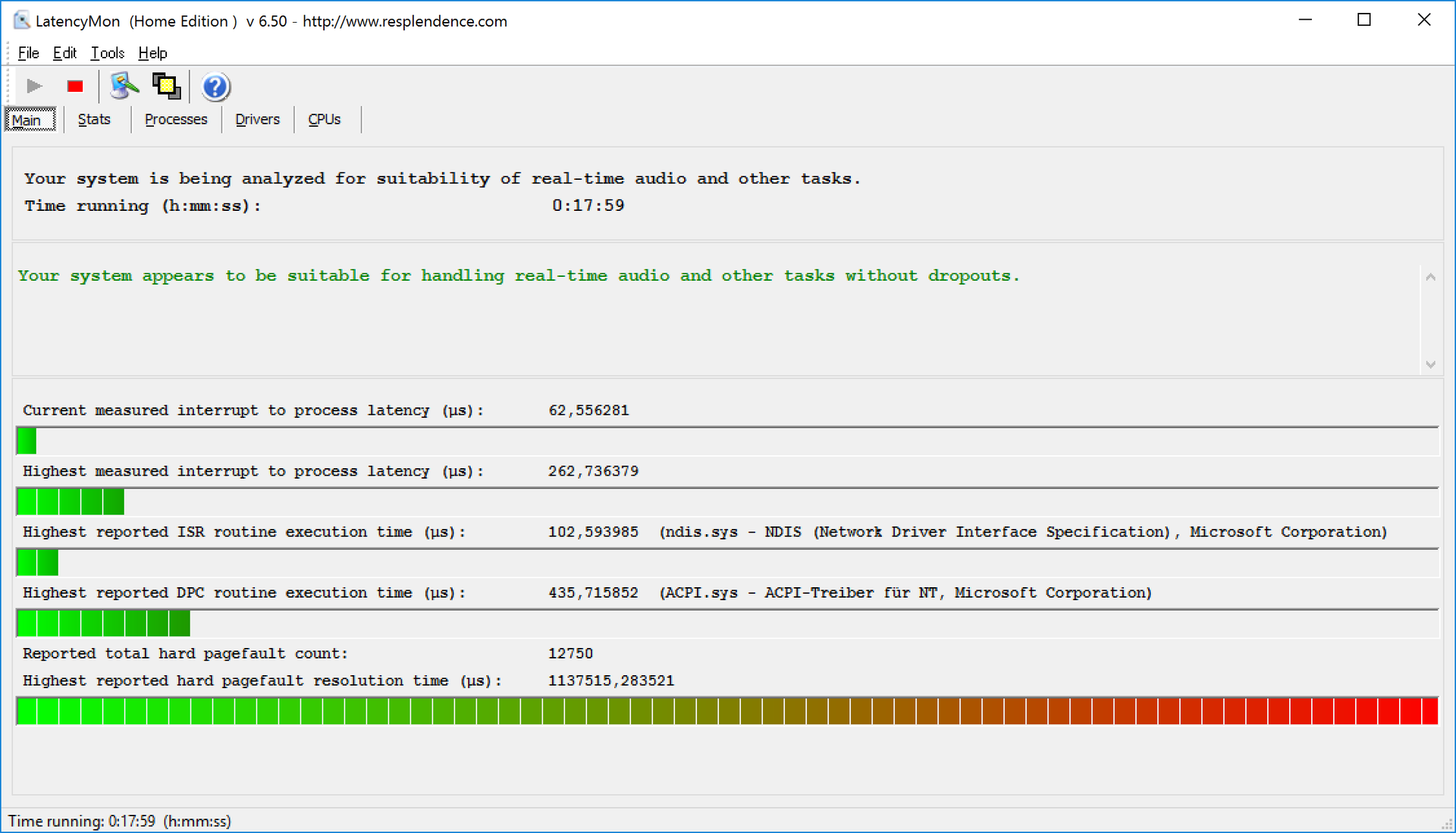

LatencyMon
LatencyMon

Apple’s iMac is an all-rounder and an All-in-One system, so it should be able to cover many scenarios. Thanks to a powerful quad-core CPU and a dedicated GPU, this is clearly achieved. However, there are some restrictions when you want to play games. The integrated AMD Radeon R9 M390 graphics card is an upper mainstream GPU. Modern games can usually be played smoothly in medium or high settings as long as you limit the resolution to Full HD. You should probably install Windows for this purpose, which is a better solution for gaming.

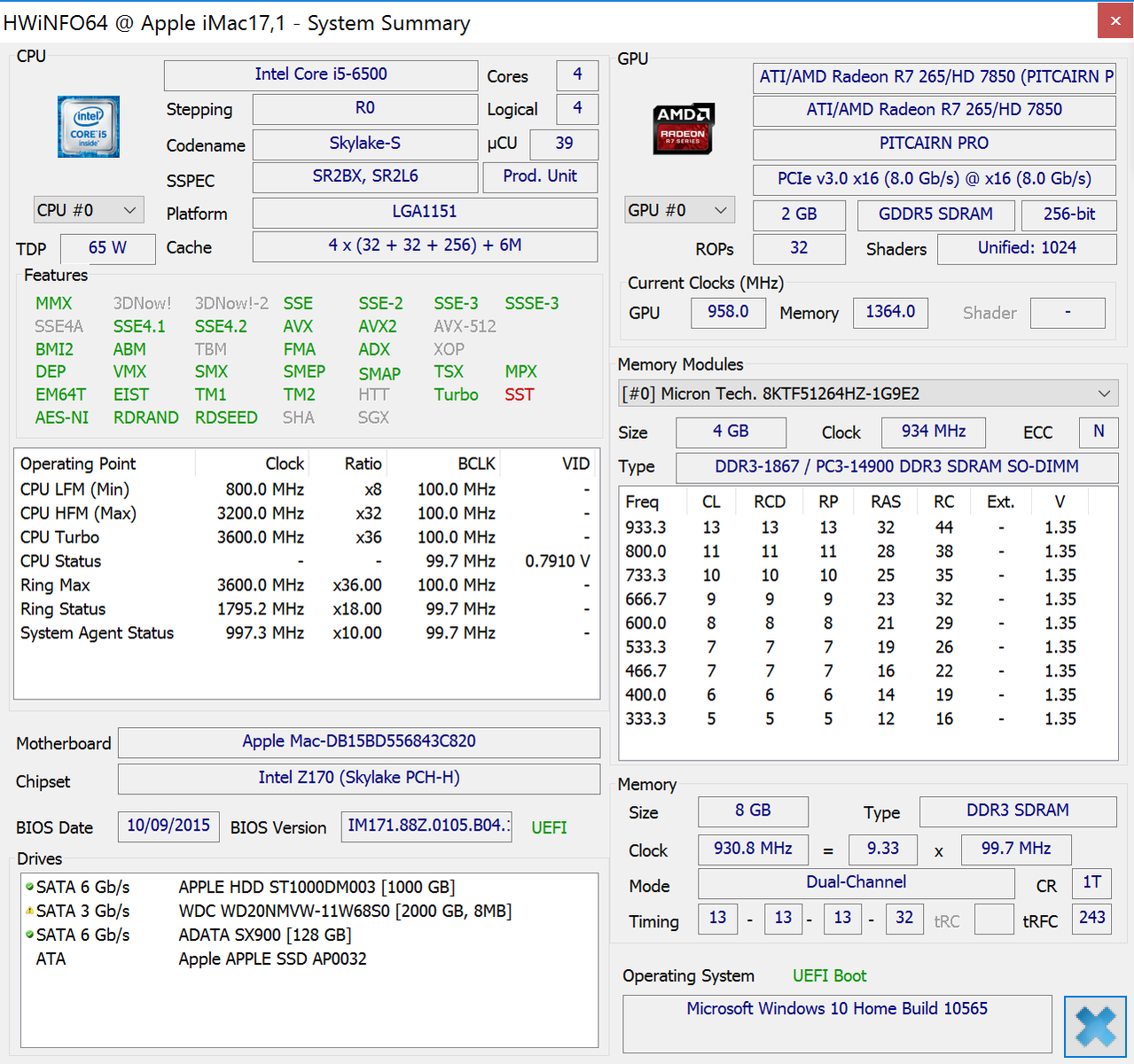

Processor

Now we have a look at one of the two significant changes. Apple now uses the latest Skylake architecture from Intel and has equipped our review unit with an Intel Core i5-6500. The processor runs at 3.2 GHz and has a maximum Turbo Boost of 3.6 GHz. The number of cores and threads is four (no Hyperthreading) and Intel specifies the TDP with 65 watts.

Apple also offers the system with an Intel Core i5-6600 and an Intel Core i7-6700K, which means that our review unit is using the least powerful chip.

Our previous review unit was equipped with the Intel Core i7-4790K from the Haswell generation, which was the most powerful CPU back then. We can see the unfair fight between the two models in Cinebench R15, where the old processor is around 50% faster in the multi-core test.

The current model of our review unit is the successor of the Intel Core i5-4690. The older chip had a higher TDP of 84 watts and higher clocks (nominal: 3.5 GHz; Turbo (2 cores): 3.7 GHz). The two CPUs should therefore be on a similar performance level.

Cinebench R15 CPU Single 64Bit
151 Points
Cinebench R15 CPU Multi 64Bit
548 Points
Cinebench R15 OpenGL 64Bit
91.2 fps
Cinebench R15 Ref. Match 64Bit
99.5 %
Help

System Performance

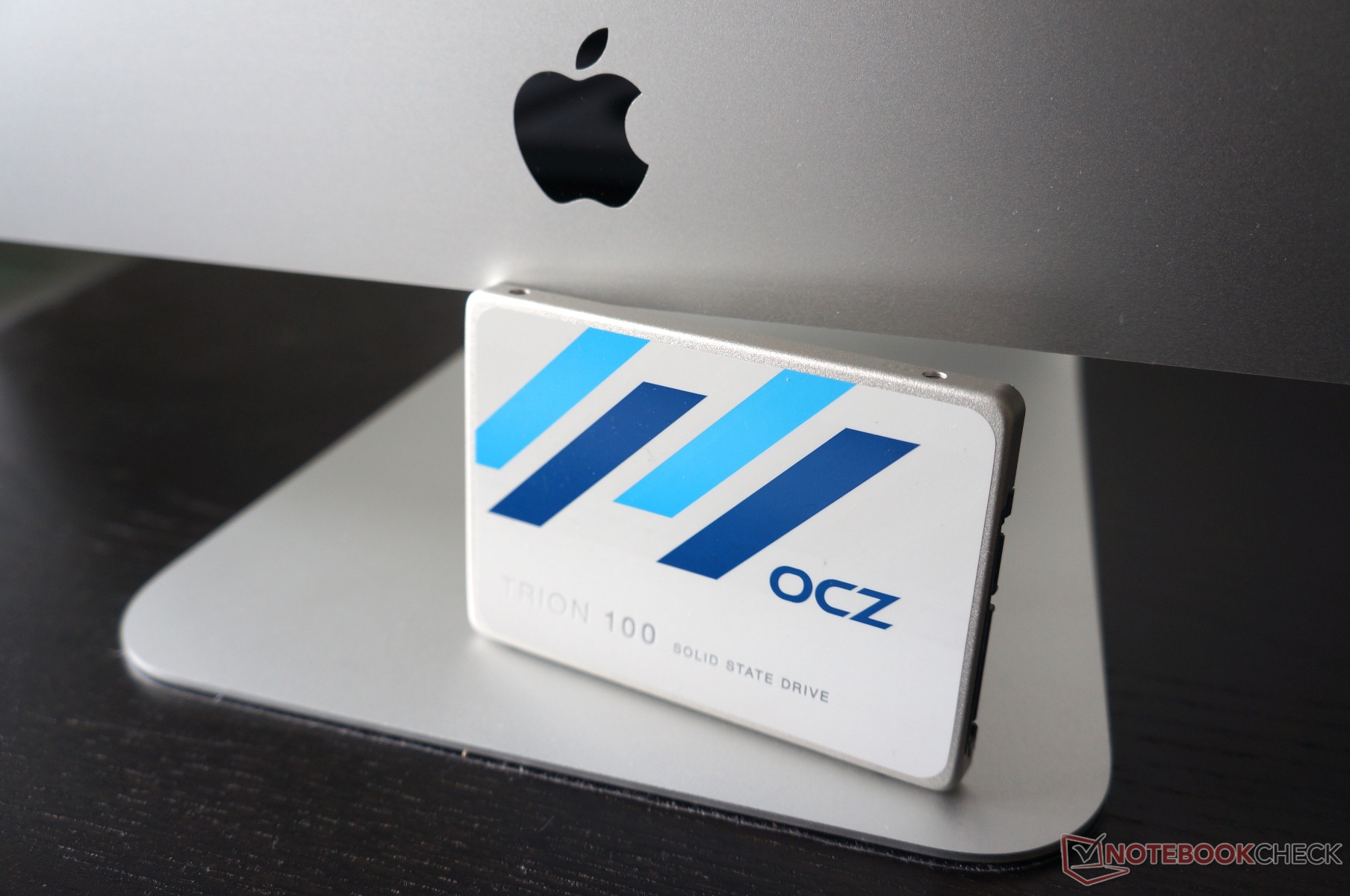

We would have preferred an inexpensive SSD like the OCZ Trion 100 instead of the HDD in the entry-level model and it would have also improved the Windows performance of Fusion Drive systems.
We would have preferred an inexpensive SSD like the OCZ Trion 100 instead of the HDD in the entry-level model and it would have also improved the Windows performance of Fusion Drive systems.

Our configuration leaves a good overall impression. The handling is very smooth, particularly in Apple’s own OS El Capitan, but we can also notice a negative development. The Fusion Drive now has less SSD storage, which is why you cannot cache as many applications and files. This is clearly noticeable under Windows, which only uses the HDD. We have already criticized this in the review of the previous  model. The review unit manages a decent score in PCMark 8, but cannot keep up with the powerful configuration of the predecessor.

PCMark 8
Work Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K, Apple SSD SM0128F
4918 Points ∼75%
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
3887 Points ∼60%
Creative Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
4828 Points ∼52%
Home Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K, Apple SSD SM0128F
4746 Points ∼79%
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
3568 Points ∼60%

Storage Devices

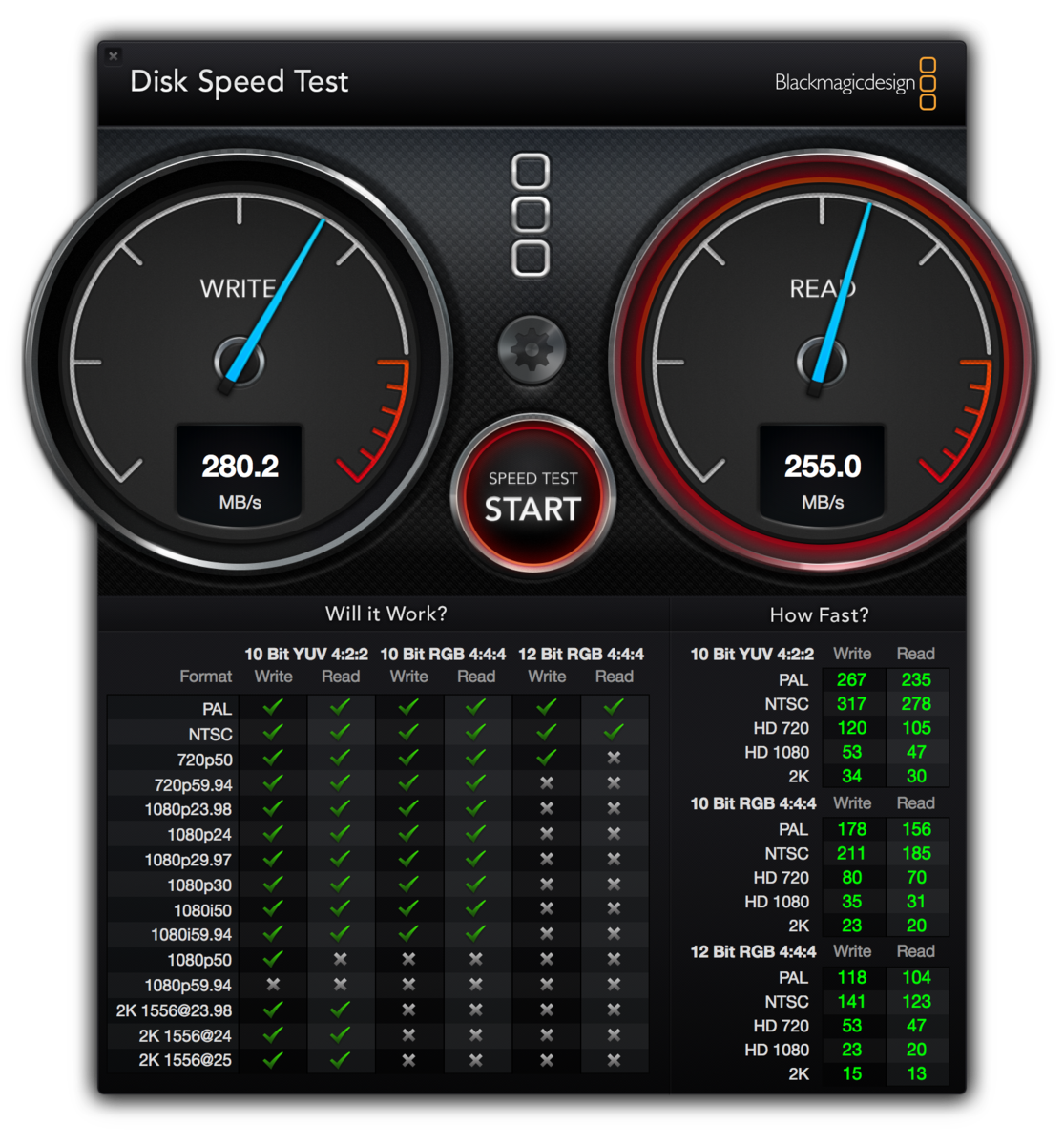

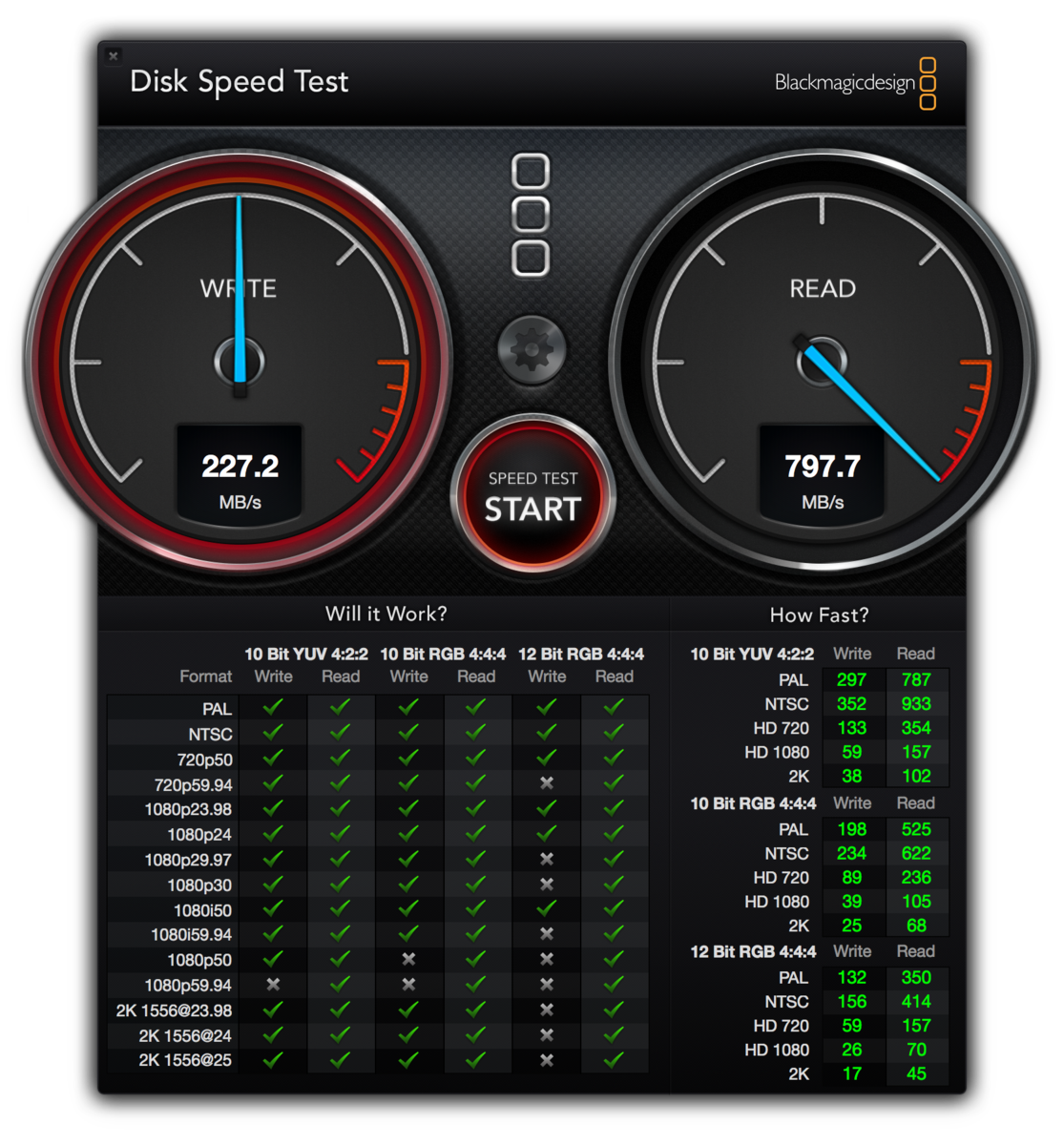

DiskSpeedTest - Maximum results
DiskSpeedTest - Maximum results
DiskSpeedTest
DiskSpeedTest

Our review unit uses a 1 TB Fusion Drive, which consists of a 1 TB HDD in combination with a 24 GB SSD. For comparison: The first generation of the 27-inch Retina iMac was equipped with a 128 GB SSD besides the hard drive. Unfortunately, this fast SSD cache is only available in Apple’s own operating system. The performance of the SSD fluctuated significantly in the BlackMagic Disc test and only the best results were on par with the predecessor.

We use Windows and CrystalDiskMark to determine the HDD performance. Read and write transfer rates of around 130 MB/s indicate that Apple uses a decent hard drive. The comparison model manages around 100 MB/s.

The results are much higher in mac OS X, where we can determine read speeds close to 800 MB/s. The old model managed around 650 MB/s. The SSD storage is now smaller so the results are fluctuating and we can sometimes only measure 250 MB/s. The sequential write speeds are between 230 MB/s and 280 MB/s, while the last iMac version managed around 310 MB/s.

Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD)
Sequential Read: 152 MB/s
Sequential Write: 139 MB/s
512K Read: 38 MB/s
512K Write: 61 MB/s
4K Read: 0.41 MB/s
4K Write: 0.8 MB/s
4K QD32 Read: 0.9 MB/s
4K QD32 Write: 0.75 MB/s

GPU Performance

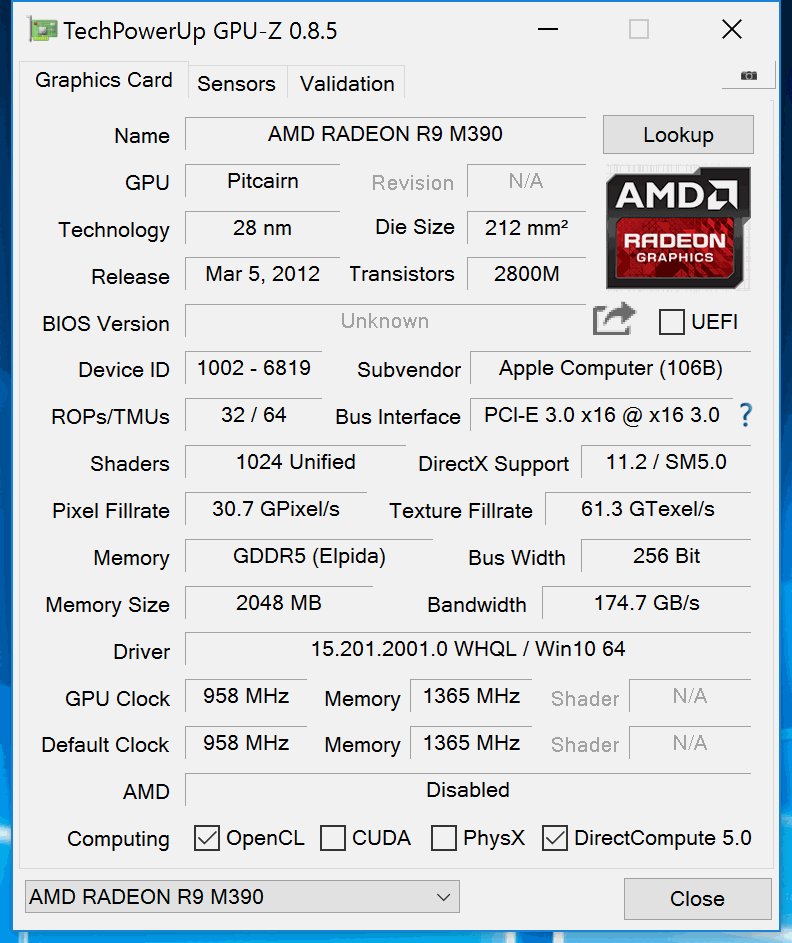

The graphics of our review unit are handled by the AMD Radeon M390 with 2 GB of GDDR5 memory. We have already mentioned that it is an upper mainstream GPU with a core clock of 958 MHz and a memory clock of 5460 MHz. According to GPU-Z (Bootcamp), the M390 is based on the old Pitcairn core, which was used for the first time in 2012 in the AMD Radeon 7850 (with a lower clock). The chip was also used as "Curacao" in the Radeon R7 265 with clocks similar to the M390. The 3DMark 11 results are similar, which supports our assumption of a GCN 1.0 chip.

The entry-level model (2100 Euros/~$2286) of the 5K Retina model is equipped with an AMD Radeon R9 M380, while the high-end version uses an AMD Radeon R9 M395.

Our current review sample manages around 22 fps in the Extreme HD preset of the Unigine Valley benchmark, while the old Apple iMac Retina from 2014 managed 6 fps more. There is also a clear gap to the more powerful configurations with the M395 and M395X.

Unigine Valley 1.0 - 1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390
22.2 fps ∼78%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X
28.6 fps ∼100% +29%
Apple iMac 27 2015 M395X
Radeon R9 M395X
28 fps ∼98% +26%
Apple iMac 27 2015 M395
Radeon R9 M395
27.3 fps ∼95% +23%
Apple iMac 27 5K 2014 M290X i5-4690
Radeon R9 M290X
25.5 fps ∼89% +15%
Apple MacBook Pro Retina 13 inch 2013-10
Iris Graphics 5100
5.8 fps ∼20% -74%

Our model also falls behind the old top model, which was equipped with an AMD Radeon M295X (Tonga) in 3DMark 11. Overall, the performance of the graphics card is between the Nvidia Geforce GTX 960M and the Nvidia Geforce GTX 965M.

3DMark 11 - 1280x720 Performance (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X
9516 Points ∼100%
Schenker XMG C405
GeForce GTX 965M
7291 Points ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M
7099 Points ∼75%
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390
6838 Points ∼72%
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M
5709 Points ∼60%
Schenker XMG A706
GeForce GTX 960M
5602 Points ∼59%

Gaming Performance

The Windows gaming performance of the review unit does not have to hide behind other devices. Even modern games can be played smoothly, although the iMac will drop to 30 fps in new games and high settings.

Only a handful of simple games can run smoothly in 5K. For example, we were able to play “FIFA 16” in the native resolution, high details and 2x anti-aliasing smoothly at 34 fps on average, but the replays stuttered significantly. Full HD and 4x AA on the other hand, are no problem for the GPU at 111 fps. Even the AMD Radeon M395 will not be powerful enough for the 5K resolution in many games.

Our special article about gaming benchmarks with current notebook graphics cards is a good indicator for the capabilities of the GPU.

Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
56 fps ∼84%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
67 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
46.6 fps ∼70%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
54.8 fps ∼82%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
55.2 fps ∼82%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
22.7 (min: 19) fps ∼67%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
33.9 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
20.6 fps ∼61%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
23.9 fps ∼71%

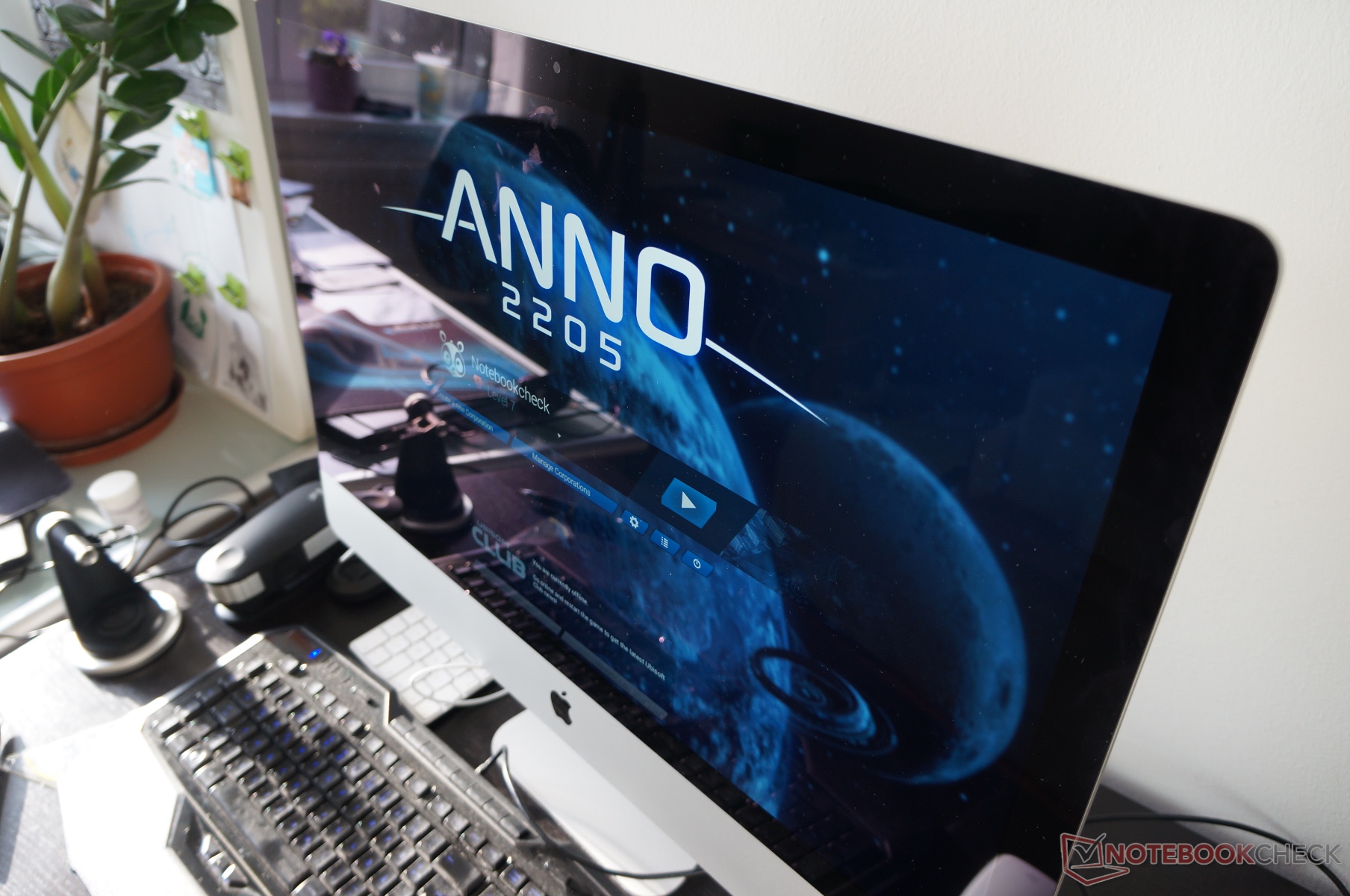

Anno 2205 - 1920x1080 High Preset AA:4x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
31.5 (min: 28) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
24.6 fps ∼78%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
26.1 (min: 23) fps ∼83%
Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
33.8 (min: 9) fps ∼87%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
31.9 fps ∼82%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
32.3 fps ∼83%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
38.7 fps ∼100%
1366x768 High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
67 (min: 10) fps ∼90%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
59.9 fps ∼81%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
59.5 fps ∼80%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
74.4 fps ∼100%
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
11.5 (min: 10) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
9.7 (min: 7) fps ∼84%
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
17.8 (min: 14) fps ∼100%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
14.4 fps ∼81%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
13.7 (min: 11) fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
16.8 fps ∼94%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
31.1 (min: 26) fps ∼100%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
26.6 fps ∼86%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
27.1 (min: 21) fps ∼87%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
29.2 fps ∼94%
Call of Duty: Black Ops 3
3840x2160 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
13.4 (min: 10) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
10.4 fps ∼78%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
10.4 (min: 5) fps ∼78%
1920x1080 Extra / On AA:T2x SM (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
29.5 (min: 18) fps ∼94%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
31.5 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
29.3 (min: 23) fps ∼93%
1920x1080 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
40.5 (min: 30) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
36.2 fps ∼89%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
34 (min: 24) fps ∼84%
World of Warships
3840 x 2160 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
24.1 (min: 15) fps ∼100%
1920x1080 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
74 (min: 55) fps ∼100%
Schenker XMG A706
GeForce GTX 960M, 6700HQ
69 fps ∼93%
1920x1080 High Preset AF:8x (sort by value)
Schenker XMG A706
GeForce GTX 960M, 6700HQ
98.1 fps ∼100%
Dragon Age: Inquisition
1920x1080 Ultra Graphics Quality AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
27.1 (min: 22.2) fps ∼77%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
35.2 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
22.5 fps ∼64%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
22.3 fps ∼63%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
27.1 fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
26.9 fps ∼76%
1920x1080 High Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
39.4 (min: 28.5) fps ∼77%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
51 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
33.5 fps ∼66%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
33.4 fps ∼65%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
39.2 fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
38.7 fps ∼76%
1366x768 Medium Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
71.5 (min: 35.5) fps ∼76%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
59.9 fps ∼64%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
93.7 fps ∼100%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
71.7 fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
70.9 fps ∼76%
Fallout 4
3840x2160 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
13.8 (min: 10) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
10 fps ∼72%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
10.1 (min: 8) fps ∼73%
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
30.3 (min: 24) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
24.7 fps ∼82%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
25.3 (min: 20) fps ∼83%
1920x1080 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
38.5 (min: 30) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
31.9 fps ∼83%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
31.4 (min: 26) fps ∼82%
FIFA 16
3840x2160 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
54 (min: 51) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
44.5 (min: 42) fps ∼82%
1920x1080 High Preset AA:4x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
111 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
108.1 (min: 95) fps ∼97%
1366x768 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
190 (min: 164) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
161.8 (min: 148) fps ∼85%
Metal Gear Solid V
3840x2160 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
21.6 (min: 19) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
15.5 (min: 13) fps ∼72%
1920x1080 Extra High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
39.6 (min: 35) fps ∼100%
Schenker XMG A706
GeForce GTX 960M, 6700HQ
37.6 fps ∼95%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
38.1 fps ∼96%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
36.4 (min: 34) fps ∼92%
1920x1080 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
60 (min: 59) fps ∼100%
Schenker XMG A706
GeForce GTX 960M, 6700HQ
56.3 fps ∼94%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
58.4 fps ∼97%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
54.2 (min: 53) fps ∼90%
Star Wars Battlefront
3840x2160 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
14.9 (min: 12) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
11.8 fps ∼79%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
11.6 (min: 9) fps ∼78%
1920x1080 Ultra Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
45.4 (min: 37) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
34.4 fps ∼76%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
34.4 (min: 28) fps ∼76%
1920x1080 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
54 (min: 45) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
41.1 fps ∼76%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
40.9 (min: 33) fps ∼76%
low med. high ultra4K
Crysis 3 (2013) 6222.7fps
Tomb Raider (2013) 19515064fps
BioShock Infinite (2013) 21314713049.5fps
Metro: Last Light (2013) 100916733.8fps
Battlefield 4 (2013) 1681219137.619.5fps
X-Plane 10.25 (2013) 8452.524.719.8fps
Thief (2014) 93726330.9fps
Sims 4 (2014) 82fps
Middle-earth: Shadow of Mordor (2014) 154925339fps
Alien: Isolation (2014) 56fps
Dragon Age: Inquisition (2014) 80.571.539.427.1fps
Battlefield Hardline (2015) 1611385636.8fps
GTA V (2015) 54.212.8fps
The Witcher 3 (2015) 8231.117.811.5fps
Metal Gear Solid V (2015) 60606039.621.6fps
Mad Max (2015) 1115748.817.6fps
World of Warships (2015) 7424.1fps
FIFA 16 (2015) 23319011154fps
Anno 2205 (2015) 10331.51212fps
Call of Duty: Black Ops 3 (2015) 1238240.529.513.4fps
Fallout 4 (2015) 38.530.313.8fps
Star Wars Battlefront (2015) 1611075445.414.9fps
Assassin's Creed Syndicate (2015) 5241.229.2fps

Emissions

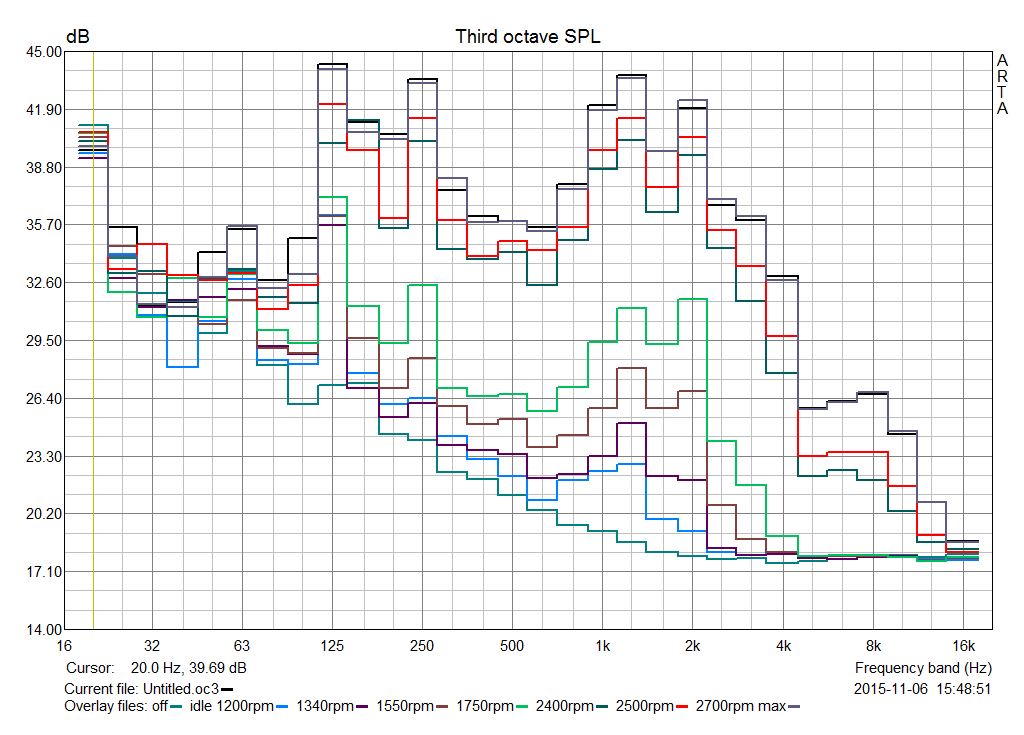

System Noise

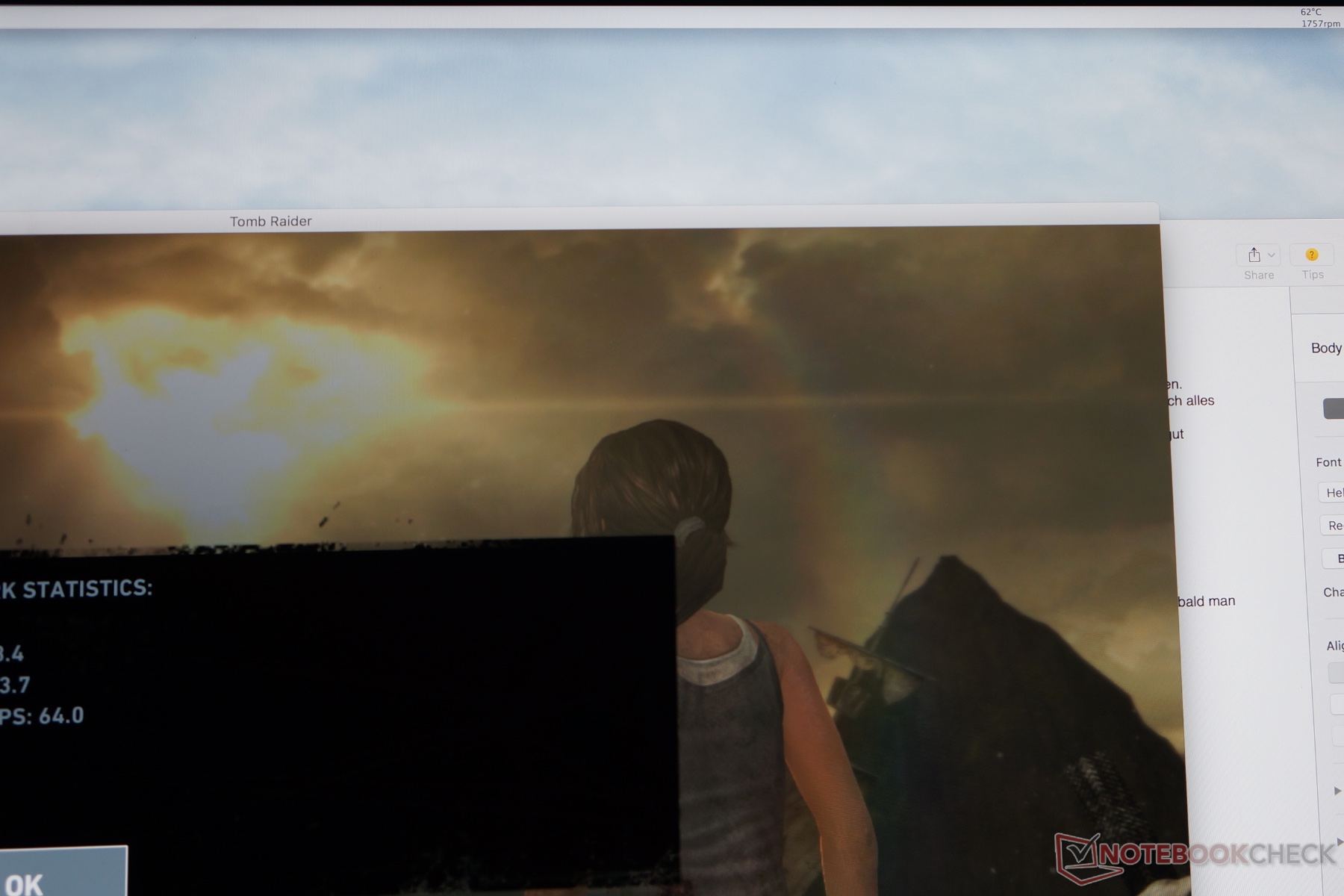

Around 1700 rpm in the game Tomb Raider
Around 1700 rpm in the game Tomb Raider
Fan exhausts are not visible
Fan exhausts are not visible

The review unit is not only quiet while idling, but the fan is also deactivated in more demanding applications like 3DMark 11. The fan will only spin at 1700 rpm when you play “Tomb Raider”, for example, and we could not even provoke the maximum speed of the fan under maximum load. We only reached up to 2500 rpm with our stress test tools, and it required an additional tool to reach the maximum level of 2700 rpm. The fan noise is pretty dull and not annoying.

However, you can always hear the hard drive. The quiet murmur is much quieter compared to an external HDD, but still perceptible compared to an SSD based Mac. It is not annoying though.

Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.
Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.

Noise Level

Idle
32.5 / 32.5 / 32.5 dB(A)
HDD
32.5 dB(A)
Load
39 / 48.2 dB(A)



30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Arta / Audix TM1 (15 cm distance)   environment noise: 30 dB(A)

Temperature

The case temperatures are not really an important aspect of a desktop system. Our review unit reaches surface temperatures of up to 39 °C (~102 °F) under load. The hot spot during our measurements was the fan exhaust at the back.

We stress the core components with the tools FurMark and Prime95. The CPU reaches up to 91 °C (~196 °F), and the processor never drops below its nominal clock even under sustained load. This means that the iMac can always utilize its maximum performance. The graphics card can also maintain its maximum clock under load.

Idle rear
Idle rear

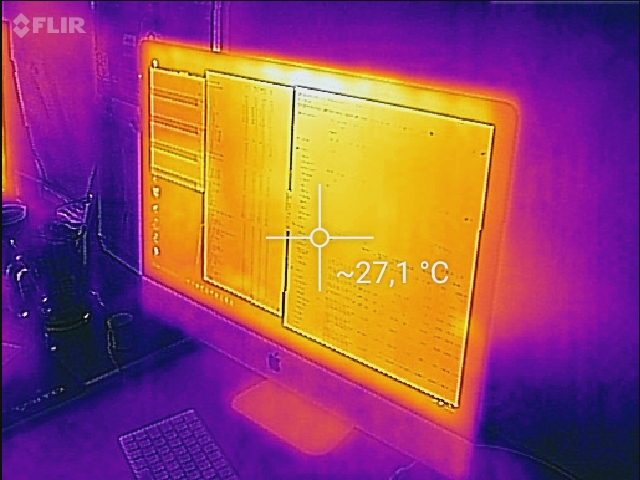

Idle front
Idle front
Load rear
Load rear
Load fan exhaust
Load fan exhaust
Load front
Load front

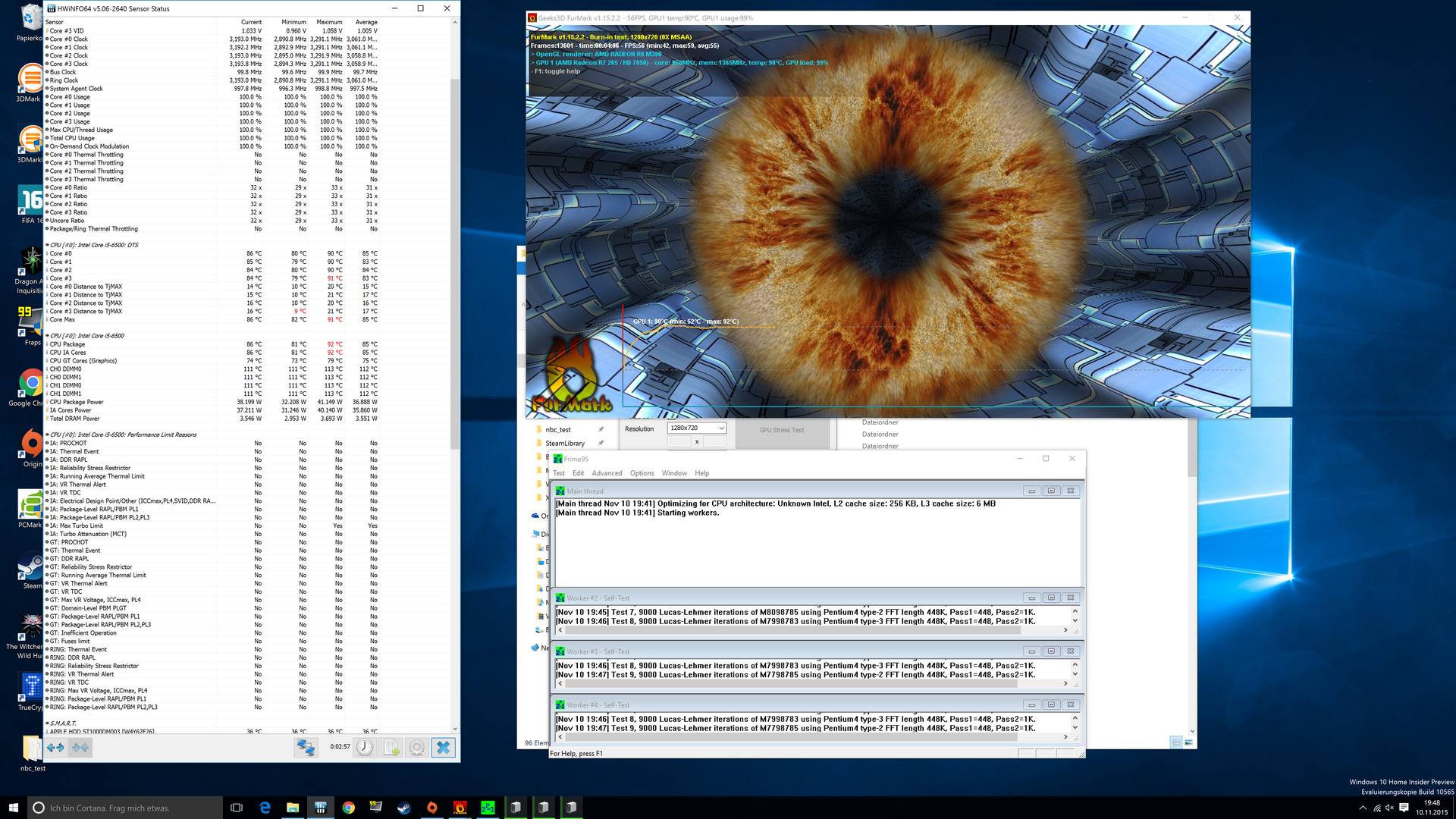

Stress test
Stress test

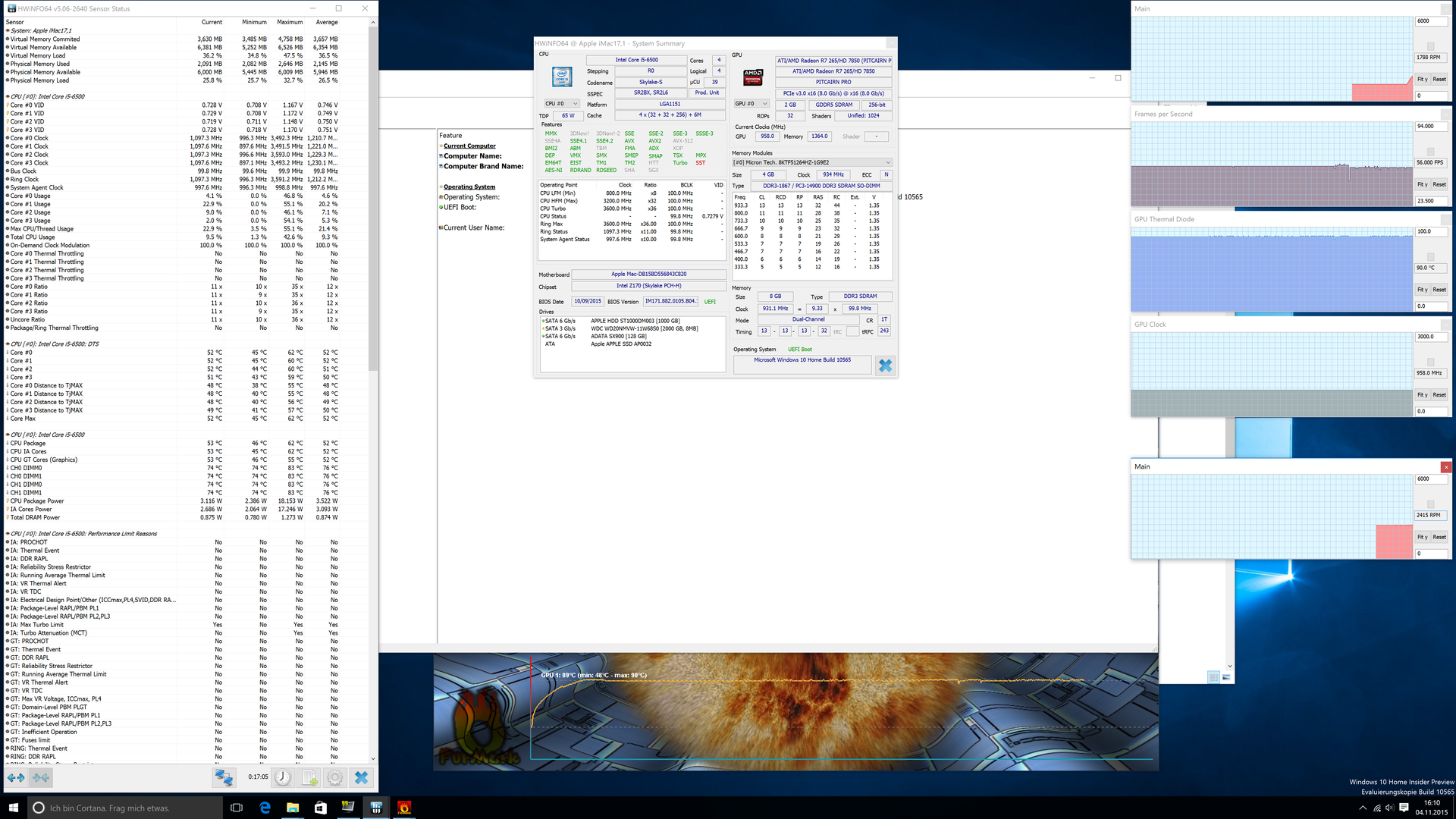

FurMark requires...
FurMark requires...

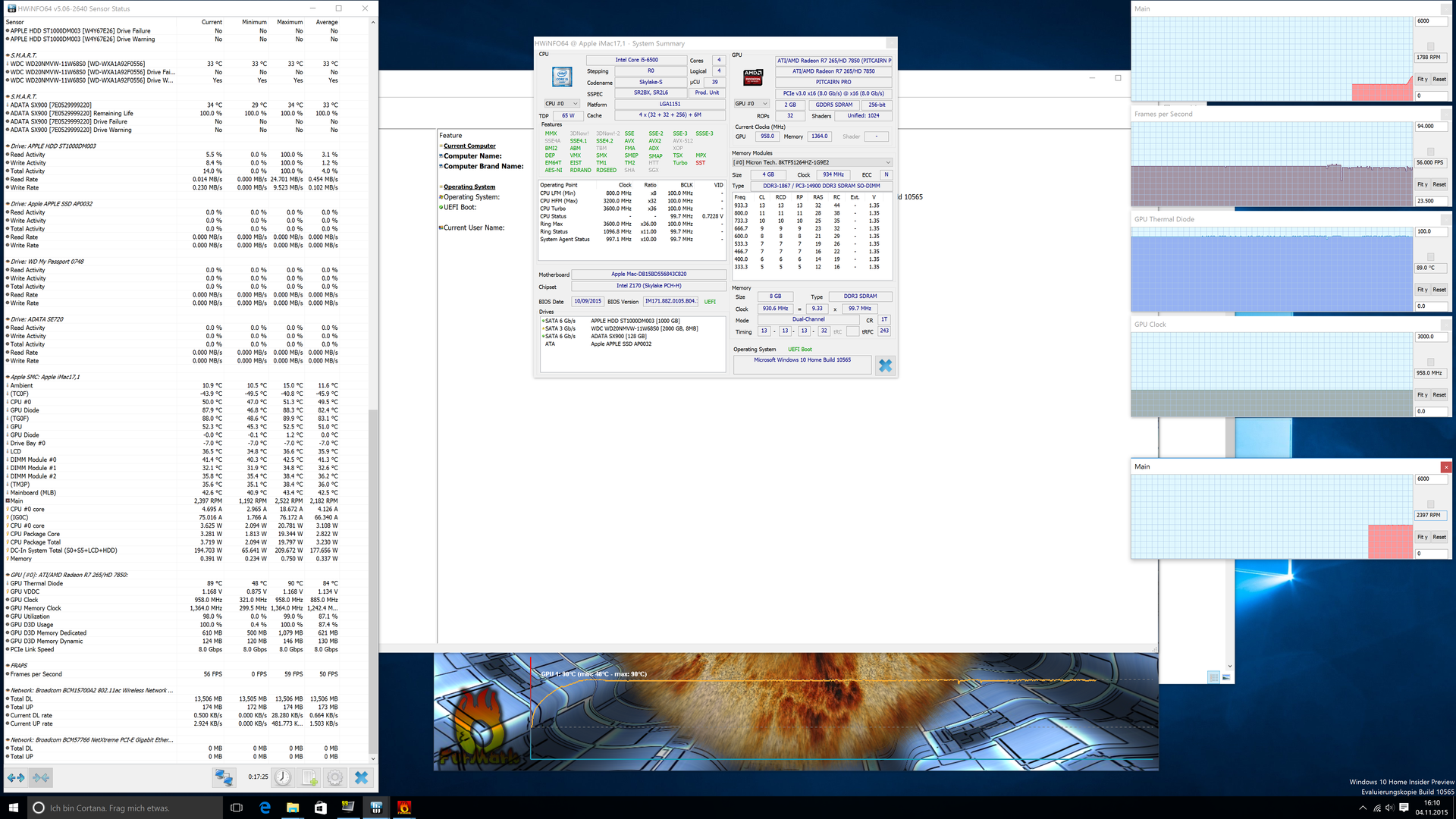

... the maximum performance of the graphics card.
... the maximum performance of the graphics card.
Max. Load
 30 °C33 °C33 °C
 30 °C32 °C33 °C
 27 °C33 °C31 °C
Maximum: 33 °C
Average: 31.3 °C
31 °C32 °C29 °C
33 °C38 °C31 °C
34 °C39 °C32 °C
Maximum: 39 °C
Average: 33.2 °C
Room Temperature 21 °C | Fluke 62 Mini

Speakers

The integrated speakers can impress with their sound diversity, but they cannot replace a professional sound system or high-quality external speakers. The stereo speakers are perfect for prolonged movie sessions or background music playback. We measured a very loud maximum volume of 85 dB(A) (Pink Noise).

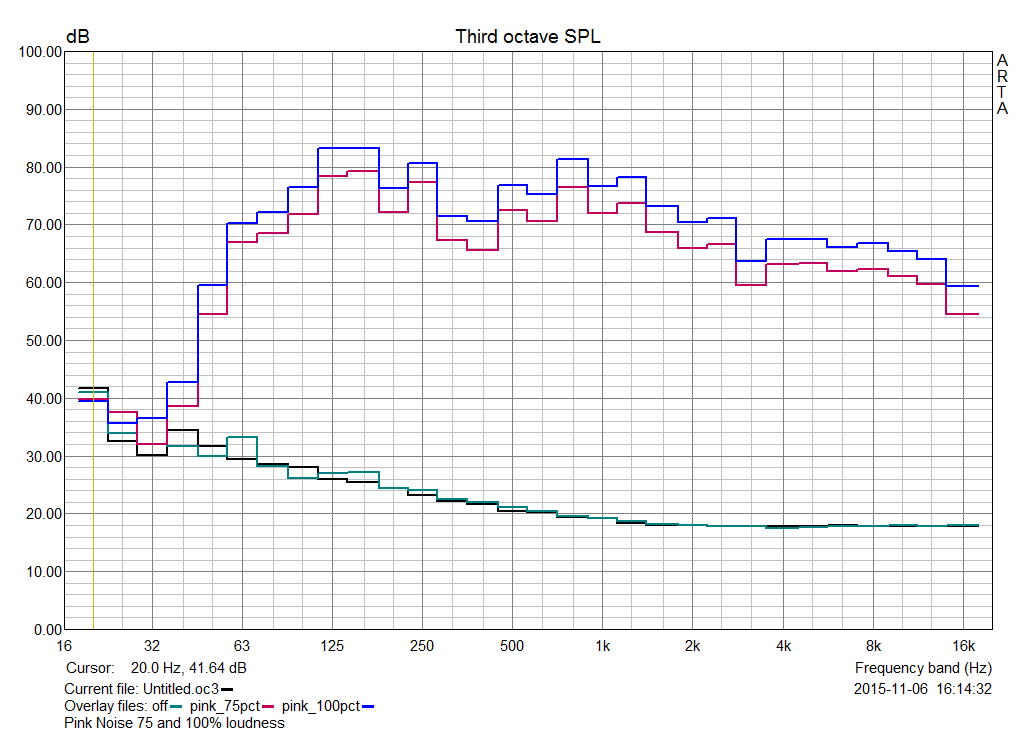

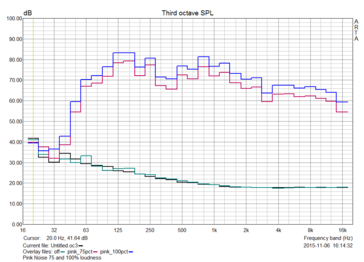

Pink Noise at maximum and reduced volume; no measurable distortions.
Pink Noise at maximum and reduced volume; no measurable distortions.

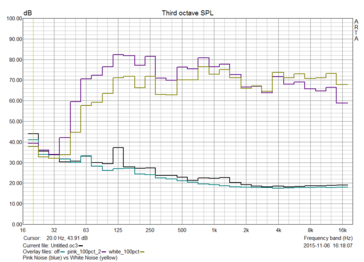

Pink Noise vs. White Noise: The integrated speakers can also convince at the lower frequencies.
Pink Noise vs. White Noise: The integrated speakers can also convince at the lower frequencies.

Energy Management

Power Consumption

The iMac consumes between 30 W and 70 W while idling. The reason: Apple uses a desktop processor and only a mobile GPU (even though it also has a pretty high consumption). Under load, the system demand increases to 230 W, but gaming sessions with “Tomb Raider”, for example, consume less (180 W). The idle consumption in particular is much lower when you use Apple's operating system. It is no problem to leave the iMac in standby; we can only measure a consumption of 0.05 watts.

Power Consumption
Off / Standbydarklight 0.044 / 0.05 Watt
Idledarkmidlight 29.5 / 59.2 / 68 Watt
Load midlight 126 / 231 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Power Consumption in Watts

OS X Windows 10

Idle min (min kuminance, WLAN off, BT on)

29.5 37.8

Idle max (max luminance, WLAN on, BT on)

59.2 68

Cinebench R15 Multi

106 109

Cinebench R15 OpenGL

145 155

Tomb Raider

177 180

Pros

+ design
+ slim chassis
+ build quality and materials
+ system performance in Mac OS X
+ high-resolution 5K display
+ input devices with rechargeable battery

Cons

- maintainability
- port access
- no USB-C
- no Thunderbolt 3
- less SSD storage with FusionDrive
- charging mechanism Magic Mouse 2

Verdict

In review: Apple iMac retina 5K. Test model courtesy of edustore.
In review: Apple iMac retina 5K. Test model courtesy of edustore.

Once again, the second iteration of Apple's Retina 5 K all-rounder leaves a very good impression. The manufacturer has produced a device with high quality chassis and an elegant design. The new input devices impress us and finally have rechargeable batteries. However, the eye-catcher is still the high-resolution display. We can only praise the brilliant colors and the wide color gamut.

Inside the system is a combination of desktop and notebook components, which ensure a decent system performance. Unfortunately, Apple has reduced the internal SSD storage of the Fusion Drive from 128 GB to 24 GB. The performance of the processor is at a decent level and the graphics card is also sufficient for modern games, but the utilization of the old chip affects the good impression slightly. If you want to use the iMac primarily for gaming, you will be better off with less-expensive and faster systems.

There is no criticism for the heat and noise development. The fan is usually deactivated during common tasks.

There is hardly any reason why you should upgrade from the older 5K Retina iMac. CPU and GPU performance are similar, and the wider color space coverage is only important for a small group of users.

Apple's iMac 5K Retina is a good product, but the price is high.

The entry-level version starts at 2100 Euros (~$2286) and you can easily pay more than 4000 Euros (~$4353) depending on the configuration. Our review version is priced at 2299 Euros (~$2502); students can currently get it for 2150.60 Euros (~$2341).

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A - 11/28/2015 v4(old)
Klaus Hinum, Nino Ricchizzi

Chassis
92 / 98 → 94%
Keyboard
79%
Pointing Device
92%
Connectivity
77 / 81 → 95%
Weight
Battery
Display
89%
Games Performance
89%
Application Performance
93%
Temperature
92%
Noise
85%
Audio
90%
Camera
63 / 85 → 74%
Average
86%
89%
Desktop - Weighted Average

Pricecompare

Read all 1 comments / answer
static version load dynamic
Loading Comments
Comment this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina Review
Klaus Hinum, Nino Ricchizzi, 2015-12- 6 (Update: 2015-12- 6)
Andreas Osthoff
Andreas Osthoff - Senior Editor Business
I grew up with computers and modern consumer electronics. I am interested in the technology since I had my first computer, a Commodore C64, and started building my own PCs after that. My focus here at Notebookcheck is the business segment including mobile workstations, but I also like to test new mobile devices. It is always a great experience to review and compare new products. My free time is filled with a lot of sports, in the summer mainly on my bike.
