MSI GS60 Ghost Pro 3K Edition (2PEWi716SR21) Notebook Review

Florian Wimmer (translated by Andreas Osthoff), 06/13/2014

Flat companion. Flat gaming is popular. No, we don't mean 2D games, but thin gaming notebooks like the MSI GS60. The 15.6-inch device is supposed to provide excellent mobility with a height of almost 2 centimeters and powerful hardware. Our review shows you why this is going to be a hot ride.

In Review: MSI GS60. Review unit courtesy of MSI Germany.

For the original German review, see here.

A ghost is something you rarely see, except if you work at an old firehouse in New York with Ghostbusters written on it. MSI wants to change that and offers a ghost for gamers, or at least a notebook with Ghost in the designation: The GS60 Ghost is a 15.6-inch notebook with a height of less than 2 centimeters (~0.8 inches), but it accommodates powerful hardware. The designated target group is therefore gamers who do not want to carry their gaming PCs to every LAN party. The GS60 Ghost is also well suited for practice on the way to the next e-sports event. Or you may just want to ride a train and enjoy your games in good quality without carrying a 5 kg (~11 lbs) monster.

A thin, light, but still powerful gaming notebook seems to be an interesting niche, which gets more and more products lately: The Alienware 14 is at least smaller and lighter than its bulky siblings. The Razer Blade 14 initiated the trend towards thin gaming laptops, but it is hard to get in Germany. Gigabyte's P34G is the price cutter amongst thin gaming devices and a very sophisticated product overall. Maybe normal 15.6-inch gaming notebooks, with their larger cases, are better solutions? We use the One K56-4NMSI GE60 and MSI GT60 for a comparison.

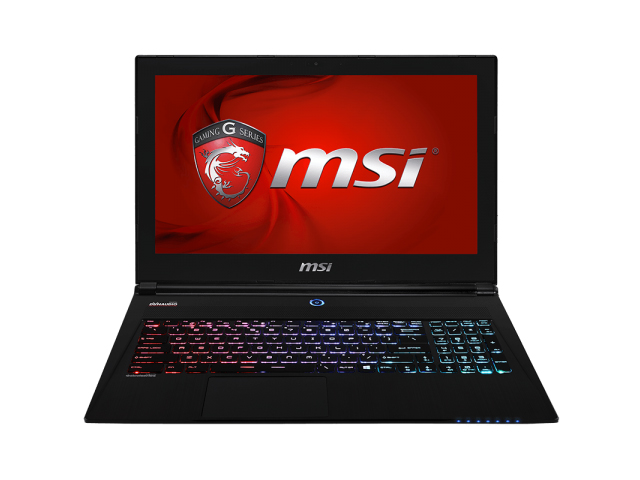

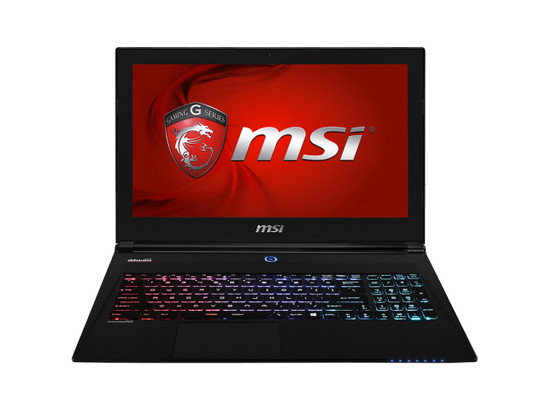

Our review unit is the MSI GS60 2PE Ghost Pro 3K Edition with an Intel Core i7-4700HQ and an Nvidia GeForce GTX 870M. You also get a very high display resolution of 2880x1620 pixels, which is also the reason for the 3K in the designation. The hardware is definitely superior to other thin gaming notebooks. But what about the cooling? And the system noise? There were issues with the larger MSI GS70, let's find out if MSI was able to solve them in the case of the GS60.

Case

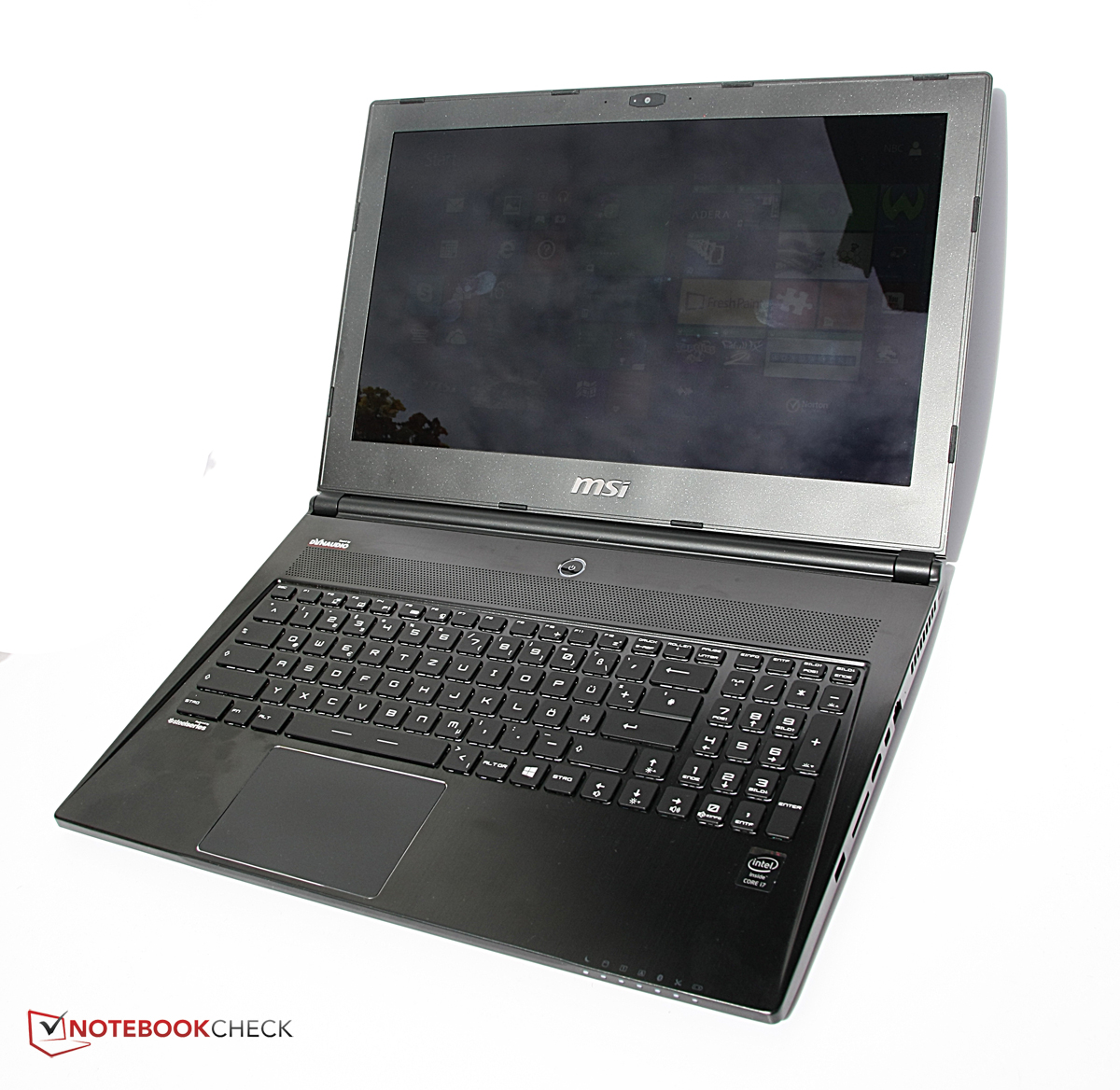

Thin silhouette, elegant design
Thin silhouette, elegant design

We reviewed the MSI GS70 almost nine months ago and really liked the matte chassis with many aluminum elements and the stylish design. MSI uses this design language for the GS60 as well: The bottom of the chassis is once again made of matte and brushed metal, but the metal of the palm rest is too susceptible to fingerprints.

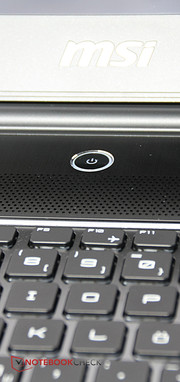

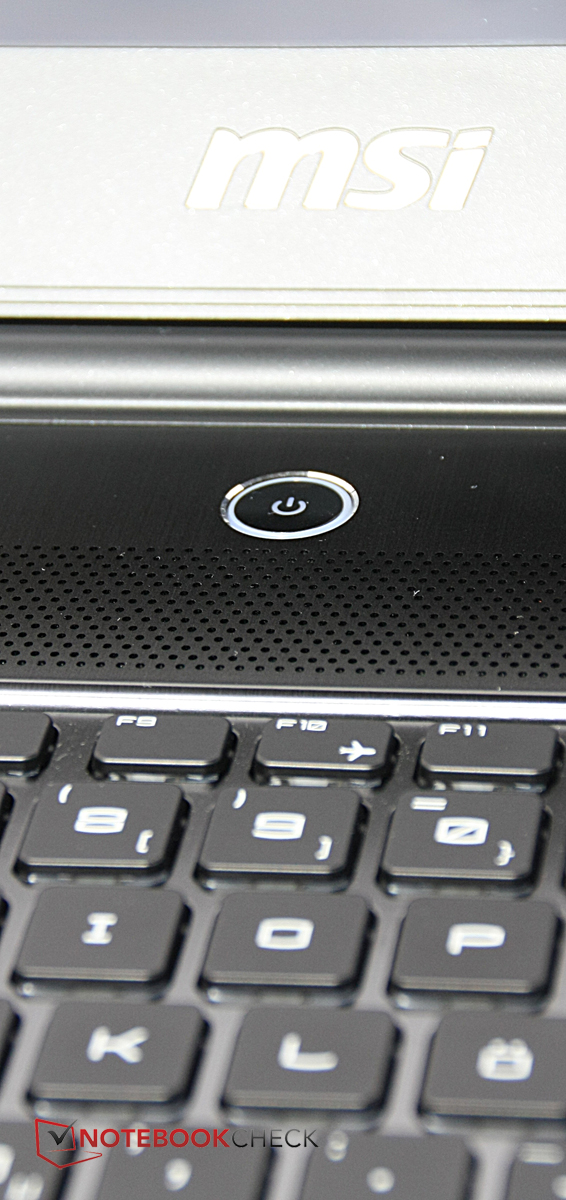

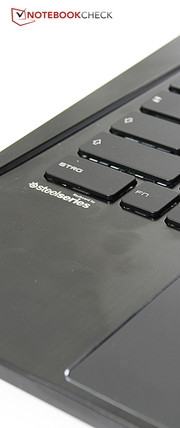

A bolder design decision is the lowered keyboard, which is actually identical to the GS70: The lettering is futuristic, angular but still easy to read. Above the keyboard is a wide speaker stripe, and above that the round and illuminated power button in the center.

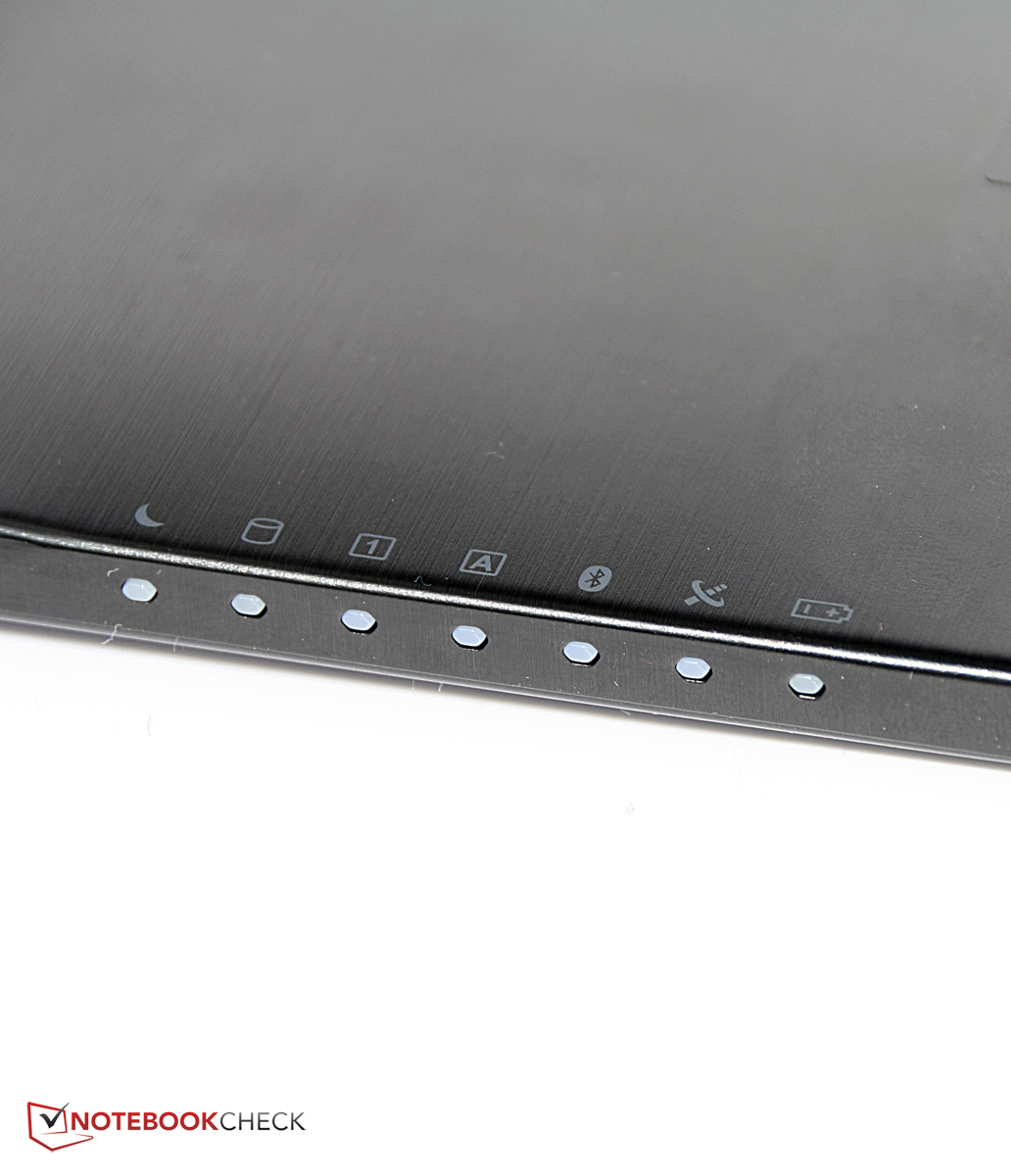

Numerous blue status LEDs at the left front of the notebook indicate the Bluetooth and WLAN status, whether the battery is charging and if the hard drive is working. The illumination itself is a great spectacle because the keyboard backlight is adjustable in multiple colors and multiple areas, just like Alienware notebooks.

The dimensions are very slim for a 15.6-inch gaming notebook, just 19.9 millimeters (~0.78 inches). It is not even half as thick as the MSI GT60, whereas the width and the depth of the two devices are almost identical. Only the Razer Blade is superior in terms of height within this comparison: It is just 17 millimeters (~0.67 in) thin. The weight is comparatively low, as it does not even weigh 2 kilograms (~4.4 pounds). The power adapter is around 650 grams (~1.4 pounds). The GT60 weighs almost 3.3 kilograms (~7.3 pounds) plus 900 grams (~2 pounds) for the power adaptor.

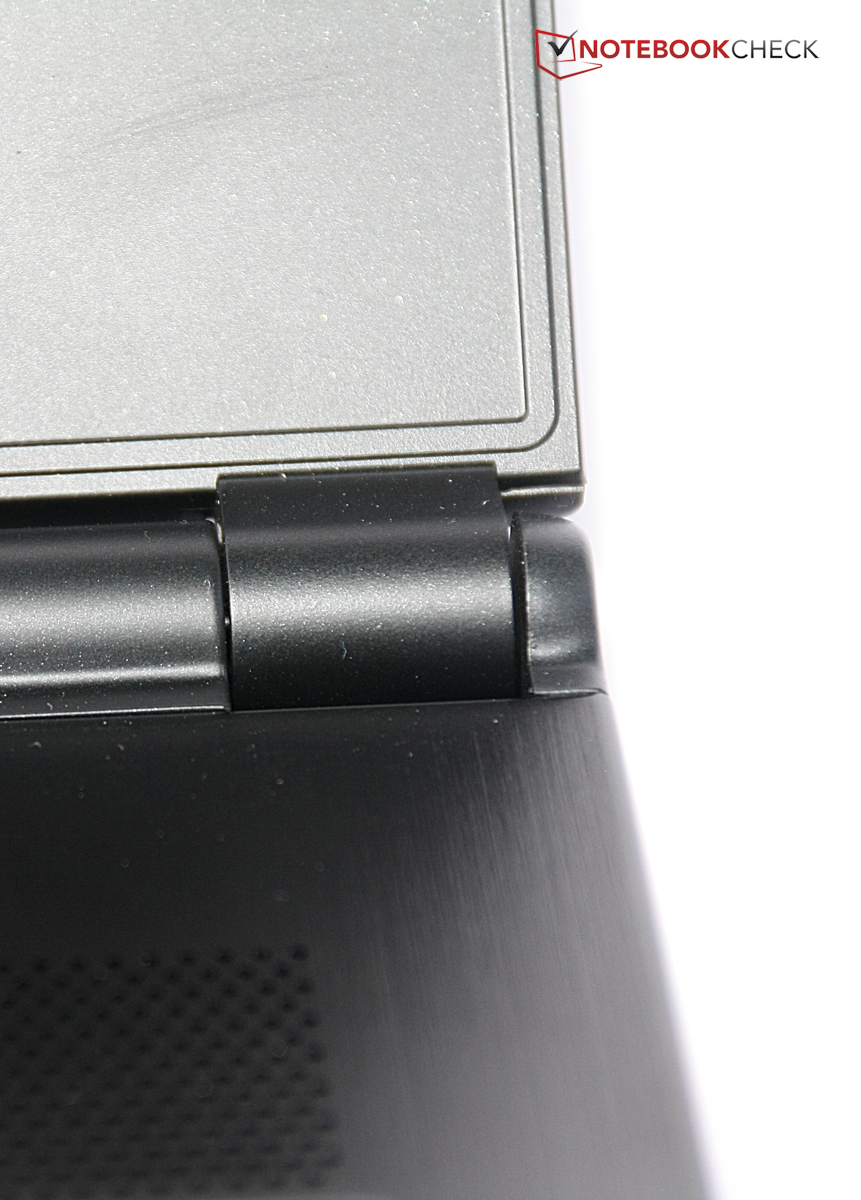

The display is very thin as well and is solidly kept in position by two very small hinges on the left and right side. You can open it up to 160 degrees, which should be sufficient for almost every situation. The construction of the display is pretty thin and light, but also very flexible: You can twist the display and the frame creates creaking sounds in the process. Pressure on the back is no problem and there are no picture distortions. The lower part of the notebook is very sturdy, cannot be twisted and just occasionally creates very quiet creaking sounds.

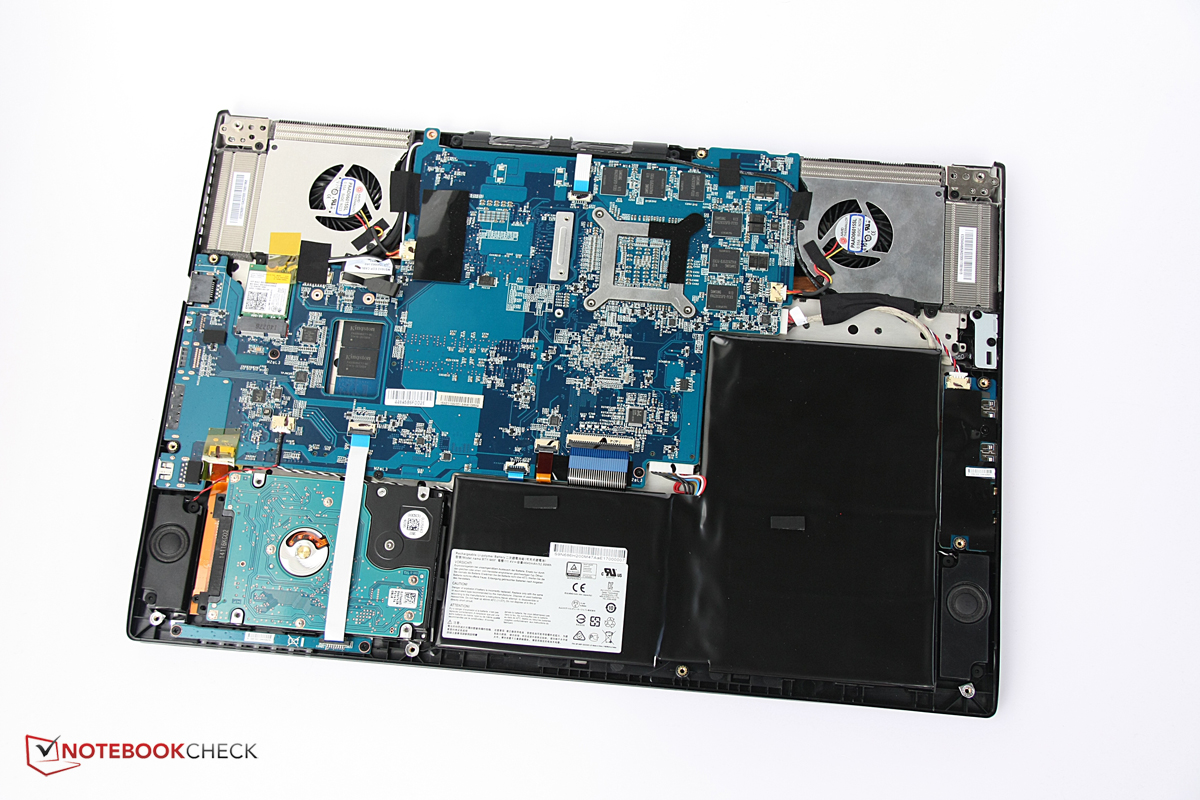

The very compact construction, which is necessary to enable the thin chassis, makes the maintenance harder compared to other gaming laptops. Some devices even come with descriptions about the replacement of components in the manual, but this is not the case for our review unit. You can remove the screwed bottom cover and get easy access to the hard drive and the fans, but other components like the RAM or the battery are still hidden and you have to remove several cables and other components to get to them.









Connectivity

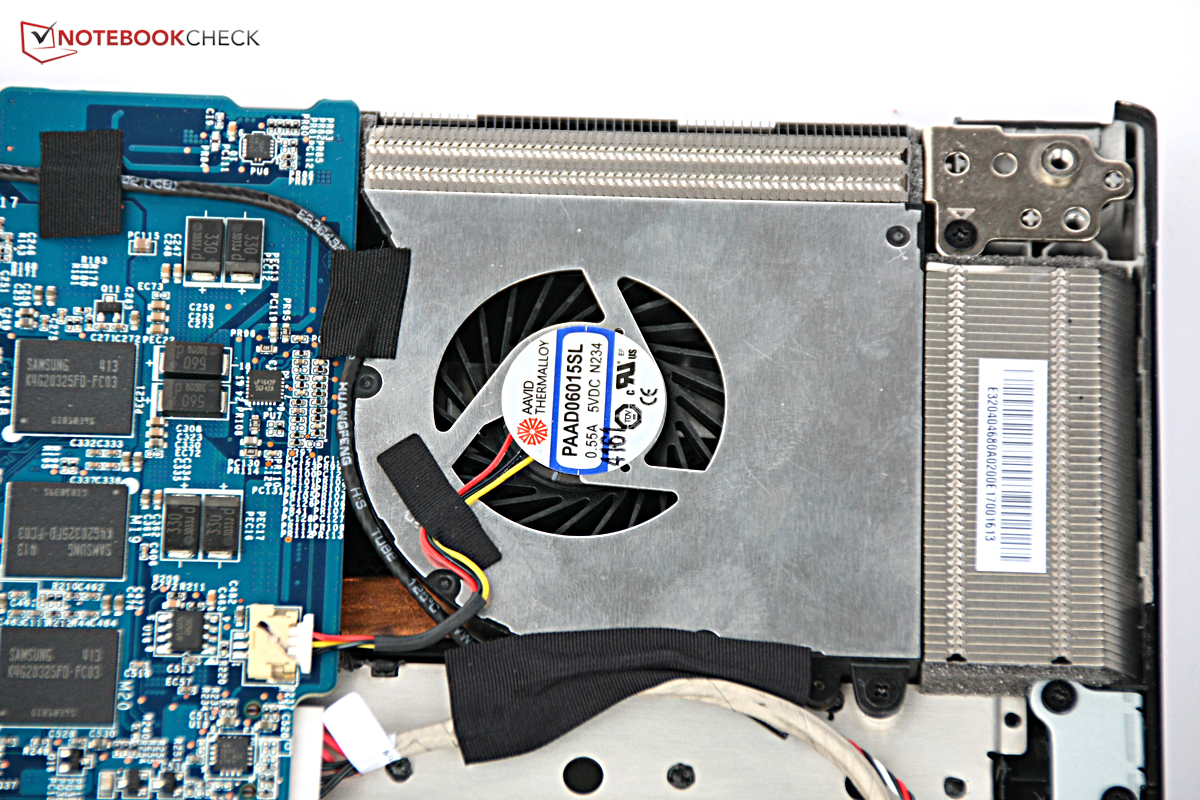

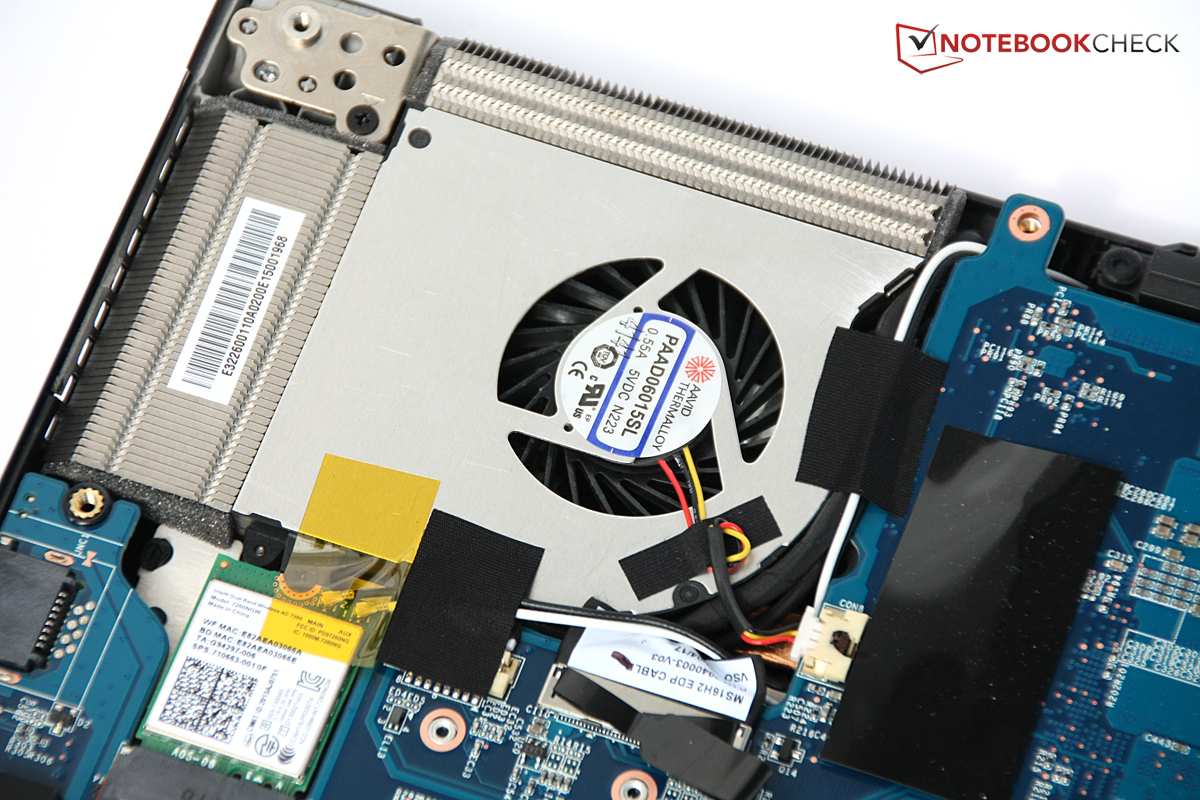

Because of the complex cooling solution at the back, the ports are located further toward the front of the sides. While there are only fan exhausts at the back, there are also fan grilles at the rear of the sides. There are no ports at the front.

As a result, the power connector on the left side is very far toward the front as well, which can be annoying for left-handers when they use a mouse. The same applies to the USB ports at both sides, which can also affect the handling of a mouse. At least the video ports on the right side are placed so that you can route the cables towards the back. All in all this is probably the best port layout when you consider the circumstances.

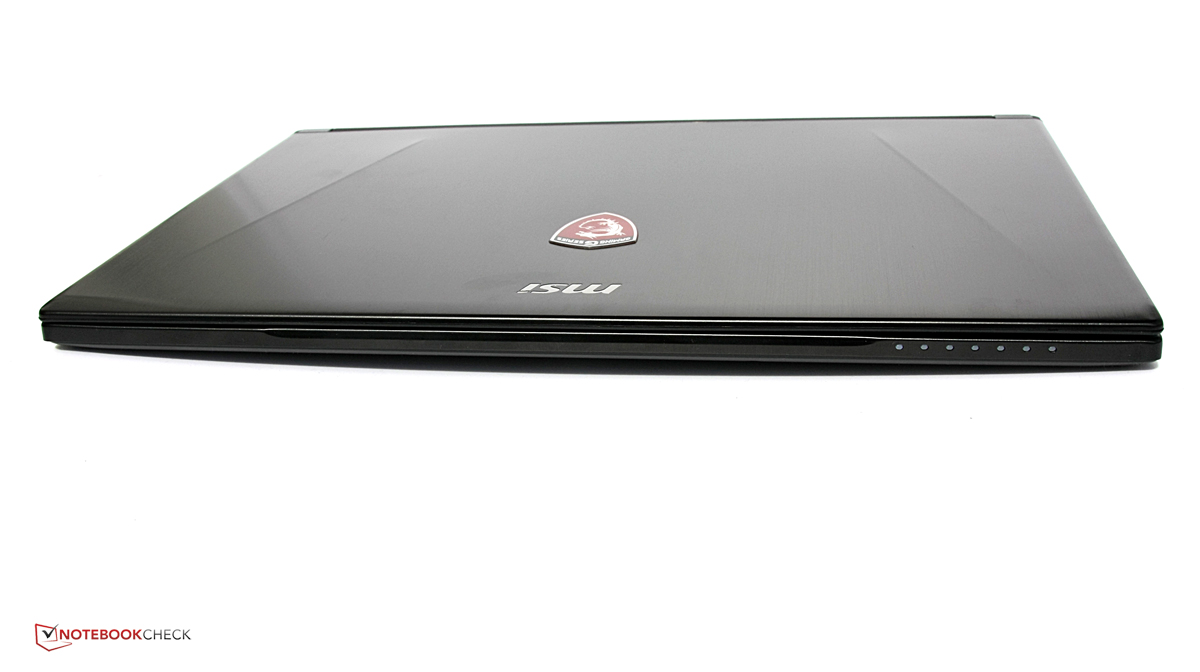

Front: Status LEDs
Front: Status LEDs

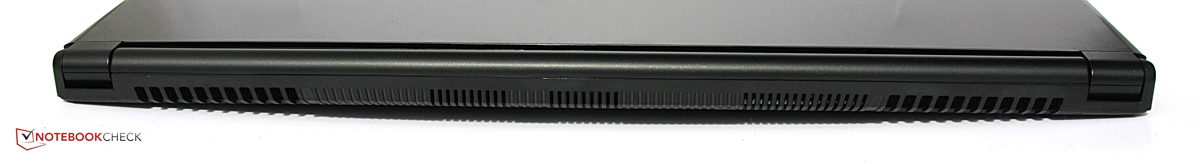

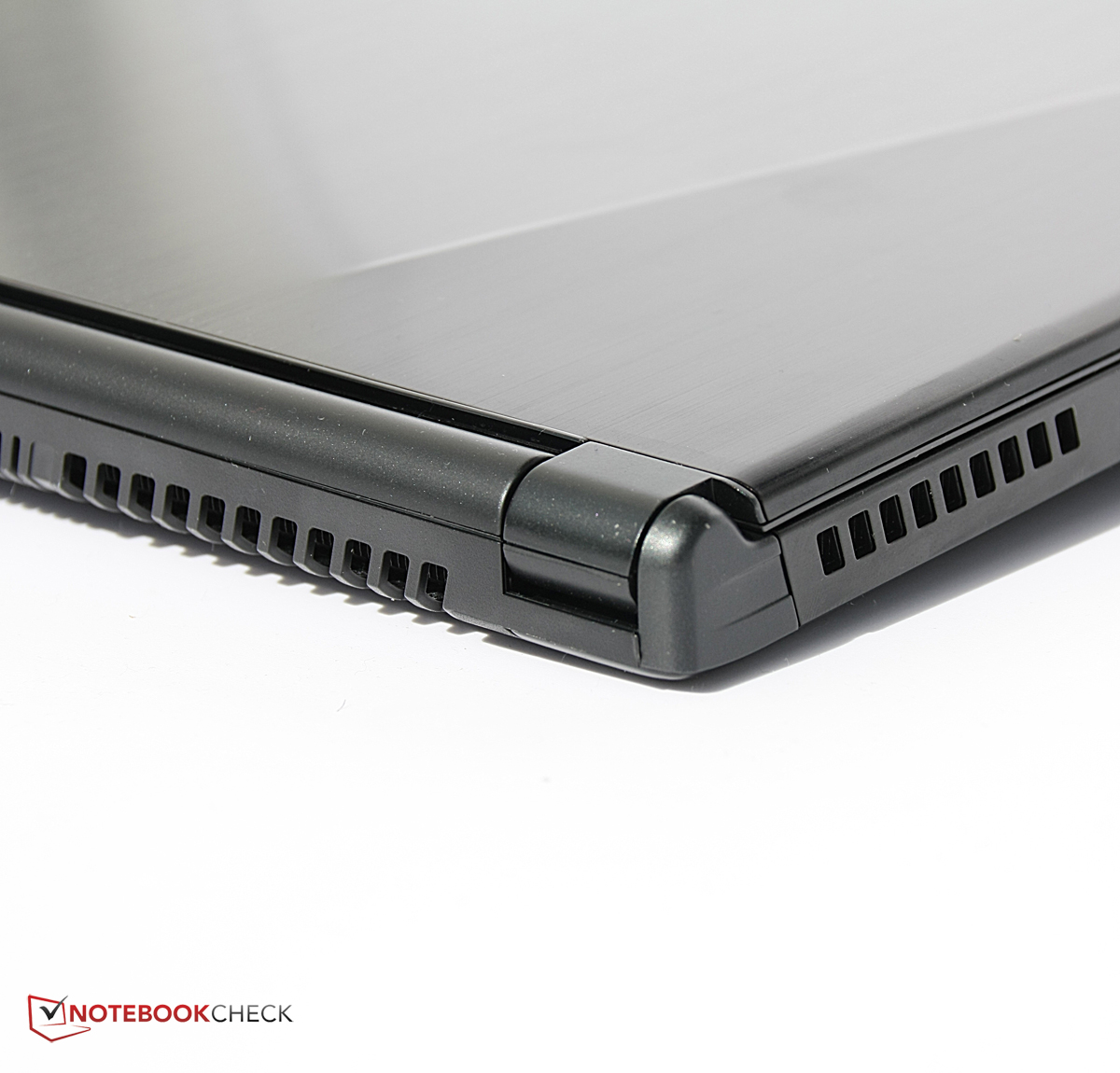

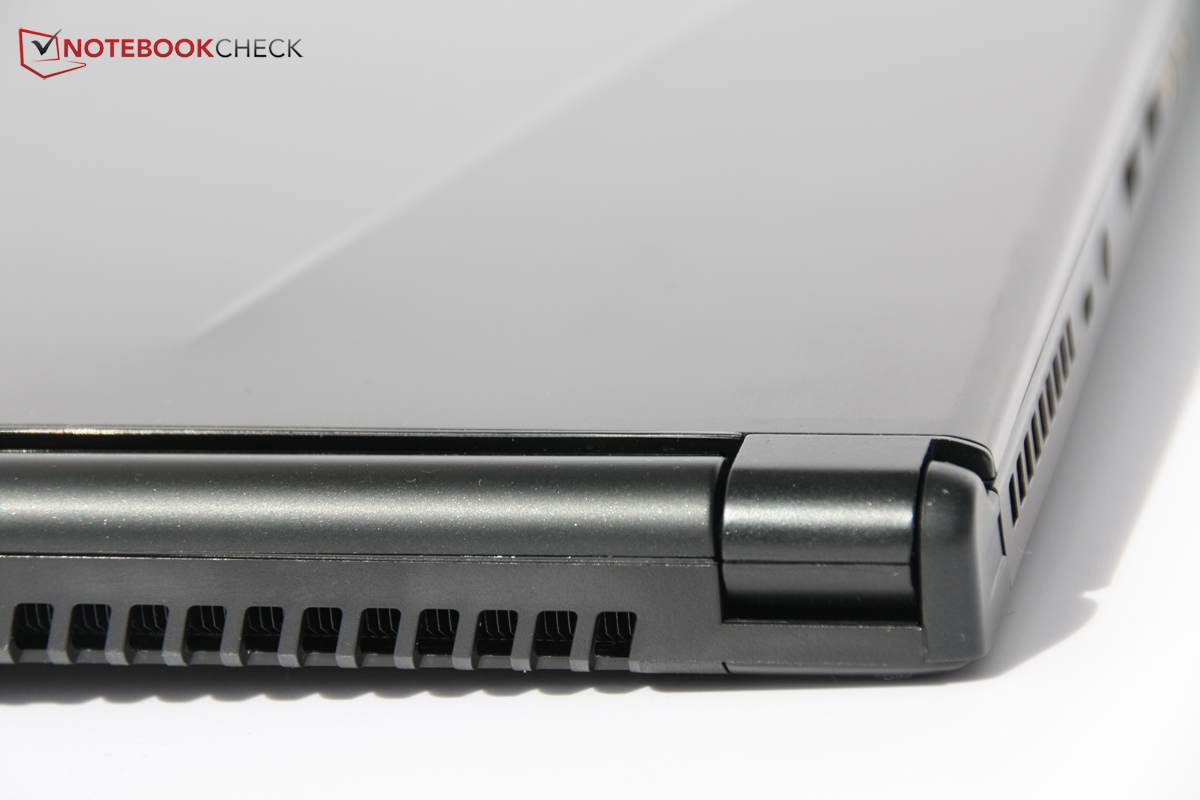

Back: Fan exhausts
Back: Fan exhausts

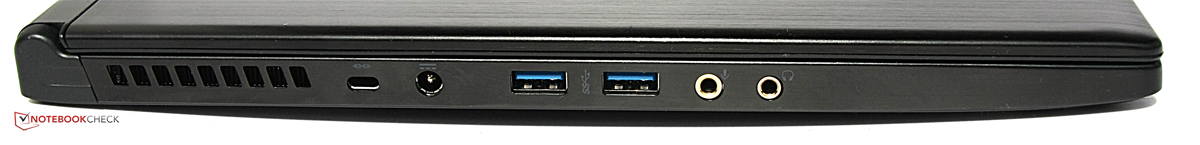

Left side: Fan exhaust, Kensington Lock, AC power, 2x USB 3.0, microphone, speakers
Left side: Fan exhaust, Kensington Lock, AC power, 2x USB 3.0, microphone, speakers

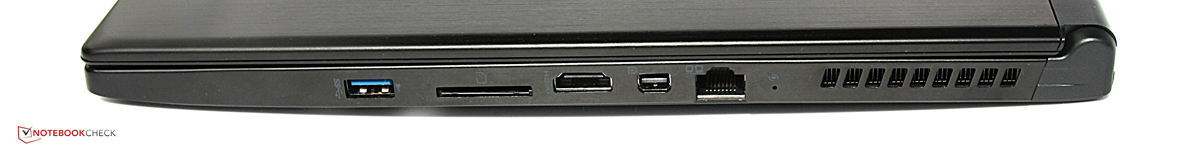

Right side: USB 3.0, SD card reader, HDMI, DisplayPort, LAN, Fan exhaust
Right side: USB 3.0, SD card reader, HDMI, DisplayPort, LAN, Fan exhaust

Communication

The MSI GS60 does not waive a full-size Ethernet port despite the slim silhouette. MSI also integrates a Killer-2200 network card, which is supposed to recognize data packages from games and favor them to ensure stable online gaming. We could not determine a much better signal or a lower latency compared to an Alienware M17x R4 with the Atheros AR8151, but all connections were stable and fast.

Wireless connections are handled by the Intel Wireless-AC 7260 that supports the latest standard 802.11 ac with very high transfer rates when you use a corresponding router. According to the Windows indicator, the signal quality is very good: We still had the full signal with a distance of ten meters (~33 feet) and through three walls. Another two meters (+6.6 feet) and one wall still resulted in 4/5 bars. The connection was only lost if we left the house. Otherwise, web pages loaded very quickly.

Accessories

Besides the power adaptor, a quick start guide and some brochures, there are no accessories in the box. MSI does not offer special accessories in its online shop, either.

Warranty

MSI grants a manufacturer's warranty of 24 months for the notebook. You will have to send the device to MSI. However, some parts like the battery are only covered for one year. You can extend the warranty period by another year for 139 Euros (~$188).

Input Devices

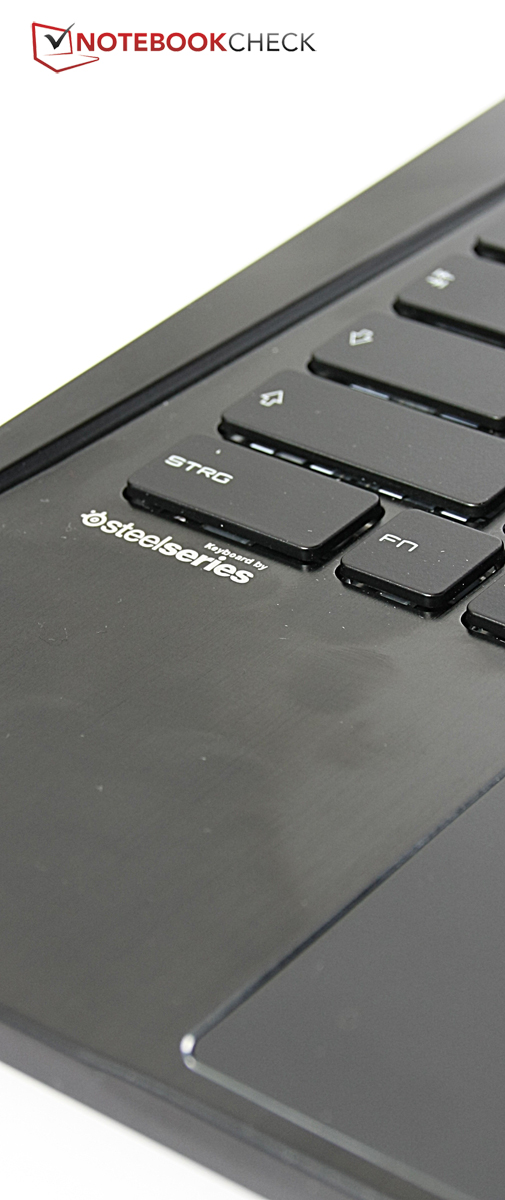

Keyboard

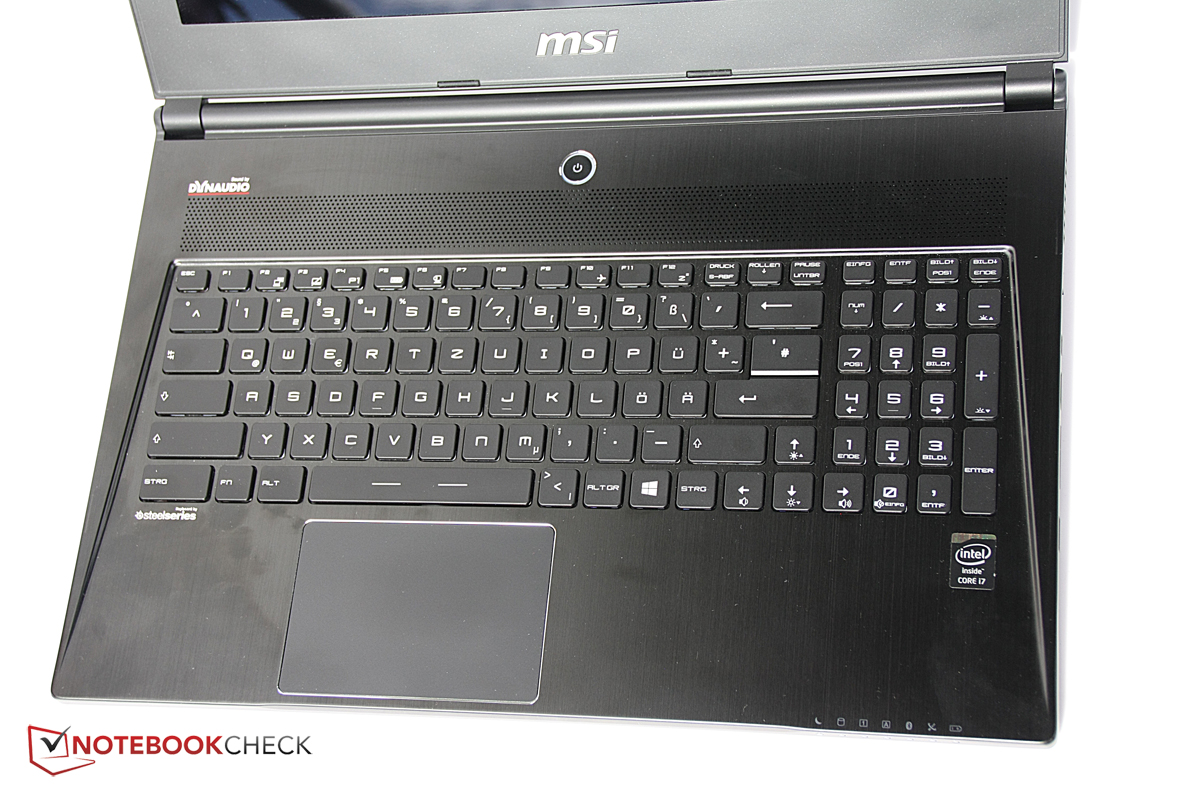

We already mentioned that the keyboard does not really differ from the version of the MSI GS70 gaming notebook. This means neither the advantages nor the disadvantages have changed: The layout with a very wide Ctrl key, Windows button on the right side and the half-sized Return key take time getting used to and are also not always perfect for gamers. The same applies for the lettering, but it looks very futuristic in return.

We do like the soft stroke of the keys, so even longer texts are no problem. Travel is short, the pressure point well defined and the keys have grip, all of which are positive features for gamers. The optimization for multiple strokes is another positive aspect that can handle multiple inputs at the same time.

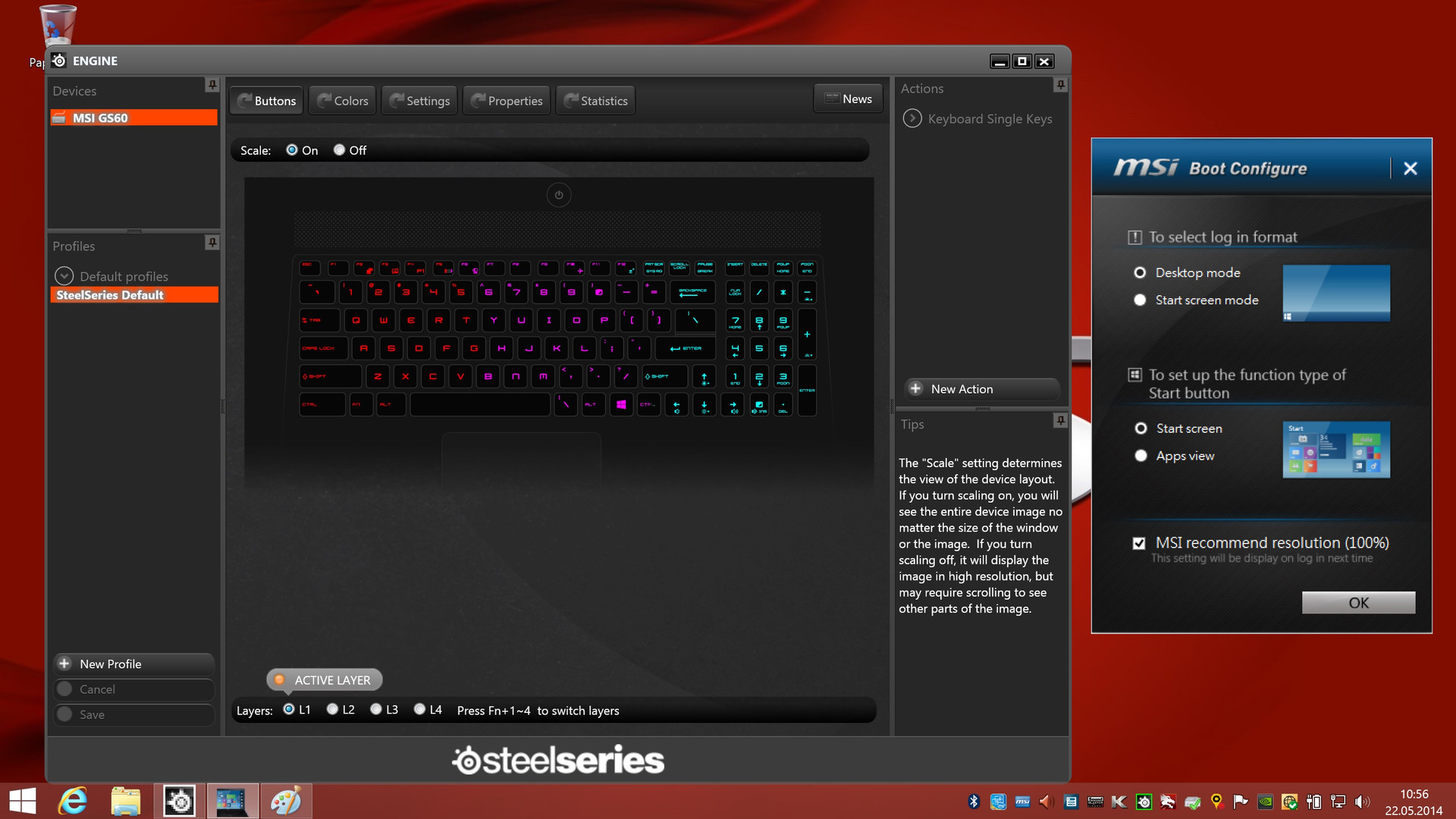

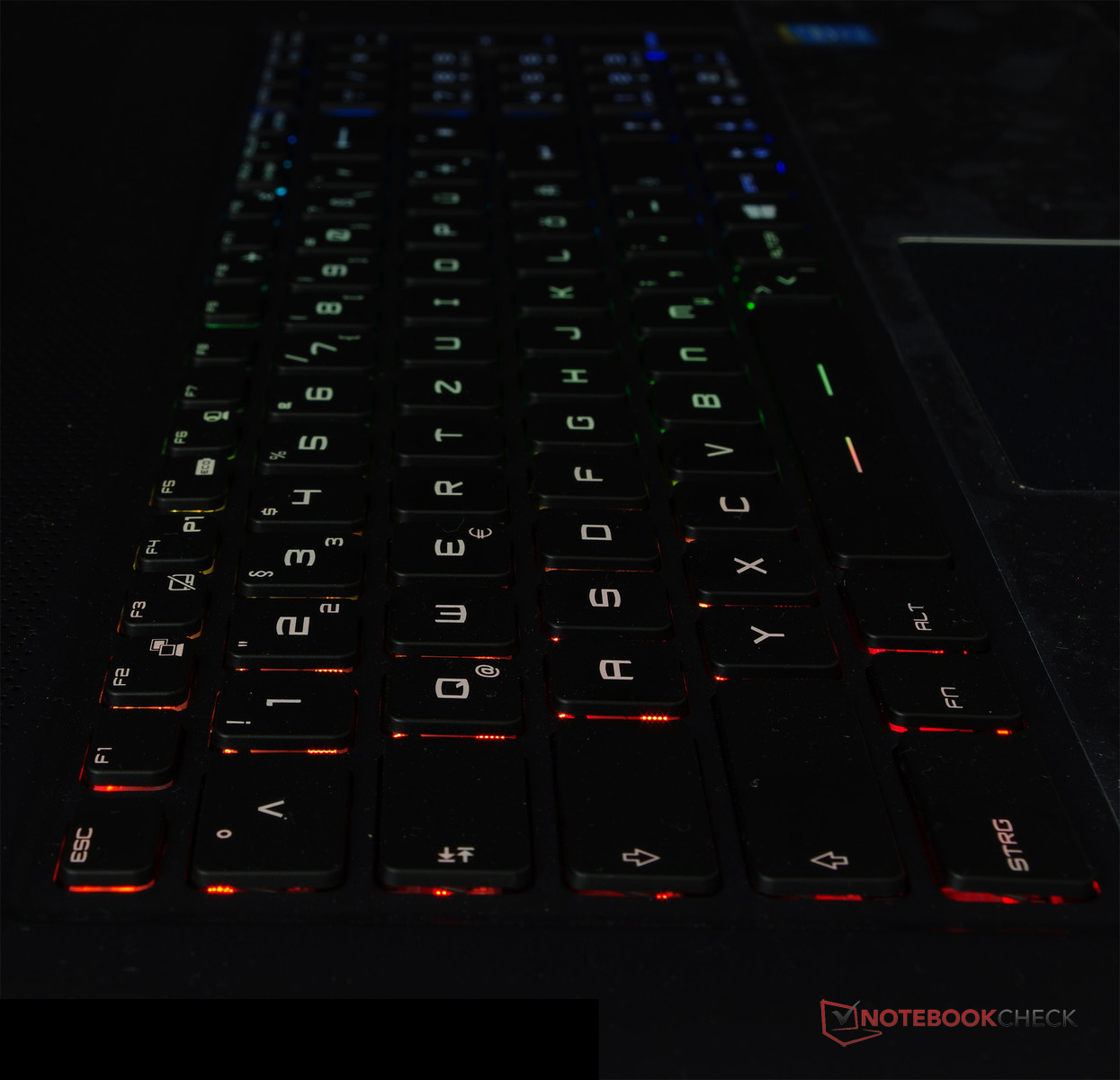

Finally, you get the popular multicolored and configurable keyboard illumination that is similar to Alienware notebooks, which provides individuality.

Touchpad

The touch-sensitive surface of the touchpad is rather big with a diagonal size of more than 12 centimeters (~4.7 in). However, there are no dedicated buttons; they are realized by pressing down the whole bottom of the pad on the corresponding side (ClickPad). ClickPads are usually not as exact as their counterparts with dedicated buttons are and there are often issues with the recognition of an input from the second finger, which lies on the left button. Fortunately, the MSI GS60 does not have these problems.

Multi-touch gestures like zooming or scrolling are supported and work reliably. The surface is not too sticky or too rough, either, but very pleasant.

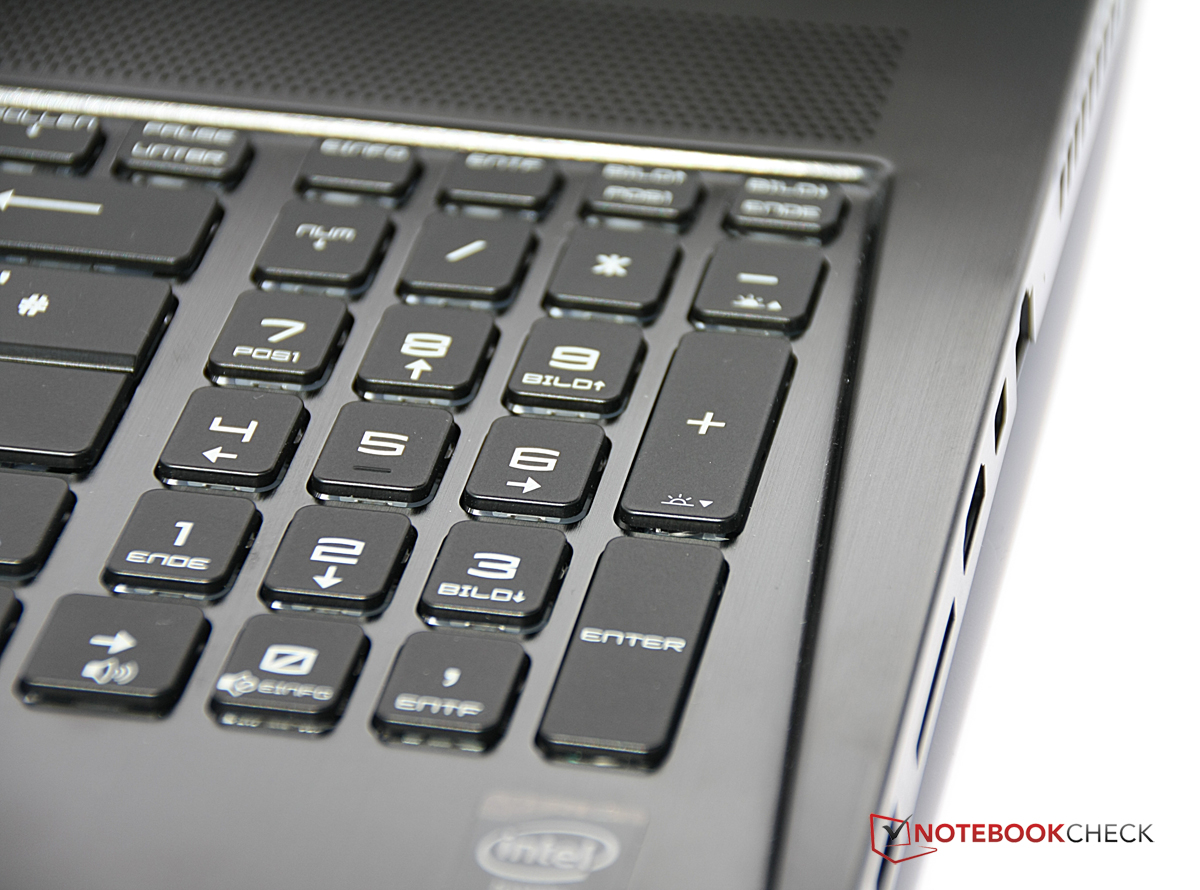

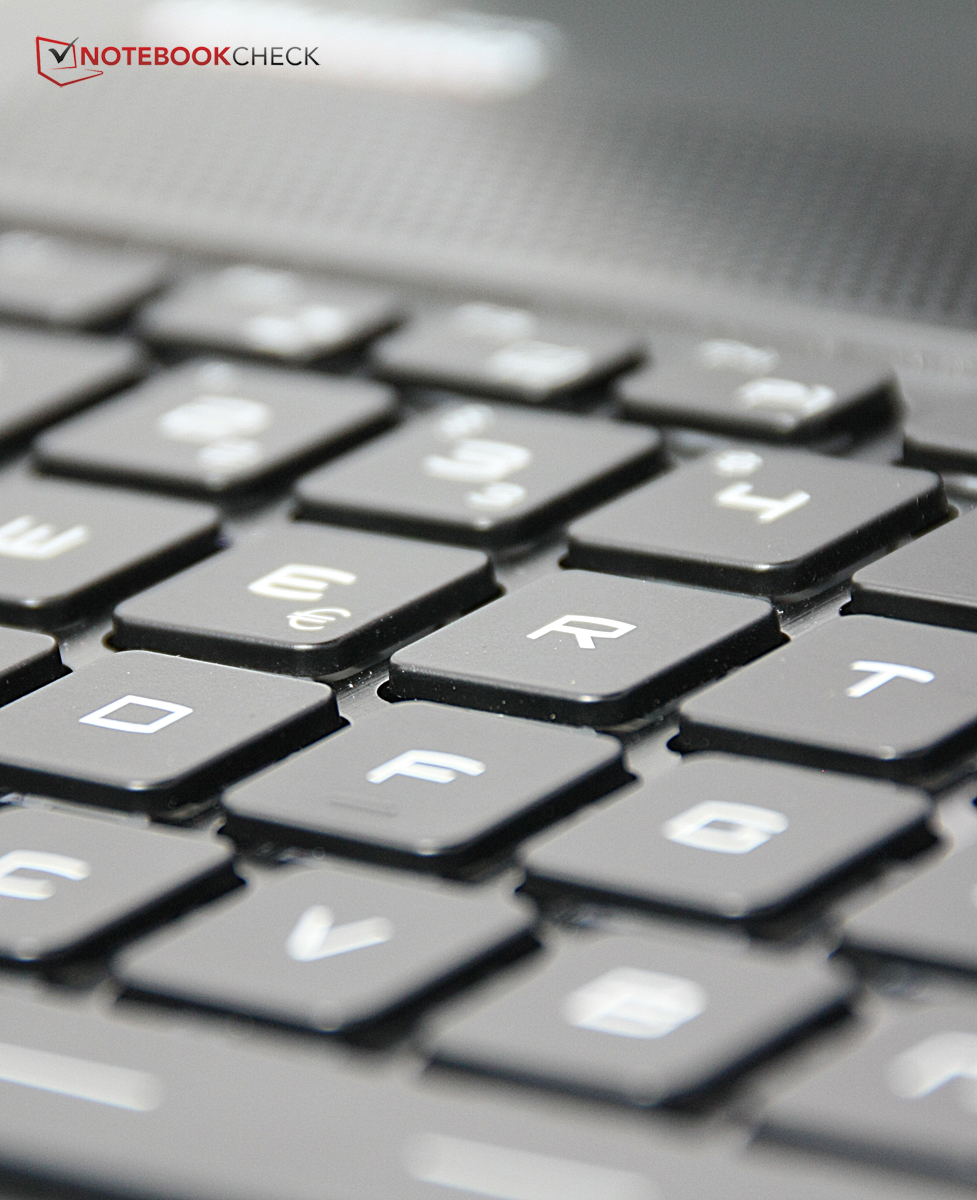

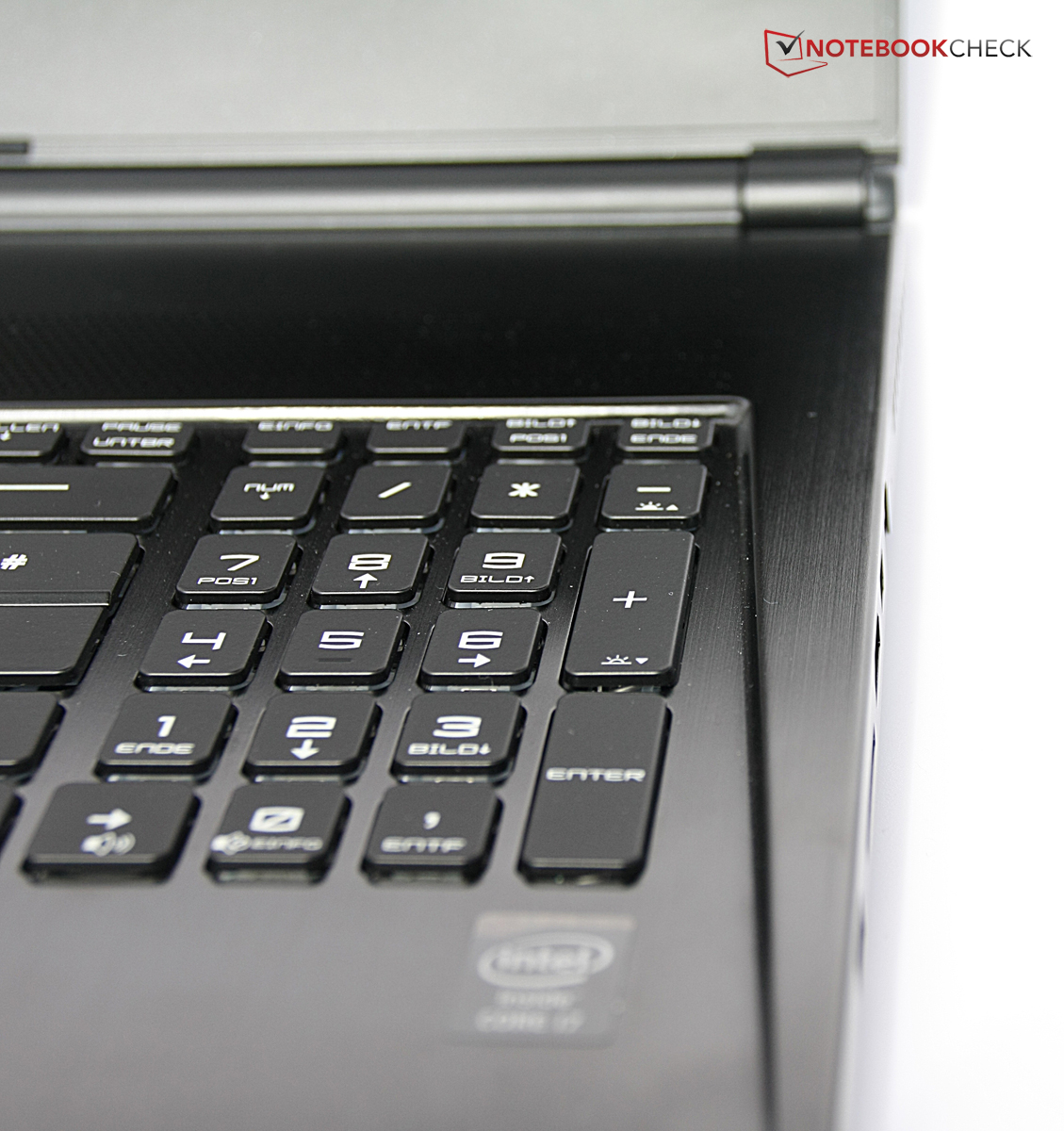

Keyboard
Keyboard

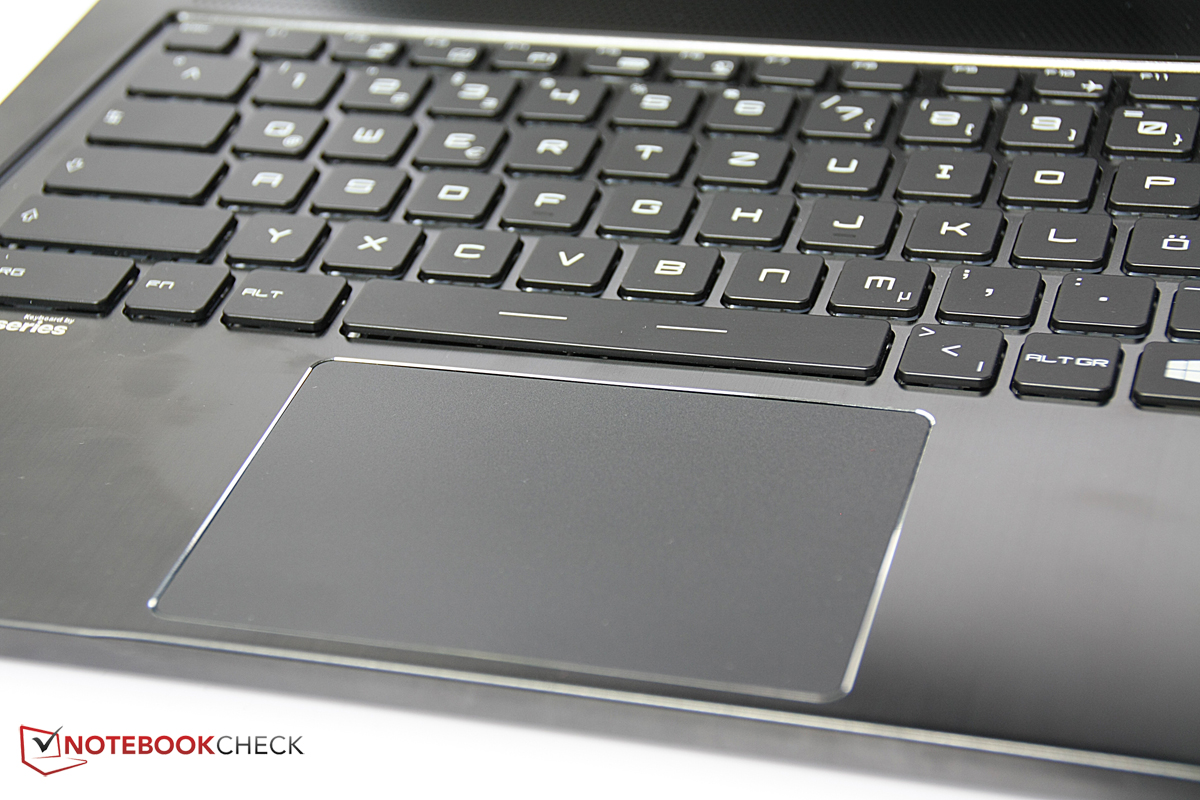

Touchpad
Touchpad

Display

Select the MSI GS60 2PE 3K Edition and you get a display with 3K resolution – as the name already suggests. This means that the panel has the native resolution of 2880x1620 pixels. It also has a glossy surface, the Full HD panels in other configurations of the GS60, on the other hand, are matte. Gaming notebooks usually use matte panels to reduce annoying reflections. However, glossy displays also result in very brilliant colors, and the subjective picture impression of the 3K panel is actually very good right away with rich colors and a detailed presentation.

One word about Windows 8: While the Metro surface with its comparatively large tiles benefits from the high resolution and results in a lot of space and overview, it is another situation on the Desktop. Fonts and symbols could be too small for some users, even with the maximum size, and some older applications do not scale well, which can result in tiny windows and very small fonts. We already mentioned this issue in our review of the MSI GT60.

Nice surprise for users who like to use multiple displays at the same time: The HDMI port, the DisplayPort and the internal display can be driven by the graphics card simultaneously. MSI calls this technology Matrix-Display, which is supposed to ensure the maximum overview in games.

The average brightness of 309.9 cd/m² at the top is typical for this class and more than sufficient indoors. The brightness distribution is not completely even at 82% and we can actually see brightness differences with the naked eye viewing large white surfaces. The black value is okay at 0.43 cd/m², but not overwhelming. Still, dark areas appear dark, with a slight gray filter at most.

326
cd/m²
342
cd/m²
315
cd/m²
311
cd/m²
323
cd/m²
308
cd/m²
286
cd/m²
298
cd/m²
280
cd/m²
Distribution of brightness
Information
X-Rite i1Pro 2
Maximum: 342 cd/m²
Average: 309.9 cd/m²
Brightness Distribution: 82 %
Center on Battery: 323 cd/m²
Black: 0.43 cd/m²
Contrast: 751:1

The contrast is also decent due to the average black value and the slightly raised brightness. As we mentioned before, colors are brilliant and rich. The display reminds us of the GT60 and it actually uses the same Panasonic panel with the designation VVX16T029D00

We use a colorimeter and the software CalMAN for a detailed display analysis. The reference in each case is the sRGB color space for comparison. We measure the values once before and once after the calibration to find out if there is an improvement.

The display already shows a low deviation of the colors from the ideal values before the calibration: We can determine a slight red hue for the grayscale. The deviations of the colors are also far away from the critical area. The oversaturation of red colors is probably supposed to compensate a blue cast, which is typical for many panels, although it might be a bit exaggerated. The automatic calibration reduces the intensity of red colors, and the overall color representation is more exact.

The available color space is not sufficient for professional purposes: The display only covers 79% of the sRGB and 59% of the AdobeRGB color space.

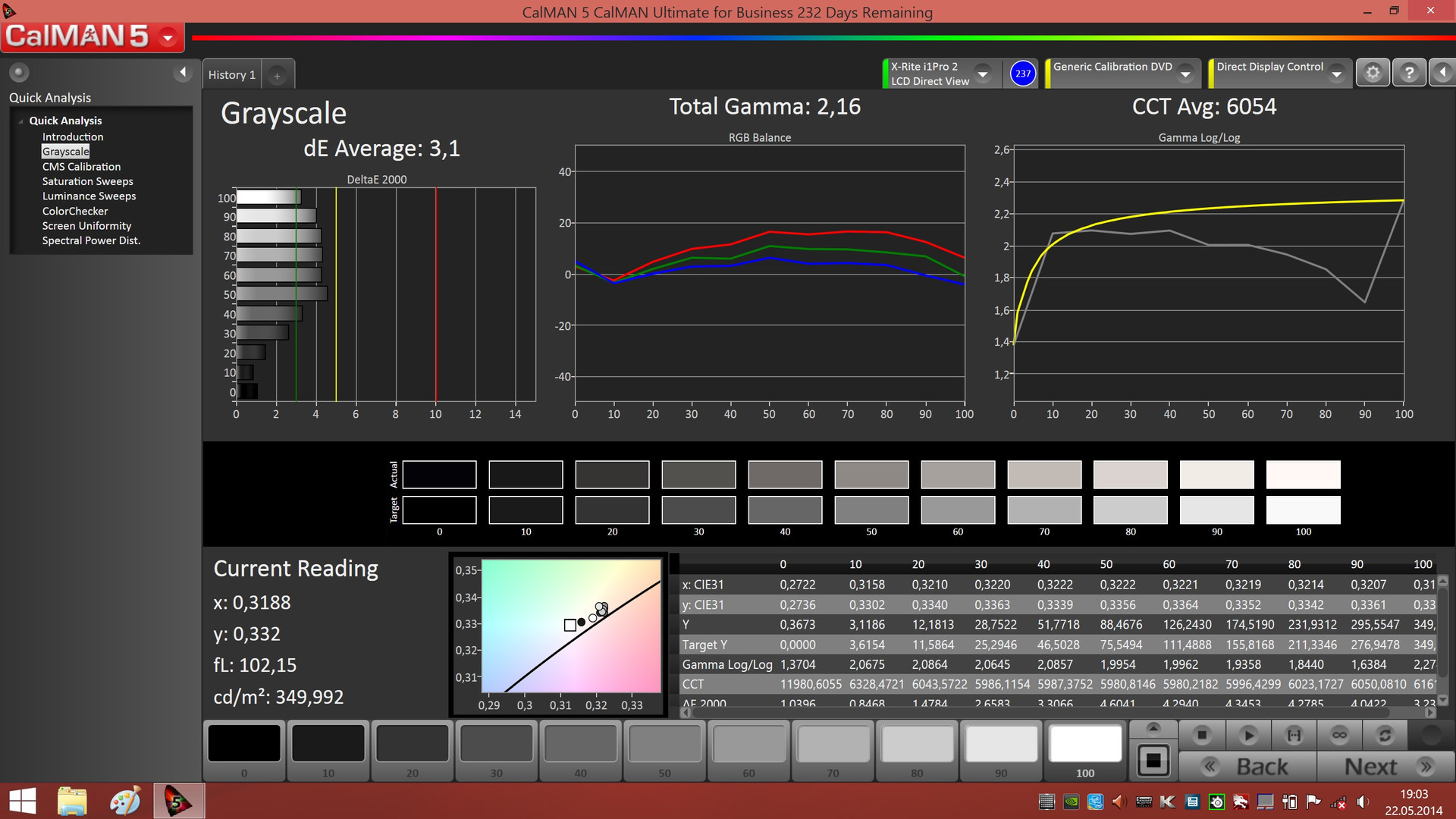

CalMAN Grayscale (pre calibration)
CalMAN Grayscale (pre calibration)

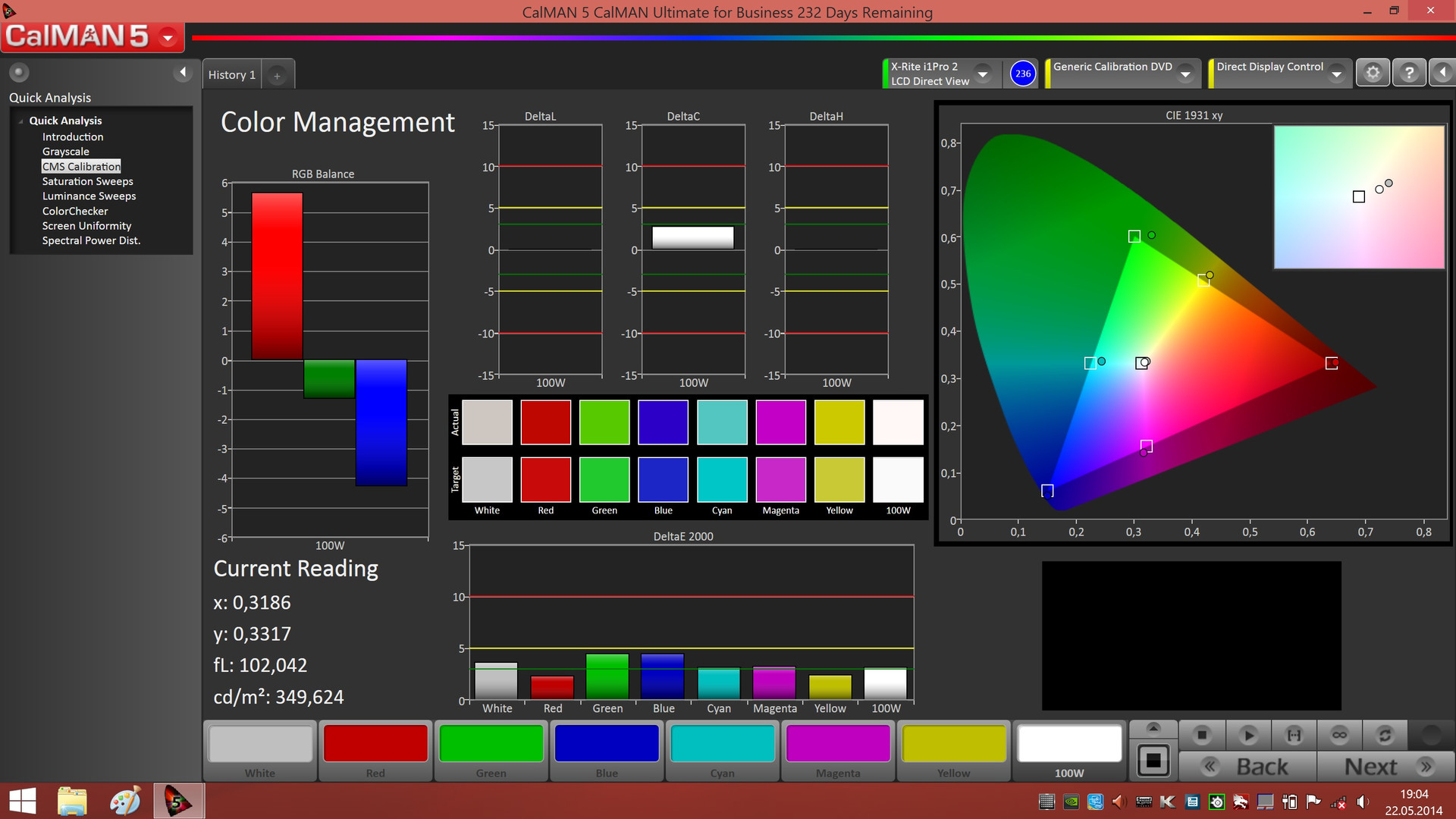

CalMAN Color Management (pre calibration)
CalMAN Color Management (pre calibration)

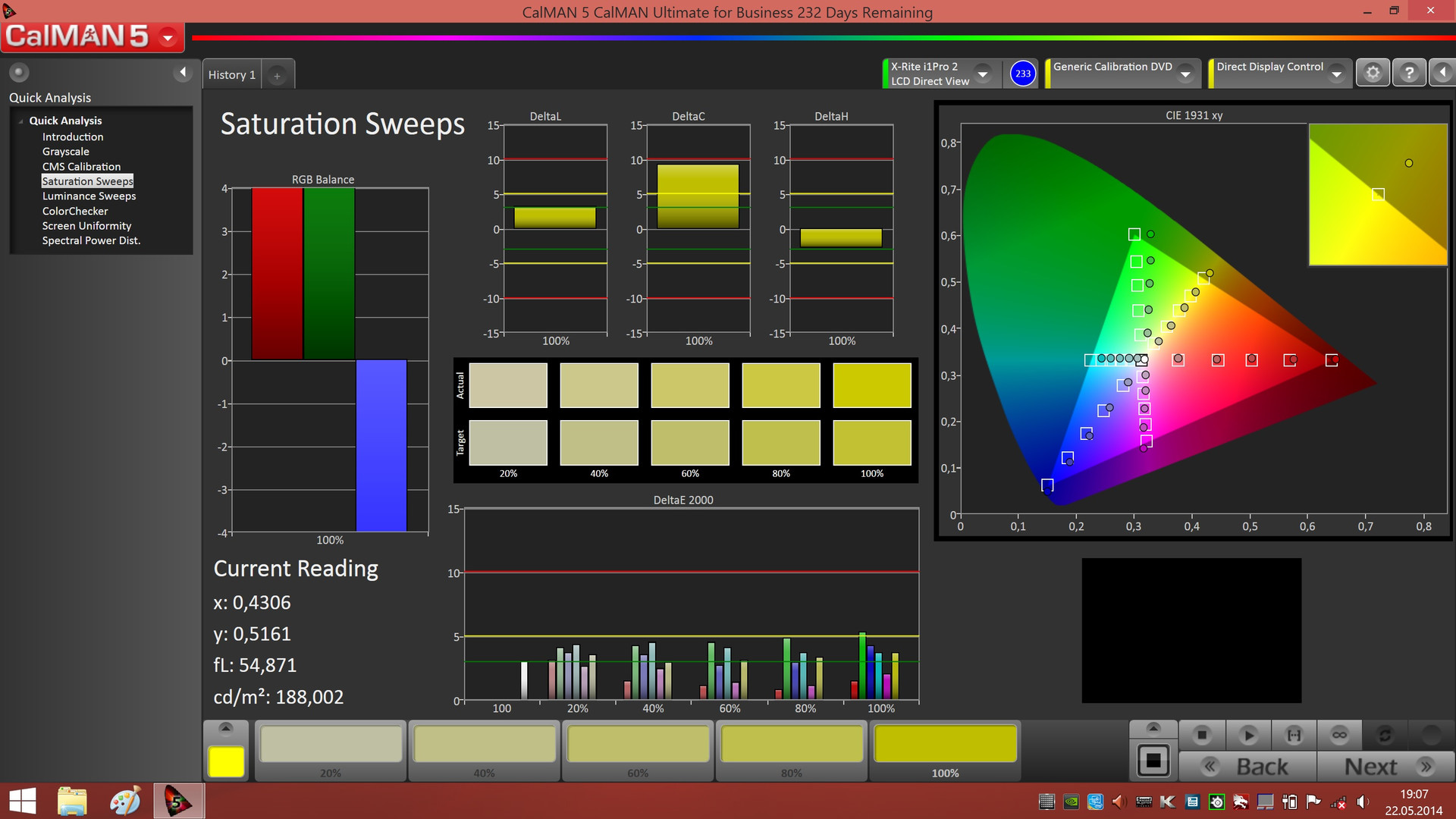

CalMAN Saturation Sweeps (pre calibration)
CalMAN Saturation Sweeps (pre calibration)

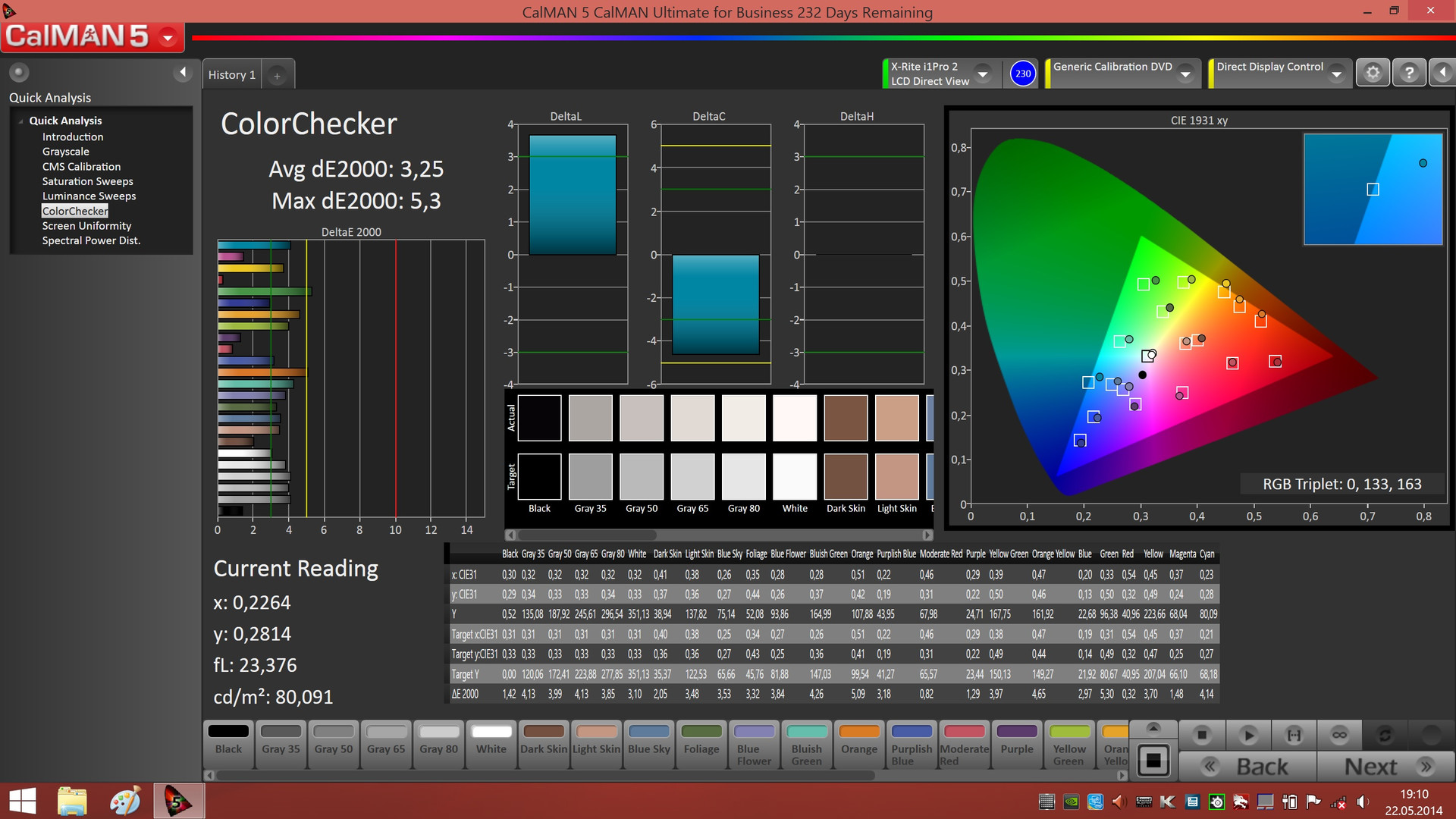

CalMAN ColorChekcer (pre calibration)
CalMAN ColorChekcer (pre calibration)

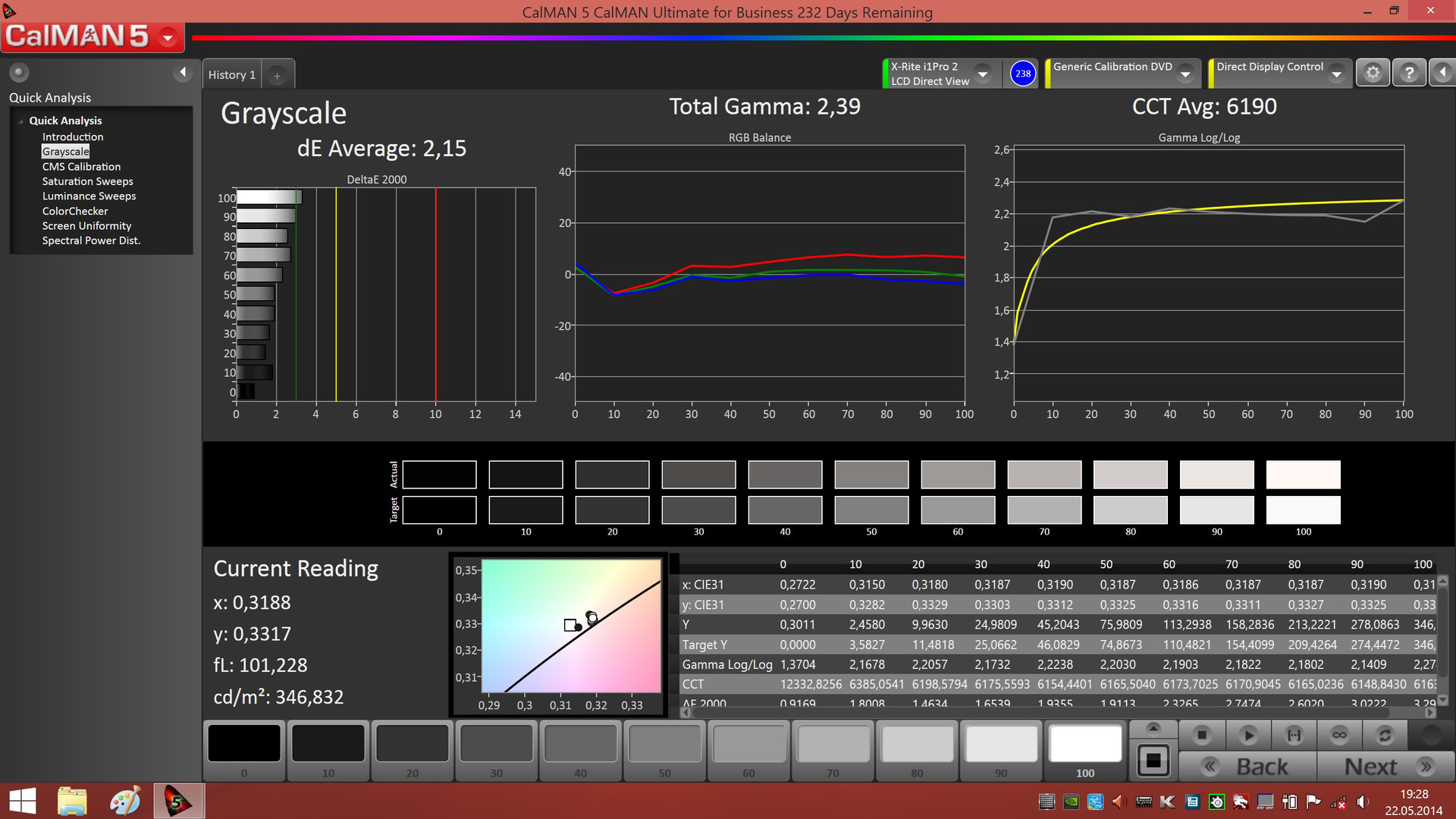

CalMAN Grayscale (calibrated)
CalMAN Grayscale (calibrated)
CalMAN Color Management (calibrated)
CalMAN Color Management (calibrated)

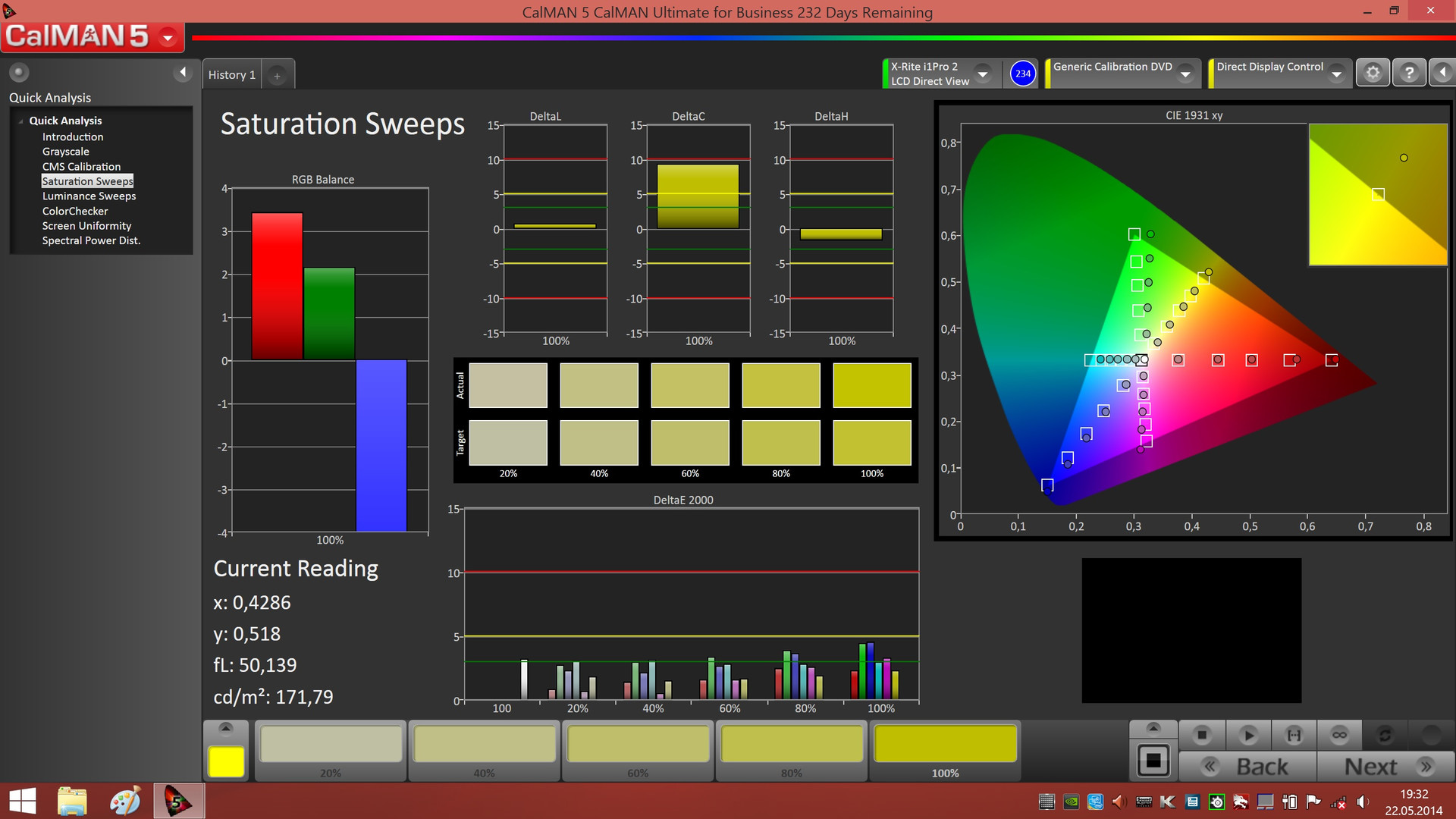

CalMAN Saturation Sweeps (calibrated)
CalMAN Saturation Sweeps (calibrated)

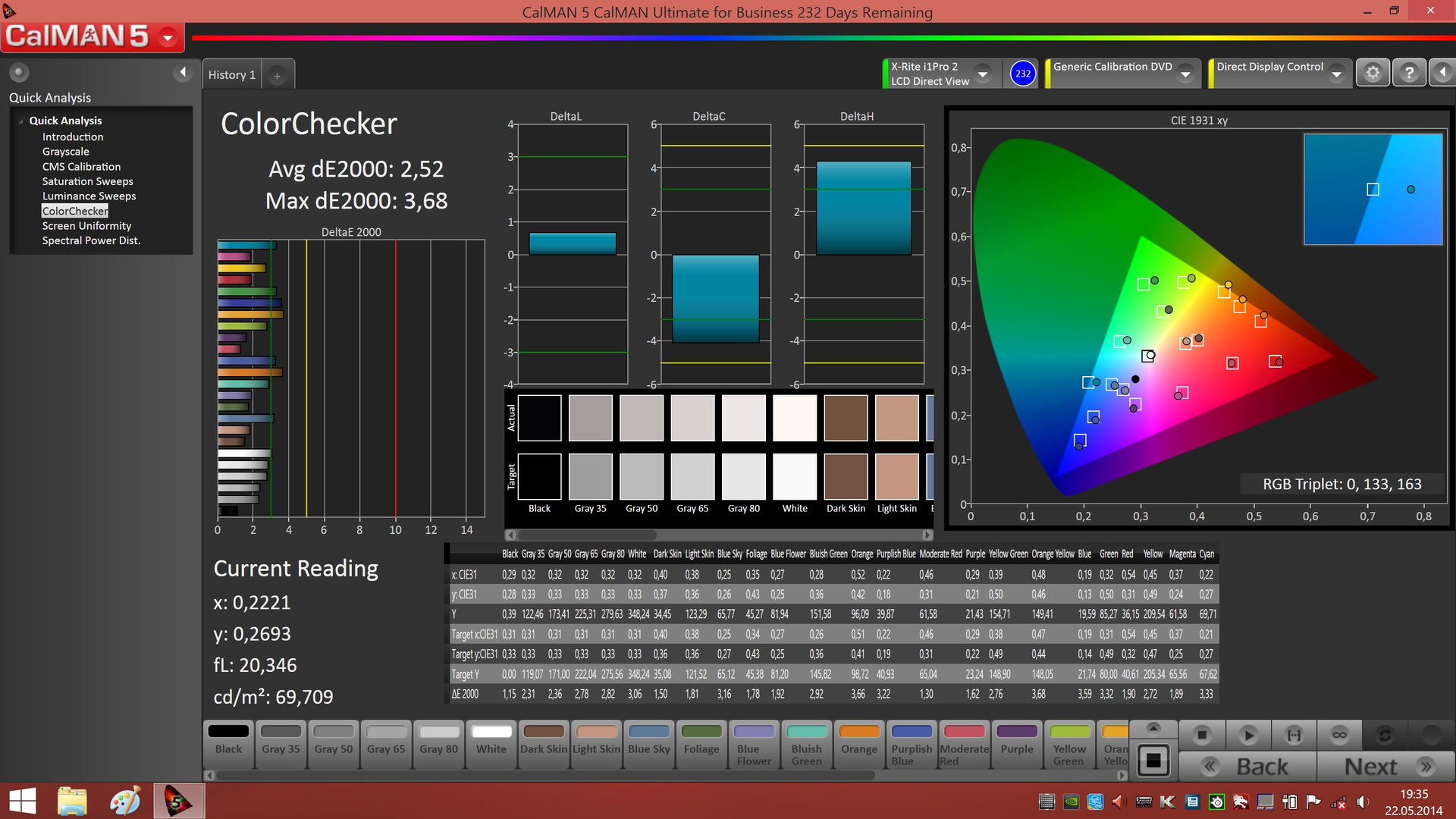

CalMAN ColorChecker (calibrated)
CalMAN ColorChecker (calibrated)
MSI GS60 vs. sRGB
MSI GS60 vs. sRGB

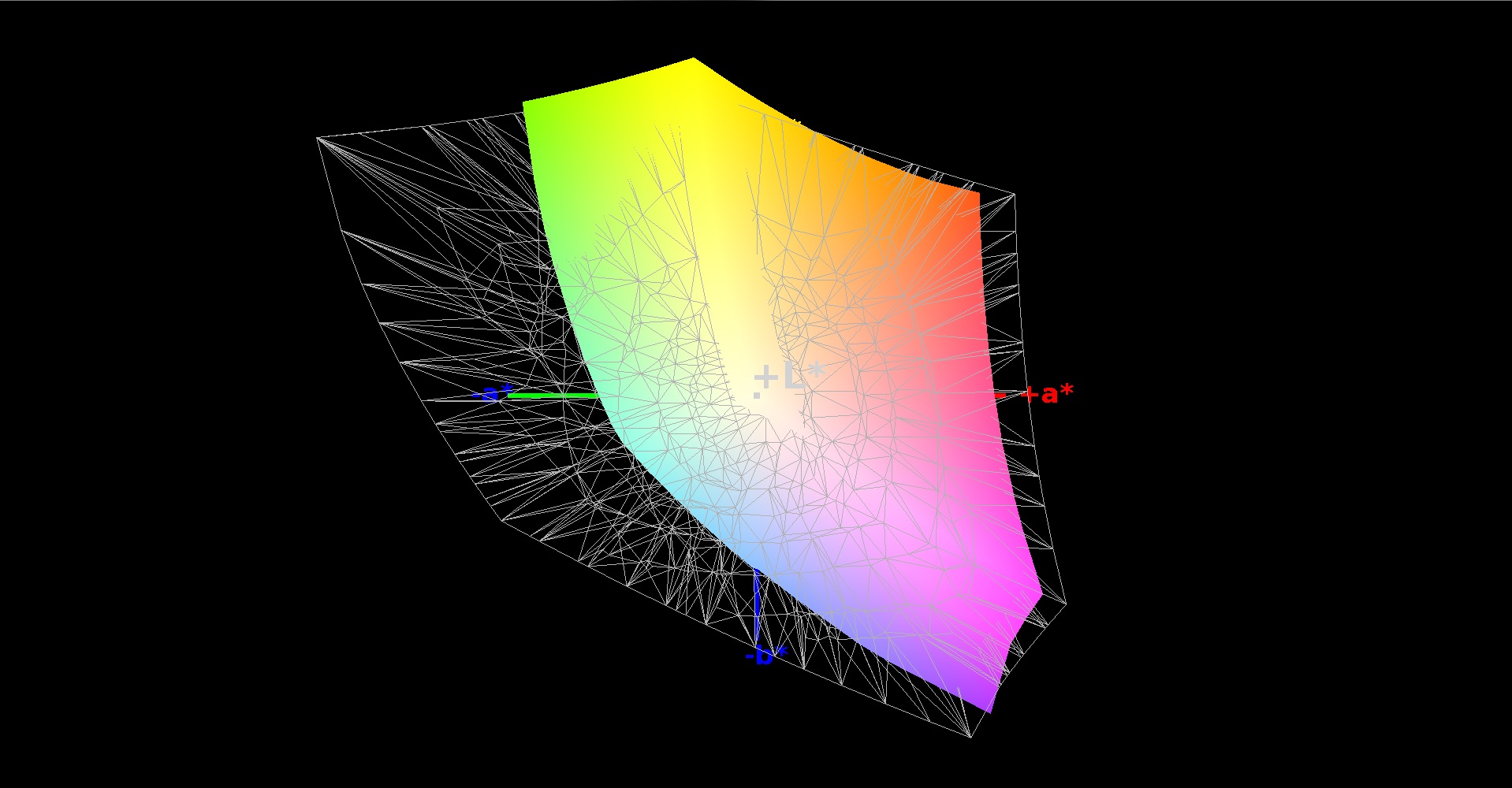

MSI GS60 vs. AdobeRGB
MSI GS60 vs. AdobeRGB

The display creates massive reflections outdoors, and that can also be a problem in bright indoor environments. The brightness is not always sufficient in these scenarios to ensure a good readability of the content. Matte panels definitely have an advantage in this section.

The viewing angle stability is convincing; MSI promises 170 degrees on its website, and the IPS technology of the panel actually enables a clearly visible picture from any angle. We can see a slight reduction of the brightness with very flat angles, but that is hardly important in practice.

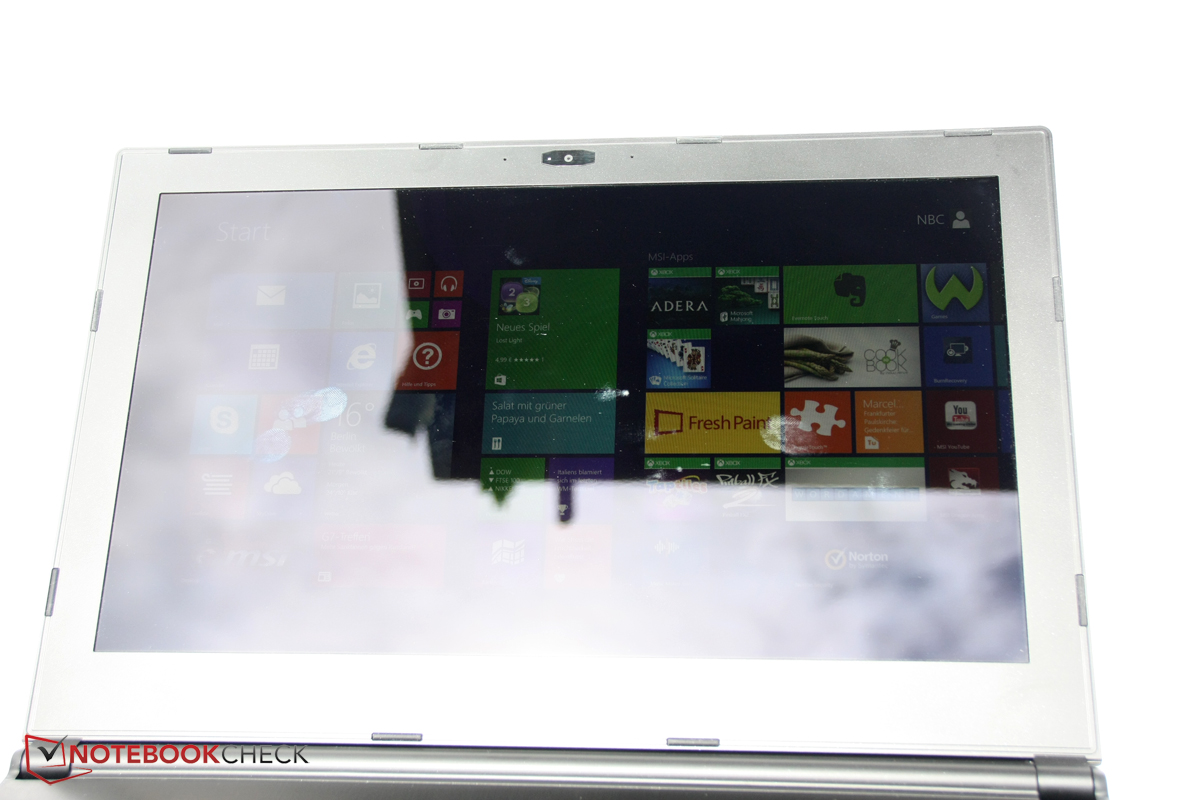

Outdoor use
Outdoor use

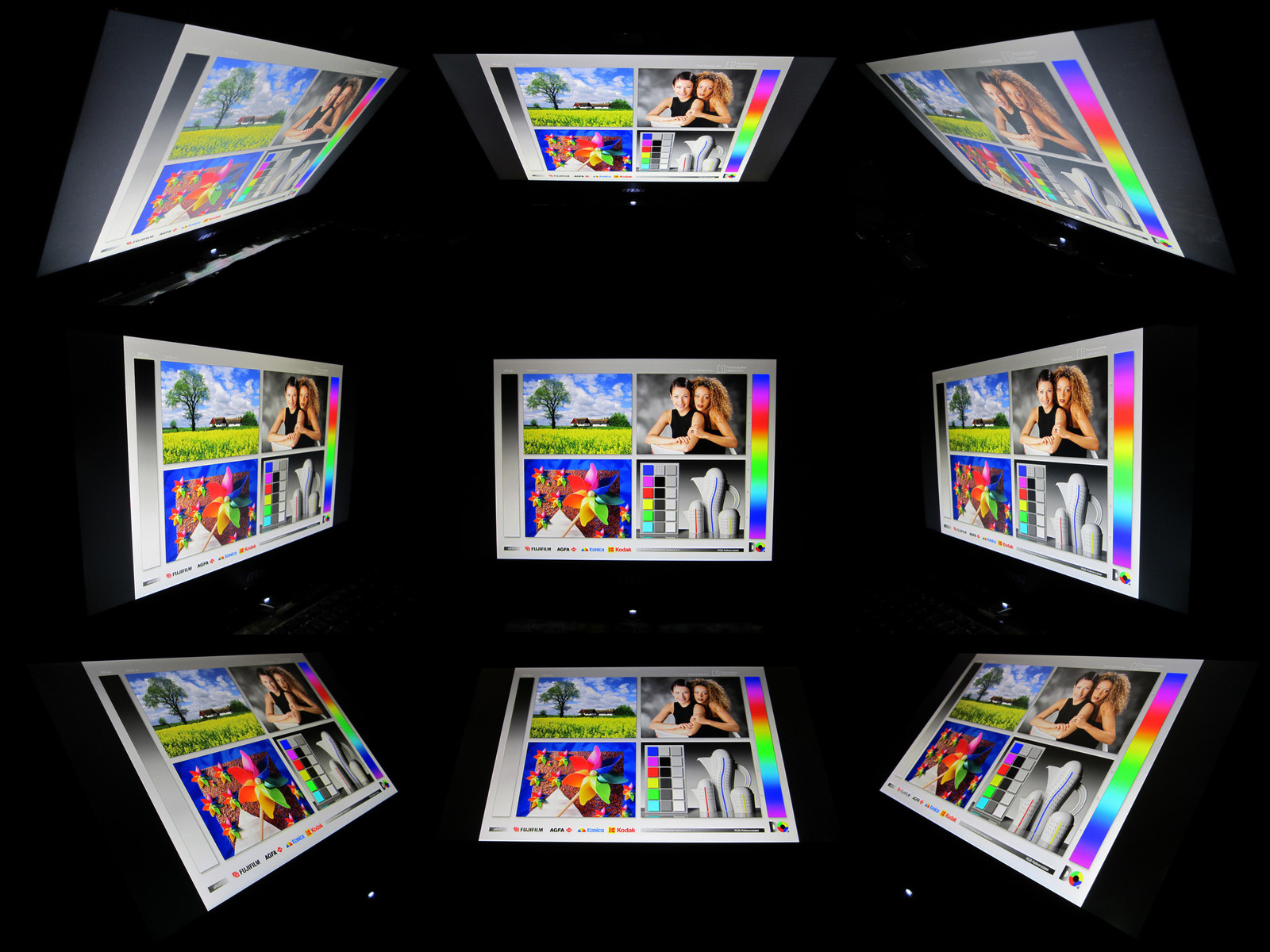

Viewing angles
Viewing angles

Performance

The MSI GS60 2PE Ghost Pro 3K Edition wants to play in the big league despite its slim dimensions. MSI integrates an Intel Core i7-4700HQ with four cores and a nominal clock of 2.4 GHz. There is also an Nvidia GeForce GTX 870M clocked at 976 MHz with 3 GB dedicated memory. 16 GB of RAM are provided by two modules, which is also the maximum memory equipment for the notebook.

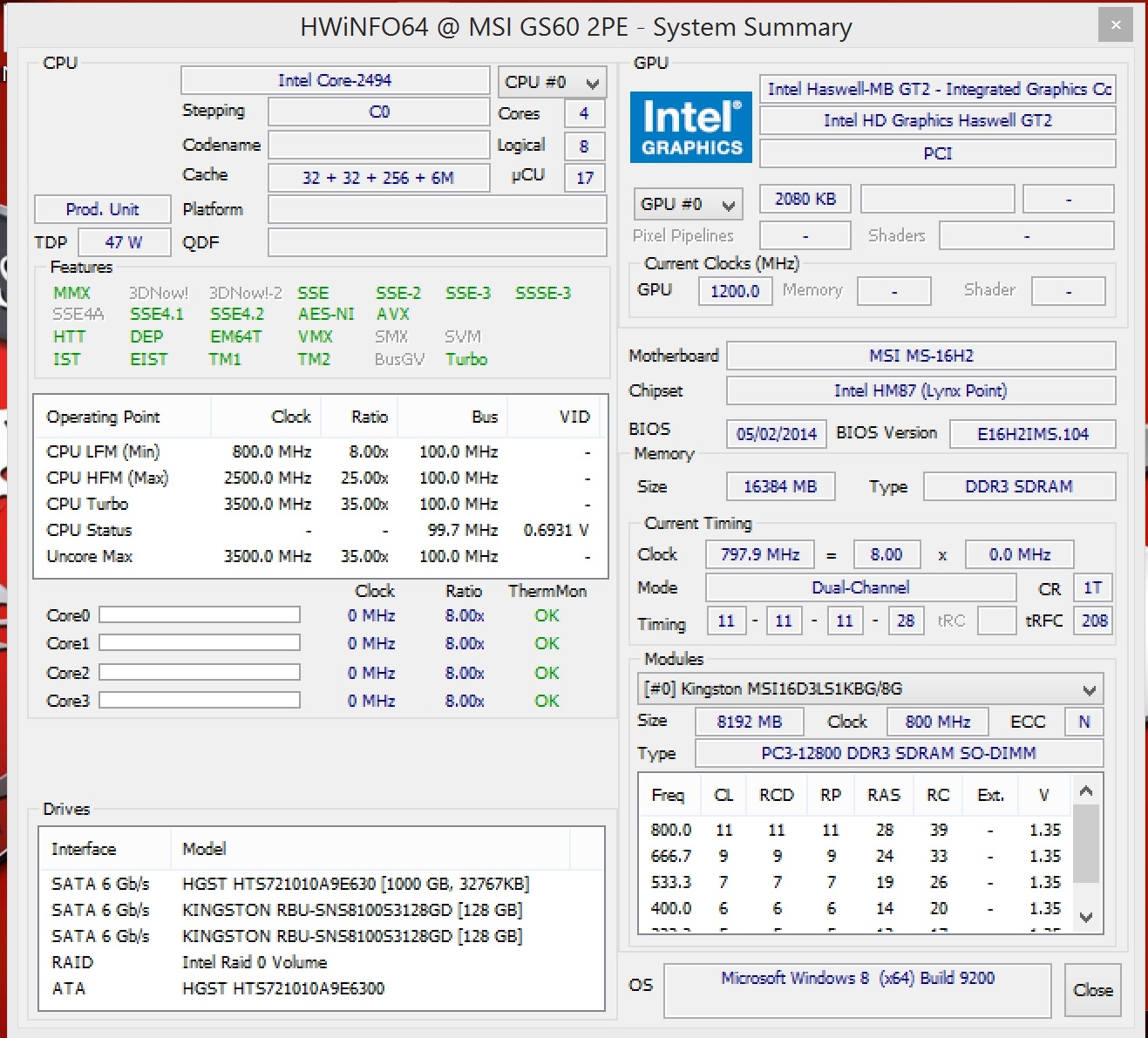

System information MSI GS60 - 2PEWi716SR21

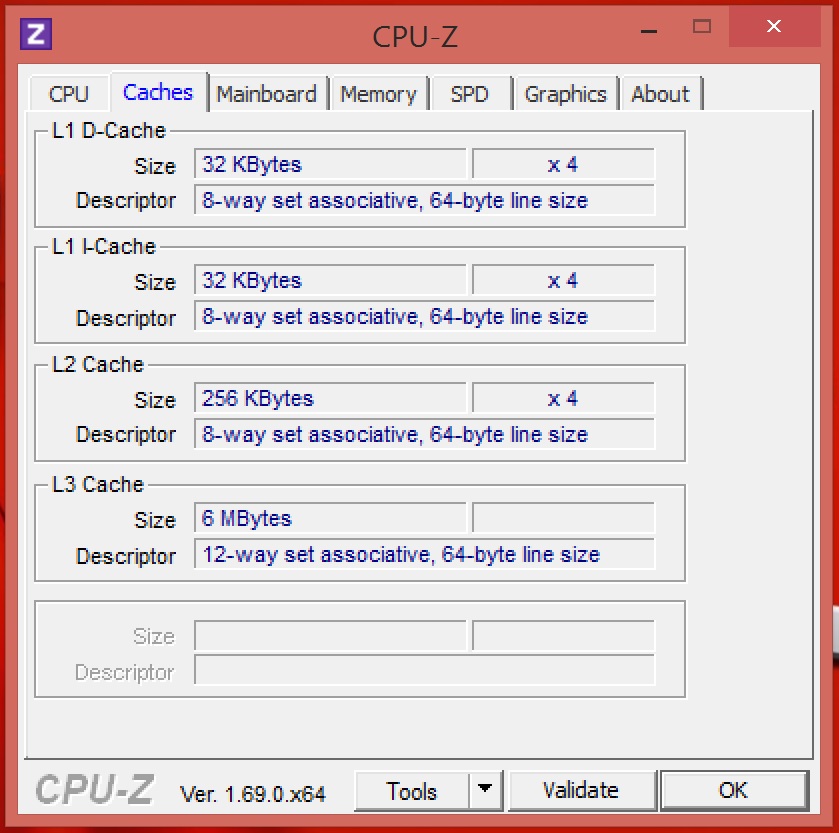

Processor

With a Thermal Design Power of 47 Watts, the Intel Core i7-4700HQ can only be used in notebooks with a very powerful cooling solution. The quad-core processor usually runs at 2.4 GHz, but can be overclocked up to 3.4 GHz via Turbo Boost. There are some faster processors above the Intel Core i7-4700HQ, but the quad-core should be more than sufficient for most applications.

The Intel Core i7-4700HQ is a popular choice for gaming notebooks and is used by many devices within our comparison. The similar results in Cinebench are therefore not surprising. However, it does show that the processor can use its full potential in the MSI GS60.

Cinebench R11.5
CPU Multi 64Bit
MSI GS60 - 2PEWi716SR21
7.12 Points ∼40%
Razer Blade 14 inch
6.32 Points ∼36% -11%
Alienware 14
6.95 Points ∼39% -2%
MSI GT60-2PC81B
7.08 Points ∼40% -1%
MSI GE60-2PEi781B
6.97 Points ∼40% -2%
One K56-4N
6.94 Points ∼39% -3%
Gigabyte P34G
7 Points ∼40% -2%
MSI GS70-65M21621
6.65 Points ∼38% -7%
CPU Single 64Bit
MSI GS60 - 2PEWi716SR21
1.5 Points ∼54%
Razer Blade 14 inch
1.39 Points ∼50% -7%
Alienware 14
1.51 Points ∼55% +1%
MSI GT60-2PC81B
1.6 Points ∼58% +7%
MSI GE60-2PEi781B
1.5 Points ∼54% 0%
One K56-4N
1.51 Points ∼55% +1%
Gigabyte P34G
1.51 Points ∼55% +1%
MSI GS70-65M21621
1.49 Points ∼54% -1%
Cinebench R15
CPU Multi 64Bit
MSI GS60 - 2PEWi716SR21
652 Points ∼42%
MSI GT60-2PC81B
639 Points ∼41% -2%
MSI GE60-2PEi781B
642 Points ∼41% -2%
One K56-4N
643 Points ∼41% -1%
Gigabyte P34G
643 Points ∼41% -1%
CPU Single 64Bit
MSI GS60 - 2PEWi716SR21
130 Points ∼85%
MSI GT60-2PC81B
137 Points ∼90% +5%
MSI GE60-2PEi781B
135 Points ∼88% +4%
One K56-4N
132 Points ∼86% +2%
Gigabyte P34G
134 Points ∼88% +3%
Legend
      MSI GS60 - 2PEWi716SR21 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Kingston RBU-SNS8100S3128GD (RAID 0)
      Razer Blade 14 inch Intel Core i7-4702HQ, NVIDIA GeForce GTX 765M, Samsung SSD PM841 MZMTD128HAFV mSATA
      Alienware 14 Intel Core i7-4700MQ, NVIDIA GeForce GTX 765M, Liteonit LMT-256M6M
      MSI GT60-2PC81B Intel Core i7-4800MQ, NVIDIA GeForce GTX 870M, HGST Travelstar 7K1000 HTS721010A9E630
      MSI GE60-2PEi781B Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, WDC Scorpio Blue WD10JPVX-22JC3T0
      One K56-4N Intel Core i7-4700MQ, AMD Radeon R9 M290X, Samsung SSD 840 EVO 500GB
      Gigabyte P34G Intel Core i7-4700HQ, NVIDIA GeForce GTX 760M, Liteonit LMT-128M6M
      MSI GS70-65M21621 Intel Core i7-4700HQ, NVIDIA GeForce GTX 765M, 2x Intel SSD 510 Series SSDSC2MH250A2 (RAID 0)

System Performance

A very fast RAID 0 system with two SSDs (!) also improves the scores of PCMark 7. The generous memory of 16 GB could also be a reason for the advantage of the MSI GS60. However, when you consider the PCMark 8 results and look at the overall situation, the MSI GS60 is not ahead of the other devices but rather on the same level.

PCMark 7 - Score
MSI GS60 - 2PEWi716SR21
6164 Points ∼93%
Razer Blade 14 inch
5599 Points ∼85% -9%
Alienware 14
5919 Points ∼89% -4%
MSI GT60-2PC81B
3425 Points ∼52% -44%
MSI GE60-2PEi781B
3142 Points ∼47% -49%
One K56-4N
6408 Points ∼97% +4%
Gigabyte P34G
5951 Points ∼90% -3%
MSI GS70-65M21621
6076 Points ∼92% -1%
PCMark 8
Home Score Accelerated
Razer Blade 14 inch
3769 Points ∼77%
Gigabyte P34G
4000 Points ∼81%
MSI GS70-65M21621
3713 Points ∼75%
Creative Score Accelerated
Razer Blade 14 inch
4566 Points ∼77%
Gigabyte P34G
4459 Points ∼75%
MSI GS70-65M21621
4322 Points ∼73%
Work Score Accelerated
Razer Blade 14 inch
4800 Points ∼92%
Gigabyte P34G
4804 Points ∼92%
MSI GS70-65M21621
4785 Points ∼92%
PC Mark
PCMark 76164 points
PCMark 8 Home v23004 points
PCMark 8 Creative v24817 points
PCMark 8 Work v23701 points
Help

Storage Devices

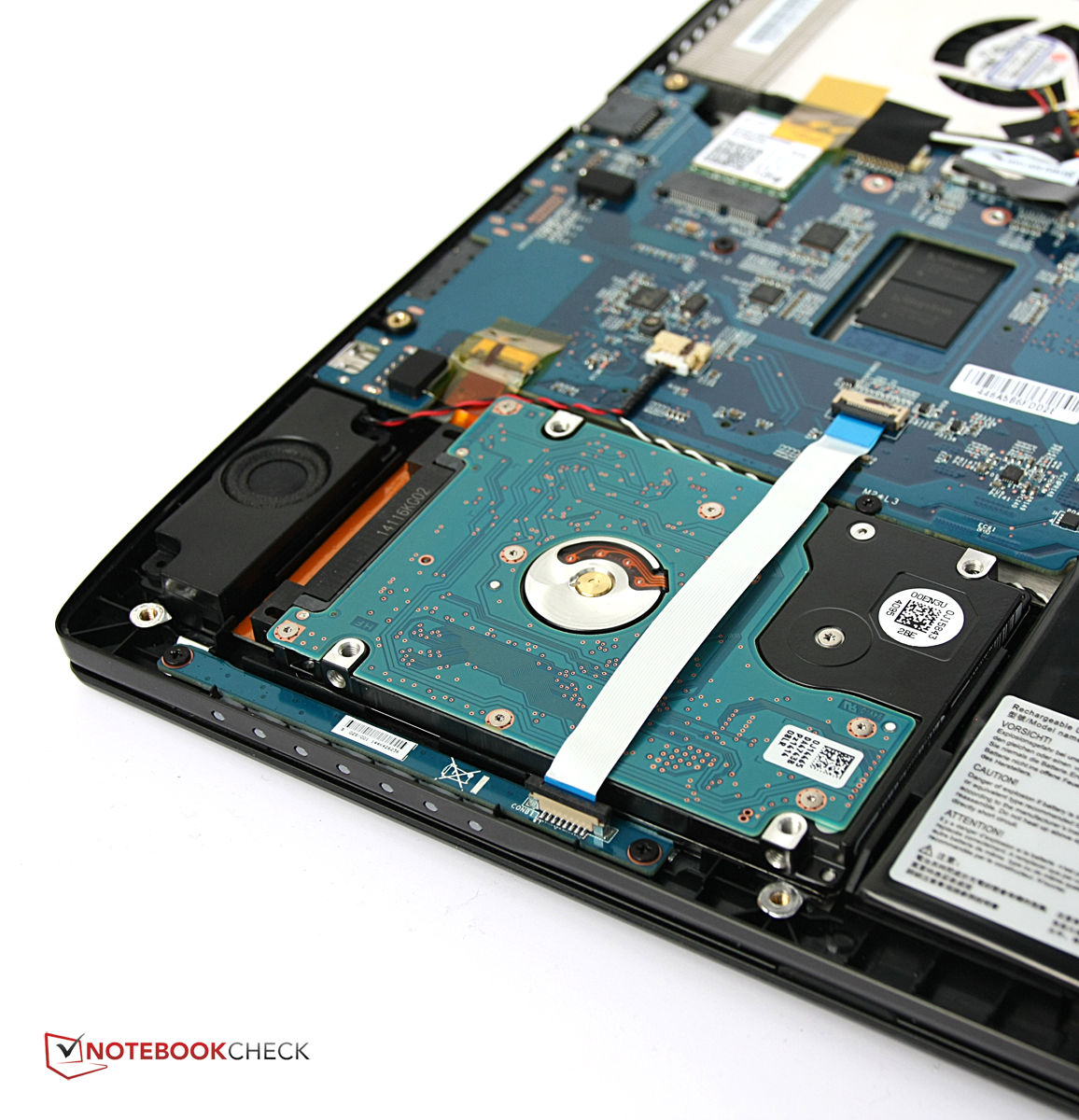

As mentioned before, MSI uses two mSATA SSDs from Kingston with a capacity of 128 GB each in a RAID 0 system. This means files are alternately read from or written on one flash drive, which increases the performance significantly. All notebooks with a single SSD clearly fall behind in terms of reading performance, only the MSI GS70 is even faster with its two Intel SSDs. However, the MSI GS60 cannot keep up with the competition in regard to the write performance, but the reading performance is more important for games.

You also get a conventional hard drive with a capacity of 1 TB, which is perfect for a lot of music, pictures, movies or less demanding games.

AS SSD
Seq Read
MSI GS60 - 2PEWi716SR21
854.35 MB/s ∼64%
Razer Blade 14 inch
509.94 MB/s ∼38% -40%
Alienware 14
491.85 MB/s ∼37% -42%
One K56-4N
508 MB/s ∼38% -41%
Gigabyte P34G
494.76 MB/s ∼37% -42%
MSI GS70-65M21621
1006.1 MB/s ∼75% +18%
Seq Write
MSI GS60 - 2PEWi716SR21
89.07 MB/s ∼10%
Razer Blade 14 inch
126.67 MB/s ∼14% +42%
Alienware 14
399.11 MB/s ∼45% +348%
One K56-4N
492.97 MB/s ∼56% +453%
Gigabyte P34G
301.12 MB/s ∼34% +238%
MSI GS70-65M21621
551.2 MB/s ∼62% +519%
4K Read
MSI GS60 - 2PEWi716SR21
30.61 MB/s ∼23%
Razer Blade 14 inch
28.06 MB/s ∼21% -8%
Alienware 14
28.26 MB/s ∼22% -8%
One K56-4N
41.01 MB/s ∼31% +34%
Gigabyte P34G
28.29 MB/s ∼22% -8%
MSI GS70-65M21621
18.24 MB/s ∼14% -40%
4K Write
MSI GS60 - 2PEWi716SR21
39.2 MB/s ∼30%
Razer Blade 14 inch
63.22 MB/s ∼48% +61%
Alienware 14
61.07 MB/s ∼46% +56%
One K56-4N
107.25 MB/s ∼81% +174%
Gigabyte P34G
59.54 MB/s ∼45% +52%
MSI GS70-65M21621
25.75 MB/s ∼20% -34%
2x Kingston RBU-SNS8100S3128GD (RAID 0)
Sequential Read: 854.35 MB/s
Sequential Write: 89.07 MB/s
4K Read: 30.61 MB/s
4K Write: 39.2 MB/s
4K-64 Read: 358 MB/s
4K-64 Write: 169.05 MB/s
Access Time Read: 0.135 ms
Access Time Write: 0.056 ms
Score Read: 474 Points
Score Write: 217 Points
Score Total: 905 Points

Graphics

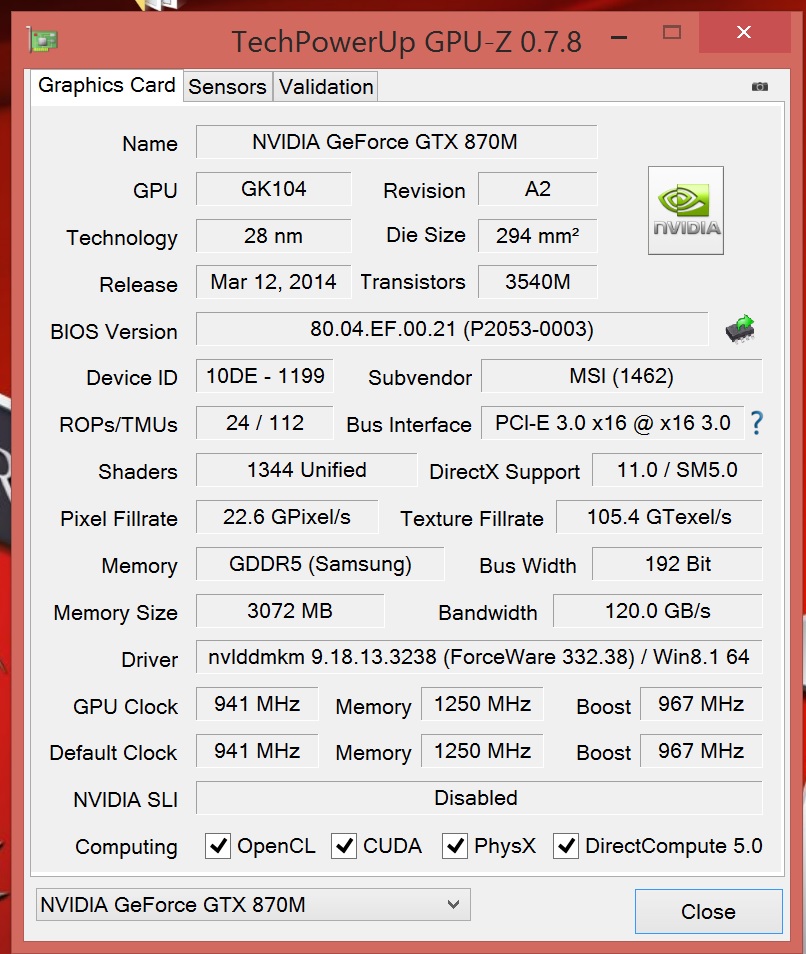

The GeForce GTX 870M is currently one of the fastest graphics cards on the market. The version in the MSI GS60 comes with 3 GB GDDR5 memory and a core clock of 976 MHz.

Compared to gaming notebooks with last-gen Nvidia GPUs, for instance, the Alienware 14 and the Razer Blade 14, the GeForce GTX 870M is clearly superior with more than 40% better results in 3DMark 11. It is roughly on the same level as current devices like the MSI GT60 in terms of GPU performance. We will have a closer look at the real world gaming performance in the next section.

3DMark 11
1280x720 Performance
MSI GS60 - 2PEWi716SR21
7089 Points ∼54%
Razer Blade 14 inch
4028 Points ∼31% -43%
Alienware 14
4042 Points ∼31% -43%
MSI GT60-2PC81B
6974 Points ∼53% -2%
MSI GE60-2PEi781B
5049 Points ∼38% -29%
One K56-4N
6859 Points ∼52% -3%
Gigabyte P34G
3914 Points ∼30% -45%
MSI GS70-65M21621
4044 Points ∼31% -43%
1280x720 Performance Combined
MSI GS60 - 2PEWi716SR21
5934 Points ∼70%
Razer Blade 14 inch
3189 Points ∼37% -46%
Alienware 14
3145 Points ∼37% -47%
MSI GT60-2PC81B
5953 Points ∼70% 0%
MSI GE60-2PEi781B
5131 Points ∼60% -14%
One K56-4N
6589 Points ∼77% +11%
Gigabyte P34G
3086 Points ∼36% -48%
MSI GS70-65M21621
3118 Points ∼37% -47%
3DMark (2013)
1280x720 Ice Storm Standard Score
MSI GS60 - 2PEWi716SR21
97464 Points ∼65%
Razer Blade 14 inch
90024 Points ∼60% -8%
Alienware 14
86088 Points ∼58% -12%
MSI GT60-2PC81B
32780 Points ∼22% -66%
MSI GE60-2PEi781B
101592 Points ∼68% +4%
One K56-4N
87614 Points ∼59% -10%
Gigabyte P34G
85253 Points ∼57% -13%
MSI GS70-65M21621
86957 Points ∼58% -11%
1280x720 Cloud Gate Standard Score
MSI GS60 - 2PEWi716SR21
16697 Points ∼69%
Razer Blade 14 inch
11874 Points ∼49% -29%
Alienware 14
12388 Points ∼51% -26%
MSI GT60-2PC81B
15688 Points ∼65% -6%
MSI GE60-2PEi781B
14746 Points ∼61% -12%
One K56-4N
17182 Points ∼71% +3%
Gigabyte P34G
12313 Points ∼51% -26%
MSI GS70-65M21621
12170 Points ∼50% -27%
1920x1080 Fire Strike Standard Score
MSI GS60 - 2PEWi716SR21
4294 Points ∼43%
Razer Blade 14 inch
2249 Points ∼23% -48%
Alienware 14
2262 Points ∼23% -47%
MSI GT60-2PC81B
4312 Points ∼43% 0%
MSI GE60-2PEi781B
3679 Points ∼37% -14%
One K56-4N
4793 Points ∼48% +12%
Gigabyte P34G
2319 Points ∼23% -46%
MSI GS70-65M21621
2191 Points ∼22% -49%
3D Mark
3DMark 117089 points
3DMark Ice Storm97464 points
3DMark Cloud Gate16697 points
3DMark Fire Strike4294 points
Help

Gaming Performance

We already mentioned that the GeForce GTX 870M is currently one of the fastest mobile GPUs. As a result, it does not have problems with many games, even if you play in Full HD resolution and ultra-high details. However, the performance is not always sufficient for the maximum details in Full HD with the latest games, for example Watch Dogs, which was released a couple of weeks ago, so you have to reduce the settings.

The display resolution of 2880x1620 pixels is higher than our ultra settings, so we also tested some titles with this resolution and the maximum settings. The results are in the chart below: You will have to reduce the details in the latest games like Watch Dogs, but older or not as demanding games like Bioshock: Infinite or Anno 2070 can also be played with ultra-high details.

Gaming on battery power is obviously possible, but not for a long time, and the performance is limited as well. 3DMark 06 shows how drastic the impact is: The MSI GS60 manages 11,795 points and 4,369 for the CPU with the energy profile maximum performance on battery power. Attach the power cord and you almost get twice the results: 26,471 and 7,211 for the CPU. The performance is also significantly reduced in games, for instance Tomb Raider: The notebook only manages 21.9 frames per second with ultra settings compared to 38 fps with the power adaptor.

low med.high ultra
Anno 2070 (2011) 1671308942fps
Diablo III (2012) 17811610375fps
Tomb Raider (2013) 30821513038fps
SimCity (2013) 106796642fps
StarCraft II: Heart of the Swarm (2013) 110987938fps
BioShock Infinite (2013) 20315013354fps
Metro: Last Light (2013) 86836335fps
The Bureau: XCOM Declassified (2013) 1201186536fps
Watch Dogs (2014) 79693224fps
Games in 3K resolution (ultra-high details)
BioShock Infinite 28 fps
Tomb Raider 21 fps
Anno 2070 35 fps
Watch Dogs 12 fps

Emissions

System Noise

Cooler Boost is MSI's technology, where two fans dissipate the warm air from the CPU and the GPU separately from each other. This is supposed to keep the temperatures and the resulting system noise low.

The fan noise is actually on the level of most other gaming notebooks. Compared to other current gaming notebooks from MSI, the GE60 and the GT60, it is even a bit quieter despite the smaller chassis. The fan speed is increased and decreased almost seamlessly and produces only a restrained noise.

The fans are, however, running all the time, even if the GeForce GTX 870M is not active. 32.4 dB(A) is the minimum system noise, other devices are better: Gigabyte P34G or Razer Blade 14 manage less than 30 dB(A). We measured up to 51.4 dB(A) under maximum load, which is an average result within the comparison.

Noise Level

Idle 32.4 / 34.2 / 36.6 dB(A)
HDD 34.6 dB(A)
Load 47.4 / 51.4 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft sl-320 (15 cm distance)

Temperature and Stress Test

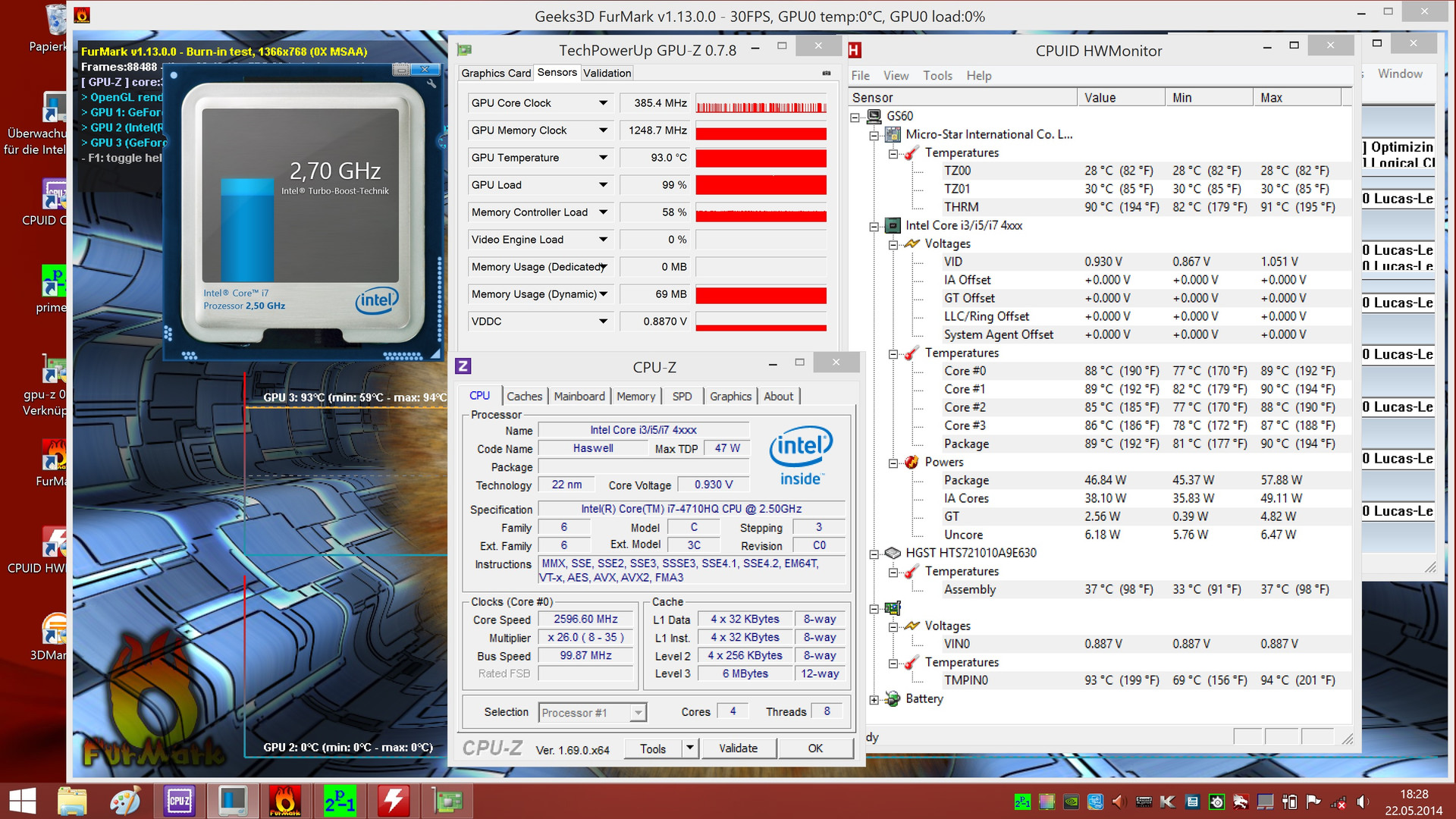

Stress test: GPU clock drops, CPU Turbo cannot be utilized anymore.
Stress test: GPU clock drops, CPU Turbo cannot be utilized anymore.

We promised a hot ride, which can be said about the impressive gaming performance, but also about the case temperatures that can reach dangerous values.

There is no problem during idle: Up to 36.5 °C (97.7 °F) at the bottom is perceptible, but still acceptable when you consider the thin chassis and that other devices, for example the Alienware 14, get much warmer.

However, we can measure up to 78 °C (172.4 °F) at the bottom under maximum load, and the average temperature at the bottom is 56.7 °C (134.06 °F). These are some of the highest temperatures we ever measured and clearly way too high: 78 °C is hotter than most radiators at the highest setting and can even result in burnings. You should not use the MSI GS60 on your lap under any circumstances!

The temperatures at the top are very high as well: Up to 50.5 °C (122.9 °F) is not comfortable to touch. At least the palm rest is the "coolest" area at up to 42.2 °C (107.96 °F) in the center.

Still, the temperatures are clearly excessively high and can even be dangerous for the user. We appreciate the highest possible performance in a very small case, but the safety of the user should be the highest priority. Less dramatic but still annoying: The graphics card quickly reaches temperatures above 90 °C (194 °F), which can result in a drastic reduction of the lifespan.

Our stress test also showed that the clock of the GPU is throttled, probably because of the high temperatures. We test the effect with 3DMark 06: We use the benchmark, which is undemanding for modern graphics cards, once immediately after the stress test and once after a cold start before the GPU is stressed. The result is encouraging: The scores are almost identical, so we can assume that the GPU only throttles if there is maximum load for the processor and the graphics card at the same time. The frame rates in games are not behind other laptops with this GPU, either.

 30.3 °C30.9 °C30.8 °C
 30 °C31.6 °C31.7 °C
 30 °C31 °C31 °C
Maximum: 31.7 °C
Average: 30.8 °C
36.5 °C36.3 °C32 °C
33.4 °C33.6 °C31.7 °C
31 °C30.9 °C30.1 °C
Maximum: 36.5 °C
Average: 32.8 °C
Power Supply (max.)  31.8 °C | Room Temperature 26 °C | Voltcraft IR-550

Speakers

The good speakers were developed in combination with Dynaudio.
The good speakers were developed in combination with Dynaudio.

We often praised the notebook sound systems in MSI gaming notebooks, and the same applies for the GS60 2PE Ghost Pro 3K Edition. One explanation for the good sound might be the integration of two speakers and two subwoofers at the bottom of the case. For comparison: The current Alienware 17 does not even have a subwoofer.

Another important factor for the good sound is the software Sound Blaster Cinema 2 with numerous adjustable settings for an individual sound characteristic. You can also deactivate the subwoofer, which shows that the sound is much tinnier without it.

So the sound is good, but the maximum volume could be a bit higher. Medium, high and low tones are well balanced and music as well as movie playback and game sound are very precise.

MSI reduced the audio ports compared to the GS70: The third stereo jack for a 7.1 system was waived, but the sound via external speakers or headphones is very good nonetheless.

Energy Management

Power Consumption

A lot of performance obviously requires a lot of power. MSI equips the GS60 2PE Ghost Pro 3K Edition with a 150-Watt power adaptor, which is supposed to provide sufficient power under maximum load. Thanks to Nvidia Optimus and Intel's energy-saving features, even gaming notebooks with powerful dedicated GPUs and fast processors have a comparatively low consumption during light workloads.

The MSI GS60 2PE Ghost Pro 3K Edition uses at least 10.5 Watts when idle, which is slightly above the MSI GS70 or the GE60. The GT60 on the other hand, consumes at least 15 Watts when idle. MSI points out that the 3K display consumes more power than the Full HD displays in the other configurations of the GS60, which also results in a higher overall consumption. We could not verify this statement, but the GS60 uses slightly less energy than comparable gaming laptops, even with the 3K display.

This is supported by our stress test with maximum load as well: Our review unit consumes up to 168.5 Watts, the GT60 consumes significantly more and 14-inch devices like the Razer Blade and Gigabyte P34G are much more frugal. However, this consumption is a problem because the power adaptor only has a nominal output of 150 Watts. This is probably also the reason for the high temperatures of the PSU under load and that the battery is drained under maximum load, even with the attached power adaptor. You can decide for yourself if this is a feature to enable a smaller and lighter power adaptor and still use the full performance, or more of a concession.

Power Consumption

Off / Standby 0.1 / 0.3 Watt
Idle 10.5 / 16.9 / 23.3 Watt
Load 113.4 / 168.5 Watt

Key: min: , med: , max:         Voltcraft VC 940

Battery Runtime

The battery capacity is a bit smaller compared to a full-size gaming notebook because of the limited space: 52 Wh are provided by the lithium-polymer battery. For comparison: The MSI GT60 has a battery with 87 Wh and also limits the GPU performance significantly on battery power. The battery of the Razer Blade is larger as well with 71 Wh.

A game like Tomb Raider can be played for around 50 minutes with high settings on the MSI GS60 if there is no socket nearby. However, the performance is clearly limited on battery power as we mentioned in the section Gaming Performance. A movie with an extended runtime can be watched on battery, but it was not quite enough for the Extended Edition of "The Lord of the Rings: The Fellowship of the Ring" at 2:43 hours. Web browsing via WLAN is possible for 3:13 hours.

Overall, the runtimes of the MSI GS60 are on the same level as most gaming notebooks within the comparison. The Razer Blade manages around half an hour more for web browsing and movie playback.

Battery Runtime
Idle (without WLAN, min brightness)
5h 07min
WiFi Surfing
3h 14min
Big Buck Bunny H.264 1080p
2h 43min
Gaming
0h 47min
Load (maximum brightness)
0h 36min

Verdict

An extreme amount of performance and a very high-resolution display in a very thin chassis. Wow, does the perfect device really exist? MSI almost managed to fulfill gamers’ dreams for an ultra-mobile yet very powerful notebook without compromises – but just almost.

Let's start with the impressive design of the MSI GS60: The very high-quality chassis is just as convincing as the thin silhouette and the low weight are impressive. The gaming and the application performance are on a very high level as well: Less demanding games run smoothly with the maximum settings, even with the native 3K resolution of the display. You also get speakers with very good sound, numerous adjustments for the keyboard layout and illumination as well as the limited but at least available maintainability. We also like the decent input devices, even though they are not perfect. System noise, energy consumption and battery runtimes are also okay.

Now comes the big BUT: The device gets warm while idling, hot during gaming and you might be burned when you touch the bottom after a long period of maximum load. This is not acceptable, especially since the graphics cards reach temperatures that can affect the lifespan. These problems result in big point deductions because you cannot use the notebook on your lap, which does affect the mobility.

If you are just looking for a very mobile gaming laptop and just want to use it on a table or a solid (not heat-sensitive) pad, this might not be a deal-breaker. If it is, you might want to look at other configurations of the GS60 with a less powerful but still pretty fast GeForce GTX 860M. This configuration might stay cooler, but we would have to test that in a separate review. A matte Full HD panel is also available; the GS60 is not recommendable for current games with higher resolutions and maximum details anyway.

The GS60 2PE Ghost Pro 3K Edition is therefore a device that can be impressive and convinces us in many areas. The extreme heat development is, however, a serious problem that you should consider before you pay almost 2,000 Euros (~2707).

In Review: MSI GS60. Review unit courtesy of MSI Germany.
In Review: MSI GS60. Review unit courtesy of MSI Germany.

Comment this article:

In Review: MSI GS60 2PE Ghost Pro 3K Edition. Review unit courtesy of MSI Germany.
In Review: MSI GS60 2PE Ghost Pro 3K Edition. Review unit courtesy of MSI Germany.

Specifications

MSI GS60 - 2PEWi716SR21

:: Processor
:: Memory
16384 MB, DDR3L, up to 1600 MHz, 2 Slots, up to 16 GByte
:: Graphics adapter
NVIDIA GeForce GTX 870M - 3072 MB, Core: 976 MHz, GDDR5 memory, Intel HD Graphics Haswell GT2
:: Display
15.6 inch 16:9, 2880x1620 pixel, Panasonic VVX16T029D00, IPS, glossy: yes
:: Harddisk
2x Kingston RBU-SNS8100S3128GD (RAID 0), 256 GB + HGST HTS721010A9E630 (1000 GByte), 1200 GB free
:: Soundcard
Intel Lynx Point PCH - High Definition Audio Controller
:: Connections
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm microphone, 3.5 mm headset, Card Reader: SD reader (XC/HC),
:: Networking
Killer e2200 (10/1000MBit), Intel Wireless-AC 7260 (a b g n ac), 4.0 Bluetooth
:: Size
height x width x depth (in mm): 19.9 x 390 x 266
:: Weight
1.96 kg Power Supply: 0.648 kg
:: Battery
52 Wh Lithium-Polymer, 4840 mAh, 6 cells
:: Price
1999 Euro
:: Operating System
Microsoft Windows 8.1 64 Bit
:: Additional features
Webcam: 1920x1080 Pixels, Speakers: Dynaudio stereo speakers + SoundBlaster Cinema 2 Software, Keyboard: Steelseries chiclet keyboard with numeric keypad and multicolored illumination , Keyboard Light: yes, SoundBlaster Cinema 2, Steelseries Engine, 24 Months Warranty



The MSI GS60 wants to be thin and offer full gaming performance at the same time.
The MSI GS60 wants to be thin and offer full gaming performance at the same time.

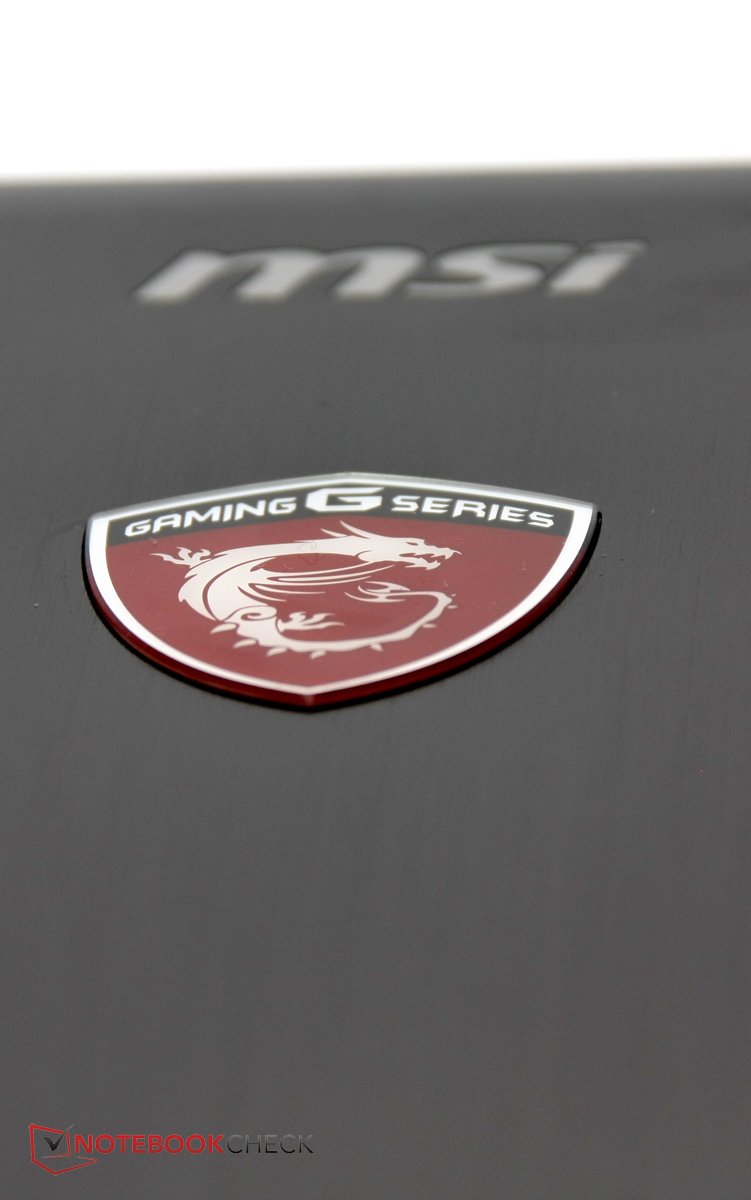

The case is pretty appealing and comparatively thin.
The case is pretty appealing and comparatively thin.
Nice diagonal edges surround the keyboard.
Nice diagonal edges surround the keyboard.
The materials leave a high-quality impression and are well-built.
The materials leave a high-quality impression and are well-built.
The stability does not reveal any serious issues, either.
The stability does not reveal any serious issues, either.

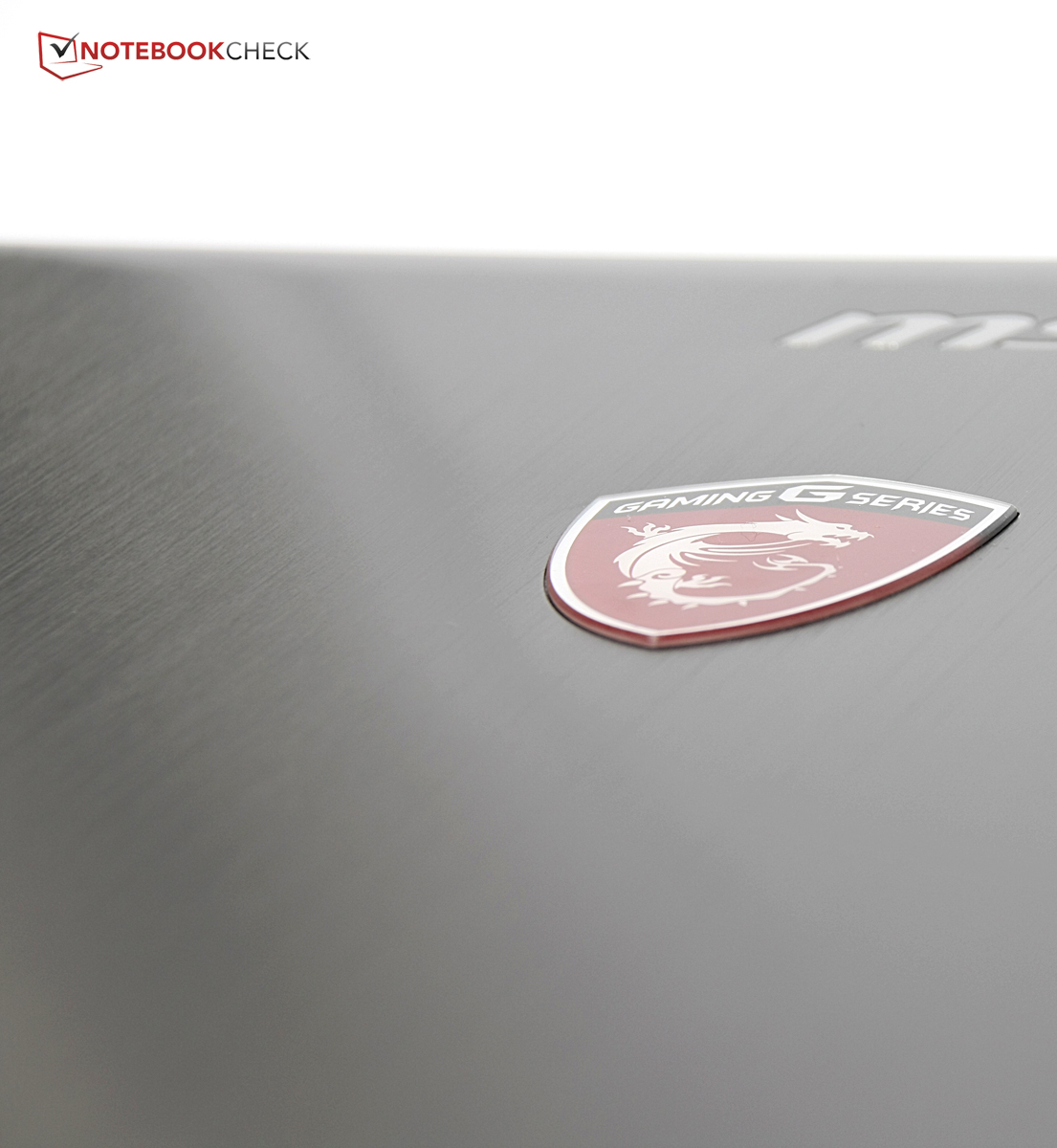

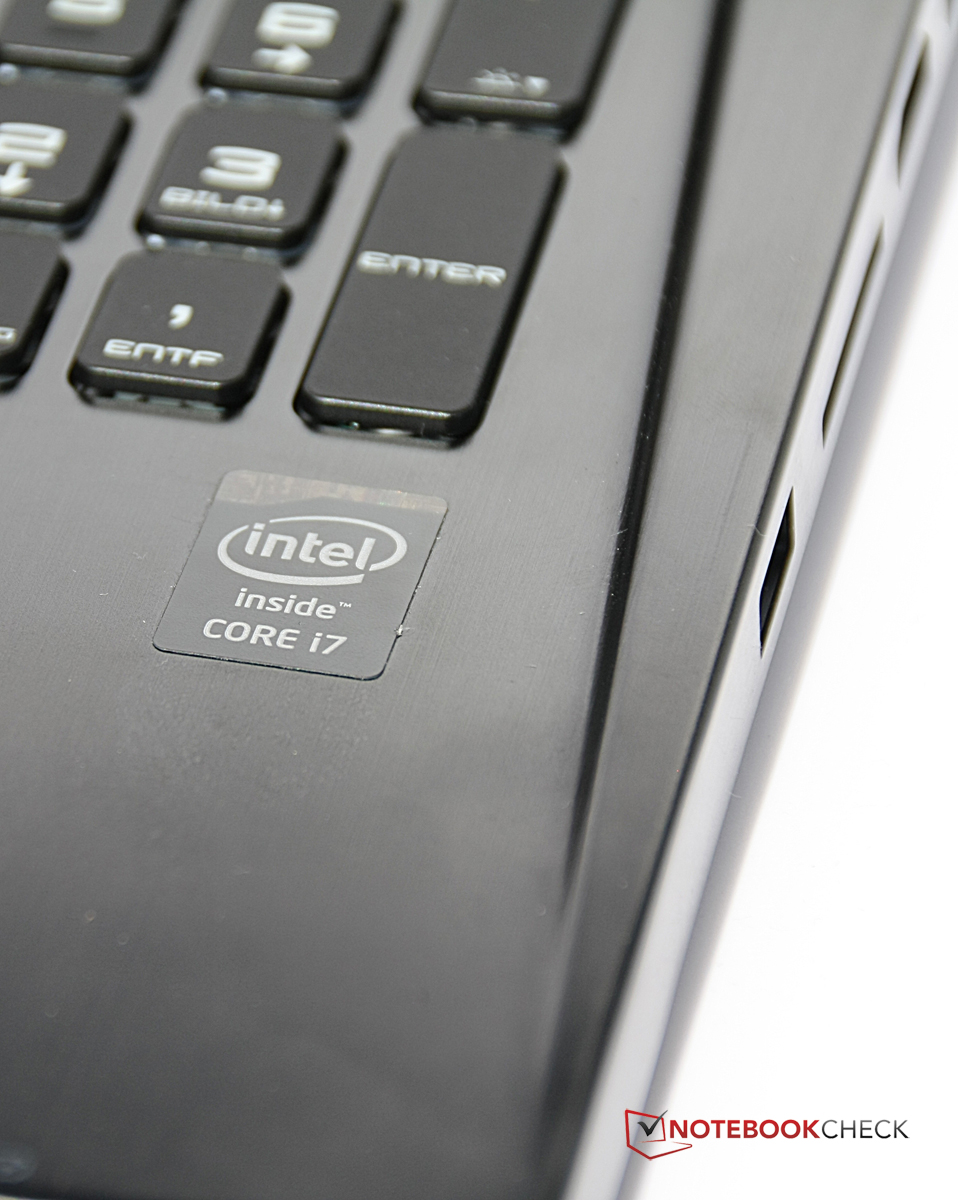

Brushed aluminum everywhere
Brushed aluminum everywhere
Numerous blue status LEDs at the front
Numerous blue status LEDs at the front
The hinges are pretty small, but they keep the display in position well...
The hinges are pretty small, but they keep the display in position well...
...and are easy to open at the same time.
...and are easy to open at the same time.
The back accommodates large fan exhausts – a lot of performance also creates a lot of heat.
The back accommodates large fan exhausts – a lot of performance also creates a lot of heat.

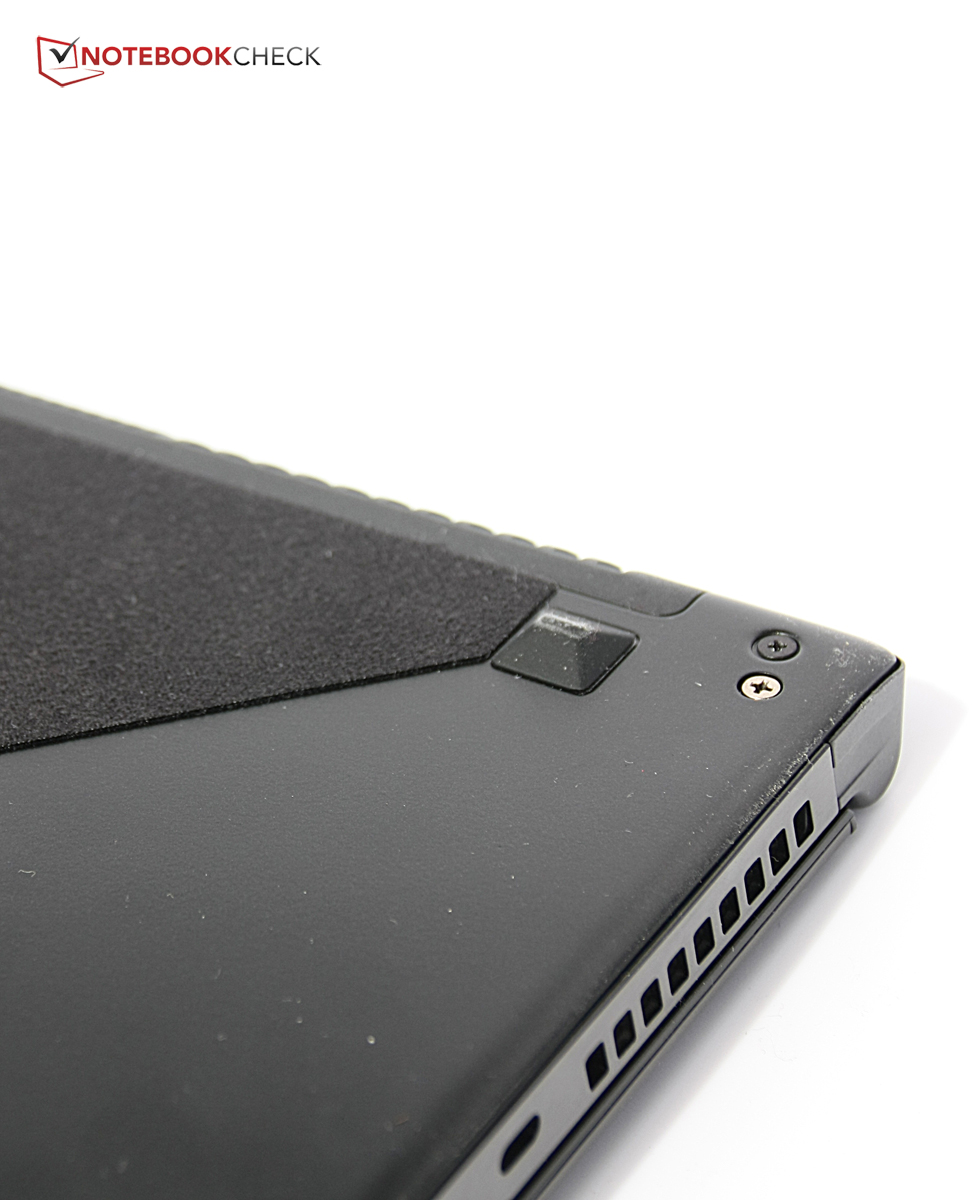

Support feet are supposed to create some breathing room for the fans.
Support feet are supposed to create some breathing room for the fans.
The keyboard was developed with SteelSeries.
The keyboard was developed with SteelSeries.
A numeric keypad is available, ...
A numeric keypad is available, ...
...just like an illumination that can be adjusted in multiple zones and several colors.
...just like an illumination that can be adjusted in multiple zones and several colors.
The power button is also illuminated.
The power button is also illuminated.
The lettering looks pretty futuristic, but is easy to read.
The lettering looks pretty futuristic, but is easy to read.
The layout on the other hand requires some time getting used to it.
The layout on the other hand requires some time getting used to it.
All in all we like the keyboard because of the soft stroke and the high precision.
All in all we like the keyboard because of the soft stroke and the high precision.
The touchpad has integrated buttons, but is precise and reliable.
The touchpad has integrated buttons, but is precise and reliable.
Windows 8.1 is preinstalled. The Metro-UI benefits from the high resolution.
Windows 8.1 is preinstalled. The Metro-UI benefits from the high resolution.
The GPU is very powerful but creates a lot of heat in return.
The GPU is very powerful but creates a lot of heat in return.

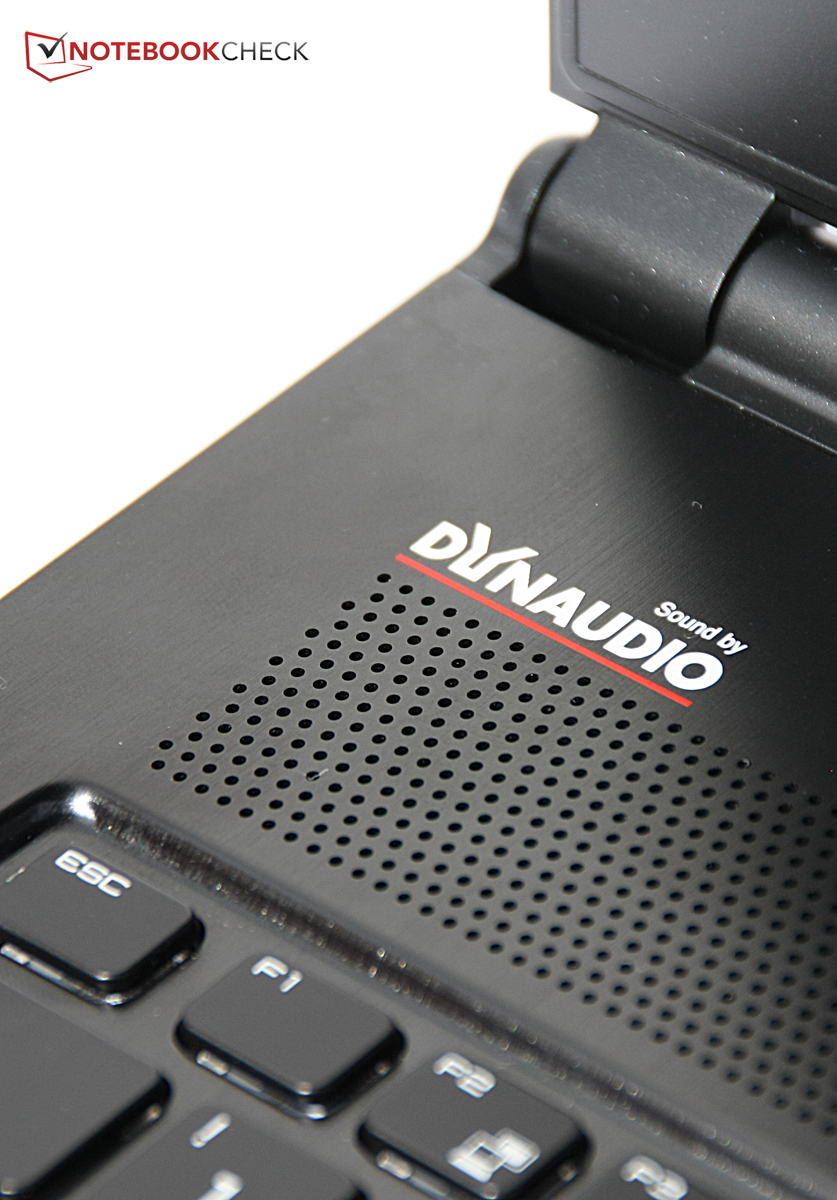

The speakers were developed by Dynaudio and convince with a good and rich sound.
The speakers were developed by Dynaudio and convince with a good and rich sound.

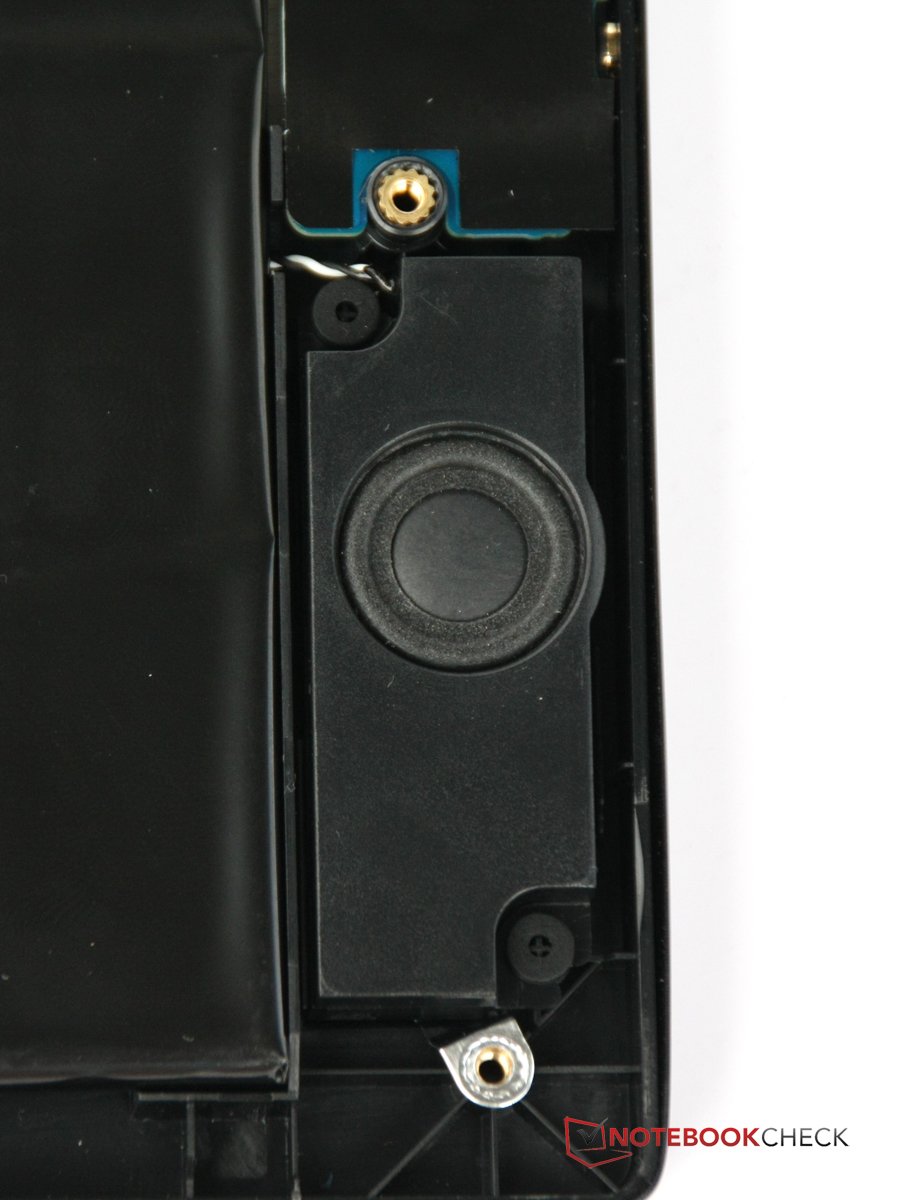

They are supported by two subwoofers at the bottom of the case.
They are supported by two subwoofers at the bottom of the case.
The display has a good color presentation, but is not suited for outdoors because of the glossy panel.
The display has a good color presentation, but is not suited for outdoors because of the glossy panel.
Remove the bottom and you can maintain some components, despite the thin construction.
Remove the bottom and you can maintain some components, despite the thin construction.
You can, for instance, replace the hard drive.
You can, for instance, replace the hard drive.
You get access to the battery as well, but it is not easy to remove it compared to other notebooks.
You get access to the battery as well, but it is not easy to remove it compared to other notebooks.
Two independent fans...
Two independent fans...
...cool the CPU and the GPU. They can easily be cleaned.
...cool the CPU and the GPU. They can easily be cleaned.

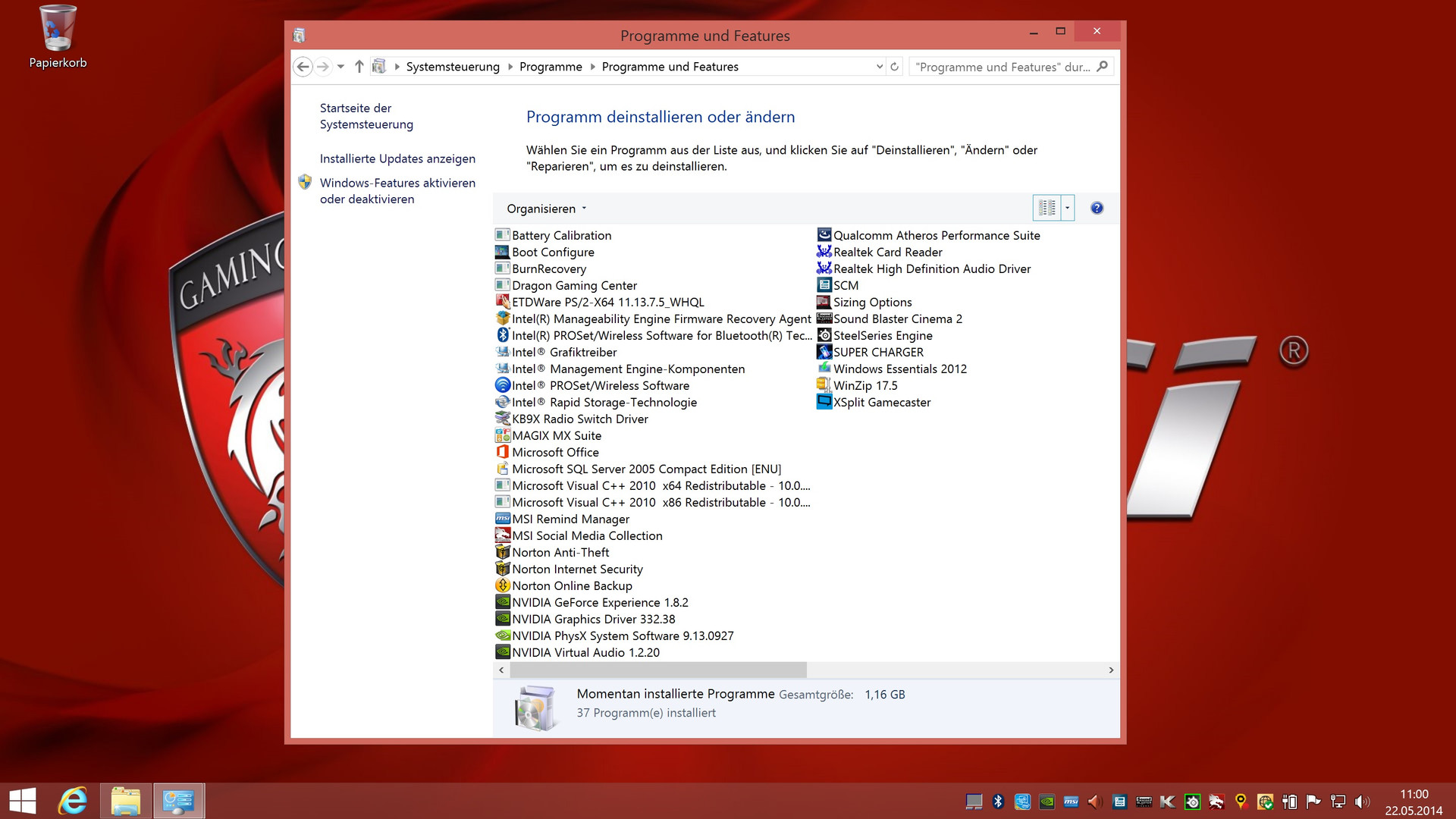

You will have to remove some applications if you don't like bloat ware.
You will have to remove some applications if you don't like bloat ware.
Keyboard and Windows 8 can be adjusted with additional applications from MSI.
Keyboard and Windows 8 can be adjusted with additional applications from MSI.
Neither the CPU nor the GPU reach their maximum performance in our stress test.
Neither the CPU nor the GPU reach their maximum performance in our stress test.
Overall, MSI created a great package. The only drawback is the dangerously high temperatures.
Overall, MSI created a great package. The only drawback is the dangerously high temperatures.

Similar Laptops

Devices with the same GPU and/or Screen Size

» Gigabyte P35W v2 Notebook Review
Core i7 4710HQ, 2.5 kg
» Review MSI GT60 Dominator Notebook
Core i7 4800MQ, 3.278 kg

Devices with the same GPU

» MSI GS70-2PEi71611 Notebook Review
Core i7 4700HQ, 17.3", 2.72 kg
» Asus G750JS-T4064H Gaming Notebook Review
Core i7 4700HQ, 17.3", 4.08 kg

Devices with Same Screen Size and/or Weight

» Toshiba Tecra Z50 A-12K Notebook Review
HD Graphics 4400, Core i7 4600U
» Asus GL550JK-CN391H Notebook Review
GeForce GTX 850M, Core i7 4700HQ

Links

Compare Prices

Amazon: Invalid XML response.

Amazon.com

Show results on Amazon.com

Pricerunner n.a.

Pro

+Nice and thin case
+Convenient materials
+Sturdy
+Comparatively low weight
+Thin power adaptor
+Decent port variety
+At least some maintainability
+High application performance
+Many games can be played in Full HD and with maximum details
+Good display
+Good speakers
+Reasonable battery runtime


Cons

-Gets very hot
-Not the full performance under maximum load
-Power adaptor not sufficient
-Battery is drained under maximum load
-Limited gaming performance on battery
-Partly unfavorable port layout
-Unusual keyboard layout
-3K resolution not always ideal in practice
-Glossy display

Shortcut

What we like

We were impressed by the high performance in the thin case, the great input devices as well as the sound from the speakers.

What we'd like to see

Overall we would prefer a matte display. But that's no problem: MSI offers them as well.

What surprises us

That a notebook can get this hot – ouch!

The competition

Alienware 14, Razer Blade 14, Gigabyte P34G, One K56-4N, MSI GE60, MSI GT60, MSI GS70

Rating

MSI GS60 - 2PEWi716SR21
06/26/2014 v4
Florian Wimmer

Chassis
86 / 98 → 88%
Keyboard
75%
Pointing Device
94%
Connectivity
68 / 91 → 75%
Weight
63 / 66 → 95%
Battery
70%
Display
85%
Games Performance
92%
Application Performance
91%
Temperature
48 / 95 → 51%
Noise
64 / 90 → 71%
Audio
82 / 90 → 91%
Camera
69 / 90 → 77%
Add Points
-3%
Average
70%
80%
Gaming *
Weighted Average

> Notebook / Laptop Reviews and News > Reviews > MSI GS60 Ghost Pro 3K Edition (2PEWi716SR21) Notebook Review
Author: Florian Wimmer, 2014-06-13 (Update: 2014-06-18)
