Honda unveils Honda XR Mobility Experience combining VR goggles with its UNI-ONE powered wheelchair for SXSW 2024

The Honda XR Mobility Experience combines the UNI-ONE powered-wheelchair with VR goggles. (Source: Honda)
The Honda XR Mobility Experience combines the UNI-ONE powered-wheelchair with VR goggles. (Source: Honda)
Honda will introduce the Honda XR Mobility Experience at SXSW 2024 in Austin, Texas on March 10-13, 2024. The experience combines its UNI-ONE, two-wheeled, self-balancing wheelchair with VR goggles. Users can feel real movement as they navigate virtual worlds.

Honda will bring its XR Mobility Experience to SXSW 2024 in Austin, Texas on March 10 to 13, 2024. This experience will combine the UNI-ONE powered-wheelchair with virtual reality goggles. This allows users to navigate virtual worlds while rolling about in reality for a heightened virtual experience. The XR experience will be an exploration of the potential uses of the wheelchair for virtual reality and extended reality entertainment.

The UNI-ONE is a wheelchair with six wheels. Four, small corner wheels help securely balance the wheelchair in lowered mode, while the two, larger drive wheels provide self-balanced motion in raised mode. In both modes, the UNI-ONE can be steered by joystick, while raised mode allows the user to steer by leaning.

The wheelchair measures 30.3 x 26.8 x 30.3 inches (77.0 x 68.0 x 77.0 cm) in lowered mode and 25.6 x 22.8 x 36.2 (65.0 x 58.0 x 92.0 cm) in raised mode. The raised mode lifts the seat height from 21.7 inches to 27.6 inches (55.0 to 70.0 cm) putting the user’s eye line closer to that of a standing individual. The UNI-ONE weighs 154 pounds (70 kg) and can carry users weighing up to 242 pounds (110 kg). The wheelchair has a range of 5 miles (8.0 km) at 2.5 mph (4.0 kph) with a maximum speed of 3.7 mph (6.0 kph).

The two main wheels are called the Honda Omni Traction Drive System (HOT Drive System). Simply, it is a bracelet of rings fitted around a wheel. The wheel moves the chair backwards and forwards while the rings move it side to side. This allows the UNI-ONE to rotate 360 degrees in place. A similar design was launched with the Whill Autonomous Drive wheelchair years earlier and showcased in a NHK news feature. That 4-wheeled device was a CES 2023 Innovation Award winner and is currently in use in airports to autonomously transport passengers.

Honda Extended Reality Mobility Experience AR/VR partners are being sought. In the meantime, why not try out a powered unicycle similar to the 2008 Toyota Winglet (like this at Amazon) while waiting for SXSW.

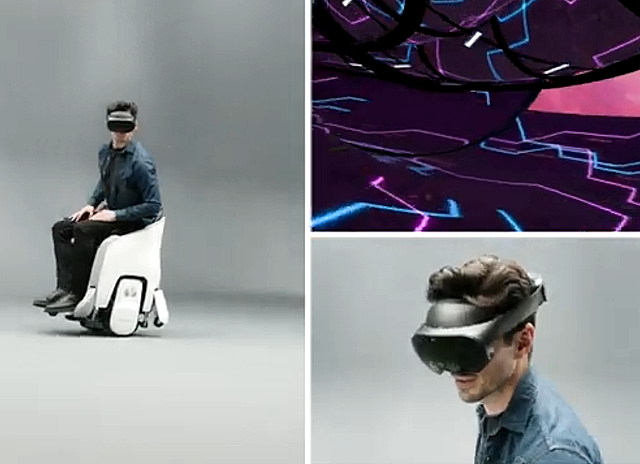

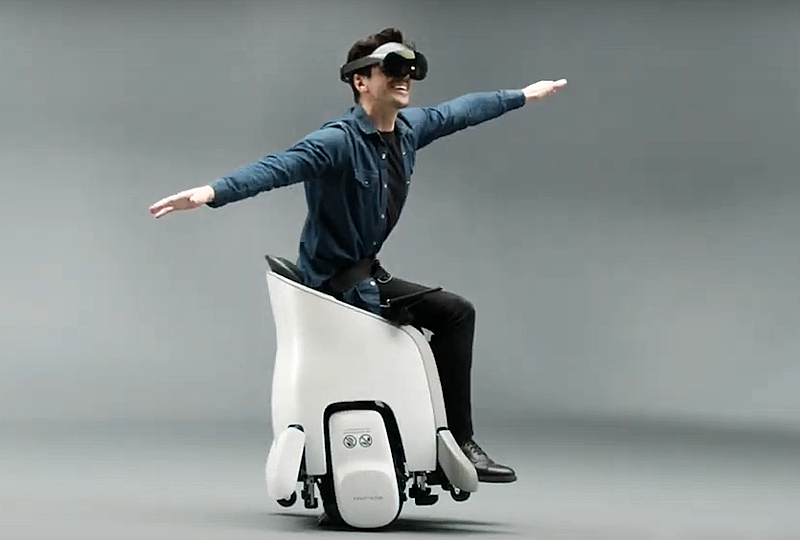

The Honda XR Mobility Experience combines the UNI-ONE wheelchair with VR goggles. (Source: Honda)
The Honda XR Mobility Experience combines the UNI-ONE wheelchair with VR goggles. (Source: Honda)

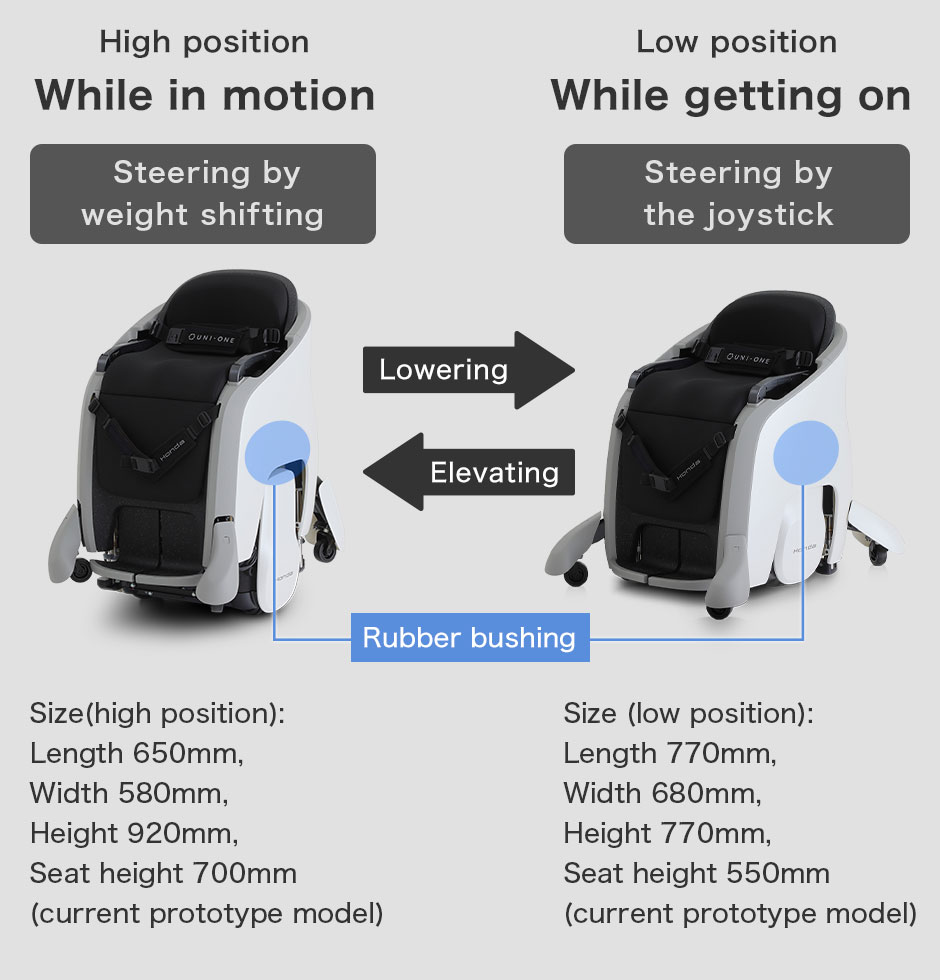

The UNI-ONE has two height modes - lowered for stability, raised for regular operation. (Source: Honda)
The UNI-ONE has two height modes - lowered for stability, raised for regular operation. (Source: Honda)

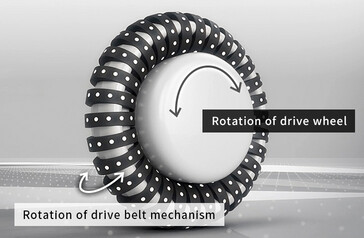

The UNI-ONE can rotate 360 degrees in place using Honda Omni Traction Drive System wheels. (Source: Honda)
The UNI-ONE can rotate 360 degrees in place using Honda Omni Traction Drive System wheels. (Source: Honda)
The UNI-ONE weighs about 154 pounds and can carry users up to 242 pounds. (Source: Honda)
The UNI-ONE weighs about 154 pounds and can carry users up to 242 pounds. (Source: Honda)

Honda Combines Personal Mobility and VR in World's First Extended Reality Mobility Experience to Debut at SXSW 2024

NEWS PROVIDED BY

Honda

28 Feb, 2024, 11:15 ET

  • Honda will introduce all-new entertainment experience fusing virtual reality with UNI-ONE, a hands-free, personal mobility device users steer by shifting their center of gravity
  • Honda envisions UNI-ONE having applications at theme parks, entertainment facilities and retail spaces across the U.S.

TORRANCE, Calif., Feb. 28, 2024 /PRNewswire/ -- Fasten your seatbelt, Honda will hold the global debut of a first-of-its-kind extended reality1 (XR) experience at SXSW 2024, merging the joy of mobility with virtual reality (VR) adventures. The all-new Honda XR Mobility Experience integrates digital environments with the real-world experience of riding the Honda UNI-ONE, a hands-free, personal mobility device.

<figure><figcaption>The all-new Honda XR Mobility Experience integrates digital environments with the real-world experience of riding the Honda UNI-ONE, a hands-free, personal mobility device.</figcaption></figure><figure><figcaption>The Honda UNI-ONE is a hands-free, personal mobility device that features advanced self-balancing technology and sensors that enable the user to move in any direction based on postural movements.</figcaption></figure><figure><figcaption>The all-new Honda XR Mobility Experience integrates digital environments with the real-world experience of riding the Honda UNI-ONE, a hands-free, personal mobility device.</figcaption></figure>

SXSW attendees will be able to immerse themselves in the all-new Honda XR Mobility Experience at the company's booth #729 located in the SXSW Creative Industries Expo at the Austin Convention Center, March 10-13, 2024. Watch a demonstration of the Honda XR Mobility Experience at honda.us/ExtendedReality.

"With the Honda XR Mobility Experience, we are expanding the joy and freedom of personal mobility into entertainment applications," said Hirokazu Hara, vice president of New Business Development, American Honda Motor Co., Inc. "By combining the unique, physical experience of riding the Honda UNI-ONE with highly immersive digital entertainment, Honda is creating a brand new multimodal experience that takes extended reality technologies to the next level."

Making Mobility More Fun with UNI-ONE

SXSW 2024 marks the U.S. debut of the Honda UNI-ONE, a hands-free, personal mobility device that features advanced self-balancing technology and sensors that enable the user to move in any direction based on postural movements.

UNI-ONE features a seat that can be raised and lowered, making mobility more fun when interacting with people at the same eye level. In "high position," the user is closer to the eye level of someone standing and can move in all directions – forward, backward, sideways or diagonally – as well as turn around with both hands free, simply by leaning in one direction to shift their weight. In "low position," the user is able to better communicate with those who are seated or small children and can move in any direction by steering with a joystick.

The electric UNI-ONE is equipped with Honda's original wheel mechanism, Honda Omni Traction Drive System (HOT Drive System), an evolution and advancement of the Honda UNI-CUB β device – first introduced in 2013. UNI-ONE has two units of the HOT Drive System – one on each side – enabling the user to move smoothly in any direction. Based on a user's posture, UNI-ONE can estimate the user's intentions, such as a desire to stay in place or move in a specific direction and speed. The stabilization function controls UNI-ONE's wheels so it does not lean too far and applies feedback to achieve natural behavior that is neither too fast nor too slow.

Beginning in 2023, Honda has been demonstration testing UNI-ONE for multiple use cases in Japan, including at the Mobility Resort Motegi in Motegi, Tochigi; Suzuka Circuit Park in Suzuka, Mie; and the Gotemba Premium Outlets in Gotemba, Shizuoka. For the demonstration testing at Suzuka Circuit Park, Honda integrated UNI-ONE with AR technology to create a game. Users play by holding a tablet and navigate UNI-ONE according to scenes displayed on the tablet. These demonstration trials are helping to validate UNI-ONE as a mobility device for entertainment applications.

UNI-ONE is designed to offer stress-free mobility and appeal to a wide range of users. It is battery-operated and has a maximum speed of 3.7 miles per hour. The maximum user weight capacity is 242 pounds.

New Entertainment Applications with UNI-ONE

SXSW attendees can ride UNI-ONE and immerse themselves in their own "choose your VR adventure" at the Honda XR Mobility Experience. While wearing a VR headset and shifting their body weight to steer UNI-ONE, users can experience the peaceful feeling of floating in the sky or the exhilarating feeling of gliding along a half-pipe path.

Working toward commercialization in the U.S., Honda envisions people enjoying the XR mobility experience in indoor and outdoor obstacle-free spaces, including theme parks, entertainment facilities and retail spaces such as shopping malls. Honda also believes that UNI-ONE can be used as a mobility device in XR games, such as a racing game where players use their hands while moving freely or a game in which players follow certain routes.

In addition to entertainment and retail business partners, Honda is seeking to collaborate with AR and VR developers to create custom digital experiences choreographed with the movements of riding UNI-ONE. Interested companies can visit Honda's booth #729 at the SXSW Creative Industries Expo or contact [email protected].

UNI-ONE Specifications

Dimensions

(length x width x height)

30.3 × 26.8 × 30.3 inches (lowered)

25.6 × 22.8 × 36.2 inches (raised)

Seat Height

21.7 inches (lowered)

27.6 inches (raised)

Weight

Approx. 154 pounds

Riding Capacity

1 person

Maximum User Weight

242 pounds

Maximum Speed

3.7 miles per hour

Range

5 miles (at 2.5 miles per hour)

Battery

Lithium-ion battery (replaceable)

Drive Wheels

Honda Omni Traction Drive System (HOT Drive) - 2 wheels

*When UNI-ONE is in the low position, HOT Drive wheels and four auxiliary wheels are on the ground.

Honda in America
Honda started operations in the United States with American Honda Motor Co., Inc. in 1959. Today, Honda employs over 30,000 associates in America engaged in the development, manufacturing, sales and service support of Honda and Acura automobiles, Honda power equipment, Honda powersports products and the HondaJet advanced light jet.

Based on its longstanding commitment to build products close to the customer, Honda operates 12 major U.S. manufacturing facilities, working with 600 U.S. suppliers to produce a diverse range of Honda products. Honda has built automobiles in America for over 40 years, and in 2022, more than two-thirds of all U.S.-sold Honda and Acura automobiles were produced in America, using domestic and globally sourced parts.

Honda also conducts research and development activities at 23 facilities in America where we fully design, develop and engineer many of the products the company manufactures in America.

Learn more with Honda's Digital FactBook.

1 XR stands for "extended reality," an umbrella term for technologies such as VR (virtual reality), AR (augmented reality) and MR (mixed reality) that fuse the real world with the virtual world to enable the perception of things that do not exist in reality.
