HP EliteBook 845 G9 in review: 35-watt AMD outclasses Lenovo & Dell

The sixth AMD Ryzen generation plays in the top class. With the Security Edition of the EliteBook, HP is catering to an affluent clientele looking for an uncompromisingly powerful and mobile laptop. In addition, the 14-inch laptop also fulfills high security demands with features such as Sure View, Fingerprint and Wolf Pro software.

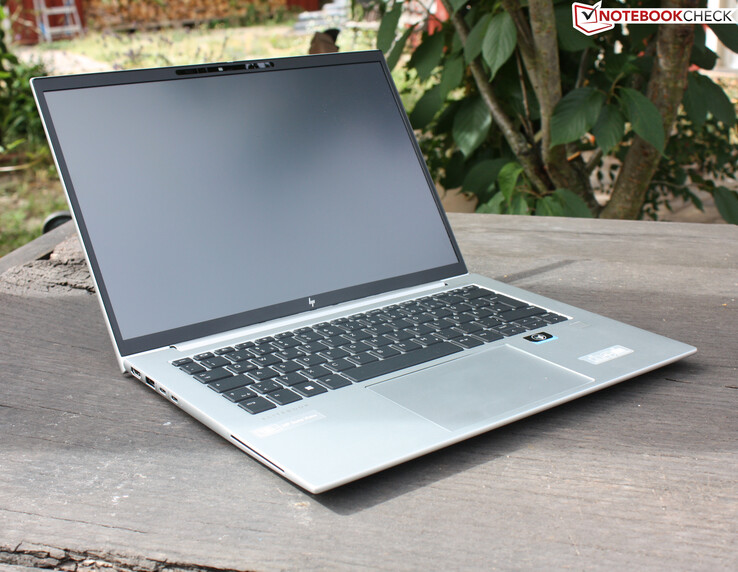

HP EliteBook 845 G9 with Ryzen 9 PRO 6950HS - High performance accompanied by numerous security features
HP EliteBook 845 G9 with Ryzen 9 PRO 6950HS - High performance accompanied by numerous security features

Gone are the days when AMD chips were installed only in laptops that did not extend beyond the mid range. Now the brand new Ryzen 6000 generation has caught up and overtaken Intel's processors. What was unthinkable six years ago is reality today: AMD in a 2.5K laptop of the high-end business class.

But this is not the main strength of the laptop in question, nor its unique selling point. Rather, it is the focus on hardware- and software security that makes the 845 G9 so special. In addition to well-known features such as SureView, a webcam shutter and SmartCard, the laptop offers a lot of software that takes care of the fail-safety aspects of the hardware and account security.

Other competitors in the high-end segment are broadly positioned. Lenovo's ThinkPad X1 and Dell's Latitudes - both from the high-end series - attempt to court the favor of buyers with comparable features. The ThinkPad X1 Carbon leads the pack with both an LTE option and Thunderbolt.

HP EliteBook 845 G9 6F6H6EA (EliteBook 845 G9 Series)
Processor
AMD Ryzen 9 PRO 6950HS 8 x 3.3 - 4.9 GHz, 50 W PL2 / Short Burst, 40 W PL1 / Sustained, Rembrandt-HS (Zen 3+)
Graphics adapter
AMD Radeon 680M - 32 GB VRAM, Memory: 3200 MHz
Memory
32 GB
, Dual Channel, 32 GB in Slot, 1 Slot empty
Display
14.00 inch 16:10, 1920 x 1200 pixel, InfoVision X140NV4J, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
WDC PC SN810 1TB, 1024 GB
, 780 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 SmartCard, 1 Fingerprint Reader
Networking
Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3, LTE
Size
height x width x depth (in mm): 19.3 x 315.6 x 224 ( = 0.76 x 12.43 x 8.82 in)
Battery
51 Wh
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 2560 x 1440
Primary Camera: 5 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, HP Premium, Keyboard Light: yes, 65 Watt PSU, HP Maxim Pro Security Edition (1 Jahr), Connection Optimizer; Hotkey Support; Support Assistant; Easy Clean; Power Manager; myHP; Privacy Settings; Benachrichtigungen; QuickDrop; Quick Touch; PC Hardware Diagnostics, 36 Months Warranty
Weight
1.466 kg ( = 51.71 oz / 3.23 pounds), Power Supply: 306 g ( = 10.79 oz / 0.67 pounds)
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
88.6 %
07/2022
HP EliteBook 845 G9 6F6H6EA
R9 PRO 6950HS, Radeon 680M
1.5 kg19.3 mm14.00"1920x1200
90.2 %
06/2022
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
i5-1250P, Iris Xe G7 80EUs
1.2 kg15.36 mm14.00"1920x1200
90.1 %
03/2022
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8
1.3 kg16.14 mm14.00"1920x1080
90.1 %
04/2022
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs
1.3 kg17.3 mm14.00"1920x1080
89.4 %
07/2021
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs
1.3 kg16.14 mm14.00"1920x1080
89.8 %
08/2021
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs
1.2 kg17.9 mm14.00"1920x1080
88.5 %
03/2022
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
i5-1140G7, Iris Xe G7 80EUs
1.2 kg11.5 mm13.50"2256x1504

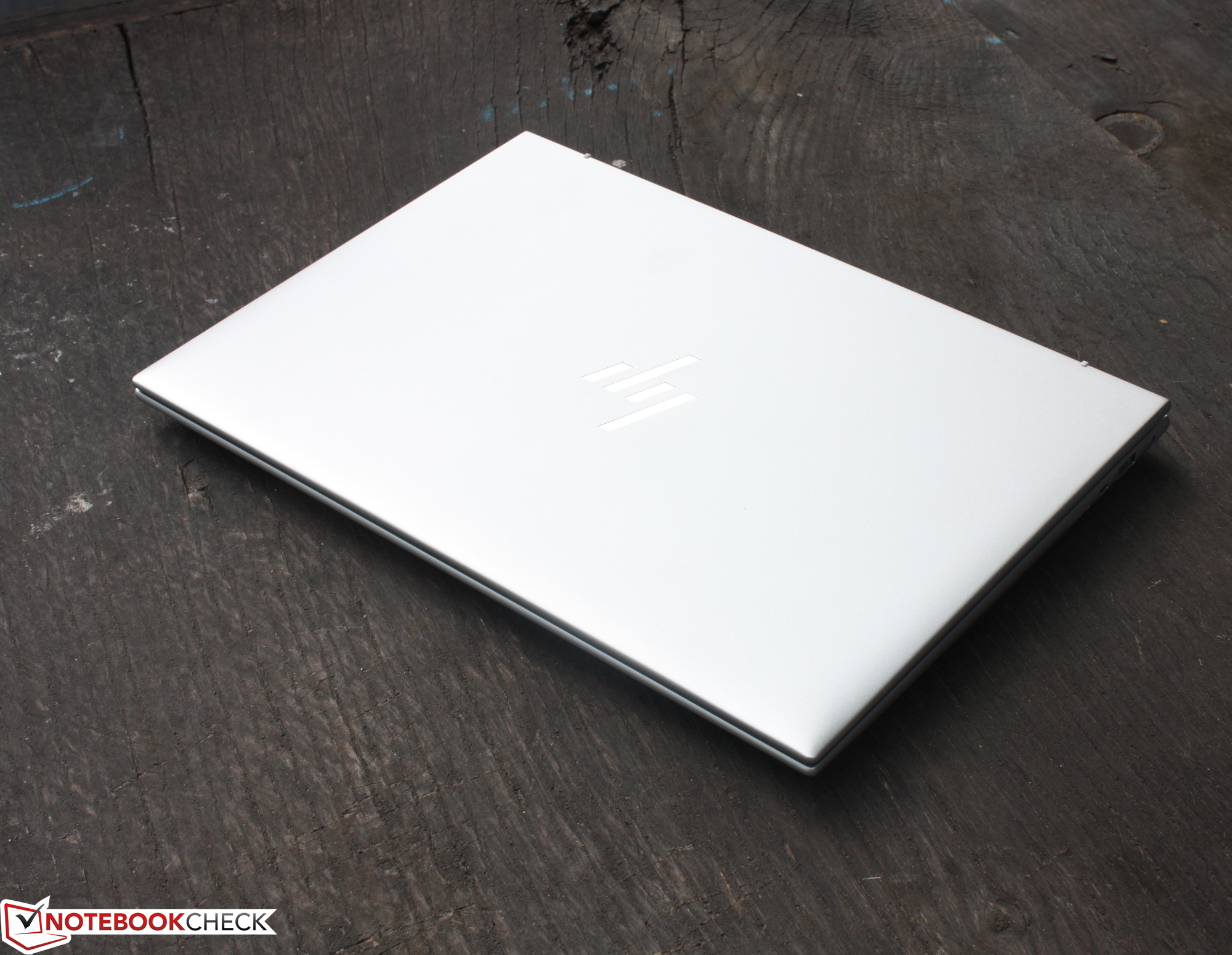

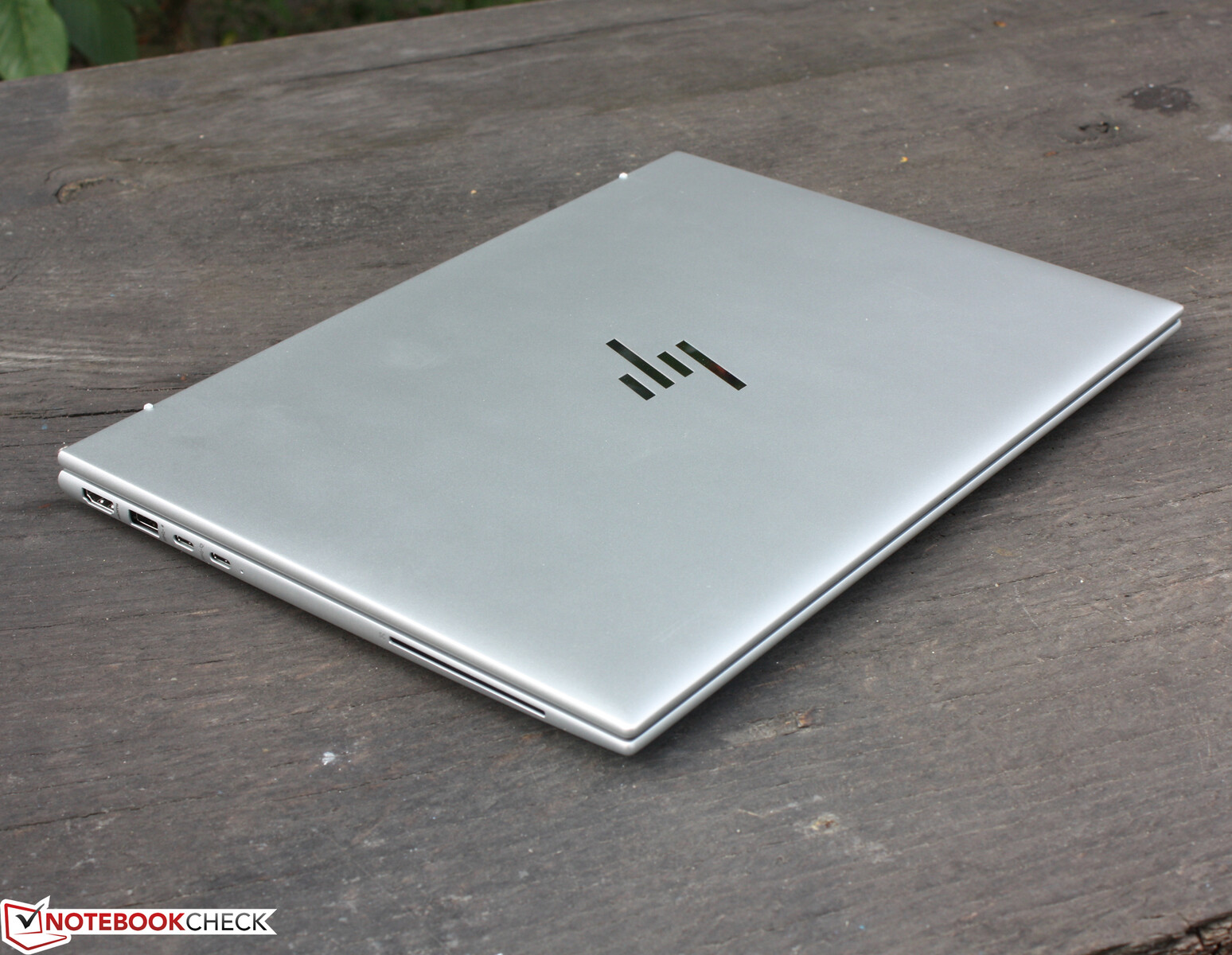

Case: Solid laptop from HP

The EliteBook comes in a torsion-resistant aluminum case that is constructed like a box and is sealed off on the bottom with a baseplate. The latter does not play a major role in terms of rigidity, as the "box" with its rounded corners is already stable in itself.

The same applies to the display, which can only be twisted to a limited extent. Pressure on the back hardly causes any dents and no streaks emerge on the panel. The mono-hinge keeps the lid taut enough, but is not too rigid that it prevents opening with one hand. One-finger opening is possible. When opened, the bottom of the screen slides under the chassis and raises it, but only between opening angles of 130 to 180 degrees.

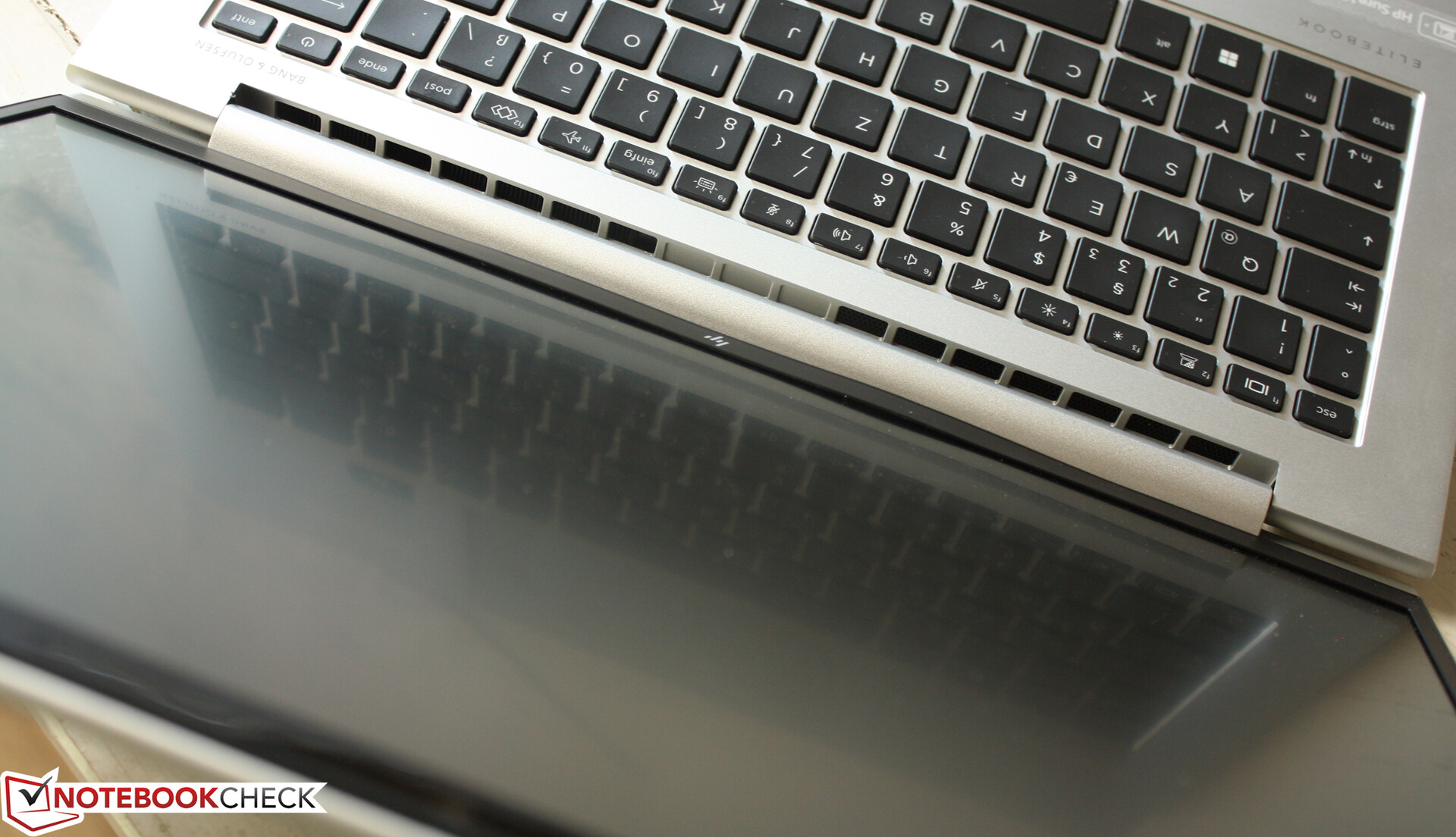

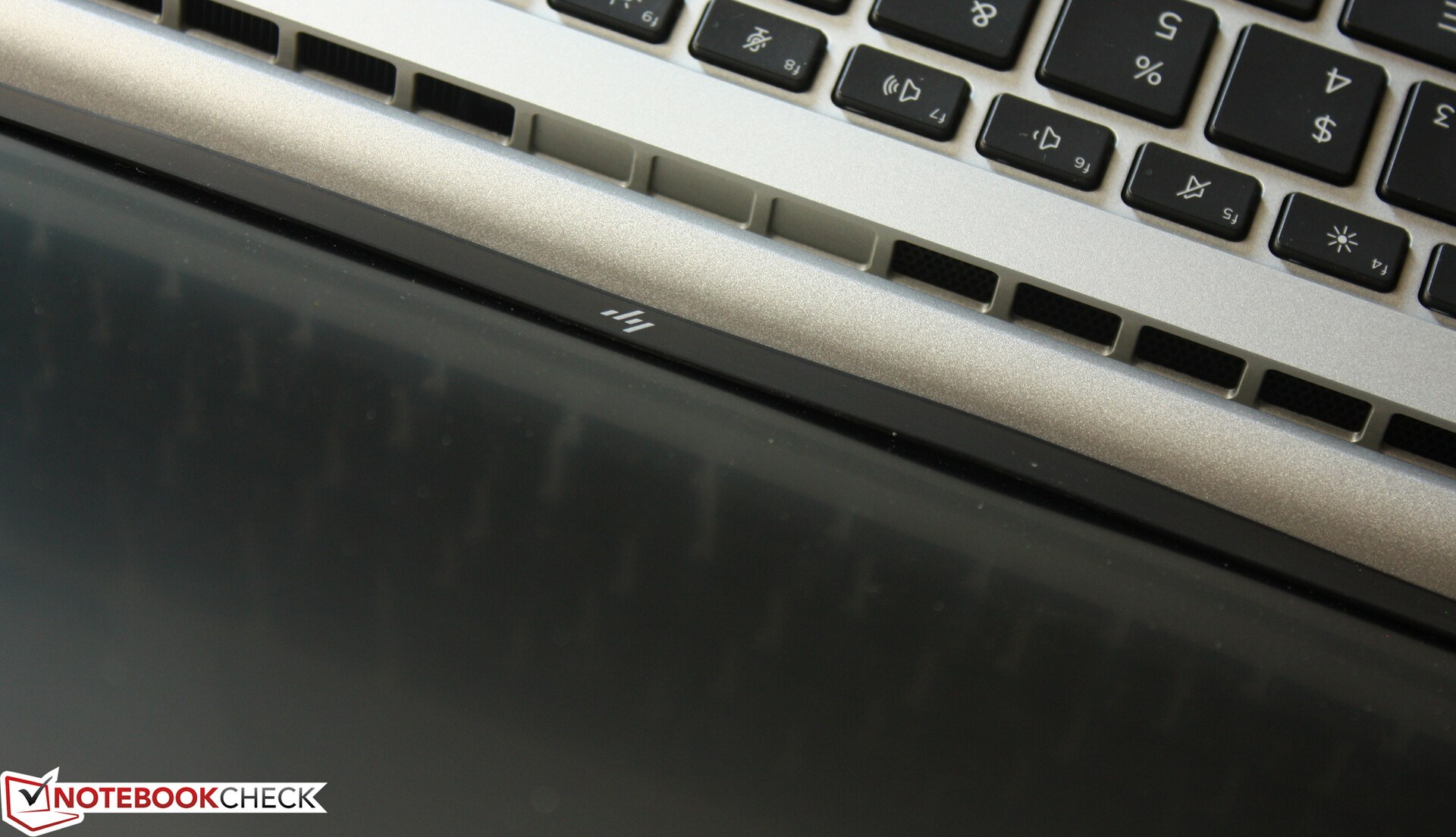

A small flaw comes to light in the summer heat: the lower display frame is glued, which bulges and remains in this state even after cooling down.

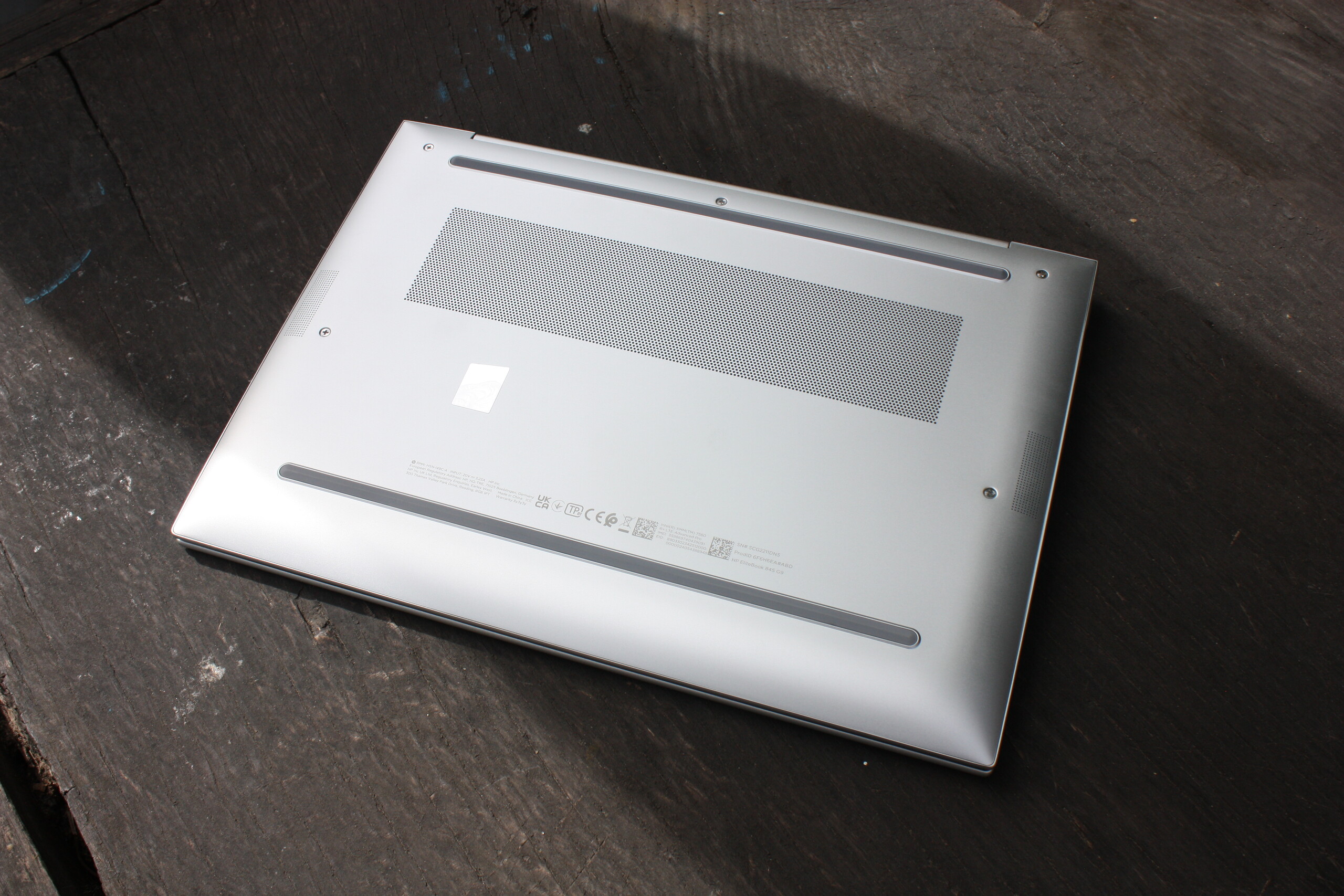

A frame forms the stable base, which is sealed off by a baseplate
A frame forms the stable base, which is sealed off by a baseplate
Defects in detail: The glued display frame is coming loose.
Defects in detail: The glued display frame is coming loose.
This should not happen in this price range.
This should not happen in this price range.

Weight did not seem to get any attention in the development of the Elitebook; the aluminum chassis weighs 1.46 kilograms. Competing devices are much lighter, especially the Elitebook Aero, X1 Carbon und X1 Titanium Yoga, which set lightweight records at 1.2 kilograms.

Size Comparison

327.5 mm / 12.9 inch 224 mm / 8.82 inch 16.14 mm / 0.635 inch 1.3 kg2.86 lbs327.5 mm / 12.9 inch 224 mm / 8.82 inch 16.14 mm / 0.635 inch 1.3 kg2.88 lbs323.6 mm / 12.7 inch 214.7 mm / 8.45 inch 17.9 mm / 0.705 inch 1.2 kg2.65 lbs321 mm / 12.6 inch 209 mm / 8.23 inch 17.3 mm / 0.681 inch 1.3 kg2.91 lbs315.6 mm / 12.4 inch 224 mm / 8.82 inch 19.3 mm / 0.76 inch 1.5 kg3.23 lbs315.6 mm / 12.4 inch 222.5 mm / 8.76 inch 15.36 mm / 0.605 inch 1.2 kg2.63 lbs297.5 mm / 11.7 inch 232.7 mm / 9.16 inch 11.5 mm / 0.4528 inch 1.2 kg2.64 lbs297 mm / 11.7 inch 210 mm / 8.27 inch 1 mm / 0.03937 inch 5.7 g0.01257 lbs

Equipment: Elitebook plays it safe

The manufacturer makes use of a large range of connections: two Type-A USB ports are available, as well as one HDMI. The fast Type-C ports are already occupied by the power supply on one side; they both accept a DisplayPort monitor. We are at a loss to understand why there wasn't enough space for an SD card reader.

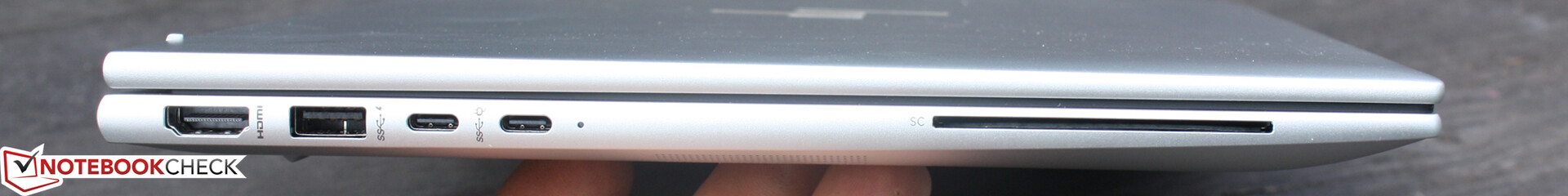

Left: HDMI 2.0, USB Type-A 5 Gbit/s with charging function, 2 USB4 Type-C 40 Gbit/s with power delivery, DisplayPort 1.4
Left: HDMI 2.0, USB Type-A 5 Gbit/s with charging function, 2 USB4 Type-C 40 Gbit/s with power delivery, DisplayPort 1.4

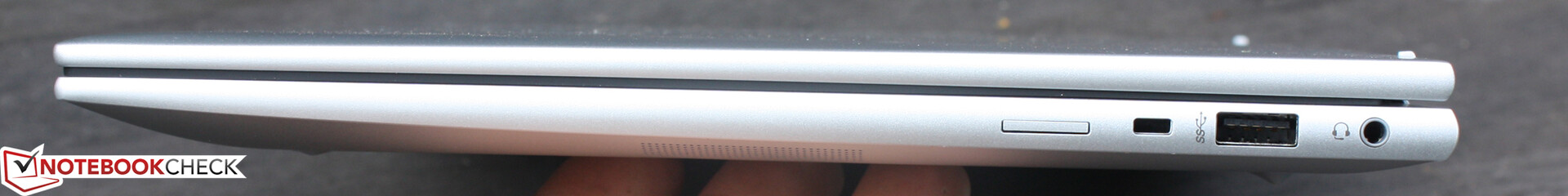

Right: SimCard slot for Qualcomm 5G modem, cable lock, USB Type-A 5 Gbit/s, headphone/microphone combo jack
Right: SimCard slot for Qualcomm 5G modem, cable lock, USB Type-A 5 Gbit/s, headphone/microphone combo jack

Communication

In addition to a Qualcomm WiFi 6E chip, a Fibocom LTE modem is installed (no 5G), as well as a SimCard slot on the right side. Both chips can be changed. The WiFi module provides high transfer rates both when sending and receiving.

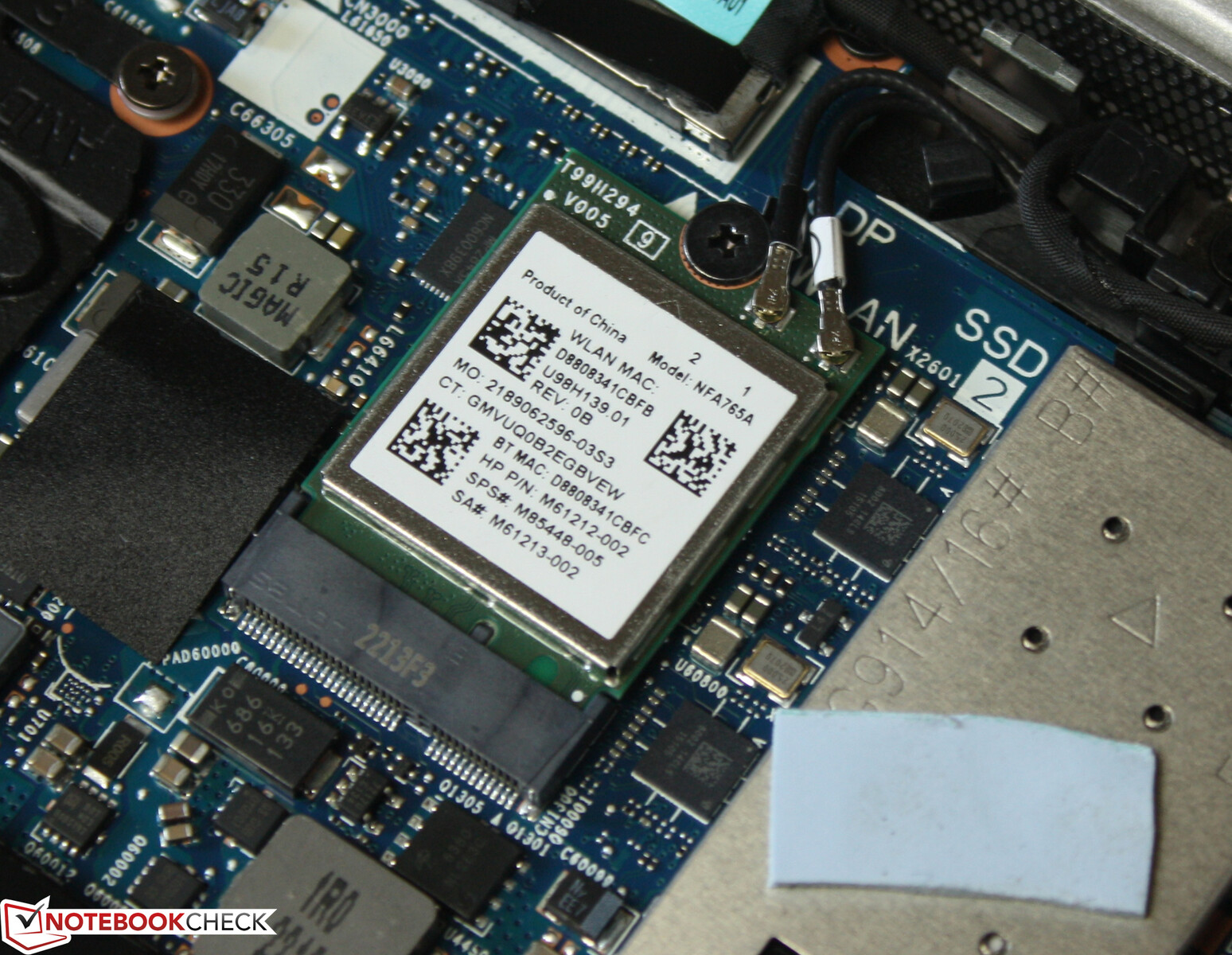

Qualcomm NFA765 aka FastConnect 6900 Wi-Fi 6E with Bluetooth 5.3
Qualcomm NFA765 aka FastConnect 6900 Wi-Fi 6E with Bluetooth 5.3

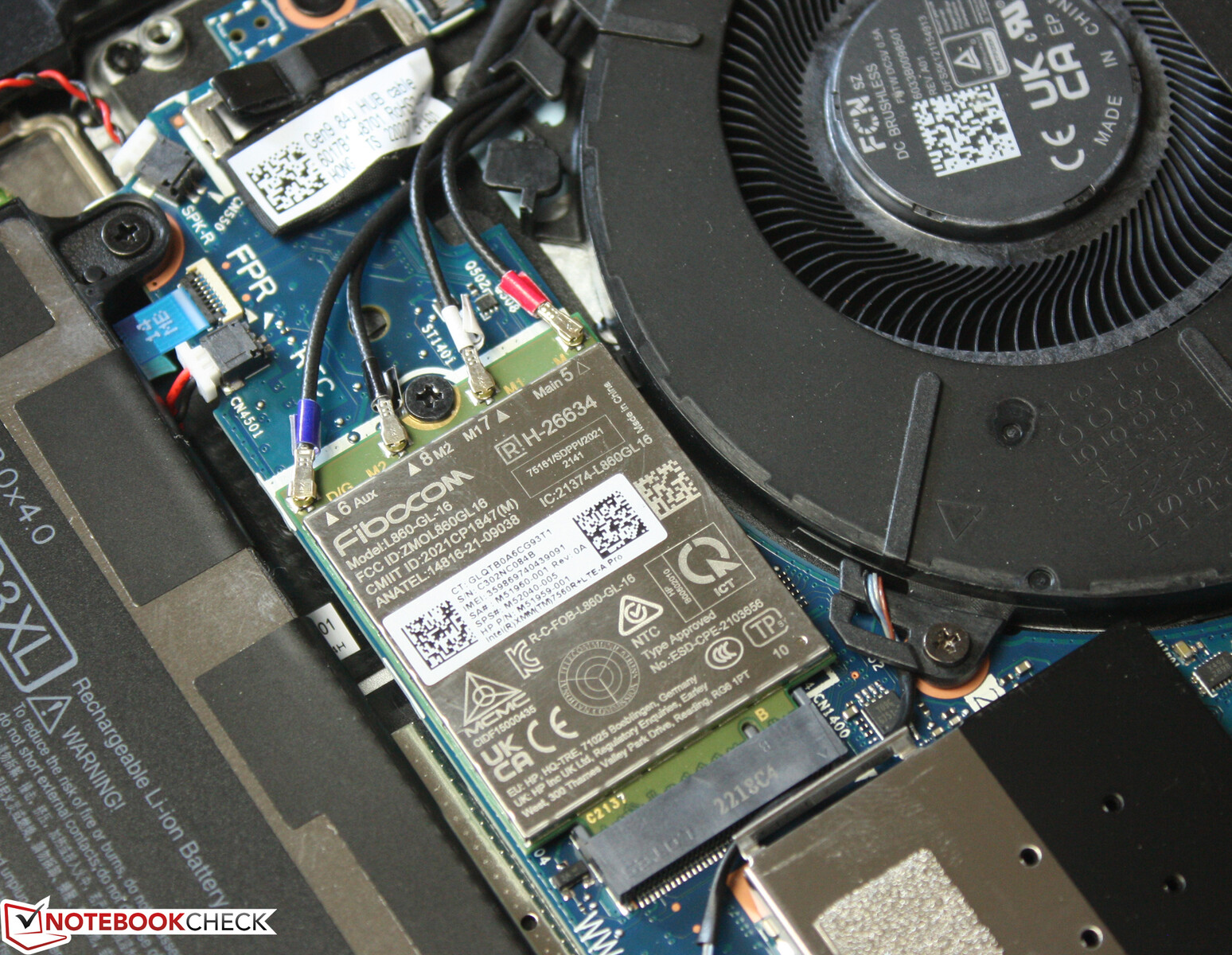

4G LTE modem Fibocom L860-GL-16 with four antennas
4G LTE modem Fibocom L860-GL-16 with four antennas
Networking
iperf3 transmit AX12
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Wi-Fi 6E AX210
1598 (1496min - 1654max) MBit/s ∼100%
Dell Latitude 7420 JW6MH
Intel Wi-Fi 6 AX201
1332 (756min - 1486max) MBit/s ∼83%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Wi-Fi 6 AX201
1138 (909min - 1199max) MBit/s ∼71%
Average of class Subnotebook
  (254 - 1535, n=23, last 2 years)
1063 MBit/s ∼67%
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
831 (711min - 899max) MBit/s ∼52%
iperf3 receive AX12
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Wi-Fi 6E AX210
1716 (1632min - 1754max) MBit/s ∼100%
Dell Latitude 7420 JW6MH
Intel Wi-Fi 6 AX201
1690 (1668min - 1708max) MBit/s ∼98%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Wi-Fi 6 AX201
1297 (1214min - 1355max) MBit/s ∼76%
Average of class Subnotebook
  (182 - 1690, n=23, last 2 years)
1139 MBit/s ∼66%
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
877 (846min - 899max) MBit/s ∼51%
iperf3 receive AXE11000 6GHz
Average Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
  (1662 - 1762, n=2)
1712 MBit/s ∼100% +3%
HP EliteBook 845 G9 6F6H6EA
Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
1662 (1357min - 1776max) MBit/s ∼97%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Wi-Fi 6E AX211
1574 (1210min - 1693max) MBit/s ∼92% -5%
Average of class Subnotebook
  (951 - 1771, n=21, last 2 years)
1543 MBit/s ∼90% -7%
iperf3 transmit AXE11000 6GHz
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Wi-Fi 6E AX211
1611 (1450min - 1645max) MBit/s ∼100% +17%
Average Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
  (1375 - 1750, n=2)
1563 MBit/s ∼97% +14%
HP EliteBook 845 G9 6F6H6EA
Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
1375 (748min - 1658max) MBit/s ∼85%
Average of class Subnotebook
  (703 - 1735, n=21, last 2 years)
1301 MBit/s ∼81% -5%
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750Tooltip
HP EliteBook 845 G9 6F6H6EA Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1351 (748-1658)
HP EliteBook 845 G9 6F6H6EA Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1661 (1357-1776)
Lenovo ThinkPad T14s G2 20XGS01100 RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø876 (846-899)
Lenovo ThinkPad T14s G2 20XGS01100 RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø831 (711-899)

Webcam

HP has really raised the bar with the camera: A 5MP webcam has not been available in standard laptops until now. An infrared camera for Windows Hello login via face recognition is again included, even if it is no longer so visible next to the webcam.

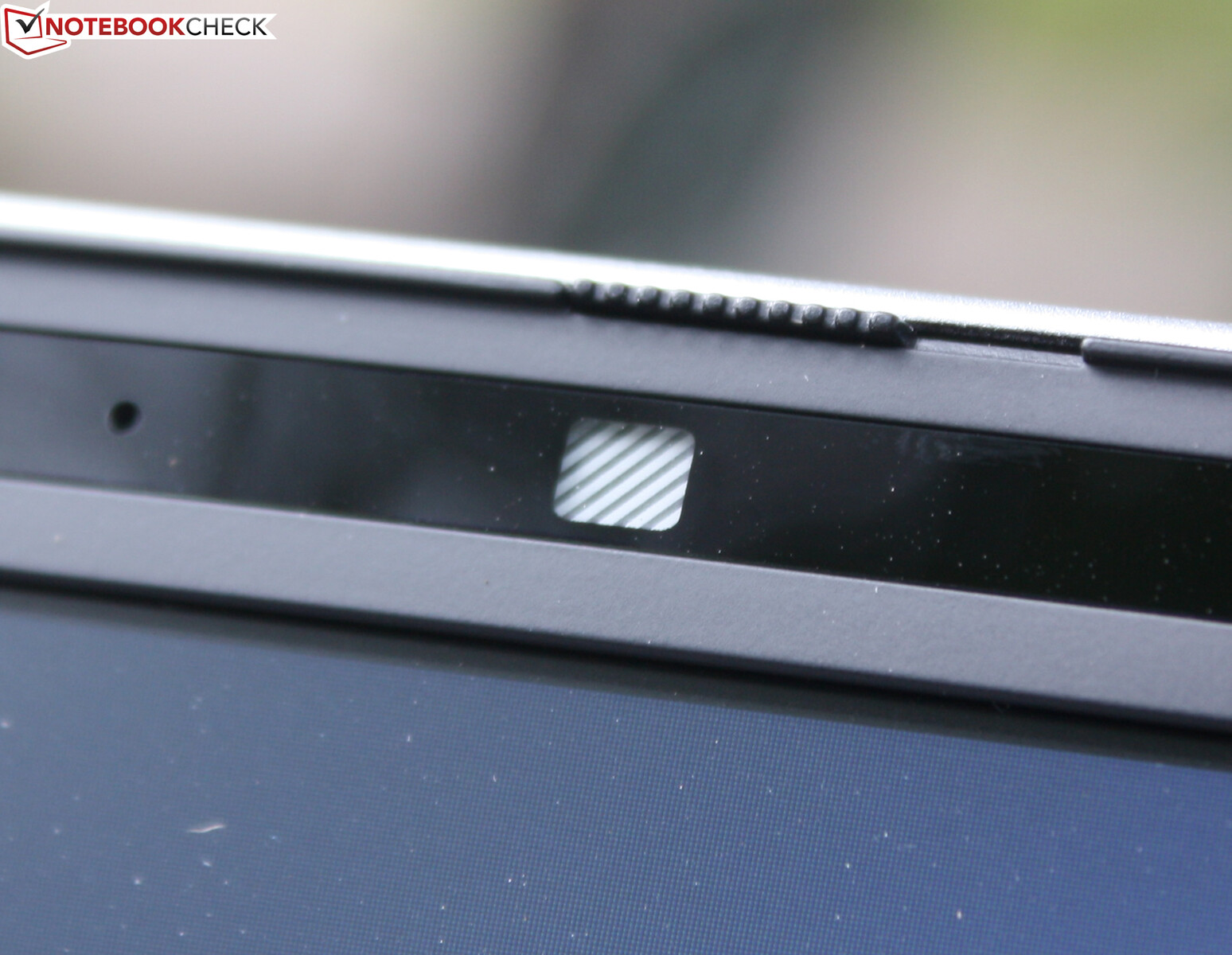

Mega webcam: 2560x1440 pixels under the manual shutter...
Mega webcam: 2560x1440 pixels under the manual shutter...
...with good focus and realistic colors. Click for original image
...with good focus and realistic colors. Click for original image
ColorChecker
17 ∆E
16.5 ∆E
20.2 ∆E
20.9 ∆E
19.4 ∆E
17.8 ∆E
12.3 ∆E
23.8 ∆E
15.2 ∆E
15.6 ∆E
16.5 ∆E
17.6 ∆E
17.3 ∆E
20.8 ∆E
20.4 ∆E
14.4 ∆E
18.2 ∆E
25.2 ∆E
2.3 ∆E
11.8 ∆E
19.7 ∆E
18.2 ∆E
18.7 ∆E
11.4 ∆E
ColorChecker HP EliteBook 845 G9 6F6H6EA: 17.13 ∆E min: 2.33 - max: 25.15 ∆E
ColorChecker
8.7 ∆E
14 ∆E
18 ∆E
19.8 ∆E
22.3 ∆E
20.1 ∆E
11.2 ∆E
14 ∆E
15.9 ∆E
9 ∆E
16 ∆E
23.6 ∆E
3.5 ∆E
8.2 ∆E
11.8 ∆E
13.2 ∆E
17.5 ∆E
19.3 ∆E
2.3 ∆E
7.9 ∆E
9.4 ∆E
10.6 ∆E
5.3 ∆E
5.5 ∆E
ColorChecker Lenovo ThinkPad T14s G2 20XGS01100: 12.79 ∆E min: 2.33 - max: 23.64 ∆E
ColorChecker
18.1 ∆E
10.5 ∆E
17.6 ∆E
26.8 ∆E
15.3 ∆E
15.6 ∆E
11.1 ∆E
9.5 ∆E
8.6 ∆E
12.7 ∆E
15.5 ∆E
13.1 ∆E
2.2 ∆E
15.2 ∆E
8.7 ∆E
7.1 ∆E
7.9 ∆E
15.4 ∆E
3.9 ∆E
3.3 ∆E
7.5 ∆E
9.8 ∆E
8.2 ∆E
1.2 ∆E
ColorChecker Lenovo ThinkPad X1 Carbon G10 21CC001RGE: 11.03 ∆E min: 1.21 - max: 26.81 ∆E

Security

HP integrates numerous security and management solutions. Software-based solutions include HP Maxim Pro Security Edition (1 year), Connection Optimizer, Hotkey Support, Support Assistant, Easy Clean, Power Manager, myHP, Privacy Settings, QuickDrop, Quick Touch and PC Hardware Diagnostics. In this way, HP Maxim Pro Security Edition protects against malware and is geared towards SMBs. The package of management software is not exactly small and goes far beyond a central retrieval of manufacturer updates.

A fingerprint reader and an IR camera (face login) are the obvious security features here, and necessary for multi-factor authentication. The Support Assistant bundles hardware management and software settings in regard to security and is the first point of contact in the event of problems. Network troubleshooting is also carried out here. Many of these features can also be found in the Windows on-board tools, but HP's native solutions do their jobs just fine.

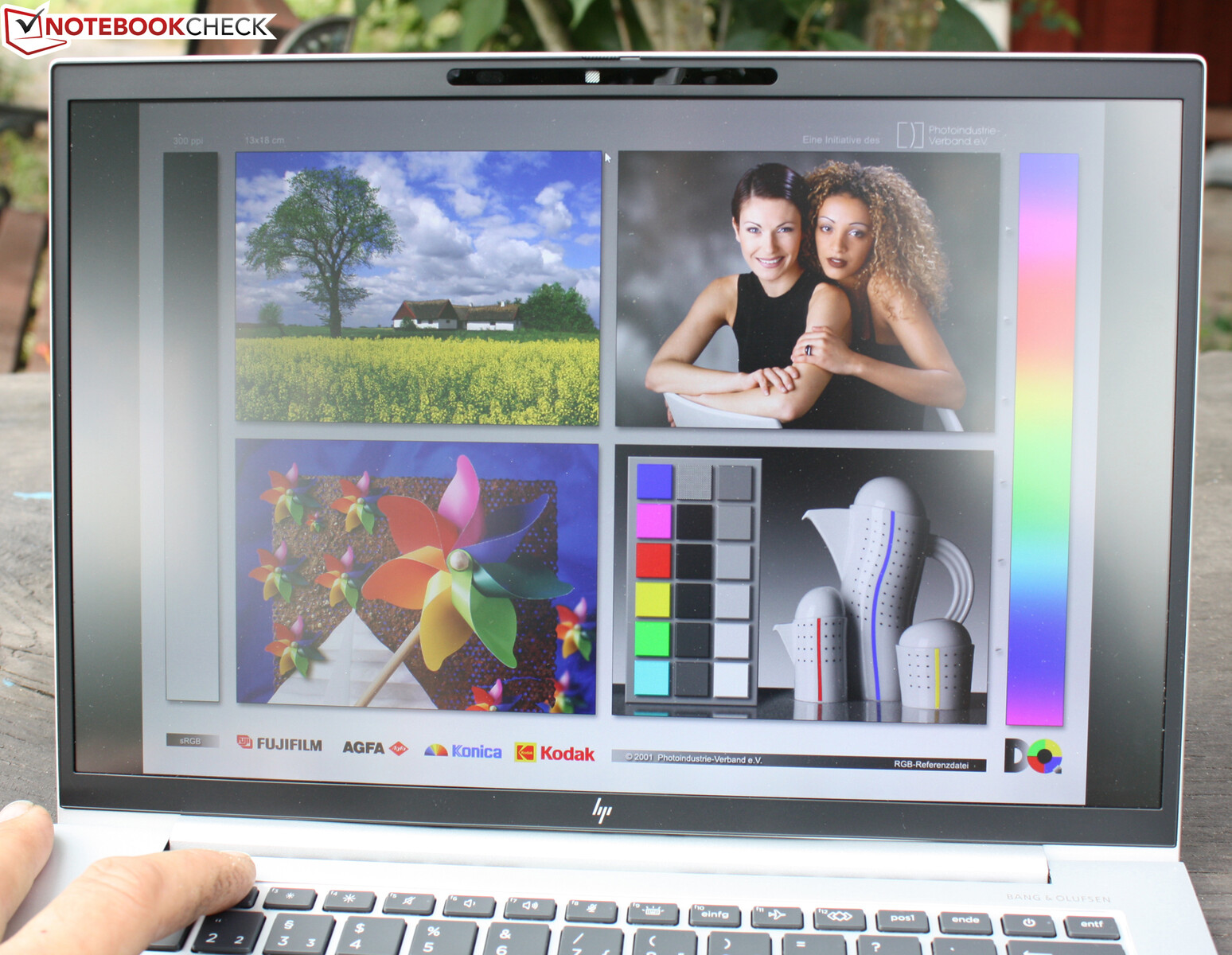

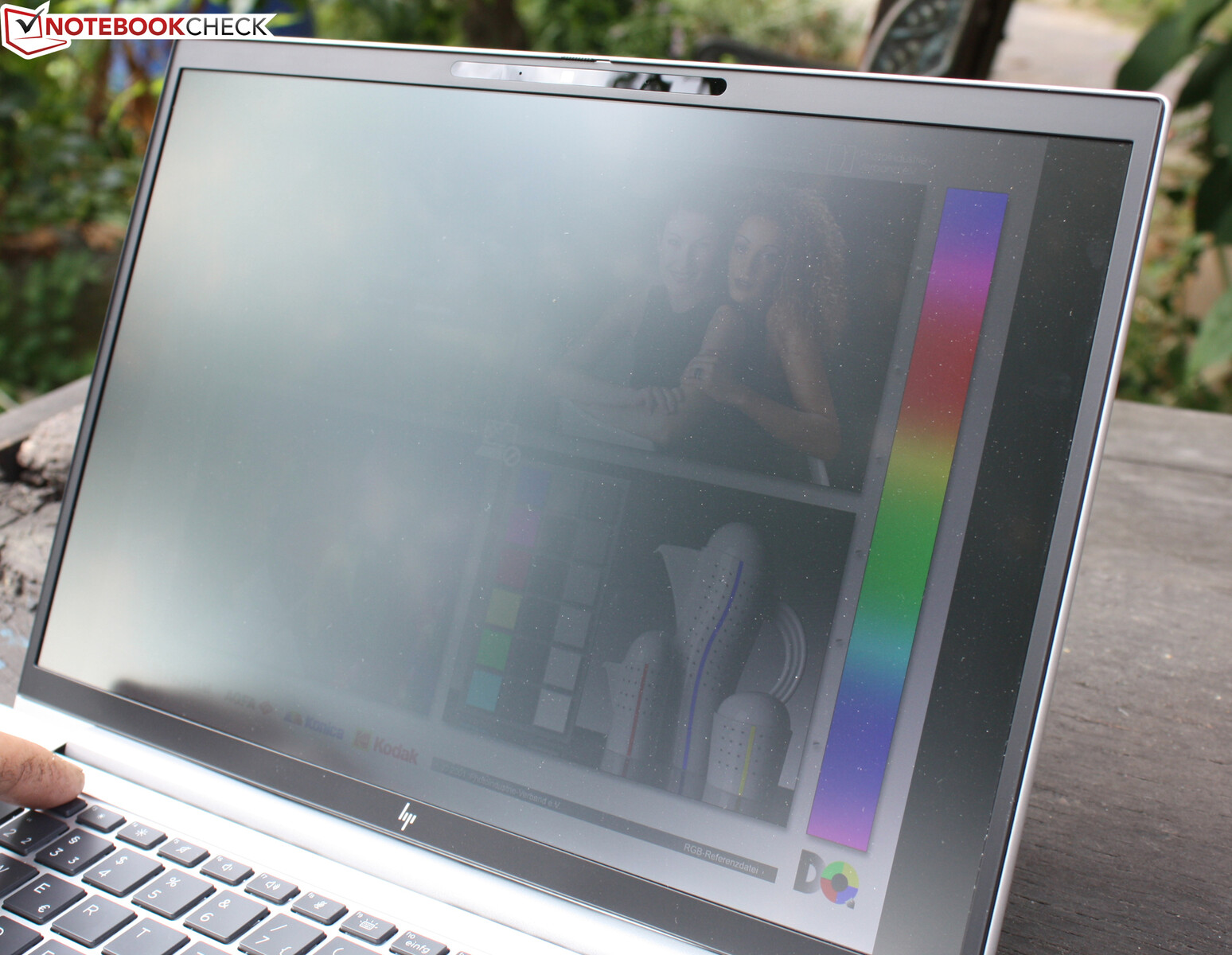

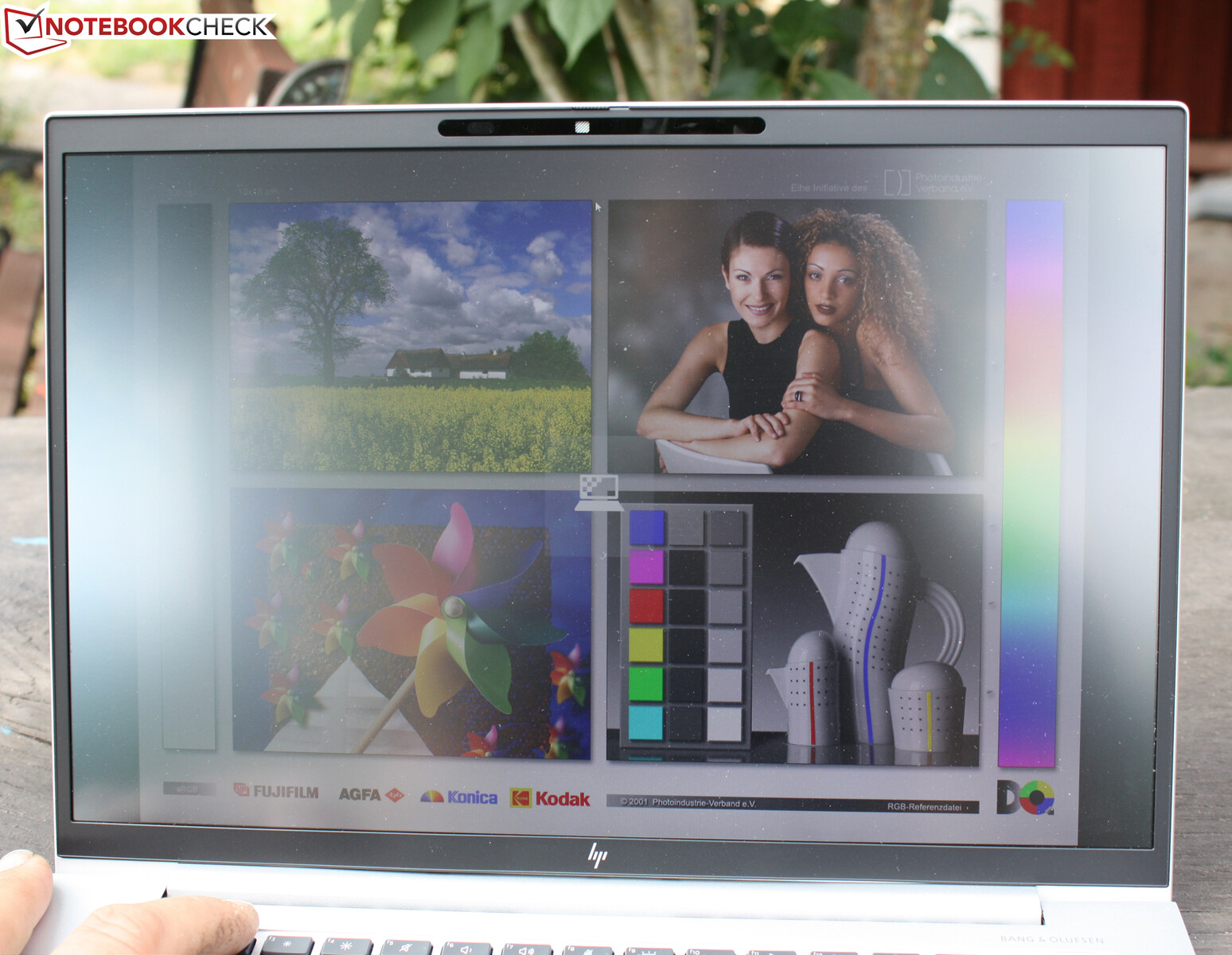

HP SureView On: frontal view is good, but the sides are already fading out.
HP SureView On: frontal view is good, but the sides are already fading out.

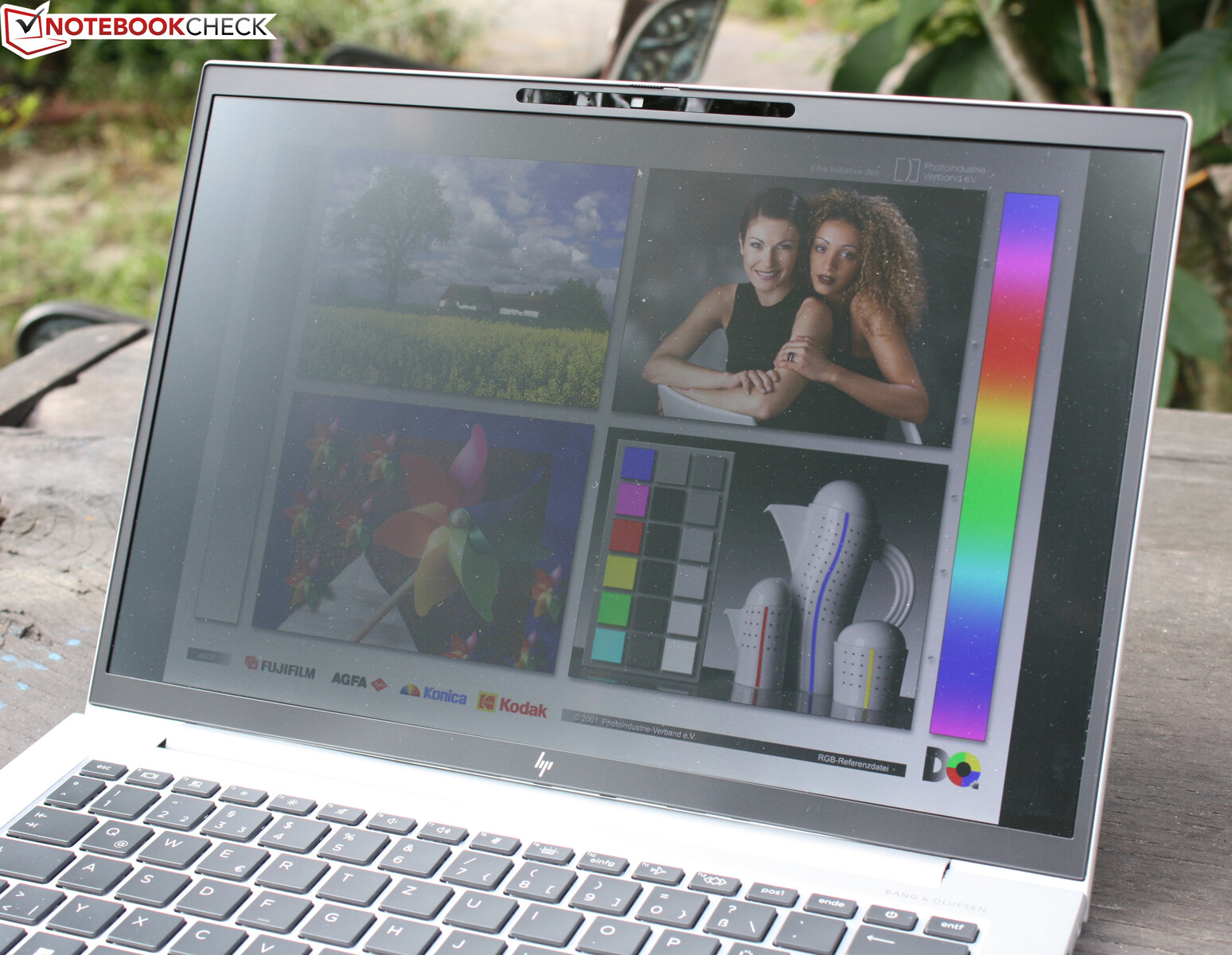

SureView Off: views from the side possible
SureView Off: views from the side possible

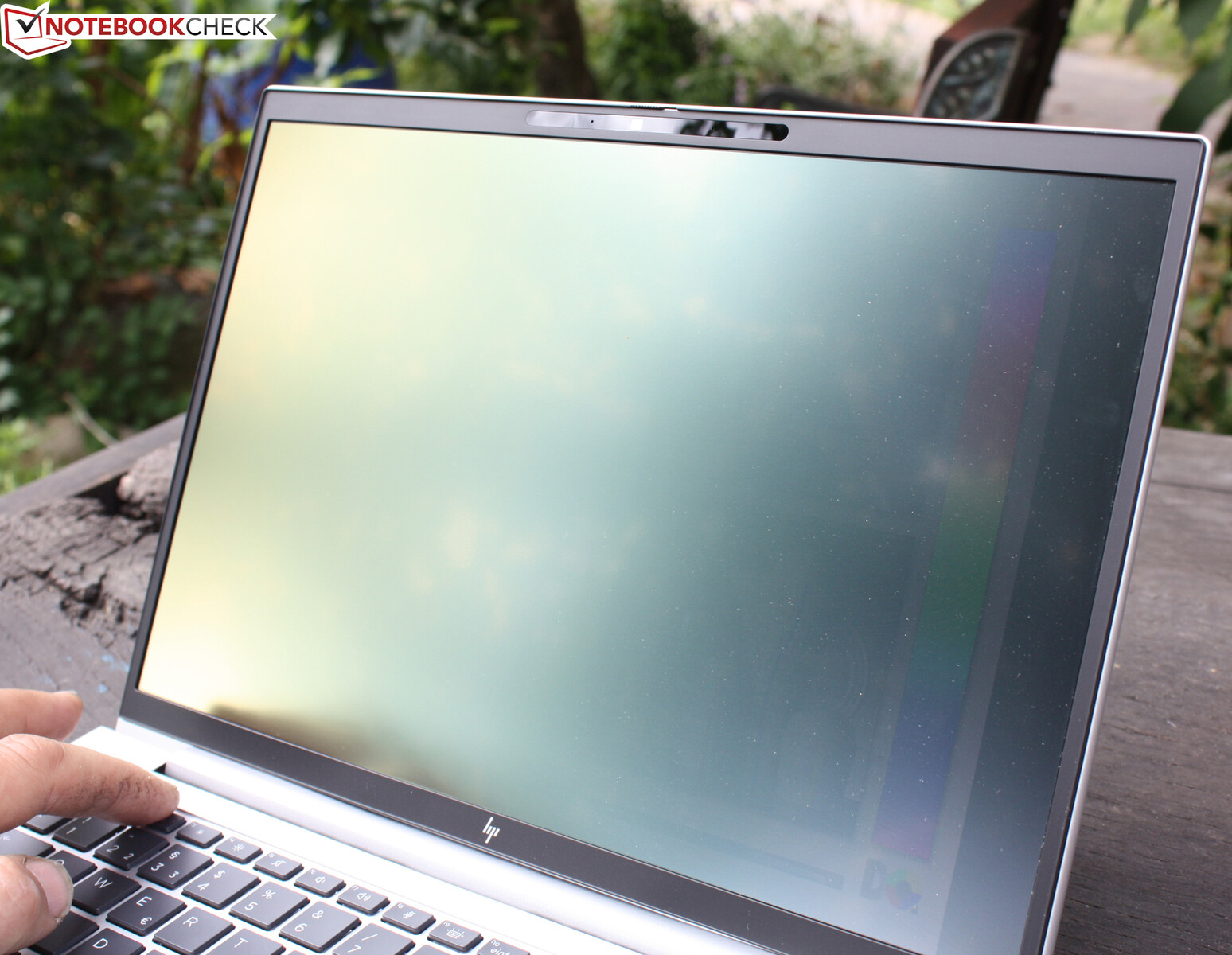

SureView On: views from the side no longer possible
SureView On: views from the side no longer possible

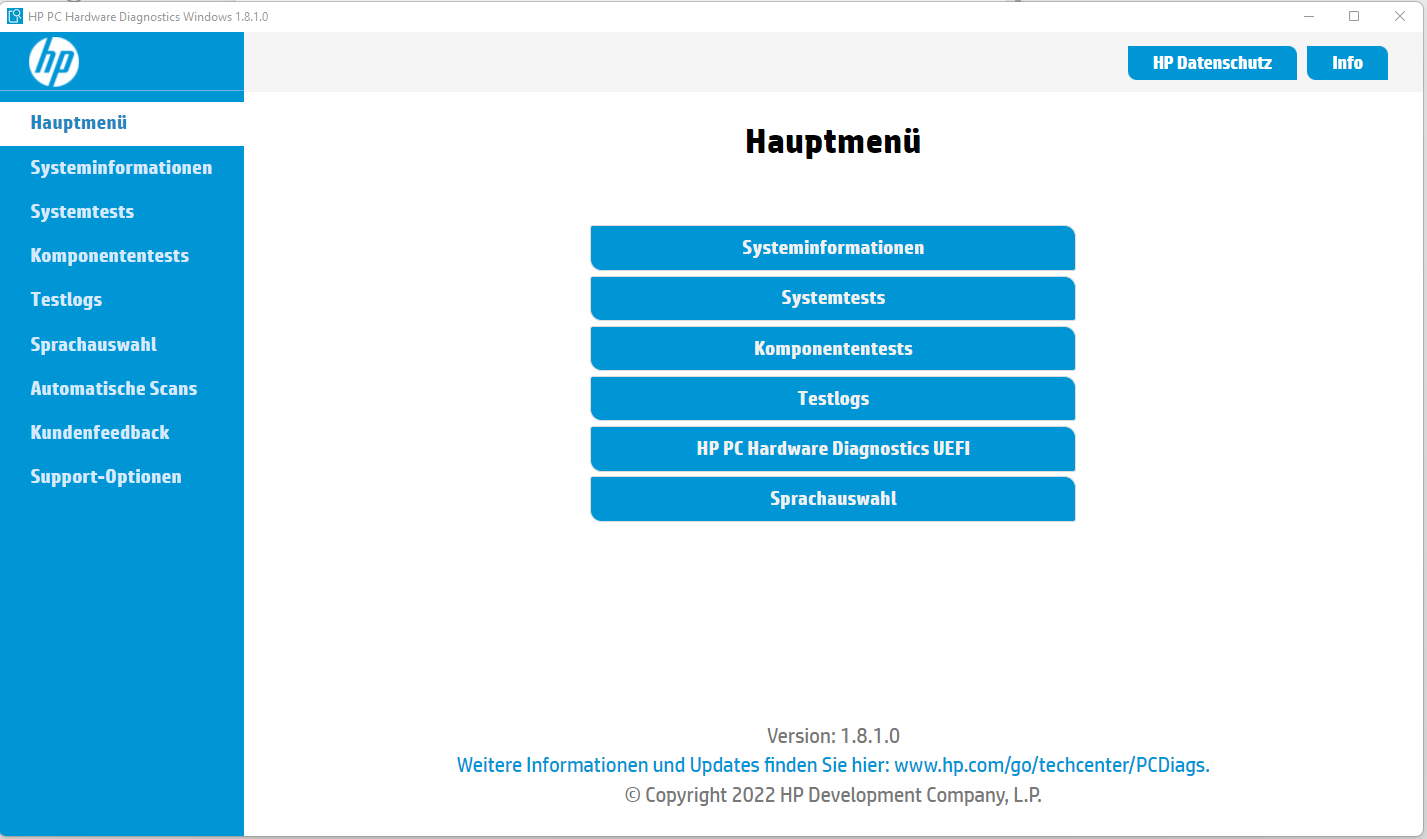

HP Support Assistant: hardware checks in many colors
HP Support Assistant: hardware checks in many colors

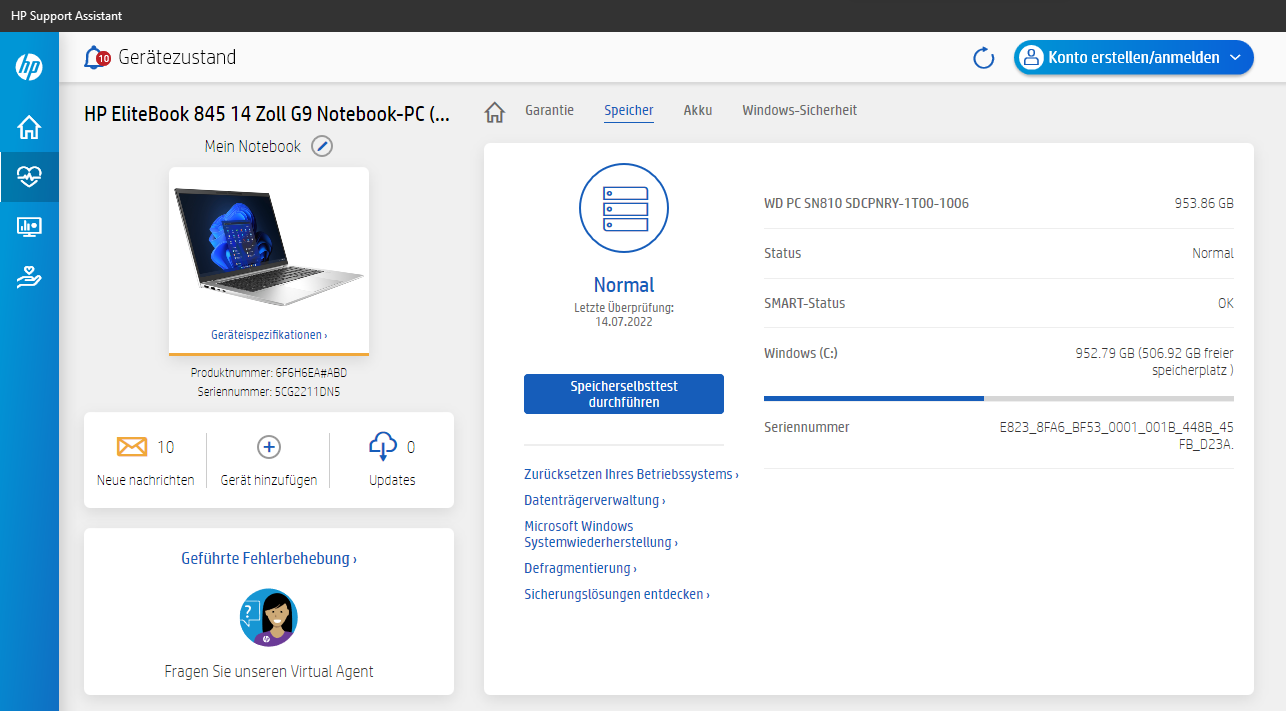

HP Support Assistant: device health
HP Support Assistant: device health

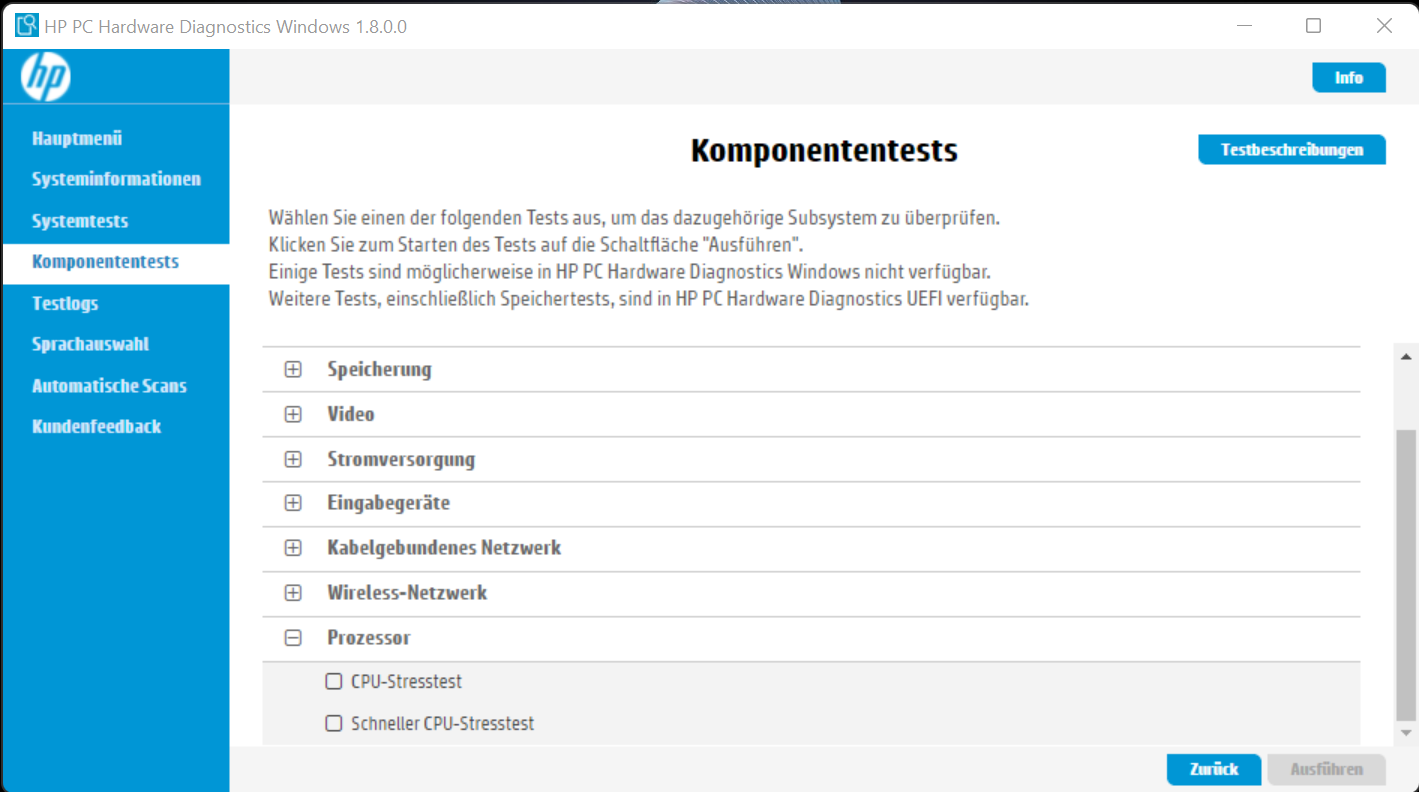

HP Support Assistant: Tests for each component - detecting the cause in case of errors
HP Support Assistant: Tests for each component - detecting the cause in case of errors

Accessories

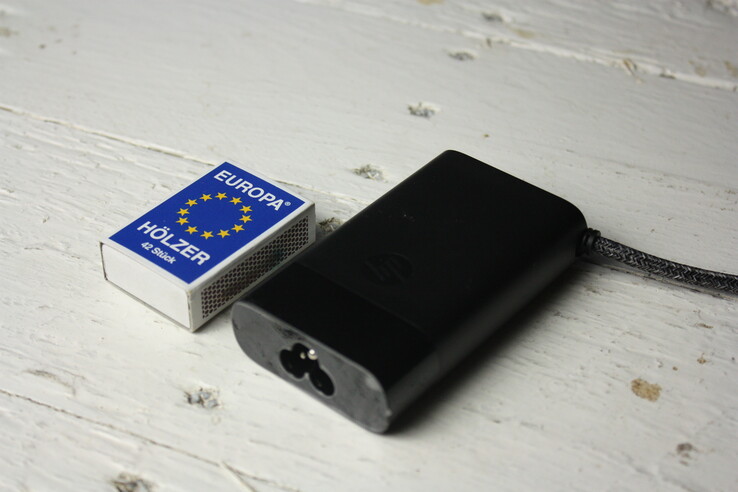

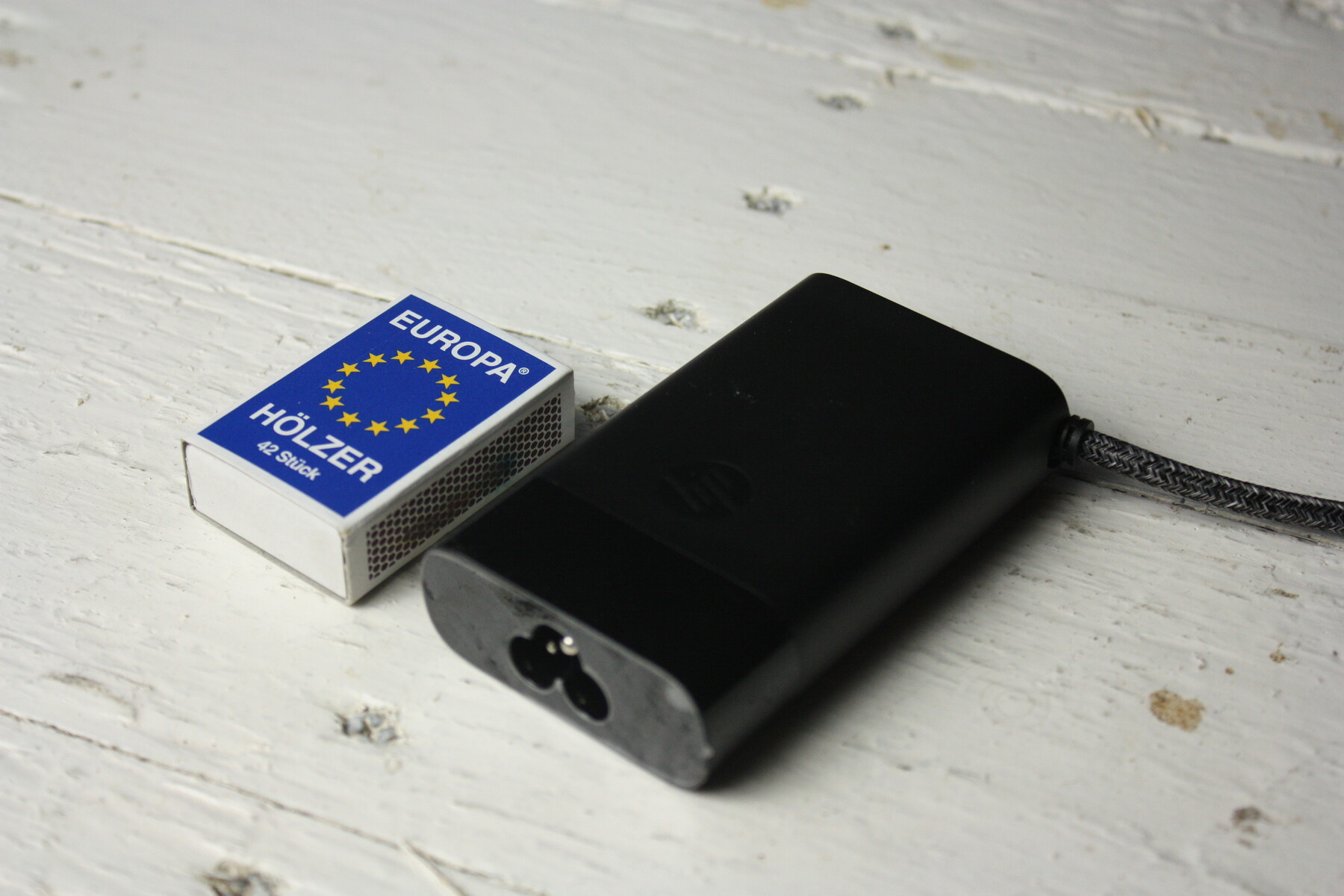

Apart from the tiny, 65-watt power adapter that weighs only 302 grams, no other accessories are included in the scope of delivery.

Maintenance

The Elitebook is easy to maintain and upgrade: the manufacturer does not use Torx screws and does not conceal screws under rubber feet or strips. The screws do not fall out of the baseplate after loosening and the baseplate can be removed without special tools or the risk of breaking clips.

Another positive point: The RAM is not soldered, as in the Lenovo ThinkPad T14s. Two sockets are available, one of which is occupied by a 32 GB SO-DIMM. There is also a socket for the WWAN (M.2 2260) and one for the WiFi module (M.2 2240) along with an SSD (M.2 2280). The battery is replaceable and not glued.

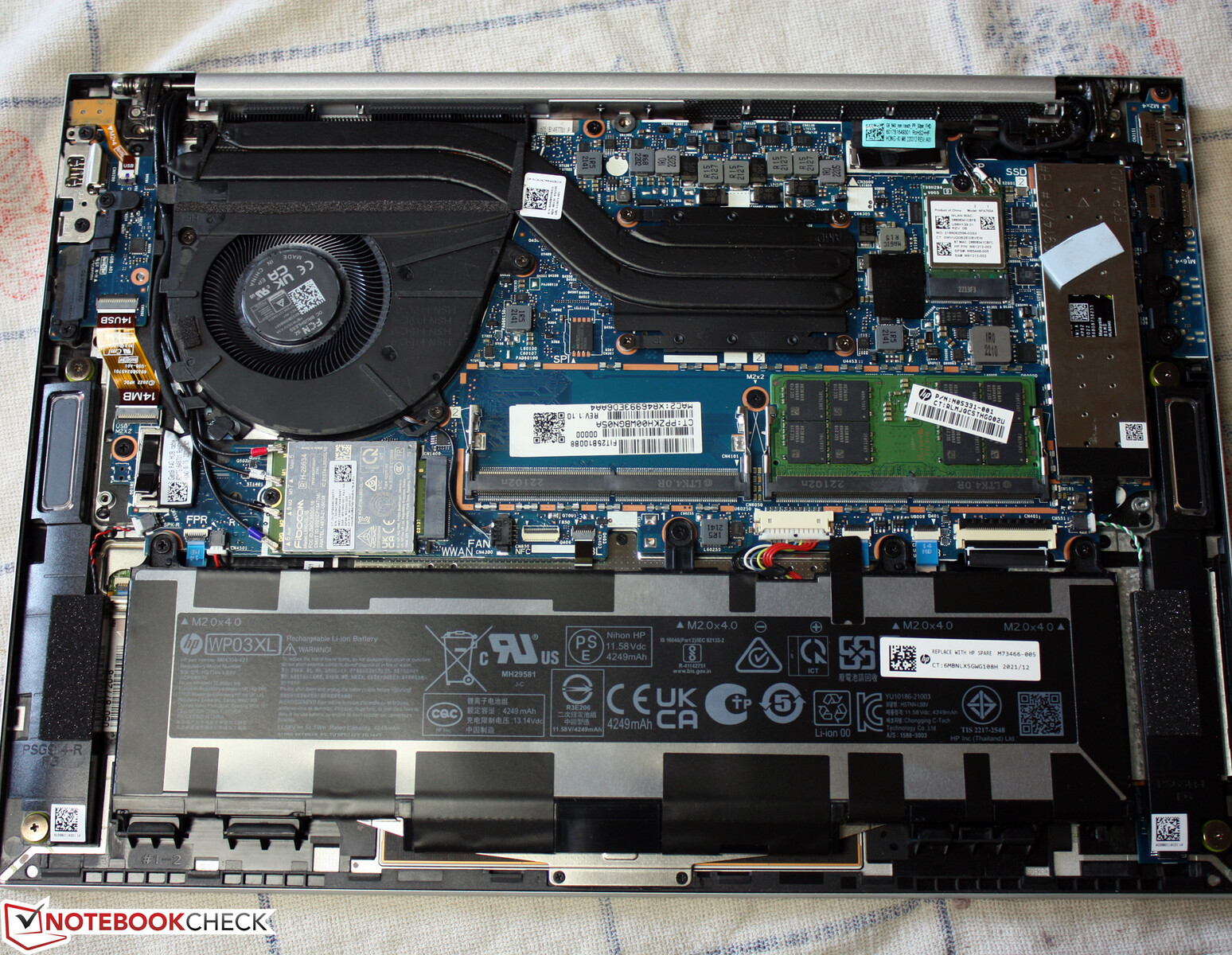

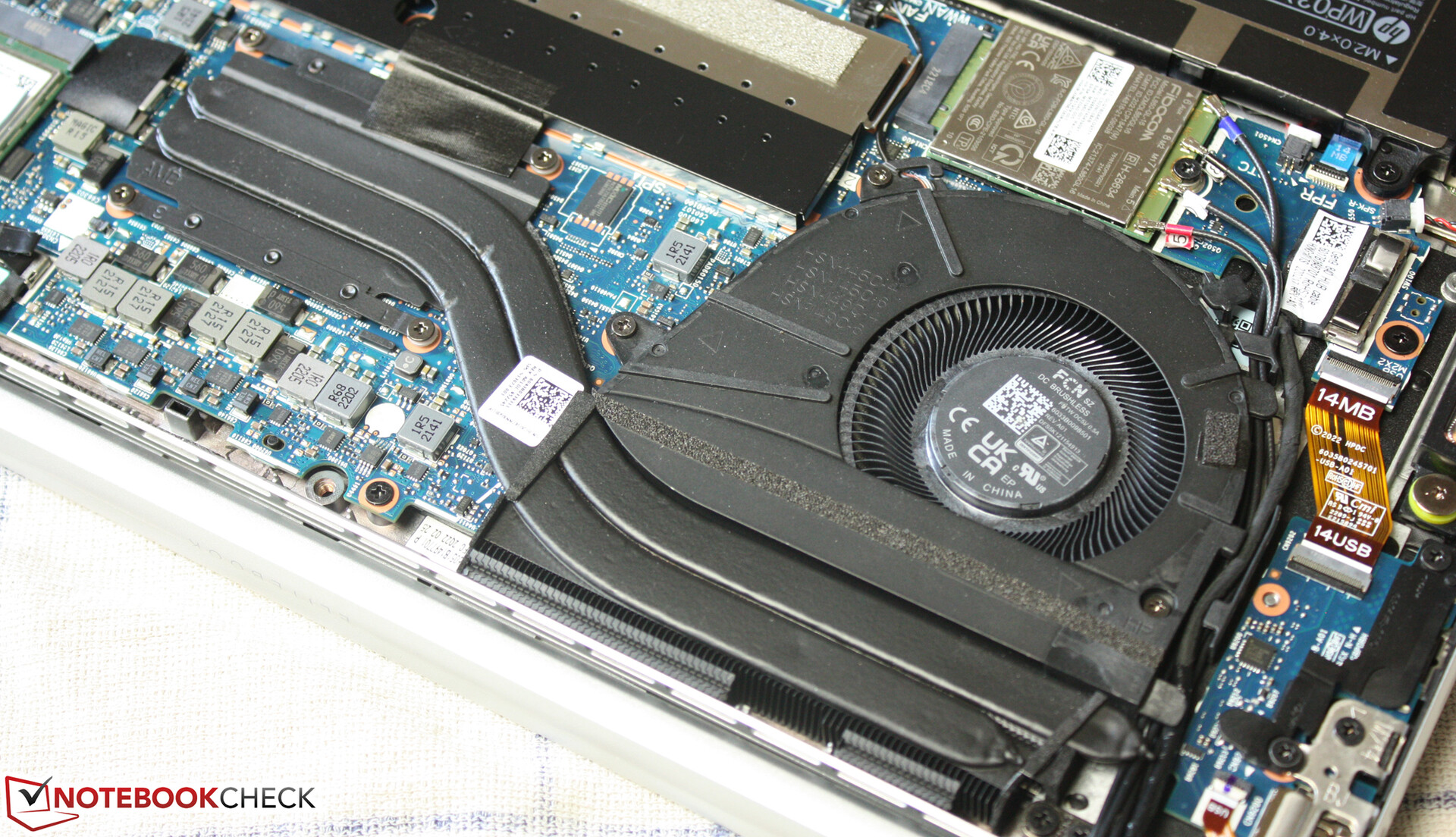

All essential components are plugged in, except for the APU.
All essential components are plugged in, except for the APU.

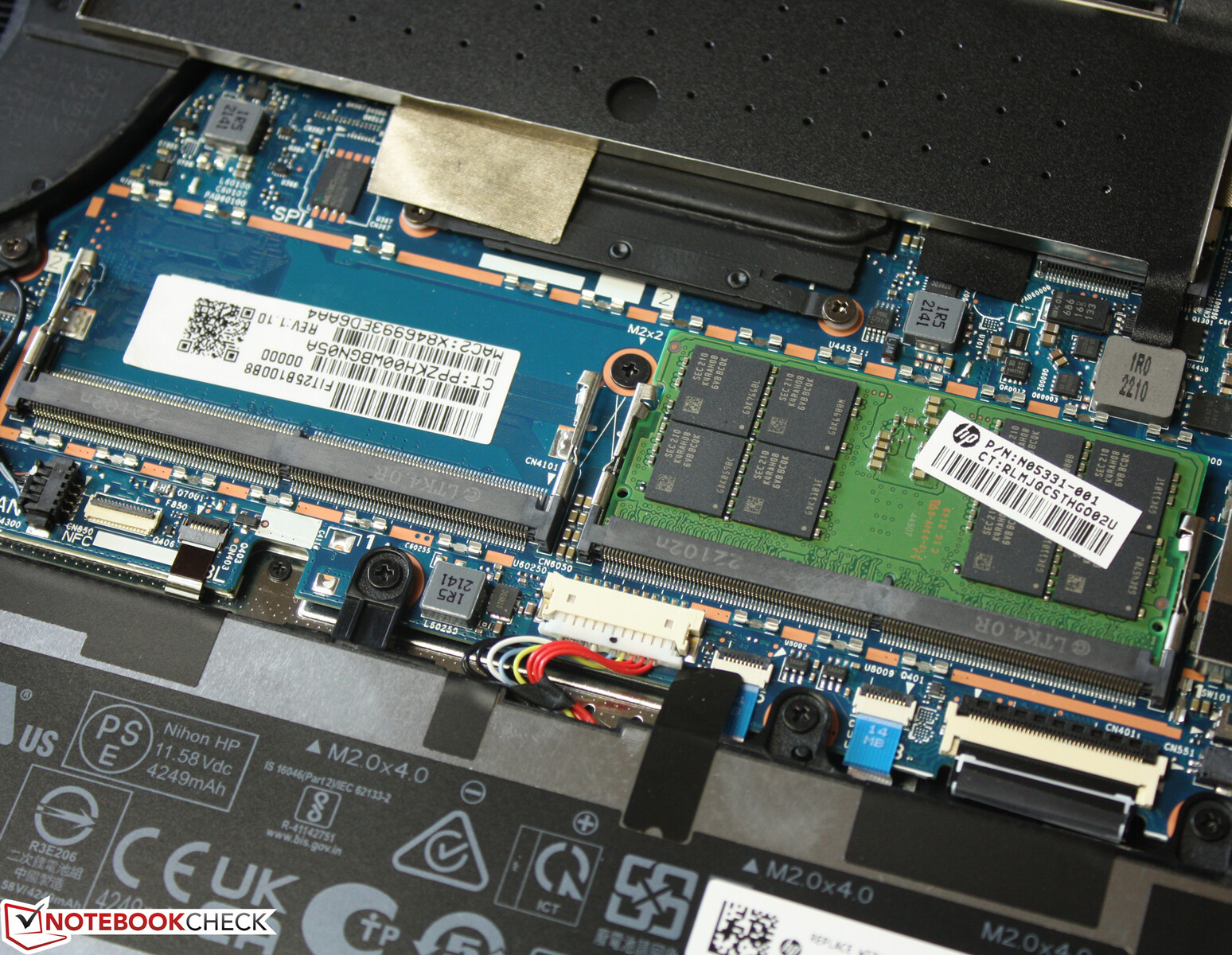

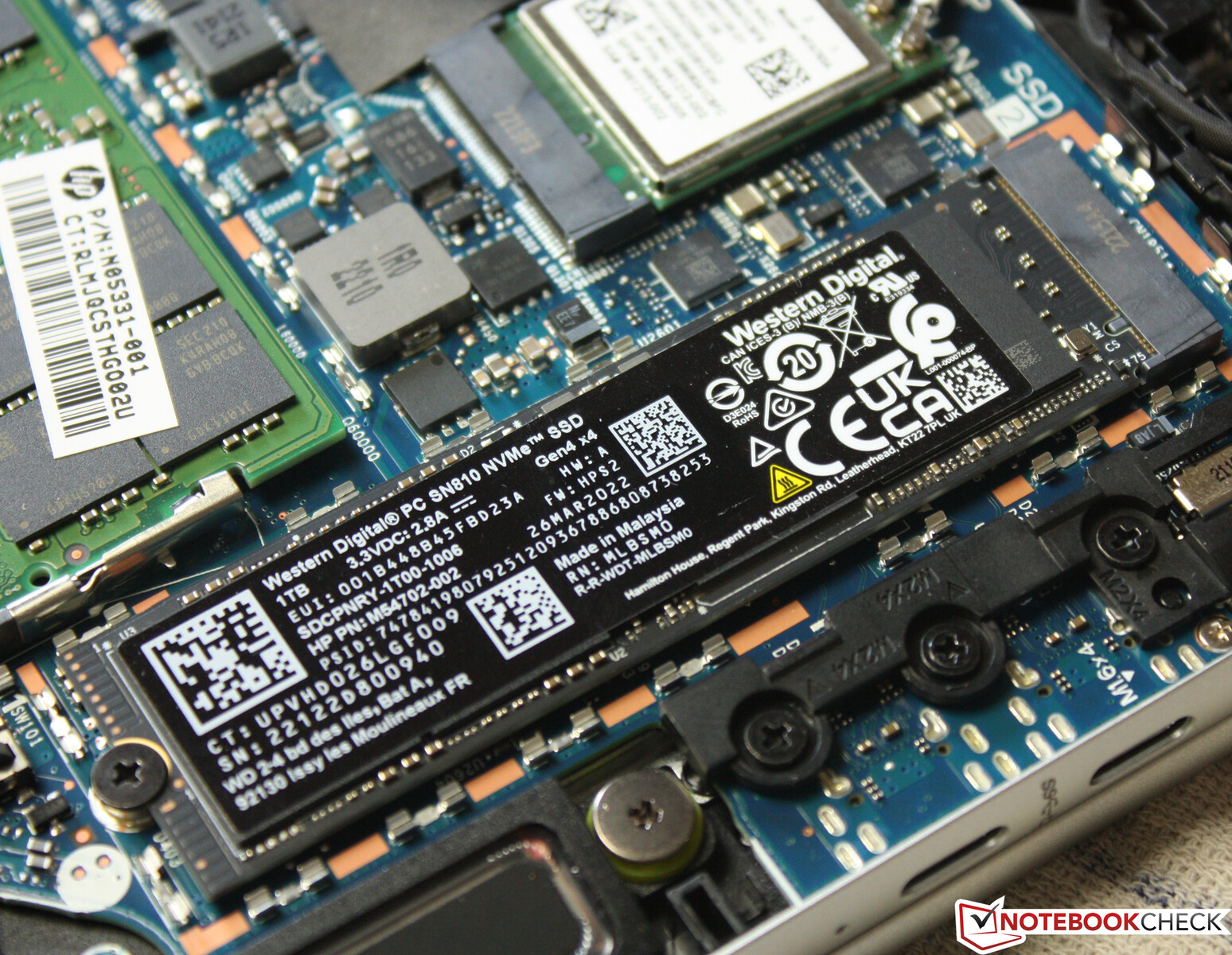

Up close: two RAM sockets available, 32 GB is plugged in, 64 GB is possible.
Up close: two RAM sockets available, 32 GB is plugged in, 64 GB is possible.

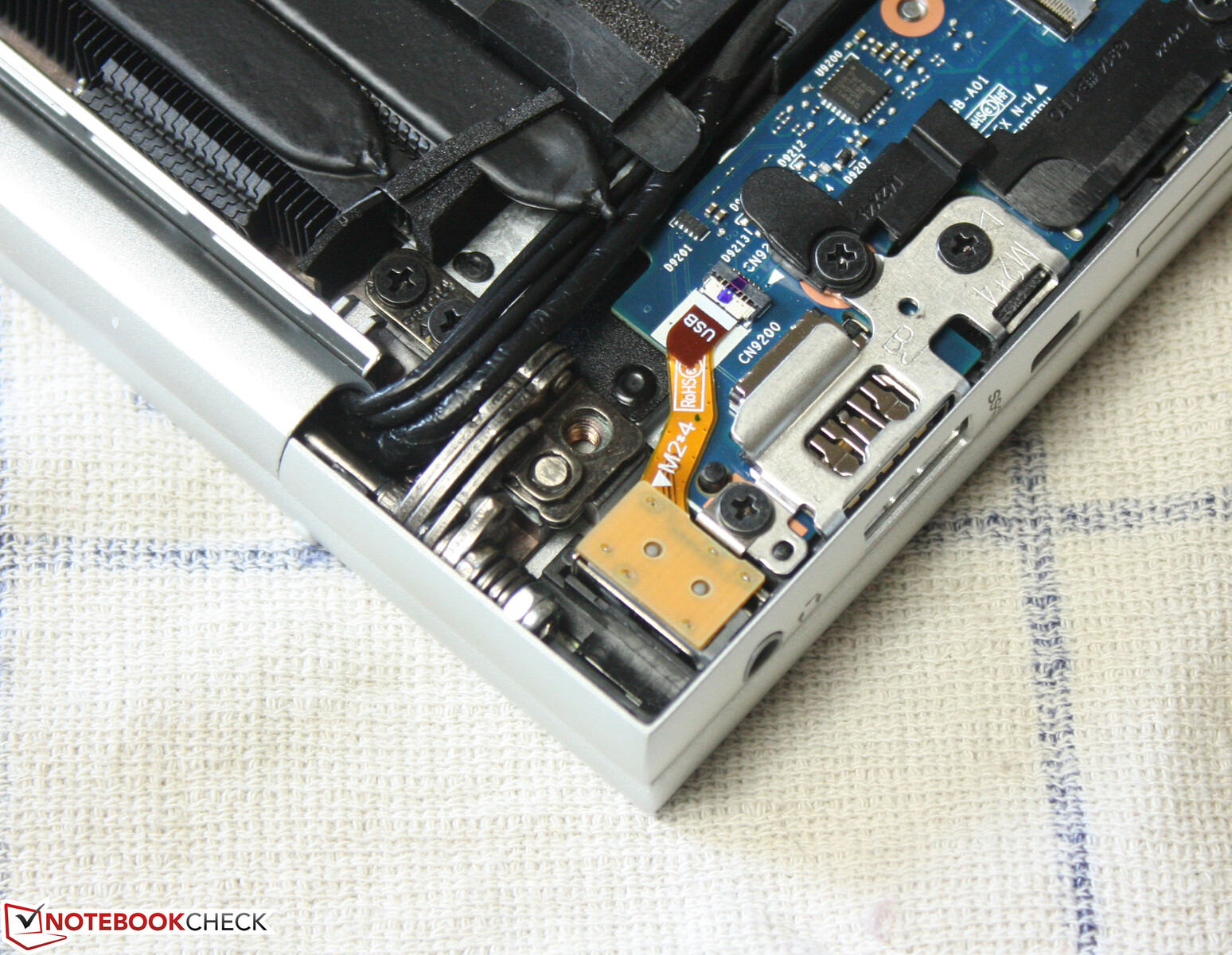

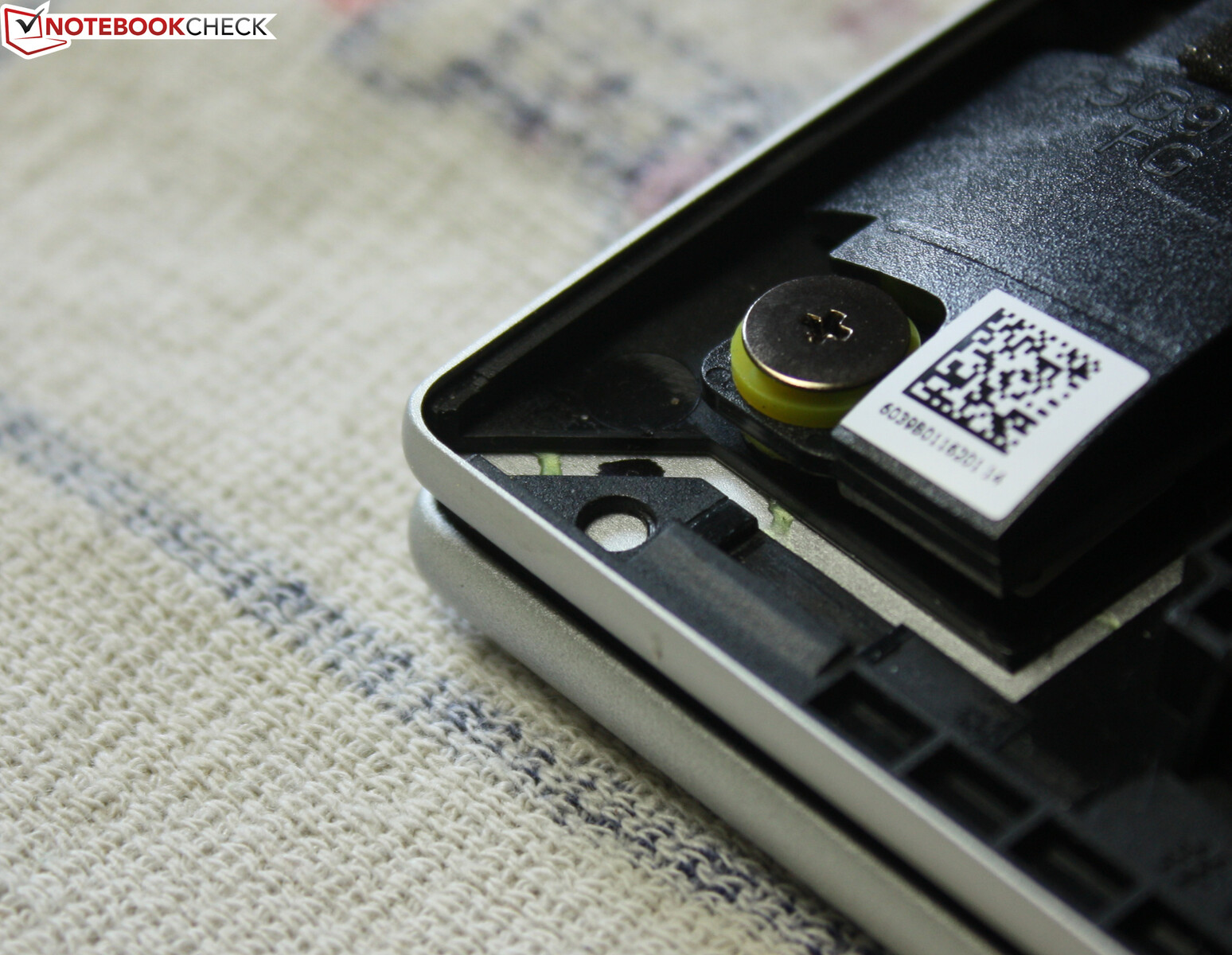

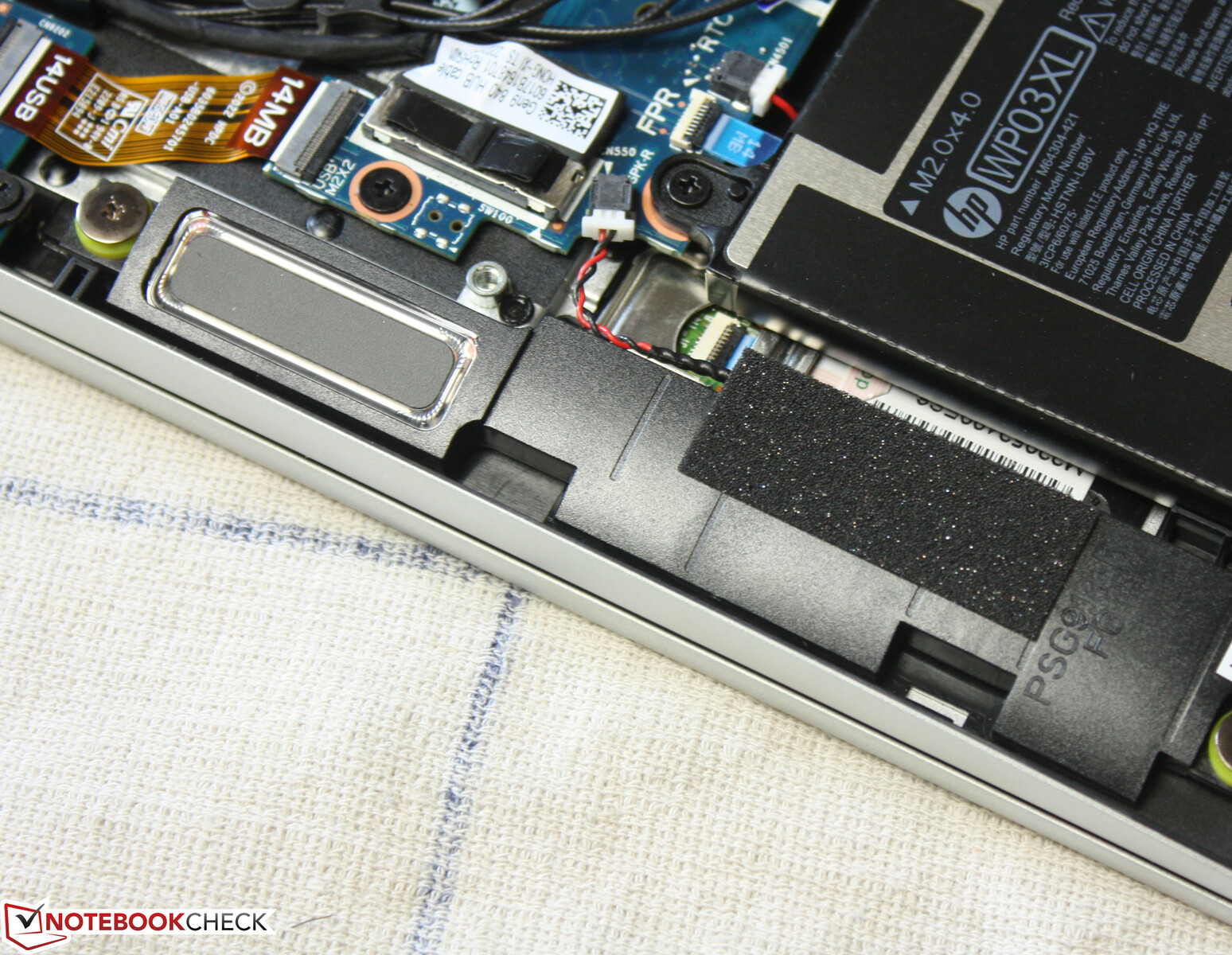

Up close: Corner joint
Up close: Corner joint

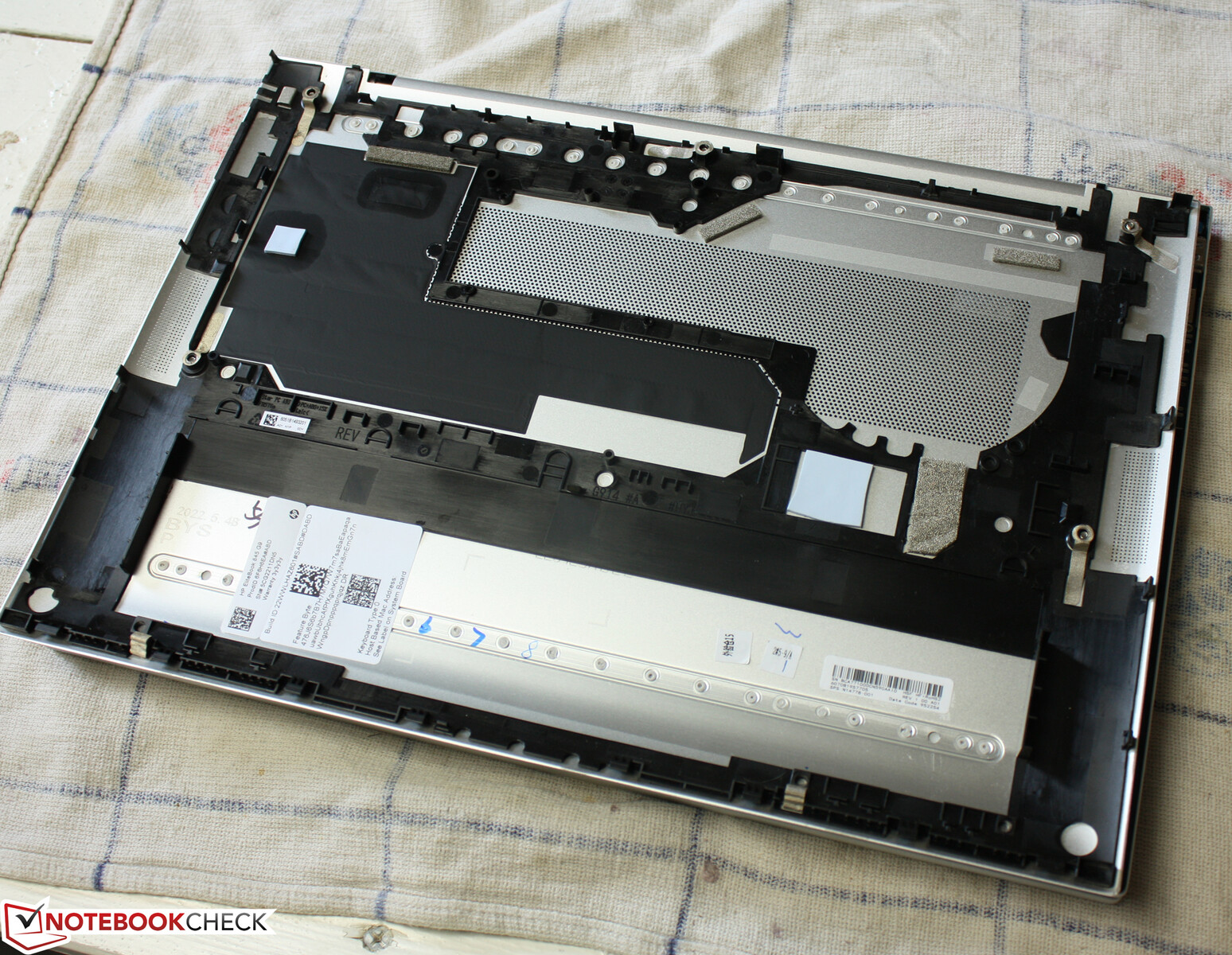

After loosening the screws, the lid can be detached with a secure grip
After loosening the screws, the lid can be detached with a secure grip

Warranty

HP offers a 3-year parts, labour, and onsite repair warranty (3-3-3) with next business day service for parts and labour.

Input Devices: Laptop keyboard with strong feedback

First things first: HP has removed the TrackPoint and dedicated keys, which will not go down well with traditionalists. In doing so, HP is following the same path that Dell and Lenovo have taken with their business laptops. In the long run, the trackpoint will probably die out.

Keyboard

The keyboard is one of the best for frequent typists. The keys deliver a firm stroke that don't teeter at any stage. The entire keyboard panel, including the palm rest, is grounded in a solid base. Key travel is moderate by laptop standards, accompanied by a crisp pressure point. Clear feedback and a hard stroke make for a strong keyboard in our eyes. The keys have a subtle conical curvature and a spacing of 3.5 millimetres.

The layout does not pose any challenges: Page up/down keys have been squeezed in above the narrow directional keys, which isn't ideal, but better than doing without them altogether. In favour of a stable chassis, the manufacturer has omitted a row of keys and the numpad on the far right. The position of the delete key right next to power on/off is not so convenient. On the other hand, the latter has to be pressed for a whole second, so no incorrect entries pop up if you mistakenly hit it instead of Del

HP also makes uses of the usual function keys such as volume, key backlighting and flight mode. Special features are the SureView key for eye protection and the freely programmable key on F12. In combination with Alt, Ctrl and Fn, some websites, programmes or files can be stored.

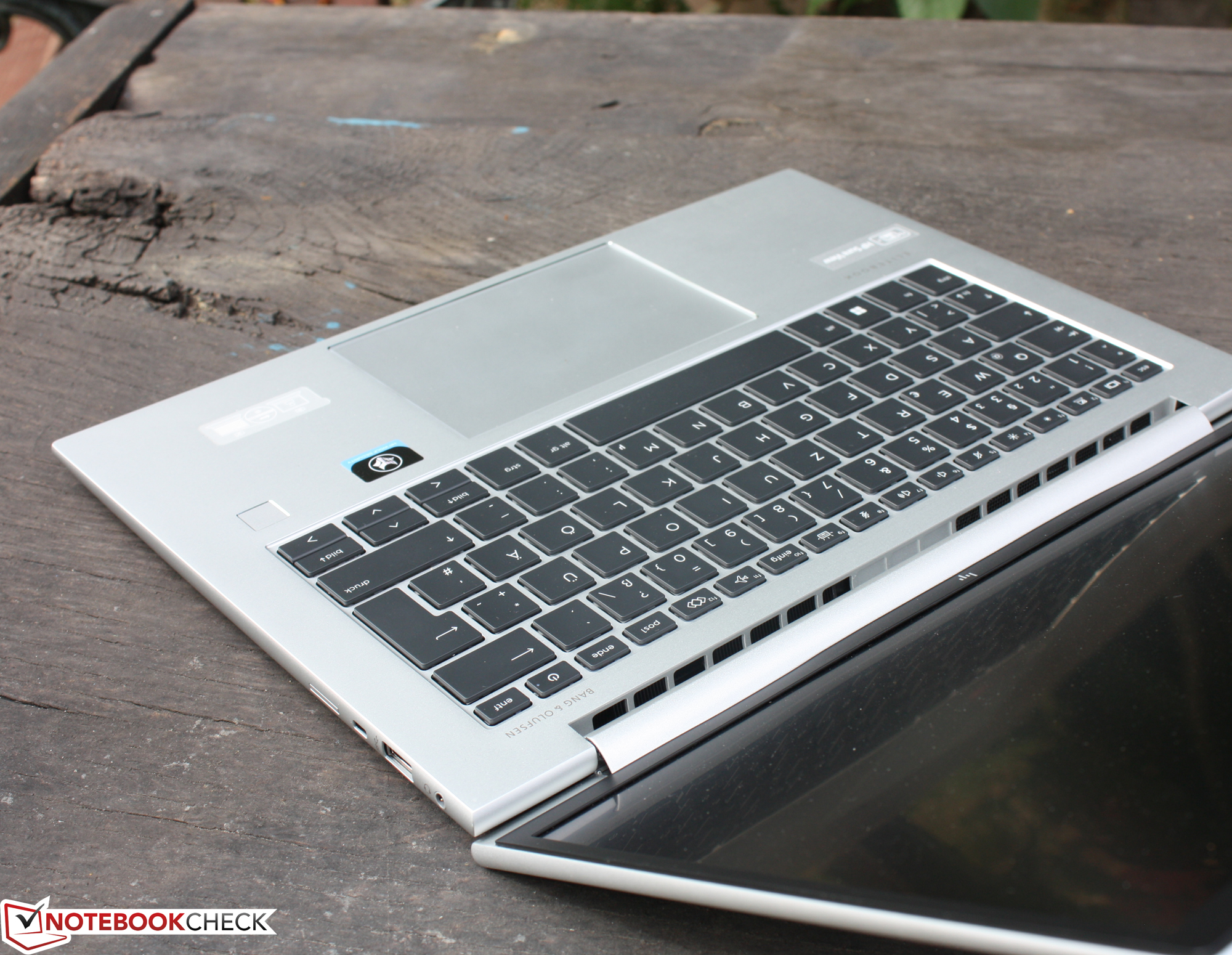

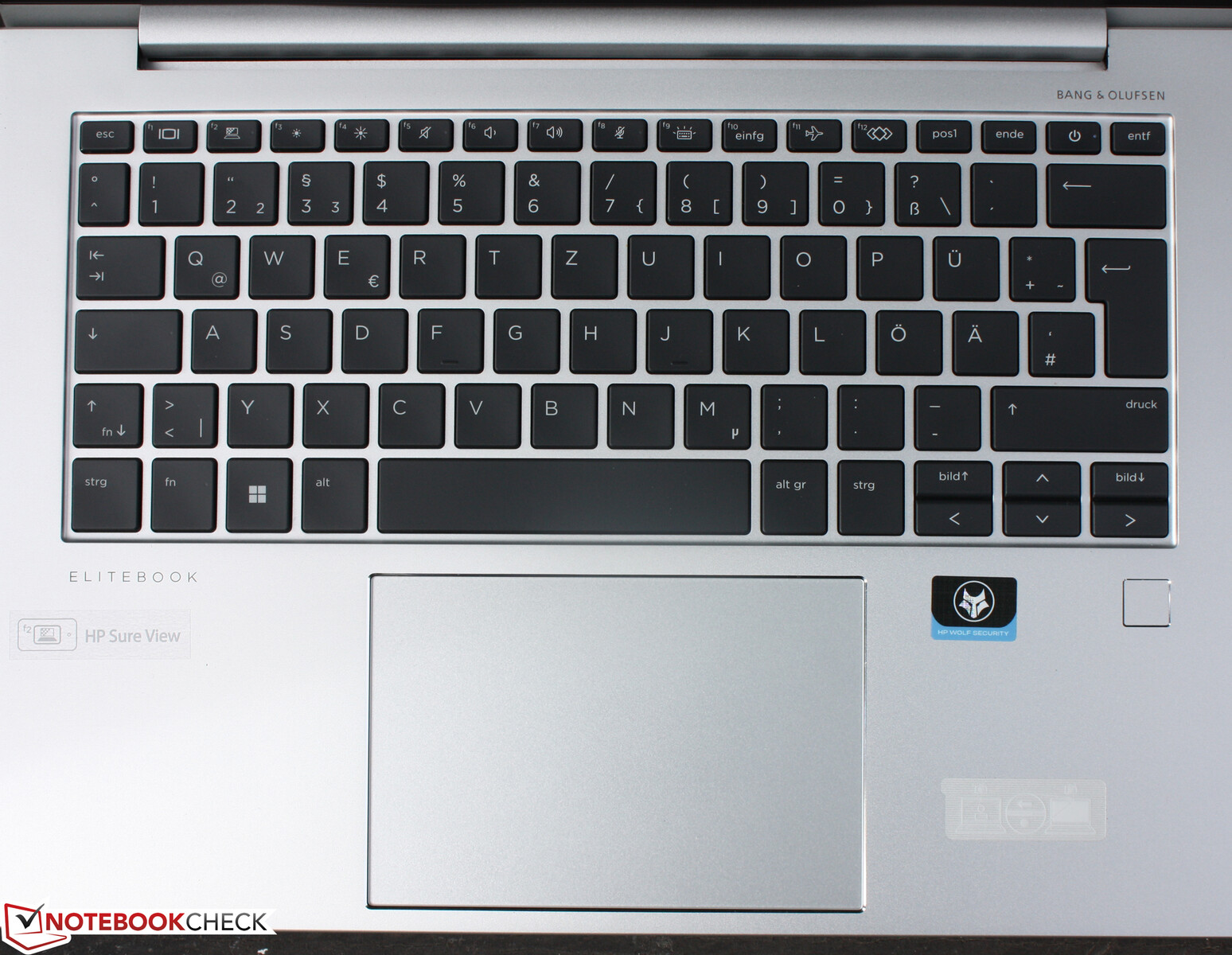

Keyboard of the Elitebook
Keyboard of the Elitebook

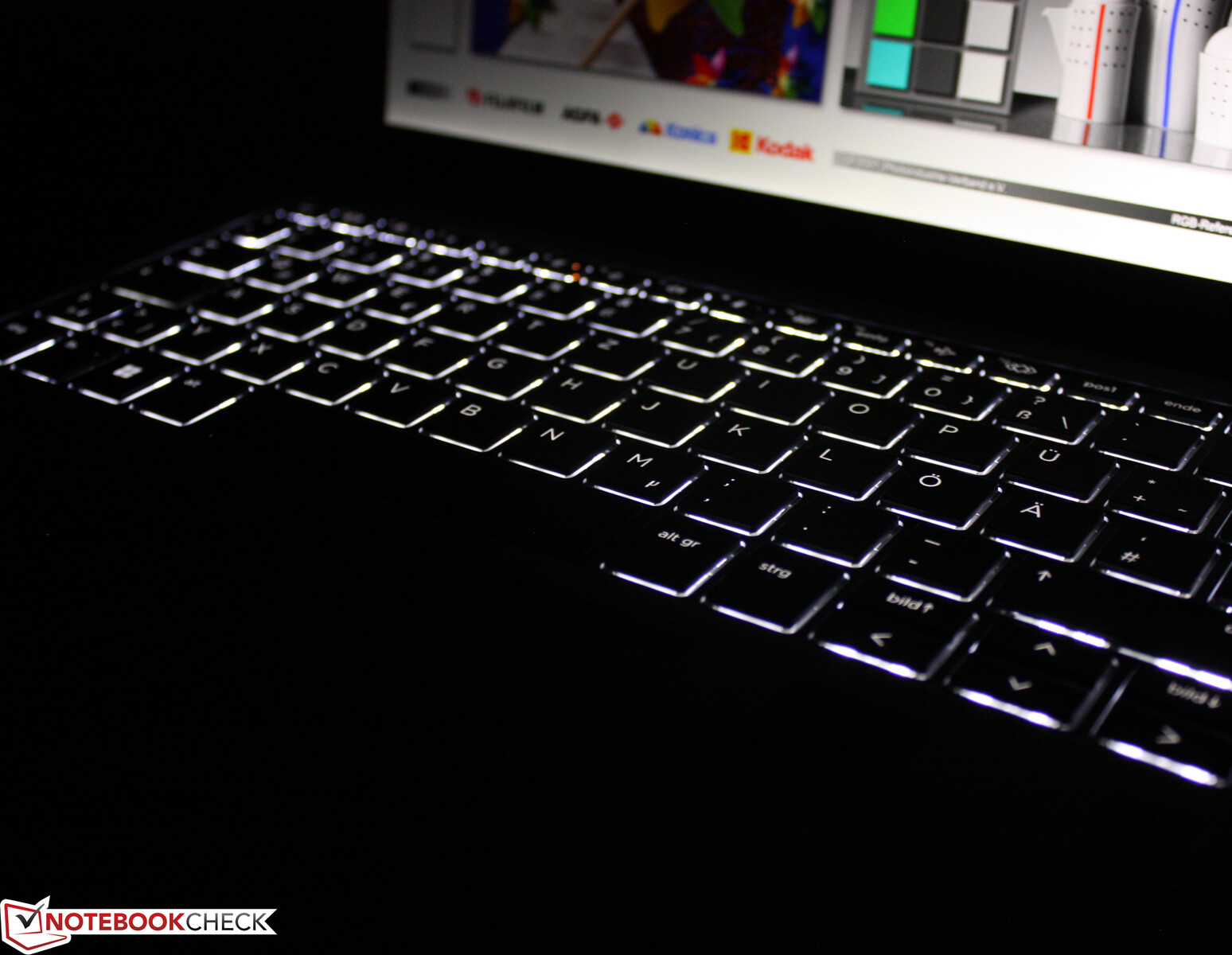

Two-stage backlighting
Two-stage backlighting

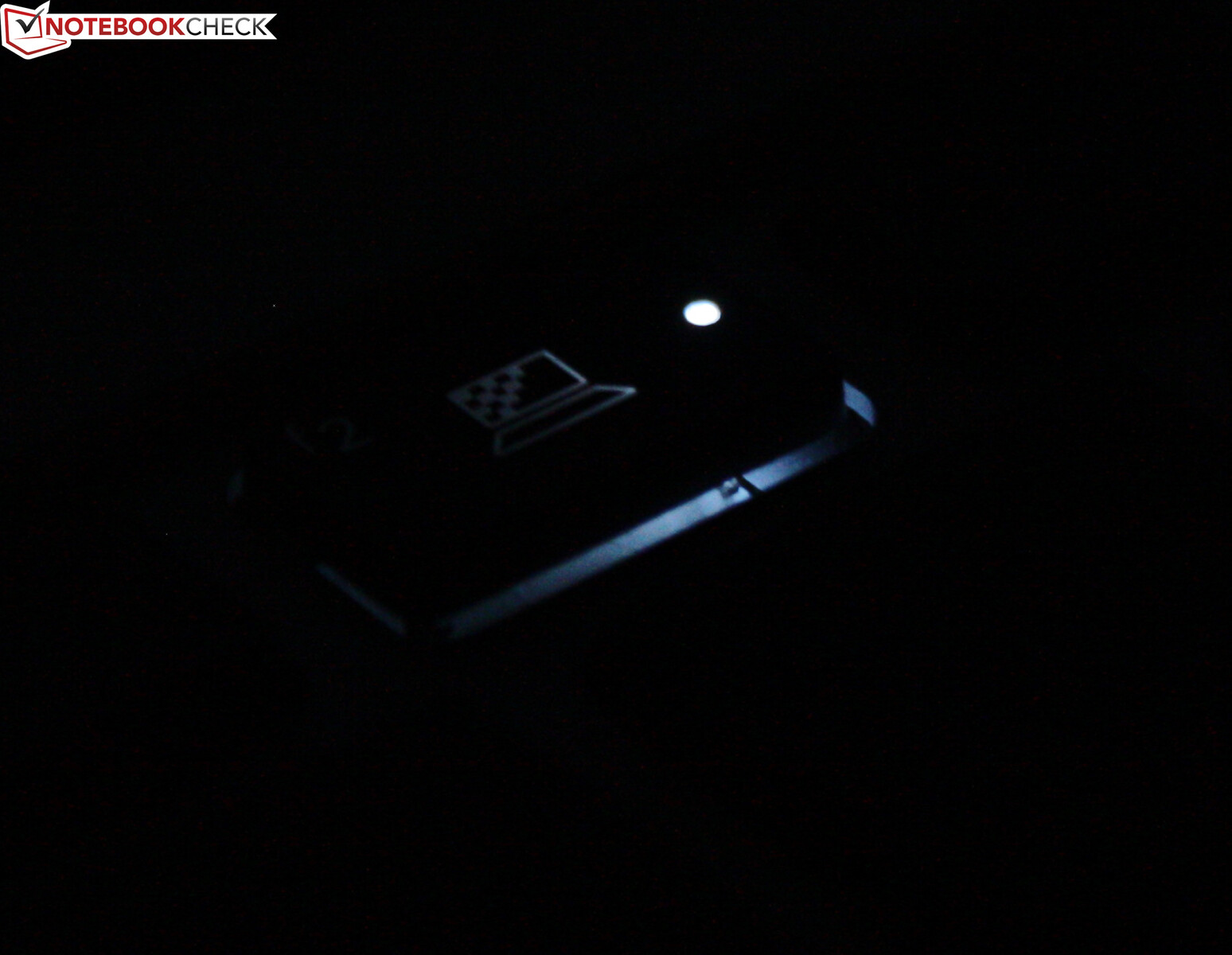

The SureView button lights up when the filter is active.
The SureView button lights up when the filter is active.

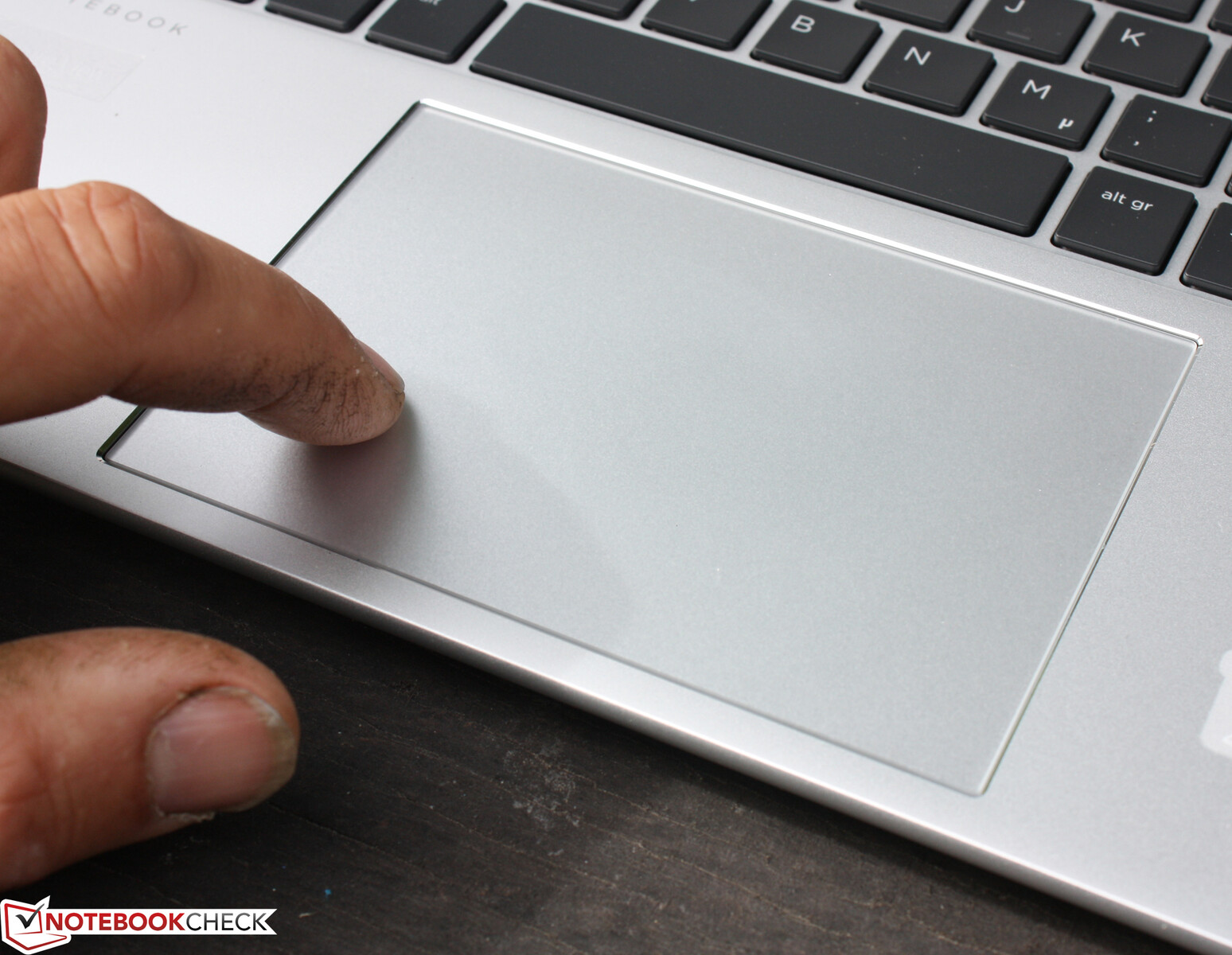

Touchpad

The large ClickPad offers a firm but damped stroke, a barely audible, muffled sound and a short travel. The surface is smooth, but does not feel slippery because friction increases with pressure. Unfortunately, there is no Fn key for quickly switching off the ClickPad. This had no negative impact on typing, for the pad only recognizes a resting palm and thus does not accept any input. In addition, it is centrally located below the keys, which is why the hand only rests on it in exceptional cases.

Large clickpad: 14.3 cm diag.
Large clickpad: 14.3 cm diag.

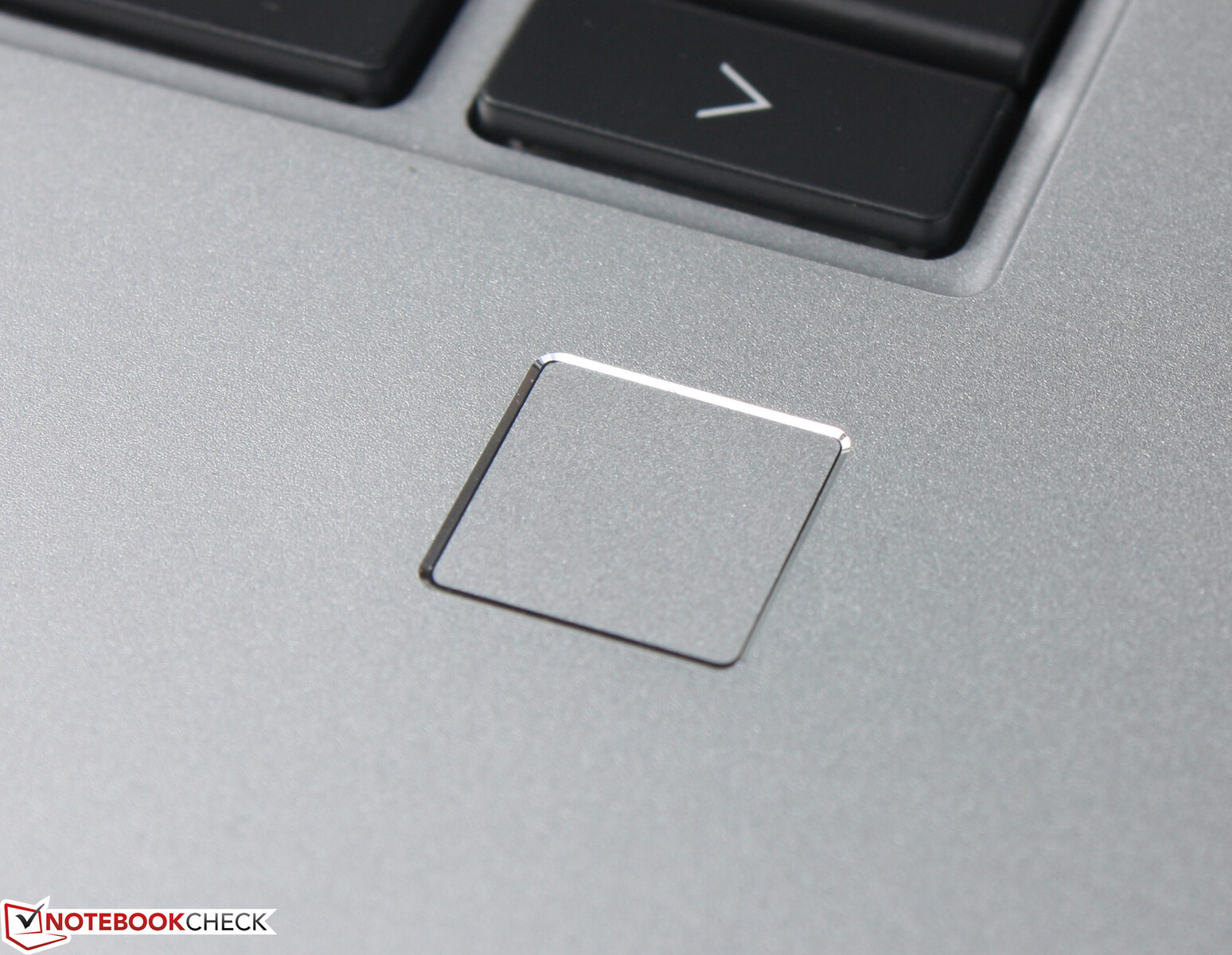

Away from the pad - fingerprint reader
Away from the pad - fingerprint reader

Display: SureView, more disadvantages than advantages?

Subpixel InfoVision Panel
Subpixel InfoVision Panel

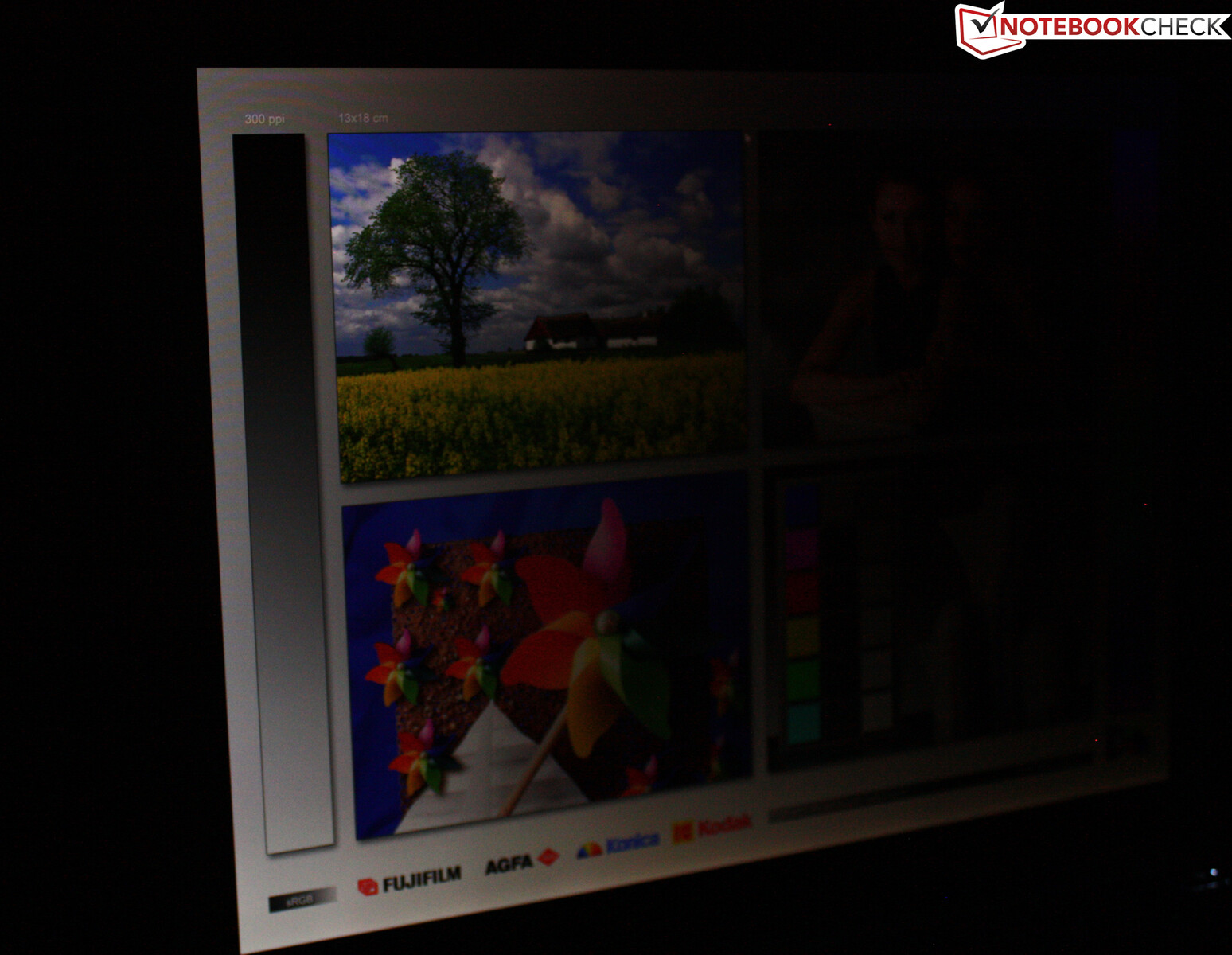

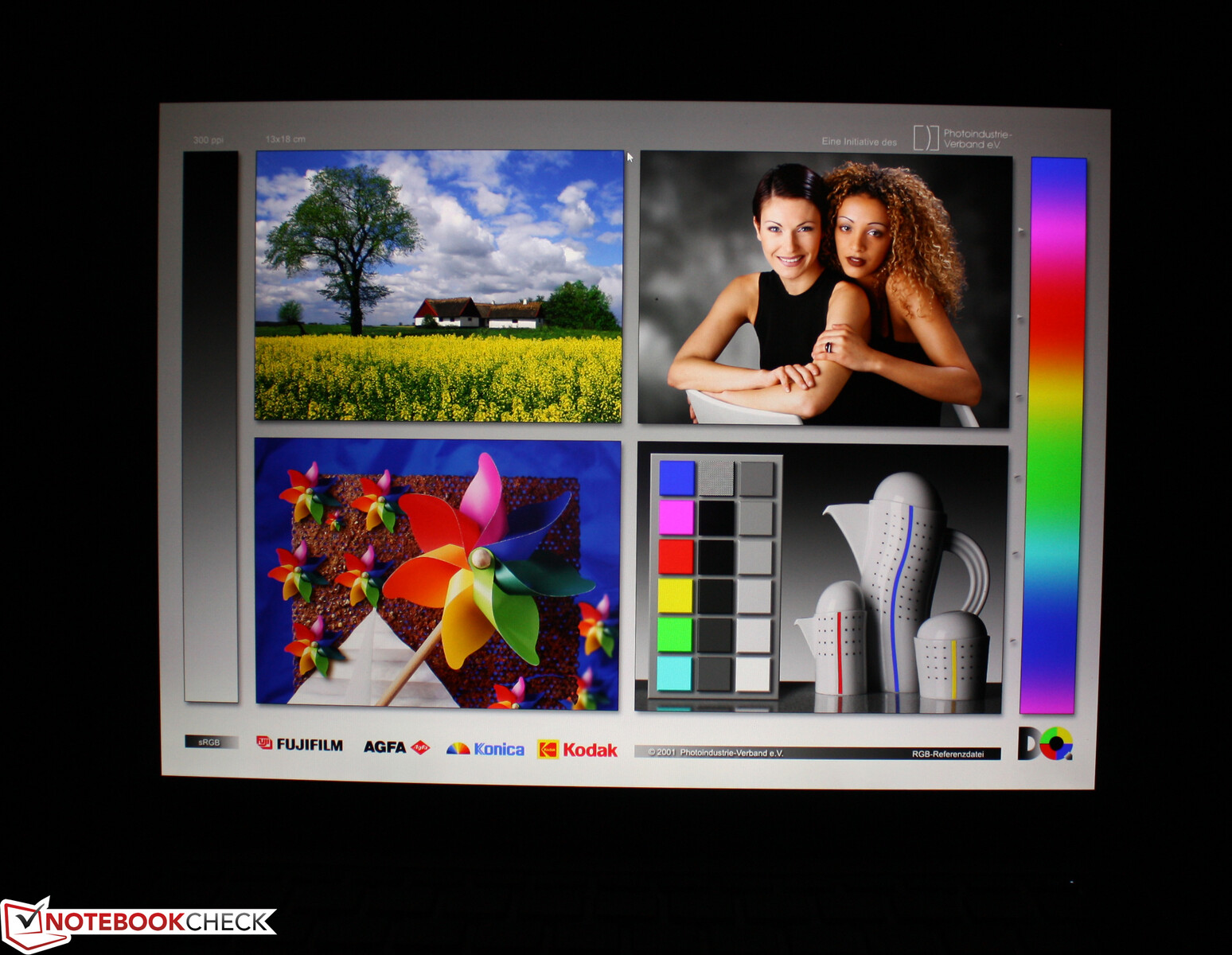

HP SureView limits at the touch of a button ...
HP SureView limits at the touch of a button ...

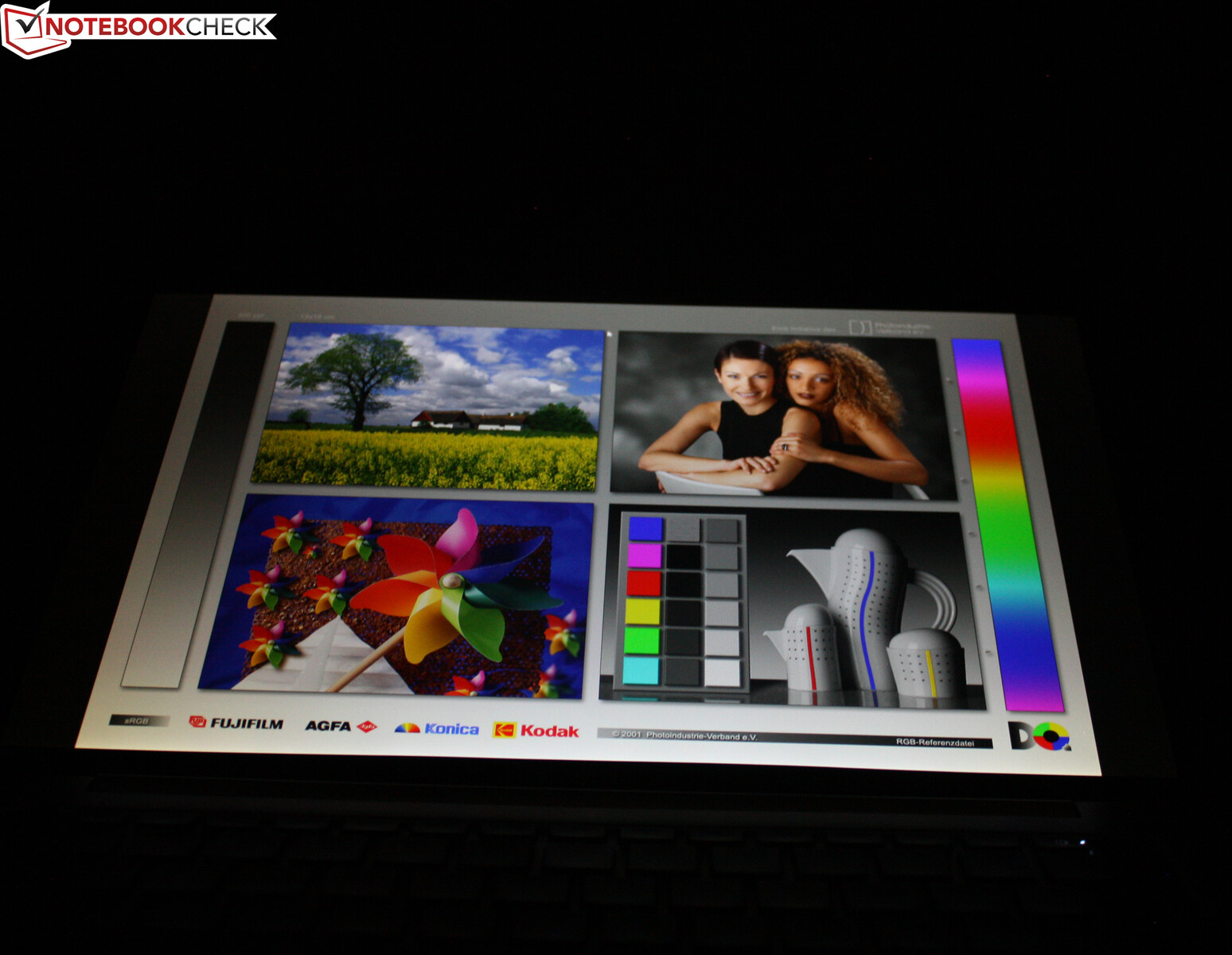

... the lateral viewing angles.
... the lateral viewing angles.

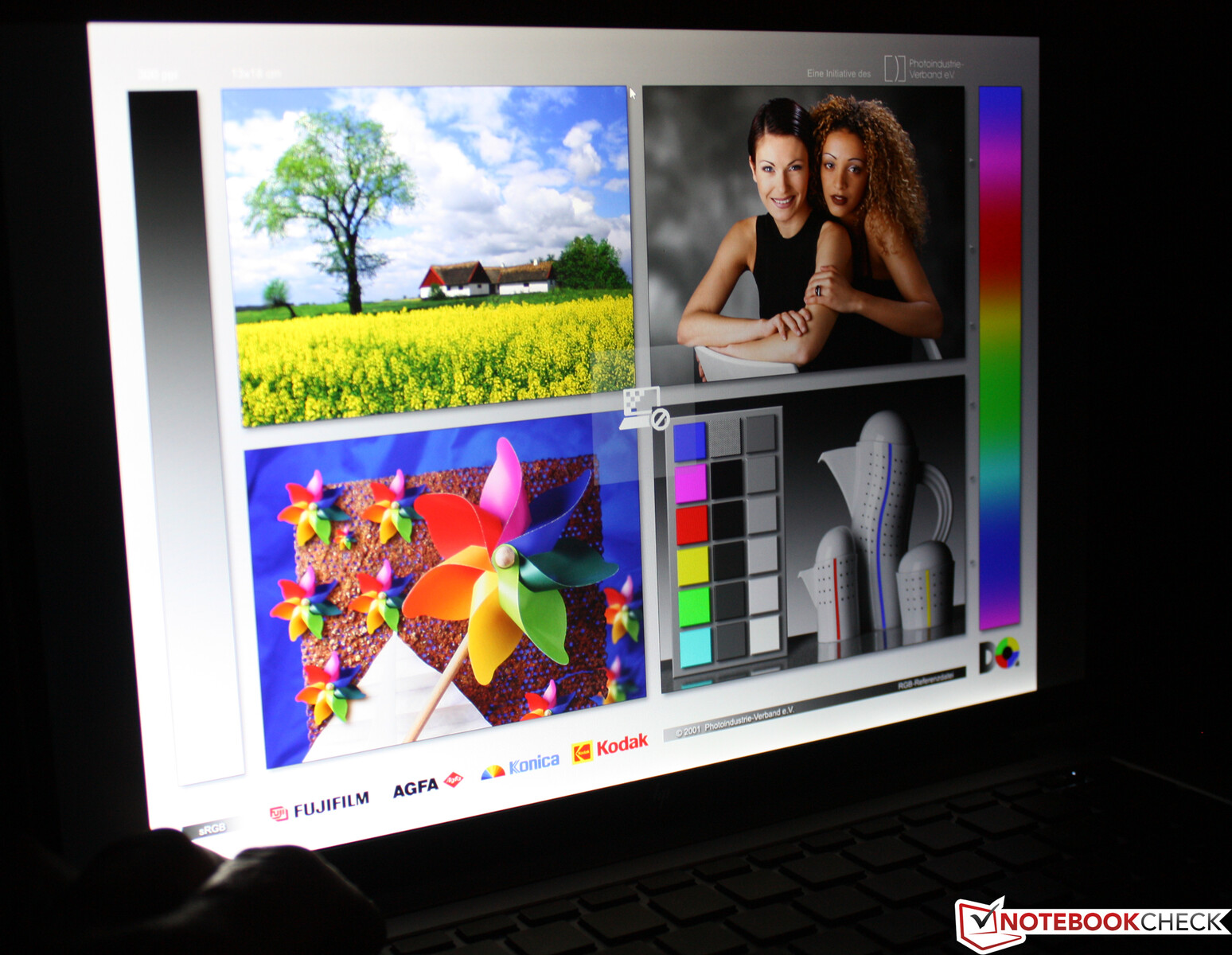

The 14-inch (35.6 cm diagonal) anti-glare FHD display (1920 x 1080 pixels) is the brightest panel in the field at an average of 744 cd/m². HP specifies a 400 nits IPS panel with 100% sRGB, which we can also confirm. Due to the high luminance, the distribution is uneven, which is noticeable in dark environments at the bottom of the screen. On the other hand, none of this can be seen in daylight or office lighting.

Our review device has a SureView panel with an integrated privacy filter. Like previous SureView panels, there are some special features. SureView only works well in the lower brightness range and is thus hardly usable in bright environments because even the front-sitting user then has limited vision. SureView was inactive for our measurements.

858
cd/m²
634
cd/m²
762
cd/m²
851
cd/m²
678
cd/m²
883
cd/m²
609
cd/m²
684
cd/m²
744
cd/m²
Distribution of brightness
InfoVision X140NV4J
X-Rite i1Pro 2
Maximum: 883 cd/m² (Nits) Average: 744.8 cd/m² Minimum: 97 cd/m²
Brightness Distribution: 69 %
Center on Battery: 900 cd/m²
Contrast: 2055:1 (Black: 0.33 cd/m²)
ΔE Color 3.56 | 0.55-29.43 Ø5.1, calibrated: 1.05
ΔE Greyscale 4.93 | 0.57-98 Ø5.3
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
99% sRGB (Argyll 2.2.0 3D)
69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.63
HP EliteBook 845 G9 6F6H6EA
InfoVision X140NV4J, IPS, 1920x1200, 14.00
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
B140UAN02.1, IPS LED, 1920x1200, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
NE140FHM-N61, IPS LED, 1920x1080, 14.00
Dell Latitude 7420 JW6MH
Chi Mei CMN1416 CHF07 140HCG, IPS, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20WM003TGE
NE140FHM-N61, IPS LED, 1920x1080, 14.00
HP EliteBook 840 Aero G8 3E4Q6AA
AU Optronics AUO068B, IPS, 1920x1080, 14.00
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
LPM135M467, IPS LED, 2256x1504, 13.50
Display
6%
-3%
-0%
-4%
-1%
-2%
Display P3 Coverage
69
74.6
8%
69.7
1%
68
-1%
68.1
-1%
68
-1%
66.8
-3%
sRGB Coverage
99
98.6
0%
91.8
-7%
99
0%
91.7
-7%
97.6
-1%
98
-1%
AdobeRGB 1998 Coverage
70
76.5
9%
67.2
-4%
70
0%
67.1
-4%
69.3
-1%
68.6
-2%
Response Times
-31%
-169%
-51%
-91%
-46%
-108%
Response Time Grey 50% / Grey 80% *
31 ?(15, 16)
45.5 ?(20, 25.5)
-47%
84 ?(42, 42)
-171%
55 ?(24, 31)
-77%
68 ?(33, 35)
-119%
48 ?(23.6, 24.4)
-55%
64 ?(34, 30)
-106%
Response Time Black / White *
21 ?(12, 9)
24 ?(12, 12)
-14%
56 ?(26, 30)
-167%
26 ?(11, 15)
-24%
34 ?(17, 17)
-62%
28.8 ?(14, 14.8)
-37%
44 ?(22, 22)
-110%
PWM Frequency
53050 ?(100)
2451 ?(50)
22730 ?(50)
Screen
-7%
-40%
15%
-27%
-13%
12%
Brightness middle
678
372
-45%
397
-41%
408
-40%
422.9
-38%
466.4
-31%
465
-31%
Brightness
745
362
-51%
386
-48%
378
-49%
397
-47%
426
-43%
451
-39%
Brightness Distribution
69
94
36%
88
28%
86
25%
91
32%
84
22%
92
33%
Black Level *
0.33
0.18
45%
0.28
15%
0.22
33%
0.32
3%
0.32
3%
0.28
15%
Contrast
2055
2067
1%
1418
-31%
1855
-10%
1322
-36%
1458
-29%
1661
-19%
Colorchecker dE 2000 *
3.56
3.4
4%
5.8
-63%
1.54
57%
4.8
-35%
2.84
20%
2
44%
Colorchecker dE 2000 max. *
7.23
6.7
7%
12.6
-74%
2.72
62%
8.7
-20%
4.73
35%
4.7
35%
Colorchecker dE 2000 calibrated *
1.05
1.8
-71%
1.9
-81%
1.08
-3%
1.9
-81%
2.27
-116%
0.7
33%
Greyscale dE 2000 *
4.93
4.3
13%
8.3
-68%
1.95
60%
6.1
-24%
3.7
25%
2.9
41%
Gamma
2.63 84%
2.13 103%
2.07 106%
2.33 94%
2.23 99%
2.13 103%
2.09 105%
CCT
7114 91%
6158 106%
6867 95%
6806 96%
7635 85%
6886 94%
6181 105%
Total Average (Program / Settings)
-11% / -8%
-71% / -51%
-12% / 2%
-41% / -31%
-20% / -15%
-33% / -8%

* ... smaller is better

The subjective image impression of the panel is not good because the viewing angles are limited even with the SureView function deactivated and even small deviations from the central sweet spot (both vertically and horizontally) result in a clearly perceptible loss of brightness or contrast. In addition, bright areas appear grainy. No PWM was detected.

Ex factory, our display had a visible bluish tint (grayscale) with a DeltaE of almost five. The colors appeared a little better at 3.5. Calibration with the photo spectrometer helped; we lowered the grayscale DeltaE to 0.9, that of the colors to 1.0. This makes the panel almost perfect for editing images. The smaller sRGB color space is fully reproduced.

Calman grayscale
Calman grayscale
Calman grayscale calibrated
Calman grayscale calibrated
Calman saturation
Calman saturation
Calman saturation calibrated
Calman saturation calibrated
Calman Color Checker
Calman Color Checker
Calman Color Checker calibrated
Calman Color Checker calibrated

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

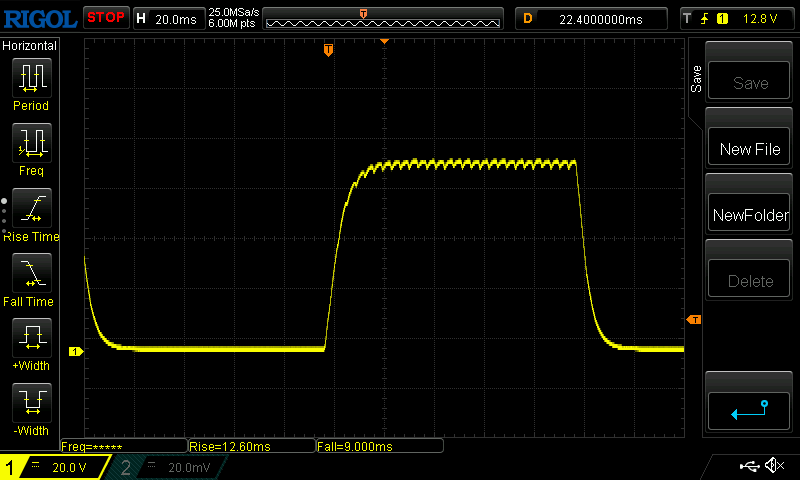

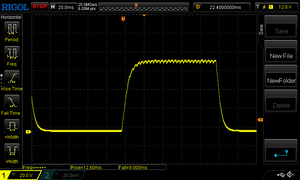

       Response Time Black to White
21 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 9 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.9 ms).

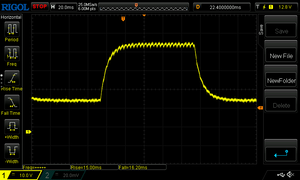

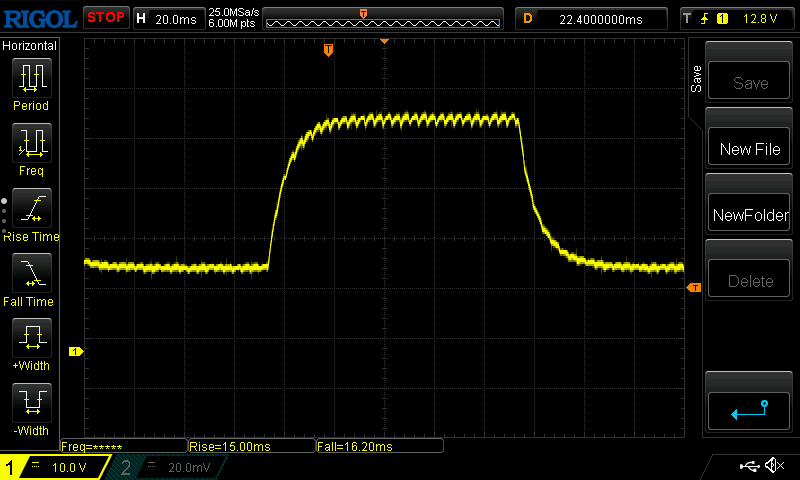

       Response Time 50% Grey to 80% Grey
31 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 16 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.25 (minimum) to 636 (maximum) ms. » 33 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (34.5 ms).

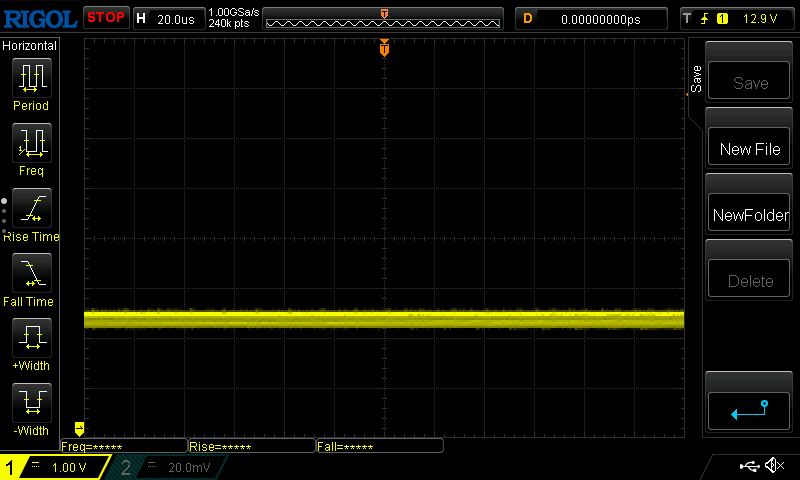

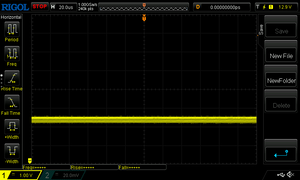

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18982 (minimum: 5 - maximum: 3846000) Hz was measured.

Even in bright environments, the matte screen is easy to look at thanks to the high brightness, so long as the screen is not directly in the sun. However, shading always appears the more the user deviates from a direct frontal position, even without active SureView.

Despite the enormous brightness of up to 850 cd/m², legibility is not always convincing.
Despite the enormous brightness of up to 850 cd/m², legibility is not always convincing.
Often enough, the image disappears behind a dull shade, as can be seen here.
Often enough, the image disappears behind a dull shade, as can be seen here.

The viewing angle stability is generally worse than other IPS displays, even without SureView activated. If you activate SureView, the viewing angles are further restricted and the person sitting next to you can no longer see the screen content. So it works as intended, but due to the severe limitations, we recommend the regular FHD panel. If in doubt, you can use external privacy filters (foil), which can also be set aside if they prove too distracting.

Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off

Performance: HP's business laptop outclasses Dell & Lenovo

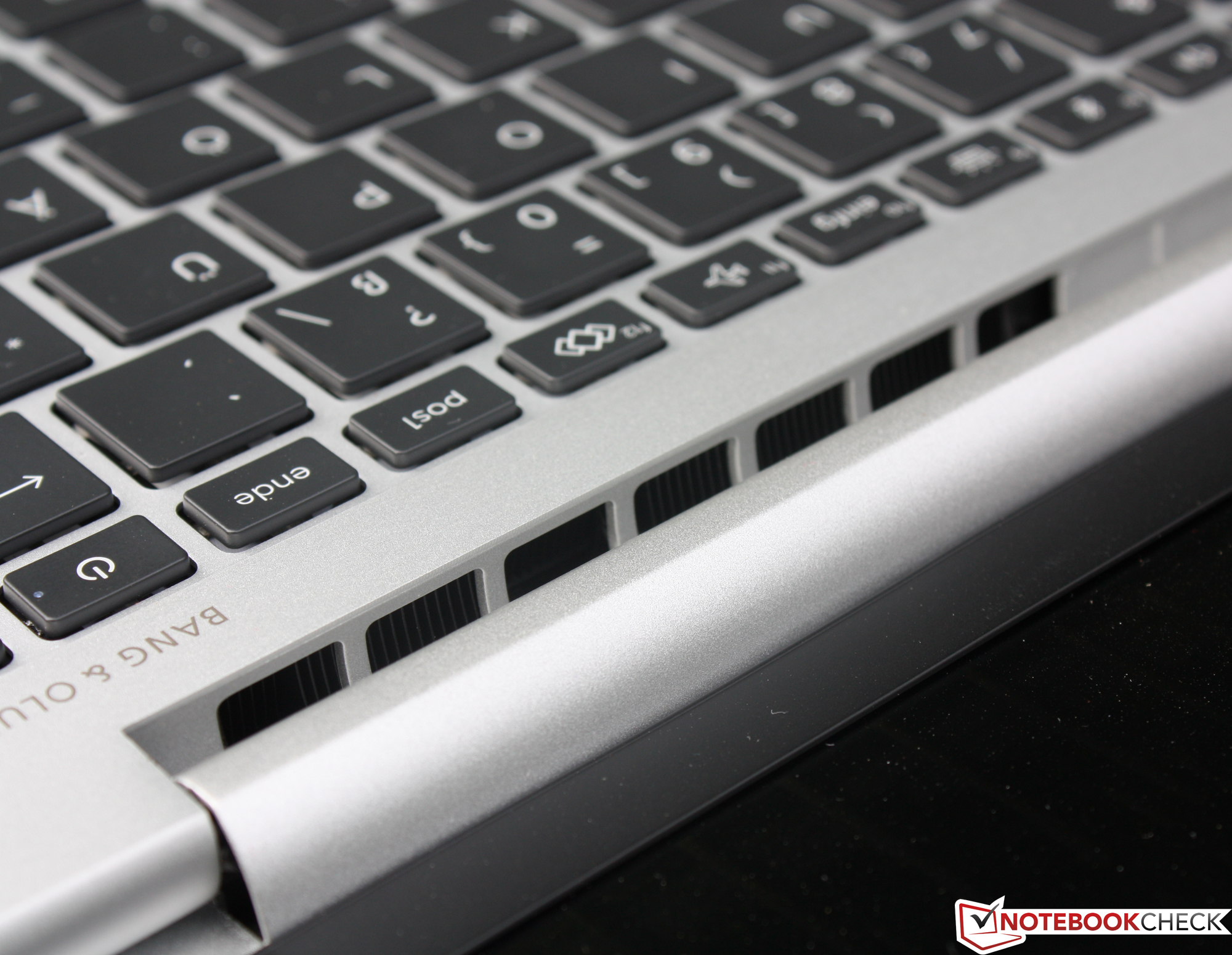

The single fan has to take care of the waste heat alone. This leads to heat but not to bottlenecks.
The single fan has to take care of the waste heat alone. This leads to heat but not to bottlenecks.

With 35 watts, the AMD Ryzen 9 PRO 6950HS is actually a chip for large laptops; it contains eight Zen 3+ cores (Octa-Core CPU) that are clocked at up to 4.9 GHz (turbo). This can even become 16 threads thanks to hyperthreading. HP has integrated the SoC into a small 14-incher with only one fan, plus 32 GB of RAM and a terabyte SSD from Western Digital. Can the cooling handle it?

The Ryzen 9 Pro is the maximum configuration of the EliteBook; smaller configurations start with the Ryzen 5 PRO 6650U, 8 GB of RAM and a 256 GB SSD, and are also considerably cheaper to buy.

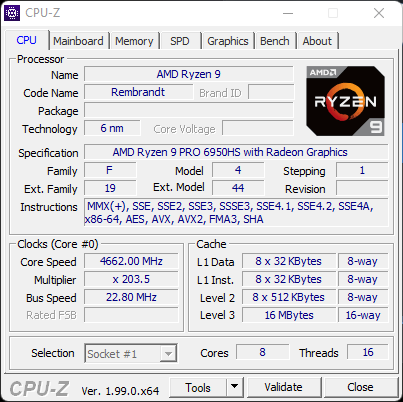

CPU-Z CPU
CPU-Z CPU

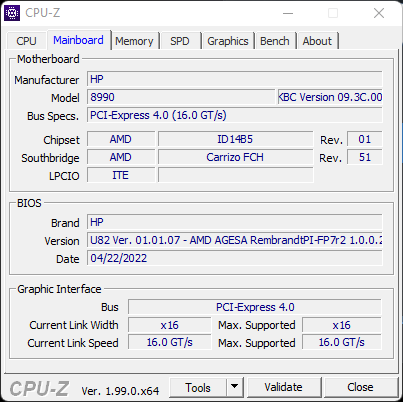

CPU-Z Mainboard
CPU-Z Mainboard

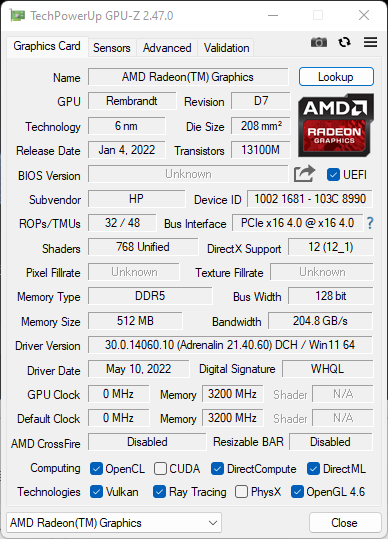

GPU-Z
GPU-Z

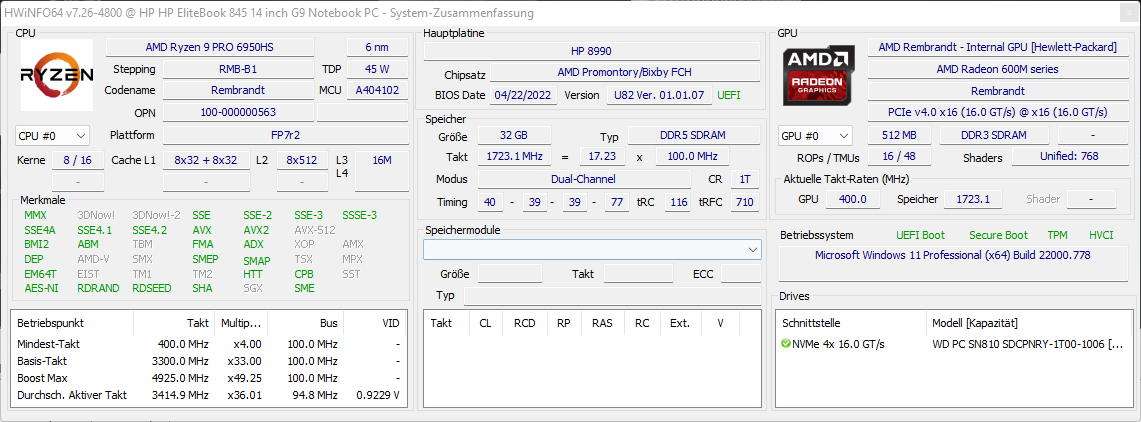

HWinfo Summary
HWinfo Summary

Testing Conditions

We carried out our tests in Performance mode without power saving measures. The HP software does not offer its own Performance mode profiles. This leaves only the Radeon software, which is more responsible for the display and the GPU. We left the graphics profile on Standard and deactivated AMD Vari Bright.

Processor

The Ryzen 9 PRO 6950HS very briefly runs at 50 watts and 3.85 GHz under load - on all cores. After a few seconds, however, the clock drops to 3.6 GHz, where it remains permanently. Here the processor processes a constant 41 watts. Single-core is unable fully exhaust the clock speed or the power consumption. A very similar picture emerges during the 8-minute Prime95 CPU stress test: briefly at 50 watts, then a drop to 41 watts in order to maintain a temperature of 92 degrees. We discontinued Prime95 after 8 minutes and observed a constant power consumption with a slightly increased clock. All in all, the EliteBook is very load capable, which is also confirmed by the R15 Multi Loop. Apart from Intel, all competitors are far outclassed.

The CPU benchmarks are also very good: the Ryzen 9 PRO 6950HS comes out on top everywhere and the 11th generation Core i7 is outperformed by 50% in multi-core and by 10% in single core. If you're looking for computing power, you can't go wrong with this APU.

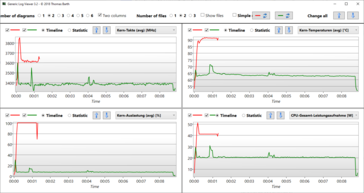

Logviewer Cinebench R23: Red = multi-core, green = single-core / 50 watts briefly touched on
Logviewer Cinebench R23: Red = multi-core, green = single-core / 50 watts briefly touched on

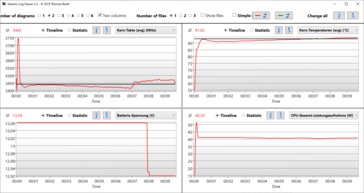

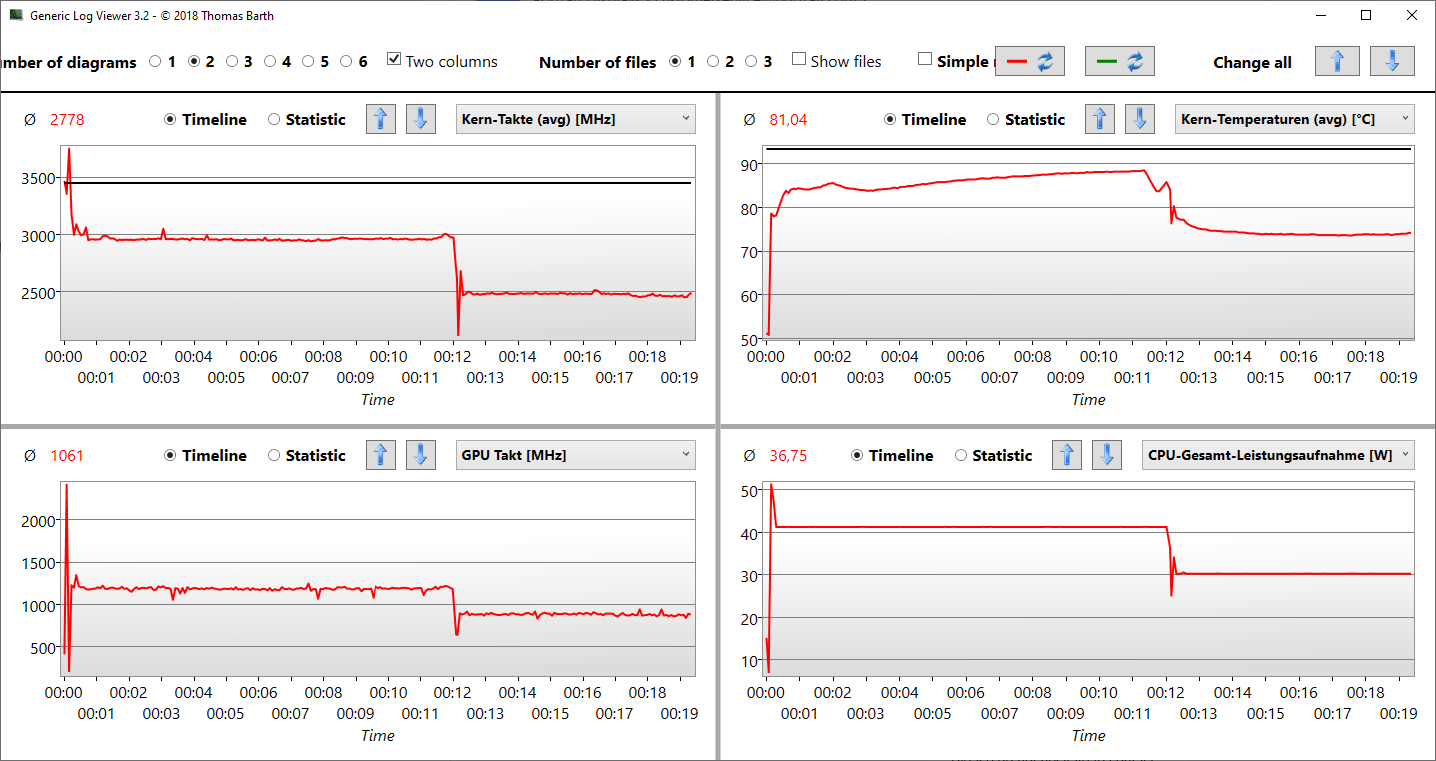

Logviewer Prime95 CPU stress: after 8 minutes on battery, power consumption remains the same
Logviewer Prime95 CPU stress: after 8 minutes on battery, power consumption remains the same

Cinebench R15 Multi Sustained Load

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS: Ø1893 (1872.75-1912.59)
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P: Ø1080 (680.55-1527.77)
Lenovo ThinkPad T14s G2 20XGS01100 AMD Ryzen 7 PRO 5850U: Ø1458 (1453.17-1466.65)
Dell Latitude 7420 JW6MH Intel Core i5-1145G7: Ø663 (583.12-791.56)
Lenovo ThinkPad T14s G2 20WM003TGE Intel Core i7-1165G7: Ø811 (721.84-1004.57)
HP EliteBook 840 Aero G8 3E4Q6AA Intel Core i7-1185G7: Ø718 (665.15-755.62)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7: Ø472 (411.56-629.91)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.2 - 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
85.6 pt ∼86%
Average AMD Ryzen 9 PRO 6950HS

85.6 pt ∼86%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
77.1 pt ∼77%
Average of class Subnotebook

72.9 pt ∼73%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
65.8 pt ∼66%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
61.3 pt ∼61%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
55.4 pt ∼55%
HP EliteBook 840 Aero G8 3E4Q6AA -2!
Intel Core i7-1185G7
54.2 pt ∼54%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
43.2 pt ∼43%
Cinebench R23 / Multi Core
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
11515 (11150.7min - 11515.3max) Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

11515 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
8716 (8655.84min - 8715.53max) Points ∼76% -24%
Average of class Subnotebook
  (2485 - 14950, n=68, last 2 years)
8136 Points ∼71% -29%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
7282 Points ∼63% -37%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
4823 Points ∼42% -58%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
4769 Points ∼41% -59%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
4744 (3563.96min - 4744max) Points ∼41% -59%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
2611 Points ∼23% -77%
Cinebench R23 / Single Core
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
1521 Points ∼100% 0%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
1514 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

1514 Points ∼100% 0%
Average of class Subnotebook
  (598 - 1934, n=68, last 2 years)
1490 Points ∼98% -2%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1449 Points ∼95% -4%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1431 Points ∼94% -5%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1388 Points ∼91% -8%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1306 Points ∼86% -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1246 Points ∼82% -18%
Cinebench R20 / CPU (Multi Core)
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
4577 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

4577 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
3417 Points ∼75% -25%
Average of class Subnotebook
  (810 - 5782, n=68, last 2 years)
3144 Points ∼69% -31%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
2334 Points ∼51% -49%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1846 Points ∼40% -60%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1823 Points ∼40% -60%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1693 Points ∼37% -63%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1126 Points ∼25% -75%
Cinebench R20 / CPU (Single Core)
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
591 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

591 Points ∼100% 0%
Average of class Subnotebook
  (216 - 738, n=68, last 2 years)
563 Points ∼95% -5%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
558 Points ∼94% -6%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
536 Points ∼91% -9%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
531 Points ∼90% -10%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
525 Points ∼89% -11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
506 Points ∼86% -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
438 Points ∼74% -26%
Cinebench R15 / CPU Multi 64Bit
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
1913 (1872.75min - 1912.59max) Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

1913 Points ∼100% 0%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
1528 (680.55min - 1527.77max) Points ∼80% -20%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1467 (1453.17min - 1466.65max) Points ∼77% -23%
Average of class Subnotebook
  (514 - 2497, n=73, last 2 years)
1405 Points ∼73% -27%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1005 (721.84min - 1004.57max) Points ∼53% -47%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
792 (583.12min - 791.56max) Points ∼41% -59%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
756 (665.15min - 755.62max) Points ∼40% -60%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
630 (411.56min - 629.91max) Points ∼33% -67%
Cinebench R15 / CPU Single 64Bit
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
239 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

239 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
227 Points ∼95% -5%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
224 Points ∼94% -6%
Average of class Subnotebook
  (91.8 - 267, n=65, last 2 years)
220 Points ∼92% -8%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
209 Points ∼87% -13%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
203 Points ∼85% -15%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
201 Points ∼84% -16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
179 Points ∼75% -25%
Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
993 Seconds * ∼100% -276%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
681 Seconds * ∼69% -158%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
641 Seconds * ∼65% -143%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
577 Seconds * ∼58% -119%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
511 Seconds * ∼51% -94%
Average of class Subnotebook
  (217 - 1600, n=69, last 2 years)
471 Seconds * ∼47% -78%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
345 Seconds * ∼35% -31%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
264 Seconds * ∼27%
Average AMD Ryzen 9 PRO 6950HS

264 Seconds * ∼27% -0%
7-Zip 18.03 / 7z b 4
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
49474 MIPS ∼100%
Average AMD Ryzen 9 PRO 6950HS

49474 MIPS ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
44266 MIPS ∼89% -11%
Average of class Subnotebook
  (15347 - 63045, n=62, last 2 years)
35662 MIPS ∼72% -28%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
25087 MIPS ∼51% -49%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
24625 MIPS ∼50% -50%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
21683 MIPS ∼44% -56%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
20565 MIPS ∼42% -58%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
15167 MIPS ∼31% -69%
7-Zip 18.03 / 7z b 4 -mmt1
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
5516 MIPS ∼100%
Average AMD Ryzen 9 PRO 6950HS

5516 MIPS ∼100% 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
5237 MIPS ∼95% -5%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
5231 MIPS ∼95% -5%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
5173 MIPS ∼94% -6%
Average of class Subnotebook
  (2197 - 6164, n=62, last 2 years)
5061 MIPS ∼92% -8%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
4751 MIPS ∼86% -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
4201 MIPS ∼76% -24%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
3532 MIPS ∼64% -36%
Geekbench 5.2 - 5.5 / Multi-Core
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
7672 Points ∼100% 0%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
7664 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

7664 Points ∼100% 0%
Average of class Subnotebook
  (2972 - 12304, n=64, last 2 years)
7318 Points ∼95% -5%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
6889 Points ∼90% -10%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
5460 Points ∼71% -29%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
5055 Points ∼66% -34%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
3921 Points ∼51% -49%
Geekbench 5.2 - 5.5 / Single-Core
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
1622 Points ∼100% +5%
Average of class Subnotebook
  (672 - 1975, n=64, last 2 years)
1550 Points ∼96% 0%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
1549 Points ∼95%
Average AMD Ryzen 9 PRO 6950HS

1549 Points ∼95% 0%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1441 Points ∼89% -7%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1436 Points ∼89% -7%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1430 Points ∼88% -8%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1353 Points ∼83% -13%
HWBOT x265 Benchmark v2.2 / 4k Preset
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
12.8 fps ∼100%
Average AMD Ryzen 9 PRO 6950HS

12.8 fps ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
11.3 fps ∼88% -12%
Average of class Subnotebook
  (1.5 - 16.7, n=59, last 2 years)
9.64 fps ∼75% -25%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
7.13 fps ∼56% -44%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
6.77 fps ∼53% -47%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
6.21 fps ∼49% -51%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
5.46 fps ∼43% -57%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
3.82 fps ∼30% -70%
LibreOffice / 20 Documents To PDF
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
66.2 s * ∼100%
Average AMD Ryzen 9 PRO 6950HS

66.2 s * ∼100% -0%
Average of class Subnotebook
  (40.1 - 120.5, n=61, last 2 years)
54.5 s * ∼82% +18%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
53.8 s * ∼81% +19%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
53.5 s * ∼81% +19%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
53.4 s * ∼81% +19%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
51.3 s * ∼77% +23%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
49.1 s * ∼74% +26%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
43.4 s * ∼66% +34%
R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
0.729 sec * ∼100% -43%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
0.627 sec * ∼86% -23%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
0.597 sec * ∼82% -17%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
0.59 sec * ∼81% -15%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
0.583 sec * ∼80% -14%
Average of class Subnotebook
  (0.4397 - 1.236, n=61, last 2 years)
0.566 sec * ∼78% -11%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
0.536 sec * ∼74% -5%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
0.511 sec * ∼70%
Average AMD Ryzen 9 PRO 6950HS

0.511 sec * ∼70% -0%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
6266
Cinebench R10 Rendering Multiple CPUs 32Bit
36583
Cinebench R10 Shading 32Bit
13431
Cinebench R10 Rendering Single CPUs 64Bit
11968 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
66188 Points
Cinebench R10 Shading 64Bit
13723 Points
Cinebench R11.5 CPU Single 32Bit
2.42 Points
Cinebench R11.5 CPU Multi 32Bit
19.46 Points
Cinebench R11.5 OpenGL 32Bit
64.73 fps
Cinebench R11.5 CPU Single 64Bit
2.82 Points
Cinebench R11.5 CPU Multi 64Bit
22.13 Points
Cinebench R11.5 OpenGL 64Bit
59.85 fps
Cinebench R15 CPU Multi 64Bit
1913 Points
Cinebench R15 OpenGL 64Bit
75.9 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
239 Points
Help
Performance Rating
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
91.7 pt ∼92%
Average AMD Ryzen 9 PRO 6950HS

91.7 pt ∼92%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
76.7 pt ∼77%
Average of class Subnotebook

62.1 pt ∼62%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
56.4 pt ∼56%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
53.7 pt ∼54%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
48.1 pt ∼48%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
46.4 pt ∼46%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
41.1 pt ∼41%
AIDA64 / FP32 Ray-Trace
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
14040 KRay/s ∼100%
Average AMD Ryzen 9 PRO 6950HS

14040 KRay/s ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9963 KRay/s ∼71% -29%
Average of class Subnotebook
  (343 - 15660, n=61, last 2 years)
8048 KRay/s ∼57% -43%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
7285 KRay/s ∼52% -48%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
6854 KRay/s ∼49% -51%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
6158 KRay/s ∼44% -56%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
4324 KRay/s ∼31% -69%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
4195 KRay/s ∼30% -70%
AIDA64 / FPU Julia
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
88935 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

88935 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
64861 Points ∼73% -27%
Average of class Subnotebook
  (11867 - 97744, n=61, last 2 years)
42953 Points ∼48% -52%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
30136 Points ∼34% -66%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
28393 Points ∼32% -68%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
25544 Points ∼29% -71%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
22541 Points ∼25% -75%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
20481 Points ∼23% -77%
AIDA64 / CPU SHA3
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
3000 MB/s ∼100%
Average AMD Ryzen 9 PRO 6950HS

3000 MB/s ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
2259 MB/s ∼75% -25%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
2041 MB/s ∼68% -32%
Average of class Subnotebook
  (453 - 3317, n=61, last 2 years)
2013 MB/s ∼67% -33%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
1931 MB/s ∼64% -36%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
1724 MB/s ∼57% -43%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
1540 MB/s ∼51% -49%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
1395 MB/s ∼47% -53%
AIDA64 / CPU Queen
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
97802 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

97802 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
83425 Points ∼85% -15%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
72801 Points ∼74% -26%
Average of class Subnotebook
  (15447 - 110863, n=61, last 2 years)
69036 Points ∼71% -29%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
52445 Points ∼54% -46%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
50053 Points ∼51% -49%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
48647 Points ∼50% -50%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
37316 Points ∼38% -62%
AIDA64 / FPU SinJulia
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
12369 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

12369 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9974 Points ∼81% -19%
Average of class Subnotebook
  (1223 - 12607, n=61, last 2 years)
6594 Points ∼53% -47%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
4875 Points ∼39% -61%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
4788 Points ∼39% -61%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
4648 Points ∼38% -62%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
4255 Points ∼34% -66%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
3110 Points ∼25% -75%
AIDA64 / FPU Mandel
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
48895 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS

48895 Points ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
35619 Points ∼73% -27%
Average of class Subnotebook
  (6379 - 53729, n=61, last 2 years)
23321 Points ∼48% -52%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
18197 Points ∼37% -63%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
17210 Points ∼35% -65%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
16249 Points ∼33% -67%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
12447 Points ∼25% -75%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
11458 Points ∼23% -77%
AIDA64 / CPU AES
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
91726 MB/s ∼100% +56%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
70463 MB/s ∼77% +20%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
63071 MB/s ∼69% +7%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
62377 MB/s ∼68% +6%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
58851 MB/s ∼64%
Average AMD Ryzen 9 PRO 6950HS

58851 MB/s ∼64% 0%
Average of class Subnotebook
  (638 - 113708, n=61, last 2 years)
55332 MB/s ∼60% -6%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
54364 MB/s ∼59% -8%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
31008 MB/s ∼34% -47%
AIDA64 / CPU ZLib
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
753 MB/s ∼100%
Average AMD Ryzen 9 PRO 6950HS

753 MB/s ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
580 MB/s ∼77% -23%
Average of class Subnotebook
  (229 - 962, n=61, last 2 years)
536 MB/s ∼71% -29%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
515 MB/s ∼68% -32%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
382 MB/s ∼51% -49%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
366 MB/s ∼49% -51%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
315 MB/s ∼42% -58%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
235 MB/s ∼31% -69%
AIDA64 / FP64 Ray-Trace
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
7053 KRay/s ∼100%
Average AMD Ryzen 9 PRO 6950HS

7053 KRay/s ∼100% 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
5479 KRay/s ∼78% -22%
Average of class Subnotebook
  (204 - 7530, n=61, last 2 years)
4198 KRay/s ∼60% -40%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
3929 KRay/s ∼56% -44%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
3694 KRay/s ∼52% -48%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
3339 KRay/s ∼47% -53%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
2358 KRay/s ∼33% -67%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
2287 KRay/s ∼32% -68%
AIDA64 / CPU PhotoWorxx
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
35895 MPixel/s ∼100% +89%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
35804 MPixel/s ∼100% +89%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
32979 MPixel/s ∼92% +74%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
32881 MPixel/s ∼92% +73%
Average of class Subnotebook
  (7622 - 49328, n=61, last 2 years)
30819 MPixel/s ∼86% +62%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
26159 MPixel/s ∼73% +38%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
19340 MPixel/s ∼54% +2%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
18989 MPixel/s ∼53%
Average AMD Ryzen 9 PRO 6950HS

18989 MPixel/s ∼53% 0%

System Performance

However, the EliteBook cannot claim the title for ultimate system performance; the Lenovo ThinkPad T14s G2 remains in the lead here, also in the AMD version. But since the scores are close together, it is almost a tie. In the sub-scores, our HP is best in Digital Content Creation, and by far. In tge Crossmark benchmarks, the Lenovo ThinkPad X1 Carbon G10 is ahead and the ThinkPad T14s G2 is on par.

PCMark 10 / Score
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5933 Points ∼100% +1%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
5896 Points ∼99%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

5896 Points ∼99% 0%
Average of class Subnotebook
  (3699 - 6767, n=60, last 2 years)
5440 Points ∼92% -8%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5214 Points ∼88% -12%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
5064 Points ∼85% -14%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
4959 Points ∼84% -16%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
4879 Points ∼82% -17%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4471 Points ∼75% -24%
PCMark 10 / Essentials
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
10331 Points ∼100% +11%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
10244 Points ∼99% +10%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
10128 Points ∼98% +9%
Average of class Subnotebook
  (7331 - 11156, n=60, last 2 years)
9929 Points ∼96% +7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
9832 Points ∼95% +6%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
9789 Points ∼95% +5%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
9397 Points ∼91% +1%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
9311 Points ∼90%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

9311 Points ∼90% 0%
PCMark 10 / Productivity
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
9237 Points ∼100% +13%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
8187 Points ∼89%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

8187 Points ∼89% 0%
Average of class Subnotebook
  (5040 - 9657, n=60, last 2 years)
7431 Points ∼80% -9%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
6900 Points ∼75% -16%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
6653 Points ∼72% -19%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
6606 Points ∼72% -19%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
6585 Points ∼71% -20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
6135 Points ∼66% -25%
PCMark 10 / Digital Content Creation
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
7298 Points ∼100%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

7298 Points ∼100% 0%
Average of class Subnotebook
  (3303 - 8855, n=60, last 2 years)
5987 Points ∼82% -18%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5938 Points ∼81% -19%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5445 Points ∼75% -25%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
5231 Points ∼72% -28%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
5135 Points ∼70% -30%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
5077 Points ∼70% -30%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4021 Points ∼55% -45%
CrossMark / Overall
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1554 Points ∼100% +16%
Average of class Subnotebook
  (718 - 1876, n=51, last 2 years)
1463 Points ∼94% +9%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1345 Points ∼87% 0%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1345 Points ∼87%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1345 Points ∼87% 0%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1290 Points ∼83% -4%
CrossMark / Productivity
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1500 Points ∼100% +8%
Average of class Subnotebook
  (685 - 1829, n=51, last 2 years)
1441 Points ∼96% +4%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1389 Points ∼93%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1389 Points ∼93% 0%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1357 Points ∼90% -2%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1316 Points ∼88% -5%
CrossMark / Creativity
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1663 Points ∼100% +21%
Average of class Subnotebook
  (776 - 2080, n=51, last 2 years)
1558 Points ∼94% +13%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1423 Points ∼86% +3%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1376 Points ∼83%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1376 Points ∼83% 0%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1292 Points ∼78% -6%
CrossMark / Responsiveness
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1409 Points ∼100% +23%
Average of class Subnotebook
  (652 - 1899, n=51, last 2 years)
1281 Points ∼91% +12%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1209 Points ∼86% +6%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1142 Points ∼81%
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1142 Points ∼81% 0%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1102 Points ∼78% -4%
PCMark 10 Score
5896 points
Help
AIDA64 / Memory Copy
Average of class Subnotebook
  (19632 - 73486, n=61, last 2 years)
52479 MB/s ∼100% +68%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
31160 MB/s ∼59%
Average AMD Ryzen 9 PRO 6950HS

31160 MB/s ∼59% 0%
AIDA64 / Memory Read
Average of class Subnotebook
  (23471 - 73719, n=61, last 2 years)
52139 MB/s ∼100% +50%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
34753 MB/s ∼67%
Average AMD Ryzen 9 PRO 6950HS

34753 MB/s ∼67% 0%
AIDA64 / Memory Write
Average of class Subnotebook
  (22486 - 93331, n=61, last 2 years)
54962 MB/s ∼100% +66%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
33060 MB/s ∼60%
Average AMD Ryzen 9 PRO 6950HS

33060 MB/s ∼60% 0%
AIDA64 / Memory Latency
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
99.7 ns * ∼100%
Average AMD Ryzen 9 PRO 6950HS

99.7 ns * ∼100% -0%
Average of class Subnotebook
  (18.8 - 126.5, n=56, last 2 years)
96.1 ns * ∼96% +4%

* ... smaller is better

DPC Latency

In our standardised latency test (internet browsing, YouTube 4K playback, CPU load), the review device shows problems with increased latencies. It is thus not suitable for real-time audio applications with the current BIOS version, but this may change via future updates. During video playback, we observed a high number of 66 dropped frames.

DPC Latency Checker: Drivers
DPC Latency Checker: Drivers
DPC Latency Checker: moderate latencies determined
DPC Latency Checker: moderate latencies determined
DPC Latency Checker: Youtube 4K - 66 dropped frames
DPC Latency Checker: Youtube 4K - 66 dropped frames
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
3846 μs * ∼100% -215%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3558 μs * ∼93% -192%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
3164 μs * ∼82% -159%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1749.7 μs * ∼45% -43%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1220 μs * ∼32%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1045 μs * ∼27% +14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
816 μs * ∼21% +33%

* ... smaller is better

Storage Devices

Western Digital NVMe SN810 1 terrabyte
Western Digital NVMe SN810 1 terrabyte

The EliteBook uses a PC SN810 1TB from Western Digital, which is a 2280 SSD in the M.2 socket. It delivers a good result, but not a great one. Samsung's PM9A1 still seems to work faster in the individual tests and overall. The Western Digital drops off in terms of continuous performance, but some Samsung models also display this behavior, such as the Samsung PM9A1 in the X1 Carbon.

The storage capacity of 1 TB (~780 GB free after start-up) should be sufficient for most users. More SSD benchmarks are available here.

WDC PC SN810 1TB
Sequential Read: 3823MB/s
Sequential Write: 2378MB/s
4K Read: 53MB/s
4K Write: 139MB/s
4K-64 Read: 917MB/s
4K-64 Write: 2097MB/s
Access Time Read: 0.074ms
Access Time Write: 0.026ms
Copy ISO: 3085MB/s
Copy Program: 329MB/s
Copy Game: 954MB/s
Score Read: 1353Points
Score Write: 2475Points
Score Total: 4459Points
Drive Performance Rating - Percent
Average WDC PC SN810 1TB

87.5 pt ∼88%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
80.8 pt ∼81%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
66.3 pt ∼66%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
60.8 pt ∼61%
Average of class Subnotebook

59.8 pt ∼60%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
54.6 pt ∼55%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
51.3 pt ∼51%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
50.5 pt ∼51%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
46.8 pt ∼47%
DiskSpd
seq read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
4277 (4190.32min - 4277.35max) MB/s ∼100% +26%
Average WDC PC SN810 1TB
  (3391 - 4206, n=6)
3810 MB/s ∼89% +12%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
3391 (3051.13min - 3390.68max) MB/s ∼79%
Average of class Subnotebook
  (452 - 4315, n=62, last 2 years)
2565 MB/s ∼60% -24%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2479 (2396.63min - 2479.12max) MB/s ∼58% -27%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2376 (2353.33min - 2376.14max) MB/s ∼56% -30%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2253 (2249.1min - 2253.29max) MB/s ∼53% -34%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2026 (2004.88min - 2026.41max) MB/s ∼47% -40%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1849 (1839.72min - 1848.93max) MB/s ∼43% -45%
seq write
Average WDC PC SN810 1TB
  (3403 - 5015, n=6)
3986 MB/s ∼100% +17%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
3968 (3782.62min - 3967.6max) MB/s ∼100% +17%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
3403 (3306.47min - 3402.84max) MB/s ∼85%
Average of class Subnotebook
  (153.3 - 4326, n=63, last 2 years)
2488 MB/s ∼62% -27%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2031 (1975.34min - 2031.43max) MB/s ∼51% -40%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1896 (1865.84min - 1896.04max) MB/s ∼48% -44%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1892 (1745.95min - 1892.46max) MB/s ∼47% -44%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1791 (1770.42min - 1790.56max) MB/s ∼45% -47%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1286 (852.26min - 1285.5max) MB/s ∼32% -62%
seq q8 t1 read
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
6878 (6719.69min - 6878.45max) MB/s ∼100%
