Review MSI GT70 2PE-890US Gaming Notebook

Daniel Schmidt (translated by Vinay Pradhan), 05/03/2014

Growling Dragon. MSI refreshes its GT70 series by adding on the new Nvidia GeForce GTX 880M. The graphics card works together with a quad-core CPU from Intel to deliver monstrous performance. The cooling is excellent and even offers the user the option to overclock the hardware. However, as is to be expected, this "dragon" is very loud. Find out more in our in-depth review.

For the original German review, see here.

The MSI GT70 2PE-890US is equipped with one of the fastest graphics cards Nvidia has to offer for mobile devices. We tested a model of this series last year: the MSI GT70H-80M4811B. The predecessor was equipped with a quad-core CPU (Core i7-4700MQ) of the Haswell generation and an Nvidia GeForce GTX 780M GPU. Overall, it was a well-rounded laptop with a single glaring flaw: single-channel RAM. This resulted in an unnecessary drop in the performance of the IGP.

The Taiwanese manufacturer has rectified this mistake and the new test model is equipped with 12 GB DDR3 RAM. The CPU is stronger and the NVIDIA GPU uses the latest technology. The test model is the US version, which means it has a slightly different keyboard layout. The European models will be delivered with the layouts appropriate for their country. Currently, there is no configuration available on the European market that matches our test model. We noticed small differences: for example, our test model is similar to the MSI GT70-2PE12H11 (1,849 Euros; ~$2565), which has an additional SSD.

Competitors like the Schenker XMG P704 and the One K73-4N have similar hardware. The One K56-4N uses the Radeon R9 M290X from AMD. In this review, we will examine how the MSI GT70 2PE-890US performs in comparison to its competitors.

Case

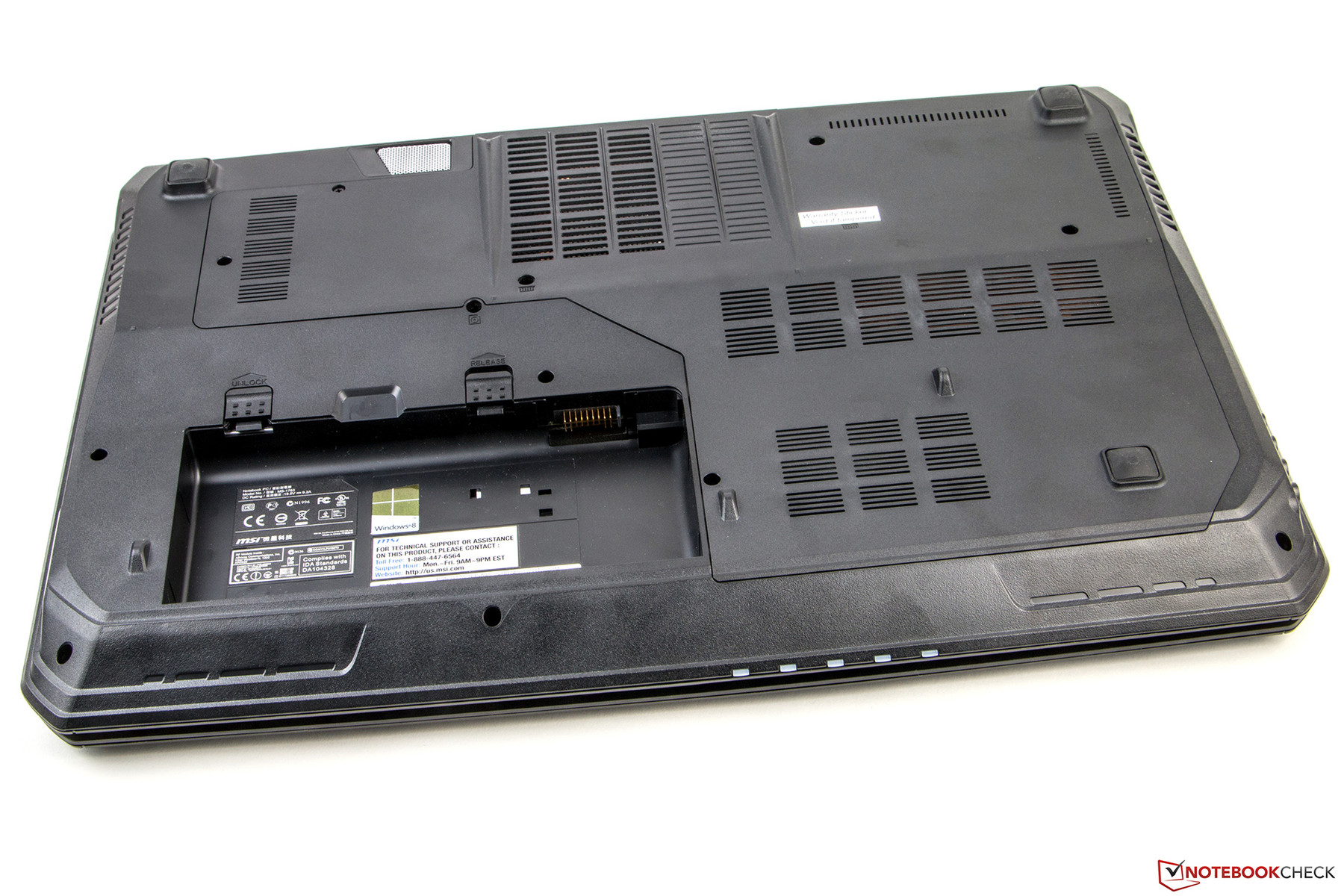

The sturdy bottom is made of synthetic material.
The sturdy bottom is made of synthetic material.
The glossy elements attract smudges and fingerprints.
The glossy elements attract smudges and fingerprints.

Like the predecessor, the test model employs the Barebones MS-1763. The laptop weighs 3.8 kilograms (~8.4 pounds) and looks the same on the outside. The illuminated logo on the back is the only change on the aluminum cover of the notebook.

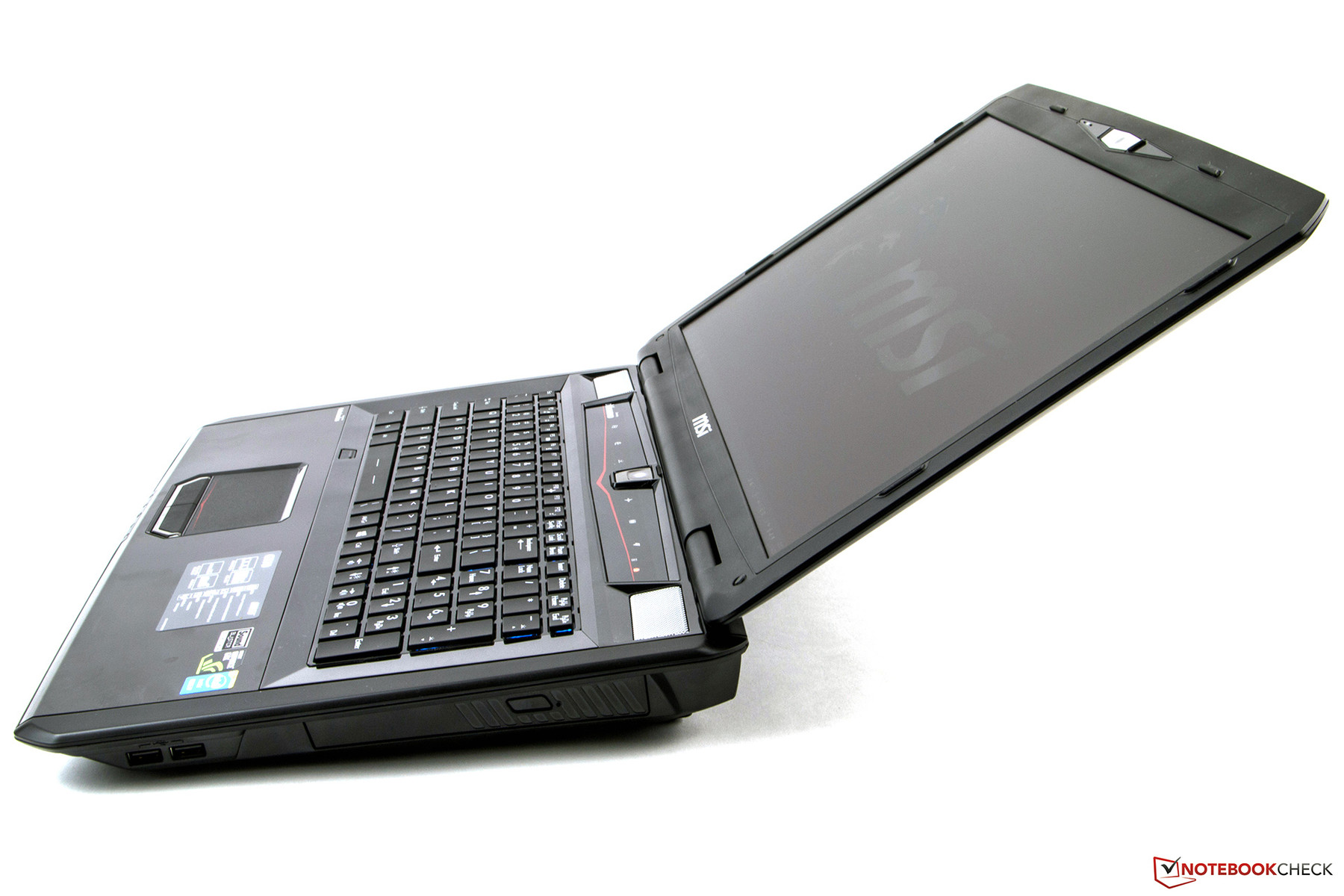

The relatively heavy case is very rigid. The choice of materials is good: aluminum is used for the display cover and the hand-rest regions and the rest is made of synthetic material. The design is a matter of taste.

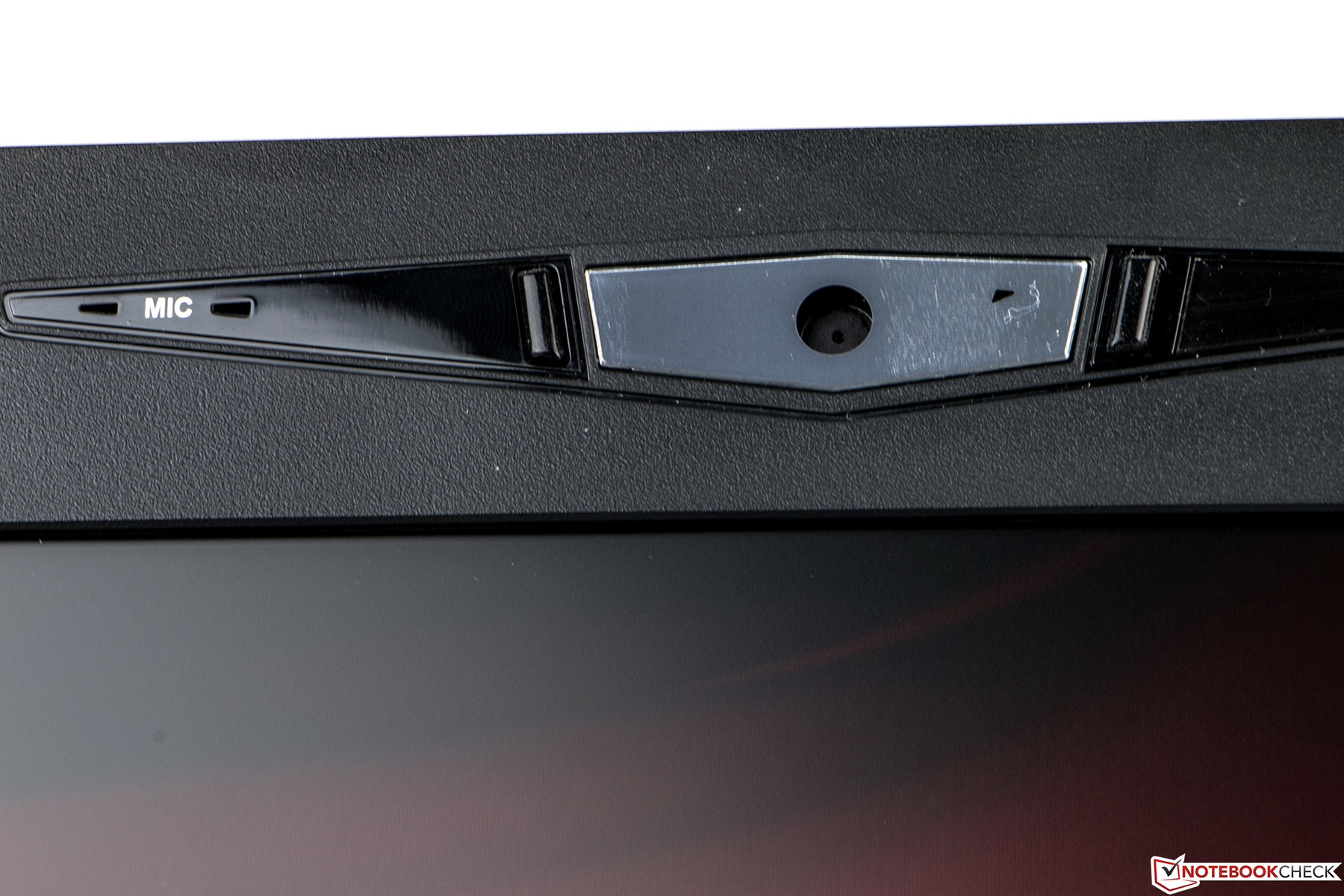

The display border is made of matte synthetic material. Unfortunately, the keyboard and the sensor panel above it are made of glossy surfaces. These attract dust, smudges and fingerprints. Overall, the construction is sturdy.

Connectivity

The distribution of ports has its pros and cons. The ports on the right and left side are placed quite close to the front. If the user uses many of these ports, then left-handed users can end up lacking space to move their external mouse. As the GT70 2PE-890US is designed to be a DTR (desktop replacement), we like that the video interfaces, the LAN port, power outlet and Kensington Lock are placed on the back.

Like in the predecessor, the manufacturer uses the MSI Matrix display. This allows the user to utilize all video outputs simultaneously, which means up to four displays can be used alongside the notebook panel in Full HD.

The four audio jacks are included and allow the user to connect headphone, microphone and a 7.1 Surround Sound (analog) system.

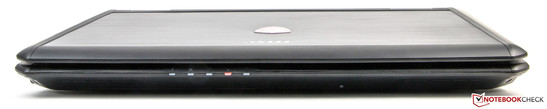

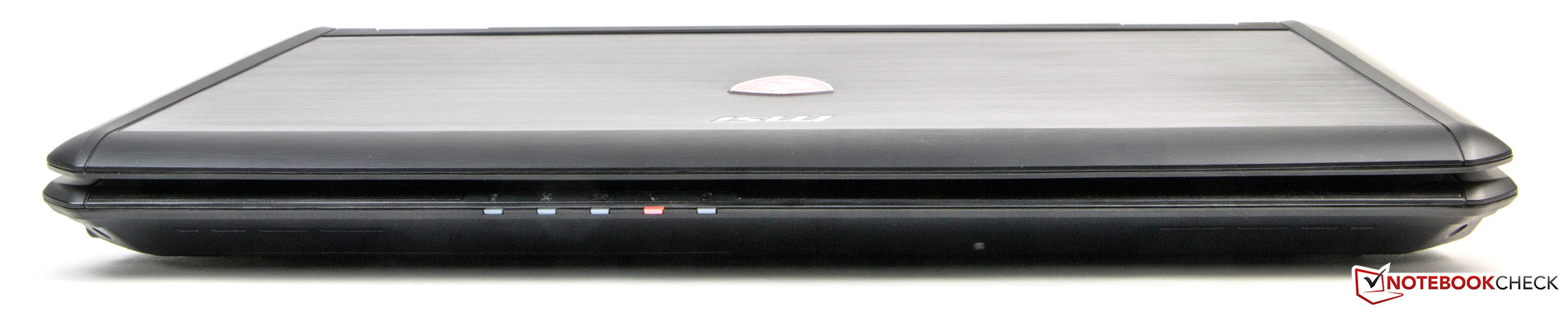

No ports on the front.
No ports on the front.

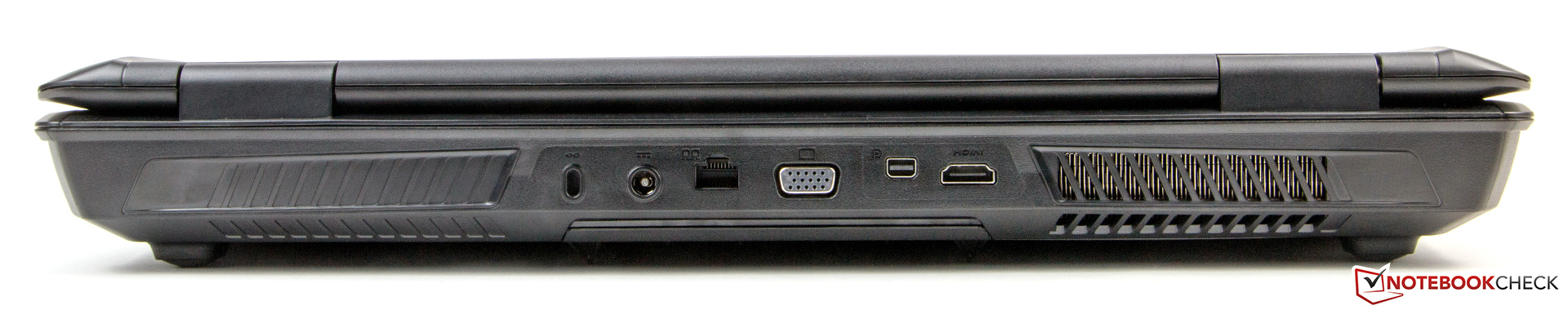

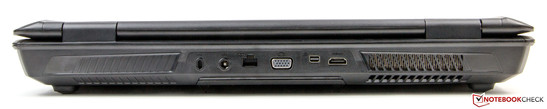

Back: Kensington Lock, Power, Gigabit LAN, VGA, Mini DisplayPort, HDMI
Back: Kensington Lock, Power, Gigabit LAN, VGA, Mini DisplayPort, HDMI

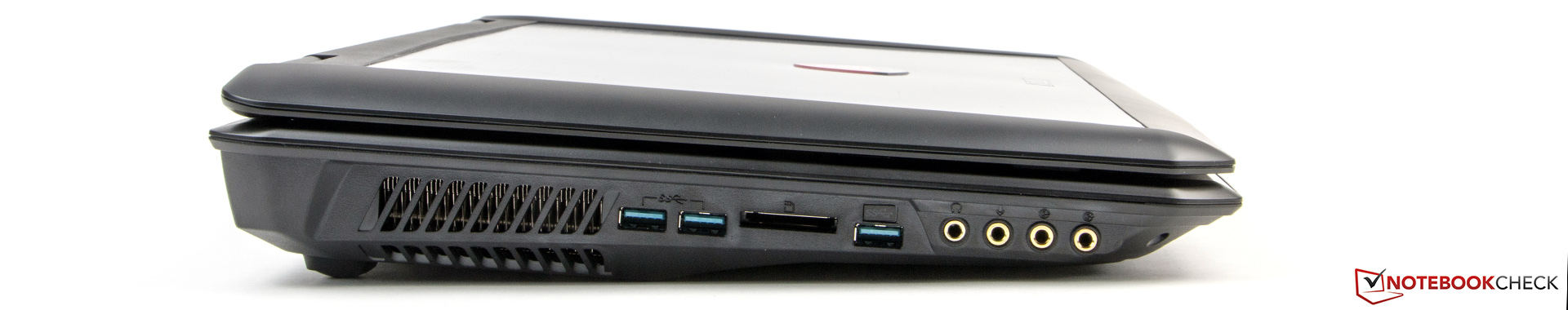

Left: 2 x USB 3.0, card reader, USB 3.0, headphone jack, microphone jack, Line-In, Line-Out
Left: 2 x USB 3.0, card reader, USB 3.0, headphone jack, microphone jack, Line-In, Line-Out

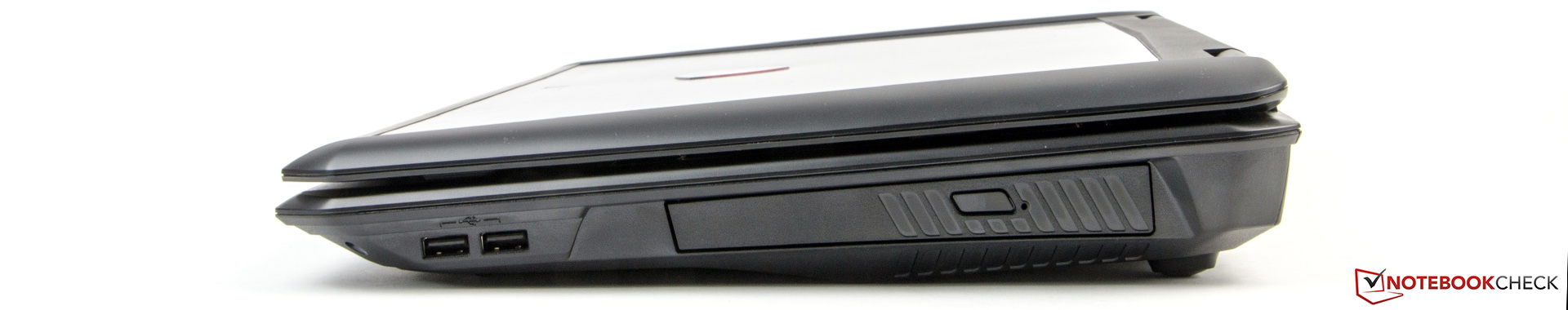

Right: 2 x USB 2.0, optical drive
Right: 2 x USB 2.0, optical drive

Communication

The communication modules are all from Qualcomm. The Gigabit-LAN Controller Killer e2200 ensures low latency while gaming. The speed and latency times of the e2200 are quite good, but they cannot surpass the modules in other models.

The WLAN is an Atheros Killer Wireless-N 1202. This module supports the IEEE-802.11 standards a/b/g/n and operates on the 2.4 and 5.0 GHz frequencies. We tested the module (desktop PC to router: Fritz!Box 6360) to check its transfer rates. The rates are good, but we could not find very low latency times. The module continues to perform well at long ranges (10 meters; ~33 feet). The connection quality of the WLAN is good.

Bluetooth 4.0 is included and the streaming of audio works without issues.

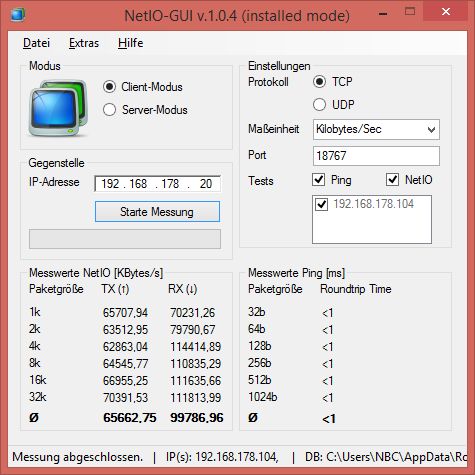

NetIO (LAN)
NetIO (LAN)

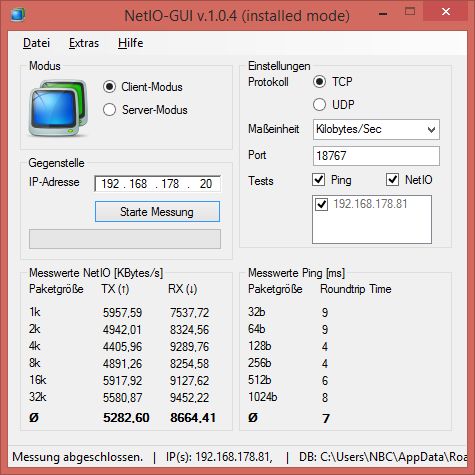

NetIO (WLAN 2.4 GHz, 2.5 m from router)
NetIO (WLAN 2.4 GHz, 2.5 m from Router)

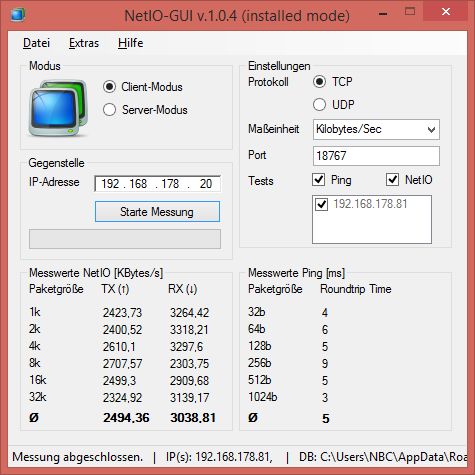

NetIO (WLAN 2.4 GHz, 10 m to router)
NetIO (WLAN 2.4 GHz, 10 m to Router)

Accessories

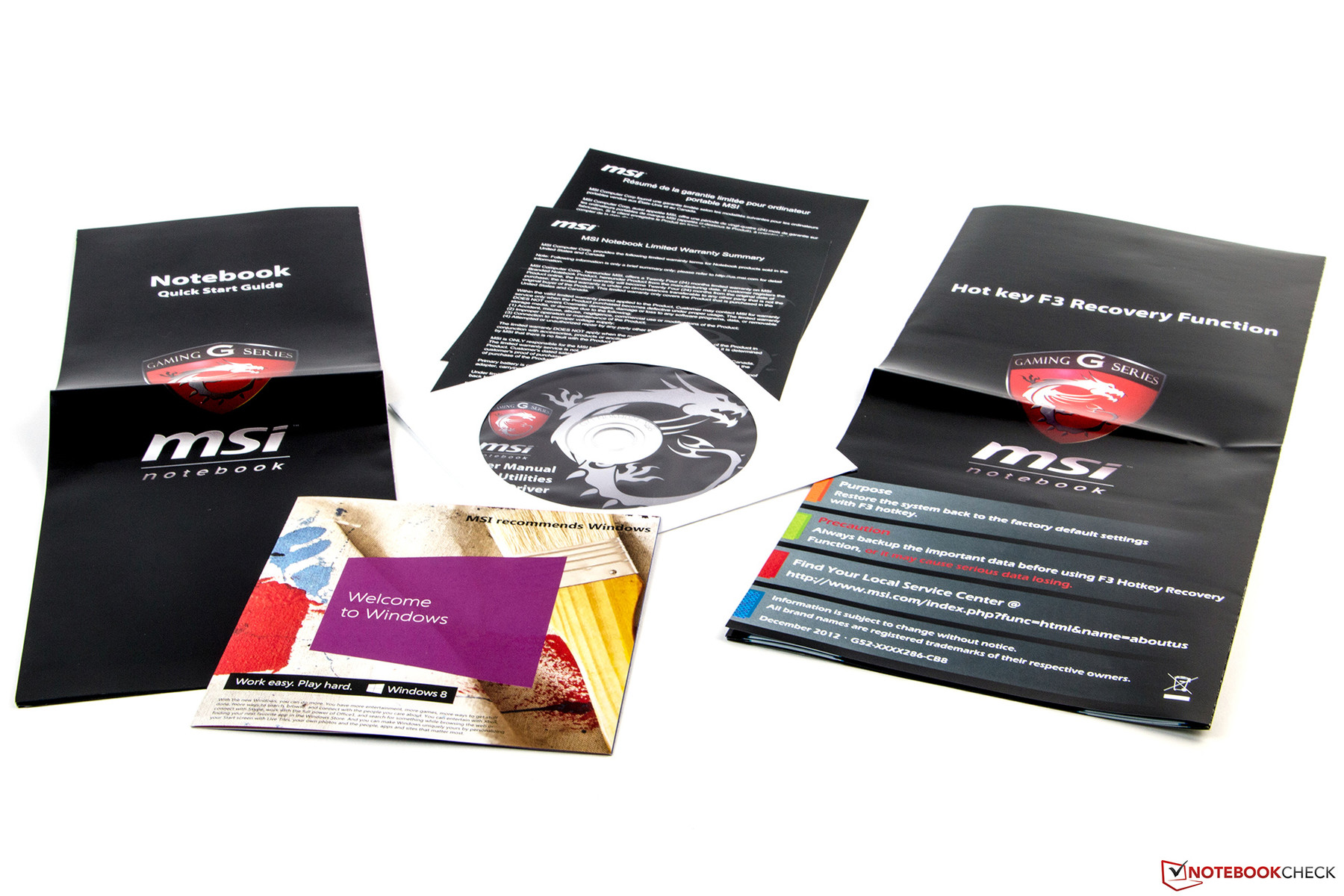

The delivery of the MSI GT70 2PE-890US includes little besides the laptop and the 180 W power adapter (19.5 Volt, 9.2 Ampere, 847 grams; ~1.9 lbs): a few colorful pages, a short manual and the warranty card. A DVD is provided and it contains the extensive user manual, the preinstalled software and the required drivers. The drivers are only for Windows 8.1 and drivers for Windows 7 are not included.

Various upgrade possibilities for the MSI GT70.
Various upgrade possibilities for the MSI GT70.

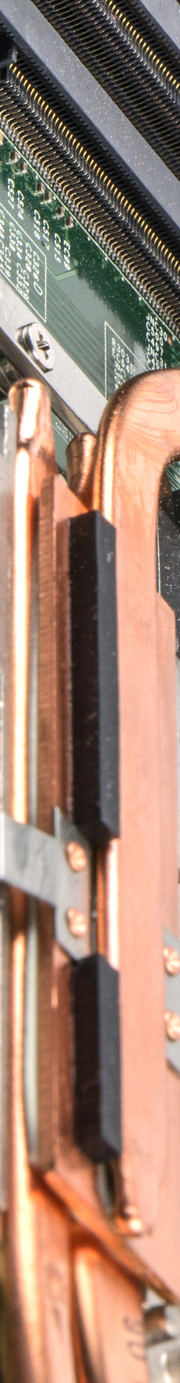

Maintenance

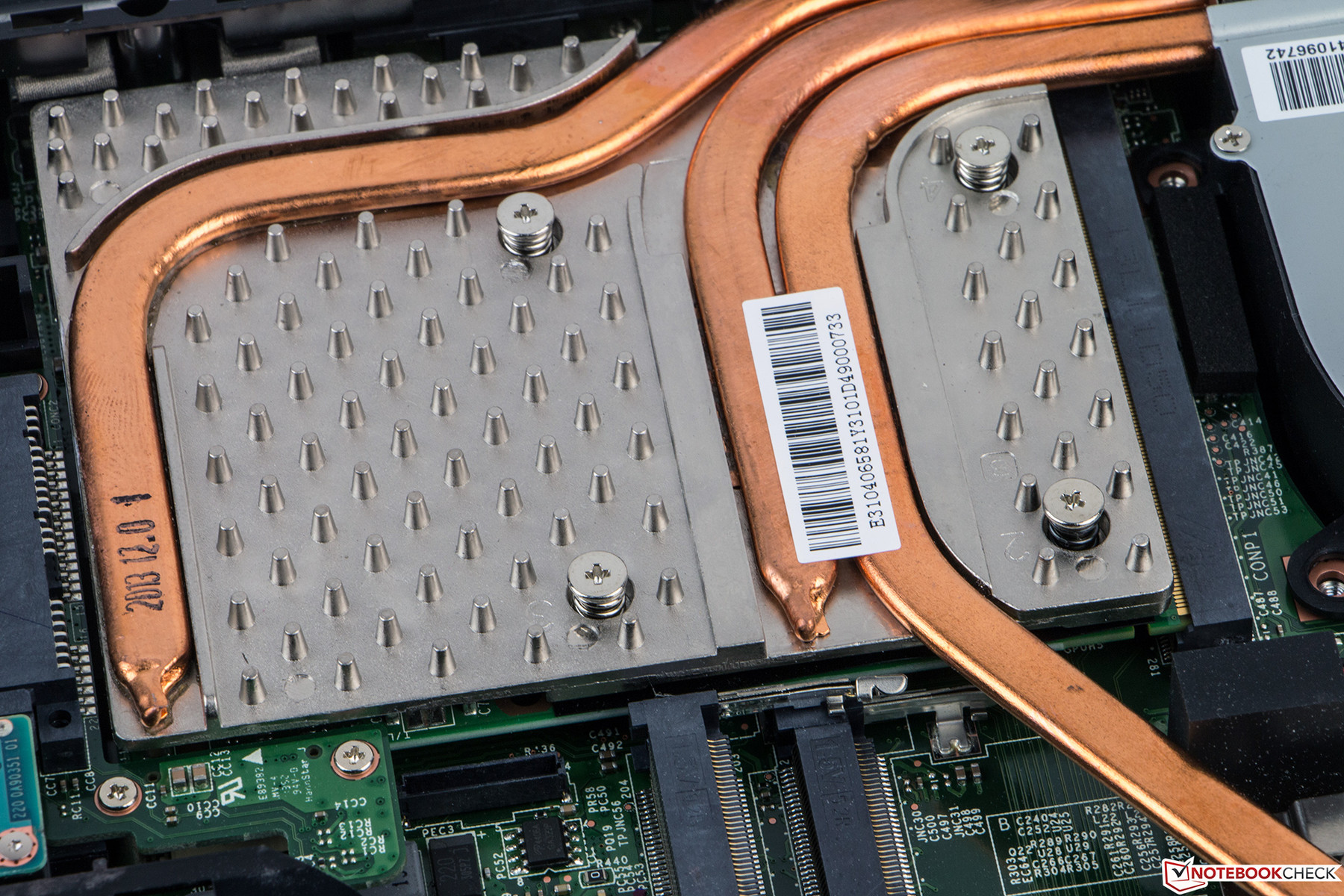

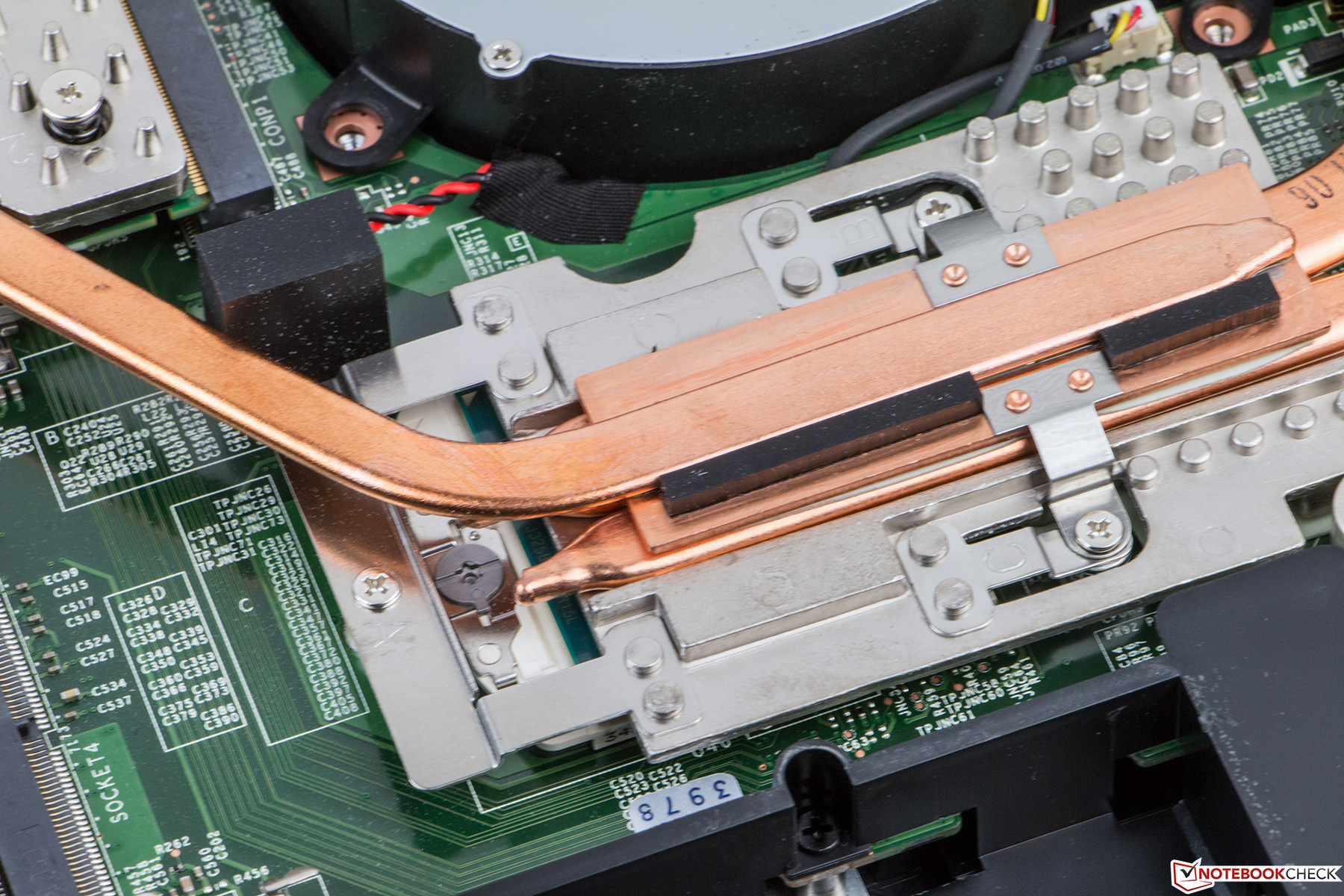

Maintenance of the MSI GT70 2PE-890US is easy: a large maintenance flap on the bottom allows us to access the internal hardware. The fan is easy to clean out. The cooling system for the CPU and GPU is very good, but it can be swapped out by experienced users.

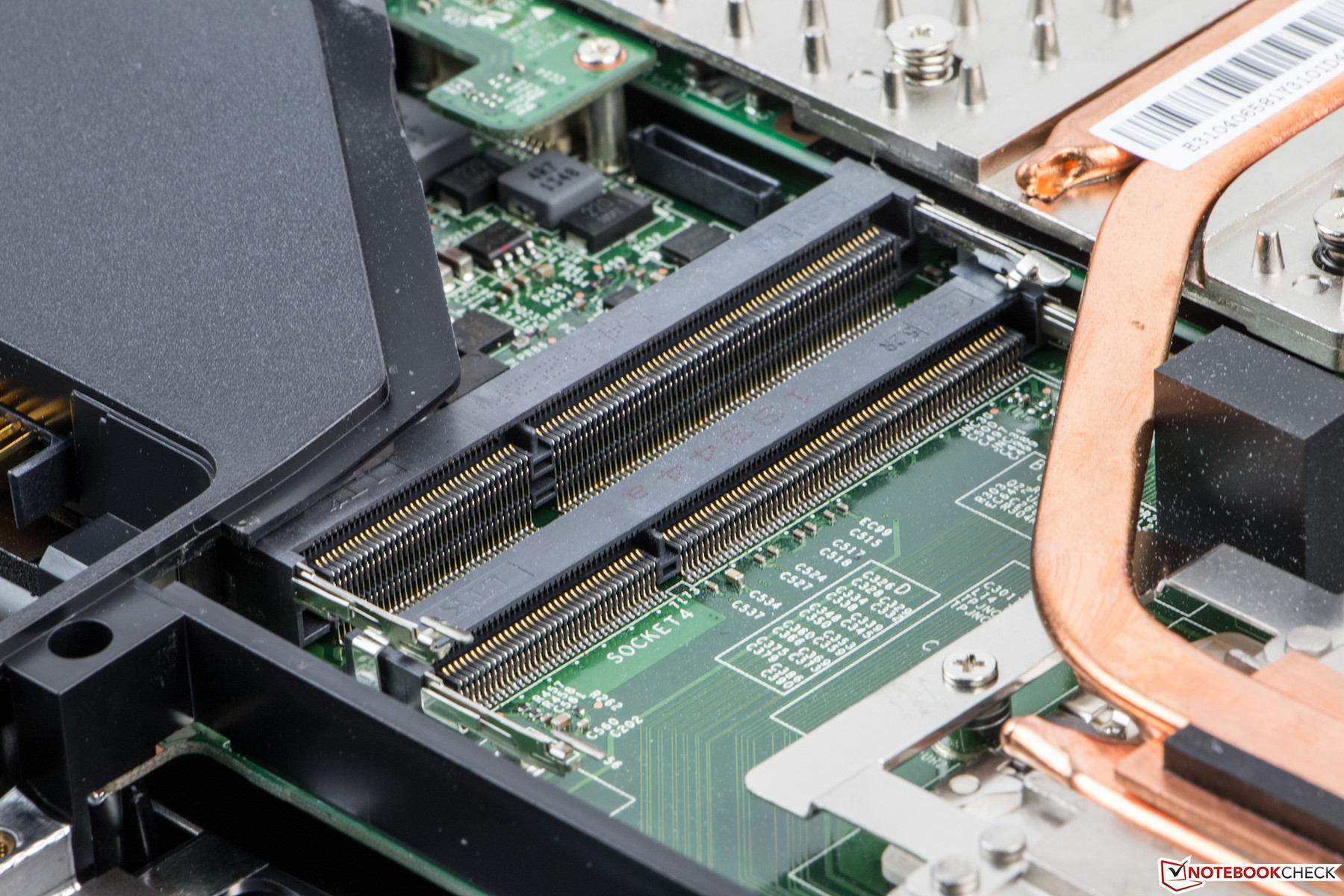

The preinstalled RAM can be found under the keyboard. The keyboard will have to be removed to reach it and a short manual can be found in our review of the MSI GT70H. The two free slots are easy to reach via the bottom flap.

The installation of the hard disks has changed slightly. Our test model already has a 2.5-inch HDD and a free slot is available for another storage device. The predecessor had three free mSATA slots in this area. MSI still advertises this feature on its website so it must be available in a different configuration (perhaps one with Super Raid 2).

Warranty

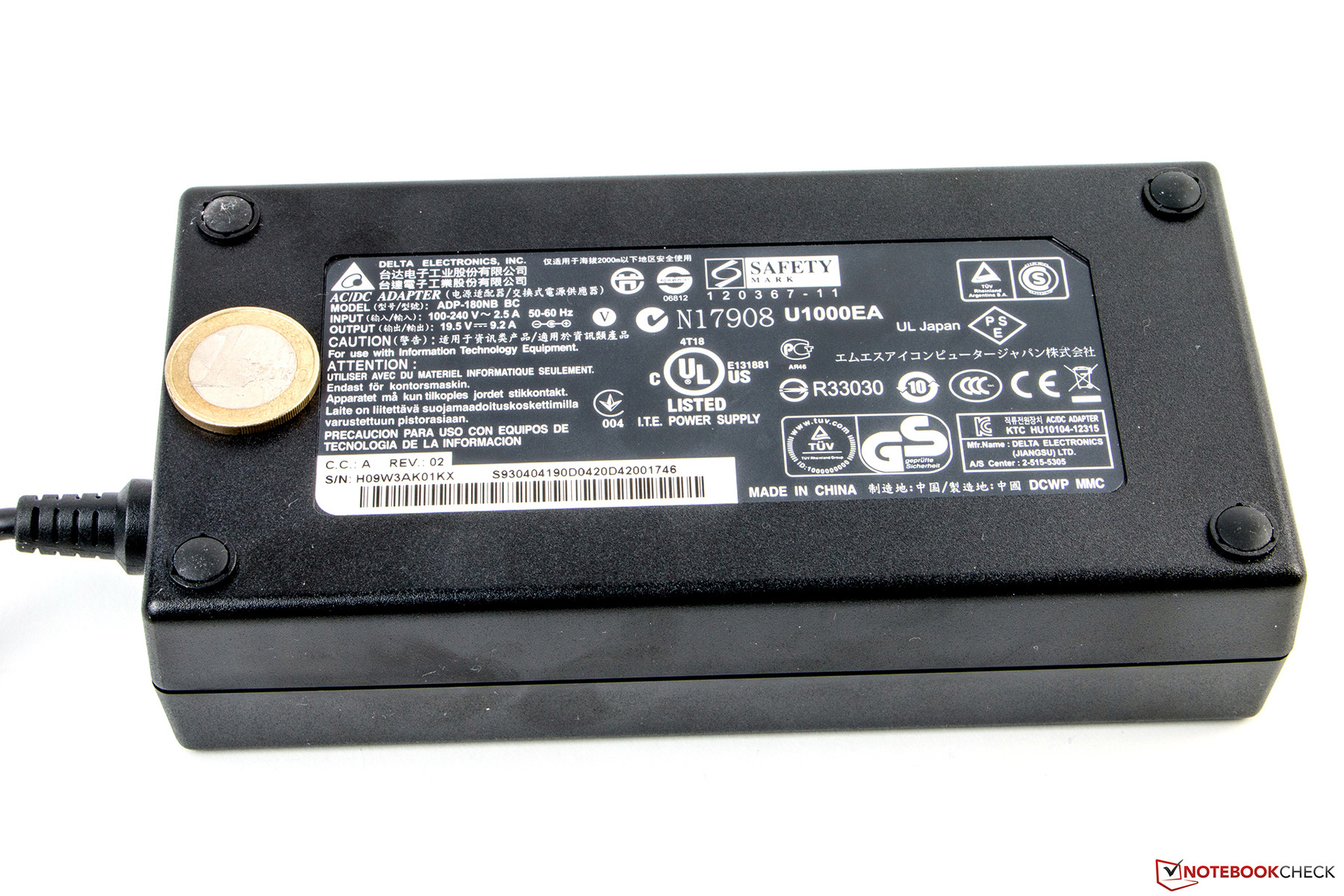

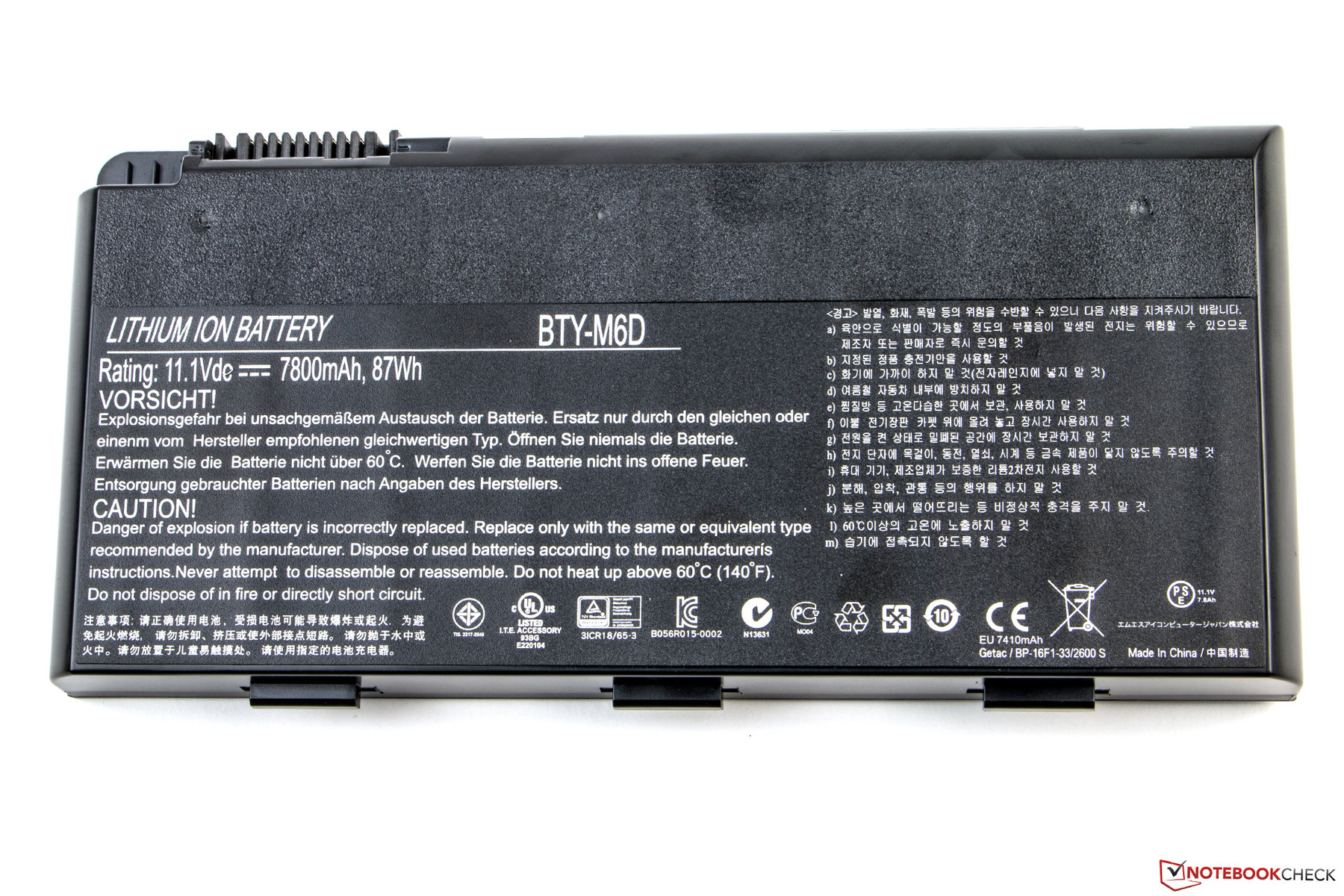

MSI provides the gaming notebook with a 24-months warranty. The power adapter and battery are insured for 12 months. If you require more, take a look at the online shop of the manufacturer. It is possible to extend the warranty up to 36 months. This will cost an extra 139 Euros (~$193).

Input Devices

Keyboard

The chiclet keyboard of the MSI GT70 2PE-890US was specially designed for gamers. This is a SteelSeries keyboard, with a focus on the WASD keys and an optimized layout for gamers. The left CTRL key and the space bar have been improved to allow the user to use them with a single hand. The Windows key had to be pushed to the side to prevent accidentally tabbing out of games. The smaller Enter key is a matter of taste and requires getting used to.

The QWERTY keys measure 14.5 x 14.5 mm and have a decent stroke distance as well as good feedback. The typing noise could have been quieter. The numeric block is useful, but the smaller zero key requires some getting used to. Up to ten key presses are recognized simultaneously.

The backlight of the keyboard is like that of the predecessor. It is distributed in three zones, which allow the user to freely pick out the colors. Additional effects are also available, for example, a pulsing light effect. The illumination is balanced and ensures good legibility. It is a pity that the user has to wait a little while for the backlight to kick in after starting the computer.

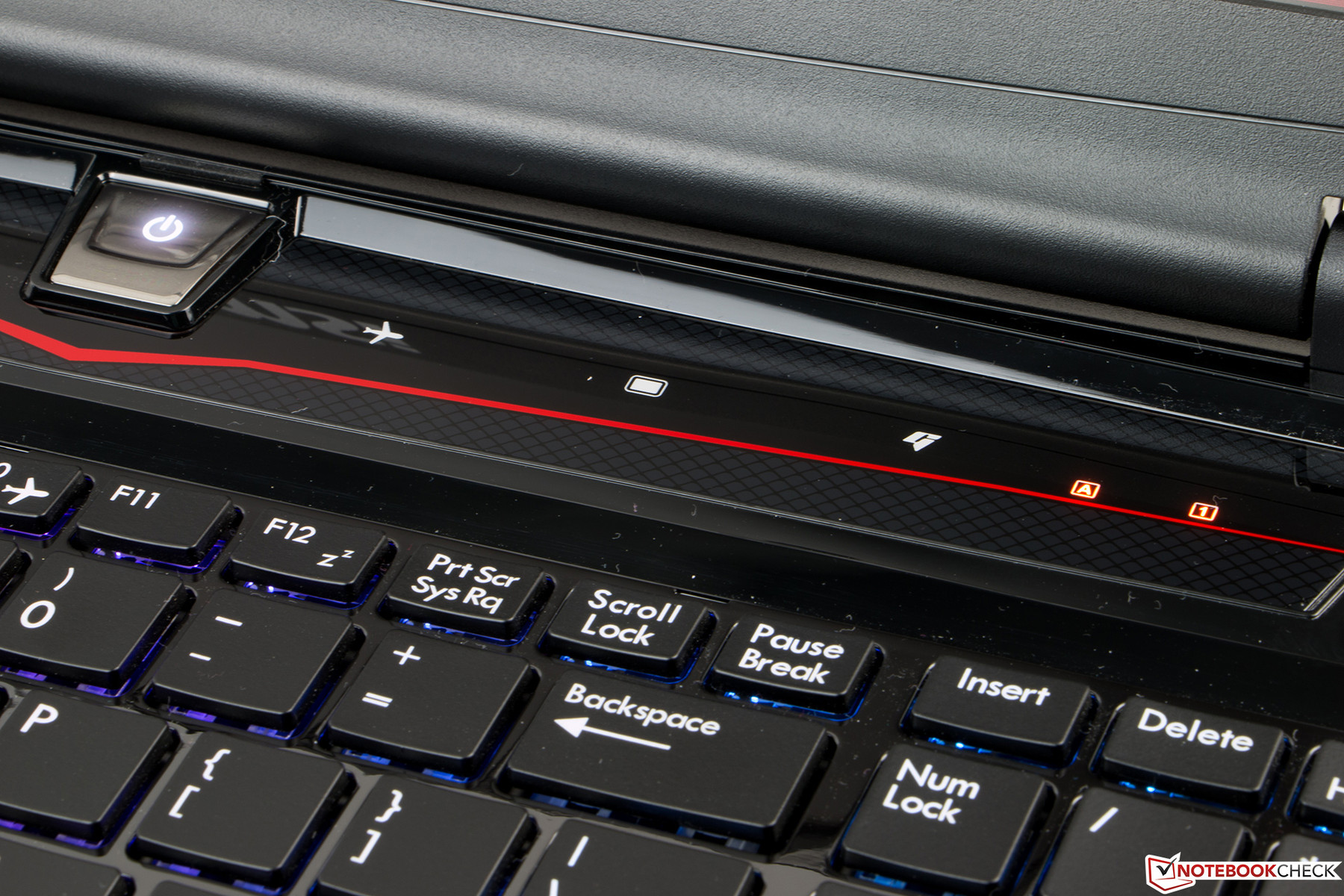

The touch-sensitive input surfaces, above the keyboard, allow the user to open certain programs and run functions. PowerDVD 10 can be opened in full screen and the Cooler Boost 2 can be activated. The user can also turn on flight mode as well as switch between the illumination schemes for the keyboard. Furthermore, the display can be turned off via these hotkeys and the Dragon Gaming Center can be opened.

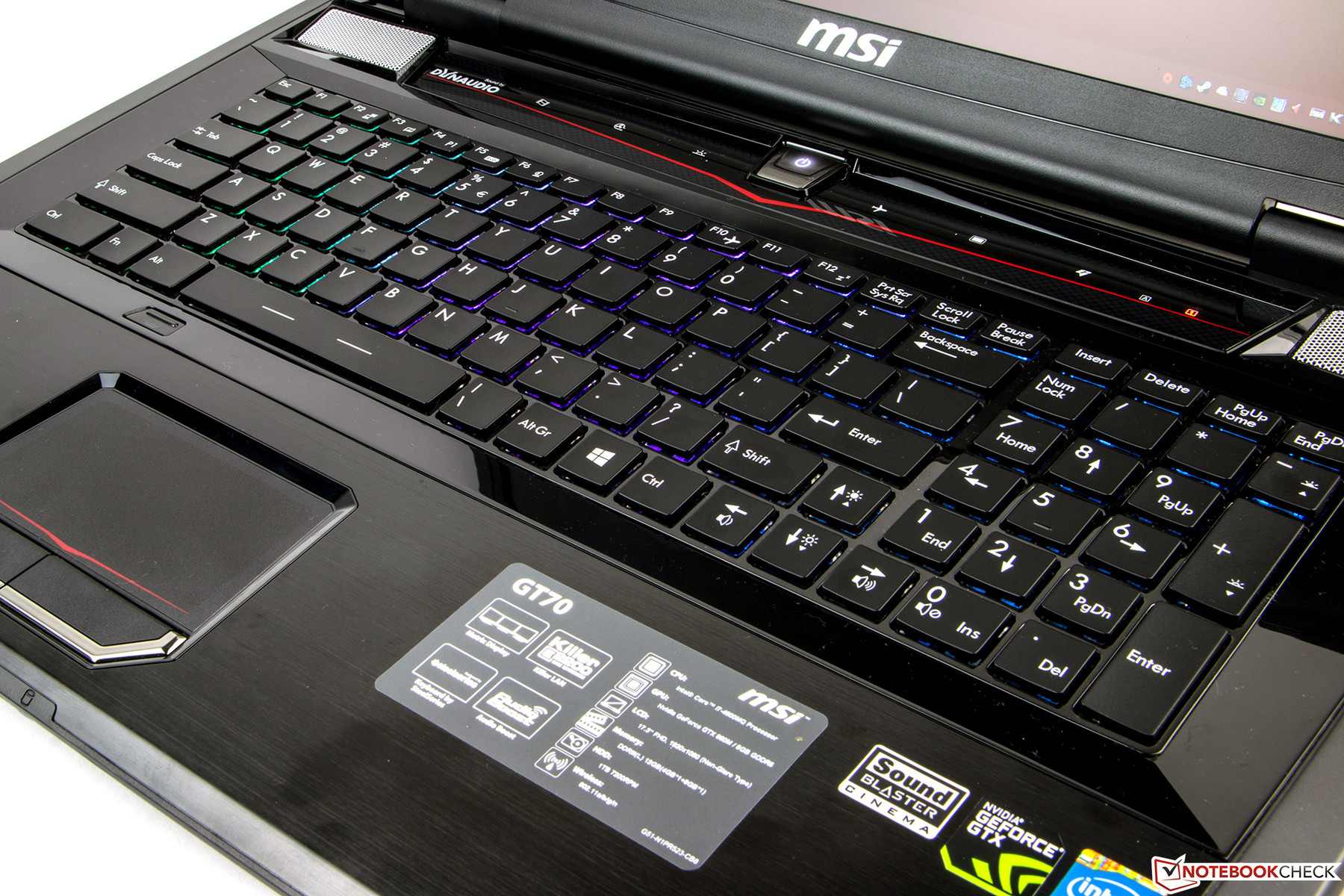

The SteelSeries keyboard is optimized for gamers.
The SteelSeries keyboard is optimized for gamers.

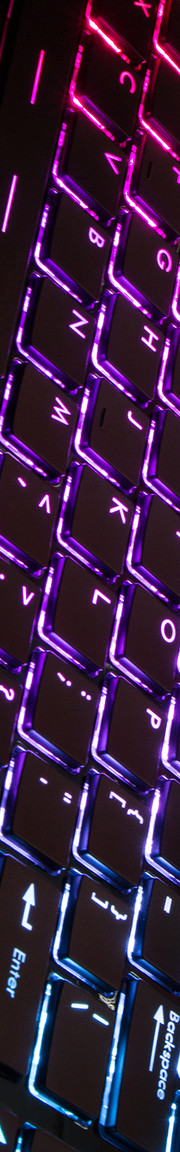

The 3 zone lighting is impressive.
The 3 zone lighting is impressive.

Touchpad

The touchpad of the MSI GT70 originates from Synaptics and is quite small for a 17.3-inch notebook: 84 x 42 mm (~3.3 x 1.7 in). The touchpad is deeply recessed and has a rough surface, which allows the user to find it even with their eyes closed. The sliding properties are good and the input is executed well. Due to the small size of the device, the user might accidentally end up displaying Charms in Windows. The multi-touch gesture support is good and the separate mouse keys are a little spongy, but easy to click.

The touchpad can be turned off via a button above it. If an external mouse is connected, the laptop automatically turns off the touchpad.

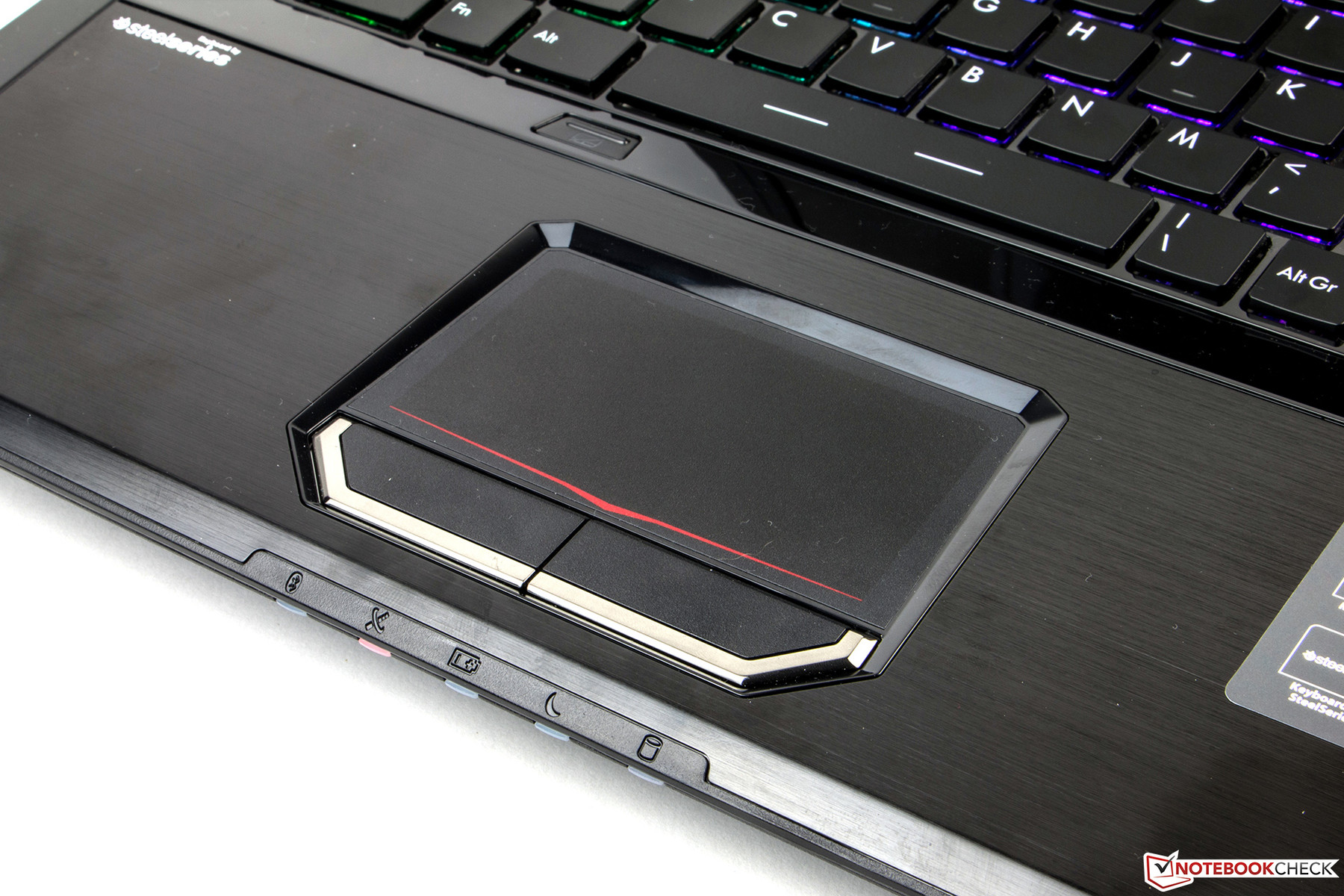

The small touchpad.
The small touchpad.

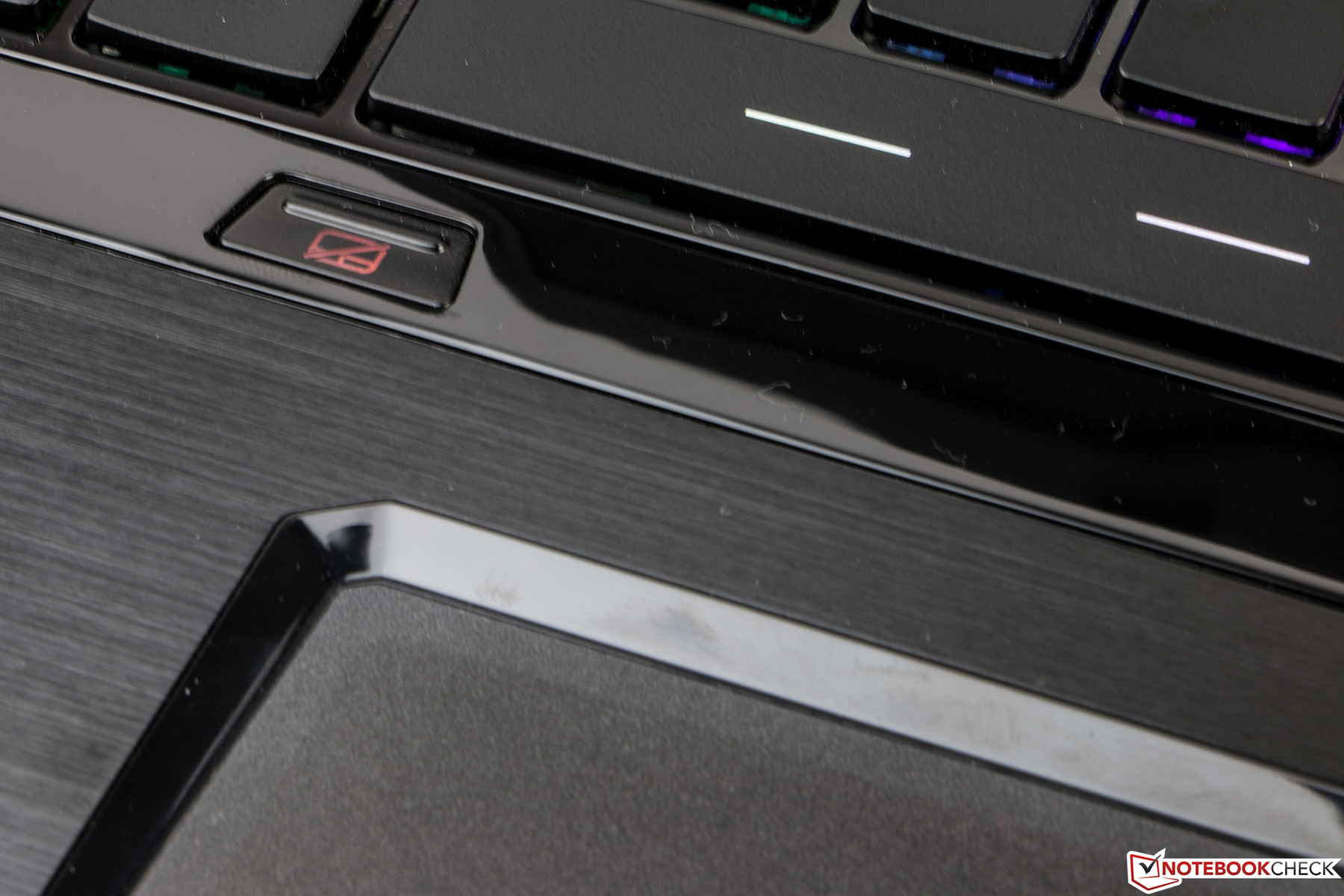

It can be turned off with this button.
It can be turned off with this button.

Display

The display of the MSI GT70 2PE-890US measures 17.3 inches and has a 1,920x1,080 pixel resolution (Full HD). This translates to a ratio of 16:9 and a pixel density of 127 PPI. The matte panel is named N173HGE-L11 and originates from CHIMEI. The Taiwanese manufacturer has picked the same panel series as their competitors One K73-4N and Schenker XMG P704.

The brightness lies at a similar level and our test model offers a maximum of 326 cd/m². The illumination is balanced at 83%. We did not notice any major discrepancies in the brightness in different areas of the panel.

326
cd/m²
296
cd/m²
288
cd/m²
290
cd/m²
324
cd/m²
269
cd/m²
313
cd/m²
316
cd/m²
293
cd/m²
Distribution of brightness
Information
X-Rite i1Pro 2
Maximum: 326 cd/m²
Average: 301.7 cd/m²
Brightness Distribution: 83 %
Center on Battery: 324 cd/m²
Black: 0.35 cd/m²
Contrast: 926:1

The black value of 0.35 cd/m² is quite good and is rare to find in TN panels. The contrast ratio is 926:1 and offers no room for complaint.

The color accuracy of the display is not so important for most gamers, but according to our tests, the display has some weaknesses with its factory settings. It has a visible blue tinge, which makes the panel look cool. However, this is only noticeable if you compare it to another laptop and it can be alleviated with calibration. Professional picture editing is not possible at a mere 73% coverage of the sRGB color spectrum.

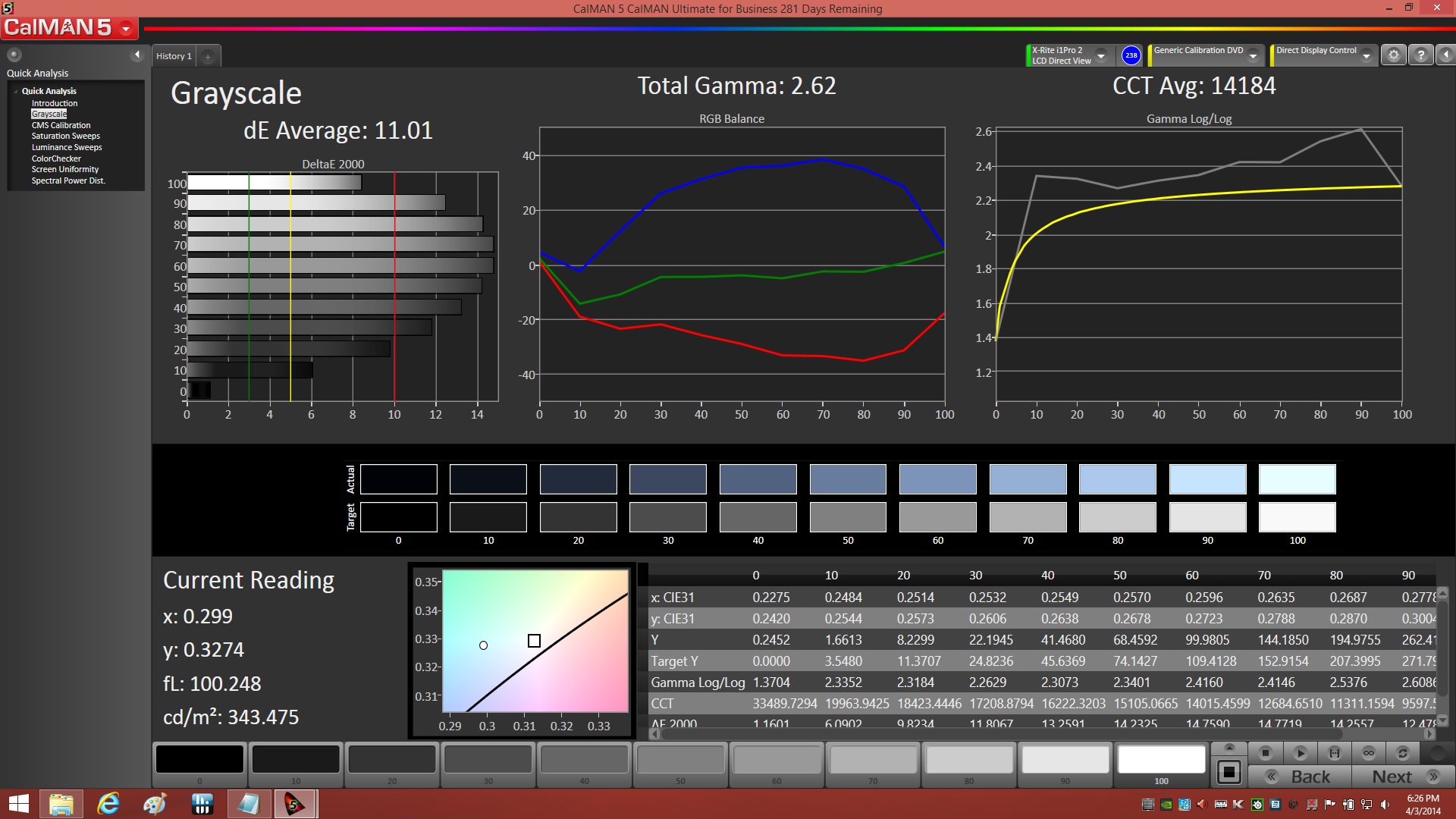

Gray levels (uncalibrated, target color space sRGB)
Gray levels (uncalibrated, target color space sRGB)

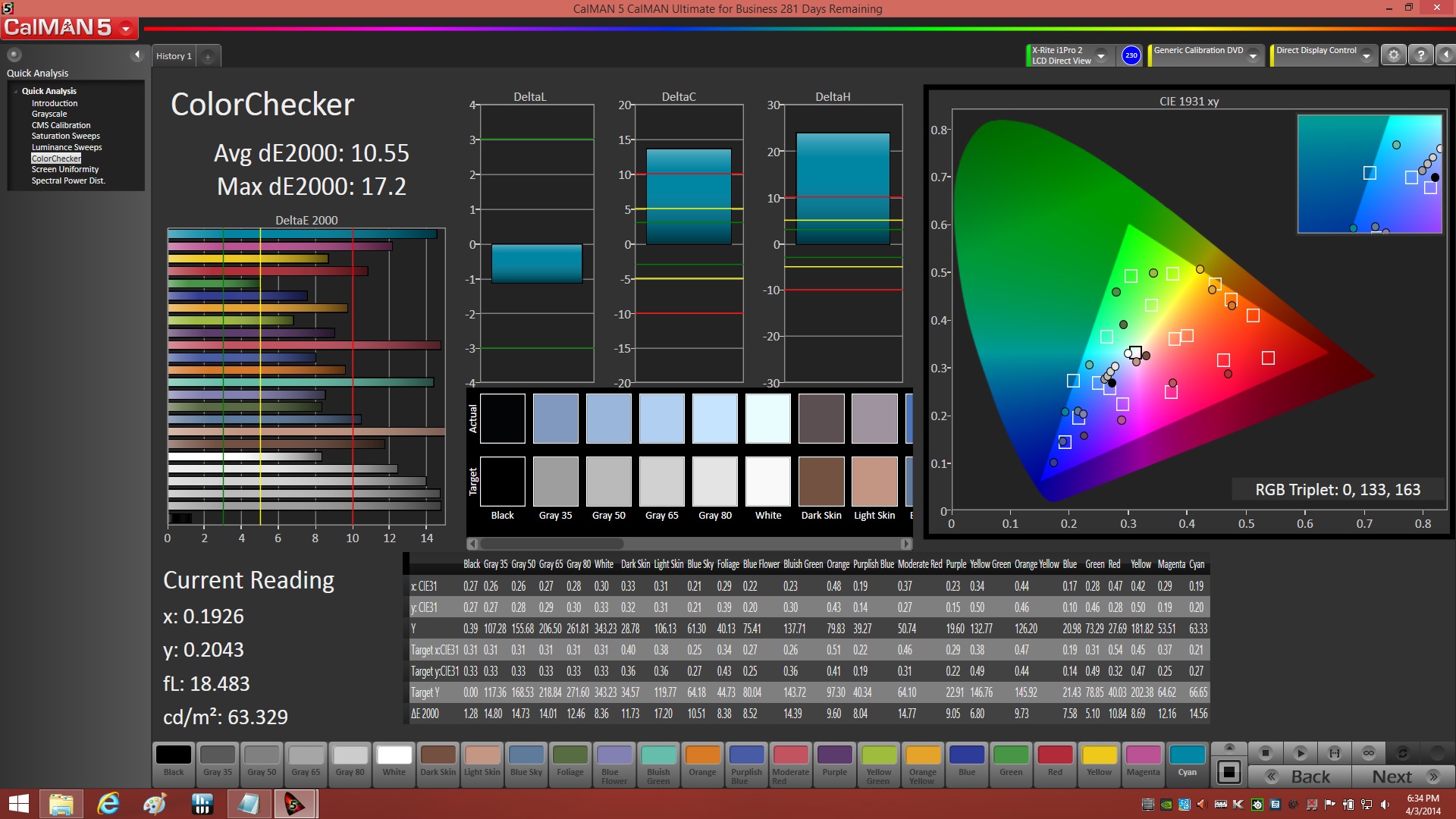

Color accuracy (uncalibrated, target color space sRGB)
Color accuracy (uncalibrated, target color space sRGB)

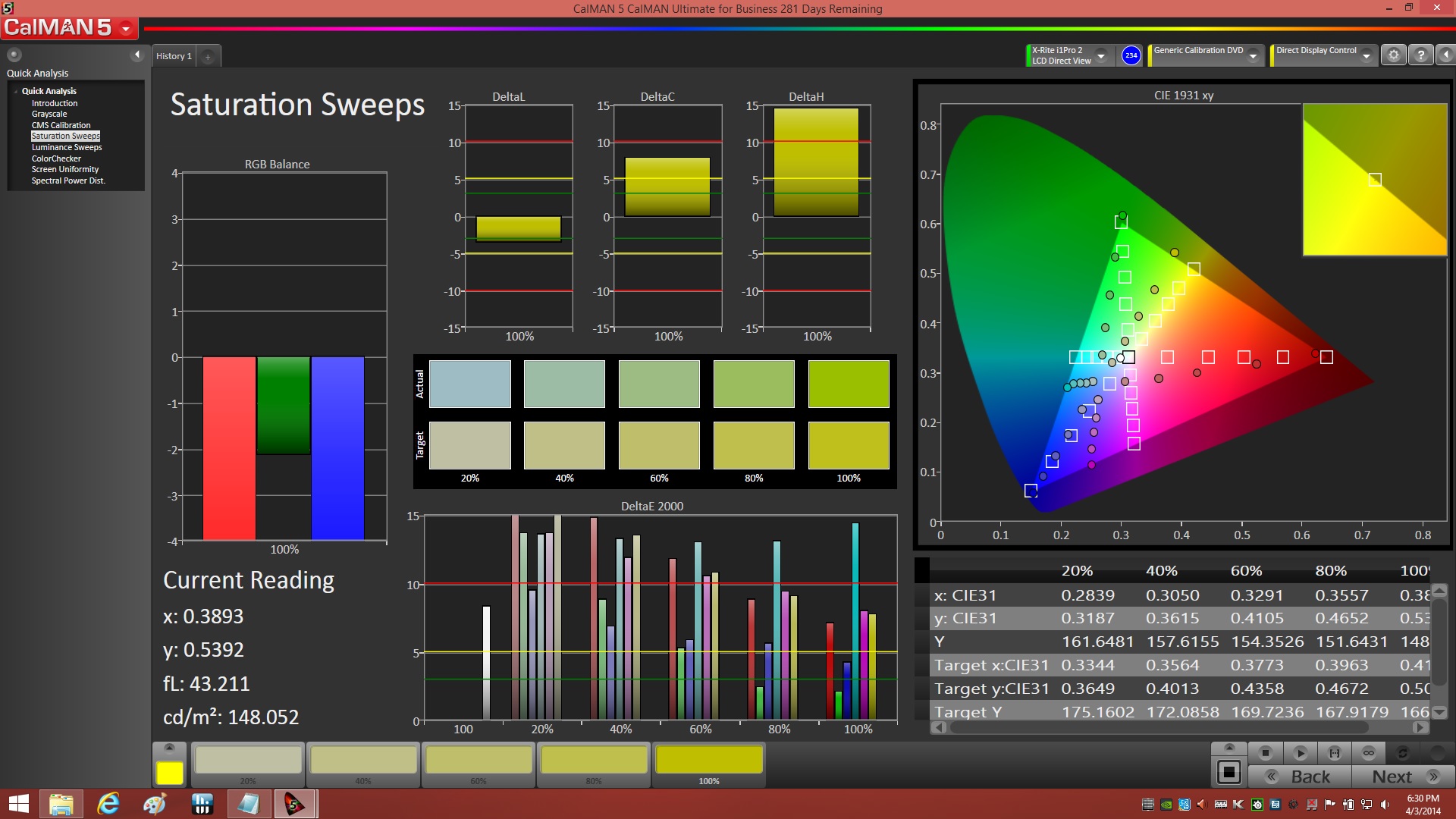

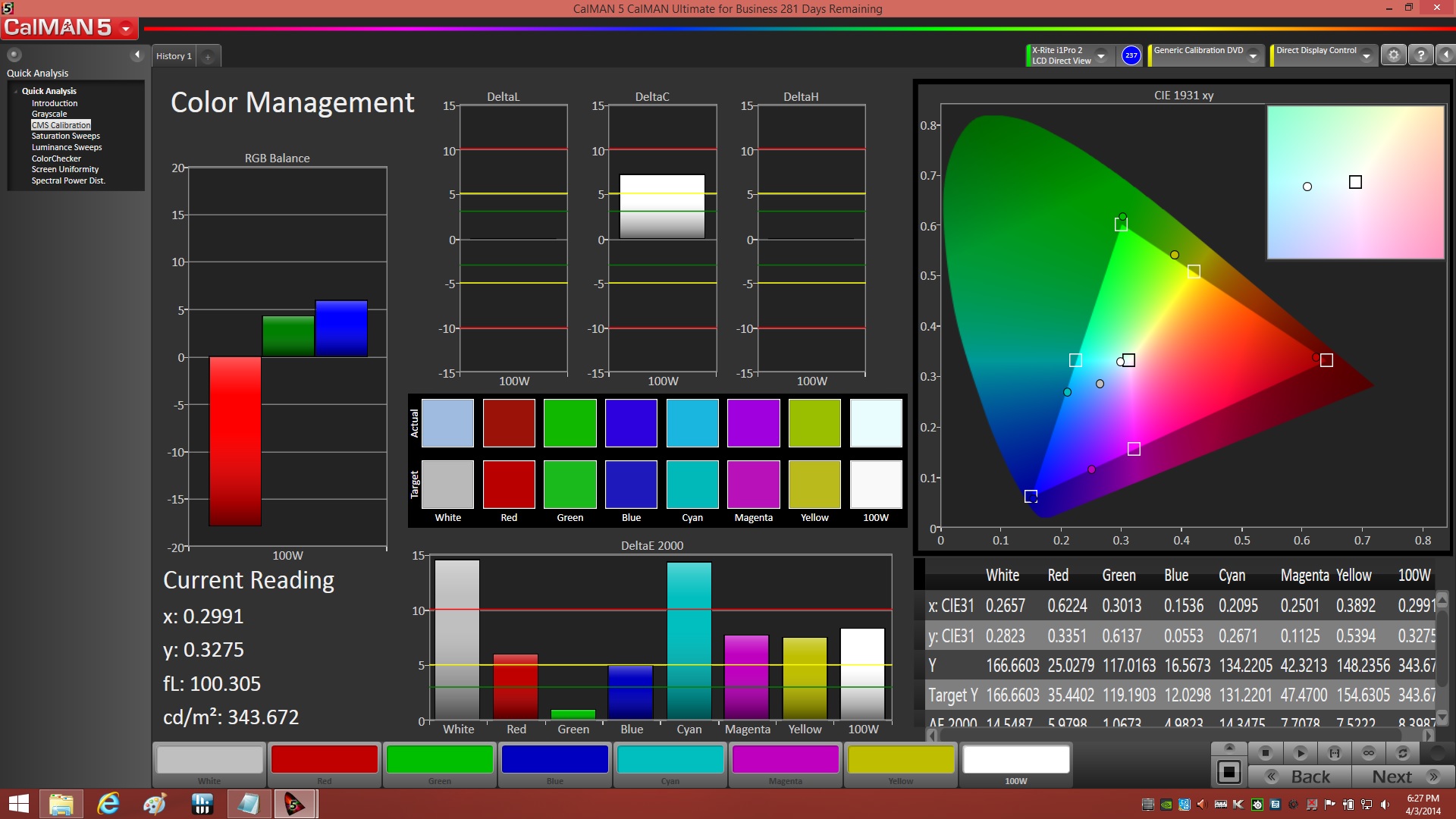

Color saturation (uncalibrated, target color space sRGB)
Color saturation (uncalibrated, target color space sRGB)
Mixed colors (uncalibrated, target color space sRGB)
Mixed colors (uncalibrated, target color space sRGB)

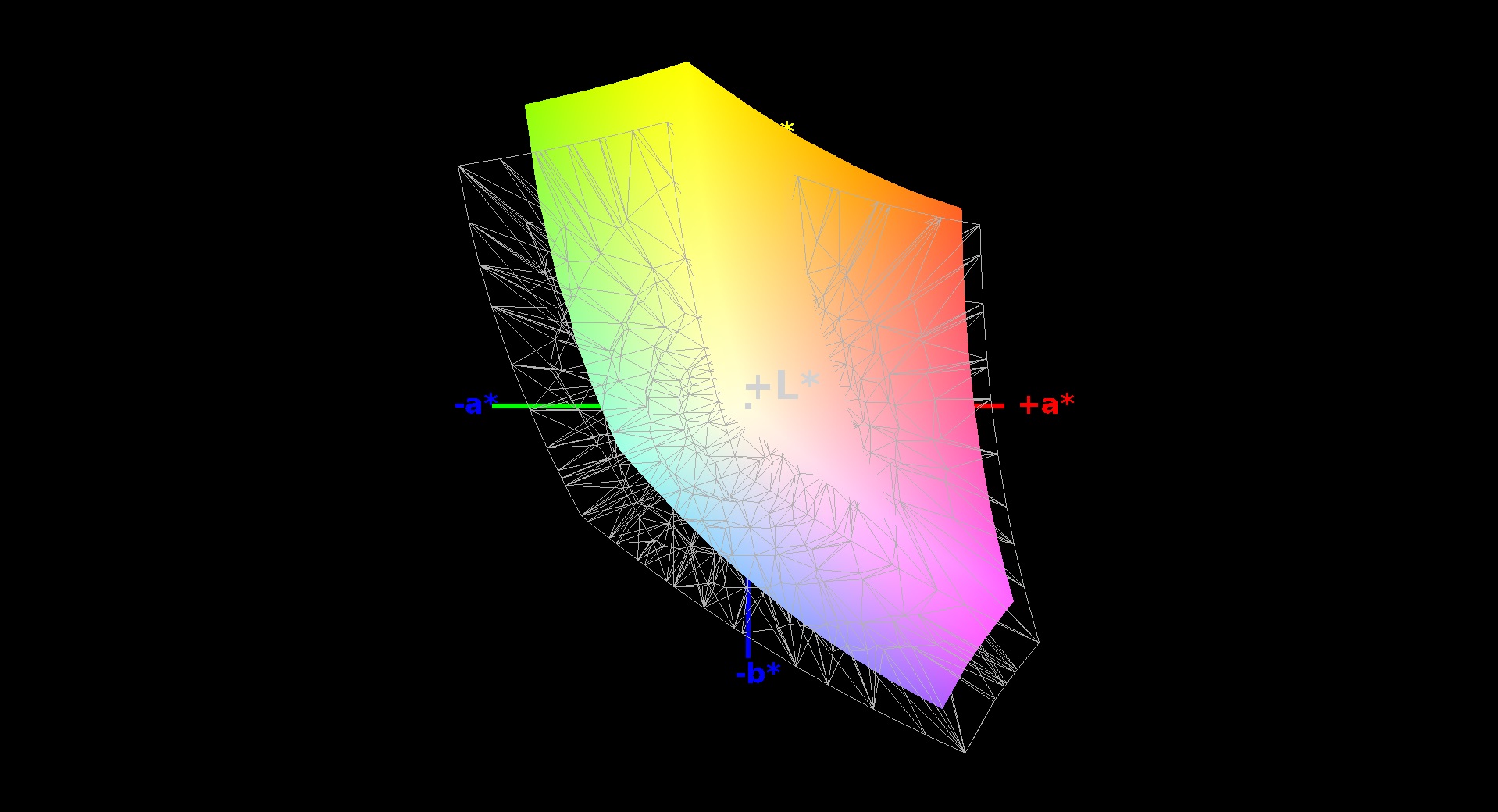

MSI GT70 vs. sRGB (73%)
MSI GT70 vs. sRGB (73%)
MSI GT70 vs. Adobe RGB 1998 (54%)
MSI GT70 vs. Adobe RGB 1998 (54%)

Outdoor use of the MSI GT70 2PE-890US should be fine. The high brightness, strong contrast and matte surface allow us to view content without issues, even in a bright environment. However, direct sunlight can strain the eyes after a while.

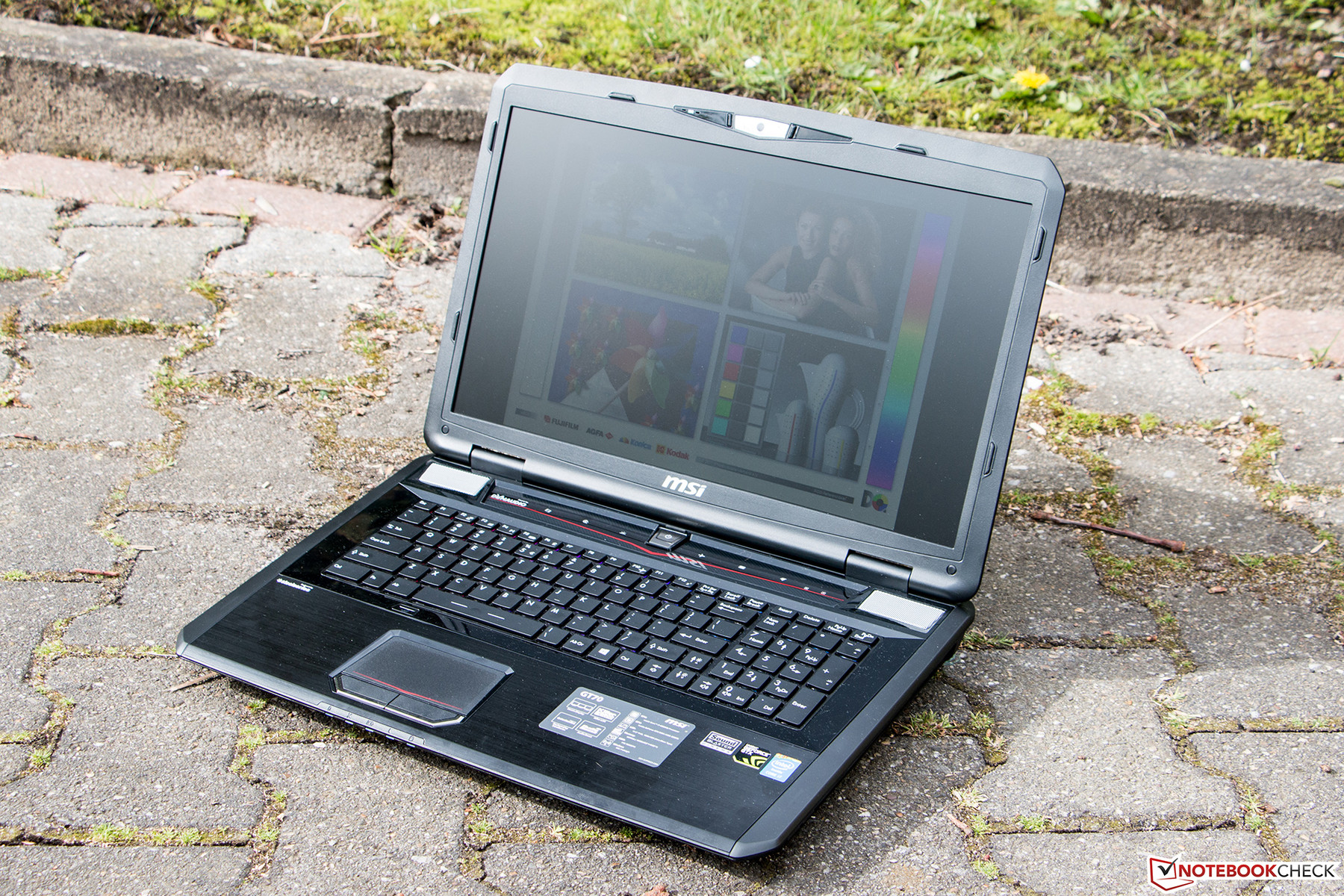

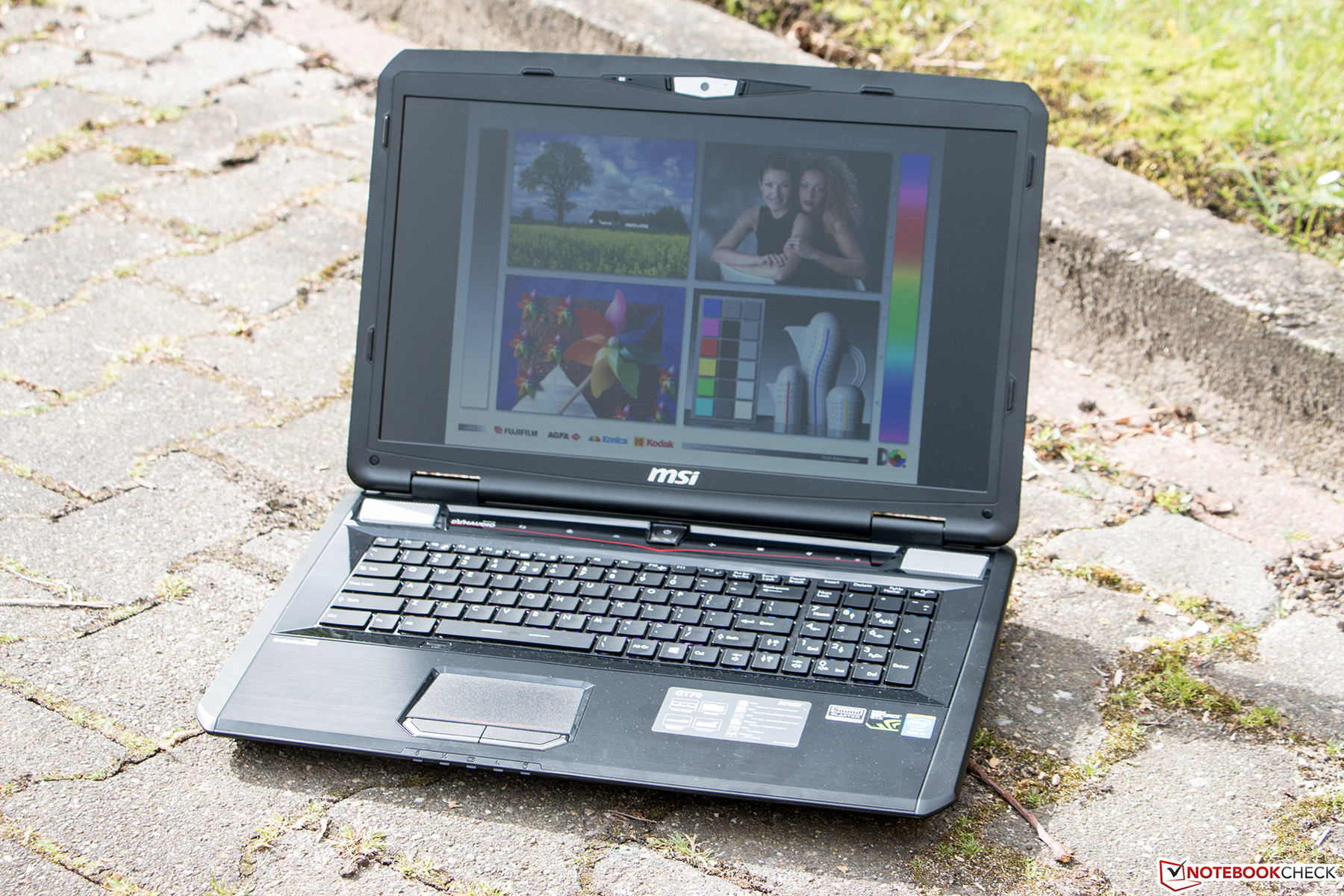

The GT70 looks good outdoors.
The GT70 looks good outdoors.
Even with direct sunlight, the content is visible.
Even with direct sunlight, the content is visible.

The viewing angles of the TN panel are good, but do not even come close to those of an IPS screen. Changes in the viewing angle horizontally, results in minimal drops in brightness, which means that watching a film with a group of people should be fine. Vertically, changes in the viewing angle results in the drops in contrast and color inverting typical to TN displays. However, these panels offer a faster reaction time, which is important for gamers.

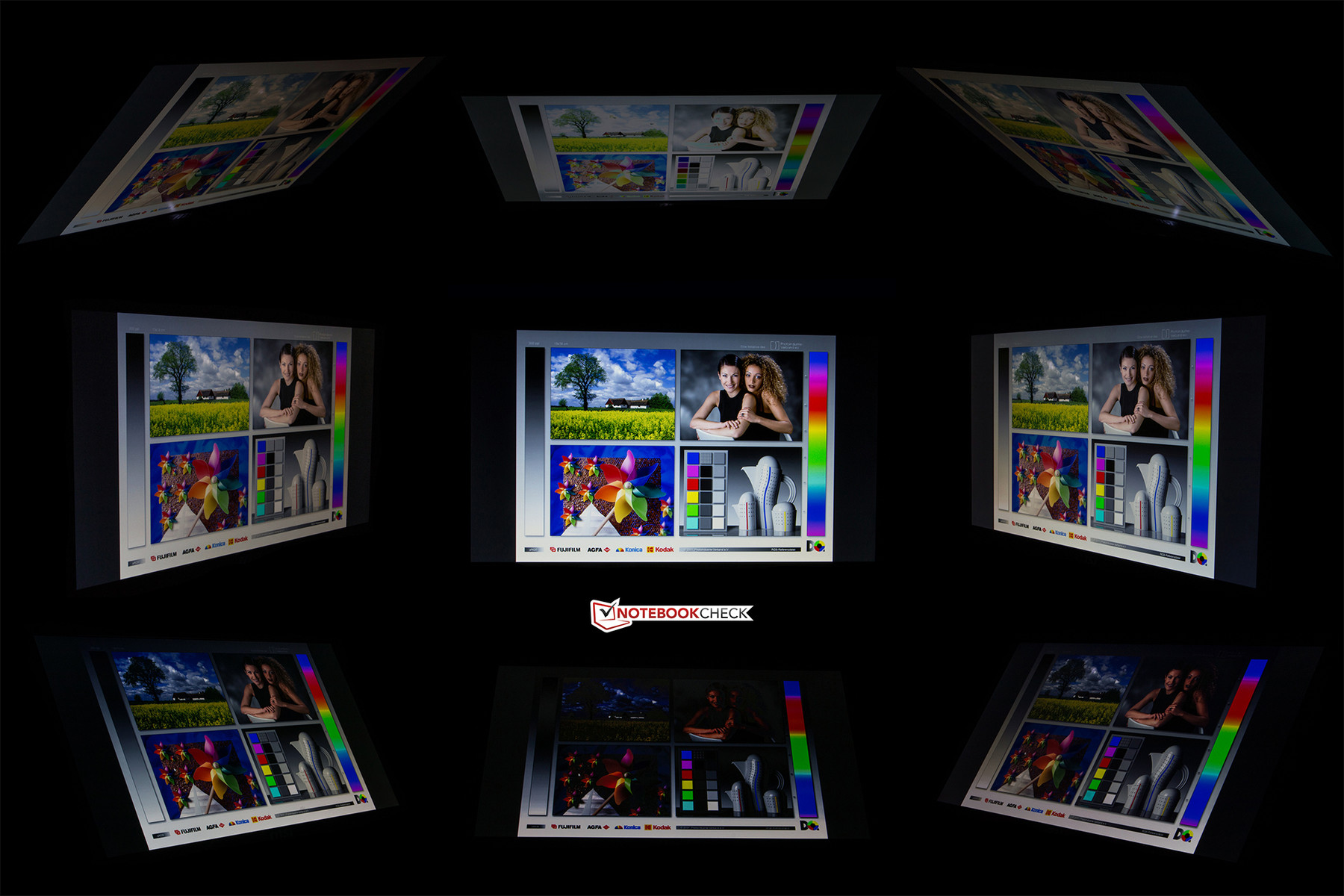

Viewing angle stability of the MSI GT70 2PE-890US
Viewing angle stability of the MSI GT70 2PE-890US

Performance

The performance of a gaming notebook is definitely important. MSI has installed a strong quad-core CPU, from the Intel Haswell generation and a fast Nvidia GeForce GTX 880M for processing high-end graphics effects. The 12 GB DDR3L RAM is unusual, but more than enough for our needs.

HWiNFO64
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z (GTX 880M)
GPU-Z (HD 4600)

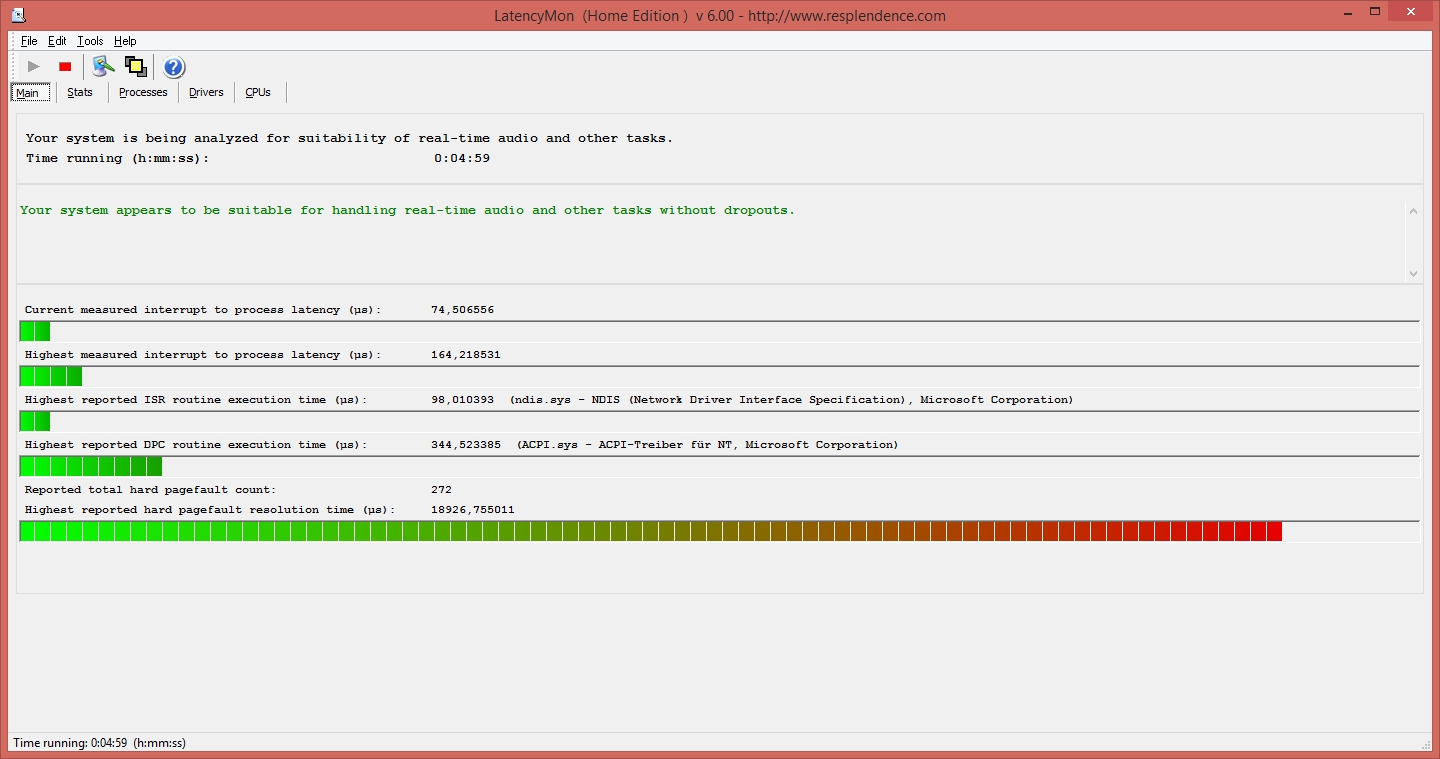

LatencyMon 6.0
System information - MSI GT70 2PE-890US

Processor

The CPU of the MSI GT70 2PE-890US is an Intel Core i7-4800MQ. This quad-core processor has a base clock speed of 2.7 GHz and can process up to eight threads simultaneously. Turbo Boost 2.0 allows the CPU to boost up to 3.7 GHz (single-core). While using two cores, the Turbo raises the speed up to a maximum of 3.6 GHz and for four cores it speeds up to a maximum of 3.5 GHz.

The benchmark results of Cinebench R15 are quite good and at the expected level. The Core i7 of our test model scores 142 points in the single-core test and 680 points in the multi-core test. The XMG P704 (Core i7-4910MQ) is a bit better off thanks to its stronger processor. The result could have been better, but the test model experienced slight fluctuations in its clock speed in both tests. When all cores are used during the test, the speed drops to 3.3 GHz.

Cinebench R15 (Single-Core)
Cinebench R15 (Single-Core)
Cinebench R15 (Multi-Core)
Cinebench R15 (Multi-Core)
Cinebench R15
CPU Multi 64Bit (sort by value)
MSI GT70 2PE-890US
680 Points ∼44%
One K56-4N
643 Points ∼41% -5%
One K73-4N
663 Points ∼43% -2%
Schenker XMG P704
697 Points ∼45% +3%
CPU Single 64Bit (sort by value)
MSI GT70 2PE-890US
142 Points ∼81%
One K56-4N
132 Points ∼75% -7%
One K73-4N
143 Points ∼81% +1%
Schenker XMG P704
153 Points ∼87% +8%

Legend


MSI GT70 2PE-890US Intel Core i7-4800MQ, NVIDIA GeForce GTX 880M, HGST Travelstar 7K1000 HTS721010A9E630

One K56-4N Intel Core i7-4700MQ, AMD Radeon R9 M290X, Samsung SSD 840 EVO 500GB

One K73-4N Intel Core i7-4800MQ, NVIDIA GeForce GTX 870M, Samsung SSD 840 EVO 500GB

Schenker XMG P704 Intel Core i7-4910MQ, NVIDIA GeForce GTX 880M, Crucial M500 480 GB CT480M500SSD3 mSATA
Cinebench R11.5 CPU Single 64Bit
1.61 Points
Cinebench R11.5 CPU Multi 64Bit
7.45 Points
Cinebench R11.5 OpenGL 64Bit
56.75 fps
Cinebench R15 CPU Single 64Bit
142 Points
Cinebench R15 CPU Multi 64Bit
680 Points
Cinebench R15 OpenGL 64Bit
96.74 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help

Processor Turbo

Like in the Cinebench R15, the Intel Core i7-4800MQ cannot always offer its maximum clock speed in the MSI GT70 2PE via Turbo Boost. We took a closer look using Prime 95 and stress testing. The clock speed of the processor dropped immediately down to 3.2 GHz. However, this is not the fault of the manufacturer, as in reality it is the CPU that is hitting its TDP value of 47 W. The temperatures rise up to 84 °C (183.2 °F), which is not a critical level. Turning on MSI Cooler Boost 2, will drop the temperatures down to 67 °C (152.6 °F), but the clock speed stays the same. It does not even change while the laptop runs on battery. The CPU stays stable in the Turbo range.

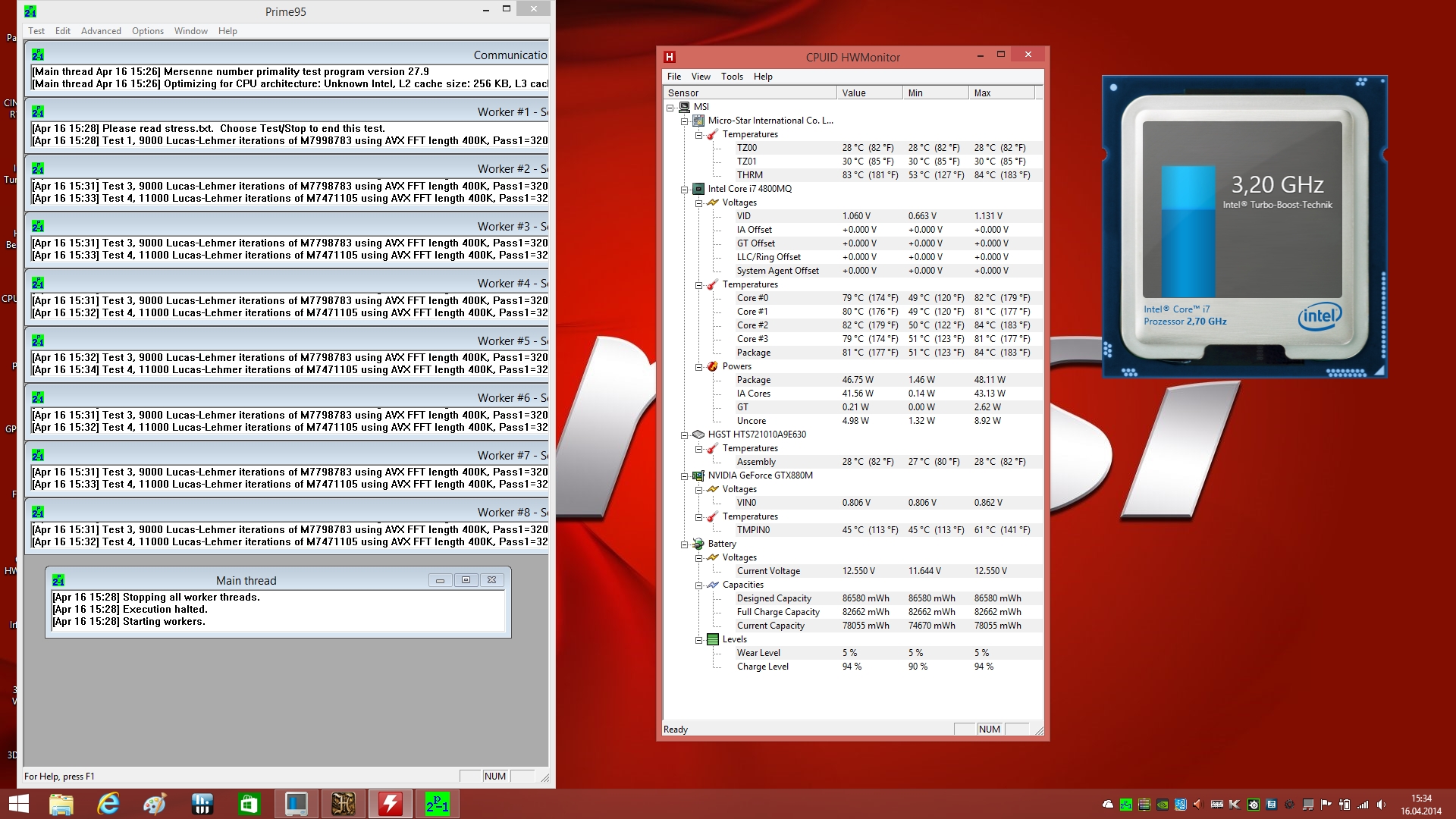

CPU stress test: 3.2 GHz @ 81 °C
CPU stress test: 3.2 GHz @ 81 °C

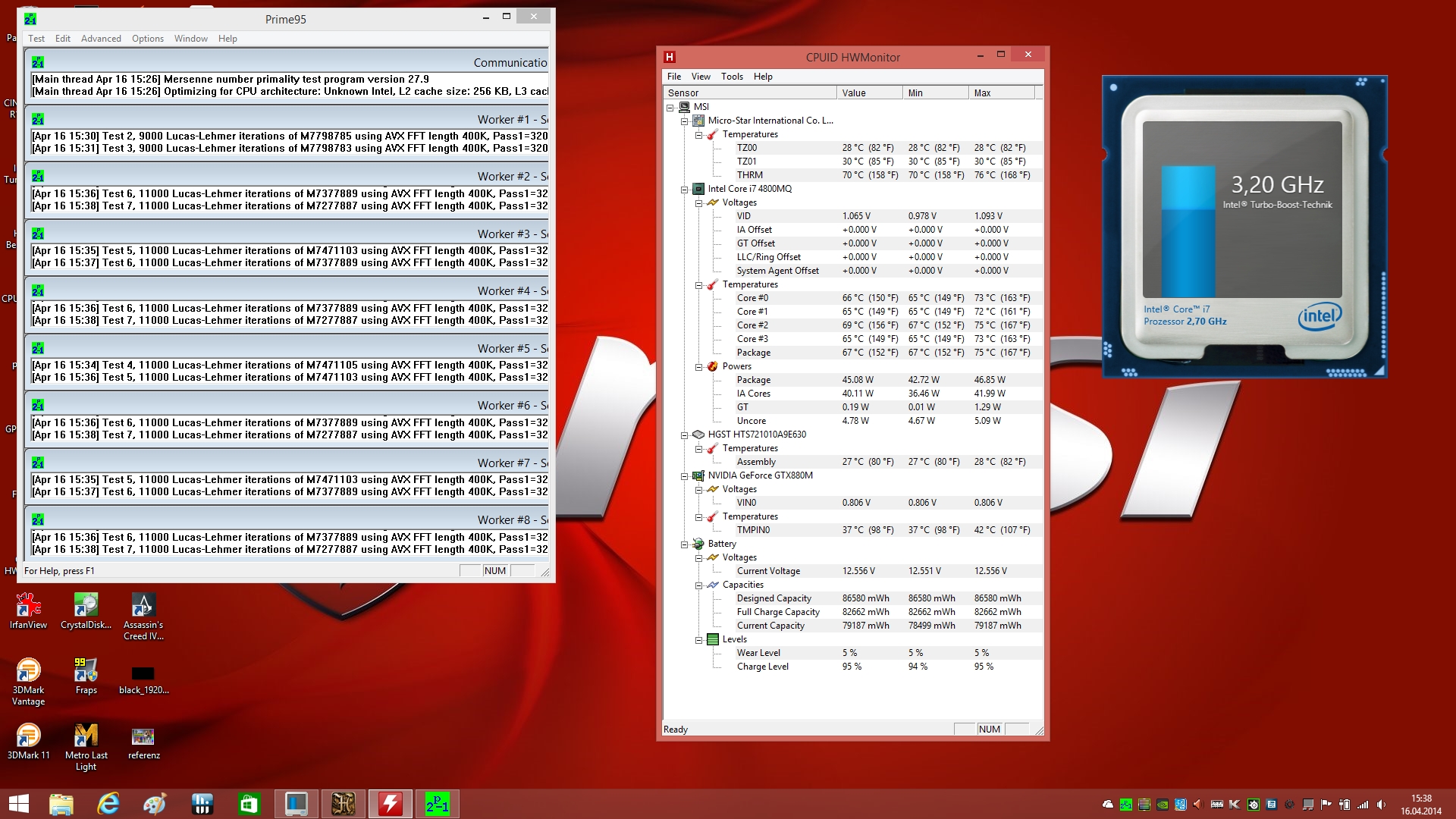

CPU stress test: 3.2 GHz @ 67 °C (Cooler Boost)
CPU stress test: 3.2 GHz @ 67 °C (Cooler Boost)

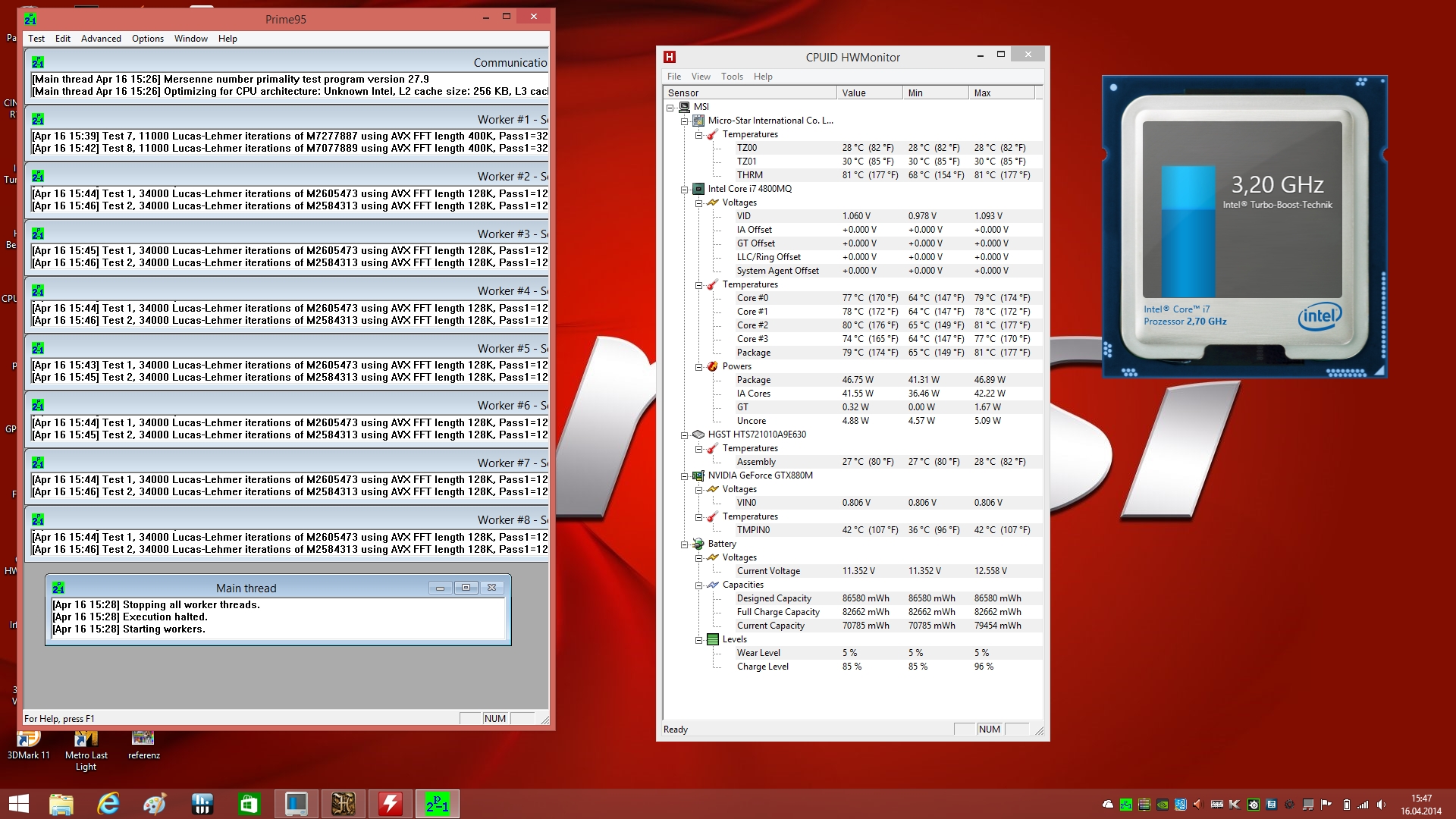

CPU stress test: 3.2 GHz @ 79 °C (on battery)
CPU stress test: 3.2 GHz @ 79 °C (on battery)

System Performance

The system performance of the MSI GT70 2PE-890US is quite good even without a fast SSD. This is confirmed by PCMark 7, in which the system scores a decent 3,566 points. Without fast storage, it is hard to break the 4k mark. As such, all competitors score higher as they use fast storage devices.

If you own a notebook with an SSD, you will surely miss it in this laptop. The European configuration usually comes with one, but otherwise we recommend installing one.

PCMark 7 - Score (sort by value)
MSI GT70 2PE-890US
GeForce GTX 880M, 4800MQ, HGST Travelstar 7K1000 HTS721010A9E630
3566 Points ∼51%
MSI GT70H-80M4811B
GeForce GTX 780M, 4700MQ, SanDisk X100 128GB SD5SF2128G1014E
5310 Points ∼77% +49%
One K73-4N
GeForce GTX 870M, 4800MQ, Samsung SSD 840 EVO 500GB
6017 Points ∼87% +69%
Schenker XMG P704
GeForce GTX 880M, 4910MQ, Crucial M500 480 GB CT480M500SSD3 mSATA
6220 Points ∼90% +74%
One K56-4N
Radeon R9 M290X, 4700MQ, Samsung SSD 840 EVO 500GB
6408 Points ∼92% +80%
PC Mark
PCMark 73566 points
PCMark 8 Home v23978 points
PCMark 8 Creative v25443 points
PCMark 8 Work v24491 points
Help

Storage Devices

The storage device used in the MSI GT70 2PE-890US is an HGST Travelstar 7K1000. This traditional hard disk runs at 7,200 rpm and is thus quite fast. The performance is especially good in the sequential read and write tests and it clearly surpasses HDD’s that operate at 5,400 rpm. The access times of 16 ms are quite high, especially when compared to the times of the storage devices found in the competition.

The biggest advantage of this package is the storage capacity of one TB (of which 820 GB is free). The rest of the space is taken by the operating system, the preinstalled software and the recovery partition.

CrystalDiskMark 3.0
Read Seq (sort by value)
MSI GT70 2PE-890US
GeForce GTX 880M, 4800MQ, HGST Travelstar 7K1000 HTS721010A9E630
123.6 MB/s ∼8%
MSI GT70H-80M4811B
GeForce GTX 780M, 4700MQ, SanDisk X100 128GB SD5SF2128G1014E
475.3 MB/s ∼32% +285%
Schenker XMG P704
GeForce GTX 880M, 4910MQ, Crucial M500 480 GB CT480M500SSD3 mSATA
476.5 MB/s ∼32% +286%
One K56-4N
Radeon R9 M290X, 4700MQ, Samsung SSD 840 EVO 500GB
528.4 MB/s ∼36% +328%
One K73-4N
GeForce GTX 870M, 4800MQ, Samsung SSD 840 EVO 500GB
529.7 MB/s ∼36% +329%
Read 4k (sort by value)
MSI GT70 2PE-890US
GeForce GTX 880M, 4800MQ, HGST Travelstar 7K1000 HTS721010A9E630
0.4 MB/s ∼1%
MSI GT70H-80M4811B
GeForce GTX 780M, 4700MQ, SanDisk X100 128GB SD5SF2128G1014E
27.37 MB/s ∼63% +6743%
Schenker XMG P704
GeForce GTX 880M, 4910MQ, Crucial M500 480 GB CT480M500SSD3 mSATA
29.13 MB/s ∼67% +7183%
One K56-4N
Radeon R9 M290X, 4700MQ, Samsung SSD 840 EVO 500GB
42.1 MB/s ∼97% +10425%
One K73-4N
GeForce GTX 870M, 4800MQ, Samsung SSD 840 EVO 500GB
43.36 MB/s ∼100% +10740%
HGST Travelstar 7K1000 HTS721010A9E630
Transfer Rate Minimum: 13.7 MB/s
Transfer Rate Maximum: 137.9 MB/s
Transfer Rate Average: 105.1 MB/s
Access Time: 16.2 ms
Burst Rate: 292.7 MB/s
CPU Usage: 1.8 %

Graphics Card

The MSI GT70 2PE-890US has two graphics cards. The Intel HD Graphics 4600 takes care of the everyday tasks like surfing the web or working with office. Thanks to Quick Sync, the CPU can efficiently convert videos. The conservative GPU operates between 200 and 1,300 MHz. It lacks its own memory. Thanks to Nvidia Optimus, the system can automatically switch from the IGP to the stronger, dedicated GPU.

The Nvidia GeForce GTX 880M belongs currently to the strongest GPUs. It is based on the GK104 chip with Kepler architecture like its predecessor the GTX 780M. It runs at 954 MHz, around 15% faster, and can increase the speed thanks to Boost. The eight shaders each have 192 CUDA cores, which means the GTX 880M has a total of 1,536 shaders. The memory interface is 256-bit. Furthermore, the GPU has 8 GB GDDR5 RAM, which runs at 2,500 MHz. Battery Boost allows the battery life to be increased while gaming.

The 3DMark benchmark (2013) shows what the GTX 880M can do. The Fire Strike Graphics score is 6,197 points. It is even faster than the GPU of the XMG P704 (6,095 points), although they use the same driver (ForceWare 332.35). The competition, using the AMD GPU, cannot hold its own. The One K56-4N uses a Radeon R9 M290X. The AMD GPU lies further behind at 5,294 points (-15%) and is closer to the standard of the predecessor. The GPU of the test model is one of the strongest single-chip GPUs.

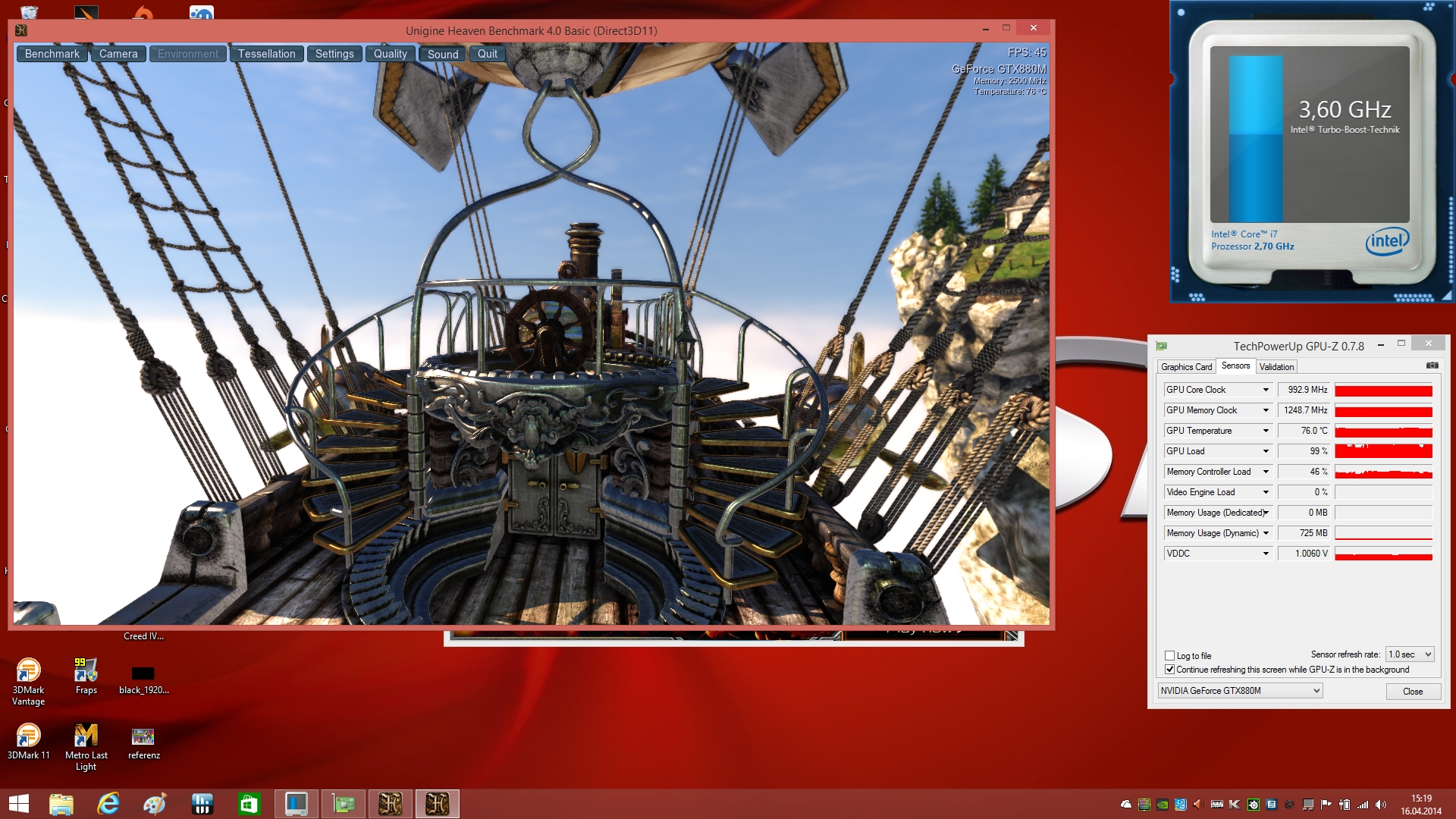

The clock speed was measured using Unigine Heaven 4.0 (1,366x768 pixels, Ultra-Quality, Extreme-Tessellation, 8xAA, Dx11). Everything runs fluidly at 78 fps. The GTX 880M runs at 993 MHz and drops down to 967 MHz for brief periods, but as such remains in the Turbo range throughout. MSI Cooler Boost 2 drops the temperature of the GPU from 87 °C (188.6 °F) to 79 °C (174.2 °F). The clock speed is dropped to 980 MHz only briefly. On battery, the clock speed ranges between 745 and 797 MHz. The frame rates drop below 30 fps.

Clock behavior GPU: 993 MHz @ 86 °C
Clock behavior GPU: 993 MHz @ 86 °C
Clock behavior GPU: 993 MHz @ 79 °C (with Cooler Boost)
Clock behavior GPU: 993 MHz @ 79 °C (with Cooler Boost)
Clock behavior GPU: 745 - 797 MHz @ 70 °C (on battery)
Clock behavior GPU: 745 - 797 MHz @ 70 °C (on battery)
MSI GT70 2PE-890US
Intel Core i7-4800MQ, NVIDIA GeForce GTX 880M, HGST Travelstar 7K1000 HTS721010A9E630
One K73-4N
Intel Core i7-4800MQ, NVIDIA GeForce GTX 870M, Samsung SSD 840 EVO 500GB
MSI GT70H-80M4811B
Intel Core i7-4700MQ, NVIDIA GeForce GTX 780M, SanDisk X100 128GB SD5SF2128G1014E
One K56-4N
Intel Core i7-4700MQ, AMD Radeon R9 M290X, Samsung SSD 840 EVO 500GB
Schenker XMG P704
Intel Core i7-4910MQ, NVIDIA GeForce GTX 880M, Crucial M500 480 GB CT480M500SSD3 mSATA
3DMark (2013)
-20%
-16%
-13%
-2%
1920x1080 Fire Strike Standard Score55774261
-24%
4631
-17%
4793
-14%
5493
-2%
1920x1080 Fire Strike Standard Graphics61974664
-25%
5104
-18%
5294
-15%
6095
-2%
1920x1080 Fire Strike Standard Physics97549225
-5%
8813
-10%
8810
-10%
9775
0%
1920x1080 Fire Strike Standard Combined23321737
-26%
1925
-17%
2004
-14%
2292
-2%
3D Mark
3DMark 06
 1280x1024
28118 points
3DMark 118148 points
3DMark Ice Storm82289 points
3DMark Cloud Gate19781 points
3DMark Fire Strike5577 points
3DMark Fire Strike Extreme2774 points
Help

Gaming Performance

The Nvidia GeForce GTX 880M is currently one of the strongest single-chip GPUs available. As such, the MSI GT70 2PE-890US has up to 15% more performance available than its predecessor. This is confirmed by the benchmarks: although the performance increase is not as great as it was last year, it is still enough to beat the AMD Radeon R9 M290X.

The strong graphics card can even run most games at ultra settings (Full HD resolution, max details, AA). This includes Company of Heroes 2, which is very performance-hungry. Still, the user will get a high-performance gaming machine.

The MSI Cooler Boost 2 has no direct influence on the benchmark results, but it does offer an improved cooling system, and thus presents the option of reaching even higher frame rates with overclocking.

Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS (sort by value)
MSI GT70 2PE-890US
GeForce GTX 880M, 4800MQ, HGST Travelstar 7K1000 HTS721010A9E630
51 fps ∼49%
One K73-4N
GeForce GTX 870M, 4800MQ, Samsung SSD 840 EVO 500GB
36.2 fps ∼35% -29%
One K56-4N
Radeon R9 M290X, 4700MQ, Samsung SSD 840 EVO 500GB
38.7 fps ∼37% -24%
Schenker XMG P704
GeForce GTX 880M, 4910MQ, Crucial M500 480 GB CT480M500SSD3 mSATA
45.4 fps ∼44% -11%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x (sort by value)
MSI GT70 2PE-890US
GeForce GTX 880M, 4800MQ, HGST Travelstar 7K1000 HTS721010A9E630
42.4 fps ∼45%
One K73-4N
GeForce GTX 870M, 4800MQ, Samsung SSD 840 EVO 500GB
34.4 fps ∼36% -19%
One K56-4N
Radeon R9 M290X, 4700MQ, Samsung SSD 840 EVO 500GB
33.1 fps ∼35% -22%
MSI GT70H-80M4811B
GeForce GTX 780M, 4700MQ, SanDisk X100 128GB SD5SF2128G1014E
35 fps ∼37% -17%
Asus G750JH-T4080H
GeForce GTX 780M, 4700HQ, Liteonit LMT-256M6S
34.9 fps ∼37% -18%
Schenker XMG P704
GeForce GTX 880M, 4910MQ, Crucial M500 480 GB CT480M500SSD3 mSATA
42.6 fps ∼45% 0%
Company of Heroes 2 - 1920x1080 Maximum / Higher / High AA:High (sort by value)
MSI GT70 2PE-890US
GeForce GTX 880M, 4800MQ, HGST Travelstar 7K1000 HTS721010A9E630
24.7 fps ∼48%
Asus G750JH-T4080H
GeForce GTX 780M, 4700HQ, Liteonit LMT-256M6S
22.8 fps ∼44% -8%
low med.high ultra
The Elder Scrolls V: Skyrim (2011) 176.2165.295.164.3fps
Diablo III (2012) 19312511784fps
StarCraft II: Heart of the Swarm (2013) 1231008547fps
Metro: Last Light (2013) 106.59075.942.4fps
GRID 2 (2013) 145.1107.198.272.6fps
Company of Heroes 2 (2013) 55.452.84624.7fps
Total War: Rome II (2013) 245175.515237fps
Fifa 14 (2013) 471347334294fps
Battlefield 4 (2013) 18114912551fps
Assassin´s Creed IV: Black Flag (2013) 62595735fps

Emissions

System Noise

While idle, the MSI GT70 2PE-890US is quite loud. The constantly running fan is audible at over 34 dB(A) and even drones over the HDD.

At medium load, which is simulated using 3DMark 06, the emissions of the system fluctuate between 40-47 dB(A). In this case, the fan behavior should be further optimized to achieve as stable a level as possible. At load, which we simulate using FurMark and Prime95 simultaneously, the emissions rise due to the activated Cooler Boost, up to 56 dB(A). This is really quite loud and even surpasses notebooks with a Clevo barebones, like the XMG P704 (max. 52 dB(A)). Thankfully, we reach this level of emission only when we activate the Cooler Boost. We find the Asus G750 to be ideal as even at full load it stays below 45 dB(A).

Noise Level

Idle 34.2 / 34.4 / 34.8 dB(A)
DVD 36.0 / dB(A)
Load 46.8 / 56.0 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft sl-320 (15 cm distance)

Temperature

Stress test: CPU @ 3.0 GHz, GPU @ 824 MHz.
Stress test: CPU @ 3.0 GHz, GPU @ 824 MHz.

The surface temperatures of the MSI GT70 2PE reach a maximum of 30.3 °C (86.54 °F) while idle, which is incredibly low. At load, the machine does not hit any critical levels, as temperatures reach a maximum of 45.4 °C (113.72 °F), near the ventilation opening. The Schenker P704 (max. 44.6 °C; 112.28 °F) performs similarly. The One K56-4N with AMD GPU reaches a maximum of 39 °C (102.2 °F) and is the coolest of all.

In the stress test, the CPU and the GPU are run at full load for multiple hours without Cooler Boost. We used Prime95 and FurMark to achieve full load. The GPU (max. 91 °C; 195.8 °F) and the CPU (max. 90 °C; 194 °F) heat up significantly, but the system stays stable. The clock speeds of the components are throttled. The processor runs at 3.0 GHz and although it is still in Turbo range, it still is far less powerful than we would expect. The graphics chip drops its speed down to 824 MHz and thus lies below its base clock speed (954 MHz). In everyday use, it would be hard to recreate this scenario, especially with this intensity. In the game benchmarks, we did not notice any limitations.

Max. Load
 43.1 °C43.5 °C29.2 °C
 37.8 °C36.4 °C29.5 °C
 28.1 °C28.9 °C27.7 °C
Maximum: 43.5 °C
Average: 33.8 °C
29.8 °C42.6 °C45.4 °C
30.4 °C32.3 °C35.8 °C
30.6 °C31.3 °C28.0 °C
Maximum: 45.4 °C
Average: 34 °C
Power Supply (max.)  54.4 °C | Room Temperature 24.0 °C | Voltcraft IR-550

Speakers

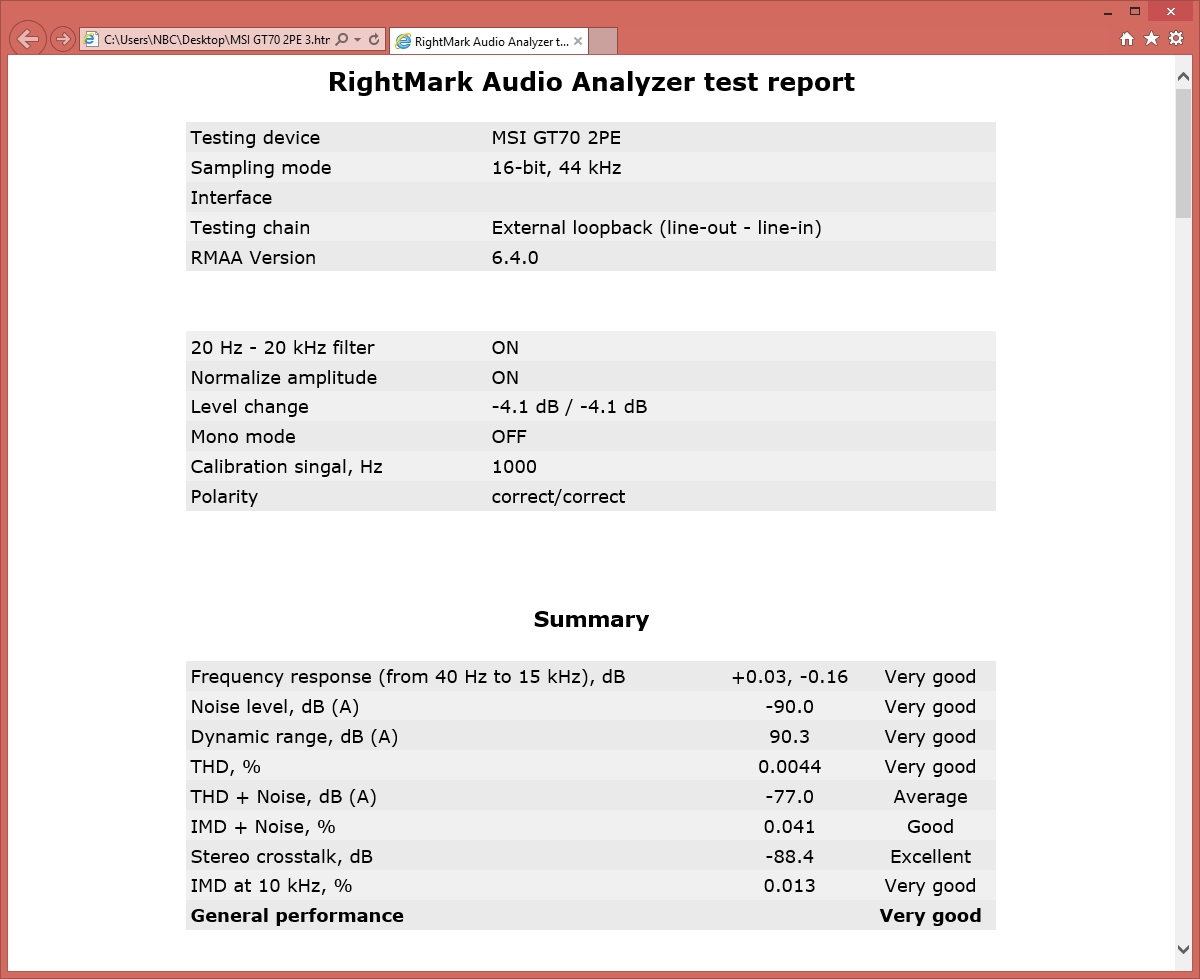

RightMark Audio Analyzer
RightMark Audio Analyzer

The MSI GT70 2PE-890US has an excellent audio system like its predecessor. The laptop has two speakers from Dynaudio and an integrated subwoofer, which ensures good bass. The sound of the two speakers is also quite good. High and middle notes sound good and are easily heard even at high volumes. The optimizations made to Sound Blaster Cinema are noticeable. At maximum volume, the settings need to be changed a little to optimize the sound.

The audio jacks also offer good performance. The RightMark Audio Analyzer shows that they perform quite well. The test model shows some weakness when dealing with distortions. The result is heavily dependent on the Sound Blaster Cinema settings. The results we noted were achieved without the software improvements and as such, the laptop has plenty of room for improvement.

Energy Management

Power Consumption

The MSI GT70 2PE-890US performs well in this area. While idle, the model consumes between 11 and 28 W with the Intel HD 4600. The competitors require more power. The XMG P704 is an exception as it consumes between 20 and 33 W.

At load, our dedicated graphics card takes over. This leads to even higher power consumption. While running 3DMark 06, the GT70 requires 25 W more than its predecessor (103 W) and thus lies at the same level as the One competitors (K56 and K73). In our stress test, the test model operates conservatively and consumes a "mere" 182 W. This places it at the same level as the K56-4N. The K73-4N (max. 196 W) and the P704 (max. 216 W) require even more power. The reason for this relatively low consumption is the power adapter performance of 180 W. If more power is required, the hardware uses the battery: for example, in our stress test, the battery discharged despite the laptop being connected to a power socket. A stronger power adapter would be nice, especially if the user wishes to overclock. Unfortunately, MSI does not offer one.

Power Consumption

Off / Standby 0.1 / 0.3 Watt
Idle 11.0 / 18.3 / 28.4 Watt
Load 127.5 / 182.0 Watt

Key: min: , med: , max:         Voltcraft VC 940

Battery Life

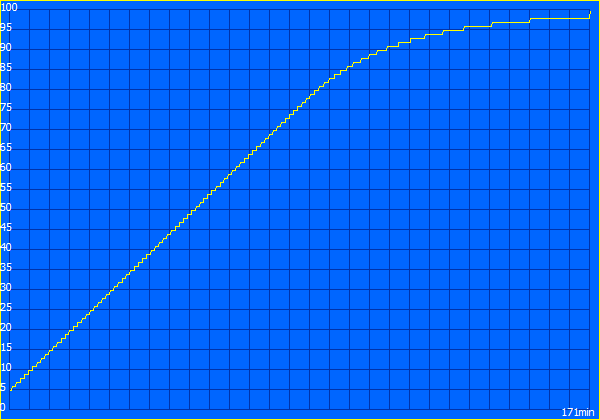

171 minutes are required to charge the GT70 battery, with the display on.
171 minutes are required to charge the GT70 battery, with the display on.

The large battery (87 Wh) allows the MSI GT70 2PE to achieve decent run times. The maximum run time was measured using the Battery Eater Reader’s test. The brightness is set to minimum and all wireless modules are turned off. The notebook lasts more than six and a half hours. In the opposite scenario, we used the Classic test from Battery Eater to measure the minimum run time, with CPU and GPU at full load and maximum brightness. The laptop lasts 71 minutes.

Our "surfing via WLAN" shows a more realistic value. In this test, the brightness is set to 150 cd/m² and all wireless modules are turned off (aside from the WLAN). The test runs a browser script, which loads a new page every 40 seconds. In this case, the GT70 shows what it can achieve with a run time of six and a half hours. This value is quite close to the max run time, which might be explained by the fact that the lowest brightness setting is still relatively high. The other competitors can achieve a maximum three and a half hours in this test. On our test model, we could play a Blu-ray for four hours. If the gaming notebook were not so big, we could have talked about the impact of such good run times on its mobility.

Battery Runtime
Idle (without WLAN, min brightness)
6h 32min
WiFi Surfing
6h 29min
Blu-ray
4h 04min
Load (maximum brightness)
1h 11min

Verdict

In review: MSI GT70 2PE-890US. Test model provided by Nvidia Germany.
In review: MSI GT70 2PE-890US. Test model provided by Nvidia Germany.

The MSI GT70 2PE-890US impresses us with its strong performance, good display, great connectivity and excellent sound system. If you want performance and do not want to invest in an SLI or CrossFire system, then we recommend this test model.

The good upgrade possibilities and extensive cooling system will appeal to tweakers and overclockers equally. It is a pity that the manufacturer did not choose a stronger power adapter, which would offer more room for optimizations. The enormous emissions might be a serious issue for a few prospective buyers, especially when the system is turned up to maximum cooling. However, if you enjoy gaming with a headset, this should not disturb you. We are happy to note that the speakers are even louder than the emissions. In everyday use, this level of emissions will be hard to reach. Gaming enthusiasts will be able to look past this flaw, as the laptop is a lot of fun to use.

The MSI GT70 is now available for $1899
Read all 12 comments / answer
static version load dynamic
Loading comments

Comment this article:

In Review: MSI GT70 2PE-890US. Test model provided by Nvidia Germany.
In Review: MSI GT70 2PE-890US. Test model provided by Nvidia Germany.
The MSI GT70 is now available for $1899

Specifications

MSI GT70 2PE-890US
Graphics adapter
NVIDIA GeForce GTX 880M - 8192 MB, Core: 954 MHz, Memory: 1250 MHz, GDDR5, 9.18.13.3235 (ForceWare 332.35), Nvidia Optimus
Memory
12288 MB
, Dual-Channel, max. 32 GB, 4 Slots
Display
17.3 inch 16:9, 1920x1080 pixel, Chi Mei N173HGE-L11, TN-LED, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Harddisk
HGST Travelstar 7K1000 HTS721010A9E630, 1000 GB
7200 rpm , 820 GB free
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
2 USB 2.0, 3 USB 3.0, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Headphones, Microphone, Line-in, Line-out (7.1 analogue + S/PDIF), Card Reader: SD card reader (SDHC, SDXC), Intel WiDi
Networking
Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000MBit), Qualcomm Atheros Killer Wireless-N 1202 (a b g n ), 4.0 Bluetooth
Optical drive
TSSTcorp BDDVDW SN-506BB
Size
height x width x depth (in mm): 55 x 428 x 288 ( = 2.17 x 16.85 x 11.34 in)
Weight
3.786 kg ( = 133.55 oz) Power Supply: 847 g ( = 29.88 oz)
Battery
87 Wh Lithium-Ion, 7,800 mAh, 11,1 V, Battery runtime (according to manufacturer): 3 h
Price
1849 Euro
Operating System
Microsoft Windows 8.1 64 Bit
Additional features
Webcam: 0.9 MP (30 fps, 720p), Speakers: 2.1 (Dynaudio, Sound Blaster Cinema), Keyboard: SteelSeries Gaming Keyboard, Keyboard Light: yes, Power adapter (180 W, 19.5 V, 9.2 A), Drivers DVD, Short manual, CyberLink PowerDVD 10, 24 Months Warranty



[+] compare
The packaging is promising.
The packaging is promising.
The GT70 is a heavyweight.
The GT70 is a heavyweight.
The display can not be pushed any further.
The display can not be pushed any further.
The TN display is impressive.
The TN display is impressive.
A 1,280 x 720 pixels resolution is offered by the webcam.
A 1,280 x 720 pixels resolution is offered by the webcam.

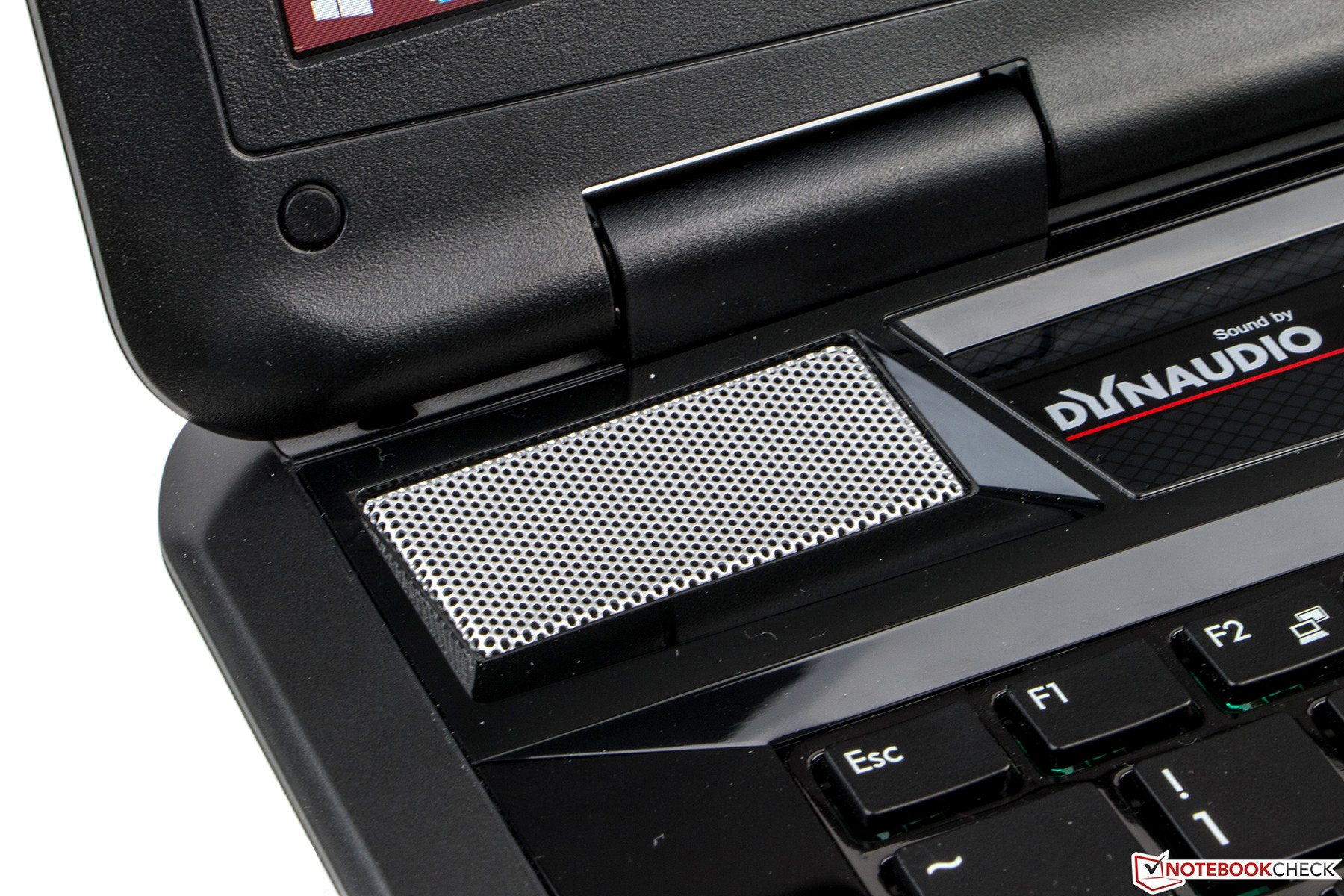

The speakers impress with clear sound output.
The speakers impress with clear sound output.
This was an optional sticker in the predecessor, but the manufacturer has chosen to turn it into an illuminated adornment.
This was an optional sticker in the predecessor, but the manufacturer has chosen to turn it into an illuminated adornment.
The bottom has a large maintenance flap.
The bottom has a large maintenance flap.
The GT70 can run without the battery while plugged in.
The GT70 can run without the battery while plugged in.
A few screws need to be removed to take off the maintenance flap.
A few screws need to be removed to take off the maintenance flap.
Heat pipes cool the CPU.
Heat pipes cool the CPU.
The GTX 880M hides under a giant cooling body.
The GTX 880M hides under a giant cooling body.
Two free RAM slots are accessible under the maintenance flap.
Two free RAM slots are accessible under the maintenance flap.
Delivery includes little extra, but all of it is useful.
Delivery includes little extra, but all of it is useful.
The 87 Wh battery.
The 87 Wh battery.
The power adapter is huge.
The power adapter is huge.

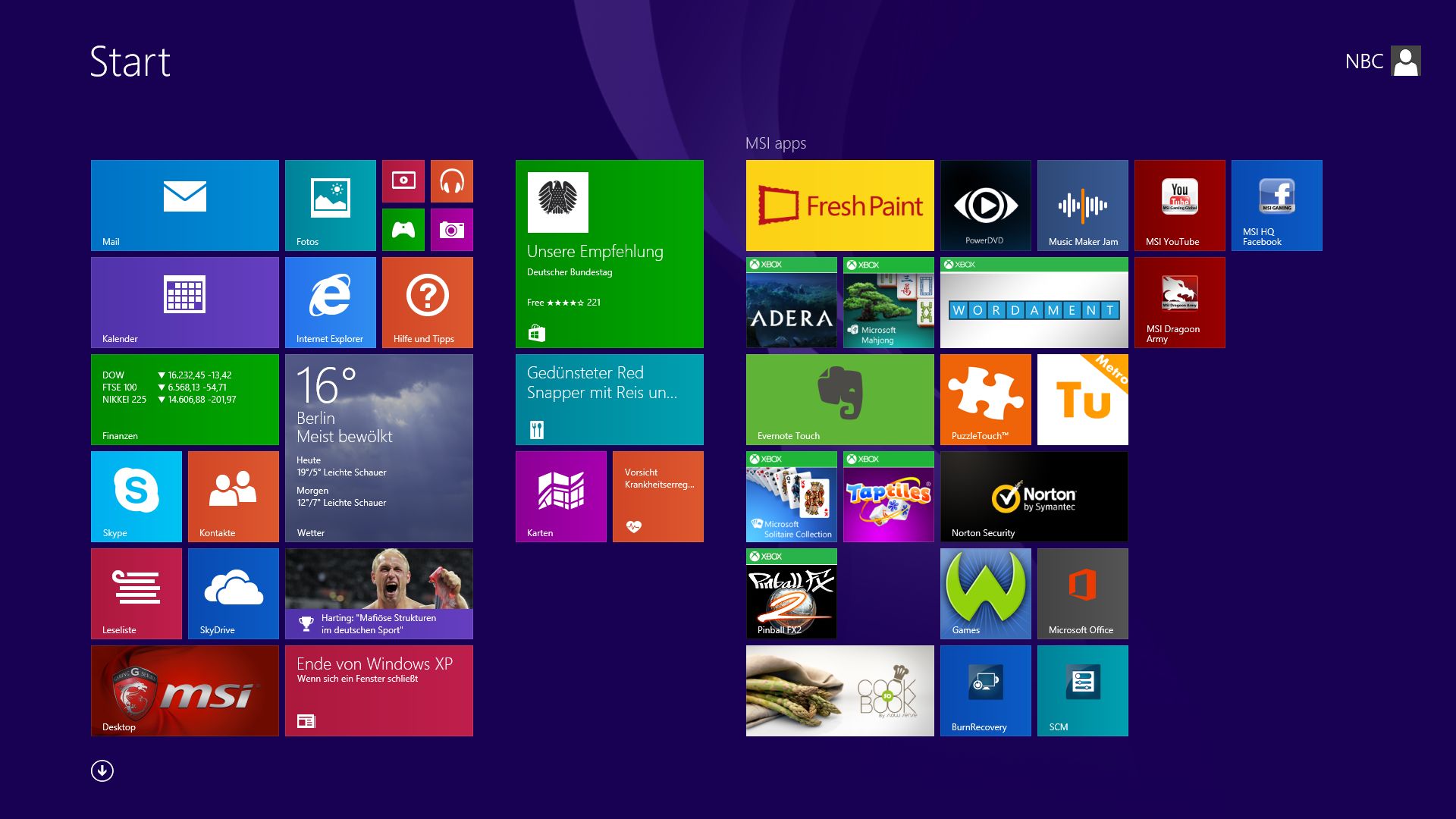

Microsoft Windows 8.1 (64-bit) is preinstalled.
Microsoft Windows 8.1 (64-bit) is preinstalled.
CrystalDiskMark
CrystalDiskMark
HD Tune
HD Tune

Similar Devices

Devices from a different Manufacturer and/or with a different CPU

» MSI GT72 Notebook Review
Core i7 4710HQ

Devices with the same GPU and/or Screen Size

» Review Asus G750JZ-T4023H Notebook
Core i7 4700HQ, 4.3 kg

Devices with the same GPU

» Gigabyte P25X v2 Notebook Review
Core i7 4810MQ, 15.6", 2.81 kg
» Eurocom X3 (Clevo P157SM) Notebook Review Update
Core i7 4930MX, 15.6", 3.49 kg

Devices with Same Screen Size and/or Weight

» iBuyPower GT72 Dominator Notebook Review Update
GeForce GTX 980M, Core i7 4710HQ

Links

Price Comparison

Connection timed out (110)

Pro

+Bright FHD display with good contrast
+Excellent performance
+Many ports
+Good battery life
+Excellent sound system
+Multiple upgrade options
+Backlit keyboard ...


Cons

-... with a layout that requires getting used to.
-Extremely loud at full load
-Small touchpad
-Heavy
-The distribution of ports on the sides could have been better

Shortcut

What we like

The performance combined with a bright panel with strong contrast is fun to game on, as most games can be run with max settings.

What we miss

Quiet. At load, the notebook can get quite loud. The cooling works, but it has a price.

What surprises us

The GT70 is a heavyweight, even for a 17.3-inch notebook. The touchpad seems tiny.

The competition

The competitors include: One K73-4N, One K56-4N, Schenker XMG P704, Alienware 17 and Asus G750JH-T4080H.

Rating

MSI GT70 2PE-890US
04/18/2014 v4
Daniel Schmidt

Chassis
81 / 98 → 83%
Keyboard
81%
Pointing Device
75%
Connectivity
78 / 91 → 86%
Weight
51 / 66 → 73%
Battery
87%
Display
82%
Games Performance
97%
Application Performance
93%
Temperature
89 / 95 → 94%
Noise
62 / 90 → 69%
Audio
88%
Average
80%
86%
Gaming *
Weighted Average
> Notebook / Laptop Reviews and News > Reviews > Review MSI GT70 2PE-890US Gaming Notebook
Author: Daniel Schmidt, 2014-05- 3 (Update: 2014-05- 5)
