Zotac ZBOX PI336 pico review: A pocket PC with Intel Celeron N6211 and 4 GB of RAM

Silent Mini PC! Under the label ZBOX PI336 pico, Zotac markets very compact desktop PCs that can easily fit in your pant pocket. However, the current model based on an Elkhart Lake SOC is not always convincing. Find out in this review with numerous benchmarks what the Zotac ZBOX PI336 pico with the Intel Celeron N6211 is able to do.

In addition to the well-known GeForce graphics cards, with the ZBOX series, Zotac also offers a number of compact desktop PCs. In the pico series, Zotac fits a complete PC into a tiny 0.18-Liter case. This is about half the size of a conventional DVD case. There is no active cooling, which also means that only very efficient components are used. The SoC is called Intel Celeron N6211 and belongs to the Elkhart Lake series. With its low TDP, this SoC is very well suited for this usage scenario. In terms of working memory, there is 4 GB, which cannot be expanded. The storage solution is also fixed, offering only 128 GB. This compact computer is available for 370 Euros (~$378), including Windows 11 Pro. As usual, Zotac offers a 36-month warranty with the option to extend this to 60 months after the registration.

ZBOX PI336 pico
Processor
Intel Celeron N6211 2 x 1.2 - 3 GHz, 20 W PL2 / Short Burst, 6 W PL1 / Sustained, Elkhart Lake
Graphics adapter
Memory
4 GB
, DDR4-3200 MT/s, soldered in
Storage
SanDisk DF4128, 128 GB
, 70 GB free
Soundcard
Realtek High Definition Audio
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, Card Reader: Micro SDHC/SDXC
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Size
height x width x depth (in mm): 20.7 x 115 x 76 ( = 0.81 x 4.53 x 2.99 in)
Operating System
Microsoft Windows 11 Pro
Additional features
AC adapter, mounting bracket, USB drive with O/S recovery, 36 Months Warranty
Weight
293 g ( = 10.34 oz / 0.65 pounds), Power Supply: 138 g ( = 4.87 oz / 0.3 pounds)
Price
370 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Zotac ZBOX PI336 pico
Zotac ZBOX PI336 pico
Zotac ZBOX PI336 pico
Zotac ZBOX PI336 pico
Zotac ZBOX PI336 pico
Zotac ZBOX PI336 pico
Zotac ZBOX PI336 pico

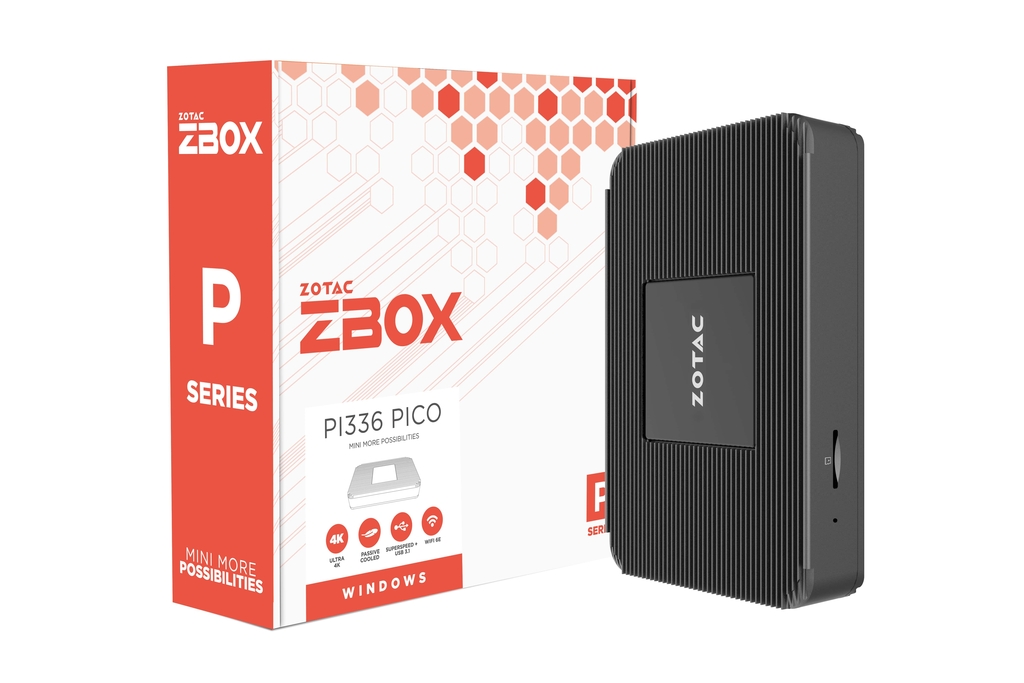

Zotac ZBOX PI336 pico (Source: Zotac)
Zotac ZBOX PI336 pico (Source: Zotac)
Zotac ZBOX PI336 pico (Source: Zotac)
Zotac ZBOX PI336 pico (Source: Zotac)

Case

The Zotac ZBOX PI336 pico is kept completely in black. The aluminum case also serves as the cooling element, also resulting in its surface structure. Visually and haptically, the device appears to be of a very high quality, and due to its compact case, the Mini PC is also very robust. Those who don't want to place the PC directly on the desk can also attach it directly to the monitor using the included VESA mount.

At barely 300 grams (~10.6 oz), the Zotac ZBOX PI336 pico is very light, and the 20-Watt power supply adds another 140 grams (~5 oz).

Connection Equipment

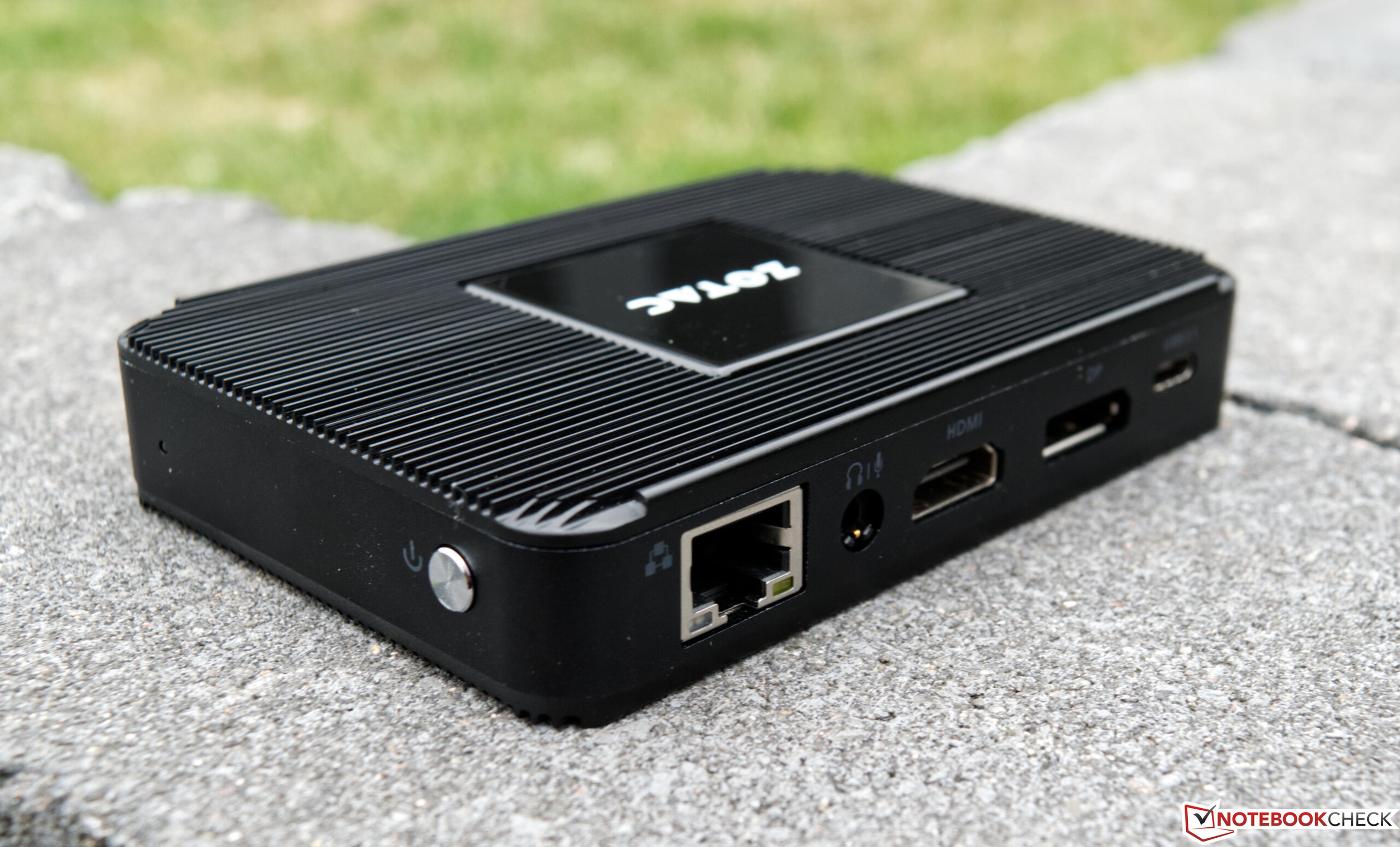

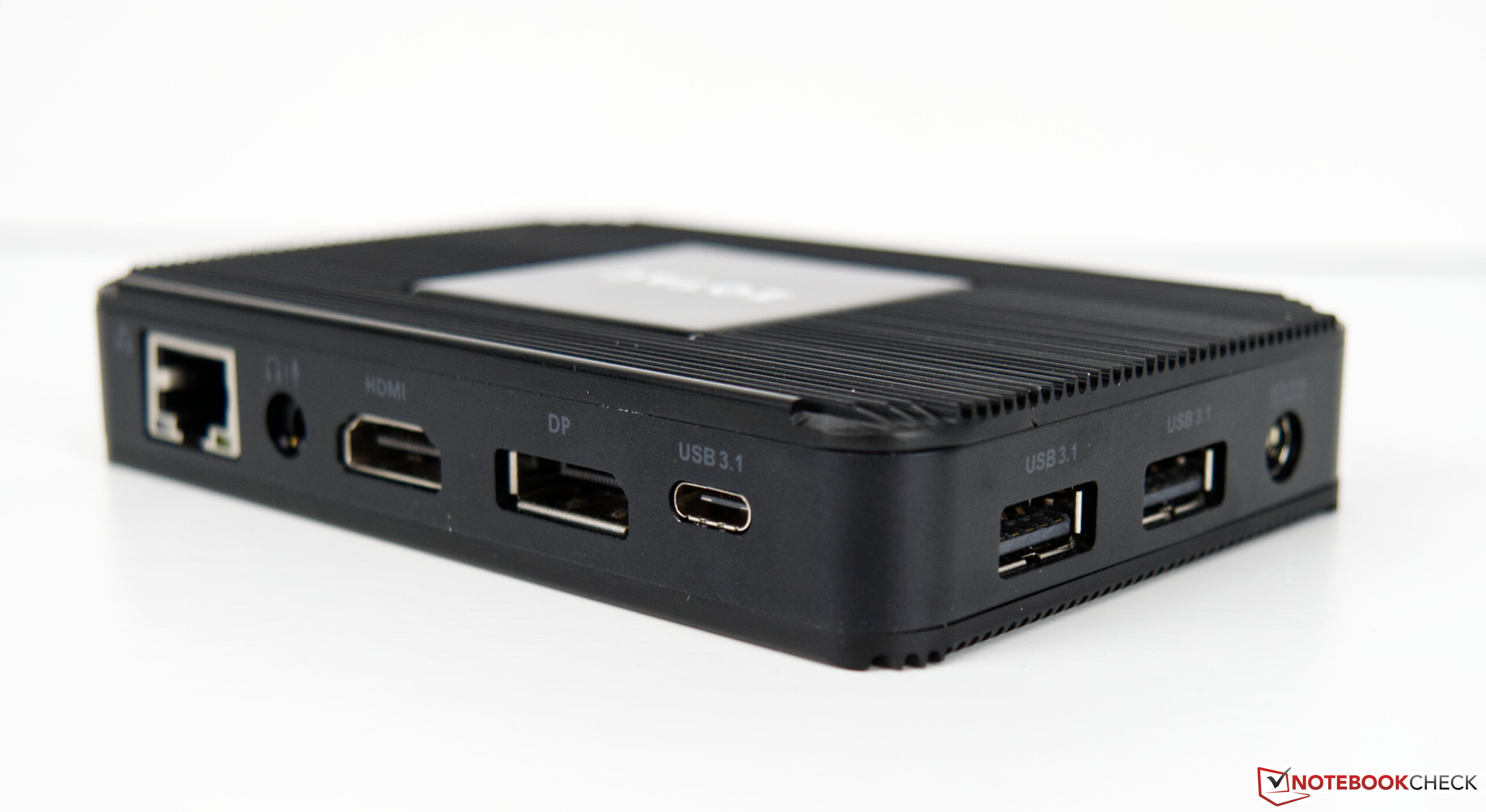

Considering its diminutive size, the Zotac ZBOX PI336 pico comes with good connection equipment. Three USB 3.1 connections are sufficient for regular office users, and the single USB Type-C connection also uses the 3.1 standard. However, unfortunately this cannot be used for charging. WLAN and LAN, as well as an SD card reader are also available, and you can connect up to two displays simultaneously using HDMI and DisplayPort.

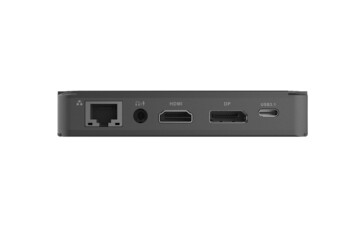

RJ45 (10/100/1000 Ethernet), headphone/microphone combi port, HDMI 2.0, DisplayPort 1.4, USB 3.1 (1 Type-C)
RJ45 (10/100/1000 Ethernet), headphone/microphone combi port, HDMI 2.0, DisplayPort 1.4, USB 3.1 (1 Type-C)
2x USB 3.1 (Type-A), power port
2x USB 3.1 (Type-A), power port

SD Card Reader

While the built-in microSD card reader offers USB-3 speeds, it is unable to use the full performance of our test card (AV Pro SD microSD 128 GB V60).

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Desktop
  (17 - 189.6, n=13, last 2 years)
80.5 MB/s ∼100% +229%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
24.44 MB/s ∼30%
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
18.46 MB/s ∼23% -24%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.02 MB/s ∼21% -30%
maximum AS SSD Seq Read Test (1GB)
Average of class Desktop
  (17.7 - 201, n=13, last 2 years)
89.8 MB/s ∼100% +117%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
41.45 MB/s ∼46%
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
21.03 MB/s ∼23% -49%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.7 MB/s ∼20% -57%

Communication

Zotac uses a very current Wi-Fi module in the ZBOX PI336 pico. The Intel Wi-Fi 6E AX210 produces very good transfer rates in the test and also works in the 6 GHz band, as long as the router supports this. The RJ-45 connection represents an alternative to the WLAN module, offering transfer rates up to 1 Gbps.

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1848 (1731min - 1888max) MBit/s ∼100% +1%
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1827 (1760min - 1865max) MBit/s ∼99%
Average Intel Wi-Fi 6E AX210
  (885 - 1827, n=5)
1462 MBit/s ∼79% -20%
Average of class Desktop
  (430 - 1851, n=9, last 2 years)
1162 MBit/s ∼63% -36%
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s ∼42% -58%
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1851 (1799min - 1897max) MBit/s ∼100% +34%
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1385 (1351min - 1401max) MBit/s ∼75%
Average Intel Wi-Fi 6E AX210
  (1198 - 1385, n=4)
1305 MBit/s ∼71% -6%
Average of class Desktop
  (572 - 1696, n=9, last 2 years)
1191 MBit/s ∼64% -14%
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s ∼47% -37%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700175018001850Tooltip
Zotac ZBOX PI336 pico; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1385 (1351-1401)
Zotac ZBOX PI336 pico; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1827 (1760-1865)

Warranty

According to the warranty conditions, when purchasing the Zotac ZBOX PI336 pico, Zotac offers a 36-month warranty for countries in Europe, the Middle East, Africa, and India. Those who register their device with the manufacturer after the purchase can also extend the warranty to 60 months for free.

Performance

Processor

The Intel Celeron N6211 used here delivers a very low performance that is only sufficient for the simplest office tasks. Correspondingly, our test unit only places in the lower end of our test field. Even the AC6-M Mini PC is able to surpass the PI336 pico from Zotac often significantly. The problem often lies in the limited 4 GB of RAM, which prevents a better and smoother operation.

On the other hand, the SoC has a basic clock speed of 1.2 GHz and reaches up to 3.0 GHz in Turbo operation, if the conditions allow for this. In our test unit, the PL values are 6 and 20 watts, but the 20 watts are never reached. In our practical test, the Zotac ZBOX PI336 pico already had some problems to maintain the PL1 constantly, so we should only see about 1.7 GHz constantly under load.

You can find additional comparisons and benchmarks in our CPU comparison chart.

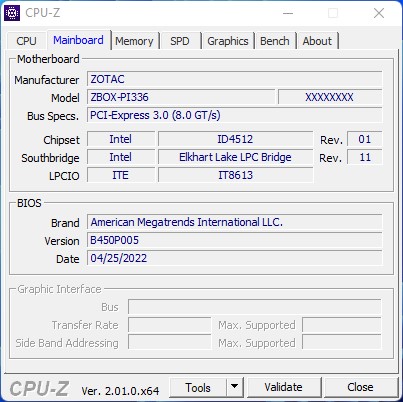

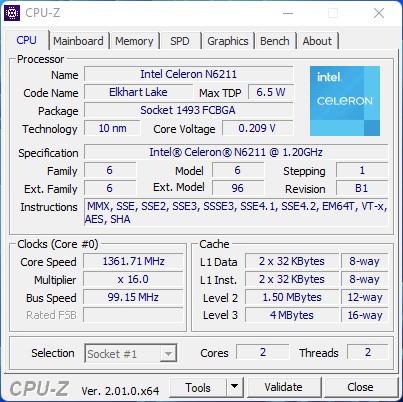

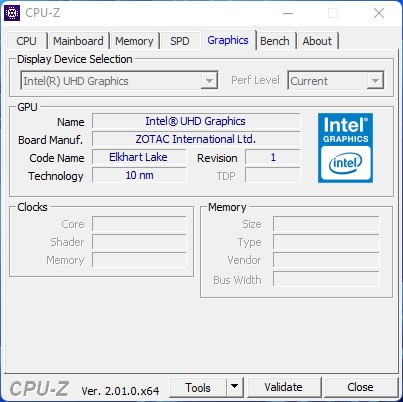

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
HWiNFO
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
242 Points ∼74% +218%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
240 Points ∼73% +216%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
212 Points ∼65% +179%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
162 Points ∼49% +113%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
123 Points ∼38% +62%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
77 Points ∼23% +1%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
76 Points ∼23%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
75.3 Points ∼23% -1%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2224 Points ∼23% +1638%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points ∼20% +1399%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
950 Points ∼10% +642%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
319 Points ∼3% +149%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
316 Points ∼3% +147%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
248 Points ∼3% +94%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
243 (199.13min - 242.53max) Points ∼3% +90%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
128 Points ∼1%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
582 Points ∼67% +234%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
567 Points ∼65% +226%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
560 Points ∼64% +222%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
401 Points ∼46% +130%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
266 Points ∼31% +53%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
174 Points ∼20%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
171 Points ∼20% -2%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
161 Points ∼19% -7%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5185 Points ∼22% +1719%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4495 Points ∼19% +1477%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2319 Points ∼10% +714%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
743 Points ∼3% +161%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
720 Points ∼3% +153%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
556 Points ∼2% +95%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
304 Points ∼1% +7%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
285 Points ∼1%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.86 Points ∼9% +195%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.8 Points ∼9% +189%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2.51 Points ∼8% +159%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.87 Points ∼6% +93%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.47 Points ∼5% +52%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.97 Points ∼3%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.92 Points ∼3% -5%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.84 Points ∼3% -13%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
25.6 Points ∼36% +1452%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
22 Points ∼31% +1233%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
10.78 Points ∼15% +553%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
4.14 Points ∼6% +151%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3.59 Points ∼5% +118%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3.09 Points ∼4% +87%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3.06 Points ∼4% +85%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.65 Points ∼2%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
12152 Points ∼66% +195%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
11811 Points ∼64% +187%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11457 Points ∼62% +178%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
8184 Points ∼45% +99%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
6163 Points ∼34% +50%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
4120 Points ∼22%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3711 Points ∼20% -10%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
73115 Points ∼55% +999%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
64320 Points ∼49% +867%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
42350 Points ∼32% +537%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
15504 Points ∼12% +133%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
14261 Points ∼11% +114%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
10705 Points ∼8% +61%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
6653 Points ∼5%
Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3767 Seconds * ∼27%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2391 Seconds * ∼17% +37%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 Seconds * ∼17% +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1805 Seconds * ∼13% +52%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
516 Seconds * ∼4% +86%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
265 Seconds * ∼2% +93%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
229.3 Seconds * ∼2% +94%
wPrime 2.10
32m
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
49.66 s * ∼10%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
19.42 s * ∼4% +61%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
17.62 s * ∼4% +65%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
17.37 s * ∼3% +65%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
17.09 s * ∼3% +66%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5.895 s * ∼1% +88%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4.4 s * ∼1% +91%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
3.308 s * ∼1% +93%
1024m
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1561.178 s * ∼18%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
615 s * ∼7% +61%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
603 s * ∼7% +61%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
566 s * ∼7% +64%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
543 s * ∼6% +65%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
191.4 s * ∼2% +88%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
106.7 s * ∼1% +93%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
91.6 s * ∼1% +94%
X264 HD Benchmark 4.0
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
276.5 (274min - 278max) fps ∼65% +511%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
271.5 (259min - 276max) fps ∼64% +500%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
106.5 (106min - 109max) fps ∼25% +135%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
102 (100min - 118max) fps ∼24% +125%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps ∼19% +74%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
52.6 fps ∼12% +16%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps ∼11%
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
128 (122min - 128max) fps ∼47% +1181%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
112 (112min - 112max) fps ∼41% +1021%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps ∼8% +116%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
20.55 (20.4min - 20.7max) fps ∼8% +106%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps ∼6% +68%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
11.31 fps ∼4% +13%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps ∼4%
WinRAR - Result
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7722 KB/s ∼45% +956%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5481 KB/s ∼32% +650%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4297 KB/s ∼25% +488%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1695 KB/s ∼10% +132%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1525 KB/s ∼9% +109%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1140 KB/s ∼7% +56%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1048 KB/s ∼6% +43%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
731 KB/s ∼4%
TrueCrypt
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
10.8 GB/s ∼0% +1003%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7.4 GB/s ∼0% +656%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6.1 GB/s ∼0% +523%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2.6 GB/s ∼0% +166%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.9 GB/s ∼0% +94%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.9 GB/s ∼0% +94%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.8 GB/s ∼0% +84%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.979 GB/s ∼0%
Twofish Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2 GB/s ∼0% +1329%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.6 GB/s ∼0% +1043%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.919 GB/s ∼0% +556%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
0.403 GB/s ∼0% +188%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.346 GB/s ∼0% +147%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.266 GB/s ∼0% +90%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.262 GB/s ∼0% +87%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.14 GB/s ∼0%
Serpent Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.2 GB/s ∼0% +1522%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.1 GB/s ∼0% +1386%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.525 GB/s ∼0% +609%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
0.23 GB/s ∼0% +211%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.21 GB/s ∼0% +184%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.182 GB/s ∼0% +146%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.178 GB/s ∼0% +141%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.074 GB/s ∼0%
Geekbench 5.4
Multi-Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7875 Points ∼27% +833%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7855 Points ∼27% +831%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5657 Points ∼20% +570%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1673 Points ∼6% +98%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1501 Points ∼5% +78%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1394 Points ∼5% +65%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
844 Points ∼3%
Single-Core
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1552 Points ∼67% +179%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1542 Points ∼67% +177%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points ∼63% +161%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
606 Points ∼26% +9%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
556 Points ∼24%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
455 Points ∼20% -18%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
435 Points ∼19% -22%
Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7859 Points ∼25% +817%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7847 Points ∼25% +816%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5606 Points ∼18% +554%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1482 Points ∼5% +73%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1313 Points ∼4% +53%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
857 Points ∼3%
5.0 Single-Core
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1504 Points ∼7% +169%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1498 Points ∼7% +168%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points ∼6% +160%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
603 Points ∼3% +8%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
559 Points ∼2%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
453 Points ∼2% -19%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6434 Points ∼66% +149%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6365 Points ∼66% +146%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6238 Points ∼64% +141%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2585 Points ∼27%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2555 Points ∼26% -1%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1922 Points ∼20% -26%
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
32434 Points ∼36% +799%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
31724 Points ∼35% +780%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
22045 Points ∼25% +511%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
5468 Points ∼6% +52%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
5399 Points ∼6% +50%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3606 Points ∼4%
3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
16783 Points ∼46% +955%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
13940 Points ∼38% +776%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11662 Points ∼32% +633%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3863 Points ∼11% +143%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3659 Points ∼10% +130%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2794 Points ∼8% +76%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2693 Points ∼7% +69%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1591 Points ∼4%
7-Zip 18.03
7z b 4
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
57435 MIPS ∼36% +1345%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
54998 MIPS ∼34% +1284%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
26858 MIPS ∼17% +576%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
9964 MIPS ∼6% +151%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7790 MIPS ∼5% +96%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7494 MIPS ∼5% +89%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3974 MIPS ∼2%
7z b 4 -mmt1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5905 MIPS ∼71% +128%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5739 MIPS ∼69% +121%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
4945 MIPS ∼59% +91%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3515 MIPS ∼42% +36%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2593 MIPS ∼31%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 MIPS ∼28% -8%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2361 MIPS ∼28% -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
15.9 fps ∼34% +1707%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
14.5 fps ∼31% +1548%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
7.86 fps ∼17% +793%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.65 fps ∼4% +88%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.48 fps ∼3% +68%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.46 fps ∼3% +66%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.88 fps ∼2%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.579 sec * ∼34% -15%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.577 sec * ∼34% -15%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.371 sec * ∼30%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.137 sec * ∼25% +17%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.622 sec * ∼13% +55%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.4965 sec * ∼11% +64%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.493 sec * ∼11% +64%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
144.7 s * ∼37%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
143 s * ∼36% +1%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
124 s * ∼31% +14%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
92.9 s * ∼23% +36%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
50.4 s * ∼13% +65%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
49.3 s * ∼12% +66%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
48.7 s * ∼12% +66%
WebXPRT 3 - ---
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
278 Points ∼73% +212%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
274 Points ∼72% +207%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
257 Points ∼68% +188%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
146 Points ∼39% +64%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
89.2 Points ∼24%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
87.2 Points ∼23% -2%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
86.2 Points ∼23% -3%
Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2288 ms * ∼3%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2276 ms * ∼3%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1396 ms * ∼2%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
670 ms * ∼1%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
602 ms * ∼1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
601 ms * ∼1%
3DMark - 1920x1080 Fire Strike Physics
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
24096 Points ∼45% +998%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
23903 Points ∼44% +989%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
13763 Points ∼25% +527%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
5122 Points ∼9% +133%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
4295 Points ∼8% +96%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3885 Points ∼7% +77%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3689 Points ∼7% +68%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2195 Points ∼4%

* ... smaller is better

Zotac ZBOX PI336 pico in the Cinebench R15 Multi loop

Our load test, where we simulate load with the Cinebench R15 Multi loop, shows that the cooling system of the Zotac ZBOX PI336 pico is sufficient to prevent thermal throttling. At an average of 127.4 points, the result remains stable across all 50 runs.

020406080100120140160180200220240260280300Tooltip
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)
GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)

Application Performance and Storage Solution

AS SSD
AS SSD

The system performance corresponds to the weak processor. Subjectively, you can use the Zotac ZBOX PI336 pico for doing some work, if you give the system sufficient time. Unfortunately, latencies when opening various applications are part of everyday operation here. The built-in eMMC storage with 128 GB is sufficient and also offers space for some smaller applications to handle everyday tasks, in addition to the Windows installation. However, the low amount of working memory causes problems from time to time. For example, we were unable to get even a single successful run with PCMark 10, so we cannot give you any comparison values. The storage cannot be expanded. Alternatively, you can only use the SD card reader. As we already mentioned above, the transfer rates offered by the card reader are even lower.

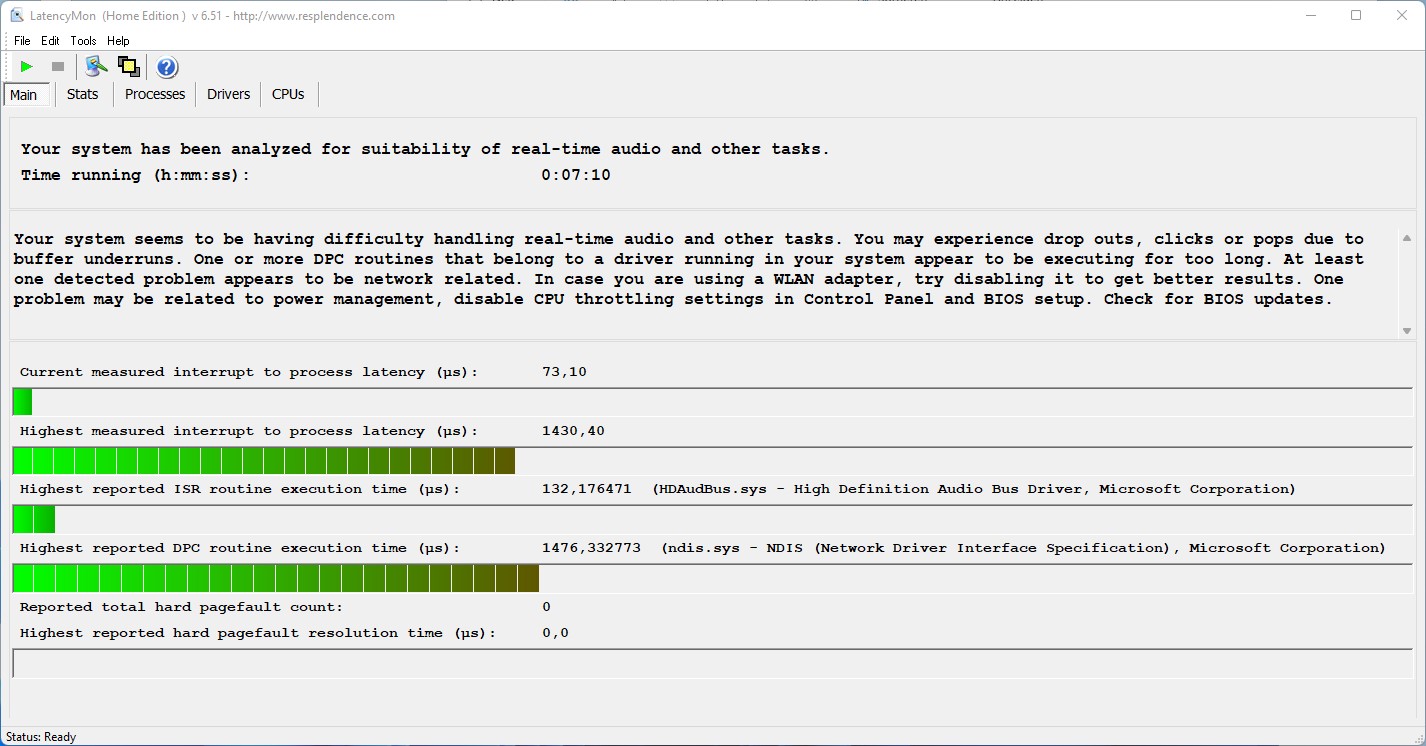

In the DPC latencies, the Zotac ZBOX PI336 pico is also unable to convince us completely. On the other hand, the competitors do even considerably worse in some parts here. But nonetheless, the Zotac ZBOX PI336 pico has very significant problems when reproducing 4K video material. The CPU is quickly utilized to 100%, resulting in a stuttering video reproduction. This means that we don't consider it to be usable as a streaming client.

Maximum latencies when opening several browser tabs and playing 4K videos
Maximum latencies when opening several browser tabs and playing 4K videos
Maximum latency after 10 seconds of Prime95
Maximum latency after 10 seconds of Prime95

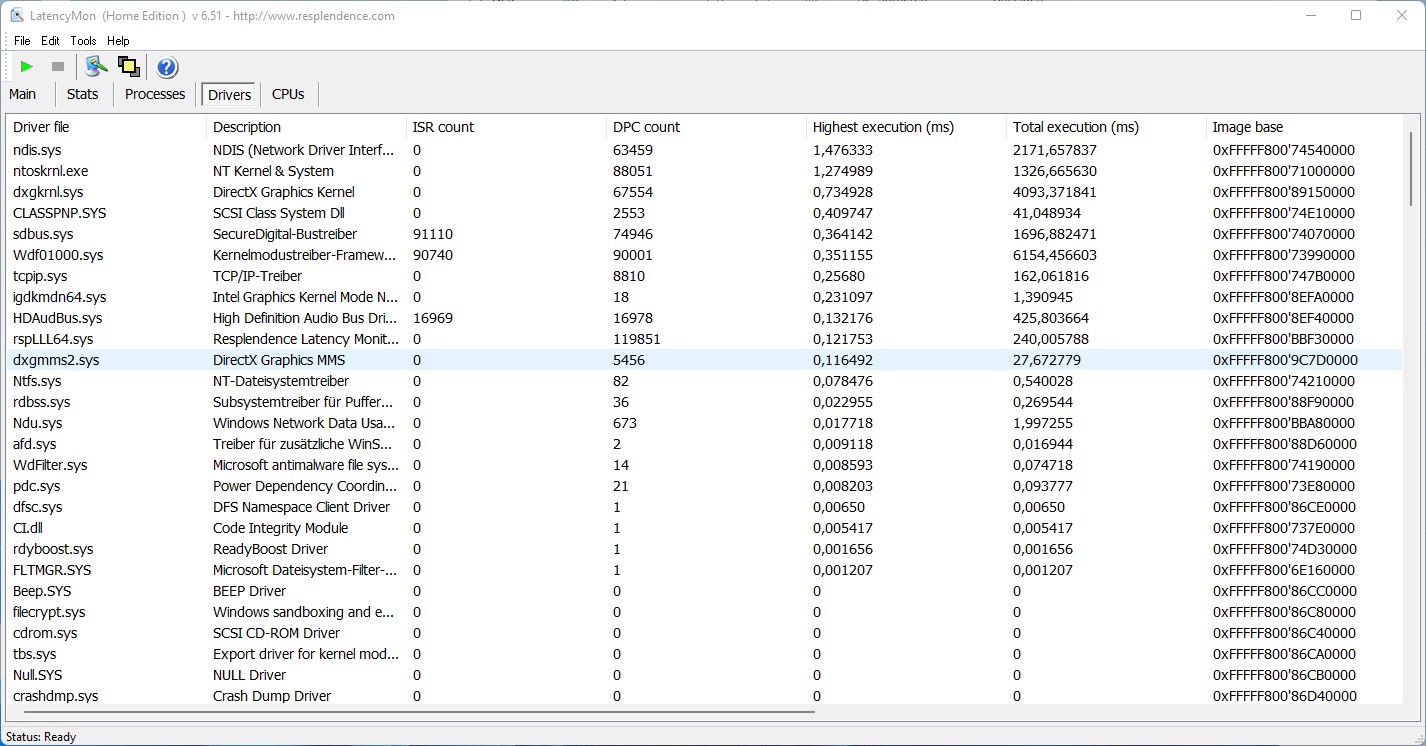

Drivers sorted by longest execution times
Drivers sorted by longest execution times
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
3767 μs * ∼100% -155%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * ∼70% -78%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1717 μs * ∼46% -16%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * ∼43% -10%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
1581 μs * ∼42% -7%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
1476.3 μs * ∼39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * ∼29% +25%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
349.5 μs * ∼9% +76%
ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points ∼100% +771%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points ∼84% +635%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
3414 Points ∼82% +617%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
959 Points ∼23% +101%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
631 Points ∼15% +33%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
476 Points ∼11%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
337 Points ∼8% -29%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
306 Points ∼100% +256%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points ∼90% +221%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points ∼77% +173%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
86 Points ∼28% 0%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
86 Points ∼28%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
54 Points ∼18% -37%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
44 Points ∼14% -49%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
292 Points ∼100% +387%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points ∼93% +353%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points ∼79% +285%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
82 Points ∼28% +37%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
63 Points ∼22% +5%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
60 Points ∼21%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
42 Points ∼14% -30%
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points ∼100% +1220%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points ∼83% +999%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
763 Points ∼60% +687%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
186 Points ∼15% +92%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
147 Points ∼11% +52%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
97 Points ∼8%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
79 Points ∼6% -19%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points ∼100% +1387%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points ∼86% +1185%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
853 Points ∼77% +1037%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
226 Points ∼20% +201%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
137 Points ∼12% +83%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
75 Points ∼7%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
54 Points ∼5% -28%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points ∼100% +658%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
1200 Points ∼100% +655%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points ∼83% +530%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
379 Points ∼31% +138%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
230 Points ∼19% +45%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
159 Points ∼13%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
118 Points ∼10% -26%
LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
2320 Samples/s ∼100% +1478%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s ∼55% +776%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s ∼40% +539%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s ∼17% +170%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
266 Samples/s ∼11% +81%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
147 Samples/s ∼6%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
129 Samples/s ∼6% -12%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
693 Samples/s ∼100% +756%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s ∼79% +575%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s ∼65% +457%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s ∼24% +101%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
109 Samples/s ∼16% +35%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
81 Samples/s ∼12%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
76 Samples/s ∼11% -6%
PCMark 10 - Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points ∼100%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
5130 Points ∼79%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
2958 Points ∼45%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points ∼39%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1831 Points ∼28%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
1806 Points ∼28%

* ... smaller is better

AIDA64 / Memory Copy
Average of class Desktop
  (6308 - 73501, n=39, last 2 years)
34519 MB/s ∼100% +119%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19544 MB/s ∼57% +24%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s ∼46%
Average Intel Celeron N6211

15737 MB/s ∼46% 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
13833 MB/s ∼40% -12%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
12604 MB/s ∼37% -20%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6308 MB/s ∼18% -60%
AIDA64 / Memory Read
Average of class Desktop
  (6292 - 75590, n=39, last 2 years)
35932 MB/s ∼100% +248%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19769 MB/s ∼55% +92%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s ∼29%
Average Intel Celeron N6211

10311 MB/s ∼29% 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10204 MB/s ∼28% -1%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10095 MB/s ∼28% -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6576 MB/s ∼18% -36%
AIDA64 / Memory Write
Average of class Desktop
  (6866 - 80230, n=39, last 2 years)
35818 MB/s ∼100% +110%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
22485 MB/s ∼63% +32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s ∼48%
Average Intel Celeron N6211

17031 MB/s ∼48% 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10449 MB/s ∼29% -39%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10347 MB/s ∼29% -39%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6866 MB/s ∼19% -60%
AIDA64 / Memory Latency
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
144 ns * ∼100% -89%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
89.5 ns * ∼62% -17%
Average of class Desktop
  (56 - 153, n=39, last 2 years)
79.5 ns * ∼55% -4%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * ∼53%
Average Intel Celeron N6211

76.3 ns * ∼53% -0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
74 ns * ∼51% +3%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
73.2 ns * ∼51% +4%

* ... smaller is better

Graphics Card

The iGPU of the Elkhart Lake SoC offers a similar performance as we already saw in the CPU tests. Due to the weak dual-core CPU, the iGPU is also unable to perform wonders here. However, the competitors with the Intel Celeron J4125 can still be slightly surpassed overall. But you shouldn't demand more than pure 2D output from the iGPU. The iGPU is not suited for gaming and is unable to reproduce even older games smoothly.

3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points ∼100% +257%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points ∼68% +144%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points ∼63% +124%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points ∼57% +102%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points ∼51% +81%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
650 Points ∼28%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
613 Points ∼26% -6%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points ∼26% -7%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
589 Points ∼25% -9%
3DMark
1280x720 Ice Storm Standard Graphics
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points ∼100% +171%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points ∼66% +80%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points ∼41% +12%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
22836 Points ∼37%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points ∼35% -6%
1920x1080 Ice Storm Extreme Graphics
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points ∼100% +178%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points ∼65% +80%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points ∼51% +41%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
14650 Points ∼36%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14600 Points ∼36% 0%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points ∼35% -2%
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points ∼100% +183%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points ∼70% +98%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points ∼60% +68%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points ∼52% +48%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points ∼52% +47%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
523 Points ∼35%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
455 Points ∼31% -13%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points ∼30% -15%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
433 Points ∼29% -17%
low med. high ultra
Dota 2 Reborn (2015) 24.3 10.9 5.8 5.2
Final Fantasy XV Benchmark (2018) 3.45 1.66
X-Plane 11.11 (2018) 7.76 4.97 4.64
Strange Brigade (2018) 9.2
3DMark 11 Performance
701 points
3DMark Ice Storm Standard Score
20892 points
3DMark Cloud Gate Standard Score
2873 points
3DMark Fire Strike Score
489 points
Help

Emissions

Noise Emissions

There are no noise emissions in the Zotac ZBOX PI336 pico. Since the system is cooled completely passively, it is suited for some special application areas. We also did not notice any other noises in our test unit, for example, when accessing the storage.

Temperatures

Stress test: FurMark+Prime95
Stress test: FurMark+Prime95

For the stress test, we run Prime95 and FurMark simultaneously. The CPU and iGPU have to share the configured TDP, so that neither component can develop its full performance. The SoC has a clock speed of almost 1.4 GHz, heating up to 78 °C (172 °F) at times. At the same time, we determined the average temperature at 73 °C (163 °F). During regular usage when surfing the Internet or running office applications, the SoC also reaches its limits quickly, which means that you can also expect high temperatures here at times. Due to the passive cooling, the cooling phase is also very sluggish. For this reason, we would recommend that you place the device in a well-vented area.

Heat development during the stress test
Heat development during the stress test
Heat development during the stress test
Heat development during the stress test
Heat development during the stress test (power supply)
Heat development during the stress test (power supply)

Power Consumption

The power consumption of the Zotac ZBOX PI336 pico is definitely one of its strengths. Due to the efficient SoC, the power consumption during idle operation remains significantly lower than 10 watts. Even under load, our measurement device only shows a maximum of 11.8 watts. The power supply is able to provide up to 20 watts.

Power Consumption
Off / Standbydarklight 0.2 / 0.4 Watt
Idledarkmidlight 5.4 / 5.5 / 6.2 Watt
Load midlight 11.3 / 11.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption With External Monitor

01234567891011Tooltip
Zotac ZBOX PI336 pico; Prime95 V28,10 Stress (external Monitor): Ø11.1 (10.3-11.8)
Zotac ZBOX PI336 pico; Cinebench R15 Multi (external Monitor): Ø10.4 (8.99-10.9)
Zotac ZBOX PI336 pico; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø11.3 (10.7-11.8)
Zotac ZBOX PI336 pico; Idle 1min (external Monitor): Ø5.53 (5.4-6.18)

Pros

+ very compact
+ silent cooling
+ many connection options
+ fast Wi-Fi
+ microSD card reader
+ 36 months of warranty with option to extend to 60 months
+ useful accessories

Cons

- slow SoC
- a bit expensive
- not upgradable

Verdict - A weak office PC

Testing the Zotac ZBOX PI336 pico, test unit provided by Zotac Germany
Testing the Zotac ZBOX PI336 pico, test unit provided by Zotac Germany

The Zotac ZBOX PI336 pico is a tiny PC with a case volume of barely 0.18 Liters. With the Intel Celeron N6211, you get a dual-core processor, which in combination with 4 GB of RAM just barely fulfills the system requirements for Windows 11. It will quickly become clear that there isn't much headroom for additional applications. With this, the Zotac ZBOX PI336 pico also has a hard time to keep up with the competitors. The system could use more working memory, which would also lower some latencies when opening various applications. We also don't think that it is optimal to use a dual-core SoC nowadays. The competitors based on an Intel Celeron J4125 are able to achieve better results and give a better subjective impression in our tests. That processor offers four native cores and can also be cooled passively with its low power consumption.

The Zotac ZBOX PI336 pico is an extremely compact and silent PC, but with its performance, it might have a hard time making it into the wish list of potential buyers.

On the other hand, the connection equipment is good, and the Zotac ZBOX PI336 pico offers all the necessary port options. In addition, there is also a card reader, even if it is only in the microSD format.

The Zotac ZBOX PI336 pico is available for about 370 Euros (~$378, for example from Mindfactory in Germany), which is not very affordable considering the offered performance. At least, a Windows 11 Professional license is included in the purchase, as well as an option for 60 months of warranty. To get that, you have to register the device as a first buyer with the manufacturer, otherwise you only get the standard warranty duration of 36 months.

An alternative to the Zotac ZBOX PI336 pico might be the MSI Cubi5 10M, if you can make do without the passive cooling. It is available from Amazon and offers significantly more performance.

Read all 1 comments / answer
static version load dynamic
Loading comments
Comment on this article
Please share our article, every link counts!
.170
> Notebook / Laptop Reviews and News > Reviews > Zotac ZBOX PI336 pico review: A pocket PC with Intel Celeron N6211 and 4 GB of RAM
Sebastian Bade, 2022-07-24 (Update: 2022-07-25)
