The 130 W GeForce RTX 3070 MSI GP66 can be 15 to 30 percent faster than the 95 W version

A laptop with 130 W GeForce RTX 3070 graphics can be 15 to 30 percent faster than the 95 W version
A laptop with 130 W GeForce RTX 3070 graphics can be 15 to 30 percent faster than the 95 W version
To the surprise of no one, going for the thinner and lighter GS66 with GeForce RTX 3070 graphics will mean accepting a cut in performance when compared to the thicker GP66 equipped with the same GPU.

Working For Notebookcheck

Are you a techie who knows how to write? Then join our Team! Especially English native speakers welcome!

English-Chinese-Translator - Details here

Nvidia made the controversial decision earlier this year to drop the "Max-Q" name from all of its mobile GPUs moving forward. The onus would instead be on laptop makers to advertise the TGP levels of their gaming laptops on their respective specification sheets. The MSI GS66 Stealth and GP66 Leopard, for example, each come with GeForce RTX 3070 GPUs at 95 W for the former and 130 W for the latter. The question then becomes how much of a performance boost users can expect from the 130 W version over the 95 W one.

To answer this question, we compare the GS66 10UG to the GP66 10UG each with nearly the same specifications save for their TGP levels. According to 3DMark, the 130 W RTX 3070 in the GP66 is roughly 15 to 19 percent faster than the 95 W RTX 3070 in the GS66. This doesn't take into account the differences in cooling or thickness between the two models, of course, but the data is useful nonetheless as higher TGP targets will almost always be associated with thicker laptops anyway.

15.6-inch MSI GS66 10UG15.6-inch MSI GP66 10UG
CPUCore i7-10870HCore i7-10870H
GPU95 W GeForce RTX 3070130 W GeForce RTX 3070
RAM32 GB DDR4-320032 GB DDR4-3200
Dimensions19.8 x 358 x 248 mm23.4 x 358 x 267 mm
Weight2.1 kg2.32 kg

The GPU performance differences extend to real-world gaming scenarios where the GS66 would run consistently slower than the GP66. Average frame rates can be up to 30 percent higher in some titles like Final Fantasy XV or Strange Brigade while other titles like GTA V may see smaller differences of just 5 to 15 percent.

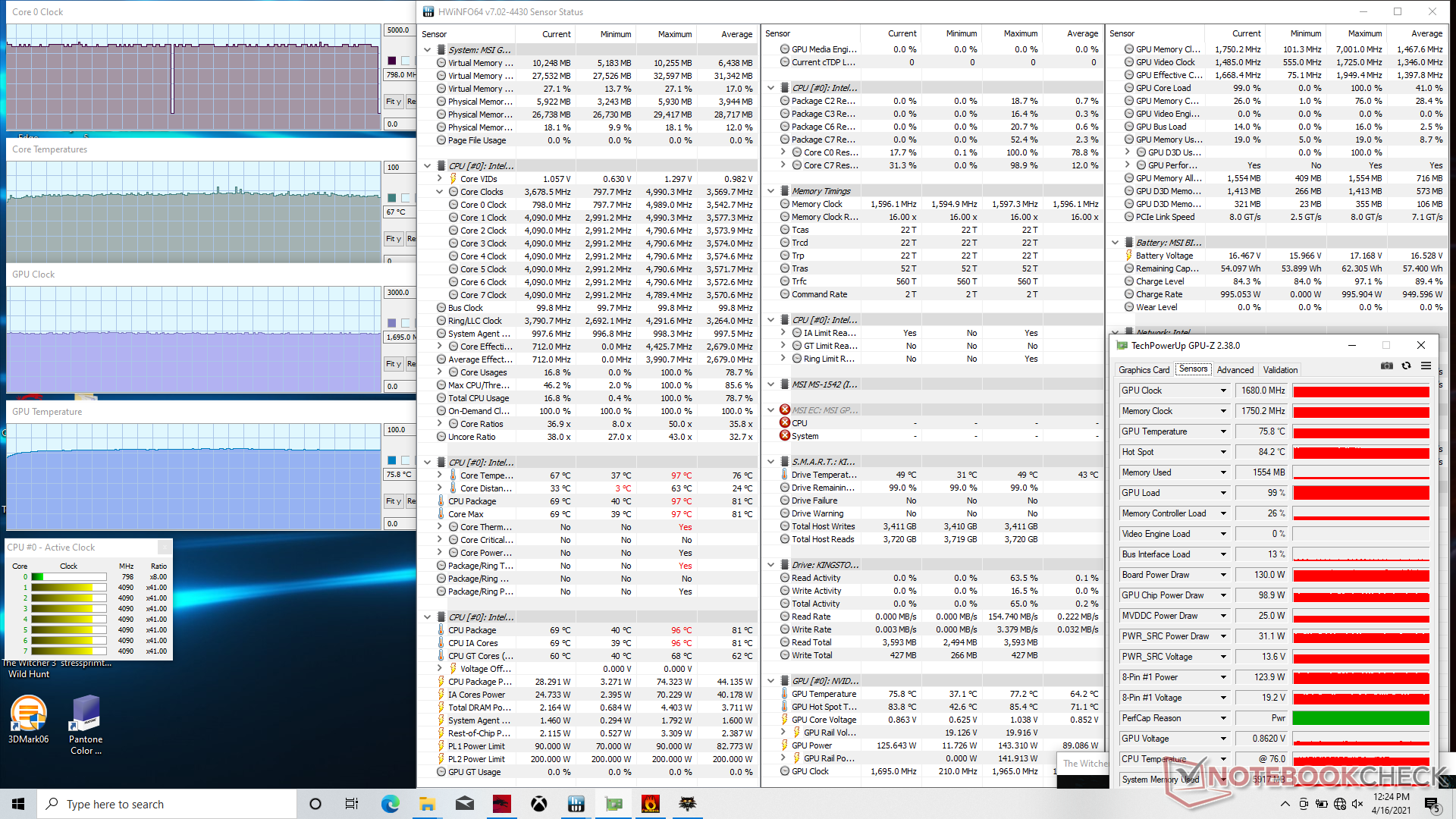

When running Witcher 3 on each system, the RTX 3070 in the GP66 would run at both faster clock rates (1680 MHz vs. 1455 MHz) and memory clock rates (1750 MHz vs. 1500 MHz) than the GS66 as shown by the screenshots below. Perhaps not coincidentally, the GP66 would also consume about 15 percent more power than the GS66 when gaming (191 W vs. 165 W).

See our full reviews on the MSI GS66 10UG and GP66 10UG for more details on each model.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

3DMark
1920x1080 Fire Strike Graphics
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
28490 Points ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (20703 - 29128, n=13)
25560 Points ∼90% -10%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
23893 Points ∼84% -16%
2560x1440 Time Spy Graphics
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
10779 Points ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (7888 - 11019, n=13)
9955 Points ∼92% -8%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
9131 Points ∼85% -15%
2560x1440 Time Spy Score
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
10521 Points ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (7358 - 10872, n=13)
9721 Points ∼92% -8%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
9140 Points ∼87% -13%
3840x2160 Fire Strike Ultra Graphics
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
6761 Points ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (5879 - 6761, n=4)
6408 Points ∼95% -5%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
5879 Points ∼87% -13%
2560x1440 Port Royal Graphics
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
6403 Points ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (4725 - 6427, n=7)
5949 Points ∼93% -7%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
5481 Points ∼86% -14%
3DMark 11
1280x720 Performance GPU
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
37100 Points ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (31092 - 38275, n=12)
34647 Points ∼93% -7%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
31092 Points ∼84% -16%
1280x720 Performance Combined
MSI GP66 Leopard 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
16186 Points ∼100%
MSI GS66 Stealth 10UG
NVIDIA GeForce RTX 3070 Laptop GPU, i7-10870H
15796 Points ∼98% -2%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (13134 - 16186, n=11)
14985 Points ∼93% -7%
Final Fantasy XV Benchmark
1280x720 Lite Quality
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
175 fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (139 - 175, n=6)
153 fps ∼87% -13%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
151 fps ∼86% -14%
1920x1080 Standard Quality
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
142 fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
111 fps ∼78% -22%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (67 - 142, n=7)
110 fps ∼77% -23%
1920x1080 High Quality
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
103 fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
87.5 fps ∼85% -15%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (62 - 103, n=8)
86.3 fps ∼84% -16%
GTA V
1024x768 Lowest Settings possible
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
181 (3.46min, 125P1 - 386max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
178 (6.56min, 143P1 - 324max) fps ∼98% -2%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (164 - 181, n=8)
175 fps ∼97% -3%
1920x1080 Lowest Settings possible
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
182 (5.63min, 143P1 - 257max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
173 (7.63min, 111P1 - 272max) fps ∼95% -5%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (150 - 182, n=7)
171 fps ∼94% -6%
1366x768 Normal/Off AF:4x
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
169 (10.6min, 111P1 - 313max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (153 - 173, n=6)
166 fps ∼98%
1920x1080 Normal/Off AF:4x
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
177 (7.39min, 125P1 - 398max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
167 (8.5min, 111P1 - 308max) fps ∼94% -6%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (138 - 177, n=8)
164 fps ∼93% -7%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
166 (6.99min, 111P1 - 282max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
152 (6.18min, 100P1 - 276max) fps ∼92% -8%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (111 - 166, n=8)
145 fps ∼87% -13%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
96.6 (5.31min, 66.7P1 - 192max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
90.4 (16.9min, 66.7P1 - 171max) fps ∼94% -6%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (72.6 - 97, n=8)
86.7 fps ∼90% -10%
Dota 2 Reborn
1280x720 min (0/3) fastest
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
156 (135.7min) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (127 - 156, n=11)
142 fps ∼91% -9%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
137 (117.9min) fps ∼88% -12%
1366x768 med (1/3)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
141 (122.9min) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (116 - 142, n=11)
131 fps ∼93% -7%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
120 (102.4min) fps ∼85% -15%
1920x1080 high (2/3)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
141 (119.3min) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (107 - 141, n=12)
123 fps ∼87% -13%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
120 (99.5min) fps ∼85% -15%
1920x1080 ultra (3/3) best looking
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
135 (110.8min) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (103 - 135, n=12)
117 fps ∼87% -13%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
107 (89.3min) fps ∼79% -21%
The Witcher 3
1024x768 Low Graphics & Postprocessing
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
362.7 (318min - 407max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (264 - 672, n=8)
355 fps ∼98% -2%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
335.9 (312min - 379max) fps ∼93% -7%
1366x768 Medium Graphics & Postprocessing
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
298.1 (276min - 320max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
246.7 (233min - 257max) fps ∼83% -17%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (180 - 298, n=7)
245 fps ∼82% -18%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
206.9 (189min - 221max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (126 - 207, n=10)
164 fps ∼79% -21%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
152.6 (141min - 166max) fps ∼74% -26%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
107.9 (102min - 118max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (73.5 - 109, n=16)
93 fps ∼86% -14%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
89.7 (83min - 95max) fps ∼83% -17%
X-Plane 11.11
1280x720 low (fps_test=1)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
116 fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
107 fps ∼92% -8%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (85 - 124, n=12)
105 fps ∼91% -9%
1920x1080 med (fps_test=2)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
104 fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (73.4 - 111, n=12)
92 fps ∼88% -12%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
90.5 fps ∼87% -13%
1920x1080 high (fps_test=3)
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
85.7 fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (62.7 - 91.4, n=12)
76.6 fps ∼89% -11%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
76.4 fps ∼89% -11%
Strange Brigade
1280x720 lowest AF:1
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
399 (137min, 301P1 - 632max) fps ∼100%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
347 (101min, 268P1 - 541max) fps ∼87% -13%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (285 - 399, n=6)
343 fps ∼86% -14%
1920x1080 medium AA:medium AF:4
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
279 (92.3min, 236P1 - 378max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (178 - 279, n=6)
214 fps ∼77% -23%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
213 (99.4min, 171P1 - 321max) fps ∼76% -24%
1920x1080 high AA:high AF:8
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
225 (89min, 167P1 - 345max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (163 - 225, n=6)
181 fps ∼80% -20%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
175 (95.6min, 129P1 - 295max) fps ∼78% -22%
1920x1080 ultra AA:ultra AF:16
MSI GP66 Leopard 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
194 (67.7min, 145P1 - 276max) fps ∼100%
Average NVIDIA GeForce RTX 3070 Laptop GPU
  (153 - 194, n=6)
163 fps ∼84% -16%
MSI GS66 Stealth 10UG
Intel Core i7-10870H, NVIDIA GeForce RTX 3070 Laptop GPU
155 (34.1min, 116P1 - 248max) fps ∼80% -20%
MSI GP66 Leopard 10UG
i7-10870H, GeForce RTX 3070 Laptop GPU, Kingston OM8PCP31024F, IPS, 1920x1080, 15.60
MSI GS66 Stealth 10UG
i7-10870H, GeForce RTX 3070 Laptop GPU, WDC PC SN730 SDBPNTY-1T00, IPS, 1920x1080, 15.60
Power Consumption
1%
Idle Minimum *
15.3
12.9
16%
Idle Average *
21.2
15.4
27%
Idle Maximum *
22.3
27.1
-22%
Load Average *
82.3
98.2
-19%
Witcher 3 ultra *
191.2
164.9
14%
Load Maximum *
216.6
232.9
-8%

* ... smaller is better

MSI GP66 monitor when running Witcher 3. Note the higher GPU clock and memory rates when compared to the GS66
MSI GP66 monitor when running Witcher 3. Note the higher GPU clock and memory rates when compared to the GS66
MSI GS66 monitor when running Witcher 3
MSI GS66 monitor when running Witcher 3

Pricecompare

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

static version load dynamic
Loading Comments
Comment on this article
Allen Ngo
Allen Ngo - Lead Editor U.S. - 4546 articles published on Notebookcheck since 2011
After graduating with a B.S. in environmental hydrodynamics from the University of California, I studied reactor physics to become licensed by the U.S. NRC to operate nuclear reactors. There's a striking level of appreciation you gain for everyday consumer electronics after working with modern nuclear reactivity systems astonishingly powered by computers from the 80s. When I'm not managing day-to-day activities and US review articles on Notebookcheck, you can catch me following the eSports scene and the latest gaming news.
contact me via: @AllenNgoNBC
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > News > News Archive > Newsarchive 2021 04 > The 130 W GeForce RTX 3070 MSI GP66 can be 15 to 30 percent faster than the 95 W version
Allen Ngo, 2021-04-20 (Update: 2021-04-19)
