The drive can indeed reach insanely fast 7000 MB/s transfer rates, but not for very long. We highly recommend getting a heat spreader to get the most out of the PCIe4 SSD as temperatures can ramp up quickly.

As detailed earlier this week, SK hynix has just launched its latest Platinum P41 series of NVMe SSDs ranging from 500 GB up to 2 TB. Unlike the older Gold P31 PCIe3 x4 series, the Platinum P41 utilizes a newer controller and NAND structure alongside support for PCIe4 x4 speeds.

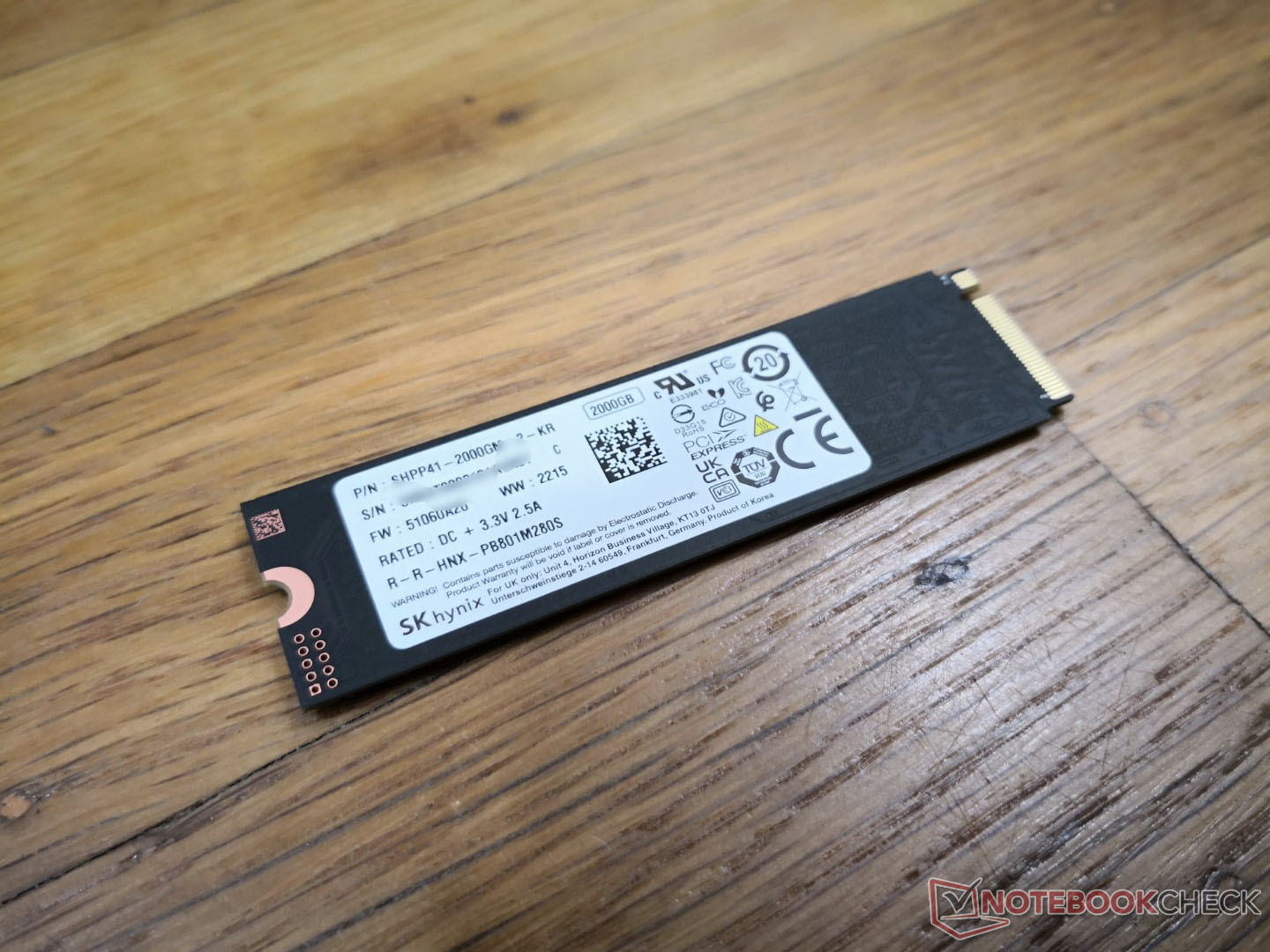

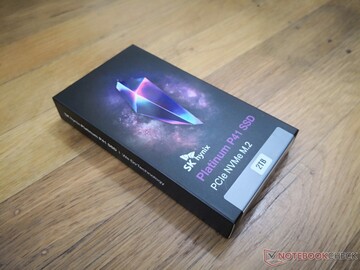

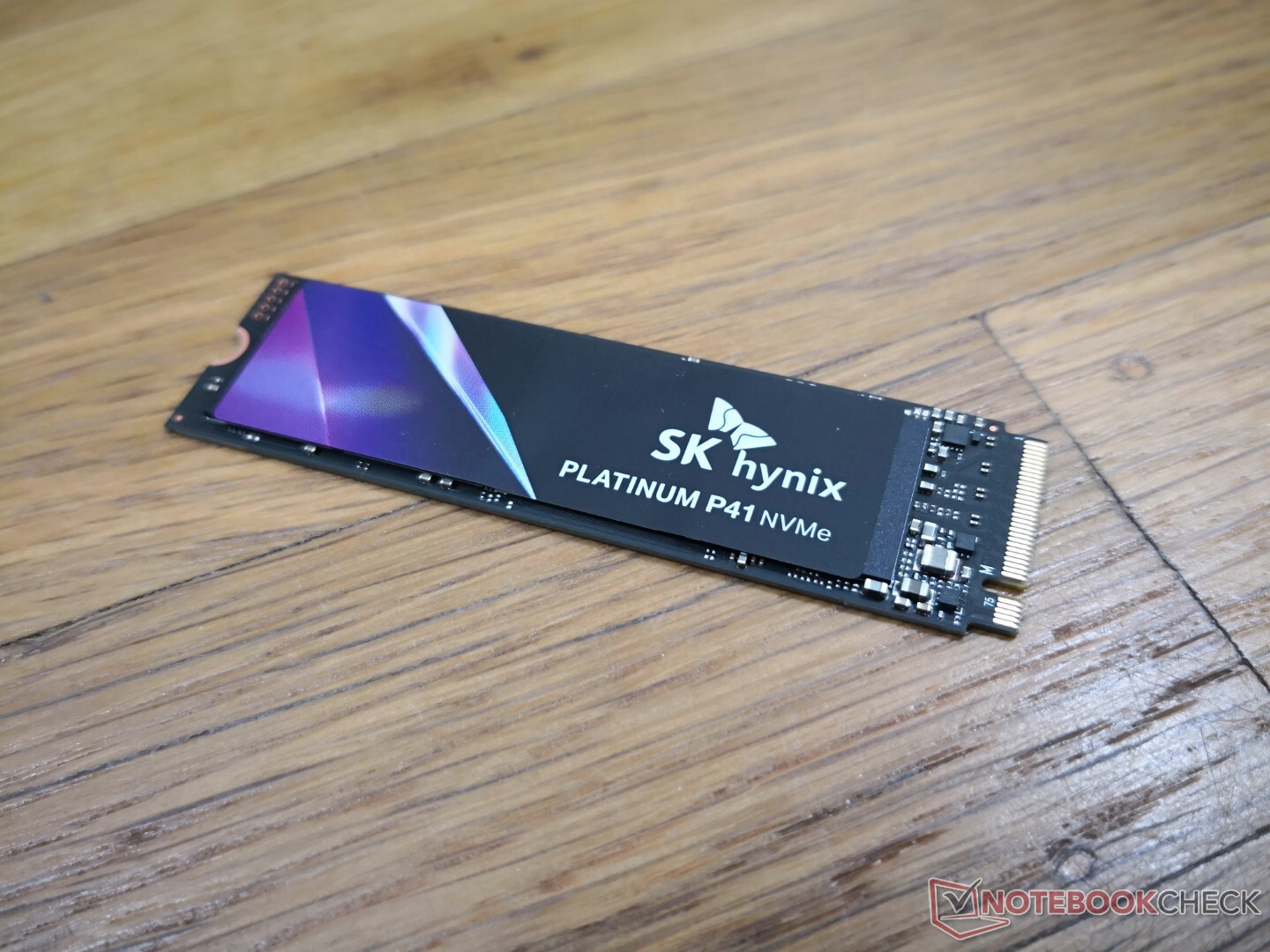

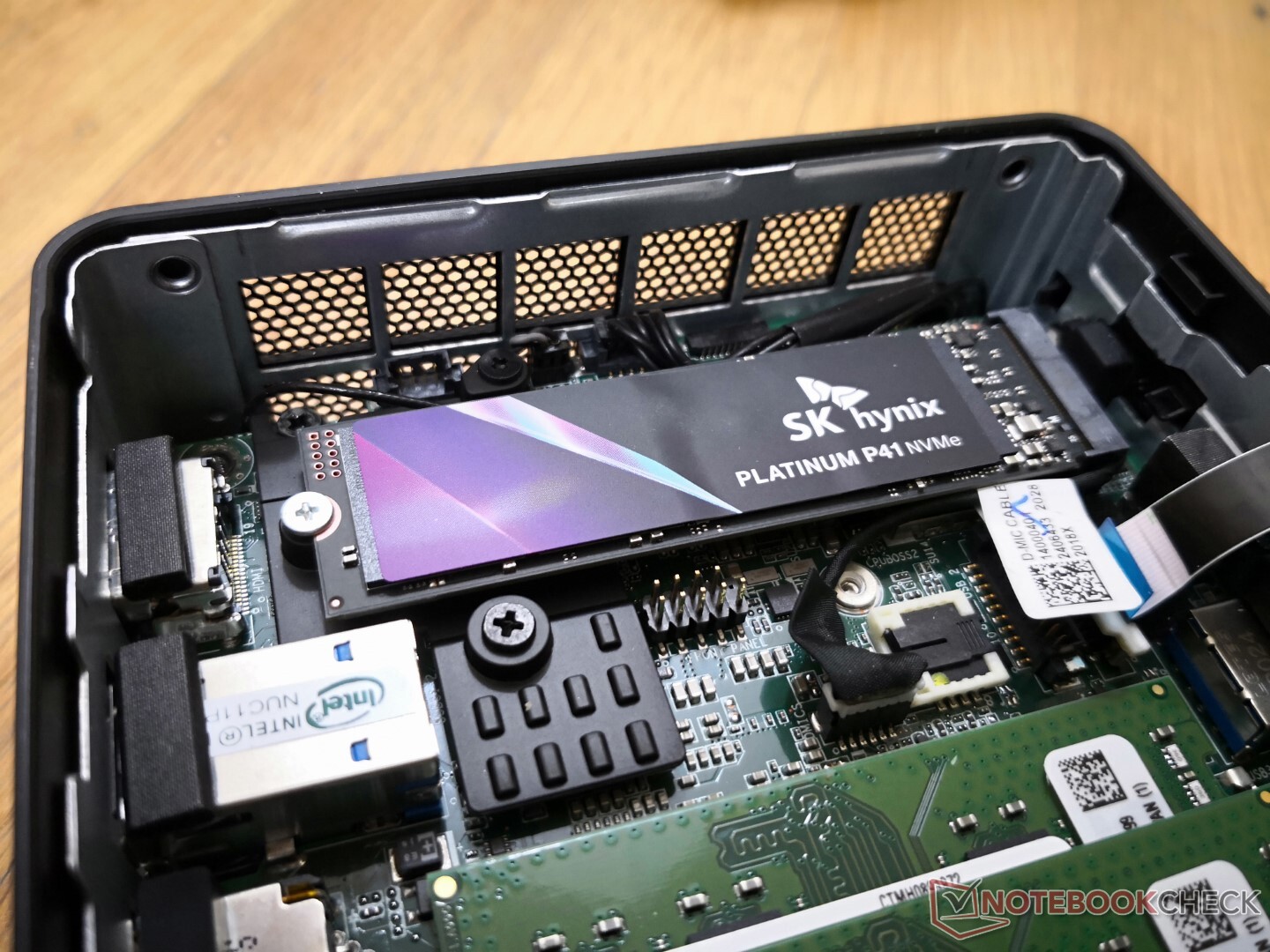

The manufacturer has sent us a test unit with our benchmark results provided below. Our host system of choice was the Intel NUC11PAQ mini PC which includes its own SSD heat spreader built in. For the purposes of this test, however, we've removed the heat spreader to benchmark the P41 as a bare drive without any cooling aids. The Platinum P41 retail box includes no heat spreader or even a mounting screw as opposed to the Acer Predator GM7000 series.

To stress the drive, we would run our DiskSpd read loop test lasting for nearly 10 minutes and note any performance dips over time. Our graph below shows that read rates would start out very high at ~6800 MB/s to be close to the advertised 7000 MB/s target. After a couple of minutes, however, transfer rates would cycle between 3500 MB/s and 6800 MB/s as the drive struggles to keep temperature at comfortable levels. We're able to record a maximum temperature of 93 C (!) on the ASIC controller when performance was throttling.

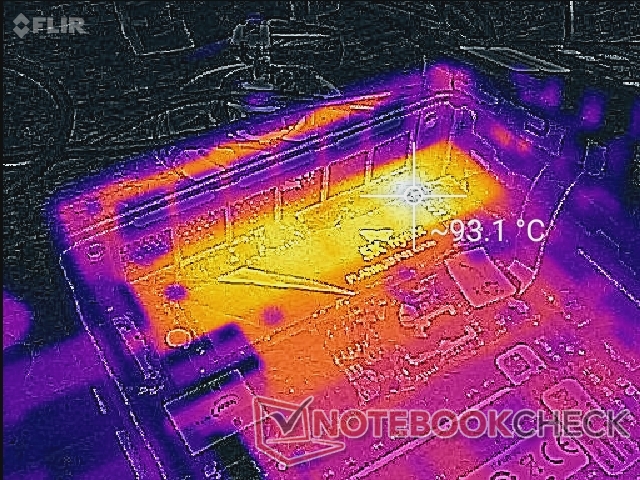

If you plan on using the drive for large and constant file transfers, then it will be especially important to pair it with a third party heat spreader. Otherwise, performance will quickly throttle to PCIe3 speeds for temperature control.

Amazon is currently shipping the Platinum P41 in 500 GB, 1 TB, and 2 TB capacities for $105, $150, and $260 USD, respectively, each with a 5-year limited warranty.

Product
SK hynix Platinum P41 SSD
Capacity
500GB/1TB/2TB
Interface
PCIe NVMe Gen4, up to 4 lanes
Form Factor
M.2 2280
Sequential Read Speed
Up to 7,000 MB/s
Sequential Write Speed
Up to 6,500 MB/s
Random Read Speed
Up to 1,400K IOPS
Random Write Speed
Up to 1,300K IOPS
Warranty
5-year warranty
MTBF
1.5M hrs
TBW
Up to 1,200 TBW
(2TB: 1200TBW / 1TB: 750TBW / 500GB: 500TBW)
Drive Performance Rating - Percent
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
93.3 pt ∼93%
SK Hynix Platinum P41 2 TB

61.7 pt ∼62%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
57 pt ∼57%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
52.9 pt ∼53%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
47 pt ∼47%
DiskSpd
seq read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
3903 (3884.75min - 3902.54max) MB/s ∼100% +43%
SK Hynix Platinum P41 2 TB

2726 (2710.39min - 2725.88max) MB/s ∼70%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
2229 (2205.36min - 2228.8max) MB/s ∼57% -18%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
2227 (2222.1min - 2227.13max) MB/s ∼57% -18%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1711 (1687.98min - 1710.58max) MB/s ∼44% -37%
seq write
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
3926 (3865.92min - 3925.78max) MB/s ∼100% +70%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
2477 (2450.86min - 2476.82max) MB/s ∼63% +8%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
2421 (2375.86min - 2421.35max) MB/s ∼62% +5%
SK Hynix Platinum P41 2 TB

2303 (2258.1min - 2303.1max) MB/s ∼59%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1905 (1871.32min - 1905.02max) MB/s ∼49% -17%
seq q8 t1 read
SK Hynix Platinum P41 2 TB

6835 (6096.6min - 6835max) MB/s ∼100%
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
6756 (5986.3min - 6756.18max) MB/s ∼99% -1%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
6663 (5388.13min - 6663.17max) MB/s ∼97% -3%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
6636 (5831.63min - 6635.6max) MB/s ∼97% -3%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
3503 (3075.61min - 3502.79max) MB/s ∼51% -49%
seq q8 t1 write
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
4979 (4960.54min - 4978.96max) MB/s ∼100% +16%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
4329 (4254.58min - 4329.36max) MB/s ∼87% +1%
SK Hynix Platinum P41 2 TB

4278 (4242.54min - 4277.6max) MB/s ∼86%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
4221 (4145.44min - 4221.36max) MB/s ∼85% -1%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
3257 (3180.68min - 3256.88max) MB/s ∼65% -24%
4k q1 t1 read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
87.2 (87.01min - 87.2max) MB/s ∼100% +74%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
51.8 (51.42min - 51.83max) MB/s ∼59% +4%
SK Hynix Platinum P41 2 TB

50 (49.75min - 50.01max) MB/s ∼57%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
47.5 (47.21min - 47.53max) MB/s ∼54% -5%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
42.6 (42.22min - 42.55max) MB/s ∼49% -15%
4k q1 t1 write
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
295 (288.34min - 294.77max) MB/s ∼100% +89%
SK Hynix Platinum P41 2 TB

155.7 (138.58min - 155.74max) MB/s ∼53%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
154 (150.27min - 153.77max) MB/s ∼52% -1%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
153 (148.97min - 152.98max) MB/s ∼52% -2%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
141 (137.17min - 140.63max) MB/s ∼48% -9%
4k q32 t16 read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
4073 (4068.14min - 4073.28max) MB/s ∼100% +247%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
1183 (1176.29min - 1182.98max) MB/s ∼29% +1%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
1178 (1166.27min - 1177.66max) MB/s ∼29% 0%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1175 (1166.45min - 1174.81max) MB/s ∼29% 0%
SK Hynix Platinum P41 2 TB

1175 (1165.82min - 1174.98max) MB/s ∼29%
4k q32 t16 write
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
3528 (3508.87min - 3527.71max) MB/s ∼100% +504%
SK Hynix Platinum P41 2 TB

584 (569.81min - 583.72max) MB/s ∼17%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
573 (551.16min - 573.45max) MB/s ∼16% -2%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
552 (539.28min - 552.43max) MB/s ∼16% -5%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
533 (522.33min - 533.16max) MB/s ∼15% -9%
AS SSD
Score Total
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
6693 Points ∼100% +35%
SK Hynix Platinum P41 2 TB

4976 Points ∼74%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
4505 Points ∼67% -9%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
4290 Points ∼64% -14%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
3594 Points ∼54% -28%
Score Read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
2777 Points ∼100% +62%
SK Hynix Platinum P41 2 TB

1719 Points ∼62%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
1707 Points ∼61% -1%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
1631 Points ∼59% -5%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1538 Points ∼55% -11%
Score Write
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
2556 Points ∼100% +2%
SK Hynix Platinum P41 2 TB

2499 Points ∼98%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
2051 Points ∼80% -18%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
2032 Points ∼79% -19%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
1148 Points ∼45% -54%
Seq Read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
5397 MB/s ∼100% +16%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
4645 MB/s ∼86% 0%
SK Hynix Platinum P41 2 TB

4633.49 MB/s ∼86%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
4565 MB/s ∼85% -1%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
2701 MB/s ∼50% -42%
Seq Write
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
4218 MB/s ∼100% +93%
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
4006 MB/s ∼95% +83%
SK Hynix Platinum P41 2 TB

2186.99 MB/s ∼52%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
1985 MB/s ∼47% -9%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1334 MB/s ∼32% -39%
4K Read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
83 MB/s ∼100% +92%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
44.29 MB/s ∼53% +2%
SK Hynix Platinum P41 2 TB

43.25 MB/s ∼52%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
41.17 MB/s ∼50% -5%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
39.31 MB/s ∼47% -9%
4K Write
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
236.7 MB/s ∼100% +182%
SK Hynix Platinum P41 2 TB

83.97 MB/s ∼35%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
83.1 MB/s ∼35% -1%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
73.4 MB/s ∼31% -13%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
67.1 MB/s ∼28% -20%
4K-64 Read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
2154 MB/s ∼100% +78%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1228 MB/s ∼57% +1%
SK Hynix Platinum P41 2 TB

1212.13 MB/s ∼56%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
1206 MB/s ∼56% -1%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
1125 MB/s ∼52% -7%
4K-64 Write
SK Hynix Platinum P41 2 TB

2196.1 MB/s ∼100%
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
1918 MB/s ∼87% -13%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
1826 MB/s ∼83% -17%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
1770 MB/s ∼81% -19%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
660 MB/s ∼30% -70%
Access Time Read
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
0.068 ms * ∼100% -89%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
0.047 ms * ∼69% -31%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
0.039 ms * ∼57% -8%
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
0.037 ms * ∼54% -3%
SK Hynix Platinum P41 2 TB

0.036 ms * ∼53%
Access Time Write
Acer Predator GM7000-2TB
Acer Predator SSD GM7000 2TB
0.181 ms * ∼100% -65%
SK Hynix Gold P31 2 TB
SK Hynix Gold P31 2TB SHGP31-2000GM
0.158 ms * ∼87% -44%
ADATA XPG Gammix S70 Blade 2 TB
ADATA XPG Gammix S70 Blade 2TB
0.151 ms * ∼83% -37%
SK Hynix Platinum P41 2 TB

0.11 ms * ∼61%
Corsair One i300
Samsung PM9A1 MZVL22T0HBLB
0.017 ms * ∼9% +85%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

035070010501400175021002450280031503500385042004550490052505600595063006650Tooltip
: Ø4820 (3473.07-6916.41)

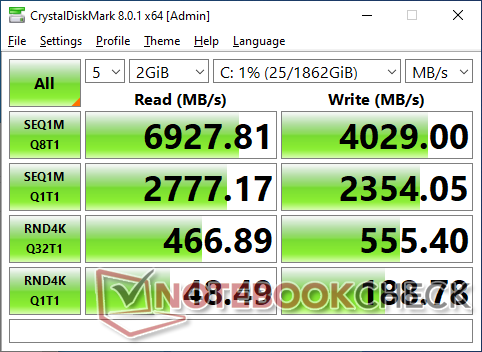

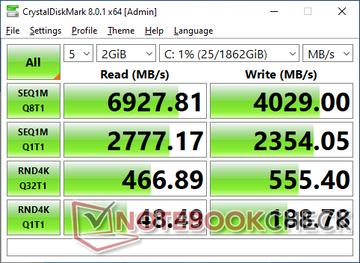

CDM 8
CDM 8

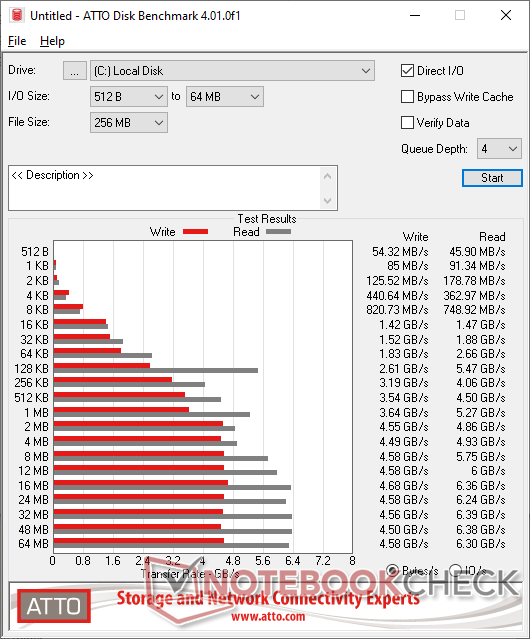

ATTO
ATTO

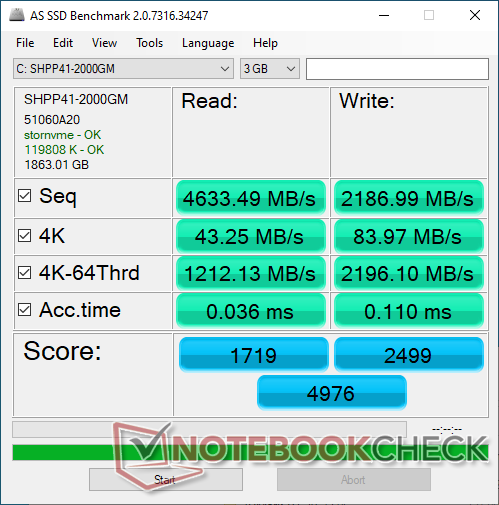

AS SSD
AS SSD

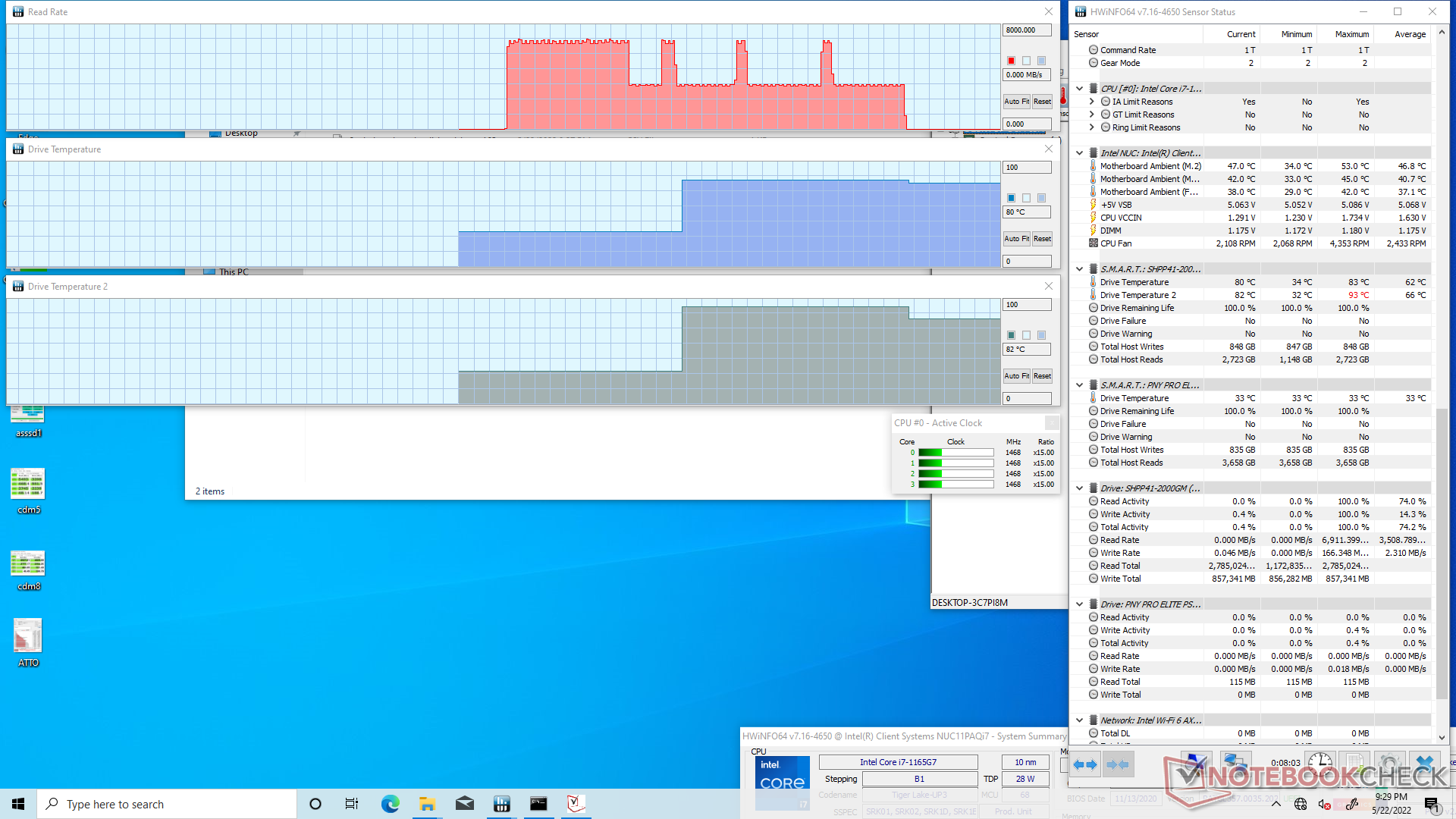

DiskSpd read loop stress test. Note the significant dip in read rate performance after a few minutes of running at the maximum rate
DiskSpd read loop stress test. Note the significant dip in read rate performance after a few minutes of running at the maximum rate
