MagyarHP Split x2 13-m210eg Convertible Review
For the original German review, see here.

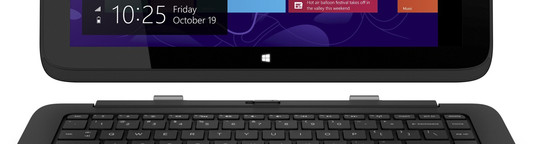

Convertibles like the HP Split x2 try to combine the advantages of a tablet and a notebook. The results are usually mixed; the devices often suffer from bad keyboards or short battery runtimes. HP now wants to score with a convertible that uses two hard drives as well as two batteries, so that both the tablet and the keyboard dock have their own set. Our review shows if the convertible can convince us.
Competitors for the Split x2 are basically all convertibles with a 13.3-inch screen. For example, we already reviewed the Toshiba Satellite W30t-A-101, Toshiba Satellite W30Dt-A-100 and Asus Transformer Book T300LA-C4006H, but conventional 13.3-inch notebooks are rivals as well. Suitable devices would be the Asus Zenbook UX302LA-C4003H, Acer Aspire V3-371-36M2 or the Lenovo Yoga 2 13. They usually have a weight advantage over convertibles.
Case

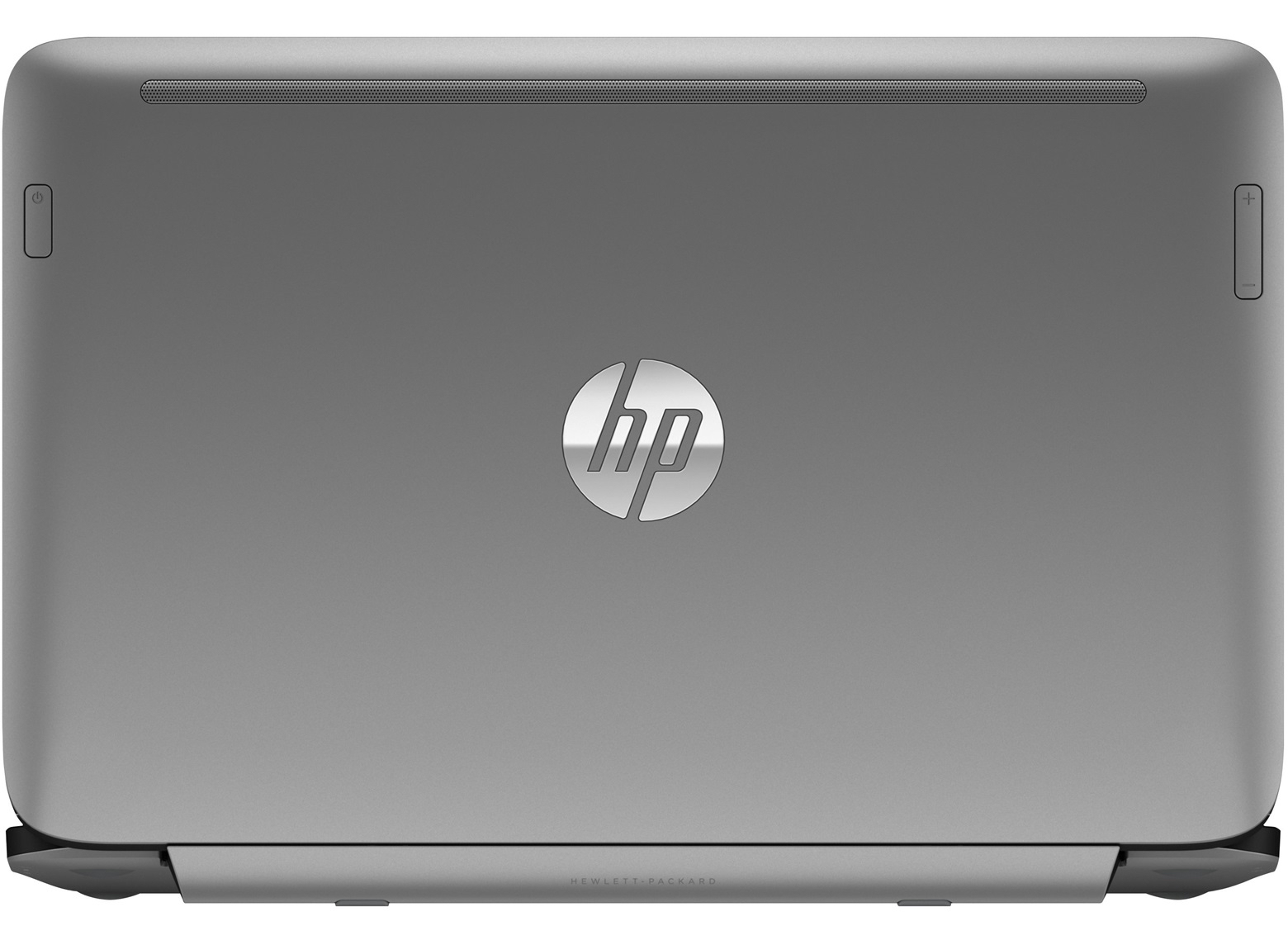

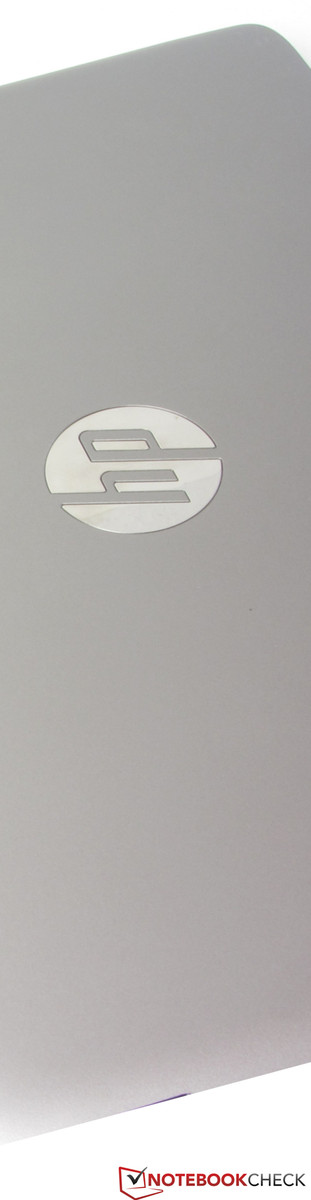

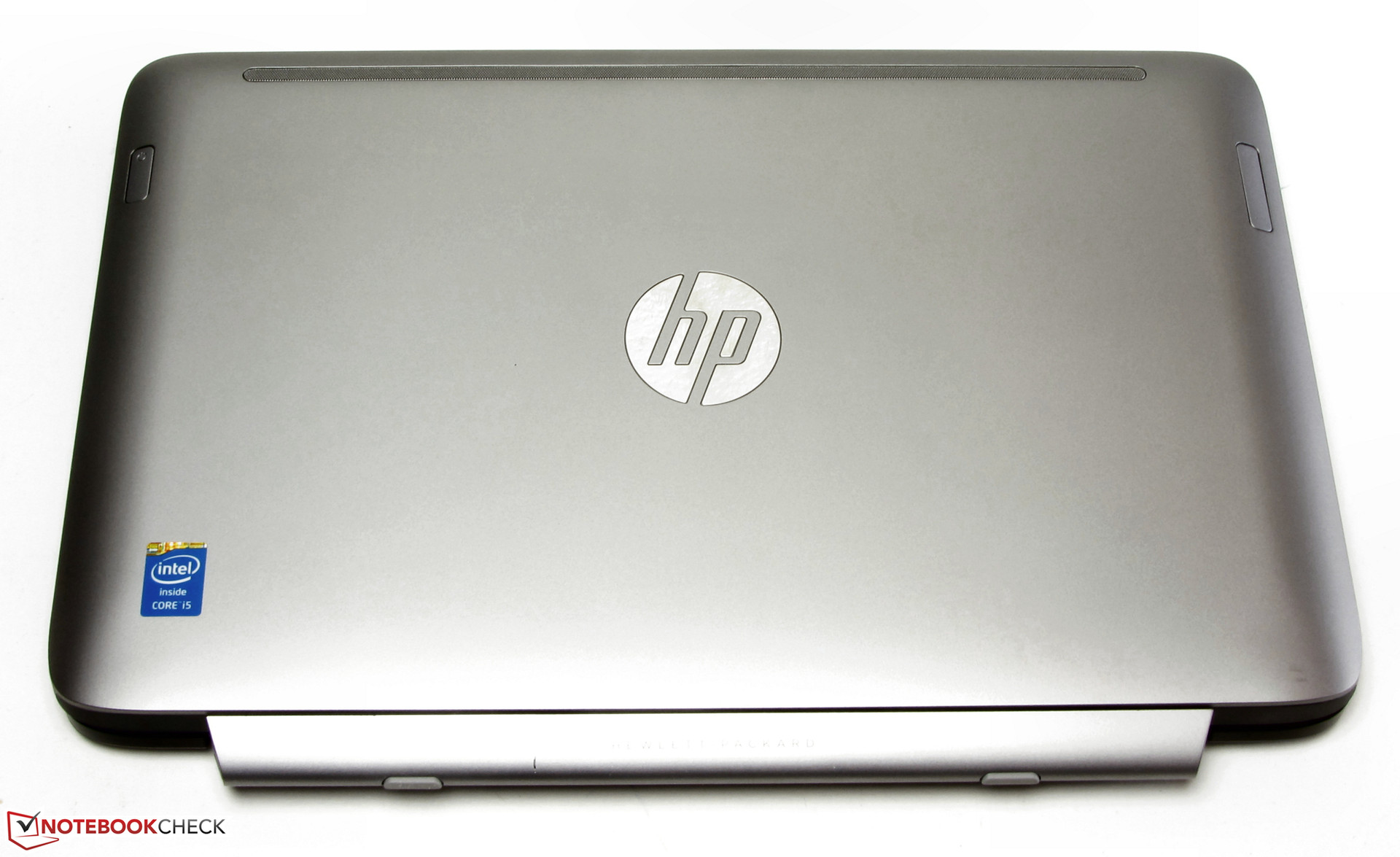

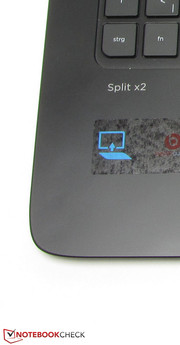

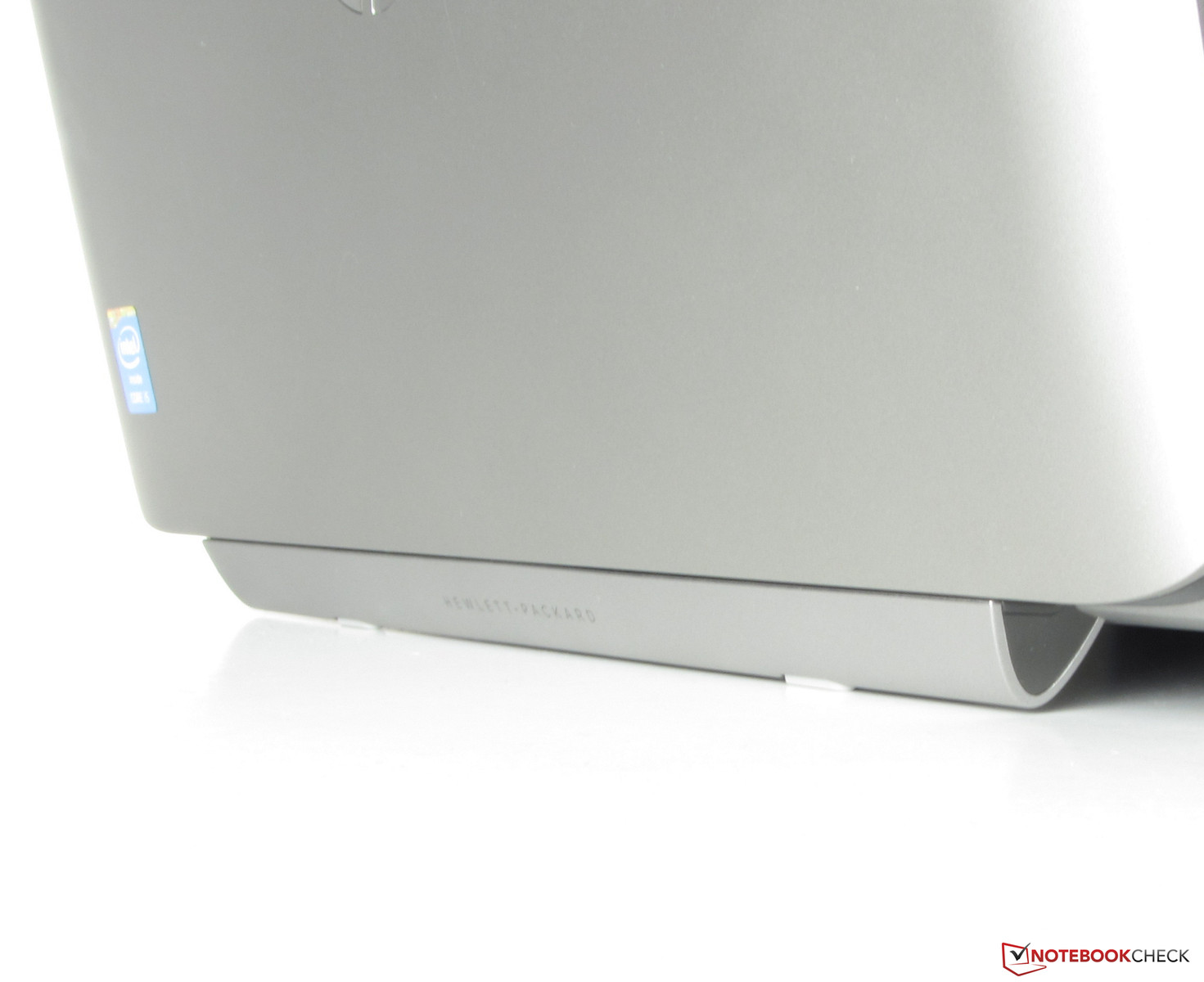

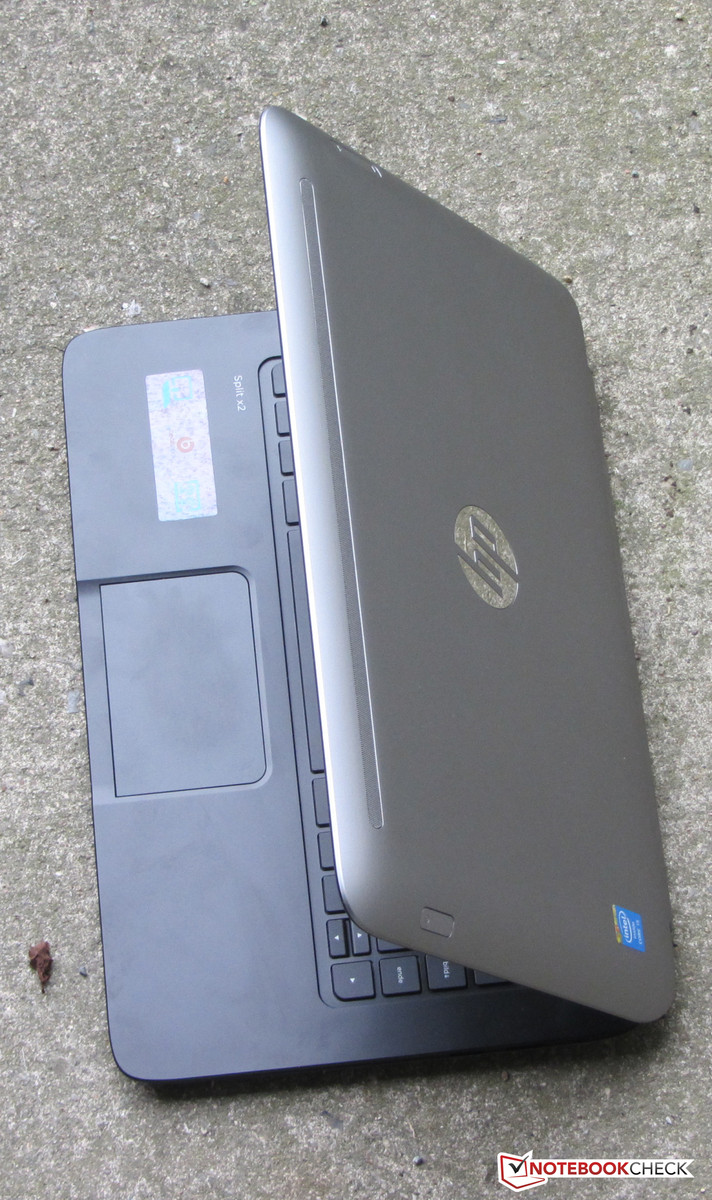

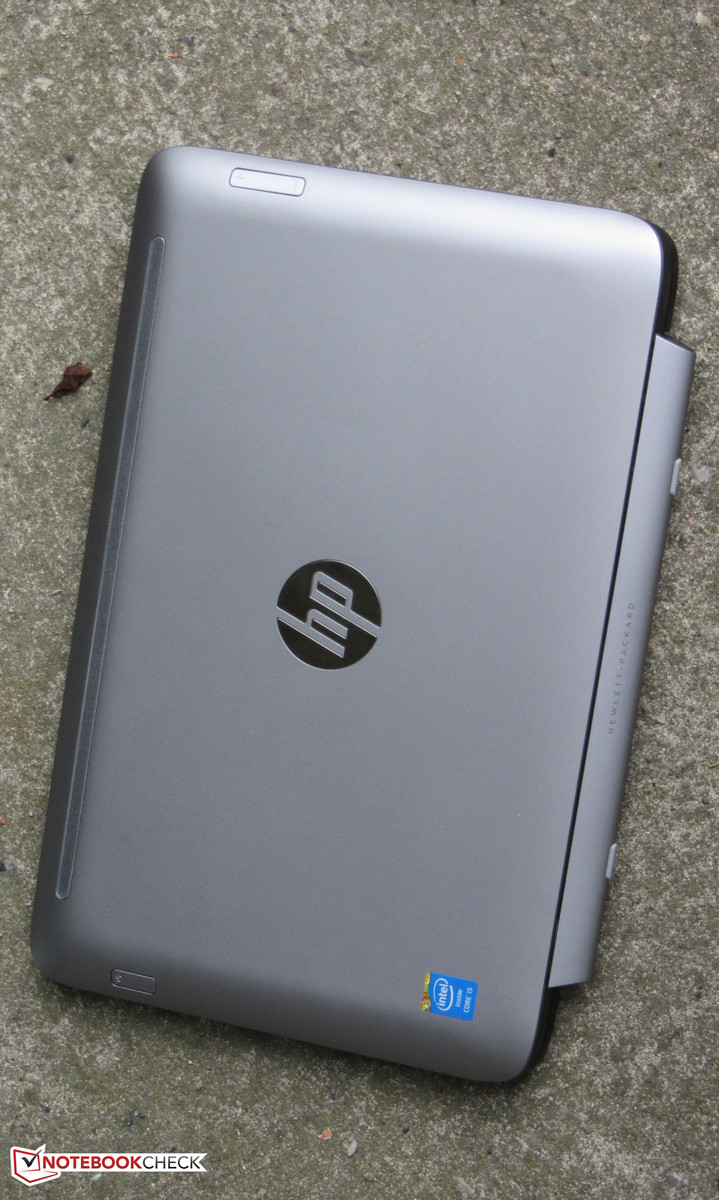

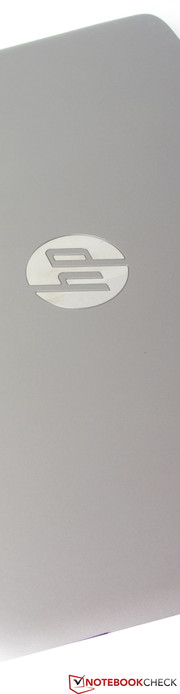

The plastic case of the Split x2 is mainly black, only the back of the display cover has a silver color. HP calls those two colors "Jack Black" and "Modern Silver". Except for the display, all surfaces have matte finishes. The design of the convertible is better than the comparable Satellite W30t since it has, unlike the Satellite, a more subtle hinge. Round shapes dominate the appearance of the Split x2: The corners are rounded and the tablet has tapered edges. Neither the keyboard dock nor the tablet has a maintenance cover.

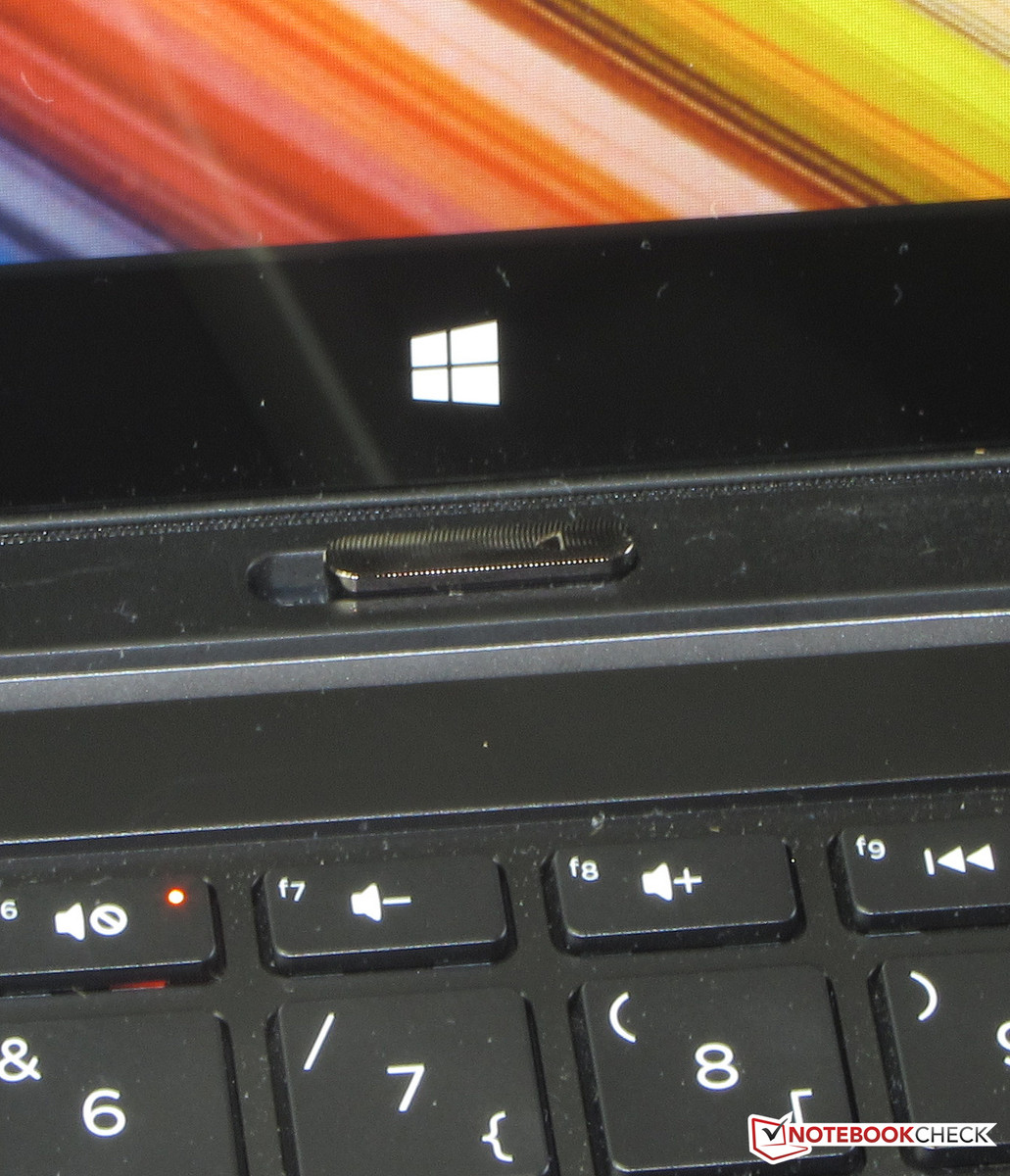

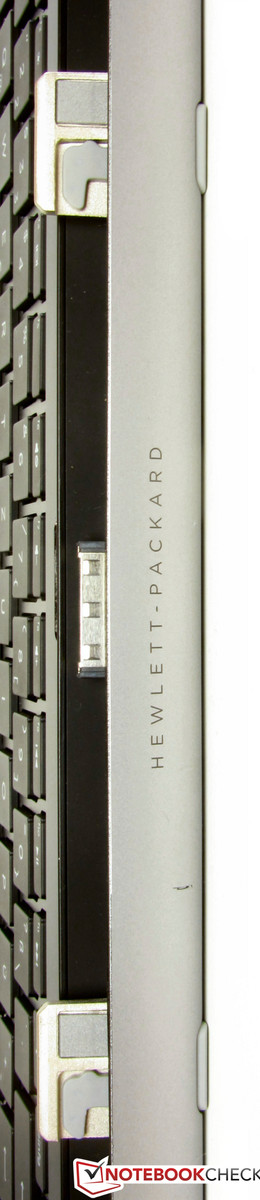

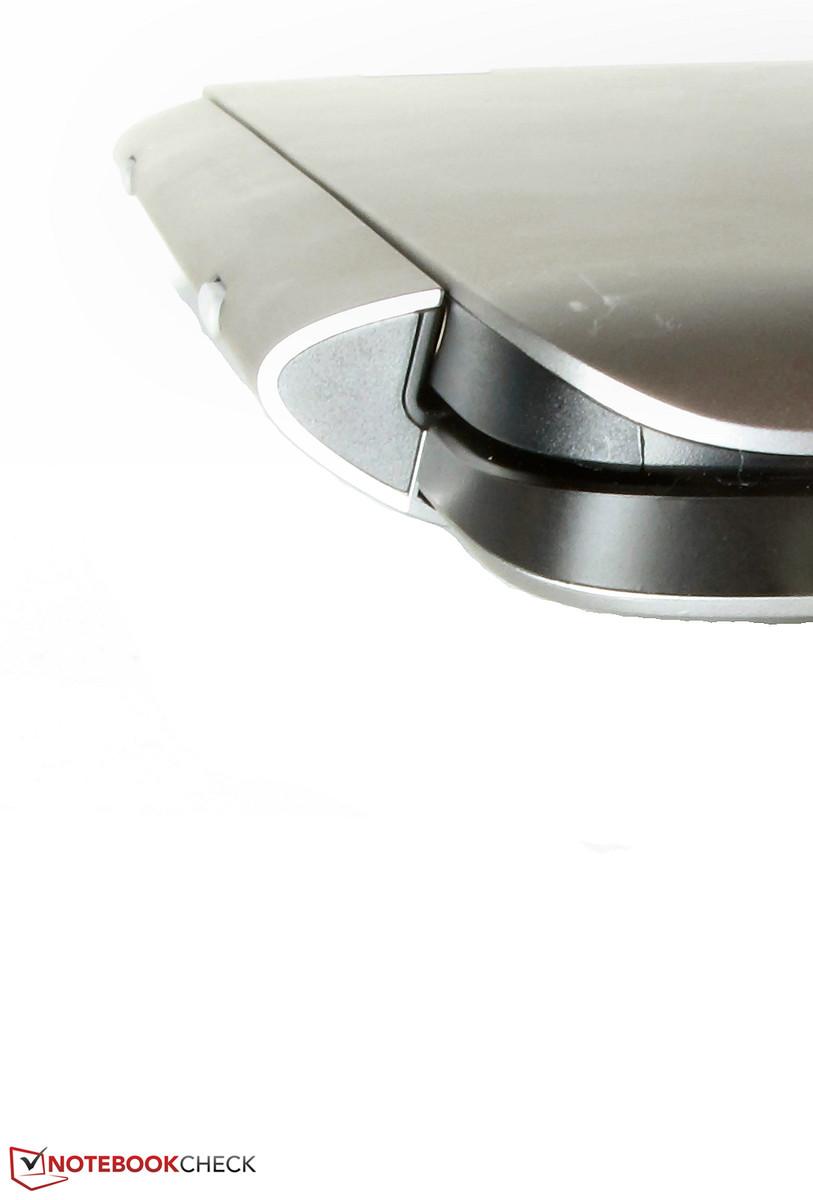

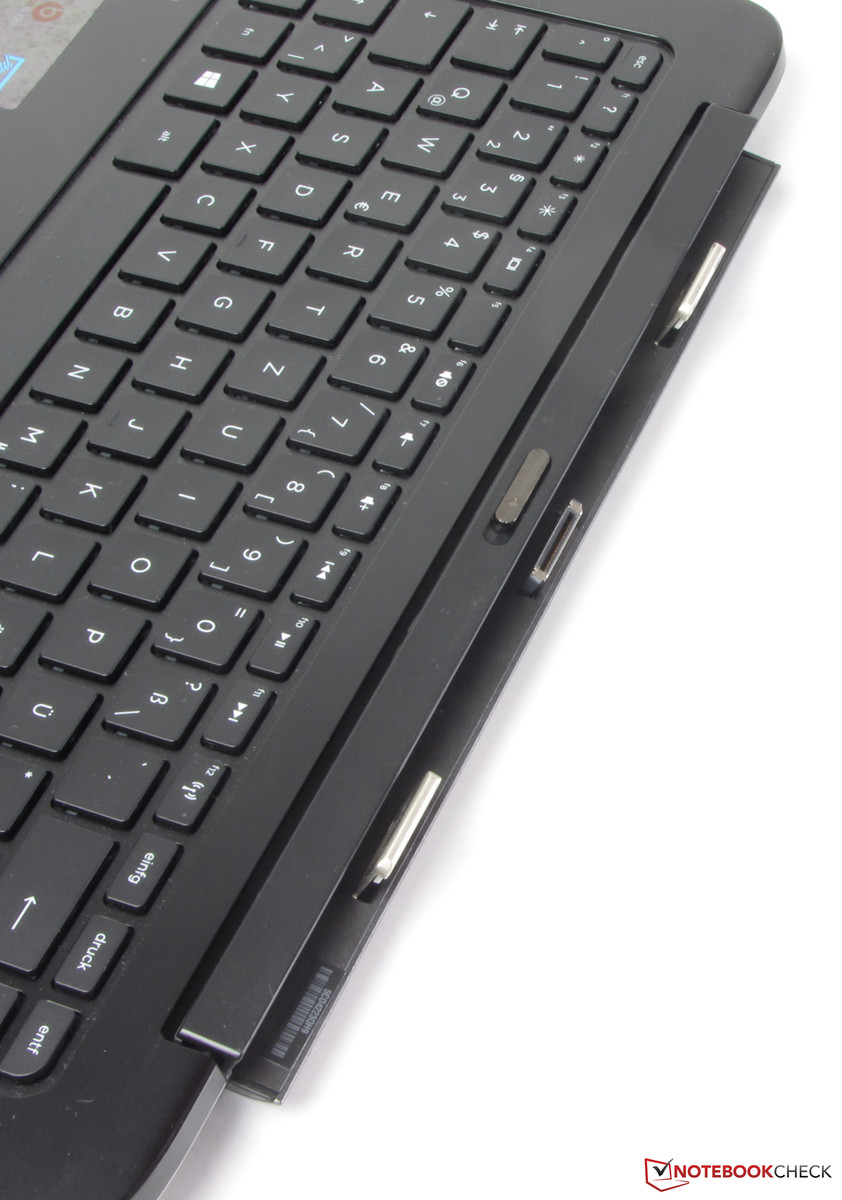

Build quality and stability of the device do not give any cause for criticism. The keyboard dock is solid and only shows some flexing next to the keyboard under pressure. However, many notebooks have the same issue. You can slightly twist the dock, but it is no reason for concern. You can hardly twist the tablet; only the back can be depressed slightly under pressure. The maximum opening angle is around 120 degrees. You should not use the convertible on your lap or close to the edge of a table at this opening angle. The tablet segment weighs around one kilogram (2.2 lb), so it can tip over.
Connectivity

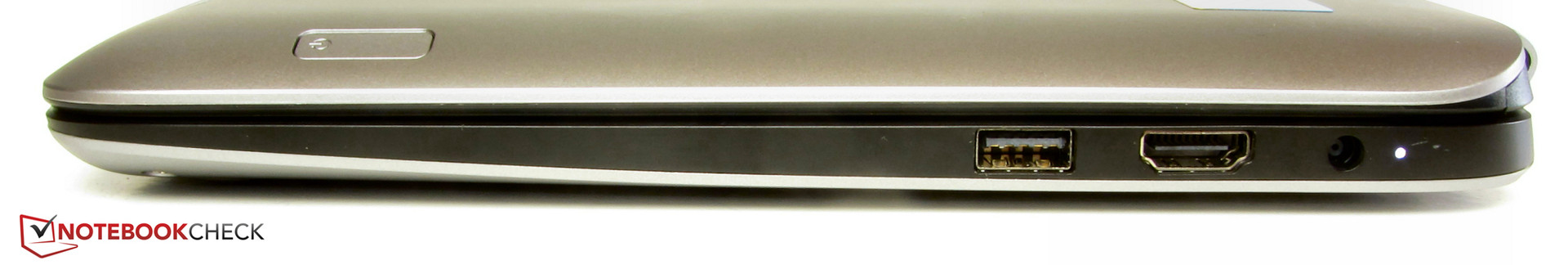

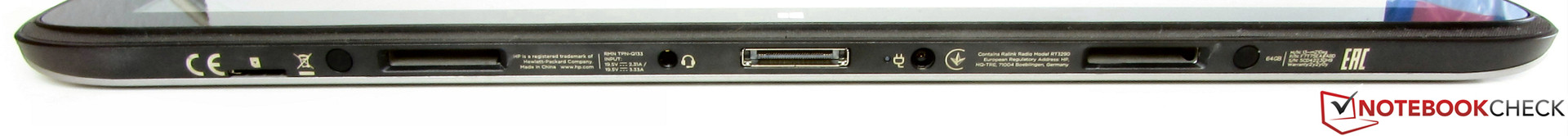

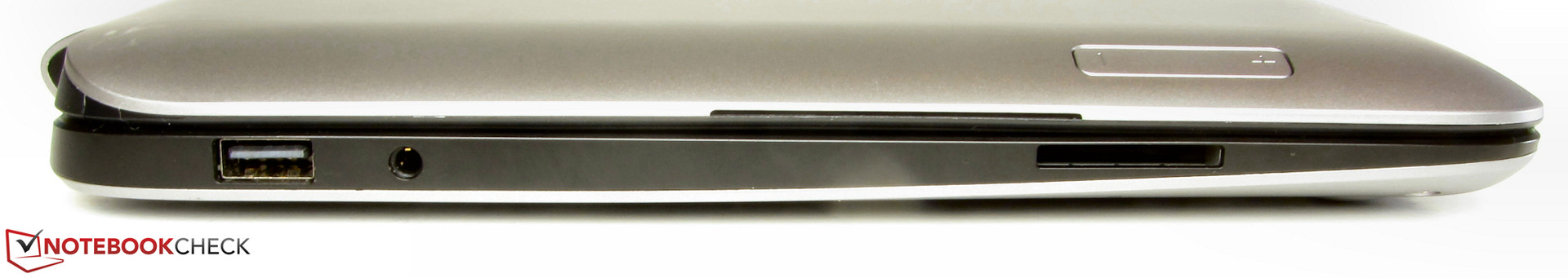

Unlike the Satellite and the Transformer Book, the tablet of the Split x2, does not have many ports, you only get a combined stereo jack, a connector for the power adaptor and a microSD slot. At least a micro-USB port would have been nice to improve the handling of the tablet without the keyboard dock. The port variety of the keyboard dock is similar to many notebooks, but HP could have integrated some more ports. A third USB port or a mini-DisplayPort would have been nice since the dock has quite a lot of room on the inside.
Communication
HP equipped the Split x2 with a WLAN module from the company Ralink. It supports the WLAN standards 802.11 b/g/n. We had no issues with the wireless signal, and had a stable connection with a distance of 15 meters (~49 ft) from the router. The Split x2 supports Bluetooth 4.0 as well. Like the Satellite, the tablet segment of the HP convertible has only one webcam. A camera at the rear, which is available in the Transformer Book, has been dispensed with. The camera of the HP takes blurry pictures with a resolution of up to 1920x1080 pixels.
Accessories
Besides a quick-start poster, the box only contains warranty information.
Operating System
The Split x2 comes with a preinstalled version of Windows 8.1 (64-bit), but there is no Windows DVD. Such a DVD can be created with the provided HP Recovery Manager and an external burner.
Maintenance
Neither the keyboard dock, nor the tablet has a maintenance cover. Still, it is possible to access the hardware. You can remove the bottom half of the dock with a sharp object after you have removed all the screws (there are also screws behind the rear rubber feet). But you should be careful, there are additional plastic clips that can easily break. After that you can access the battery and the hard drive. The latter could easily be replaced by a drive with a higher storage capacity. Do not forget that the recovery partition of the Split x2 is stored on this drive. You can use all 2.5-inch hard drives with a height of 7 millimeters (~0.27 inches).
Before you can remove the back of the tablet, you have to loosen two screws at the bottom that are covered by rubber feet. The back of the tablet is secured by additional plastic clips as well. We did not manage to loosen all clips, so we gave up, to avoid damaging the review sample. The cover provides access to the memory, the Solid State Drive, the WLAN module, the BIOS battery, the battery and the fan. The device only has one memory slot that is occupied by a 4 GB module. Replacing the SSD is possible, HP uses an mSATA drive.
You should have a look at the corresponding hardware manual from HP before you try to open the case of the Split x2. It includes detailed information about dismantling.
Warranty
The HP Split x2 comes with a two-year warranty – same as the Satellite and the Transformer Book. The warranty period of the convertible can be extended, a three-year Collect & Return warranty, for instance, is available for around 120 Euros (~$155).
Input Devices
Keyboard

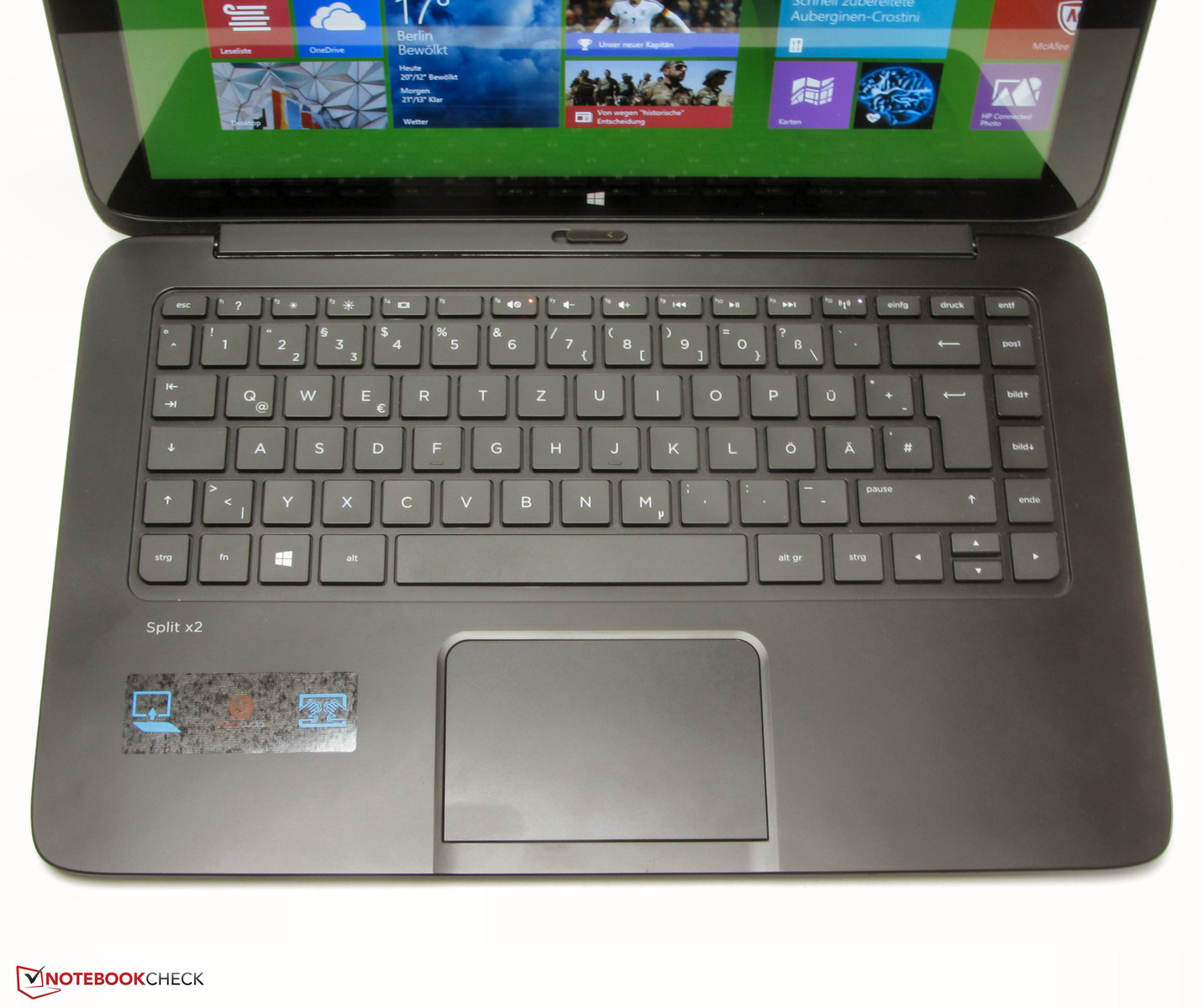

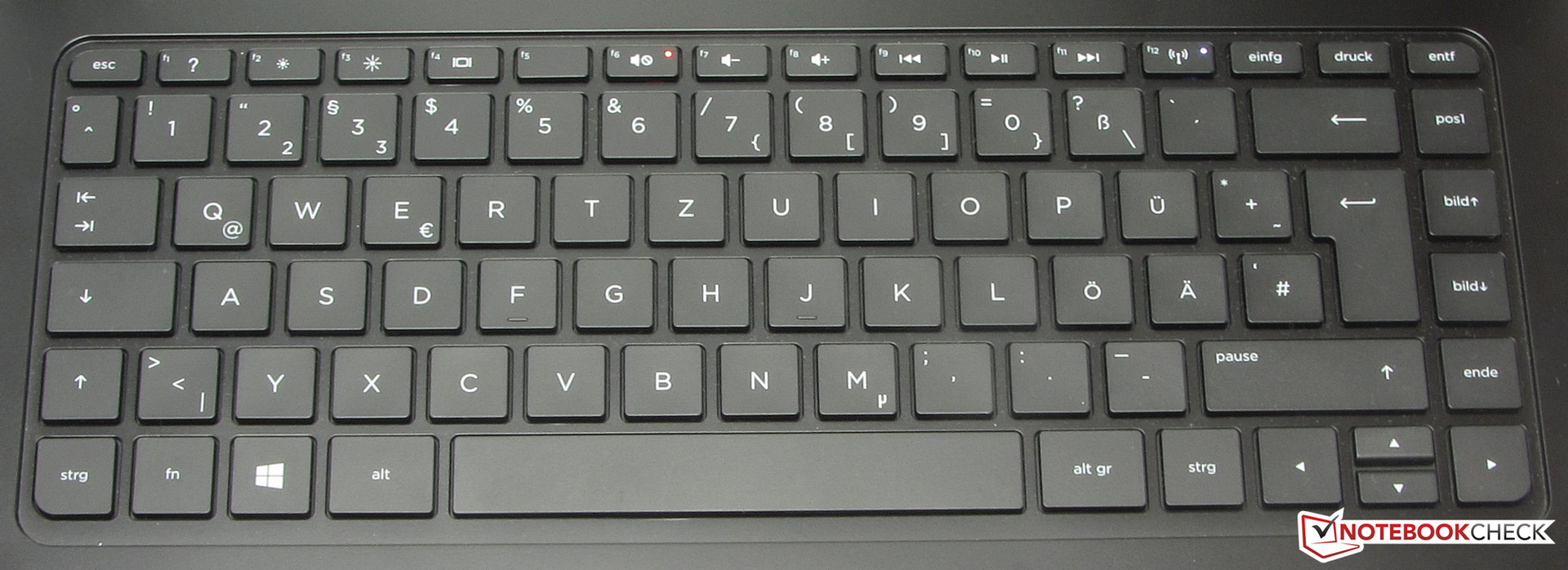

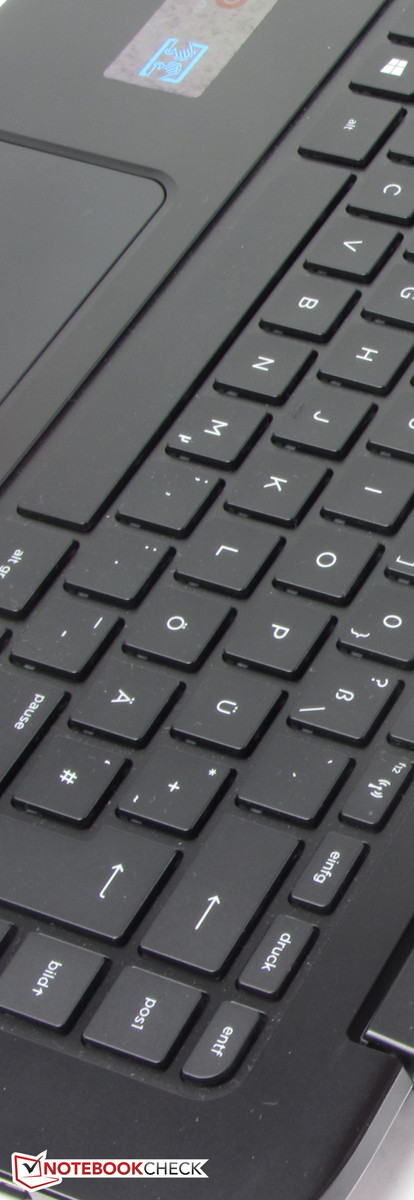

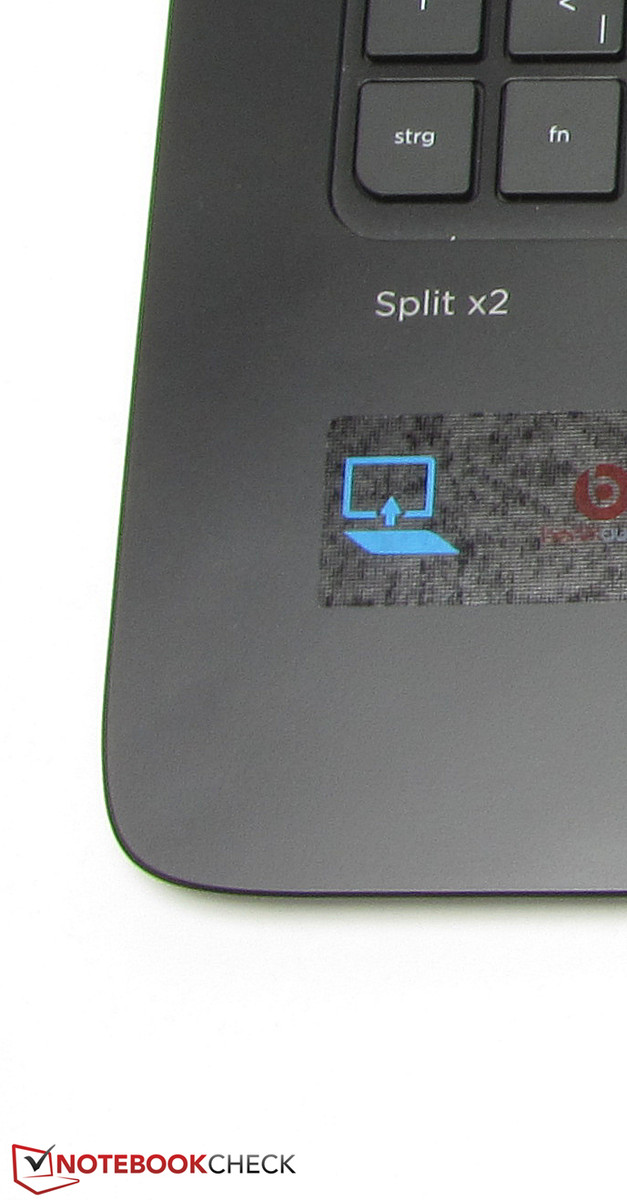

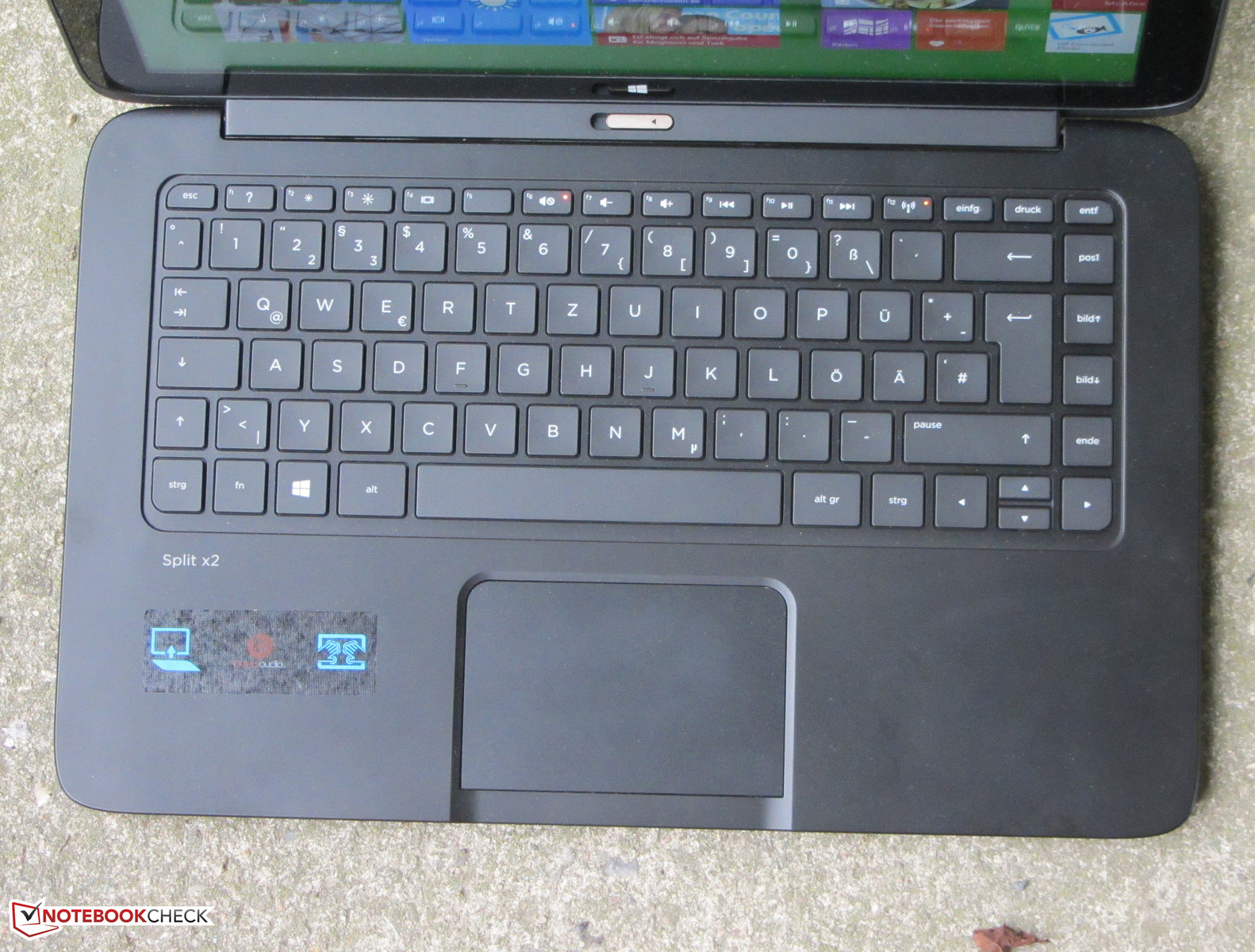

The Split x2 is equipped with a non-illuminated chiclet keyboard. The flat and slightly roughened keys have an average travel and a well-defined pressure point. The resistance is decent as well. We can determine some flexing during typing, but it is not annoying. All in all, HP integrates a decent and convenient keyboard, which can also be used for longer typing sessions.
Touchpad

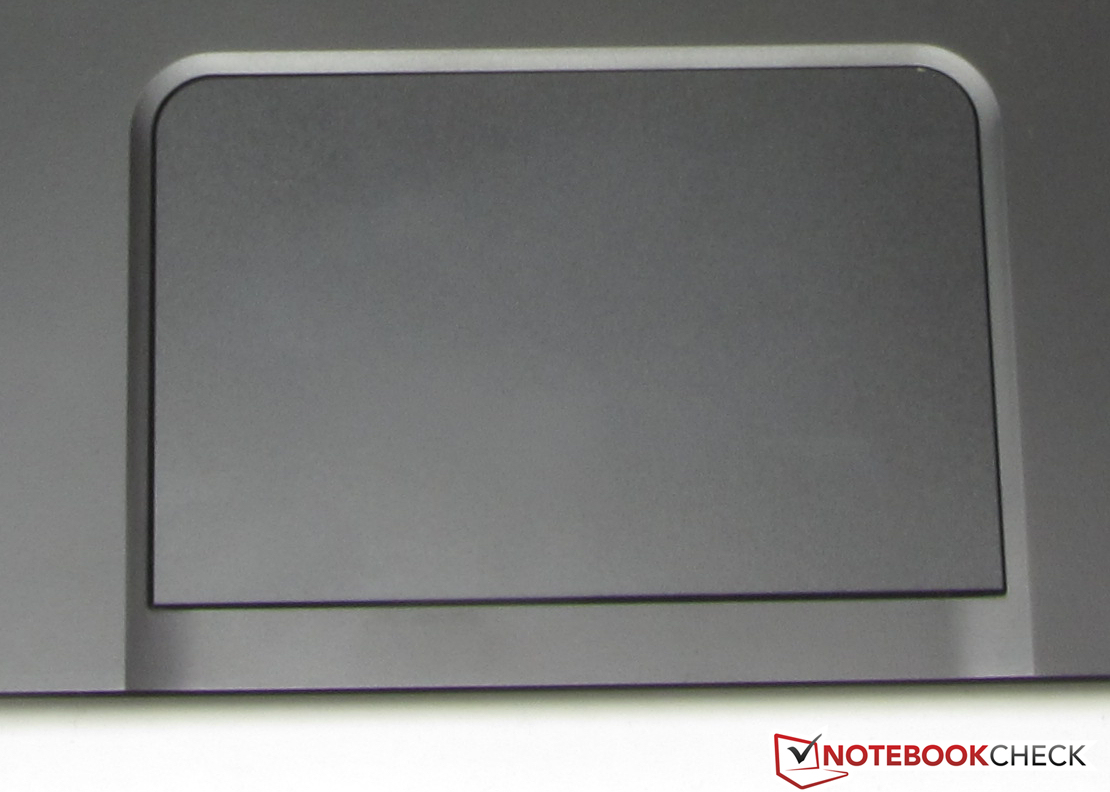

The mouse replacement is a ClickPad (touchpad without dedicated mouse buttons) with multi-touch support. The dimensions are 9.5 x 6.2 cm (3.7 x 2.44 inches), so there is sufficient room for multi-touch gestures. The smooth surface provides good gliding capabilities. The multi-touch gestures can be configured in a dedicated menu for the pad. The pad itself has a short travel and a clear pressure point.
Touchscreen
You can obviously control the convertible via touchscreen as well. The screen quickly executes inputs and did not create any issues during our review.
Display
The glossy 13.3-inch display of the Split has a native resolution of 1366x768 pixels. It is not the brightest panel with 210.6 cd/m², but the Satellite (240.8 cd/m²; HD) and the Transformer Book (220.3 cd/m²; Full HD) are only slightly better.
| |||||||||||||||||||||||||
Brightness Distribution: 93 %
Center on Battery: 216 cd/m²
Contrast: 864:1 (Black: 0.25 cd/m²)
ΔE Color 4.54 | 0.5-29.43 Ø4.95
ΔE Greyscale 3.46 | 0.5-98 Ø5.2
Gamma: 2.47
| HP Split x2 13-m210eg HD Graphics 4200, 4210Y, Micron RealSSD C400 MTFDDAT064MAM-1J2 64 GB | Toshiba Satellite W30Dt-A-100 Radeon HD 8180, A4-1200, WD Blue UltraSlim WD5000MPCK-22AWHT0 | Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0 | Asus Transformer Book T300LA-C4006H HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002 | |
|---|---|---|---|---|
| Display | ||||
| Display P3 Coverage | 39.12 | 40.52 | 70.2 | |
| sRGB Coverage | 57.9 | 60.8 | 96 | |
| AdobeRGB 1998 Coverage | 40.13 | 41.89 | 70.3 | |
| Screen | -42% | -6% | -11% | |
| Brightness middle | 216 | 309 43% | 250 16% | 229 6% |
| Brightness | 211 | 308 46% | 241 14% | 220 4% |
| Brightness Distribution | 93 | 90 -3% | 84 -10% | 79 -15% |
| Black Level * | 0.25 | 1.06 -324% | 0.39 -56% | 0.27 -8% |
| Contrast | 864 | 292 -66% | 641 -26% | 848 -2% |
| Colorchecker dE 2000 * | 4.54 | 4.76 -5% | 4.27 6% | 4.5 1% |
| Greyscale dE 2000 * | 3.46 | 2.83 18% | 2.87 17% | 5.52 -60% |
| Gamma | 2.47 89% | 2.33 94% | 2.3 96% | 2.42 91% |
| CCT | 6679 97% | 6993 93% | 6842 95% | 6227 104% |
| Color Space (Percent of AdobeRGB 1998) | 36.7 | 38.5 | 62.59 | |
| Total Average (Program / Settings) | -42% /
-42% | -6% /
-6% | -11% /
-11% |
* ... smaller is better
We can measure good values for the contrast ratio (864:1) and the black value (0.25 cd/m²), which are on the same level as the screen of the Transformer Book (848:1, 0.27 cd/m²). The Satellite (641:1, 0.39 cd/m²) cannot quite keep up, but the results are not bad, either.
The colors are pretty good without a calibration with an average DeltaE-2000 deviation of 4.54, which is pretty close to the target area (DeltaE smaller 3). We cannot see a blue cast, either. We could not calibrate the display because the corresponding software kept crashing.

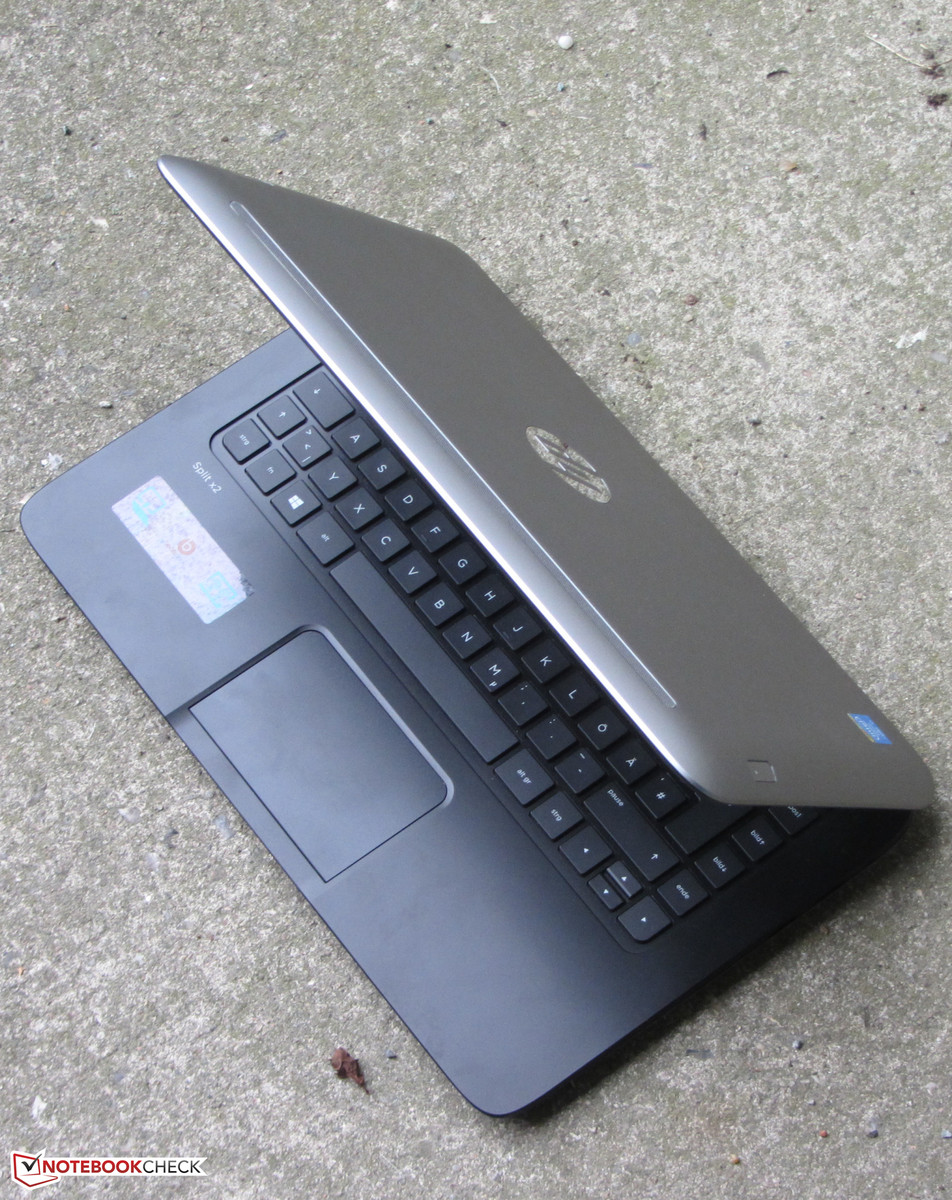

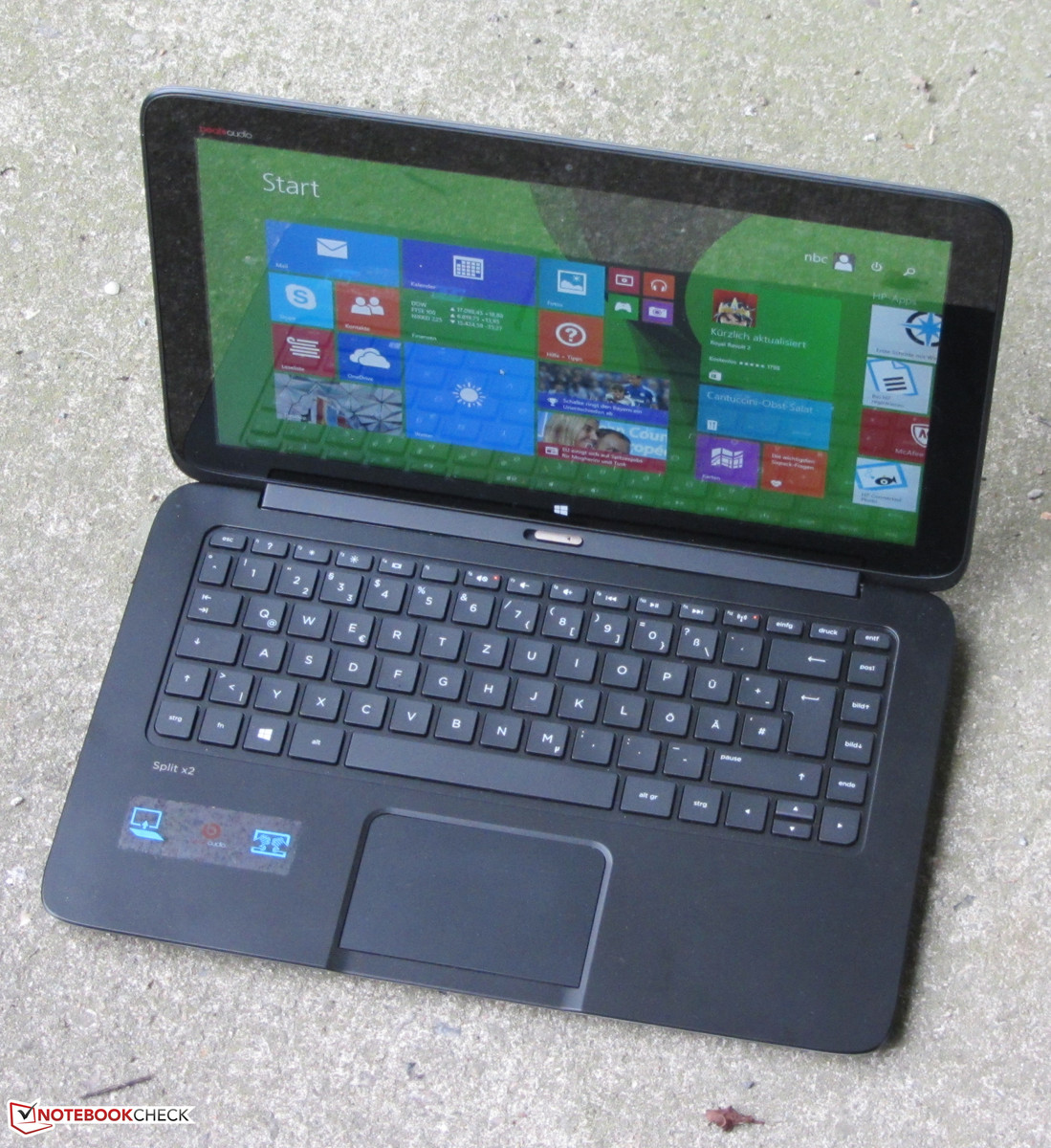

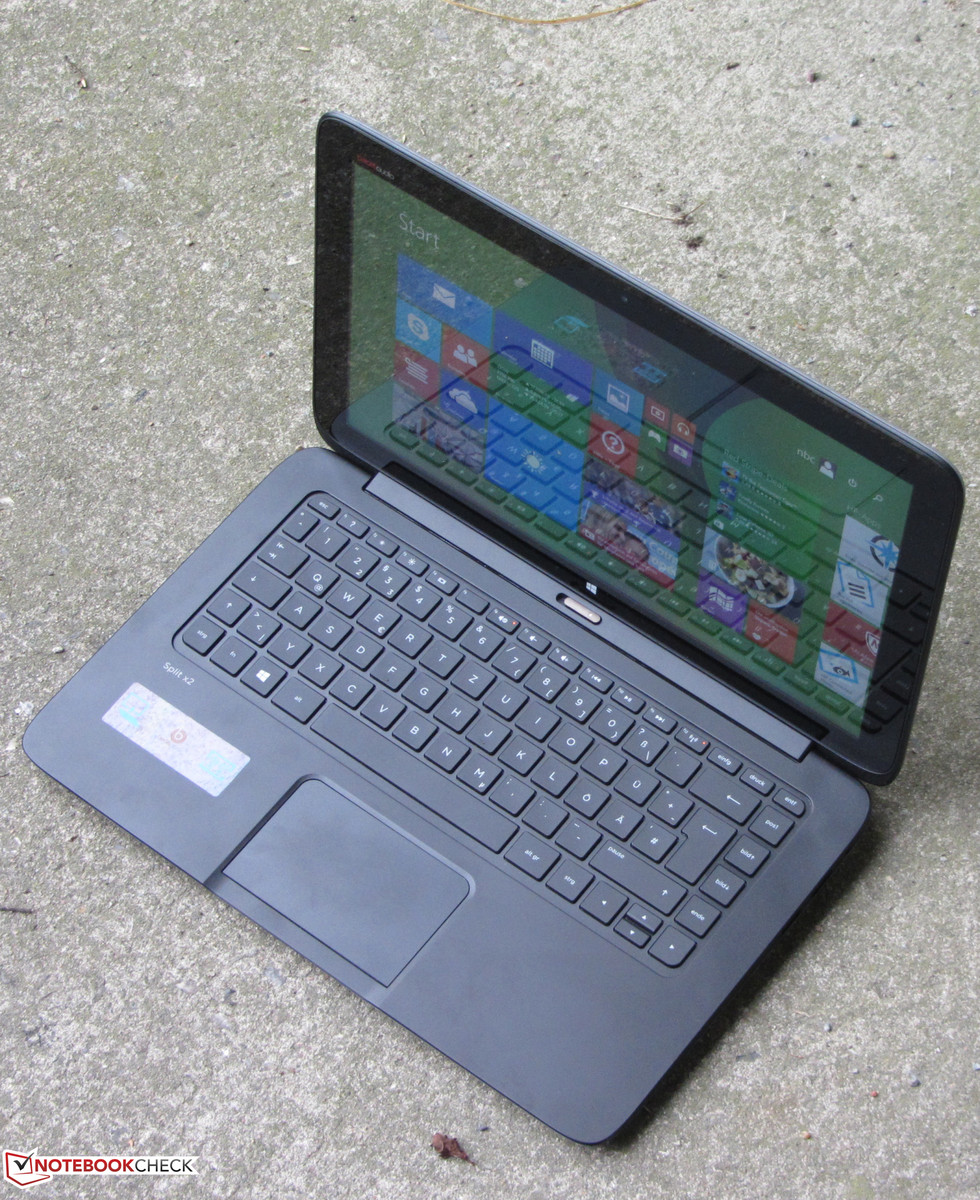

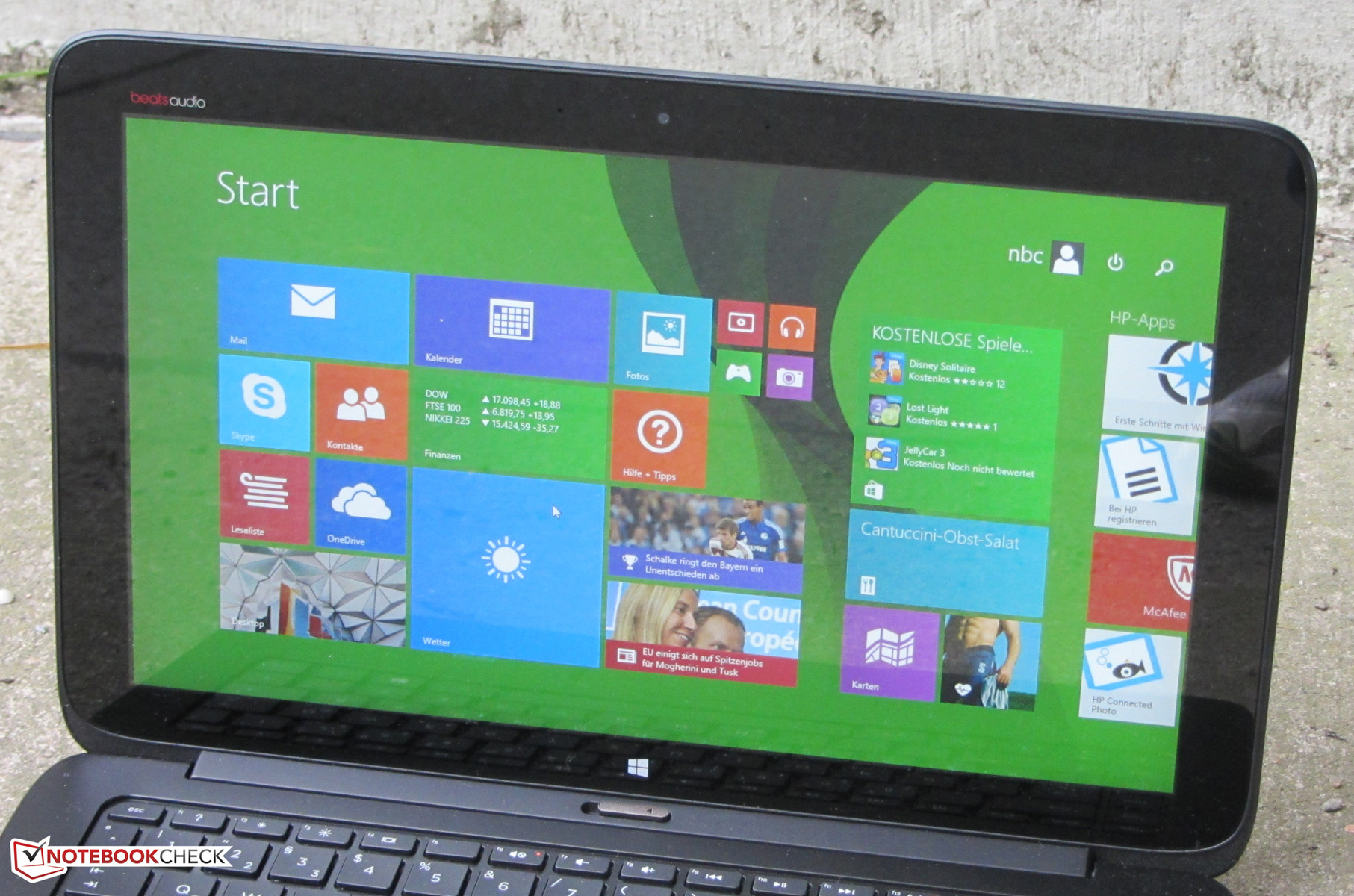

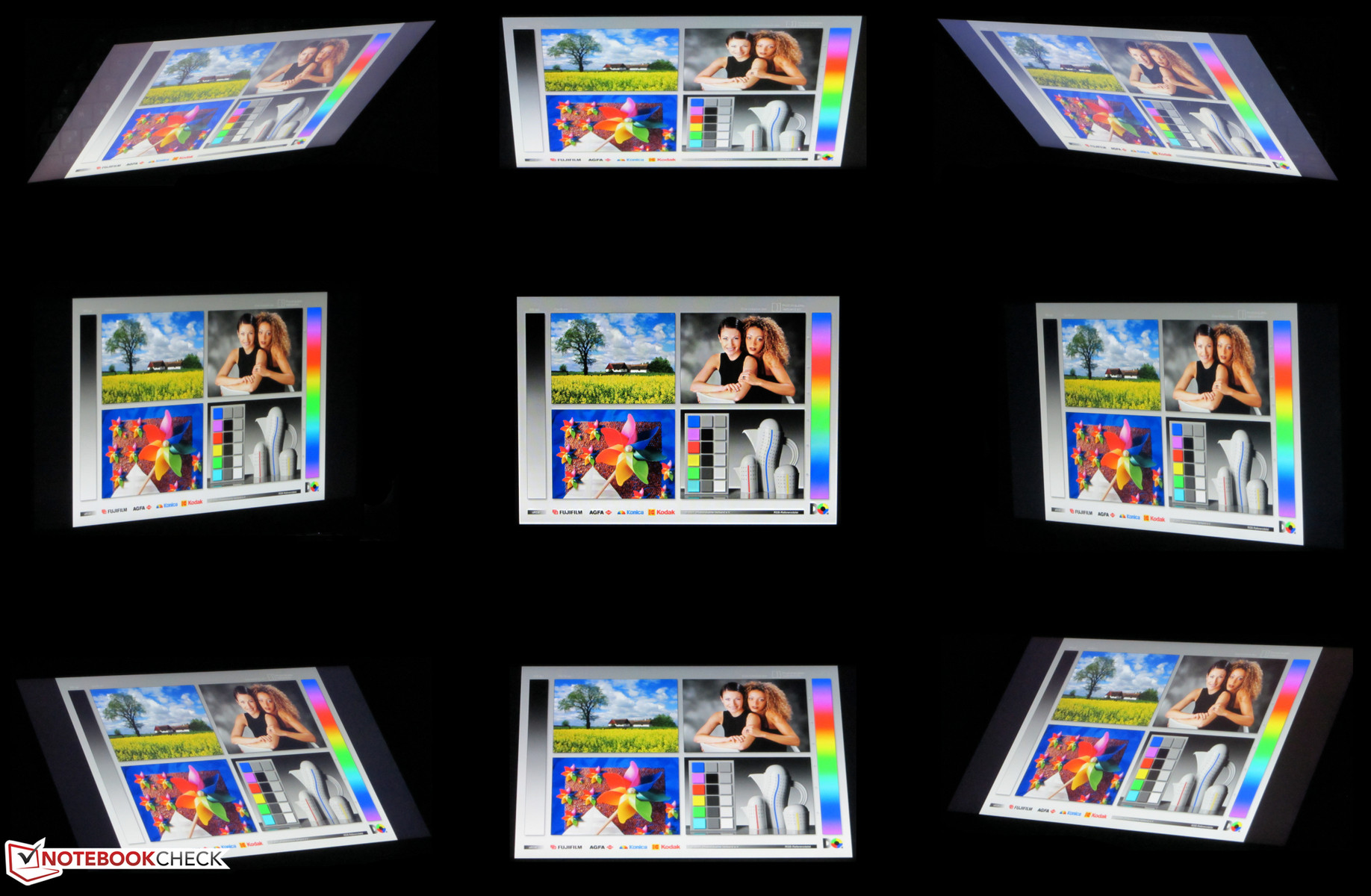

Thanks to the IPS panel, the Split x2 has an excellent viewing angle stability. You can see the display content from every position. Using the device outdoors is generally possible, but the very glossy surface can be an issue in some conditions.
Performance
The HP Split x2 13-m210eg represents a compromise between a tablet and a notebook. It is powerful enough for common office and web applications, and you get decent input devices. Our review sample retails for around 700 Euros (~$902); other configurations are not available.
Processor
HP utilizes the performance of an Intel processor for the Split x2. Our review sample uses a Core i5-4210Y processor. The letter Y in the designation indicates a very frugal chip, Intel specifies the TDP with 11.5 Watts. The dual-core processor (Haswell) can execute four threads simultaneously and runs with a nominal clock of 1.5 GHz, which can be raised up to 1.6 GHz (both cores) and 1.9 GHz (one core), respectively, via Turbo Boost. We could utilize the full performance of the processor on mains and battery power. The CPU tests of the Cinebench benchmark were always executed with the highest possible clock.
System Performance
The system runs smoothly without any hiccups. This, however, is, not surprising when you consider the Core i5 processor and the Solid State Drive. It also means Windows started quickly. The PCMark results are very good. They are lower compared to devices with Core processors of the U-class (e.g. Core i5-4200U), since those chips run with much higher clocks. However, this behavior does not apply to the Transformer Book, which uses the above-mentioned CPU, in PCMark 8 Home. We assume that the device could not use the whole Turbo potential during the test.
| PCMark 7 Score | 3629 points | |
| PCMark 8 Home Score Accelerated v2 | 1943 points | |
| PCMark 8 Creative Score Accelerated v2 | 1913 points | |
| PCMark 8 Work Score Accelerated v2 | 2614 points | |
Help | ||
| PCMark 8 - Home Score Accelerated v2 (sort by value) | |
| HP Split x2 13-m210eg | |
| Asus Transformer Book T300LA-C4006H | |
| Toshiba Satellite W30t-A-101 | |
Storage Devices
The Split x2 has two hard drives: The 64-GB Solid State Drive (mSATA) from Micron works as a system partition inside the tablet element of the convertible. 30 GB can be used for your own data. The SSD is pretty fast in general, but it cannot keep up with high-end drives. As well as the SSD, the manufacturer also included a conventional hard drive. The 500 GB Toshiba hard drive is inside the keyboard dock and can be used for all your files. A small part (around 12 GB) is occupied by the system recovery.
| HP Split x2 13-m210eg HD Graphics 4200, 4210Y, Micron RealSSD C400 MTFDDAT064MAM-1J2 64 GB | Asus Transformer Book T300LA-C4006H HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002 | SCHENKER XMG P724 GeForce GTX 880M SLI, 4810MQ, Samsung SSD 840 EVO 500GB mSATA | HP Spectre 13-h205eg x2 HD Graphics 4200, 4202Y, Samsung SSD PM841 MZMTD128HAFV mSATA | |
|---|---|---|---|---|
| AS SSD | 57% | 120% | 26% | |
| Seq Read | 431.6 | 470.6 9% | 504 17% | 502 16% |
| Seq Write | 107.3 | 271.8 153% | 483.6 351% | 131.8 23% |
| 4K Read | 23.77 | 28.2 19% | 40.83 72% | 24.19 2% |
| 4K Write | 56.7 | 76.2 34% | 109.9 94% | 51.6 -9% |
| 4K-64 Read | 256.8 | 315.1 23% | 355.2 38% | 308.4 20% |
| 4K-64 Write | 74.2 | 157.4 112% | 270.5 265% | 115.4 56% |
| Access Time Read * | 0.142 | 0.114 20% | 0.097 32% | 0.115 19% |
| Access Time Write * | 0.378 | 0.054 86% | 0.03 92% | 0.069 82% |
* ... smaller is better
Graphics
Intel's HD Graphics 4200 GPU handles the graphics. It supports DirectX 11 and runs with 200 up to 850 MHz. The 3DMark results do not show any surprises. However, the Satellite W30t with the same GPU, manages significantly higher results. The reason is simple: The memory of the Satellite works in a dual-channel configuration that benefits the GPU, so the results are better. The memory of the Split x2 only works in a single-channel configuration.
| 3DMark 11 Performance | 696 points | |
| 3DMark Ice Storm Standard Score | 32486 points | |
| 3DMark Cloud Gate Standard Score | 3211 points | |
| 3DMark Fire Strike Score | 441 points | |
Help | ||
Gaming Performance
Games from the Windows Store are usually no problem for the Split x2, and you can even play some modern 3D games. However, you will obviously have to reduce the resolution and use low quality settings. Still, it is not powerful enough for smooth gameplay in titles like Thief. Similar to the 3DMarks, the Satellite manages 20 percent higher frame rates on average thanks to its dual-channel memory. It is therefore on the same level as the HD Graphics 4400 GPU inside the Transformer Book (single-channel memory as well). The 13.3-inch size and a good gaming performance are not mutually exclusive. We already reviewed notebooks with good gaming performance, for example the Asus Zenbook UX32LN (Core i7-4500U, GeForce 840M). However, the price is also much higher, above 1,000 Euros (~$1289).
| low | med. | high | ultra | |
| Resident Evil 5 (2009) | 56.5 | 22.8 | ||
| Battlefield: Bad Company 2 (2010) | 32.2 | 24.5 | 15.6 | |
| Total War: Shogun 2 (2011) | 54.8 | |||
| Alan Wake (2012) | 8.4 | 6.1 | ||
| Tomb Raider (2013) | 33.9 | 17.1 | 9.9 | |
| BioShock Infinite (2013) | 24 | 12.9 | 10.6 | |
| Splinter Cell: Blacklist (2013) | 17.8 | 10.4 | 5.8 | |
| Thief (2014) | 11 | 7.1 | 5.8 | |
| GRID: Autosport (2014) | 57.5 | 18.9 | ||
| Risen 3: Titan Lords (2014) | 19.9 | 11.7 | ||
| Sims 4 (2014) | 89.1 | 24.4 |
| HP Split x2 13-m210eg HD Graphics 4200, 4210Y, Micron RealSSD C400 MTFDDAT064MAM-1J2 64 GB | Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0 | Asus Transformer Book T300LA-C4006H HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002 | |
|---|---|---|---|
| Tomb Raider | 31% | ||
| 1024x768 Low Preset | 33.9 | 44.4 31% | |
| 1366x768 Normal Preset AA:FX AF:4x | 17.1 | 22.4 31% | |
| Thief | 1% | 23% | |
| 1024x768 Very Low Preset | 11 | 14 27% | 14.2 29% |
| 1366x768 Normal Preset AA:FX | 7.1 | 5.3 -25% | 8.3 17% |
| Total Average (Program / Settings) | 16% /
16% | 23% /
23% |
Emissions
System Noise
Unlike the Transformer Book and the Satellite, the fan of the Split x2 runs even while idling. However, you can hardly hear it, it only gets louder under load. Even then it is not too bad. The fan does not have to run at the highest rpm level during the stress test since both the CPU and the GPU are throttled. The good results of the HP convertible are beaten by the Transformer Book.
Noise Level
| Idle |
| 30.8 / 31.4 / 32.6 dB(A) |
| HDD |
| 31.1 dB(A) |
| Load |
| 35.3 / 35.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm distance) | ||
Temperature

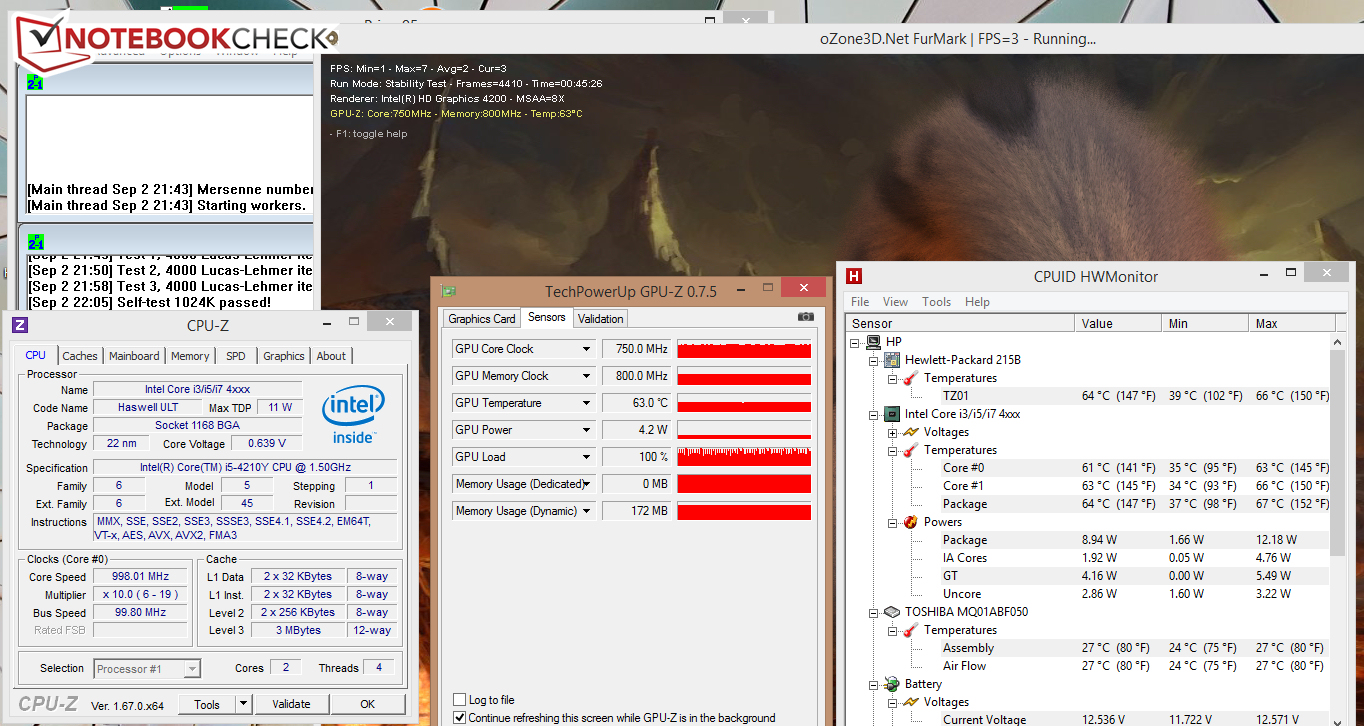

Our three comparison devices are very similar with regard to the temperature development. All devices exceed 40 °C (~104 °F) at one or two points during our stress test, but that is no problem in practice. The case temperatures during idling are consistently in the green zone. The Split x2 shows the same behavior during the stress test (Prime95 and FurMark for at least one hour) on mains and battery power: The processor runs with 1 up to 1.1 GHz and the GPU with 750 up to 850 MHz, which is reduced to 700 MHz over the course of the test. The CPU temperature on mains power leveled off at around 64 °C (~147.2 °F).
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.2 °C / 106 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.6 °C / 82 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.1 °C / 89.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-4 °C / -7.2 F).
Speakers
The stereo speakers are at the lower edge of the tablet and directed towards the user. HP advertises a "Beats Audio" system, which describes the software to improve the sound. The speakers create a rather metallic, but still decent sound that would benefit from more bass. A better sound experience is available with headphones or external speakers.
Energy Management
Power Consumption
Both the Split x2 and the Transformer Book are very frugal devices in all scenarios. The power consumption for these two convertibles is on the expected level with significantly less than 10 Watts while idling – a hallmark of Haswell systems. The consumption of the Split x2 during our stress test (Prime95 and FurMark) is lower than with medium workloads (3DMark 06) because both the CPU and the GPU are throttled. The Satellite on the other hand, has a higher consumption compared to its rivals – even though it has the slowest processor.
| Off / Standby | 0.2 / 0.4 Watt |
| Idle | 4.3 / 5.5 / 6.3 Watt |
| Load |
21.1 / 19 Watt |

| |
Battery Runtime
The Split x2 manages an idling runtime of 15:12 hours, which is longer than the Satellite (10:40 h) and the Transformer Book (14:23 h). The idle mode is simulated by the Battery Eater Reader's test with the minimum display brightness, activated energy-saving profile and deactivated wireless modules. Load results in a runtime of 3:27 hours for the Split x2, and the two comparison devices once again cannot keep up (Satellite 2:12 h; Transformer Book 2:26 h). The runtime under load is determined by the Battery Eater Classic test with the maximum display brightness, high-performance profile and activated wireless modules.
The Wi-Fi test runs for 7:13 hours before the HP convertible turns off. This result is right between the Satellite (6:30 h) and the Transformer Book (10:53 h). This test runs a script that refreshes websites every 40 seconds while the energy-saving profile is active and the display brightness is adjusted to around 150 cd/m². The runtime during video playback is tested with a loop of the short movie Big Buck Bunny (H.264, 1920x1080 pixels). The energy-saving profile is active, the wireless modules are deactivated and the display brightness is adjusted to around 150 cd/m². In this scenario, the Split x2 manages 7:38 hours, which is once again between the rivals Satellite (5:30 h) and Transformer Book (9:52 h).
Overall, the runtimes of the Split x2 are very good. However, it is surprising that the Transformer Book runs much longer in the realistic Wi-Fi and video playback tests – with a lower battery capacity (HP: 65 Wh (33 Wh + 32 Wh), Asus: 50 Wh, Toshiba: 46 Wh). The second hard drive of the Split x2 certainly affects the runtime of the HP device, but it does not explain the big difference. Asus really did a good job.
| HP Split x2 13-m210eg HD Graphics 4200, 4210Y, Micron RealSSD C400 MTFDDAT064MAM-1J2 64 GB | Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0 | Toshiba Satellite W30Dt-A-100 Radeon HD 8180, A4-1200, WD Blue UltraSlim WD5000MPCK-22AWHT0 | Asus Transformer Book T300LA-C4006H HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002 | |
|---|---|---|---|---|
| Battery Runtime | -26% | -5% | 12% | |
| Reader / Idle | 912 | 640 -30% | 650 -29% | 863 -5% |
| H.264 | 458 | 330 -28% | 592 29% | |
| WiFi | 433 | 390 -10% | 430 -1% | 653 51% |
| Load | 207 | 132 -36% | 236 14% | 146 -29% |
Verdict
All things considered, the HP Split x2 13-m210eg is a good device. HP offers a well-balanced package: A Core i5 processor provides sufficient performance, the IPS display is quite dark, but otherwise very convincing and the system partition on the SSD results in a fast system. There is another conventional hard drive in the keyboard dock, which provides a lot of storage for your files. We must not forget the decent input devices and the very good battery runtimes either. There is not much criticism from our side. Like the majority of detachable convertibles, the device suffers from a comparatively high weight. The tablet itself could have more ports (micro-USB) and HP could have integrated a Full HD panel. This would not be unreasonable when you consider the price. The last item on our wish list for the Split x2 is a 3G/LTE modem – at least as an option.
Because of its larger hinge, the Toshiba Satellite W30t-A-101 looks much bulkier than the Split x2. Its advantage is the lower price compared to the Split x2. Another even cheaper alternative is the similarly constructed Satellite W30Dt-A-100 (AMD A4-1200, Radeon HD 8180). Instead of an Intel processor, it uses a less powerful AMD APU. This device is currently available for around 580 Euros (~$747). The advantages of the Asus Transformer Book T300LA-C4006H are the better runtimes in the realistic WLAN and video playback scenarios. It is also the only convertible within our comparison with a Full HD display, but it is also more expensive than the Split x2.
