Gigabyte P55W v5 Notebook Review

Sascha Mölck (translated by Liala Stieglitz), 02/20/2016

Enduring. There are no obvious performance gains in Gigabyte's gaming laptop when compared with the predecessor. However, the new Skylake processor leads to a considerably better battery life. Furthermore, a fast NVMe SSD is also on board.

For the original German review, see here.

As the name suggests, we are facing the fifth version of Gigabyte's P55W. Gigabyte relies on the same casing as in the precursor for its P55W v5. Consequently, the differences between the laptops are only minor. However, there are differences in terms of technology. Rivals of the P55W v5 include laptops such as the Schenker XMG P506 and the MSI GS60 6QE. Basically, all devices listed in our Top 10 Lightweight Gaming Notebooks can be considered rivals.

Since the P55W v4 and P44W v5 feature an identical build, we will not go into details about casing, connectivity, input devices or speakers – unless there are differences. The relevant information can be found in the review of the Gigabyte P55W v4.

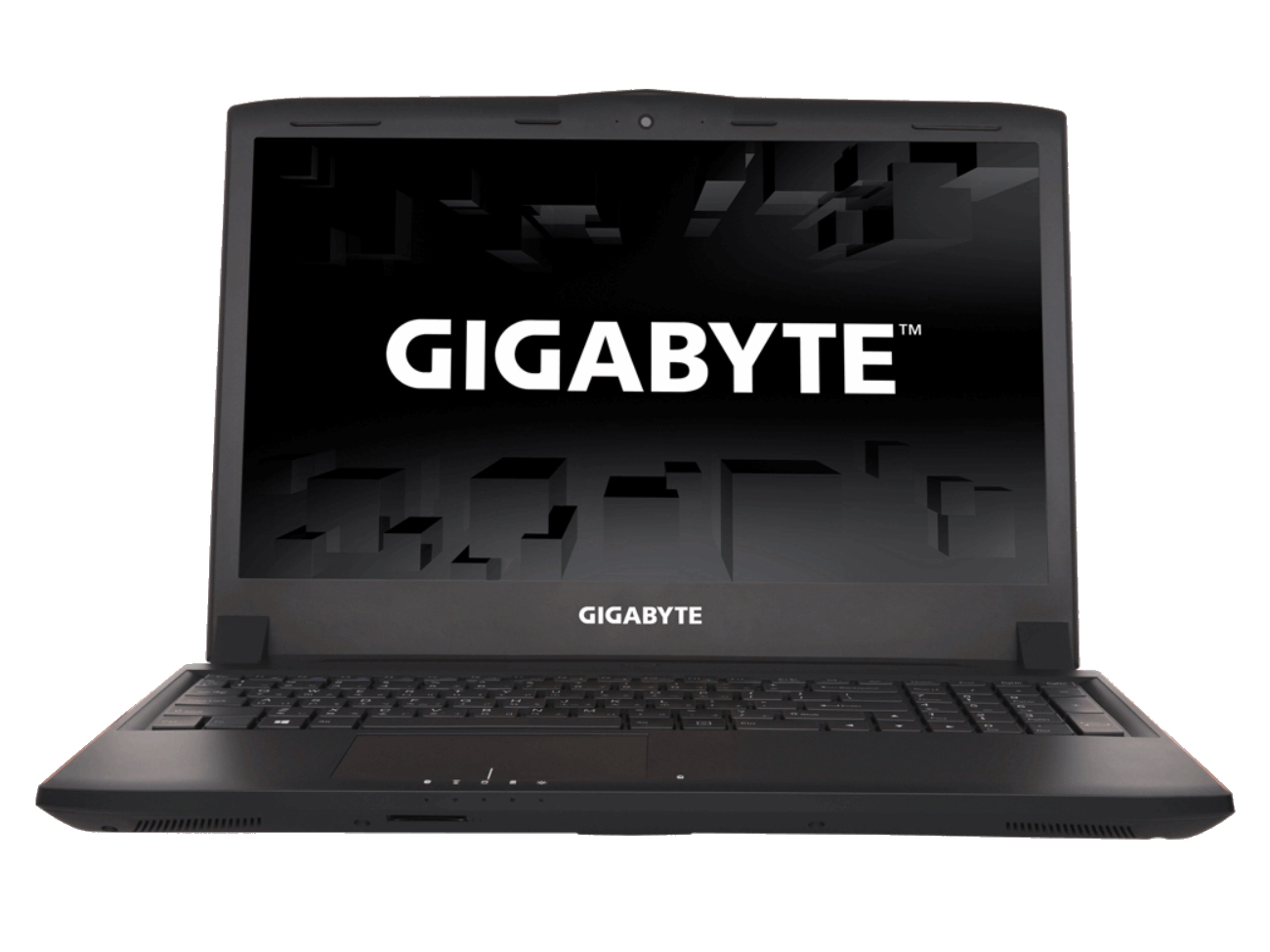

Gigabyte P55W v5 (P55 Series)
Graphics adapter
NVIDIA GeForce GTX 970M - 3072 MB, Core: 924-1038 MHz, Memory: 2500 MHz, GDDR5, 192 bit interface, ForceWare 359.00 (10.18.13.5900), Optimus
Memory
8192 MB
, DDR4-2133, single-channel, two memory banks, one Bank occupied, max. 32 GB
Display
15.6 inch 16:9, 1920 x 1080 pixel, LG Philips LP156WF4-SPH1, IPS, Full HD, glossy: no
Mainboard
Intel HM170 (Skylake PCH-H)

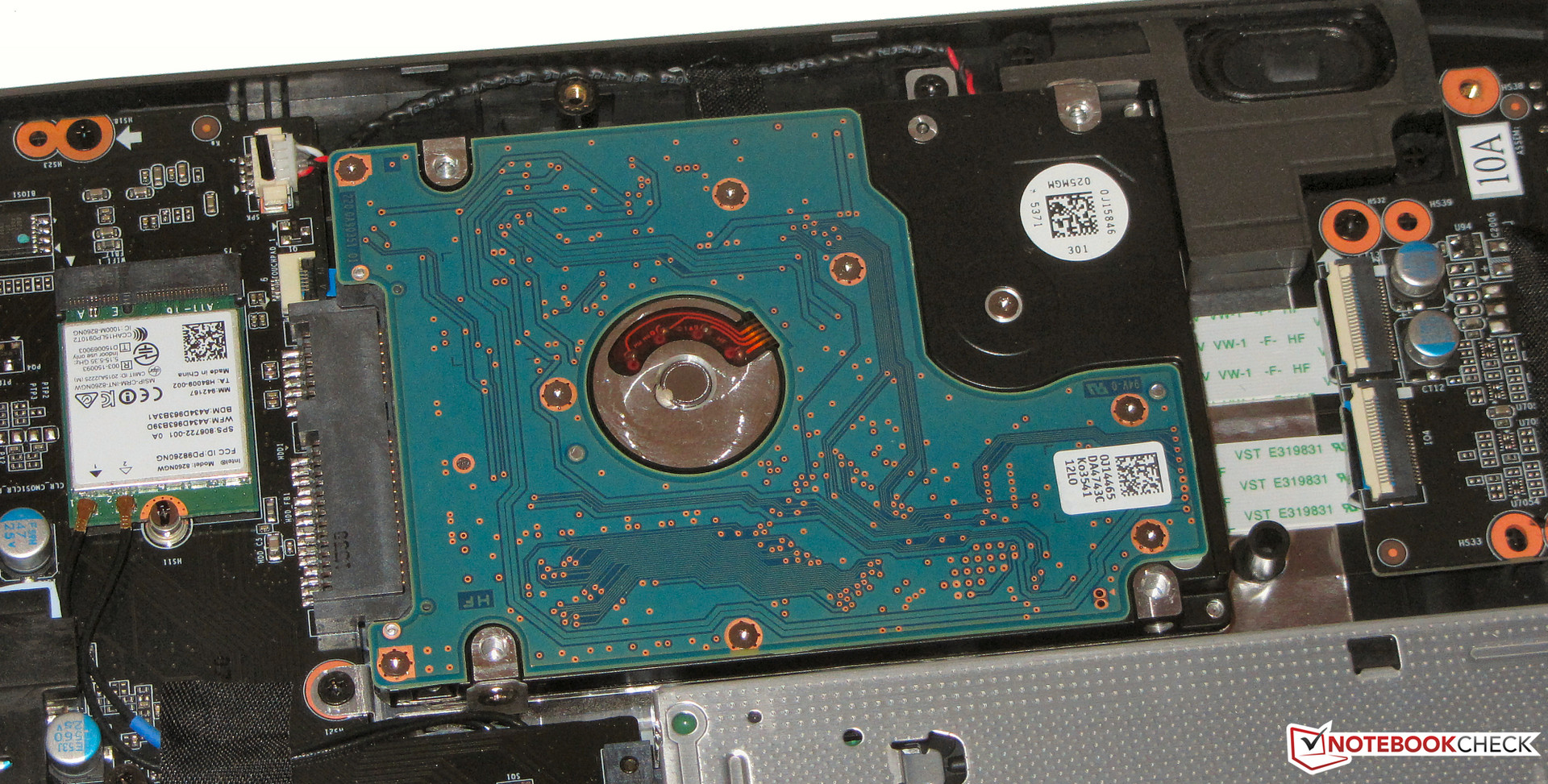

Storage

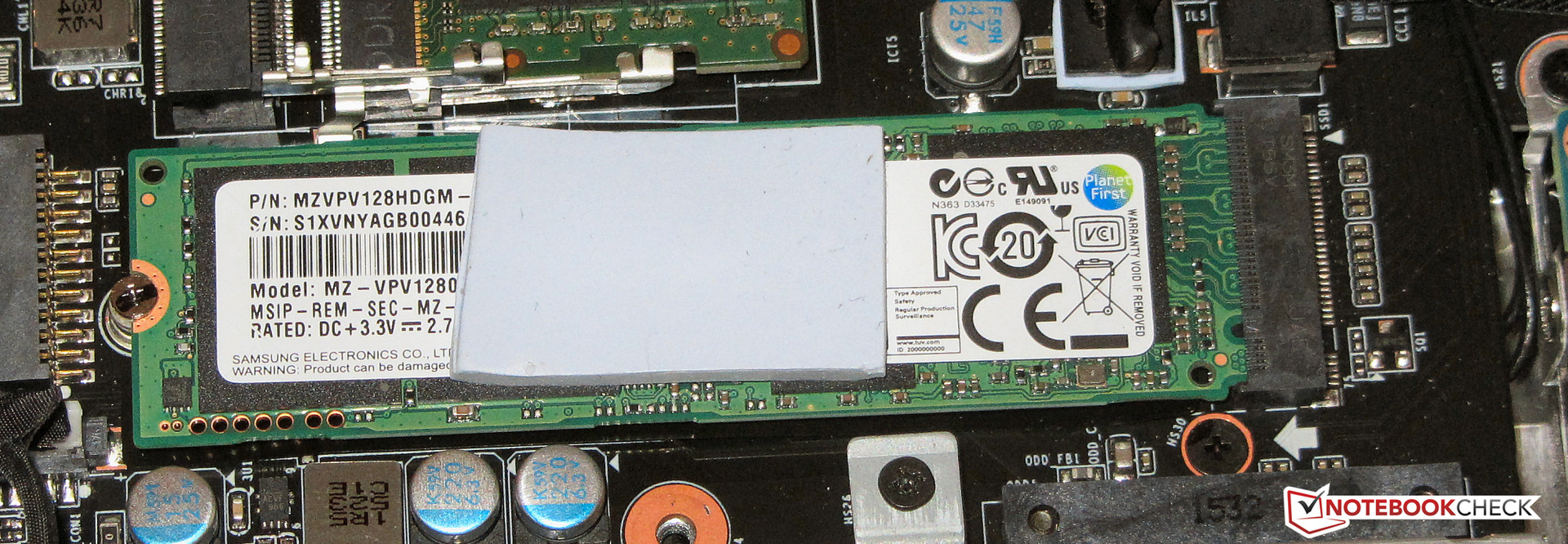

Samung SM951 MZVPV128 NVMe, 128 GB
, SSD + HGST HTS721010A9E630 (1 TB HDD, 7200 RPM). Slots: 1x m.2 2280 & 1x 2.5 inches
Soundcard
Realtek ALC255 @ Intel Sunrise Point PCH - High Definition Audio Controller

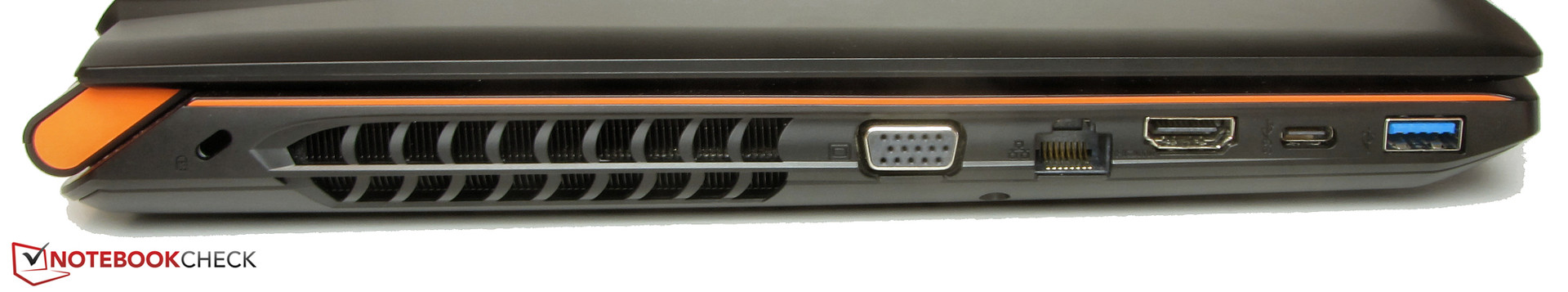

Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 1 headphone out, 1 microphone in, Card Reader: SD
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.2
Optical drive
Matshita DVD-RAM UJ8G2
Size
height x width x depth (in mm): 34 x 380 x 269 ( = 1.34 x 14.96 x 10.59 in)

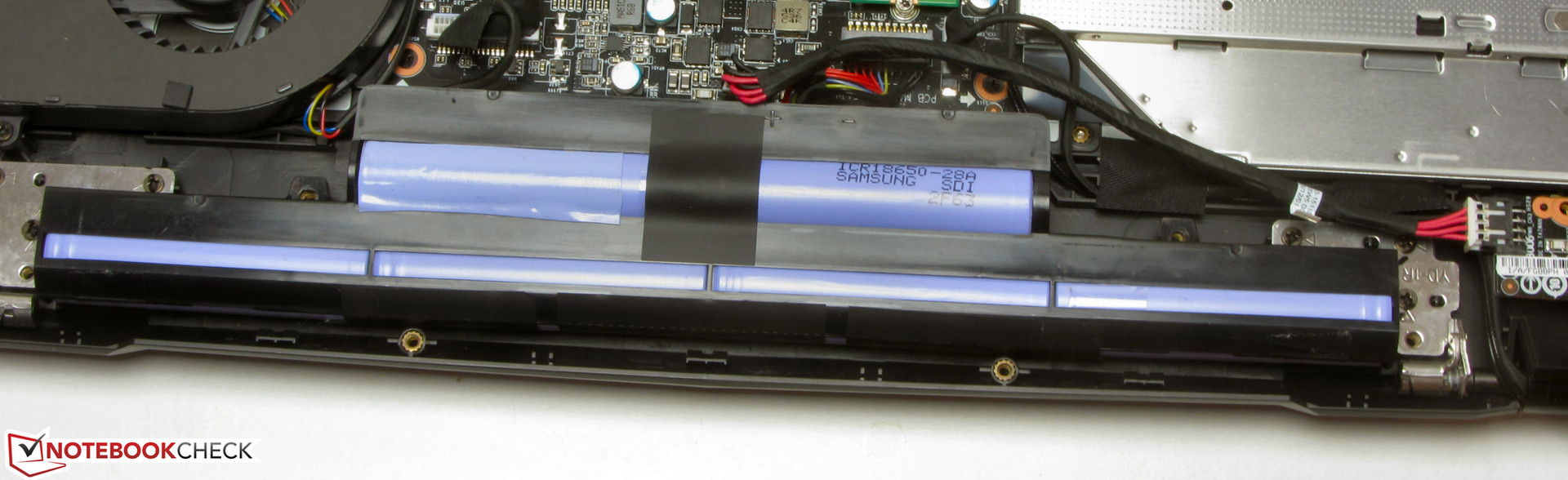

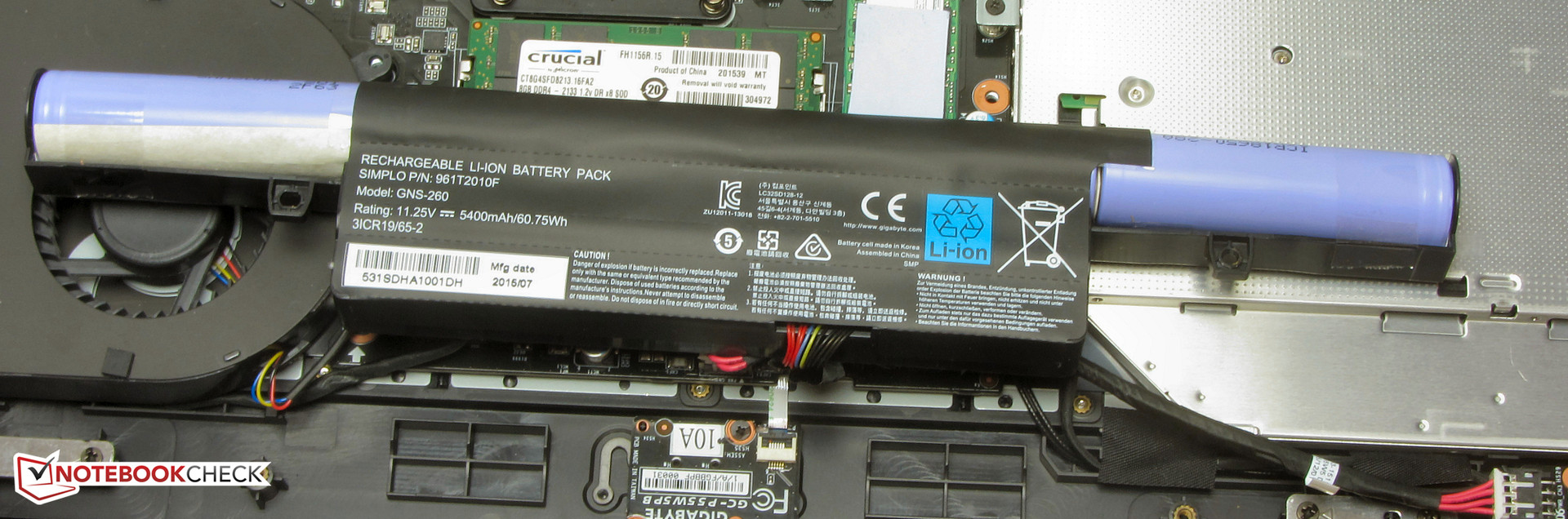

Battery
61 Wh, 5400 mAh Lithium-Ion, 11.25 V, 6 cells
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, power supply: 180 watts, software: Cyberlink PowerDVD 12, MS Office 365 (trial), 24 Months Warranty
Weight
2.6 kg ( = 91.71 oz / 5.73 pounds), Power Supply: 630 g ( = 22.22 oz / 1.39 pounds)
Price
1600 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



What's new?

  • A Skylake processor replaces the Broadwell model

  • An M.2 connector is found in place of the mSATA slot

  • One USB 3.0 port makes way for a USB 3.1 port (Type-C)

  • DDR4 working memory instead of DDR3 RAM

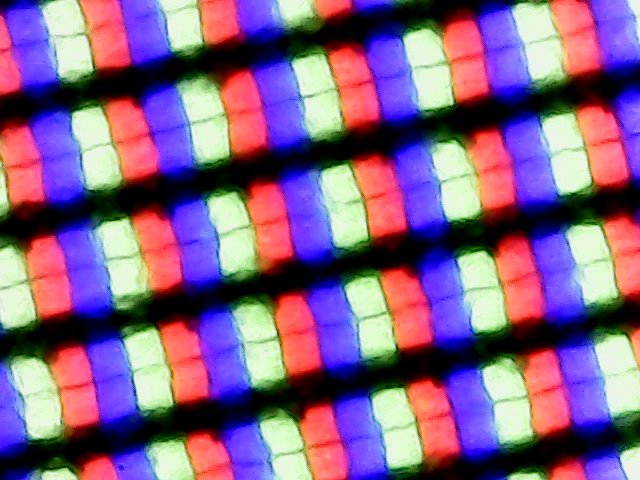

Pixel grid
Pixel grid

The P55W v5 is equipped with the same screen as its predecessor. The rates differ marginally, which is normal. Two identically built panels never correspond one hundred percent. The screen offers a good contrast and only mediocre brightness. Positive: PWM flickering is never an issue.

274
cd/m²
274
cd/m²
278
cd/m²
260
cd/m²
254
cd/m²
264
cd/m²
270
cd/m²
248
cd/m²
279
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 279 cd/m² Average: 266.8 cd/m²
Brightness Distribution: 89 %
Center on Battery: 254 cd/m²
Contrast: 907:1 (Black: 0.28 cd/m²)
ΔE Color 4.28 | 0.6-29.43 Ø6.1
ΔE Greyscale 2.77 | 0.64-98 Ø6.3
73% sRGB (Argyll 3D) 47% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.28
Gigabyte P55W v5
LG Philips LP156WF4-SPH1
Gigabyte P55 V4
LG Philips, ID: LGD040E, Name: 156WF4
MSI GS60-6QE4K16H21
Samsung 156FL02-P01 (SDC424B)
MSI GE62-6QD16H11
LG Philips LP156WF6
Acer Predator 15 G9-591-74ZV
LG LP156WF6-SPP1 (LGD04D5)
Schenker XMG P506
Samsung 156HL01-102 (SDC324C)
Response Times
7%
15%
19%
Response Time Grey 50% / Grey 80% *
44 (18, 26)
40 (12, 28)
9%
31 (11, 20, starke Schwankungen)
30%
31 (10, 21)
30%
Response Time Black / White *
27 (7, 20)
26 (8, 18)
4%
27 (8, 19)
-0%
25 (7, 18)
7%
PWM Frequency
1316 (20)
Screen
7%
-37%
10%
5%
-4%
Brightness middle
254
262.3
3%
212
-17%
300
18%
310
22%
310
22%
Brightness
267
265
-1%
197
-26%
291
9%
287
7%
299
12%
Brightness Distribution
89
89
0%
78
-12%
88
-1%
86
-3%
84
-6%
Black Level *
0.28
0.259
7%
0.49
-75%
0.32
-14%
0.36
-29%
0.35
-25%
Contrast
907
1013
12%
433
-52%
938
3%
861
-5%
886
-2%
Colorchecker DeltaE2000 *
4.28
4.29
-0%
7.8
-82%
3.51
18%
3.83
11%
4.1
4%
Colorchecker DeltaE2000 max. *
10.6
8.72
18%
Greyscale DeltaE2000 *
2.77
2.28
18%
5.23
-89%
2.52
9%
2.53
9%
5.7
-106%
Gamma
2.28 96%
2.31 95%
3.05 72%
2.38 92%
2.42 91%
2.53 87%
CCT
6284 103%
6350 102%
6693 97%
6759 96%
6934 94%
7454 87%
Color Space (Percent of AdobeRGB 1998)
47
53
13%
50
6%
56
19%
56
19%
63
34%
Color Space (Percent of sRGB)
73
80.3
10%
80
10%
86
18%
86
18%
96
32%
Total Average (Program / Settings)
7% / 7%
-15% / -29%
13% / 11%
12% / 8%
-4% / -4%

* ... smaller is better

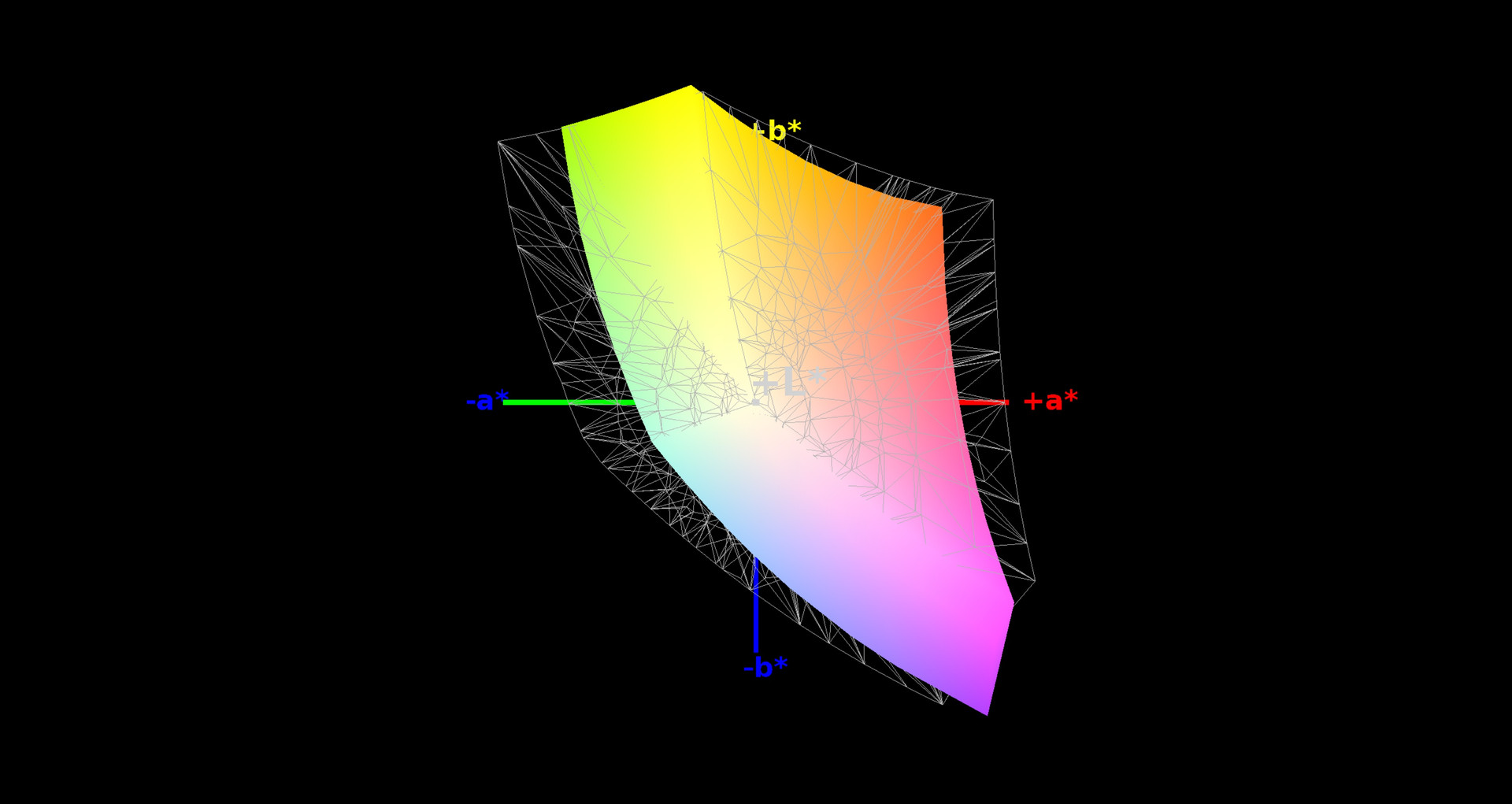

P55W v5 vs. sRGB (73%)
P55W v5 vs. sRGB (73%)

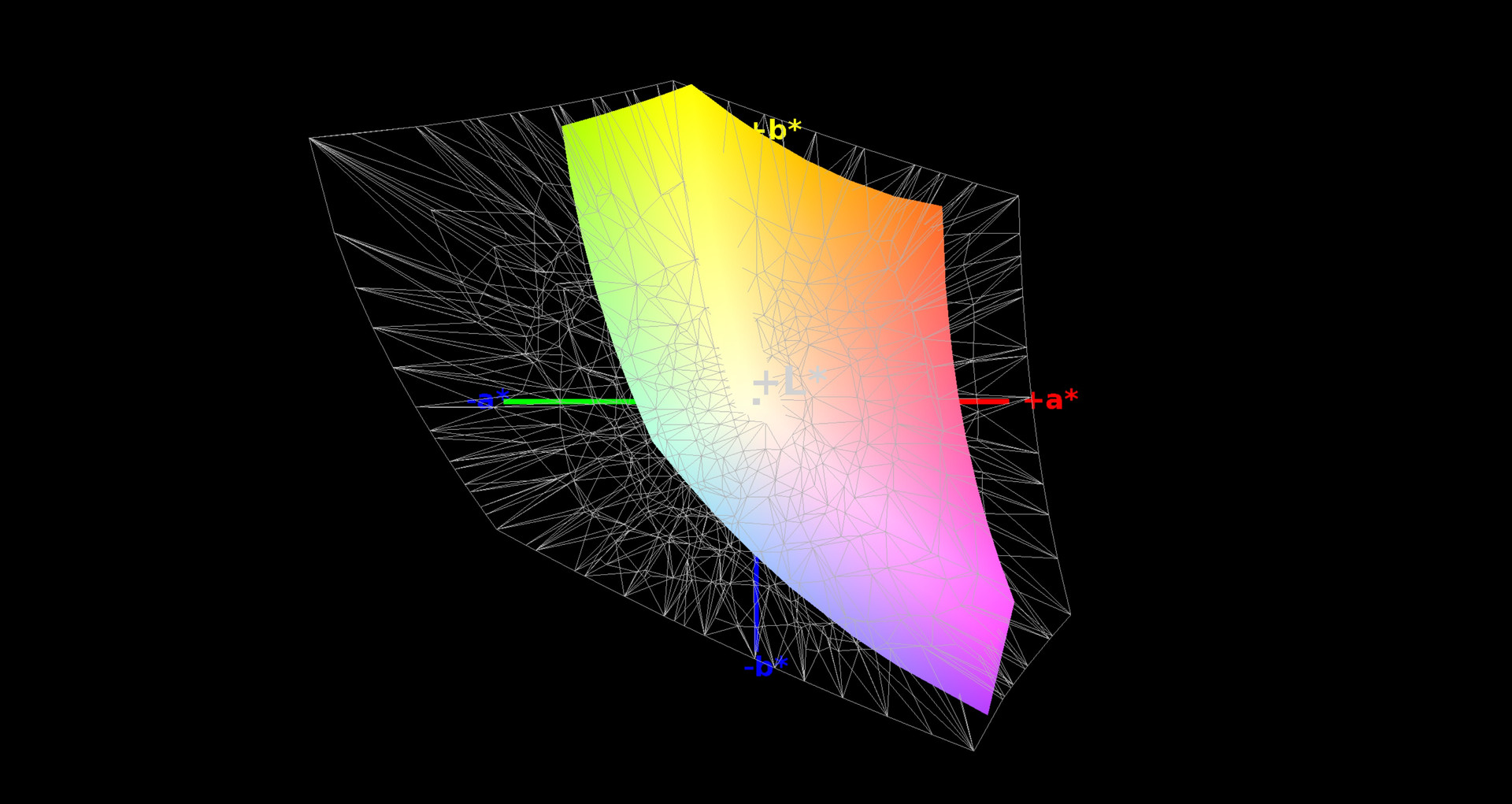

P55W v5 vs. AdobeRGB (47%)
P55W v5 vs. AdobeRGB (47%)

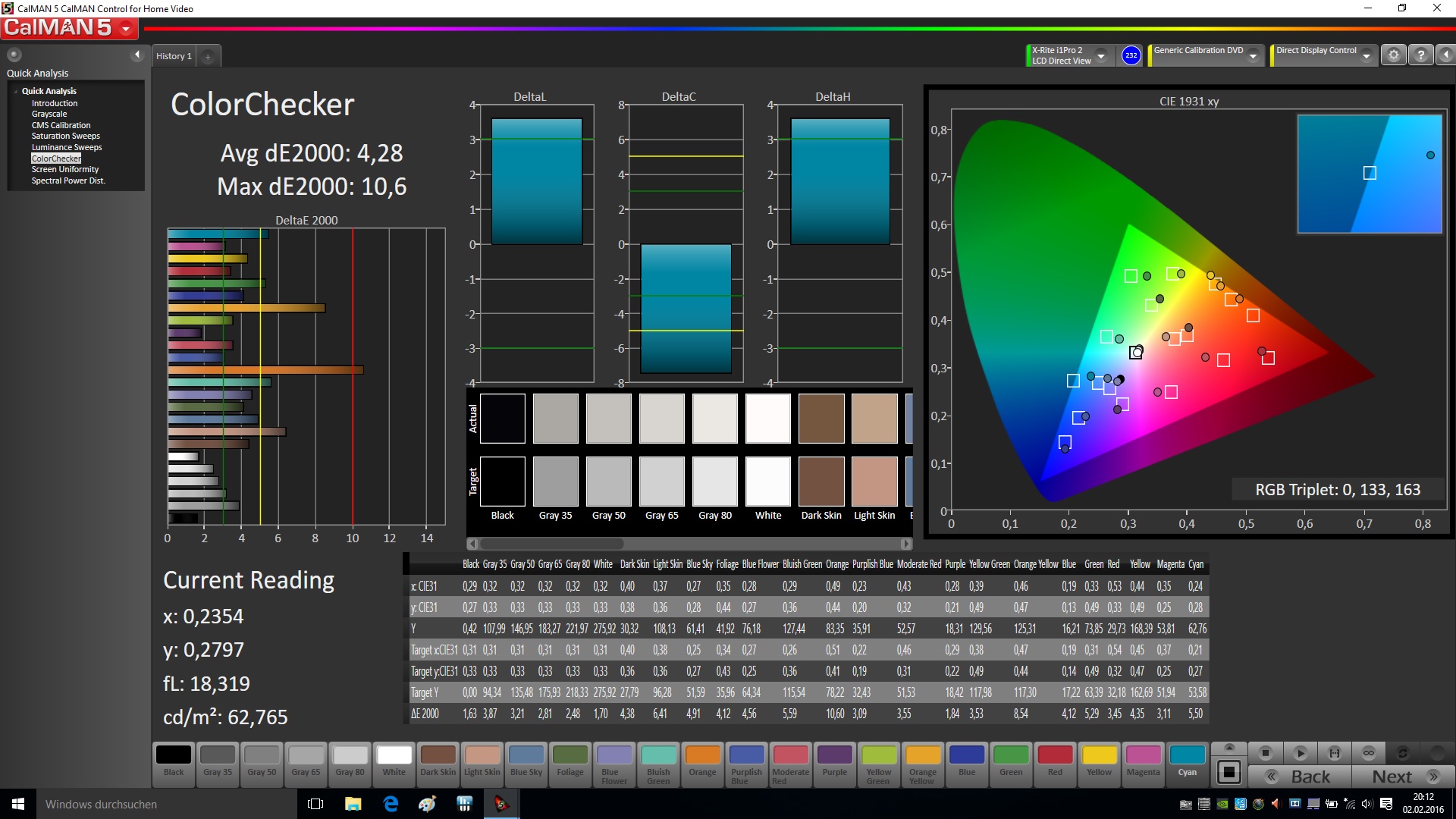

CalMAN - ColorChecker
CalMAN - ColorChecker

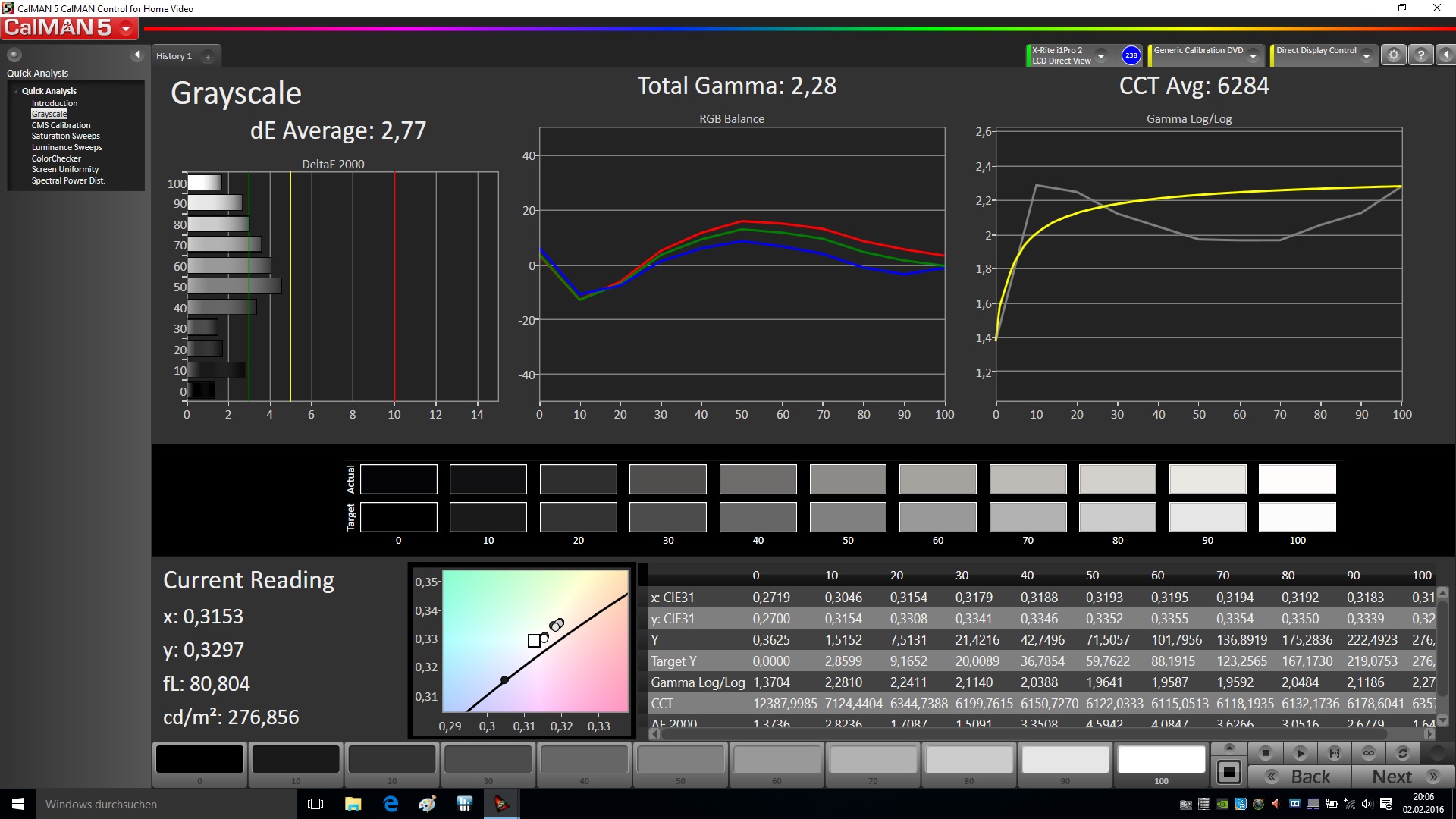

CalMAN - Grayscale
CalMAN - Grayscale

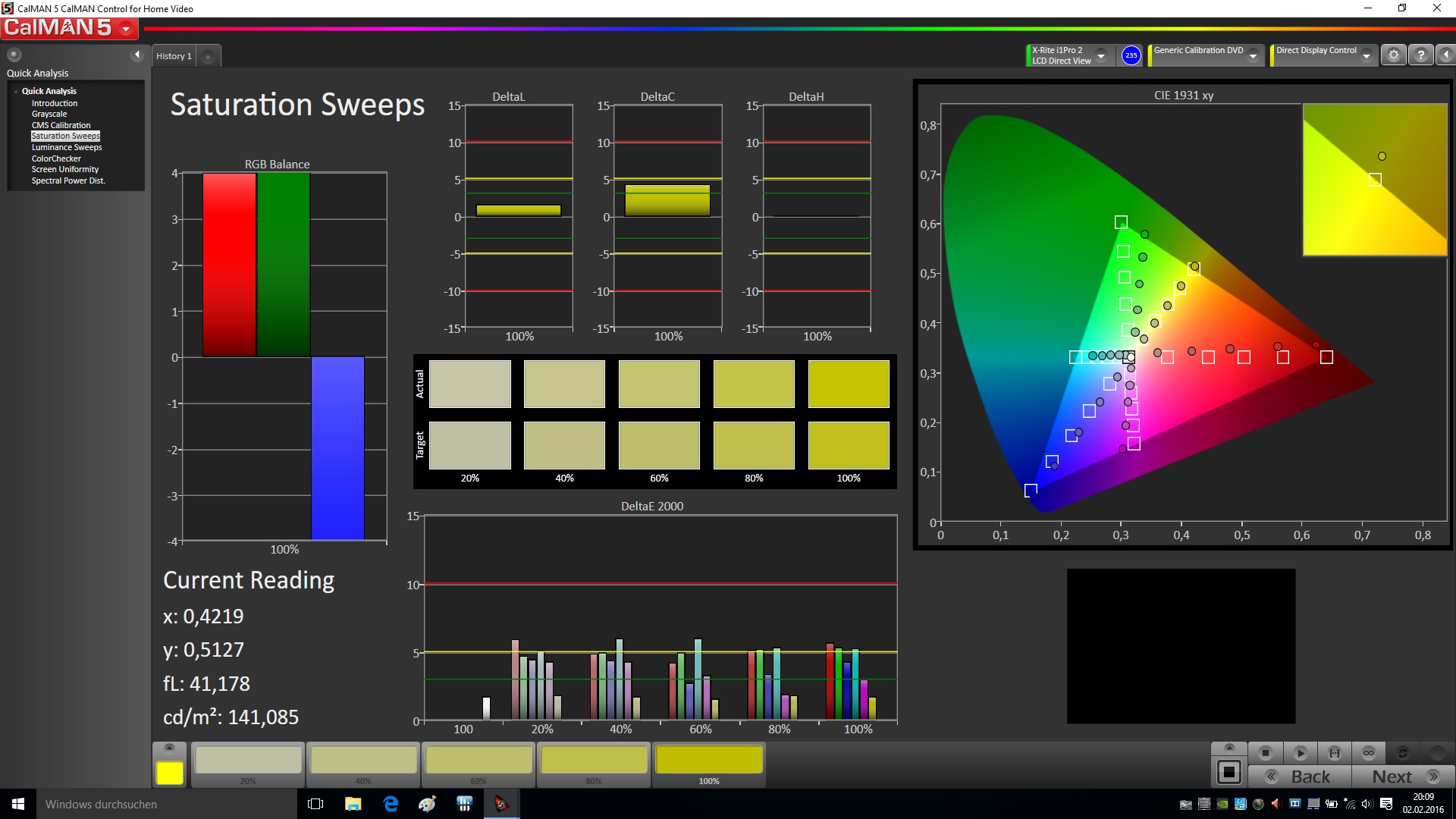

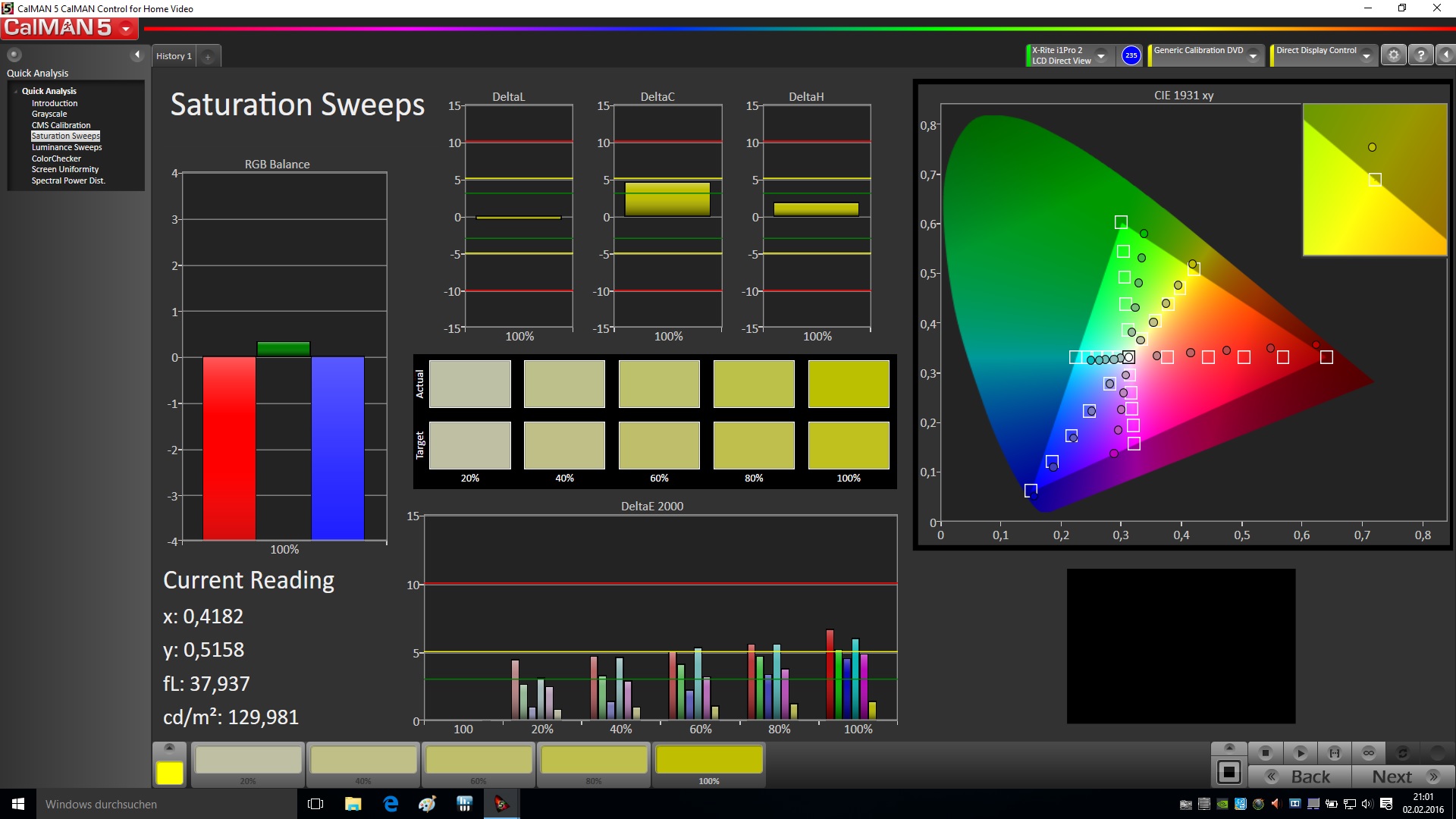

CalMAN - Saturation Sweeps
CalMAN - Saturation Sweeps

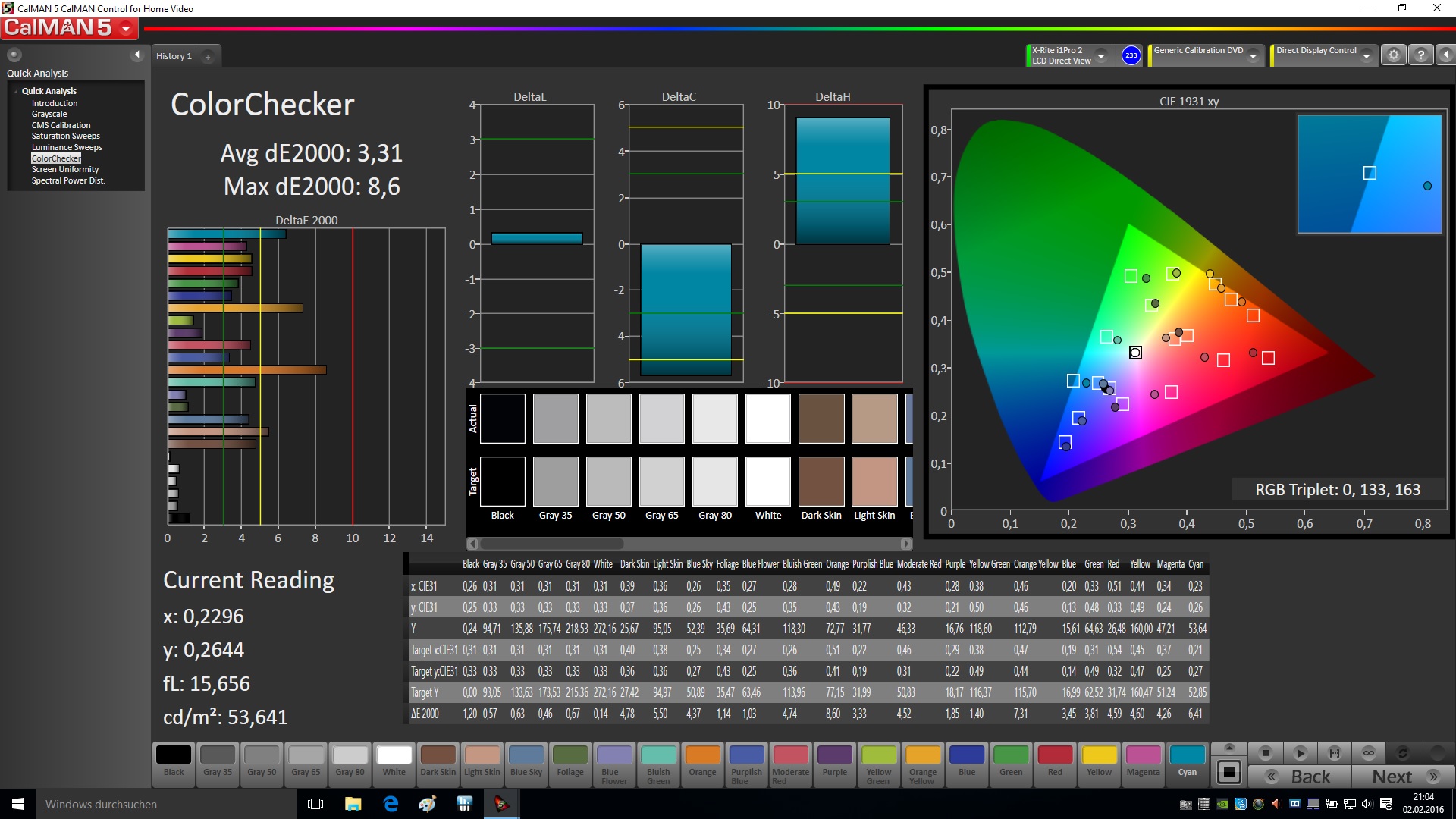

CalMAN - ColorChecker (post-calibration)
CalMAN - ColorChecker (post-calibration)

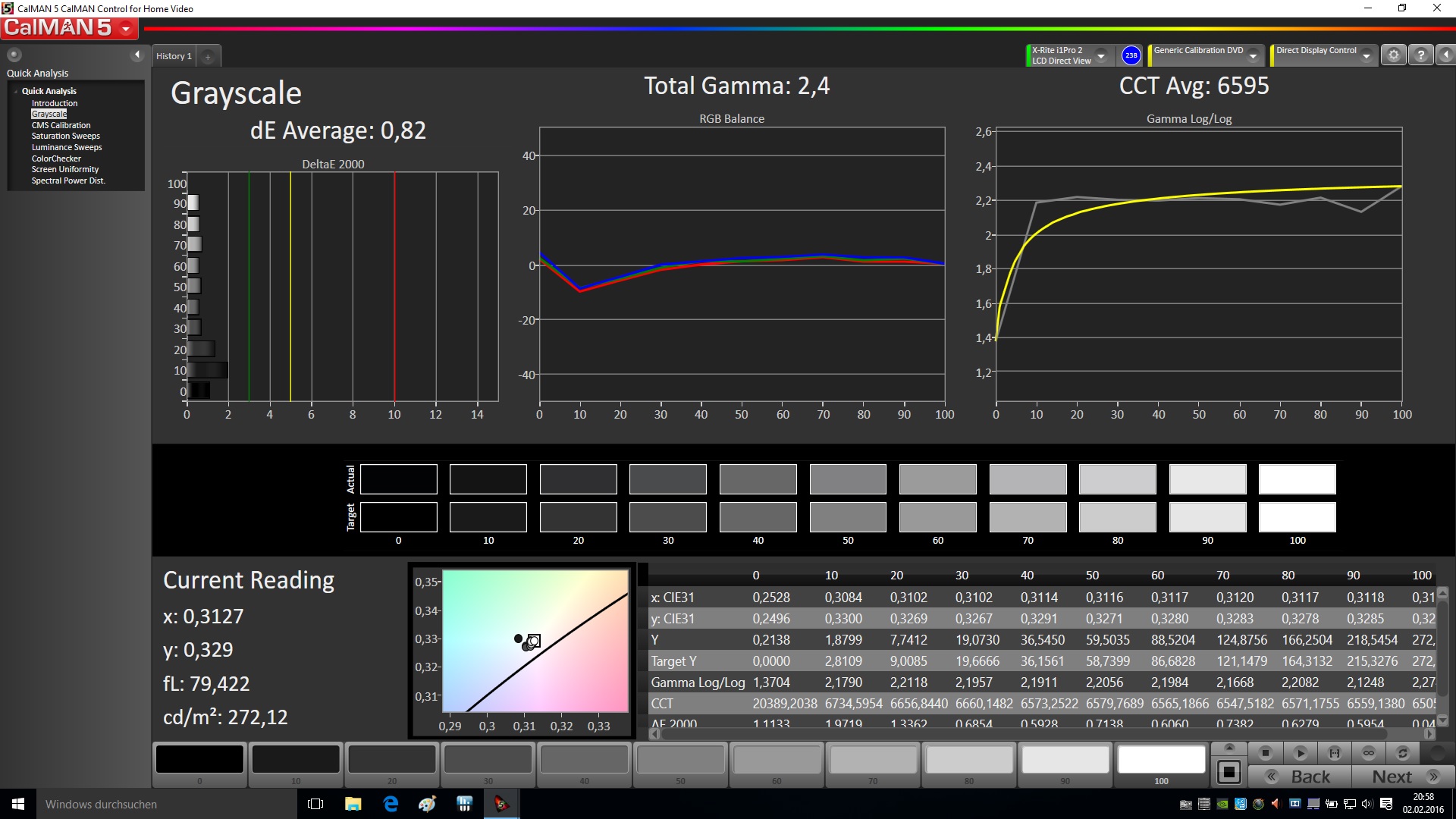

CalMAN - Grayscale (post-calibration)
CalMAN - Grayscale (post-calibration)
CalMAN - Saturation Sweeps (post-calibration)
CalMAN - Saturation Sweeps (post-calibration)

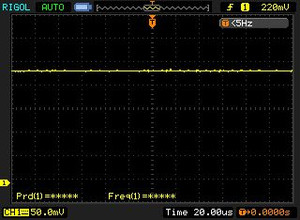

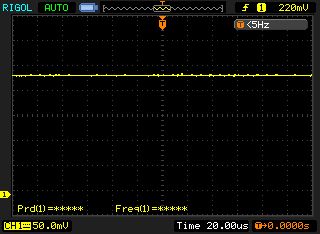

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9524 (minimum: 43 - maximum: 142900) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

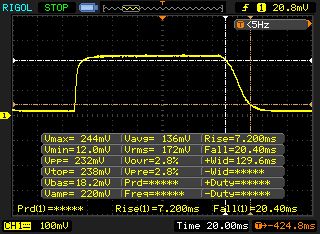

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 20 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 54 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (25.3 ms).

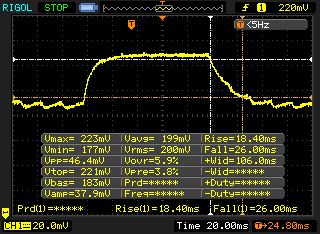

       Response Time 50% Grey to 80% Grey
44 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 26 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 64 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (40.3 ms).

Performance

Gigabyte's P55W v5 is a 15.6-inch gaming laptop. It renders all up-to-date games smoothly. We cannot state an exact price for our review sample since it was not listed in price search engines at the time of testing. It will probably be priced at approximately 1600 Euros (~$1781).

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z

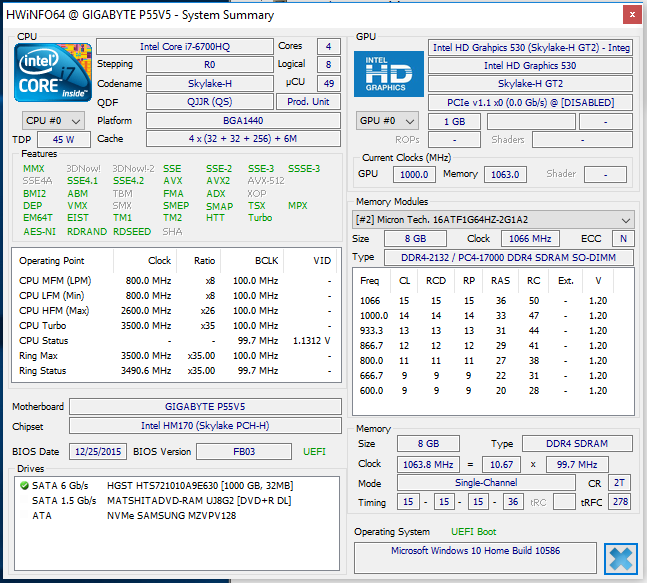

HWInfo
HWInfo
Latency

Processor

The biggest innovation of the P55W v5 compared with its predecessor is the new CPU generation. As mentioned above, the Broadwell processor has been replaced by a Skylake model. To be precise, a Core i7-6700HQ is installed in Gigabyte's laptop. It is a premium-range model that looks impressive in all common application scenarios. It is not one of the frugal ULV processors (15 watts TDP). A TDP of 45 watts reveals its relationship to standard mobile processors. The CPU clocks at a base speed of 2.6 GHz, which can be boosted to 3.1 GHz (four cores), 3.3 GHz (two cores) and 3.5 GHz (one core) via Turbo. The Turbo is also fully utilized in AC mode. It is not used as intensely in battery mode. The processor then only clocks at 2.9 to 3.5 GHz (single-thread) and 2.9 to 3.1 GHz (multi-thread).

The P55W v4 came with the Broadwell predecessor (Core i7-5700HQ) of the processor installed here. This calls for a direct comparison. A clear winner could not be determined in the CPU tests that we performed. Sometimes the one and then the other processor had the lead. It can be said that the P55W v5 delivers the same CPU performance as the P55W v4. However, the new Skylake processor improves something else, as we will see later.

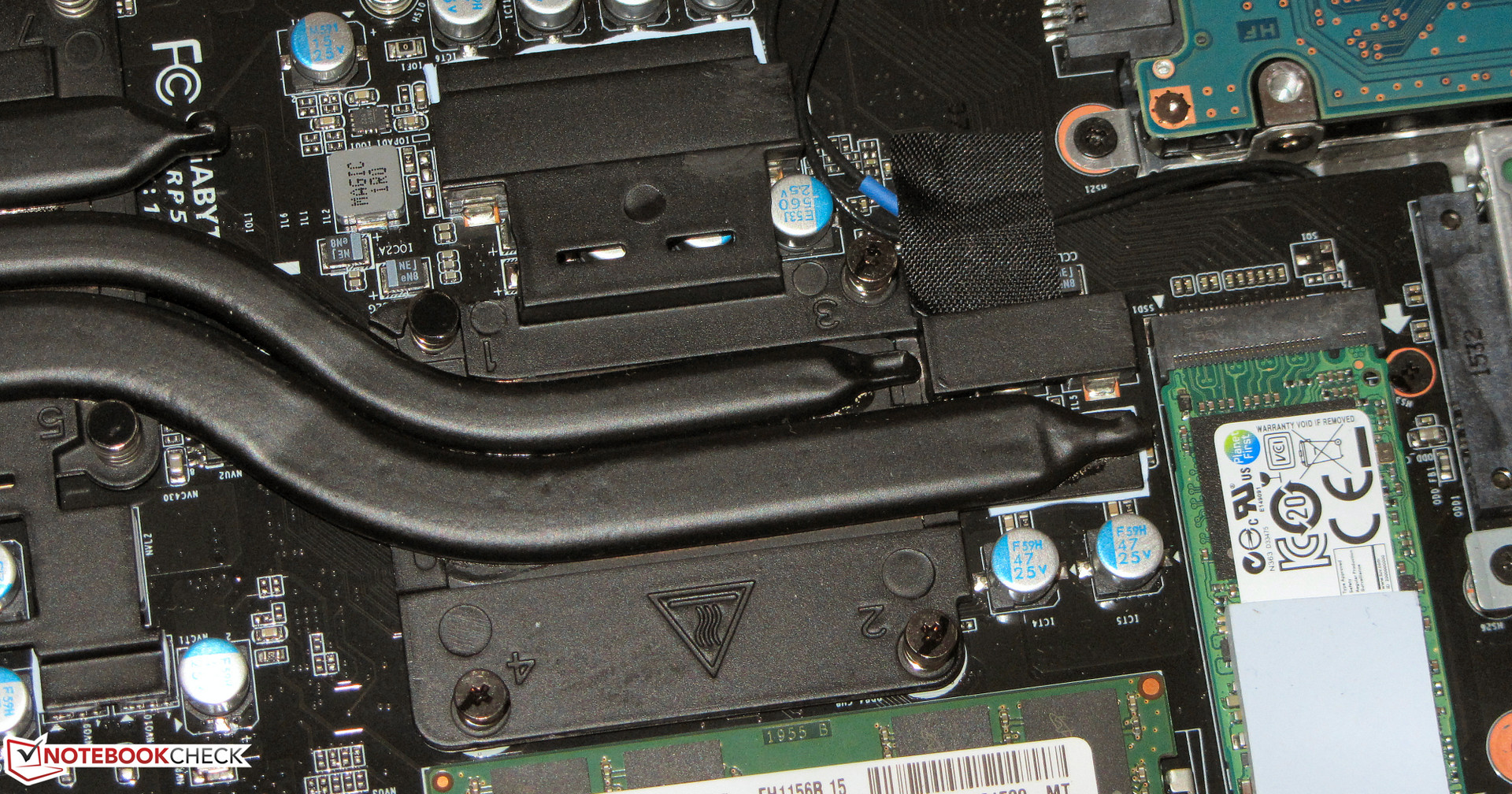

Soldered CPU
Soldered CPU
Cinebench R10 Shading 32Bit
6724
Cinebench R10 Rendering Multiple CPUs 32Bit
19977
Cinebench R10 Rendering Single 32Bit
5101
Cinebench R11.5 OpenGL 64Bit
44.07 fps
Cinebench R11.5 CPU Multi 64Bit
7.33 Points
Cinebench R11.5 CPU Single 64Bit
1.65 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
52.16 fps
Cinebench R15 CPU Multi 64Bit
675 Points
Cinebench R15 CPU Single 64Bit
144 Points
Help
Cinebench R15
CPU Single 64Bit (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
144 Points ∼99%
Gigabyte P55 V4
Intel Core i7-5700HQ
144 Points ∼99% 0%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
128 Points ∼88% -11%
MSI GE62-6QD16H11
Intel Core i7-6700HQ
141 Points ∼97% -2%
Acer Predator 15 G9-591-74ZV
Intel Core i7-6700HQ
143 Points ∼98% -1%
Schenker XMG P506
Intel Core i7-6700HQ
146 Points ∼100% +1%
CPU Multi 64Bit (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
675 Points ∼94%
Gigabyte P55 V4
Intel Core i7-5700HQ
721 Points ∼100% +7%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
663 Points ∼92% -2%
MSI GE62-6QD16H11
Intel Core i7-6700HQ
665 Points ∼92% -1%
Acer Predator 15 G9-591-74ZV
Intel Core i7-6700HQ
659 Points ∼91% -2%
Schenker XMG P506
Intel Core i7-6700HQ
680 Points ∼94% +1%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
1.65 Points ∼98%
Gigabyte P55 V4
Intel Core i7-5700HQ
1.54 Points ∼91% -7%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
1.47 Points ∼87% -11%
MSI GE62-6QD16H11
Intel Core i7-6700HQ
1.62 Points ∼96% -2%
Acer Predator 15 G9-591-74ZV
Intel Core i7-6700HQ
1.62 Points ∼96% -2%
Schenker XMG P506
Intel Core i7-6700HQ
1.69 Points ∼100% +2%
CPU Multi 64Bit (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
7.33 Points ∼98%
Gigabyte P55 V4
Intel Core i7-5700HQ
6.89 Points ∼92% -6%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
7.33 Points ∼98% 0%
MSI GE62-6QD16H11
Intel Core i7-6700HQ
7.36 Points ∼98% 0%
Acer Predator 15 G9-591-74ZV
Intel Core i7-6700HQ
7.27 Points ∼97% -1%
Schenker XMG P506
Intel Core i7-6700HQ
7.48 Points ∼100% +2%
Cinebench R10
Rendering Single 32Bit (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
5101 Points ∼92%
Gigabyte P55 V4
Intel Core i7-5700HQ
5516 Points ∼100% +8%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
5454 Points ∼99% +7%
MSI GE62-6QD16H11
Intel Core i7-6700HQ
5368 Points ∼97% +5%
Acer Predator 15 G9-591-74ZV
Intel Core i7-6700HQ
5240 Points ∼95% +3%
Schenker XMG P506
Intel Core i7-6700HQ
5093 Points ∼92% 0%
Rendering Multiple CPUs 32Bit (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
19977 Points ∼96%
Gigabyte P55 V4
Intel Core i7-5700HQ
20801 Points ∼100% +4%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
20355 Points ∼98% +2%
MSI GE62-6QD16H11
Intel Core i7-6700HQ
20299 Points ∼98% +2%
Acer Predator 15 G9-591-74ZV
Intel Core i7-6700HQ
19831 Points ∼95% -1%
Schenker XMG P506
Intel Core i7-6700HQ
20133 Points ∼97% +1%
Geekbench 3
32 Bit Multi-Core Score (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
12158 Points ∼100%
32 Bit Single-Core Score (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
3250 Points ∼100%
Sunspider - 1.0 Total Score (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
81.4 ms * ∼100%
MSI GS60-6QE4K16H21
Intel Core i7-6700HQ
76.2 ms * ∼94% +6%
JetStream 1.1 - Total Score (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
241.24 Points ∼100%
Mozilla Kraken 1.1 - Total Score (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
1040.2 ms * ∼100%
Octane V2 - Total Score (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
34552 Points ∼100%
Peacekeeper - --- (sort by value)
Gigabyte P55W v5
Intel Core i7-6700HQ
3132 Points ∼100%

* ... smaller is better

System Performance

A super-fast solid-state drive and a strong processor ensure an overall fast-running system. Accordingly, the PCMark scores are very good. Despite the much faster SSD, the P55W v5 does not stand out from its predecessor. This is not very surprising since there is no subjective speed difference, which the PCMark 8 Home tries to simulate. An advantage of the PCIe/NVMe technology is noticed vaguely in loading processes, for example when loading computer games. It will hardly be possible to increase the system performance. Only installing a second working memory would be make sense.

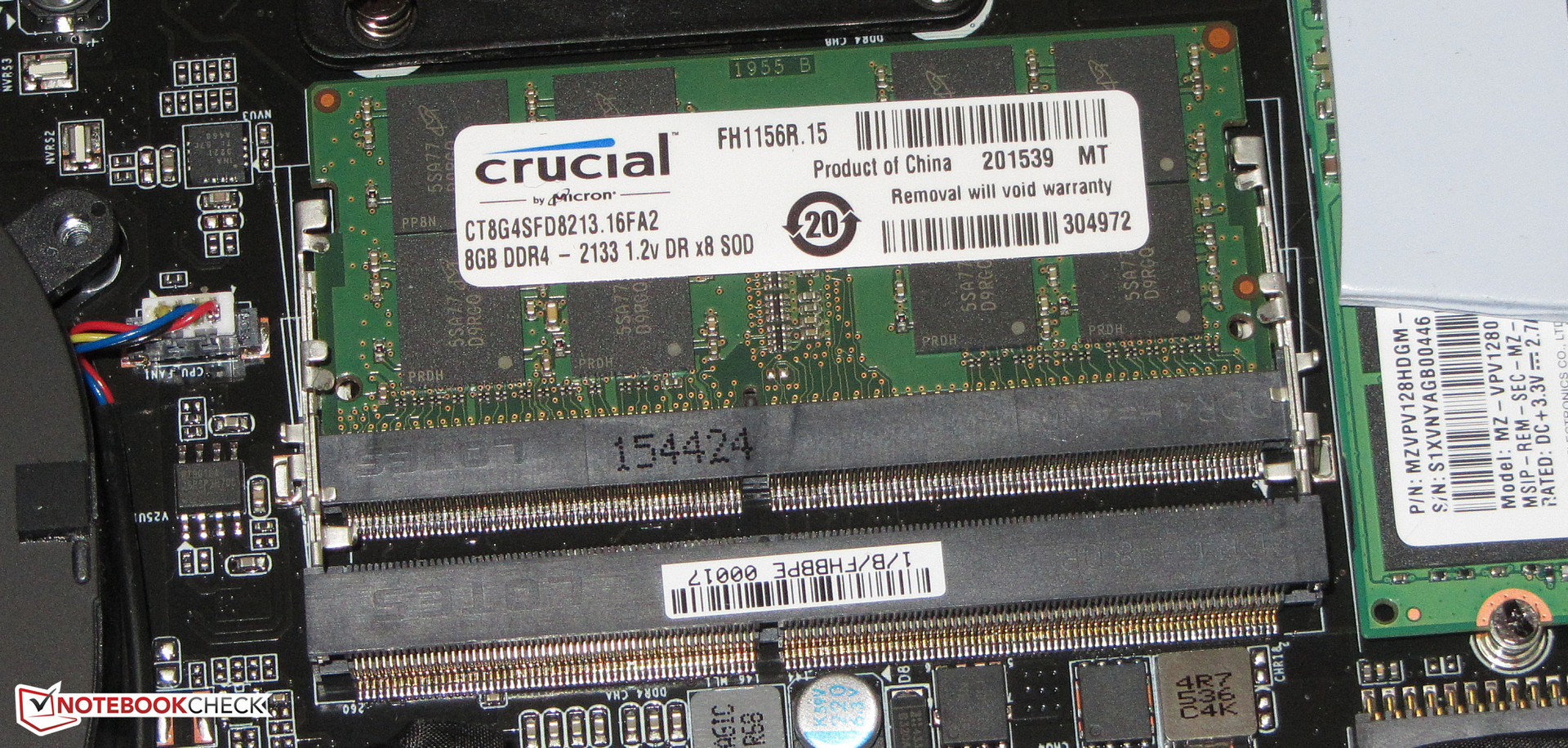

Two working memory banks are present
Two working memory banks are present
PCMark 7 Score
5124 points
PCMark 8 Home Score Accelerated v2
3832 points
PCMark 8 Creative Score Accelerated v2
4579 points
PCMark 8 Work Score Accelerated v2
4852 points
Help
PCMark 8 - Home Score Accelerated v2 (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samung SM951 MZVPV128 NVMe
3832 Points ∼95%
Gigabyte P55 V4
GeForce GTX 970M, 5700HQ, Lite-On LMT-128L9M
3853 Points ∼95% +1%
MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ, Hynix HFS256G3MND
3134 Points ∼77% -18%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
3703 Points ∼92% -3%
Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ, Lite-On CV1-8B256
4045 Points ∼100% +6%
PCMark 7 - Score (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samung SM951 MZVPV128 NVMe
5124 Points ∼82%
Gigabyte P55 V4
GeForce GTX 970M, 5700HQ, Lite-On LMT-128L9M
5737 Points ∼92% +12%
MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ, Hynix HFS256G3MND
5941 Points ∼95% +16%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
5839 Points ∼94% +14%
Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ, Lite-On CV1-8B256
6021 Points ∼97% +18%
Schenker XMG P506
GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e
6228 Points ∼100% +22%

Storage Devices & Memory Card Reader

The system drive is a Samsung SSD in M.2 format (type 2280) with a capacity of 128 GB. Approximately 90 GB is available for the user. The rest of the storage is reserved for the Windows installation and recovery partition. It is an NVMe model that is connected via PCI Express. Consequently, the P55W v5 delivers superb transfer rates. Although the solid-state drive offers a total of only 128 GB, the laptop has plenty of storage. A conventional 2.5-inch hard drive provides games with the required capacity. The 2.5-inch model spins at 7200 revolutions per minute and has a capacity of 1 TB.

The memory card reader is neither super-fast nor particularly sluggish. A maximum transfer rate of 76 MB/s is achieved when copying large data blocks. The P55W v5 transfers 250 JPG images (approx. 5 MB each) at a speed of 47 MB/s. We always test the card reader with our Toshiba Exceria Pro SDXC 64 GB UHS-II reference card.

The system drive is a solid state drive
The system drive is a solid state drive
One Terabyte HDD: enough storage for games
One Terabyte HDD: enough storage for games
Samung SM951 MZVPV128 NVMe
Sequential Read: 1356 MB/s
Sequential Write: 657.4 MB/s
512K Read: 1044 MB/s
512K Write: 642 MB/s
4K Read: 50.75 MB/s
4K Write: 142.7 MB/s
4K QD32 Read: 587.6 MB/s
4K QD32 Write: 236.3 MB/s

Graphics Card

Nothing is new in terms of GPU. The new model is also equipped with a GeForce GTX 970M. The GPU supports DirectX 12 and clocks at up to 1038 MHz. 3072 MB of GDDR5 VRAM supports the core. Gigabyte should have improved here. 3 GB are rather scanty for a device of this performance category. There are laptops with weaker GPUs that have 4096 MB graphics memory. The 3DMark scores are roughly on par with those of the predecessor.

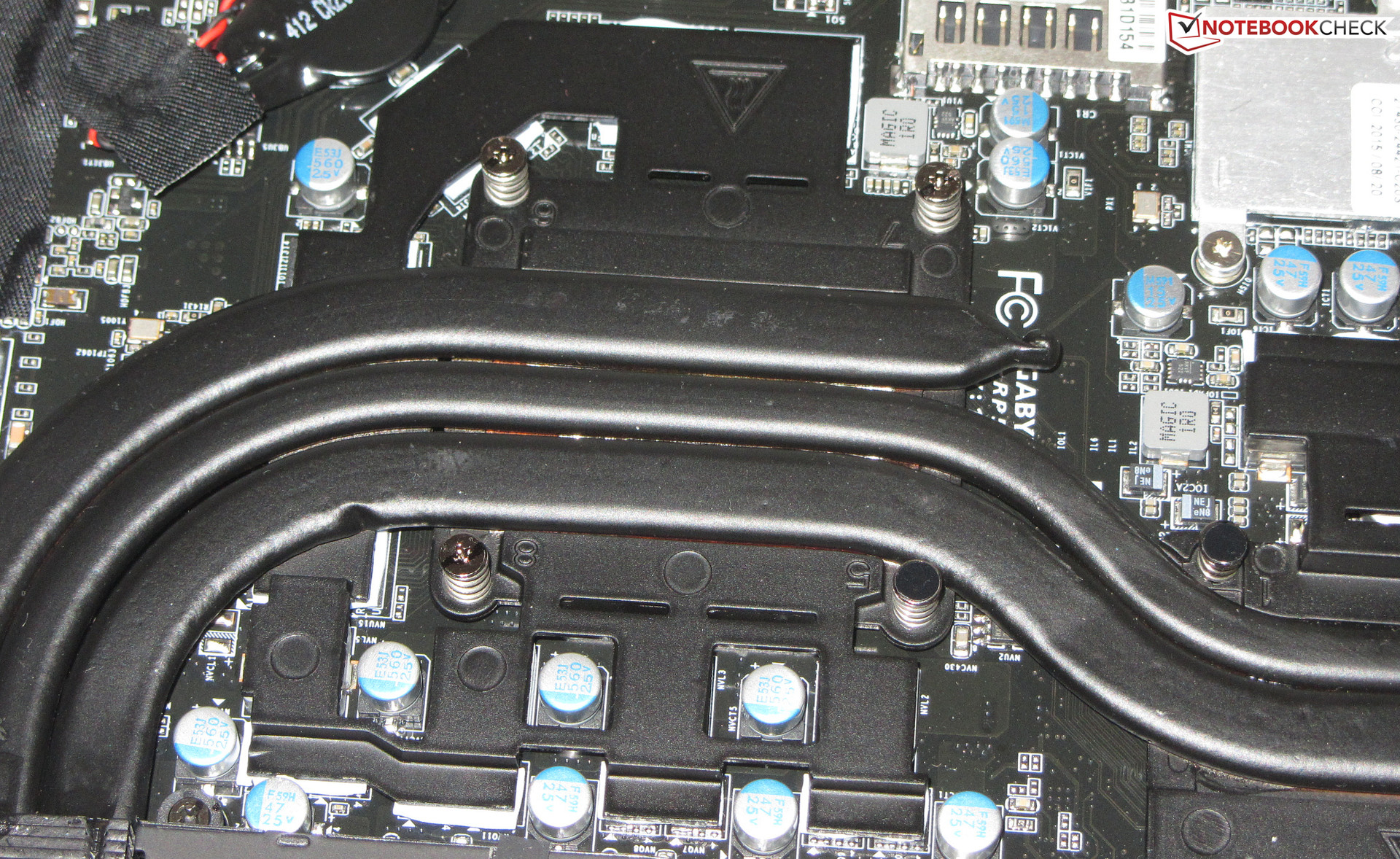

The graphics core is also soldered
The graphics core is also soldered
3DMark 06 Standard
24611 points
3DMark 11 Performance
8932 points
3DMark Ice Storm Standard Score
64844 points
3DMark Cloud Gate Standard Score
20087 points
3DMark Fire Strike Score
6565 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Gigabyte P55W v5
NVIDIA GeForce GTX 970M
8932 Points ∼81%
Gigabyte P55 V4
NVIDIA GeForce GTX 970M
8699 Points ∼79% -3%
MSI GS60-6QE4K16H21
NVIDIA GeForce GTX 970M
9536 Points ∼87% +7%
MSI GE62-6QD16H11
NVIDIA GeForce GTX 960M
5865 Points ∼53% -34%
Acer Predator 15 G9-591-74ZV
NVIDIA GeForce GTX 980M
10977 Points ∼100% +23%
Schenker XMG P506
NVIDIA GeForce GTX 970M
9627 Points ∼88% +8%
3DMark
1920x1080 Fire Strike Score (sort by value)
Gigabyte P55W v5
NVIDIA GeForce GTX 970M
6565 Points ∼79%
Gigabyte P55 V4
NVIDIA GeForce GTX 970M
6746 Points ∼81% +3%
MSI GS60-6QE4K16H21
NVIDIA GeForce GTX 970M
5982 Points ∼72% -9%
MSI GE62-6QD16H11
NVIDIA GeForce GTX 960M
4018 Points ∼48% -39%
Acer Predator 15 G9-591-74ZV
NVIDIA GeForce GTX 980M
8306 Points ∼100% +27%
Schenker XMG P506
NVIDIA GeForce GTX 970M
6672 Points ∼80% +2%
1280x720 Sky Diver Score (sort by value)
Gigabyte P55W v5
NVIDIA GeForce GTX 970M
18332 Points ∼85%
Acer Predator 15 G9-591-74ZV
NVIDIA GeForce GTX 980M
21505 Points ∼100% +17%
Schenker XMG P506
NVIDIA GeForce GTX 970M
19395 Points ∼90% +6%
1280x720 Cloud Gate Standard Score (sort by value)
Gigabyte P55W v5
NVIDIA GeForce GTX 970M
20087 Points ∼88%
Gigabyte P55 V4
NVIDIA GeForce GTX 970M
20807 Points ∼92% +4%
MSI GS60-6QE4K16H21
NVIDIA GeForce GTX 970M
13453 Points ∼59% -33%
MSI GE62-6QD16H11
NVIDIA GeForce GTX 960M
17764 Points ∼78% -12%
Acer Predator 15 G9-591-74ZV
NVIDIA GeForce GTX 980M
22733 Points ∼100% +13%
Schenker XMG P506
NVIDIA GeForce GTX 970M
21881 Points ∼96% +9%
1280x720 Ice Storm Standard Score (sort by value)
Gigabyte P55W v5
NVIDIA GeForce GTX 970M
64844 Points ∼71%
Gigabyte P55 V4
NVIDIA GeForce GTX 970M
64146 Points ∼70% -1%
MSI GS60-6QE4K16H21
NVIDIA GeForce GTX 970M
75735 Points ∼83% +17%
MSI GE62-6QD16H11
NVIDIA GeForce GTX 960M
69304 Points ∼76% +7%
Acer Predator 15 G9-591-74ZV
NVIDIA GeForce GTX 980M
88214 Points ∼96% +36%
Schenker XMG P506
NVIDIA GeForce GTX 970M
91765 Points ∼100% +42%
3DMark 06 - 1280x1024 Standard AA:0x AF:0x (sort by value)
Gigabyte P55W v5
NVIDIA GeForce GTX 970M
24611 Points ∼87%
Gigabyte P55 V4
NVIDIA GeForce GTX 970M
28380 Points ∼100% +15%

Gaming Performance

Gigabyte's P55W v5 definitely belongs to the gaming laptop category. It renders every computer game smoothly. Most games even allow using the screen's native resolution (1920x1080) alongside maximum graphic settings. Reducing the pixel count and/or quality level will only be necessary in a few games. No major frame rate differences are observed between the Broadwell and Skylake model of the P55W.

low med. high ultra
Tomb Raider (2013) 278.8233.7186.887.5fps
BioShock Infinite (2013) 158.4140.8133.169.7fps
Dirt Rally (2015) 167.792.477.357.3fps
Batman: Arkham Knight (2015) 91845736fps
Anno 2205 (2015) 117.5102.654.917.4fps
Call of Duty: Black Ops 3 (2015) 100.19759.655.7fps
Just Cause 3 (2015) 85.377.756.447.8fps
Rise of the Tomb Raider (2016) 102.170.444.637.1fps
XCOM 2 (2016) 66.24734.816.5fps
Tomb Raider - 1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
87.5 fps ∼99%
Gigabyte P55 V4
GeForce GTX 970M, 5700HQ
88.8 fps ∼100% +1%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ
52.9 fps ∼60% -40%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
69.7 fps ∼100%
Gigabyte P55 V4
GeForce GTX 970M, 5700HQ
68.4 fps ∼98% -2%
Dirt Rally - 1920x1080 Ultra Preset AA:4x MS (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
57.3 fps ∼96%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ
34.36 fps ∼58% -40%
Schenker XMG P506
GeForce GTX 970M, 6700HQ
59.7 fps ∼100% +4%
Batman: Arkham Knight - 1920x1080 High / On AA:SM AF:16x (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
36 fps ∼88%
Schenker XMG P506
GeForce GTX 970M, 6700HQ
41 fps ∼100% +14%
Anno 2205 - 1920x1080 High Preset AA:4x (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
54.9 fps ∼87%
MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ
54.7 fps ∼87% 0%
Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ
63.1 fps ∼100% +15%
Call of Duty: Black Ops 3 - 1920x1080 Extra / On AA:T2x SM (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
55.7 fps ∼85%
Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ
65.7 fps ∼100% +18%
Just Cause 3 - 1920x1080 Very High / On AA:SM AF:16x (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
47.8 fps ∼100%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
37.1 fps ∼100%
XCOM 2 - 1920x1080 High Preset AA:FX AF:8x (sort by value)
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ
34.8 fps ∼100%

Emissions

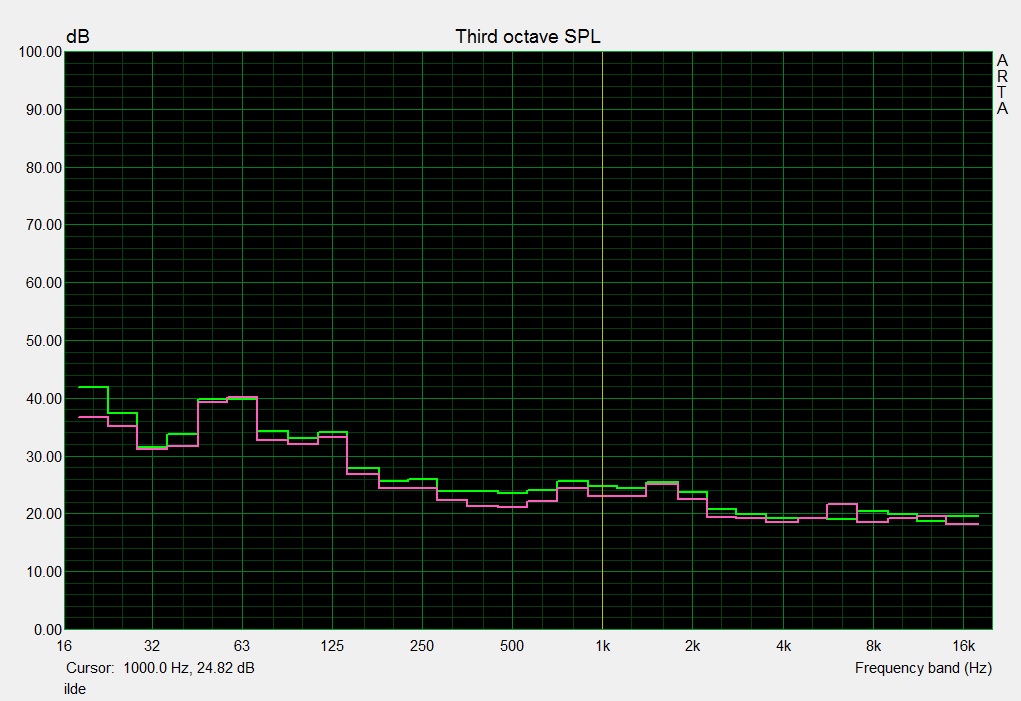

System Noise

The fan in the P55W v5 permanently spins at a consistent and low speed while idling. The 2.5-inch hard drive's noise is primarily heard. The cooling clearly speeds up during load. A noise level of 49 dB(A) was reached in the stress test. This rate is acceptable for a laptop from this performance category. The fan slows down quite quickly after prolonged load.

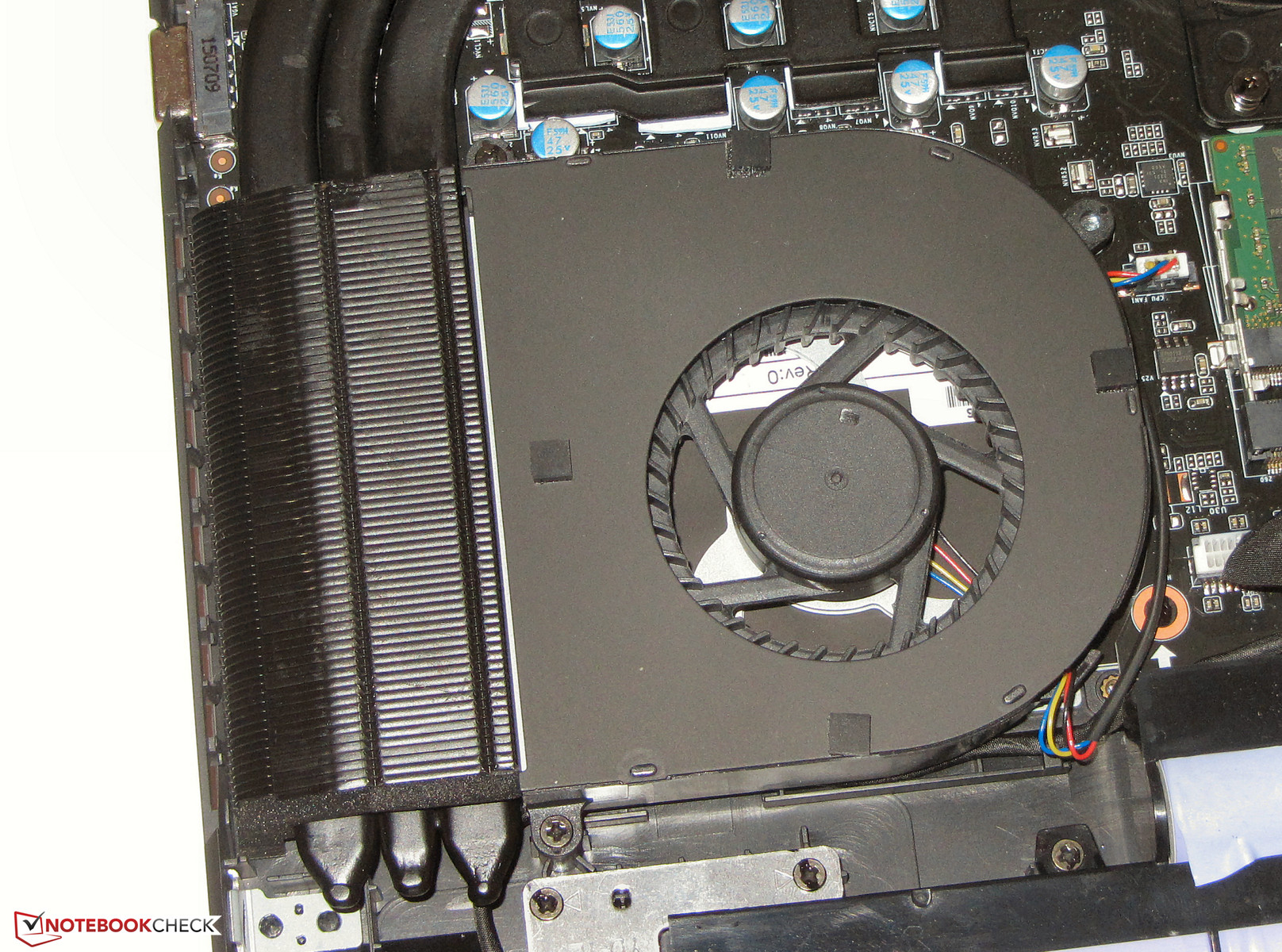

Fan
Fan
Idle
Idle

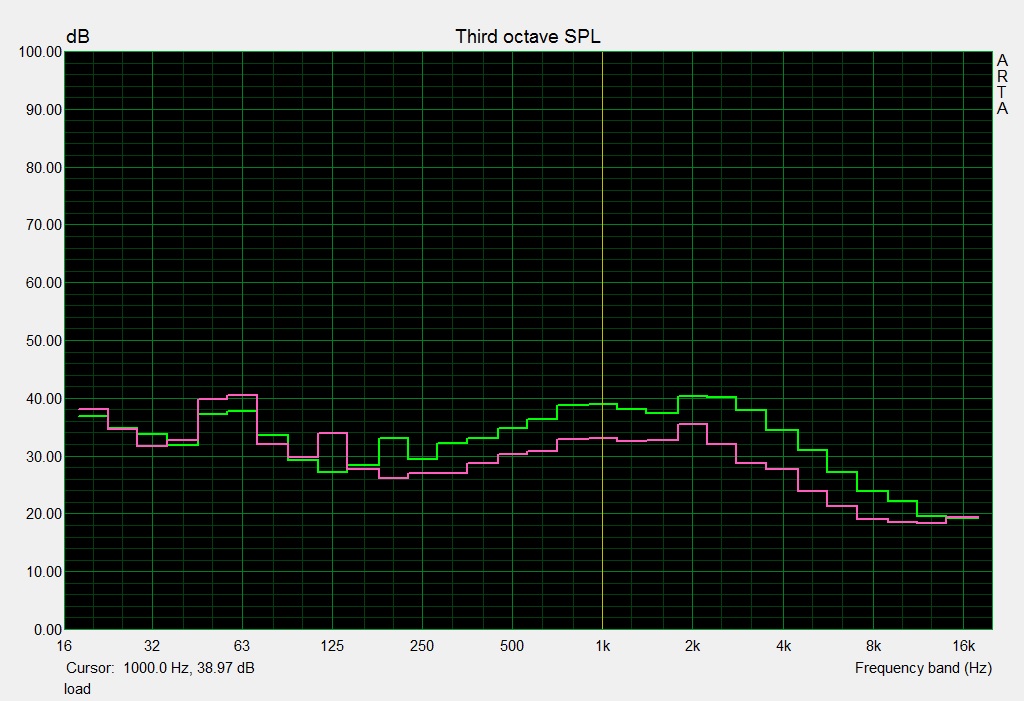

Load
Load

Noise Level

Idle
33 / 34 / 35 dB(A)
DVD
36 / dB(A)
Load
43 / 49 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1 (15 cm distance)
Gigabyte P55W v5
6700HQ, GeForce GTX 970M
Gigabyte P55 V4
5700HQ, GeForce GTX 970M
MSI GS60-6QE4K16H21
6700HQ, GeForce GTX 970M
MSI GE62-6QD16H11
6700HQ, GeForce GTX 960M
Acer Predator 15 G9-591-74ZV
6700HQ, GeForce GTX 980M
Schenker XMG P506
6700HQ, GeForce GTX 970M
Noise
9%
-3%
-0%
-3%
1%
off / environment *
Idle Minimum *
33
28.8
13%
35
-6%
33
-0%
31
6%
30.8
7%
Idle Average *
34
28.9
15%
36
-6%
34
-0%
32
6%
32.8
4%
Idle Maximum *
35
29
17%
37
-6%
38
-9%
42
-20%
35.9
-3%
Load Average *
43
39
9%
40
7%
42
2%
47
-9%
42.2
2%
Load Maximum *
49
52.3
-7%
50
-2%
46
6%
48
2%
51
-4%

* ... smaller is better

Temperature

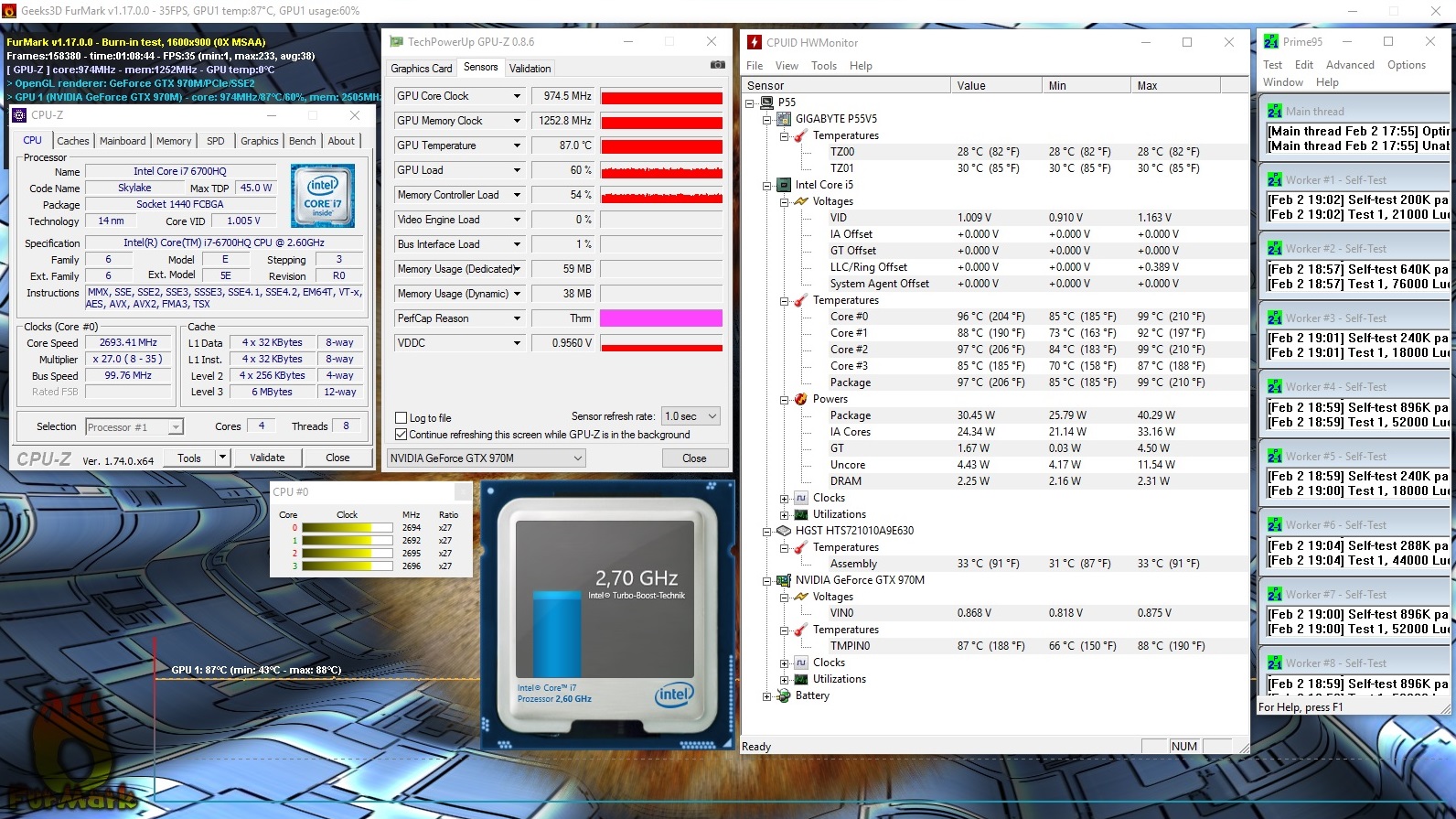

Stress test
Stress test

The P55W v5 performed the stress test (Prime95 and FurMark run for at least one hour) differently in AC and battery mode. The CPU clocked at 1 GHz and the GPU at 200 to 700 MHz for about 10 minutes in battery mode. They then throttled to 800 MHz (i7-6700HQ) and 200 to 250 MHz (GTX 970M). Throttling did not occur in AC mode. The processor clocked at 2.7 to 3 GHz, and the graphics core reached speeds of around 1000 MHz. Only the casing heated up moderately during the stress test. Although 50 degrees Celsius (~122 degrees Fahrenheit) was exceeded on some measuring points, we have seen laptops based on a comparable configuration that reach considerably higher temperatures.

Max. Load
 47.5 °C
118 F
46.1 °C
115 F
35.5 °C
96 F

 50 °C
122 F
47.5 °C
118 F
35.7 °C
96 F

 44.6 °C
112 F
45.4 °C
114 F
32 °C
90 F

Maximum: 50 °C = 122 F
Average: 42.7 °C = 109 F
30.1 °C
86 F
40.7 °C
105 F
54.8 °C
131 F
32.5 °C
91 F
48.2 °C
119 F
57.7 °C
136 F
31.2 °C
88 F
48.4 °C
119 F
52.9 °C
127 F
Maximum: 57.7 °C = 136 F
Average: 44.1 °C = 111 F
Power Supply (max.)  47.3 °C = 117 F | Room Temperature 22 °C = 72 F | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 42.7 °C / 109 F, compared to the average of 33 °C / 91 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 39.5 °C / 103 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 57.7 °C / 136 F, compared to the average of 42 °C / 108 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 33 °C / 91 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 45.4 °C / 113.7 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-16.6 °C / -29.9 F).

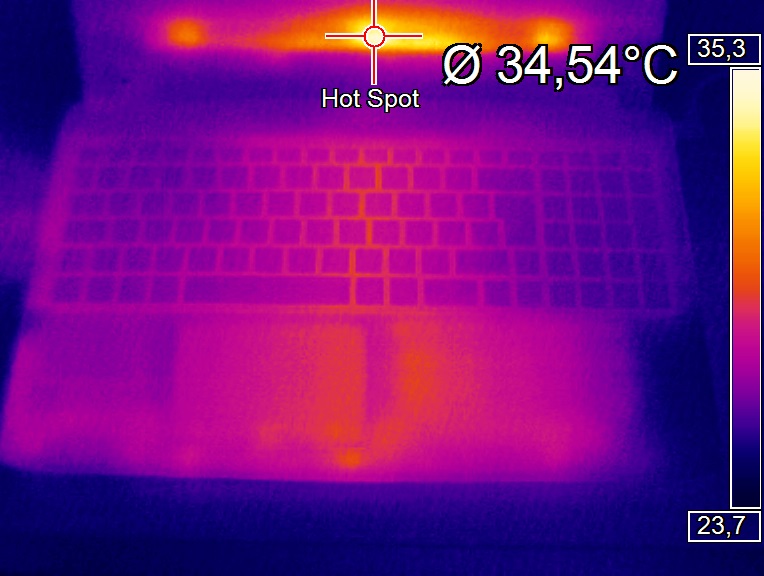

Idle (upper side)
Idle (upper side)

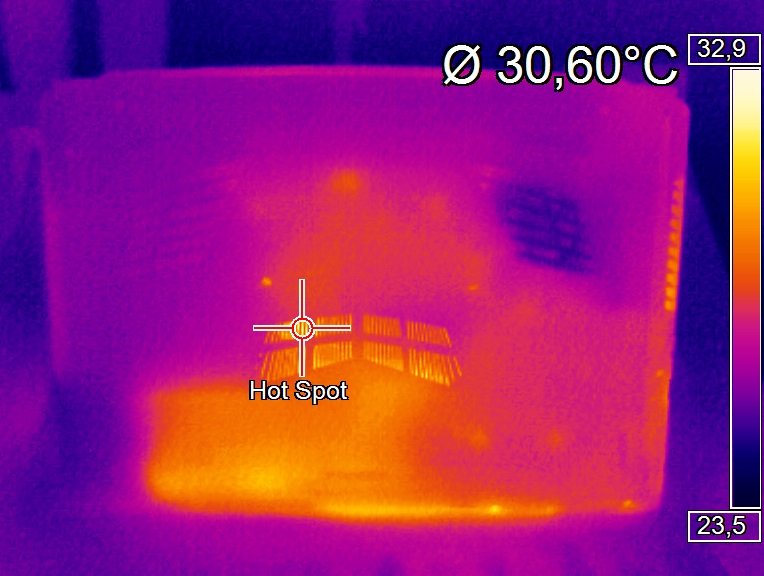

Idle (underside)
Idle (underside)

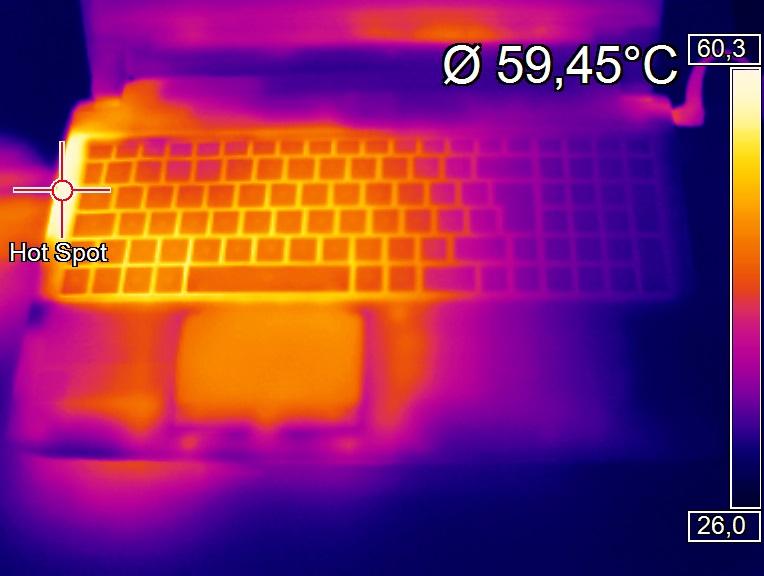

Full load (upper side)
Full load (upper side)

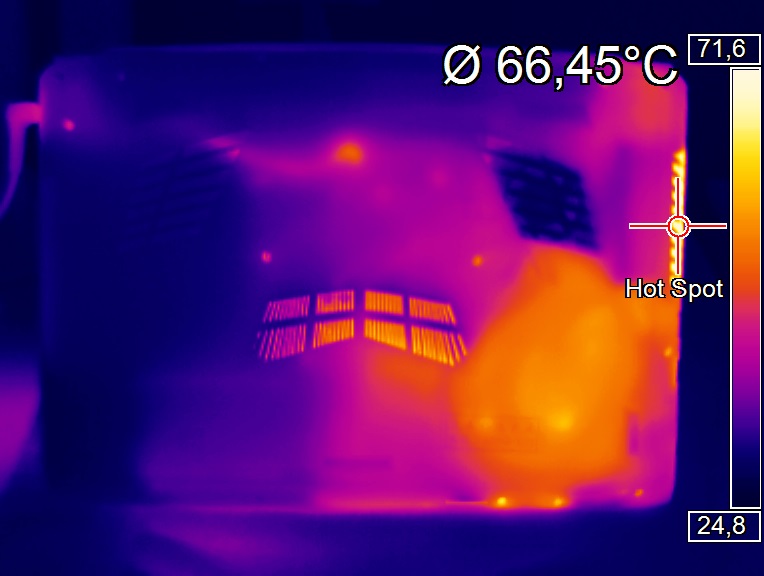

Full load (underside)
Full load (underside)
Gigabyte P55W v5
6700HQ, GeForce GTX 970M
Gigabyte P55 V4
5700HQ, GeForce GTX 970M
MSI GS60-6QE4K16H21
6700HQ, GeForce GTX 970M
MSI GE62-6QD16H11
6700HQ, GeForce GTX 960M
Acer Predator 15 G9-591-74ZV
6700HQ, GeForce GTX 980M
Schenker XMG P506
6700HQ, GeForce GTX 970M
Heat
-18%
-10%
-26%
-7%
-11%
Maximum Upper Side *
50
48.2
4%
51.4
-3%
53.3
-7%
49.8
-0%
49.3
1%
Maximum Bottom *
57.7
50.2
13%
68.9
-19%
49.3
15%
59.2
-3%
60.4
-5%
Idle Upper Side *
25.7
35.6
-39%
27.1
-5%
41.2
-60%
32.2
-25%
31.4
-22%
Idle Bottom *
27.2
41.2
-51%
30.4
-12%
40.8
-50%
26.9
1%
32.3
-19%

* ... smaller is better

Energy Management

Power Consumption

We measured an idle power consumption of up to 17 watts. This is acceptable for a laptop of this performance category. The energy requirement climbed up to 152 watts in the stress test. The power supply can deal with that: Its nominal output is 180 watts. The consumption is much lower in gaming routine. Rates of approximately 81 watts (+/- 10%) can be expected here.

Power Consumption
Off / Standbydarklight 0.2 / 0.7 Watt
Idledarkmidlight 9 / 13 / 17 Watt
Load midlight 81 / 152 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Gigabyte P55W v5
6700HQ, GeForce GTX 970M
MSI GS60-6QE4K16H21
6700HQ, GeForce GTX 970M
MSI GE62-6QD16H11
6700HQ, GeForce GTX 960M
Acer Predator 15 G9-591-74ZV
6700HQ, GeForce GTX 980M
Schenker XMG P506
6700HQ, GeForce GTX 970M
Power Consumption
-47%
-61%
-23%
-10%
Idle Minimum *
9
17
-89%
20
-122%
12
-33%
10.5
-17%
Idle Average *
13
22
-69%
24
-85%
16
-23%
14.6
-12%
Idle Maximum *
17
28
-65%
30
-76%
22
-29%
20.7
-22%
Load Average *
81
91
-12%
97
-20%
100
-23%
81.8
-1%
Load Maximum *
152
149
2%
155
-2%
162
-7%
146.3
4%

* ... smaller is better

Battery Runtime

The P55W v5 surprised us positively in terms of battery life. The energy efficient Skylake processor is noticed here. Some ULV office laptops do not achieve the rates we measured. Gigabyte's laptop managed a runtime of 5:48 hours in our real world Wi-Fi test. Thus, it lasts almost 2 hours longer than its predecessor. We simulate the load needed for opening websites via a script. The "Balanced" profile is enabled, and the screen's brightness is set to approximately 150 cd/m². The laptop finishes the video playback test after 5:32 hours. We run the short movie "Big Buck Bunny" (H.264 encoding, 1920x1080 pixels) in a loop here. The radio modules are disabled, and the screen's brightness is dimmed to 150 cd/m².

Two screws fix the battery
Two screws fix the battery
It has a capacity of 60.75 Wh
It has a capacity of 60.75 Wh
Battery Runtime
Idle (without WLAN, min brightness)
10h 04min
NBC WiFi Websurfing Battery Test 1.3 ( Edge 25.10586.0.0)
5h 48min
Big Buck Bunny H.264 1080p
5h 32min
Load (maximum brightness)
1h 33min
Gigabyte P55W v5
61 Wh
Gigabyte P55 V4
57 Wh
MSI GS60-6QE4K16H21
47 Wh
MSI GE62-6QD16H11
53 Wh
Acer Predator 15 G9-591-74ZV
 Wh
Schenker XMG P506
60 Wh
Battery Runtime
-15%
-51%
-55%
22%
-22%
Reader / Idle
604
517
-14%
213
-65%
184
-70%
670
11%
314
-48%
H.264
332
137
-59%
442
33%
WiFi v1.3
348
231
-34%
157
-55%
149
-57%
Load
93
95
2%
61
-34%
60
-35%
113
22%
98
5%

Pros

+ matte Full HD IPS panel
+ decent keyboard
+ NVMe SSD + 2.5 inch hard drive
+ user-friendly maintenance
+ long battery life
+ USB 3.1

Cons

- 3 GB VRAM only
- casing and lid could be stiffer
- fingerprint susceptible surfaces

Verdict

In review: Gigabyte P55W v5. Review sample courtesy of Gigabyte Germany
In review: Gigabyte P55W v5. Review sample courtesy of Gigabyte Germany

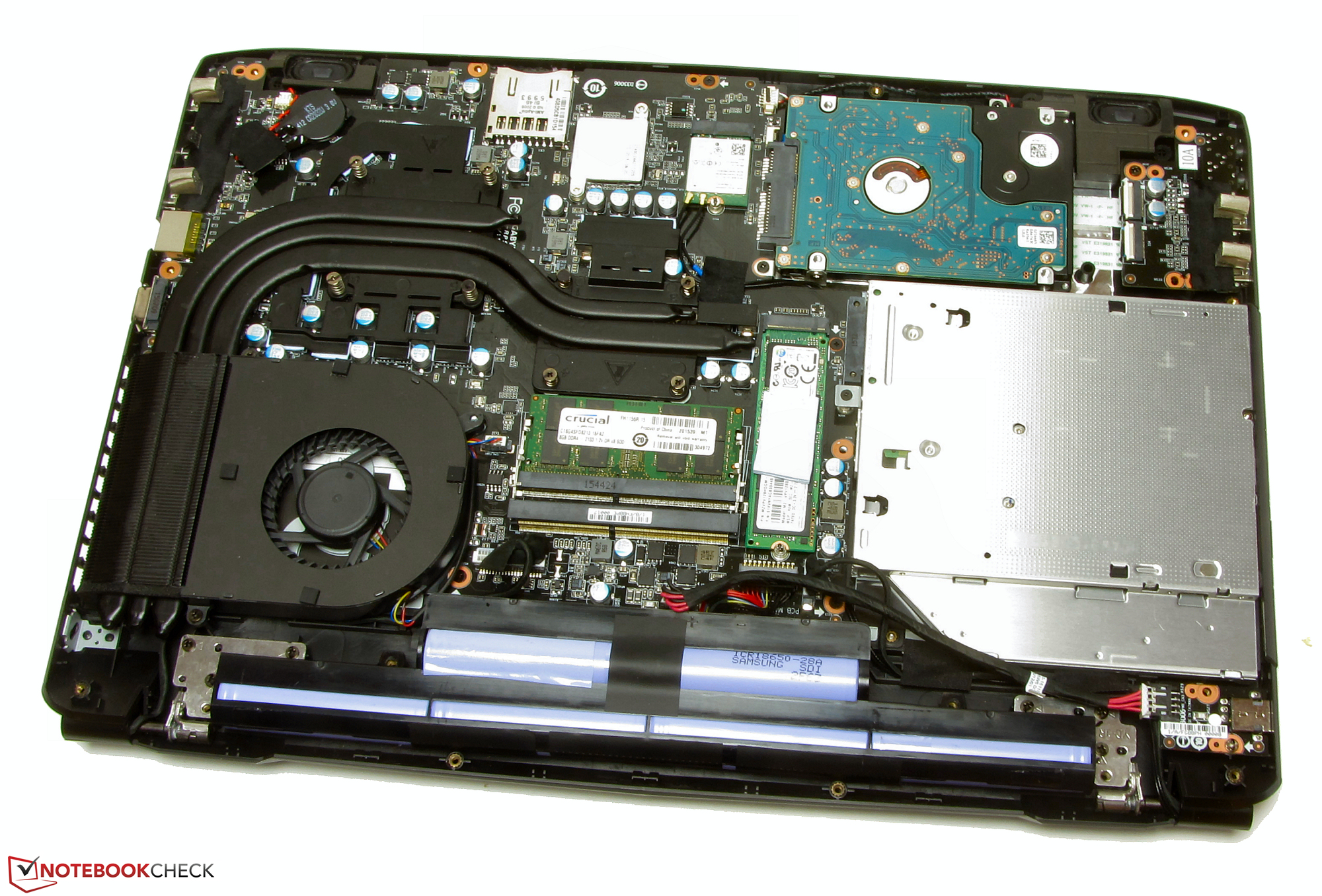

Gigabyte's P55W v5 is a 15.6-inch gaming laptop. The installed Core i7 processor provides enough computing power for all common application scenarios. The GeForce GTX 970M renders all up-to-date games smoothly. A lightning-fast NVMe SSD ensures a fast-running system. Thanks to the existing 2.5-inch hard drive, storage capacity will not get tight. Both storage devices could be easily replaced with higher-capacity models. Although the P55W v5 does not have a maintenance hatch, the base tray is easy to replace. The good keyboard is surprising in a gaming laptop. The same is true for the long runtimes in our real world battery tests. The matte Full HD IPS panel pleases with stable viewing angles and decent contrast. However, its brightness could be higher.

Gigabyte primarily upgrades its P55W v5. The modifications and innovations (NVMe, DDR4 RAM, USB 3.1, and Skylake CPU) prove reasonable.

However, Gigabyte should have followed this path more consistently. For example, a DisplayPort would have been desirable and more graphics memory would also be appreciated. Perhaps Gigabyte will take up these points for its P55W v6.

Gigabyte P55W v5 - 02/29/2016 v5
Sascha Mölck

Chassis
84 / 98 → 86%
Keyboard
88%
Pointing Device
78%
Connectivity
49 / 81 → 60%
Weight
59 / 10-66 → 88%
Battery
85%
Display
86%
Games Performance
88%
Application Performance
93%
Temperature
78 / 95 → 82%
Noise
70 / 90 → 78%
Audio
75%
Average
78%
82%
Gaming - Weighted Average

Pricecompare

Read all 3 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > Gigabyte P55W v5 Notebook Review
Sascha Mölck, 2016-02-20 (Update: 2018-05-15)
