Asus ExpertBook B1 B1400 in review: Small, light and affordable

Many connections for the home office. With the ExpertBook B1 B1400, Asus presents a 14-inch laptop that is also suitable for mobile work due to its low weight. We will clarify the expected performance and how long the battery will last in our review.

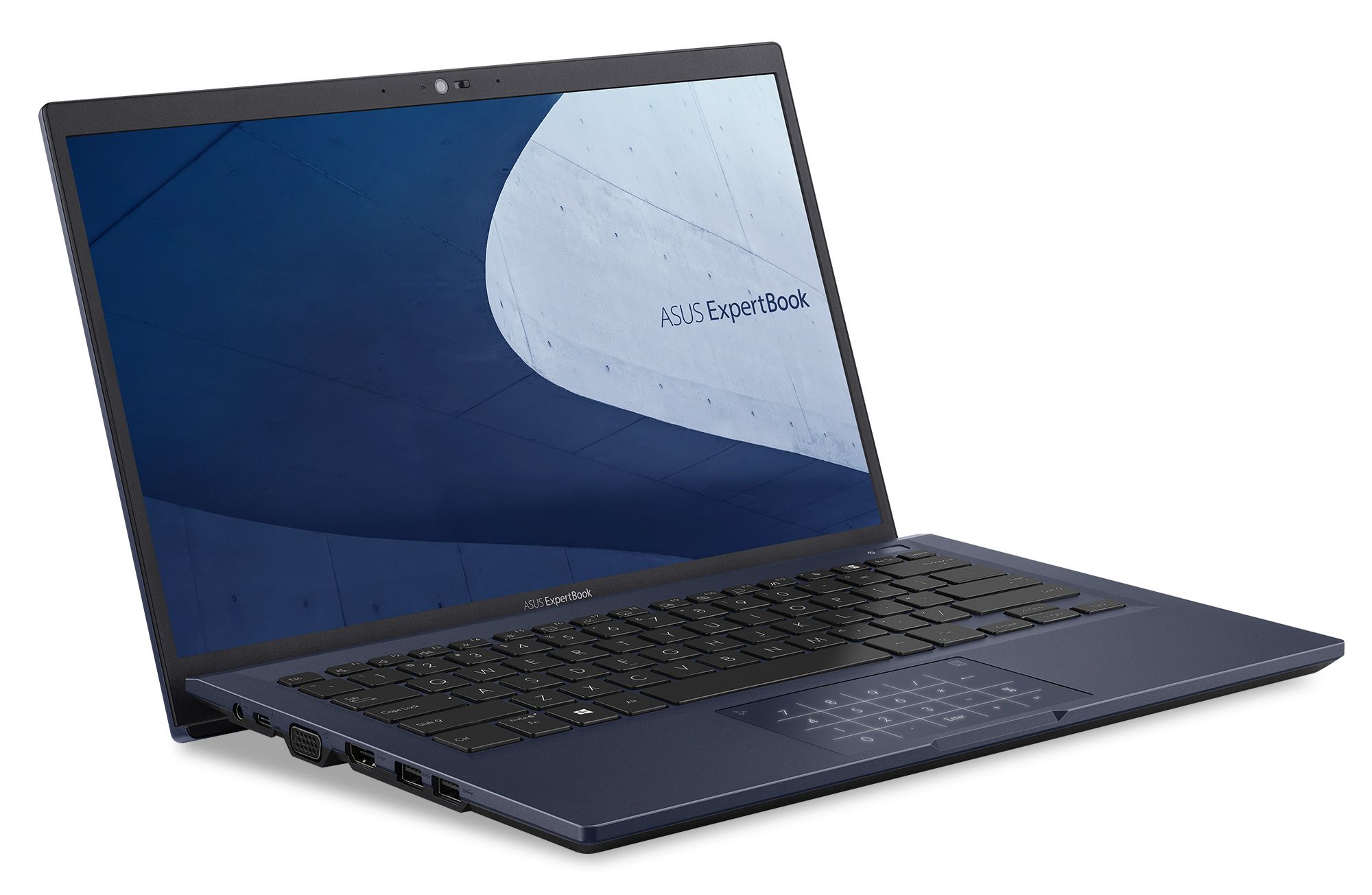

Asus ExpertBook B1 B1400CEAE

Among Asus' ExpertBooks, the B1 series offers the most affordable models of notebooks intended for office and business tasks. In our tests, we could already take a look at the 15-inch ExpertBook B1 B1500 which offers a similar configuration as the B1 B1400. The latter is equipped in our test configuration with an Intel Core i5-1135G7, 8 GB RAM as well as a 512 GB SSD and is available for about 700 Euros (~$796). The most expensive configuration with a Core i7 processor and more RAM costs about 1,030 Euros (~$1171).

Asus ExpertBook B1 B1400CEAE, i5-1135G7 (ExpertBook B1 Series)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 51 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3
Memory
8 GB
, DDR4-3200, Single-Channel, 1 Slot free, max. 40 GB
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei CMN14D4, IPS, glossy: no, 60 Hz
Storage
WDC PC SN530 SDBPNPZ-512G, 512 GB
, 432 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 2.0, 2 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 DVI, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: combined 3.5 mm audio jack, Card Reader: microSD, 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 19.2 x 323.4 x 215.6 ( = 0.76 x 12.73 x 8.49 in)
Battery
42 Wh Lithium-Ion, 3-cell
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1.280x720)
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.483 kg ( = 52.31 oz / 3.27 pounds), Power Supply: 300 g ( = 10.58 oz / 0.66 pounds)
Price
800 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
83.9 %
11/2021
Asus ExpertBook B1 B1400CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.2 mm14.00"1920x1080
09/2021
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs
1 kg16.8 mm14.00"1920x1200
84.9 %
05/2021
Honor Magicbook 14 i7-1165G7
i7-1165G7, Iris Xe G7 96EUs
1.4 kg15.9 mm14.00"1920x1080
83.9 %
04/2021
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
i5-1135G7, Iris Xe G7 80EUs
1.5 kg17.9 mm14.00"1920x1080

Case & features - 14-inch laptop with Thunderbolt 4

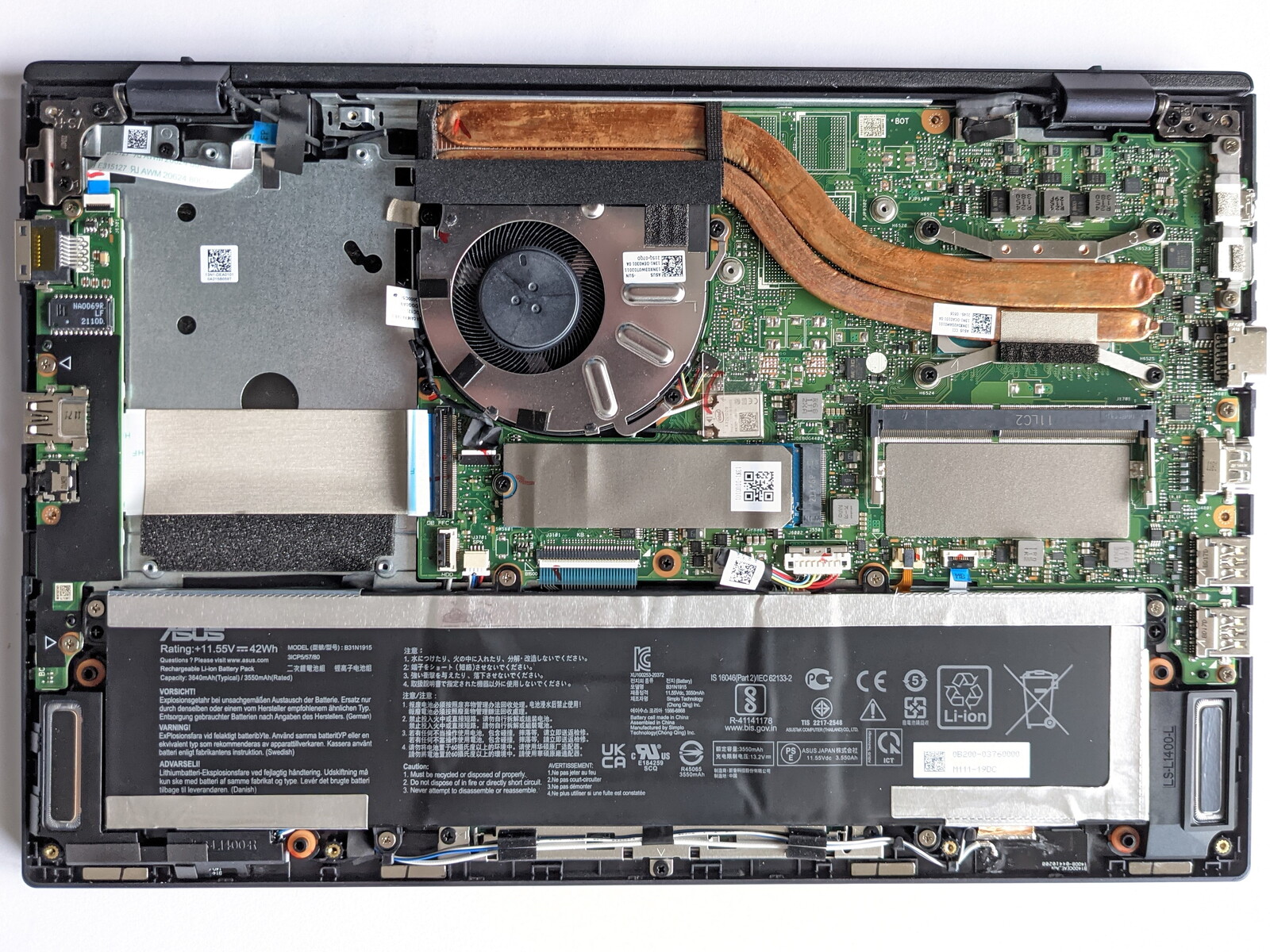

Maintenance
Maintenance

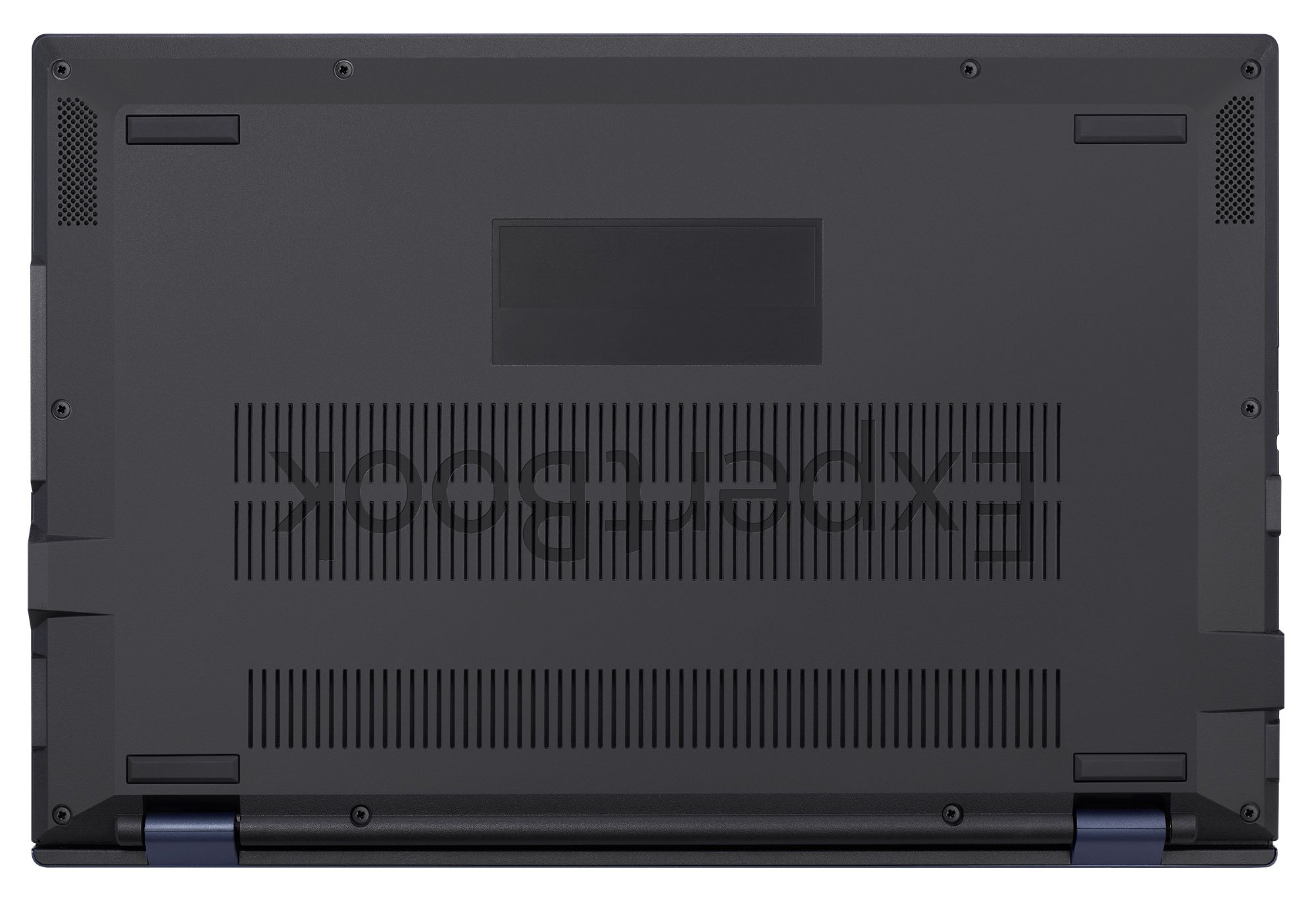

Asus manufactures the case of the ExpertBook B1 B1400 from sturdy plastic and reinforces the lid with an aluminum alloy. The build quality is high and there are no uneven gaps or the like.

The display does not flex when opening the lid and can be folded back up to 180 degrees. Both the dimensions and the weight correspond to those of other 14-inch notebooks. The weight is 1.5 kg (~3.3 lb).

The ExpertBook B1 B1400 also offers unusual ports, such as the VGA port. Since the Thunderbolt 4 port is not blocked by the power supply, numerous other interfaces can also be created with corresponding adapters.

A microSD card reader is also available. However, this only achieves a slow 25.3 MB/s when copying and 26.6 MB/s when writing data with our reference memory card Angelbird AV Pro V60.

WiFi 6 is available for wireless network connections. In combination with our reference router Netgear Nighthawk AX12, the test model achieves very good transfer rates of 1,333 MBit/s when transmitting and 1,480 MBit/s when receiving data.

The webcam resolves pictures with just 0.9 MP, as is the case with many current notebooks. The image quality is correspondingly low, which displays content blurry and with pale colors even in good light conditions. A mechanical webcam shutter protects against unwanted glances.

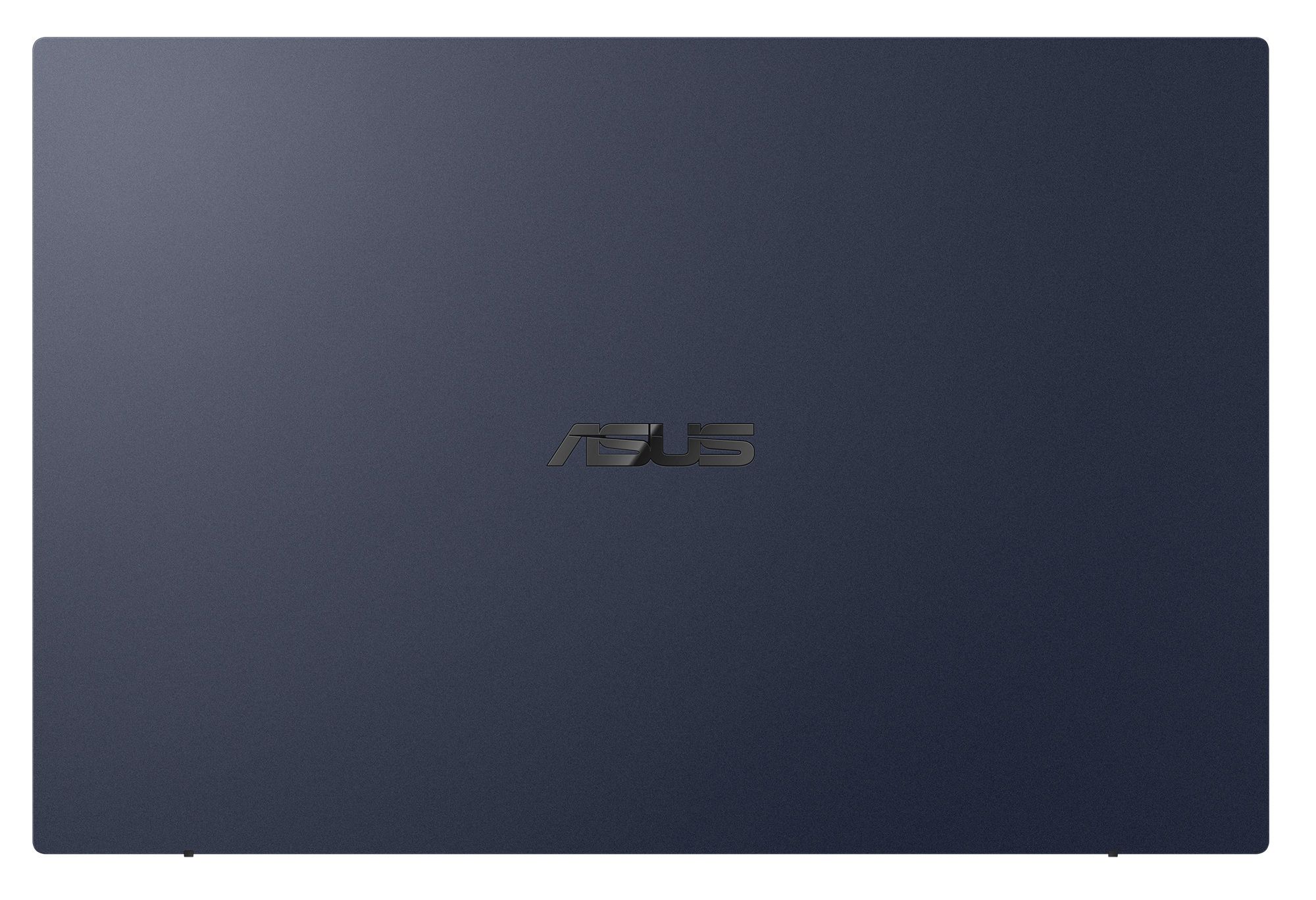

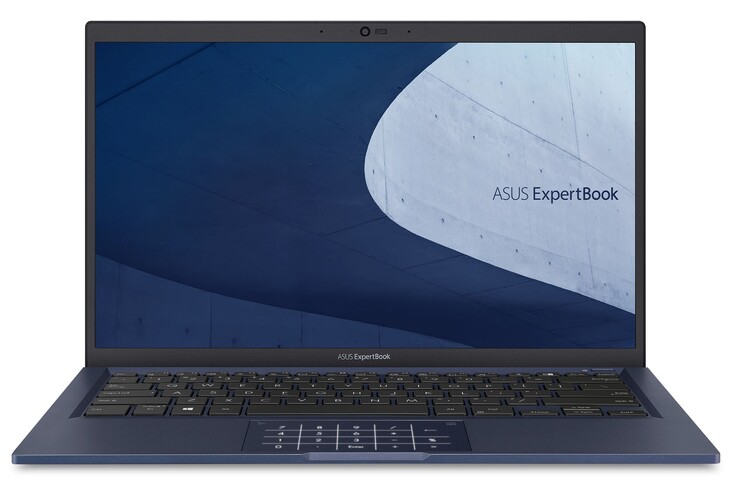

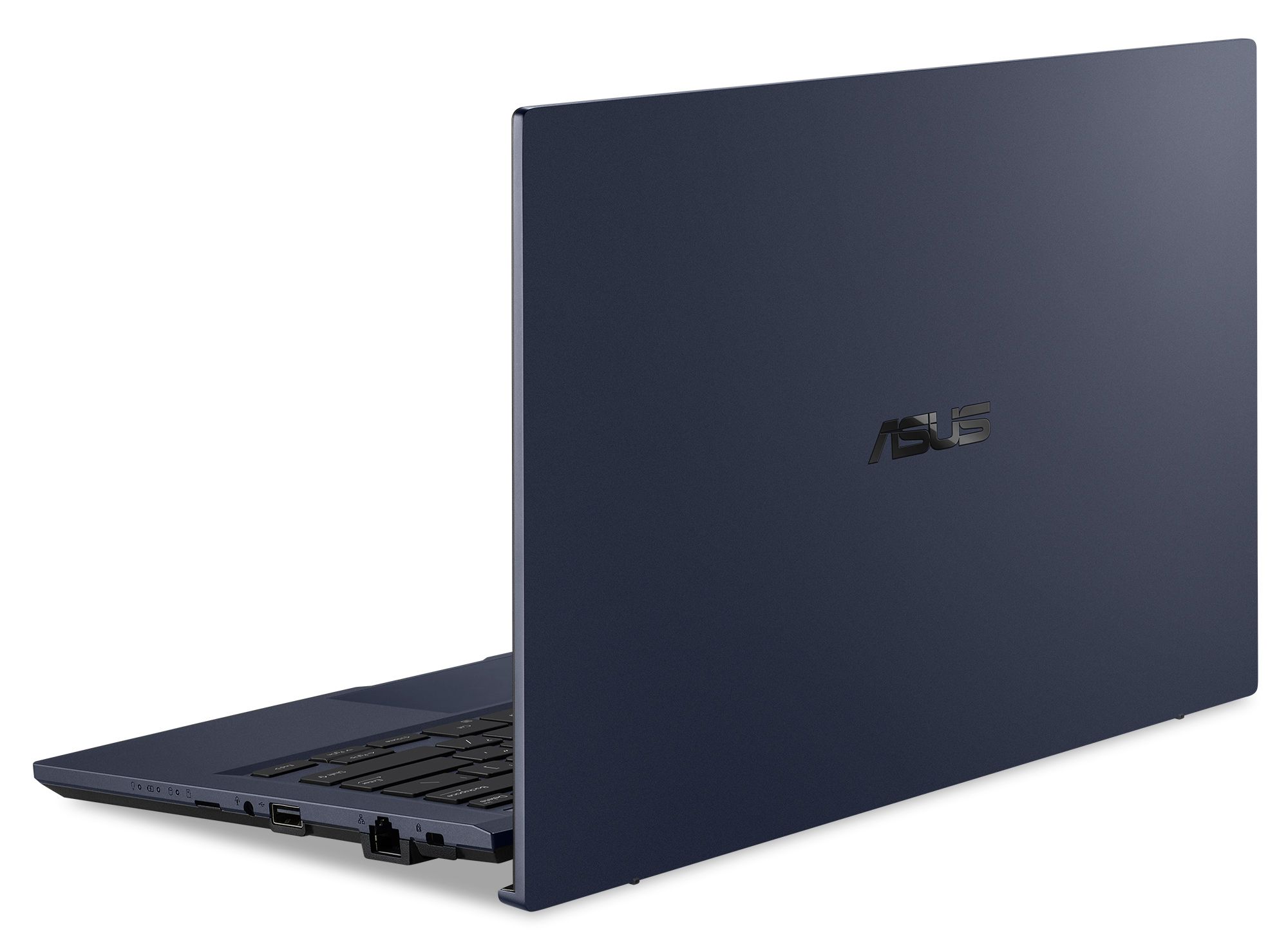

Asus ExpertBook B1 B1400CEAE
Asus ExpertBook B1 B1400CEAE
Asus ExpertBook B1 B1400CEAE
Asus ExpertBook B1 B1400CEAE
Asus ExpertBook B1 B1400CEAE
Asus ExpertBook B1 B1400CEAE
Asus ExpertBook B1 B1400CEAE

Size comparison

323.4 mm / 12.7 inch 215.6 mm / 8.49 inch 19.2 mm / 0.756 inch 1.5 kg3.27 lbs323 mm / 12.7 inch 218 mm / 8.58 inch 17.9 mm / 0.705 inch 1.5 kg3.29 lbs322.5 mm / 12.7 inch 214.8 mm / 8.46 inch 15.9 mm / 0.626 inch 1.4 kg3.03 lbs312 mm / 12.3 inch 226 mm / 8.9 inch 16.8 mm / 0.661 inch 1000 g2.2 lbs297 mm / 11.7 inch 210 mm / 8.27 inch 1 mm / 0.03937 inch 5.7 g0.01257 lbs

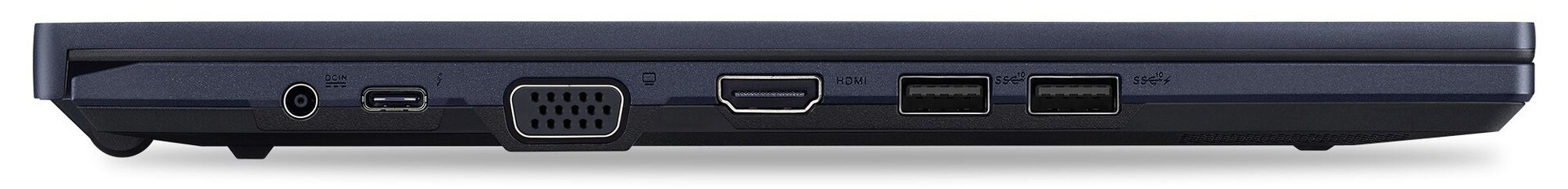

Left side: Power connector, Thunderbolt 4, VGA, HDMI, 2x USB-A 3.2 Gen2
Left side: Power connector, Thunderbolt 4, VGA, HDMI, 2x USB-A 3.2 Gen2

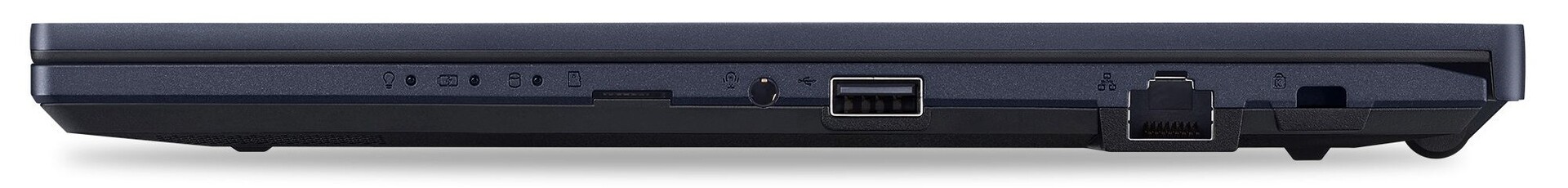

Right side: microSD card reader, combined audio jack, 1x USB-A 2.0, GigabitLAN, Kensington lock
Right side: microSD card reader, combined audio jack, 1x USB-A 2.0, GigabitLAN, Kensington lock
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
  (AV Pro V60)
80.3 MB/s +217%
Average of class Office
  (8 - 196.8, n=49, last 2 years)
55.8 MB/s +121%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
  (AV Pro V60)
25.3 MB/s
Acer TravelMate P614P-52
  (AV PRO microSD 128 GB V60)
20.2 (20.15min - 20.74max) MB/s -20%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
  (AV Pro V60)
85.1 MB/s +220%
Average of class Office
  (25 - 173.2, n=43, last 2 years)
65.6 MB/s +147%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
  (AV Pro V60)
26.6 MB/s
Acer TravelMate P614P-52
  (AV PRO microSD 128 GB V60)
23.61 MB/s -11%
Networking
iperf3 transmit AX12
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Wi-Fi 6 AX201
1400 (675min - 1528max) MBit/s +5%
Honor Magicbook 14 i7-1165G7
Intel Wi-Fi 6 AX201
1352 (674min - 1509max) MBit/s +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1333 (699min - 1465max) MBit/s
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s -13%
Average of class Office
  (819 - 1332, n=4, last 2 years)
990 MBit/s -26%
Acer TravelMate P614P-52
Intel Wi-Fi 6 AX201
506 (427min - 674max) MBit/s -62%
iperf3 receive AX12
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Wi-Fi 6 AX201
1535 (780min - 1601max) MBit/s +4%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1480 (1227min - 1597max) MBit/s
Acer TravelMate P614P-52
Intel Wi-Fi 6 AX201
1366 (755min - 1524max) MBit/s -8%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s -15%
Honor Magicbook 14 i7-1165G7
Intel Wi-Fi 6 AX201
1191 (1067min - 1275max) MBit/s -20%
Average of class Office
  (721 - 1690, n=4, last 2 years)
1067 MBit/s -28%
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600Tooltip
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1479 (1227-1597)
Lenovo ThinkBook 14 G2 ITL 20VD008WGE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1509 (780-1601)
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1311 (699-1465)
Lenovo ThinkBook 14 G2 ITL 20VD008WGE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1378 (675-1528)
ColorChecker
7.3 ∆E
11.3 ∆E
14.4 ∆E
11.7 ∆E
13.9 ∆E
8.8 ∆E
7.9 ∆E
15.5 ∆E
14.4 ∆E
9 ∆E
8.8 ∆E
7 ∆E
8.5 ∆E
6 ∆E
11.9 ∆E
2.4 ∆E
13.5 ∆E
11.1 ∆E
2.3 ∆E
7.3 ∆E
9.2 ∆E
8.1 ∆E
5.3 ∆E
7.4 ∆E
ColorChecker Asus ExpertBook B1 B1400CEAE, i5-1135G7: 9.29 ∆E min: 2.33 - max: 15.47 ∆E

Input devices - ExpertBook with backlit keyboard

The keyboard of the ExpertBook B1 B1400 offers a noticeable pressure point and is well suited for writing longer texts. The arrow keys are a bit small and their double assignment with the scroll keys as well as Home and End is not optimal. A number pad can be displayed in the clickpad, whereby the mouse pointer can be navigated further.

As a mouse replacement, the touchpad works very well and allows precise navigation. Inputs triggered via click as well as touch are reliably registered. The fingerprint sensor integrated into the power button also functioned reliably during our test period.

Asus ExpertBook B1 B1400 - Input Devices
Asus ExpertBook B1 B1400 - Input Devices

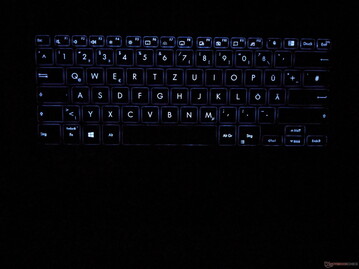

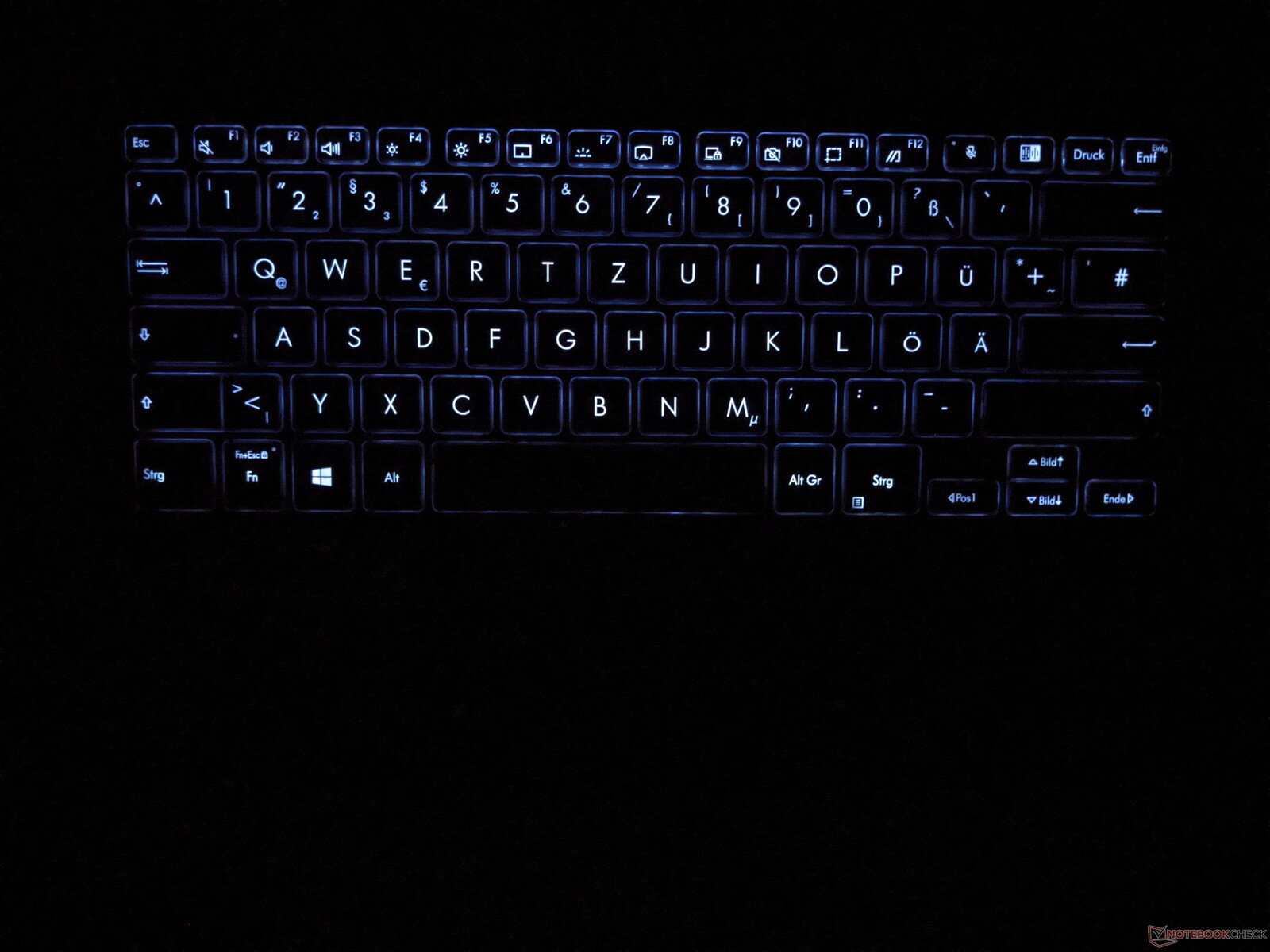

Asus ExpertBook B1 B1400 - Lighting
Asus ExpertBook B1 B1400 - Lighting

Display - Full HD in the Asus notebook

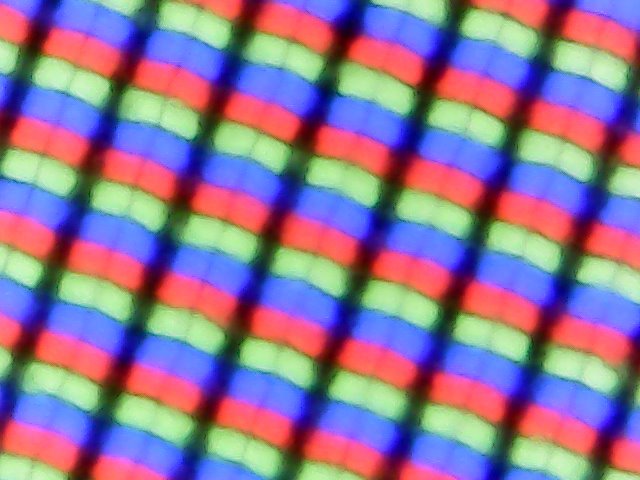

Subpixel
Subpixel

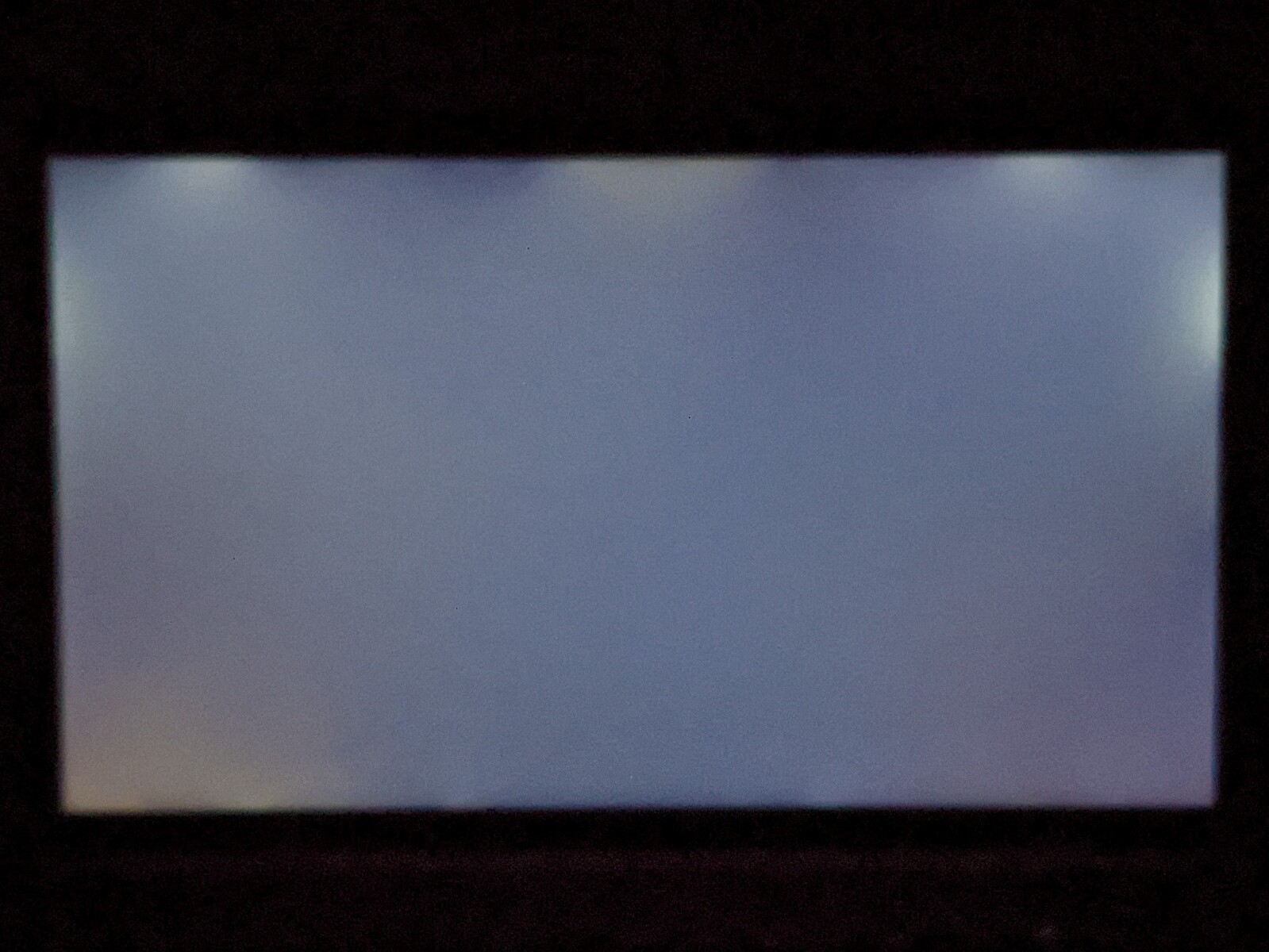

Screen-Bleeding
Screen-Bleeding

The screen of the ExpertBook B1 B1400 consists of a 14-inch IPS panel and offers a resolution of 1,920 x 1,080 pixels. The average brightness of around 240 cd/m² is very low, but the good black value (0.23 cd/m²) still results in a good contrast ratio of more than 1,100:1. The brightness in combination with the matte panel is therefore still sufficient for indoor use. The subjective picture quality is good and even bright surfaces do not look too grainy.

From a brightness level of 20 percent and less, we measure PWM with a frequency of 25,000 Hz. Since this value turns out very high, people with sensitive eyes should not have to expect any problems. There are also visible halos at the edges.

231
cd/m²
248
cd/m²
250
cd/m²
229
cd/m²
256
cd/m²
246
cd/m²
212
cd/m²
245
cd/m²
234
cd/m²
Distribution of brightness
Chi Mei CMN14D4 tested with X-Rite i1Pro 2
Maximum: 256 cd/m² (Nits) Average: 239 cd/m² Minimum: 14.3 cd/m²
Brightness Distribution: 83 %
Center on Battery: 256 cd/m²
Contrast: 1113:1 (Black: 0.23 cd/m²)
ΔE Color 6.2 | 0.5-29.43 Ø5, calibrated: 3.8
ΔE Greyscale 5 | 0.57-98 Ø5.3
44.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.9% sRGB (Argyll 2.2.0 3D)
42.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.97
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Chi Mei CMN14D4, IPS, 1920x1080, 14.00
Acer TravelMate P614P-52
AU Optronics B140UAV01.0, IPS, 1920x1200, 14.00
Honor Magicbook 14 i7-1165G7
BOE092E, IPS, 1920x1080, 14.00
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
B140HAN04.0, a-Si IPS LED, 1920x1080, 14.00
Display
68%
50%
-13%
Display P3 Coverage
42.8
76
78%
64.8
51%
37.23
-13%
sRGB Coverage
63.9
99.4
56%
96.3
51%
55.9
-13%
AdobeRGB 1998 Coverage
44.3
75.5
70%
66.1
49%
38.47
-13%
Response Times
-37%
14%
-42%
Response Time Grey 50% / Grey 80% *
35.2 ?(18, 17.2)
40.79 ?(17.72, 23.07)
-16%
31.2 ?(14.8, 16.4)
11%
51.6 ?(27.2, 24.4)
-47%
Response Time Black / White *
23.2 ?(14, 9.2)
22.9 ?(10.96, 11.94)
1%
19.2 ?(10.8, 8.4)
17%
31.6 ?(17.2, 14.4)
-36%
PWM Frequency
25000 ?(20)
1000 ?(99)
-96%
Screen
66%
35%
-1%
Brightness middle
256
504.15
97%
341
33%
240
-6%
Brightness
239
482
102%
313
31%
226
-5%
Brightness Distribution
83
77
-7%
87
5%
69
-17%
Black Level *
0.23
0.19
17%
0.27
-17%
0.23
-0%
Contrast
1113
2653
138%
1263
13%
1043
-6%
Colorchecker dE 2000 *
6.2
2.75
56%
1.76
72%
5.4
13%
Colorchecker dE 2000 max. *
18.2
4.66
74%
4.85
73%
21.9
-20%
Colorchecker dE 2000 calibrated *
3.8
1.72
55%
1.01
73%
4.8
-26%
Greyscale dE 2000 *
5
1.9
62%
3.3
34%
2.3
54%
Gamma
1.97 112%
2.13 103%
2.26 97%
2.37 93%
CCT
7364 88%
6426 101%
7233 90%
6706 97%
Color Space (Percent of AdobeRGB 1998)
66
35.4
Color Space (Percent of sRGB)
89
55.8
Total Average (Program / Settings)
32% / 46%
33% / 35%
-19% / -10%

* ... smaller is better

Our analysis (CalMAN & X-Rite i1 Pro 2) shows a visible blue cast in combination with a too cool color temperature in the state of delivery. We get the color cast under control with our calibration, but the brightness drops a bit further to 225 cd/m² at the same time. The color representation also improves a bit, but the deviations are still too high for serious image editing, since the color space coverage is also too low (sRGB only 63%). The calibrated ICC file can be found in the upper right window next to the screen illumination graphic.

Overall, this is a very inexpensive IPS panel, but its picture quality is perfectly sufficient for normal office tasks.

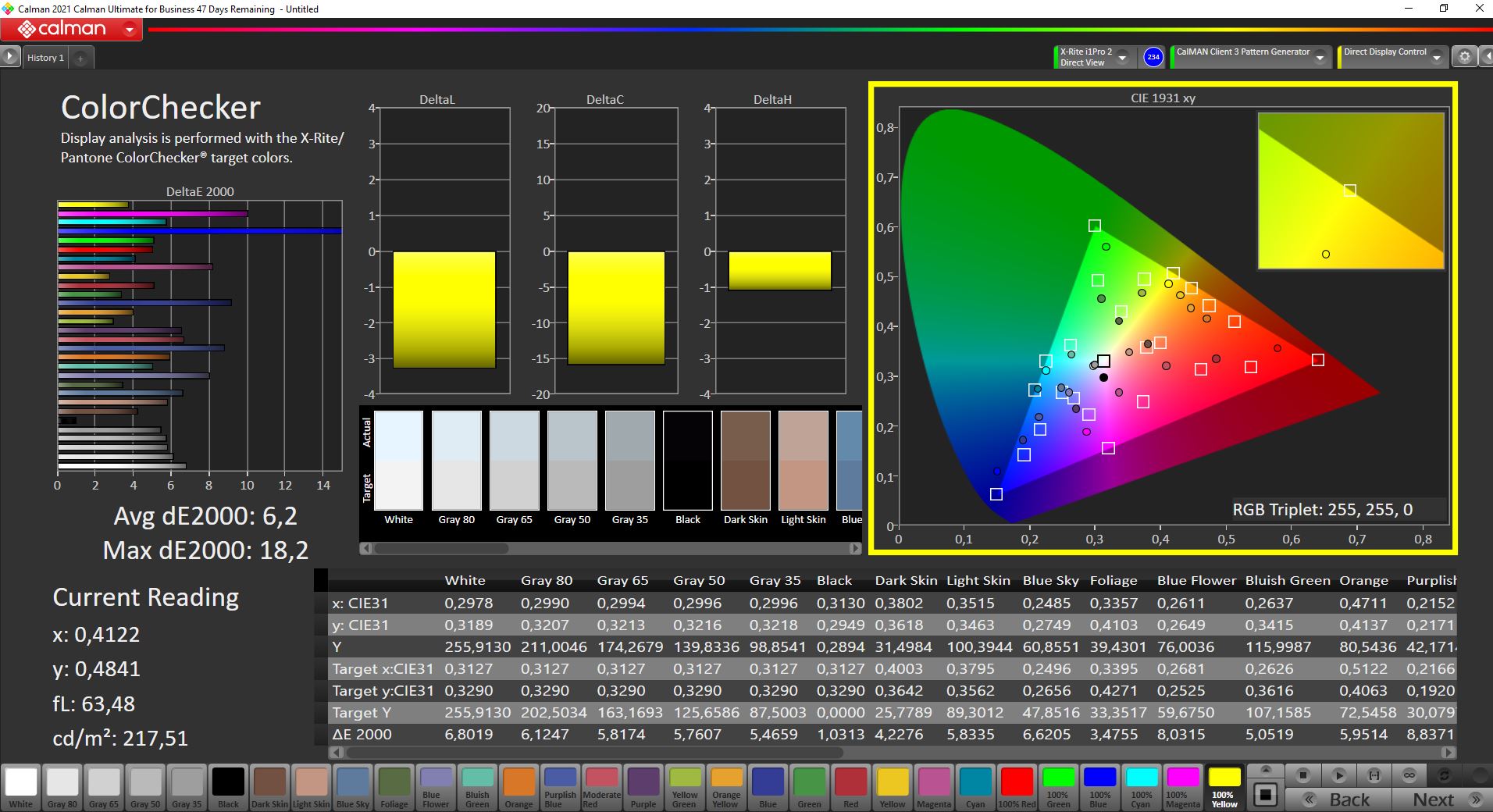

CalMAN - Color fidelity
CalMAN - Color fidelity

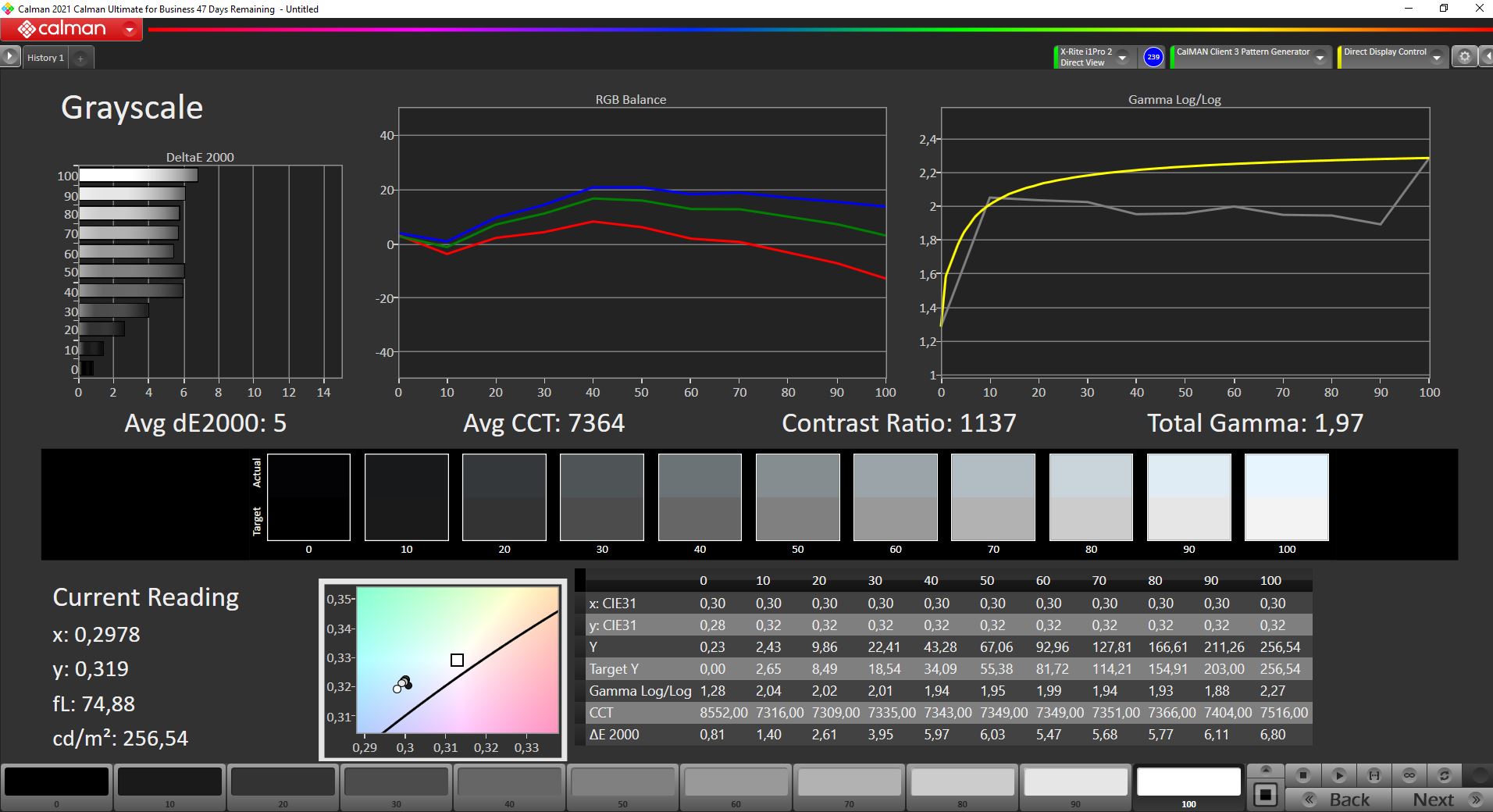

CalMAN - Grayscale
CalMAN - Grayscale

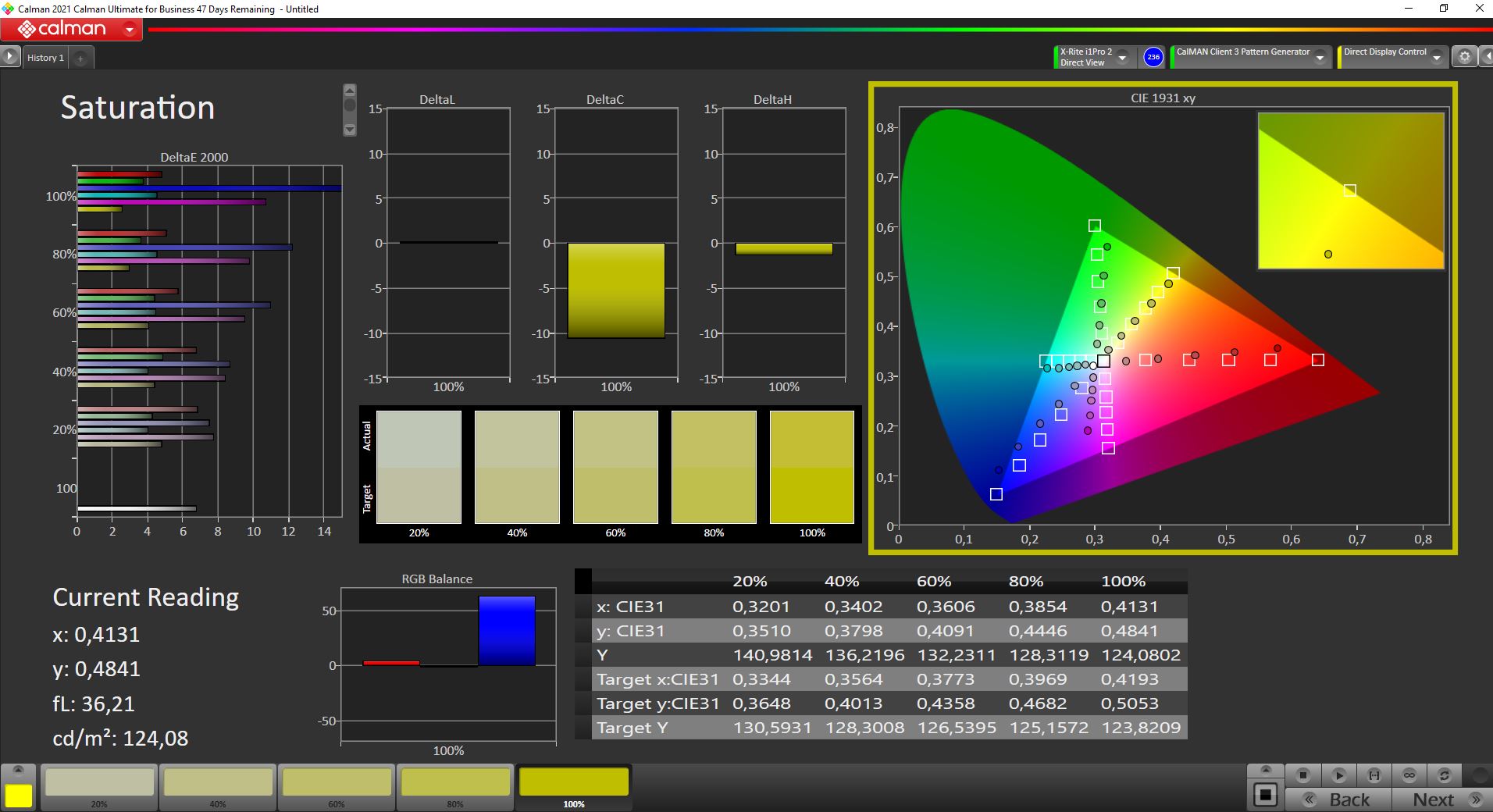

CalMAN - Saturation
CalMAN - Saturation

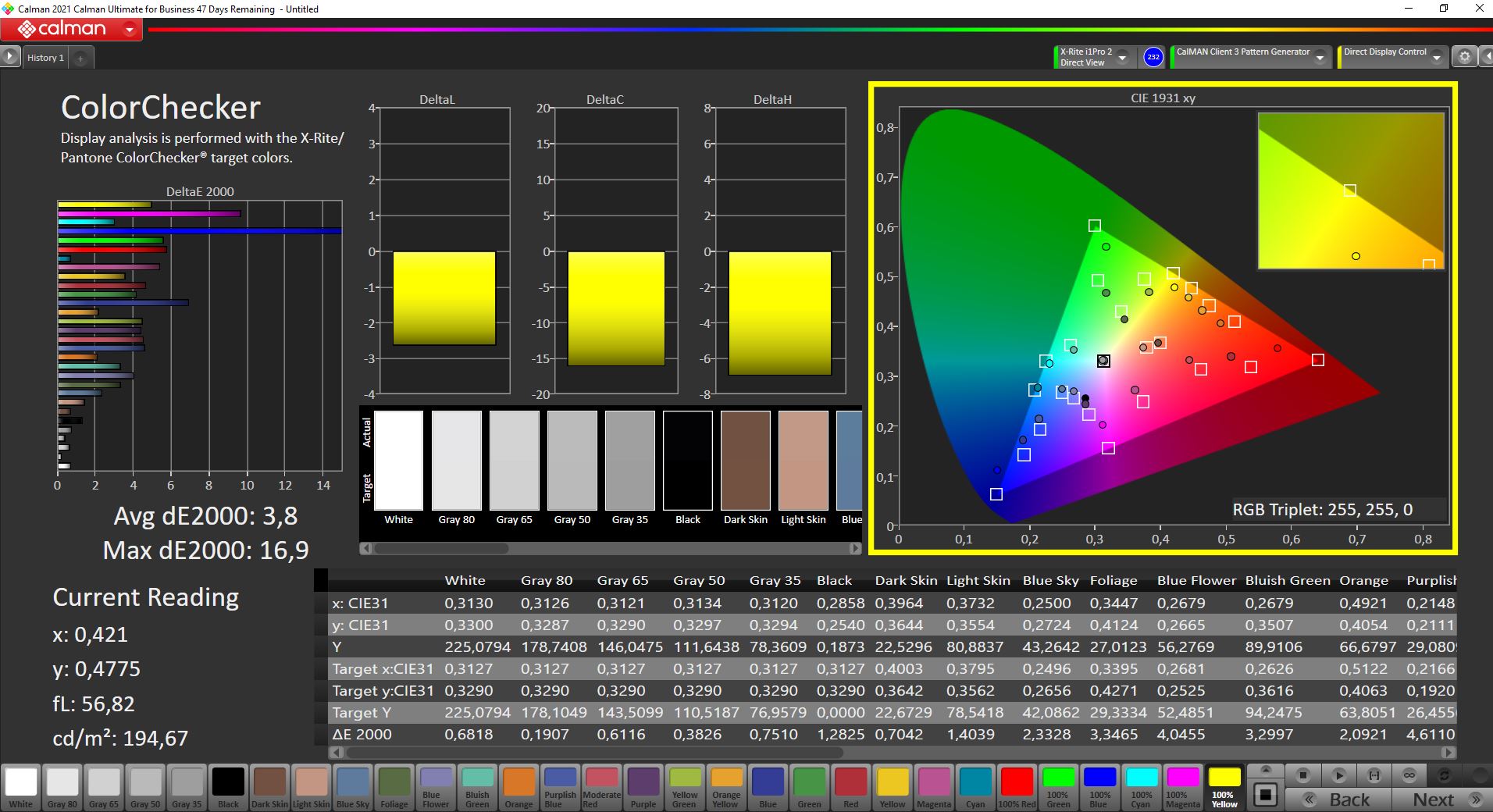

CalMAN - color fidelity (calibrated)
CalMAN - color fidelity (calibrated)

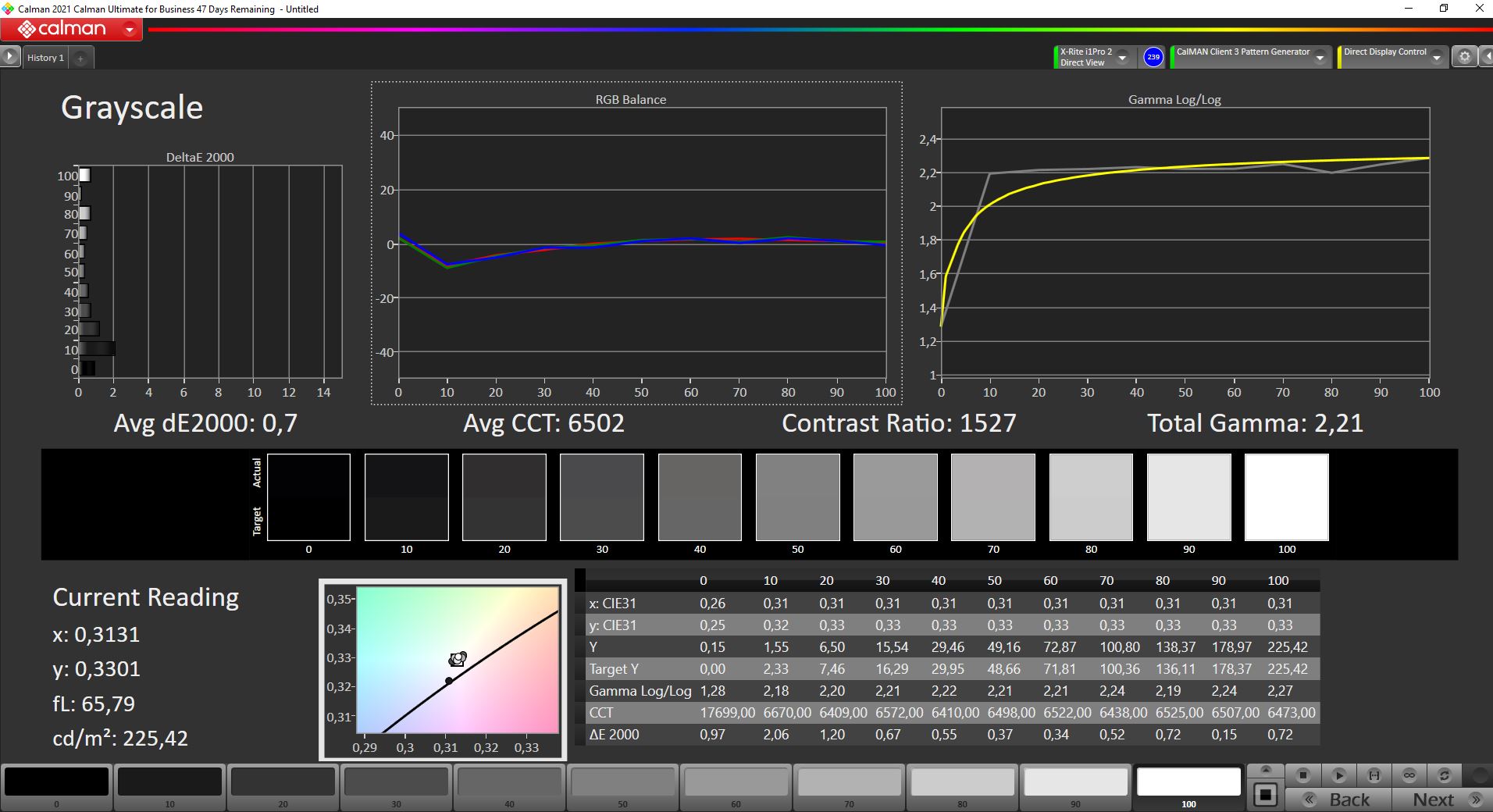

CalMAN - Grayscale (calibrated)
CalMAN - Grayscale (calibrated)

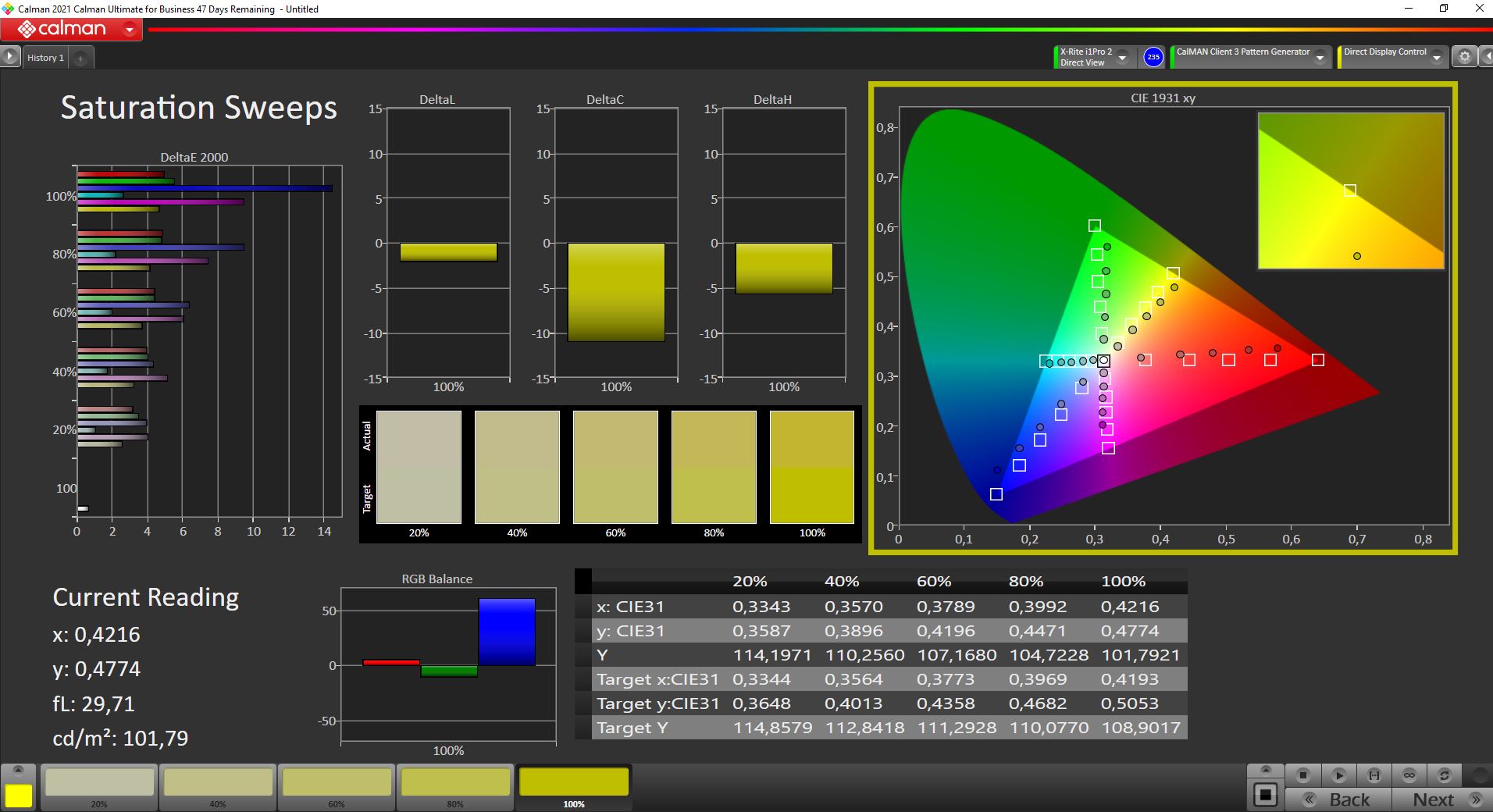

CalMAN - Saturation (calibrated)
CalMAN - Saturation (calibrated)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

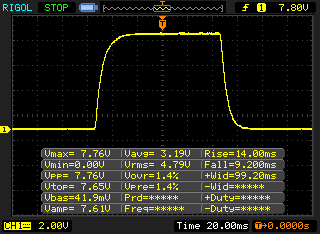

       Response Time Black to White
23.2 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 9.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 47 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.6 ms).

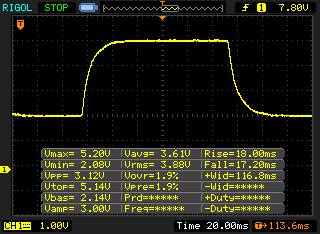

       Response Time 50% Grey to 80% Grey
35.2 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 17.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 43 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).

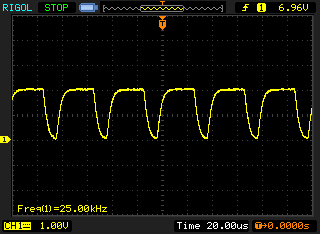

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

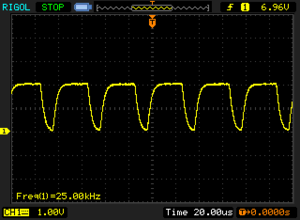

Screen flickering / PWM detected 25000 Hz ≤ 20 % brightness setting

The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18080 (minimum: 5 - maximum: 3846000) Hz was measured.

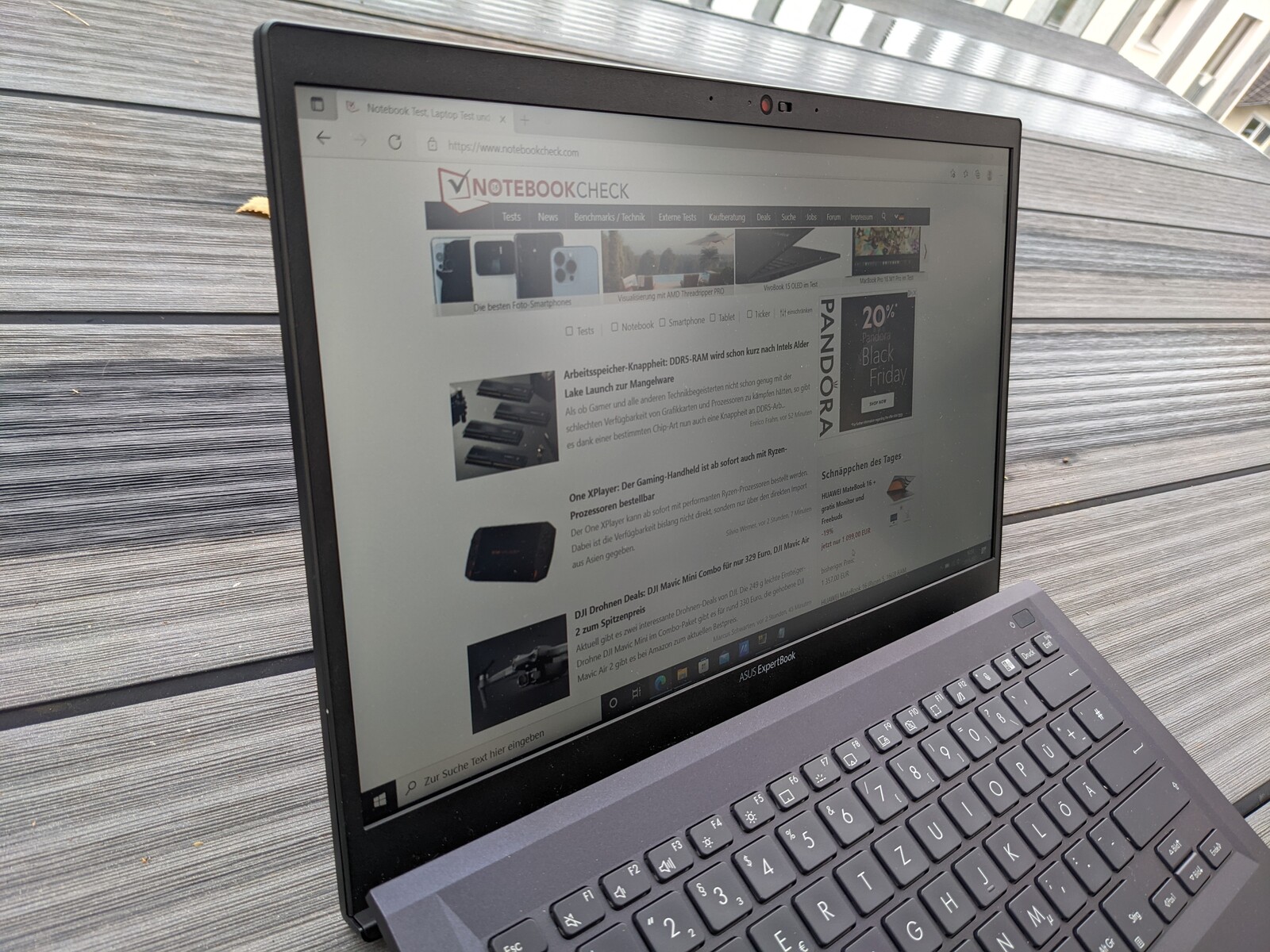

Outdoors, the ExpertBook B1 B1400 can be used well especially on cloudy days or in the shade. However, the display brightness is not sufficient for working in direct sunlight. The IPS panel used is very viewing-angle stable.

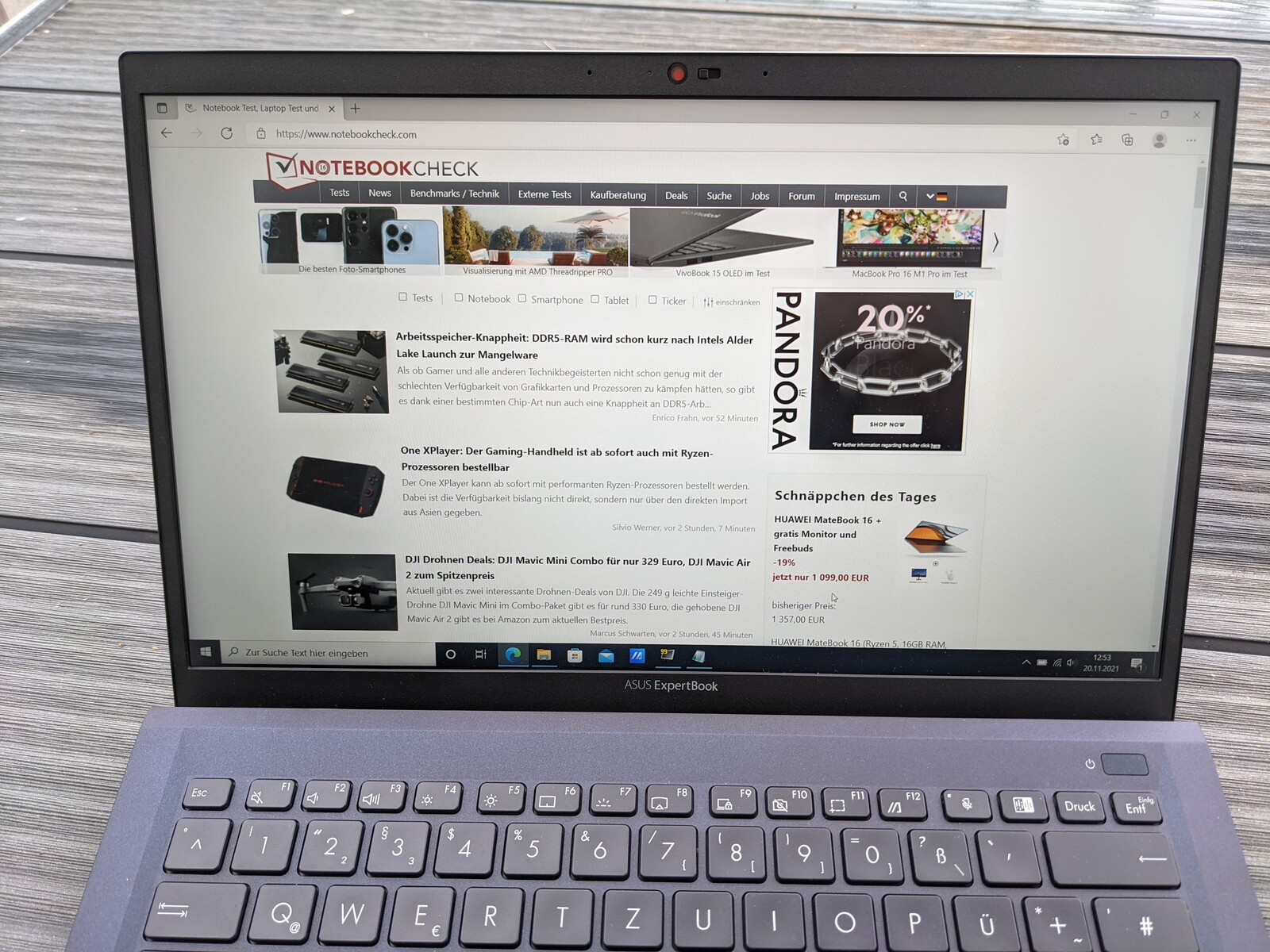

ExpertBook B1 B1400 in outdoor use
ExpertBook B1 B1400 in outdoor use
ExpertBook B1 B1400 in outdoor use
ExpertBook B1 B1400 in outdoor use

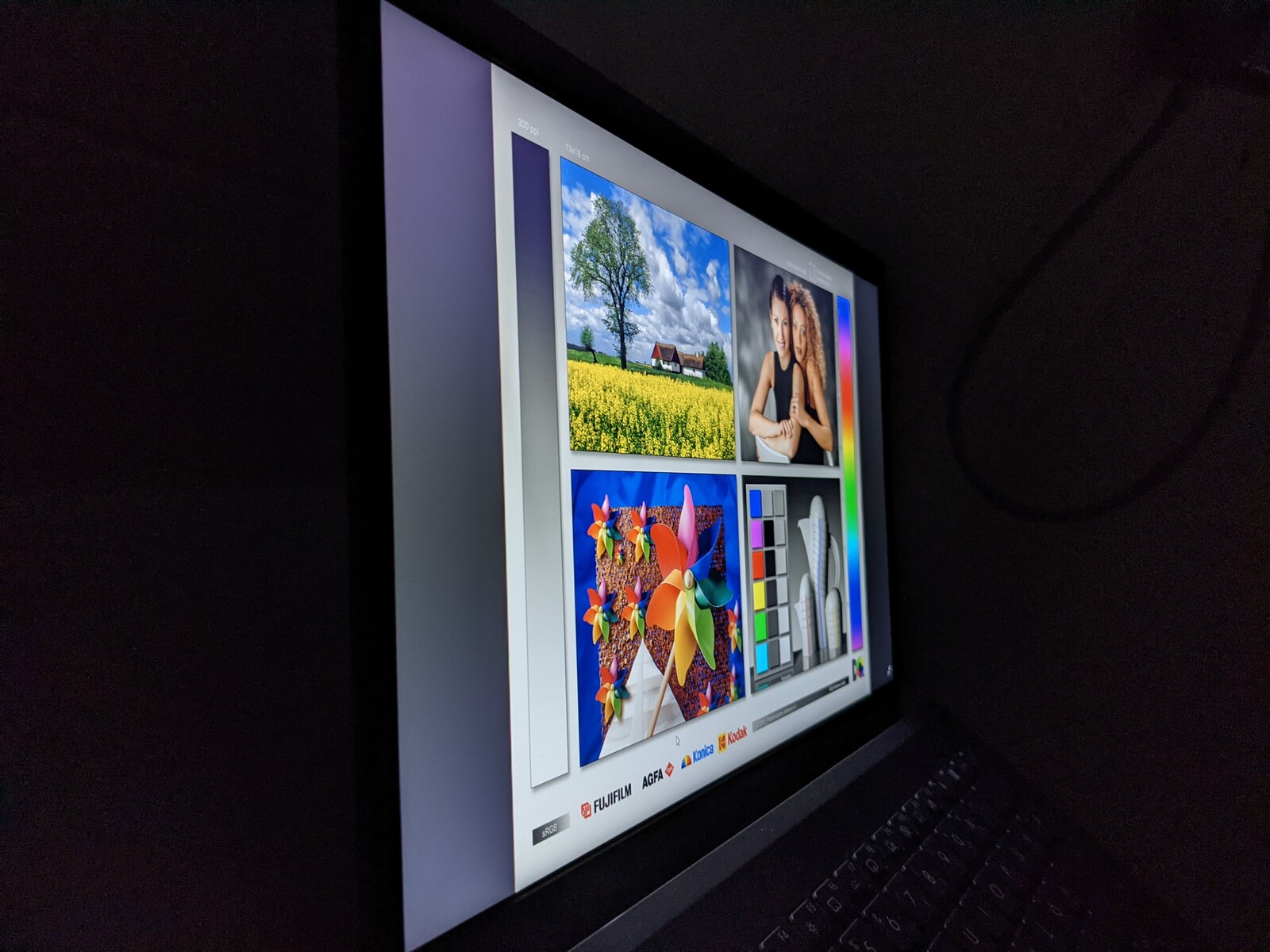

ExpertBook B1 B1400 - viewing angle stability
ExpertBook B1 B1400 - viewing angle stability

Performance - Well suited for office work

Our test model of the Asus ExpertBook B1 B1400 is equipped with an Intel Core i5-1135G7, 8 GB RAM and a 512 GB SSD. For the display of image contents, the internal graphics unit Intel Iris Xe Graphics G7 80EUs is responsible. As an alternative, the ExpertBook can also be equipped with the stronger Intel Core i7-1165G7 and more working memory.

Asus ExpertBook B1 B1400 - CPUz
Asus ExpertBook B1 B1400 - CPUz
Asus ExpertBook B1 B1400 - CPUz
Asus ExpertBook B1 B1400 - CPUz
Asus ExpertBook B1 B1400 - CPUz
Asus ExpertBook B1 B1400 - CPUz



Test conditions

For our test, we use the "Balanced" performance profile that can be set in the MyAsus app. A whisper and a power mode are also available as alternatives.

Processor

The test unit runs on a Intel Core i5-1135G7 processor with four cores from Intel's Tiger Lake generation and operates with clock rates between 2.4 and 4.2 GHz. Besides the cooling system, however, the set TDP also plays a role for the CPU's performance. This is generously dimensioned with a short-term value of 51 watts (PL2) and a long-term value of 28 watts (PL1).

In our Cinebench R15 endurance test, the initial value is on a high level, and even reaches that of some notebooks with an Intel Core i7-1165G7. Afterwards, however, the result drops significantly and settles at an approximately 15 percent lower rate. The results of the individual disciplines are usually a bit below average and are often only enough for the last place in our test field.

The CPU's performance drops significantly in battery mode. Only 248 instead of 860 points are achieved in the Cinebench R15 multi-core test without a connected power supply.

Cinebench R15 Multi Endurance test

04590135180225270315360405450495540585630675720765810855Tooltip
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7: Ø734 (723.71-860.22)
Acer TravelMate P614P-52 Intel Core i7-1165G7: Ø841 (834.71-880.07)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7: Ø870 (762.33-887.51)
Lenovo ThinkBook 14 G2 ITL 20VD008WGE Intel Core i5-1135G7: Ø818 (811.51-869.07)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average of class Office

78.9 pt
Acer TravelMate P614P-52
Intel Core i7-1165G7
68.7 pt
Honor Magicbook 14 i7-1165G7 -2!
Intel Core i7-1165G7
68 pt
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
63.1 pt
Average Intel Core i5-1135G7

58.4 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
56.7 pt
Cinebench R23 / Multi Core
Average of class Office
  (1056 - 15743, n=121, last 2 years)
8030 Points +122%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
5455 Points +51%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5396 Points +49%
Average Intel Core i5-1135G7
  (2786 - 6136, n=55)
4724 Points +31%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
3619 Points
Cinebench R23 / Single Core
Acer TravelMate P614P-52
Intel Core i7-1165G7
1473 Points +38%
Average of class Office
  (529 - 1995, n=120, last 2 years)
1451 Points +36%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
1368 Points +28%
Average Intel Core i5-1135G7
  (1062 - 1373, n=53)
1322 Points +24%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1065 Points
Cinebench R20 / CPU (Multi Core)
Average of class Office
  (356 - 5904, n=119, last 2 years)
3085 Points +99%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
2242 Points +45%
Acer TravelMate P614P-52
Intel Core i7-1165G7
2085 Points +35%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
2064 Points +33%
Average Intel Core i5-1135G7
  (979 - 2382, n=62)
1827 Points +18%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1548 Points
Cinebench R20 / CPU (Single Core)
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
577 Points +21%
Acer TravelMate P614P-52
Intel Core i7-1165G7
565 Points +19%
Average of class Office
  (181.3 - 764, n=119, last 2 years)
558 Points +17%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
527 Points +11%
Average Intel Core i5-1135G7
  (375 - 527, n=62)
507 Points +7%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
476 Points
Cinebench R15 / CPU Multi 64Bit
Average of class Office
  (160.8 - 2642, n=119, last 2 years)
1392 Points +62%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
888 (762.33min - 887.51max) Points +3%
Acer TravelMate P614P-52
Intel Core i7-1165G7
880 (834.71min - 880.07max) Points +2%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
869 (811.51min - 869.07max) Points +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
860 (723.71min - 860.22max) Points
Average Intel Core i5-1135G7
  (431 - 941, n=65)
792 Points -8%
Cinebench R15 / CPU Single 64Bit
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
227 Points +13%
Acer TravelMate P614P-52
Intel Core i7-1165G7
220 Points +9%
Average of class Office
  (82.6 - 284, n=117, last 2 years)
216 Points +7%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
204 Points +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
201 Points
Average Intel Core i5-1135G7
  (141.4 - 205, n=61)
194.4 Points -3%
Blender / v2.79 BMW27 CPU
Average Intel Core i5-1135G7
  (499 - 1044, n=60)
662 Seconds * -4%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
639 Seconds *
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
580 Seconds * +9%
Acer TravelMate P614P-52
Intel Core i7-1165G7
569 Seconds * +11%
Average of class Office
  (214 - 2844, n=119, last 2 years)
535 Seconds * +16%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
528 Seconds * +17%
7-Zip 18.03 / 7z b 4
Average of class Office
  (4226 - 62349, n=120, last 2 years)
34626 MIPS +60%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
25506 MIPS +18%
Acer TravelMate P614P-52
Intel Core i7-1165G7
24418 MIPS +13%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
23561 MIPS +9%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
21582 MIPS
Average Intel Core i5-1135G7
  (14745 - 24873, n=62)
21407 MIPS -1%
7-Zip 18.03 / 7z b 4 -mmt1
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
5382 MIPS +14%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5157 MIPS +9%
Average of class Office
  (2233 - 6687, n=120, last 2 years)
5007 MIPS +6%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
4800 MIPS +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
4720 MIPS
Average Intel Core i5-1135G7
  (3924 - 4921, n=62)
4674 MIPS -1%
Geekbench 5.5 / Multi-Core
Average of class Office
  (1018 - 11980, n=121, last 2 years)
6590 Points +49%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5845 Points +32%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
5089 Points +15%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
4686 Points +6%
Average Intel Core i5-1135G7
  (3475 - 5472, n=58)
4663 Points +6%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
4416 Points
Geekbench 5.5 / Single-Core
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
1573 Points +17%
Acer TravelMate P614P-52
Intel Core i7-1165G7
1551 Points +15%
Average of class Office
  (510 - 1974, n=121, last 2 years)
1468 Points +9%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
1426 Points +6%
Average Intel Core i5-1135G7
  (1147 - 1428, n=58)
1373 Points +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1345 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Office
  (1.55 - 17.4, n=119, last 2 years)
9.18 fps +52%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
7.06 fps +17%
Acer TravelMate P614P-52
Intel Core i7-1165G7
6.85 fps +14%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
6.7 fps +11%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
6.03 fps
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=57)
5.93 fps -2%
LibreOffice / 20 Documents To PDF
Average of class Office
  (31.3 - 117.5, n=119, last 2 years)
56.7 s * -28%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
53 s * -20%
Average Intel Core i5-1135G7
  (44.2 - 62.9, n=60)
52.8 s * -19%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
47.4 s * -7%
Acer TravelMate P614P-52
Intel Core i7-1165G7
45.6 s * -3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
44.2 s *
R Benchmark 2.5 / Overall mean
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
0.647 sec *
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=59)
0.642 sec * +1%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7
0.635 sec * +2%
Acer TravelMate P614P-52
Intel Core i7-1165G7
0.6 sec * +7%
Average of class Office
  (0.4244 - 1.397, n=118, last 2 years)
0.588 sec * +9%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
0.552 sec * +15%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
860 Points
Cinebench R15 OpenGL 64Bit
76 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
201 Points
Help
Performance Rating
Average of class Office

92.6 pt
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
82.7 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
73.6 pt
Average Intel Core i5-1135G7

70.3 pt
Honor Magicbook 14 i7-1165G7 -9!
Intel Core i7-1165G7, Iris Xe G7 96EUs
0 pt
Lenovo ThinkBook 14 G2 ITL 20VD008WGE -9!
Intel Core i5-1135G7, Iris Xe G7 80EUs
0 pt
AIDA64 / FP32 Ray-Trace
Average of class Office
  (763 - 24250, n=119, last 2 years)
8353 KRay/s +21%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
7012 KRay/s +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
6928 KRay/s
Average Intel Core i5-1135G7
  (4313 - 7952, n=45)
6445 KRay/s -7%
AIDA64 / FPU Julia
Average of class Office
  (4027 - 102228, n=119, last 2 years)
44699 Points +54%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
29875 Points +3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
29006 Points
Average Intel Core i5-1135G7
  (19402 - 32283, n=45)
26975 Points -7%
AIDA64 / CPU SHA3
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
1999 MB/s +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
1973 MB/s
Average of class Office
  (279 - 4442, n=118, last 2 years)
1940 MB/s -2%
Average Intel Core i5-1135G7
  (1316 - 2172, n=45)
1832 MB/s -7%
AIDA64 / CPU Queen
Average of class Office
  (8031 - 113016, n=119, last 2 years)
67458 Points +45%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
50505 Points +8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
46554 Points
Average Intel Core i5-1135G7
  (39000 - 46951, n=45)
45742 Points -2%
AIDA64 / FPU SinJulia
Average of class Office
  (404 - 14288, n=119, last 2 years)
6752 Points +52%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
4792 Points +8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points
Average Intel Core i5-1135G7
  (3497 - 4445, n=45)
4218 Points -5%
AIDA64 / FPU Mandel
Average of class Office
  (2054 - 54365, n=119, last 2 years)
23572 Points +37%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
18020 Points +5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
17201 Points
Average Intel Core i5-1135G7
  (12569 - 19635, n=45)
16302 Points -5%
AIDA64 / CPU AES
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
67916 MB/s
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
67883 MB/s 0%
Average Intel Core i5-1135G7
  (28988 - 67977, n=45)
58975 MB/s -13%
Average of class Office
  (5226 - 147611, n=119, last 2 years)
47448 MB/s -30%
AIDA64 / CPU ZLib
Average of class Office
  (67.6 - 1018, n=119, last 2 years)
533 MB/s +46%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
370 MB/s +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
364 MB/s
Average Intel Core i5-1135G7
  (265 - 373, n=51)
289 MB/s -21%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Iris Xe G7 80EUs
0 MB/s -100%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
0 MB/s -100%
AIDA64 / FP64 Ray-Trace
Average of class Office
  (432 - 12755, n=119, last 2 years)
4455 KRay/s +20%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
3779 KRay/s +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
3700 KRay/s
Average Intel Core i5-1135G7
  (2226 - 4291, n=45)
3424 KRay/s -7%
AIDA64 / CPU PhotoWorxx
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
40949 MPixel/s +228%
Average of class Office
  (4814 - 48177, n=119, last 2 years)
24080 MPixel/s +93%
Average Intel Core i5-1135G7
  (9004 - 45366, n=45)
23085 MPixel/s +85%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
12497 MPixel/s

System performance

In the PCMark 10 test for evaluating the system performance, the ExpertBook B1 B1400 achieves a slightly above-average overall score. The results of the individual disciplines reflect this score and are on par with the Lenovo ThinkBook 14 G2. However, it is noticed in the AIDA64 test that the working memory speed is comparatively low.

PCMark 10 / Score
Average of class Office
  (2325 - 7157, n=104, last 2 years)
5340 Points +13%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5317 Points +12%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
5036 Points +6%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4738 Points
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
4722 Points 0%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4952, n=53)
4613 Points -3%
PCMark 10 / Essentials
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
10608 Points +13%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
9985 Points +6%
Average of class Office
  (5095 - 20841, n=104, last 2 years)
9828 Points +5%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
9688 Points +3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
9386 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9917, n=53)
9310 Points -1%
PCMark 10 / Productivity
Average of class Office
  (3041 - 10198, n=104, last 2 years)
7453 Points +18%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
6931 Points +9%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
6802 Points +7%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
6332 Points
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
6269 Points -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5040 - 6619, n=53)
6218 Points -2%
PCMark 10 / Digital Content Creation
Average of class Office
  (1912 - 9056, n=104, last 2 years)
5782 Points +19%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5550 Points +14%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
5103 Points +5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4858 Points
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
4704 Points -3%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 5255, n=53)
4612 Points -5%
PCMark 10 Score
4738 points
Help
AIDA64 / Memory Copy
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
65274 MB/s +217%
Average of class Office
  (7158 - 84290, n=120, last 2 years)
42295 MB/s +105%
Average Intel Core i5-1135G7
  (17443 - 63889, n=45)
36640 MB/s +78%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
20616 MB/s
AIDA64 / Memory Read
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
63676 MB/s +174%
Average of class Office
  (7325 - 75550, n=120, last 2 years)
42852 MB/s +84%
Average Intel Core i5-1135G7
  (19716 - 63705, n=45)
40897 MB/s +76%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
23261 MB/s
AIDA64 / Memory Write
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
66791 MB/s +202%
Average of class Office
  (7579 - 94965, n=120, last 2 years)
46139 MB/s +108%
Average Intel Core i5-1135G7
  (18722 - 66778, n=45)
41742 MB/s +88%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
22149 MB/s
AIDA64 / Memory Latency
Average of class Office
  (44.3 - 188.3, n=121, last 2 years)
96.5 ns * -16%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
94.6 ns * -13%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
83.5 ns *
Average Intel Core i5-1135G7
  (68.3 - 107, n=51)
72.5 ns * +13%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Iris Xe G7 80EUs
0 ns * +100%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Iris Xe G7 96EUs
0 ns * +100%

* ... smaller is better

DPC latencies

In the test with LatencyMon, our test model from Asus shows slightly increased Interruption times. However, it should still be suitable for real-time applications and the like.

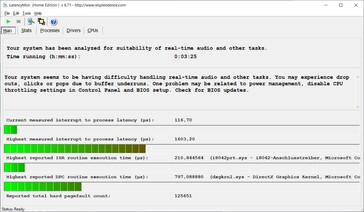

LatencyMon - Statistics
LatencyMon - Statistics

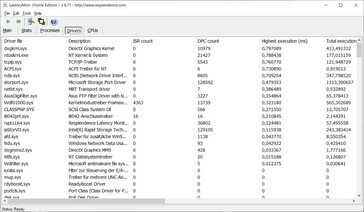

LatencyMon - Driver
LatencyMon - Driver
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
1914 μs * -19%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
1603 μs *
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
854 μs * +47%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
592 μs * +63%

* ... smaller is better

Mass storage

Our configuration of the ExpertBook B1 B1400 is equipped with a 512 GB M.2-2280 SSD (PCIe-3.0 x4), which achieves good speeds in the storage benchmarks. Thus, the laptop can place itself in the middle of our test field.

What speeds can be expected from other mass storage devices can be seen in our HDD/SSD benchmark list.

WDC PC SN530 SDBPNPZ-512G
CDM 5/6 Read Seq Q32T1: 2415 MB/s
CDM 5/6 Write Seq Q32T1: 1826 MB/s
CDM 5/6 Read 4K Q32T1: 420.9 MB/s
CDM 5/6 Write 4K Q32T1: 460.7 MB/s
CDM 5 Read Seq: 1681 MB/s
CDM 5 Write Seq: 1666 MB/s
CDM 5/6 Read 4K: 54.2 MB/s
CDM 5/6 Write 4K: 172.3 MB/s
Drive Performance Rating - Percent
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
89.6 pt
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
77.7 pt
Average of class Office

75.5 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
61 pt
Average WDC PC SN530 SDBPNPZ-512G

54.4 pt
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
52 pt
DiskSpd
seq read
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
2546 (2504.6min - 2546.3max) MB/s +51%
Average of class Office
  (482 - 4315, n=104, last 2 years)
2440 MB/s +45%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1771 (1732.46min - 1771.25max) MB/s +5%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1682 (1660.98min - 1681.91max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1116 - 1862, n=12)
1637 MB/s -3%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
1617 (1491.28min - 1617.11max) MB/s -4%
seq write
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
2685 (2659.68min - 2685.28max) MB/s +60%
Average of class Office
  (333 - 5842, n=104, last 2 years)
2344 MB/s +40%
Average WDC PC SN530 SDBPNPZ-512G
  (1356 - 1791, n=12)
1693 MB/s +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1676 (1639.9min - 1676.26max) MB/s
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1346 (1336.46min - 1345.53max) MB/s -20%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
1173 (1123.71min - 1172.73max) MB/s -30%
seq q8 t1 read
Average of class Office
  (535 - 7120, n=104, last 2 years)
3971 MB/s +60%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
3437 (3152.63min - 3437.07max) MB/s +38%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
2485 (2010.29min - 2484.56max) MB/s
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
2357 (2131.76min - 2356.78max) MB/s -5%
Average WDC PC SN530 SDBPNPZ-512G
  (1359 - 2488, n=12)
2248 MB/s -10%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1928 (1786.98min - 1927.7max) MB/s -22%
seq q8 t1 write
Average of class Office
  (276 - 6791, n=104, last 2 years)
2976 MB/s +62%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
2718 (2618.92min - 2717.93max) MB/s +48%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1838 (1817.32min - 1837.94max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1486 - 1838, n=12)
1780 MB/s -3%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
1416 (1374.26min - 1415.89max) MB/s -23%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1348 (1315.85min - 1348.29max) MB/s -27%
4k q1 t1 read
Average of class Office
  (17.7 - 89.9, n=104, last 2 years)
57.6 MB/s +13%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
51.4 (50.94min - 51.36max) MB/s +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
50.9 (45.39min - 50.94max) MB/s
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
47.9 (47.31min - 47.93max) MB/s -6%
Average WDC PC SN530 SDBPNPZ-512G
  (27.3 - 52.8, n=12)
43.3 MB/s -15%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
42.3 (41.8min - 42.29max) MB/s -17%
4k q1 t1 write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
262 (260.09min - 262.11max) MB/s +42%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
234 (222.72min - 233.84max) MB/s +26%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
185 (155.61min - 185.24max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (111 - 277, n=12)
167.1 MB/s -10%
Average of class Office
  (32 - 429, n=104, last 2 years)
161 MB/s -13%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
121 (115.83min - 120.97max) MB/s -35%
4k q32 t16 read
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
1917 (1861.06min - 1917.34max) MB/s +179%
Average of class Office
  (184.2 - 4425, n=104, last 2 years)
1243 MB/s +81%
Average WDC PC SN530 SDBPNPZ-512G
  (681 - 1315, n=12)
1034 MB/s +51%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
994 (973.86min - 994.47max) MB/s +45%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
696 (678.64min - 696.07max) MB/s +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
686 (682.28min - 685.76max) MB/s
4k q32 t16 write
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
1652 (581.49min - 1652.14max) MB/s +239%
Average of class Office
  (192.2 - 3254, n=104, last 2 years)
920 MB/s +89%
Average WDC PC SN530 SDBPNPZ-512G
  (448 - 1306, n=12)
898 MB/s +84%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
880 (650.52min - 880.09max) MB/s +80%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
488 (469.24min - 487.69max) MB/s
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
427 (397.8min - 426.91max) MB/s -12%
AS SSD
Score Total
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
4973 Points +48%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
4885 Points +46%
Average of class Office
  (704 - 9204, n=101, last 2 years)
3939 Points +17%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
3357 Points
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
2739 Points -18%
Average WDC PC SN530 SDBPNPZ-512G
  (1795 - 3507, n=12)
2738 Points -18%
Score Read
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
2054 Points +63%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
1822 Points +44%
Average of class Office
  (252 - 3364, n=101, last 2 years)
1419 Points +12%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1264 Points
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
1102 Points -13%
Average WDC PC SN530 SDBPNPZ-512G
  (581 - 1322, n=12)
1041 Points -18%
Score Write
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
2249 Points +51%
Average of class Office
  (320 - 4111, n=101, last 2 years)
1837 Points +23%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1797 Points +21%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1488 Points
Average WDC PC SN530 SDBPNPZ-512G
  (684 - 1654, n=12)
1179 Points -21%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
1112 Points -25%
Seq Read
Average of class Office
  (508 - 5796, n=101, last 2 years)
3148 MB/s +57%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
3034 MB/s +51%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
3021 MB/s +50%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
2011 MB/s
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
1943 MB/s -3%
Average WDC PC SN530 SDBPNPZ-512G
  (1007 - 2228, n=12)
1862 MB/s -7%
Seq Write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
2650 MB/s +176%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
2341 MB/s +144%
Average of class Office
  (304 - 5880, n=101, last 2 years)
2054 MB/s +114%
Average WDC PC SN530 SDBPNPZ-512G
  (956 - 1755, n=12)
1392 MB/s +45%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
961 MB/s
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
936 MB/s -3%
4K Read
Average of class Office
  (18.7 - 91.1, n=101, last 2 years)
56.3 MB/s +15%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
54.6 MB/s +12%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
49.96 MB/s +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
48.77 MB/s
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
47.9 MB/s -2%
Average WDC PC SN530 SDBPNPZ-512G
  (27.8 - 48.8, n=12)
42.1 MB/s -14%
4K Write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
239.8 MB/s +8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
221.5 MB/s
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
186.7 MB/s -16%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
183.4 MB/s -17%
Average WDC PC SN530 SDBPNPZ-512G
  (102.9 - 239, n=12)
163.8 MB/s -26%
Average of class Office
  (35.4 - 350, n=101, last 2 years)
158.3 MB/s -29%
4K-64 Read
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1696 MB/s +67%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
1472 MB/s +45%
Average of class Office
  (182.3 - 2713, n=101, last 2 years)
1047 MB/s +3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1015 MB/s
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
858 MB/s -15%
Average WDC PC SN530 SDBPNPZ-512G
  (406 - 1067, n=12)
813 MB/s -20%
4K-64 Write
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
1829 MB/s +56%
Average of class Office
  (132.3 - 3394, n=101, last 2 years)
1474 MB/s +26%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1292 MB/s +10%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1170 MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (396 - 1385, n=12)
876 MB/s -25%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
835 MB/s -29%
Access Time Read
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
0.119 ms * -92%
Average of class Office
  (0.022 - 0.295, n=101, last 2 years)
0.08048 ms * -30%
Average WDC PC SN530 SDBPNPZ-512G
  (0.045 - 0.132, n=12)
0.07875 ms * -27%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
0.062 ms *
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
0.06 ms * +3%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
0.055 ms * +11%
Access Time Write
Average WDC PC SN530 SDBPNPZ-512G
  (0.04 - 0.167, n=12)
0.08225 ms * -55%
Average of class Office
  (0.017 - 0.619, n=101, last 2 years)
0.0646 ms * -22%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
0.053 ms *
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Samsung PM991 MZALQ512HALU
0.021 ms * +60%
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
0.021 ms * +60%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
0.018 ms * +66%

* ... smaller is better

Continuous power reading: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
Asus ExpertBook B1 B1400CEAE, i5-1135G7: Ø2479 (2185.48-2489.37)

Graphics card

The Asus ExpertBook B1 B1400 is equipped with an Intel Iris Xe Graphics G7 80EUs which is suitable for simple graphical applications. The performance also depends on the installed working memory, which is why the single-channel configuration of our test model offers a lower performance than comparable notebooks.

This is also reflected in the 3DMark as well as gaming benchmarks, where Asus' notebook ranks last in our test field. An improvement in performance can be achieved by using a second RAM module. In battery mode, the 3DMark 11 result of 4472 points is only slightly worse compared to 4684 points.

However, the iGPU is completely sufficient for office and multimedia applications (incl. playing high-resolution videos), but only low details/resolutions are usually possible when gaming. The performance of other graphics units in comparison to this can be seen in our GPU benchmark list and our GPU gaming list.

3DMark Performance Rating - Percent
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
100 pt
Average of class Office

82.6 pt
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
82 pt
Average Intel Iris Xe Graphics G7 80EUs

73.4 pt
Lenovo ThinkBook 14 G2 ITL 20VD008WGE -1!
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
67.6 pt
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
59.9 pt
3DMark 11 - 1280x720 Performance GPU
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6616 Points +41%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6194 Points +32%
Average of class Office
  (1474 - 12230, n=113, last 2 years)
5932 Points +27%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5440 Points +16%
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6477, n=105)
5167 Points +10%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4684 Points
3DMark
1280x720 Cloud Gate Standard Graphics
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
29559 Points +71%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
24425 Points +42%
Average of class Office
  (5681 - 58068, n=96, last 2 years)
24181 Points +40%
Average Intel Iris Xe Graphics G7 80EUs
  (6361 - 30894, n=92)
21769 Points +26%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
17253 Points
1920x1080 Fire Strike Graphics
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5403 Points +98%
Average of class Office
  (712 - 8815, n=115, last 2 years)
4125 Points +51%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3988 Points +46%
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 5305, n=107)
3782 Points +39%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3080 Points +13%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2723 Points
2560x1440 Time Spy Graphics
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1626 Points +67%
Average of class Office
  (242 - 3186, n=111, last 2 years)
1341 Points +37%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1269 Points +30%
Average Intel Iris Xe Graphics G7 80EUs
  (561 - 1511, n=104)
1170 Points +20%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1035 Points +6%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
976 Points
3DMark 11 Performance
4701 points
3DMark Cloud Gate Standard Score
14042 points
3DMark Fire Strike Score
2303 points
3DMark Time Spy Score
1099 points
Help
The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
97.7 (82min, 83.22P1) fps +90%
Average of class Office
  (8.4 - 149, n=101, last 2 years)
72.1 fps +40%
Average Intel Iris Xe Graphics G7 80EUs
  (30.2 - 97.4, n=98)
65.3 fps +27%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
59.3 fps +15%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.1 (51min) fps +15%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
51.5 fps
GTA V - 1366x768 Normal/Off AF:4x
Average of class Office
  (7.47 - 153.1, n=102, last 2 years)
81.8 fps +82%
Average Intel Iris Xe Graphics G7 80EUs
  (28.9 - 133.8, n=80)
70.4 fps +57%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
44.9 (10.6min, 29.4P1) fps
Dota 2 Reborn - 1366x768 med (1/3)
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
82.2 (66.8min) fps +52%
Average of class Office
  (10.9 - 127, n=122, last 2 years)
76.4 fps +41%
Average Intel Iris Xe Graphics G7 80EUs
  (10.9 - 119.5, n=105)
67.8 fps +25%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.9 (48.1min) fps +11%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
58.3 (42.2min) fps +8%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
54.1 (42.7min) fps
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
45.4 fps +87%
Average of class Office
  (5.42 - 94, n=114, last 2 years)
35.4 fps +46%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.9 fps +35%
Average Intel Iris Xe Graphics G7 80EUs
  (8.32 - 45.6, n=100)
31.5 fps +30%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
24.3 fps
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Office
  (9.12 - 109.9, n=122, last 2 years)
40.3 fps +14%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.7 fps +9%
Average Intel Iris Xe Graphics G7 80EUs
  (9.12 - 74.4, n=105)
36.4 fps +3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
35.4 fps
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
29.4 fps -17%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
28.5 fps -19%
Strange Brigade - 1280x720 lowest AF:1
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
85 (19min, 27.5P1) fps +74%
Average of class Office
  (16.3 - 173.8, n=109, last 2 years)
79 fps +62%
Average Intel Iris Xe Graphics G7 80EUs
  (22.7 - 98.7, n=78)
67 fps +37%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
48.8 (11.3min, 14.4P1) fps

Witcher 3 FPS Diagram

012345678Tooltip
Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs: Ø8.22 (7-9)
low med. high ultra
GTA V (2015) 57.2 44.9 9.94 4.38
The Witcher 3 (2015) 51.5 31.2 15.89 8.22
Dota 2 Reborn (2015) 75.4 54.1 33 31.1
Final Fantasy XV Benchmark (2018) 24.3 12.2 9.5
X-Plane 11.11 (2018) 35.4 29.1 26.5
Strange Brigade (2018) 48.8 18.4 15.8 14.9

Emissions & Energy - Nearly silent and economical

Noise emissions

During daily use with office applications and web browsing, the Asus ExpertBook B1 B1400 is mostly silent. When the system is fully loaded, the fans are audible with a maximum level of 37.4 dB(A) and emit a steady noise. We could not detect any other electronic noises (e.g. coil whine).

Noise Level

Idle
23.8 / 23.8 / 26.5 dB(A)
Load
28.6 / 37.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 23.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.734.23435.836.32530.128.830.830.2343126.227.928.225.9304027.829.428.628.227.25027.228.126.224.327.46327.125.526.62427.98022.224.723.620.624.210020.821.321.120.525.71252021.120.618.523.316018.118.817.916.321.12002120.820.219.321.825018.818.618.315.821.231519.317.916.914.121.740018.217.21612.320.850018.516.915.810.622.263019.917.817.112.124.480022.119.817.79.926.9100020.318.115.11025.7125019.317.114.21025.5160019.617.114.211.626.9200020.217.314.210.828.8250019.116.413.81128.1315018.215.613.511.525.9400017.616.412.711.823.5500014.813.212.412.223.9630013.912.812.512.321.9800012.812.612.512.318.11000012.812.712.612.514.91250012.812.512.812.813.41600012.712.312.312.212.2SPL30.628.626.523.837.4N1.31.10.80.52.5median 18.8median 17.1median 14.2median 12.2median 23.3Delta2.21.82.423.7hearing rangehide median Fan NoiseAsus ExpertBook B1 B1400CEAE, i5-1135G7
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
Noise
-19%
-10%
-20%
off / environment *
23.8
26.61
-12%
24
-1%
28.7
-21%
Idle Minimum *
23.8
26.61
-12%
24
-1%
28.7
-21%
Idle Average *
23.8
26.61
-12%
25
-5%
28.7
-21%
Idle Maximum *
26.5
26.61
-0%
28
-6%
28.7
-8%
Load Average *
28.6
42.1
-47%
36
-26%
35.5
-24%
Witcher 3 ultra *
30.6
40.7
-33%
41.6
-36%
Load Maximum *
37.4
43.71
-17%
46
-23%
41.6
-11%

* ... smaller is better

Temperature

Stress test
Stress test

During our demanding load test, the surfaces of the ExpertBook B1 B1400 heated up to 54.3 °C (~130 °F) at the lower left corner. However, since this scenario does not occur in everyday use, the temperatures always remain moderate and no restrictions have to be expected.

Inside Asus' laptop, temperatures briefly rose to around 89 °C (~192 °F) during the long-term stress test, then dropped to 80 °C (176 °F) and settled at around 65 °C (149 °F), which could be maintained until the end of the test. The CPU's clock rates dropped below the base clock of 2.4 GHz, but the system quickly stabilized again after the end of the test. Since this scenario should also not occur in everyday use, a limited system performance can only occur in very demanding applications.

Max. Load
 41.7 °C
107 F
38.7 °C
102 F
32.4 °C
90 F

 38.8 °C
102 F
34.6 °C
94 F
27.8 °C
82 F

 31.8 °C
89 F
26.6 °C
80 F
24.8 °C
77 F

Maximum: 41.7 °C = 107 F
Average: 33 °C = 91 F
36.9 °C
98 F
44.6 °C
112 F
54.3 °C
130 F
25.9 °C
79 F
40.7 °C
105 F
44.6 °C
112 F
23.8 °C
75 F
27.6 °C
82 F
29.2 °C
85 F
Maximum: 54.3 °C = 130 F
Average: 36.4 °C = 98 F
Power Supply (max.)  37.4 °C = 99 F | Room Temperature 20.6 °C = 69 F | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 33 °C / 91 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.7 °C / 107 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 54.3 °C / 130 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.4 °C / 90 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.1 °C / -7.3 F).
Thermal image - top side
Thermal image - top side
Thermal image - bottom side
Thermal image - bottom side
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Heat
0%
2%
6%
Maximum Upper Side *
41.7
41
2%
43
-3%
40.6
3%
Maximum Bottom *
54.3
43
21%
47
13%
46.4
15%
Idle Upper Side *
26
29.4
-13%
27
-4%
25.2
3%
Idle Bottom *
27.1
29.6
-9%
27
-0%
26.8
1%

* ... smaller is better

Speaker

The ExpertBook B1 B1400's speakers offer a medium volume and a sound spectrum that is pronounced on the mids. Thus, they are suitable for the occasional consumption of media content in quiet environments. However, external speakers or headphones are still recommended for listening to music and the like.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.834.82530.2353125.928.44028.2295024.326.3632424.88020.625.410020.533.812518.537.516016.341.120019.349.325015.855.231514.15940012.363.250010.666.263012.1668009.969.810001073.112501075.4160011.669.8200010.866.725001165.6315011.562.5400011.863500012.267.2630012.370.4800012.367.61000012.566.71250012.861.91600012.262.9SPL23.881.1N0.550.1median 12.2median 65.6Delta25.623.218.223.220.821.320.821.919.621.925.82225.822.419.522.424.323.124.32321.62328.32728.328.72428.728.418.528.435.326.235.337.821.237.842.418.442.447.516.647.555.219.555.261.717.261.766.514.666.569.813.269.864.513.664.561.31361.357.312.957.355.413.255.454.912.654.954.312.954.354.81354.852.412.852.456.812.656.857.412.457.456.512.156.547.611.347.673.526.673.528.50.928.5median 54.9median 13.2median 54.98.63.28.6hearing rangehide median Pink NoiseAsus ExpertBook B1 B1400CEAE, i5-1135G7Acer TravelMate P614P-52
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ExpertBook B1 B1400CEAE, i5-1135G7 audio analysis

(±) | speaker loudness is average but good (81.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.6% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15% difference to median)
Compared to same class
» 10% of all tested devices in this class were better, 4% similar, 86% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 16% of all tested devices were better, 4% similar, 80% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Acer TravelMate P614P-52 audio analysis

(±) | speaker loudness is average but good (73.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (8.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.4% higher than median
(±) | linearity of mids is average (12% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 10% similar, 24% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 68% of all tested devices were better, 7% similar, 25% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power management - Good battery life

Energy consumption

According to our measurements, the maximum power consumption of the Asus notebook is up to 64.3 watts for a short time, but it is only around 42 watts in the long run. In our idle scenario, the ExpertBook B1 B1400 is very frugal with an average power consumption of 5.2 watts.

The included power supply has an output of 65 watts and is thus sufficiently sized.

Power Consumption
Off / Standbydarklight 0.45 / 0.83 Watt
Idledarkmidlight 3.2 / 5.2 / 6.1 Watt
Load midlight 25.2 / 64.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power consumption Witcher 3 / Stress test

051015202530354045505560Tooltip
Asus ExpertBook B1 B1400CEAE, i5-1135G7; Witcher 3 ultra: Ø27.7 (25.8-33.6)
Asus ExpertBook B1 B1400CEAE, i5-1135G7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø42.5 (7.25-63.7)

Battery life

In our practical WLAN test, the Asus ExpertBook B1 B1400 achieves a runtime of just under seven hours. Thus, it can make good use of its 42 Wh battery and performs better than the Lenovo ThinkBook 14 G2, which is equipped with a larger capacity.

Battery Runtime
WiFi Websurfing
6h 56min
Asus ExpertBook B1 B1400CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs, 42 Wh
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Honor Magicbook 14 i7-1165G7
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
i5-1135G7, Iris Xe G7 80EUs, 45 Wh
Average of class Office

Battery Runtime
28%
39%
-17%
43%
WiFi v1.3
416
534
28%
580
39%
347
-17%
594 ?(300 - 1137, n=106, last 2 years)
43%
Witcher 3 ultra
120
152 ?(142 - 162, n=2, last 2 years)

Pros

+ stable housing
+ good maintenance options
+ good battery life
+ fast WLAN
+ decent system performance

Cons

- slow memory card reader
- slow working memory
- CPU throttles under heavy load
- low screen brightness

Verdict - Mobile with Asus ExpertBook B1 B1400

In review: Asus ExpertBook B1 B1400. Test device provided by:
In review: Asus ExpertBook B1 B1400. Test device provided by:

In our test, the Asus ExpertBook B1 B1400 proves to be a slim and mobile notebook that is well suited for everyday tasks. Office applications run efficiently and the laptop also copes well with more demanding tasks thanks to its good performance. Thanks to the relatively good battery runtime of seven hours, you do not have to have a power outlet nearby all the time.

Even though the performance proves to be completely sufficient in everyday use, an improvement, especially in the graphics performance, can be achieved by using a second RAM module. The maintenance options also allow for an expansion of the mass memory. Compared to rivals, like the Lenovo ThinkBook 14 G2, the ExpertBook B1 B1400 proves to be on par. Those who also want to work with stronger models, like the Honor MagicBook 14 or the Acer TravelMate P6, can also simply switch to the model variant with an Intel Core i7-1165G7.

The Asus ExpertBook B1 B1400 is ideally suited for mobile office work and is also extremely robust due to its sturdy case.

Price and availability

Besides our loaner Campuspoint the Asus ExpertBook B1 B1400 can also be purchased at Amazon (DE).

Asus ExpertBook B1 B1400CEAE, i5-1135G7 - 11/20/2021 v7
Mike Wobker

Chassis
84 / 98 → 86%
Keyboard
78%
Pointing Device
91%
Connectivity
66 / 80 → 82%
Weight
69 / 20-75 → 89%
Battery
74%
Display
80%
Games Performance
59 / 78 → 75%
Application Performance
88 / 95 → 92%
Temperature
87%
Noise
96%
Audio
81%
Camera
33 / 85 → 39%
Average
76%
84%
Office - Weighted Average

Pricecompare

Read all 2 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Asus ExpertBook B1 B1400 in review: Small, light and affordable
Mike Wobker, 2021-11-30 (Update: 2021-11-30)
