Review Acer Aspire P3-171-3322Y2G06as Convertible

Iconia basic. Windows alongside decent computing power packed in a quality aluminum tablet featuring a colorful and bright IPS screen. A keyboard-case combination is also included. There is barely a contender that can beat the current price of just below 600 Euros (~$769). Bargain alert?
Acer Aspire P3-171-3322Y2G06as: The perfect fusion of tablet and subnotebook for Windows fans?
Acer Aspire P3-171-3322Y2G06as: The perfect fusion of tablet and subnotebook for Windows fans?

For the original German review, see here.

The Aspire P3-171 could be described as a slimmed down version of Acer's Iconia W700. After all, it is the same device from the outside and technically for the most part. The P3 offers "weaker" hardware for less money. At a price of just below 600 Euros (~$769), it sports an Ivy Bridge Core i3 alongside a 60 GB Intel SSD and an IPS with just 1366x768 pixels. It is a matter of course that a protective case with integrated chiclet keyboard is again included. The only significant difference, the Iconia W700 can apparently score with a Full HD screen (1920x1080). However, 50 Euros (~$64) more is charged for the lowest i3 configuration (i3-2365M).

Find out which qualities the slimmed down IPS screen features in our in-depth review. Is the performance difference of the Sandy Bridge i3-2365M to the Ivy Bridge i3-3229Y weighty? Both CPUs have 2 x 1.40 GHz each. Are there serious points of criticism? Or is the Aspire P3-171 a good deal for everyone who wants a swift Windows tablet alongside a hardware keyboard?

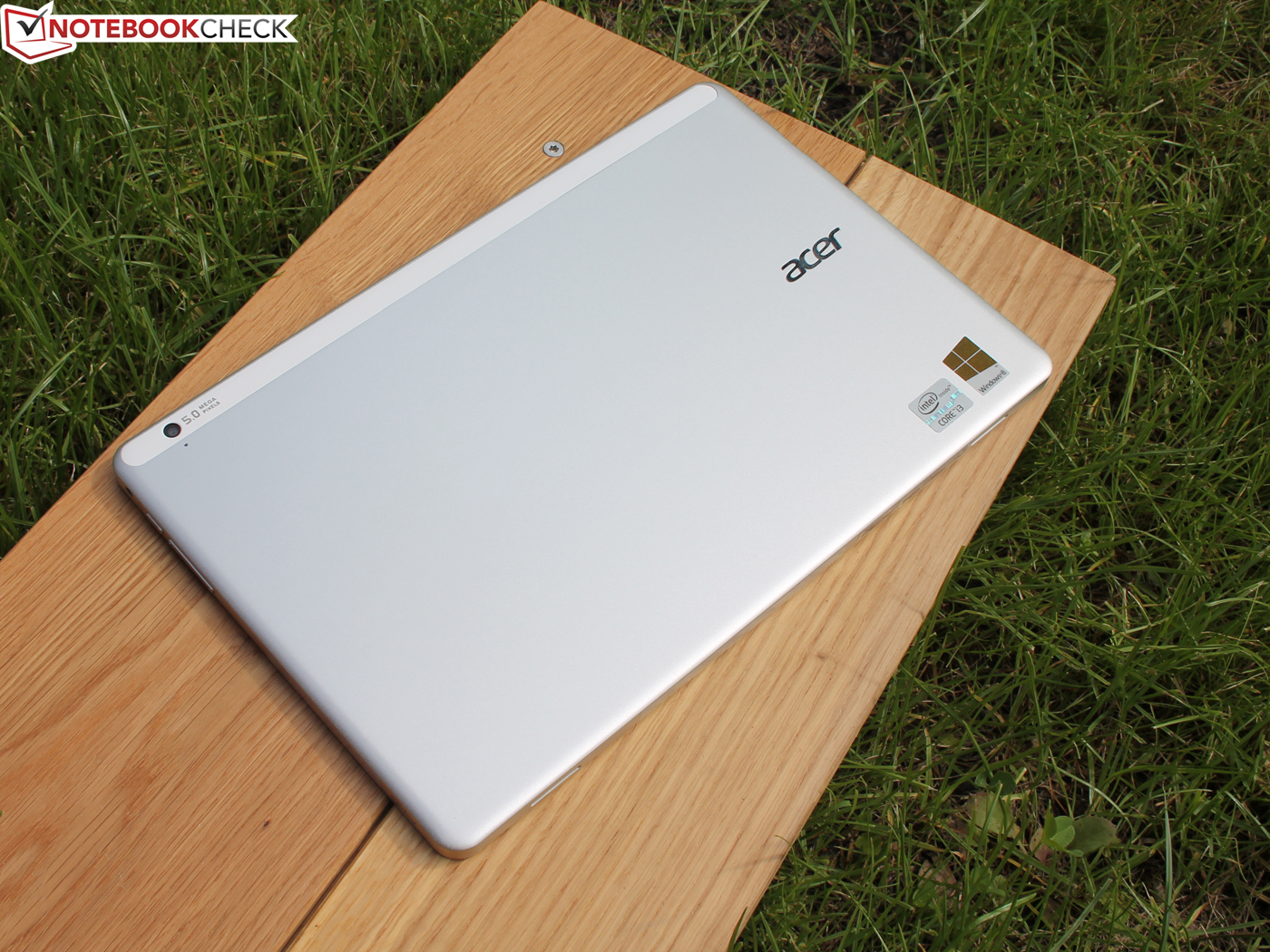

Case

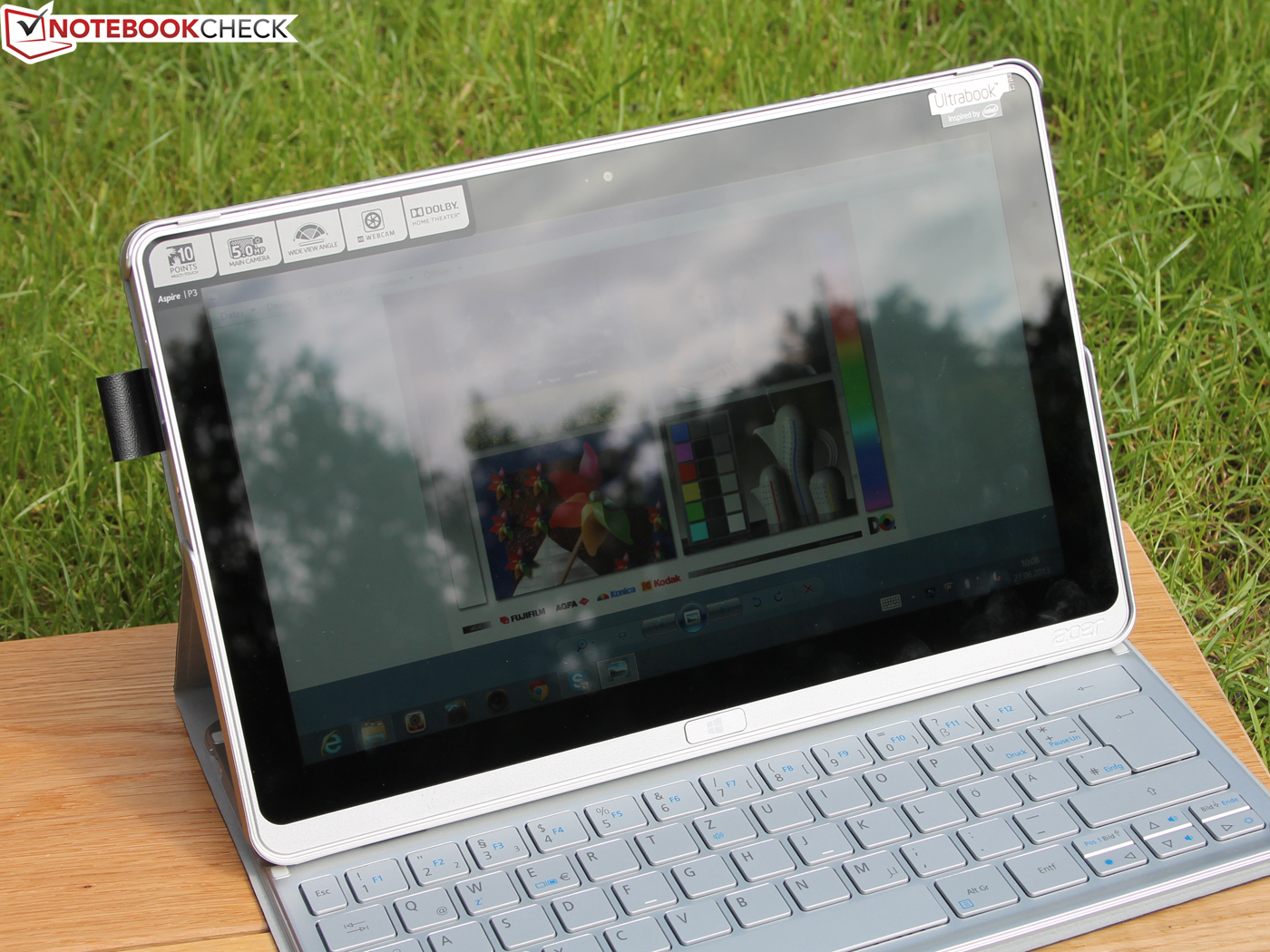

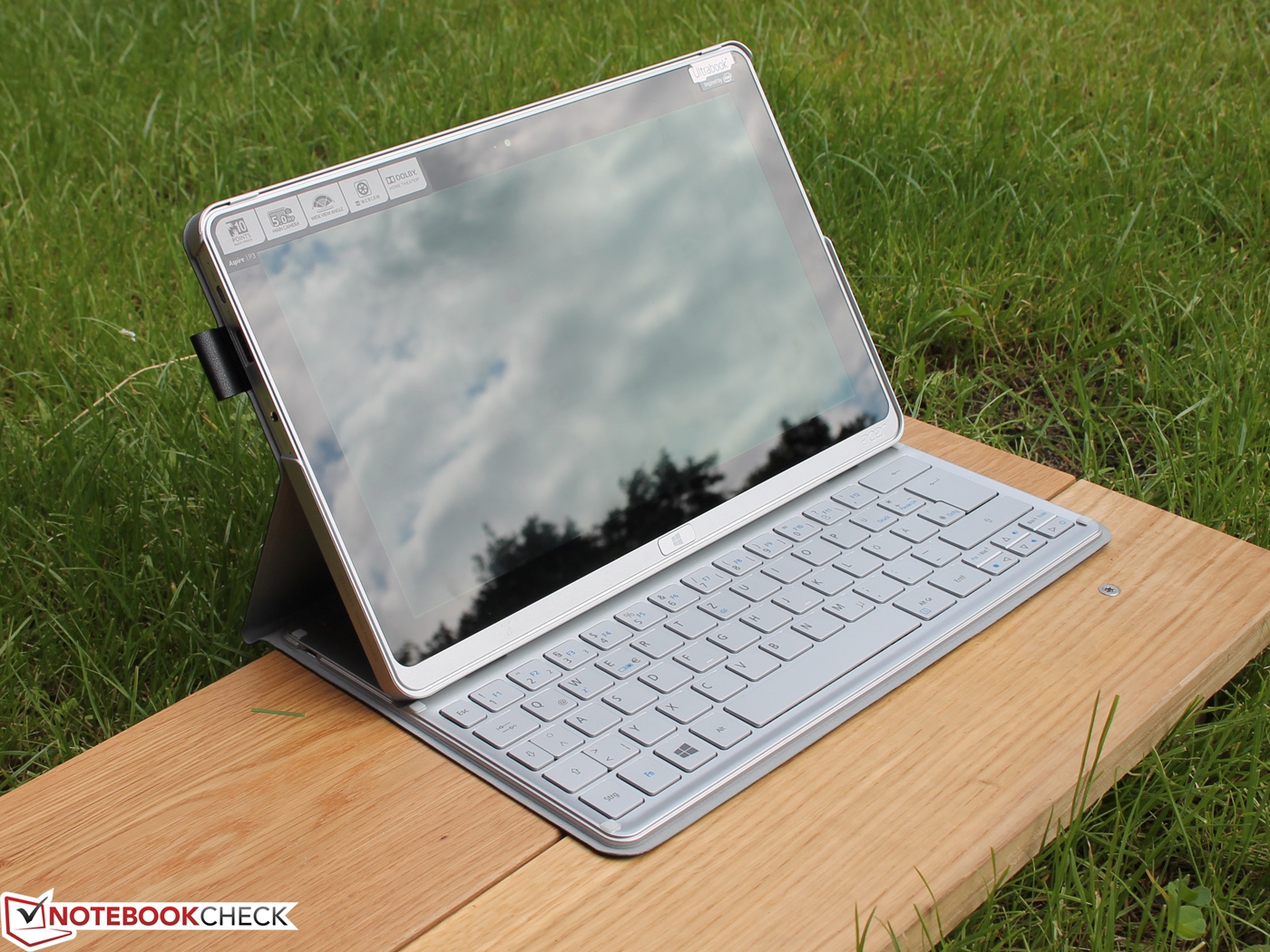

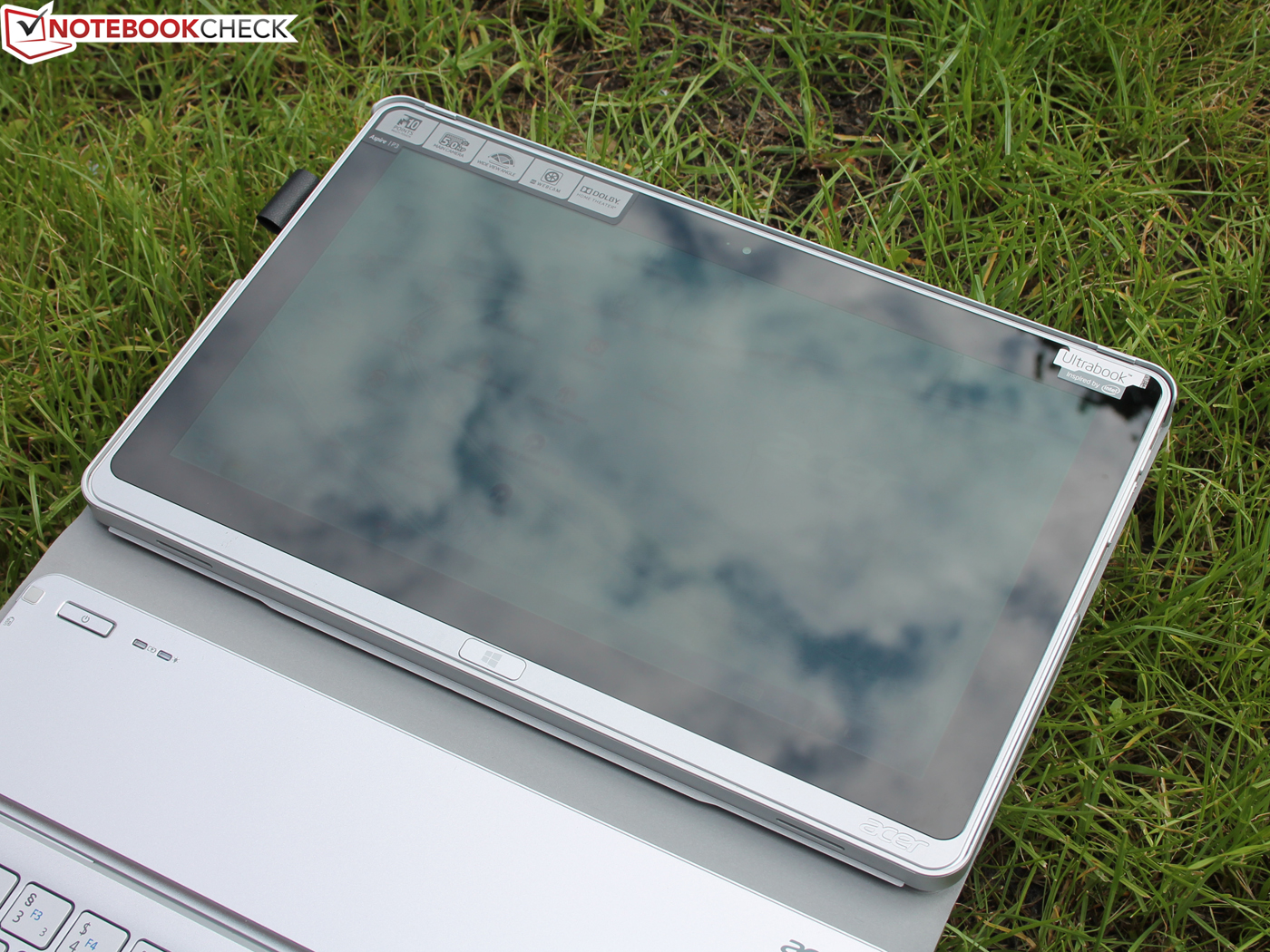

P3 in keyboard mode
P3 in keyboard mode

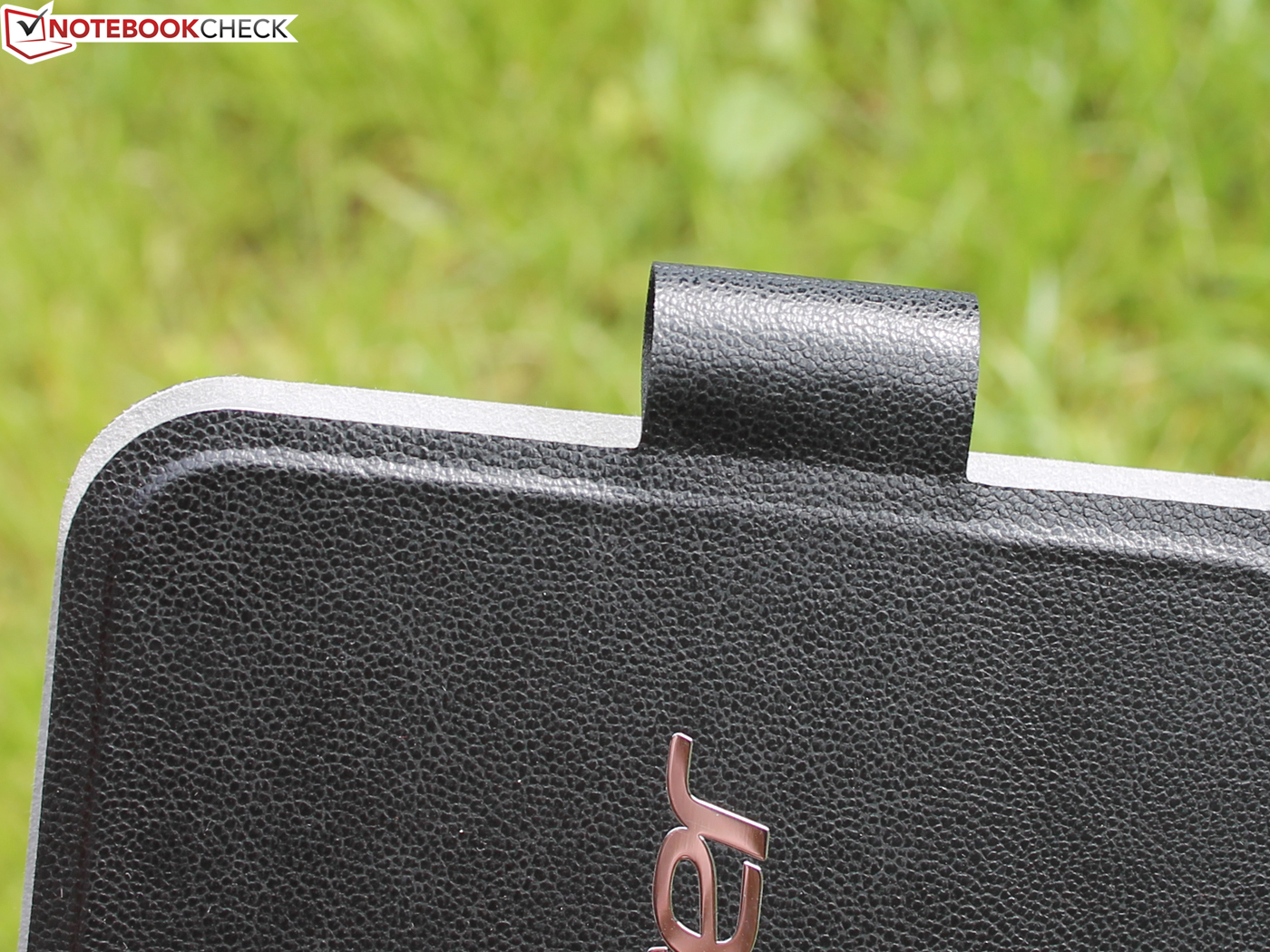

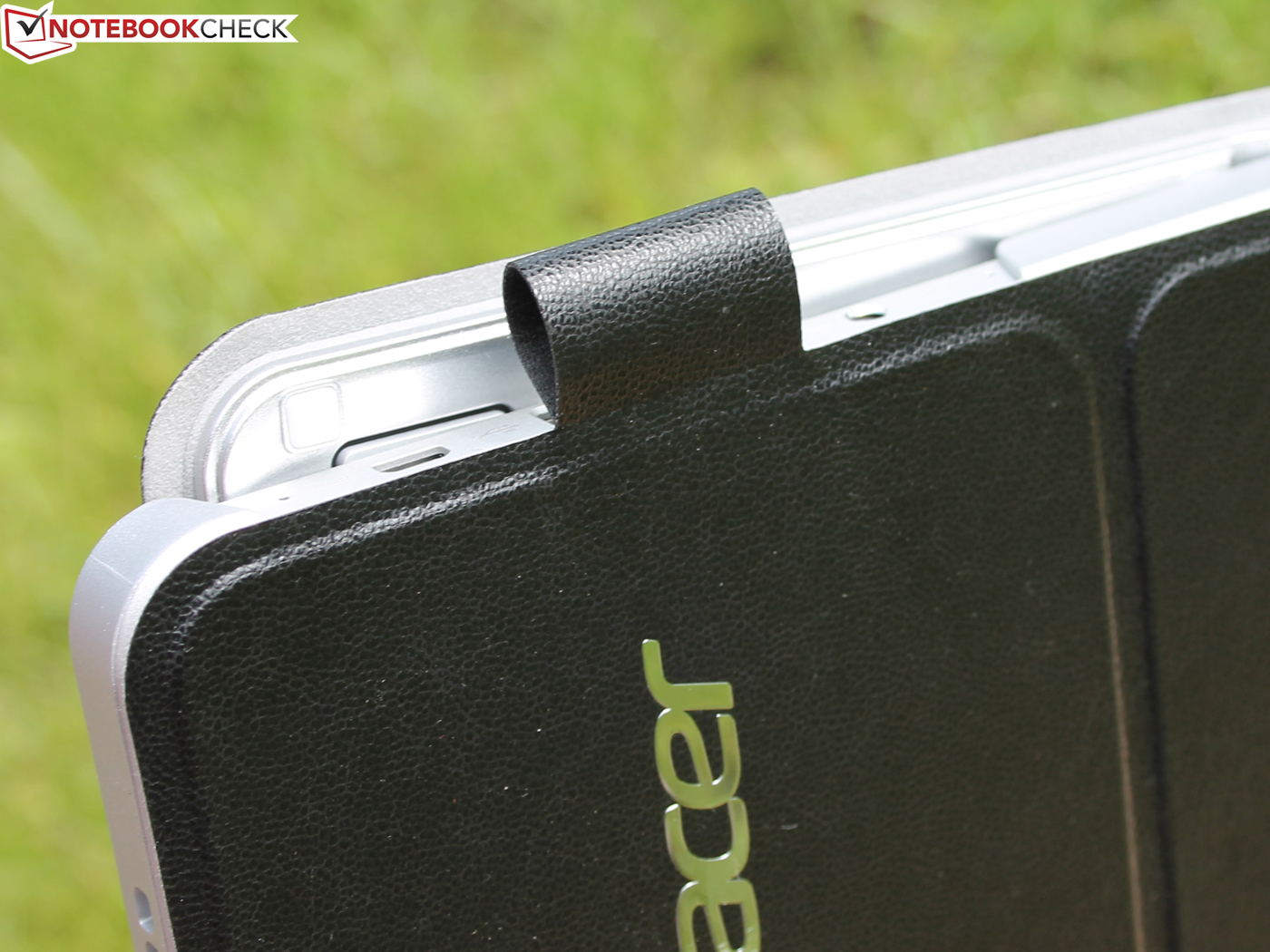

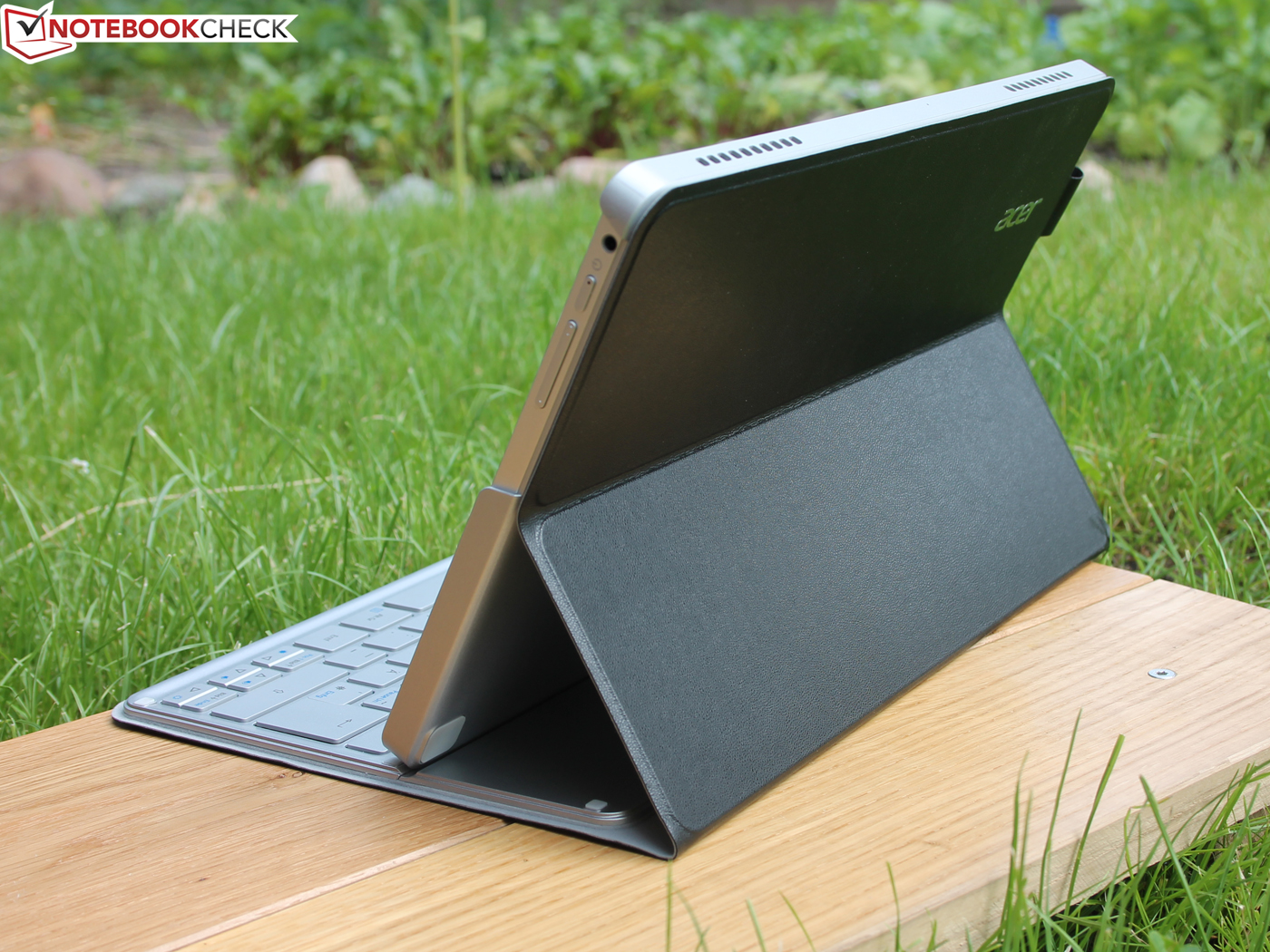

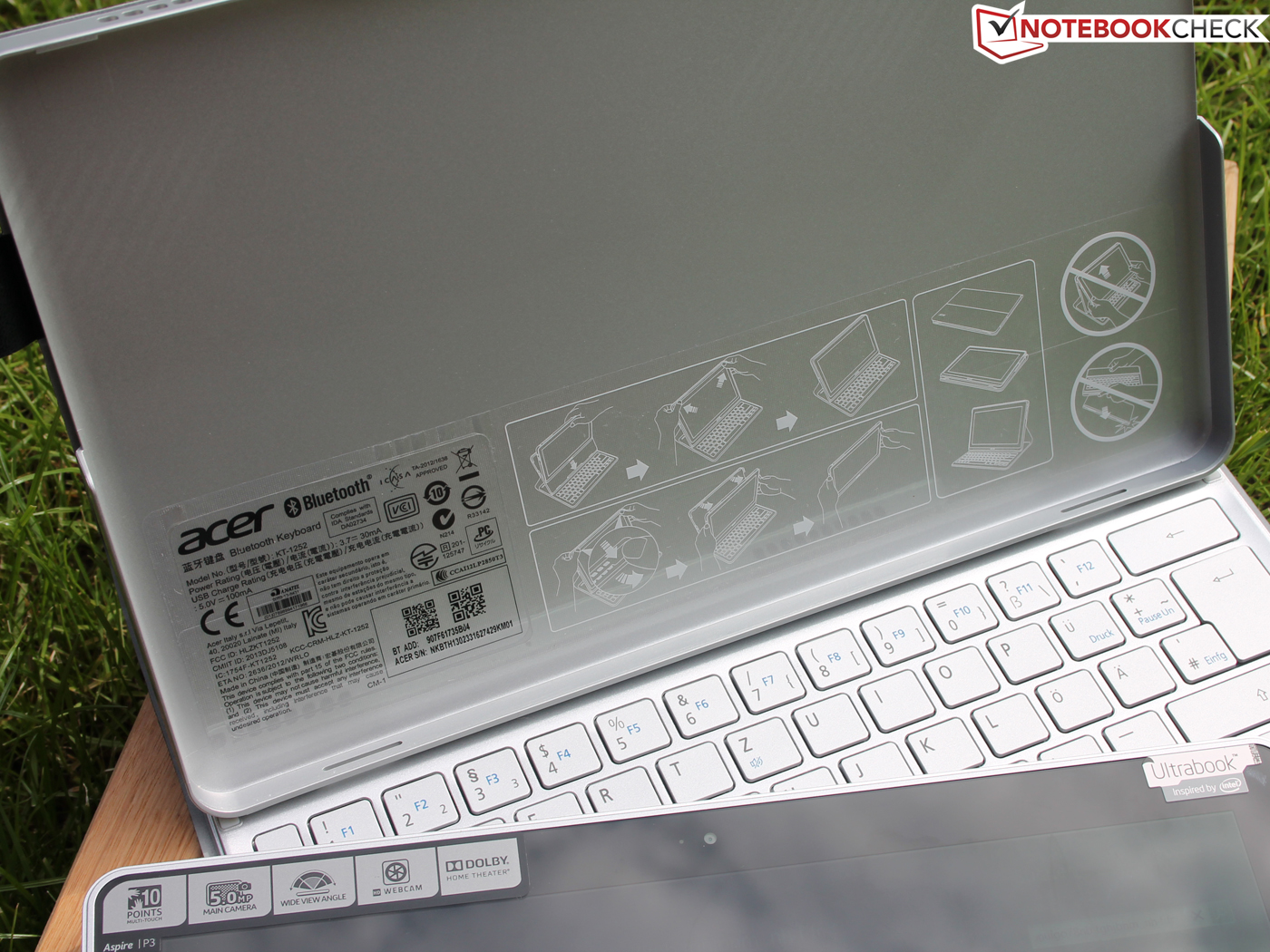

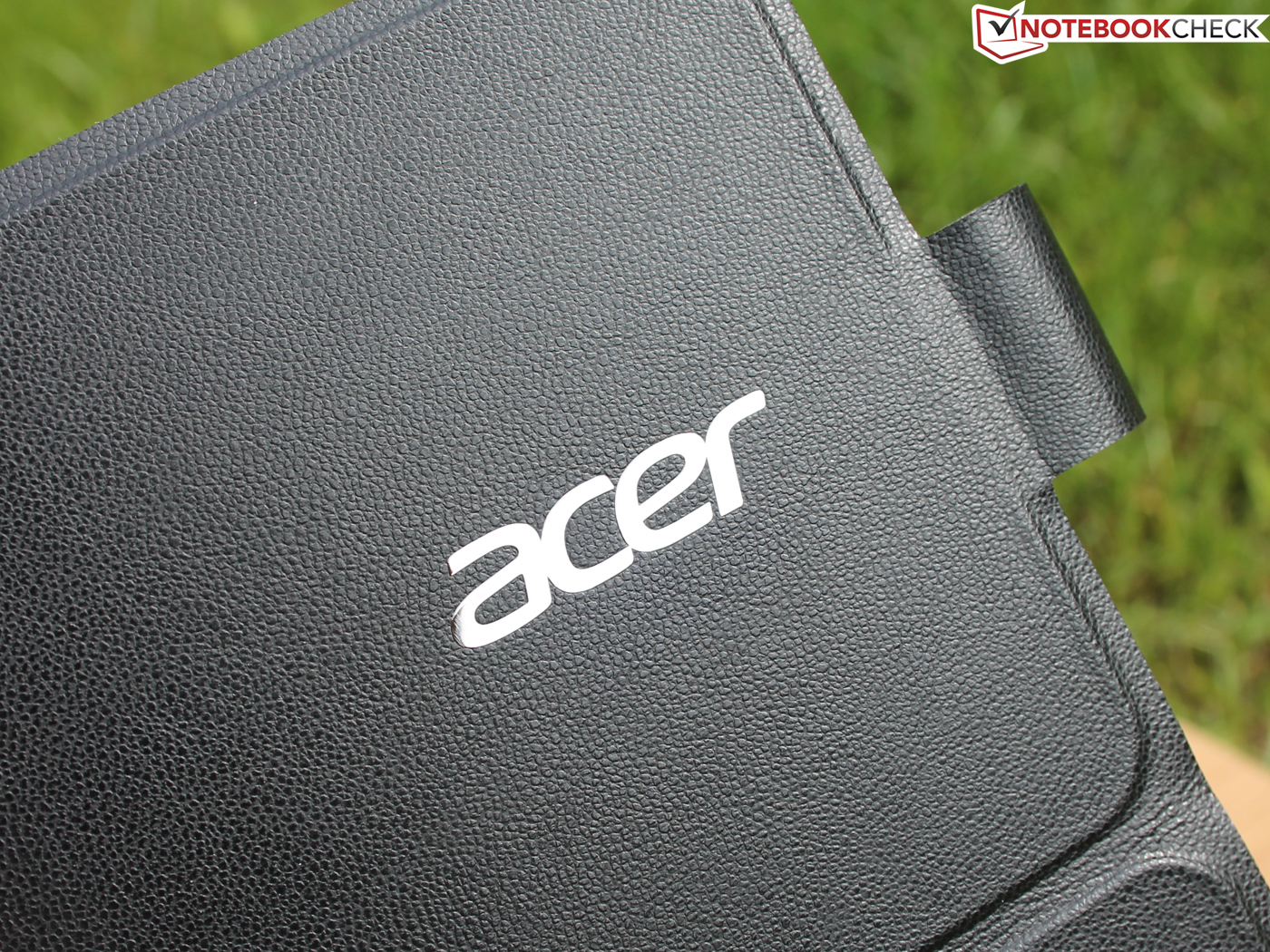

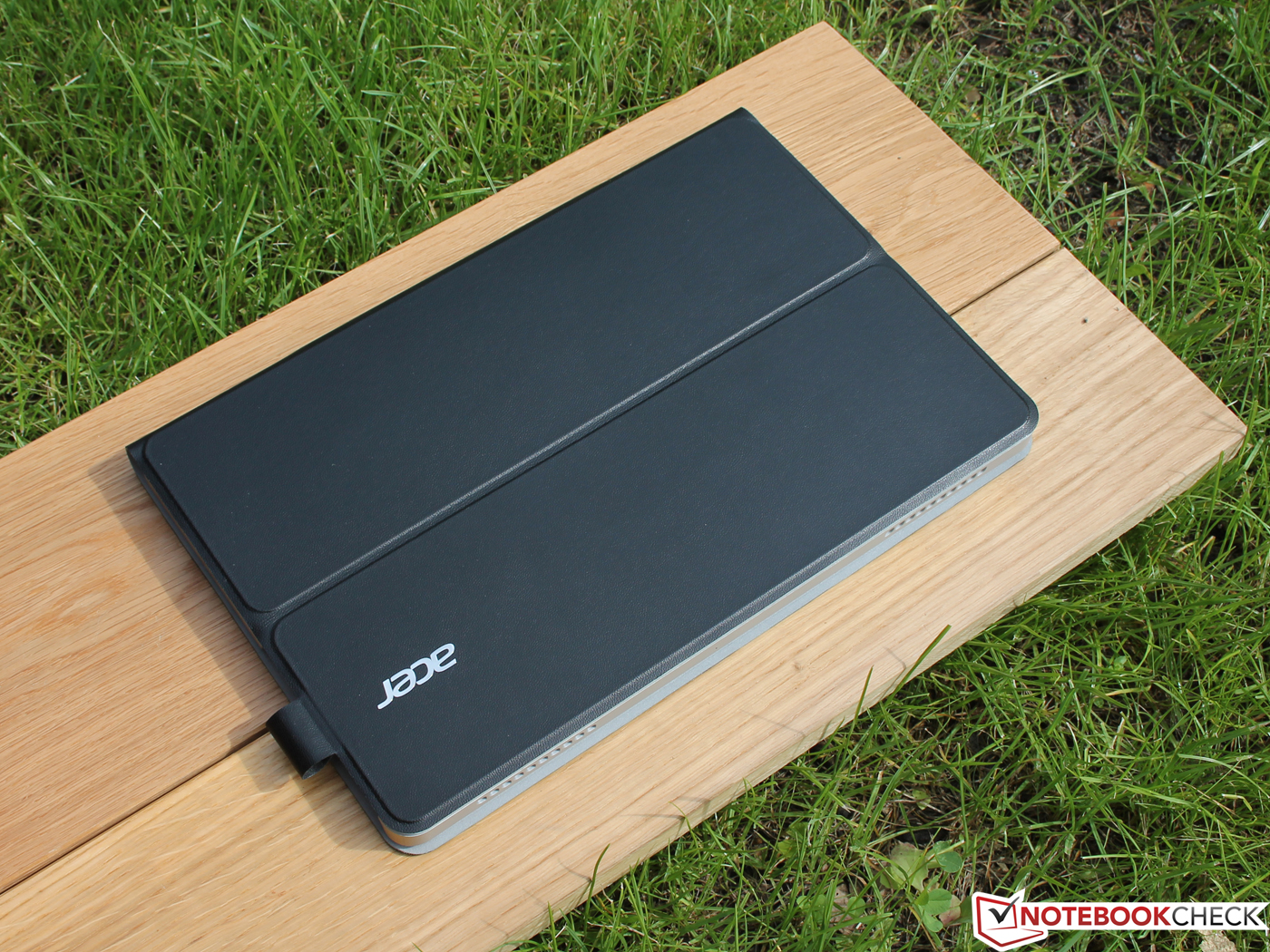

The case safely protects the tablet
The case safely protects the tablet

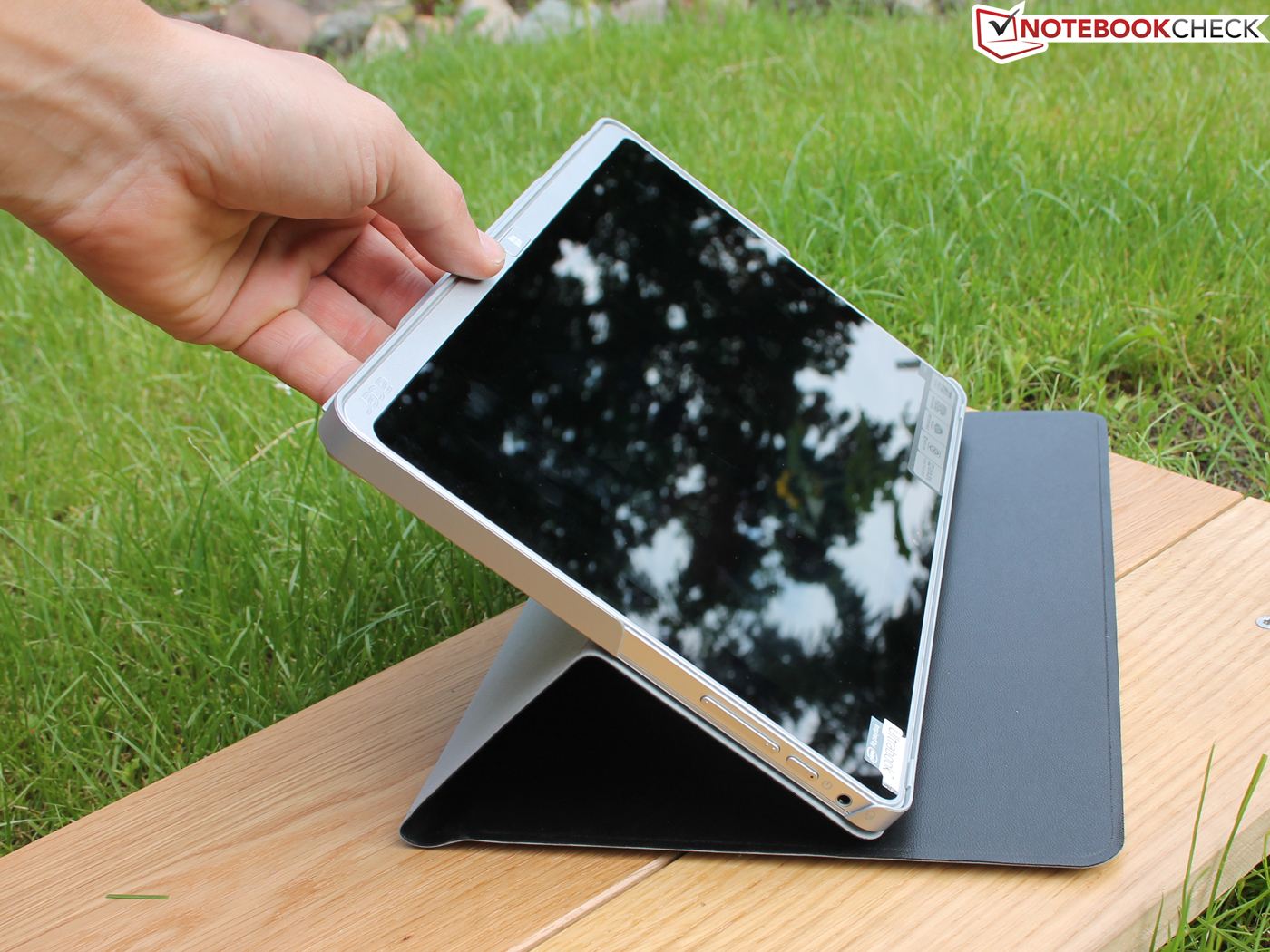

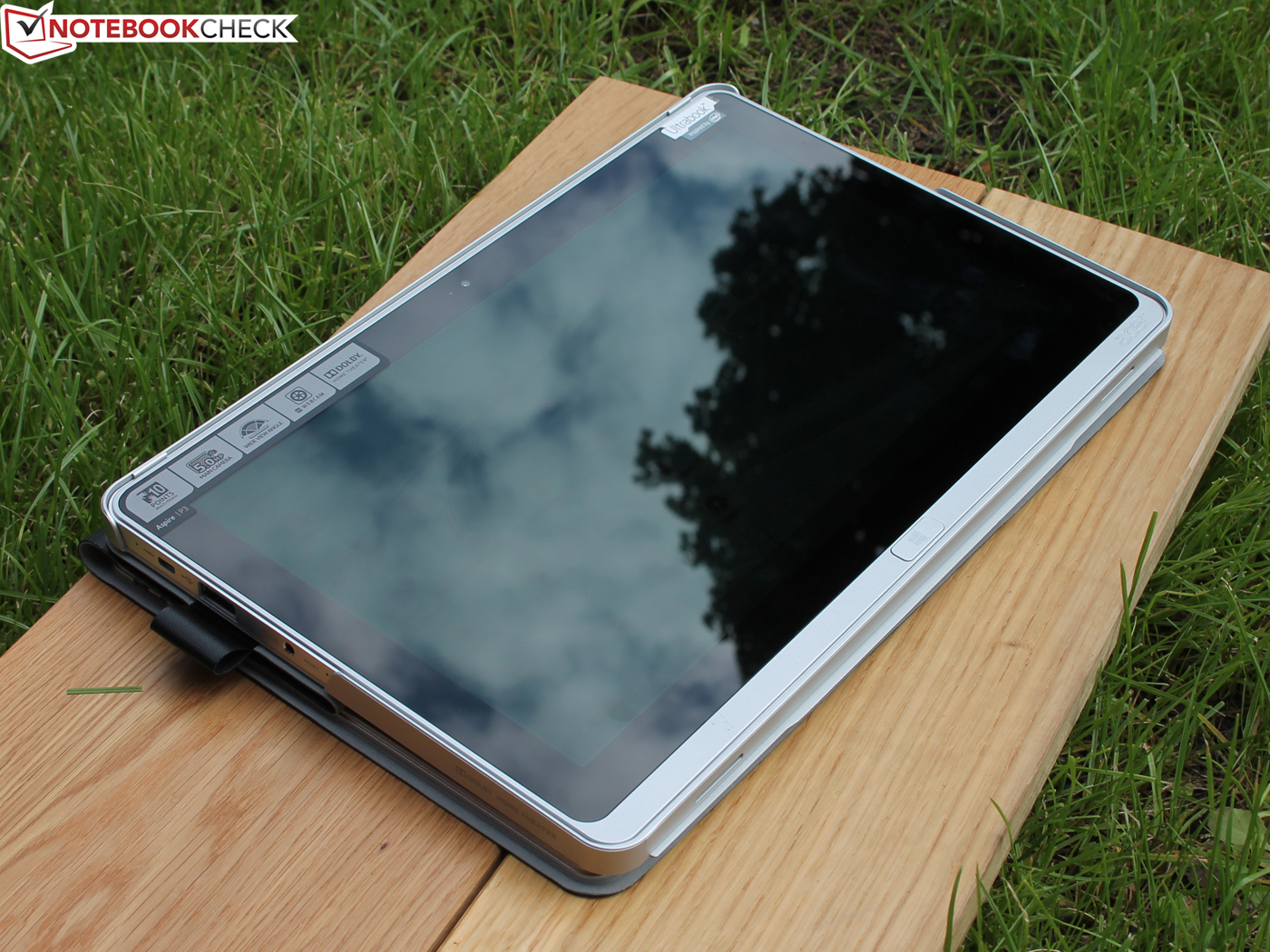

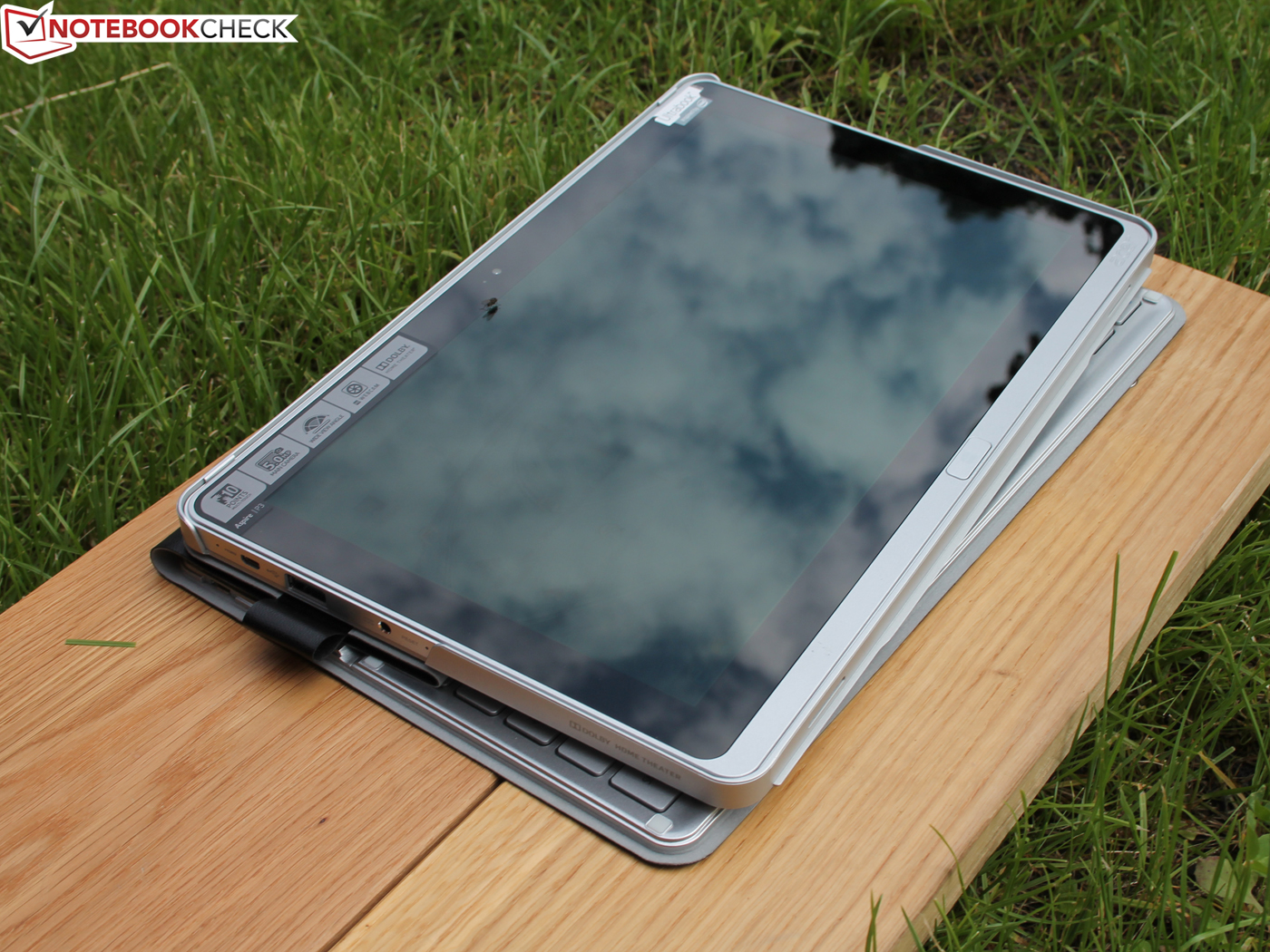

Of course, the tablet can be removed
Of course, the tablet can be removed

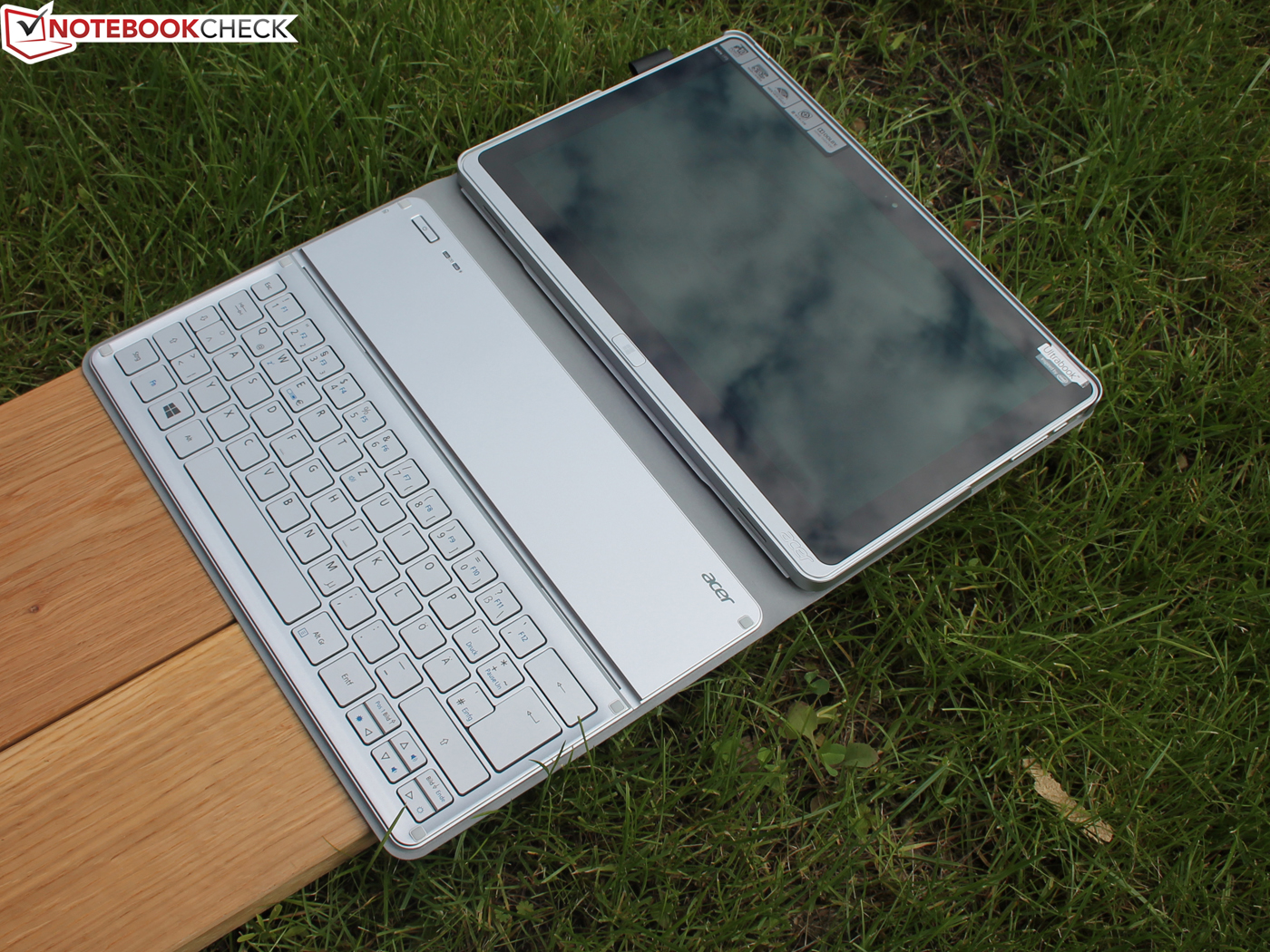

The 11.6-inch device is delivered in two parts, the Bluetooth keyboard (protective) case and the actual keyboard. The base of the latter consists of a kind of aluminum tray that encloses the innards and the screen. We could actually call it an aluminum unibody. The anodized, matte finish prevents fingerprints and it has a non-slip feel. The screen's pane only yields under high force. Scratches were first noticed on the silver bezel and above the keyboard after only a few days of real use during a trip. The finish does not seem particularly resistant.

The keyboard case is inserted into the tablet via a plastic latch. It fits securely and recesses ensure air circulation. We took the following measurements with the keyboard case because it is basically a bundle. Users will unlikely remove the P3 from the case very often since the keyboard mode will be used most of the time. Besides that, taking it out requires using the fingernails to an extent.

The laptop position locks securely because a wedge snaps into a narrow slot. Other positions are not possible. The screen rotates when held upside down but the tablet falls over.

The Iconia W700 tablet (IPS 1920x1080 pixels) keyboard case is different. It is made of soft, transparent plastic like some smartphone sleeves. We are dealing with hard plastic in the present Aspire P3.

Connectivity

The interfaces are no big surprise. They are the same as in the W700 but with a slightly different distribution. We criticized the lack of a second USB port and omitted card reader in the sister model. The tablet is not so thin that the omission could be justified.

USB 3.0 and a micro-HDMI port are on the device's upper left. Users will have to look at unwieldy cables when an external TFT is connected. Heavy plugs and adapters also pull precariously at the small ports that could break after a certain time. The P3 does not offer anything similar to the rotation lock switch found on the W700 (top left, by the air outlets).

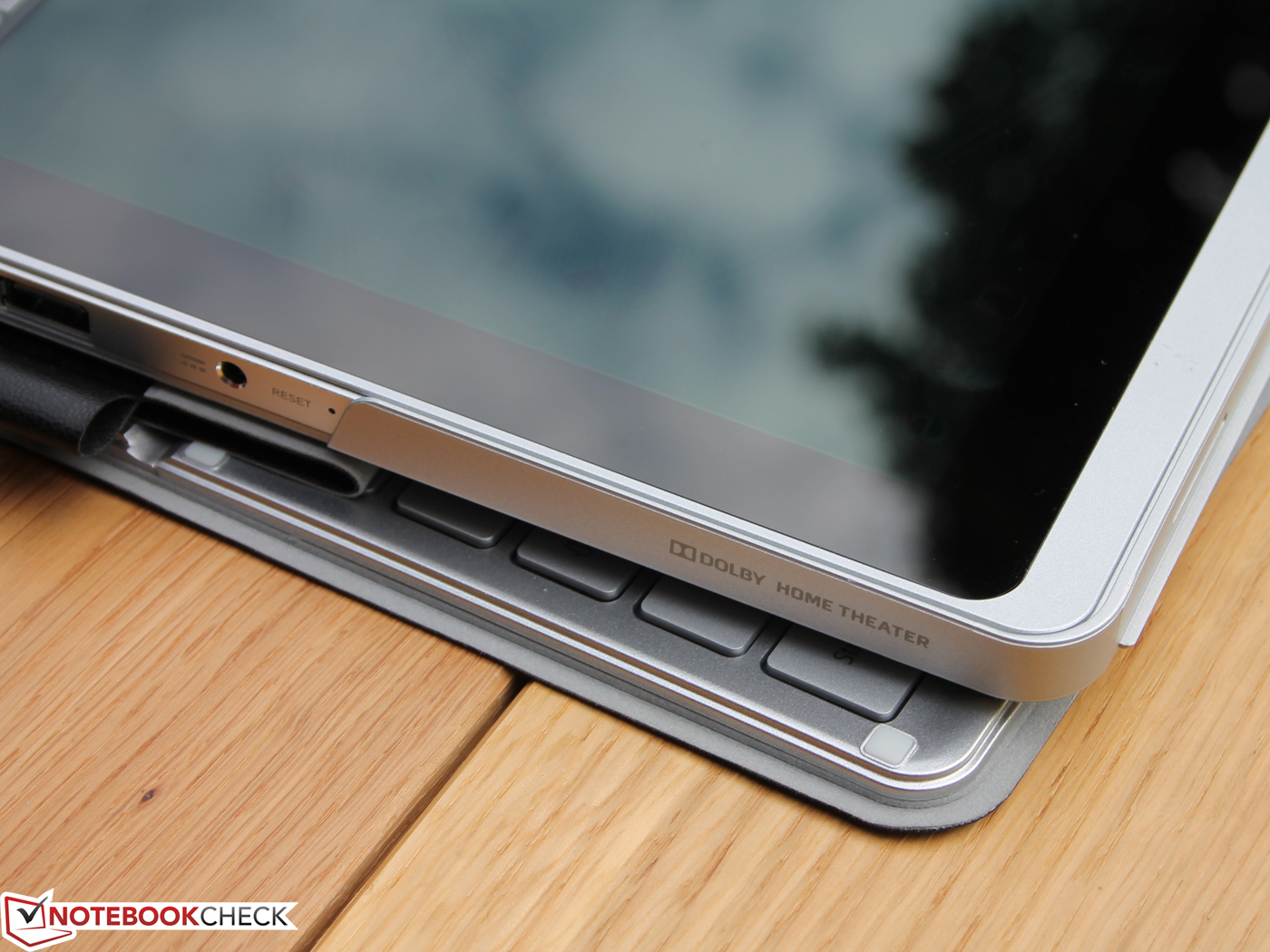

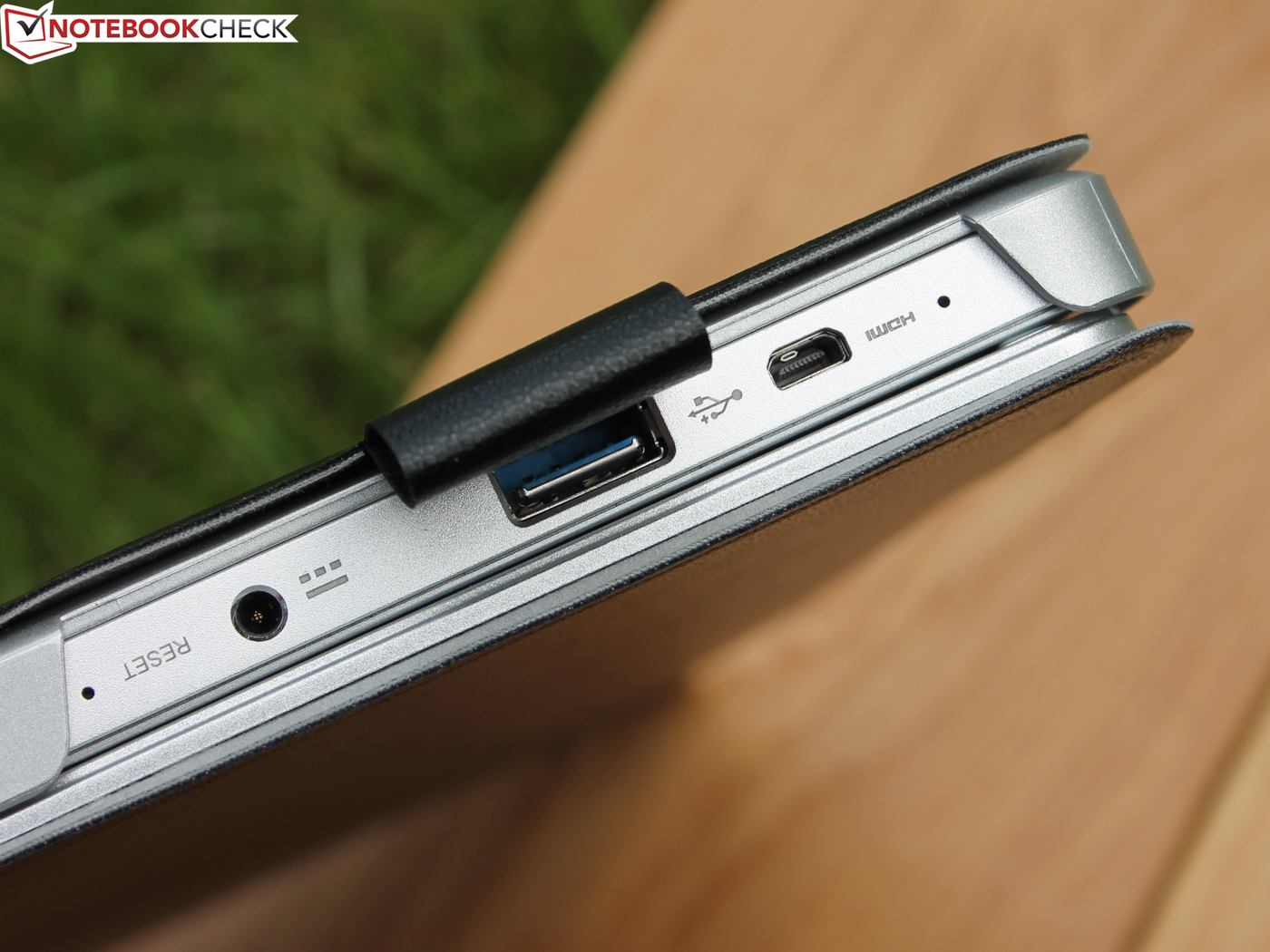

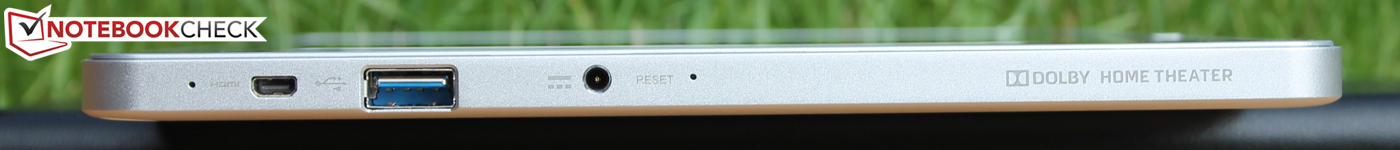

Micro HDMI, USB 3.0, AC, Reset (e.g. via a paper clip)
Micro HDMI, USB 3.0, AC, Reset (e.g. via a paper clip)

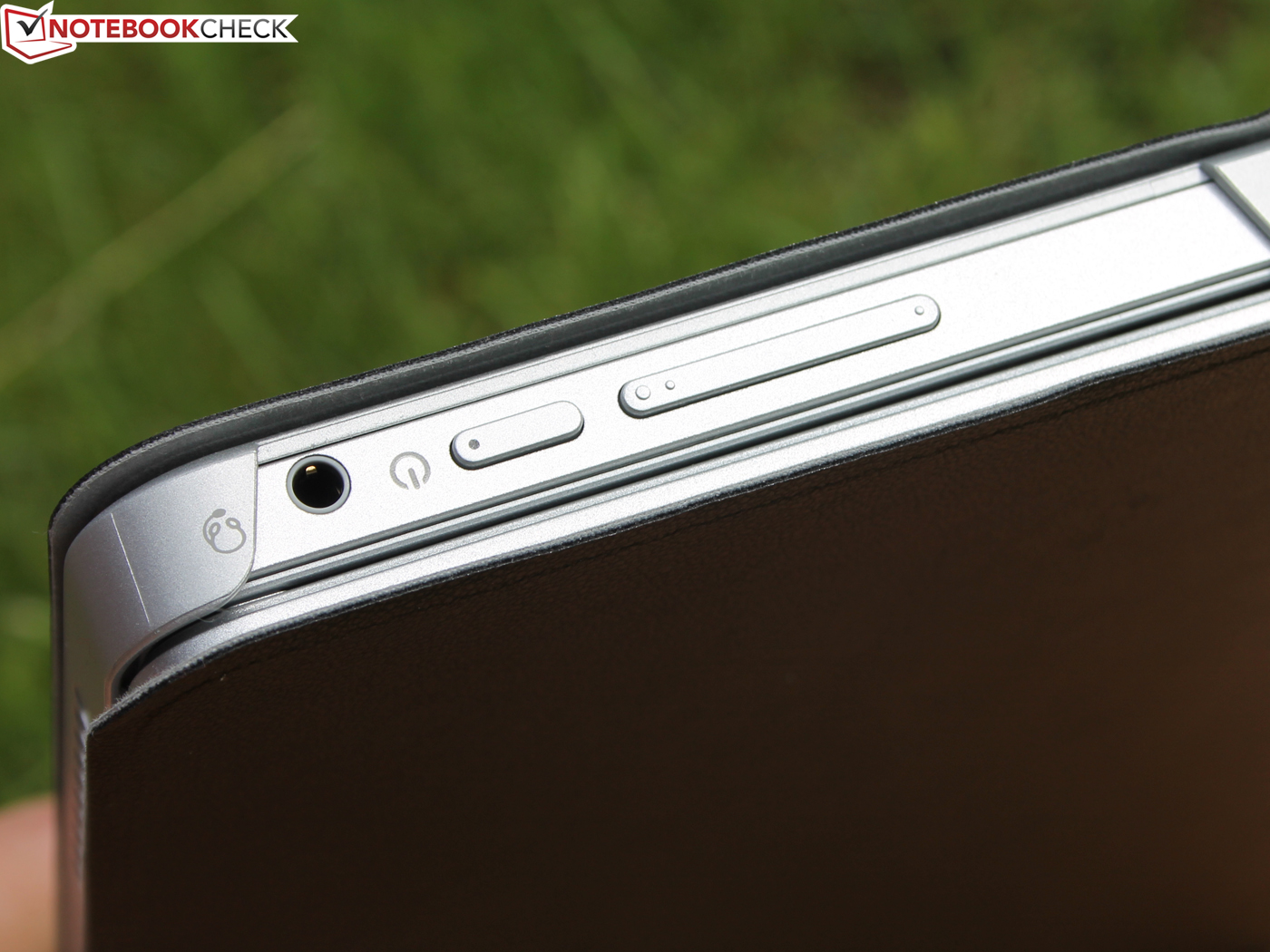

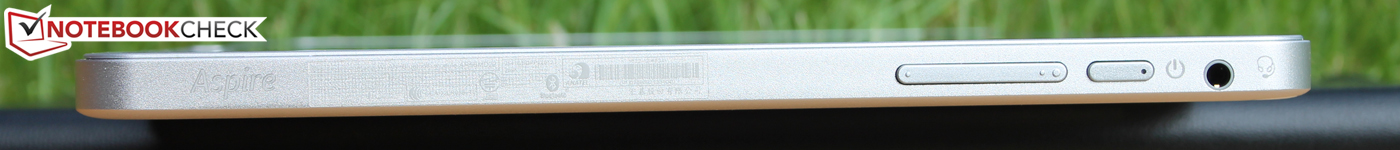

Volume rocker, power button, headphone / microphone combo
Volume rocker, power button, headphone / microphone combo

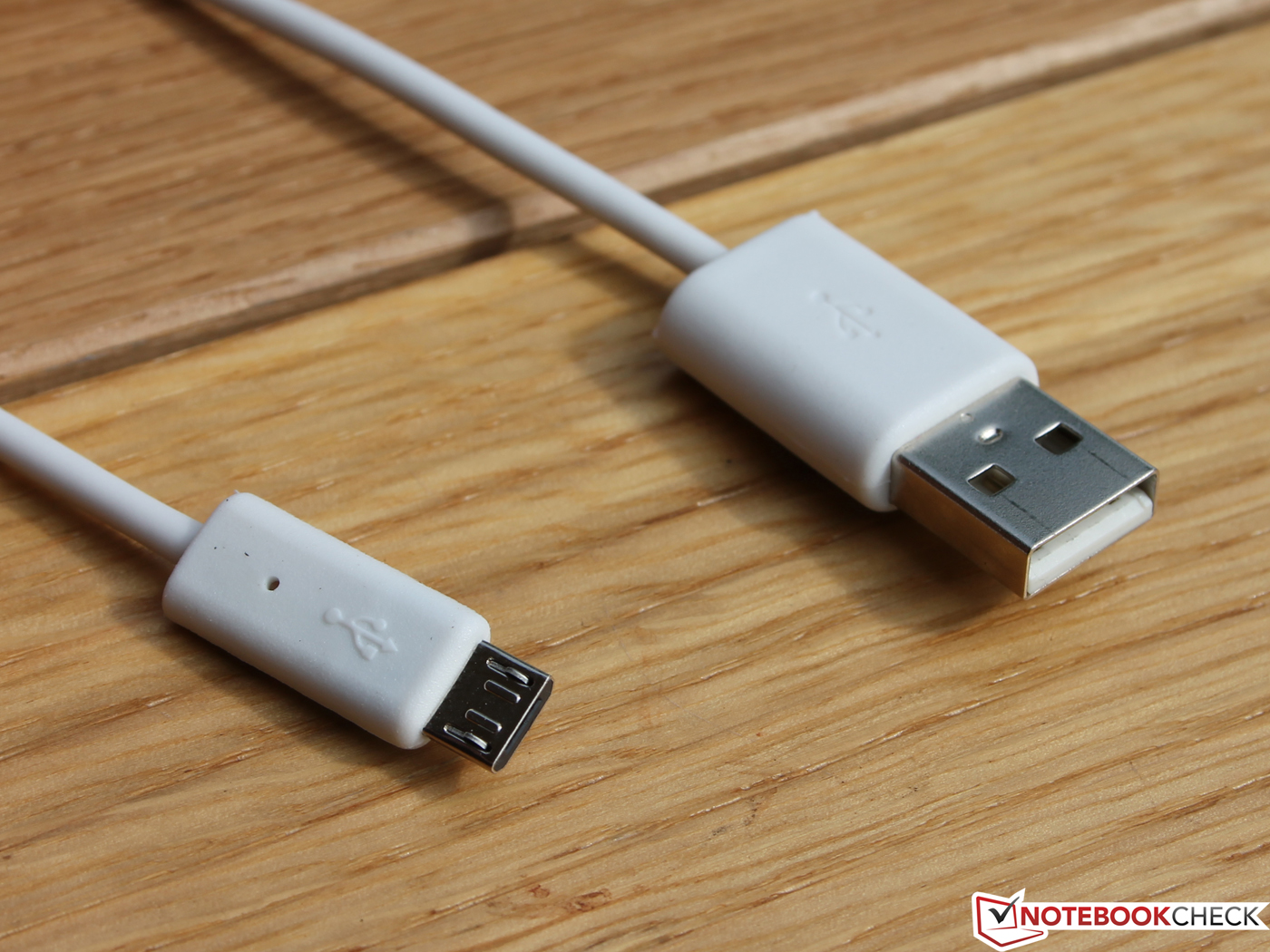

USB charging cord for the Bluetooth keyboard
USB charging cord for the Bluetooth keyboard

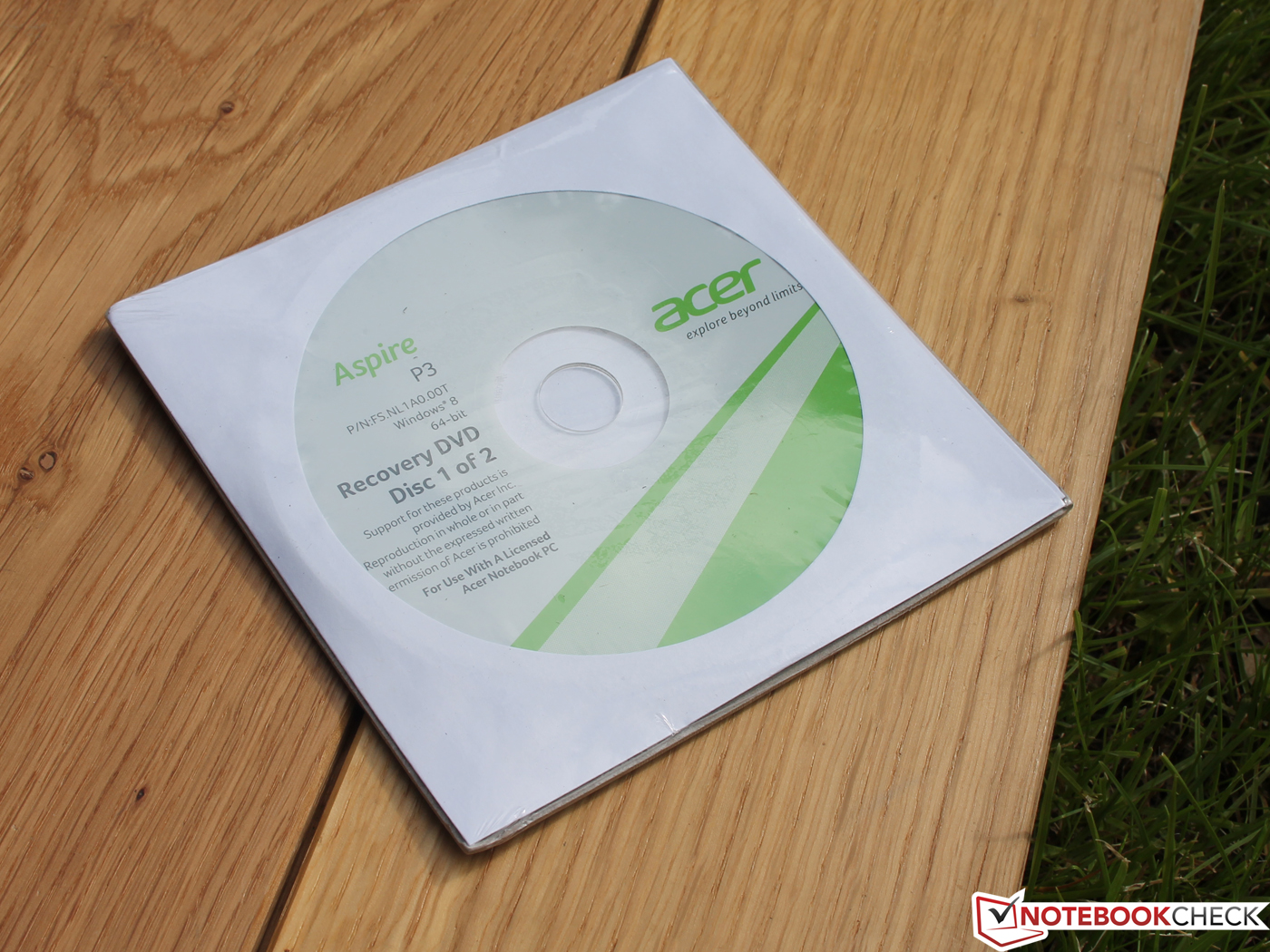

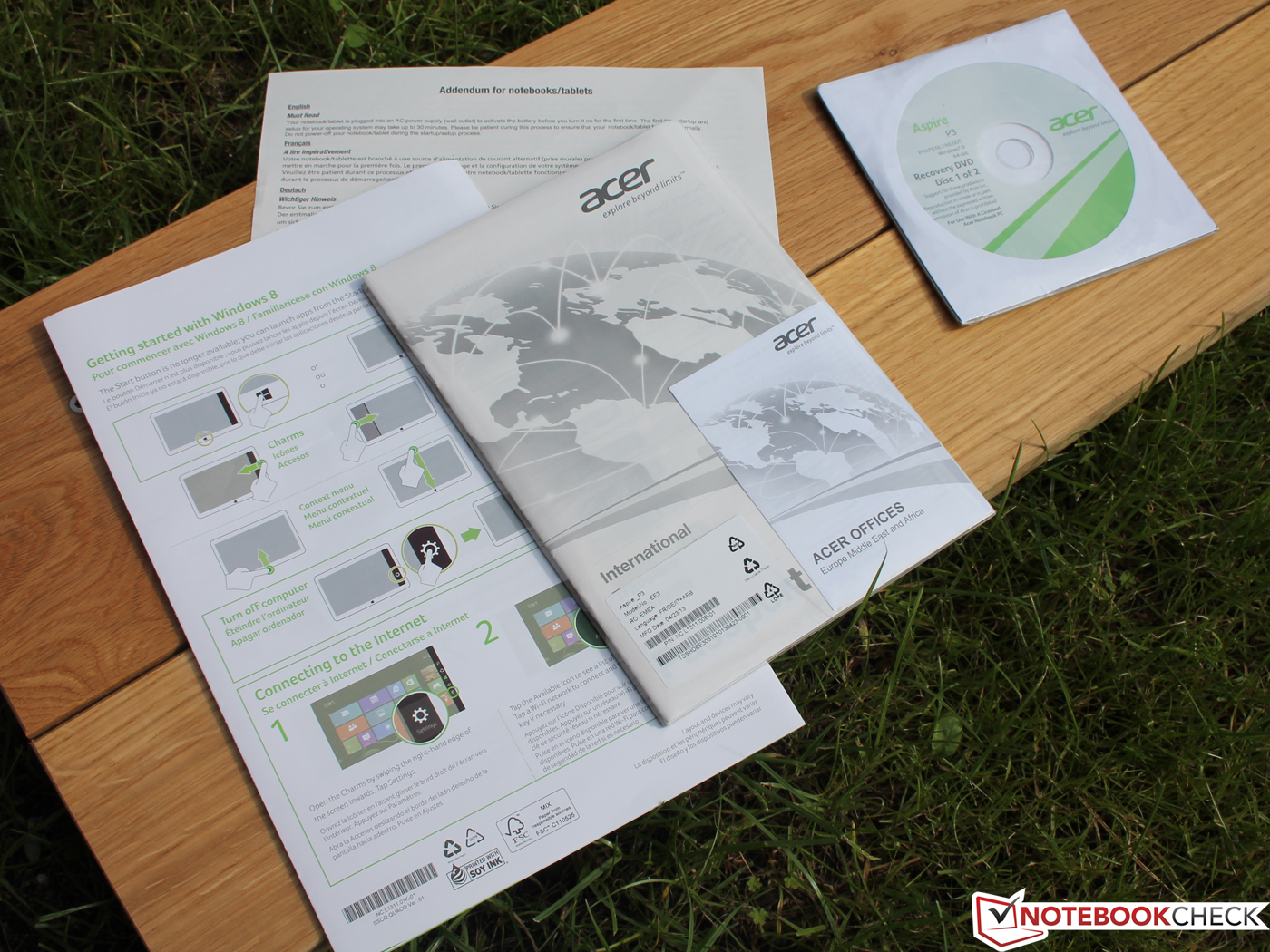

Quick start guides and Windows 8 recovery DVDs
Quick start guides and Windows 8 recovery DVDs

Communication

Qualcomm's Atheros AR5BMD22 Wireless adapter supports the extended 5 GHz band in addition to the 2.4 GHz band. That should rarely be needed but when the network is overloaded by many users, it is possible to fall back on it. We ascertained its range in a quick check in four positions in our office environment. 5 of 5 signal bars were displayed one story above the router (Fritz!Box at 50% transmission power). Four bars were still displayed at a distance of 15 meters (~49 feet), where we were outside of the building. We lost the signal permanently at a distance of 40 meters (~131 feet), at the furthermost corner of the property boundary. Some laptop contenders also fail at this distance, but many still have a weak connection. The Bluetooth module supports the 4.0 standard and can thus communicate with the keyboard economically.

Accessories / Software

Acer always includes the keyboard case for the P3. The former is recharged via the USB 3.0 port and turned off and on via a switch. Regrettably, the device only features one USB port and is thus occupied when recharging the keyboard. However, a second recharge was not necessary during our test phase. Only the USB charging cord for the keyboard is included. The user needs this unique cable due to a special, particularly flat USB used on the keyboard.

Acer delivers the Aspire P3 with Windows 8 64-bit. The box even contains recovery disks. The two Windows 8 recovery DVDs are a rare thing and manufacturers usually only include driver DVDs. The user does not need an optical drive for recovering the default settings. A hidden recovery partition with this data is on the SSD. The default settings can be restored via Windows PC settings. Acer installs Social Jogger (that unites the four major social networks in one view), Skype and proprietary webcam software so that the user can start communicating right away.

Warranty

Acer includes a 24-month bring-in manufacturer warranty. Acer offers a range of warranty upgrades either over its own web shop or via diverse retailers (69 Euros/~$88 – 139 Euros/~$178). For example, 99 Euros (~$127) is demanded for the 3-year carry-in / 1-year International travelers warranty for tablets and ensures priority and free shipping.

Webcam

The front-facing camera is conceived for video calls only. 640x480 pixels simply do not allow more. Colors look natural but surfaces are very blurry. The high-resolution, 5 MP camera on the back is different. It allows up to 2592x1944 pixels and the results are impressive. Its assets are a viable focus, detailed contours (even small details in the lawn) and natural colors. Acer however omits a flash. Of course, the small sensor cannot compete with an SLR (differentiation foreground and background EOS 1100D).

Front-facing webcam 640x480
Front-facing webcam 640x480

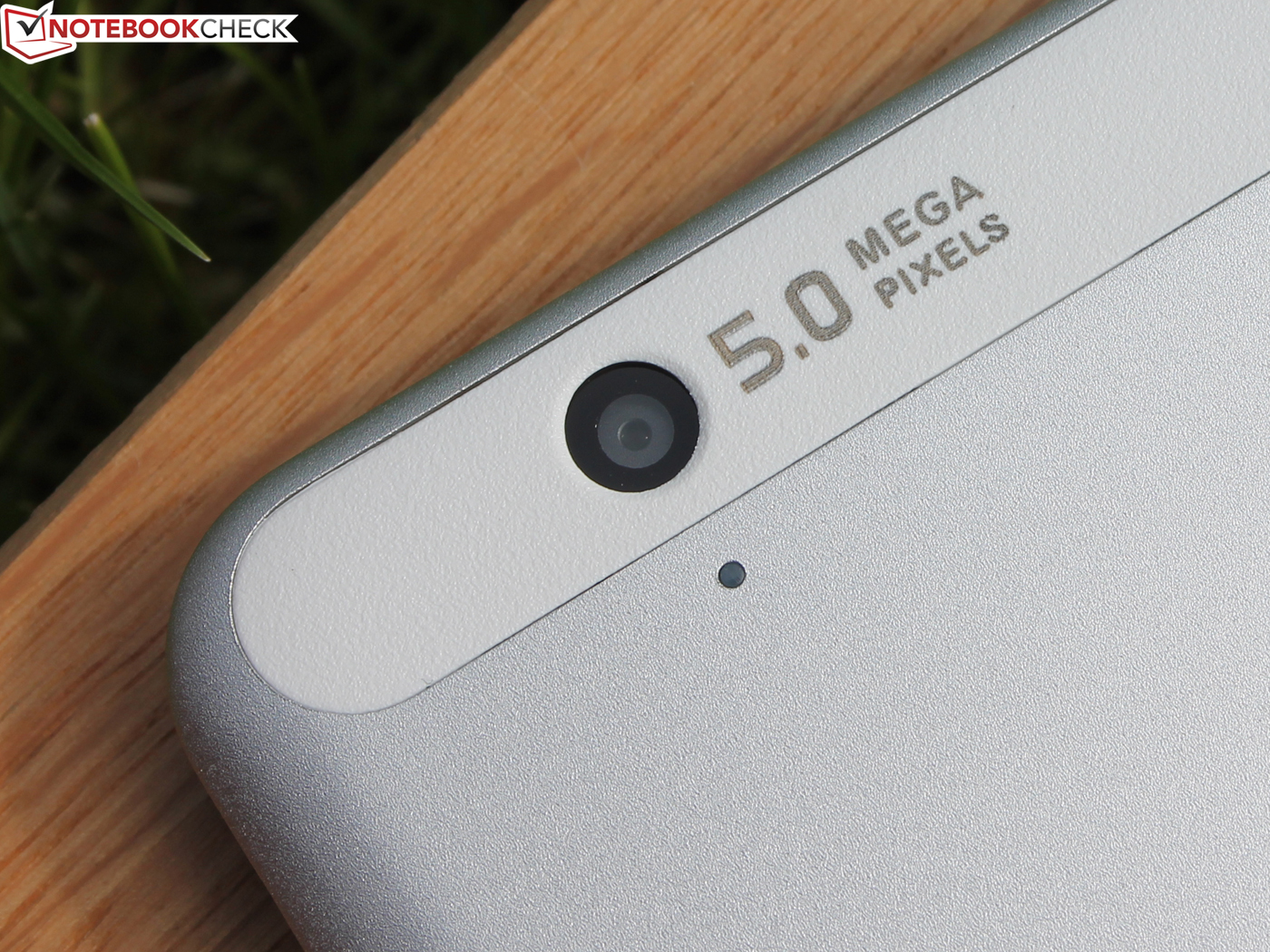

Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Rear-facing 5MP camera: 1280x720
Reference Canon EOS 1100D
Reference Canon EOS 1100D
Reference Canon EOS 1100D distance
Reference Canon EOS 1100D distance


Input Devices

Keyboard

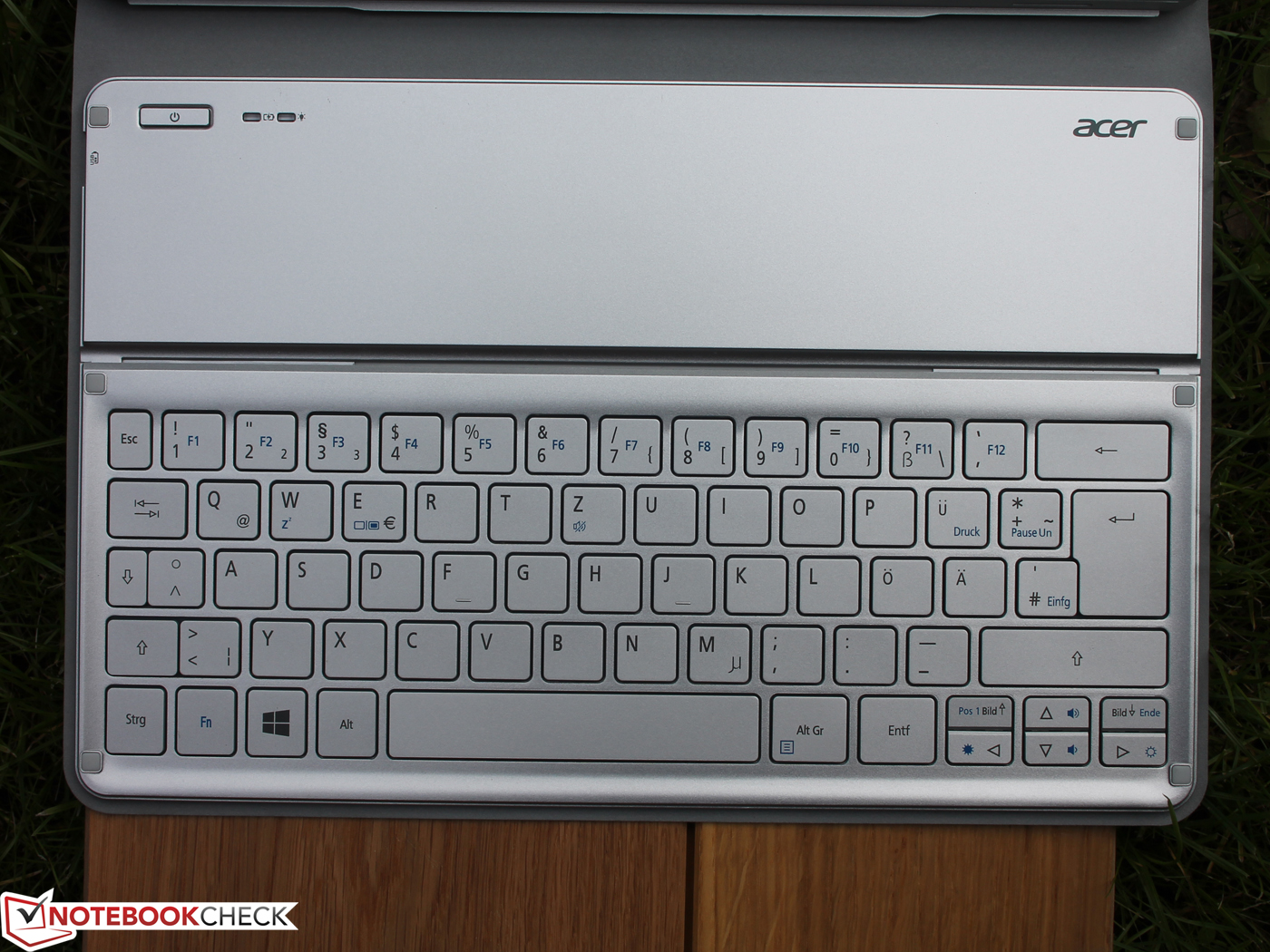

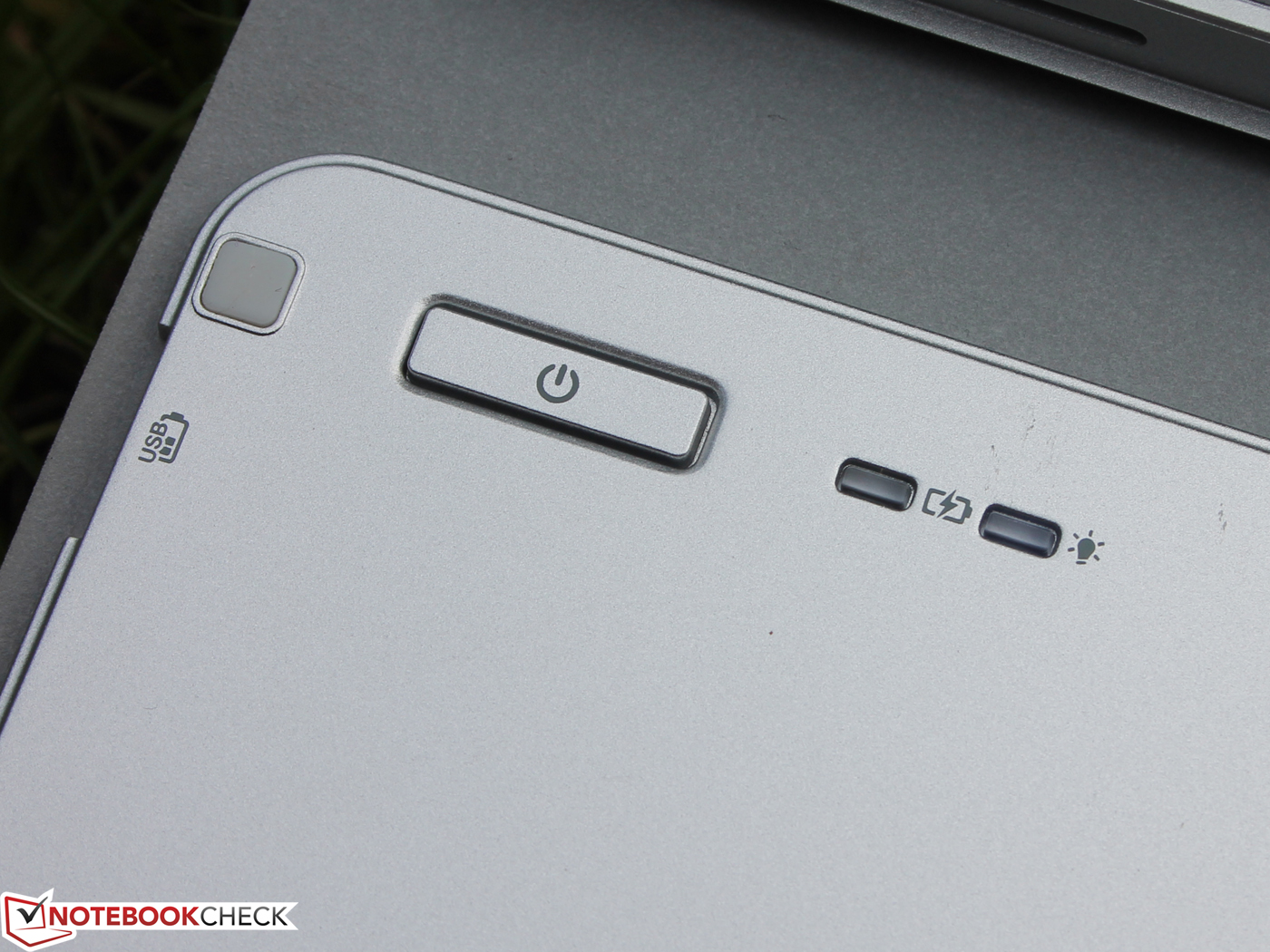

The Bluetooth keyboard case is a handy gadget because the user always has a keyboard with real feedback at hand. That is the theory. The wireless connection was sometimes interrupted in practice (airplane = flight mode) and the short drop only gives an unsatisfactory feedback. This repeatedly leads to omitted characters.

The keys feature a firm stroke and do not yield. The surface only bends under high force when the device is placed on the lap and free space is created under the keyboard. We found the layout with its big keys, the wide enter and delete beside the arrow keys pleasant. The function keys are highlighted in blue as is common for Acer's devices.

We can generally confirm that the keyboard, on which this text was written, has an acceptable but not a good feedback. It would be suitable for longer texts after some accommodation. This keyboard is no threat for business typing units, such as with HP's ProBooks or Lenovo's Edge models.

Touchscreen

The 10-finger multi-touchscreen is quite practical to use alongside the keyboard. We quickly got used to highlighting words with our finger or moving the cursor while we continued typing on the keys. The advantage is also obvious in shorter texts or quickly filling out forms: There is no virtual keyboard that obstructs the view.

We found working with both input methods more practical and agreeable than on a 14 or 15-inch touch laptop due to the short distance for the hand.

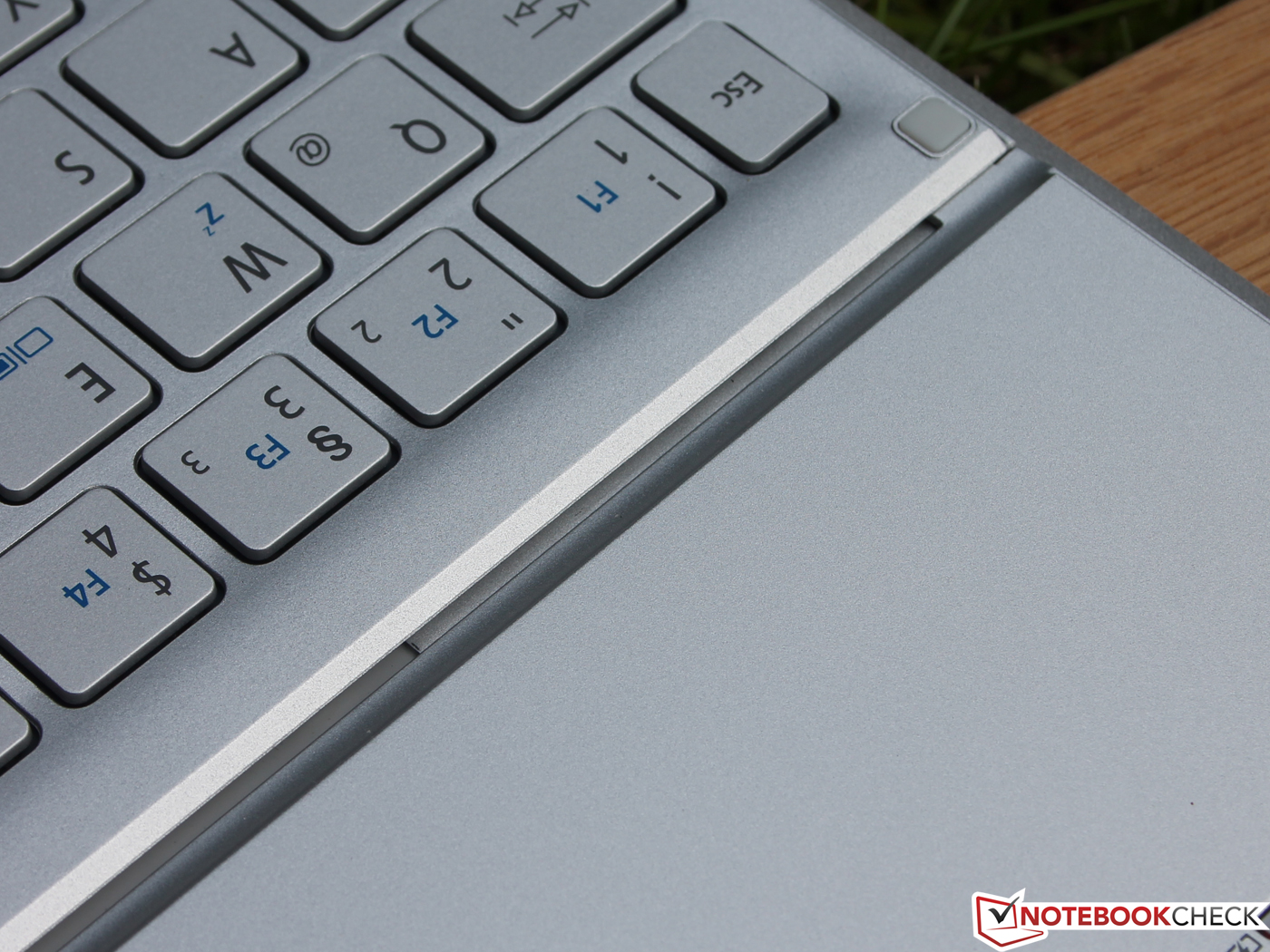

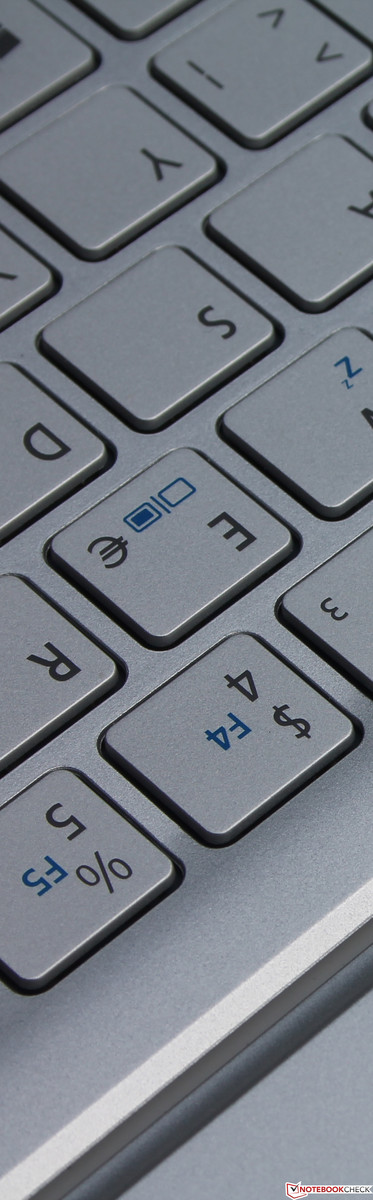

Hardware keyboard with a short drop
Hardware keyboard with a short drop

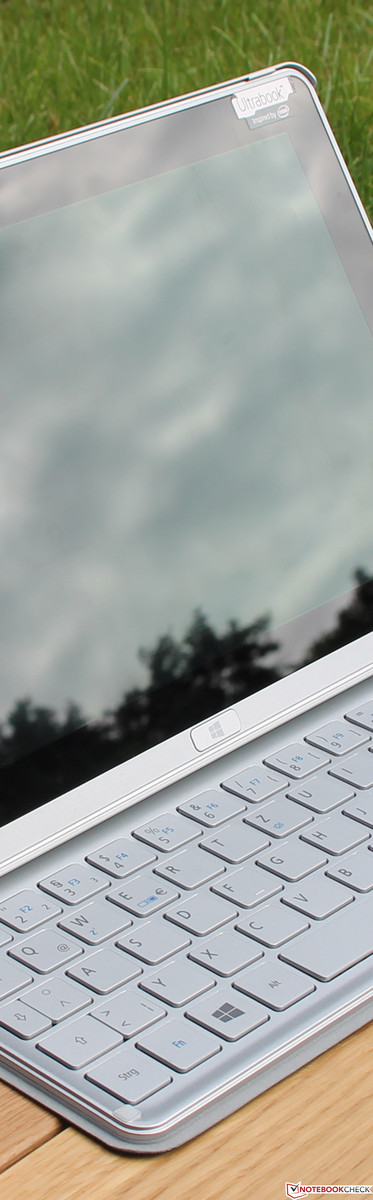

10 finger multi-touchscreen
10 finger multi-touchscreen

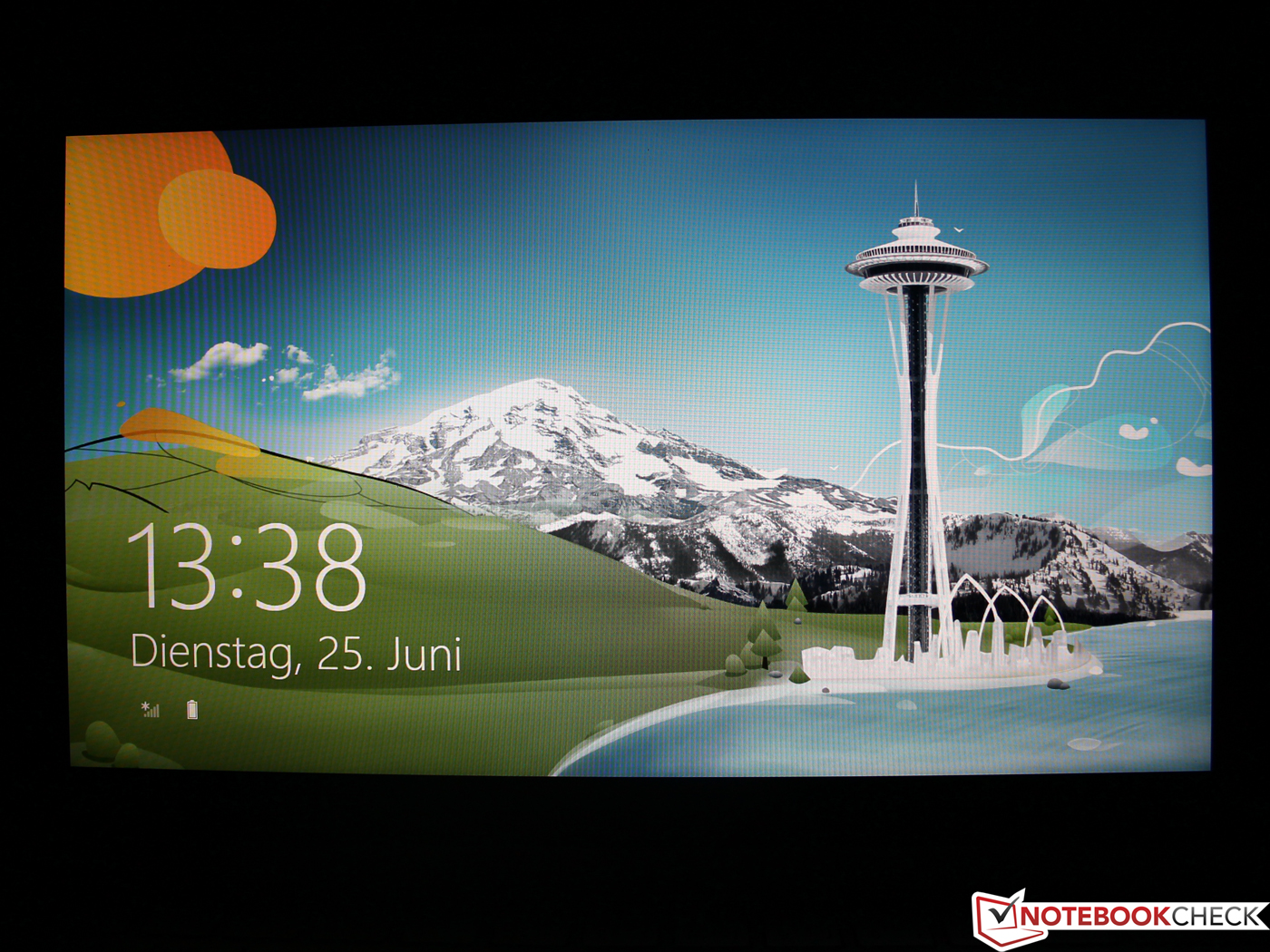

Display

The 11.6-inch IPS screen's resolution of 1366x768 pixels is not as high as the W700 model that features Full HD. Acer does not offer an alternative resolution. Beyond that, the IPS screen's good qualities have been maintained. The 10-finger multi-touch B116XAT0 model from AUO is visibly reflective but has a very high average brightness of up to 400 cd/m².

The illumination is very good despite the high brightness: 90% indicates a relatively homogeneously illuminated area, so no screen bleeding. The contrast is surprising. The black value measured in maximum brightness is so slight that we ascertained a contrast of 1580:1 (W700: 972:1). This lets colors look very crisp and fresh.

364
cd/m²
383
cd/m²
372
cd/m²
386
cd/m²
403
cd/m²
386
cd/m²
384
cd/m²
400
cd/m²
404
cd/m²
Distribution of brightness
AUO B116XAT03 tested with X-Rite i1Pro 2
Maximum: 404 cd/m² (Nits) Average: 386.9 cd/m²
Brightness Distribution: 90 %
Center on Battery: 403 cd/m²
Contrast: 1580:1 (Black: 0.255 cd/m²)
ΔE Color 3.55 | 0.5-29.43 Ø5
ΔE Greyscale 2.71 | 0.57-98 Ø5.3
42% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.98% AdobeRGB 1998 (Argyll 2.2.0 3D)
67.4% sRGB (Argyll 2.2.0 3D)
45.69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

The screen cannot cater to professional needs, at least not when considering the standard sRGB and AdobeRGB gamuts. The screen is far from covering either space. However, this is the case for most contenders regardless whether an IPS or TN screen is used (Gigabyte U2142: TN TFT). The Iconia W700 has virtually the same small color spectrum.

Acer Aspire P3-171 vs. sRGB (t)
Acer Aspire P3-171 vs. sRGB (t)
Acer Aspire P3-171 vs. AdobeRGB (t)
Acer Aspire P3-171 vs. AdobeRGB (t)
Acer Aspire P3-171 vs. Gigabyte U2142 (t)
Acer Aspire P3-171 vs. Gigabyte U2142 (t)

We performed a color analysis using the i1 Pro 2 spectrophotometer and CalMAN 5 software before calibrating. They both recorded good qualities in grayscale reproduction. Particularly the center hues are far below a DeltaE 2000 of 3. The screen does not have a bluish cast like so many laptops from this and higher price ranges. The screen's saturation shows that blue and cyan clearly deviate from the target spectrum of DeltaE 10 and 21. The W700 exhibited exactly the same deviation.

CalMAN grayscale
CalMAN grayscale
CalMAN color saturation
CalMAN color saturation
CalMAN ColorChecker
CalMAN ColorChecker

Since the high brightness is not reduced in battery mode, we experienced an acceptable picture on the desktop outdoors. However, we often struggled with the viewing angles due to the intense reflections because the backgrounds were strongly mirrored. We exposed the ambient light sensor with a lamp to ascertain the maximum brightness. This sensor ensures that the TFT brightness is automatically adapted to the surroundings. Thus, the screen is set to maximum brightness is bright sunlight.

Users will be prevented from using the full brightness indoors because the sensor determines the upper limit. We therefore constantly exposed the sensor and set the brightness as close to 150 cd/m² as possible (Wi-Fi test) for the battery tests where the brightness settings are predefined.

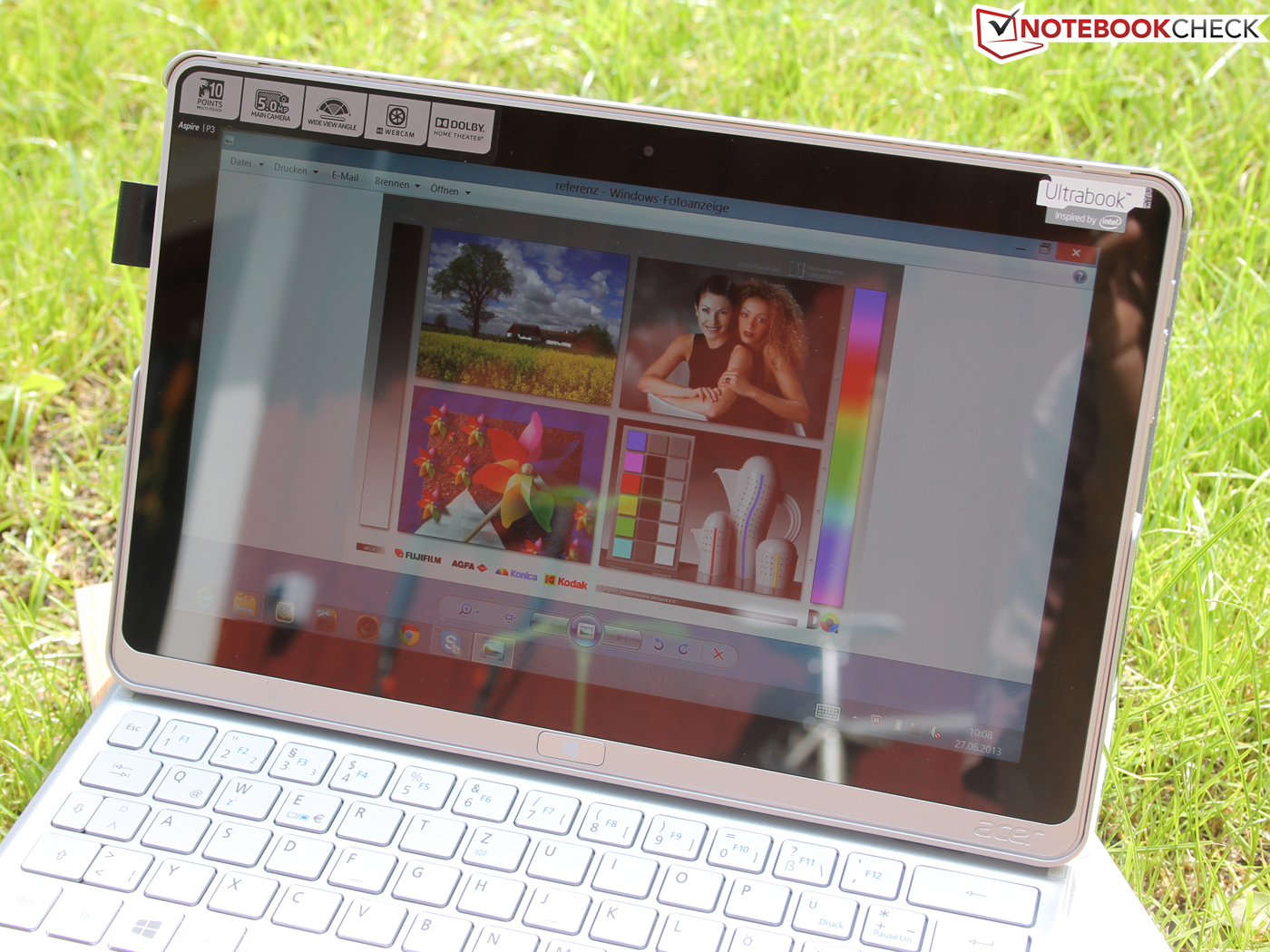

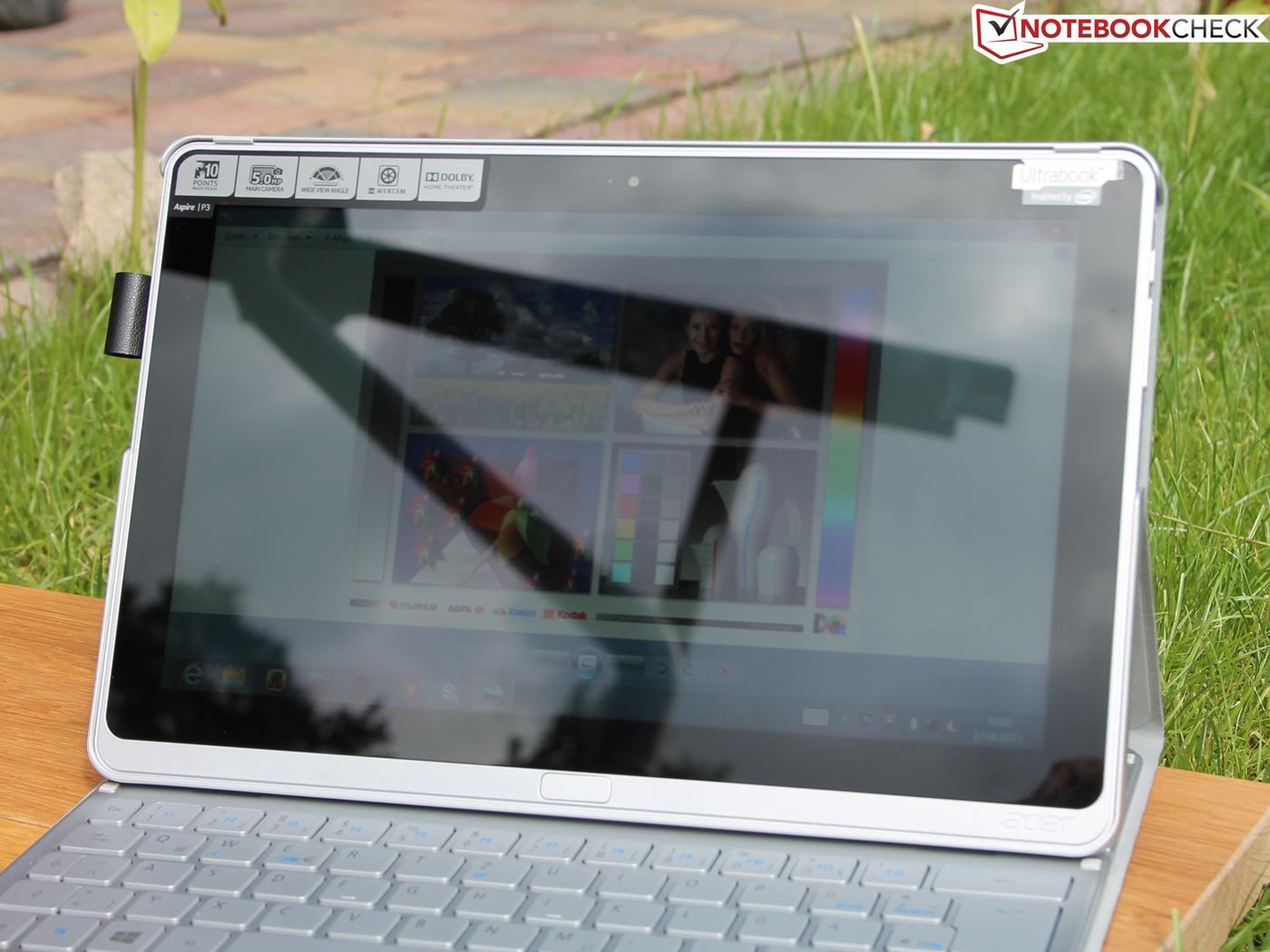

Outdoors, sunny
Outdoors, sunny
Outdoors, sunny with reflections
Outdoors, sunny with reflections
Outdoors, sunny and reflections
Outdoors, sunny and reflections

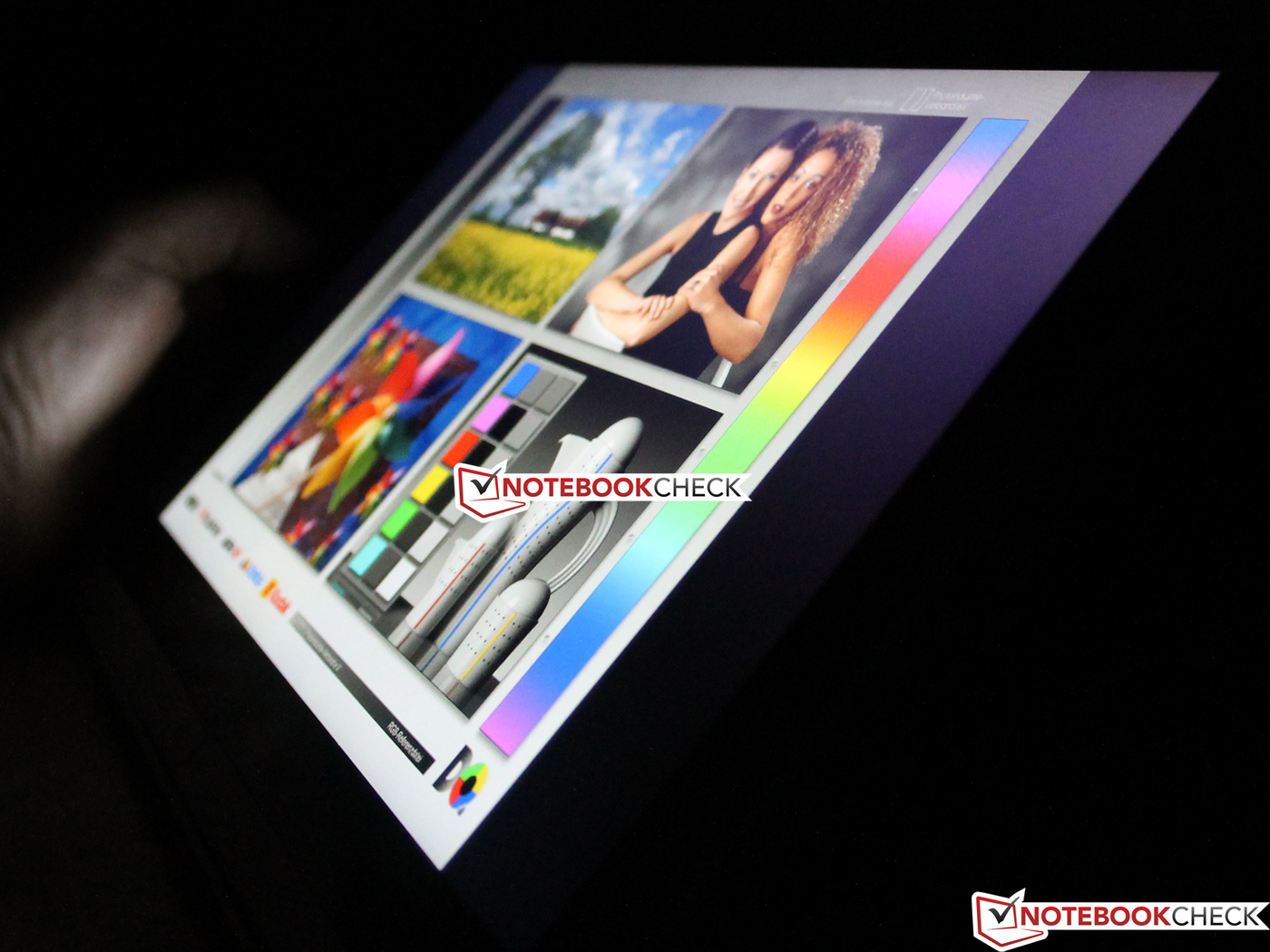

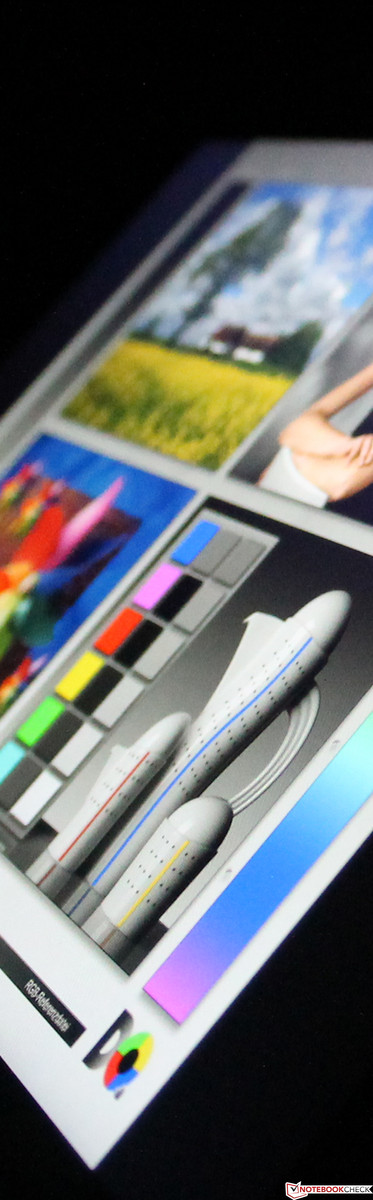

The viewing angle stability is a typical asset of IPS screens and this one is no exception. Like good smartphones, we can look at the screen from slanted positions. Contours stay defined and colors do not fade. The picture first fades at very acute angles of almost 90 degrees. The W700 has the same quality.

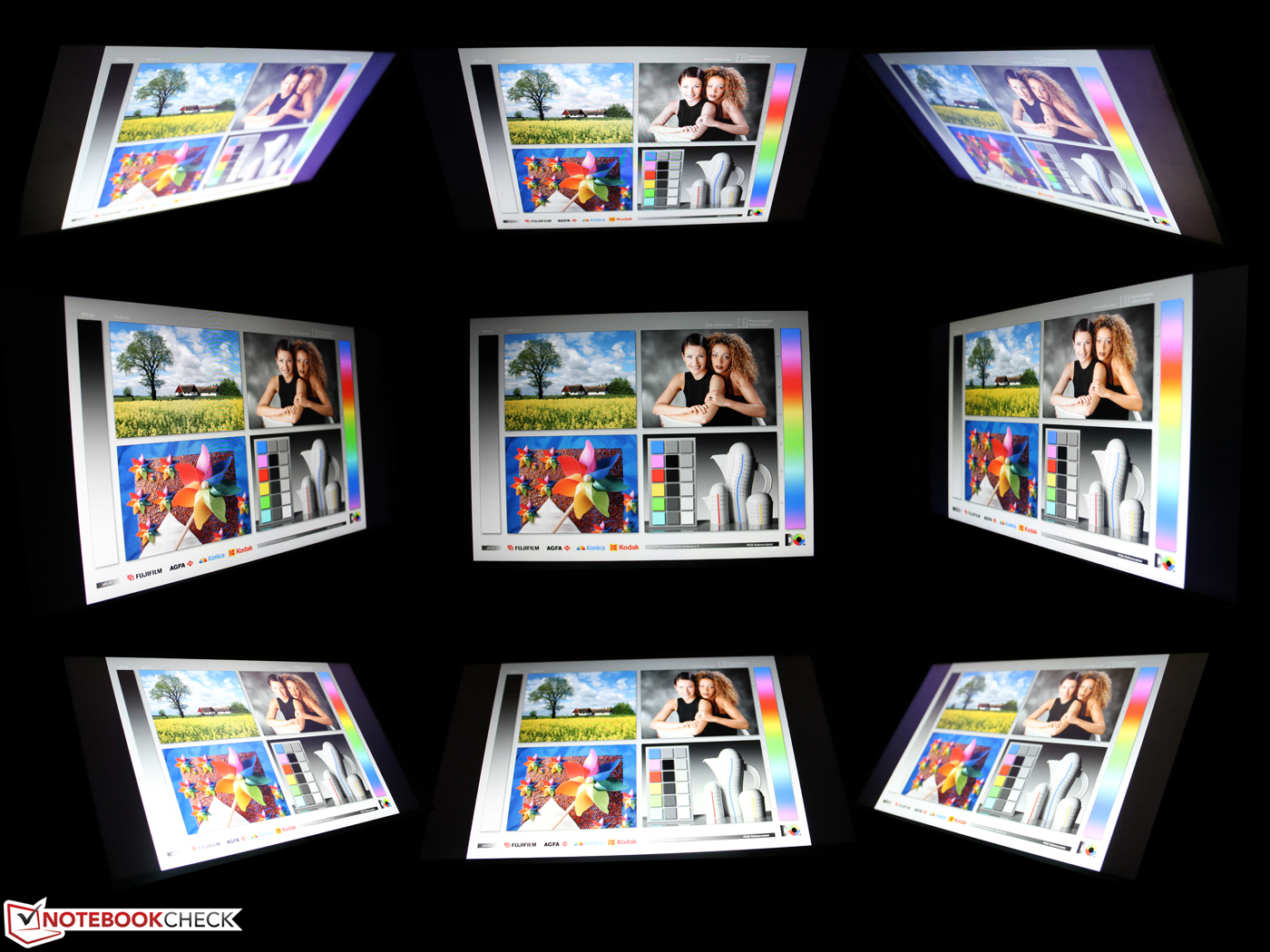

Viewing angles: Acer Aspire P3-171-3322Y2G06as
Viewing angles: Acer Aspire P3-171-3322Y2G06as

Performance

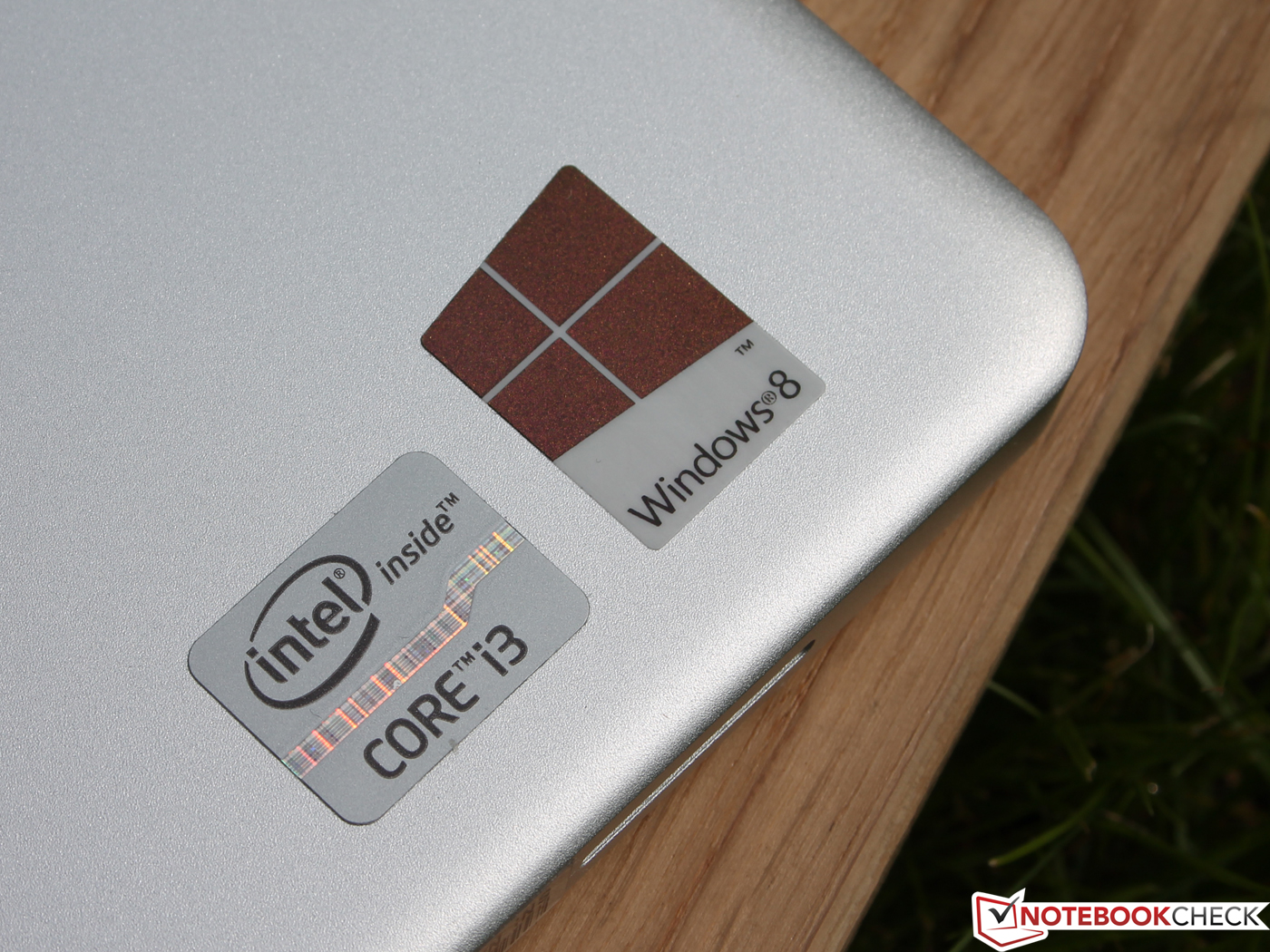

Acer trusts Intel and installs a Core i3-3229Y with 2x 1.40 GHz. The low-voltage core comes with its own Intel HD Graphics 4000 (IGP) and memory controller. The lack of Turbo Boost but present hyperthreading that processes four threads at the same time is typical for the i3. The 3229Y's TDP of only 13 Watts fits better to tablets than other Ivy Bridge models with standard 17 Watts. We wonder whether Acer has reduced the TDP by another 10 Watts in order to achieve longer runtimes with the 5280 mAh battery (cTDP down). Since we do not have a comparison device with the same CPU, we can only guess and say no due to the good performance scores.

Acer also offers the P3-171 with a Core i5-3339Y (2x 1.50 GHz) that is bundled with a 120 GB SSD and is otherwise identical. Our review sample only sports a 60 GB SSD inserted as mSATA. Only approximately 25 GB are unused in state of delivery. It cannot be expanded since there is no SD card slot.

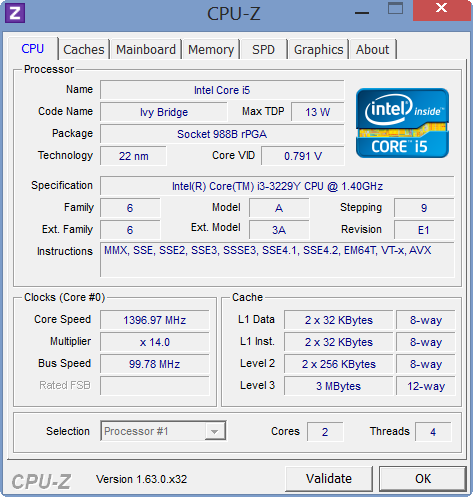

System info CPU-Z CPU
System info CPU-Z CPU

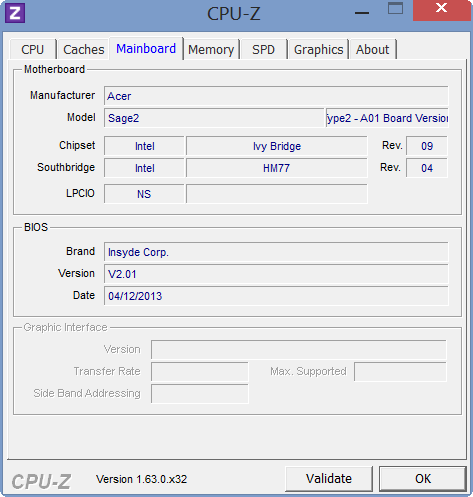

System info CPU-Z Mainboard
System info CPU-Z Mainboard

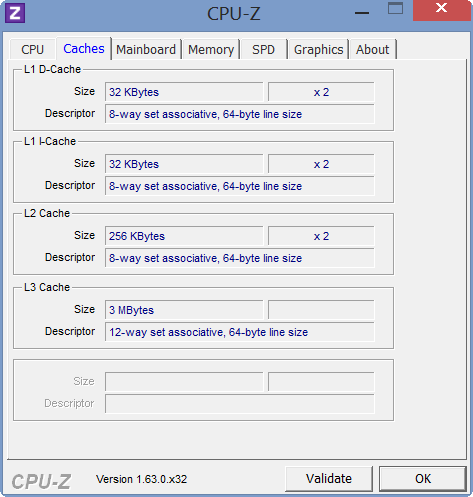

System info CPU-Z Cache
System info CPU-Z Cache

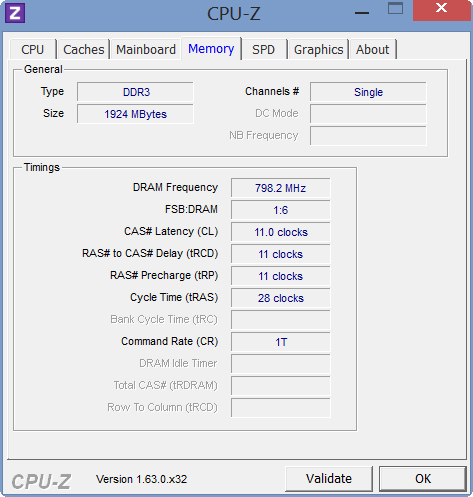

System info CPU-Z Memory
System info CPU-Z Memory

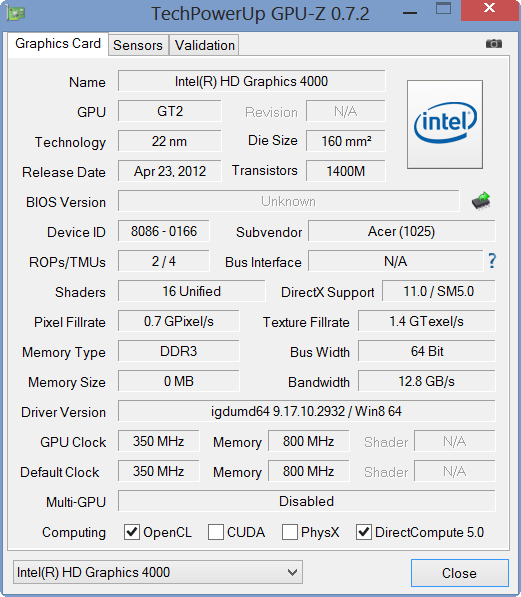

System info GPU-Z HD 4000
System info GPU-Z HD 4000

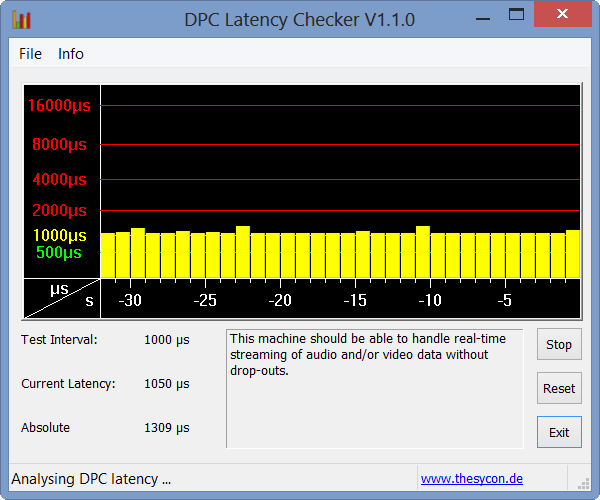

DPC Latency Checker: Idle OK
DPC Latency Checker: Idle OK

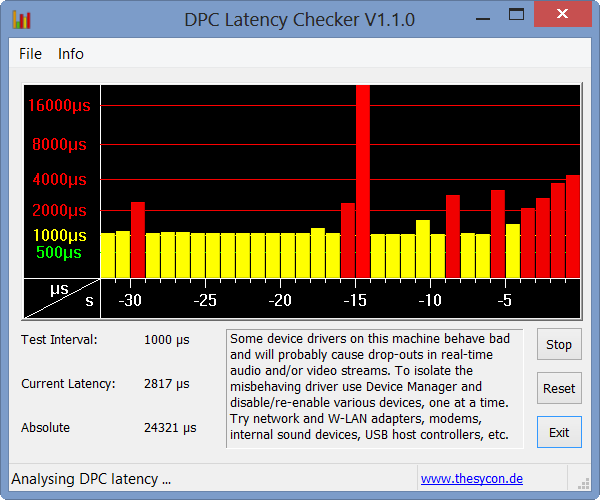

DPC Latency Checker: Wi-Fi on/off latencies
DPC Latency Checker: Wi-Fi on/off latencies
System information: Acer Aspire P3-171-3322Y2G06as

Processor

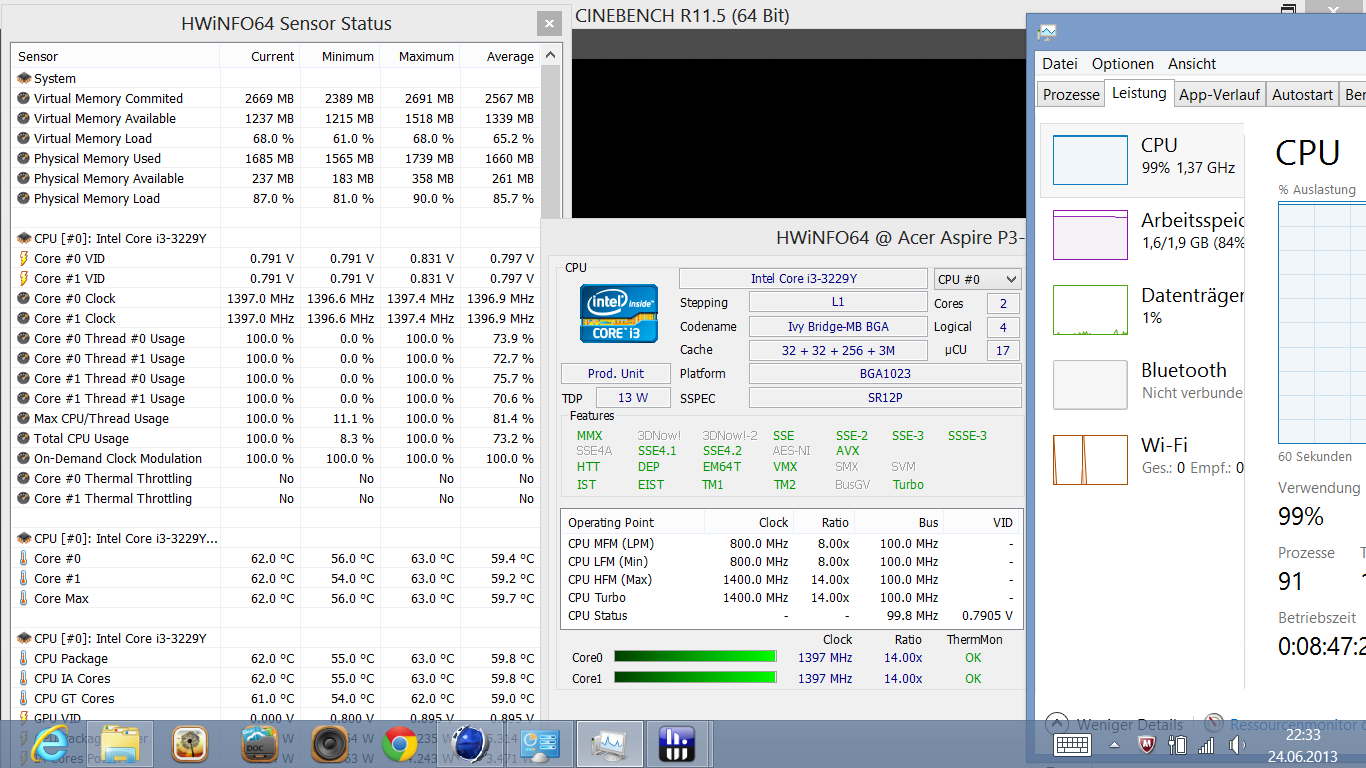

Cinebench R11.5 Multi CPU@1.4 GHz
Cinebench R11.5 Multi [email protected] GHz

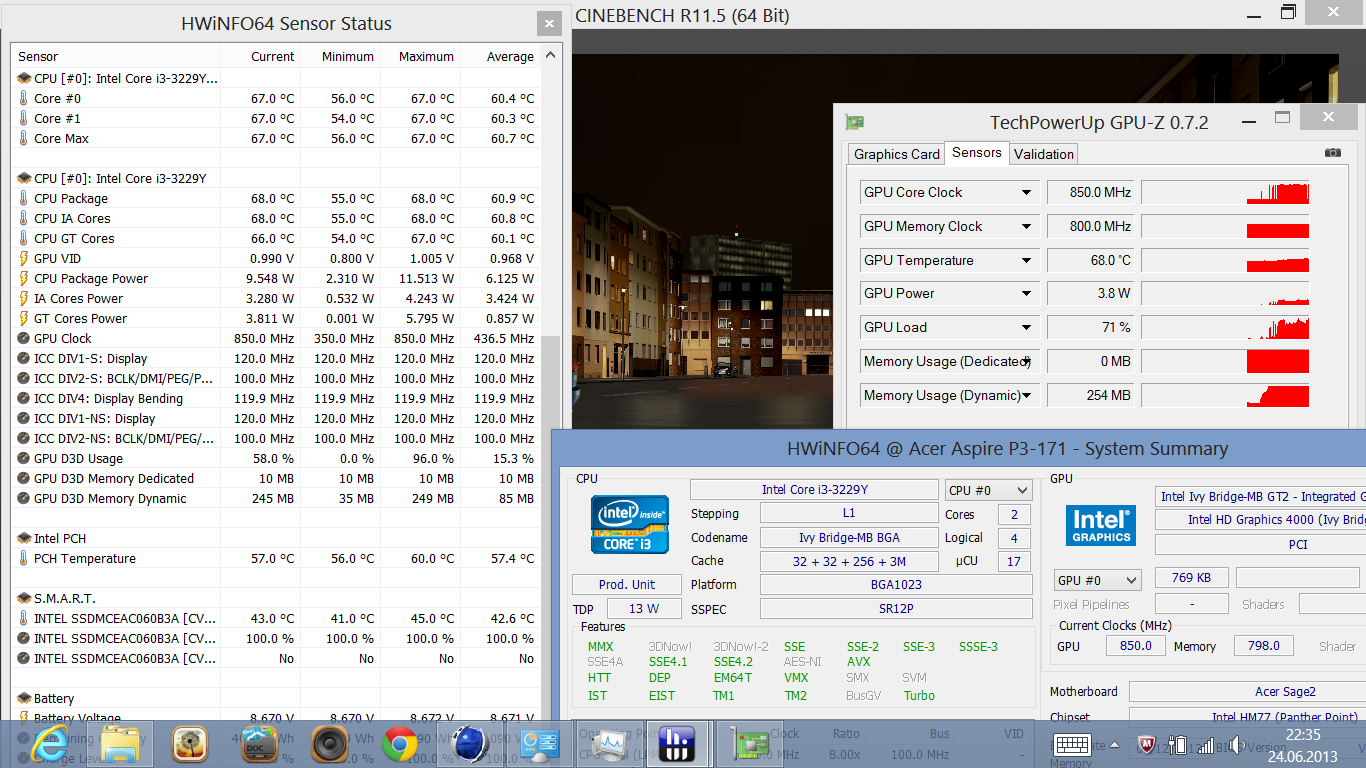

Cinebench OpenGL GPU@800 MHz
Cinebench OpenGL GPU@800 MHz

Is the performance difference between the Core i3-2365M (Sandy Bridge, HD Graphics 3000) and i3-3229Y (Ivy Bridge) significant? Both CPUs clock with 2x 1.40 GHz but the now installed 22 nm CPU is more energy-efficient. It also sports a newer version of the integrated graphics (HD 4000). Looking at comparisons to the tested Iconia W700-53334G12as show that this does not make much sense in terms of price. We reviewed the expensive i5-3337U version (1.8 GHz, HD 4000, Ivy Bridge, price around 800 Euros (~$1025)).

Therefore we used Lenovo's IdeaPad S300 for comparison, which sports the corresponding i3-2365M. However, only the CPU benchmarks are comparable due to its installed AMD Radeon HD 7450M. We cannot make a direct comparison with the Core i5-3339Y due to the lack of test results (IdeaPad Yoga 11s).

The Core i3-2365M in the IdeaPad S300 performs the Cinebench R11.5 multi-test 29% faster than our Core i3. This difference is similar in other CPU benchmarks (approx. +25%). The expensive W700 with a Core i5 achieves +110%. A look at Acer's Aspire V5-122P subnotebook is interesting. The A6-1450 low-voltage quad-core was specially developed for multi-tasking in small devices and processes on the same level. The default clock of 1.4 GHz was constant during the tests. The scores in all R11.5 tests were constant in battery mode (high-performance setting).

This is also true for the HD 4000 that maxes out its Turbo of 850 MHz (GPU energy-saving disabled!). Cinebench R10 illustrates the major difference to Intel's Atom Z2760 (-48%) that powers many Windows 8 tablets (e.g. Asus' VivoTab TF810C). Thus, Windows users are on the safe side with the Core i3.

Cinebench R11.5 - CPU Multi 64Bit (sort by value)
Acer Aspire P3-171-3322Y2G06as
HD Graphics 4000, 3229Y, Intel SSD 525 Series SSDMCEAC060B3A
1.04 Points
Acer Aspire V5-122P-61454G50NSS
Radeon HD 8250, A6-1450, Western Digital Scorpio Blue WD5000LPVX
1.02 Points -2%
Lenovo IdeaPad S300 MA145GE
Radeon HD 7450M, 2365M, Seagate Momentus Thin ST500LT0 12-9WS142
1.34 Points +29%
Samsung Series 7 XE700T1A-H01DE
HD Graphics 3000, 2467M, Samsung MZMPA064HMDR
1.63 Points +57%
Acer W700-53334G12as
HD Graphics 4000, 3337U, Toshiba THNSNS128GMCP
2.18 Points +110%
Sony Vaio Duo 11 SV-D1121X9EB
HD Graphics 4000, 3317U, Toshiba THNSNS128GMCP
2.35 Points +126%
Microsoft Surface Pro
HD Graphics 4000, 3317U, Micron RealSSD C400 MTFDDAT064M
2.39 Points +130%
Dell XPS 13 L322X
HD Graphics 4000, 3337U, Samsung SSD PM830 256 GByte mSATA
2.44 Points +135%
Cinebench R10 - Rendering Multiple CPUs 32Bit (sort by value)
Acer Aspire P3-171-3322Y2G06as
HD Graphics 4000, 3229Y, Intel SSD 525 Series SSDMCEAC060B3A
3271 Points
Asus VivoTab TF810C-1B026W
SGX545, Z2760, 64 GB SSD
1692 Points -48%
Acer Aspire V5-122P-61454G50NSS
Radeon HD 8250, A6-1450, Western Digital Scorpio Blue WD5000LPVX
2826 Points -14%
Lenovo IdeaPad S300 MA145GE
Radeon HD 7450M, 2365M, Seagate Momentus Thin ST500LT0 12-9WS142
4044 Points +24%
Acer W700-53334G12as
HD Graphics 4000, 3337U, Toshiba THNSNS128GMCP
6748 Points +106%
Microsoft Surface Pro
HD Graphics 4000, 3317U, Micron RealSSD C400 MTFDDAT064M
7276 Points +122%
Dell XPS 13 L322X
HD Graphics 4000, 3337U, Samsung SSD PM830 256 GByte mSATA
7608 Points +133%
Cinebench R10 Rendering Single 32Bit
1763
Cinebench R10 Rendering Multiple CPUs 32Bit
3271
Cinebench R10 Shading 32Bit
3060
Cinebench R10 Rendering Single CPUs 64Bit
2226 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
3874 Points
Cinebench R10 Shading 64Bit
3218 Points
Cinebench R11.5 CPU Single 64Bit
0.4 Points
Cinebench R11.5 CPU Multi 64Bit
1.04 Points
Cinebench R11.5 OpenGL 64Bit
9.08 fps
Help

System Performance

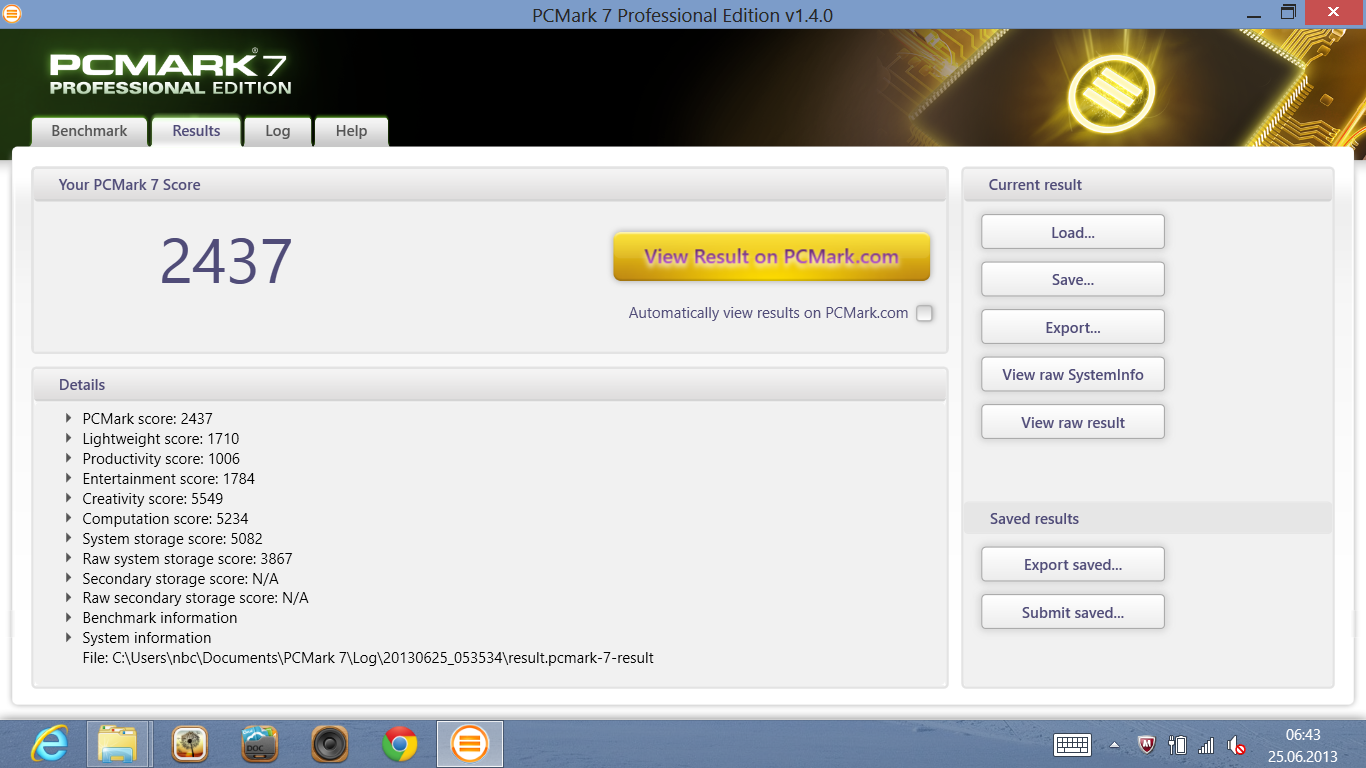

PCMark 7 sub-scores
PCMark 7 sub-scores

The system benchmarks, which are exemplary for PCMark 7 in the chart, deliver astonishingly strong, though not perfect scores. The A6-1450 in Acer's Aspire V5-122P only manages half the points and the i5-3337U in the W700 achieves 77% more. The system benchmarks benefit from the high system storage score and HDD score. Owing to its Intel SSD, the P3 can outperform the hard disk in the V5-122P and can almost keep up with higher quality SSDs installed in some ultrabooks. Samsung's SSD PM830 in Dell's XPS 13 L322X, for example, only achieves 33% more points in the PCMark 7 system storage score.

The subjective work speed convinces us. The tablet boots in no time from a cold start and programs open swiftly. The performance is miles ahead of Intel Atom tablets (standard Windows 8) both in measured rates and subjective impression (Asus VivoTab TF810C: -39%).

PCMark 7 - System Storage (sort by value)
Acer Aspire P3-171-3322Y2G06as
HD Graphics 4000, 3229Y, Intel SSD 525 Series SSDMCEAC060B3A
3867 Points
Acer Aspire V5-122P-61454G50NSS
Radeon HD 8250, A6-1450, Western Digital Scorpio Blue WD5000LPVX
1440 Points -63%
Asus VivoTab TF810C-1B026W
SGX545, Z2760, 64 GB SSD
2375 Points -39%
Samsung Series 7 XE700T1A-H01DE
HD Graphics 3000, 2467M, Samsung MZMPA064HMDR
4522 Points +17%
Microsoft Surface Pro
HD Graphics 4000, 3317U, Micron RealSSD C400 MTFDDAT064M
4892 Points +27%
Dell XPS 13 L322X
HD Graphics 4000, 3337U, Samsung SSD PM830 256 GByte mSATA
5148 Points +33%
Toshiba Satellite U920t-100
HD Graphics 4000, 3317U, Samsung MZMPC128HBFU
5184 Points +34%
Acer W700-53334G12as
HD Graphics 4000, 3337U, Toshiba THNSNS128GMCP
5350 Points +38%
Sony Vaio Duo 11 SV-D1121X9EB
HD Graphics 4000, 3317U, Toshiba THNSNS128GMCP
5384 Points +39%
Sony Vaio Duo 11 SV-D1121X9EB
HD Graphics 4000, 3317U, Toshiba THNSNS128GMCP
5384 Points +39%
4.7
Windows 8 Experience Index
Processor
Calculations per second
5.5
Memory (RAM)
Memory operations per second
5.5
Graphics
Desktop performance for Windows Aero
4.7
Gaming graphics
3D business and gaming graphics
6.1
Primary hard disk
Disk data transfer rate
7.8
PCMark Vantage Result
4966 points
PCMark 7 Score
2437 points
Help

Storage Devices

The details of the SSD assessment reveal its strengths as well as its (few) weaknesses. With high 388 MB/s in the read test, Intel's mSATA module can read almost as fast as SSDs in full-blown and expensive ultrabooks. Samsung's SSD PM830 256 in Dell's XPS 13 is 20% faster.

A look at the Read 4K shows that the 60 GB SSD is sometimes faster than the premium models in reading small random files. Compared with Toshiba's THNSNS128GMCP in the W700, Intel even tops it by 47%. When considering that the installed Intel 525 Series SSDMCEAC060B3A is connected to SATA 3.x (6 GBit/s), those rates are high but not remarkable. We have had SSDs with 30 MB/s in the 4K read test. We have to note that Acer could change to another SSD model without warning so this swift model is not guaranteed.

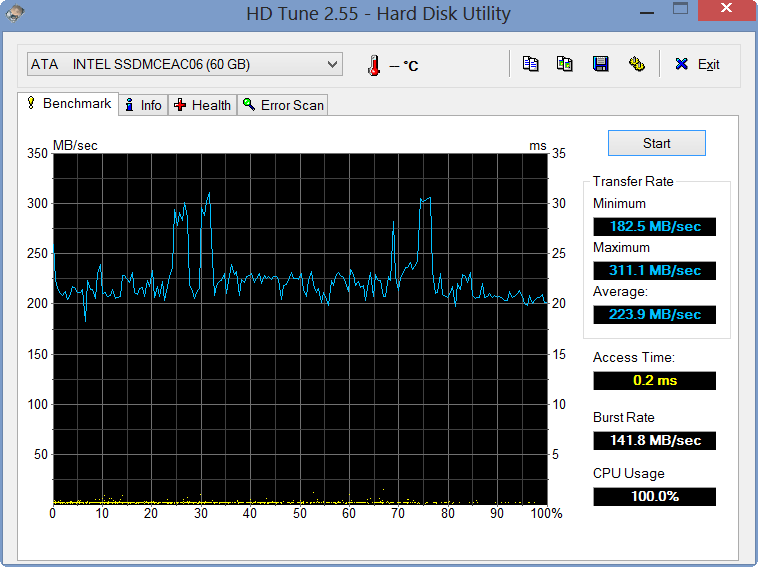

HD Tune 224 MB/s seq. read
HD Tune 224 MB/s seq. read

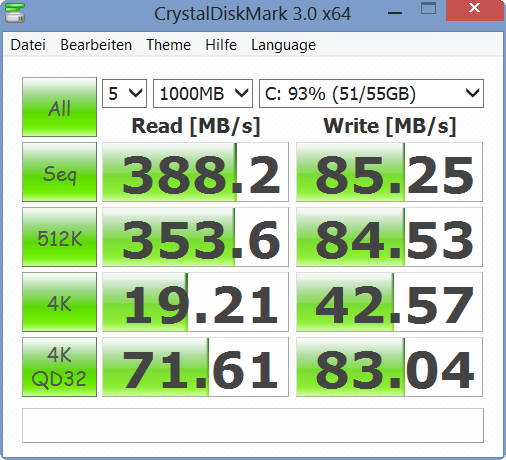

Crystal Disk Mark 388 MB/s seq. read
Crystal Disk Mark 388 MB/s seq. read

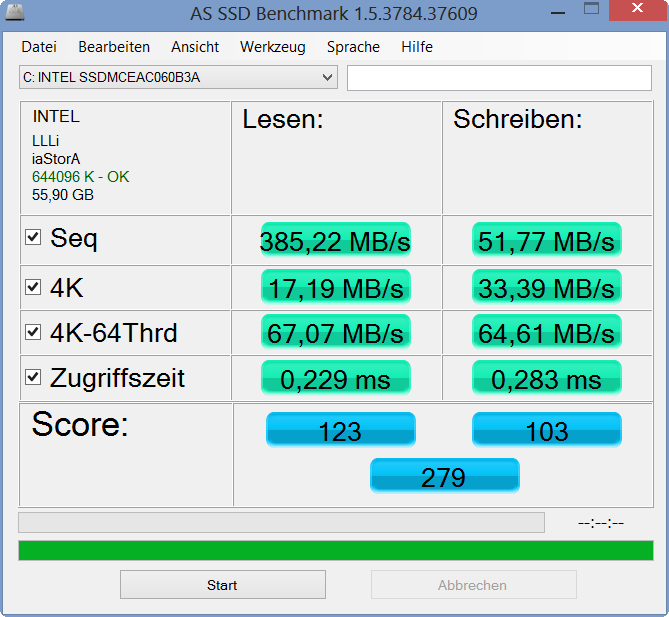

ASSSD 385 MB/s seq. read
ASSSD 385 MB/s seq. read
CrystalDiskMark 3.0
Read 4k (sort by value)
Acer Aspire P3-171-3322Y2G06as
HD Graphics 4000, 3229Y, Intel SSD 525 Series SSDMCEAC060B3A
19.21 MB/s
Asus VivoTab TF810C-1B026W
SGX545, Z2760, 64 GB SSD
7.05 MB/s -63%
Acer Aspire V5-122P-61454G50NSS
Radeon HD 8250, A6-1450, Western Digital Scorpio Blue WD5000LPVX
0.298 MB/s -98%
Samsung Series 7 XE700T1A-H01DE
HD Graphics 3000, 2467M, Samsung MZMPA064HMDR
16.05 MB/s -16%
Acer W700-53334G12as
HD Graphics 4000, 3337U, Toshiba THNSNS128GMCP
10.09 MB/s -47%
Sony Vaio Duo 11 SV-D1121X9EB
HD Graphics 4000, 3317U, Toshiba THNSNS128GMCP
19.64 MB/s +2%
Toshiba Satellite U920t-100
HD Graphics 4000, 3317U, Samsung MZMPC128HBFU
18.68 MB/s -3%
Dell XPS 13 L322X
HD Graphics 4000, 3337U, Samsung SSD PM830 256 GByte mSATA
17.28 MB/s -10%
Read Seq (sort by value)
Acer Aspire P3-171-3322Y2G06as
HD Graphics 4000, 3229Y, Intel SSD 525 Series SSDMCEAC060B3A
388.2 MB/s
Asus VivoTab TF810C-1B026W
SGX545, Z2760, 64 GB SSD
79.4 MB/s -80%
Acer Aspire V5-122P-61454G50NSS
Radeon HD 8250, A6-1450, Western Digital Scorpio Blue WD5000LPVX
87.7 MB/s -77%
Samsung Series 7 XE700T1A-H01DE
HD Graphics 3000, 2467M, Samsung MZMPA064HMDR
254.3 MB/s -34%
Acer W700-53334G12as
HD Graphics 4000, 3337U, Toshiba THNSNS128GMCP
410.6 MB/s +6%
Sony Vaio Duo 11 SV-D1121X9EB
HD Graphics 4000, 3317U, Toshiba THNSNS128GMCP
457.6 MB/s +18%
Toshiba Satellite U920t-100
HD Graphics 4000, 3317U, Samsung MZMPC128HBFU
463.2 MB/s +19%
Dell XPS 13 L322X
HD Graphics 4000, 3337U, Samsung SSD PM830 256 GByte mSATA
466.3 MB/s +20%
Intel SSD 525 Series SSDMCEAC060B3A
Transfer Rate Minimum: 182.5 MB/s
Transfer Rate Maximum: 311.1 MB/s
Transfer Rate Average: 223.9 MB/s
Access Time: 0.2 ms
Burst Rate: 141.8 MB/s
CPU Usage: 100 %

Graphics Card

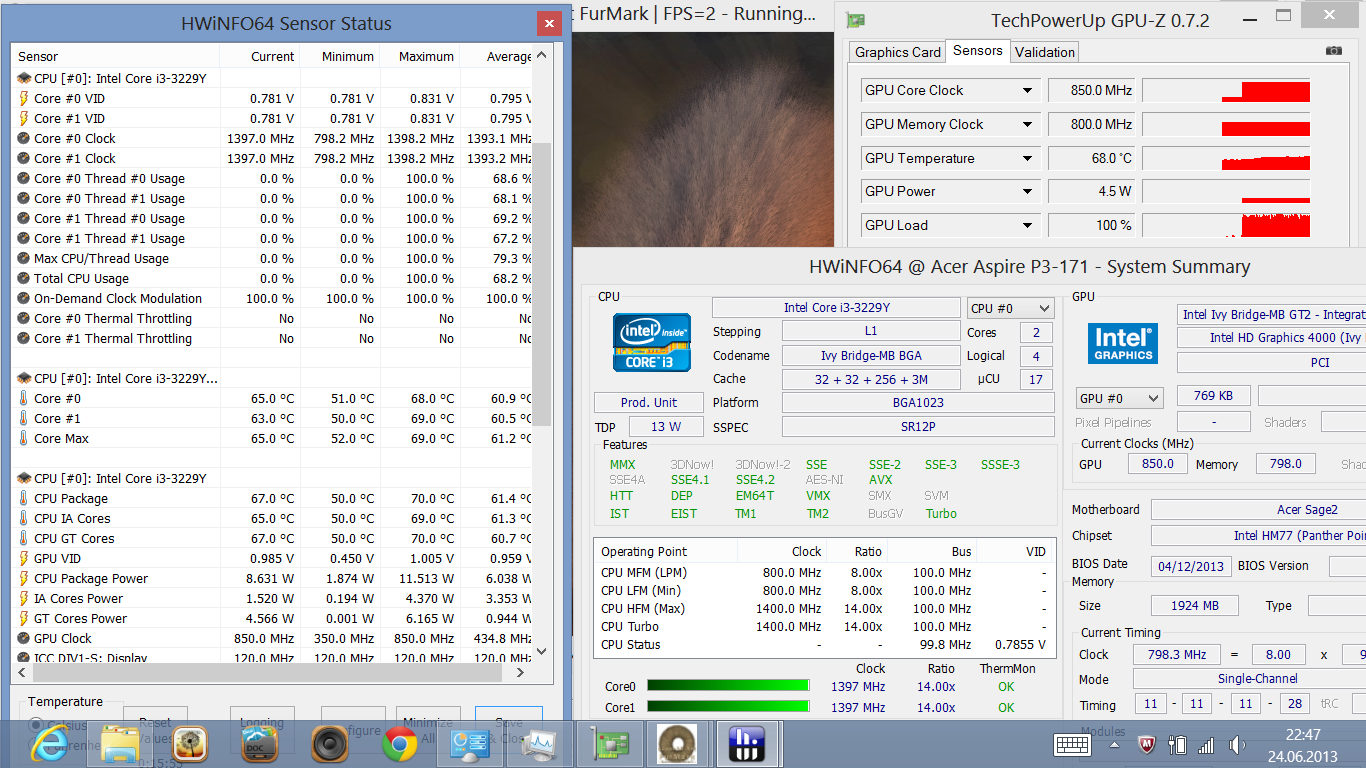

Furmark GPU stress test @850 MHz
Furmark GPU stress test @850 MHz

The Core i3's HD 4000 clocks with up to 850 MHz in Turbo, which the FurMark GPU test confirms exactly. The measured rates are 27% (W700, dual-channel) to 85% (Dell XPS 13, dual-channel) below the comparison devices due to the lower clock rate and single-channel bus. Even Acer's Aspire V5-122P with its Radeon HD 8250 does not achieve a much higher score in the Cinebench R11.5 OpenGL test. The 3D benchmarks roughly show the same picture: HD 4000 systems with a higher Turbo and dual-channel manage 70 to 100% more points.

Cinebench R11.5 - OpenGL 64Bit (sort by value)
Acer Aspire P3-171-3322Y2G06as
9.08 fps
Acer Aspire V5-122P-61454G50NSS
9.59 fps +6%
Samsung Series 7 XE700T1A-H01DE
5.49 fps -40%
Acer W700-53334G12as
11.5 fps +27%
Sony Vaio Duo 11 SV-D1121X9EB
15.84 fps +74%
Microsoft Surface Pro
15.78 fps +74%
Dell XPS 13 L322X
16.76 fps +85%
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x (sort by value)
Acer Aspire P3-171-3322Y2G06as
2645 Points
Acer Aspire V5-122P-61454G50NSS
2366 Points -11%
Samsung Series 7 XE700T1A-H01DE
1850 Points -30%
Acer W700-53334G12as
3682 Points +39%
Sony Vaio Duo 11 SV-D1121X9EB
4889 Points +85%
Sony Vaio Duo 11 SV-D1121X9EB
4889 Points +85%
Microsoft Surface Pro
4951 Points +87%
Dell XPS 13 L322X
5226 Points +98%
3DMark
1280x720 Cloud Gate Standard Score (sort by value)
Acer Aspire P3-171-3322Y2G06as
1770 Points
Acer Aspire V5-122P-61454G50NSS
1560 Points -12%
Acer W700-53334G12as
2845 Points +61%
Microsoft Surface Pro
3503 Points +98%
Dell XPS 13 L322X
3767 Points +113%
1280x720 Cloud Gate Standard Graphics (sort by value)
Acer Aspire P3-171-3322Y2G06as
2706 Points
Acer Aspire V5-122P-61454G50NSS
1914 Points -29%
Acer W700-53334G12as
3196 Points +18%
Microsoft Surface Pro
4096 Points +51%
Dell XPS 13 L322X
4561 Points +69%

Legend


Acer Aspire P3-171-3322Y2G06as Intel Core i3-3229Y, Intel HD Graphics 4000, Intel SSD 525 Series SSDMCEAC060B3A

Acer Aspire V5-122P-61454G50NSS AMD A6-1450, AMD Radeon HD 8250, Western Digital Scorpio Blue WD5000LPVX

Samsung Series 7 XE700T1A-H01DE Intel Core i5-2467M, Intel HD Graphics 3000, Samsung MZMPA064HMDR

Acer W700-53334G12as Intel Core i5-3337U, Intel HD Graphics 4000, Toshiba THNSNS128GMCP

Sony Vaio Duo 11 SV-D1121X9EB Intel Core i5-3317U, Intel HD Graphics 4000, Toshiba THNSNS128GMCP

Microsoft Surface Pro Intel Core i5-3317U, Intel HD Graphics 4000, Micron RealSSD C400 MTFDDAT064M

Dell XPS 13 L322X Intel Core i5-3337U, Intel HD Graphics 4000, Samsung SSD PM830 256 GByte mSATA

Asus VivoTab TF810C-1B026W Intel Atom Z2760, PowerVR SGX545, 64 GB SSD
3DMark 06 Standard Score
2645 points
3DMark Ice Storm Standard Score
11067 points
3DMark Cloud Gate Standard Score
1770 points
Help

Gaming Performance

Is playing games possible on the P3? A clear no, because the action is very jerky. Even undemanding games like FIFA 13 do not run smoothly in medium settings.

low med. high ultra
Anno 2070 (2011) 20 10.5 6.6
Diablo III (2012) 23 14 10
Fifa 13 (2012) 44 29 20

Emissions

System Noise

The 11.6-incher sports a small fan (active cooling) that runs constantly and does not even stop during long idle periods. The noise of 30.5 dB(A) is audible but did not distract us seeing that it was quieter than other noise sources caused by normal office noises. The P3 did not overdo it during the stress test where we only measured up to 37 dB(A). Medium load, like in 3DMark 2006, only resulted in 34 dB(A). One opening in the casing takes in cooling air and another discharges the waste heat.

Noise Level

Idle
30.5 / 30.5 / 31.4 dB(A)
Load
33.9 / 37 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

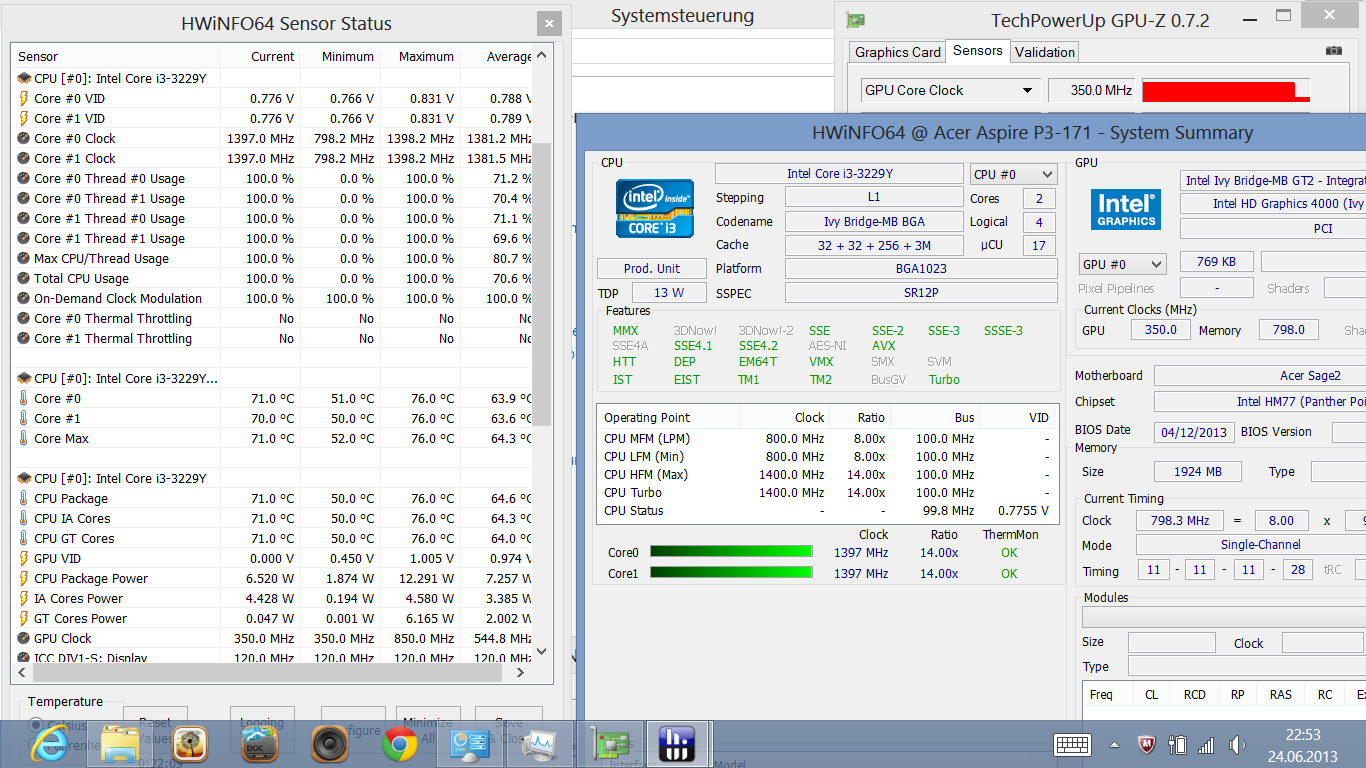

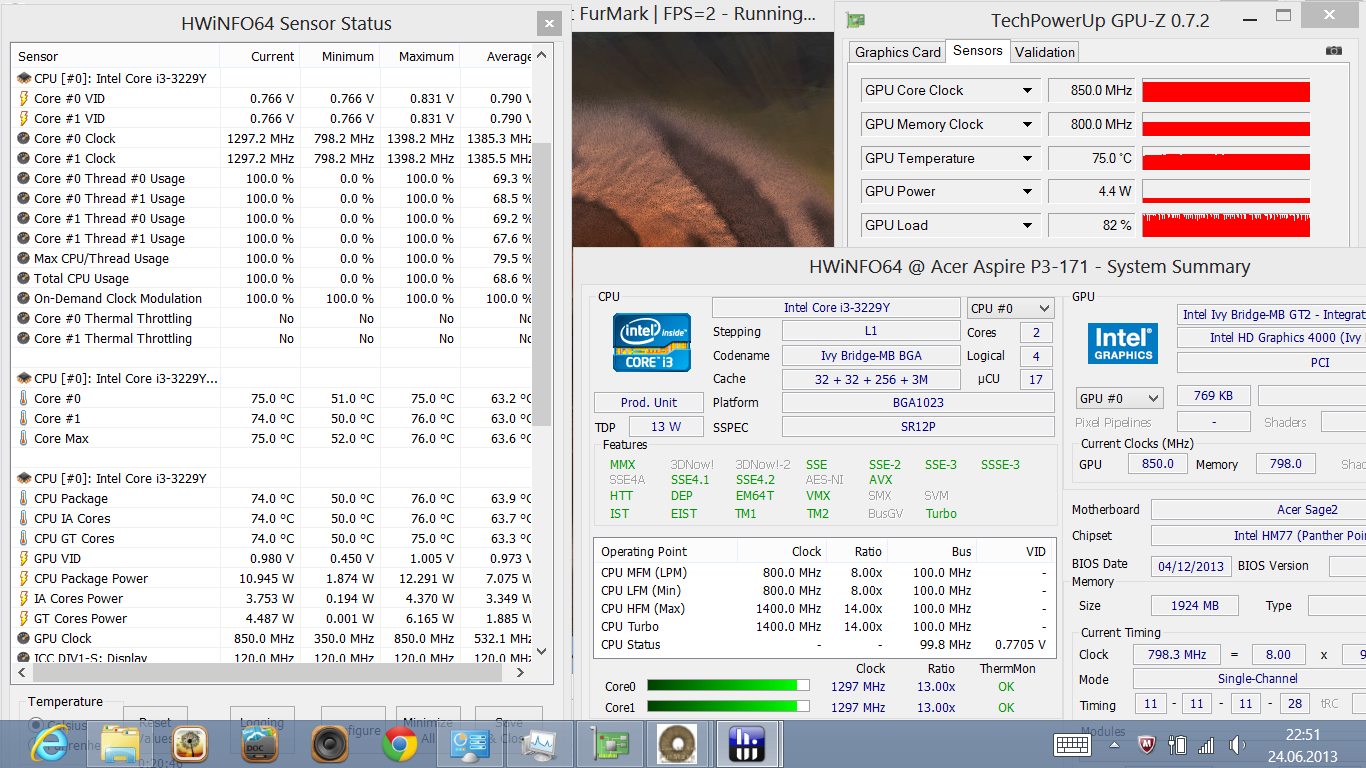

Stress test Prime95+Furmark CPU@1.3 GHz
Stress test Prime95+Furmark [email protected] GHz
Prime95 multi solo CPU@1.4 GHz
Prime95 multi solo [email protected] GHz

Despite its consistently running fan, the casing clearly heated up to a lukewarm 35 °C (95 °F) on the top and 32 degrees (89.6 °F) on the bottom when idling. We measured the P3's waste heat while it was in its cover since this will likely be the usual scenario. The tablet’s hot spot was at the top on both sides of the webcam. The processor is probably located here. We measured up to 49 degrees Celsius (120.2 °F) during constant maximum load. The W700 managed much lower waste heat temperatures in both scenarios with the same noise level (max 41 degrees (105.8 °F) bottom @ stress test).

The HD 4000 consistently clocked with its 850 MHz when the CPU and GPU cores were put under constantly high load. The CPU marginally throttled to 1.3 GHz. As soon as FurMark was stopped, the clock again climbed to its standard clock of 1.4 GHz. The processor does not feature Turbo.

 34.7 °C
94 F
37.5 °C
100 F
35.9 °C
97 F

 33.8 °C
93 F
34 °C
93 F
32.6 °C
91 F

 34.7 °C
94 F
35.5 °C
96 F
34.9 °C
95 F

Maximum: 37.5 °C = 100 F
Average: 34.8 °C = 95 F
32.6 °C
91 F
35.3 °C
96 F
34.3 °C
94 F
30.5 °C
87 F
33.1 °C
92 F
33 °C
91 F
29.1 °C
84 F
30.6 °C
87 F
31.4 °C
89 F
Maximum: 35.3 °C = 96 F
Average: 32.2 °C = 90 F
Power Supply (max.)  31.2 °C = 88 F | Room Temperature 23.3 °C = 74 F | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 37.9 °C / 100 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 48.9 °C / 120 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.6 °C / 107 F, compared to the average of 36.7 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 34.8 °C / 95 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.6 °C / 97.9 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-8.5 °C / -15.3 F).

Speakers

The small stereo speakers are located on the tablets lower edge. They discharge the sound toward the keyboard in keyboard mode. That is intentional because a bit of volume is lost when the sound does not reflect on the surface and the sound gets thinner, e.g. when carrying the tablet. We noticed a light scratching at maximum volume. However, this level is unnecessary because music is more than sufficiently loud at 50% for the desk. There is no audible bass due to the lack of a sound box. Differentiated trebles are not possible for the midrange-heavy speakers.

Energy Management

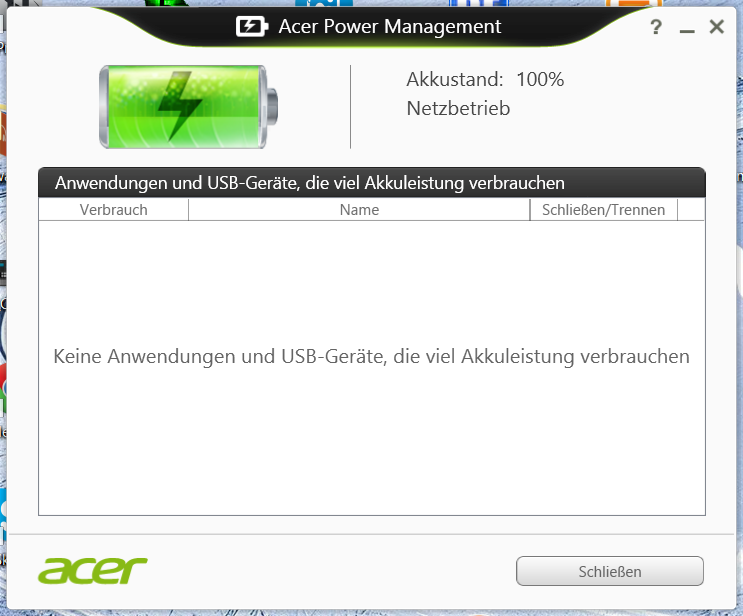

Acer Power Manager
Acer Power Manager

Power Consumption

The 65 Watt power supply seems very oversized for the power consumption of just 25 Watts during load. There are enough reserves, which the stress test's low waste heat of only 43 degrees (109.4 °F) confirms. Nevertheless, the activated Aspire P3 needs a whole three and a half hours for recharging the battery. The Iconia W700 has a somewhat higher stress power consumption of 28 Watts, but the medium (21 W) and idle (5.6 - 7.4 W) consumption rates are much lower than that of the P3. This is also a reason for the shorter runtimes despite the roughly same battery capacity of 5280 mAh (W700: 4850 mAh).

The Acer Power Manager proves to be a superfluous tool. It does not enable accessing certain hardware features, e.g. webcam off, USB off, limit clock rate, brightness sensor, etc., but only displays applications and USB devices that consume a lot of power.

Power Consumption
Off / Standbydarklight 0.2 / 0.4 Watt
Idledarkmidlight 7.8 / 11.6 / 11.6 Watt
Load midlight 24.3 / 25.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 960
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

The loose fit of the keyboard's bottom part annoyed us a bit when the P3 was closed. It often slipped and did not completely cover the TFT. The 5280 mAh battery lasted for a good three hours in Wi-Fi mode and high brightness (real use on a trip). Our standard Wi-Fi test however finished after 4:41 hours. The brightness was set to 150 cd/m² (sensor exposed to light) and a browser script opened websites (some videos) every 40 seconds.

The runtime decreased to only 2:54 hours during load. The CPU is constantly working, the high-performance profile is selected and the brightness is set to maximum (sensor disabled) in this test via Battery Eater Classic. The low TDP of 13 Watts is noticed here. The Iconia W700 achieved idle runtimes of up to 11 hours (minimum power consumption) and 6:33 hours in the Wi-Fi test. The P3 (i3) and W700 (i5) are approximately on a par in load with 3 hours.

Battery Runtime
Idle (without WLAN, min brightness)
5h 14min
WiFi Surfing
4h 41min
Load (maximum brightness)
2h 54min

Verdict

The P3 tries to live up to the earlier success of the Iconia W700 model and lures with a low price design. The 11.6-inch tablet only makes a few mistakes. The i3 performance alongside the swift Intel SSD bears fruits. Common Windows tasks like Excel, Outlook, copying or even basic image editing are performed quickly. It is only too bad that only 25 GB of the 64 GB SSD (net: 59 GB) is available for storage and installations. There is no card reader for expanding it via an SD card.

Working is fun on the contrast-rich and viewing-angle-stable screen although HD+ would have been the better choice for productive use. However, productivity under Windows is not long lasting. The battery is drained after only 3 - 3:30 hours of undemanding operation and the joy of a real keyboard dissolves more and more due to the short drop after longer use.

We deem the Aspire P3-171 to be a suitable companion for everyone looking for a laptop and a tablet in one device. However, homebound laptop use will be the rule. The buyer should not be a gaming fan and not planning to save masses of movies or pictures on the tablet. He or she should rather take delight in a handy device with a great screen. The good application performance makes the P3 future-proof for the next few years. Another laptop in addition to the tablet is actually unnecessary.

However, users who want a perfect ultrabook in tablet format, in every sense, should look at the Iconia W700Microsoft Surface Pro and Sony Vaio Duo 11Samsung's ATIV Q now being released on the market could also be an alternative.





Read all 1 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
Acer Aspire P3-171-3322Y2G06as, courtesy of Acer Germany
Acer Aspire P3-171-3322Y2G06as, courtesy of Acer Germany

Specifications

Acer Aspire P3-171-3322Y2G06as
Processor
Intel Core i3-3229Y 2 x 1.4 GHz, Ivy Bridge-Y
Graphics adapter
Intel HD Graphics 4000, Core: 850 MHz, 9.17.10.2932
Memory
2048 MB
, single channel 800 MHz
Display
11.60 inch 16:9, 1366 x 768 pixel, 10 finger multi-touch, AUO B116XAT03, IPS, glossy: yes
Mainboard
Intel HM77 (Panther Point)
Storage
Intel SSD 525 Series SSDMCEAC060B3A, 60 GB
, an SATA 2.0 (3 Gbit/s, 300 MB/s), 25 GB free
Soundcard
HD Audio
Connections
1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: combo line out & microphone, Sensors: position, brightness
Networking
Atheros AR5BMD222 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 19 x 299 x 196 ( = 0.75 x 11.77 x 7.72 in)
Battery
40 Wh Lithium-Polymer, 4 cell, 5280 mAh
Operating System
Microsoft Windows 8 64 Bit
Camera
Webcam: 5MP rear, 1.3 MP front
Additional features
Speakers: stereo, Keyboard: isolation, Keyboard Light: no, Bluetooth keyboard case, 24 Months Warranty
Weight
1.338 kg ( = 47.2 oz / 2.95 pounds), Power Supply: 319 g ( = 11.25 oz / 0.7 pounds)
Price
600 Euro



Acer was one of the first manufacturers...
Acer was one of the first manufacturers...
with an affordable Windows tablet based on standard hardware.
with an affordable Windows tablet based on standard hardware.
The W700 fulfilled the wish of some buyers...
The W700 fulfilled the wish of some buyers...
for ultrabook hardware in tablet format.
for ultrabook hardware in tablet format.
The current price of EUR 600 is luring.
The current price of EUR 600 is luring.
The 11.6 incher includes one important standard accessory:
The 11.6 incher includes one important standard accessory:
A keyboard case.
A keyboard case.
The keyboard belongs to the typical user scenario for the P3.
The keyboard belongs to the typical user scenario for the P3.
But the P3 cannot be placed backwards in its case.
But the P3 cannot be placed backwards in its case.
Despite the different name, the Aspire P3 has the same 11.6 inch casing...
Despite the different name, the Aspire P3 has the same 11.6 inch casing...
as the Iconia W700, but a plastic keyboard case in silver (W700 = transparent).
as the Iconia W700, but a plastic keyboard case in silver (W700 = transparent).
The cover snaps in here...
The cover snaps in here...
and the tablet sits securely over the keyboard.
and the tablet sits securely over the keyboard.

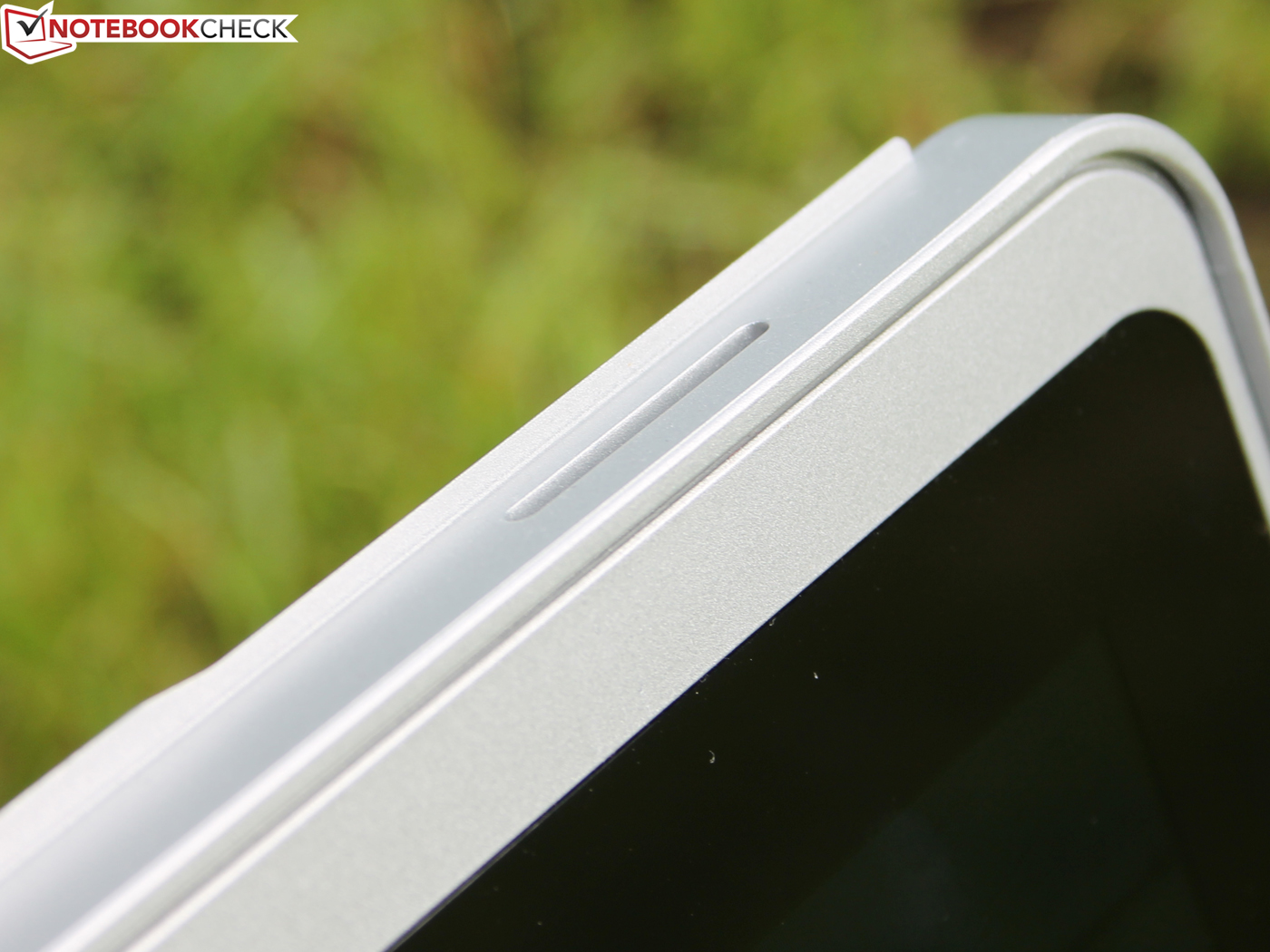

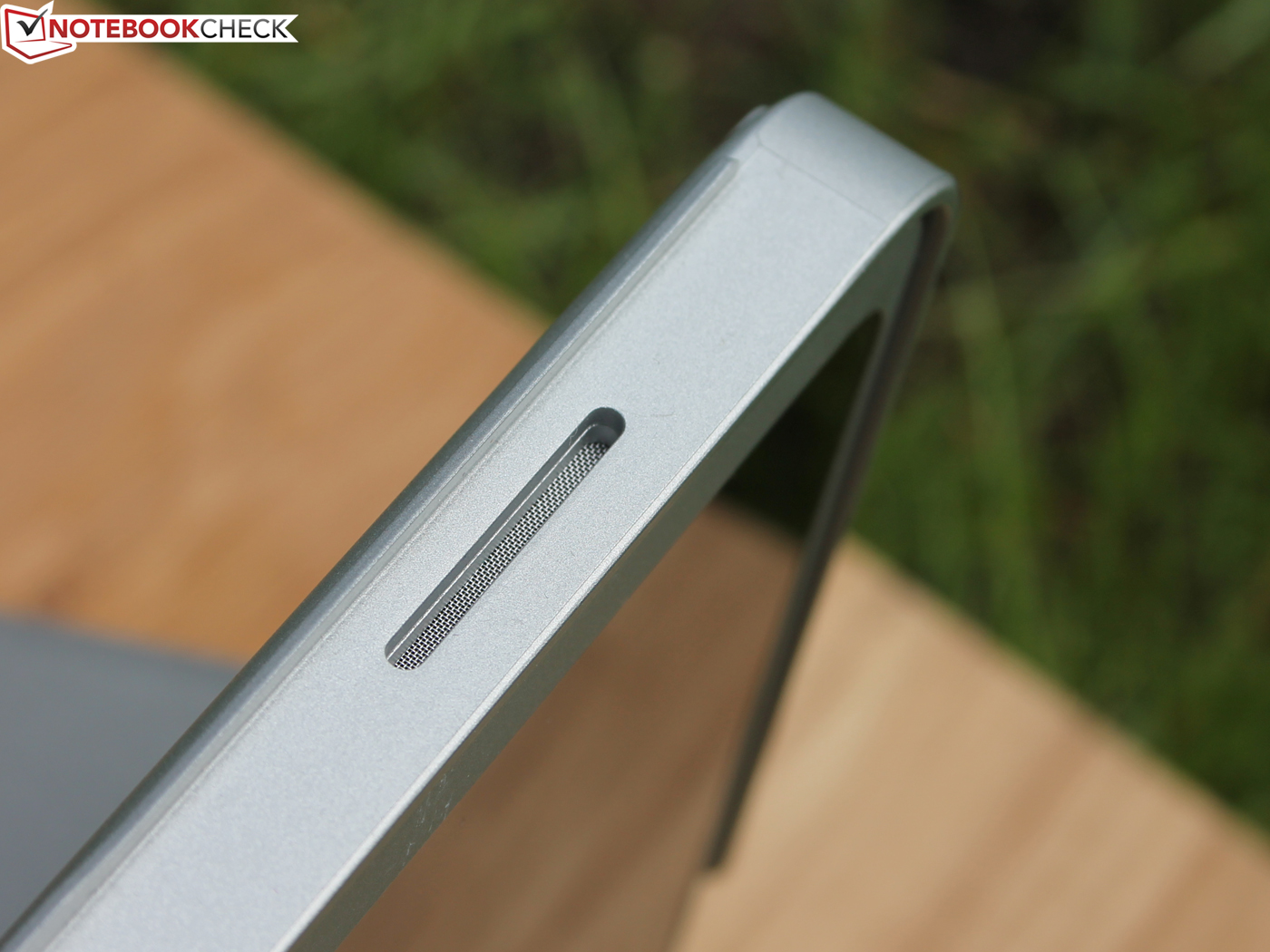

The speakers are located on the bottom edge.
The speakers are located on the bottom edge.
Disadvantage: When the P3 is in the case...
Disadvantage: When the P3 is in the case...
the keyboard's loose fit is annoying.
the keyboard's loose fit is annoying.
The mechanical input device has a battery and connects to the P3 via Bluetooth.
The mechanical input device has a battery and connects to the P3 via Bluetooth.

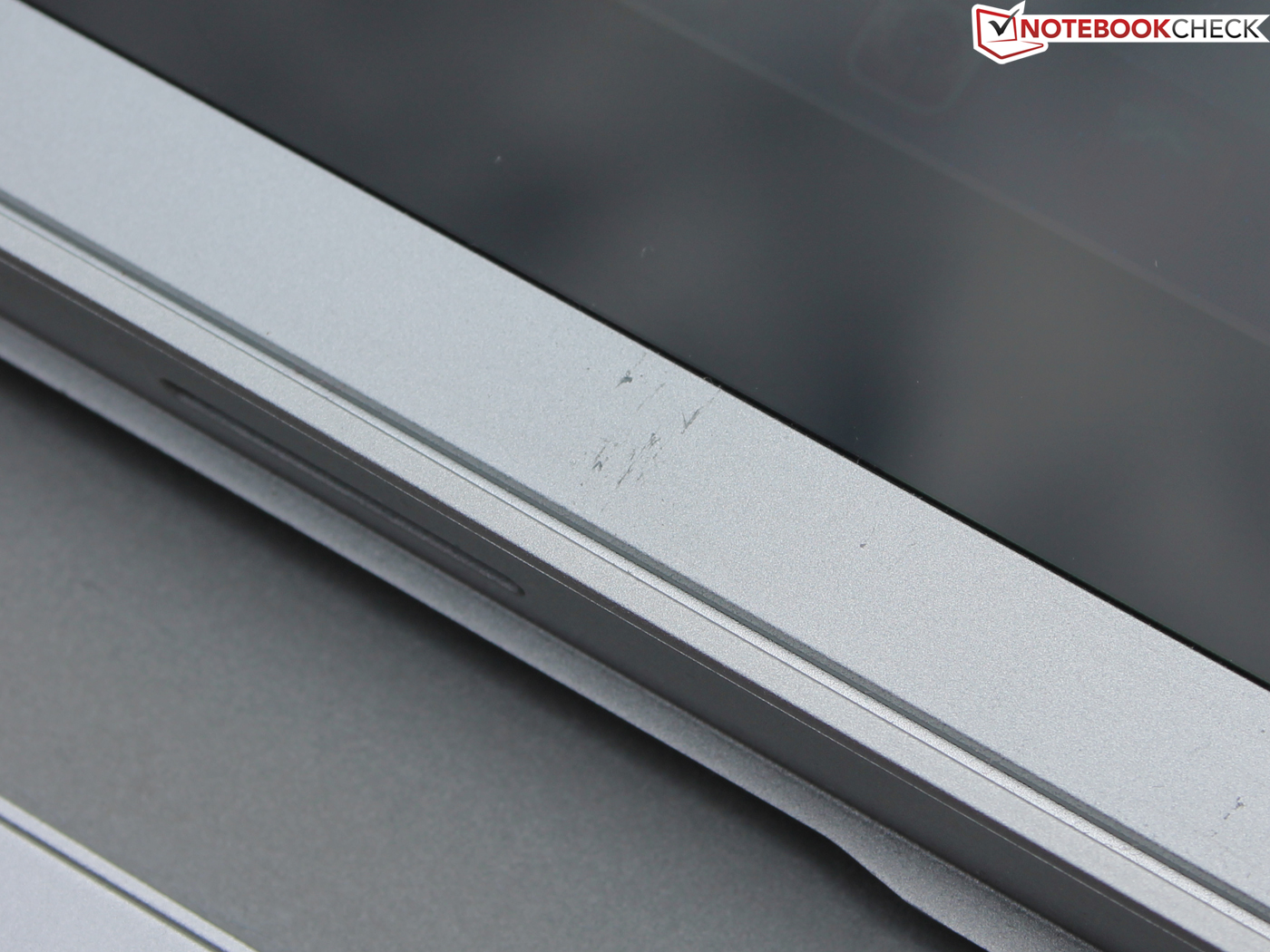

The tablet's movement over the keyboard quickly leads to scratches.
The tablet's movement over the keyboard quickly leads to scratches.
The power button and volume rocker...
The power button and volume rocker...
besides the sole USB 3.0 port and mini-HDMI...
besides the sole USB 3.0 port and mini-HDMI...
are the only interfaces.
are the only interfaces.
A stylus can be inserted in this strap.
A stylus can be inserted in this strap.
The rear-facing camera convinces with a high resolution and crystal clear pictures.
The rear-facing camera convinces with a high resolution and crystal clear pictures.

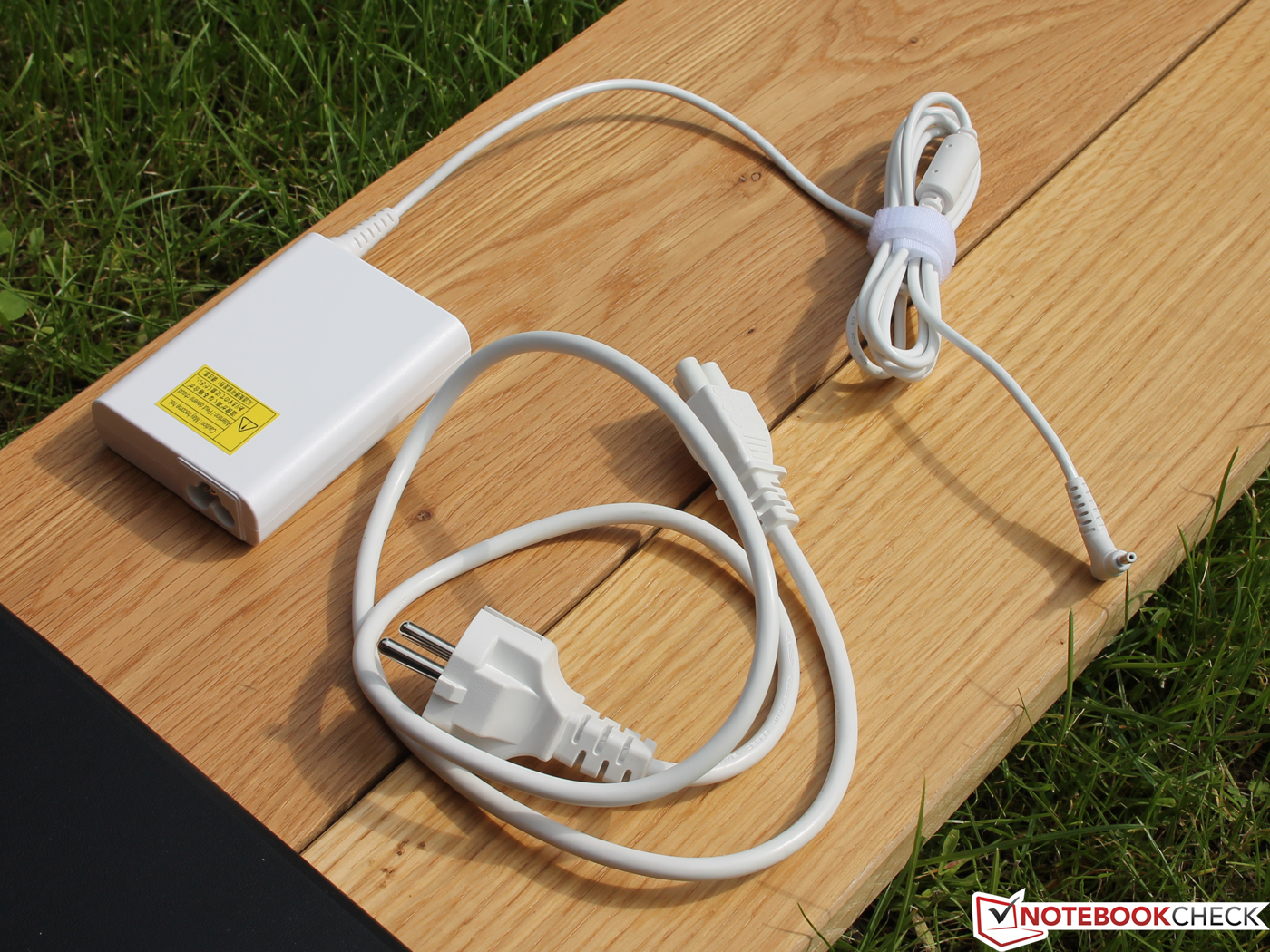

The power supply and its cord only weigh 319 grams.
The power supply and its cord only weigh 319 grams.
Accessories: The USB to mini-USB cable is used for recharging the keyboard.
Accessories: The USB to mini-USB cable is used for recharging the keyboard.
The IPS screen has a HD resolution and not in FHD (Iconia W700).
The IPS screen has a HD resolution and not in FHD (Iconia W700).
A strong contrast of 1580:1 and a high brightness is pleasing to the eye.
A strong contrast of 1580:1 and a high brightness is pleasing to the eye.
The box even contains a Windows 8 recovery DVD (2 data carriers.
The box even contains a Windows 8 recovery DVD (2 data carriers.

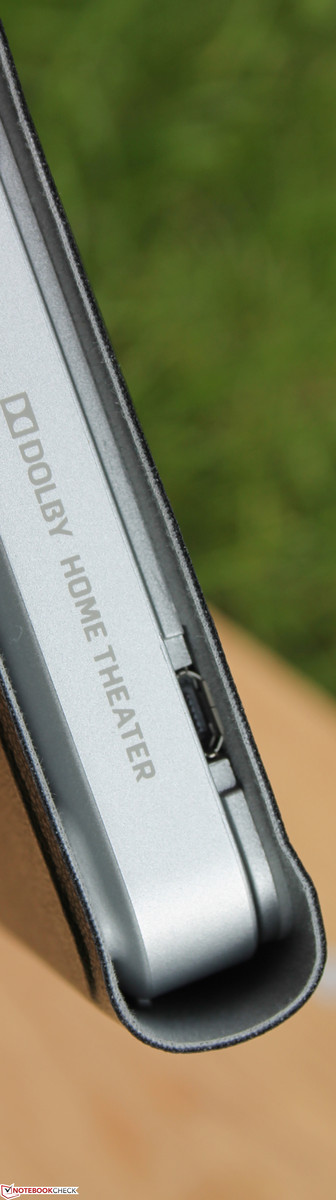

Acer Aspire P3-171: The installed speakers cannot meet the Dolby claim.
Acer Aspire P3-171: The installed speakers cannot meet the Dolby claim.
Acer Aspire P3-171: The keyboard is not optional, it belongs to the bundle.
Acer Aspire P3-171: The keyboard is not optional, it belongs to the bundle.
Acer Aspire P3-171: The case makes a solid, long-lasting impression.
Acer Aspire P3-171: The case makes a solid, long-lasting impression.
Acer Aspire P3-171: The IPS HD screen's contrast, brightness and viewing angles are awesome.
Acer Aspire P3-171: The IPS HD screen's contrast, brightness and viewing angles are awesome.
Acer Aspire P3-171: The overall idea is balanced. Switching from the keyboard to the touchscreen is quick and easy.
Acer Aspire P3-171: The overall idea is balanced. Switching from the keyboard to the touchscreen is quick and easy.
Acer Aspire P3-171: The swift Intel SSD ensures good performance.
Acer Aspire P3-171: The swift Intel SSD ensures good performance.
Acer Aspire P3-171: It is of course not the slimmest tablet. The necessary cooling capacity takes its toll.
Acer Aspire P3-171: It is of course not the slimmest tablet. The necessary cooling capacity takes its toll.

Similar Laptops

Devices from a different Manufacturer and/or with a different CPU

Review Gigabyte Padbook S1185 Convertible
HD Graphics 4000, Core i5 3337U
Review Panasonic Toughbook CF-AX2 Convertible
HD Graphics 4000, Core i5 3427U
Review Lenovo ThinkPad Helix 3G Convertible
HD Graphics 4000, Core i5 3317U
Review Toshiba Portégé Z10t Convertible
HD Graphics 4000, Core i5 3339Y
Review HP EliteBook Revolve 810 Convertible
HD Graphics 4000, Core i5 3437U
Review MSI S20-i541 UltraSlider Ultrabook
HD Graphics 4000, Core i5 3337U

Links

Compare Prices

Pros

+Very good viewing angles
+Very bright screen
+Grayscale reproduction
+Decent performance owing to SSD
+Nice feel, stable chassis
+Quiet
+Decent 5 MP camera
+Decent runtimes


Cons

-Few interfaces, no card reader
-Poor keyboard feedback
-Keyboard unusable in flight mode
-Heavy with keyboard case
-High waste heat

Shortcut

What we like

A viable idea with simplistic implementation. A Windows tablet for typing. We did not miss a touchpad because we soon got used to switching between keys and touch. The perfect screen with vivid colors, high brightness and very good viewing angles.

What we'd like to see

The good approach is lessened by the inferior keyboard. Regrettably, the system cannot be carried around in keyboard mode. Why is there only one sole USB port and no card reader?

What surprises us

The slimmed Core i3 does a good job. A decent system performance is achieved alongside the swift SSD, which can almost compete with expensive ultrabooks.

The competition

Is usually more expensive: Sony Vaio Duo 11, Microsoft Surface Pro, Acer W700, Asus Taichi 21, Dell XPS 12, MSI S20-i541 UltraSlider, Samsung ATIV Smart PC Pro



Rating

Acer Aspire P3-171-3322Y2G06as - 07/04/2013 v3(old)
Sebastian Jentsch

Chassis
90%
Keyboard
65%
Pointing Device
85%
Connectivity
40%
Weight
93%
Battery
89%
Display
85%
Games Performance
56%
Application Performance
89%
Temperature
81%
Noise
92%
Add Points
85%
Average
79%
83%
Convertible - Weighted Average
Sebastian Jentsch, 2013-07- 8 (Update: 2021-05-18)
