Lenovo V17-IIL review: A quiet home office laptop with a good display

Ice Lake office. With the V17-IIL, Lenovo delivers a work device for desk usage. The 17.3-inch laptop scores with low operating noise, a low heat development, and a well-rounded IPS display. The unstable case prohibits mobile usage.
Sascha Mölck, 👁 Sebastian Jentsch (translated by Mark Riege), 🇩🇪 🇮🇹 ...

Lenovo's V series represents the entry level series into the business laptop segment. You can find simple office laptops that don't strain your budget too much and are thus suited for private as well as business users. The 17.3-inch model we are testing here is run by a Core i3-1005G1 processor and available for barely 600 Euros (~$729). The competitors include devices such as the HP 17 and the Asus Vivobook 17 F712.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Lenovo V17-IIL 82GX008TGE
Processor
Intel Core i3-1005G1 2 x 1.2 - 3.4 GHz, 51 W PL2 / Short Burst, 25 W PL1 / Sustained, Ice Lake U
Graphics adapter
Intel UHD Graphics G1 (Ice Lake 32 EU), Core: 900 MHz, dual-channel mode, 27.20.100.9466
Memory
8192 MB

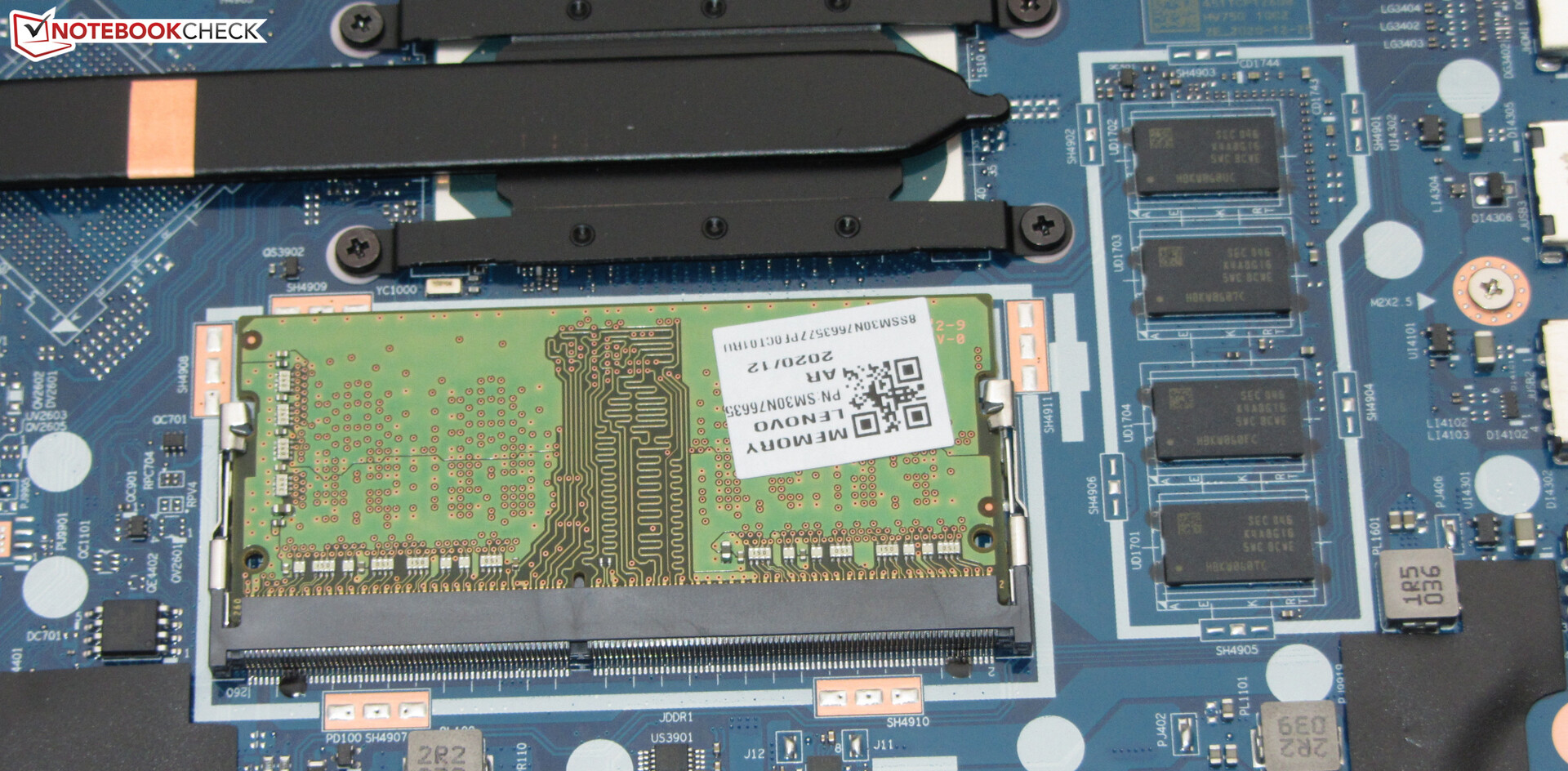

, DDR4-3200, dual-channel mode, one memory slot (in use), 4 GB onboard, max. 36 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.3, IPS, glossy: no, 60 Hz
Mainboard
Intel 495 (Ice Lake-U PCH-LP Premium)

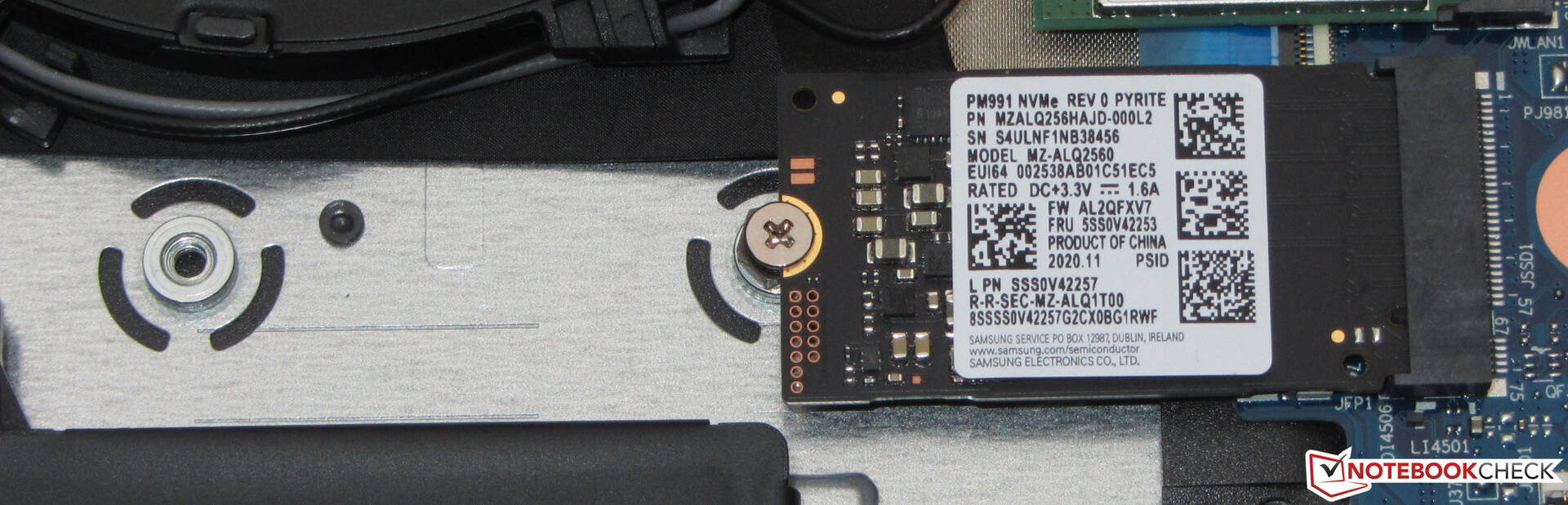

Storage
Samsung PM991 MZALQ256HAJD, 256 GB
, M.2-2242, NVMe, 200 GB free
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: combined audio port, Card Reader: SD, SDHX, SDXC, MMC, TPM 2.0
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Size
height x width x depth (in mm): 19.9 x 402 x 281.3 ( = 0.78 x 15.83 x 11.07 in)
Battery
42 Wh, 3735 mAh Lithium-Polymer
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: VGA
Primary Camera: 0.3 MPix
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, McAfee LiveSafe (trial), MS Office 365 (trial), 12 Months Warranty
Weight
2.2 kg ( = 77.6 oz / 4.85 pounds), Power Supply: 220 g ( = 7.76 oz / 0.49 pounds)
Price
599 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
80 %
05/2021
Lenovo V17-IIL 82GX008TGE
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)
2.2 kg19.9 mm17.30"1920x1080
75 %
05/2020
HP 17-by2437ng
i3-10110U, UHD Graphics 620
2.4 kg24.5 mm17.30"1600x900
77 %
09/2020
Asus VivoBook 17 F712FA-AU518T
i5-10210U, UHD Graphics 620
2.3 kg21.4 mm17.30"1920x1080

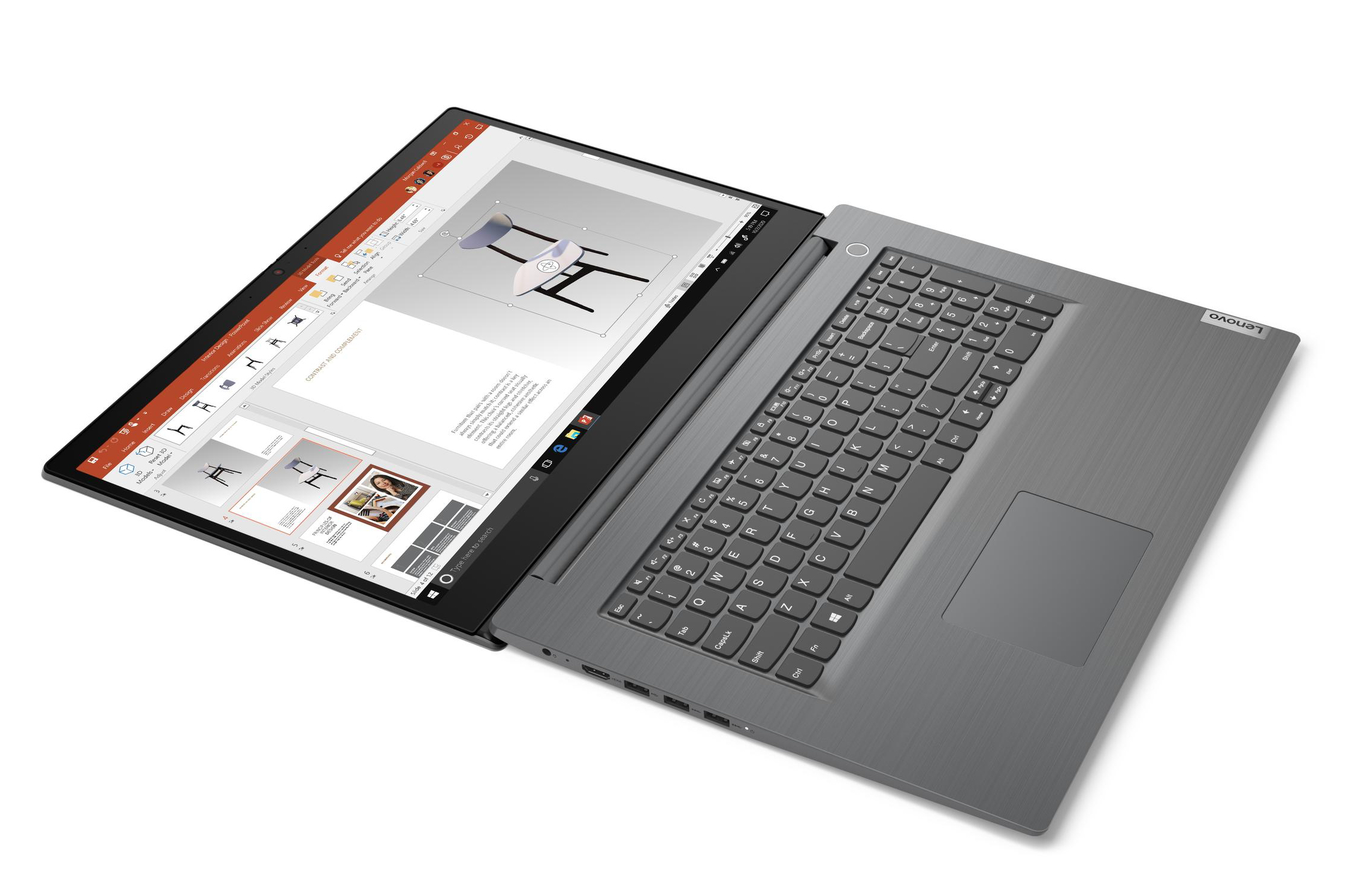

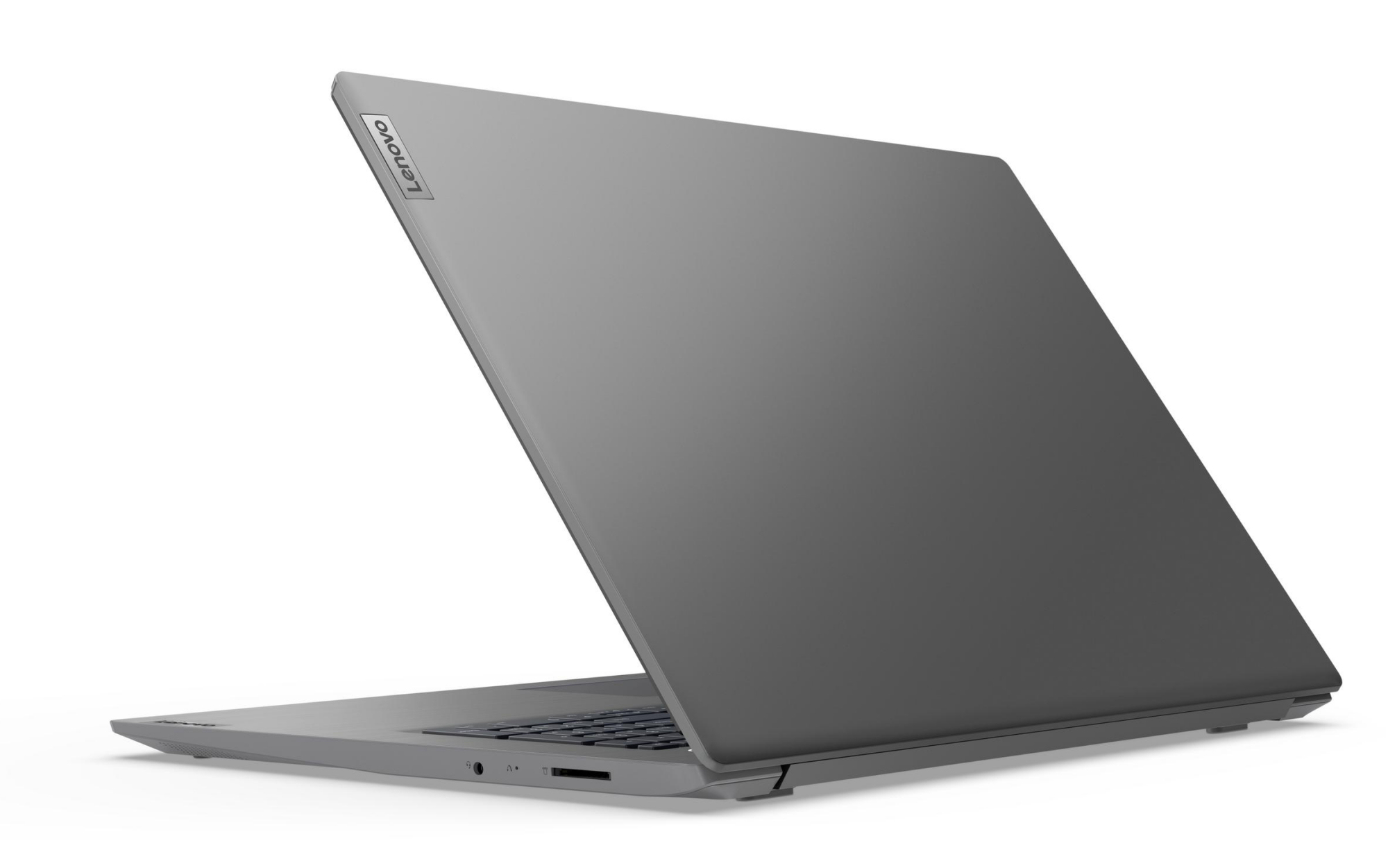

Case and Equipment - The V17 does not offer USB-C

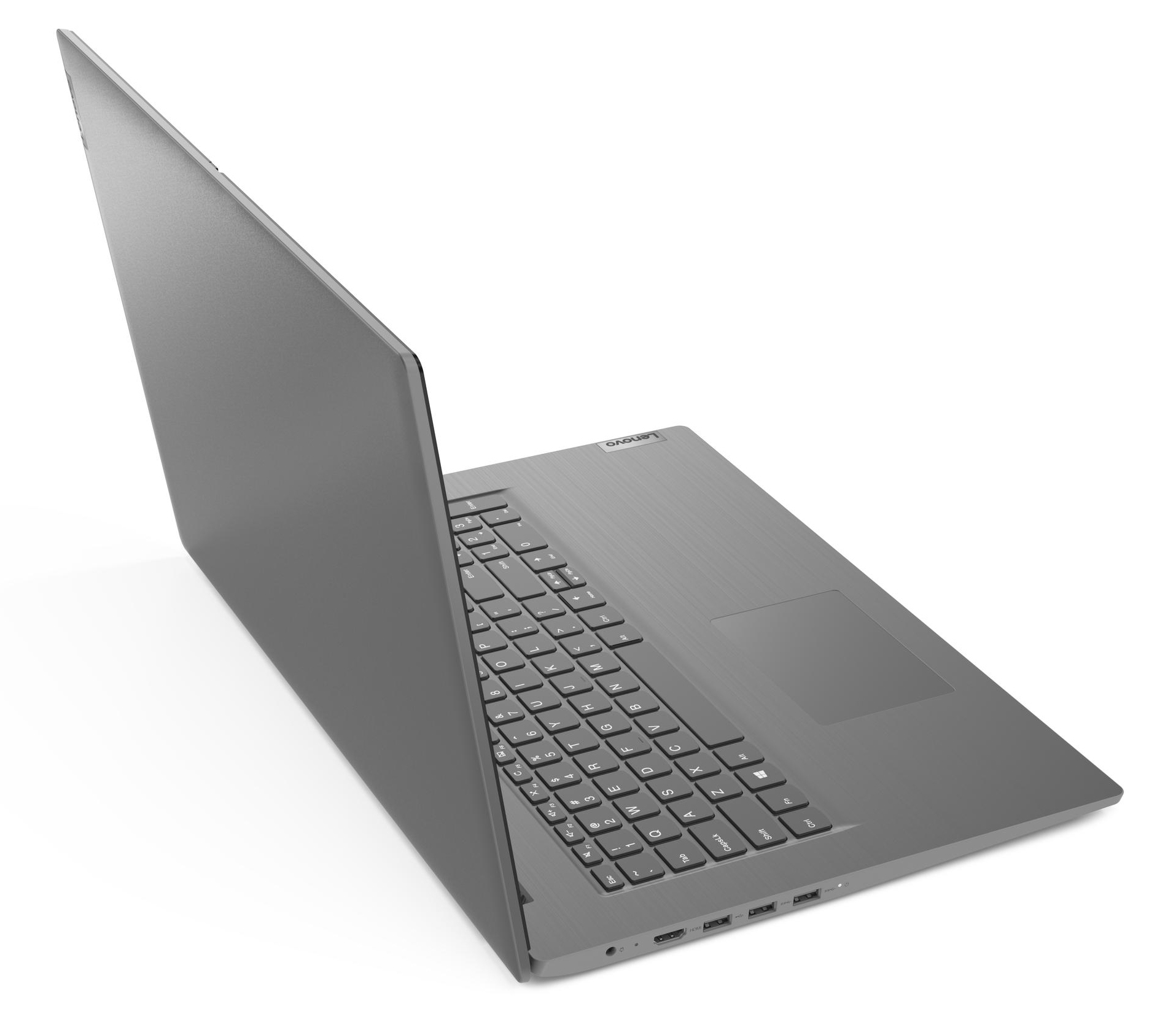

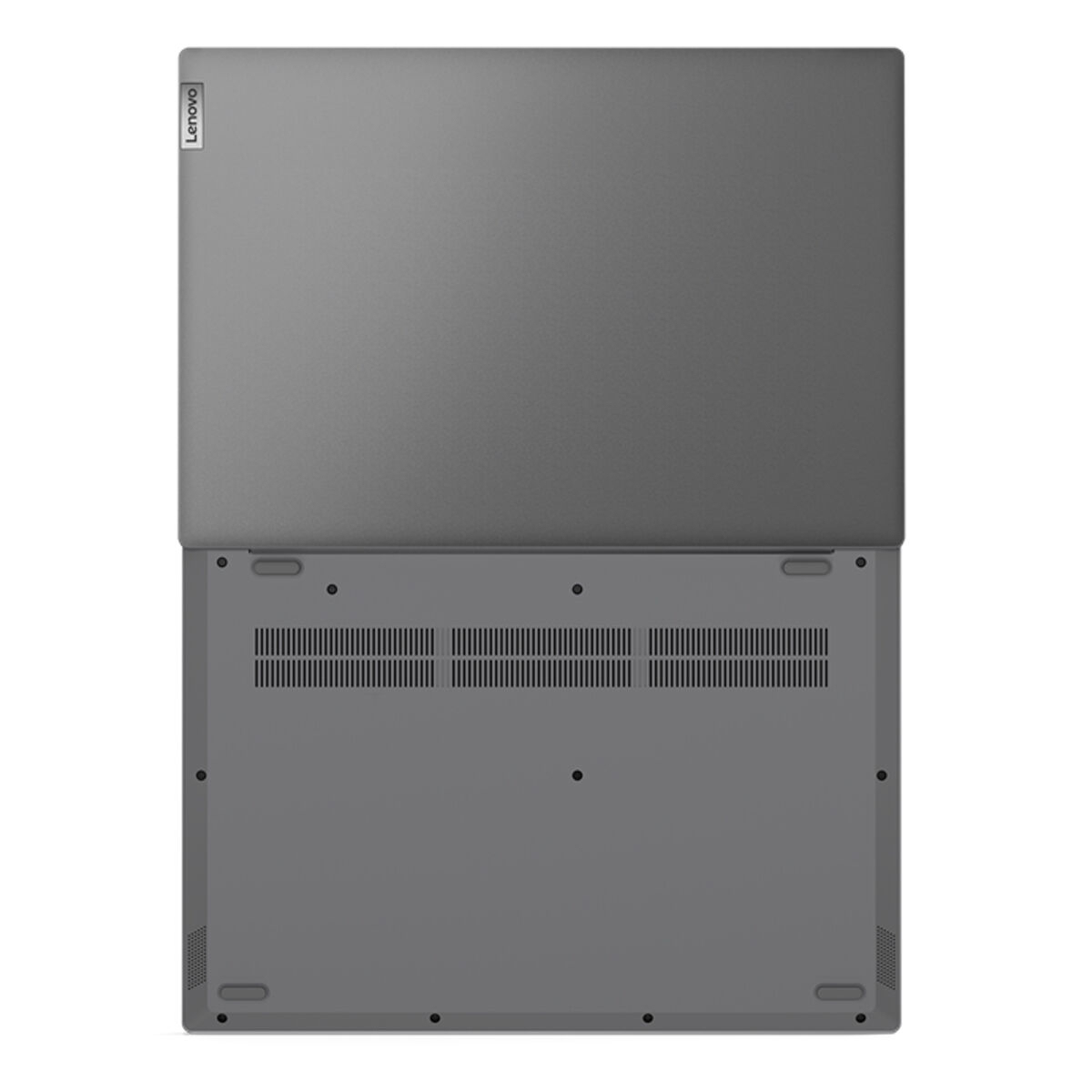

Lenovo uses a dark grey (Iron Grey) plastic case with matte, smooth surfaces. The top of the base unit is printed with a pattern that is supposed to simulate a discretely brushed surface. While the case shows good workmanship, it lacks stability. The base unit and lid can be warped too easily. This means that the laptop should be used in a fixed location on top of a flat surface. The battery is built-in, and you can access the insides after removing the bottom of the case.

The limited amount of connections consists of three USB-A ports (2x USB 3.2 Gen 1, 1x USB 2.0), one HDMI port, and an audio combo port. The storage card reader belongs to the slower models (reference card: Angelbird SD Card AV PRO UHS-II 128GB V60), and SD cards cannot be fully inserted but stick out by about 16 mm (~0.6 in).

The WLAN chip (Intel AX201) supports the 802.11 a/b/g/n/ac/ax standards and offers Bluetooth 5 functionality. The transfer rates determined under optimal conditions (no additional WLAN devices in close proximity and close distance between laptop and Server PC) turn our very good.

Size Comparison

414.8 mm / 16.3 inch 272.2 mm / 10.7 inch 24.5 mm / 0.965 inch 2.4 kg5.31 lbs406.9 mm / 16 inch 256 mm / 10.1 inch 21.4 mm / 0.843 inch 2.3 kg5.07 lbs402 mm / 15.8 inch 281.3 mm / 11.1 inch 19.9 mm / 0.783 inch 2.2 kg4.85 lbs
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Connection Equipment

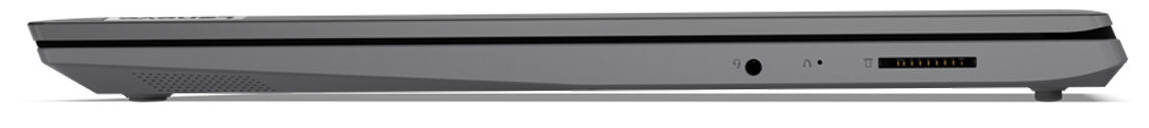

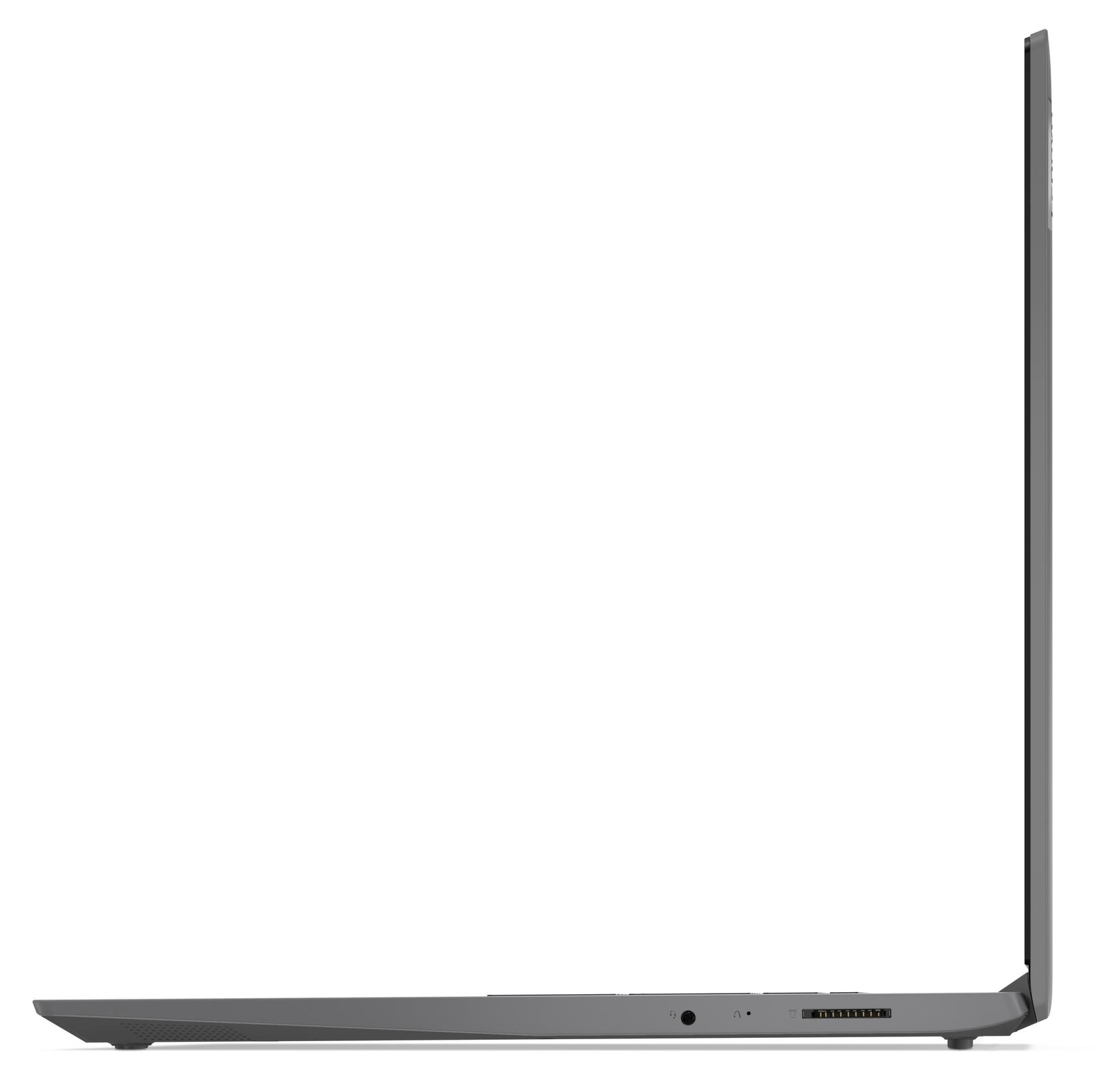

Right side: audio combo port, storage card reader (SD)
Right side: audio combo port, storage card reader (SD)

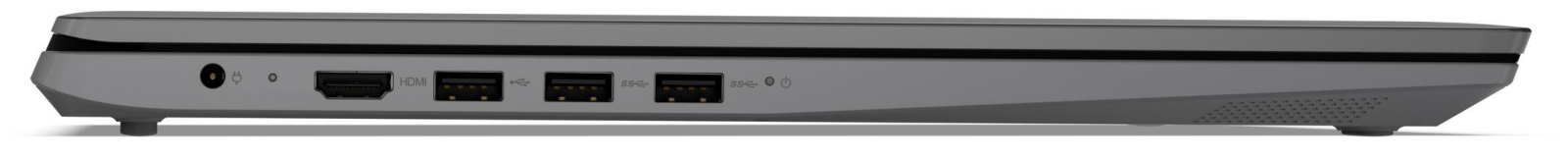

Left side: power, HDMI, USB 2.0 (Type-A), 2x USB 3.2 Gen 1 (Type-A)
Left side: power, HDMI, USB 2.0 (Type-A), 2x USB 3.2 Gen 1 (Type-A)
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Average of class Office
  (17.7 - 194, n=80, last 2 years)
76.1 MB/s ∼100% +266%
Asus VivoBook 17 F712FA-AU518T
  (Toshiba Exceria Pro M501 microSDXC 64GB)
72.5 MB/s ∼95% +249%
HP 17-by2437ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
33.9 MB/s ∼45% +63%
Lenovo V17-IIL 82GX008TGE

20.8 MB/s ∼27%
maximum AS SSD Seq Read Test (1GB)
Average of class Office
  (17.2 - 205, n=77, last 2 years)
87.5 MB/s ∼100% +180%
Asus VivoBook 17 F712FA-AU518T
  (Toshiba Exceria Pro M501 microSDXC 64GB)
83.9 MB/s ∼96% +169%
HP 17-by2437ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.2 MB/s ∼41% +16%
Lenovo V17-IIL 82GX008TGE

31.2 MB/s ∼36%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo V17-IIL 82GX008TGE
Intel Wi-Fi 6 AX201
1419 (698min - 1497max) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=230)
1152 MBit/s ∼81% -19%
Asus VivoBook 17 F712FA-AU518T
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
627 (564min - 692max) MBit/s ∼44% -56%
Lenovo V340-17IWL 81RG001YGE
Qualcomm Atheros QCA9377 Wireless Network Adapter
310 (251min - 369max) MBit/s ∼22% -78%
HP 17-by2437ng
Realtek RTL8723DE
65.2 (35min - 84max) MBit/s ∼5% -95%
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo V17-IIL 82GX008TGE
Intel Wi-Fi 6 AX201
1453 (1291min - 1633max) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (289 - 1743, n=230)
1239 MBit/s ∼85% -15%
Asus VivoBook 17 F712FA-AU518T
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
633 (624min - 642max) MBit/s ∼44% -56%
Lenovo V340-17IWL 81RG001YGE
Qualcomm Atheros QCA9377 Wireless Network Adapter
340 (323min - 347max) MBit/s ∼23% -77%
HP 17-by2437ng
Realtek RTL8723DE
60.8 (54min - 72max) MBit/s ∼4% -96%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160015431562145813961495134516091515148912911577157715491532161916331300141713921372136113291485140513821364138912941513138359656360656062617254625958576557545861645667666056585457635663662963463364263363862664063463362963963862462663263163663063763463463962463063963063063233933633634034033734333934633834133734033933534133334233834533833134233934433334134334732315431562145813961495134516091515148912911577157715491532161916331300141713921372136113291485140513821364138912941513138359656360656062617254625958576557545861645667666056585457635663662963463364263363862664063463362963963862462663263163663063763463463962463063963063063233933633634034033734333934633834133734033933534133334233834533833134233934433334134334732369814241350141313971421143314441436141413081451141614581383149714391427140913471364149413591456142314581450142614141450646670707069687466716546528462565768676565646862683577716767564616608618622616630637639634634603628617640640612623639636630623625607627607620673656692308321309312303302315325300312312293327315329251369310314303304307313291279333309313320298Tooltip
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1453 (1291-1633)
HP 17-by2437ng Intel Core i3-10110U, Intel UHD Graphics 620; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø60.3 (54-72)
Asus VivoBook 17 F712FA-AU518T Intel Core i5-10210U, Intel UHD Graphics 620; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø633 (624-642)
Lenovo V340-17IWL 81RG001YGE Intel Pentium Gold 5405U, Intel UHD Graphics 610; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø339 (323-347)
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1395 (698-1497)
HP 17-by2437ng Intel Core i3-10110U, Intel UHD Graphics 620; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø65.1 (35-84)
Asus VivoBook 17 F712FA-AU518T Intel Core i5-10210U, Intel UHD Graphics 620; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø627 (564-692)
Lenovo V340-17IWL 81RG001YGE Intel Pentium Gold 5405U, Intel UHD Graphics 610; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø310 (251-369)
ColorChecker
11.4 ∆E
14 ∆E
24.4 ∆E
25 ∆E
27.3 ∆E
18 ∆E
8.9 ∆E
28.9 ∆E
16.6 ∆E
21.5 ∆E
16.5 ∆E
12.6 ∆E
25.8 ∆E
10.7 ∆E
17.2 ∆E
4.2 ∆E
23.6 ∆E
23.2 ∆E
2.3 ∆E
11.7 ∆E
18.7 ∆E
17.3 ∆E
16.3 ∆E
7.8 ∆E
ColorChecker HP 17-by2437ng: 16.83 ∆E min: 2.33 - max: 28.89 ∆E
ColorChecker
23.3 ∆E
16.3 ∆E
17.3 ∆E
19.3 ∆E
18.3 ∆E
13.4 ∆E
18.5 ∆E
24 ∆E
20 ∆E
17.2 ∆E
11.2 ∆E
14.4 ∆E
19.3 ∆E
16 ∆E
24.3 ∆E
11.9 ∆E
21.3 ∆E
17.7 ∆E
3.3 ∆E
13.3 ∆E
14.1 ∆E
13.2 ∆E
8.5 ∆E
7.6 ∆E
ColorChecker Lenovo V340-17IWL 81RG001YGE: 15.99 ∆E min: 3.32 - max: 24.29 ∆E
ColorChecker
4.9 ∆E
13.6 ∆E
15.8 ∆E
7.6 ∆E
13.7 ∆E
12.6 ∆E
14.3 ∆E
19.1 ∆E
18.2 ∆E
10.2 ∆E
13.2 ∆E
12.6 ∆E
11.8 ∆E
11.6 ∆E
21.9 ∆E
14.1 ∆E
18.3 ∆E
13.2 ∆E
2.3 ∆E
10.2 ∆E
14.5 ∆E
14.1 ∆E
2.7 ∆E
11 ∆E
ColorChecker Lenovo V17-IIL 82GX008TGE: 12.55 ∆E min: 2.33 - max: 21.86 ∆E
ColorChecker
17.3 ∆E
12 ∆E
16.3 ∆E
19.2 ∆E
15.2 ∆E
11.1 ∆E
9.2 ∆E
20.3 ∆E
14.7 ∆E
15 ∆E
8.3 ∆E
6.7 ∆E
14 ∆E
10.7 ∆E
16.4 ∆E
4.5 ∆E
15.2 ∆E
12.6 ∆E
2.3 ∆E
10.6 ∆E
9 ∆E
9.7 ∆E
12.1 ∆E
6.5 ∆E
ColorChecker Asus VivoBook 17 F712FA-AU518T: 12.03 ∆E min: 2.33 - max: 20.28 ∆E

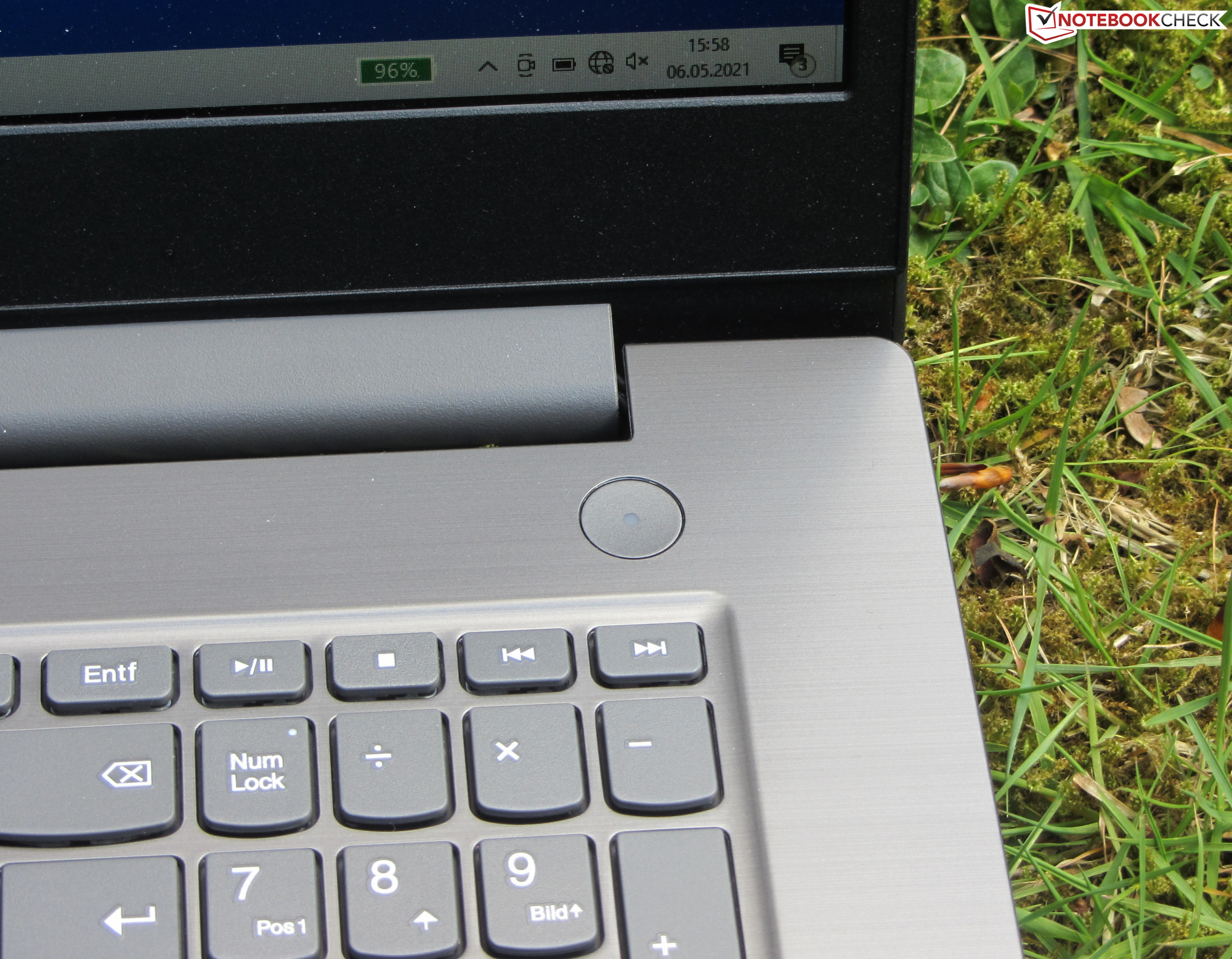

Input Devices - The Lenovo laptop does not offer a keyboard illumination

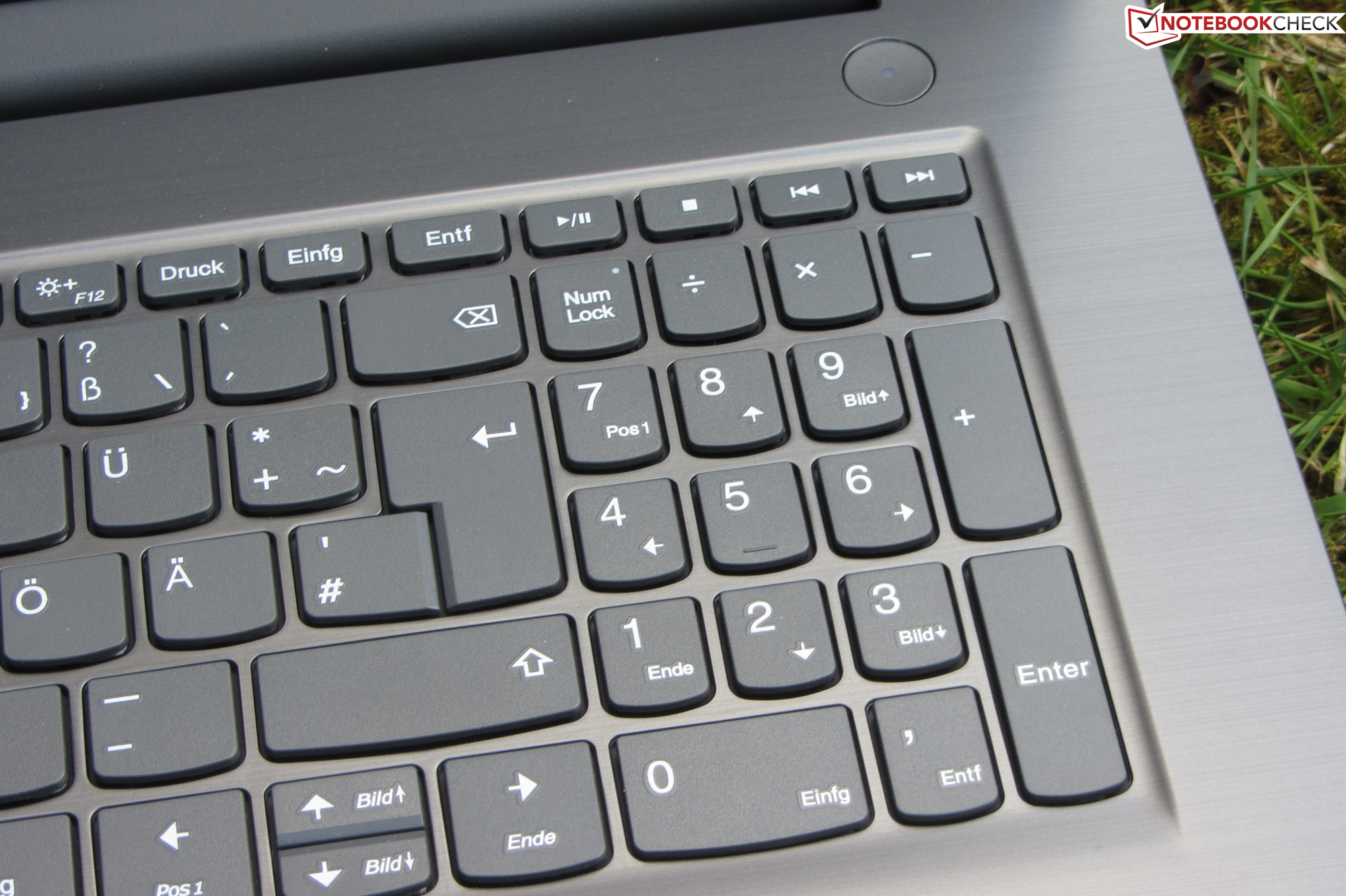

Lenovo has equipped the V17 with a chiclet keyboard that does not offer any illumination. The keys, whose surface is only slightly rough, offer a short stroke and clear pressure point. While typing, the keyboard bounces back slightly. Overall, Lenovo has delivered a keyboard that is suitable for everyday tasks here.

The mouse replacement is a multitouch capable ClickPad (~10.5 x 7 cm, ~4.1 x 2.8 in) whose embedded keys also offer a short stroke and clear pressure point. The smooth pad surface allows fingers to slide easily. The ClickPad also responds to input in the corners.

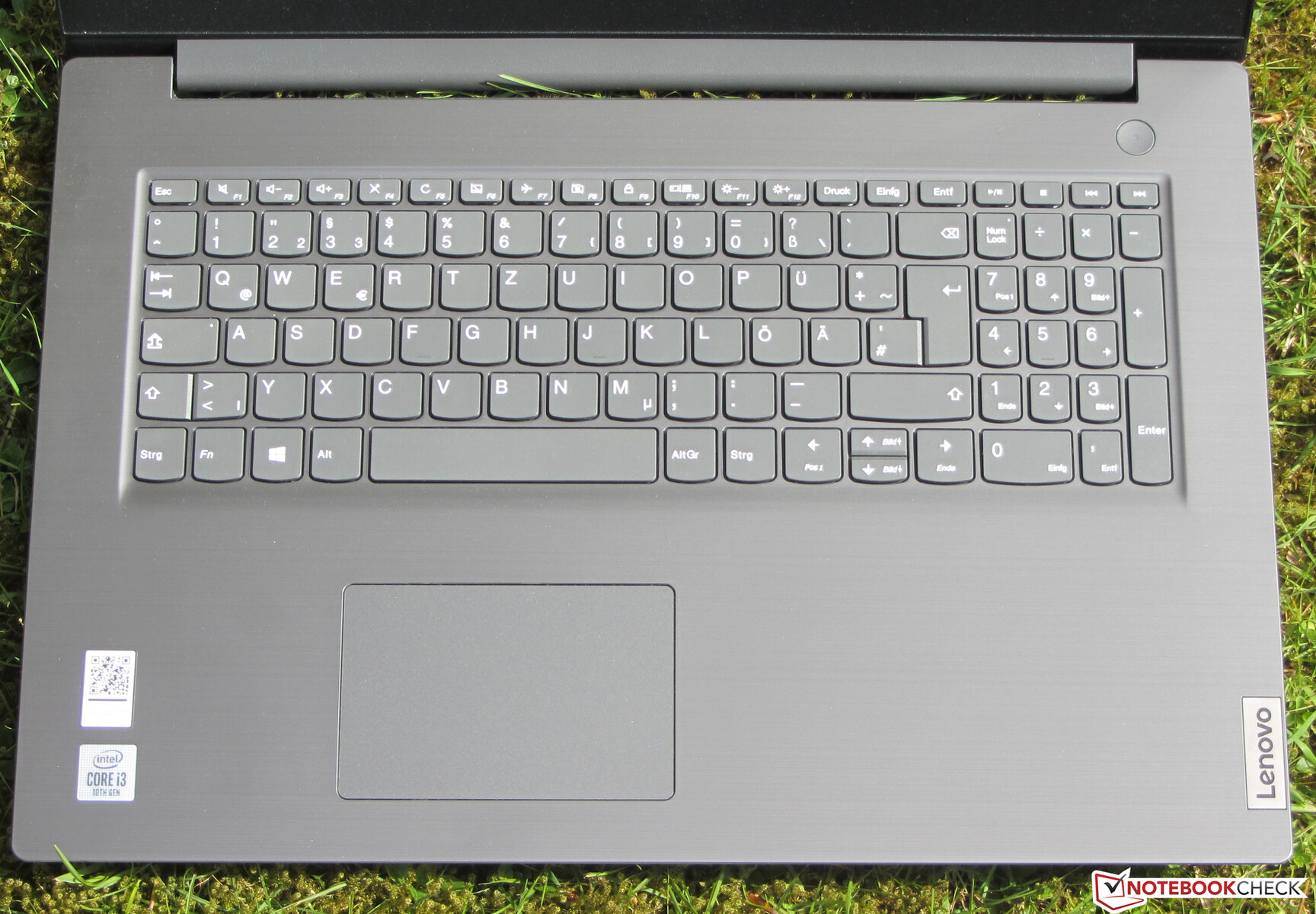

Input Devices V17
Input Devices V17

Display - IPS onboard

Subpixel grid
Subpixel grid

The brightness (309.4 cd/m²) and contrast (1000:1) of the 17.3-inch display (1920 x 1080 pixels) fulfill the requirements. A positive aspect of the display is the lack of PWM flickering.

311
cd/m²
312
cd/m²
306
cd/m²
295
cd/m²
330
cd/m²
292
cd/m²
318
cd/m²
307
cd/m²
314
cd/m²
Distribution of brightness
AU Optronics B173HAN04.3
X-Rite i1Pro 2
Maximum: 330 cd/m² Average: 309.4 cd/m² Minimum: 3.8 cd/m²
Brightness Distribution: 88 %
Center on Battery: 330 cd/m²
Contrast: 1000:1 (Black: 0.33 cd/m²)
ΔE Color 2.82 | 0.59-29.43 Ø5.6
ΔE Greyscale 3.58 | 0.64-98 Ø5.8
97% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.07% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.08% sRGB (Argyll 2.2.0 3D)
68.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.42
Lenovo V17-IIL 82GX008TGE
AU Optronics B173HAN04.3, IPS, 1920x1080, 17.30
HP 17-by2437ng
BOE NT173WDM-N21, TN LED, 1600x900, 17.30
Asus VivoBook 17 F712FA-AU518T
BOE NV173FHM-N49, IPS, 1920x1080, 17.30
Lenovo V340-17IWL 81RG001YGE
CMN N173HCE-E31 CMN1738, , 1920x1080, 17.30
Display
-23%
-42%
-2%
Display P3 Coverage
68.5
53.63
-22%
39.03
-43%
67.49
-1%
sRGB Coverage
97.08
74.04
-24%
58.38
-40%
94.22
-3%
AdobeRGB 1998 Coverage
70.07
53.93
-23%
40.32
-42%
68
-3%
Response Times
25%
41%
7%
Response Time Grey 50% / Grey 80% *
39 (19, 20)
42 (22, 20)
-8%
24 (13, 11)
38%
37 (17.7, 19.3)
5%
Response Time Black / White *
28 (15, 13)
12 (7, 5)
57%
16 (8, 8)
43%
25.8 (15.2, 10.6)
8%
PWM Frequency
250 (80)
25000 (24)
Screen
-112%
-41%
-15%
Brightness middle
330
222
-33%
288
-13%
284
-14%
Brightness
309
208
-33%
262
-15%
268
-13%
Brightness Distribution
88
89
1%
83
-6%
77
-12%
Black Level *
0.33
0.649
-97%
0.24
27%
0.23
30%
Contrast
1000
342
-66%
1200
20%
1235
24%
Colorchecker DeltaE2000 *
2.82
11.77
-317%
6.14
-118%
4.98
-77%
Colorchecker DeltaE2000 max. *
6.27
20.78
-231%
18.55
-196%
8.45
-35%
Greyscale DeltaE2000 *
3.58
14.31
-300%
4.55
-27%
5.3
-48%
Gamma
2.42 91%
2.24 98%
2.37 93%
2273 0%
CCT
6994 93%
19250 34%
7161 91%
7065 92%
Color Space (Percent of AdobeRGB 1998)
63
48
-24%
37
-41%
61
-3%
Color Space (Percent of sRGB)
97
74
-24%
58.1
-40%
94
-3%
Colorchecker DeltaE2000 calibrated *
3.5
4.6
1.87
Total Average (Program / Settings)
-37% / -76%
-14% / -30%
-3% / -10%

* ... smaller is better

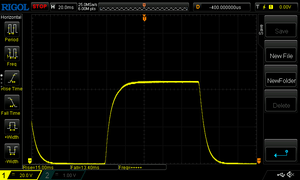

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

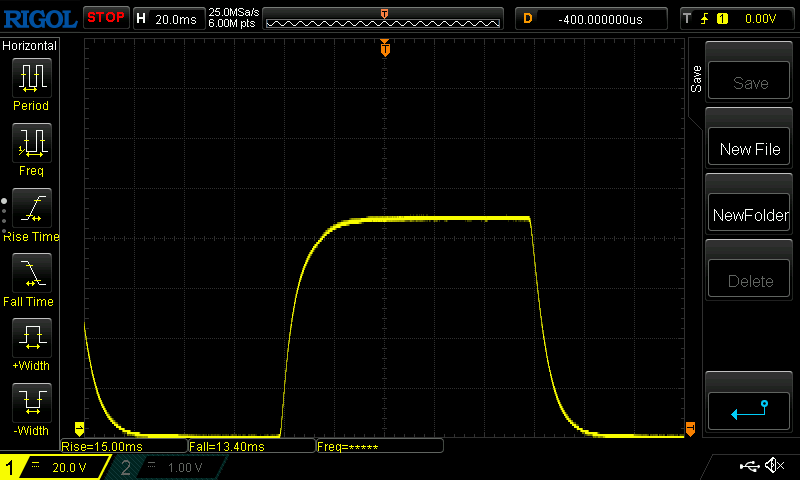

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 13 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.1 ms).

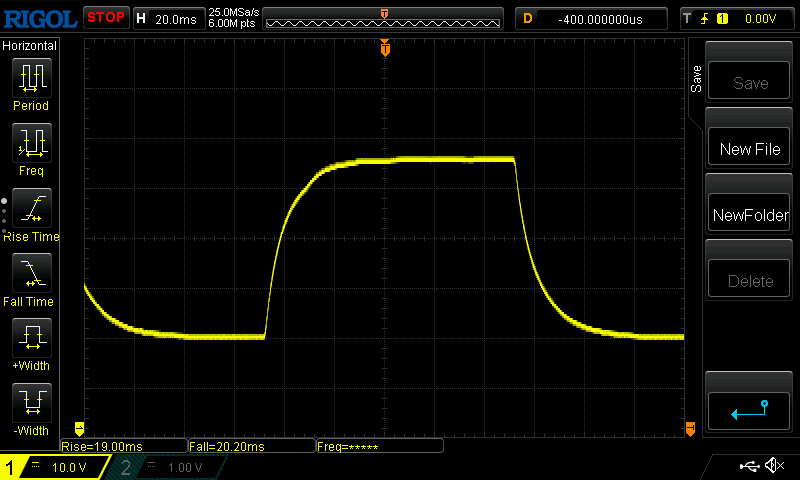

       Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 20 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 44 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (38.2 ms).

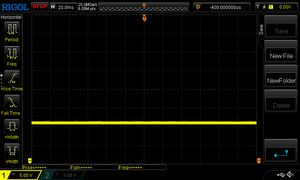

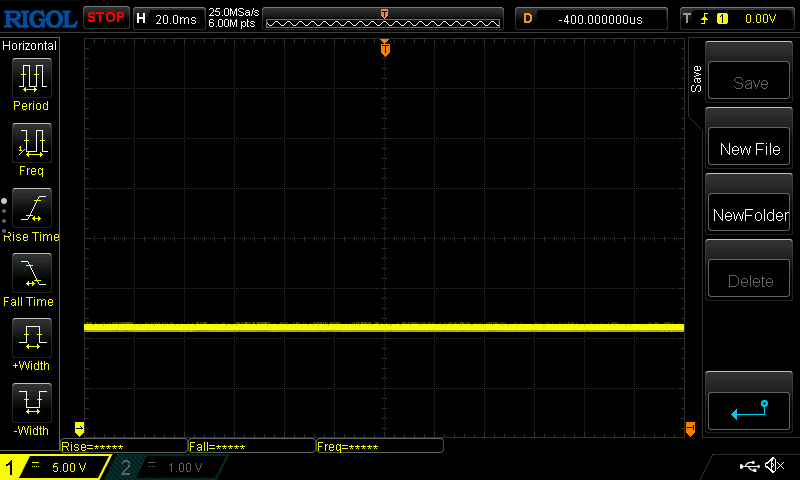

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9726 (minimum: 5 - maximum: 151500) Hz was measured.

In the state of delivery, the display shows a good color reproduction and its color deviation of slightly less than 3 just barely meets the target value (Delta E < 3). The display does not suffer from a blue tint. The AdobeRGB (63%) and sRGB (97%) color spaces are not fully covered.

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Grayscale
CalMAN - Grayscale
CalMAN - Saturation
CalMAN - Saturation

Since the IPS panel has stable viewing angles, it can be read from any position. You should also be able to read the display outdoors, as long as the sun is not too bright.

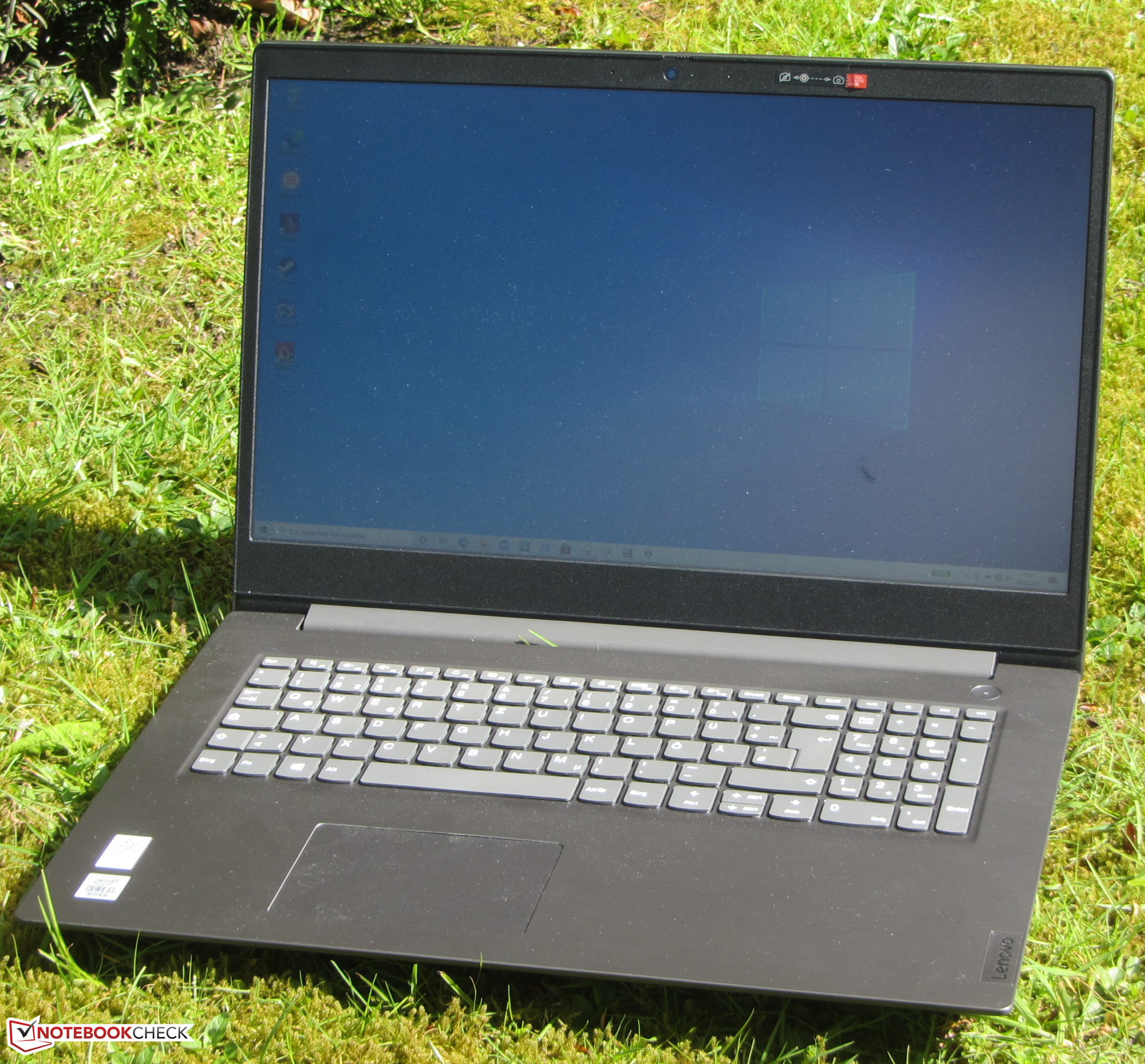

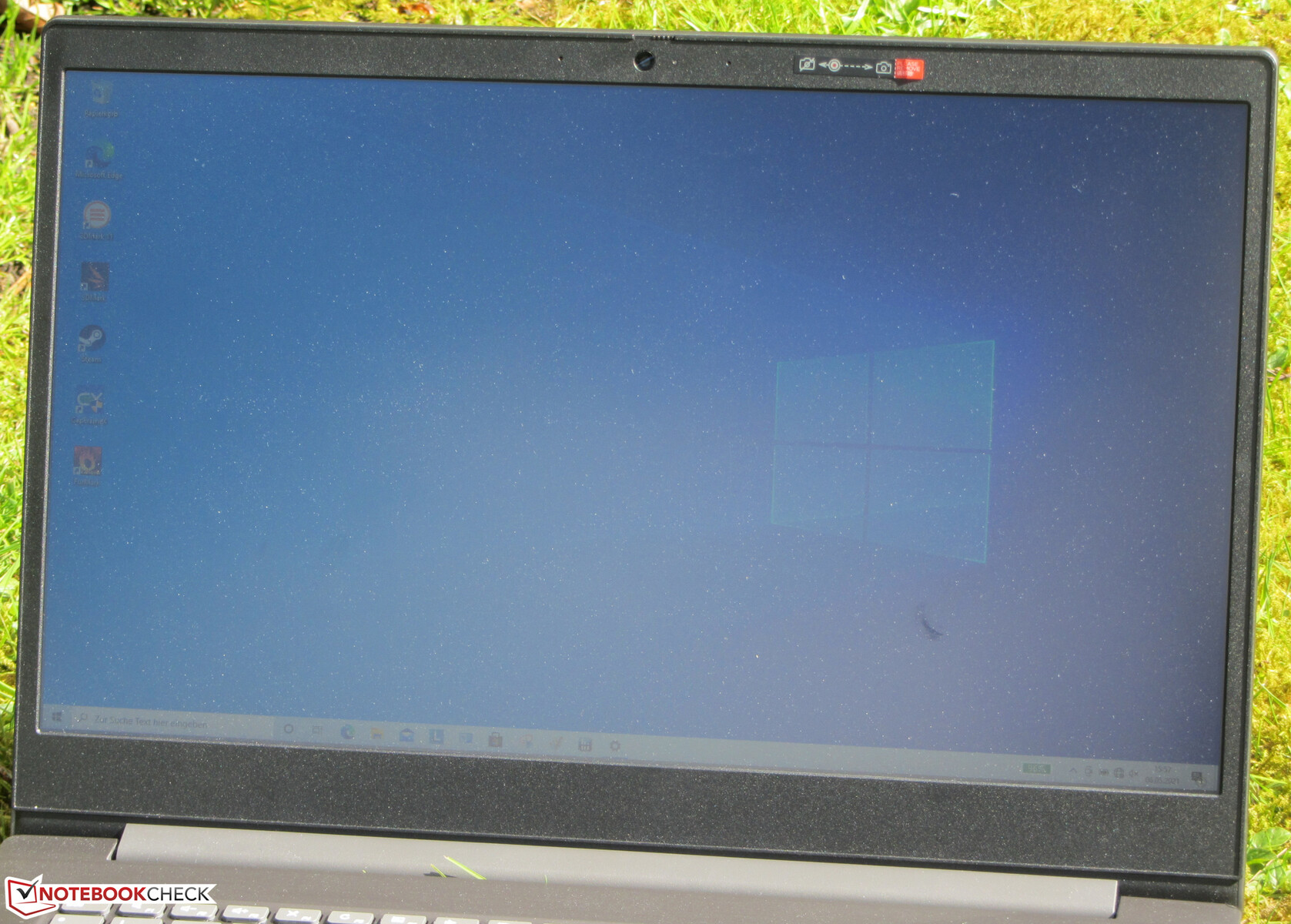

The V17 outdoors
The V17 outdoors

Performance - The Core i3 runs at full speed

With the V17-IIL, Lenovo offers a simple 17.3-inch office laptop that is targeted toward private and professional users. The laptop offers sufficient computing performance for office and Internet applications.

Test Conditions

The laptop offers the three power profiles "Intelligent Cooling," "Highest Performance," and "Battery Saver" mode. You can switch between the profiles by using the "Fn" + "Q" key combination or via the preinstalled Lenovo Vantage software. We ran our test with the "Intelligent Cooling" mode activated. With this, the laptop already runs at full speed, and the "Highest Performance" mode does not offer any additional performance - but this might look different with other equipment configurations of the V17.

Processor

The Core i3-1005G1 dual-core processor (Ice Lake) runs at a basic clock speed of 1.2 GHz, which can be increased up to 3.4 GHz via Turbo. Hyper threading (two threads per core) is supported.

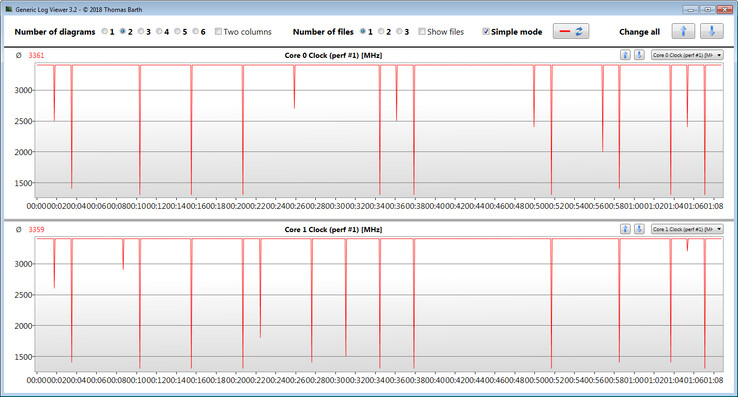

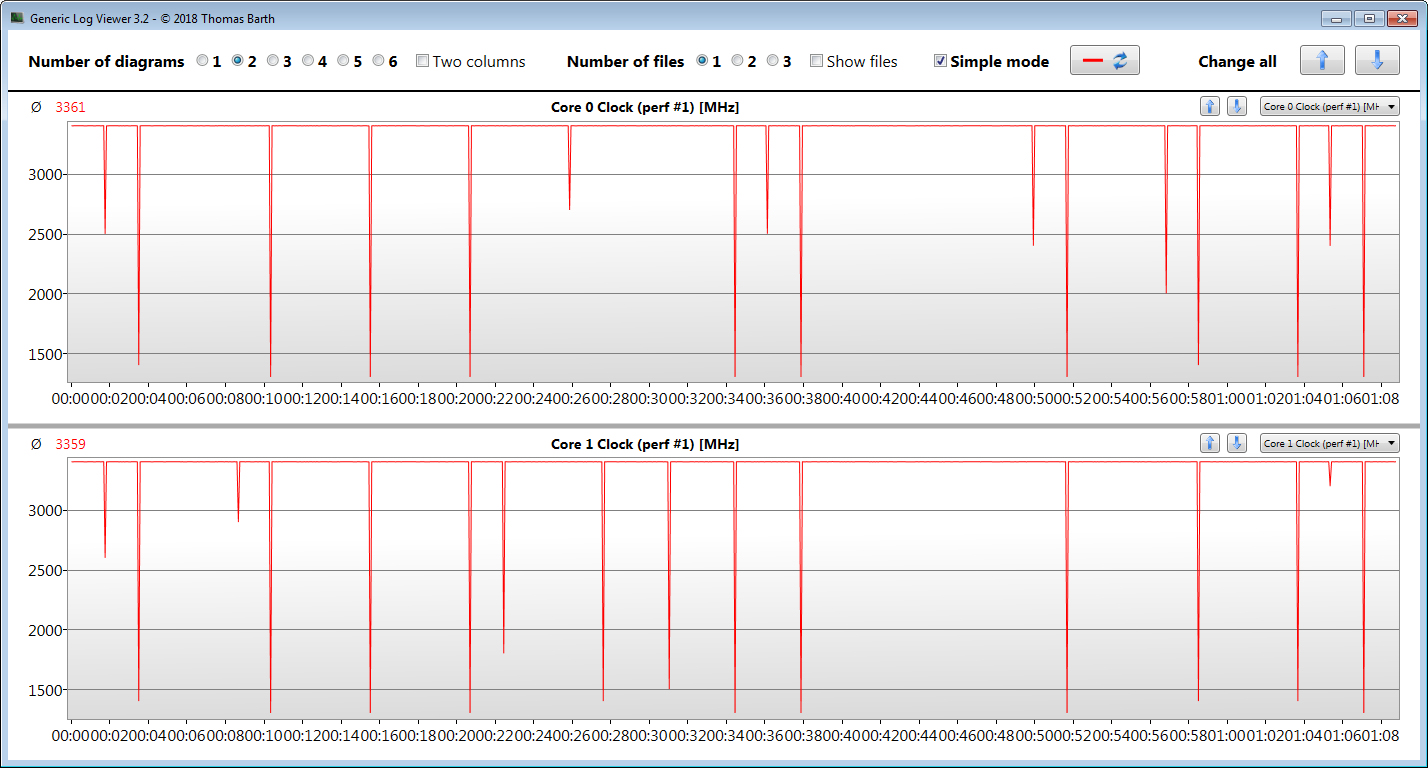

The processor runs through the multi-thread test of the Cinebench R15 benchmarks at 3.4 GHz and the single-thread test at between 1.5 and 3.4 GHz. In battery operation, the clock speeds are at 1.6 GHz (multi-thread) and 1.2 to 1.6 GHz (single-thread).

CPU-Z
CPU-Z

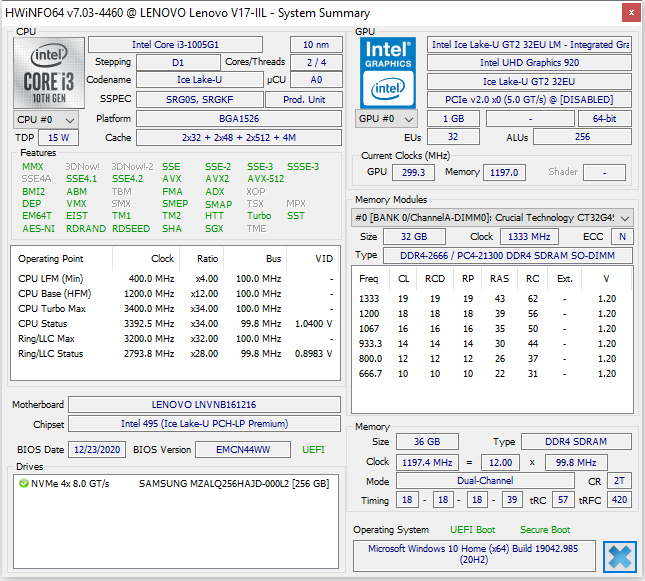

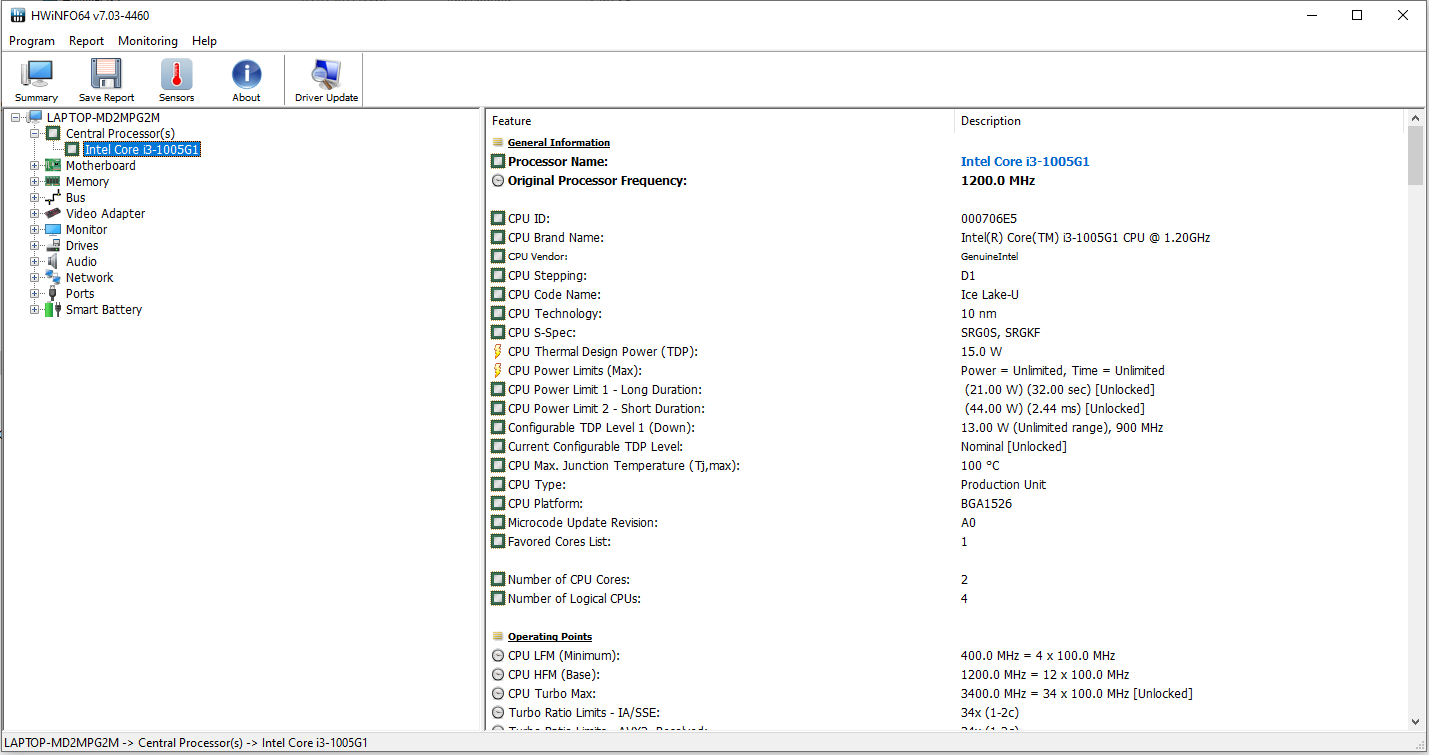

HWInfo
HWInfo
HWInfo
HWInfo

We evaluate whether the CPU Turbo is used constantly in mains operation by running the multi-thread test of the Cinebench R15 benchmarks for at least 30 minutes in a constant loop. The CPU runs constantly at maximum speed.

03570105140175210245280315350385420455490525560595630665399.03403.87404.97405.38406.77405.74403.09403.88401403.03402.53401.74402.78403.37403.74402.81401.78403.36404.42404.47405.34403.74404.37404.29403.05389.86404.02403403.79404.65406.96404.64404.9405.31404.99405.7404.53405.99405.09402.94321.01304.04301.6304.62305.38302.78303.89302.03302.99302.32303.71302.35307.06307.47308.17307.25306.92307.58308.06307.73306.69308.1304.4307.17306.44307.95305.6307.91307.17309.29307.99308.32308.02307.84307.14307.25305.49306.7307.69306.88683.92629.46628.83625.76625.46629.91631.78628.67626.98627.9627.9628.53627.6631.77630.69628.37630.54626.83633.97626.67626.07631.31635.7635.38631.78632.25632.41631.46630.22630.53631.31629.76634.29632.24633.03636.17628.83631630.85629.75228.28228.02227.62228.07227.49226.38225.51227.03226.15226.62227.6226.13227.04226.03227.05226.77226.23227.4227.24226.44227.57226.02226.89226.41226.85Tooltip
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1: Ø404 (389.86-406.96)
HP 17-by2437ng Intel Core i3-10110U: Ø307 (301.6-321.01)
Asus VivoBook 17 F712FA-AU518T Intel Core i5-10210U: Ø632 (625.46-683.92)
Lenovo V340-17IWL 81RG001YGE Intel Pentium Gold 5405U: Ø227 (225.51-228.28)
CPU clock speeds while running the CB15 loop
CPU clock speeds while running the CB15 loop
Cinebench R15 CPU Single 64Bit
148 Points
Cinebench R15 CPU Multi 64Bit
407 Points
Cinebench R15 OpenGL 64Bit
44.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
Cinebench R15
CPU Single 64Bit
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
172 Points ∼100% +16%
Average of class Office
  (75 - 230, n=117, last 2 years)
170 Points ∼99% +15%
HP 17-by2437ng
Intel Core i3-10110U
160 Points ∼93% +8%
Average Intel Core i3-1005G1
  (148 - 158, n=4)
155 Points ∼90% +5%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
148 Points ∼86%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
91.1 Points ∼53% -38%
CPU Multi 64Bit
Average of class Office
  (134 - 1410, n=120, last 2 years)
687 Points ∼100% +69%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
684 Points ∼100% +68%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
407 Points ∼59%
Average Intel Core i3-1005G1
  (404 - 407, n=4)
406 Points ∼59% 0%
HP 17-by2437ng
Intel Core i3-10110U
321 Points ∼47% -21%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
227 (225.51min - 228.28max) Points ∼33% -44%
Blender 2.79 - BMW27 CPU
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
2191 Seconds * ∼100% -94%
HP 17-by2437ng
Intel Core i3-10110U
1385 Seconds * ∼63% -23%
Average Intel Core i3-1005G1
  (1123 - 1264, n=4)
1160 Seconds * ∼53% -3%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
1129 Seconds * ∼52%
Average of class Office
  (344 - 3319, n=99, last 2 years)
828 Seconds * ∼38% +27%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
822 Seconds * ∼38% +27%
7-Zip 18.03
7z b 4 -mmt1
Average of class Office
  (2493 - 5565, n=99, last 2 years)
4343 MIPS ∼100% +9%
HP 17-by2437ng
Intel Core i3-10110U
4269 MIPS ∼98% +7%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
3989 MIPS ∼92%
Average Intel Core i3-1005G1
  (3851 - 4057, n=4)
3985 MIPS ∼92% 0%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
3504 MIPS ∼81% -12%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
2493 MIPS ∼57% -38%
7z b 4
Average of class Office
  (4963 - 39649, n=99, last 2 years)
19288 MIPS ∼100% +77%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
14940 MIPS ∼77% +37%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
10896 MIPS ∼56%
Average Intel Core i3-1005G1
  (10536 - 11135, n=4)
10877 MIPS ∼56% 0%
HP 17-by2437ng
Intel Core i3-10110U
9858 MIPS ∼51% -10%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
6446 MIPS ∼33% -41%
Cinebench R20
CPU (Single Core)
Average of class Office
  (194 - 606, n=107, last 2 years)
432 Points ∼100% +6%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
424 Points ∼98% +4%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
407 Points ∼94%
HP 17-by2437ng
Intel Core i3-10110U
400 Points ∼93% -2%
Average Intel Core i3-1005G1
  (338 - 407, n=4)
388 Points ∼90% -5%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
204 Points ∼47% -50%
CPU (Multi Core)
Average of class Office
  (159 - 3302, n=108, last 2 years)
1589 Points ∼100% +57%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
1464 Points ∼92% +44%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
1015 Points ∼64%
Average Intel Core i3-1005G1
  (848 - 1015, n=4)
928 Points ∼58% -9%
HP 17-by2437ng
Intel Core i3-10110U
753 Points ∼47% -26%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
513 Points ∼32% -49%
Geekbench 5.3
64 Bit Single-Core Score
Average of class Office
  (431 - 1648, n=89, last 2 years)
1152 Points ∼100% +1%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
1141 Points ∼99%
Average Intel Core i3-1005G1
  (1118 - 1161, n=3)
1140 Points ∼99% 0%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
1126 Points ∼98% -1%
HP 17-by2437ng
Intel Core i3-10110U
1017 Points ∼88% -11%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
570 Points ∼49% -50%
64 Bit Multi-Core Score
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
3946 Points ∼100% +63%
Average of class Office
  (873 - 6502, n=89, last 2 years)
3846 Points ∼97% +59%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
2417 Points ∼61%
Average Intel Core i3-1005G1
  (2153 - 2434, n=3)
2335 Points ∼59% -3%
HP 17-by2437ng
Intel Core i3-10110U
2017 Points ∼51% -17%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
1255 Points ∼32% -48%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Office
  (1.15 - 9.8, n=98, last 2 years)
5.09 fps ∼100% +44%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
3.53 fps ∼69%
Average Intel Core i3-1005G1
  (3.12 - 3.59, n=4)
3.43 fps ∼67% -3%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
3.35 fps ∼66% -5%
HP 17-by2437ng
Intel Core i3-10110U
2.72 fps ∼53% -23%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
1.5 fps ∼29% -58%
LibreOffice - 20 Documents To PDF
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
105 s * ∼100% -65%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
80.32 s * ∼76% -26%
HP 17-by2437ng
Intel Core i3-10110U
65.4 s * ∼62% -3%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
63.6 s * ∼61%
Average of class Office
  (21.5 - 180, n=78, last 2 years)
62.9 s * ∼60% +1%
Average Intel Core i3-1005G1
  (55.8 - 63.6, n=3)
58.7 s * ∼56% +8%
R Benchmark 2.5 - Overall mean
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U
1.254 sec * ∼100% -68%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U
0.901 sec * ∼72% -21%
Average Intel Core i3-1005G1
  (0.747 - 0.763, n=3)
0.755 sec * ∼60% -1%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1
0.747 sec * ∼60%
HP 17-by2437ng
Intel Core i3-10110U
0.74 sec * ∼59% +1%
Average of class Office
  (0.542 - 1.578, n=83, last 2 years)
0.705 sec * ∼56% +6%

* ... smaller is better

System Performance

The system runs smoothly and well-rounded. We did not run into any problems. The processor used delivers sufficient performance for office and Internet applications. The results in the PCMark benchmarks turn out good.

The working memory (8 GB, DDR4-3200, 4 GB module + 4 GB onboard) runs in dual-channel mode. Lenovo limits the available maximum amount of working memory in the V17 series to 12 GB. Nonetheless, the devices also support larger capacities, and we were able to equip a model with a 32-GB module, which means that you can expand the storage up to 36 GB.

The working memory runs in dual-channel mode.
The working memory runs in dual-channel mode.
The working memory can be expanded up to 36 GB.
The working memory can be expanded up to 36 GB.
PCMark 8 Home Score Accelerated v2
3200 points
PCMark 8 Creative Score Accelerated v2
3218 points
PCMark 8 Work Score Accelerated v2
2618 points
PCMark 10 Score
3422 points
Help
PCMark 10
Score
Asus VivoBook 17 F712FA-AU518T
UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8
4205 Points ∼48% +23%
Average of class Office
  (1900 - 5606, n=112, last 2 years)
4139 Points ∼47% +21%
HP 17-by2437ng
UHD Graphics 620, i3-10110U, Toshiba KBG30ZMV256G
3542 Points ∼40% +4%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (3420 - 3562, n=4)
3463 Points ∼39% +1%
Lenovo V17-IIL 82GX008TGE
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD
3422 Points ∼39%
Lenovo V340-17IWL 81RG001YGE
UHD Graphics 610, Pentium 5405U, Lenovo UMIS AM610 RPFTJ256PDD2MWX
2363 Points ∼27% -31%
Essentials
Asus VivoBook 17 F712FA-AU518T
UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8
8854 Points ∼77% +11%
Average of class Office
  (4469 - 10457, n=112, last 2 years)
8410 Points ∼73% +6%
Lenovo V17-IIL 82GX008TGE
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD
7954 Points ∼69%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (7666 - 8088, n=4)
7869 Points ∼68% -1%
HP 17-by2437ng
UHD Graphics 620, i3-10110U, Toshiba KBG30ZMV256G
7583 Points ∼66% -5%
Lenovo V340-17IWL 81RG001YGE
UHD Graphics 610, Pentium 5405U, Lenovo UMIS AM610 RPFTJ256PDD2MWX
5559 Points ∼48% -30%
Productivity
Asus VivoBook 17 F712FA-AU518T
UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8
7124 Points ∼64% +36%
HP 17-by2437ng
UHD Graphics 620, i3-10110U, Toshiba KBG30ZMV256G
6758 Points ∼61% +29%
Average of class Office
  (2917 - 9071, n=112, last 2 years)
6528 Points ∼58% +24%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (5252 - 5822, n=4)
5453 Points ∼49% +4%
Lenovo V17-IIL 82GX008TGE
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD
5252 Points ∼47%
Lenovo V340-17IWL 81RG001YGE
UHD Graphics 610, Pentium 5405U, Lenovo UMIS AM610 RPFTJ256PDD2MWX
4133 Points ∼37% -21%
Digital Content Creation
Average of class Office
  (1270 - 5878, n=112, last 2 years)
3571 Points ∼23% +37%
Asus VivoBook 17 F712FA-AU518T
UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8
3199 Points ∼21% +23%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (2605 - 2692, n=4)
2629 Points ∼17% +1%
Lenovo V17-IIL 82GX008TGE
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD
2606 Points ∼17%
HP 17-by2437ng
UHD Graphics 620, i3-10110U, Toshiba KBG30ZMV256G
2335 Points ∼15% -10%
Lenovo V340-17IWL 81RG001YGE
UHD Graphics 610, Pentium 5405U, Lenovo UMIS AM610 RPFTJ256PDD2MWX
1559 Points ∼10% -40%
PCMark 8 - Home Score Accelerated v2
Asus VivoBook 17 F712FA-AU518T
UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8
3595 Points ∼57% +12%
Average of class Office
  (2142 - 4878, n=77, last 2 years)
3583 Points ∼57% +12%
Lenovo V17-IIL 82GX008TGE
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD
3200 Points ∼51%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (2900 - 3240, n=4)
3140 Points ∼50% -2%
HP 17-by2437ng
UHD Graphics 620, i3-10110U, Toshiba KBG30ZMV256G
3116 Points ∼50% -3%

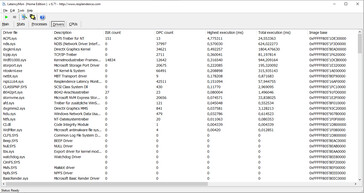

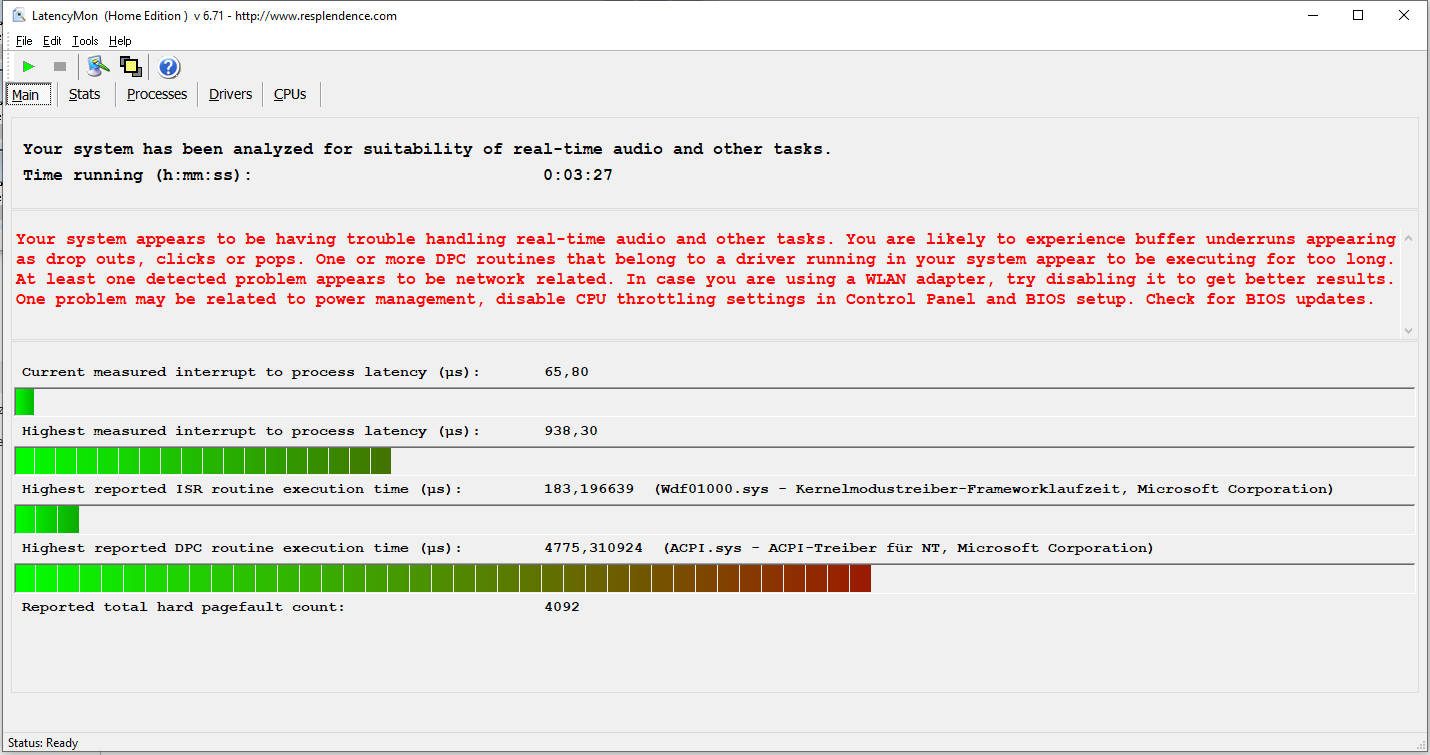

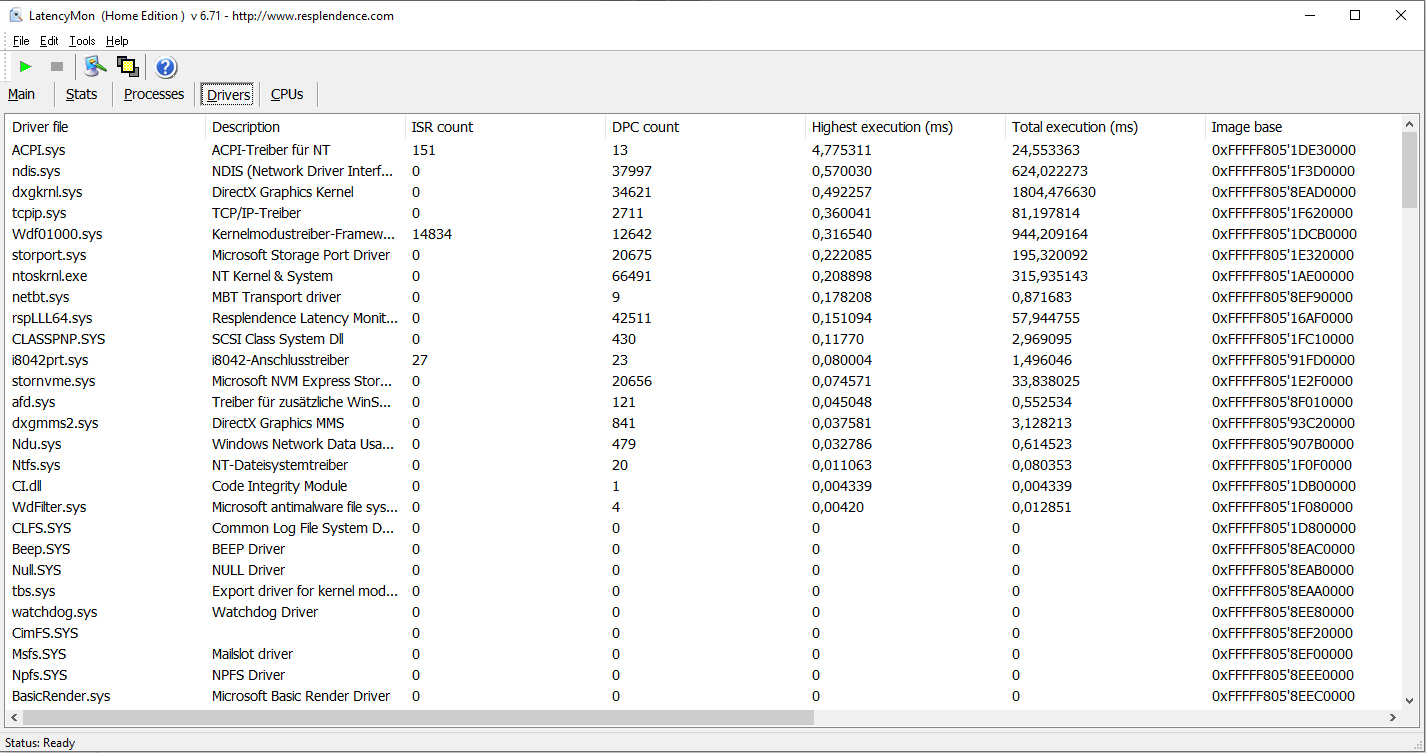

DPC Latencies

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus VivoBook 17 F712FA-AU518T
UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8
3900.1 μs * ∼100% -316%
HP 17-by2437ng
UHD Graphics 620, i3-10110U, Toshiba KBG30ZMV256G
2578.8 μs * ∼66% -175%
Lenovo V340-17IWL 81RG001YGE
UHD Graphics 610, Pentium 5405U, Lenovo UMIS AM610 RPFTJ256PDD2MWX
1216 μs * ∼31% -30%
Lenovo V17-IIL 82GX008TGE
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD
938.3 μs * ∼24%

* ... smaller is better

Storage Solution

A Samsung NVMe SSD (M.2-2242, but M.2-2280 models will also fit), which offers an overall capacity of 256 GB, serves as the system drive. Its transfer rates turn out good. While the laptop generally offers additional space for a 2.5-inch storage medium, we were unable to install the corresponding drive, since neither the necessary SATA slot nor an insertion frame were included.

An additional hint: If you consider replacing the SSD, you have to choose a model that does not have any elements on the side that faces the main board. Since there is a flat cable connection below the SSD, other models won't fit.

An NVMe SSD serves as the system drive.
An NVMe SSD serves as the system drive.
Samsung PM991 MZALQ256HAJD
CDM 5/6 Read Seq Q32T1: 2123 MB/s
CDM 5/6 Write Seq Q32T1: 1034 MB/s
CDM 5/6 Read 4K Q32T1: 489.3 MB/s
CDM 5/6 Write 4K Q32T1: 449.8 MB/s
CDM 5 Read Seq: 1168 MB/s
CDM 5 Write Seq: 846.9 MB/s
CDM 5/6 Read 4K: 56.45 MB/s
CDM 5/6 Write 4K: 170.5 MB/s
Lenovo V17-IIL 82GX008TGE
Samsung PM991 MZALQ256HAJD
HP 17-by2437ng
Toshiba KBG30ZMV256G
Asus VivoBook 17 F712FA-AU518T
Intel SSD 660p SSDPEKNW512G8
Lenovo V340-17IWL 81RG001YGE
Lenovo UMIS AM610 RPFTJ256PDD2MWX
Average Samsung PM991 MZALQ256HAJD

Average of class Office

CrystalDiskMark 5.2 / 6
-21%
1%
-61%
-27%
12%
Write 4K
170.5
126.7
-26%
180.3
6%
64.06
-62%
171 (157 - 184, n=3)
0%
136 (37.8 - 248, n=109, last 2 years)
-20%
Read 4K
56.45
52.52
-7%
62.1
10%
10.54
-81%
45.2 (39.3 - 56.5, n=3)
-20%
46.1 (10.5 - 78.6, n=109, last 2 years)
-18%
Write Seq
846.9
668.5
-21%
972
15%
296.24
-65%
419 (198 - 847, n=3)
-51%
1329 (137 - 3689, n=104, last 2 years)
57%
Read Seq
1168
881.2
-25%
1608
38%
524.86
-55%
1237 (1168 - 1319, n=3)
6%
1540 (303 - 4340, n=104, last 2 years)
32%
Write 4K Q32T1
449.8
272.2
-39%
397.4
-12%
220.54
-51%
281 (173 - 450, n=3)
-38%
390 (45.6 - 671, n=109, last 2 years)
-13%
Read 4K Q32T1
489.3
483.5
-1%
343
-30%
274.66
-44%
333 (253 - 489, n=3)
-32%
410 (58.2 - 761, n=109, last 2 years)
-16%
Write Seq Q32T1
1034
796.4
-23%
972.5
-6%
294.4
-72%
476 (173 - 1034, n=3)
-54%
1650 (138 - 4396, n=109, last 2 years)
60%
Read Seq Q32T1
2123
1503
-29%
1779
-16%
872.5
-59%
1492 (1150 - 2123, n=3)
-30%
2421 (213 - 6804, n=109, last 2 years)
14%
AS SSD
-48%
-4%
-49%
-34%
11%
Seq Read
1734.12
1359.07
-22%
1678.61
-3%
758
-56%
1551 (1425 - 1734, n=3)
-11%
1856 (306 - 5533, n=110, last 2 years)
7%
Seq Write
911.24
758.82
-17%
910.11
0%
278
-69%
392 (114 - 911, n=3)
-57%
1208 (136 - 3289, n=110, last 2 years)
33%
4K Read
50.71
45.04
-11%
56.12
11%
28.09
-45%
41.3 (36.4 - 50.7, n=3)
-19%
45.3 (10.2 - 72.8, n=110, last 2 years)
-11%
4K Write
134.52
105.7
-21%
153.64
14%
74.14
-45%
121 (110 - 135, n=3)
-10%
124 (28.4 - 215, n=110, last 2 years)
-8%
4K-64 Read
467.49
628.37
34%
324.36
-31%
480.48
3%
313 (233 - 467, n=3)
-33%
814 (18.6 - 2128, n=110, last 2 years)
74%
4K-64 Write
706.25
333.84
-53%
792.12
12%
273.25
-61%
321 (126 - 706, n=3)
-55%
896 (31 - 2262, n=110, last 2 years)
27%
Access Time Read *
0.117
0.09
23%
0.088
25%
0.134
-15%
0.154 (0.117 - 0.186, n=3)
-32%
0.0888 (0.025 - 0.453, n=105, last 2 years)
24%
Access Time Write *
0.028
0.157
-461%
0.046
-64%
0.065
-132%
0.037 (0.028 - 0.046, n=3)
-32%
0.0834 (0.018 - 0.818, n=110, last 2 years)
-198%
Score Read
692
809
17%
548
-21%
584
-16%
510 (418 - 692, n=3)
-26%
1045 (59 - 2754, n=110, last 2 years)
51%
Score Write
932
515
-45%
1037
11%
375
-60%
481 (254 - 932, n=3)
-48%
1139 (84 - 2574, n=110, last 2 years)
22%
Score Total
1954
1722
-12%
1849
-5%
1242
-36%
1208 (834 - 1954, n=3)
-38%
2697 (175 - 6629, n=110, last 2 years)
38%
Copy ISO MB/s
774.07
448.41
-42%
800.87
3%
290
-63%
458 (143 - 774, n=2)
-41%
1221 (169 - 3024, n=70, last 2 years)
58%
Copy Program MB/s
356.29
248.28
-30%
340.92
-4%
220
-38%
244 (133 - 356, n=2)
-32%
392 (70.2 - 1353, n=70, last 2 years)
10%
Copy Game MB/s
572.28
416.42
-27%
568.14
-1%
280
-51%
350 (128 - 572, n=2)
-39%
755 (135 - 3007, n=70, last 2 years)
32%
Total Average (Program / Settings)
-35% / -38%
-2% / -2%
-55% / -53%
-31% / -31%
12% / 12%

* ... smaller is better

Constant Performance Reads: DiskSpd Read Loop, Queue Depth 8

0951902853804755706657608559501045114012351330142515201615171018051404.81644.651645.71646.121646.261646.751647.311647.371647.79164816481648.211648.631648.631648.841648.841648.841648.991649.051649.051649.051649.051649.051649.051649.411649.471649.681649.681649.681649.681649.681649.891650.091650.31650.31650.31650.931651.091651.091651.091651.091651.091651.141651.351651.351651.931652.561652.821653.651654.491702.841861.071861.221863.581864.411864.831864.831865.211865.421865.461866.931867.341867.551868.391868.811869.021869.191869.191869.231869.441869.821869.861869.861870.481871.321871.531871.531871.741871.951872.161872.161872.371872.551872.581872.5818731873.21873.21873.391873.411873.831874.041874.251874.461874.461874.461874.671874.671875.31875.51761.06888.35888.56888.77888.88888.98888.98888.98889.19889.19889.4889.4889.4889.4889.4889.4889.4889.4889.4889.4889.61889.61889.61889.82889.82889.82889.82889.82889.82889.82889.82890.03890.03890.03890.03890.03890.03890.03890.03890.03890.03890.03890.24890.24890.45890.45890.45890.45890.66890.66Tooltip
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD: Ø1645 (1404.8-1654.49)
Asus VivoBook 17 F712FA-AU518T UHD Graphics 620, i5-10210U, Intel SSD 660p SSDPEKNW512G8: Ø1867 (1702.84-1875.51)
Lenovo V340-17IWL 81RG001YGE UHD Graphics 610, Pentium 5405U, Lenovo UMIS AM610 RPFTJ256PDD2MWX: Ø887 (761.06-890.66)

Graphics Card

Intel's UHD Graphics G1 graphics core supports DirectX 12 and runs at speeds of up to 900 MHz. The 3DMark results range at normal levels for this GPU.

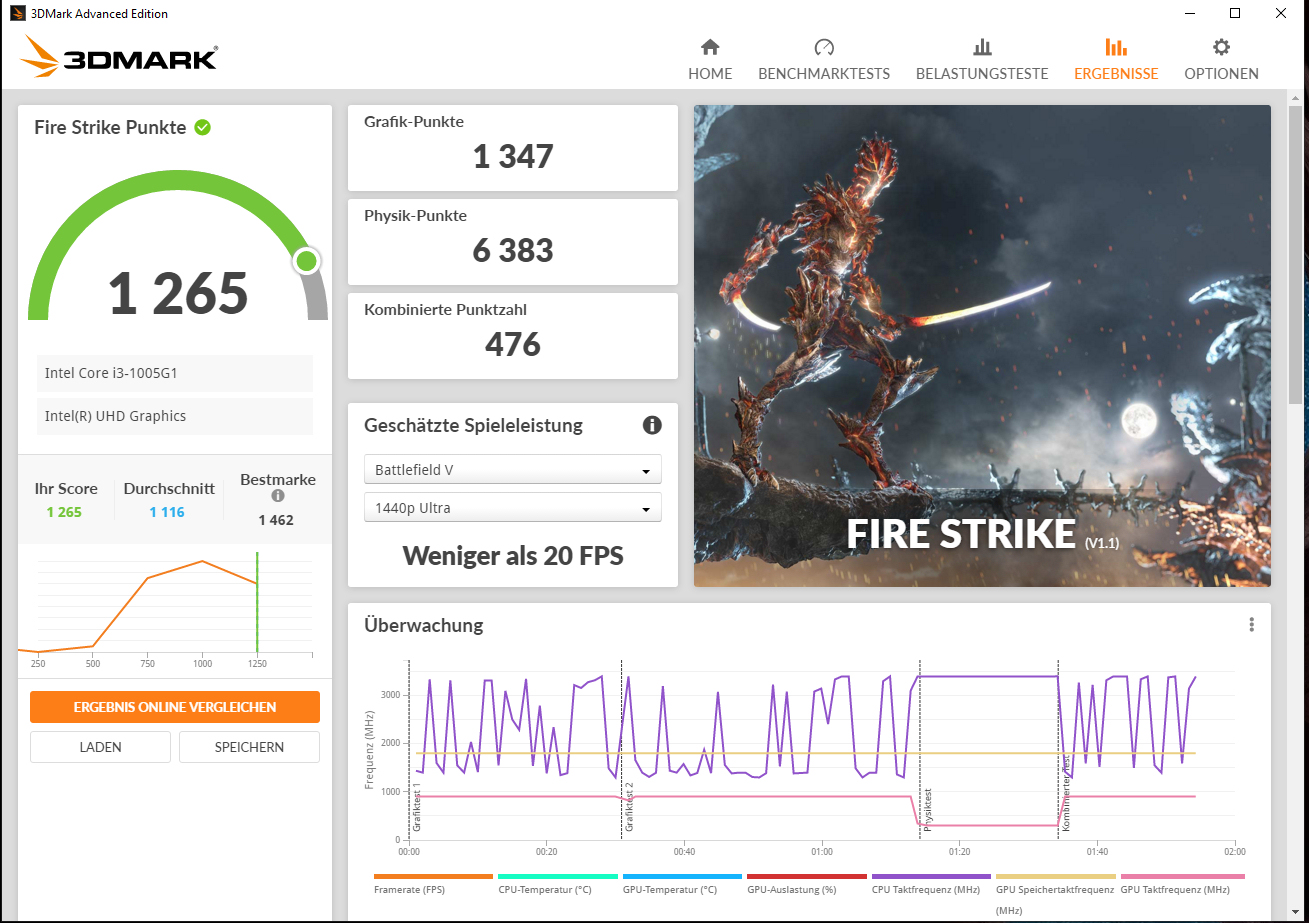

Fire Strike (mains operation)
Fire Strike (mains operation)

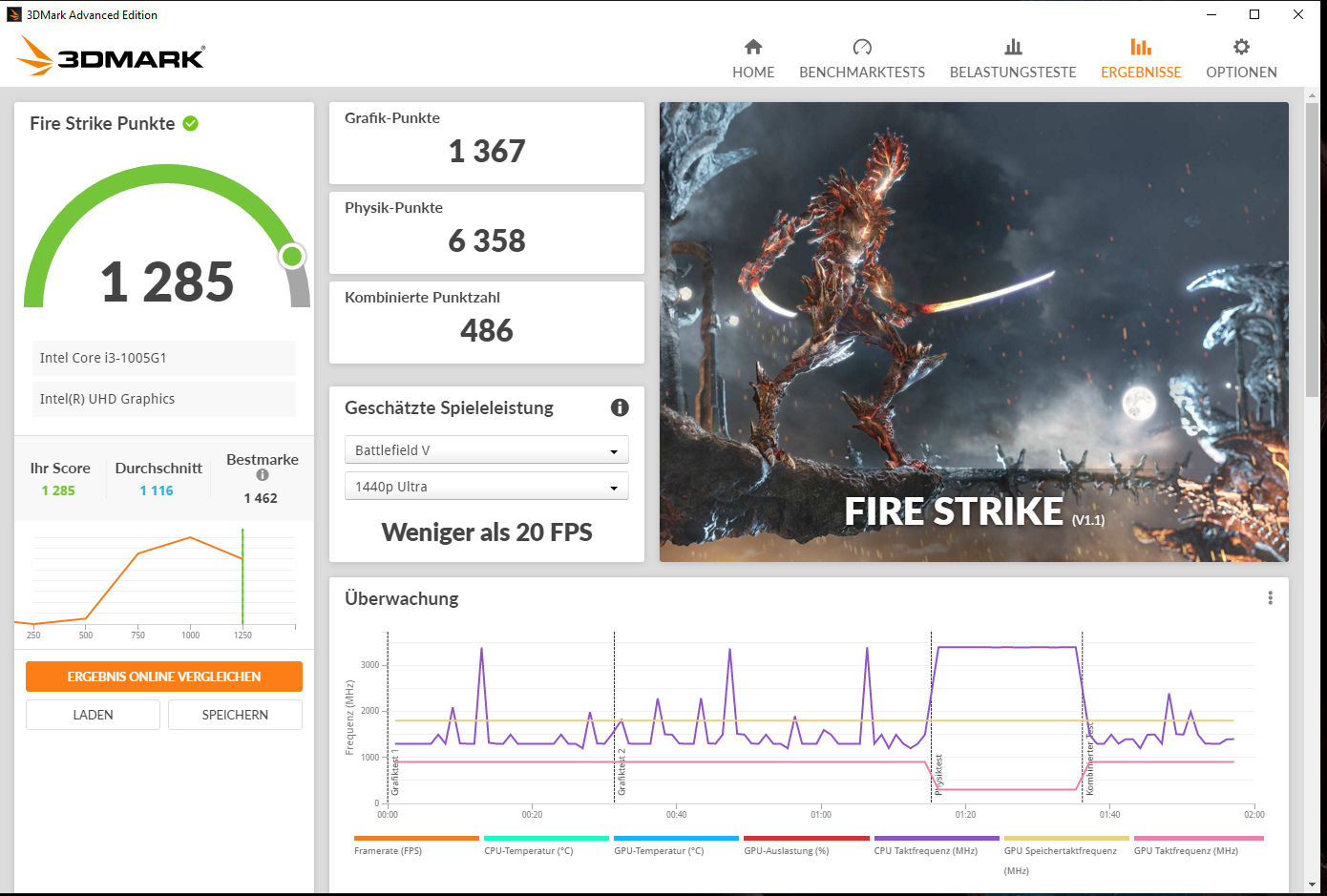

Fire Strike (battery operation)
Fire Strike (battery operation)

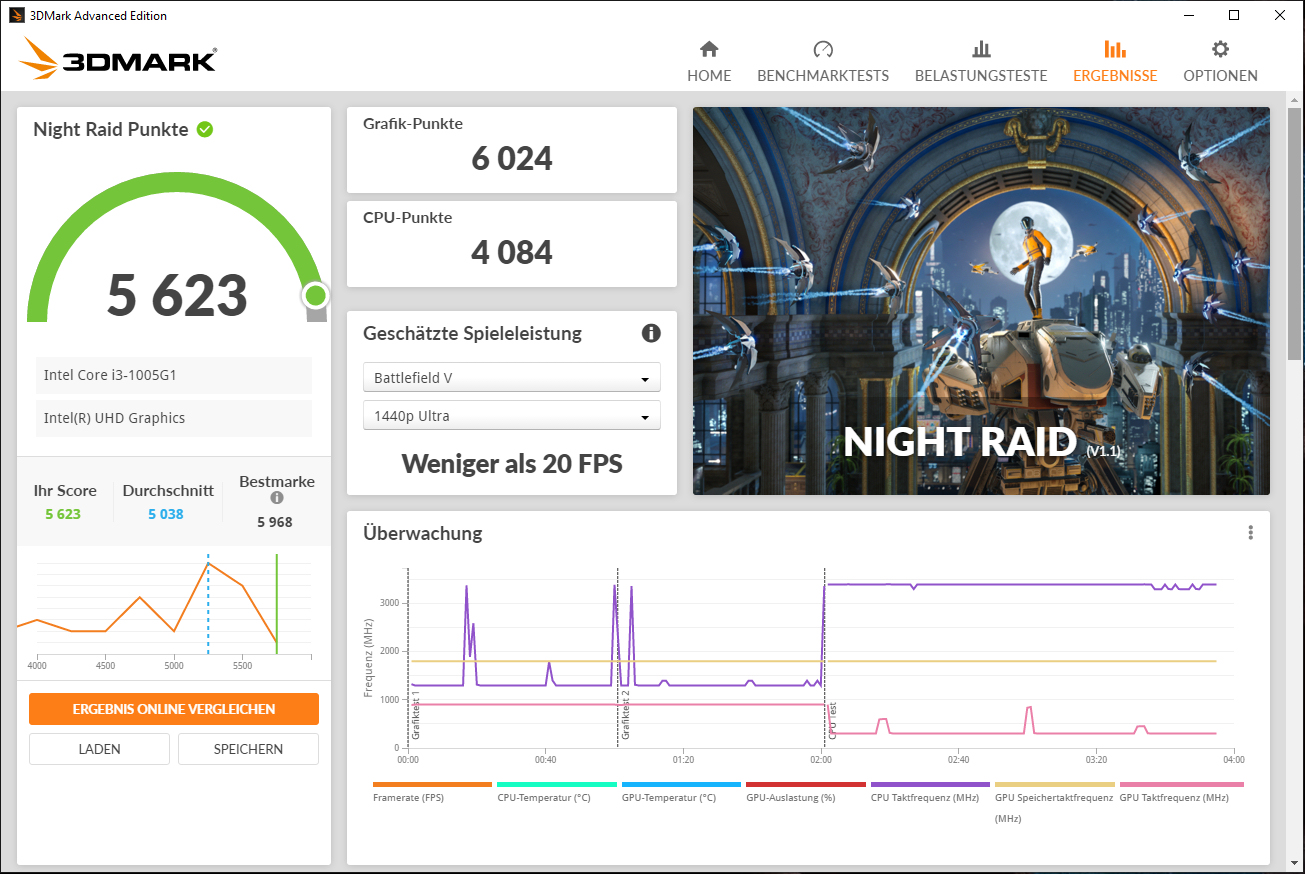

Night Raid (mains operation)
Night Raid (mains operation)

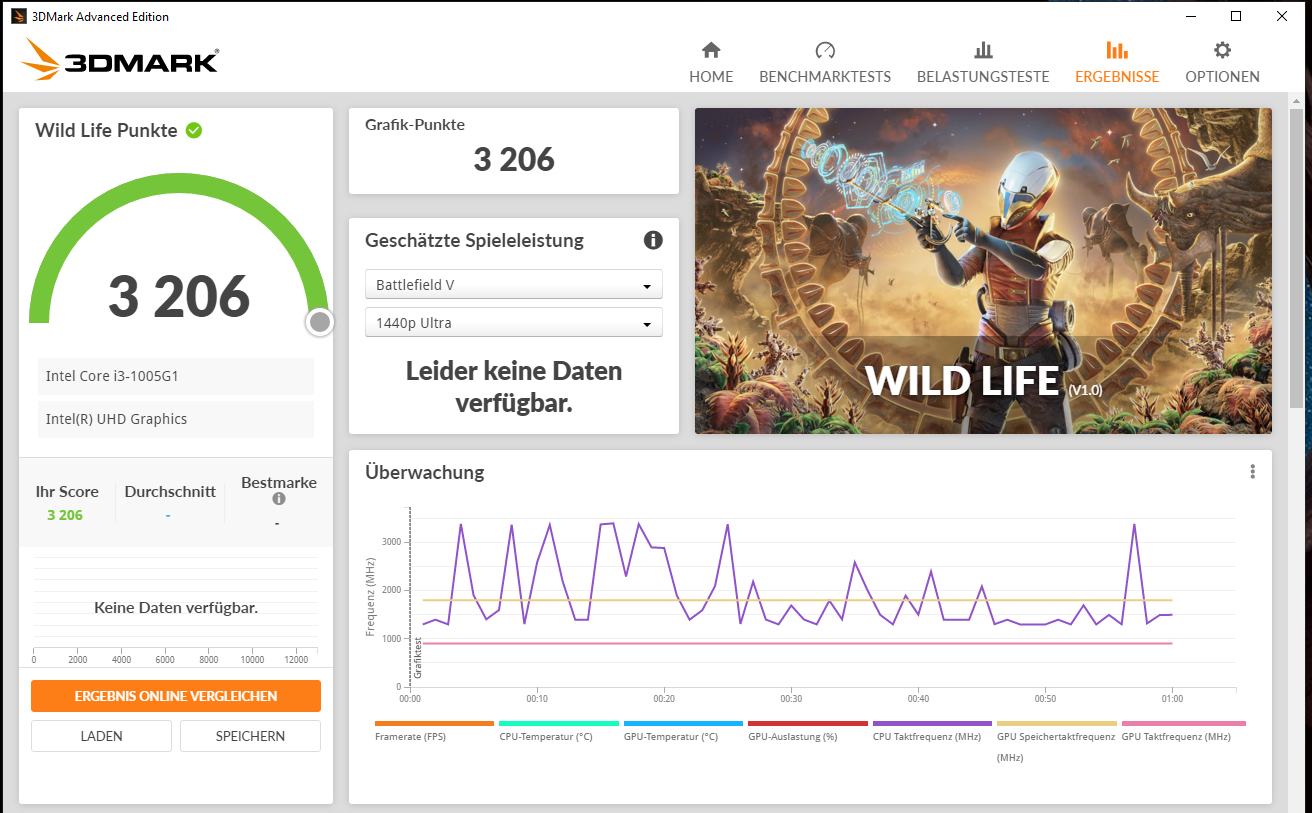

Wild Life (mains operation)
Wild Life (mains operation)

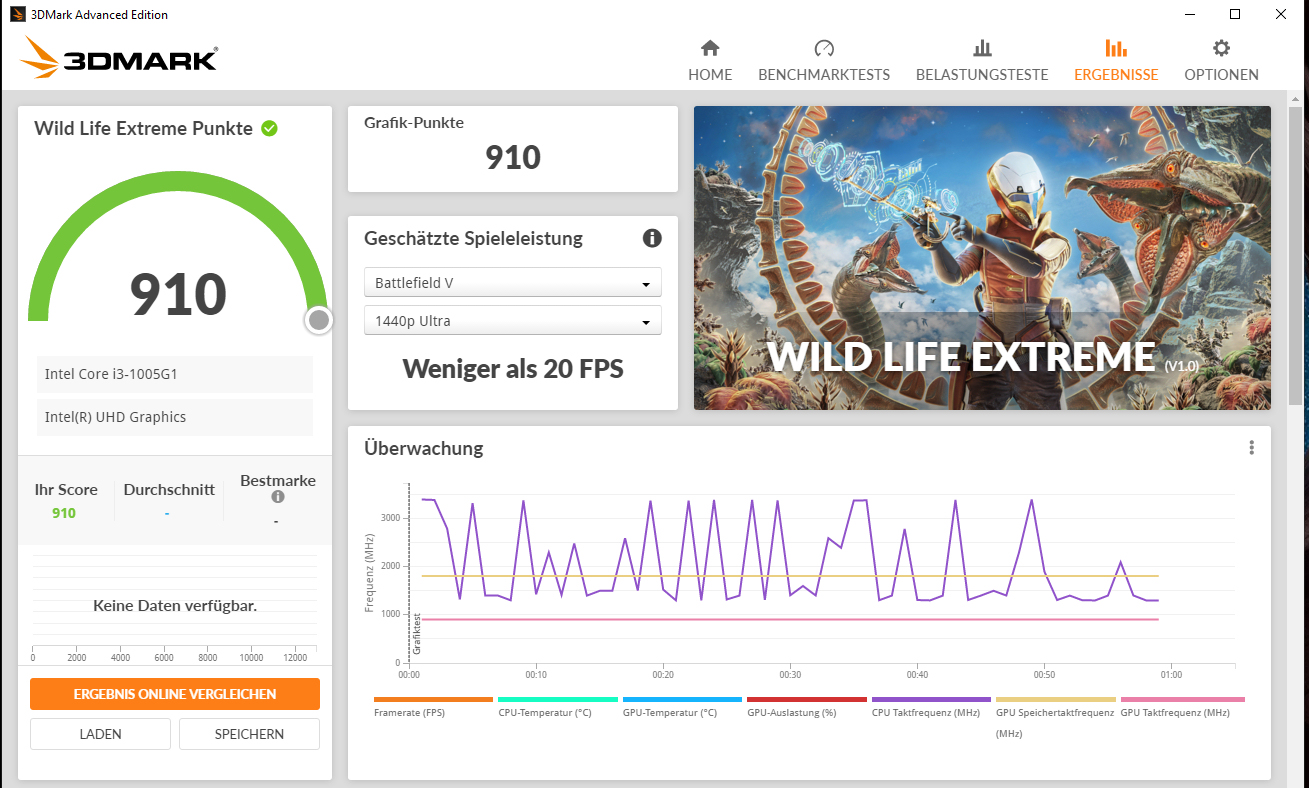

Wild Life Extreme (mains operation)
Wild Life Extreme (mains operation)
GPU-Z
GPU-Z
3DMark 11 Performance
2174 points
3DMark Ice Storm Standard Score
57993 points
3DMark Cloud Gate Standard Score
7703 points
3DMark Fire Strike Score
1265 points
3DMark Time Spy Score
453 points
Help
3DMark 11 - 1280x720 Performance GPU
Average of class Office
  (617 - 8296, n=113, last 2 years)
3267 Points ∼100% +67%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (1684 - 2578, n=12)
2218 Points ∼68% +13%
Lenovo V17-IIL 82GX008TGE
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
1955 Points ∼60%
Asus VivoBook 17 F712FA-AU518T
Intel UHD Graphics 620, Intel Core i5-10210U
1878 Points ∼57% -4%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
1501 Points ∼46% -23%
Lenovo V340-17IWL 81RG001YGE
Intel UHD Graphics 610, Intel Pentium Gold 5405U
915 Points ∼28% -53%
3DMark
1920x1080 Fire Strike Graphics
Average of class Office
  (449 - 5848, n=107, last 2 years)
2276 Points ∼100% +69%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (960 - 1755, n=12)
1491 Points ∼66% +11%
Lenovo V17-IIL 82GX008TGE
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
1347 Points ∼59%
Asus VivoBook 17 F712FA-AU518T
Intel UHD Graphics 620, Intel Core i5-10210U
1224 Points ∼54% -9%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
967 Points ∼42% -28%
Lenovo V340-17IWL 81RG001YGE
Intel UHD Graphics 610, Intel Pentium Gold 5405U
634 Points ∼28% -53%
1280x720 Cloud Gate Standard Graphics
Average of class Office
  (3280 - 30980, n=94, last 2 years)
14395 Points ∼100% +46%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (7448 - 12698, n=11)
10819 Points ∼75% +9%
Lenovo V17-IIL 82GX008TGE
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
9889 Points ∼69%
Asus VivoBook 17 F712FA-AU518T
Intel UHD Graphics 620, Intel Core i5-10210U
9501 Points ∼66% -4%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
7787 Points ∼54% -21%
Lenovo V340-17IWL 81RG001YGE
Intel UHD Graphics 610, Intel Pentium Gold 5405U
5139 Points ∼36% -48%
2560x1440 Time Spy Graphics
Average of class Office
  (194 - 1975, n=84, last 2 years)
763 Points ∼100% +93%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (320 - 476, n=7)
422 Points ∼55% +7%
Lenovo V17-IIL 82GX008TGE
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
396 Points ∼52%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
317 Points ∼42% -20%
Lenovo V340-17IWL 81RG001YGE
Intel UHD Graphics 610, Intel Pentium Gold 5405U
194 Points ∼25% -51%

Gaming Performance

The V17 is able to bring several of the games from our database smoothly to the screen, but only at low resolutions and low detail settings. This goes for games that only pose moderate demands on the hardware.

Dota 2 Reborn - 1280x720 min (0/3) fastest
Average of class Office
  (36.5 - 145, n=102, last 2 years)
80.9 fps ∼100% +3%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
78.5 (66.8min) fps ∼97%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U, Intel UHD Graphics 620
77 (64.9min) fps ∼95% -2%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (57.7 - 84.1, n=9)
73.2 fps ∼90% -7%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U, Intel UHD Graphics 610
54.4 (45.6min) fps ∼67% -31%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Office
  (6.95 - 87.2, n=96, last 2 years)
30.1 fps ∼100% +28%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (17.3 - 32.9, n=7)
25.4 fps ∼84% +8%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
23.5 fps ∼78%
Asus VivoBook 17 F712FA-AU518T
Intel Core i5-10210U, Intel UHD Graphics 620
18.9 fps ∼63% -20%
Lenovo V340-17IWL 81RG001YGE
Intel Pentium Gold 5405U, Intel UHD Graphics 610
9.56 fps ∼32% -59%
Strange Brigade - 1280x720 lowest AF:1
Average of class Office
  (30.6 - 95.9, n=8, last 2 years)
62.7 fps ∼100% +105%
Lenovo V17-IIL 82GX008TGE
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
30.6 (7.2min, 8.62P1 - 207max) fps ∼49%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)

30.6 fps ∼49% 0%
low med. high ultra
Dota 2 Reborn (2015) 78.5 34.1 22 20.4 fps
X-Plane 11.11 (2018) 23.5 11.4 10.7 fps
Strange Brigade (2018) 30.6 11.7 12.5 fps
Crysis Remastered (2020) 22.8 5.66 fps
Serious Sam 4 (2020) 33.6 fps
Mafia Definitive Edition (2020) 11.9 5.6 fps
Immortals Fenyx Rising (2020) 13 7 fps
Hitman 3 (2021) 20.6 8.3 fps
Outriders (2021) 25.6 13.6 fps

Emissions and Power Management - The Lenovo laptop hardly heats up

Noise Emissions

The 17.3-inch laptop does not produce a lot of noise. During idle operation and under low load, the fan usually remains turned off and there is complete silence. Under higher load, the fan only revs up a bit, and the maximum noise level is 33.4 dB(A).

Noise Level

Idle
25.5 / 29 / 29 dB(A)
Load
30.1 / 33.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2023.325.322.823.32531.333.935.931.33138.63130.638.64025.428.125.625.45031.132.224.731.16324.231.622.124.28020.921.621.120.910022.522.322.322.512516.319.817.216.316016.217.515.416.220015.816.513.515.825016.417.715.516.431520.321.114.720.340017.11919.417.150015.41713.315.463015.717.812.915.780016.419.312.216.4100017.620.612.917.6125020.323.413.120.3160018.822.212.418.8200020.524.71320.5250021.925.813.221.9315017.822.213.117.8400015.118.513.215.1500014.917.313.514.9630014.616.213.614.6800014.114.513.514.11000013.813.913.613.81250013.613.613.413.6160001312.712.613SPL30.133.425.630.1N1.21.60.71.2median 16.3median 18.5median 13.4median 16.3Delta1.92.50.91.9hearing rangehide median Fan NoiseLenovo V17-IIL 82GX008TGE

Temperature

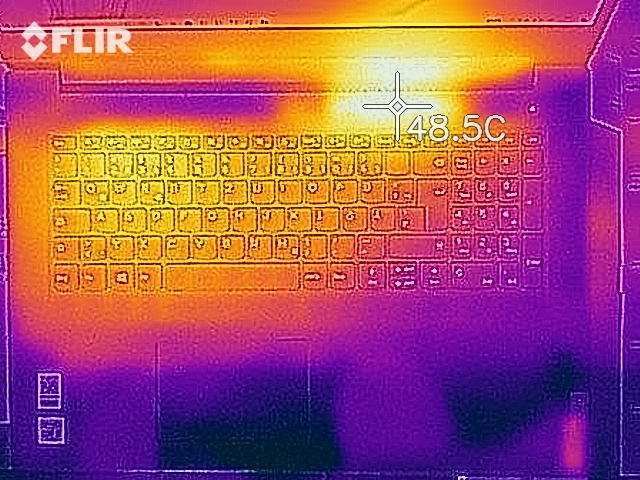

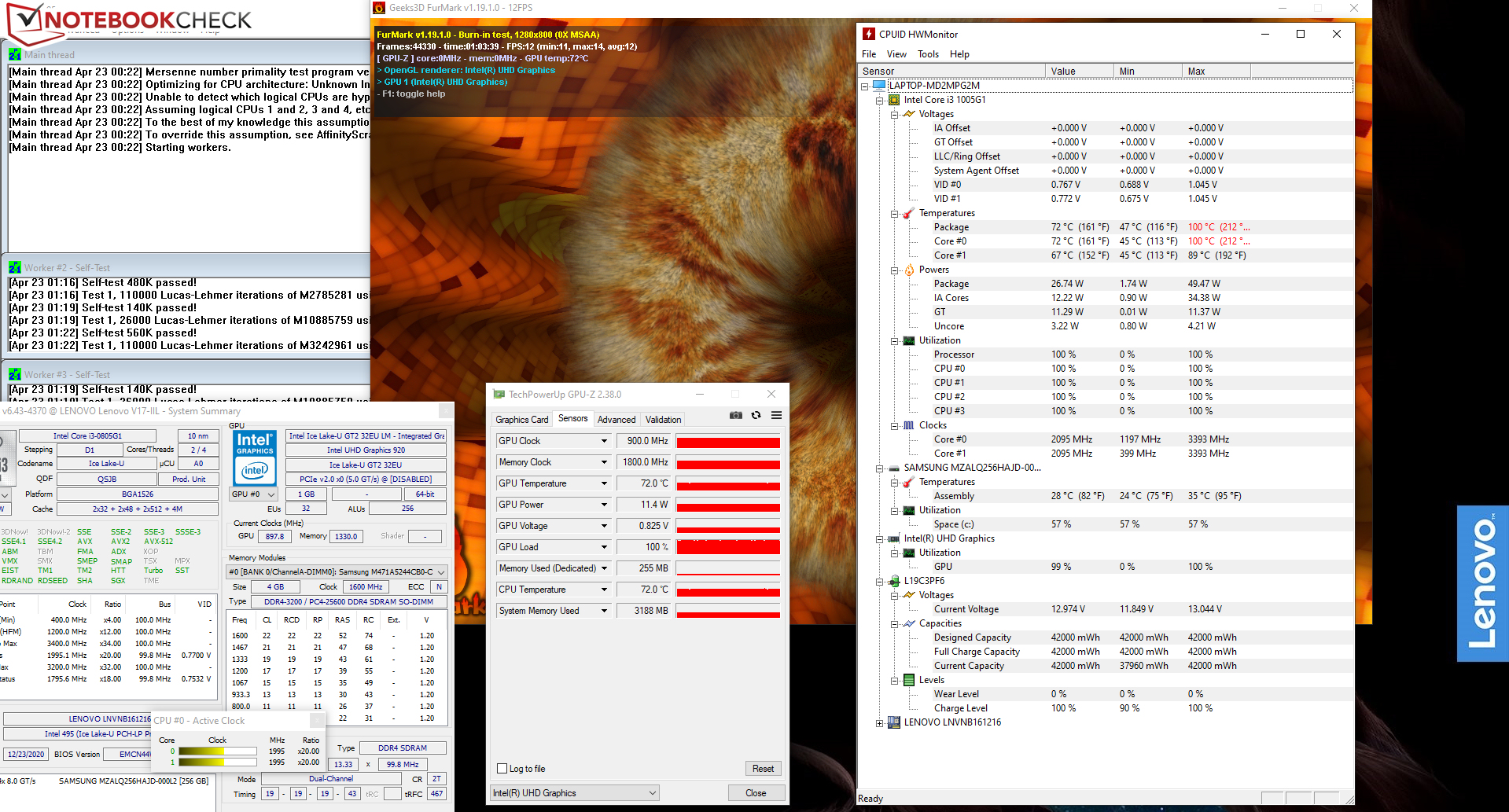

The V17 in the stress test
The V17 in the stress test

The CPU and GPU run through our stress test (Prime95 and Furmark running for at least one hour) at 2.4 to 2.5 GHz and 900 MHz respectively. The stress test represents an extreme scenario that does not occur like that in everyday operation. We use this test to evaluate whether the system also remains stable under full load.

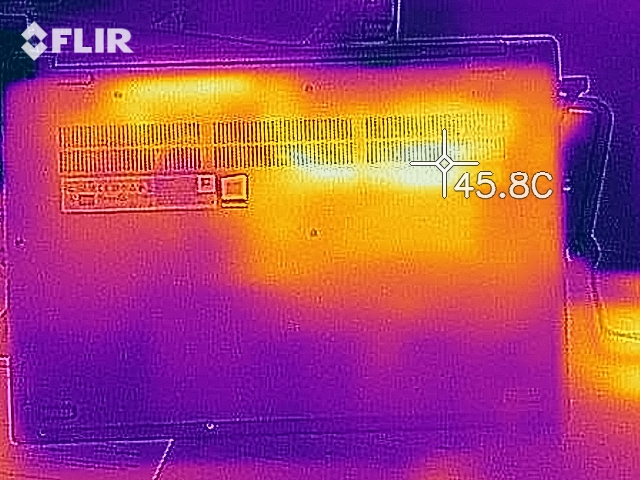

The heat development is very limited. During the stress test, we register temperatures below 40 ºC (104 ºF) at all the measurement points. In everyday operation, the temperature values remain within the green range throughout.

Max. Load
 37.5 °C
100 F
37.7 °C
100 F
28.8 °C
84 F

 33.4 °C
92 F
33.3 °C
92 F
26.3 °C
79 F

 25.2 °C
77 F
23.5 °C
74 F
24.4 °C
76 F

Maximum: 37.7 °C = 100 F
Average: 30 °C = 86 F
29.5 °C
85 F
30 °C
86 F
35.1 °C
95 F
24.3 °C
76 F
27.5 °C
82 F
32.7 °C
91 F
24 °C
75 F
22.2 °C
72 F
23.9 °C
75 F
Maximum: 35.1 °C = 95 F
Average: 27.7 °C = 82 F
Power Supply (max.)  39 °C = 102 F | Room Temperature 22.9 °C = 73 F | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30 °C / 86 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 37.7 °C / 100 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 35.1 °C / 95 F, compared to the average of 36.5 °C / 98 F

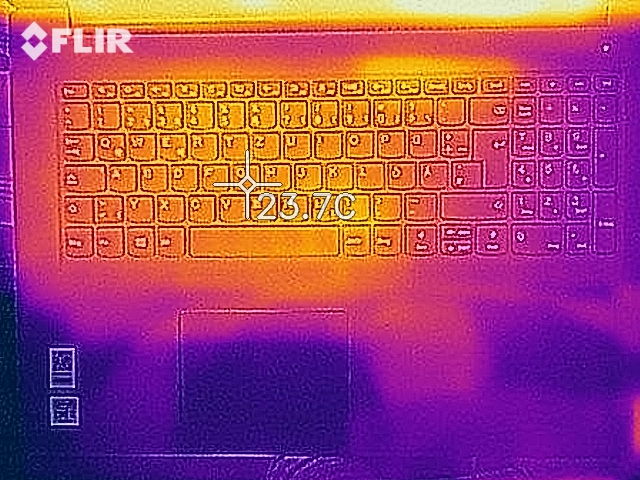

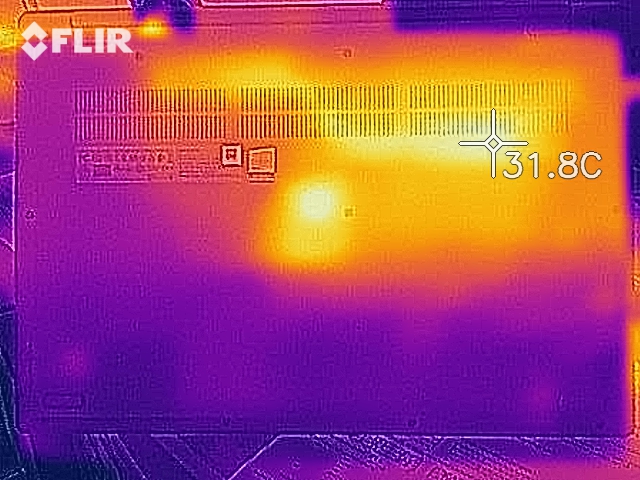

(+) In idle usage, the average temperature for the upper side is 25.7 °C / 78 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.2 °C / 77.4 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+2.7 °C / 4.8 F).
Heat development - top (load)
Heat development - top (load)
Heat development - top (idle)
Heat development - top (idle)
Heat development - bottom (load)
Heat development - bottom (load)
Heat development - bottom (idle)
Heat development - bottom (idle)

Speakers

While the stereo speakers produce a decent sound, there is hardly any bass. In addition, the maximum volume turns our relatively low.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2022.322.822.3252935.9293129.630.629.64023.225.623.25030.824.730.86323.522.123.58020.621.120.610021.822.321.812518.917.218.916024.515.424.520031.113.531.125046.415.546.431557.114.757.14006219.46250056.713.356.763061.512.961.580068.212.268.210006912.969125066.513.166.5160068.412.468.4200069.91369.9250066.913.266.9315063.213.163.240006213.262500063.413.563.4630064.913.664.9800065.413.565.41000062.513.662.51250057.513.457.51600056.612.656.6SPL78.125.678.1N41.30.741.3median 62median 13.4median 62Delta9.40.99.4hearing rangehide median Pink NoiseLenovo V17-IIL 82GX008TGE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo V17-IIL 82GX008TGE audio analysis

(-) | not very loud speakers (69.03 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.7% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.9% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 12% similar, 38% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 52% of all tested devices were better, 9% similar, 39% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Power Consumption

There is nothing conspicuous in terms of the power consumption of the Lenovo laptop. After all, there is only a frugal Core i3 processor inside. The values remain at a normal level of the hardware used here. The power supply is rated at 65 watts.

Power Consumption
Off / Standbydarklight 0.4 / 0.45 Watt
Idledarkmidlight 4.4 / 10 / 11.7 Watt
Load midlight / 42 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
0510152025303526.528.32726.528.127.12827.52728.926.827.725.927.426.527.125.825.726.337.326.225.828.12626.127.524.825.525.526.429.726.225.126.425.225.525.825.625.425.528.32627.728.22625.327.226.225.627.625.625.325.625.828.824.927.225.425.126.426.524.726.325.725.525.925.927.525.825.628.726.125.82626.727.125.526.430.82626.726.425.926.426.126.825.225.326.726.225.625.529.930.226.426.22626.22625.52626.224.927.726.826.526.527.125.726.125.525.225.725.92626.425.22628.926.426.42727.827.624.825.725.126.125.625.1252626.725.426.427.525.137.637.836.925.428.526.830.432.126.526.225.827.827.5262728.12627.725.927.22627.1Tooltip
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD: Ø26.8 (24.7-37.8)

Battery Life

The V17 achieves a runtime of 6:09 hours in our realistic WLAN test, which simulates the load when displaying websites via a script.

Battery Runtime
NBC WiFi Websurfing Battery Test 1.3 (Edge 90)
6h 9min
Battery Runtime - WiFi Websurfing 1.3
Average of class Office
  (241 - 1124, n=116, last 2 years)
515 min ∼20% +40%
Lenovo V17-IIL 82GX008TGE
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), 42 Wh
369 min ∼14%
HP 17-by2437ng
i3-10110U, UHD Graphics 620, 41 Wh
339 min ∼13% -8%
Asus VivoBook 17 F712FA-AU518T
i5-10210U, UHD Graphics 620, 32 Wh
324 min ∼12% -12%
Lenovo V340-17IWL 81RG001YGE
Pentium 5405U, UHD Graphics 610, 36 Wh
316 min ∼12% -14%

Pros

+ matte, bright IPS display rich in contrast
+ good color reproduction
+ NVMe SSD
+ operates quietly
+ hardly any heat development
+ expandable working memory

Cons

- unstable case
- no keyboard illumination
- no USB-C
- slow storage card reader

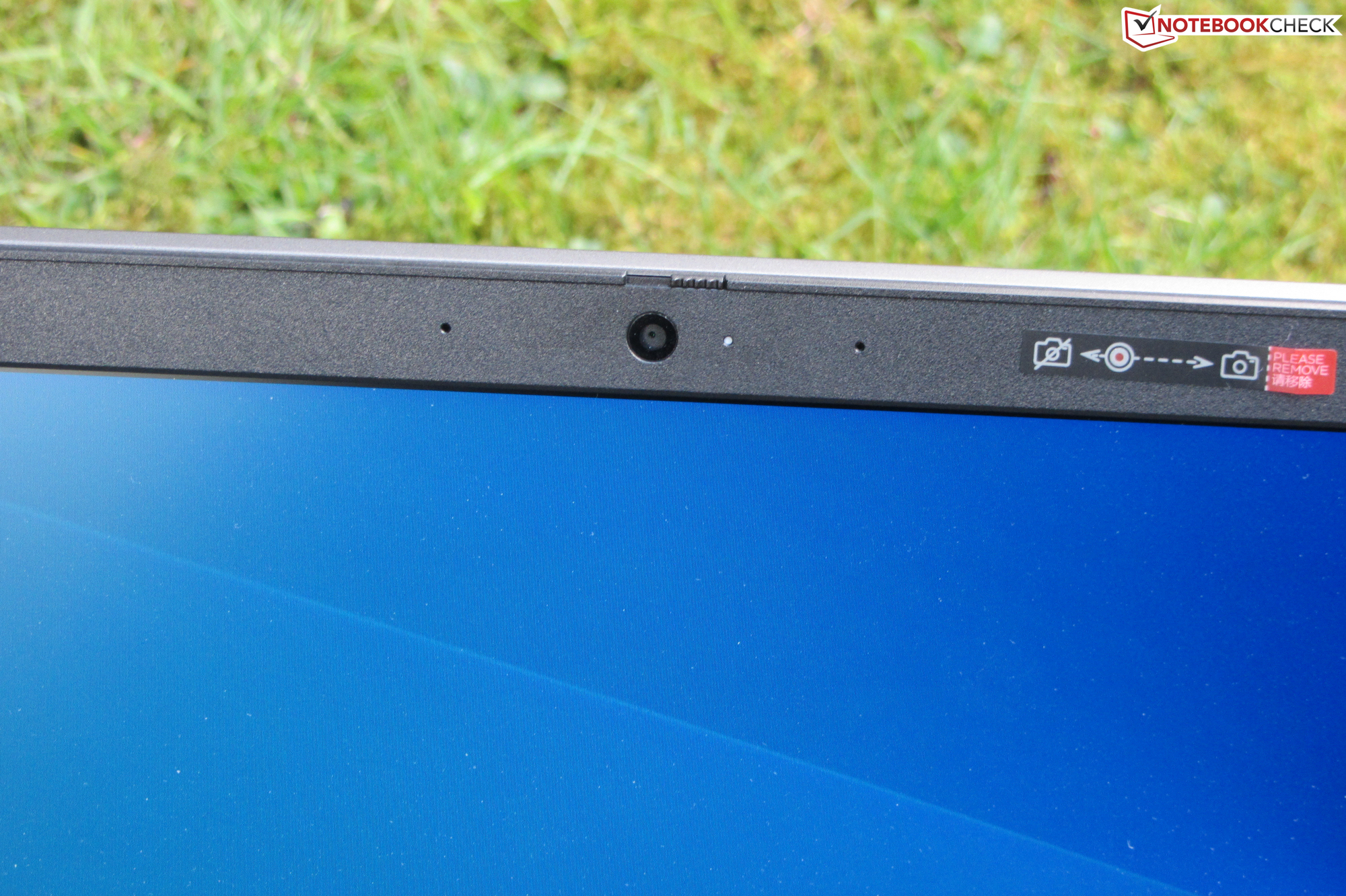

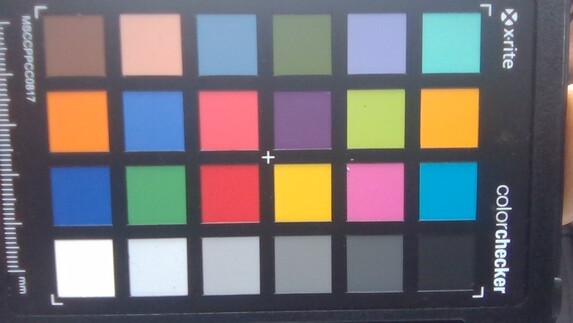

- VGA webcam
- only 12-month warranty

Verdict

The Lenovo V17-IIL (82GX008TGE). Test unit provided by nbb.com (notebooksbilliger.de).
The Lenovo V17-IIL (82GX008TGE). Test unit provided by nbb.com (notebooksbilliger.de).

Although Lenovo primarily targets small businesses with the V17-IIL, the devices should also find some buyers in the private as well as the business segments.

The Lenovo V17-IIL - a simple office laptop for stationary operation.

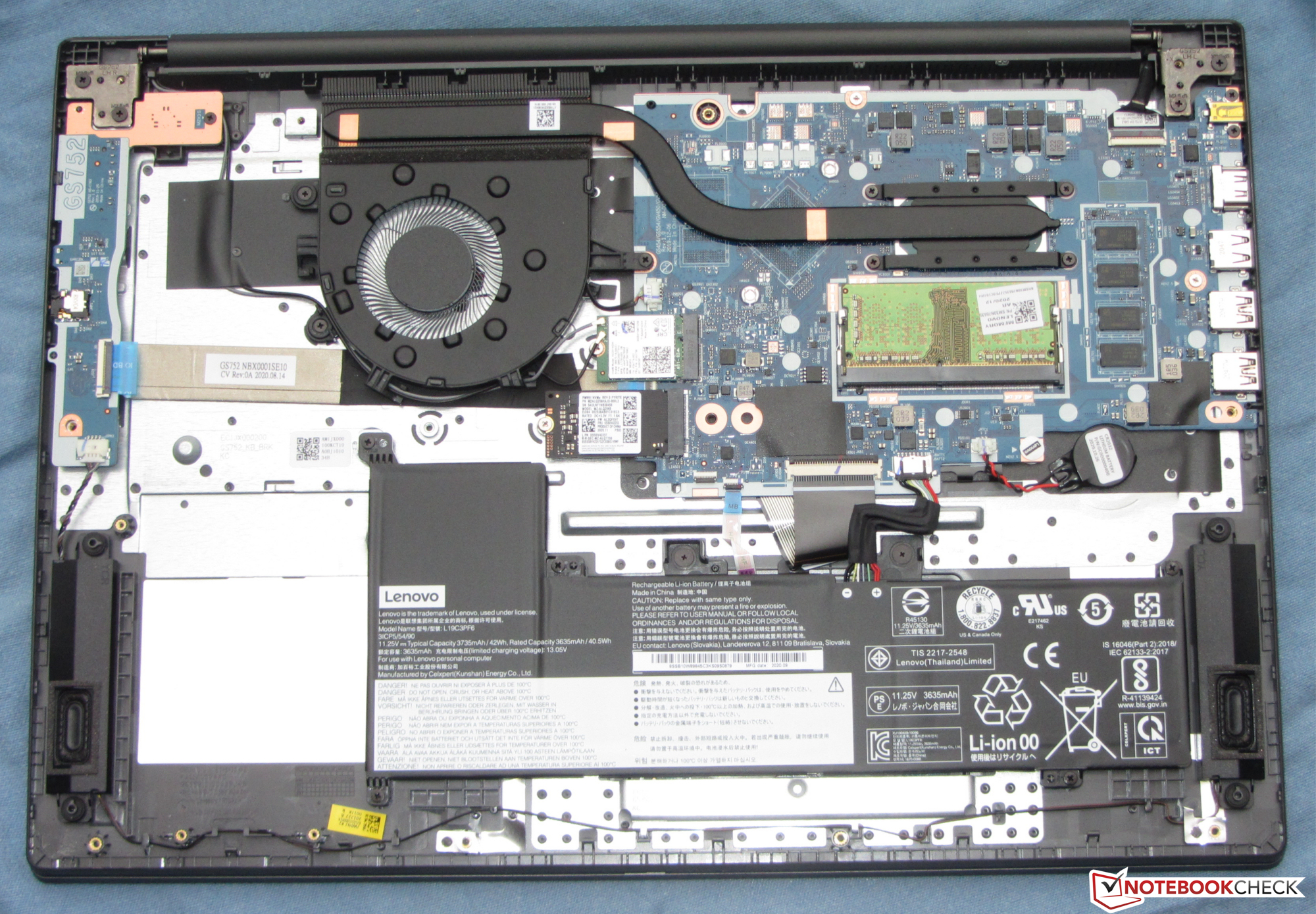

With a Core i3-1005G1 processor, 8 GB of working memory (dual-channel mode; 4 GB module + 4 GB onboard, max. 36 GB), and a 256-GB NVMe SSD, the laptop is well-equipped for office and Internet operation. A positive point: the CPU is able to run constantly at full power. Overall, the 17.3-inch laptop produces very little noise and there is hardly any heat development.

While the battery life would be quite okay, the fact that the case is not particularly robust prohibits mobile usage. It is best if the laptop remains stationary on a desk or other flat place. The display (FHD, IPS) scores with stable viewing angles, a matte surface, good color reproduction, and good color space coverage. The brightness and contrast fulfill the requirements. In addition, there is a keyboard well-suited for everyday typing tasks - but unfortunately without a keyboard illumination.

Price and Availability

The Lenovo V17-IIL in the tested configuration (Core i3-1005G1, 8 GB RAM, 256 GB SSD, Windows 10 Home) is available in Germany for 599 Euros (~$727) from Notebooksbilliger.de. While the V17-IIL is currently unavailable from Lenovo in the US, it can be purchased from international vendors such as this, or alternative configurations are available under the "IdeaPad 3" label for example from BestBuy.com for ~$630.

Lenovo V17-IIL 82GX008TGE - 05/15/2021 v7
Sascha Mölck

Chassis
72 / 98 → 74%
Keyboard
79%
Pointing Device
86%
Connectivity
46 / 80 → 57%
Weight
62 / 20-75 → 76%
Battery
70%
Display
87%
Games Performance
52 / 78 → 67%
Application Performance
81 / 95 → 85%
Temperature
94%
Noise
93%
Audio
57%
Camera
35 / 85 → 41%
Average
70%
80%
Office - Weighted Average

Pricecompare

Read all 1 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Sascha Mölck
Editor of the original article: Sascha Mölck - Senior Tech Writer - 792 articles published on Notebookcheck since 2012
What started as a side job during my computer science studies later became my main job: For more than 20 years now I have been working as an editor and author in the IT sector. While working in the print sector I also contributed to the creation of various loose-leaf publications and published original written pieces. I have been working for Notebookcheck since 2012.
Mark Riege
Translator: Mark Riege - Translator - 212 articles published on Notebookcheck since 2018
Having worked as a programmer for 20 years (medical devices, AI, data management systems), I've been following the computer scene for many years and especially enjoy finding out about new technology advances. Originally from Germany but living in the US, I've been working as a translator more recently, with Notebookcheck allowing me to combine my interest in new devices and translation. Other interests include Buddhism, spending time in Tibetan monasteries, and translating ancient Tibetan texts.
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > Lenovo V17-IIL review: A quiet home office laptop with a good display
Sascha Mölck, 2021-05-15 (Update: 2021-05-15)
