Because of the way OLED works, it may be worth changing white backgrounds to something darker especially if your commonly used applications or web pages are predominately white. At the most extreme, white at maximum brightness will consume almost 14 W more than if the screen were only black.

We recently checked out the Razer Blade 15 OLED and discovered some interesting finds in regards to power consumption when displaying different colors at different brightness levels. Now that the Dell XPS 15 7590 OLED is out in the wild with a similar Samsung OLED panel as found on the Razer, we decided to run some of the same power consumption measurements to see if there are any patterns worth exploring.

For this test, we wanted to find out how much power the XPS 15 7590 OLED would consume when displaying all black, white, green, blue, or red at the minimum and maximum brightness settings. The laptop would be set to 'Better Battery' mode with the wireless disabled in order to keep background activity in check. We would also record only the average power consumption over a 30 second period in order to obtain more accurate readings. Our final results are recorded in the table below.

Minimum Brightness Setting (W)Maximum Brightness Setting (W)Difference (W)
Displaying all Black5.505.47-0.03
Displaying all White5.5718.9713.4
Displaying all Green5.9110.004.09
Displaying all Blue6.2913.246.95
Displaying all Red6.0611.155.09
Displaying Notebookcheck Home Page (screenshot)6.1016.8110.71
Displaying Battle.net News Page (screenshot)5.978.462.49

Some notable observations about OLED can be made based on the data collected:

  • Black consumes the same amount of power no matter the brightness setting
  • There are almost no power consumption differences between colors when at the minimum brightness setting
  • White will consume much more power than green, blue, or red when at higher brightness settings by as much as 9 W
  • Web pages that are predominately dark show only small differences in power consumption between minimum and maximum brightness settings
  • Web pages that are predominately white can consume 2x more power than a page that is predominately dark when at the maximum brightness setting

The results are of interest because they differ considerably from a laptop with a typical IPS display. The power consumption difference of an IPS laptop at the minimum and maximum brightness settings tends to be just ~6 W or less regardless of color or onscreen content. If you want to extend the battery life of your OLED laptop, you'll have to consider not just the brightness setting but also the colors on display.

Working For Notebookcheck

Are you a techie who knows how to write? Then join our Team! Especially English native speakers welcome!

Currently wanted:
News and Editorial Editor - Details here

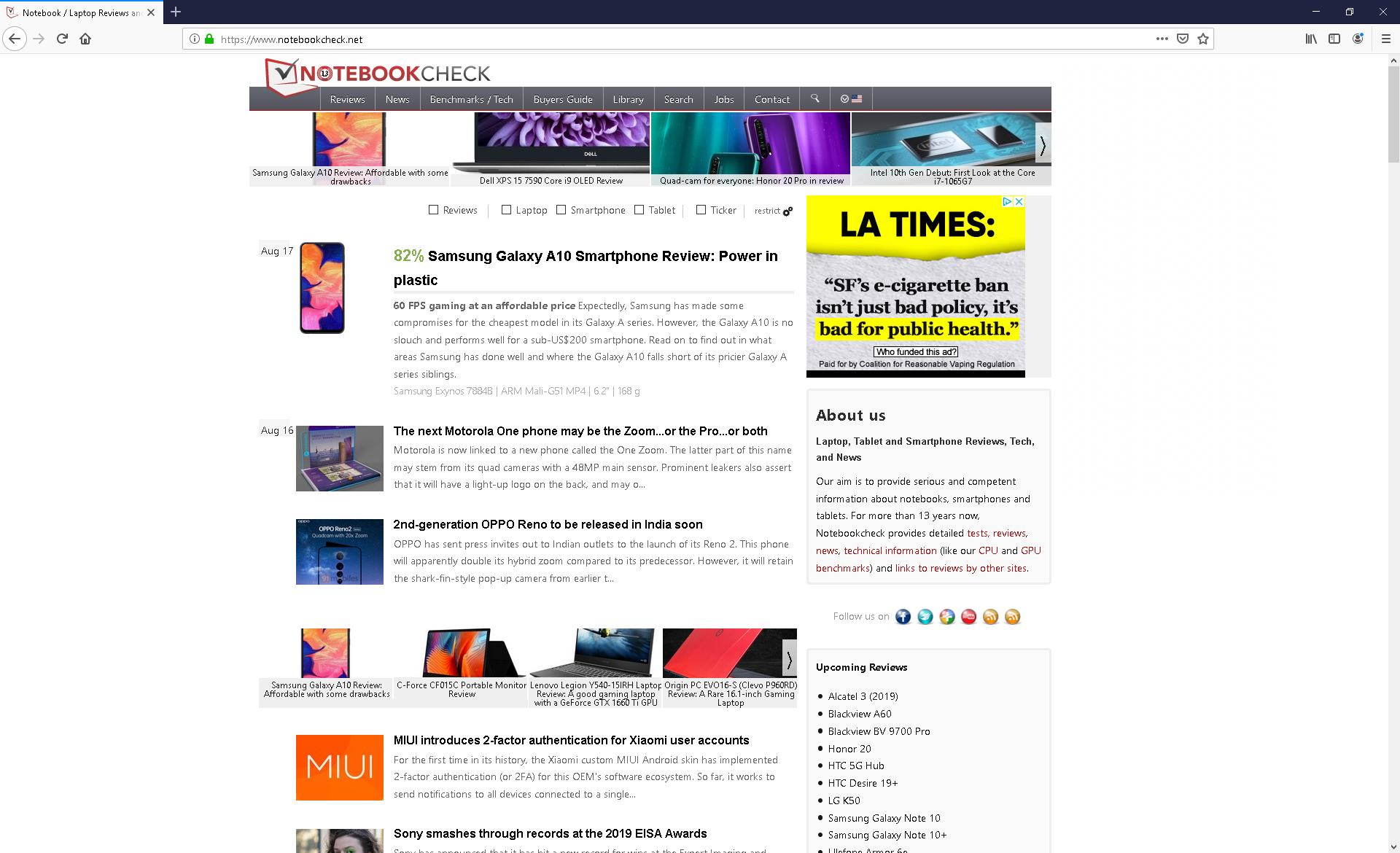

Notebookcheck.net home page as our example of a predominately white web page
Notebookcheck.net home page as our example of a predominately white web page

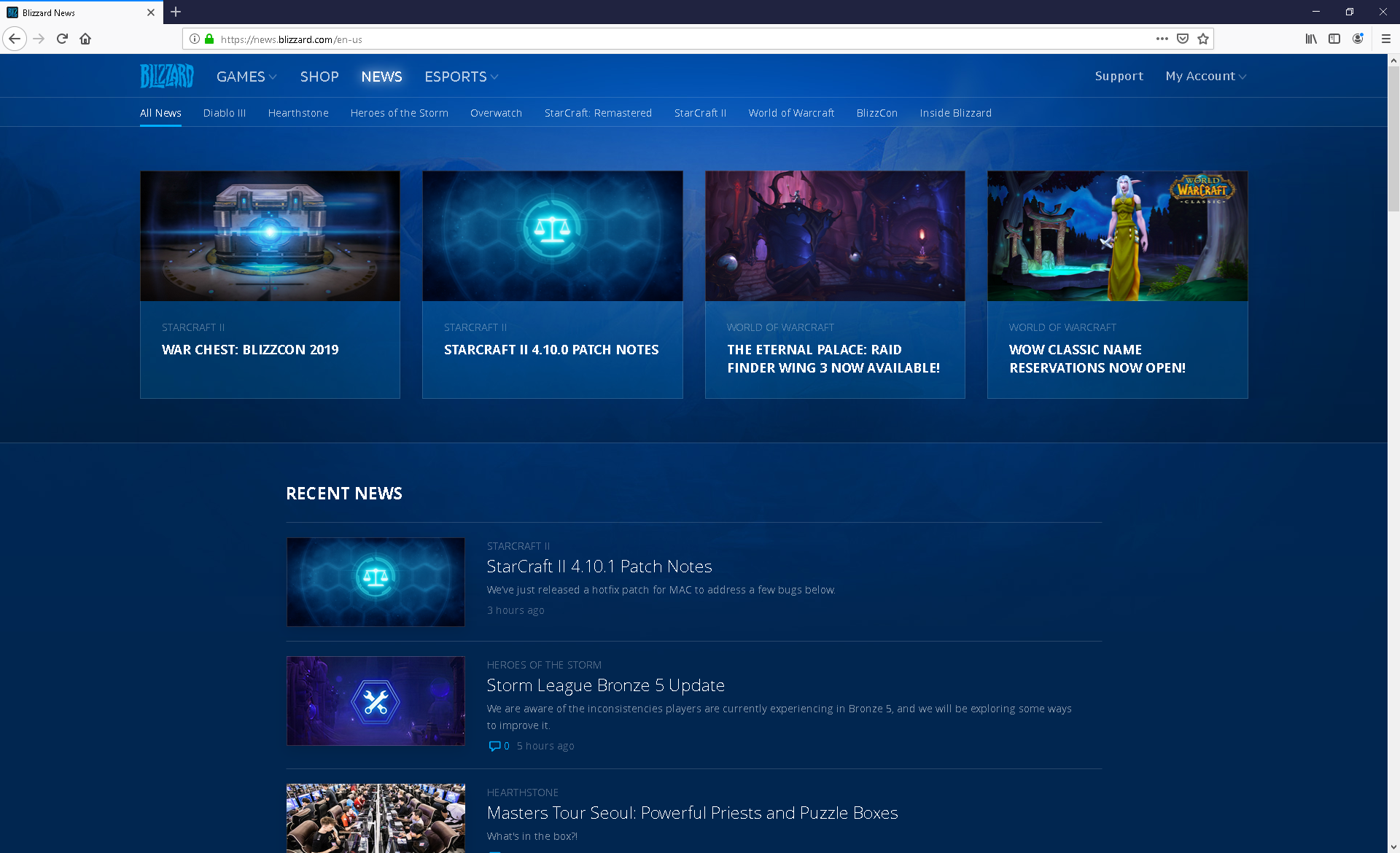

Blizzard Battle.net news page as our example of a predominately dark web page
Blizzard Battle.net news page as our example of a predominately dark web page
Average consumption over 30 seconds when displaying all black at the minimum brightness setting
Average consumption over 30 seconds when displaying all black at the minimum brightness setting
Average consumption over 30 seconds when displaying all black at the maximum brightness setting
Average consumption over 30 seconds when displaying all black at the maximum brightness setting
Average consumption over 30 seconds when displaying all white at the minimum brightness setting
Average consumption over 30 seconds when displaying all white at the minimum brightness setting

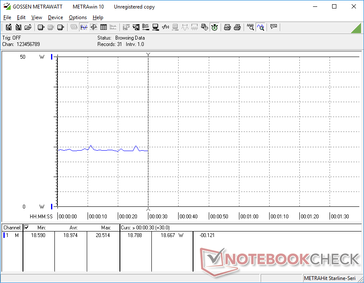

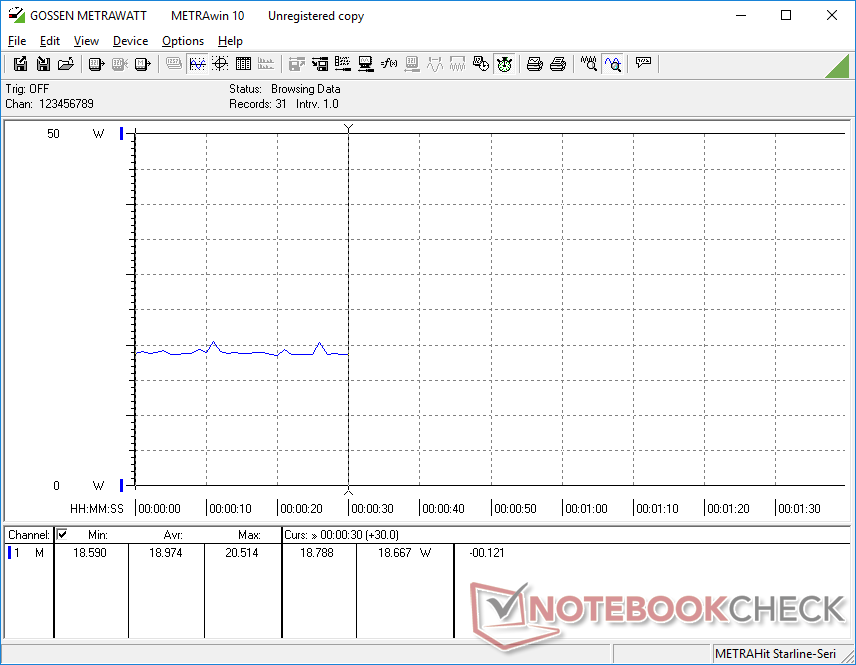

Average consumption over 30 seconds when displaying all white at the maximum brightness setting
Average consumption over 30 seconds when displaying all white at the maximum brightness setting

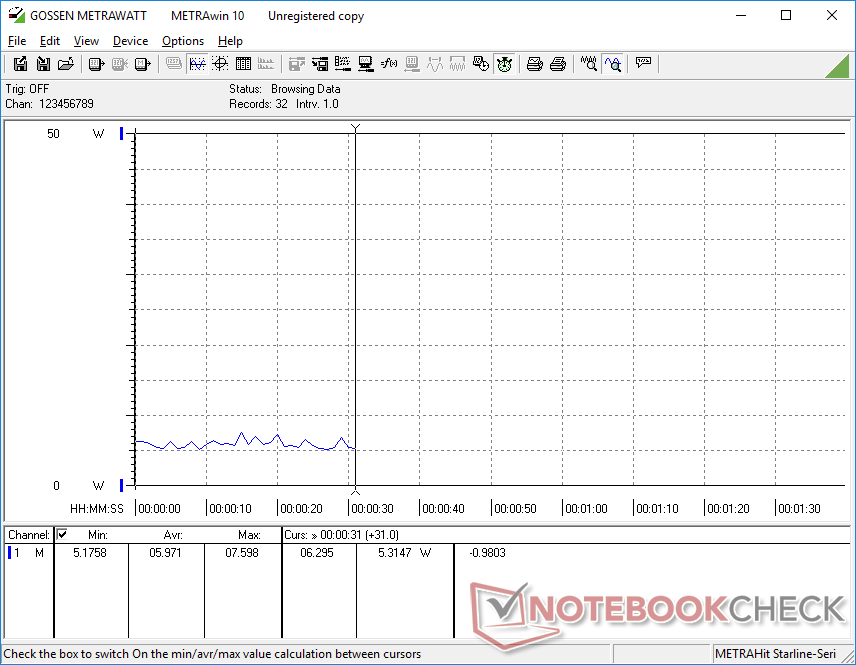

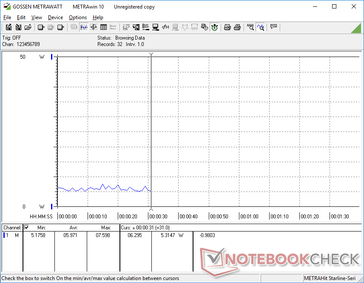

Average consumption over 30 seconds when displaying Battle.net news page at the minimum brightness setting
Average consumption over 30 seconds when displaying Battle.net news page at the minimum brightness setting

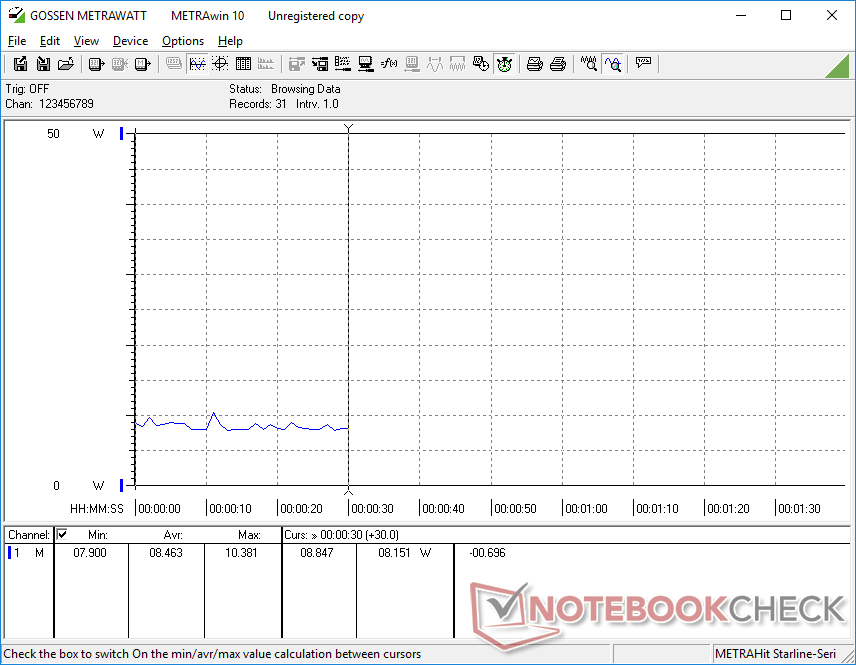

Average consumption over 30 seconds when displaying Battle.net news page at the maximum brightness setting
Average consumption over 30 seconds when displaying Battle.net news page at the maximum brightness setting
