Minisforum UH125 Pro review: AI mini-PC with Intel Core Ultra 5 125H, 32 GB DDR5 RAM and 1 TB SSD comes at a price

Name: Minisforum UH125 Pro
Brand: Minisforum

AI as a marketing tool?

Minisforum is renewing its model range based on the Intel Meteor Lake processors: The UH125 Pro is being launched based on the Intel Core Ultra 5 125H. You can also look forward to a wealth of connectivity, which is currently among the most modern with USB4 and OCuLink. We took a detailed look at the device and analyzed its performance based on numerous measurements and benchmarks.

Sebastian Bade, 👁 Sebastian Bade, ✓ Anton Avdyushkin (translated by DeepL / Ninh Duy), Published 07/27/2024 🇩🇪 🇫🇷 ...

Mini PC Desktop Intel Arc Meteor Lake GPU

The manufacturer itself advertises the Minisforum UH125 Pro as a powerful AI mini-PC with OCuLink connection. The processor is an Intel Core Ultra 5 125H, which can definitely offer a certain added value with its separate NPU. However, we can now also find this option in other SoCs. Minisforum does not offer other CPU configurations for the UH125 Pro. When purchasing the Minisforum UH125 Pro, the buyer is faced with the decision between the barebone variant and our test configuration. Without RAM and SSD, the device can be pre-ordered for 499 euros. The regular price, however, is 629 euros. If you want to purchase the Minisforum UH125 Pro with 32 GB DDR5 RAM and a 1 TB SSD, you will have to dig deeper into your pockets: The RRP is currently 879 euros. However, Minisforum is offering the device for 699 euros during the pre-order phase.

In terms of price, the Minisforum UH125 Pro stands out neither positively nor negatively. The competitors against whom we pitted the Minisforum UH125 Pro are listed in the following table.

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum UH125 Pro

Processor

Intel Core Ultra 5 125H 14 x 3.6 - 4.5 GHz, 60 W PL2 / Short Burst, 54 W PL1 / Sustained, Meteor Lake-H

Graphics adapter

Intel Arc 7-Core iGPU, Core: 2200 MHz, 31.0.101.5594 DCH

Memory

32 GB

, DDR5-5600 MT/s, max 96GB

Mainboard

Intel Meteor Lake-U/P/H PCH

Storage

Kingston OM8PGP41024Q-A0, 1024 GB

, 930 GB free

Soundcard

Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, 1 Docking Station Port, Audio Connections: 3.5mm combo jack, Card Reader: SD (Full-Size), Realtek Semiconductor RTL8126 PCIe Ethernet Controller (10/100/1000/2500/5000MBit/s), OCuLink

Networking

Realtek Semiconductor RTL8126 PCIe Ethernet Controller (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.3

Size

height x width x depth (in mm): 49 x 145 x 145 ( = 1.93 x 5.71 x 5.71 in)

Operating System

Microsoft Windows 11 Home

Additional features

120W power adapter, VESA-Mount, 24 Months Warranty

Weight

797 g ( = 28.11 oz / 1.76 pounds), Power Supply: 278 g ( = 9.81 oz / 0.61 pounds)

Price

879 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Possible competitors in comparison

Rating	Version	Date	Model	Weight	Height
74.5 %	v8	07 / 2024	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	797 g	49 mm
80.8 %	v8	06 / 2024	Aoostar GEM12 R7 8845HS, Radeon 780M	653 g	60 mm
78 %	v8	07 / 2024	Geekom AE7 R9 7940HS, Radeon 780M	578 g	49.2 mm
72.1 %	v8	06 / 2024	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	440 g	37 mm
82.4 % v7 ^(old)	v7 ^(old)	05 / 2024	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	615 g	55 mm
82.3 % v7 ^(old)	v7 ^(old)	04 / 2024	Acemagic AM18 R7 7840HS, Radeon 780M	600 g	58 mm

Note: We have updated our rating system and the results of version 8 are not comparable with the results of version 7 here available here.

Minisforum UH125 Pro in detail

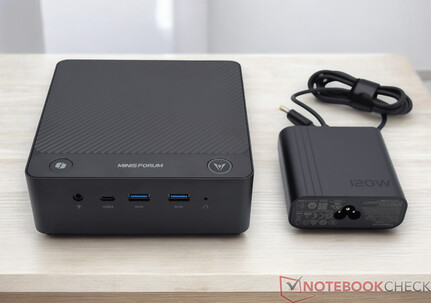

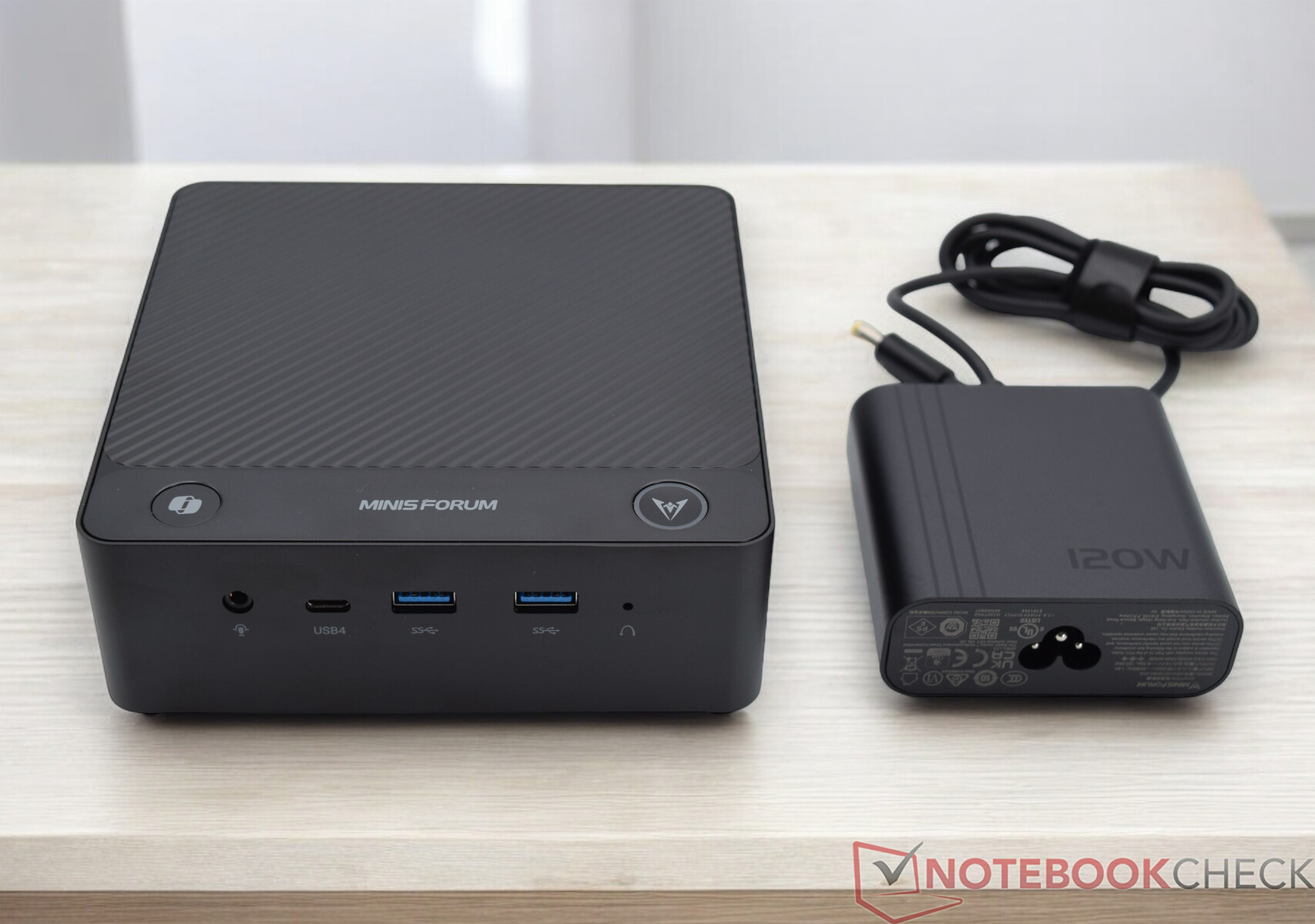

Minisforum UH125 Pro with power supply unit (19 V; 6.32 A)

Case - Aluminum and plastic in a good combination

The Minisforum UH125 Pro is sold exclusively in black color. The manufacturer relies on a mix of aluminum and plastic for the materials used. The latter can be found on the top and bottom, although the main part of the case is made of metal. This gives the device excellent stability, which is also accompanied by impeccable workmanship. The power button and the Copilot button are located on the top. The latter is simply a button to start the Copilot assistant. However, it is questionable whether this feature will be used often in practice.

The Minisforum UH125 Pro takes up slightly more space on the desk than its competitors. In terms of height, our test device ranks in the midfield, although the 49 millimeters do not make the device appear bulky. In relation to the 14.5 centimeters in width and depth, the Minisforum UH125 Pro has enough internal space to accommodate a powerful and efficient cooling unit. The Minisforum UH125 Pro can also be attached to a monitor via a VESA mount.

Size comparison

Equipment - USB4 in double version and OCuLink

The Minisforum UH125 Pro scores with a good selection of interfaces. Both the number and the choice of ports are excellent. Two USB4 interfaces are not necessarily the standard for mini-PCs. However, Minisforum proves that this is possible. The manufacturer also installs an OCuLink port, which is primarily used for external graphics cards. Minisforum itself has already announced its own model. The position of the ports is good, but not perfect. The DisplayPort connection stands out negatively here. If the underlying USB-A is in use, it is practically impossible to remove the DisplayPort cable as it is often fitted with a catch. Screens can also be controlled via HDMI. If you also use the two USB4 ports for image output, you can operate up to four screens simultaneously on the Minisforum UH125 Pro.

The Minisforum UH125 Pro is equipped with an SD card reader, which is only recommended to a limited extent in terms of performance. Devices with faster UHS-II card readers deliver significantly better transfer rates. The SD card reader in our test device is therefore more of an emergency solution.

Important note on the OCuLink connection: The manufacturer points out that this interface doesn't support hot swap, which means that the mini-PC must be switched off before connecting the device. In the worst-case scenario, ignoring this feature can result in damage to the devices. Aoostar has also explicitly pointed this out with a similar note on its devices.

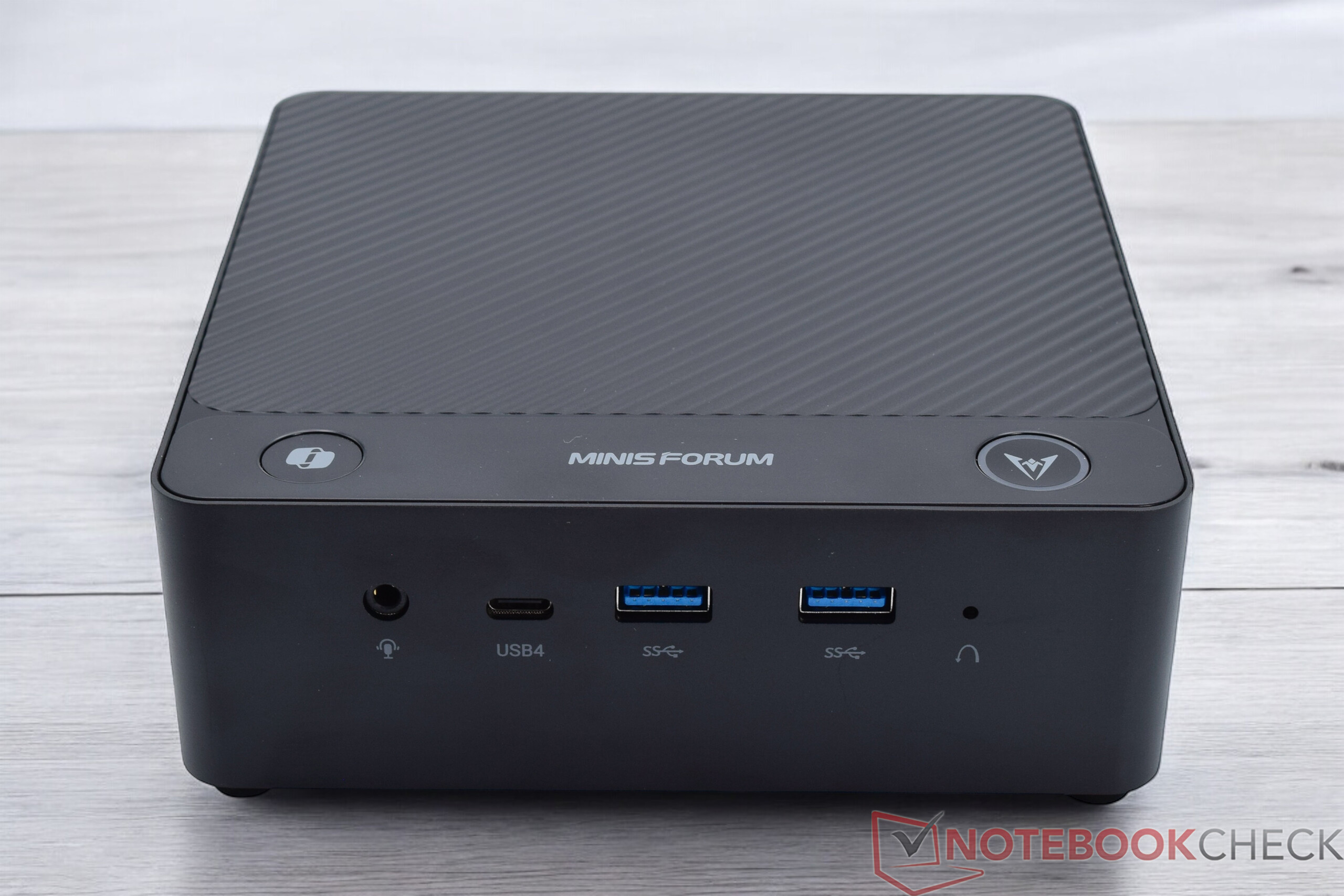

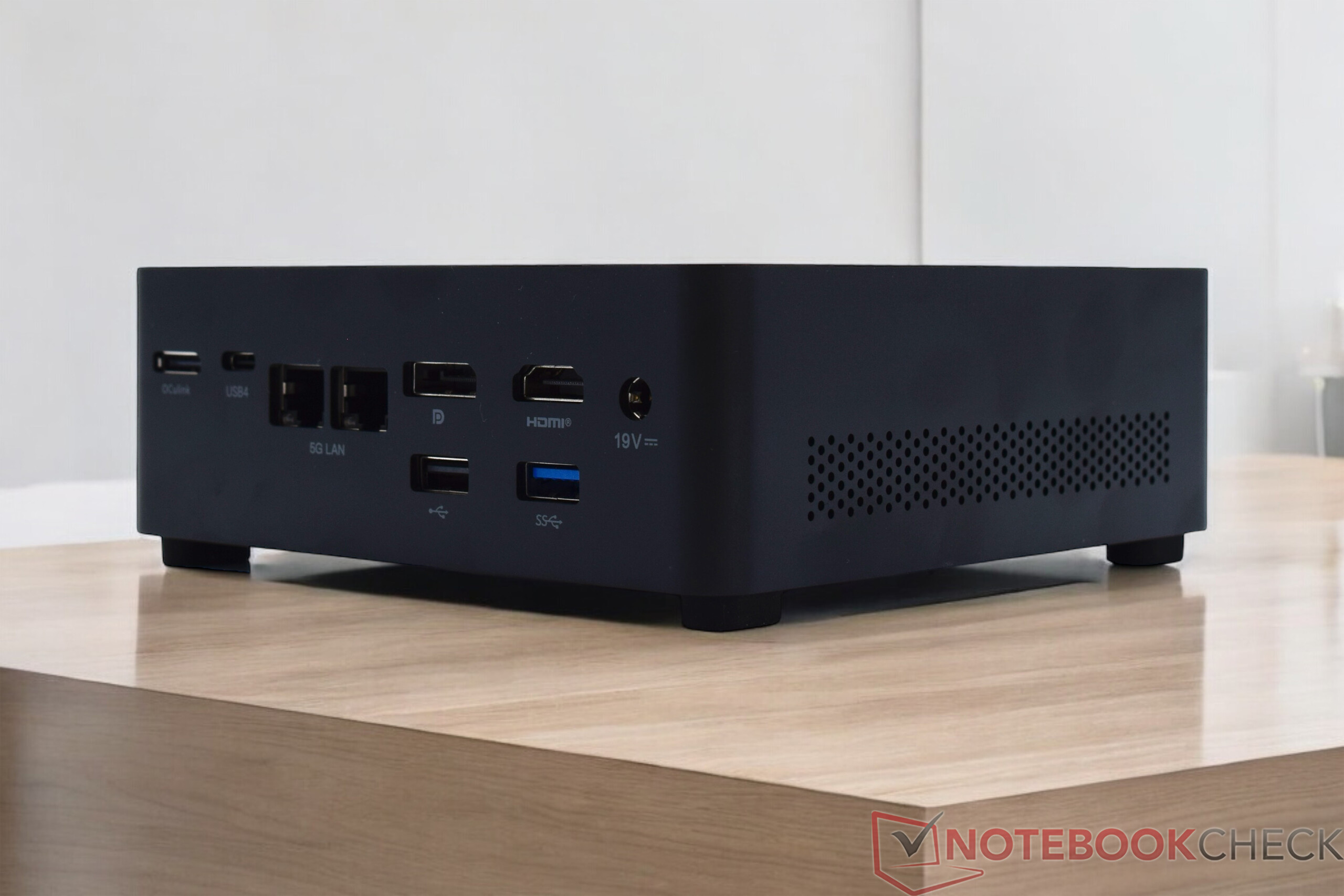

The external connections of the Minisforum UH125 Pro (Source: Minisforum)

SD card reader

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s +593%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	176.8 MB/s +574%
Geekom Mini IT13 Intel Core i9-13900H	154.449 MB/s +489%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s +393%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	101.1 MB/s +286%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s +148%
Minisforum UH125 Pro Intel Core Ultra 5 125H (AV Pro SD microSD 128 GB V60)	26.22 MB/s
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s +708%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	182.5 MB/s +636%
Geekom Mini IT13 Intel Core i9-13900H	180.4 MB/s +627%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s +613%
Average of class Mini PC (18.2 - 221, n=26, last 2 years)	113.6 MB/s +358%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s +182%
Minisforum UH125 Pro Intel Core Ultra 5 125H (AV Pro SD microSD 128 GB V60)	24.8 MB/s

Communication

The Minisforum UH125 Pro is equipped with an Intel Wi-Fi 6E-AX210 radio module, which ensures wireless network communication. The WLAN module can operate in 2.4 GHz as well as in 5 GHz and 6 GHz frequency ranges. The test shows clear differences in performance, which are certainly noticeable in certain application scenarios. If a lot of data is transmitted, we primarily recommend using the faster 6 GHz radio network. Nevertheless, the somewhat slower 5 GHz wireless network is perfectly adequate for normal everyday use. In comparison, the Minisforum UH125 Pro is among the front runners. We carried out the WLAN tests with the Asus ROG Rapture GT-AXE11000 router. As an alternative to the wireless connection, the Minisforum UH125 Pro has two LAN sockets. Both network connections can transfer data at up to 5 GBit/s. This makes our test sample stand out from the crowd.

Networking
iperf3 receive AXE11000 6GHz
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	1755 (1737^min - 1766^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s -10%
Geekom AE7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1528 (1495^min - 1552^max) MBit/s -13%
Average Intel Wi-Fi 6E AX210 (729 - 1827, n=28)	1462 MBit/s -17%
Average of class Mini PC (684 - 1806, n=54, last 2 years)	1452 MBit/s -17%
iperf3 transmit AXE11000 6GHz
Geekom AE7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1699 (1590^min - 1792^max) MBit/s +6%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	1605 (1238^min - 1652^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s -11%
Average of class Mini PC (394 - 1800, n=54, last 2 years)	1386 MBit/s -14%
Average Intel Wi-Fi 6E AX210 (712 - 1991, n=27)	1372 MBit/s -15%
iperf3 receive AXE11000
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s +49%
Average Intel Wi-Fi 6E AX210 (715 - 1774, n=32)	1262 MBit/s +35%
Average of class Mini PC (267 - 1796, n=102, last 2 years)	954 MBit/s +2%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	936 (907^min - 946^max) MBit/s
Aoostar GEM12 Intel Wi-Fi 6 AX200	740 (676^min - 758^max) MBit/s -21%
Geekom AE7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	707 (631^min - 811^max) MBit/s -24%
Minisforum Venus Series NAB9 MediaTek MT7921	503 (371^min - 687^max) MBit/s -46%
Acemagic AM18 Realtek RTL8852BE	455 (221^min - 519^max) MBit/s -51%
iperf3 transmit AXE11000
Average Intel Wi-Fi 6E AX210 (565 - 1966, n=32)	1171 MBit/s +54%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s +51%
Average of class Mini PC (251 - 1776, n=102, last 2 years)	891 MBit/s +18%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	758 (727^min - 793^max) MBit/s
Aoostar GEM12 Intel Wi-Fi 6 AX200	736 (369^min - 756^max) MBit/s -3%
Acemagic AM18 Realtek RTL8852BE	665 (343^min - 743^max) MBit/s -12%
Geekom AE7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	573 (145^min - 972^max) MBit/s -24%
Minisforum Venus Series NAB9 MediaTek MT7921	531 (255^min - 725^max) MBit/s -30%

Minisforum UH125 Pro Intel Wi-Fi 6E AX210; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1605 (1238-1652)

Minisforum UH125 Pro Intel Wi-Fi 6E AX210; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1755 (1737-1766)

Minisforum UH125 Pro Intel Wi-Fi 6E AX210; iperf3 receive AXE11000; iperf 3.1.3: Ø935 (907-946)

Aoostar GEM12 Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø739 (676-758)

Minisforum UH125 Pro Intel Wi-Fi 6E AX210; iperf3 transmit AXE11000; iperf 3.1.3: Ø758 (727-793)

Aoostar GEM12 Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø724 (369-756)

Accessories

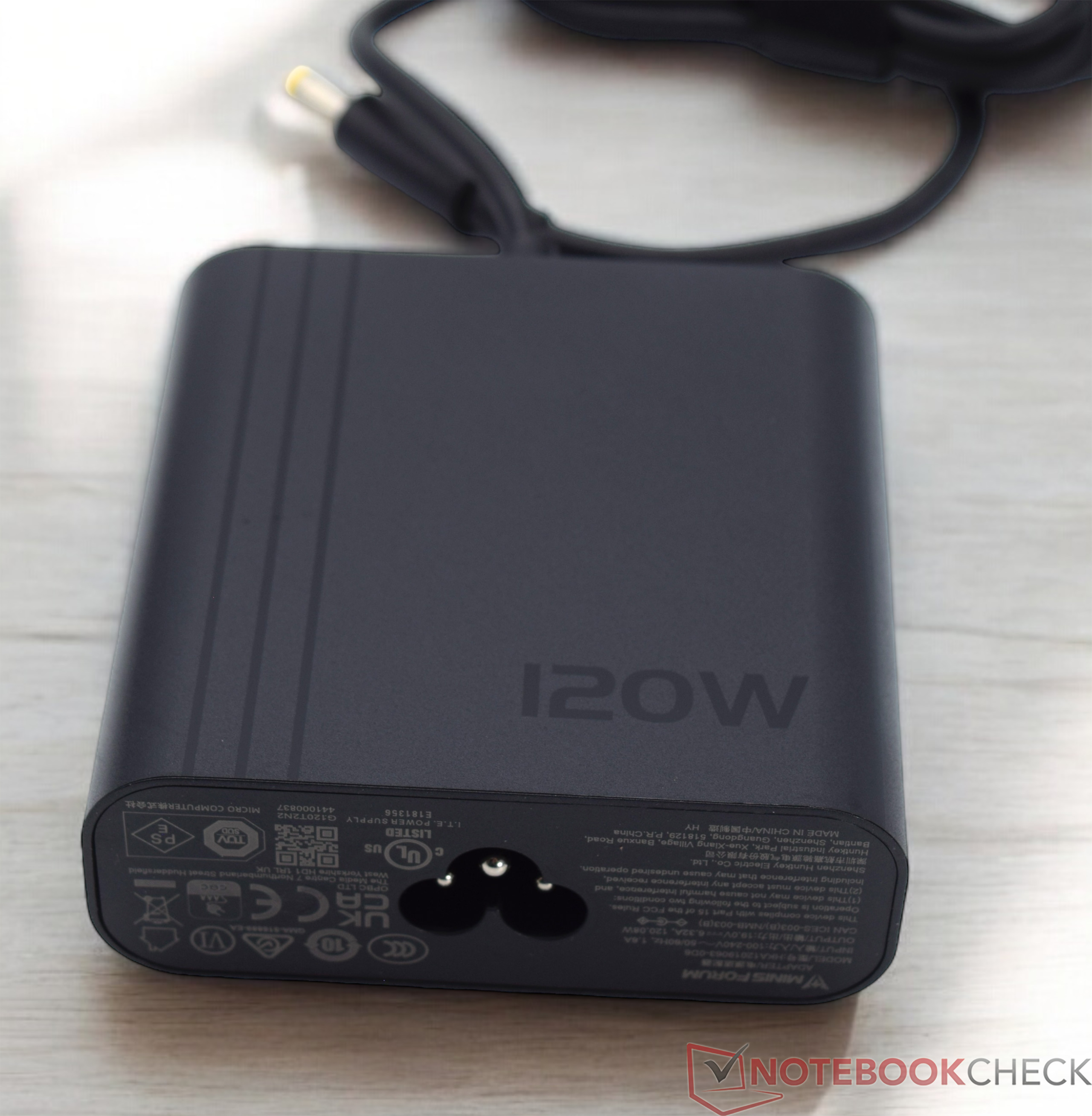

The scope of delivery includes the device and a compact 120-watt power supply unit. A VESA mounting plate including mounting material is also included. A quick start guide, HDMI cable, and power cable are also included.

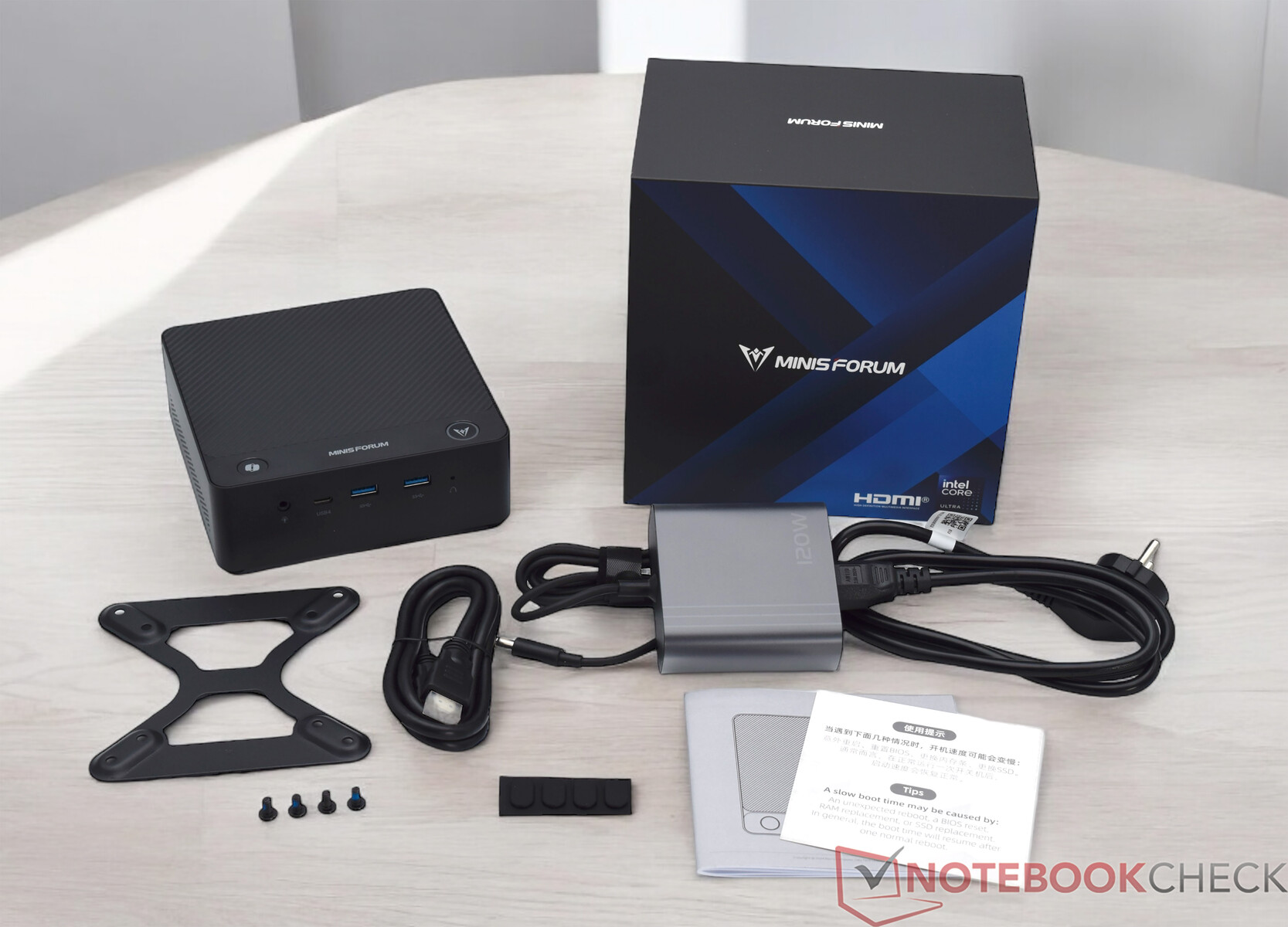

The scope of delivery of the Minisforum UH125 Pro

Maintenance

If you order the Minisforum UH125 Pro as a barebone version, you will inevitably have to open the device to install the RAM and an SSD. In principle, this works relatively well, although the glued-on rubber feet on the underside are a bit of a hindrance. They conceal the four screws that hold the underside to the housing. However, care should be taken when opening the case, as the two lower USB ports are connected internally with a relatively short ribbon cable. In order to access the RAM and an SSD, the fan must then be removed. Twelve screws have to be unscrewed for this. Internally, the Minisforum UH125 Pro is similar to the Minisforum AtomMan X7 Ti. The two M.2 interfaces are concealed under a solid metal cooler. One of these is already occupied by an 80-millimeter-long SSD in our test device. Two SO-DIMM modules can be installed for the RAM. The WLAN module can also be replaced. However, this is much more complicated, as the entire circuit board has to be dismantled.

Minisforum UH125 Pro with open underside

Top side of the circuit board of the Minisforum UH125 Pro

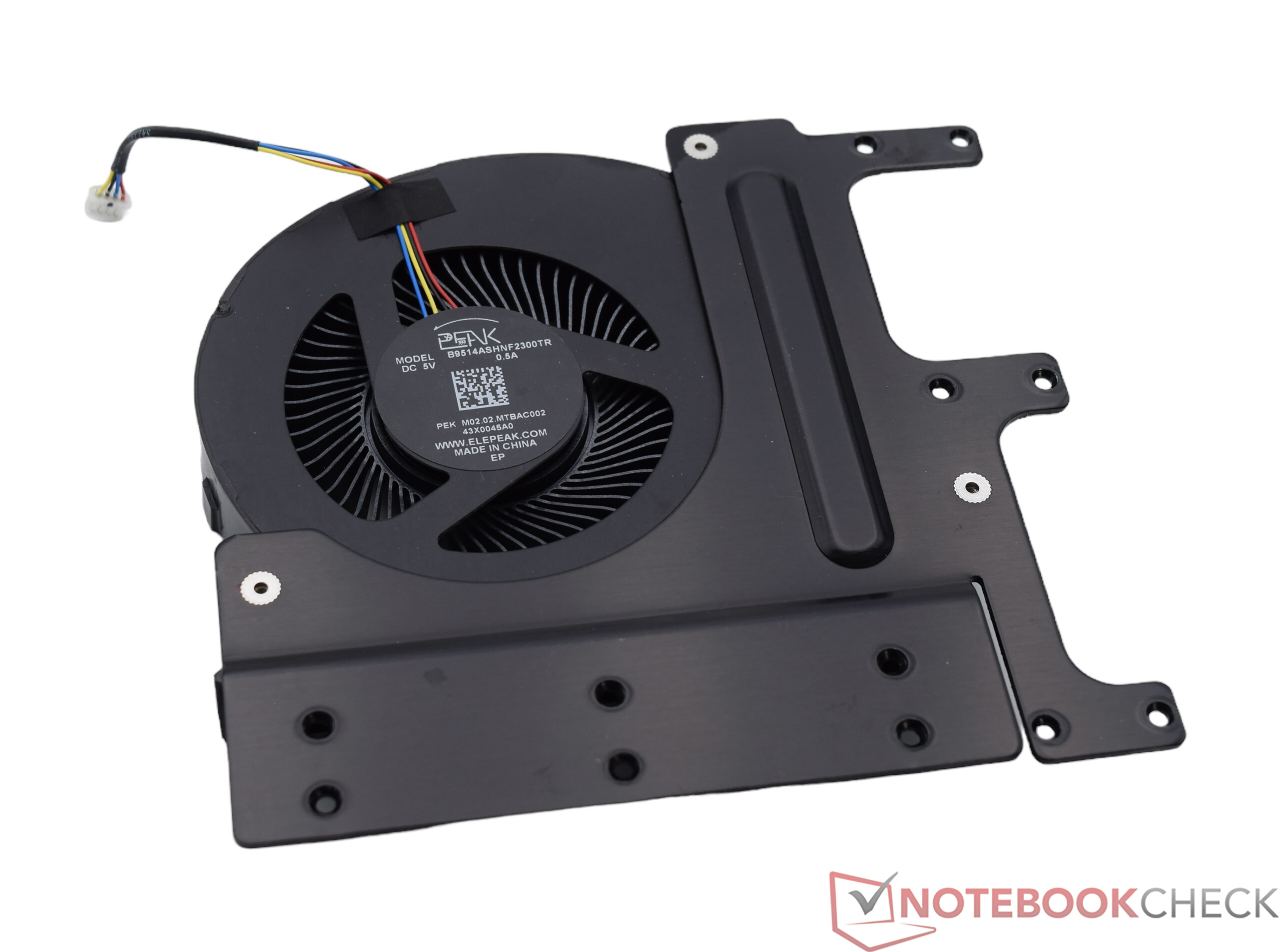

The individual parts of the Minisforum UH125 Pro

Sustainability

The Minisforum UH125 Pro is supplied in a cardboard box appropriate to the size of the device. The accessories are packed in separate plastic bags, which could be improved in terms of sustainability. As already mentioned, the device itself is made from a mix of aluminum and plastic. We do not know whether special processes were used for the production of recycled materials.

Performance - Intel Core Ultra 5 with good performance

The Intel Core Ultra 5 125H is a solid mid-range SoC and belongs to Intel's Meteor Lake series. Overall, the SoC offers many native computing cores, which are ideally suited for multi-threaded applications. The iGPU has also been revised with the Meteor Lake series and, based on the Arc architecture, there is noticeably more performance compared to the outdated Xe iGPUs of the previous series.

Test conditions

We carried out all performance tests with the Balanced energy mode. We did not change the performance of the SoC and left it in its default state according to the BIOS settings (Balanced). As an alternative to the Balanced, the SoC can also be operated in Silent and Performance mode. The same applies to the fan curve, which we have not changed any further. We will take a closer look at the different noise levels with regard to the various fan profiles later in the test.

	Power Limit 1	Power Limit 2
Silent Mode	45 W	54 W
Balanced Mode	54 W	60 W
Performance Mode	65 W	65 W

Processor

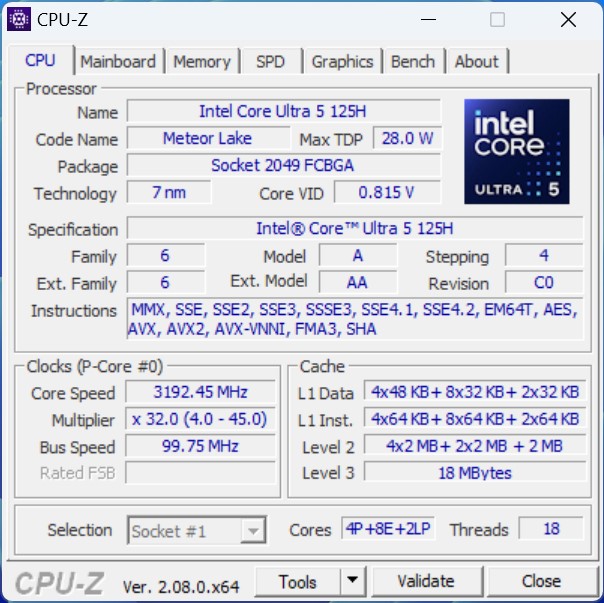

The Minisforum UH125 Pro is powered by an Intel Core Ultra 5 125H. The SoC combines 6 P and 8 E cores and can process a total of 18 threads in parallel. Basically, the processor delivers solid performance, and occasionally the mid-range SoC can even compete with the Core i9 models. In the overall performance comparison, our test device has to settle for last place in terms of CPU performance. However, one should not be too deceived by this result, as Minisforum does not use the top model of the Meteor Lake series here. The gap to the Geekom AE7 is comparatively small with only 13 percentage points in the performance rating.

For further comparisons and benchmarks, please refer to our CPU comparison table.

Performance Rating - Percent
Geekom AE7 AMD Ryzen 9 7940HS	57.5 pt
Aoostar GEM12 AMD Ryzen 7 8845HS	56.9 pt
Acemagic AM18 AMD Ryzen 7 7840HS	56.7 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55.4 pt
Geekom GT13 Pro Intel Core i9-13900H	54 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H	50.4 pt

Cinebench 2024
CPU Multi Core
Geekom AE7 AMD Ryzen 9 7940HS	946 Points +16%
Aoostar GEM12 AMD Ryzen 7 8845HS	933 Points +15%
Acemagic AM18 AMD Ryzen 7 7840HS	923 Points +13%
Minisforum UH125 Pro Intel Core Ultra 5 125H	814 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	746 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	703 Points -14%
CPU Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	114 Points +18%
Geekom AE7 AMD Ryzen 9 7940HS	108 Points +11%
Aoostar GEM12 AMD Ryzen 7 8845HS	107 Points +10%
Acemagic AM18 AMD Ryzen 7 7840HS	104 Points +7%
Geekom GT13 Pro Intel Core i9-13900H	104 Points +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	97 Points

Cinebench R23
Multi Core
Aoostar GEM12 AMD Ryzen 7 8845HS	16130 Points +11%
Geekom AE7 AMD Ryzen 9 7940HS	16099 Points +11%
Acemagic AM18 AMD Ryzen 7 7840HS	15979 Points +10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	14659 Points +1%
Minisforum UH125 Pro Intel Core Ultra 5 125H	14564 Points
Geekom GT13 Pro Intel Core i9-13900H	13015 Points -11%
Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1901 Points +16%
Geekom AE7 AMD Ryzen 9 7940HS	1788 Points +9%
Aoostar GEM12 AMD Ryzen 7 8845HS	1783 Points +9%
Acemagic AM18 AMD Ryzen 7 7840HS	1737 Points +6%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points +5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1640 Points

Cinebench R15
CPU Single 64Bit
Geekom AE7 AMD Ryzen 9 7940HS	281 Points +20%
Aoostar GEM12 AMD Ryzen 7 8845HS	279 Points +19%
Acemagic AM18 AMD Ryzen 7 7840HS	274 Points +17%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	270 Points +15%
Geekom GT13 Pro Intel Core i9-13900H	245 Points +4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	235 Points
CPU Multi 64Bit
Geekom AE7 AMD Ryzen 9 7940HS	2544 Points +13%
Aoostar GEM12 AMD Ryzen 7 8845HS	2537 Points +13%
Acemagic AM18 AMD Ryzen 7 7840HS	2505 Points +12%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points +1%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2249 Points 0%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2245 Points

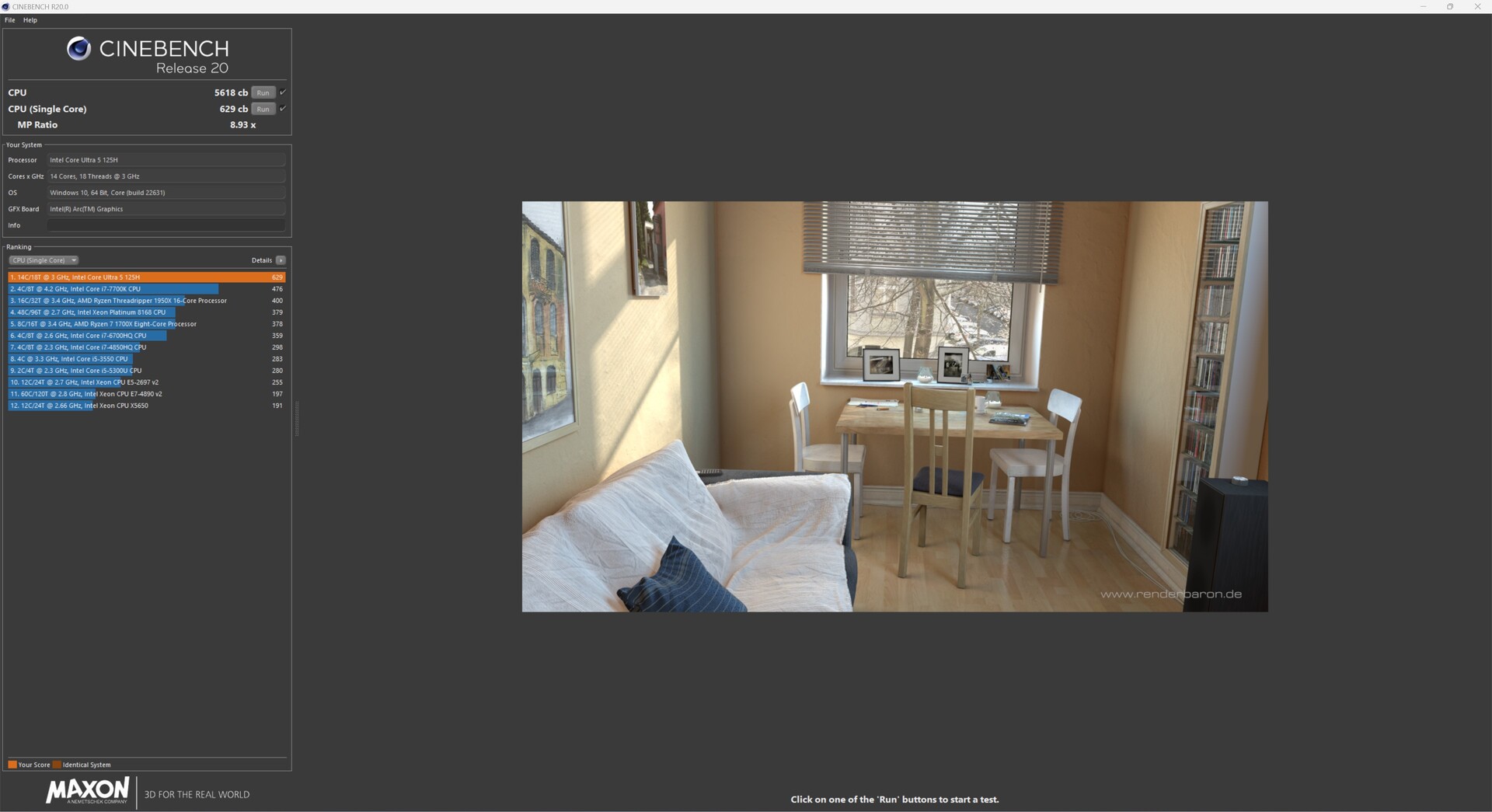

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9 Intel Core i9-12900HK	734 Points +17%
Geekom AE7 AMD Ryzen 9 7940HS	700 Points +11%
Aoostar GEM12 AMD Ryzen 7 8845HS	691 Points +10%
Acemagic AM18 AMD Ryzen 7 7840HS	673 Points +7%
Geekom GT13 Pro Intel Core i9-13900H	659 Points +5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	629 Points
CPU (Multi Core)
Aoostar GEM12 AMD Ryzen 7 8845HS	6346 Points +13%
Geekom AE7 AMD Ryzen 9 7940HS	6321 Points +13%
Acemagic AM18 AMD Ryzen 7 7840HS	6250 Points +11%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	5691 Points +1%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5618 Points
Geekom GT13 Pro Intel Core i9-13900H	5013 Points -11%

Cinebench R11.5
CPU Single 64Bit
Geekom AE7 AMD Ryzen 9 7940HS	3.38 Points +18%
Aoostar GEM12 AMD Ryzen 7 8845HS	3.32 Points +16%
Acemagic AM18 AMD Ryzen 7 7840HS	3.29 Points +15%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.26 Points +14%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points +4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2.86 Points
CPU Multi 64Bit
Geekom AE7 AMD Ryzen 9 7940HS	30.49 Points +13%
Aoostar GEM12 AMD Ryzen 7 8845HS	29.76 Points +10%
Acemagic AM18 AMD Ryzen 7 7840HS	29.7 Points +10%
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points +2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	27.25 Points +1%
Minisforum UH125 Pro Intel Core Ultra 5 125H	27.02 Points

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9 Intel Core i9-12900HK	15303 Points +19%
Geekom AE7 AMD Ryzen 9 7940HS	14232 Points +11%
Aoostar GEM12 AMD Ryzen 7 8845HS	14163 Points +10%
Acemagic AM18 AMD Ryzen 7 7840HS	14015 Points +9%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	12858 Points
Rendering Multiple CPUs 64Bit
Geekom AE7 AMD Ryzen 9 7940HS	87296 Points +11%
Aoostar GEM12 AMD Ryzen 7 8845HS	85872 Points +9%
Acemagic AM18 AMD Ryzen 7 7840HS	83726 Points +6%
Geekom GT13 Pro Intel Core i9-13900H	79014 Points 0%
Minisforum UH125 Pro Intel Core Ultra 5 125H	78817 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	75947 Points -4%

Blender - v2.79 BMW27 CPU
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * -14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	234 Seconds * -2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	230 Seconds *
Acemagic AM18 AMD Ryzen 7 7840HS	202 Seconds * +12%
Aoostar GEM12 AMD Ryzen 7 8845HS	197 Seconds * +14%
Geekom AE7 AMD Ryzen 9 7940HS	197 Seconds * +14%

wPrime 2.10
32m
Minisforum UH125 Pro Intel Core Ultra 5 125H	4.48 s *
Geekom GT13 Pro Intel Core i9-13900H	3.518 s * +21%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.454 s * +23%
Aoostar GEM12 AMD Ryzen 7 8845HS	2.703 s * +40%
Geekom AE7 AMD Ryzen 9 7940HS	2.699 s * +40%
Acemagic AM18 AMD Ryzen 7 7840HS	2.658 s * +41%
1024m
Geekom GT13 Pro Intel Core i9-13900H	412.775 s * -67%
Minisforum UH125 Pro Intel Core Ultra 5 125H	246.982 s *
Minisforum Venus Series NAB9 Intel Core i9-12900HK	186.394 s * +25%
Aoostar GEM12 AMD Ryzen 7 8845HS	98.896 s * +60%
Geekom AE7 AMD Ryzen 9 7940HS	96.95 s * +61%
Acemagic AM18 AMD Ryzen 7 7840HS	71.922 s * +71%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB9 Intel Core i9-12900HK	317.5 (292^min - 319^max) fps +4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	304.5 (304^min - 306^max) fps
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps -1%
Aoostar GEM12 AMD Ryzen 7 8845HS	289 (286^min - 292^max) fps -5%
Geekom AE7 AMD Ryzen 9 7940HS	288 (287^min - 289^max) fps -5%
Acemagic AM18 AMD Ryzen 7 7840HS	281.5 (277^min - 286^max) fps -8%
Pass 2
Geekom AE7 AMD Ryzen 9 7940HS	144.15 (143.5^min - 146.6^max) fps +8%
Acemagic AM18 AMD Ryzen 7 7840HS	144.1 (143.9^min - 145.6^max) fps +8%
Aoostar GEM12 AMD Ryzen 7 8845HS	143.7 (143^min - 145.2^max) fps +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	134 (133.7^min - 134.5^max) fps
Minisforum Venus Series NAB9 Intel Core i9-12900HK	125.05 (112.4^min - 132^max) fps -7%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps -15%

WinRAR - Result
Minisforum Venus Series NAB9 Intel Core i9-12900HK	8735 KB/s +56%
Geekom AE7 AMD Ryzen 9 7940HS	7580 KB/s +36%
Aoostar GEM12 AMD Ryzen 7 8845HS	7327 KB/s +31%
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s +22%
Acemagic AM18 AMD Ryzen 7 7840HS	6428 KB/s +15%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5594 KB/s

TrueCrypt
AES Mean 100MB
Geekom AE7 AMD Ryzen 9 7940HS	15.2 GB/s +69%
Acemagic AM18 AMD Ryzen 7 7840HS	14.7 GB/s +63%
Aoostar GEM12 AMD Ryzen 7 8845HS	14.4 GB/s +60%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s +47%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	13 GB/s +44%
Minisforum UH125 Pro Intel Core Ultra 5 125H	9 GB/s
Twofish Mean 100MB
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s +71%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2.2 GB/s +57%
Acemagic AM18 AMD Ryzen 7 7840HS	2.1 GB/s +50%
Geekom AE7 AMD Ryzen 9 7940HS	2.1 GB/s +50%
Aoostar GEM12 AMD Ryzen 7 8845HS	2 GB/s +43%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1.4 GB/s
Serpent Mean 100MB
Geekom AE7 AMD Ryzen 9 7940HS	1.4 GB/s +64%
Acemagic AM18 AMD Ryzen 7 7840HS	1.3 GB/s +52%
Aoostar GEM12 AMD Ryzen 7 8845HS	1.3 GB/s +52%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1.2 GB/s +41%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s +41%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.854 GB/s

Geekbench 5.5
Multi-Core
Geekom AE7 AMD Ryzen 9 7940HS	12228 Points +13%
Aoostar GEM12 AMD Ryzen 7 8845HS	12143 Points +13%
Acemagic AM18 AMD Ryzen 7 7840HS	12049 Points +12%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10788 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10378 Points -4%
Single-Core
Geekom AE7 AMD Ryzen 9 7940HS	1986 Points +25%
Aoostar GEM12 AMD Ryzen 7 8845HS	1958 Points +23%
Acemagic AM18 AMD Ryzen 7 7840HS	1946 Points +22%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1866 Points +17%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points +16%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1593 Points

Geekbench 5.0
5.0 Multi-Core
Geekom AE7 AMD Ryzen 9 7940HS	12141 Points +14%
Aoostar GEM12 AMD Ryzen 7 8845HS	12086 Points +13%
Acemagic AM18 AMD Ryzen 7 7840HS	12019 Points +13%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points +5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10676 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10276 Points -4%
5.0 Single-Core
Geekom AE7 AMD Ryzen 9 7940HS	1905 Points +19%
Aoostar GEM12 AMD Ryzen 7 8845HS	1900 Points +19%
Acemagic AM18 AMD Ryzen 7 7840HS	1870 Points +17%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points +13%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1795 Points +12%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1596 Points

Geekbench 4.4
64 Bit Single-Core Score
Geekom AE7 AMD Ryzen 9 7940HS	8125 Points +21%
Aoostar GEM12 AMD Ryzen 7 8845HS	8034 Points +19%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7932 Points +18%
Acemagic AM18 AMD Ryzen 7 7840HS	7924 Points +18%
Geekom GT13 Pro Intel Core i9-13900H	7787 Points +16%
Minisforum UH125 Pro Intel Core Ultra 5 125H	6734 Points
64 Bit Multi-Core Score
Geekom AE7 AMD Ryzen 9 7940HS	49341 Points +28%
Aoostar GEM12 AMD Ryzen 7 8845HS	47777 Points +24%
Acemagic AM18 AMD Ryzen 7 7840HS	47599 Points +23%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points +8%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	39510 Points +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	38648 Points

3DMark 11 - 1280x720 Performance Physics
Acemagic AM18 AMD Ryzen 7 7840HS	22786 Points +33%
Geekom AE7 AMD Ryzen 9 7940HS	22237 Points +30%
Aoostar GEM12 AMD Ryzen 7 8845HS	21762 Points +27%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	18553 Points +8%
Geekom GT13 Pro Intel Core i9-13900H	18383 Points +7%
Minisforum UH125 Pro Intel Core Ultra 5 125H	17138 Points

7-Zip 18.03
7z b 4
Geekom AE7 AMD Ryzen 9 7940HS	71631 MIPS
Aoostar GEM12 AMD Ryzen 7 8845HS	70733 MIPS
Acemagic AM18 AMD Ryzen 7 7840HS	70723 MIPS
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55620 MIPS
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS
Minisforum UH125 Pro Intel Core Ultra 5 125H	0 MIPS
7z b 4 -mmt1
Geekom AE7 AMD Ryzen 9 7940HS	6661 MIPS +42%
Aoostar GEM12 AMD Ryzen 7 8845HS	6644 MIPS +41%
Acemagic AM18 AMD Ryzen 7 7840HS	6545 MIPS +39%
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +35%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	6136 MIPS +31%
Minisforum UH125 Pro Intel Core Ultra 5 125H	4699 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom AE7 AMD Ryzen 9 7940HS	20.9 fps +25%
Acemagic AM18 AMD Ryzen 7 7840HS	20.5 fps +23%
Aoostar GEM12 AMD Ryzen 7 8845HS	20.5 fps +23%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.7 fps
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.2 fps -3%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps -16%

R Benchmark 2.5 - Overall mean
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.513 sec *
Acemagic AM18 AMD Ryzen 7 7840HS	0.4398 sec * +14%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * +14%
Aoostar GEM12 AMD Ryzen 7 8845HS	0.4392 sec * +14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	0.4391 sec * +14%
Geekom AE7 AMD Ryzen 9 7940HS	0.4346 sec * +15%

LibreOffice - 20 Documents To PDF
Minisforum UH125 Pro Intel Core Ultra 5 125H	70.9 s *
Geekom AE7 AMD Ryzen 9 7940HS	53.7 s * +24%
Acemagic AM18 AMD Ryzen 7 7840HS	47.7 s * +33%
Aoostar GEM12 AMD Ryzen 7 8845HS	47.5 s * +33%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +44%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	37.2 s * +48%

WebXPRT 3 - Overall
Geekom AE7 AMD Ryzen 9 7940HS	323 Points +27%
Acemagic AM18 AMD Ryzen 7 7840HS	320 Points +26%
Geekom GT13 Pro Intel Core i9-13900H	304 Points +20%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	301 Points +19%
Aoostar GEM12 AMD Ryzen 7 8845HS	300 Points +18%
Minisforum UH125 Pro Intel Core Ultra 5 125H	254 Points

Mozilla Kraken 1.1 - Total
Minisforum UH125 Pro Intel Core Ultra 5 125H	595 ms *
Acemagic AM18 AMD Ryzen 7 7840HS	518 ms * +13%
Aoostar GEM12 AMD Ryzen 7 8845HS	517 ms * +13%
Geekom GT13 Pro Intel Core i9-13900H	517 ms * +13%
Geekom AE7 AMD Ryzen 9 7940HS	510 ms * +14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	499 ms * +16%

3DMark
1920x1080 Fire Strike Physics
Acemagic AM18 AMD Ryzen 7 7840HS	27120 Points +27%
Geekom AE7 AMD Ryzen 9 7940HS	26617 Points +24%
Aoostar GEM12 AMD Ryzen 7 8845HS	26194 Points +22%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	26093 Points +22%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points +10%
Minisforum UH125 Pro Intel Core Ultra 5 125H	21391 Points
2560x1440 Time Spy CPU
Geekom AE7 AMD Ryzen 9 7940HS	11049 Points +20%
Acemagic AM18 AMD Ryzen 7 7840HS	10926 Points +19%
Aoostar GEM12 AMD Ryzen 7 8845HS	10824 Points +18%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10402 Points +13%
Geekom GT13 Pro Intel Core i9-13900H	9347 Points +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	9182 Points

Super Pi mod 1.5 XS 1M - 1M
Minisforum UH125 Pro Intel Core Ultra 5 125H	7.744 s *
Geekom GT13 Pro Intel Core i9-13900H	7.445 s * +4%
Aoostar GEM12 AMD Ryzen 7 8845HS	7.331 s * +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7.281 s * +6%
Geekom AE7 AMD Ryzen 9 7940HS	7.158 s * +8%
Acemagic AM18 AMD Ryzen 7 7840HS	7.112 s * +8%

Super Pi mod 1.5 XS 2M - 2M
Aoostar GEM12 AMD Ryzen 7 8845HS	18.138 s * -7%
Geekom AE7 AMD Ryzen 9 7940HS	17.904 s * -6%
Acemagic AM18 AMD Ryzen 7 7840HS	17.697 s * -4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.967 s *
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.498 s * +3%
Geekom GT13 Pro Intel Core i9-13900H	16.234 s * +4%

Super Pi Mod 1.5 XS 32M - 32M
Aoostar GEM12 AMD Ryzen 7 8845HS	665.289 s * -57%
Acemagic AM18 AMD Ryzen 7 7840HS	655.388 s * -55%
Geekom AE7 AMD Ryzen 9 7940HS	653.976 s * -54%
Minisforum UH125 Pro Intel Core Ultra 5 125H	423.565 s *
Geekom GT13 Pro Intel Core i9-13900H	417.103 s * +2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	397.363 s * +6%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8948

Cinebench R10 Shading 64Bit

15967 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

78817 Points

Cinebench R10 Rendering Single CPUs 64Bit

12858 Points

Cinebench R10 Shading 32Bit

15394

Cinebench R10 Rendering Multiple CPUs 32Bit

51581

Cinebench R11.5 CPU Single 32Bit

2.52 Points

Cinebench R11.5 CPU Multi 32Bit

23.68 Points

Cinebench R11.5 OpenGL 32Bit

95.61 fps

Cinebench R11.5 CPU Single 64Bit

2.86 Points

Cinebench R11.5 CPU Multi 64Bit

27.02 Points

Cinebench R11.5 OpenGL 64Bit

95.42 fps

Cinebench R15 CPU Single 64Bit

235 Points

Cinebench R15 CPU Multi 64Bit

2245 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

132.66 fps

Cinebench R20 CPU (Single Core)

629 Points

Cinebench R20 CPU (Multi Core)

5618 Points

Cinebench R23 Multi Core

14564 Points

Cinebench R23 Single Core

1640 Points

Cinebench 2024 CPU Single Core

97 Points

Cinebench 2024 CPU Multi Core

814 Points

Help

... in comparison

Performance Rating
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	98.6 pt
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	96.3 pt
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	92.2 pt
Average of class Mini PC	64.7 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	64.5 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	60.8 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	57.5 pt

AIDA64 / FP32 Ray-Trace
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	26514 KRay/s +94%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	25916 KRay/s +90%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	25725 KRay/s +89%
Average of class Mini PC (769 - 76534, n=111, last 2 years)	15705 KRay/s +15%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	13639 KRay/s
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	12389 KRay/s -9%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s -14%

AIDA64 / FPU Julia
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	112419 Points +59%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	109747 Points +55%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	108506 Points +53%
Average of class Mini PC (4140 - 214250, n=111, last 2 years)	72212 Points +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	70880 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	64350 Points -9%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points -17%

AIDA64 / CPU SHA3
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	4898 MB/s +44%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	4769 MB/s +40%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	4695 MB/s +38%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	3404 MB/s
Average of class Mini PC (290 - 9399, n=111, last 2 years)	3242 MB/s -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	3028 MB/s -11%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s -20%

AIDA64 / CPU Queen
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	119250 Points +53%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	116083 Points +49%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	115133 Points +47%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	99851 Points +28%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points +20%
Average of class Mini PC (8186 - 184747, n=111, last 2 years)	82996 Points +6%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	78098 Points

AIDA64 / FPU SinJulia
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	14976 Points +91%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	14876 Points +90%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	14590 Points +86%
Average of class Mini PC (408 - 30299, n=111, last 2 years)	9711 Points +24%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	8417 Points +7%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7842 Points

AIDA64 / FPU Mandel
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	60098 Points +70%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	58597 Points +66%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	57881 Points +64%
Average of class Mini PC (2088 - 113499, n=111, last 2 years)	37471 Points +6%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	35321 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	31933 Points -10%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points -18%

AIDA64 / CPU AES
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	167583 MB/s +157%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	163604 MB/s +151%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	112254 MB/s +72%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s +57%
Average of class Mini PC (3691 - 325960, n=111, last 2 years)	88176 MB/s +35%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	85572 MB/s +31%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	65304 MB/s

AIDA64 / CPU ZLib
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	1048 MB/s +5%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	1042 MB/s +5%
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	1015 MB/s +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	994 MB/s
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	870 MB/s -12%
Average of class Mini PC (77.4 - 2346, n=111, last 2 years)	842 MB/s -15%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -21%

AIDA64 / FP64 Ray-Trace
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	14162 KRay/s +96%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	13875 KRay/s +92%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	13617 KRay/s +89%
Average of class Mini PC (432 - 41221, n=111, last 2 years)	8405 KRay/s +16%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7221 KRay/s
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	6325 KRay/s -12%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s -14%

AIDA64 / CPU PhotoWorxx
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	45789 MPixel/s
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	40690 MPixel/s -11%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	40655 MPixel/s -11%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	40245 MPixel/s -12%
Average of class Mini PC (5333 - 92934, n=111, last 2 years)	31246 MPixel/s -32%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s -38%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	24903 MPixel/s -46%

Cinebench R15 Multi loop

On the whole, the Minisforum UH125 Pro masters the Cinebench R15 continuous loop quite well. A closer look at the results reveals some fluctuations throughout the test. However, with an average result of 2,186 points, our test device has nothing to hide. We were unable to detect any significant drop in performance, such as with the Geekom GT13 Pro.

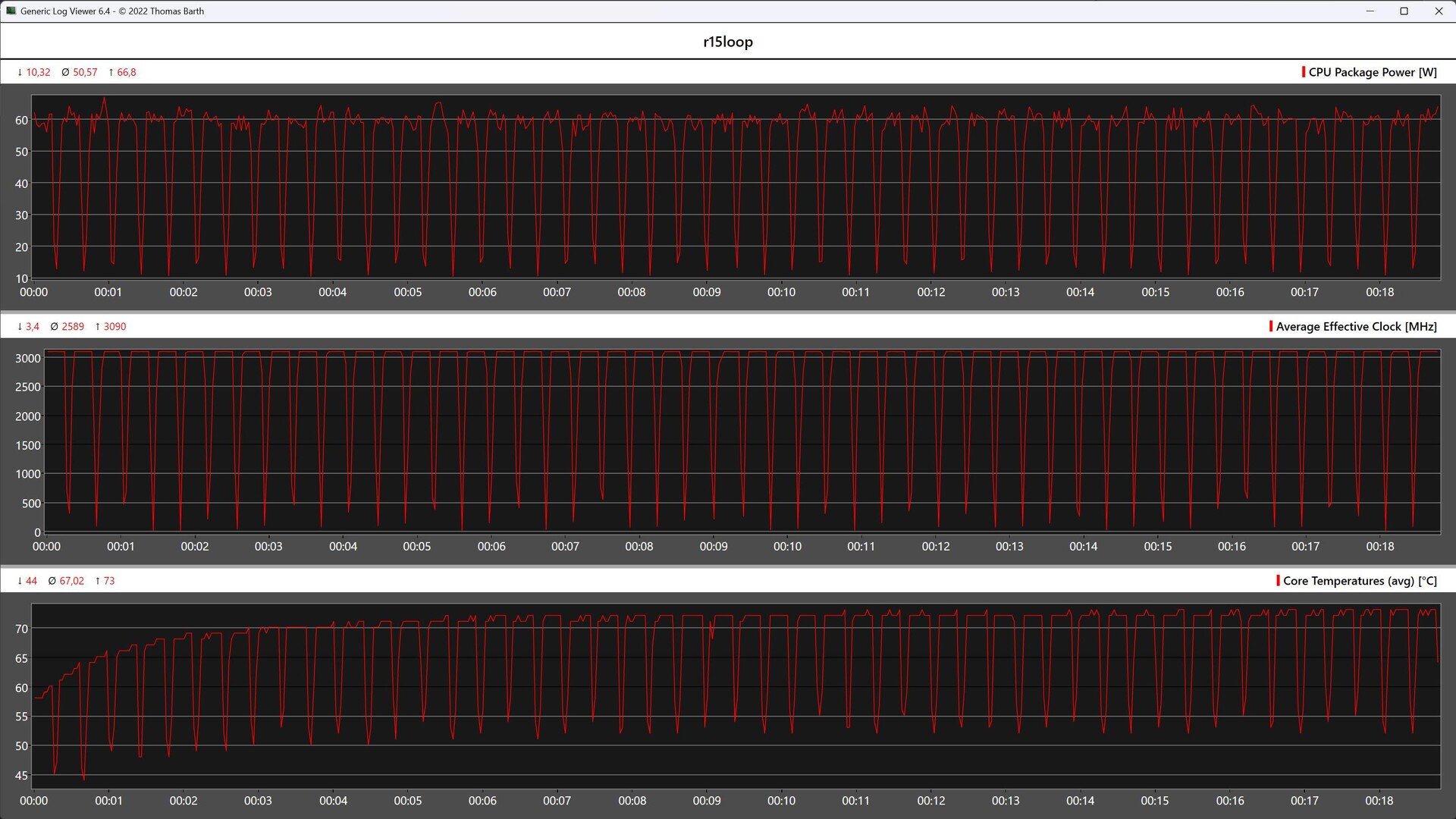

CPU metrics during the Cinebench R15 loop

Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Core Ultra 5 125H: Ø2186 (2040.4-2248.33)

Aoostar GEM12 AMD Ryzen 7 8845HS, AMD Ryzen 7 8845HS: Ø2530 (2503.13-2552.81)

Geekom AE7 AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2563 (2486.79-2630.54)

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)

Acemagic AM18 AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2489 (2476.93-2539.84)

System performance

Our test sample performed slightly better in the system performance tests than in the pure CPU performance tests. The Intel Core Ultra 5 125H in combination with the installed DDR5 RAM delivers excellent performance in everyday use. We can also subjectively confirm the high performance of the entire system. Our test sample even came out on top in the RAM tests.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7651 Points +24%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	7520 Points +21%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	7431 Points +20%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	6435 Points +4%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	6194 Points
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	5944 Points -4%

PCMark 10 / Essentials
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	11591 Points +23%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	11097 Points +18%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	11058 Points +17%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	10822 Points +15%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	10347 Points +10%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	9427 Points

PCMark 10 / Productivity
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10970 Points +42%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	10717 Points +39%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	10482 Points +36%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	7924 Points +3%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	7715 Points
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	7319 Points -5%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1986 Points +30%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1939 Points +26%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1828 Points +19%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	1813 Points +18%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1766 Points +15%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1533 Points

CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	2205 Points +66%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1849 Points +39%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1790 Points +34%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1541 Points +16%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	1527 Points +15%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1332 Points

CrossMark / Creativity
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	2040 Points +21%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2030 Points +21%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	2011 Points +19%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1907 Points +13%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1789 Points +6%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1683 Points

CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1996 Points +36%
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1872 Points +28%
Acemagic AM18, AMD Ryzen 7 7840HS AMD Radeon 780M, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1743 Points +19%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1736 Points +19%
Geekom AE7, AMD Ryzen 9 7940HS AMD Radeon 780M, Wodposit NVMe SSD 1024 GB	1731 Points +18%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1463 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	69592 MB/s
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	68449 MB/s -2%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	68299 MB/s -2%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	67777 MB/s -3%
Average of class Mini PC (8377 - 154332, n=111, last 2 years)	52139 MB/s -25%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s -34%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	44442 MB/s -36%

AIDA64 / Memory Read
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	72711 MB/s
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	61836 MB/s -15%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	61463 MB/s -15%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	61006 MB/s -16%
Average of class Mini PC (8974 - 122850, n=111, last 2 years)	52690 MB/s -28%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	47960 MB/s -34%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s -37%

AIDA64 / Memory Write
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	87118 MB/s +22%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	86677 MB/s +21%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	86273 MB/s +21%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	71514 MB/s
Average of class Mini PC (8762 - 216693, n=111, last 2 years)	57655 MB/s -19%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	45952 MB/s -36%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s -36%

AIDA64 / Memory Latency
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	184.8 ns *
Average of class Mini PC (44.9 - 184.8, n=111, last 2 years)	93.8 ns * +49%
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	90 ns * +51%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	88.6 ns * +52%
Acemagic AM18 AMD Ryzen 7 7840HS, Radeon 780M	87.9 ns * +52%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	79.9 ns * +57%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +59%

* ... smaller is better

NPU performance

The Intel Core Ultra 5 125H contains a Neural Processing Unit, which should significantly reduce the load on the SoC when it comes to AI applications. We evaluate the performance using the UL Procyon AI Interface benchmark program. Compared to its competitors, the Minisforum UH125 Pro delivers slightly better AI performance. The difference in performance compared to the Minisforum AtomMan X7 Ti. We already repeated the benchmark several times in the latter test, but this did not result in any change.

UL Procyon for Windows
Overall Score Integer NPU
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	501 Points
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	499 Points 0%
Acer Swift Go 14 SFG14-72 Intel Core Ultra 7 155H, Arc 8-Core	493 Points -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	368 Points -27%
Overall Score Integer GPU
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 AMD Ryzen 9 7950X, Arc A770	1500 Points +2244%
Acer Predator BiFrost Arc A750 OC AMD Ryzen 9 7950X, Arc A750	1433 Points +2139%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	684 Points +969%
Minisforum Neptune Series HN2673 Intel Core i7-12650H, A730M	597 Points +833%
Acer Swift Go 14 SFG14-72 Intel Core Ultra 7 155H, Arc 8-Core	541 Points +745%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	73 Points +14%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	64 Points

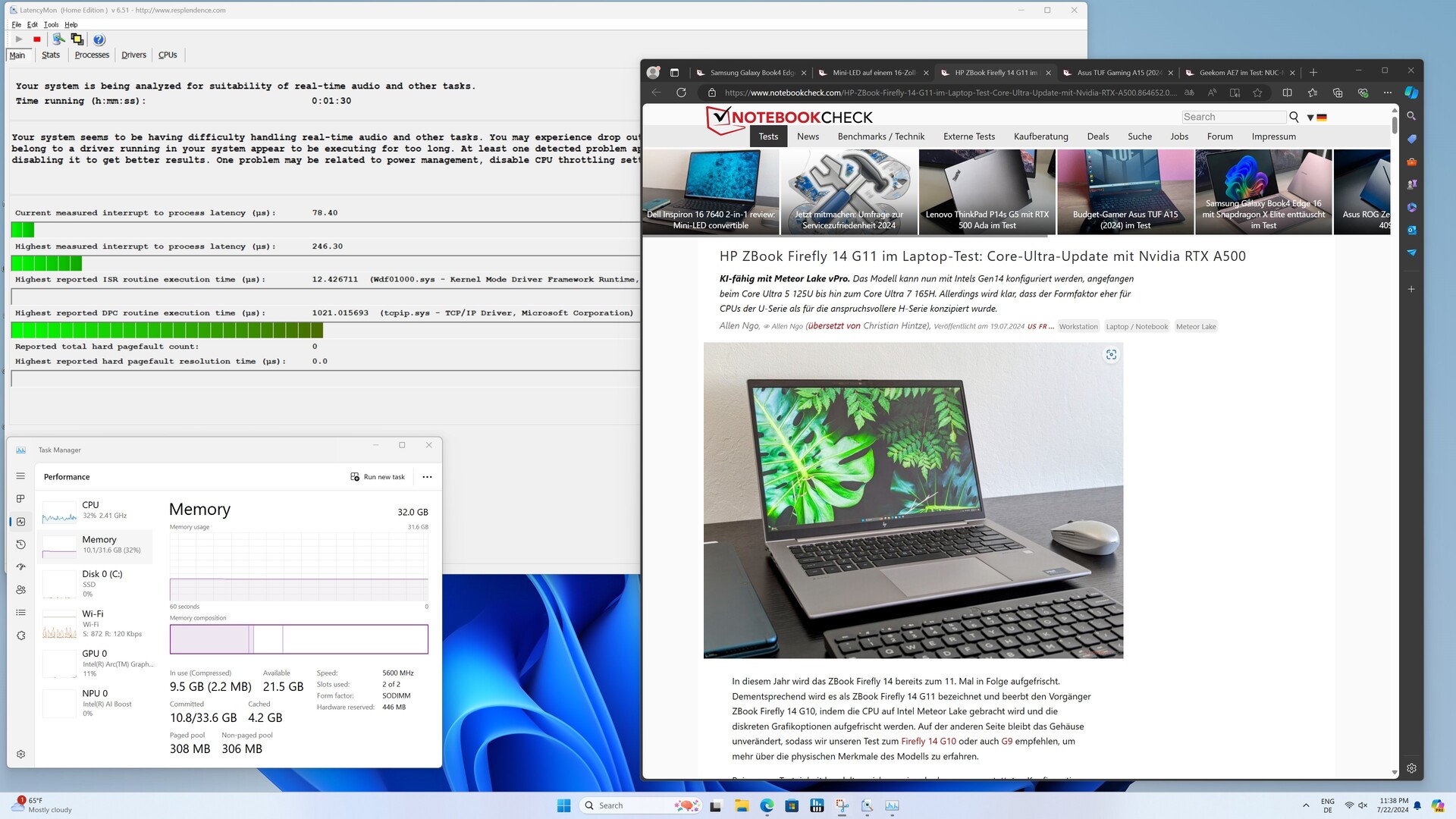

DPC latencies

In our DPC latency measurements, the Minisforum UH125 Pro also only ranks in the midfield. We already document slightly increased latencies when surfing the Internet. The playback of our 4K test video causes the latencies to increase slightly again. However, we did not record any dropped frames, which is excellent.

Maximum latency when opening multiple browser tabs

Maximum latency when playing 4K video material

Maximum latency after ten seconds of Prime95

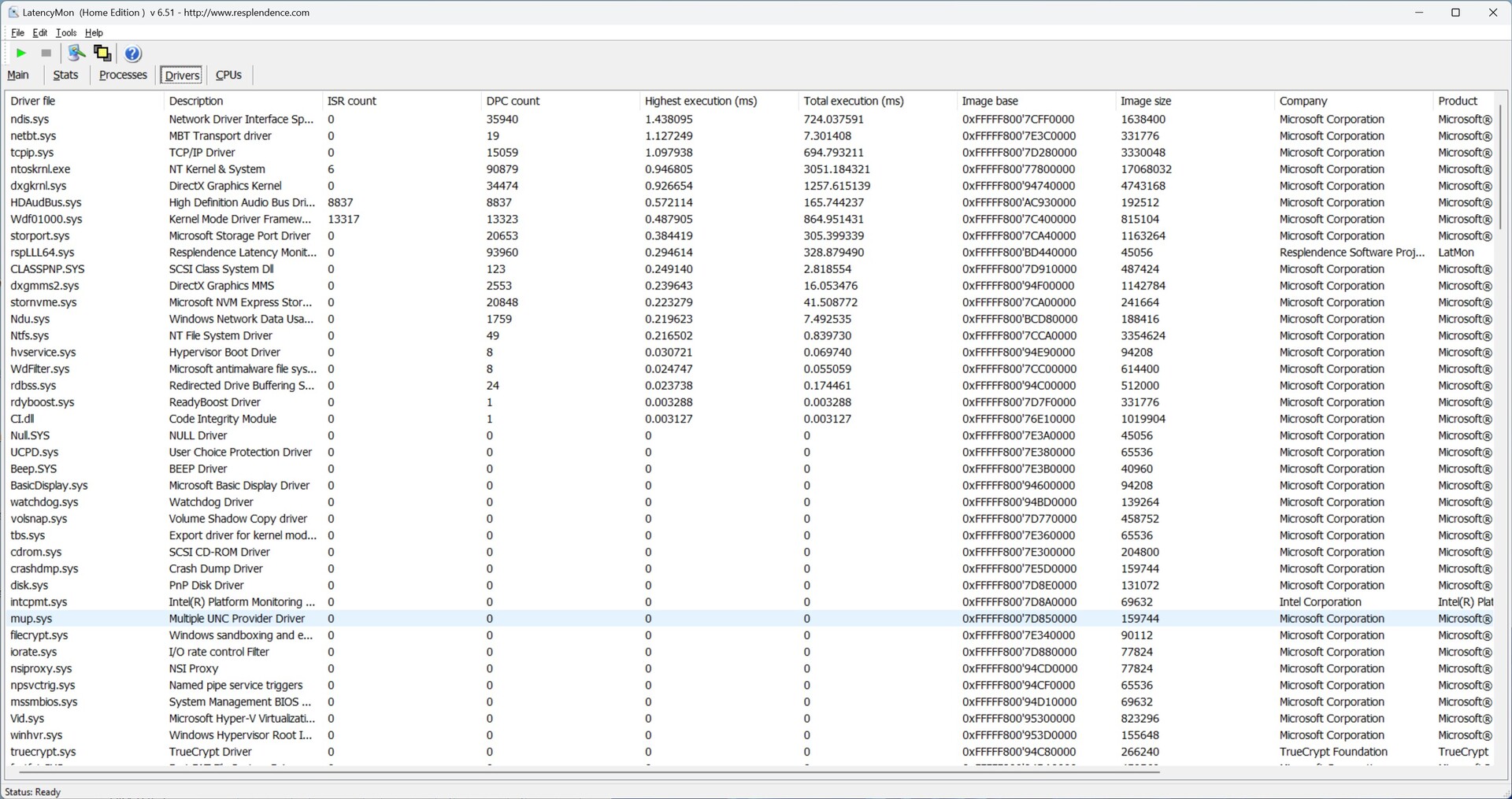

Drivers ranked by longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	2198.8 μs * -53%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	1533.4 μs * -7%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1438 μs *
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	1026 μs * +29%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1001.9 μs * +30%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	900 μs * +37%

* ... smaller is better

Mass storage

If the Minisforum UH125 Pro is not purchased as a barebone device, there is a 1 TB SSD in the device. In our case, it is a model from Kingston. In terms of performance, we would have expected a little more from the installed model. Unfortunately, it is only good enough for a place in the lower midfield compared to its competitors. The SSD operates at PCIe 4.0 x4 speed, which is exactly what the M.2 interface can deliver at best. We have already mentioned the large SSD cooler in the maintenance section. This can cool the SSD well under load so that no performance losses are to be expected in longer load scenarios. In addition to the already installed M.2 2280 SSD, another SSD can be installed in the Minisforum UH125 Pro. However, it is important to ensure that the SSD is 30 millimeters long. Both SSDs are covered by the cooler, and the thermal pad already applied is large enough to cover both SSDs.

For further comparisons and benchmarks, please refer to our comparison table.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP41024Q-A0

Sequential Read: 2329 MB/s

Sequential Write: 3323 MB/s

512K Read: 1465 MB/s

512K Write: 2486 MB/s

4K Read: 51.02 MB/s

4K Write: 138.5 MB/s

4K QD32 Read: 366.2 MB/s

4K QD32 Write: 318.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	87.5 pt
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	82.4 pt
Geekom GT13 Pro Acer N7000 2 TB	75.4 pt
Geekom AE7 Wodposit NVMe SSD 1024 GB	61 pt
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	49.6 pt
Average of class Mini PC	49.2 pt
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	43 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000 2 TB	4357 (4314.26^min - 4356.72^max) MB/s +85%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3108 (3065.99^min - 3107.56^max) MB/s +32%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2668 (2648.91^min - 2668.42^max) MB/s +13%
Average of class Mini PC (413 - 4960, n=111, last 2 years)	2446 MB/s +4%
Geekom AE7 Wodposit NVMe SSD 1024 GB	2411 (2346.63^min - 2410.89^max) MB/s +3%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2351 (2320.68^min - 2350.61^max) MB/s
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2279 (2272.33^min - 2279.03^max) MB/s -3%
seq write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4619 (4584.79^min - 4619.39^max) MB/s +39%
Geekom GT13 Pro Acer N7000 2 TB	4544 (4380.79^min - 4543.83^max) MB/s +36%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3866 (206.78^min - 3865.71^max) MB/s +16%
Geekom AE7 Wodposit NVMe SSD 1024 GB	3650 (3239.07^min - 3649.71^max) MB/s +10%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3331 (3244.92^min - 3330.75^max) MB/s
Average of class Mini PC (339 - 5595, n=111, last 2 years)	2781 MB/s -17%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2629 (1414.22^min - 2628.56^max) MB/s -21%
seq q8 t1 read
Geekom GT13 Pro Acer N7000 2 TB	7007 (6166.72^min - 7006.62^max) MB/s +46%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	5213 (4500.71^min - 5212.95^max) MB/s +9%
Geekom AE7 Wodposit NVMe SSD 1024 GB	4939 (4360.49^min - 4938.56^max) MB/s +3%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	4802 (4169.19^min - 4801.68^max) MB/s
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4780 (4492.97^min - 4780.46^max) MB/s 0%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4684 (4089.86^min - 4684.2^max) MB/s -2%
Average of class Mini PC (397 - 8430, n=111, last 2 years)	4026 MB/s -16%
seq q8 t1 write
Geekom GT13 Pro Acer N7000 2 TB	5261 (5018.9^min - 5261.3^max) MB/s +35%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4754 (4738.27^min - 4754.03^max) MB/s +22%
Geekom AE7 Wodposit NVMe SSD 1024 GB	4273 (4238.26^min - 4272.58^max) MB/s +10%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3902 (3839.68^min - 3901.75^max) MB/s
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3901 (912.47^min - 3901.29^max) MB/s 0%
Average of class Mini PC (346 - 6669, n=111, last 2 years)	3140 MB/s -20%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2627 (2402.52^min - 2626.88^max) MB/s -33%
4k q1 t1 read
Geekom GT13 Pro Acer N7000 2 TB	85.3 (82.57^min - 85.32^max) MB/s +42%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	80.9 (78.95^min - 80.85^max) MB/s +35%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	78.7 (78.09^min - 78.69^max) MB/s +31%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	60 (58.44^min - 60.02^max) MB/s
Average of class Mini PC (6.85 - 87.3, n=111, last 2 years)	56.8 MB/s -5%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	55.6 (53.92^min - 55.58^max) MB/s -7%
Geekom AE7 Wodposit NVMe SSD 1024 GB	48.1 (43.1^min - 48.11^max) MB/s -20%
4k q1 t1 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	422 (409.3^min - 421.98^max) MB/s +208%
Geekom GT13 Pro Acer N7000 2 TB	327 (306.06^min - 326.78^max) MB/s +139%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	274 (271.38^min - 273.89^max) MB/s +100%
Average of class Mini PC (29.6 - 435, n=111, last 2 years)	197.7 MB/s +45%
Geekom AE7 Wodposit NVMe SSD 1024 GB	184.8 (177.47^min - 184.84^max) MB/s +35%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	151.3 (148.71^min - 151.28^max) MB/s +11%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	136.8 (131.56^min - 136.81^max) MB/s
4k q32 t16 read
Geekom GT13 Pro Acer N7000 2 TB	3593 (3380.17^min - 3593.41^max) MB/s +415%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3197 (3174.44^min - 3196.85^max) MB/s +358%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2967 (2962.7^min - 2967.4^max) MB/s +325%
Geekom AE7 Wodposit NVMe SSD 1024 GB	1580 (1549.8^min - 1579.65^max) MB/s +126%
Average of class Mini PC (102.3 - 4158, n=111, last 2 years)	1522 MB/s +118%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	910 (889.36^min - 909.64^max) MB/s +30%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	698 (691.89^min - 697.84^max) MB/s
4k q32 t16 write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3639 (3534.46^min - 3639.09^max) MB/s +1070%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3364 (866.38^min - 3364.31^max) MB/s +982%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1583 (825.5^min - 1583.41^max) MB/s +409%
Average of class Mini PC (70.3 - 4288, n=111, last 2 years)	1441 MB/s +363%
Geekom GT13 Pro Acer N7000 2 TB	762 (700.88^min - 761.76^max) MB/s +145%
Geekom AE7 Wodposit NVMe SSD 1024 GB	627 (618.33^min - 627.08^max) MB/s +102%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	311 (252.72^min - 310.91^max) MB/s

AS SSD
Score Total
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	10021 Points +158%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	7931 Points +105%
Geekom GT13 Pro Acer N7000 2 TB	6798 Points +75%
Geekom AE7 Wodposit NVMe SSD 1024 GB	6354 Points +64%
Average of class Mini PC (507 - 10021, n=108, last 2 years)	4523 Points +17%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3878 Points
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3435 Points -11%
Score Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3741 Points +241%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2899 Points +165%
Geekom GT13 Pro Acer N7000 2 TB	2866 Points +161%
Geekom AE7 Wodposit NVMe SSD 1024 GB	1757 Points +60%
Average of class Mini PC (172 - 3741, n=108, last 2 years)	1626 Points +48%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1248 Points +14%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1096 Points
Score Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4371 Points +90%
Geekom AE7 Wodposit NVMe SSD 1024 GB	3759 Points +63%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3564 Points +55%
Geekom GT13 Pro Acer N7000 2 TB	2516 Points +9%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2306 Points
Average of class Mini PC (210 - 4371, n=108, last 2 years)	2094 Points -9%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -31%
Seq Read
Geekom GT13 Pro Acer N7000 2 TB	4546 MB/s +19%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4317 MB/s +13%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4162 MB/s +9%
Geekom AE7 Wodposit NVMe SSD 1024 GB	3891 MB/s +2%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3835 MB/s +1%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3808 MB/s
Average of class Mini PC (483 - 6620, n=108, last 2 years)	3329 MB/s -13%
Seq Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4188 MB/s +134%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3477 MB/s +95%
Geekom GT13 Pro Acer N7000 2 TB	3374 MB/s +89%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2568 MB/s +44%
Average of class Mini PC (326 - 5783, n=108, last 2 years)	2537 MB/s +42%
Geekom AE7 Wodposit NVMe SSD 1024 GB	2526 MB/s +41%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1787 MB/s
4K Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	104.3 MB/s +82%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	89.3 MB/s +56%
Geekom GT13 Pro Acer N7000 2 TB	83.4 MB/s +46%
Average of class Mini PC (18.2 - 104.3, n=108, last 2 years)	59.9 MB/s +5%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	57.3 MB/s
Geekom AE7 Wodposit NVMe SSD 1024 GB	55.2 MB/s -4%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	52.4 MB/s -9%
4K Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	366 MB/s +101%
Geekom GT13 Pro Acer N7000 2 TB	296 MB/s +63%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	221 MB/s +21%
Geekom AE7 Wodposit NVMe SSD 1024 GB	195.5 MB/s +7%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	182.1 MB/s
Average of class Mini PC (40.8 - 366, n=108, last 2 years)	178.5 MB/s -2%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	139.4 MB/s -23%
4K-64 Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3220 MB/s +389%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2379 MB/s +262%
Geekom GT13 Pro Acer N7000 2 TB	2328 MB/s +254%
Geekom AE7 Wodposit NVMe SSD 1024 GB	1313 MB/s +100%
Average of class Mini PC (94.3 - 3220, n=108, last 2 years)	1233 MB/s +87%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	812 MB/s +23%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	658 MB/s
4K-64 Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3731 MB/s +92%
Geekom AE7 Wodposit NVMe SSD 1024 GB	3311 MB/s +70%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2850 MB/s +47%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1945 MB/s
Geekom GT13 Pro Acer N7000 2 TB	1883 MB/s -3%
Average of class Mini PC (96.3 - 3731, n=108, last 2 years)	1662 MB/s -15%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1204 MB/s -38%
Access Time Read
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.173 ms * -71%
Geekom GT13 Pro Acer N7000 2 TB	0.127 ms * -26%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.101 ms *
Average of class Mini PC (0.025 - 0.288, n=108, last 2 years)	0.0918 ms * +9%
Geekom AE7 Wodposit NVMe SSD 1024 GB	0.077 ms * +24%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +25%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.044 ms * +56%
Access Time Write
Average of class Mini PC (0.013 - 0.706, n=108, last 2 years)	0.1044 ms * -335%
Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.078 ms * -225%
Geekom GT13 Pro Acer N7000 2 TB	0.059 ms * -146%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.031 ms * -29%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.024 ms *
Geekom AE7 Wodposit NVMe SSD 1024 GB	0.023 ms * +4%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	0.017 ms * +29%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

Minisforum UH125 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4790 (4223.81-4803.95)

Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5121 (4152.57-5218.34)

Geekom AE7 Wodposit NVMe SSD 1024 GB; diskspd 2.0.17 f: Ø4932 (4634.29-4944.25)

Geekom GT13 Pro Acer N7000 2 TB; diskspd 2.0.17 f: Ø5377 (3710.83-7006.62)

Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4764 (3862.99-4794.3)

Acemagic AM18 Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø4663 (3995.26-4684.2)

Graphics card - Intel Arc 7-Core iGPU

Thanks to the Intel Arc architecture, the iGPU of the Minisforum UH125 Pro offers noticeably more performance than an Intel Iris Xe G7 with 96 EUs. However, the Intel Arc 7-Core iGPU bites its teeth out at the outstanding performance of the AMD Radeon 780M. Only the top model, the Intel Arc 8-Core iGPU, can close the gap somewhat. The Intel iGPU copes perfectly with Affinity Photo 2. We have already observed this in several of our test devices based on the new Intel iGPUs.

Further comparisons and benchmarks can be found in our GPU comparison table.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	100 pt
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	98.5 pt
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	95.9 pt
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	84.1 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	59.8 pt
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	56 pt

3DMark 11 - 1280x720 Performance GPU
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13824 Points +34%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	13636 Points +32%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	13410 Points +30%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10303 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points -28%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6999 Points -32%

3DMark
2560x1440 Time Spy Graphics
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2970 Points +6%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2912 Points +4%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2846 Points +2%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2796 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points -40%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1583 Points -43%
1920x1080 Fire Strike Graphics
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8437 Points +20%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	8327 Points +18%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	8007 Points +14%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7047 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points -18%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5407 Points -23%

Unigine Heaven 4.0
Extreme Preset OpenGL
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	34.6 fps +17%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	34 fps +15%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	33.2 fps +12%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	29.6 fps
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps -15%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	22.3 fps -25%
Extreme Preset DX11
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	36.3 fps +15%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	36.1 fps +15%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	35.3 fps +12%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	31.5 fps
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps -17%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	23.2 fps -26%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	24.5 fps +45%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	24.5 fps +45%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	24 fps +42%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	16.9 fps
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps -11%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.7 fps -19%
1920x1080 Extreme HD Preset OpenGL AA:x8
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	21 fps +15%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	20.8 fps +14%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	19.2 fps +5%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	18.3 fps
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps -14%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	14.6 fps -20%

Unigine Superposition
1280x720 720p Low
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	12174 Points +21%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	12146 Points +21%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	11903 Points +19%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10026 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points -34%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6129 Points -39%
1920x1080 1080p High
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3698 Points +21%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	3631 Points +18%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	3592 Points +17%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3066 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points -25%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2113 Points -31%
1920x1080 1080p Extreme
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	1803 Points +7%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1777 Points +5%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1737 Points +3%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1686 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points -33%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1060 Points -37%

ComputeMark v2.1
1024x600 Normal, Score
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	9863 Points +76%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	9806 Points +75%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	9494 Points +69%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5613 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points -35%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3382 Points -40%
1024x600 Normal, Fluid 3DTex
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	483 Points +3%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	481 Points +2%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	471 Points 0%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	471 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points -39%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	226 Points -52%
1024x600 Normal, Fluid 2DTexArr
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	486 Points +11%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	486 Points +11%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	481 Points +10%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	439 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points -33%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points -46%
1024x600 Normal, Mandel Vector
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2589 Points +79%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2560 Points +77%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2477 Points +71%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1447 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points -40%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	850 Points -41%
1024x600 Normal, Mandel Scalar
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	2651 Points +138%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2614 Points +135%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +127%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1112 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points -20%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	866 Points -22%
1024x600 Normal, QJuliaRayTrace
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	3667 Points +71%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3665 Points +71%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	3535 Points +65%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2143 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points -39%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1201 Points -44%

LuxMark v2.0 64Bit
Room GPUs-only
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	1025 Samples/s +44%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	808 Samples/s +14%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	801 Samples/s +13%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	710 Samples/s
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s -8%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	577 Samples/s -19%
Sala GPUs-only
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2517 Samples/s
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2349 Samples/s -7%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2312 Samples/s -8%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s -16%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1512 Samples/s -40%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1496 Samples/s -41%

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5244 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points -15%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	4215 Points -20%
Geekom AE7 AMD Radeon 780M, AMD Ryzen 9 7940HS	1889 Points -64%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1709 Points -67%
Acemagic AM18 AMD Radeon 780M, AMD Ryzen 7 7840HS	1371 Points -74%

	Minisforum UH125 Pro, Intel Arc 7-Core iGPU Ultra 5 125H	Aoostar GEM12, AMD Radeon 780M R7 8845HS	Geekom AE7, AMD Radeon 780M R9 7940HS	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	Minisforum Venus Series NAB9, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Acemagic AM18, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 2020		291%	263%	-11%	-13%	264%	243%
3840x2160 Medical (medical-03)	4.8	11.2 133%	12.7 165%	2.69 -44%	3.48 -27%	13 171%	11.1 ?(0.78 - 87.5, n=63, last 2 years) 131%
3840x2160 Energy (energy-03)	3.38	19.9 489%	14.4 326%	3.17 -6%	3 -11%	14.2 320%	17.9 ?(0.52 - 139, n=63, last 2 years) 430%
3840x2160 Creo (creo-03)	15.4	33.4 117%	30.2 96%	16.3 6%	15.1 -2%	31.2 103%	36.2 ?(7.73 - 126, n=63, last 2 years) 135%
3840x2160 CATIA (catia-06)	9.7	23.2 139%	23.7 144%	8.53 -12%	8.08 -17%	24.7 155%	22.4 ?(4.61 - 89.8, n=62, last 2 years) 131%
3840x2160 3ds Max (3dsmax-07)	13.2	20.4 55%	20.7 57%	10.3 -22%	9.78 -26%	20.7 57%	30.1 ?(5.53 - 213, n=63, last 2 years) 128%
3840x2160 Siemens NX (snx-04)	5.54	64.1 1057%	61.3 1006%	6.62 19%	6.67 20%	61.1 1003%	39.3 ?(2.25 - 224, n=61, last 2 years) 609%
3840x2160 Maya (maya-06)	32.8	47.7 45%	47.4 45%	27.3 -17%	24.4 -26%	46.7 42%	77.2 ?(11.8 - 522, n=63, last 2 years) 135%

3DMark 05 Standard		41203 points
3DMark 06 Standard Score		39957 points
3DMark Vantage P Result		36043 points
3DMark 11 Performance		10634 points
3DMark Ice Storm Standard Score		125884 points
3DMark Cloud Gate Standard Score		29186 points
3DMark Fire Strike Score		6548 points
3DMark Fire Strike Extreme Score		3351 points
3DMark Time Spy Score		3121 points
3DMark Steel Nomad Score		598 points
3DMark Steel Nomad Light Score		2436 points
Help

... in comparison

Gaming performance

Games can only be enjoyed to a limited extent with the Minisforum UH125 Pro. Although the performance of the iGPU is now significantly better than with the Intel Iris Xe G7 iGPUs, you have to accept some significant compromises. However, the Intel Arc-7 iGPU masters some games: even the new F1 24 delivers surprisingly good frame rates, which allow a smooth gaming experience. However, we cannot make a blanket statement on gaming suitability at this point. To classify the performance of the Intel Arc-7 iGPU more precisely, we refer you to our GPU game list.

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	168 (6.33^min, 125^P1) fps +27%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	165.1 (4.54^min, 100^P1) fps +25%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	165.1 (4.83^min, 125^P1) fps +25%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	132.4 (4.93^min, 90.9^P1) fps
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	120.8 (22.9^min, 83.3^P1) fps -9%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	119.7 (7.51^min, 66.7^P1) fps -10%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	66.7 (4.68^min, 45.5^P1) fps +71%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	65.3 (4.57^min, 45.5^P1) fps +68%
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	65.1 (2.93^min, 29.4^P1) fps +67%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	38.9 (3.15^min, 28.6^P1) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	22 (6.3^min, 16.4^P1) fps -43%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	20.3 (10.5^min, 16.1^P1) fps -48%

Dota 2 Reborn
1280x720 min (0/3) fastest
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	163.1 (143^min) fps +71%
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	163 (143.1^min) fps +71%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	152.7 (134.2^min) fps +60%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	119.5 (88.5^min) fps +25%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	109.8 (85^min) fps +15%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	95.5 (63.7^min) fps
1920x1080 high (2/3)
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	89.8 (75.7^min) fps +22%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	86.6 (72.2^min) fps +18%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	82.9 (69.1^min) fps +13%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	73.6 (47.5^min) fps
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	67 (60.7^min) fps -9%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	65.5 (56.1^min) fps -11%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	45.4 (38.4^min) fps +54%
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	45 (38^min) fps +53%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	42.4 (35.7^min) fps +44%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	29.5 (25.4^min) fps
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	18.2 (14.1^min) fps -38%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	18.2 (14.7^min) fps -38%
1920x1080 High Preset (FSR off)
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	27.8 (23.7^min) fps +35%
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	27.4 (23.1^min) fps +33%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	26.3 (22.2^min) fps +28%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	20.6 (17.9^min) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	12.8 (10.9^min) fps -38%
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	12.2 (10.3^min) fps -41%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	67.4 (22.7^min, 28.3^P0.1, 43.6^P1) fps +50%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	65.7 (44.8^min, 50.6^P0.1, 57.8^P1) fps +46%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	60.3 (21.3^min, 36^P0.1, 46.1^P1) fps +34%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	45 (14.9^min, 19.4^P0.1, 29^P1) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	26.2 (4.4^min, 7.02^P0.1, 18.4^P1) fps -42%
1920x1080 High Preset AA:T
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	26.6 (20.2^min, 22.7^P0.1, 24.3^P1) fps +36%
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	25.7 (11^min, 11.5^P0.1, 14.5^P1) fps +32%
Aoostar GEM12 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	24.7 (16.6^min, 17.1^P0.1, 19.4^P1) fps +27%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	19.5 (9.2^min, 10.4^P0.1, 12.7^P1) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	11.7 (3.43^min, 3.51^P0.1, 3.99^P1) fps -40%

F1 24
1920x1080 Low Preset AA:T AF:16x
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	94.8 (81^min, 64^P1) fps +47%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	89.4 (78^min, 64^P1) fps +39%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	64.3 (55^min, 53^P1) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	40.4 (34^min, 33^P1) fps -37%
1920x1080 High Preset AA:T AF:16x
Geekom AE7 Radeon 780M, R9 7940HS, Wodposit NVMe SSD 1024 GB	59.5 (50^min, 41^P1) fps +43%
Acemagic AM18 Radeon 780M, R7 7840HS, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	58.8 (51^min, 45^P1) fps +41%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	41.7 (34^min, 34^P1) fps
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000 2 TB	25.6 (22^min, 21^P1) fps -39%

FPS chart

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core: Ø17 (16.3-17.7)

Aoostar GEM12 R7 8845HS, Radeon 780M: Ø21.7 (20.1-23.3)

Geekom AE7 R9 7940HS, Radeon 780M: Ø22.4 (19.7-23.7)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

	low	med.	high	ultra
GTA V (2015)	132.4	143.3	38.9	15.3
Dota 2 Reborn (2015)	95.5	77.8	73.6	70.5
Final Fantasy XV Benchmark (2018)	58.3	32.9	23.4
X-Plane 11.11 (2018)	52.2	40.3	33.4
Baldur's Gate 3 (2023)	29.9	23.2	19.5	19.5
Cyberpunk 2077 2.2 Phantom Liberty (2023)	29.5	24.3	20.6	18.8
F1 24 (2024)	64.3	56.6	41.7	11.4

Minisforum UH125 Pro paired with Nvidia GeForce RTX 3060 Ti

The Minisforum UH125 Pro can be used with external graphics cards without any problems. The 3D accelerators can be connected to the device either via USB4 or OCuLink. Without influencing the overall rating, we carried out some tests with the Razer Core X and an Nvidia GeForce RTX 3060 Ti. Basically, the 3D performance can be noticeably increased with this combination. The Minisforum UH125 Pro has to take a back seat to its competitors, which we also tested with the same external GPU solution. The slightly lower single-core performance of the Intel Core Ultra 5 125H compared to the comparison devices is very evident in low resolutions. Nevertheless, the Minisforum UH125 Pro can handle the most modern games in this configuration without having to sacrifice too much detail.

Performance Rating - Percent
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	99.1 pt
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	99 pt
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	98 pt
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	94.9 pt

3DMark 11 - 1280x720 Performance GPU
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	34666 Points +236%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	34034 Points +230%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	33219 Points +222%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	32085 Points +211%
	10303 Points

3DMark
2560x1440 Time Spy Graphics
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	11182 Points +300%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	11156 Points +299%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	11085 Points +296%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	10935 Points +291%
	2796 Points
1920x1080 Fire Strike Graphics
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	25842 Points +267%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	25468 Points +261%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	25462 Points +261%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	24809 Points +252%
	7047 Points
3840x2160 Fire Strike Ultra Graphics
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	7139 Points +339%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	7079 Points +335%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	7044 Points +333%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	6997 Points +330%
	1628 Points

Unigine Superposition
1280x720 720p Low
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	34726 Points +246%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	34168 Points +241%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	33894 Points +238%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	25121 Points +151%
	10026 Points
1920x1080 1080p High
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	15240 Points +397%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	15076 Points +392%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	15008 Points +389%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	14859 Points +385%
	3066 Points
1920x1080 1080p Extreme
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	7193 Points +327%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	7064 Points +319%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	7055 Points +318%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	7029 Points +317%
	1686 Points
3840x2160 4k Optimized
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	9419 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	9205 Points
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	9188 Points
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	9149 Points
7680x4320 8k Optimized
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	4079 Points
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	4016 Points
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	4013 Points
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	4009 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	143.9 fps +751%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	141.6 fps +738%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	140.6 fps +732%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	135.9 fps +704%
	16.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	138.6 fps +657%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	137.5 fps +651%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	137 fps +649%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	133.5 fps +630%
	18.3 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	174.9 fps +491%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	174.5 fps +490%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	173.6 fps +486%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	172.3 fps +482%
	29.6 fps
Extreme Preset DX11
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	163.6 fps +419%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	163.2 fps +418%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	162 fps +414%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	158.8 fps +404%
	31.5 fps

ComputeMark v2.1
1024x600 Normal, Score
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	28156 Points +402%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	28076 Points +400%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	27929 Points +398%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	27669 Points +393%
	5613 Points
1024x600 Normal, Fluid 3DTex
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	2719 Points +477%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	2715 Points +476%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	2708 Points +475%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2687 Points +470%
	471 Points
1024x600 Normal, Fluid 2DTexArr
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	2663 Points +507%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	2657 Points +505%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	2641 Points +502%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	2622 Points +497%
	439 Points
1024x600 Normal, Mandel Vector
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	5769 Points +299%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	5760 Points +298%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	5742 Points +297%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	5652 Points +291%
	1447 Points
1024x600 Normal, Mandel Scalar
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	6335 Points +470%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	6319 Points +468%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	6283 Points +465%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	6223 Points +460%
	1112 Points
1024x600 Normal, QJuliaRayTrace
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	10671 Points +398%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	10626 Points +396%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	10594 Points +394%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	10445 Points +387%
	2143 Points

Photoshop PugetBench - GPU Score
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	100.6 Points +11%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	98.3 Points +8%
	90.9 Points
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	81.6 Points -10%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	81.2 Points -11%

Premiere Pro PugetBench - GPU 0.9
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	55.8 Points +234%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	55.8 Points +234%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	48 Points +187%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	47.9 Points +187%
	16.7 Points

Performance Rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

Performance Rating - Percent
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	98.8 pt
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	98.7 pt
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	93.6 pt
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	87.6 pt

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	106 (82.3^min) fps +133%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	101.4 (78.7^min) fps +123%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	84.9 (65.5^min) fps +87%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	70.2 (53.5^min) fps +54%
	45.5 (38.7^min) fps
1920x1080 Medium Preset (FSR off)
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	81.5 (64.7^min) fps +235%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	81.2 (65.1^min) fps +234%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	80.4 (63.9^min) fps +231%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	72.2 (55.8^min) fps +197%
	24.3 (21.3^min) fps
1920x1080 Ultra Preset (FSR off)
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	64.5 (50.7^min) fps +243%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	63.9 (49.4^min) fps +240%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	63.5 (50.1^min) fps +238%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	60.8 (43.6^min) fps +223%
	18.8 (16.2^min) fps

Baldur's Gate 3
1920x1080 Low Preset AA:SM
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	113.4 (62.4^min, 69.4^P0.1, 78.1^P1) fps +279%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	110.4 (37.6^min, 67.1^P0.1, 77.2^P1) fps +269%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	110.1 (57.6^min, 68.5^P0.1, 75.3^P1) fps +268%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	109.5 (51.8^min, 62.3^P0.1, 74.4^P1) fps +266%
	29.9 (18.4^min, 19^P0.1, 20.6^P1) fps
1920x1080 Medium Preset AA:T
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	90.8 (48.5^min, 55.2^P0.1, 61.7^P1) fps +291%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	90.4 (50.6^min, 54.8^P0.1, 59.8^P1) fps +290%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	88.5 (53.2^min, 55.5^P0.1, 59.9^P1) fps +281%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	87.3 (36.9^min, 43.6^P0.1, 57.2^P1) fps +276%
	23.2 (14.2^min, 14.4^P0.1, 15.2^P1) fps
1920x1080 Ultra Preset AA:T
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	79 (45.4^min, 46^P0.1, 53.2^P1) fps +305%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	78.3 (46.6^min, 47.4^P0.1, 51.3^P1) fps +302%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	76.8 (44.1^min, 46.7^P0.1, 49.8^P1) fps +294%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	76.3 (41.3^min, 43.7^P0.1, 50^P1) fps +291%
	19.5 (11.2^min, 12.1^P0.1, 13.2^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	88.2 (48^min, 52^P1) fps +37%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	88.1 (48^min, 49^P1) fps +37%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	77.3 (42^min, 43^P1) fps +20%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	72.6 (41^min, 43^P1) fps +13%
	64.3 (55^min, 53^P1) fps
1920x1080 Medium Preset AA:T AF:16x
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	84.5 (47^min, 49^P1) fps +49%
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	82.2 (47^min, 49^P1) fps +45%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	72.8 (41^min, 41^P1) fps +29%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	70 (41^min, 42^P1) fps +24%
	56.6 (48^min, 47^P1) fps
1920x1080 Ultra High Preset AA:T AF:16x
Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 7940HS	46.4 (27^min, 26^P1) fps +307%
Geekom A8 (Nvidia GeForce RTX 3060 Ti FE) AMD Ryzen 9 8945HS	46.1 (27^min, 27^P1) fps +304%
Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core i9-13900H	42 (24^min, 25^P1) fps +268%
Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE) Intel Core Ultra 5 125H	39.5 (22^min, 23^P1) fps +246%
	11.4 (8^min, 8^P1) fps

	Minisforum UH125 Pro, Intel Arc 7-Core iGPU Ultra 5 125H	Minisforum UH125 Pro (Nvidia GeForce RTX 3060 Ti FE), Ultra 5 125H	Geekom AE7 (Nvidia GeForce RTX 3060 Ti FE), R9 7940HS	Geekom A8 (Nvidia GeForce RTX 3060 Ti FE), R9 8945HS	Geekom GT13 Pro (Nvidia GeForce RTX 3060 Ti FE), i9-13900H	Average of class Mini PC
SPECviewperf 2020		148%	336%	450%	330%	243%
3840x2160 Medical (medical-03)	4.8	10.9 127%	13 171%	10.8 125%	10.8 125%	11.1 ?(0.78 - 87.5, n=63, last 2 years) 131%
3840x2160 Energy (energy-03)	3.38	17.8 427%	20.9 518%	50.3 1388%	21 521%	17.9 ?(0.52 - 139, n=63, last 2 years) 430%
3840x2160 Creo (creo-03)	15.4	26.6 73%	76.8 399%	76.6 397%	76.4 396%	36.2 ?(7.73 - 126, n=63, last 2 years) 135%
3840x2160 CATIA (catia-06)	9.7	23.6 143%	39.2 304%	38.8 300%	40.1 313%	22.4 ?(4.61 - 89.8, n=62, last 2 years) 131%
3840x2160 3ds Max (3dsmax-07)	13.2	28.7 117%	46.5 252%	45.9 248%	47.3 258%	30.1 ?(5.53 - 213, n=63, last 2 years) 128%
3840x2160 Maya (maya-06)	32.8	47.5 45%	199 507%	195 495%	196 498%	77.2 ?(11.8 - 522, n=63, last 2 years) 135%
3840x2160 Siemens NX (snx-04)	5.54	11.4 106%	16.6 200%	16.6 200%	16.5 198%	39.3 ?(2.25 - 224, n=61, last 2 years) 609%

	low	med.	high	ultra	QHD	4K
GTA V (2015)	171.1	166.4	150.5	93.1	85.4	102.2
Dota 2 Reborn (2015)	144.6	128	120.8	117.5		103.6
X-Plane 11.11 (2018)	109.8	97.5	74.7			64
Baldur's Gate 3 (2023)	109.5	87.3	77.3	76.3	60	36.3
Cyberpunk 2077 2.2 Phantom Liberty (2023)	74.2	72.2	65.3	60.8	43.5	21.9
F1 24 (2024)	72.6	70	58.2	39.5	35	18.6

Emissions - No optimal fan curve

Noise emissions

The noise emissions of the Minisforum UH125 Pro are inconspicuous when idling. Nevertheless, we document a sound pressure level of 35 dB(A). We have seen better results with other Minisforum devices. Under load, the volume increases, and at the peak, we record a clearly audible 43.9 dB(A). These values are the result of the preset fan profile (Balanced) in the UEFI and are also included in the overall rating, as this is the default setting. We also carried out the same measurements with the Silent and Performance fan profiles. The differences in terms of volume are clearly measurable and audible. If you want to buy the Minisforum UH125 Pro, we recommend activating the Silent profile in the UEFI. The volume decreases in all scenarios, although the CPU performance is not affected.

	Quiet	Balanced	Performance
idle	31.3 dB(A)	35 dB(A)	42.4 dB(A)
Load avg	36.9 dB(A)	42.2 dB(A)	45.1 dB(A)
Load max	38.5 dB(A)	43.9 dB(A)	47.5 dB(A)
CP 2077 Ultra	36.5 dB(A)	40.8 dB(A)	46.4 dB(A)

Noise Level

Idle		35 / 35 / 35 dB(A)
Load		42.2 / 43.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	Aoostar GEM12 R7 8845HS, Radeon 780M	Geekom AE7 R9 7940HS, Radeon 780M	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M
Noise		15%	3%	5%	7%	4%
off / environment *	24.8	24.3 2%	24.4 2%	24.3 2%	25.4 -2%	24.8 -0%
Idle Minimum *	35	27.5 21%	24.9 29%	27.9 20%	27.5 21%	31 11%
Idle Average *	35	27.6 21%	25 29%	27.9 20%	28 20%	31.2 11%
Idle Maximum *	35	27.6 21%	25 29%	28 20%	33 6%	31.4 10%
Load Average *	42.2	36 15%	52 -23%	43.8 -4%	42.8 -1%	37.1 12%
Cyberpunk 2077 ultra *	40.8	35.4 13%	52 -27%	45.4 -11%
Load Maximum *	43.9	38.2 13%	51.4 -17%	48.5 -10%	44.9 -2%	53.7 -22%
Witcher 3 ultra *		35.4			44.5	37.6

* ... smaller is better

Temperature

The Minisforum UH125 Pro passes all stress tests with flying colors and never has any temperature problems. The metal casing dissipates the heat well and always stays cool. Temperatures can only be slightly higher in the area of the fan outlets on the right-hand side. In the stress test, the Intel Core Ultra 5 125H operates at a maximum of 78 °C, although the average temperature then settles at 73 °C. The defined power limit of 54 watts can be maintained throughout.

Minisforum UH125 Pro stress test (top side)

Minisforum UH125 Pro stress test (underside)

Minisforum UH125 Pro during stress test (right side)

Power supply unit during the stress test

Max. Load

Idle

Cyberpunk


31.9 °C 89 F	30.1 °C 86 F	30.6 °C 87 F
32.1 °C 90 F	34.3 °C 94 F	34.6 °C 94 F
30.2 °C 86 F	29 °C 84 F	32.1 °C 90 F

Maximum: 34.6 °C = 94 F
Average: 31.7 °C = 89 F


33.7 °C 93 F	31.8 °C 89 F	27.6 °C 82 F
35.5 °C 96 F	23.8 °C 75 F	26.7 °C 80 F
34.1 °C 93 F	28 °C 82 F	28.5 °C 83 F

Maximum: 35.5 °C = 96 F
Average: 30 °C = 86 F

Power Supply (max.) 38 °C = 100 F | Room Temperature 21.5 °C = 71 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


24 °C 75 F	23.5 °C 74 F	23.5 °C 74 F
23.8 °C 75 F	24 °C 75 F	24.2 °C 76 F
23.5 °C 74 F	23.4 °C 74 F	23.6 °C 74 F

Maximum: 24.2 °C = 76 F
Average: 23.7 °C = 75 F


24.1 °C 75 F	23.9 °C 75 F	23.5 °C 74 F
23.6 °C 74 F	22.1 °C 72 F	22.9 °C 73 F
23.5 °C 74 F	23.6 °C 74 F	23 °C 73 F

Maximum: 24.1 °C = 75 F
Average: 23.4 °C = 74 F

Power Supply (max.) 30.7 °C = 87 F | Room Temperature 21.9 °C = 71 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


26.8 °C 80 F	26.2 °C 79 F	26.9 °C 80 F
27.2 °C 81 F	28.7 °C 84 F	29.2 °C 85 F
25.6 °C 78 F	26.5 °C 80 F	27.4 °C 81 F

Maximum: 29.2 °C = 85 F
Average: 27.2 °C = 81 F


28.4 °C 83 F	27.1 °C 81 F	24.7 °C 76 F
30.2 °C 86 F	22.7 °C 73 F	23.7 °C 75 F
28.7 °C 84 F	25.5 °C 78 F	25.3 °C 78 F

Maximum: 30.2 °C = 86 F
Average: 26.3 °C = 79 F

Power Supply (max.) 32.2 °C = 90 F | Room Temperature 21.7 °C = 71 F | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 32.5 °C / 91 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 34.6 °C / 94 F, compared to the average of 36 °C / 97 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.5 °C / 96 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 32.5 °C / 91 F.
(+) 3: The average temperature for the upper side is 27.2 °C / 81 F, compared to the average of 32.5 °C / 91 F for the class Mini PC.

Power consumption

The Minisforum UH125 Pro surprises with high idle power consumption values: 11.9 to 15.4 watts are more than most of the other Mini-PCs we have compared here. Under load, the tide turns in favor of the Minisforum UH125 Pro. Our measuring device only shows 48.3 watts under average load. The maximum we see is just under 90 watts, which is a significantly better result compared to the competitors. In the efficiency overview, however, our test device does not manage to outperform the Geekom AE7 and the lead over the Geekom GT13 Pro is only wafer-thin.

We are already familiar with the 120-watt power supply unit, which is included with many Minisforum mini-PCs. We never had any problems with the power supply in any of our tests. If you want to run the SoC in performance mode with 65 watts permanently, you still have enough reserves.

Power Consumption

Off / Standby	1.5 / 6.6 Watt
Idle	11.9 / 14.6 / 15.4 Watt
Load	48.3 / 89.8 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	Aoostar GEM12 R7 8845HS, Radeon 780M	Geekom AE7 R9 7940HS, Radeon 780M	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Acemagic AM18 R7 7840HS, Radeon 780M	Average Intel Arc 7-Core iGPU	Average of class Mini PC
Power Consumption		-7%	10%	-2%	-15%	-6%	24%	-2%
Idle Minimum *	11.9	8.2 31%	4.5 62%	7.9 34%	12.1 -2%	9.8 18%	6.61 ?(3 - 11.9, n=7) 44%	9.84 ?(2.2 - 45.7, n=111, last 2 years) 17%
Idle Average *	14.6	10 32%	4.7 68%	10.3 29%	13.2 10%	11.5 21%	8.59 ?(6 - 14.6, n=7) 41%	12.2 ?(2.59 - 47.5, n=109, last 2 years) 16%
Idle Maximum *	15.4	14.6 5%	8.1 47%	22.3 -45%	14.1 8%	15.3 1%	11.8 ?(6.5 - 16, n=7) 23%	15.5 ?(2.6 - 49, n=111, last 2 years) -1%
Load Average *	48.3	73.9 -53%	81.8 -69%	57.44 -19%	82.9 -72%	75.3 -56%	51.2 ?(48.3 - 55.5, n=7) -6%	60.4 ?(12.9 - 170.6, n=111, last 2 years) -25%
Cyberpunk 2077 ultra external monitor *	52.7	79.9 -52%	71.2 -35%	55.9 -6%
Load Maximum *	89.8	95.3 -6%	100.3 -12%	93.4 -4%	106.8 -19%	102.8 -14%	75.7 ?(60 - 103.3, n=7) 16%	104.2 ?(26.2 - 423, n=111, last 2 years) -16%

* ... smaller is better

Efficiency overview

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	100 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	84.5 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	83.8 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	62.9 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	238 Points per Watt +31%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	210 Points per Watt +16%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	181.1 Points per Watt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	148.1 Points per Watt -18%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	61.4 Points per Watt +8%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	57.1 Points per Watt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	54.3 Points per Watt -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	34.9 Points per Watt -39%
Cinebench R15 Multi Efficiency (external Monitor)
Geekom AE7 AMD Ryzen 9 7940HS, Radeon 780M	33.2 Points per Watt +19%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	28 Points per Watt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	24.8 Points per Watt -11%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	23.1 Points per Watt -17%

Power consumption with external monitor

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Idle 1min (external Monitor): Ø14.4 (13.7-16.8)

Aoostar GEM12 R7 8845HS, Radeon 780M; Idle 1min (external Monitor): Ø10 (9.28-14.3)

Geekom AE7 R9 7940HS, Radeon 780M; Idle 1min (external Monitor): Ø4.76 (3.61-8.11)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.4 (12.6-22.4)

Aoostar GEM12 R7 8845HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø79.6 (76-85.2)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø82.9 (81.3-87.6)

Aoostar GEM12 R7 8845HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø84.4 (83.6-85.1)

Geekom AE7 R9 7940HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø86.2 (76.5-100.3)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø60.2 (57-86.6)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø52.7 (51.9-55.2)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø79.9 (75.5-83.5)

Geekom AE7 R9 7940HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø71.2 (68.8-72.8)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø55.9 (54.2-59.2)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 3DMark06 Return To Proxycon: Ø48.4 (45.1-51.5)

Aoostar GEM12 R7 8845HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø73.9 (55.4-87)

Geekom AE7 R9 7940HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø81.8 (56.1-94.1)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø57.4 (53.5-61.5)

Power consumption with external monitor

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Prime95 V2810 Stress (external Monitor): Ø83 (67.7-89.8)

Aoostar GEM12 R7 8845HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø83.6 (80.7-95.3)

Geekom AE7 R9 7940HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø80.9 (76-99.5)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.5-84.7)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R15 Multi (external Monitor): Ø80.3 (80-81.4)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø82.1 (74.2-89.2)

Geekom AE7 R9 7940HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø76.7 (69.8-91.2)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø91.2 (88.5-93.4)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R23 Single (external Monitor): Ø28.7 (27-62.8)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø34 (31.1-57.1)

Geekom AE7 R9 7940HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø29.1 (24.9-62.9)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø31.6 (29-59.5)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; Cinebench R23 Multi (external Monitor): Ø80.4 (79.8-81.1)

Aoostar GEM12 R7 8845HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø75.3 (72.3-87.5)

Geekom AE7 R9 7940HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø67.6 (64.1-85.2)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø62.1 (50.4-89.7)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø48 (46.2-53.5)

Aoostar GEM12 R7 8845HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø83.1 (79.2-88.5)

Geekom AE7 R9 7940HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø86.1 (77.5-94.6)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.6 (51.3-69.7)

Pros

+ sturdy housing

+ Intel Core Ultra 5 125H with good iGPU and NPU

+ 32 GB DDR5 RAM (5,600 MT/s)

+ dual 5 GBit LAN

+ fast WLAN

+ powerful cooling unit (SoC and SSDs)

+ low case temperatures

+ 2x USB4, 1x OCuLink

Cons

- slow SD card reader

- Copilot button offers no added value

- Fan clearly audible on delivery

- price-performance ratio

Verdict - Good mini-PC with slight weaknesses

The Minisforum UH125 Pro in test: provided by Minisforum

The Minisforum UH125 Pro is a mini-PC equipped with Intel's latest Meteor Lake processor. Until now, the Minisforum UH125 Pro has only been available with the Intel Core Ultra 5 125H, which is ideally suited for most tasks. The Minisforum UH125 Pro scores points with stable performance, which is not affected by excessively high temperatures in relation to the cooling unit installed.

In terms of design, Minisforum does not draw from the portfolio we have already seen and equips its UH125 Pro with a new case. In terms of dimensions, the Mini-PC is slightly larger than other Mini-PCs. Nevertheless, the device does not appear bulky and the size benefits the cooling unit, which we definitely approve of. Speaking of cooling, this brings us to the biggest criticism of the Minisforum UH125 Pro: The preset fan profile is not optimally set. However, it would offer enough leeway to reduce the fan speed. In quiet mode, the device is noticeably quieter without any loss of performance. The choice of external interfaces is outstanding. In addition to two USB4 ports, there is also an OCuLink port, and there are two 5G interfaces for the network connection. This sets the Minisforum UH125 Pro apart from the masses, which usually only have two 2.5G network connections.

The Minisforum UH125 Pro has what it takes to be a really good mini-PC. The connectivity is perfect, and with an adapted fan curve, the mini-PC remains quiet even under load.

The performance of the Minisforum UH125 Pro is consistently good, but not outstanding. With the UH125 Pro, Minisforum has created a good mini-PC for a variety of purposes, which could be used for home office use or as a multimedia device in the living room. In terms of price, you have to be a little more critical, because if we take the RRP of 879 euros for the device in our test configuration as a basis, then we cannot give a purchase recommendation here. The current pre-order price of 699 euros is also a lot of money. A Minisforum UM790 Pro costs only 649 euros and can beat the Minisforum UH125 Pro in almost all respects.

Note: We have recently updated our rating system and the results of version 8 are not comparable with the results of version 7. Further information can be found here.

Price and availability

The Minisforum UH125 Pro can now be pre-ordered directly from the manufacturer's store. Alternatively, users can purchase the device via online stores such as Amazon.

Minisforum UH125 Pro - 07/24/2024 v8
Sebastian Bade

Chassis

84 / 98 → 86%

Connectivity

72 / 81 → 89%

Weight

78%

Games Performance

44 / 80 → 55%

Application Performance

80 / 92 → 87%

Workstation

26%

AI Performance

71%

Temperature

95%

Noise

65%

Average

47%

75%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
25%

Power Use
55.7%

Repairability
20%

Software Updates
22.3%

Total Sustainability Score: 20.5%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Best Mini PC for under 450 dollars? Chuwi AuBox with AMD Ryzen 7 8745HS review 07/26/2025

Read all 2 comments / answer

Loading comments

Comment on this article

Editor of the original article: Sebastian Bade - Senior Tech Writer - 638 articles published on Notebookcheck since 2012

I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.

contact me via: Bluesky, Threads, Facebook, nbc.basti, LinkedIn, Xing

Translator: Ninh Ngoc Duy - Editorial Assistant - 582095 articles published on Notebookcheck since 2008

My main responsibility as an editorial assistant is maintaining the Library section, which aggregates reviews from other publications and channels. In addition, my daily breakfast is Notebookcheck's long list of new content, which I comb through to select the most interesting topics for translation from English to French, Italian, Spanish, Portuguese, and Dutch."

contact me via: Facebook

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Minisforum UH125 Pro review: AI mini-PC with Intel Core Ultra 5 125H, 32 GB DDR5 RAM and 1 TB SSD comes at a price

Sebastian Bade, 2024-07-27 (Update: 2024-07-27)

Possible competitors in comparison

Minisforum UH125 Pro in detail

Case - Aluminum and plastic in a good combination

Size comparison

Equipment - USB4 in double version and OCuLink

SD card reader

Communication

Accessories

Maintenance

Sustainability

Performance - Intel Core Ultra 5 with good performance

Test conditions

Processor

Cinebench R15 Multi loop

System performance

NPU performance

DPC latencies

Mass storage

Continuous read: DiskSpd Read Loop, Queue Depth 8

Graphics card - Intel Arc 7-Core iGPU

Gaming performance

FPS chart

Minisforum UH125 Pro paired with Nvidia GeForce RTX 3060 Ti

Emissions - No optimal fan curve

Noise emissions

Temperature

Power consumption

Efficiency overview

Power consumption with external monitor

Power consumption with external monitor

Pros

Cons

Verdict - Good mini-PC with slight weaknesses

Price and availability

Transparency

Price comparison

Related Articles
