Hybrid architecture at 28W. | Intel Alder Lake Core i7-1260P - The 12th Generation of Mobile CPUs in Review
Intel's mobile processors were generally divided into two classes until now: U-series chips with a nominal TDP of 15 Watts and the H-series chips with a TDP of 35/45 Watts. However, these values are purely theoretical and U-series chips are usually operated at values between 25-35W in most modern laptops. With the introduction of the new 12th generation Alder Lake processors, Intel introduces an additional P-series. They are specified with a TDP of 28W and therefore positioned right between the U- and H-series CPUs. The following table shows an overview of the new Alder Lkae-P models:
CPU | Cores | Threads | Clocks (P-Cores) | Clocks (E-Cores) | L3-Cache | iGPU | GPU-Takt | PBP | PL2 |
---|---|---|---|---|---|---|---|---|---|
Intel Core i7-1280P | 6P + 8E | 20 | 1.8 GHz – 4.8 GHz | 1.3 GHz – 3.6 GHz | 24 MB | 96 EU | 1.45 GHz | 28W | 64W |
Intel Core i7-1270P | 4P + 8E | 16 | 2.2 GHz – 4.8 GHz | 1.6 GHz – 3.5 GHz | 18 MB | 96 EU | 1.4 GHz | 28W | 64W |
Intel Core i7-1260P | 4P + 8E | 16 | 2.1 GHz – 4.7 GHz | 1.5 GHz – 3.4 GHz | 18 MB | 96 EU | 1.4 GHz | 28W | 64W |
Intel Core i5-1250P | 4P + 8E | 16 | 1.7 GHz – 4.4 GHz | 1.2 GHz – 3.3 GHz | 12 MB | 80 EU | 1.4 GHz | 28W | 64W |
Intel Core i5-1240P | 4P + 8E | 16 | 1.7 GHz – 4.4 GHz | 1.2 GHz – 3.3 GHz | 12 MB | 80 EU | 1.3 GHz | 28W | 64W |
Intel Core i3-1220P | 2P + 8E | 12 | 1.5 GHz – 4.4 GHz | 1.1 GHz – 3.3 GHz | 12 MB | 64 EU | 1.1 GHz | 28W | 64W |
Intel Core i7-1260P
The new Intel Core i7-1260P is one chip from the new P-series with a TDP of 28 Watts and it also uses a hybrid architecture. Four fast performance cores (up to 4.7 GHz) with Hyperthreading support are accompanied by eight efficiency cores, so the chip can execute up to 16 threads simultaneously. The integrated GPU did not change and you still get the familiar Iris Xe Graphics with 96 EUs at a slightly higher clock of 1.4 GHz. The chip is manufactured in the Intel 7 process (10 nm). Compared to the slightly faster Core i7-1270P (+100 MHz), the 1260P does not support all the vPro features.

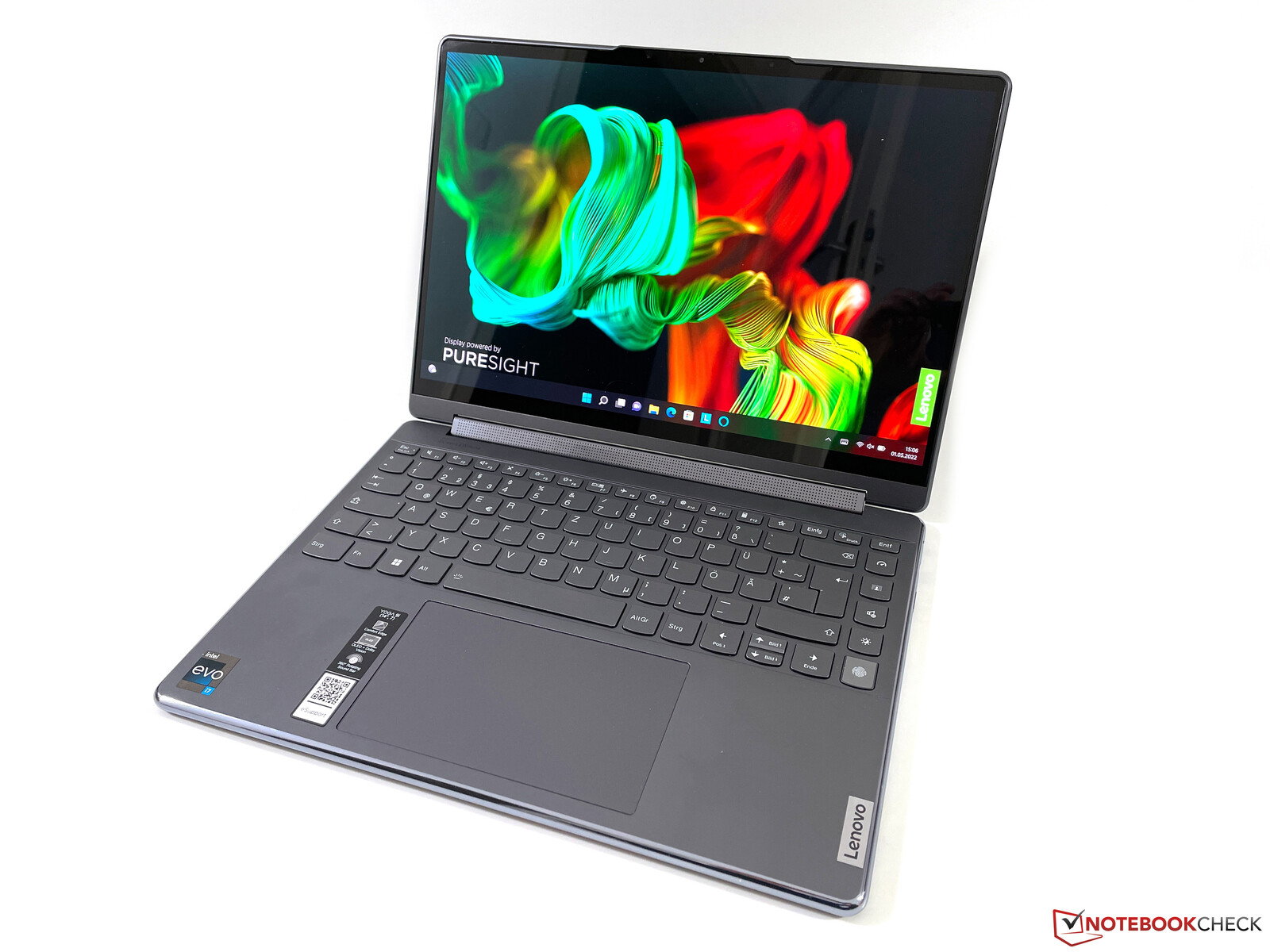

We review the new Core i7-1260P in Lenovo's Yoga 9i 14 convertible with generous TDP limits of 64W in short-term load scenarios and 38W under sustained workloads, so it should be one of the fastest versions of the new Core i7.
Single-Core Performance
Similar to the reviews of the new H45 Alder Lake CPUs, the single-core performance of the new performance cores is very good and the new Core i7-1260P is at the top of the comparison charts in most benchmarks and is usually only beaten by the faster H45 models. However, the price for this performance are very high consumption figures. We observe a consumption of around 26W for the IA cores (package power ~30W) in single-core tests. Considering the overall 28W classification for the 8-core model, this is an extremely high value. We are currently still lacking data for the new Zen 3+ CPUs from AMD (Ryzen 6000), but the regular Zen 3 chips like the Ryzen 9 5900HS are much more efficient at ~14W (18W total). Apple's M1 CPUs are on a completely different level and one core only consumes ~4W (9W package).
Cinebench R23: Single Core
Cinebench R20: CPU (Single Core)
Cinebench R15: CPU Single 64Bit
7-Zip 18.03: 7z b 4 -mmt1
Geekbench 5.5: Single-Core
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Jetstream 2: Total Score
CPU Performance Rating | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU -3! | |
Alienware x14 i7 RTX 3060 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average Intel Core i7-1260P | |
Average of class Convertible | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Gigabyte Aero 15 OLED XD -1! |
Cinebench R23 / Single Core | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Alienware x14 i7 RTX 3060 | |
Average Intel Core i7-1260P (1155 - 1812, n=25) | |
Average of class Convertible (307 - 1970, n=66, last 2 years) | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Gigabyte Aero 15 OLED XD |
Cinebench R20 / CPU (Single Core) | |
Alienware x14 i7 RTX 3060 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average Intel Core i7-1260P (448 - 698, n=25) | |
Average of class Convertible (116.8 - 755, n=65, last 2 years) | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Gigabyte Aero 15 OLED XD | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU |
Cinebench R15 / CPU Single 64Bit | |
Alienware x14 i7 RTX 3060 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Average Intel Core i7-1260P (165.4 - 260, n=27) | |
Average of class Convertible (68.6 - 287, n=65, last 2 years) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Gigabyte Aero 15 OLED XD |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Alienware x14 i7 RTX 3060 | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Gigabyte Aero 15 OLED XD | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Average Intel Core i7-1260P (4064 - 5791, n=25) | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average of class Convertible (2046 - 6417, n=63, last 2 years) | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
Geekbench 5.5 / Single-Core | |
Alienware x14 i7 RTX 3060 | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average Intel Core i7-1260P (1436 - 1786, n=25) | |
Average of class Convertible (319 - 1981, n=67, last 2 years) | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Gigabyte Aero 15 OLED XD | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo ThinkBook 13s G3 20YA0005GE |
LibreOffice / 20 Documents To PDF | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Average of class Convertible (42 - 223, n=63, last 2 years) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Average Intel Core i7-1260P (40.2 - 65.7, n=25) | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Gigabyte Aero 15 OLED XD | |
Alienware x14 i7 RTX 3060 |
R Benchmark 2.5 / Overall mean | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Gigabyte Aero 15 OLED XD | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Average of class Convertible (0.4102 - 1.967, n=63, last 2 years) | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Average Intel Core i7-1260P (0.4559 - 0.727, n=25) | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Alienware x14 i7 RTX 3060 |
Jetstream 2 / Total Score | |
Alienware x14 i7 RTX 3060 | |
Average of class Convertible (157.5 - 435, n=37, last 2 years) | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average Intel Core i7-1260P (206 - 255, n=15) | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
* ... smaller is better
Multi-Core Performance
Intel's Tiger Lake processors in the sub-45W segment were clearly beaten by the rivals in terms of multi-core performance. Even the slightly faster Tiger Lake H35 CPUs like the Core i7-11370H still used only four cores with eight threads. Alder Lake's increased number of cores alone helps in this regard and the new CPU is roughly 60 % faster than the Core i7-11370H in the Surface Laptop Studio (51/40W).
The comparison with AMD processors is a bit more challenging since U-series chips like the Ryzen 7 5800U, which would be a perfect rival, are often operated at lower TDP values. We therefore have a closer look at the Ryzen 9 5900HS, which is operated at steady 42W in the case of the Lenovo Yoga Slim 7 Pro. The performance is almost on par, so Intel managed to close the gap, We are already eager to find out how the new Zen 3+ cores (Ryzen 6000) will perform, but for now we do not have any data in this TDP range.
Apple's M1 CPUs (both the M1 Max or M1 Pro) with 10 CPU cores offer more performance (~15-20%) in native benchmarks like Cinebench R23, Geekbench, or Blender, but consume noticeable less power at the same time (cores 29W, package 34W @M1 Max or 27/31W @M1 Pro).
Cinebench R23: Multi Core
Cinebench R20: CPU (Multi Core)
Cinebench R15: CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4
Geekbench 5.5: Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
CPU Performance Rating | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU -2! | |
Apple MacBook Pro 16 2021 M1 Pro -2! | |
Gigabyte Aero 15 OLED XD | |
Average Intel Core i7-1260P | |
Average of class Convertible | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
Cinebench R23 / Multi Core | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Apple MacBook Pro 16 2021 M1 Pro | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Gigabyte Aero 15 OLED XD | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average of class Convertible (616 - 18070, n=66, last 2 years) | |
Average Intel Core i7-1260P (3173 - 12150, n=27) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
Cinebench R20 / CPU (Multi Core) | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Gigabyte Aero 15 OLED XD | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Average Intel Core i7-1260P (1234 - 4748, n=25) | |
Average of class Convertible (242 - 6954, n=66, last 2 years) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Apple MacBook Pro 16 2021 M1 Pro | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
Cinebench R15 / CPU Multi 64Bit | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Gigabyte Aero 15 OLED XD | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Apple MacBook Pro 16 2021 M1 Pro | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Average of class Convertible (110.1 - 2889, n=67, last 2 years) | |
Average Intel Core i7-1260P (549 - 2034, n=29) | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
Blender / v2.79 BMW27 CPU | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti | |
Average of class Convertible (193 - 3620, n=61, last 2 years) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Average Intel Core i7-1260P (264 - 906, n=26) | |
Gigabyte Aero 15 OLED XD | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Apple MacBook Pro 16 2021 M1 Pro |
7-Zip 18.03 / 7z b 4 | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Gigabyte Aero 15 OLED XD | |
Average of class Convertible (7703 - 72400, n=63, last 2 years) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Average Intel Core i7-1260P (16146 - 47064, n=25) | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
Geekbench 5.5 / Multi-Core | |
Apple MacBook Pro 14 2021 M1 Max 24-Core GPU | |
Apple MacBook Pro 16 2021 M1 Pro | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Gigabyte Aero 15 OLED XD | |
Average Intel Core i7-1260P (3866 - 10570, n=25) | |
Average of class Convertible (663 - 14016, n=67, last 2 years) | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
Gigabyte Aero 15 OLED XD | |
Average Intel Core i7-1260P (3.45 - 13.6, n=26) | |
Average of class Convertible (0.61 - 20.1, n=65, last 2 years) | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Microsoft Surface Laptop Studio i7 RTX 3050 Ti |
* ... smaller is better
GPU Performance
We already mentioned that the Alder Lake-P CPUs are still equipped with the familiar Iris Xe Graphics G7, and depending on the model you either get 80 or 96 execution units with different clocks. Our Core i7-1260P is equipped with the 96 EU version and a clock of 1.4 GHz, which is just slightly faster compared to the Core i7-11370H in the Surface Laptop Studio, which is running at 1.35 GHz. The benchmark scores are also comparable, so we will skip a detailed analysis at this point.
3DMark | |
1920x1080 Fire Strike Graphics | |
Honor MagicBook View 14 | |
Lenovo Yoga 9i 14 2022 i7-1260P | |
LG Gram 15Z90P-G.AA89G | |
Lenovo ThinkBook 13s G3 20YA0005GE | |
Wild Life Extreme | |
Apple MacBook Pro 16 2021 M1 Pro | |
Apple MacBook Pro 14 2021 M1 Pro Entry | |
Lenovo Yoga 9i 14 2022 i7-1260P |
Verdict - Intel catches up, but needs to improve the efficiency
Intel's new Alder Lake mobile processors finally offer adequate multi-core performance and there is a significant performance increase over the aging quad-core CPUs from the Tiger Lake generation. Intel also managed to reduce the gap to the AMD Ryzen 5000 CPUs with Zen 3 cores, but we cannot yet evaluate the performance compared to the new Ryzen 6000 chips at this point. Intel is still playing catch-up with Apple's M1 CPUs, which offer more performance in multi-core tests and consume less power at the same time.
The single-core results are excellent thanks to the new performance cores, but it comes at the cost of a high power consumption of around 26W. AMD and especially Apple are much more efficient here. The high power consumption also results in a problem when you use your laptop for daily stuff, which is evident in the case of the Lenovo Yoga 9i 14 (review will be published soon). Even short peak load scenarios result in high chip temperatures, so the fans start spinning really quickly.
The increasing number of CPUs with the new P-series is another problem. There have already been massive performance differences for the old U-series chips over the last couple of years due to different implementations and the manufacturer can once again pretty much do what they want. Even the new U-series chips can consume up to 55W (P-series up to 64W), so there might be laptops where a supposedly faster Core i7-1260P is actually slower than an Alder Lake-U due to TDP settings. This just makes its much more difficult for consumers to find the right chip or get an idea of the performance.
