Microsoft Surface 3 Tablet/Convertible Review

"Notebook-Killer" Vol. 3 - After the Surface Pro 3 was released last autumn, Microsoft now also launches the light version called Surface 3. We already have a review unit and will publish our first results. Update 05/07/2015: Application Performance, Emissions and Rating.

For the original German review, see here.

Microsoft's search for the next generation of notebooks continues. Panos Panay, Corporate Vice President for Surface Computing, already announced the Surface 3 on March 31st on Microsoft's Surface Blog. The most important change compared to the predecessors Surface 2 (here in review) and Surface RT is that you get a full version of Windows 8.1 this time. Microsoft does not want to comment on the future of Windows RT, but insiders think this will be the end of Windows RT.

The use of Windows 8.1 is possible thanks to the integration of a CPU with x86 support. The Intel Atom x7-Z8700 is based on the brand-new Atom generation and is manufactured in a 14 nm process. The chip of the Cherry Trail platform has four cores and runs with 1.6 up to 2.4 GHz. The GPU performance is supposed to be twice as high compared to the Bay Trail platform.

The following article includes our first test results and impressions of the device. The review will be complemented with further measurements and content in the next couple of days.

Configurations

ProcessorStorageRAM DisplayCommunicationOperating System
€599 (base)Intel Atom x7-Z870064 GB2 GB10.8-inch, 1920x1280 pixelsWiFiWindows 8.1
- tba -Intel Atom x7-Z870064 GB2 GB10.8-inch, 1920x1280 pixelsWiFi + 4G LTEWindows 8.1
€719Intel Atom x7-Z8700128 GB4 GB10.8-inch, 1920x1280 pixelsWiFiWindows 8.1
- tba -Intel Atom x7-Z8700128 GB4GB10.8-inch, 1920x1280 pixelsWiFi + 4G LTEWindows 8.1

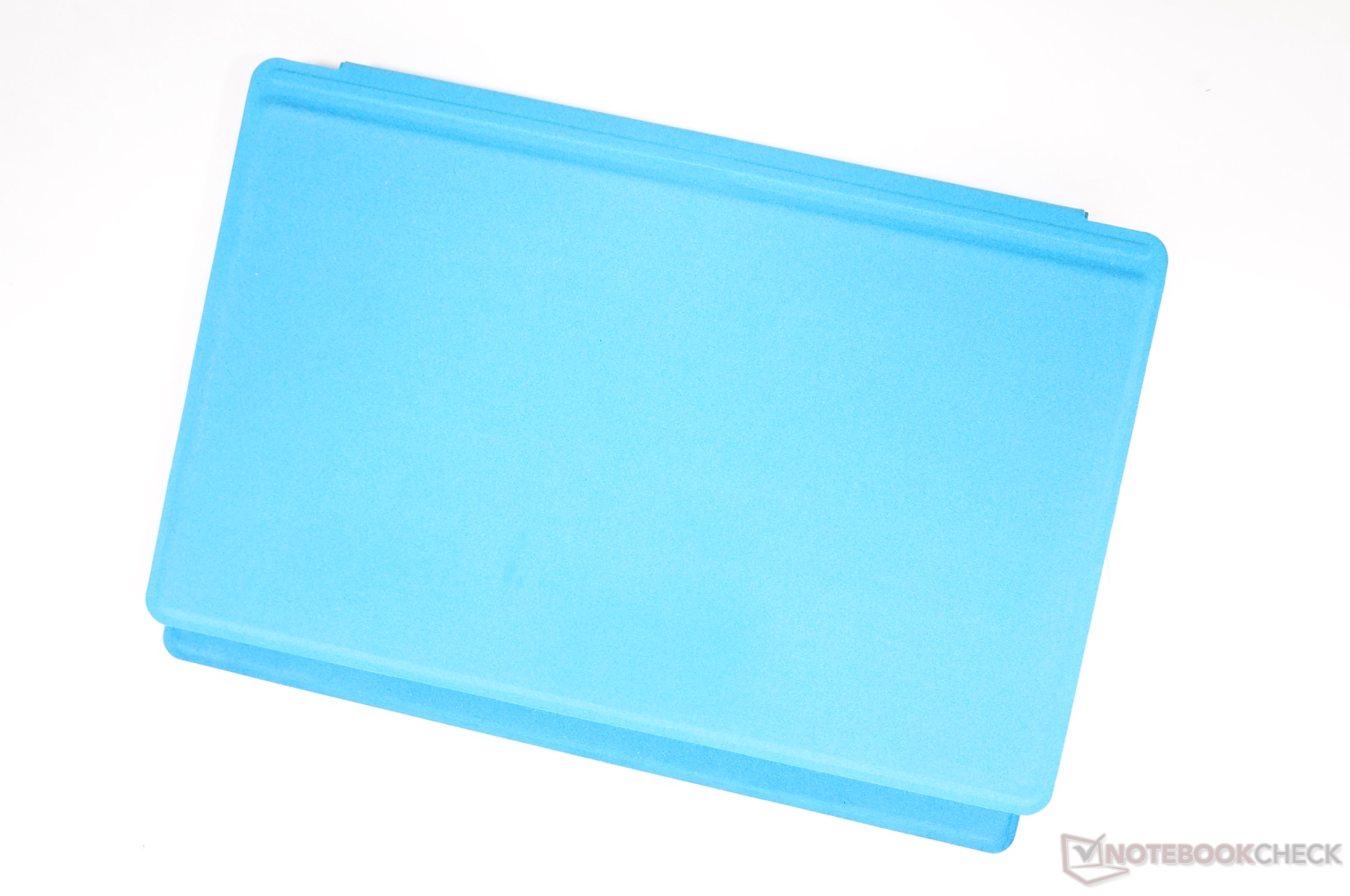

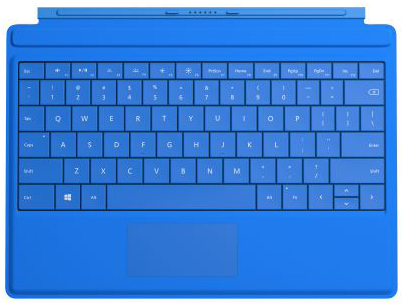

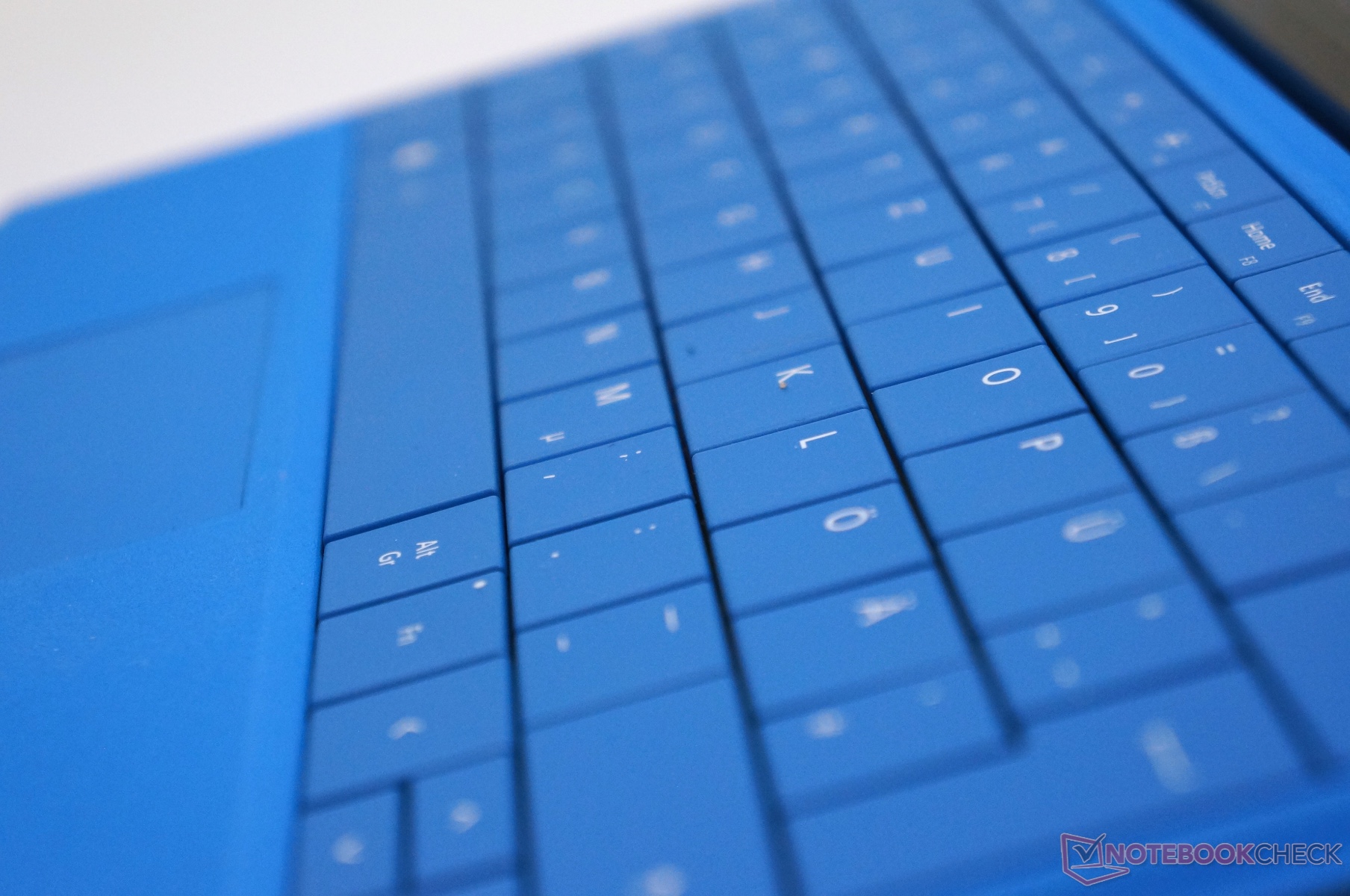

+ €149.99Surface 3 Type Cover
+ €49.99Surface Pen

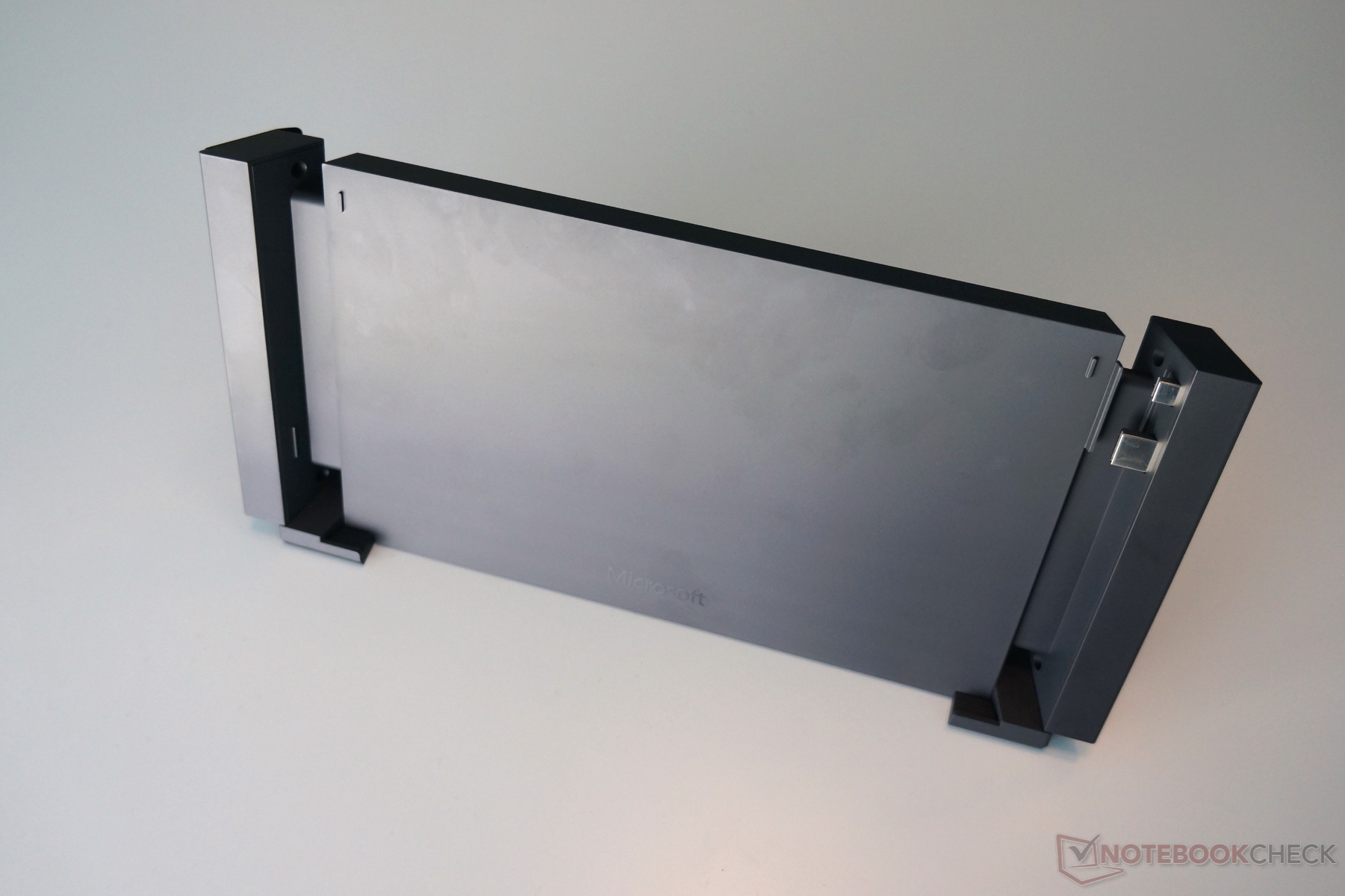

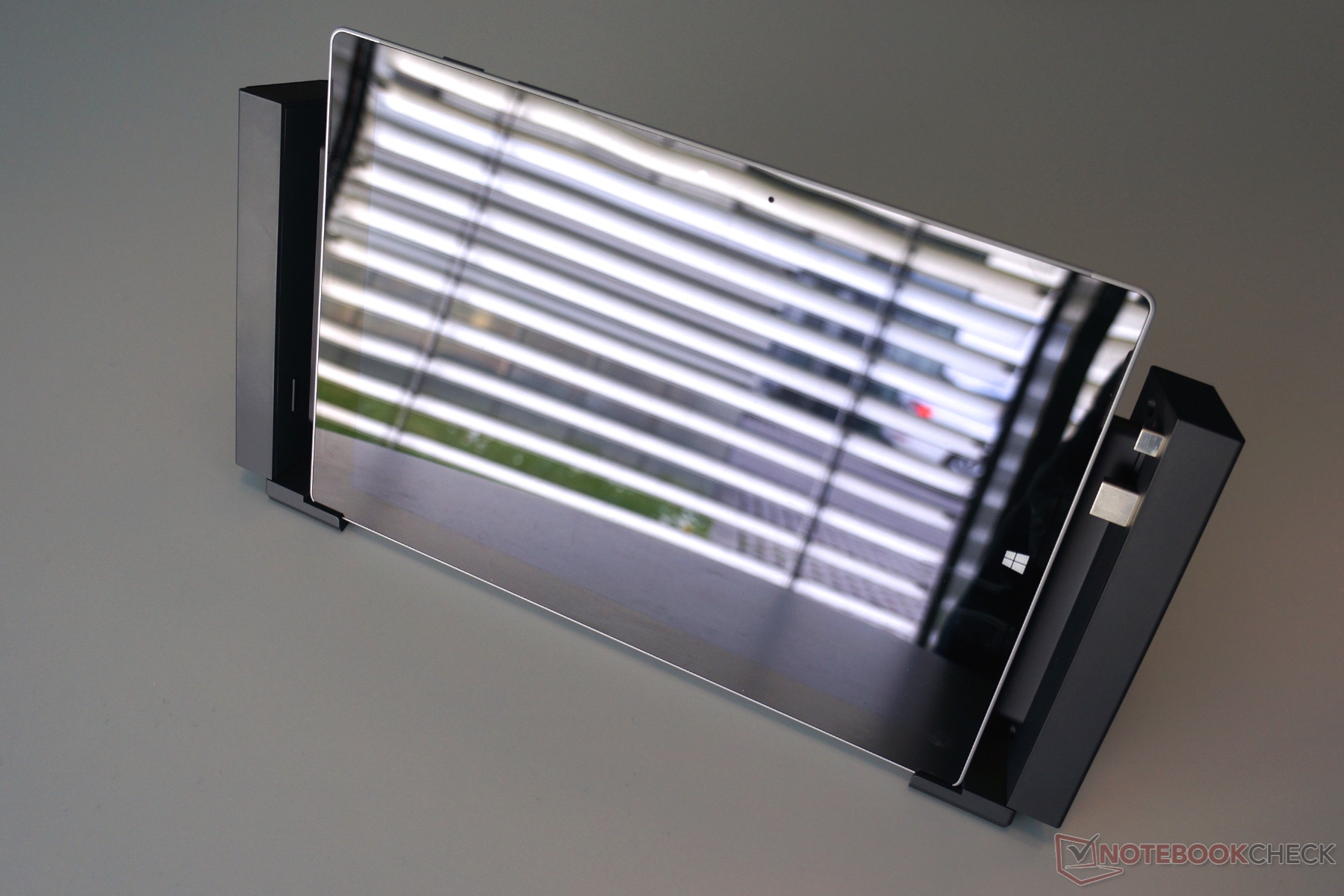

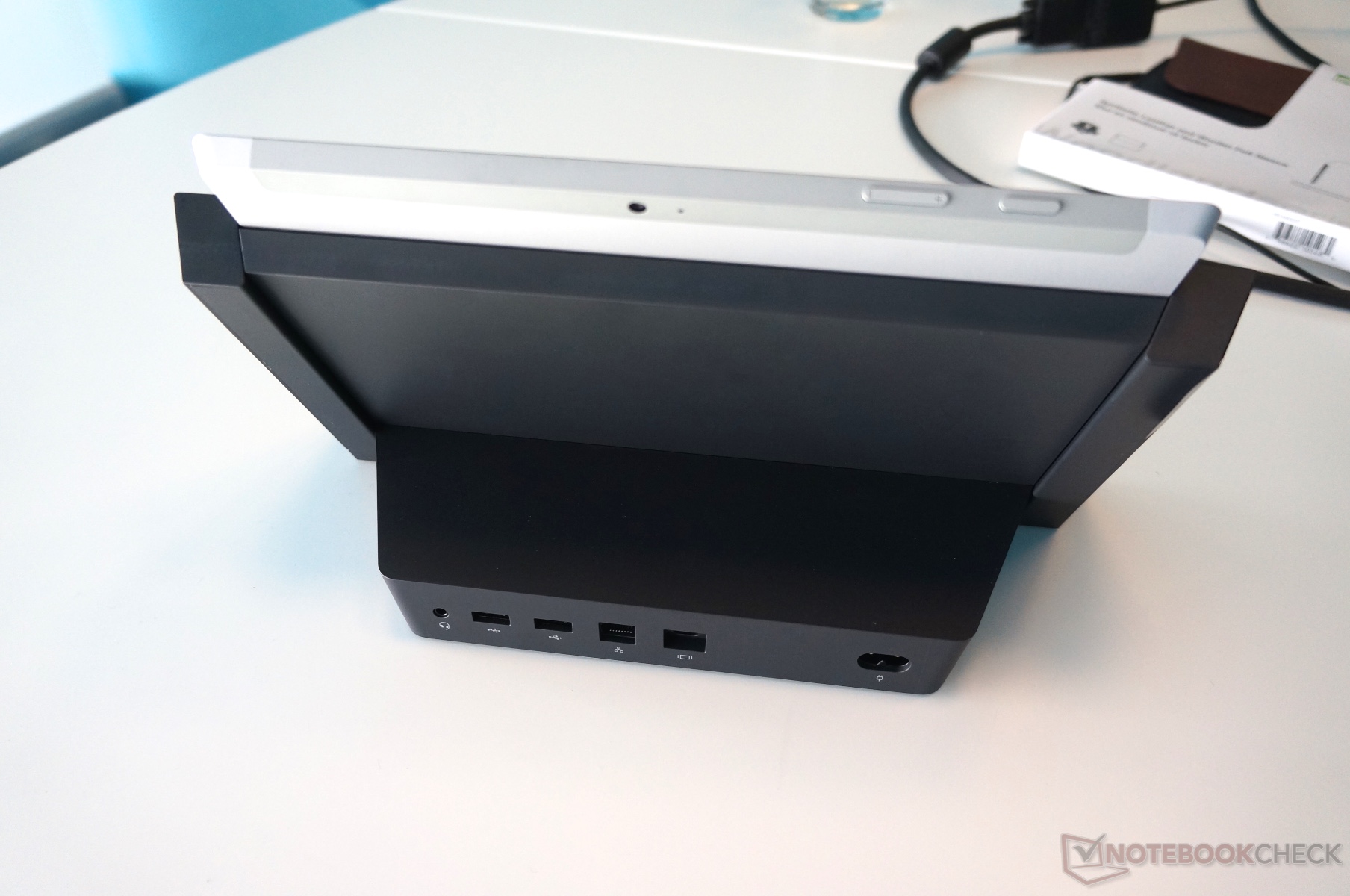

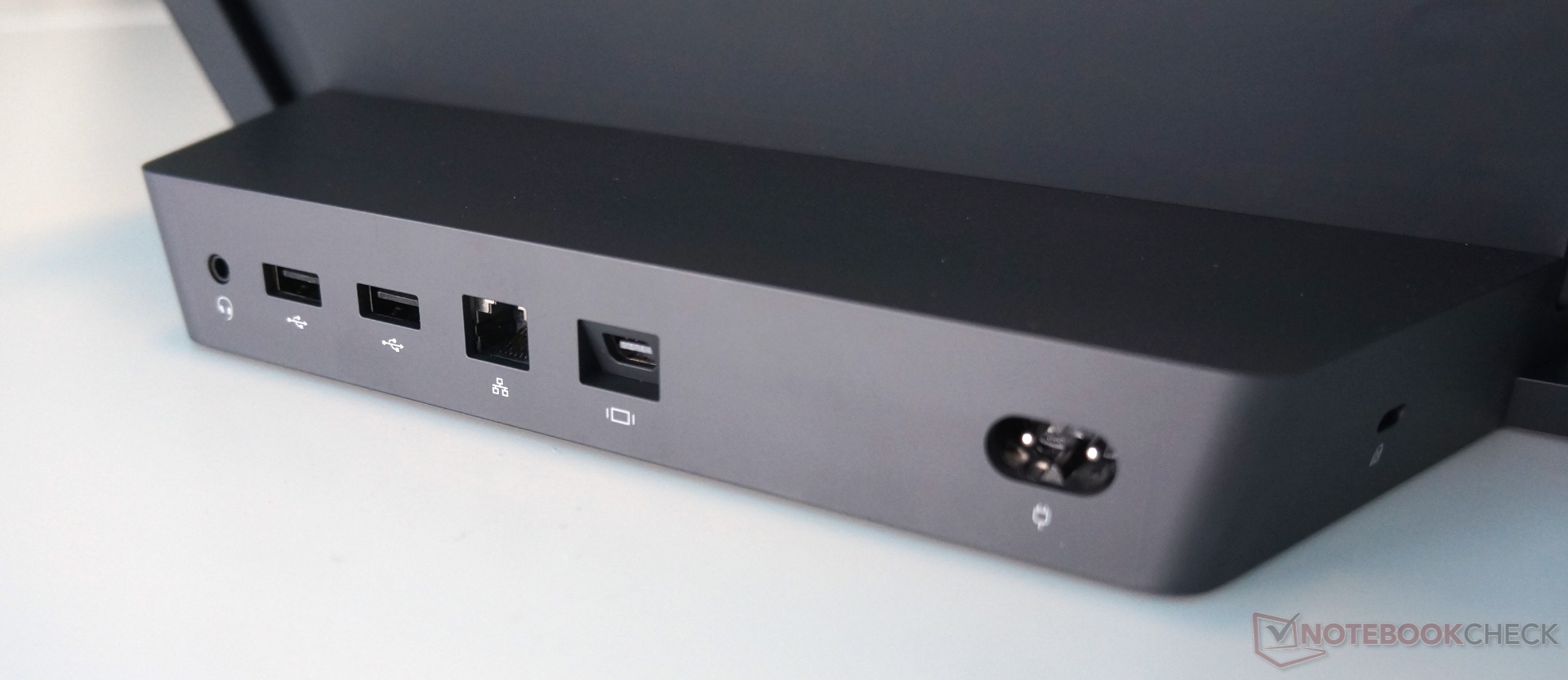

+ €229.99Surface 3 Dock

Microsoft's Surface 3 is targeting price-conscious customers with a starting price of 599 Euros (~$648), which is 200 Euros (~$216) lower than the Surface Pro 3 (here in review) with an Intel i5 CPU and 150 Euros (~$162) lower than the version with the Core i3 (including input pen), respectively. According to Microsoft, the device is designed for university students, parents and mobile employees.

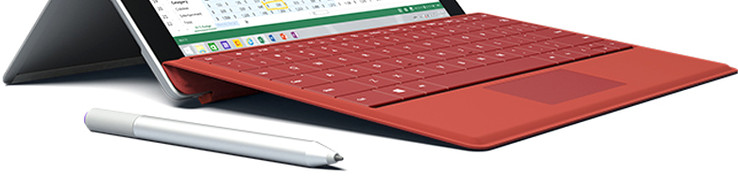

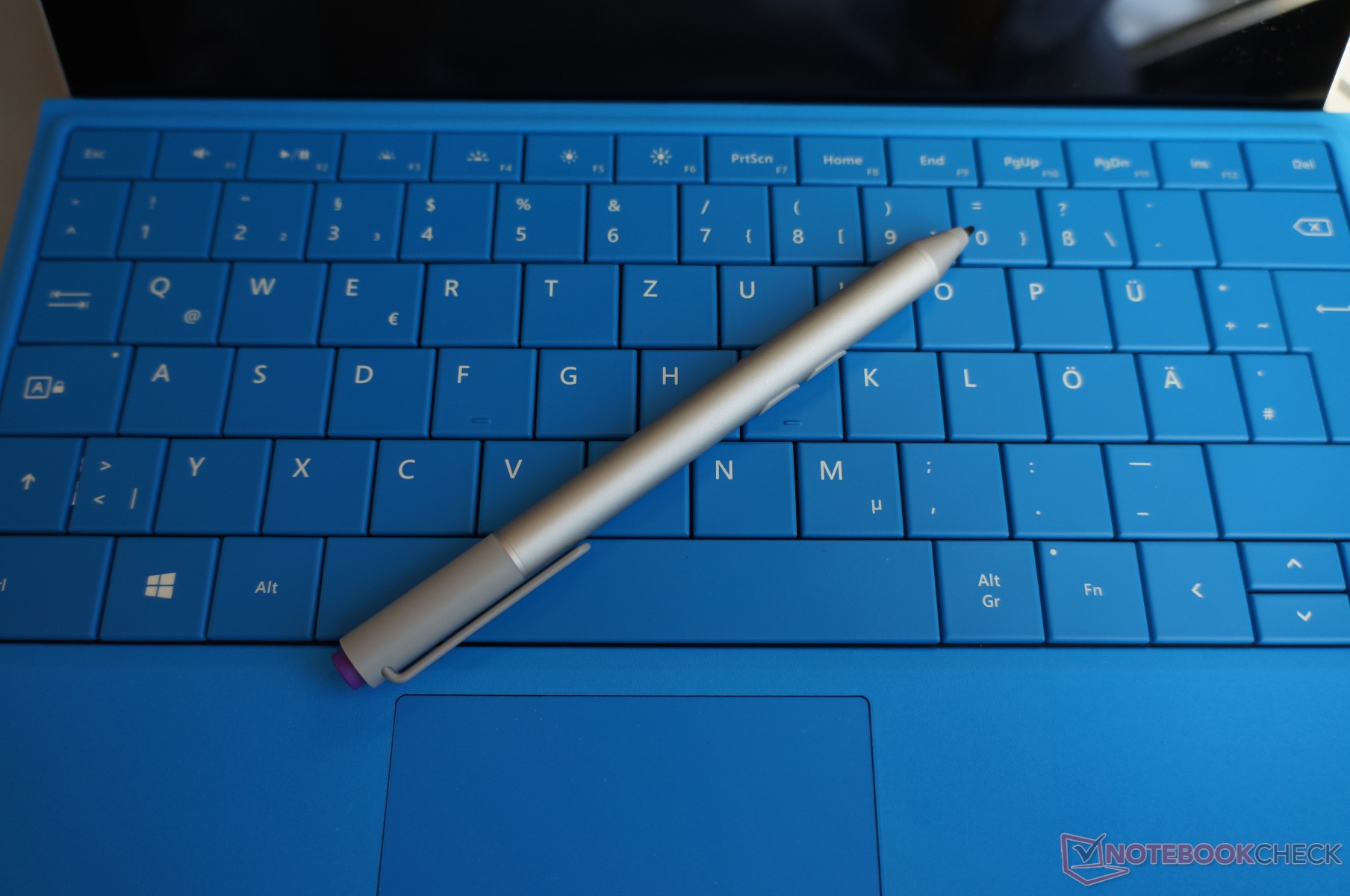

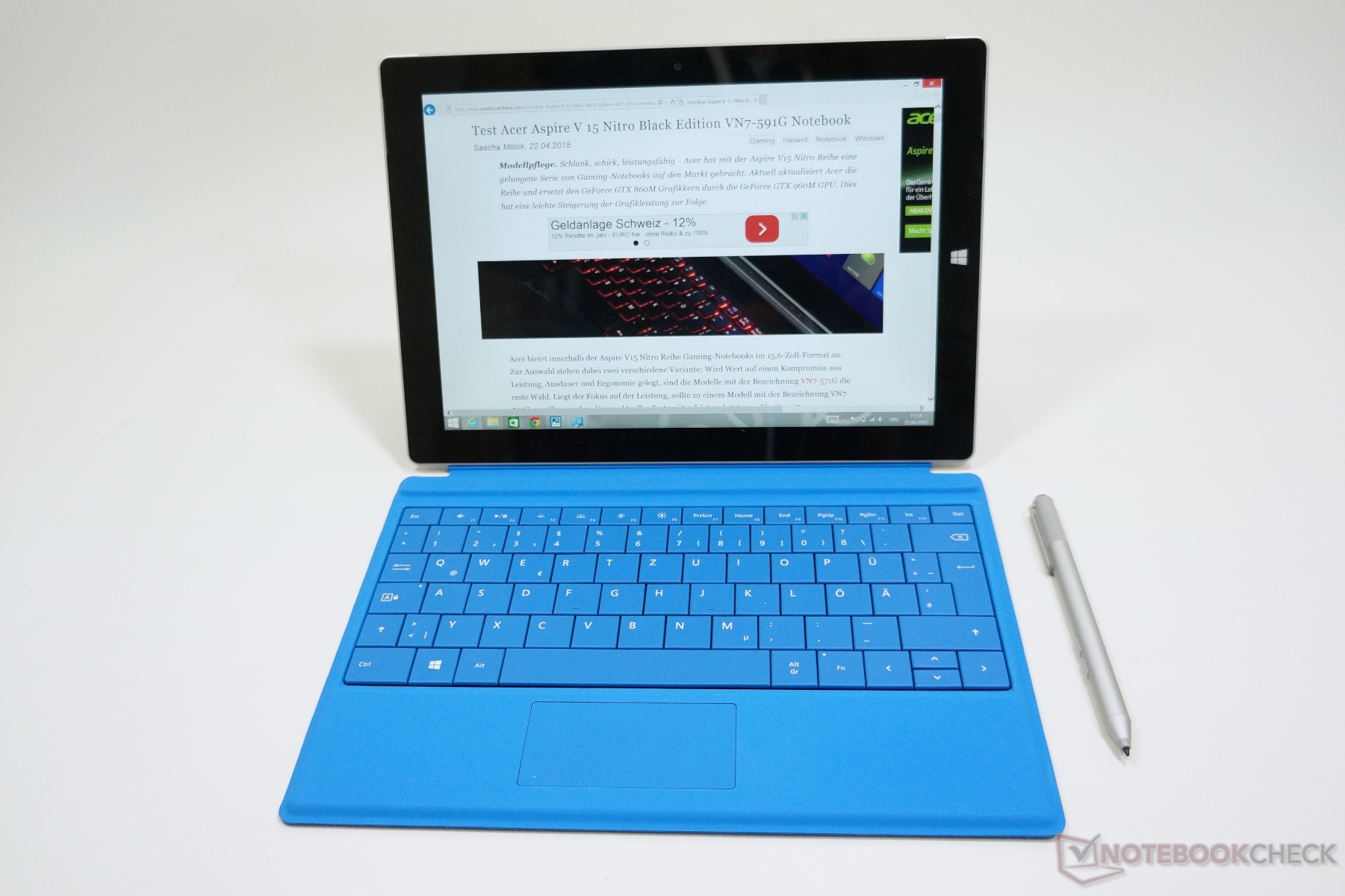

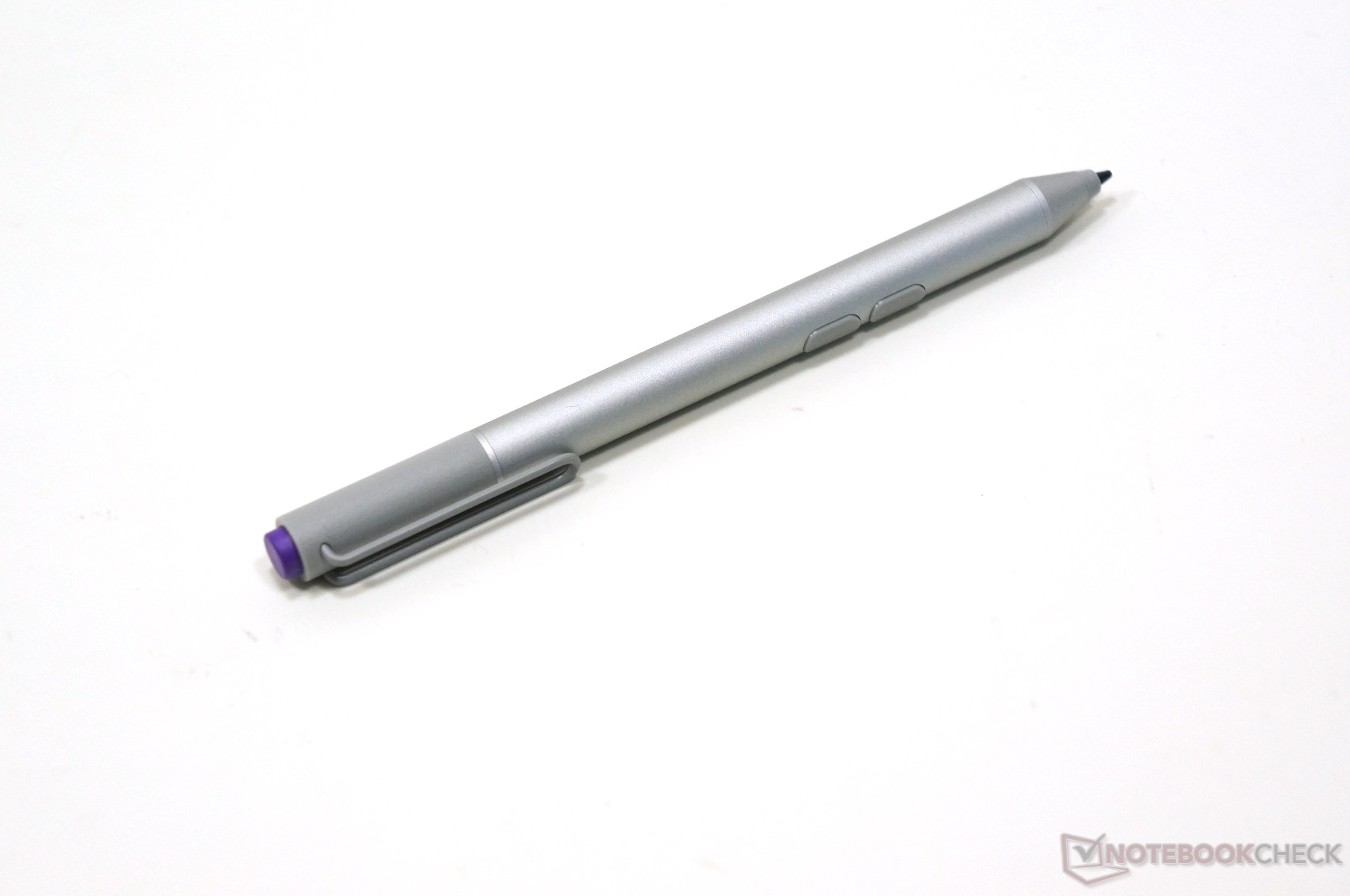

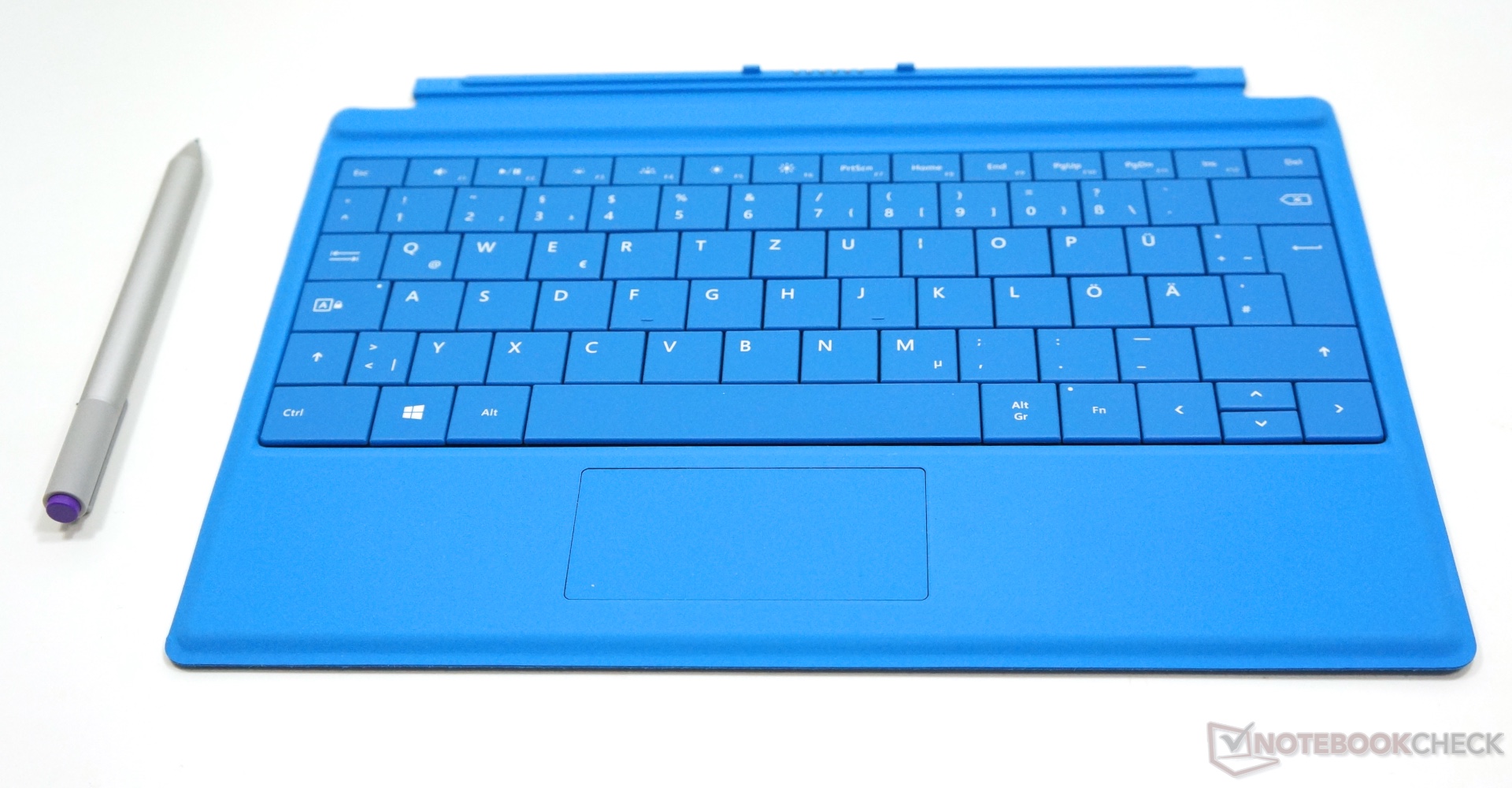

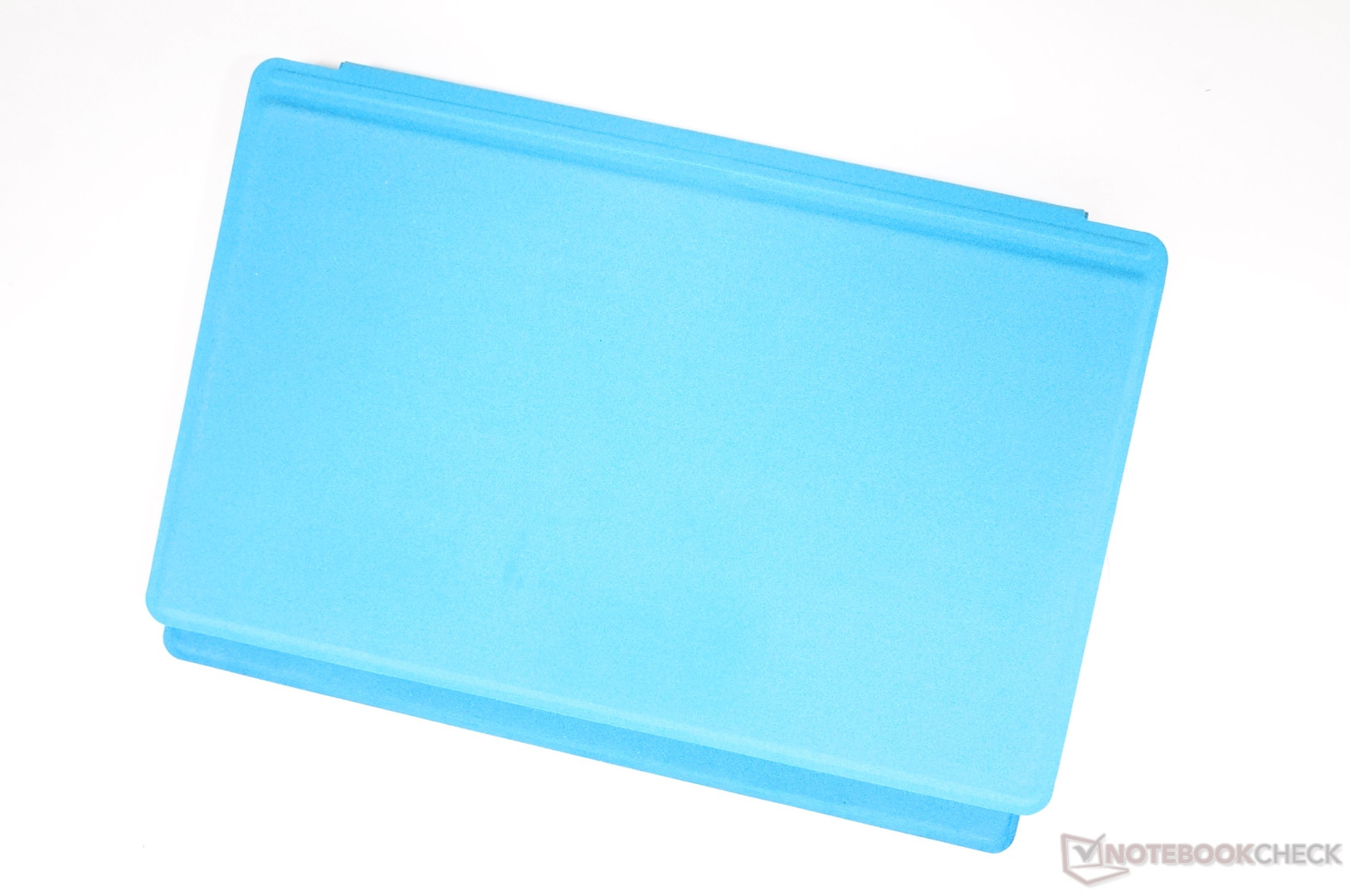

Type Cover and Pen cost another 200 Euros (~$216)
Type Cover and Pen cost another 200 Euros (~$216)

Select the base configuration with 64 GB storage and 2 GB memory, add a Type Cover since you want to be able to type comfortably, and you will quickly have a total price of around 749 Euros (~$810). This price range already includes numerous notebooks that are clearly superior to the Surface 3 in respect of performance reserves and storage capacity. But the Surface 3 can score with its high mobility. Office 365 Personal is also included, but only for one year. After that you will have to pay 69 Euros (~$74), every year.

By the way: The 64 GB/Wi-Fi version of the Apple iPad Air 2 costs 589 Euros (~$637); with Smart Cover (39 Euros, ~$42) and Wireless Keyboard (69 Euros, ~$74) you get a comparable package for around 697 Euros (~$754).

Besides the versions with 64 and 128 GB storage, which are available first, Microsoft will also sell a special Business version with the same two storage capacities, but always with 4 GB memory and Windows 8.1 Pro. There will also be a special Education version in the beginning of May with 32 GB storage and 2 GB memory. The bundle will also include the optional Type Cover and the input pen for a total price of 579 Euros (~$626).

Our review unit is equipped with 128 GB, and 93.2 GB of the 110 GB was free at the start of the review.

This would mean that you can only use a couple of GB for your own files when you get the configuration with a 32 GB SSD.

Microsoft Surface 3 (Surface Series)
Processor
Intel Atom x7-Z8700 4 x 1.6 - 2.4 GHz, Cherry Trail
Memory
4 GB
Display
10.80 inch 3:2, 1920 x 1280 pixel, 10-point multi-touch, native pen support, Panasonic MEI9001, IPS, glossy: yes, detachable screen
Storage
128 GB eMMC Flash, 128 GB
, 93.2 GB free
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 DisplayPort, Audio Connections: combined 3.5 headset, Card Reader: microSD card reader, Brightness Sensor, Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, Micro-USB charging port
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 8.7 x 267 x 187 ( = 0.34 x 10.51 x 7.36 in)
Battery
28 Wh, Battery runtime (according to manufacturer): 10 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 3.5 MP webcam, 8.0 MP rear camera
Primary Camera: 8 MPix
Secondary Camera: 3.5 MPix
Additional features
Speakers: Stereo with Dolby Audio, Keyboard: optional type cover, Keyboard Light: no, Office 365 Personal (1 year), 24 Months Warranty, fanless
Weight
917 g ( = 32.35 oz / 2.02 pounds), Power Supply: 168 g ( = 5.93 oz / 0.37 pounds)
Price
719 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



In Comparison

292 mm / 11.5 inch 201 mm / 7.91 inch 9 mm / 0.3543 inch 810 g1.786 lbs275 mm / 10.8 inch 173 mm / 6.81 inch 8.9 mm / 0.3504 inch 643 g1.418 lbs267 mm / 10.5 inch 187 mm / 7.36 inch 8.7 mm / 0.3425 inch 917 g2.02 lbs240 mm / 9.45 inch 169.5 mm / 6.67 inch 6.1 mm / 0.2402 inch 444 g0.979 lbs297 mm / 11.7 inch 210 mm / 8.27 inch 1 mm / 0.03937 inch 5.7 g0.01257 lbs

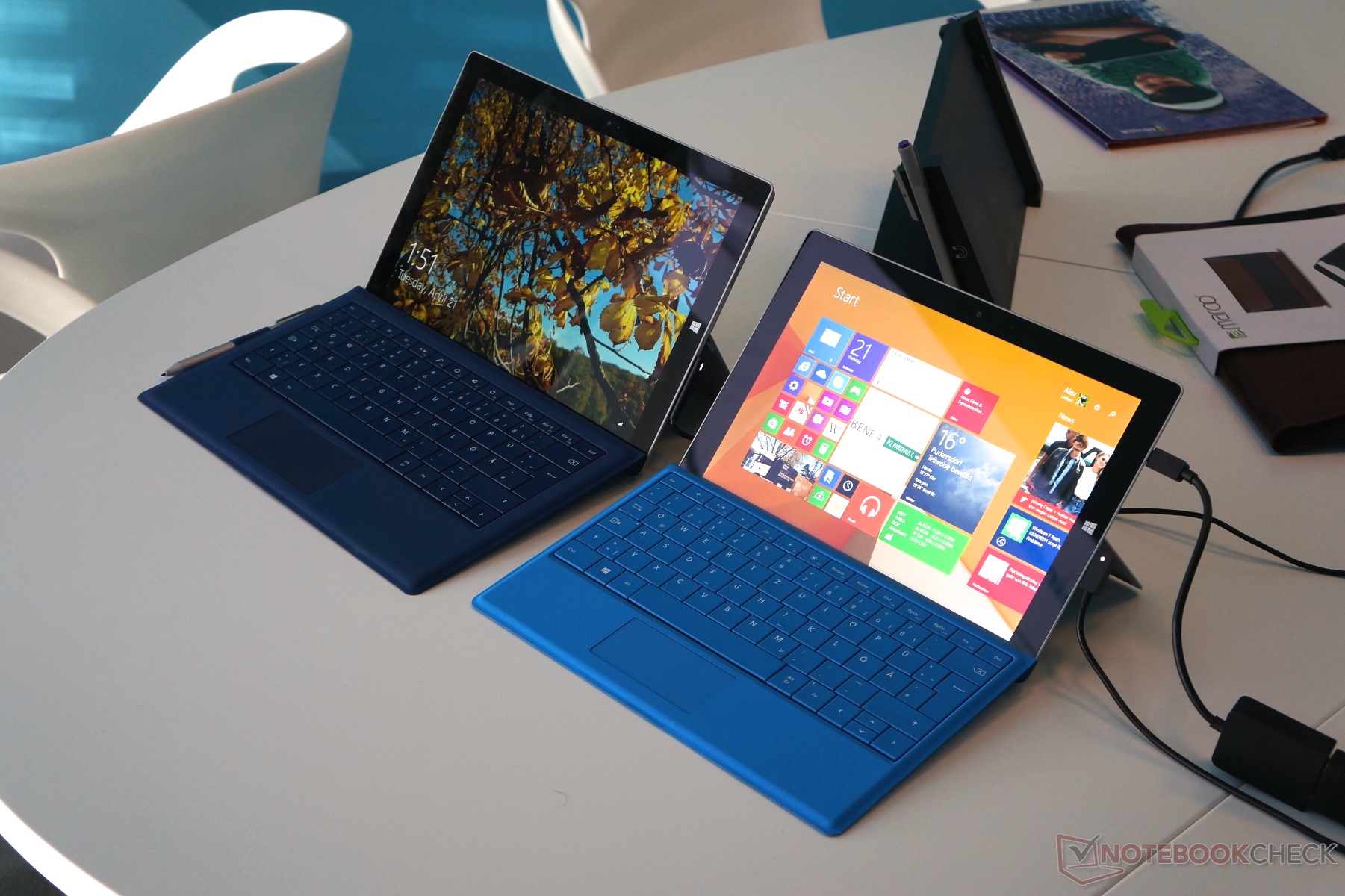

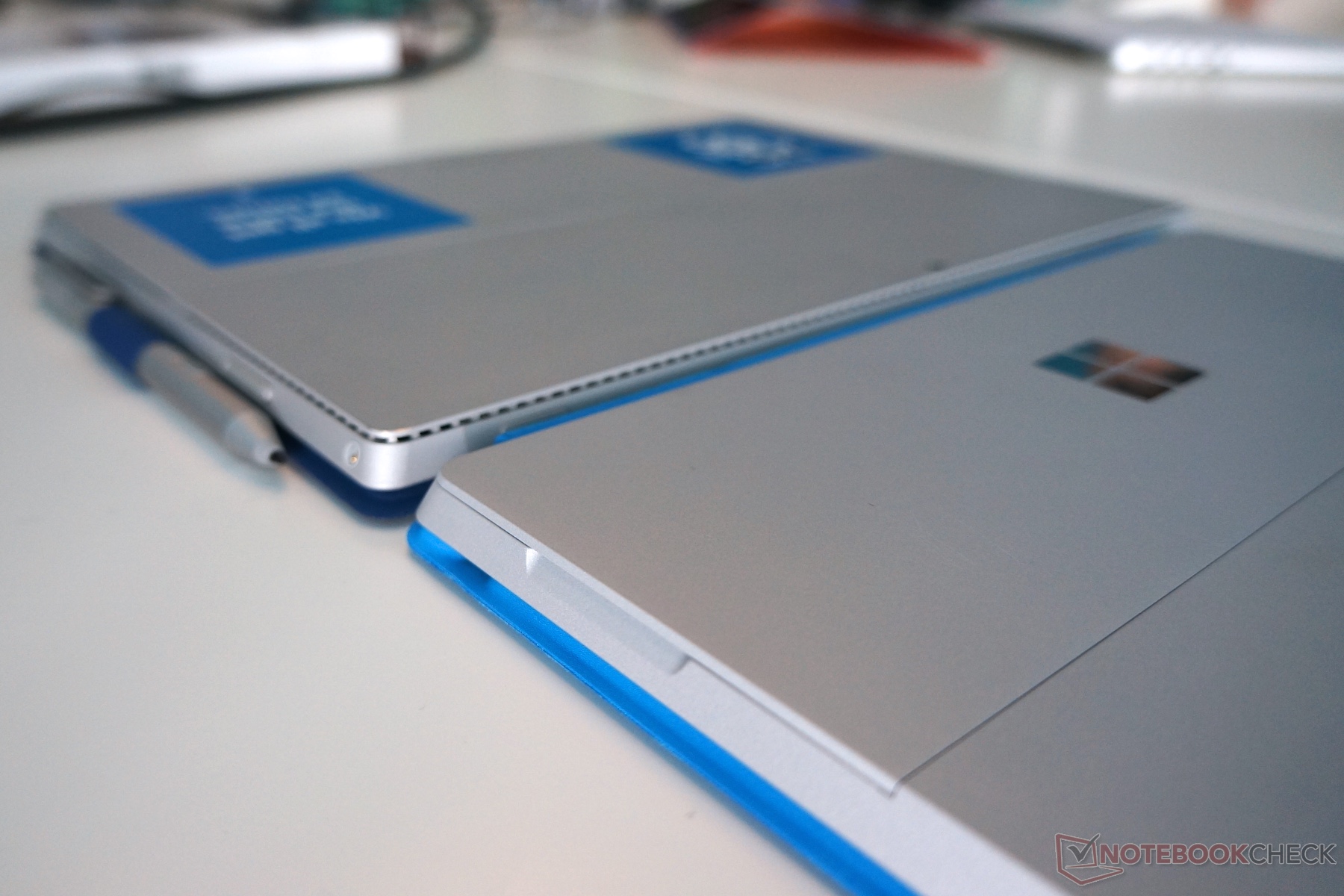

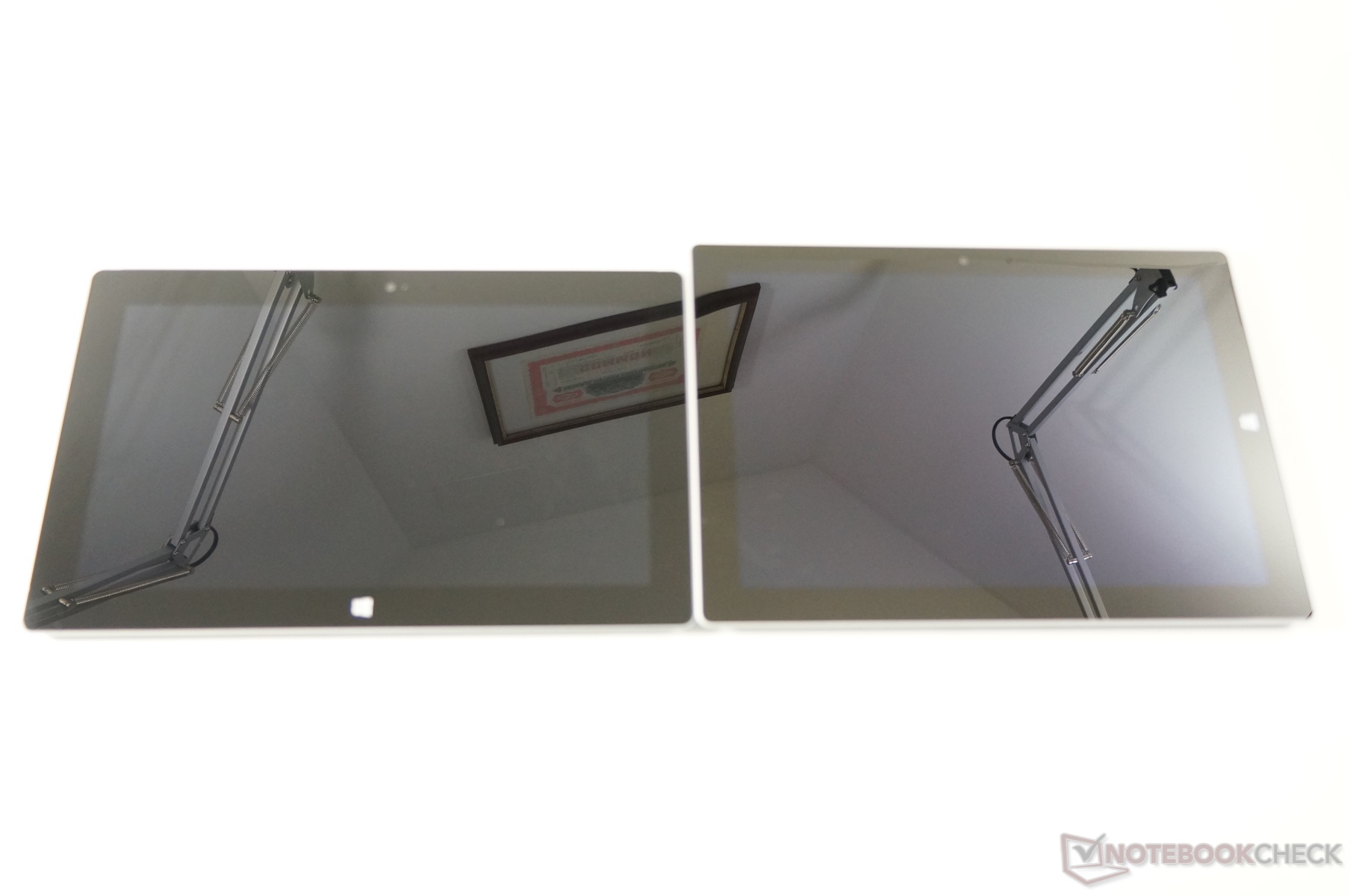

Surface 3 Pro vs Surface 3
Surface 3 Pro vs Surface 3
Larger display...
Larger display...

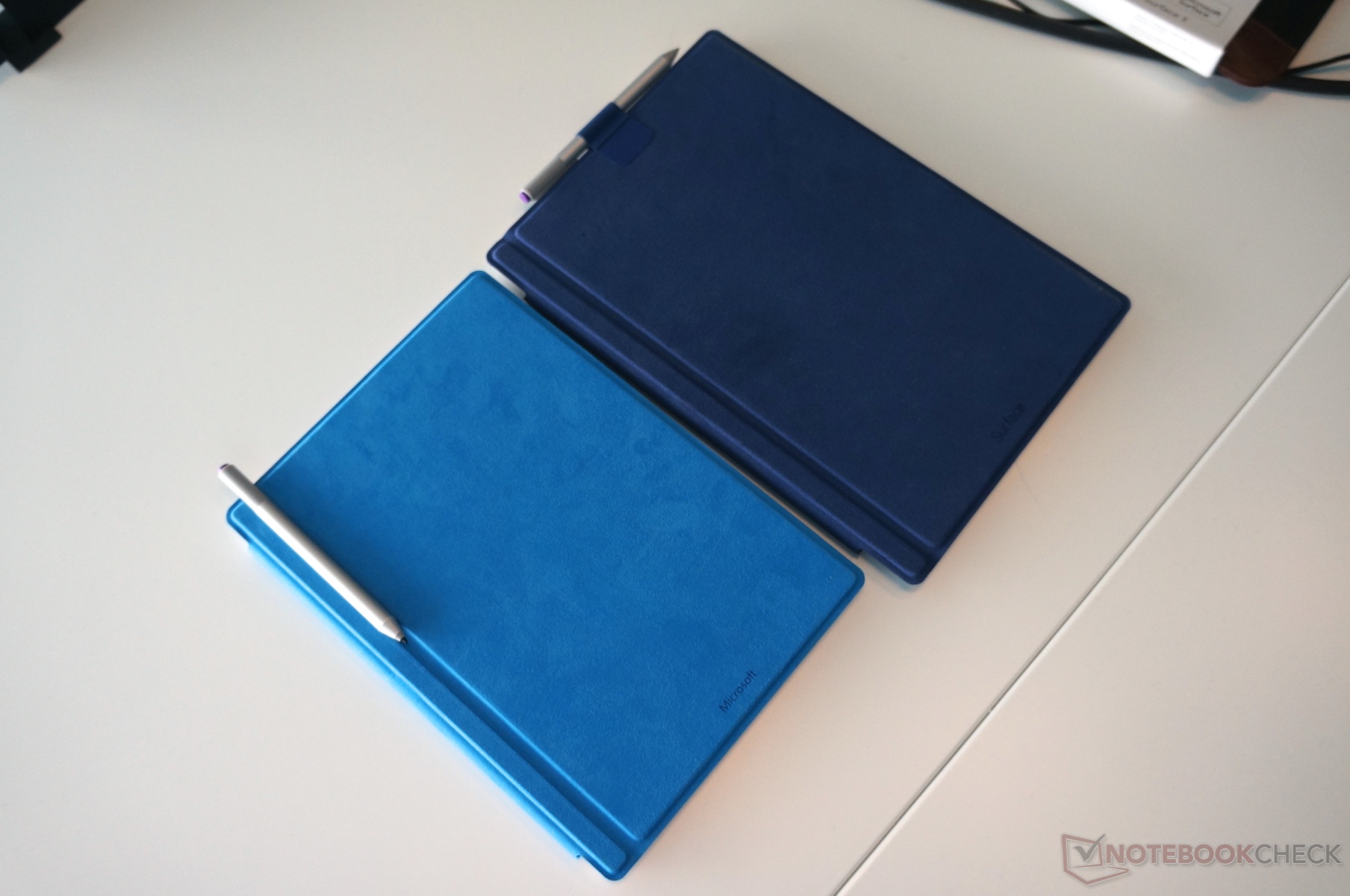

...and thicker dimensions for the Pro
...and thicker dimensions for the Pro

First Impressions

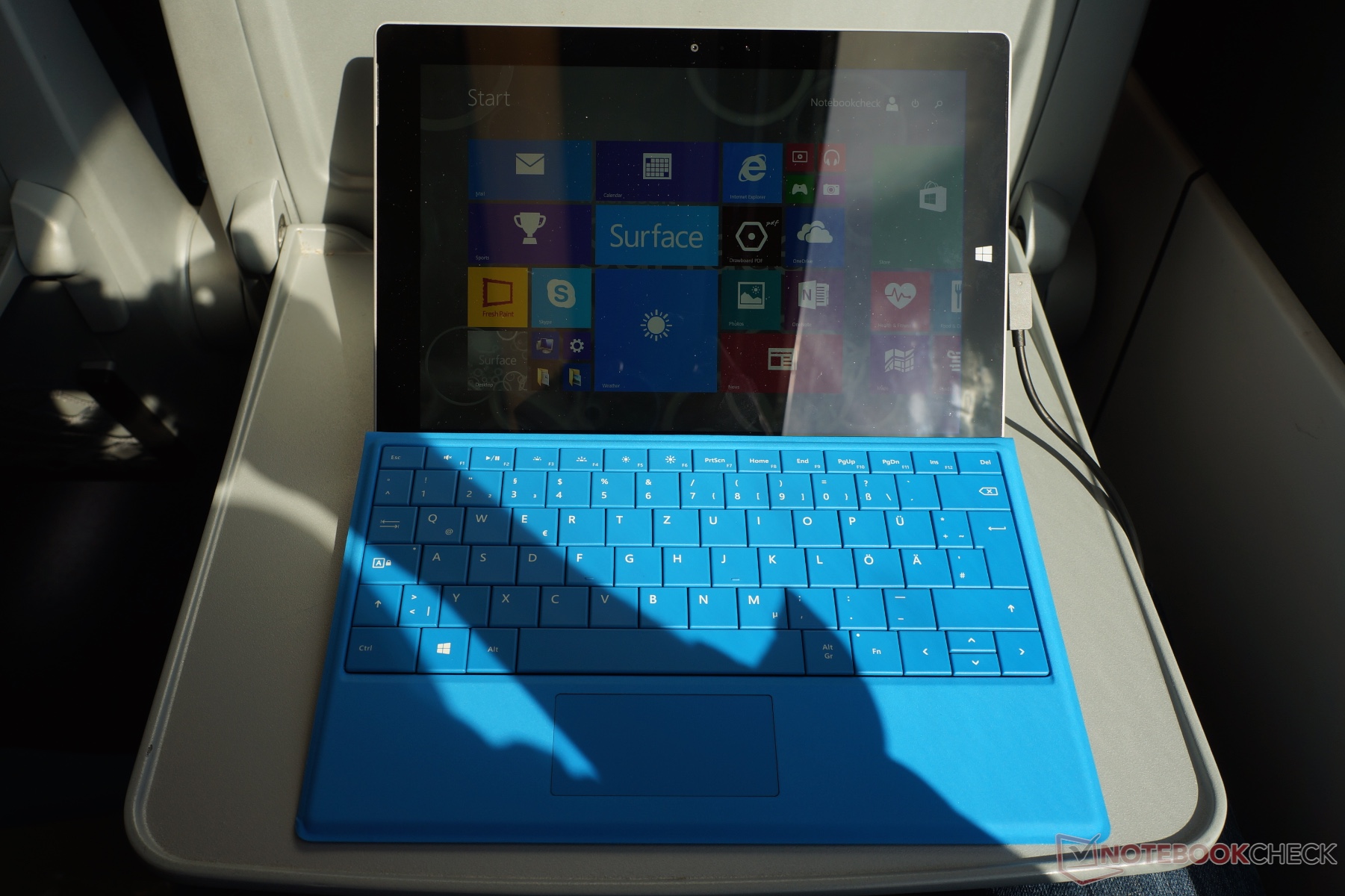

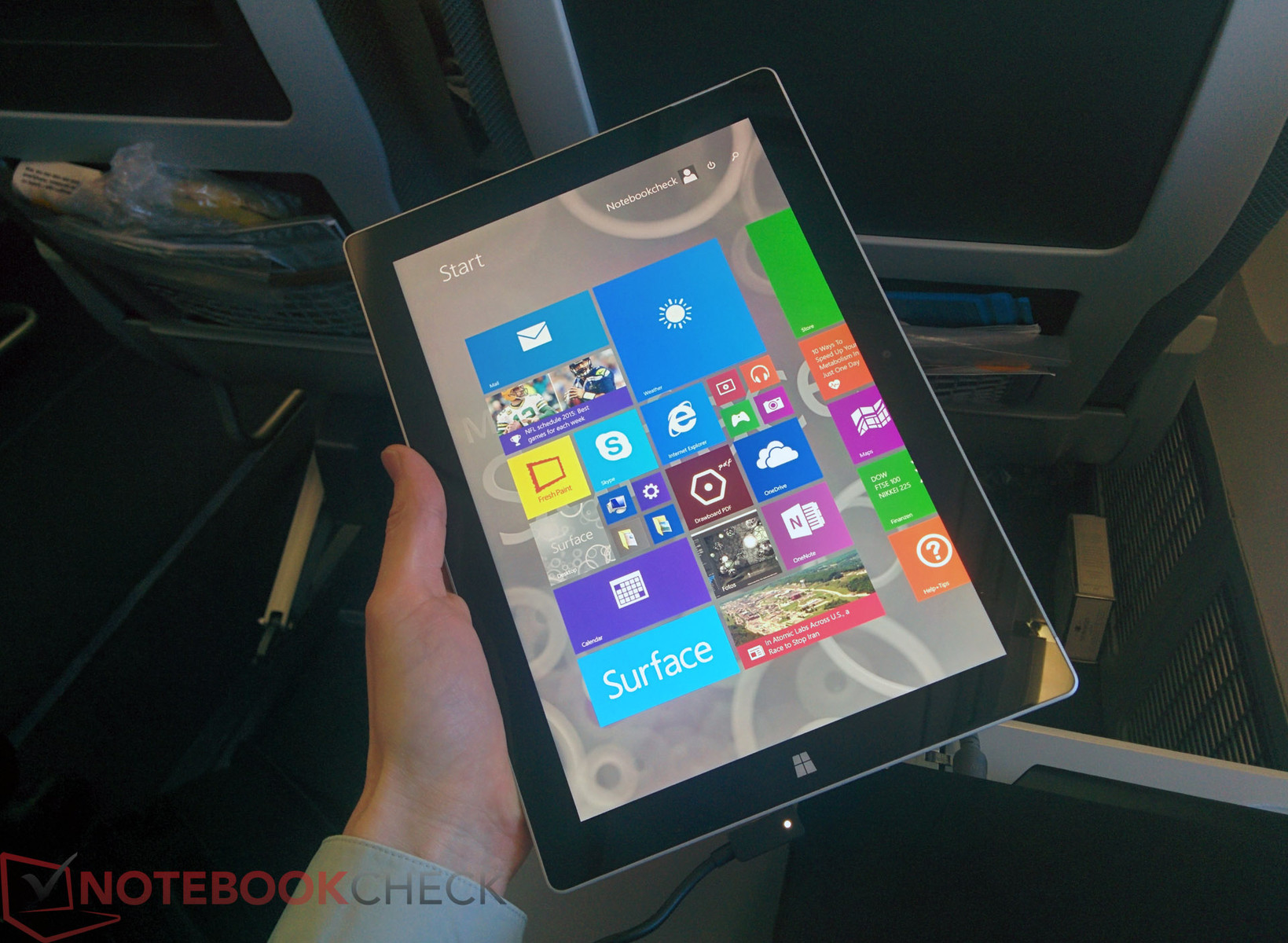

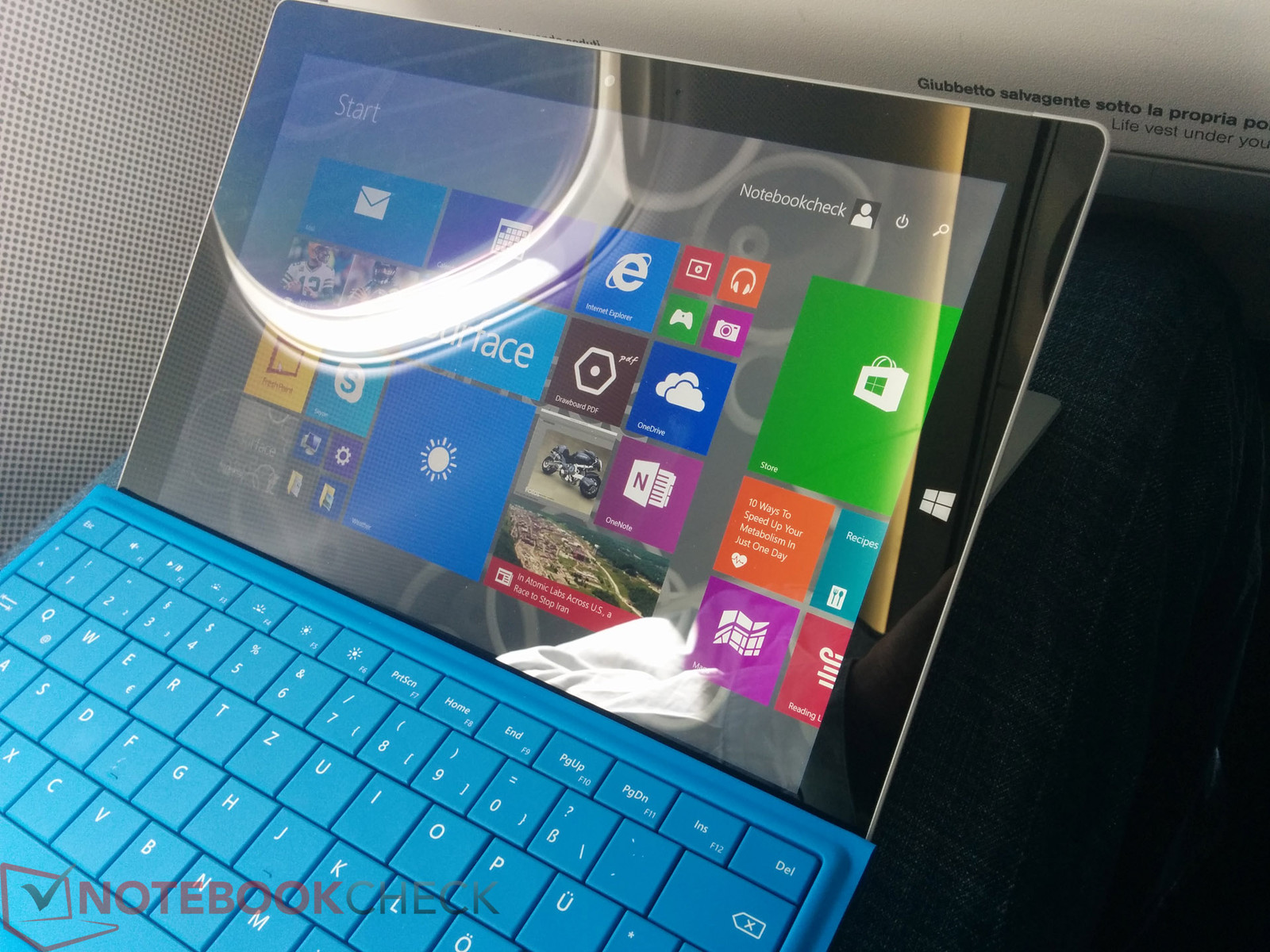

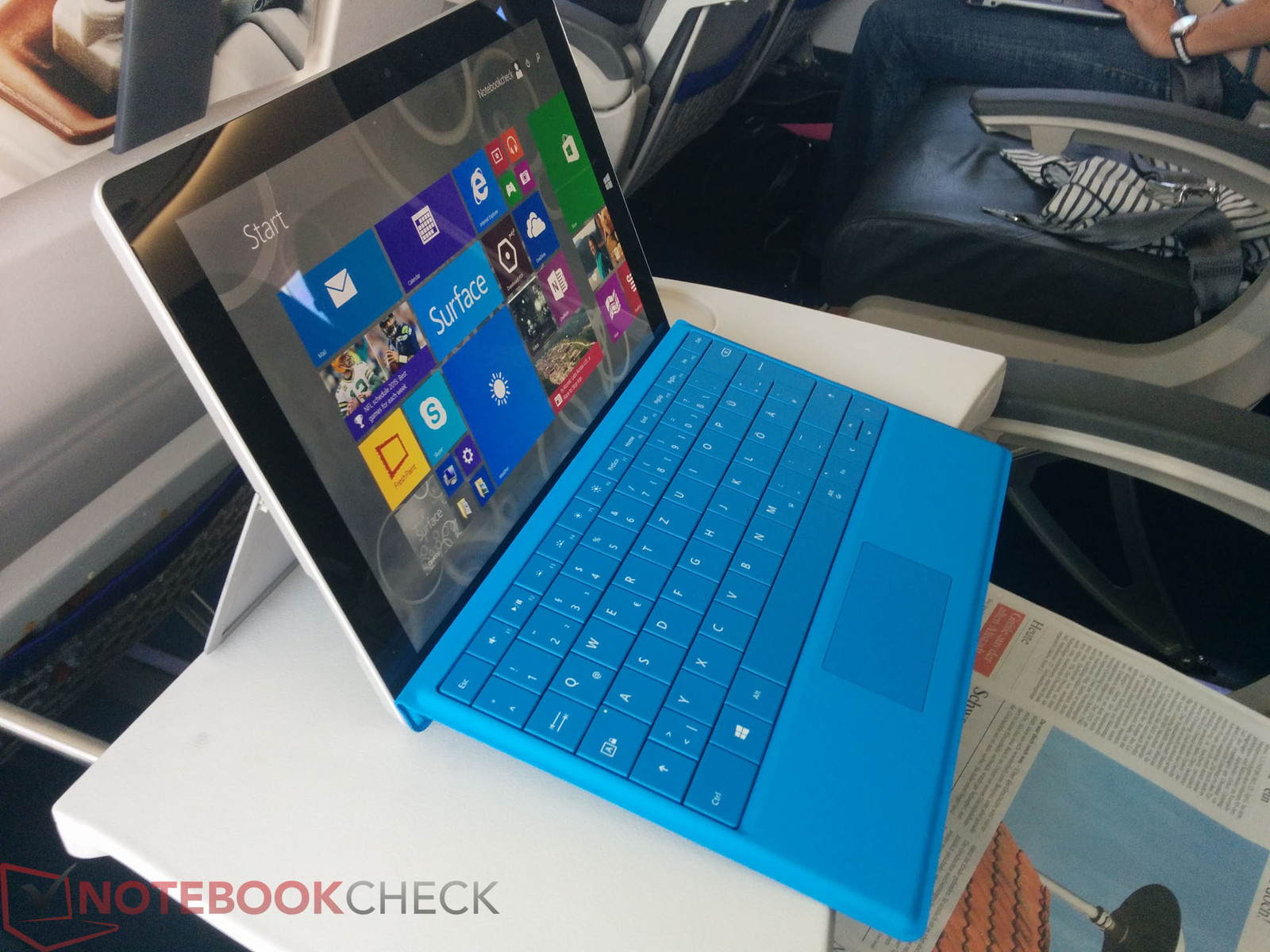

Microsoft Surface 3 in Flight Mode
Microsoft Surface 3 in Flight Mode

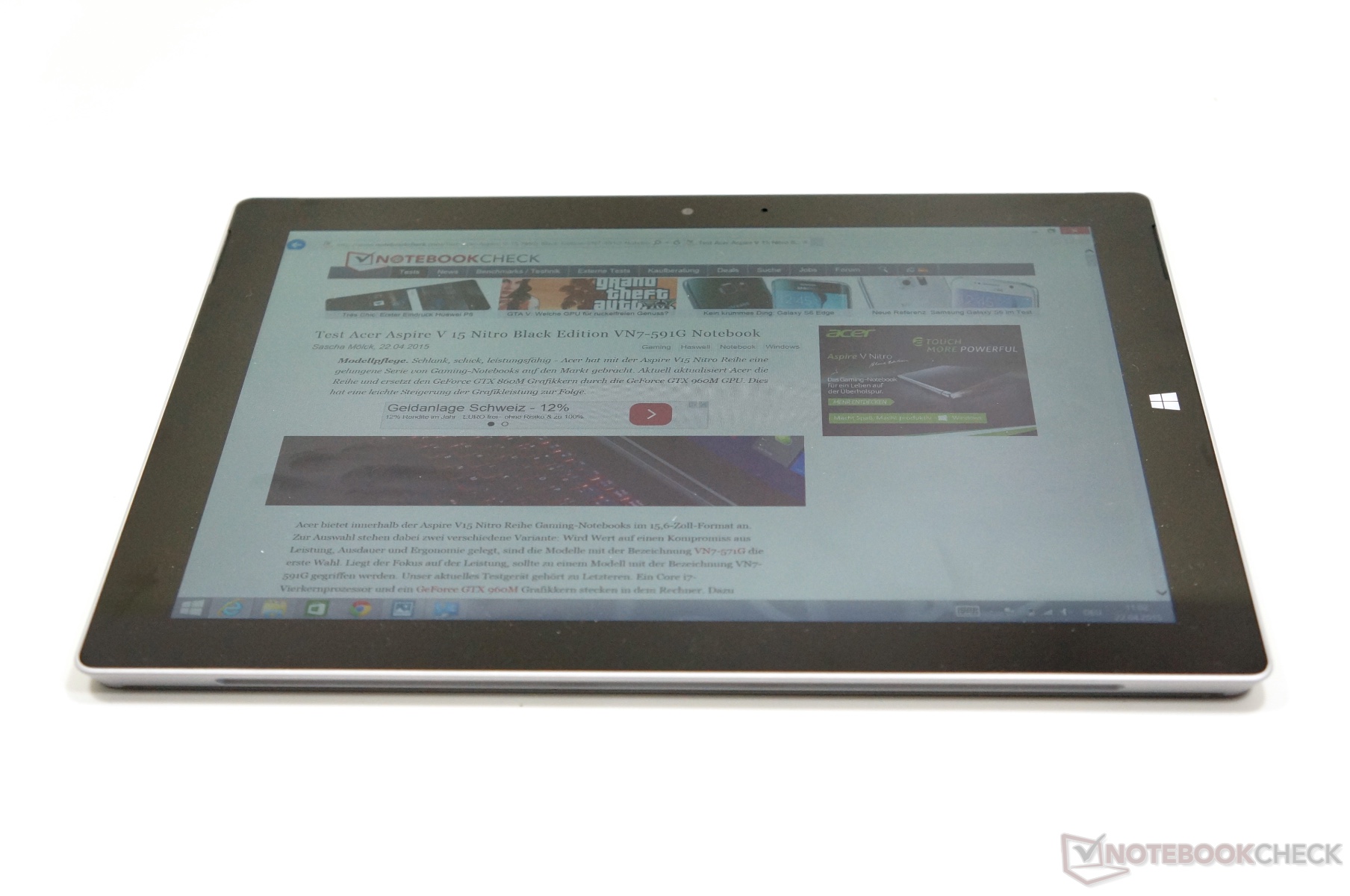

The overall impression after the first few hours with the device was very positive. The design and the feel of the Surface 3 are similar to its predecessors. The magnesium chassis appears sophisticated, but it is also a bit dull. With a weight of 622 grams (without cover), the Surface 3 is pretty heavy in the hands after a while. Apple's iPad Air 2 only weighs 437 grams. The thickness of 8.7 mm is lower compared to the bigger sibling Surface Pro 3 (9 millimeters), but it is still noticeably thicker than the Apple iPad Air with just 6.1 millimeters.

We like the silent operation of the device (no fan). At the same time we could not determine any performance problems with simple office tasks and Internet applications. The display can subjectively convince with a good luminance and rich colors. The Type Cover also works pretty well and the typing experience in our first tests is a bit better than you would expect from such a solution. We reviewed the optional input pen as well, which shows a good and precise response. The pen is similar to the model of the Surface Pro 3. The active pen with N-trig technology has a noticeable weight because of the necessary battery, but it is certainly not inconvenient.

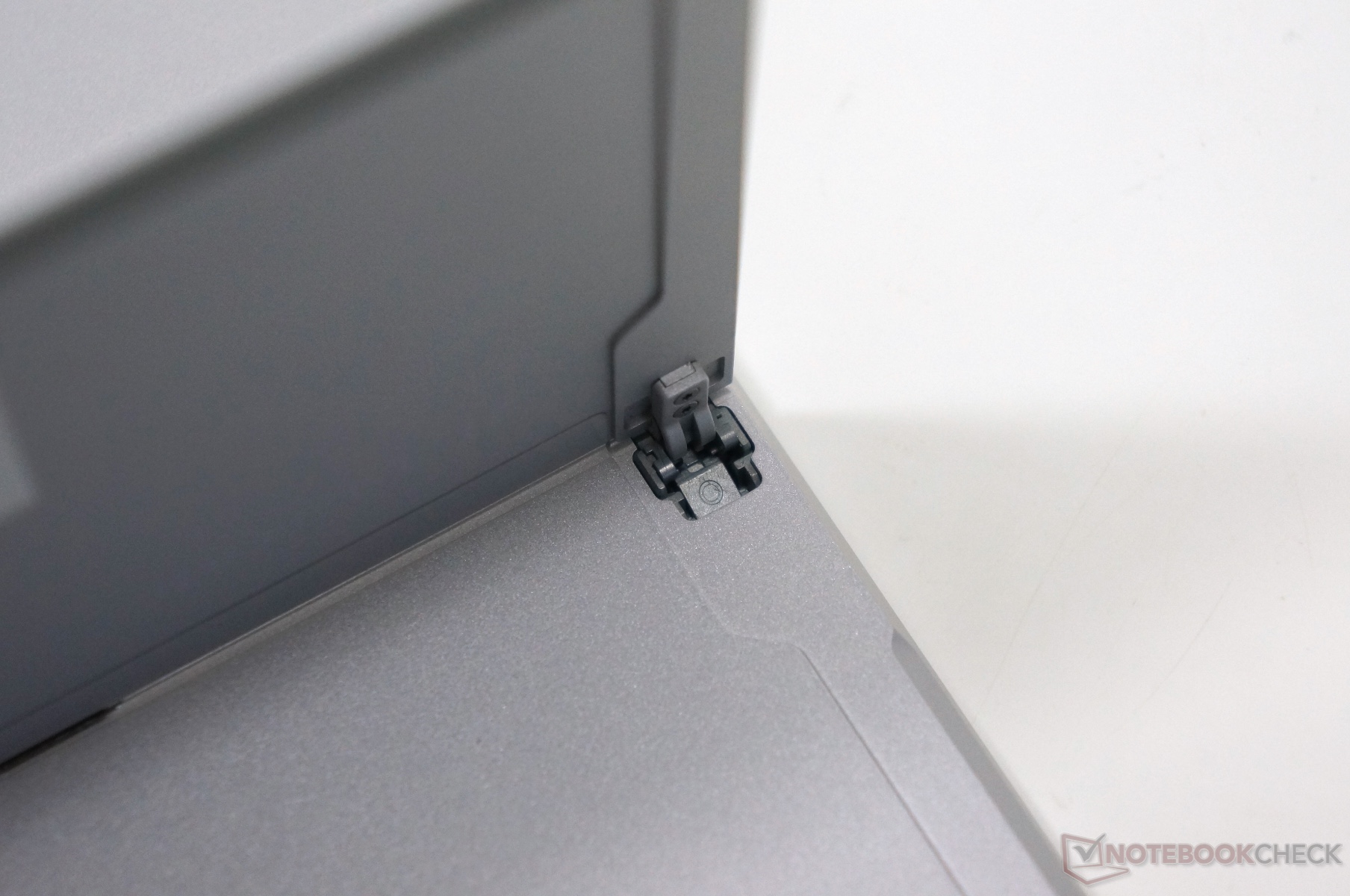

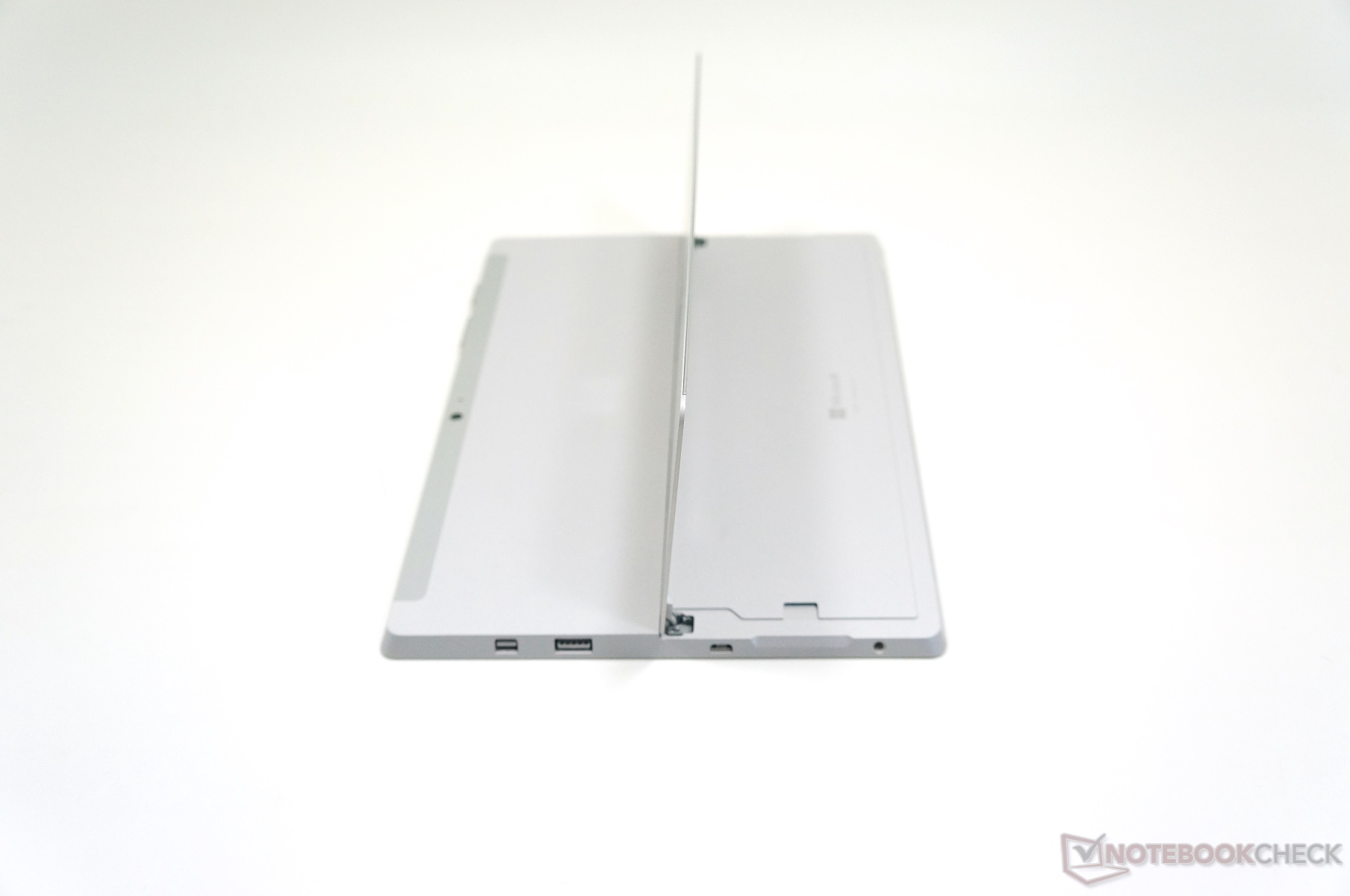

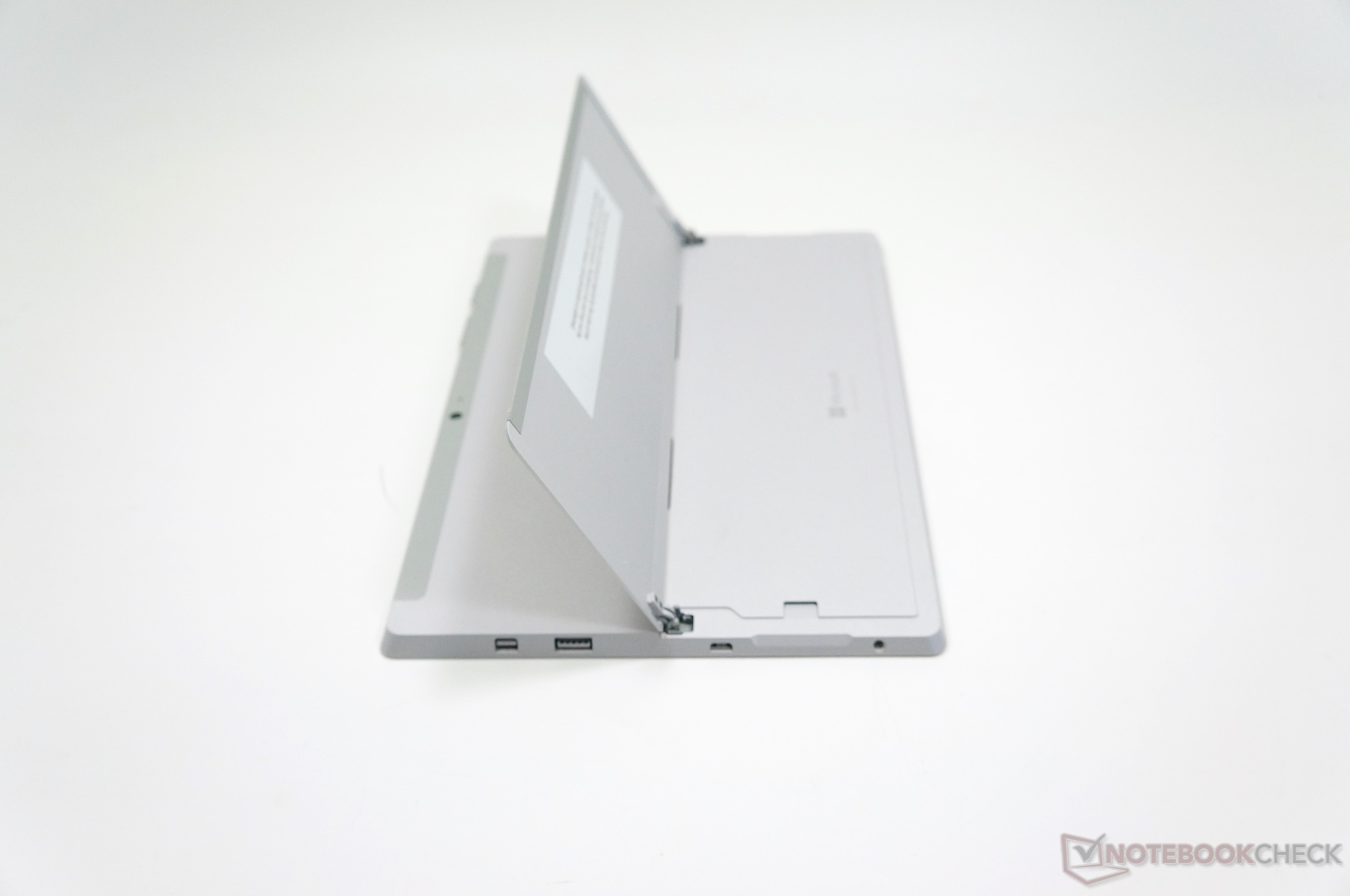

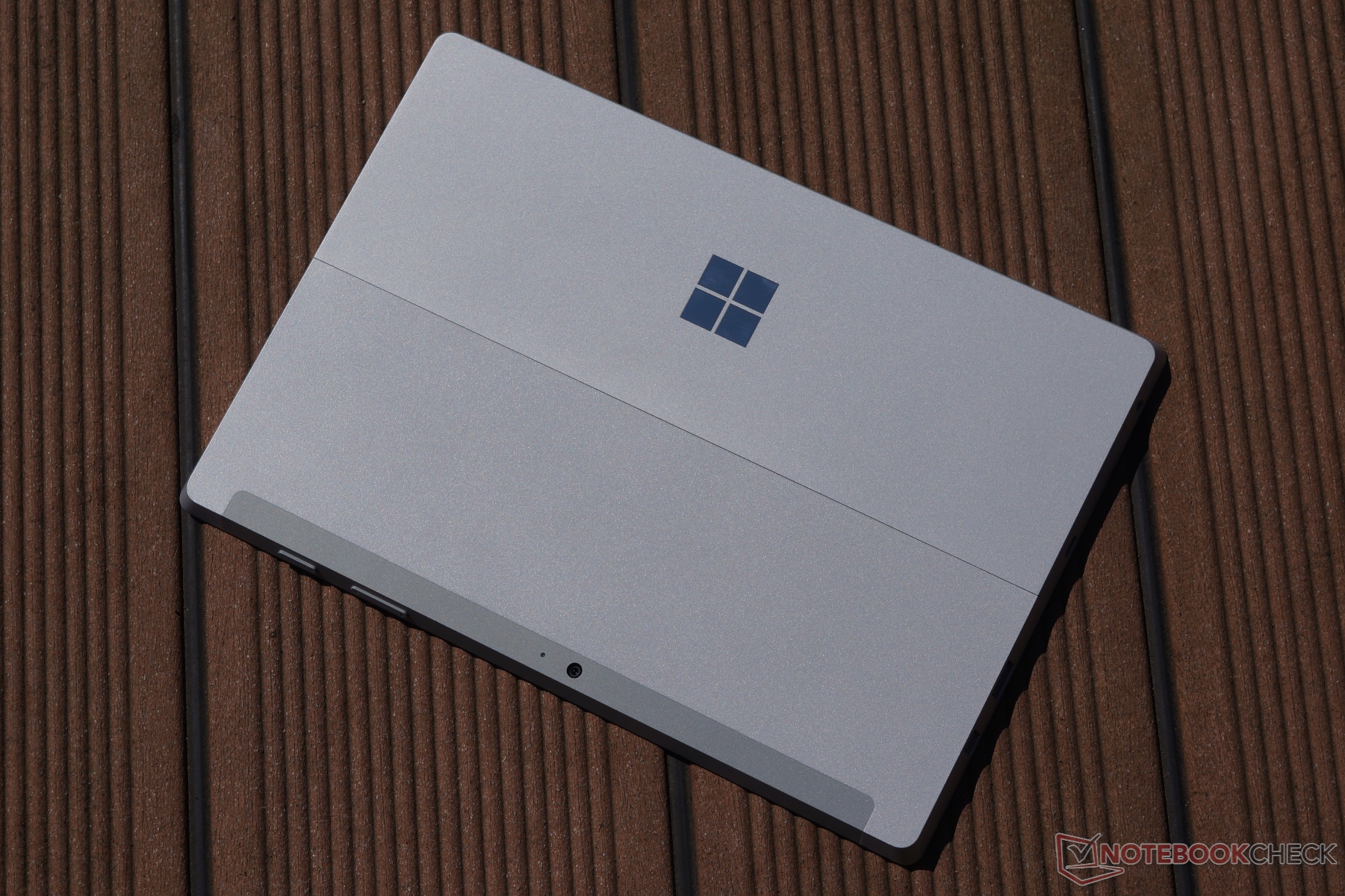

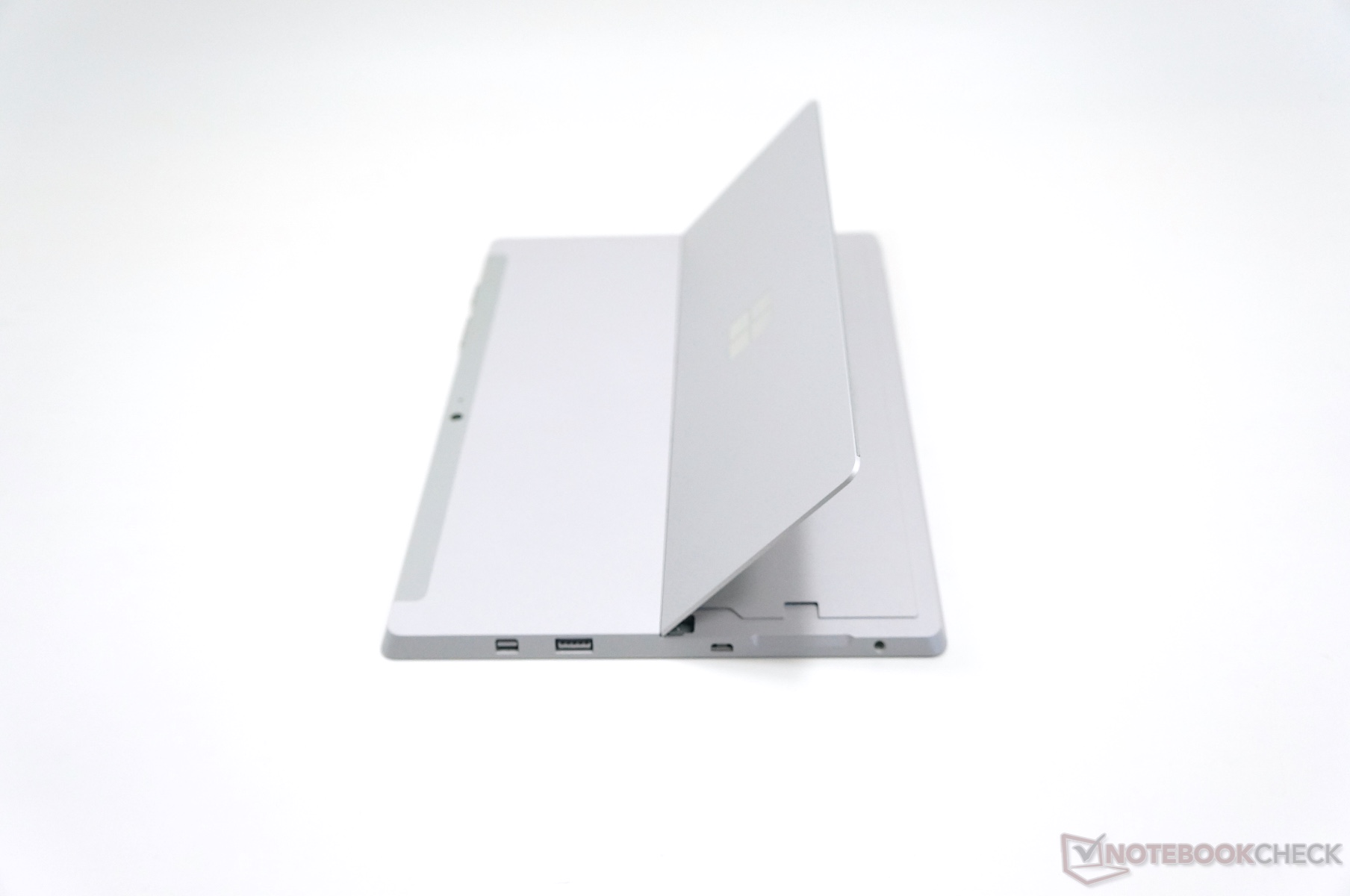

The stand mechanism at the back now supports three positions, so the adjustability of the Surface 3 to certain situations or preferences is better than before. However, the solution still has the same issues on soft and uneven surfaces, respectively. We also want to mention that Microsoft does not want the user to upgrade or maintain the device. If the device is defective, you will get a new device in return for your credit card information according to Microsoft, after that you have to return the defective device. If that is not the case, Microsoft will charge your credit card. This solution does at least reduce the time where you cannot use the device.

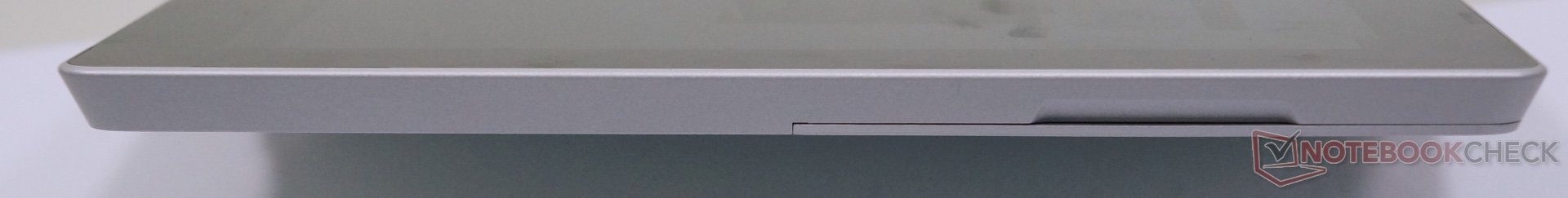

Left side: no ports
Left side: no ports

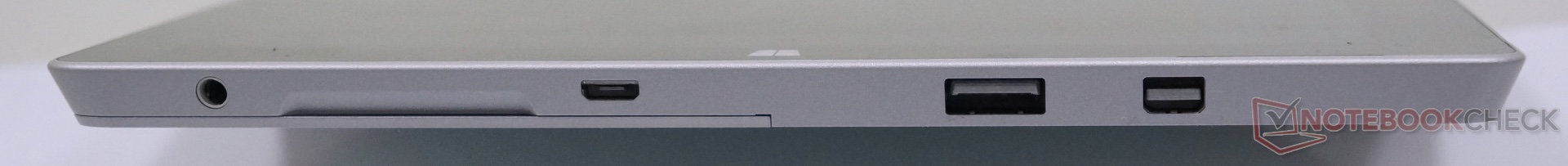

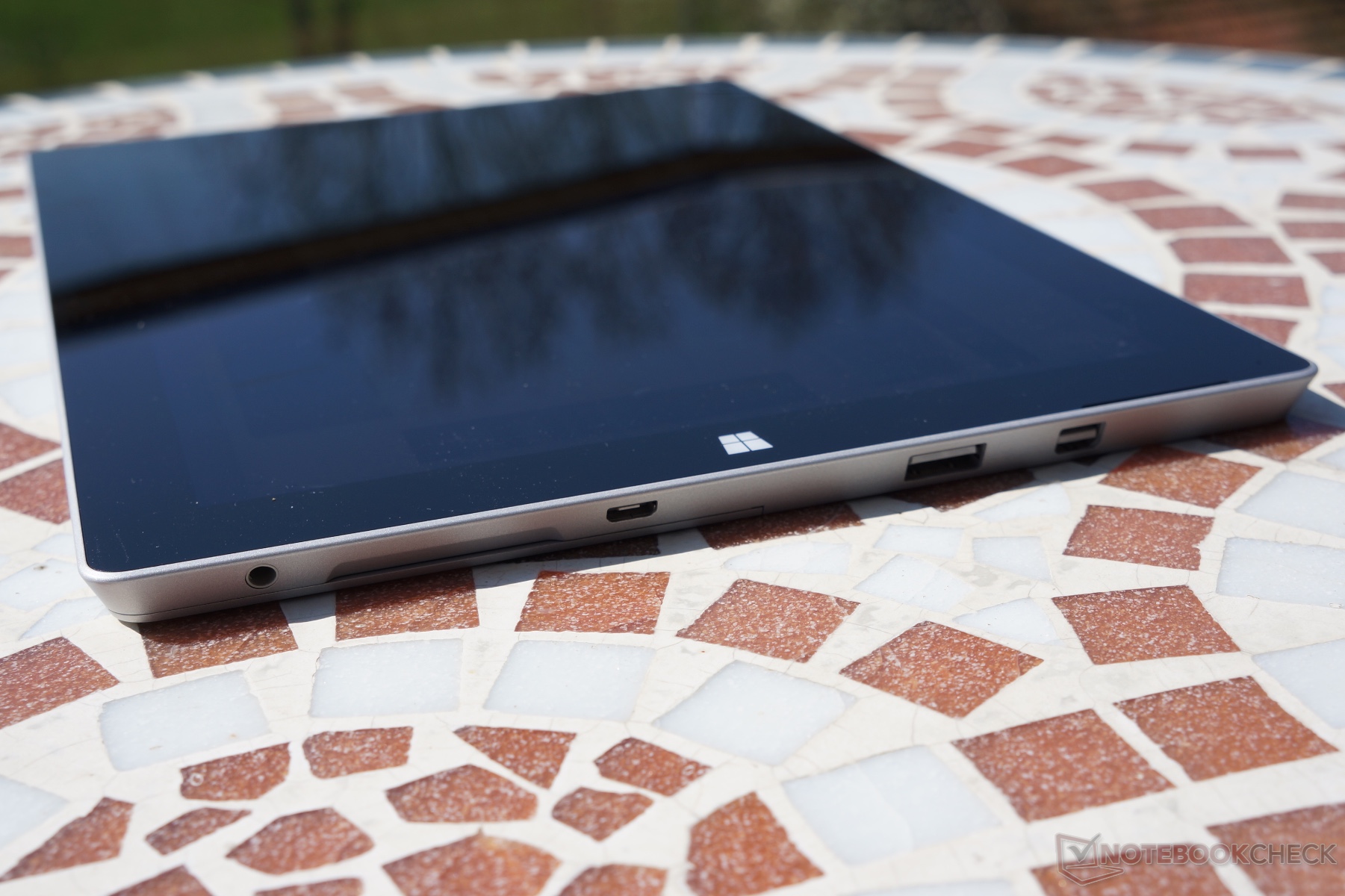

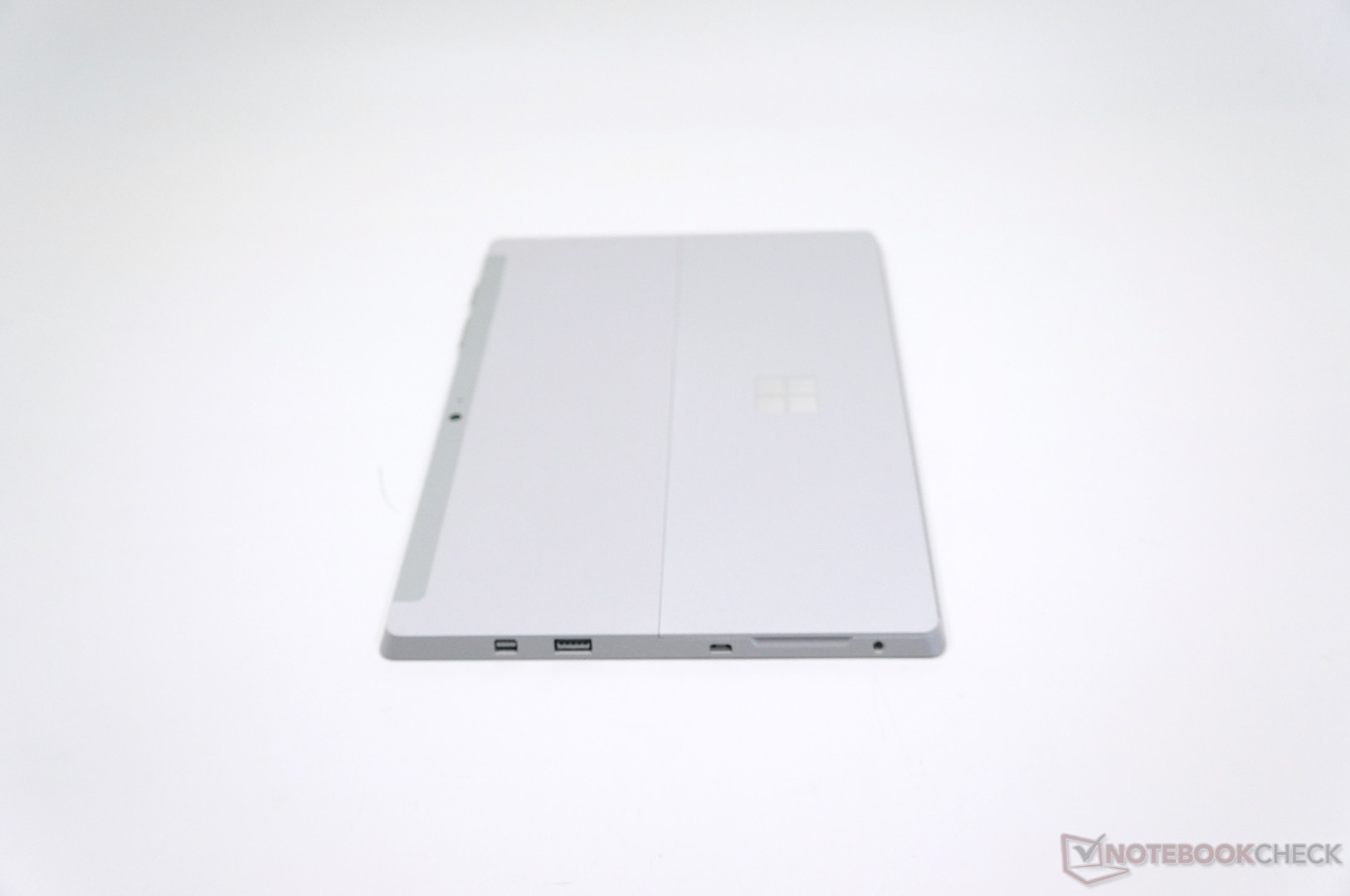

Right side: DisplayPort, USB 3.0, Micro USB (also for charging), headset
Right side: DisplayPort, USB 3.0, Micro USB (also for charging), headset

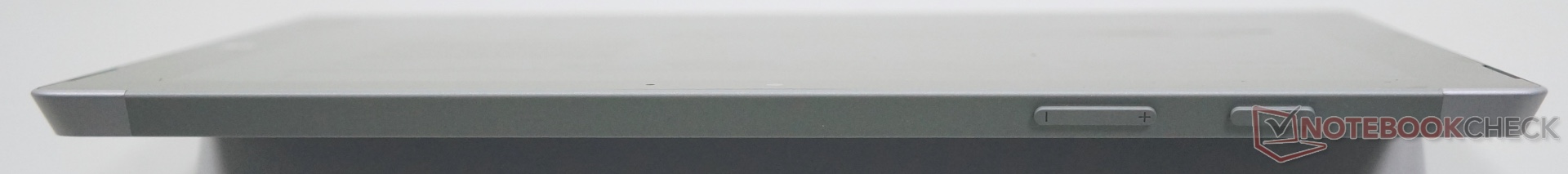

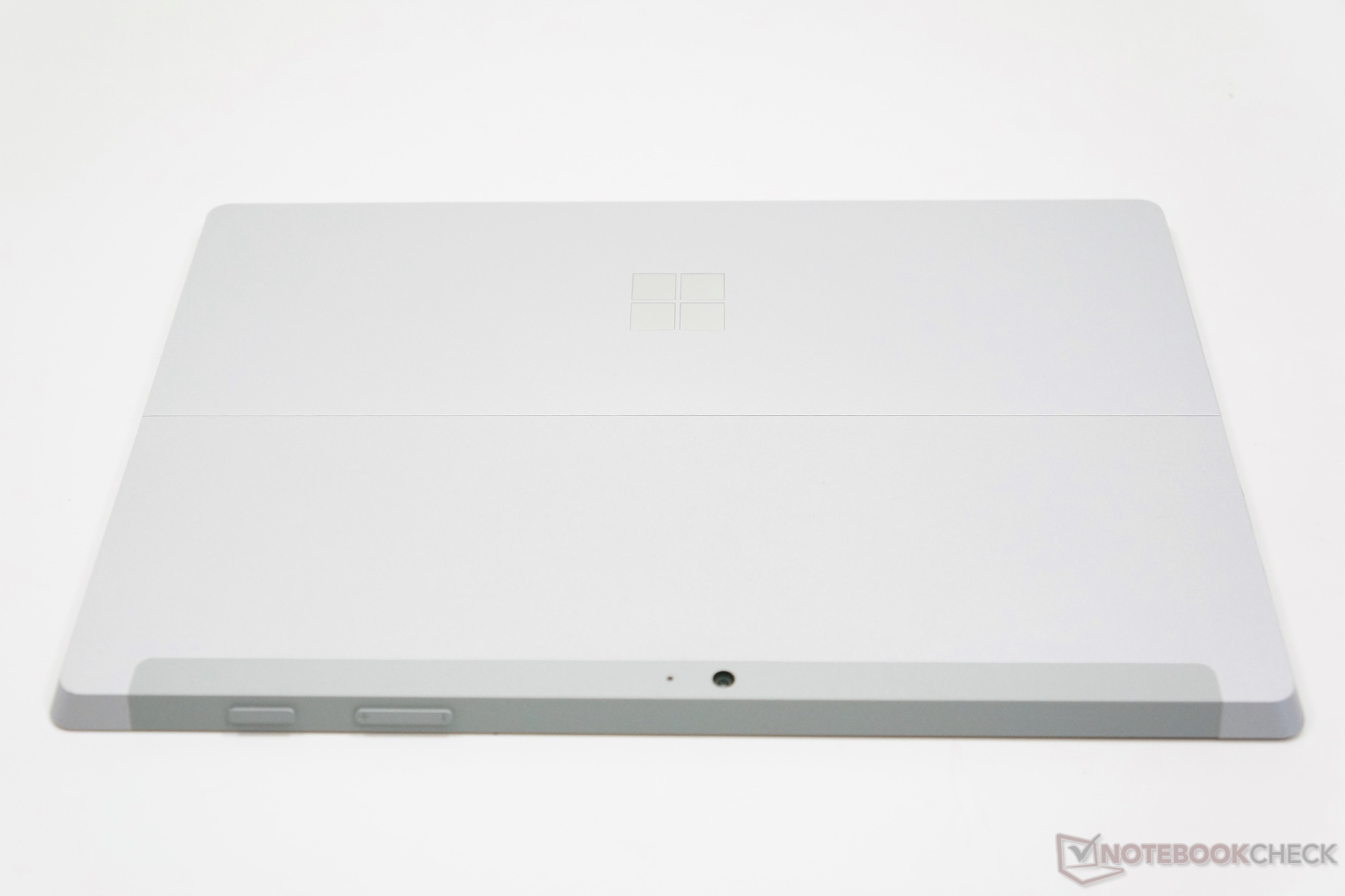

Top: power button, volume control
Top: power button, volume control

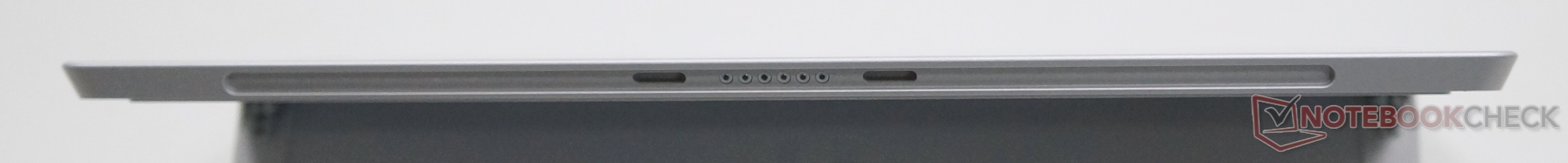

Bottom: keyboard dock
Bottom: keyboard dock

Cameras & Multimedia

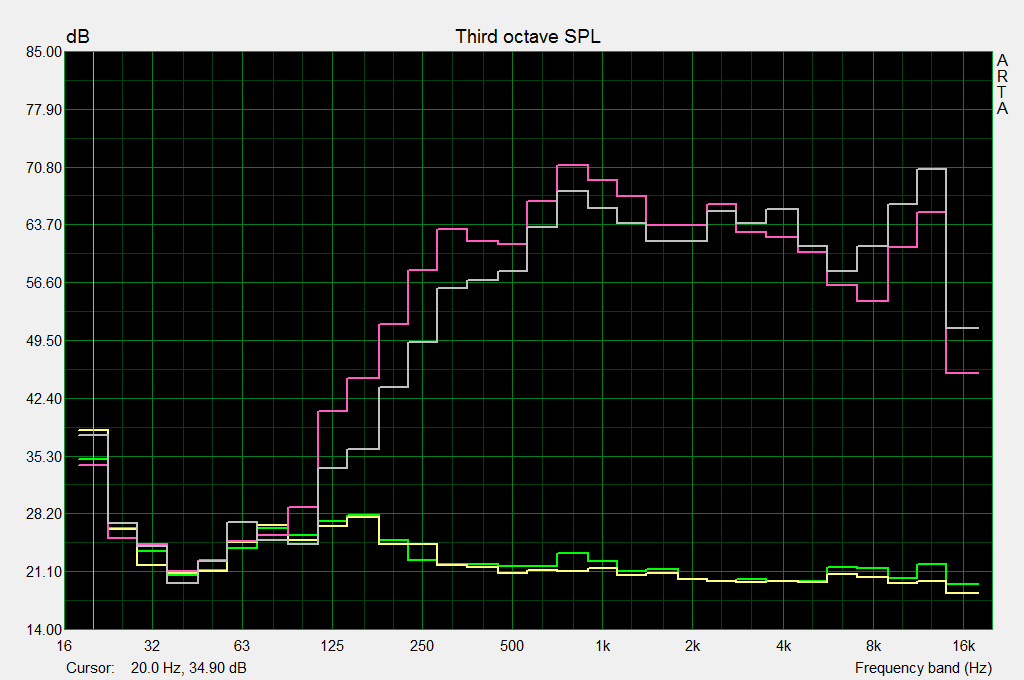

White noise and pink noise with 77db / 40 Sone (Steinberg UR22 + Behringer ECM8000)
White noise and pink noise with 77db / 40 Sone (Steinberg UR22 + Behringer ECM8000)
5.1 HiFi-system in comparison
5.1 HiFi-system in comparison

Our first sound check shows that the sound quality of the Surface 3 is good for a tablet and the maximum volume is sufficient (was improved compared to the Surface Pro 3 according to Microsoft) for a small room. You will, however, also notice the weak bass with some music titles and some echoes during music playback.

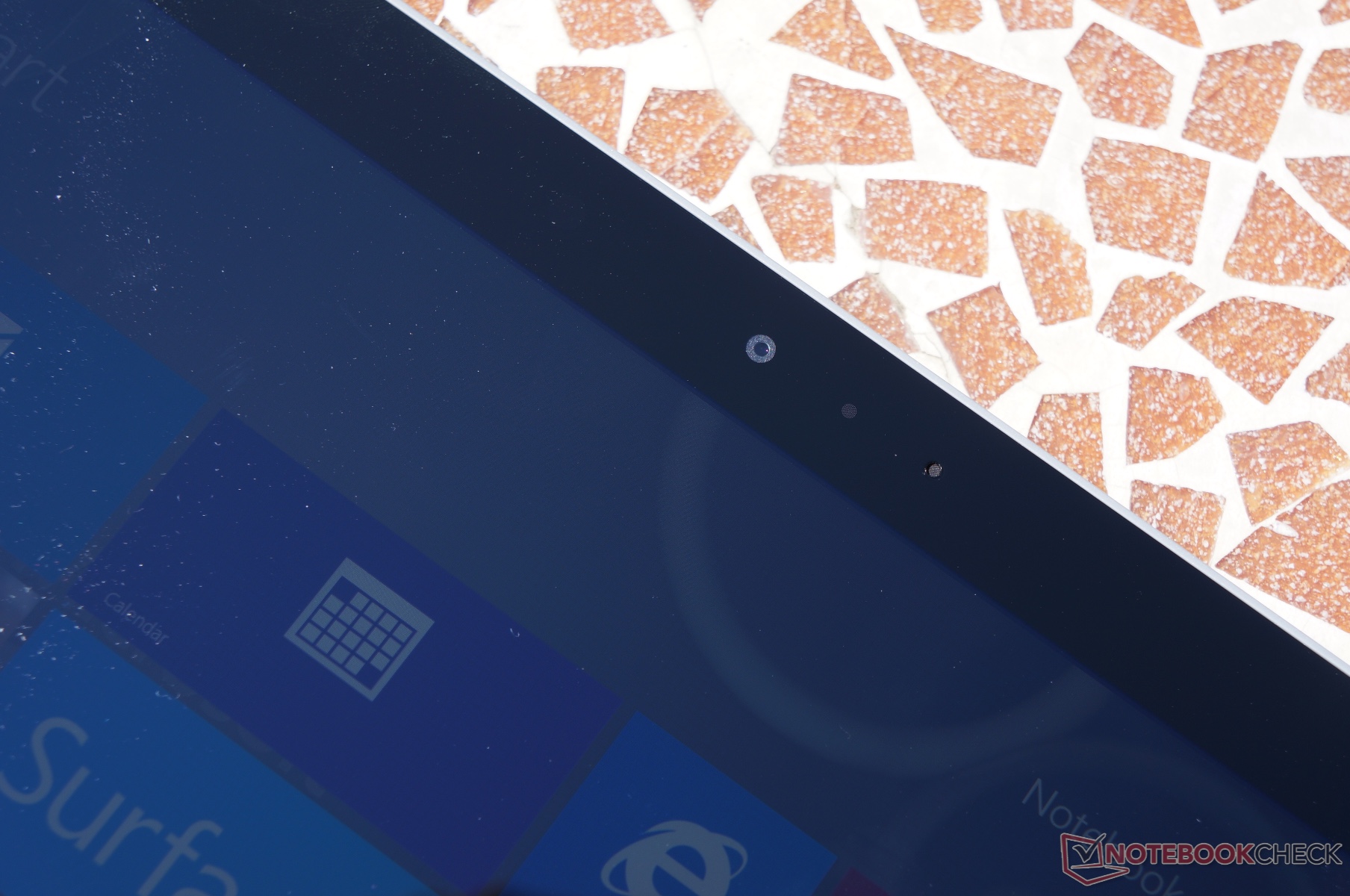

The integrated camera module puts up a decent performance as well. The rear camera can actually be used for occasional snapshots, while the webcam is sufficient for simple video conferences. We can see problems in low-light situations, which will result in significant picture noise.

Webcam indoors
Webcam indoors
Webcam indoors
Webcam indoors
Rear camera indoors
Rear camera indoors
Rear camera indoors
Rear camera indoors
Rear camera outdoors
Rear camera outdoors
Rear camera indoors low-light
Rear camera indoors low-light

Display

The Surface 3 has a touchscreen in the unusual 3:2 aspect ratio with a resolution of 1920x1280 pixels. The glossy surface does ensure a good handling of the touchscreen, but it will result in inconvenient reflections when you use the device outdoors or when the lighting situation is unfavorable. The very high luminance of up to 400 cd/m² helps to reduce reflections indoors. The brightness distribution of the small screen is great and we can hardly see any screen bleeding of the LED backlight illumination, even in dark environments.

The minimum brightness with a white background is very low at 4.7 cd/m², so the tablet should also be well suited for reading in the dark.

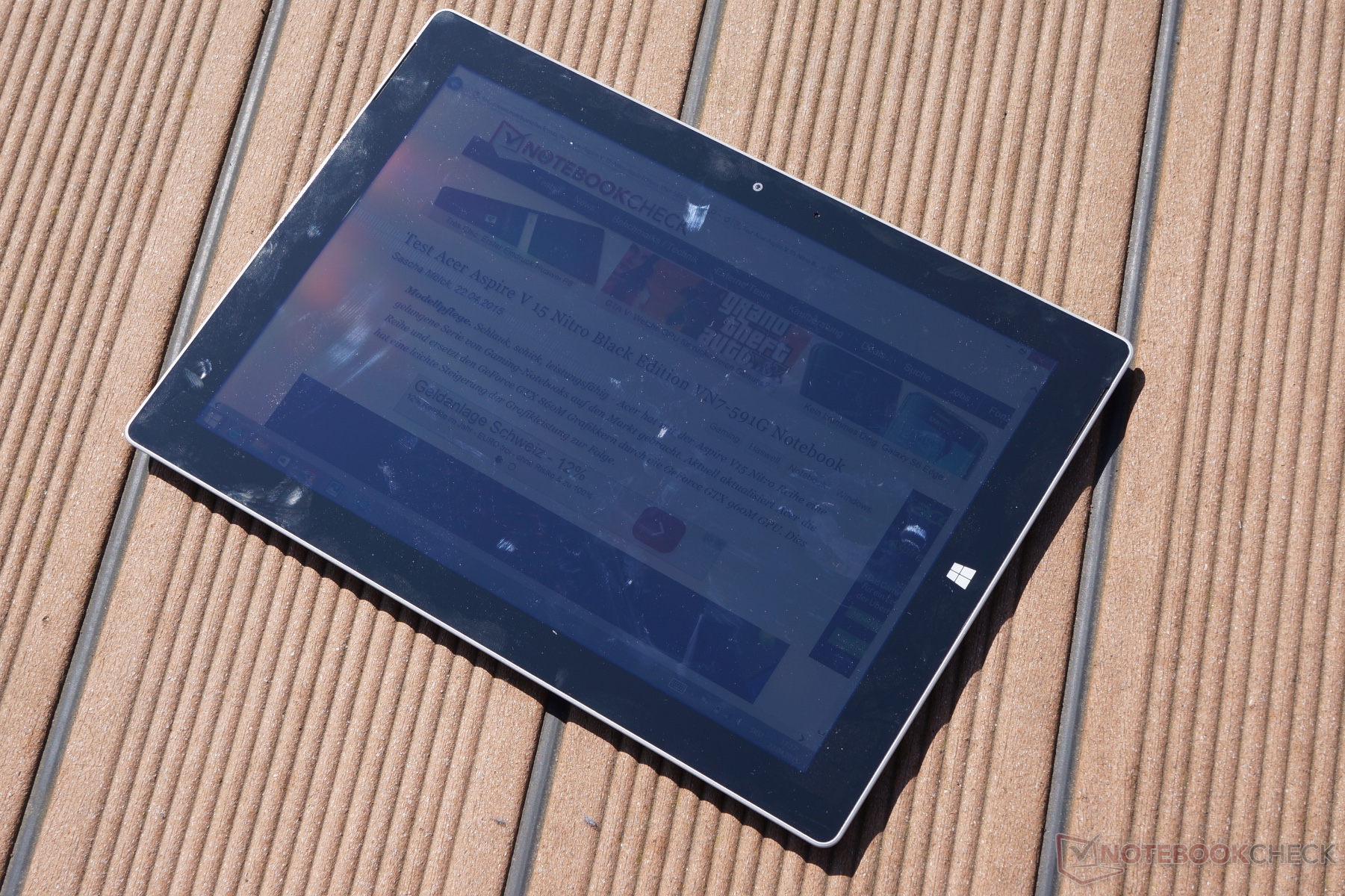

Thanks to the good brightness, the Surface 3 can compensate for some reflections but not prevent them completely.
Thanks to the good brightness, the Surface 3 can compensate for some reflections but not prevent them completely.

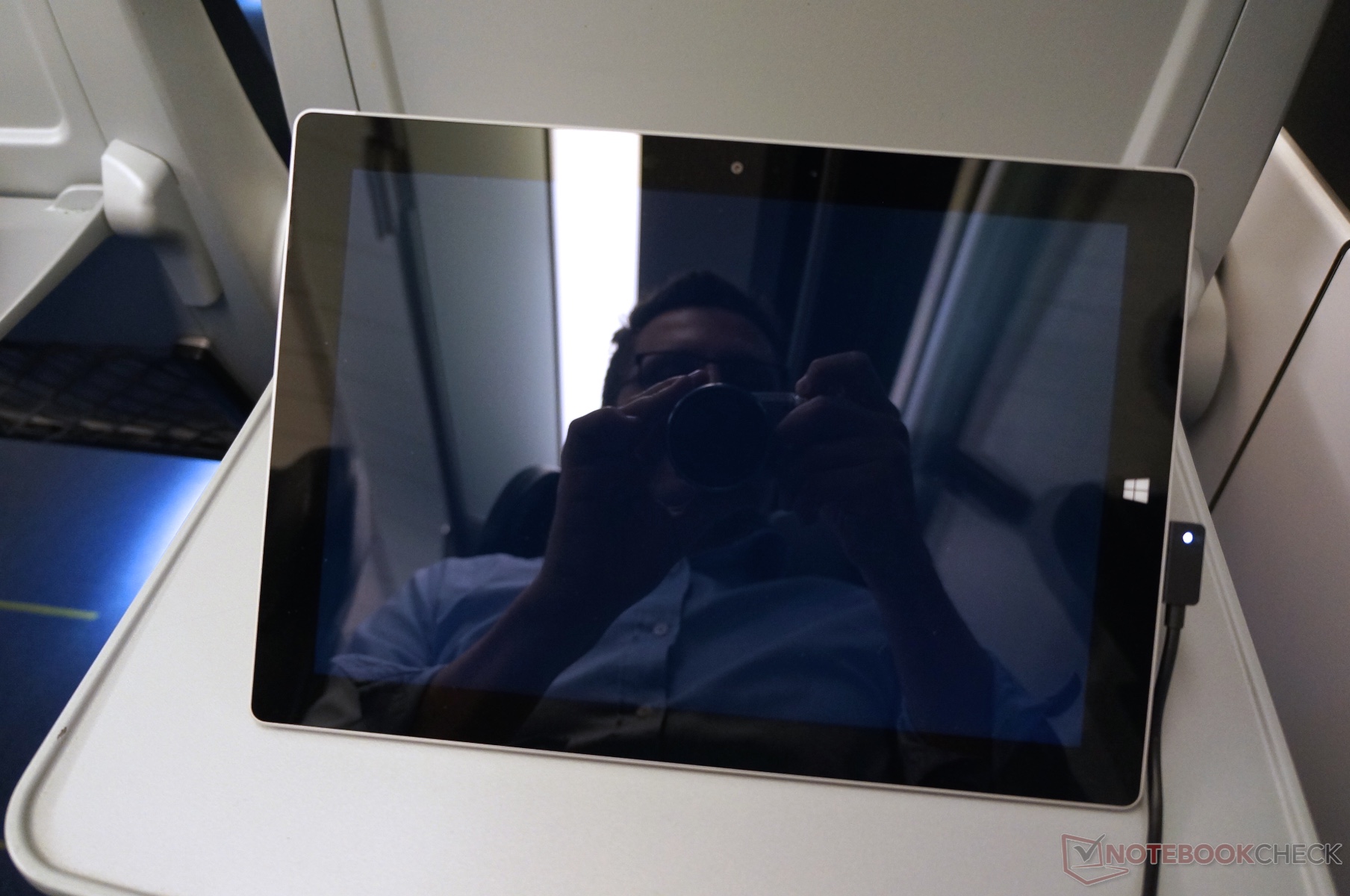

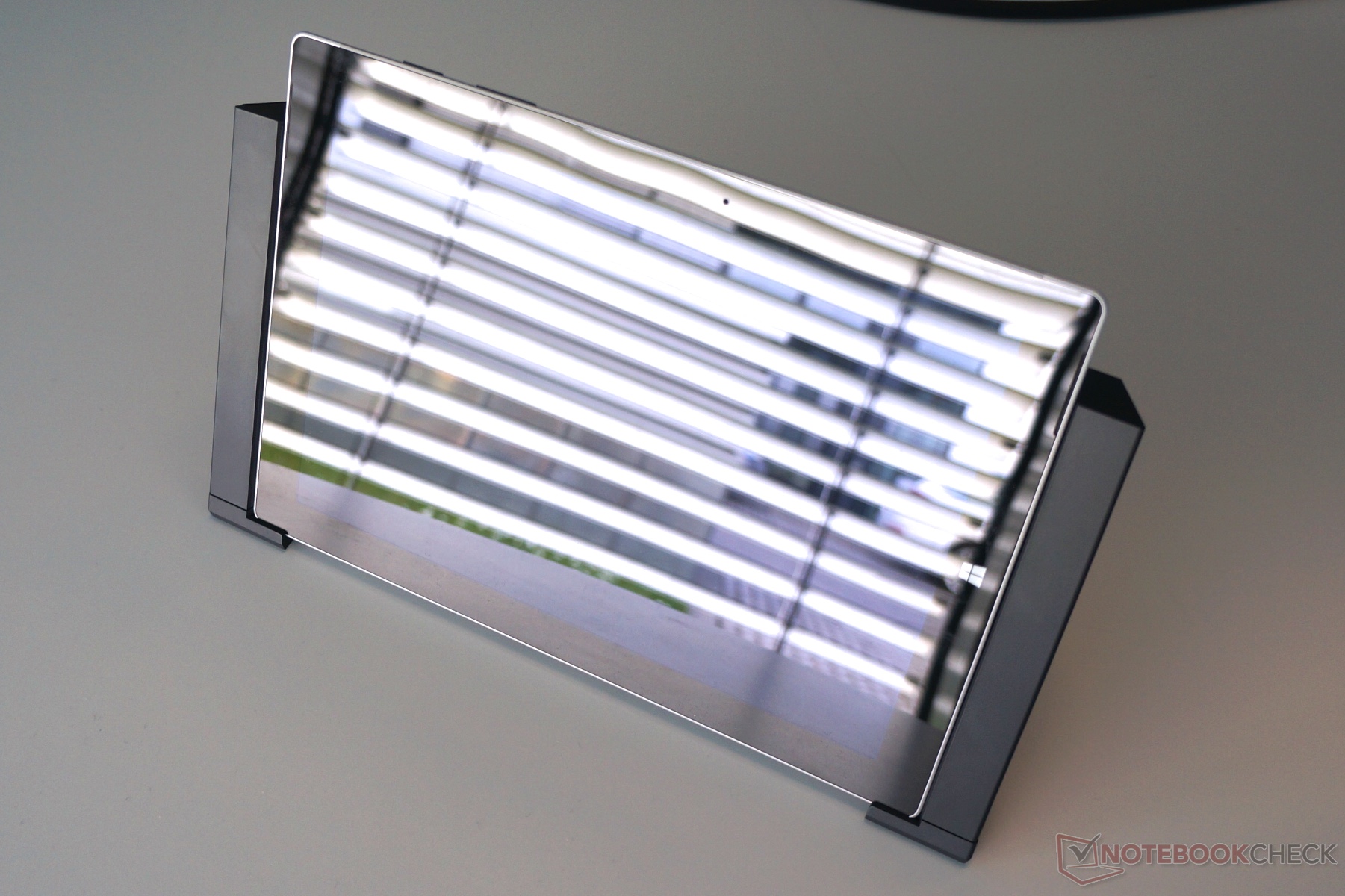

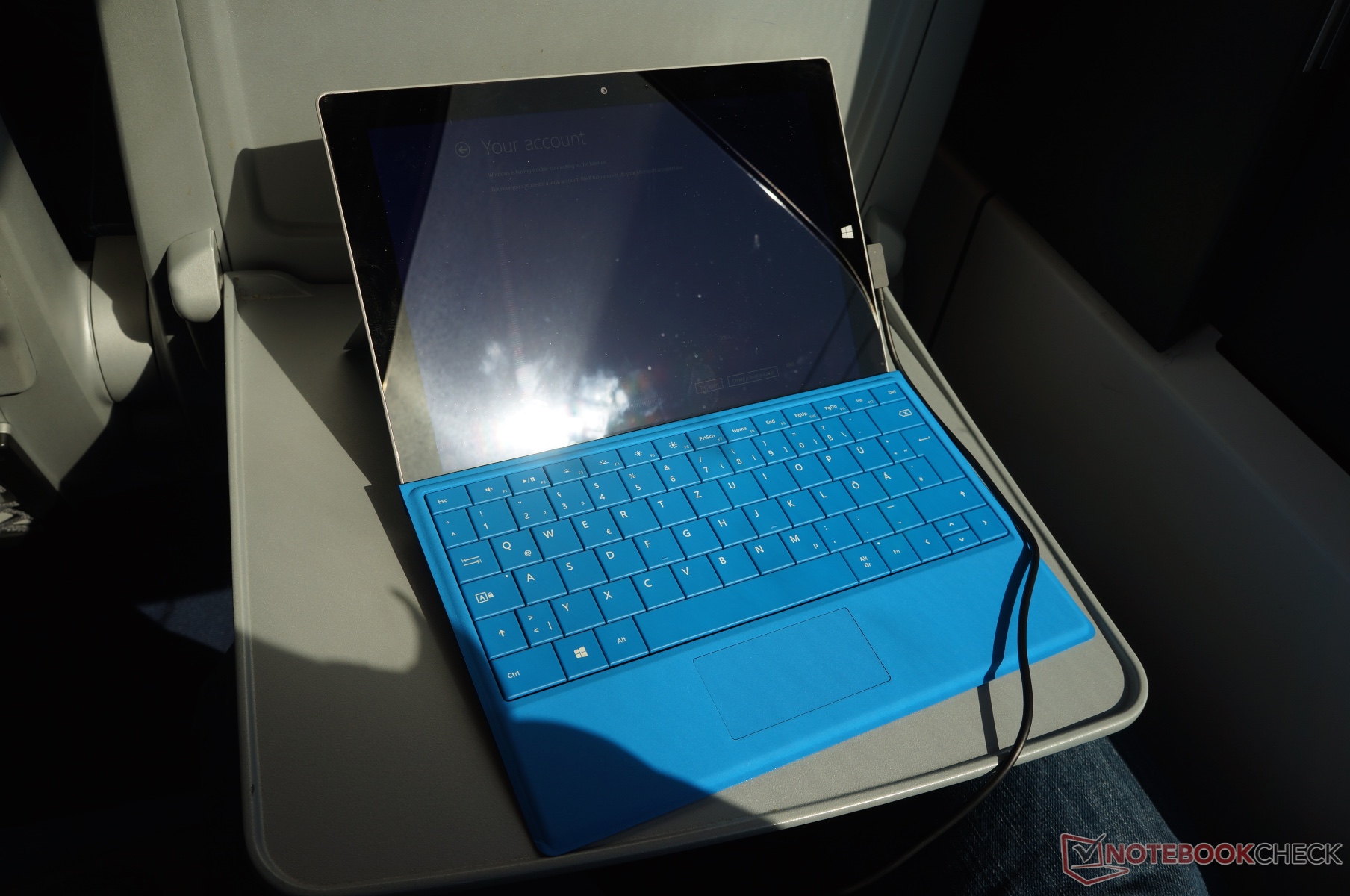

The maximum brightness is sufficient to see details without a direct light source.
The maximum brightness is sufficient to see details without a direct light source.
366
cd/m²
404
cd/m²
390
cd/m²
373
cd/m²
399
cd/m²
373
cd/m²
363
cd/m²
374
cd/m²
374
cd/m²
Distribution of brightness
Panasonic MEI9001 tested with X-Rite i1Pro 2
Maximum: 404 cd/m² (Nits) Average: 379.6 cd/m²
Brightness Distribution: 90 %
Center on Battery: 399 cd/m²
Contrast: 814:1 (Black: 0.49 cd/m²)
ΔE Color 1.66 | 0.5-29.43 Ø5
ΔE Greyscale 2.75 | 0.57-98 Ø5.3
98.8% sRGB (Argyll 1.6.3 3D)
64.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.7% sRGB (Argyll 2.2.0 3D)
68.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Microsoft Surface 2
GeForce Tegra 4, 4, 32 GB eMMC Flash
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
Screen
-36%
-22%
-5%
Brightness middle
399
355.3
-11%
357
-11%
423
6%
Brightness
380
338
-11%
369
-3%
427
12%
Brightness Distribution
90
91
1%
89
-1%
92
2%
Black Level *
0.49
0.33
33%
0.51
-4%
0.61
-24%
Contrast
814
1077
32%
700
-14%
693
-15%
Colorchecker dE 2000 *
1.66
4.72
-184%
3.86
-133%
2.86
-72%
Colorchecker dE 2000 max. *
3.24
Greyscale dE 2000 *
2.75
6.53
-137%
2.4
13%
2.37
14%
Gamma
2.22 99%
2.17 101%
2.46 89%
2.43 91%
CCT
6358 102%
6707 97%
6740 96%
6941 94%
Color Space (Percent of AdobeRGB 1998)
64.4
59.37
-8%
88
37%
Color Space (Percent of sRGB)
98.8

* ... smaller is better

Both the black value (0.49 cd/m²) and the maximum contrast (814:1) are okay, but they are pretty average in the tablet segment. The display uses the pulse width modulation (PWM) to control the brightness, but our measurement tools only notice it in the lowest 2-3 brightness levels. The light sensor was pretty annoying at first because it does not allow manual control when you want a brighter picture, but it can be deactivated in the Windows energy settings.

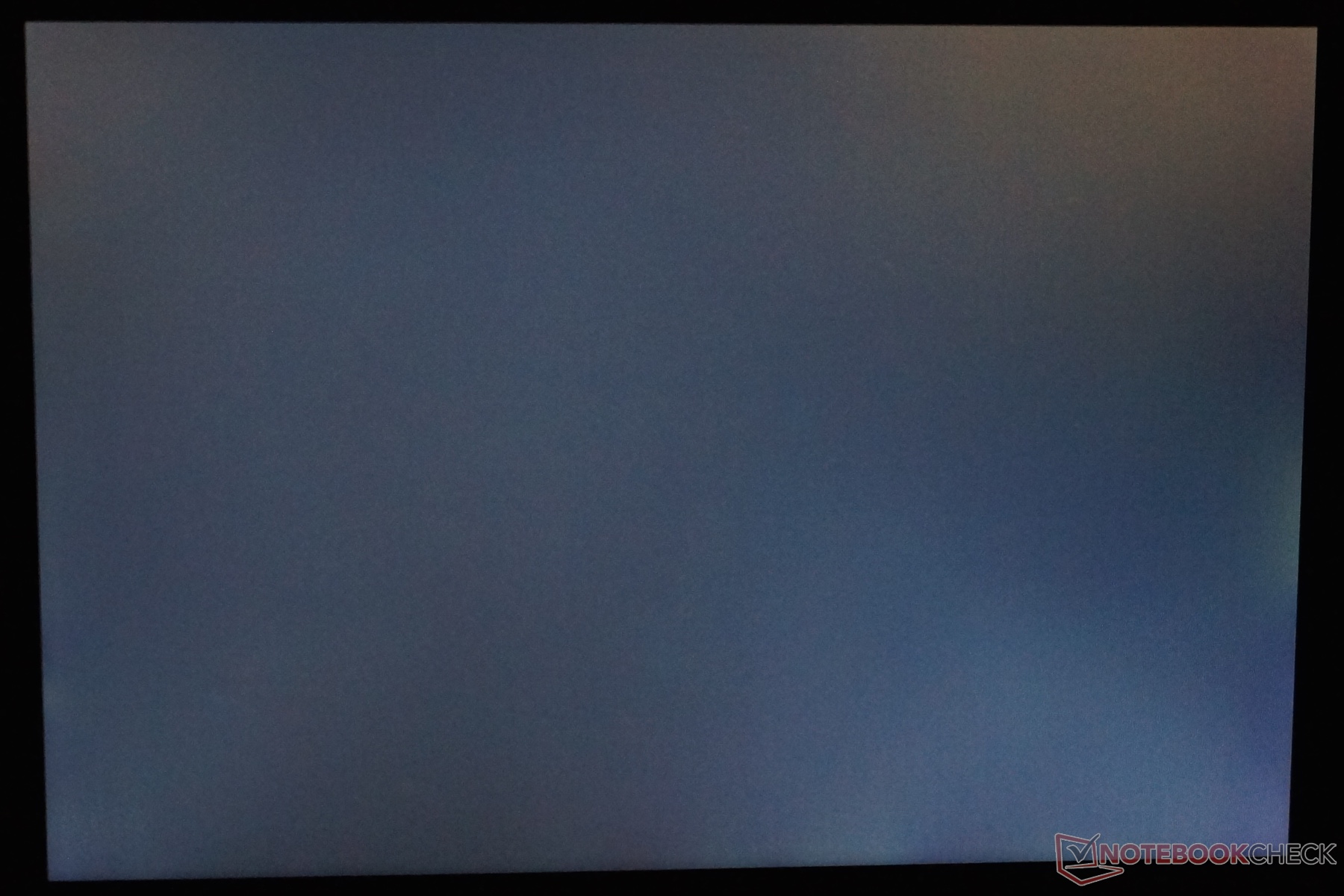

Hardly any backlight bleeding (maximum brightness, black picture, no ambient light)
Hardly any backlight bleeding (maximum brightness, black picture, no ambient light)

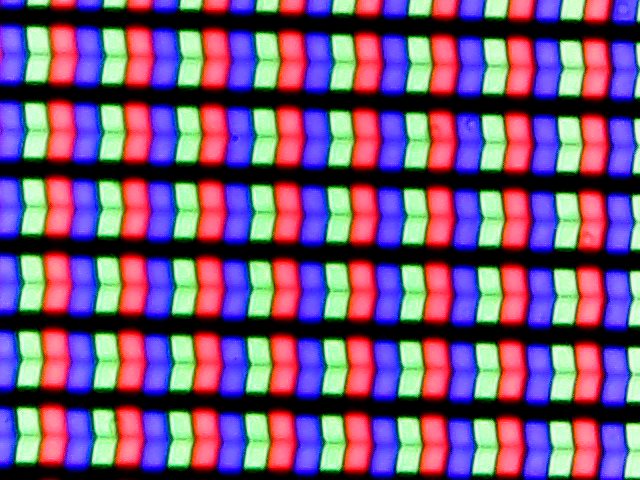

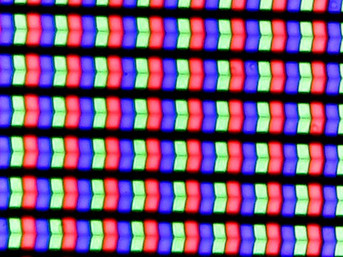

RGB pixel array under the microscope
RGB pixel array under the microscope

A surprise is the analysis of the color accuracy. Compared to the sRGB reference color space, the Surface 3 already shows very small average deviations (DeltaE) of just 1.66 for the ColorChecker and 2.75 for the grayscale ex-works. A calibration can further improve the very good results to 0.86 (ColorChecker) and 1.06 (grayscale). Graphic artists and picture editors should be very happy with these results.

ColorChecker
ColorChecker

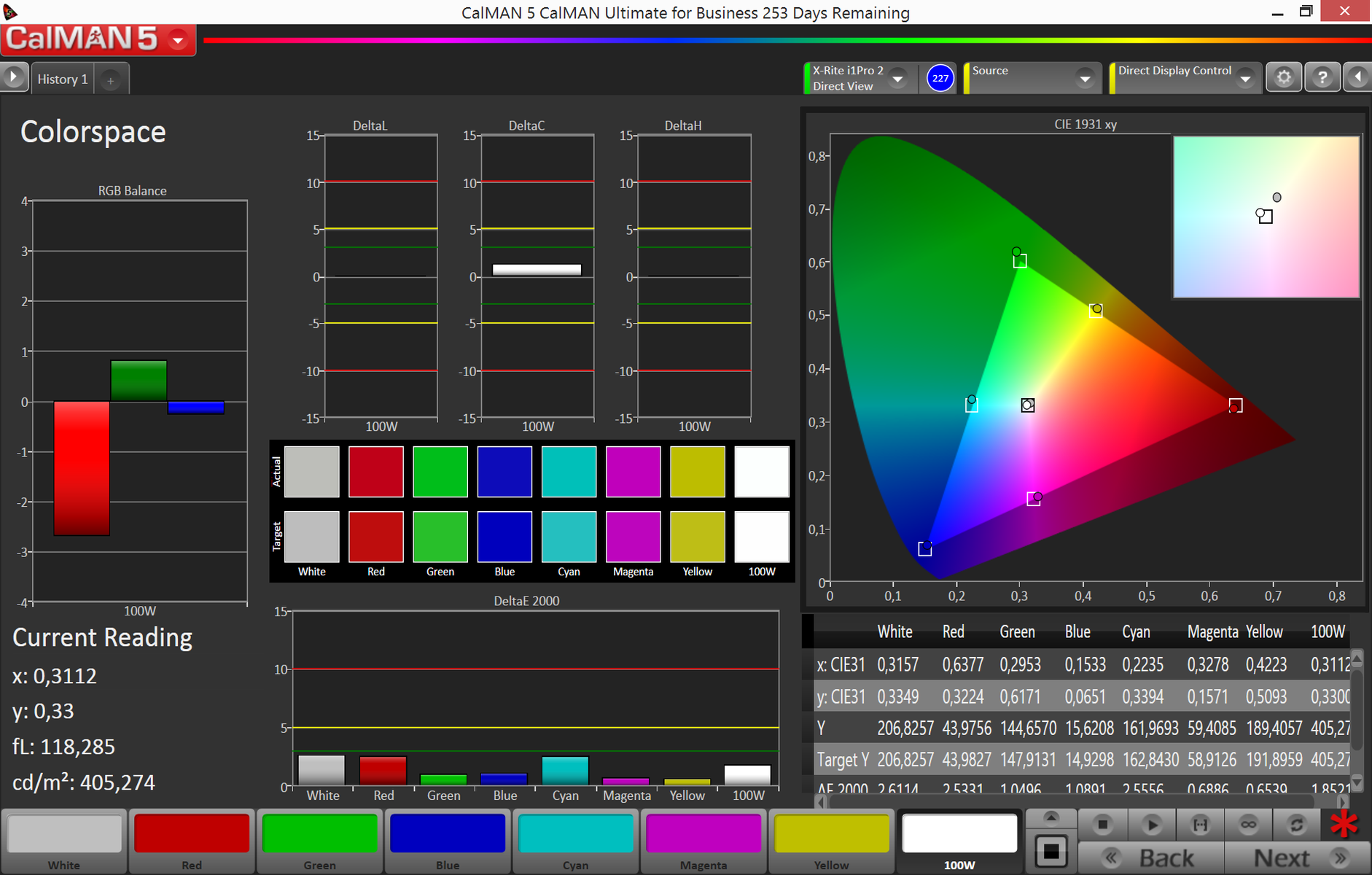

Colorspace
Colorspace

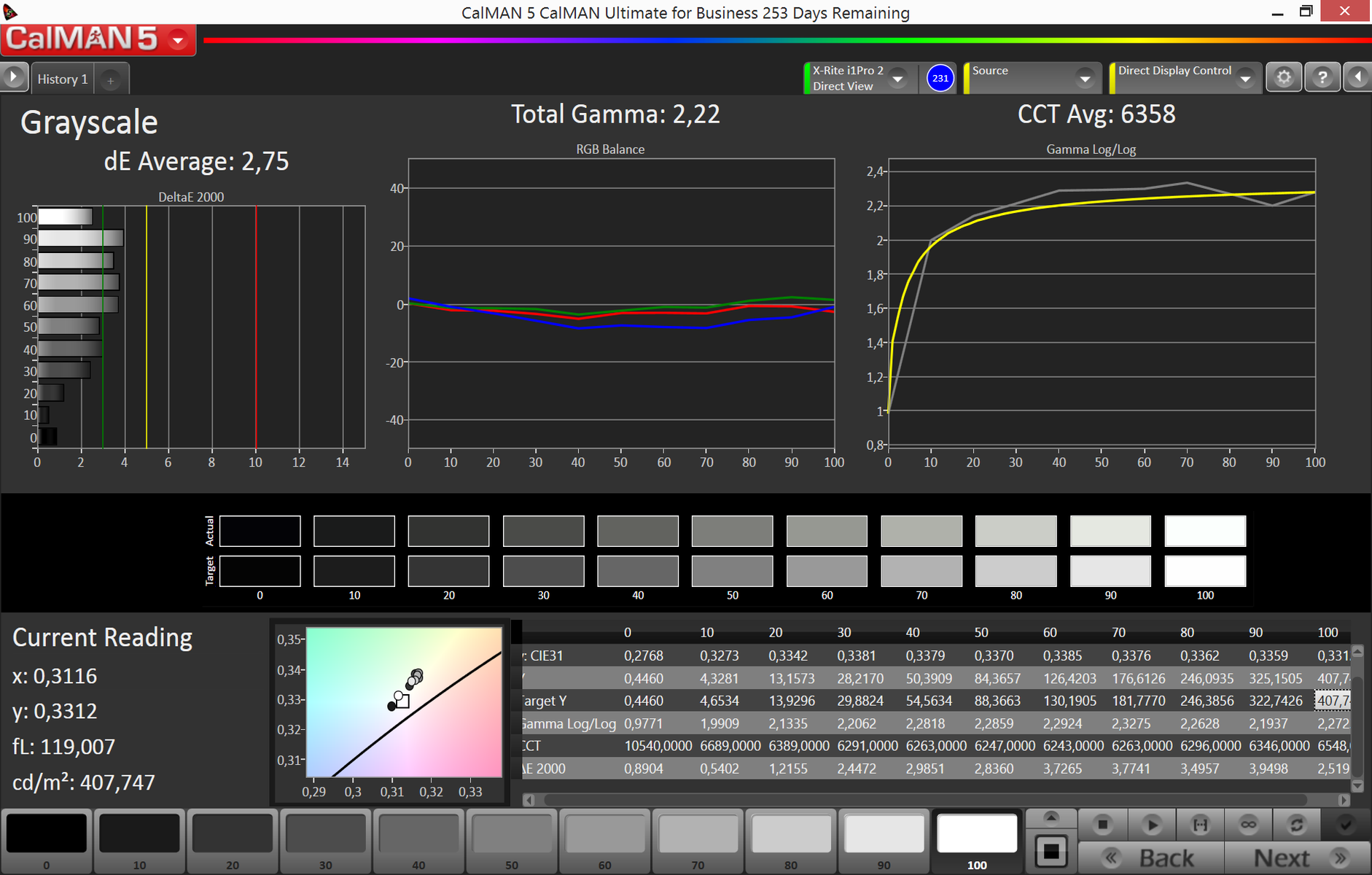

Grayscale
Grayscale
Saturation Sweeps
Saturation Sweeps

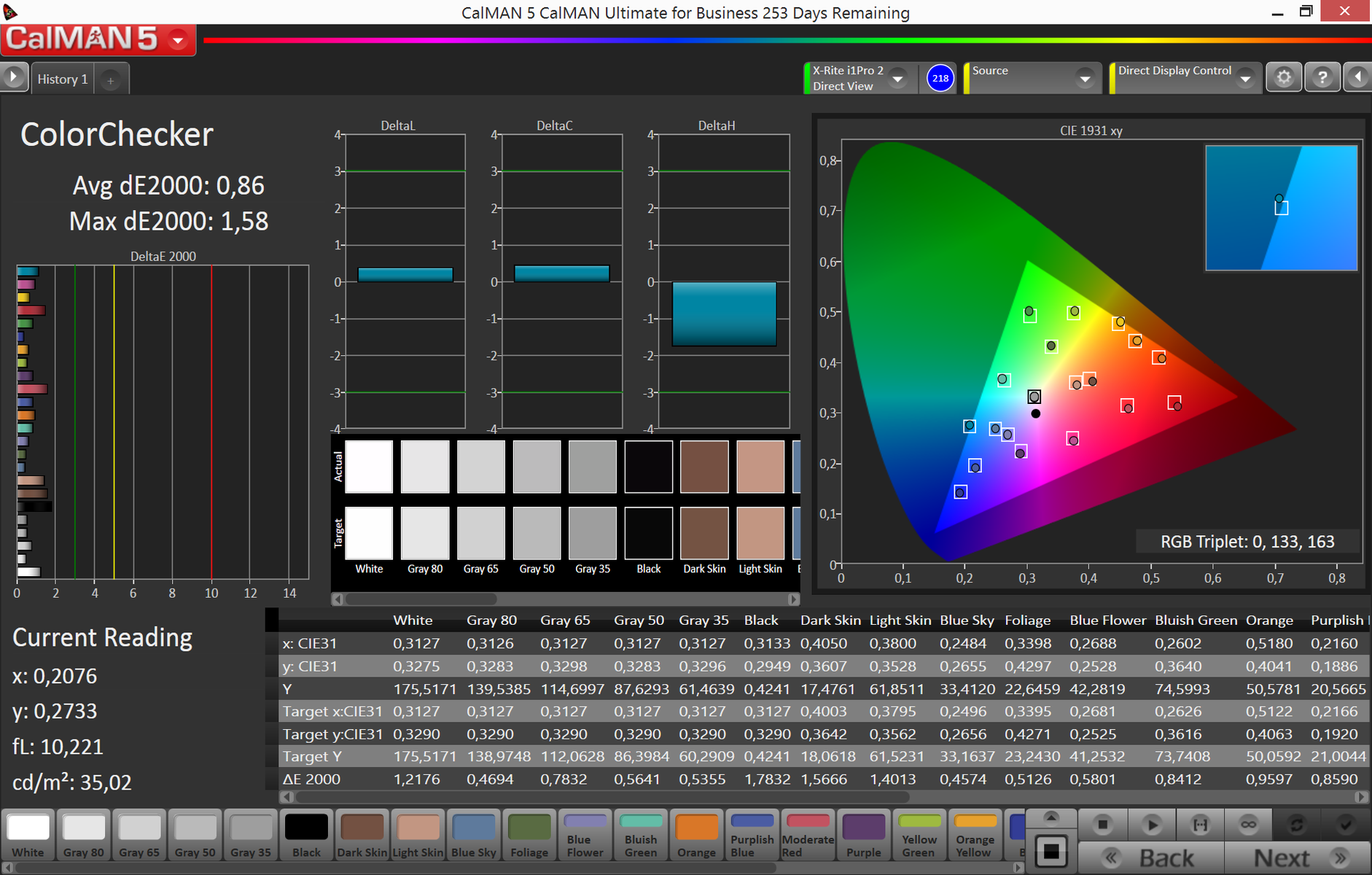

ColorChecker - calibrated
ColorChecker - calibrated

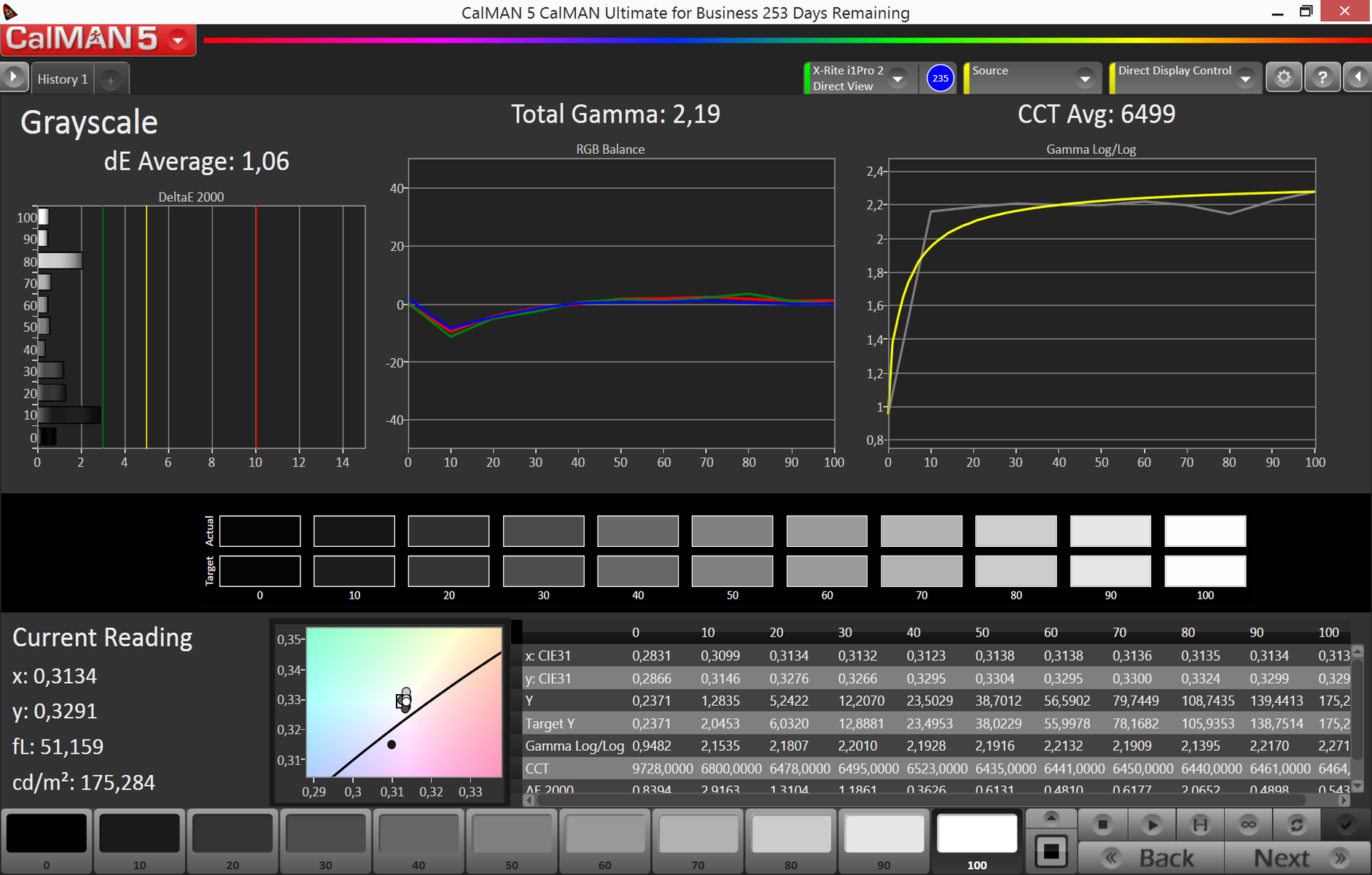

Grayscale - calibrated
Grayscale - calibrated

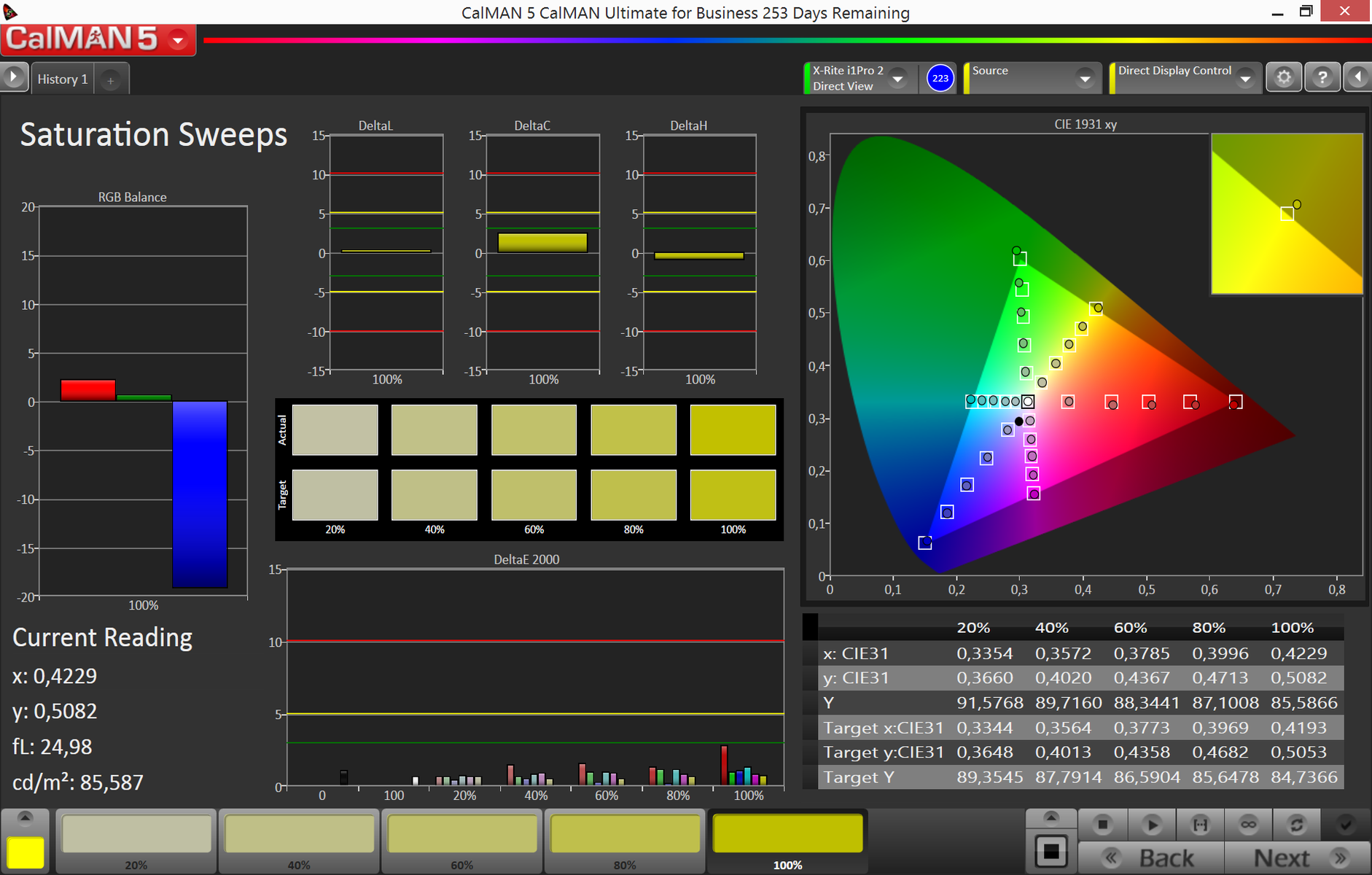

Saturation Sweeps - calibrated
Saturation Sweeps - calibrated

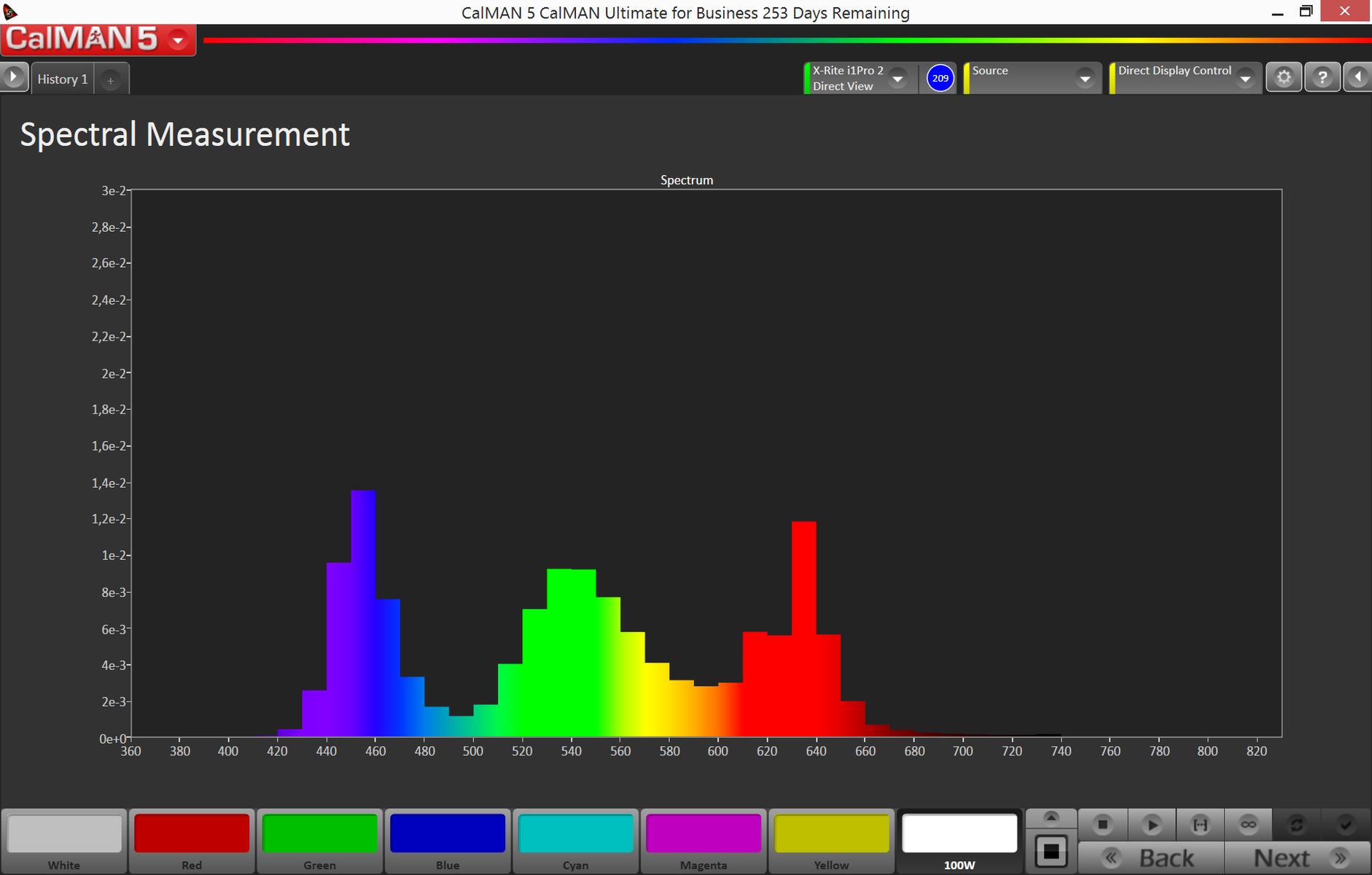

Color spectrum white
Color spectrum white

No suprise after the very good Calman results is the color space test against sRGB and AdobeRGB1998. sRGB is covered by very good 98.8% and AdobeRGB1998 by 64.4%.

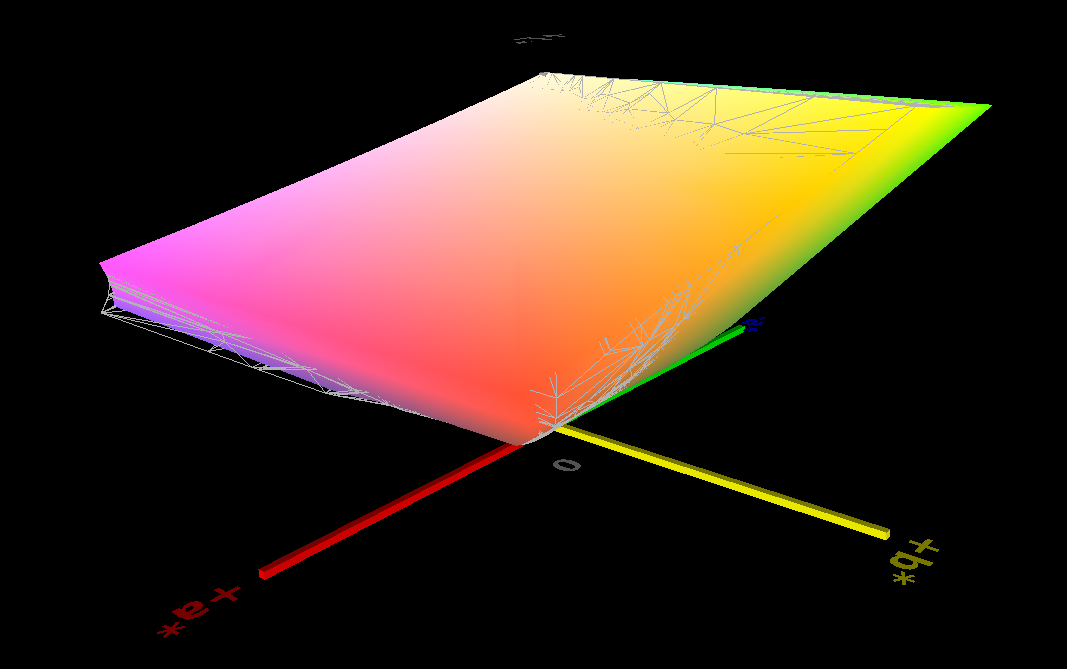

Surface 3 vs sRGB (transparent) - 98,8%
Surface 3 vs sRGB (transparent) - 98,8%

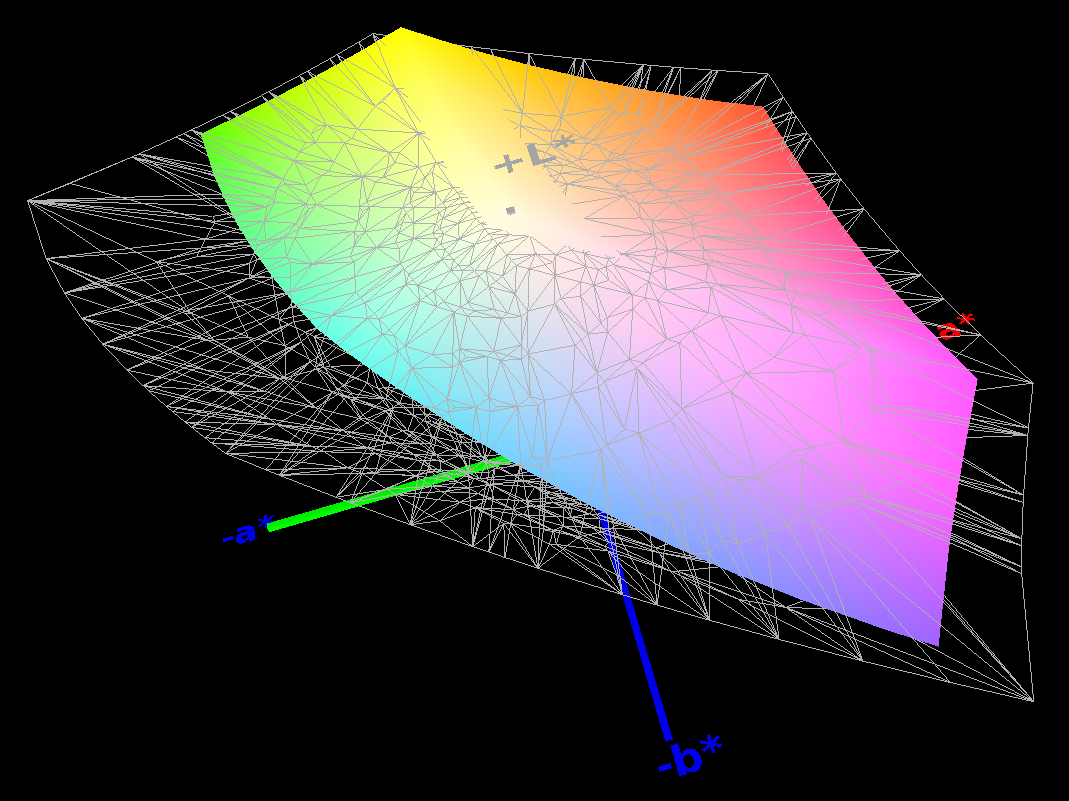

Surface 3 vs AdobeRGB1998 (transparent) - 64,4%
Surface 3 vs AdobeRGB1998 (transparent) - 64,4%

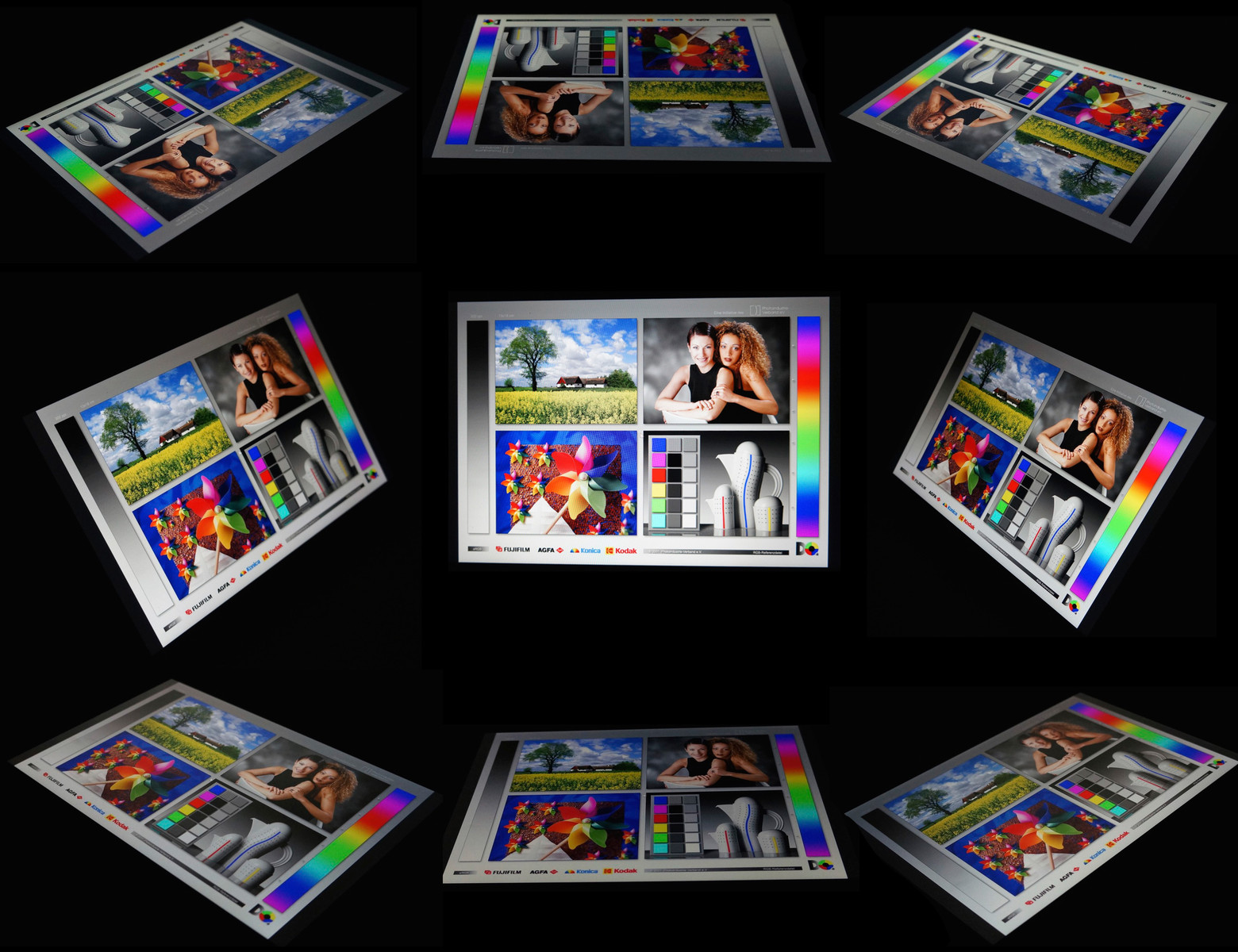

The viewing stability is – as expected for a display based on the IPS technology – very good and is only affected by the annoying reflections with very flat angles in practice.

Performance

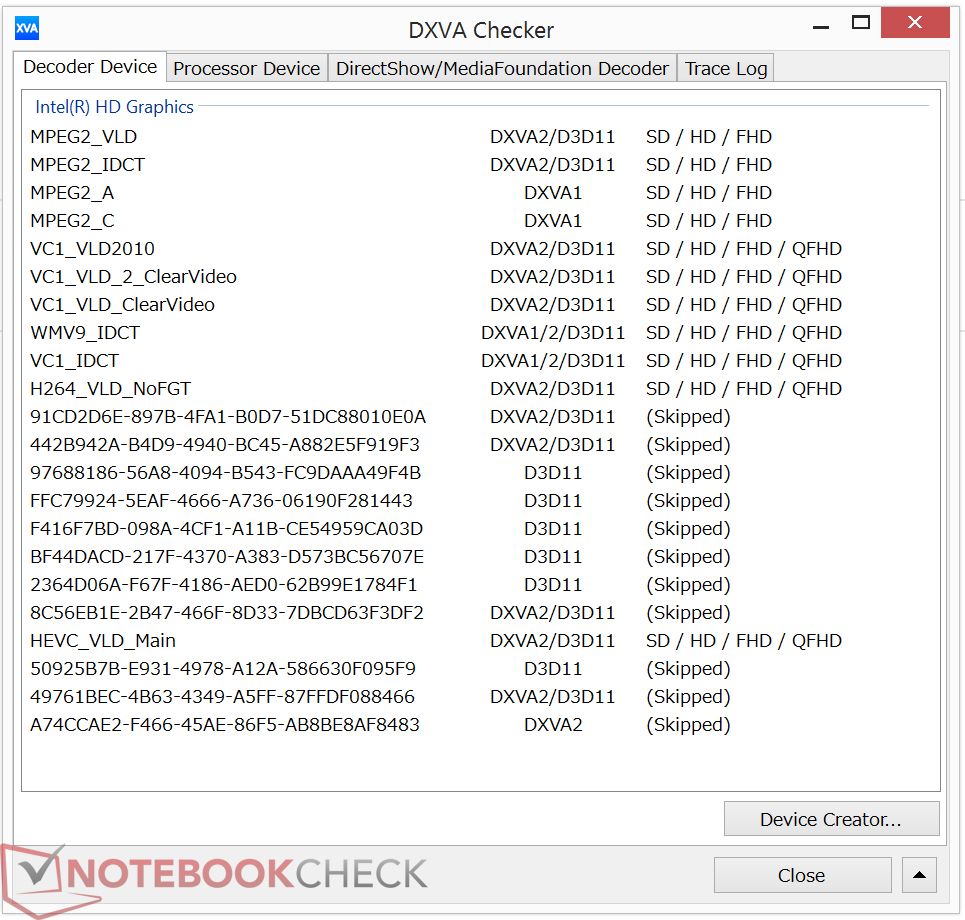

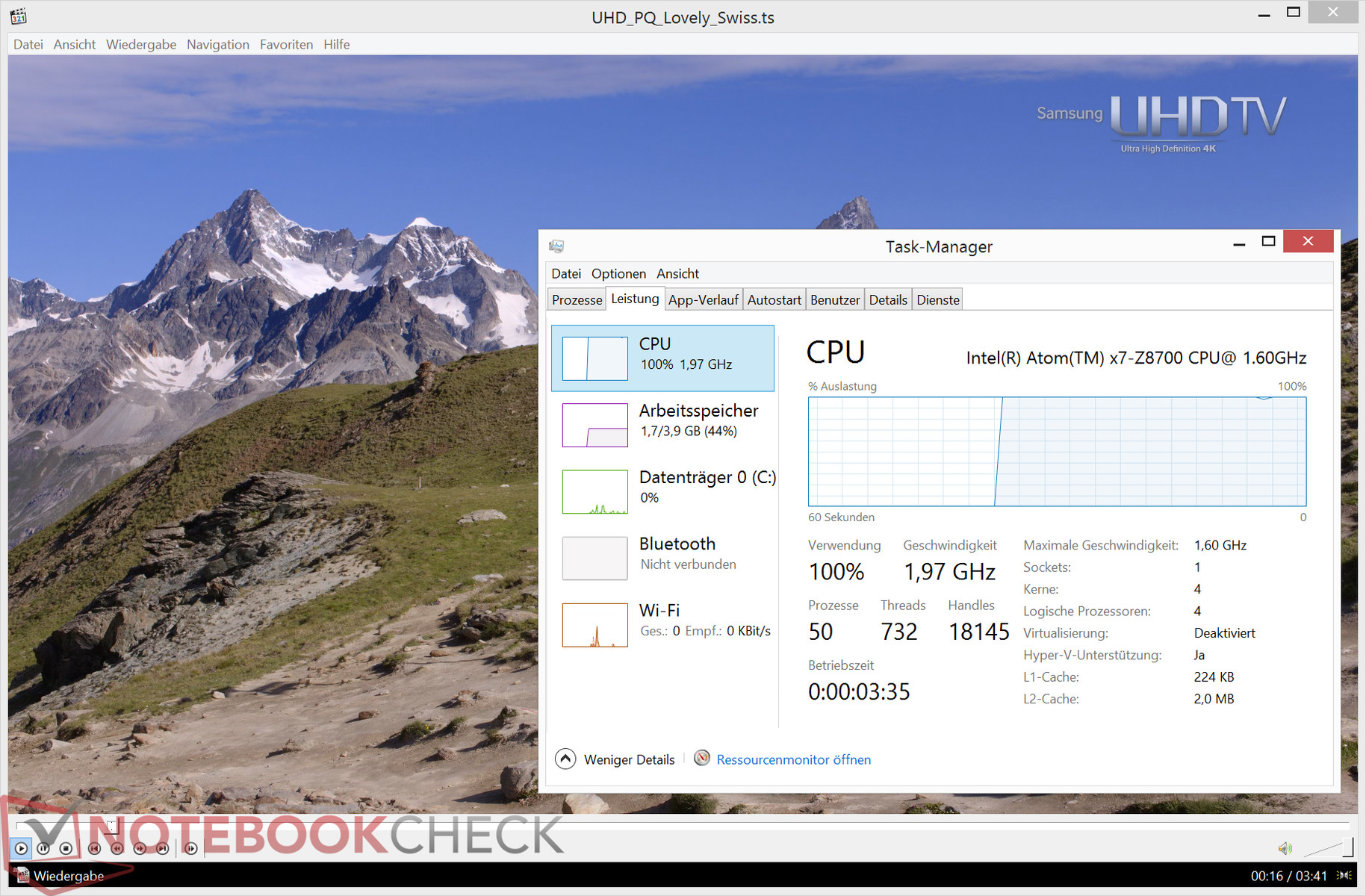

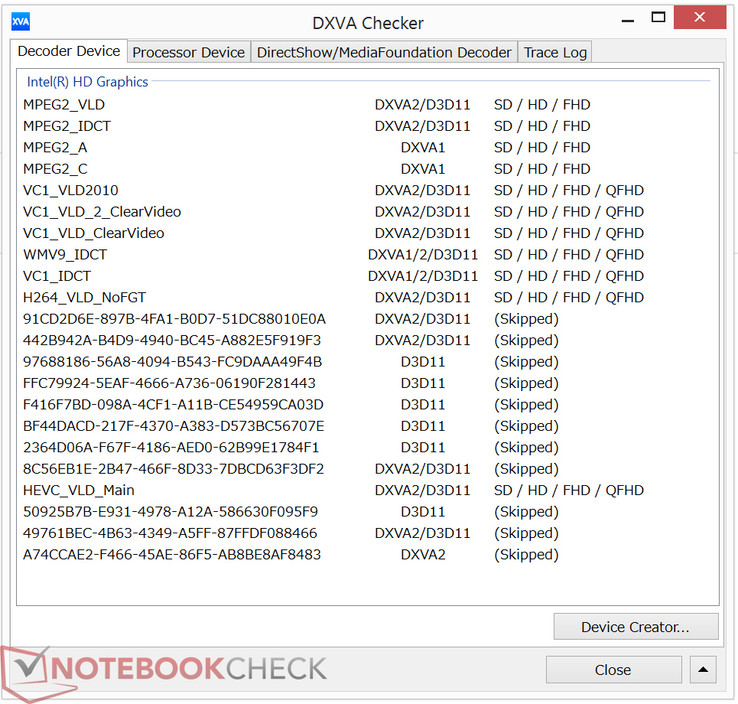

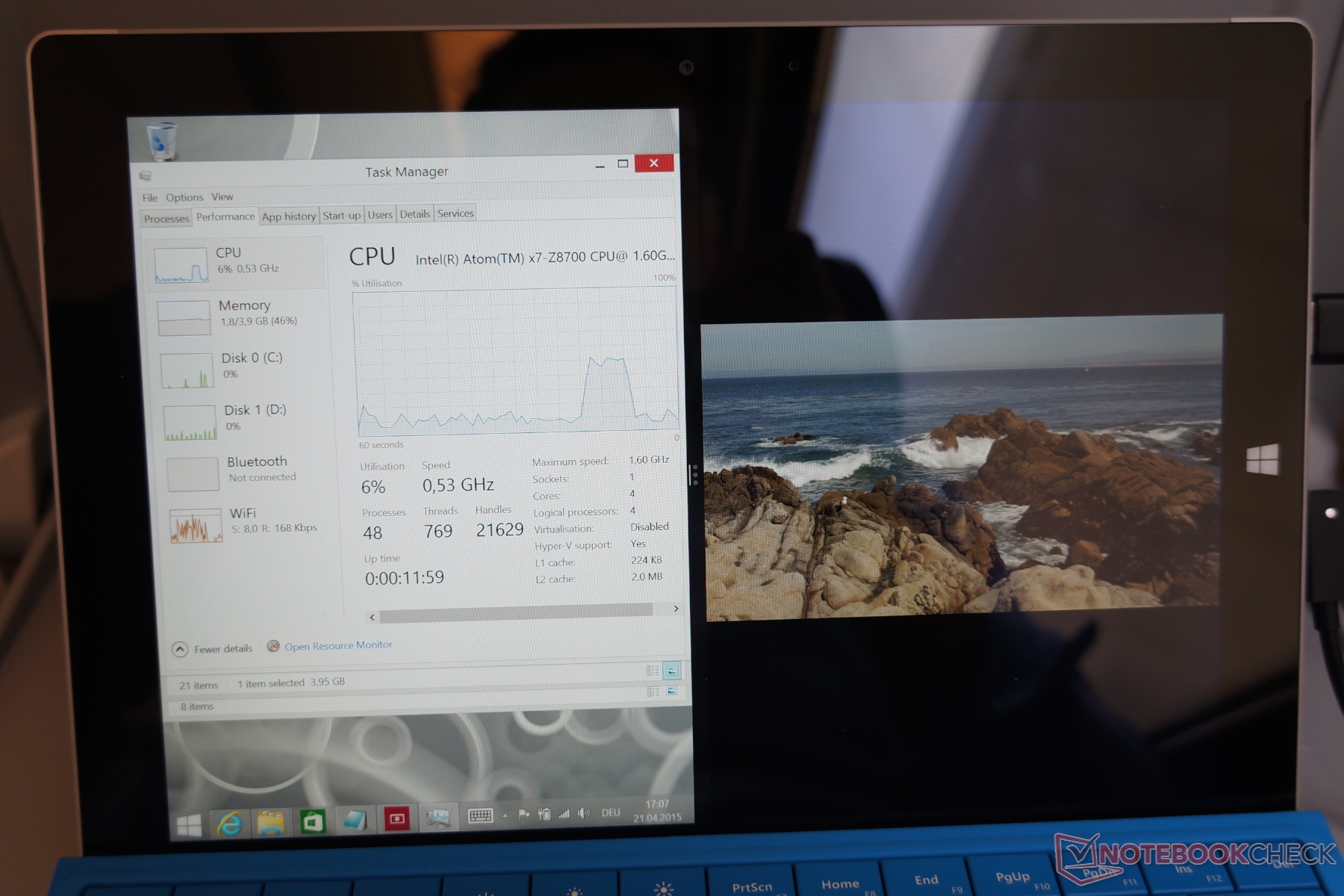

4K 100Mbps video - smooth playback with low CPU load
4K 100Mbps video - smooth playback with low CPU load

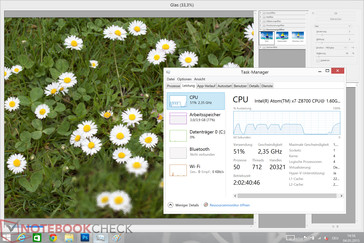

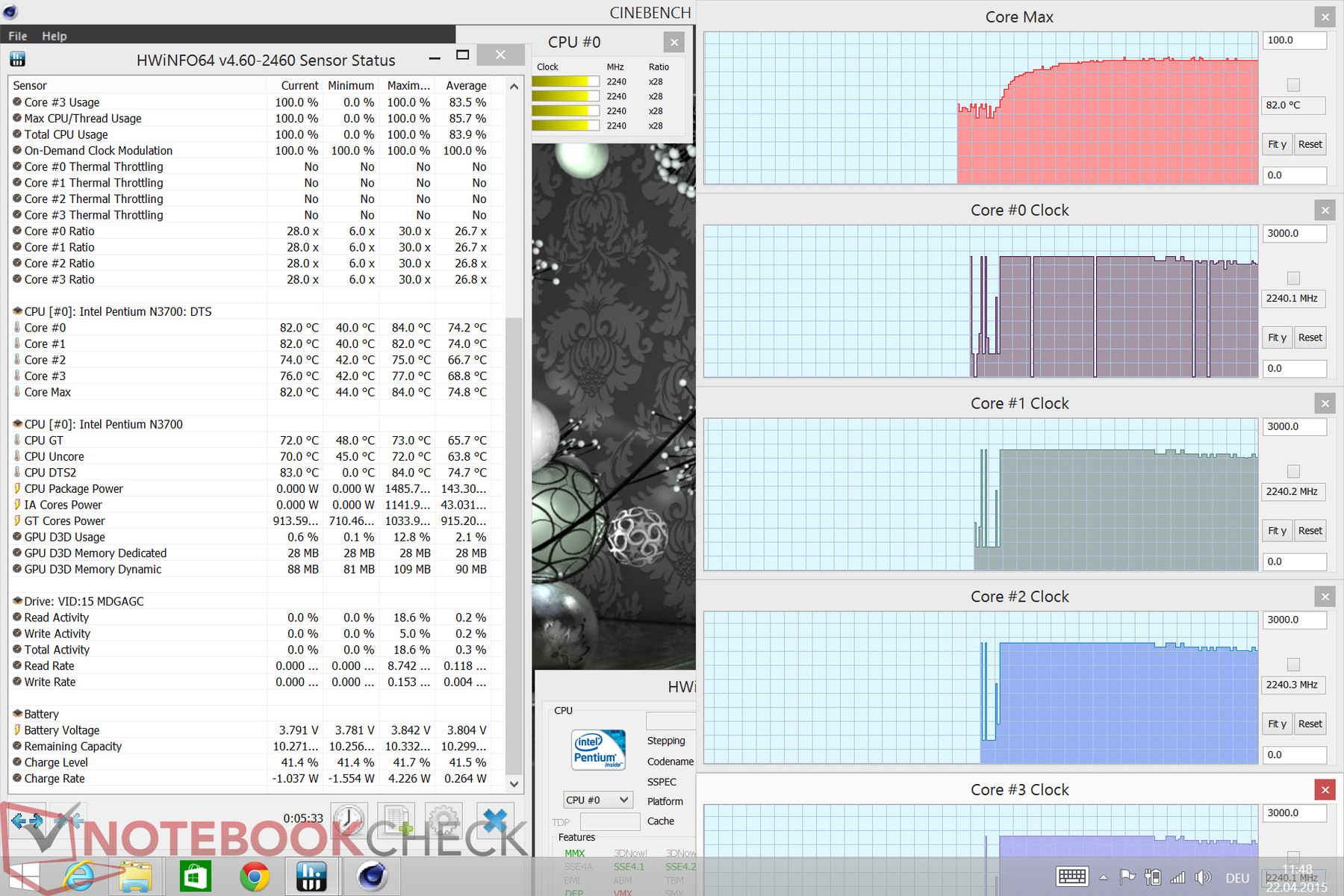

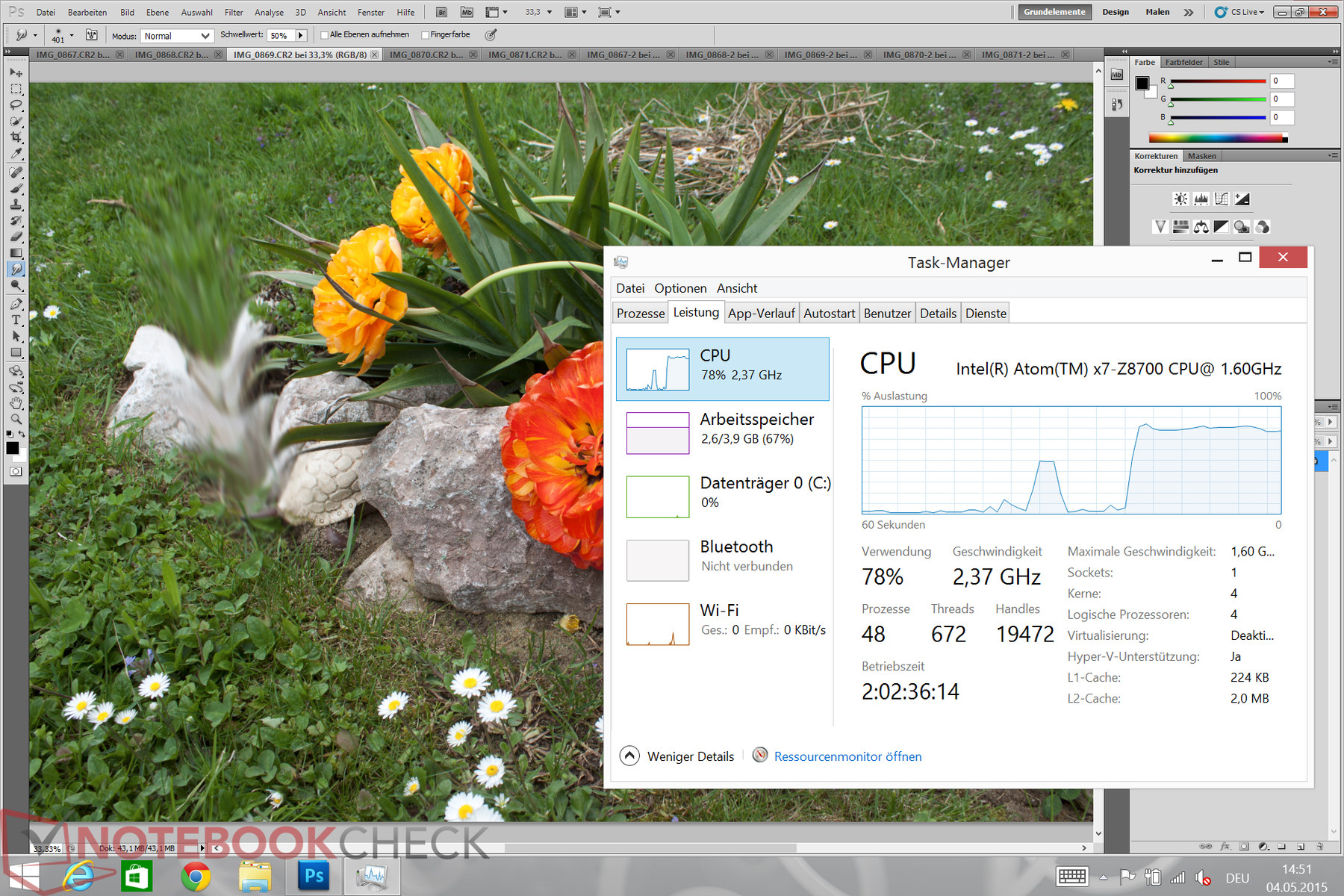

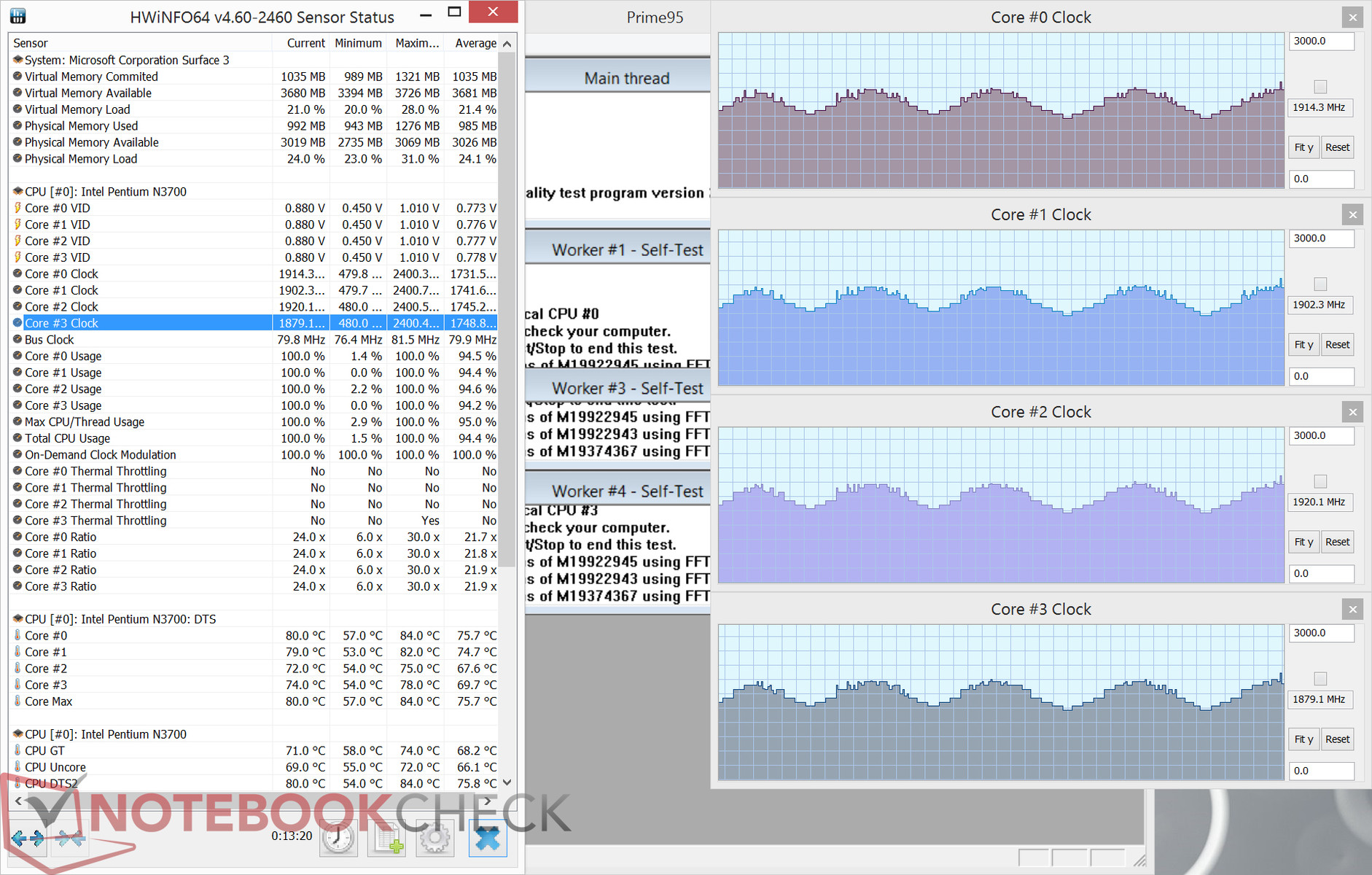

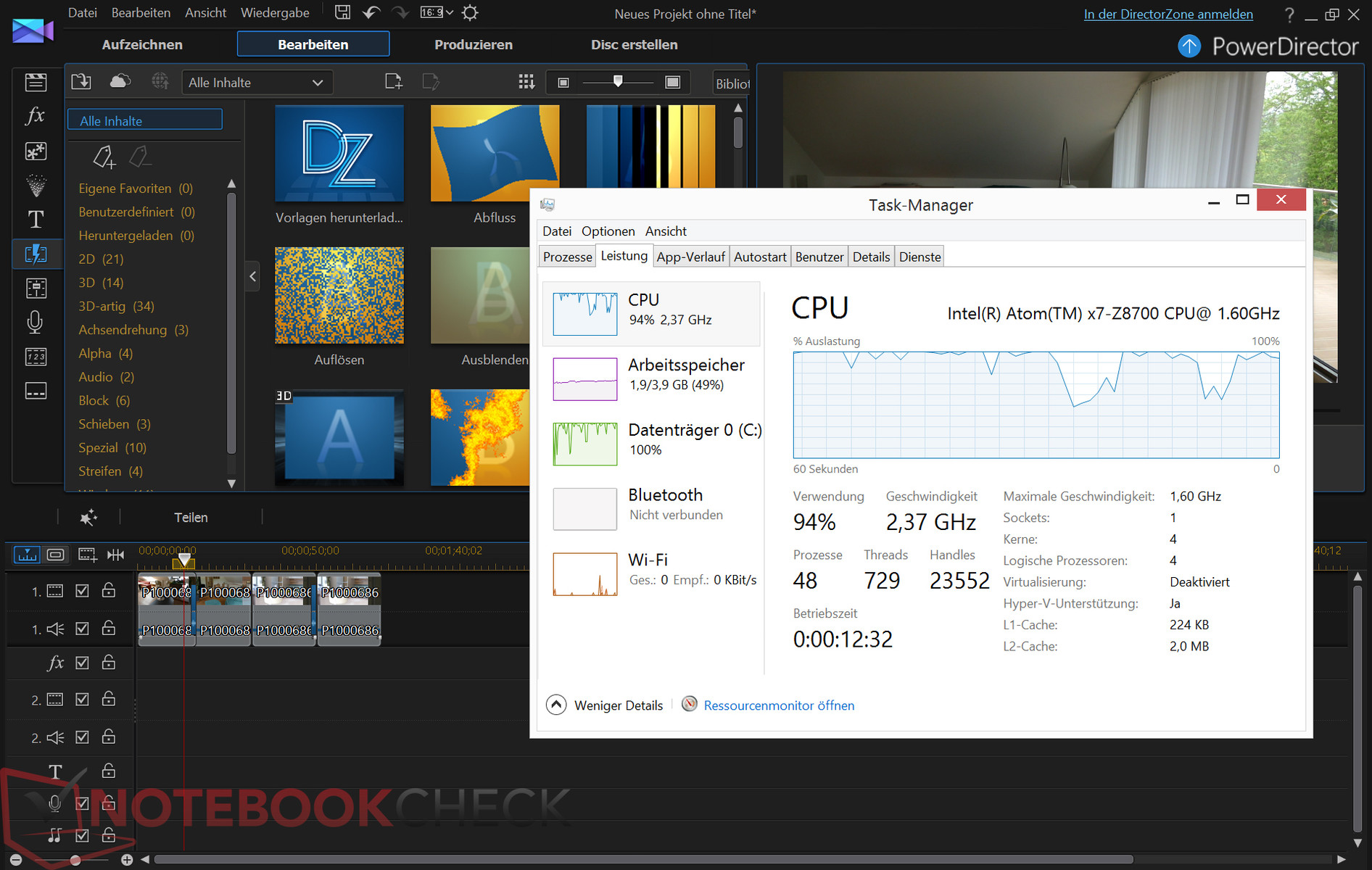

The Turbo Boost is slightly reduced after some time under load
The Turbo Boost is slightly reduced after some time under load

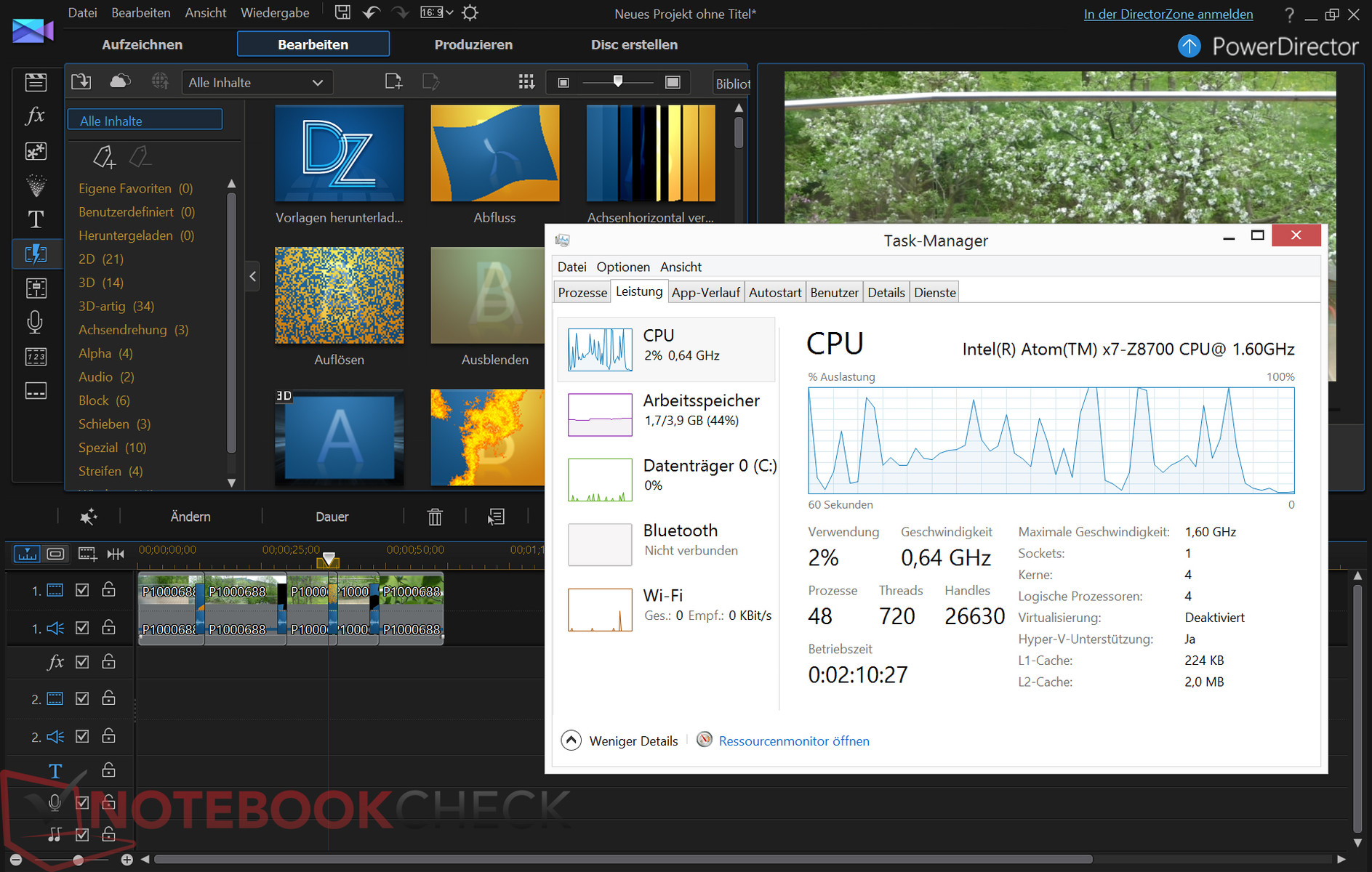

An important aspect for the concept of the Surface 3 is the silent operation as a tablet, which requires a passively cooled x86-CPU. Microsoft decided to use the recently announced Intel Atom x7-Z8700 CPU, one of the first chips from the new Cherry Trail platform. The quad-core is manufactured in a 14 nm process and has a TDP of under 4 Watts.

Processor

The first test for the CPU performance shows that the new Intel Atom x7-Z8700 CPU is slightly faster than the Z3795, which is the current top version of the Intel Atom Bay Trail generation (22 nm). The Core i3-4020Y in the base configuration of the Surface 3 Pro has a clear advantage in the single-thread tests, while the Z8700 is actually often on par in the multi-thread tests. You can also clearly see the performance advantage of the i5-4300U CPU in the Surface Pro 3.

The four cores of the Z8700 CPU usually run with 479 MHz while idling with small spikes to 800 MHz. All four cores manage 2.4 GHz under load in the Cinebench multi-thread test. The chip temperature according to HWiNFO reaches a maximum value of 82 °C after a couple of minutes and then levels off at this value. We can see a slight clock reduction to 2.2 - 2.3 GHz after a few minutes and the back of the tablet warmed up to 39 °C in the area under the camera. This should be the location of the CPU. We can also notice this hotspot at the front, but the surface stays a bit cooler.

Cinebench R11.5
CPU Single 64Bit (sort by value)
Microsoft Surface 3, Z8700
0.46 Points
HP ElitePad 1000 G2, Z3795
0.44 Points -4%
Toshiba Satellite W30t-A-101, 4020Y
0.67 Points +46%
Microsoft Surface Pro 3, 4300U
1.12 Points +143%
CPU Multi 64Bit (sort by value)
Microsoft Surface 3, Z8700
1.79 Points
HP ElitePad 1000 G2, Z3795
1.64 Points -8%
Toshiba Satellite W30t-A-101, 4020Y
1.63 Points -9%
Microsoft Surface Pro 3, 4300U
2.77 Points +55%
Cinebench R15
CPU Single 64Bit (sort by value)
Microsoft Surface 3, Z8700
38 Points
HP ElitePad 1000 G2, Z3795
36 Points -5%
Toshiba Satellite W30t-A-101, 4020Y
60 Points +58%
CPU Multi 64Bit (sort by value)
Microsoft Surface 3, Z8700
134 Points
HP ElitePad 1000 G2, Z3795
134 Points 0%
Toshiba Satellite W30t-A-101, 4020Y
152 Points +13%
Cinebench R10
Rendering Single 32Bit (sort by value)
Microsoft Surface 3, Z8700
1225 Points
Fujitsu Stylistic Q584, Z3770
997 Points -19%
HP Omni 10 5600eg (F4W59EA), Z3770
1230 Points 0%
HP ElitePad 1000 G2, Z3795
1234 Points +1%
Toshiba Satellite W30t-A-101, 4020Y
2241 Points +83%
Microsoft Surface Pro 3, 4300U
3675 Points +200%
Rendering Multiple CPUs 32Bit (sort by value)
Microsoft Surface 3, Z8700
4356 Points
Fujitsu Stylistic Q584, Z3770
2848 Points -35%
HP Omni 10 5600eg (F4W59EA), Z3770
3939 Points -10%
HP ElitePad 1000 G2, Z3795
4106 Points -6%
Toshiba Satellite W30t-A-101, 4020Y
5004 Points +15%
Microsoft Surface Pro 3, 4300U
7067 Points +62%
X264 HD Benchmark 4.0
Pass 1 (sort by value)
Microsoft Surface 3, Z8700
50.8 fps
HP ElitePad 1000 G2, Z3795
47.13 fps -7%
Toshiba Satellite W30t-A-101, 4020Y
52.2 fps +3%
Microsoft Surface Pro 3, 4300U
75.5 fps +49%
Pass 2 (sort by value)
Microsoft Surface 3, Z8700
10.28 fps
HP ElitePad 1000 G2, Z3795
9.5 fps -8%
Toshiba Satellite W30t-A-101, 4020Y
9.6 fps -7%
Microsoft Surface Pro 3, 4300U
13.47 fps +31%
Super Pi mod 1.5 XS 1M - 1M (sort by value)
Microsoft Surface 3, Z8700
49.78 s *
HP Omni 10 5600eg (F4W59EA), Z3770
27 s * +46%
HP ElitePad 1000 G2, Z3795
36.26 s * +27%
Toshiba Satellite W30t-A-101, 4020Y
24.81 s * +50%
Microsoft Surface Pro 3, 4300U
13 s * +74%
Super Pi mod 1.5 XS 2M - 2M (sort by value)
Microsoft Surface 3, Z8700
96.7 s *
HP Omni 10 5600eg (F4W59EA), Z3770
61 s * +37%
HP ElitePad 1000 G2, Z3795
79.6 s * +18%
Toshiba Satellite W30t-A-101, 4020Y
54.9 s * +43%
Microsoft Surface Pro 3, 4300U
30 s * +69%
wPrime 2.10 - 32m (sort by value)
Microsoft Surface 3, Z8700
24.51 s *
HP Omni 10 5600eg (F4W59EA), Z3770
24 s * +2%
HP ElitePad 1000 G2, Z3795
25.93 s * -6%
Toshiba Satellite W30t-A-101, 4020Y
35.31 s * -44%
Microsoft Surface Pro 3, 4300U
19.9 s * +19%

Legend


Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Fujitsu Stylistic Q584 Intel Atom Z3770, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

HP Omni 10 5600eg (F4W59EA) Intel Atom Z3770, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

HP ElitePad 1000 G2 Intel Atom Z3795, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

Toshiba Satellite W30t-A-101 Intel Core i3-4020Y, Intel HD Graphics 4200, WD Blue UltraSlim WD5000MPCK-22AWHT0

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

* ... smaller is better

Storage Solution

Bottleneck eMMC: Similar to the Bay Trail predecessors, the Cherry Trail CPUs probably do not support the eSATA interface
Bottleneck eMMC: Similar to the Bay Trail predecessors, the Cherry Trail CPUs probably do not support the eSATA interface

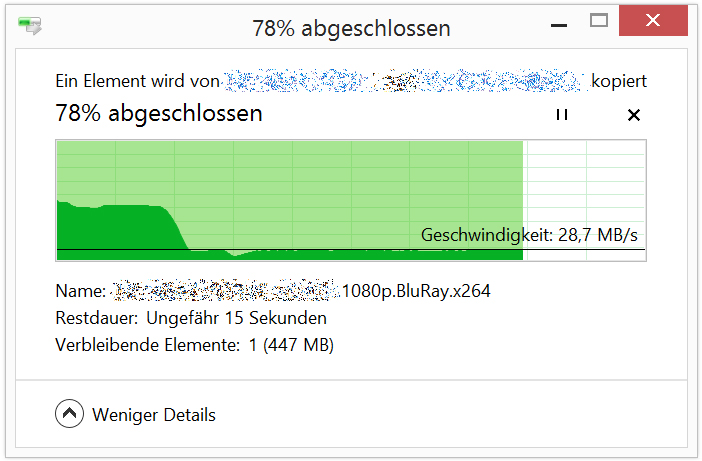

The handling of large files can become a test of your patience...
The handling of large files can become a test of your patience...

The Surface 3 is available with two different storage solutions at the moment. A 64 GB drive or a 128 GB drive, which is being used in our review unit. Contrary to faster Solid State Drives, the manufacturer only uses eMMC (embedded Multimedia Card), where the technology and the performance are closer to an SD card. The advantage is the lower price for the manufacturer, but the drawback is the performance for the user. Another reason for the choice of the eMMC solution could also be the missing compatibility of the new Cherry Trail Atom processors. The Bay Trail predecessor already had the same problem.

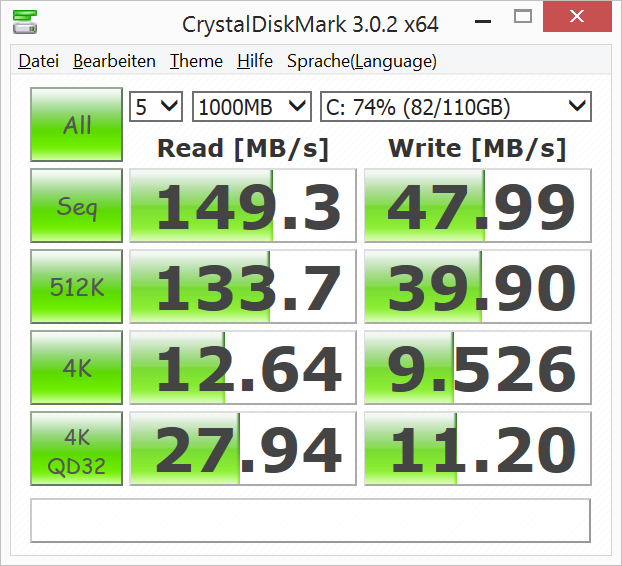

We use CrystalDiskMark to check the performance of the integrated storage solution. Other benchmarks like AS SSD did not work because of the incompatibility with eMMC solutions. If we compare the results with the Surface Pro 3, which uses conventional SSDs, we can clearly see the big difference. Depending on the test we are speaking about an advantage of 2x-25x over the Surface 3. The smallest difference of the Surface 3 is in the 4K Read test, which is very important for the system start. The storage solution even falls behind an SSHD drive (Thinkpad Yoga 12) when you write large files, for example, copy audio or video files.

So how does that affect the daily use? Starting the system takes around 18 seconds, but the Surface 3 almost immediately resumes from standby. There can be limitations when you copy files. For comparison: A 2 GB video file needs around 70 seconds, a folder with 10 video files (300 MB each) needs 2 minutes. If we execute the same operation on a ThinkPad X220, which is equipped with a 256 GB Samsung 840 mainstream SSD, the 2 GB video file is copied in less than 10 seconds and the folder with the video files in less than 15 seconds (vs. 120 seconds on the Surface 3!). The opening and saving of large files within applications can also result in delays that you would not expect from a device with flash storage. We will have a closer look at the performance in several scenarios (picture and video editing,...) in an upcoming update.

Microsoft Surface 3
128 GB eMMC Flash
Microsoft Surface Pro 3
Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
Sandisk X110 M.2 SD6SP1M-128G
Lenovo ThinkPad Helix 2
Toshiba THNSFJ256GDNU 256 GB
Acer Aspire Switch 11 SW5-171-31U3
Lite-On IT L8T-64L9G
Acer Aspire Switch 10 SW5-012-13DP
32 GB eMMC Flash
Lenovo ThinkPad Yoga 12
Seagate ST500LM000 Solid State Hybrid Drive
CrystalDiskMark 3.0
765%
417%
447%
409%
14%
-49%
Read Seq
149.3
501
236%
395.6
165%
422.7
183%
504
238%
169.3
13%
33.57
-78%
Write Seq
47.99
324
575%
221.9
362%
247.4
416%
167.2
248%
72.8
52%
107.6
124%
Read 512
133.7
357.8
168%
209.1
56%
333.7
150%
378.7
183%
151.1
13%
29.68
-78%
Write 512
39.9
324.6
714%
153.5
285%
164.9
313%
167.2
319%
72.7
82%
47.23
18%
Read 4k
12.64
20.81
65%
22.9
81%
19.44
54%
29.46
133%
18.31
45%
0.351
-97%
Write 4k
9.52
76.2
700%
35.29
271%
43.08
353%
57.6
505%
5.603
-41%
0.64
-93%
Read 4k QD32
27.94
345
1135%
256.4
818%
295.9
959%
195
598%
26.66
-5%
0.706
-97%
Write 4k QD32
11.2
294.4
2529%
156.1
1294%
139.3
1144%
128.1
1044%
5.642
-50%
0.665
-94%

GPU Performance

If you trust the first results in 3DMark 2011, then the Intel HD Graphics (Cherry Trail) has a clear advantage over its Bay Trail predecessor. However, the new chip is still behind the HD Graphics 4200 in the i3-4020Y CPU, which was to be expected. We will have a closer look at the real-world performance gains in applications and games compared to the Bay Trail generation soon. Current titles with high hardware demands like Battlefield Hardline or GTA 5, however, should not be playable (we will still test it). Older and simpler titles like FIFA, Dota 2, Counterstrike or Diablo 3 should at least run in the lowest settings. We will see...

3DMark 11 - 1280x720 Performance (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
562 Points
Fujitsu Stylistic Q584, Z3770, HD Graphics (Bay Trail)
207 Points -63%
HP Omni 10 5600eg (F4W59EA), Z3770, HD Graphics (Bay Trail)
202 Points -64%
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
233 Points -59%
Toshiba Satellite W30t-A-101, 4020Y, HD Graphics 4200
828 Points +47%
Microsoft Surface Pro 3, 4300U, HD Graphics 4400
877 Points +56%
Cinebench R11.5 - OpenGL 64Bit (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
11.71 fps
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
6.74 fps -42%
Toshiba Satellite W30t-A-101, 4020Y, HD Graphics 4200
18.78 fps +60%
Microsoft Surface Pro 3, 4300U, HD Graphics 4400
19.48 fps +66%
Cinebench R15
OpenGL 64Bit (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
14.71 fps
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
5.1 fps -65%
Ref. Match 64Bit (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
98 %
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
97.8 % 0%
Cinebench R10 - Shading 64Bit (sort by value)
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
2304 Points
Toshiba Satellite W30t-A-101, 4020Y, HD Graphics 4200
4471 Points
Microsoft Surface Pro 3, 4300U, HD Graphics 4400
7154 Points

Legend


Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Fujitsu Stylistic Q584 Intel Atom Z3770, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

HP Omni 10 5600eg (F4W59EA) Intel Atom Z3770, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

HP ElitePad 1000 G2 Intel Atom Z3795, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

Toshiba Satellite W30t-A-101 Intel Core i3-4020Y, Intel HD Graphics 4200, WD Blue UltraSlim WD5000MPCK-22AWHT0

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Games and the Surface 3?

The small Atom processor inside the Surface 3 is not powerful enough for complex games. Even less demanding Windows 3D games like Team Fortress 2 can only be played in the lowest settings, despite the much improved GPU compared to older Atom processors. The frame rate in our multiplayer test often dropped below 20 fps in busy scenes, but it was subjectively still playable (see video).

System Performance

We start the evaluation of the system performance with a look at the results in the PCMark benchmark. With 3029 points in PCMark 7, our review configuration is just behind the Lenovo Miix 2, which is equipped with an Intel i3-4012Y processor (active cooling!). Devices based on Bay Trail chips like the Aspire Switch 10 or Venue 10, for example, fall behind by 20-25 % in this test. Microsoft’s Surface 3 Pro (i5-4300U, 128 GB SSD) has a significant advantage and is around 70 % faster than its smaller sibling.
The Surface 3 can beat the Miix 2 in PCMark 8, even though the device from Lenovo is equipped with a faster SSD. Intel’s Haswell chip i5-4202Y in the Aspire Switch 11 is roughly 20 % faster, and the Venue 11 with the Broadwell M-5Y10a is around 50 % faster in this test.

PCMark 7 - Score (sort by value)
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
3029 Points
Acer Aspire Switch 10 SW5-012-13DP
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
2252 Points -26%
Dell Venue 10 Pro 5055
HD Graphics (Bay Trail), Z3735F, Hynix HCG8E 64 GB
2351 Points -22%
Lenovo Miix 2 11
HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA
3141 Points +4%
Dell Venue 11 Pro
HD Graphics 4200, 4020Y, 128 GB SATA SSD
3843 Points +27%
Acer Aspire Switch 11 Pro 128GB HDD-Dock
HD Graphics 4200, 4202Y, 128 GB SATA SSD
4061 Points +34%
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
4135 Points +37%
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
4602 Points +52%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
5066 Points +67%
PCMark 8 - Home Score Accelerated v2 (sort by value)
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
1677 Points
Dell Venue 10 Pro 5055
HD Graphics (Bay Trail), Z3735F, Hynix HCG8E 64 GB
858 Points -49%
Asus Transformer Book T100TAL-DK021P
HD Graphics (Bay Trail), Z3735D, 64 GB eMMC Flash
1127 Points -33%
Lenovo Miix 2 11
HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA
1392 Points -17%
Acer Aspire Switch 11 Pro 128GB HDD-Dock
HD Graphics 4200, 4202Y, 128 GB SATA SSD
2002 Points +19%
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
2480 Points +48%
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
2690 Points +60%

Practical Test Photoshop CS5 & Lightroom 5

We open 10 RAW pictures (around 20 MB each) and use different tools. The opening of the pictures takes a couple of seconds each. Crop commands are executed immediately, picture corrections like exposure, color and brightness are just as quick, but the corresponding preview is showed with slight delays. More complex actions, like the use of the brush finger tool, however, can result in significant delays depending on the extent of the modifications. The same applies for cut commands. The CPU runs at 2.37 GHz for the time of the actions and drops back to idle again afterwards (around 0.6 GHz). Filters stress the CPU as well and the preview is shown with a delay. The memory workload is at around 64 % of the 4 GB RAM, 1500 MB are only allocated for Photoshop CS5. The 2 GB version of the Surface 3 is therefore not suitable for these kind of applications.
Adobe Lightroom is another popular tool for picture editing. Similar to Photoshop there are no problems when you open RAW files and with light processing (correcting exposure, contrast,…). The export of the pictures can take a couple of seconds.

Still, we would not recommend our tested high-end version of the Surface 3 (128 GB eMMC, 4 GB RAM) for picture editing. If we would express our rating in traffic light colors it would be orange. It will depend on the individual needs of the user and if the provided performance is still sufficient or if the necessary waiting times are too long. Based on our experiences we would not recommend the device for professional picture editing.

Complex actions will bring the CPU to its limits ...
Complex actions will bring the CPU to its limits ...
... and result in waiting times for the user.
... and result in waiting times for the user.

Practical Test Powerdirector 13 & High-Res Video Playback

Our practical test with Full HD video editing in Powerdirector 13 is not very promising. We imported a one minute MP4 clip (1080p, 50 fps) and cut it or added transitions, respectively. The work with Powerdirector was characterized by input delays, a preview with many stutters as well as unmotivated jumps on the timeline. The rendering of the video in H.264 AVC 1920x1080i 60 fps (16 Mbps) was executed in around 3 minutes thanks to the activated Intel QuickSync. Much smoother was another attempt with a one minute HD clip (MP4, 720p, 25 fps). Cutting, transitions and the preview did not show annoying delays.

Possible: Video editing in HD
Possible: Video editing in HD
Performance limit surpassed: Full HD video editing with Powerdirector 13
Performance limit surpassed: Full HD video editing with Powerdirector 13
DXVA Checker: Supported video formats
DXVA Checker: Supported video formats
H.265 4K Smooth playback is not possible
H.265 4K Smooth playback is not possible

The Intel Atom x7-Z8700 should be able to decode HEVC/H.265 videos, but it seems that the Surface 3 had problems with the high bitrate of this test clip (HEVC 3840x2160, 10-bit). We used the K-Lite Codec Pack 11.04 in combination with the Media Player Classic x64 for this test.

4K Video Output via Mini-Displayport

We use an adaptor to attach the Surface 3 to our Asus PB287Q 4K test display (3840x2160 pixels) and check the performance of the video output. We can quickly see that the picture is only running at 30 fps (DisplayPort 1.1), which is noticeable when you move the cursor, for example, which lacks smoothness and precision. It can also be noticeable when you move windows or scroll through websites. Intel’s Update Utility does not find any drivers right now, which could give us extended settings.
Speaking scrolling through websites: The load for the Atom CPU was 100 % when we scrolled in Google’s Chrome browser (output 4K and 1080p). This value is reduced to 50-60 % when you use the preloaded Internet Explorer.

Emissions

System Noise

Thanks to a Thermal Design Power of less than 4 Watts, the Intel Atom x7 Z8700 can be cooled passively, so the Surface 3 does not need a fan. The storage solution does not use mechanical components either, so the Surface 3 is silent in every scenario. We did not notice any other noises during our review period.

Temperature

The x7 Z8700 CPU repeatedly drops below its nominal clock to keep the temperatures in line.
The x7 Z8700 CPU repeatedly drops below its nominal clock to keep the temperatures in line.

The surface temperatures are just slightly higher than 30 °C while idling and therefore no problem. Contrary to conventional notebooks, the display/tablet element of the Surface 3 includes all important components. The Type Cover only adds the mechanical keys, but gets the required power from the tablet unit. Sustained load will result in higher temperatures that surpass 40 °C, so the warming of the Surface 3 is perceptible but not really an issue, especially if you use the device like a notebook, which seems to be appropriate for more demanding tasks, since there is no skin contact with the display unit.

Max. Load
 37 °C
99 F
39.9 °C
104 F
39 °C
102 F

 35.8 °C
96 F
36.3 °C
97 F
36.1 °C
97 F

 36.9 °C
98 F
37.6 °C
100 F
37.2 °C
99 F

Maximum: 39.9 °C = 104 F
Average: 37.3 °C = 99 F
40.2 °C
104 F
41.9 °C
107 F
40.2 °C
104 F
35.3 °C
96 F
36.2 °C
97 F
36.3 °C
97 F
33.9 °C
93 F
34.1 °C
93 F
33.1 °C
92 F
Maximum: 41.9 °C = 107 F
Average: 36.8 °C = 98 F
Power Supply (max.)  48.3 °C = 119 F | Room Temperature 23 °C = 73 F | Raytek Raynger ST
(±) The average temperature for the upper side under maximal load is 37.3 °C / 99 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 39.9 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.9 °C / 107 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.9 °C / 89 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.6 °C / 99.7 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-9.5 °C / -17.1 F).

Stress Test

The CPU will start with its maximum clock of 2.4 GHz when we stress it with Prime95, but the clock slowly drops after a few minutes when the temperature reaches around 84 °C and then levels off between 1.4 and 2.0 GHz, while the core temperature of the CPU is between 70-80 °C. If we also start FurMark and stress the integrated HD Graphics (Cherry Trail), the CPU clock will immediately drop to 540 MHz and the system shuts down a couple of seconds later. This is probably a safety mechanism to protect the system against damages caused by high temperatures. Our stress test measurements therefore only represent the test with Prime95.

Energy & Battery Runtime

Microsoft advertises a runtime of around 10 hours. Our first observations suggest a runtime between 6-7 hours in our WLAN test and around 7.5 hours with a 720p video clip (x264) at the maximum brightness setting. We will, however, have to wait for our final measurements before we can see a definite result.

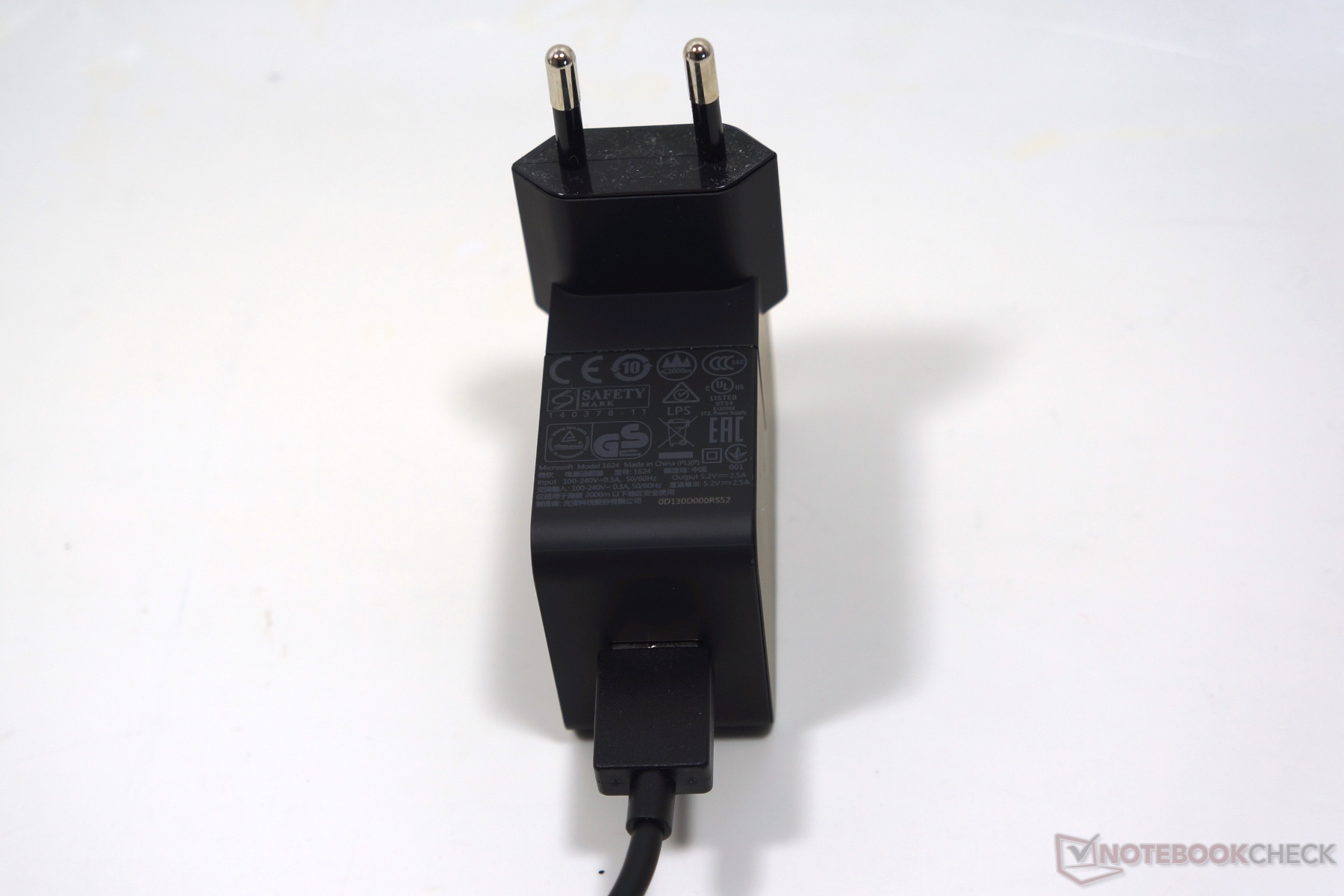

The provided power adaptor is rated at 13 Watts and is supposed to charge the device in around two hours according to the manufacturer. The battery has a capacity of 28.4 Wh.

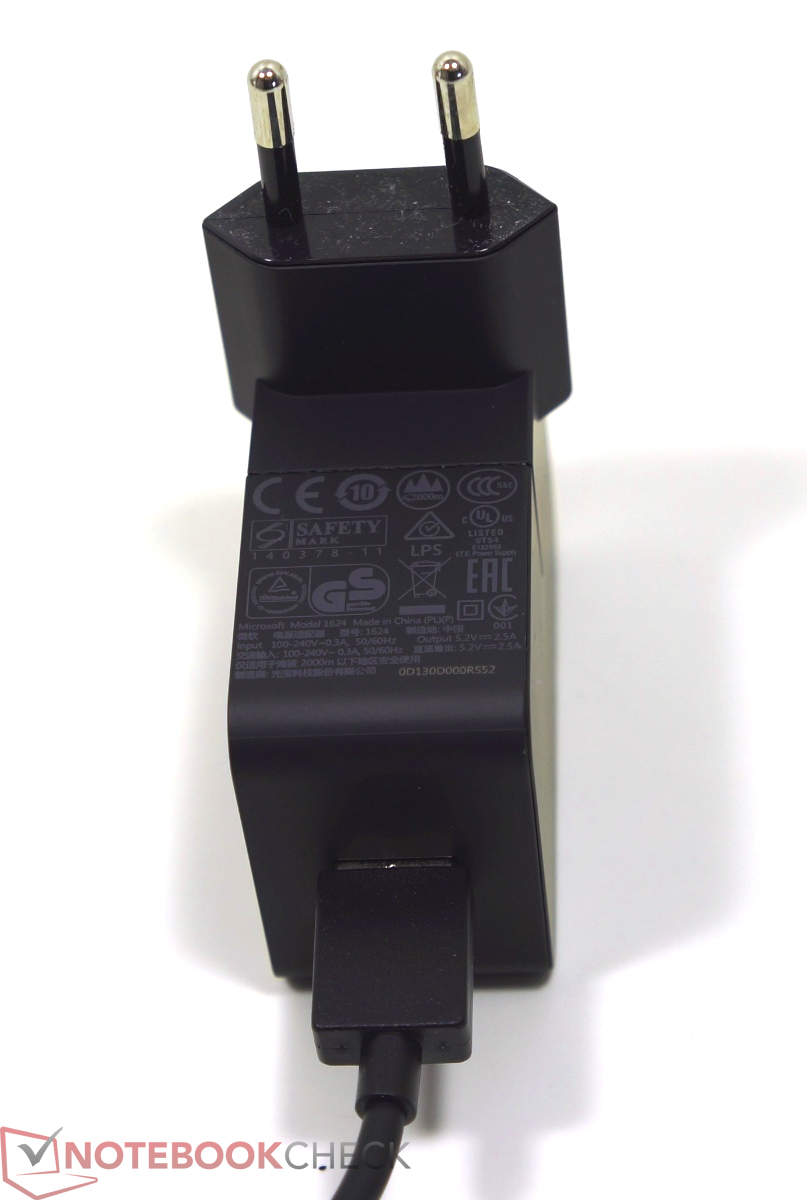

Zu wenig Power: 13 Watt Netzteil
Zu wenig Power: 13 Watt Netzteil

After the completion of our measurements we can complement the official information from Microsoft. Our Reader's Test (reading of a text file) with the minimum display brightness and deactivated wireless modules determined a maximum runtime of more than 13 hours. Our script in the WLAN browsing test (v1.3) ran for more than 7 hours with an adjusted brightness (177 cd/m², maximum brightness minus 4 steps). The Surface 3 was empty after around 3 hours under load (Classic test). These runtimes are okay for a device that is mainly designed for simple tasks and web browsing, and the same applies for the comparison with other convertibles. Despite the more powerful CPU, the Surface Pro 3 manages better results in the idle test, but falls behind under load. The Aspire Switch 10 (Atom Z3735F) reaches similar runtimes in the practical WLAN test, despite the smaller battery.

"Mobile employees" in particular are the target audience for the Surface 3 according to Microsoft. For us, this means a frequent switching between battery and mains operation, depending on the environment when you use the Surface 3 on the road. And this might actually be the biggest issue of the Surface 3. The poor charging times disqualify the device as an ultramobile working device.

If you charge the device when it is turned off, the 13-Watt power adapter charges the battery by 32% (start at 5% remaining capacity) within one hour. After two hours we get 72 %, but the whole capacity of 28 Wh is only available after almost 4 hours. If you have to use the device while you charge it, however, on the train or a plane, for example, then it takes much longer. It seems that the 13-Watt power adapter is not powerful enough. We simulate the use with the help of our WLAN script and charge the battery at the same time. After one hour (once again start at 5 % remaining capacity) the battery capacity is only at 18%, after 2 hours 27%, 3h: 39%, 4h: 53%, 5h: 67%, 6h: 80%, 7h: 92%, and the full capacity is only available after around 8 hours.
In our test with multiple days of flights and numerous location changes we always had the problem that the device did not get enough power in the charging periods to use the device without a socket afterwards for a longer time.

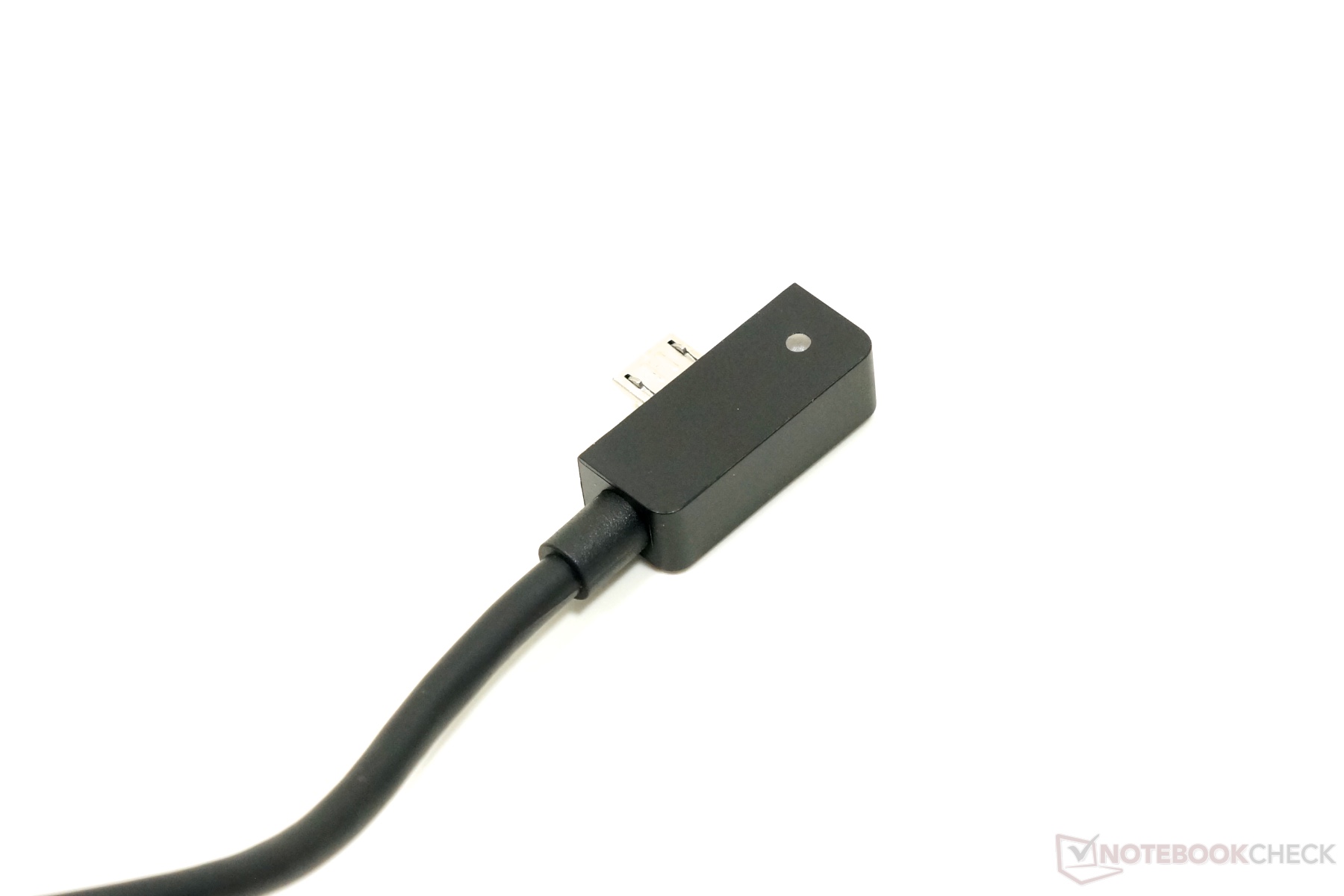

The cable of the provided power adapter can also be used as a USB cable. The charging via USB port is basically possible, but only when the Surface 3 is turned off, otherwise the device will consume too much power so it would take quite a while.

Battery Runtime
Idle (without WLAN, min brightness)
13h 48min
WiFi Surfing
7h 05min
WiFi Websurfing
7h 17min
Load (maximum brightness)
2h 53min
Microsoft Surface 3
Z8700, 28 Wh
Microsoft Surface Pro 3
4300U, 42 Wh
Dell Venue 11 Pro 7140
5Y10a, 38 Wh
Lenovo ThinkPad Helix 2
5Y71, 35 Wh
Acer Aspire Switch 11 SW5-171-31U3
4012Y, 32 Wh
Acer Aspire Switch 10 SW5-012-13DP
Z3735F, 24 Wh
Lenovo ThinkPad Yoga 12
5200U, 47 Wh
MSI S100
Z3740D, 27 Wh
Lenovo ThinkPad Yoga 11e 20D9000QGE
N2930, 34 Wh
Battery Runtime
8%
22%
8%
-22%
7%
-12%
-17%
-32%
Reader / Idle
828
1096
32%
777
-6%
964
16%
788
-5%
720
-13%
WiFi
425
504
19%
562
32%
396
-7%
331
-22%
453
7%
433
2%
340
-20%
WiFi v1.3
437
297
-32%
Load
173
124
-28%
244
41%
197
14%
117
-32%
H.264
360
330

We have a look at the power consumption of the Surface 3. While idling, we can measure a consumption between around 3 and 8.5 Watts, and up to 12 Watts under load. The Aspire Switch 10 with the Atom predecessor Z3735F is more frugal with 2.2 up to 5.5 Watts. Devices with the new Broadwell-Y processor, like the Dell Venue 11 Pro or the Lenovo Thinkpad Helix 2 (each 2 up to 6.2/6.6 Watts) cover a wider range in respect of the idle consumption. Broadwell-U in the Thinkpad Yoga 12 needs 3.6 up to 9 Watts and up to 35.7 Watts under load.

We can measure a consumption (at the socket) of 3 up to 6 Watts (reduced brightness at 177 cd/m²) in the WLAN test. The display brightness has the biggest impact on the runtimes, a reduction of four steps to 177 cd/m², for example, can reduce the power consumption from 7.0 to around 4.7 Watts. The power consumption during standby is also suspicious in our measurements. We can measure 2 up to 5 Watts. One reason for these peaks could be Microsoft's Connected Standby, which enables updates for apps of the modern UI despite the standby. Those updates include the weather and mails, for example. After we put the Surface 3 to standby and activated it 16 hours later we were able to see a reduction of the battery charge from 100 % to 95 %. However, the device did not resume from standby but rebooted. It seems that the device turns off automatically after a certain period.

Power Consumption
Off / Standbydarklight 0.8 / 2 Watt
Idledarkmidlight 2.5 / 7 / 8.4 Watt
Load midlight 11.2 / 12.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Microsoft Surface 3
Z8700, 28 Wh
Microsoft Surface Pro 3
4300U, 42 Wh
Dell Venue 11 Pro 7140
5Y10a, 38 Wh
Lenovo ThinkPad Helix 2
5Y71, 35 Wh
Acer Aspire Switch 11 SW5-171-31U3
4012Y, 32 Wh
Acer Aspire Switch 10 SW5-012-13DP
Z3735F, 24 Wh
Lenovo ThinkPad Yoga 12
5200U, 47 Wh
Power Consumption
-11%
-28%
-34%
21%
-89%
Idle Minimum *
2.5
2
20%
2
20%
4.2
-68%
2.2
12%
3.6
-44%
Idle Average *
7
5.9
16%
6
14%
6.5
7%
5.1
27%
8
-14%
Idle Maximum *
8.4
6.2
26%
6.6
21%
6.7
20%
5.5
35%
8.9
-6%
Load Average *
11.2
19.1
-71%
17.6
-57%
16.4
-46%
9.2
18%
32.7
-192%
Load Maximum *
12.4
18.2
-47%
29.7
-140%
22.6
-82%
10.8
13%
35.7
-188%

* ... smaller is better

Pros

+ High-quality chassis
+ Very good display
+ Good battery runtimes
+ Full Windows OS
+ Silent operation
+ Performance easily sufficient for daily tasks
+ Update to Windows 10 included
+ 1 year Office 365 included

Cons

- A bit heavy and thick for a tablet
- Complete package with Type Cover comparatively expensive
- Use on the lap not really convenient
- No maintainability/upgradeability
- Bottleneck eMMC storage solution
- Very long charging times

Verdict

Surface 3: Job done right?
Surface 3: Job done right?

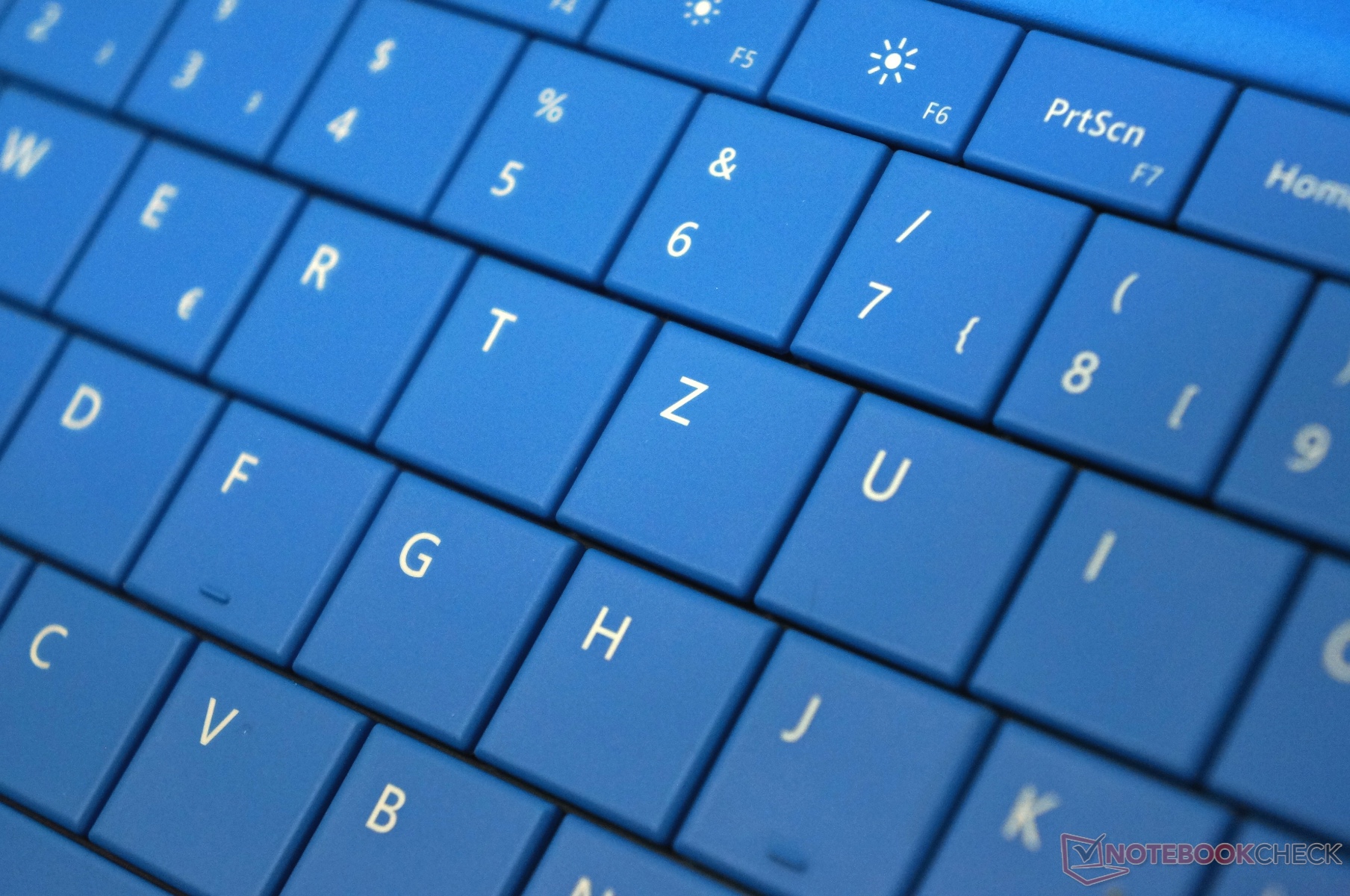

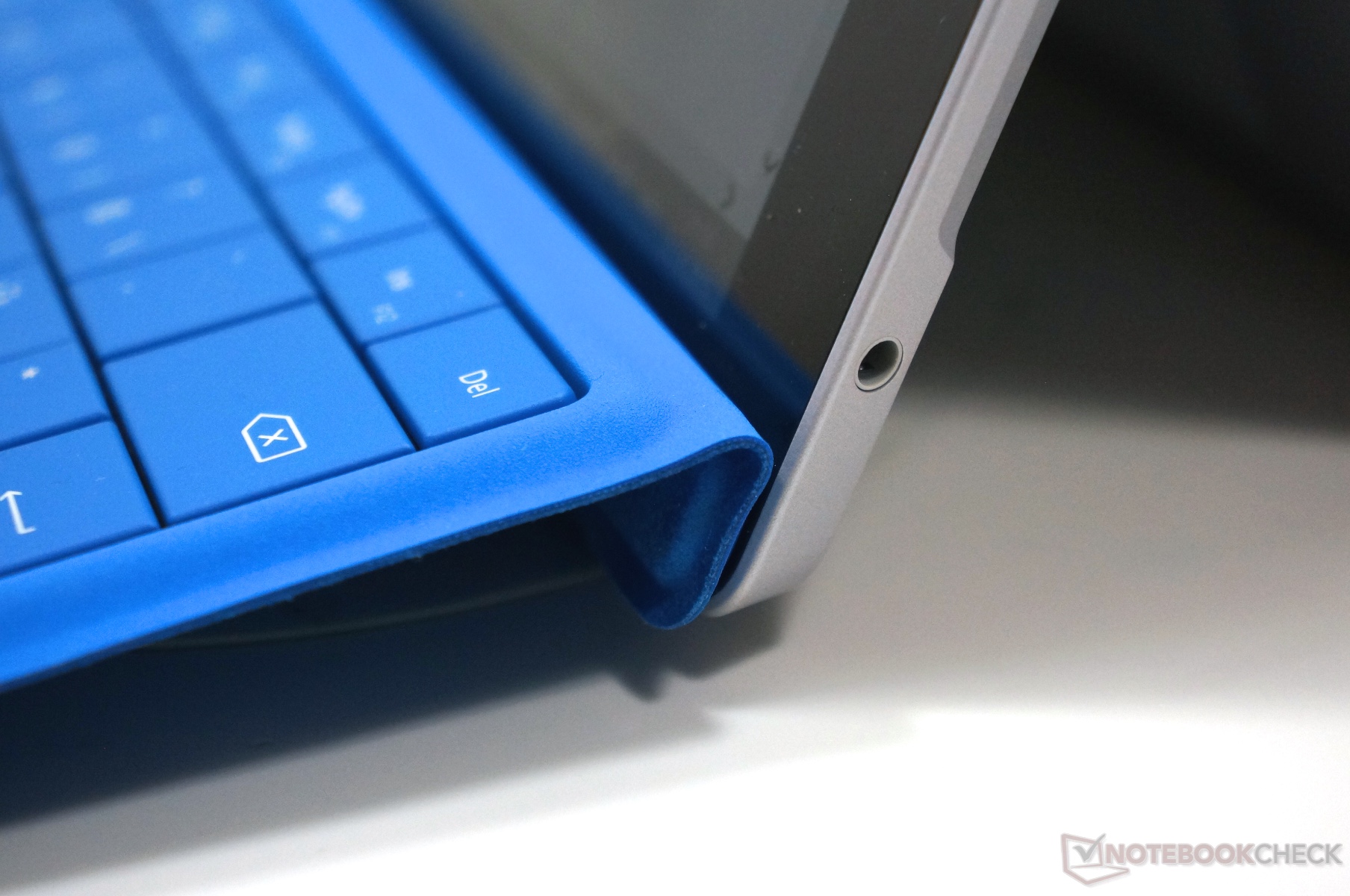

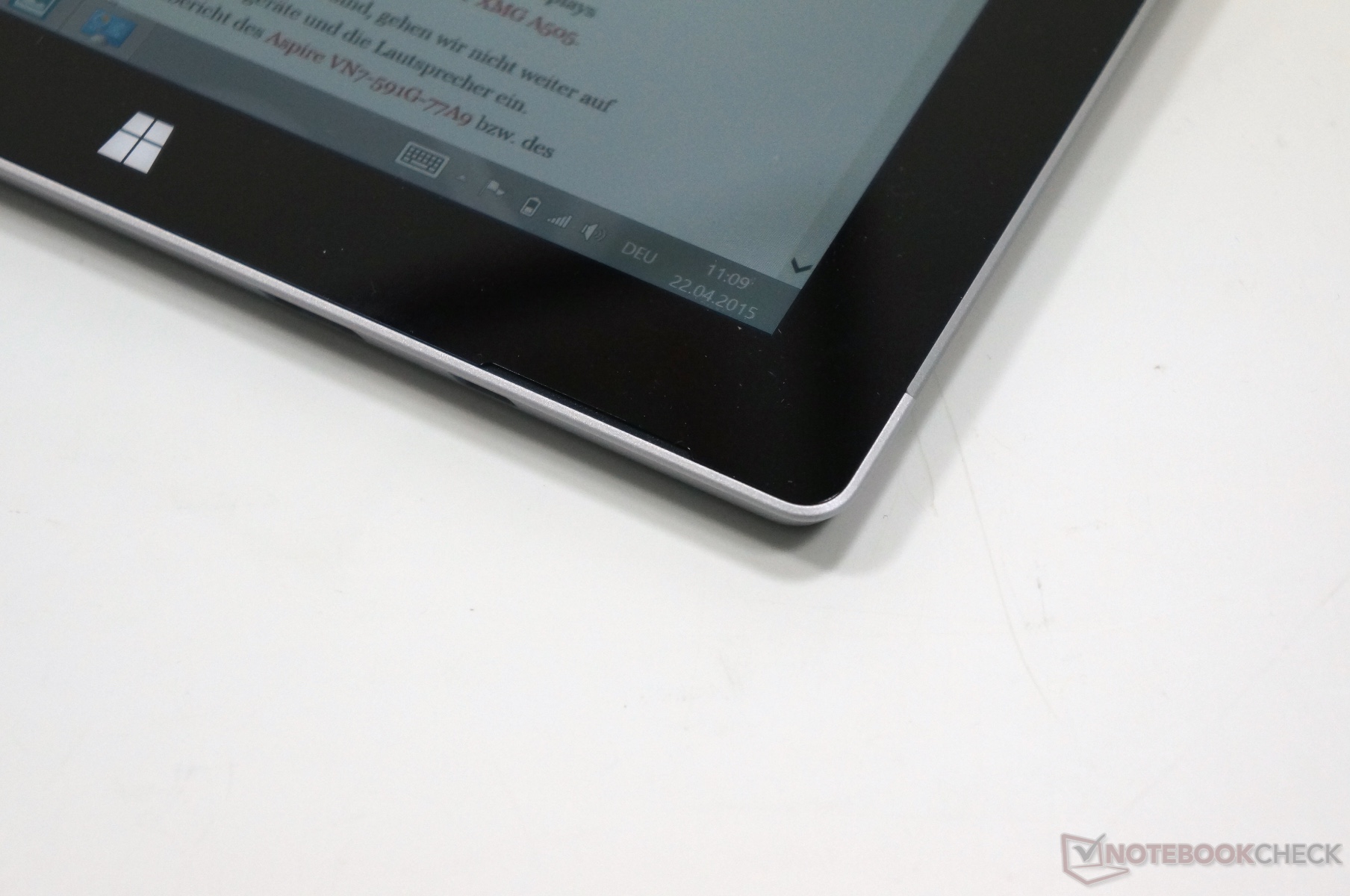

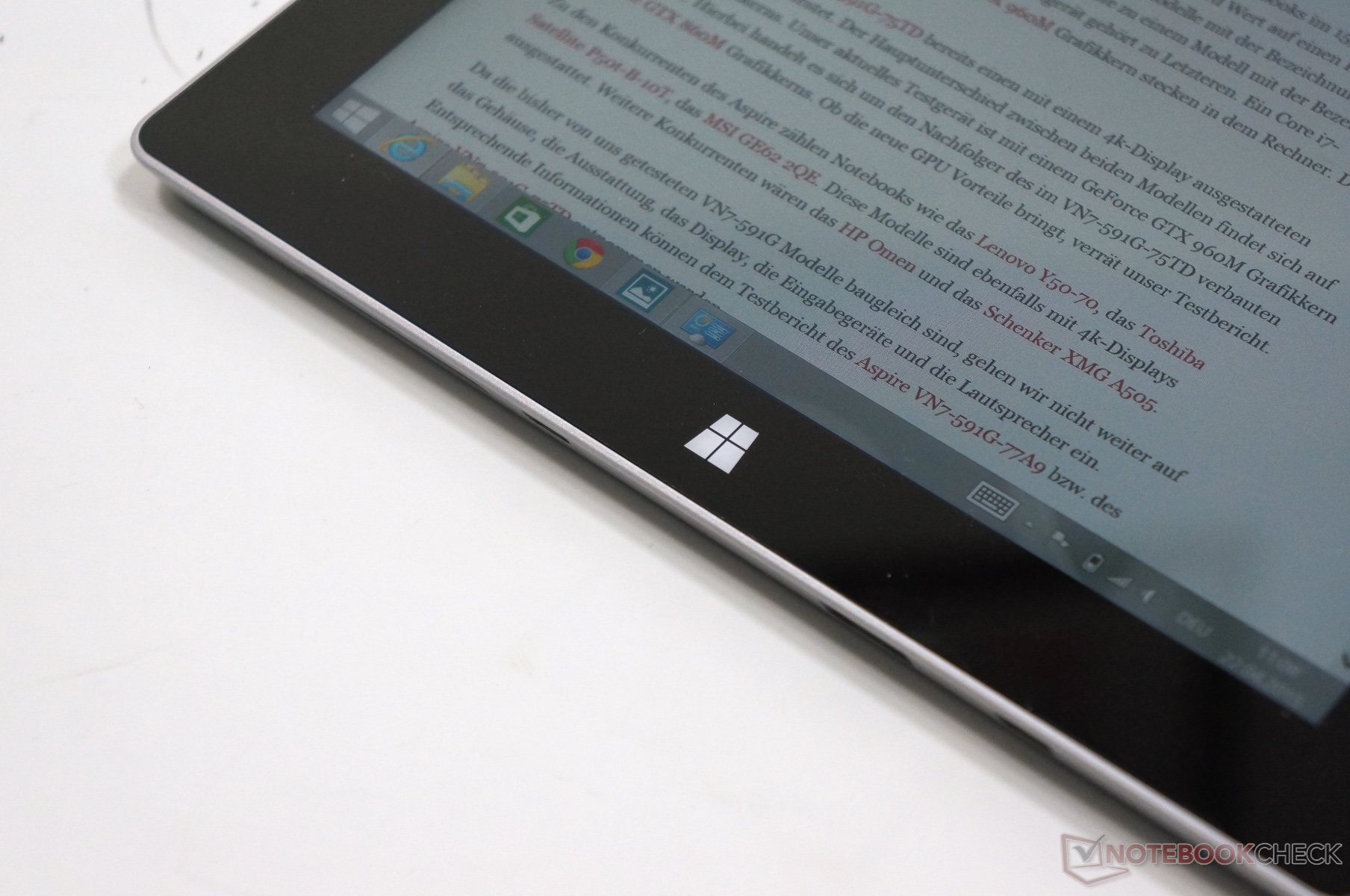

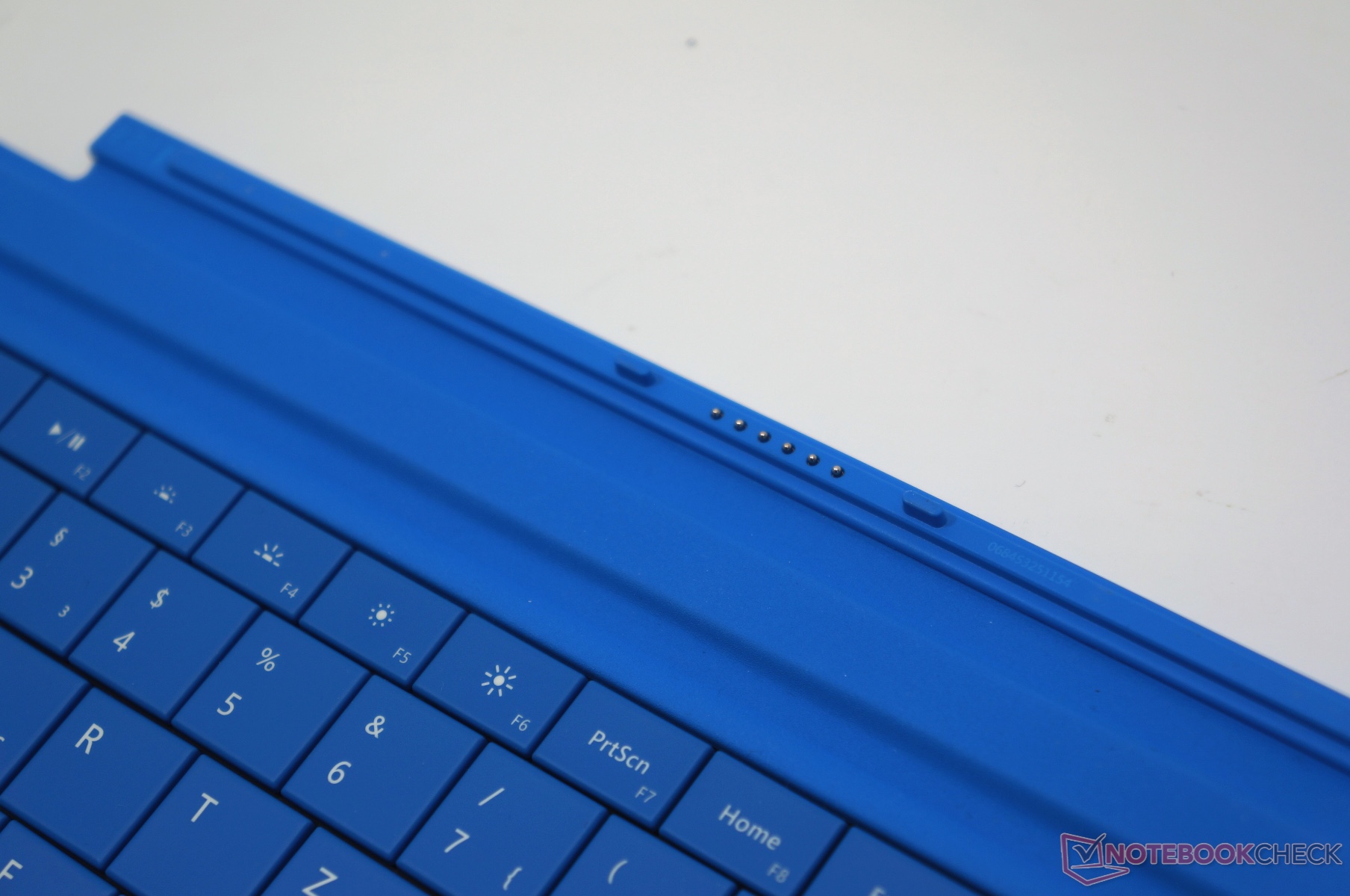

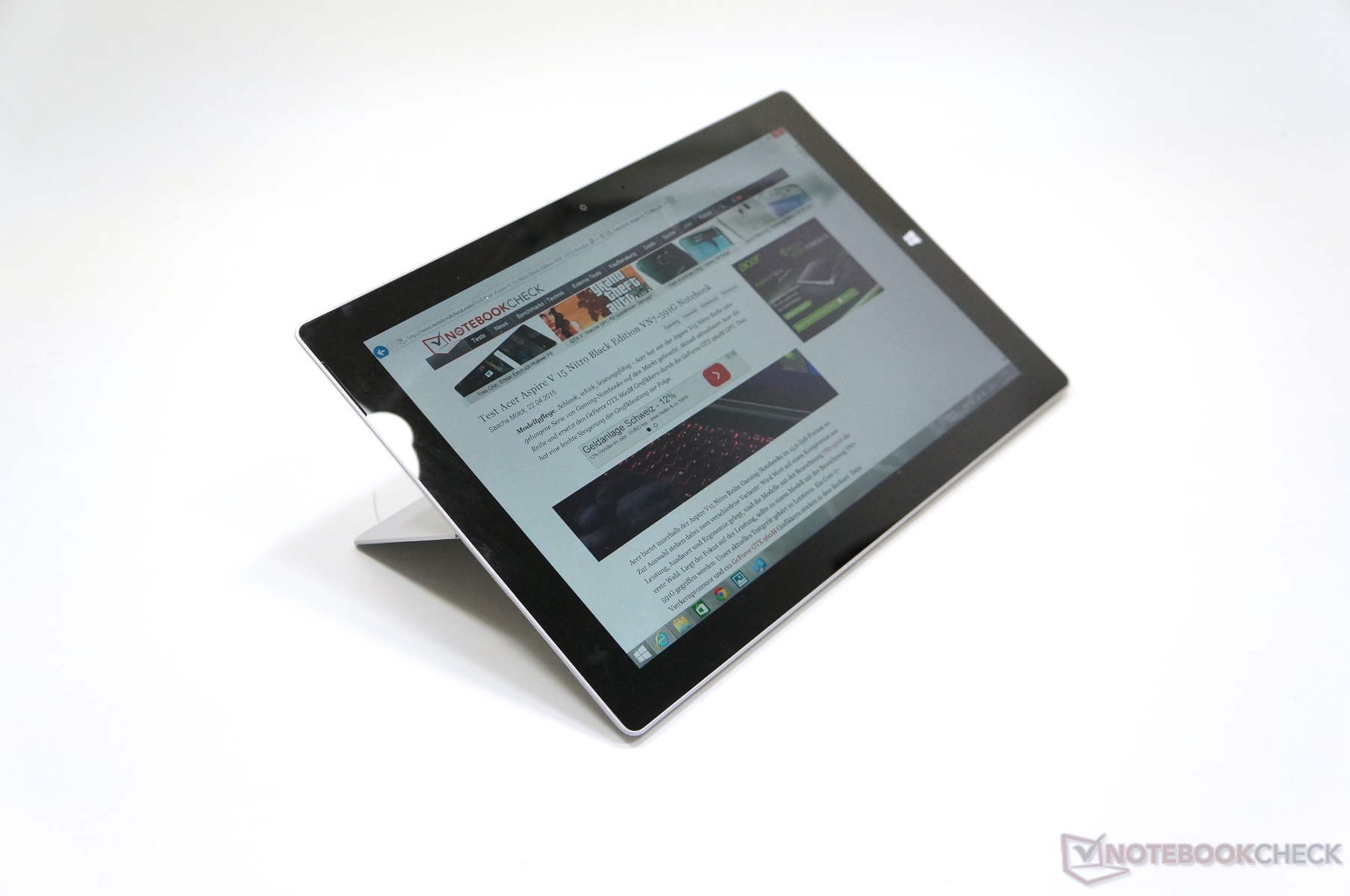

We already mentioned that the Microsoft Surface 3 is a convenient package, which does not reveal any serious issues at a first look. Chassis and build quality are on the good level of the predecessor, the Type Cover can actually be used for longer texts, the display convinces with a good luminance as well as accurate colors and the new 3:2 aspect ratio can be a small advantage for productivity. The performance seems to be sufficient as well.

The Surface 3 closes the gap between a tablet and a notebook like we have never seen before. We are eager to follow the journey of Surface products over the next couple of years.

Update 05/02/2015: As expected, the analysis of the storage solution (eMMC) reveals big issues compared to conventional SSD drives. This is mainly noticeable when you copy files, but also when you open and save files within applications.

The determined battery runtimes of the Surface 3 are good and reach more than 7 hours in our WLAN test. The drawback of the Surface 3, however, is the charging time. You cannot use the device if you want to fully charge the battery within 3-4 hours. If you use the device, you can expect charging times of up to 8 hours when the battery is empty. This resulted in pretty big problems when we tested the device on the road.

Update 05/07/2015: After comprehensive tests, the Surface 3 acts like a good working device for common tasks like web browsing, office applications and the playback of audio and video files. Even picture and movie editing is, if you use simple tools, actually possible with the Surface 3.

Our verdict is generally positive with an overall rating of 85 %. The Surface 3 is well-suited as a notebook-tablet hybrid, but a comparatively high price for the package with the Type Cover unfortunately prevents a purchase recommendation.

Microsoft Surface 3 - 04/18/2016 v5.1(old)
J. Simon Leitner, Klaus A. Hinum

Chassis
89 / 98 → 91%
Keyboard
69%

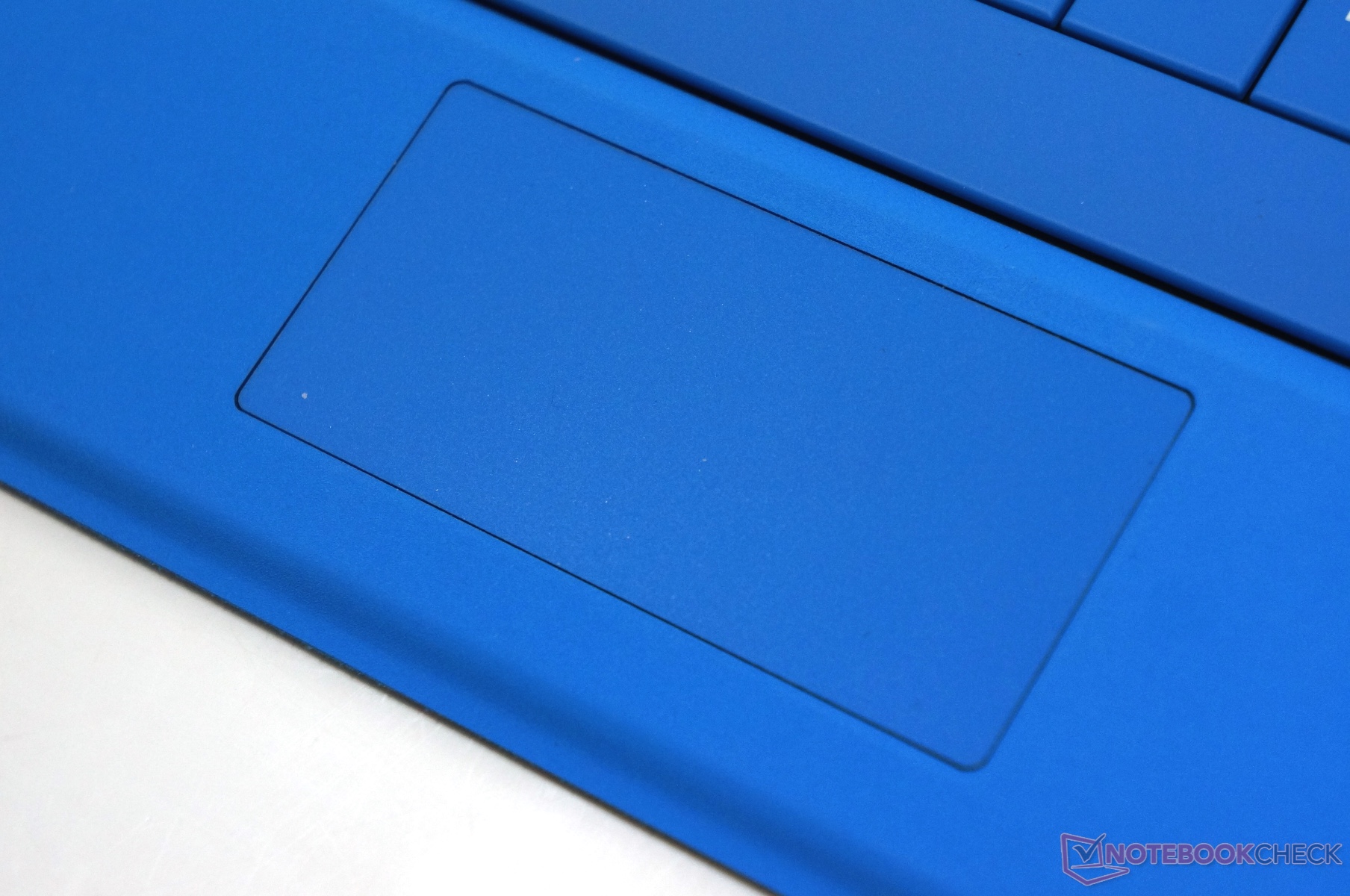

Pointing Device
94%
Connectivity
47 / 80 → 58%
Weight
76 / 35-78 → 95%
Battery
95%
Display
89%
Games Performance
36 / 68 → 53%
Application Performance
50 / 87 → 57%
Temperature
89%
Noise
100%
Audio
50 / 91 → 55%
Camera
50 / 85 → 59%
Average
72%
87%
Convertible - Weighted Average

Pricecompare

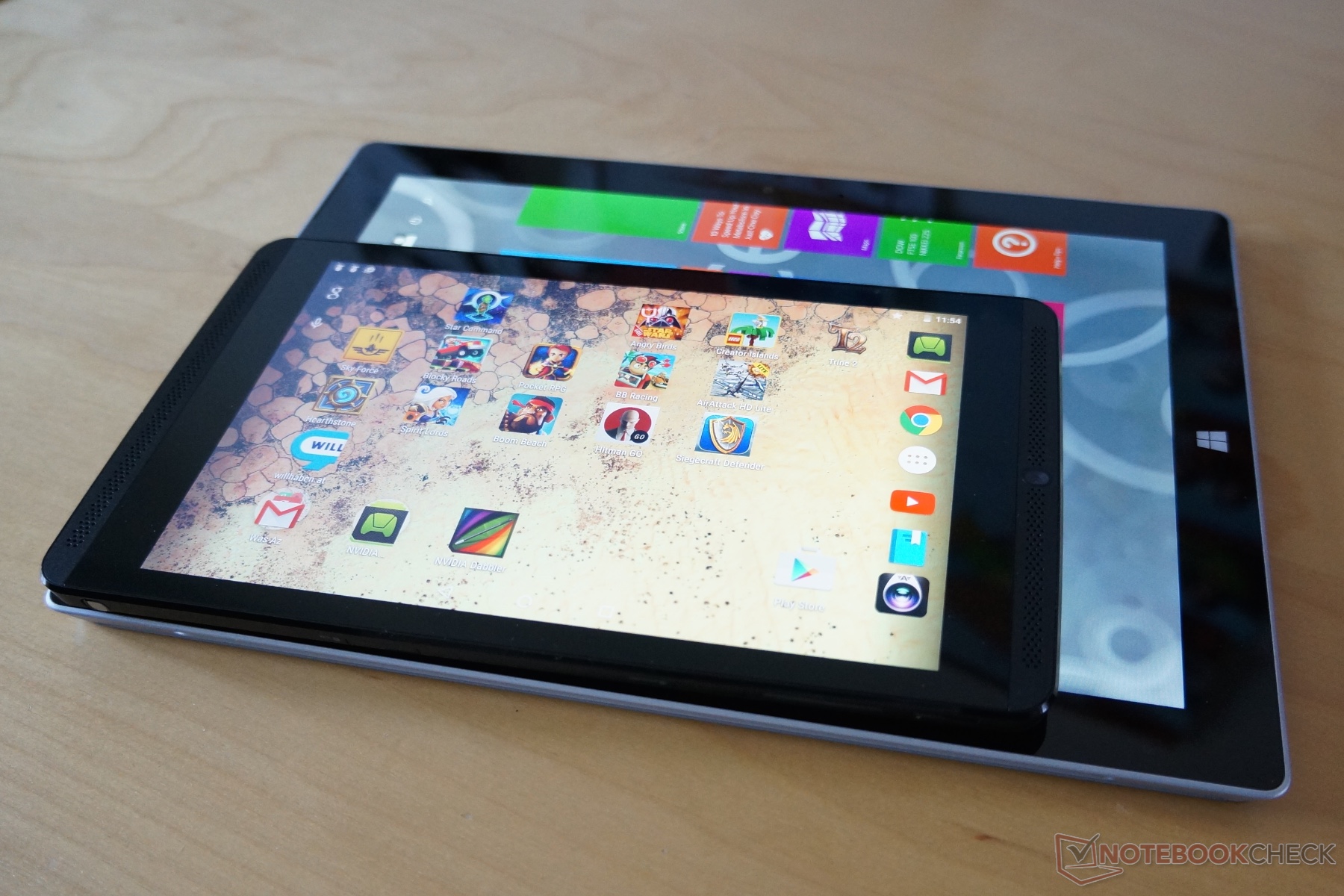

Microsoft Surface 3 vs Nvidia Shield Tablet LTE

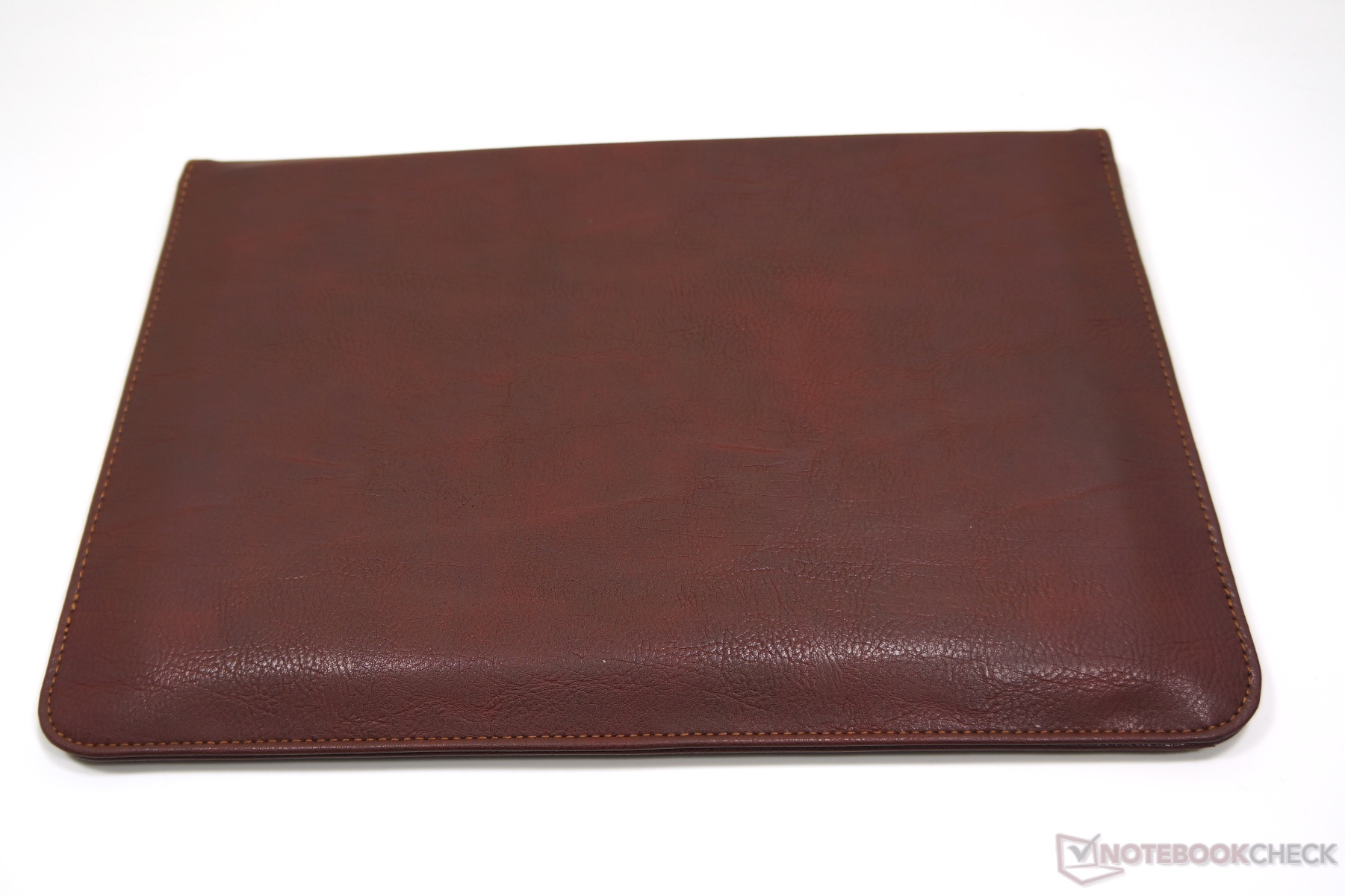

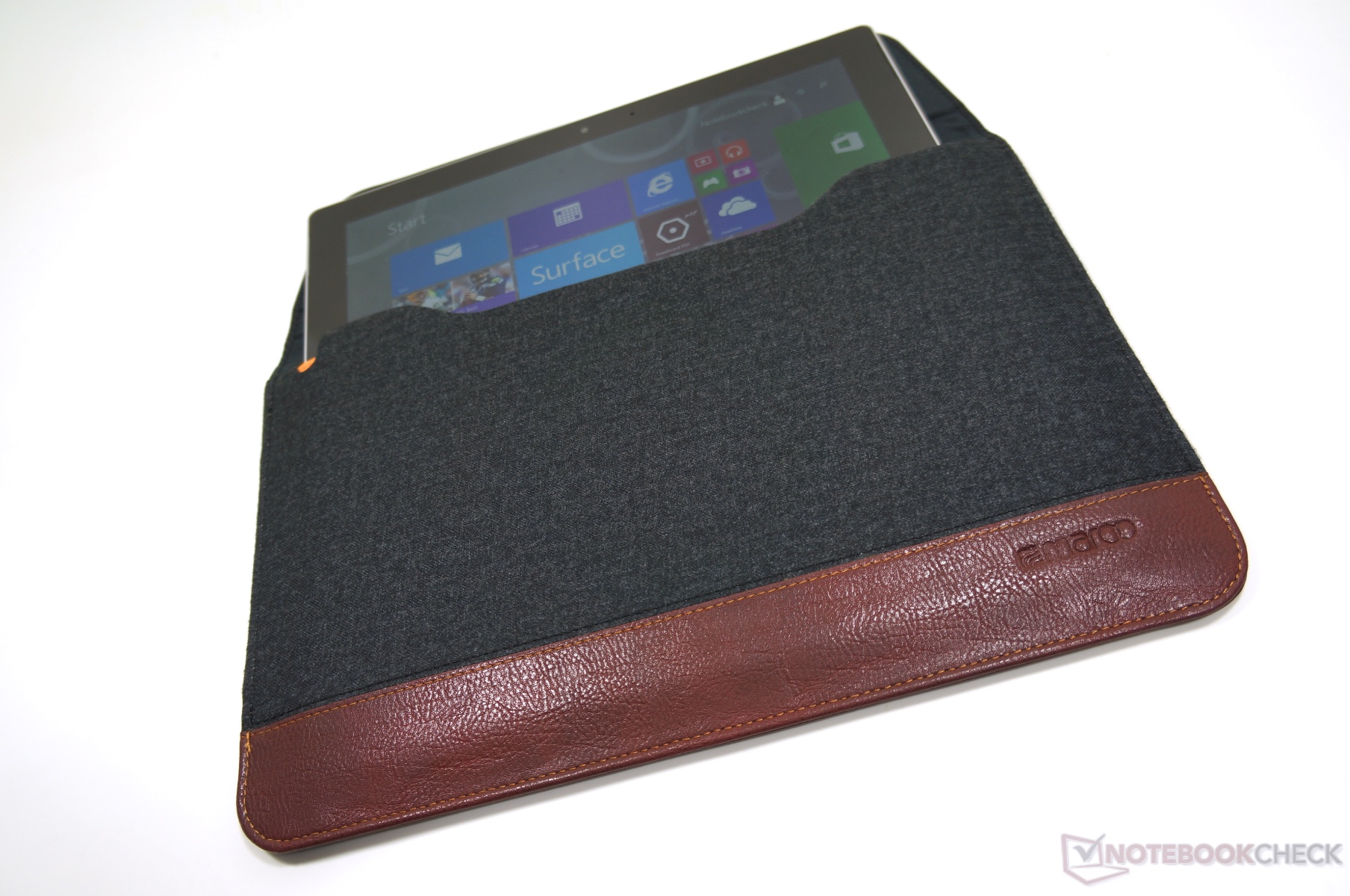

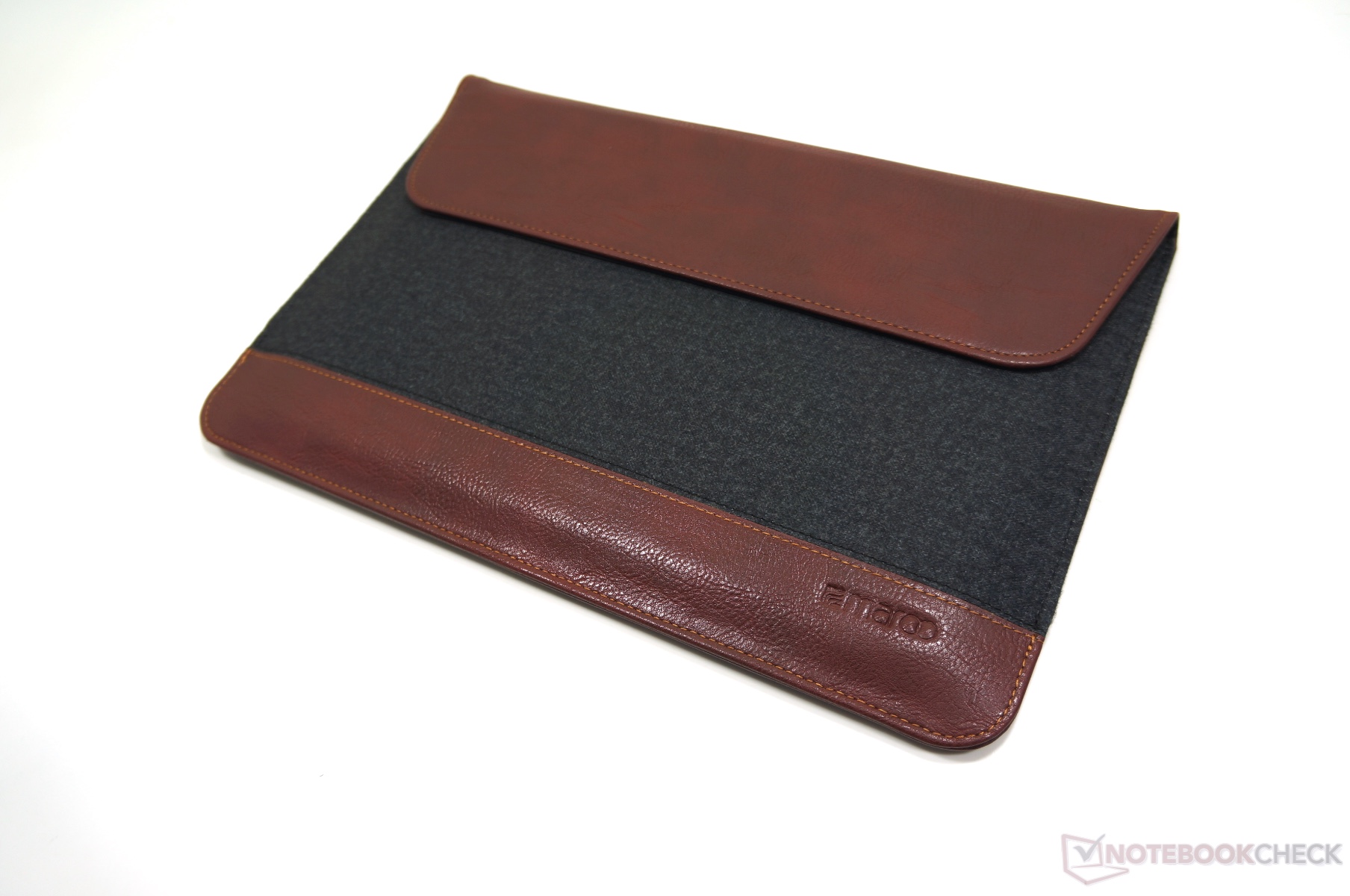

3rd party accessory bags

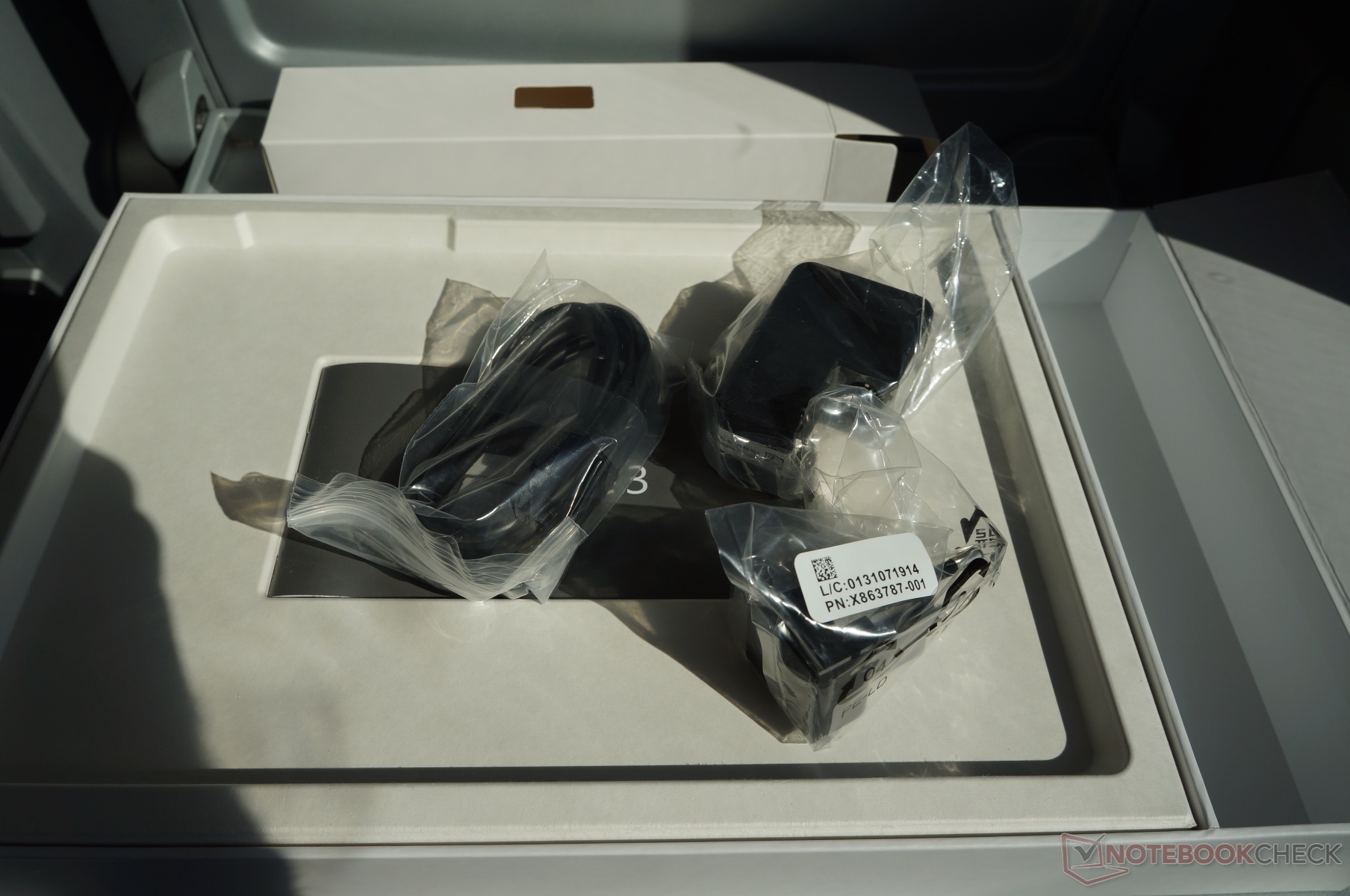

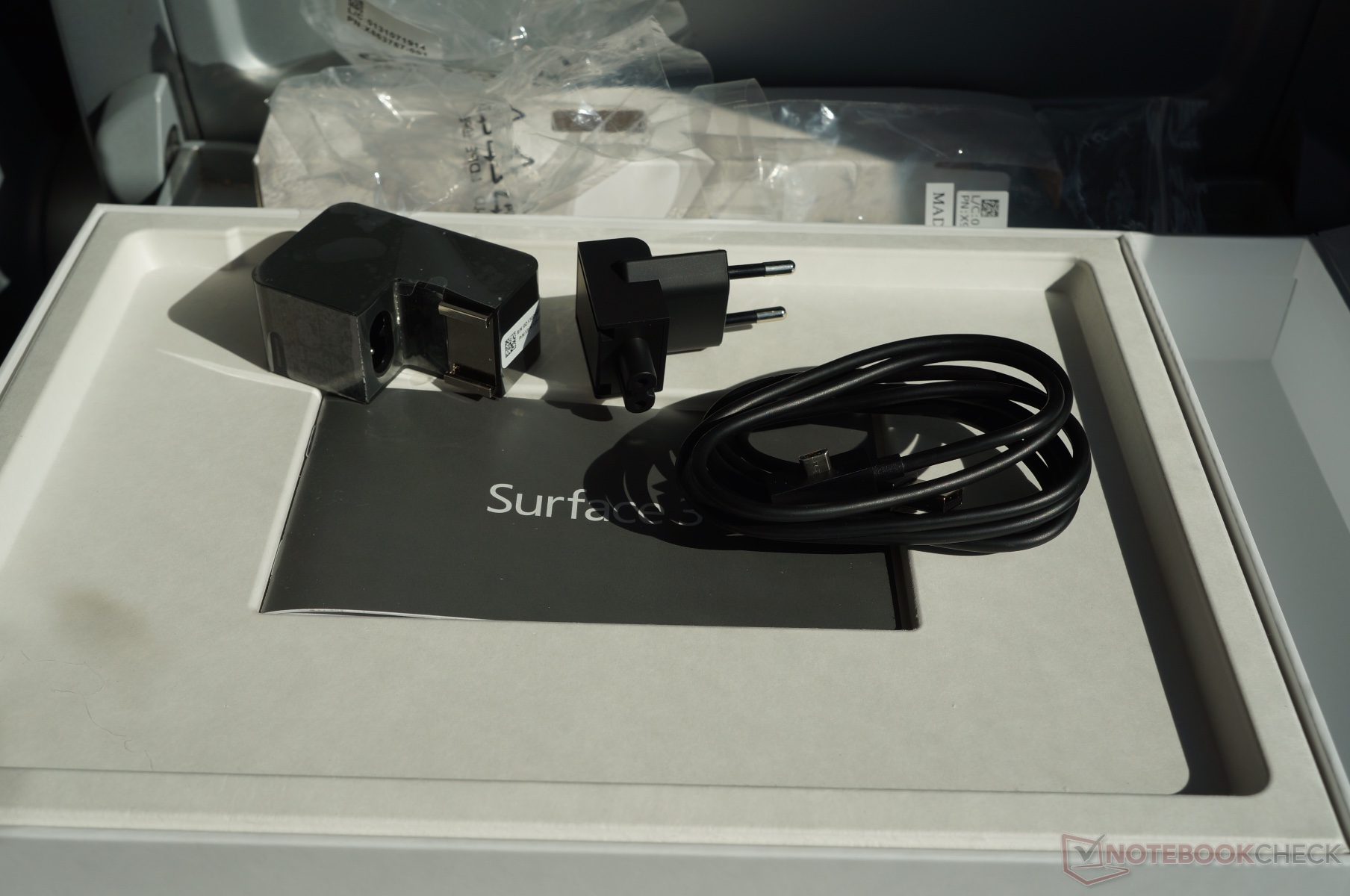

13-watt USB power adaptor
USB charging cable
Surface 2 vs Surface 3
Read all 11 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
J. Simon Leitner, Klaus A. Hinum, 2015-05-11 (Update: 2020-06- 8)
