FiiO unveils FP3 planar earbuds with bass-enhancing Tesla Valve design and faceplates in black walnut or rosewood

Facing problems head-on, Breaking through them

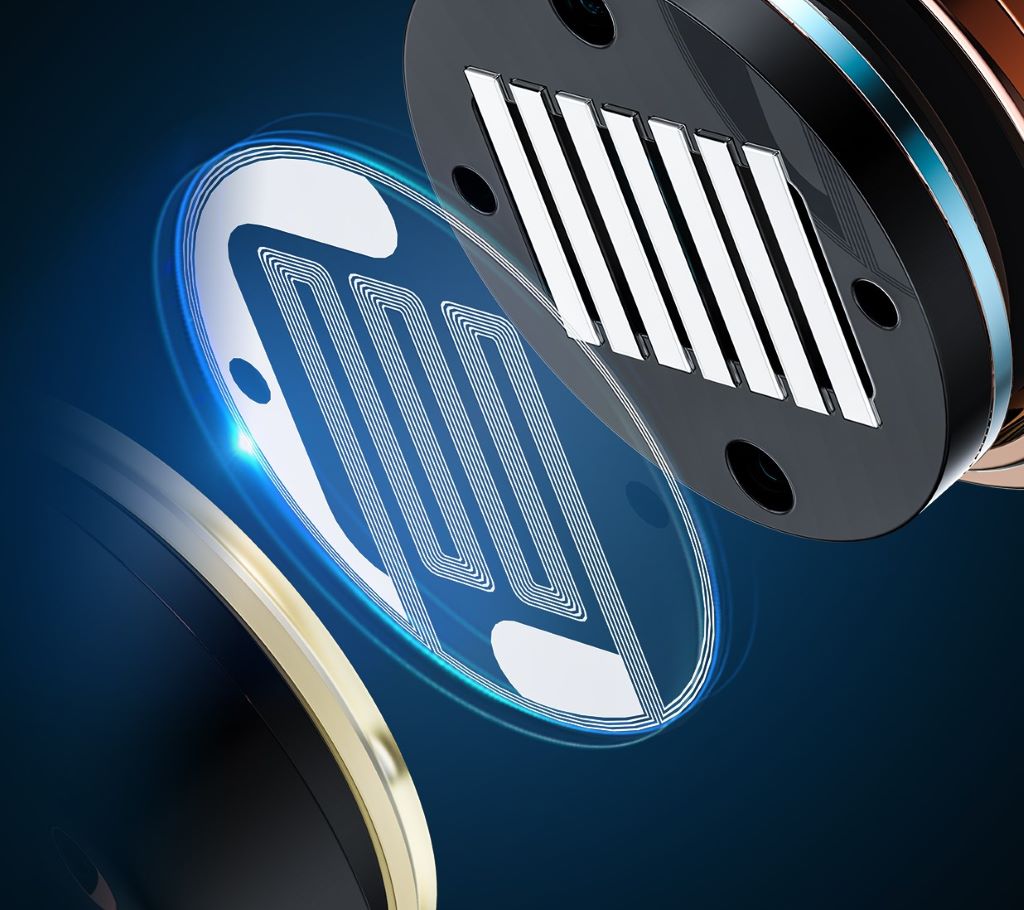

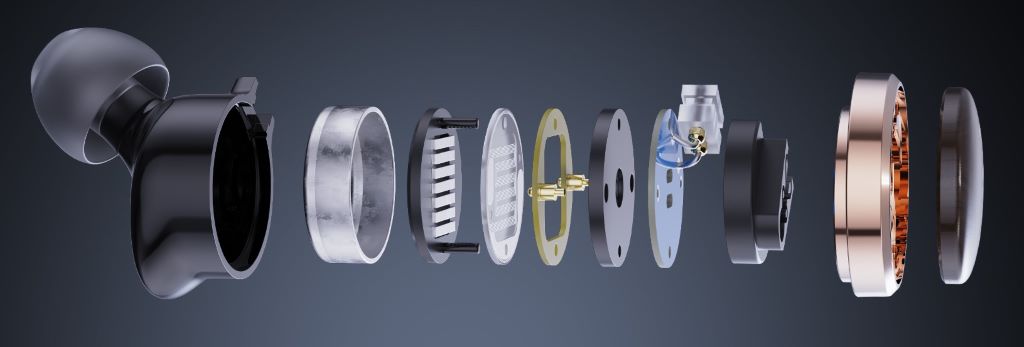

The FP3 is equipped with FIIO’s second generation, self-developed 14.5mm in-ear planar driver. The planar driver has been designed from the ground-up by FIIO, from the diaphragm, to the patented dual-coating, to the conductive trace width, to the fine-tuning of the magnetic circuit, and even the standardized bracket fixings. Compared to typical off-the-shelf drivers, the self-developed driver can be completely customized to build and fit around it a sophisticated acoustic system, allowing the driver to achieve significant breakthroughs in sound quality.

Thanks to this intensive research and development, the FIIO FP3 features a large, almost limitless soundstage rarely found among its peers. It also effortlessly produces deep bass and detailed treble up to 40kHz, allowing you to fully dive into the music.

Dual-sided 14 N52 neodymium magnets

In order to achieve a comfortable and lightweight design, the development team decided to place 7 N52 high-performance neodymium magnets on both sides of the FP3’s driver. These magnets are arranged in a 7x2 pattern, totaling 14 in all. The balanced placement of these magnets allows the dual-coated traces to be distributed evenly within the magnetic field. This completes a matrix-style magnetic circuit system, ensuring that the diaphragm experiences balanced forces on both sides. As a result, the diaphragm does not move in irregular ways, which reduces distortion, and achieves high-fidelity sound.

A true standout, 1μm ultra-thin diaphragm

Engineers have constantly strived to achieve thinner and lighter diaphragms for planar drivers. After two years of independent research and development, we have created a class-leading 1μm ultra-thin diaphragm, using high-performance PET as the substrate. The difference between even a 2μm and a 1μm diaphragm thickness results in noticeable performance differences when the diaphragm is vibrating at high speeds, which ultimately affects sound quality.

The FP3’s 1μm ultra-thin diaphragm is exceptionally lightweight, allowing it to respond with lightning-quick speed. It faithfully reproduces even subtle sounds in the ultra-high frequency range, as well as providing exceptional dynamic range.

Dual-stacked, Finely-tuned frequency response

The FIIO FP3 employs a newly self-developed technology for its planar driver – a patented dual-coating system. The planar driver uses high-performance PET as the diaphragm substrate and selectively applies aluminum and titanium to create a dual-coated driver. Such a design enhances the driver’s frequency response across different frequency ranges, improves audio resolution, and allows listeners to fully appreciate the nuanced sound quality of planar drivers.

The first coating layer is made of aluminum. Lightweight and conducive, the aluminum coating enhances the traces’ conductivity, helping to reduce the IEM’s impedance and power requirements.

The second coating layer is made of titanium. With its high hardness, the titanium coating contributes to the diaphragm’s rigidity and enhances treble resolution and overall transparency.

*Patent number: ZL2024205488218

“Tesla valve” patented bass enhancement acoustic technology

The FIIO FP3 is equipped with the same F.T.B.S.* “Tesla Valve” patented bass enhancement acoustic technology as in the FD15. The lengths, angles, and quantities of channels within the IEM’s cavity have been specially calculated to achieve a Tesla valve fluid structure. The result is significantly enhanced and deeply extended yet textured bass.

*Patented number: ZL2024203547620

*F.T.B.S is FIIO Tesla Bass Sound

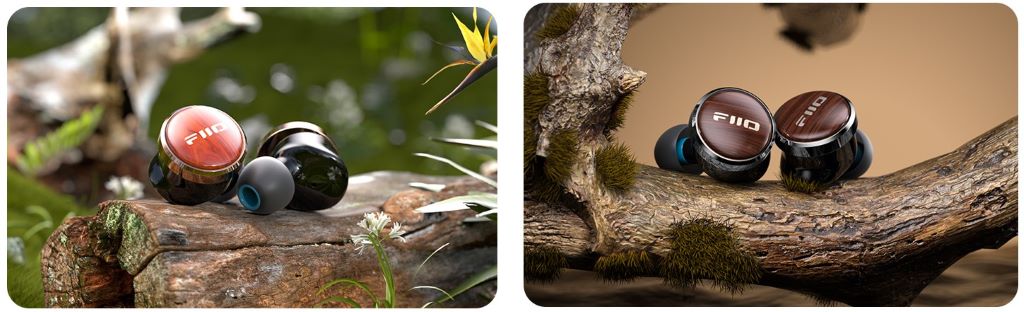

Rosewood/Black walnut versions available

The FIIO FP3 features a natural solid wood faceplate, with rosewood/black walnut versions available:

· Rosewood: Grows in tropical regions and is commonly used in various applications, such as for high-end musical instruments and custom classical furniture. The wood itself boasts vivid colors and distinct grain patterns, making it a beautiful and elegant wood adored all over the world.

· Black walnut: Originating from the high-latitude regions of North America, black walnut is renowned for its beautiful and elegant grain patterns, as well as its smooth and fine texture. It is used in luxury products such as yachts, high-end cars, and custom-made furniture. It is a relatively rare wood.

*FP3 TC is expected to be launched in December.

* The FP3 is available on our AliExpress Official Store. Click the link to take it home right away: aliexpress.com/item/1005007948436998.html
