Ace Magician T8Pro review: Budget mini PC for office use

Name: Minipc Union Ace Magician T8Pro
Brand: Minipc Union

Quiet and efficient! The Ace Magician T8Pro is an extremely compact office PC released by Minipc Union. The Jasper Lake SoC inside is only capable of running basic tasks. In this review, we have summarised our findings with lots of measurements and benchmark results to give you a better idea of this product.

Sebastian Bade (translated by Zhiwei (Peter) Zhuang), Published 01/09/2023 🇩🇪 🇸🇪 ...

Jasper Lake Desktop Intel Mini PC

The system manufacturer Minipc Union offers a wide range of compact PCs for applications ranging from basic office tasks to budget gaming. The Ace Magician T8Pro is a highly compact mini PC powered by an Intel Celeron N5095. The device also comes with 8 GB of RAM and a 256 GB SSD. You can expect to pay around €290 (US$309) for the device, which is a fair price compared with other compact mini computers. There are no other variants available – not that we think it is necessary anyway. What's more, Windows 11 Pro is included in the price.

The mini PC comes packaged in a small box that also contains a 65-watt charger and a VESA bracket for mounting the device on a monitor.

Minipc Union Ace Magician T8Pro

Processor

Intel Celeron N5095 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Graphics adapter

Intel UHD Graphics (Jasper Lake 16 EU)

Memory

8 GB

Storage

FPT310M4SSD256G, 256 GB

, M.2 2242 SATA SSD, 210 GB free

Connections

3 USB 3.0 / 3.1 Gen1, 3 HDMI, Audio Connections: 3.5mm Klinke

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 43.5 x 87 x 87 ( = 1.71 x 3.43 x 3.43 in)

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

Weight

209 g ( = 7.37 oz / 0.46 pounds), Power Supply: 124 g ( = 4.37 oz / 0.27 pounds)

Price

280 EUR

Links

Minipc Union homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Detailed information on the Ace Magician T8Pro

Case

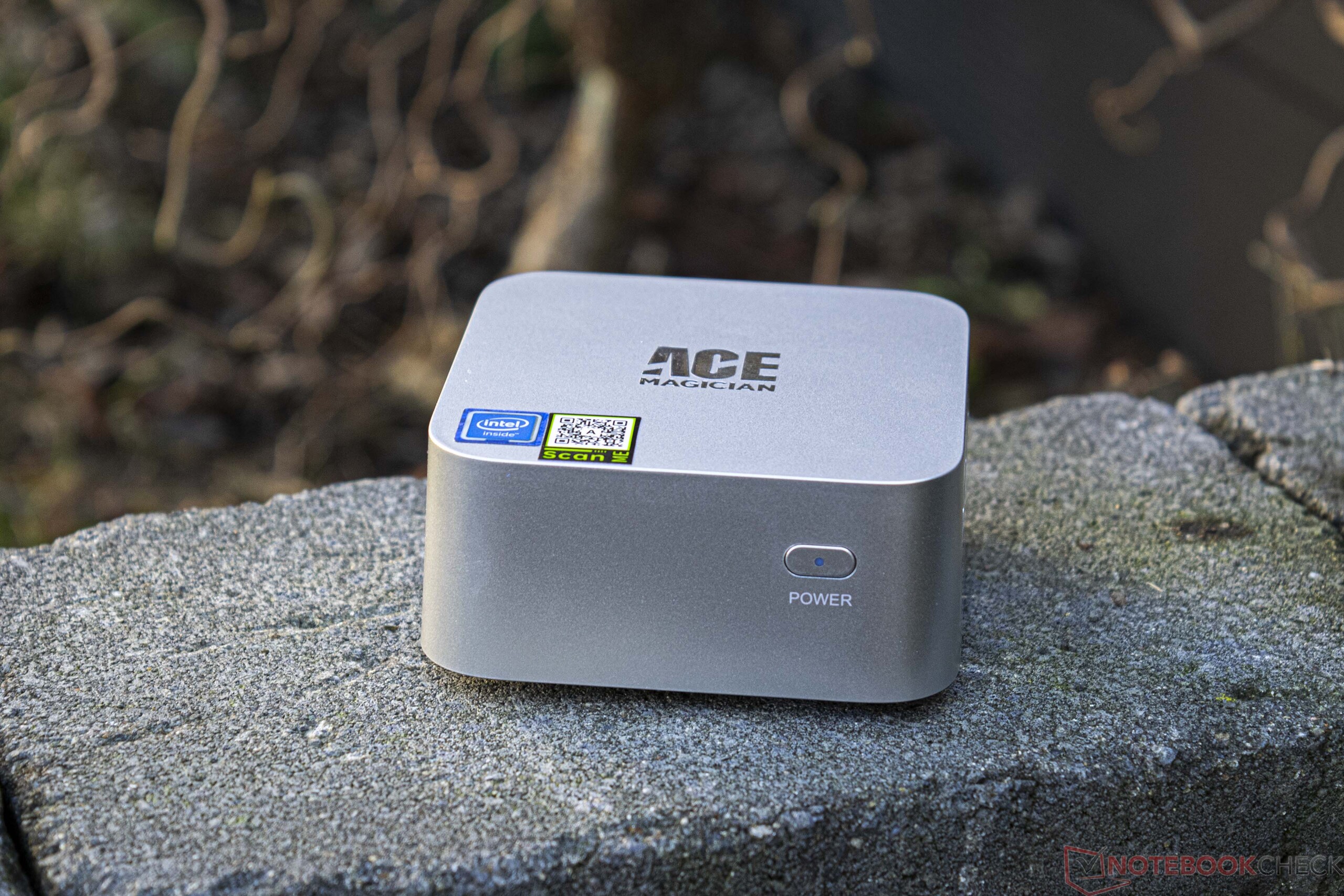

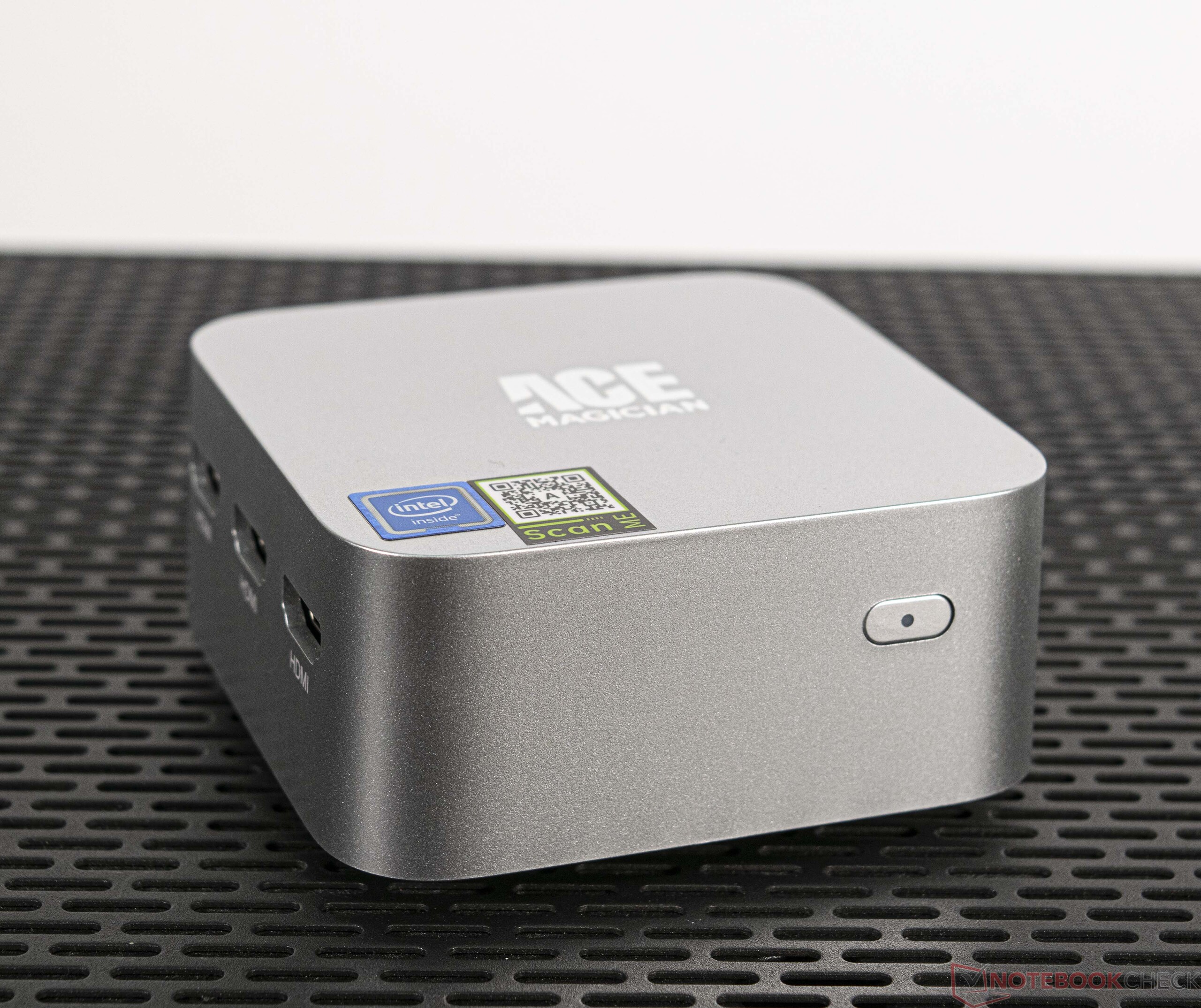

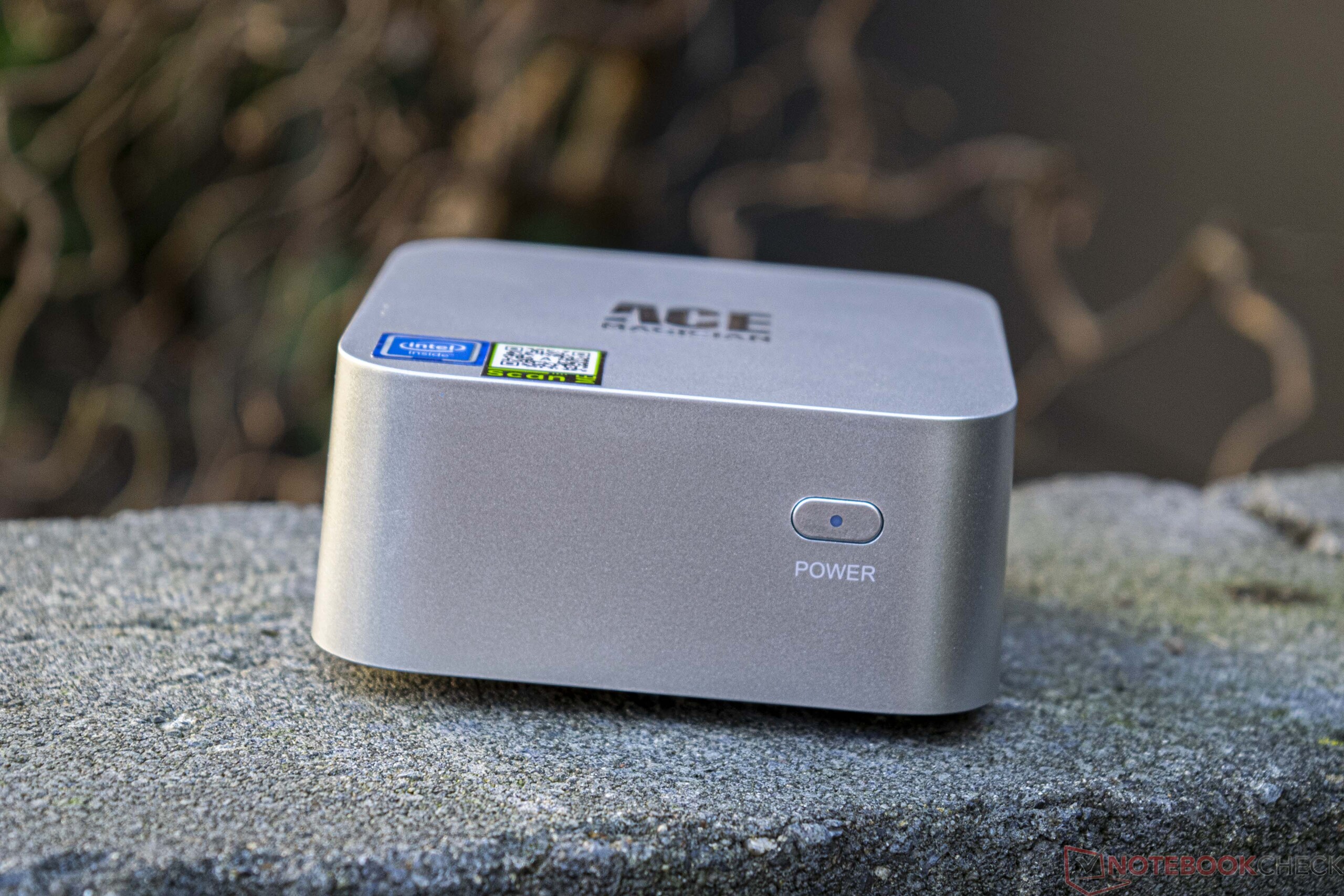

The Ace Magician T8Pro is a very tiny mini PC that only occupies a footprint of roughly 8.7 x 8.7 cm (3.5 x 3.5"). The product is also relatively thin at just 4.35 cm (1.69"). The manufacturer went with a mostly plastic build. The surfaces on the device are fairly smooth and feel good to the touch. Colour-wise, the Ace Magician T8Pro is kept relatively neutral with silver and grey, allowing it to blend in seamlessly on a modern desk. There are no stability issues thanks to its compact design. And the tiny computer is very lightweight at just 209 g (0.46 lb).

Size comparison

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Morefine S500+ Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A4 ❌

Specifications

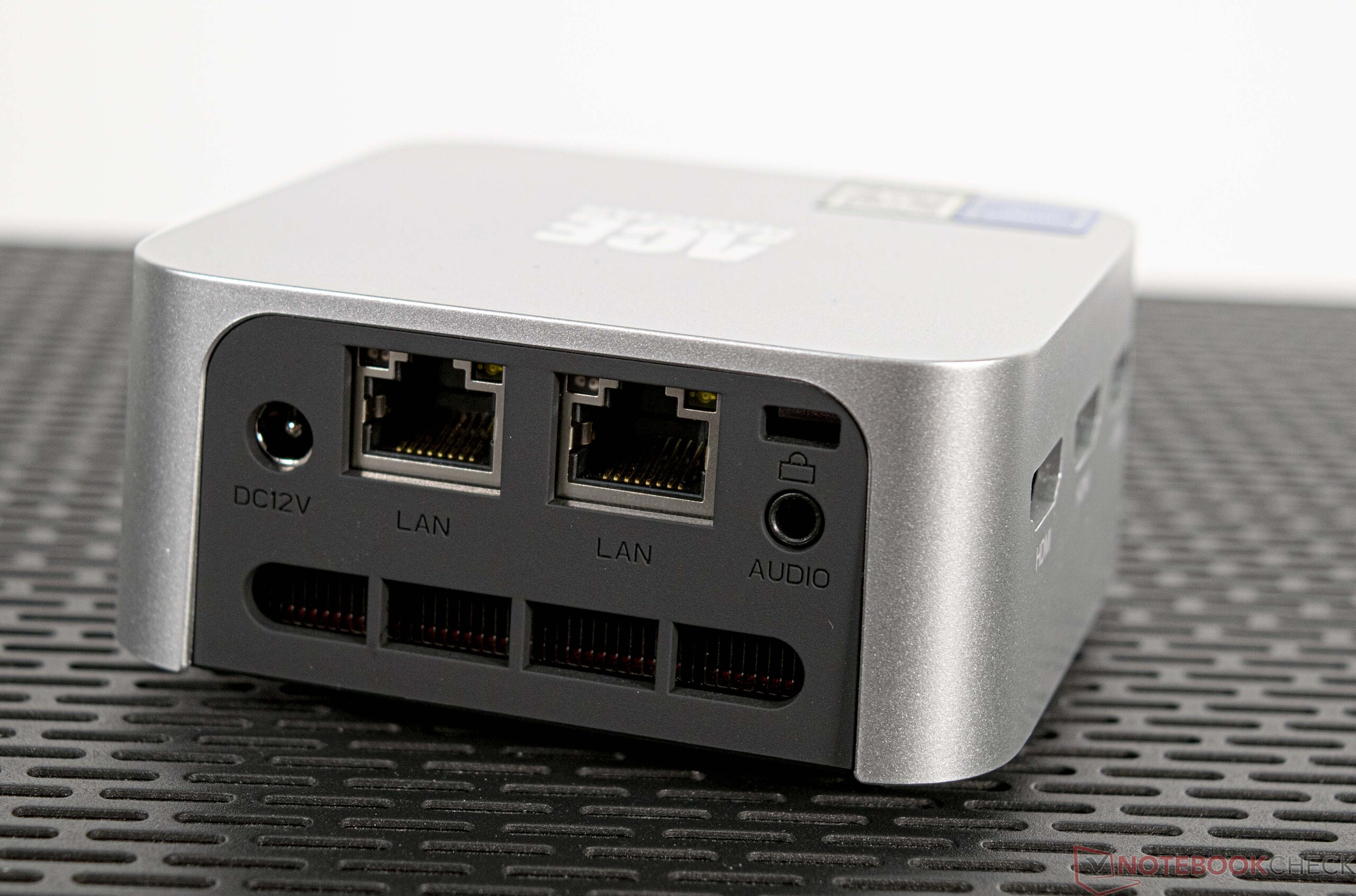

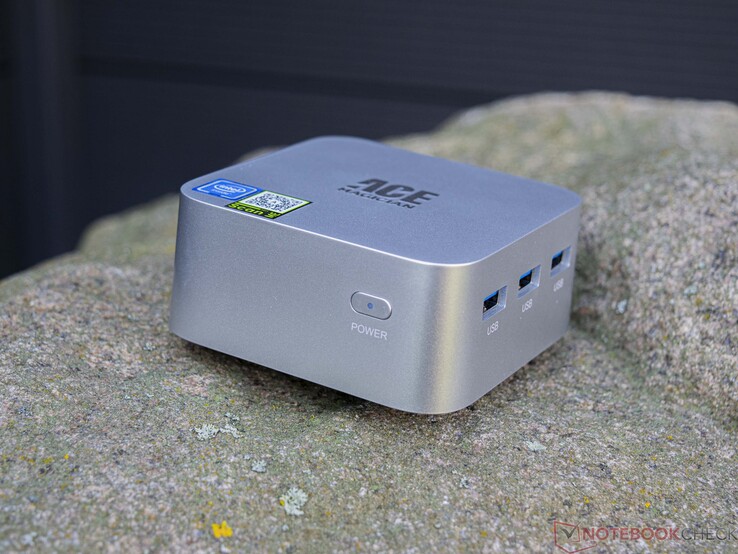

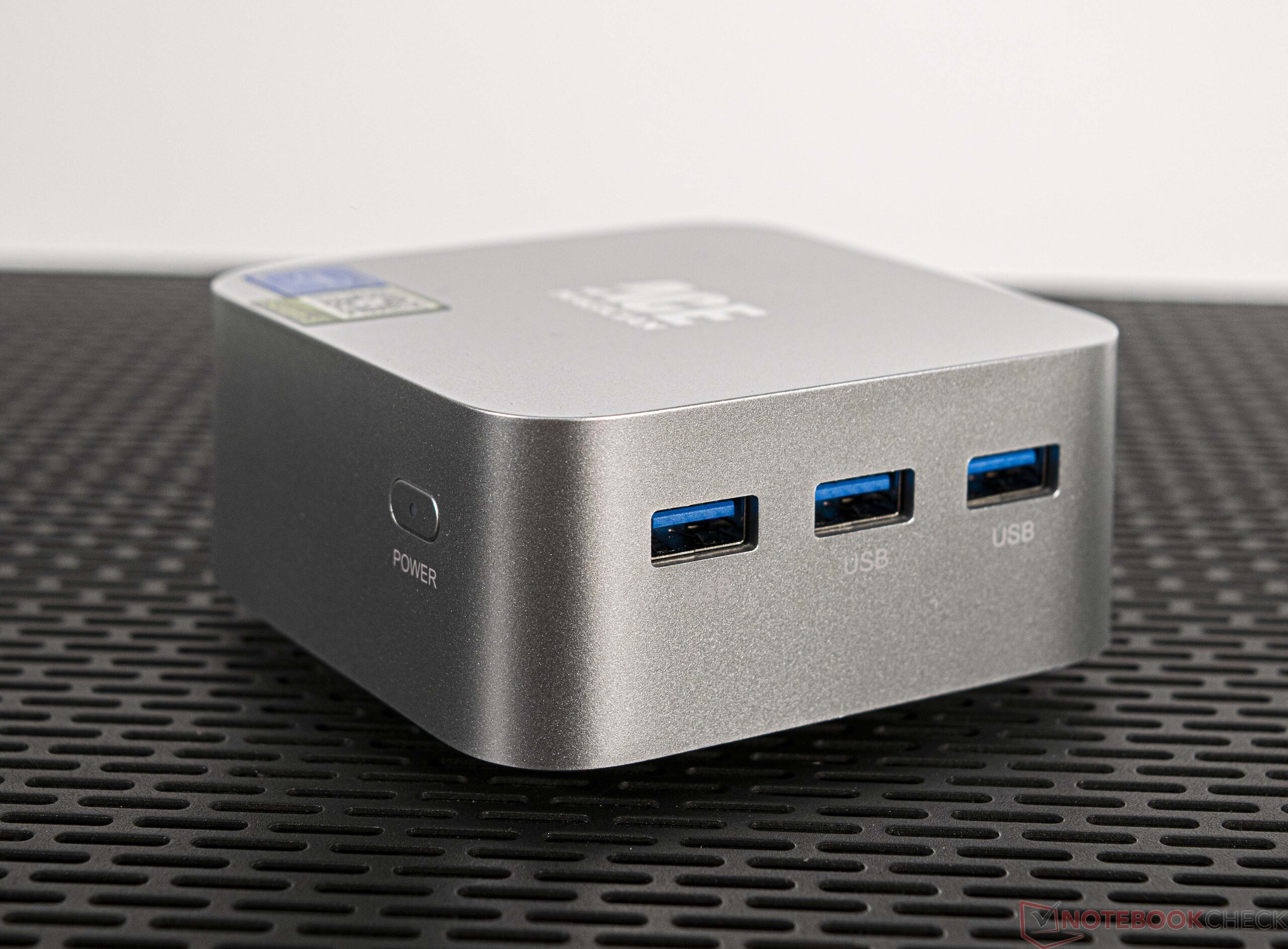

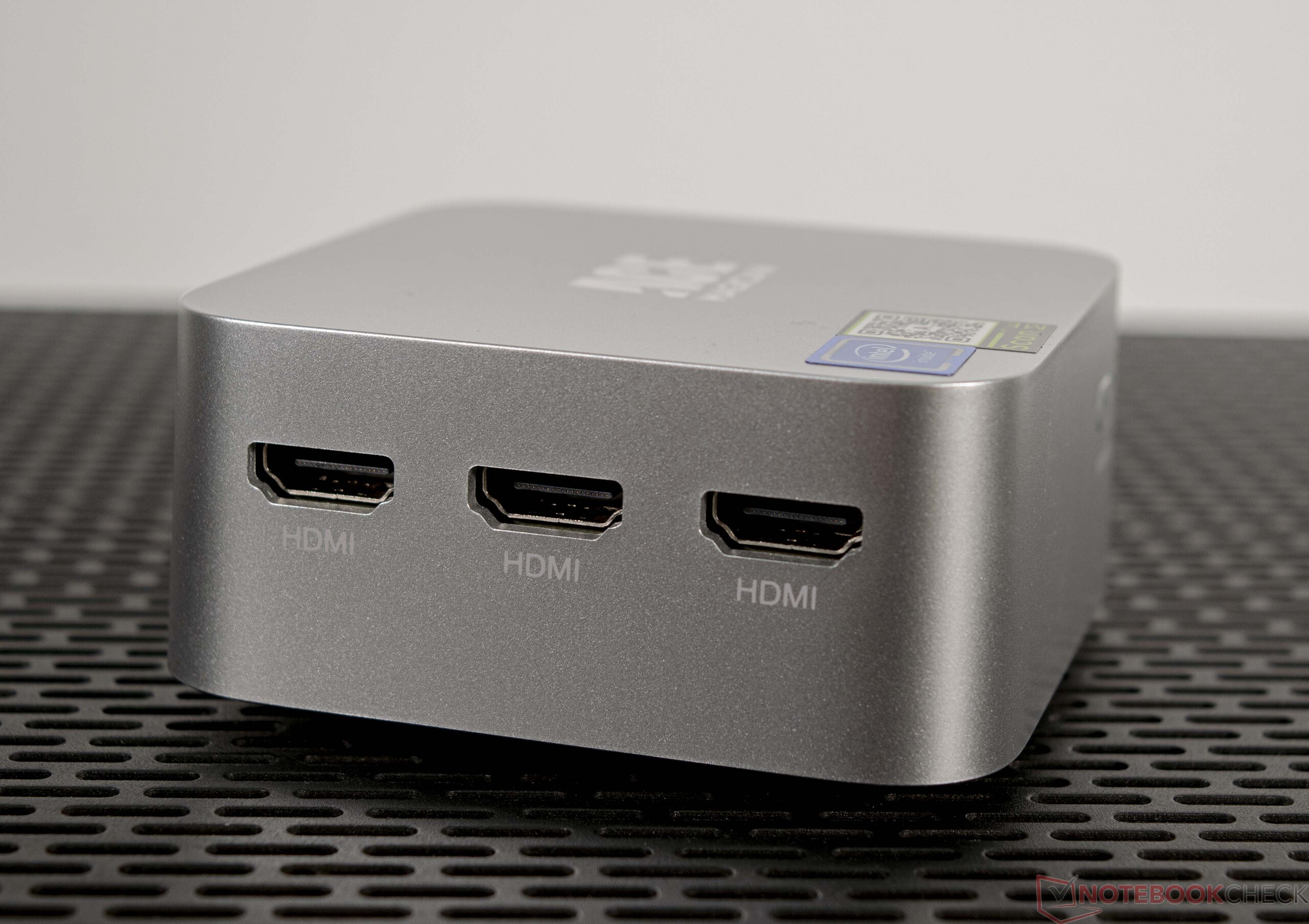

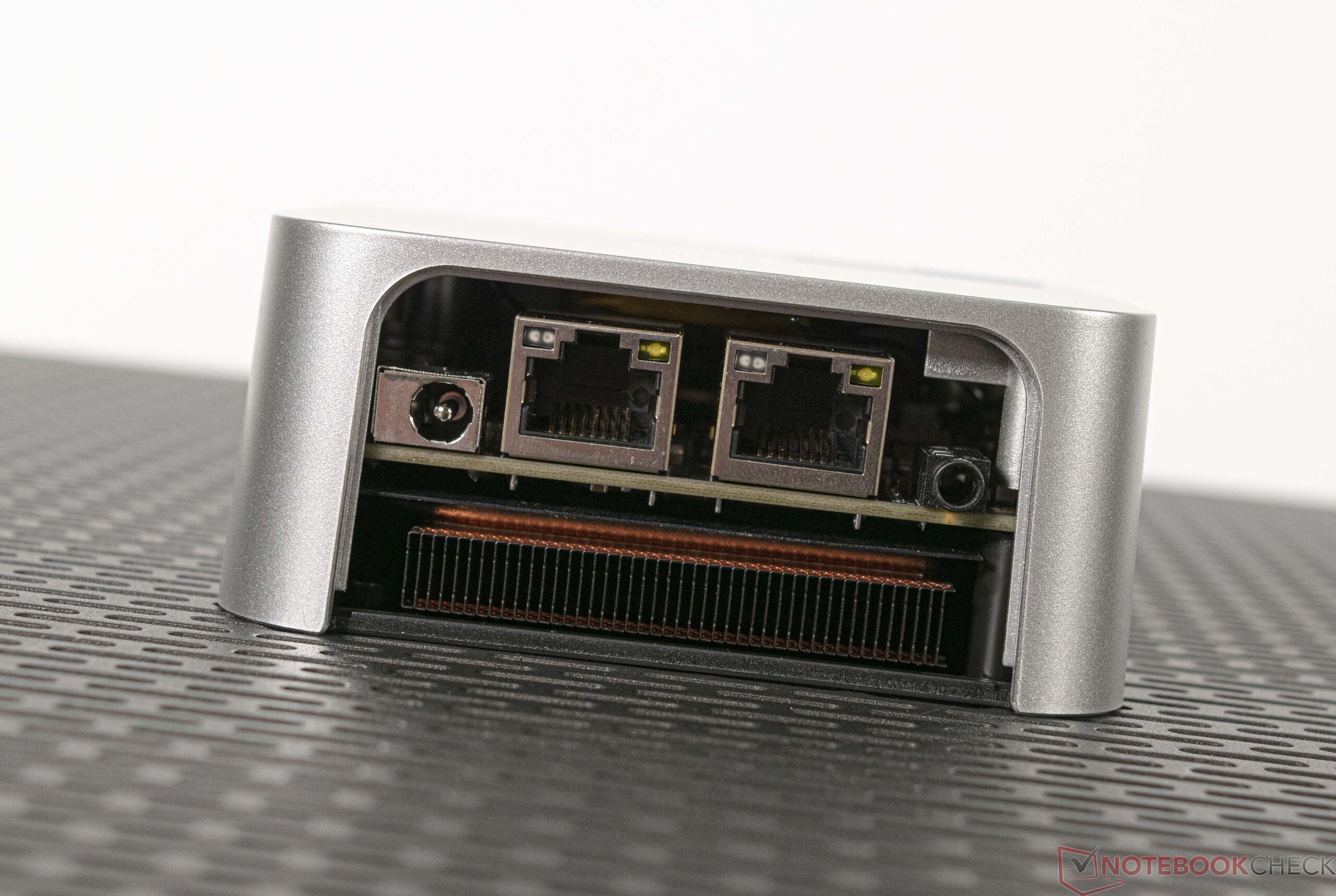

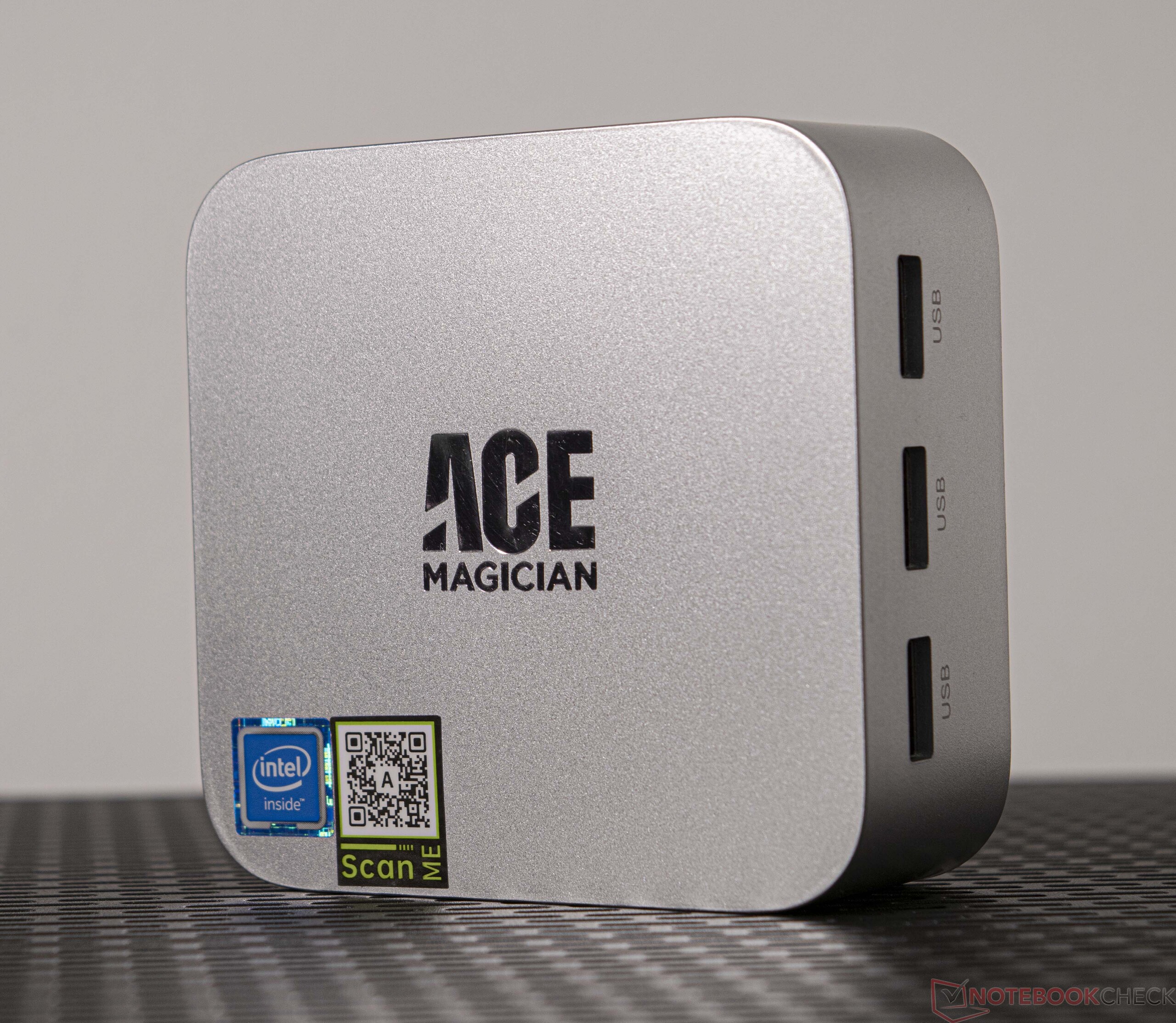

In spite of the compact design, Minipc Union managed to pack three USB-A ports and three HDMI outputs into the Ace Magician T8Pro. The two port types are each located on one side of the device, and there are two LAN ports on the rear. This means the Ace Magician T8Pro is very well equipped and can hold its own against "larger" devices in our comparison. The T8Pro uses a Realtek 8821CE chip for wireless communication, which offers worse performance than the wireless solutions in the other devices.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s +166%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +149%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s +147%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +114%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +18%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 365, n=5)	360 MBit/s -1%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +425%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +370%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s +366%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +348%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +211%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 274, n=5)	242 MBit/s +31%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s +22%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s

Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)

Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

Maintenance

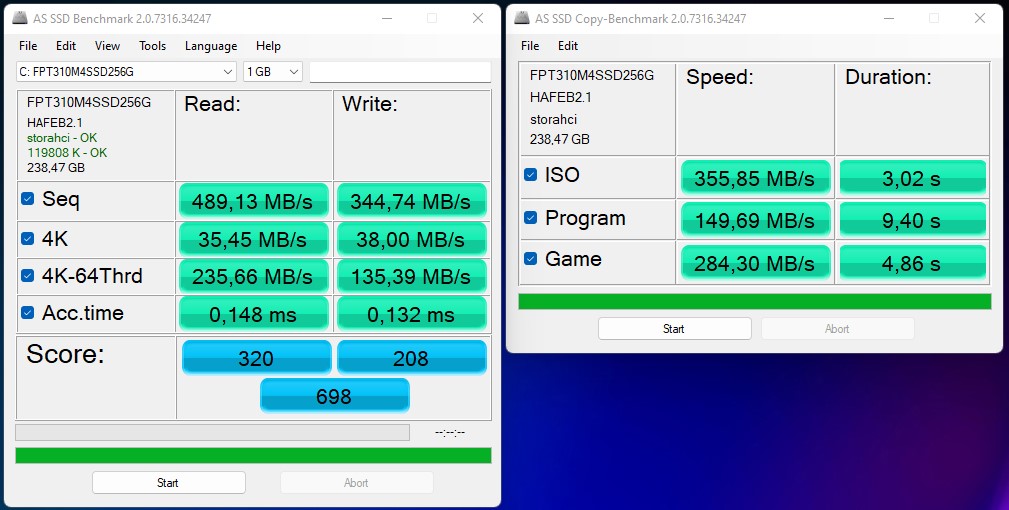

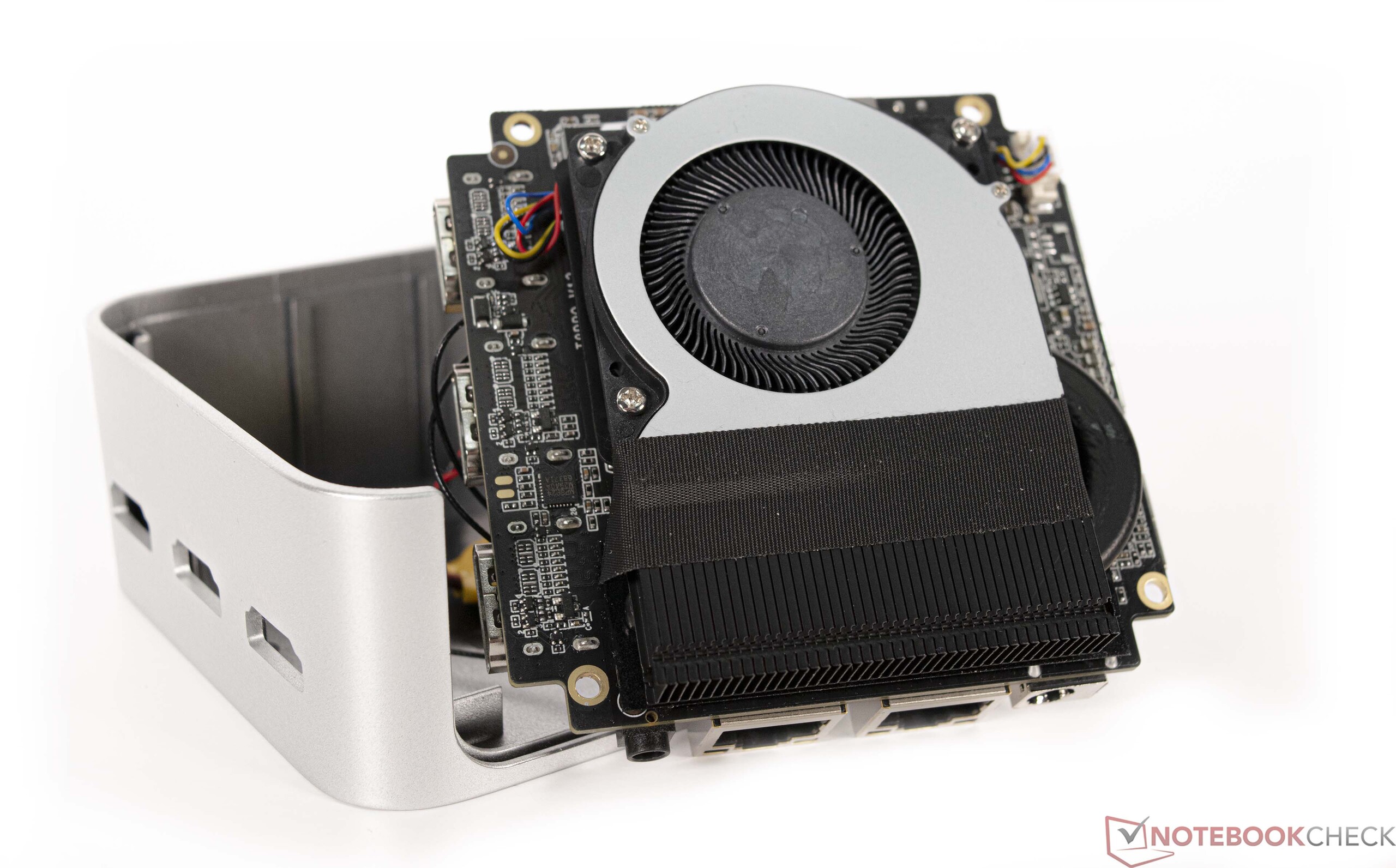

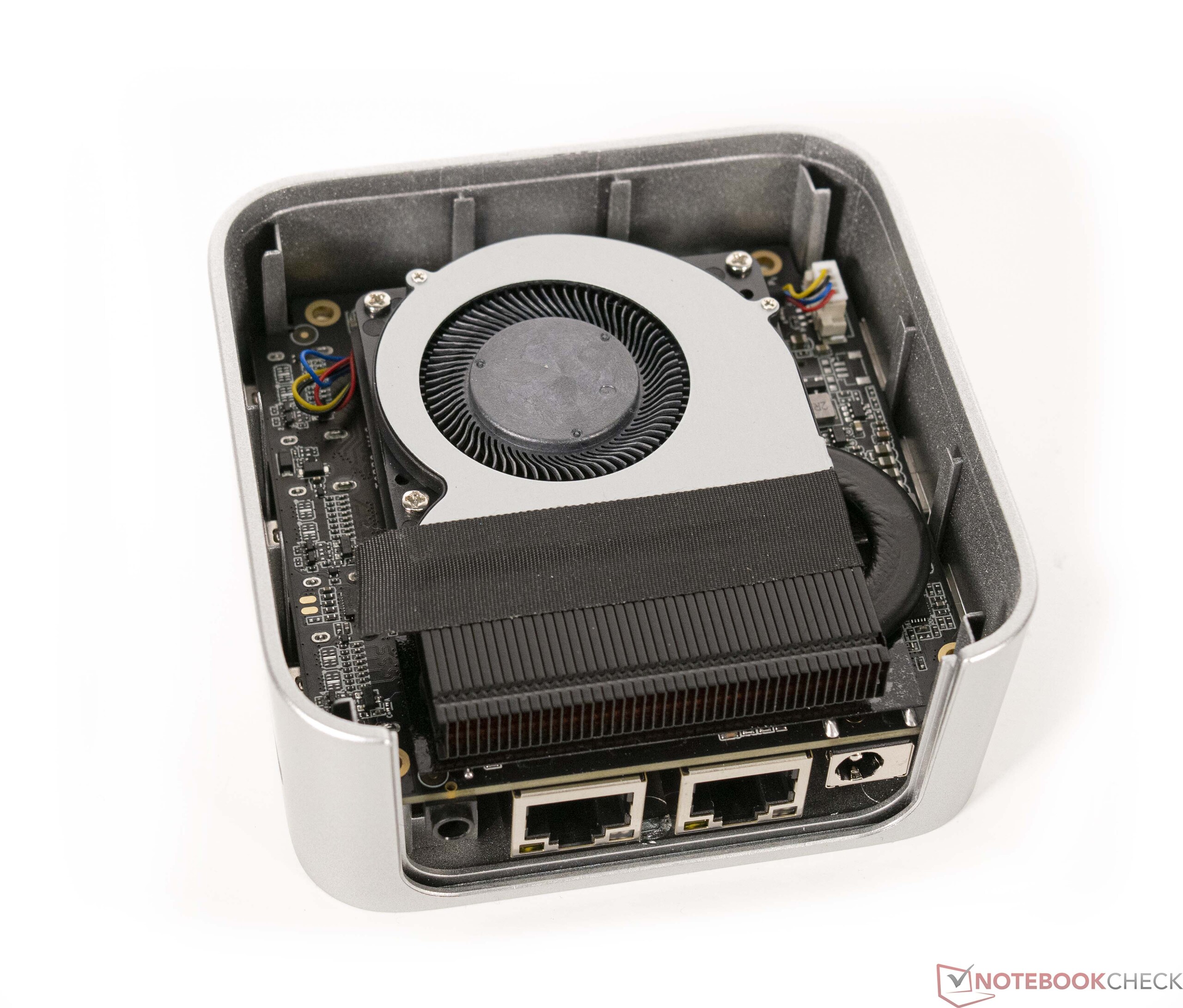

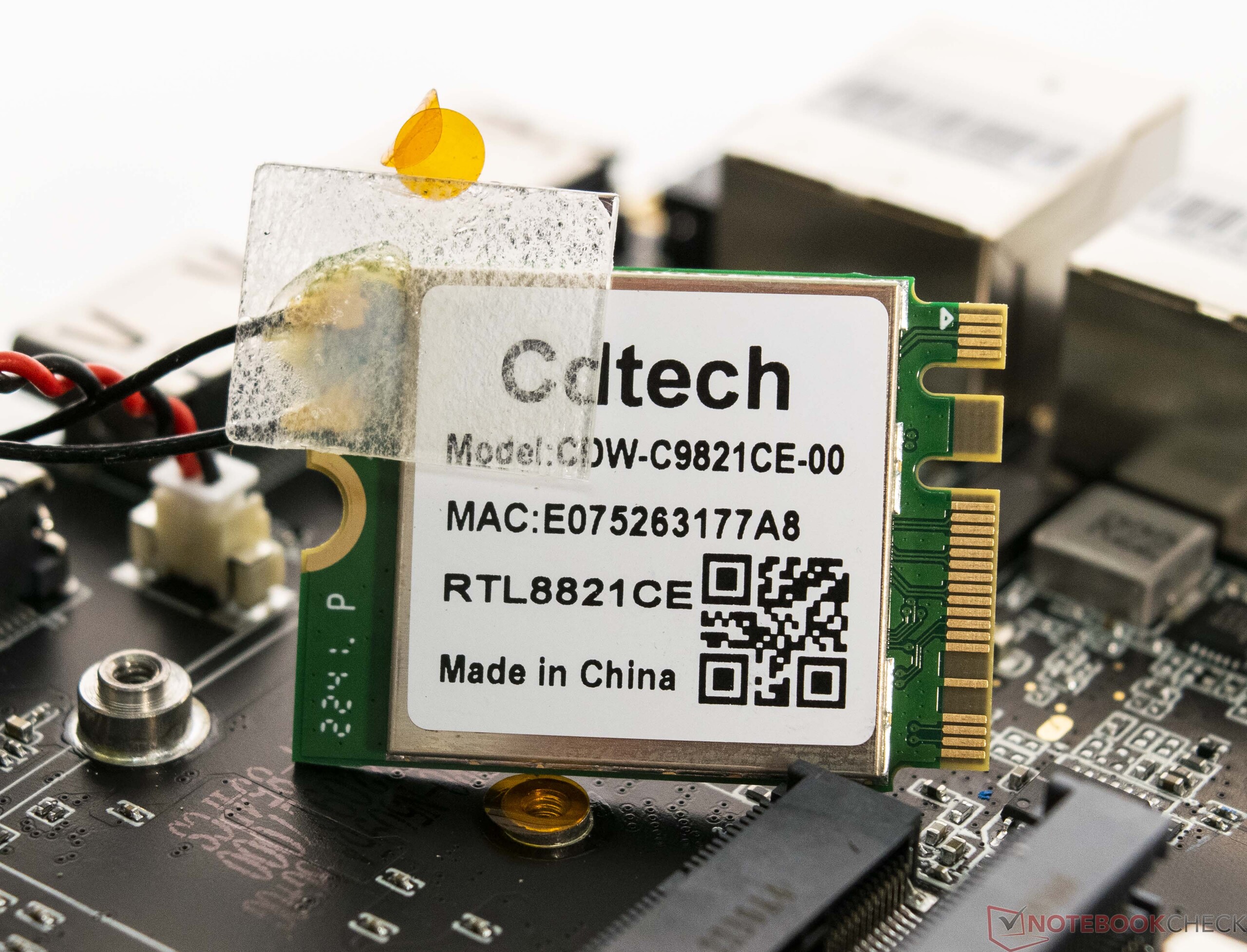

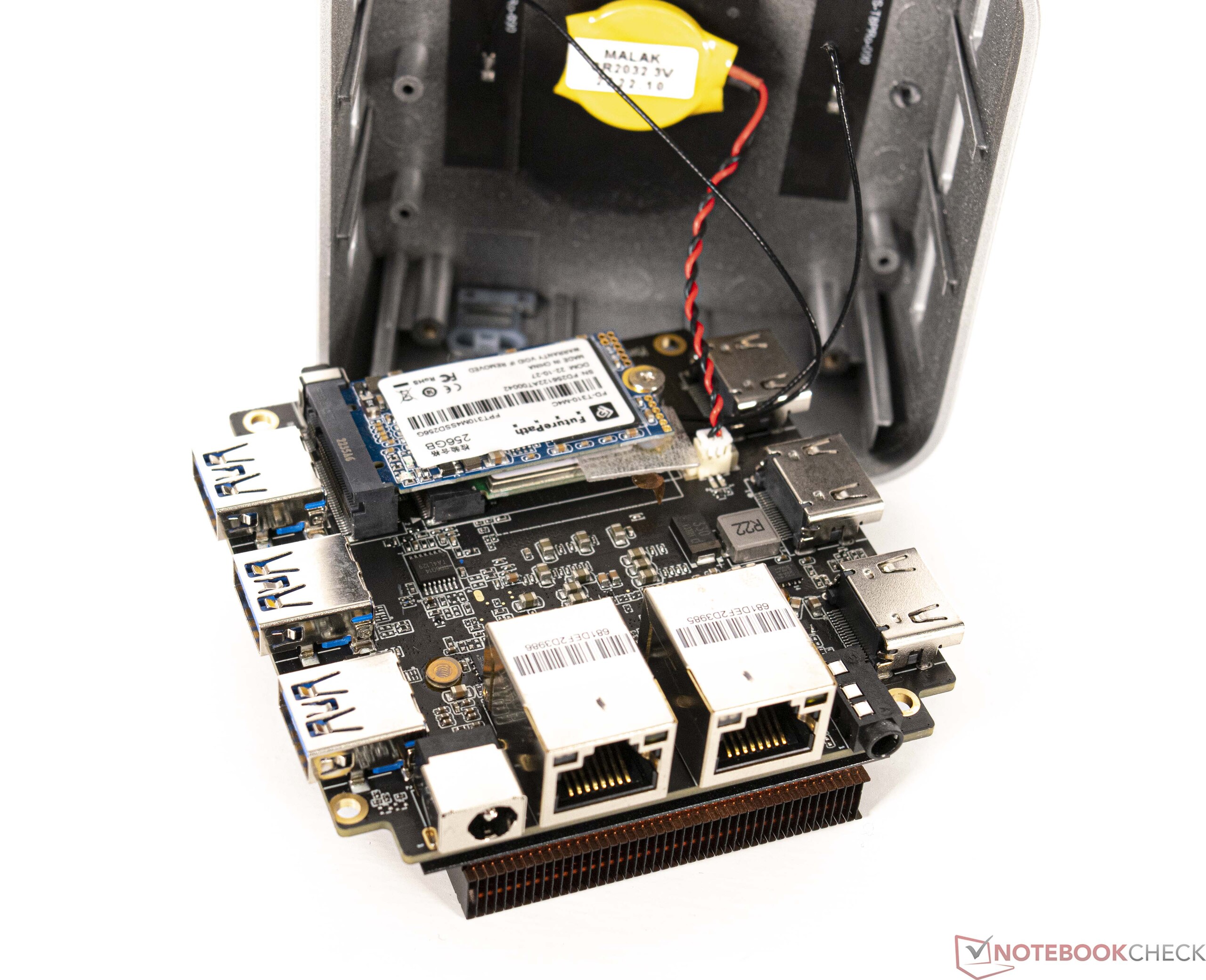

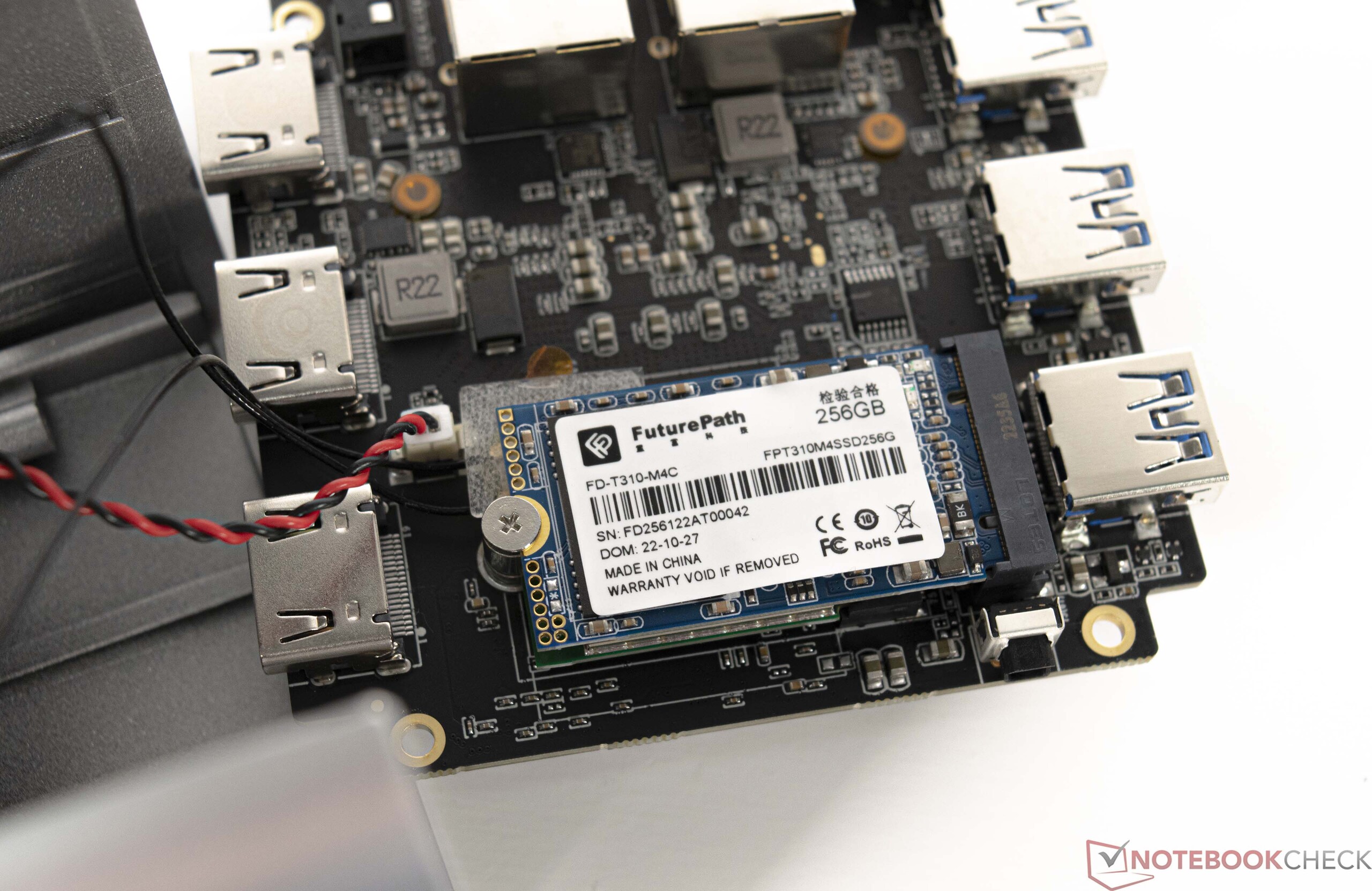

The SSD and Wi-Fi module are easily accessible for those who want to upgrade the Ace Magician T8Pro. To open up the device, all you have to do is to remove the four screws on the bottom. However, you should take note of the SSD's form factor, as the device can only accommodate an M.2 SSD with a length of 42 mm. Unlike the SSD and Wi-Fi module, though, the memory isn't upgradable.

Performance

The Intel Celeron N5095 is the only processor option available for the Ace Magician T8Pro. The four native cores have 8 GB of DDR4 RAM at their disposal and offer solid performance for basic office tasks.

Test conditions

We carried out all performance-related tests with the "High Performance" power plan in order to get the best possible results. The only time we used a different power plan was when measuring power consumption and noise levels. Click here to find out more about our test criteria.

Processor

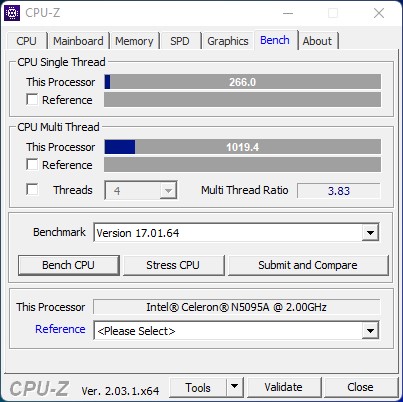

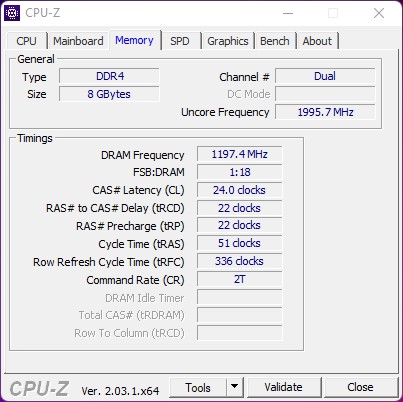

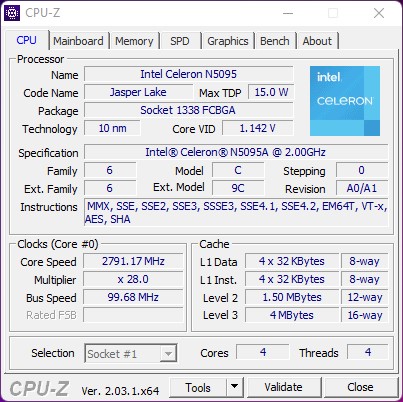

The Ace Magician T8Pro can tap into the power of the Intel Celeron N5095 fairly well. That said, there are competing products that perform better with the same SoC, such as the Geekom MiniAir 11 Special Edition. The performance differential is, however, in the low single-digit percentage range and is therefore negligible. The SoC's short-term power limit (PL2) is around 20 watts, whereas the long-term power limit (PL1) is capped at 15 watts.

You can click here to see more processor benchmarks.

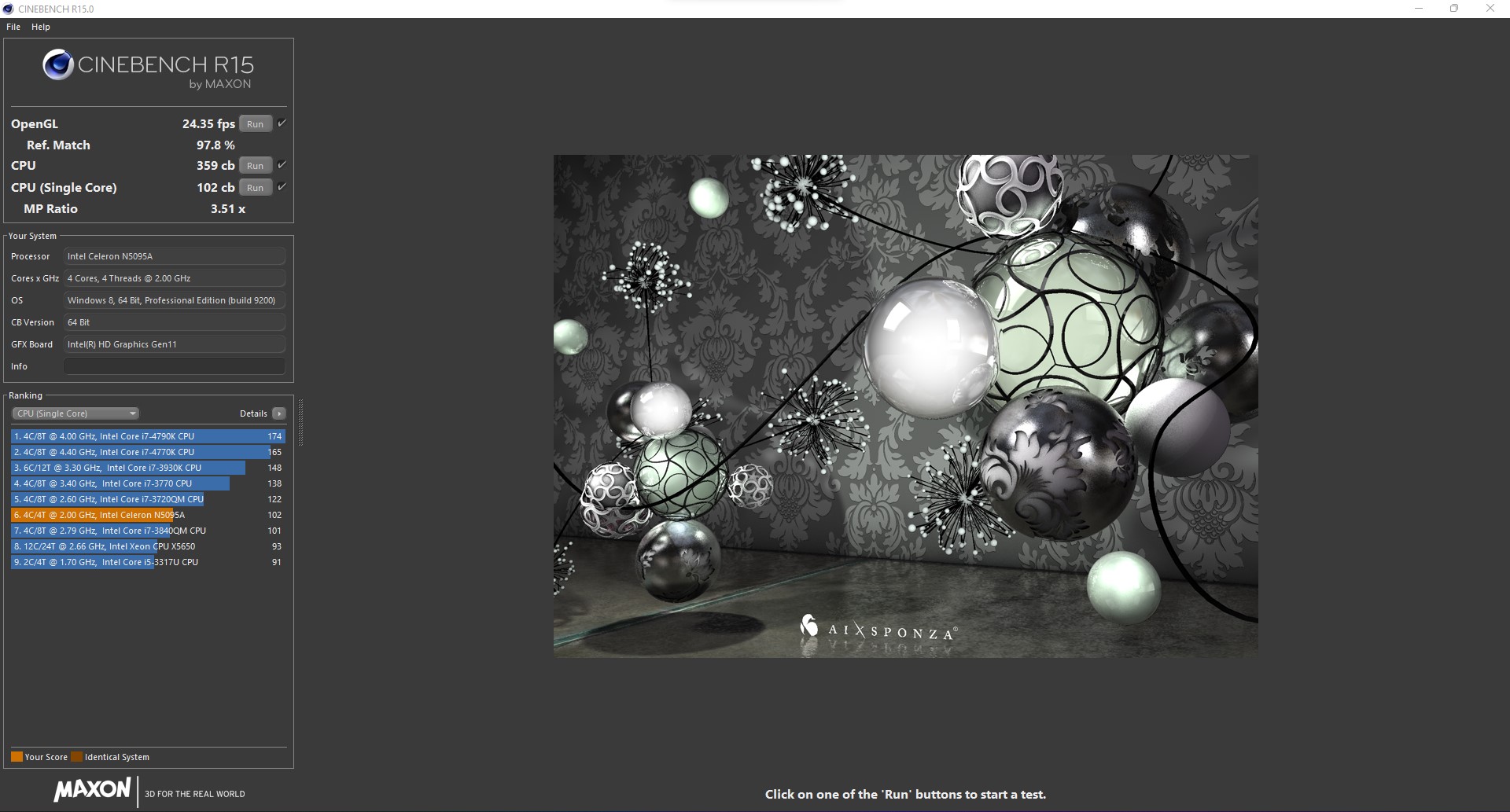

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points +21%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.3 Points +5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points +4%
Average Intel Celeron N5095 (95.4 - 109, n=5)	103.9 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	95.4 Points -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	76 Points -25%
CPU Multi 64Bit
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	372 Points +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	358 (350.25^min - 357.53^max) Points 0%
Average Intel Celeron N5095 (221 - 379, n=6)	343 Points -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	128 Points -64%

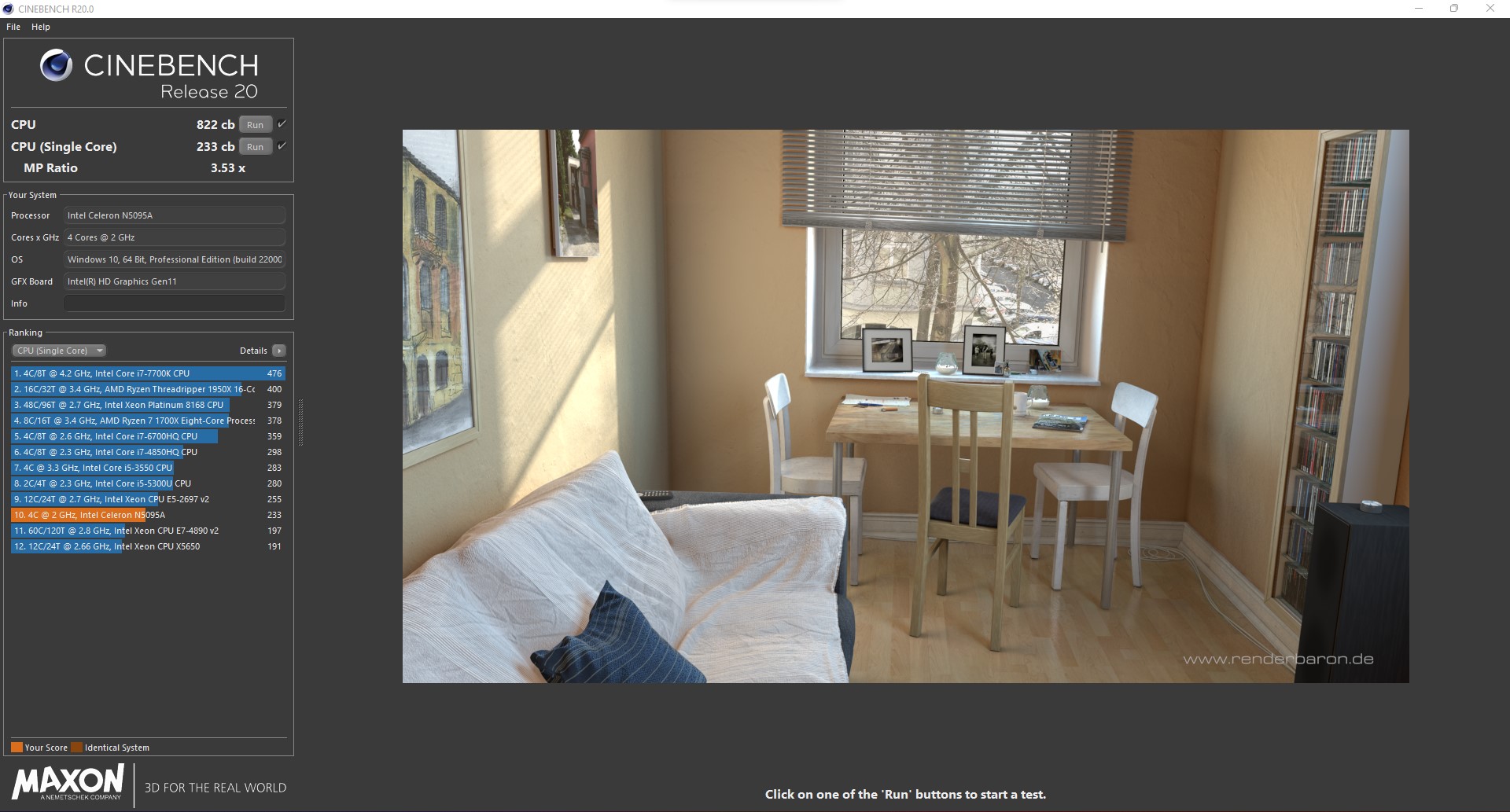

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +14%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	236 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points 0%
Average Intel Celeron N5095 (228 - 239, n=5)	234 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	228 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	174 Points -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	827 Points +1%
Average Intel Celeron N5095 (804 - 844, n=5)	825 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	804 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	285 Points -65%

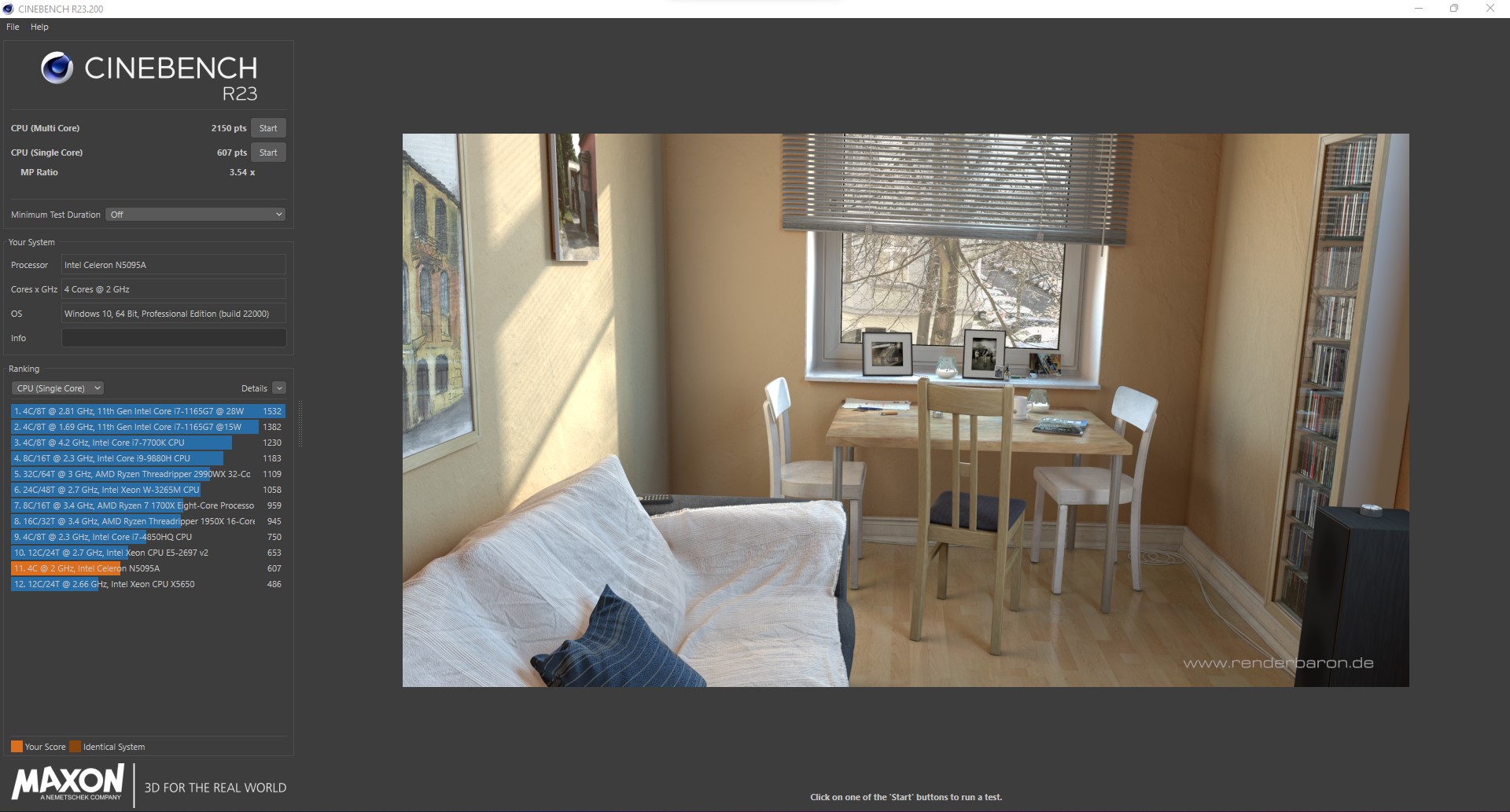

Cinebench R23
Single Core
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points +15%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	615 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points +1%
Average Intel Celeron N5095 (587 - 621, n=5)	608 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	587 Points -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	439 Points -28%
Multi Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2176 (2164.67^min - 2176.1^max) Points +1%
Average Intel Celeron N5095 (2150 - 2219, n=5)	2174 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2159 (2113.79^min - 2158.74^max) Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	735 Points -66%

Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points +3%
Average Intel Celeron N5095 (1.25 - 1.29, n=2)	1.27 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.97 Points -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points +2%
Average Intel Celeron N5095 (4.65 - 4.76, n=2)	4.71 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.65 Points -65%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points +4%
Average Intel Celeron N5095 (5224 - 5451, n=2)	5338 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	4120 Points -21%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points
Average Intel Celeron N5095 (16442 - 17278, n=2)	16860 Points -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points -38%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	6653 Points -61%

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3767 Seconds * -144%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * -54%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -17%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1624 Seconds * -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -0%
Average Intel Celeron N5095 (1502 - 1624, n=5)	1548 Seconds * -0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds *
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1502 Seconds * +3%

wPrime 2.10
32m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	49.66 s * -159%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -3%
Average Intel Celeron N5095 (19.2 - 19.8, n=2)	19.5 s * -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s *
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * +10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * +11%
1024m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1561.178 s * -158%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -2%
Average Intel Celeron N5095 (605 - 617, n=2)	611 s * -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s *
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * +7%

X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps +7%
Average Intel Celeron N5095 (112.8 - 120.3, n=2)	116.5 fps +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	45.25 (44.7^min - 45.7^max) fps -60%
Pass 2
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps +2%
Average Intel Celeron N5095 (24.8 - 25.3, n=2)	25 fps +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	9.995 (9.97^min - 10.2^max) fps -60%

WinRAR - Result
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s +9%
Average Intel Celeron N5095 (1630 - 1781, n=2)	1706 KB/s +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	731 KB/s -55%

TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s
Average Intel Celeron N5095 (2.5 - 2.5, n=2)	2.5 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s -24%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.979 GB/s -61%
Twofish Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s +9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s
Average Intel Celeron N5095 (0.37 - 0.37, n=2)	0.37 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s -28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.14 GB/s -62%
Serpent Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s +16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s
Average Intel Celeron N5095 (0.198 - 0.198, n=2)	0.198 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s -8%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.074 GB/s -63%

Geekbench 5.5
Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2036 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -2%
Average Intel Celeron N5095 (1933 - 2052, n=4)	2010 Points -2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1933 Points -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points -27%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	844 Points -59%
Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	659 Points +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points +3%
Average Intel Celeron N5095 (637 - 659, n=4)	649 Points +2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	644 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	556 Points -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points -29%

Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points
Average Intel Celeron N5095 (1985 - 2070, n=4)	2029 Points -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2020 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	857 Points -58%
5.0 Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	655 Points +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points +3%
Average Intel Celeron N5095 (628 - 655, n=4)	644 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	559 Points -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points -29%

Geekbench 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points +2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2900 Points +1%
Average Intel Celeron N5095 (2858 - 2929, n=3)	2896 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2585 Points -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points
Average Intel Celeron N5095 (7759 - 7968, n=3)	7856 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	7759 Points -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points -31%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3606 Points -55%

3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	4322 Points +1%
Average Intel Celeron N5095 (4224 - 4439, n=5)	4309 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points 0%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	4224 Points -1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points -35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1591 Points -63%

7-Zip 18.03
7z b 4
Average Intel Celeron N5095 (10924 - 11168, n=5)	11024 MIPS +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	11023 MIPS +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	11013 MIPS +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -9%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS -29%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3974 MIPS -64%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +20%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	3124 MIPS +6%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	3100 MIPS +6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS +6%
Average Intel Celeron N5095 (2935 - 3124, n=5)	3074 MIPS +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2593 MIPS -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2 fps 0%
Average Intel Celeron N5095 (1.9 - 2.05, n=5)	1.996 fps -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.9 fps -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps -26%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.88 fps -56%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.371 sec * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec *
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1.178 sec * +2%
Average Intel Celeron N5095 (1.16 - 1.2, n=5)	1.174 sec * +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.16 sec * +3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * +5%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	144.7 s * -40%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * -38%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.9 s * -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	106.5 s * -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s *
Average Intel Celeron N5095 (97 - 107.9, n=5)	103.6 s * -0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * -0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * +10%

WebXPRT 3 - Overall
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points +15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points -1%
Average Intel Celeron N5095 (114.3 - 127.2, n=6)	123.4 Points -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	114.3 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	89.2 Points -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points -32%

Mozilla Kraken 1.1 - Total
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * -41%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms *
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1591 ms * +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * +2%
Average Intel Celeron N5095 (1557 - 1619, n=6)	1578 ms * +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * +4%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * +4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * +14%

3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	5499 Points -1%
Average Intel Celeron N5095 (5400 - 5572, n=5)	5496 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	5400 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2195 Points -60%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22 pt
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21 pt
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	20.7 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	17 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.2 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +704%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1245 KRay/s 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s -20%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -67%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +604%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7459 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points -3%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points -17%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -68%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +347%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s -23%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -68%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +210%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points -2%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21458 Points -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -65%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +631%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points +20%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1003 Points 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -60%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points -60%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +603%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3962 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -68%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +289%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19086 MB/s -1%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s -48%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -67%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +209%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	189.9 MB/s +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -68%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +689%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s -18%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -68%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +149%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7707 MPixel/s -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s -25%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s -48%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -75%

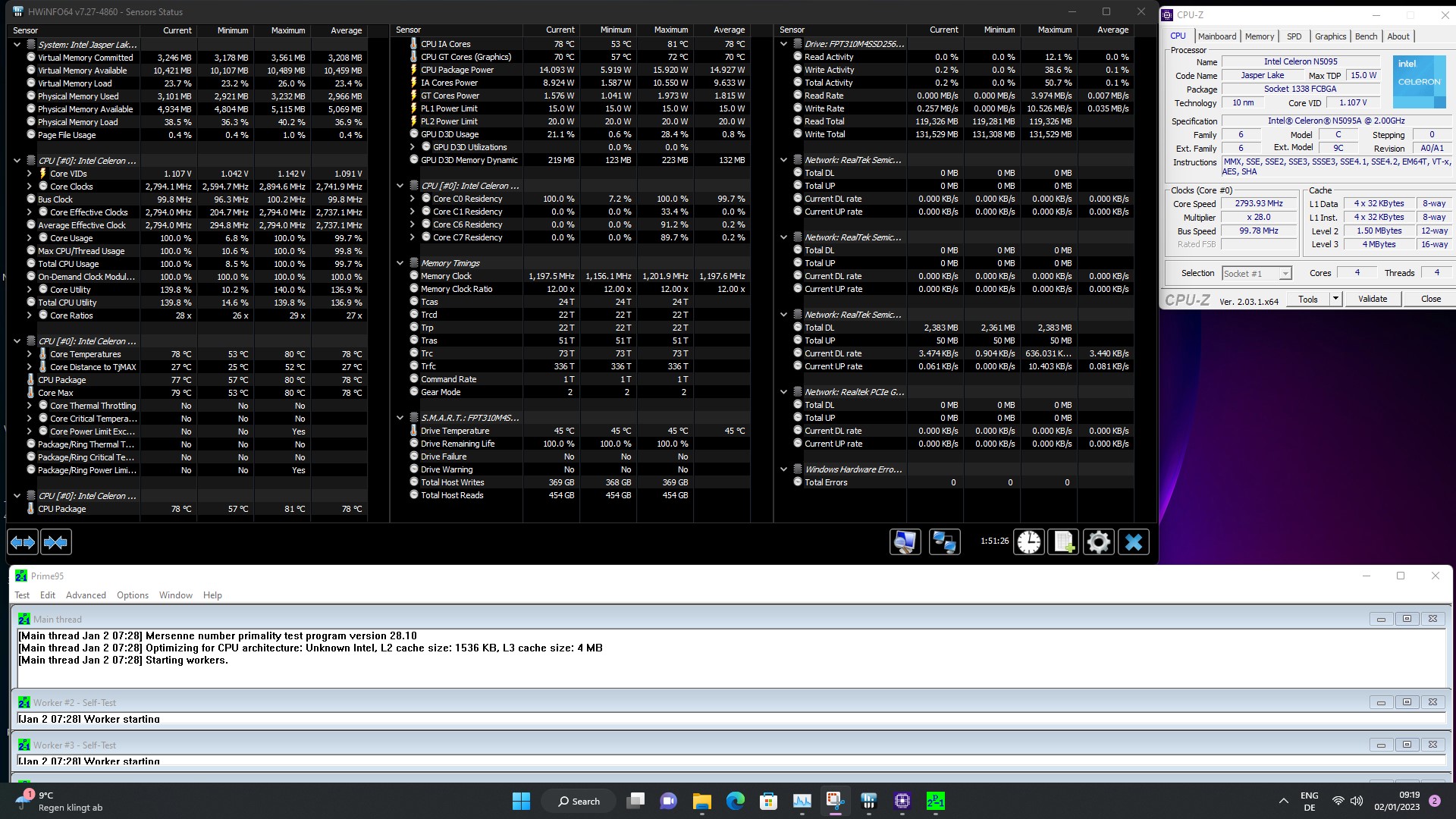

The performance of the Intel Celeron N5059 is very well managed under load, as demonstrated by the Cinebench R15 loop test. The results remained consistent throughout all 50 runs of the test. The passively cooled Newsmay AC8 couldn't keep up despite having a faster SoC. Overall, our review unit managed to secure the second spot within the comparison group.

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)

Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)

Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

System performance

The Intel Celeron N5059 limits the capability of the Ace Magician T8Pro. Nevertheless, the device does well in everyday use, provided you don't overwhelm its SoC. The Ace Magician was even able to slightly outperform the Geekom MiniAir 11 Special Edition, and the performance gap between the T8Pro and the Newsmay AC8 (with an Intel Pentium Silver N6005) is miniscule.

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	97.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	96.7 pt
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	95.1 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93.7 pt
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	91.5 pt
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	75.6 pt

PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2317 Points -4%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5516 Points -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -7%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3454 Points -6%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points -20%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	99.8 pt
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	98 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93 pt

CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -4%

PCMark 10 Score		2417 points
Help

DPC latency

The Ace Magician T8Pro encountered latency issues as soon as several tabs were open in Edge browser. Playing back our 4K test video further increased the latency. During the video playback, iGPU usage was a smidge above 30 per cent.

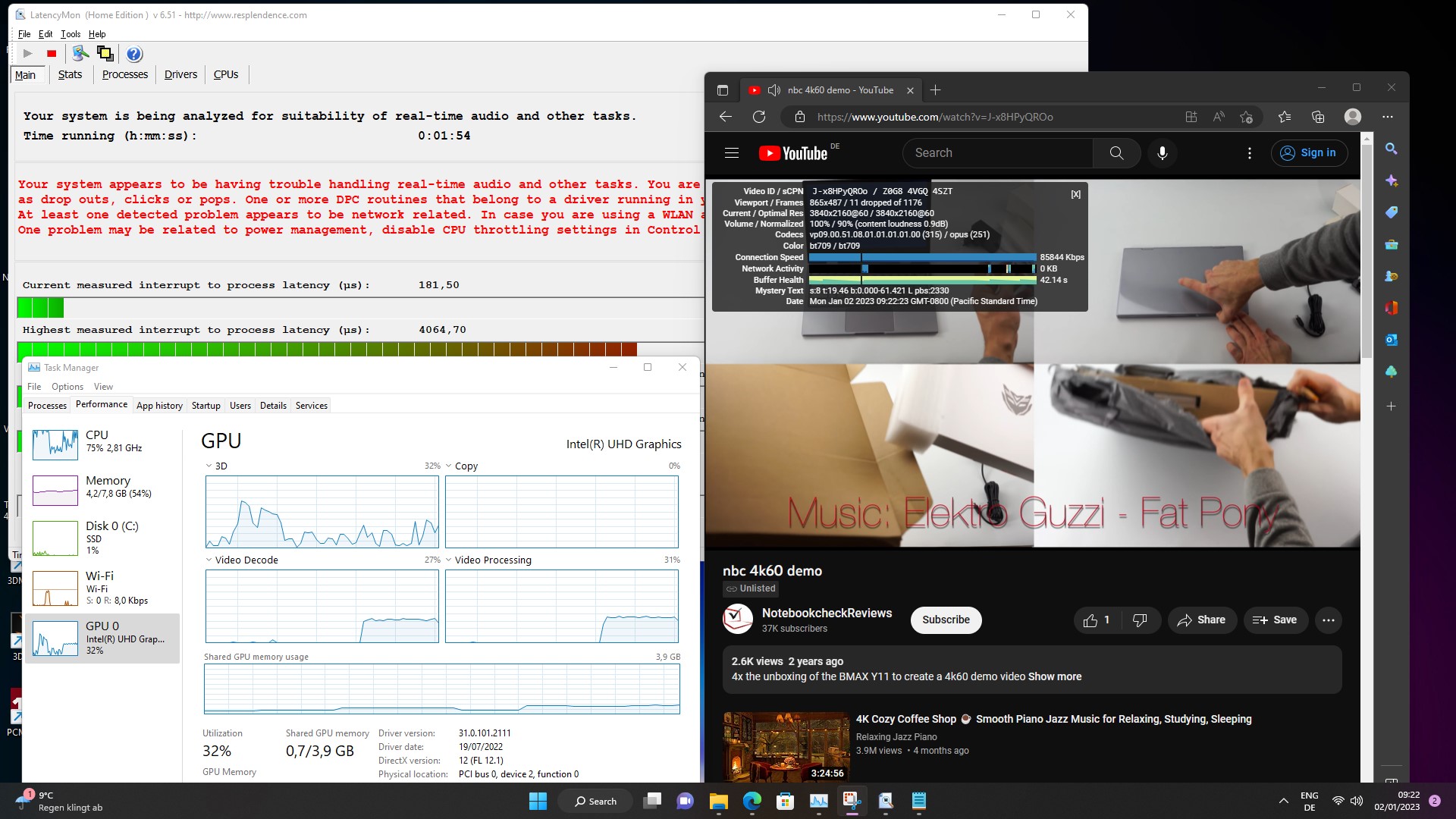

Maximum latency with several browser tabs open and with 4K video playing

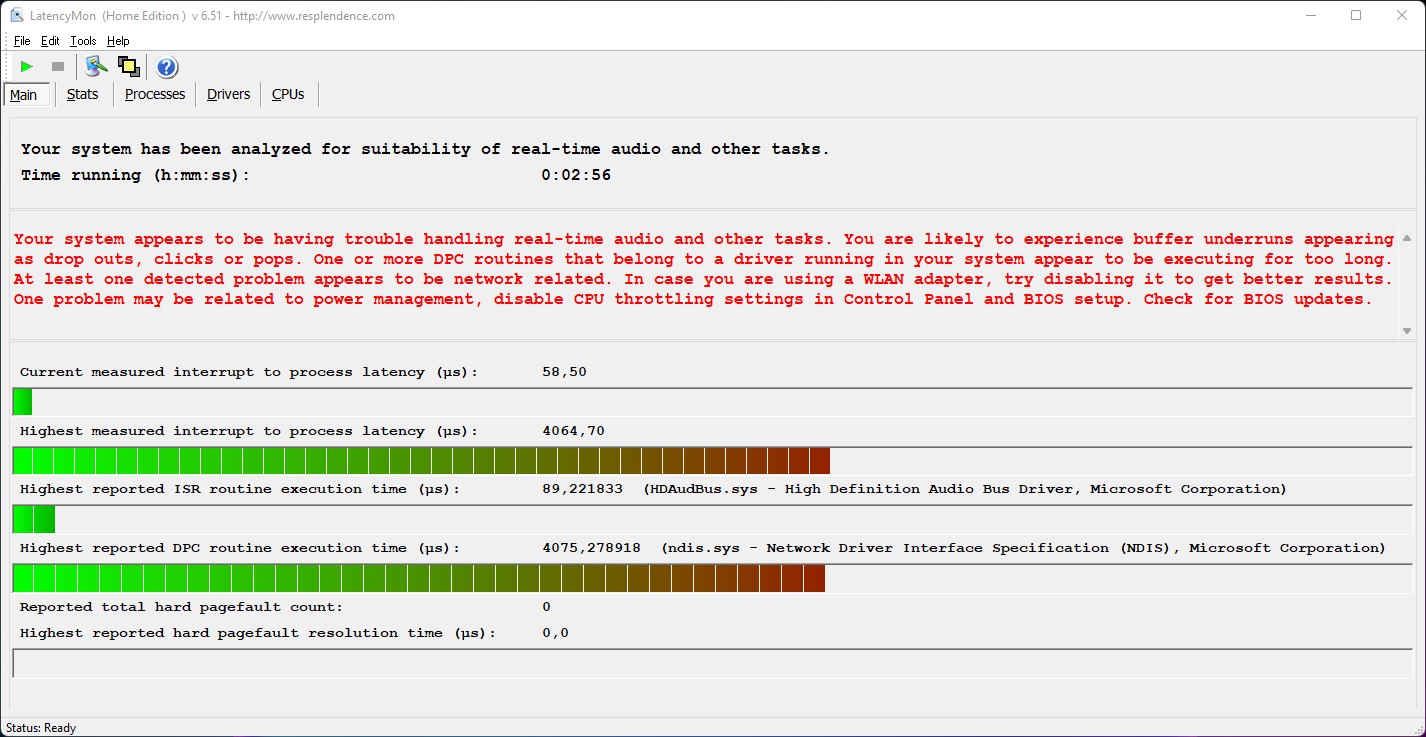

Maximum latency after running Prime95 for 10 seconds

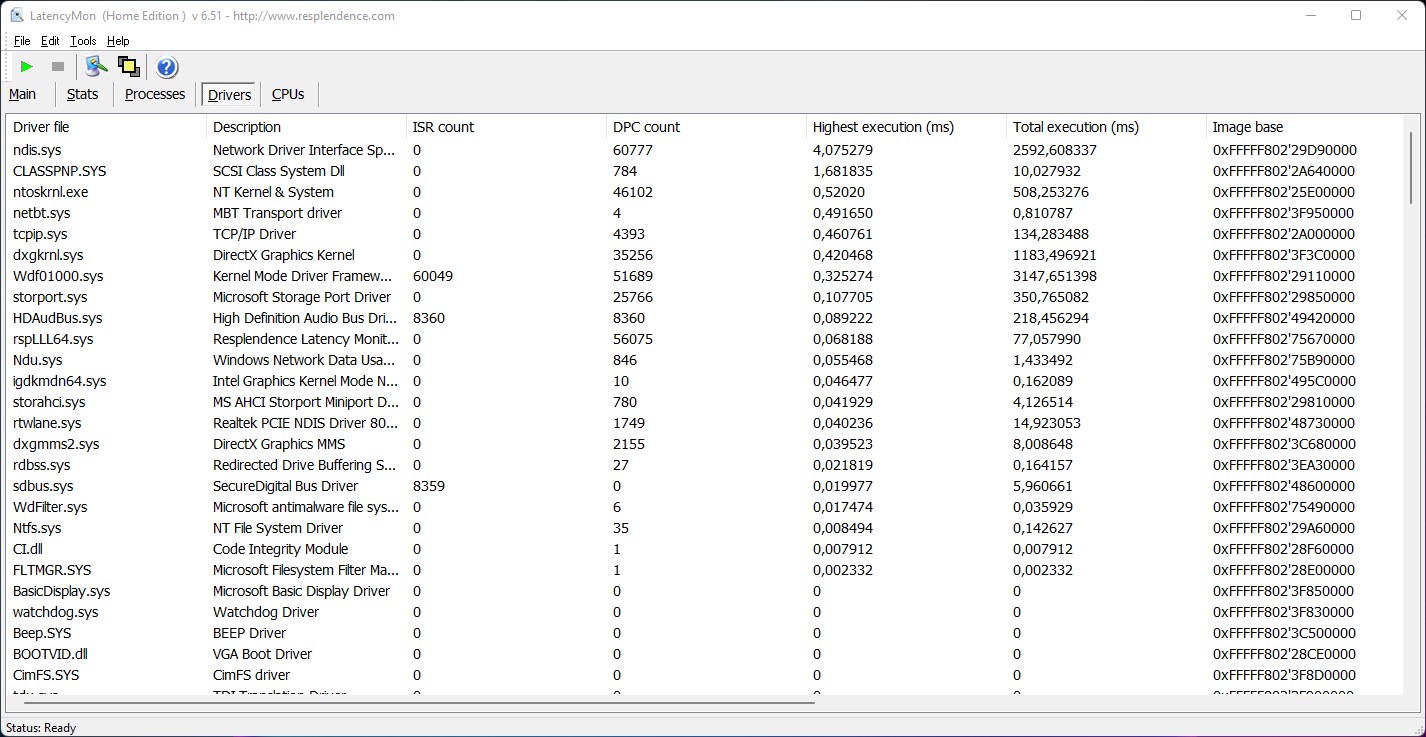

Drivers sorted according to execution time (from high to low)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs *
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	3767 μs * +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * +35%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2582.6 μs * +37%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * +83%

* ... smaller is better

Mass storage

The Ace Magician T8Pro is equipped with a 256 GB SSD. The drive only supports SATA speeds and is thus slower than NVMe SSDs. Nonetheless, it is still adequate for the T8Pro's intended purposes. We also didn't notice any performance dips under sustained load. If the 256 GB of storage in the default configuration isn't enough for your needs, you can replace the included SSD with a larger one. Though you should ensure that the new SSD isn't longer than 42 mm (M.2 2242).

You can refer to our storage drive table for more comparisons and benchmark results.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M4SSD256G

Sequential Read: 398.7 MB/s

Sequential Write: 463.1 MB/s

512K Read: 344.1 MB/s

512K Write: 446.8 MB/s

4K Read: 33.16 MB/s

4K Write: 74.22 MB/s

4K QD32 Read: 237.1 MB/s

4K QD32 Write: 215.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	97.5 pt
AC6-M Mini-PC	33 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	31.3 pt
Average FPT310M4SSD256G	31.3 pt
Newsmay AC8 N6005 Lexar 128GB SSD	31 pt
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	24.4 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	21.7 pt
Geekom MiniAir 11 NF830 256GB M.2 2280	18.4 pt
Zotac ZBOX PI336 pico SanDisk DF4128	6.8 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +330%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s +8%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s
Average FPT310M4SSD256G ()	472 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -8%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	229 (187.74^min - 229.26^max) MB/s -51%
seq write
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +343%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s
Average FPT310M4SSD256G ()	463 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s -6%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s -8%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -12%
Geekom MiniAir 11 NF830 256GB M.2 2280	256 (237.45^min - 255.73^max) MB/s -45%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s -77%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +477%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s +2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s
Average FPT310M4SSD256G ()	550 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -19%
Geekom MiniAir 11 NF830 256GB M.2 2280	260 (234.3^min - 260.36^max) MB/s -53%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s -54%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +379%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s +11%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s +7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s
Average FPT310M4SSD256G ()	466 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -26%
Geekom MiniAir 11 NF830 256GB M.2 2280	268 (261.2^min - 268.44^max) MB/s -42%
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s -78%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +52%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s
Average FPT310M4SSD256G ()	33.9 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s -22%
Geekom MiniAir 11 NF830 256GB M.2 2280	16.1 (12.09^min - 16.13^max) MB/s -53%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s -53%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s -59%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s -60%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -62%
4k q1 t1 write
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +151%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +35%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s
Average FPT310M4SSD256G ()	74.1 MB/s 0%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s -16%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s -37%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -70%
Geekom MiniAir 11 NF830 256GB M.2 2280	20.9 (15.11^min - 20.94^max) MB/s -72%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s -81%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +311%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s +14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s
Average FPT310M4SSD256G ()	266 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -30%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -36%
Geekom MiniAir 11 NF830 256GB M.2 2280	165.1 (75.31^min - 165.14^max) MB/s -38%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s -39%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s -90%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +241%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s +10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s
Average FPT310M4SSD256G ()	319 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s -10%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s -34%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	113 (45.88^min - 112.97^max) MB/s -65%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s -96%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +410%
AC6-M Mini-PC	1091 Points +56%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points
Average FPT310M4SSD256G ()	698 Points 0%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -13%
Geekom MiniAir 11 NF830 256GB M.2 2280	582 Points -17%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points -17%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -78%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points -81%
Score Read
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +323%
AC6-M Mini-PC	473 Points +48%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points
Average FPT310M4SSD256G ()	320 Points 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -32%
Geekom MiniAir 11 NF830 256GB M.2 2280	201 Points -37%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points -48%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -58%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points -80%
Score Write
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points +652%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points +90%
AC6-M Mini-PC	374 Points +80%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points +56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points +50%
Geekom MiniAir 11 NF830 256GB M.2 2280	278 Points +34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points
Average FPT310M4SSD256G ()	208 Points 0%
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points -81%
Seq Read
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +477%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s +5%
AC6-M Mini-PC	492 MB/s +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s
Average FPT310M4SSD256G ()	489 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s -7%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -11%
Geekom MiniAir 11 NF830 256GB M.2 2280	421.78 MB/s -14%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s -46%
Seq Write
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +473%
AC6-M Mini-PC	450 MB/s +31%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s +27%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s +20%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s +12%
Geekom MiniAir 11 NF830 256GB M.2 2280	365.24 MB/s +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s
Average FPT310M4SSD256G ()	344 MB/s 0%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s -66%
4K Read
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s +57%
Average FPT310M4SSD256G ()	35.5 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s -34%
AC6-M Mini-PC	19.43 MB/s -45%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s -61%
Geekom MiniAir 11 NF830 256GB M.2 2280	13.57 MB/s -62%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s -63%
4K Write
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +343%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s +118%
AC6-M Mini-PC	51.4 MB/s +35%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s +31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s
Average FPT310M4SSD256G ()	38 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -4%
Geekom MiniAir 11 NF830 256GB M.2 2280	21.25 MB/s -44%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s -65%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +331%
AC6-M Mini-PC	404.1 MB/s +71%
Average FPT310M4SSD256G ()	236 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s -33%
Geekom MiniAir 11 NF830 256GB M.2 2280	144.84 MB/s -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s -55%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -75%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s -89%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s +786%
AC6-M Mini-PC	277.8 MB/s +105%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s +101%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s +75%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s +70%
Geekom MiniAir 11 NF830 256GB M.2 2280	219.83 MB/s +62%
Average FPT310M4SSD256G ()	135.4 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s -90%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * -110%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.284 ms * -92%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms *
Average FPT310M4SSD256G ()	0.148 ms * -0%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * +6%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * +31%
AC6-M Mini-PC	0.088 ms * +41%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * -614%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.218 ms * -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * -36%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms *
Average FPT310M4SSD256G ()	0.132 ms * -0%
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * +2%
AC6-M Mini-PC	0.071 ms * +46%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)

Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)

Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)

Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Graphics card and gaming performance

Graphics processing is handled by Intel's UHD Graphics 16 EUs (Jasper Lake). With this iGPU, it's unreasonable to ask the Ace Magician T8Pro to perform complex 3D calculations. Nonetheless, based on our measurements, the T8Pro is ever so slightly better than the Geekom MiniAir 11 Special Edition in terms of graphics performance. That said, our review unit isn't as good as the Newsmay AC8 because the iGPU on the Intel Pentium Silver N6005 has a total of 32 EUs. Whilst you shouldn't expect to play demanding 3D games on the Ace Magician T8Pro, the small office PC should have no issue running simple browser-based and other casual games.

Click here for more benchmark results for the Intel UHD Graphics.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	72.6 pt
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.7 pt
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.1 pt
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	68.3 pt
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	54.7 pt
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	49.3 pt

3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points +85%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points -1%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -3%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -3%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points -24%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	602 Points -30%

3DMark
1280x720 Cloud Gate Standard Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points +13%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -5%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4952 Points -5%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4863 Points -7%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	3762 Points -28%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	3503 Points -33%
1920x1080 Fire Strike Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points +33%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -4%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	623 Points -6%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	605 Points -9%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points -21%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	446 Points -33%

	low	med.	high	ultra
Dota 2 Reborn (2015)	61.2	22.8	12	11.2
Final Fantasy XV Benchmark (2018)	7.13	3.27
X-Plane 11.11 (2018)	15.1

Emissions - mostly quiet and efficient

Noise emissions

Due to the low TDP of the Intel Celeron N5095, the cooling system isn't particularly taxed. The computer is almost silent at idle and only produces a small amount of noise under load (not exceeding 30.9 dB(A) according to our measurements).

	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		15%	-3%	-10%	-25%	1%
off / environment *	30.2	23.3 23%	30.2 -0%	30.2 -0%	30.5 -1%	29.6 2%
Idle Minimum *	30.2	24.2 20%	30.5 -1%	30.8 -2%	31.5 -4%	29.6 2%
Idle Average *	30.2	24.2 20%	30.5 -1%	32.1 -6%	32.6 -8%	29.6 2%
Idle Maximum *	30.2	24.2 20%	30.5 -1%	32.9 -9%	33.8 -12%	29.6 2%
Load Average *	30.5	25.1 18%	31.2 -2%	33.9 -11%	49.3 -62%	30 2%
Load Maximum *	30.9	33.9 -10%	35.1 -14%	41.4 -34%	50.9 -65%	32.9 -6%

* ... smaller is better

Noise Level

Idle		30.2 / 30.2 / 30.2 dB(A)
Load		30.5 / 30.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.2 dB(A)

Temperature

The chassis of the Ace Magician T8Pro only gets moderately warm under load. On the SoC itself, the highest temperature we recorded was 80°C (176°F), which is still far from the CPU's maximum thermal limit of 105°C (221°F).

Ace Magician T8Pro during the stress test

Ace Magician T8Pro's power adapter during the stress test

Power consumption

Most mini PCs have impressively low power consumption, and the Ace Magician T8Pro is no different. Whilst its power usage is substantially lower than the average for this class of device, the other mini PCs in our comparison are even more energy-efficient. Our power monitor showed that the T8Pro drew a maximum of 26.3 watts. Rated at 30 watts, the power adapter is capable of handling this level of power use.

Power Consumption

Off / Standby	0.8 / 1.7 Watt
Idle	8.4 / 8.4 / 11.1 Watt
Load	16.5 / 26.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Average Intel UHD Graphics (Jasper Lake 16 EU)	Average of class Mini PC
Power Consumption		10%	40%	24%	20%	-106%
Idle Minimum *	8.4	7 17%	5.4 36%	4.8 43%	5.65 ?(2.5 - 8.4, n=8) 33%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -16%
Idle Average *	8.4	7 17%	5.5 35%	4.8 43%	6.61 ?(4.6 - 8.4, n=7) 21%	11.7 ?(1.9 - 63, n=91, last 2 years) -39%
Idle Maximum *	11.1	7.6 32%	6.2 44%	6.7 40%	7.54 ?(5.3 - 11.1, n=7) 32%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -32%
Load Average *	16.5	18.3 -11%	11.3 32%	15.9 4%	16.2 ?(12.3 - 18.3, n=6) 2%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -215%
Load Maximum *	26.3	27.1 -3%	11.8 55%	28.4 -8%	23.1 ?(13.4 - 28.4, n=7) 12%	86 ?(18.1 - 271, n=92, last 2 years) -227%

* ... smaller is better

Power consumption with external monitor

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.8 (23.8-26.3)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.6 (23.2-25.8)

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (15-23.3)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø21.4 (17.3-21.8)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (13.6-23.3)

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Pros

+ extremely compact mini PC

+ sturdy housing

+ very quiet under load

+ low power consumption

+ 3x HDMI

+ Dual LAN

Cons

- sluggish SoC

- limited graphics performance

- no SD card reader

- slow Wi-Fi

- soldered RAM

Verdict - Mini PC for basic tasks

The Ace Magician T8Pro offers good performance in a very tiny form factor and is able to handle basic office work. The Intel Celeron N5095 features four native cores that are quickly pushed to their limits when performing challenging tasks. If you are mindful of what the Ace Magician T8Pro is designed to do, you'll find a compact mini PC that is both efficient and extremely quiet. There is 8 GB of RAM onboard, which in our opinion is the minimum amount required for a reasonably functional system. The 256 GB of storage is adequate, and the T8Pro even comes with Windows 11 Pro for less than €300 (US$320).

The device has great build quality even though its chassis is completely made of plastic. Despite its compact design, the Ace Magician T8Pro offers an impressive selection of ports. The mini PC can drive up to three external displays at the same time and features three USB-A ports and two LAN ports. All these are not always a given for a product of this size.

The Ace Magician T8Pro is a compact work computer for basic office applications.

One thing we didn't like about the system is the built-in Wi-Fi module. It unfortunately doesn't support the latest standard and delivered lacklustre performance. A modern Wi-Fi 6E module would have been a more future-proof solution. The Ace Magician T8Pro definitely had a great showing during our review, but the Beelink U59 Mini-S and Geekom MiniAir 11 (both equipped with the same SoC) offer better performance in some aspects as well as much lower DPC latency.

The Ace Magician T8Pro was loaned to Notebookcheck for review purposes.

Price and availability

In Germany, you can purchase the Ace Magician T8Pro (with 8 GB of RAM and a 256 GB SSD) on Amazon for €329 right now. In the US, the product is going for as low as US$199 on Amazon.

Please note that prices are accurate as at the time of writing and are subject to change.

Ace Magician T8Pro review: Budget mini PC for office use

Detailed information on the Ace Magician T8Pro

Case

Size comparison

Specifications

Maintenance

Performance

Test conditions

Processor

System performance

DPC latency

Mass storage

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Graphics card and gaming performance

Emissions - mostly quiet and efficient

Noise emissions

Temperature

Power consumption

Power consumption with external monitor

Pros

Cons

Verdict - Mini PC for basic tasks

Price and availability

More articles related to this device

Related Articles
