Newsmay AC8 Mini PC in review: A silent office PC with the Pentium N6005

Stable office PC. We took a closer look at the Newsmay AC8 based on Jasper Lake, so as to reveal what you can expect from the compact, fanless Mini PC. The Newsmay AC8 cuts a fine figure as a small office PC, we can tell you that much in advance.

Sebastian Bade, 👁 Sebastian Bade (translated by Stephanie Chamberlain), Published 02/04/2022 🇩🇪 🇳🇱 ...

Newsmay AC8 (source: Newsmay Technology)

Newsmay Technology is a Chinese system manufacturer that specializes in small office PCs. We were already able to take a look at their extremely small Mini PC, the Newsmay AC6-M. The Newsmay AC8 isn't quite as small, but the Mini PC is still quite compact at 127 x 127 millimeters. Fortunately, the computing powerhouse, which is only about 5 centimeters high, is cooled passively.

With the Intel Pentium Silver N6005, the small office PC offers a native quad-core SoC, which is definitely capable of handling everyday office tasks. Thanks to the Jasper-Lake series, the SoC is manufactured in a 10 nm process, and it manages a TDP of up to 10 watts. Alternatively, the Newsmay AC8 can also be ordered with even more frugal 6-watt SoCs. When it comes to the RAM, the barebone PC can be equipped with up to 32 GB. In terms of mass storage, you'll have to settle for an M.2-2280 SDD.

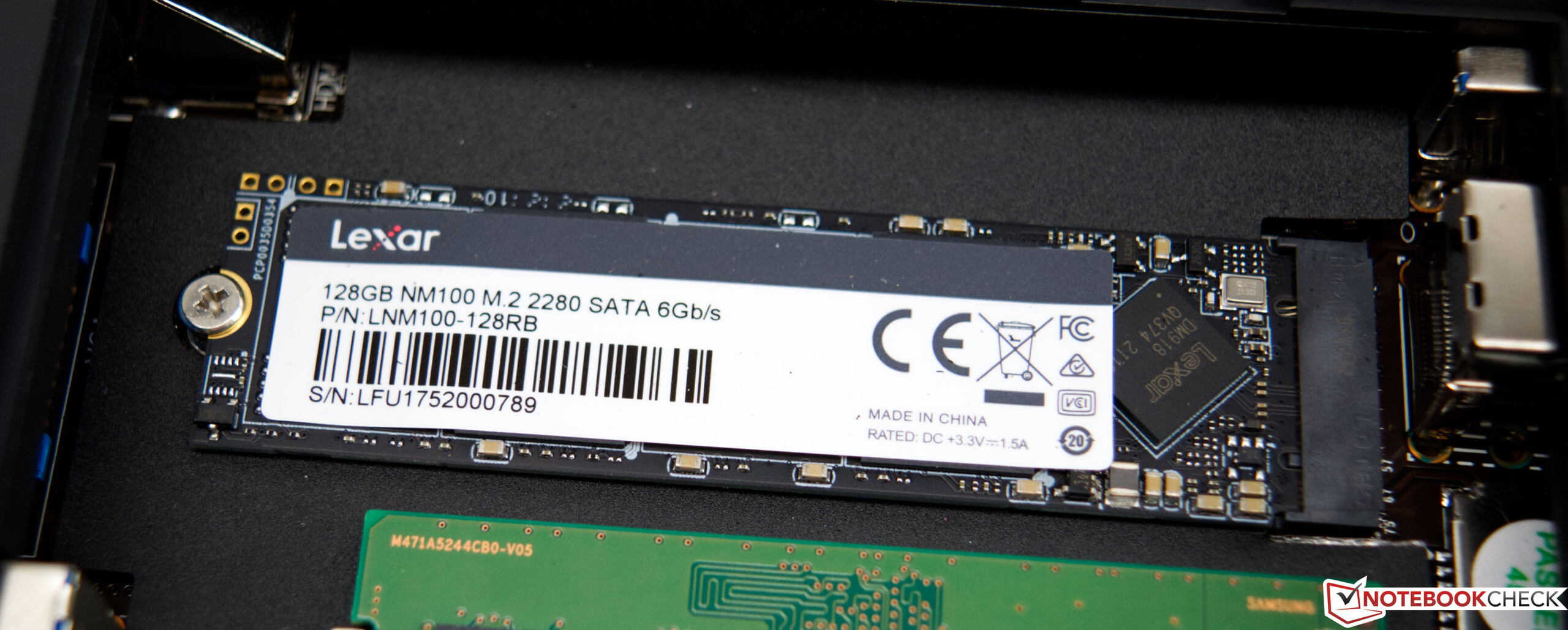

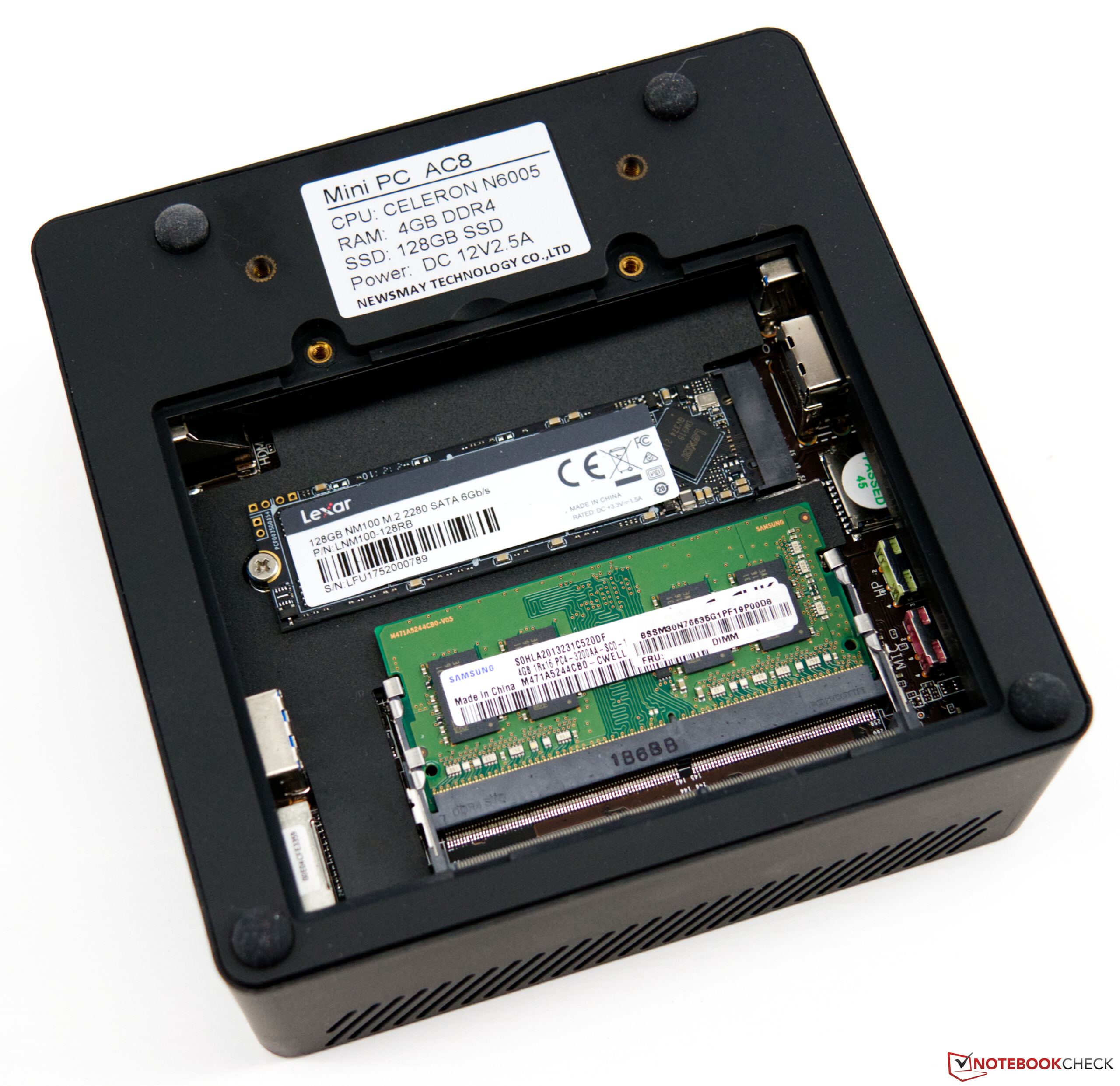

Newsmay Technology equipped the AC8 with 4 GB of RAM and a 128 GB SSD for this review. The price for the Newsmay AC8 in its barebone version based on the Intel Pentium Silver N6005 is $140 when 300 units are purchased. We used the preinstalled Windows 11 Professional as the operating system.

Newsmay AC8 N6005

Processor

Intel Pentium Silver N6005 4 x 2 - 3.3 GHz, 10 W PL2 / Short Burst, 10 W PL1 / Sustained, Jasper Lake

Graphics adapter

Intel UHD Graphics (Jasper Lake 32 EU), Core: 850 MHz, 27.20.100.8681 DCH

Memory

4 GB

, DDR4-3200 (2x SODIMM DDR4 slots, max 32 GB)

Storage

Lexar 128GB SSD, 128 GB

, 80 GB free

Connections

2 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 1x mic in, 1x line out, Card Reader: microSD

Networking

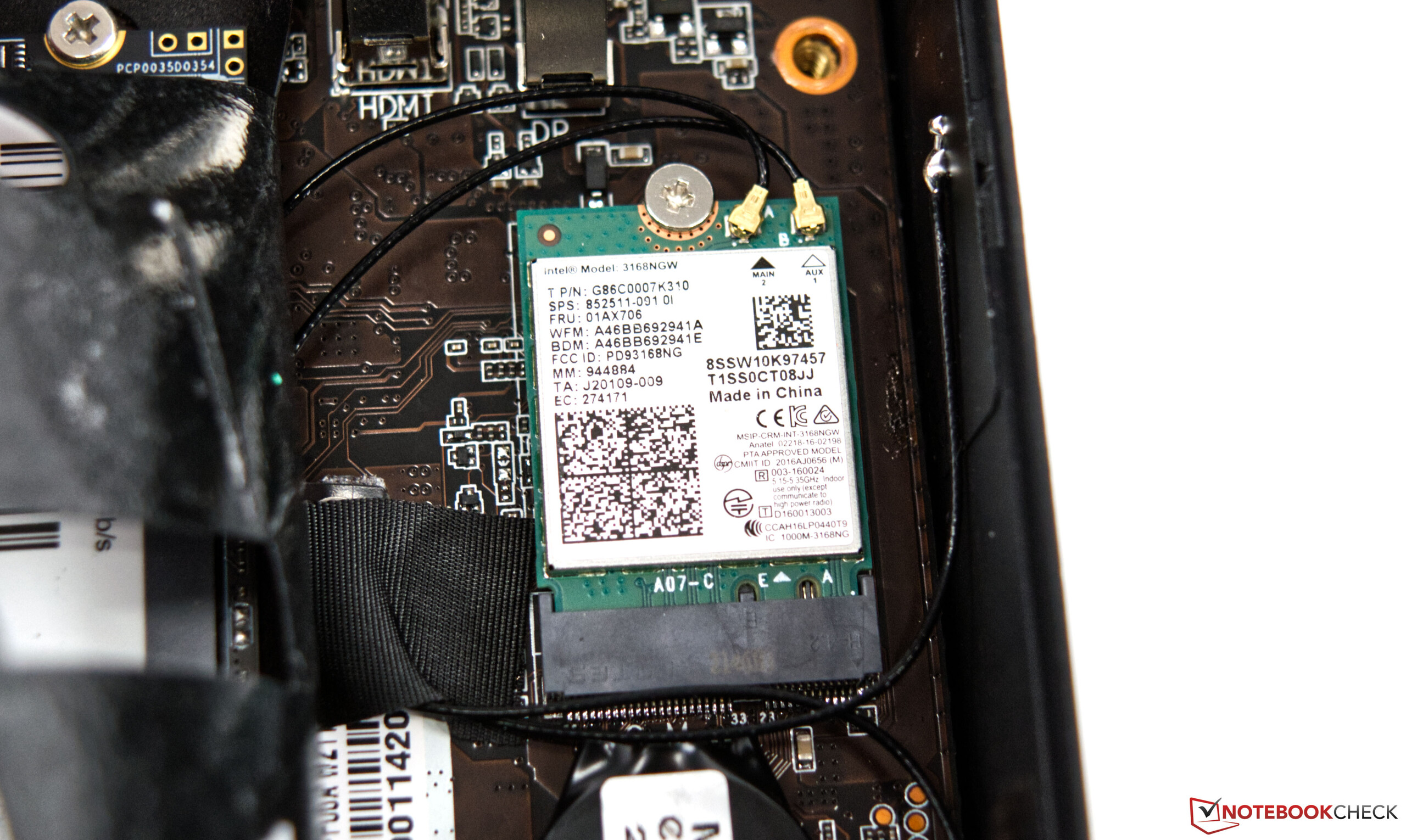

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3168 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)

Size

height x width x depth (in mm): 48 x 127 x 127 ( = 1.89 x 5 x 5 in)

Operating System

Microsoft Windows 11 Pro

Additional features

fanless

Weight

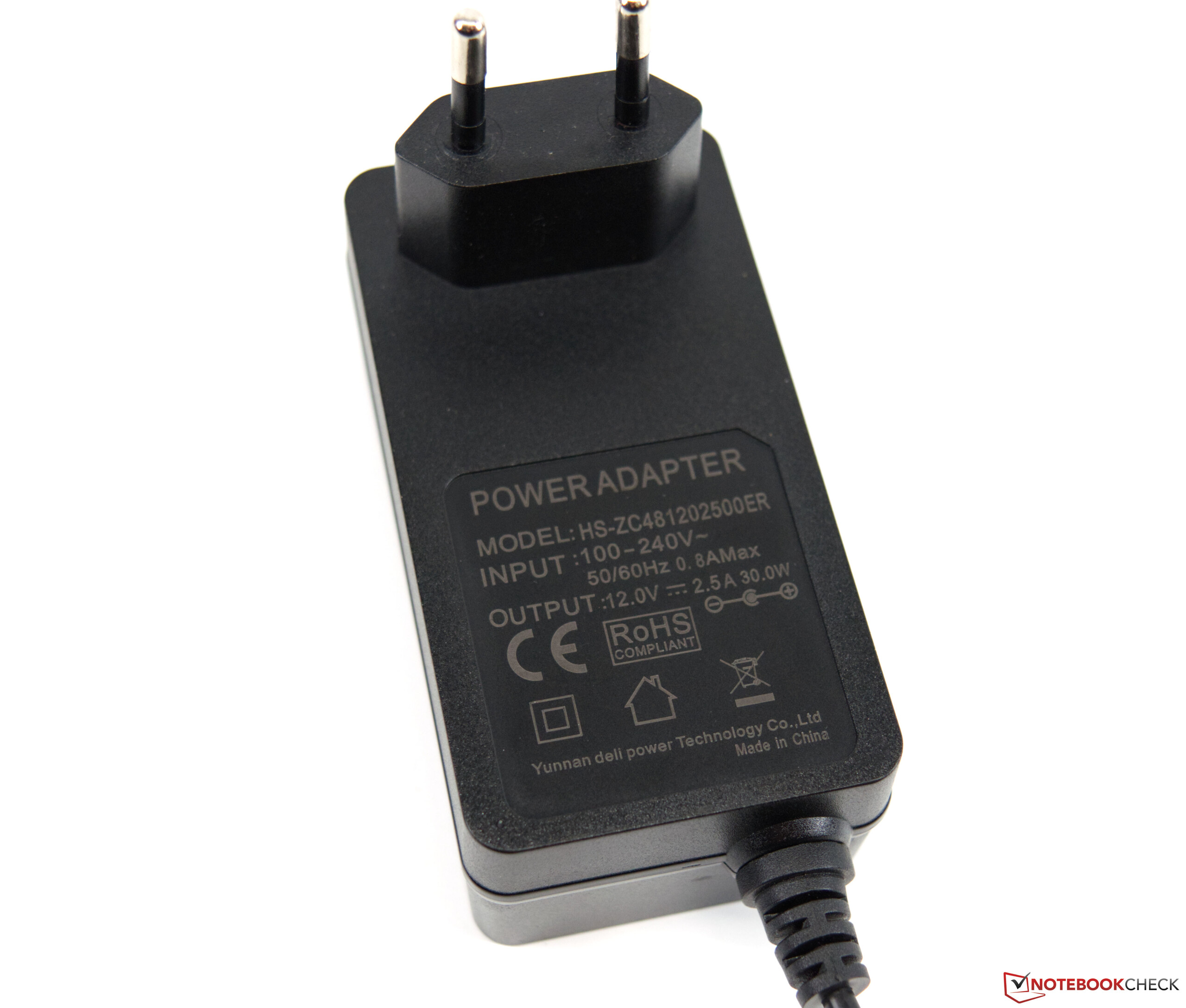

534 g ( = 18.84 oz / 1.18 pounds), Power Supply: 139 g ( = 4.9 oz / 0.31 pounds)

Price

140 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Case and connectivity

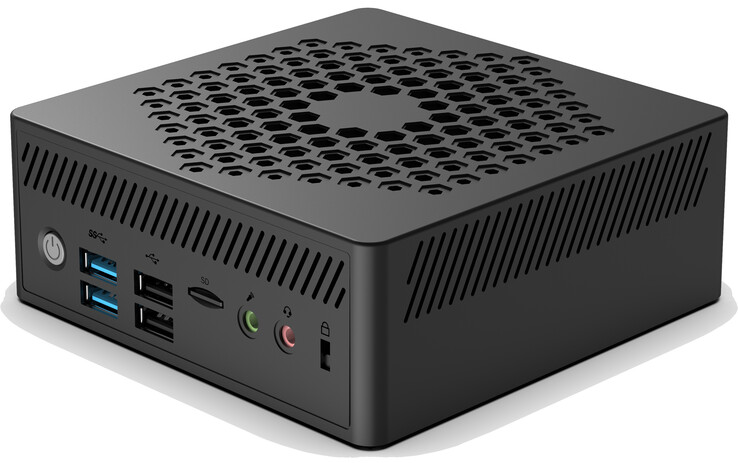

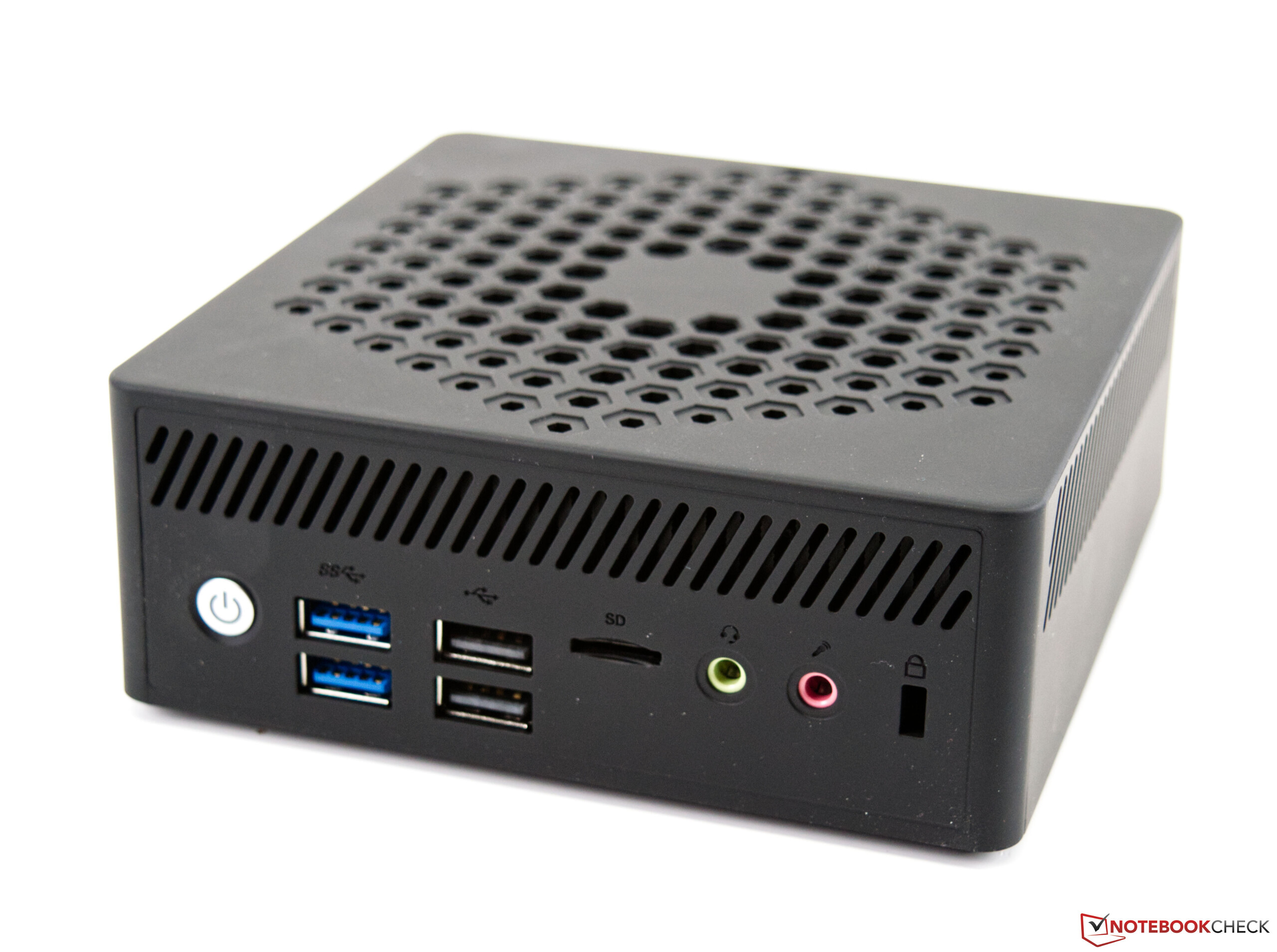

At 127 x 127 millimeters, the Mini PC doesn't take up much space on a desk. The all-black case is made of plastic and is very sturdy. The soft-touch surfaces feel very high quality. However, a bitter aftertaste remains because the surfaces literally attract dust particles. The rough texture also makes them difficult to remove.

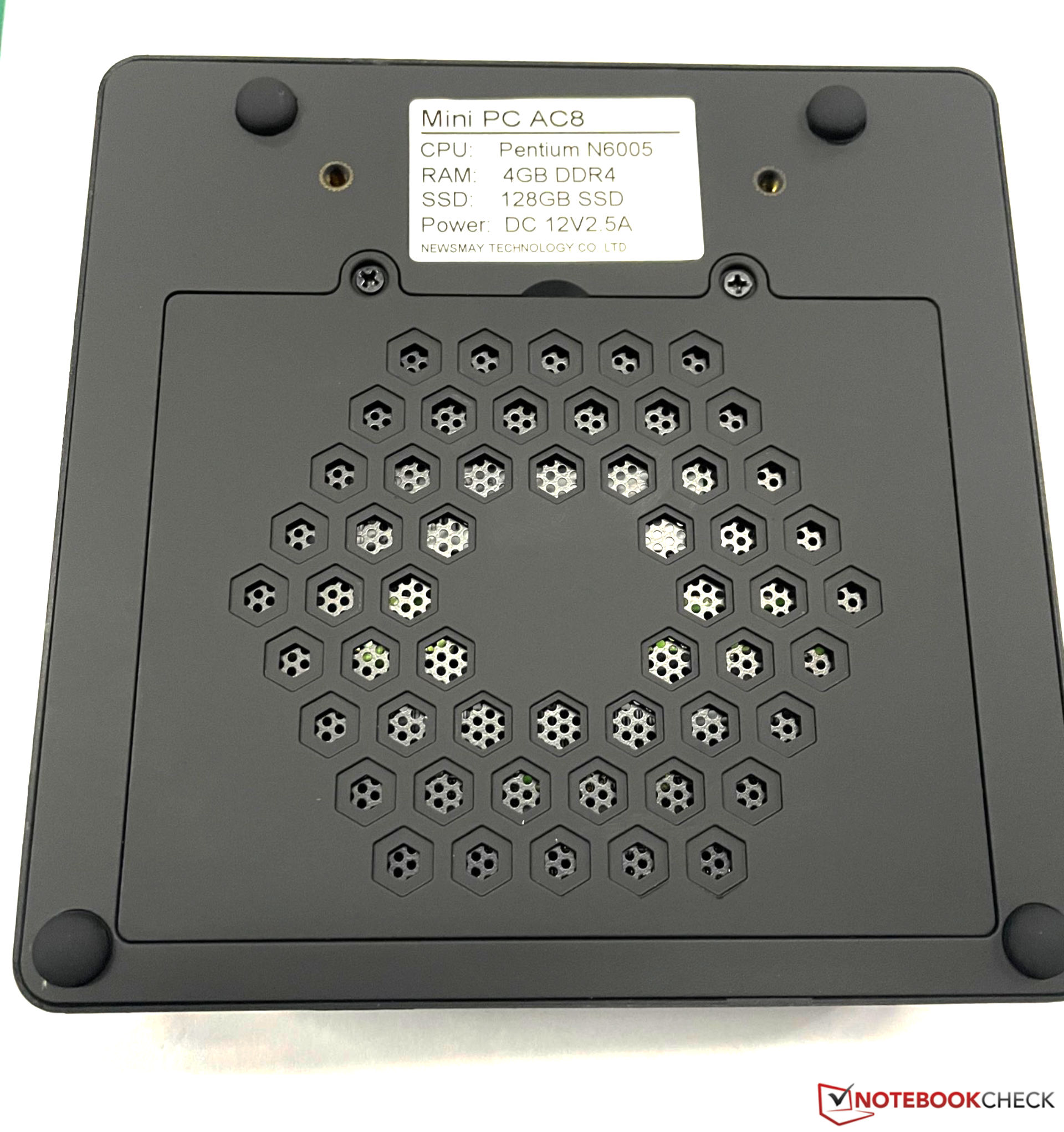

Newsmay has given the AC8 a passive cooling unit. There are many vents at the sides and top for the waste heat to escape from the case. There's a small maintenance hatch at the bottom. The installed components can be quickly accessed behind it, and they can be replaced or upgraded if necessary. The WLAN module can also be changed, since this is an M.2 module. Furthermore, two SO-DIMM modules and an M.2 SSD are also located here. Unfortunately, it's not possible to install a second mass storage drive in the device.

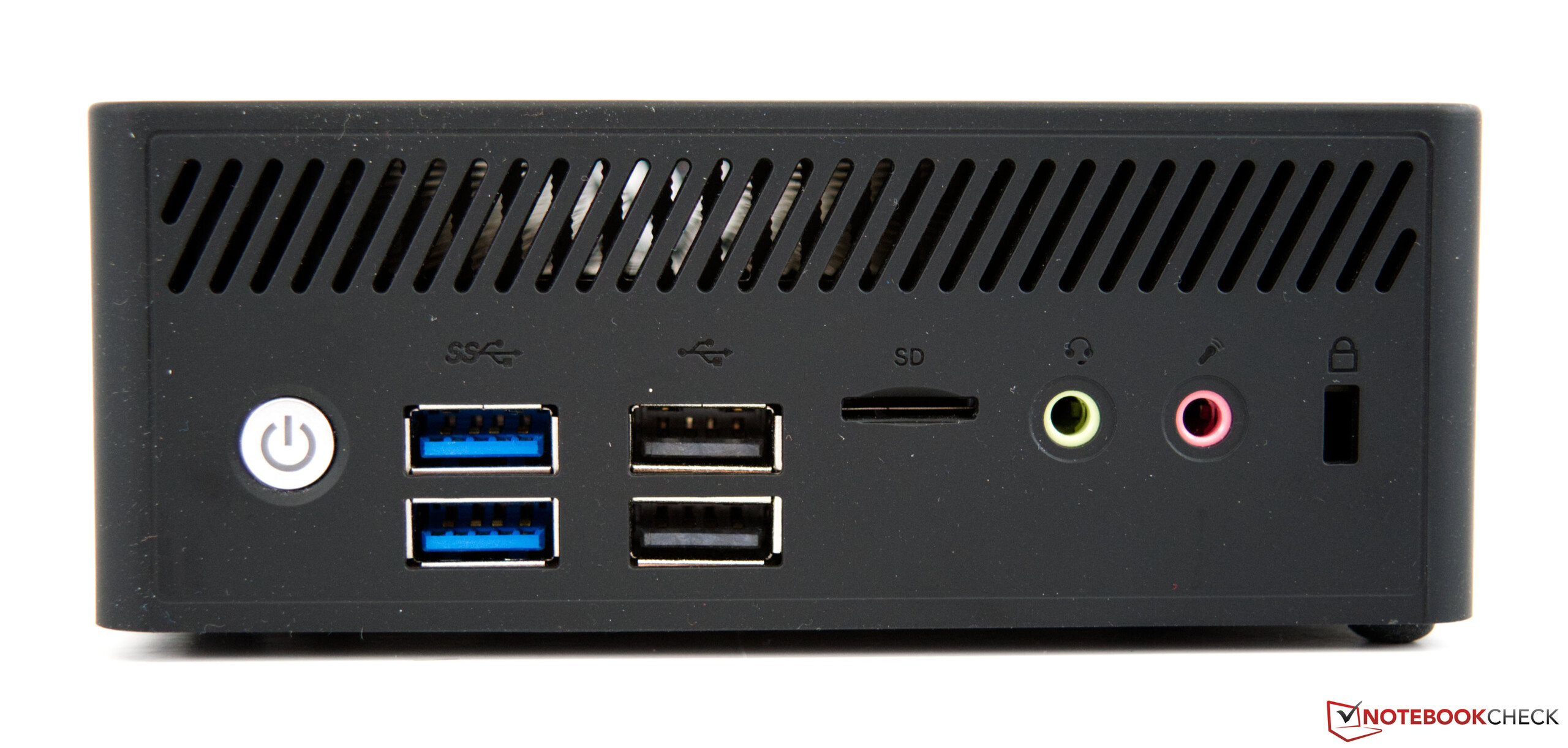

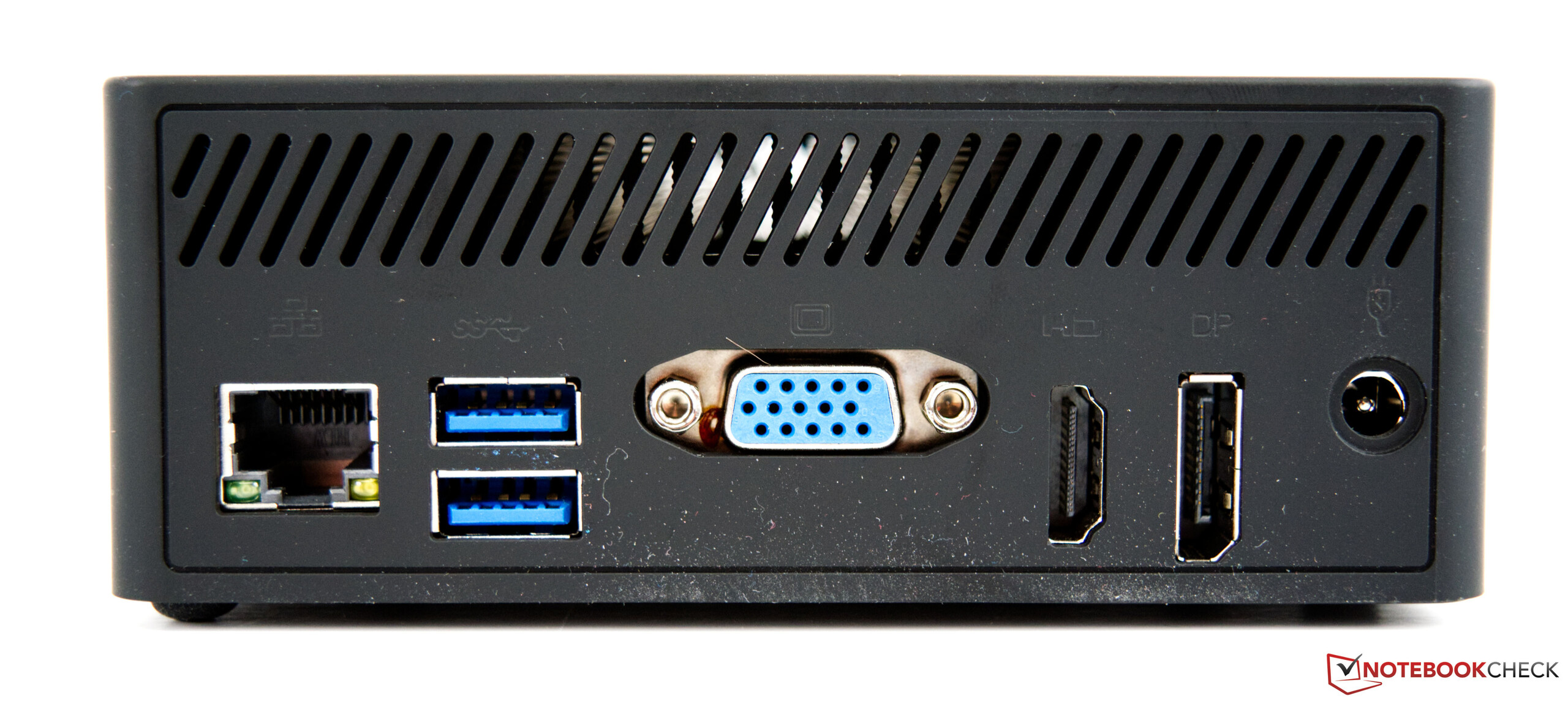

The Newsmay AC8 offers many options for the connection of external devices. The ports are located at the front and back. We count a total of six USB-A ports, four of which offer USB 3.0 speeds. Furthermore, there's also a microSD card reader, but its performance isn't very good. In our opinion, it should have also used the USB 3.0 interface. A highlight is the analog VGA output, which is hardly ever found nowadays. Nevertheless, there are still many devices in the industrial field that use this interface nowadays. But there's place for modern technology too, since both an HDMI and a DisplayPort connection are included, allowing up to three monitors to be connected to the Newsmay AC8.

CPU performance of the AC8 in detail

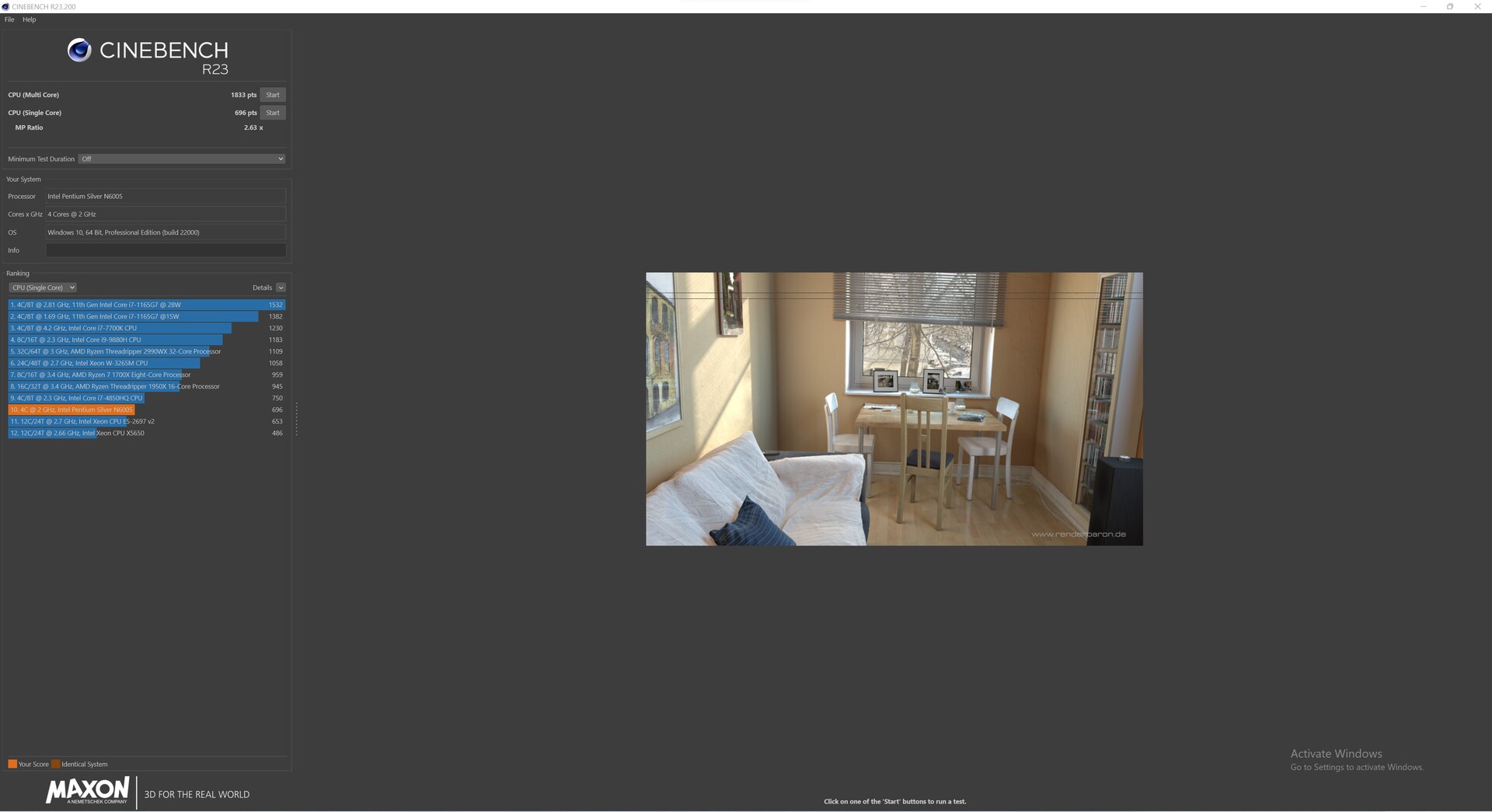

Newsmay Technology provided us with the version of the AC8 that is based on the Intel Pentium Silver N6005. The 10-watt frugal SoC has base clock speeds of 2 GHz and reaches up to 3.3 GHz in Turbo mode. The total of four native processing cores offers a solid performance that is sufficient for simple office tasks. The 4 GB of RAM is a bit limited in our opinion, something that can be occasionally noticed when working. The AC8 can be equipped with a maximum of 32 GB.

Our review shows that the performance of our test sample is better than that of the AC6-M, which is also from Newsmay Technology. The Beelink GK Mini and the GMK NucBox K1 are also equipped with a somewhat weaker SoC, so they can't keep up with the Newsmay AC8. However, our test sample doesn't stand a chance against the Intel NUC10 based on the Intel Core i5-10210U.

For further comparisons and benchmarks, please refer to our CPU Benchmarks article.

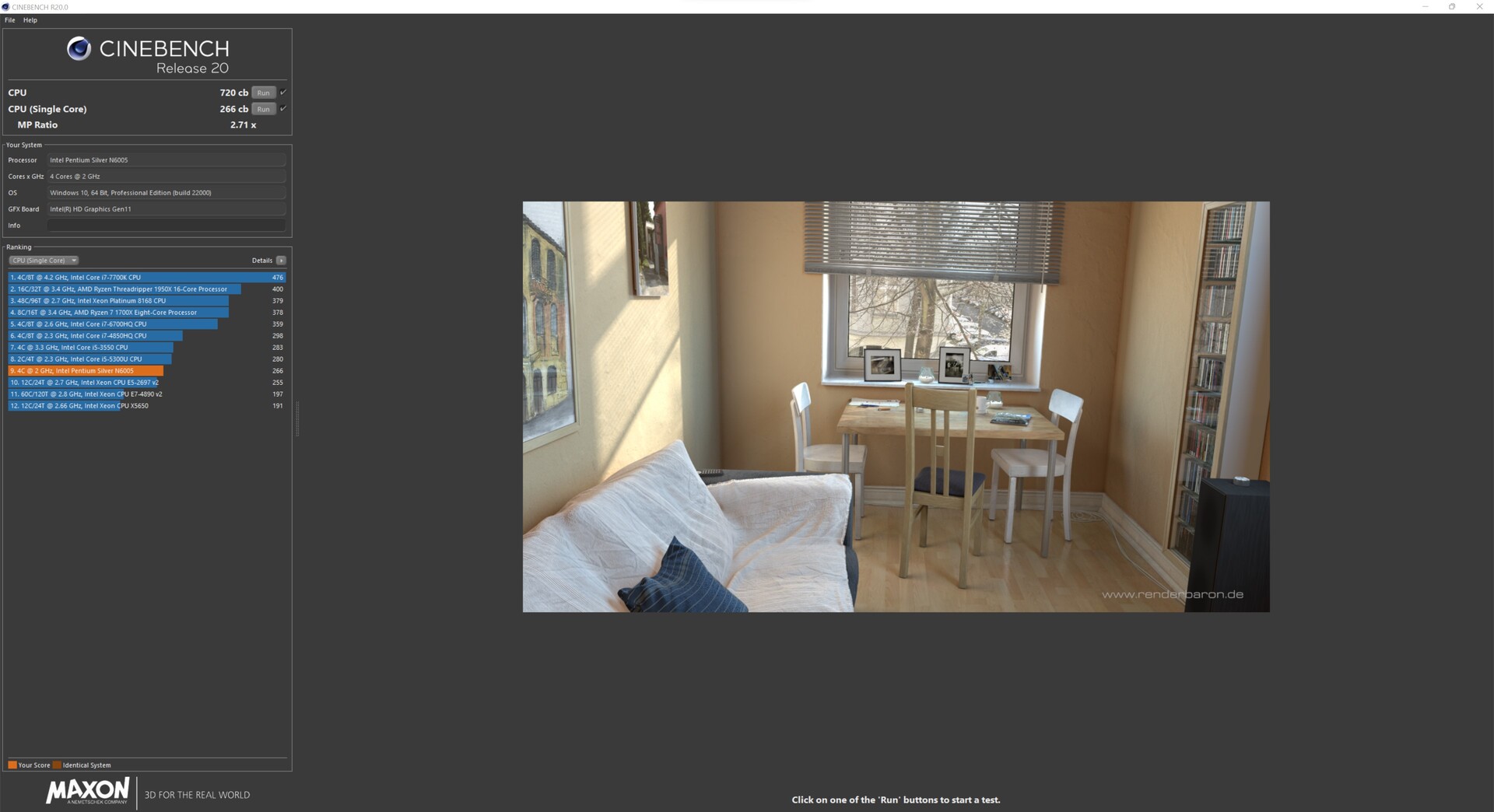

Cinebench R20
CPU (Single Core)
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points +61%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	266 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -25%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	174 Points -35%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	171 Points -36%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	161 Points -39%
CPU (Multi Core)
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points +153%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	720 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	610 Points -15%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	556 Points -23%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -32%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	304 Points -58%

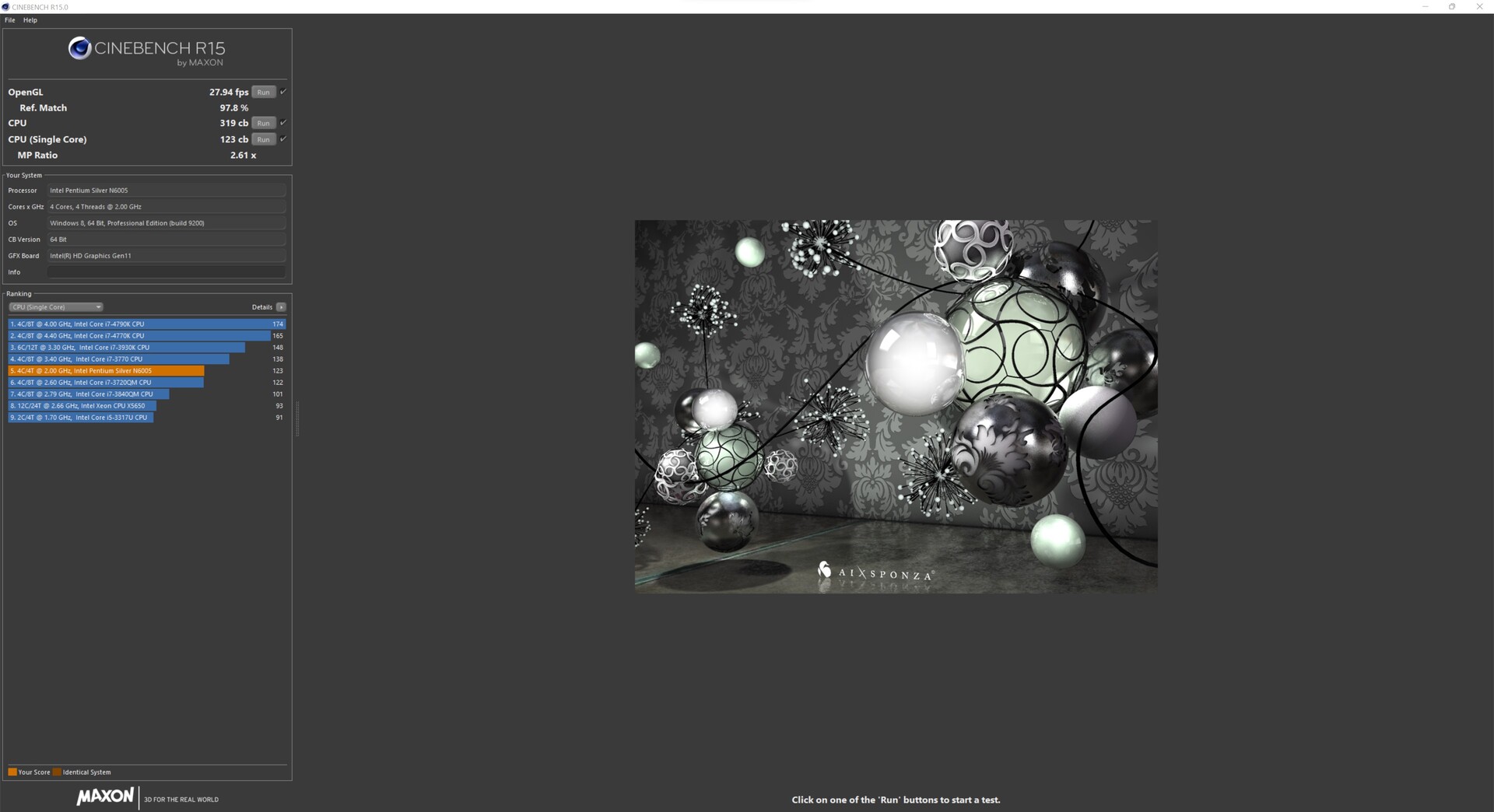

Cinebench R15
CPU Single 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	123 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points -5%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points -12%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -32%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	79.1 Points -36%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	77 Points -37%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	75.3 Points -39%
CPU Multi 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points +148%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	319 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points -7%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	271 (263.32^min - 271.42^max) Points -15%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points -18%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	248 Points -22%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	243 (199.13^min - 242.53^max) Points -24%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -31%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -34%

Cinebench R11.5
CPU Single 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.91 Points +30%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.47 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points -10%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points -13%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.92 Points -37%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.84 Points -43%
CPU Multi 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8.66 Points +109%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	4.14 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points -21%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.09 Points -25%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.06 Points -26%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points -31%

Blender - v2.79 BMW27 CPU
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2391 Seconds * -32%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2379 Seconds * -32%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2198 Seconds * -22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1805 Seconds *
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds * +68%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -19%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * -1%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	615 s *
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	603 s * +2%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	566 s * +8%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * +9%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s * +65%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -35%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * -14%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	19.42 s * -14%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * -5%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	17.37 s * -2%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.09 s *
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s * +60%

X264 HD Benchmark 4.0
Pass 2
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps +128%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21.6 (21.5^min - 22.1^max) fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps -11%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	16.75 (16.7^min - 16.9^max) fps -22%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps -24%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps -36%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	11.31 fps -48%
Pass 1
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps +81%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps +3%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	102 (100^min - 118^max) fps
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps -13%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	78.9 (77.1^min - 81.7^max) fps -23%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps -27%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	52.6 fps -48%

TrueCrypt
Serpent Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s +109%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.23 GB/s
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.182 GB/s -21%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.178 GB/s -23%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s -28%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -38%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -42%
Twofish Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s +96%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.403 GB/s
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s -30%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.266 GB/s -34%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.262 GB/s -35%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s -39%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -51%
AES Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s +81%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.6 GB/s
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.9 GB/s -27%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.8 GB/s -31%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s -35%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s -42%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -50%

Geekbench 4.4
64 Bit Multi-Core Score
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13949 Points +158%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5761 Points +7%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5468 Points +1%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	5399 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points -6%
64 Bit Single-Core Score
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3680 Points +44%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points +2%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2555 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1997 Points -22%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1922 Points -25%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps +281%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.65 fps
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.61 fps -2%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.48 fps -10%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.46 fps -12%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

* ... smaller is better

Cinebench R15 Multi loop

The load test, which is simulated with the Cinebench R15 multi loop here, shows that the passive cooling system has its hands full with keeping the Intel Pentium Silver N6005 cool. In the end, the Newsmay AC8 is on the same level as the Beelink GK Mini with an average of 273 points.

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)

Beelink GK Mini Intel Celeron J4125, Intel Celeron J4125: Ø268 (263.32-271.42)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

System performance

In the PCMark 10 synthetic benchmark, the Newsmay AC8 delivers a better performance than the Newsmay AC6-M due to the faster SoC. However, its performance clearly lags behind the widespread Core i5 models. The Newsmay AC8 also has problems when playing 4K content. In this regard, we had to struggle with significantly elevated latencies right from the start. When playing the 4K test video, the average iGPU load was around 50%. The many dropped frames accumulated during playback. This suggests that the 4 GB of RAM is simply too little. When opening several browser tabs, the system takes some seconds to respond from time to time, which makes it difficult to work smoothly. Unfortunately, the SSD is unable to compensate for this. Moreover, if you want to expand storage with a microSD memory card, you should know that the transfer rates of about 17 MB/s aren't exactly fast. We tested this with our UHS-II Angelbird AV Pro V60 microSD card.

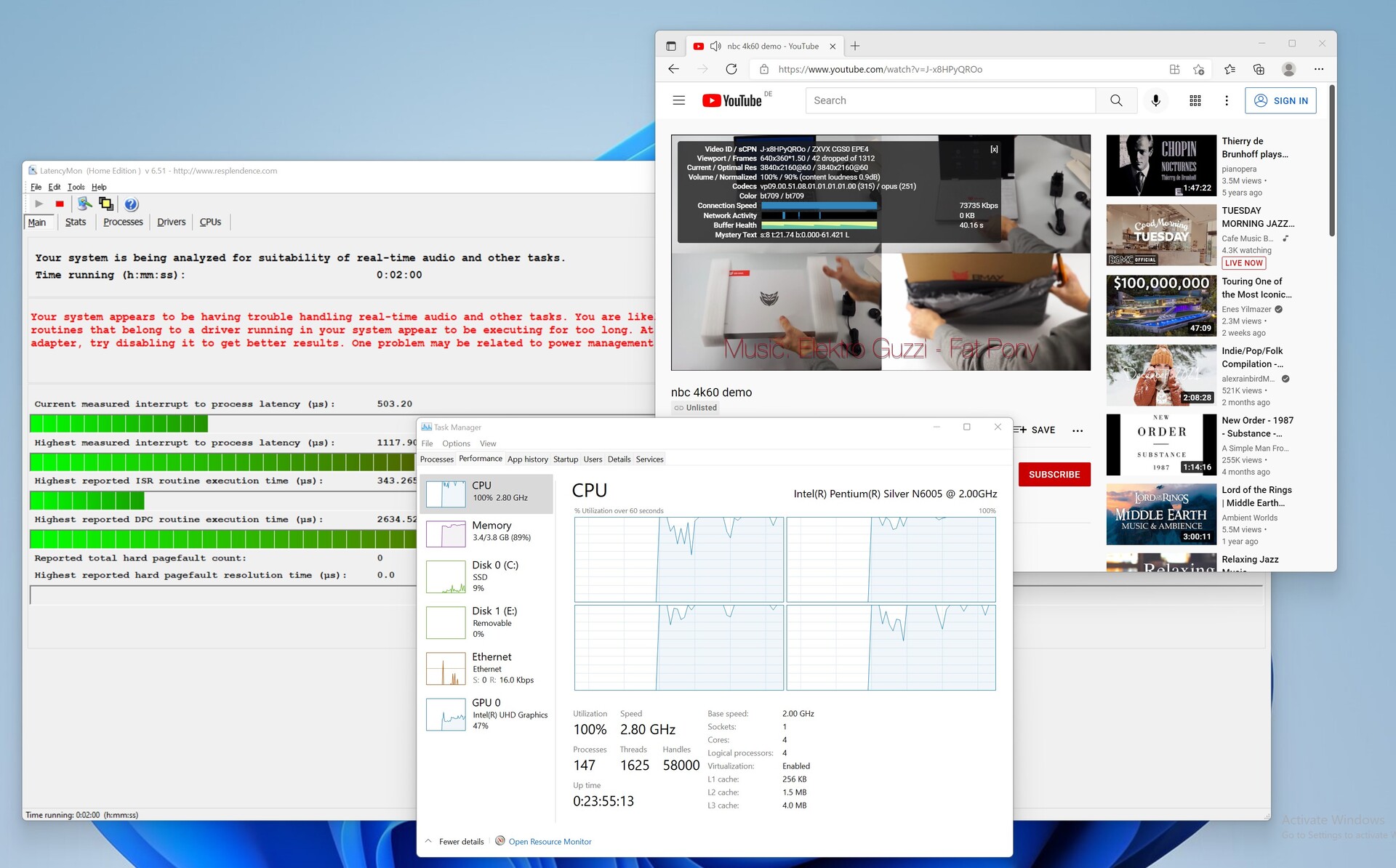

Maximum latency when opening multiple browser tabs and when playing 4K video content.

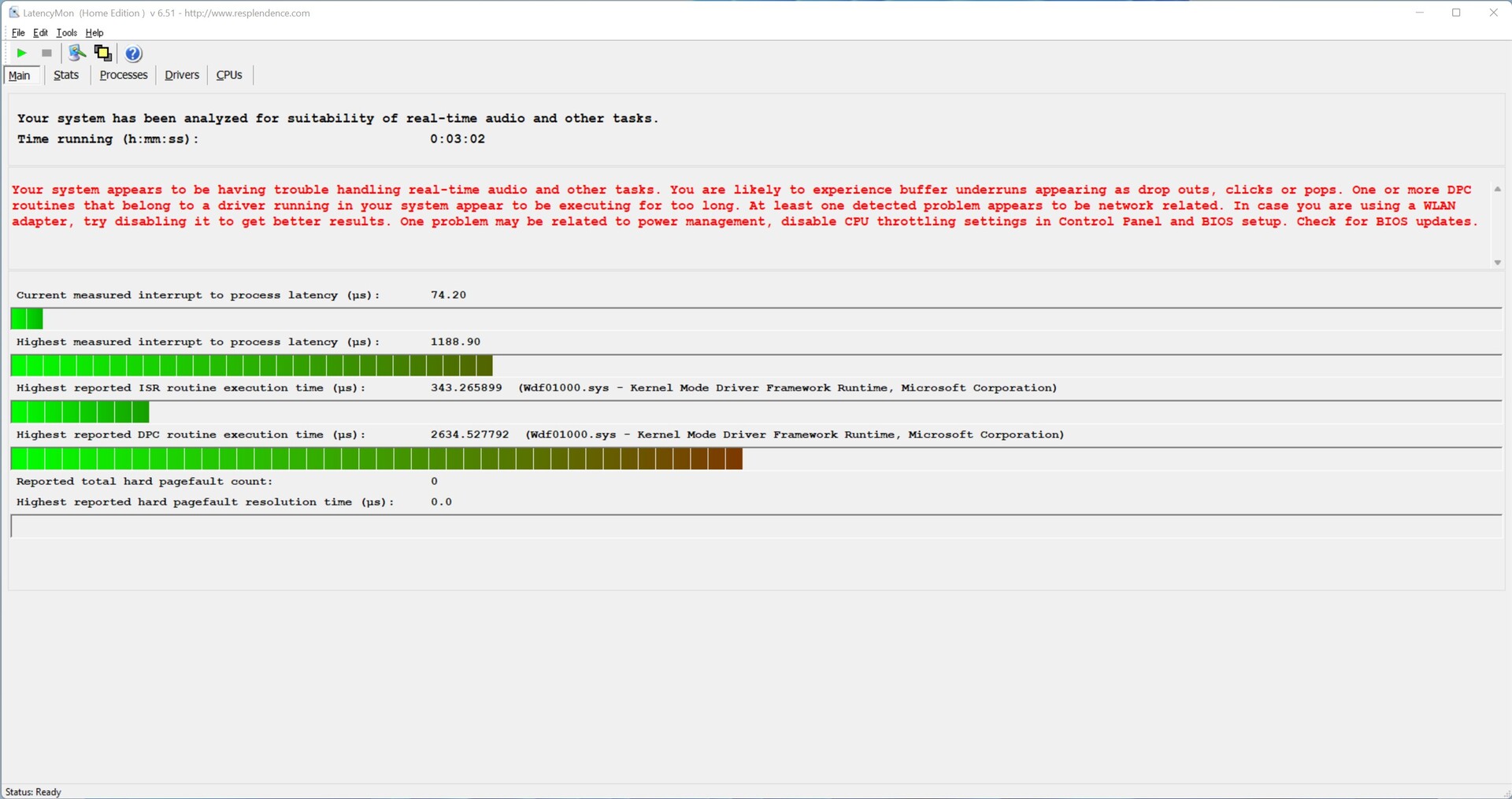

Maximum latency after 10 seconds of Prime95

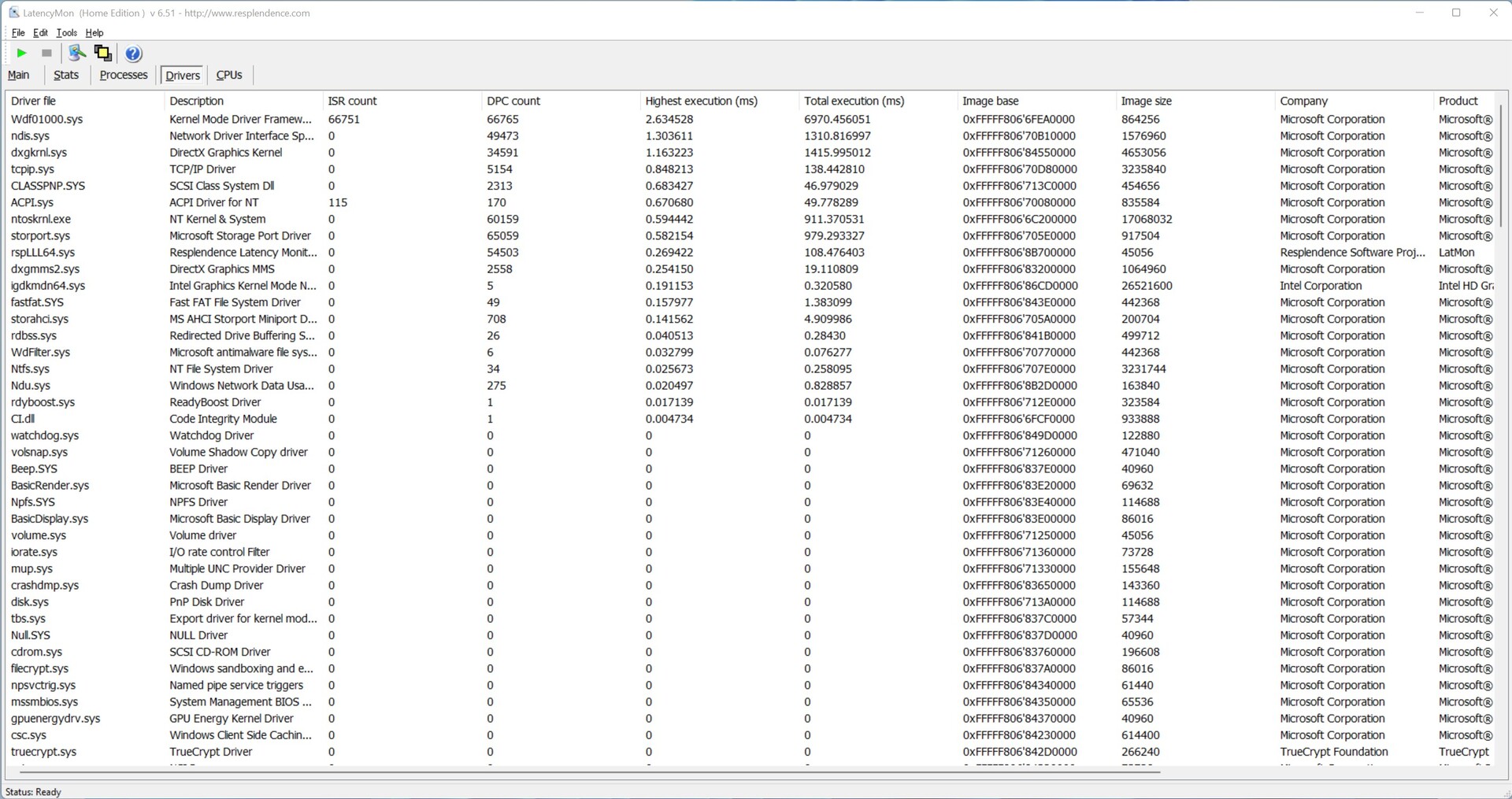

Drivers ranked by longest execution time

PCMark 10 | SD Card Reader | DPC Latencies / LatencyMon

PCMark 10
Score
Average Intel Core i5-10210U (3448 - 4742, n=33)	4046 Points +59%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points +58%
Average Intel Core i5-8265U (2247 - 4192, n=36)	3744 Points +47%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2548 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points -6%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1898 Points -26%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1831 Points -28%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1806 Points -29%
Productivity
Average Intel Core i5-10210U (5980 - 7332, n=33)	6717 Points +74%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points +69%
Average Intel Core i5-8265U (2941 - 6755, n=36)	6114 Points +59%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points +6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3854 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3050 Points -21%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2948 Points -24%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2928 Points -24%

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average Intel Core i5-8265U (16.1 - 184, n=27)	69.6 MB/s +309%
Average Intel Core i5-10210U (26.7 - 82.4, n=25)	63.7 MB/s +274%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	47.1 MB/s +177%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	18.46 MB/s +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.02 MB/s
maximum AS SSD Seq Read Test (1GB)
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	84.3 MB/s +376%
Average Intel Core i5-8265U (23.5 - 192.6, n=27)	79 MB/s +346%
Average Intel Core i5-10210U (27.1 - 88.6, n=23)	73.3 MB/s +314%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	21.03 MB/s +19%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.7 MB/s

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3767 μs * -43%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2635 μs *
Average Intel Core i5-10210U (466 - 5702, n=17)	1904 μs * +28%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1717 μs * +35%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1318 μs * +50%
Average Intel Core i5-8265U (561 - 915, n=3)	748 μs * +72%

* ... smaller is better

Storage

Since the Newsmay AC8 is offered as a barebone version, the mass storage configuration is up to the buyer. However, Newsmay Technology equipped the device with a 128 GB SSD for our review. This allows the system to run without any problems, and a few programs can still be run alongside the operating system. The built-in SSD is an M.2-2280 model from Lexar, which only offers SATA speeds. This is also confirmed by the sequential write and read rates. Unfortunately, the Newsmay AC8 can only be equipped with one mass storage unit. Considering the design, accommodating two SSDs should actually be no problem. We didn't observe any temperature problems in our model.

Graphics card

The Newsmay AC8's integrated graphics unit is the familiar Intel UHD Graphics 600. However, with 32 EUs and a chip clock speed of up to 850 MHz, it can't even begin to keep up with the latest Intel Iris Xe iGPUs. The Intel UHD Graphics 600 is not meant to be used for more than just office applications.

You can find more benchmarks of the Intel UHD Graphics 600 here.

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=105)	5167 Points +225%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +46%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1589 Points
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points -8%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points -26%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	613 Points -61%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	602 Points -62%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	589 Points -63%
Average Intel UHD Graphics 600 (410 - 854, n=27)	558 Points -65%

3DMark
1280x720 Ice Storm Standard Graphics
Average Intel Iris Xe Graphics G7 80EUs (25199 - 142022, n=23)	83387 Points +288%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +189%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	25631 Points +19%
Average Intel UHD Graphics 600 (14412 - 35101, n=10)	23582 Points +10%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21465 Points
1920x1080 Ice Storm Extreme Graphics
Average Intel Iris Xe Graphics G7 80EUs (27687 - 96826, n=13)	56325 Points +173%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points +97%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	20602 Points
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14600 Points -29%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14360 Points -30%
Average Intel UHD Graphics 600 (8277 - 19919, n=12)	13725 Points -33%
1920x1080 Fire Strike Graphics
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=107)	3782 Points +329%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points +68%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points +17%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	881 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points -13%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	455 Points -48%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	446 Points -49%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	433 Points -51%
Average Intel UHD Graphics 600 (307 - 637, n=21)	421 Points -52%

3DMark 05 Standard		8291 points
3DMark 06 Standard Score		5416 points
3DMark Vantage P Result		5185 points
3DMark 11 Performance		1652 points
3DMark Ice Storm Standard Score		22209 points
3DMark Cloud Gate Standard Score		4821 points
3DMark Fire Strike Score		797 points
Help

... in comparison

	low	med.	high	ultra
Dota 2 Reborn (2015)	54	22.4	12.8	11.5
Final Fantasy XV Benchmark (2018)	10.7	4.96	0.84
X-Plane 11.11 (2018)	15.2	11.4	10.5

Emissions

Temperature

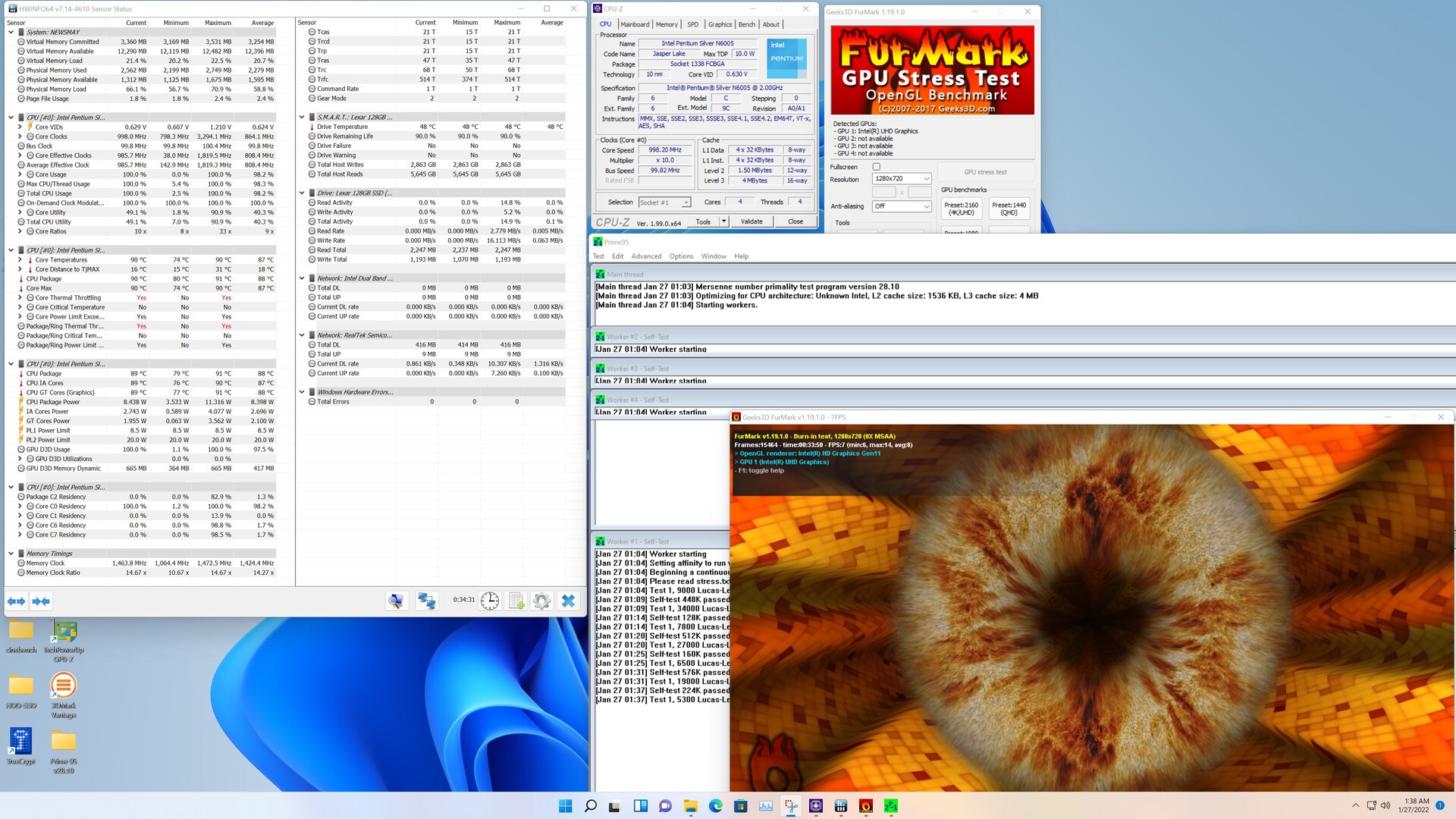

Based on the first load tests, it was already clear to us that the Newsmay AC8 quickly reaches the thermal limits of the Intel Pentium Silver N6005 with its passive cooling system. Accordingly, we registered a maximum temperature of 91 °C (~196 °F) in the stress test. However, there's still a small margin to the official maximum of 105 °C (~221 °F) specified by Intel. Nevertheless, there's still a bit of thermal throttling, something that we also saw in the Cinebench R15 multi loop. Newsmay seems to have defined the limit at 90 °C (~196 °F) here.

The case heated up noticeably under load, and it should be placed in a well-ventilated place to allow the waste heat to properly dissipate.

Noise emissions

The Newsmay AC8 doesn't produce any noise due to its lack of fans. Consequently, the Mini PC operates silently at all times. We didn't notice any other interfering noises in idle usage or under load, either.

Energy consumption

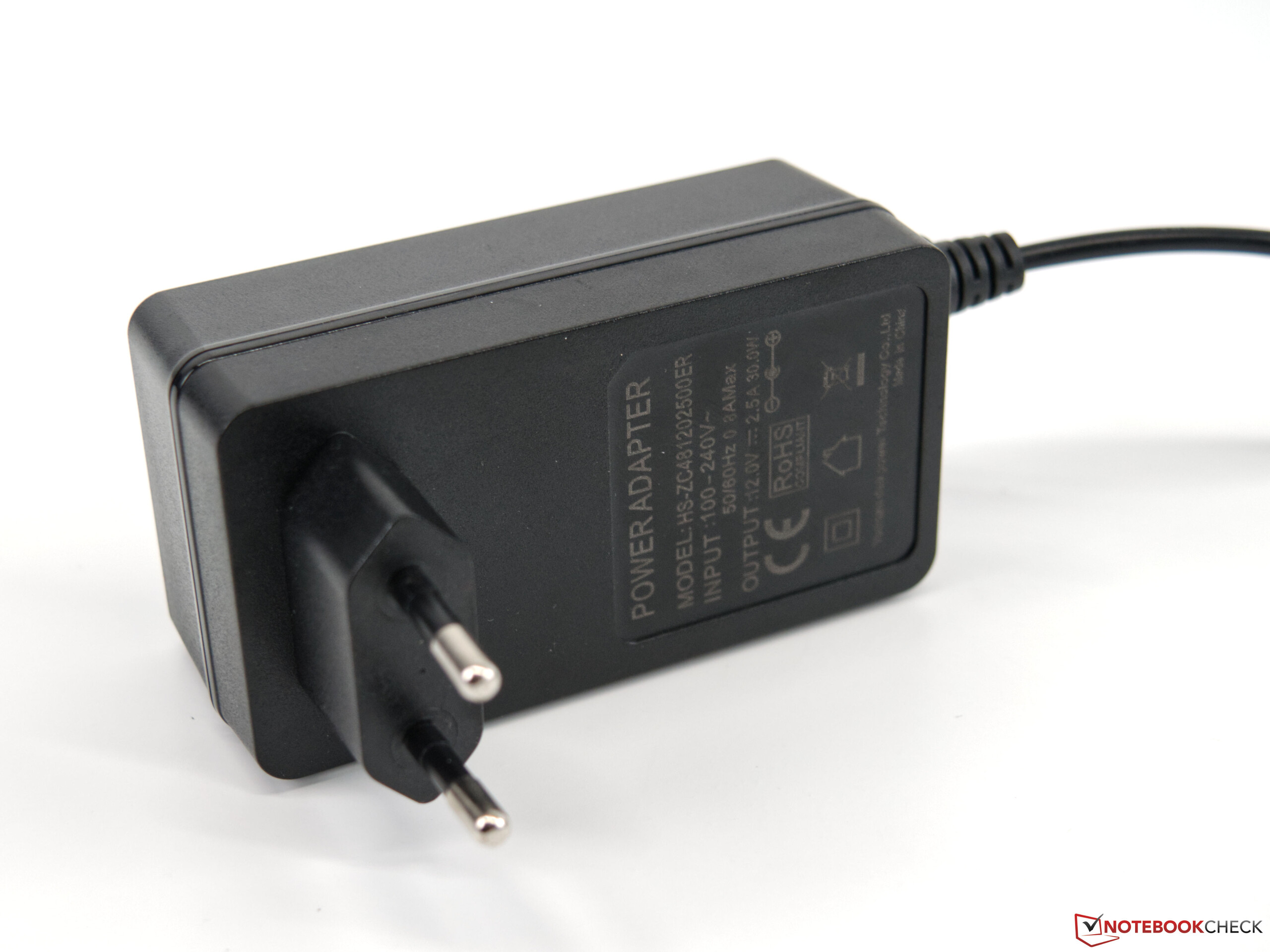

Users who are careful about their energy bills can safely go for the Newsmay AC8. The small Mini PC is very frugal, and it doesn't even exceed the 20-watt mark under load. The compact power supply doesn't reach its capacity limit, because it can deliver up to 30 watts.

Power Consumption
Idle 1min (external Monitor)
Newsmay AC8 N6005	8.21 (7.75^min, 7.76^P1 - 11.1^max) Watt *
Cinebench R15 Multi Efficiency (external Monitor)
GMK NucBox K1	19.8 Points per Watt +12%
Newsmay AC8 N6005	17.7 Points per Watt
Intel NUC5i3RYK	12.6 Points per Watt -29%
1280x720 Prime95 28.10 and Furmark 1.25
AC6-M Mini-PC	19.4 (19^min, 19.1^P1 - 20^max) Watt * -2%
Newsmay AC8 N6005	19.1 (17^min, 18.4^P1 - 24.4^max) Watt *
Prime95 V2810 Stress (external Monitor)
Intel NUC10i5FNK (Idle: 15.7 W)	58.5 (56^min - 69^max) Watt * -210%
Intel NUC5i3RYK (Idle: 7.8 W)	24.1 (23.3^min - 26^max) Watt * -28%
Newsmay AC8 N6005	18.9 (17.5^min, 18.2^P1 - 27.9^max) Watt *
AC6-M Mini-PC	17.4 (15.8^min, 16.8^P1 - 18^max) Watt * +8%
GMK NucBox K1	14.3 Watt * +24%
Cinebench R15 Multi (external Monitor)
Newsmay AC8 N6005	18 (9.62^min, 14.9^P1 - 27.1^max) Watt *
Intel NUC5i3RYK (Idle: 7.8 W)	17.4 (15.9^min - 19.9^max) Watt * +3%
GMK NucBox K1	12.3 Watt * +32%
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Intel NUC10i5FNK (Idle: 15.7 W)	37.8 (35^min - 63^max) Watt * -101%
Intel NUC5i3RYK	28.3 (27.1^min - 36.8^max) Watt * -51%
Newsmay AC8 N6005	18.8 (17^min, 17.8^P1 - 28.3^max) Watt *
1920x1080 The Witcher 3 ultra (external Monitor)
Intel NUC5i3RYK (2.7 fps, Idle: 7.8 W)	26.5 (24.5^min - 28.1^max) Watt *

* ... smaller is better

Pros

+ compact build

+ simple design

+ all necessary ports available

+ inexpensive

+ energy efficient

+ silent operation

Cons

- cooling unit reaches its limit under load

- only one storage drive can be installed

- slow SD card reader

Verdict - Compact and silent office PC

Newsmay AC8, provided by Newsmay Technology

The Newsmay AC8 is a compact and silent Mini PC. Based on the Intel Pentium Silver N6005, it delivers a solid performance, which is sufficient for simple office tasks or browsing the Internet. In our opinion, the very limited RAM of 4 GB turned out to be the weak point. This prevented a better subjective performance overall. We repeatedly experienced short delays, which were caused by an excessive utilization of the RAM. However, this situation shouldn't influence the overall rating too much, since Newsmay sells the AC8 as a barebone system without RAM and SSD. Therefore, buyers will be spoiled for choice when deciding what to build into the system.

Users who want to purchase the Newsmay AC8 should definitely consider choosing the Pentium variant. The alternative configurations offer more frugal SoCs, but also less performance as a result. A small office system, however, needs no less performance to be able to work well.

The Newsmay AC8 offers a good port configuration, and it's easy to fit on a desk thanks to its compact dimensions.

The connectivity of the AC8 is good, and all the necessary external interfaces are present. There's also a card reader, but it only supports the microSD format. We would have liked to see at least USB 3.0 speeds here, though.

The small office PC is very inexpensive for about $140 (before taxes). Nevertheless, this offer is rather directed at B2B customers, as this price refers to a purchase quantity of 300 units. Here you can go directly to the shop.

The biggest drawback of the Newsmay AC8 is the cooling unit, which has a hard time cooling the SoC effectively under load. However, the fact that the cooling unit is completely silent is a plus that we would like to emphasize here once again.

Bosgame Mini PC review: An affordable Mini PC with an Intel N95 for everyday office use 07/31/2023

NiPoGi GK3 Plus N95 reviewed: A compact mini PC with an Intel N95 for office use 03/01/2023

Zotac ZBOX PI336 pico review: A pocket PC with Intel Celeron N6211 and 4 GB of RAM 07/24/2022

Read all 3 comments / answer

Loading comments

Comment on this article

Editor of the original article: Sebastian Bade - Senior Tech Writer - 499 articles published on Notebookcheck since 2012

I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.

contact me via: Facebook, nbc.basti, Xing

Translator: Stephanie Chamberlain - Translator - 571 articles published on Notebookcheck since 2020

I've been fascinated with technology ever since I got my very first Android smartphone, which was quite a while ago. The power packed into such a small footprint still amazes me. Learning to program made my understanding of technology deeper, and at the same time, it expanded my interest to the area of desktop computers and laptops. All this led me to enjoy reading and watching reviews of new devices, and that's how I stumbled upon Notebookcheck. I immediately found their reviews to be very comprehensive, and luckily, I've even had the chance of translating them since 2019. When it comes to the huge field of technology, I'm currently also interested in specializing in Java programming.

contact me via: LinkedIn

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Newsmay AC8 Mini PC in review: A silent office PC with the Pentium N6005

Sebastian Bade, 2022-02- 4 (Update: 2022-06- 2)

Newsmay AC8 Mini PC in review: A silent office PC with the Pentium N6005

Case and connectivity

CPU performance of the AC8 in detail

Cinebench R15 Multi loop

System performance

Storage

Graphics card

Emissions

Temperature

Noise emissions

Energy consumption

Pros

Cons

Verdict - Compact and silent office PC

Related Articles
