JDI develops Dual Touch 2VD - the world’s first simultaneous dual-user, dual-view touchscreen display

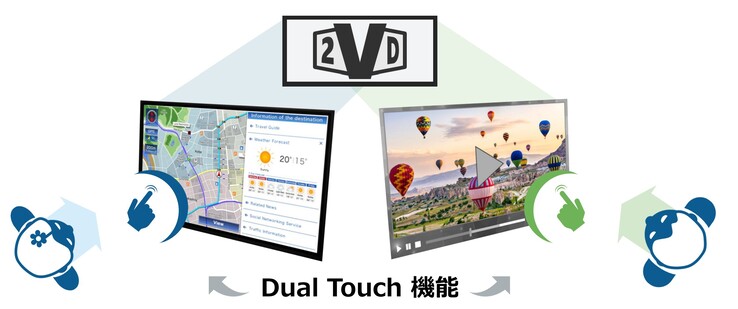

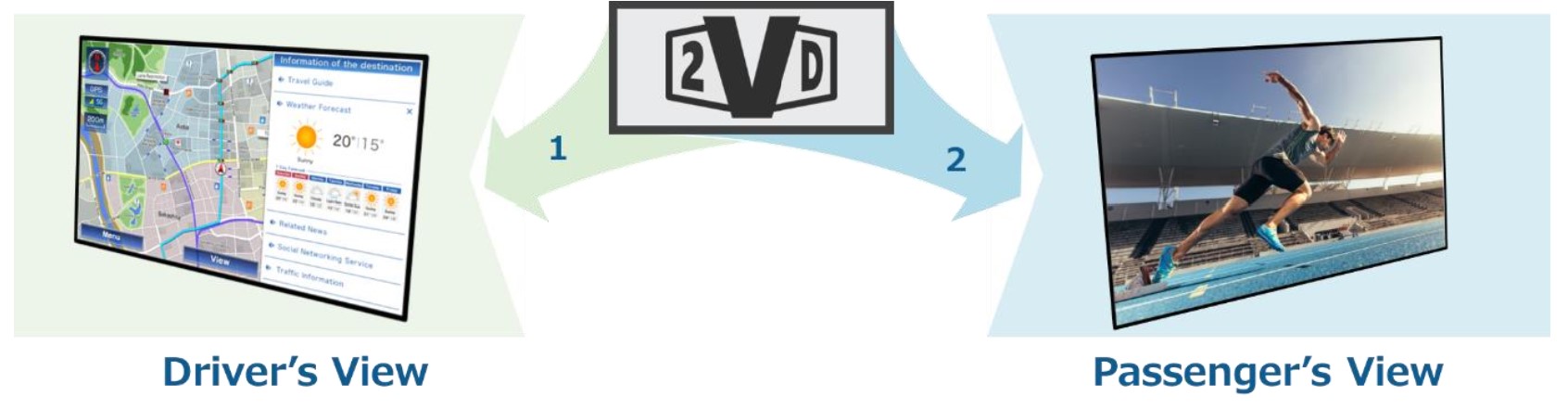

JDI has developed the Dual Touch 2VD - the world’s first simultaneous dual-user, dual-view touchscreen display targeted for use in automobiles. The driver and passenger see different images based on their viewing direction while both images are shown at the same time. Both riders can also simultaneously operate the touchscreen and change unique settings visible only to their viewing angle.

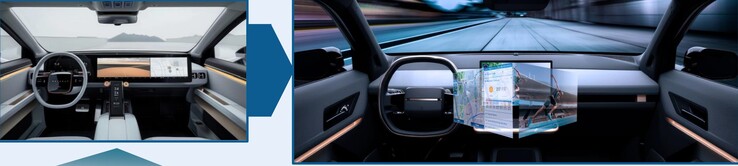

The Dual Touch 2VD allows the display to be located between the driver and passenger, reducing the safety risks of heads striking forward display panels during an accident and allowing for optimal airbag placement in front of each rider. The single display also reduces costs and points of failure versus multiple displays.

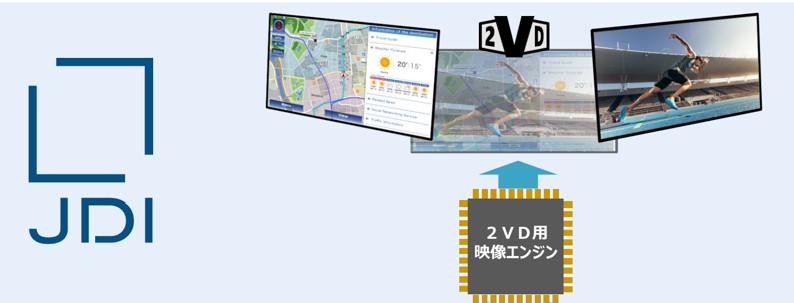

A custom JDI IC was developed to distinguish which rider touchscreen inputs are originating, enabling simultaneous control. The LTPS LCD panel uses JDI’s IPS-NEO technology for deeper blacks as well as more consistent colors through wide viewing angles along with proprietary optics and display algorithms.
The JDI Dual Touch 2VD has a native 241 ppi pixel density with a per-user-view 171 ppi pixel density, 700 nits brightness with a 1000 to 1 contrast ratio, and 85% NTSC color gamut coverage. The display will be available for shipment in 2025 for OEM integration into automobiles. JDI expects to expand the market for 2VD displays to additional markets and develop models utilizing OLED panels. Readers who want something new to play with until 2VD PC monitors arrive can try a 3D digital camera with an integrated viewer to view stereoscopic photos and videos of their lives.
Source(s)
August 2, 2024
Japan Display Inc. (JDI) (Tokyo Stock Exchange Prime Market, 6740) Representative: Scott Callon, Chairman & CEO Inquiries: Haruhiko Sakaguchi, CFO Telephone: +81-3-6732-8100 www.j-display.com/en/
JDI Develops World's First Automotive Grade Dual Touch 2 Vision Display (2VD) ~ Simultaneously Displays Different Content to Driver and Passenger with Dual Touch Capabilities, Enabling One Display to Function as Two Displays ~ JDI has developed the world's first 2 Vision Display (2VD) technology that meets automotive grade image quality requirements while simultaneously displaying different image content based on viewing direction. As another world first, JDI has incorporated Dual Touch into its new 2VD technology that identifies discrete touch operations from different users. JDI Dual Touch 2VD thus enables a single display to function as two separate touch-enabled displays.
2VD has existed as a concept for many years. Unfortunately, it has historically been unable to overcome image quality issues to achieve commercialization and product use.
With its new Dual Touch 2VD technology, JDI has deployed its world-leading LTPS and optics capabilities to generate the necessary breakthrough in image quality to allow for widespread use. As an automotive use case, JDI Dual Touch 2VD simultaneously provides a large-screen, rich-content information display to the driver to support safe driving and a large-screen, high-quality passenger display on a single display. Dual Touch 2VD also resolves interior design constraints caused by the increase in displays, while allowing the reduction of in-car display usage to support streamlined and sophisticated interior designs.
2VD has also historically lacked touch functionality, an important capability for many use cases. JDI Dual Touch 2VD uses JDI-developed custom ICs to identify whether touch operations originate from the driver or passenger (again, using an automotive use case example), allowing a single display to function as two separate touch-enabled displays.
JDI is currently in discussions with multiple global automobile OEMs to incorporate JDI Dual Touch 2VD into their next-generation vehicle interiors, with first shipment possible as early as 2025. In collaboration with these OEMs, JDI is working to create unprecedented levels of automobile safety and comfort.
Existing 2VD vs. New JDI Dual Touch 2VD Furthermore, JDI Dual Touch 2VD’s rich functionality goes beyond the automotive industry. It has a broad set of use cases in an extraordinarily rich variety of contexts, locations, and industries and in both horizontal and vertical 2VD modes. As examples, JDI Dual Touch 2VD can be deployed in large signage applications or to create display security and privacy enhancements through viewing angle control, or to support innovative gaming applications.
A sample vertical use case of JDI Dual Touch 2VD would be a large display at a transportation hub such as an airport or train station, in which the changing user viewing angle, depending on the distance between the display and the user, allows for the simultaneous provision of rich visuals, art or other creative content, general information, or advertising (at a distance) and departure/arrival information (up close).
JDI Dual Touch 2VD is a breakthrough display technology that has the potential to change the way displays are used – and shared – all over the world in fundamentally new ways. JDI looks forward to open innovation and collaboration with individuals, organizations, and creative communities globally to explore new use cases for JDI Dual Touch 2VD that enrich people’s daily lives. Please feel free to contact us at: https://www.webcoms.jp/jdi/eng/form.php?pid=524
Existing 2VD New JDI Dual Touch 2VD Resolution 88 ppi 171 ppi Brightness 350 nits 700 nits Contrast 350 : 1 1000 : 1 NTSC Ratio 70% 85% Touch Functionality None Dual Touch
