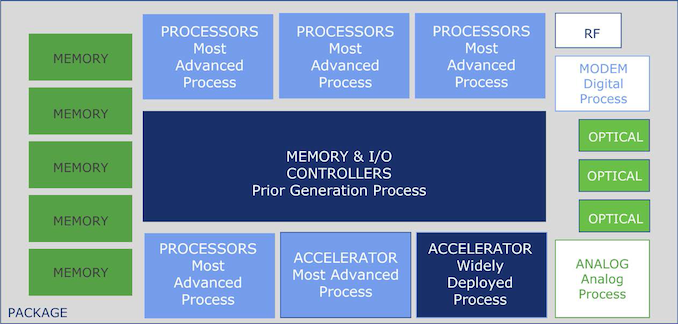

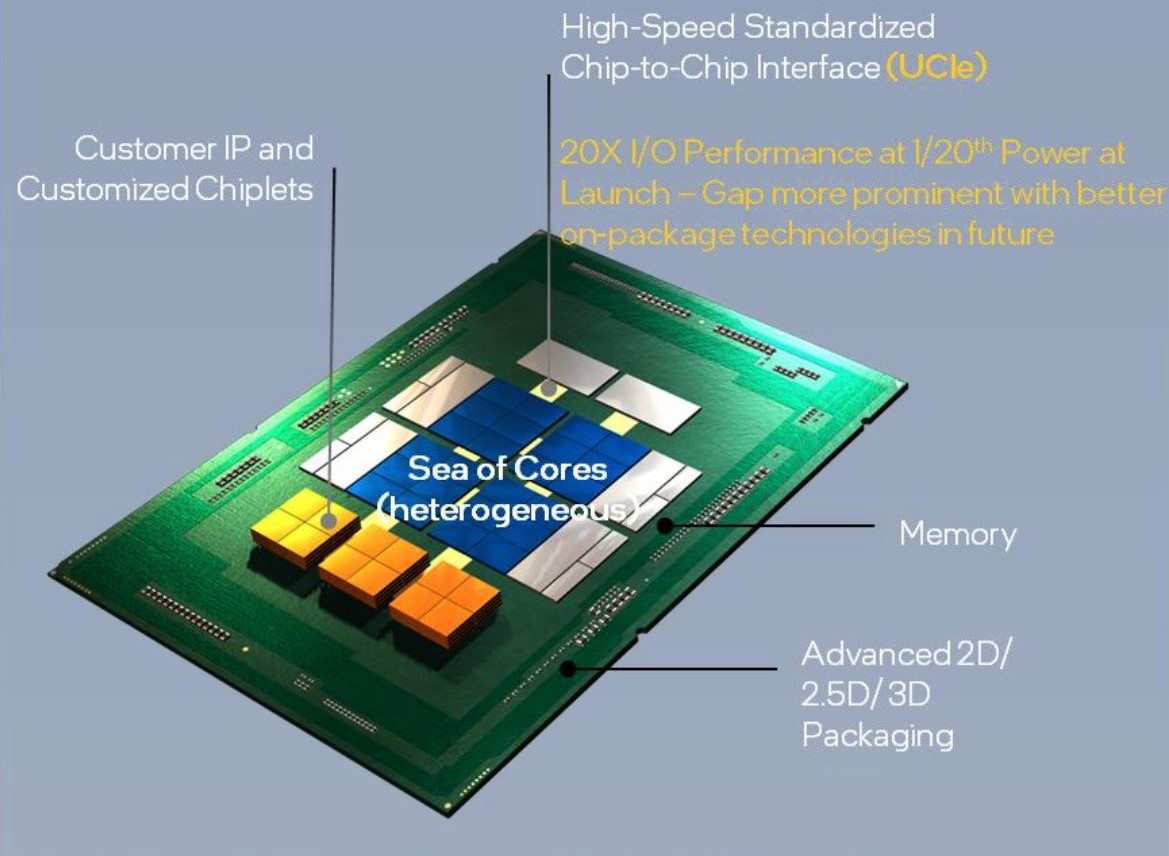

Leading processor makers such as AMD, Arm, Intel, Qualcomm, Samsung, as well as TSMC and ASE Group, together with giants like Google Cloud, Meta and Microsoft are establishing the Universal Chiplet Interconnect Express (UCIe) consortium to facilitate the creation of a chiplet ecosystem and accelerate the adoption of future chiplet technologies. The consortium representing diverse market segments will address customer requests for more customizable package-level integration, connecting best-in-class die-to-die interconnect and protocols from an interoperable, multi-vendor ecosystem.

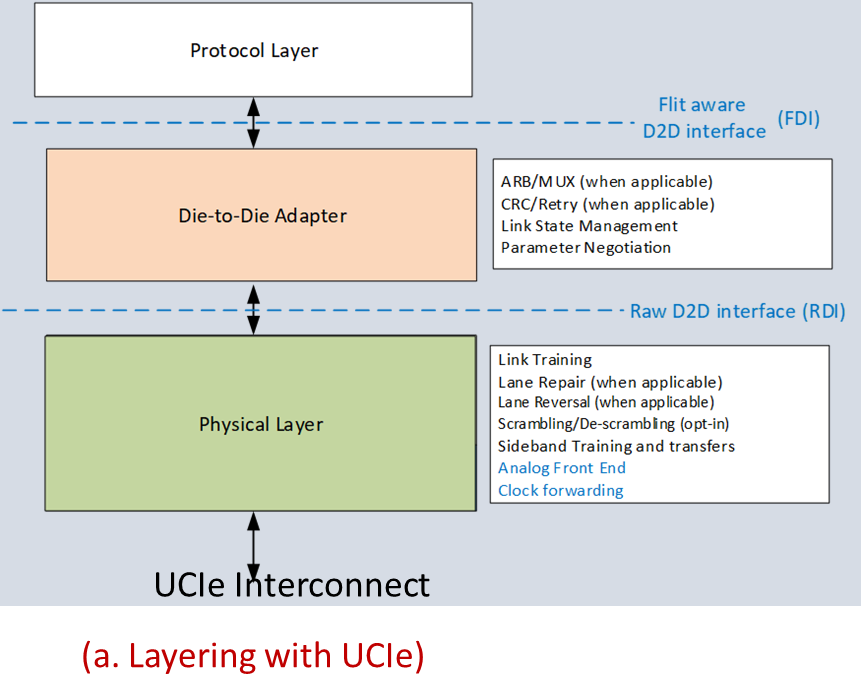

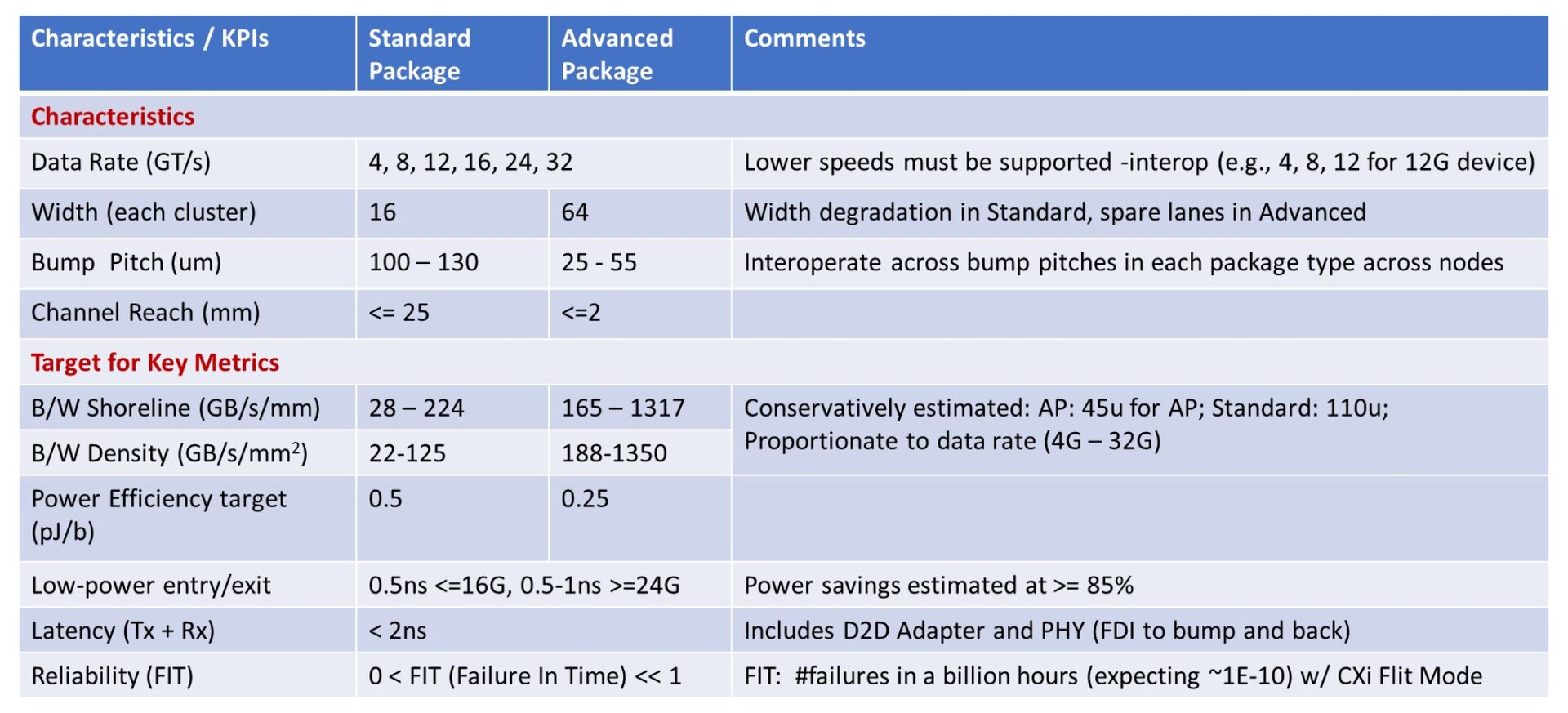

The founding companies ratified the first version of UCIe specifications as an open industry standard developed to establish a ubiquitous interconnect at the package level. The UCIe 1.0 spec sheet covers the die-to-die I/O physical layer, die-to-die protocols, and software stack which leverage the well-established PCI Express (PCIe) and Compute Express Link (CXL) industry standards. As pointed out by Anandtech, this initial version of UCIe comes from Intel, who is donating the specification wholesale to the consortium. Not at all surprising, considering that Intel has been responsible for the initial development of several high-profile open interconnect technologies like USB, PCIe and Thunderbolt 3 over the last two decades. As such, UCIe 1.0 is actually based on Intel’s Advanced Interface Bus designs.
Upon incorporation of the new UCIe industry organization later this year, member companies will begin work on the next generation of UCIe technology, including defining the chiplet form factor, management, enhanced security, and other essential protocols.
