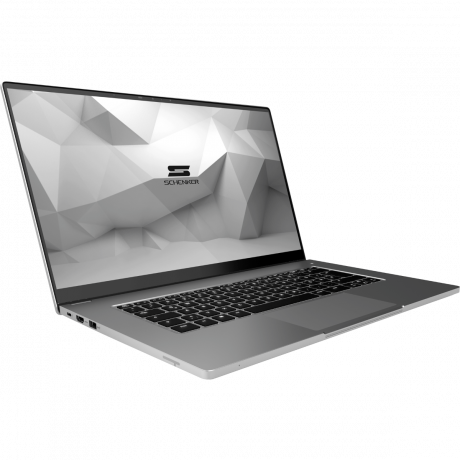

SCHENKER Vision 15

Specifications

SCHENKER Vision 15
SCHENKER Vision 15
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 50 W PL2 / Short Burst, 40 W PL1 / Sustained, Tiger Lake-UP3
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1300 MHz, Memory: 1600 MHz
Memory
16 GB
, LPDDR4X-4266, Dual-Channel, On-Board
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, capacitive, BOE08F5, IPS, glossy: yes, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW, 1024 GB
, 863 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
2 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm stereo, Brightness Sensor
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 15 x 355 x 230 ( = 0.59 x 13.98 x 9.06 in)
Battery
73 Wh, 4830 mAh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 65W PSU, Intel NUC Software, 36 Months Warranty
Weight
1.66 kg ( = 58.55 oz / 3.66 pounds), Power Supply: 352 g ( = 12.42 oz / 0.78 pounds)
Price
1500 Euro



Pricecompare

Average Score: 87.7% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 82%, features: 63%, display: 85% mobility: 79%, workmanship: 91%, ergonomy: 93%, emissions: 91%

Reviews for the SCHENKER Vision 15

87.7% Schenker Vision 15 (Intel NUC M15) Laptop Review: Intel's answer to XPS 15 and MacBook Pro? | Notebookcheck
The Vision 15 from Schenker Technologies is one of the first notebooks based on Intel's brand-new NUC M15. There has been a lot of development effort for the 15.6-inch laptop and it offers a good basis whitebook for a premium multimedia laptop. We have already reviewed the Schenker Vision 15 and see if it really is an alternative for the Dell XPS 15 or Apple MacBook Pro.
Intels Referenz-Notebook mit Tiger Lake bei bis zu 40 Watt
Source: Computerbase German DE→EN Archive.org version
Single Review, online available, Long, Date: 12/15/2020

Comment

Intel Iris Xe G7 96EUs: Integrated graphics card in Intel Tiger Lake G4 SoCs based on the new Gen. 12 architecture with 96 EUs (Execution Units / Shader Cluster). The clock rate depends on the processor model. The Tiger Lake chips are produced in the modern 10nm+ process at Intel.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-1165G7: An upper mid-range, quad-core processor of Tiger Lake product family. The i7 is designed for use in ultra-light (yet actively cooled) laptops; it is manufactured on Intel's third-gen 10 nm process marketed as SuperFin. The CPU cores run at 2.8 GHz (base clock speed @ 28 W TDP) to 4.7 GHz (single-core Boost frequency). This i7 features the 96 EU Intel Iris Xe G7 iGPU; it was the second-fastest CPU of TGL-UP3 line-up when Intel initially launched the series in 2020.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-inch display variants are the standard and are used for more than half of all laptops.

The reason for the popularity of mid-sized displays is that this size is reasonably easy on the eyes, often allows high resolutions and thus offers rich details on the screen, yet does not consume too much power and the devices can still be reasonably compact - simply the standard compromise.

» To find out how fine a display is, see our DPI List.


87.7%: This is an above-average rating. Nevertheless, it should not be forgotten that about one fifth of all tested models receive a better rating.


» Further information can be found in our Notebook Purchase Guide.
