PlayStation 5 'Gonzalo' PC hardware simulation throws up interesting performance and power consumption results, but it's not really an apples-to-apples comparison

The PlayStation 5's 'Gonzalo' can potentially offer great performance at low power consumption. (Source: GRM Daily)
The PlayStation 5's 'Gonzalo' can potentially offer great performance at low power consumption. (Source: GRM Daily)
A PC hardware simulation of the upcoming Sony PlayStation 5's purported hardware specs offers some insights into the likely performance and power draws that can be expected from the console. The OP undervolted an AMD Ryzen 7 3700X and the Radeon RX 5700 XT to simulate the PlayStation 5 specs as much as possible. While the performance can be matched to an extent, the final console has the potential to perform even better at even lower power draws.

Working For Notebookcheck

Are you a techie who knows how to write? Then join our Team! English native speakers welcome!

News Writer - Details here

We are still more than a year away from the official Sony PlayStation 5 launch, but we already have some idea about the specs of the next gen console including that it will feature a semi-custom AMD APU codenamed 'Gonzalo' (likely, not confirmed). User DemoCleaner over at the NeoGAF forums wanted to find out if Gonzalo can be replicated with current PC hardware. The idea was to find out what sort of PC hardware would give performance equivalent to the PS5's purported FireStrike score we saw recently and "how much horsepower you can put in a console sized box with all it's constraints using AMDs recent tech".

From the codename leak we saw earlier this year, it was evident that Gonzalo would feature a CPU boost of 3.2 GHz and a GPU clock of 1.8 GHz. The last lines of the code (refer image below) also seemed to indicate that the GPU would be a Navi 10 Lite part. The recently launched AMD Radeon RX 5700 XT is a Navi 10 GPU with 40 CUs and is the closest relative we have on the PC side. Also, since Gonzalo is a 7nm octa-core chip, DemonCleaner snapped-up a Ryzen 7 3700X as a PC equivalent.

Now, the PC parts are clocked higher and consume a lot more power than console equivalents so they need to be undervolted. Using AMD Wattman and Ryzen Master, the OP set the frequency limit of the Radeon RX 5700 XT to 1800 MHz at 975 mV and set the maximum frequency of the Ryzen 7 3700X to 3.2 GHz at 1000 mV. The OP notes that the clocks had to be lowered below 1750 MHz to achieve stability and notes that Wattman has a 50 MHz offset i.e. 1750 MHz in Wattman actually translates to 1700 MHz in real life.

With the above hardware and voltage settings, the OP was able to achieve the 20,208 score in FireStrike that TUM_APISAK had indicated earlier. Overall, this 'Gonzalo' combination is about 10% slower than the stock hardware scores with lesser power consumption (208 W vs 280 W).

There are a few things to remember here, though. For one, the PS5 hardware is, in all likelihood, still in the prototyping stage. The 'APU' in question will have lower power draws than this PC equivalent although, we might get to see higher power draw variants with some 'Pro' SKUs down the line similar to the current console generation.

So although it is still early to comment on PS5 hardware (we don't know much, frankly) and considering that console developers will be able to optimize code for the metal, these comparisons must be taken with a pinch of salt for now.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

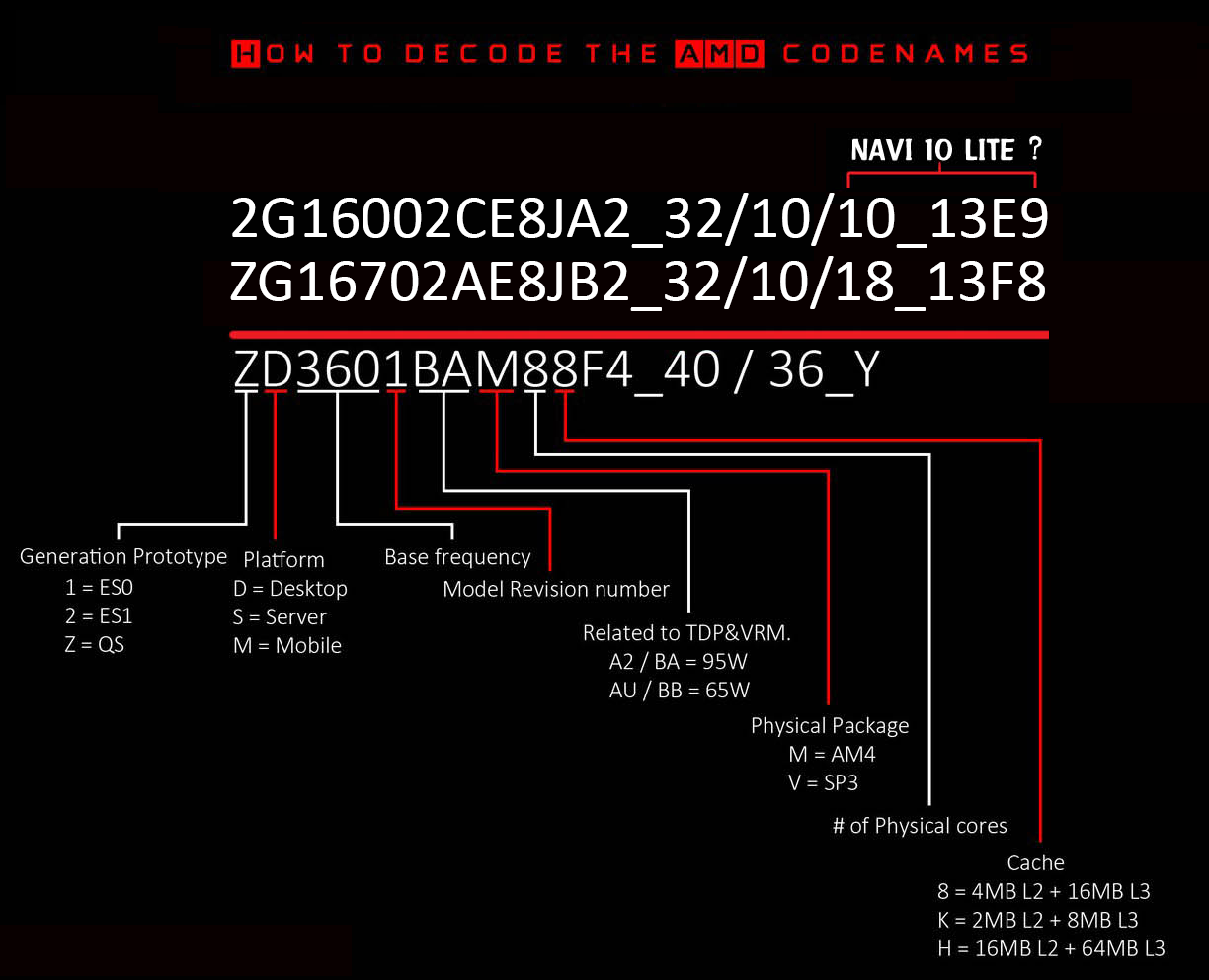

Decoding the Gonzalo CPU codename. (Source: DemonCleaner on Neogaf)
Decoding the Gonzalo CPU codename. (Source: DemonCleaner on Neogaf)

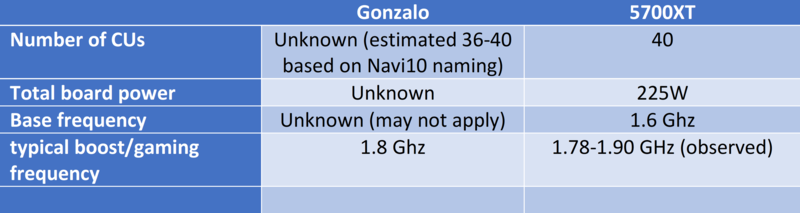

Purported Gonzalo specs compared with the Radeon RX 5700 XT. (Source: DemonCleaner on Neogaf)
Purported Gonzalo specs compared with the Radeon RX 5700 XT. (Source: DemonCleaner on Neogaf)

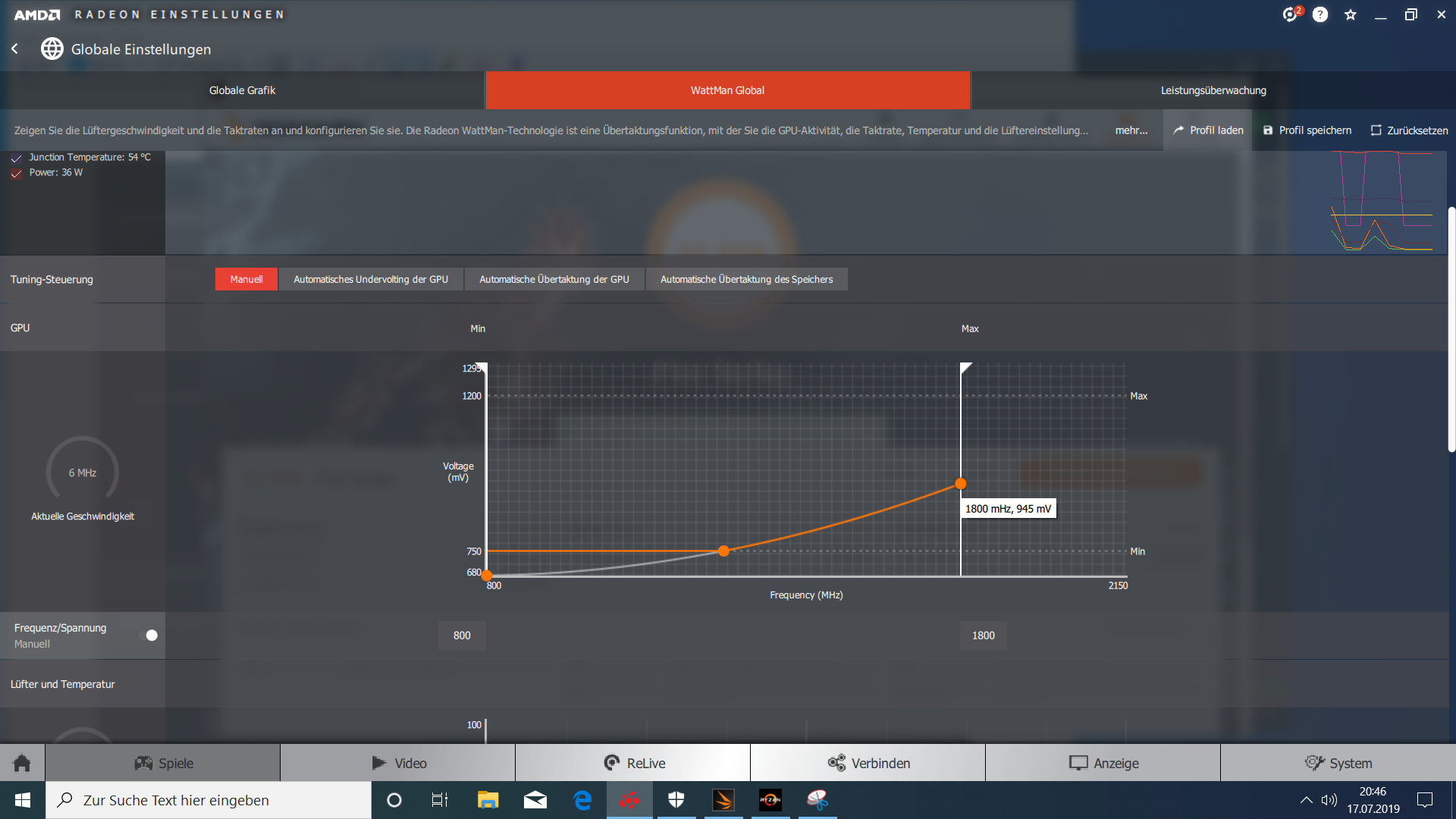

AMD Wattman GPU undervolting. (Source: DemonCleaner on Neogaf)
AMD Wattman GPU undervolting. (Source: DemonCleaner on Neogaf)
AMD Ryzen 7 3700X undervolted in Ryzen Master. (Source: DemonCleaner on Neogaf)
AMD Ryzen 7 3700X undervolted in Ryzen Master. (Source: DemonCleaner on Neogaf)

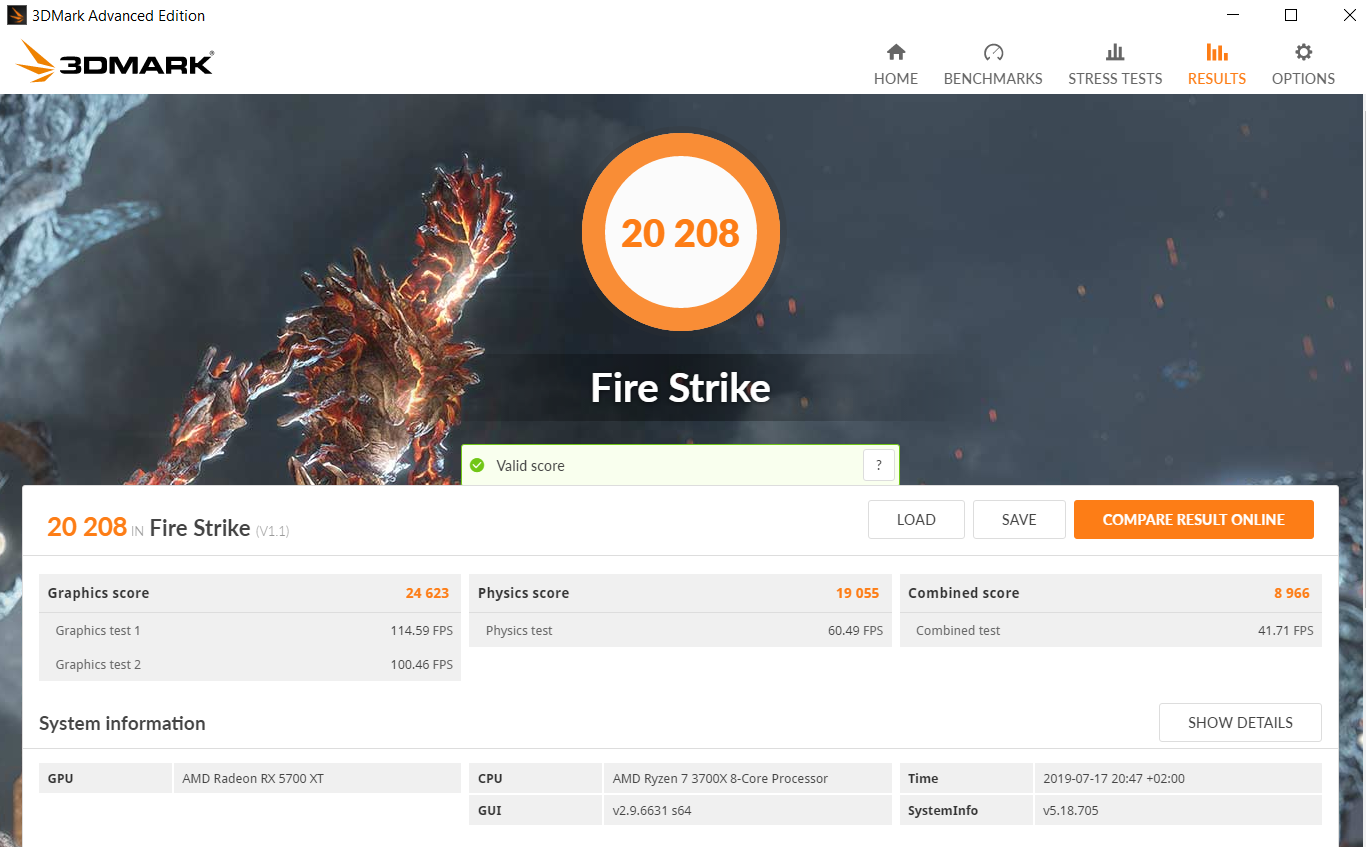

'Gonzalo' simulation 3DMark FireStrike Score. (Source: DemonCleaner on Neogaf)
'Gonzalo' simulation 3DMark FireStrike Score. (Source: DemonCleaner on Neogaf)

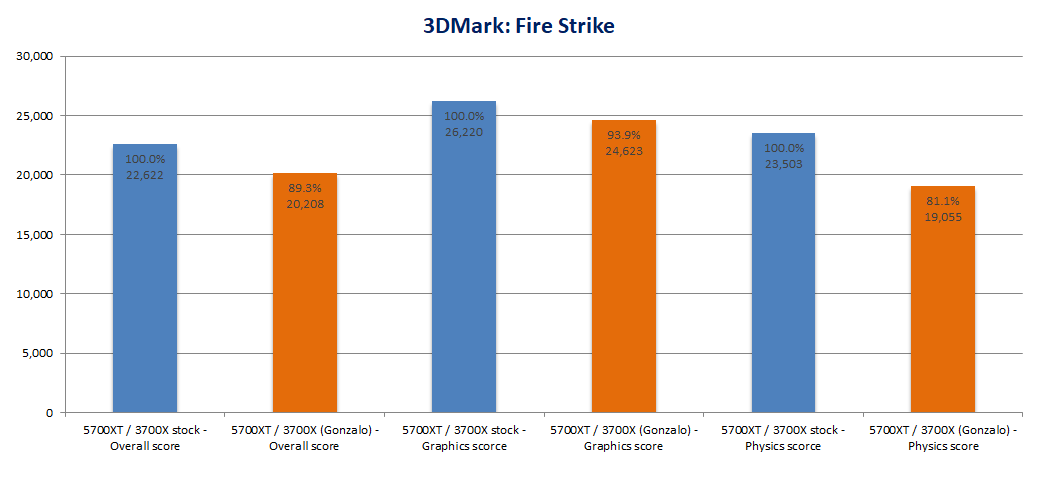

3DMark FireStrike Score comparison. (Source: DemonCleaner on Neogaf)
3DMark FireStrike Score comparison. (Source: DemonCleaner on Neogaf)

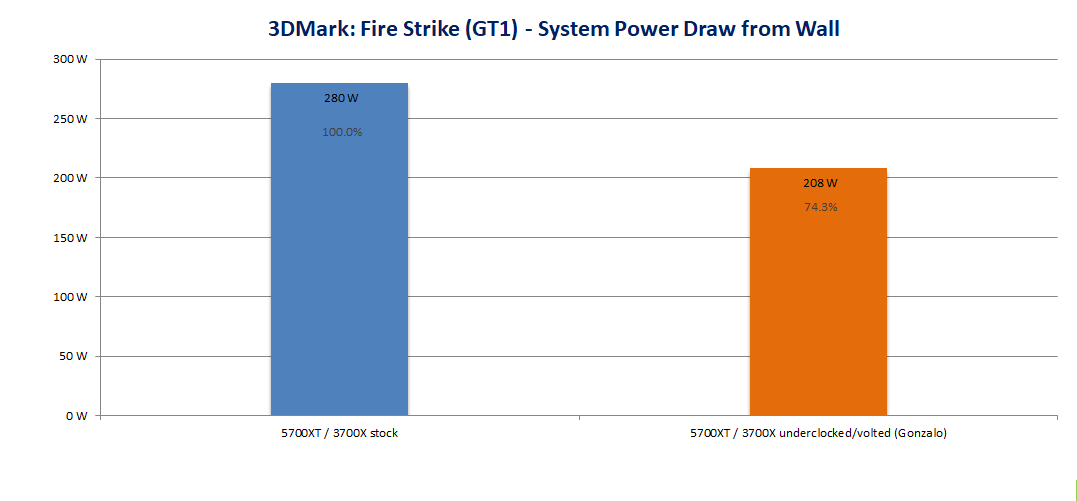

3DMark FireStrike power draw from wall. (Source: DemonCleaner on Neogaf)
3DMark FireStrike power draw from wall. (Source: DemonCleaner on Neogaf)

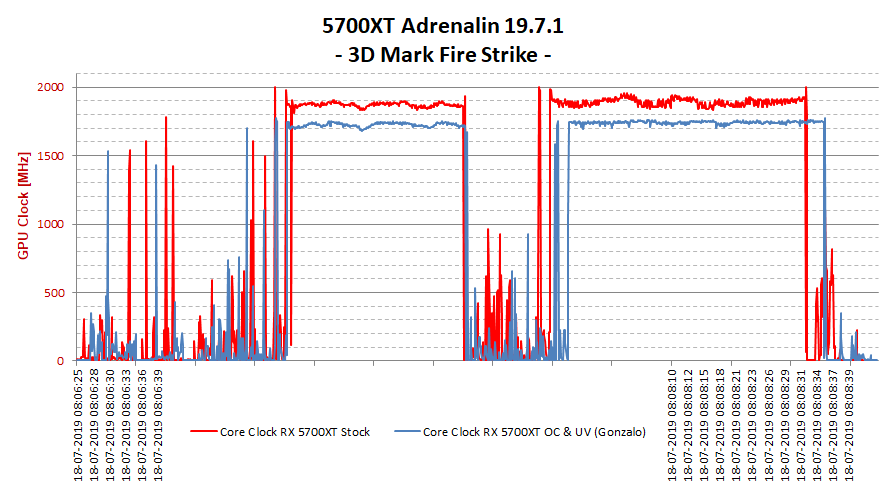

3DMark FireStrike GPU clocks comparison with stock and PS5 'Gonzalo' simulation. (Source: DemonCleaner on Neogaf)
3DMark FireStrike GPU clocks comparison with stock and PS5 'Gonzalo' simulation. (Source: DemonCleaner on Neogaf)

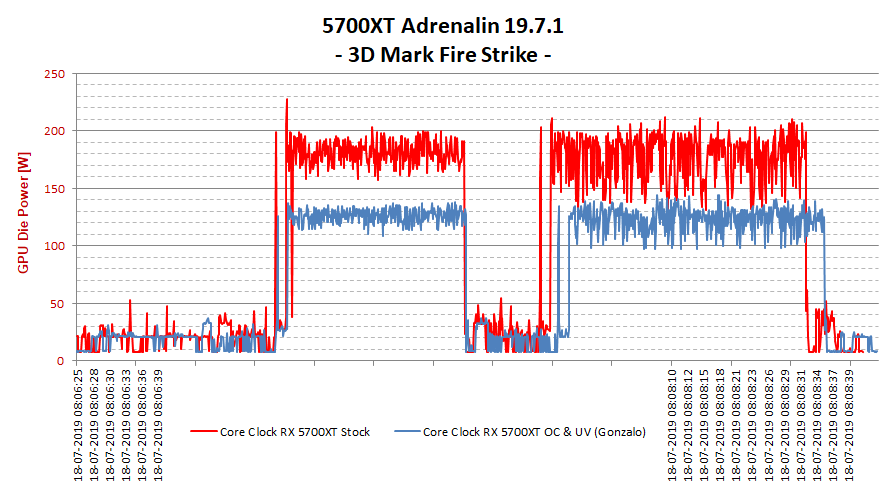

3DMark FireStrike GPU die power comparison with stock and PS5 'Gonzalo' simulation. (Source: DemonCleaner on Neogaf)
3DMark FireStrike GPU die power comparison with stock and PS5 'Gonzalo' simulation. (Source: DemonCleaner on Neogaf)
