Lenovo Yoga 500-15IBD Convertible Review

Sebastian Jentsch (translated by Liala Stieglitz), 09/23/2015

Universal tool? 2-in-1 convertibles want to be the Swiss Army Knife in the Laptop World. Lenovo has an interesting configuration that should satisfy office workers, casual gamers, and media consumers alike in its line for 800 Euros (~$892).

Working For Notebookcheck

Are you a techie who knows how to write? Then join our Team!

Currently wanted:
News Editor - Details here

Lenovo Yoga 500-15IBD: Handy - a multipurpose tool always at hand?
Lenovo Yoga 500-15IBD: Handy - a multipurpose tool always at hand?

For the original German review, see here.

No matter how we look at it: Convertibles with a 360-degree hinge have entered the market - the success of the handy ThinkPad Yoga 12 or that of the Yoga 3 11 seem to prove that. Lenovo virtually dives into a new World, and even challenges restrained, conservative business clients to rethinking. The manufacturer has its ThinkPad Yoga 15 in its lineup for this. Lenovo's gaming suitable Yoga 3 14 (940M) is intended for consumers. The step to 15 inches appears logical, but whether or not it is handy remains doubtful.

Our review sample of Lenovo's Yoga 500-15 includes a 15.6-inch IPS screen with 1920x1080 pixels. A potent trio composed of a Core i5-5200U, 8 GB RAM and Nvidia GeForce 940M join in on that. This hardware is sold as a "conventional" laptop for 500 to 600 Euros (~$558 to $669). The Yoga tablet option currently costs 800 Euros (~$892).

There are now quite a few rivals with a similar convertible approach and 15.6-inch screens. Lenovo's IdeaPad Flex 15 was one of the first in 2014 and is still sold with a Haswell SoC. The Flex 2 Pro 15 as a Broadwell update makes it state-of-the-art, and we will publish a review update in the near future. Asus caters to its customers with multiple versions of the Transformer Book Flip TP550LA and TP500LA. HP tries its luck with the Envy 15-u200ng x360, and Toshiba recently stepped in line with the Satellite Radius 1. All 360-degree, 15-inch devices are roughly in the same price range when based on similar configurations. Can the Yoga 500-15 mingle at the very front?

Lenovo Yoga 500-15IBD (Yoga 500 Series)
Graphics adapter
NVIDIA GeForce 940M - 2048 MB, Core: 1072 MHz, Memory: 900 MHz, DDR3, ForceWare 345.01, Optimus HD Graphics 5500
Memory
8192 MB
, PC3-12800 Samsung
Display
15.6 inch 16:9, 1920 x 1080 pixel, 10 finger, LGDisplay LP156WF4_SPL1, WLED AH-IPS, 700:1, 220 cd/m², a-Si TFT, glossy: yes
Mainboard
Haswell-ULT
Storage
WDC Scorpio Blue WD10JPVX-22JC3T0, 1024 GB
, 5400 rpm, WDC Slim WD10SPCX-24HWST1, 865 GB free
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: line+mic combo, Card Reader: SD, SDHC, SDXC, MMC, Sensors: ambient light
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit), Intel Dual Band Wireless-AC 3160 (a/b/g/n/ac), Bluetooth 4.0
Size
height x width x depth (in mm): 23 x 385 x 255 ( = 0.91 x 15.16 x 10.04 in)
Battery
30 Wh Lithium-Ion, model: L14M2P21 4050 mAh, Battery runtime (according to manufacturer): 4 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 1.0 MP 720p
Additional features
Speakers: stereo, Keyboard: AccuType, Keyboard Light: no, 65 watts / 3 pin power supply, 24 Months Warranty
Weight
2.148 kg ( = 75.77 oz / 4.74 pounds), Power Supply: 335 g ( = 11.82 oz / 0.74 pounds)



Case

The extremely curved base tray ...
The extremely curved base tray ...
... creates an inconvenient edge in tablet mode.
... creates an inconvenient edge in tablet mode.
Aluminum finish attracts greasy fingers
Aluminum finish attracts greasy fingers

The stiff plastic construction with an upper tray composed of brushed aluminum makes a good quality and solid impression. We could only twist the base marginally with two hands. The Yoga 500's aluminum surface and its relatively high weight always conveyed the impression of holding a solid convertible in our hands. Both silver hinges are not quite as solid as they look. However, two strong metal hinges are under the plastic cover that is mounted firmly to the base and lid. Opening the lid with one hand is not possible.

The bottom tray is sleek and does not have a maintenance hatch. That and the non-removable battery are adverse for repairs and maintenance, but certainly contribute to stiffness. The underside cannot be dented anywhere, unlike the lid. Although it features a pressure resistant back, it can be noticeably warped diagonally. We noticed that the bezel and back slide against each other here.

The lid rests on the big, round stoppers when opened 360 degrees (Tablet Mode). A rubber rim surrounds the work area so that the brushed aluminum surface does not come in contact with the tabletop to prevent scratches. Since it does not increase the height by even one millimeter, scratches will be inevitable over time when used on slightly uneven surfaces. Both the keys and ClickPad are disabled in Tablet Mode.

Users who carry the tablet in their hands will find this irregularity annoying. However, the significant gap between both curved back parts struck us the most. It creates a clear break and does not make the best impression when handling the device. The tablet cannot be locked, and there is no magnetic fastener, either. These points will not be a problem when the tablet is used on a table. The situation is different when it is carried around or used in a sitting position. The drifting apart of both heavy single components will be unwelcome.

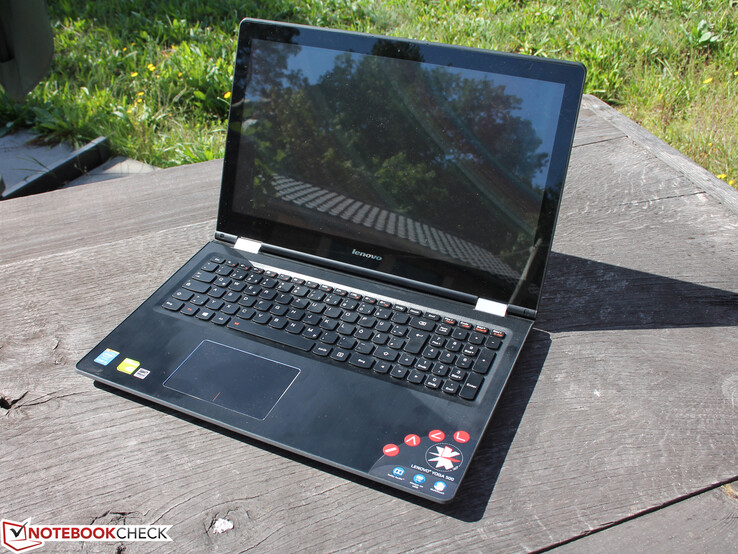

Lenovo Yoga 500-15
Now one among many 15-inch convertibles
Lenovo Yoga 500-15 - 360 degree hinge
Keys on the underside of the
No maintenance hatch, non-removable battery

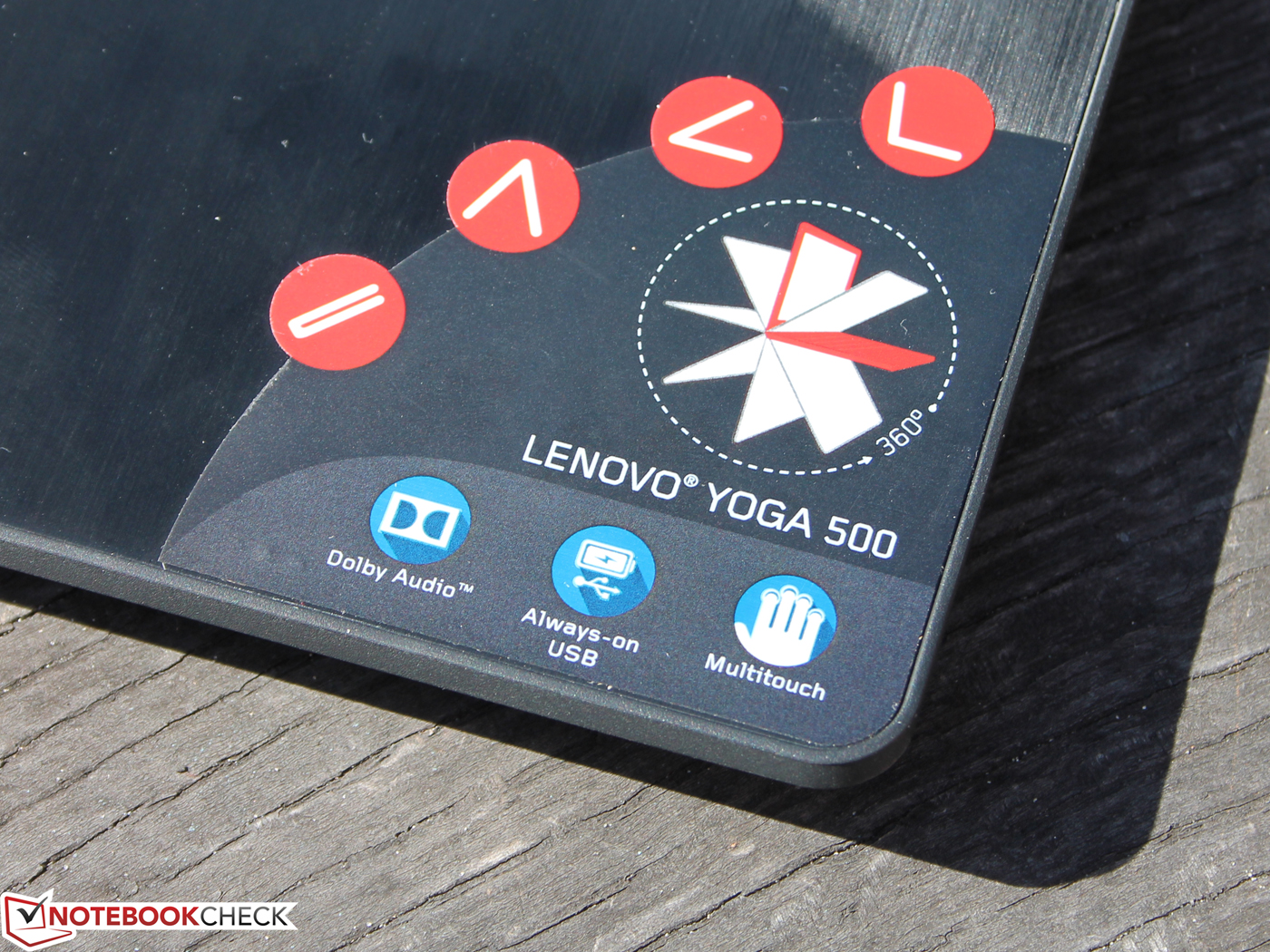

The Modes are praised

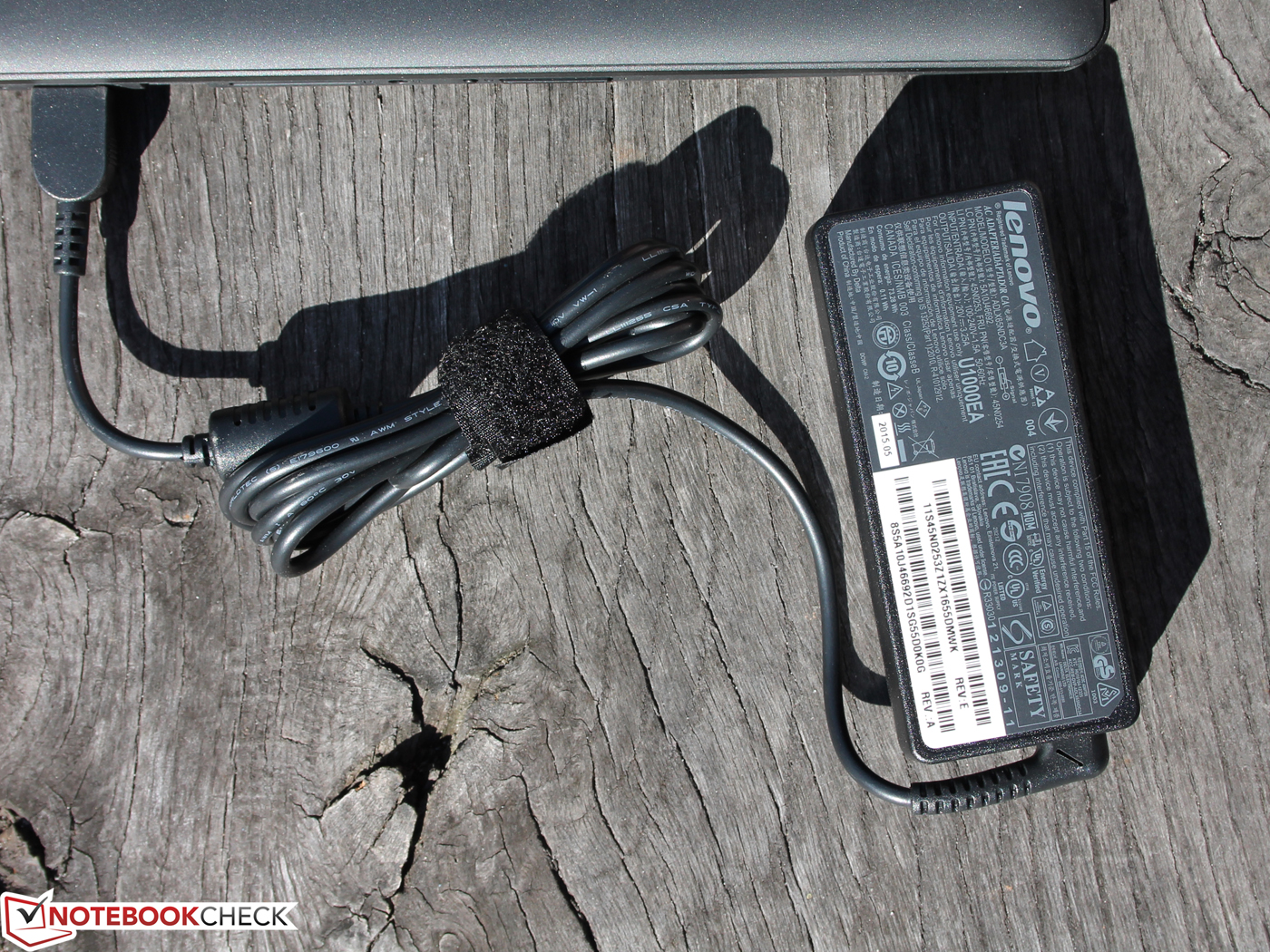

65 watt power supply

Connectivity

VGA d-Sub has been axed, but Lenovo installs an RJ-45, likely because the Yoga 500 will mostly be used as a conventional laptop and only as a tablet to a small extent. Lenovo's typical One Key Recovery button is hidden in a small opening. The button for opening the recovery manager has to be triggered with a paperclip.

We tested the performance of the installed card reader with our Toshiba Exceria Pro SDXC 64 GB UHS-II reference SD card. The maximum transfer rate was 86 MB/s (read) in copying large data blocks. Write was a bit slower at 63 MB/s. Our package of .jpg image files (approx. 5 MB each) was copied to the hard drive in 17 seconds, which is very fast. Slow card readers need over 30 seconds for that.

Right: Power on, 2x USB 3.0, RJ45 Ethernet, HDMI
Right: Power on, 2x USB 3.0, RJ45 Ethernet, HDMI
Left: Kensington, power in, USB 2.0, card reader, mic+line, rotation lock, volume rocker
Left: Kensington, power in, USB 2.0, card reader, mic+line, rotation lock, volume rocker

Communication

Intel's Wireless-AC 3160 Wi-Fi adapter operates inside the Yoga 500. The chip supports Bluetooth 4.0 and Wi-Fi 802.11 a/b/g/n/ac standards (2.4 and 5 GHz). That theoretically enables 433 Mbit/s gross in single-stream, which is far from the real world rates. Up to 6.5 Mbit/s were possible with 1 - 3 bars at a distance of 15 meters (~49 feet) outside a building. Websites opened quickly. The 15 incher displayed 1 bar at the 45-meter (~148 ft) measuring point. The connection was not interrupted, but websites were loaded at a maximum of 500 Kbit. It took longer for pages to open, but that is still acceptable under difficult conditions. By comparison, approximately 25% of our review samples completely lost the AC router's signal at the 45-meter (~148 ft) measuring point, and only a handful of selected Wi-Fi chips could maintain the connection beyond 45 meters. This is a personal setting of the author, and can only provide a reference point about the performance of the chip and the antennas.

Webcam

The 1.0 megapixel webcam in the display's bezel is not very useful. The CMOS lens delivered the following photos despite very good daylight conditions (sunlight). Surfaces are faded and details are lost. They give the impression they are covered with a Vintage effect. In return, the microphone does a good job; see "Speakers".

Accessories

Our Yoga 500 with Windows 8.1 is shipped without driver CDs or other accessories. In addition to the 65-watt power supply, only a quick start guide and leaflet with warranty contacts is in the box. Installing the free Windows 10 upgrade is possible.

Maintenance

There is no maintenance hatch. We did not open the Yoga 500 in favor of the lender. Opening appears to be possible after releasing 11 screws.

Warranty

As common in Lenovo's mid-range, a 24-month warranty is included on the Yoga 500. Comparatively affordable upgrade packages (bring-in service: 24/36 months starts at 32/58 Euros (~$36/$65)) make upgrading this period seem sensible.

Webcam: 1280 x 720
Webcam: 1280 x 720
Reference: Canon EOS 1100D
Reference: Canon EOS 1100D
Faded, unnatural colors
Faded, unnatural colors
Canon EOS 1100D
Canon EOS 1100D

Input Devices

Keyboard

Typing on the keyboard is pleasing. Although the AccuType keys are not concave, they have a firm, almost hard stroke due to the stably installed base, a clear pressure point, and medium drop. The keys' surface is relatively sleek, but that suits a nimble and quick typing style.

Touchpad

The ClickPad has a diagonal of 12.5 cm (~4.9 in), and responds to touch up to its edges. Multi-touch gestures are implemented quickly on the sleek, gliding-friendly surface. Only a rim separates the pad very subtly from the wrist rest. The finger might sometimes miss the pad when not looking because the aluminum finish around it feels very similar. The ClickPad only has a short drop, but the pressure point is triggered easily, making it possible to tap a window accurately and move it quickly with a finger. The ClickPad's hardware detects a left or right mouse click according to where the finger is placed on the pad.

Touchscreen

The hinges cannot stop the touchscreen from wobbling when using it. However, they are tight enough to prevent the lid from falling back unintentionally. Opening the lid with one hand is not possible. A rotation lock button on the left (beside the volume rocker) fixes the contents current position. The surface of the 10-finger multi-touch TFT is agreeably sleek and responsive. The surface is sensitive up to the edges.

Keyboard: Sufficient drop, firm stroke
Keyboard: Sufficient drop, firm stroke
ClickPad: Responsive and quiet
ClickPad: Responsive and quiet
Touchscreen: Agreeably sleek surface, few fingerprints
Touchscreen: Agreeably sleek surface, few fingerprints

Display

The LG TFT Display (model: LP156WF4_SPL1) is an AH-IPS with WLED light. LG specifies a contrast of 700:1 and brightness of 220 cd/m². That corresponds almost exactly with our measurements. We ascertained an average of 206 cd/m². We recorded 224 cd/m² as the brightest point. The illumination of 87% is homogeneous; we did not discover any distracting screen bleeding.

The review sample covers 59% of the sRGB color space, and only 37% of AdobeRGB. Professional graphic designers and image editors will not be happy with this screen. Furthermore, its color reproduction is inaccurate with a DeltaE of around 6. That is better than the low-cost TN TFTs on the market. The competition is not much better here. Quite the contrary: The TN screen in the Envy 15-u200ng x360 is the worst: DeltaE 13. The IdeaPad Flex 2 15 has an IPS and a slightly better DeltaE of 5, but the contrast is abysmal. Our review sample is in the midfield here. The Satellite Radius 15 P50W has the best screen with a contrast of 1172:1 and the most accurate color reproduction. Its brightness is also the best in this comparison.

224
cd/m²
203
cd/m²
195
cd/m²
220
cd/m²
205
cd/m²
200
cd/m²
210
cd/m²
206
cd/m²
195
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 224 cd/m² Average: 206.4 cd/m²
Brightness Distribution: 87 %
Center on Battery: 167 cd/m²
Contrast: 732:1 (Black: 0.28 cd/m²)
ΔE Color 6.68 | 0.4-29.43 Ø6.3
ΔE Greyscale 6.3 | 0.64-98 Ø6.5
59% sRGB (Argyll 3D) 37% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.34
Lenovo Yoga 500-15IBD
IPS FHD
Lenovo IdeaPad Flex 15
TN HD
Lenovo IdeaPad Flex 2 15
IPS FHD
Asus Transformer Book Flip TP500LN
TN FHD
HP Envy 15-u200ng x360
TN FHD
Toshiba Satellite Radius 15 P50W-C-102
IPS FHD
Screen
-16%
-19%
-1%
-45%
33%
Brightness middle
205
209
2%
224.2
9%
154
-25%
261
27%
293
43%
Brightness
206
203
-1%
215
4%
143
-31%
253
23%
287
39%
Brightness Distribution
87
81
-7%
84
-3%
84
-3%
79
-9%
91
5%
Black Level *
0.28
0.3
-7%
0.675
-141%
0.3
-7%
0.58
-107%
0.25
11%
Contrast
732
697
-5%
332
-55%
513
-30%
450
-39%
1172
60%
Colorchecker DeltaE2000 *
6.68
9.61
-44%
5.8
13%
4.84
28%
13.09
-96%
5.4
19%
Greyscale DeltaE2000 *
6.3
10.32
-64%
5.03
20%
4.53
28%
13.34
-112%
4.33
31%
Gamma
2.34 103%
2.84 85%
2.18 110%
2.22 108%
3.46 69%
2.39 100%
CCT
6996 93%
12804 51%
7277 89%
7307 89%
13202 49%
6670 97%
Color Space (Percent of AdobeRGB 1998)
37
35.8
-3%
36.19
-2%
48
30%
55
49%
Color Space (Percent of sRGB)
59
83
41%

* ... smaller is better

The Yoga 500 does not exhibit the bluish tint typical for TN screens. IPS panels are rarely plagued by that. We measured the delivery state, and calibrated the color reproduction. We linked the profile in the box above.

CalMAN Grayscale - no bluish tint
CalMAN Grayscale - no bluish tint
CalMAN Saturation Sweeps
CalMAN Saturation Sweeps
CalMAN ColorChecker
CalMAN ColorChecker

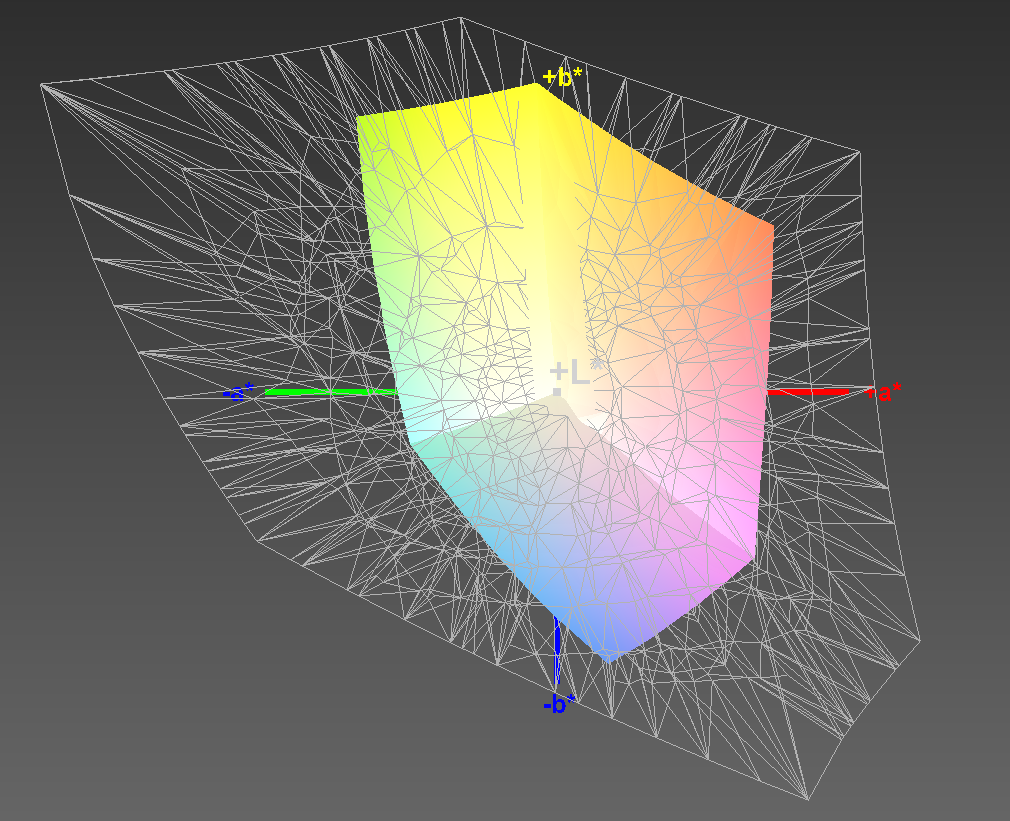

AdobeRGB color space: 37 %
AdobeRGB color space: 37%

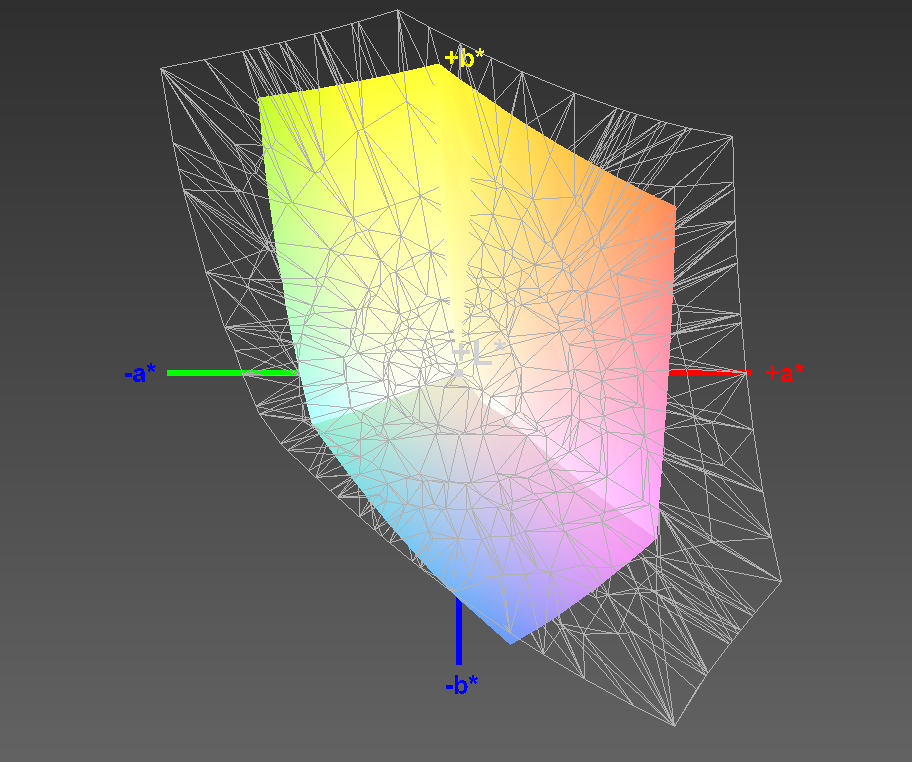

sRGB color space: 59 %
sRGB color space: 59%

The low maximum brightness of only 167 cd/m² alongside its glossy touch surface makes working with the Yoga 500 in daylight difficult. Users will have to look for a shadowy place, but are not protected against blinding effects there, either. The Yoga 500 has an ambient light sensor for adapting the brightness automatically. We disabled it for the assessments/photos.

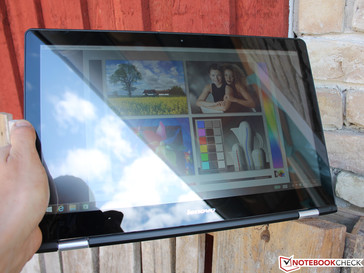

Outdoors - very disadvantageous
Outdoors - very disadvantageous

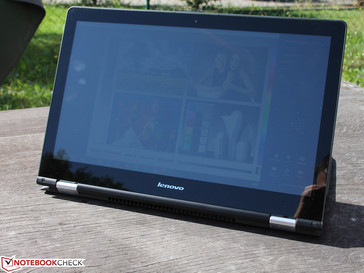

Reflective and low brightness
Reflective and low brightness

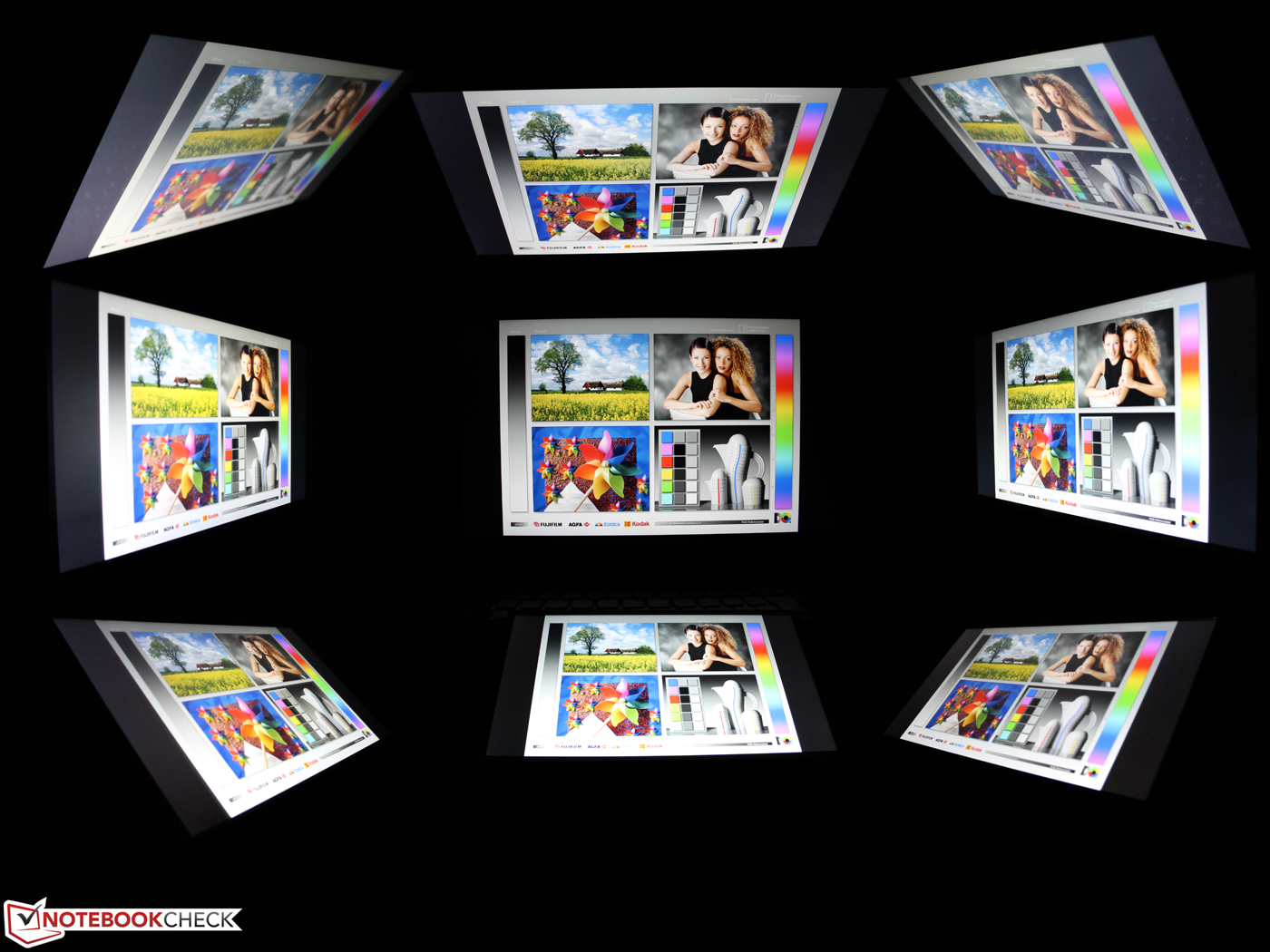

The viewing angles of IPS screens are more stable, and they usually have a more accurate color reproduction than TN panels. Our review sample does not suffer under contrast shifts and image inverting. Vivid colors and a clear image can be recognized from every position.

Lenovo Yoga 500-15IBD: IPS screen's viewing angles
Lenovo Yoga 500-15IBD: IPS screen's viewing angles

Performance

Intel Core i5 5200U and Nvidia GeForce 940M, 2 GB
Intel Core i5 5200U and Nvidia GeForce 940M, 2 GB

Lenovo's 15-inch Yoga 500 models are available starting at approximately 500 Euros (~$558). We discovered 11 configurations at test time: Options starting with a Pentium 3805U and HD screen (likely TN) up to a Core i7-5500U alongside a 256 GB SSD and FHD IPS TFT (like our review sample) are possible. The latter premium configuration costs 1000 Euros (~$1115).

Our review sample with a Core i5-5200U (Broadwell), GeForce 940M and HDD is practically an all-rounder among the configurations. It should be able to cope with the most diverse applications including games. The GeForce 940M is an attractive incentive for many customers who want to play an occasional game. We will examine this aspect randomly further below.

Processor

Intel's Core i5-5200U clocks at a base speed of 2.2 GHz, which can be boosted to 2.5 GHz (both cores) or 2.7 GHz (one core) via Turbo. The Turbo is utilized in both AC and battery mode. The Cinebench benchmarks were always performed at full speed (multi-test @ 2.5 GHz). Other 5200U laptops achieve similar scores. Thermal throttling is not an issue during normal use, unlike in the stress test, see "Emissions" chapter. The 940M GPU clocks at 1176 MHz during load and utilizes its Turbo stably (GPU Boost 2.0).

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
1.24 Points ∼53%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
0.75 Points ∼32% -40%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
1.09 Points ∼47% -12%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
1.25 Points ∼53% +1%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
1.26 Points ∼54% +2%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2.77 Points ∼12%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
1.45 Points ∼6% -48%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2.44 Points ∼10% -12%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
2.82 Points ∼12% +2%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2.82 Points ∼12% +2%
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
108 Points ∼52%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
67 Points ∼32% -38%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
101 Points ∼49% -6%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
86 Points ∼42% -20%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
107 Points ∼52% -1%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
109 Points ∼53% +1%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
257 Points ∼9%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
129 Points ∼4% -50%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
228 Points ∼8% -11%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
232 Points ∼8% -10%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
259 Points ∼9% +1%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
253 Points ∼9% -2%
Cinebench R10 Rendering Single 32Bit
5449
Cinebench R11.5 CPU Single 64Bit
1.24 Points
Cinebench R11.5 CPU Multi 64Bit
2.77 Points
Cinebench R11.5 OpenGL 64Bit
35.56 fps
Cinebench R15 CPU Single 64Bit
108 Points
Cinebench R15 CPU Multi 64Bit
257 Points
Cinebench R15 OpenGL 64Bit
55.09 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help

System Performance

Here we compare the application performance of HDD based laptops. Devices with a solid-state hybrid drive where frequently used data is cached, such as Lenovo's IdeaPad Flex 2 15, do not have a real advantage in the PCMark benchmarks. That could only be measured by repeating the benchmarks multiple times. PCMark 7 favors the IdeaPad Flex 2 15, and it achieves considerably more points than the Yoga 500. That cannot be due to the processor and graphics since they are Haswell precursors and somewhat weaker. PCMark 8 is more objective and sees the Yoga 500 ahead of the Flex 2 15 on both the Work and Home benchmarks by 11 percent and 16 percent, respectively. Systems based on an identical i5 processor reach the same score.

PCMark 7
Creativity (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
5182 Points ∼36%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
3223 Points ∼23% -38%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
7069 Points ∼50% +36%
Entertainment (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2471 Points ∼23%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
2031 Points ∼19% -18%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2966 Points ∼28% +20%
Productivity (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
818 Points ∼8%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
660 Points ∼6% -19%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
1615 Points ∼15% +97%
Lightweight (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
1256 Points ∼17%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
1141 Points ∼16% -9%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2187 Points ∼30% +74%
Score (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2558 Points ∼30%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
2156 Points ∼25% -16%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
3725 Points ∼43% +46%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3991 Points ∼46% +56%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2652 Points ∼31% +4%
PCMark 8
Work Score Accelerated v2 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
3622 Points ∼56%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
3236 Points ∼50% -11%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3541 Points ∼54% -2%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
3498 Points ∼54% -3%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
3676 Points ∼56% +1%
Home Score Accelerated v2 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2793 Points ∼46%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2355 Points ∼39% -16%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2846 Points ∼47% +2%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
2653 Points ∼44% -5%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2841 Points ∼47% +2%
Screen
Brightness middle (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
205 cd/m² ∼70%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
209 cd/m² ∼71%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
224.2 cd/m² ∼77%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
154 cd/m² ∼53%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
261 cd/m² ∼89%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
293 cd/m² ∼100%
Brightness (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
206 cd/m² ∼72%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
203 cd/m² ∼71%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
215 cd/m² ∼75%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
143 cd/m² ∼50%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
253 cd/m² ∼88%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
287 cd/m² ∼100%
Brightness Distribution (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
87 % ∼96%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
81 % ∼89%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
84 % ∼92%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
84 % ∼92%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
79 % ∼87%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
91 % ∼100%
Black Level (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
0.28 cd/m² * ∼112%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
0.3 cd/m² * ∼120%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
0.675 cd/m² * ∼270%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
0.3 cd/m² * ∼120%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
0.58 cd/m² * ∼232%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
0.25 cd/m² * ∼100%
Contrast (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
732 :1 ∼62%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
697 :1 ∼59%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
332 :1 ∼28%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
513 :1 ∼44%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
450 :1 ∼38%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
1172 :1 ∼100%
Colorchecker DeltaE2000 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
6.68 * ∼124%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
9.61 * ∼178%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
5.8 * ∼107%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
4.84 * ∼90%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
13.09 * ∼242%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
5.4 * ∼100%
Greyscale DeltaE2000 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
6.3 * ∼145%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
10.32 * ∼238%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
5.03 * ∼116%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
4.53 * ∼105%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
13.34 * ∼308%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
4.33 * ∼100%
Gamma (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2.34 ∼98%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
2.84 ∼119%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2.18 ∼91%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2.22 ∼93%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
3.46 ∼145%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2.39 ∼100%
CCT (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
6996 ∼105%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
12804 ∼192%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
7277 ∼109%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
7307 ∼110%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
13202 ∼198%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
6670 ∼100%
Color Space (Percent of AdobeRGB 1998) (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
37 % ∼67%
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
35.8 % ∼65%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
36.19 % ∼66%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
48 % ∼87%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
55 % ∼100%
Color Space (Percent of sRGB) (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
59 % ∼71%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
83 % ∼100%

* ... smaller is better

PCMark 7 Score
2558 points
PCMark 8 Home Score Accelerated v2
2793 points
PCMark 8 Work Score Accelerated v2
3622 points
Help

Quality journalism is made possible by advertising. We show the least amount of ads whenever possible. We intentionally show more ads when an adblocker is used. Please, switch off ad blockers.

Storage Device

Western Digital's WDC Scorpio Blue WD10JPVX-22JC3T0 hard drive with a gross capacity of 1024 GB, of which approximately 865 GB are available after deducting the recovery partition and OS, does a good job. It is a touch faster than other 5400 rpm models (15 - 20%). The chart with the test outcomes shows: 4K Read and write are sometimes considerably better. The solid state hybrid drive in Lenovo's IdeaPad Flex 2 15 does not achieve an advantage; the HDD benchmarks do not benefit from the cache.

Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
CrystalDiskMark 3.0
-16%
-15%
-23%
-24%
-23%
Write 4k QD32
1.281
1.208
-6%
0.933
-27%
0.9
-30%
0.984
-23%
0.986
-23%
Read 4k QD32
1.498
1.034
-31%
1.248
-17%
0.8
-47%
0.82
-45%
0.878
-41%
Read 4k
0.542
0.427
-21%
0.494
-9%
0.4
-26%
0.406
-25%
0.432
-20%
Write Seq
113
102.1
-10%
101.7
-10%
106.9
-5%
90.75
-20%
97.48
-14%
Read Seq
114.4
102.8
-10%
99.49
-13%
109.2
-5%
106.5
-7%
95.43
-17%
WDC Scorpio Blue WD10JPVX-22JC3T0
Transfer Rate Minimum: 7.7 MB/s
Transfer Rate Maximum: 115 MB/s
Transfer Rate Average: 83.9 MB/s
Access Time: 18.7 ms
Burst Rate: 226.4 MB/s
CPU Usage: 100 %

Graphics Card

The GeForce 940M (2GB DDR3) operates in an Optimus array with Intel's HD 5500, which allows switching to the processor graphics automatically. This functioned in all benchmarks without problems. The 940M can also be enforced in the Nvidia driver (high performance mode). All information concerning the GeForce 940M including an extensive overview of playable games can be found in the data sheet.

According to 3DMark 2013, the performance of the GeForce 940M is a bit higher than that of the GeForce 840M (Transformer Book Flip TP500LN). The 840M achieves up to 8% more points depending on the test, which is hardly noteworthy. Integrated solutions, such as the HD 5500, are defeated by a higher performance of almost 30%. Too small an advantage? As we will prove in a moment, real games benefit even more clearly from the GeForce. 3DMark 11 could not be performed; it crashed repeatedly.

3DMark
1280x720 Cloud Gate Standard Physics (sort by value)
Lenovo Yoga 500-15IBD
2848 Points ∼7%
Lenovo IdeaPad Flex 15
1209 Points ∼3% -58%
Lenovo IdeaPad Flex 2 15
2397 Points ∼6% -16%
Asus Transformer Book Flip TP500LN
2480 Points ∼6% -13%
HP Envy 15-u200ng x360
2845 Points ∼7% 0%
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo Yoga 500-15IBD
8590 Points ∼5%
Lenovo IdeaPad Flex 15
3111 Points ∼2% -64%
Lenovo IdeaPad Flex 2 15
5163 Points ∼3% -40%
Asus Transformer Book Flip TP500LN
8292 Points ∼4% -3%
HP Envy 15-u200ng x360
4975 Points ∼3% -42%
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo Yoga 500-15IBD
5932 Points ∼12%
Lenovo IdeaPad Flex 15
2305 Points ∼5% -61%
Lenovo IdeaPad Flex 2 15
4109 Points ∼8% -31%
Asus Transformer Book Flip TP500LN
5452 Points ∼11% -8%
HP Envy 15-u200ng x360
4265 Points ∼9% -28%
Toshiba Satellite Radius 15 P50W-C-102
4438 Points ∼9% -25%
Screen
Brightness middle (sort by value)
Lenovo Yoga 500-15IBD
205 cd/m² ∼70%
Lenovo IdeaPad Flex 15
209 cd/m² ∼71%
Lenovo IdeaPad Flex 2 15
224.2 cd/m² ∼77%
Asus Transformer Book Flip TP500LN
154 cd/m² ∼53%
HP Envy 15-u200ng x360
261 cd/m² ∼89%
Toshiba Satellite Radius 15 P50W-C-102
293 cd/m² ∼100%
Brightness (sort by value)
Lenovo Yoga 500-15IBD
206 cd/m² ∼72%
Lenovo IdeaPad Flex 15
203 cd/m² ∼71%
Lenovo IdeaPad Flex 2 15
215 cd/m² ∼75%
Asus Transformer Book Flip TP500LN
143 cd/m² ∼50%
HP Envy 15-u200ng x360
253 cd/m² ∼88%
Toshiba Satellite Radius 15 P50W-C-102
287 cd/m² ∼100%
Brightness Distribution (sort by value)
Lenovo Yoga 500-15IBD
87 % ∼96%
Lenovo IdeaPad Flex 15
81 % ∼89%
Lenovo IdeaPad Flex 2 15
84 % ∼92%
Asus Transformer Book Flip TP500LN
84 % ∼92%
HP Envy 15-u200ng x360
79 % ∼87%
Toshiba Satellite Radius 15 P50W-C-102
91 % ∼100%
Black Level (sort by value)
Lenovo Yoga 500-15IBD
0.28 cd/m² * ∼112%
Lenovo IdeaPad Flex 15
0.3 cd/m² * ∼120%
Lenovo IdeaPad Flex 2 15
0.675 cd/m² * ∼270%
Asus Transformer Book Flip TP500LN
0.3 cd/m² * ∼120%
HP Envy 15-u200ng x360
0.58 cd/m² * ∼232%
Toshiba Satellite Radius 15 P50W-C-102
0.25 cd/m² * ∼100%
Contrast (sort by value)
Lenovo Yoga 500-15IBD
732 :1 ∼62%
Lenovo IdeaPad Flex 15
697 :1 ∼59%
Lenovo IdeaPad Flex 2 15
332 :1 ∼28%
Asus Transformer Book Flip TP500LN
513 :1 ∼44%
HP Envy 15-u200ng x360
450 :1 ∼38%
Toshiba Satellite Radius 15 P50W-C-102
1172 :1 ∼100%
Colorchecker DeltaE2000 (sort by value)
Lenovo Yoga 500-15IBD
6.68 * ∼124%
Lenovo IdeaPad Flex 15
9.61 * ∼178%
Lenovo IdeaPad Flex 2 15
5.8 * ∼107%
Asus Transformer Book Flip TP500LN
4.84 * ∼90%
HP Envy 15-u200ng x360
13.09 * ∼242%
Toshiba Satellite Radius 15 P50W-C-102
5.4 * ∼100%
Greyscale DeltaE2000 (sort by value)
Lenovo Yoga 500-15IBD
6.3 * ∼145%
Lenovo IdeaPad Flex 15
10.32 * ∼238%
Lenovo IdeaPad Flex 2 15
5.03 * ∼116%
Asus Transformer Book Flip TP500LN
4.53 * ∼105%
HP Envy 15-u200ng x360
13.34 * ∼308%
Toshiba Satellite Radius 15 P50W-C-102
4.33 * ∼100%
Gamma (sort by value)
Lenovo Yoga 500-15IBD
2.34 ∼98%
Lenovo IdeaPad Flex 15
2.84 ∼119%
Lenovo IdeaPad Flex 2 15
2.18 ∼91%
Asus Transformer Book Flip TP500LN
2.22 ∼93%
HP Envy 15-u200ng x360
3.46 ∼145%
Toshiba Satellite Radius 15 P50W-C-102
2.39 ∼100%
CCT (sort by value)
Lenovo Yoga 500-15IBD
6996 ∼105%
Lenovo IdeaPad Flex 15
12804 ∼192%
Lenovo IdeaPad Flex 2 15
7277 ∼109%
Asus Transformer Book Flip TP500LN
7307 ∼110%
HP Envy 15-u200ng x360
13202 ∼198%
Toshiba Satellite Radius 15 P50W-C-102
6670 ∼100%
Color Space (Percent of AdobeRGB 1998) (sort by value)
Lenovo Yoga 500-15IBD
37 % ∼67%
Lenovo IdeaPad Flex 15
35.8 % ∼65%
Lenovo IdeaPad Flex 2 15
36.19 % ∼66%
Asus Transformer Book Flip TP500LN
48 % ∼87%
Toshiba Satellite Radius 15 P50W-C-102
55 % ∼100%
Color Space (Percent of sRGB) (sort by value)
Lenovo Yoga 500-15IBD
59 % ∼71%
Toshiba Satellite Radius 15 P50W-C-102
83 % ∼100%

Legend


Lenovo Yoga 500-15IBD Intel Core i5-5200U, NVIDIA GeForce 940M, WDC Scorpio Blue WD10JPVX-22JC3T0

Lenovo IdeaPad Flex 15 Intel Pentium 3556U, Intel HD Graphics (Haswell), Western Digital Scorpio Blue WD5000LPCX-24C6HT0

Lenovo IdeaPad Flex 2 15 Intel Core i5-4210U, Intel HD Graphics 4400, Seagate ST500LM000 Solid State Hybrid Drive

Asus Transformer Book Flip TP500LN Intel Core i5-4210U, NVIDIA GeForce 840M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

HP Envy 15-u200ng x360 Intel Core i5-5200U, Intel HD Graphics 5500, Toshiba MQ02ABF100

Toshiba Satellite Radius 15 P50W-C-102 Intel Core i5-5200U, Intel HD Graphics 5500, HGST Travelstar 5K1000 HTS541010A9E680

* ... smaller is better

3DMark Ice Storm Standard Score
37883 points
3DMark Cloud Gate Standard Score
5932 points
3DMark Fire Strike Score
1384 points
Help

Gaming Performance

The Yoga 500 is suitable for entry-level gaming with its GeForce 940M (Maxwell). Up-to-date games can be played smoothly in medium or at least low settings. The native FHD resolution will rarely be utilized because the narrow memory bandwidth of 64 bits is then quickly overloaded.

low med. high ultra
Evolve (2015) 33.724.21311.4fps
Battlefield Hardline (2015) 564017.5fps
Batman: Arkham Knight (2015) 2017127fps

Emissions

System Noise

Although the user will find a fan that is never completely disabled (idle), it remains on a virtually inaudible noise level. The noise level fluctuations are very minor and only measurable but not perceptible in normal use and low load. The hard drive is also quiet; its read-write heads do not produce noise, and they are quieter than the fan's base noise and their own spinning noise.

The level quickly climbs to 40.6 dB(A) during load, which is not high. The strongest rival with an 840M was a touch quieter in the test (Transformer Book Flip TP500LN). We did not notice any strong level fluctuations.

Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
Noise
8%
-2%
5%
-5%
-1%
off / environment *
Idle Minimum *
31.9
30.7
4%
33.8
-6%
30.6
4%
34.7
-9%
32.9
-3%
Idle Average *
32.3
32.1
1%
33.9
-5%
30.6
5%
34.7
-7%
32.9
-2%
Idle Maximum *
32.7
32.1
2%
34
-4%
31.8
3%
34.7
-6%
32.9
-1%
Load Average *
40.3
33.2
18%
36.6
9%
37.4
7%
39.6
2%
37.1
8%
Load Maximum *
40.6
33.7
17%
42
-3%
39.1
4%
43.4
-7%
43.1
-6%

* ... smaller is better

Noise Level

Idle
31.9 / 32.3 / 32.7 dB(A)
HDD
32 dB(A)
Load
40.3 / 40.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

The Yoga 500 stays quite cool while idling. The average on the top/bottom was just 27/28 degrees Celsius (80.6/82.4 Fahrenheit). That can vary depending on the ambient temperature. We measured up to 40 degrees Celsius (104 Fahrenheit, upper side) and 42 degrees Celsius (107 Fahrenheit, underside) on the hot spots during and primarily permanent load over several hours. That is very low for a device with dedicated graphics. These are stress test rates where the maximum is retrieved from the thermals. However, throttling was noticed in the stress test. The CPU's clock dropped to an unsteady 1.8/1.9 GHz. That was only the case with simultaneous GPU load. Without that, Intel's SoC clocked at an unwavering 2.5 GHz. Throttling lowers the stress test power consumption and waste heat during load.

Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
Heat
3%
-10%
-3%
20%
-7%
Maximum Upper Side *
39.9
38.6
3%
38.2
4%
41.6
-4%
32.8
18%
41.6
-4%
Maximum Bottom *
41.5
40.5
2%
41.8
-1%
46
-11%
29.7
28%
45.8
-10%
Idle Upper Side *
28.6
26.4
8%
34
-19%
28.4
1%
23.6
17%
30.7
-7%
Idle Bottom *
30
30.5
-2%
36.6
-22%
28.7
4%
25.1
16%
32
-7%

* ... smaller is better

Max. Load
 30.5 °C
87 F
39.9 °C
104 F
37.1 °C
99 F

 27.2 °C
81 F
38.6 °C
101 F
34.9 °C
95 F

 25.1 °C
77 F
25.7 °C
78 F
30 °C
86 F

Maximum: 39.9 °C = 104 F
Average: 32.1 °C = 90 F
41.5 °C
107 F
38 °C
100 F
29.5 °C
85 F
32.9 °C
91 F
39.5 °C
103 F
25.1 °C
77 F
30.4 °C
87 F
26.7 °C
80 F
25 °C
77 F
Maximum: 41.5 °C = 107 F
Average: 32.1 °C = 90 F
Power Supply (max.)  49.8 °C = 122 F | Room Temperature 23.9 °C = 75 F | Voltcraft IR-360

Speakers

The installed speakers under the wrist rest radiate their sound toward the tabletop and use its reflection for a relatively strong and to some extent rich sound. We cannot speak of basses, but low-pitches are hinted just like differentiated trebles. A disadvantage of speakers on the underside: A soft surface absorbs the waves and the sound changes adversely. However, that should not often be the case because movies or music videos will likely be watched mostly in Tent or Presentation Mode. The speakers' openings are then not covered at all, which is also true for Tablet Mode.

In return, we like the stereo microphone's recordings (beside the webcam). The recording barely exhibits base noise; recorded speech is loud and clear. We achieved the best result when speaking directly into the microphone from a distance ranging from 80 centimeters to 1.5 meters (~2.6 to 4.9 feet). The level is reduced when turning away from the device, and interference noise becomes noticeable.

Energy Management

Power Consumption

The idle power consumption of Lenovo's Yoga 500 remains clearly below 10 watts. The rivals are roughly on par since they all sport a 15-watt SoC. The test system consumes up to 43 watts in the stress test. That is relatively little for the GPU configuration but is a result of throttling. The Yoga 500 would consume around 55 watts without that, like the Transformer Book Flip TP500LN. The 65-watt power supply is sized sufficiently.

Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
Power Consumption
17%
-63%
1%
2%
Idle Minimum *
4.2
4.2
-0%
9.8
-133%
4.7
-12%
4.4
-5%
Idle Average *
7.4
7.5
-1%
12.2
-65%
8.9
-20%
7.9
-7%
Idle Maximum *
8.6
7.5
13%
12.9
-50%
9.1
-6%
9.2
-7%
Load Average *
36.5
24.8
32%
49.2
-35%
30
18%
31.5
14%
Load Maximum *
42.7
25.3
41%
55.3
-30%
31.8
26%
36.1
15%

* ... smaller is better

Power Consumption
Off / Standbydarklight 0.1 / 0.1 Watt
Idledarkmidlight 4.2 / 7.4 / 8.6 Watt
Load midlight 36.5 / 42.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 960

Battery Runtime

The Yoga 500 (30 Wh) only achieves an idle runtime of 7:47 hours. Even though the power consumption is average, the runtime is low due to its low battery capacity. All contenders do a better job here because they have a stronger battery than our review sample.

The review sample only lasted 153 minutes in the significant Wi-Fi test. That is considerably less than three hours. In particular, HP's Envy 15-u200ng x360 and Toshiba's Satellite Radius 15 P50W-C-102 can boast here; they have the bigger batteries at a very similar power consumption. The Wi-Fi test simulates opening websites in the "Balanced" profile and a brightness set to approximately 150 cd/m² (dimmed 2 levels). The Yoga 500's battery life is very short due to its limited capacity.

Battery Runtime
Reader / Idle (sort by value)
Lenovo Yoga 500-15IBD
30 Wh 5200U
467 min ∼67%
Lenovo IdeaPad Flex 15
32 Wh Pentium 3556U
412 min ∼59%
Lenovo IdeaPad Flex 2 15
48 Wh i5 4210U
603 min ∼87%
Asus Transformer Book Flip TP500LN
48 Wh i5 4210U
452 min ∼65%
HP Envy 15-u200ng x360
43 Wh 5200U
min ∼0%
Toshiba Satellite Radius 15 P50W-C-102
45 Wh 5200U
693 min ∼100%
WiFi v1.3 (sort by value)
Lenovo Yoga 500-15IBD
30 Wh 5200U
153 min ∼43%
HP Envy 15-u200ng x360
43 Wh 5200U
299 min ∼84%
Toshiba Satellite Radius 15 P50W-C-102
45 Wh 5200U
358 min ∼100%
Load (sort by value)
Lenovo Yoga 500-15IBD
30 Wh 5200U
107 min ∼86%
Lenovo IdeaPad Flex 15
32 Wh Pentium 3556U
81 min ∼65%
Lenovo IdeaPad Flex 2 15
48 Wh i5 4210U
73 min ∼59%
Asus Transformer Book Flip TP500LN
48 Wh i5 4210U
49 min ∼40%
HP Envy 15-u200ng x360
43 Wh 5200U
min ∼0%
Toshiba Satellite Radius 15 P50W-C-102
45 Wh 5200U
124 min ∼100%
WiFi (sort by value)
Lenovo IdeaPad Flex 15
32 Wh Pentium 3556U
218 min ∼79%
Lenovo IdeaPad Flex 2 15
48 Wh i5 4210U
234 min ∼85%
Asus Transformer Book Flip TP500LN
48 Wh i5 4210U
276 min ∼100%
Battery Runtime
Idle (without WLAN, min brightness)
7h 47min
NBC WiFi Websurfing Battery Test 1.3
2h 33min
Load (maximum brightness)
1h 47min

Pros

+ Contrast, viewing angles
+ Entry-gamer
+ Low emissions
+ Decent input devices

Cons

- Short battery life
- High weight, unhandy in tablet mode
- No maintenance hatch, non-removable battery
- Screen virtually useless in sunlight

Verdict

In review: Lenovo Yoga 500-15IBD (80N6008AGE). Test model courtesy of Cyberport.de
In review: Lenovo Yoga 500-15IBD (80N6008AGE). Test model courtesy of Cyberport.de

Buyers looking at a 15 incher with a 360-degree hinge will have specific purposes for it in mind. Watching a video without having an annoying keyboard in view, relaxing on the sofa with a tablet on the lap or making a presentation in Tent Mode is all possible with the Yoga 500. It is up to the buyer whether the 15 incher's unhandiness and weight (2.15 kg/4.7 pounds) will be deterring. Lenovo does many things right - starting with the next to first-rate screen with contrast rich colors and wide viewing angles. A drawback here is its low brightness, particularly in battery mode. That and the reflective screen make it almost useless outside in the sun.

Neither the input devices nor the quality and stability give reason for complaint. The big dimensions function surprisingly well as a convertible. We believe that fears of weakening hinges over time are unfounded. The Yoga 500 will likely mostly be used as a tabletop computer where it will look good as an all-rounder owing to its sufficiently fast components. We can label it conditionally as gaming suitable, but gamers should look for at least a GTX card. That is, however, not yet available in convertibles and the 940M is presently the strongest dedicated graphics card in a convertible.

The Yoga 500 can make up for small drawbacks, such as the disappointing webcam, with little bonus features such as the very good dual-array microphone, the swift SD card reader and the above-average hard drive.

On the other hand, the short battery life of less than three hours in the Wi-Fi test is deplorable. It is Lenovo's own "fault" due to the very small battery.

The Yoga 500's price of 800 Euros (~$892) in our test configuration composed of a GeForce and FHD IPS screen is interesting. The rating of 78% is also better than that of the more expensive Toshiba Satellite Radius 15 P50W (1080 Euros/~$1205), which does not feature a graphics card. We cannot recommend HP's Envy 15-u200ng x360 as warmly due to its TN screen. Asus' Transformer Book Flip TP500LA appears to be the most adequate rival although we have not yet had the Broadwell configuration in review, and we are referring to the likely identically built Flip TP500LN with Haswell and a GeForce 840M. However, the Broadwell model does NOT have a dedicated graphics card. Therefore, only Lenovo's Flex 2 Pro remains to be a potential rival. The review of the SSD 840M IPS model will follow soon.

Lenovo Yoga 500-15IBD - 09/21/2015 v4(old)
Sebastian Jentsch

Chassis
81 / 98 → 83%
Keyboard
80%
Pointing Device
83%
Connectivity
62 / 80 → 78%
Weight
62 / 35-78 → 63%
Battery
81%
Display
80%
Games Performance
78 / 68 → 100%
Application Performance
76 / 87 → 87%
Temperature
90%
Noise
85%
Audio
73 / 91 → 80%
Camera
35 / 85 → 41%
Average
74%
78%
Convertible - Weighted Average

Pricecompare

Read all 5 comments / answer
static version load dynamic
Loading Comments
Comment this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Lenovo Yoga 500-15IBD Convertible Review
Sebastian Jentsch, 2015-09-23 (Update: 2018-05-15)
