Lenovo Legion Slim 5 16 retested: GeForce RTX 4060 now properly running at 90 W to 100 W

Lenovo Legion Slim 5 16 retested: GeForce RTX 4060 now properly running at 90 W to 100 W
Lenovo Legion Slim 5 16 retested: GeForce RTX 4060 now properly running at 90 W to 100 W
A replacement unit confirms that our original one was an outlier with graphics performance issues. Jumping from 60 W to 90 W with the mobile RTX 4060 will increase frame rates by as much as 15 to 30 percent.

In our review of the Lenovo Legion Slim 5 16 back in August, we noted its unusually low 60 W RTX 4060 GPU against the advertised 100 W even when set to the Performance power profile with the dGPU active. Both synthetic and gaming scores were therefore lower than expected and far too close to the RTX 4050 for comfort. Our specific unit was seemingly stuck on Balanced mode for reasons unknown.

Luckily, we were able to secure a second unit from the manufacturer for retesting purposes not long after publishing our results on the first. Our second unit would perform notably faster to be closer to what we were originally expecting from the first unit. GPU clock rates and board power draw when running Witcher 3 would stabilize at 2655 MHz and 91 W, respectively, compared to just 2220 MHz and 60 W on our first unit. 3DMark results are approximately 15 to 30 percent faster as a result as shown by our comparison chart below.

Naturally, performance in games has also improved especially at higher resolutions where titles become GPU bound. Cyberpunk 2077, for example, would perform 30 percent faster on 4K vs. only 20 percent when on 1080p before applying any DLSS enhancements.

3DMark Performance Rating - Percent
Lenovo Legion Slim 5 16APH8 retest

100 pt
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
82.5 pt
3DMark 11 - 1280x720 Performance GPU
Lenovo Legion Slim 5 16APH8 retest

38569 Points
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
31864 Points -17%
3DMark
1920x1080 Fire Strike Graphics
Lenovo Legion Slim 5 16APH8 retest

26839 Points
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
23418 Points -13%
3840x2160 Fire Strike Ultra Graphics
Lenovo Legion Slim 5 16APH8 retest

6240 Points
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
5196 Points -17%
2560x1440 Time Spy Graphics
Lenovo Legion Slim 5 16APH8 retest

10789 Points
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
8873 Points -18%
2560x1440 Port Royal Graphics
Lenovo Legion Slim 5 16APH8 retest

6046 Points
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
4933 Points -18%
2560x1440 Speed Way Score
Lenovo Legion Slim 5 16APH8 retest

2705 Points
Lenovo Legion Slim 5 16APH8
NVIDIA GeForce RTX 4060 Laptop GPU, AMD Ryzen 7 7840HS
2118 Points -22%
Tiny Tina's Wonderlands
1920x1080 Badass Preset (DX12)
Lenovo Legion Slim 5 16APH8 retest

96.2 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
80.3 fps -17%
2560x1440 Badass Preset (DX12)
Lenovo Legion Slim 5 16APH8 retest

65.3 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
54.3 fps -17%
3840x2160 Badass Preset (DX12)
Lenovo Legion Slim 5 16APH8 retest

32.3 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
26.7 fps -17%
Cyberpunk 2077 1.6
1920x1080 Ultra Preset
Lenovo Legion Slim 5 16APH8 retest

83.6 (59.5min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
69.4 (43.2min) fps -17%
2560x1440 Ultra Preset
Lenovo Legion Slim 5 16APH8 retest

50.7 (41.1min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
40.7 (26.4min) fps -20%
3840x2160 Ultra Preset
Lenovo Legion Slim 5 16APH8 retest

22.7 (18.5min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
17.4 (11.6min) fps -23%
F1 22
1920x1080 Ultra High Preset AA:T AF:16x
Lenovo Legion Slim 5 16APH8 retest

69.6 (59min, 55P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
55.1 (46min, 46P1) fps -21%
2560x1440 Ultra High Preset AA:T AF:16x
Lenovo Legion Slim 5 16APH8 retest

44 (37min, 37P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
35.5 (30min, 29P1) fps -19%
3840x2160 Ultra High Preset AA:T AF:16x
Lenovo Legion Slim 5 16APH8 retest

21.6 (18min, 18P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
16.6 (14min, 14P1) fps -23%
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo Legion Slim 5 16APH8 retest

106.4 (102min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
93.2 (87min) fps -12%
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo Legion Slim 5 16APH8 retest

70.2 (65min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
57 (52min) fps -19%
GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
101 (5.12min, 71.4P1) fps +3%
Lenovo Legion Slim 5 16APH8 retest

98 (7.96min, 66.7P1) fps
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo Legion Slim 5 16APH8 retest

87 (6.2min, 58.8P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
83 (6.82min, 55.6P1) fps -5%
3840x2160 Highest Settings possible AA:4xMSAA + FX AF:16x
Lenovo Legion Slim 5 16APH8 retest

41.6 (11.5min, 29.4P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
38.1 (14.2min, 27P1) fps -8%
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
Lenovo Legion Slim 5 16APH8 retest

85.3 (15.3min, 58.8P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
76.3 (21min, 55.6P1) fps -11%
X-Plane 11.11
1280x720 low (fps_test=1)
Lenovo Legion Slim 5 16APH8 retest

113.7 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
110.1 fps -3%
1920x1080 med (fps_test=2)
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
106.3 fps +5%
Lenovo Legion Slim 5 16APH8 retest

100.8 fps
1920x1080 high (fps_test=3)
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
83.3 fps +5%
Lenovo Legion Slim 5 16APH8 retest

79.7 fps
3840x2160 high (fps_test=3)
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
70.9 fps +4%
Lenovo Legion Slim 5 16APH8 retest

68.1 fps
Dota 2 Reborn
1280x720 min (0/3) fastest
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
167.5 (146.5min) fps +7%
Lenovo Legion Slim 5 16APH8 retest

156 (139.1min) fps
1366x768 med (1/3)
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
151.3 (135.7min) fps +5%
Lenovo Legion Slim 5 16APH8 retest

144.7 (126.6min) fps
1920x1080 high (2/3)
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
142.7 (123.8min) fps +4%
Lenovo Legion Slim 5 16APH8 retest

137.4 (120.6min) fps
1920x1080 ultra (3/3) best looking
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
135.6 (121.2min) fps +3%
Lenovo Legion Slim 5 16APH8 retest

131.5 (115.2min) fps
3840x2160 ultra (3/3) best looking
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
115.7 (101.8min) fps +2%
Lenovo Legion Slim 5 16APH8 retest

113.8 (100min) fps
Returnal
1920x1080 Epic Preset
Lenovo Legion Slim 5 16APH8 retest

88 (42min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
75 (43min) fps -15%
2560x1440 Epic Preset
Lenovo Legion Slim 5 16APH8 retest

63 (33min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
52 (27min) fps -17%
3840x2160 Epic Preset
Lenovo Legion Slim 5 16APH8 retest

35 (19min) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
29 (13min) fps -17%
Strange Brigade
1920x1080 ultra AA:ultra AF:16
Lenovo Legion Slim 5 16APH8 retest

196 (38.3min, 143.4P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
168.2 (38.3min, 126.4P1) fps -14%
2560x1440 ultra AA:ultra AF:16
Lenovo Legion Slim 5 16APH8 retest

136.3 (46.5min, 111.4P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
115.1 (28.9min, 94.1P1) fps -16%
3840x2160 ultra AA:ultra AF:16
Lenovo Legion Slim 5 16APH8 retest

71 (23min, 61.1P1) fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
61.8 (32.2min, 53.3P1) fps -13%
Final Fantasy XV Benchmark
1920x1080 High Quality
Lenovo Legion Slim 5 16APH8 retest

107 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
94.3 fps -12%
2560x1440 High Quality
Lenovo Legion Slim 5 16APH8 retest

80.3 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
67.7 fps -16%
3840x2160 High Quality
Lenovo Legion Slim 5 16APH8 retest

43.1 fps
Lenovo Legion Slim 5 16APH8
AMD Ryzen 7 7840HS, NVIDIA GeForce RTX 4060 Laptop GPU
37.6 fps -13%

The higher GPU power draw from 60 W to 90 W has entailed higher core temperatures. The GPU on our second unit would stabilize at 69 C compared to 58 C on our first unit when running the same game as shown by our screenshots below. Meanwhile, CPU temperature and package power would remain the same as before. The bug we experienced on our first unit was seemingly only impacting graphics performance.

As always, it's never a bad idea to double-check recent purchases and make sure that they're performing where they're supposed to. Newer gaming laptops in particular have several layers of power profiles and GPU modes that can potentially conflict with one another. The standard Windows power profiles, for example, should match the Lenovo Vantage power profiles while the Lenovo Vantage GPU settings should match the GPU settings on GeForce Experience.

We recommend checking out our full review on the Legion Slim 5 16 to learn more about the physical features of the model.

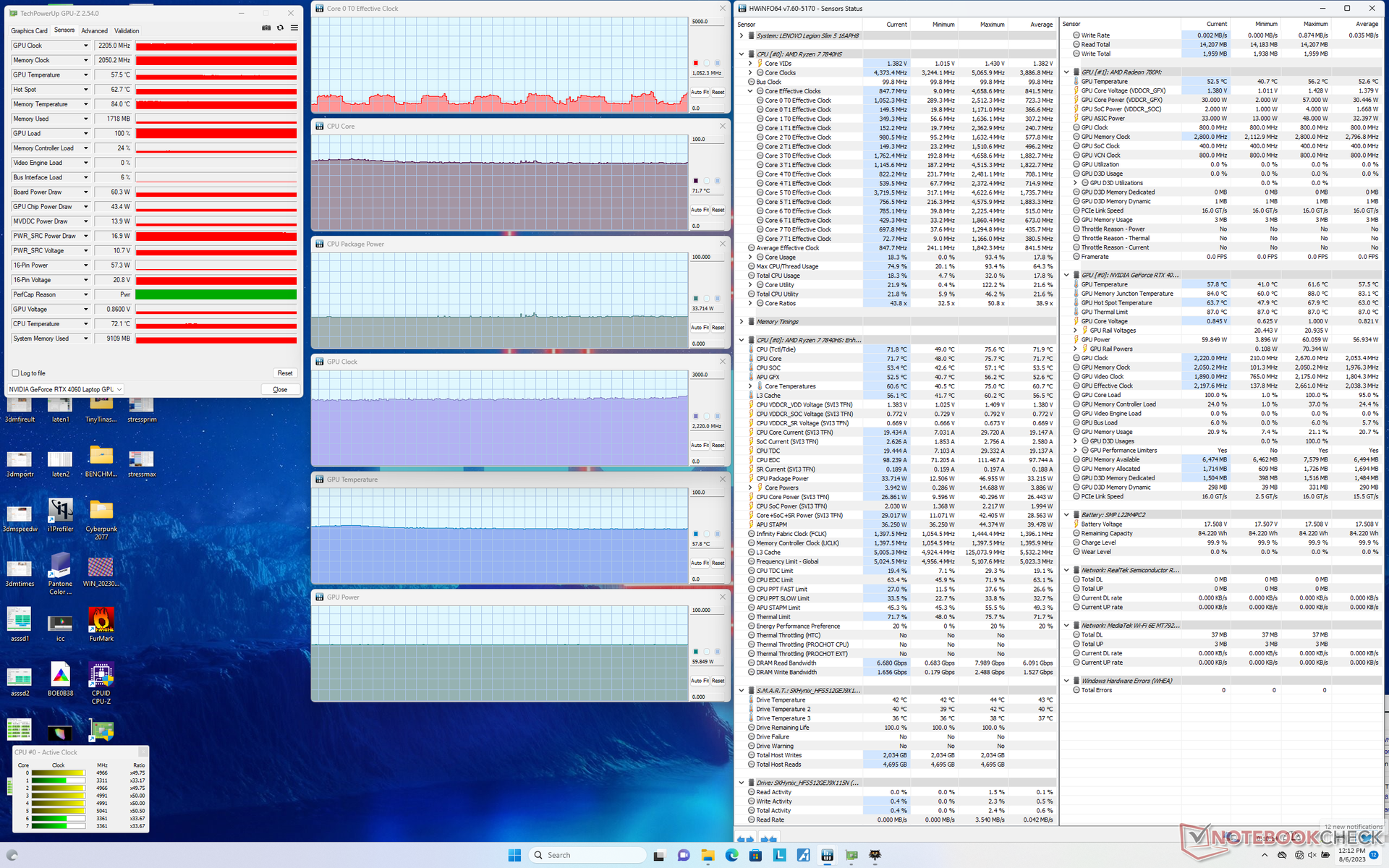

Witcher 3 stress test (First test unit)
Witcher 3 stress test (First test unit)
Witcher 3 stress test (Second test unit)
Witcher 3 stress test (Second test unit)
