Intel NUC Kit NUC7CJYH (Celeron J4005, UHD 600) Mini PC Review

Small and economical. Intel NUC Mini PC’s are known for their compact design. The new NUC generation maintains this concept, with Intel equipping them with a set of new processors too. In this review, we will be covering the NUC Kit NUC7CJYH, an entry-level NUC Mini PC that is equipped with an Intel Celeron J4005 processor. Find out in this review whether this Gemini Lake processor is up to scratch in an entry-level NUC Kit.

Sebastian Bade, 👁 Klaus Hinum, ✓ Stefanie Voigt (translated by Alex Alderson), Published 06/11/2018 🇩🇪 🇮🇹 ...

Desktop Windows

NUC is Intel’s Mini PC range. Intel sells these in either kit form or as fully working machines. Hardware choices vary from the basic up to enthusiast level, the latter of which includes an Intel Core i7-8890G processor. Our test device is the Intel NUC Kit NUC7CJYH, which is powered by an entry-level Intel Celeron J4005 processor. The J4005 is a 14 nm desktop CPU that is based on Intel’s Gemini Lake architecture. The J4005 is a 10 W dual-core CPU with a 2.0 GHz base clock speed that can increase up to 2.7 GHz when required and has a 4 MB cache. The J4005 includes the Intel UHD Graphics 600, an integrated GPU that has 12 execution units (EUs).

The NUC7CJYH comes with a 65 W power supply, a VESA mount and documentation about the Mini PC. It is worth bearing in mind that the Kit doesn’t include an OS, RAM or internal storage.

If you need a bit more power then there is the NUC7PJYH, a Kit that includes an Intel Pentium J5005 processor. The J5005 is a 10 W quad-core Gemini Lake CPU that clocks between 1.5 GHz and 2.8 GHz. The NUC7PJYH lacks an OS, RAM and internal storage too though.

If this doesn’t appeal, then Intel offers numerous NUC Mini PCs with similar specifications but with the components that the NUC7CJYH omits. Intel currently offers the NUC7CJYSAL, which adds Windows 10, 4 GB DDR4-2400 SO-DIMM RAM and a 32 GB eMMC drive.

Intel NUC7CJYH

Processor

Intel Celeron J4005 2 x 2 - 2.7 GHz, Gemini Lake

Graphics adapter

Intel UHD Graphics 600, Core: 700 MHz, 23.20.16.4944

Memory

8 GB

, DDR4-2400 1.2V SO-DIMM. Maximum of 32 GB RAM with two DIMMs.

Mainboard

Gemini Lake

Storage

SanDisk Ultra II, 240 GB

, 2.5-inch drive bay

Connections

4 USB 3.0 / 3.1 Gen1, 2 HDMI, 1 Kensington Lock

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 51 x 115 x 111 ( = 2.01 x 4.53 x 4.37 in)

Operating System

Microsoft Windows 10 Pro 64 Bit

Additional features

Power Supply, 36 Months Warranty, Thirty-six months warranty, No OS, SSD or RAM included

Weight

577 g ( = 20.35 oz / 1.27 pounds), Power Supply: 330 g ( = 11.64 oz / 0.73 pounds)

Price

0 EUR

Links

Intel homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Case & Equipment

The case is dominated by plastic and metal. The combination of materials helps make the NUC7CJYH look quality and gives it a robust and solid feel. The top has a glossy finish that quickly picks up fingerprints and micro scratches. The bottom plate is secured with four small screws. Unscrewing these allows the bottom plate to pop off and gives access to the internal components. Intel included a VESA mount in the box, which allows the NUC7CJYH to be mounted to a monitor or on a wall.

The ports are distributed across three sides, with Intel placing most on the rear of the device. Overall, there are four USB 3.0 Type-A ports and two HDMI ports. The front of the device has two USB ports, a 3.5 mm headphone & microphone jack and a power button. On the back, there are the two remaining USB ports, two HDMI ports, an RJ45 Ethernet port, an optical audio connector and a power connector. There is also an SD card reader and a lock slot on the left-hand side. It would have been nice had Intel included a USB Type-C port, with this saved for more expensive NUC variants.

Our test device weighs 577 g, with the power supply weighing an additional 330 g.

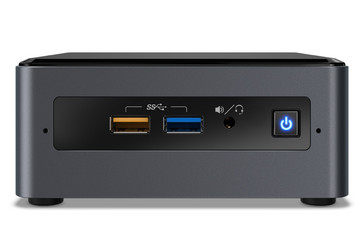

Front: USB 3.0 Type-A port x2, 3.5 mm headphone & microphone jack, power button

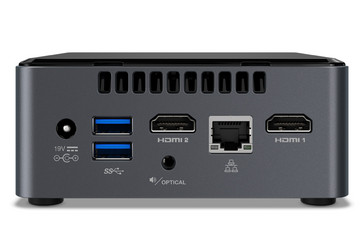

Rear: power connector, USB 3.0 Type-A port x2, HDMI port x2, optical audio connector, RJ45 Ethernet Port

Performance

The NUC7CJYH is powerful enough for simple office applications thanks to its entry-level processor and weak integrated GPU.

Processor

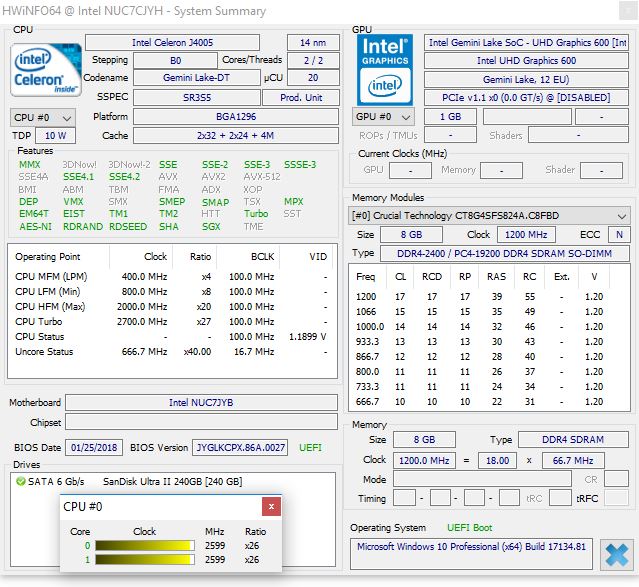

The NUC7CJYH is powered by an Intel Celeron J4005, a 10 W dual-core processor with 4 MB cache. The CPU has a 2.0 GHz base clock speed that can increase up to 2.8 GHz when required. There is no Hyper-Threading support though so there are only two threads that run in parallel. The limiting factor performance wise is the 10 W TDP, which both the CPU and GPU share. So, while the CPU will run at 2.6 GHz in CPU-only stress tests, it drops to 2.4 GHz when running CPU and GPU stress tests simultaneously. Single-core performance has improved on previous Celeron generations, but buyers should still not expect anything great from the Celeron J4005.

Cinebench R15
CPU Single 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	127 Points +65%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points +52%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points +40%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points +9%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	77 Points
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	53 Points -31%
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	48 Points -38%
CPU Multi 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	327 Points +127%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points +107%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points +81%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points +53%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points +47%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	165 Points +15%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	144 Points
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	135 Points -6%

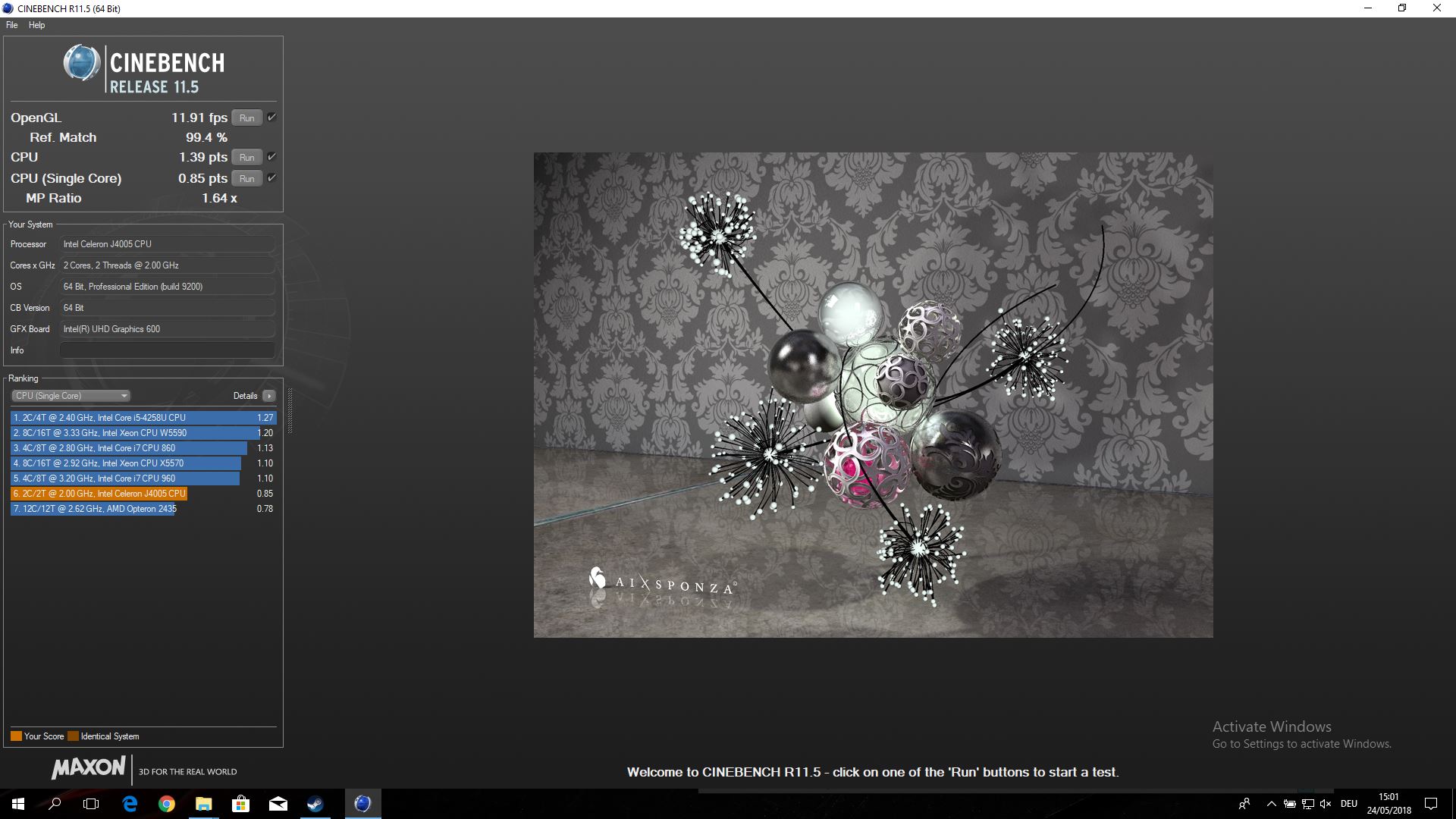

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1.46 Points +72%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points +56%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points +51%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.85 Points
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.66 Points -22%
CPU Multi 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	3.65 Points +163%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points +135%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points +106%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2.09 Points +50%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1.39 Points

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	5521 Points +64%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3365 Points
Rendering Multiple CPUs 64Bit
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	11202 Points +136%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4741 Points

Blender - v2.79 BMW27 CPU
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4124 Seconds *

wPrime 2.10
1024m
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1042 s *
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * +30%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	724 s * +31%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * +40%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * +46%
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	469 s * +55%
32m
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	33.07 s *
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * +30%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	20.13 s * +39%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * +41%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * +46%
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	14.88 s * +55%

X264 HD Benchmark 4.0
Pass 2
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps +94%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps +65%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps +38%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	12.02 fps +21%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	9.955 (9.95^min - 9.98^max) fps
Pass 1
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps +110%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps +77%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps +48%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	60 fps +20%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	49.92 (49.69^min - 50.04^max) fps

WinRAR - Result
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2461 KB/s +208%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2457 KB/s +208%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2111 KB/s +165%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	944 KB/s +18%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	798 KB/s

TrueCrypt
Serpent Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	0.189 GB/s +102%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.171 GB/s +83%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s +78%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s +52%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s +42%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.0935 GB/s
Twofish Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	0.322 GB/s +140%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s +111%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s +83%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.237 GB/s +77%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s +49%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.134 GB/s
AES Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1.9 GB/s +97%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s +77%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s +56%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	1.4 GB/s +45%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s +35%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.963 GB/s

Geekbench 4.4
64 Bit Multi-Core Score
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points +45%
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	4001 Points +15%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3491 Points
64 Bit Single-Core Score
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points +31%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1997 Points
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1399 Points -30%

* ... smaller is better

Cinebench R15 Results

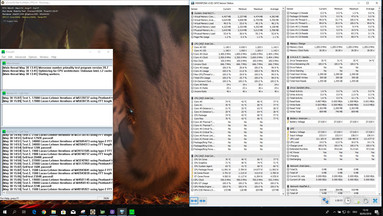

The CPU didn’t thermal throttle during our Cinebench R15 multi-loop benchmark test thanks to the NUC7CJYH’s decent cooling system. Our test device performed consistently during the Cinebench R15 loop, averaging 144 points in the multi-core test and 77 points in the single-core test. The benchmarks indicate that the Celeron J4005 has more than 30% better single-core performance than older Pentium and Celeron chips, but 13% worse multi-core performance than the Intel Pentium N4200. Regardless of the test, the Celeron J4005 is significantly behind its Intel Core ix counterparts.

Intel Celeron J4005 Cinebench R15 CPU Multi 64 Bit

System Performance

Naturally, the hardware chosen to make the NUC7CJYH into a working machine will affect system performance. A conventional HDD will cause the system to run slower than it would if an SSD was installed instead. This is the case for RAM too. More RAM will benefit system performance up to a point depending on what applications that are running. Light users probably won’t notice the difference between 8 GB and 16 GB RAM, whereas heavier users may do. Moreover, using two matching RAM modules will enable dual-channel mode, which offers a slight performance boost over single-channel mode. We equipped our test device with 8 GB DDR4-2400 RAM and a SanDisk SSD. The NUC7CJYH only has a 2.5-inch drive bay. An M.2-2280 slot would have allowed for faster SATA and NVMe SSDs to be installed, which would have further improved system performance.

The results in PCMark benchmarks are like the results from CPU benchmarks. The Celeron J4005 is easily faster than the Pentium N4200 but cannot keep pace with the significant Core ix CPUs.

Overall, the NUC7CJYH is powerful enough for simple office applications. The CPU quickly reaches its limits with several applications in the foreground though, leading to noticeable slowdowns. The same principle applies to opening too many browser tabs, which quickly bogs down the system. We would suggest thinking carefully about whether the NUC7CJYH is the right Mini PC for you if you need to run multiple applications and several browsers tabs simultaneously.

PCMark 10 | PCMark 8 | PCMark 7

PCMark 10
Score
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points +110%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1181 Points +4%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1136 Points
Productivity
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points +24%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3289 Points
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1926 Points -41%

PCMark 8
Work Score Accelerated v2
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4588 Points +44%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	4390 Points +38%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	4046 Points +27%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3732 Points +17%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3188 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2801 Points -12%
Home Score Accelerated v2
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3667 Points +76%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	3345 Points +61%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3062 Points +47%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2901 Points +39%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	2084 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2073 Points -1%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1530 Points -27%

PCMark 7
Score
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4716 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2441 Points -48%
Productivity
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4437 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	1414 Points -68%

Storage Devices

We equipped our test device with a SanDisk Ultra II 240 GB SSD, model number X41100RL. The NUC7CJYH only has a 2.5-inch drive bay, but this should be sufficient in most use cases. We would recommend using an SSD over a traditional HDD for better performance. The SanDisk Ultra II achieved good transfer speeds in our tests, demonstrating that the NUC7CJYH has decent hardware. Treat our test here as a rough guide though as results will vary with different storage devices.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

SanDisk Ultra II

Sequential Read: 426.4 MB/s

Sequential Write: 443 MB/s

512K Read: 309.8 MB/s

512K Write: 365.5 MB/s

4K Read: 29.45 MB/s

4K Write: 51.7 MB/s

4K QD32 Read: 132.8 MB/s

4K QD32 Write: 109 MB/s

Graphics Card

The Intel UHD Graphics 600 handles graphics. The integrated GPU has 12 EUs and a clock speed of between 250 MHz and 700 MHz. Graphics performance depends on CPU load and the amount of RAM installed. Performance is comparable to the Intel HD Graphics 500, making the UHD Graphics 600 suitable for only the simplest of requirements.

Positively, the updated video decoder can hardware decode and encode H.265, HEVC, and VP9 videos. It is worth noting that we could not get Netflix to play in 4K, but we could get YouTube to play in maximum resolution at 3840x2160 at 60 FPS.

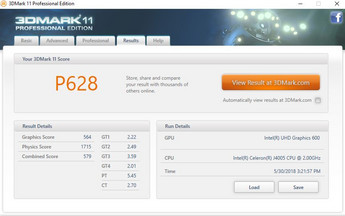

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2484 Points +284%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1568 Points +142%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1354 Points +109%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1298 Points +101%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	647 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	642 Points -1%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	414 Points -36%
1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +301%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points +152%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1281 Points +121%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points +103%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	583 Points +1%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	579 Points
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	368 Points -36%

3DMark
1280x720 Ice Storm Standard Score
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	53073 Points +122%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	47545 Points +99%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	24851 Points +4%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	23892 Points
1280x720 Ice Storm Standard Graphics
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +140%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	51216 Points +98%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	29561 Points +14%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	25846 Points
1920x1080 Ice Storm Extreme Score
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	37240 Points +118%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	34211 Points +100%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	18052 Points +6%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	17068 Points
1920x1080 Ice Storm Extreme Graphics
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points +145%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	33478 Points +102%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	18860 Points +14%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	16594 Points

Gaming Performance

The Intel UHD Graphics 600 in the NUC7CJYH will struggle to run many games. It has no real gaming capabilities but can easily play simple browser-based games.

	low	med.	high	ultra
BioShock Infinite (2013)	20.1	10

Emissions & Energy

Temperature

Our test device manages its temperatures well. Surface temperatures heat up only slightly under load, while the fan helps to keep the CPU cool enough so that it does not thermal throttle under load. We measured a maximum core temperature of 80 °C under load during stress testing, demonstrating how effective the cooling system is. Likewise, our test device had no problems during our FurMark and Prime95 stress tests, averaging 2.4 GHz throughout. Our test device experienced no 3D performance issues in 3DMark 11 after our stress tests.

3DMark 11 results after our stress tests

Fan Noise

Overall, fan noise is relatively restrained. While the fan speed remains low during stress tests, it remains audible at idle. As such, the NUC7CJYH does not run silently and there is no way to manually adjust fan speeds. Fortunately, our test device exhibited no coil whine during our tests.

Power Consumption

The NUC7CJYH is a power-efficient device that fully exploits its CPU potential. Our test device consumes 0.8 W on standby, which increases to a maximum of 8.4 W at idle. Typically, the NUC7CJYH consumes approximately 4.5 W at idle, with a minimum consumption of 3.9 W. This increases to between 12.3 W and 21.4 W under load, which is enough headroom for the Celeron J4005 to be fully exploited. Overall, if you are looking for a power-efficient Mini PC, then you should take a closer look at the NUC7CJYH.

Power Consumption

Off / Standby	0.8 / Watt
Idle	3.9 / 4.5 / 8.4 Watt
Load	12.3 / 21.4 Watt


Key: min: , med: , max: Metrahit Energy

Pros

+ stable case

+ very compact

+ quiet operation

+ good system performance

+ low power consumption

+ affordable

Cons

- no USB Type-C

- delicate high gloss surfaces

- basic device with no RAM, internal storage or OS installed

Verdict

The Intel NUC Kit NUC7CJYH in review. Test device courtesy of Intel Germany.

The Intel NUC7CJYH is a compact and economical Mini PC kit that is an attractive proposition for office work thanks to its low price. The NUC7CJYH is equipped with a basic Intel Celeron J4005 dual-core processor and an Intel UHD Graphics 600 integrated GPU. It is worth keeping in mind the device’s intended purpose though.

The affordable price is tempting, but this comes at the expense of an OS, RAM and internal storage. These will be necessary additional costs that are worth factoring in when considering the NUC7CJYH.

Performance is suitable for only simple office applications and Internet browsing. The NUC7CJYH can even decode and encode 2160 p videos thanks to its Intel UHD Graphics 600. The NUC7CJYH wouldn’t be the right choice if you want to play games or run graphics-intensive tasks.

Overall, the NUC Kit NUC7CJYH has impressive system performance considering its power consumption and compact design.

Two years later, the Intel Hades Canyon mini PC is still the best NUC you can get

Two years later, the Intel Hades Canyon mini PC is still the best and fastest NUC you can get 04/24/2020

Passively Cooled Core i9: Impact Display Solutions IMP-3654-B1-R Mini PC Review 04/07/2020

Lenovo ThinkCentre M90n Nano: A small but capable mini desktop PC 12/07/2019

Intel NUC Kit NUC8i7BEH (i7-8559U) Mini PC Review 11/13/2018

Chuwi GBox CWI560 (Celeron N4100) Mini PC Review 09/25/2018

Zotac ZBOX-CI660 Nano (i7-8550U) Mini PC Review 09/22/2018

Read all 4 comments / answer

Loading comments

Comment on this article

Editor of the original article: Sebastian Jentsch - Managing Editor Consumer Laptops - 1751 articles published on Notebookcheck since 2010

Computers always had an important place in my life, starting with an Intel 80286 microprocessor in the early 1990s. I became interested in the productive side of technology, especially in campus radio, while studying at TU Chemnitz and during a trainee program in Belfast. Hardware interests led me to manage Notebookjournal.de, which is now a division of Notebooksbilliger, for a few years. I became self-employed in 2010 and took the next logical step in my career by starting to write for Notebookcheck.

contact me via: Xing

Translator: Alex Alderson - Senior Tech Writer - 11585 articles published on Notebookcheck since 2018

Prior to writing and translating for Notebookcheck, I worked for various companies including Apple and Neowin. I have a BA in International History and Politics from the University of Leeds, which I have since converted to a Law Degree. Happy to chat on Twitter or Notebookchat.

contact me via: @aldersonaj

Please share our article, every link counts!
