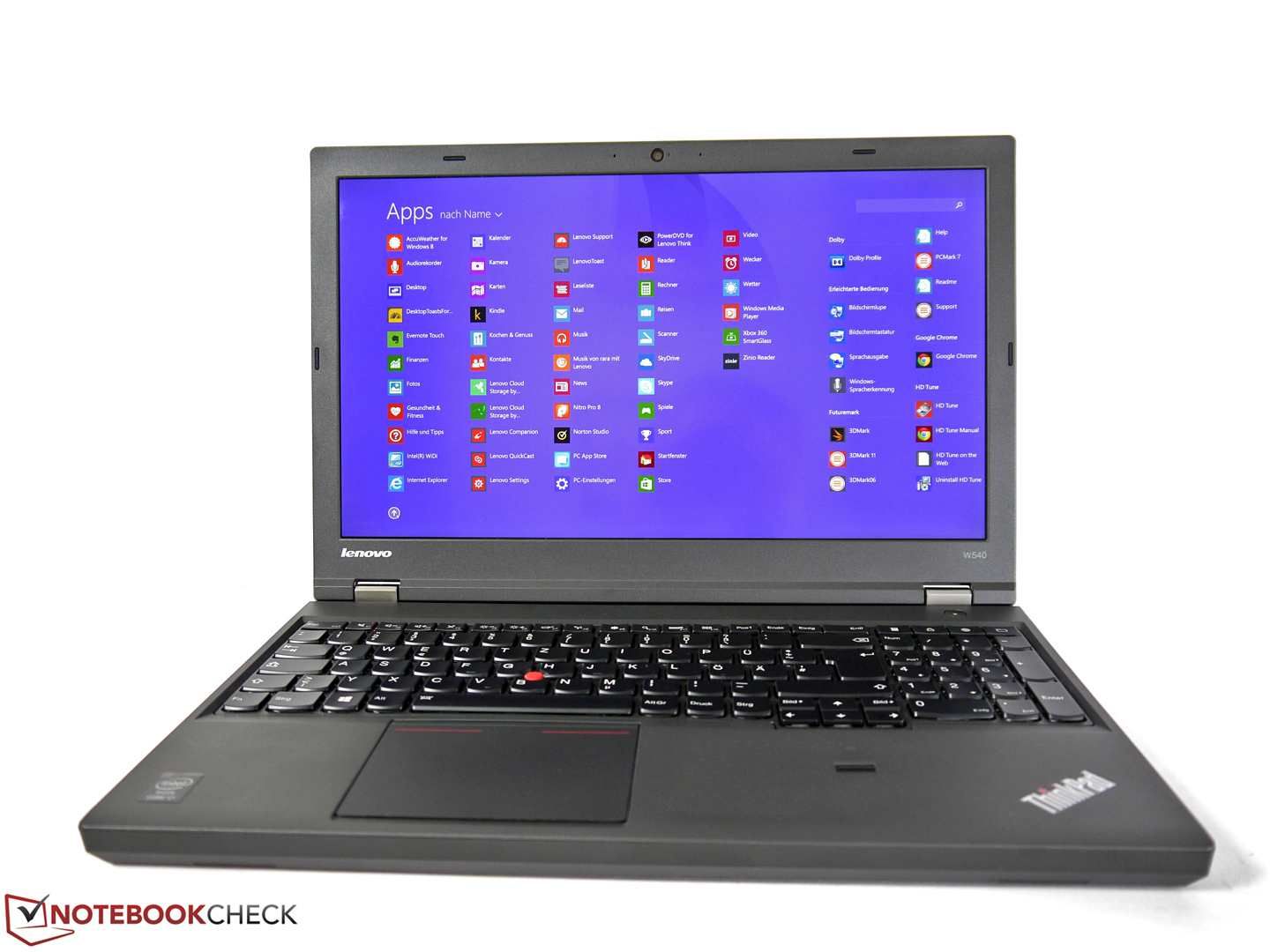

Review Lenovo ThinkPad W540 Workstation

Tobias Winkler (translated by Andreas Osthoff), 03/07/2014

Transformation. Lenovo completely redesigns its mobile workstations from the ThinkPad W-series and introduces some fundamental changes in this category. Does the device really meet the high expectations of the loyal customers?

For the original German review, see here.

We already reviewed many mobile workstations from the established manufacturers. Now we have a closer look at Lenovo's ThinkPad W540, which is eagerly awaited by many users. It represents the ideal business notebook with its legendary branding and offers the performance of a powerful workstation as well. However, loyal ThinkPad users had to accept numerous changes in the recent past that did not always result in unlimited enthusiasm. Some keywords like ThinkLight, keyboard design, touchpad design, battery bridge or surface materials are often controversially discussed amongst our forum users.

Our review unit is more of an entry-level configuration at around 1,600 Euros (~$2217), but it is well equipped in the core areas and well suited as a basic configuration for professional scenarios. Our configuration uses an Intel Core i7-4700MQ CPU, Nvidia's professional Quadro K1100M GPU, 4 GB RAM, 1 TB storage and a high-resolution IPS display with 2880x1620 pixels.

Case

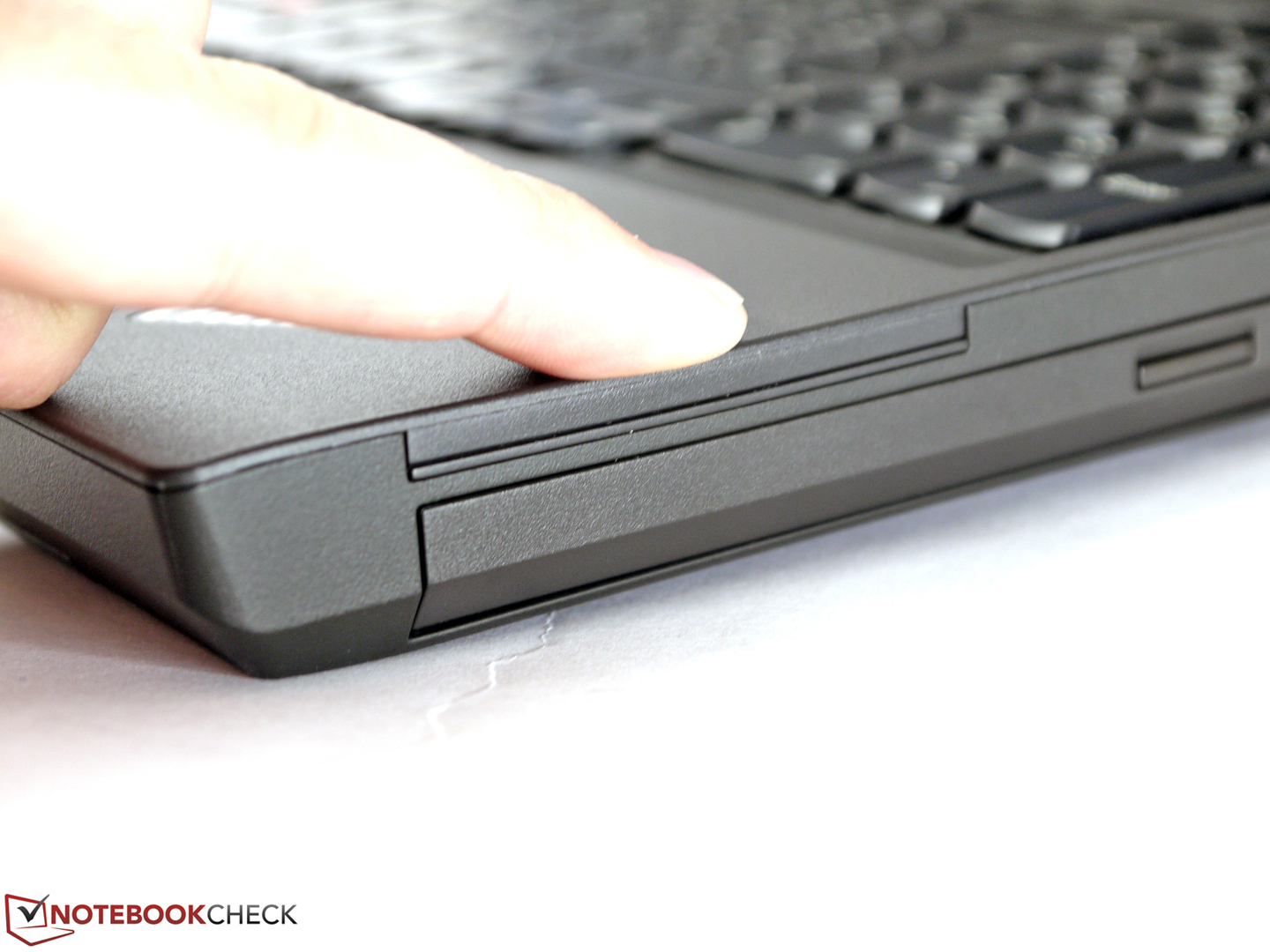

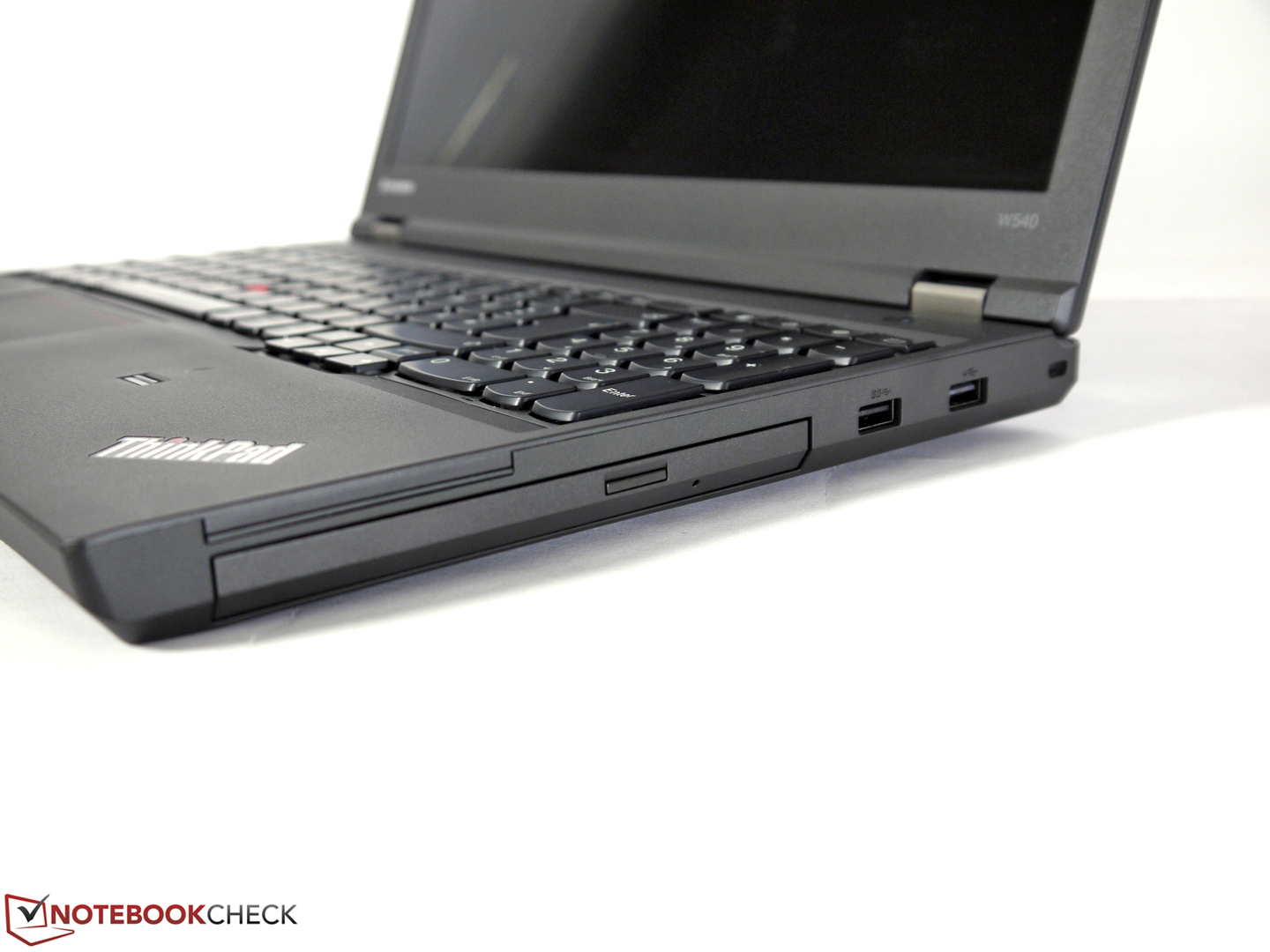

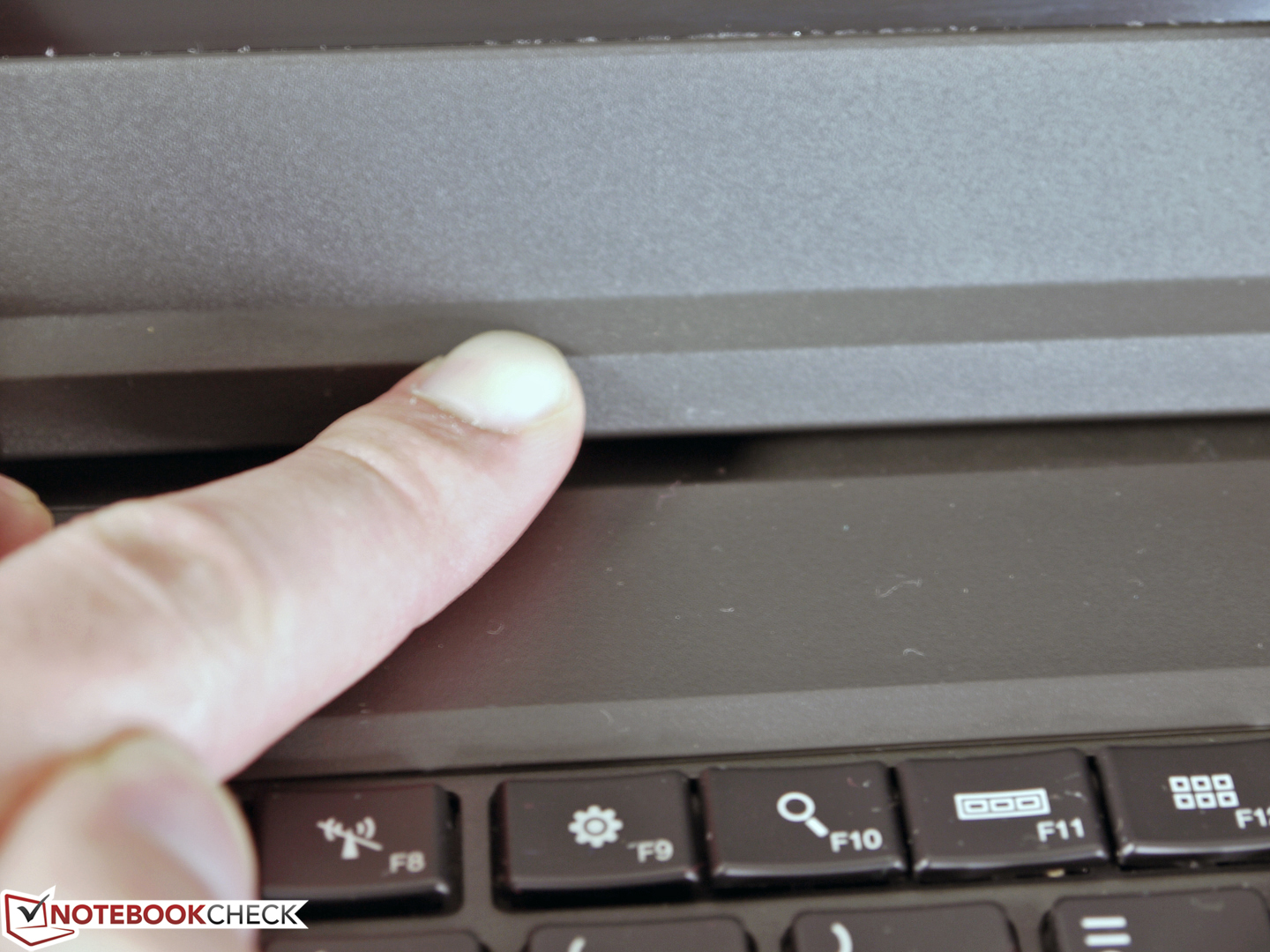

You can slightly dent the case above the optical drive, ...
You can slightly dent the case above the optical drive, ...

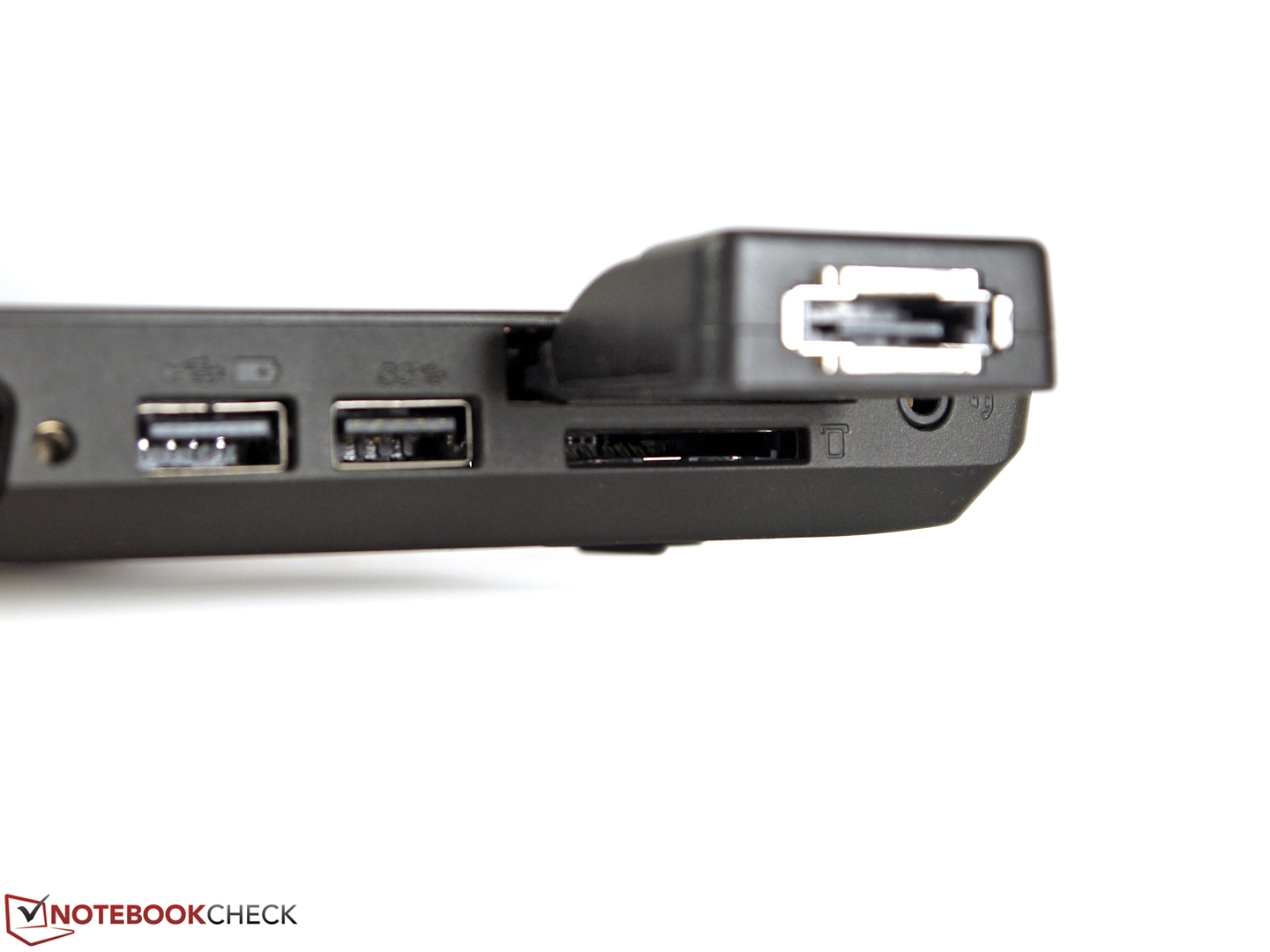

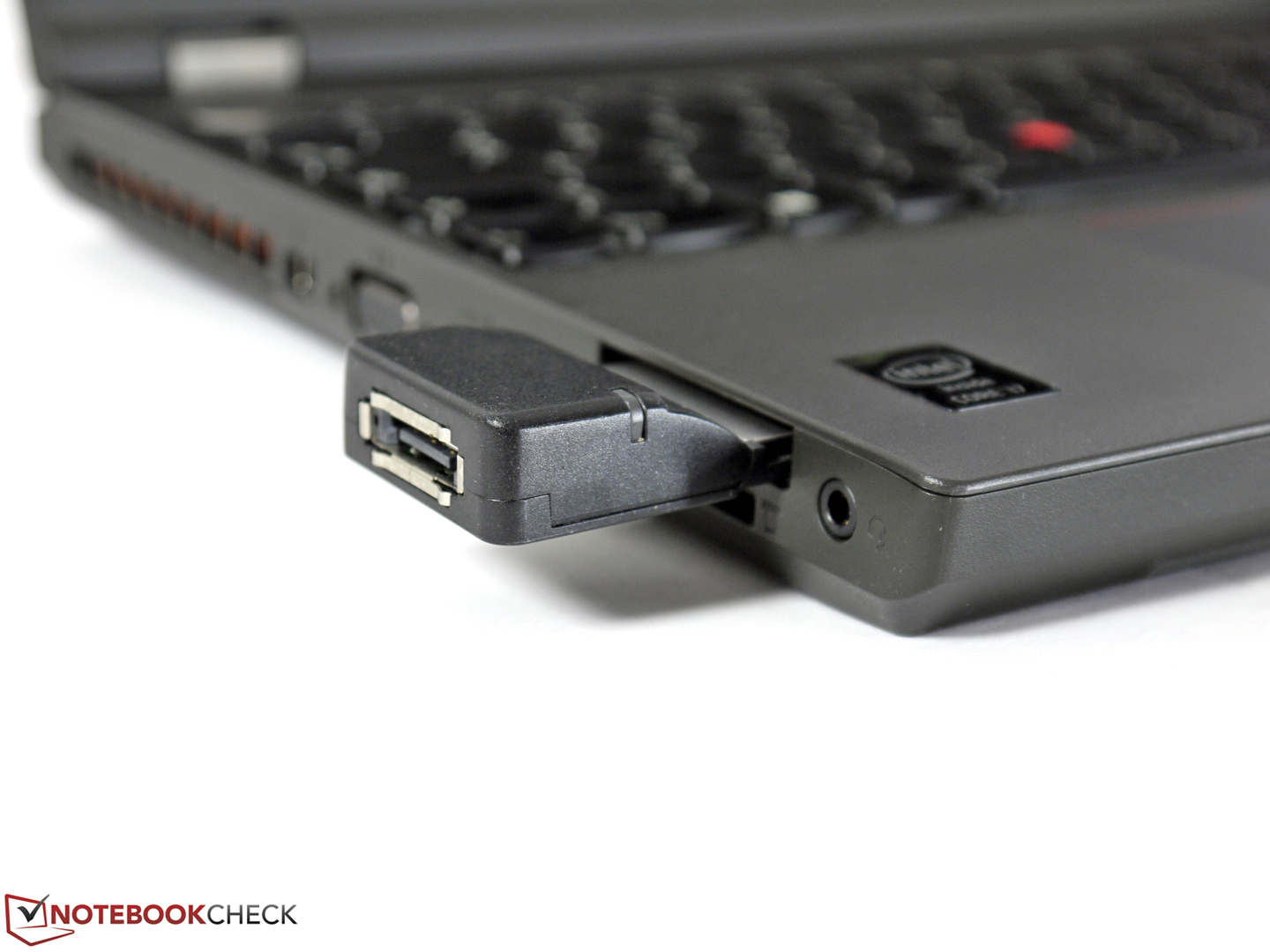

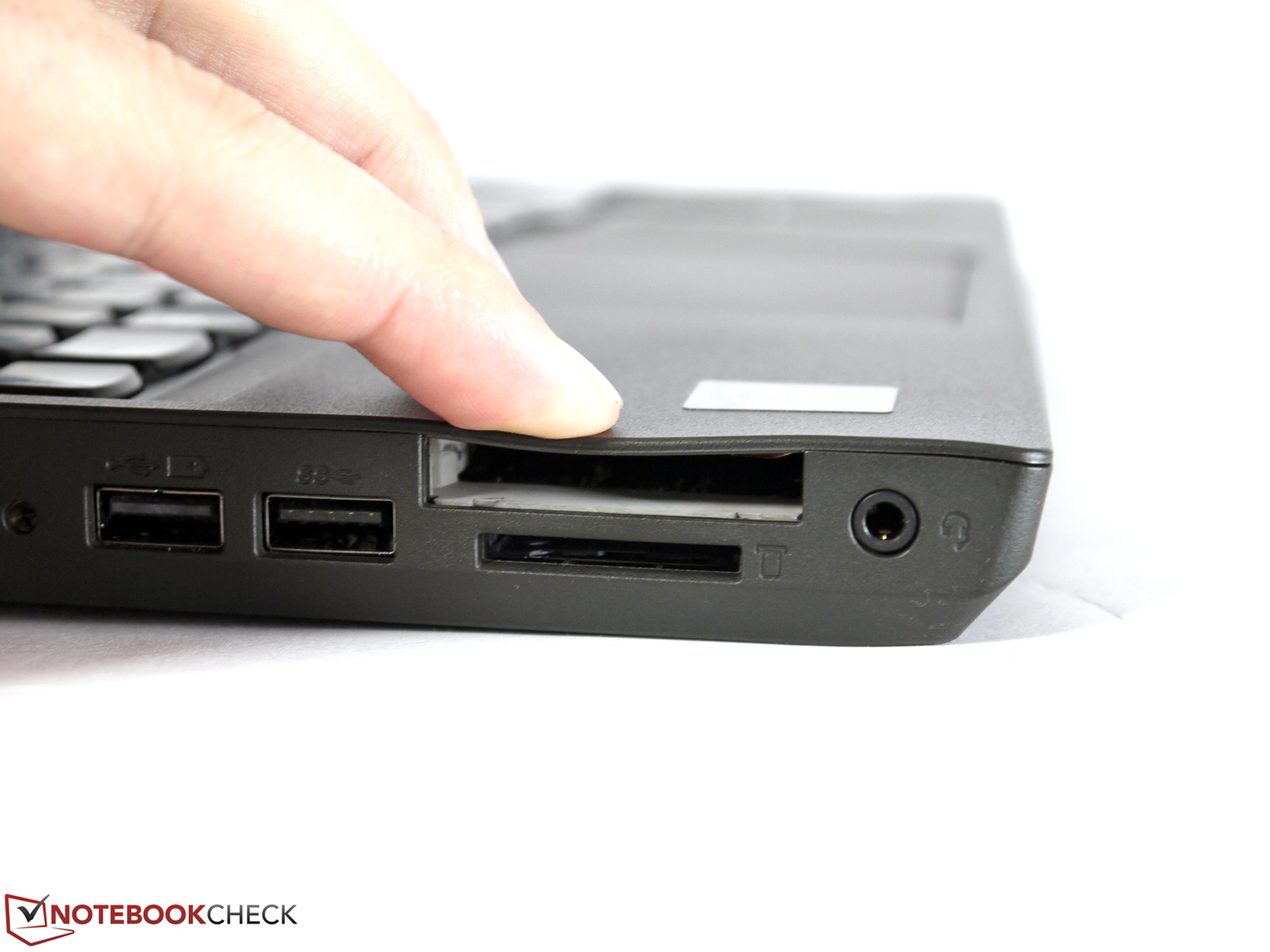

... the ExpressCard slot ...
... the ExpressCard slot ...
... and at the display frame.
... and at the display frame.
There are some uneven gaps and material transitions.
There are some uneven gaps and material transitions.

The completely redesigned case is not only used for the workstation ThinkPad W540, but also for the ThinkPad T540p. A large part of the case is made of a carbon fiber-plastic material, which is complemented by a magnesium frame inside the base unit that improves the stability. Apart from the slightly grayish color scheme, the overall appearance did not really change when you compare it with the predecessor and you still know that it is a ThinkPad. The surfaces now look cleaner in general and benefit from the lower number of parts and therefore fewer transitions between them. The surface is slightly roughened, feels very comfortable and does prevent the typically greasy look of the predecessors.

Overall stability is good, but there are the typical weak spots above the optical drive and the battery tray. You can dent the material, which does result in some quiet creaking sounds from the palm rest. This is the spot where the surface hits the inner frame. The display cover can be twisted with some force, but it does leave a sturdy impression in general and there are no picture distortions. Familiar metal hinges keep the display in position well and only allow a slight bouncing when you move it. Only HP's ZBook 15 is better in this regard since it left an excellent impression in our review.

The build quality is still good, but there are some details that cannot convince us, especially when you consider the price range. The left side panel is not completely flush and protrudes slightly. You can also see that the top and bottom of the base unit do not fit properly in the area of the hinges and subsequently result in a misalignment when closed. The DVD drive is flush at the front of the case, but it is further inside the case at the back. Our review unit also has some issues with the keys on the left side of the keyboard since they are not properly integrated. Depending on the pressure, the keys Shift, Caps-Lock, Tab and F2 are stuck. The touchpad quickly results in frustration because the lower corners do not accept clicks or inputs, respectively. We do not know if this is an isolated or a general problem at this time.

One advantage of the case construction is the low weight for a mobile workstation. Our review unit weighs just 2,480 grams (~5.5 pounds), which beats the Toshiba Tecra W50 by around 200 grams (~0.44 pounds) and the HP ZBook 15 with a DreamColor display even by around 900 grams (~2 pounds). This is a good precondition for use on the road and it does noticeably reduce the weight of your notebook bag.on is the low weight for a mobile workstation. Our review unit just weighs 2,480 grams, which beats the Toshiba Tecra W50 by around 200 grams and the HP ZBook 15 with a DreamColor display even by around 900 grams. This is a good precondition for the use on the road and it does noticeably reduce the weight of your notebook bag.

Connectivity

Port performance
Port performance

The port equipment is on a decent level, but it is limited to the most essential ports. Users of the ThinkPad W540 can neither use FireWire, eSATA, a modem port, a serial port nor a big ExpressCard/54, but you can at least use an ExpressCard/34 slot for expansions and some older ports as well as a docking port. Otherwise, there is an analog VGA port, a modern Thunderbolt port (for data, displays and multiple devices in a chain), 2x USB 2.0, 2x USB 3.0 and a card reader.

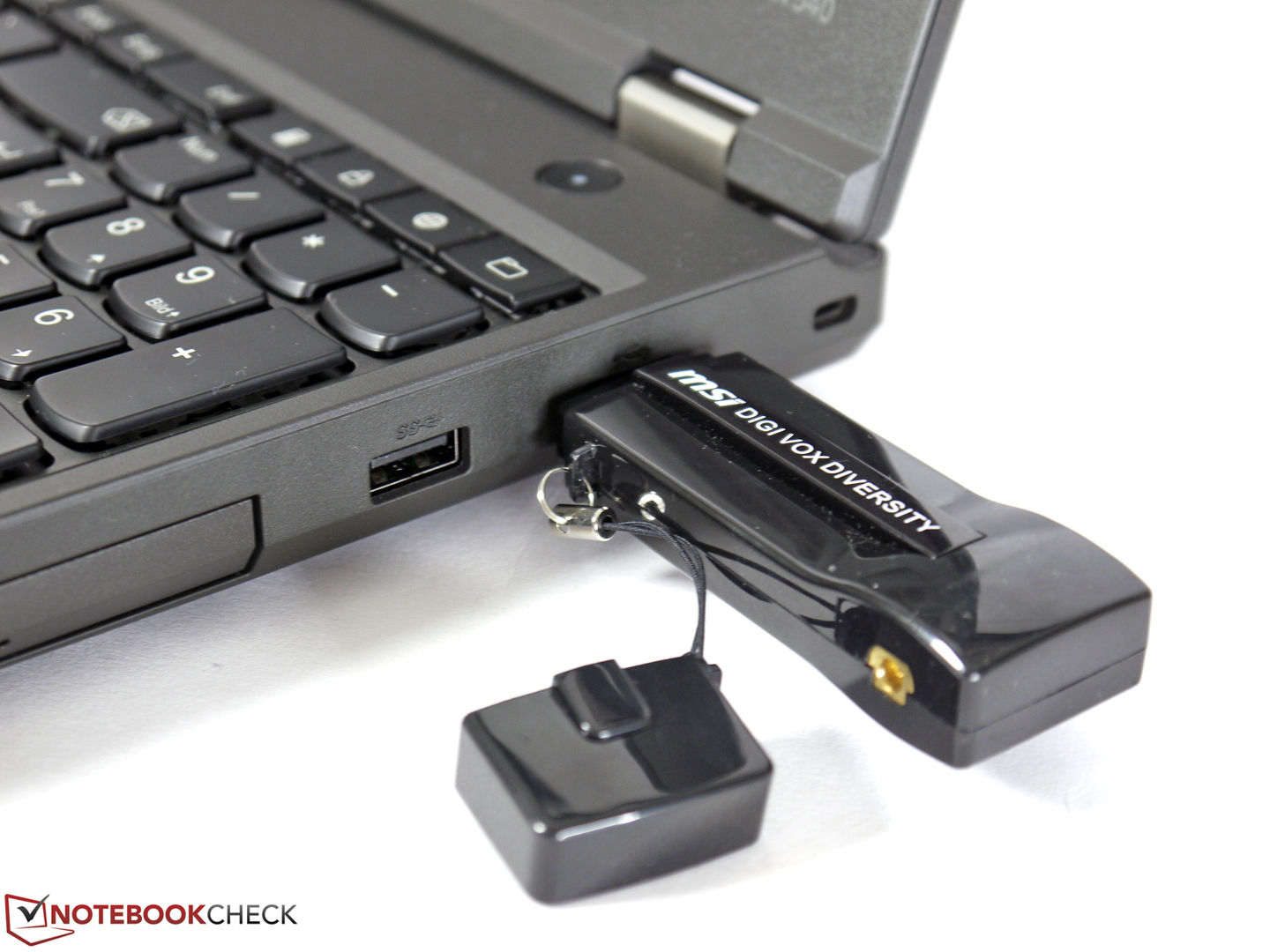

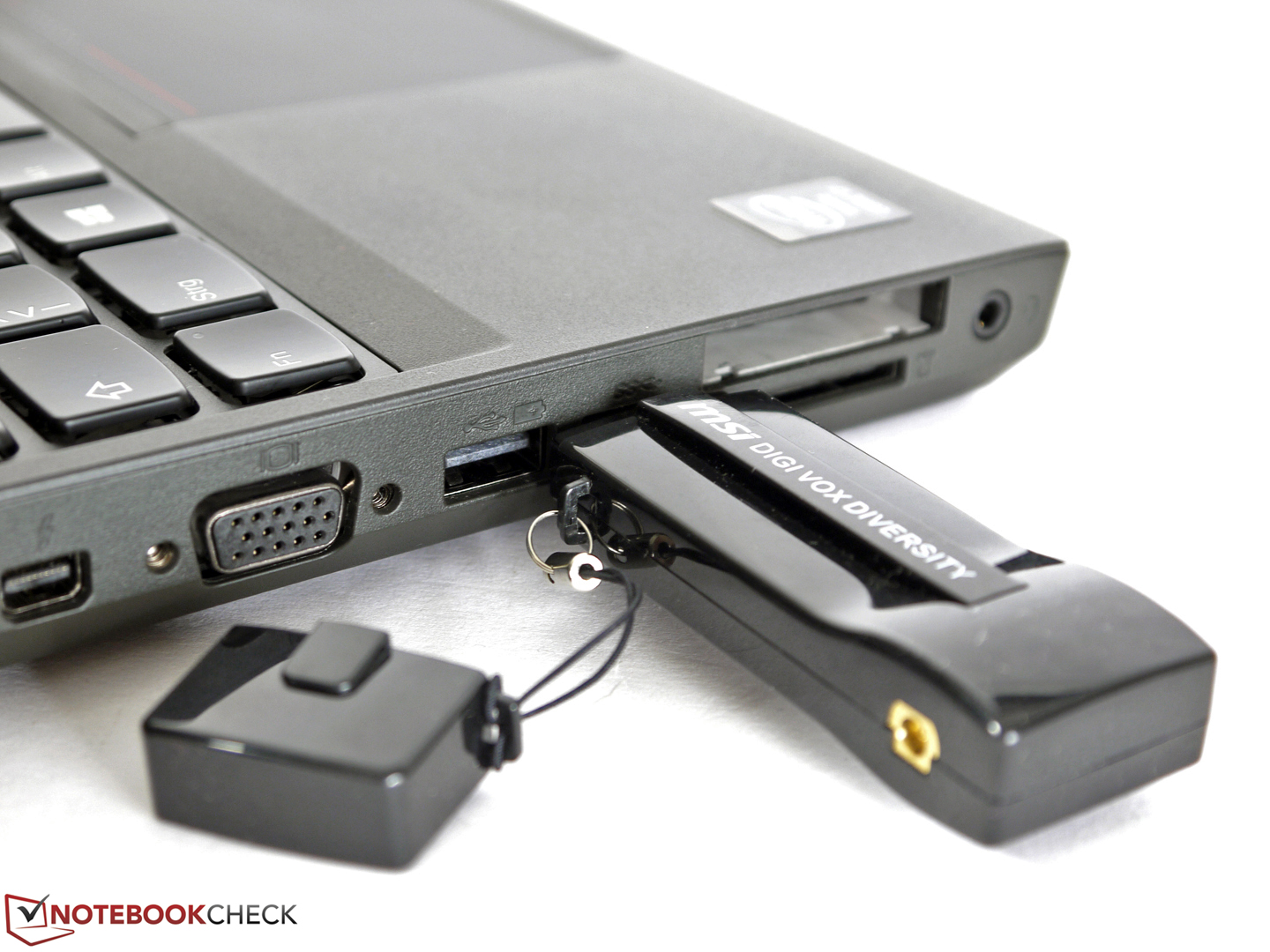

The ports on the left side of the case are somewhat crowded and will eventually block each other and affect the usability when you attach cables or devices. The two USB ports on the right side however have enough room. We also like that the power connector and the Gigabit Ethernet port are located at the back. This hides these cables pretty well during stationary operation. The transfer rates of the ports are very good and up to date. You can see the results in the attached chart.

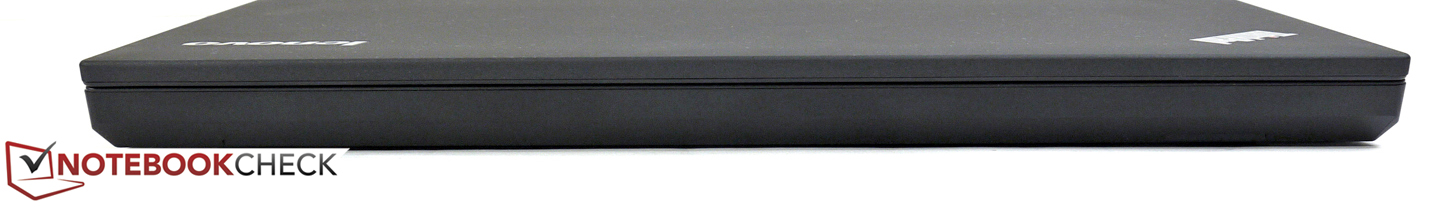

Front: No ports
Front: No ports

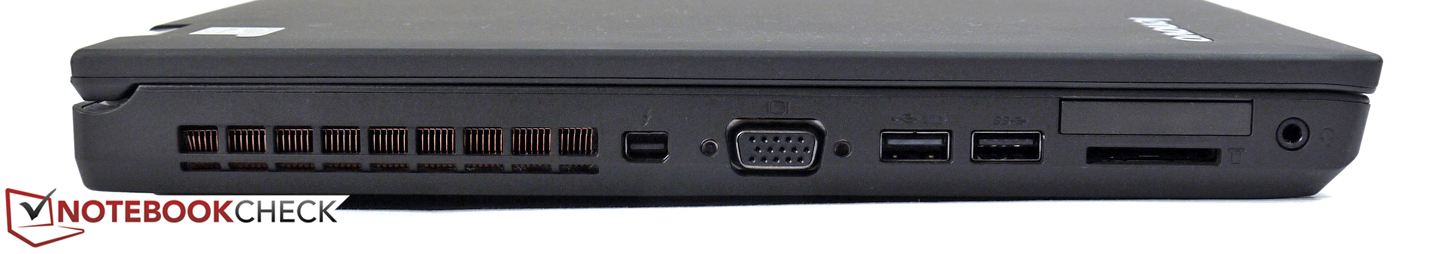

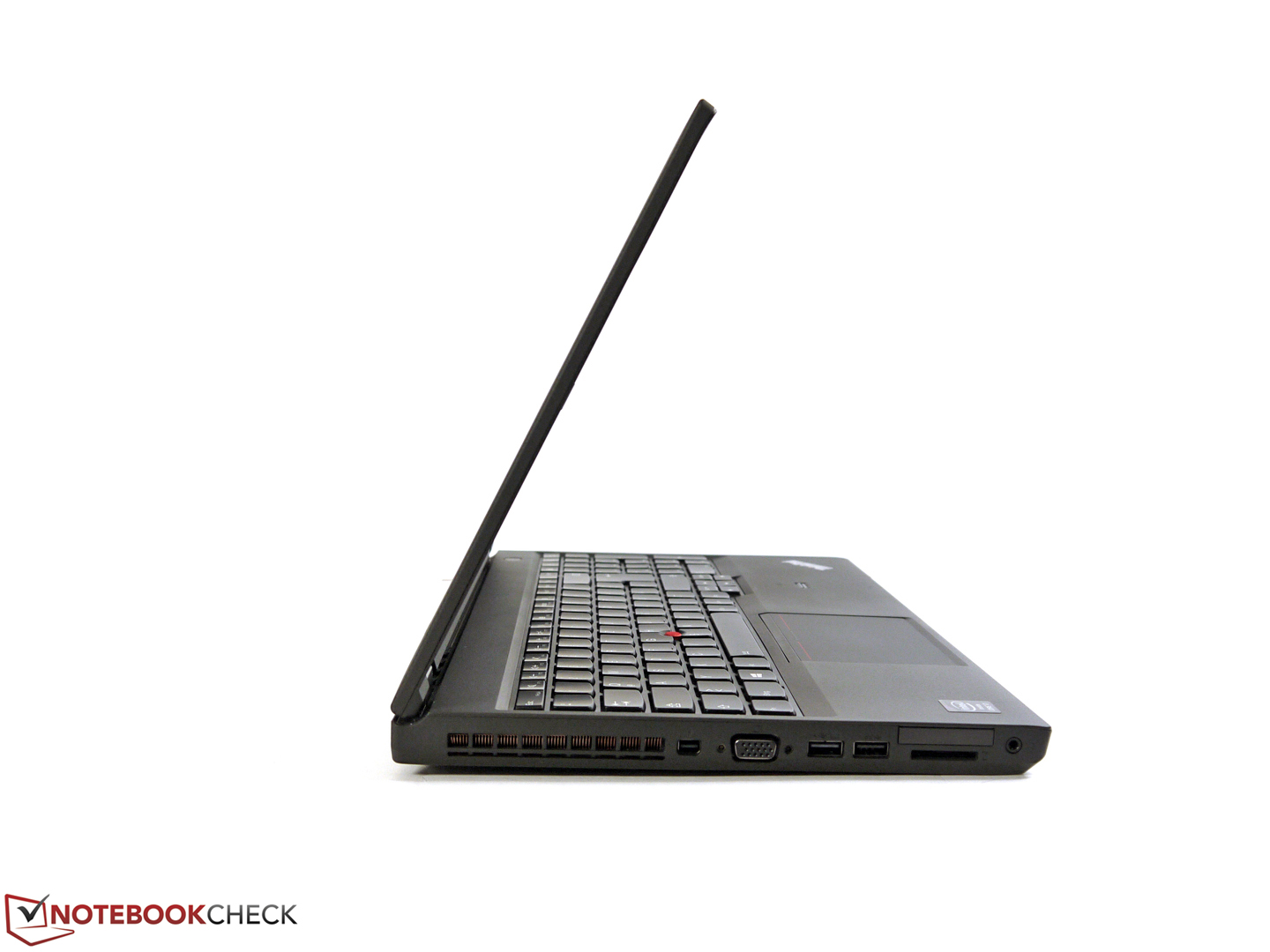

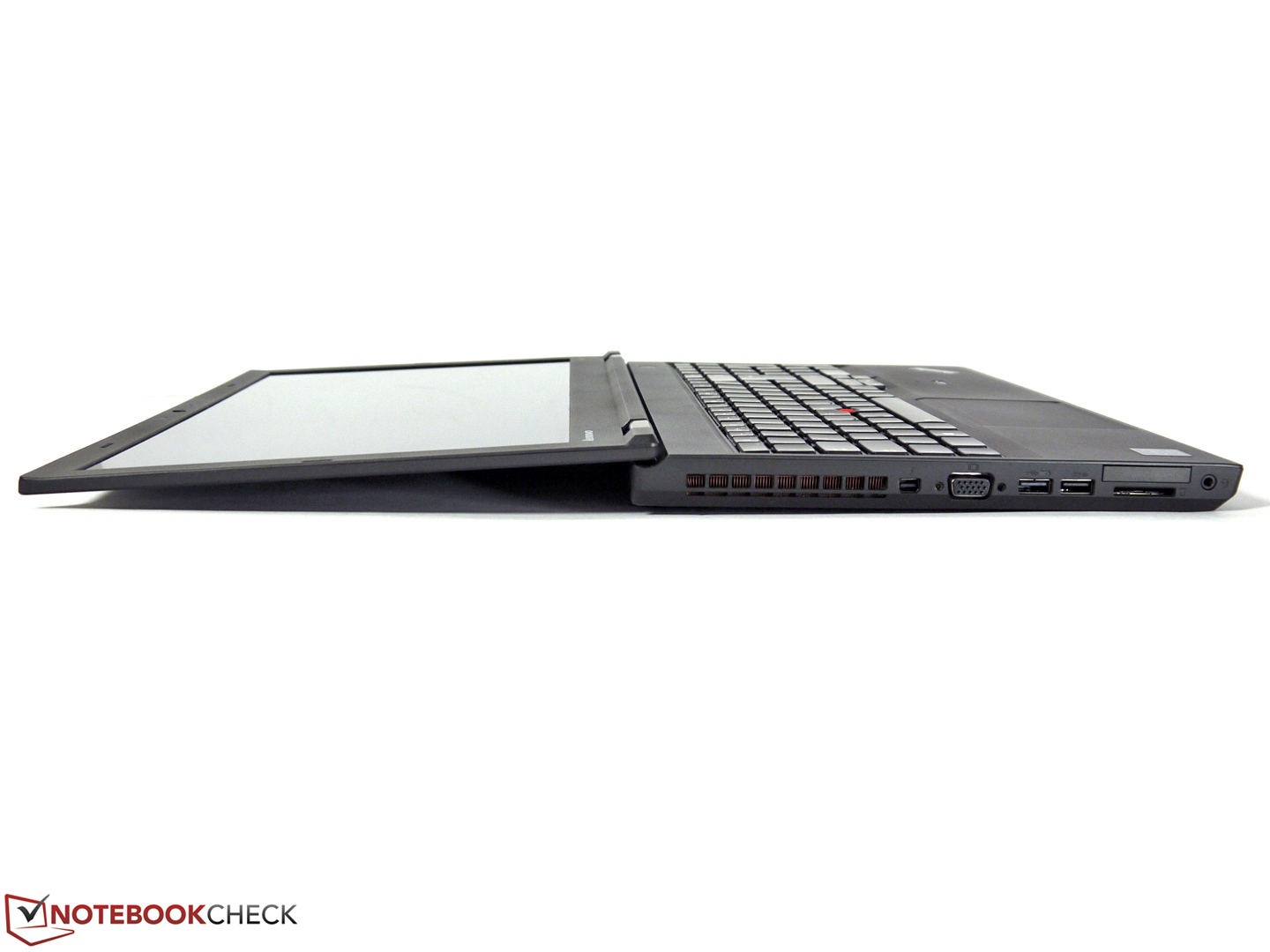

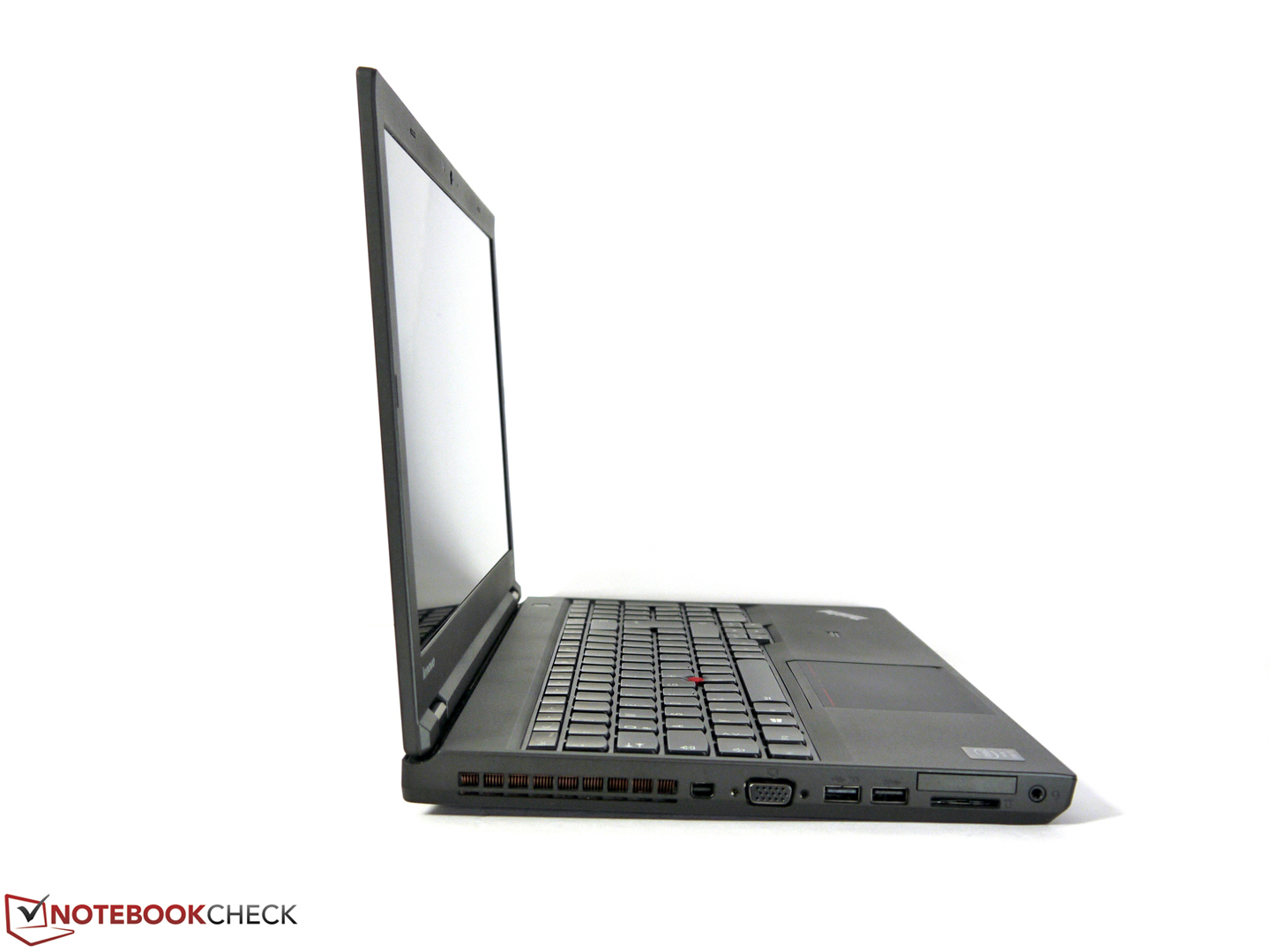

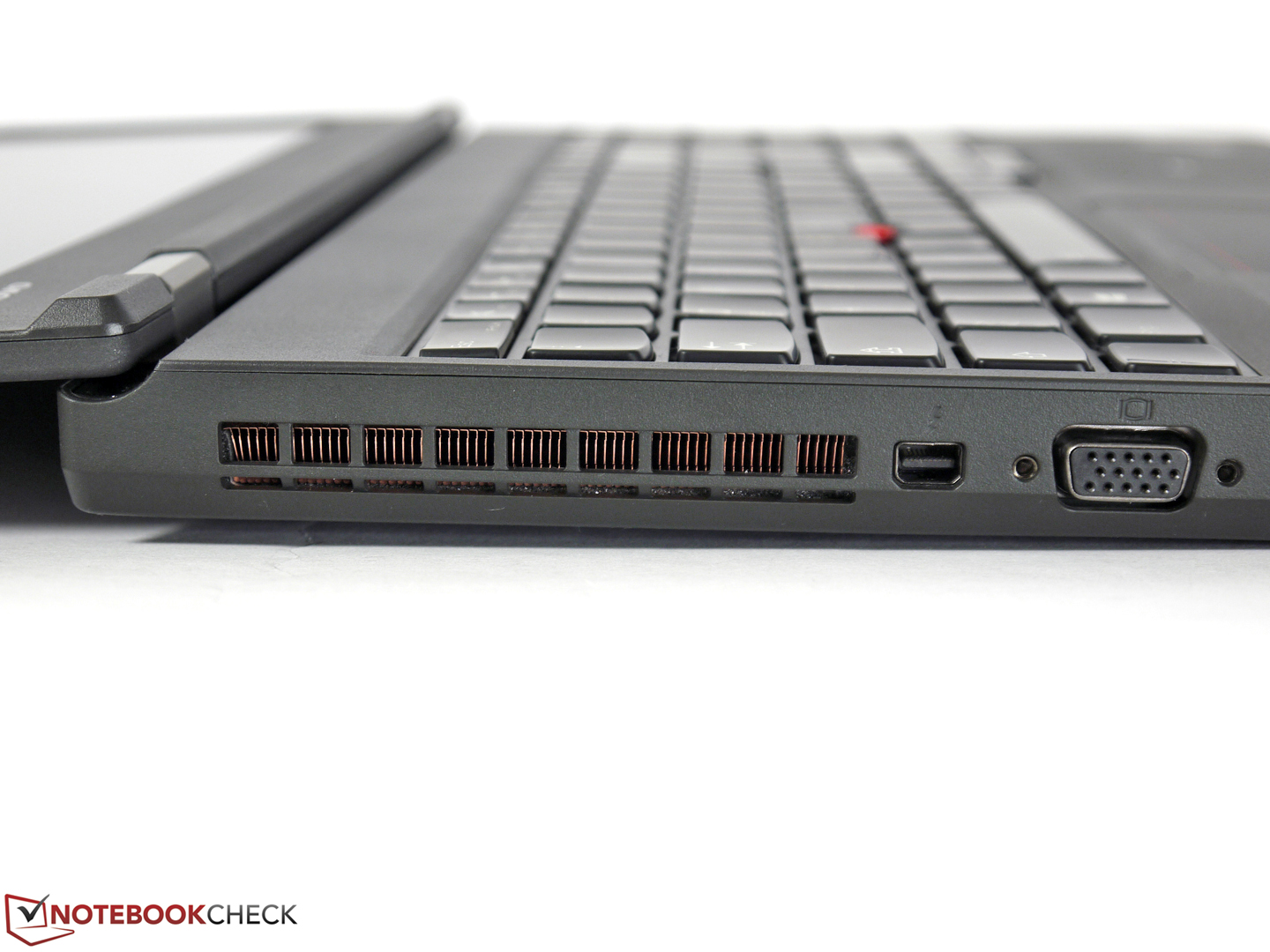

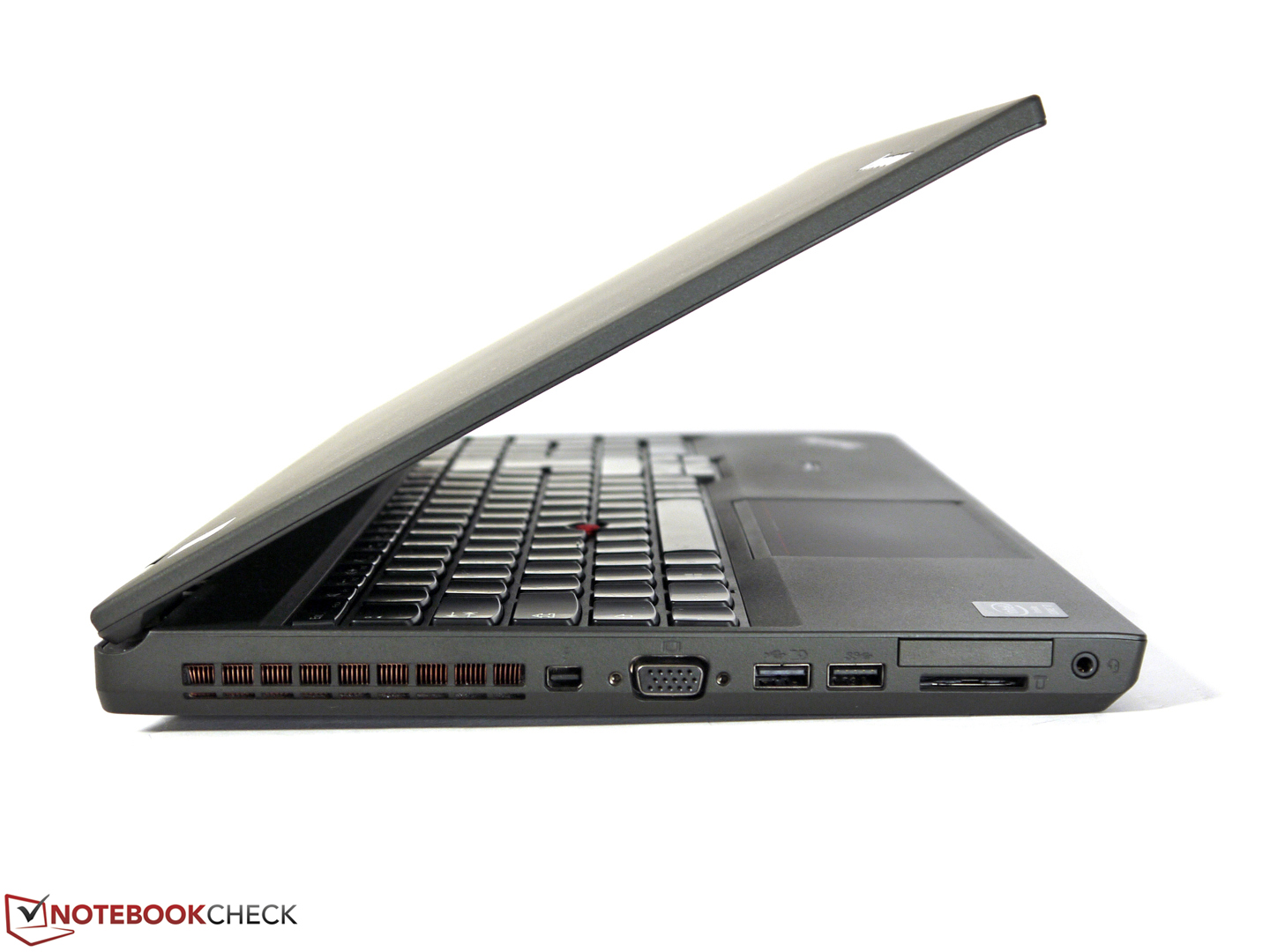

Left side: Thunderbolt, VGA, USB 2.0, USB 3.0, card reader, ExpressCard/34, combined stereo jack
Left side: Thunderbolt, VGA, USB 2.0, USB 3.0, card reader, ExpressCard/34, combined stereo jack

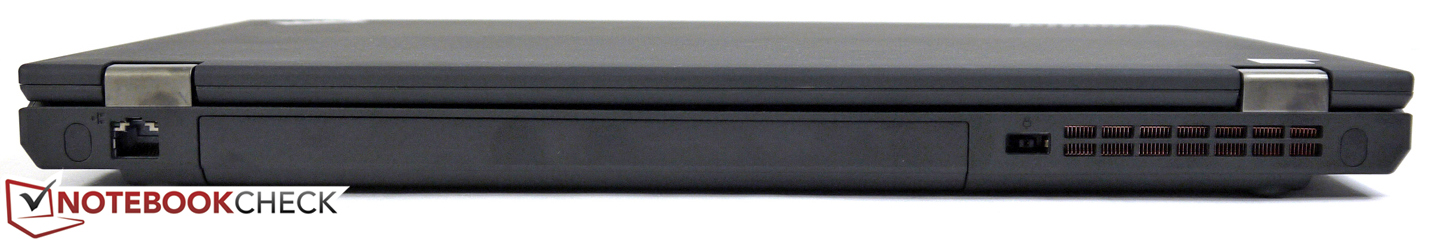

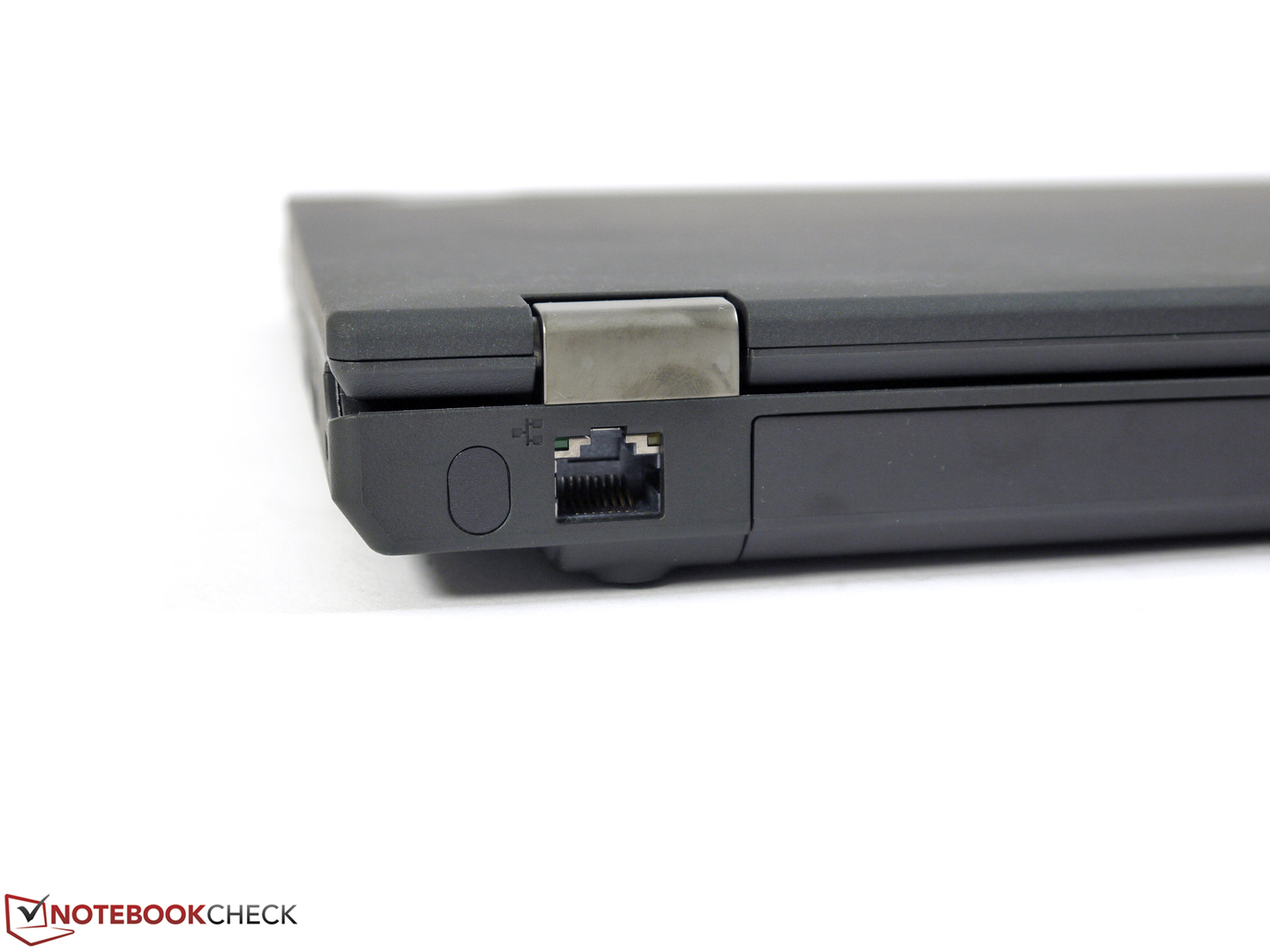

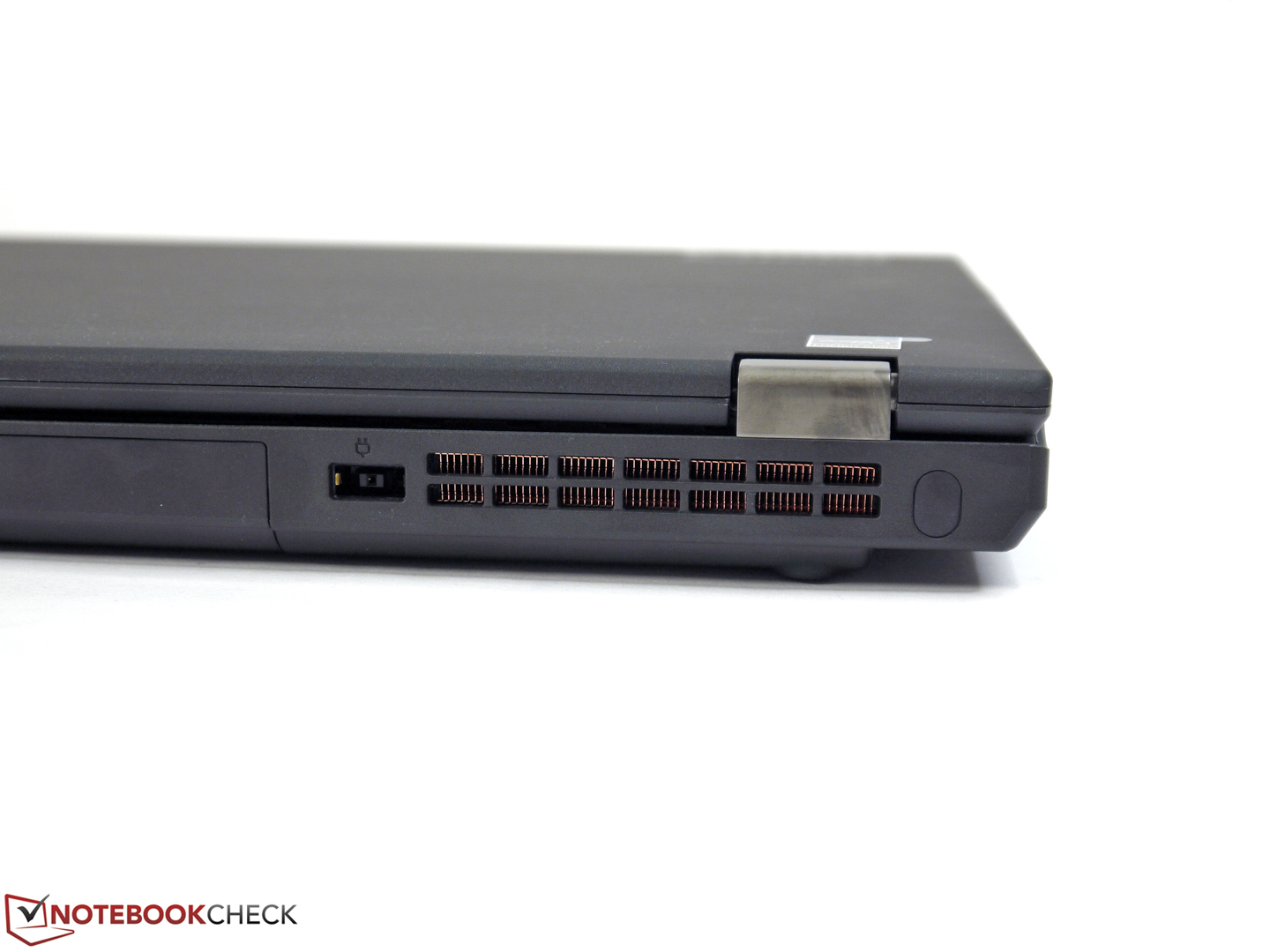

Back: LAN, AC power
Back: LAN, AC power

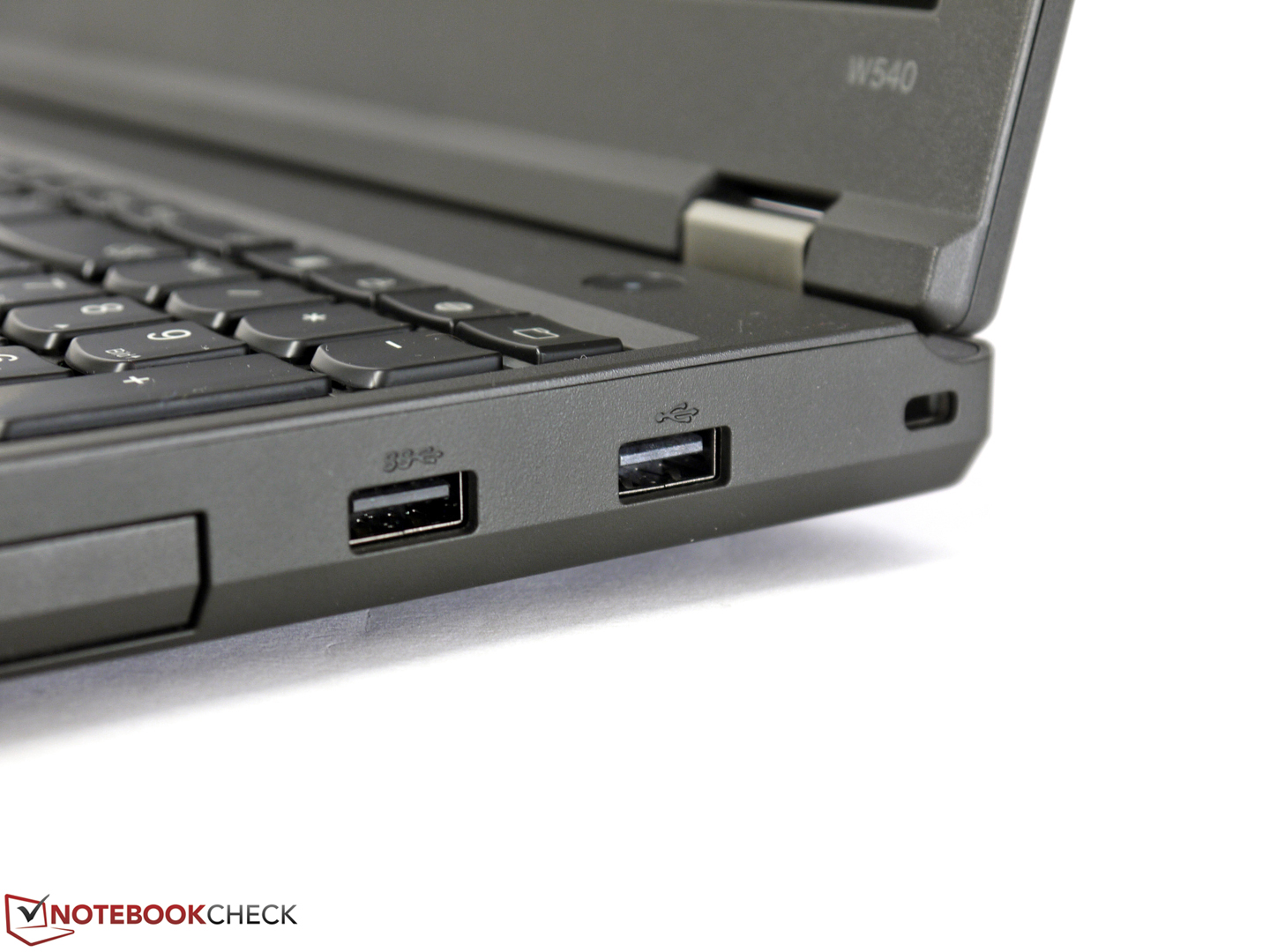

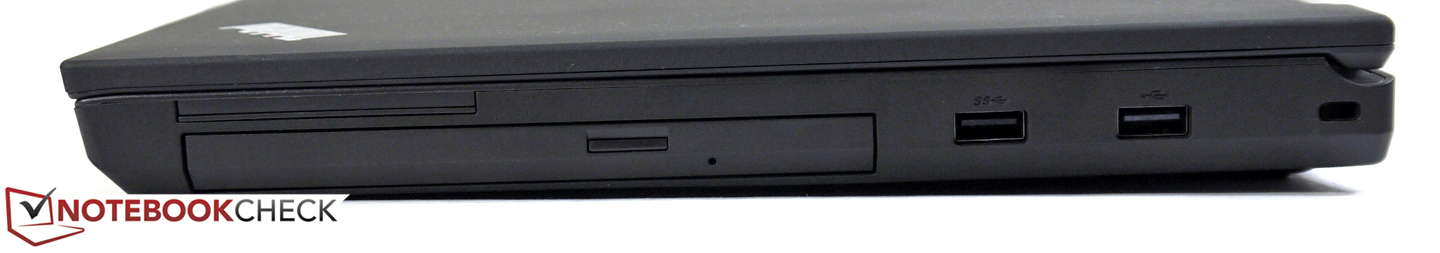

Right side: Optical drive, USB 3.0, USB 2.0, Kensington Lock
Right side: Optical drive, USB 3.0, USB 2.0, Kensington Lock

Communication

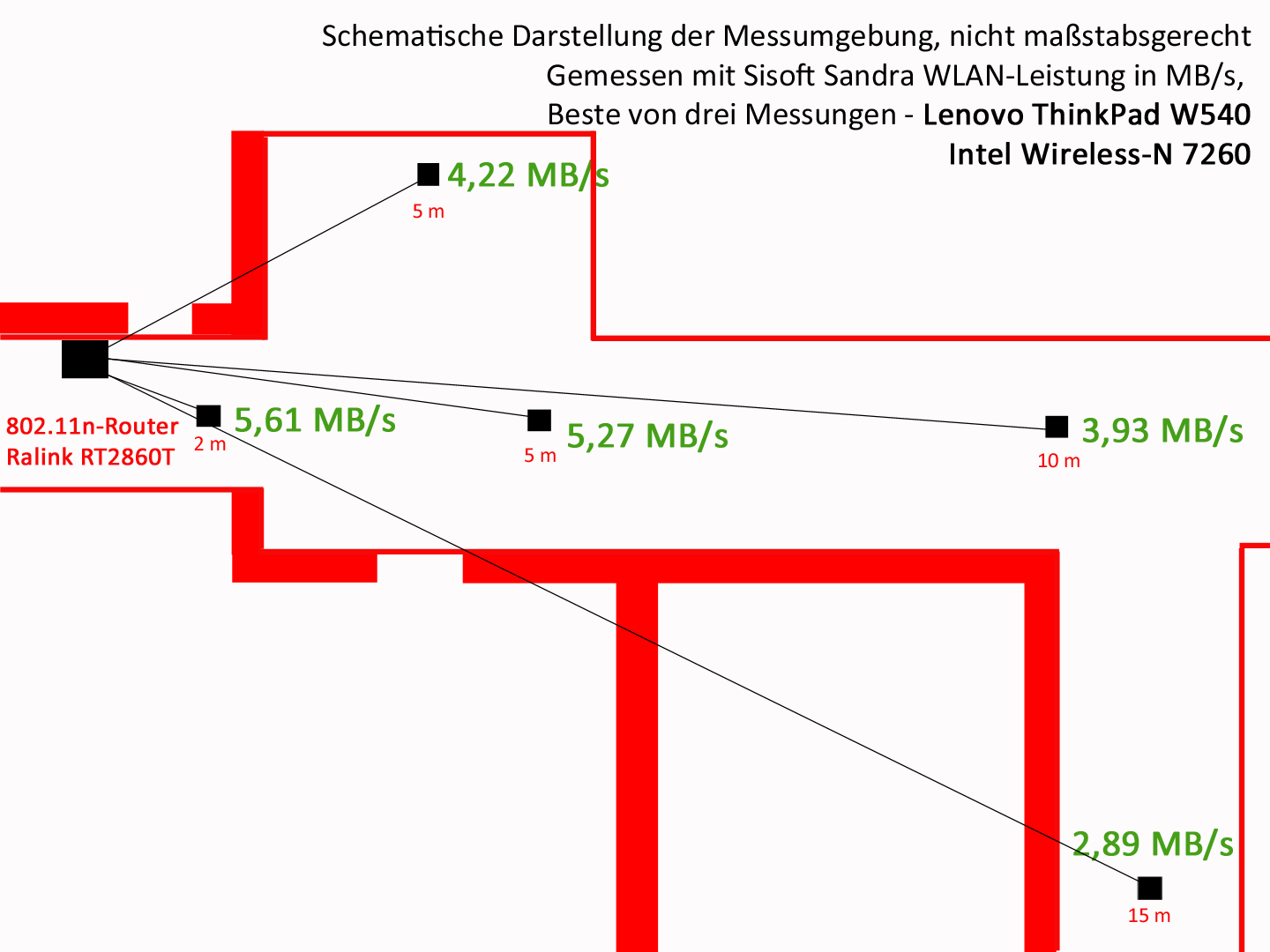

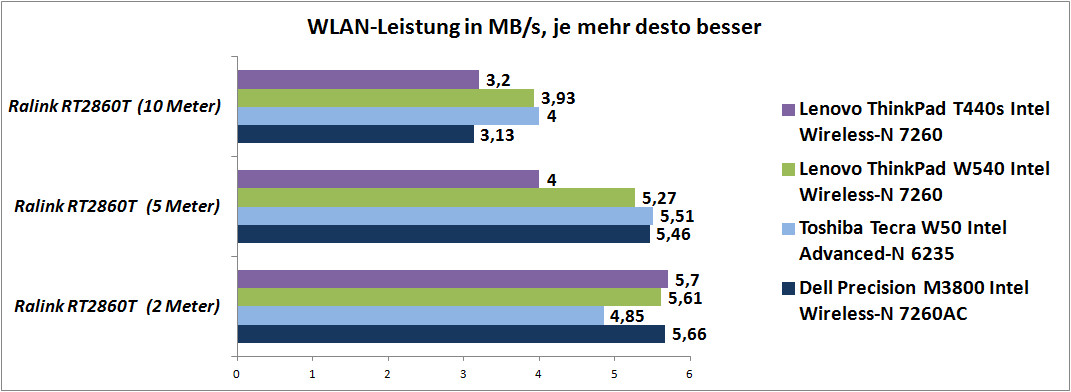

Chart WLAN performance
Chart WLAN performance
WLAN performance in comparison
WLAN performance in comparison

Our review unit is equipped with Intel's Wireless-N 7260 WLAN module. It supports 2.4 and 5 GHz networks, has two antennas and a theoretical maximum transfer rate of up to 144 Mbps. We measured transfer rates between 2.9 and 5.6 MB/s in our individual review environment, which is obviously just an indicator. There were no connection losses or other problems during our review. The communication features are completed by Bluetooth 4.0, Gigabit Ethernet as well as a 720p webcam. The camera is sufficient for well-lit rooms, but it creates picture noise and loses quality in darker environments.

Lenovo offers other WLAN and WWAN modules. The notebook is WWAN-ready (necessary antennas already integrated); you just have to integrate a WWAN card (M.2).

Security

Besides the usual passwords for the BIOS and operating system, our reviewed ThinkPad W540 also has a fingerprint reader, a Trusted Platform Module and Intel's Anti-Theft. Computrace is available as an option as well. The slot for the SmartCard reader is empty in our case, but you can order it when you customize the device in the online shop. Further information is available in our FAQ article about security solutions for notebooks.

Accessories

We already mentioned that you cannot use many of the accessories from the predecessors. Bay adaptors, docking stations and power supply units have been redesigned. The ThinkPad Pro Dock with a 65-Watt power adaptor (40A10065EU) retails for around 150 Euros (~$208) and offers, amongst others, a DisplayPort, DVI-D and VGA.

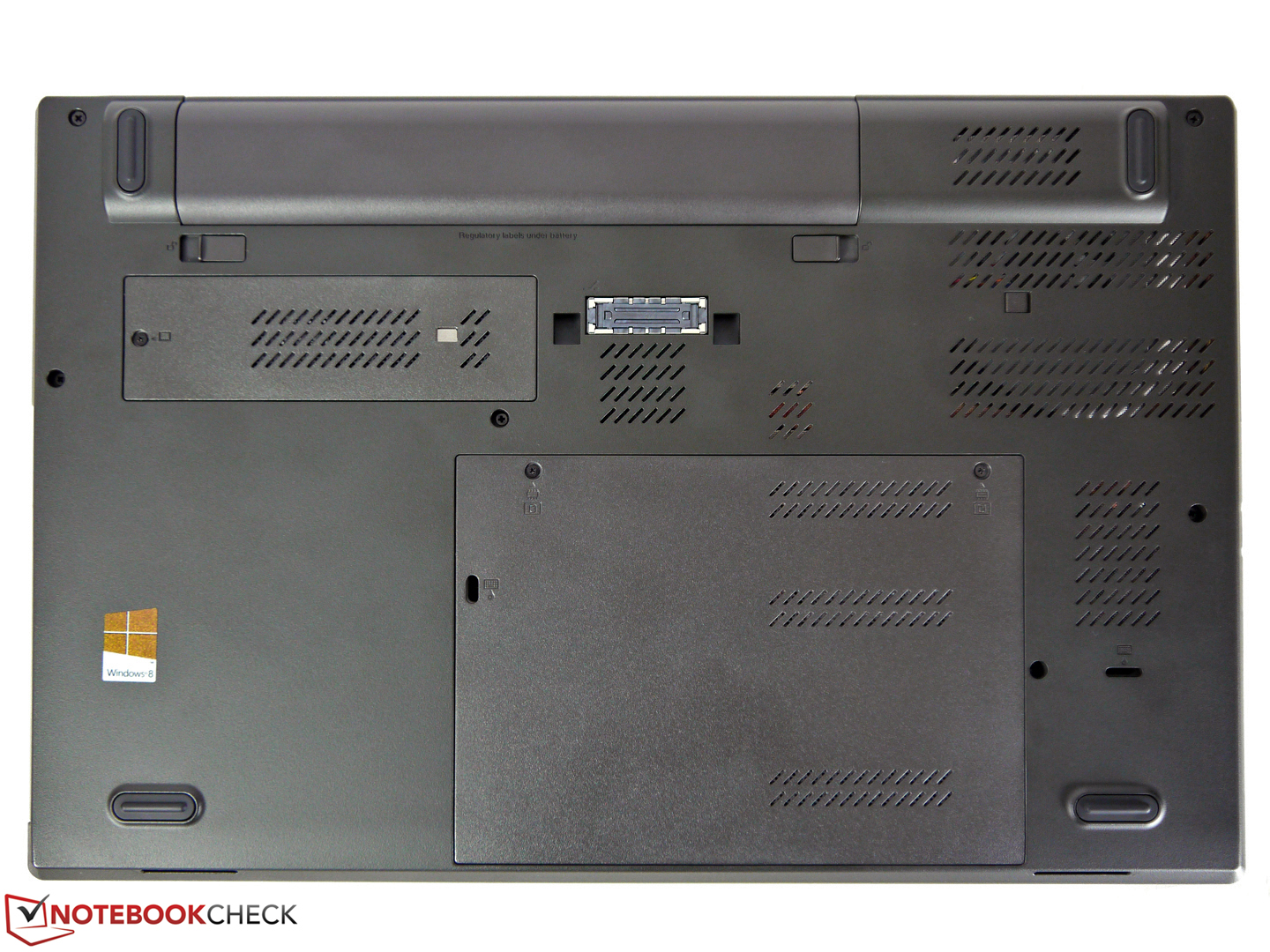

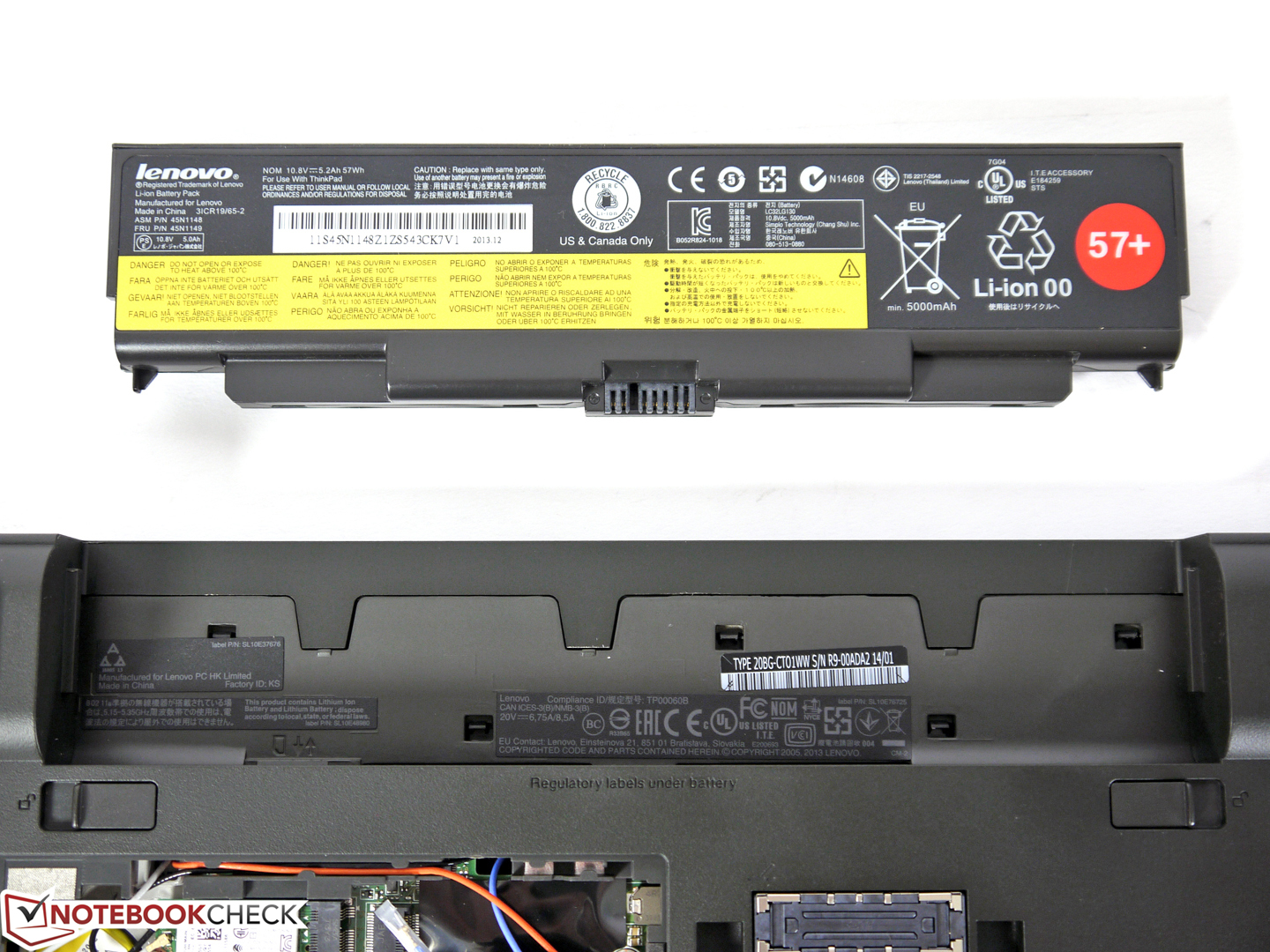

Maintenance

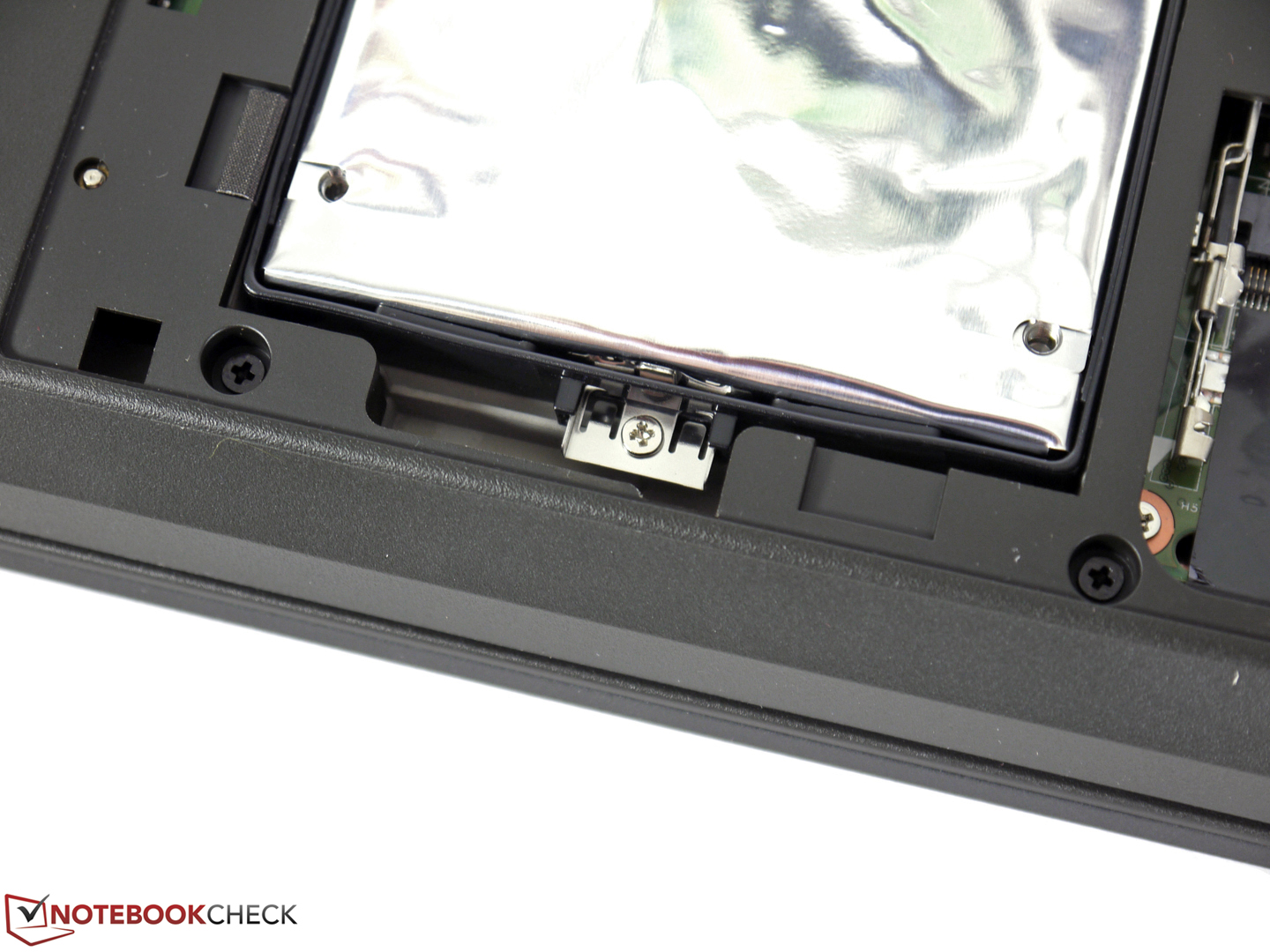

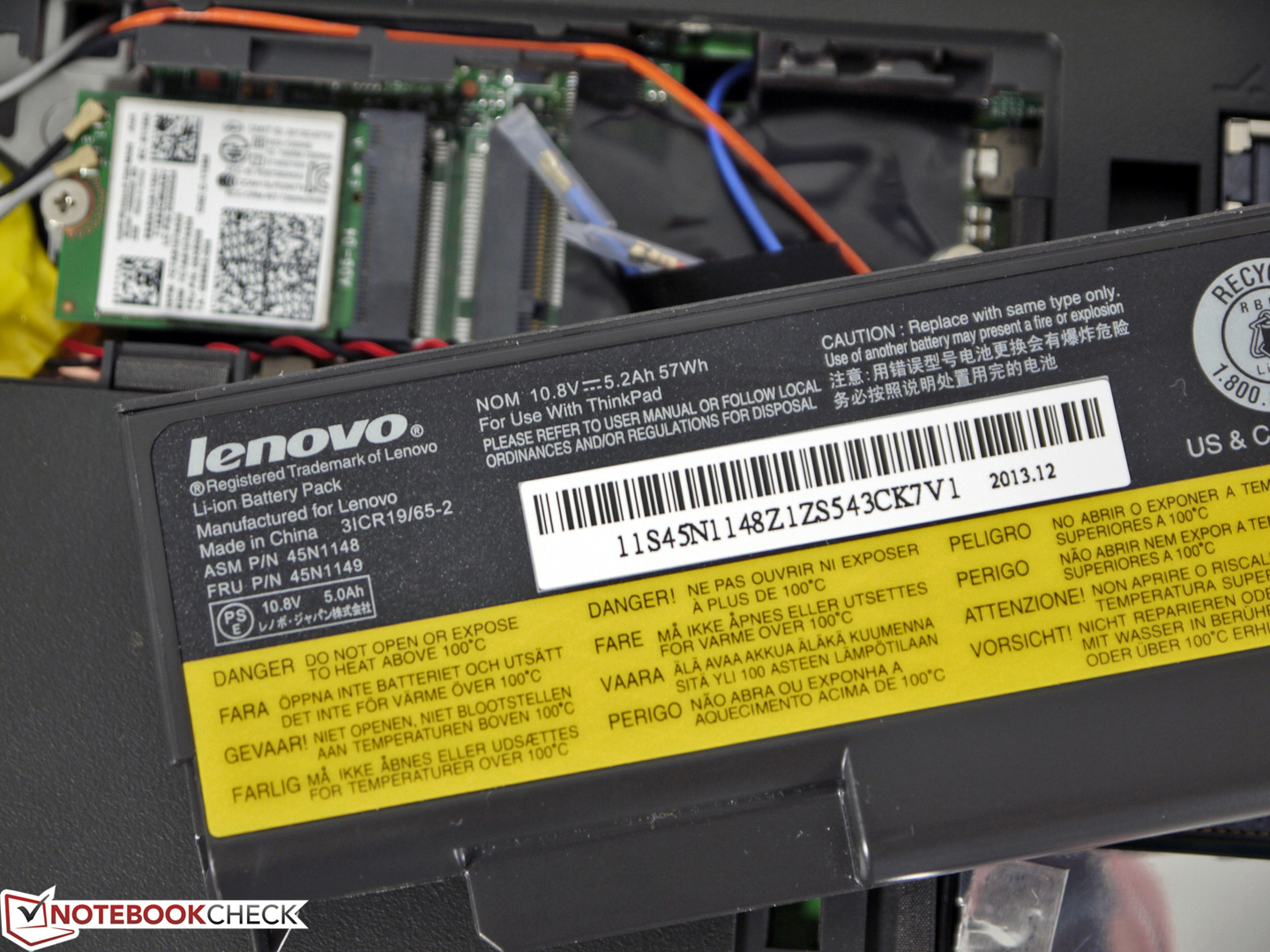

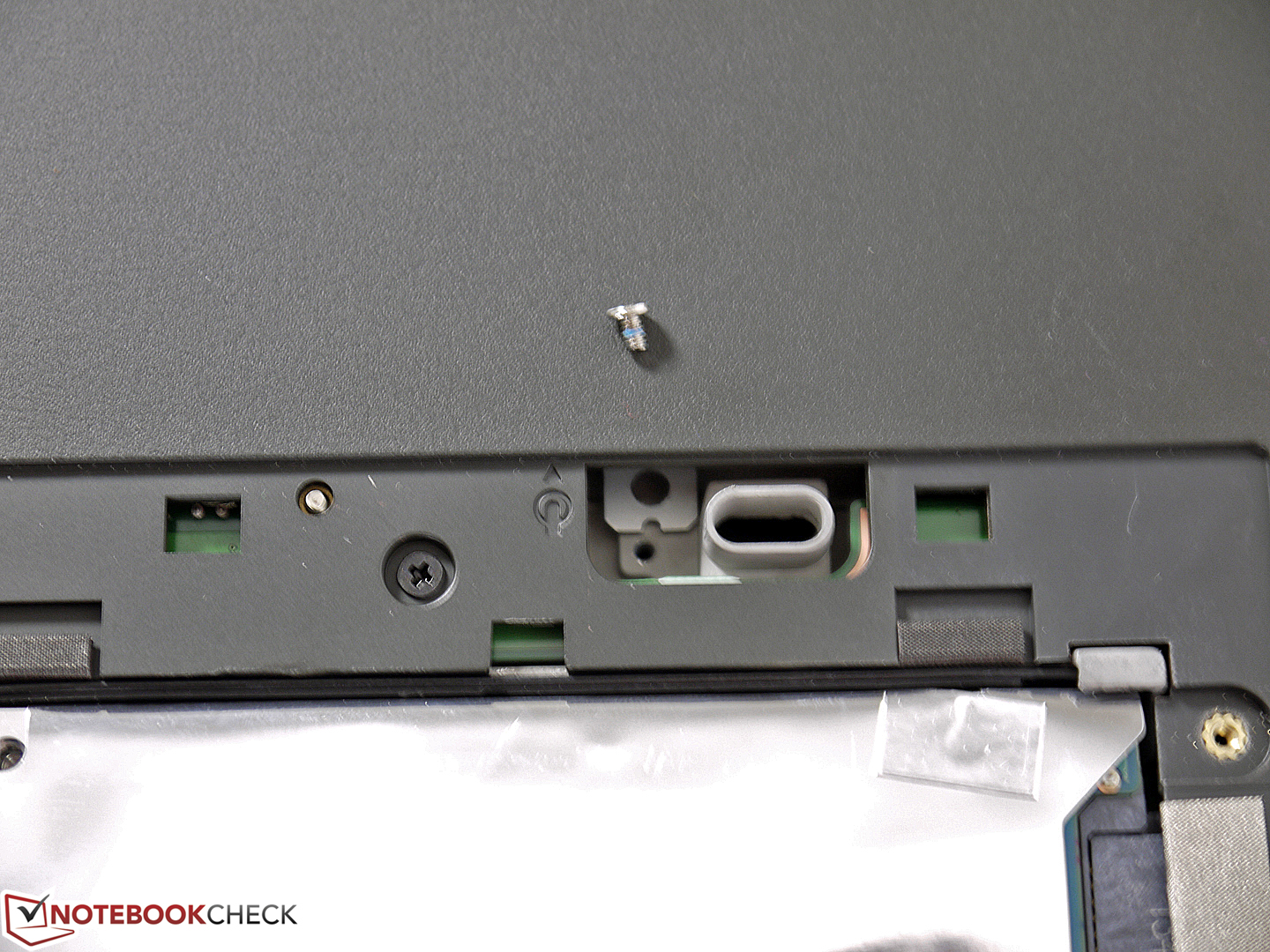

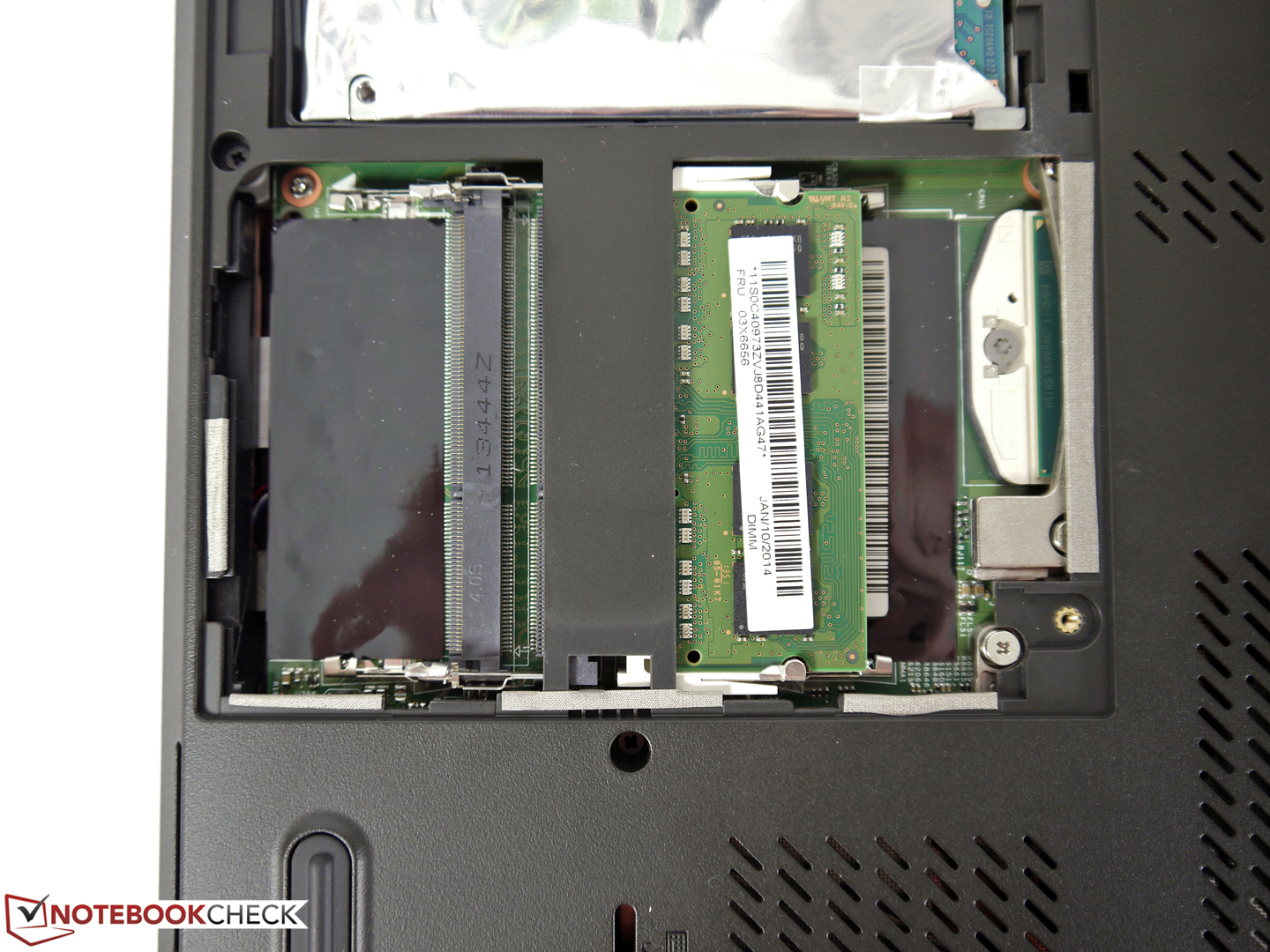

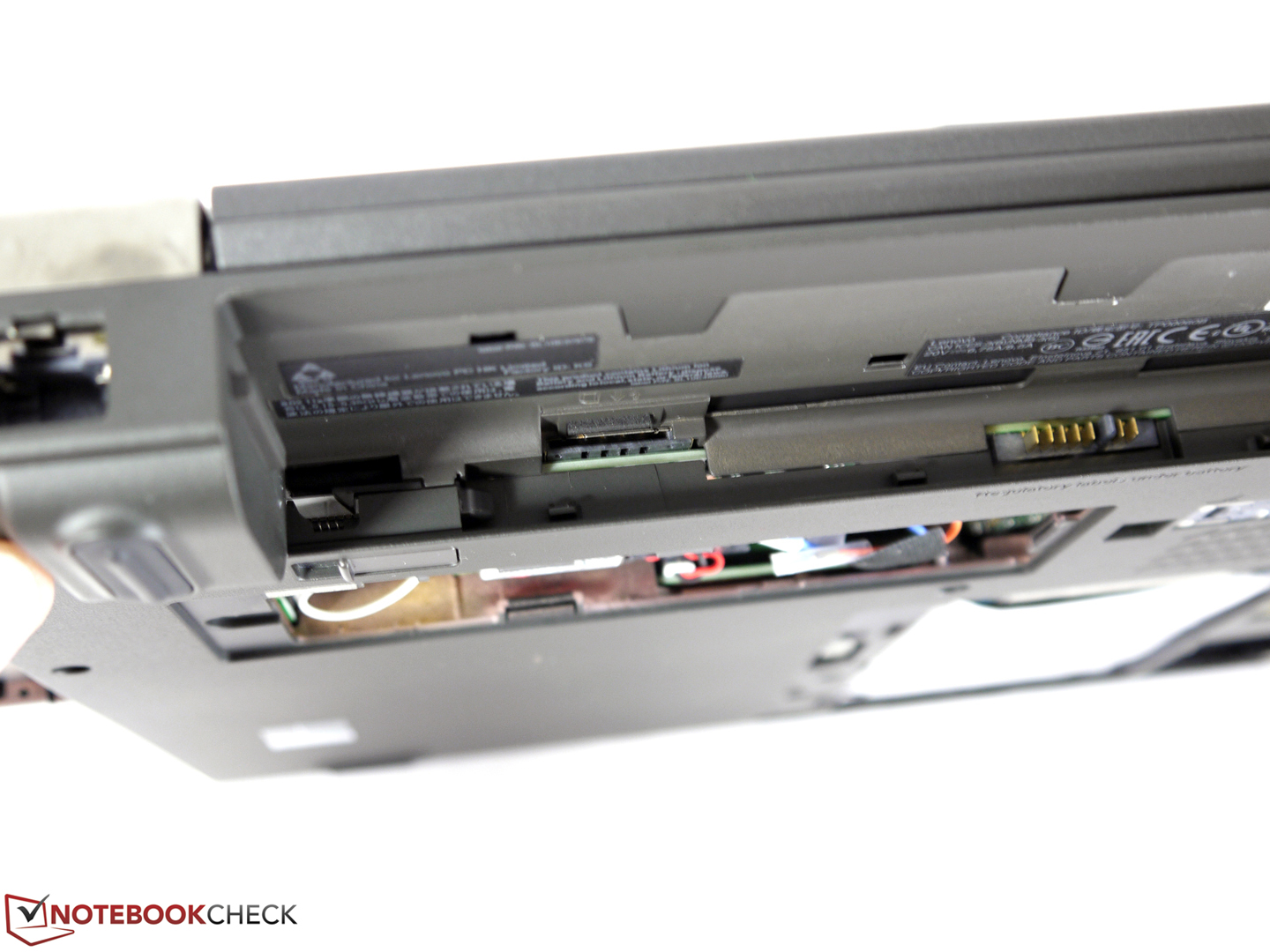

Lenovo noticeably changed the maintainability of the mobile workstation in some areas. You can now access all four memory slots (dual-core CPUs with 2 slots) via a maintenance cover on the bottom, which means you do not have to remove the keyboard anymore if you want to upgrade the RAM. Lenovo also changed the hard drive cage; the rubber frame at the sides has been waived and replaced by a thin frame. You cannot mount a drive without this frame, not in the standard hard drive bay, nor in the Ultra Bay Adaptor IV, which was also redesigned. It seems that Lenovo only wants to sell its own drives since they are already equipped with this frame. According to Lenovo's support, you cannot buy this part separately.

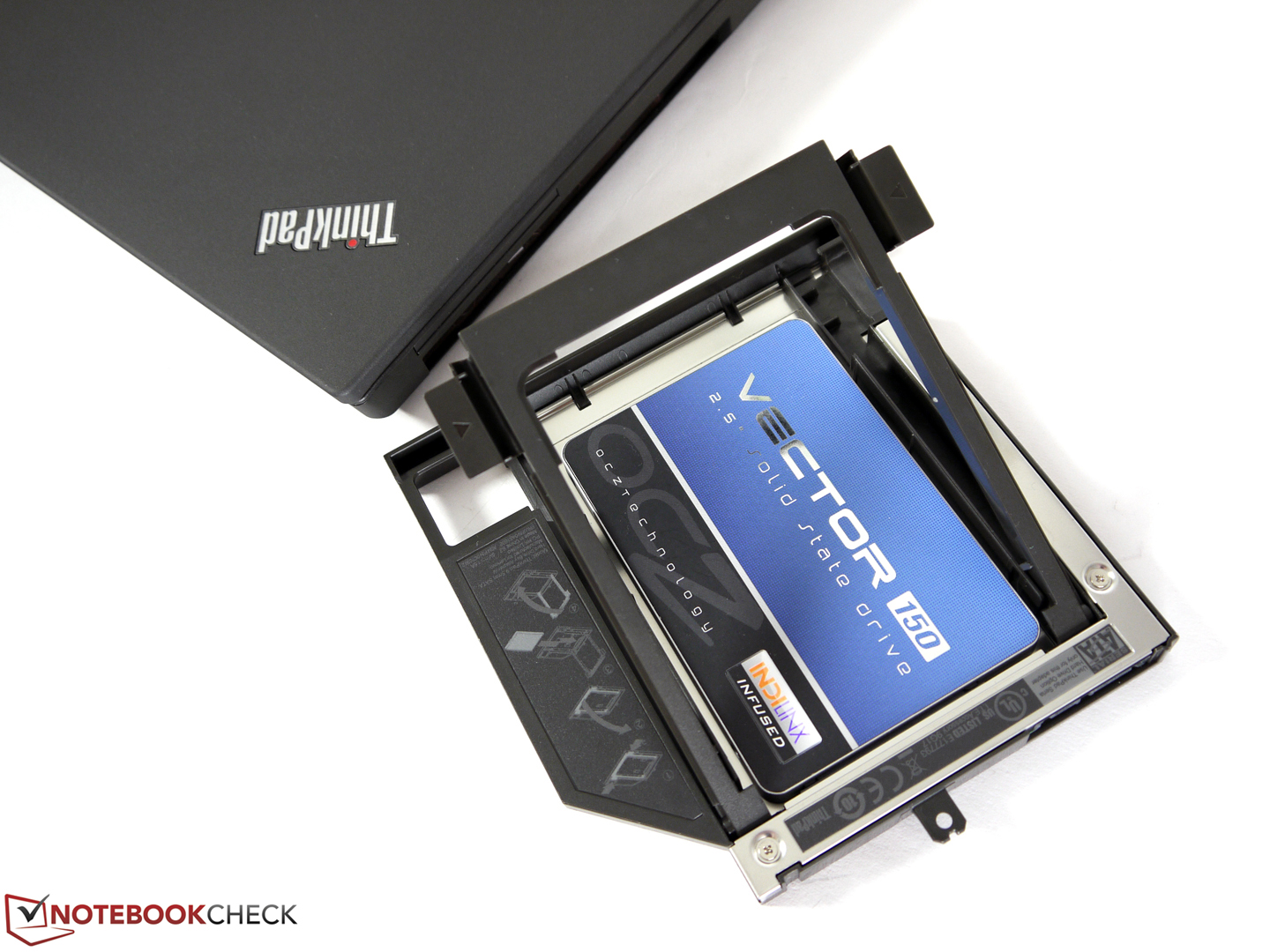

Similar to the other current models, docking stations, bay adaptors and power supply units of the predecessors are not compatible anymore. You have to open the large maintenance cover and loosen a big screw before you can remove the optical drive. Access to the fan requires dismantling of the whole bottom cover.

Our review unit has two M.2 SATAe ports. Lenovo offers SSD caches, WLAN and WWAN modules for this port. You can only integrate modules with a length of up to 42 mm, but currently available M.2 SSDs have a length of 80 mm, so you cannot use them. The BIOS can be accessed by pushing F1 during the start-up. As usual, Lenovo's Hardware Maintenance Manual is a big help if you want to replace components.

Warranty

Lenovo grants a standard warranty period of 36 months for its W-series notebooks. An upgrade to four years with on-site service, for example, costs 80 Euros (~$111).

Input Devices

Keyboard

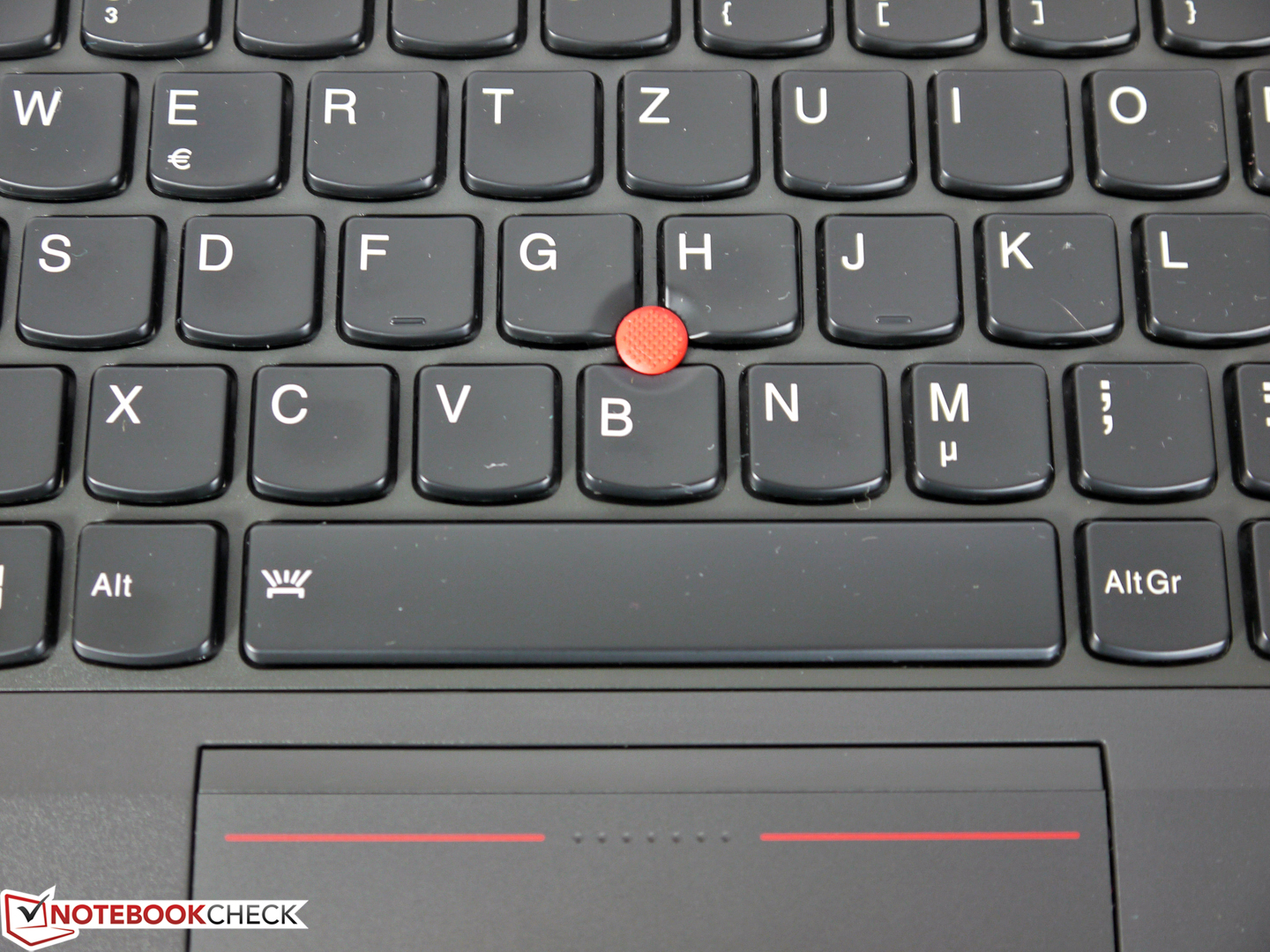

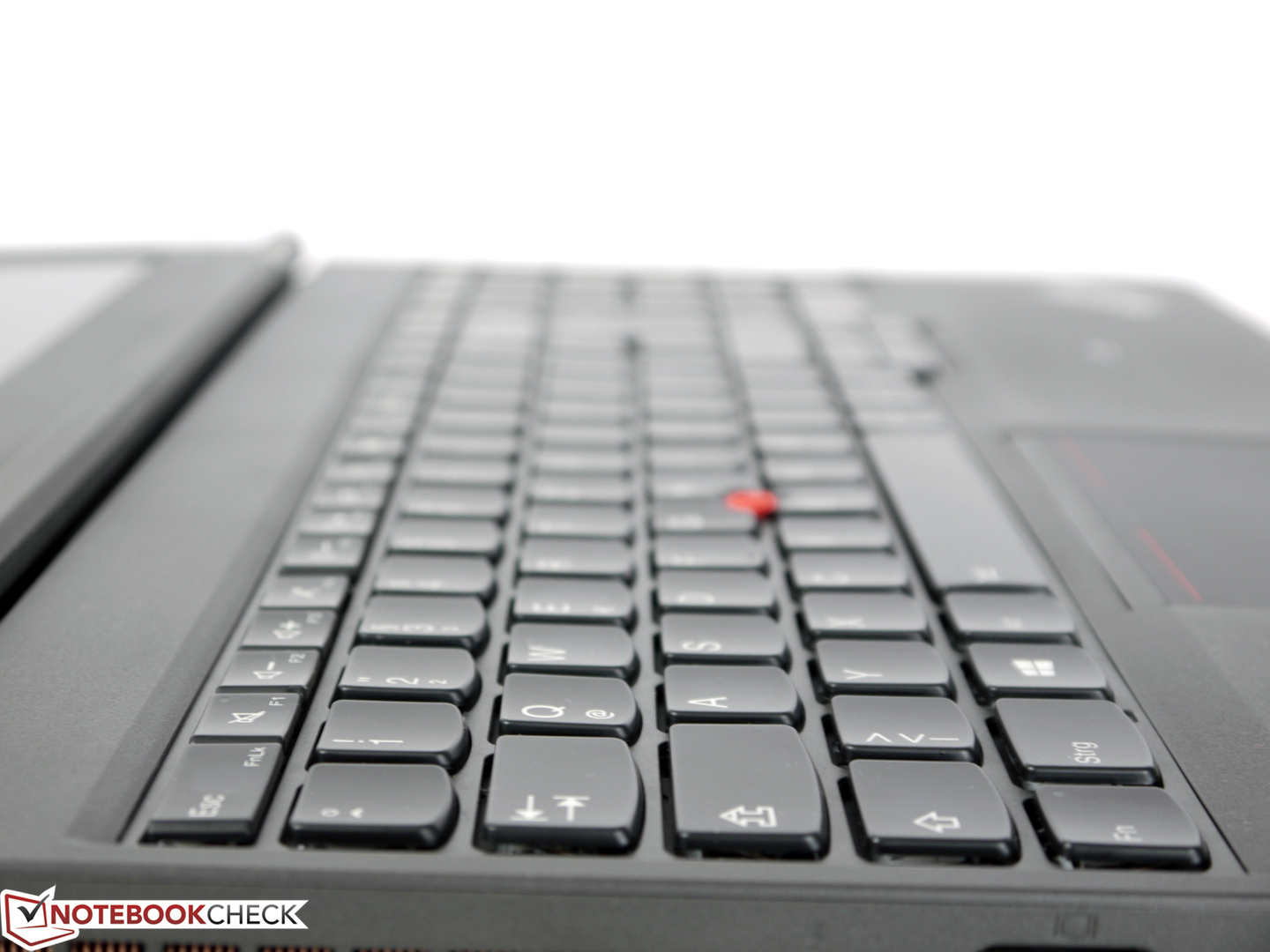

The chiclet keyboard can convince us with a good pressure point, large keys and a convenient typing noise. The arrow keys are larger compared to many rivals and easy to use. The keyboard is very firm and provides good feedback. A separate numeric keypad is a nice addition but also results in an asymmetrical position of the touchpad. You also get an F-row with additional multimedia features and controls that improve the handling. You can change the function of the FN and Ctrl key within the BIOS. Our review unit had some issues with notchy keys on the left side, which are probably caused by build quality problems. We did not notice this problem in our reviews of other current devices, so this is probably an isolated incident, but it does affect the rating of the build quality.

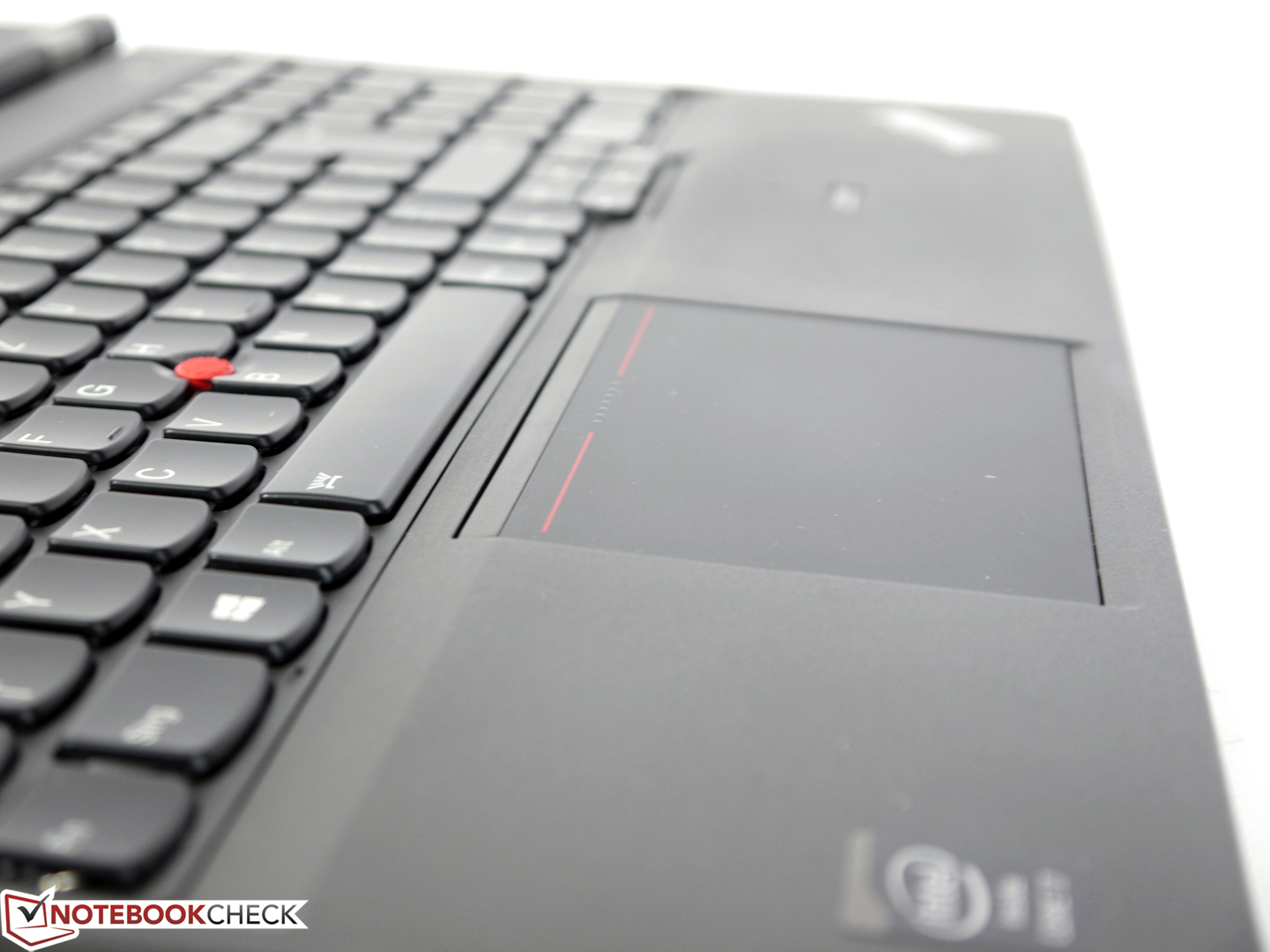

Touchpad

The most controversial change in regard to the input devices is certainly the 5-button trackpad. The integrated buttons for the touchpad and the TrackPoint were unreliable and did not work at all in the bottom corners of our review unit. While the touchpad works well with a two-finger tap instead of a right click, it requires a lot of patience to use the TrackPoint and the related buttons at the top of the pad. Compared to the dedicated buttons of the predecessors the current solution is certainly a big step in the wrong direction. This is very unfortunate because the touchpad itself is a noticeable improvement in terms of basic features like gliding capabilities, responsiveness and accuracy. Multi-touch gestures are also convenient on the large touchpad surface of 100 x 76 mm (~4 x 3 inches, minus the button area). The TrackPoint also works flawlessly. It allows a precise and fast control of the cursor and is therefore a good alternative to the touchpad.

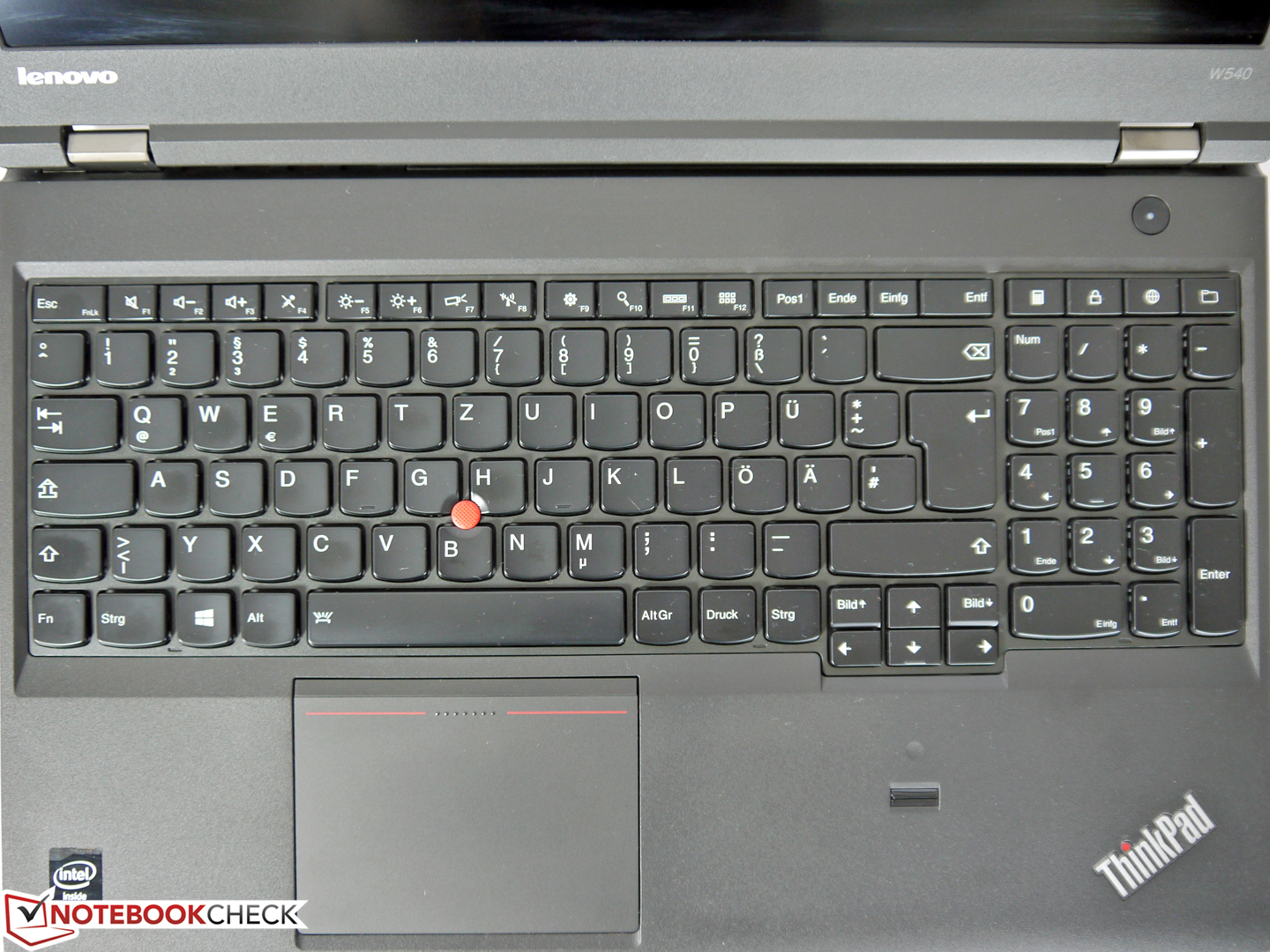

Keyboard
Keyboard

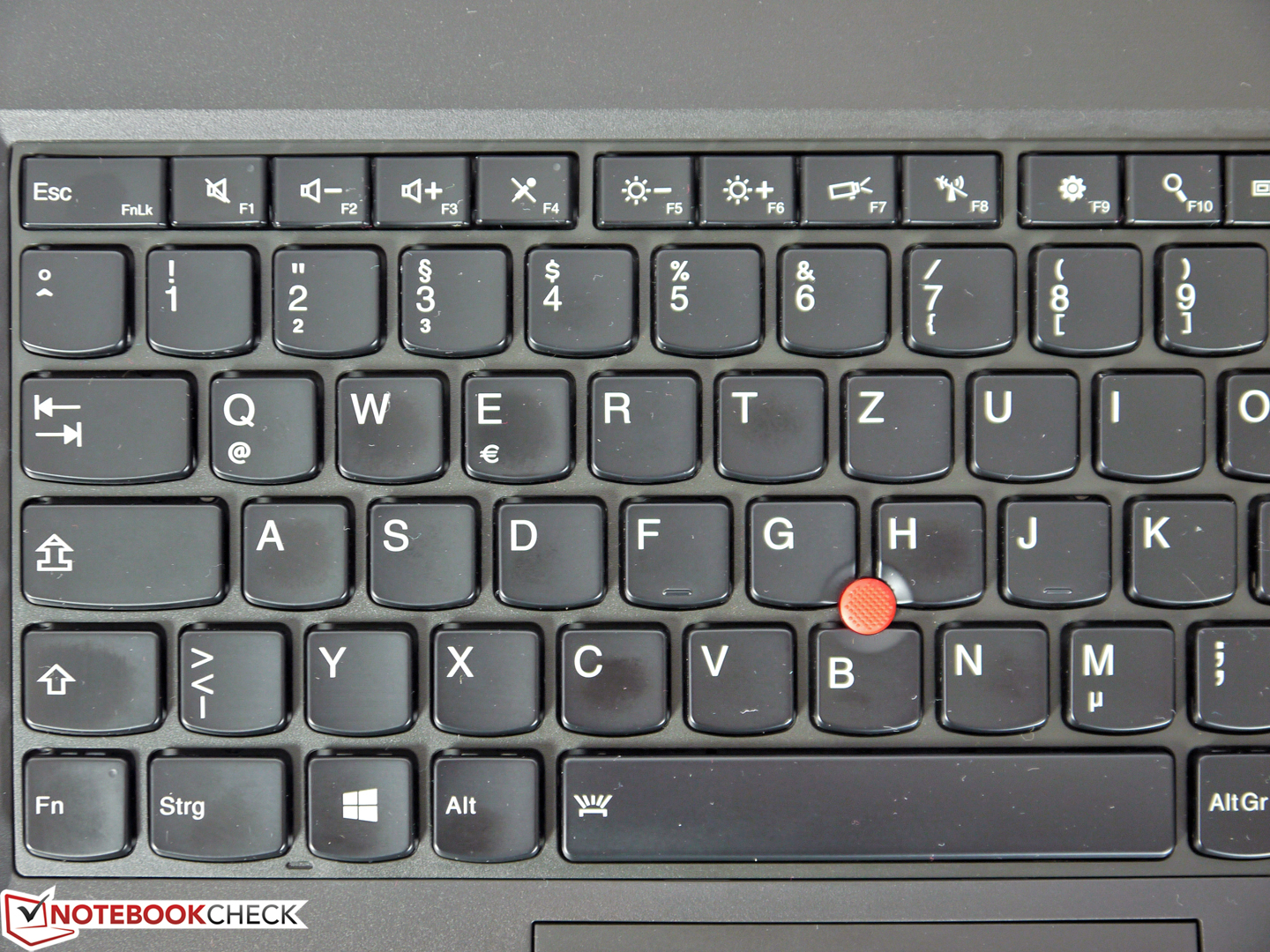

Left side
Left side

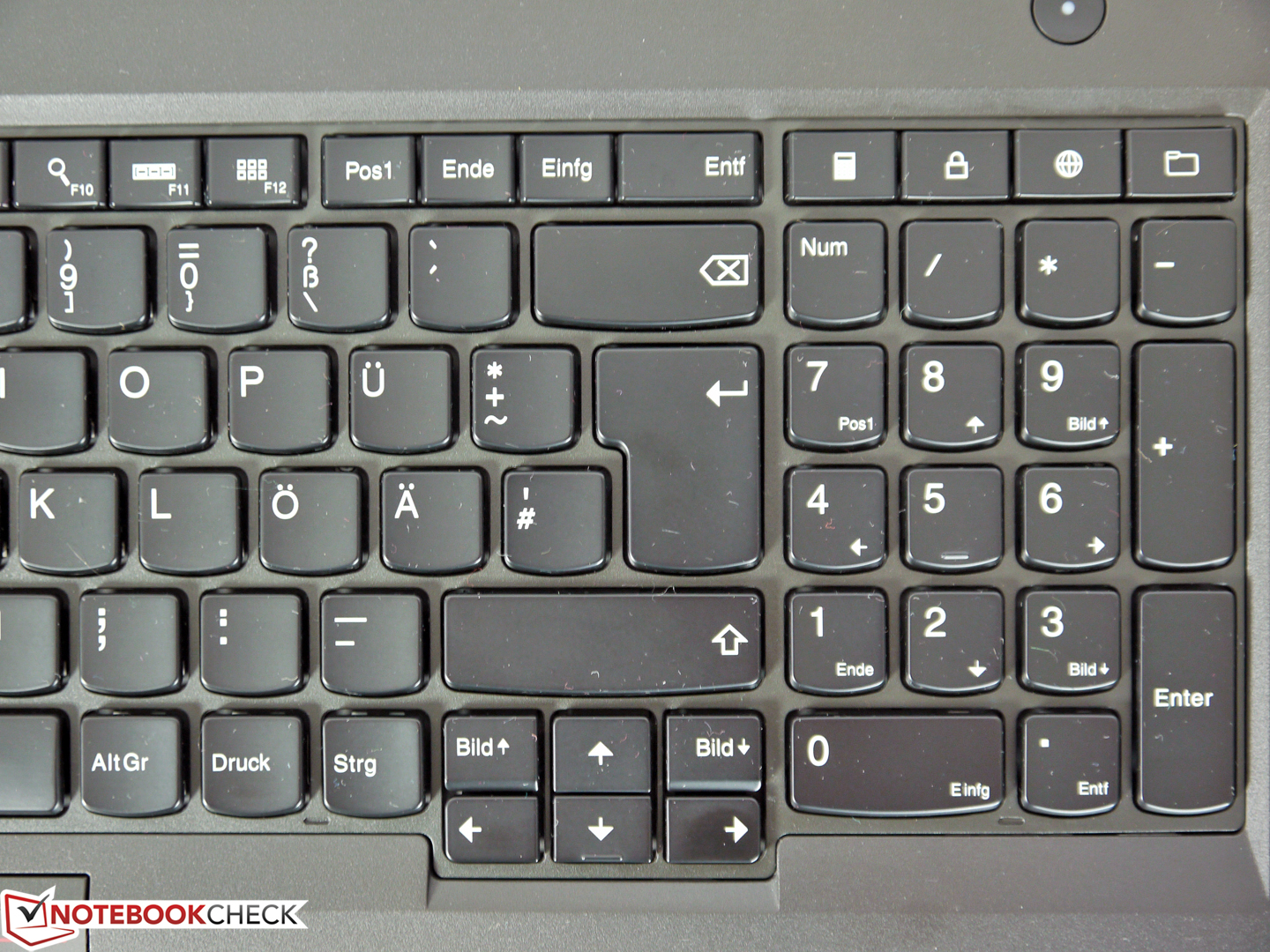

Right side
Right side

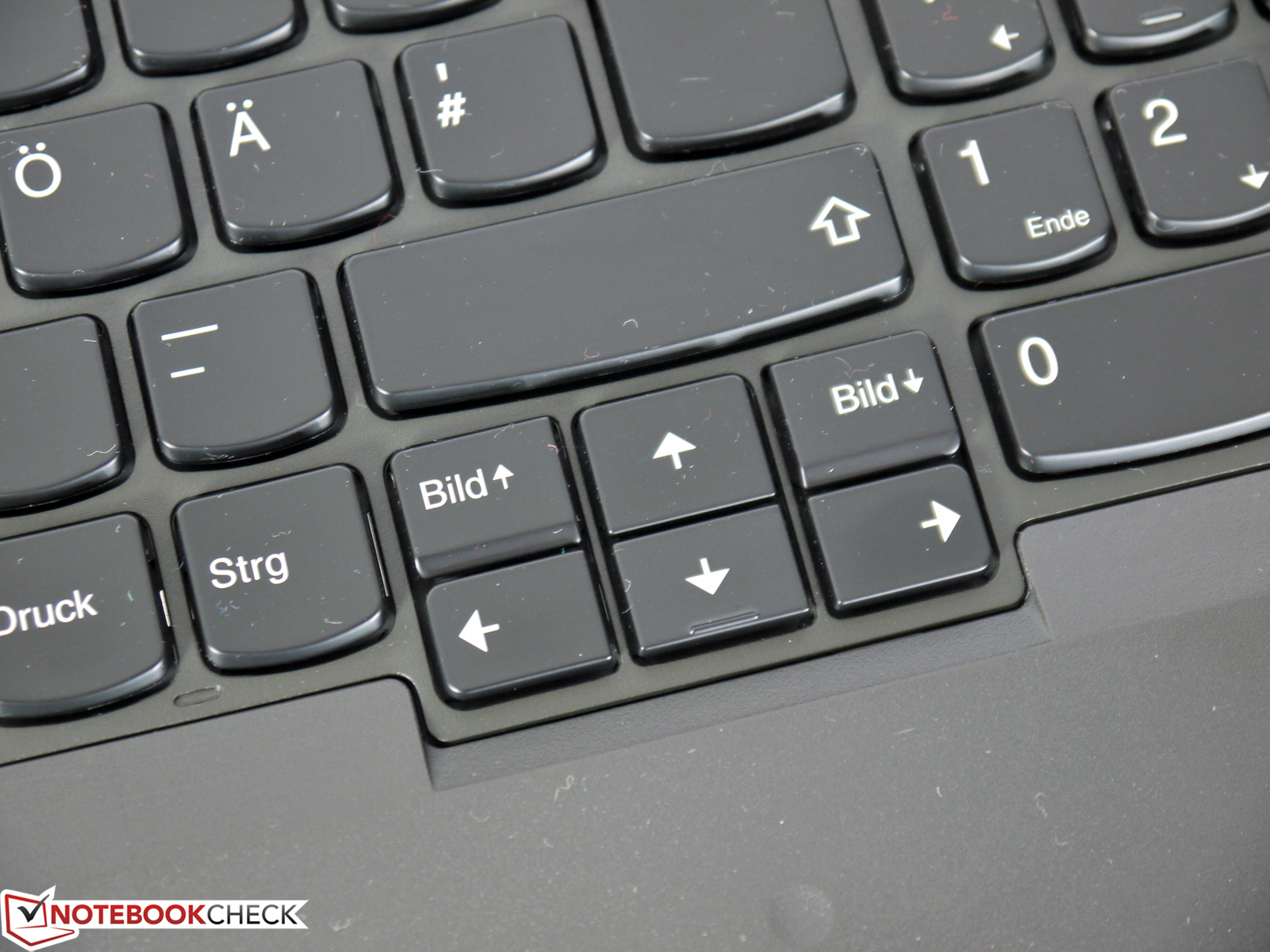

Arrow keys
Arrow keys

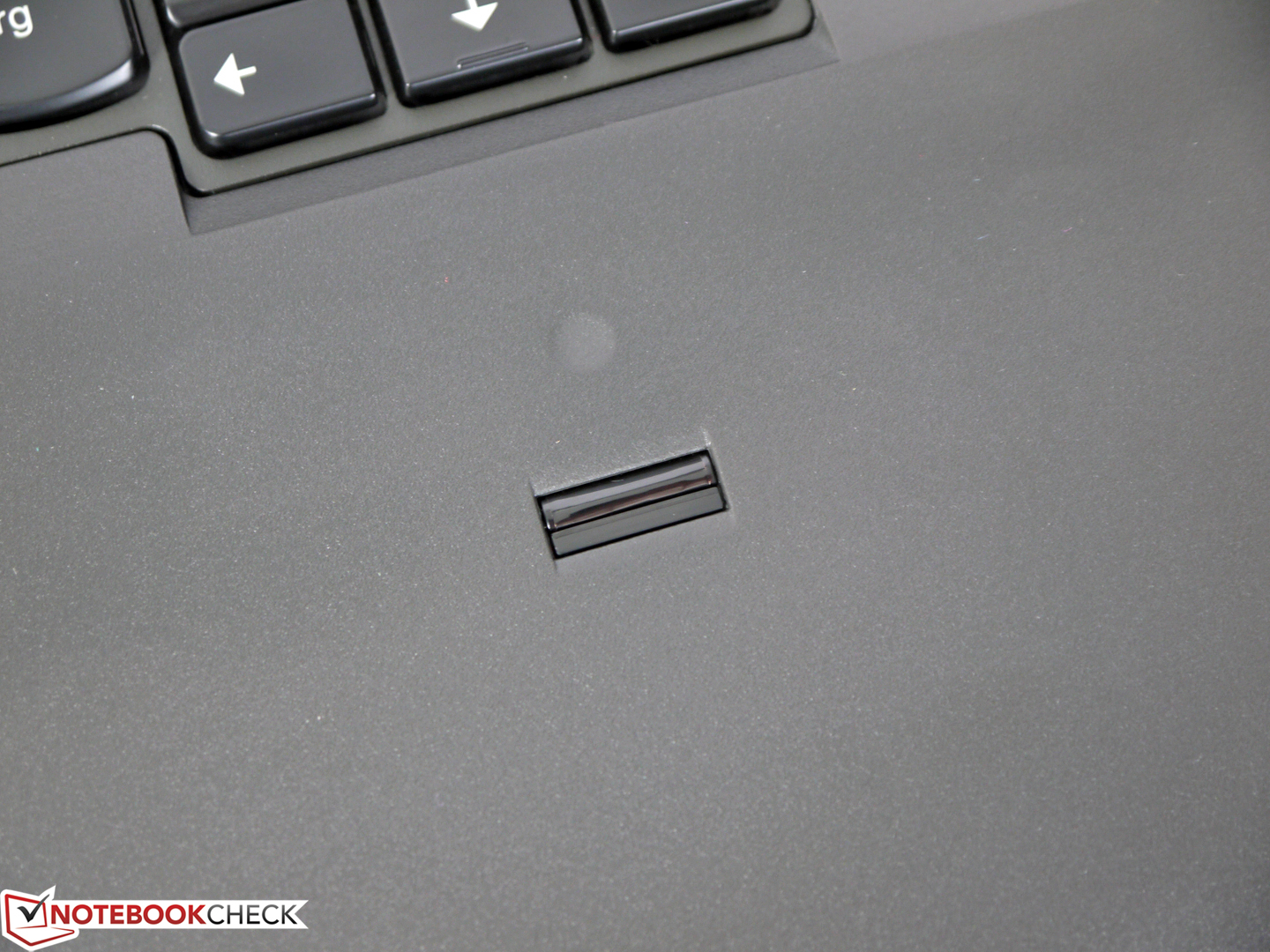

Fingerprint reader
Fingerprint reader

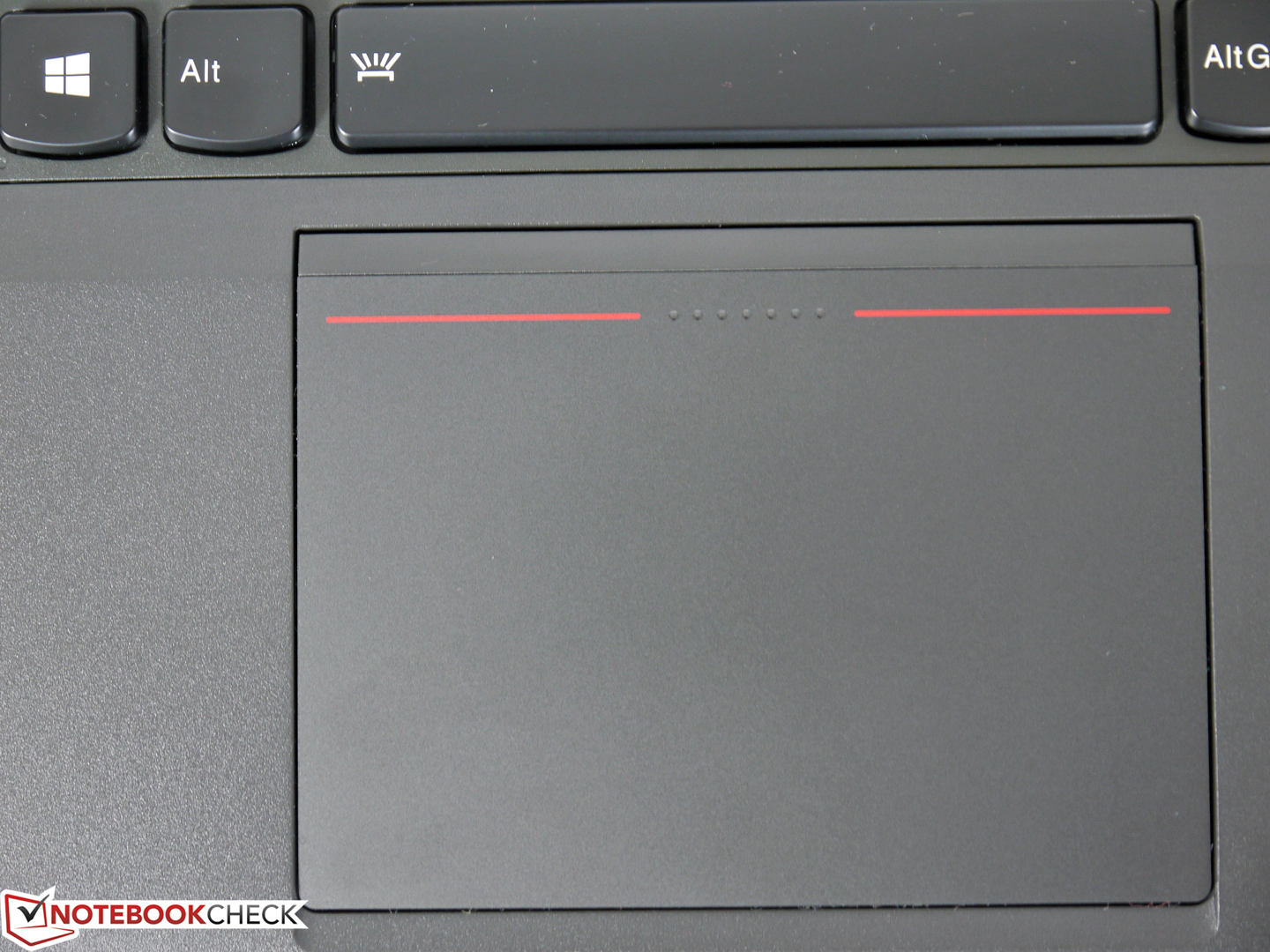

Touchpad
Touchpad

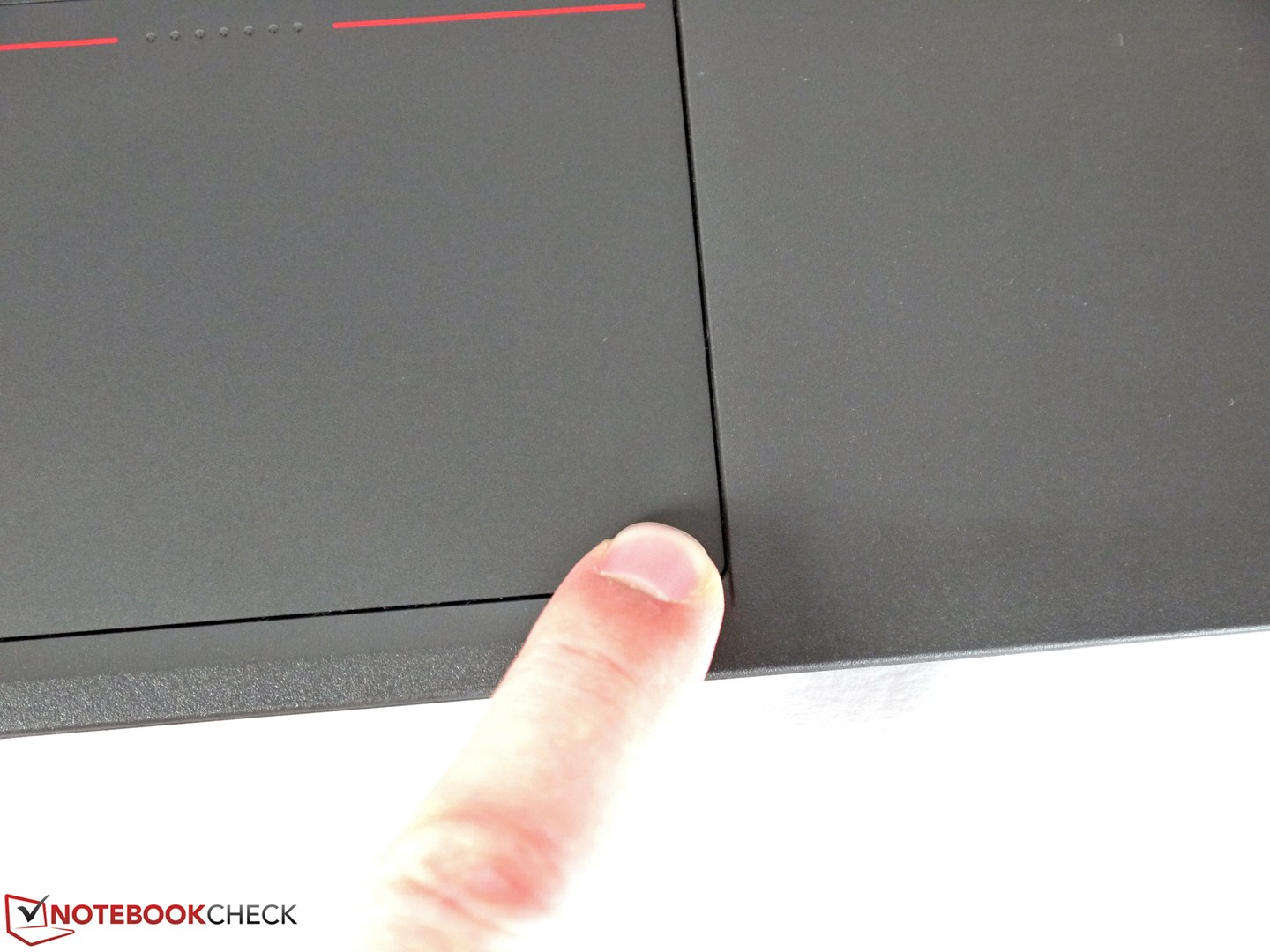

Bottom corner without reaction
Bottom corner without reaction
Trackpoint is hardly usable
Trackpoint is hardly usable

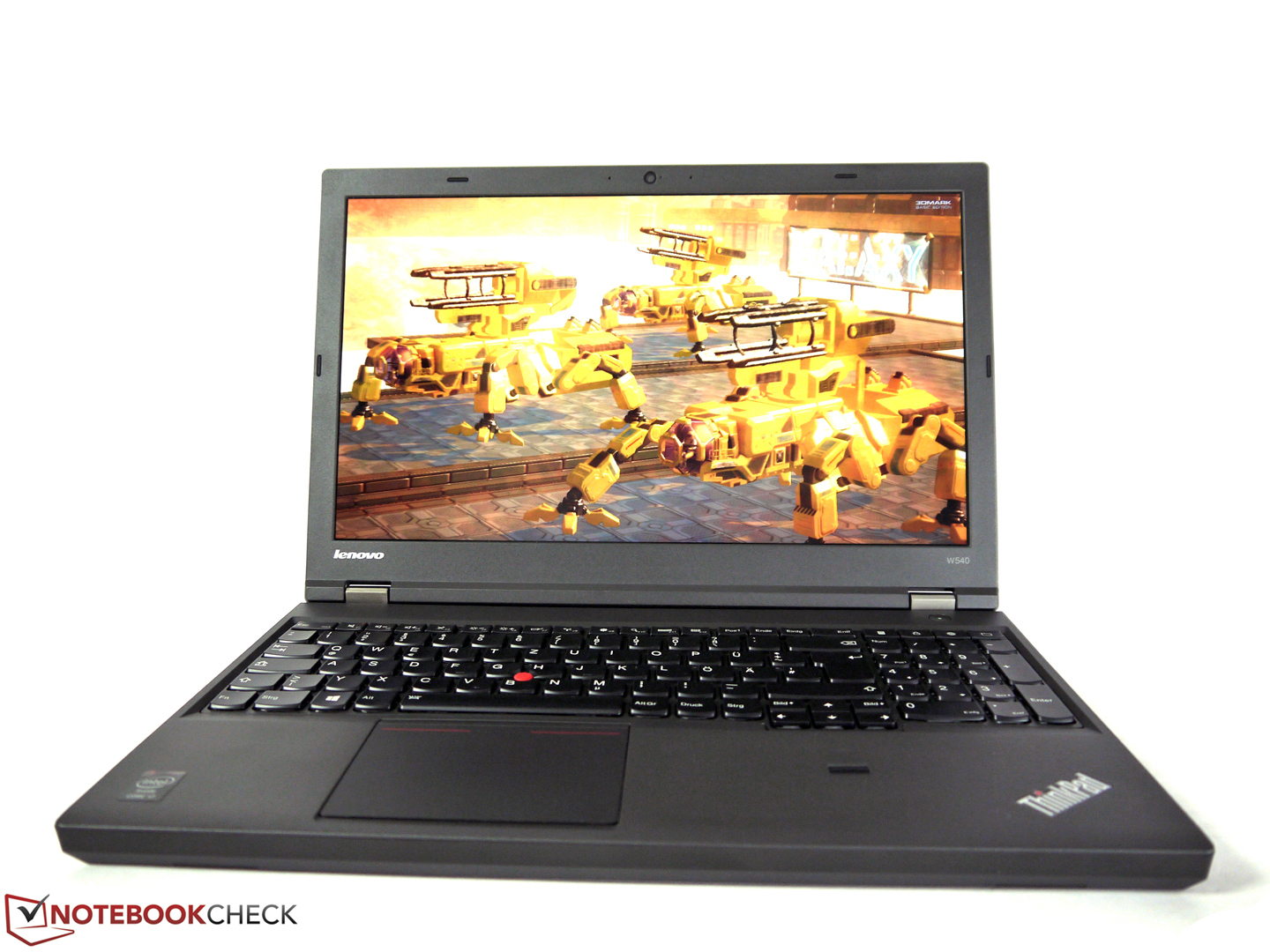

Display

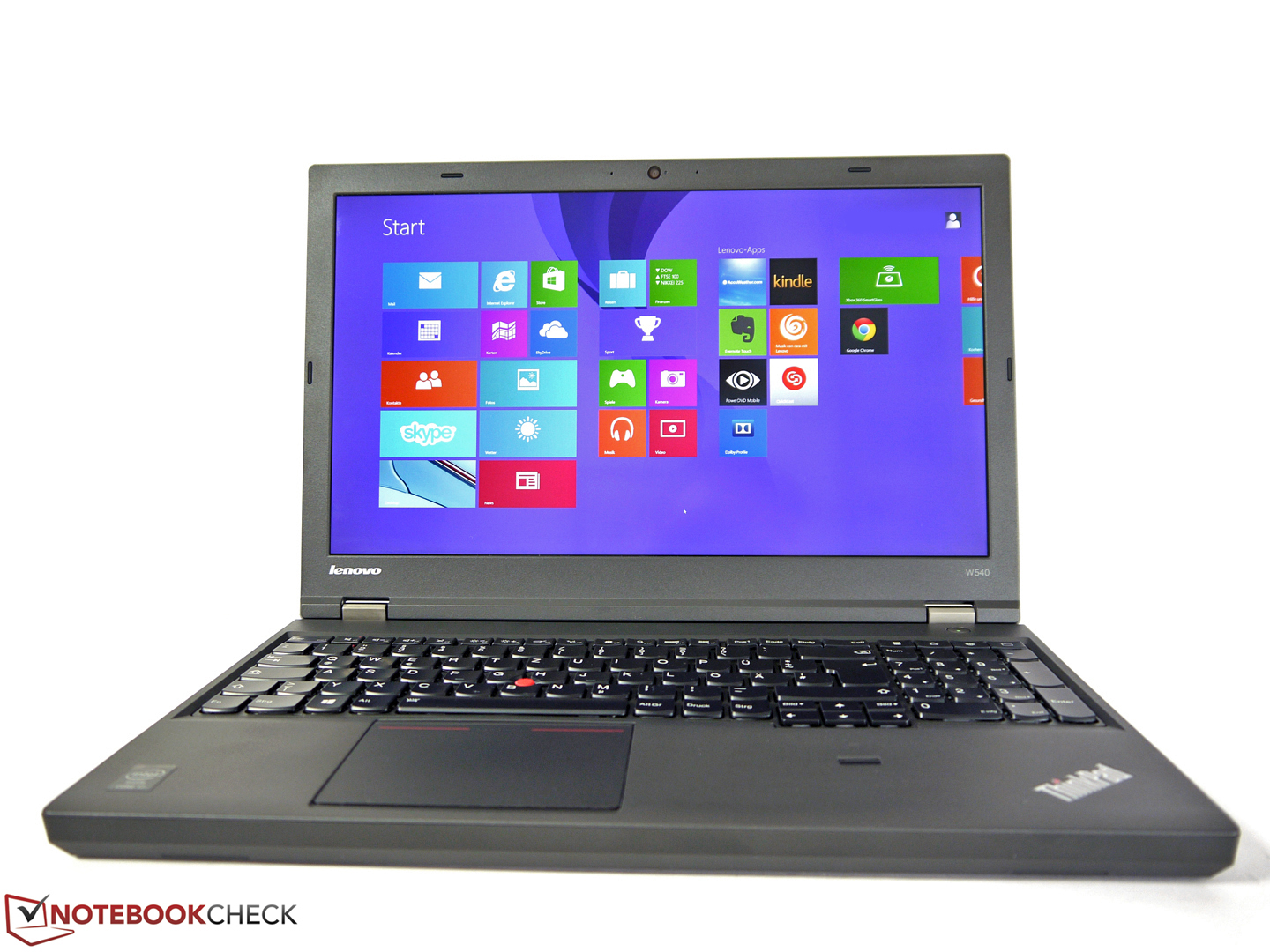

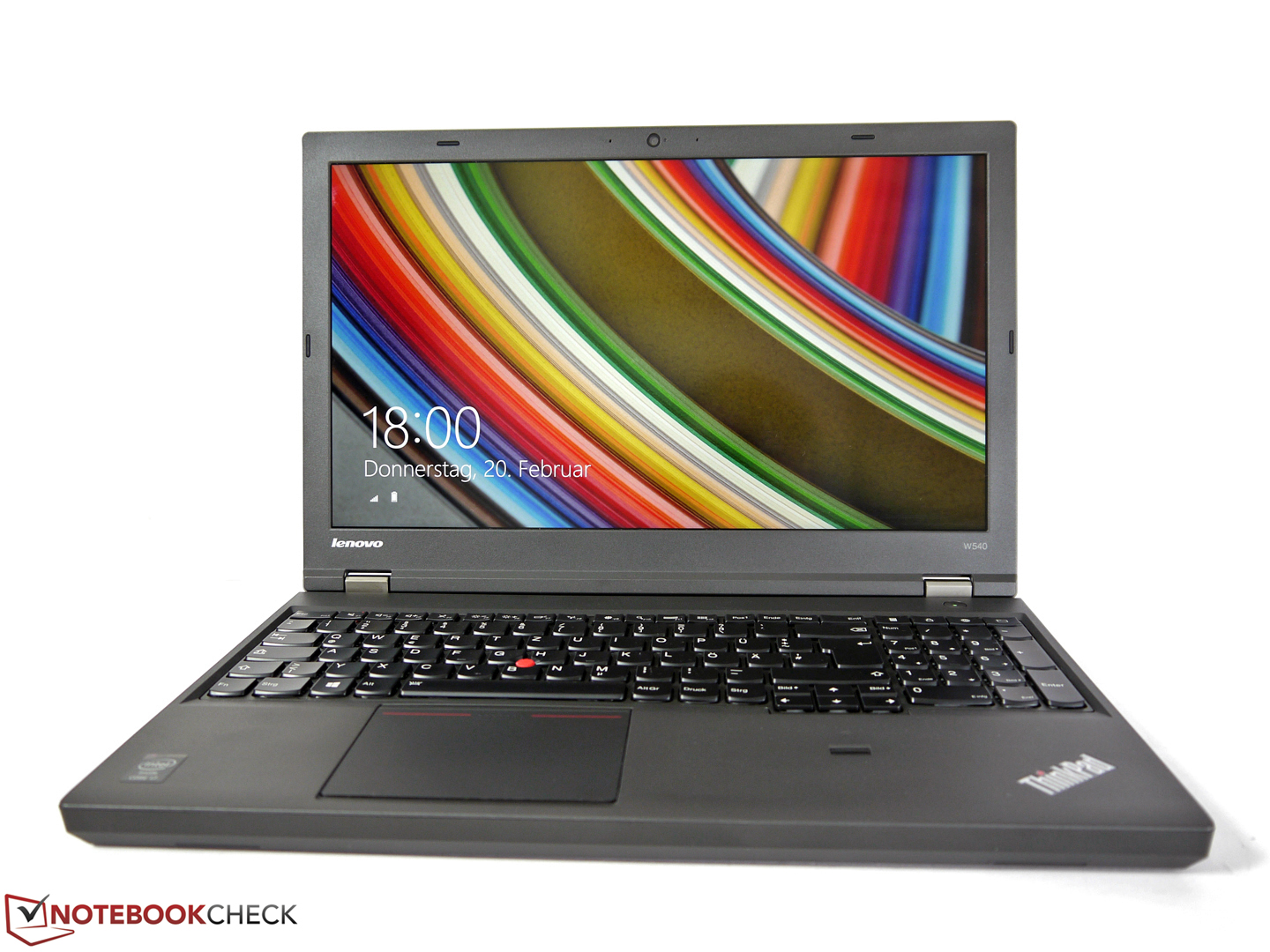

Lenovo ThinkPad W540 with 3K IPS display
Lenovo ThinkPad W540 with 3K IPS display

Lenovo currently offers the ThinkPad W540 with two different displays. The less expensive versions are usually equipped with a Full HD TN panel. It has a resolution of 1920x1080 pixels, an anti-reflective surface and is supposed to manage a brightness of 300 nits according to the specifications. The second option is a 3K IPS display, which is also the display of our review unit. You get a much higher resolution with 2880x1620 pixels and better viewing angle stability due to the IPS technology. The anti-reflective display surface is not truly matte, but it can be compared with semi-gloss surfaces from some business convertibles. Reflections are diffuse and light sources, depending on the angle, can create stronger reflections compared to conventionally roughened surfaces, but it should still be tolerable for most users. What you get in return is a fine, sharp and appealing picture. The additional charge is currently 106 Euros (~$147) in Lenovo's online shop, which is fair.

It is also nice to see that the scaling problems were noticeably reduced with Windows 8.1. Fonts are now sharp in the Chrome browser and small windows and fonts are now generally rare. Some applications, for example Photoshop Elements 12, show the correct size of menu items, but the tools are still comparatively small. Only SPECviewperf 12 did not manage to accept the necessary minimum resolution of 1920x1080 pixels. It did not work on the internal or an external display, which is why we could not even start this benchmark.

348
cd/m²
325
cd/m²
331
cd/m²
304
cd/m²
332
cd/m²
298
cd/m²
287
cd/m²
286
cd/m²
286
cd/m²
Distribution of brightness
Information
X-Rite i1Pro 2
Maximum: 348 cd/m²
Average: 310.8 cd/m²
Brightness Distribution: 82 %
Center on Battery: 333 cd/m²
Black: 0.374 cd/m²
Contrast: 888:1

Lenovo specifies the brightness of the 3K display as 350 cd/m², and our measurements actually showed 348 cd/m² in the top left corner. However, the brightness is significantly lower at the other measurement spots with just 286 cd/m² in the bottom right corner. This results in an average luminance of 310 cd/m² and a brightness distribution of 82%. These differences, however, do not have a big effect in practice. We could not determine screen bleeding, clouds or other bright areas around the frame.

The brightness can be adjusted in 10 steps, starting from 4 cd/m² up to 332 cd/m² (each at the center). We measured 141 cd/m² in step 8, which is also the setting for our battery runtime tests. This setting is sufficient for indoor environments and enables working with an ergonomic display brightness. Our review unit left a good impression outdoors and we could even see the display content under direct morning sunlight. This is hard with the brightness setting 8 and it does not work for longer periods. However, if you adjust the display for an optimal viewing position to avoid direct sunlight you won't necessarily need the maximum brightness all the time for comfortable working.

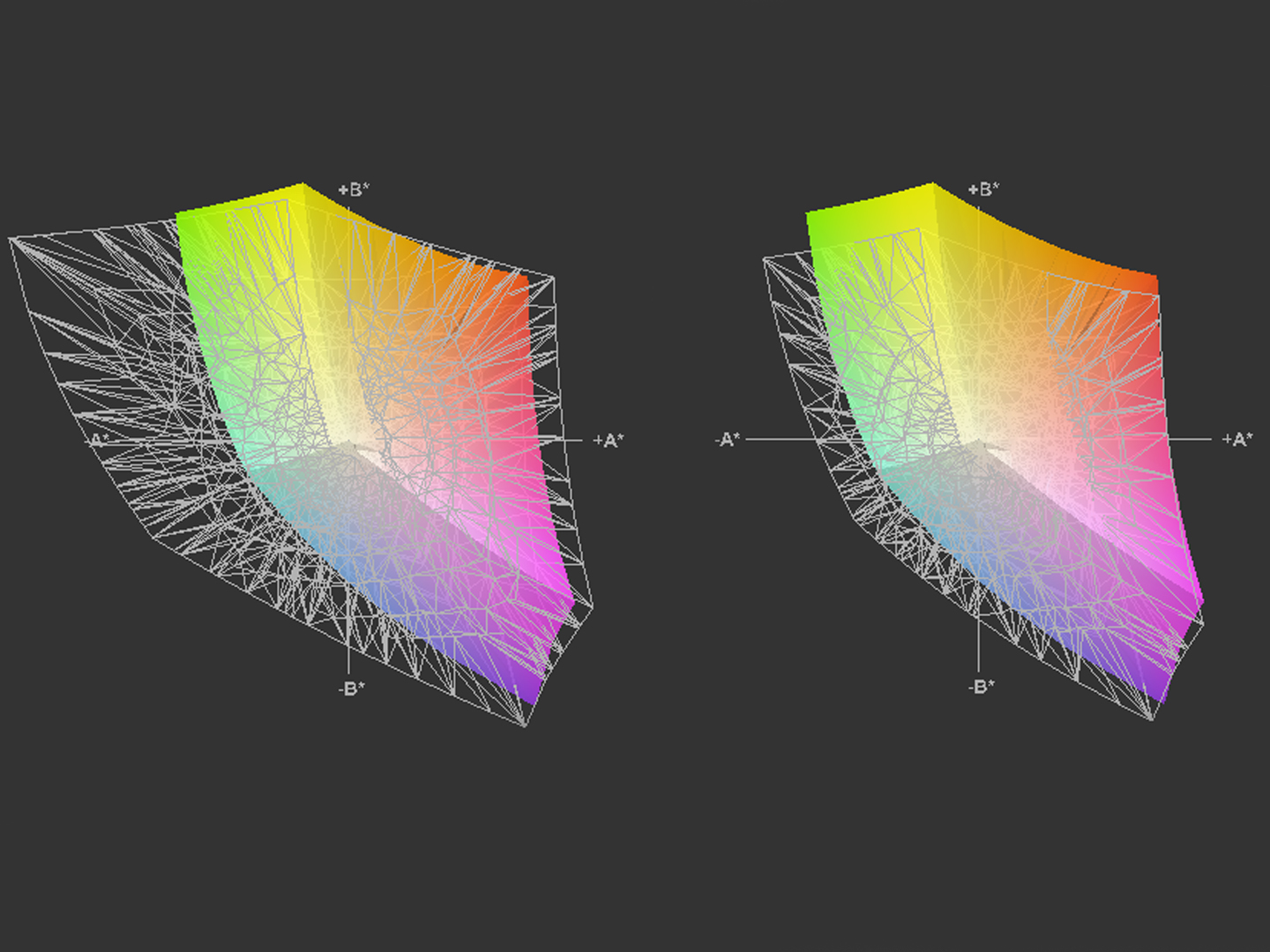

W540 3K IPS vs. AdobeRGB (t) and sRGB (t)
W540 3K IPS vs. AdobeRGB (t) and sRGB (t)

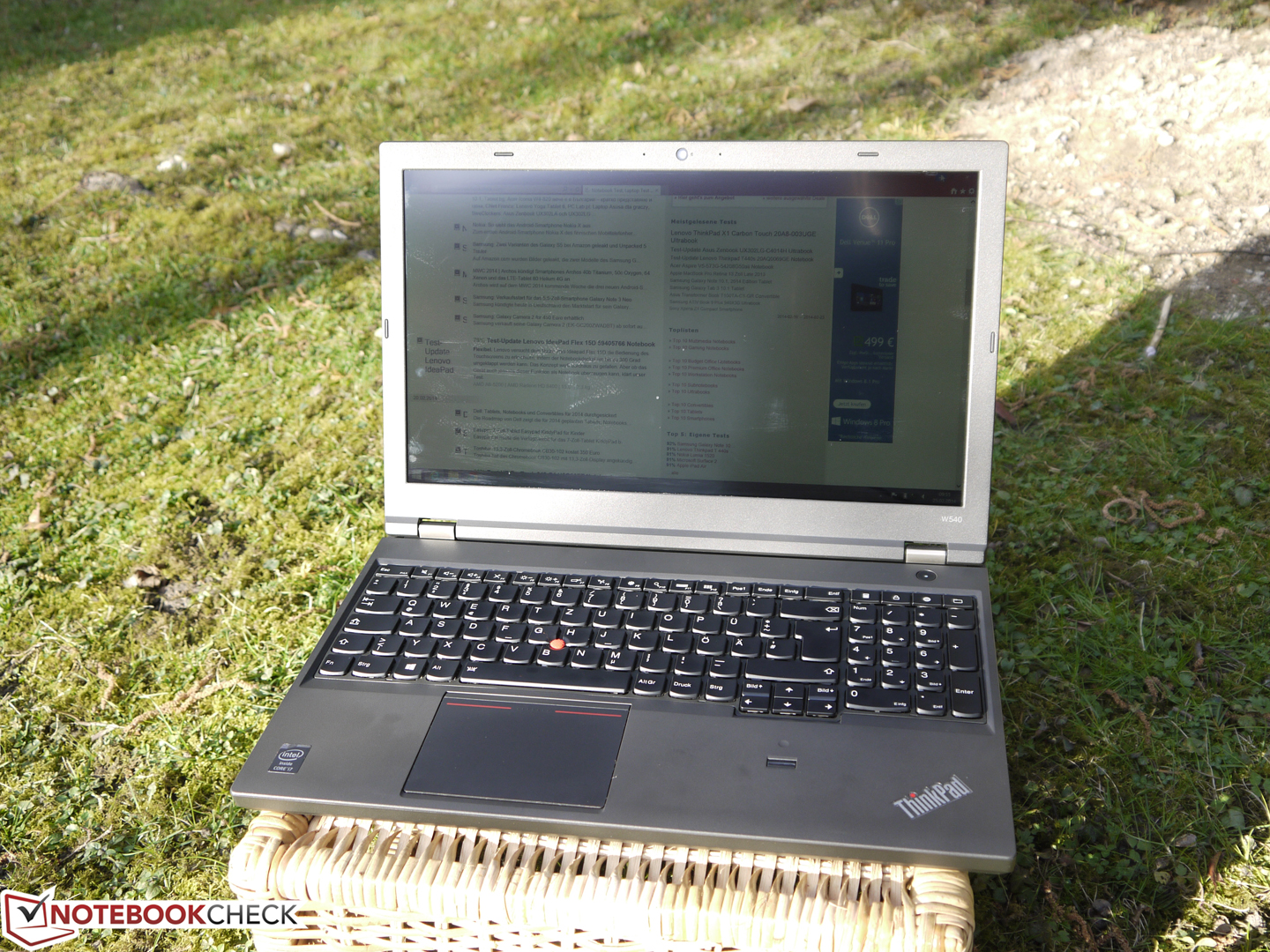

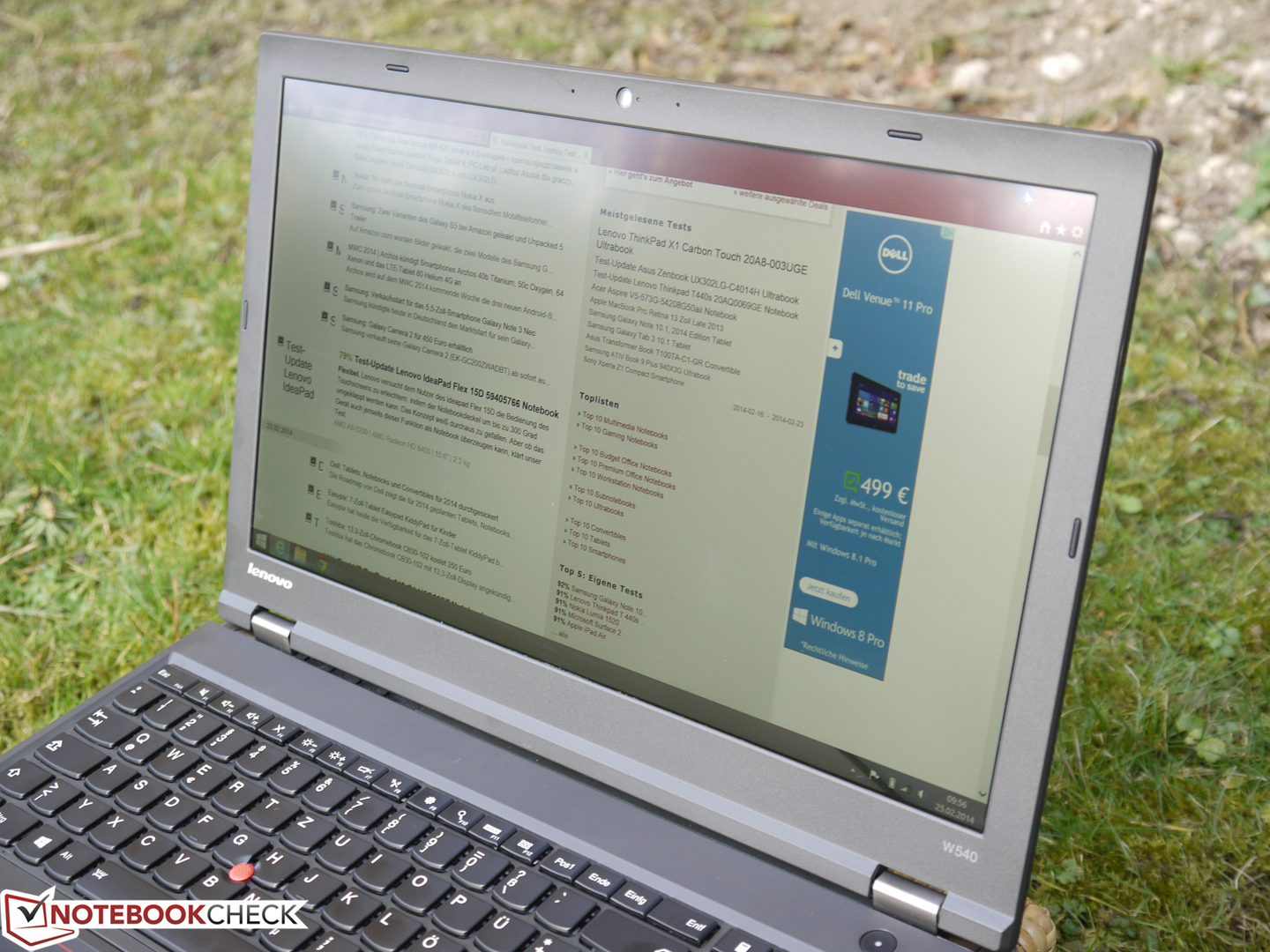

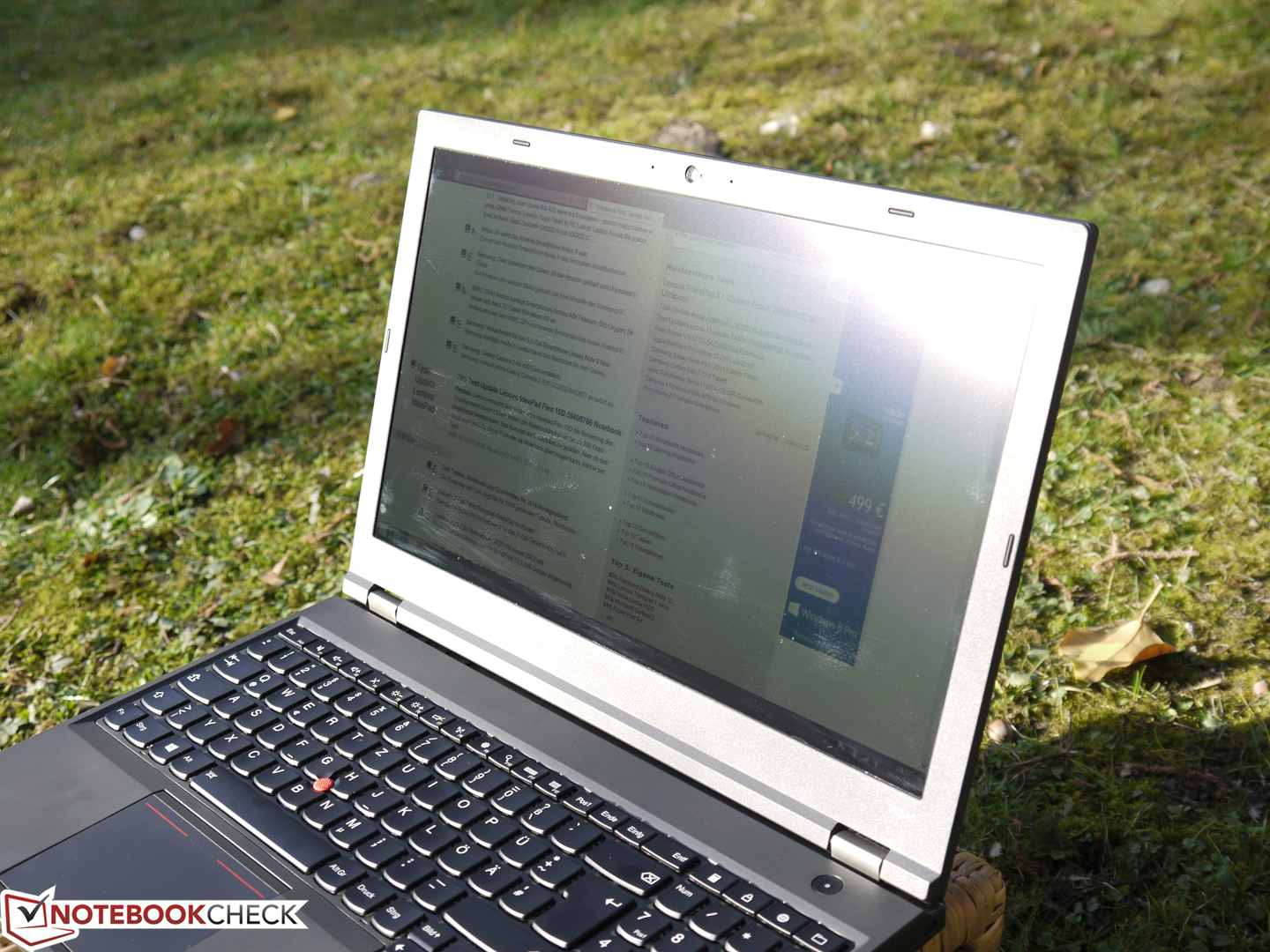

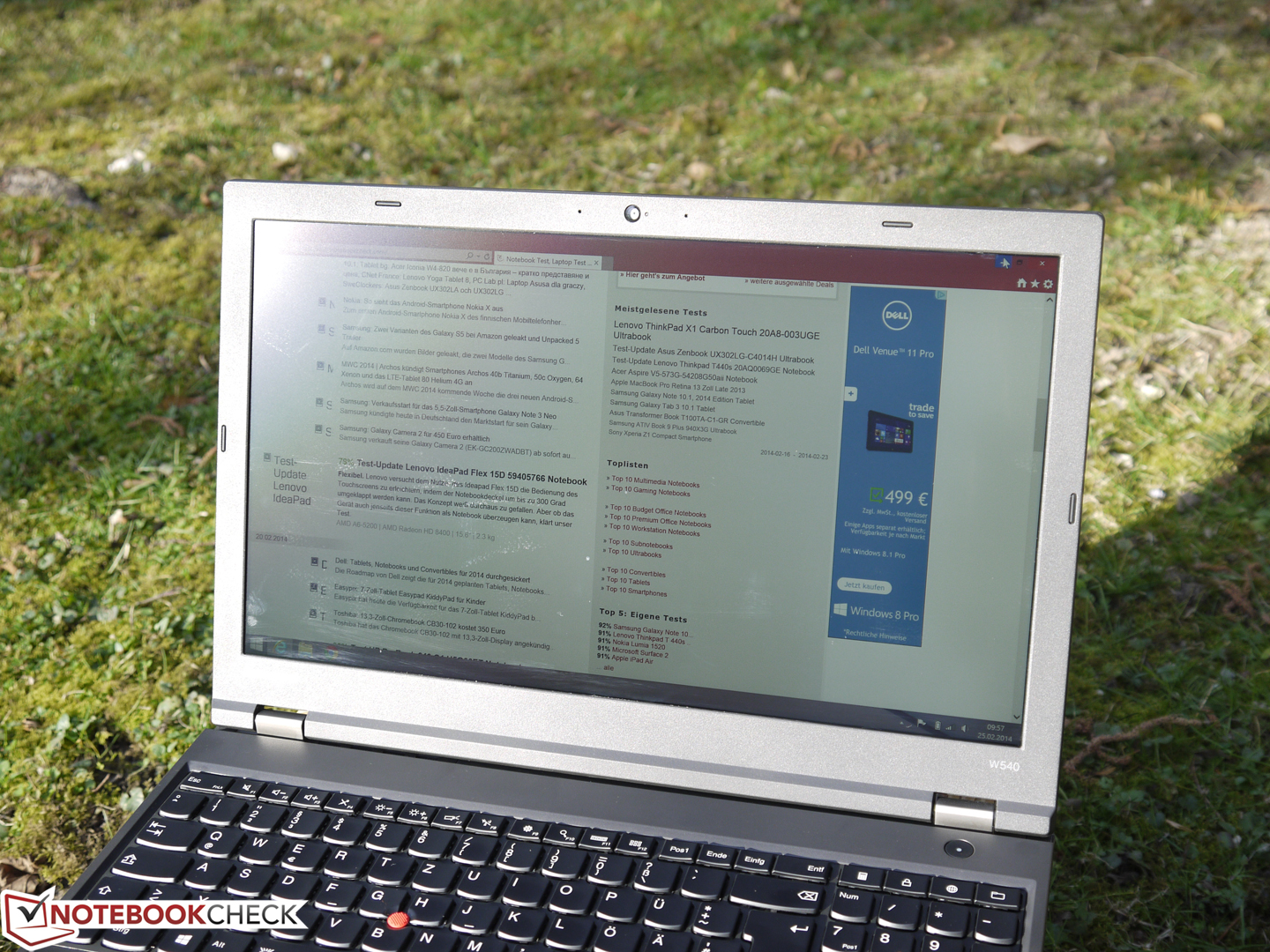

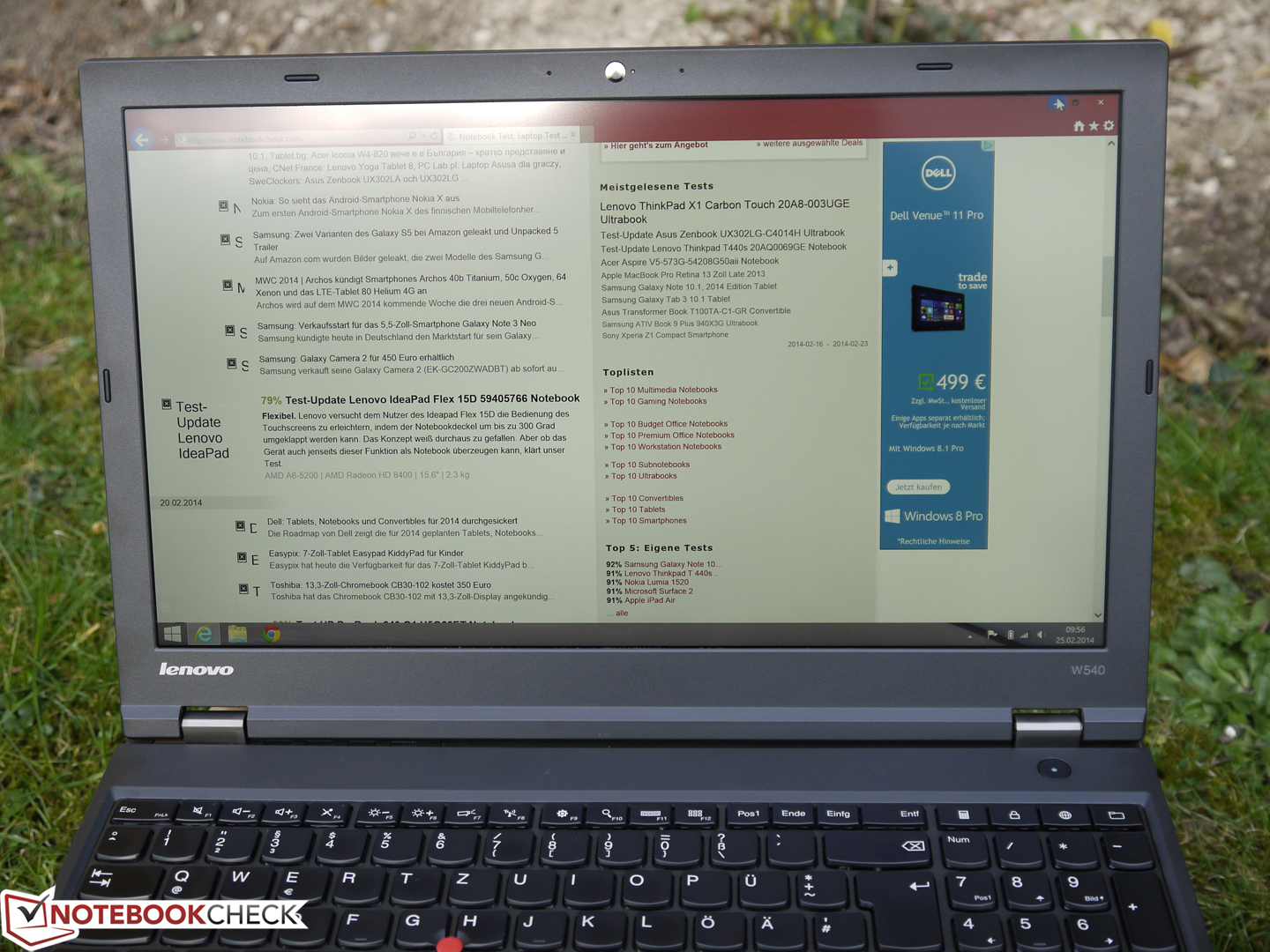

Sun at an angle (141 cd/m²)
Sun at an angle (141 cd/m²)
Sun from behind (141 cd/m²)
Sun from behind (141 cd/m²)
Shade (141 cd/m²)
Shade (141 cd/m²)
Shade from the side (141 cd/m²)
Shade from the side (141 cd/m²)

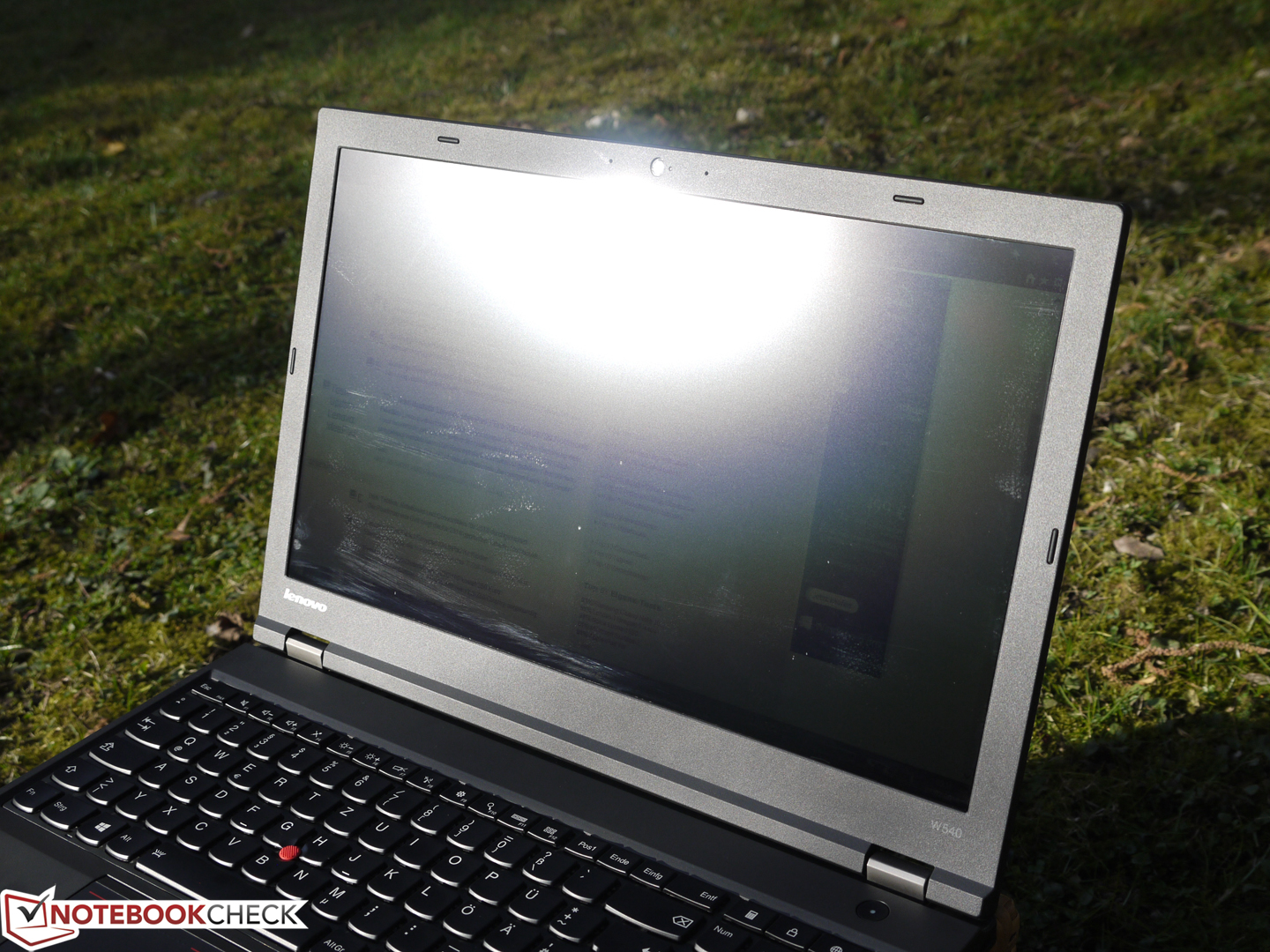

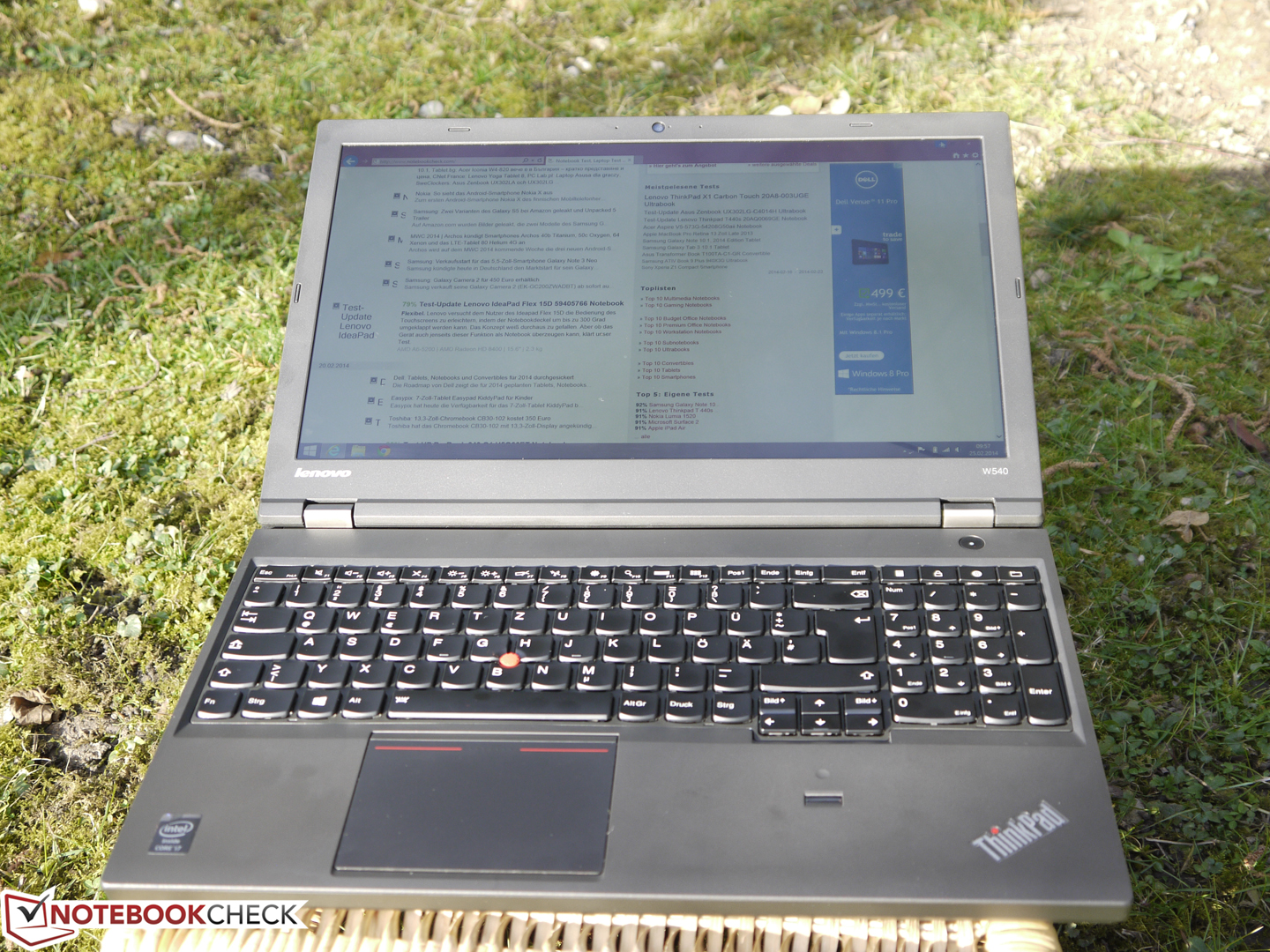

Sun at an angle (maximum brightness)
Sun at an angle (maximum brightness)
Sun from behind (maximum brightness)
Sun from behind (maximum brightness)
Sun from behind (maximum brightness)
Sun from behind (maximum brightness)

Another strength of the panel is the good contrast ratio of 888:1. It is not a record, but a noticeable improvement compared to less expensive panels and it creates subjectively good blacks and rich colors. The color space coverage is good, with 62% AdobeRGB and 90% sRGB. These results should be sufficient for many usage scenarios, especially professional picture editing, which requires good color accuracy besides the available sRGB color space. The panel is however not very accurate out of the box and professional editing is hardly possible with DeltaE2000 values over 10, an uneven RGB balance and an inaccurate gamma curve. The situation does change after the obligatory calibration and you get a usable working device. Only a few DeltaE2000 values are still above 4, the RGB balance is more even and the grayscale presentation is very good, but the gamma curve still shows some deviations.

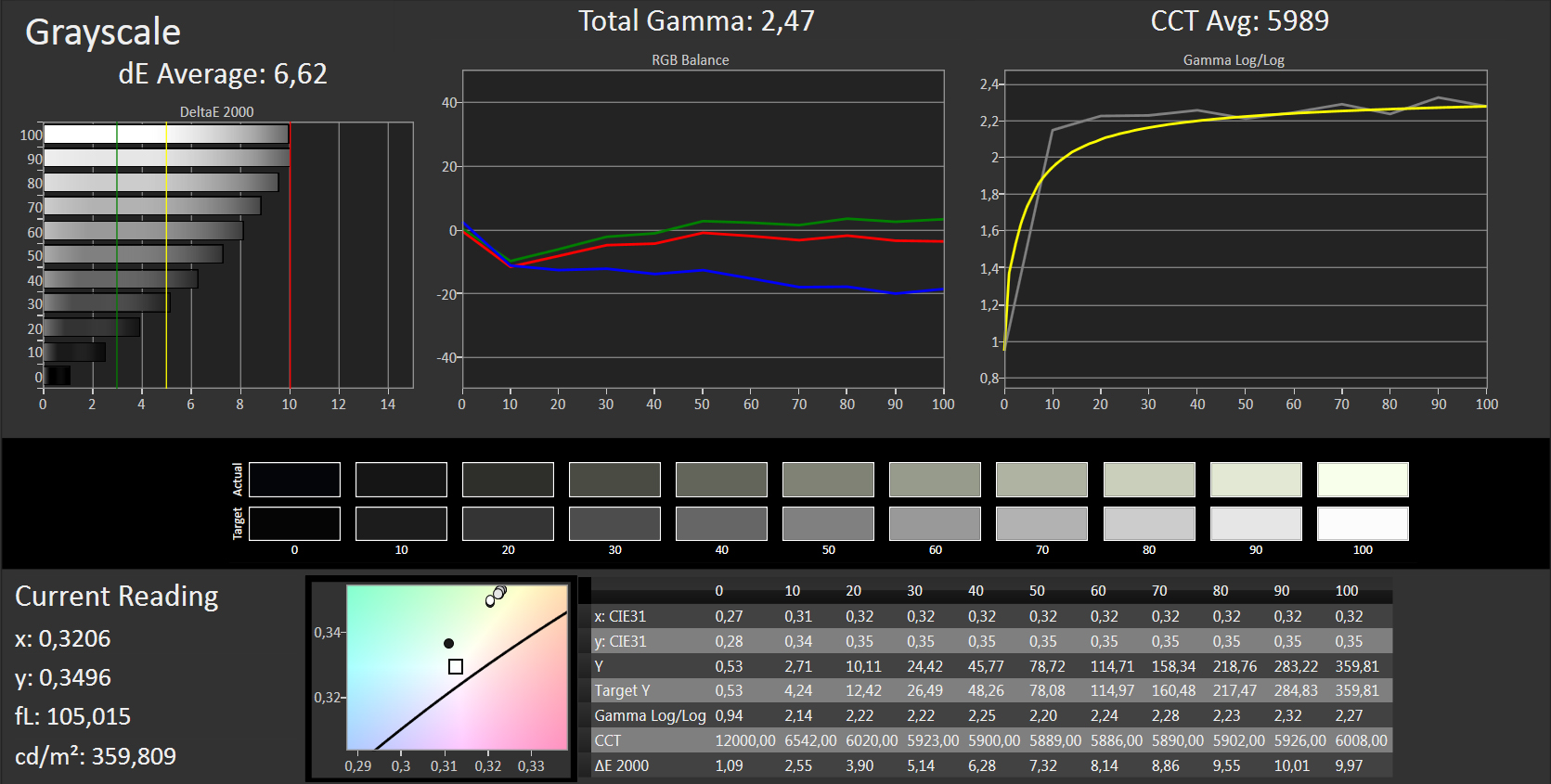

Grayscale
Grayscale

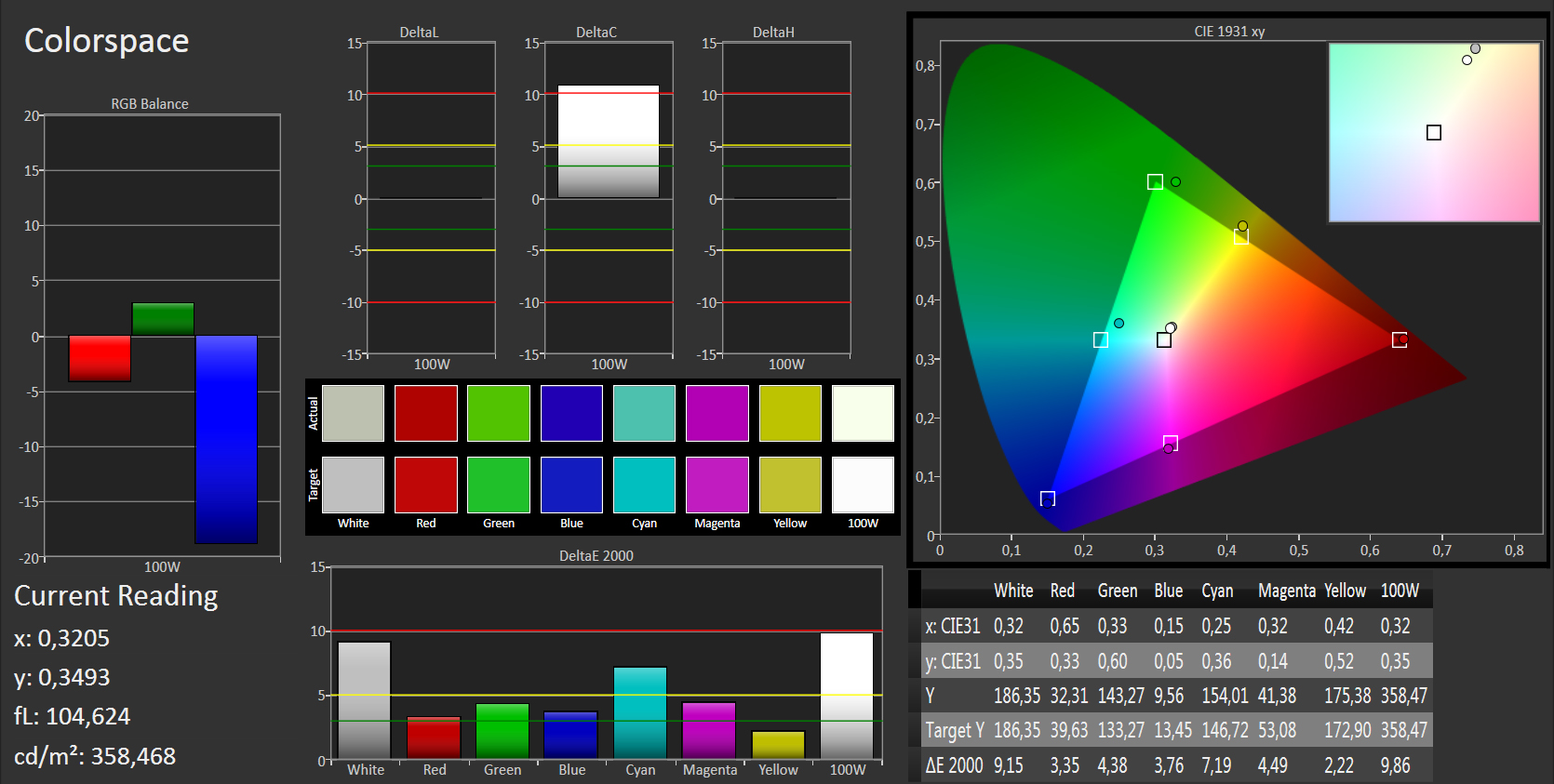

Colorspace
Colorspace

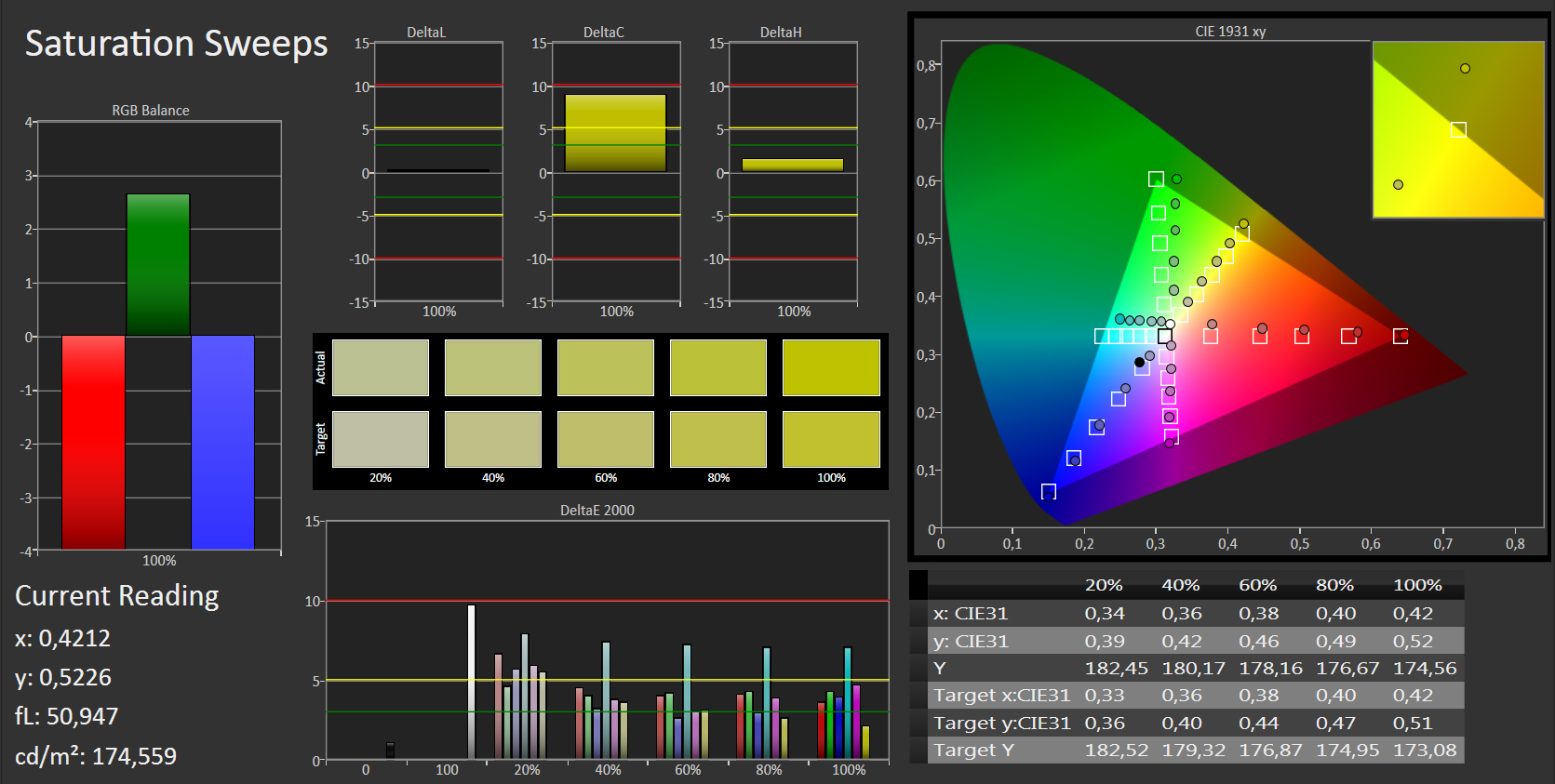

Saturation Sweeps
Saturation Sweeps

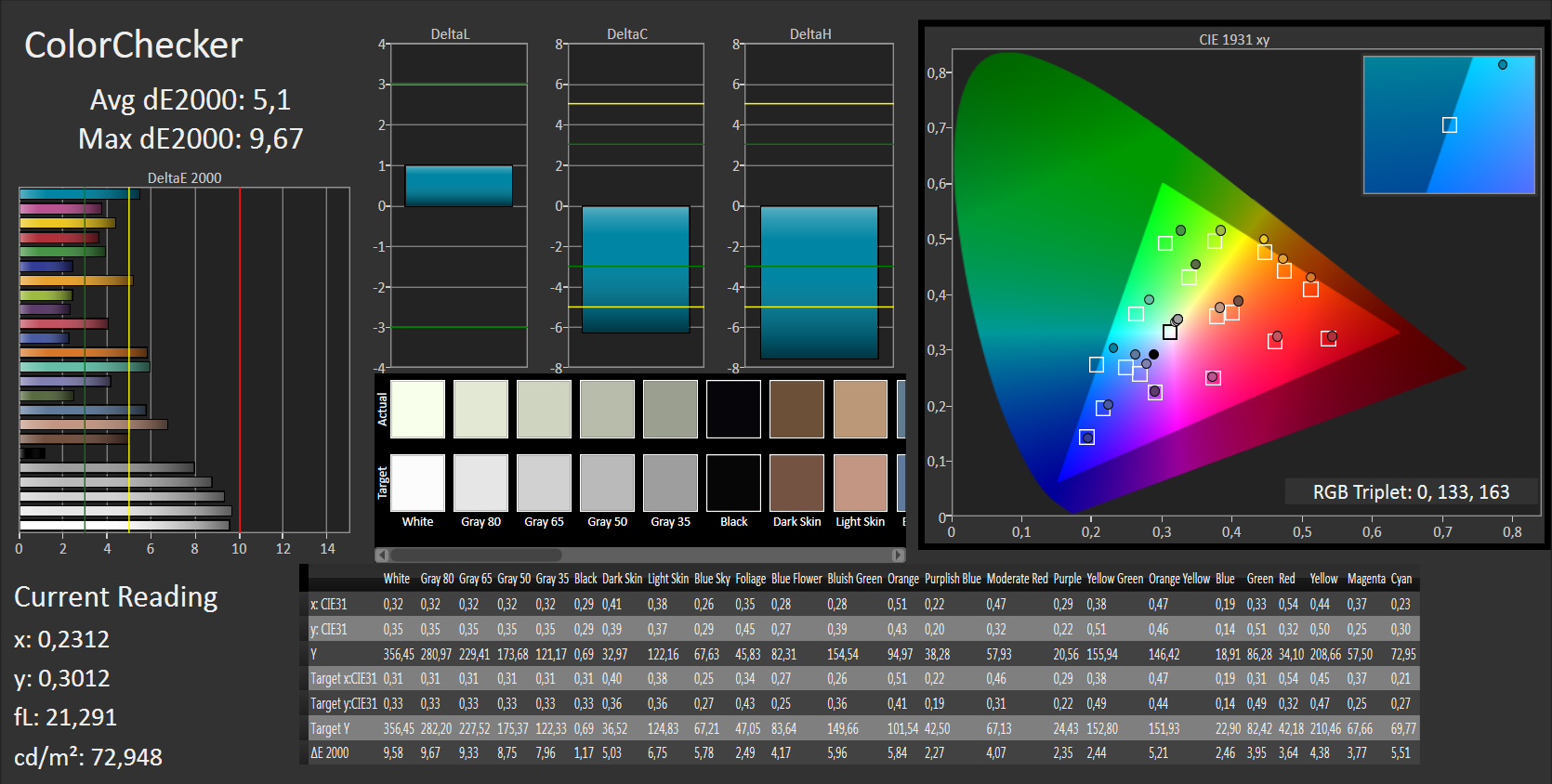

ColorChecker
ColorChecker
Grayscale calibrated
Grayscale calibrated

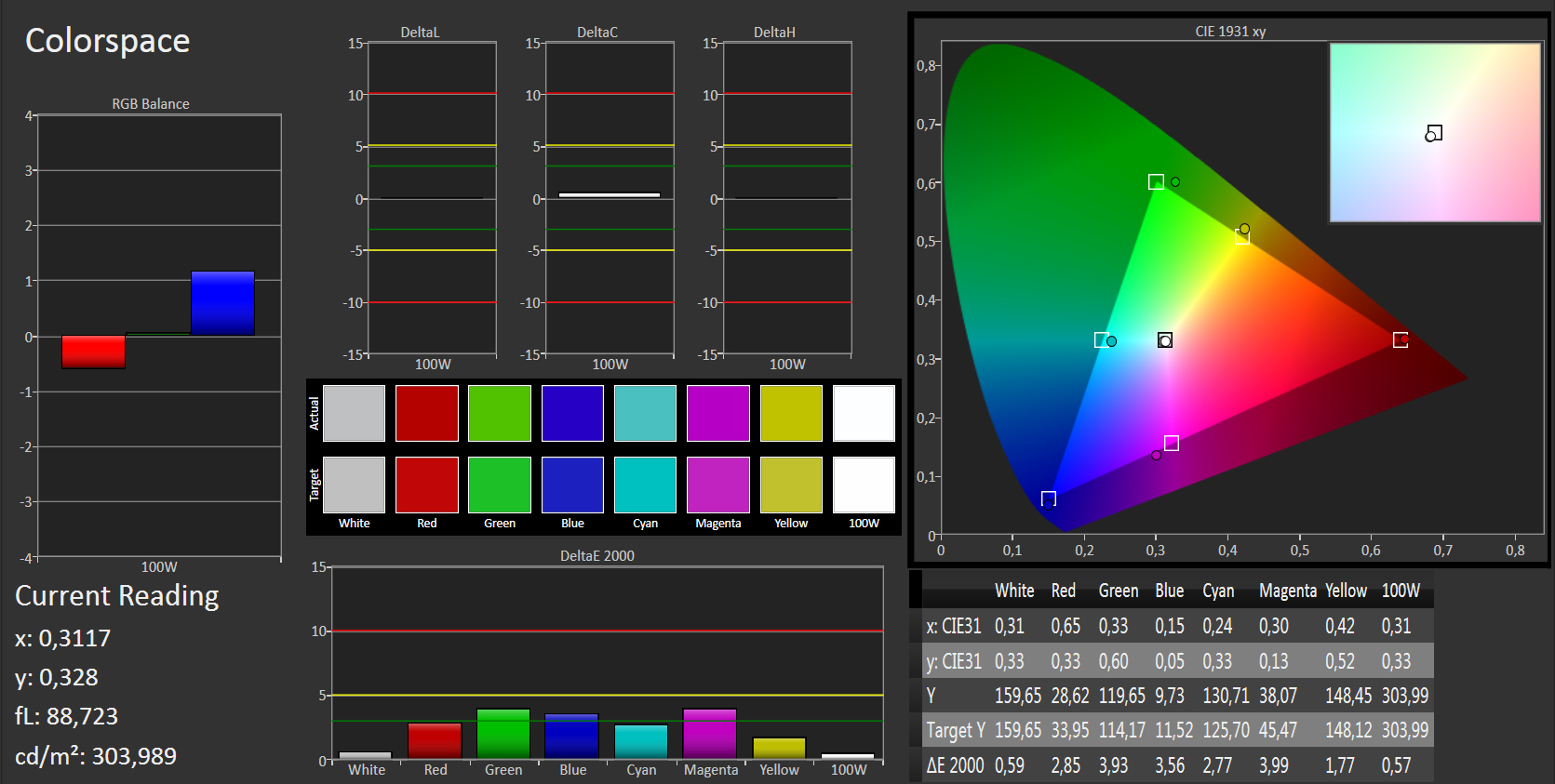

Colorspace calibrated
Colorspace calibrated

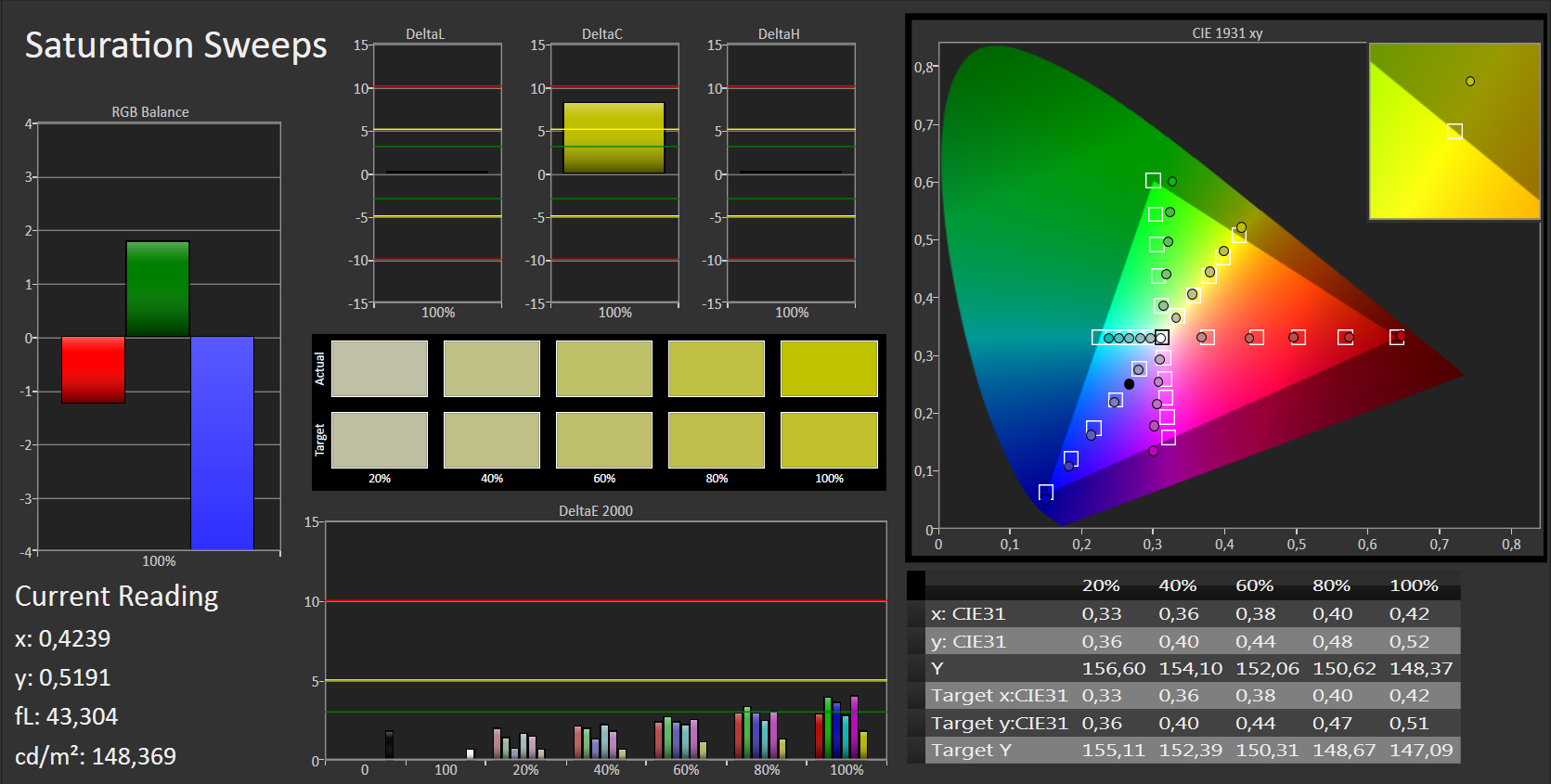

Saturation Sweeps calibrated
Saturation Sweeps calibrated

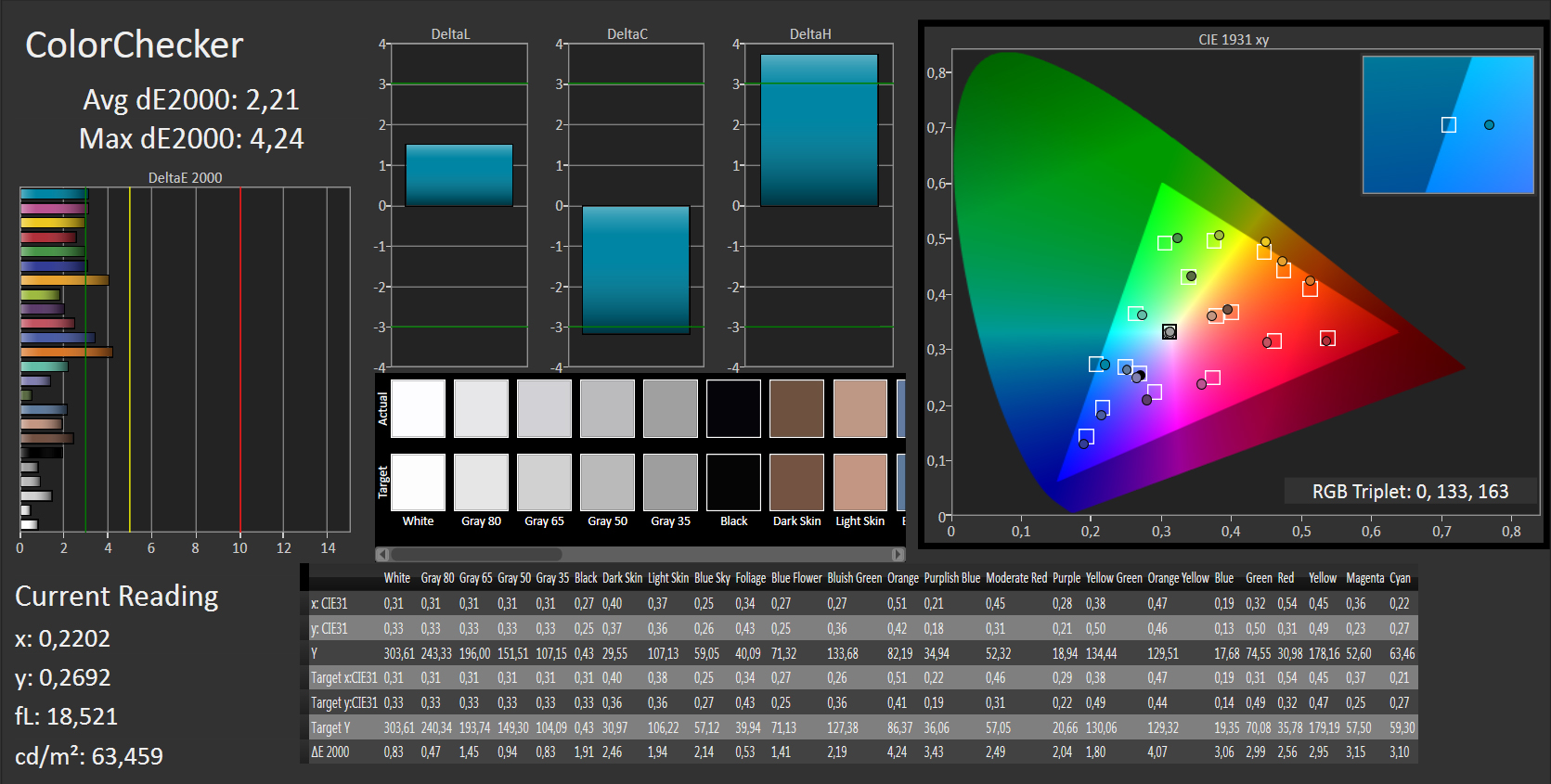

ColorChecker calibrated
ColorChecker calibrated

Overall, the viewing angle stability is very good and there are only small color and brightness changes. Depending on the lighting conditions and viewing angle, there can be some diffuse reflections from light sources that can slightly affect the image. This effect is enhanced, for example, by our viewing angle shots, especially with a tilted display towards the front.

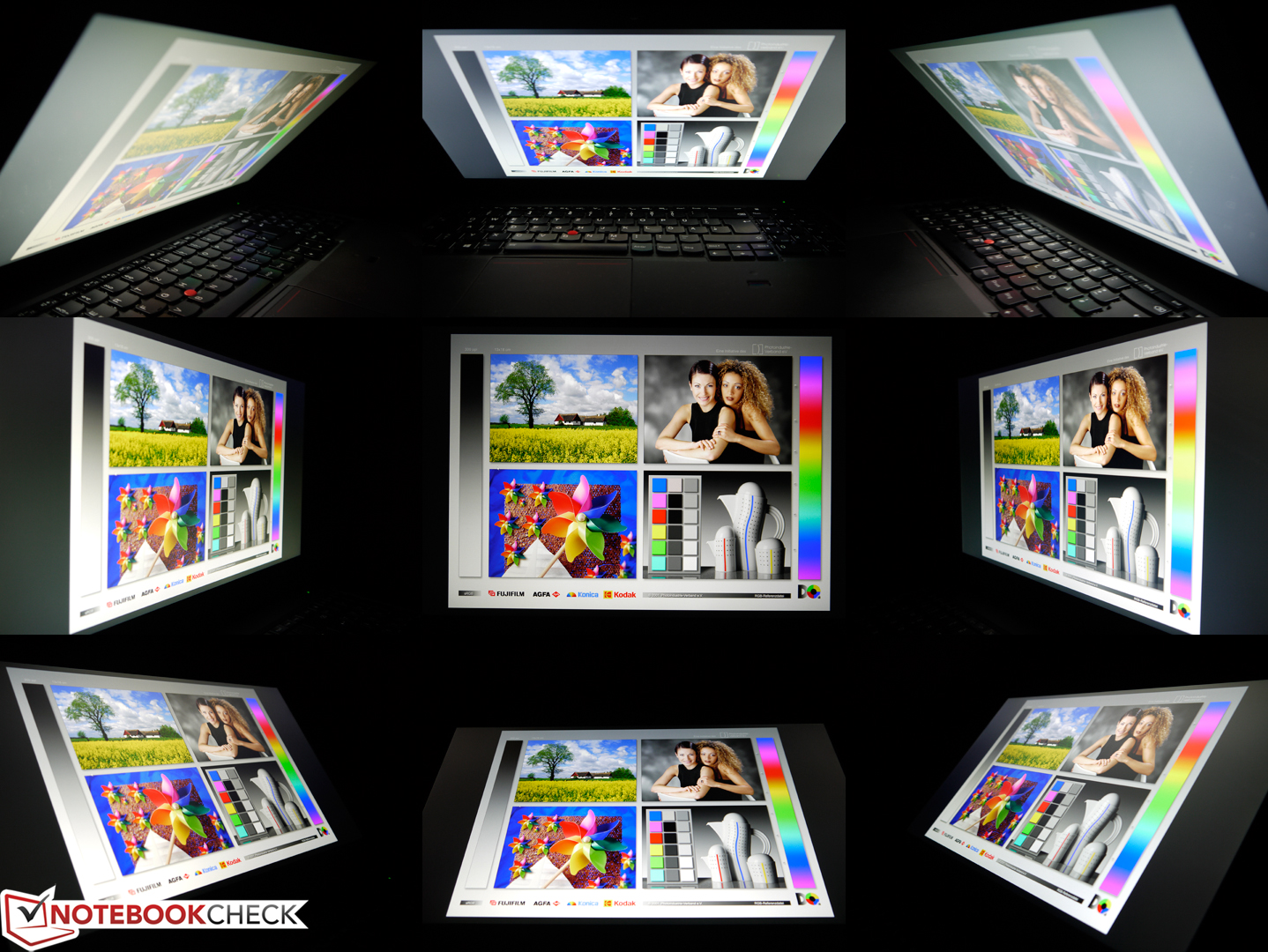

Viewing angles Lenovo ThinkPad W540 3K IPS display
Viewing angles Lenovo ThinkPad W540 3K IPS display

Performance

Lenovo currently offers the ThinkPad W540 Workstation with seven processors, all the way up to an Intel Core i7-4930MX. Besides the two professional graphics cards Nvidia Quadro K1100M and K2100M you can choose the memory and storage equipment. An alternative to the custom-built machines from the online shop are several pre-configured models that are sold by the associated retailers. Our review unit uses an Intel Core i7-4700MQ CPU, Nvidia's professional Quadro K1100M GPU, 4 GB RAM and a 1 TB hard drive.

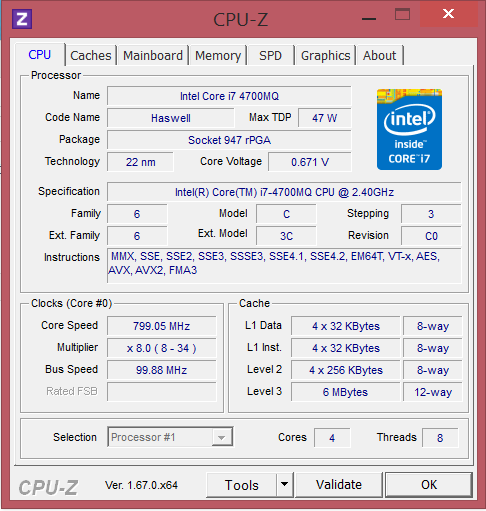

cpu

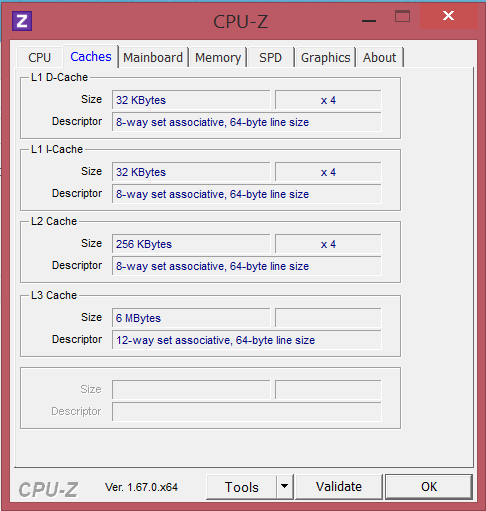

caches

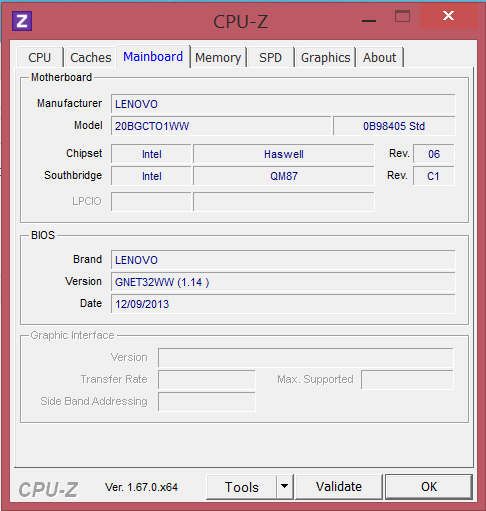

Mainboard

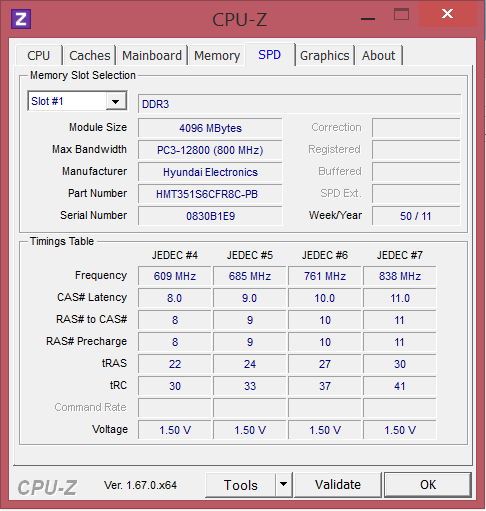

RAM SPD

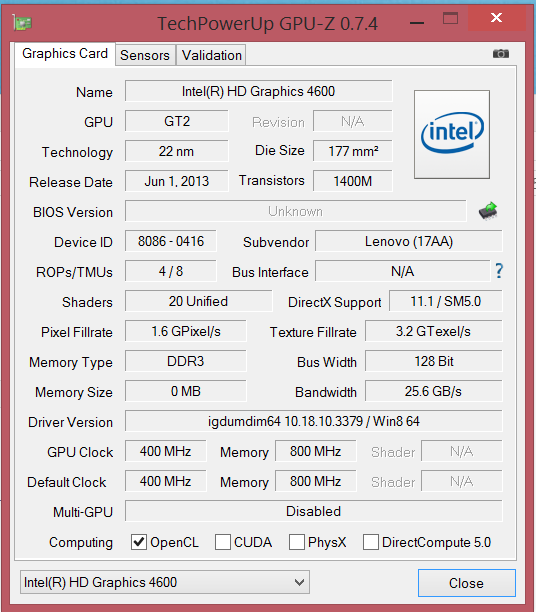

Intel GPU
Nvidia GPU
HD Tune

System information Lenovo ThinkPad W540 20BGCTO1WW

Processor

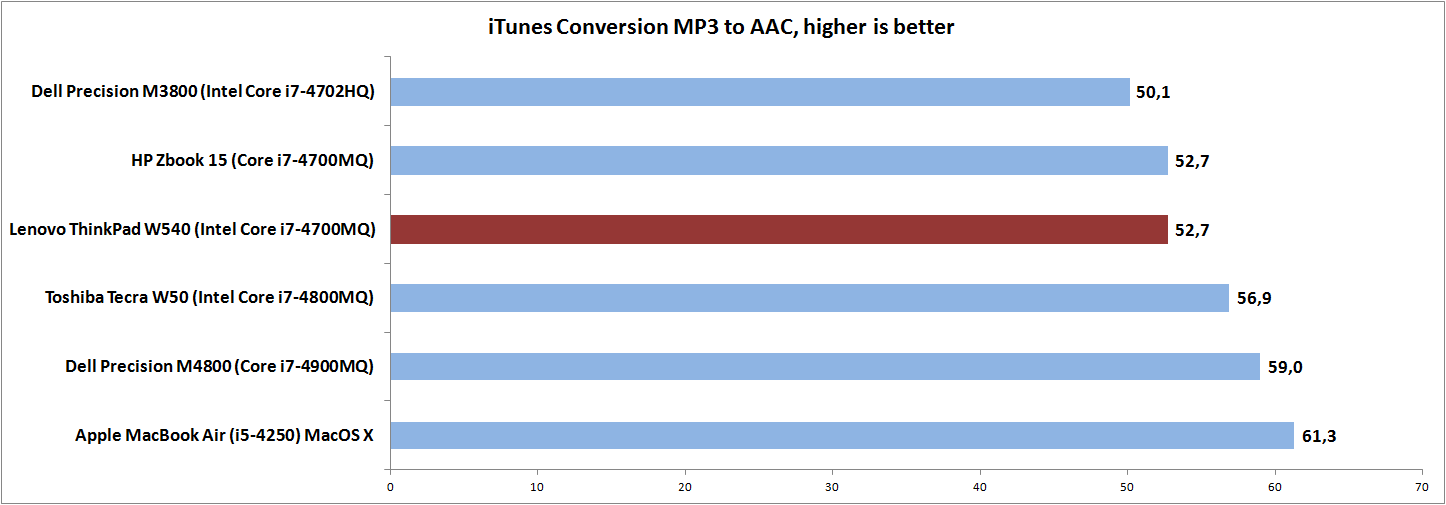

Audio conversion
Audio conversion

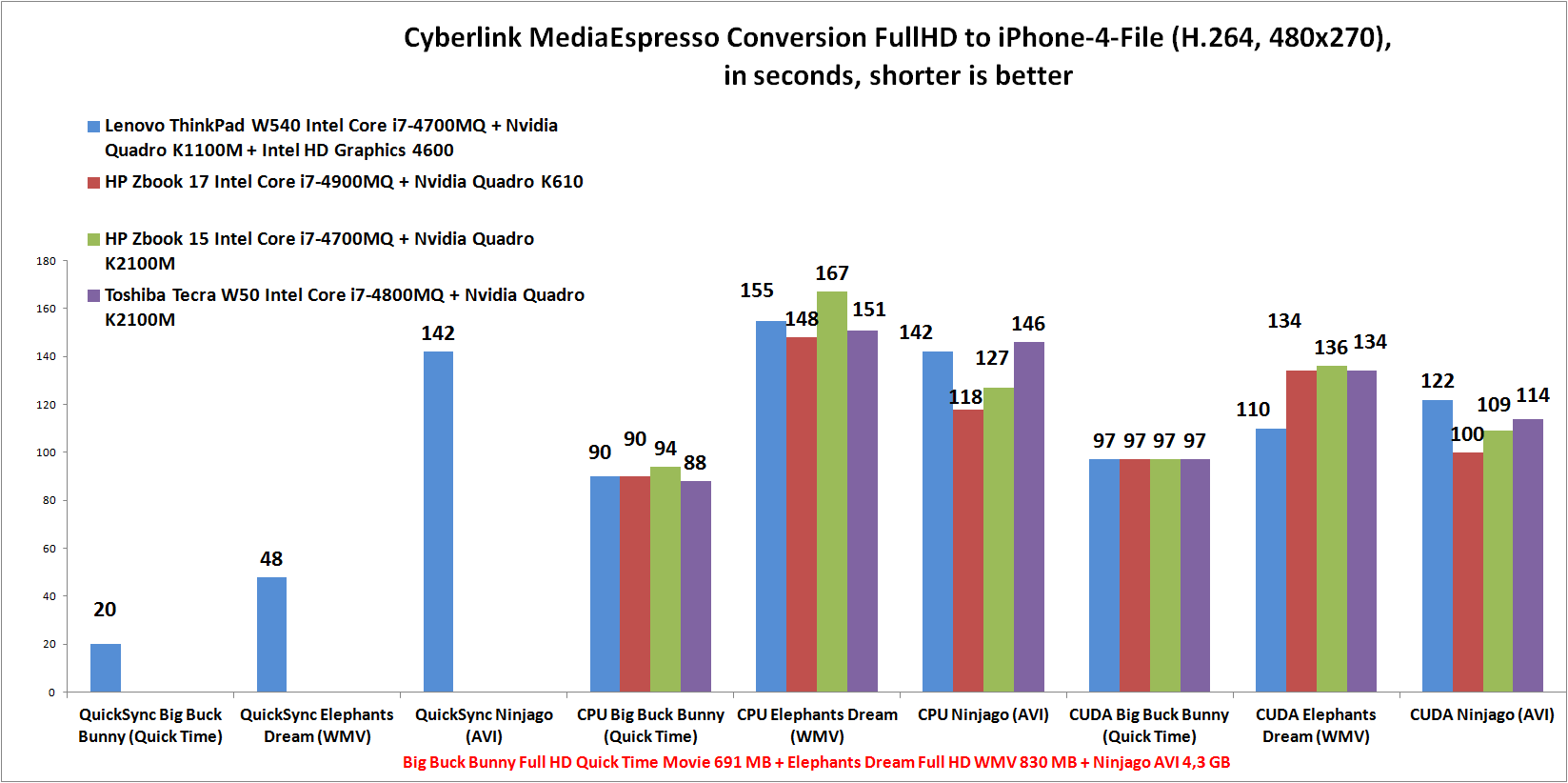

Video conversion
Video conversion

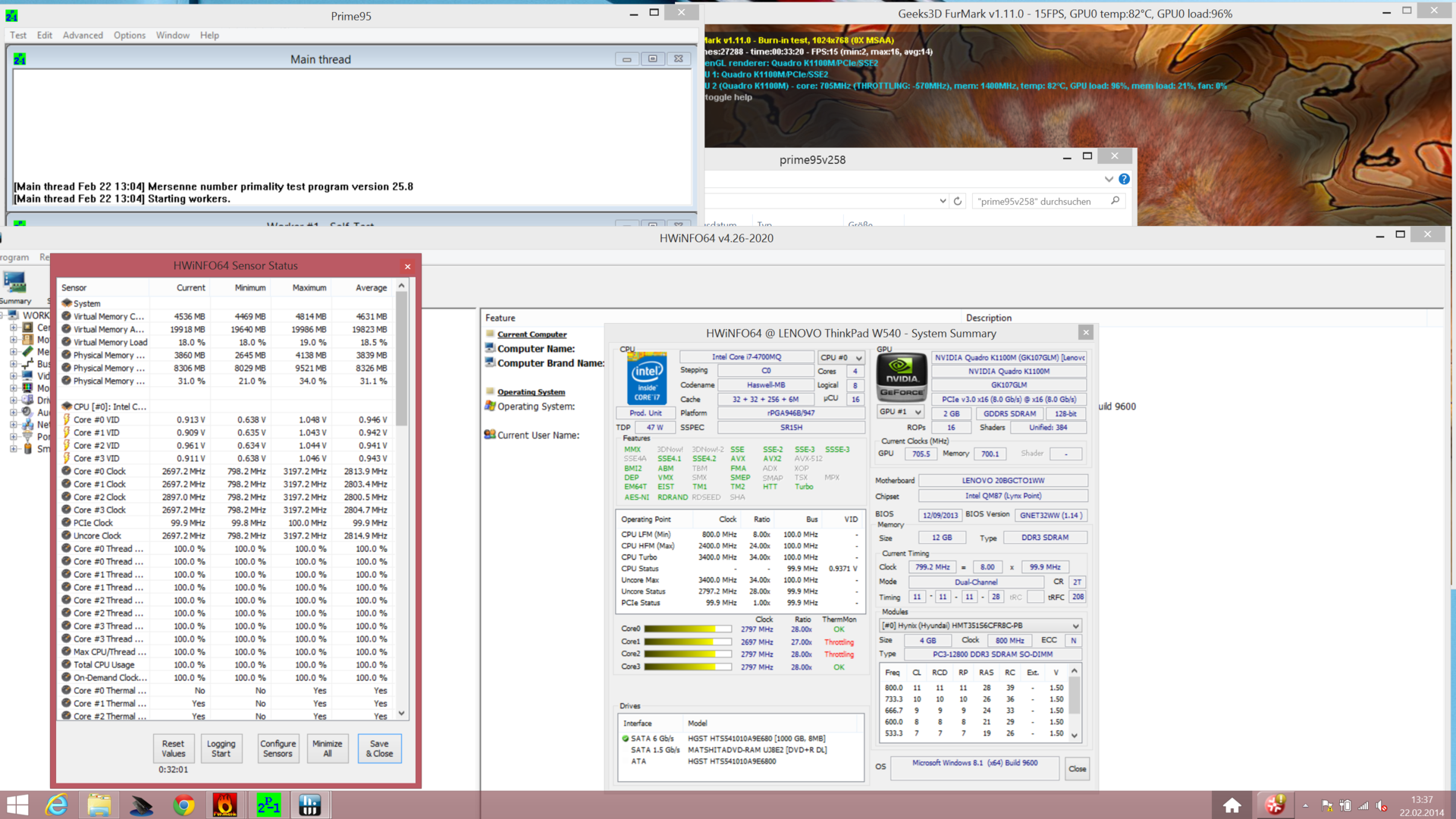

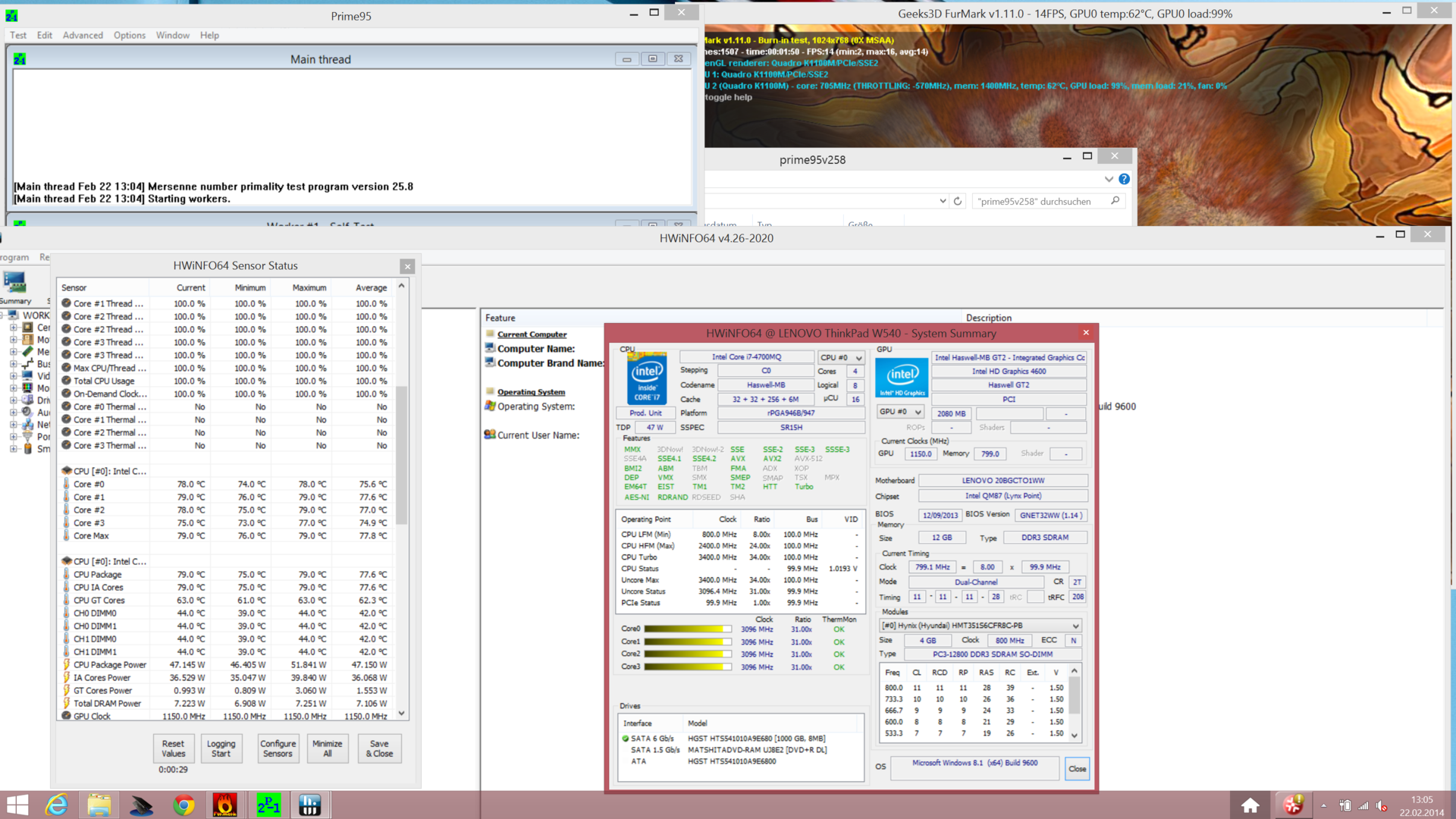

Stress test 2 minutes
Stress test 2 minutes
Stress test 33 minutes
Stress test 33 minutes
Stress test 2:44 hours
Stress test 2:44 hours

Our review unit is equipped with an Intel Core i7-4700MQ CPU that we already reviewed in many other notebooks. It is an appealing solution in terms of performance and is currently the cheapest option for the Lenovo ThinkPad W540 after the entry-level CPU Intel Core i5-4200M. The additional price is even lower than for the dual-core processors Intel Core i5-4330M and i7-4600M in Lenovo's online shop.

Thanks to four native processor cores, four additional virtual cores (Hyperthreading) and the Turbo Boost technology, Intel's Core i7-4700MQ offers sufficient performance for any scenario. Multi-core optimized applications also benefit from the execution of 8 threads simultaneously and applications that only use one core benefit from the clock of up to 3,400 MHz.

The benchmark results are on the usual level for the processor. Cinebench R10 64-bit, for instance, shows 6,281 points (single) and 23,677 points (multi). Our practical tests with iTunes and MediaEspresso are on the expected level as well. iTunes manages 52.7 times the conversion speed and the video conversion via CPU shows that the Intel Core i7-4700MQ falls behind the Intel Core i7-4800MQ CPU.

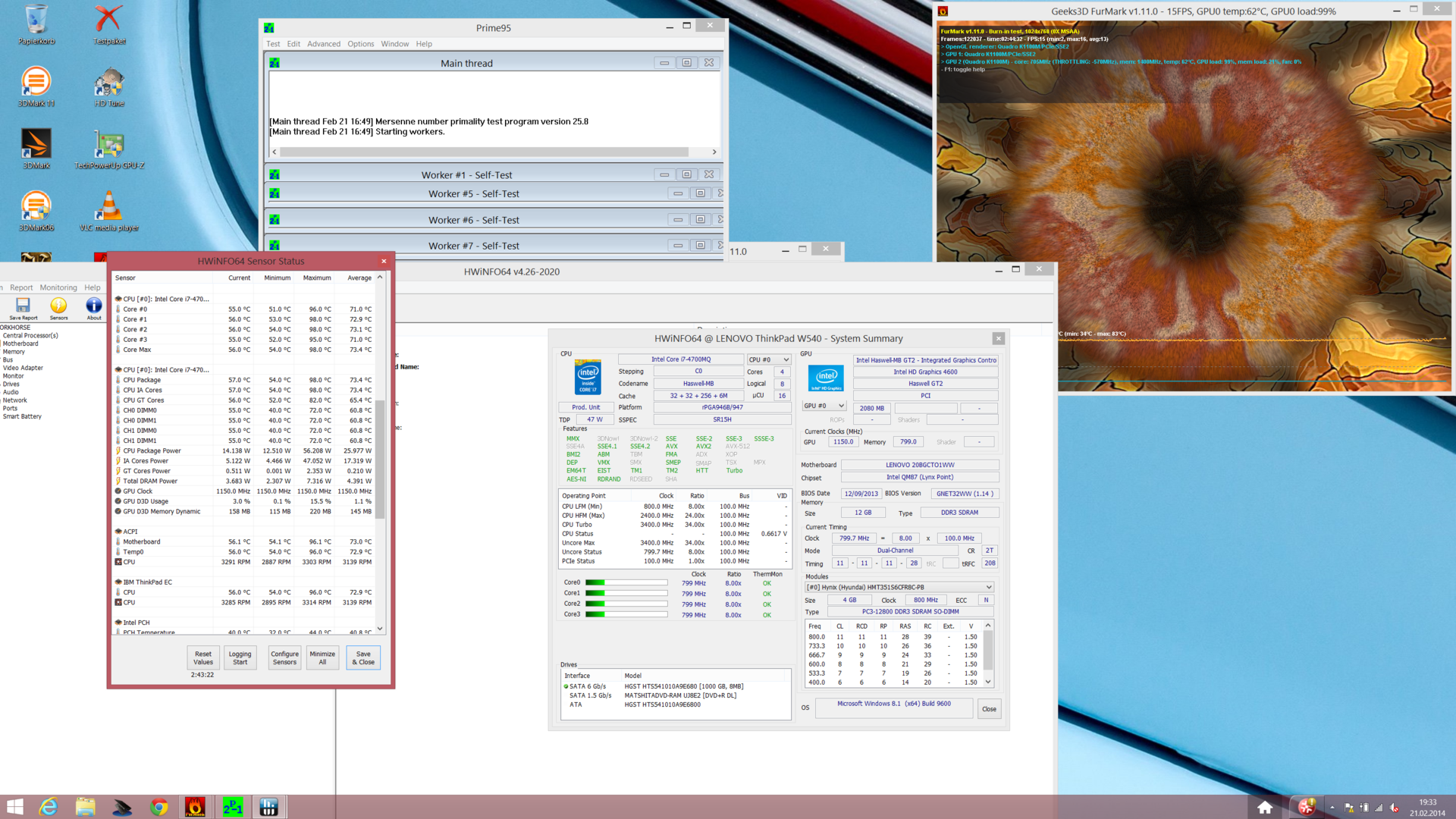

We use Prime95 and FurMark simultaneously to simulate maximum load and assess the stability of the performance. The CPU starts with the maximum clock of 3.0-3.1 GHz but drops to 2.7-2.8 GHz after around 10 minutes. This level can be maintained for nearly exactly 2 hours, after that the processor throttles to 800 MHz and is not able to increase the clock again under the same load. We continued the test for around 40 minutes and could not determine a higher clock. The processor is cooled down to around 55 °C (131 °F) in this situation according to HWinfo 64.

Operation on battery power reduces the CPU performance by around 42% in general. Cinebench R11.5 for example only results in 3.96 instead of 6.71 points. You can minimize this effect if you change the BIOS setting to "maximum performance on battery". After that, you can use around 72% of the CPU performance, which results in 5.09 points for the Cinebench R11.5 Multi test.

Cinebench R10 Shading 32Bit
5843
Cinebench R10 Rendering Multiple CPUs 32Bit
17530
Cinebench R10 Rendering Single 32Bit
4737
Cinebench R10 Shading 64Bit
5979 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
23677 Points
Cinebench R10 Rendering Single CPUs 64Bit
6281 Points
Cinebench R11.5 CPU Multi 64Bit
6.71 Points
Cinebench R11.5 OpenGL 64Bit
43.68 fps
Cinebench R11.5 CPU Single 64Bit
1.45 Points
Cinebench R15 CPU Multi 64Bit
611 Points
Cinebench R15 CPU Single 64Bit
124 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
50.66 fps
Help

System Performance

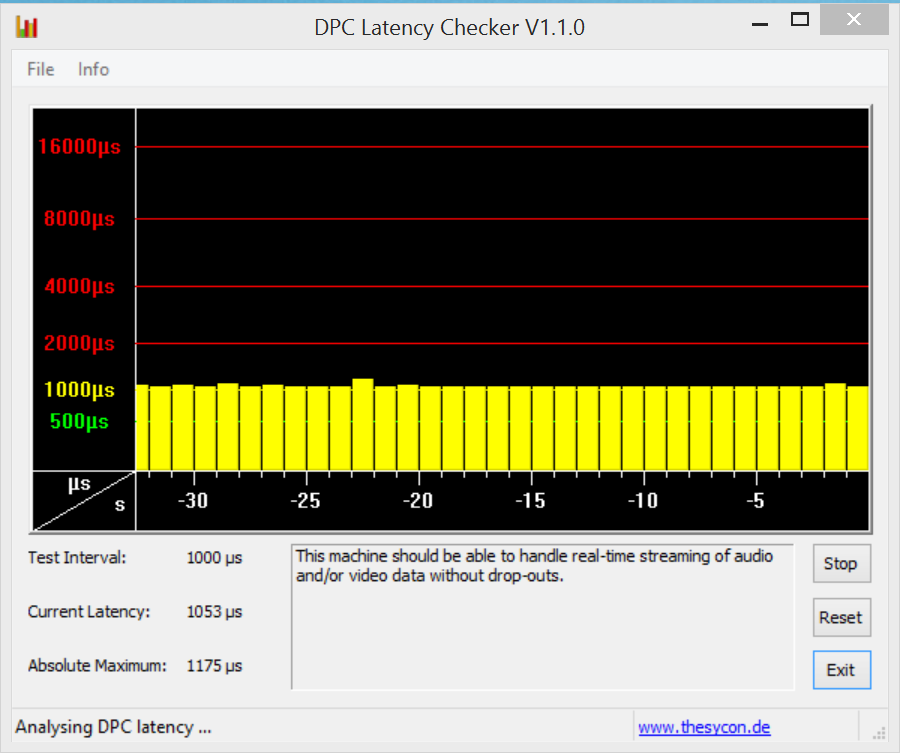

DPC Latency Checker
DPC Latency Checker

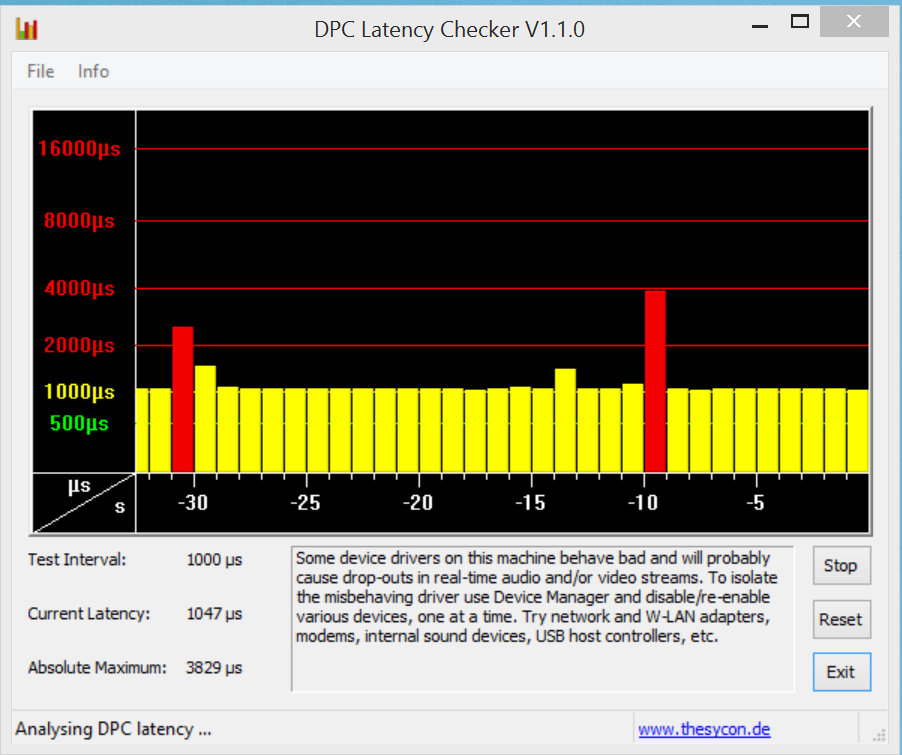

DPC Latency Checker with 2 x keyboard input
DPC Latency Checker with 2 x keyboard input

System performance is usually high enough for many tasks, but it could be improved by more memory and a faster storage solution. Both areas appear to be the bottleneck of the system and affect the overall performance. PCMark 7 results in 3,204 points and PCMark 8 Creative 3,676 points. Both benchmarks show a comparatively bad result in the storage tests with just 1,577 points (PCMark 7) and 2,095 points (PCMark 8 Storage), respectively. You can upgrade the memory very easily by adding another module and the storage could be accelerated by an SSD cache or replaced by an SSD.

DPC Latency Checker checks the system for high latencies. Synchronizing problems, for instance, can create sound disruptions during videos. We could reproduce critical spikes for our review unit with keyboard inputs. Otherwise, the values were not in a critical range with around 1000 µs.

PC Mark
PCMark Vantage9515 points
PCMark 73204 points
PCMark 8 Home3014 points
PCMark 8 Creative3676 points
PCMark 8 Work3450 points
Help

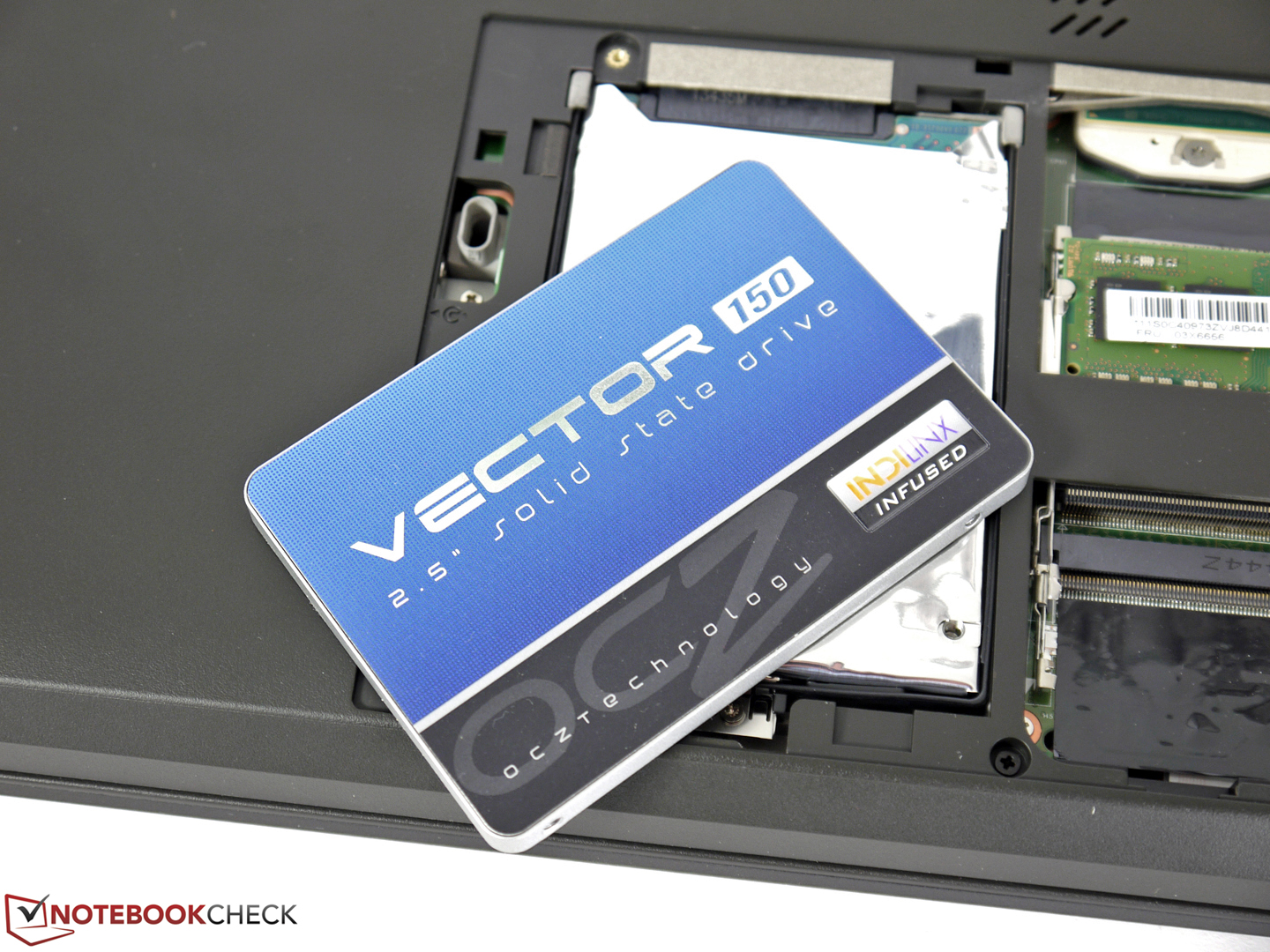

Storage Solution

Our review unit uses a 1 TB hard drive from Hitachi, which has a large capacity, but is otherwise not particularly good in terms of performance with an average transfer rate of 87 MB/s and access times between 15 and 17 ms. Lenovo also offers the alternative of a 16 GB SSD cache or Solid State Drives with a capacity of up to 512 GB. You can also replace the optical drive with the Bay Adaptor IV to integrate a second hard drive or a second SSD.

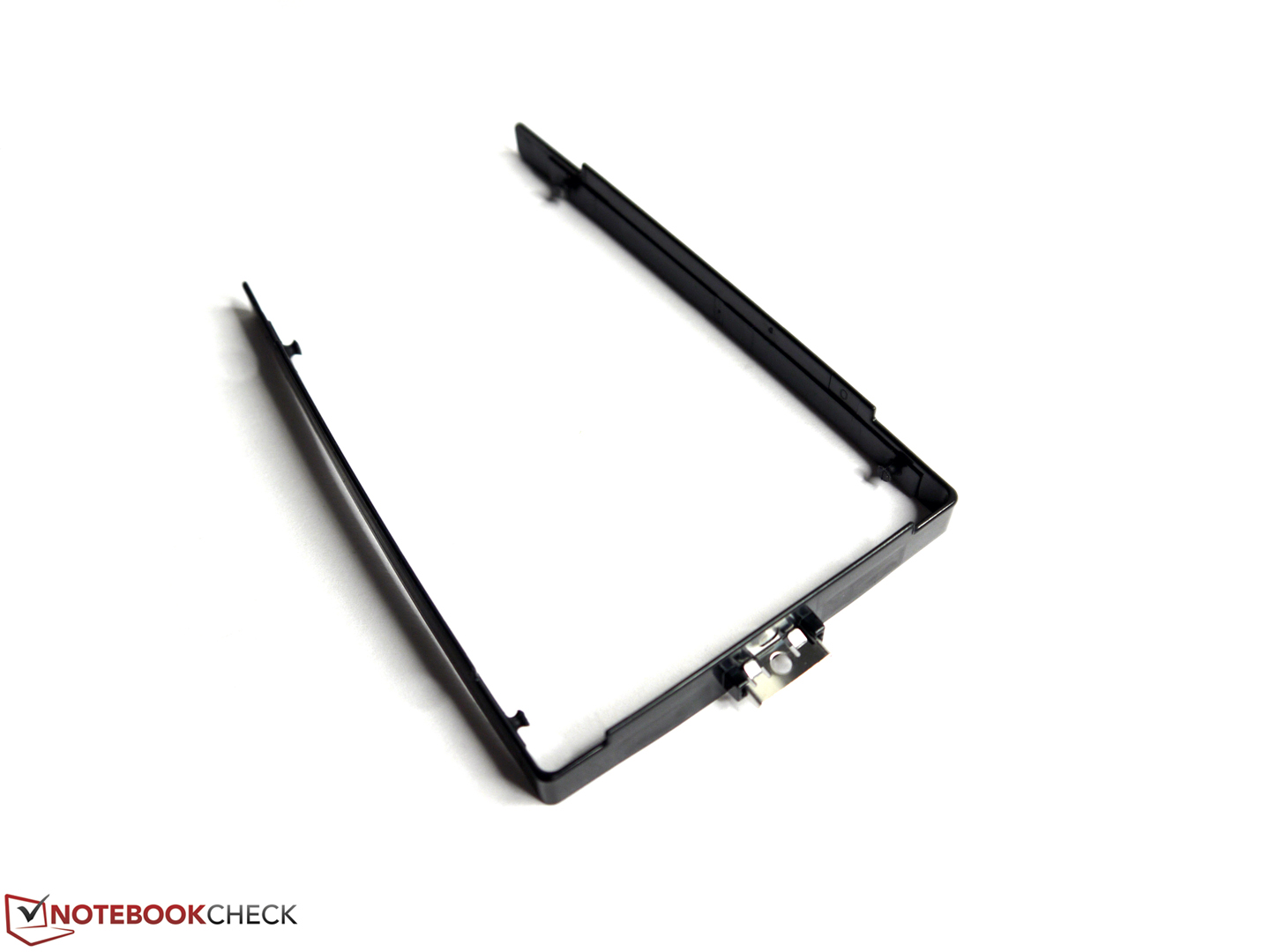

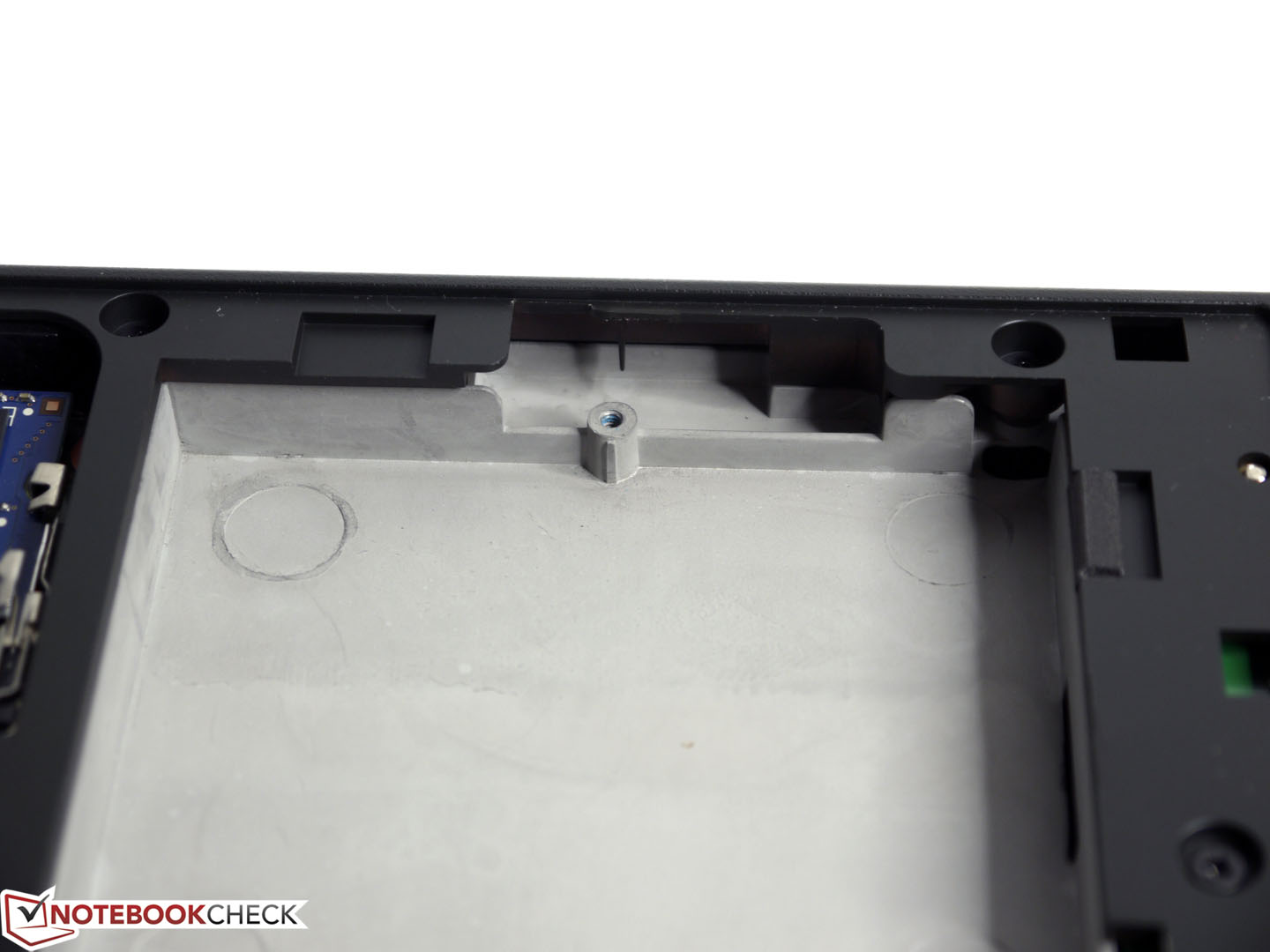

However, upgrading is not as easy as expected. The empty SATAe M.2 slot can only take storage modules with a maximum length of 42 mm. Currently the available models all have a length of 80 mm so they will not fit. Mounting a drive in the Bay Adaptor IV is also quite tricky, because you require a plastic frame, which is not provided. According to the Lenovo support, you cannot buy this part separately, either. You cannot securely mount your own drives in the normal hard drive bay or in the Bay Adaptor without this frame, which means you will have to either build one yourself or use a third-party adaptor. Both solutions are not a convenient solution for every user.

Lenovo offers the possibility to create a RAID configuration. Our review unit, however, did not have this option in the BIOS (1.14) and it is only supposed to work with BIOS version 1.08 (or lower) for all W540s. Otherwise, this option is only provided by models that have been configured with a RAID system.

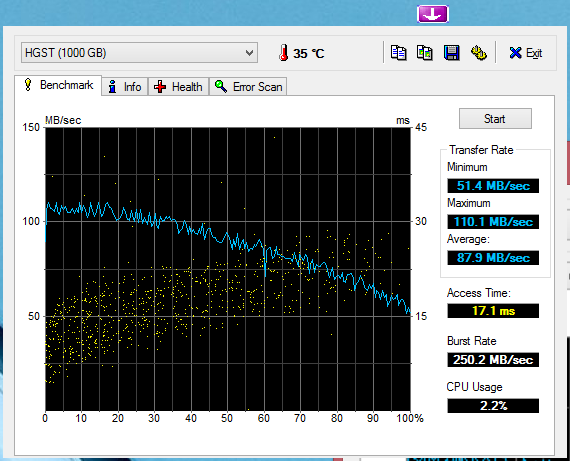

HGST Travelstar 5K1000 HTS541010A9E680
Transfer Rate Minimum: 51.4 MB/s
Transfer Rate Maximum: 110.1 MB/s
Transfer Rate Average: 87.9 MB/s
Access Time: 17.1 ms
Burst Rate: 250.2 MB/s
CPU Usage: 2.2 %

Graphics

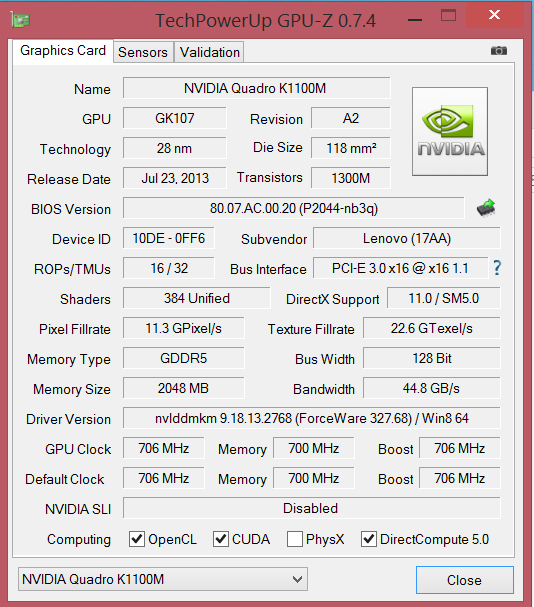

Nvidia's Quadro K1100M is the professional version of the Nvidia GeForce GT 730M. It is slightly modified in terms of hardware and has special drivers as well as an adjusted BIOS. The GPU has advantages when applications support the OpenGL interface and accelerate tasks with special optimizations. We use the benchmark SPECviewperf 11 to test a number of CAD applications and the results indicate the level of performance. The results can differ considerably depending on the configuration, driver version, and actually used software and therefore require an analysis of your usage scenario in advance. Compared to the smaller Nvidia Quadro K610M and bigger Nvidia Quadro K2100M, the Nvidia Quadro K1100M is usually right in the middle. Smaller differences are most likely a result of different driver versions.

SPECviewperf 11
1920x1080 Catia AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
30.91 fps ∼45%
Dell Precision M3800 QHD+ Display
31.89 fps ∼46% +3%
Toshiba Tecra W50-A-104
42.66 fps ∼61% +38%
HP ZBook 15
28.72 fps ∼41% -7%
HP ZBook 14
25.05 fps ∼36% -19%
1920x1080 Ensight AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
17.49 fps ∼22%
Dell Precision M3800 QHD+ Display
17.84 fps ∼22% +2%
Toshiba Tecra W50-A-104
28.26 fps ∼35% +62%
HP ZBook 15
14.67 fps ∼18% -16%
HP ZBook 14
11.29 fps ∼14% -35%
1920x1080 Lightwave AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
46.51 fps ∼58%
Dell Precision M3800 QHD+ Display
48 fps ∼59% +3%
Toshiba Tecra W50-A-104
50.61 fps ∼63% +9%
HP ZBook 15
49.06 fps ∼61% +5%
HP ZBook 14
48.54 fps ∼60% +4%
1920x1080 Maya AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
46.37 fps ∼41%
Dell Precision M3800 QHD+ Display
46.91 fps ∼42% +1%
Toshiba Tecra W50-A-104
53.3 fps ∼47% +15%
HP ZBook 15
42.44 fps ∼38% -8%
HP ZBook 14
37.65 fps ∼33% -19%
1920x1080 Pro/ENGINEER AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
12.82 fps ∼68%
Dell Precision M3800 QHD+ Display
13.55 fps ∼71% +6%
Toshiba Tecra W50-A-104
18.79 fps ∼99% +47%
HP ZBook 15
13.93 fps ∼73% +9%
HP ZBook 14
8.87 fps ∼47% -31%
1920x1080 SolidWorks AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
36.26 fps ∼56%
Dell Precision M3800 QHD+ Display
37.78 fps ∼58% +4%
Toshiba Tecra W50-A-104
44.64 fps ∼69% +23%
HP ZBook 15
35.16 fps ∼54% -3%
HP ZBook 14
37.88 fps ∼59% +4%
1920x1080 Tcvis AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
27.62 fps ∼46%
Dell Precision M3800 QHD+ Display
28.04 fps ∼47% +2%
Toshiba Tecra W50-A-104
34.82 fps ∼58% +26%
HP ZBook 15
26.47 fps ∼44% -4%
HP ZBook 14
13.56 fps ∼23% -51%
1920x1080 Siemens NX AA:0x AF:0x (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
23.62 fps ∼37%
Dell Precision M3800 QHD+ Display
24.01 fps ∼38% +2%
Toshiba Tecra W50-A-104
31.33 fps ∼50% +33%
HP ZBook 15
20.54 fps ∼33% -13%
HP ZBook 14
21.28 fps ∼34% -10%

Legend


Lenovo ThinkPad W540 20BGCTO1WW Intel Core i7-4700MQ, NVIDIA Quadro K1100M, HGST Travelstar 5K1000 HTS541010A9E680

Dell Precision M3800 QHD+ Display Intel Core i7-4702HQ, NVIDIA Quadro K1100M, Liteonit LMT-256M6M

Toshiba Tecra W50-A-104 Intel Core i7-4800MQ, NVIDIA Quadro K2100M, Toshiba MQ01ABD100

HP ZBook 15 Intel Core i7-4800MQ, NVIDIA Quadro K610M, Hitachi Travelstar Z7K500 HTS725050A7E630

HP ZBook 14 Intel Core i7-4600U, AMD FirePro M4100, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

The conventional benchmarks show that the Quadro K1100M is on one level with the Nvidia GeForce GT 740M. 3DMark 06 results in 12,397 points, 3DMark 11 in 1,921 points and Cinebench R11.5 OpenGL Shading in 43.68 fps. The GPU performance can be maintained under maximum load as well as on battery power; worse scores are a result of the reduced CPU performance. 3DMark 06 produced 11,608 points on battery power (CPU only 4,239 instead of 6,874 points) and 43.8 fps in Cinebench R11.5.

3D Mark
3DMark 06
 1280x1024
12397 points
3DMark 111921 points
3DMark Ice Storm35709 points
3DMark Cloud Gate7353 points
3DMark Fire Strike1263 points
Help

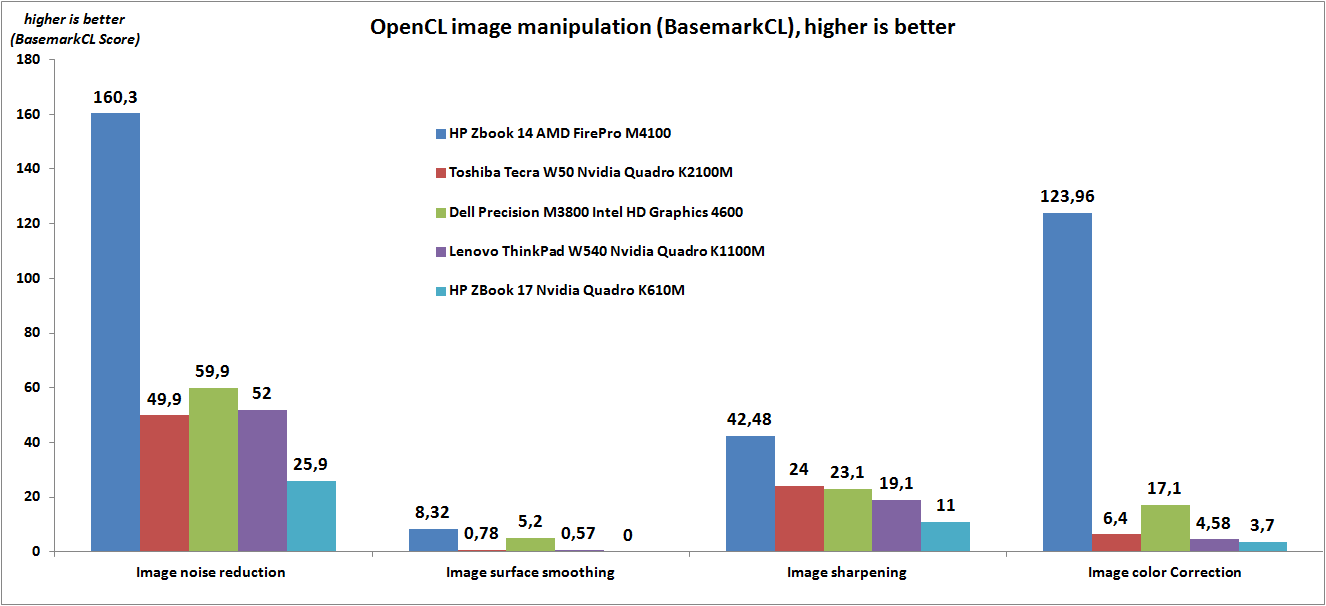

Besides the usual 3D applications, GPUs with OpenCL can also calculate tasks that are more specialized, such as filters during picture editing, data encryption or light-shadow effects. Nvidia GPUs are comparatively slow in these areas and are even beaten by Intel's integrated graphics solutions. It is the first time that we can compare the results with an AMD FirePro M4100 inside the HP ZBook 14 (in-depth review to follow). Depending on the test sequence, the AMD solution gets very high results and can even beat very powerful Quadros. Similar to the Dell Precision M3800, our Nvidia Quadro K1100M is not very fast and can only beat the smaller Nvidia Quadro K610M.

Picture editing
Picture editing

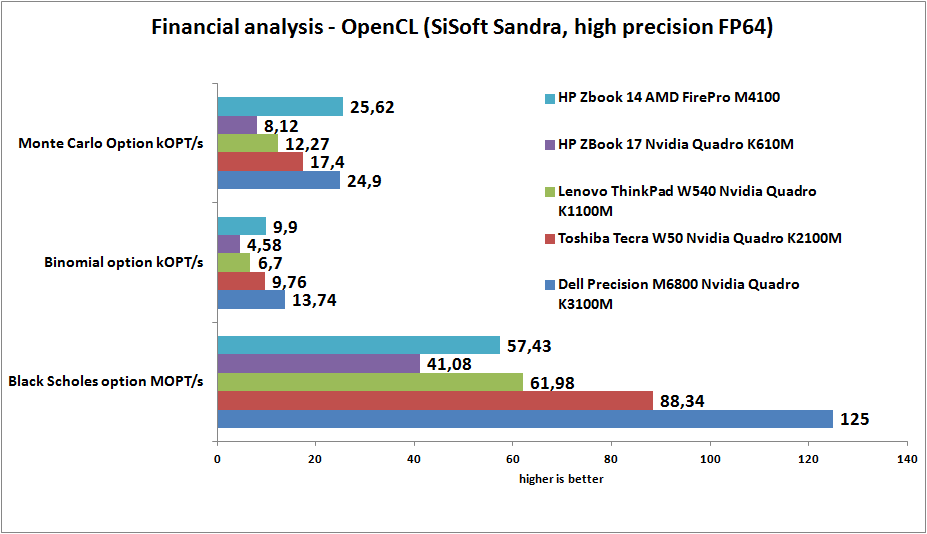

Financial analysis
Financial analysis

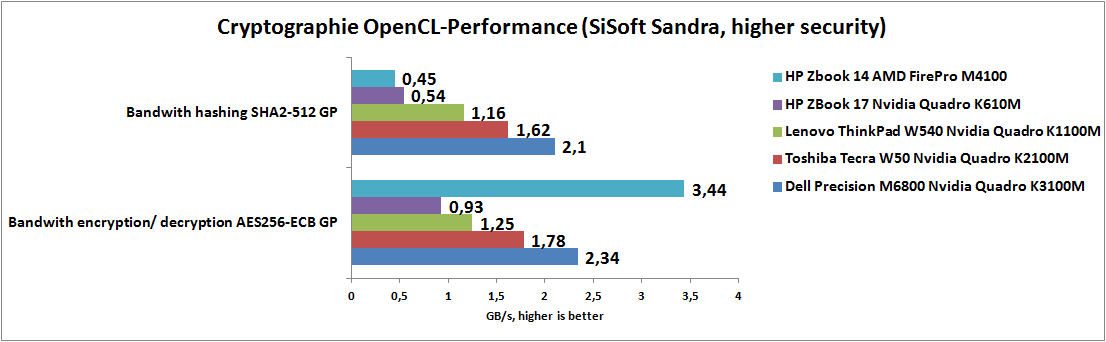

Cryptography
Cryptography
LuxMark v2.0 64Bit
Sala Scene, OpenCL GPUs-only (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
48 Samples/s ∼2%
Toshiba Tecra W50-A-104
160 Samples/s ∼5% +233%
HP ZBook 14
306 Samples/s ∼10% +538%
HP ZBook 17 E9X11AA-ABA
48 Samples/s ∼2% 0%
Room Scene, OpenCL GPUs-only (sort by value)
Lenovo ThinkPad W540 20BGCTO1WW
103 Samples/s ∼7%
Toshiba Tecra W50-A-104
75 Samples/s ∼5% -27%
HP ZBook 14
187 Samples/s ∼12% +82%
HP ZBook 17 E9X11AA-ABA
102 Samples/s ∼7% -1%

Legend


Lenovo ThinkPad W540 20BGCTO1WW Intel Core i7-4700MQ, NVIDIA Quadro K1100M, HGST Travelstar 5K1000 HTS541010A9E680

Toshiba Tecra W50-A-104 Intel Core i7-4800MQ, NVIDIA Quadro K2100M, Toshiba MQ01ABD100

HP ZBook 14 Intel Core i7-4600U, AMD FirePro M4100, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

HP ZBook 17 E9X11AA-ABA Intel Core i7-4900MQ, NVIDIA Quadro K610M, Micron RealSSD C400 MTFDDAK128MAM

Gaming Performance

The gaming performance is usually sufficient for most titles in medium and high details. Besides the CAD benchmark SPECviewperf 12, Total War Rome had problems with the high display resolution as well. Except for Full HD, we could not use any of our test resolutions; changing the settings just resulted in a crash. Company of Heroes 2 is hardly playable at all; the Quadro K1100M is just not powerful enough. We already evaluated the gaming performance in the review of the Dell Precision M3800 and you can take the results as an indicator for the ThinkPad W540. Further comparison values can also be found in our comprehensive benchmark list for notebook GPUs.

low med.high ultra
Tomb Raider (2013) 101.756.938.816.3fps
Company of Heroes 2 (2013) 23.619.913.15.8fps
Total War: Rome II (2013) 11.8fps

Emissions

System Noise

The measured system noise during idle is mainly produced by the conventional hard drive. After it is deactivated we can only measure 28 dB(A) and the fan is hardly audible in this case. The activated hard drive increases the noise to 30.8 dB(A) and 31.2 dB(A) when we access the drive. DVD playback is pretty quiet with 32.9 dB(A), so the DVD drive is only audible in quiet movie scenes. Medium workloads increase the system noise to a moderate 35.8 dB(A) and the maximum of 41.9 dB(A) is only annoying after a long period. A very positive aspect is that the cooling solution only gets louder if it is necessary. The ThinkPad W540 did not produce the unpleasant fan noise that we noticed in the review of the Lenovo ThinkPad T440p.

Noise Level

Idle 28.0 / 30.8 / 30.8 dB(A)
HDD 31.2 dB(A)
DVD 31.2 / dB(A)
Load 35.8 / 41.9 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    PCE-322A (15 cm distance)

Temperature

The temperature development under maximum load is in a tolerable range with up to 43.4 °C (110.1 °F) at the bottom and it is limited to the outer left side of the case. Even the cooling fins at the fan exhaust are not dangerously hot at 44.6 °C (112.3 °F). The review unit also benefits from the already mentioned low fan activity during light workloads. We only measured up to 41.1 °C (106 °F) in this case, which means using the notebook on your lap is still possible.

Max. Load
 33.1 °C26.8 °C24.1 °C
 37.3 °C32.7 °C25.5 °C
 40.8 °C30.4 °C24.5 °C
Maximum: 40.8 °C
Average: 30.6 °C
24.9 °C27.5 °C40.2 °C
26.2 °C30.2 °C43.4 °C
26.4 °C30.1 °C37.2 °C
Maximum: 43.4 °C
Average: 31.8 °C
Power Supply (max.)  38.5 °C | Room Temperature 20 °C | Fennel Firt 550

Speakers

Music playback is surprisingly good for a business notebook. It tends to emphasize high tones, but medium tones and bass are audible and produce a comparatively pleasant sound characteristic. This is also a result of the location: The speakers are at the bottom and can use the empty space underneath the notebook as a sound box. The volume can be finely adjusted in 50 steps. We could not hear any distortion at maximum volume. The stereo jack on the left side is a combined headphones and microphone port. External solutions can also be attached via USB or Bluetooth.

Energy Management

Power Consumption

We measured the power consumption (at the socket) between 12.8 Watts and 111.3 Watts under maximum load. In combination with charging the battery, it can result in 150 Watts. The power supply unit is sufficient with a nominal output of 198 Watts, even leaving some headroom. The display is much more frugal in general compared to the DreamColor display of the HP ZBook 15 or the 4K display of the Dell Precision M3800, for example. The minimum consumption drops to 5.5 Watts with a deactivated display and around 18 Watts with the highest brightness setting.

Lenovo offers two different batteries for the ThinkPad W540. Our review unit is equipped with the smaller 56 Wh battery, which is flush with the case. The alternative is a protruding, almost twice as powerful, 99 Wh battery. This battery is already included in some pre-configured models; otherwise, it can be added or bought separately in the online shop (Lenovo 0C52864, around 100 Euros; ~$139).

Power Consumption

Off / Standby 0.1 / 0.2 Watt
Idle 12.8 / 18.4 / 18.7 Watt
Load 53.1 / 111.3 Watt

Key: min: , med: , max:         Voltcraft VC 940

Battery Runtime

The battery runtimes benefit from the comparatively low power consumption, but the review unit falls short of its potential because of the small battery. What you get in return is a compact and lighter notebook. Both solutions have their advantages and disadvantages and it basically comes down to your personal preferences.

Compared to the workstation competition our review unit still holds up pretty well and manages battery runtimes of up to 5:33 hours in the Battery Eater Reader's Test (maximum runtime, minimum display brightness, flight mode). Our WLAN test with an adjusted brightness (141 cd/m²) resulted in 3:49 hours and our Full HD video (141 cd/m², flight mode) ran for 2:17 hours. The Battery Eater Classic Test (maximum brightness, wireless on, high-performance profile) benefits from the throttled CPU performance (1.9 GHz) and can potentially longer runtimes. A runtime of 1:16 hours results in a consumption of around 44 Wh.

Battery Eater Reader's Test
Battery Eater Reader's Test

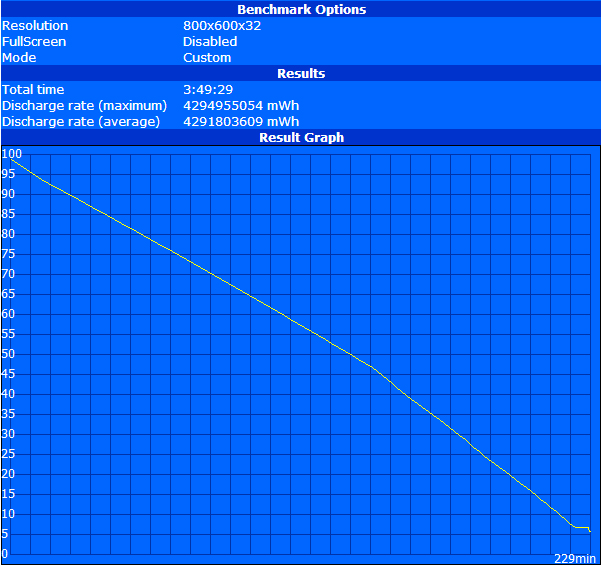

WLAN test
WLAN test

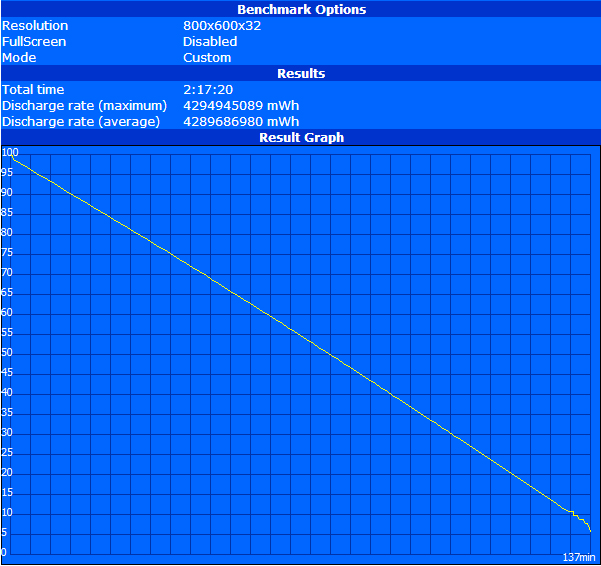

Video test
Video test

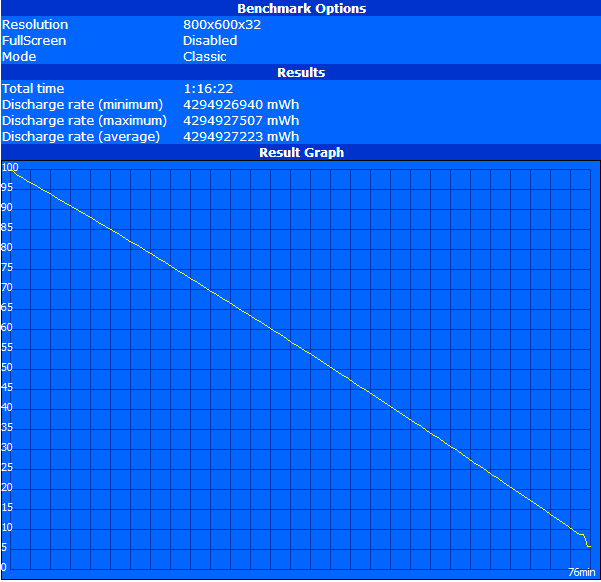

Battery Eater Classic Test
Battery Eater Classic Test
Battery Runtime
Idle (without WLAN, min brightness)
5h 33min
WiFi Surfing
3h 49min
Big Buck Bunny H.264 1080p
2h 17min
Load (maximum brightness)
1h 16min

Verdict

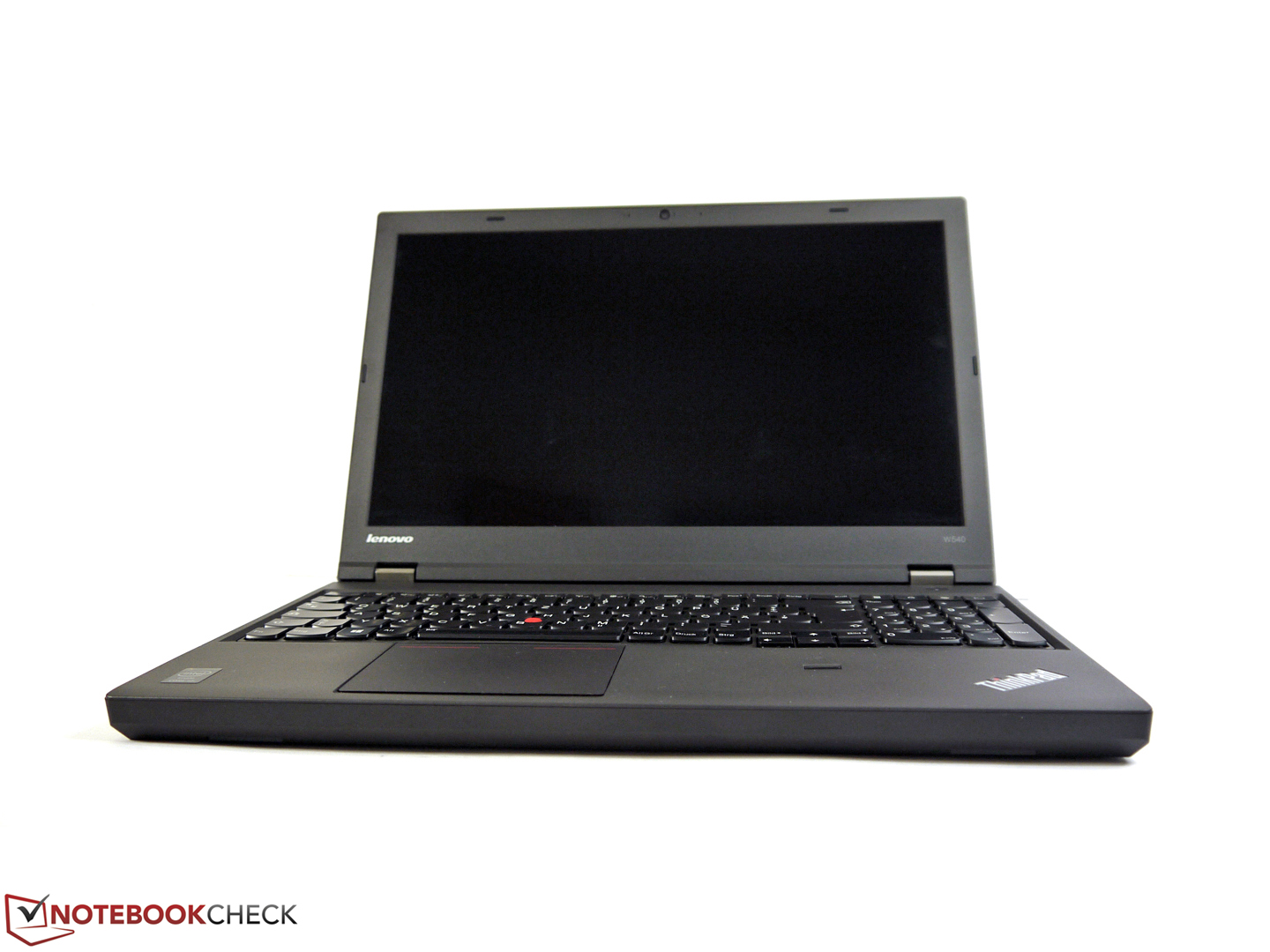

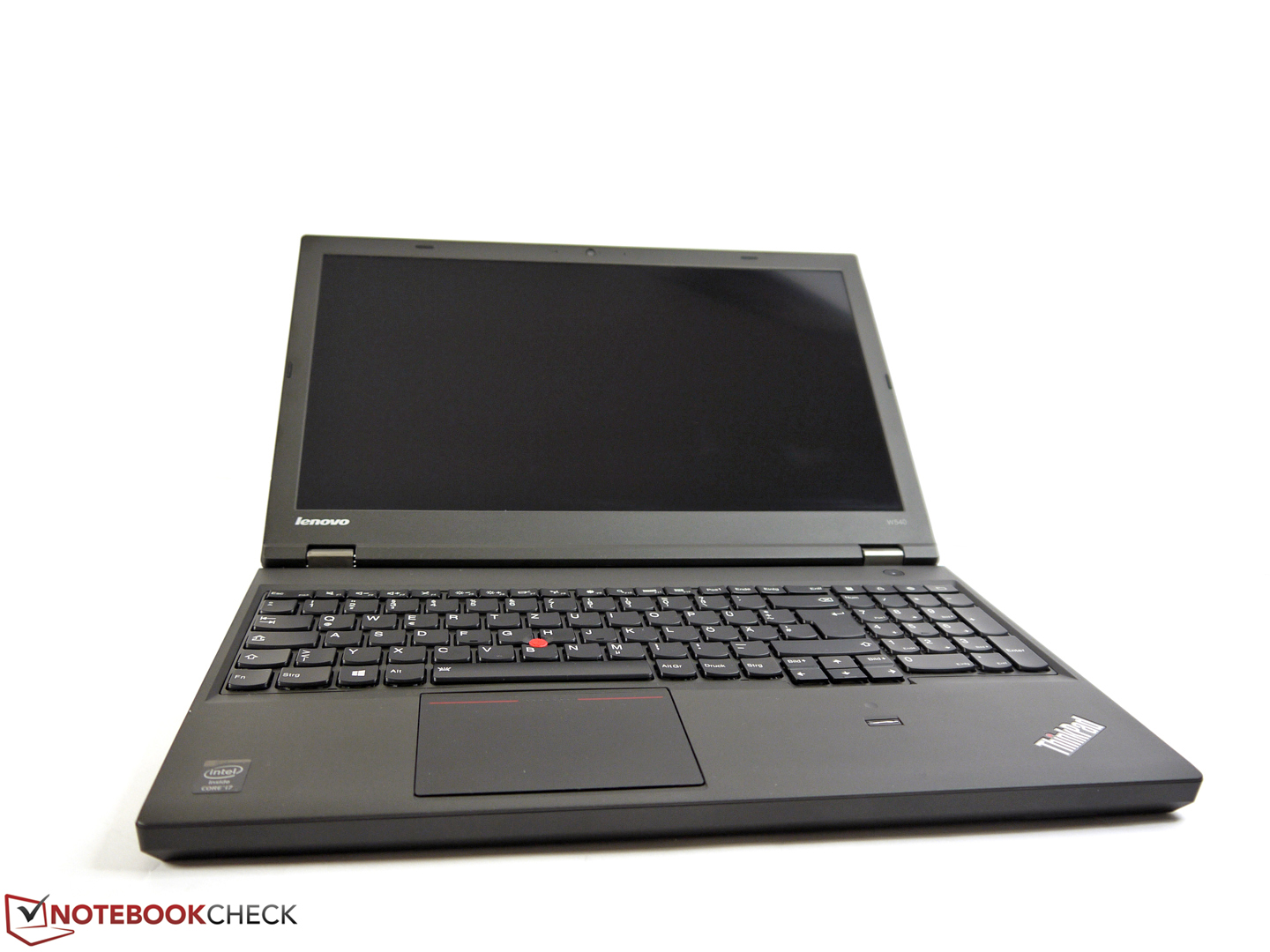

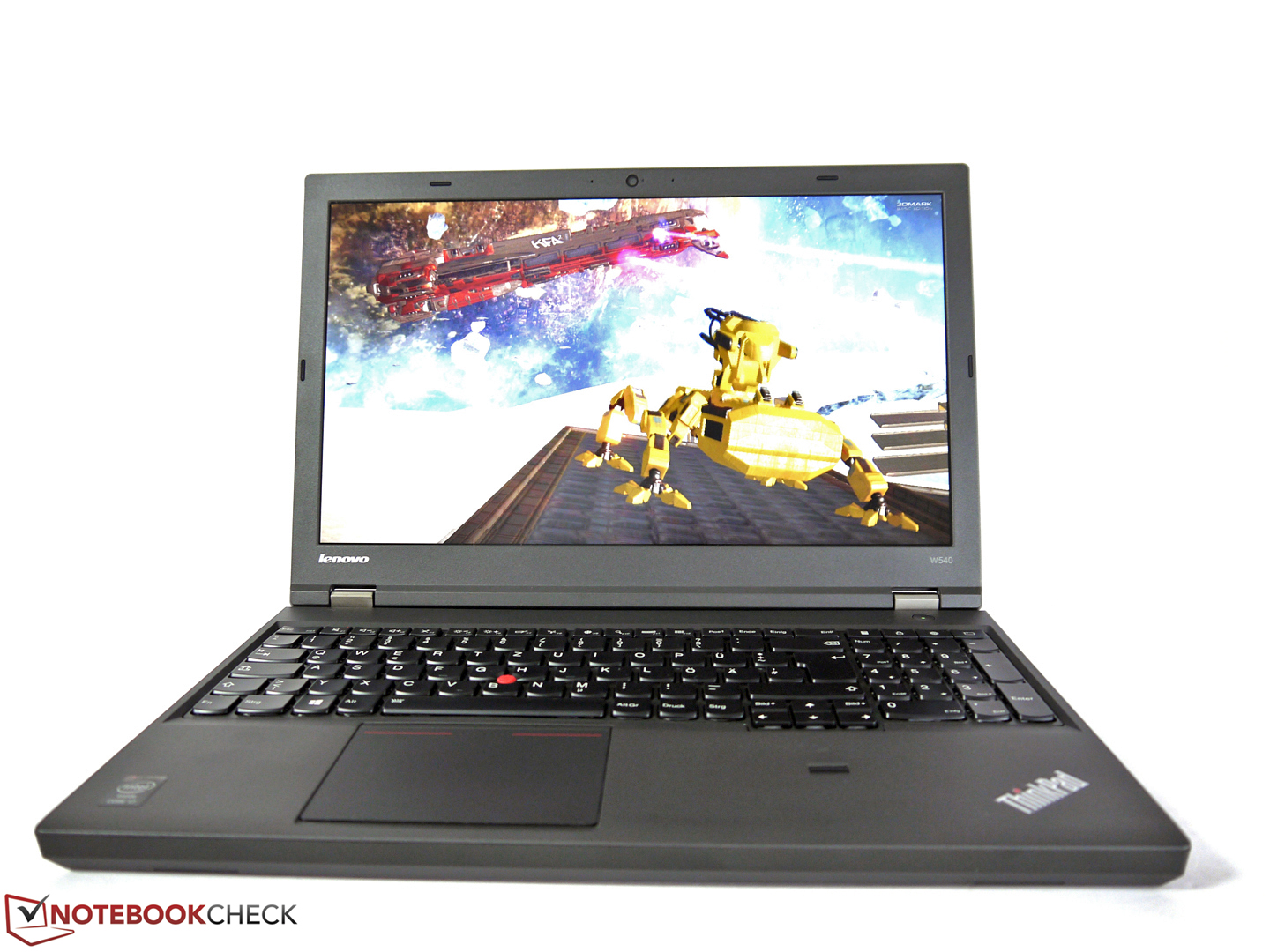

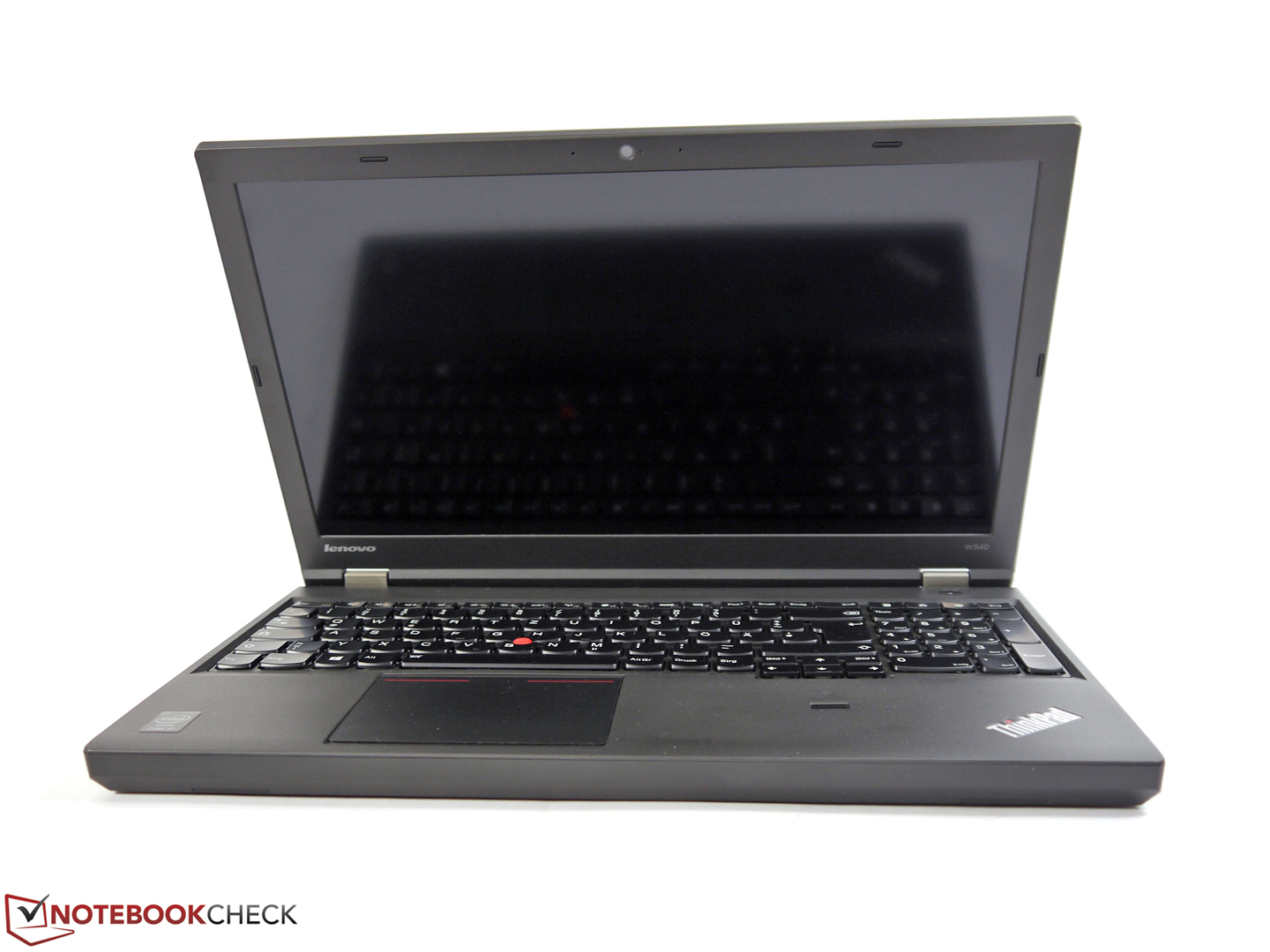

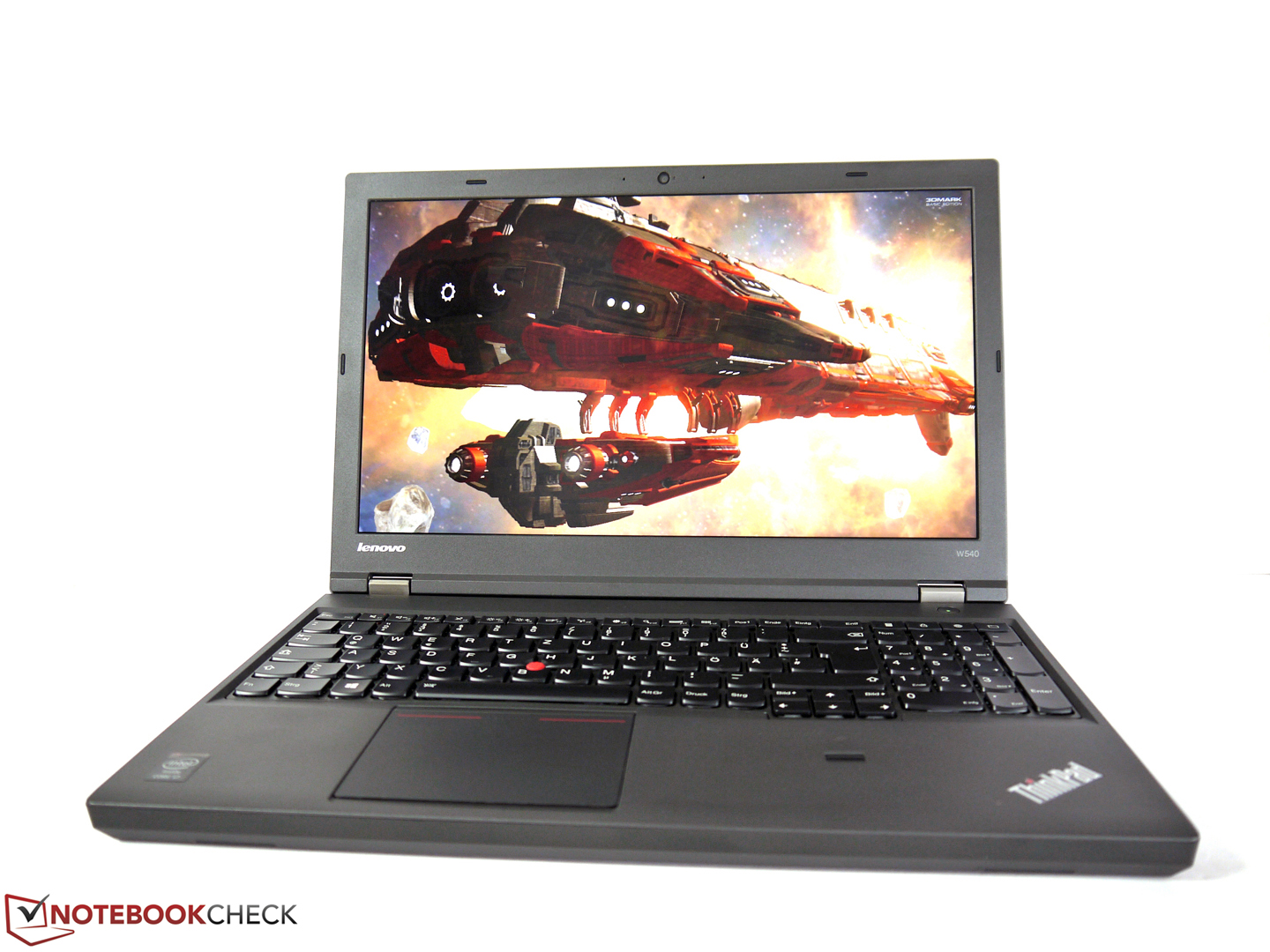

Lenovo ThinkPad W540 with 3K IPS display
Lenovo ThinkPad W540 with 3K IPS display

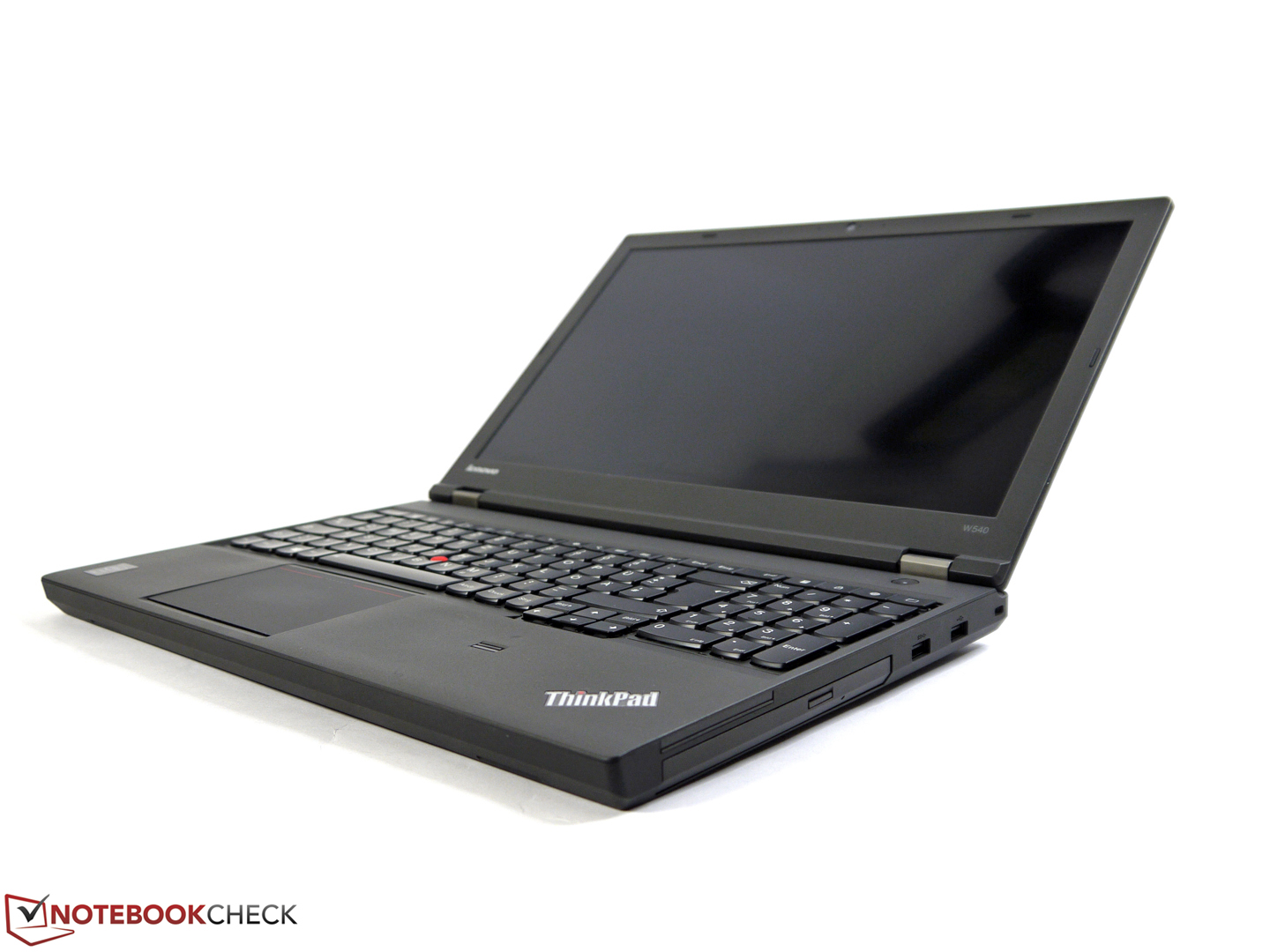

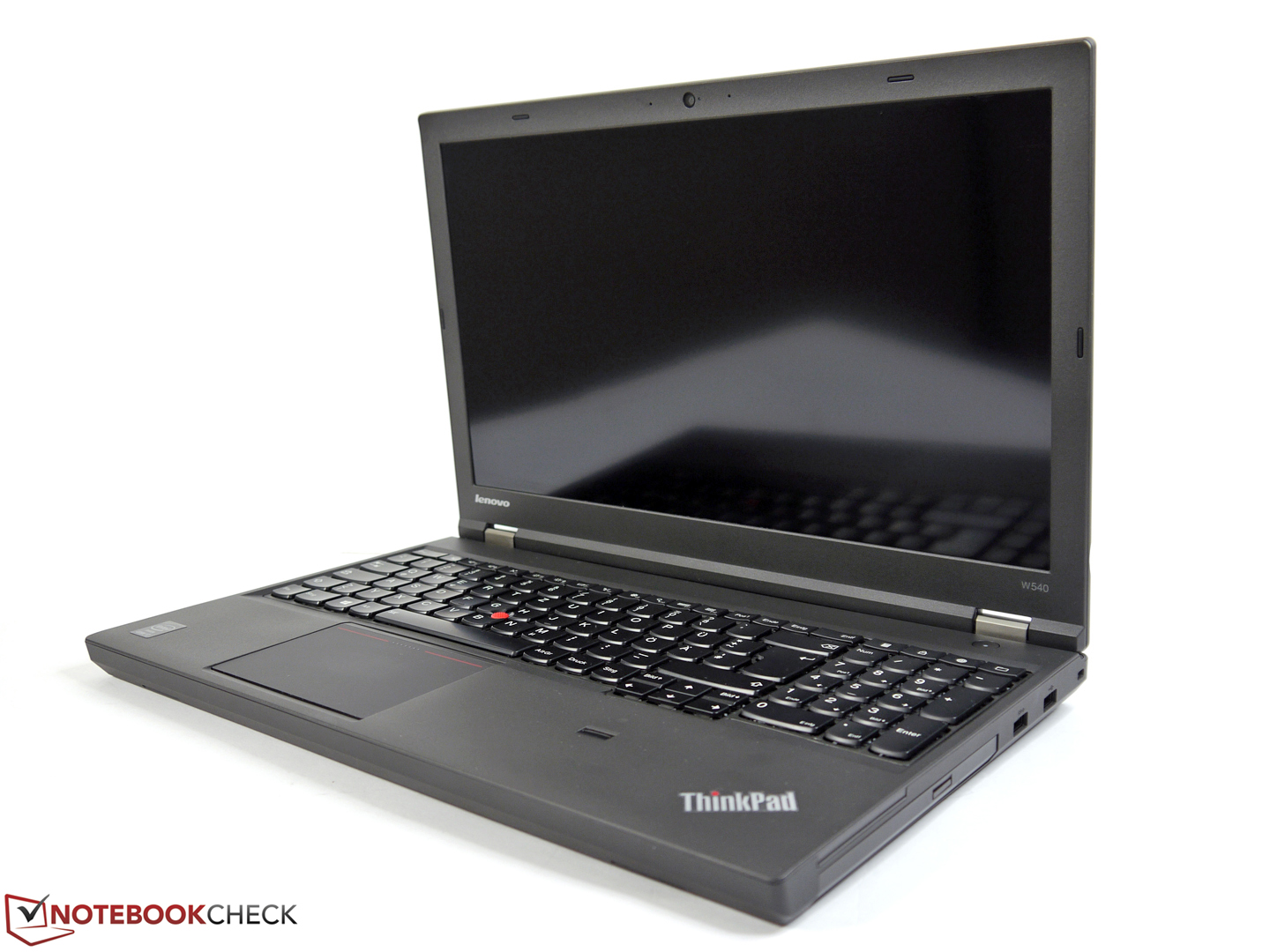

Lenovo ThinkPad W540

Lenovo offers an exciting notebook with the ThinkPad W540 mobile workstation, which is the right choice for many professional scenarios. The combination of a light case, good performance, decent port variety and the excellent high-resolution display is attractive. Lenovo also managed a well-balanced system in regard to the emissions. Keyboard, stability of the case and upgradability are convincing as well.

A better rating is prevented by Lenovo itself. While uneven gaps and slightly protruding components are mainly an aesthetic problem, the issues with some notchy keys and the trackpad buttons, which take a lot of time getting used to, are annoying on an everyday basis. The unnecessary restrictions when you try to upgrade the storage are a small drawback as well. Finally, Lenovo changed all the accessories, so you cannot use old power supply units, docking stations or adaptors with the new models anymore.

Reconciling is the fair price policy and the warranty period of 36 months. Is the overall package a good choice for you? It really comes down to your individual needs and quality demands.

Comment this article:

In Review: Lenovo ThinkPad W540
In Review: Lenovo ThinkPad W540

Specifications

Lenovo ThinkPad W540 20BGCTO1WW

:: Processor
:: Mainboard
Intel QM87 (Lynx Point)
:: Memory
4096 MB, 1x 4GB PC3-12800 DDR3L, 3 slots empty, up to 32 GB
:: Graphics adapter
NVIDIA Quadro K1100M - 2048 MB, Core: 706 MHz, Memory: 700 MHz, Forceware 327.68 Win 8 64, Nvidia Optimus mit Intel HD Graphics 4600
:: Display
15.5 inch 16:9, 2880x1620 pixel, WX16T028J00, LEN40B5, IPS LED, glossy: no
:: Harddisk
HGST Travelstar 5K1000 HTS541010A9E680, 1000 GB 5400 rpm
:: Soundcard
Intel Lynx Point PCH - High Definition Audio Controller
:: Connections
1 Express Card 34mm, 2 USB 2.0, 2 USB 3.0, 1 Thunderbolt, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: combined headphone and microphone port, Card Reader: SD, SDHC, SDXC, 1 Fingerprint Reader, Sensors: Brightness sensor, Vibration sensor,
:: Networking
Intel I217-LM Gigabit Network Connection (10/100/1000MBit), Intel Wireless-N 7260 (b g n ), 4.0 Bluetooth
:: Optical drive
Matshita DVD-RAM UJ-8B2
:: Size
height x width x depth (in mm): 35 x 376 x 247
:: Weight
2.48 kg Power Supply: 0.68 kg
:: Battery
56.16 Wh Lithium-Ion
:: Price
1600 Euro
:: Operating System
Microsoft Windows 8 64 Bit
:: Additional features
Webcam: 720p, Keyboard: Chiclet, Keyboard Light: yes, 36 Months Warranty



[+] compare
The Lenovo ThinkPad W540 continues Lenovo's long tradition...
The Lenovo ThinkPad W540 continues Lenovo's long tradition...
...of mobile workstations and can convince in many core areas.
...of mobile workstations and can convince in many core areas.
We like the adequate connectivity, ...
We like the adequate connectivity, ...
... the low emissions, ...
... the low emissions, ...
... the basically good keyboard, ...
... the basically good keyboard, ...
... the good configurability, ...
... the good configurability, ...
... the comparatively long warranty period...
... the comparatively long warranty period...
...as well as the available accessories.
...as well as the available accessories.
Our review unit also has a real highlight:
Our review unit also has a real highlight:
A 3K IPS display.
A 3K IPS display.
Viewing angle stability, brightness, contrast and color space coverage...
Viewing angle stability, brightness, contrast and color space coverage...
... are far above average.
... are far above average.
The panel can even be used for picture editing, ...
The panel can even be used for picture editing, ...
... at least after a calibration.
... at least after a calibration.
Ports that are mainly used for the stationary operation like Gigabit Ethernet ...
Ports that are mainly used for the stationary operation like Gigabit Ethernet ...
... and the power connector are at the back of the notebook.
... and the power connector are at the back of the notebook.

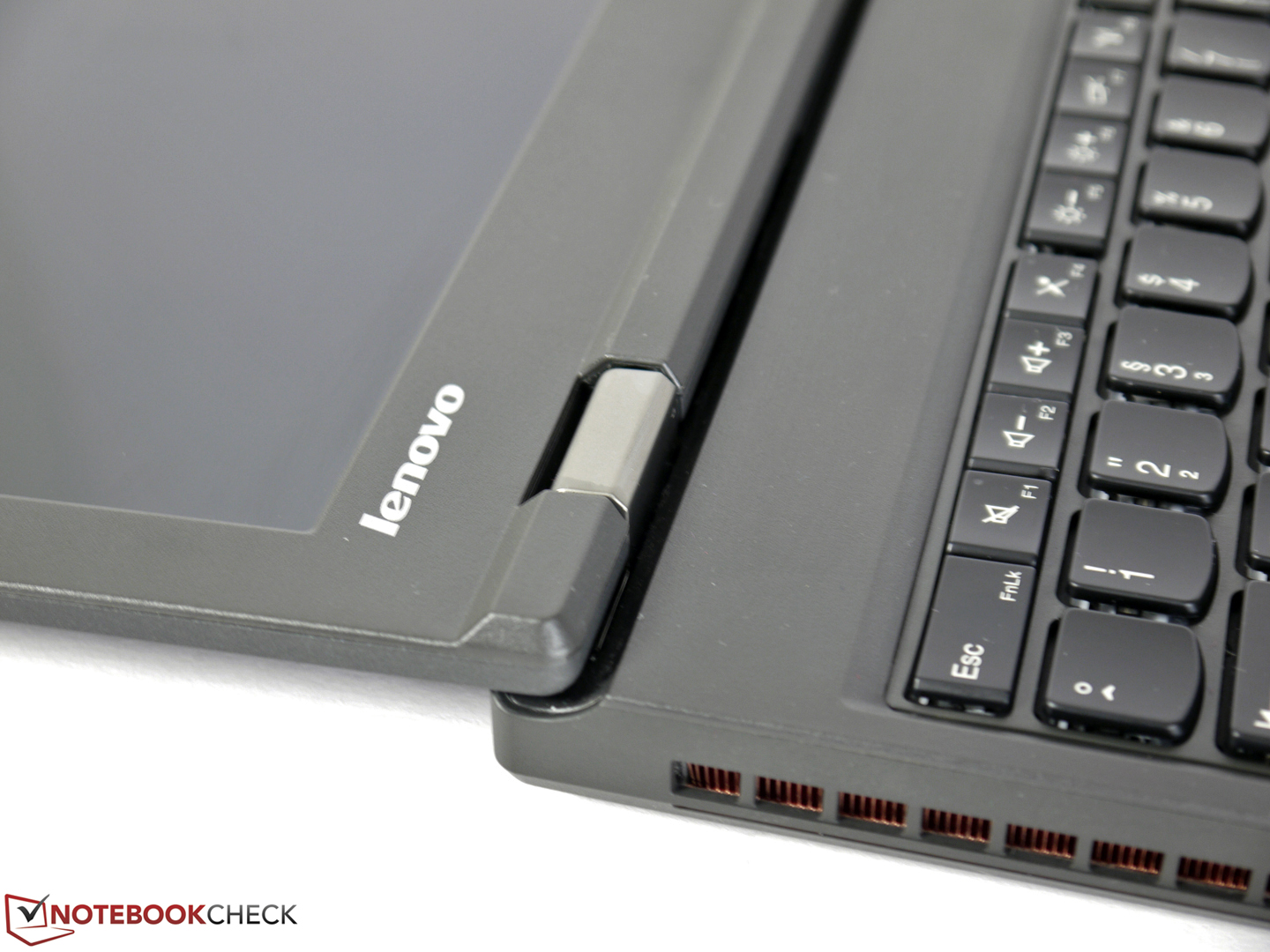

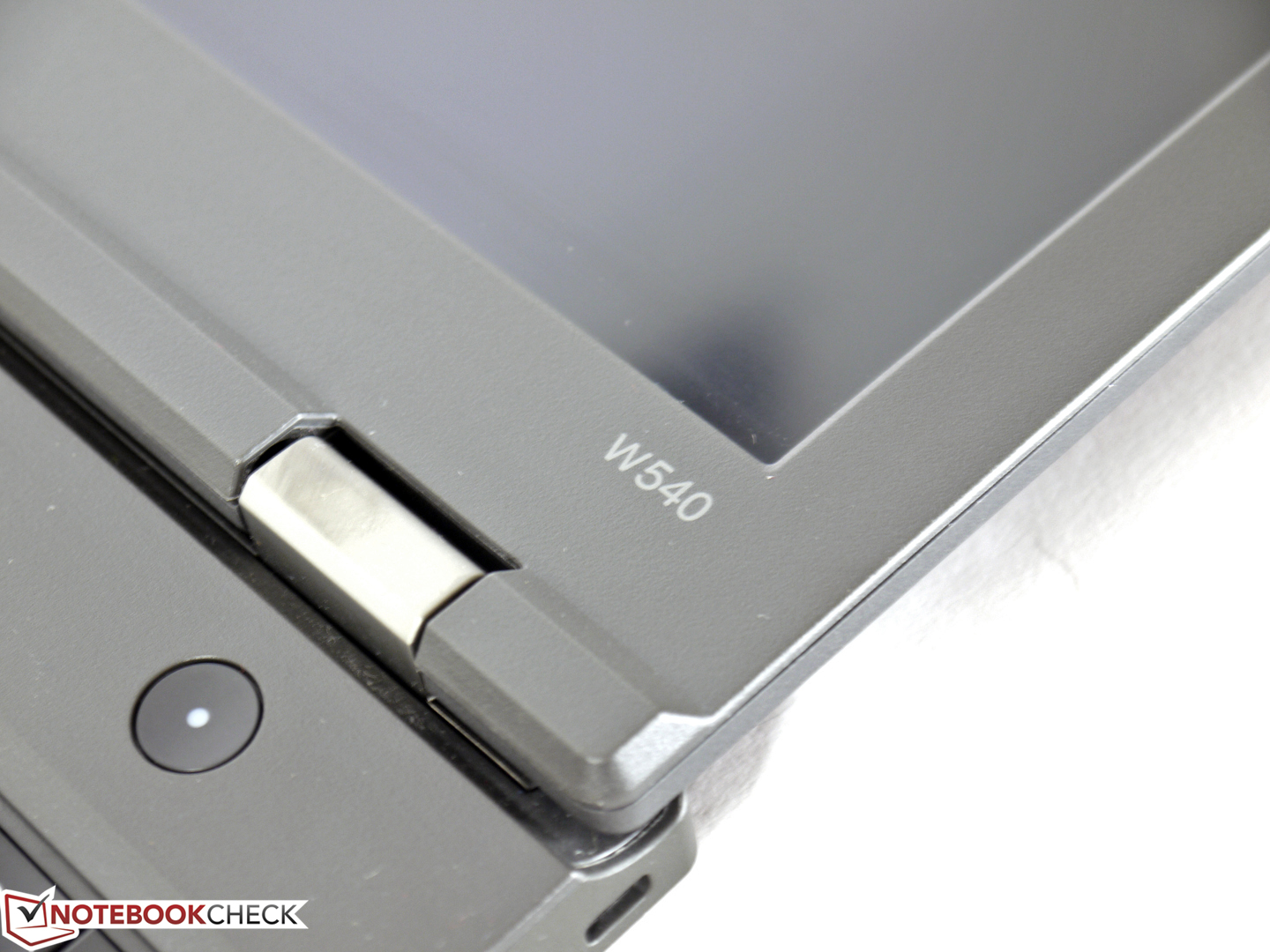

The display hinges work very well and ensure a stable display position.
The display hinges work very well and ensure a stable display position.

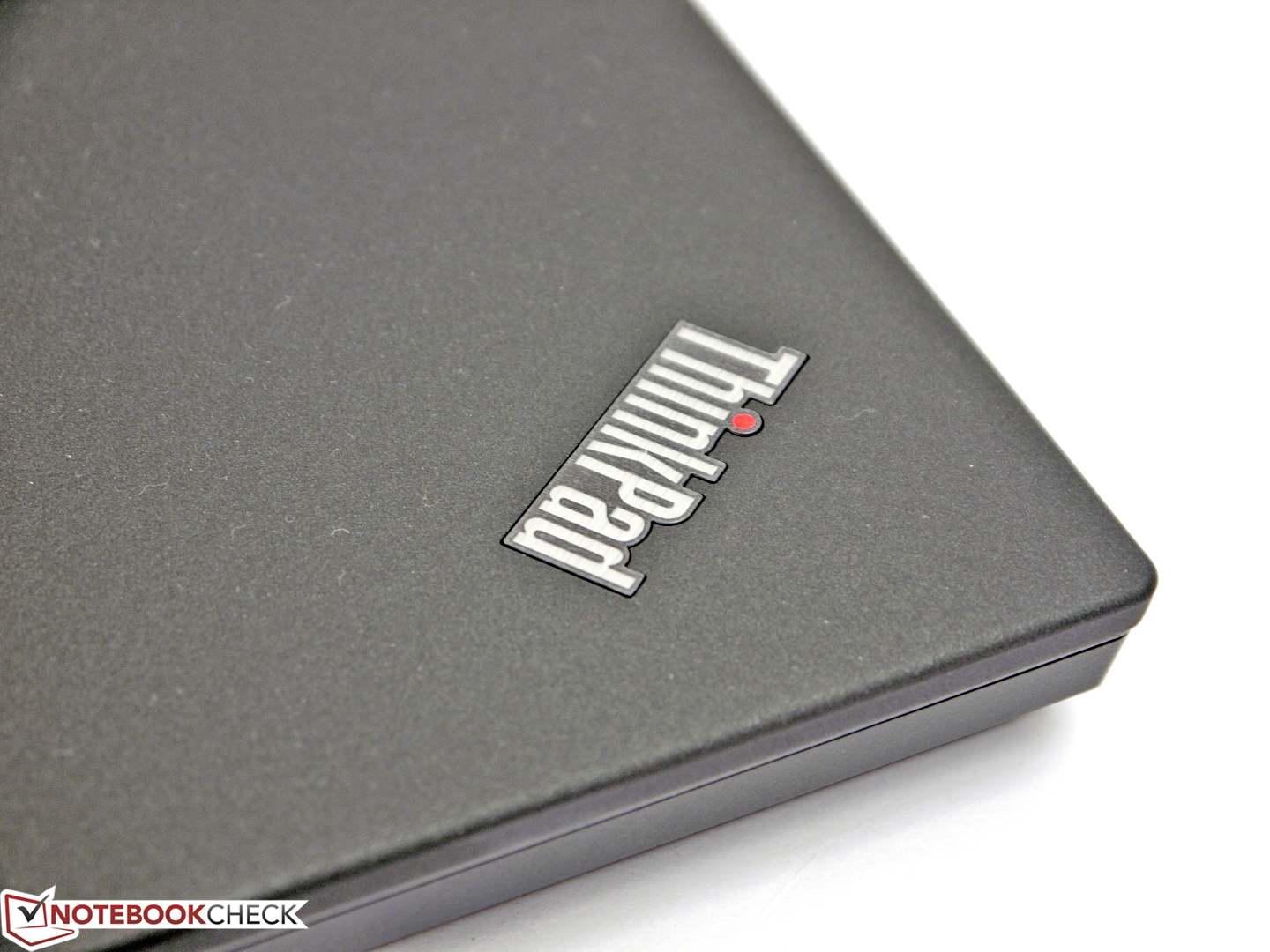

The illuminated i in the logo is a small status indicator.
The illuminated i in the logo is a small status indicator.

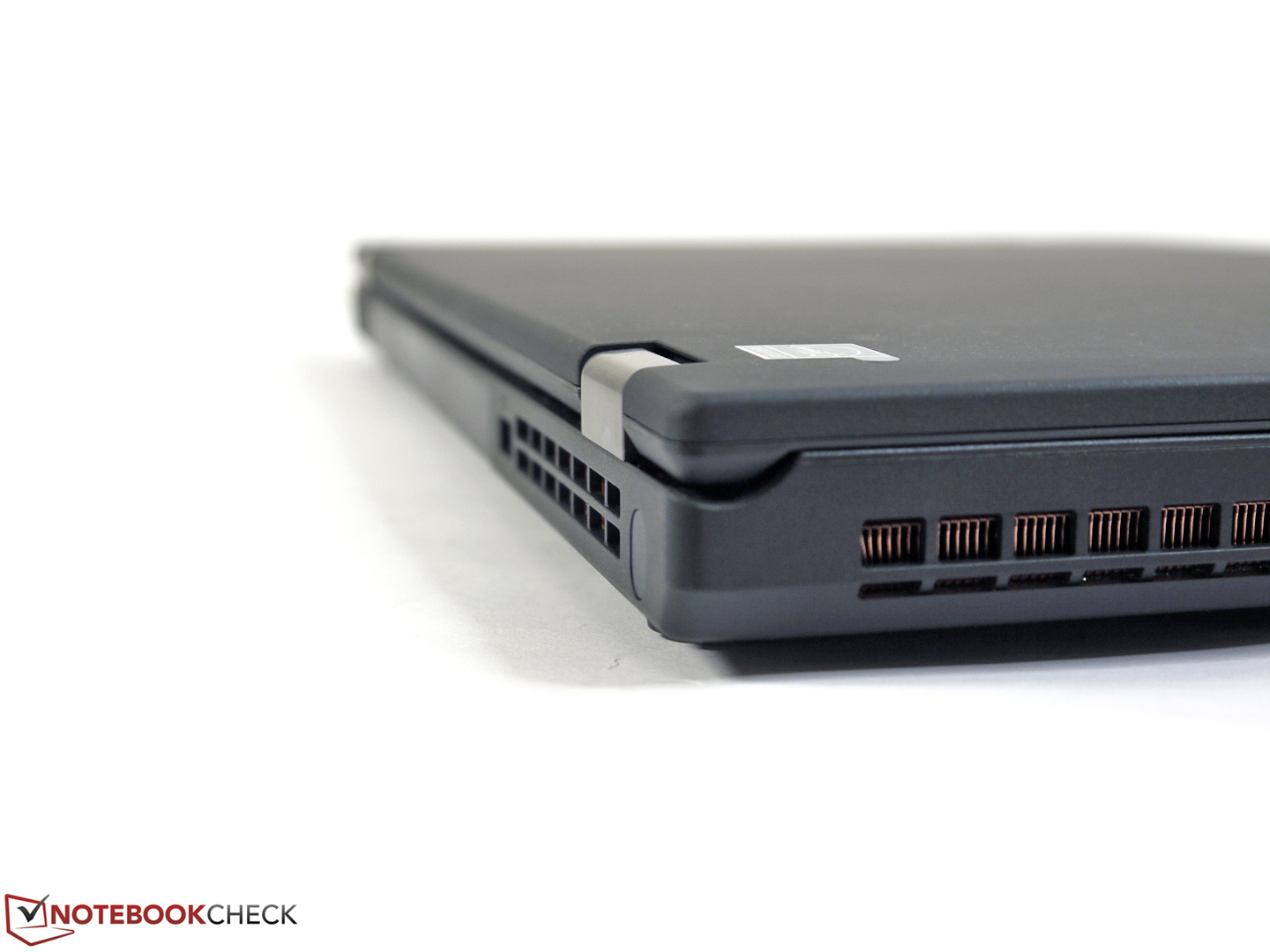

The cooling system does a very good job and is only audible if you stress the device.
The cooling system does a very good job and is only audible if you stress the device.
Our review unit had some issues with the keys on the left side.
Our review unit had some issues with the keys on the left side.
We also don't really like the new integrated touchpad buttons, especially compared to the solution of the predecessor.
We also don't really like the new integrated touchpad buttons, especially compared to the solution of the predecessor.
The maximum opening angle of the display is still very big...
The maximum opening angle of the display is still very big...
... and the round power button is the last reminder of the old row of special keys.
... and the round power button is the last reminder of the old row of special keys.

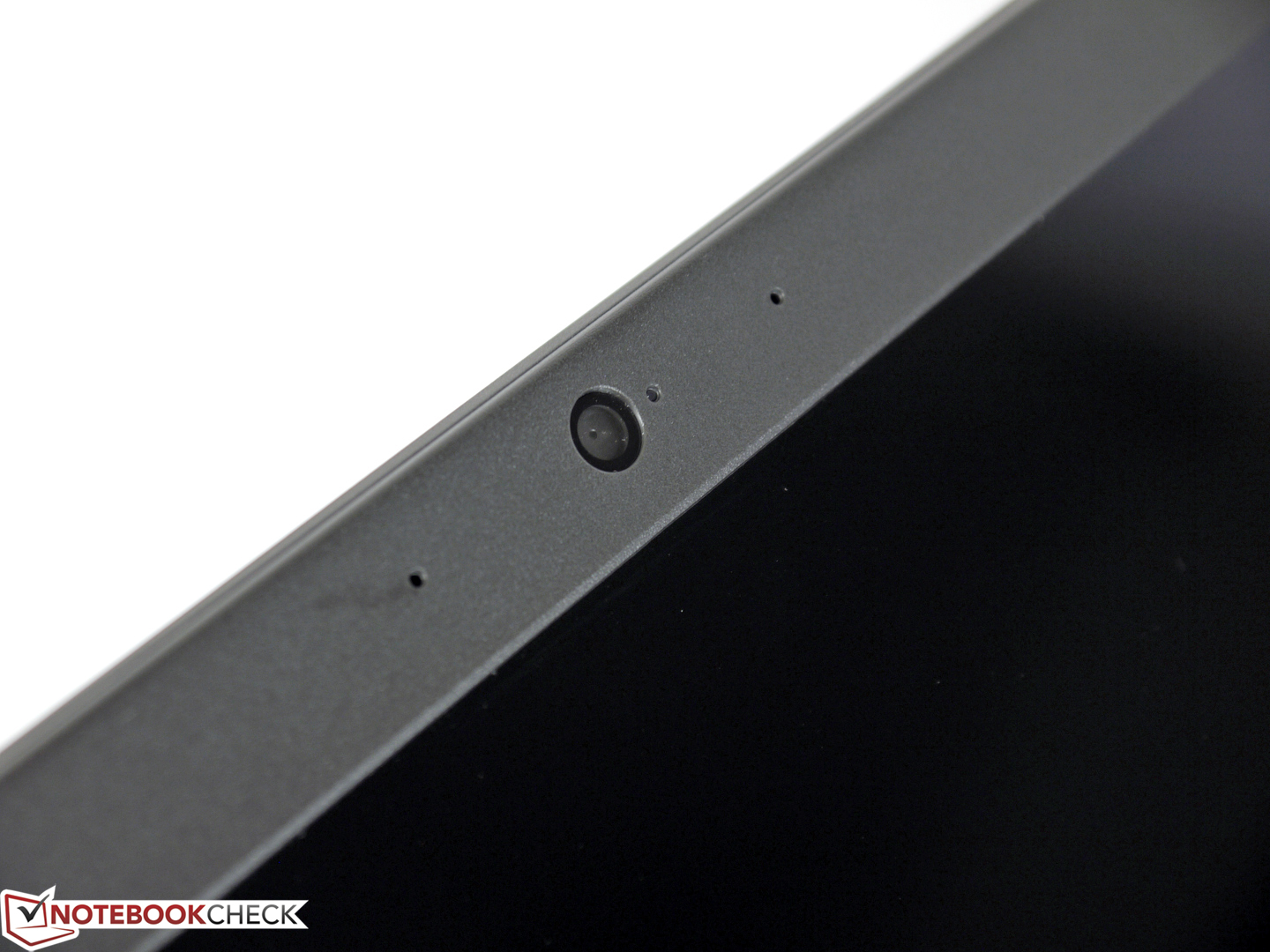

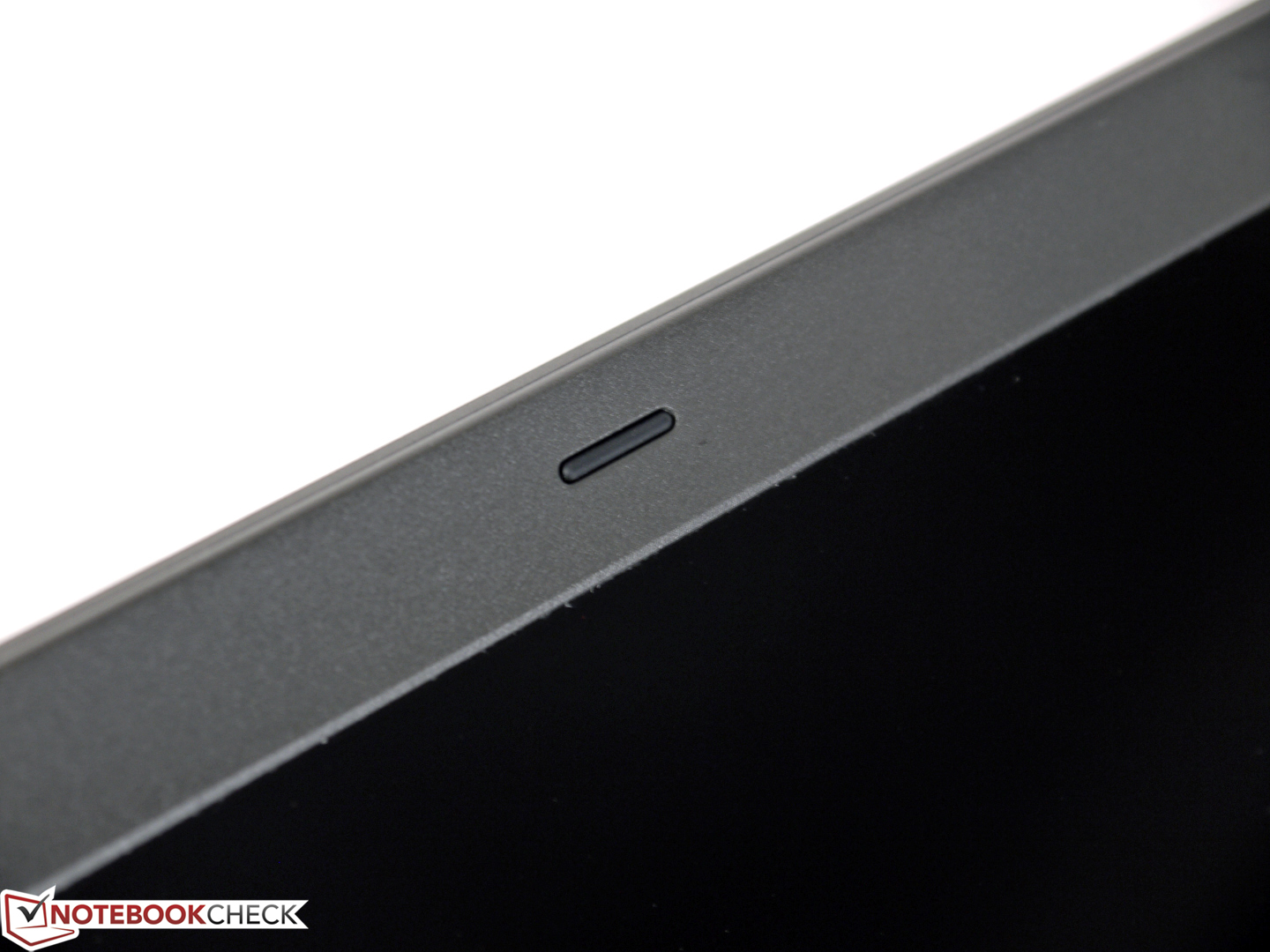

Webcam with 720p works well with good lighting conditions.
Webcam with 720p works well with good lighting conditions.
The small rubber lips are very thin and do not have an apparent buffer effect.
The small rubber lips are very thin and do not have an apparent buffer effect.
The optical drive is comparatively quiet, but it is not perfectly integrated into the case.
The optical drive is comparatively quiet, but it is not perfectly integrated into the case.
Lenovo equipped every side with 1x USB 3.0 and 1x USB 2.0.
Lenovo equipped every side with 1x USB 3.0 and 1x USB 2.0.
Missing ports, in this case eSATA, can be used via ExpressCard/34.
Missing ports, in this case eSATA, can be used via ExpressCard/34.
However, this will affect the usability of the adjacent ports.
However, this will affect the usability of the adjacent ports.
The port layout on the left side is a bit crowded in general.
The port layout on the left side is a bit crowded in general.
It is much better on the right side and even thicker USB connectors or adaptors are no problem.
It is much better on the right side and even thicker USB connectors or adaptors are no problem.
There are two maintenance covers at the bottom...
There are two maintenance covers at the bottom...
...that grant access to the most important components.
...that grant access to the most important components.
It is very good that all four memory slots (quad-core) can now be accessed from the bottom.
It is very good that all four memory slots (quad-core) can now be accessed from the bottom.
Antennas for a WWAN upgrade are already integrated.
Antennas for a WWAN upgrade are already integrated.
It is however not ideal that the storage drive has to be mounted...
It is however not ideal that the storage drive has to be mounted...
...with a plastic frame, which cannot be bought separately.
...with a plastic frame, which cannot be bought separately.
You have to loosen one screw underneath the large maintenance cover before you can remove the optical drive.
You have to loosen one screw underneath the large maintenance cover before you can remove the optical drive.
Battery with a capacity of 57 Wh.
Battery with a capacity of 57 Wh.
A larger alternative with almost 100 Wh is available for around 100 Euros.
A larger alternative with almost 100 Wh is available for around 100 Euros.
The SIM card slot is in the battery tray.
The SIM card slot is in the battery tray.
The problem of the missing mounting frame is also an issue when you use the new Bay Adaptor IV.
The problem of the missing mounting frame is also an issue when you use the new Bay Adaptor IV.
This means you cannot properly mount your own drives and they will come loose when you move the notebook.
This means you cannot properly mount your own drives and they will come loose when you move the notebook.
Mounting frame for 2.5-inch drives
Mounting frame for 2.5-inch drives
Attachment point for the storage
Attachment point for the storage

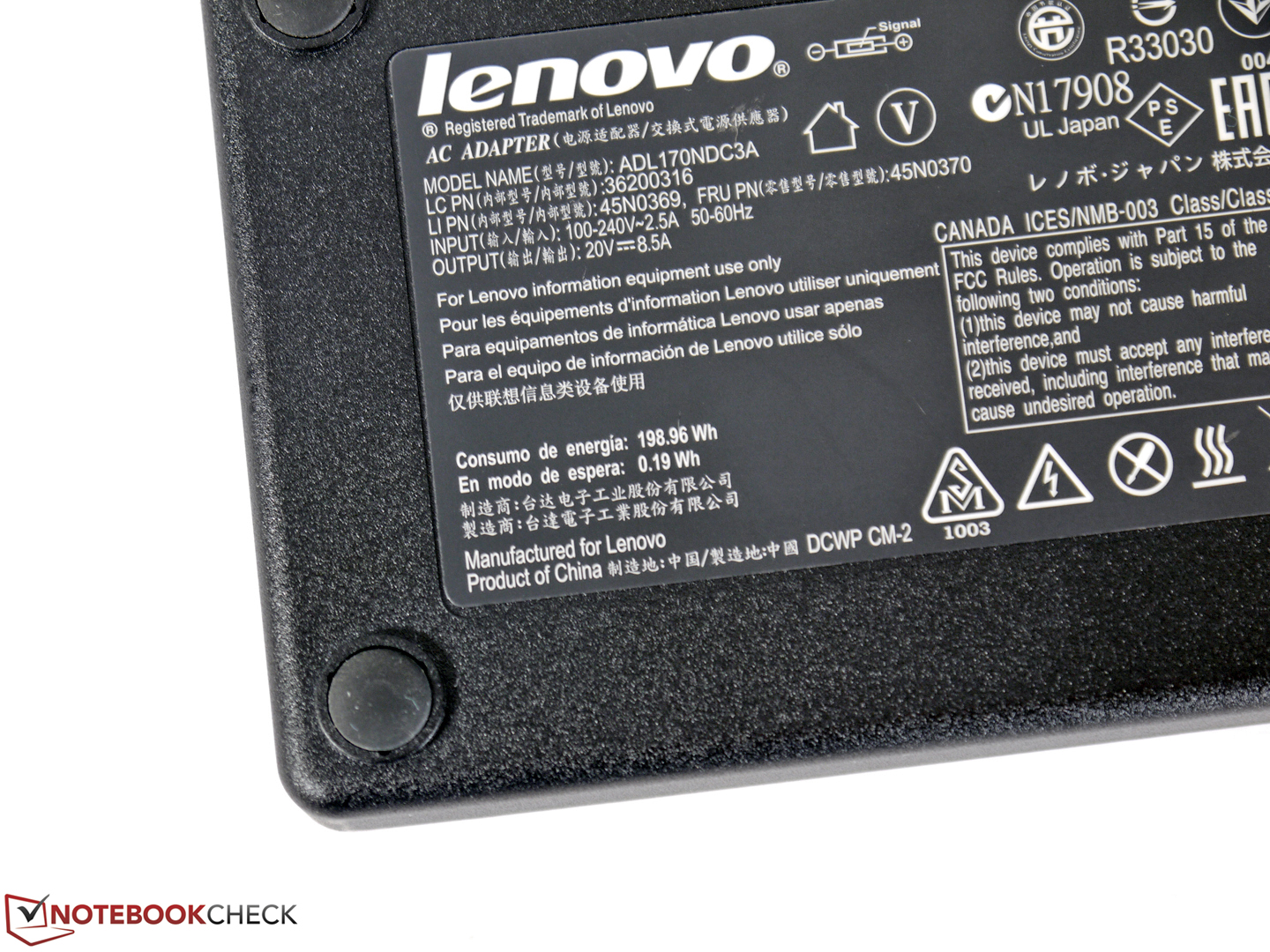

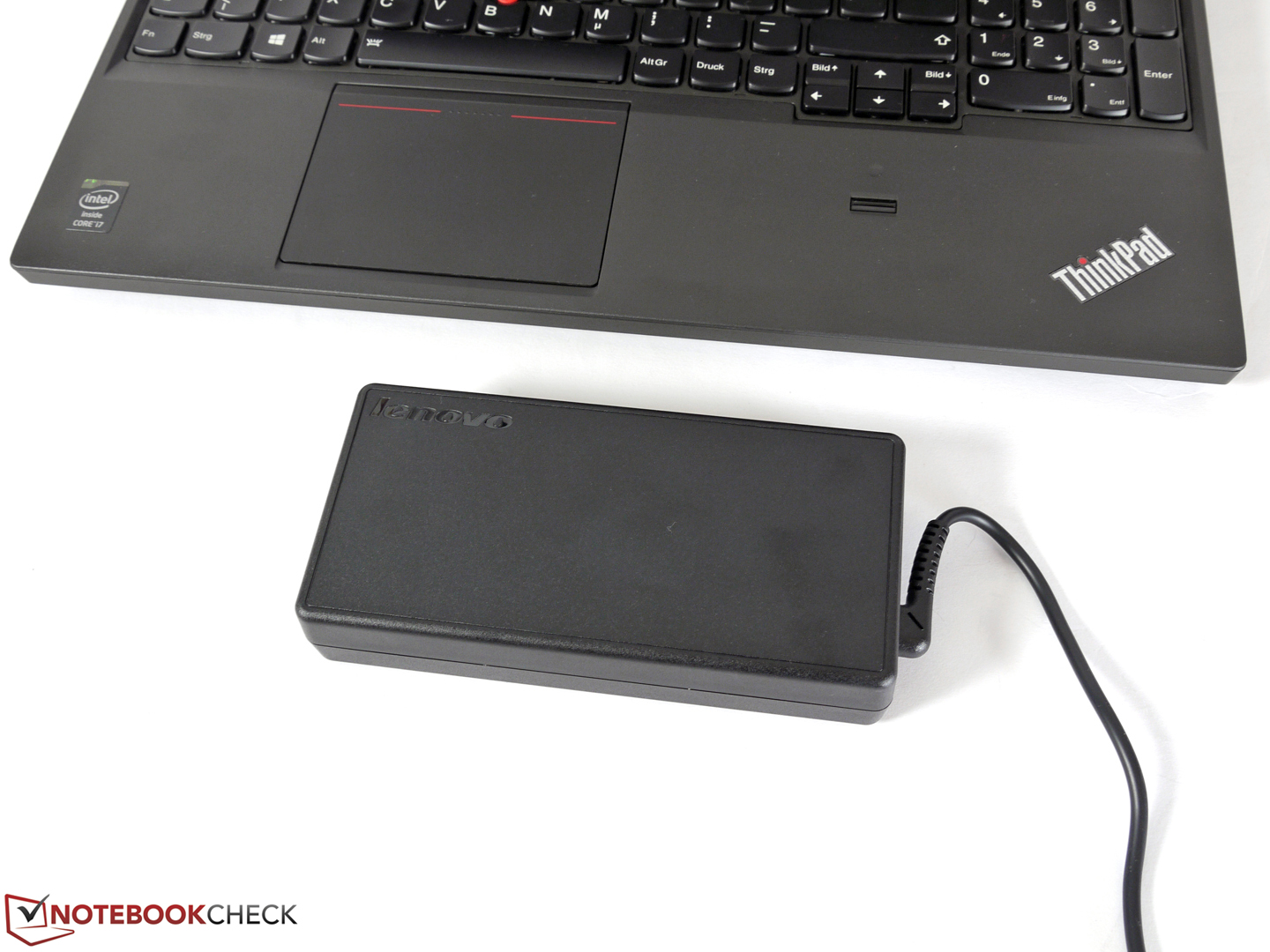

The power supply unit weighs 680 grams (1.5 pounds) and...
The power supply unit weighs 680 grams (1.5 pounds) and...
...has sufficient power reserves with a nominal output of 198 Watts.
...has sufficient power reserves with a nominal output of 198 Watts.

Similar Laptops

Devices with the same GPU

» Review Dell Precision M3800 Workstation
Core i7 4702HQ, 15.6", 2 kg

Devices with Same Screen Size and/or Weight

» Review Lenovo ThinkPad T540p-20BE005YGE Notebook
GeForce GT 730M, Core i7 4700MQ
» Review Sony Vaio Fit SV-F1521V6EB Notebook
GeForce GT 740M, Core i7 3537U
» Review Sony Vaio SV-F15A1S2ES Notebook
GeForce GT 735M, Core i7 3537U
» Review Sony Vaio SV-E1511V1EW Notebook
Radeon HD 7650M, Core i5 3210M
» Review Sony Vaio SV-S1511X9E/B Notebook
GeForce GT 640M LE, Core i7 3612QM

Links

Compare Prices

Amazon: Invalid XML response.

Amazon.com

Show results on Amazon.com

Pricerunner n.a.

Pro

+Performance
+Display
+Weight
+Configurability
+Warranty
+System noise


Cons

-Problems with the build quality
-Upgradeability of the storage
-M.2 expansion cards only with 42 mm
-Port layout on the left side
-Clickpad buttons

Shortcut

What we like

Good performance, low weight, acceptable battery runtimes, great display and fair prices.

What we miss

Better build quality in detail, easy upgrading of the storage and better trackpad buttons.

What surprises us

That Lenovo as a traditional business manufacturer risks to lose loyal customers with the redesign.

The competition

HP ZBook 15

HP ZBook 15 DreamColor

Toshiba Tecra W50

Dell Precision M4800

Dell Precision M3800

Fujitsu Celsius H730 (not yet reviewed)

Rating

Lenovo ThinkPad W540 20BGCTO1WW
03/19/2014 v4
Tobias Winkler

Chassis
83 / 98 → 85%
Keyboard
92%
Pointing Device
74%
Connectivity
79%
Weight
60 / 66 → 89%
Battery
77%
Display
86%
Games Performance
79%
Application Performance
67%
Temperature
81 / 95 → 85%
Noise
91 / 90 → 100%
Audio
46%
Camera
22 / 85 → 26%
Add Points
+2%
Average
67%
82%
Workstation *
Weighted Average

> Notebook / Laptop Reviews and News > Reviews > Review Lenovo ThinkPad W540 Workstation
Author: Tobias Winkler, 2014-03- 7 (Update: 2014-03-12)
