The visual design and unobtrusive LED lighting make the WD D50 one of the best-looking docking stations available. However, the ad-heavy software and lack of HDMI leave a lot to be desired from a practical point of view.
Allen Ngo,

Thunderbolt is becoming increasingly common on laptops these days to offer both high bandwidth transfer rates and charging capabilities all through a single port. To make the most of the feature, users may want to consider investing in docking stations especially since many thin-and-light laptops are lacking in ports and sometimes storage. Western Digital has sent us its Thunderbolt-based WD_BLACK D50 Game Dock with an integrated 1 TB NVMe SSD for our honest impressions.

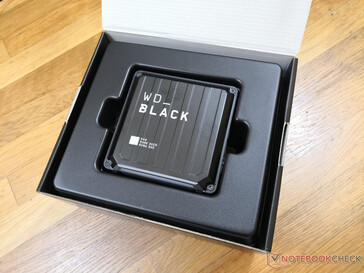

The first thing we noticed upon opening the packaging is how solid the build quality of the dock is. Unlike the Baseus dock we recently reviewed, the WD model doesn't rely on flimsy stands. The dock is designed to be positioned vertically, however, as there are unfortunately no rubber feet on either of its two large metal faces for horizontal positioning. The unit is susceptible to sliding if positioned horizontally as a result.

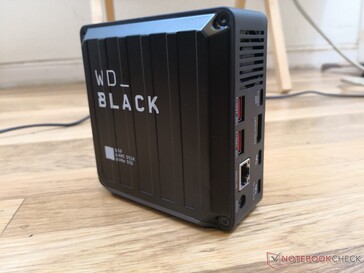

Metal body is rigid and deters fingerprints well
Metal body is rigid and deters fingerprints well

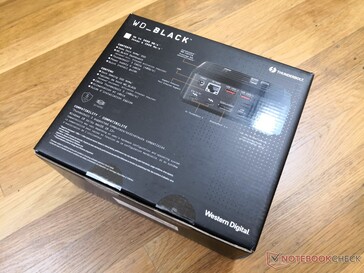

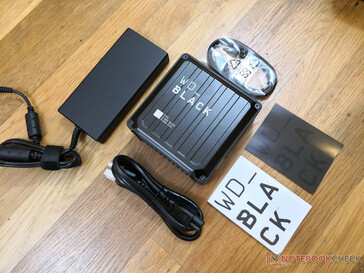

Box includes a short (~25-inch) Thunderbolt 3 cable, AC power brick, and manual
Box includes a short (~25-inch) Thunderbolt 3 cable, AC power brick, and manual

A huge disadvantage of the dock that users will notice immediately is its relatively large proprietary external AC adapter. When the power adapter is almost as large as the actual dock, then you know it's going to be a hassle to transport. We would love to see WD integrate the PSU into the dock itself for future models.

For our host device, we connected the D50 dock to an MSI GS66 10UG. Keep in mind that users must connect to a Thunderbolt port; connecting to a USB-C 3.0, 3.1, or 3.2 port with no Thunderbolt support will not work. Once connected, the 1 TB drive and all ports on the docking station become useable without any further installations as one would expect. The dock would also charge our MSI laptop simultaneously albeit with an output of only 87 W instead of the 100 W maximum specification of Thunderbolt 3.

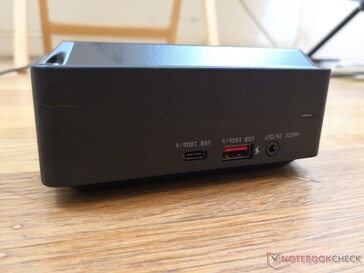

Front: USB-C 3.2 Gen. 2 (10 Gbps), USB-A 3.2 Gen. 2 (10 Gbps) w/ 7.5 W charging output, 3.5 mm combo audio
Front: USB-C 3.2 Gen. 2 (10 Gbps), USB-A 3.2 Gen. 2 (10 Gbps) w/ 7.5 W charging output, 3.5 mm combo audio

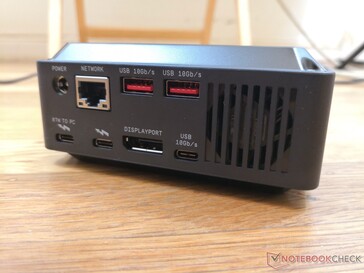

Rear: AC power, RJ-45 (up to 1 Gbps), 2x USB-A 3.2 Gen. 2 (10 Gbps), 2x Thunderbolt 3 (1x charging up to 87 W), DisplayPort 1.4, USB-C 3.2 Gen. 2 (10 Gbps)
Rear: AC power, RJ-45 (up to 1 Gbps), 2x USB-A 3.2 Gen. 2 (10 Gbps), 2x Thunderbolt 3 (1x charging up to 87 W), DisplayPort 1.4, USB-C 3.2 Gen. 2 (10 Gbps)
The dock is notable for including a fan to sustain high transfer rates
The dock is notable for including a fan to sustain high transfer rates

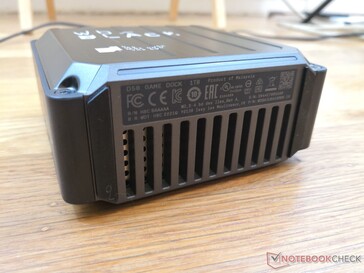

Rubber feet for stability only on one side of the dock
Rubber feet for stability only on one side of the dock

The 1 TB drive comes loaded with an older version of the WD_BLACK Dashboard software. Attempting to install this software on our MSI wouldn't even work and so we had to visit the official D50 Game Dock product page for the newer software version instead.

The software is a mixed bag. On the bright side, it's simple to use with plenty of features, helpful tooltips, and a nonintrusive UI that's easy on the eyes. It works with almost any Western Digital drive as well meaning the software is definitely worth a look for owners of multiple WD SSDs. Our MSI configuration, for example, comes with a 1 TB WD SN730 which the dashboard is able to recognize upon launching. Non WD drives will not appear on the software.

There are a couple of aspects that really bring down the software. Firstly, there is always a large ad present when connected to the internet. In our case, WD is advertising its Edge Rover software that we have no interest in trying. This wouldn't be an issue if there was a quick way to close the ad, but it appears to be permanent. As far as we're concerned, customers who paid for the WD SSD to use this software should not be subjected to permanent ads occupying a quarter of the whole window.

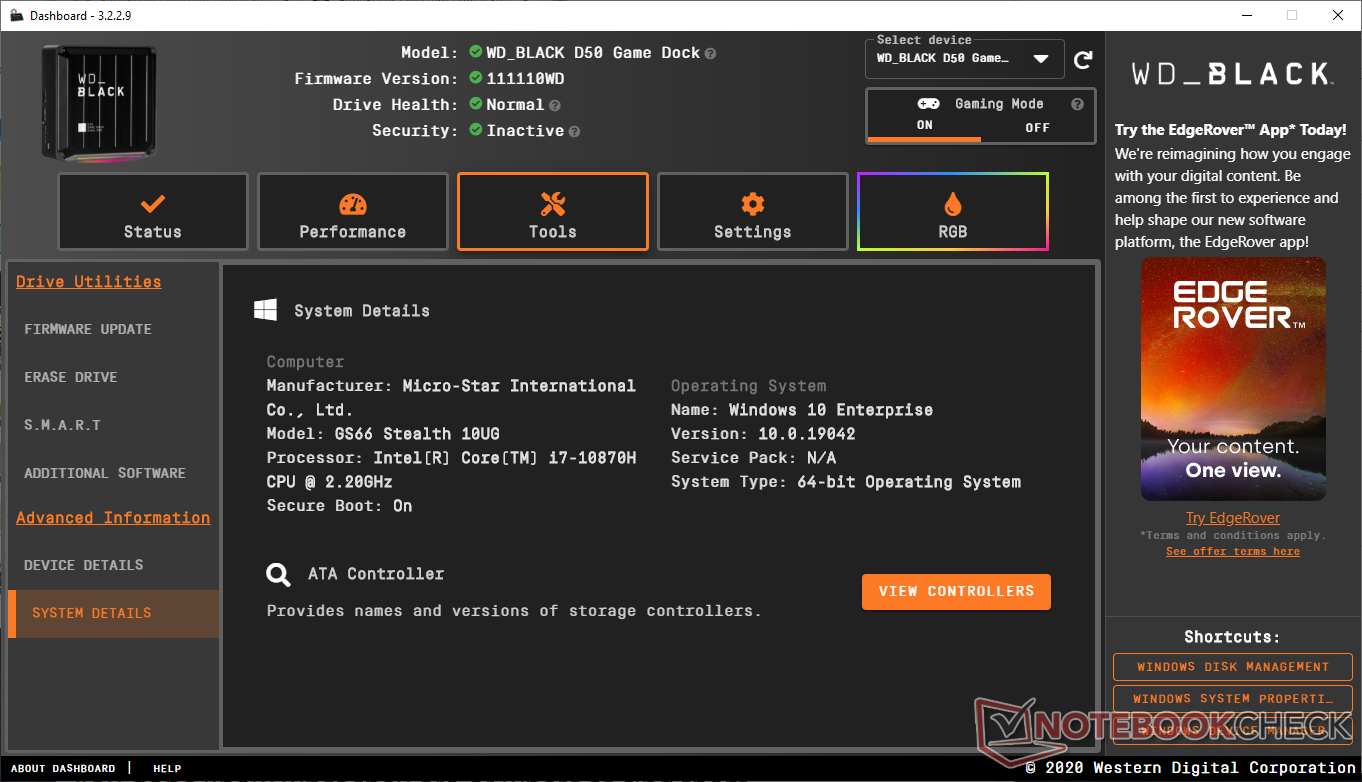

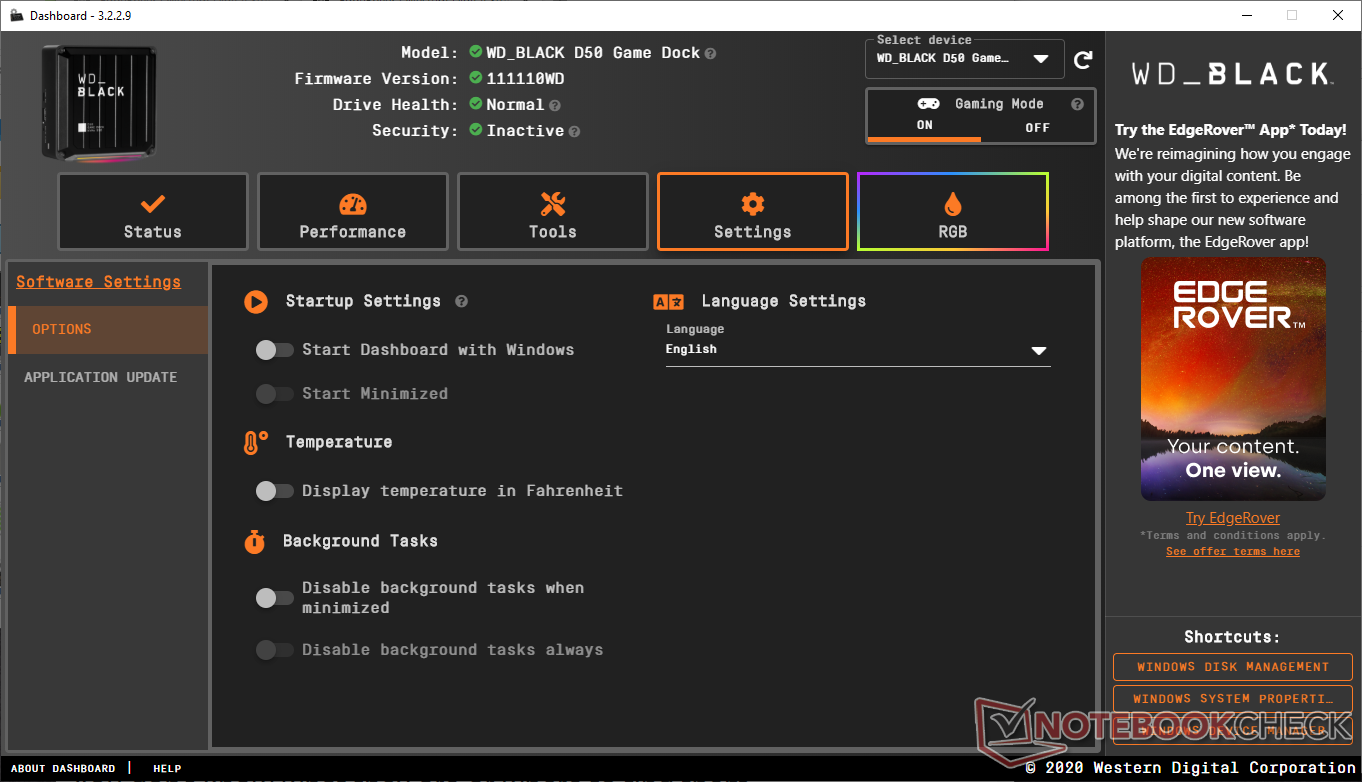

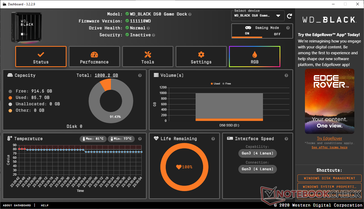

Useful tools hindered by an overly large ad and lack of screen space
Useful tools hindered by an overly large ad and lack of screen space

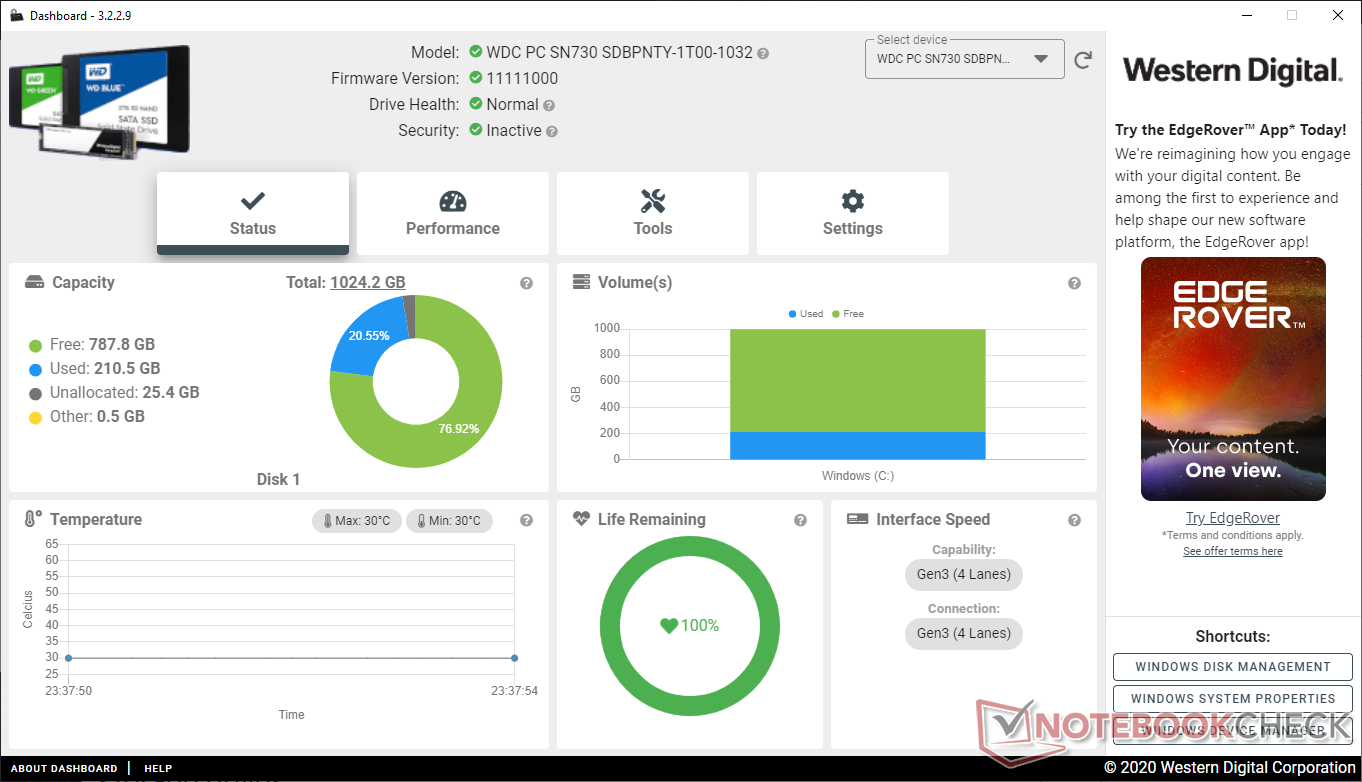

WD Dashboard is compatible with other WD drives including our SN730
WD Dashboard is compatible with other WD drives including our SN730

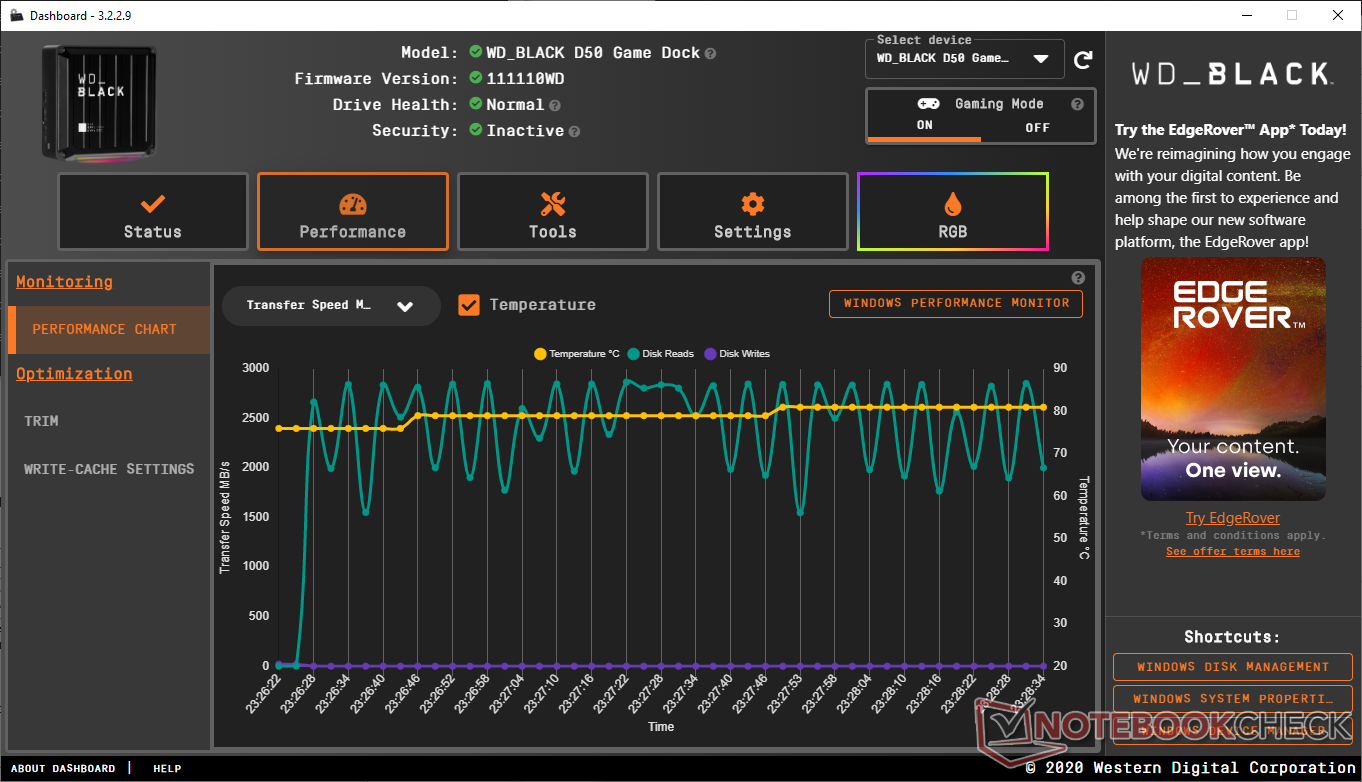

Sustainable transfer rates when running our DiskSpd test in a loop. Note the high running temperature of 80 C
Sustainable transfer rates when running our DiskSpd test in a loop. Note the high running temperature of 80 C

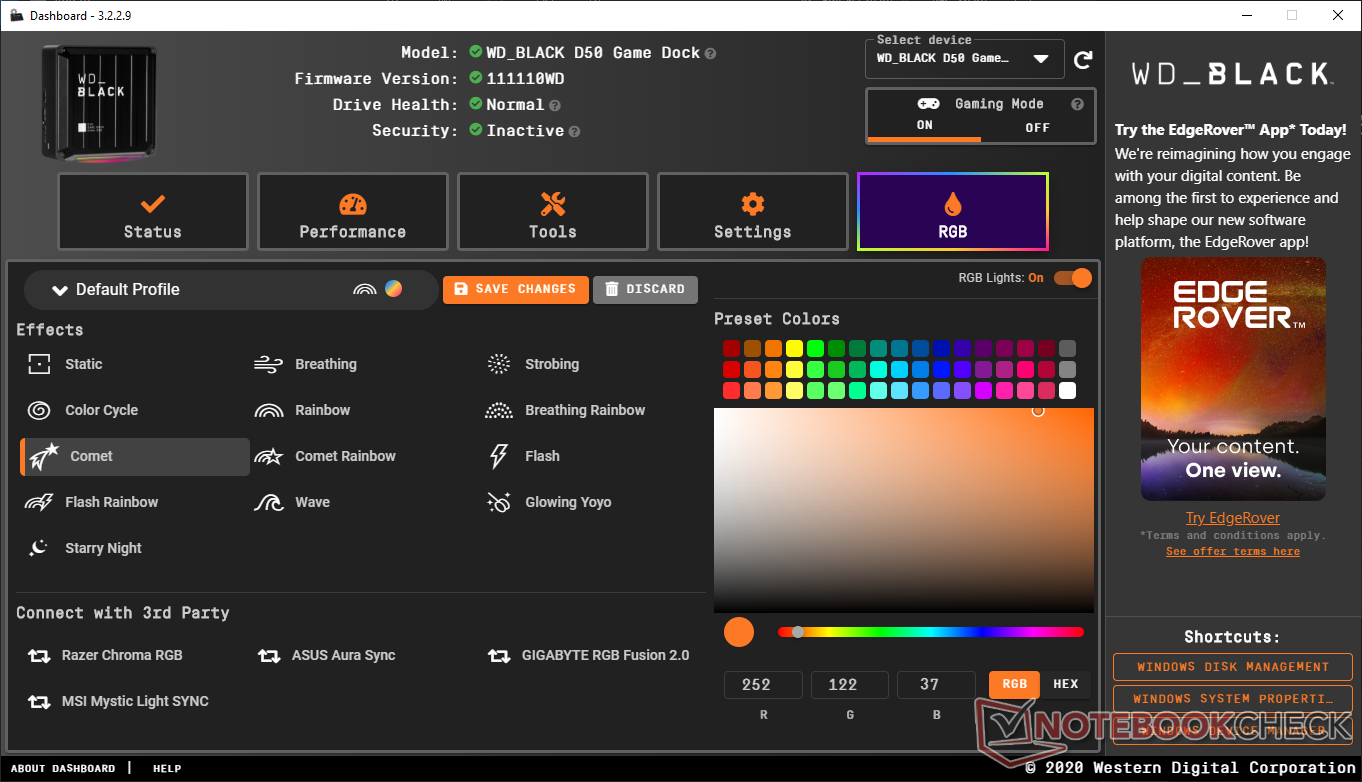

The RGB features are nice, but they may not even be visible depending on how you plan to position your dock
The RGB features are nice, but they may not even be visible depending on how you plan to position your dock

Our second complaint is that the software window cannot be maximized. Many of its features and real-time graphs could have been better organized into fewer larger tabs instead of a bunch of smaller ones if it weren't for the fixed-resolution window. This is made even worse by the permanent "Edge Rover" ad which takes valuable space away from the main features of the actual software. An option to export the real-time graphs and drive data would have been great for enthusiasts.

A unique feature of the D50 dock is a Gaming Mode toggle which "enhances drive performance for gaming loads". However, CrystalDiskMark results don't show any benefits of the mode nor can we tell the difference during actual gameplay. Toggling the mode on or off annoyingly requires a full PC reboot. Gamers may as well leave Gaming Mode on permanently.

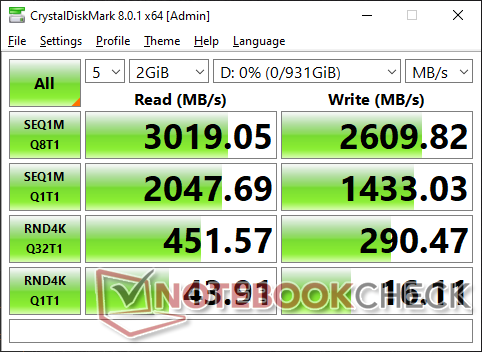

WD advertises read and write rates of 3000 MB/s and 2500 MB/s, respectively, which we can confirm. Enabling Gaming Mode doesn't seem to make a difference
WD advertises read and write rates of 3000 MB/s and 2500 MB/s, respectively, which we can confirm. Enabling Gaming Mode doesn't seem to make a difference

As a whole, the D50 Game Dock is a well-built docking station with its fair share of notable disadvantages. The lack of an HDMI port, which is a commonly used port for most users, isn't even available on this dock. Performance sustainability is excellent in our DiskSpd loop tests, but there is definitely room for improvement beyond simply performance.

Users can learn more about the Western Digital D50 Game Dock via its product pages here. SKUs include 1 TB and 2 TB options with a third option housing no drive at all for a much lower price.

ProsCons
+ Solid build quality
+ Great SSD performance sustainability
+ Software has handy features and shortcuts
+ RGB LED profile is compatible with Razer, MSI, Asus, and Gigabyte PCs
- AC adapter brick required
- Fan can get quite loud when the drive is running at maximum transfer rates
- Not compatible with USB-C ports that don't support Thunderbolt
- No SD card reader, mini-DisplayPort, or HDMI
- Internal drive is not designed to be easily upgradeable
- Permanent ads on the software dashboard
- Software window is small and cannot be maximized
- No fan RPM reading
- Dock slides around too easily when positioned horizontally

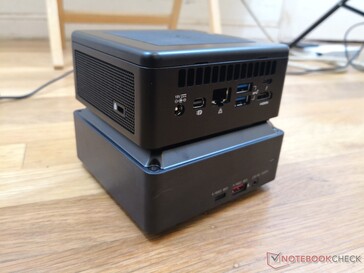

Top: Intel NUC 11 PAQ, Bottom: WD D50 Game Dock
Top: Intel NUC 11 PAQ, Bottom: WD D50 Game Dock

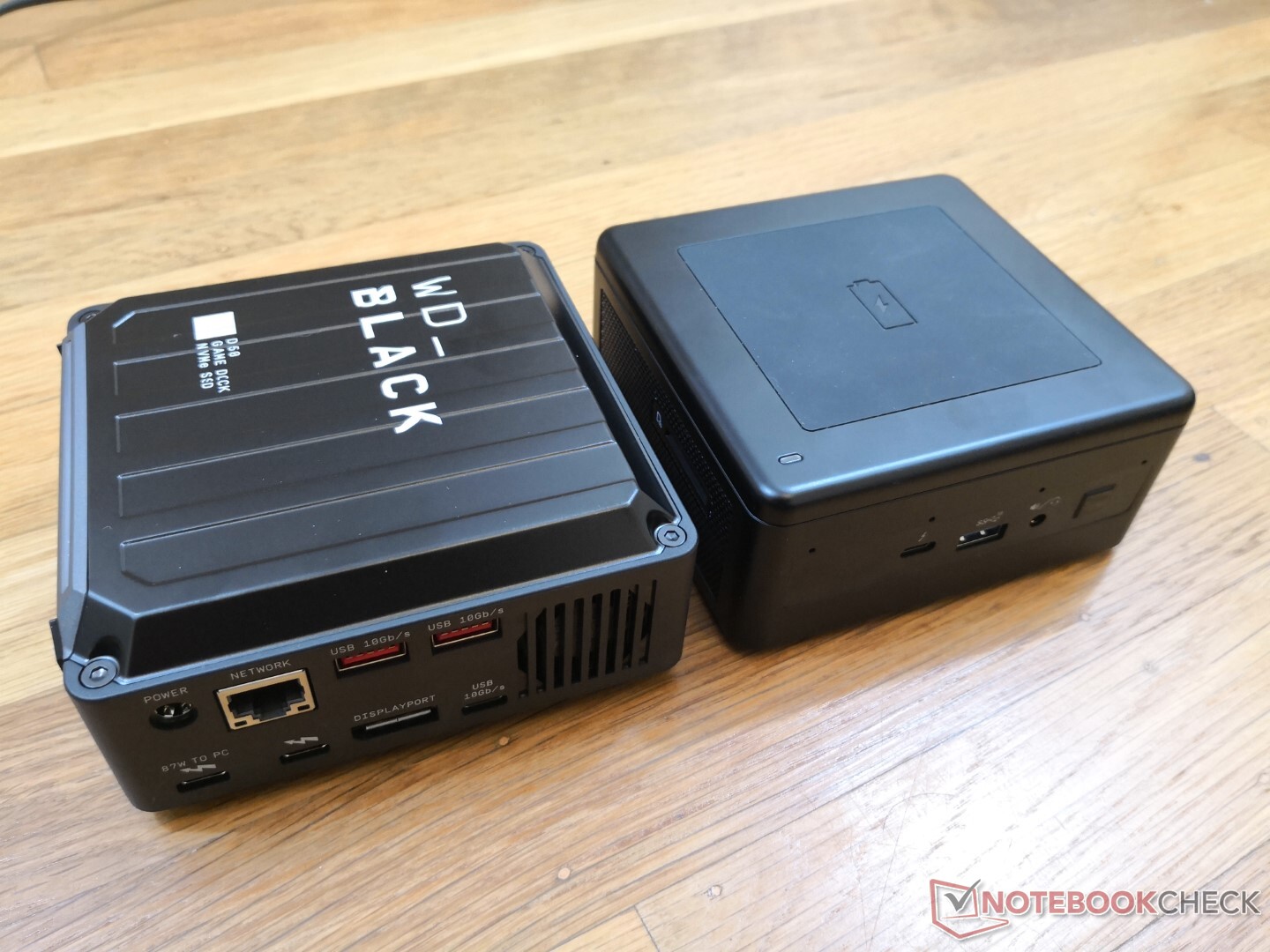

Left: WD D50 Game Dock, Right: Intel NUC 11 PAQ
Left: WD D50 Game Dock, Right: Intel NUC 11 PAQ
