Unisoc T7200 (T606) vs Allwinner A523 vs UNISOC SC9863A
Unisoc T7200 (T606)
► remove from comparison
The Unisoc T7200 (formerly Unisoc T606) is an entry level octa core SoC with two big ARM Cortex A75 cores at up to 1.6 GHz and six power efficient ARM Cortex A55 cores at up to 1.6 GHz. The SoC further includes an LTE modem (TDD-LTE, FDD-LTE, TDSCDMA, WCDMA, CDMA, GSM), an LPDDR4X 1600 MHz memory controller, an ARM Mali G57 MP1 GPU at 650 MHz and a tri core ISP (24, 8 and 8 MPixels max). The chip is manufactured by TSMC on a 12nm FinFET process.
Allwinner A523
► remove from comparison

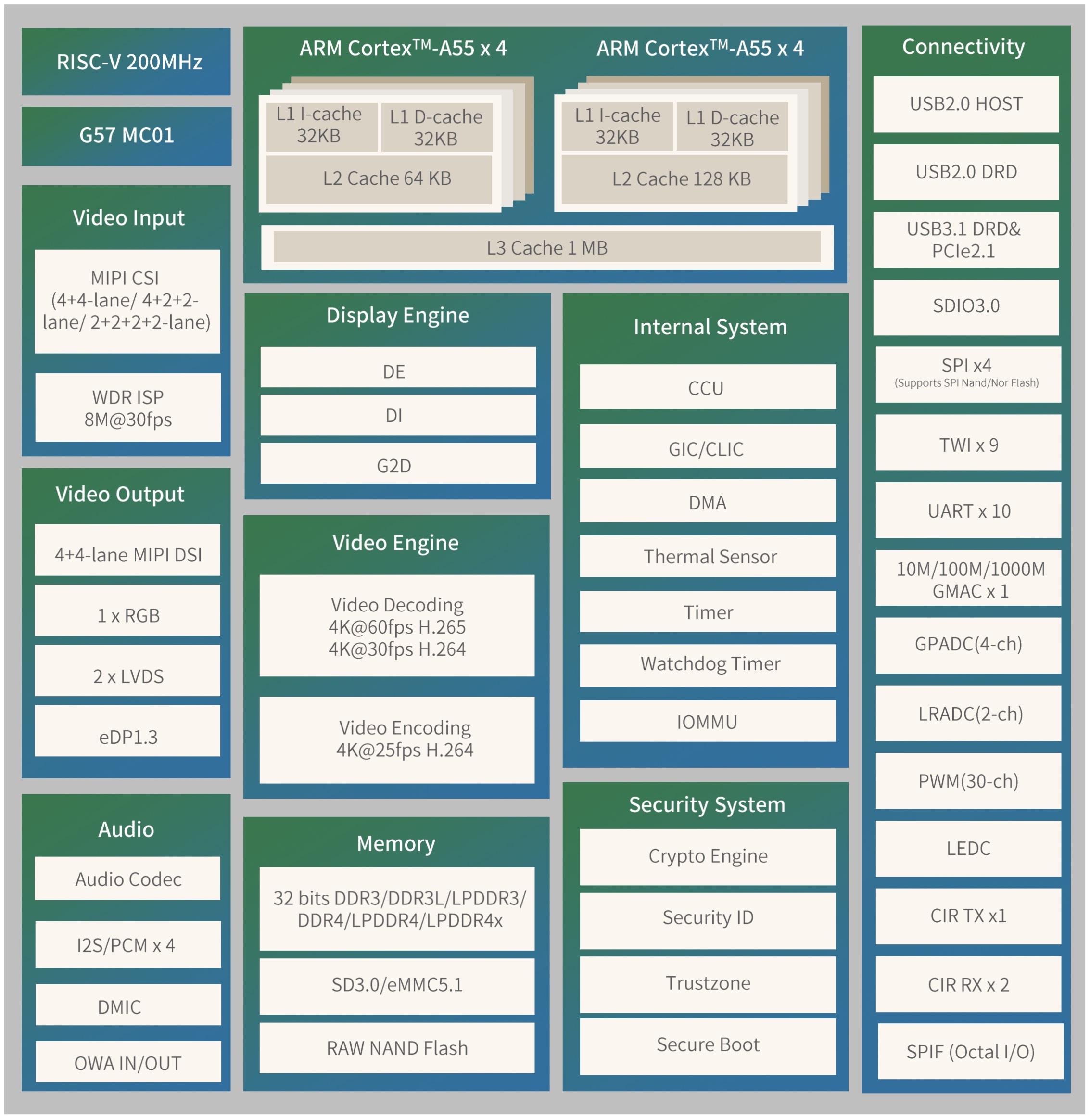

The Allwinner A523 is a very affordable ARM-based SoC for smartphones and tablets. The eight-core processor presented in 2023 consists of two quad-core clusters, each made up of 4 Cortex-A55 cores.
The faster quad cluster operates at a clock frequency of up to 1.8 GHz and offers 128 KB L2 cache per A55 core, while the second cluster clocks at up to 1.4 GHz and only offers 64 KB L2 cache per core.
In another version of the Allwinner A523, the first quad cluster clocks at up to 2.0 GHz. The ARM Mali-G57 MC1 is used as the graphics unit, which supports OpenGL 3.2, Vulkan 1.0 and OpenCL 2.0. A XuanTie E906 RISC-V PMU is also integrated.
The Allwinner SoC can control up to 4 GB DDR3/DDR4/LPDDR2/LPDDR3/LPDDR4/LPDDR4X RAM and eMMC 5.1 flash memory. In addition to PCIe 2.1, USB 3.1 Gen. 1 and Gigabit Ethernet are also supported as interfaces. There is also an H264/H265 video decoder (up to 4K at 60 frames per second) and an H264 encoder (up to 4K at 25 frames per second).
The Allwinner A523 is manufactured with a 22 nm structure width.
UNISOC SC9863A
► remove from comparisonThe Unisoc SC9863A (formerly Spreadtrum) is an entry level octa core SoC with 8 ARM Cortex-A55 cores in two clusters. One performance cluster with up to 1.6 GHz and a efficiency cluster with up to 1.2 GHz. The SoC also integrates an LTE modem (TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GGE), a PowerVR IMG8322 /GE8322 graphics card and 1080p video support.
Process | TSMC 28HPC+ | |
CPU | 8XA55 | |
GPU | IMG 8322 | |
Memory | eMMC 5.1, LPDDR3, LPDDR4/4X | |
Modem | LTE Cat7, L+L DSDS | |
Display | FHD+ | |
Camera | 16M @ 30fps, Dual ISP 16M + 5M | |
Camera Interface | MIPI CSI: 4+4+2/4+2+2+2 | |
Video | Decode | 1080p @ 30 fps, H.264/H.265 |
Encode | 1080p @ 30 fps, H.264/H.265 | |
WCN | 11bgn BT4.2 | integrated (BB&RF) |
11AC BT5.0 | Marilin3 (option) | |
| Model | Unisoc T7200 (T606) | Allwinner A523 | UNISOC SC9863A |
| Codename | Cortex-A75 / A55 | Cortex-A55 | Cortex-A55 |
| Clock | 1600 MHz | 480 - 2000 MHz | 1200 - 1600 MHz |
| L3 Cache | 1 MB | 1 MB | 512 KB |
| Cores / Threads | 8 / 8 | 8 / 8 4 x 1.8 GHz ARM Cortex-A55 4 x 1.4 GHz ARM Cortex-A55 | 8 / 8 |
| Technology | 12 nm | 22 nm | 28 nm |
| Features | ARM Mali G57 MP1, Vivimagic 5.0 Tri-Core-ISP, LTE / 4G Modem, VDSP | H.264 4K25 Encoding, 4K30 decoding, H.265 4K60 decoding, 32 Bit LPDDR4x memory controller, SD 3.0 / eMMC 5.1, Trustzone, Secure Boot, Security ID, USB 3.1, PCIe 2.1, RISC-V 200 MHz | TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GGE Modem, IMG8322 GPU, 1080p video, FHD+ display support |
| iGPU | ARM Mali-G57 MP1 (650 MHz) | ARM Mali-G57 MP1 | PowerVR GE8322 / IMG8322 (550 MHz) |
| Architecture | ARM | ARM | ARM |
| Announced | |||
| L1 Cache | 512 KB | ||
| L2 Cache | 768 KB | ||
| Manufacturer | www.allwinnertech.com | www.unisoc.com |
Benchmarks
Average Benchmarks Unisoc T7200 (T606) → 100% n=11
Average Benchmarks Allwinner A523 → 69% n=11
Average Benchmarks UNISOC SC9863A → 734% n=11
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
