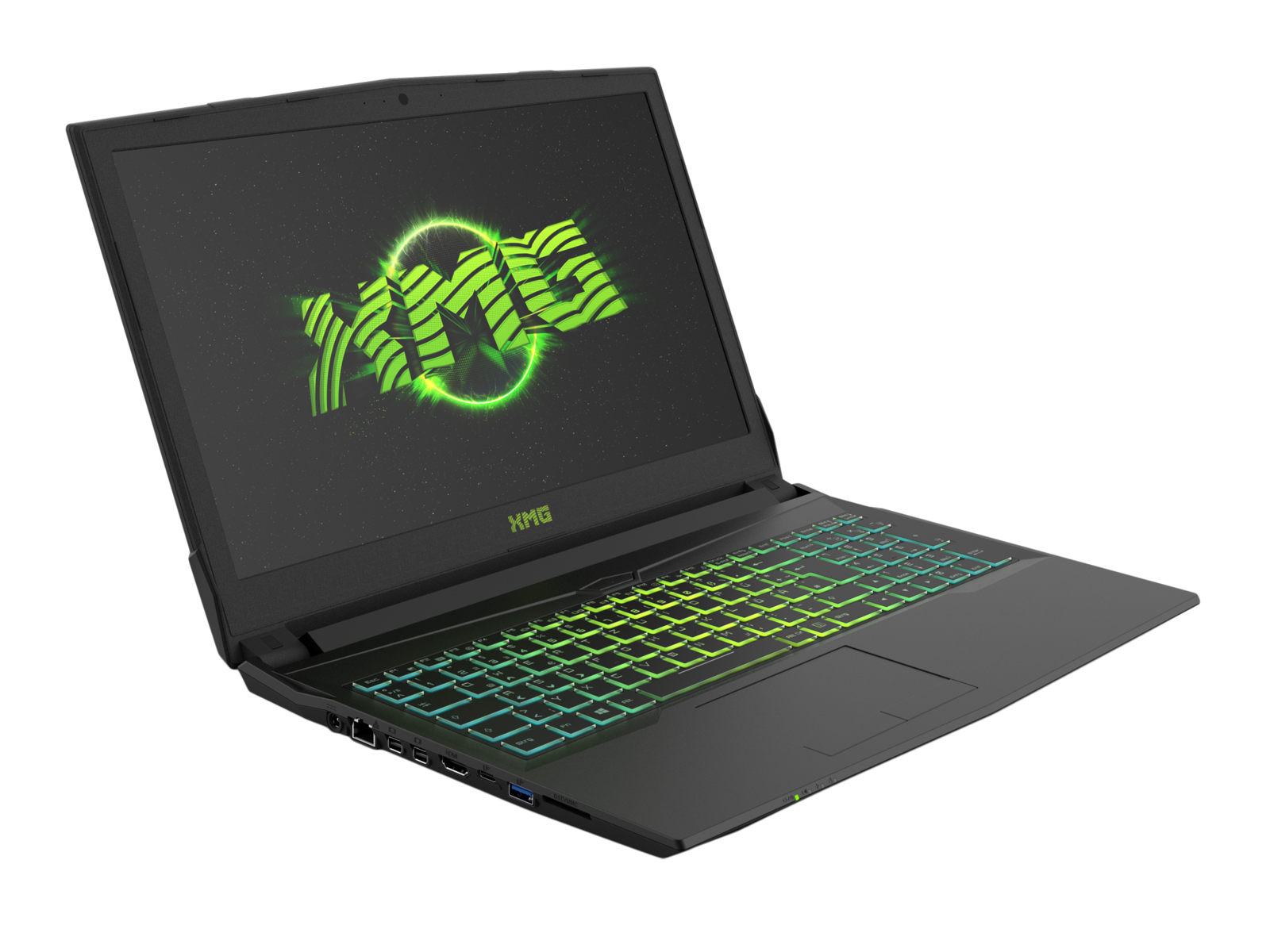

Schenker XMG A517

Specifications

Schenker XMG A517
Schenker XMG A517
Graphics adapter
NVIDIA GeForce GTX 1060 (Laptop) - 6144 MB, Core: 1405 MHz, Memory: 4000 MHz, GDDR5, ForceWare 382.05, Optimus
Memory
16384 MB
, 2x 8 GB DDR4-2400 SO-DIMM, dual channel, 2 of 2 slots in use, max. 32 GB
Display
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LP156WF6 (LGD046F), IPS, Full HD, 60 Hz, glossy: no
Mainboard
Intel HM175
Storage
Samsung SSD 960 Evo 500GB m.2 NVMe, 500 GB
, Slots: 1x M.2 Type 2280 SATA III or PCIe 3.0 x4 & 1x 2.5 inch
Soundcard
Realtek ALC269 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 1x audio jack, 1x microphone, Card Reader: SD,SDHC,SDXC,Mini-SD,MMC,RSMMC
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit), Killer Wireless-n/a/ac 1535 Wireless Network Adapter (b/g/n/ac), Bluetooth 4.1
Size
height x width x depth (in mm): 30 x 378 x 267 ( = 1.18 x 14.88 x 10.51 in)
Battery
62 Wh, 5300 mAh Lithium-Ion, removeable, 11.1V, 6 cells, 333 gram
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: Full HD (2.0 MP)
Additional features
Speakers: 2.0 (Soundblaster Cinema 3), Keyboard: Chiclet (RGB), Keyboard Light: yes, 180-Watt power supply, cleaning cloth, USB stick, XMG sticker, storage device accessories, Recovery DVD, Driver DVD, Quick Start Guide, Control Center, 24 Months Warranty
Weight
2.426 kg ( = 85.57 oz / 5.35 pounds), Power Supply: 632 g ( = 22.29 oz / 1.39 pounds)
Price
1729 EUR



Pricecompare

Average Score: 83.5% - good
Average of 2 scores (from 1 reviews)
price: - %, performance: 92%, features: 64%, display: 88% mobility: 80%, workmanship: 63%, ergonomy: 79%, emissions: 73%

Reviews for the Schenker XMG A517

82% Schenker Technologies XMG A517 (Clevo N850HP6) Laptop Review | Notebookcheck
A breath of fresh air. About a year and half ago, we tested the XMG A516 - a powerful high-end notebook from Schenker Technologies that was quite compact for gaming devices in those days, with a height of 2.9 cm (~1.14 in) and a weight of 2.5 kg (~5.5 lb). Now its successor, the XMG A517, shows what it can do in our detailed review.
85% SCHENKER XMG A517 dxf Gaming Laptop mit 15,6 Zoll Full HD-Display
Source: Notebooksbilliger Blog German DE→EN
Single Review, online available, Long, Date: 09/15/2017
Rating: Total score: 85% performance: 90% display: 90% mobility: 90%

Comment

NVIDIA GeForce GTX 1060 (Laptop): The mobile GTX 1060 is based on the GP106 chip and offer 1280 shaders. Compared to the identically named desktop version it features a slightly lower clock rate. Games in Full HD and maximum details should run fluently on the card. These graphics cards are able to play the latest and most demanding games in high resolutions and full detail settings with enabled Anti-Aliasing. » Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.
Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.
7700HQ: Quad-core notebook processor based on the Kaby Lake architecture. Besides four CPU cores (including Hyper Threading), the chips also integrates the HD Graphics 630 GPU and is manufactured in an improved 14 nm process.» Further information can be found in our Comparison of Mobile Processsors.
15.6":

15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.
2.426 kg:

Usually subnotebooks, ultrabooks and quite lightweight laptops with 12-16 inch display-diagonal weigh as much.


83.5%: This rating should be considered to be average. This is because the proportion of notebooks which have a higher rating is approximately equal to the proportion which have a lower rating.
» Further information can be found in our Notebook Purchase Guide.
