Review Panasonic Toughpad JT-B1 Tablet

Sturdy. Panasonic presents a rugged 7-inch tablet. It can endure falls from 1.50 m (~4.9 feet) and hose water from all directions. The battery is replaceable. Can the inner components and the display convince in our tests?

For the original German review, see here.

Panasonic adds a 7-inch fully ruggedized tablet to its product range with the Toughpad JT-B1. The device is IP certified to be water and dust proof and was tested for compliance to MIL-STD-810G standard. A dual-core CPU from Texas Instruments should deliver the necessary performance. In addition, the specs include WWAN, docking port, GPS, NFC, WLAN and an expansion port for bar code and magnetic card readers. Panasonic designed the device for mobile field workers in the industry. The Japanese company claims, that the device is suitable for use in company oil rigs, power plants and construction sites and even for public security forces and military.

We only had a single similar device of this category under review so far: Although the Unitech TB-100 is based on significantly older technology, it is certainly robust. The Fujitsu Stylistic M702 is only a semi-ruggedized tablet with IP certification. The performance of our test model is mid-range. It uses similar components to the Amazon Kindle Fire HD 7 or the Samsung Galaxy Tab 3 8.0. Our review covers, how the Toughpad JT-B1 compares to the competition in performance and what it can stand.

Case

The front is protected by Corning Gorilla Glass 2.
The front is protected by Corning Gorilla Glass 2.

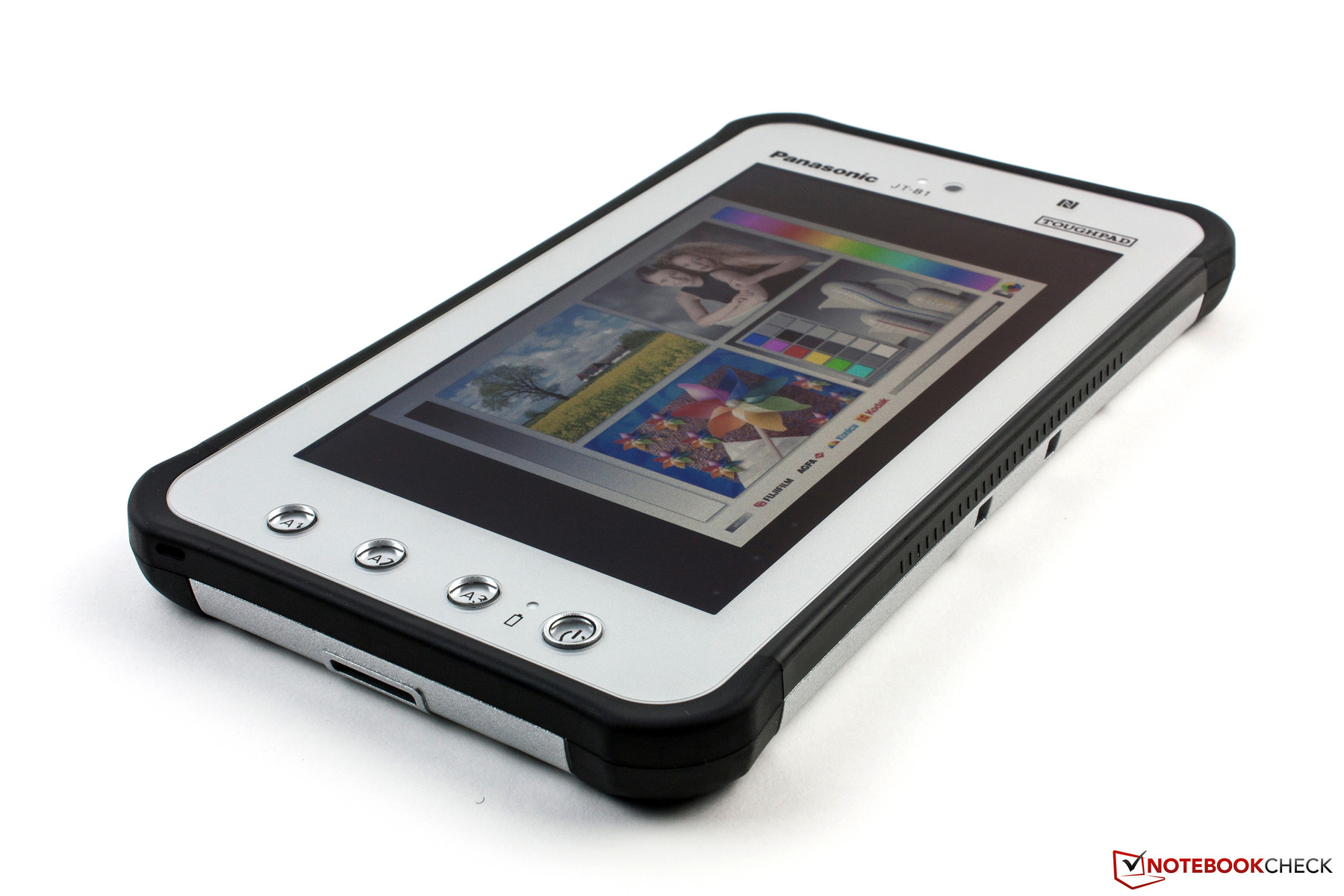

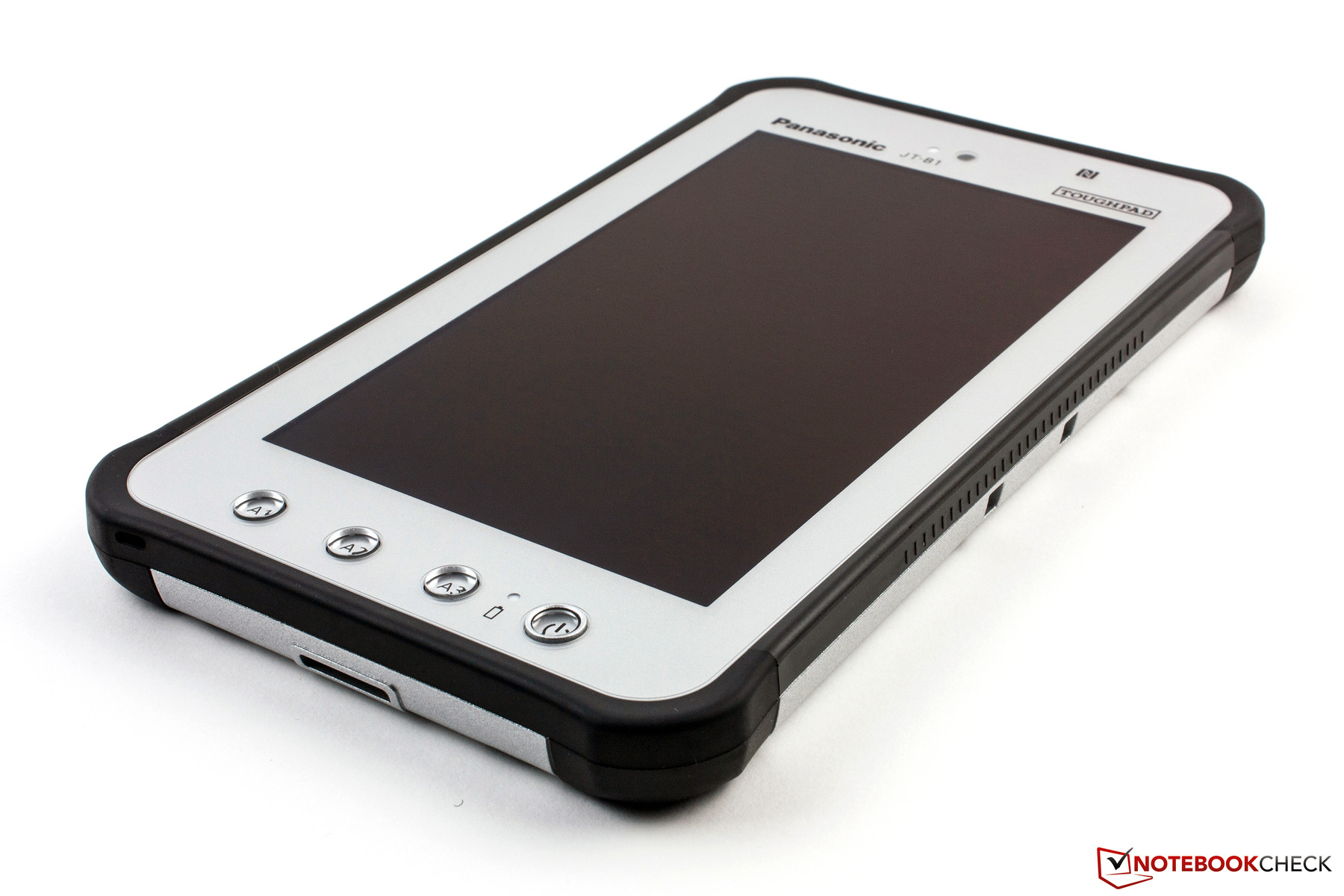

The tablet is very bulky and robust.
The tablet is very bulky and robust.

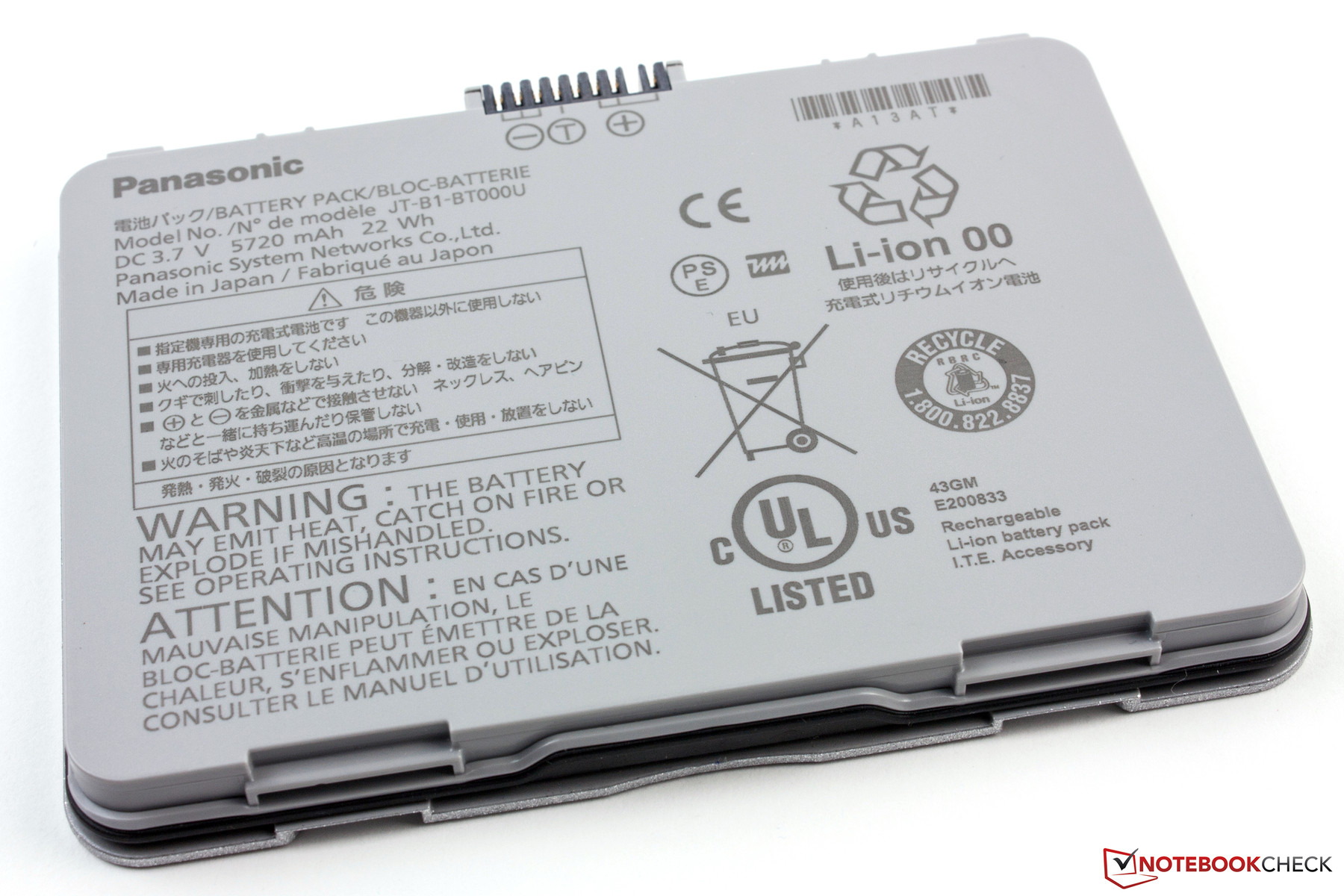

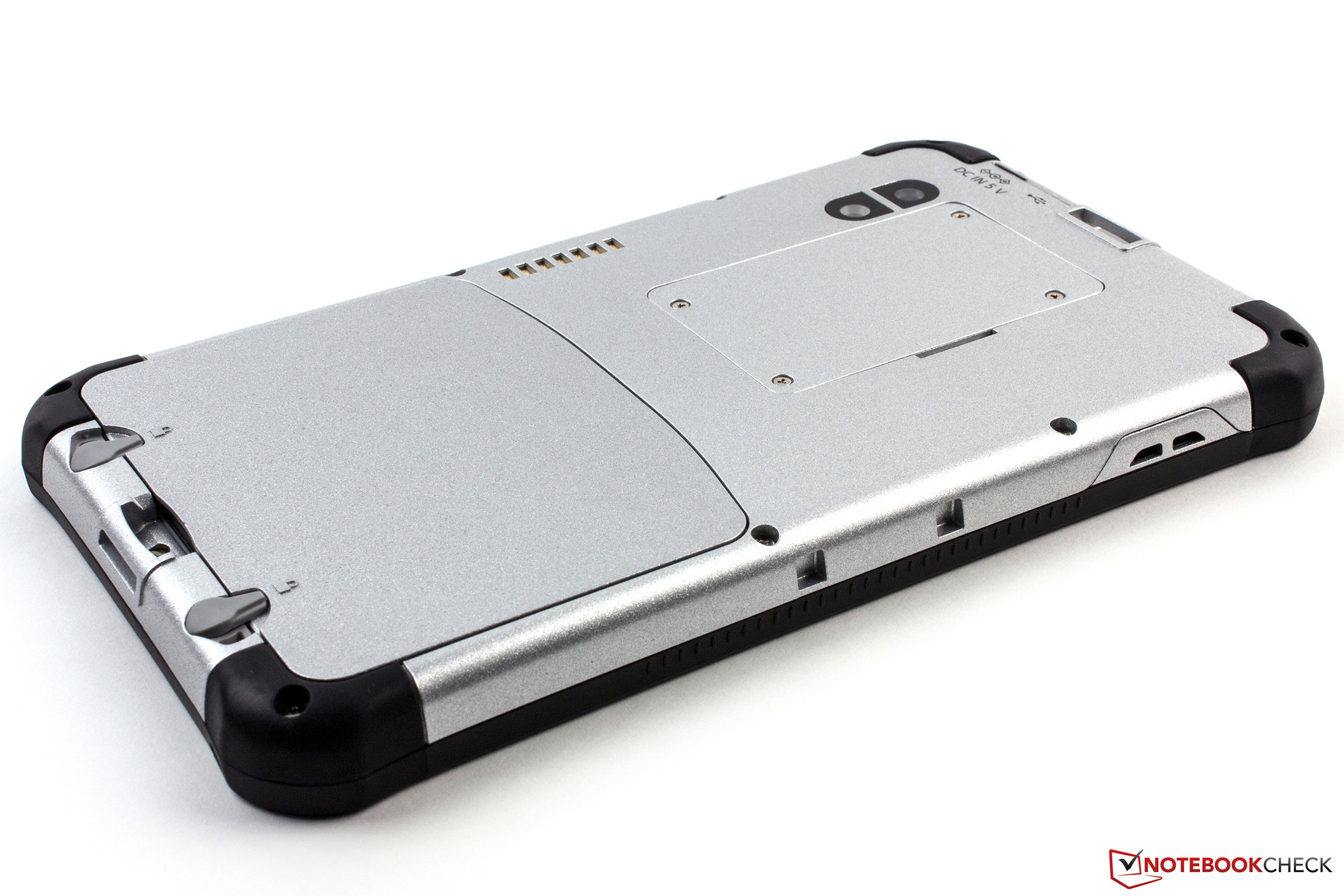

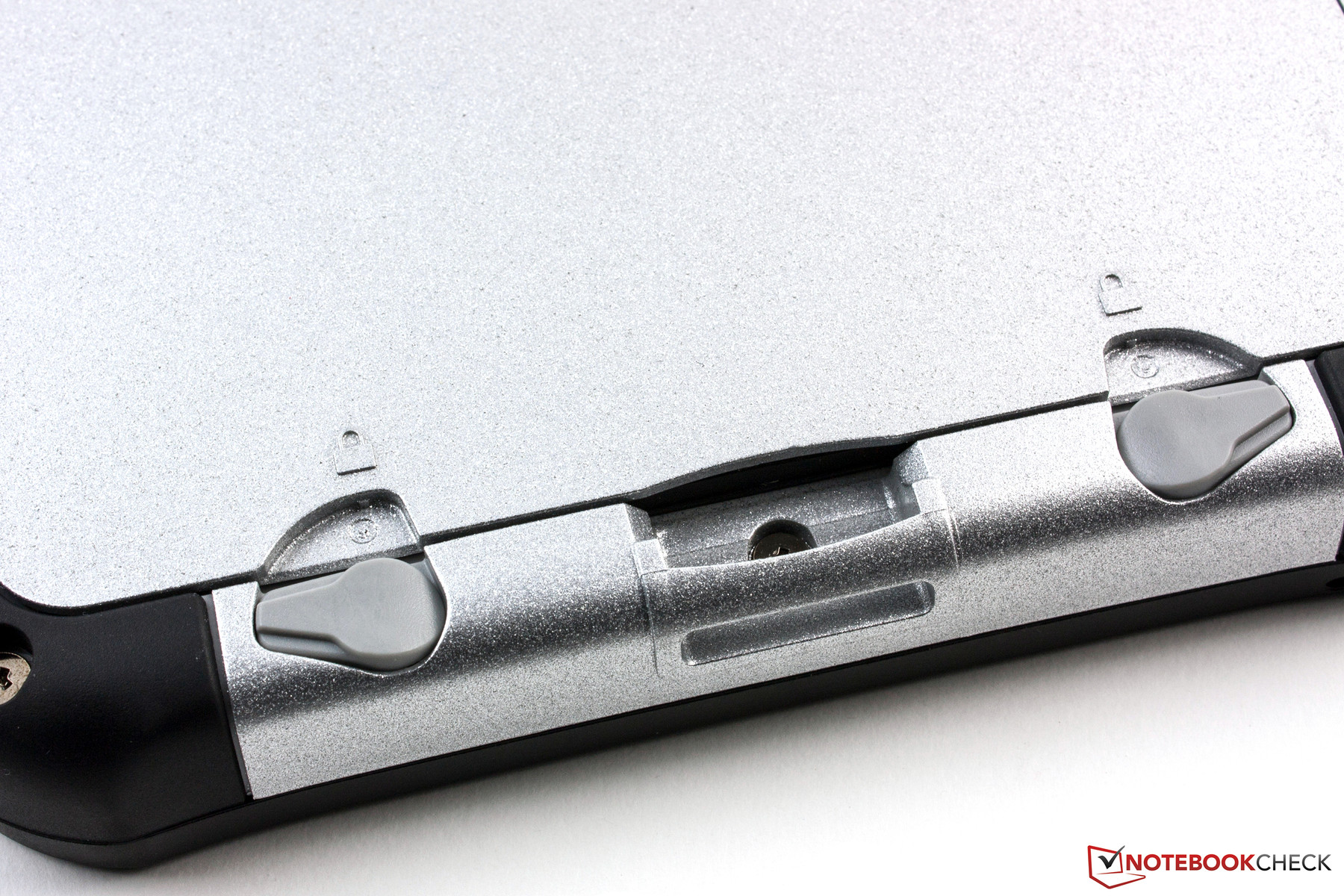

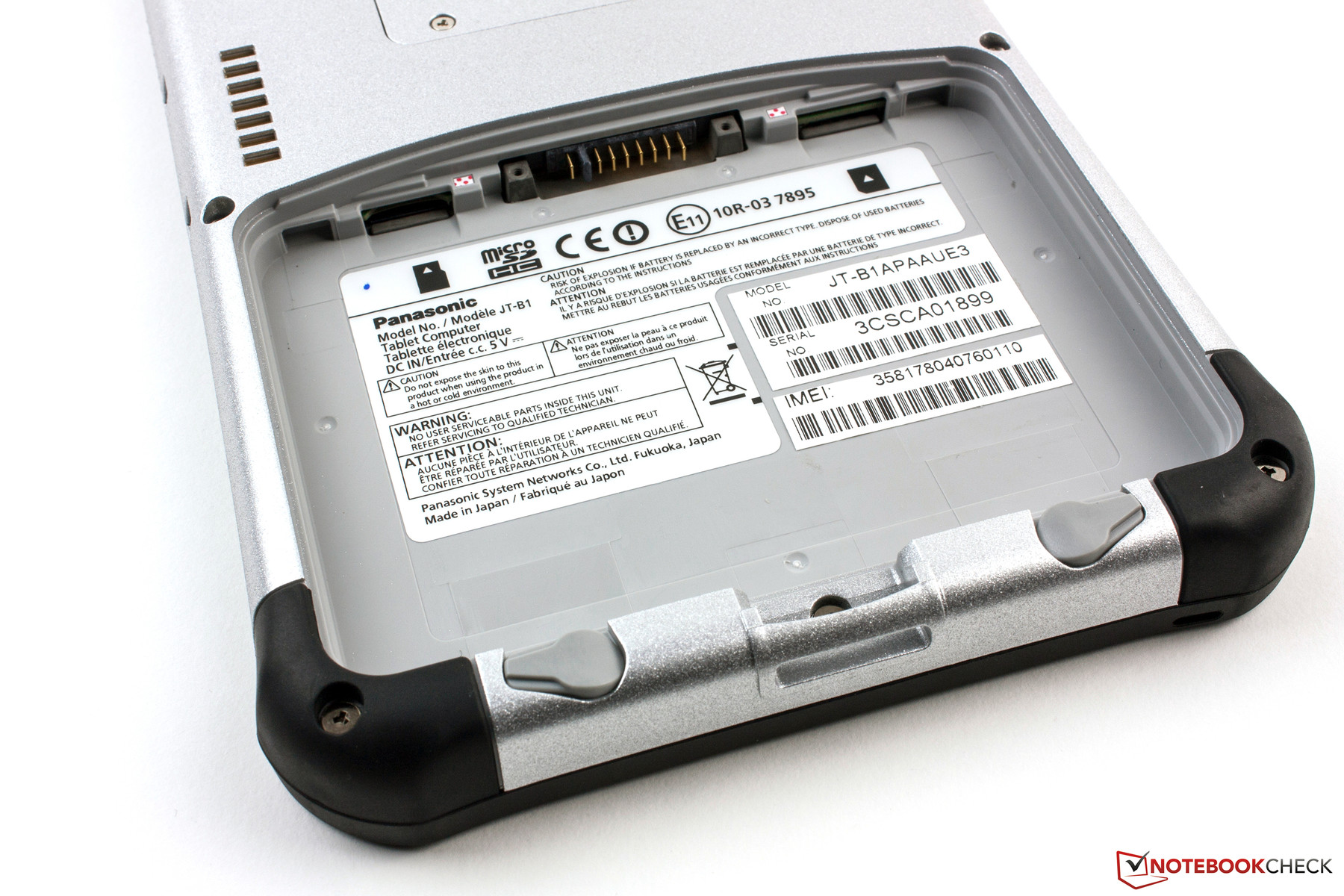

The battery can be replaced.
The battery can be replaced.

The case is 220 x 129.5 x 17.8 mm (length x width x height) (~8.7 x 5.1 x 0.7 inches) and weighs 549 grams (~1.2 pounds) without strap. Therefore, the Panasonic Toughpad JT-B1 is relatively bulky and heavy. It is made from silver plastic, which appears robust and feels a bit rough, but it sits comfortably in the hand. The display and the edges of the fully ruggedized tablet are protected by a thick, black rubber coating. Corning Gorilla Glass 2 shields the display from damage.

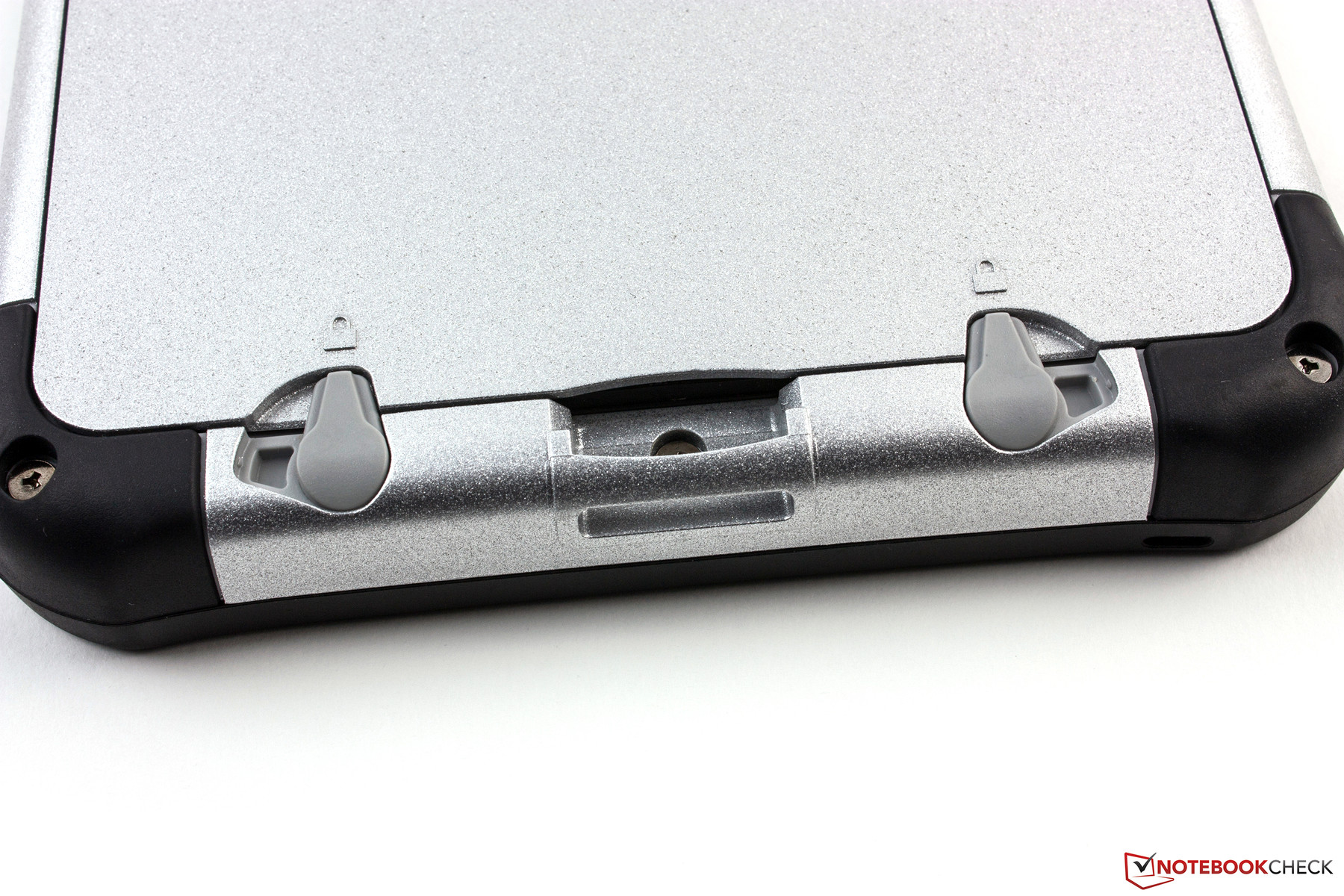

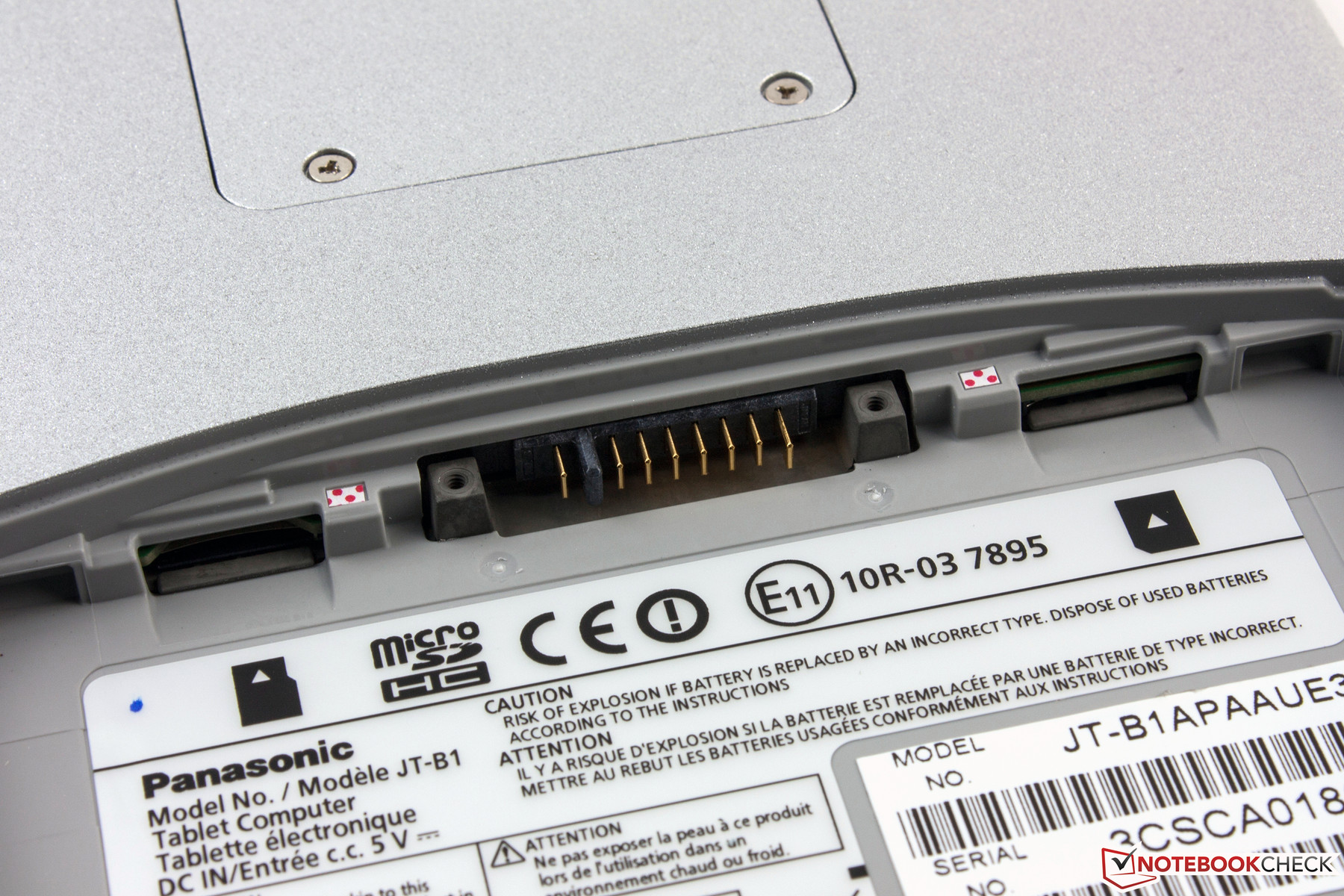

The replaceable battery is a special feature. Two bolts hold it in place. It remains in place even if it is not closed in error. The tablet cannot be used without a battery. If one of the locks is opened during operation, an alarm signal rings.

The Toughpad is stiff, but it creaks from side-to-side-twisting. The whole device appears to be pressure resistant. However, if you press the backside hard enough, you can create pressure waves on the display. The same is true for the front side. If you press the left or right display frame hard enough, you can trigger a touch event.

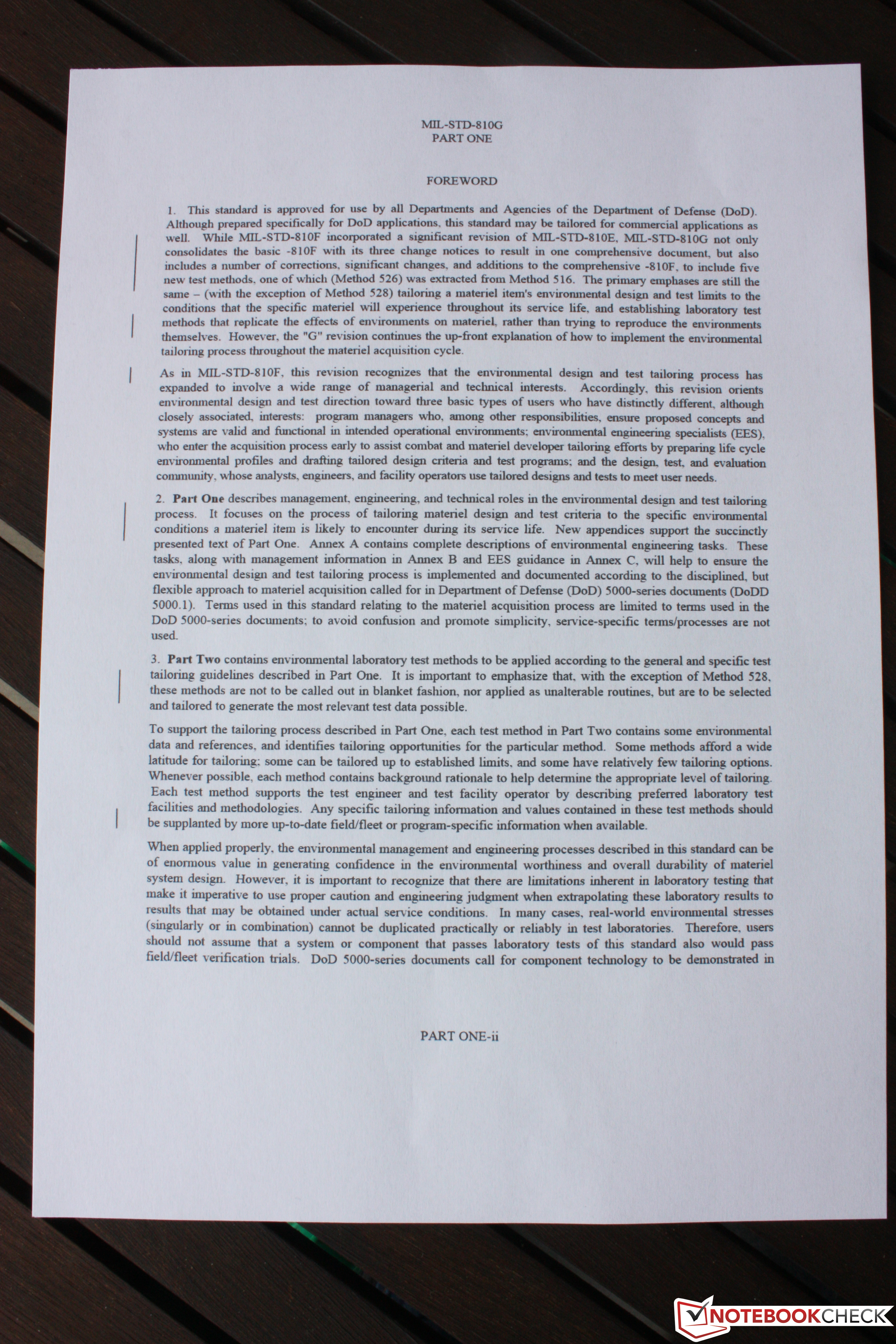

Nevertheless, the device is very robust and can stand a lot. According to the IP65 certification, the tablet is completely protected against dust, and hose water from all directions. In addition, Panasonic engaged an independent institute to test the device for compliance to the military standard MIL-STD-810G. We got a detailed list of all tests performed upon our request. These include falls from 1.50 m (~4.9 feet), operation with ambient temperatures between -10 °C and 50 °C (14 and 122 °F), use at an altitude of 4572 m (15,000 feet), heavy rain, high humidity (95%), rapid temperature changes, dust and sand resistance, and several vibration and shock tests. The tablet proved to be very sturdy. We tested its robustness as far as we could in realistic tests and it turned out to be as tough as the Unitech TB100.

Connectivity

The Toughpad JT-B1 distinguishes itself from the competition and its connectivity significantly differs from consumer tablets. It does not have a volume control, which is logical, as it is not a multimedia device. Apart from the power button, which has a different haptic because of an additional plastic ring, there are three further function keys. The three typical Android functions (back, home, app switch) are assigned to them ex factory, but the user can assign different apps, settings, and even input shortcuts to them.

The docking port is designed for compatible car mounts, which can be used to charge the device. Beneath the cover on the rear side, there is an interface for connecting magnetic card and bar code readers. An optional smartcard reader can also be used.

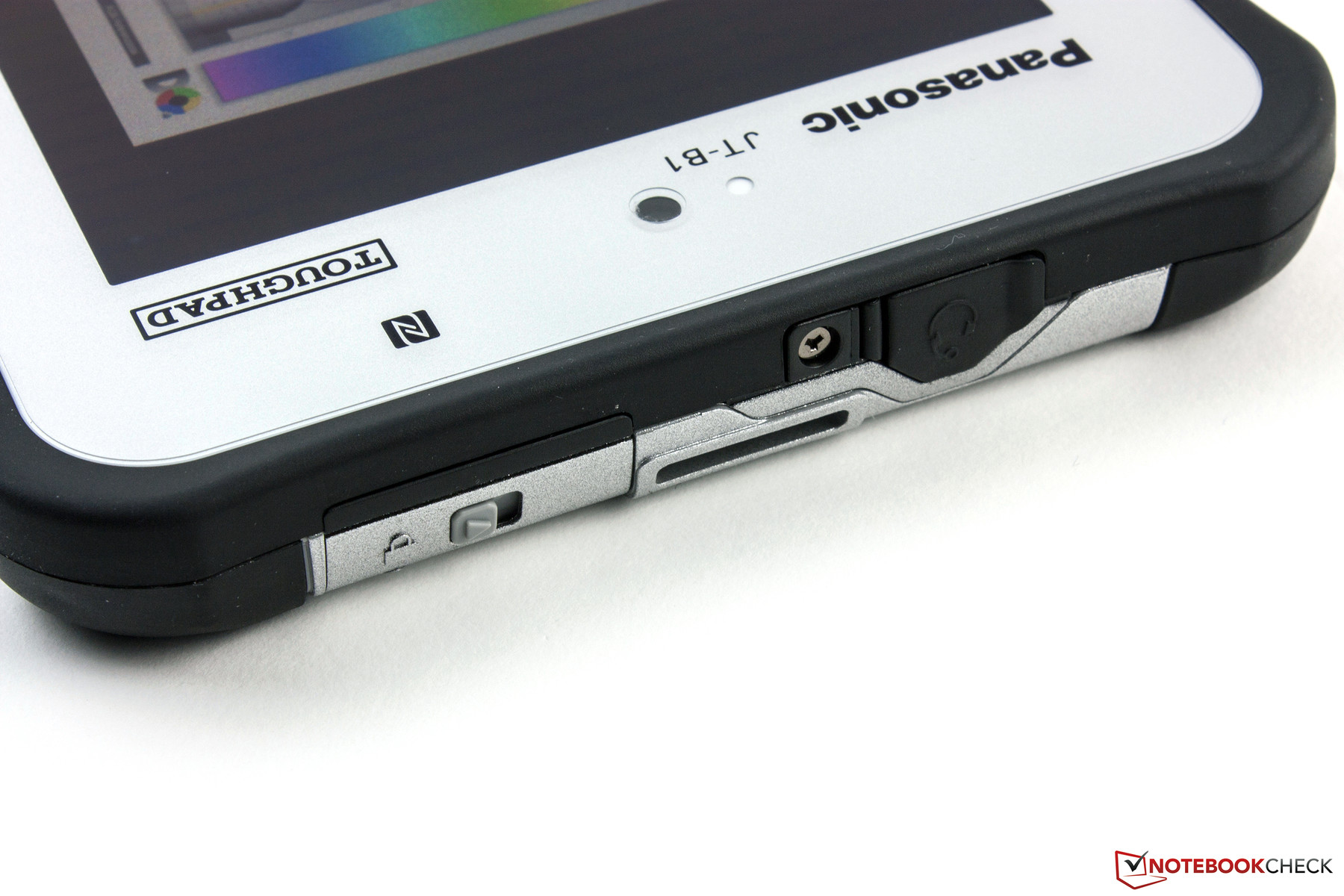

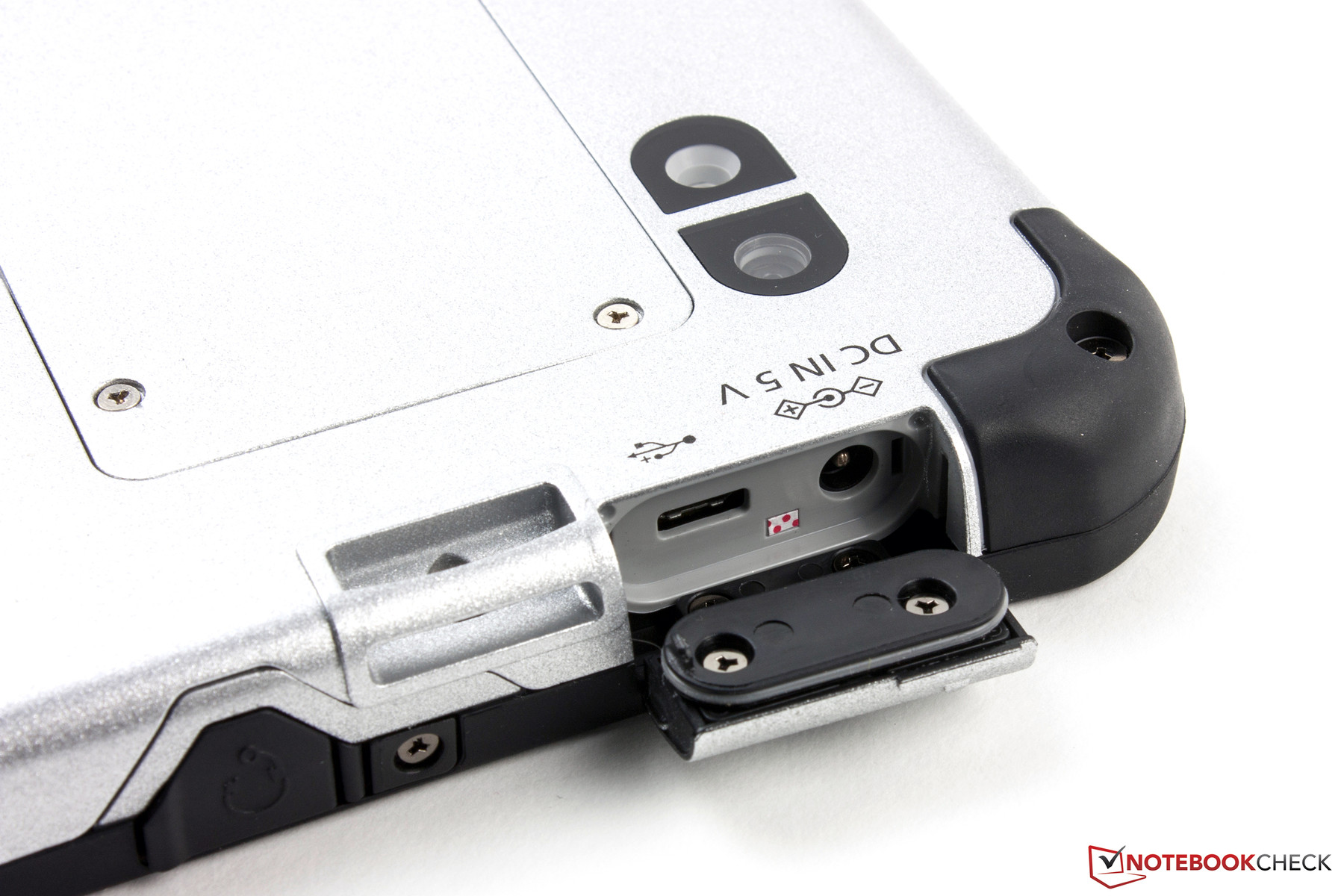

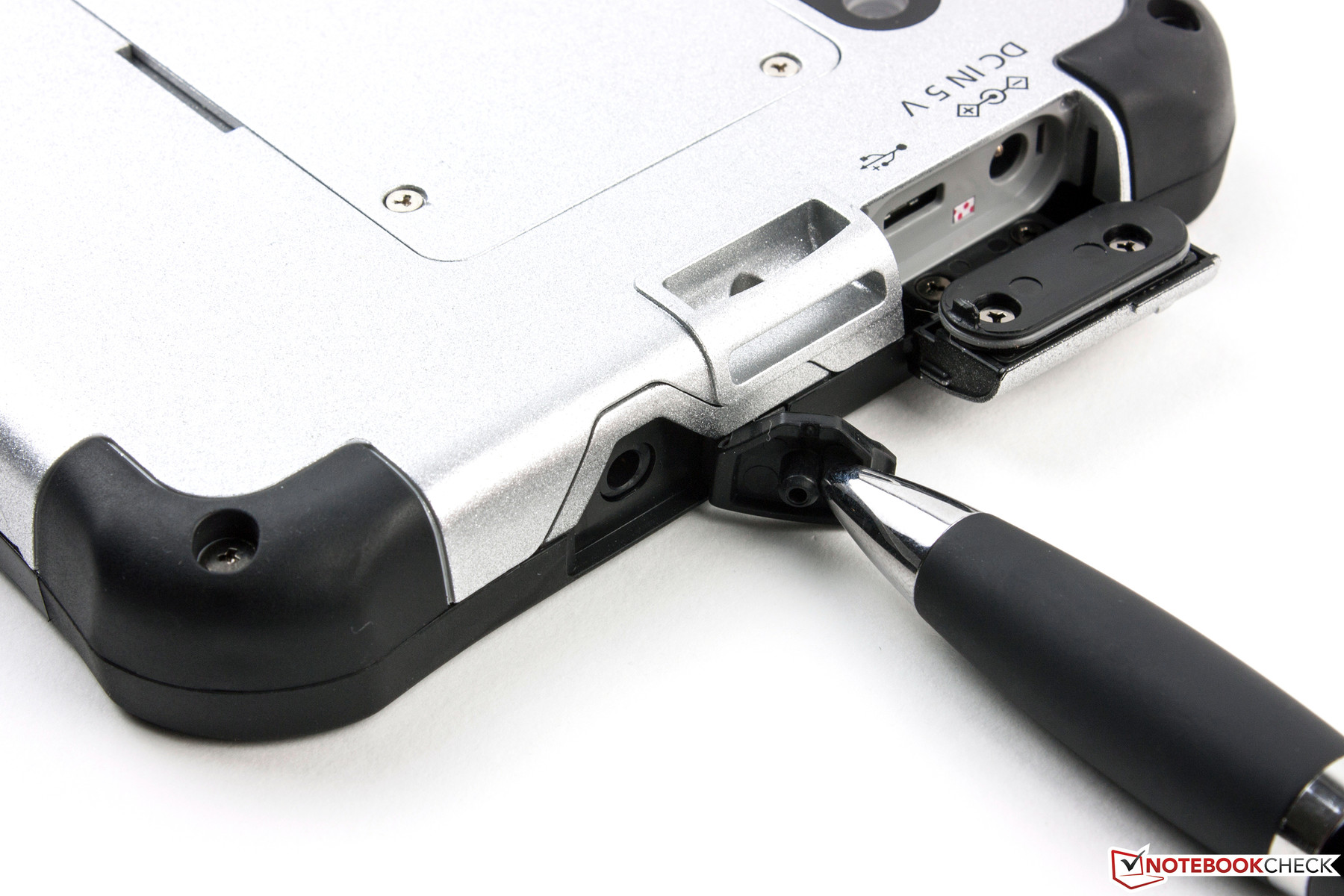

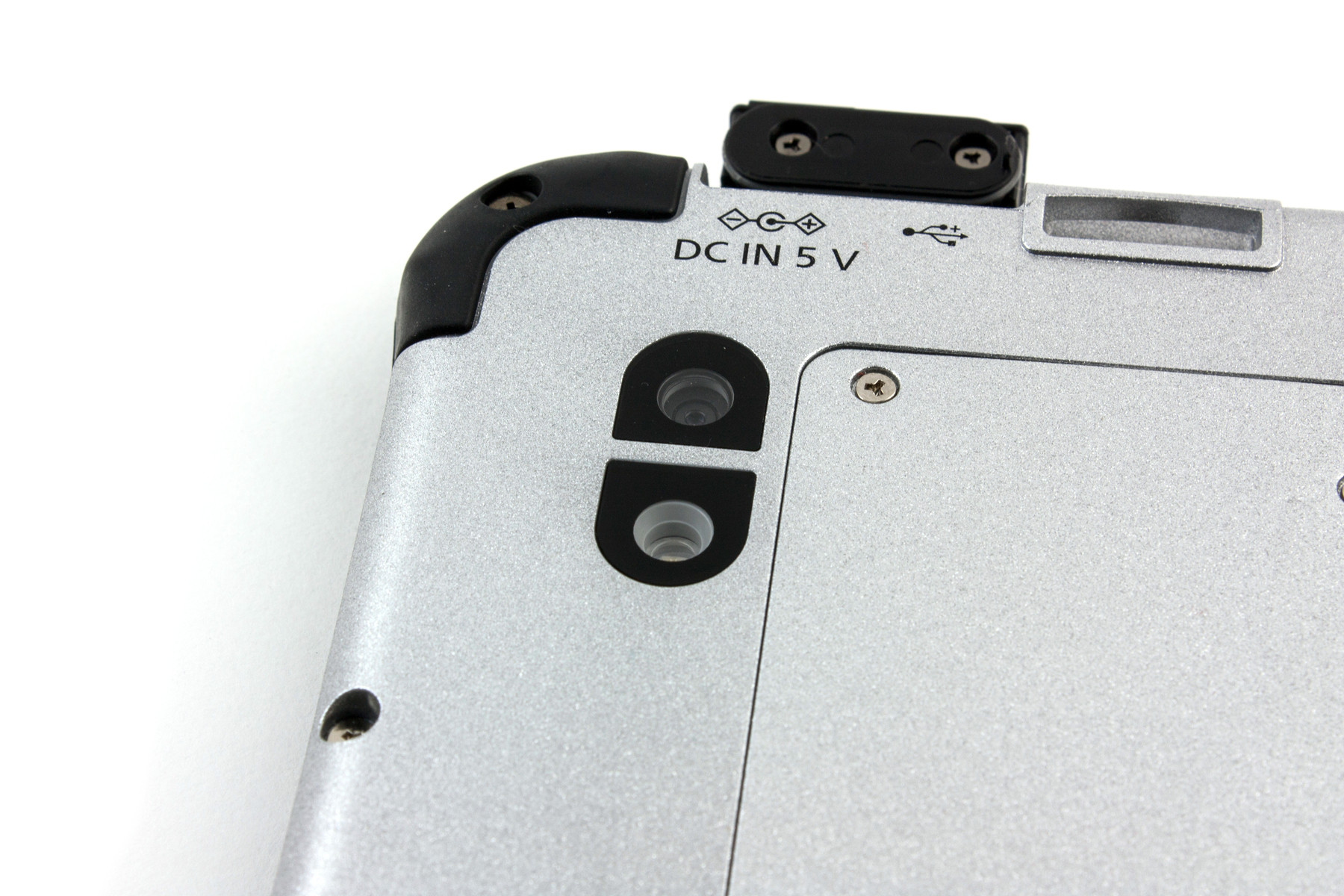

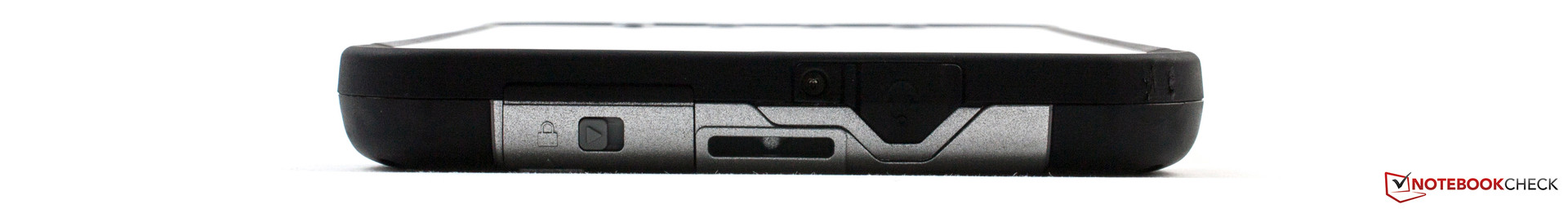

top side beneath covers: power-in, micro USB, combined headphone/mic jack
top side beneath covers: power-in, micro USB, combined headphone/mic jack

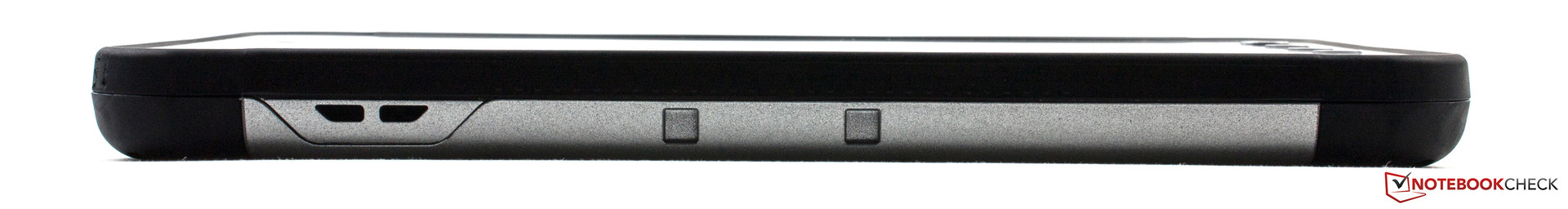

Left side: waterproof mono speaker
Left side: waterproof mono speaker

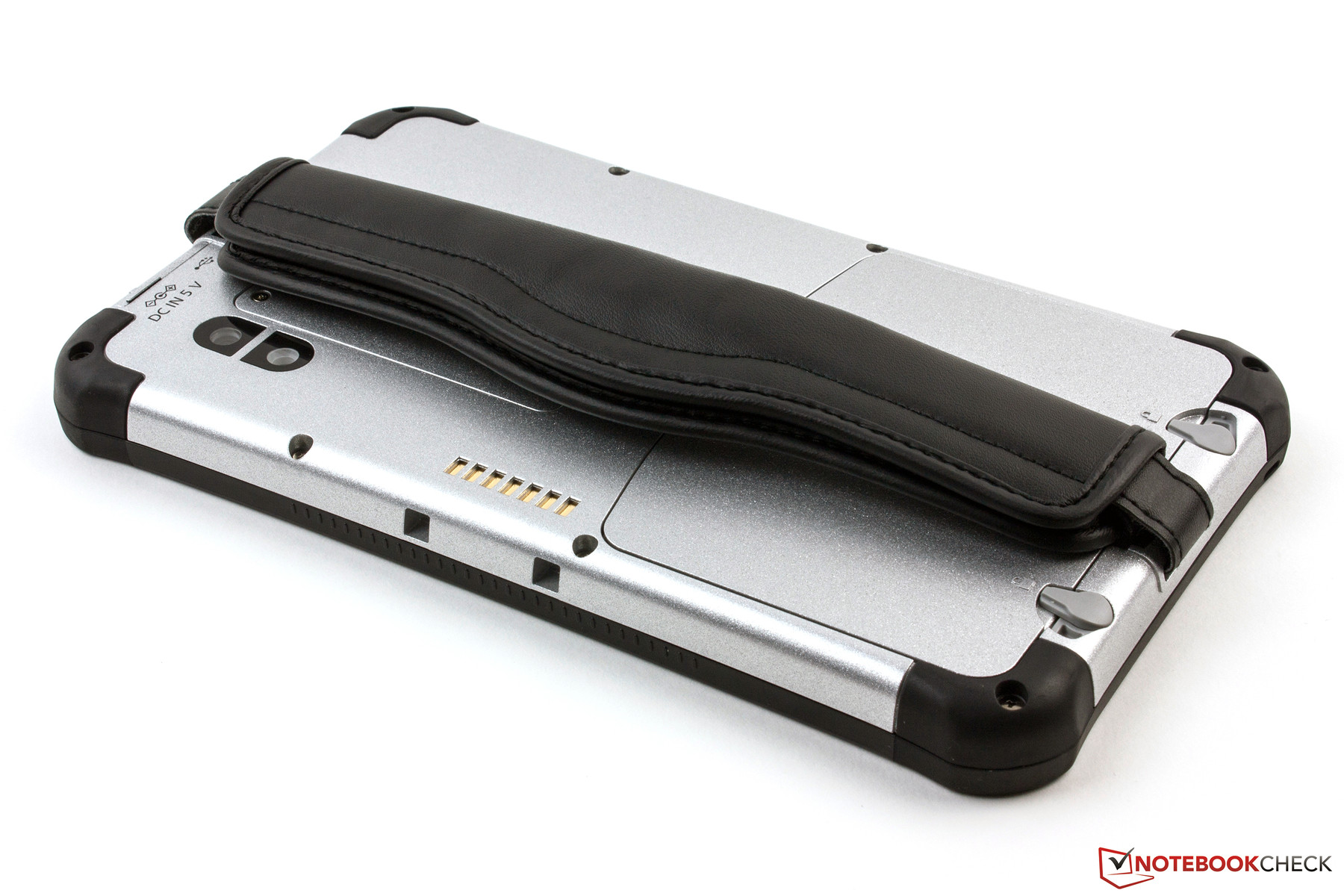

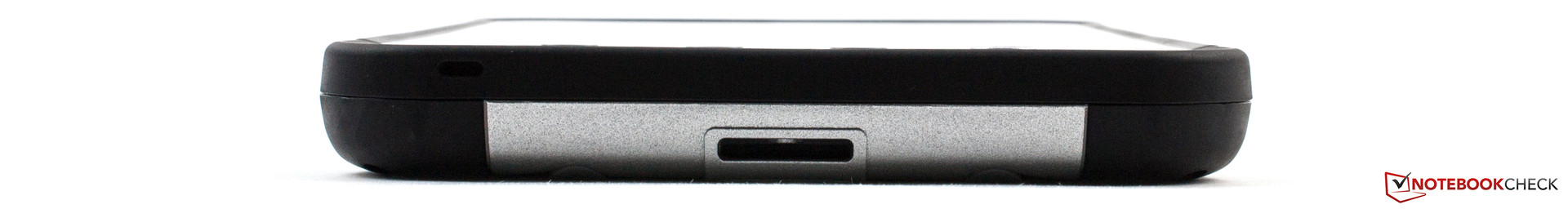

bottom side: hand strap eyelet
bottom side: hand strap eyelet

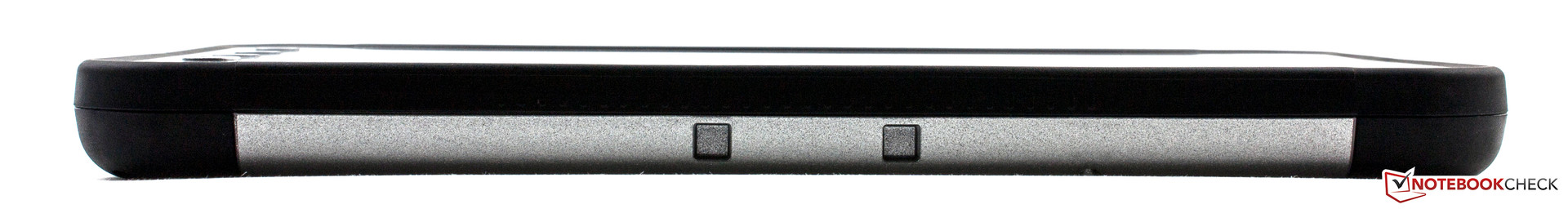

right side
right side

Software and security

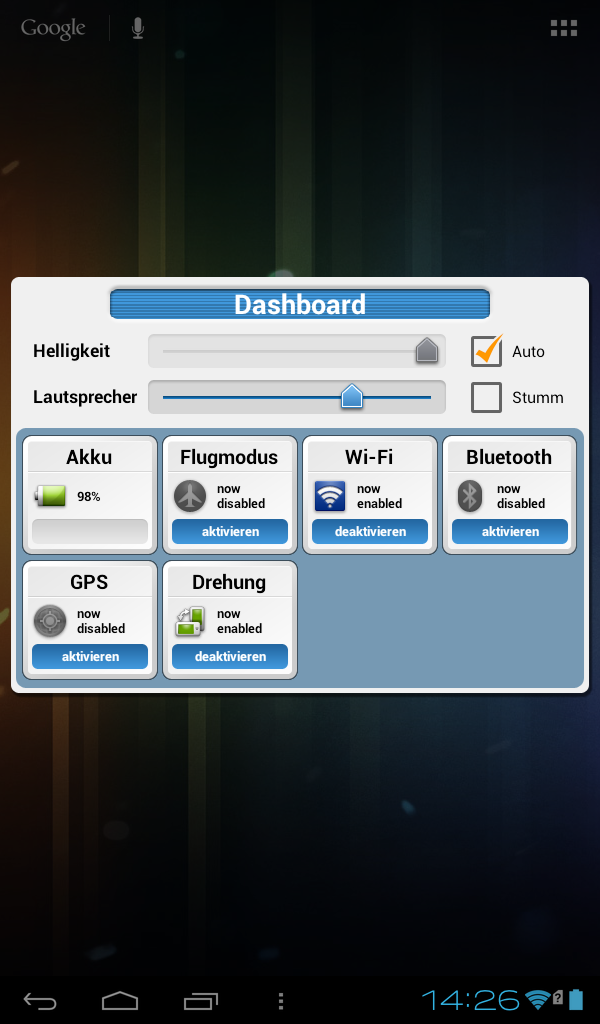

Google's Android 4.0.4 Ice Cream Sandwich is used as the operating system. It is already slightly outdated. Its design was not adjusted in any way, but security options were added.

Apart from Trusted Boot and Root Protection, the Panasonic Toughpad also supports IPSec VPN Client. In addition, it is able to decode FIPS 140-2 and can be connected to an anti-theft compatible dock.

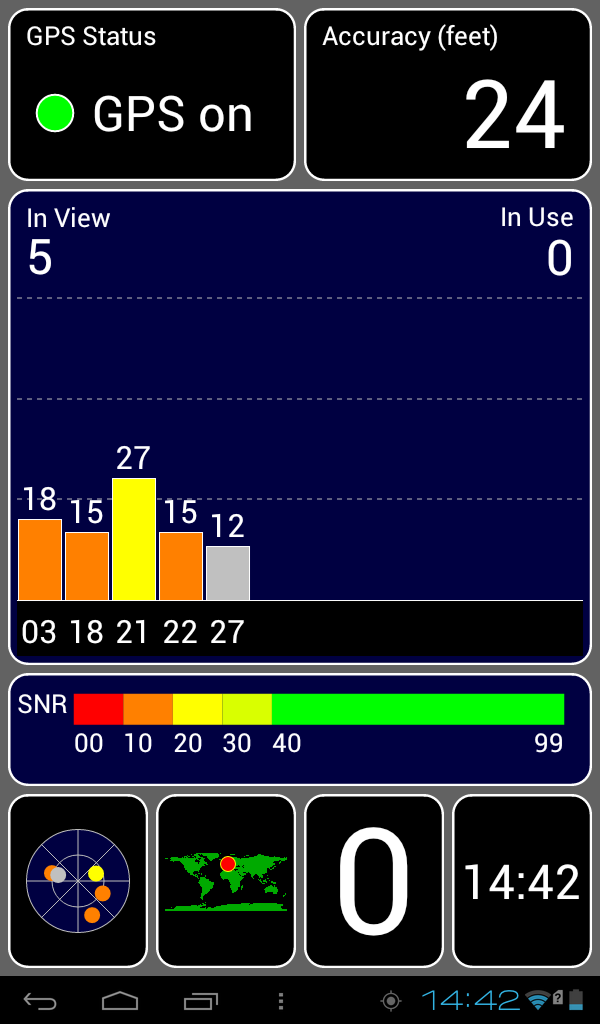

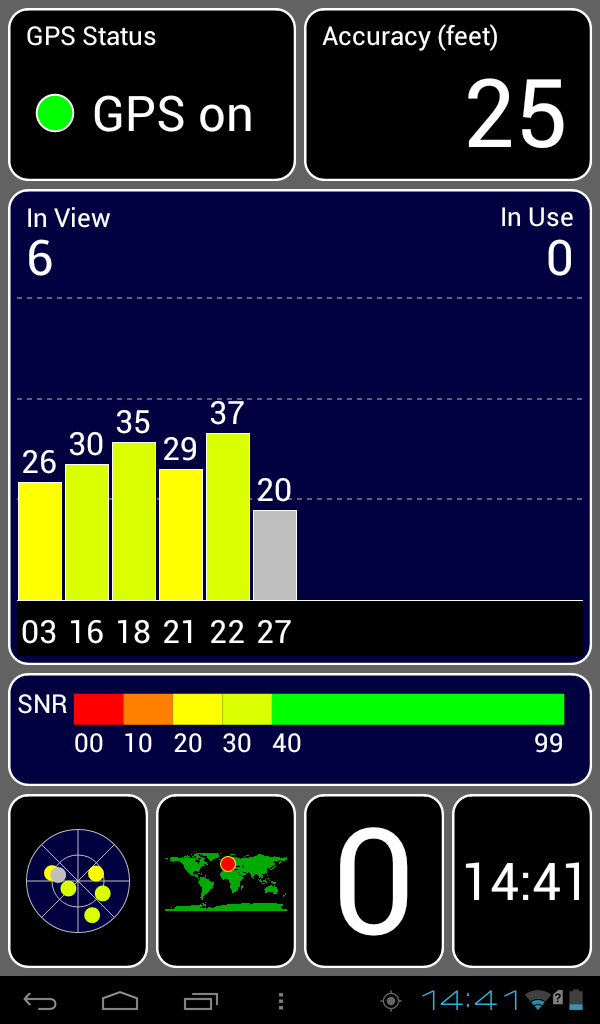

App GPS test: outdoors
App GPS test: outdoors
App GPS test: indoors
App GPS test: indoors

Communication & GPS

Unfortunately, the GPS module of the Panasonic Toughpad JT-B1 cannot completely convince. The position can be determined, but this takes above 2 minutes outdoors. In addition, the component is not able to establish a permanent connection to the satellites. Again and again, the connection broke off during our test. Therefore, it was surprising that a geolocation was possible indoors.

The tablet can be connected to a network via a Wi-Fi hotspot. The Wi-Fi component transmits in the frequency ranges of 2.4 and 5.0 GHz and supports IEEE 802.11 standards a, b, g, and n. Therefore, it should allow an especially good range, but the signal strength already falls to 50% ten meters (~33 feet) away from the router.

You can also connect to the Internet via a Micro SIM card. This works very well. All usual data standards including HSPA+ and LTE are supported. However, if you think you can also phone with the device, since it is equipped with a WWAN modem, you will be disappointed. The mobile data connection can only be used for accessing the Internet or establishing a VPN connection. However, you can use Skype for phoning.

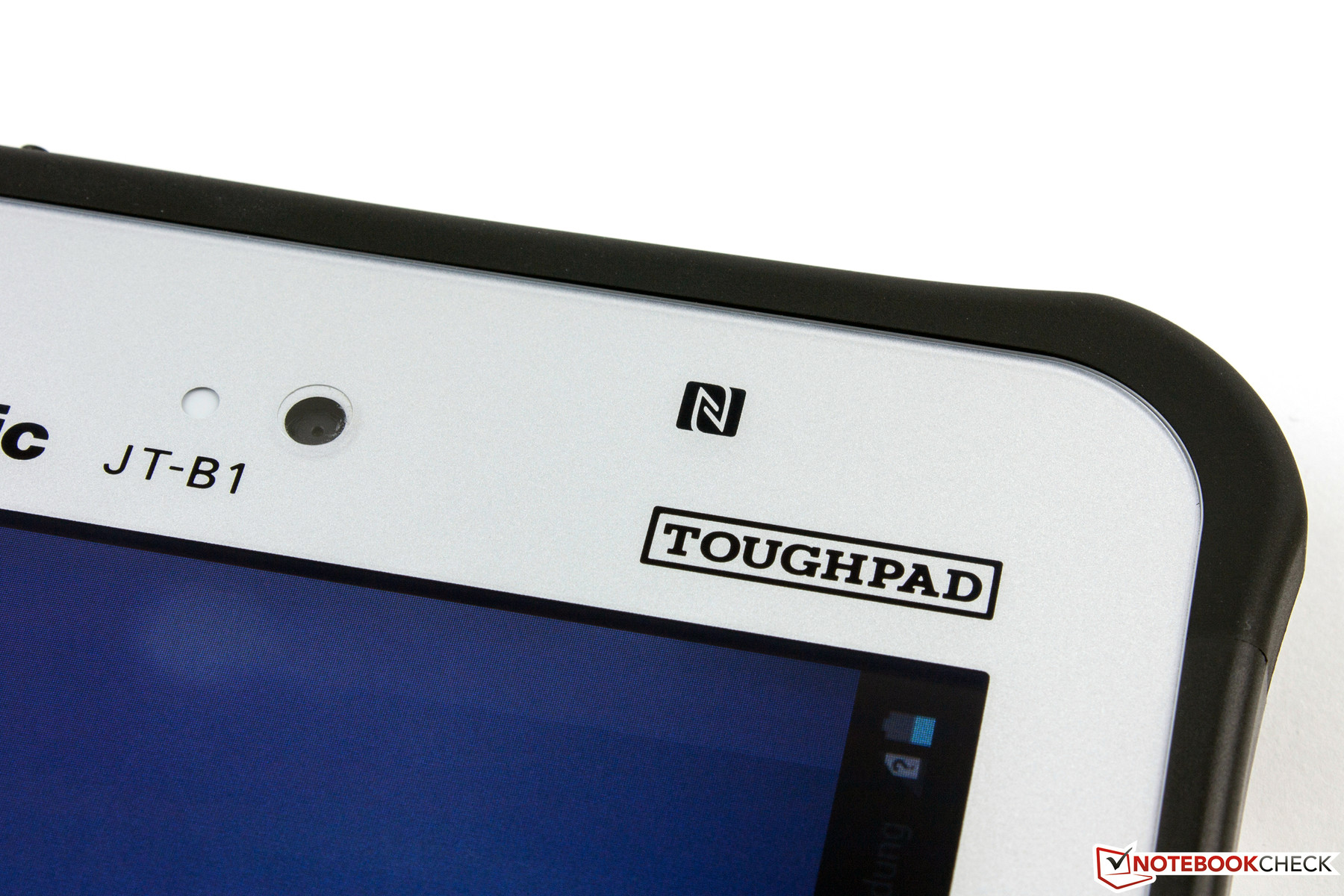

Bluetooth 4.0 and NFC complete the communication features.

Cameras and Multimedia

The Panasonic Toughpad JT-B1 features two cameras. The web cam on the front side has a resolution of 1.2 MP (1280x960 pixels) and is convenient for video calls. The main camera on the backside has a resolution of 13 MP (4160x3120 pixels) and uses an LED flash on demand. It has not been designed for photography as such. The high resolution should allow taking highly legible pictures of texts.

This works well in good light conditions. If it is slightly dimmer, the auxiliary LED is sufficient, to take sufficiently legible pictures of texts. Even occasional snapshots are not a problem in good ambient light. However, backlit photos tend to be overexposed and photos tend to be noisy when taken in low light conditions.

Toughpad JT-B1: main camera
Toughpad JT-B1: main camera
Toughpad JT-B1: web cam
Toughpad JT-B1: web cam
Reference camera (Canon EOS 450D)
Reference camera (Canon EOS 450D)
Toughpad JT-B1: daylight
Toughpad JT-B1: daylight
Toughpad JT-B1: artificial light from power LED
Toughpad JT-B1: artificial light from power LED
Reference camera (Canon EOS 450D)
Reference camera (Canon EOS 450D)

Accessories

As usual, only a few accessories are included: a power adapter with a nominal power of 8 Watts (5 V, 1.6 A), a hand strap, and a cleaning cloth. With the hand strap, the tablet can be held more safely and sometimes moved to the wrist if you have to have both hands free.

Panasonic offers many optional accessories including compatible bar code and magnetic card reader, smartcard reader and car docks. Depending on the vendor, an original replacement battery for the JT-B1 costs between $120 and $180.

Warranty

Panasonic grants a 36-month warranty for its product, which is valid worldwide. The warranty also covers damages the tablet is certified or tested for including the MIL-STD-810G standard. Warranty extensions are not offered.

Input Devices and Handling

The capacitive touchscreen supports multi-touch with up to four points. Although this is not much, it is sufficient. The touchscreen should respond slightly faster. Sometimes we had to repeat gestures. Many devices are more responsive. In addition, the gliding traits are poor. The fingers do not slide smoothly on the display surface of the Toughpad JT-B1. In addition, it is a fingerprint magnet. So, the content might become unreadable depending on viewing angle.

The sensitivity of the touch screen can be adjusted to two levels: normal and high. If you compare it to highly sensitive models like Nokia's Lumia 920 or 925 models, you will be disappointed. Regardless of the settings, you cannot use it with gloves, although this would certainly have been useful. We cannot tell what the high display sensitivity is good for. It actually seems that the Toughpad responds even slower with this setting than in normal mode. The keyboards are Android standard and Panasonic did not modify them.

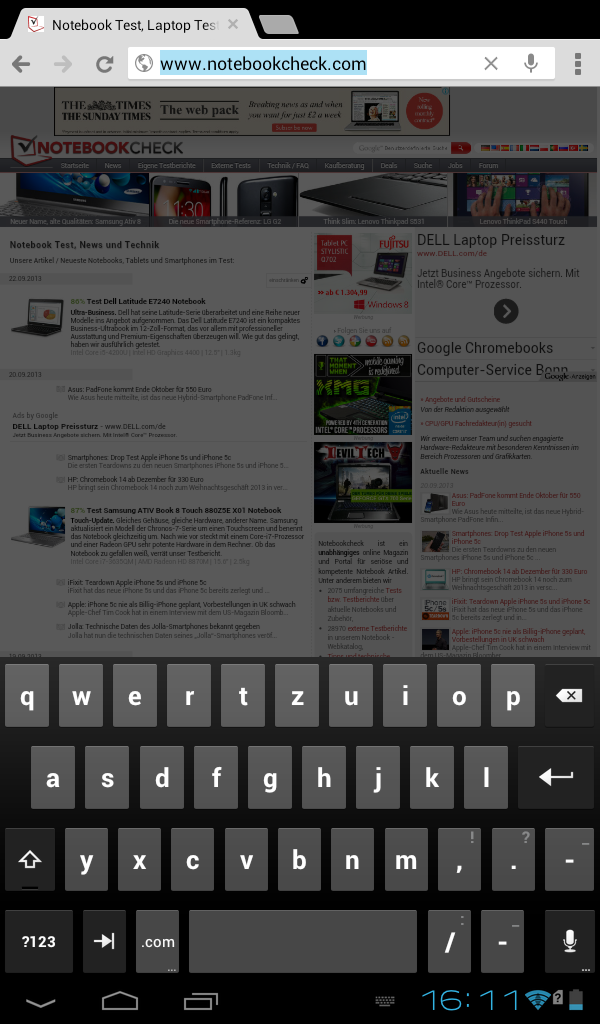

Keyboard in portrait mode
Keyboard in portrait mode

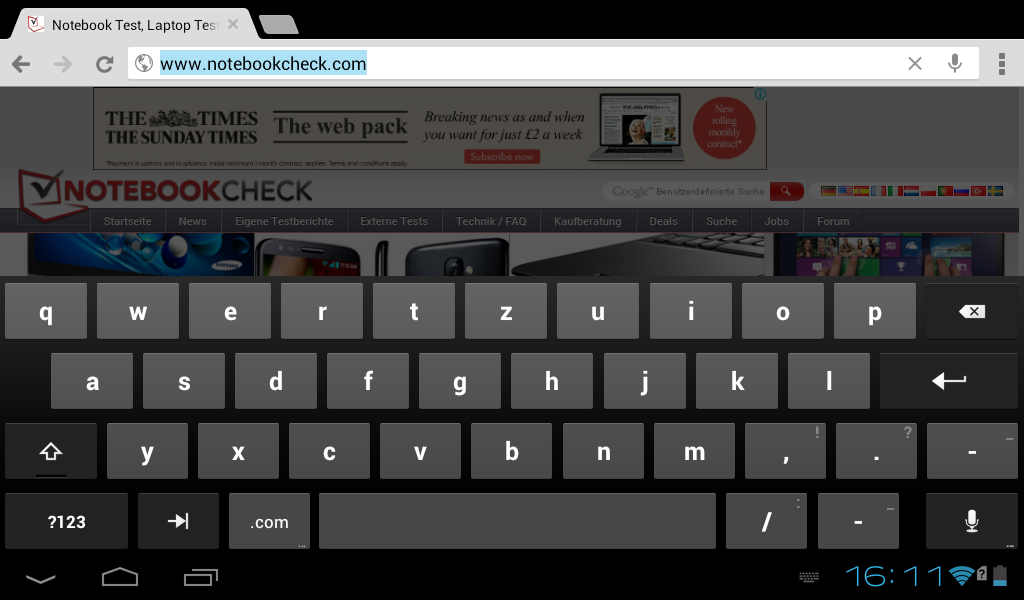

Keyboard in landscape mode
Keyboard in landscape mode

Display

The 7-inch multi-touch display features a resolution of 1024x600 pixels. This gives a 16:10 format and a pixel density of 170 ppi, which is not particularly high and rather entry level. The older Kindle Fire HD 7 already had a resolution of 1280x800 pixels. Today's top models, e.g., Google's Nexus 7 even features a resolution of 1920x1200 pixels.

The brightness of the Panasonic Toughpad JT-B1 is very high with up to 630 cd/m². Unfortunately, the brightness distribution of 77% is not particularly even. The average brightness of 561 cd/m² is slightly lower, but still exceeds the 500 cd/mspecified by Panasonic. Only the Nexus (max. 549 cd/m²) can keep up with our test model in this aspect.

486
cd/m²
576
cd/m²
548
cd/m²
502
cd/m²
595
cd/m²
543
cd/m²
570
cd/m²
630
cd/m²
603
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 630 cd/m² (Nits) Average: 561.4 cd/m²
Brightness Distribution: 77 %
Center on Battery: 595 cd/m²
Contrast: 647:1 (Black: 0.92 cd/m²)
ΔE Color 9.02 | 0.5-29.43 Ø5
ΔE Greyscale 10.86 | 0.57-98 Ø5.3
Gamma: 2.41

The black value of 0.92 cd/m² is rather high. Black does not look deep black but rather grayish. The contrast of 647:1 is good. Even the Nexus 7 cannot keep up with our test model, because of its higher black value (1.07 cd/m²) and lower contrast (513:1). The Fujitsu Stylistic M702 (0.46 cd/m², 537:1) has a good black value, but it is significantly darker (max. 274 cd/m²) than the Toughpad.

The color calibration is not particularly good ex factory. Gray levels have a high DeltaE of 10.9. The results of the Color Checker (dE 9) are similar. The deviations of color fidelity and color saturation are visible, too. This is especially apparent in blue, cyan and magenta. Also white and gray levels appear - typical TN panel - bluish. However, this is not important for everyday tasks, as the tablet does not focus on displaying precise colors.

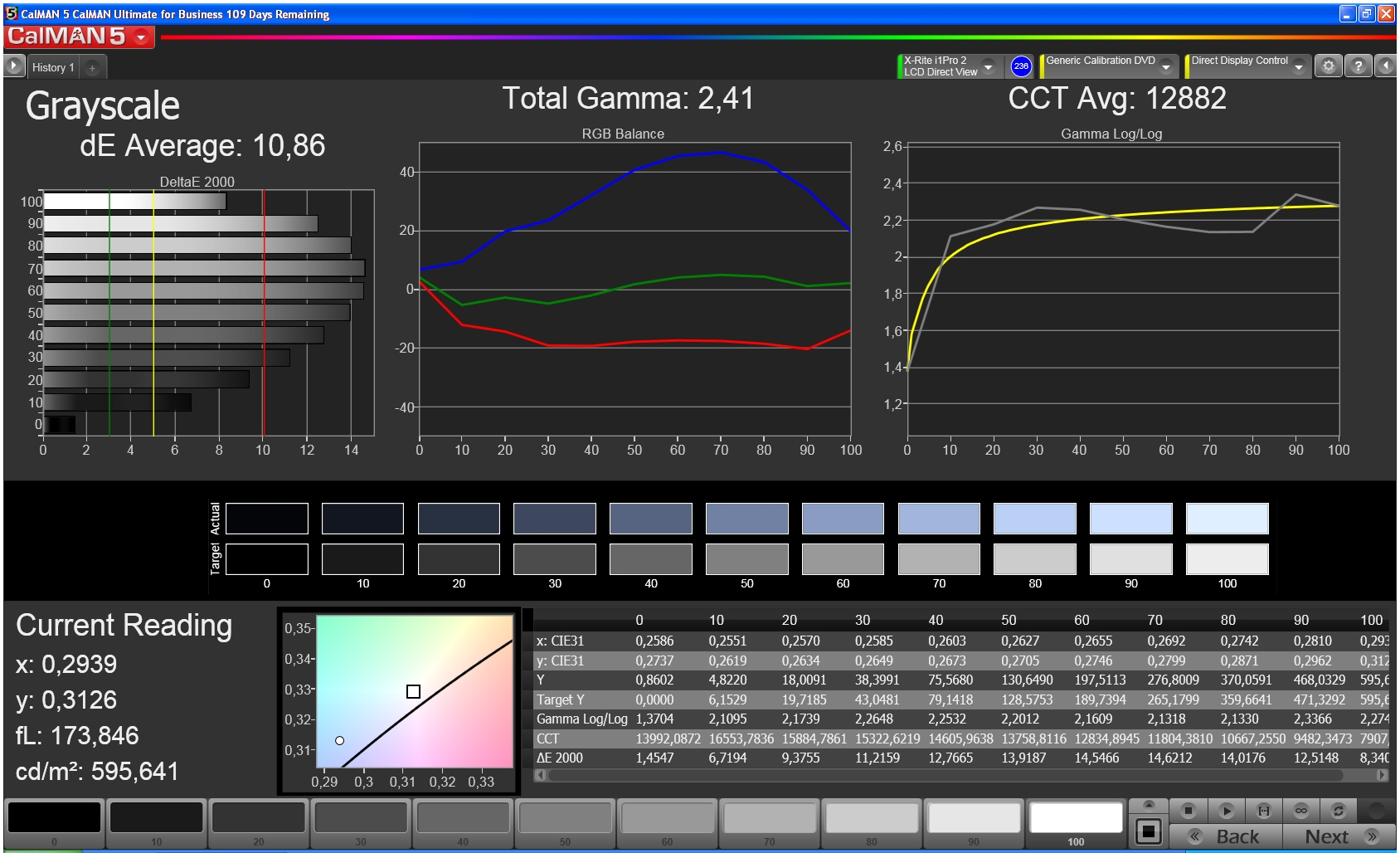

CalMAN gray level (target color space: sRGB)
CalMAN gray level (target color space: sRGB)

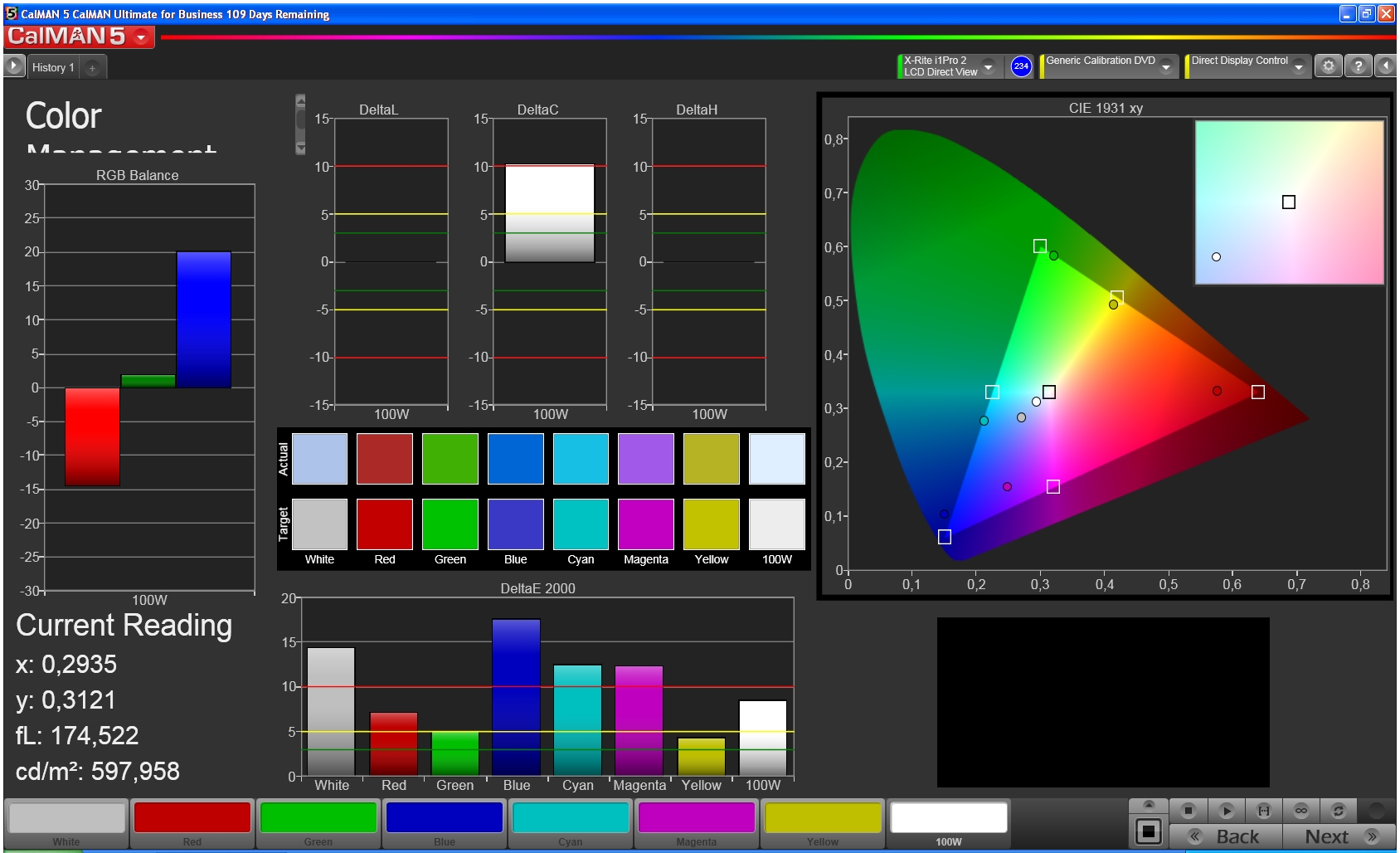

CalMAN color fidelity (target color space: sRGB)
CalMAN color fidelity (target color space: sRGB)

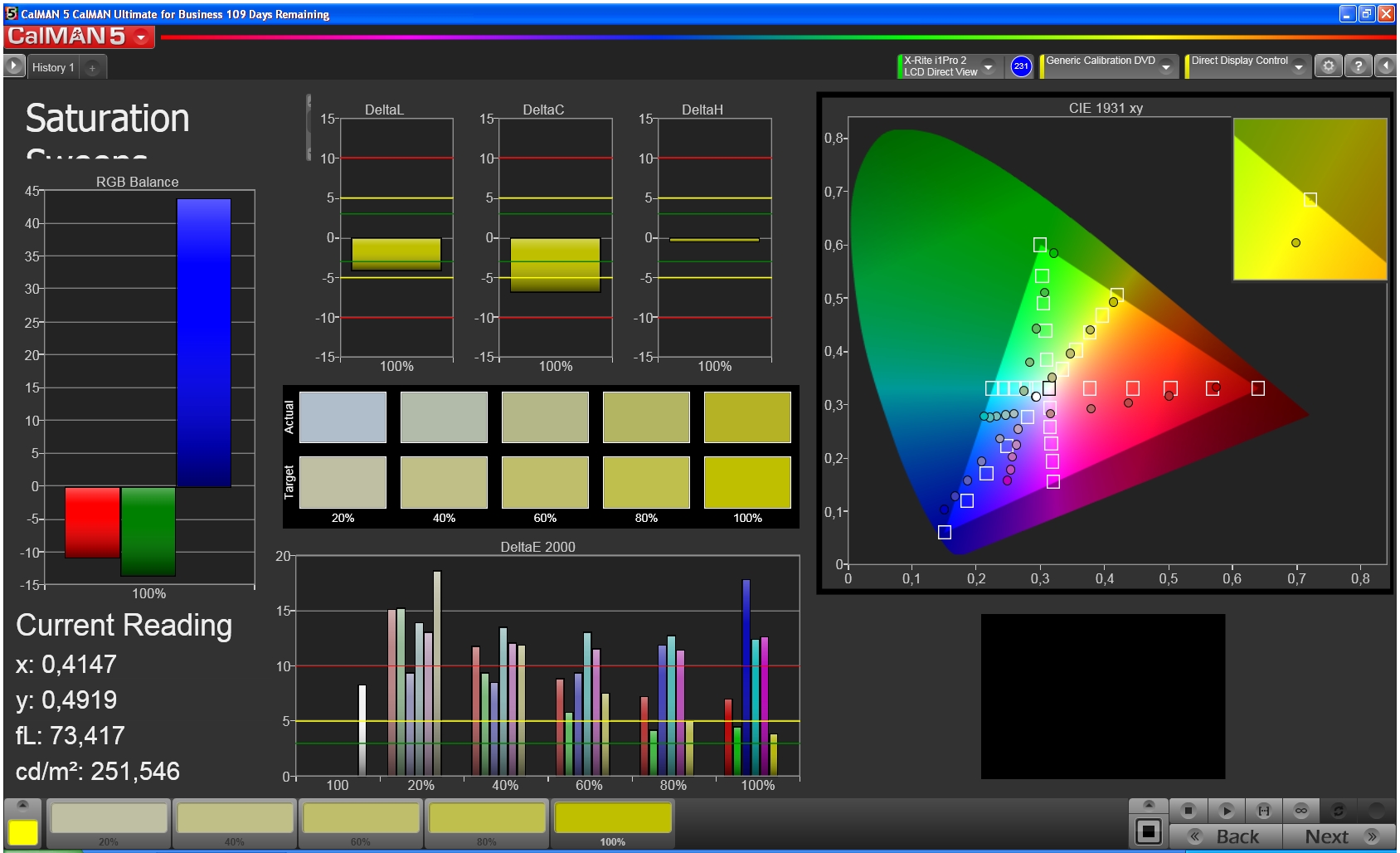

CalMAN color saturation (target color space: sRGB)
CalMAN color saturation (target color space: sRGB)

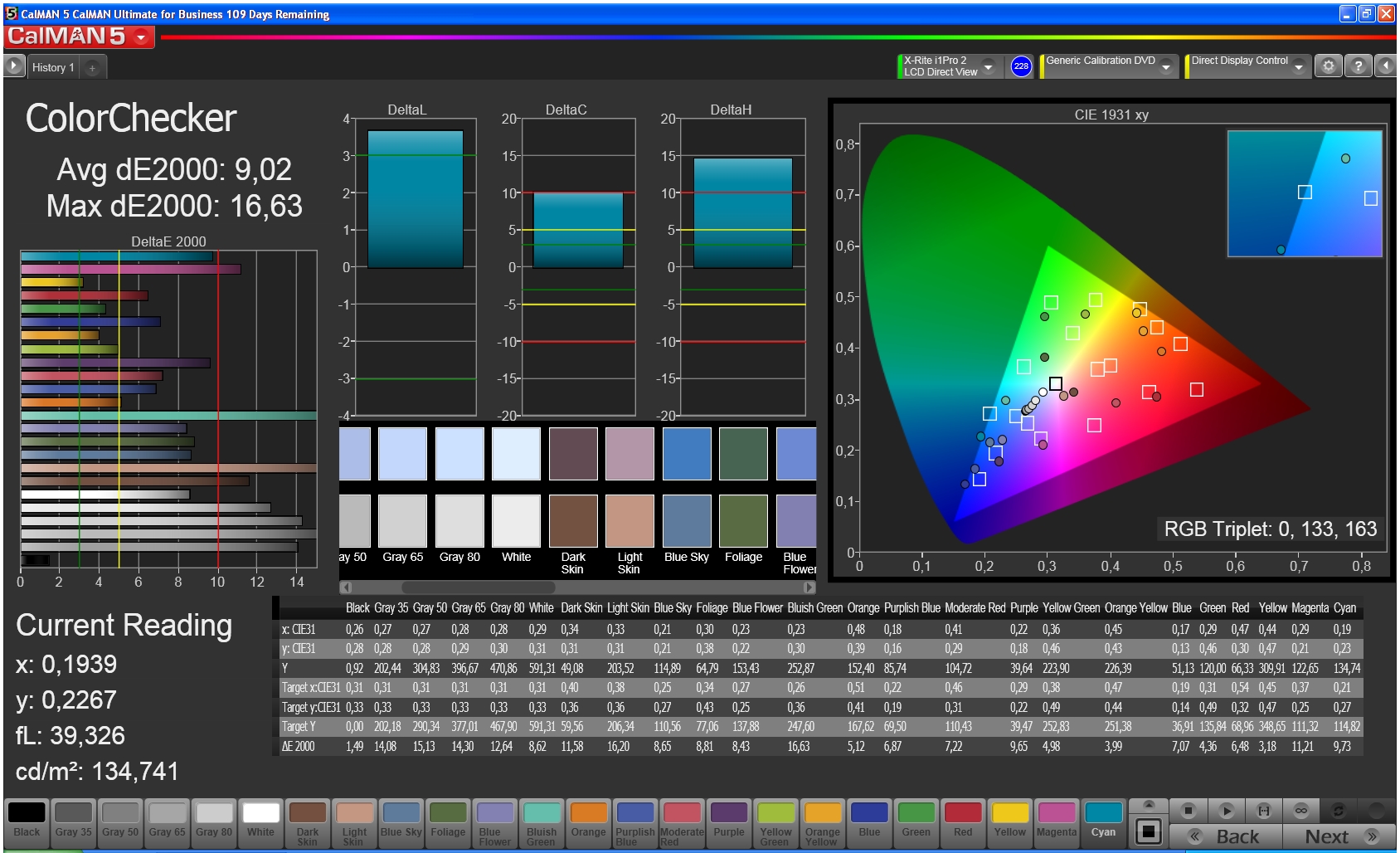

CalMAN Color Checker (target color space: sRGB)
CalMAN Color Checker (target color space: sRGB)

Thanks to its high brightness and good contrast, the Panasonic Toughpad JT-B1 performs well outdoors. A further advantage is that the display is already covered by an anti-reflective foil. This works well in practice, but the foil appears to glisten in the sun, which is disturbing. However, you can still easily read from the tablet in bright environments.

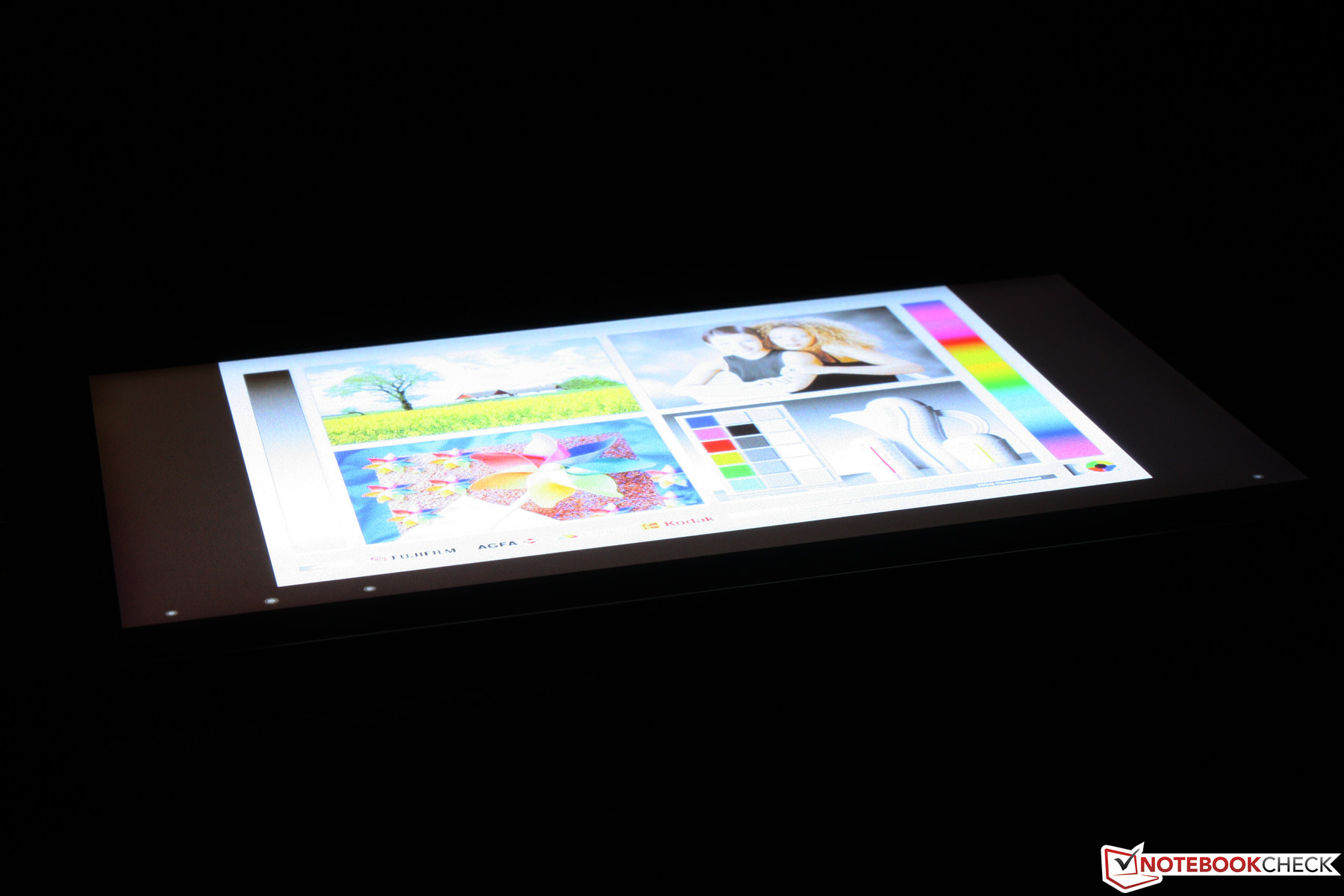

Viewing angles: Panasonic Toughpad JT-B1.
Viewing angles: Panasonic Toughpad JT-B1.

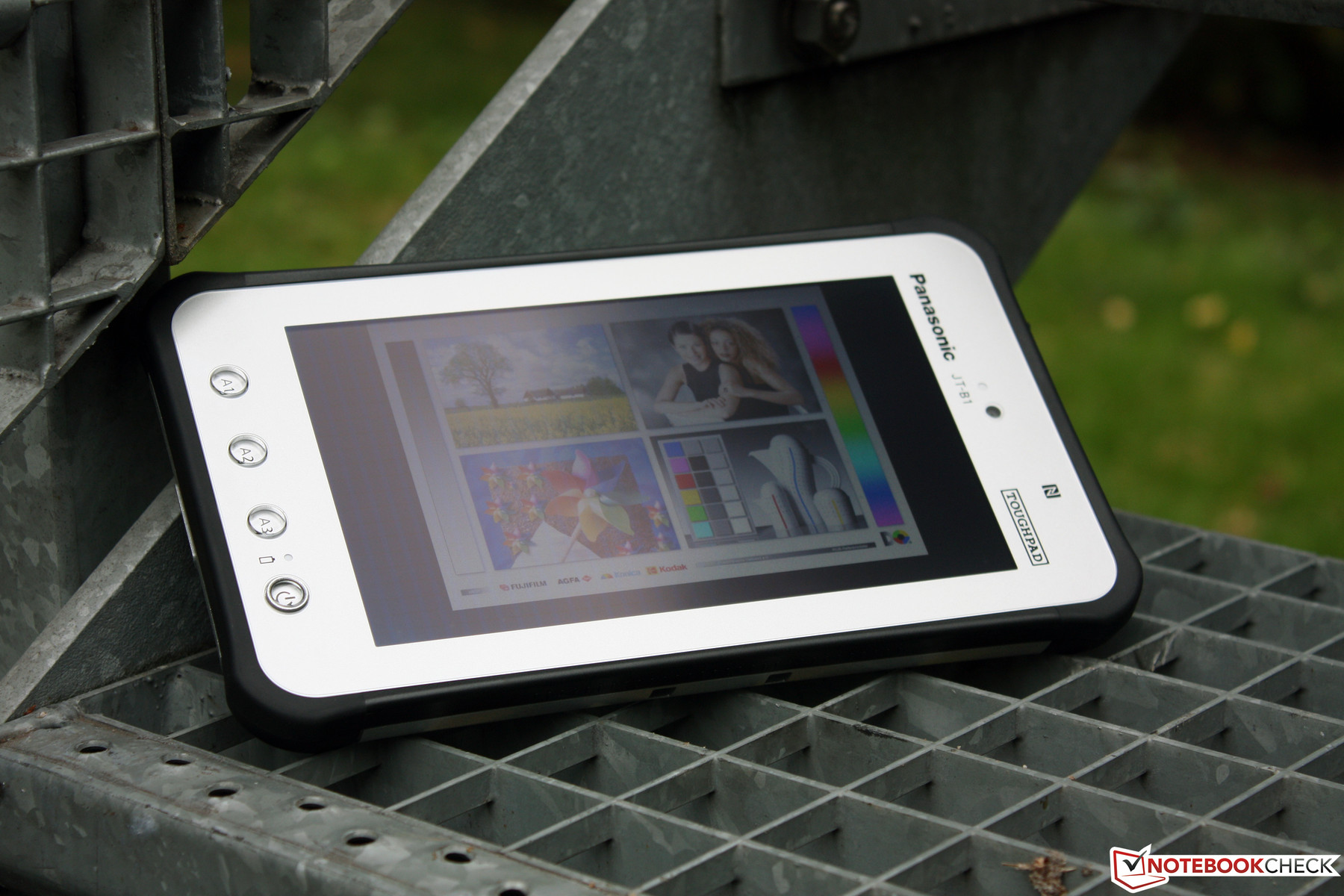

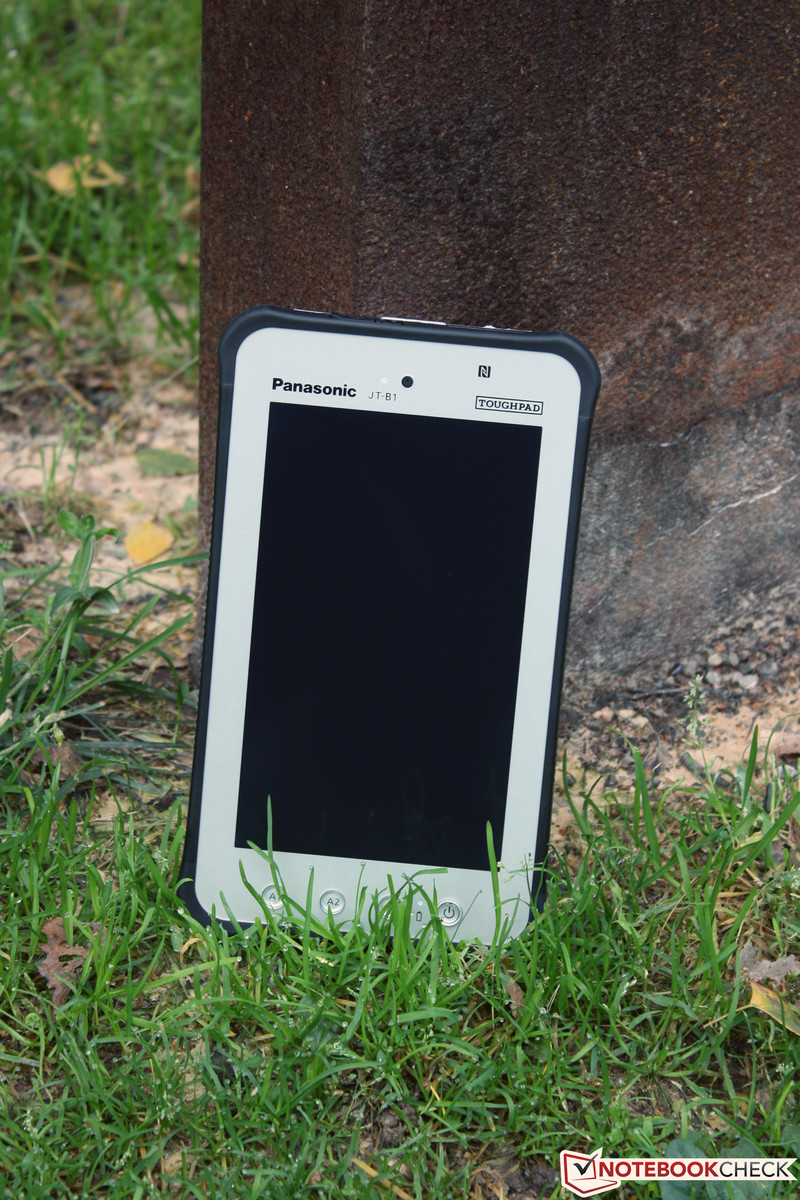

The Panasonic Toughpad JT-B1 outdoors
The Panasonic Toughpad JT-B1 outdoors

As it is a TN display, its viewing angles are not very wide. But, the viewing angles of the Toughpad JT-B1 are particularly poor. Color inversions are already clearly visible from 20 degrees. The image is completely unreadable from about 30 degrees in the horizontal direction. The viewing angles are significantly wider in the vertical direction.

Performance

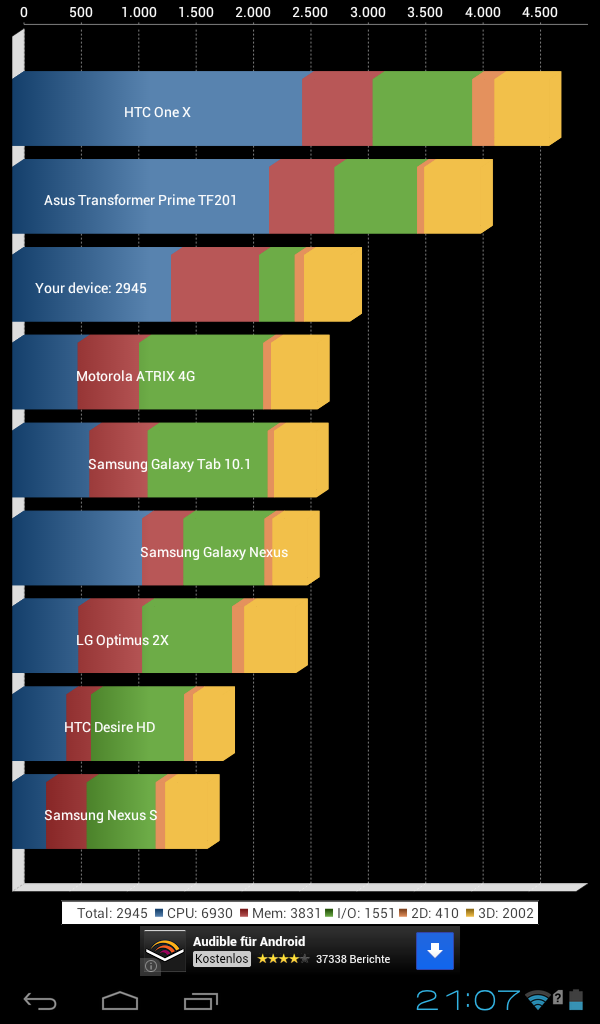

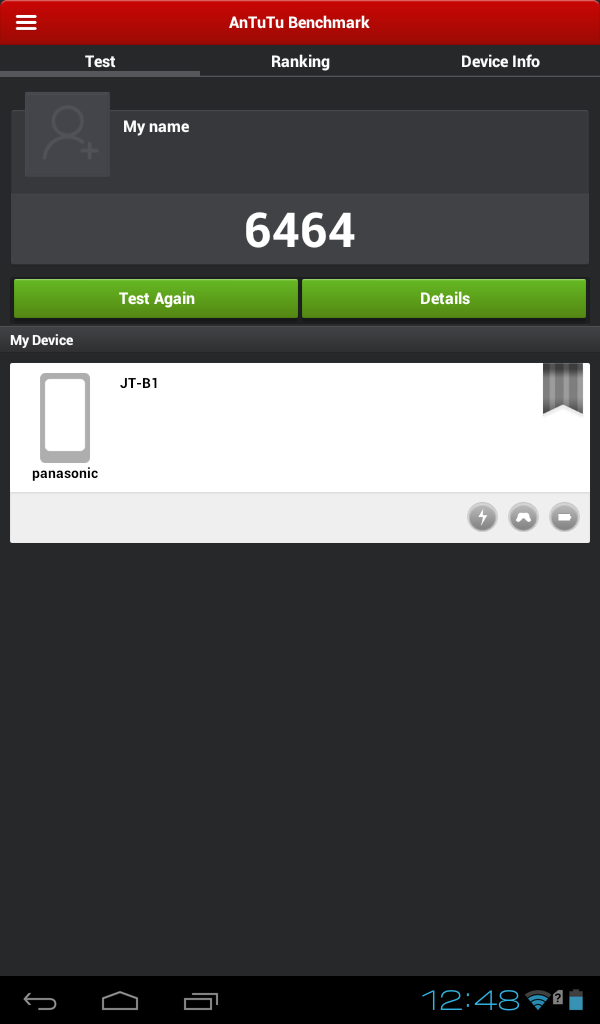

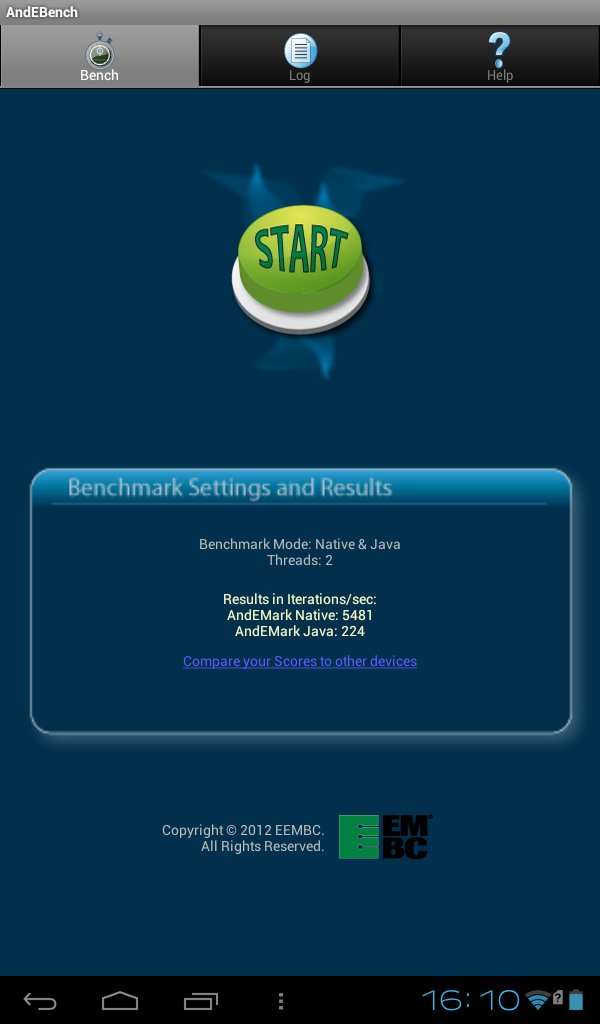

The Panasonic Toughpad JT-B1 uses a dual-core OMAP 4460 CPU from Texas Instruments. Usually, the maximum clock rate of its two cores is 1200 MHz, but the manufacturer increased it to 1.5 GHz and the benchmarks actually profit from the higher clock rate. In Linpack, the test sample is faster than most of its competitors. The Galaxy Tab 3 8.0 is the only device featuring a faster dual-core CPU. Apart from it, only the Bullman Tab 8 and Nexus 7, which both feature quad-core SoCs, are faster.

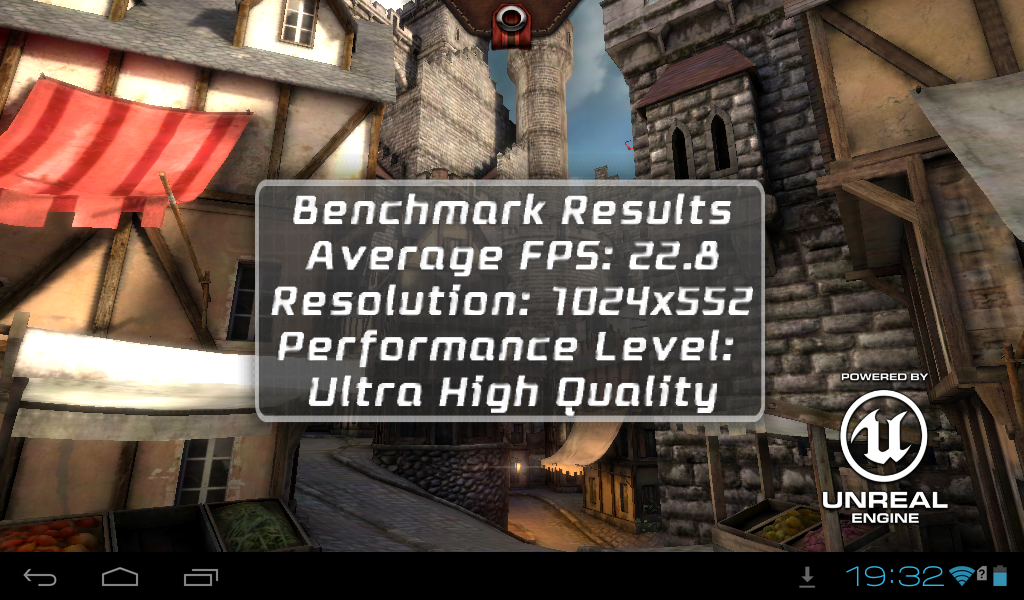

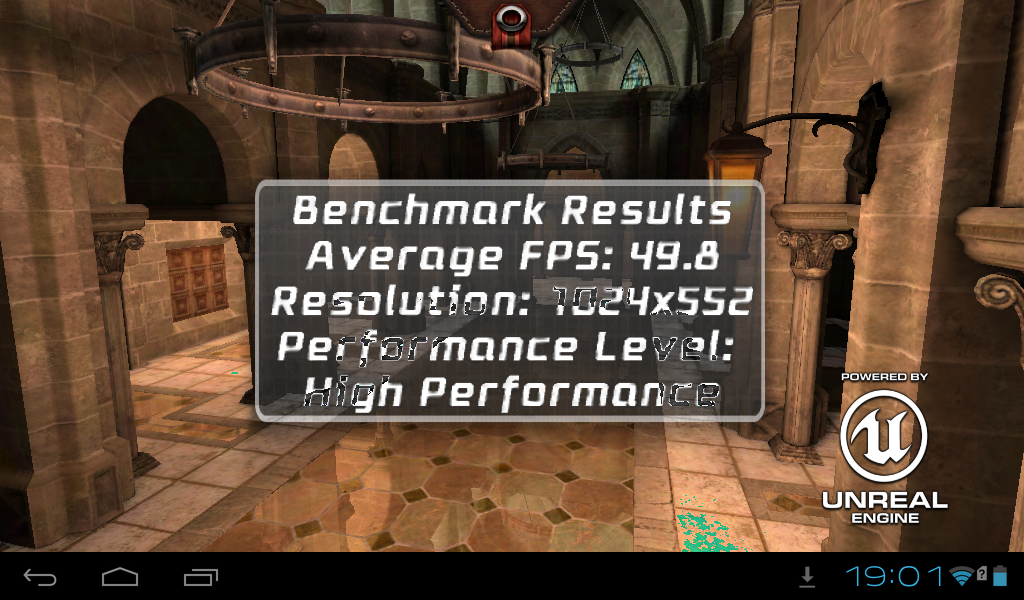

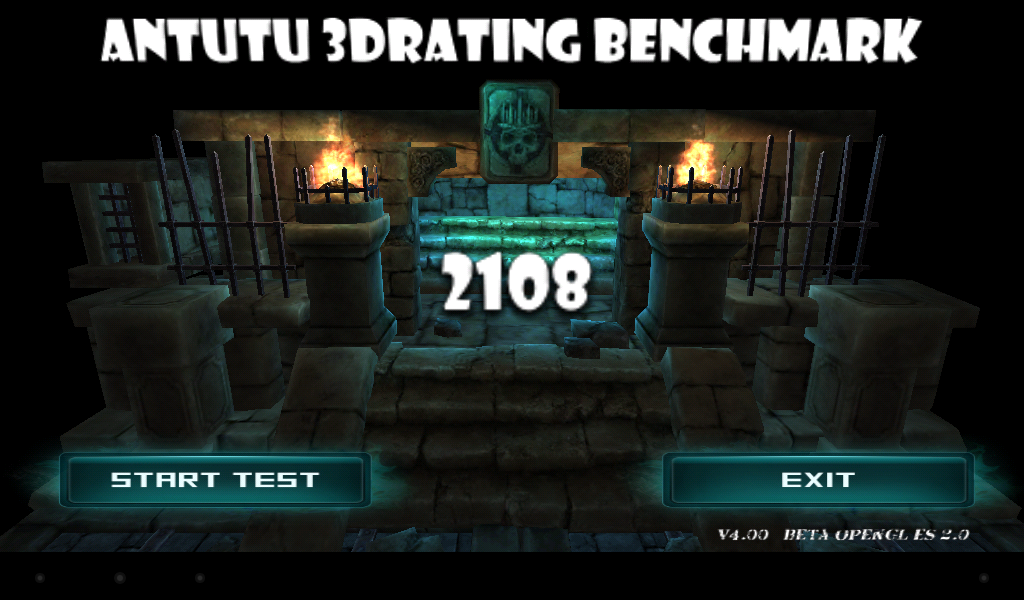

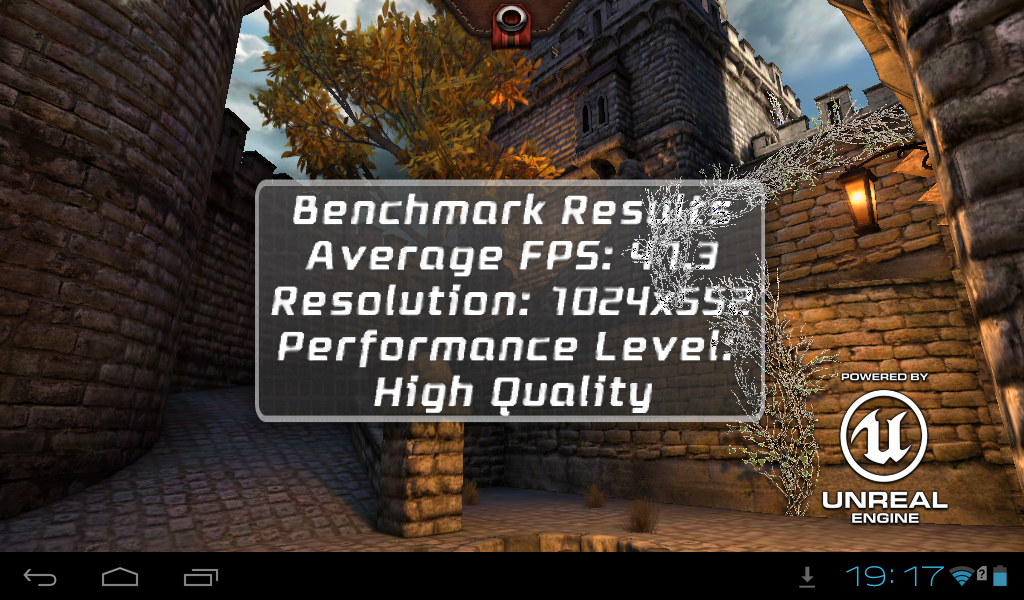

The PowerVR SGX540 graphics of the Toughpad shows weaknesses in our tests. Nearly all competitors are 150 to 1500% faster in GFXBench 2.7. Only the Bullman Tab 7 Mini is even slower. Benchmarks like Basemark X or 3DMark could be installed and launched on the test model, but they crashed during execution.

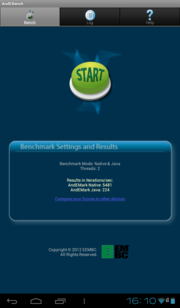

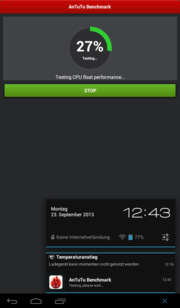

In addition, we simulated the operation of the tablet with an environment temperature of 50 °C (122 °F). We exposed the Toughpad to these conditions for just under an hour and left it streaming a video from YouTube. It stuttered at the end. Inputs were still possible, but the response of the tablet was slightly delayed. The device only achieved 6464 points in the AnTuTu benchmarks V4 we ran immediately afterwards. The result was 12,347 points with normal room temperature. Therefore, the device reaches its limits when the ambient temperature is high, and you will observe considerable throttling.

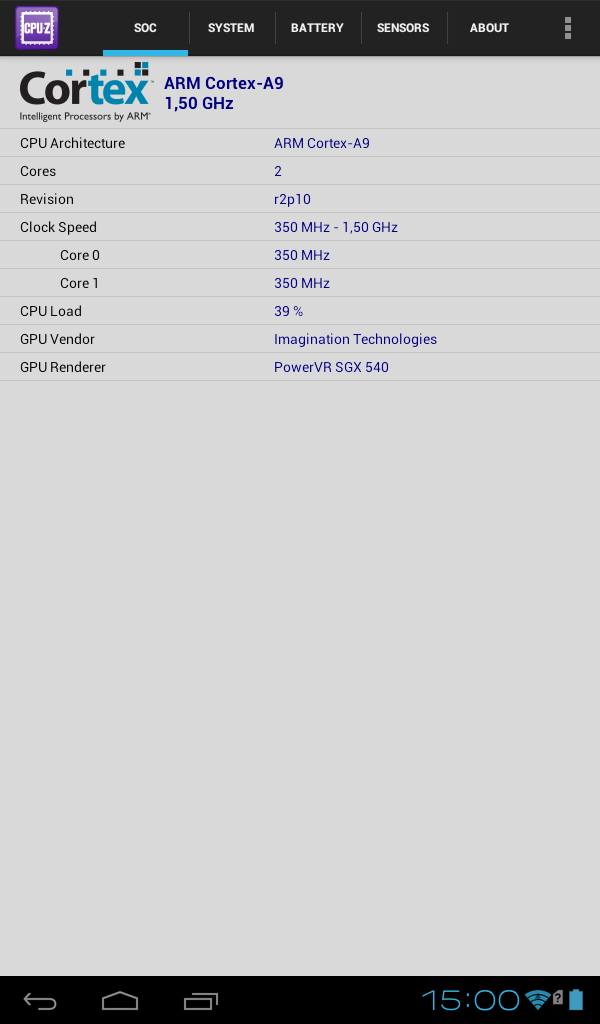

CPU-Z: SoC
CPU-Z: SoC

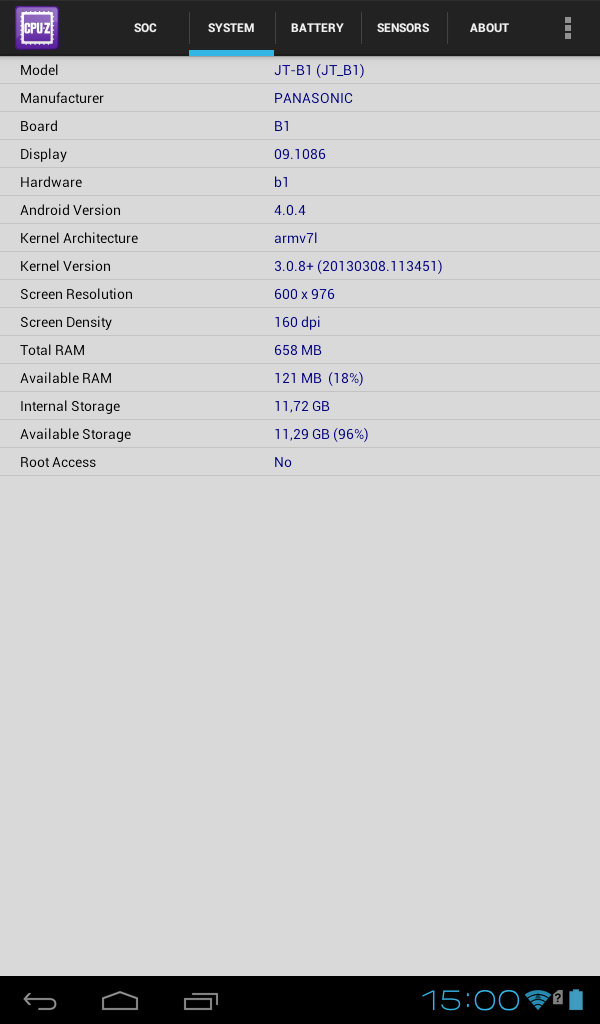

CPU-Z: System
CPU-Z: System

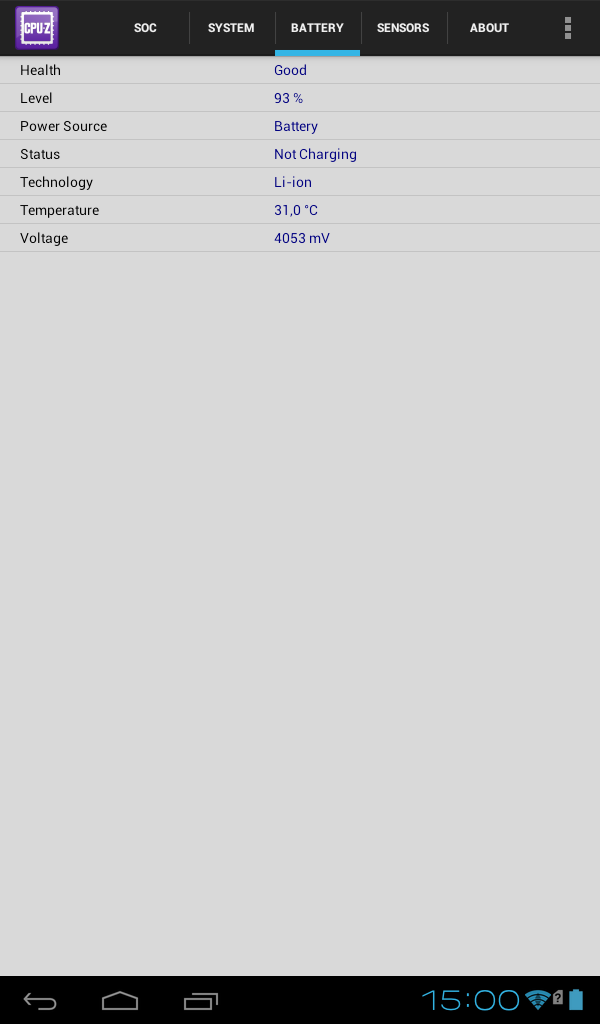

CPU-Z: Battery
CPU-Z: Battery

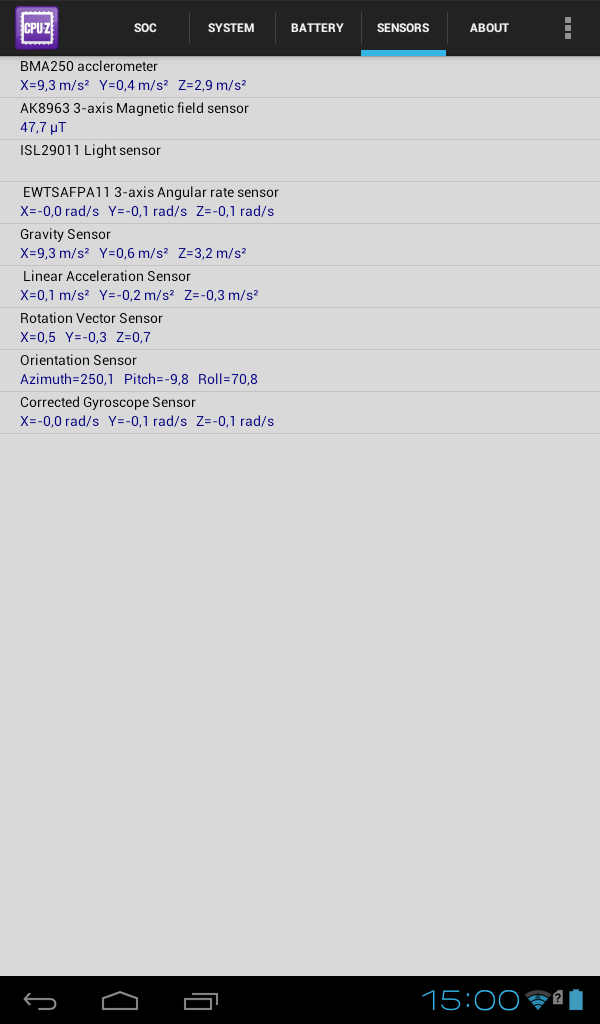

CPU-Z: Sensors
CPU-Z: Sensors
Smartbench 2012
Gaming Index (sort by value)
Panasonic Toughpad JT-B1
2253 points
Unitech TB100
1101 points -51%
Amazon Kindle Fire HD 7 inch
1773 points -21%
Samsung Galaxy Tab 3 7.0 inch
2758 points +22%
Bullman Tab 7 Mini UMTS GPS v2
1315 points -42%
Samsung Galaxy Tab 3 8.0 SM-T310
1683 points -25%
Fujitsu Stylistic M702
1628 points -28%
Bullman Tab 8 Mini AQQI
2829 points +26%
Google Nexus 7 2013
3279 points +46%
Productivity Index (sort by value)
Panasonic Toughpad JT-B1
3402 points
Unitech TB100
2080 points -39%
Amazon Kindle Fire HD 7 inch
2418 points -29%
Samsung Galaxy Tab 3 7.0 inch
2571 points -24%
Bullman Tab 7 Mini UMTS GPS v2
2654 points -22%
Samsung Galaxy Tab 3 8.0 SM-T310
3153 points -7%
Fujitsu Stylistic M702
3634 points +7%
Bullman Tab 8 Mini AQQI
3796 points +12%
Google Nexus 7 2013
5080 points +49%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Panasonic Toughpad JT-B1
2.7 fps
Samsung Galaxy Tab 3 7.0 inch
5.5 fps +104%
Bullman Tab 7 Mini UMTS GPS v2
1.1 fps -59%
Samsung Galaxy Tab 3 8.0 SM-T310
6.2 fps +130%
Fujitsu Stylistic M702
3 fps +11%
Bullman Tab 8 Mini AQQI
5.9 fps +119%
Google Nexus 7 2013
16 fps +493%
1920x1080 T-Rex Offscreen (sort by value)
Panasonic Toughpad JT-B1
1 fps
Samsung Galaxy Tab 3 7.0 inch
2.5 fps +150%
Samsung Galaxy Tab 3 8.0 SM-T310
3.9 fps +290%
Fujitsu Stylistic M702
3.1 fps +210%
Bullman Tab 8 Mini AQQI
4.4 fps +340%
Google Nexus 7 2013
16 fps +1500%

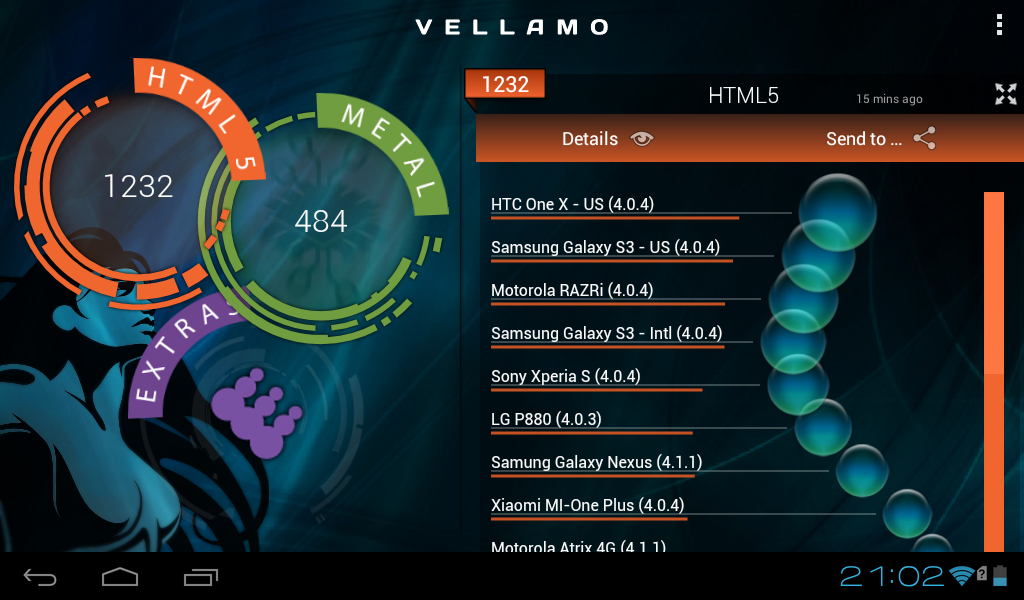

Vellamo Mobile Benchmark 2.0
HTML5 (sort by value)
Panasonic Toughpad JT-B1
1232 Points
Unitech TB100
904 Points -27%
Amazon Kindle Fire HD 7 inch
460 Points -63%
Samsung Galaxy Tab 3 7.0 inch
1410 Points +14%
Bullman Tab 7 Mini UMTS GPS v2
1110 Points -10%
Samsung Galaxy Tab 3 8.0 SM-T310
1594 Points +29%
Fujitsu Stylistic M702
976 Points -21%
Bullman Tab 8 Mini AQQI
1583 Points +28%
Google Nexus 7 2013
1663 Points +35%
Metal (sort by value)
Panasonic Toughpad JT-B1
484 Points
Unitech TB100
275 Points -43%
Samsung Galaxy Tab 3 7.0 inch
468 Points -3%
Bullman Tab 7 Mini UMTS GPS v2
372 Points -23%
Samsung Galaxy Tab 3 8.0 SM-T310
522 Points +8%
Fujitsu Stylistic M702
431 Points -11%
Bullman Tab 8 Mini AQQI
499 Points +3%
Google Nexus 7 2013
727 Points +50%
Linpack Android / IOS
Multi Thread (sort by value)
Panasonic Toughpad JT-B1
76.6 MFLOPS
Unitech TB100
50 MFLOPS -35%
Amazon Kindle Fire HD 7 inch
73.8 MFLOPS -4%
Samsung Galaxy Tab 3 7.0 inch
75.3 MFLOPS -2%
Bullman Tab 7 Mini UMTS GPS v2
67.7 MFLOPS -12%
Samsung Galaxy Tab 3 8.0 SM-T310
95.9 MFLOPS +25%
Fujitsu Stylistic M702
132.6 MFLOPS +73%
Bullman Tab 8 Mini AQQI
132.1 MFLOPS +72%
Google Nexus 7 2013
253.6 MFLOPS +231%
Single Thread (sort by value)
Panasonic Toughpad JT-B1
52.9 MFLOPS
Unitech TB100
29.22 MFLOPS -45%
Amazon Kindle Fire HD 7 inch
44.38 MFLOPS -16%
Samsung Galaxy Tab 3 7.0 inch
41.4 MFLOPS -22%
Bullman Tab 7 Mini UMTS GPS v2
42.56 MFLOPS -20%
Samsung Galaxy Tab 3 8.0 SM-T310
56.4 MFLOPS +7%
Fujitsu Stylistic M702
52.2 MFLOPS -1%
Bullman Tab 8 Mini AQQI
54.9 MFLOPS +4%
Google Nexus 7 2013
97.5 MFLOPS +84%

Legend


Panasonic Toughpad JT-B1 Texas Instruments OMAP 4460, PowerVR SGX540, 16 GB iNAND Flash

Unitech TB100 Nvidia Tegra 2 (250), NVIDIA GeForce ULP (Tegra 2), 16 GB SSD

Amazon Kindle Fire HD 7 inch Texas Instruments OMAP 4460, PowerVR SGX540, 16 GB SSD

Samsung Galaxy Tab 3 7.0 inch Marvell PXA986, Vivante GC1000+ Dual-Core, 8 GB SSD

Bullman Tab 7 Mini UMTS GPS v2 MediaTek MT8377, PowerVR SGX531, 8 GB SSD

Samsung Galaxy Tab 3 8.0 SM-T310 Samsung Exynos 4212 1.5 GHz, ARM Mali-400 MP4, 16 GB iNAND Flash

Fujitsu Stylistic M702 NVIDIA Tegra 3, NVIDIA GeForce ULP (Tegra 3), 32 GB SSD

Bullman Tab 8 Mini AQQI Rockchip RK3188, ARM Mali-400 MP4, 16 GB iNAND Flash

Google Nexus 7 2013 Qualcomm Snapdragon S4 Pro APQ8064A, Qualcomm Adreno 320, 16 GB SSD

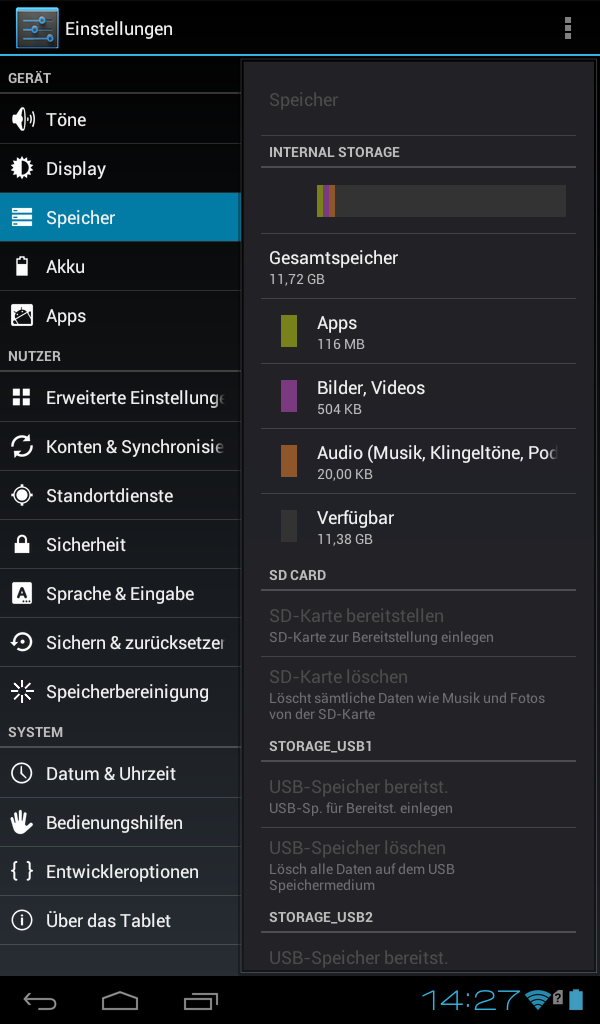

Panasonic incorporates 16 GB RAM in its Touchpad. After the first boot, about 11.4 GB can be used by the user. The rest of the storage capacity is occupied by the operating system and preinstalled apps. You can add up to 32 GB via a MicroSD card slot if needed.

The flash memory performs well in AndroBench. Especially the read rates are decent. It is faster than the Stylistic M702 and on par with the Galaxy Tab 3 7.0 especially when reading small data blocks (4k).

AndroBench 3-5
Random Write 4KB (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
0.58 MB/s
Unitech TB100
GeForce ULP (Tegra 2), 2 (250), 16 GB SSD
0.2 MB/s -66%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
0.21 MB/s -64%
Fujitsu Stylistic M702
GeForce ULP (Tegra 3), 3, 32 GB SSD
0.92 MB/s +59%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
0.99 MB/s +71%
Amazon Kindle Fire HD 7 inch
SGX540, OMAP 4460, 16 GB SSD
0.59 MB/s +2%
Random Read 4KB (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
10.4 MB/s
Unitech TB100
GeForce ULP (Tegra 2), 2 (250), 16 GB SSD
5.6 MB/s -46%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
8.71 MB/s -16%
Fujitsu Stylistic M702
GeForce ULP (Tegra 3), 3, 32 GB SSD
7.5 MB/s -28%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
10.56 MB/s +2%
Amazon Kindle Fire HD 7 inch
SGX540, OMAP 4460, 16 GB SSD
12.11 MB/s +16%
Sequential Write 256KB (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
7.87 MB/s
Unitech TB100
GeForce ULP (Tegra 2), 2 (250), 16 GB SSD
5.31 MB/s -33%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
5.31 MB/s -33%
Fujitsu Stylistic M702
GeForce ULP (Tegra 3), 3, 32 GB SSD
9.5 MB/s +21%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
14.9 MB/s +89%
Amazon Kindle Fire HD 7 inch
SGX540, OMAP 4460, 16 GB SSD
12.3 MB/s +56%
Sequential Read 256KB (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
31.64 MB/s
Unitech TB100
GeForce ULP (Tegra 2), 2 (250), 16 GB SSD
23.57 MB/s -26%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
21.94 MB/s -31%
Fujitsu Stylistic M702
GeForce ULP (Tegra 3), 3, 32 GB SSD
24.73 MB/s -22%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
38.08 MB/s +20%
Amazon Kindle Fire HD 7 inch
SGX540, OMAP 4460, 16 GB SSD
42.73 MB/s +35%

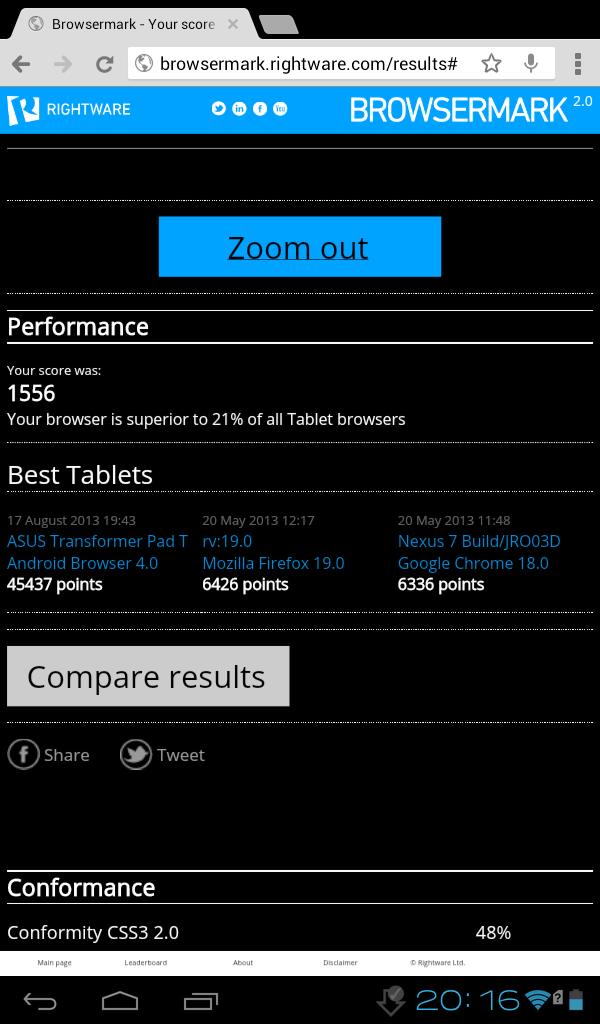

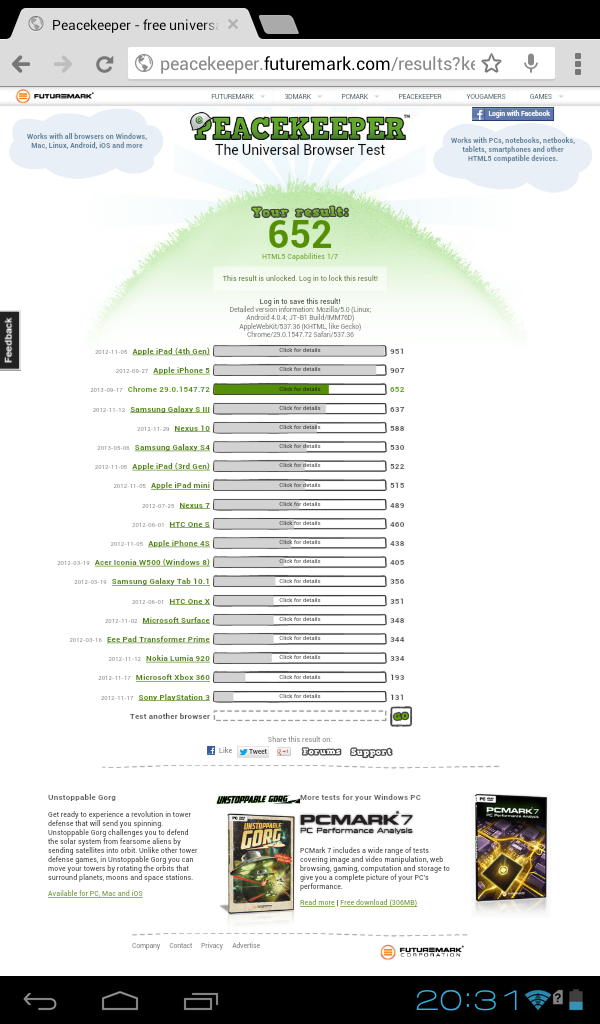

The Touchpad performs well when surfing the Internet and outperforms the competitors. However, this is more due to the browser used than the performance of the components (Google Chrome 29). Even the Nexus 7 (2013) is slightly slower here, but it would achieve more points than our test device with the same browser.

Peacekeeper - --- (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
652 Points
Unitech TB100
GeForce ULP (Tegra 2), 2 (250), 16 GB SSD
339 Points -48%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
611 Points -6%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
480 Points -26%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
458 Points -30%
Octane V1 - Total Score (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
2350 Points
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
2283 Points -3%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
999 Points -57%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
1338 Points -43%
Browsermark - --- (sort by value)
Panasonic Toughpad JT-B1
SGX540, OMAP 4460, 16 GB iNAND Flash
1556 points
Unitech TB100
GeForce ULP (Tegra 2), 2 (250), 16 GB SSD
896 points -42%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
2380 points +53%
Bullman Tab 7 Mini UMTS GPS v2
SGX531, MT8377, 8 GB SSD
1038 points -33%

Games

Given the benchmark results of the PowerVR SGX540, we had rather expected low gaming performance. However, demanding games like Iron Man 3 run acceptably. It only stutters a little bit during cut scenes. Casual games, like Angry Birds or Fruit Ninja, do not pose a problem for the Panasonic Toughpad JT-B1.

The position sensor works fine, and does not impair gaming experience. But, the touchscreen with its moderate gliding traits and sometimes-poor input precision does.

Emissions

Temperature

The Toughpad JT-B1 gets rather warm even at idle with a maximum of 39 °C (102.2 °F). The high temperature might be caused primarily by the bright background LED, as it was measured at the brightest segment of the screen.

We maximized the temperature of the tablet with the Stability Test app. The maximum temperature of 41.3 °C (106.34 °F) was measured near the NFC chip after one hour. Probably the SoC is also incorporated in this part. According to our measurements, the device only gets minimally warmer under load than during normal use.

The Toughpad remained stable at high ambient temperature (50 °C, 122 °F) and completed its tasks - albeit slowly. As too high temperatures might damage lithium-ion batteries, we were curious to see how the device reacts. A battery of this kind requires a temperature between 0 and 45 °C (32 and 113 °F) for charging. If the temperature is higher, the pressure in the battery might get too high. Android displayed a message that the battery cannot be charged when the ambient temperature was 50 °C (122 °F). Great! It does not become dangerous.

Max. Load
 33.4 °C
92 F
41.2 °C
106 F
39.2 °C
103 F

 32.9 °C
91 F
39.6 °C
103 F
39.3 °C
103 F

 32.1 °C
90 F
38.6 °C
101 F
41.3 °C
106 F

Maximum: 41.3 °C = 106 F
Average: 37.5 °C = 100 F
29.2 °C
85 F
28.7 °C
84 F
30.3 °C
87 F
30 °C
86 F
29.6 °C
85 F
30.5 °C
87 F
30.5 °C
87 F
31.1 °C
88 F
28.7 °C
84 F
Maximum: 31.1 °C = 88 F
Average: 29.8 °C = 86 F
Power Supply (max.)  45.3 °C = 114 F | Room Temperature 23 °C = 73 F | Voltcraft IR-350
(±) The average temperature for the upper side under maximal load is 37.5 °C / 100 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(±) The maximum temperature on the upper side is 41.3 °C / 106 F, compared to the average of 33.8 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 31.1 °C / 88 F, compared to the average of 33.3 °C / 92 F
(±) In idle usage, the average temperature for the upper side is 34.7 °C / 94 F, compared to the device average of 30 °C / 86 F.

Speakers

The Panasonic Toughpad JT-B1 comes with a mono speaker, which is waterproof according to the manufacturer. The multimedia properties of the speaker are poor. Basses are hardly audible, mid tones are very thin and treble could sound clearer. The sound is slightly too dull at maximum volume and the sound tends to distort when playing sequences dominated by treble.

You can live with this during online calls via Skype. In contrast, we were surprised by the good microphone, which records voices very precisely.

Energy Management

Power Consumption

The power consumption of the Toughpad JT-B1 is already relatively high while idle and reaches 6.9 Watts at maximum brightness. The competition is more frugal. For example, the HP Slate 7 only needs 4.3 Watts in the same scenario, but its display is significantly darker. The energy consumption reaches a maximum of 8.9 Watts under load. Again, the Panasonic is the most power hungry, but it also features a CPU with a relatively high clock rate. The Samsung Galaxy Tab 3 8.0 is very frugal and performs better. Although it also comes with a dual-core CPU with 1.5 GHz, it only requires up to 5.8 Watts.

The high power consumption during stand-by (1.2 W) and while turned off (1.1 W) stands out negatively. In addition, the power adapter's nominal power of 8 Watts is too low given the maximum power consumption.

Power Consumption
Off / Standbydarklight 1.1 / 1.2 Watt
Idledarkmidlight 2.4 / 6.7 / 6.9 Watt
Load midlight 8.4 / 8.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Life

The lithium-ion battery of the Panasonic Toughpad JT-B1 has a capacity of 22 Wh (3.7 Volts, 5720 mAh), which is significantly lower than the Fujitsu M702's (37 Wh). But, it can easily be replaced. A complete charge requires just under 6.5 hours.

We recorded the maximum battery life of the device with minimum display brightness and with all wireless modules apart from Wi-Fi disabled. An online script simulates reading of a book. In this scenario, the Toughpad kept running for nearly 15 hours.

We ran the Stability Test app (CPU + GPU) with maximum brightness and all wireless modules enabled, in order to record the minimum battery life. The tablet shut down after just under 3.5 hours.

"Surfing via Wi-Fi" is a more realistic test. The display brightness is dimmed to 150 cd/m², only the Wi-Fi module is enabled and the test device runs a browser script, which loads new web sites every 40 seconds. This test ran for above 8 hours.

The battery runtimes of the Panasonic tablet are decent. It should be able to run a whole workday in practice even if it is intensively used. We noticed that the battery was emptied up to one percent of its capacity. A slightly higher safety margin would be desirable to avoid deep discharge.

Battery Runtime
Idle (without WLAN, min brightness)
14h 59min
WiFi Surfing
8h 12min
Load (maximum brightness)
3h 26min

Verdict

In Review: Panasonic Toughpad JT-B1. Test device courtesy of Panasonic Germany.
In Review: Panasonic Toughpad JT-B1. Test device courtesy of Panasonic Germany.

The Panasonic Toughpad JT-B1 is as sturdy as the Japanese state it is. It proved to be very resistant in our test and can endure a lot. The display is even brighter than the manufacturer's information making it perfectly suitable for outdoor use. Unfortunately, the touchscreen does not perform well. It responds too slowly and its gliding traits are poor. In addition, we would have appreciated if the device would optionally allow input with gloves.

Another point of critique is the modest GPS receiver. As the test model is primarily designed for outdoor use, it should perform better here. However, the device shines with several useful security features. As a result it is fully suitable for business use.

The Toughpad JT-B1 is a real workhorse. It is designed for industrial use and not a multimedia tablet for use in the bath like the Sony Xperia Tablet Z. It might not be worth just under 900 Euros (~$1217) for private use, but it could be an interesting alternative for outdoor junkies and those engaged in the industry.

Read all 2 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review: Panasonic Toughpad JT-B1. Test sample courtesy of Panasonic Germany.
In Review: Panasonic Toughpad JT-B1. Test sample courtesy of Panasonic Germany.

Specifications

Panasonic Toughpad JT-B1
Processor
Texas Instruments OMAP 4460 2 x 1.5 GHz, Cortex A9
Graphics adapter
Memory
1024 MB
Display
7.00 inch 16:10, 1024 x 600 pixel, four point multi touch, capacitive, TN LED, glossy: yes
Storage
16 GB iNAND Flash, 16 GB
, 11.3 GB free
Connections
1 USB 2.0, 1 Docking Station Port, Audio Connections: 1x 3.5 mm jack (headphone/mic combi), Card Reader: MicroSD to 32 GB, Sensors: ambient light sensor, digital compass, accelerometer, NFC, GPS, 13 MP camera with LED flash
Networking
802.11a/b/g/n (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0, LTE/UMTS/HSPA+/EDGE/GPRS/GSM
Size
height x width x depth (in mm): 17.8 x 220 x 129.5 ( = 0.7 x 8.66 x 5.1 in)
Battery
22 Wh Lithium-Ion, replaceable , 5720 mAh, 3.6 Volt, Battery runtime (according to manufacturer): 480 h
Operating System
Android 4.0
Camera
Webcam: 1.3 MP (1280 x 900 Pixel)
Additional features
Speakers: a waterproof mono speaker, Keyboard: virtual, wrist strap, cleaning cloth, 36 Months Warranty
Weight
549 g ( = 19.37 oz / 1.21 pounds), Power Supply: 112 g ( = 3.95 oz / 0.25 pounds)
Price
1250 Euro



The Toughpad JT-B1 features a 7-inch TN display.
The Toughpad JT-B1 features a 7-inch TN display.
It has a resolution of 1024 x 600 pixels and is very bright.
It has a resolution of 1024 x 600 pixels and is very bright.
NFC is also built-in.
NFC is also built-in.

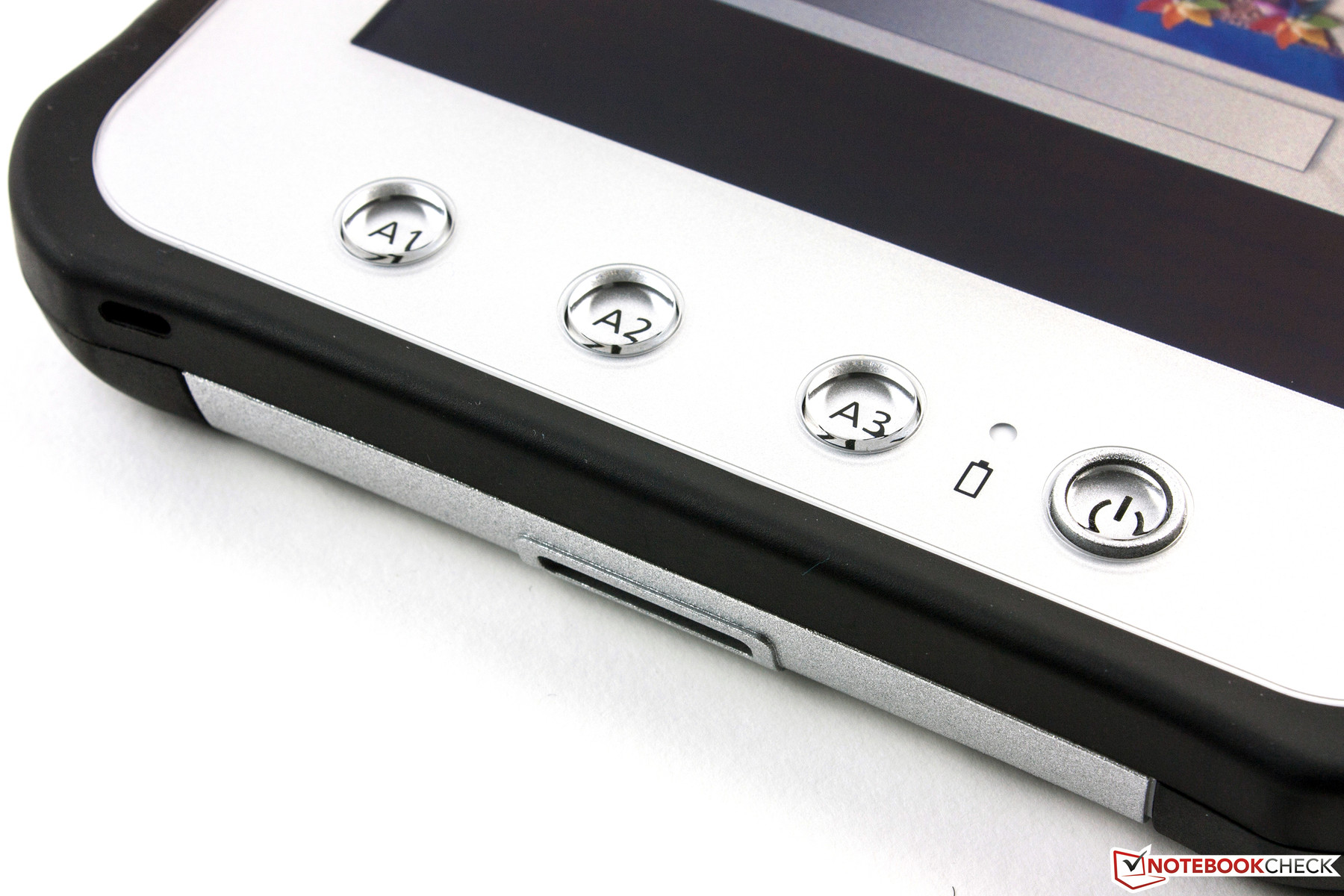

Three user definable buttons and the power button.
Three user definable buttons and the power button.
Covered ports
Covered ports
The cover of the audio port could be better.
The cover of the audio port could be better.
The Cover in front of the USB and the DC connector seems robust.
The Cover in front of the USB and the DC connector seems robust.
Hand strap for additional security
Hand strap for additional security
The JT-B1 is IP65 certified and passed MIL-STD-810G tests.
The JT-B1 is IP65 certified and passed MIL-STD-810G tests.
The 13 MP camera features an LED flash.
The 13 MP camera features an LED flash.
The battery is secured by two bolts.
The battery is secured by two bolts.
If one of the locks is opened during use, an alarm will ring.
If one of the locks is opened during use, an alarm will ring.
The battery almost takes up one half of the rear side.
The battery almost takes up one half of the rear side.
Micro SIM and MicroSD card slot are beneath the battery.
Micro SIM and MicroSD card slot are beneath the battery.
The battery capacity is 22 Wh.
The battery capacity is 22 Wh.

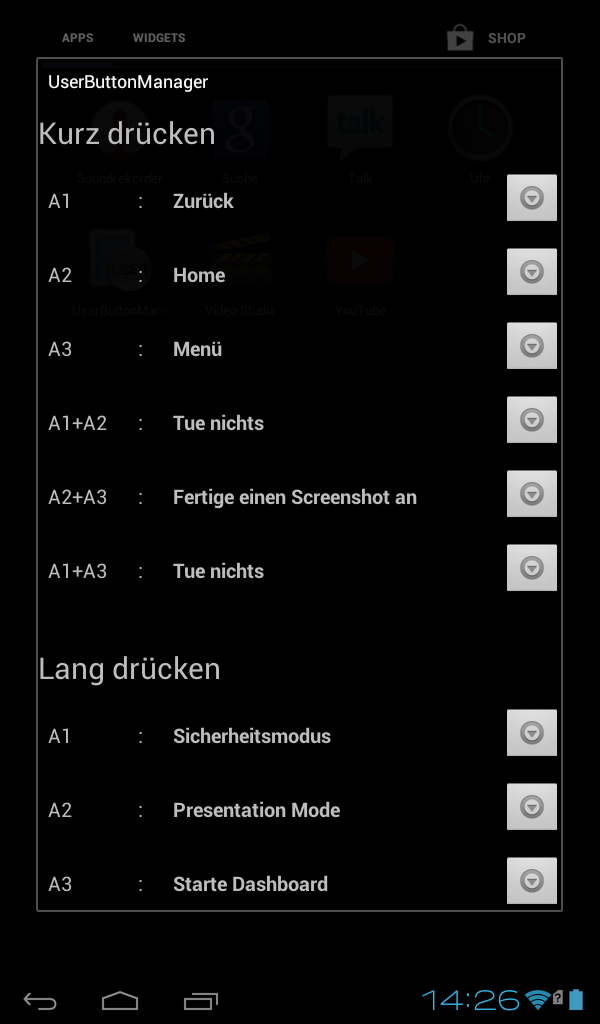

The function keys can be configured in the UserButtonManager.
The function keys can be configured in the UserButtonManager.
All important functions are available in the Dashboard app.
All important functions are available in the Dashboard app.
11.4 GB of the storage capacity are free after the first start.
11.4 GB of the storage capacity are free after the first start.

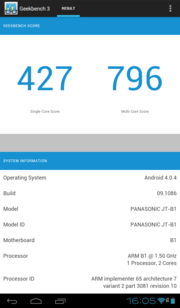

Geekbench 3
Geekbench 3
AndEBench
AndEBench

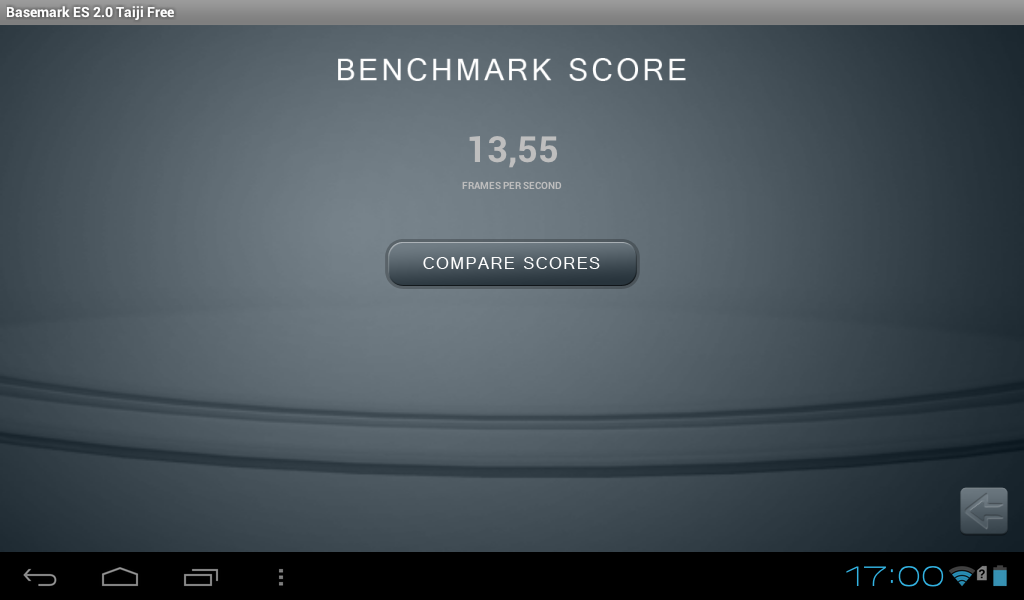

Basemark ES 2.0
Basemark ES 2.0
Epic Citadel: High Performance
Epic Citadel: High Performance
Epic Citadel: High Quality
Epic Citadel: High Quality
Epic Citadel: Ultra High Quality
Epic Citadel: Ultra High Quality
Browsermark 2.0
Browsermark 2.0
Peacekeeper
Peacekeeper

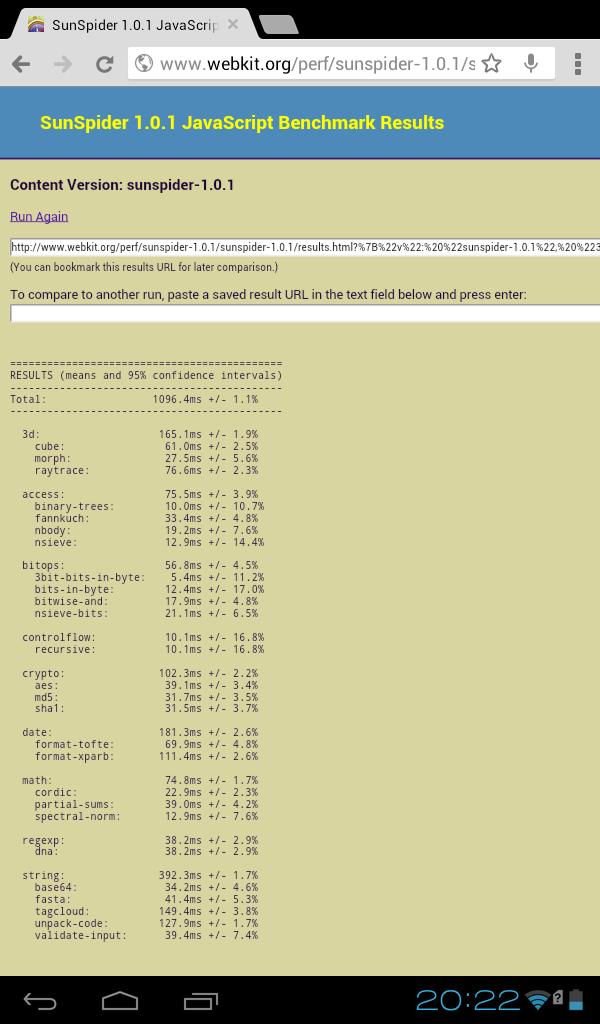

Sunspider 1.0.1
Sunspider 1.0.1

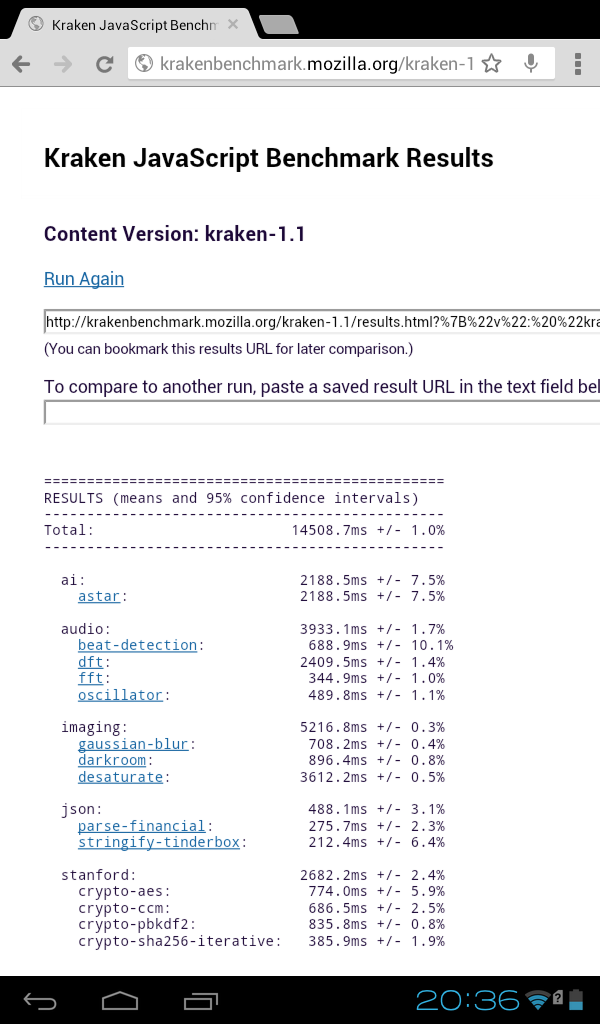

Mozilla Kraken 1.1
Mozilla Kraken 1.1
Vellamo
Vellamo
Quadrant
Quadrant
AnTuTu 3D Rating V4
AnTuTu 3D Rating V4

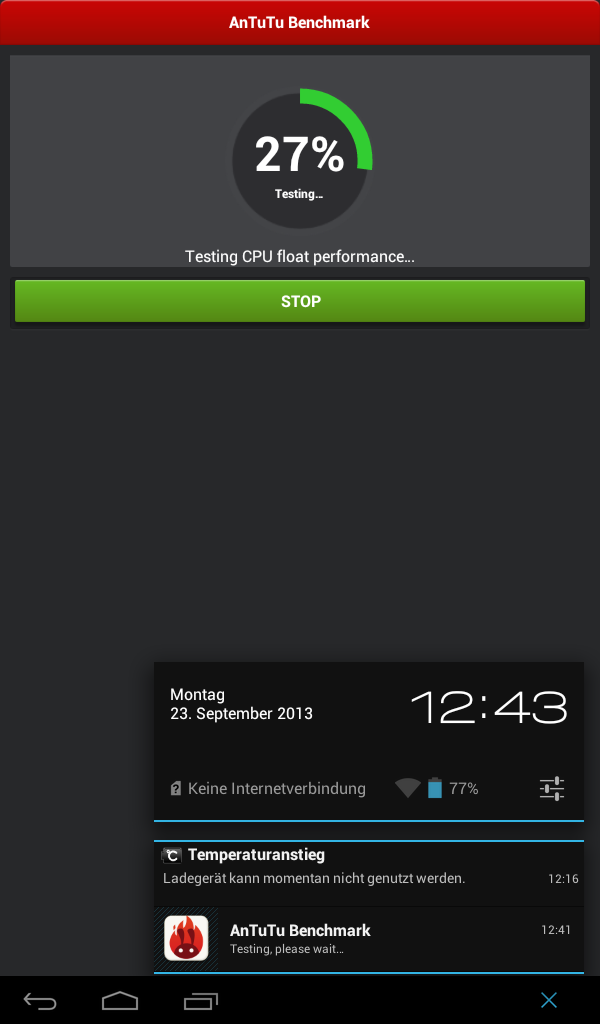

If the device gets too warm, it displays a warning that it cannot be charged at the moment.
If the device gets too warm, it displays a warning that it cannot be charged at the moment.
AnTuTu V4 with high ambient temperature.
AnTuTu V4 with high ambient temperature.

Similar Laptops

Devices from a different Manufacturer and/or with a different CPU

Devices with Same Screen Size and/or Weight

Panasonic Toughbook FZ-A3 Tablet Review: When Thin Meets Rugged
Adreno 512, Snapdragon SD 660, 10.10", 0.93 kg
Panasonic Toughpad FZ-B2 Tablet Review
HD Graphics (Bay Trail), Celeron N2930, 7.00", 0.59 kg
Panasonic ToughPad FZ-E1 Handheld Review
Adreno 330, Snapdragon 801 MSM8974AB, 5.00", 0.426 kg
Panasonic Toughpad UT-MB5 Tablet Review
GeForce GT 745M, Core i5 3437U, 20.00", 2.35 kg
Review Panasonic Toughpad FZ-G1 Tablet
HD Graphics 4000, Core i5 3437U, 10.10", 1.012 kg

Links

Compare Prices

Pros

+extremely resistant
+good build quality
+many connection options
+bright display
+removable battery
+useful cameras
+HSPA + and LTE


Cons

-modest touchscreen
-high power consumption
-throttling when the ambient temperature is high

Shortcut

What we like

The Toughpad is really sturdy and can stand quite a lot. The build quality is also high-end. A replaceable battery is real added value in a tablet.

What we would like to see

The touchscreen responds very slowly. Sometimes, inputs have to be repeated and its gliding traits are poor.

What surprises us

We could only find a single flaw in build quality: the pressure sensitivity of the display's sides. If you press the display frame hard enough, a touch event is triggered.

The competition

The Toughpad hardly has real competitors. The design of the Unitech TB100 and the Fujitsu Stylistic M702 are most similar to the Toughpad's. Of course, many models including the HP Slate 7, the Bullman Tab 7 Mini, the Samsung Galaxy Tab 3 7.0 and 8.0, and the Amazon Kindle Fire HD 7 are on par in performance.

Rating

Panasonic Toughpad JT-B1 - 09/24/2013 v3(old)
Daniel Schmidt

Chassis
86%
Keyboard
59%
Pointing Device
76%
Connectivity
52%
Weight
98%
Battery
95%
Display
74%
Games Performance
24%
Application Performance
44%
Temperature
85%
Noise
100%
Add Points
80%
Average
73%
84%
Tablet - Weighted Average
Daniel Schmidt, 2013-09-30 (Update: 2018-05-15)
