Review Asus V2S Notebook

Compact Business by Asus. The Asus V2S tries to score points by mobility with a 14 inch format, and at the same time by an adequately big display and good equipment. The basic data of this notebook sound interesting: Compact 2.5kg case, 14" WXGA+ display with non-reflecting surface, Intel Core 2 Duo CPU with 2.0 GHz, and nVIDIA Geforce 8600M GS video card. So, this laptop is even fit for multimedia and graphics.

Test Asus V2S Logo

Case

Quickly, you'll recognize the typical Asus notebook qualities. The Asus V2S's case is decently colored in matte black, whereas silver moldings surround the outer edges and further improve the look of the notebook. Also the chrome molding around the touchpad and the hot keys contribute to its elegant look.

The case stands out by a very thin form. Small, tapered front edges contribute to this appearance. But, also the real height of the V2S is rather small and fits well to its dimensions.

The workmanship of the Asus V2S is impressing. Clear, even edges, surfaces with very user-friendly haptics, and a compact design without any wobbling parts contribute to the high-quality impression, which is proved every time you handle the V2S.

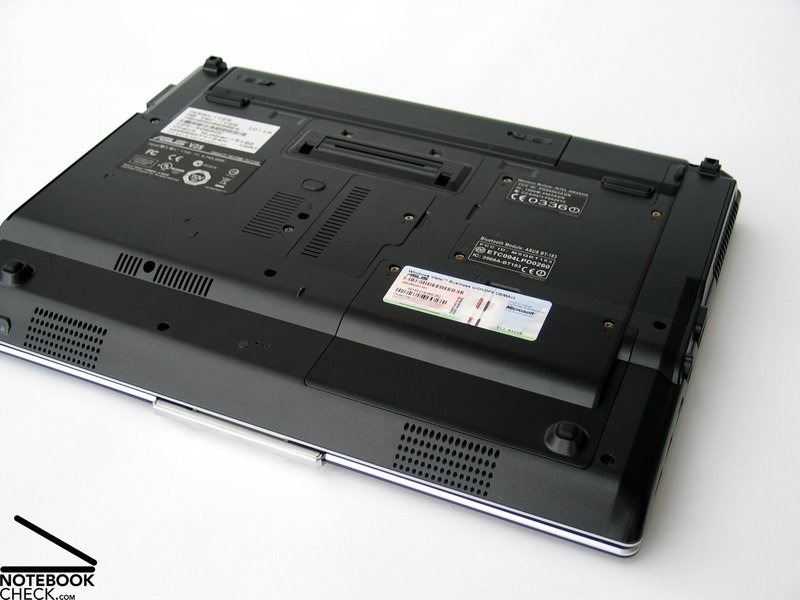

Here also the stability and robustness of the case is important. The base unit hardly deflects when applying force. Only the part of the DVD drive yields when applying directed force.

Alike the base unit also the display of the V2S appears to be very compact. The test uncovered that the lid is slightly too pressure sensitive. The flexural rigidity of the display is sufficient. The web cam, which is located in the upper edge of the display seems to be very durable too.

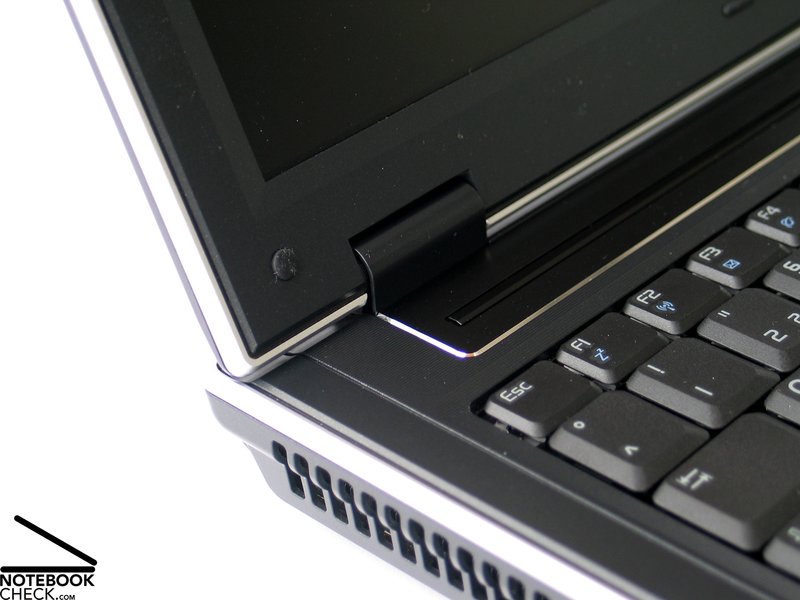

Although the hinges appear to be rather small, they are able to keep the display's position without recognizable see-saw. Furthermore, the Asus V2S misses out a transport hook or a similar mechanism. Only a mechanism in the hinges keeps the display closed. So, you should take care to avoid object penetration when carrying the V2S.

An interface equipment proper for business notebooks is provided. This consists of a Firewire port, a HDMI port, and a S-ATA interface for attaching an external harddisk, which can also be utilized as USB port. Also the docking port, a required port in the business notebook class, is provided.

Regarding position of interface one might possible criticizes that some ports (S-ATA, HDMI, USB) at the left side are a little too far to the front. However, because of the mobility of this notebook and the docking option, this should not be too important.

Furthermore, the Asus V2S provides an integrated UMTS modem, which can be used for mobile Internet access. The specific SIM of each provider, has to be inserted in a slot at the bottom side of the notebook. According to experiences of users signal quality and transfer rate are alright.

Asus V2S Interfaces
Asus V2S Interfaces
Asus V2S Interfaces
Asus V2S Interfaces

Interfaces

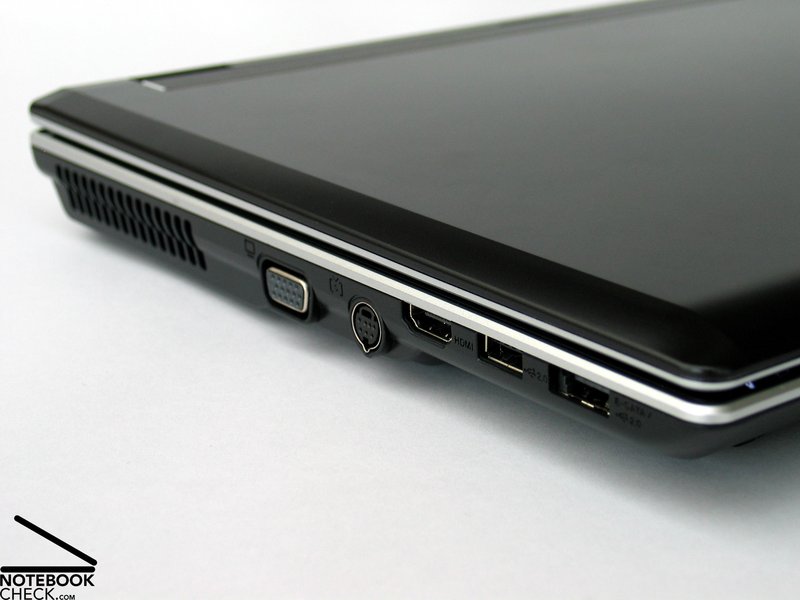

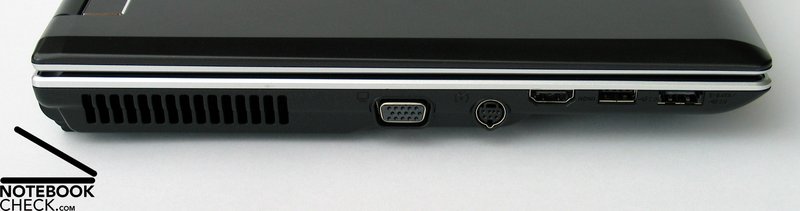

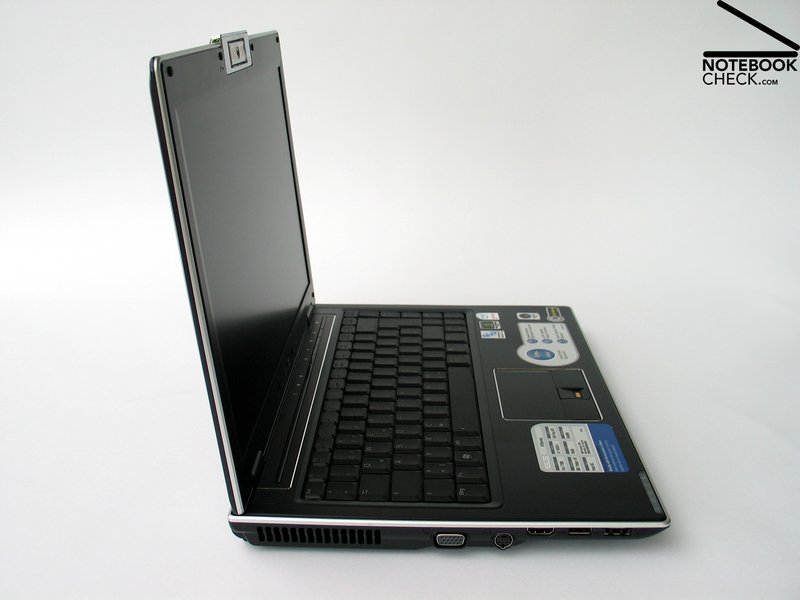

Left Side: Fan, VGA-Out, S-Video Out, HDMI, USB, S-ATA/USB Combo

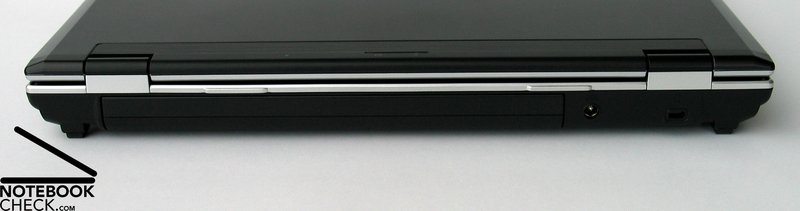

Back Side: Battery, Power Connector,
Kensington Lock

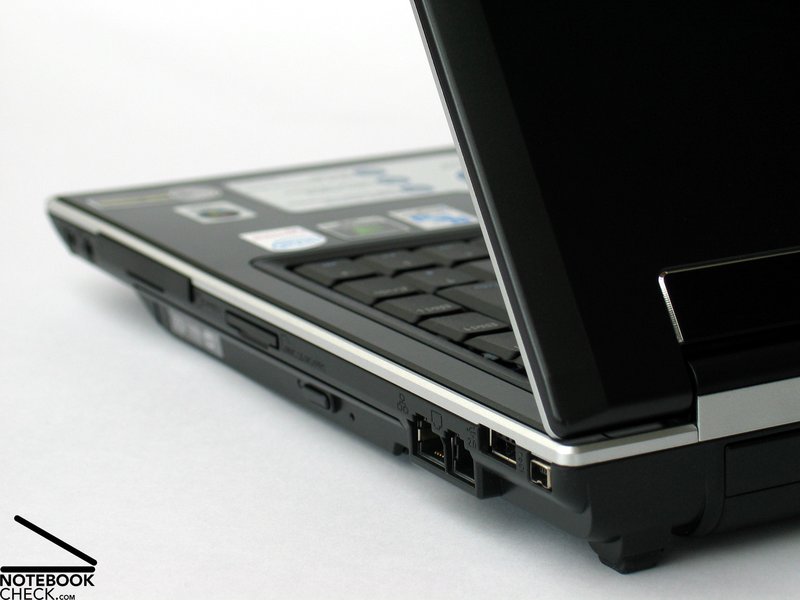

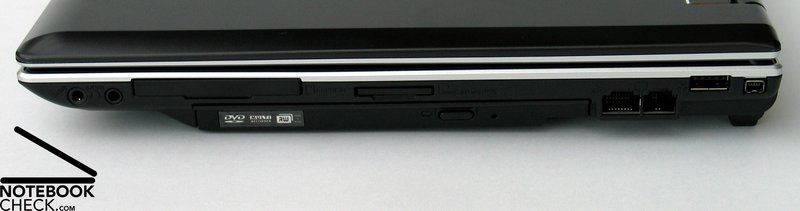

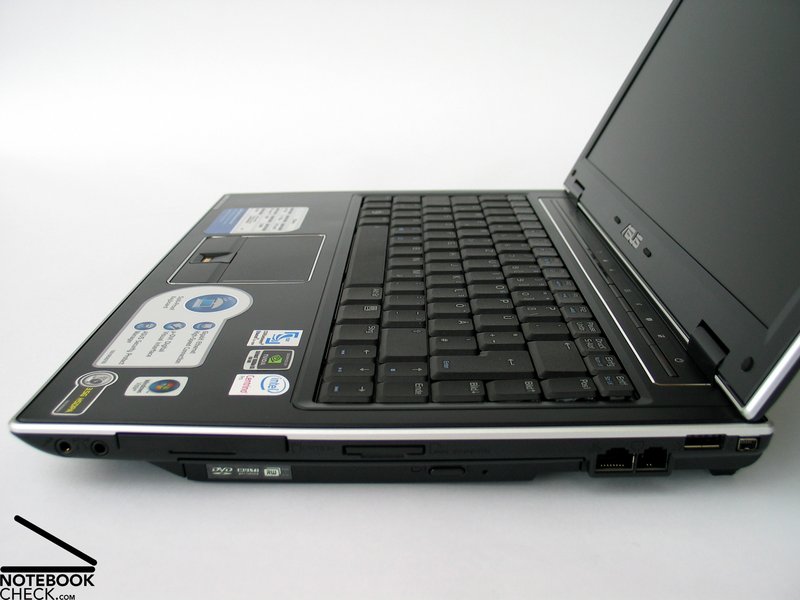

Right Side: Audio Ports, ExpressCard, Cardreader, DVD-LW, LAN, Modem, USB, Firewire

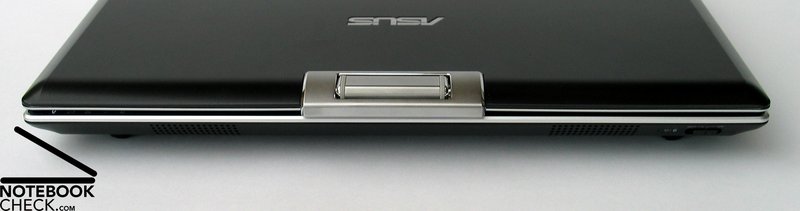

Front Side: No Ports

Input Devices

This is an very important aspect considering that the Asus V2S is optimized for office applications. Generally, we were satisfied, but, not without some reservations.

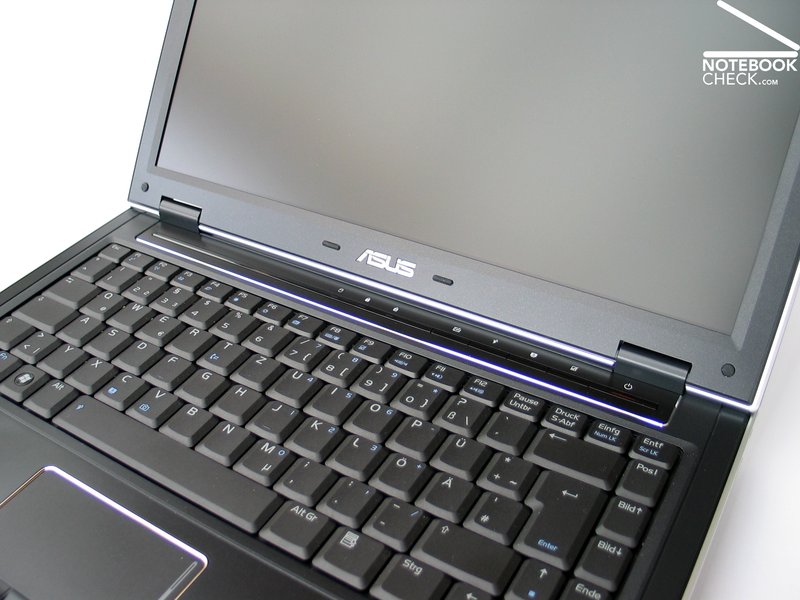

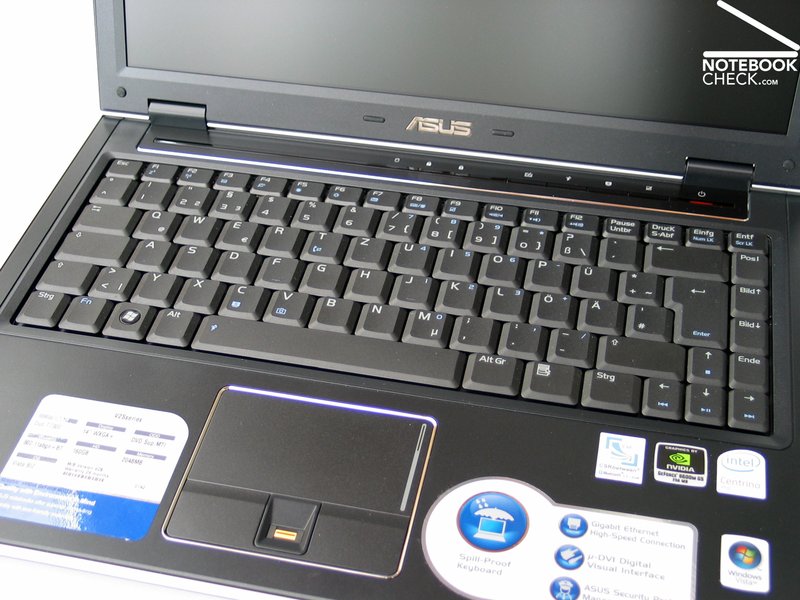

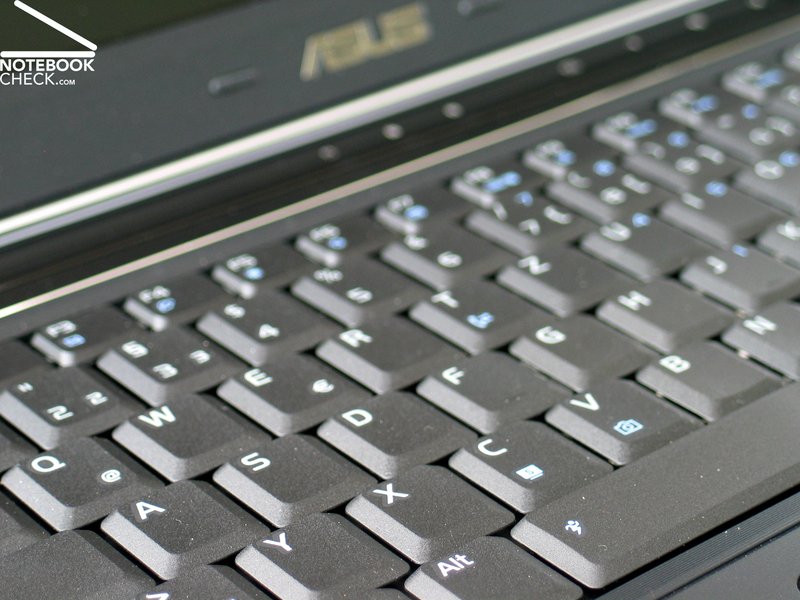

The keyboard is comfortable in use and the way typing feels convinces. The pressure resistance of the keys is ideal and also travel and point of pressure are alright. Regarding layout, the keyboard appears dense, but, it can still convince in practice.

The keyboard unit does not solidly seat at the right side and, so, it slightly clatters, when typing somewhat more forcefully. On the contrary, the left side is alright.

The sliding properties of the touchpad are good and it reacts well. Its position relative to the case seems to be ideal. The beautiful chrome molding around it is well, but, decently distinct. So, you can even navigate well, without looking at the pad.

Both touchpad buttons have a slightly increased dead zone at their upper third, but, can still be comfortably and nearly silently used at their front edge. In between them a fingerprint reader is located.

A number of hot keys above the keyboard provide some short-cuts for switching between different energy profiles and also for quick deactivation of the touchpad. A hardware switch for deactivating the WLAN is at the front edge of the notebook.

Asus V2S Touchpad
Touchpad
Asus V2S Tastatur
Keyboard

Display

Display Measurement

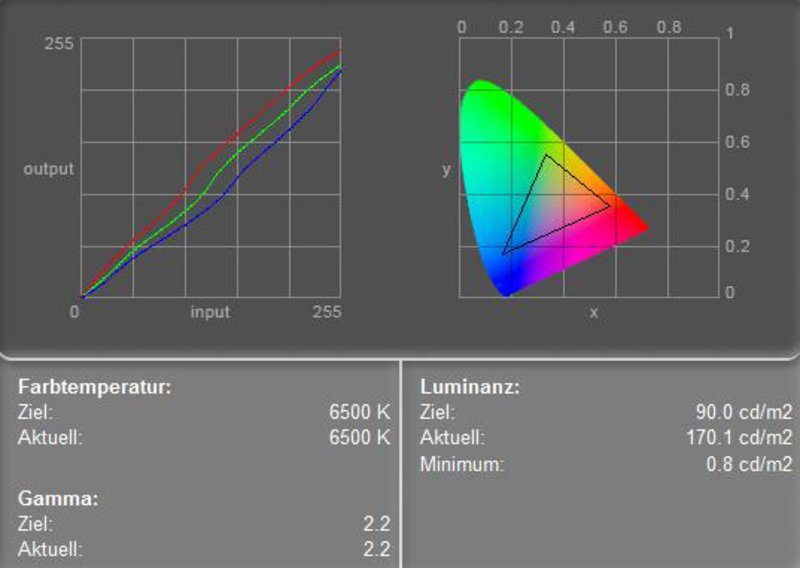

Color Diagram

The Asus V2S is equipped with a 14 inch WXGA+ panel with a resolution of 1440x900 pixels. So, the desktop size of the compact 14 inch display is despite of its size alright. Doubtless, the biggest advantage of the built-in panel is presumably its matte and non-glare surface.

We were pleased to measure a maximum brightness of 173.9 cd/m² and also the illumination of at least 85.3% is good. The average brightness of 163.2 cd/m² is just alright.

148.3
cd/m²
171.3
cd/m²
155.2
cd/m²
152.5
cd/m²
170.1
cd/m²
161.7
cd/m²
164.2
cd/m²
171.3
cd/m²
173.9
cd/m²
Distribution of brightness
Maximum: 173.9 cd/m² (Nits) Average: 163.2 cd/m²
Brightness Distribution: 85 %
Contrast: 213:1 (Black: 0.8 cd/m²)

The possible maximum contrast ratio of 217:1 calculated from the measured maximum brightness and the measured black value of 0.8 cd/m² is acceptable. We did not detect any anomalies during our scrolling tests.

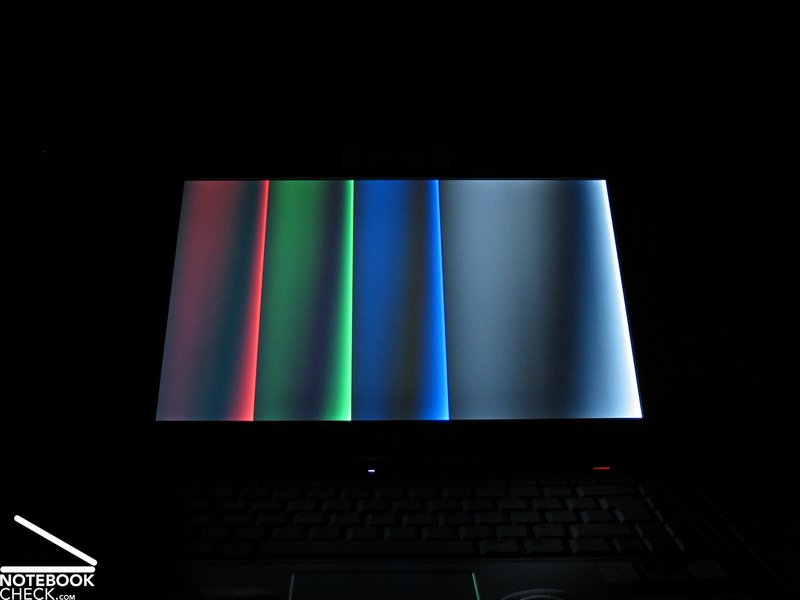

The good brightness of the display and its matte and, therefore, non-reflecting surface make the Asus V2S even fit for outdoor work. The test proved that the picture stayed even in very bright environments well legible. So, working at the  balcony or the patio should be possible, unless the powerful midday sun shines directly into the display.

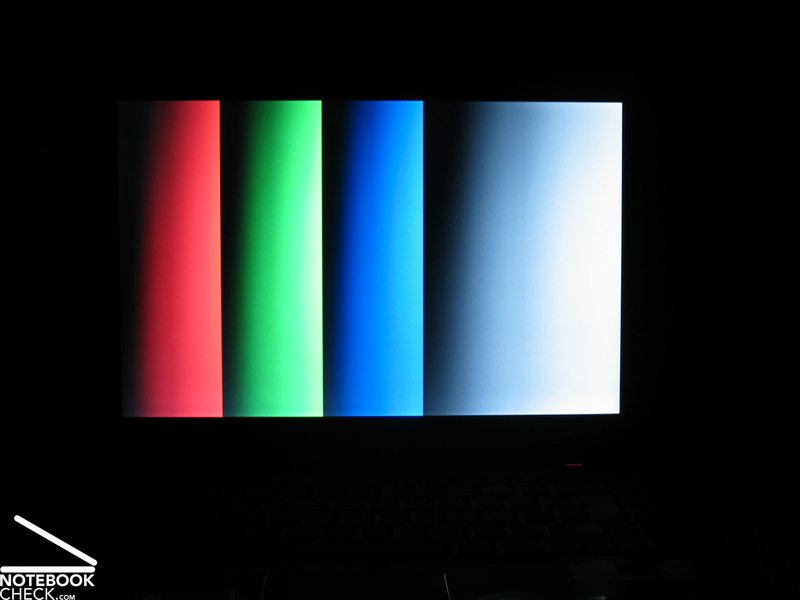

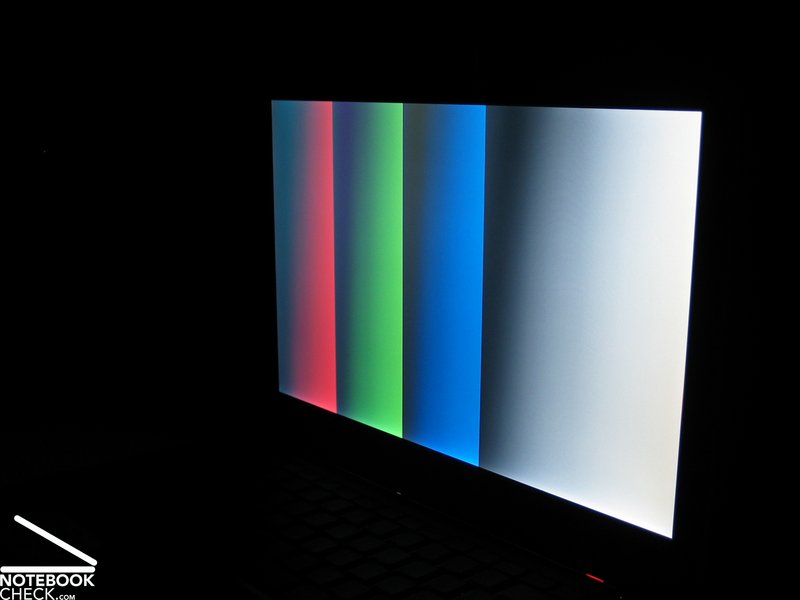

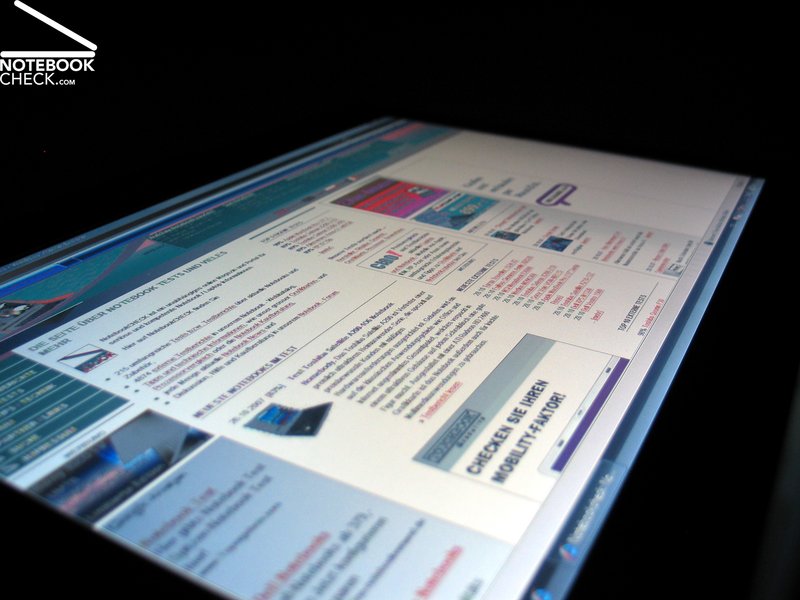

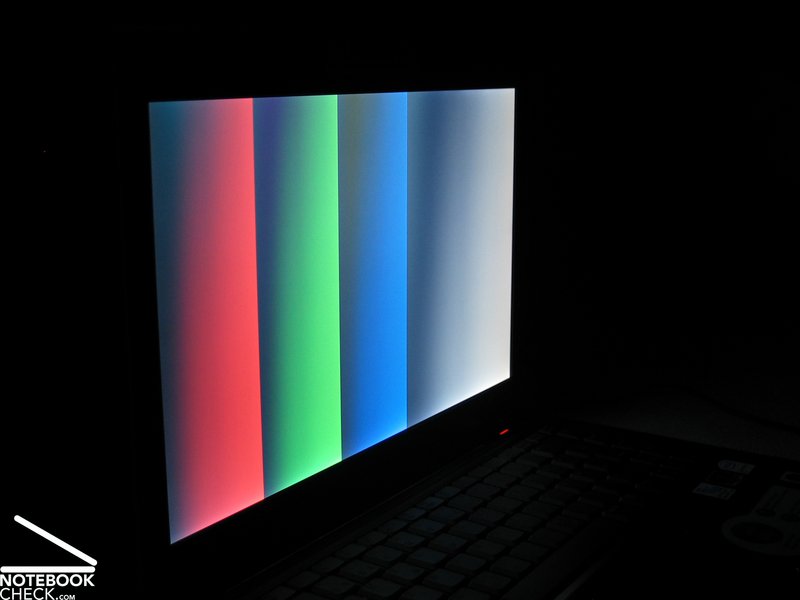

The horizontal viewing angles of the WXGA+ display are rather passable. Color changes can only noticed at very acute angles.

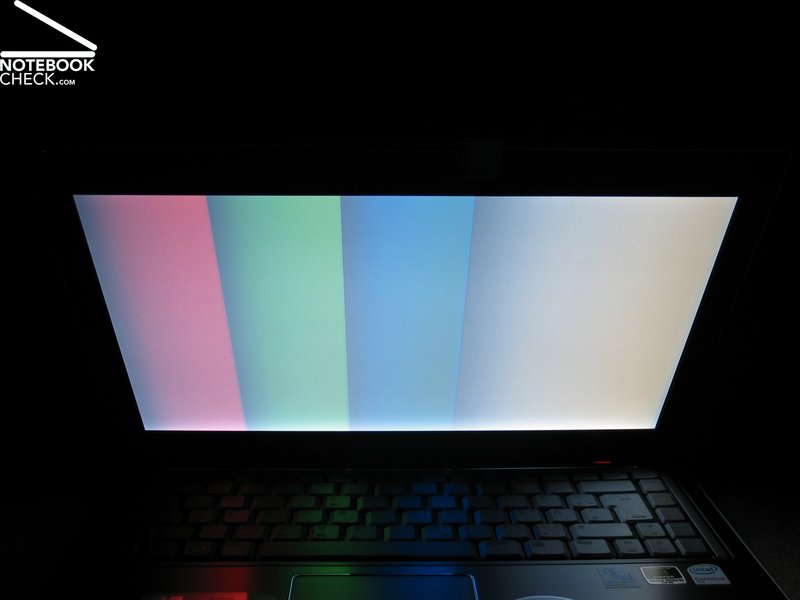

Vertically, the area of operation is unfortunately rather small. Outside it, you'll quickly face darkening and whitening of the display. So, the display position has to be often adjusted in mobile use.

Asus V2S Viewing Angles
Asus V2S Viewing Angles
Asus V2S Viewing Angles
Asus V2S Viewing Angles
Asus V2S Viewing Angles
Asus V2S Viewing Angles
Asus V2S Viewing Angles
Asus V2S Viewing Angles



Video of Display's Viewing Angles

Performance

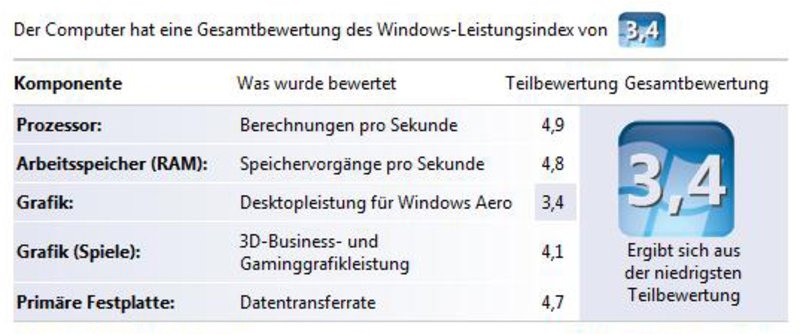

Asus V2S Windows performance index
Windows Vista performance index

As already mentioned in the introduction the hardware equipment of the Asus V2S  is good. So, it is also fit for multimedia applications. This makes the V2S a mobile general-purpose notebook which can also be used to play one or the other game.

Technically speaking, the Asus V2S is equipped with an Intel T7300 CPU with a clock-rate of 2.0 GHz and a nVIDIA Geforce 8600M GS video card with 256MB video memory. Furthermore, it comes with a 160GB harddisk (5400 revs/min) and a total of 2 GB main memory.

So, the Asus V2S rates very good regarding office performance. This is also proved by the benchmark tests. Furthermore, also the graphics and 3D  performance is due to built-in Geforce 8600 video card good.

Although the V2S is advertised as business notebook, the multimedia performance makes it also attractive for private users. Additionally, the video card is also fit for current games, however, you must live with some limitations regarding resolution and details.

According to the software tool RivaTuner, the video memory is only connected to a 64-bit connection. This could explain the somewhat lower 3D benchmark results.

In total the Asus V2S still is an attractive bundle with a wide range of application. Even more, because it stays very mobile due to 14 inch format and still provides good performance.

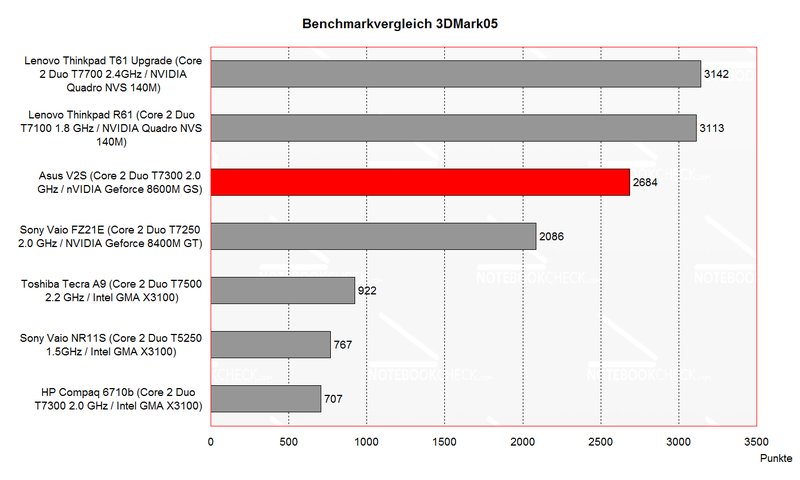

Benchmark Comparison 3DMark
Benchmark Comparison 3DMark

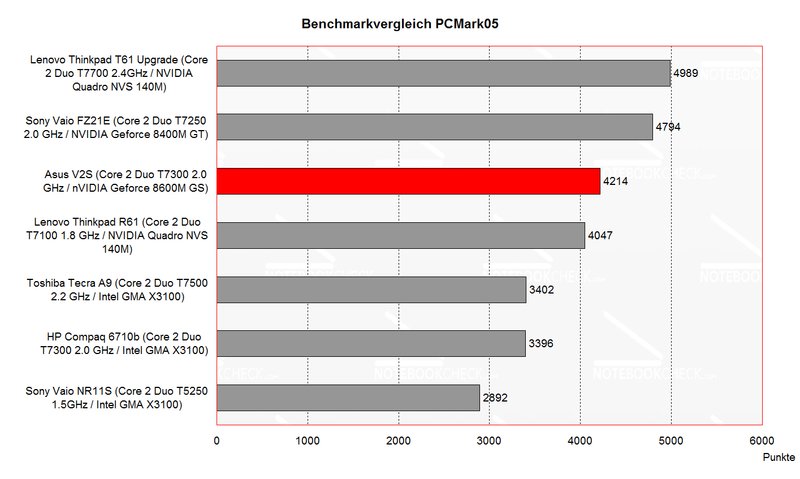

Benchmark Comparison PCMark
Benchmark Comparison PCMark
3DMark 05 Standard
2684 points
3DMark 06 1152x864 Score
1554 points
Help
PCMark 05 Standard
4214 points
Help
160 GB - 5400 rpm
Transfer Rate Minimum: 10 MB/s
Transfer Rate Maximum: 43.9 MB/s
Transfer Rate Average: 31.5 MB/s
Access Time: 16.9 ms
Burst Rate: 73.5 MB/s
CPU Usage: 13.9 %
Doom 3
 ResolutionSettingsValue
 1024x768Ultra, 0xAA, 0xAF34.9 fps
 800x600High, 0xAA, 0xAF61.3 fps
 640x480Medium, 0xAA, 0xAF61.3 fps
 640x480Low, 0xAA, 0xAF94.2 fps
F.E.A.R.
 ResolutionSettingsValue
 1024x768GPU: max, CPU: max, 0xAA, 0xAF14 fps
 800x600GPU medium, CPU medium, 0xAA, 0xAF54 fps
 640x480GPU min, CPU min, 0xAA, 0xAF278 fps
Quake 3 Arena - Timedemo
 ResolutionSettingsValue
 1024x768highest, 0xAA, 0xAF275.3 fps

Emissions

Loudness

Unfortunately, the fan runs permanently even in idle mode. The noise level caused by the fan can be called clearly audible, but, the rustling noise is yet acceptable.
After we worked a while with the energy profile „Battery Saving“, i.e., with lowest performance the fan finally slowed down and the notebook got passably quiet (36.3 dB). Work is also comfortable and smooth with these settings.

Under load the fan still turns up and reaches a maximum noise level of 43.1 dB, which is tolerable.

Noise Level

Idle
36.3 / 36.3 / 39.6 dB(A)
DVD
40.5 / dB(A)
Load
39.5 / 43.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light    (15 cm distance)

Temperature

The aspect surface temperature increase rates very positive, because it is very low. At the bottom side we measured a maximum of about 34°C. The temperature increase of the top side was partly similarly high.

Considering the built-in hardware components and the rather compact case, we were please even more.

Max. Load
 36.9 °C
98 F
33.7 °C
93 F
30.2 °C
86 F

 33.9 °C
93 F
34.2 °C
94 F
30.3 °C
87 F

 29.8 °C
86 F
31.3 °C
88 F
29.9 °C
86 F

Maximum: 36.9 °C = 98 F
Average: 32.2 °C = 90 F
28.7 °C
84 F
32.7 °C
91 F
34.9 °C
95 F
29.1 °C
84 F
33.6 °C
92 F
33.9 °C
93 F
31.3 °C
88 F
33.2 °C
92 F
33.9 °C
93 F
Maximum: 34.9 °C = 95 F
Average: 32.4 °C = 90 F
Room Temperature 21.5 °C = 71 F
(±) The average temperature for the upper side under maximal load is 32.2 °C / 90 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 36.9 °C / 98 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 34.9 °C / 95 F, compared to the average of 36.7 °C / 98 F
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.3 °C / 88.3 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.6 °C / -6.4 F).

Speakers

The Asus V2S provides two speakers at the front edge of the base unit. Because of the chosen form of the case they sound against the surface the notebook is placed on. So, the sound seems a little damped.

The sound itself is also not really convincing. Neither the sound nor the maximum volume were satisfying.

However, you can use a headset instead. The sound output via 3.5mm stereo out was without any anomalies. Digital sound is available by means of a proper adapter to the HDMI port at the left side of the case.

Battery Runtime

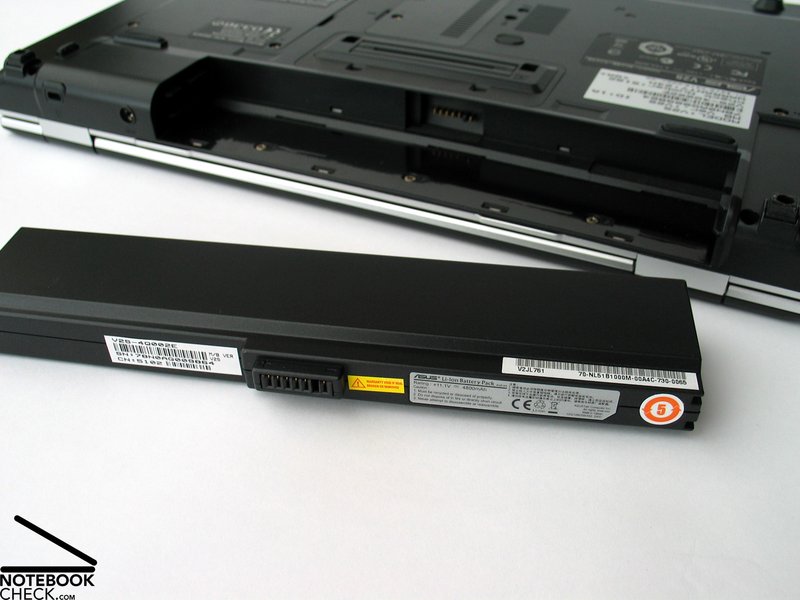

The reviewed Asus V2S came with a 6 cells battery with a capacity of 4800 mAh (53 Wh). Therewith, the runtime was only moderate. It ranges from at least one hour to a maximum of nearly 3 hours.

The runtime can be improved by the also available 9 cell battery with a capacity of 7800 mAh (86 Wh). Herewith, it should be possible to work about 50-60% longer unplugged. However, you can expect that the battery protrudes the back side of the case.

Power Consumption
Off / Standbydarklight 0 / 0 Watt
Idledarkmidlight 27.6 / 37 / 41.4 Watt
Load midlight 58.3 / 69.6 Watt
 color bar
Key: min: dark, med: mid, max: light
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
2h 50min
WiFi Surfing
1h 50min
DVD
1h 35min
Load (maximum brightness)
0h 55min

Verdict

The Asus V2S convinces in a lot of aspects. First of all by its compact, decently stylish case, which left a high-quality impression. The 14 inch format fits well to this notebook and well balances mobility and comfort.

The input devices, first of all the keyboard, are really business-like, at least if you do not type too forcefully. We also liked the white indicator LEDs above the keyboard.

Asus V2S
Asus V2S
Asus V2S
Asus V2S

Actually, it should go without saying that business notebooks must not be equipped with reflecting displays. The Asus V2S's display scores points by being fit for outdoor usage by good brightness combined with a matte display. However, the viewing angles could be better.

The hardware equipment of the V2S leaves nothing to be desired. A powerful T7300 CPU by Intel and a Geforce 8600M GS video card make it completely fit for multimedia applications.

Regarding emissions, we want to mention that the fan is rather audible especially under load, and that the surface temperature only slightly increases. Obviously, the speakers are a really cheap solution, which are not worthy of the V2S.

The battery runtime of the provided 6 cells battery is somewhat useful, but could be better. Fortunately, also a 9 cells battery is available for the otherwise very mobile V2S.

Asus V2S
Asus V2S
Please share our article, every link counts!
Asus V2S
Reviewed: Asus V2S

Specifications

Asus V2S
Graphics adapter
NVIDIA GeForce 8600M GS - 256 MB VRAM, Core: 500 MHz, Memory: 400 MHz
Memory
2048 MB
, DDR2 PC5300 667 MHz, 2x1024MB, max. 4096MB
Display
14.10 inch 16:10, 1440 x 900 pixel, WXGA+, glossy: no
Mainboard
Intel PM965
Storage
160 GB - 5400 rpm, 160 GB
, 5400 rpm, Seagate Momentus ST9160821AS
Soundcard
Realtek ALC660
Connections
1 Express Card 54mm, 2 USB 2.0, 1 Firewire, 1 VGA, 1 HDMI, 1 S-Video, 1 Modem, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Microphone, Headphone, S/PDIF, Card Reader: 8in1, S-ATA/USB Combo
Networking
10/100/1000 LAN Card (10/100/1000MBit/s), Intel Wireless WiFi Link 4965AGN (a/b/g/n = Wi-Fi 4/), Bluetooth v2.0+EDR
Optical drive
HL-DT-ST DVD +/-RW GSA-U10N
Size
height x width x depth (in mm): 36 x 241 x 245 ( = 1.42 x 9.49 x 9.65 in)
Battery
53 Wh Lithium-Ion, 11.1V 4800mAh
Operating System
Microsoft Windows Vista Business 32 Bit
Additional features
Mouse, Carry Bag, Asus Tools, NERO 7 Essentials, Adobe Acrobat Reader 8.0, Symantec Norton Internet Security 2007, 24 Months Warranty, 1.3 Megapixel Webcam, Fingerprint Reader, TPM, UMTS 3G/3.5G int.
Weight
2.45 kg ( = 86.42 oz / 5.4 pounds), Power Supply: 500 g ( = 17.64 oz / 1.1 pounds)
Price
1500 Euro



Asus V2S Image

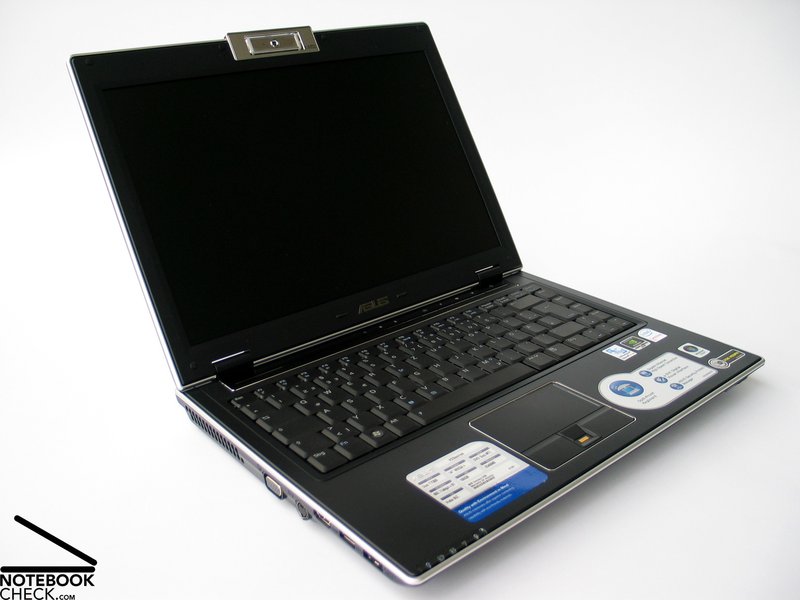

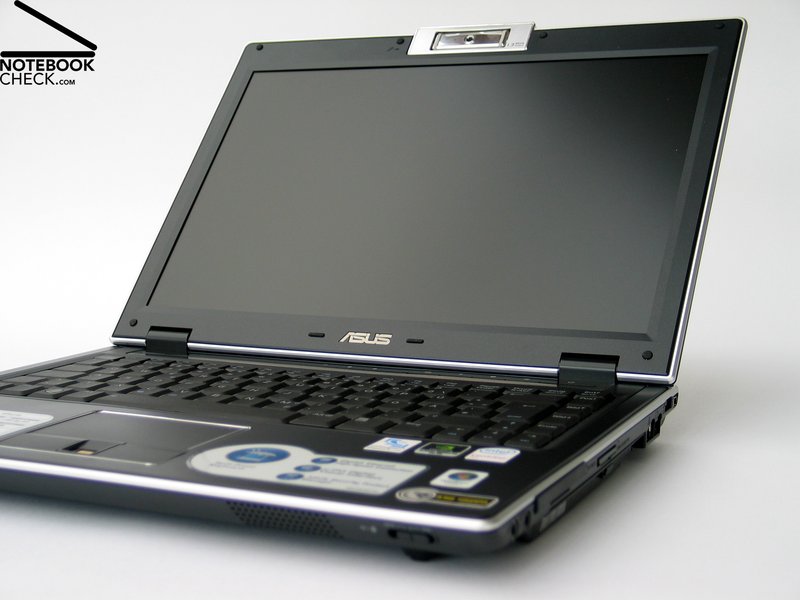

The Asus V2S is a mobile business notebook...
Asus V2S Image

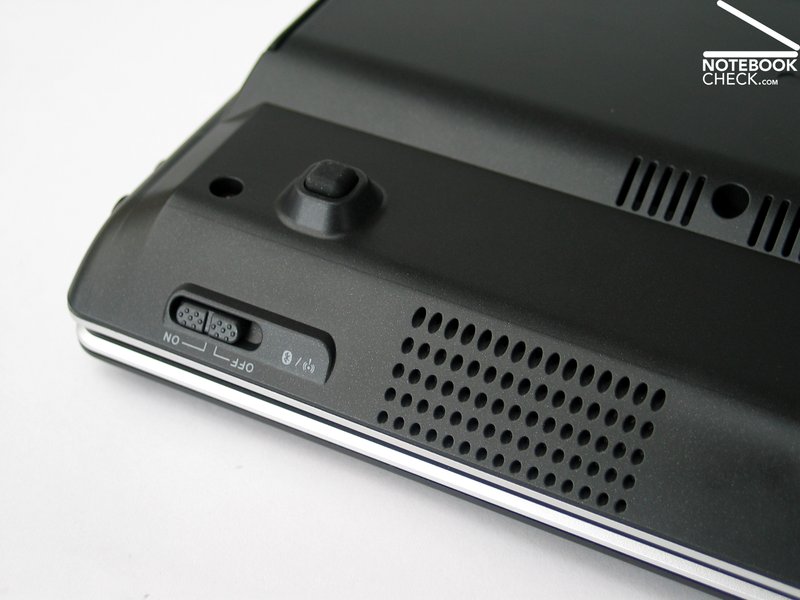

The speakers of the V2S could not convince, because of their below-average quality of sound.
Asus V2S Image
...however, the surface temperature always stays alright.
Asus V2S Image

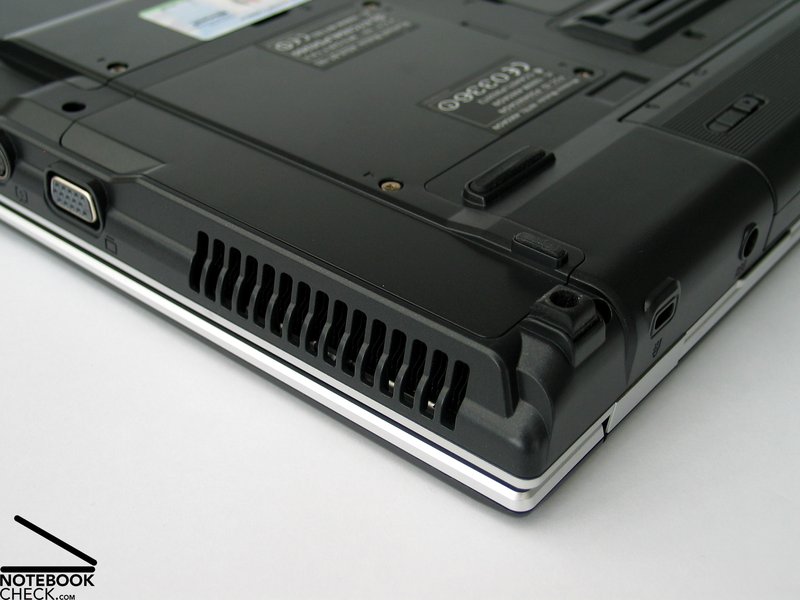

The fan is especially under load very active,...
Asus V2S Image

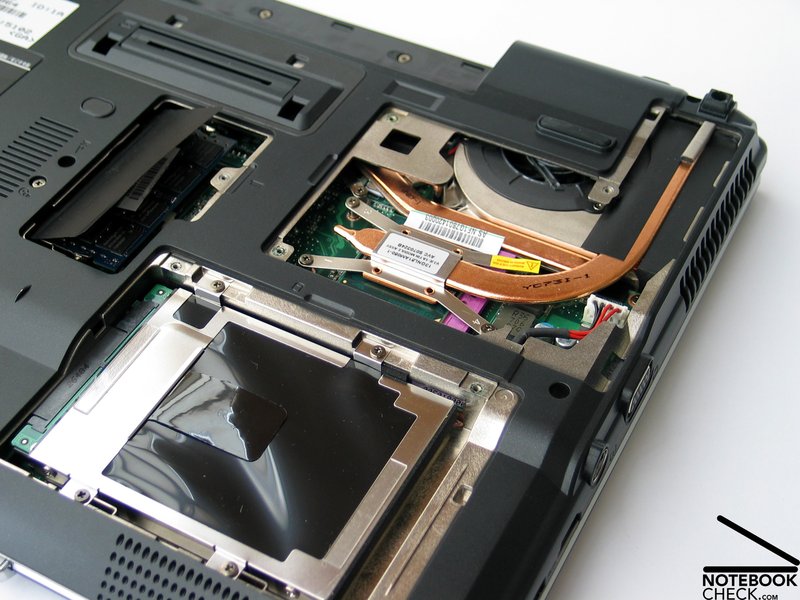

...and T7300 Core 2 Duo CPU the 14" notebook is also a multimedia expert.
Asus V2S Image
Due to good hardware equipment consisting of nVIDIA Geforce 8600M GS video card...
Asus V2S Image

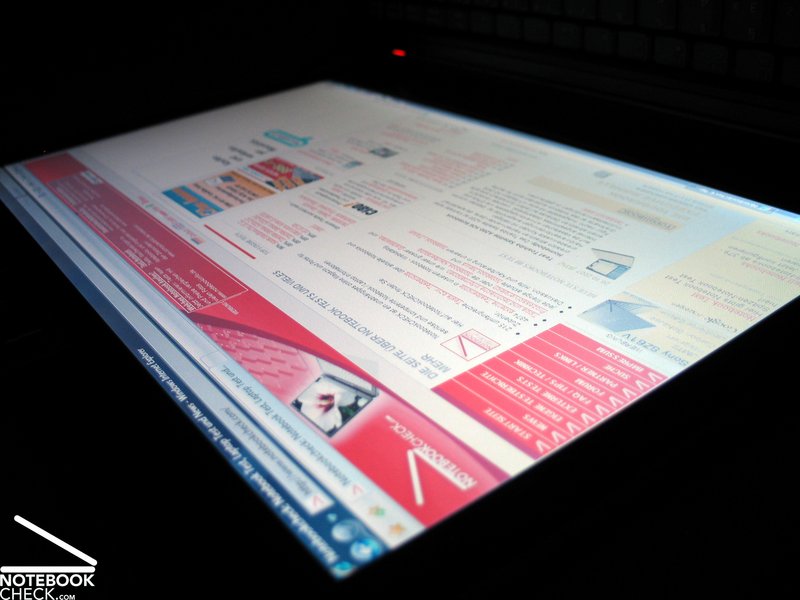

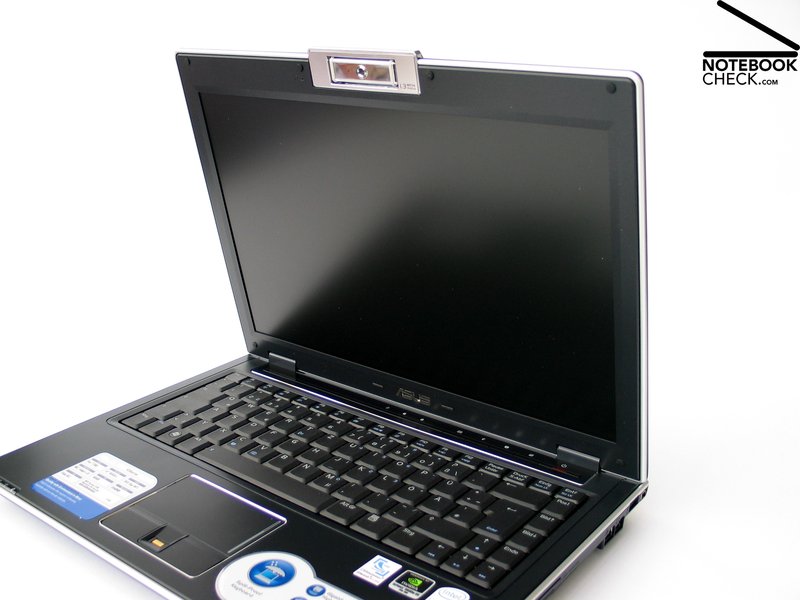

The matte WXGA+ display convinces by being fit for outdoor usage.
Asus V2S Image
The keyboard is ready for intensive typing, even it was not attached completely tight to the case in the reviewed notebook.
Asus V2S Image

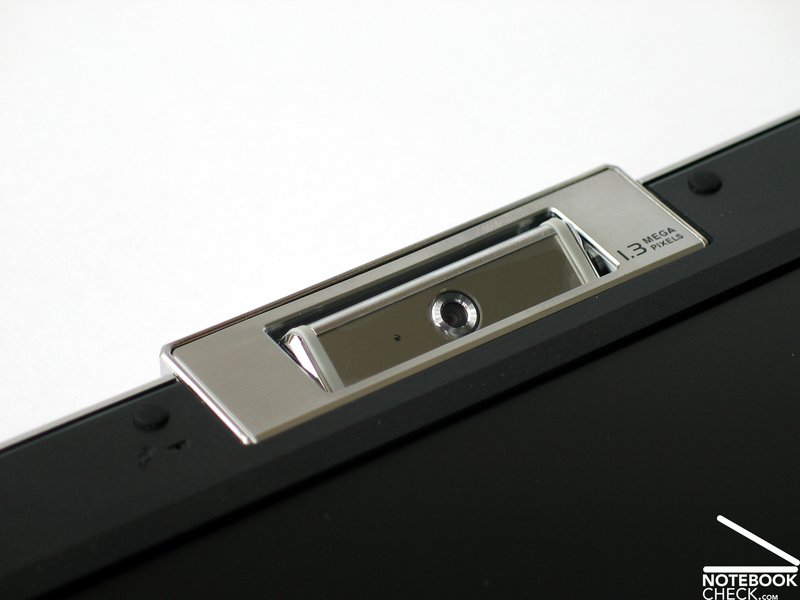

Fit for video conferences: 1.3 Mega pixels Webcam of the V2S.
Asus V2S Image

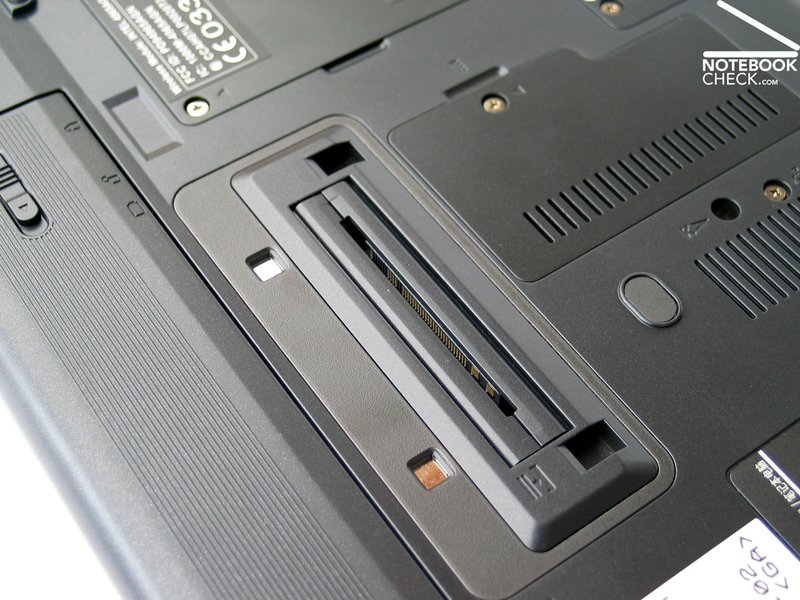

Of course also the docking port, a requirement for business notebooks, is provided.
Asus V2S Image
The provided interfaces are comprehensive. Among others also an HDMI and S-ATA port are available.
Asus V2S Image
...case stability and robustness.
Asus V2S Image
The Asus V2S also scores points regarding...
Asus V2S Image
...and convinces especially by user-friendly haptics.
Asus V2S Image

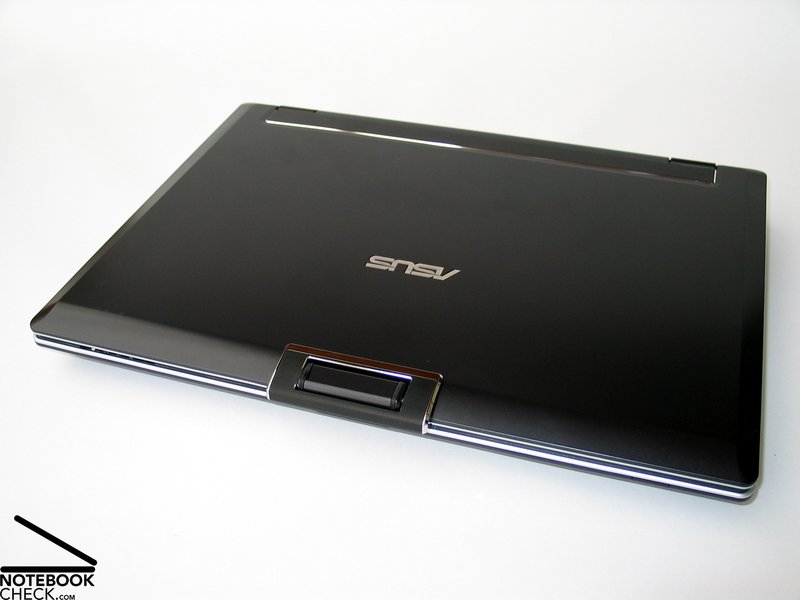

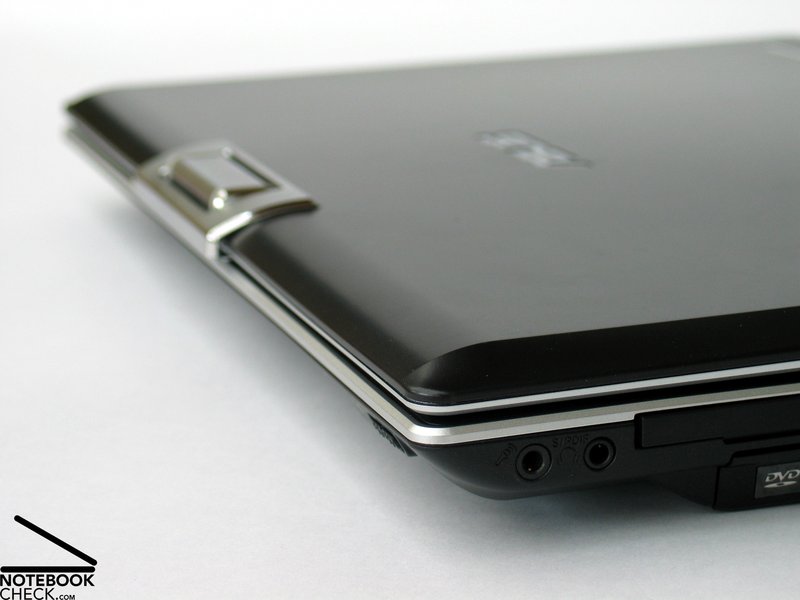

The design of the V2S is decent, business-like...
Asus V2S Image
...which is fit for multimedia applications.
Asus V2S Image
...with compact 2.kg case...
Asus V2S Image
The runtime of the 6 cells battery is alright, but, could be better.

Similar Notebooks

Devices with Same Screen Size and/or Weight

Asus Chromebook CM14 laptop in review - For beginners
Mali-G52 MP2, MediaTek Kompanio 500 Kompanio 520, 14.00", 1.424 kg
Asus F415EA Review: Cool and quiet Core i5 office laptop
Iris Xe G7 80EUs, Tiger Lake i5-1135G7, 14.00", 1.55 kg
Asus P1511CEA reviewed: An affordable office laptop for school, office, leisure
UHD Graphics Xe G4 48EUs, Tiger Lake i3-1115G4, 15.60", 1.8 kg
Asus ExpertBook L1 L1401CDA in review: Quiet office notebook for a small budget
Vega 3, Picasso (Ryzen 3000 APU) R3 3250U, 14.00", 1.5 kg
Asus VivoBook 15 OLED Review: Quiet Office Notebook With Strong Screen
Vega 8, Lucienne (Zen 2, Ryzen 5000) R7 5700U, 15.60", 1.8 kg
Asus ExpertBook B1 B1500 in review: Many ports on the business laptop
Iris Xe G7 80EUs, Tiger Lake i5-1135G7, 15.60", 1.727 kg
Asus ExpertBook B1 B1400 in review: Small, light and affordable
Iris Xe G7 80EUs, Tiger Lake i5-1135G7, 14.00", 1.483 kg
Asus VivoBook S15 D533UA Review: Ryzen 7 all-rounder with good battery runtimes
Vega 8, Lucienne (Zen 2, Ryzen 5000) R7 5700U, 15.60", 1.8 kg
Asus VivoBook 17 F712FA Review: Lackluster 17.3-inch laptop for home
UHD Graphics 620, Comet Lake i5-10210U, 17.30", 2.3 kg
Asus M509DA Review: Slow Speed WiFi in Ryzen 3 Notebook
Vega 3, Picasso (Ryzen 3000 APU) R3 3200U, 15.60", 1.8 kg
Asus VivoBook 17 X705UA (i7-7100U, HD620) Laptop Review
HD Graphics 620, Kaby Lake i3-7100U, 17.30", 2.1 kg

Pro

  • Compact mobile case
  • Good stability and workmanship
  • User-friendly input devices
  • Bright display - fit for outdoor usage
  • Good performance for office and multimedia
  • Low surface temperatures
  • Contra

  • Moderate viewing angles
  • Below-average sound of the built-in speakers
  • Moderate battery runtime
  • Rating

    Asus V2S - 11/07/2007
    J. Simon Leitner

    Chassis
    92%
    Keyboard
    88%
    Pointing Device
    90%
    Connectivity
    90%
    Weight
    82%
    Battery
    60%
    Display
    93%
    Games Performance
    75%
    Application Performance
    96%
    Temperature
    86%
    Noise
    80%
    Add Points
    94%
    Average
    86%
    87%
    Office - Weighted Average
    J. Simon Leitner, 2007-11-25 (Update: 2013-05- 8)
