Notebookcheck

Lenovo ThinkPad X1 Extreme-20MF000XUK

Specifications

Lenovo ThinkPad X1 Extreme-20MF000XUK
Lenovo ThinkPad X1 Extreme-20MF000XUK (ThinkPad X1 Extreme Series)
Graphics adapter
Memory
32768 MB
, DDR4-2666
Display
15.6 inch 16:9, 3840 x 2160 pixel 282 PPI, IPS, glossy: no
Mainboard
Intel CM246
Storage
1TB SSD
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm, Card Reader: SD, 1 SmartCard, 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Size
height x width x depth (in mm): 18.4 x 361.8 x 245.7 ( = 0.72 x 14.24 x 9.67 in)
Battery
80 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p with ThinkShutter
Additional features
Speakers: 2 Watt stereo with Dolby Audio Premium, Keyboard: 6-row chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
1.7 kg ( = 59.97 oz / 3.75 pounds), Power Supply: 450 g ( = 15.87 oz / 0.99 pounds)
Price
2700 Euro



Pricecompare

Average Score: 100% - very good
Average of 1 scores (from 1 reviews)

Reviews for the Lenovo ThinkPad X1 Extreme-20MF000XUK

100% Lenovo ThinkPad X1 Extreme review: The ThinkPad, perfected
Source: It Pro English
Few laptops can cost this much and still feel worth it, but the ThinkPad X1 Extreme is no ordinary laptop. From performance to the keyboard, from connectivity to the display, it succeeds at almost every turn, and business buyers in particular can take advantage of a host of security and management tools.
Single Review, online available, Short, Date: 02/06/2019
Rating: Total score: 100%

Comment

Series:

The ThinkPad X1 Extreme is the consumer version of the ThinkPad P1 workstation. From multi-monitor support to a rich MR/VR experience and even to intensive gaming, the ThinkPad X1 Extreme handles demanding computing tasks without a hitch. Lenovo is not breaking with tradition with the X1 Extreme, either. The laptop’s body is made of carbon fibre with a sturdy feel to it, and ports are easy to access on either side. The trusty ThinkPad keyboard and pointing stick make a return as well, opposite a 15.6” display that can either be configured as a non-touch Full-HD screen or a touch-enabled 4K IPS display with HDR and Dolby Vision, as well as support for a stylus with tilt function and shading. Users can opt for either an 8th-gen Coffee Lake Core i5 or i7 processor to start with, and up to 64 GB of DDR4 at 2666 MHz, Dual DIMM RAM. Then there is the storage, which comes in the form of up to 2 TB that can be configured via dual M.2 PCI Express NVMe SSDs with RAID support. That is a huge amount of blazing-fast storage to play around with, making it easy to work on large and complex files in most programs. The graphics department is where the X1 Extreme might seem to fall short. In theory, with a GTX 1050 Ti Max-Q GPU, it will match the performance of the XPS and the EliteBook, but it cannot compete with the full-voltage 1050 Ti chip inside the Zenbook Pros.

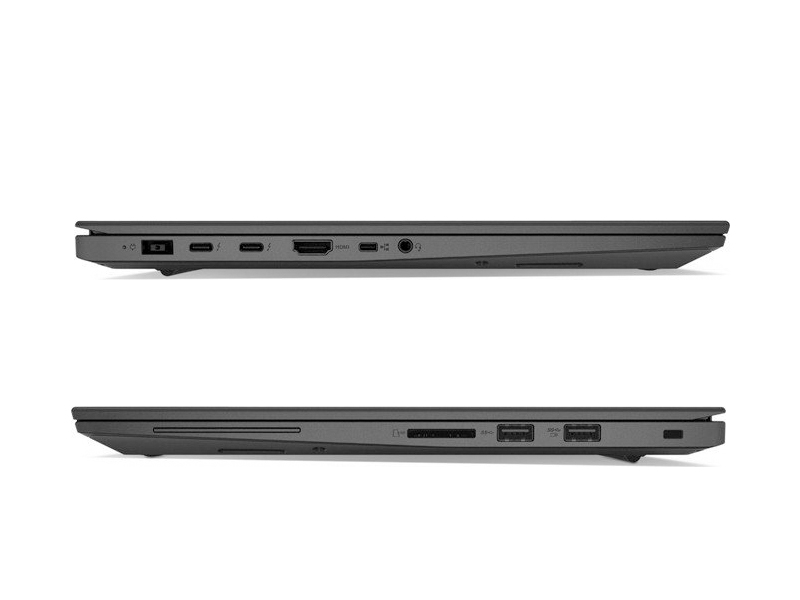

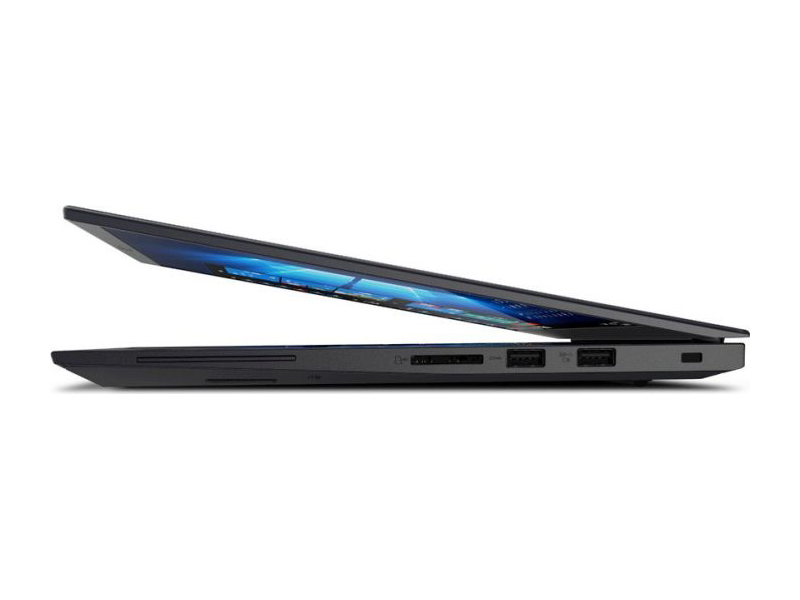

Lenovo is using a tiny (and light) power brick alongside an 80Whr battery in the ThinkPad X1 Extreme, and the battery should charge up to 80 per cent in just an hour thanks to Lenovo’s RapidCharge tech. There is even a fingerprint reader at the side of the keyboard and a Windows Hello camera that can be covered with the ThinkShutter camera cover. Windows 10 Pro is pre-installed, so a user will be able to use the built-in camera to log into the operating system with just their face. For connectivity, a user has got two USB-3.0 ports and an SD-card reader on the right side, which is great for quickly connecting an external storage device or to copy content directly from an SD card. On the opposite side sit two Thunderbolt ports, full-sized HDMI, a network extension port, and a headphone jack. The Thunderbolt and HDMI ports mean that a user can have up to three external monitors connected to the X1 Extreme, which makes it perfect for video editing or working on complex programs that need more screen space. It’s plug-and-play-ready for the leading VR/MR headsets, including Oculus Rift. Lenovo’s ThinkPad X1 Extreme really does pack plenty of power into a ridiculously slim and lightweight body. For users who are in the market for an on-the-go powerhouse that can also scratch the occasional gaming itch, the X1 Extreme is a great choice.

Hands-on article by Jagadisa Rajarathnam

NVIDIA GeForce GTX 1050 Ti (Laptop): Mainstream graphics card based on Nvidia's Pascal architecture and successor to the GeForce GTX 965M. Is manufactured in a 14nm process at Samsung and the technical specifications are very similar to the desktop version.

With these GPUs you are able to play modern and demanding games fluently at medium detail settings and HD resolution.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


i7-8750H: On Coffee Lake architecture based processor for big and heavy laptops. Integrates six processor cores clocked at 2.2 - 4.1 GHz (4 GHz with 4 cores, 3.9 GHz with 6 cores) that support HyperThreading. Manufactured in an improved 14nm process (14nm++). » Further information can be found in our Comparison of Mobile Processsors.


15.6":

15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.


1.7 kg:

This weight is typical for very big tablets, subnotebooks, ultrabooks and convertibles with a 11-13 inch display-diagonal.


Lenovo: Lenovo ( "Le" as in the English word legend and "novo" (Latin) for new) was founded in 1984 as a Chinese computer trading company. From 2004, the company has been the largest laptop manufacturer in China and got the fourth largest manufacturer worldwide after the acquisition of IBM's PC division in 2005. In addition to desktops and notebooks, the company also produces monitors, projectors, servers, etc.

In 2011, Lenovo acquired the majority of Medion AG, a European computer hardware manufacturer. In 2014, Lenovo took over Motorola Mobility, which gave them a boost in the smartphone market.

From 2014 to 2016 Lenovo's market share in the global notebook market was 20-21%, ranking second behind HP. However, the distance decreased gradually. In the smartphone market, Lenovo did not belong to the Top 5 global manufacturers in 2016.


100%: This notebook model is regarded by the reviewers to be exceptionally good. There hardly exist laptops, which are rated so good. If this rating can be taken seriously, this is a clear recommendation for purchase.


» Further information can be found in our Notebook Purchase Guide.
