Asus UX501VW-FY145T

Specifications

Asus UX501VW-FY145T
Asus UX501VW-FY145T (ZenBook Pro UX501 Series)
Processor
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz (Intel Core i7)
Graphics adapter
Memory
16 GB
, DDR4-2132, 1063.8 MHz
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, IPS, glossy: no
Mainboard
Intel HM170 (Skylake PCH-H)
Storage
512GB SSD (PCIe, M.2 2280)
Soundcard
Intel Skylake PCH-H High Definition Audio Controller
Connections

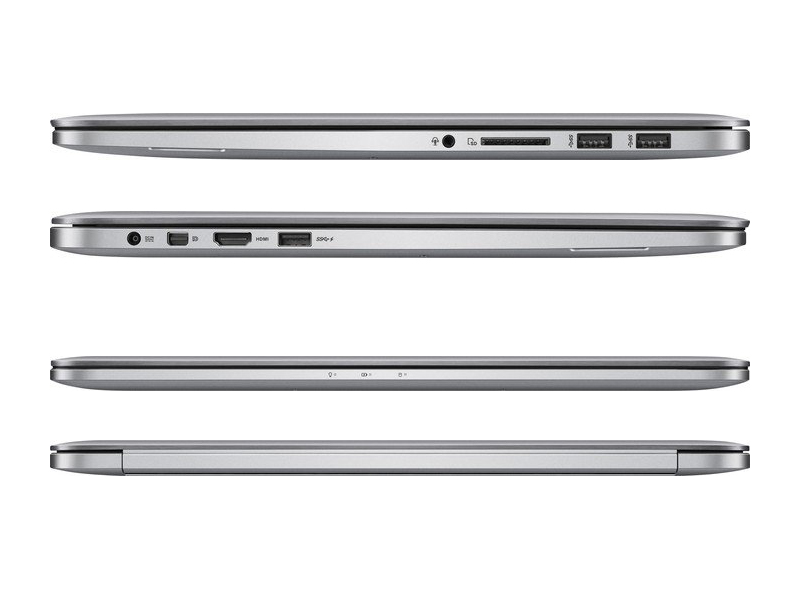

3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, Audio Connections: 3.5mm, Card Reader: 2-in-1 card reader (SD/ SDXC), Brightness Sensor
Networking
10/100/1000 LAN Card (10/100/1000MBit/s), Killer Wireless-n/a/ac 1525 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 22 x 385 x 255 ( = 0.87 x 15.16 x 10.04 in)
Battery
96 Wh Lithium-Polymer, 6 cells
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 1.2MP
Additional features
Speakers: Stereo Bang & Olufsen ICEpower, Keyboard: Chiclet, Keyboard Light: yes, USB 2.0 to RJ45 adapter, Cable tie, Killer Network Manager, Gaming Assistant, 12 Months Warranty
Weight
2.3 kg ( = 81.13 oz / 5.07 pounds), Power Supply: 420 g ( = 14.82 oz / 0.93 pounds)
Price
1600 Euro



Price comparison

Average Score: 85% - good
Average of 1 scores (from 2 reviews)
price: 85%, performance: 86%, features: 85%, display: - % mobility: 86%, workmanship: - %, ergonomy: - %, emissions: - %

Reviews for the Asus UX501VW-FY145T

Asus Zenbook Pro UX501VW Review : Killer Specs And Pricing, Offset By Small Flaws
Source: Gear Open English Archive.org version
After spending time with it, however, it becomes clear why it’s less expensive, particularly when compared to the Dell XPS 15 with the exact same specs. The Zenbook Pro’s performance is slightly weaker, and it has subpar speakers and little oddities like uneven keyboard backlighting and that slap-dash Thunderbolt sticker.
Single Review, online available, Very Long, Date: 09/06/2016

Foreign Reviews

85% Asus UX501VW-FY145T
Source: 15 Zoll Notebooks Test German DE→EN Archive.org version
Single Review, online available, Long, Date: 07/01/2016
Rating: Total score: 85% price: 85% performance: 86% features: 85% mobility: 86%

Comment

NVIDIA GeForce GTX 960M: Upper mid-range graphics card of the GeForce GTX 900M series.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


6700HQ: Skylake-based quad-core processor for notebooks. Offers an integrated HD Graphics 530 GPU and is manufactured in 14 nm.» Further information can be found in our Comparison of Mobile Processsors.
