$399 Audeze LCD-1 planar magnetic headphones are ultra-light and maybe a little bit too small for comfort

Audeze sent us its latest portable planar headphones to test and compare to other more common headphones in the market
Audeze sent us its latest portable planar headphones to test and compare to other more common headphones in the market
Our pink noise test shows balanced audio reproduction at most frequencies, but the smaller design may not fit comfortably around larger ears. If you travel a lot, however, then the LCD-1 should prove useful.
Allen Ngo,
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


The LCD-1 are the latest planar magnetic headphones from Audeze who specializes in premium audio for both professional home and studio environments. When compared to other high-end headphones like the bulky LCD-2, the LCD-1 is notable for the more travel-friendly size and foldable design.

Specifications (Source: Audeze)

Style

Over-ear, open-circumaural

Transducer type

Planar Magnetic

Magnetic structure

Single-sided Fluxor™ magnet array

Phase management

Fazor

Magnet type

Neodymium N50

Diaphragm type

Ultra-thin Uniforce™

Transducer size

90 mm

Maximum power handling

5W RMS

Maximum SPL

>120dB

Frequency response

10Hz - 50KHz

THD

<0.1% @ 100dB

Impedance

16 ohms

Sensitivity

99 dB/1mW (at Drum Reference Point)

Ear Pads

Memory foam, genuine lambskin leather

Weight

250g

To measure playback quality, we connected our LCD-1 to a Dell Precision 5550 mobile workstation and then placed our Earthworks M23R microphone between the two earcups as equidistantly as possible. We would then play a pink noise file at maximum volume with our results shown in the graph below.

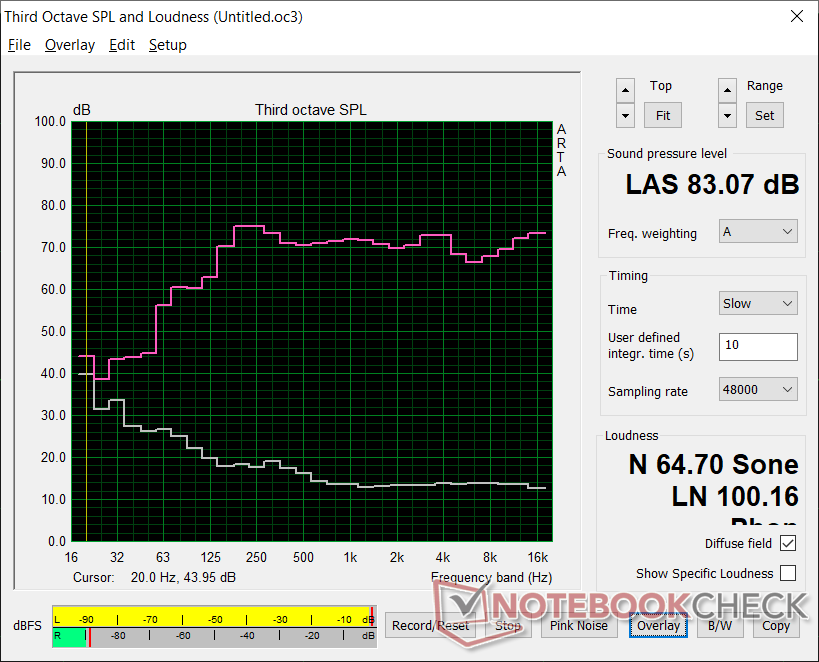

Audeze LCD-1 pink noise at maximum volume. The curve is relatively flat to represent even frequency reproduction
Audeze LCD-1 pink noise at maximum volume. The curve is relatively flat to represent even frequency reproduction

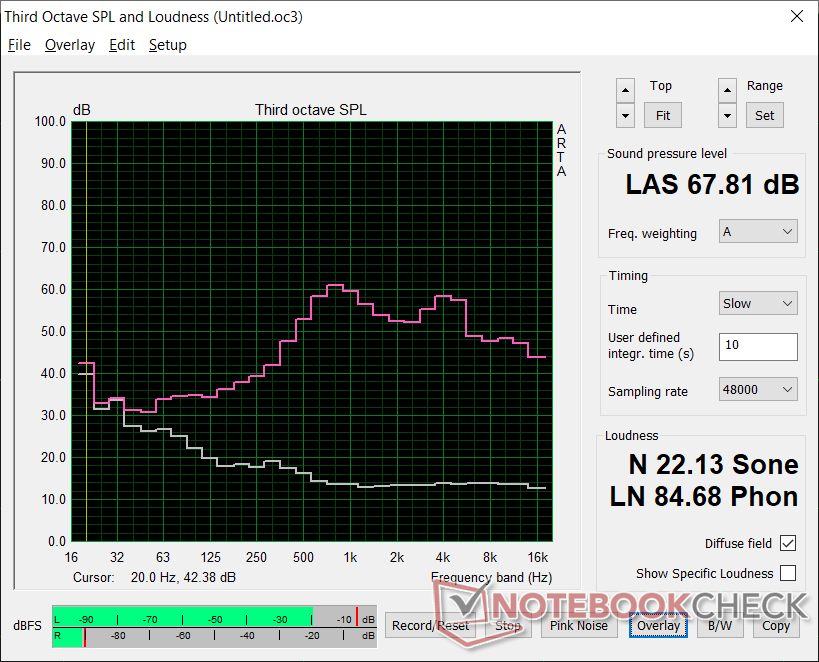

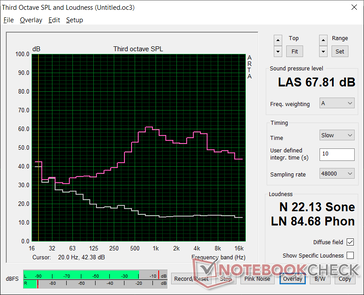

Turtle Beach Elite Atlas Aero pink noist at maximum volume for comparison. The curve is sharper with fall-off occurring at higher frequencies
Turtle Beach Elite Atlas Aero pink noist at maximum volume for comparison. The curve is sharper with fall-off occurring at higher frequencies

Ideally, the pink noise graph should be flat across the board which is close to what the LCD-1 is able to reproduce. Roll-off begins at around 200 Hz to be much earlier than most laptop speakers we test where the 250 Hz or 500 Hz range is more common. The cheaper consumer-oriented Turtle Beach Elite Atlas Aero headphones, for example, are not as loud with more uneven treble and bass reproduction and a later bass roll-off. We understand that the Audeze and Turtle Beach aren't directly comparable, but we also wanted to illustrate the audio quality difference if upgrading from standard gaming headphones to a pair of professional ones.

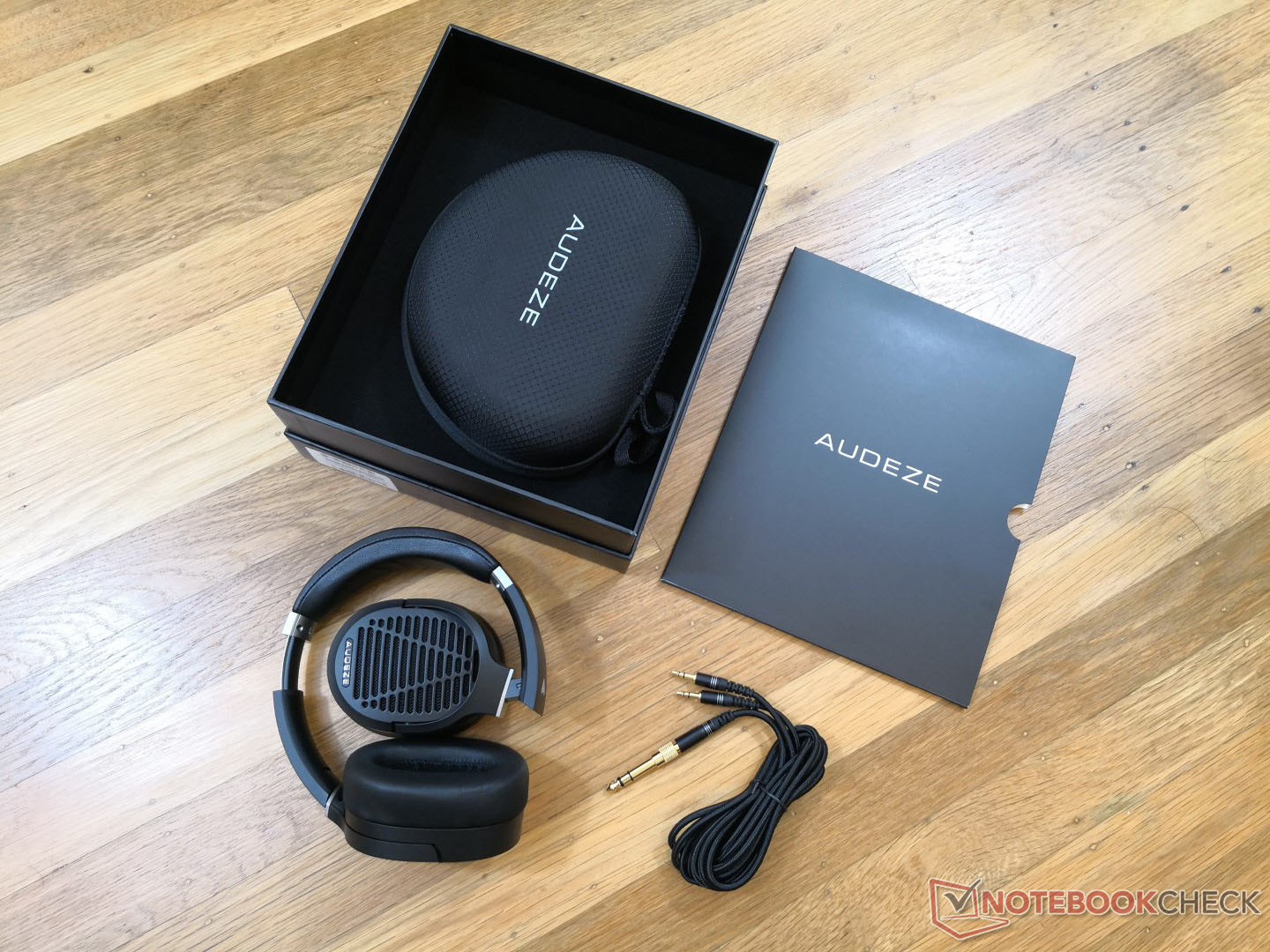

Box includes a rigid carrying case for the headphones and connector
Box includes a rigid carrying case for the headphones and connector

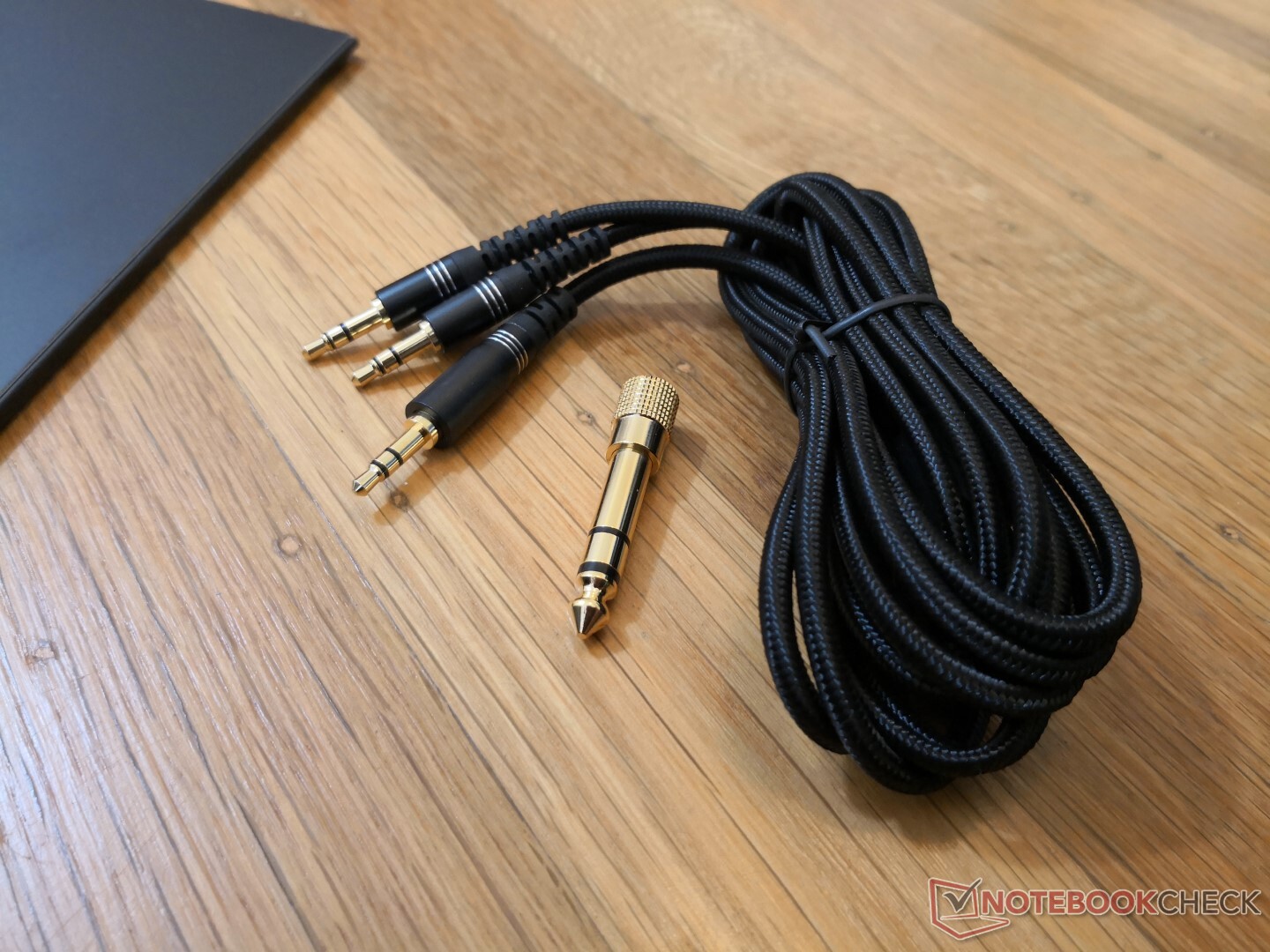

Long ~7' 3.5 mm braided cable with 1/4" adapter
Long ~7' 3.5 mm braided cable with 1/4" adapter

Unfortunately, having smaller and more portable headphones means sacrificing a bit of comfort. The memory foam ear pads are relatively small and the foldable aspect of the design does little to reduce the overall size. In other words, the headphones take up almost as much space folded when compared to unfolded.

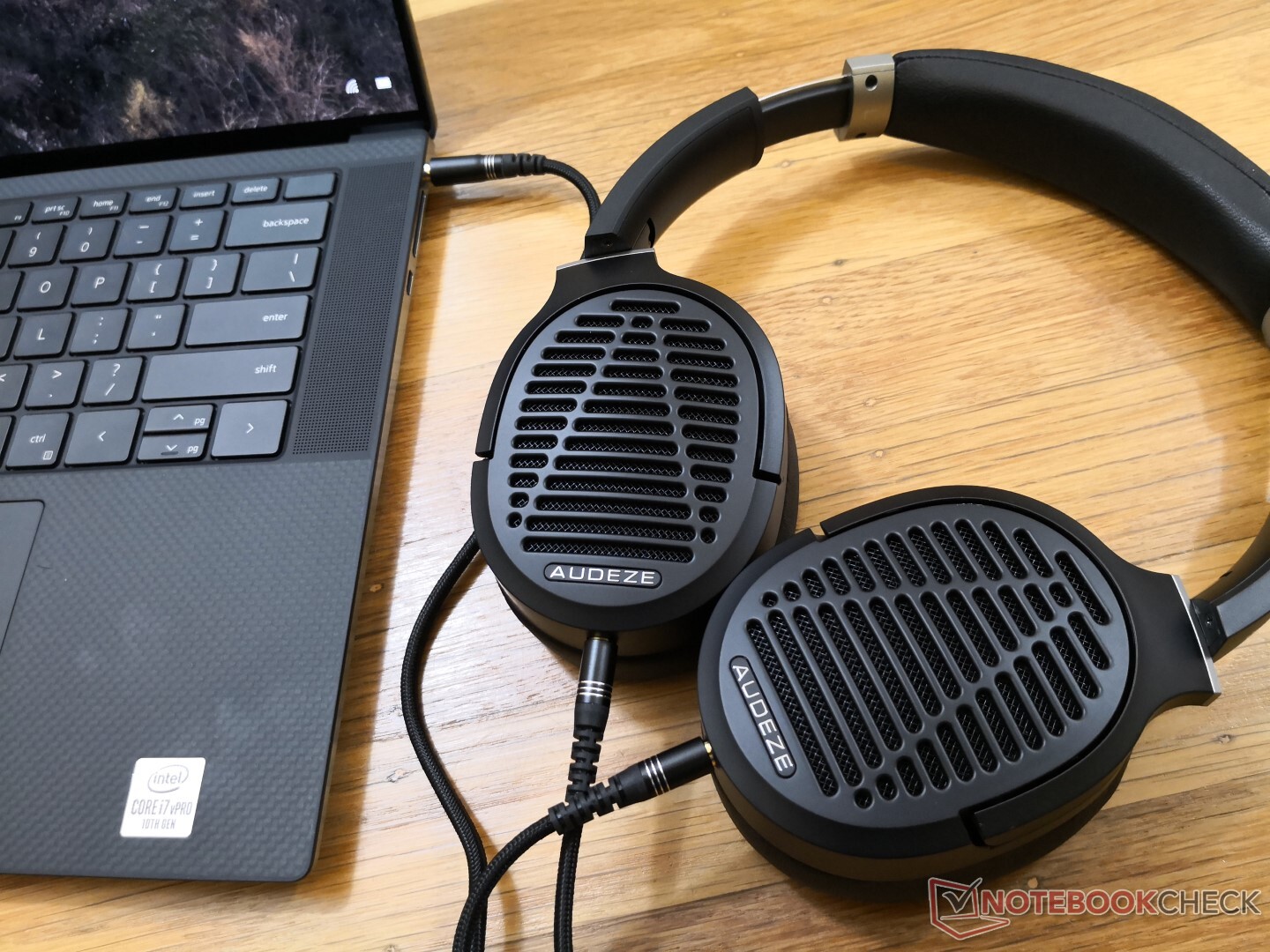

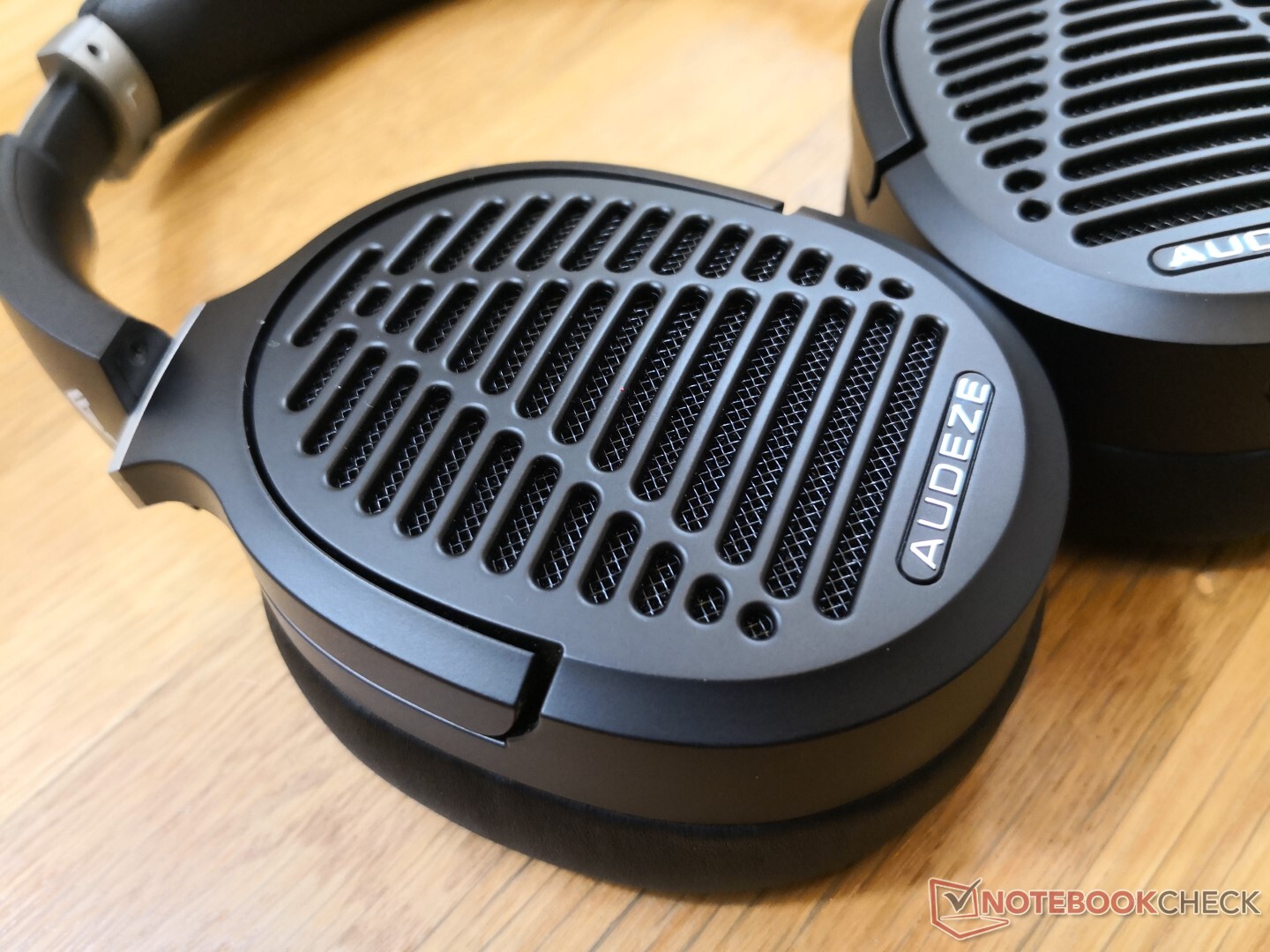

Recognizable Audeze grille design
Recognizable Audeze grille design

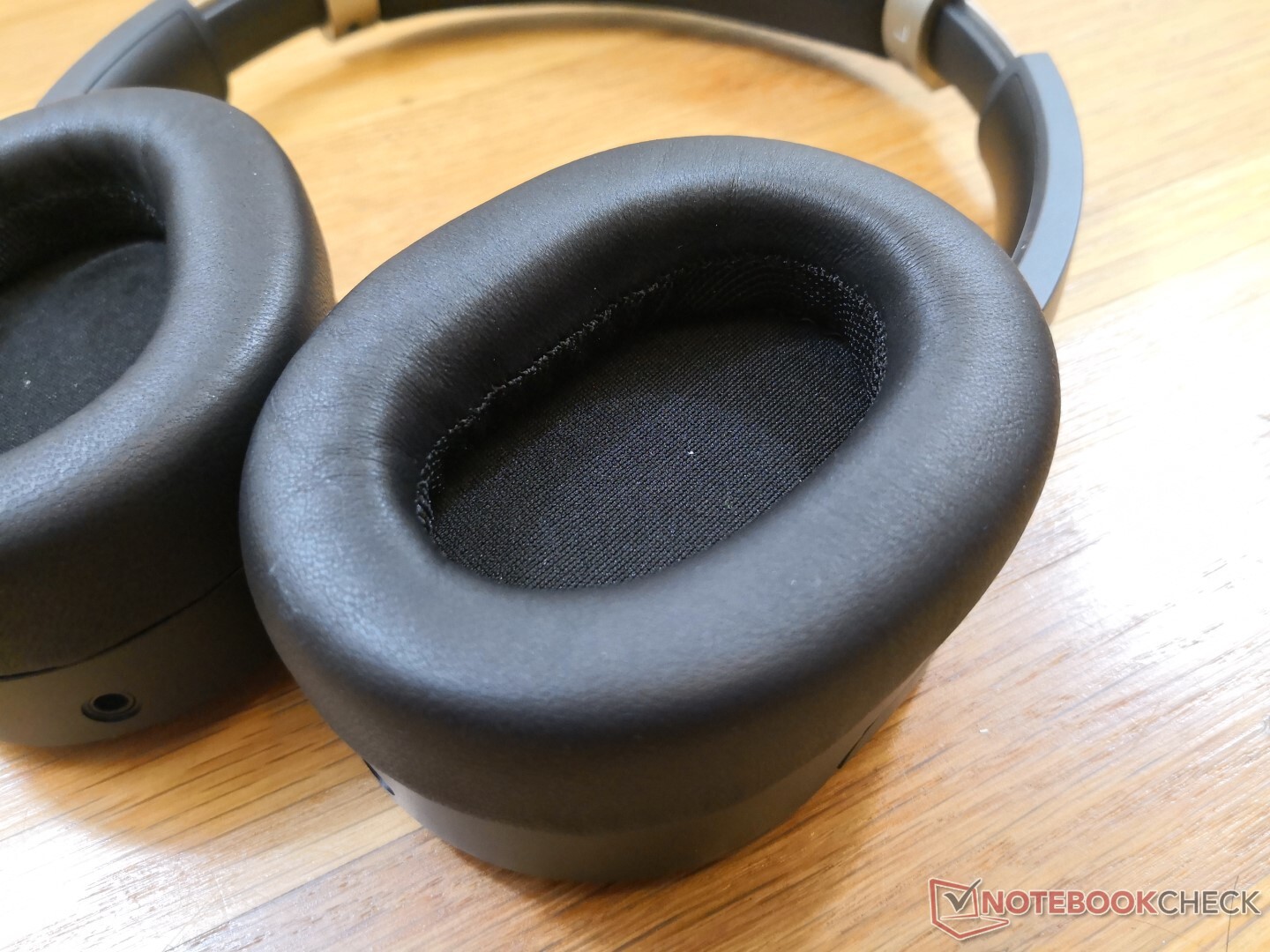

Ear cups are narrower in diameter than most other headphones from Audeze in order to increase portability
Ear cups are narrower in diameter than most other headphones from Audeze in order to increase portability

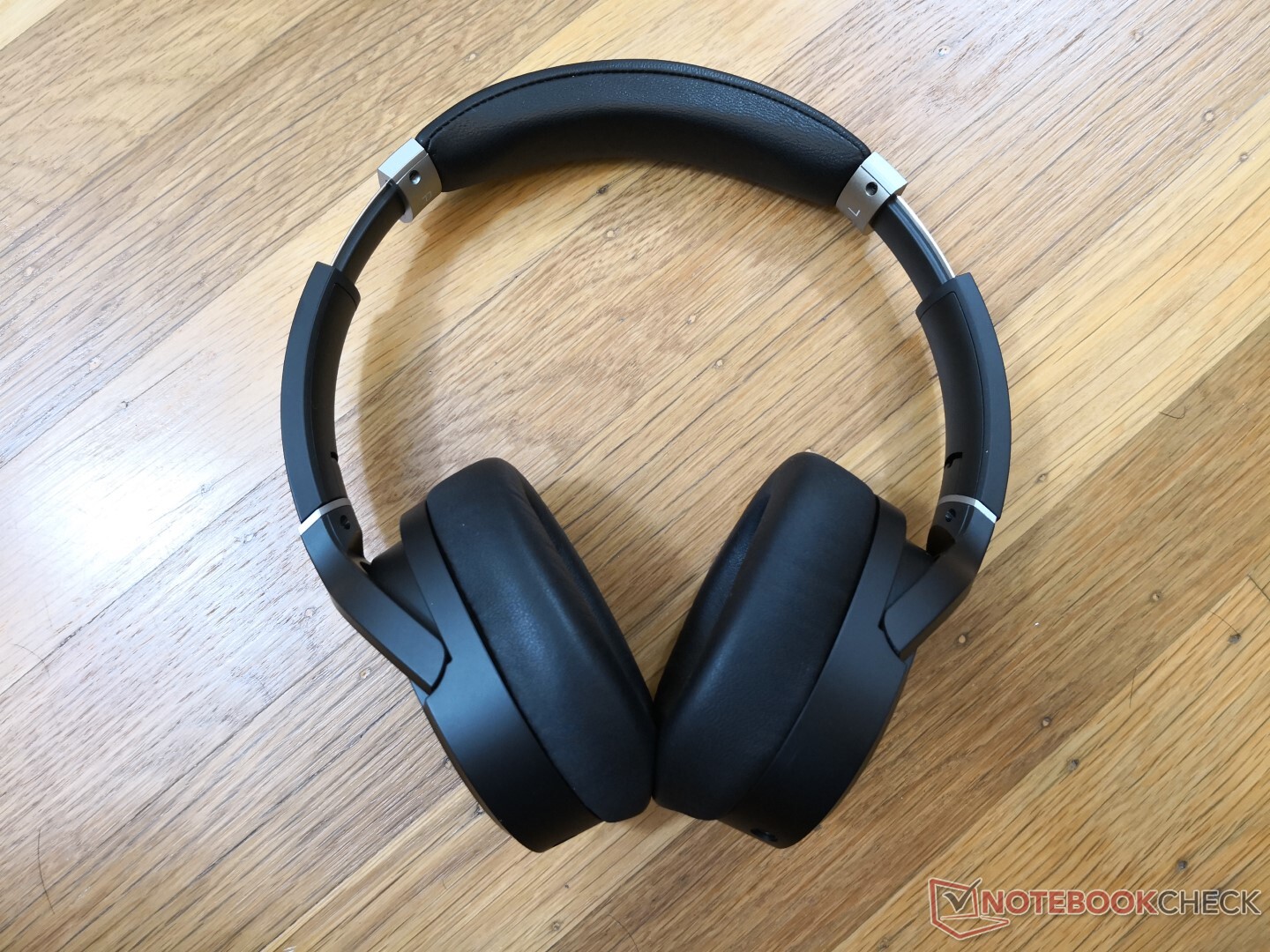

Headphone band stretched to its longest position. The extenders are not very rigid and can slide easily
Headphone band stretched to its longest position. The extenders are not very rigid and can slide easily

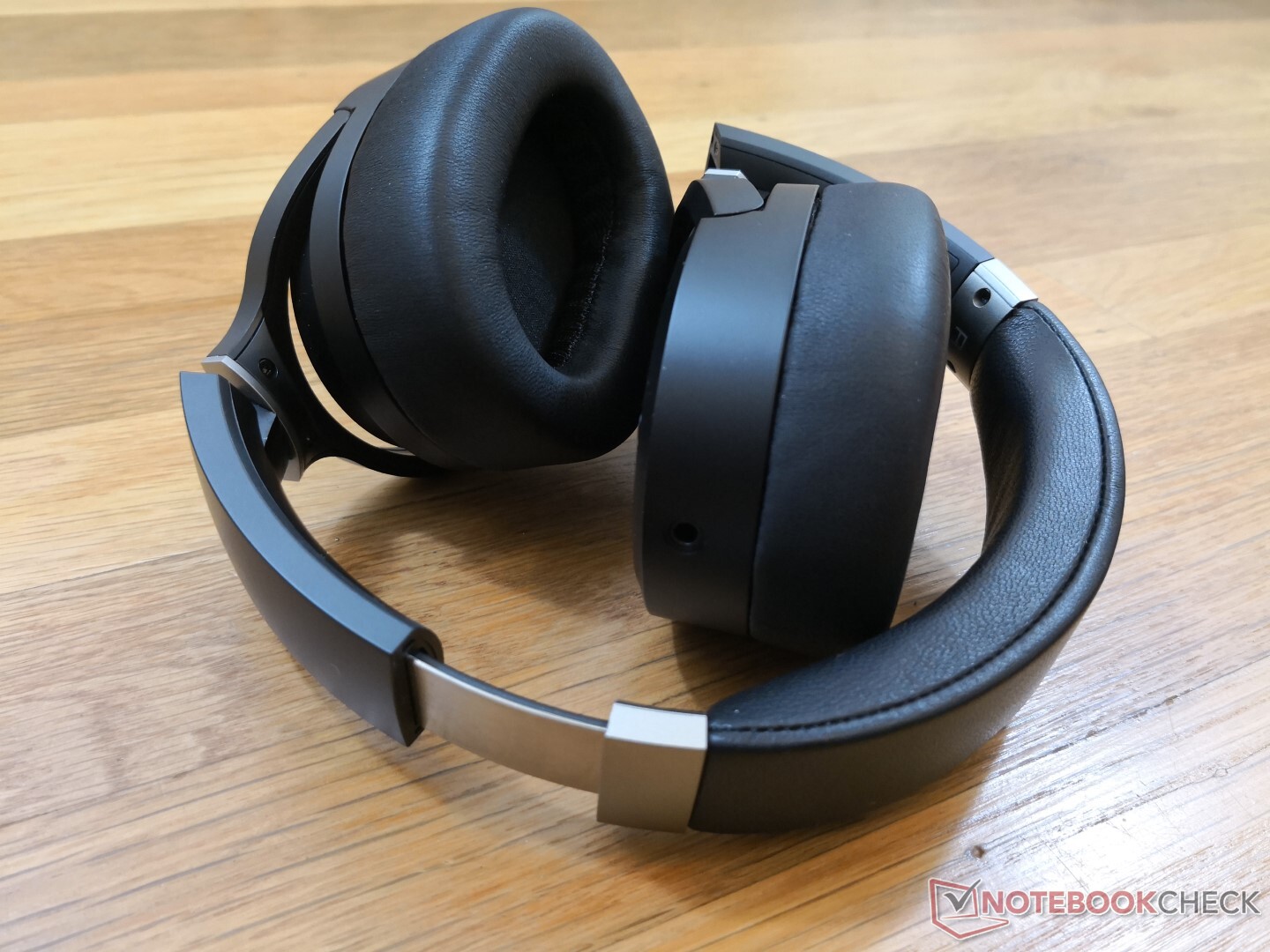

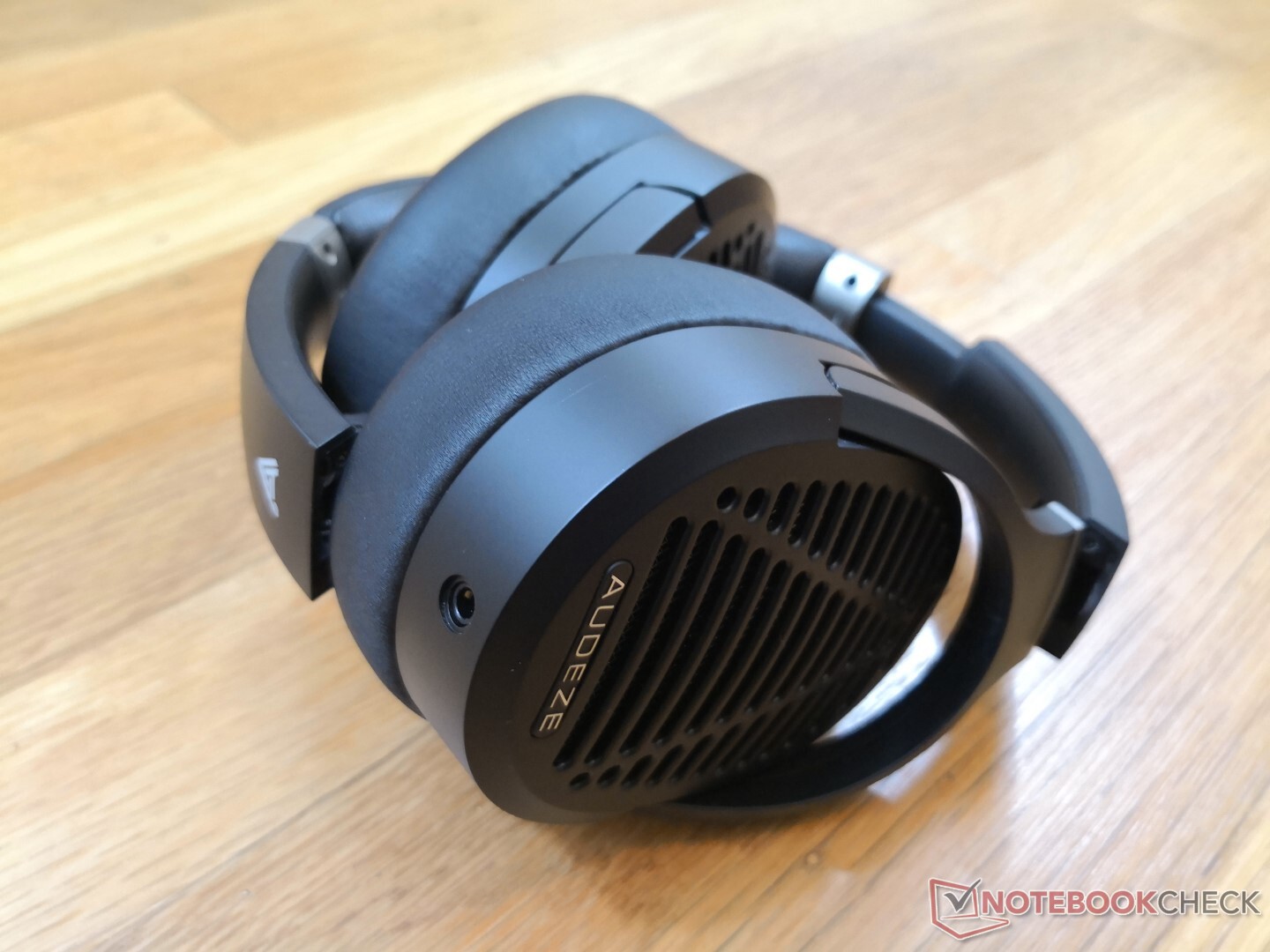

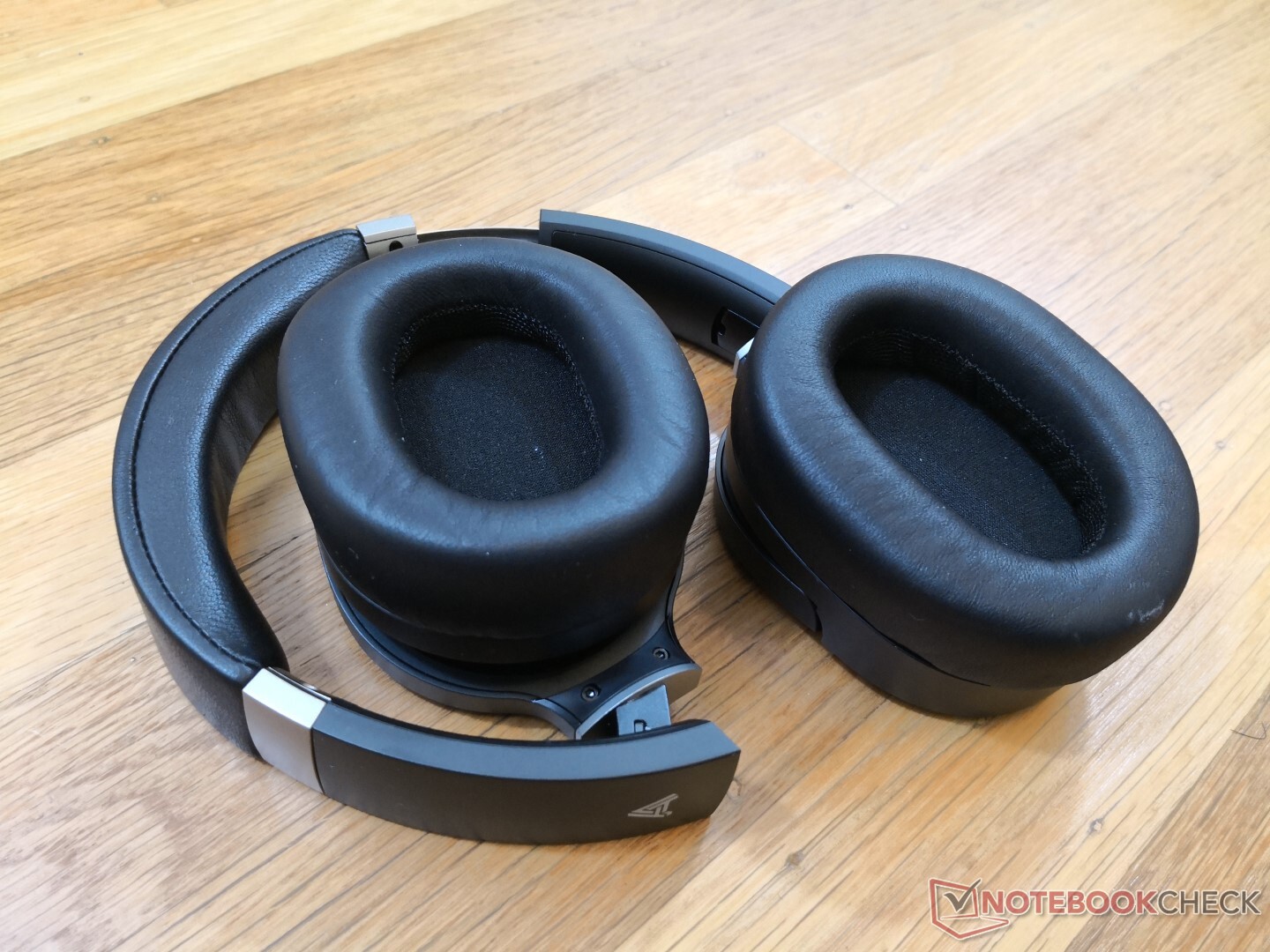

When folded, they still aren't all that much easier to carry which makes the feature feel moot
When folded, they still aren't all that much easier to carry which makes the feature feel moot
Build quality is decent, but the all-black matte plastic design doesn't match the more visually appealing wood or two-tone designs of other Audeze headphones
Build quality is decent, but the all-black matte plastic design doesn't match the more visually appealing wood or two-tone designs of other Audeze headphones
We love the portability aspect, but users with larger ears are going to want something bigger
We love the portability aspect, but users with larger ears are going to want something bigger
, , , , , ,
